www.tnb.ca B1
Sta-Kon ®Termination Products
Overview.......................................................................................B2–B5
Ring Terminals ............................................................................B6–B15
Flag Terminals...................................................................................B16
Fork Terminals ..........................................................................B17–B20
Pin Terminals ....................................................................................B21
Butt Splices ..............................................................................B22–B23
Wire Joints................................................................................B24–B25
Heat-Shrinkable Terminals, Splices and Disconnects.................B26–B27
Disconnects and Male Tabs.......................................................B28–B31
Luminaire Disconnect ...............................................................B32–B33
Insulated Ferrules .....................................................................B34–B35
Ferrules ....................................................................................B36–B37
Installing Kits ............................................................................B38–B40
Application Tools.......................................................................B41–B51
Die Selection Chart ...................................................................B52–B54
Wire Guide Table.......................................................................B55–B57
Military Standard Cross Reference ....................................................B58
Cross Reference for Packaging .................................................B59–B61
Catamount®Terminals ..............................................................B62–B63
Catamount®Terminal Tools ...............................................................B64
Polycarbonate Insulated Ring Terminals.............................................B65
Polycarbonate Insulated Fork Terminals.............................................B66
Vinyl Insulated Ring Terminals DIN 46237..........................................B67
Nylon Insulated Ring Terminals DIN 46237 ........................................B68
Nylon Insulated Fork Terminals DIN 46237 ........................................B69
Vinyl Insulated Fork Terminals DIN 46237..........................................B70
Polycarbonate Insulated Pin Terminals...............................................B71
Insulated Female Disconnects DIN 46245..........................................B72
Insulated Male Disconnects DIN 46245 .............................................B73
Fully Insulated Female Disconnects...................................................B74
Fully Insulated Butt Splices ...............................................................B75
Insulated Wire Joints.........................................................................B76
Tools.........................................................................................B77–B78
Table of Contents
Overview
www.tnb.ca
B2
Sta-Kon ®Termination Products
Experience the Sta-Kon®advantage!
Thomas & Betts developed the first tool-applied solderless terminals and
connectors more than 70 years ago in response to industry awareness of the
need for better performance of electrical systems.
Key Features and Benefits
•Metal insulation grip sleeve is included on all nylon terminal
for strain relief
•Long barrel selectively annealed
•CSA Certified
•UL Listed unless otherwise specified
Deep Internal Serrations
After the insertion of a wire into the terminal’s barrel, a deep, serrated interior
ensures a large area of contact that lowers the resistance of a connection. With
the mechanical force of the tool, the wire strands cold flow into the serrated
interior. This guarantees electrical resistance lower than the wire to which it is
applied. This feature also prevents pullout from vibration and mechanical strain.
Deep internal serrations can be compared to the effective holding power of a
well-treaded tire on a wet highway.
Funneled Terminal Barrel Entry
This feature makes wire insertion faster and easier. A funneled barrel eliminates
wire strand “hang up” upon insertion into the terminal’s barrel. The loss of even
a couple of wire strands can have negative results on electrical efficiency and
resistance to mechanical strain.
Sta-Kon®Long Barrel Design
If lowering electrical resistance, preventing wire pullout, eliminating a “missed”
crimp and having an insulator that stays on the barrel during installation are
your goals, then you must design a terminal with a long barrel. This also provides
the insulator with additional surface area, holding tight to the barrel. Most
competitive barrel lengths range from 20–50% shorter than Sta-Kon®terminals.
The results are usually a stream of electrical failure, rework and added expense.
Many competitive insulators come off during crimping due to a limited barrel
length.
Note: Listed for solid wire up to #10 AWG, terminals only.
•Funnel Entry Barrel
•Selectively annealed
long barrel
•Longer barrel design
•Colour-coded insulators
•Brazed or overlapping seams
•Anti-rotational tongue
•Hardened tongue
•Complete wire and
stud size identification
Overview

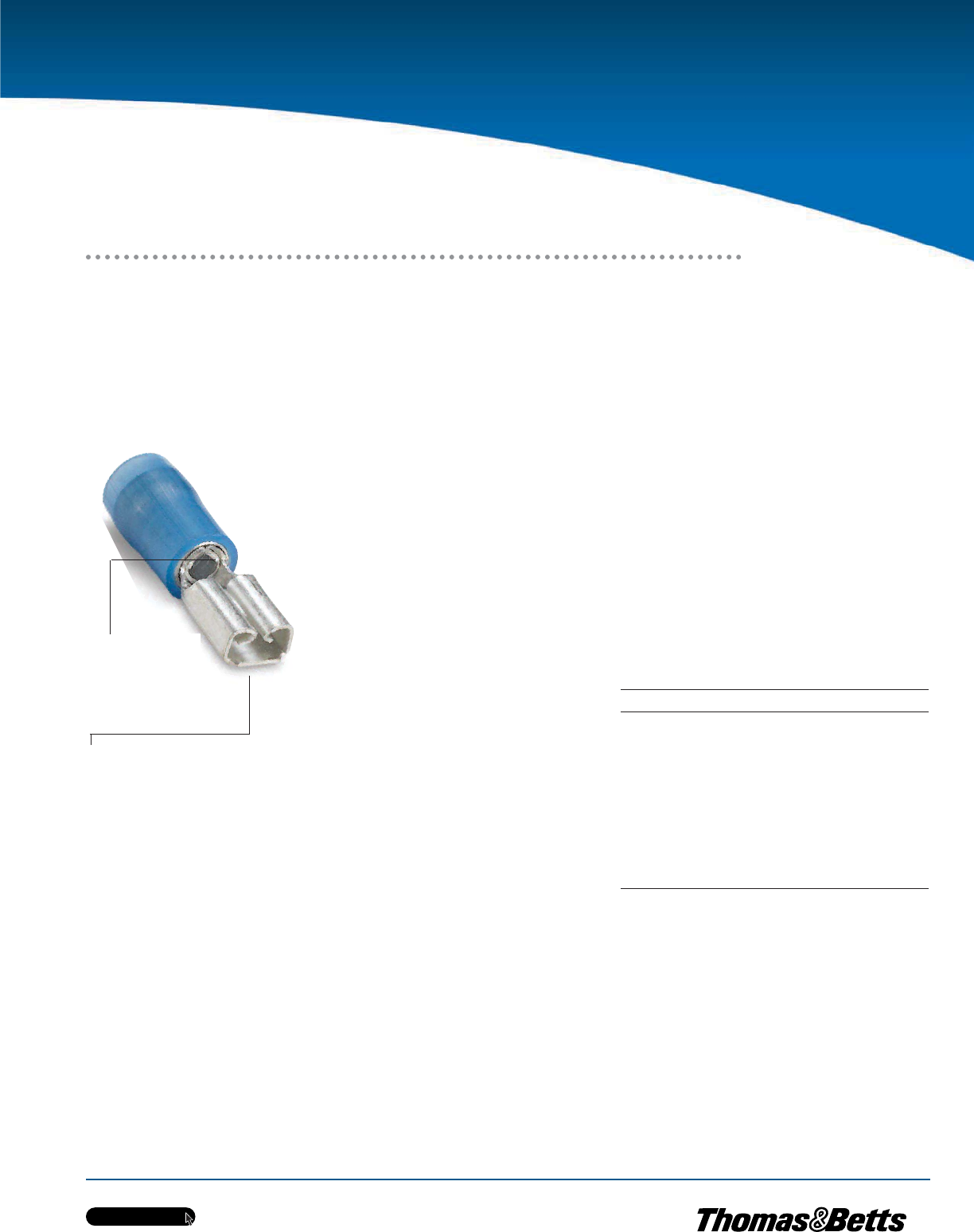

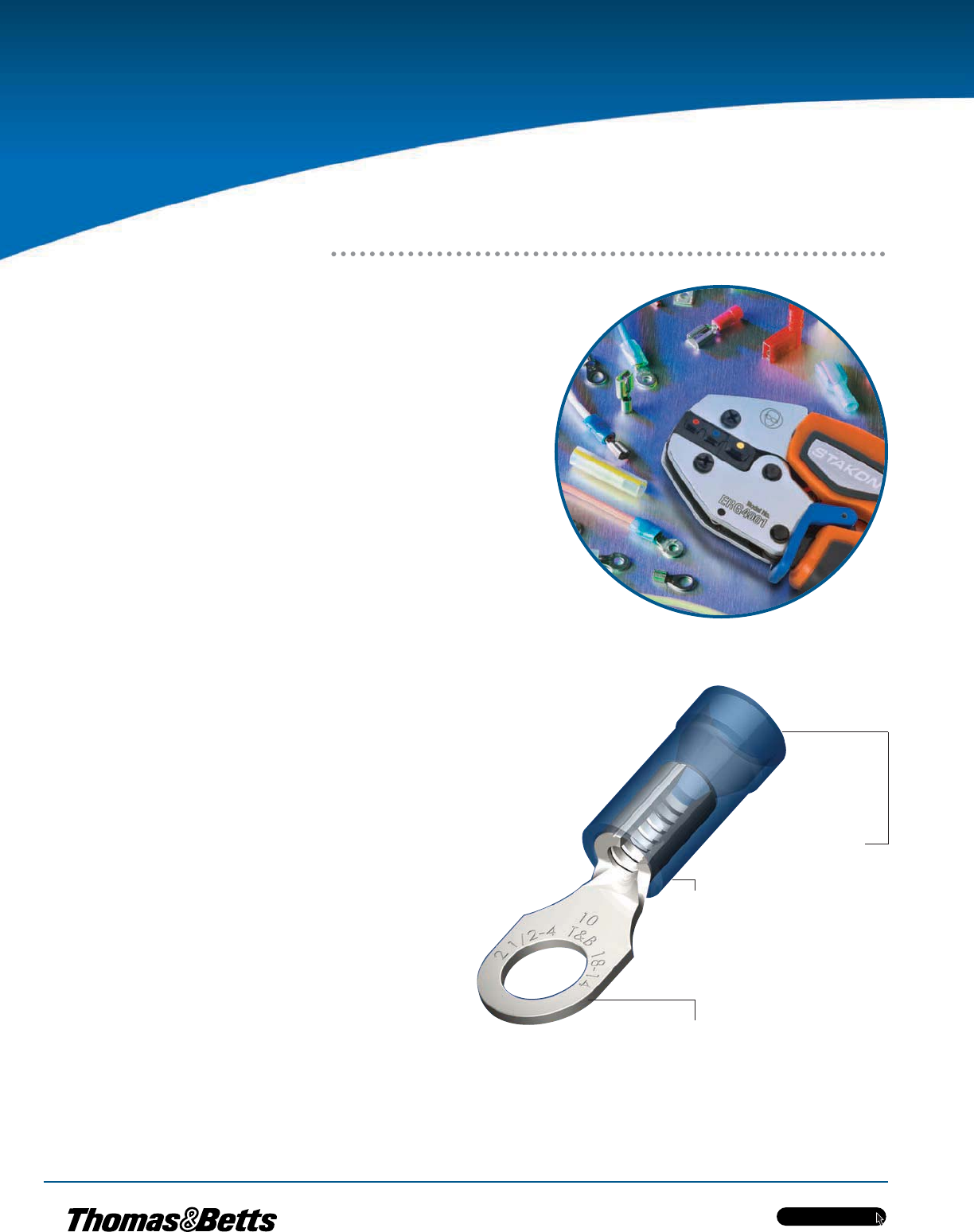

www.tnb.ca B3
Sta-Kon ®Termination Products
•Deep Internal
Serrations.
•Flat bottom box
•Electro-tin plating
•Center reinforced spring detent for
minimum insertion force
•Compound Spring Rails provide
positive contact after repeated
insertions
Selective Annealing
Because of the mechanical strength of copper, an installer
can experience fatigue associated with repeated installa-
tions. For this reason Thomas & Betts puts our terminals
through one more step called selective annealing. This
process leaves the barrel soft enough to crimp and form
around the wire. However, we “cold form” the tongue
during the manufacturing process so it remains strong.
This is done so the tongue can withstand repeated bends
and bolt tightening strain common in most electrical
installations. Many competitors attempt to accomplish
similar goals by removing valuable material or using a
softer copper which has lower conductivity. This
increases electrical resistance as well as the odds
for shorting and downtime.
Anti-Rotational Tongues
This is a unique feature to the Thomas & Betts ring
tongue terminal. This design prevents terminal shorting
by keeping the terminal secure in the terminal block. The
installer can place a greater number of terminals closer
together without worry.
Proper Identification
We identify all terminals with Thomas & Betts initials,
T&B. We also indicate wire and stud sizes. These
markings are clearly visible on the surface of the tongue,
taking any guesswork out of replacing or reordering
additional parts. Our superior bright plating also assists
in visibility.
All Sta-Kon®Terminals are
Deburred and Degreased
To ensure a Sta-Kon®terminal is properly plated and
insulated, all our parts are put through a process which
cleans and smooths the terminal of any manufacturing
residues, mainly grease, oils and sharp edges. Many
competitive products do not put their product through such
rigorous finishing.
Platings/Finish
Electroplated-Tin is standard. All others require minimum
order quantities and are generally not stocked. Alterna-
tive platings as follows: Gold, Silver, Tin-alloys, Nickel, etc.
The following finishes are available on most one-piece
Sta-Kon®terminals:
Finish Suffix Spec.
Gold Plate GP MIL-G-45204
Type II, Grade B,
C, D, Class O
Nickel Plate NP QQ-N-290 Class 2,
Grade G
Plain Finish PF None
Silver Plate SP MIL-T-16366 Type I
or II, 400°F, 204°C
Tin Plate TP MIL-T-10727 Type I
To order, add the indicated suffix to the regular catalogue
number.
Underwriters Laboratories Listing
Sta-Kon®Rings, Forks, Locking Forks, two-way splices
and disconnects are tested and listed to UL
standards and all appli cable products to CSA standards.
Why Sta-Kon®Terminals are Better
www.tnb.ca
B4
Termination Products
ERG4001
Sta-Kon®Ring, Fork and Locking Fork
•Complete line of installing tools engineered to match tool with terminal
•First to gain military approval for pressure connections … many styles available for military
applications
•Sta-Kon®products exceed test specification requirements of military, UL and CSA
•Fluoropolymer and Nylon Terminals provided with extra metal sleeve to grip insulation
•Vinyl insulated and bare Sta-Kon®terminals feature brazed seam wire barrels which can be crimped
at any place on the barrel circumference
•Ring and Fork terminals can be used with solid wire as follows:
Non-Insulated: 22-8 gauge
Insulated: 22-10 gauge
Sta-Kon®Disconnects
•Internal barrel serrations and long barrel provide for maximum tensile strength
•Complete line of installing tools, engineered to match tool with terminal
•Funnel entry insulators allow for easier inserting of wire into barrel
•Colour-coded for easy installation
The Shure-Stake®Tools are Matched to Terminals
The Shure-Stake®mechanism prevents the dies from releasing the terminal until the proper
compression has been completed. With this method, an operator achieves a reliable crimp
everytime. Thomas & Betts’ tooling techniques correctly match tools, wire size and terminal to
produce optimum mechanical and electrical performance.
Overview
Sta-Kon ®
w w w . t n b . c a
B5
Termination Products
Thomas & Betts is pleased to announce that Sta-Kon®RA, RB
and RC insulated quick disconnect products are now UL Listed at
600 volts.
Sta-Kon®Technical Data
The Sta-Kon®Terminals Numbering System
Distributor Package 100/50
Bulk “O.E.M.” Packaged 1000/500
Common to Both Packages
• Letter A denotes 22-18 AWG wire range = Red
• Letter B denotes 16-14 AWG wire range = Blue
• Letter C denotes 26-22 AWG, 12-10 AWG wire range = Yellow
• Letter R preceding the above letters indicates the terminal is insulated
• No letter R… no insulation … no exception!
Distributor Packaged
Part numbers are very descriptive indicating insulation and type, stud size, tongue style and the largest maximum wire that can be put inside.
• If the letter R precedes the number, the part is nylon insulated – RA18-6
• If the letter R follows the number, the part is vinyl insulated – 14RB-8
EXAMPLE: 10RC-8F EXAMPLE: 2RA18X
C – Indicates 12-10 AWG 2 – Indicates a 2 way or butt style connector
10RC – Vinyl Insulated X – Means expanded insulation
8 – Indicates stud size
F – Means a fork tongue terminal
FL – Would indicate locking fork
Terminals & Splices
Insulation Rating
UL 94
Flammability Voltage Temperature
Nylon V-2
600V 105ºC
Vinyl V-0
TEFZEL®V-0
Disconnects (non-insulated) 300V
Overview
TEFZEL®is a registered trademark of DuPont.
Sta-Kon ®

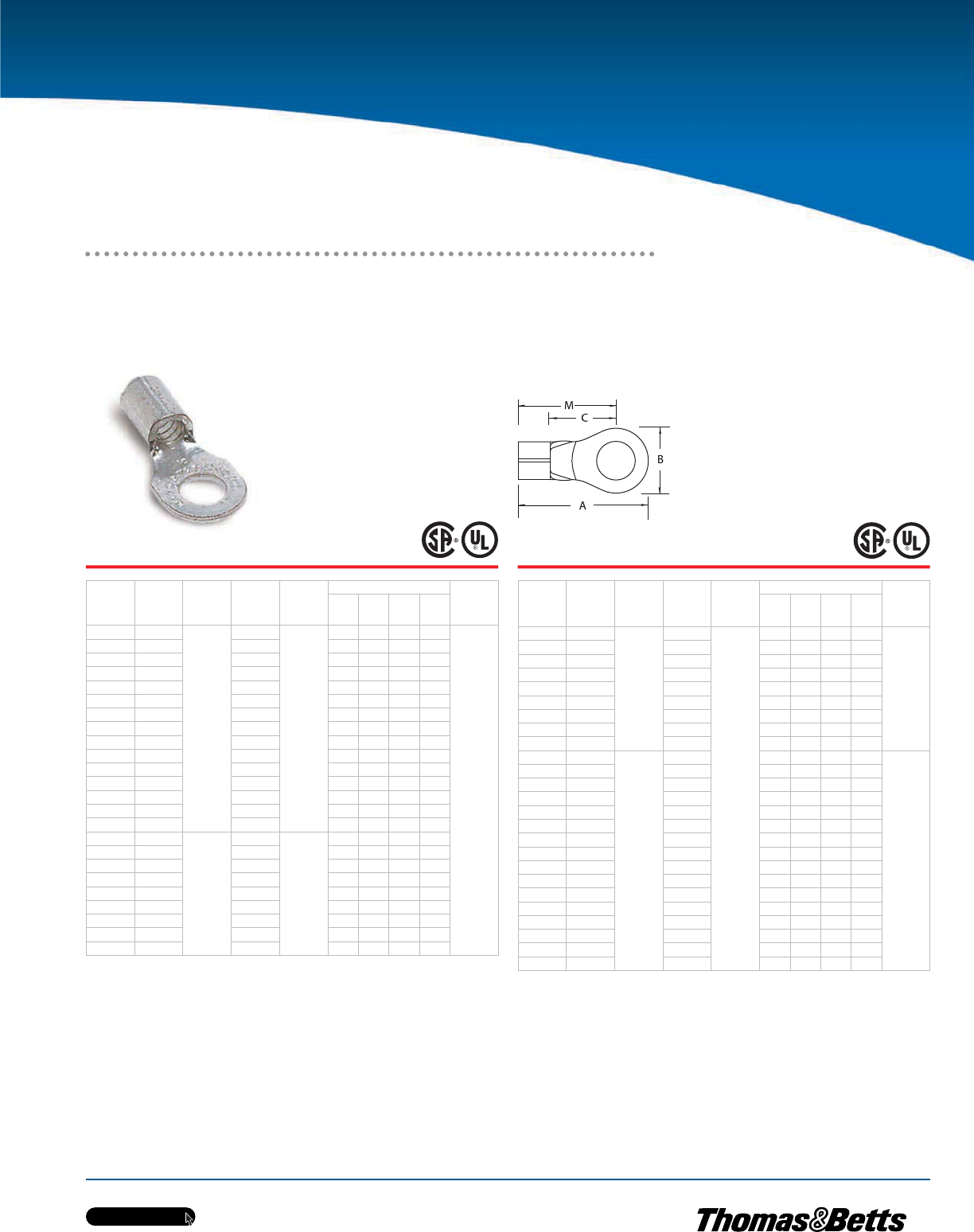

Ring Terminals
www.tnb.ca
B6
Termination Products
•Complete line of installing tools engineered to match
tool with terminal
•First to gain military approval for pressure connections…
many styles available for military applications
•Sta-Kon®products exceed test specification
requirements of military, UL and CSA
•Include extra metal sleeve to grip insulation
•Vinyl insulated and bare Sta-Kon®terminals feature brazed
seam wire barrels that can be crimped at any place on the barrel
circumference
•Can be installed with crimping tools having a single
indentor or double indentor (recommended for solid wire)
•Serrated barrel increases grip on wire
•Wire range identification on the tongue of each terminal
•Constructed of electrolytic copper for high conductivity

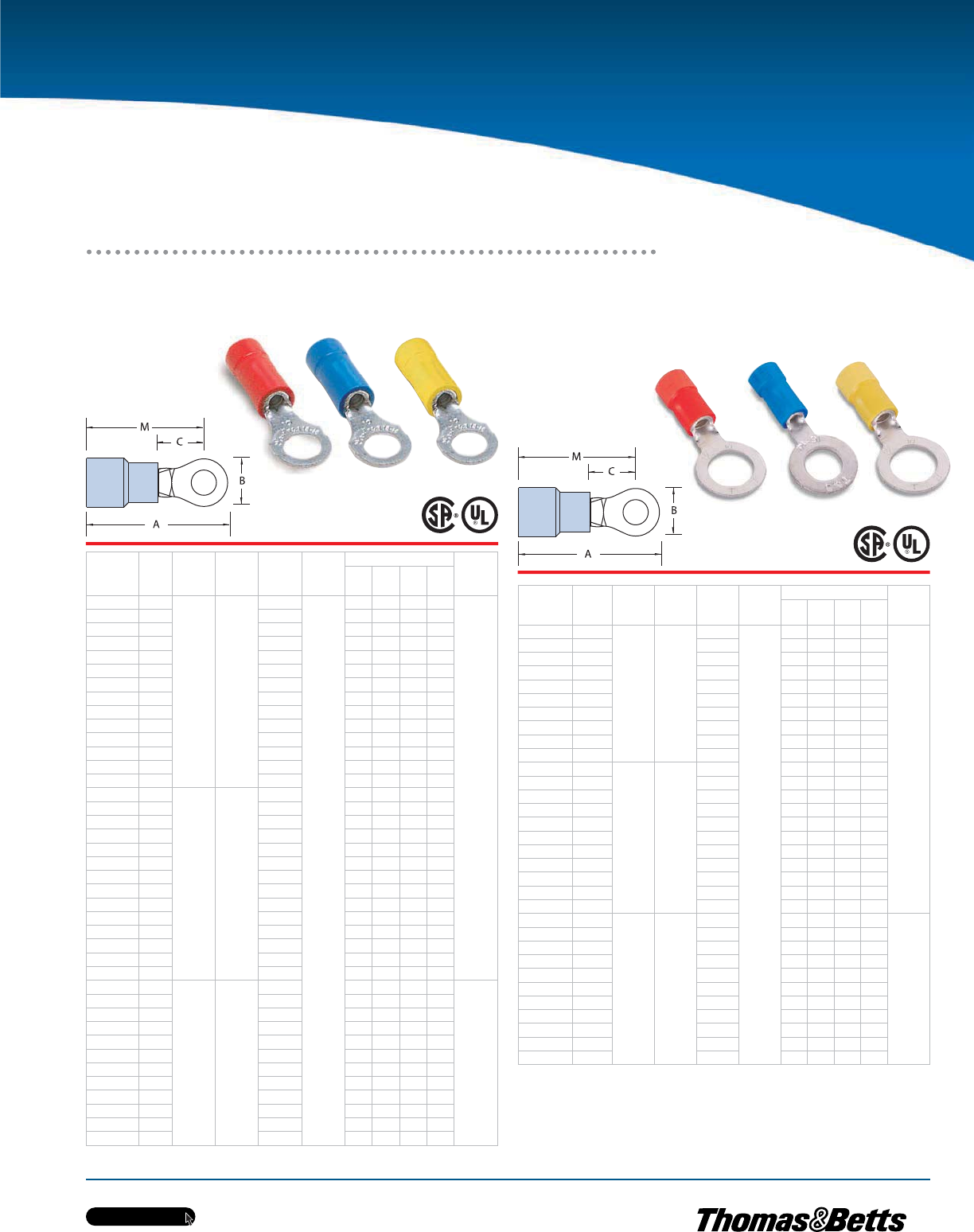

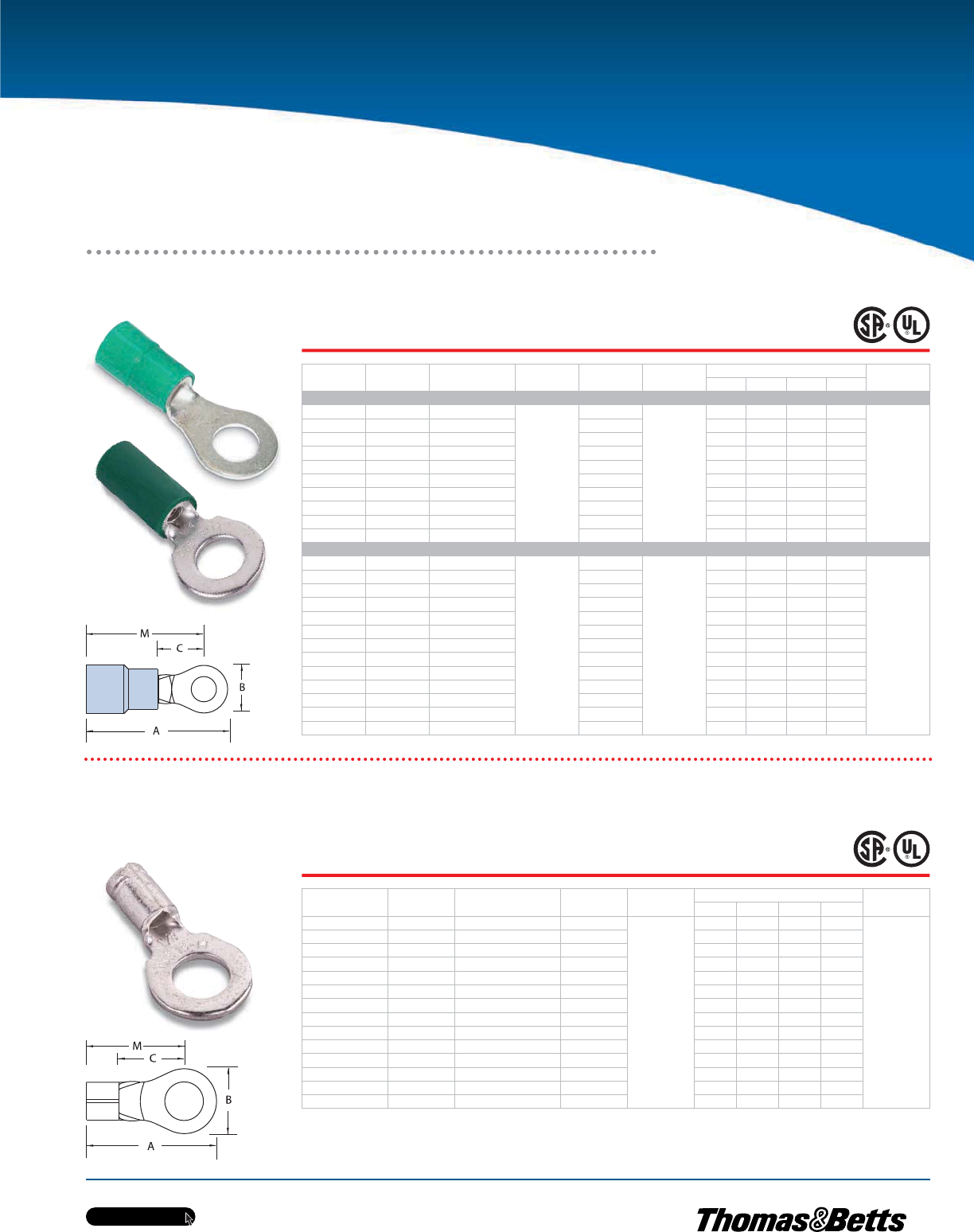

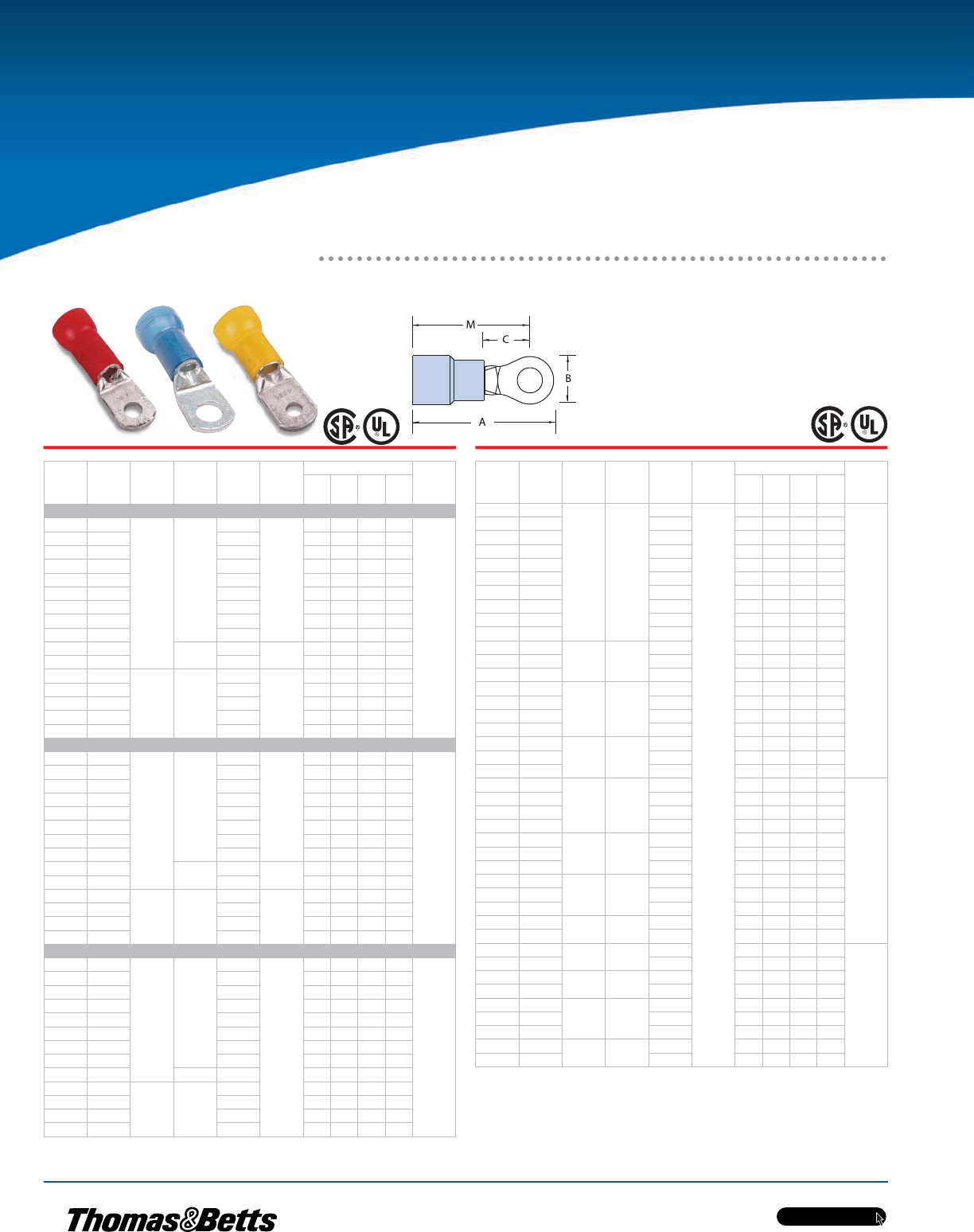

Nylon-Insulated Ring Terminals
* Not listed by UL or CSA ** CSA Certified only
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RZ22-2** 100 26–22 0.083 #2
ERG4006
0.57 0.14 0.13 0.49
0.02
RZ22-4** 100 26–22 0.083 #4 0.65 0.21 0.20 0.54
RZ22-6** 100 26–22 0.083 #6 0.65 0.21 0.20 0.54
RZ22-8** 100 26–22 0.083 #8 0.75 0.25 0.23 0.62
RZ22-10** 100 26–22 0.083 #10 0.75 0.25 0.23 0.62
RAX23* 1,000 26–24 0.125 #2
WT145A
0.66 0.14 0.14 0.59
RAX43* 1,000 26–24 0.125 #4 0.74 0.20 0.19 0.64
RAX63* 1,000 26–24 0.125 #6 0.84 0.25 0.22 0.72
RAX83* 1,000 26–24 0.125 #8 0.84 0.25 0.22 0.72
RAX103* 1,000 26–24 0.125 #10 0.84 0.25 0.24 0.72
RA18-4 100 22–16 0.136 #4
ERG4001
0.72 0.23 0.14 0.59
0.03
RA323 1,000 22–16 0.136 #4 0.72 0.23 0.14 0.59
RA333 1,000 22–16 0.136 #6 0.72 0.23 0.14 0.59
RA18-6 100 22–16 0.136 #6 0.86 0.26 0.25 0.71
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RA853 1,000
22–16 0.136
#6
WT145A
0.86 0.26 0.25 0.71
.03
RA18-8 100 #8 0.89 0.26 0.25 0.71
RA833 1,000 #8 0.86 0.26 0.25 0.71
RA863 1,000 #8 0.89 0.26 0.25 0.71
RA18-10 100 #10 0.89 0.31 0.25 0.71
RA873 1,000 #10 0.89 0.31 0.25 0.71
RA18-14 100 1⁄4 in. 1.10 0.46 0.31 0.84
RA713 1,000 1⁄4 in. 1.10 0.46 0.31 0.84
RA18-516 100 5⁄16 in. 1.10 0.46 0.31 0.84
RA723 1,000 5⁄16 in. 1.10 0.46 0.31 0.84
RA18-38 100 3⁄8 in.
ERG4001
1.20 0.53 0.35 0.87
.03
RA733 1,000 3⁄8 in. 1.20 0.53 0.35 0.87
RA18-12 100 1⁄2 in. 1.30 0.72 0.50 0.92
RA753 1,000 1⁄2 in. 1.30 0.72 0.50 0.92
Most standard bulk catalogue numbers can be put on Mylar Tape for reel feed applications
(i.e. 12050 tool and application). Please put the suffix M for Mylar tape i.e. RA2573M.
Sta-Kon ®
Nylon-Insulated Ring Terminals
www.tnb.ca B7
Termination Products

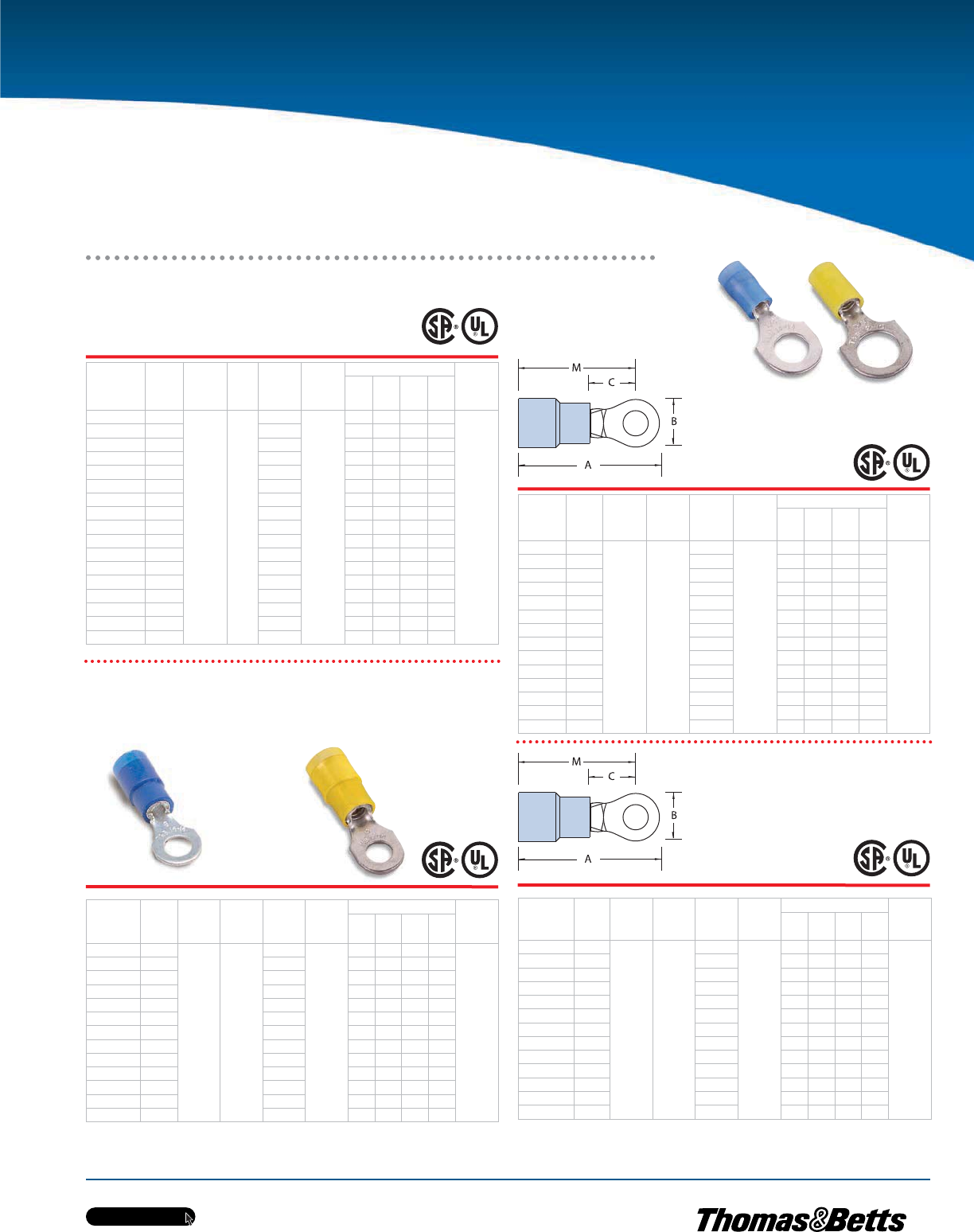

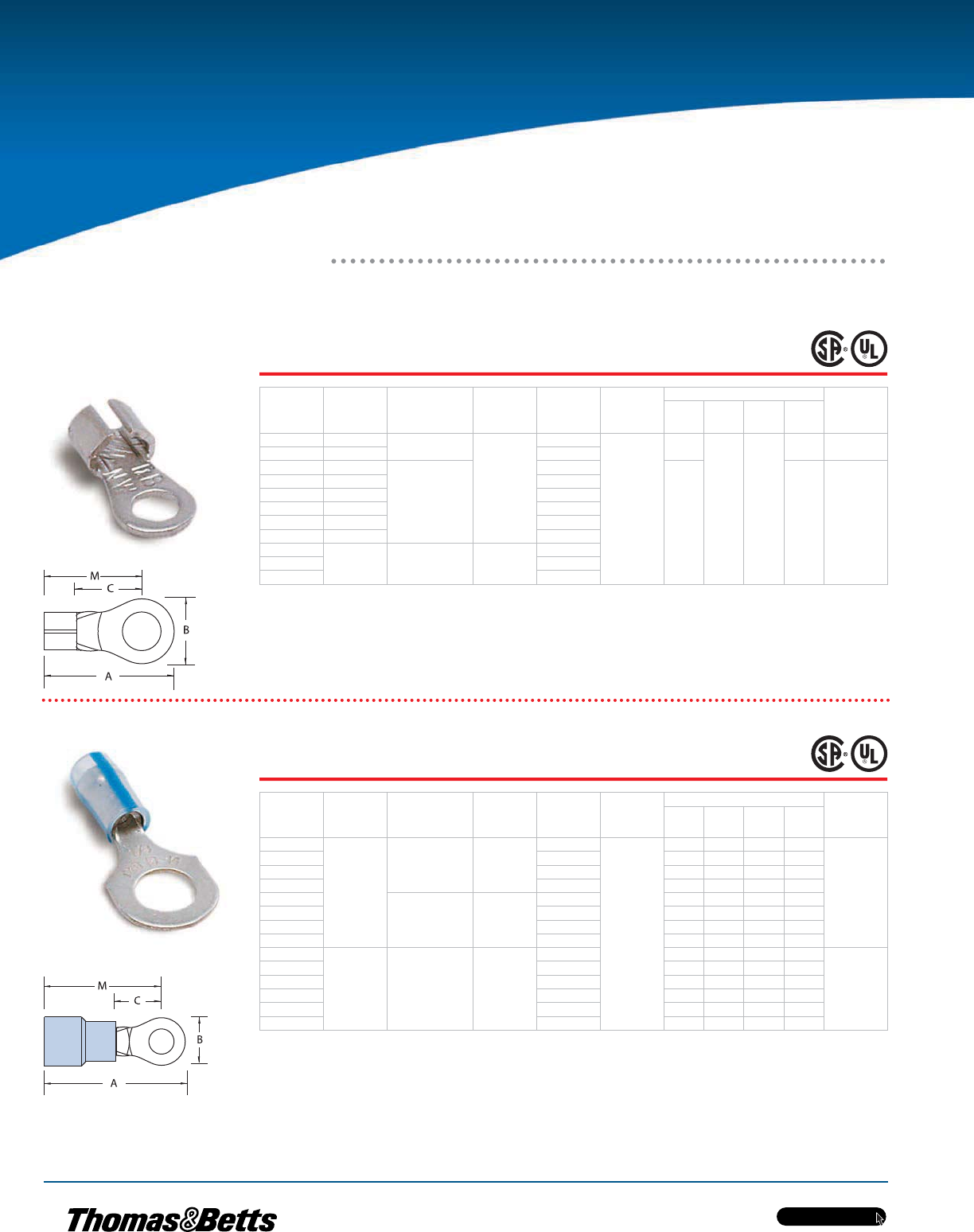

Nylon-Insulated Ring Terminals —
Expanded Entry
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RB14-4 100
18–14 0.162
#4
ERG4001
0.72 0.26 0.14 0.59
0.03
RB1323 1,000 #4 0.72 0.26 0.14 0.59
RB14-6 100 #6 0.89 0.31 0.25 0.71
RB853 1,000 #6 0.89 0.31 0.25 0.71
RB1333 1,000 #6 0.74 0.26 0.14 0.59
RB14-8 100 #8 0.89 0.31 0.25 0.71
RB863 1,000 #8 0.89 0.31 0.25 0.71
RB14-10 100 #10 0.89 0.31 0.25 0.71
RB873 1,000 #10 0.89 0.31 0.25 0.71
RB14-14 100 1⁄4 in. 1.08 0.47 0.31 0.81
RB713 1,000 1⁄4 in. 1.08 0.47 0.31 0.81
RB14-516 100 5⁄16 in. 1.08 0.47 0.31 0.84
RB723 1,000 5⁄16 in. 1.08 0.47 0.31 0.84
RB14-38 100 3⁄8 in. 1.17 0.53 0.35 0.87
RB733 1,000 3⁄8 in. 1.17 0.53 0.35 0.87
RB14-12 100 1⁄2 in. 1.25 0.72 0.50 0.90
RB753 1,000 1⁄2 in. 1.25 0.72 0.50 0.90
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RC10-6 50
12–10 0.210
#6
ERG4001
1.00 0.37 0.27 0.81
0.04
RC333 500 #6 1.00 0.37 0.27 0.81
RC10-8 50 #8 1.00 0.37 0.27 0.81
RC863 500 #8 1.00 0.37 0.27 0.81
RC10-10 50 #10 1.00 0.37 0.27 0.81
RC363 500 #10 1.00 0.37 0.27 0.81
RC10-14 50 1⁄4 in. 1.12 0.53 0.32 0.86
RC713 500 1⁄4 in. 1.12 0.53 0.32 0.86
RC10-516 50 5⁄16 in. 1.21 0.53 0.31 0.94
RC703 500 5⁄16 in. 1.21 0.53 0.31 0.94
RC10-38 50 3⁄8 in. 1.27 0.59 0.35 0.98
RC733 500 3⁄8 in. 1.27 0.59 0.35 0.98
RC10-12 50 1⁄2 in. 1.37 0.72 0.52 1.02
RC753 500 1⁄2 in. 1.37 0.72 0.52 1.02
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RB14-4X 100
18–14 0.190
#4
ER4001
0.80 0.26 0.14 0.67
0.03
RB14-6X 100 #6 0.95 0.31 0.25 0.79
RB854 1,000 #6 0.95 0.31 0.25 0.79
RB14-8X 100 #8 0.95 0.31 0.25 0.79
RB864 1,000 #8 0.95 0.31 0.25 0.79
RB14-10X 100 #10 0.95 0.31 0.25 0.79
RB874 1,000 #10 0.95 0.31 0.25 0.79
RB14-14X 100 1⁄4 in. 1.16 0.47 0.31 0.92
RB714 1,000 1⁄4 in. 1.16 0.47 0.31 0.92
RB14-516X 100 5⁄16 in. 1.16 0.47 0.31 0.92
RB724 1,000 5⁄16 in. 1.16 0.47 0.31 0.92
RB14-38X 100 3⁄8 in. 1.25 0.53 0.42 0.95
RB734 1,000 3⁄8 in. 1.25 0.53 0.42 0.95
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RC10-6X 50
12–10 0.250
#6
ERG4001
1.10 0.37 0.27 0.91
0.04
RC334 500 #6 1.10 0.37 0.27 0.91
RC10-8X 50 #8 1.10 0.37 0.27 0.91
RC864 500 #8 1.10 0.37 0.27 0.91
RC10-10X 50 #10 1.10 0.37 0.27 0.91
RC364 500 #10 1.10 0.37 0.27 0.91
RC10-14X 50 1⁄4 in. 1.22 0.53 0.32 0.96
RC714 500 1⁄4 in. 1.22 0.53 0.32 0.96
RC10-516X 50 5⁄16 in. 1.32 0.53 0.31 1.05
RC704 500 5⁄16 in. 1.32 0.53 0.31 1.05
RC10-38X 50 3⁄8 in. 1.38 0.59 0.48 1.09
RC734 500 3⁄8 in. 1.38 0.59 0.48 1.09
RC10-12X 50 1⁄2 in. 1.48 0.72 0.52 1.13

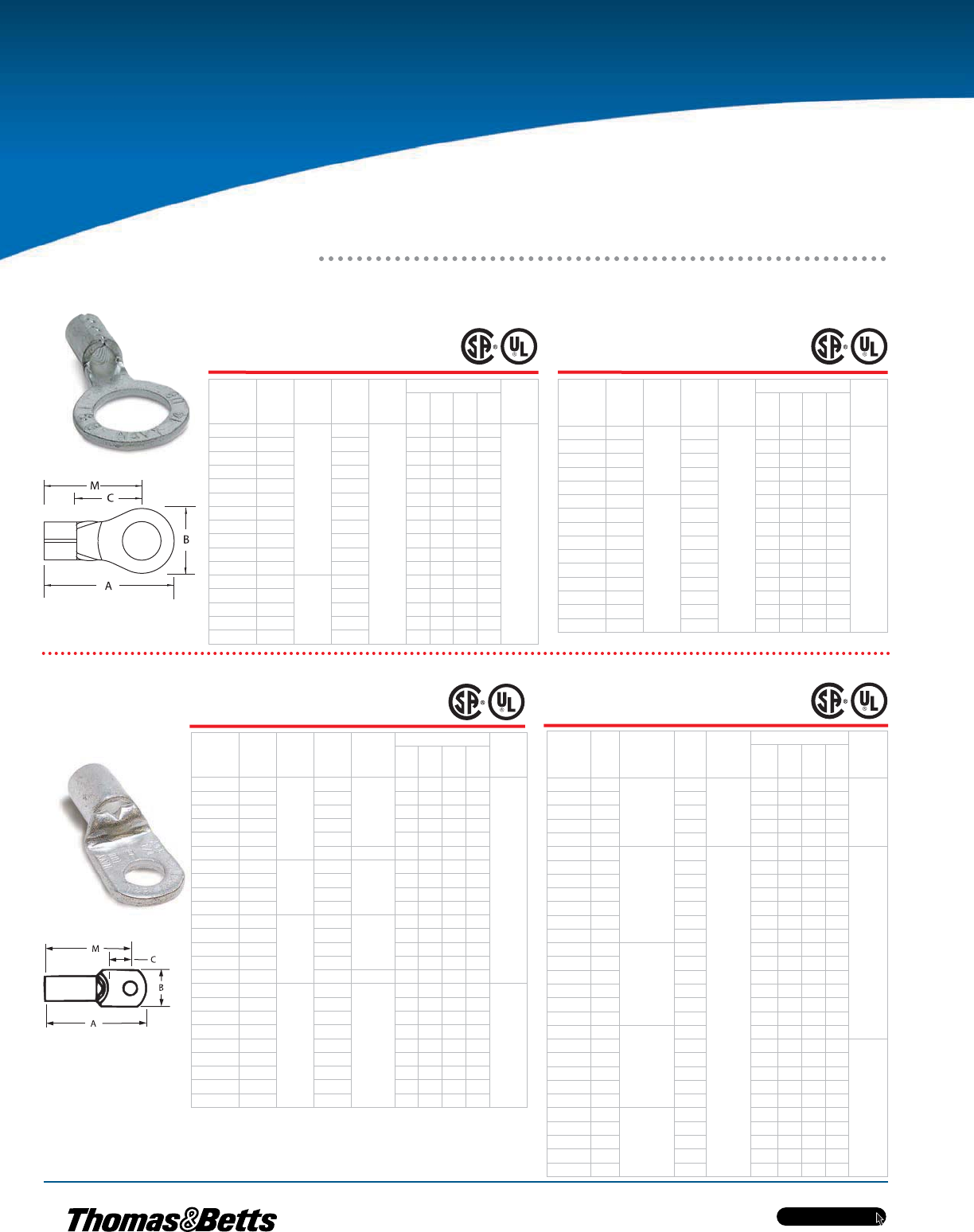

Ring Terminals
Sta-Kon ®
www.tnb.ca
B8
Termination Products
*Brazed Seam
AN=Aircraft Wire
Cat.
No.
Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
Flex Class 41/24
RD167 200
8
0.340
#8
ERG4007
1.48 0.42 0.28 1.29
0.04
RD8-10 25 #10 1.48 0.42 0.28 1.29
RD367 200 #10 1.48 0.42 0.28 1.29
RD8-14 25 1⁄4 in. 1.54 0.46 0.36 1.32
RD717 200 1⁄4 in. 1.54 0.46 0.36 1.32
RD8-516 25 5⁄16 in. 1.63 0.57 0.36 1.35
RD727 200 5⁄16 in. 1.63 0.57 0.36 1.35
RD8-38 25 3⁄8 in. 1.63 0.57 0.36 1.35
RD737 200 3⁄8 in. 1.63 0.57 0.36 1.35
RD8-12* 25 0.310 1⁄2 in. TBM6S 1.79 0.82 0.55 1.39
RD757* 200 1⁄2 in. 1.79 0.82 0.55 1.39
RD10161 200
8AN 0.270
#8
ERG4007
1.40 0.41 0.24 1.20
RD10361 200 #10 1.40 0.41 0.24 1.20
RD10711 200 1⁄4 in. 1.45 0.45 0.27 1.22
RD10721 200 5⁄16 in. 1.53 0.56 0.34 1.25
RD10731 200 3⁄8 in. 1.53 0.56 0.34 1.25
Flex Class 63/24
RE6-10 20
6
0.420
#10
ERG4007
1.65 0.49 0.28 1.40
0.04
RE267 200 #10 1.65 0.49 0.28 1.40
RE6-14 20 1⁄4 in. 1.65 0.49 0.28 1.40
RE717 200 1⁄4 in. 1.65 0.49 0.28 1.40
RE6-516 20 5⁄16 in. 1.76 0.61 0.34 1.47
RE727 200 5⁄16 in. 1.76 0.61 0.34 1.47
RE6-38 20 3⁄8 in. 1.76 0.61 0.34 1.47
RE737 200 3⁄8 in. 1.76 0.61 0.34 1.47
RE6-12* 20 0.395 1⁄2 in. TBM6S 1.83 0.82 0.55 1.43
RE757* 200 1⁄2 in. 1.83 0.82 0.55 1.43
RE10261 200
6AN 0.315
#10
ERG4007
1.55 0.49 0.24 1.31
RE10711 200 1⁄4 in. 1.55 0.49 0.27 1.31
RE10721 200 5⁄16 in. 1.70 0.60 0.34 1.40
RE10731 200 3⁄8 in. 1.70 0.60 0.34 1.40
Flex Class 105/24
RF4-10 15
40.510
#10
TBM6S
1.76 0.56 0.36 1.49
0.04
RF267 100 #10 1.76 0.56 0.36 1.49
RF4-14 15 1⁄4 in. 1.76 0.56 0.36 1.49
RF717 100 1⁄4 in. 1.76 0.56 0.36 1.49
RF4-516 15 5⁄16 in. 1.84 0.62 0.35 1.53
RF727 100 5⁄16 in. 1.84 0.62 0.35 1.53
RF4-38 15 3⁄8 in. 1.84 0.62 0.35 1.53
RF737 100 3⁄8 in. 1.84 0.62 0.35 1.53
RF757* 100 0.500 1⁄2 in. 1.90 0.82 0.55 1.49
RF10261 100
4AN 0.380
#10 1.78 0.55 0.30 1.51
RF10711 100 1⁄4 in. 1.78 0.55 0.30 1.51
RF10721 100 5⁄16 in. 1.80 0.62 0.34 1.49
RF10731 100 3⁄8 in. 1.80 0.82 0.34 1.49
Cat.
No.
Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RG2-10 10
2 0.588
#10
TBM6S
2.15 0.69 0.40 1.83
0.05
RG267 50 #10 2.15 0.69 0.40 1.83
RG2-14 10 1⁄4 in. 2.15 0.69 0.40 1.83
RG717 50 1⁄4 in. 2.15 0.69 0.40 1.83
RG2-516 10 5⁄16 in. 2.15 0.69 0.40 1.83
RG727 50 5⁄16 in. 2.15 0.69 0.40 1.83
RG2-38 10 3⁄8 in. 2.15 0.69 0.40 1.83
RG737 50 3⁄8 in. 2.15 0.69 0.40 1.83
RG2-12 10 1⁄2 in. 2.35 0.80 0.49 1.93
RG757 50 1⁄2 in. 2.35 0.80 0.49 1.93
RG9711 50
2AN 0.453
1⁄4 in. 2.07 0.69 0.40 1.74
RG9731 50 3⁄8 in. 2.07 0.69 0.40 1.74
RG9751 50 1⁄2 in. 2.26 0.80 0.49 1.84
RH717 50
1/0 0.629
1⁄4 in. 2.14 0.77 0.43 1.81
RH727 50 5⁄16 in. 2.14 0.77 0.43 1.81
RH737 50 3⁄8 in. 2.14 0.77 0.43 1.81
RH757 50 1⁄2 in. 2.34 0.77 0.54 1.90
RH9711 50
1AN 0.500
1⁄41⁄4 in. 2.14 0.77 0.44 1.81
RH9731 50 3⁄8 in. 2.14 0.77 0.44 1.81
RH9751 50 1⁄2 in. 2.34 0.77 0.54 1.90
RJ717 100
2/0 0.675
1⁄4 in. 2.34 0.83 0.46 1.96
0.06
RJ727 100 5⁄16 in. 2.34 0.83 0.46 1.96
RJ737 100 3⁄8 in. 2.34 0.83 0.46 1.96
RJ757 100 1⁄2 in. 2.48 0.89 0.54 2.03
RJ9711 50
1/0AN 0.550
1⁄4 in. 2.35 0.83 0.46 1.97
RJ9731 50 3⁄8 in. 2.35 0.83 0.46 1.97
RJ9751 50 1⁄2 in. 2.49 0.89 0.55 2.04
RK717 25
3/0 0.765
1⁄4 in. 2.60 0.93 0.54 2.21
RK727 25 5⁄16 in. 2.60 0.93 0.54 2.21
RK737 25 3⁄8 in. 2.60 0.93 0.54 2.21
RK9731 100 2/0AN 0.610 3⁄8 in. 2.52 0.93 0.55 2.14
RK9751 100 1⁄2 in. 2.60 0.93 0.55 2.15
RL737 25 4/0 0.785 3⁄8 in. 2.83 1.04 0.57 2.35
0.07
RL757 25 1⁄2 in. 2.83 1.04 0.57 2.35
RL9731 25 3/0AN 0.680 3⁄8 in. 2.83 1.04 0.57 2.36
RL9751 25 1⁄2 in. 2.83 1.04 0.57 2.36
RM737 20
250kcmil 0.868
3⁄8 in. 3.00 1.13 0.65 2.51
RM747 20 7⁄16 in. 3.00 1.13 0.65 2.51
RM757 20 1⁄2 in. 3.00 1.13 0.65 2.51
RM9731 20 4/0AN 0.750 3⁄8 in. 3.00 1.13 0.66 2.51
RM9751 20 1⁄2 in. 3.00 1.13 0.66 2.51
Nylon-Insulated Large Ring Terminals
Ring Terminals
Sta-Kon ®

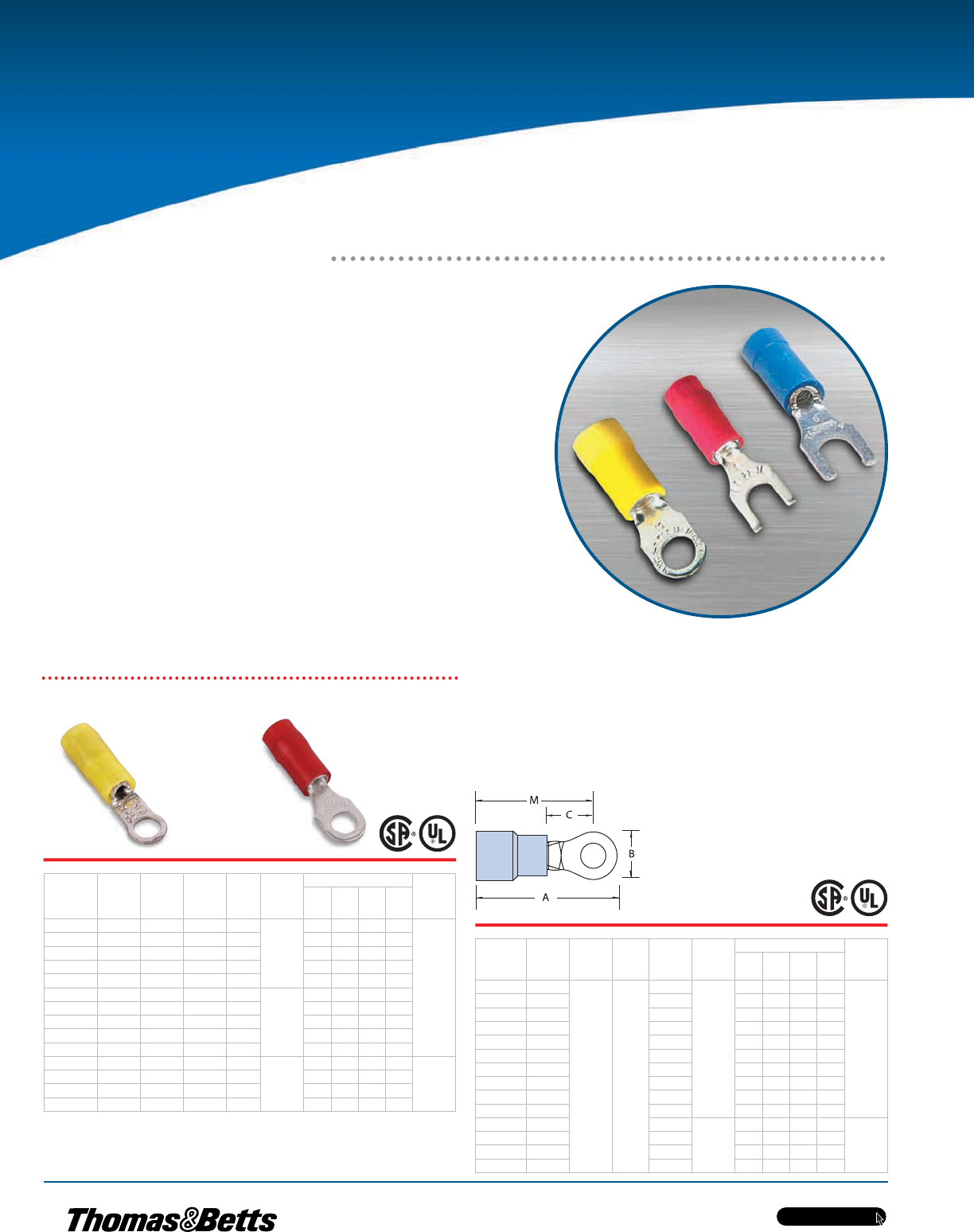

Vinyl-Insulated Ring Terminals
Extra-length PVC sleeve offers extra protection
www.tnb.ca B9
Termination Products
Vinyl-Insulated Ring Terminals —
Expanded Insulation
A wider wire entry for heavy-wall insulation
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
18RA-4 100
22–16 0.150
#4
ERG4001
0.97 0.31 0.27 0.81
0.03
RA77 1,000 #4 0.97 0.31 0.27 0.81
18RA-6 100 #6 0.94 0.25 0.27 0.81
RA857 1,000 #6 0.94 0.25 0.27 0.81
18RA-8 100 #8 0.97 0.31 0.27 0.81
RA867 1,000 #8 0.97 0.31 0.27 0.81
18RA-10 100 #10 0.97 0.31 0.27 0.81
RA877 1,000 #10 0.97 0.31 0.27 0.81
18RA-14 100 1⁄4 in. 1.13 0.50 0.37 0.88
RA717 1,000 1⁄4 in. 1.13 0.50 0.37 0.88
18RA-516 100 5⁄16 in. 1.13 0.50 0.37 0.88
RA727 1,000 5⁄16 in. 1.13 0.50 0.37 0.88
18RA-38 100 3⁄8 in. 1.24 0.54 0.37 0.91
RA737 1,000 3⁄8 in. 1.24 0.54 0.37 0.91
14RB-4 100
18–14 0.170
#4 0.94 0.25 0.27 0.81
RB1327 1,000 #4 0.94 0.25 0.27 0.81
14RB-6 100 #6 0.97 0.31 0.27 0.81
RB857 1,000 #6 0.97 0.31 0.27 0.81
14RB-8 100 #8 0.97 0.31 0.27 0.81
RB867 1,000 #8 0.97 0.31 0.27 0.81
14RB-10 100 #10 0.97 0.31 0.27 0.81
RB877 1,000 #10 0.97 0.31 0.27 0.81
14RB-14 100 1⁄4 in. 1.14 0.50 0.38 0.89
RB717 1,000 1⁄4 in. 1.14 0.50 0.38 0.89
14RB-516 100 5⁄16 in. 1.15 0.50 0.38 0.89
RB727 1,000 5⁄16 in. 1.15 0.50 0.38 0.89
14RB-38 100 3⁄8 in. 1.16 0.54 0.38 0.91
RB737 1,000 3⁄8 in. 1.16 0.54 0.38 0.91
10RC-6 50
12–10 0.210
#6 1.06 0.31 0.27 0.90
0.04
RC337 500 #6 1.06 0.31 0.27 0.90
10RC-8 50 #8 1.06 0.31 0.27 0.90
RC777 500 #8 1.06 0.31 0.27 0.90
10RC-10 50 #10 1.06 0.31 0.27 0.90
RC367 500 #10 1.06 0.31 0.27 0.90
10RC-14 50 1⁄4 in. 1.16 0.50 0.27 0.90
RC717 500 1⁄4 in. 1.16 0.50 0.27 0.90
10RC-516 50 5⁄16 in. 1.17 0.50 0.37 0.92
RC707 500 5⁄16 in. 1.17 0.50 0.37 0.92
10RC-38 50 3⁄8 in. 1.29 0.59 0.44 0.99
RC737 500 3⁄8 in. 1.29 0.59 0.44 0.99
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
18RA-4X 100
22–16 0.170
#4
ERG4001
0.97 0.31 0.27 0.81
0.03
18RA-6X 100 #6 0.97 0.31 0.27 0.81
18RA-8X 100 #8 0.97 0.31 0.27 0.81
18RA-38X 100 3⁄8 in. 1.15 0.54 0.35 0.90
RA857-170 1,000 #6 0.97 0.31 0.27 0.81
RA867-170 1,000 #8 0.97 0.31 0.27 0.81
18RA-10X 1,000 #10 0.97 0.31 0.27 0.81
RA877-170 1,000 #10 0.97 0.31 0.27 0.81
18RA-14X 100 1⁄4 in. 1.13 0.50 0.37 0.88
RA727-170 1,000 5⁄16 in. 1.13 0.50 0.37 0.88
14RB-4X 100
18–14 0.200
#4 0.94 0.25 0.27 0.81
14RB-6X 100 #6 0.97 0.31 0.27 0.81
RB857-200 1,000 #6 0.97 0.31 0.27 0.81
14RB-8X 100 #8 0.97 0.31 0.27 0.81
RB867-200 1,000 #8 0.97 0.31 0.27 0.81
14RB-10X 100 #10 0.97 0.31 0.27 0.81
RB877-200 1,000 #10 0.97 0.31 0.27 0.81
14RB-14X 100 1⁄4 in. 1.14 0.50 0.38 0.89
RB717-200 1,000 1⁄4 in. 1.14 0.50 0.38 0.89
14RB-516X 100 5⁄16 in. 1.15 0.50 0.38 0.89
14RB-38X 100 3⁄8 in. 1.16 0.54 0.35 0.91
10RC-6X 50
12–10 0.250
#6 1.06 0.31 0.27 0.90
0.04
RC337-250 500 #6 1.06 0.31 0.27 0.90
10RC-8X 50 #8 1.06 0.31 0.27 0.90
RC777-250 500 #8 1.06 0.31 0.27 0.90
10RC-10X 50 #10 1.06 0.31 0.27 0.90
RC367-250 500 #10 1.06 0.31 0.27 0.90
10RC-14X 50 1⁄4 in. 1.16 0.50 0.27 0.90
RC717-250 500 1⁄4 in. 1.16 0.50 0.27 0.90
10RC-516X 50 5⁄16 in. 1.17 0.50 0.37 0.92
10RC-38X 50 3⁄8 in. 1.29 0.59 0.44 0.99
RC737-250 500 3⁄8 in. 1.29 0.59 0.44 0.99
Ring Terminals
Sta-Kon ®

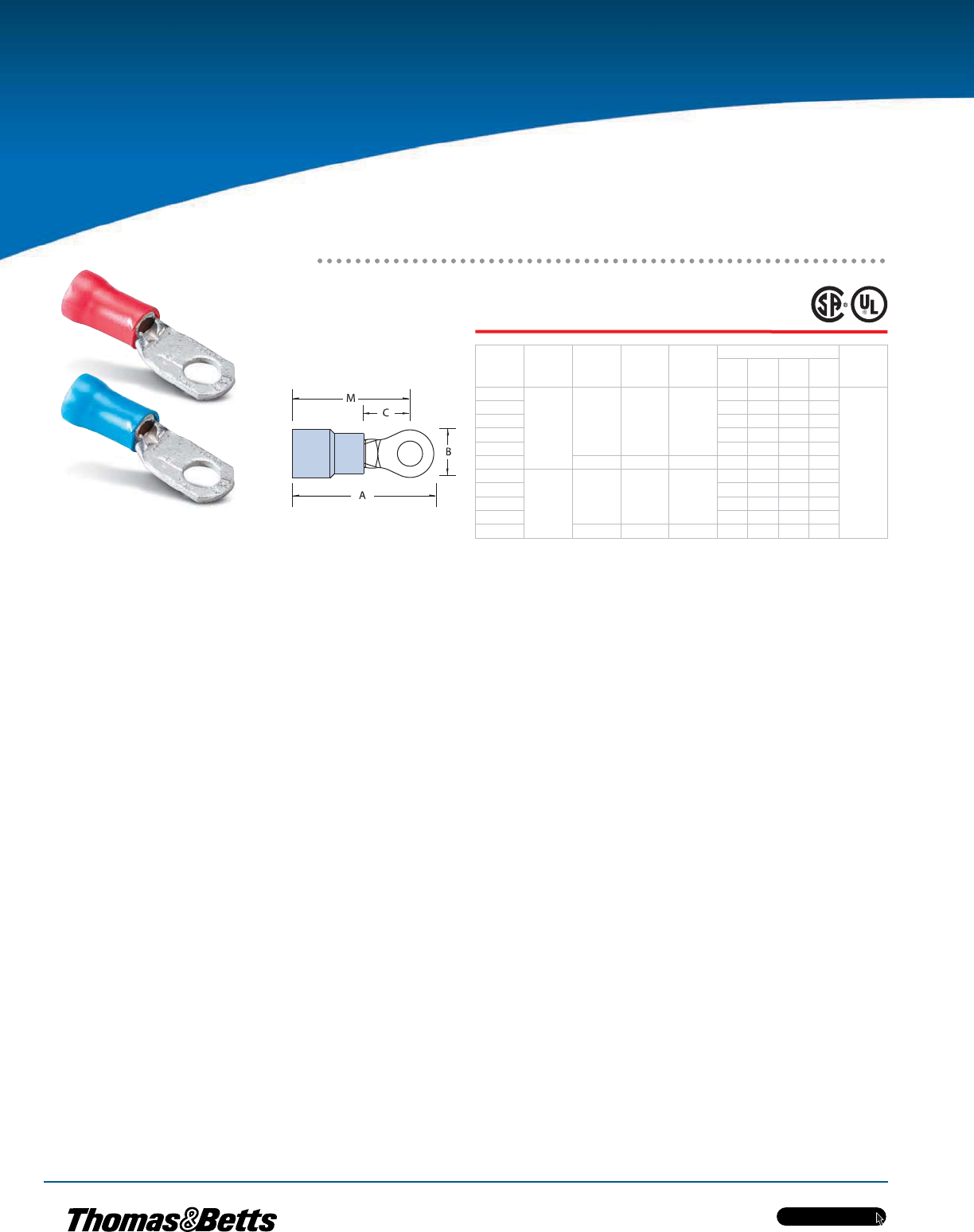

Vinyl-Insulated
Large Ring
Terminals
www.tnb.ca
B10
Termination Products
Cat. No. Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RDV167
80.340 #8 ERG4007
1.48 0.42 0.28 1.17
0.04
RDV367 1.48 0.42 0.28 1.17
RDV717 1.54 0.46 0.36 1.20
RDV727 1.63 0.57 0.36 1.23
RDV737 1.63 0.57 0.36 1.23
RDV757* 0.310 1⁄2 in. TBM6S 1.79 0.82 0.55 1.27
REV267
60.420 #10 ERG4007
1.65 0.45 0.28 1.23
REV717 1.65 0.49 0.28 1.23
REV727 1.76 0.61 0.34 1.30
REV737 1.76 0.61 0.34 1.30
REV757* 0.395 1⁄2 in. TBM6S 1.83 0.82 0.55 1.26
*Brazed Seam
Ring Terminals
Sta-Kon ®

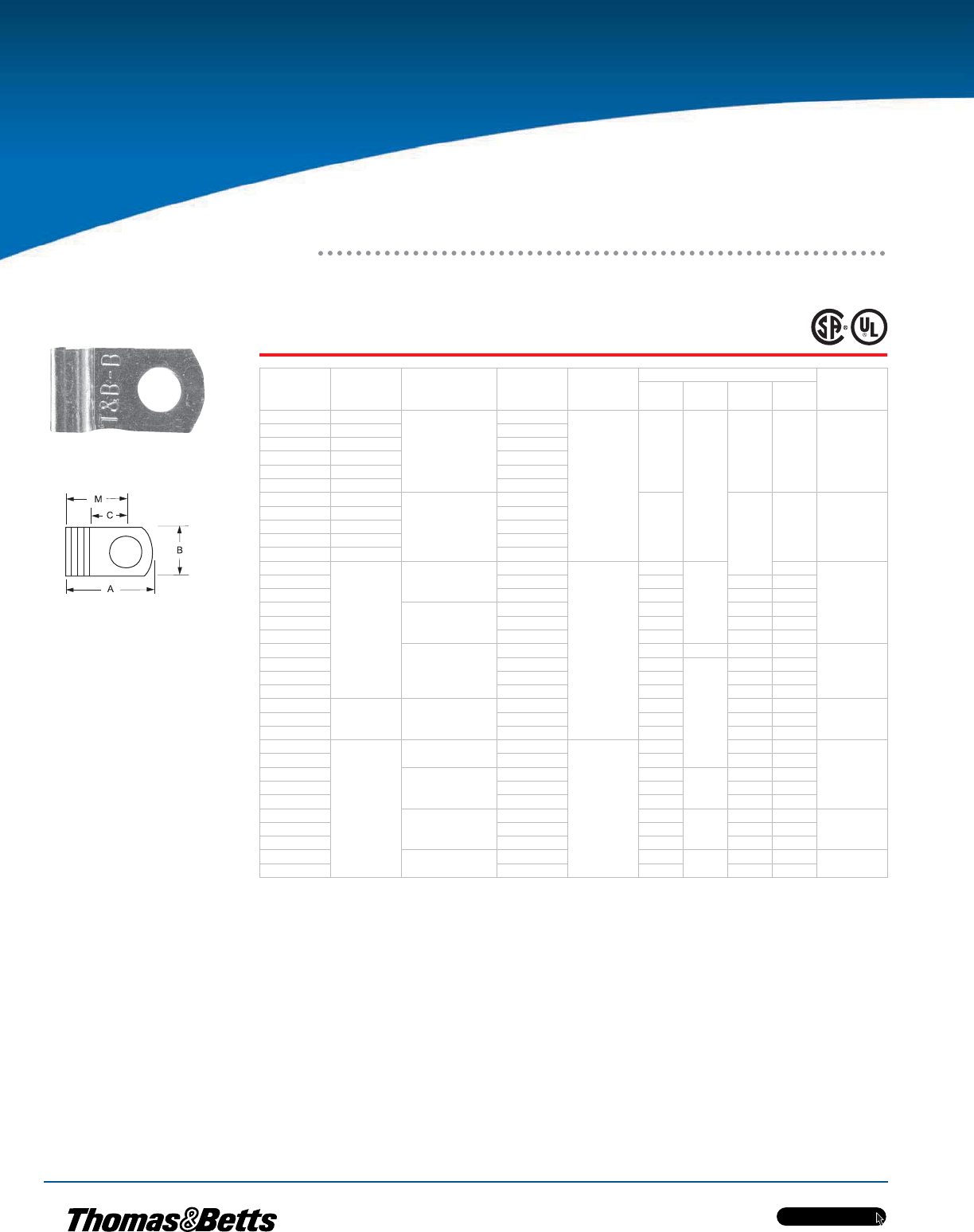

Non-Insulated Ring Terminals
Constructed of electrolytic copper for high conductivity!
www.tnb.ca B11
Termination Products
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
A18-4 100
22–16
#4
ERG4002
0.75 0.31 0.27 0.59
0.03
A18-6 100 #6 0.72 0.25 0.27 0.59
A85 1,000 #6 0.72 0.25 0.27 0.59
A18-8 100 #8 0.75 0.31 0.27 0.59
A86 1,000 #8 0.75 0.31 0.27 0.59
A18-10 100 #10 0.75 0.31 0.27 0.59
A87 1,000 #10 0.75 0.31 0.27 0.59
A18-14 100 1⁄4 in. 0.92 0.50 0.37 0.67
A71 1,000 1⁄4 in. 0.92 0.50 0.37 0.67
A18-516 100 5⁄16 in. 0.92 0.50 0.37 0.67
A72 1,000 5⁄16 in. 0.92 0.50 0.37 0.67
A18-38 100 3⁄8 in. 0.99 0.54 0.35 0.67
A73 1,000 3⁄8 in. 0.99 0.54 0.35 0.67
A18-12 100 1⁄2 in. 1.06 0.72 0.38 0.70
A75 1,000 1⁄2 in. 1.06 0.72 0.38 0.70
B14-4 100
18–14
#4
ERG4002
ERG4005
0.72 0.25 0.27 0.59
B132 1,000 #4 0.72 0.25 0.27 0.59
B14-6 100 #6 0.72 0.25 0.27 0.59
B133 1,000 #6 0.72 0.25 0.27 0.59
B14-8 100 #8 0.75 0.31 0.27 0.59
B86 1,000 #8 0.75 0.31 0.27 0.59
B14-10 100 #10 0.75 0.31 0.27 0.59
B87 1,000 #10 0.75 0.31 0.27 0.59
B14-14 100 1⁄4 in. 0.93 0.50 0.38 0.68
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
B71 1,000
18–14
1⁄4 in.
ERG4002
ERG4005
0.93 0.50 0.38 0.68
0.03
B14-516 100 5⁄16 in. 0.93 0.50 0.38 0.68
B72 1,000 5⁄16 in. 0.93 0.50 0.38 0.68
B14-38 100 3⁄8 in. 0.96 0.54 0.35 0.68
B73 1,000 3⁄8 in. 0.96 0.54 0.35 0.68
B14-12 100 1⁄2 in. 1.06 0.72 0.38 0.70
B75-TB 1,000 1⁄2 in. 1.06 0.72 0.38 0.70
B85 1,000 #6 0.75 0.31 0.27 0.59
B134 1,000 #8 0.72 0.25 0.27 0.59
C10-6-SK 50
12–10
#6 0.82 0.31 0.27 0.66
0.04
C33 500 #6 0.82 0.31 0.27 0.66
C10-8-SK 50 #8 0.82 0.31 0.27 0.66
C77 500 #8 0.82 0.31 0.27 0.66
C10-10 50 #10 0.85 0.38 0.27 0.66
C26 500 #10 0.85 0.38 0.27 0.66
C36 500 #10 0.82 0.31 0.27 0.66
C10-14 50 1⁄4 in. 0.91 0.50 0.27 0.66
C71 500 1⁄4 in. 0.91 0.50 0.27 0.66
C10-516 50 5⁄16 in. 0.98 0.50 0.38 0.73
C70 500 5⁄16 in. 0.98 0.50 0.38 0.73
C72 500 3⁄8 in. 1.10 0.59 0.45 0.80
C10-38 50 3⁄8 in. 1.10 0.59 0.45 0.80
C73 500 1⁄2 in. 1.10 0.59 0.45 0.80
C10-12 50 1⁄2 in. 1.21 0.72 0.38 0.84
C75 500 1⁄2" 1.21 0.72 0.38 0.84
Ring Terminals
Sta-Kon ®
Non-Insulated Large Ring Terminals — Brazed Seam
www.tnb.ca
B12
Termination Products
Non-Insulated Large Ring Terminals — Tubular
Select the configuration you need!
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
D8-10 25
8
#10
TBM6S
1.09 0.42 0.34 0.90
0.06
D36 200 #10 1.09 0.42 0.34 0.90
D26 200 #10 1.13 0.48 0.36 0.90
D8-14-SK 25 1⁄4 in. 1.13 0.48 0.36 0.90
D71 200 1⁄4 in. 1.13 0.48 0.36 0.90
D8-516 25 5⁄16 in. 1.32 0.59 0.49 1.03
D72 200 5⁄16 in. 1.32 0.59 0.49 1.03
D8-38 25 3⁄8 in. 1.32 0.59 0.49 1.03
D73 200 3⁄8 in. 1.32 0.59 0.49 1.03
D8-12 25 1⁄2 in. 1.49 0.82 0.55 1.09
D75 200 1⁄2 in. 1.49 0.82 0.55 1.09
E6-10 20
6
#10 1.13 0.48 0.36 0.90
E26 200 #10 1.13 0.48 0.36 0.90
E6-14 20 1⁄4 in. 1.13 0.48 0.36 0.90
E71 200 1⁄4 in. 1.13 0.48 0.36 0.90
E6-516 20 5⁄16 in. 1.32 0.60 0.49 1.03
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
E72 200
6
5⁄16 in.
TBM6S
1.32 0.60 0.49 1.03
0.06
E6-38 20 3⁄8 in. 1.32 0.60 0.49 1.03
E73 200 3⁄8 in. 1.32 0.60 0.49 1.03
E6-12 20 1⁄2 in. 1.49 0.82 0.55 1.08
E75 200 1⁄2 in. 1.49 0.82 0.55 1.08
F4-10 20
4
#10 1.16 0.48 0.36 0.93
0.07
F26 200 #10 1.16 0.48 0.36 0.93
F4-14 20 1⁄4 in. 1.16 0.48 0.36 0.93
F71-TB 200 1⁄4 in. 1.16 0.48 0.36 0.93
F4-516 20 5⁄16 in. 1.35 0.60 0.49 1.06
F72 200 5⁄16 in. 1.35 0.60 0.49 1.06
F4-38 20 3⁄8 in. 1.35 0.60 0.49 1.06
F73 200 3⁄8 in. 1.35 0.60 0.49 1.06
F4-12 20 1⁄2 in. 1.52 0.82 0.55 1.11
F75 200 1⁄2 in. 1.52 0.82 0.55 1.11
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
D10161 200
8/8AN
#8
ERG4005
ERG4008
1.15 0.41 0.28 0.95
0.04
D10361 200 #10 1.15 0.41 0.28 0.95
D10711 200 1⁄4 in. 1.20 0.45 0.36 0.97
D10721 200 5⁄16 in. 1.28 0.56 0.36 1.00
D10731 200 3⁄8 in. 1.28 0.56 0.36 1.00
D975* 200 1⁄2 in. TBM6S 1.46 0.83 0.49 1.06
E10261 200
6/6AN
#10
ERG4005
ERG4008
1.26 0.49 0.24 1.02
E10711 200 1⁄4 in. 1.26 0.49 0.27 0.99
E10721 200 5⁄16 in. 1.38 0.60 0.34 1.04
E10731 200 3⁄8 in. 1.38 0.60 0.34 1.04
F10261 100
4/4AN
#10
ERG4008
1.37 0.55 0.30 1.07
F10711 100 1⁄4 in. 1.37 0.55 0.30 1.07
F10721 100 5⁄16 in. 1.42 0.62 0.34 1.08
F10731 100 3⁄8 in. 1.42 0.62 0.34 1.08
F975* 200 1⁄2 in. TBM6S 1.49 0.83 0.45 1.10
G926 100
2/2AN
#10
ERG4008
TMB6S
1.59 0.69 0.40 1.26
0.05
G2-14 10 1⁄4 in. 1.59 0.69 0.40 1.26
G971 100 5⁄16 in. 1.59 0.69 0.40 1.26
G2-516 10 5⁄16 in. 1.59 0.69 0.40 1.26
G972 100 5⁄16 in. 1.59 0.69 0.40 1.26
G2-38 10 3⁄8 in. 1.59 0.69 0.40 1.26
G973 100 3⁄8 in. 1.59 0.69 0.40 1.26
G2-12 10 1⁄2 in. 1.79 0.80 0.49 1.36
G975 100 1⁄2 in. 1.79 0.80 0.49 1.36
Cat.
No.
Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions Stock
Thick.
(in.)
A B C M
H10-14 10
1AN–1/0
1⁄4 in.
ERG4008
TBM6S
1.65 0.77 0.43 1.32
0.05
H971 100 1⁄4 in. 1.65 0.77 0.43 1.32
H972 100 5⁄16 in. 1.65 0.77 0.43 1.32
H973 100 3⁄8 in. 1.65 0.77 0.43 1.32
H975 100 1⁄2 in. 1.85 0.77 0.54 1.41
J971 50
1/0AN–2/0
1⁄4 in.
TBM6S
1.94 0.84 0.48 1.53
0.06
J972 50 5⁄16 in. 1.94 0.84 0.48 1.53
J20-38 10 3⁄8 in. 1.84 0.83 0.46 1.46
J973 50 3⁄8 in. 1.99 0.84 0.53 1.58
J974 50 7⁄16 in. 1.99 0.89 0.51 1.56
J975 50 1⁄2 in. 1.99 0.89 0.51 1.56
J976 50 5⁄8 in. 1.99 0.89 0.51 1.56
K971 50
2/0AN–3/0
1⁄4 in. 2.08 0.93 0.54 1.69
K972 50 5⁄16 in. 2.08 0.93 0.54 1.69
K30-38 5 3⁄8 in. 2.08 0.93 0.54 1.69
K973 50 3⁄8 in. 2.08 0.93 0.54 1.69
K974 50 7⁄16 in. 2.08 0.93 0.54 1.70
K975 50 1⁄2 in. 2.08 0.93 0.54 1.70
L971 50
3/0AN–4/0
1⁄4 in. 2.25 1.04 0.57 1.77
L972 50 5⁄16 in. 2.25 1.04 0.57 1.77
0.07
L40-38 5 3⁄8 in. 2.25 1.04 0.57 1.77
L973 50 3⁄8 in. 2.25 1.04 0.57 1.77
L974 50 7⁄16 in. 2.25 1.04 0.57 1.77
L975 50 1⁄2 in. 2.25 1.04 0.57 1.77
M972 50
4/0AN–
250kcmil
5⁄16 in. 2.28 1.12 0.62 1.90
M250-38 5 3⁄8 in. 2.40 1.12 0.65 1.91
M973 50 3⁄8 in. 2.40 1.12 0.65 1.91
M974 50 7⁄16 in. 2.40 1.12 0.65 1.91
M975 50 1⁄2 in. 2.40 1.12 0.65 1.91
*Brazed Seam AN – Aircraft Wire
Ring Terminals
Sta-Kon ®
Insulated Heavy-Duty Ring Terminals
www.tnb.ca B13
Termination Products
Non-Insulated Heavy-Duty Ring Terminals
The heavy-duty terminal solution!
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick. (in.)
A B C M
BC14-6 50 16–14 Heavy-duty #6
ERG4002
ERG4005
0.81 0.25 0.29 0.68
0.05
BC85 500 #6 0.81 0.25 0.29 0.68
BC14-8 50 16–14 Heavy-duty #8 0.87 0.39 0.29 0.68
BC86 500 #8 0.87 0.39 0.29 0.68
BC14-10 50 16–14 Heavy-duty #10 0.87 0.39 0.29 0.68
BC87 500 #10 0.87 0.39 0.29 0.68
BC14-14 50 16–14 Heavy-duty 1⁄4 in. 0.93 0.51 0.29 0.68
BC71 500 1⁄4 in. 0.93 0.51 0.29 0.68
BC14-516 50 16–14 Heavy-duty 5⁄16 in. 1.04 0.54 0.38 0.77
BC72 500 5⁄16 in. 1.04 0.54 0.38 0.77
BC14-38 50 16–14 Heavy-duty 3⁄8 in. 1.09 0.63 0.38 0.77
BC79 500 3⁄8 in. 1.09 0.63 0.38 0.77
BC14-12 50 16–14 Heavy-duty 1⁄2 in. 1.32 0.76 0.54 0.94
BC75 500 1⁄2 in. 1.32 0.76 0.54 0.94
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick. (in.)
A B C M
Nylon
RBC14-6 50 16–14 Heavy-duty
0.210
#6
WT2130A
0.98 0.25 0.29 0.85
0.05
RBC14-8 50 16–14 Heavy-duty #8 1.04 0.39 0.29 0.85
RBC863 500 #8 1.04 0.39 0.29 0.85
RBC14-10 50 16–14 Heavy-duty #10 1.04 0.39 0.29 0.85
RBC14-14 50 16–14 Heavy-duty 1⁄4 in. 1.10 0.51 0.29 0.85
RBC713 500 1⁄4 in. 1.10 0.51 0.29 0.85
RBC14-516 50 16–14 Heavy-duty 5⁄16 in. 1.21 0.54 0.38 0.94
RBC14-38 50 16–14 Heavy-duty 3⁄8 in. 1.26 0.63 0.38 0.94
RBC14-12 50 16–14 Heavy-duty 1⁄2 in. 1.49 0.76 0.54 1.11
RBC753 500 1⁄2 in. 1.49 0.76 0.54 1.11
Vinyl
14RBC-6 50 16–14 Heavy-duty
0.210
#6
WT2130A
1.06 0.25 0.29 0.93
0.05
RBC857 500 #6 1.06 0.25 0.29 0.93
14RBC-8 50 16–14 Heavy-duty #8 1.13 0.39 0.29 0.93
RBC867 500 #8 1.13 0.39 0.29 0.93
14RBC-10 50 16–14 Heavy-duty #10 1.13 0.39 0.29 0.93
RBC877 500 #10 1.13 0.39 0.29 0.93
14RBC-14 50 16–14 Heavy-duty 1⁄4 in. 1.19 0.51 0.29 0.93
RBC717 500 1⁄4 in. 1.19 0.51 0.29 0.93
14RBC-516 50 16–14 Heavy-duty 5⁄16 in. 1.29 0.54 0.38 1.03
RBC727 500 5⁄16 in. 1.29 0.54 0.38 1.03
14RBC-38 50 16–14 Heavy-duty 3⁄8 in. 1.34 0.63 0.38 1.03
RBC797 500 3⁄8 in. 1.34 0.63 0.38 1.03
14RBC-12 50 16–14 Heavy-duty 1⁄2 in. 1.57 0.76 0.54 1.19
Ring Terminals
Sta-Kon ®
Ring Terminals
www.tnb.ca
B14
Termination Products
High-Temperature Non-Insulated Rings —
1200° F Max.
Tefzel®Insulated Rings — Insulation Grip
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
NW18-10 100 20–18
2.5
#10
WT1377
0.63
0.31 0.28
0.38 0.032
NW52 1,000 #8
NW81 1,000
16–14
#6
0.66 0.51 0.040
NW14-8 100 #8
NW14-10 100 #10
NW83 1,000 #10
NW14-12 100 #12*
NW84 1,000 #12*
NW10-8
50 12–10 3
#8
NW10-10 #10
NW10-12 #12*
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RAT853
1,000
22–18 0.140
#6
WT145C
0.81 0.25 0.25 0.69
0.03
RAT863 #8 0.84 0.31 0.25 0.69
RAT873 #10 0.84 0.31 0.25 0.69
RAT713 1⁄4 in. 1.07 0.46 0.31 0.84
RBT853
16–14 0.170
#6 0.84 0.31 0.25 0.69
RBT863 #8 0.84 0.31 0.25 0.69
RBT873 #10 0.84 0.31 0.25 0.69
RBT713 1⁄4 in. 1.08 0.46 0.31 0.81
RCT333
500 12–10 0.210
#6 1.00 0.37 0.27 0.81
0.04
RCT863 #8 1.00 0.37 0.27 0.81
RCT363 #10 1.00 0.37 0.27 0.81
RCT713 1⁄4 in. 1.11 0.52 0.32 0.85
RCT703 5⁄16 in. 1.23 0.52 0.31 0.96
RCT733 3⁄8 in. 1.29 0.58 0.35 1.00
* #12 stud is smaller than 1⁄4 in. stud
Tefzel®is a registered trademark of DuPont
Terminals for nichrome wire NW Series
Sta-Kon ®
Nylon-Insulated Rectangular Rings
www.tnb.ca B15
Termination Products

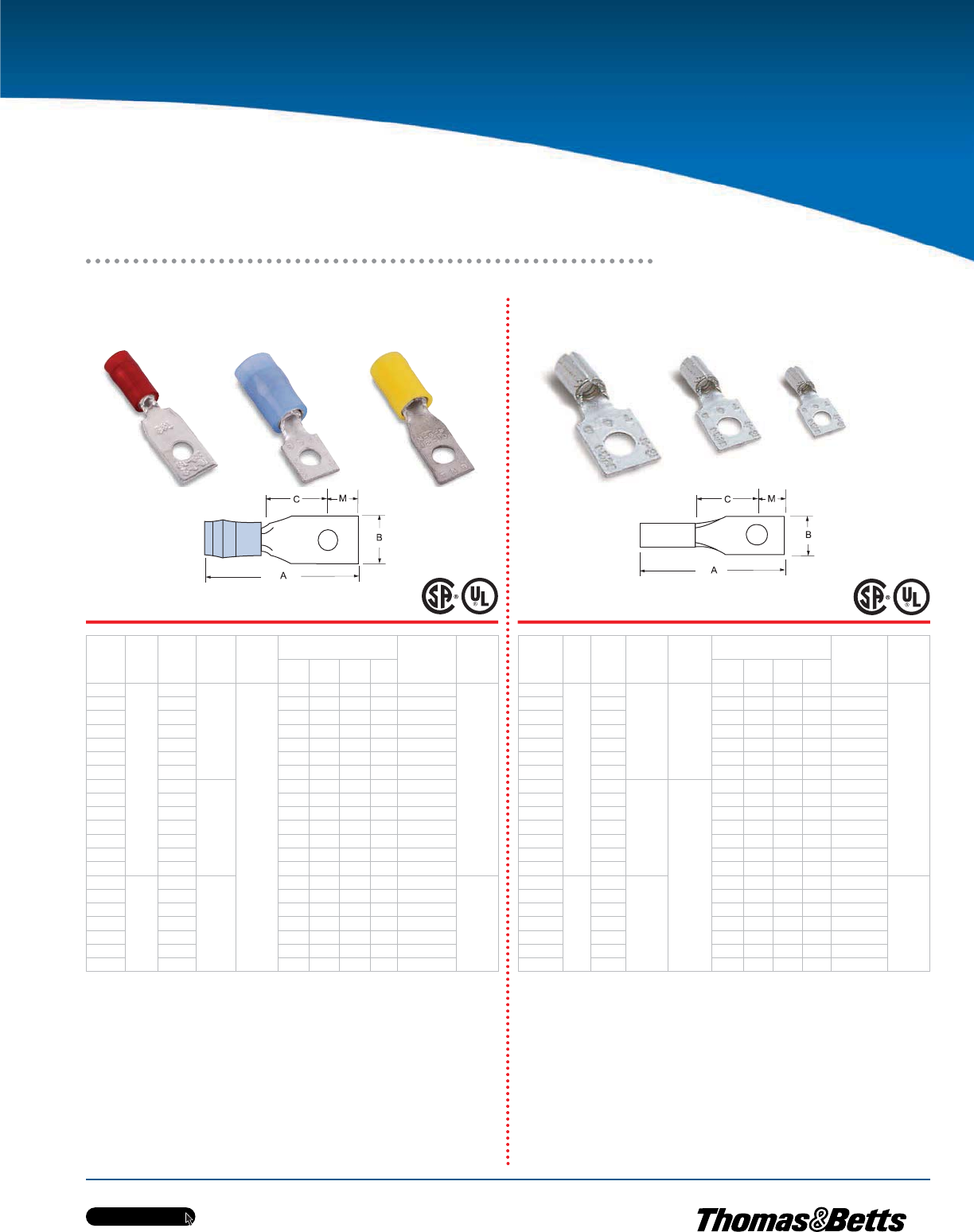

Non-Insulated Rectangular Rings
Cat.
No.
Pkg.
Qty.
Bolt
Hole
Wire
Range
Rec.
Tool
Dimensions (in.) BU-Ships
Tongue
Shape
Stock
Thick.
(in.)
A B C M
RA486
1,000
#4
22–18
ERG4001
0.796 0.237 0.237 0.143 L86P-1
0.03
RA485 #4 1.015 0.237 0.404 0.195 L85P-1
RA483 #5 0.859 0.277 0.277 0.143 L83P-1
RA484 #6 1.015 0.237 0.404 0.195 L84P-1
RA481 #6 1.109 0.302 0.465 0.227 L81P-1
RA482 #8 1.109 0.302 0.465 0.227 L82P-1
RA480* #8 1.359 0.390 0.621 0.310 L80P-1
RB486 #4
16–14
0.796 0.237 0.237 0.143 L86P-2
RB485 #4 1.015 0.237 0.404 0.195 L85P-2
RB483 #5 0.859 0.277 0.277 0.143 L83P-2
RB484 #6 1.015 0.237 0.404 0.195 L84P-2
RB481 #6 1.109 0.302 0.465 0.227 L81P-2
RB482 #8 1.109 0.302 0.465 0.227 L82P-2
RB480* #8 1.359 0.390 0.621 0.310 L80P-2
RC486
500
#4
12–10
0.984 0.237 0.237 0.143 L86P-3
0.04
RC485 #4 1.187 0.237 0.404 0.195 L85P-3
RC483 #5 1.046 0.277 0.277 0.143 L83P-3
RC484 #6 1.203 0.237 0.404 0.195 L84P-3
RC481 #6 1.281 0.302 0.465 0.227 L81P-3
RC482 #8 1.281 0.302 0.465 0.227 L82P-3
RC480* #8 1.531 0.390 0.621 0.310 L80P-3
Cat.
No.
Pkg.
Qty.
Bolt
Hole
Wire
Range
Rec.
Tool
Dimensions (in.) BU-Ships
Tongue
Shape
Stock
Thick.
(in.)
A B C M
A486
1,000
#4
22–18 ERG4002
0.65 0.237 0.237 0.143 L86
0.03
A485 #4 0.87 0.237 0.404 0.195 L85
A483 #5 0.70 0.277 0.277 0.143 L83
A484 #6 0.87 0.237 0.404 0.195 L84
A481 #6 0.96 0.302 0.465 0.227 L81
A482 #8 0.96 0.302 0.465 0.227 L82
A480* #8 1.21 0.390 0.621 0.310 L80
B486 #4
16–14
ERG4002
ERG4005
0.65 0.237 0.237 0.143 L86
B485 #4 0.87 0.237 0.404 0.195 L85
B483 #5 0.70 0.277 0.277 0.143 L83
B484 #6 0.87 0.237 0.404 0.195 L84
B481 #6 0.96 0.302 0.465 0.227 L81
B482 #8 0.96 0.302 0.465 0.227 L82
B480* #8 1.21 0.390 0.621 0.310 L80
C486
500
#4
12–10
0.73 0.237 0.237 0.143 L86
0.04
C485 #4 0.90 0.237 0.404 0.195 L85
C483 #5 0.76 0.277 0.277 0.143 L83
C484 #6 0.94 0.237 0.404 0.195 L84
C481 #6 1.03 0.302 0.465 0.227 L81
C482 #8 1.03 0.302 0.465 0.227 L82
C480* #8 1.27 0.390 0.621 0.310 L80
* Not available on tape.
Note: RA, RB, RC486 for use with BU-Ships terminal board types 26TB. RA, RB, RC485
for use with 25TB and 27TB. RA, RB, RC483 for use with 8TB. RA, RB, RC484 for use
with 10TB and 11TB. RA, RB, RC481 for use with 6TB, 7TB and 9TB. RA, RB, RC482
for use with 15TB. RA, RB, RC480 for use with 3TB, 4TB, 5TB, 16TB, 17TB and 18TB.
Note:
22–18 ga. = 1–2 Navy
16–14 ga. = 2-1/2–4 Navy
12–10 ga. = 6–9 Navy
* Not available on tape.
Note: A, B, C486 for use with BU-Ships terminal board types 26TB. A, B. C485 for use
with 25TB, 27TB. A, B, C483 for use with 8TB. A, B, C484 for use with 10TB and 11TB.
A, B, C481 for use with 6TB, 7TB and 9TB. A, B, C482 for use with 15TB. A, B, C480
for use with 3TB, 5TB, 16TB, 17TB and 18TB.
Note:
22–18 ga. = 1–2 Navy
16–14 ga. = 2-1/2–4 Navy
12–10 ga. = 6–9 Navy
Ring Terminals
Sta-Kon ®
Non-Insulated Flags
www.tnb.ca
B16
Termination Products
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
AB14-6A 100
22–14
#6
ERG4004
0.55
0.31
0.22 0.39 0.03
AB51 1,000 #6
AB14-8A 100 #8
AB52 1,000 #8
AB14-10A 100 #10
AB53 1,000 #10
C51 500
12–10
#6
0.66 0.25 0.48 0.04
C10-8A 50 #8
C52-TB 500 #8
C10-10A 50 #10
C53 500 #10
D236
200
8
#10
WT129
0.83
0.50
0.59
0.06
D226 #10 0.90 0.29 0.64
D271 1⁄4 in. 0.92 0.33 0.68
E226
6
#10 0.93 0.29 0.69
E271 1⁄4 in. 0.99 0.33 0.73
E272 5⁄16 in. 1.05 0.41 0.81
F226
4
#10 1.07 0.56 0.33 0.80
0.07
F271 1⁄4 in. 1.10
0.63
0.33 0.80
F272 5⁄16 in. 1.18 0.41 0.88
F273 3⁄8 in. 1.20 0.43 0.90
G671
100 2
1⁄4 in. 1.20 0.33 0.89
0.08G672 5⁄16 in. 1.28 0.41 0.97
G673 3⁄8 in. 1.32 0.46 1.02
H672
50
1/0 5⁄16 in.
13642M
1.31 0.41 1.01
0.10
H673 3⁄8 in. 1.36 0.46 1.06
J672
2/0
5⁄16 in. 1.46
0.75
0.41 1.10
J673 3⁄8 in. 1.51 0.46 1.15
J675 1⁄2 in. 1.67 0.55 1.24
K672
3/0
5⁄16 in. 1.59
0.81
0.41 1.19
0.11K673 3⁄8 in. 1.64 0.46 1.24
K675 1⁄2 in. 1.76 0.55 1.34
M673 250kcmil 3⁄8 in. 1.89 1.0 0.46 1.43 0.13
M675 1⁄2 in. 1.99 0.55 1.52
Flag Terminals
Sta-Kon ®
www.tnb.ca B17
Termination Products

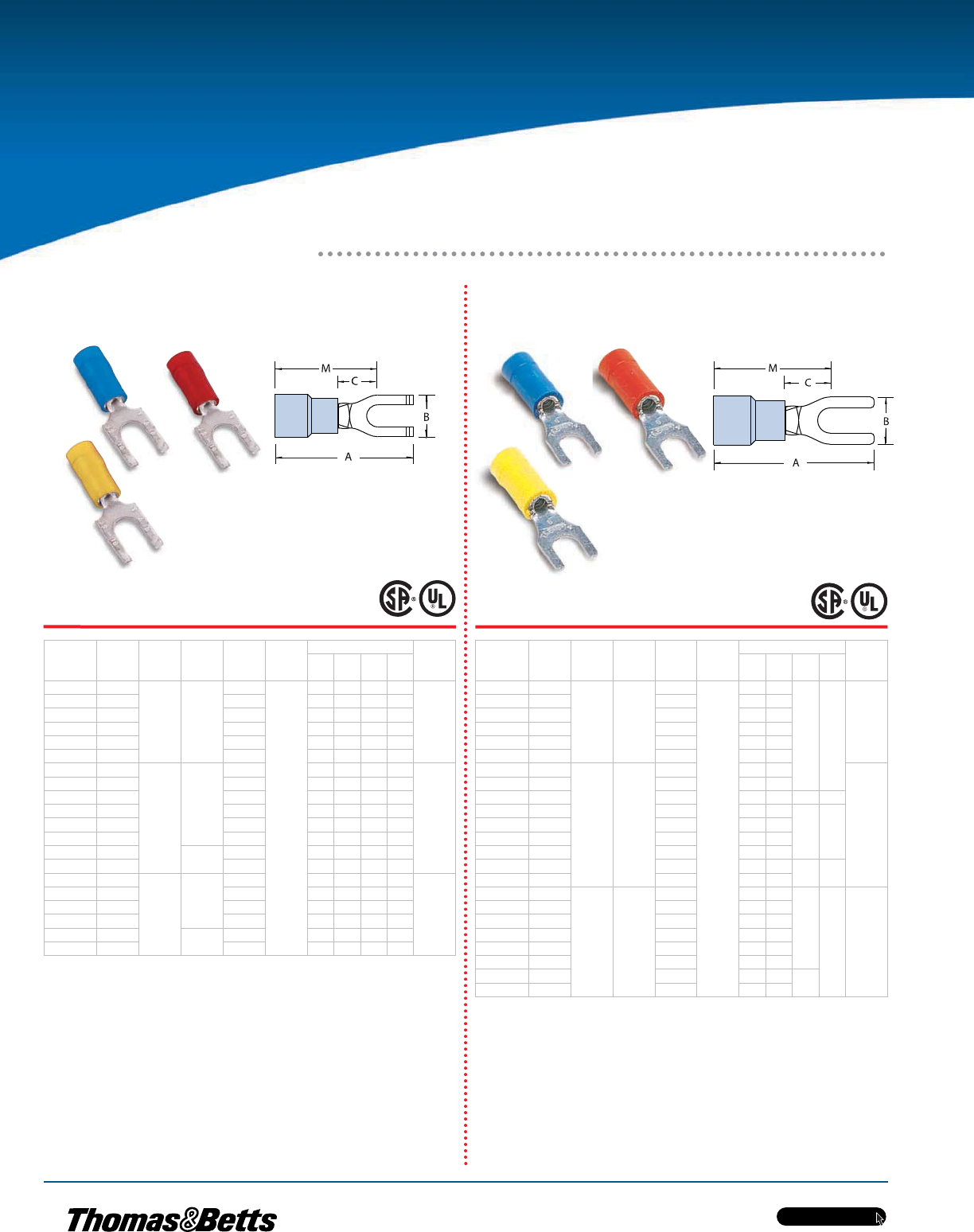

•Fork terminals enable easy installation because the mounting screw does not have to be completely removed
•Brazed-seam barrel is serrated for high pull-out value
•Terminal is high-conductivity electrolytic copper, electro-tin plated. Insulation is colour-coded
•Vinyl-insulated fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire’s flex point

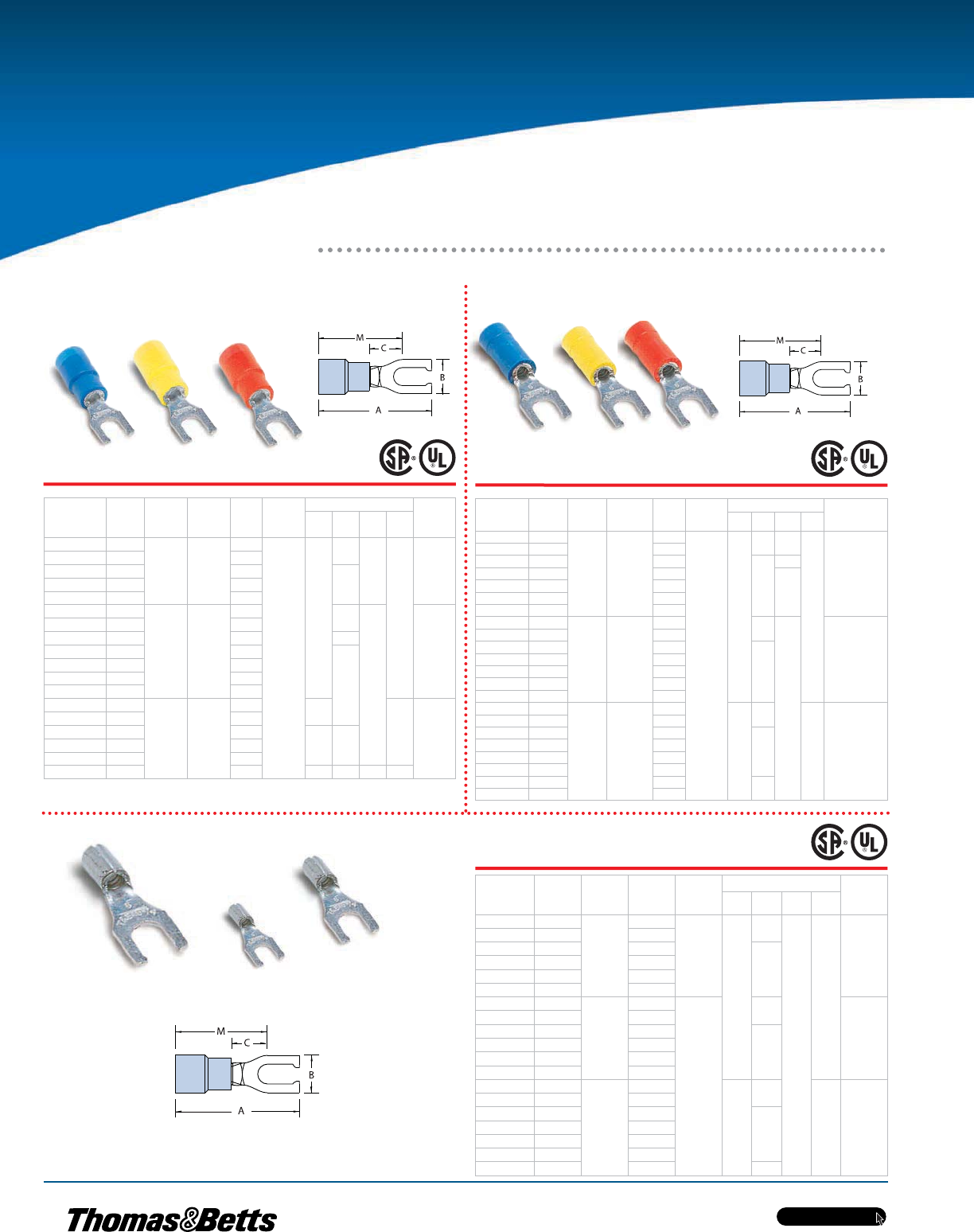

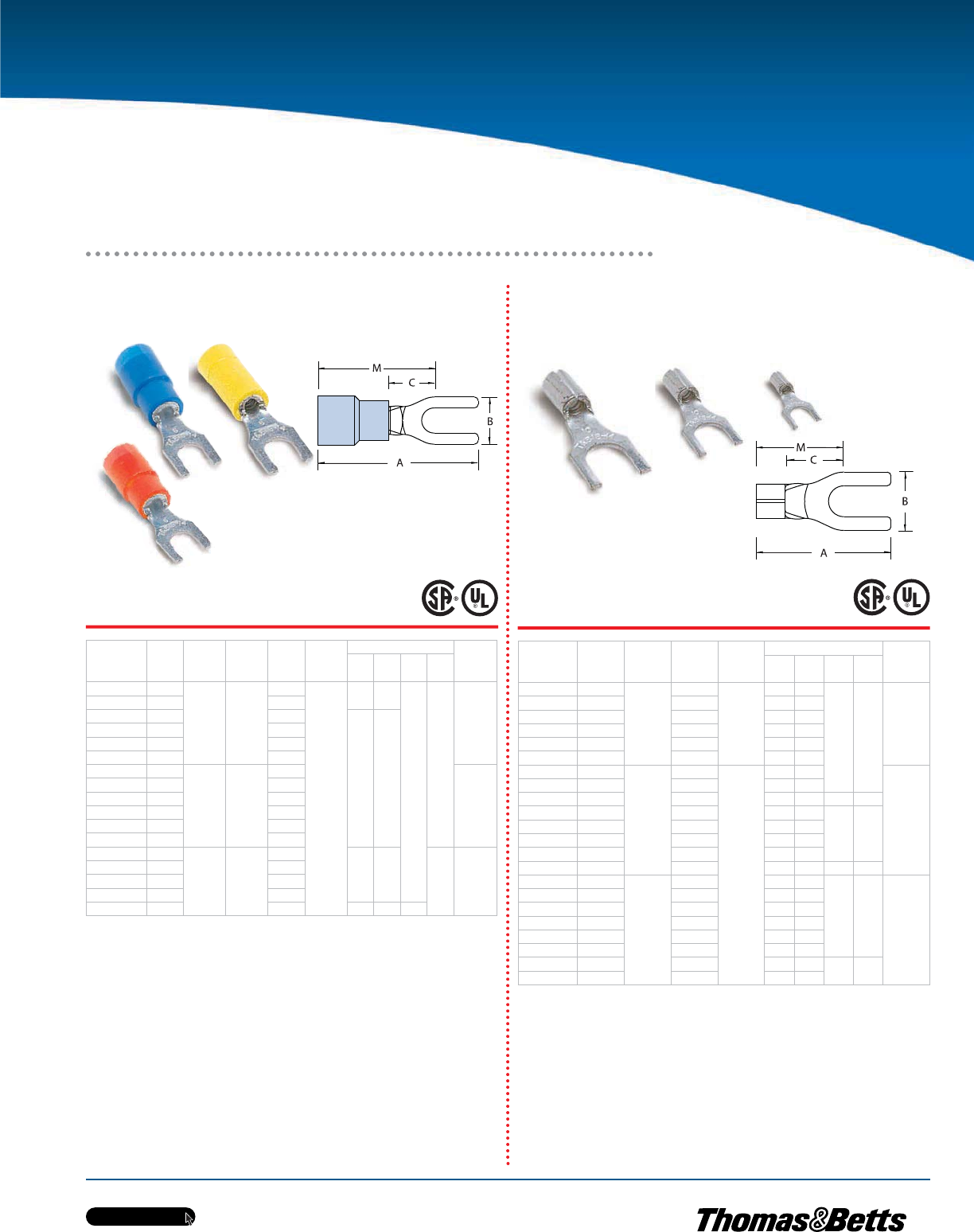

Nylon-Insulated Forks Nylon-Insulated Locking Forks
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RA18-6F 100
22–16 0.136
#6
ERG4001
0.83 0.25
0.25 0.71
0.02
RA1103 1,000 #6 0.83 0.25
RA18-8F 100 #8 0.86 0.31
RA1123 1,000 #8 0.86 0.31
RA18-10F 100 #10 0.86 0.31
RA1153 1,000 #10 0.86 0.31
RA18-14F 100 1⁄4 in. 0.95 0.44 0.31 0.70
RA1163 1,000 1⁄4 in. 0.95 0.44
RB14-6F 100
18–14
0.162
#6 0.87 0.31
0.25 0.71
0.03
RB1113 1,000 #6 0.87 0.31
RB14-8F 100 #8 0.87 0.31
RB1123 1,000 #8 0.87 0.31
RB14-10F 100 #10 0.87 0.38
RB1153 1,000 #10 0.87 0.38
RB14-14F 100 1⁄4 in. 0.95 0.44 0.28 0.74
RB1163 1,000 1⁄4 in. 0.95 0.44
RB1103 1,000 #6 0.74 0.28 0.16 0.60
RB1124 1,000 0.190 #8 0.95 0.31 0.25 0.79
RB1154 1,000 #10 0.95 0.31
RC10-6F 50
12–10
0.210
#6 0.97 0.31
0.27
0.81
0.04
RC1113 500 #6 0.97 0.31
RC10-8F 50 #8 1.00 0.37
RC1123 500 #8 1.00 0.37
RC10-10F 50 #10 1.00 0.37
RC1153 500 #10 1.00 0.37
RC10-14F 50 1⁄4 in. 1.12 0.50 0.86
RC1163 500 1⁄4 in. 1.12 0.50
RC1124 1,000 0.250 #8 1.10 0.37 0.91
RC1154 1,000 #10 1.10 0.37
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RA18-6FL 100
22–16 0.136
#6
ERG4001
0.86
0.25
0.25
0.71
0.02
RA2213 1,000 #6
RA18-8FL 100 #8
0.29
RA2243 1,000 #8
RA18-10FL 100 #10
RA2253 1,000 #10
RB14-6FL 100
18–14 0.162
#6 0.87 0.25
0.03
RB2213 1,000 #6
RB2214 1,000 #6 0.95 0.79
RB14-8FL 100 #8
0.87 0.29 0.71
RB2233 1,000 #8
RB14-10FL 100 #10
RB2253 1,000 #10
RB2254 1,000 0.190 #10 0.95
RC10-6FL 50
12–10
0.210 #6 0.97 0.31
0.27
0.81
0.04
RC2203 500 #6
RC2204 1,000 0.250 #6 1.07 0.91
RC10-8FL 50
0.210
#8 1.00
0.37 0.81
RC2213 500 #8 1.00
RC10-10FL 50 #10 1.00
RC2223 500 #10 1.00
RC2224 1,000 0.250 #10 1.10 0.91
RC10-14FL 50 0.210 1⁄4 in. 1.12 0.50 0.32 0.86
RC2233 500 1⁄4 in. 1.12
Add suffix “X” for wider wire entry to accommodate heavy wall insulation
Fork Terminals
Sta-Kon ®
www.tnb.ca
B18
Termination Products

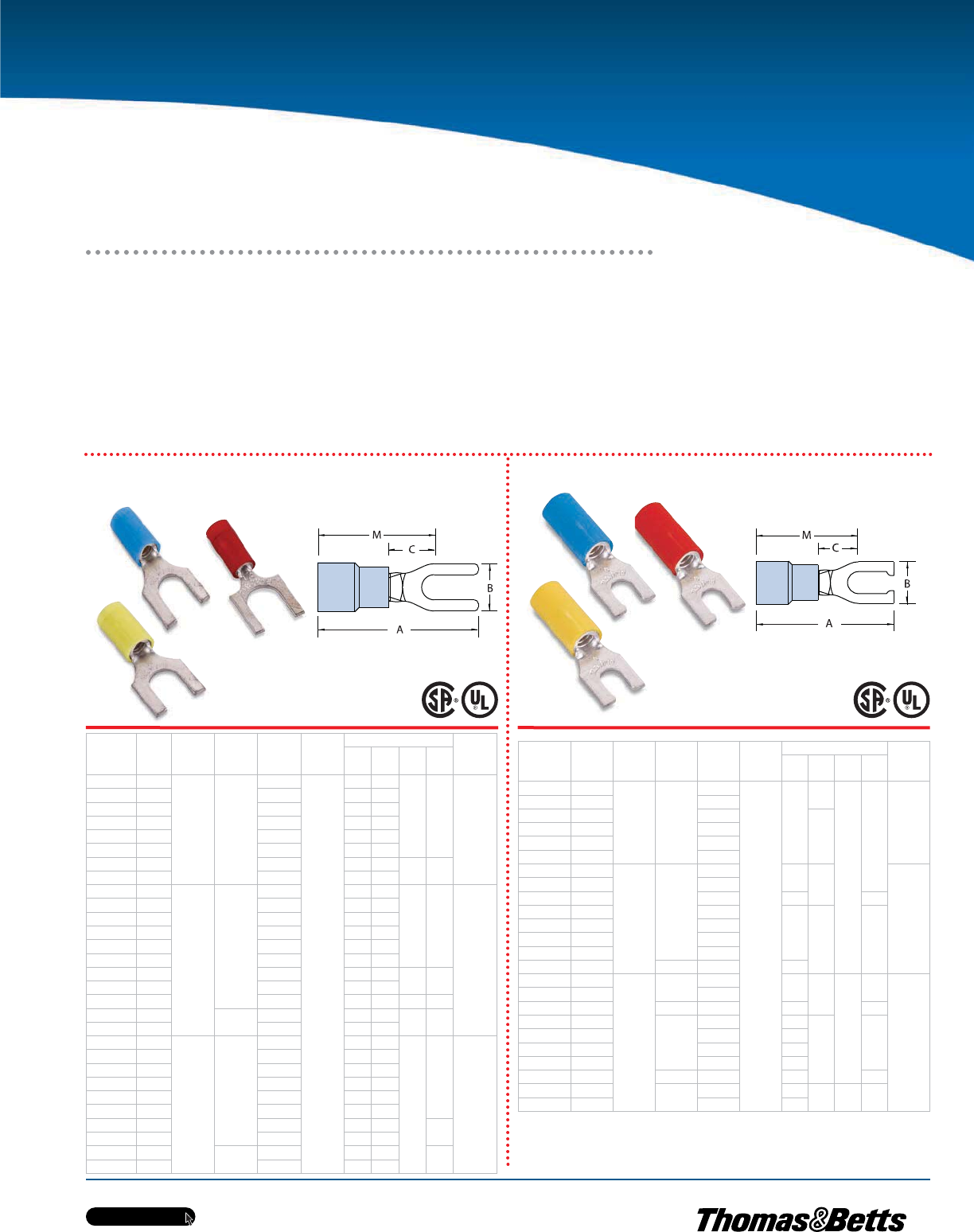

Nylon-Insulated Forks —
Flanged Tongue
Vinyl-Insulated Forks
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
18RA-6F 100
22–16 0.150
#6
ERG4001
0.94 0.25
0.27 0.81
0.02
RA1167 1,000 #6 0.94 0.25
18RA-8F 100 #8 0.97 0.31
RA1147 1,000 #8 0.97 0.31
18RA-10F 100 #10 0.97 0.31
RA1157 1,000 #10 0.97 0.31
14RB-6F 100
18–14 0.170
#6 0.97 0.31
0.03
RB647 1,000 #6 0.97 0.31
14RB-6FS 100 #6 0.89 0.30 0.25 0.75
14RB-8F 100 #8 0.97 0.31
0.27 0.81
RB657 1,000 #8 0.97 0.31
14RB-10F 100 #10 0.97 0.31
RB1157 1,000 #10 0.97 0.31
14RB-14F 100 1⁄4 in. 1.11 0.44 0.38 0.89
RB1717 1,000 1⁄4 in. 1.11 0.44
10RC-6F 50
12–10 0.210
#6 1.09 0.31
0.27
0.90 0.04
RC1337 500 #6 1.09 0.31
10RC-8F 50 #8 1.09 0.38
RC1147 500 #8 1.09 0.38
10RC-10F 50 #10 1.09 0.38
RC1157 500 #10 1.09 0.38
10RC-14F 50 1⁄4 in. 1.15 0.50 0.37
RC1167 500 1⁄4 in. 1.15 0.50
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RA18-6FS 100
22–16 0.136
#6
ERG4001
0.75 0.28 0.16 0.62
0.02
RA1203 1,000 #6 0.75 0.28 0.16 0.62
RA18-8FS 100 #8 0.89 0.31 0.23 0.65
RA1223 1,000 #8 0.89 0.31 0.23 0.65
RA18-10FS 100 #10 0.93 0.38 0.26 0.68
RA1253 1,000 #10 0.93 0.38 0.26 0.68
RB14-6FS 100
18–14
0.162
#6 0.74 0.28 0.16 0.60
0.03
RB1203 1,000 #6 0.74 0.28 0.16 0.60
RB14-8FS 100 #8 0.89 0.31 0.23 0.66
RB1223 1,000 #8 0.89 0.31 0.23 0.66
RB14-10FS 100 #10 0.94 0.38 0.27 0.69
RB1253 1,000 #10 0.94 0.38 0.27 0.69
RB1204 1,000 0.190 #6 0.79 0.28 0.16 0.67
RB1224 1,000 #8 0.94 0.31 0.23 0.71
RC10-8FS 50
12–10
0.210
#8 0.97 0.34 0.23 0.73
0.04
RC1223 500 #8 0.97 0.34 0.23 0.73
RC10-10FS 50 #10 1.00 0.38 0.26 0.74
RC1253 500 #10 1.00 0.38 0.26 0.74
RC1224 1,000 0.250 #8 1.08 0.34 0.23 0.80
RC1254 1,000 #10 1.12 0.38 0.26 0.86
Fork Terminals
Sta-Kon ®
www.tnb.ca B19
Termination Products
Vinyl-Insulated Forks —
Expanded Insulation
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
18RA-6FX 100
22–16 0.170
#6
ERG4001
0.94 0.25
0.27
0.81
0.02
RA1167-170 1,000 #6
18RA-8FX 100 #8
0.97 0.31
RA1147-170 1,000 #8
18RA-10FX 100 #10
RA1157-170 1,000 #10
14RB-6FX 100
18–14 0.200
#6
0.03
RB647-200 1,000 #6
14RB-8FX 100 #8
RB657-200 1,000 #8
14RB-10FX 100 #10
RB1157-200 1,000 #10
10RC-8FX 50
12–10 0.250
#8
1.11 0.38 0.90 0.04
RC1147-250 500 #8
10RC-10FX 50 #10
RC1157-250 500 #10
10RC-14FX 50 1⁄4 in. 1.17 .50 .37
Fork Terminals
Sta-Kon ®
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
A18-6F 100
22–16
#6
ERG4002
0.72 0.25
0.27 0.59
0.02
A116 1,000 #6 0.72 0.25
A18-8F 100 #8 0.75 0.31
A114 1,000 #8 0.75 0.31
A18-10F 100 #10 0.75 0.31
A115-TB 1,000 #10 0.75 0.31
B14-6F 100
18–14
#6
ERG4002
ERG4005
0.75 0.31
0.03
B64 1,000 #6 0.75 0.31
B19 1,000 #6 0.66 0.25 0.13 0.50
B14-8F 100 #8 0.75 0.31
0.27 0.59
B65-TB 1,000 #8 0.75 0.31
B14-10F 100 #10 0.75 0.31
B115 1,000 #10 0.75 0.31
B14-14F 100 1⁄4 in. 0.90 0.44 0.38 0.68
C10-6F 50
12–10
#6 0.77 0.31
0.27 0.63
0.04
C133 500 #6 0.77 0.31
C10-8F 50 #8 0.82 0.38
C114 500 #8 0.82 0.38
C10-10F 50 #10 0.82 0.38
C115 500 #10 0.82 0.38
C10-14F 50 1⁄4 in. 0.98 0.50 0.37 0.73
C116-TB 500 1⁄4 in. 0.98 0.50
Non-Insulated Locking
Fork Terminals
www.tnb.ca
B20
Termination Products
Vinyl-Insulated Locking Forks —
Expanded Insulation
Non-Insulated Locking
Fork Terminals
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
18RA-6FLX 100
22–16 0.170
#6
ERG4001
0.97
0.25
0.25
0.81
0.02
RA2217-170 1,000 #6
18RA-8FLX 100 #8
0.2918RA-10FLX 100 #10
RA2257-170 1,000 #10
14RB-6FLX 100
18–14 0.200
#6 0.31
0.27
0.03
RB2207-200 1,000 #6
RB2217-200 1,000 #6 0.29
14RB-8FLX 100 #8
0.31
RB2237-200 1,000 #8
14RB-10FLX 100 #10
RB2257-200 1,000 #10
10RC-6FLX 50
12–10 0.250
#6 1.07
0.91 0.04
RC2207-250 500 #6
10RC-8FLX 50 #8
1.10 0.3710RC-10FLX 50 #10
RC2227-250 500 #10
10RC-14FLX 50 1⁄4 in. 1.22 0.50 0.32 0.96
Cat. No. Pkg.
Qty.
Wire
Range
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
A18-6FL 100
22–16
#6
ERG4002
0.75
0.25
0.27
0.59
0.02
A221 1,000 #6
A18-8FL 100 #8
0.29
A224 1,000 #8
A18-10FL 100 #10
A225 1,000 #10
B14-6FL 100
18–14
#6
ERG4002
ERG4005
0.25
0.03
B220 1,000 #6
B14-8FL 100 #8
0.29
B223 1,000 #8
B14-10FL 100 #10
B225 1,000 #10
C10-6FL 50
12–10
#6
0.85
0.31
0.66 0.04
C220-TB 500 #6
C10-8FL 50 #8
0.37
C221 500 #8
C10-10FL 50 #10
C222-TB 500 #10
C10-14FL 50 1⁄4 in. 0.49
Fork Terminals
Sta-Kon ®
Vinyl–Insulated Locking Forks
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick. (in.)
A B C M
18RA-6FL 100
22–16 0.150
#6
ERG4001
0.97
0.25 0.25
0.81
0.02
RA2217 1,000 #6
RA2227 1,000 #6
0.29
—
18RA-8FL 100 #8
0.25
RA2247 1,000 #8
18RA-10FL 100 #10
RA2257 1,000 #10
14RB-6FL 100
18–14 0.170
#6 0.25
0.27
0.03
RB2207 1,000 #6
RB2217 1,000 #6
0.29
14RB-8FL 100 #8
RB2237 1,000 #8
14RB-10FL 100 #10
RB2257 1,000 #10
10RC-6FL 50
12–10 0.220
#6
1.09
0.31
0.90 0.04
RC2207 500 #6
10RC-8FL 50 #8
0.37
RC2217 500 #8
10RC-10FL 50 #10
RC2227 500 #10
10RC-14FL 50 1⁄4 in. 0.49
RC2237 500 1⁄4 in.
www.tnb.ca B21
Termination Products

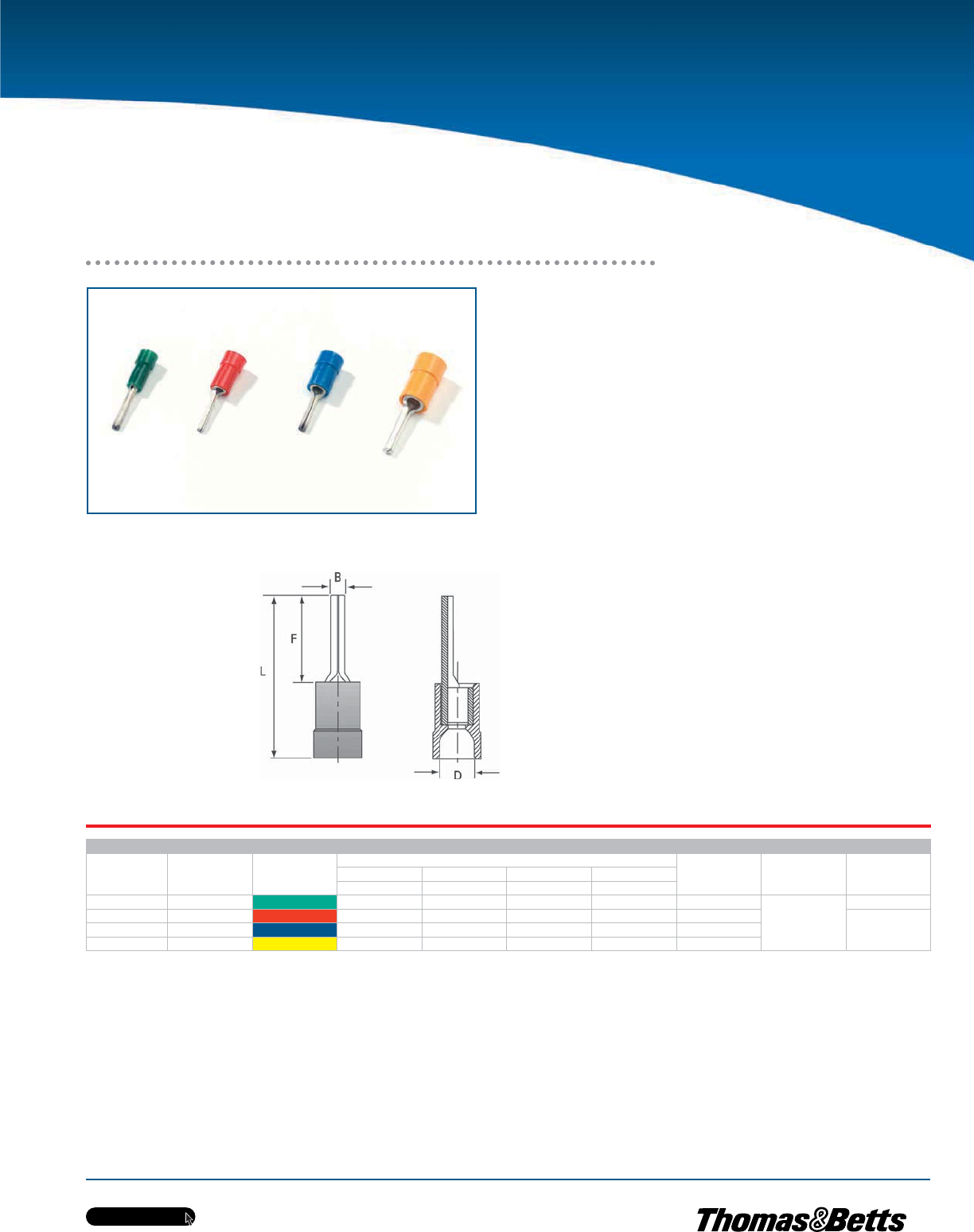

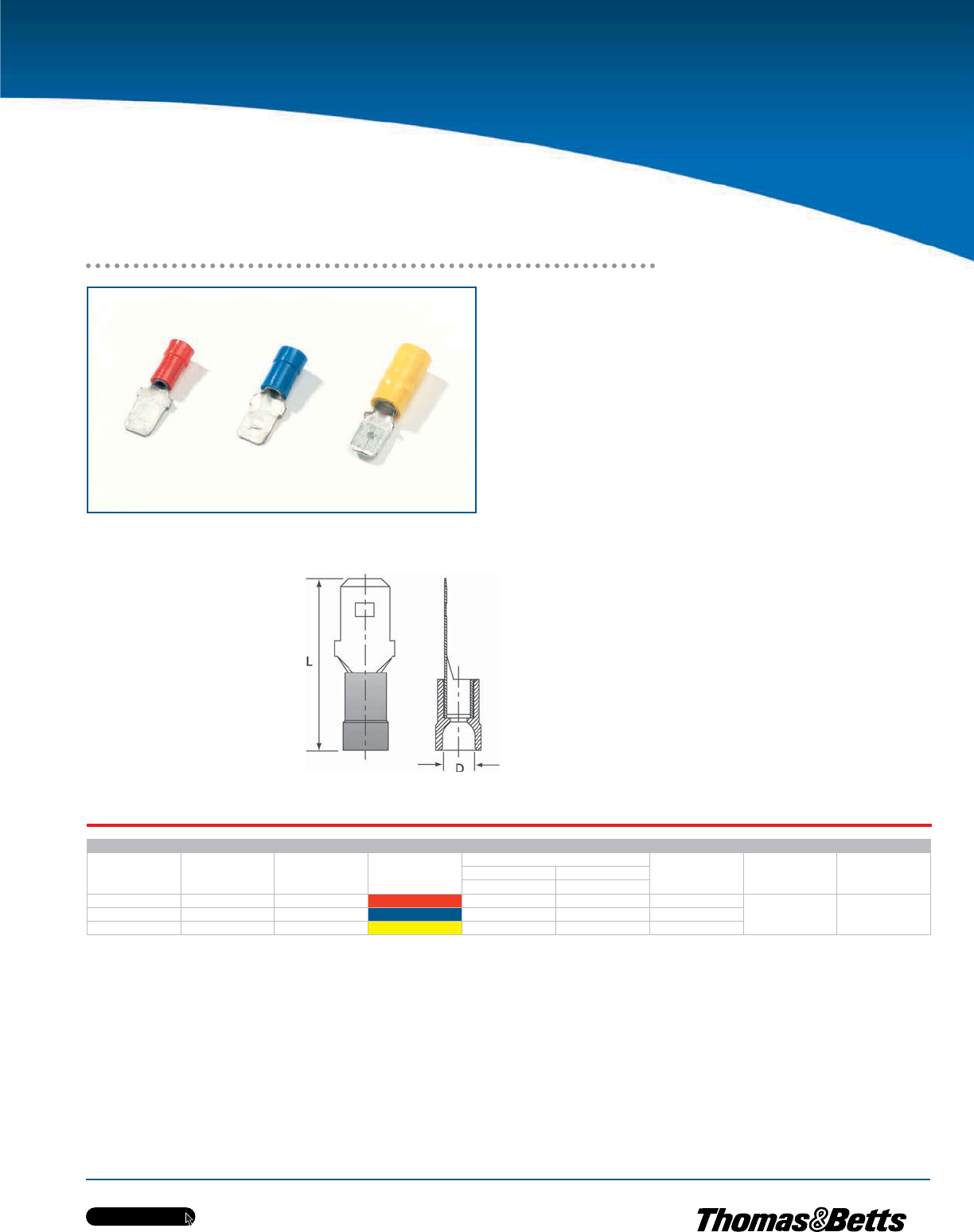

Pin Terminals
Non-Insulated Pin Terminal
Cat. No. Pkg. Qty. Wire Range D
(Dia.) (in.) LRec.
Tool
Stock Thick.
(in.)
Non-Insulated
A47PT 1,000 22–18 0.075 0.63
ERG4002
0.02
0.03
0.04
B47PT 1,000 16–14 0.075 0.63
C55PT 500 12–10 0.106 0.76
Vinyl
18RA-47PT 100 22–18 0.075 0.85
ERG4001
0.02
RA47PT 1,000 22–18 0.075 0.85
14RB-47PT 100 16–14 0.075 0.87 0.03
RB47PT 1,000 16–14 0.075 0.87
10RC-55PT 50 12–10 0.106 1.04 0.04
RC55PT 500 12–10 0.106 1.04
Nylon
RA18-47PT 100 22–18 0.075 0.85
ERG4001
0.02
RA147PT 1,000 22–18 0.075 0.85
RB14-47PT 100 16–14 0.075 0.87 0.03
RB147PT 1,000 16–14 0.075 0.87
RC10-55PT 50 12–10 0.106 1.04 0.04
RC155PT 500 12–10 0.106 1.04
•Provide an easy and effective way to terminate stranded wire into
European/metric style terminal blocks
•Designed to prevent shorting, wire strand loss and/or wire pullout
resulting from improper termination of stranded wire
•Designed to meet emerging global standards which require
wire-to-metric style terminal block installations be terminated with
a “pin” style terminal
•Available in vinyl insulated, nylon insulated, and non-insulated styles
•All styles offered in 22 AWG to 10 AWG and compatible with existing
Sta-Kon®tooling
Pin Terminals
Sta-Kon ®
Insulated Pin Terminal
Butt Splices
www.tnb.ca
B22
Termination Products

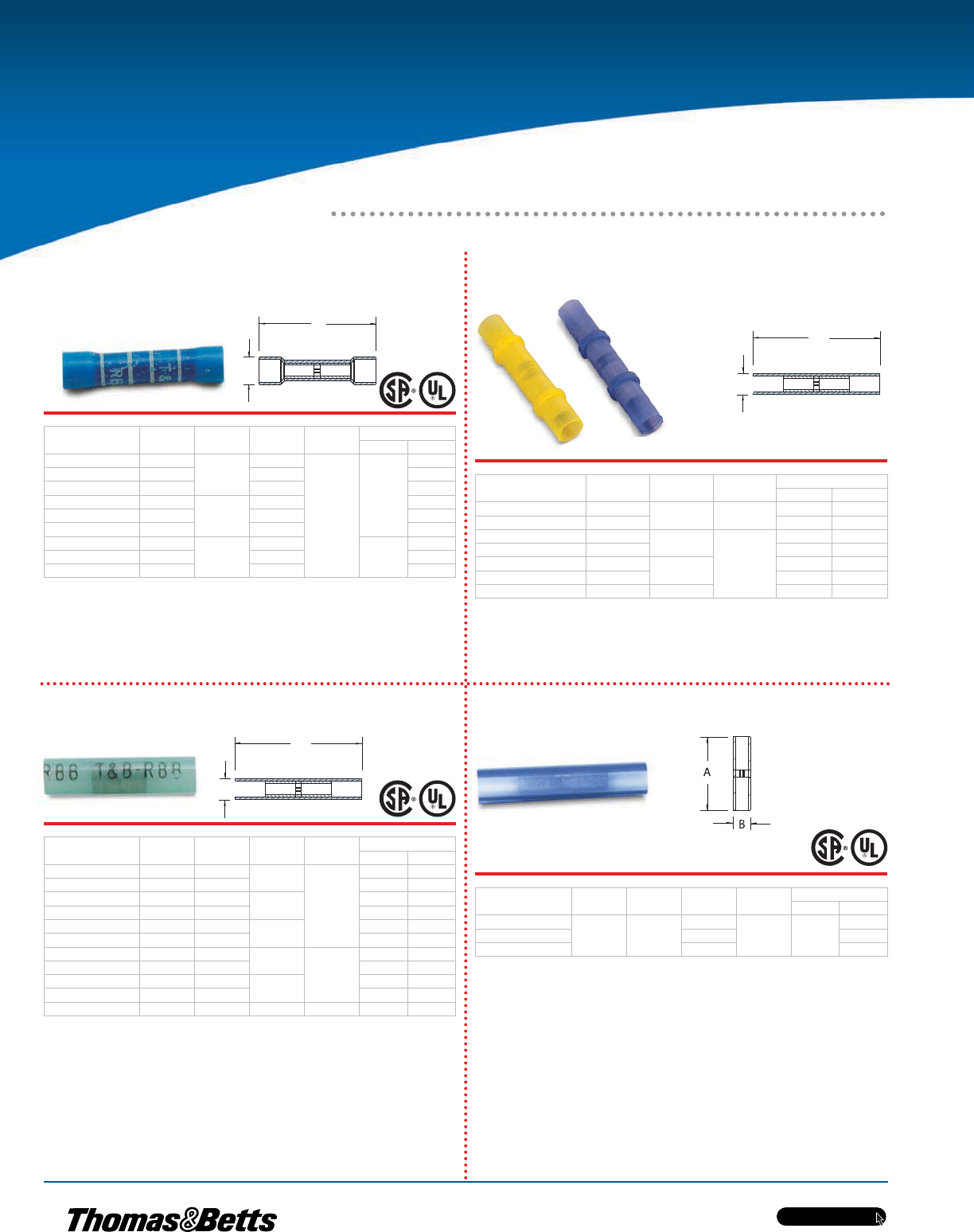

Vinyl-Insulated Butt Splices —
Expanded Insulation
Nylon-Insulated Aircraft Splices
Nylon-Insulated Butt Splices Tefzel®Insulated Butt Splices
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Rec.
Tool
Dimensions (in.)
A B
2RA18X 100
22–18
0.170
ERG4001
1.13
0.25
RAA217-170 1,000 0.170 0.25
RAA217 1,000 0.150 0.23
2RB14X 100
16–14
0.200 0.26
RBB217-200 1,000 0.200 0.26
RBB217 1,000 0.170 0.24
2RC10X 50
12–10
0.250
1.31
0.31
RCC217-250 500 0.250 0.31
RCC217 1,000 0.210 0.28
Cat. No. Pkg.
Qty.
Wire
Range
Rec.
Tool
Dimensions (in.)
A B
2RZZ 50 26–22 ERG4006 1.22 0.15
RZZ23 500 1.22 0.15
2RAA 50 22–18
ERG4001
1.52 0.25
RAA23 500 1.52 0.25
2RBB 50 16–14 1.52 0.28
RBB23 500 1.52 0.28
2RCC 25 12–10 1.54 0.35
Cat. No. Pkg.
Qty.
Max Ins.
(in.)
Wire
Range
Rec.
Tool
Dimensions (in.)
A B
2RA18 100 0.115 22–18
ERG4001
1.19 0.18
RAA21 1,000 0.115 1.19 0.18
2RB14 100 0.148 16–14 1.19 0.21
RBB21 1,000 0.148 1.19 0.21
2RC10 50 0.210 12–10 1.26 0.28
RCC21 500 0.210 1.26 0.28
2RD8 25 0.340 8ERG4007
TBM6S
1.69 0.36
RDD27 200 0.340 1.69 0.36
2RE6 20 0.420 61.85 0.45
REE28 200 0.420 1.85 0.45
2RF4 15 0.510 4 TBM6S 1.85 0.52
Cat. No. Pkg.
Qty.
Max Ins.
(in.)
Wire
Range
Rec.
Tool
Dimensions (in.)
A B
RAAT21
1,000 1.22
22–18
WT145C 1.22
0.115
RBBT21 16–14 0.148
RCCT21 12–10 0.210
Note: RCC217 is not expanded
B
A
B
A
Tefzel®is a registered trademark of DuPont
B
A
Sta-Kon ®
www.tnb.ca B23
Termination Products

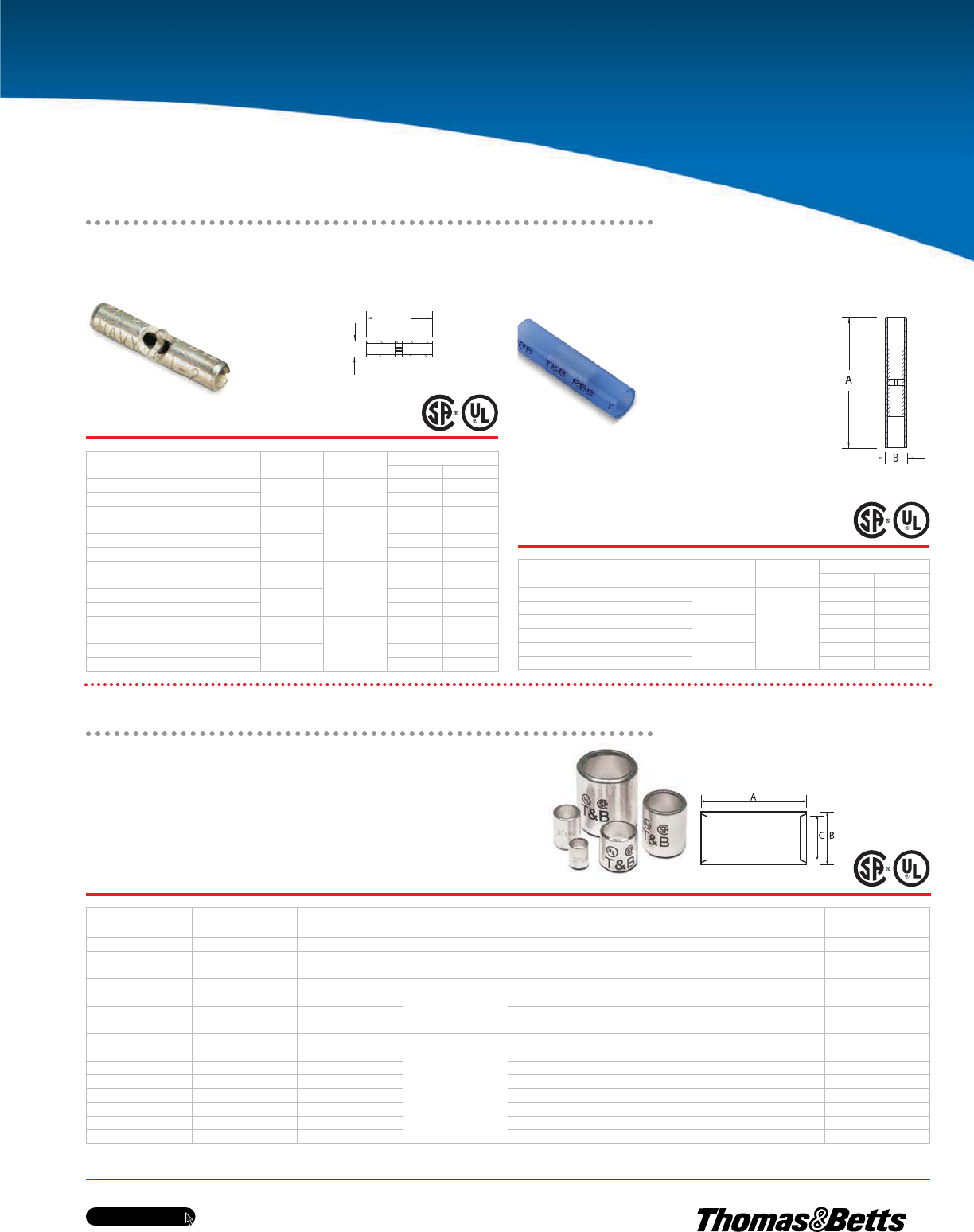

Non-Insulated Butt Splices Nylon-Insulated Butt Splices
The total combined cross sectional area of all wires must be within the circular mil area range. Rated at 150°C.
Cat. No. Pkg.
Qty.
Wire
Range
Rec.
Tool
Dimensions (in.)
A B
2A-18 100 22–18 ERG4002 0.62 0.12
AA2 1,000 0.62 0.12
2B-14 100 16–14 ERG4002
ERG4005
0.62 0.16
BB2 1,000 0.62 0.16
2C-10 50 12–10 0.72 0.22
CC2-TB 500 0.72 0.22
2D-8 25 9–8–7 ERG4005
TBM6S
1.03 0.28
DD102 200 1.03 0.28
2E-6 20 6–5 1.12 0.37
EE2 200 1.12 0.37
2F-4 15 4–3
TBM6S
1.25 0.44
FF2 200 1.25 0.44
2G21 52–1 1.72 0.55
GG2 25 1.72 0.55
Cat. No. Pkg.
Qty.
Wire
Range
Rec.
Tool
Dimensions (in.)
A B
2A20 100 22–20
ERG4001
0.84 0.20
RAA24 1,000 0.84 0.20
2B-16 100 18–16 0.84 0.23
RBB25 1,000 0.84 0.23
2C-12 50 14–12 0.90 0.28
RCC26 500 0.90 0.28
B
A
Cat. No. Wire
Range
CIR. Mil
Range
Rec.
Tool
Length / A
(in.)
O.D. / B
(in.)
I.D. / C
(in.)
Pkg.
Qty.
A18-PS-M 22–16 AWG 509–3,260 ERG4002 0.314 0.129 0.086 1,000
B14-PS-M 16–14 AWG 2,050–5,180 ERG4002
ERG4005
0.315 0.155 0.113 1,000
C10-PS-D 12–10 AWG 5,180–13,100 0.380 0.220 0.170 500
D8-PS-D 8 AWG 13,100–20,800 ERG4005 0.375 0.260 0.180 500
E6-PS-D 6 AWG 20,800–33,100
WT115A
0.500 0.365 0.266 500
F4-PS-W 4 AWG 33,100–52,600 0.531 0.410 0.302 250
G2-PS-W 2 AWG 52,600–83,700 0.640 0.521 0.396 250
H1/0-PS-C 1/0 AWG 83,700–119,500
TBM8-750M-1
0.750 0.571 0.446 100
J2/0-PS-C 2/0 AWG 119,500–150,500 0.750 0.632 0.507 100
K3/0-PS-L 3/0 AWG 150,500–190,000 0.750 0.701 0.564 50
L4/0-PS-L 4/0 AWG 190,000–231,100 0.770 0.766 0.629 50
M250-PS-Q 250 kcmil 231,100–300,000 1.063 0.926 0.749 25
N300-PS-X 300 kcmil 300,000–380,000 1.125 1.100 0.882 10
P400-PS-X 400 kcmil 380,000–478,000 1.250 1.200 0.956 10
R500-PS-V 500 kcmil 478,000–600,000 1.438 1.330 1.060 5
Butt Splices
Parallel Splices
•Wires are laid side by side in the connector, and the connection
is made in one crimp
•Offer advantages in simplicity of installation and small size
•One crimp completes the splice
Sta-Kon ®

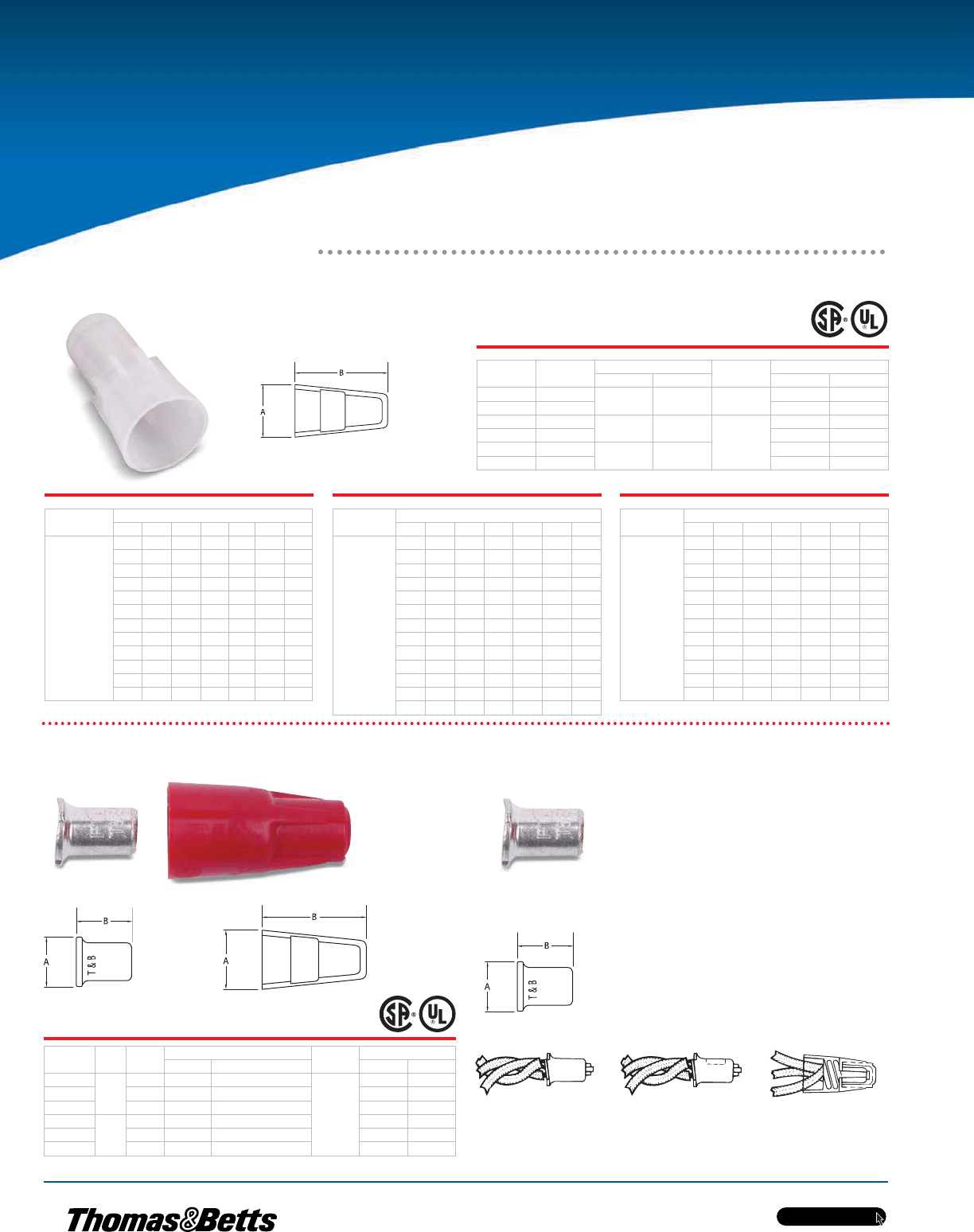

Crimp-On Wire Joints, One-Piece Nylon
Self-Insulated
www.tnb.ca
B24
Termination Products
PT Series Crimp-On Wire Joints
Installation Procedure for “PT” Connectors
Twist wires, insert throug
serrated barrel of wire joint.
(PT60M, PT70, PT70M, PT80.)
Crimp and trim off excess wire
with WT161M hand tool.
Screw PT6M insulator firmly
onto PT160M barrel.
Cat. No. Pkg.
Qty.
Wire Range Rec.
Tool
Dimensions (in.)
Min. Max. A B
RB44 100 2#18 2#16 WT2000 0.31 0.78
RB4-TB 1,000 0.31 0.78
RC55 50 4#18 2#12
WT2130A
0.43 0.95
RC6 500 0.43 3
RP12 100 3#14 4#12 0.53 1.00
RP7 1,000 0.53 1.00
Cat. No. Allowable Wire Combinations
#22 #20 #18 #16 #14 #12 #10
RB4-TB/RB44
2–3
1–2 2
3
3
3 1
2 3
1–2 2
2 1
3 1
1 2
2 1
1 2
Cat. No. Allowable Wire Combinations
#22 #20 #18 #16 #14 #12 #10
RC6/RC55
1–4 1
1–3 1
1–2 1
2
3–5 1
2–4 1
3
1–4 2
1–3 2
1–3 3
1 3
2–5
4–6
Cat. No. Allowable Wire Combinations
#22 #20 #18 #16 #14 #12 #10
RP7/RP12
2
1 1
1 1
2–4
2–4 1
1–3 2
1 3
3–6
1 2–3
2 1–2
3 1–2
4 1
Two-Piece Barrel
Nylon insulator
Non Insulated
Barrel
Cat. No. Fig. Pkg.
Qty.
Wire Range Rec.
Tool
Dimensions (in.)
Min. Max. A B
PT66M
1
100 2#18 3#12 combination
WT161M
0.50 0.93
PT6M 100 — Insulator only 0.50 0.93
PT60M 100 2#14 3#12 connector only 0.31 0.37
PT70
2
200 2#14 3#12 0.29 0.34
PT70M 200 3#18 4#12 0.31 0.37
PT80 50 2#16 4#10 0.35 0.62
90°C rated
Fig. 1 Fig. 2
Wire Joints
Sta-Kon ®
High-Temperature Wire Joints
www.tnb.ca B25
Termination Products
•Rated for temperatures up to 150°C (302°F), 600V maximum
•Molded, one-piece nylon construction for electrical insulation,
UL94-V2
•Brazed copper sleeve prevents separation of connection during
crimping
•Internal serrations enable cold flow for increased conductivity and
pull-out strength
Wire Joints UL Listed Combinations
Cat. No. Pkg.
Qty.
Wire Range Rec.
Tool
Dimensions (in.)
Min. Max. A B
RB4-HT 1,000 2#18 2#16 WT2000 0.36 0.82
RB44-HT 100 2#18 2#16 WT2000 0.36 0.82
RC6-HT 500 3#16 3#14 ERG4001, WT2130A 0.48 0.95
RC551-HT 100 3#16 3#14 ERG4001, WT2130A 0.48 0.95
RP7-HT 500 3#14 3#12 ERG4007, WT2130A 0.53 1.00
RP12-HT 100 3#14 3#12 ERG4007, WT2130A 0.53 1.00
Cat. No. solid or stranded AWG
RB4-TB, RB44, RB4-10M
(2) or (3) #18
(2) #16
(1) #16 and (1) or (2) #18
(3) #22
(3) #20
(3) #22 and (1) #18
(2) #22 and (3) #20
(1) or (2) #22 and (2) #18
(2) #22 and (1) #16
(3) #20 and (1) #18
(2) #20 and (1) #22
(2) #20 and (1) #16
(1) #20 and (2) #18
RC6, RC6-5M, RC55
(1) #14 with (2), (3) or (4) #16
(1) #14 with (3), (4) or (5) #18
(2) #14 with (1), (2), (3) or (4) #18
(2) #14 with (1), (2) or (3) #16
(3) #14
(4) to (7) #18
(3) #14 with (1) or (2) #18
(3) #14 with (1) #16
(1) #12 with (1), (2), (3) or (4) #18
(1) #12 with (1), (2) or (3) #16
(1) #12 with (1) or (2) #14
(5) #16
Cat. No. solid or stranded AWG
RP7, RP-12
(2) to (4) #12 AWG
(3) to (6) #14 AWG
(3) #12 and (1) #14
(2) #12 and (1) #14
(2) #12 and (2) #14
(2) #12 and (3) #14
(1) #12 and (2) #14
(1) #12 and (3) #14
(1) #12 and (4) #14
(2) #10
(1) #10 and (1) #12
(1) #10 and (1) #14
(1) #8 Str. and (1) #16
(1) #10 and (1) #16
(1) #12 and (1) #16
Wire Joints
Sta-Kon ®

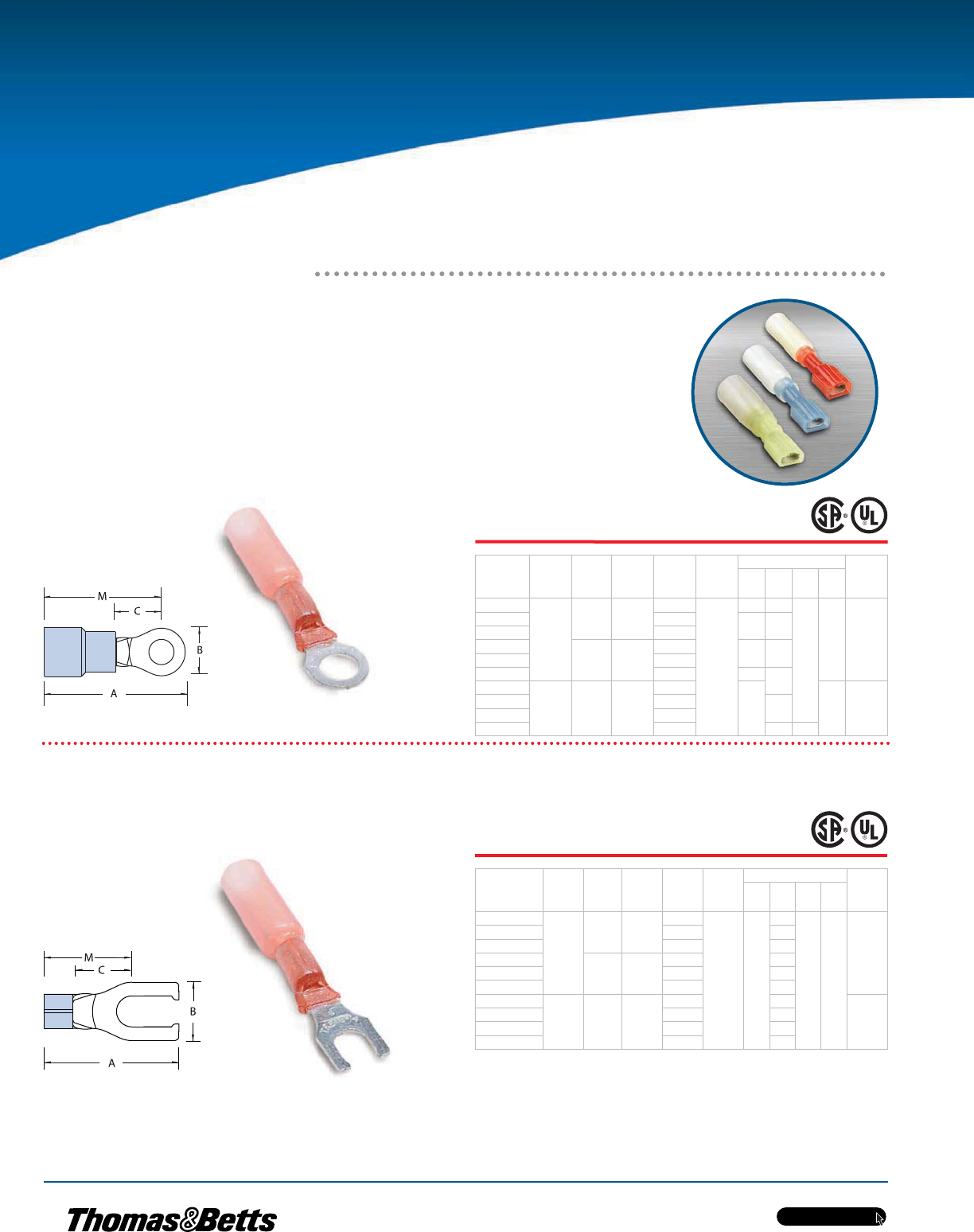

Heat-Shrinkable Terminals, Splices and
Disconnects
www.tnb.ca
B26
Termination Products
•These ring terminals, butt splices and
disconnects are self-insulated with
heat-shrinkable polyolefin and internally
coated sealant
•Upon completed installation, a fully sealed
connection is achieved to protect the joint
against the degrading effects of galvanic
action, corrosion and environmental exposure
Note: Not approved for outdoor use
Heat-Shrinkable Ring Terminals
Heat-Shrinkable Locking Fork Terminals
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RAS18-6X
100
22–18 0.170
#6
ERG4255
1.23 0.25
0.27
1.10 0.03
RAS18-8X #8 1.26 0.31
RAS18-10X #10
RBS14-6X
16–14 0.200
#6 1.23 0.25
RBS14-8X #8
RBS14-10X #10 1.26 0.31
RCS10-6X
50 12–10 0.250
#6
1.34 1.15 0.04
RCS10-8X #8 0.37
RCS10-10X #10
RCS10-14X 1⁄4 in. 0.49 0.32
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins.
(in.)
Bolt
Hole
Rec.
Tool
Dimensions (in.) Stock
Thick.
(in.)
A B C M
RAS18-6FLX
100
22–18 0.170
#6
ERG4255 1.350
0.25
— —
0.03
RAS18-8FLX #8 0.29
RAS18-10FLX #10 0.29
RBS14-6FLX
16–14 0.200
#6 0.25
RBS14-8FLX #8 0.29
RBS14-10FLX #10 0.29
RCS10-6FLX
50 12–10 0.250
#6 0.31
0.04
RCS10-8FLX #8 0.37
RCS10-10FLX #10 0.37
RCS10-14FLX 1⁄4 in. 0.49
Sta-Kon ®

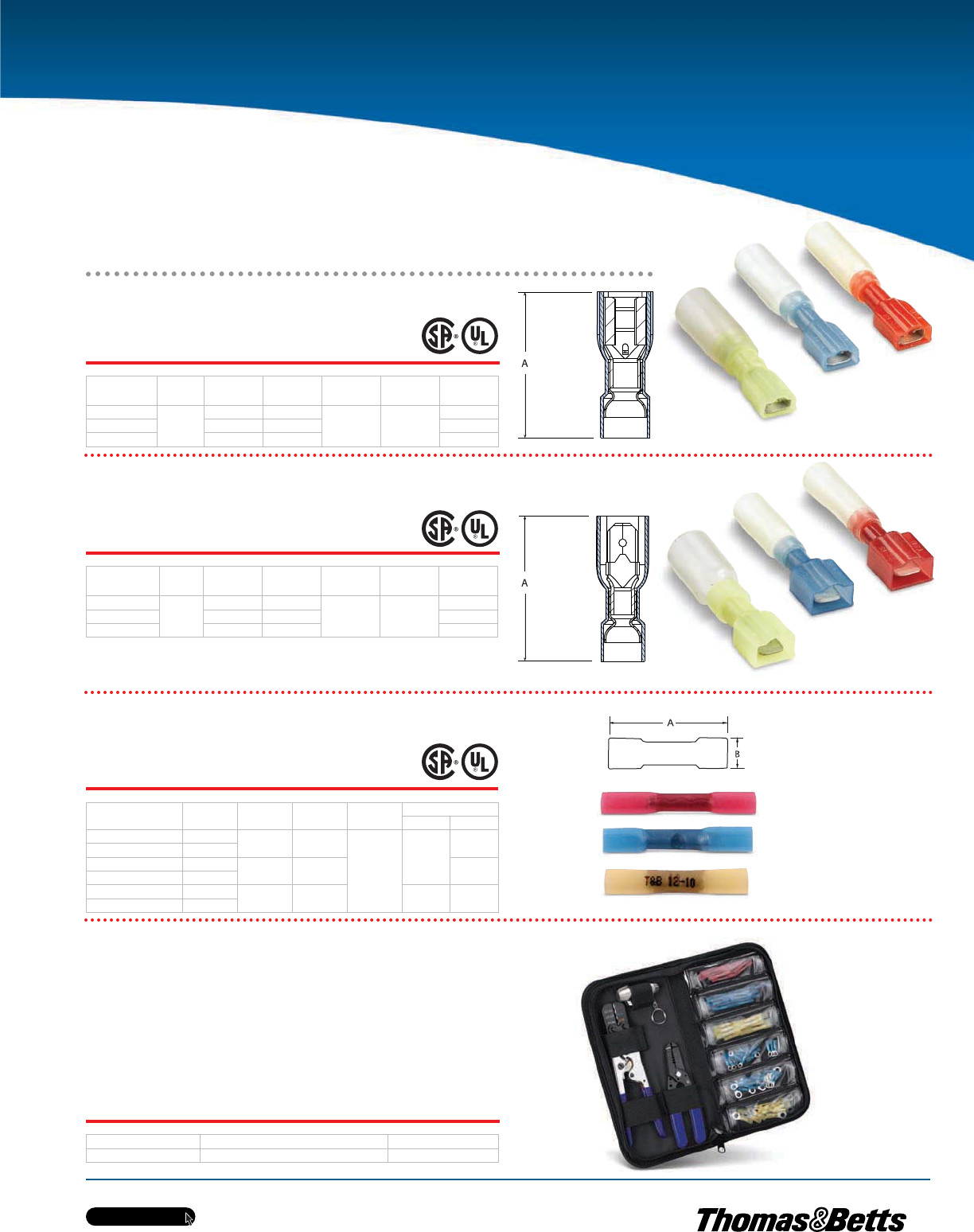

Heat-Shrinkable Fully
Insulated Female Disconnects
www.tnb.ca B27
Termination Products
Heat-Shrinkable Fully Insulated Male Tabs
Heat-Shrinkable Butt Splices
Heat-Shrink Terminal Kit with Tools
Everything you need to make fully sealed connections in one handy kit
•Tools: (1) butane torch; (1) wire stripper; (1) ratchet crimp tool
•Butt Splices: (20) #22–#18 AWG; (20) #16–#14 AWG; (15) #12–#10 AWG
•Ring Terminals: (20) #16–#14 AWG #10 stud;
(2) #16–#14 AWG #8 stud; (15) #12–#10 AWG 1⁄4 in. stud
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Tab
Size (in.)
Rec.
Tool
A
(in.)
RAS18-250AX
25
22–18 0.170
0.250 x 0.032 ERG4255
1.82
RBS14-250AX 16–14 0.200 1.77
RCS10-250AX 12–10 0.250 1.80
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Tab
Size (in.)
Rec.
Tool A (in.)
18RAS-251TX
25
22–18 0.170
0.250 x 0.032 ERG4255
1.80
14RBS-251TX 16–14 0.200 1.75
10RCS-251TX 12–10 0.250 1.80
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Rec.
Tool
Dimensions (in.)
A B
2RAS18X 50 22–18 0.170
ERG4255
1.50
0.25
RAAS22X 500
2RBS14X 50 16–14 0.200 0.26
RBBS22X 500
2RCS10X 25 12–10 0.250 1.60 0.31
RCCS22X 250
Cat. No. Description Std. Pkg. Qty.
STAPOUCH-HS Heat-Shrink Terminal Kit with Tools 1
Heat-Shrinkable Terminals, Splices and
Disconnects
Sta-Kon ®
w w w . t n b . c a
B28
Termination Products
•Internal barrel serrations and
long barrel provide for
maximum tensile strength
•Complete line of installing
tools, engineered to match
tool with terminal
•Funnel-entry insulators
enable easier inserting of
wire into barrel
•Colour-coded for
easy installation

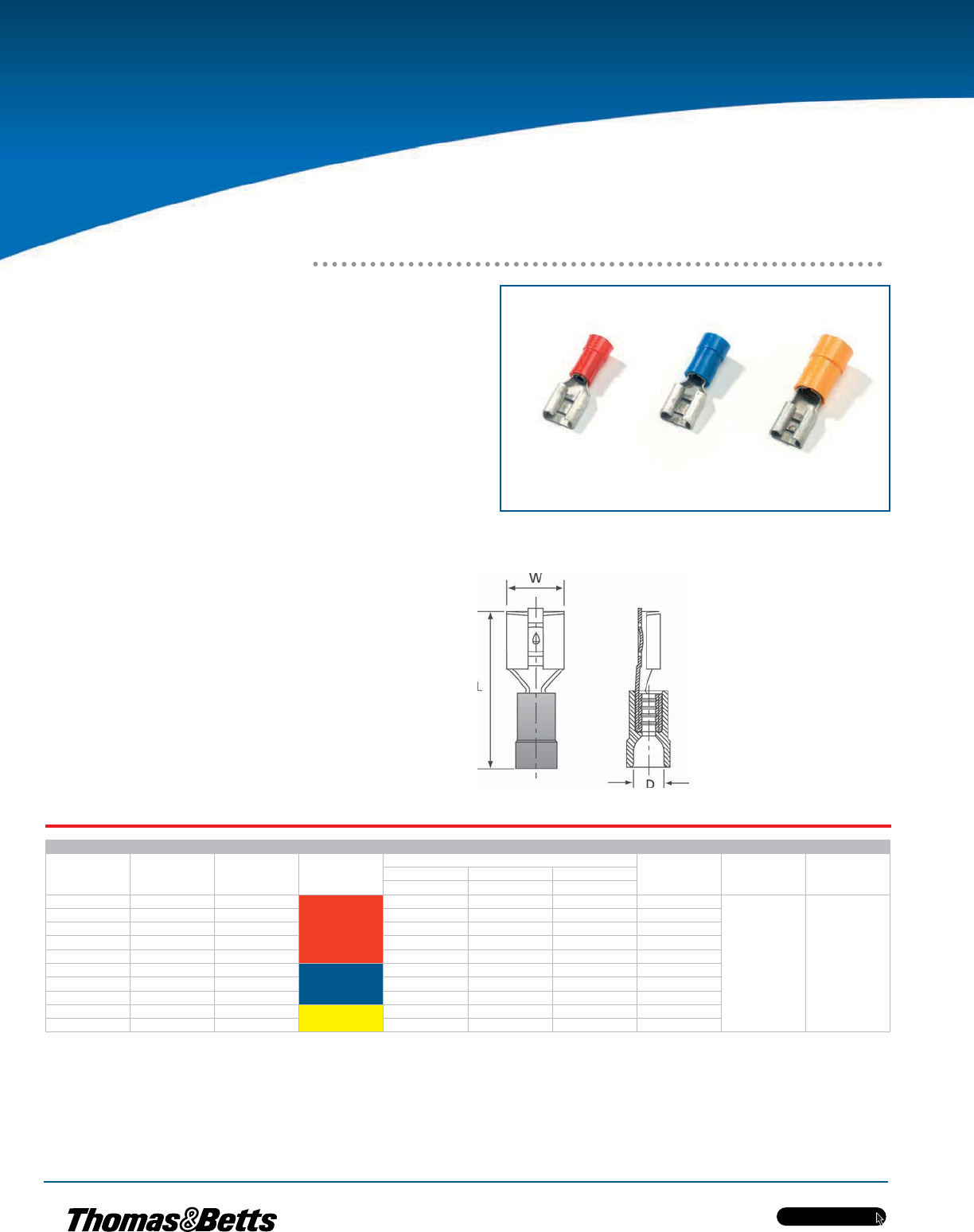

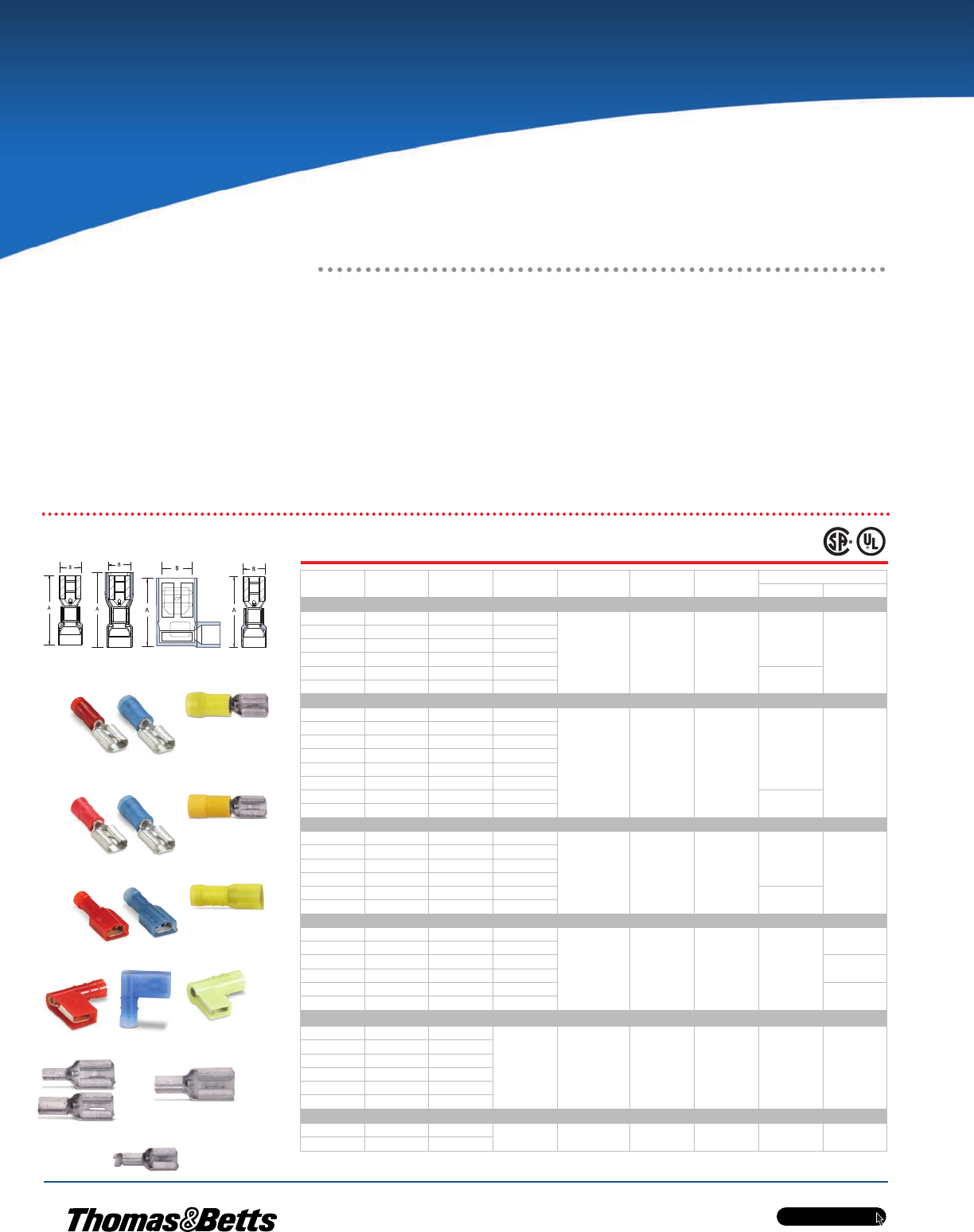

250 Series — Female Disconnects
•Female disconnect terminals and matching
male tabs accommodate a range of #22–#10
AWG, and are available in non-insulated,
partially insulated and fully insulated styles,
in both nylon and vinyl
•Unique construction of the female disconnect
offers long-term dependability
•Brazed-seam serrated barrel provides
maximum tensile strength
187 Series — Female Disconnects
•Quick, reliable method of connection to
terminal blocks and boards without the use
of tools
•Female disconnect terminals and matching
male tabs accommodate a range of #22–#10
AWG, and are available in non-insulated,
partially insulated and fully insulated styles,
in both nylon and vinyl
•Unique construction of the female disconnect
offers long-term dependability
250 Series — Female Disconnects
(Continued on facing page)
Nylon self-insulated
Vinyl self-insulated
Nylon fully insulated
Nylon open top insulated 90° flag
Non-insulated
Non-insulated/insulation grip
Disconnects and Male Tabs
Sta-Kon ®
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Tab
Size (in.) Fig. Rec.
Tool
Dimensions (in.)
A B
Nylon self-insulated
RA18-250F 100 22–18 0.136
0.250 x 0.032 1 ERG4001
0.91
0.29
RA250-TB 1,000 22–18 0.136
RB14-250F 100 16–14 0.162
RB250 1,000 16–14 0.162
RC10-250F 50 12–10 0.215 1.04
RC250 500 12–10 0.215
Vinyl self-insulated
18RA-250F 100 22–18 0.150
0.250 x 0.032 1ERG4001
0.96
0.29
RA257 1,000 22–18 0.150
RA257-170 1,000 22–18 0.170
14RB-250F 100 16–14 0.170
RB257 1,000 16–14 0.170
RB257-200 1,000 16–14 0.200
10RC-250F 50 12–10 0.250 1.03
RC257 500 12–10 0.250

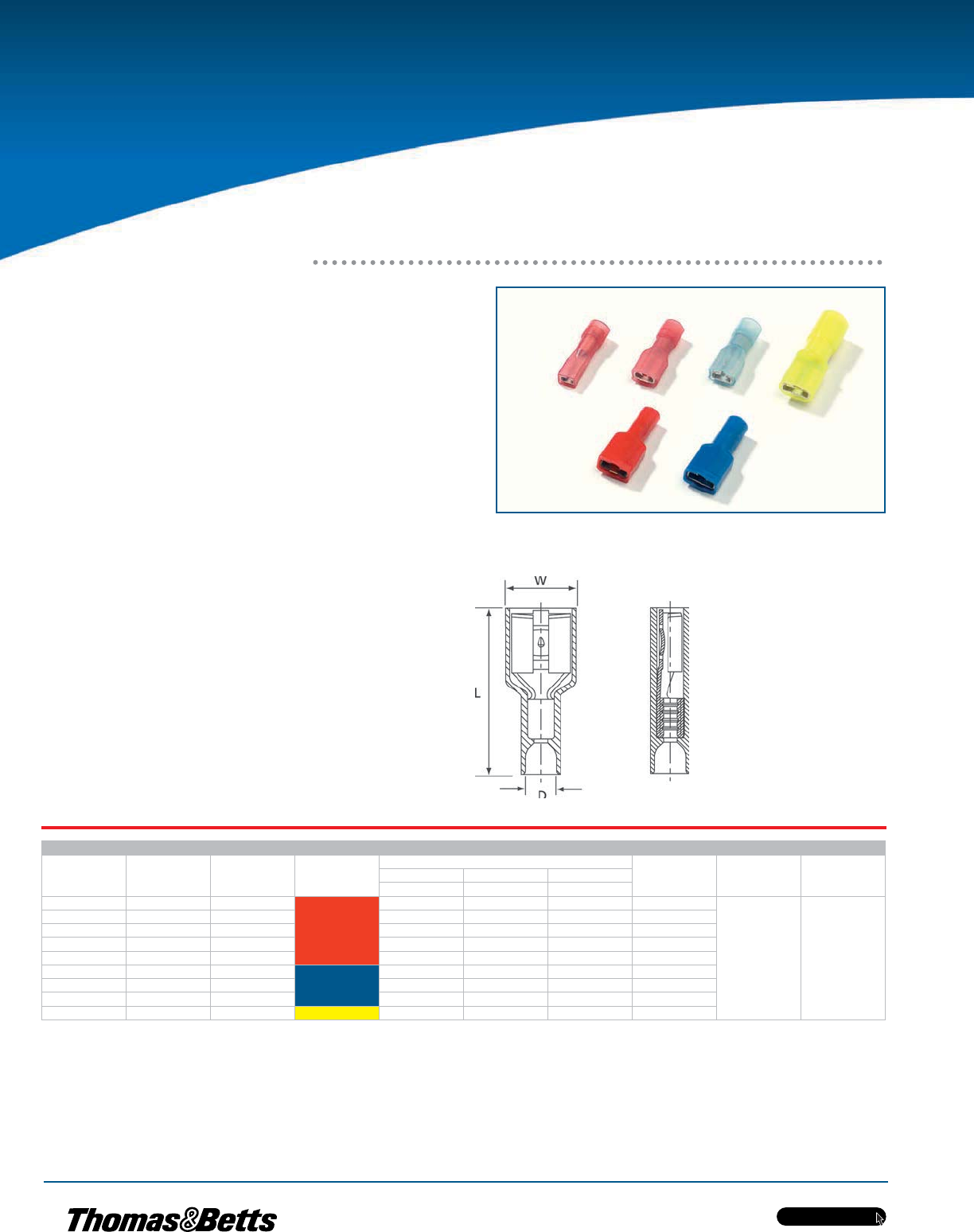

Nylon fully insulated
18RA-2577 50 22–18 0.165
0.250 x 0.032 2ERG4001
1.01
0.38
RA2573 1,000 22–18 0.165
14RB-2577 50 16–14 0.185
RB2573 1,000 16–14 0.185
10RC-2577 50 12–10 0.225 1.04
RC2573 500 12–10 0.225
Nylon open top insulated 90° flag
RA18-250A 50 22–18 0.170
0.250 x 0.032 3ERG4001 0.80
0.71
RA2577F 500 22–18 0.170
RB14-250A 50 16–14 0.190 0.72
RB2577F 500 16–14 0.190
RC10-250A 50 12–10 0.245 0.88
RC2577F 500 12–10 0.245
Non-insulated
A18-250 100 22–18
–0.250 x 0.032 1ERG4002 0.73 0.31
A250-TB 1,000 22–18
B14-250 100 16–14
B250 1,000 16–14
C10-250F 50 12–10
C250 500 12–10
Non-insulated/insulation grip
B14-250F 100 16–14 –0.250 x 0.032 4 WT110M 0.87 0.31
B250G 1,000 16–14
250 Series — Female
Disconnects (cont’d)
w w w . t n b . c a
B29
Termination Products

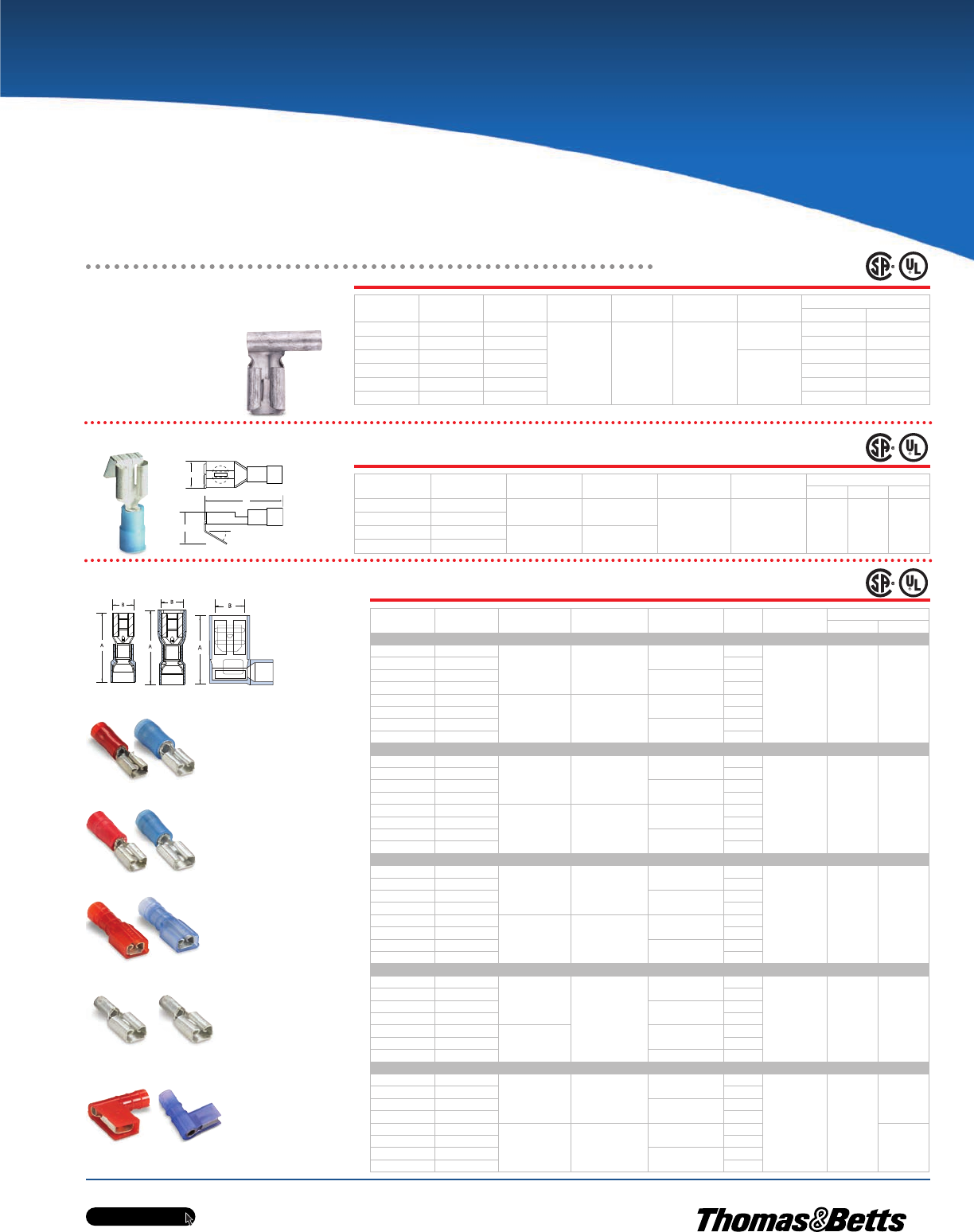

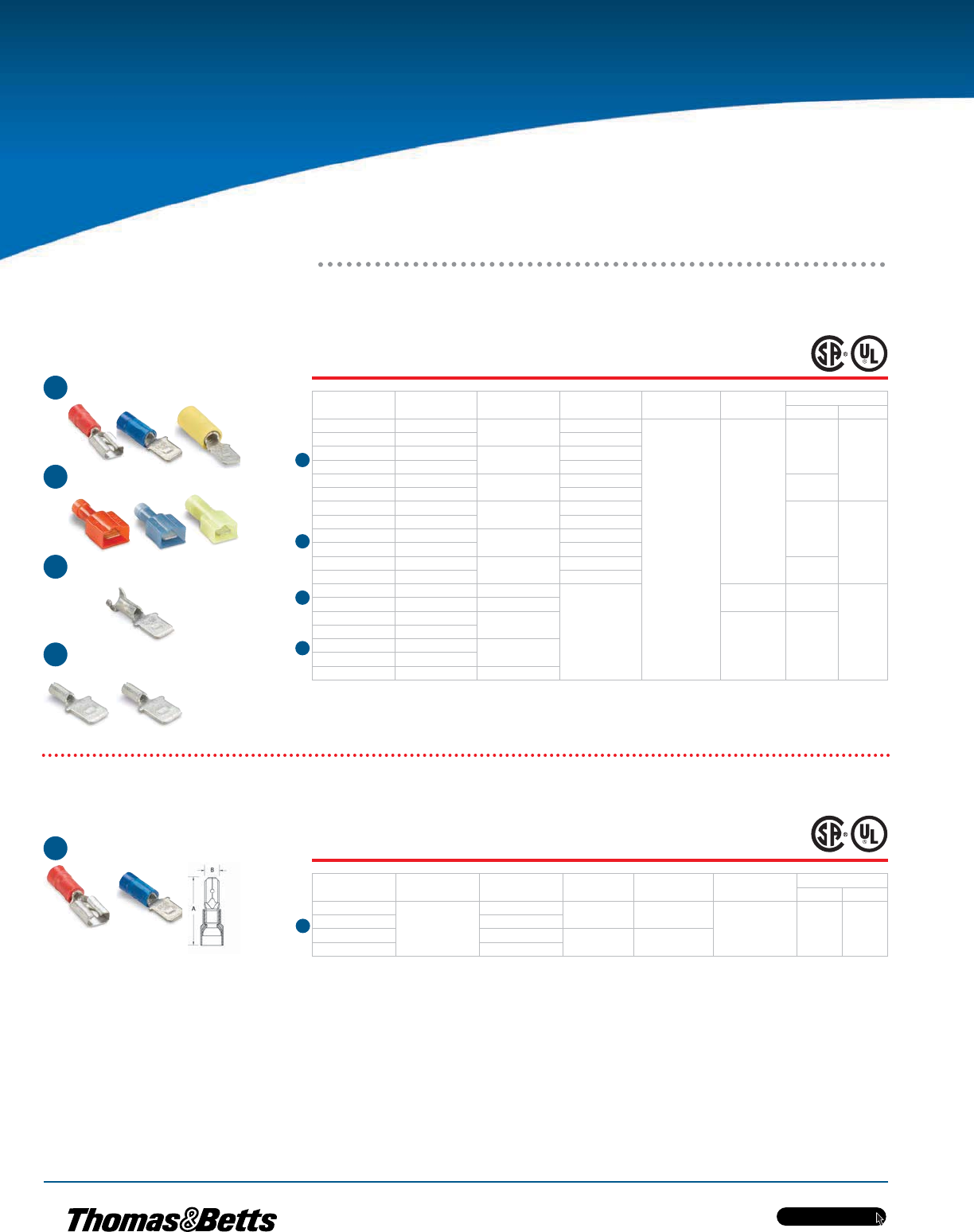

250 Series — Nylon Piggy Back Disconnects
187 Series — Female Disconnects
B
C
30O
A
Nylon self-insulated
Vinyl self-insulated
Nylon fully insulated
Non-insulated
Nylon fully insulated 90° flag
Non-insulated 90° flag
Cat. No. Pkg. Qty. Wire Range Max. Ins. (in.) Tab Size (in.) Fig. Rec. Tool Dimensions (in.)
A B
Nylon self-insulated
RAD18-183 100
22–18 0.136
0.187 x 0.032 1
ERG4001 0.83 0.23
RAD1833 1,000 1
RAD18-182 100 0.187 x 0.020 1
RAD1823 1,000 1
RBD14-183 100
16–14 0.163
0.187 x 0.032 1
RBD1833 1,000 1
RBD14-182 100 0.187 x 0.020 1
RBD1823 1,000 1
Vinyl self-insulated
18RAD-183 100
22–18 0.150
0.187 x 0.032 1
ERG4001 0.85 0.23
RAD1837 1,000 1
18RAD-182 100 0.187 x 0.020 1
RAD1827 1,000 1
14RBD-183 100
16–14 0.170
0.187 x 0.032 1
RBD1837 1,000 1
14RBD-182 100 0.187 x 0.020 1
RBD1827 1,000 1
Nylon fully insulated
18RAD-18377 100
22–18 0.150
0.187 x 0.032 2
ERG4001 0.89 0.30
RAD18377 1,000 2
18RAD-18277 100 0.187 x 0.020 2
RAD18277 1,000 2
14RBD-18377 100
16–14 0.170
0.187 x 0.032 2
RBD18377 1,000 2
14RBD-18277 100 0.187 x 0.020 2
RBD18277 1,000 2
Non-insulated
AD18-183 100
22–18
–
0.187 x 0.032 1
ERG4002 0.64 0.23
AD183 1,000 1
AD18-182 100 0.187 x 0.020 1
AD182 1,000 1
BD14-183 100
16–14 0.187 x 0.032 1
BD183 1,000 1
BD14-182 100 0.187 x 0.020 1
Nylon fully insulated 90° flag
RAD18-187A 50
22–18 0.150
0.187 x 0.032 3
ERG4001 0.74
0.59
RAD1877F 500 3
RAD18-188A 50 0.187 x 0.020 3
RAD1887F 500 3
RBD14-187A 50
16–14 0.170
0.187 x 0.032 3
0.61
RBD1877F 500 3
RBD14-188A 50 0.187 x 0.020 3
RBD1887F 500 3
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Tab
Size (in.) Fig. Rec.
Tool
Dimensions (in.)
A B
A18-250A 50 22–18
— 0.250 x 0.032 3
ERG4002 0.58 0.61
A252G 500 22–18 0.58 0.61
B14-250A 50 16–14
ERG4002
ERG4005
0.58 0.62
B252G 500 16–14 0.58 0.62
C10-250A 50 12–10 0.64 0.63
C252G 500 12–10 0.64 0.63
Cat. No. Pkg. Qty. Wire Range Max. Ins. (in.) Tab Size (in.) Rec.Tool Dimensions (in.)
A B C
RA18-250FP 100 22–18 0.136
0.250 x 0.032 WT112M
ERG4001 0.87 0.30 0.43
RA250P 1,000
RB14-250FP 100 16–14 0.163
RB250P 1,000
Disconnects and Male Tabs
Sta-Kon ®
www.tnb.ca
B30
Termination Products

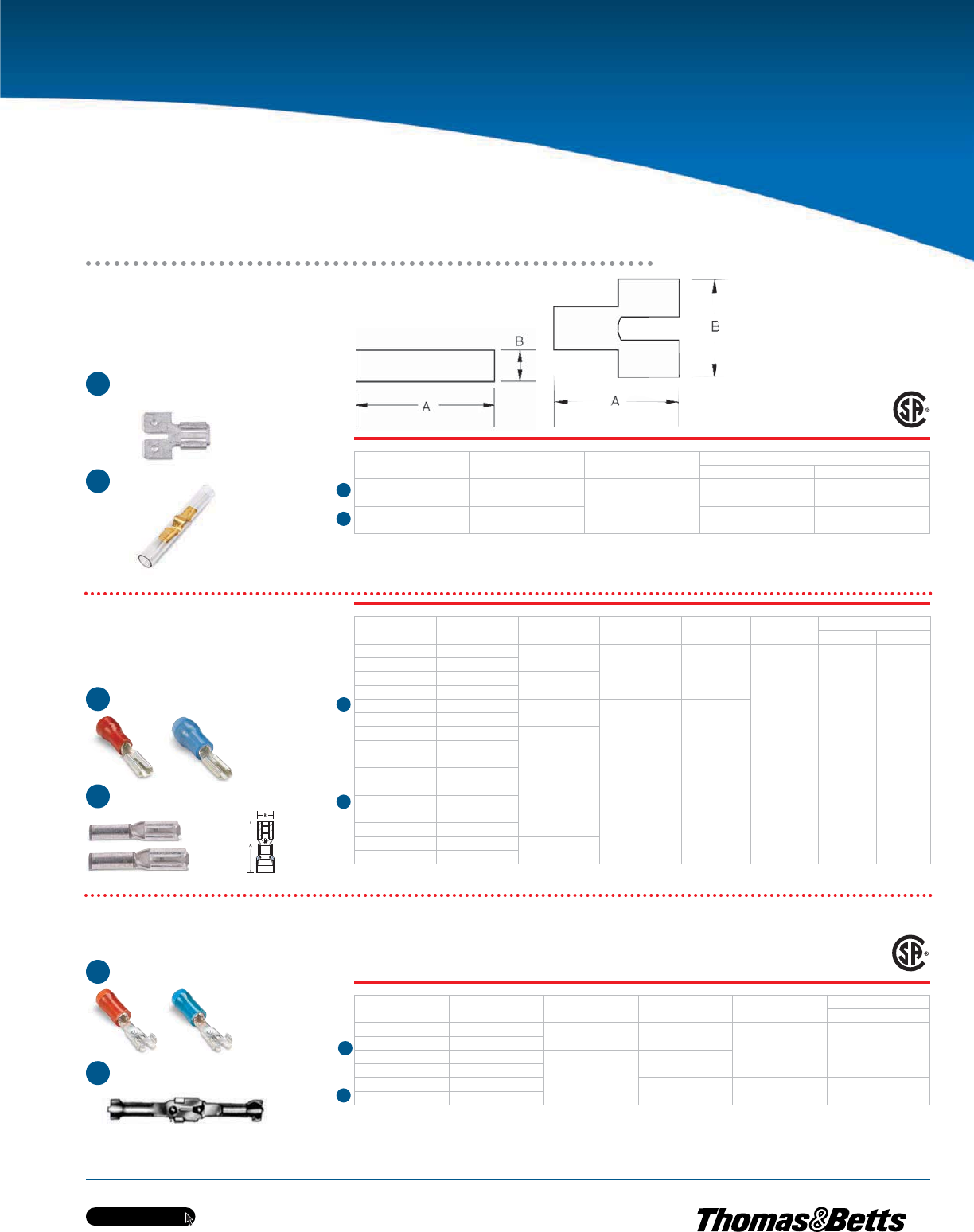

250 Series — Male Tabs
187 Series — Male Tabs
1Vinyl self-insulated
2Nylon fully insulated
3Non-insulated/insulated Grip
4Non-insulated
5Vinyl insulated
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Tab
Size
Rec.
Tool
Dimensions (in.)
A B
18RA-250T 100 22–18 0.150
0.250 x 0.032
ERG4001
0.95
—
RA2517 1,000 0.150
14RB-250T 100 16–14 0.170
RB2517 1,000 0.170
10RC-250T 50 12–10 0.250 1.08
RC2517 500 0.250
18RA-251T 50 22–18 0.150
1.13
0.45
RA25177 500 0.150
14RB-251T 50 16–14 0.170
RB25177 500 0.170
10RC-251T 25 12–10 0.210 1.17
RC25177 500 0.210
A18-250T 100 22–18
—
WT110M 0.87
—
B14-250T 100 20–14
A18-251T 100 22–18
ERG4002 0.68
A251 1,000
B14-251T 100 16–14
B251 1,000
C10-251T 50 12–10
Cat. No. Pkg.
Qty.
Max.
Ins. (in.)
Wire
Range
Tab
Size (in.)
Rec.
Tool
Dimensions (in.)
A B
18RAD-187
100
0.187 x 0.032 22–18 0.150
ERG4001 0.87 —
18RAD-188 0.187 x 0.020
14RBD-187 0.187 x 0.032 16–14 0.170
14RBD-188 0.187 x 0.020
1
2
3
4
5
Disconnects and Male Tabs
Sta-Kon ®
250 Series — Adapters
and Coupler†
Insulated coupler requires no tool!
www.tnb.ca B31
Termination Products
110 Series —
Disconnects*
Available in variety of wire ranges!
Wristlock Disconnects†
Choose from nylon-insulated or non-insulated!
Picture shows wristlock disconnect assembled
as two pieces. Parts are sold by the piece not by
assemblies.
6Non-insulated
7Insulated coupler
8Nylon-Insulated
10 Nylon-insulated
11 Non-insulated
9Non-Insulated
Cat. No. Pkg.
Qty.
Max. Ins.
(in.) Wire Range Tab
Size (in.)
Rec.
Tool
Dimensions (in.)
A B
RA18-110F 100 0.110 x 0.032
22–18 0.110
ERG4006 0.75
0.15
RA10-SK 1,000
RA18-111F 100 0.110 x 0.020
RA11 1,000
RB14-110F 100 0.110 x 0.032
16–14 0.135
RB10-SK 1,000
RB14-111F 100 0.110 x 0.020
RB11-TB 1,000
A18-110F 100 0.110 x 0.032
22–18
—
WT111M
WT112M
WT2000
0.59
A10-TB 1,000
A18-111F 100 0.110 x 0.020
A11 1,000
B14-110F 100 0.110 x 0.032
16–14
B10-TB 1,000
B14-111F 100 0.110 x 0.020
B11-TB 1,000
Cat. No. Pkg.
Qty.
Wire
Range
Max.
Ins. (in.)
Rec.
Tool
Dimensions (in.)
A B
RA18D 50 22–18 0.136
WT2000 0.99 1.70
RA23 1,000
RB14D 50
16–14
0.162
RB23 1,000
B14-D 50 0.187 WT110M 0.97 1.66
B23 1,000
6
7
8
9
10
11
Cat. No. Pkg.
Qty.
Tab
Size (in.)
Dimensions (in.)
A B
F250TA 50
0.250 x 0.032
0.82 0.56
FTA250 1,000 0.82 0.56
RB14-250 50 2.35 0.51
RBB250 500 2.35 0.51
† Not UL Listed
Cat. No. F250TA — Material: brass Finish: tin-plated
Cat. No. RB14-250 — Material: brass Finish: none Insulation: vinyl
Disconnects and Male Tabs
Sta-Kon ®
* Not UL Listed or CSA approved
† Not UL Listed
www.tnb.ca
B32
Termination Products

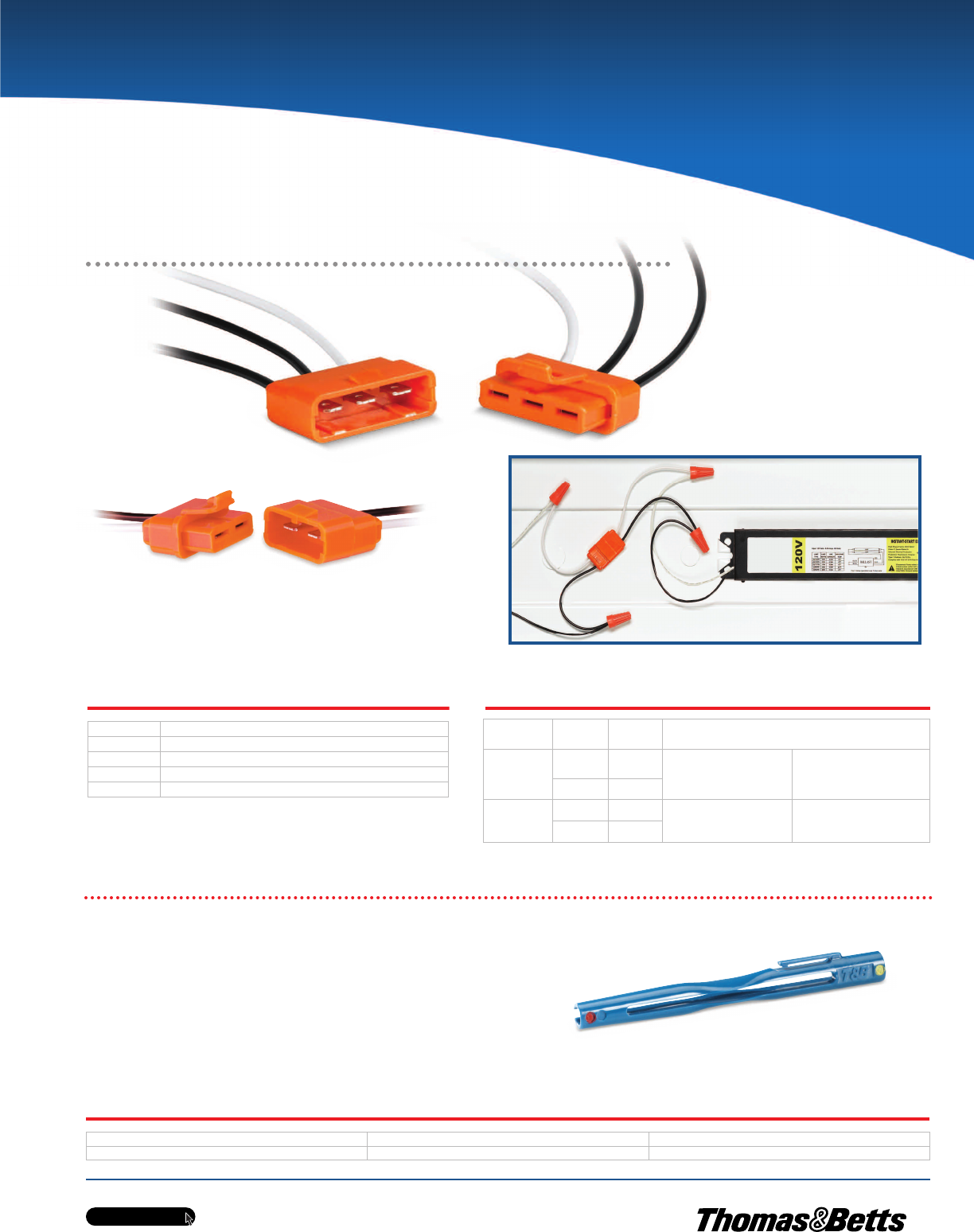

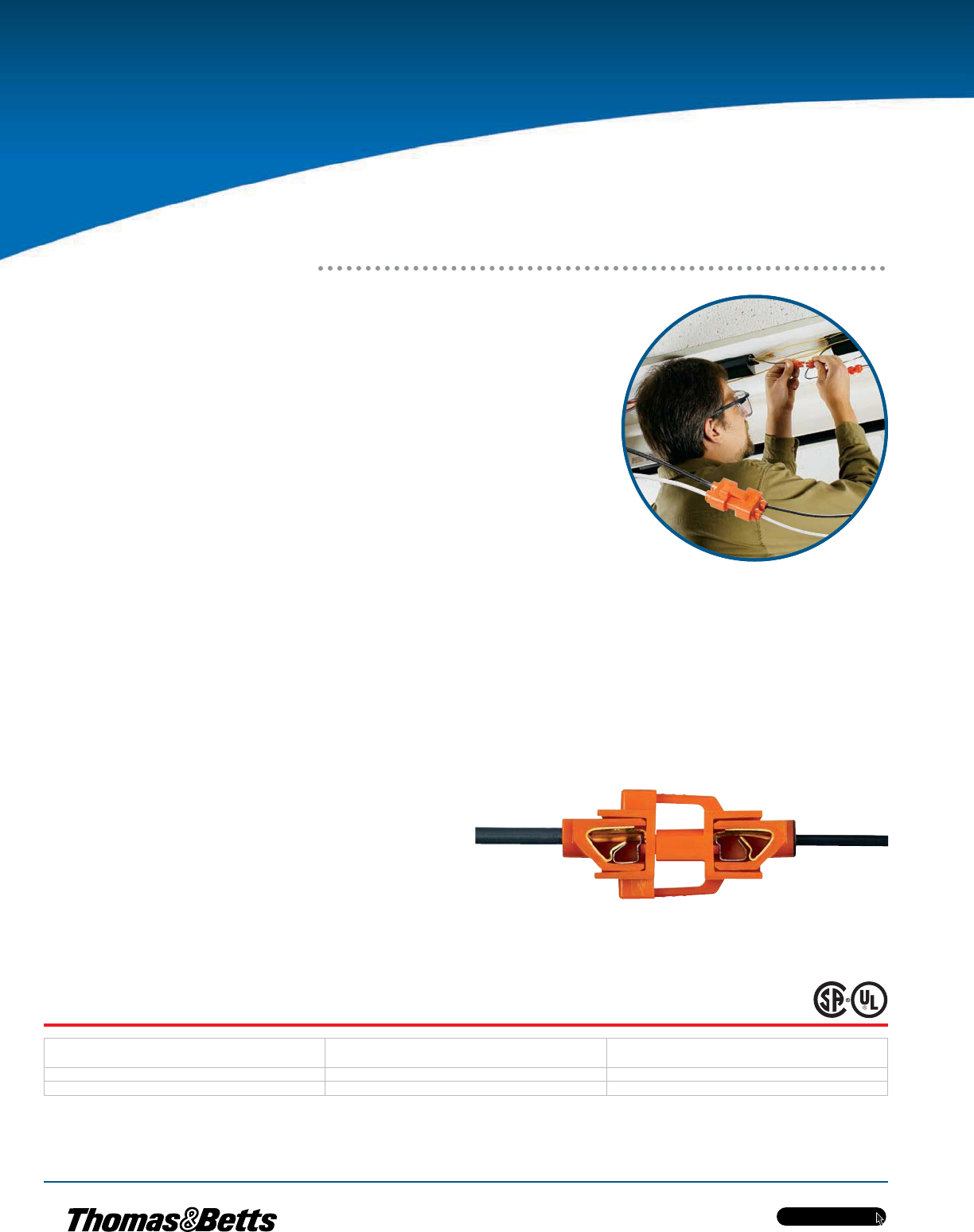

Disconnect ballasts under load for safe servicing —
in compliance with NEC®requirements
Each year, electricians sustain injuries while attempting to change ballasts
without tripping the breaker because they’re trying to avoid disconnecting other
lighting and equipment from power. That’s why recent changes to NEC®and UL
standards require a means of disconnecting power to non-residential
fluorescent lighting ballasts.
In 2006, Thomas & Betts developed the first UL Listed product to meet this need.
Now, in response to customer demand, the new Sta-Kon®Push-In Luminaire
Disconnect provides all the same safety benefits as the original, but installs
even faster and easier.
•Enables electricians changing ballasts to easily disconnect
incoming power for safe servicing without having to trip the
main power breaker
•Installs easily — just strip de-energized wires and insert
•Disconnect halves snap together and separate
easily — but won’t accidentally disconnect
•Foolproof design eliminates the potential for incorrect
installation and reverse polarity
•Fits through 1⁄2 in. knockouts for easy retrofit
•Ballast hot-lead wire entry is colour-coded black
for easy visibility
•Finger-safe on both sides
•For use in all non-residential fluorescent lighting
applications and in ordinary location HID lighting
applications — both up to 600V, 4A maximum
•Complies with NEC®, CEC, UL and CSA requirements
•Sold in mated pairs (male/line and female/load sides)
Specifications
•Housing: Polycarbonate
•Temperature Rating: 105°C (221°F) max.
•Electrical Rating: 600V, 4A max.
•Flammability Rating: UL94V-2
•Contacts: Copper alloy
•Wire Range: #18–#12 AWG solid copper
#14–#12 AWG stranded copper
(19 strands or fewer)
•Standards: Complies with 2008 NEC®410.130(G) and
CEC 30-308(4)
•Certifications: UL Listed, CSA Certified
This cutaway shows how the Sta-Kon®Luminaire Disconnect
grips and holds the pushed-in wires securely after installation
Note: If you prefer lead wires instead of a push-in design and/or need a 3-wire disconnect for switching or dimming applications, order the original Sta-Kon®Luminaire Disconnect,
2-wire Cat. No. LD2 (Cat. No. LD2-D for bulk packaging) or 3-wire Cat. No. LD3 (Cat. No. LD3-D for bulk packaging). See following page.
NEC and National Electrical Code are registered trademarks of the National Fire Protection Association, Inc.
Sta-Kon®Push-In Luminaire Disconnect
Cat. No. Description Std. Pkg.
Qty.
LD2P-Q 2-Wire Push-In Luminaire Disconnect, Distributor Pack 25
LD2P-D 2-Wire Push-In Luminaire Disconnect, Bulk Packaging 500
Push-In Luminaire Disconnect
Sta-Kon ®
w w w . t n b . c a
B33
Termination Products
Disconnect Installation Tool
Faster, easier and safer than manual seating of disconnects!
•Perfect for wire-harness assemblers and panel builders
•Dual-ended with slots to fit red andblue (male and female)
or yellowdisconnects
•Colour-coded dots for easy matching of disconnect with
correct tool end
•Lightweight and only 5-1/8 in. long — fitsin a shirt pocket like a pen
This one-of-a-kind tool may be used to seat all
sizes of Thomas & Betts disconnects.
Cat. No. Description Pkg. Qty.
DT22-10 Sta-Kon®Disconnect Installation Tool 1
Sta-Kon ®
Ordering Information Packaging Options
Cat. No. Description
LD2C-D 2-pole luminaire disconnect (marrettes not included)
LD3C-D 3-pole luminaire disconnect (marrettes not included)
LD2-C 2-pole luminaire disconnect (2 x 4 marrettes 333 /inner bag)
LD3-C 3-pole luminaire disconnect (6 of each marrettes (331 + 333) /inner bag)
Cat. No. Pkg.
Format Std. Pkg. (Min./Mult.)
BULK LD2C-D Box Sold without marrettes
Sold in multiple of 500
Inner: 50 per inner bag
Outer: 250 per outer box
Master: 500 in master box
LD3C-D Box
KITS LD2-C Bag Sold with marrettes
Sold in multiple of 20
Inner: 2 per inner bag
Outer: 20 per outer box
Master: 200 in master box
LD3-C Bag
Luminaire Disconnects
www.tnb.ca
B34
Termination Products
Features
• Ferrules ensure reliable electrical connections when terminating conductors in
screw clamp terminal blocks
•Fraying and breaking of wire strands is prevented and the possibility of an
unreliable connection is minimized
•Insulated ferrules prevent conductor breakage due to bending, wire stress or
vibration, while facilitating wire insertions into the terminal block clamp
• Ferrules are the preferred alternative to twisting wire stands or tinning the wire
end before terminating into a terminal block
• Ferrules are thin-walled copper tubes, which are mechanically crimped onto the
ends of stranded wires
• They are easy to use — simply strip the wire, slide the ferrule onto the end of the
wire and crimp
• Meets emerging global standards, requiring wire-to-metric style terminal block
installations to be terminated with a “pin” style terminal
• Vinyl insulated, nylon insulated, and non-insulated styles
• All styles offered in #22 AWG to #10 AWG and compatible with existing
Sta-Kon®tooling
How to Apply a Ferrule
• Strip the insulation from the end of the wire and insert
into the insulated end of the ferrule
• Using the designated crimping tool, place the metal shaft into
the tool’s appropriate slot. Compress the tool to make a
crescent-shape depression along the length of the ferrule
• Insert the crimped ferrule into the terminal block
• Tighten the ferrule and wire into the terminal block
Materials
• High-conductivity copper
• Tin plating
Insulated Ferrules
Cat. No. Conductor Section Colour Dimensions in./mm Installation
Tooling
Pkg.
Qty.
AWG mm2A B øC øD E
F4004 26 0.14 Grey 0.413 / 10.5 0.236 / 6.0
0.031 / 0.80 0.079 / 2.0 0.010 / 0.25 T3, ERG4
500
F4005 26 0.14 0.492 / 12.5 0.315 / 8.0
F4006 24 0.25 Yellow 0.413 / 10.5 0.236 / 6.0
F4007 24 0.25 0.492 / 12.5 0.315 / 8.0
F4008 22 0.34 Purple 0.413 / 10.5 0.236 / 6.0
F4009 22 0.34 0.492 / 12.5 0.315 / 8.0
F2020 20 0.50
White
0.453 / 11.5 0.236 / 6.0
0.043 / 1.1 0.098 / 2.5
0.006 / 0.15 T1, T3 & ERG4
F2021 20 0.50 0.531 / 13.5 0.315 / 8.0
F2022 20 0.50 0.610 / 15.5 0.394 / 10.0
F2023 18 0.75
Grey
0.472 / 12.0 0.236 / 6.0
0.051 / 1.3 0.110 / 2.8
F2024 18 0.75 0.551 / 14.0 0.315 / 8.0
F2025 18 0.75 0.630 / 16.0 0.394 / 10.0
F2026 18 0.75 0.709 / 18.0 0.472 / 12.0
F2027 18 1.00
Red
0.492 / 12.5 0.236 / 6.0
0.059 / 1.5 0.118 / 3.0
F2028 18 1.00 0.571 / 14.5 0.315 / 8.0
F2029 18 1.00 0.650 / 16.5 0.394 / 10.0
F2030 18 1.00 0.728 / 18.5 0.472 / 12.0
F2031 16 1.50
Black
0.571 / 14.5 0.315 / 8.0
0.071 / 1.8 0.134 / 3.4
F2032 16 1.50 0.650 / 16.5 0.394 / 10.0
F2033 16 1.50 0.728 / 18.5 0.472 / 12.0
F2034 16 1.50 0.965 / 24.5 0.708 / 18.0
F2035 14 2.50
Blue
0.591 / 15.0 0.315 / 8.0
0.091 / 2.3 0.165 / 4.2F2036 14 2.50 0.748 / 19.0 0.472 / 12.0
F2037 14 2.50 0.984 / 25.0 0.708 / 18.0
F2038 12 4.00
Grey
0.889 / 17.5 0.394 / 10.0
0.114 / 2.9 0.189 / 4.8
0.008 / 0.20
T3 & ERG4
F2039 12 4.00 0.787 / 20.0 0.472 / 12.0
F2040 12 4.00 1.024 / 26.0 0.708 / 18.0
100
F2041 10 6.00 Yellow 0.787 / 20.0 0.472 / 12.0 0.142 / 3.6 0.244 / 6.2
F2042 10 6.00 0.984 / 25.0 0.708 / 18.0
F2043 8 10.00 Red 0.827 / 21.0 0.472 / 12.0 0.181 / 4.6 0.295 / 7.5
F2044 8 10.00 1.063 / 27.0 0.708 / 18.0
F2045 6 16.00 Blue 0.906 / 23.0 0.472 / 12.0 0.236 / 6.0 0.346 / 8.8
ERG4
F2046 6 16.00 1.142 / 29.0 0.708 / 18.0
50
F2047 4 25.00
Yellow
1.142 / 29.0 0.630 / 18.0
0.295 / 7.5 0.433 / 11.0F2048 4 25.00 1.220 / 31.0 0.708 / 18.0
F2049 4 25.00 1.378 / 35.0 0.866 / 22.0
F2050 2 35.00
Red
1.181 / 30.0 0.630 / 16.0
0.335 / 8.5 0.492 / 12.5F2051 2 35.00 1.260 / 32.0 0.708 / 18.0
F2052 2 35.00 1.535 / 39.0 0.984 / 25.0
F2053 1/0 50.00 Blue 1.417 / 36.0 0.787 / 20.0 0.413 / 10.5 0.591 / 15.0 0.014 / 0.35
F2054 1/0 50.00 1.614 / 41.0 0.984 / 25.0
Ferrule dimensions conform to DIN 46228, Part 4
Sta-Kon ®
Insulated Ferrules
www.tnb.ca B35
Termination Products

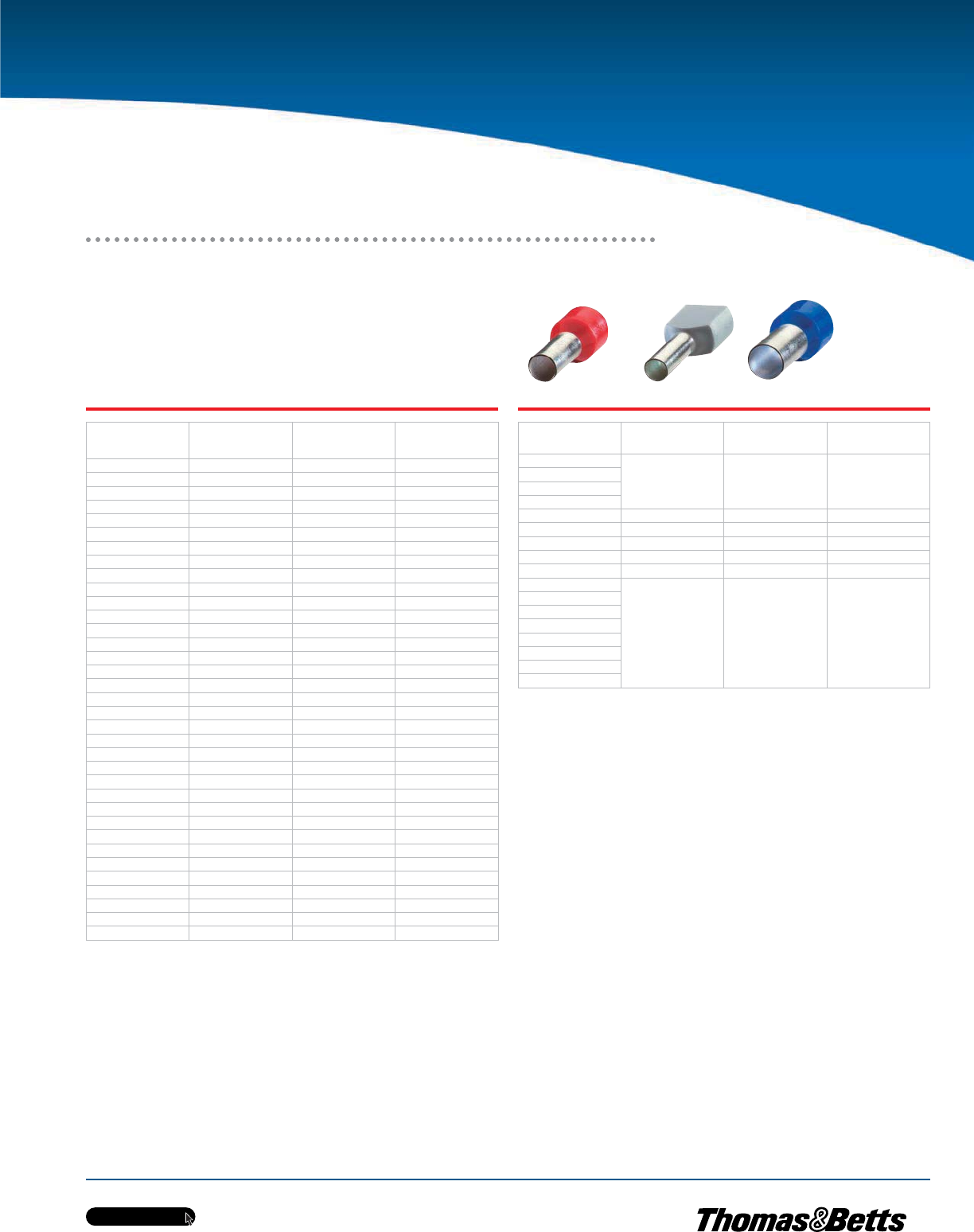

Cat. No. Pin
Length (in.)
Min. strip
Length (in.)
Max. strip
Length (in.)
F2020 0.236 0.3147 0.354
F2021 0.315 0.3937 0.433
F2022 0.394 0.4727 0.512
F2023 0.236 0.3147 0.354
F2024 0.315 0.3937 0.433
F2025 0.394 0.4727 0.512
F2026 0.472 0.5507 0.59
F2027 0.236 0.3147 0.354
F2028 0.315 0.3937 0.433
F2029 0.394 0.4727 0.512
F2030 0.472 0.5507 0.59
F2031 0.315 0.3937 0.433
F2032 0.394 0.4727 0.512
F2033 0.472 0.5507 0.59
F2034 0.708 0.7867 0.826
F2035 0.315 0.3937 0.433
F2036 0.472 0.5507 0.59
F2037 0.708 0.7867 0.826
F2038 0.394 0.4727 0.512
F2039 0.472 0.5507 0.59
F2040 0.708 0.7867 0.826
F2041 0.472 0.5507 0.59
F2042 0.708 0.7867 0.826
F2043 0.472 0.5507 0.59
F2044 0.708 0.7867 0.826
F2045 0.472 0.5507 0.59
F2046 0.708 0.7867 0.826
F2047 0.63 0.7087 0.748
F2048 0.708 0.7867 0.826
F2049 0.866 0.9447 0.984
F2050 0.53 0.6087 0.648
G2051 0.708 0.7867 0.826
G2052 0.984 1.0627 1.102
G2053 0.787 0.8657 0.905
F2054 0.984 1.0627 1.102
Note: The stripping length is based on the thickness of the insulation wire -
more thickness, more stripping length.
Cat. No. Pin
Length (in.)
Min. strip
Length (in.)
Max. strip
Length (in.)
F4000
0.315 0.3937 0.433
F4001
F4002
F4003
F4004 0.236 0.3147 0.354
F4005 0.315 0.3937 0.433
F4006 0.236 0.3147 0.354
F4007 0.315 0.3937 0.433
F4008 0.236 0.3147 0.354
F4009
0.315 0.3937 0.433
F4020
F4021
F4022
F4023
F4024
F4027
F4028
Sta-Kon ®
Strip Lengths
Insulated Twin Ferrules
w w w . t n b . c a
B36
Termination Products

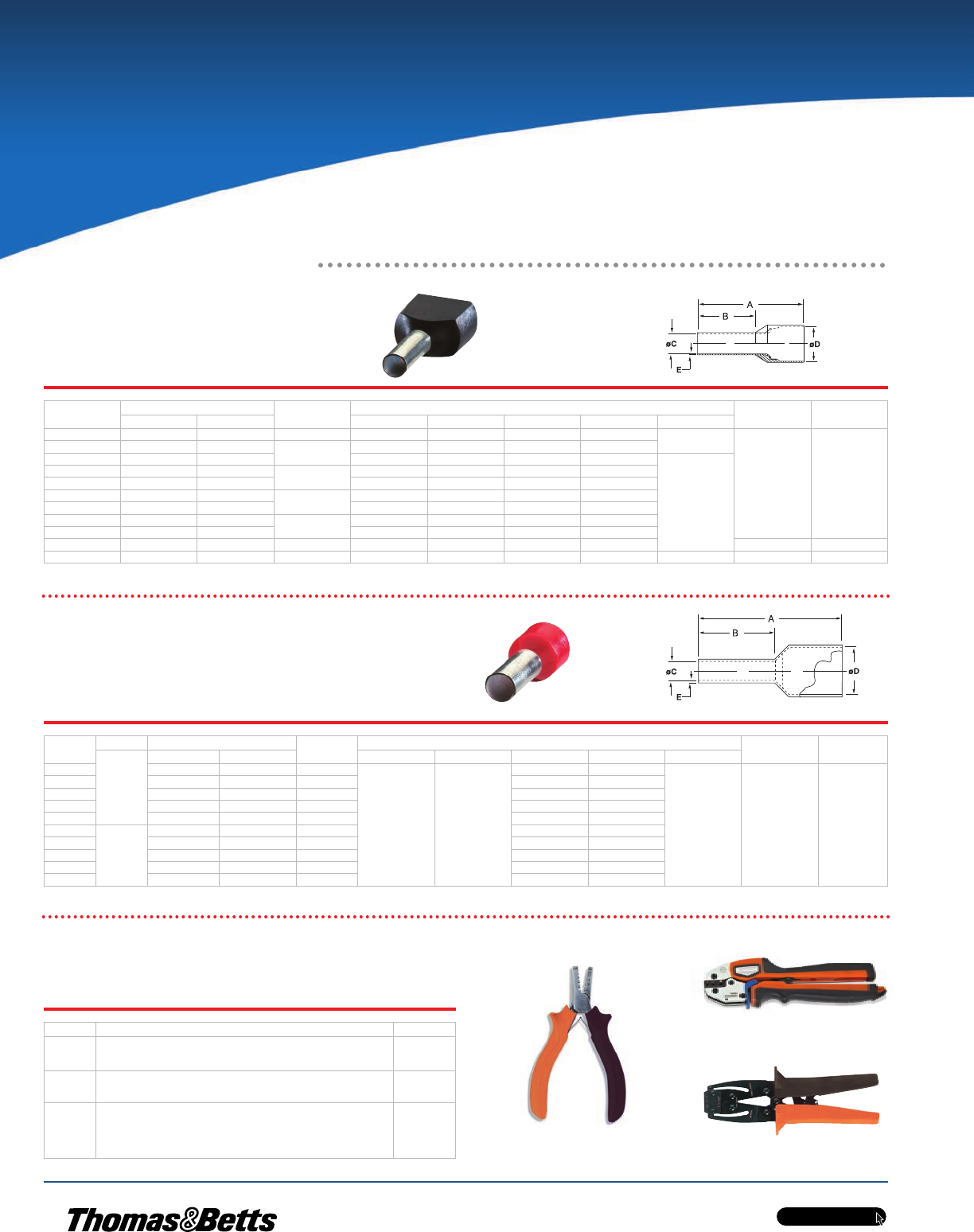

Insulated Ferrules
(Old DIN and French Standards)
Tooling for Sta-Kon®Insulated Ferrules
The crimping tools you need!
T1
ERG4
Cat. No. Conductor Section Colour Dimensions in./mm Installation
Tooling
Pkg.
Qty.
AWG mm2A B øC øD E
F8000 2 x 20 2 x 0.50 White 0.591 / 15.0 0.315 / 8.0 0.059 / 1.5 0.177 / 4.5 0.010 / 0.25
T3 500
F8001 2 x 18 2 x 0.75 Grey 0.591 / 15.0 0.315 / 8.0 0.071 / 1.8 0.201 / 5.1
F8002 2 x 18 2 x 0.75 0.669 / 17.0 0.394 / 10.0 0.071 / 1.8 0.201 / 5.1
0.006 / 0.15
F8003 2 x 17 2 x 1.00 Red 0.591 / 15.0 0.315 / 8.0 0.081 / 2.05 0.201 / 5.1
F8005 2 x 17 2 x 1.00 0.669 / 17.0 0.394 / 10.0 0.081 / 2.05 0.201 / 5.1
F8006 2 x 16 2 x 1.50 Black 0.630 / 16.0 0.315 / 8.0 0.091 / 2.3 0.252 / 6.4
F8007 2 x 16 2 x 1.50 0.787 / 20.0 0.472 / 12.0 0.091 / 2.3 0.252 / 6.4
F8008 2 x 14 2 x 2.50 Blue 0.728 / 18.5 0.394 / 10.0 0.114 / 2.9 0.295 / 7.5
F8009 2 x 14 2 x 2.50 0.846 / 21.5 0.512 / 13.0 0.114 / 2.9 0.295 / 7.5
F8010 2 x 12 2 x 4.00 Grey 0.906 / 23.0 0.472 / 12.0 0.150 / 3.8 0.339 / 8.6 ERG4/6MM DIE 100
F8011 2 x 10 2 x 6.00 Yellow 0.984 / 25.0 0.551 / 14.0 0.193 / 4.9 0.378 / 9.6 0.008 / 0.20 ERG4/10MM DIE 100
Cat. No. Style Conductor Colour Dimensions in./mm Installation
Tooling
Pkg.
Qty.
OLD DIN
AWG mm2A B øC øD E
F4000 20 0.50 Orange
0.571 / 14.5 0.315 / 8.0
0.043 / 1.1 0.102 / 2.6
0.006 / 0.15 T1, T3 & ERG4 500
F4001 18 0.75 White 0.051 / 1.3 0.110 / 2.8
F4002 18–17 1.00 Yellow 0.059 / 1.5 0.118 / 3.0
F4003 16 1.50 Red 0.071 / 1.8 0.134 / 3.4
F4020 14 2.50 Blue 0.091 / 2.3 0.165 / 4.2
F4021
FRENCH
20 0.50 White 0.043 / 1.1 0.102 / 2.6
F4023 18 0.75 Lt. Blue 0.051 / 1.3 0.110 / 2.8
F4024 18–17 1.00 Red 0.059 / 1.5 0.118 / 3.0
F4027 16 1.50 Black 0.071 / 1.8 0.134 / 3.4
F4028 14 2.50 Grey 0.091 / 2.3 0.165 / 4.2
Ferrule dimensions conform to DIN 46228, Part 4
Ferrule dimensions conform to DIN 46228, Part 4
Cat. No. Description Pkg. Qty.
T1 Sta-Kon®Crimp Tool for wire ferrules #20–#14 AWG —
insulated handle 1
T3 Sta-Kon®Crimp Tool for wire ferrules #26–#10 AWG —
insulated handle 1
ERG4
Comfort CrimpTM Sta-Kon®Crimp Tool with Shure-Stake®mechanism,
for installing wire ferrules #26–1/0 AWG. Four interchangeable die sets
included. Insulated handle. Packaged in sturdy plastic carrying case
1
t3
Ferrules
Sta-Kon ®

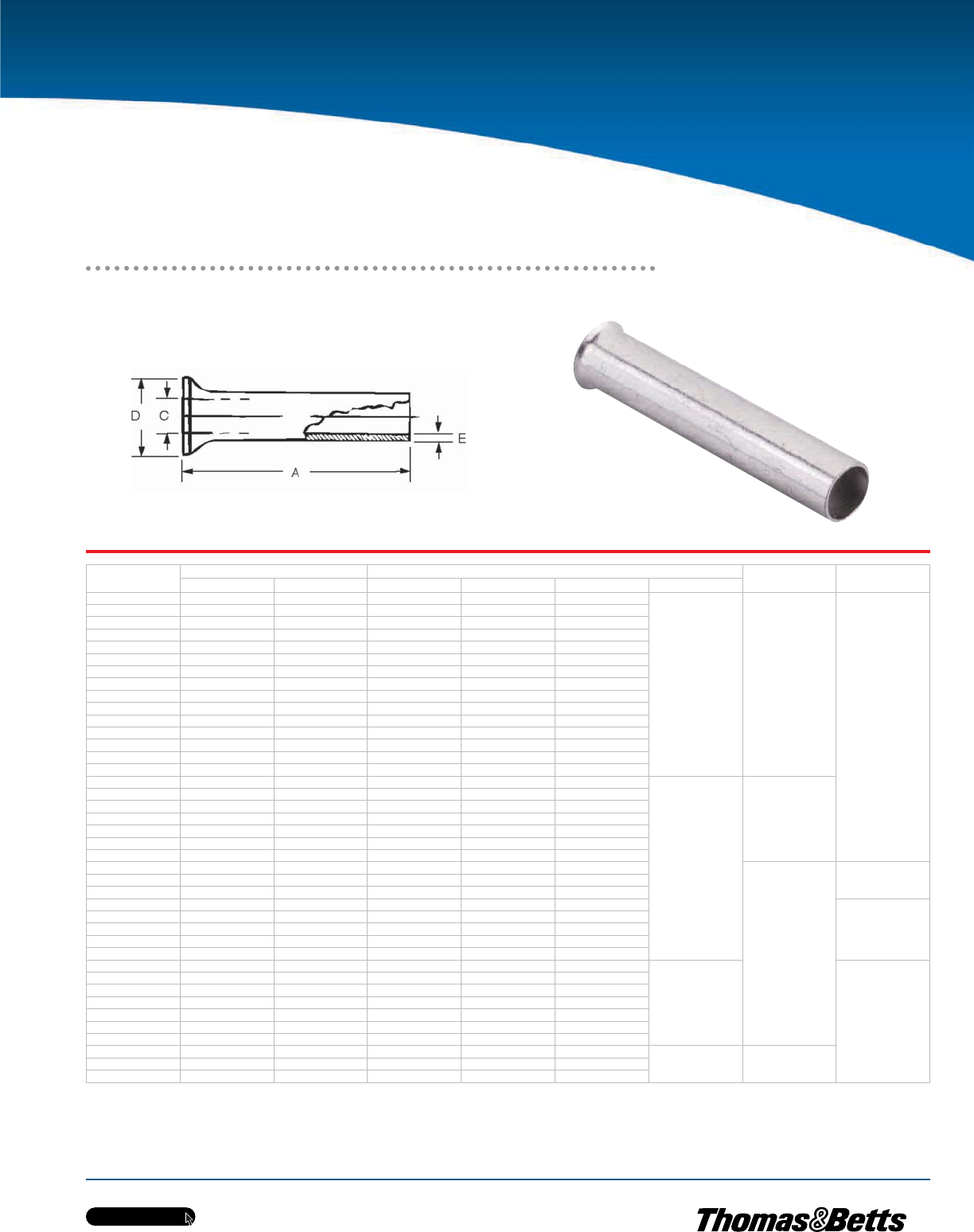

Non-Insulated Ferrules
www.tnb.ca B37
Termination Products
Cat. No. Conductor Section Dimensions in./mm Installation
Tooling
Pkg.
Qty.
AWG mm2A C D E
F9000 24 0.25 0.196 / 5 0.030 / 0.75 0.067 / 1.7
0.006 / 0.15 T1, T3, ERG4
1,000
F9001 22 0.5 0.236 / 6 0.039 / 1.0 0.083 / 2.1
F9002 22 0.5 0.394 / 10 0.039 / 1.0 0.083 / 2.1
F9003 18 0.75 0.236 / 6 0.047 / 1.2 0.091 / 2.3
F9004 18 0.75 0.394 / 10 0.047 / 1.2 0.091 / 2.3
F9005 18 1 0.236 / 6 0.055 / 1.4 0.098 / 2.5
F9006 18 1 0.394 / 10 0.055 / 1.4 0.098 / 2.5
F9007 16 1.5 0.276 / 7 0.067 / 1.7 0.110 / 2.8
F9008 16 1.5 0.394 / 10 0.067 / 1.7 0.110 / 2.8
F9009 16 1.5 0.473 / 12 0.067 / 1.7 0.110 / 2.8
F9010 16 1.5 0.709 / 18 0.067 / 1.7 0.110 / 2.8
F9011 14 2.5 0.276 / 7 0.087 / 2.2 0.139 / 3.4
F9012 14 2.5 0.394 / 10 0.087 / 2.2 0.139 / 3.4
F9013 14 2.5 0.472 / 12 0.087 / 2.2 0.139 / 3.4
F9014 14 2.5 0.709 / 18 0.087 / 2.2 0.139 / 3.4
F9015 12 4 0.354 / 9 0.110 / 2.8 0.158 / 4
0.008 / 0.2
T3, ERG4
F9016 12 4 0.472 / 12 0.110 / 2.8 0.158 / 4
F9017 12 4 0.591 / 15 0.110 / 2.8 0.158 / 4
F9018 12 4 0.709 / 18 0.110 / 2.8 0.158 / 4
F9019 10 6 0.472 / 12 0.138 / 3.5 0.185 / 4.7
F9020 10 6 0.591 / 15 0.138 / 3.5 0.185 / 4.7
F9021 10 6 0.709 / 18 0.138 / 3.5 0.185 / 4.7
F9022 8 10 0.472 / 12 0.177 / 4.5 0.228 / 5.8
ERG4
500F9023 8 10 0.591 / 15 0.177 / 4.5 0.228 / 5.8
F9024 8 10 0.709 / 18 0.177 / 4.5 0.228 / 5.8
F9025 6 16 0.472 / 12 0.228 / 5.8 0.295 / 7.5
250
F9026 6 16 0.591 / 15 0.228 / 5.8 0.295 / 7.5
F9027 6 16 0.709 / 18 0.228 / 5.8 0.295 / 7.5
F9028 6 16 0.984 / 25 0.228 / 5.8 0.295 / 7.5
F9029 6 16 1.26 / 32 0.228 / 5.8 0.295 / 7.5
F9030 4 25 0.591 / 15 0.287 / 7.3 0.374 / 9.5
0.010 / 0.25
100
F9031 4 25 0.709 / 18 0.287 / 7.3 0.374 / 9.5
F9032 4 25 0.984 / 25 0.287 / 7.3 0.374 / 9.5
F9033 4 25 1.26 / 32 0.287 / 7.3 0.374 / 9.5
F9034 2 35 0.709 / 18 0.327 / 8.3 0.433 / 11
F9035 2 35 0.984 / 25 0.327 / 8.3 0.433 / 11
F9036 2 35 1.26 / 32 0.327 / 8.3 0.433 / 11
F9037 1/0 50 0.709 / 18 0.406 / 10.3 0.512 / 13
0.012 / 0.3 TB5095, ERG4F9038 1/0 50 0.984 / 25 0.406 / 10.3 0.512 / 13
F9039 1/0 50 1.18 / 30 0.406 / 10.3 0.512 / 13
Ferrules
Sta-Kon ®
www.tnb.ca
B38
Termination Products

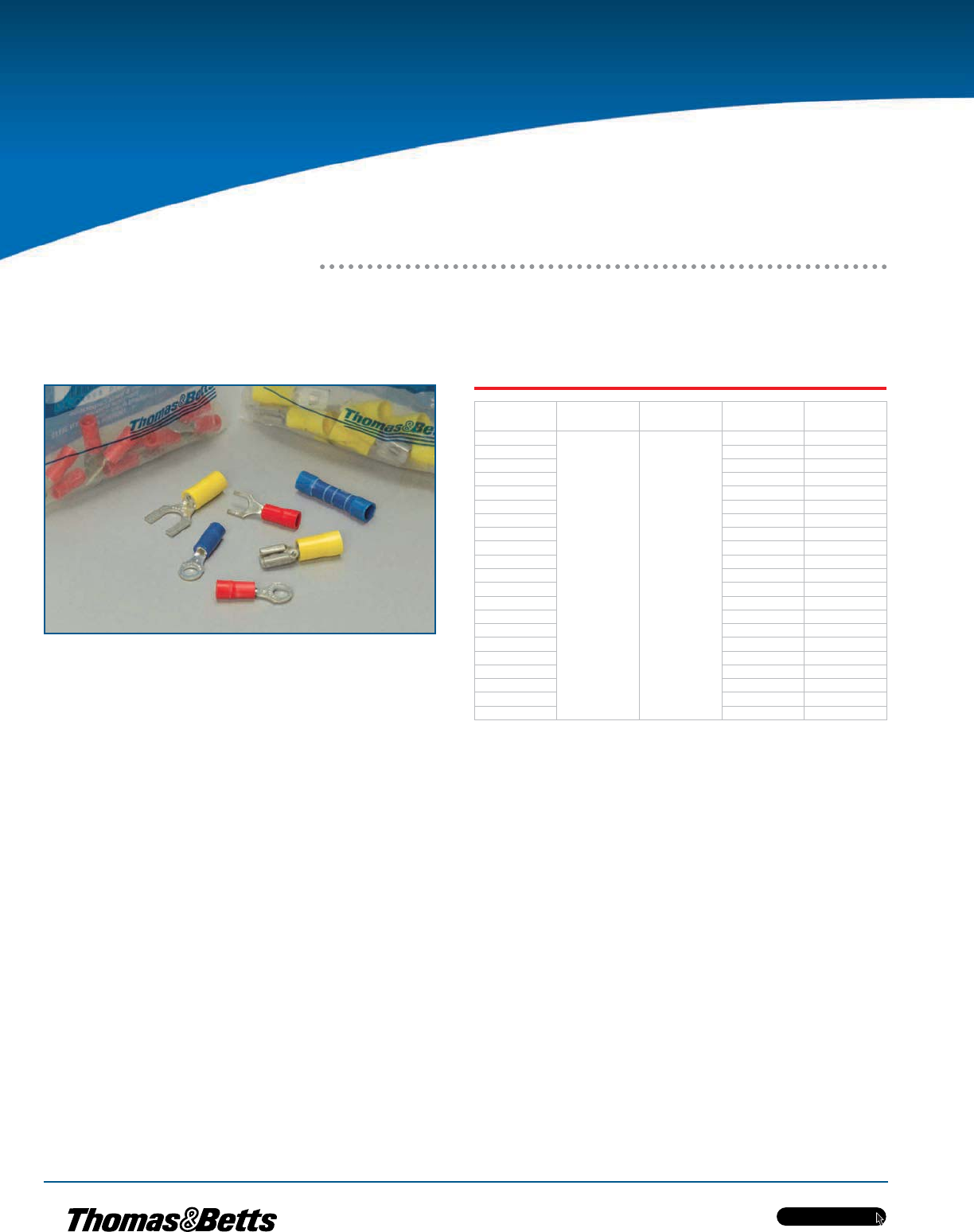

Sta-Kon®Mini-Pack Terminals
Convenient 20-count packaging!
• Wire ranges from #22 AWG to #10 AWG
• Vinyl insulated ring and forked-tongued terminals,
female disconnects, butt-type splice connectors
Note: “CP” designates mini-pack quantities. Refer to other catalogue pages
for description and dimensional information.
Cat. No. Unit
Qty.
Pkg.
Qty.
Wire
Range
Bolt
Hole
18RA-6FCP
20 100
22–18 #6
18RA-8CP 22–18 #8
18RA-10CP 22–18 #10
14RB-6CP 16–14 #6
14RB-8CP 16–14 #8
14RB-10CP 16–14 #10
10RC-10CP 12–10 #10
10RC-14CP 12–10 1⁄4
18RA-8FCP 22–18 #8
18RA-10FCP 22–18 #10
14RB-6FCP 16–14 #6
14RB-8FCP 16–14 #8
14RB-10FCP 16–14 #10
10RC-8FCP 12–10 #8
10RC-10FCP 12–10 10
2RA18XCP 22–18 —
2RB14XCP 16–14 —
2RC10XCP 12–10 —
18RA-250FCP 22–18 —
14RB-250FCP 16–14 —
10RC-250FCP 12–10 —
Installing Kits
Sta-Kon ®
www.tnb.ca B39
Termination Products

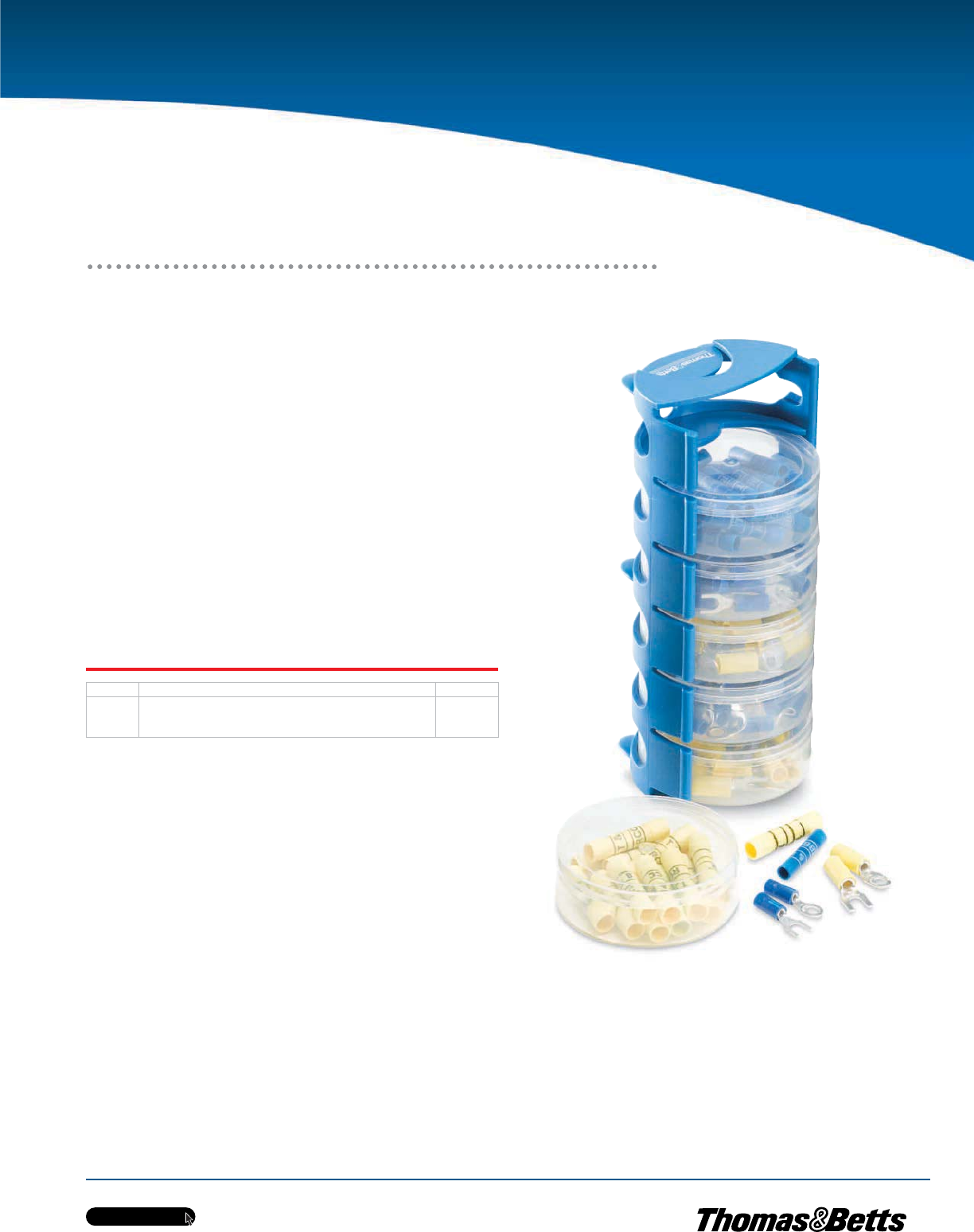

Sta-OrgTM Terminal and Splice Organizer Kit
Lightweight, durable, nylon construction!
•Ideal for contractors, OEMs or any other user of terminals and splices
•Slips in a tool box or sits on your bench — only 6.6 in. L x 3 in. dia.
•Bench-mountable (hardware included) Kit Contents
•(1) blue nylon organizer/carrier
•(6) see-through nylon canisters with lids
•(20) #12–#10 AWG vinyl ring terminals (Cat. No. 10RC-10)
•(25) #18–#14 AWG vinyl ring terminals (Cat. No. 14RB-10)
•(15) #12–#10 AWG vinyl butt splices (Cat. No. 2RC-10X)
•(25) #18–#14 AWG vinyl butt splices (Cat. No. 2RB-14X)
•(20) #12–#10 AWG vinyl fork terminals (Cat. No. 10RC-10F)
•(25) #18–#14 AWG vinyl fork terminals (Cat. No. 14RB-10F)
Cat. No. Description Pkg. Qty.
STA-ORG Sta-Kon®Sta-OrgTM Terminal and Splice Organizer Kit 1
Installing Kits
Sta-Kon ®
www.tnb.ca
B40
Termination Products

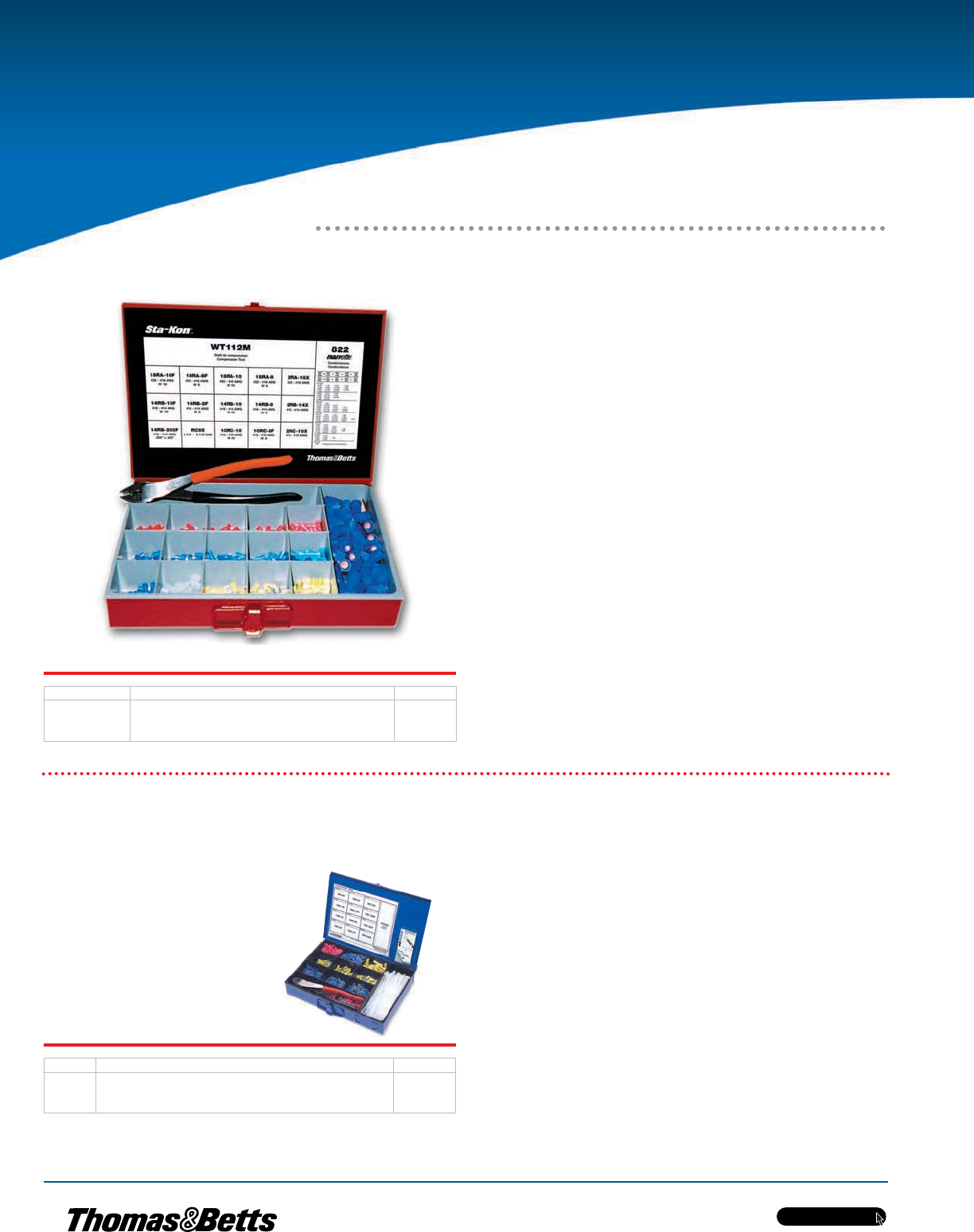

Kit contains
36 2RA18X butt splices for 22 - 16 AWG
36 18RA-8F fork terminals for 22 - 16 AWG
36 18RA-10F fork terminals for 22 - 16 AWG
36 18RA-8 ring terminals for 22 - 16 AWG
36 18RA-10 ring terminals for 22 - 16 AWG
36 RBB217-200 butt splices for 16 - 14 AWG
36 14RB-10F fork terminals for 18 - 14 AWG
36 18RA-250F disconnects for 22 - 18 AWG
36 14RB-8F fork terminals for 18 - 14 AWG
36 14RB-8 ring terminals for 18 - 14 AWG
36 14RB-10 ring terminals for 18 - 14 AWG
25 RCC217-250 butt splices for 12 - 10 AWG
25 10RC-8F fork terminals for 12 - 10 AWG
25 10RC-10 ring terminals for 12 - 10 AWG
20 RC6 wire joints
1 WT112M crimping tool
50 822D wire connectors XTP blue #22-#8 AWG
Installing Kits
Terminal Kits
For residential or light commercial installations we recommend this proven
assortment of popular Sta-Kon®vinyl terminals. This kit includes a WT112M
crimping tool.
STAKIT Installing Kit
Perfect for residential or light commercial installations!
•Assortment of popular
Sta-Kon®vinyl terminals
•Kit includes a WT112M
crimping tool
•Includes cable ties
and wire marker book
Cat. No. Description Pkg. Qty.
STAKIT Assortment of Sta-Kon®vinyl terminals, splices and disconnects.
Includes crimp tool, cable ties and wire book marker 1
Kit contains
100 2RA18X butt splices for 22 - 18 AWG
100 2RB14X butt splices for 18 - 14 AWG
50 2RC10X butt splices for 12 - 10 AWG
50 10RC-10 ring terminals for 12 - 10 AWG
50 10RC-10FL locking fork terminals for 12 - 10 AWG
50 10RC-250F disconnects for 12 - 10 AWG
100 14RB-10 ring terminals for 18 - 14 AWG
100 14RB-8FL locking fork terminals for 18 - 14 AWG
100 14RB-250F disconnects for 18 - 14 AWG
100 18RA-8F fork terminals for 22 - 18 AWG
100 18RA-6FL locking fork terminals for 22 - 18 AWG
100 18RA-250F disconnects for 22 - 18 AWG
1 WM-0-THRU9 wire marker book
1 WT112M crimping tool
100 TY525M Ty-Rap®cable ties (approx. length 7-1/2)
Note: All splices, terminals and disconnects are vinyl insulated.
Cat. No. Description Pkg. Qty.
SK-CLASSIQUE Terminal Kit 1
Sta-Kon ®
www.tnb.ca B41
Termination Products

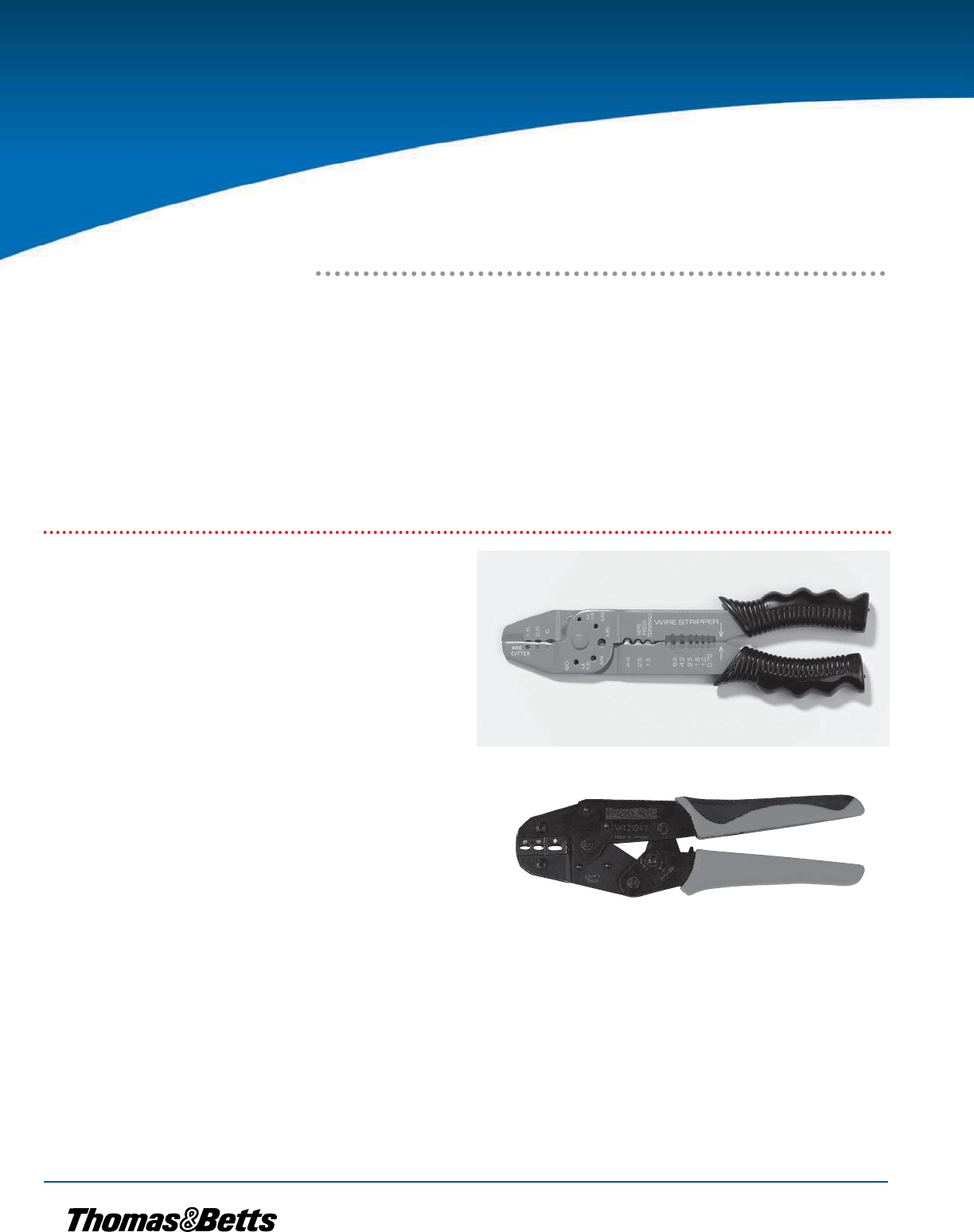

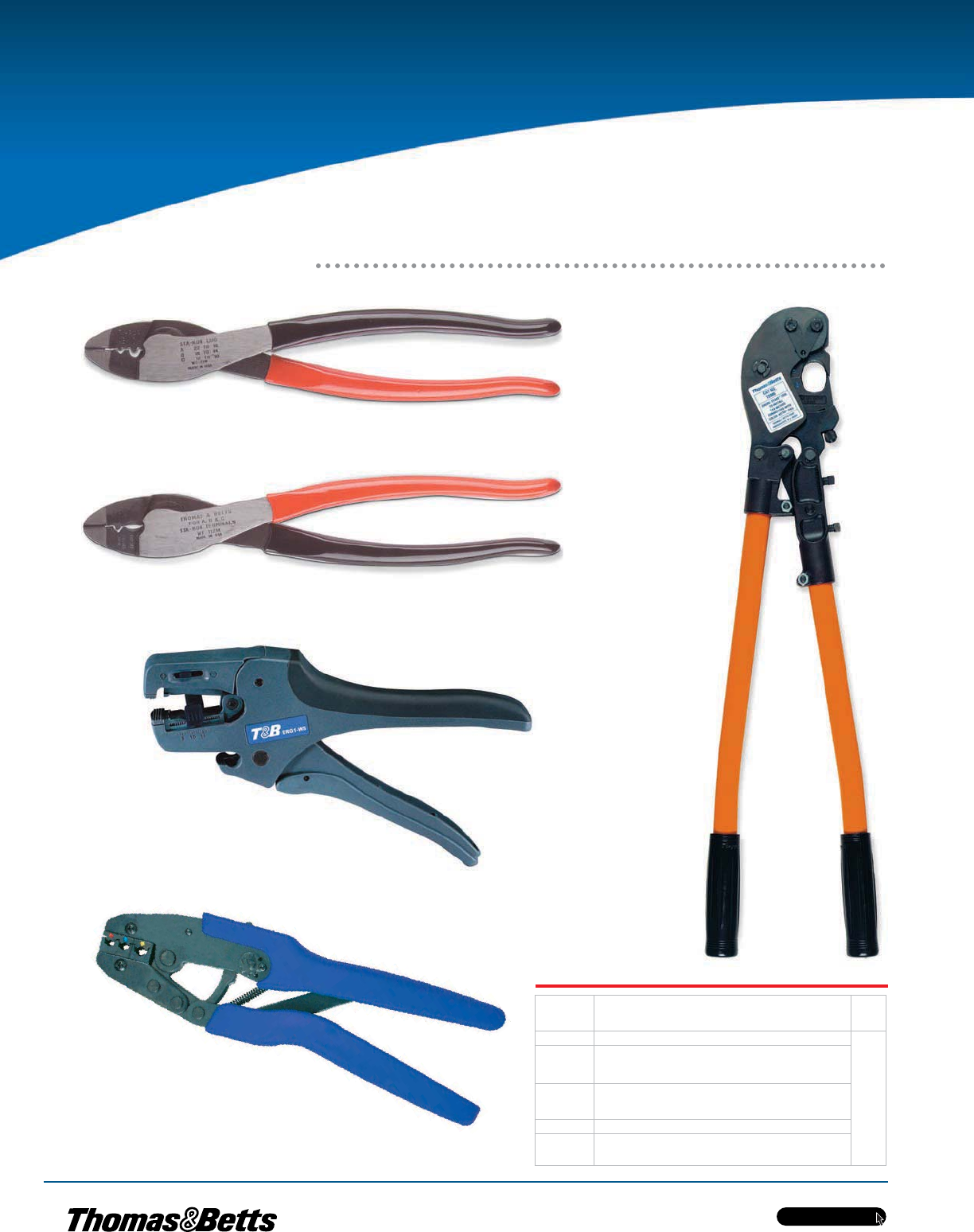

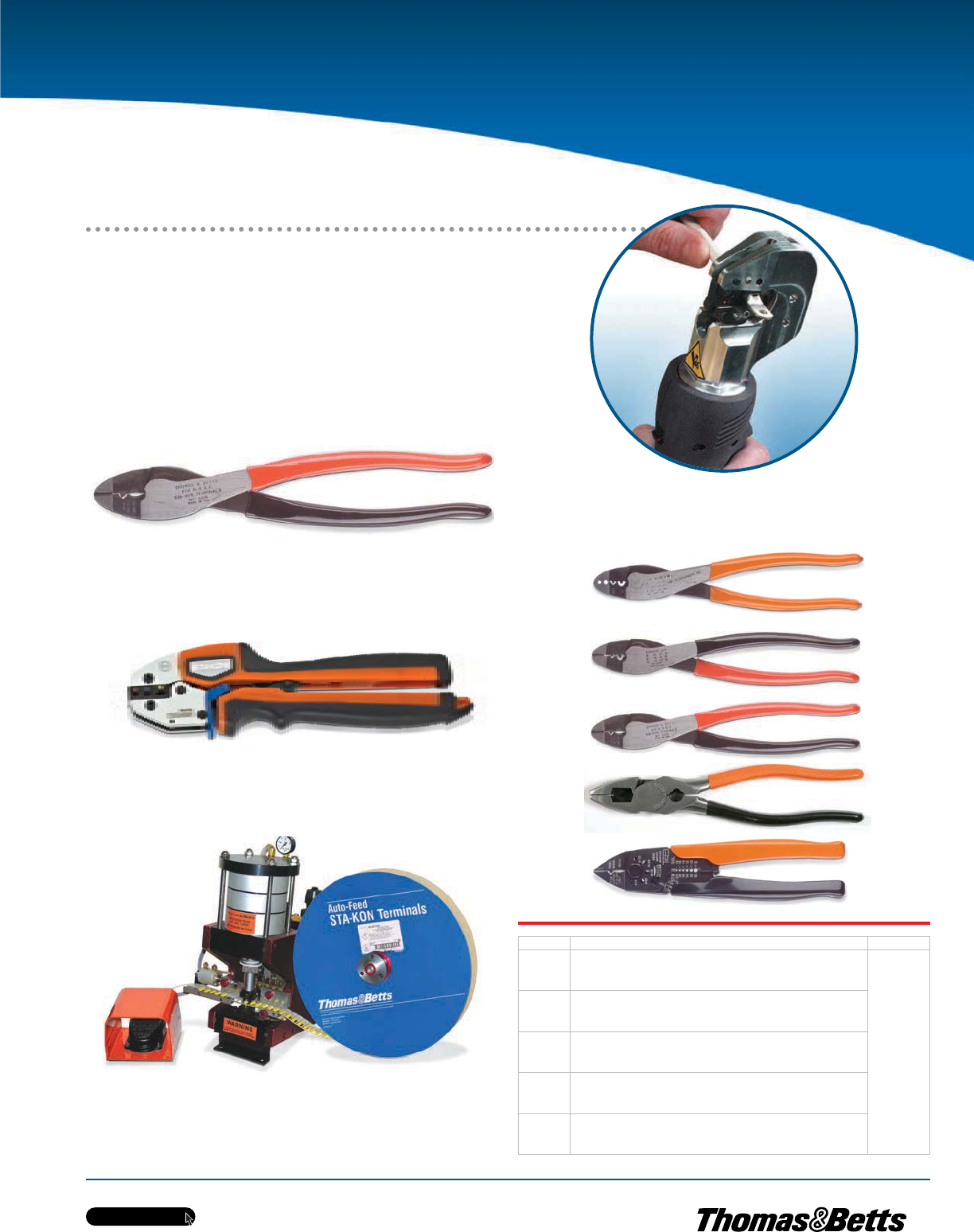

Application Tools
Recommended Tools
The Shure-Stake®mechanism on mechanical ratchet tools and power tools
prevents the dies from releasing the terminal until the proper compression has
been completed. With this method, an operator achieves a reliable crimp every
time. Thomas & Betts tooling techniques correctly match tools, wire size, and
terminal to produce optimum mechanical and electrical performance.
Plier-Type Tools
Used for installation of various Sta-Kon®terminal series
Plier type if installations are fewer than 20 per day
Ratchet type if installations are more than 20 per day
Power type if installations are more than 200 per day
Cat. No. Description Pkg. Qty.
WT110M A, B, C non-insulated terminals and splices and A, B non-insulated
terminals with insulation grip
1
WT111M A, B, C, PT non-insulated terminals and splices; includes cutters
WT112M A, B, C non-insulated and RA, RB, RC insulated nylon and vinyl
terminals and splices; includes cutters
WT161M A, B, C, PT non-insulated terminals and splices; includes
plier grip and cutters
WT2000 A, B, C, AB, PT, RA, RB, RC insulated and non-insulated terminals
and splices; includes wire cutters, bolt cutters and wire stripper
WT112M
WT110M
WT111M
WT112M
WT161M
WT2000
ERG4001
12050
Sta-Kon ®
www.tnb.ca
B42
Termination Products
Application Tools

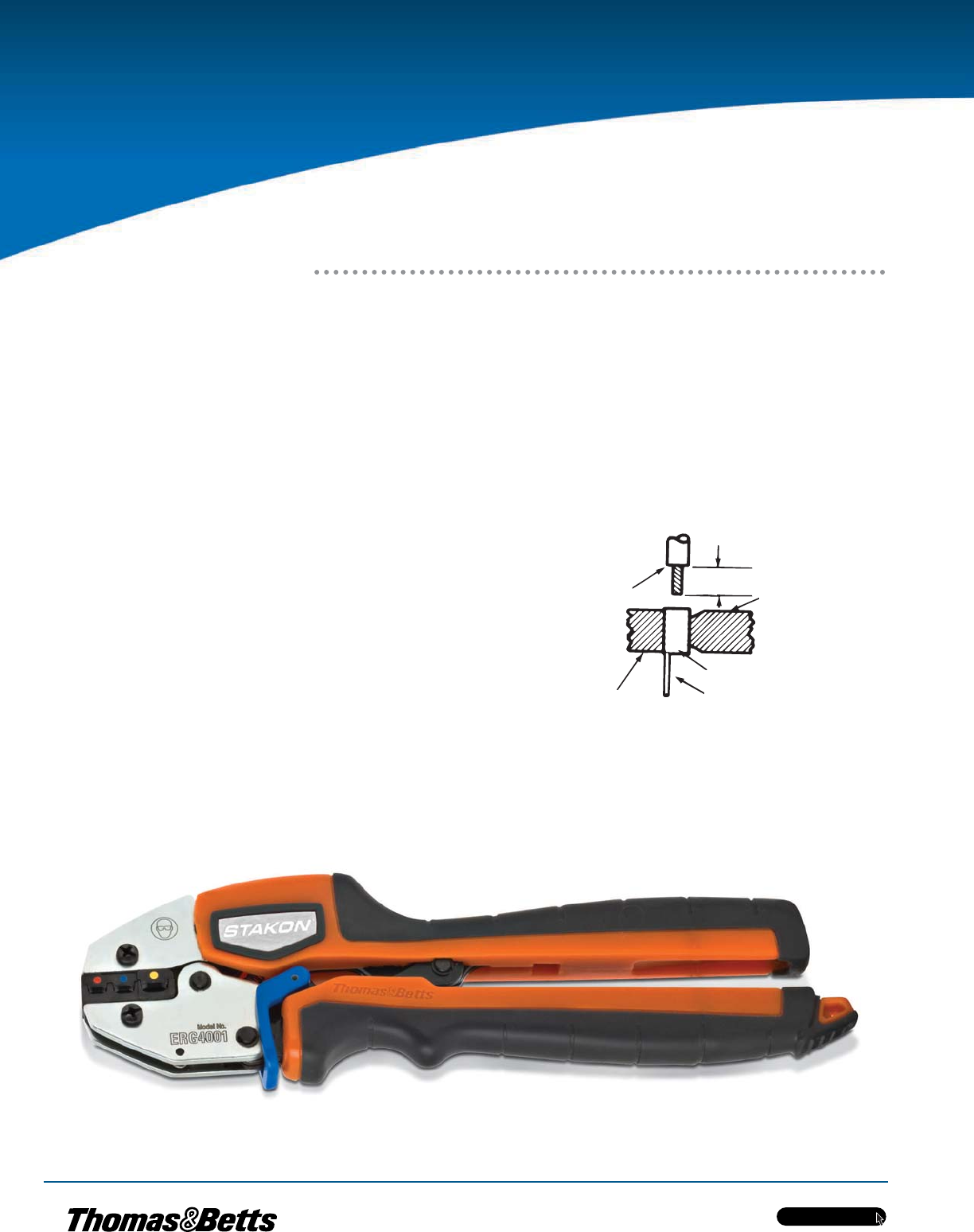

The proper installation procedure for the quality-assured connection!
The proper installation of terminals, splices and connectors is very important to the efficient performance of an electrical
system. The properly installed connector will enable good conductivity through the termination. Certain basic requirements
must be met to make a good termination.
• Strip the insulation carefully to avoid nicking or cutting conductor strands
• Strip the insulation to the proper length so the conductors can be inserted fully into the connector
barrel; the wire/cable should be visible in the inspection hole of the lug
A poor termination results in a high-resist ance connection.
A poor connector installation may cause damage or failure of an entire system.
Installation Procedure
1. Strip the insulation carefully to avoid nicking or cutting
conductor strands.
2. Strip the insulation to the proper length so the conductors can be
inserted fully into the connector barrel; the wire/cable should be
visible in the inspection hole of the lug.
3. Train the wires to eliminate fanning of strands.
4. Open handles fully.
5. Insert terminal in proper die nest and locate it as shown on the right.
When crimping a butt splice, position in proper die nest with
window facing indentor.
6. Close handles slightly to secure terminal.
Do not deform terminal.
7. Insert properly stripped wire into terminal.
8. Complete crimp by closing handles.
stripped wire
rest
stripping
length indento
r
terminal
orient tongue
as shown
Shure-Stake®tools are
matched to terminals
ERG4001
Safety Warning: Keep fingers and hands away from mechanism during crimp function.
stripped wire
stripping
length indentor
nest
terminal
orient tongue
as shown
Sta-Kon ®
www.tnb.ca B43
Termination Products

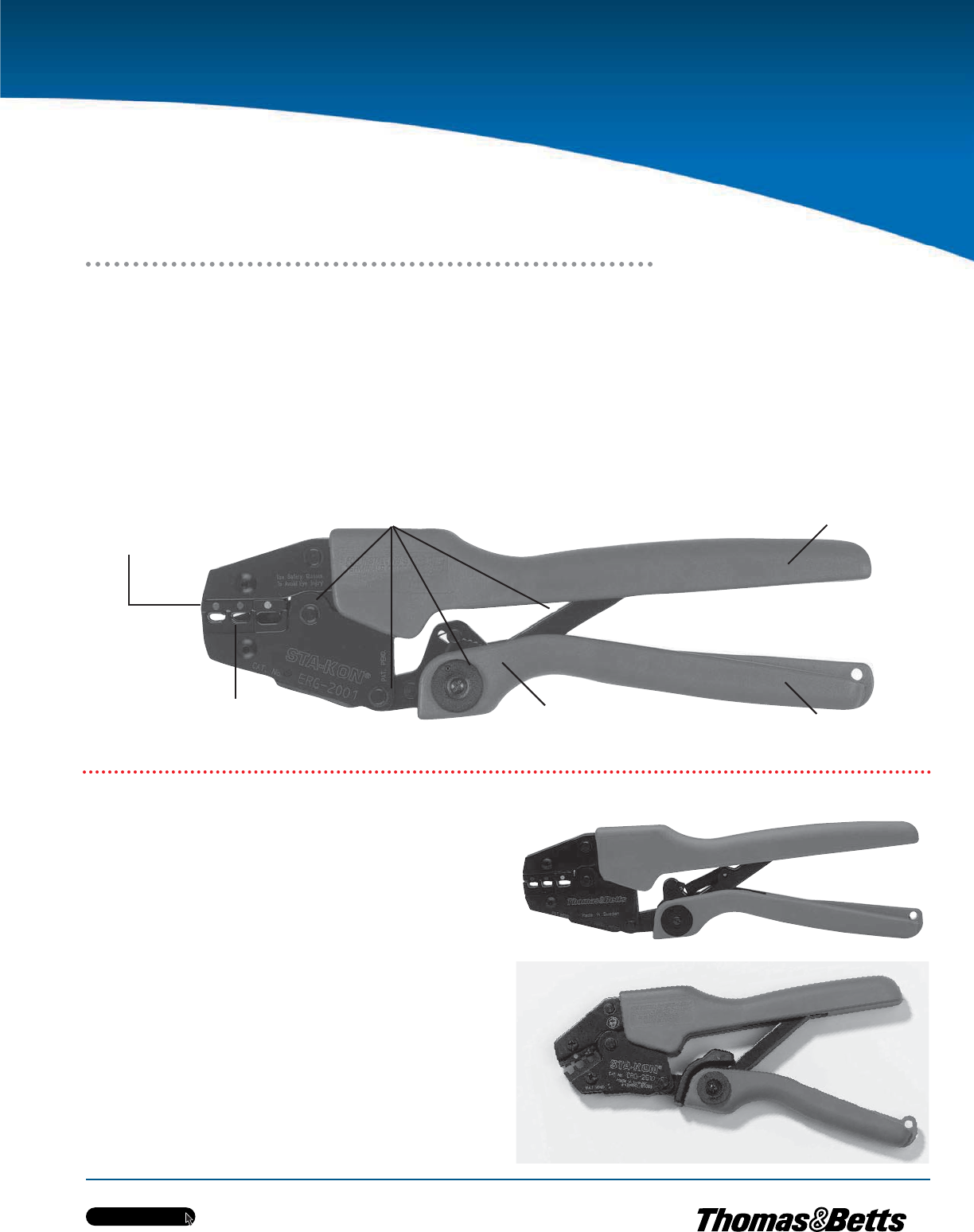

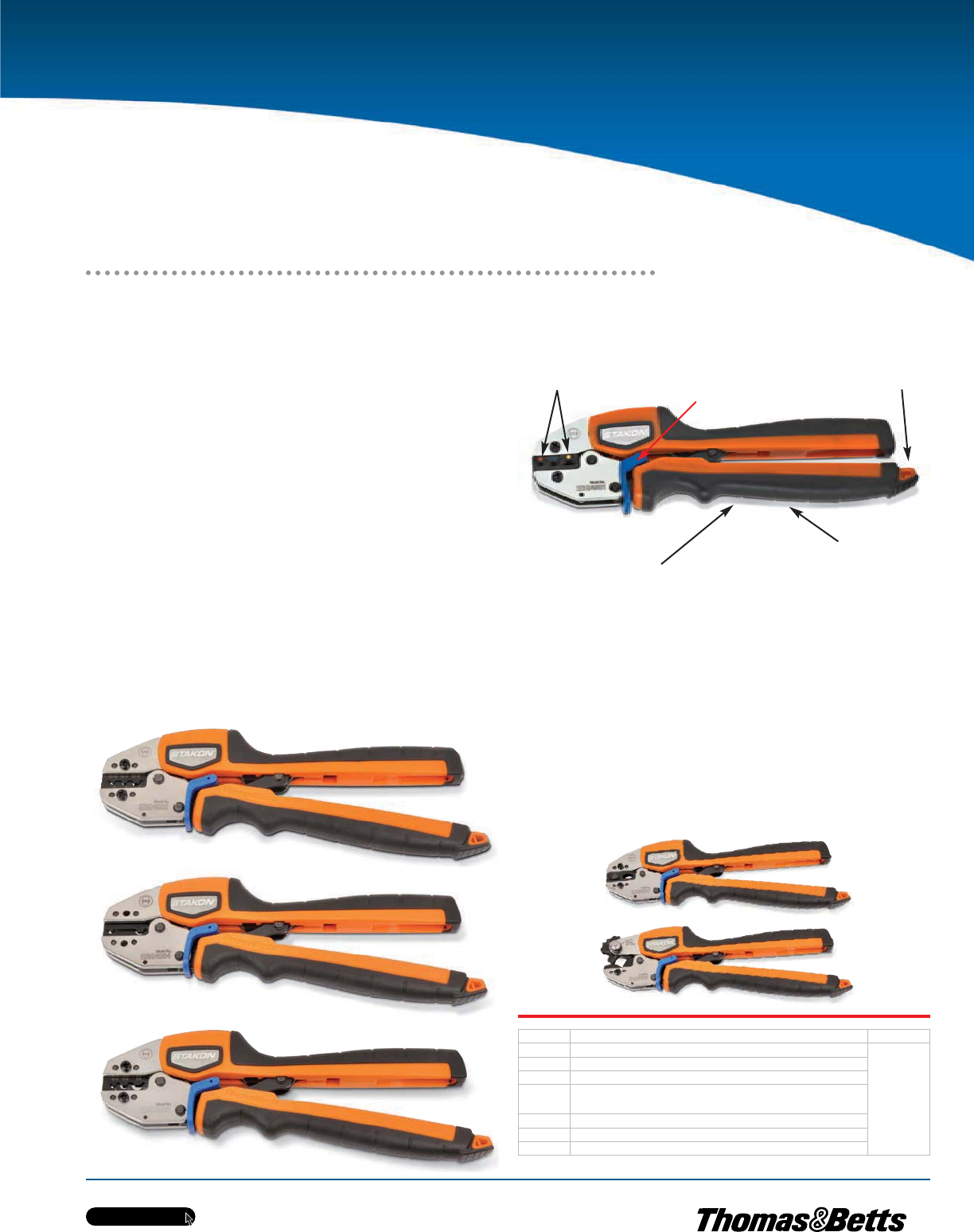

Redesigned family of termination tools sets a new standard for manual
crimping tools!
The most comfortable crimp available from
a manual compression tool!
Sta-Kon®Comfort CrimpTM Compression Tools previously set the standard for
manual crimp tools. Now, Thomas & Betts engineers have made a great line of
tools even better with the newly redesigned Sta-Kon®Comfort CrimpTM
Compression Tools. We kept all the performance features that made the tools
industry leaders such as the Shure-Stake®mechanism and interchangeable
dies with colour-coded die nests, and focused on creating the best possible
user experience in terms of comfort and reduction of strain.
Ergonomic handles position the user’s hands correctly to minimize the risk of
strain, and soft, over-molded grips cushion fingers and palm for user comfort.
A new Crimp-AssistTM foot stabilizes the tool when the user needs to place it on
a work surface for leverage to crimp larger connectors. Best of all, the
redesigned Comfort CrimpTM tools require 25% less handle force to complete
the crimp cycle than the previous generation — and up to 75% less handle
force than competing tools!
Requiring the lowest handle force of any tool in its class, the new
Comfort CrimpTM family provides maximum comfort to installers, without
sacrificing the durability or performance associated with Thomas & Betts tools.
•Perfect for OEM, MRO and field use
•UL Listed for use with Sta-Kon®connectors
•Shure-Stake®mechanism ensures a complete crimp cycle
before release for a proper crimp every time
•Colour-coded die nests for easy matching with Sta-Kon®
insulated terminals
•Creates integrity dots for quick verification of proper crimp
•Advanced manufacturing methods for improved durability
and tool life
•Lanyard hole in handle for easy tethering to workstation
•Calibration service available through T&B Tool Services
Colour-coded die nests (left and
right side) provided for proper
crimping of insulated terminals
Crimp-Assist™foot provides stability
when work surface leverage is
needed to crimp larger connectors
Shure-Stake®mechanism
ensures a proper crimp
every time
Ergonomically advanced, soft,
over-molded handle grips reduce
strain and enhance user comfort
Requires the lowest handle force of
any tooling its class — 25% less
than the previous generation of
Comfort CrimpTM tools
ERG4002
ERG4007
ERG4008
ERG4004
ERG4005
Cat. No. For use with STA-KON®Series Pkg. Qty.
ERG4001 RA, RB, RC nylon & vinyl terminals, splices & disconnects
1
ERG4002 A, B, C non-insulated terminals, splices, disconnects
ERG4004 A, B and C flag terminals
ERG4005 B, C, D, E non-insulated terminals, splices,
(D & E tubular only)
ERG4006 RA, RB disconnects and RZ terminals
ERG4007 RD & RE insulated terminals (tubular only)
ERG4008 Non-insulated terminals #8–1/0 AWG (tubular only)
Note: Contact Tool Services for gauging
Application Tools
Sta-Kon ®
www.tnb.ca
B44
Termination Products

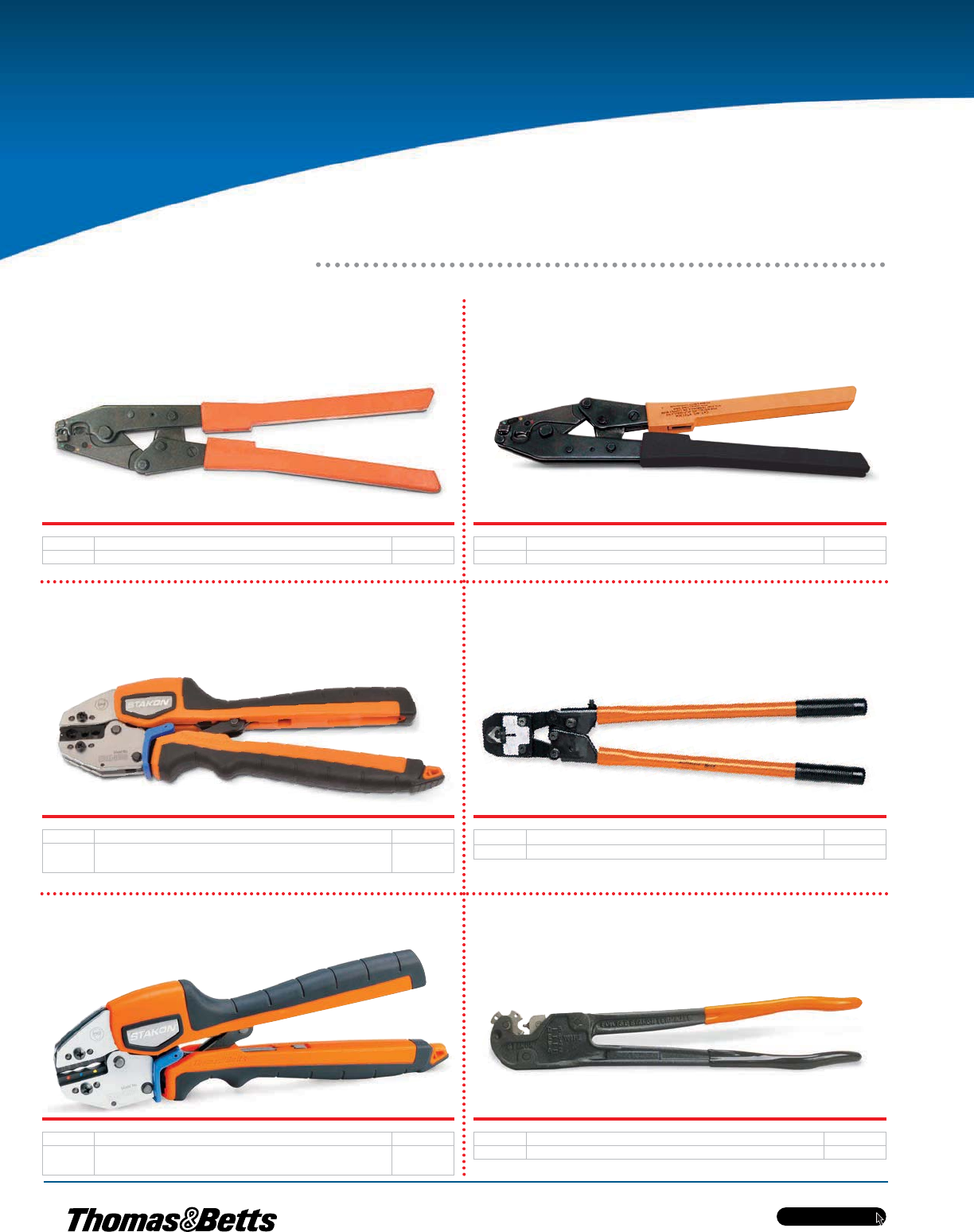

WT1377 Ratchet Hand Tool
Correct compression every time — the Shure-Stake®mechanism principle
prevents opening of the handles until full staking action is completed. Installs
self-insulated and non-insulated Sta-Kon®terminal series in the #26–#10 AWG
wire range.
WT2130A Ratchet Hand Tool
ERG4006 Hand Tool WT3185 Ratchet Hand Tool
ERG4255 Ratchet Hand Tool WT129 Flag Terminal Type Hand Tool
Cat. No. For use with STA-KON®Series Pkg. Qty.
WT1377 NW ring terminals 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
WT2130A RC, RBC and RD insulated terminals, RC6, RP7 wire joints 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
ERG4006 RZ terminals/splices
RA, RB insulated disconnects 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
WT3185 For #8 AWG to 250 kcmil non-insulated Sta-Kon®Terminals 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
ERG4255 RA, RB, RC heat-shrinkable nylon-insulated
terminals, butt splices, and disconnects 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
WT129 D, E, F & G non-insulated flag terminals 1
Note: For gauging information, contact Tool Services
Application Tools
Sta-Kon ®
w w w . t n b . c a
B45
Termination Products

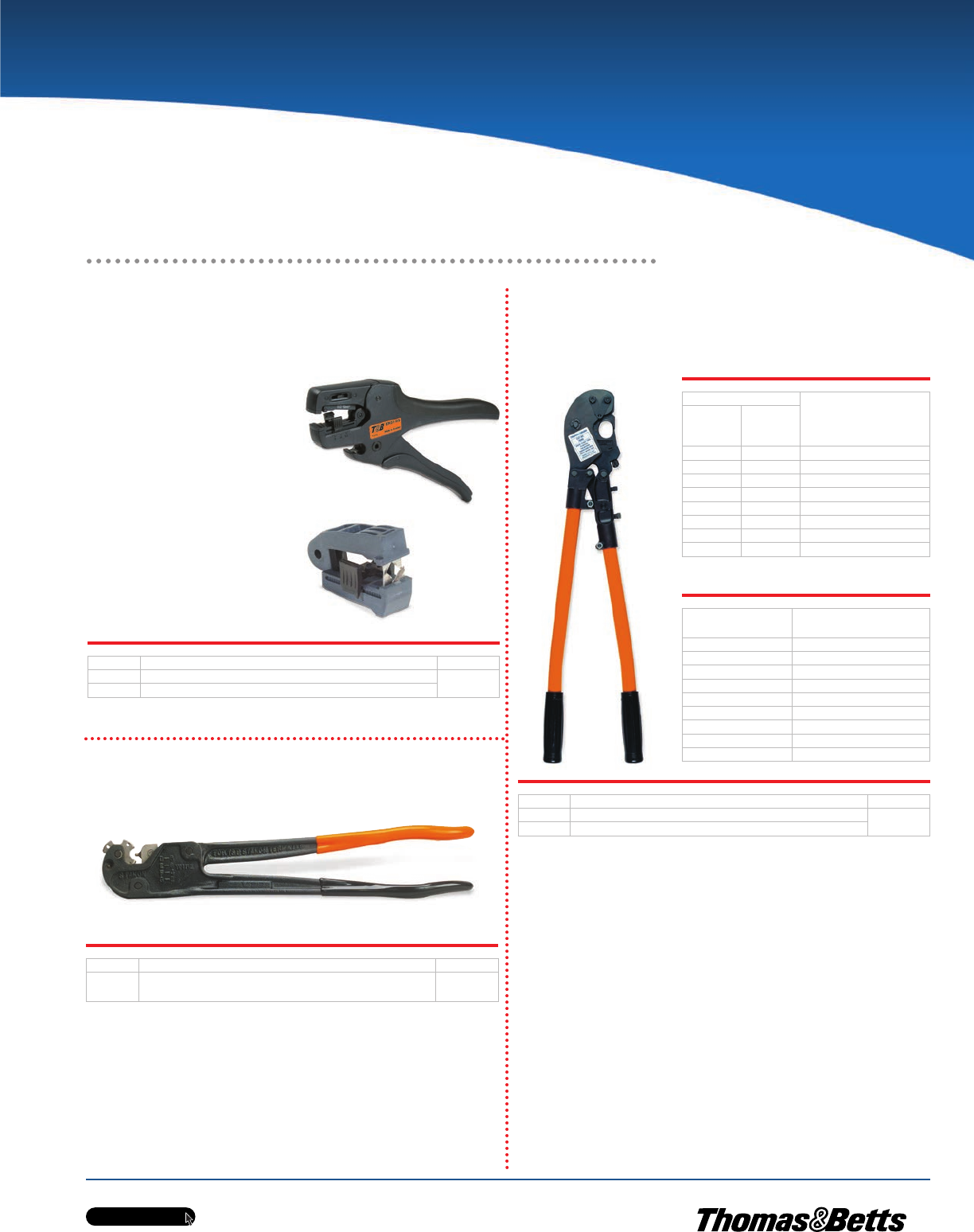

WT115A Toggle-Type Hand Tool
Sta-Kon®ERG1-WS Wire
Stripping/Cutting Tool
Integral wire cutter lets user cut and strip with the same tool!
•Interchangeable cassettes
enable the user to strip a
wide range of insulations
without having to change
tools
•Tool automatically strips wire
to preset length
TBM6 & TBM6S Toggle-Type Hand
Tools
Installing Dies for Non-Insulated Code
and Aircraft Sta-Kon®Terminals
Installing Dies for Nylon-Insulated
Sta-Kon®Terminals TBM6 & TM6S Tools
Dies not included.
Note: These tools can also be used to crimp Blackburn®Lugs and Splices.
“V” Blade Cassette
TBM6
Cat. No. For use with STA-KON®Series Pkg. Qty.
WT115A D, E, F & G non-insulated terminals 1
Cat. No. For use with STA-KON®Series Pkg. Qty.
TBM6 D through M, RD through RM 1
TBM6S D through M, RD through RM with Shure-Stake®
Cat. No. Description Pkg. Qty.
ERG1-WS Ergonomic Wire Stripping Tool 1
VBC-1 Replacement “V” Blade Cassette
ERG1-WS Wire Stripping/Cutting Tool is shipped with one Straight Blade Cassette (SBC-1).
“V” Blade Cassettes sold separately.
Cat. No.
Term.
Size
Nest
Stationary
Die
Indentor
Movable
Die
11803 D, E (Tubular)
11805 E (Brazed), F (Tubular)
11806 11802 F (Brazed), G
11807 H
11808 J
11809 K
11810 L
11811 M
Die Set
Cat. No. Term. Size
11821 RD (Tubular)
11822 RD (Brazed Seam) RE (Tubular)
11823 RF
11824 RG
11825 RH
11826 RJ
11827 RK
11828 RL
11829 RM
Application Tools
Sta-Kon ®
www.tnb.ca
B46
Termination Products

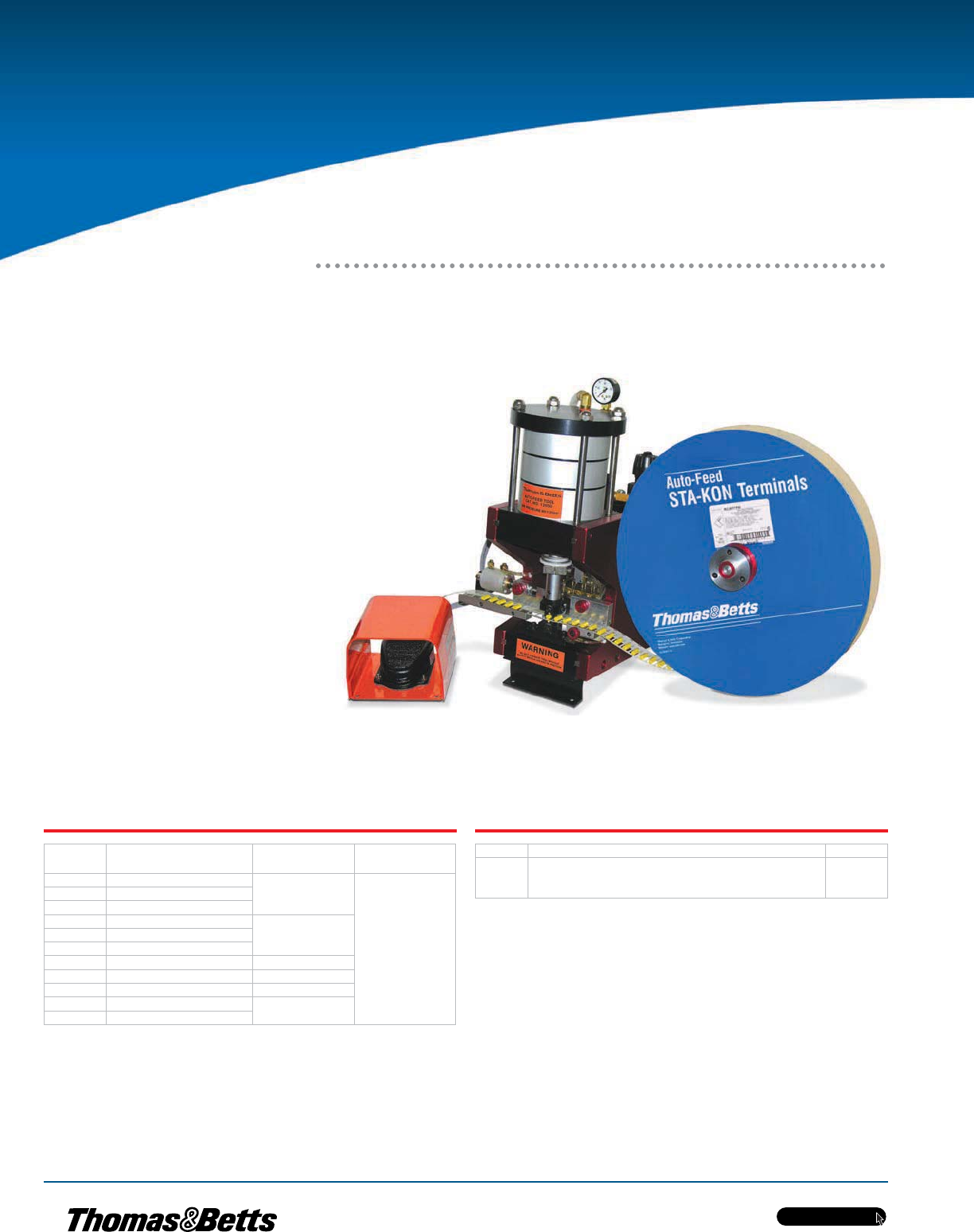

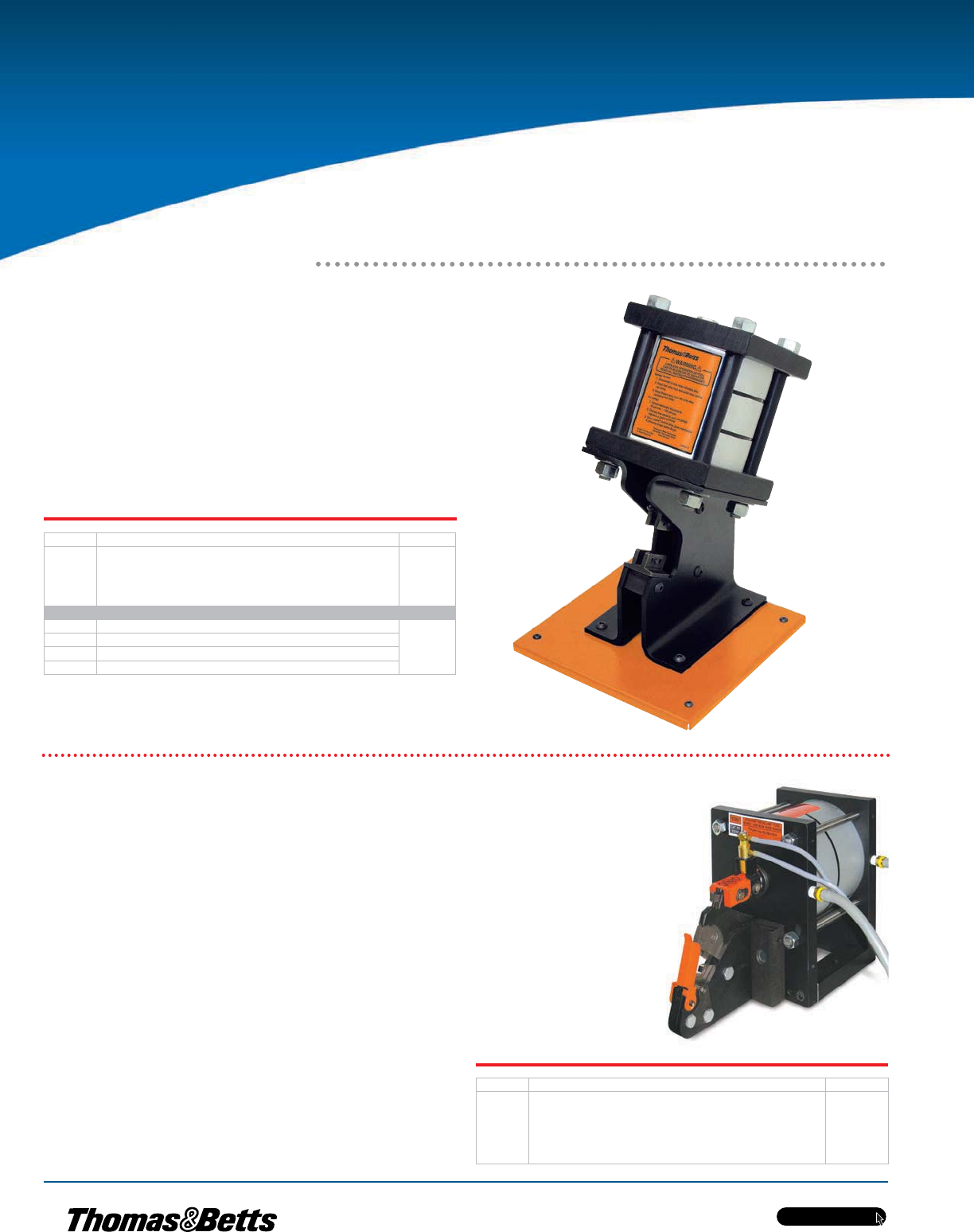

Shure-Stake®Auto-Feed Tool
Safe, fast, high-volume crimping machine!
•Shure-Stake®mechanism
•Fully guarded foot pedal
•Clear plastic safety guard over die area
•Dies colour-coded to terminals
•#26–#10 AWG wire range
•Installs insulated and non-insulated
terminals and disconnects
Space Requirement: 30 in. W x 20 in. H x 20 in. D
Weight: 55 lb.
Air Pressure: 90–125 psi input air supply
INSTALLING DIES FOR 12050
Die
Cat. No.
Sta-kon®
Terminal Type
AWG
Wire Size
Pkg.
Qty.
12051 RA — Nylon
22–18
1
12054* RA — Vinyl
12061 RA — Disconnect
12052 RB — Nylon
16–14
12055* RB — Vinyl
12062 RB — Disconnect
12056 RC — Nylon and Vinyl Insulated 12–10
12057 A — Non-Insulated 22–18
12058 B — Non-Insulated 16–14
12059 C — Non-Insulated 12–10
12060 C — Disconnect, Non-Insul.
* Can also be used on nylon
Cat. No. Description Pkg. Qty.
12050
Compact, pneumatically operated unit for crimping tape-mounted
Sta-Kon®terminals; equipped with a Shure-Stake®mechanism, which
ensures a full compression each time
1
Application Tools
Sta-Kon ®
www.tnb.ca B47
Termination Products

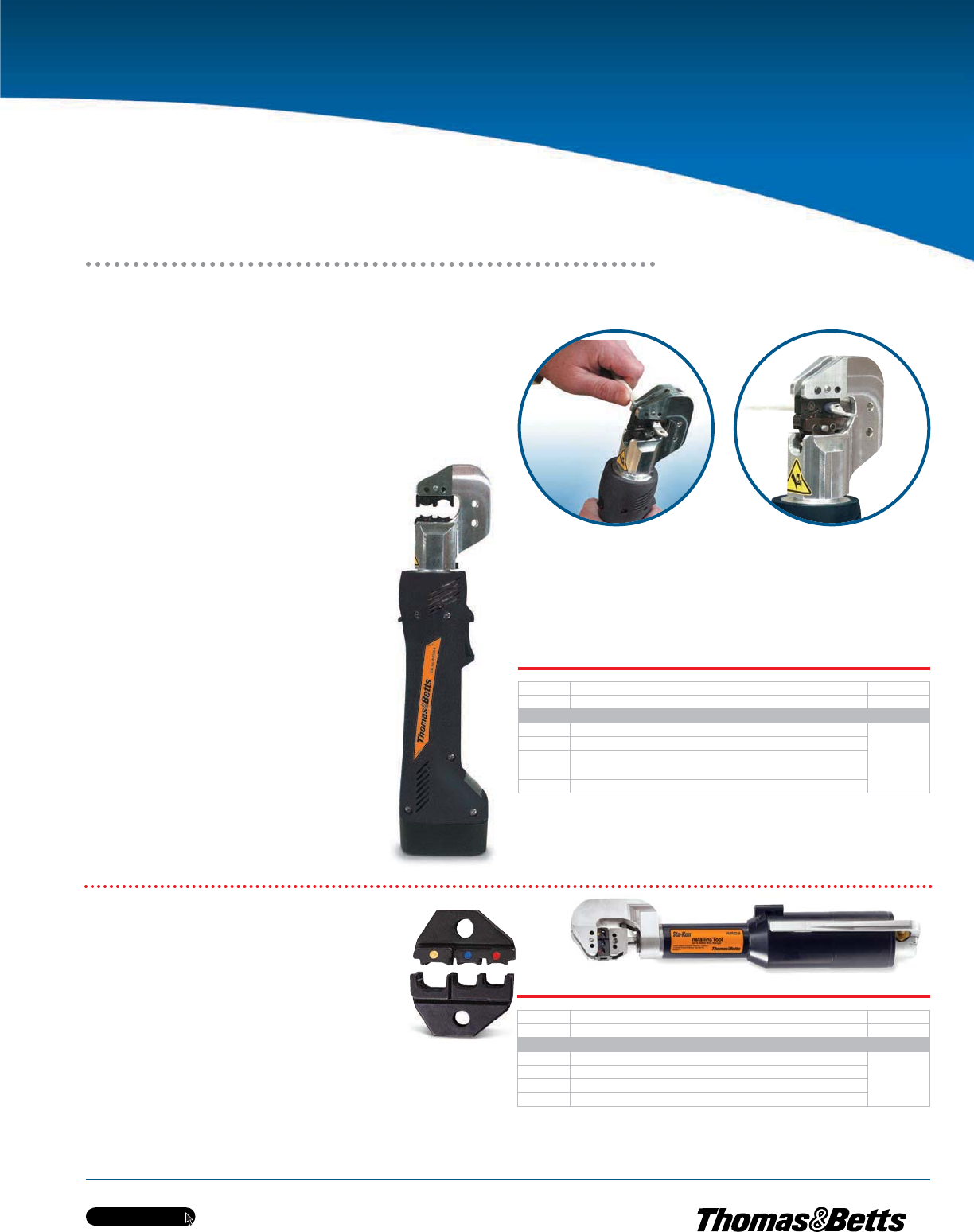

Battery-Powered Crimping Tool — BAT22-6
1-1/2 tons of grip that weighs less than three pounds!
T&B’s newest battery-powered tool is fast and portable for making high-volume
and difficult-to-reach terminal installations in a snap. The Sta-Kon®BAT22-6
delivers 1.5 tons of crimping force with an easy, pushbutton trigger. The
lightweight, ergonomic design minimizes the risk of repetitive motion injuries
that can occur with traditional hand crimping tools. And at less than three
pounds, one-hand operation is easy while still packing enough power to crimp
up to #6 AWG terminals in seconds.
•Interchangeable dies can be quickly changed
to crimp non-insulated and insulated
terminals up to #6 AWG
•Dies are the same as our hand tools —
crimps will be exactly the same between
Sta-Kon®hand tools such as our ERG4001
and the BAT22-6
•360° rotating head gives the user the added
flexibility when crimping hard-to-reach
connections
•Short cycle time equates to crimping times
of less than two seconds
•Quick, lightweight, and maneuverable
•NiCd battery operation provides long-lasting
battery life to complete up to 150 crimps
on a single charge
•Extra battery and charger are included with
the tool, ensuring round-the-clock operation
•Battery charger provides full battery life in
under an hour
•Linear crimping motion gives asymmetric,
high-quality crimp every time
Included Accessories
•Sturdy, plastic carrying case for portability
•Two 9.6V NiCd batteries and battery charger
•Sturdy tray for convenient storage of crimp dies
*Dies sold separately.
Note: Battery-powered tools BPI42300CR, BPLT6BSCR and BPLT62BSCR can also
be used to crimp non-insulated Sta-Kon®terminals.
PAIR22-6
Air Crimp Tool
Heavy-duty portable tool
•1.25 tons output force at 100 psi
•Crimps #22–#6 AWG terminals
•Installs Sta-Kon®terminals as well as ferrules
and Dragon Tooth™connectors
•Interchangeable dies
•Open yoke enables easy access to insert and remove
terminals for crimping
* Dies sold separately.
Note: The dies for the BAIR22-6, PAIR22-6 and BAT22-6 are interchangeable.
Note: Battery-powered tools BPI42300CR, BPLT6BSCR and BPLT62BSCR can also be used
to crimp non-insulated Sta-Kon®terminals.
Cat. No. Description Pkg. Qty.
BAT22-6 Battery Crimping Tool, 1.5 Ton with 120-VAC Charger 1
Crimp Dies*
DIE2001 Insulated #22–#10 AWG Sta-Kon®Terminals
1
DIE2002 Non-Insulated #22–#10 AWG Sta-Kon®Terminals
DIE2005 Non-Insulated #16–#14/#12–#10/#8–#6 Sta-Kon®Terminals
(Tubular Only)
DIE2007 Insulated #8–#6 AWG Sta-Kon®Terminals (Tubular Only)
Easy to rotate with your wrist — delivers fast and
effective crimping power
Uses the exact dies of the Comfort Crimp™
line of ergonomic tools for Sta-Kon®and
Dragon Tooth™ terminals
Cat. No. Description Pkg. Qty.
PAIR22-6 Open yoke, hand actuated 1
Crimp Dies*
DIE2001 Insulated #22–#10 AWG Sta-Kon®Terminals
1
DIE2002 Non-Insulated #22–#10 AWG Sta-Kon®Terminals
DIE2005 Non-Insulated #16–#10/#8–#6 Sta-Kon®Terminals (Tubular Only)
DIE2007 Insulated #8–#6 AWG Sta-Kon®Terminals (Tubular Only)
Application Tools
Sta-Kon ®
BAIR22-6 Bench-Mounted Air Tool
Crimps #22–#6 AWG terminals!
www.tnb.ca
B48
Termination Products
•1.8 tons output force at 100 psi
•Bench-mounted heavy-duty air tool
•Short cycle time
•Shure-Stake®mechanism
•Foot actuated
•Accepts T&B standard hand tool dies
•Installs Sta-Kon®and Spec-Kon™terminals
as well as ferrules and Dragon Tooth™connectors
* Dies sold separately.
Note: The dies for the BAIR22-6, PAIR22-6 and BAT22-6 are interchangeable.
Note: Battery-powered tools BPI42300CR, BPLT6BSCR and BPLT62BSCR can also be
used to crimp non-insulated Sta-Kon®terminals.
Air-Operated Bench-Mounted Tool
Crimps #8 AWG–250 kcmil!
Convenience and Economy
The tool accepts a full range of interchangeable dies, the same as used in the
TBM6 or TBM6S tools. To install the dies, simply pull the spring-loaded pin and
remove the indentor die. Then, flex the retaining spring and remove the die nest.
Shure-Stake®Mechanism Means Quality Connections
The Shure-Stake®mechanism senses inlet air pressure, and if insufficient,
is designed to prevent the tool from cycling. Thus you avoid “undercrimping.”
An 85–90-psi air pressure source is required.
Safety Features Increase Productivity, Reduce Downtime
Safety features include a guard over the die area, an air shutdown switch
activated by a slight push with the finger and a foot pedal that’s enclosed to
prevent accidental tool operation. In addition, the tool may be bench-mounted
for stability and control. For convenience when crimping large size terminals
on heavy wire, the head assembly may overhang the workbench.
Note: This tool uses the same dies as the TBM6 and TBM6S hand tools on page B45.
Cat. No. Description Pkg. Qty.
BAIR22-6
Heavy-duty, high-speed production tool installs a wide range of
Sta-Kon®terminals, from #26–#6 gauge; uses the DIE2000 Series dies
for both non-insulated and insulated terminals; supplied complete with
foot pedal, air hose/air lubricator
1
Crimp Dies*
DIE2001 Insulated #22–#10 AWG Sta-Kon®Terminals
1
DIE2002 Non-Insulated #22–#10 AWG Sta-Kon®Terminals
DIE2005 Non-Insulated #16–#10/#8–#6 Sta-Kon®Terminals (Tubular Only)
DIE2007 Insulated #8–#6 AWG Sta-Kon®Terminals (Tubular Only)
Cat. No. Description Pkg. Qty.
25000
This compact heavy-duty air tool installs nylon insulated Sta-Kon®
terminals on wire sizes from #8 AWG to 250 kcmil; non-insulated
styles are also installed just as quickly and dependably; heavy-duty
air tool installs non-insulated and insulated Sta-Kon®terminals from
#8 AWG to 250 kcmil
1
Application Tools
Sta-Kon ®
www.tnb.ca B49
Termination Products

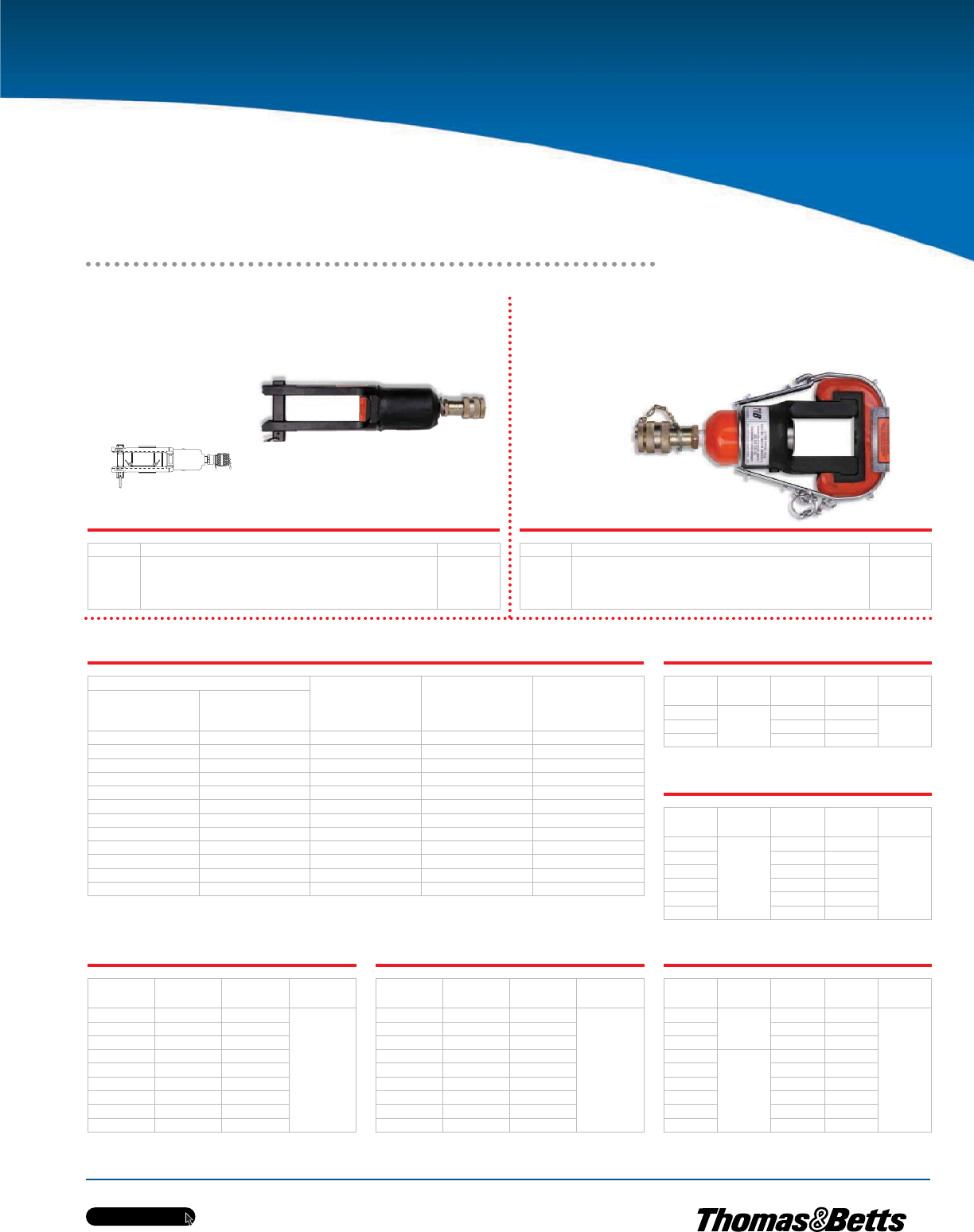

12-Ton Hydraulic Head
Installs insulated and non-insulated Sta-Kon®Terminals!
12-Ton Crimping Tool
(Military Spec. MS25441-1)
Military listed and 12 tons of crimping power!
** Cat. Nos. 21739, 21740 and 21741 dies must be left
in 13642M head with 21732 indentor when gauging
Cat. No. Description Pkg. Qty.
13400
12-ton crimping tool supplied with adapter TBM12D-AR is used for
installing both insulated and non-insulated Sta-Kon®terminals #8
AWG to 250 kcmil (dies ordered separately)
1
Cat. No. Description Pkg. Qty.
13642M Hydraulic-operated 12-ton tool installs #8 AWG through 250 kcmil
Sta-Kon®terminals (dies ordered separately) 1
HEX DIES FOR NON-INSULATED STA-KON®TERMINALS TO FIT 13642M AND 13400
Cat. No.
Sta-Kon®
Size
Wire
Size
Hex
Die
Code
For
Tubular
Term
For
Brazed
Seam
11732 — D 8 21
— 11733 D 8 24
11733 — E 6 24
— 11734 E 6 29
11734 — F 4 29
— 11735 F 4 33
11736 — G 2–1 37
11737 — H 1/0 42
11738 — J 2/0 45
11739 — K 3/0 50
11740 — L 4/0 54
11771 — M 250 kcmil 62
INDENT STYLE DIES FOR STA-KON®BRAZED SEAM
NON-INSULATED TERMINALS TO FIT 13642M AND 13400
INDENT STYLE DIES FOR STA-KON®TUBULAR
NON-INSULATED TERMINALS TO FIT 13642M AND 13400
Nest
Cat. No.
Indent.
Cat. No.
Sta-Kon®
Size
Wire
Size
Pkg.
Qty.
13643
13650
D 8
113644 E 6
13645 F 4
Nest
Cat. No.
Indent.
Cat. No.
Sta-Kon®
Size
Wire
Size
Pkg.
Qty.
13654
13650
G 2–1
1
13655 H 1/0
13656 J 2/0
13657 K 3/0
13658 L 4/0
13659 M 250 kcmil
INDENT STYLE DIES FOR FLAG TYPE STA-KON®
TERMINALS — USE WITH 13642M AND 13400
Nest
Cat. No.
Indent.
Cat. No.
Sta-Kon®
Size
Wire
Size
Pkg.
Qty.
21733
21731
D 8
1
21734 E 6
21735 F 4
21736
21732
G 2
21737 H 1
21738 J 1/0
21739** K 2/0
21740** L 3/0
21741** M 4/0
HEX DIES FOR NON-INSULATED STA-KON®
TERMINALS TO FIT 13642M (MILITARY LISTED)
Die
Cat. No.
Sta-Kon®
Size
Wire
Size
Pkg.
Qty.
11781M D 8
1
11782M E 6AN
11783M F 4AN
11784M G 2AN
11785M H 1AN
11786M J 1/0AN
11787M K 2/0AN
11788M L 3/0AN
11789M M 4/0AN
INSTALLING DIES FOR INSULATED STA-KON®
TERMINALS TO FIT 13642M (MILITARY LISTED)
Die
Cat. No.
Sta-Kon®
Size
Wire
Size
Pkg.
Qty.
21707M RD 8
1
21708M RE 6
21709M RF 4
21710M RG 2–1
21711M RH 1/0
21712M RJ 2/0
21713M RK 3/0
21714M RL 4/0
21715M RM 250 kcmil
Application Tools
Sta-Kon ®
www.tnb.ca
B50 www.tnb.ca

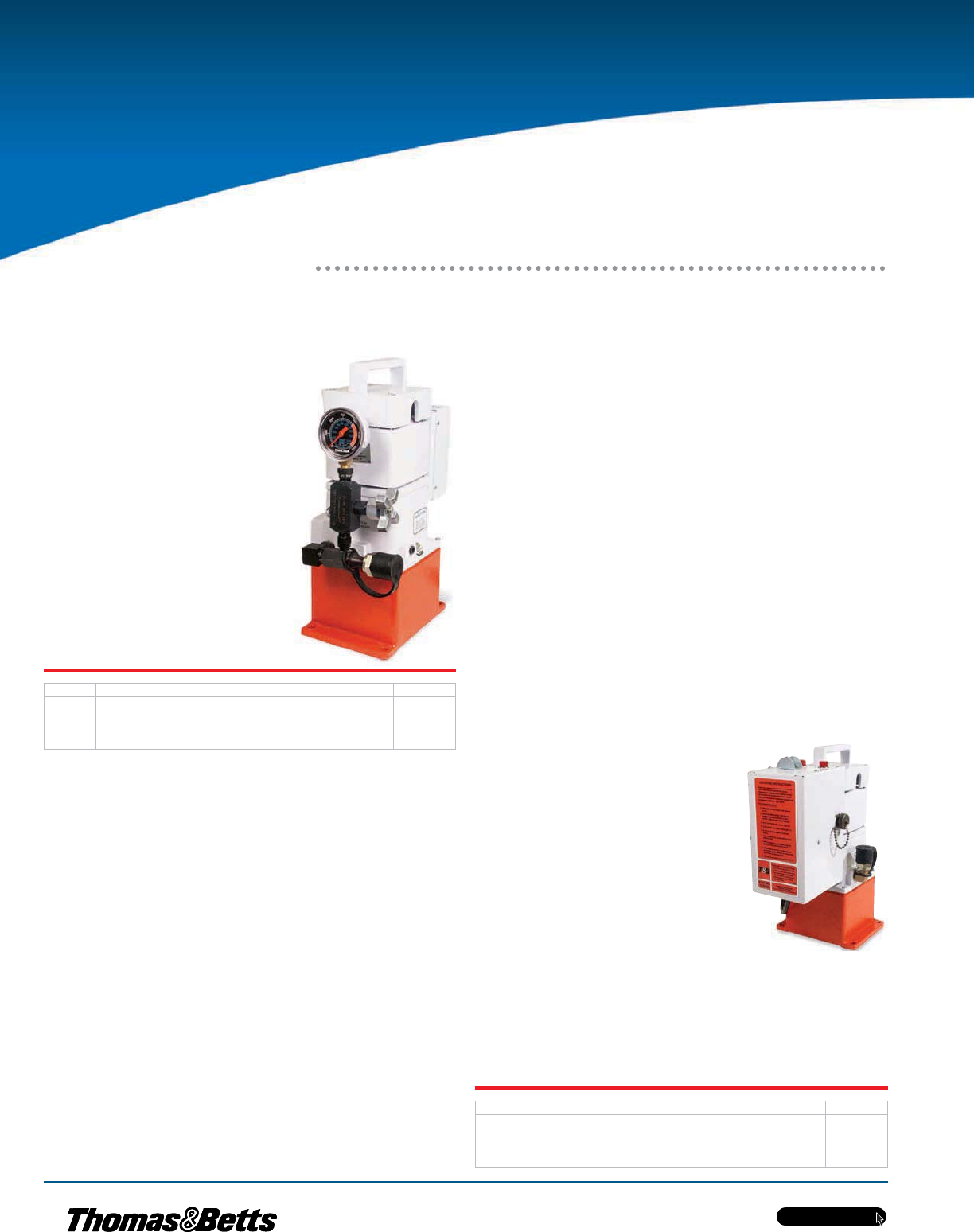

•Designed for use with single-
acting cylinders and tools rated
for 10,000-psi operation
•Supplied with metal carrying
case
•13620 hand switch and 13619
hydraulic hose, both sold separately,
required for operation
Specifications
•Motor: 1⁄2 hp, 115V 50–60 Hz, 10 amps
•Pumping Capacity:
170 cu. in./min. at 100 psi
32 cu. in./min. at 1,000 psi
25 cu. in./min. at 5,000 psi
18 cu. in./min. at 10,000 psi
•Reservoir Volume: 104 cu. in. (0.45 gal.)
•Basic Pump Dimension: 6 in. x 8 in. x 16 in.
•Weight: 25 lb.
13610A Electric Hydraulic Pump
with Shure-Stake®Control
•Shure-Stake®control
mechanism requires
9,800-psi pump pressure
before recycling to prevent
under-crimping
•Designed for use with
single-acting cylinders
and tools rated for
10,000-psi operation
•Supplied with metal
carrying case
Specifications
•Motor Rating: 1/2 hp, 115V,
50–60 Hz, 12.5 amps
•Pumping Capacity:
170 cu. in./min. at 100 psi
32 cu. in./min. at 1,000 psi
25 cu. in./min. at 5,000 psi
18 cu. in./min. at 10,000 psi
•Reservoir Volume: 104 cu. in.
(0.45 gal.)
•Basic Pump Dimension:
8-1/2 in. x 10-1/2 in. x 16 in.
•Weight: 35 lb.
Cat. No. Description Pkg. Qty.
13600 Electric Hydraulic Pump — hand or foot switch and nonmetallic hose
(sold separately) required for operation 1
Cat. No. Description Pkg. Qty.
13610A Electric Hydraulic Pump with Shure-Stake®control — hand or foot
switch and nonmetallic hose (sold separately) required for operation 1
13600 Electric Hydraulic Pump
Application Tools
Termination Products
Sta-Kon ®
www.tnb.ca B51
Termination Products
13810 Heavy-Duty Electric Hydraulic
Pump with Shure-Stake®Control
•Designed for perfect crimps every time in heavy-duty OEM
applications
•Heavy-duty OEM two-stage pump with high flow rate
•Shure-Stake®control mechanism requires 9,800-psi pump
pressure before recyling to prevent under-crimping
•Requires hand or foot control (sold separately)
Specifications
•Motor Rating:
1-1⁄2 hp, 115V, 60 Hz, 23 amps
•Pumping Capacity:
235 cu.in./min. at 200 psi
6 cu.in./min. at 8,000 psi
•Reservoir Volume:
462 cu.in./2 gal.
•Dimensions (L x W x H):
10-3⁄4" x 15" x 20-3⁄4"
•Weight: 60 lb.
Cat. No. Description Pkg. Qty.
13810
Heavy-duty electric hydraulic pump with Shure-Stake®control —
hand or foot switch and nonmetallic hose (sold separately)
required for operation
1
Cat. No. Description Pkg. Qty.
You may also need…for 13600
13620 Hand Switch
1
13589A Foot Switch
13619 10-ft. Nonmetallic Hose
13618 20-ft. Nonmetallic Hose
13600S “Sled” type stand for 13600 pump
You may also need…for 13610A & 13810
13611 Hand Switch
113612 Foot Switch
13619 10-ft. Nonmetallic Hose
Accessories for the pumps
on these pages
Application Tools
Sta-Kon ®
www.tnb.ca
B52
Termination Products
Terminal Type Terminal
Series
Pliers Ergonomic Ratchet Hand Tools Ratchet Hand Tools
WT110M WT111M WT112M WT161M WT2000 ERG4001 ERG4002 ERG4004 ERG4005 ERG4006 ERG4255 WT1377 WT145A
Nylon Terminals
RZ •
RA, RAX • • • •
RB • • • •
RBC, RC • • • •
Nylon Butt Splices
RA • • •
RB • • •
RC • • •
Nylon Parallel Splices
RAA •
RBB •
RCC •
All Nylon Disconnects
(except .110 size)
RA • • •
RB • • •
RC • • •
Heat-Shrinkable
Terminals, Splices,
Disconnects
RAS •
RBS •
RCS •
Vinyl Terminals and
Splices
RA, RAA • • •
RB, RBB • • •
RC, RCC, RBC • • •
Bare Terminals and
Splices
A, AA • • • • • •
B, BB • • • • • • •
C, CC • • • • • • •
Wire Joints
RB • • •
RC • •
RP • •
PT • •
Hi-Temp Terminals
and Splices
NW-Rings •
NW-Splices •
Insulation Grip A •
B •
.110 Disconnects A, B • • •
RA, RB •
Flag Terminals AB •
C •
Tefzel®Terminals and
Splices
RAT, RAAT • •
RBT, RBBT • •
RCT, RCCT • •
Vinyl Disconnects
RA • • •
RB • • •
RC • • •
Bare Disconnects
A • • • • • •
B • • • • • • •
C • • • • • • •
Tefzel®is a registered trademark of DuPont
Critical information for determining the products you need!
Die Selection Chart
Sta-Kon ®
www.tnb.ca B53
Termination Products
Terminal Type Terminal
Series
Ratchet Hand
Tools (cont.)
BAT22-6 BAIR22-6
PAIR22-6 12050 Mylar Tape Auto Tool
WT145C WT2130A DIE2001 DIE2002 DIE2005 DIE2009 12051 12052 12054 12055 12056 12057 12058 12059 12060
Nylon Terminals
RZ
RA, RAX • • • •
RB • • • •
RBC, RC • • • •
Nylon Butt Splices
RA • •
RB • •
RC • • •
Nylon Parallel Splice
RAA
RBB
RCC
All Nylon Disconnects
(except .110 size)
RA • • • •
RB • • • •
RC • • • •
Heat Shrinkable
Terminals, Splices,
Disconnects
RAS
RBS
RCS
Vinyl Terminals and
Splices
RA, RAA • • •
RB, RBB • • •
RC, RCC, RBC • • • •
Bare Terminals and
Splices
A, AA • •
B, BB • • •
C, CC • • •
Wire Joints
RB • •
RC • •
RP • •
PT
Hi-Temp Terminals and
Splices
NW-Rings
NW-Splices
Insulation Grip A
B
.110 Disconnects A, B
RA, RB
Flag Terminals AB
C
Tefzel®Terminals
and Splices
RAT, RAAT •
RBT, RBBT •
RCT, RCCT •
Vinyl Disconnects
RA • • •
RB • • •
RC • • • •
Bare Disconnects
A • •
B • • •
C • • •
Tefzel® is a registered trademark of DuPont
Critical information for determining the products you need!
Die Selection Chart
Sta-Kon ®
www.tnb.ca
B54
Termination Products
Description Terminal Hand Tool
with dies
TBM6 Toggle Hand Tool
TBM6S Toggle Hand Tool Die
Cat. Nos.
BPI42300CR, BPLT6BSCR
and BPLT62BSCR
Crimp Tools
13642M (MS25441-1)
and
13400 Hydraulic Tool
Series Type Nest (Stationary) Indentor (Movable) Hex Dies Die Code Hex Dies Nest Indentor
Non-Insulated
Terminals and
Splices
D Tubular ERG4005 11803 11802 — — 11781M* 13651 13650**
D Tubular ERG4008 11803 11802 — — 11781M* 13651 13650**
D Tubular WT3185/WT115A 11803 11802 TBM6221 21 11732 13651 13650**
D Brazed WT3185/WT115A 11803 11802 TBM6224 24 11733 13643 13650**
E Tubular ERG4005 11803 11802 — — 11782M 13652 13650**
E Tubular ERG4008 11803 11802 — — 11782M 13652 13650**
E Tubular WT3185/WT115A 11803 11802 TBM6224 24 11733* 13652 13650**
E Brazed WT3185/WT115A 11804 11802 TBM6229 29 11734 13644 13650**
F Tubular ERG4008 11805 11802 — — 11783 13653 13650**
F Tubular WT3185/WT115A 11805 11802 TBM6229 29 11734* 13653 13650**
F Brazed WT3185/WT115A 11806 11802 TBM6233 33 11735 13645 13650**
G Tubular ERG4008 11806 11802 — — 11784M* 13654 13650**
G Tubular WT3185/WT115A 11806 11802 TBM6237 37 11736 13654 13650**
H Tubular ERG4008 11807 11802 — — 11785M* 13655 13650**
H Tubular WT3185 11807 11802 — — 11785M* 13655 13650**
H Tubular WT3185 11807 11802 TBM6242 42 11737 13655 13650**
J Tubular WT3185 11808 11802 — — 11786M* 13656 13650**
J Tubular WT3185 11808 11802 TBM6245 45 11738 13656 13650**
K Tubular — 11809 11802 — — 11787M* 13657 13650**
K Tubular — 11809 11802 TBM6250 50 11739 13657 13650**
L Tubular — 11810 11802 — 50 11788M* 13658 13650**
L Tubular — 11810 11802 TBM6254 54 11740 13658 13650**
M Tubular — 11811 11802 — 54 11789M* 13659 13650**
M Tubular — 11811 11802 TBM6262 62 11771 13659 13650**
Nylon
Insulated
Terminals
and Splices
RD Tubular ERG4007 11821 (Set) 21707M* (Set)
RD Brazed & Tubular — 11822 (Set) 21708M* (Set)
RE Tubular ERG4007 11822 (Set) 21708M* (Set)
RE Brazed — 11823 (Set) 21709M* (Set)
RF Tubular — 11823 (Set) 21709M* (Set)
RF Brazed — 11824 (Set) 21710M* (Set)
RG Tubular — 11824 (Set) 21710M* (Set)
RH Tubular — 11825 (Set) 21711M* (Set)
RJ Tubular — 11826 (Set) 21712M* (Set)
RK Tubular — 11827 (Set) 21713M* (Set)
RL Tubular — 11828 (Set) 21714M* (Set)
RM Tubular — 11829 (Set) 21715M* (Set)
Non-Insulated
Flag Terminals
D — WT129 — — — 21733 21731
E — WT129 — — — 21734 21731
F — WT129 — — — 21735 21731
G — WT129 — — — 21736 21732
H — — — — — 21737 21732
J — — — — — 21738 21732
K — — — — — 21739 21732
L — — — — — 21740 21732
M — — — — — 21741 21732
* Indicates military listed die.
** To order the military version, suffix the indentor catalogue number with an “M” (13650M). Nest catalog number does not change.
Stud Size 2 4 6 8 10 1/4 5/16 3/8 7/16 1/2 5/8 3/4
Min. hole diam. — in. .92 .116 .143 .169 .196 .262 .323 .388 .453 .516 .650 .775
Min. hole diam. — mm 2.337 2.946 3.632 4.292 4.978 6.655 8.204 9.855 11.506 13.106 16.510 19.685
STUD SIZE AND CLEARANCE HOLE CHART
Select the die numbers you need!
Die Selection Chart
Sta-Kon ®
www.tnb.ca B55
Termination Products
* MIL-W-5086. ** Strand diameter not specified. † MIL-E-16366 A.
Wire Strip
Length
Terminal
Series
Recommend
Wire Strip
Length “A”
Standard
Terminals
Non-Insulated A 1/4
B 1/4
C, BC 5/16
Vinyl Insulated —
Add 1⁄16" for
Funnel Entry Type
RA 1/4
RB 1/4
RC, RBC 11/32
Nylon Insulated
and Tefzel®
Insulated
RA 7/32
RB 7/32
RC, RBC 5/16
Nylon Insulated
and Tefzel®
Insulated when
using Aircraft
and Code Wire
RD 17/32
RE 17/32
RF 9/16
RG 11/16
RH 11/16
RJ 3/4
RK 7/8
RL 7/8
RM 1
Non-Insulated,
when using
Aircraft and
Code Wire
D 15/32
E 15/32
F 1/2
G 41/64
H 43/64
J 47/64
K 55/64
L 55/64
M 59/64
Tefzel®is a registered trademark of DuPont
AWG or AN Navy
Shipboard†
Individual Strands Whole Conductor
No. Dia. (in.) Cir. Mil. Area Dia. (in.) Dia. (mm)
22 Wire Size
22 3⁄5 (1) 1 0.025 642 0.025 0.635
22 3⁄5 (7) 7 0.010 703 0.030 0.762
AN-22* 7 ** 704 0.032 0.813
1⁄2 (21) 21 0.005 525 0.028 0.711
20 Wire Size
20 1 (1) 1 0.032 1,022 0.032 0.813
20 7 0.012 1,024 0.036 0.914
20 10 0.010 1,005 0.040 1.016
20 19 0.007 1,022 0.037 0.940
20 26 0.006 1,034 0.039 0.991
AN-20* 7 ** 1,119 0.040 1.016
1 (7) 7 0.013 1,119 0.038 0.965
1 (10) 10 0.010 1,005 0.038 0.965
1 (26) 26 0.006 1,034 0.042 1.067
18 Wire Size
18 11⁄2 (1) 1 0.040 1,624 0.040 1.016
18 11⁄2 (7) 7 0.016 1,624 0.049 1.245
18 11⁄2 (16) 16 0.010 1,608 0.049 1.245
18 19 0.009 1,624 0.046 1.168
18 11⁄2 (41) 41 0.006 1,630 0.049 1.245
AN-18* 2 (7) 7 0.016 1,779 0.048 1.219
16 Wire Size
16 21⁄2 (1) 1 0.051 2,583 0.051 1.295
16 7 0.019 2,583 0.058 1.473
16 19 0.012 2,601 0.058 1.473
16 26 0.010 2,613 0.059 1.499
16 65 0.006 2,580 0.058 1.473
AN-16* 21⁄2 (19) 19 0.011 2,407 0.061 1.549
21⁄2 (26) 26 0.010 2,613 0.061 1.549
14 Wire Size
14 1 0.064 4,107 0.064 1.626
14 7 0.024 4,107 0.073 1.854
14 19 0.015 4,107 0.074 1.880
14 37 0.011 4,107 0.074 1.880
14 14 0.009 4,157 0.083 2.108
14 104 0.006 4,128 0.074 1.880
AN-14* 19 ** 3,830 0.076 1.930
3 (7) 7 0.020 2,828 0.060 1.524
3 (19) 19 0.013 3,036 0.063 1.600
4 (1) 1 0.064 4,107 0.064 1.626
4 (7) 7 0.025 4,497 0.076 1.930
4 (19) 19 0.014 3,828 0.072 1.829
4 (41) 41 0.010 4,121 0.077 1.956
12 Wire Size
12 1 0.081 6,530 0.081 2.057
12 7 0.031 6,530 0.092 2.337
12 19 0.019 6,530 0.093 2.362
12 37 0.013 6,530 0.093 2.362
12 49 0.012 6,593 0.104 2.642
12 65 0.010 6,533 0.093 2.362
12 104 0.008 6,574 0.094 2.388
12 165 0.006 6,559 0.095 2.413
AN-12* 6 (19) 19 0.018 6,088 0.096 2.438
6 (7) 7 0.031 6,512 0.092 2.337
6 (65) 65 0.010 6,533 0.097 2.964
10 Wire Size
10 1 0.102 10,380 0.102 2.591
10 7 0.039 10,380 0.116 2.946
10 19 0.023 10.380 0.117 2.972
10 37 0.017 10,443 0.117 2.972
10 49 0.015 10,445 0.131 2.327
10 104 0.010 10,452 0.116 2.946
AN-10* 37 ** 10,380 0.117 2.972
9 (7) 7 0.036 9,016 0.108 2.743
9 (37) 37 0.016 9,402 0.109 2.769
9 (90) 90 0.010 9,045 0.120 3.048
Wire Strip
Length Chart
Wire Guide Table
Sta-Kon ®
www.tnb.ca
B56
Termination Products
AWG or AN Navy
Shipboard†
Individual Strands Whole Conductor
No. Dia. (in.) Cir. Mil. Area Dia. (in.) Dia. (mm)
9 Wire Size
9 7 0.043 13,090 0.130 3.302
14 (7) 7 0.045 14,340 0.136 3.454
8 Wire Size
8 7 0.049 16,510 0.146 3.712
8 19 0.030 16,510 0.148 3.763
8 37 0.021 16,510 0.148 3.763
7 Wire Size
7 1 0.144 20,820 0.144 3.662
14 (7) 7 0.045 14,340 0.136 3.454
14 (140) 140 0.010 14,070 0.145 3.787
6 Wire Size
6 7 0.061 25,250 0.184 4.672
6 19 0.037 26,250 0.186 4.722
6 37 0.027 26,250 0.186 4.722
6 49 0.023 26,146 0.208 5.283
6 661 0.006 26,274 0.259 6.579
5 Wire Size
5 1 0.181 33,100 0.181 4.595
20 (49) 7x7 0.020 19,800 0.180 4.570
23 (7) 7 0.057 22,800 0.171 4.345
23 (228) 19x12 0.010 22,190 0.190 4.830
26 (49) 7x7 0.023 26,250 0.210 5.330
4 Wire Size
4 7 0.077 41,740 0.232 5.891
4 19 0.047 41,740 0.235 5.967
4 37 0.034 41,740 0.235 5.967
3 Wire Size
3 1 0.229 52,630 0.229 5.819
30 (304) 19x16 0.010 30,550 0.220 5.590
33 (336) 7x48 0.010 33,370 0.235 5.967
40 (19) 19 0.045 38,910 0.226 5.742
42 (49) 7x7 0.029 41,740 0.260 6.600
42 (209) 19x11 0.014 42,110 0.260 6.600
50 (19) 19 0.051 49,080 0.254 6.452
2 Wire Size
27 0.097 66,370 0.292 7.421
219 0.059 66,370 0.296 7.522
237 0.042 66,370 0.297 7.548
249 0.037 66,356 0.331 8.405
2133 0.022 66,140 0.335 8.507
AN-2* 663 ** 66,832 0.345 8.767
53 (532) 19x28 0.010 53,470 0.304 7.772
60 (37) 37 0.040 60,090 0.282 7.161
60 (304) 19x16 0.014 61,260 0.310 7.870
66 (133) 19x7 0.022 66,370 0.330 8.380
75 (37) 37 0.045 75,780 0.317 8.048
1 Wire Size
17 0.109 83,690 0.328 8.333
119 0.066 83,690 0.332 8.431
137 0.048 83,690 0.333 8.456
161 0.037 83,690 0.333 8.456
1133 0.025 83,690 0.377 9.578
1259 0.018 83,916 0.378 9.603
AN-1* 812 ** 81,807 0.384 9.752
83 (418) 19x22 0.014 84,230 0.380 9.650
84 (2,107) 2107 ** 83,690 0.410 10.41
* MIL-W-5086.
** Strand diameter not specified.
†MIL-E-16366 A
Wire Guide Table
Sta-Kon ®
www.tnb.ca B57
Termination Products
AWG or AN Navy
Shipboard†
Individual Strands Whole Conductor
No. Dia. (in.) Cir. Mil. Area Dia. (in.) Dia. (mm)
1/0 Wire Size
1/0 7 0.123 105,500 0.368 9.343
1/0 19 0.075 105,500 0.373 9.476
1/0 37 0.053 105,500 0.374 9.502
1/0 61 0.042 105,500 0.374 9.502
1/0 133 0.028 105,761 0.423 10.721
1/0 259 0.020 105,672 0.424 10.772
AN-0* 1,033 ** 104,118 0.432 10.971
100 (61) 61 0.040 99,060 0.363 9.216
105 (259) 37x7 ** 105,500 0.410 10.410
2/0 Wire Size
105 (2,646) 2,646 ** 105,500 0.460 11.680
2/0 7 0.138 133,100 0.414 10.512
2/0 19 0.084 133,100 0.419 10.639
2/0 37 0.060 133,100 0.420 10.670
2/0 61 0.047 133,100 0.420 10.670
2/0 133 0.032 132,800 0.474 12.042
2/0 259 0.023 133,462 0.477 12.118
AN-00* 1,327 ** 133,665 0.490 12.450
125 (61) 61 0.045 124,900 0.407 10.338
133 (259) 37x7 ** 133,100 0.460 11.680
133 (684) 19x36 0.014 137,800 0.480 12.190
133 (3,325) 3,325 ** 133,100 0.520 13.210
150 (61) 61 0.051 157,600 0.457 11.608
3/0 Wire Size
3/0 7 0.155 167,800 0.464 11.782
3/0 19 0.094 167,800 0.470 11.940
3/0 37 0.067 167,800 0.471 11.965
3/0 61 0.052 167,800 0.472 11.991
3/0 133 0.036 167,607 0.533 13.536
3/0 259 0.026 167,402 0.536 13.612
3/0 4,227 0.006 168,023 0.610 15.490
150 (760) 19x40 0.014 153,100 0.510 12.950
168 (427) 61x7 ** 167,800 0.520 13.210
4/0 Wire Size
4/0 7 0.174 211,600 0.522 13.261
4/0 19 0.106 211,600 0.528 13.413
4/0 37 0.076 211,600 0.529 13.439
4/0 61 0.059 211,600 0.530 13.460
4/0 133 0.040 211,736 0.599 15.219
4/0 259 0.029 211,845 0.601 15.265
AN-000* 1,661 ** 167,332 0.548 13.923
200 (61) 61 0.057 198,700 0.514 13.652
200 (988) 19x52 0.014 199,100 0.580 14.730
250 kcmil Wire Size
250,000 19 0.115 250,000 0.574 14.582
250,000 37 2 250,000 0.575 14.607
250,000 61 0.064 250,000 0.576 14.632
250,000 91 0.052 250,000 0.576 14.632
AN-0000* 2,104 ** 211,954 0.615 15.617
220 (259) 37x7 0.029 220,700 0.610 15.490
250 (61) 61 0.064 250,000 0.577 14.658
* MIL-W-5086.
** Strand diameter not specified.
†MIL-E-16366 A
Wire Guide Table
Sta-Kon ®
www.tnb.ca
B58
Termination Products
MIL-T-7928
MS-25036
Cat. No.
T&B
Class 1 & 2
-101 RA333
-102 RA853
-103 RA873
-104 RA723
-105 RA733
-106 RB1333
-107 RB853
-108 RB873
-109 RB723
-110 RB733
-111 RC333
-112 RC363
-113 RC703
-114 RC733
-115 RD10361
-116 RD10711
-117 RD10721
-118 RD10731
-119 RE10261
-120 RE10711
-121 RE10721
-122 RE10731
-123 RF10711
-124 RF10721
-125 RF10731
-126 RG9711
-127 RG9731
-128 RG9751
-129 RH9711
-130 RH9731
-131 RH9751
-132 RJ9711
-133 RJ9731
-135 RK9721
-136 RK9731
-137 RK9751
-138 RL9731
-139 RL9751
-140 RM9731
-141 RM9751
-142 —
-143 —
-144 —
-145 —
-146 —
-147 —
-148 RA323
-149 RA863
-150 RA713
-151 RA753
-152 RB1323
-153 RB863
-154 RB713
-155 RB753
-156 RC863
-157 RC713
-158 RC753
MIL-T-7928
MS-20659
Cat. No.
T&B
-101 A85G
-102 A87G
-103 B85G
-104 B87G
-105 C26
-106 C70
-107 D10361
-108 D10721
-109 E10711
-110 E10731
-111 F10711
-112 F10731
-113 G971
-114 G973
-115 H971
-116 H973
-117 J971
-118 J973
-119 K972
-120 K973
-121 L973
-122 L975
-123 M973
-124 M975
-128 C73
-129 D10731
-130 E10261
-131 E10721
-132 F10721
-133 G975
-134 H975
-135 J975
-136 K975
-140 D10161
-141 D10711
-144 F10261
-146 G926
-147 G972
-148 G974
-149 H972
-151 J972
-152 J974
-153 K971
-154 K974
-155 L972
-156 L974
-157 M972
-158 M974
-165 C33
-166 C75
MIL-T-22909
MS-90485
Cat. No.
T&B
-8 11781M
-6 11782M
-4 11783M
-2 11784M
-1 11785M
-01 11786M
-02 11787M
-03 11788M
-04 11789M
MIL-T-7928
MS-17143
Cat. No.
T&B
-1 RA480
-2 RB480
-3 RC480
-4 RA481
-5 RB481
-6 RC481
-7 RA482
-8 RB482
-9 RC482
-10 RA483
-11 RB483
-12 RC483
-13 RA484
-14 RB484
-15 RC484
-16 RA485
-17 RB485
-19 RA486
-20 RB486
MIL-T-7928
MS-21004
Cat. No.
T&B
-1 A486
-2 A483
-3 A482
-4 A481
-5 A485
-6 A484
-7 A480
-8 B486
-9 B483
-10 B482
-11 B481
-12 B485
-13 B484
-14 B480
-15 C486
-16 C483
-17 C482
-18 C481
-19 C485
-20 C484
-21 C480
MIL-T-22909
MS-23002
Cat. No.
T&B
-8 21707M
-6 21708M
-4 21709M
-2 21710M
-1 21711M
-01 21712M
-02 21713M
-03 21714M
-04 21715M
Military Standard Cross Reference
Sta-Kon ®
www.tnb.ca B59
Termination Products
10RC-10 RC367
10RC-10F RC1157
10RC-10FL RC2227
10RC-10FLX RC2227-250
10RC-10FX RC1157-250
10RC-10X RC367-250
10RC-14 RC717
10RC-14F RC1167
10RC-14FL RC2237
10RC-14X RC717-250
10RC-250F RC257
10RC-250T RC2517
10RC-251T RC25177
10RC-2577 RC2573
10RC-38 RC737
10RC-38X RC737-250
10RC-516 RC707
10RC-55PT RC55PT
10RC-6 RC337
10RC-6F RC1337
10RC-6FL RC2207
10RC-6FLX RC2207-250
10RC-6X RC337-250
10RC-8 RC777
10RC-8F RC1147
10RC-8FL RC2217
10RC-8FLX RC2217-250
10RC-8X RC777-250
14RB-10 RB877
14RB-10F RB1157
14RB-10FL RB2257
14RB-10FLX RB2257-200
14RB-10FX RB1157-200
14RB-10X RB877-200
14RB-14 RB717
14RB-14X RB717-200
14RB-250F RB257
14RB-250T RB2517
14RB-251T RB25177
14RB-2577 RB2573
14RB-38 RB737
14RB-4 RB1327
14RB-47PT RB47PT
14RB-516 RB727
14RB-6 RB857
14RB-6F RB647
14RB-6FL RB2207
14RB-6FLX RB2207-200
14RB-6FX RB647-200
14RB-6X RB857-200
14RB-8 RB867
14RB-8F RB657
14RB-8FL RB2237
14RB-8FLX RB2237-200
14RB-8FX RB657-200
14RB-8X RB867-200
14RBC-10 RBC877
14RBC-12 RBC757
14RBC-14 RBC717
14RBC-38 RBC797
14RBC-516 RBC727
14RBC-6 RBC857
14RBC-8 RBC867
14RBD-182 RBD1827
14RBD-18277 RBD18277
14RBD-183 RBD1837
14RBD-18377 RBD18377
18RA-10 RA877
18RA-10F RA1157
18RA-10FL RA2257
18RA-10FLX RA2257-170
18RA-14 RA717
18RA-250F RA257
18RA-250T RA2517
18RA-251T RA25177
18RA-2577 RA2573
18RA-38 RA737
18RA-4 RA77
18RA-47PT RA47PT
18RA-516 RA727
18RA-516X RA727-170
18RA-6 RA857
18RA-6F RA1167
18RA-6FL RA2217
18RA-6FLX RA2217-170
18RA-6FX RA1167-170
18RA-6X RA857-170
18RA-8 RA867
18RA-8F RA1147
18RA-8FL RA2247
18RA-8FX RA1147-170
18RA-8X RA867-170
18RAD-182 RAD1827
18RAD-18277 RAD18277
18RAD-183 RAD1837
18RAD-18377 RAD18377
2A-18 AA2
2A20 RAA24
2A22-20 A1A
2B-14 BB2
2B-16 RBB25
2B18-16 B1B
2C-10 CC2-TB
2C-12 RCC26
2C14-12 C1C
2D10-9 D1D
2D-8 DD102
2E-6 EE2
2E8-7 E1E
2F-4 FF2
2F6-5 F1F
2G21 GG2
2G4-2 G1G
2RA18 RAA21
2RA18X RAA217-170
2RAA RAA23
2RB14 RBB21
2RB14X RBB217-200
2RBB RBB23
2RC10 RCC21
2RC10X RCC217-250
2RCC RCC23
2RD8 RDD27
2RE6 REE28
A18-10 A87
A18-10F A115-TB
A18-10FL A225
A18-110F A10-TB
A18-111F A11
A18-12 A75
A18-14 A71
A18-250 A250-TB
A18-250A A252G
A18-251T A251
A18-38 A73
A18-516 A72
A18-6 A85
A18-6F A116
A18-6FL A221
A18-8 A86
A18-8F A114
A18-8FL A224
AB14-10A AB53
AB14-6A AB51
AB14-8A AB52
AD18-182 AD182
AD18-183 AD183
B14-10 B87
B14-10F B115
B14-10FL B225
B14-10G B87G
B14-110F B10TB
B14-111F B11-TB
B14-12 B75TB
B14-14 B71
B14-250 B250
B14-250A B252G
B14-250F B250G
B14-250T B251G
B14-251T B251
B14-38 B73
B14-4 B132
B14-516 B72
B14-6 B133
B14-6F B64
B14-6FL B220
B14-6FS B19
B14-8 B86
B14-8F B65TB
B14-8FL B223
B14-D B23
BC14-10 BC87
BC14-12 BC75
BC14-14 BC71
BC14-38 BC79
BC14-516 BC72
BC14-6 BC85
BC14-8 BC86
BD14-183 BD183
C10-10 C26
C10-10A C53
C10-10F C115
C10-10FL C222-TB
C10-12 C75
C10-14 C71
C10-14F C116-TB
C10-250A C252G
C10-250F C250
C10-38 C73
C10-516 C70
C10-6A C51
C10-6F C133
C10-6FL C220-TB
C10-6-SK C33
C10-8A C52-TB
C10-8F C114
C10-8FL C221
C10-8-SK C77
D8-10 D36
D8-12 D75
D8-14-SK D71
D8-38 D73
D8-516 D72
E6-10 E26
E6-12 E75
E6-14 E71
E6-38 E73
E6-516 E72
F250TA FTA250
F4-10 F26
F4-12 F75
F4-14 F71-TB
F4-38 F73
F4-516 F72
G2-12 G975
G2-14 G971
G2-38 G973
G2-516 G972
H10-14 H971
J20-38 J973
K30-38 K973
L40-38 L973
M250-38 M973
NW14-10 NW83
NW14-12 NW84
NW14-6 NW81
NW22-10 NW23
RA18-10 RA873
RA18-10F RA1153
RA18-10FL RA2253
RA18-10FS RA1253
RA18-110F RA10SK
RA18-111F RA11
RA18-12 RA753
RA18-14 RA713
RA18-14F RA1163
RA18-250A RA2577F
RA18-250F RA250TB
RA18-250FP RA250P
RA18-38 RA733
RA18-4 RA323
RA18-47PT RA147PT
RA18-516 RA723
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
Cross Reference for Packaging
Sta-Kon ®
www.tnb.ca
B60
Termination Products
RA18-6 RA853
RA18-6F RA1103
RA18-6FL RA2213
RA18-6FS RA1203
RA18-8 RA863
RA18-8F RA1123
RA18-8FL RA2243
RA18-8FS RA1223
RA18D RA23
RAD18-182 RAD1823
RAD18-183 RAD1833
RB14-10 RB873
RB14-10F RB1153
RB14-10FL RB2253
RB14-10FS RB1253
RB14-10X RB874
RB14-110F RB10-SK
RB14-111F RB11-TB
RB14-12 RB753
RB14-14 RB713
RB14-14F RB1163
RB14-14X RB714
RB14-250 RBB250
RB14-250A RB2577F
RB14-250F RB250
RB14-250FP RB250P
RB14-38 RB733
RB14-38X RB734
RB14-4 RB1323
RB14-47PT RB147PT
RB14-516 RB723
RB14-516X RB724
RB14-6 RB853
RB14-6F RB1113
RB14-6FL RB2213
RB14-6FS RB1203
RB14-6X RB854
RB14-8 RB863
RB14-8F RB1123
RB14-8FL RB2233
RB14-8FS RB1223
RB14-8X RB864
RB44 RB4-TB
RBC14-14 RBC713
RBC14-516 RBC723
RBD14-182 RBD1823
RBD14-183 RBD1833
RC10-10 RC363
RC10-10F RC1153
RC10-10FL RC2223
RC10-10FS RC1253
RC10-10X RC364
RC10-12 RC753
RC10-14 RC713
RC10-14F RC1163
RC10-14FL RC2233
RC10-14X RC714
RC10-250A RC2577F
RC10-250F RC250
RC10-38 RC733
RC10-38X RC734
RC10-516 RC703
RC10-55PT RC155PT
RC10-6 RC333
RC10-6F RC1113
RC10-6FL RC2203
RC10-8 RC863
RC10-8F RC1123
RC10-8FL RC2213
RC10-8FS RC1223
RC10-8X RC864
RC55 RC6
RD8-10 RD367
RD8-12 RD757
RD8-14 RD717
RD8-38 RD737
RD8-516 RD727
RE6-10 RE267
RE6-12 RE757
RE6-14 RE717
RE6-38 RE737
RE6-516 RE727
RF4-10 RF267
RF4-12 RF757
RF4-14 RF717
RF4-38 RF737
RF4-516 RF727
RG2-10 RG267
RG2-12 RG757
RG2-14 RG717
RG2-38 RG737
RG2-516 RG727
RP12 RP7
A10-TB A18-110F
A11 A18-111F
A114 A18-8F
A115-TB A18-10F
A116 A18-6F
A1A 2A22-20
A221 A18-6FL
A224 A18-8FL
A225 A18-10FL
A250-TB A18-250
A251 A18-251T
A252G A18-250A
A71 A18-14
A72 A18-516
A73 A18-38
A75 A18-12
A85 A18-6
A86 A18-8
A87 A18-10
AA2 2A-18
AB51 AB14-6A
AB52 AB14-8A
AB53 AB14-10A
AD182 AD18-182
AD183 AD18-183
B10TB B14-110F
B115 B14-10F
B11-TB B14-111F
B132 B14-4
B133 B14-6
B19 B14-6FS
B1B 2B18-16
B220 B14-6FL
B223 B14-8FL
B225 B14-10FL
B23 B14-D
B250 B14-250
B250G B14-250F
B251 B14-251T
B251G B14-250T
B252G B14-250A
B64 B14-6F
B65TB B14-8F
B71 B14-14
B72 B14-516
B73 B14-38
B75TB B14-12
B86 B14-8
B87 B14-10
B87G B14-10G
BB2 2B-14
BC71 BC14-14
BC72 BC14-516
BC75 BC14-12
BC79 BC14-38
BC85 BC14-6
BC86 BC14-8
BC87 BC14-10
BD183 BD14-183
C114 C10-8F
C115 C10-10F
C116-TB C10-14F
C133 C10-6F
C1C 2C14-12
C220-TB C10-6FL
C221 C10-8FL
C222-TB C10-10FL
C250 C10-250F
C252G C10-250A
C26 C10-10
C33 C10-6-SK
C51 C10-6A
C52-TB C10-8A
C53 C10-10A
C70 C10-516
C71 C10-14
C73 C10-38
C75 C10-12
C77 C10-8-SK
CC2-TB 2C-10
D1D 2D10-9
D36 D8-10
D71 D8-14-SK
D72 D8-516
D73 D8-38
D75 D8-12
DD102 2D-8
E1E 2E8-7
E26 E6-10
E71 E6-14
E72 E6-516
E73 E6-38
E75 E6-12
EE2 2E-6
F1F 2F6-5
F26 F4-10
F71-TB F4-14
F72 F4-516
F73 F4-38
F75 F4-12
FF2 2F-4
FTA250 F250TA
G1G 2G4-2
G971 G2-14
G972 G2-516
G973 G2-38
G975 G2-12
GG2 2G21
H971 H10-14
J973 J20-38
K973 K30-38
L973 L40-38
M973 M250-38
NW23 NW22-10
NW81 NW14-6
NW83 NW14-10
NW84 NW14-12
RA10SK RA18-110F
RA11 RA18-111F
RA1103 RA18-6F
RA1123 RA18-8F
RA1147 18RA-8F
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
Cross Reference for Packaging
Sta-Kon ®
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
www.tnb.ca B61
Termination Products
RA1147-170 18RA-8FX
RA1153 RA18-10F
RA1157 18RA-10F
RA1163 RA18-14F
RA1167 18RA-6F
RA1167-170 18RA-6FX
RA1203 RA18-6FS
RA1223 RA18-8FS
RA1253 RA18-10FS
RA147PT RA18-47PT
RA2213 RA18-6FL
RA2217 18RA-6FL
RA2217-170 18RA-6FLX
RA2243 RA18-8FL
RA2247 18RA-8FL
RA2253 RA18-10FL
RA2257 18RA-10FL
RA2257-170 18RA-10FLX
RA23 RA18D
RA250P RA18-250FP
RA250TB RA18-250F
RA2517 18RA-250T
RA25177 18RA-251T
RA257 18RA-250F
RA2573 18RA-2577
RA2577F RA18-250A
RA323 RA18-4
RA47PT 18RA-47PT
RA713 RA18-14
RA717 18RA-14
RA723 RA18-516
RA727 18RA-516
RA727-170 18RA-516X
RA733 RA18-38
RA737 18RA-38
RA753 RA18-12
RA77 18RA-4
RA853 RA18-6
RA857 18RA-6
RA857-170 18RA-6X
RA863 RA18-8
RA867 18RA-8
RA867-170 18RA-8X
RA873 RA18-10
RA877 18RA-10
RAA21 2RA18
RAA217-170 2RA18X
RAA23 2RAA
RAA24 2A20
RAD1823 RAD18-182
RAD1827 18RAD-182
RAD18277 18RAD-18277
RAD1833 RAD18-183
RAD1837 18RAD-183
RAD18377 18RAD-18377
RB10-SK RB14-110F
RB1113 RB14-6F
RB1123 RB14-8F
RB1153 RB14-10F
RB1157 14RB-10F
RB1157-200 14RB-10FX
RB1163 RB14-14F
RB11-TB RB14-111F
RB1203 RB14-6FS
RB1223 RB14-8FS
RB1253 RB14-10FS
RB1323 RB14-4
RB1327 14RB-4
RB147PT RB14-47PT
RB2207 14RB-6FL
RB2207-200 14RB-6FLX
RB2213 RB14-6FL
RB2233 RB14-8FL
RB2237 14RB-8FL
RB2237-200 14RB-8FLX
RB2253 RB14-10FL
RB2257 14RB-10FL
RB2257-200 14RB-10FLX
RB250 RB14-250F
RB250P RB14-250FP
RB2517 14RB-250T
RB25177 14RB-251T
RB257 14RB-250F
RB2573 14RB-2577
RB2577F RB14-250A
RB47PT 14RB-47PT
RB4-TB RB44
RB647 14RB-6F
RB647-200 14RB-6FX
RB657 14RB-8F
RB657-200 14RB-8FX
RB713 RB14-14
RB714 RB14-14X
RB717 14RB-14
RB717-200 14RB-14X
RB723 RB14-516
RB724 RB14-516X
RB727 14RB-516
RB733 RB14-38
RB734 RB14-38X
RB737 14RB-38
RB753 RB14-12
RB853 RB14-6
RB854 RB14-6X
RB857 14RB-6
RB857-200 14RB-6X
RB863 RB14-8
RB864 RB14-8X
RB867 14RB-8
RB867-200 14RB-8X
RB873 RB14-10
RB874 RB14-10X
RB877 14RB-10
RB877-200 14RB-10X
RBB21 2RB14
RBB217-200 2RB14X
RBB23 2RBB
RBB25 2B-16
RBB250 RB14-250
RBC713 RBC14-14
RBC717 14RBC-14
RBC723 RBC14-516
RBC727 14RBC-516
RBC757 14RBC-12
RBC797 14RBC-38
RBC857 14RBC-6
RBC867 14RBC-8
RBC877 14RBC-10
RBD1823 RBD14-182
RBD1827 14RBD-182
RBD18277 14RBD-18277
RBD1833 RBD14-183
RBD1837 14RBD-183
RBD18377 14RBD-18377
RC1113 RC10-6F
RC1123 RC10-8F
RC1147 10RC-8F
RC1153 RC10-10F
RC1157 10RC-10F
RC1157-250 10RC-10FX
RC1163 RC10-14F
RC1167 10RC-14F
RC1223 RC10-8FS
RC1253 RC10-10FS
RC1337 10RC-6F
RC155PT RC10-55PT
RC2203 RC10-6FL
RC2207 10RC-6FL
RC2207-250 10RC-6FLX
RC2213 RC10-8FL
RC2217 10RC-8FL
RC2217-250 10RC-8FLX
RC2223 RC10-10FL
RC2227 10RC-10FL
RC2227-250 10RC-10FLX
RC2233 RC10-14FL
RC2237 10RC-14FL
RC250 RC10-250F
RC2517 10RC-250T
RC25177 10RC-251T
RC257 10RC-250F
RC2573 10RC-2577
RC2577F RC10-250A
RC333 RC10-6
RC337 10RC-6
RC337-250 10RC-6X
RC363 RC10-10
RC364 RC10-10X
RC367 10RC-10
RC367-250 10RC-10X
RC55PT 10RC-55PT
RC6 RC55
RC703 RC10-516
RC707 10RC-516
RC713 RC10-14
RC714 RC10-14X
RC717 10RC-14
RC717-250 10RC-14X
RC733 RC10-38
RC734 RC10-38X
RC737 10RC-38
RC737-250 10RC-38X
RC753 RC10-12
RC777 10RC-8
RC777-250 10RC-8X
RC863 RC10-8
RC864 RC10-8X
RCC21 2RC10
RCC217-250 2RC10X
RCC23 2RCC
RCC26 2C-12
RD367 RD8-10
RD717 RD8-14
RD727 RD8-516
RD737 RD8-38
RD757 RD8-12
RDD27 2RD8
RE267 RE6-10
RE717 RE6-14
RE727 RE6-516
RE737 RE6-38
RE757 RE6-12
REE28 2RE6
RF267 RF4-10
RF717 RF4-14
RF727 RF4-516
RF737 RF4-38
RF757 RF4-12
RG267 RG2-10
RG717 RG2-14
RG727 RG2-516
RG737 RG2-38
RG757 RG2-12
RP7 RP12
Cross Reference for Packaging
Sta-Kon ®
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
CAT. NO.
T&B BULK
PACKAGE
CAT. NO.
T&B DISTRIBUTOR
PACKAGE
www.tnb.ca
B62
Termination Products

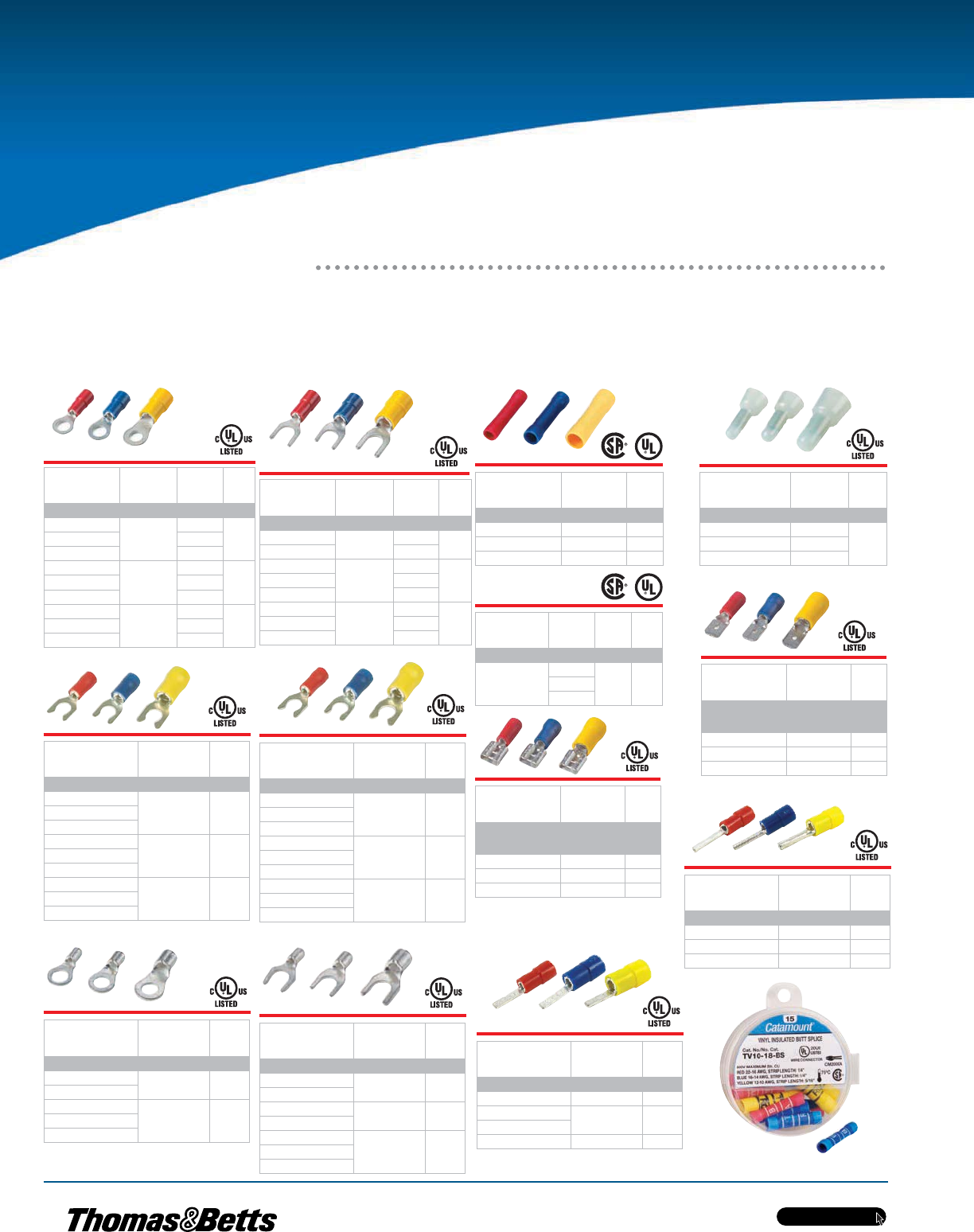

Catamount®Terminals – Now in Convenient, Spillproof, Re-Usable Packaging!
While poly bags keep their contents dry, they don’t offer much other protection, and they aren’t environmentally friendly. That’s why Catamount®
terminals now come in sturdy plastic containers that safeguard the connectors inside against crushing and can be re-used or recycled when empty.
T&B is always adding value to its products. With the introduction of a durable plastic container, the value of T&B’s Catamount®terminals has been
significantly enhanced. No more lost or spilled terminals because of inadequate packaging.
Cat. No. Wire
Range
Bolt
Size
Pkg.
Qty.
Vinyl Insulated Ring Terminals
TV18-6R-XV
22-16
#6
15TV18-8R-XV #8
TV18-10R-XV #10
TV14-6R-XV
16-14
#6
15TV14-8R-XV #8
TV14-10R-XV #10
TV10-8R-XV
12-10
#8
15TV10-10R-XV #10
TV10-14R-XV 1/4 in.
Cat. No. Wire
Range
Bolt
Size
Pkg.
Qty.
Vinyl Insulated Fork Terminals
TV18-6F-XV 22-16 #6 15
TV18-8F-XV #8
TV14-6F-XV
16-14
#6
15TV14-8F-XV #8
TV14-10F-XV #10
TV10-8F-XV
12-10
#8
15TV10-10F-XV #10
TV10-14F-XV 1/4 in.
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Butt Splices
TV18-BS-XV 22-16 15
TV14-BS-XV 16-14 15
TV10-BS-XV 12-10 15
Cat. No. Wire
Range Qty Pkg.
Qty.
Vinyl Insulated Butt Splices Kit
TV10-18-BS
22-18
5 1516-14
12-10
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Insulated Wire Joints
TN18-WJ-XV 22-18
15TN14-WJ-XV 16-14
TN10-WJ-XV 12-10
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Double Crimp Locking Fork
TV18-10LFD-XV
22-16 15TV18-6LFD-XV
TV18-8LFD-XV
TV14-10LFD-XV
16-14 15TV14-6LFD-XV
TV14-8LFD-XV
TV10-10LFD-XV
12-10 15TV10-6LFD-XV
TV10-8LFD-XV
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Locking Fork Terminal
TV18-10LF-XV
22-16 15TV18-6LF-XV
TV18-8LF-XV
TV14-10LF-XV
16-14 15TV14-6LF-XV
TV14-8LF-XV
TV10-10LF-XV
12-10 15TV10-6LF-XV
TV10-8LF-XV
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Female Disconnects –
250 Series
TV18-250FD-XV 22-16 15
TV14-250FD-XV 16-14 15
TV10-250FD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Male Disconnects –
250 Series
TV18-250MD-XV 22-16 15
TV14-250MD-XV 16-14 15
TV10-250MD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Non insulated Ring Terminals
T14-10R-XV 16-14 15
T14-8R-XV
T10-10R-XV
12-10 15T10-14R-XV
T10-8R-XV
Cat. No. Wire
Range
Pkg.
Qty.
Non insulated Fork Terminals
T18-10F-XV 22-18 15
T18-8F-XV
T14-10F-XV 16-14 15
T14-8F-XV
T10-10F-XV
12-10 15T10-14F-XV
T10-8F-XV
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Blade Terminal
TV18-10BL-XV 22-16 15
TV14-10BL-XV 16-14 15
TV14-18BL-XV
TV10-10BL-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Pin Terminal
TV18-12PT-XV 22-16 15
TV14-12PT-XV 16-14 15
TV10-14PT-XV 12-10 15
Catamount®Terminals
Sta-Kon ®
www.tnb.ca B63
Termination Products

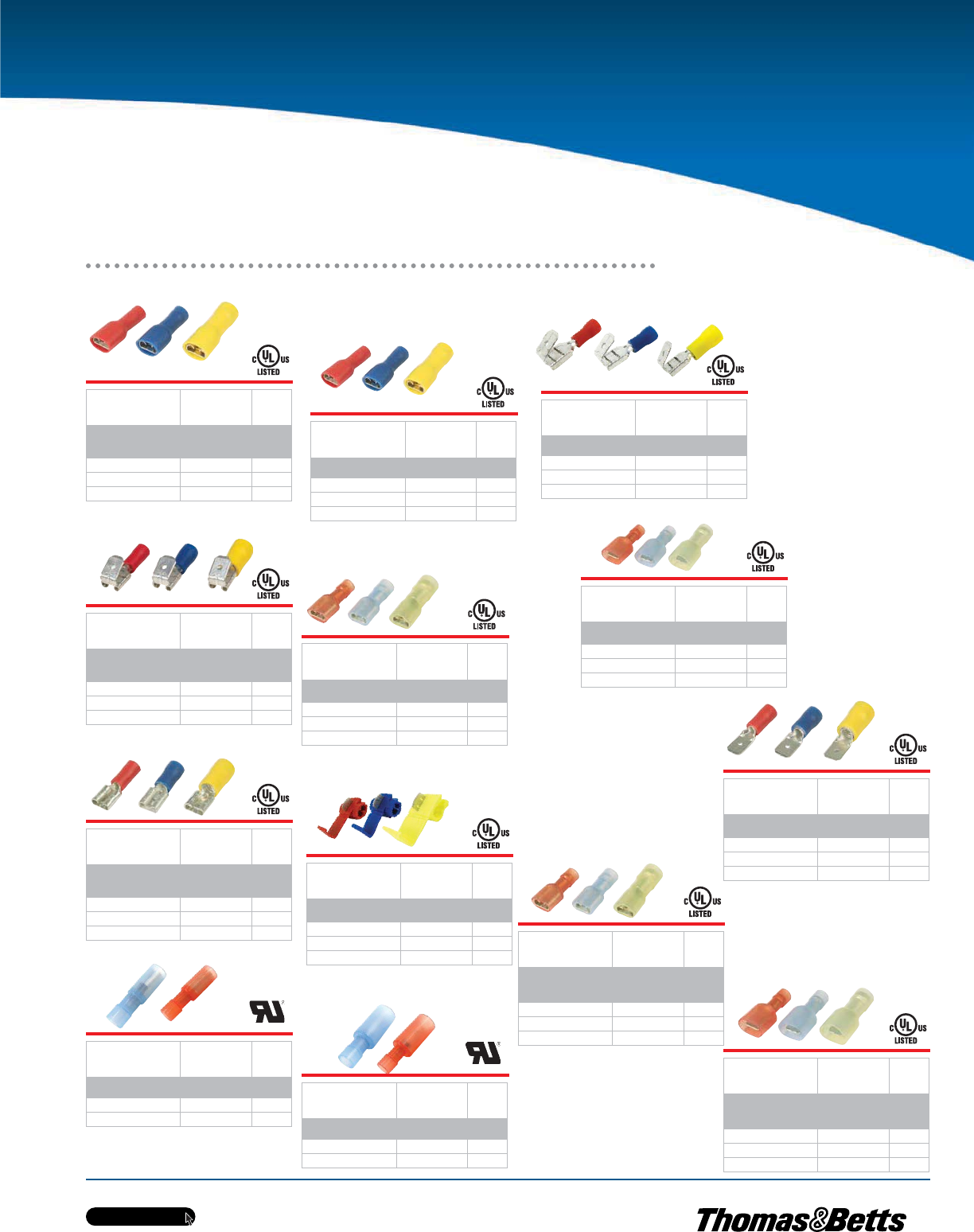

Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Fully Insulated Double Crimp
Female Disconnect
TVF18-250FDD-XV 22-16 15
TVF14-250FDD-XV 16-14 15
TVF10-250FDD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Fully Insulated Female Disconnect
TVF18-250FD-XV 22-16 15
TVF14-250FD-XV 16-14 15
TVF10-250FD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Piggy Back Disconnect
TV18-250PD-XV 22-16 15
TV14-250PD-XV 16-14 15
TV10-250PD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Double Crimp Piggy
Back Disconnect
TV18-250PDD-XV 22-16 15
TV14-250PDD-XV 16-14 15
TV10-250PDD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Female Disconnect
TNF18-250FD-XV 22-16 15
TNF14-250FD-XV 16-14 15
TNF10-250FD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Male Disconnect
TNF-18-250MD-XV 22-16 15
TNF-14-250MD-XV 16-14 15
TNF-10-250MD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Double Crimp
Female Disconnect
TV18-250FDD-XV 22-16 15
TV14-250FDD-XV 16-14 15
TV10-250FDD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Quick Splice
TV18-00QS-V 22-18 15
TV14-00QS-V 18-14 15
TV10-00QS-V 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Female Bullet
TNF18-4FB-XV 22-16 15
TNF14-4FB-XV 16-14 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Male Bullet
TNF18-4MB-XV 22-16 15
TNF14-4MB-XV 16-14 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Double Crimp
Male Disconnect
TNF-18-250MDD-XV 22-16 15
TNF-14-250MDD-XV 16-14 15
TNF-10-250MDD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Vinyl Insulated Double Crimp Male Disconnect
TV-18-250MDD-XV 22-16 15
TV-14-250MDD-XV 16-14 15
TV-10-250MDD-XV 12-10 15
Cat. No. Wire
Range
Pkg.
Qty.
Nylon Fully Insulated Double Crimp
Female Disconnects
TNF-18-250FDD-XV 22-16 15
TNF-14-250FDD-XV 16-14 15
TNF-10-250FDD-XV 12-10 15
Catamount®Terminals
Sta-Kon ®
www.tnb.ca
B64
Termination Products
WT111M
WT112M
ERG1-WS
CM2000A
TBM6S
Cat. No. Description Pkg.
Qty.
WT111M Pier tool with cutter for 22 - 10 AWG non-insulated terminals
1
WT112M Pier tool with cutter for 22 - 10 AWG insulated and non-
insulated terminals, splices and disconnects
TBM6S Toggle type hand tool with Shure-Stake®for 8 - 6 AWG, vinyl
insulated terminals (dies sold separately)
ERG1-WS Ergonomic wire stripping tool
CM2000A 10 in. ratchet crimping tool for insulated terminals
(22 - 10 AWG)
Catamount®Terminal Tools
Sta-Kon ®
www.tnb.ca B65
Termination Products

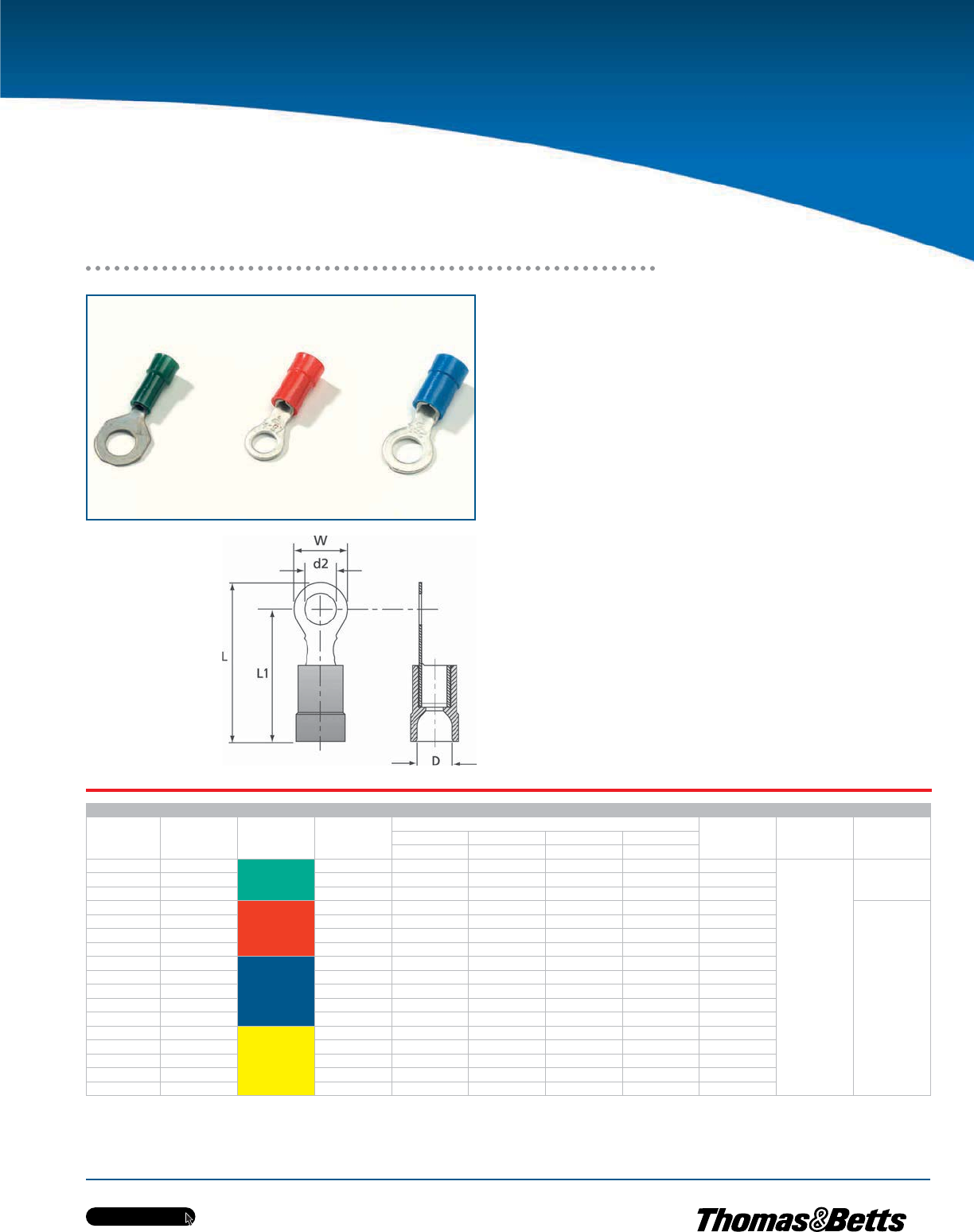

Technical Information
Material Electrolytic copper
Plating Tin-plated
Marking Wire size and bolt size
stamped on the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
Colour coding of the According to the wire size
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L D L1
(mm) (mm) (mm) (mm)
RZ3 0.25 - 0.75
Green
M3 5.5 18.0 3.2 15.0 36
100
ERG2510RZ4 0.25 - 0.75 M4 7.5 21.0 3.2 17.5 45
RZ5 0.25 - 0.75 M5 9.0 22.0 3.2 17.5 51
RA3RR 0.5 - 1.5
Red
M3 5.5 19.0 4.0 16.0 60
ERG2001A
WT2124Y
RA4RR 0.5 - 1.5 M4 7.0 20.5 4.0 17.0 71
RA5RR 0.5 - 1.5 M5 9.0 22.5 4.0 18.0 79
RA6RR 0.5 - 1.5 M6 11.0 26.5 4.0 21.0 96
RB3 1.5 - 2.5
Blue
M3 5.5 19.0 4.5 16.0 75
RB4-EU 1.5 - 2.5 M4 7.0 20.5 4.5 17.0 92
RB5 1.5 - 2.5 M5 9.0 22.5 4.5 18.0 96
RB6 1.5 - 2.5 M6 11.0 26.5 4.5 21.0 117
RB8 1.5 - 2.5 M8 14.0 27.5 4.5 21.0 141
RC4 4.0 - 6.0
Yellow
M4 8.0 24.0 6.4 20.5 158
RC5 4.0 - 6.0 M5 9.0 25.0 6.4 20.5 166
RC6-EU 4.0 - 6.0 M6 11.0 28.5 6.4 23.0 179
RC8 4.0 - 6.0 M8 14.0 31.0 6.4 24.0 220
RC10E 4.0 - 6.0 M10 17.0 34.0 6.4 25.5 245
Polycarbonate Insulated Ring Terminals
Sta-Kon ®
www.tnb.ca
B66

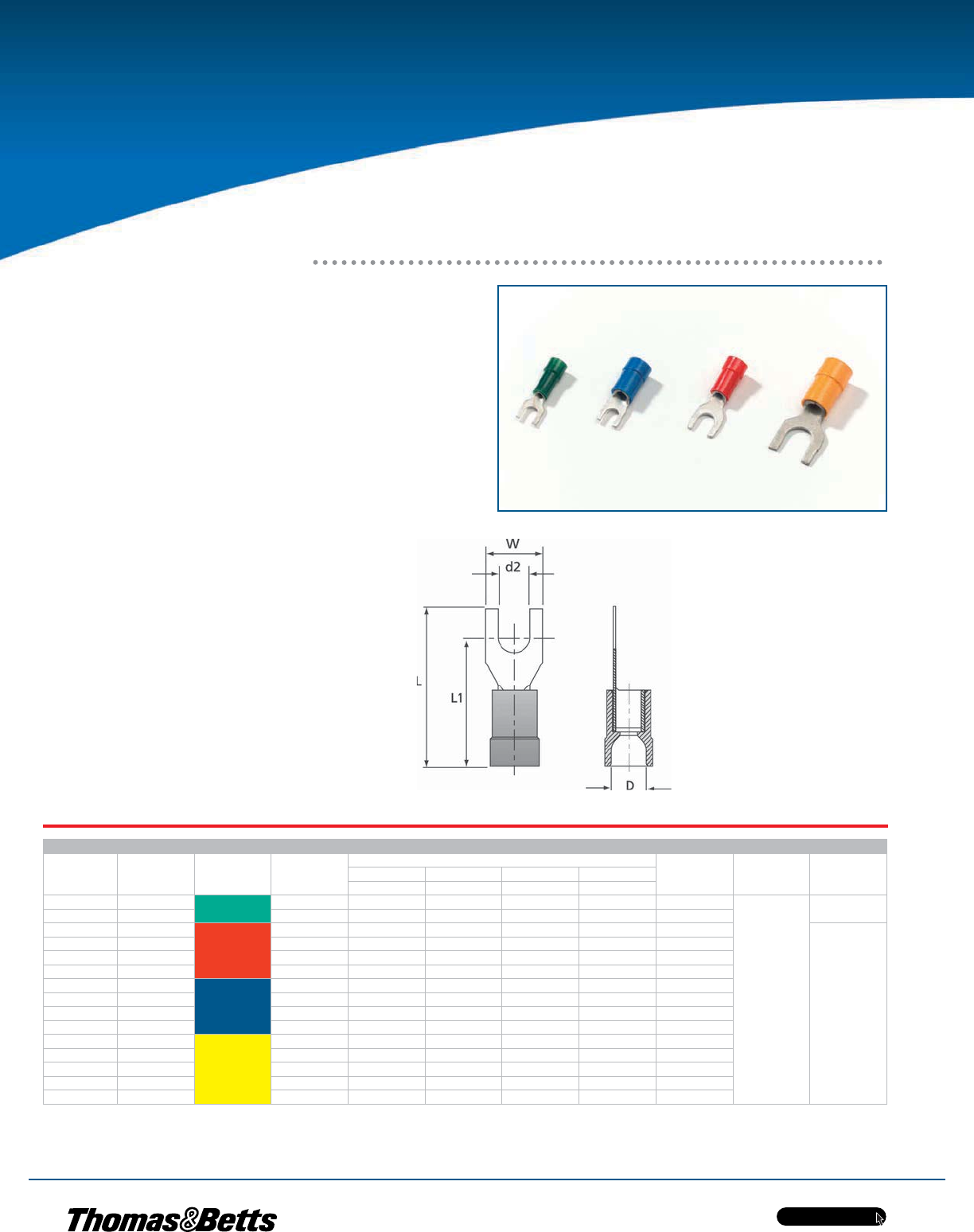

Technical Information
Material Electrolytic copper
Plating Tin-plated
Marking Wire size and bolt size
stamped on the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
Colour coding of the According to the wire size
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L D L1
(mm) (mm) (mm) (mm)
RZ3F 0.25 - 0.75 Green M3 5.5 18.0 3.2 15.0 41
100
ERG2510
RZ4F 0.25 - 0.75 M4 7.5 21.0 3.2 17.5 41
RA35F 0.5 - 1.5
Red
M3.5 5.5 21.0 4.0 17.5 62
ERG2001A
WT2124Y
RA4F 0.5 - 1.5 M4 7.0 20.5 4.0 17.0 64
RA5F 0.5 - 1.5 M5 9.0 22.5 4.0 18.0 75
RA6F 0.5 - 1.5 M6 11.0 26.5 4.0 21.0 90
RB3F 1.5 - 2.5
Blue
M3 5.5 19.0 4.5 16.0 72
RB4F 1.5 - 2.5 M4 7.0 20.5 4.5 17.0 84
RB5F 1.5 - 2.5 M5 9.0 22.5 4.5 18.0 96
RB6F 1.5 - 2.5 M6 11.0 26.5 4.5 21.0 113
RC4F 4.0 - 6.0
Yellow
M4 8.0 24.0 6.4 20.5 159
RC5F 4.0 - 6.0 M5 9.0 25.0 6.4 20.5 161
RC6F 4.0 - 6.0 M6 11.0 28.5 6.4 23.0 174
RC8F 4.0 - 6.0 M8 14.0 31.0 6.4 24.0 207
RC10F 4.0 - 6.0 M10 18.0 36.0 6.4 27.0 280
Polycarbonate Insulated Fork Terminals
Termination Products
Sta-Kon ®
www.tnb.ca B67

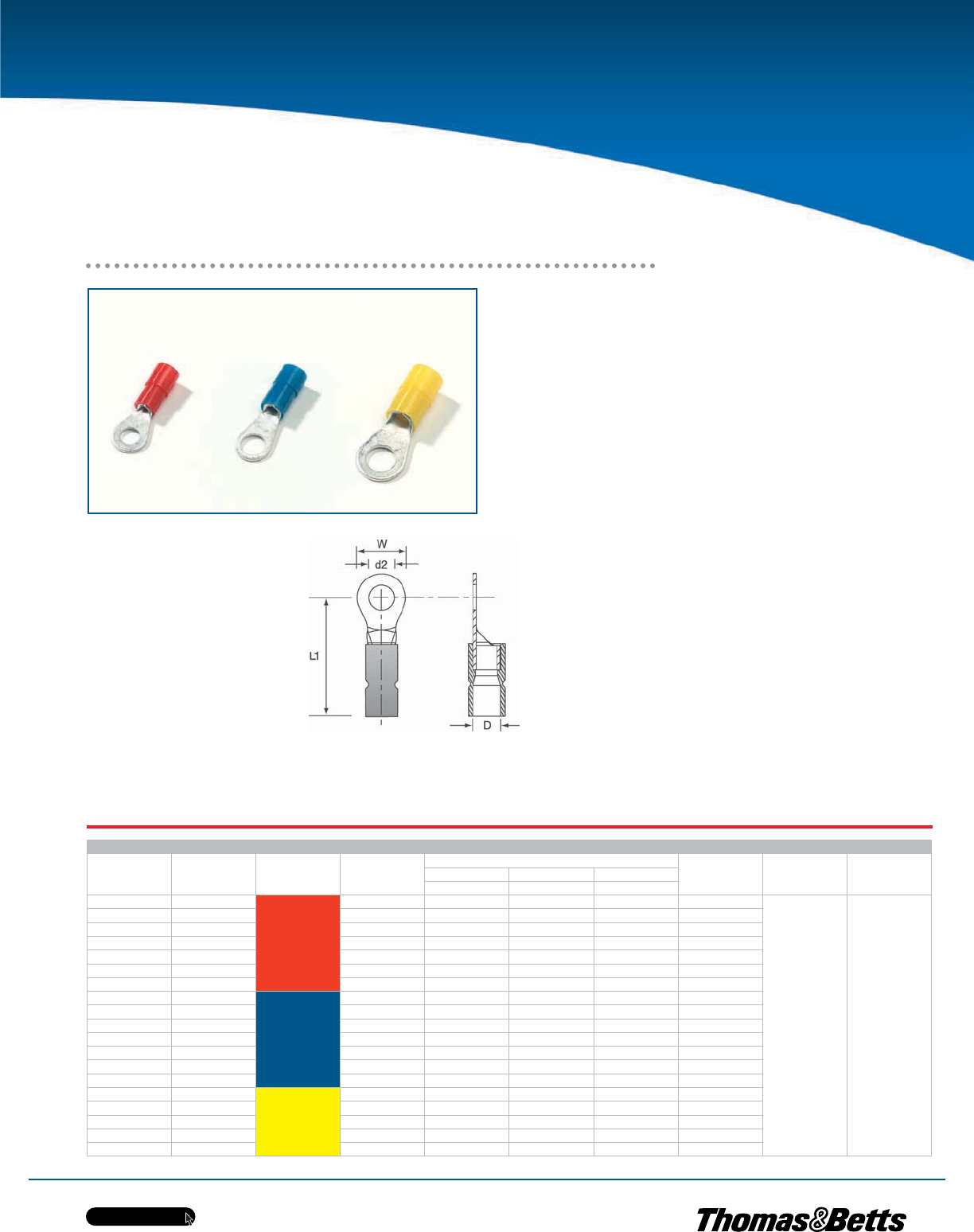

Technical Information
Material Copper
Plating Tin-plated
Marking Wire size and bolt size
stamped on the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PVC = Polyvinylchloride (Vinyl)
Ideal for harsh environments,
provides excellent chemical,
impact and abrasion resistance
Max. electrical rating +75ºC 600 Volts max
Colour coding of the According to the wire size
insulation
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L1 D
(mm) (mm) (mm)
VB-3RR 0.5 - 1.5
Red
M3 6.0 17.2 4.0 68
100 ERG2001A
WT2124Y
VB-35RR 0.5 - 1.5 M3.5 6.0 17.2 4.0 69
VB-4RR 0.5 - 1.5 M4 8.0 18.2 4.0 73
VB-5RR 0.5 - 1.5 M5 10.0 19.2 4.0 92
VB-6RR 0.5 - 1.5 M6 10.0 19.2 4.0 87
VB-8RR 0.5 - 1.5 M8 14.0 23.2 4.0 139
VB-10RR 0.5 - 1.5 M10 14.0 23.2 4.0 100
VB-3BR 1.5 - 2.5
Blue
M3 6.0 17.5 4.5 80
VB-35BR 1.5 - 2.5 M3.5 6.0 17.5 4.5 94
VB-4BR 1.5 - 2.5 M4 8.0 18.5 4.5 83
VB-5BR 1.5 - 2.5 M5 10.0 20.5 4.5 110
VB-6BR 1.5 - 2.5 M6 11.0 22.5 4.5 122
VB-8BR 1.5 - 2.5 M8 14.0 23.5 4.5 146
VB-10BR 1.5 - 2.5 M10 15.0 23.5 4.5 204
VB-4YR 4.0 - 6.0
Yellow
M4 8.0 22.1 6.3 167
VB-5YR 4.0 - 6.0 M5 10.0 23.1 6.3 196
VB-6YR 4.0 - 6.0 M6 11.0 24.1 6.3 195
VB-8YR 4.0 - 6.0 M8 14.0 27.1 6.3 250
VB-10YR 4.0 - 6.0 M10 18.0 29.1 6.3 305
Vinyl Insulated Ring Terminals DIN 46237
Termination Products
Sta-Kon ®
www.tnb.ca
B68

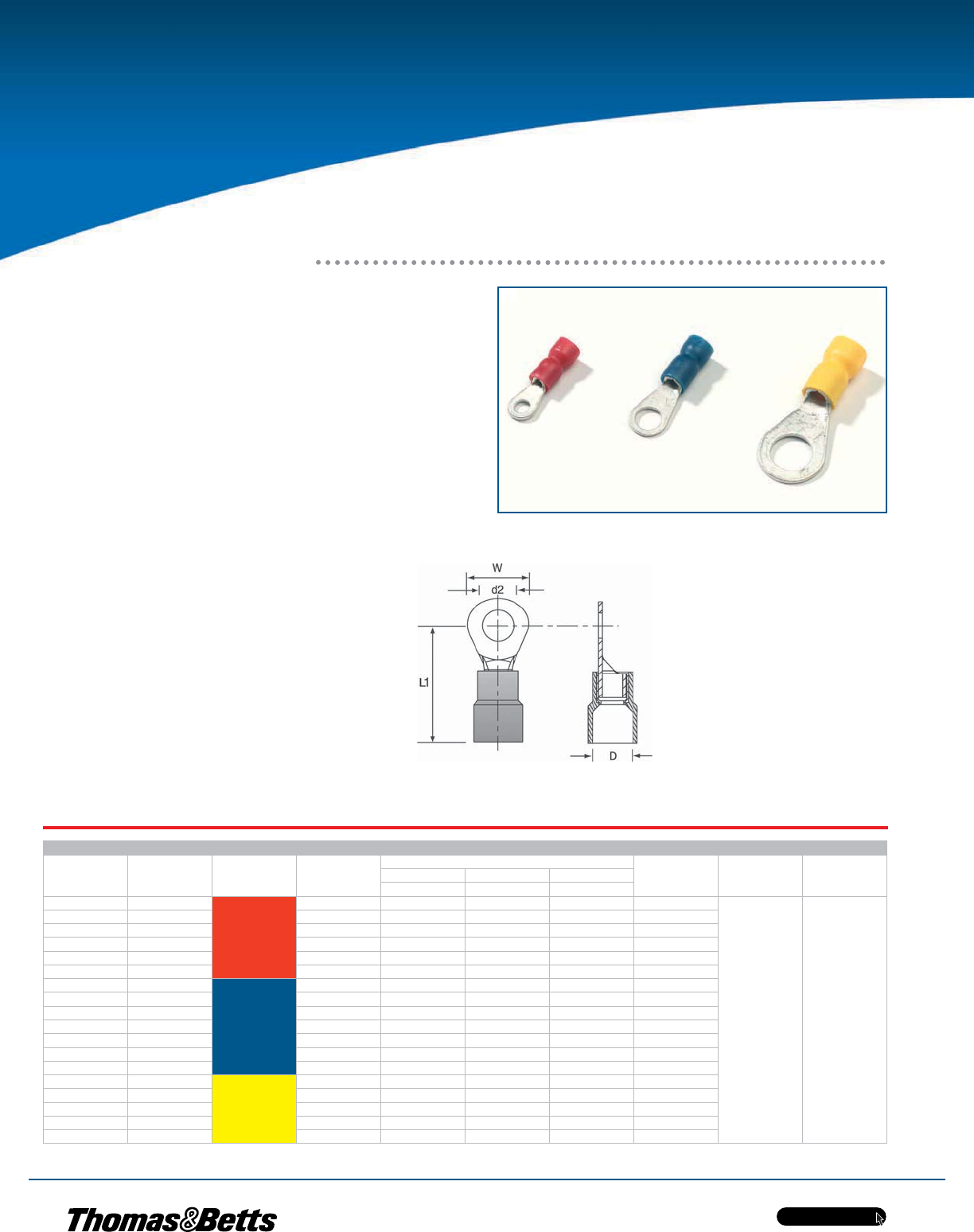

Technical Information
Material Copper
Plating Tin-plated
Marking Wire size and bolt size stamped
on the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PA = Polyamide
Ideal for harsh
environments, provides
excellent chemical, impact and
abrasion resistance
Temperature resistance +85ºC / +105ºC
Colour coding of the According to the wire size
insulation
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L1 D
(mm) (mm) (mm)
TRA3 0.5 - 1.5
Red
M3 5.5 17.5 4.0 70
100 ERG2001A
WT2124Y
TRA35 0.5 - 1.5 M3.5 6.6 20.4 4.0 67
TRA4 0.5 - 1.5 M4 8.0 21.8 4.0 76
TRA5 0.5 - 1.5 M5 8.0 21.8 4.0 79
TRA6 0.5 - 1.5 M6 11.6 27.5 4.0 108
TRA8 0.5 - 1.5 M8 11.6 27.5 4.0 134
TRB3 1.5 - 2.5
Blue
M3 6.0 20.6 4.5 79
TRB35 1.5 - 2.5 M3.5 8.5 23.0 4.5 76
TRB4 1.5 - 2.5 M4 8.5 23.0 4.5 79
TRB5 1.5 - 2.5 M5 9.5 22.9 4.5 89
TRB6 1.5 - 2.5 M6 12.0 28.0 4.5 117
TRB8 1.5 - 2.5 M8 12.0 28.0 4.5 148
TRB10 1.5 - 2.5 M10 13.6 31.7 4.5 204
TRC4-EU 4.0 - 6.0
Yellow
M4 7.4 26.7 6.4 158
TRC5-EU 4.0 - 6.0 M5 9.5 26.7 6.4 175
TRC6-EU 4.0 - 6.0 M6 12.0 32.7 6.4 187
TRC8 4.0 - 6.0 M8 15.0 34.9 6.4 230
TRC10 4.0 - 6.0 M10 15.0 34.9 6.4 296
Nylon Insulated Ring Terminals DIN 46237
Termination Products
Sta-Kon ®
www.tnb.ca B69

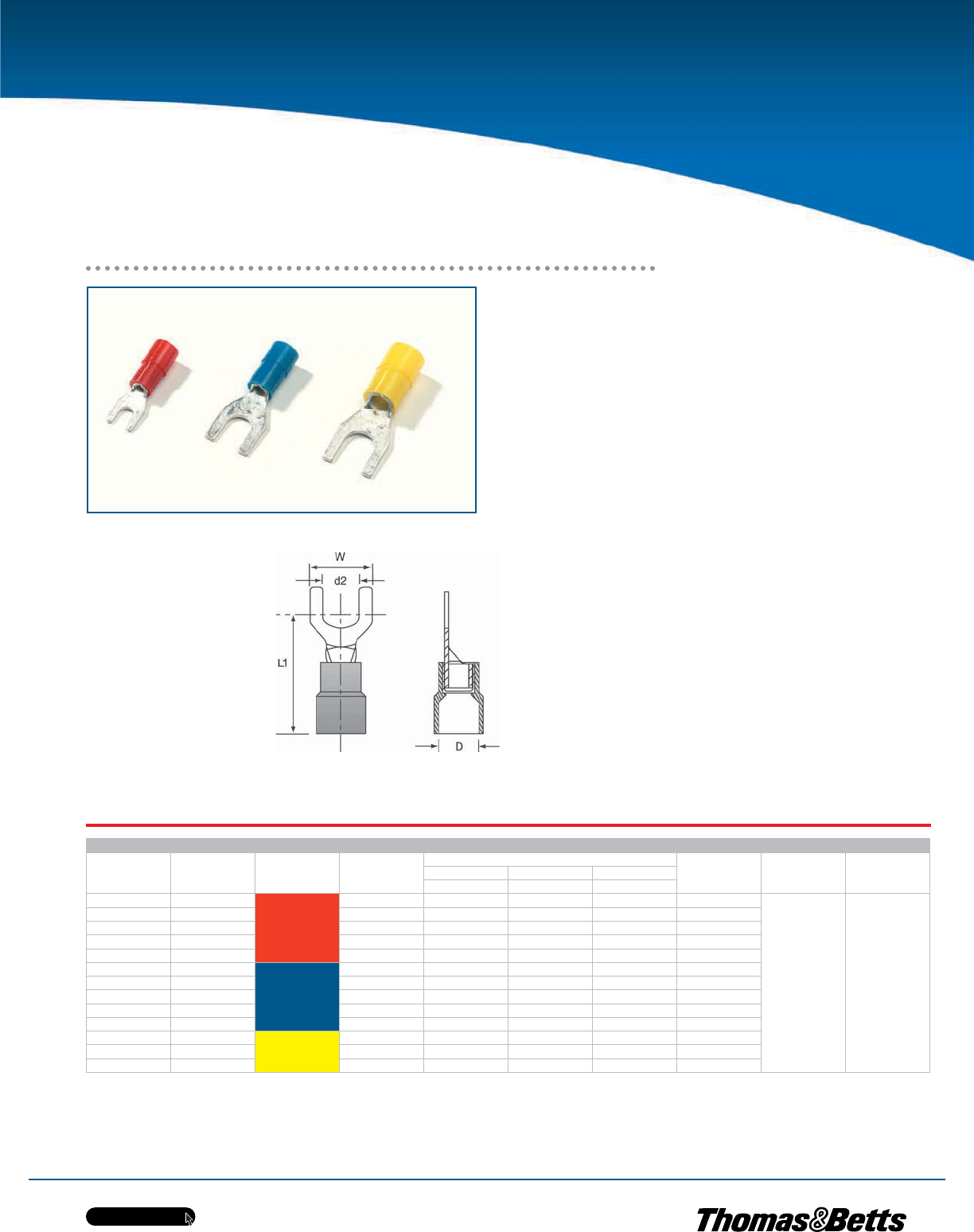

Technical Information
Material Copper
Plating Tin-plated
Marking Wire size and bolt size
stamped ont the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PA = Polyamide
Ideal for harsh
environments, provides
excellent chemical, impact
and abrasion resistance
Temperature resistance +85ºC / +105ºC
Colour coding of the According to the wire size
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L1 D
(mm) (mm) (mm)
TRA3F 0.5 - 1.5
Red
M3 5.7 22.0 4.0 65
100 ERG2001A
WT2124Y
TRA35F 0.5 - 1.5 M3.5 6.2 22.0 4.0 62
TRA4F 0.5 - 1.5 M4 7.2 22.0 4.0 70
TRA5F 0.5 - 1.5 M5 8.0 22.0 4.0 92
TRA6F 0.5 - 1.5 M6 10.8 23.0 4.0 102
TRB3F 1.5 - 2.5
Blue
M3 5.7 22.2 4.5 81
TRB35F 1.5 - 2.5 M3.5 6.2 22.2 4.5 74
TRB4F 1.5 - 2.5 M4 7.2 22.2 4.5 80
TRB5F 1.5 - 2.5 M5 8.0 22.2 4.5 110
TRB6F 1.5 - 2.5 M6 10.8 23.5 4.5 122
TRC4F 4.0 - 6.0
Yellow
M4 8.2 26.7 6.4 163
TRC5F 4.0 - 6.0 M5 9.0 26.7 6.4 182
TRC6F 4.0 - 6.0 M6 12.0 30.3 6.4 190
Nylon Insulated Fork Terminals DIN 46237
Termination Products
Sta-Kon ®
www.tnb.ca
B70

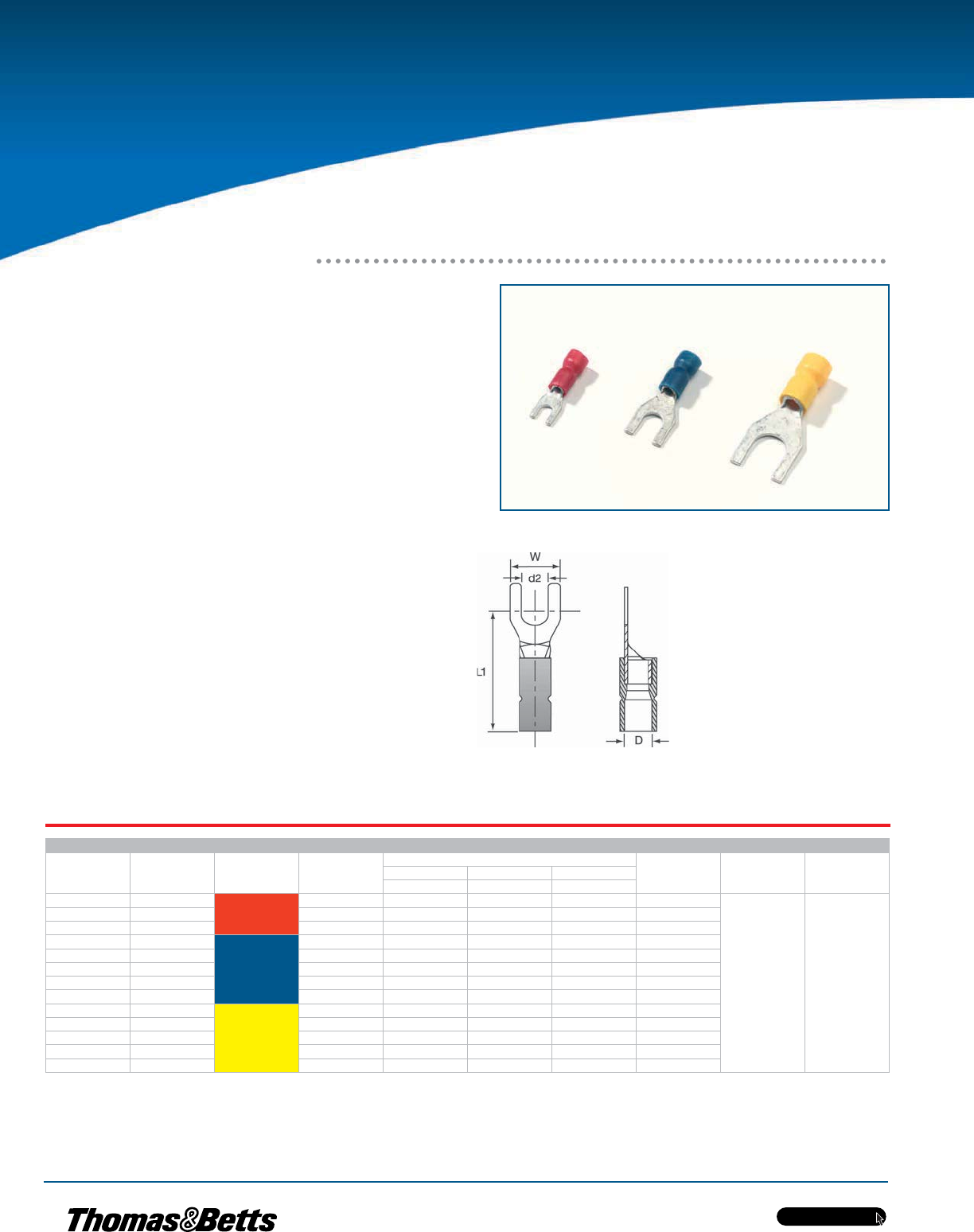

Technical Information
Material Copper
Plating Tin-plated
Marking Wire size and bolt size
stamped on the tongue
Metal barrel Brazed seam to prevent
barrel separation
Insulation PVC = Polyvinylchloride (Vinyl)
Max. electrical rating +75ºC 600 Volts
Colour coding of the According to the wire size
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Stud Hole
Size
d2
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L1 D
(mm) (mm) (mm)
VB-4RF 0.5 - 1.5
Red
M4 6.8 18.2 4.0 73
100 ERG2001A
VB-5RF 0.5 - 1.5 M5 10.0 19.2 4.0 92
VB-6RF 0.5 - 1.5 M6 11.0 21.2 4.0 103
VB-3BF 1.5 - 2.5
Blue
M3 5.5 19.5 4.5 90
VB-35BF 1.5 - 2.5 M3.5 6.0 17.5 4.5 97
VB-4BF 1.5 - 2.5 M4 6.8 19.2 4.5 83
VB-5BF 1.5 - 2.5 M5 10.0 20.5 4.5 110
VB-6BF 1.5 - 2.5 M6 11.0 22.5 4.5 121
VB-4YF 2.5 - 6.0
Yellow
M4 8.0 22.1 6.3 169
VB-5YF 2.5 - 6.0 M5 10.0 23.1 6.3 189
VB-6YF 2.5 - 6.0 M6 11.0 24.1 6.3 200
VB-8YF 2.5 - 6.0 M8 14.0 27.1 6.3 235
VB-10YF 2.5 - 6.0 M10 18.0 29.1 6.3 305
Vinyl Insulated Fork Terminals DIN 46237
Termination Products
Sta-Kon ®
www.tnb.ca B71
Technical Information
Material Electrolytic copper
Plating Tin-plated
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
Colour coding of the According to the wire size
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
L F B D
(mm) (mm) (mm) (mm)
RZP 0.25 - 0.75 Green 22.0 12.0 1.8 3.2 47
100
ERG2510
RAP 0.5 - 1.5 Red 22.0 12.0 1.9 4.0 67 ERG2001A
WT2124Y
RBP 1.5 - 2.5 Blue 22.0 12.0 1.9 4.5 80
RCP 4.0 - 6.0 Yellow 27.0 14.0 2.8 6.4 175
Polycarbonate Insulated Pin Terminals
Termination Products
Sta-Kon ®
www.tnb.ca
B72
Technical Information
Material Brass
Plating Tin-plated
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
(for PVC insulation +65ºC / +75ºC)
Colour coding of the According to the wire size (DIN)
insulation
Cable insertion Easy entry
**Non-brazed, with support sleeve and PVC insulation, not easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Male
Tab Size
(mm)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
L D W
(mm) (mm) (mm)
RA28 0.5 - 1.5 2.8 x 0.8
Red
18.5 3.3 3.5 60
100 ERG2001A
WT2124Y
RA29 0.5 - 1.5 2.8 x 0.5 18.5 3.3 3.5 60
RA48** 0.5 - 1.5 4.8 x 0.8 19.0 3.7 5.7 82
RA49** 0.5 - 1.5 4.8 x 0.5 19.0 3.7 5.7 83
RA63 0.5 - 1.5 6.3 x 0.8 20.0 4.0 7.6 96
RB48** 1.5 - 2.5 4.8 x 0.5
Blue
19.0 4.4 5.7 91
RB49** 1.5 - 2.5 4.8 x 0.8 19.0 4.4 5.7 87
RB63 1.5 - 2.5 6.3 x 0.8 20.0 4.5 7.6 106
RC63 4.0 - 6.0 6.3 x 0.8 Yellow 24.0 6.4 7.6 183
RC95** 4.0 - 6.0 9.5 x 1.2 31.0 6.2 11.0 233
Insulated Female Disconnects DIN 46245
Termination Products
Sta-Kon ®
www.tnb.ca B73
**PVC insulation. No easy entry and non-brazed, with brass support sleeve
Technical Information
Material Brass
Plating Tin-plated
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
(for PVC inslulation +65ºC / +75ºC)
Colour coding of the According to the wire size (DIN)
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Male
Tab Size
(mm)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
L D
(mm) (mm)
RA63M 0.5 - 1.5 6.3 x 0.8 Red 22.0 4.0 107
100 ERG2001A
WT2124Y
RB63M 1.5 - 2.5 6.3 x 0.8 Blue 22.0 4.5 107
RC63M** 4.0 - 6.0 6.3 x 0.8 Yellow 25.0 6.3 155
Insulated Male Disconnects DIN 46245
Termination Products
Sta-Kon ®
www.tnb.ca
B74
Technical Information
Material Brass
Plating Tin-plated
Metal barrel Non-brazed, with brass
support sleeve
Insulation PA = Polyamide
Ideal for harsh
environments, provides
excellent chemical, impact
and abrasion resistance
Temperature resistance +85ºC / +105ºC
Colour coding of the According to the wire size (DIN)
insulation
**Easy entry and brazed barrel, polycarbonate insulator
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Male
Tab Size
(mm)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
W L D
(mm) (mm) (mm)
RA28V 0.5 - 1.5 2.8 x 0.8
Red
5.0 19.3 3.8 110
100 ERG2001A
WT2124Y
RA29V 0.5 - 1.5 2.8 x 0.5 5.0 19.3 3.8 110
RA48V 0.5 - 1.5 4.8 x 0.8 7.4 20.2 3.6 115
RA49V 0.5 - 1.5 4.8 x 0.5 7.4 20.2 3.6 115
RA63V** 0.5 - 1.5 6.3 x 0.8 8.8 21.0 4.0 123
RB48V 1.5 - 2.5 4.8 x 0.8
Blue
7.1 19.5 3.9 120
RB49V 1.5 - 2.5 4.8 x 0.5 7.1 19.5 3.9 120
RB63V** 1.5 - 2.5 6.3 x 0.8 8.8 21.0 4.5 132
RC63V 4.0 - 6.0 6.3 x 0.8 Yellow 9.0 26.0 5.3 215
Fully Insulated Female Disconnects
Termination Products
Sta-Kon ®
www.tnb.ca B75

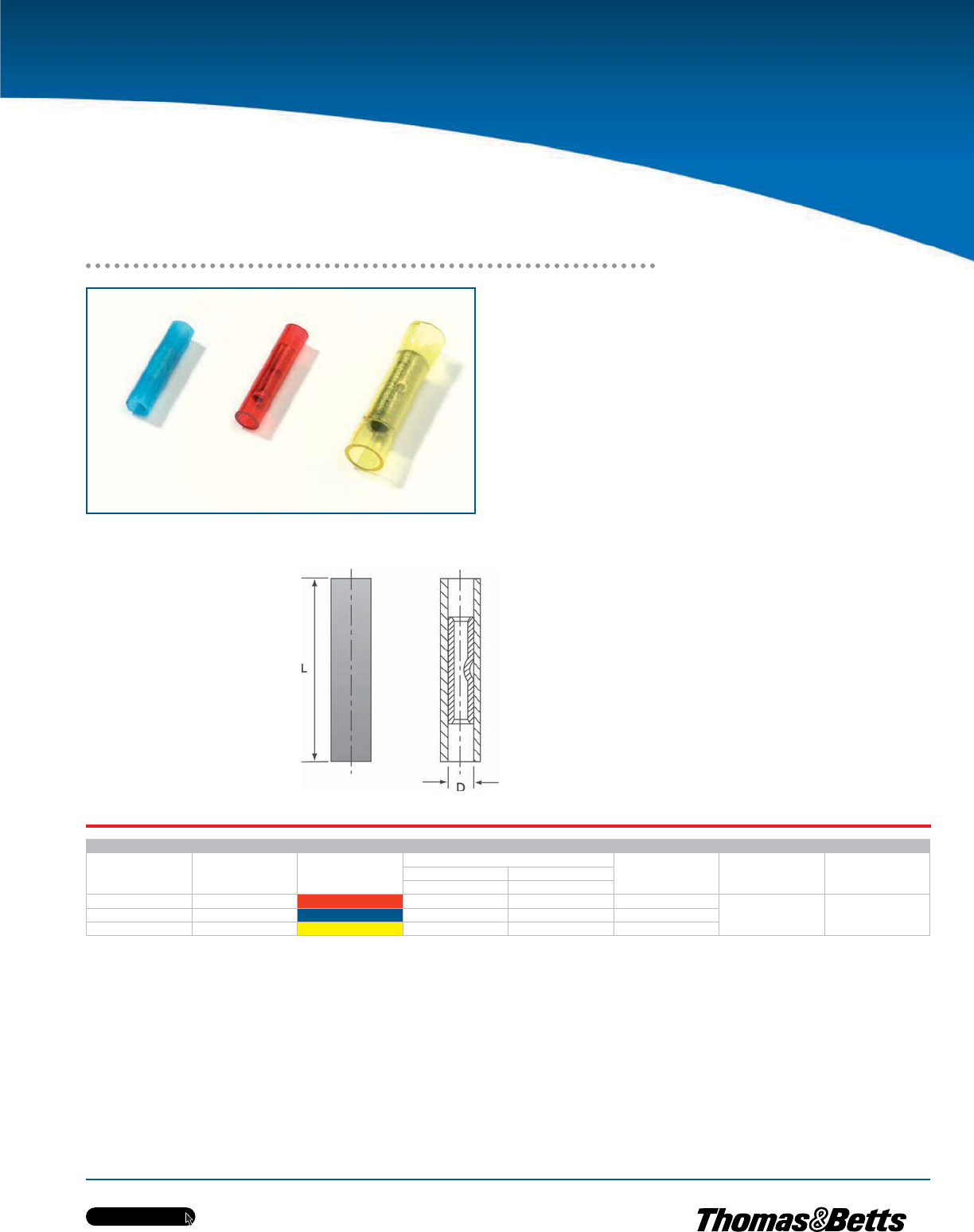

Technical Information
Material Electrolytic copper
Plating Tin-plated
Metal barrel Brazed seam to prevent
barrel separation
Insulation PC = Polycarbonate
Temperature resistance +115ºC / +125ºC
Colour coding of the According to the wire size (DIN)
insulation
Cable insertion Easy entry
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
L D
(mm) (mm)
RAA15 0.5 - 1.5 Red 24.0 3.4 97
100 ERG2001A
WT2124Y
RBB25 1.5 - 2.5 Blue 26.0 4.3 150
RCC6 4.0 - 6.0 Yellow 33.0 6.5 316
Fully Insulated Butt Splices
Termination Products
Sta-Kon ®
www.tnb.ca
B76
Technical Information
Material Brass
Plating Tin-plated
Metal barrel Brazed seam to prevent
barrel separation
Insulation PA = Polyamide
Ideal for harsh
environments, provides
excellent chemical, impact
and abrasion resistance
Temperature resistance +85ºC / +105ºC
Ordering Information
Cat. No.
Wire Size
Range
(mm2)
Colour
Dimensions Wt.
(g/100)
Qty.
(pieces)
Crimping
Tool
F L D
(mm) (mm) (mm)
RBJ 1.0 - 3.0 White 8.0 15.2 6.4 86 100 ERG2001A
WT2124Y
RCJ 2.0 - 6.0 9.0 17.7 9.2 166
Insulated Wire Joints
Termination Products
Sta-Kon ®
www.tnb.ca B77

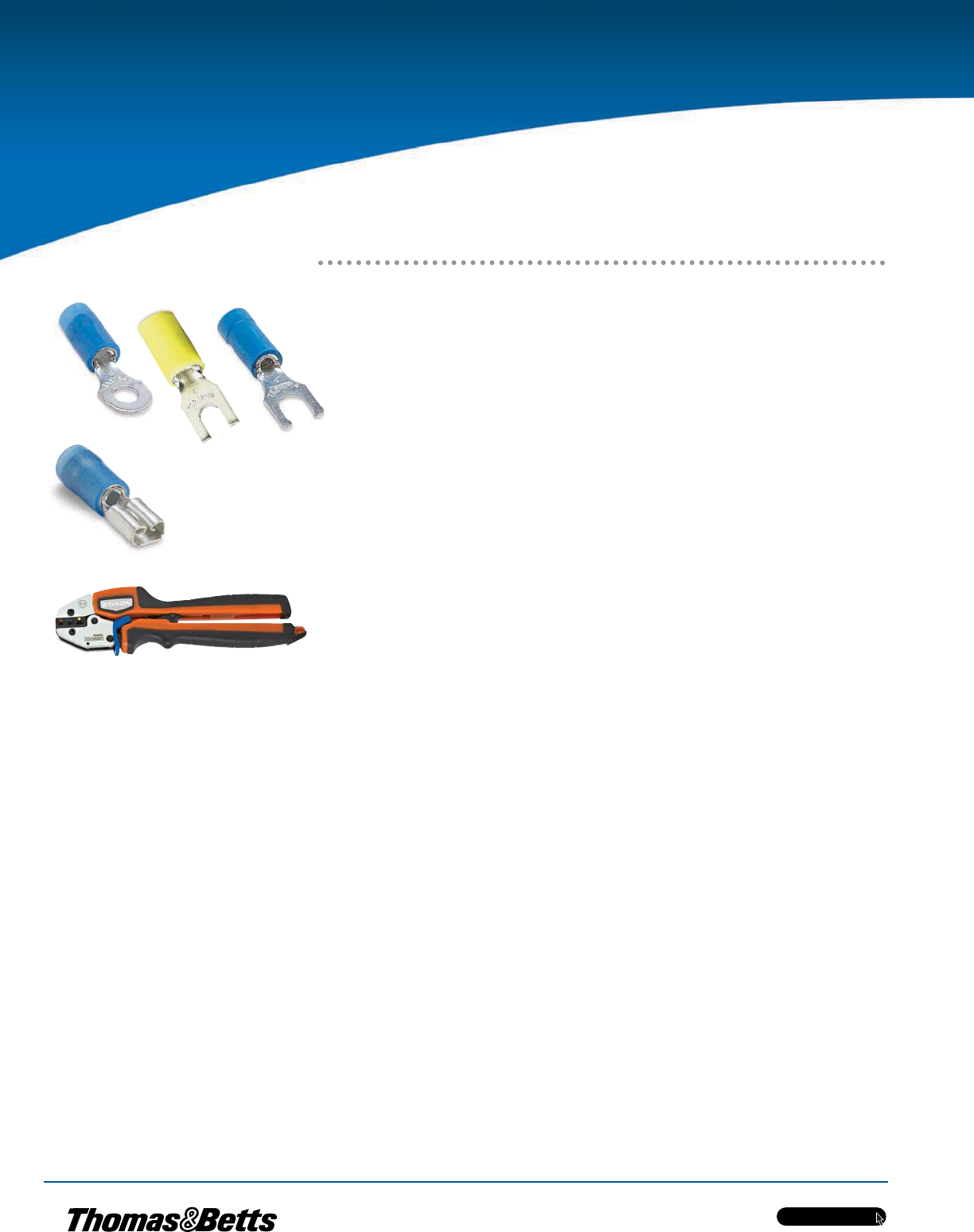

Tools
•Ergonomic ratchet style hand tools used for installing insulated
and non-insulated terminals
•Specially designed ergonomic handles distribute the crimping
force more evenly across the user’s hands. This helps to reduce
the risk of Carpal Tunnel Syndrome, the cause of almost one in
two industrial injuries
•Ratchet design greatly reduces handle forces over conventional
hand tools and incorporates the Shure-Stake®mechanism which
ensures a full crimp cycle every time
•Most dies incorporate wire range mark for easy inspection
(insulated only)
•Colour-coded die nests (insulated only) make terminal and
die nest selection easy
•The product design and engineering results in a long lasting
precision tool
•Exists in 2 versions: with interchangeable dies or with fixed dies
Colour-coded die nests on both the right and
left sides of the tool are included for insulated
terminals
For easy visual verification of crimps,
integrity dots are embossed on the
top and bottom of the terminal
Toggle action increases mechanical gain, which dramatically
reduces handle force - and the stress on your hands
Shure-Stake®mechanism ensures a
complete crimp cycle before it releases Rubberized thermoplastic handle combines
maximum friction with a soft, comfortable
feel that reduces muscle tension
Advanced ergonomic design of handle
distributes the force more evenly across the hand
Ergonomic Hand Tools with Fixed Die
Product Ref.: ERG2001A
Ergonomic fixed die tool, with three colour-coded die nests for easy selection
For insulated terminals from:
0.5 to 1.5 mm2red
1.5 to 2.5 mm2blue
4.0 to 6.0 mm2yellow
Shure-StakeTM mechanism
Length: 255 mm
Weight: 560 g
Product Ref.: ERG2510
Ergonomic fixed die tool with 2 die nests
For insulated terminals and insulated bootlace ferrules
from: 0.25 to 0.5 mm2
0.5 to 1.0 mm2
Shure-StakeTM mechanism
Length: 220 mm
Weight: 430 g
Termination Products
Sta-Kon ®
B78
An extensive range of tooling is available, suiting a variety
of requirements, to crimp the following terminals:
•Insulated terminals and bootlace ferrules
•Non-insulated terminals
•Copper tube terminals
Different types of tooling are offered, depending on volume
and application:
•Plier type hand tools for occasional applications
(“Do-It-Yourself” users)
•Standard hand tooling for low to medium volume applications
•Ergonomic hand tooling for low to medium volume applications,
where high, repeatable quality is essential
•Hydraulic tooling for heavy-duty applications
•Smart tools where no die change is necessary
Standard Crimping Tools
Product Ref.: WT52
Plier type tool
For insulated and non-insulated terminals from 0.5 to 6.0 mm2
Incorporates wire stripper and bolt cutters
Recommended for “Do-It-Yourself” applications only
Length: 225 mm
Weight: 200 g
Product Ref.: WT2124Y
Ratchet type hand tool, fixed die
For insulated and non-insulated terminals
from: 0.5 to 1.5 mm2red
1.5 to 2.5 mm2blue
4.0 to 6.0 mm2yellow
Built in Shure-Stake®mechanism to ensure a full
compression every time
Length: 228 mm
Weight: 533 g
Tools
Metric Crimping Tools
Termination Products
Sta-Kon ®

Navigation menu
