Just a few of the many Configurable Solutions opportunities.No mounting screws (order code X). Saves you time and cuts waste when you’re using your own mounting hardware.Split-circuit tab removed (order code SC). Great for switched receptacle circuits. One less task to perform, more time saved.CRB5362LANo ground clips (order code Y). If you’re using the ground terminal and your own mounting hardware, ground clips would just be in the way. Choose this option and you won’t have to remove them yourself.Shipped in bulk packaging (standard feature — order code B). No individual product wrapping to remove or discard. Saves you time and reduces waste.Shim lock washers (order code F) are available to quickly eliminate floating. Make devices flush to wall surface without shimming or wall repair.No mounting ears (order code Z). Ideal for when devices must be installed before the dry wall goes up. Saves four separate operations per device.PS20AC2REDBZRed 20A Spec Grade Toggle Switch, bulk packaging, no mounting ears8300LABZLight Almond 20A Hospital Grade Receptacle, bulk packaging, no mounting ears2095HGWBXZRed 20A Hospital Grade GFCI with SafeLock™ Protection, bulk packaging, no mounting screws, no mounting earsTM870WBZWhite TradeMaster® 15A Decorator Switch, bulk packaging, no mounting ears26352LABZLight Almond Spec Grade 15A Decorator Receptacle, bulk packaging, no mounting ears5362LASPBZLight Almond Heavy-Duty Specification Grade 20A TVSS Straight Blade Receptacle, bulk packaging, no mounting earsCR20LABZSCLight Almond Specification Grade 20A Receptacle, bulk packaging, no mounting ears, split-circuit tab removedPTRA6STRAll PlugTail™ Connectors are available in any wire length up to 25 inches. To order, add the letter “B” and the length requested to the end of the catalog number.Wiring devices configured for your job. Configurable SolutionsConfigurable SolutionsWiring devices configured for your job.Push in connectors (order code P) can be added to Leaded and Plugtail™ wires to speed installation.100 piece minimum order for switches.500 piece minimum order for receptacles.

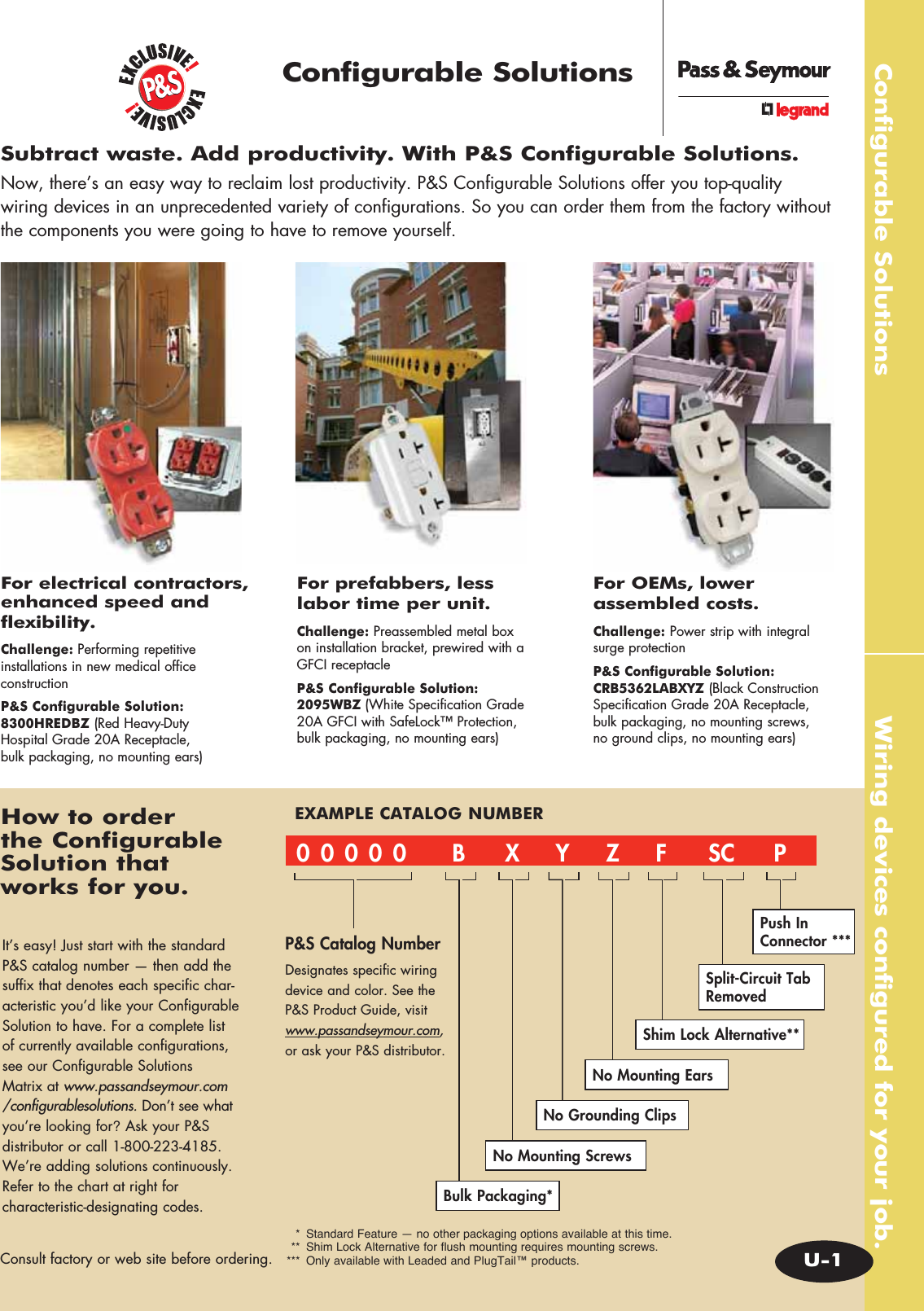

How to order the Configurable Solution that works for you.It’s easy! Just start with the standard P&S catalog number — then add the suffix that denotes each specific char-acteristic you’d like your Configurable Solution to have. For a complete list of currently available configurations, see our Configurable Solutions Matrix at www.passandseymour.com /configurablesolutions. Don’t see what you’re looking for? Ask your P&S distributor or call 1-800-223-4185. We’re adding solutions continuously. Refer to the chart at right for characteristic-designating codes.Consult factory or web site before ordering.For electrical contractors,enhanced speed andflexibility.Challenge: Performing repetitive installations in new medical office constructionP&S Configurable Solution: 8300HREDBZ (Red Heavy-Duty Hospital Grade 20A Receptacle, bulk packaging, no mounting ears) For prefabbers, less labor time per unit.Challenge: Preassembled metal box on installation bracket, prewired with a GFCI receptacleP&S Configurable Solution: 2095WBZ (White Specification Grade 20A GFCI with SafeLock™ Protection, bulk packaging, no mounting ears)For OEMs, lower assembled costs.Challenge: Power strip with integral surge protectionP&S Configurable Solution: CRB5362LABXYZ (Black Construction Specification Grade 20A Receptacle, bulk packaging, no mounting screws, no ground clips, no mounting ears)Subtract waste. Add productivity. With P&S Configurable Solutions.Now, there’s an easy way to reclaim lost productivity. P&S Configurable Solutions offer you top-quality wiring devices in an unprecedented variety of configurations. So you can order them from the factory without the components you were going to have to remove yourself.U-1Configurable SolutionsConfigurable SolutionsWiring devices configured for your job.EXAMPLE CATALOG NUMBER00000 B X Y Z F SC PP&S Catalog NumberDesignates specific wiring device and color. See the P&S Product Guide, visit www.passandseymour.com, or ask your P&S distributor. Bulk Packaging* No Mounting Screws No Grounding Clips No Mounting Ears Shim Lock Alternative** Split-Circuit Tab Removed * Standard Feature — no other packaging options available at this time. ** Shim Lock Alternative for flush mounting requires mounting screws. *** Only available with Leaded and PlugTail™ products. Push In Connector ***
