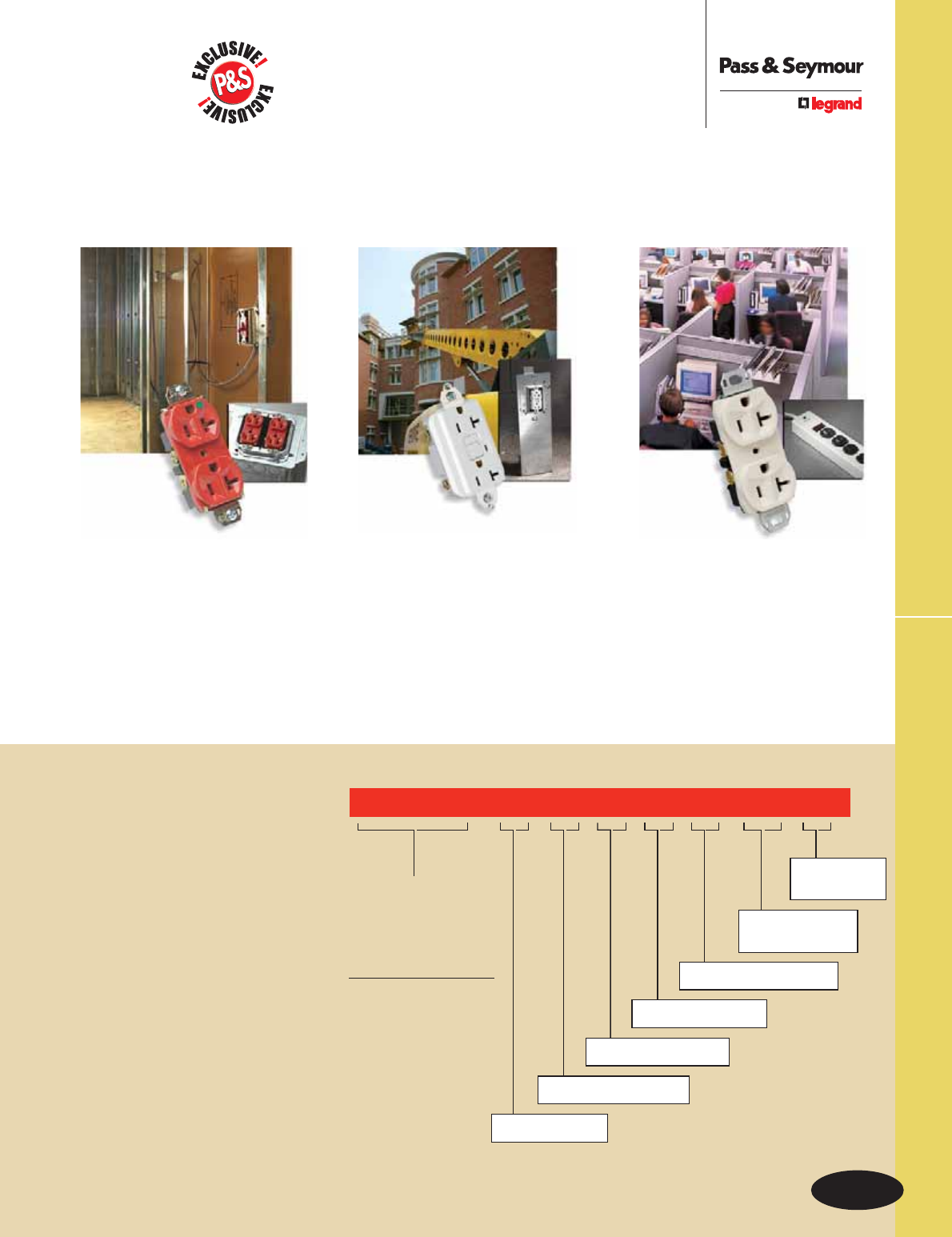

Just a few of the many Configurable Solutions opportunities.
No mounting screws (order code X).
Saves you time and cuts waste when you’re
using your own mounting hardware.
Split-circuit tab removed
(order code SC). Great for
switched receptacle circuits.
One less task to perform,
more time saved.
CRB5362LA
No ground clips (order code Y). If you’re using the
ground terminal and your own mounting hardware,
ground clips would just be in the way. Choose this
option and you won’t have to remove them yourself.
Shipped in bulk packaging (standard
feature — order code B). No individual
product wrapping to remove or discard.
Saves you time and reduces waste.
Shim lock washers (order code F) are available
to quickly eliminate floating. Make devices flush to
wall surface without shimming or wall repair.
No mounting ears (order code Z).
Ideal for when devices must be installed
before the dry wall goes up. Saves four
separate operations per device.
PS20AC2REDBZ
Red 20A Spec
Grade Toggle
Switch, bulk
packaging, no
mounting ears
8300LABZ
Light Almond
20A Hospital
Grade Receptacle,
bulk packaging,
no mounting ears
2095HGWBXZ
Red 20A Hospital
Grade GFCI
with SafeLock™
Protection, bulk
packaging, no
mounting screws,
no mounting ears
TM870WBZ
White
TradeMaster®
15A Decorator
Switch, bulk
packaging, no
mounting ears
26352LABZ
Light Almond
Spec Grade
15A Decorator
Receptacle, bulk
packaging, no
mounting ears
5362LASPBZ
Light Almond
Heavy-Duty
Specification
Grade 20A TVSS
Straight Blade
Receptacle, bulk
packaging, no
mounting ears
CR20LABZSC
Light Almond
Specification
Grade 20A
Receptacle,
bulk packaging,
no mounting ears,
split-circuit tab
removed
PTRA6STR
All PlugTail™
Connectors are
available in any
wire length up
to 25 inches. To
order, add the
letter “B” and the
length requested
to the end of the
catalog number.
Wiring devices configured for your job. Configurable Solutions
Configurable Solutions
Wiring devices configured for your job.
Push in connectors (order code P) can be added
to Leaded and Plugtail™ wires to speed installation.
100 piece minimum order for switches.
500 piece minimum order for receptacles.
How to order
the Configurable
Solution that
works for you.
It’s easy! Just start with the standard
P&S catalog number — then add the
suffix that denotes each specific char-
acteristic you’d like your Configurable
Solution to have. For a complete list
of currently available configurations,
see our Configurable Solutions
Matrix at www.passandseymour.com
/configurablesolutions. Don’t see what
you’re looking for? Ask your P&S
distributor or call 1-800-223-4185.
We’re adding solutions continuously.
Refer to the chart at right for
characteristic-designating codes.
Consult factory or web site before ordering.
For electrical contractors,
enhanced speed and
flexibility.
Challenge: Performing repetitive
installations in new medical office
construction
P&S Configurable Solution:
8300HREDBZ (Red Heavy-Duty
Hospital Grade 20A Receptacle,
bulk packaging, no mounting ears)
For prefabbers, less
labor time per unit.
Challenge: Preassembled metal box
on installation bracket, prewired with a
GFCI receptacle
P&S Configurable Solution:
2095WBZ (White Specification Grade
20A GFCI with SafeLock™ Protection,
bulk packaging, no mounting ears)
For OEMs, lower
assembled costs.
Challenge: Power strip with integral
surge protection
P&S Configurable Solution:
CRB5362LABXYZ (Black Construction
Specification Grade 20A Receptacle,
bulk packaging, no mounting screws,
no ground clips, no mounting ears)
Subtract waste. Add productivity. With P&S Configurable Solutions.
Now, there’s an easy way to reclaim lost productivity. P&S Configurable Solutions offer you top-quality
wiring devices in an unprecedented variety of configurations. So you can order them from the factory without
the components you were going to have to remove yourself.
U-1
Configurable Solutions
Configurable Solutions
Wiring devices configured for your job.

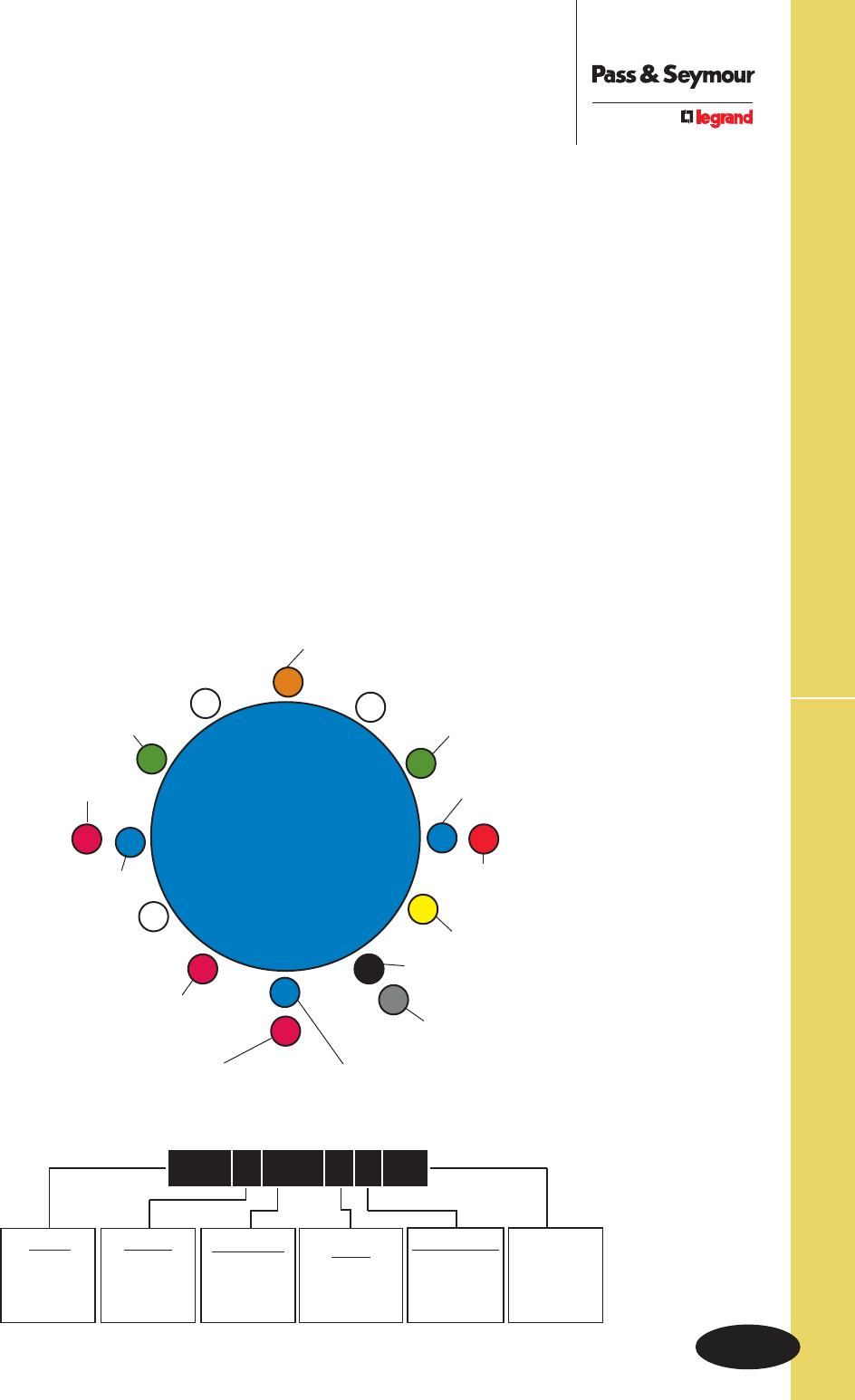

EXAMPLE CATALOG NUMBER
00000 B X Y Z F SC P
P&S Catalog Number
Designates specific wiring
device and color. See the
P&S Product Guide, visit
www.passandseymour.com,
or ask your P&S distributor.
Bulk Packaging*
No Mounting Screws
No Grounding Clips
No Mounting Ears
Shim Lock Alternative**
Split-Circuit Tab
Removed
* Standard Feature — no other packaging options available at this time.
** Shim Lock Alternative for flush mounting requires mounting screws.
*** Only available with Leaded and PlugTail™ products.
Push In
Connector ***
U-2
Technical Specifications
PlugTail™ Power Pre-Fabricated Wiring Systems
Technical Specifications
PlugTail™ Power
Pre-Fabricated Wiring Systems
Constructing a condominium complex, office building or hotel and the
wiring project is substantial or repetitive? Look to PlugTail Power Products
from Pass & Seymour. With PlugTail Power, much of the electrical assembly
is completed in advance, dramatically cutting project completion times.
Rough-in is fast and easy. PlugTail Power floor brackets slide under the sill plate so
no vertical measuring is necessary. Wall brackets that attach to the stud are also
available. Everything is pre-wired for fast rough in – P&S PlugTail Connector is
pre-wired to the ground screw.
And all PlugTail Power Products are pre-packaged and shipped to the requirements of
the contractor for fast job starts.
Each PlugTail Power assembly includes:
■ Floor or wall bracket with one or two gang openings
■ Pre-installed boxes
■ Pre-installed rings available in 5/8" or 3/4" rise
■ Far side support arms
■ PlugTail devices pre-wired to ground screw
PlugTail Power can benefit you in many ways:
■ PlugTail Power assemblies are packaged per contractor
■ Simple installation – no vertical measuring necessary for mounting boxes
■ Pre-mounted and grounded boxes cut install times
■ Available in 2-1/2" and 3-1/2" depth, depending on wall thickness
■ Pre-wired PlugTail Connector allows you to make device choices at finish
Floor Bracket Wired Assemblies – One and Two Gang
The P&S Floor Bracket Assembly consists of a floor bracket, 4-inch ring, back side support
arm, 4-11/16 x 2-1/8 inch metal boxes, and PlugTail Right Angle Connectors with push-in
connectors. The PlugTail Connectors are sealed in plastic to keep them finish-ready. The boxes
are mounted independent of the rings to allow full box access when wiring. Multiple wire
openings in the push-in wire connectors allow connection of in-line, end-of-line, or multi-wire
branch circuits. A large selection of PlugTail Receptacles and GFCIs is available to complete the
installation.
Installation: The Floor Bracket is installed by kicking the lower flange under the wall base.
Two holes are provided for attachment screws, if required.
Wall Bracket Wired Assemblies – One and Two Gang
The P&S Wall Bracket Wire Assembly consists of a 9-1/2 x 5 inch wall bracket, 4-inch mud
rings, back side support arm, 4-11/16 x 2-1/8 inch metal boxes, and PlugTail Right Angle
Connectors with push-in wire connectors. The PlugTail Connectors are sealed in plastic to keep
them finish-ready. The boxes are mounted independent of the rings to allow full box access
when wiring. Multiple wire openings in the push-in wire connectors allow connection of in-line,
end-of-line, or multi-wire branch circuits.
Installation: The Wall Bracket Assembly is quickly installed with screws using the holes
provided in the bracket.
A large selection of PlugTail Receptacles and GFCIs is available to complete the installation.
For more information, see Section B and Section C.
U-3
Technical Specifications
Technical Specifications
PlugTail™ Power Pre-Fabricated
Wiring Systems & Metal-Box Kits

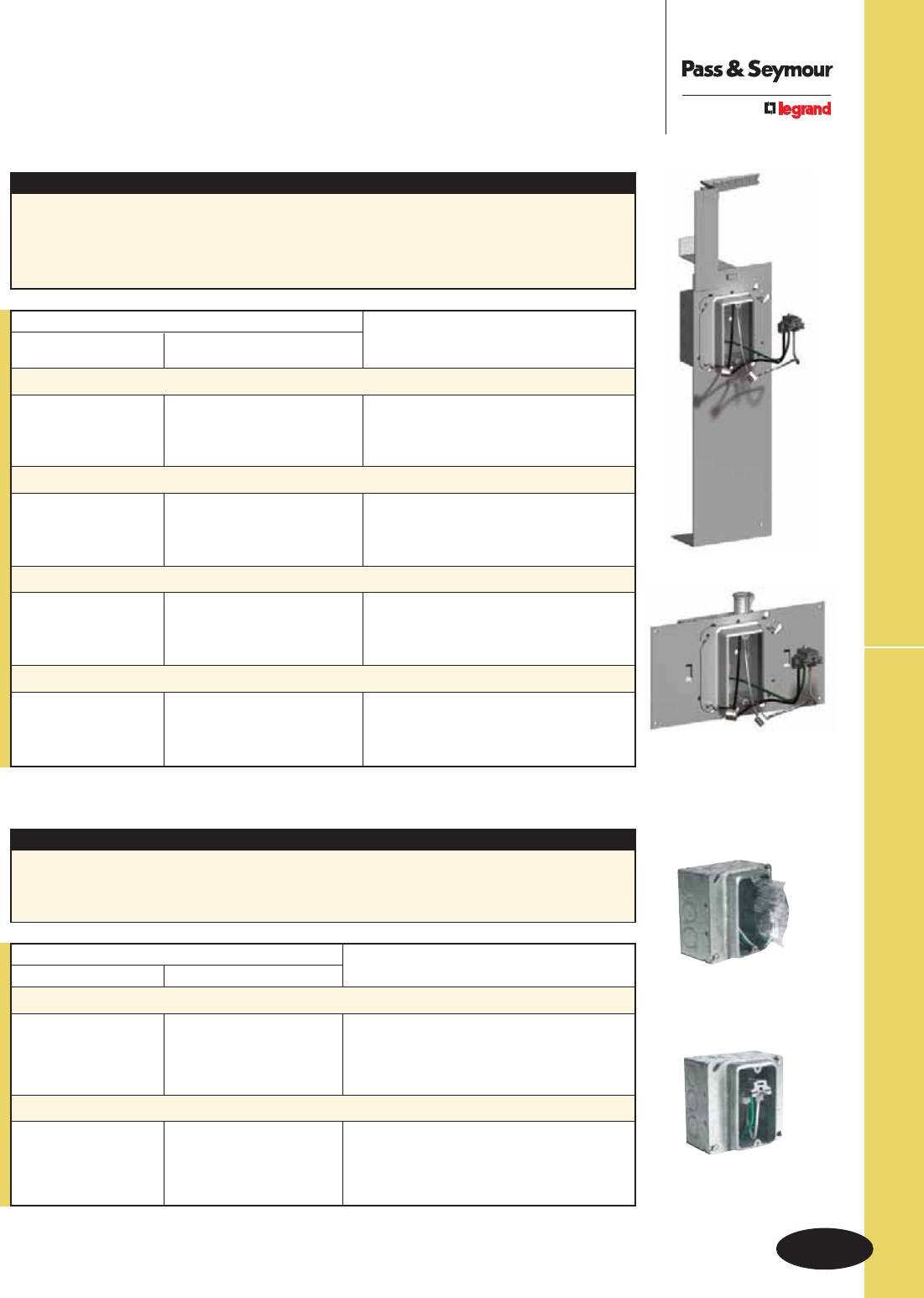

PlugTail™ Metal Box Kits
MBD4S1PTSTR
MBD4S1SPTSTR
Features
■ Ground wire pre-mounted to the box.
■ Mud ring factory installed.
■ 4" square x 1-1/2" or 2-1/8" metal boxes.
■ PlugTail Right Angle Connectors with
12 AWG copper pigtails.
■ All Double Gang Kits contain two right
angle PlugTail connectors.
Features
■ Four-inch mud ring.
■ Back side support arm.
■ 18-inch box mounting height.
■ 4-11/16" x 2-1/8" metal boxes.
■ Push-in push wire connectors.
■ PlugTail Right Angle Connectors with
12 AWG copper pigtails.
■ Floor brackets are 16-gauge galvanized steel.
■ Wall brackets are 18-gauge galvanized steel.
PlugTail Receptacles and GFCIs sold separately.
PSF1185825
Catalog Number
Single Gang Double Gang
Single PlugTail™ Double PlugTail™ Description
Floor Bracket Wired Assemblies with Stranded Copper Pigtails
PSF1185825 PSF2185825 5/8" ring rise, 2-1/2" wall depth
PSF1185835 PSF2185835 5/8" ring rise, 3-1/2" wall depth
PSF1187525 PSF2187525 3/4" ring rise, 2-1/2" wall depth
PSF1187535 PSF2187535 3/4" ring rise, 3-1/2" wall depth
Floor Bracket Wired Assemblies with Solid Copper Pigtails
PSFS1185825 PSFS2185825 5/8" ring rise, 2-1/2" wall depth
PSFS1185835 PSFS2185835 5/8" ring rise, 3-1/2" wall depth
PSFS1187525 PSFS2187525 3/4" ring rise, 2-1/2" wall depth
PSFS1187535 PSFS2187535 3/4" ring rise, 3-1/2" wall depth
Wall Bracket Wired Assemblies with Stranded Copper Pigtails
PSW15825 PSW25825 5/8" ring rise, 2-1/2" wall depth
PSW15835 PSW25835 5/8" ring rise, 3-1/2" wall depth
PSW17525 PSW27525 3/4" ring rise, 2-1/2" wall depth
PSW17535 PSW27535 3/4" ring rise, 3-1/2" wall depth
Wall Bracket Wired Assemblies with Solid Copper Pigtails
PSWS15825 PSWS25825 5/8" ring rise, 2-1/2" wall depth
PSWS15835 PSWS25835 5/8" ring rise, 3-1/2" wall depth
PSWS17525 PSWS27525 3/4" ring rise, 2-1/2" wall depth
PSWS17535 PSWS27535 3/4" ring rise, 3-1/2" wall depth
PSW15825
Unit only ships in quantities of 24.
Catalog Number
Single Gang Double Gang Description
Metal-Box Kits with Stranded Copper Pigtails
MB4S1PTSTR MB4S2PTSTR 4 Sq. 1-1/2" Metal Box, 5/8 MR, PTRA6STR
MBD4S1PTSTR MBD4S2PTSTR 4 Sq. 2-1/8" Metal Box, 5/8 MR, PTRA6STR
MB4S1SPTSTR MB4S2SPTSTR 4 Sq. 1-1/2" Metal Box, 3/4 MR, PTRA6STR
MBD4S1SPTSTR MBD4S2SPTSTR 4 Sq. 2-1/8" Metal Box, 3/4 MR, PTRA6STR
Metal-Box Kits with Solid Copper Pigtails
MB4S1PTSOL MB4S2PTSOL 4 Sq. 1-1/2" Metal Box, 5/8 MR, PTRA6SOL
MBD4S1PTSOL MBD4S2PTSOL 4 Sq. 2-1/8" Metal Box, 5/8 MR, PTRA6SOL
MB4S1SPTSOL MB4S2SPTSOL 4 Sq. 1-1/2" Metal Box, 3/4 MR, PTRA6SOL
MBD4S1SPTSOL MBD4S2SPTSOL 4 Sq. 2-1/8" Metal Box, 3/4 MR, PTRA6SOL
U-4
Technical Specifications
Technical Specifications
Category Description Page Number

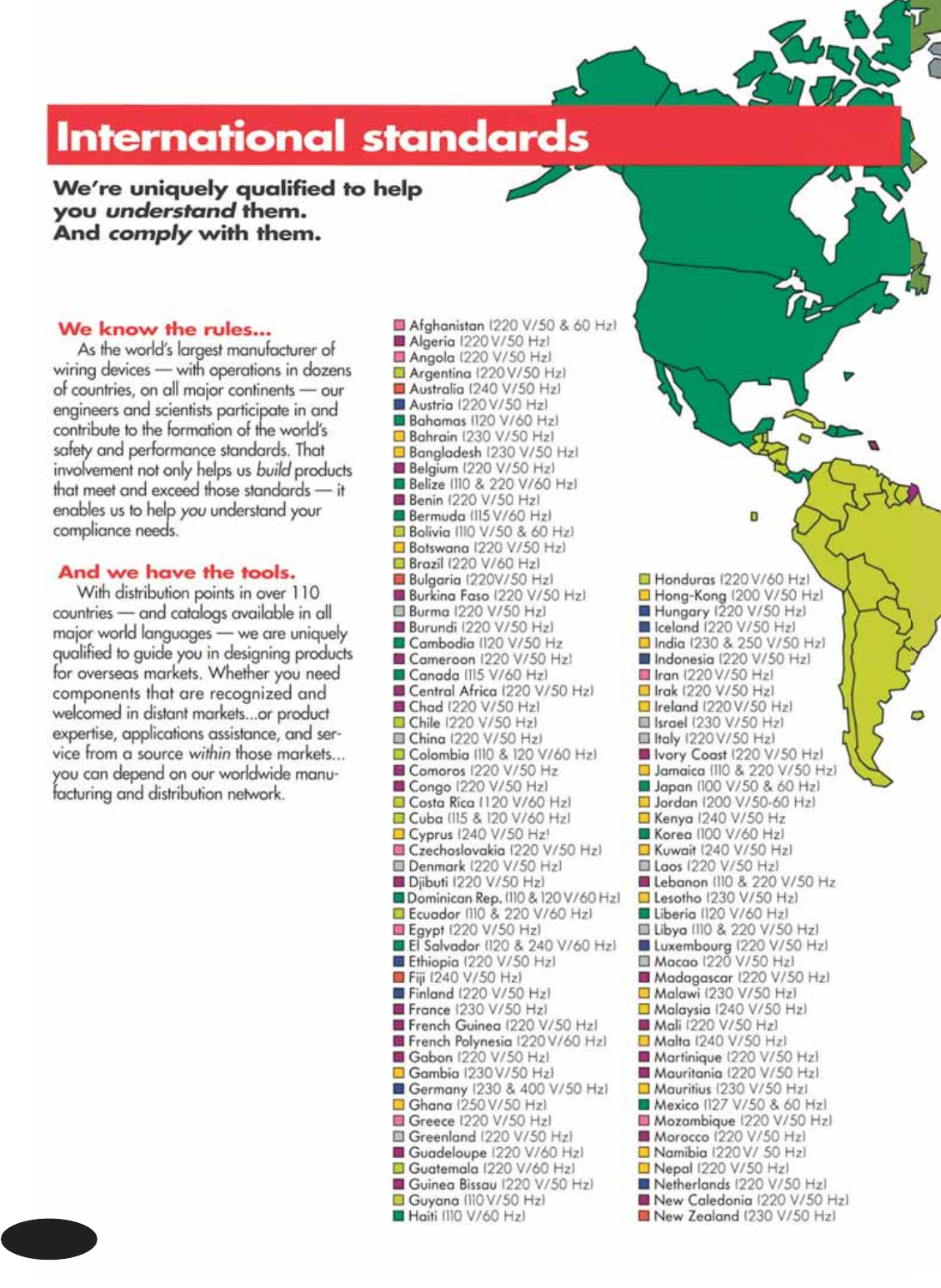

Associations, Organizations & Standards U-7, U-8
Cam-Type Devices Series 16 In-Line Connectors U-104
Series 15 In-Line Connectors U-105
Series 18 In-Line Connectors U-106
Configuration & Clocking Systems U-107
Dimmers High Wattage Rotary Dimmers U-142 – U-144
Incandescent Non-Preset Wide Slide Dimmers U-138
Incandescent Preset Wide Slide Dimmers U-139
Incandescent Rotary Dimmers U-141
Magnetic Low-Voltage Wide Slide Dimmers U-140
Magnetic Low-Voltage Rotary Dimmers U-145, U-146
Titan™ Series Incandescent & Magnetic Low-Voltage U-134, U-135
Titant™ Series Fluorescent 2 Wire U-136, U-137
GFCI Receptacles Hospital Grade GFCI Receptacles U-59
Hospital Grade Illuminated GFCI Receptacles U-61
Hospital Grade Tamper-Resistant GFCI Receptacles U-57
Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacles U-63
Illuminated GFCI Receptacles U-60
PlugTail™ Hospital Grade GFCI Receptacles U-67
PlugTail™ Hospital Grade Nightlight/GFCI Receptacles U-71
PlugTail™ Hospital Grade Tamper-Resistant GFCI Receptacles U-69
PlugTail™ Specification Grade GFCI Receptacles U-66
PlugTail™ Specification Grade Nightlight/GFCI Receptacles U-70
PlugTail™ Specification Grade Tamper-Resistant GFCI Receptacles U-68
Tamper-Resistant GFCI Receptacles U-56
Tamper-Resistant Nightlight/GFCI Receptacles U-62
TradeMaster® & Specification Grade GFCI Receptacles U-58
Weather-Resistant DuraShield™ GFCI Receptacles U-65
Weather-Resistant GFCI Receptacles U-64

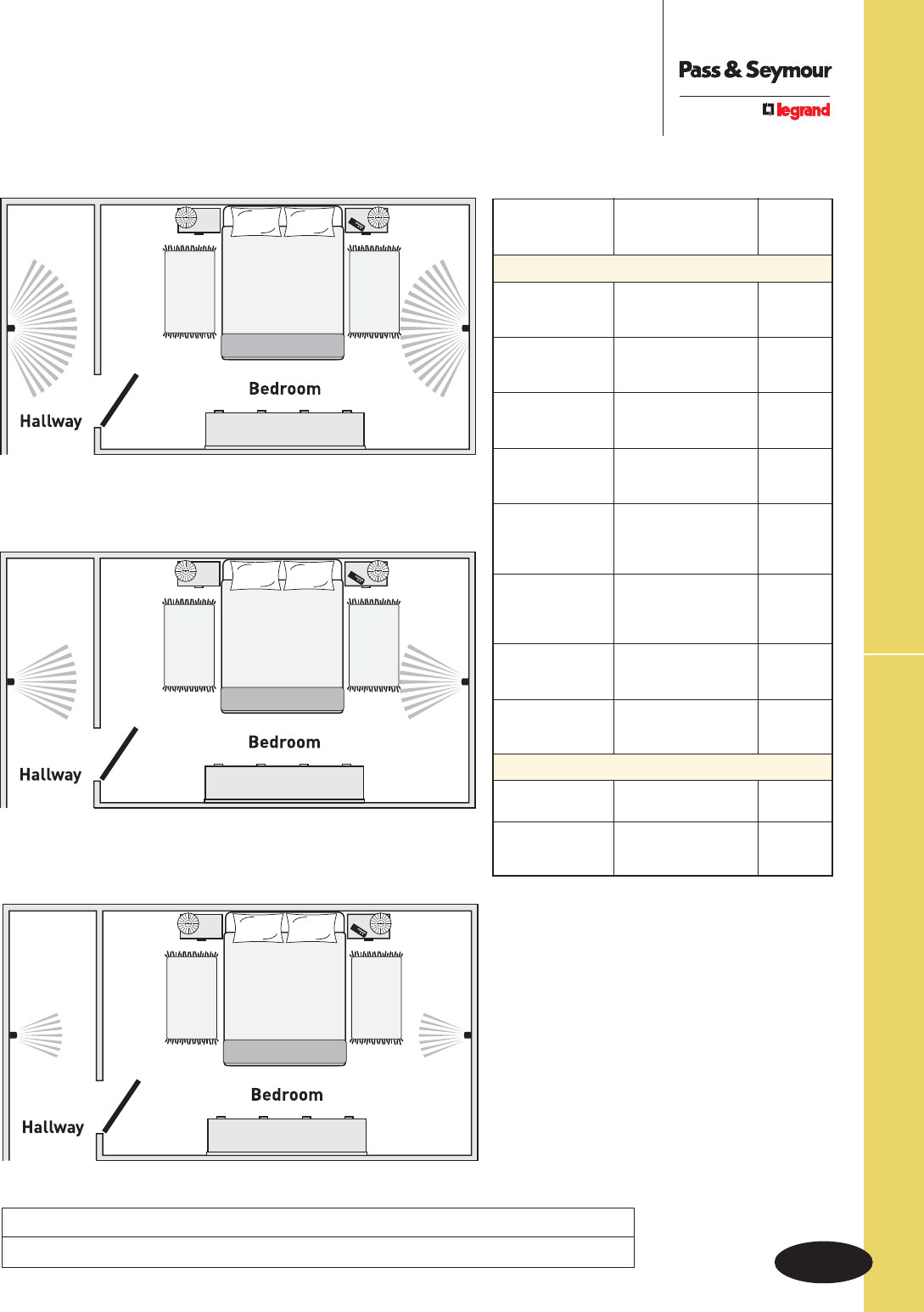

Hallway Lights Light Output Measurements U-55
Horsepower Ratings for NEMA U-14

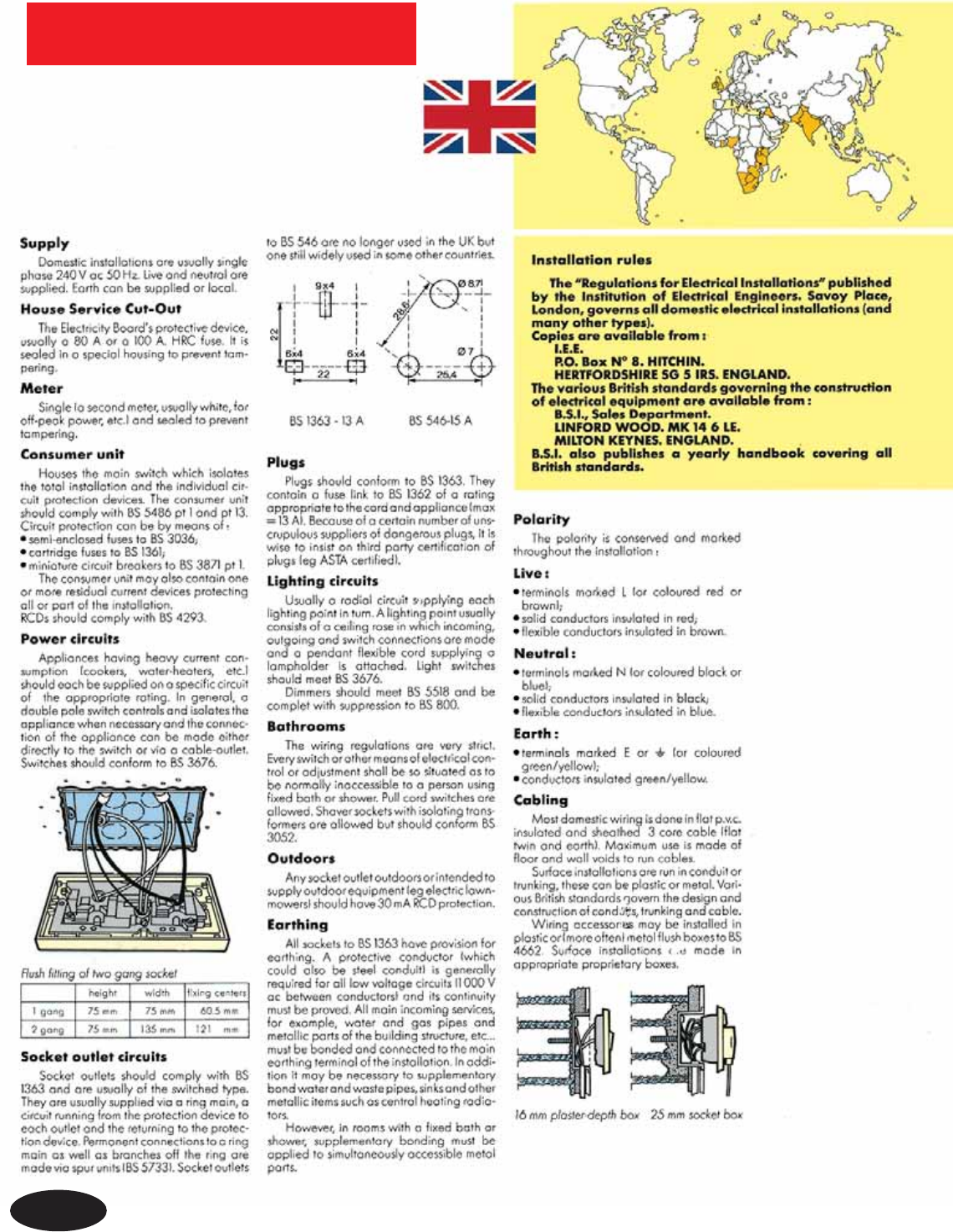

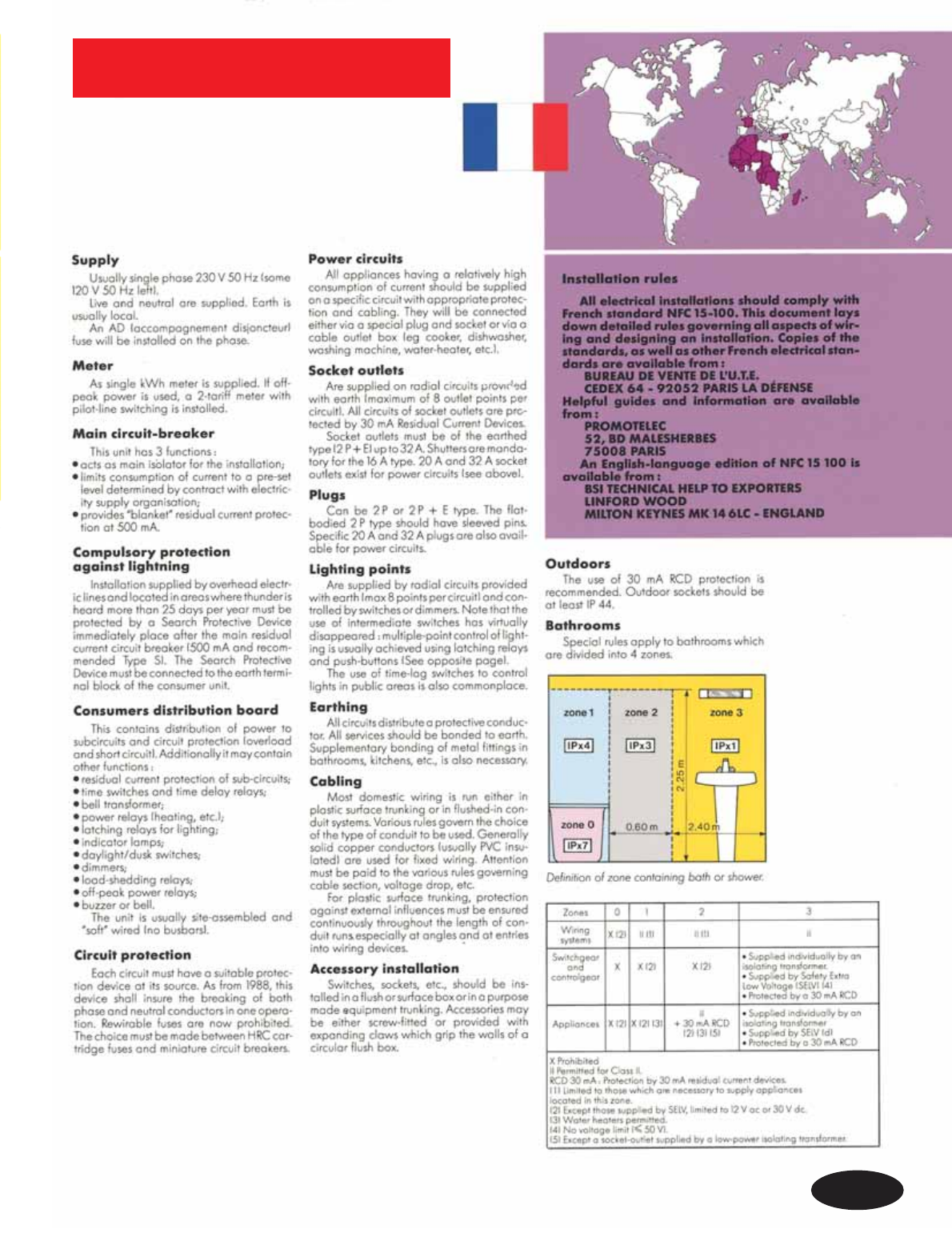

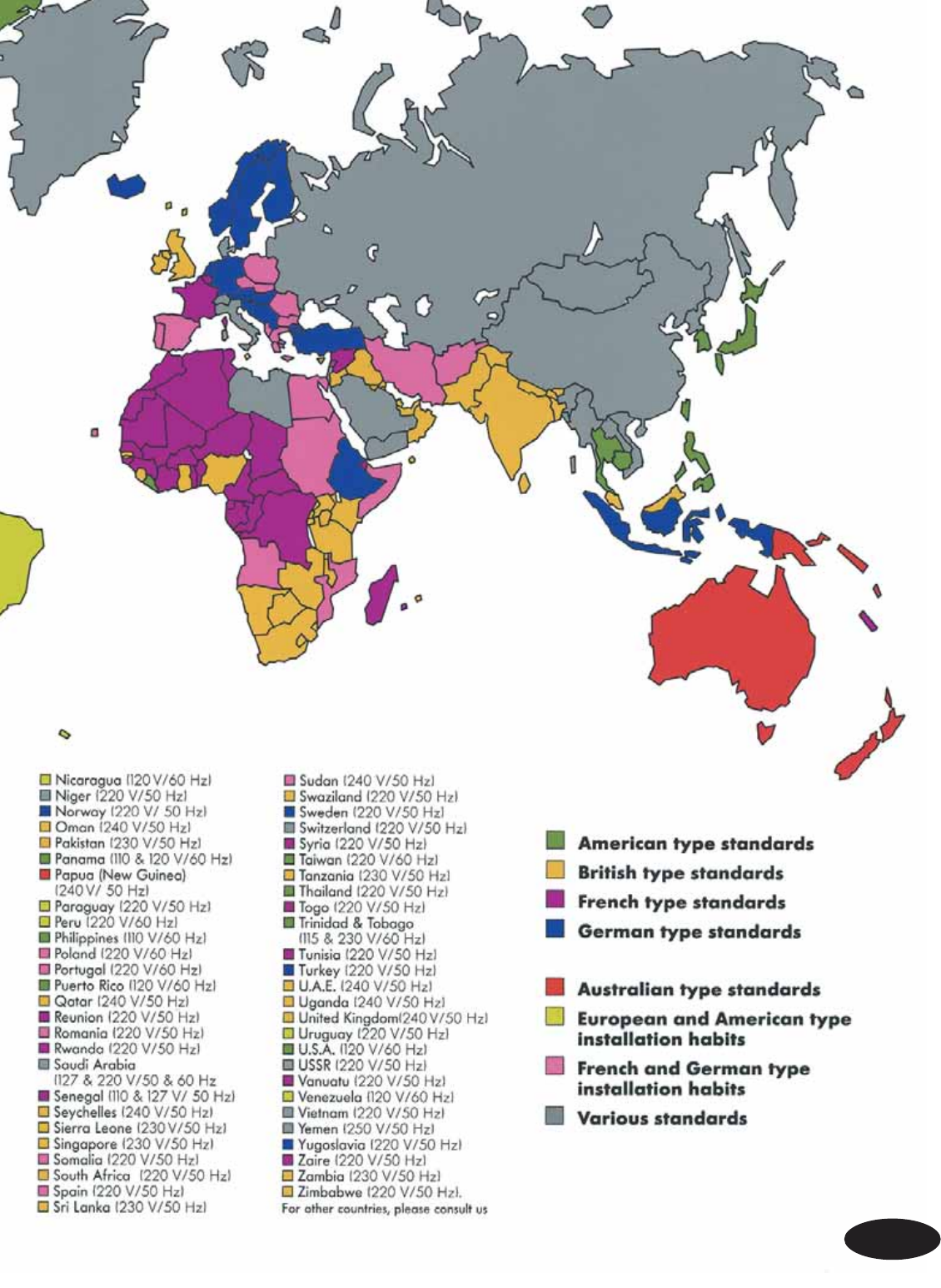

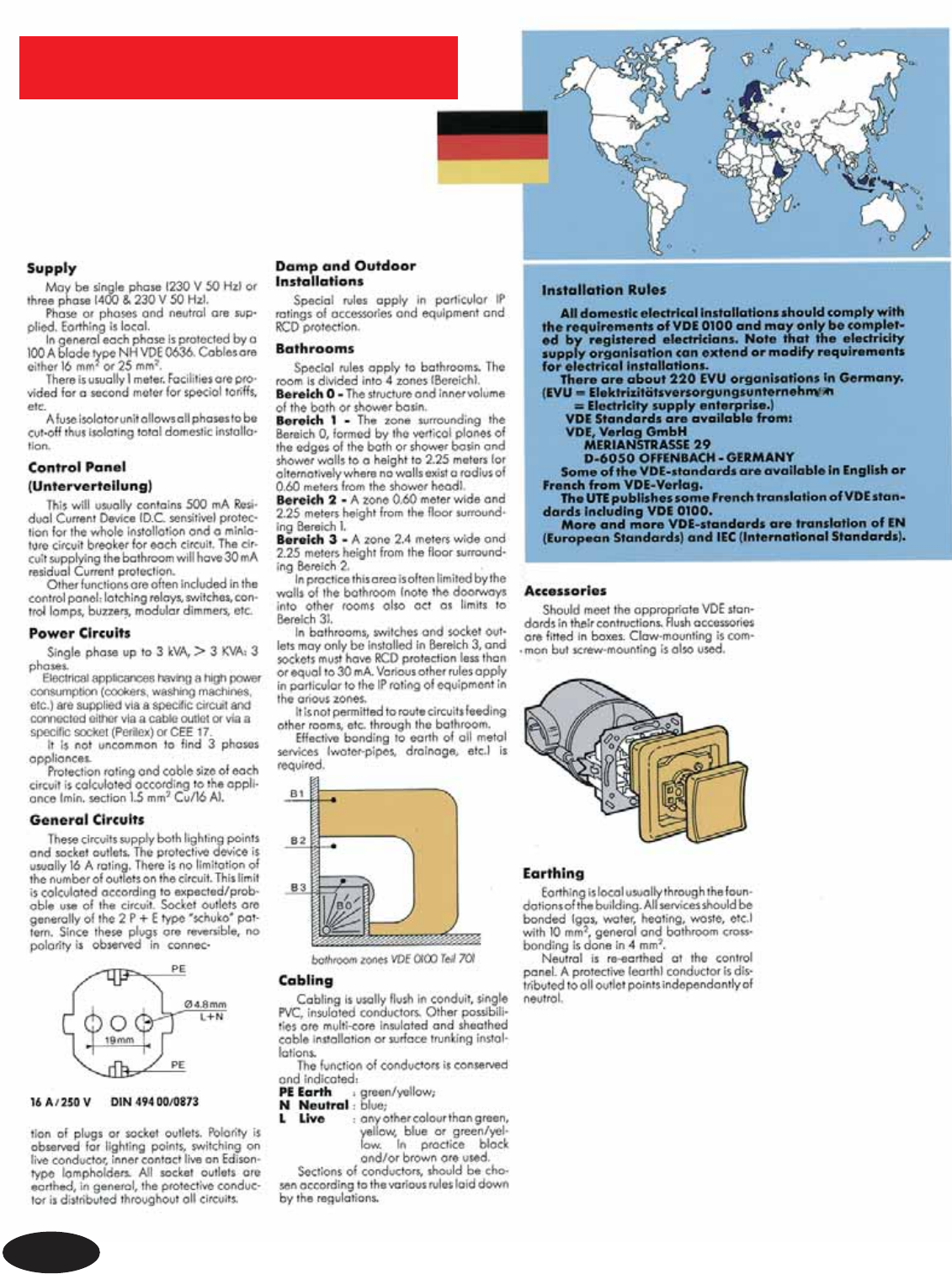

International Standards U-152 – U-156
IP Codes & Their Meanings U-13

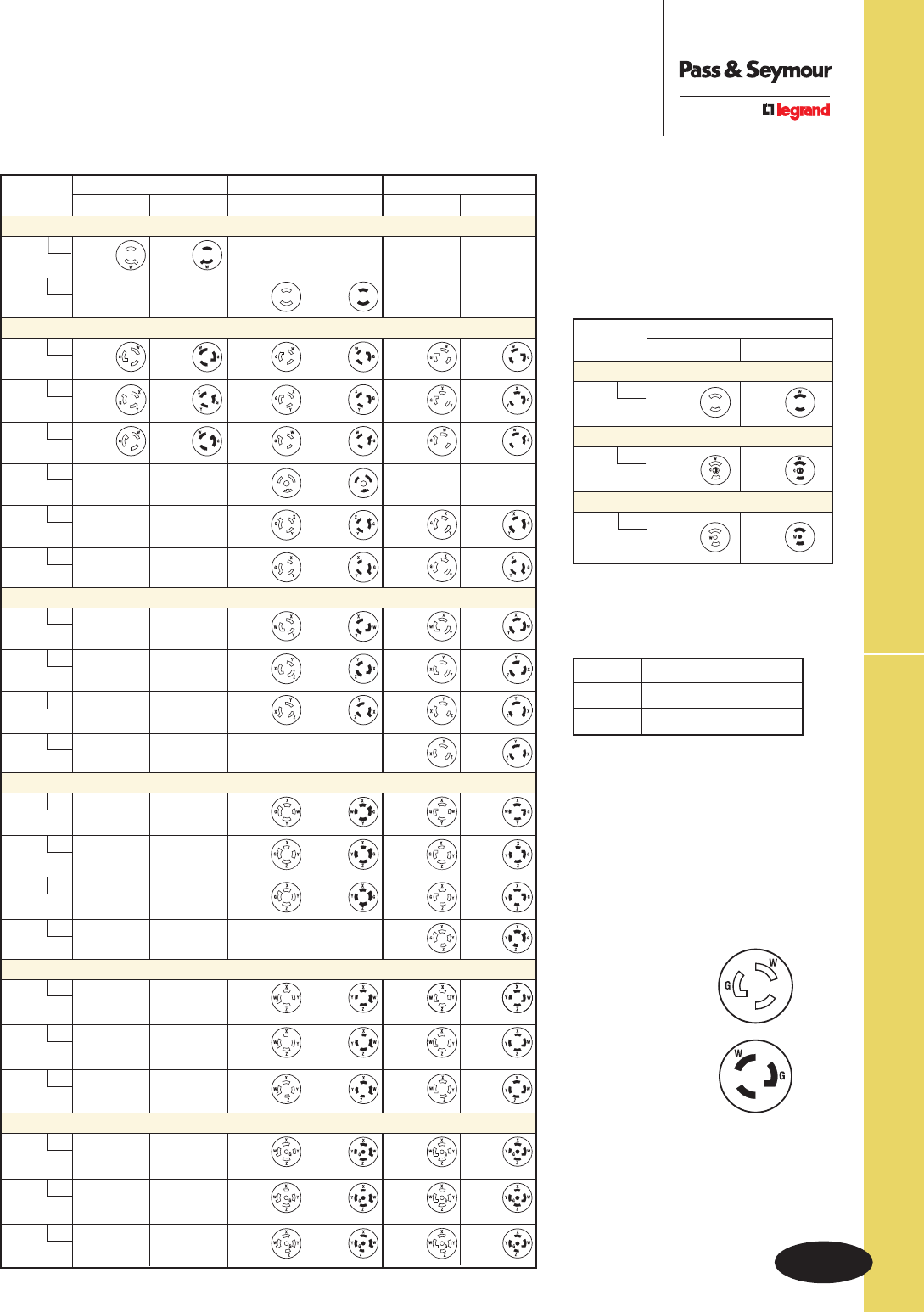

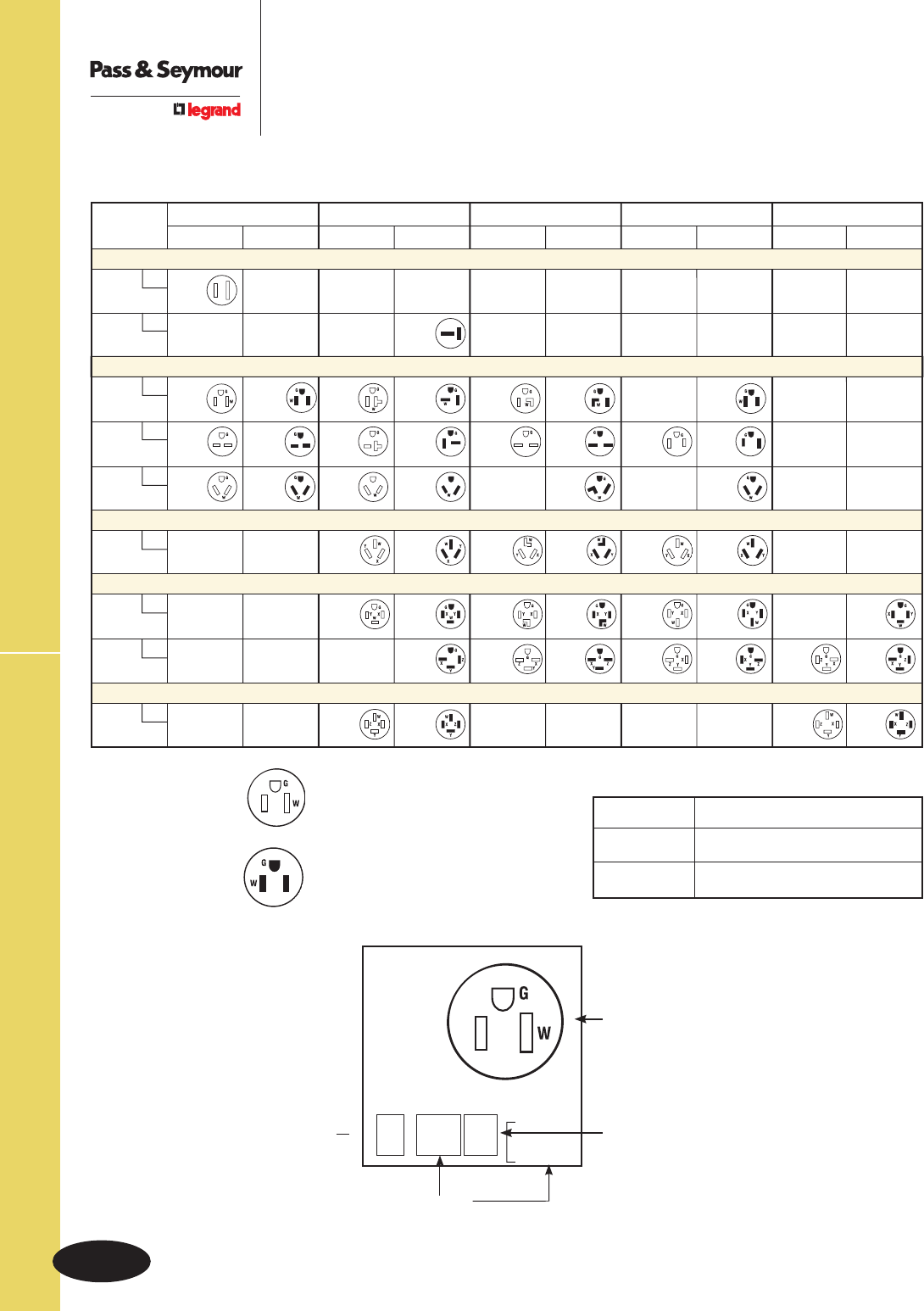

NEMA Configurations Straight Blade Devices U-10
Turnlok® Devices U-11

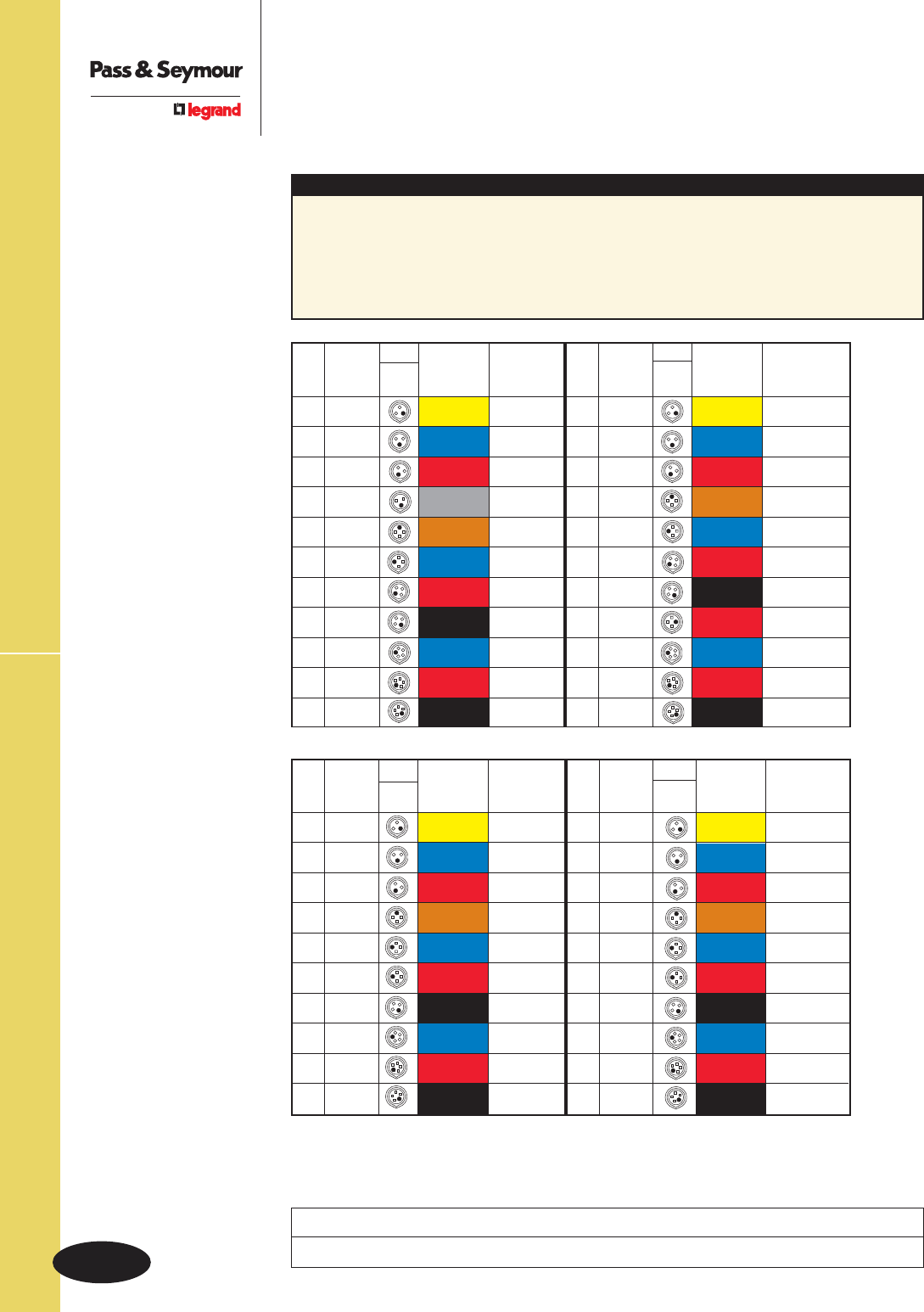

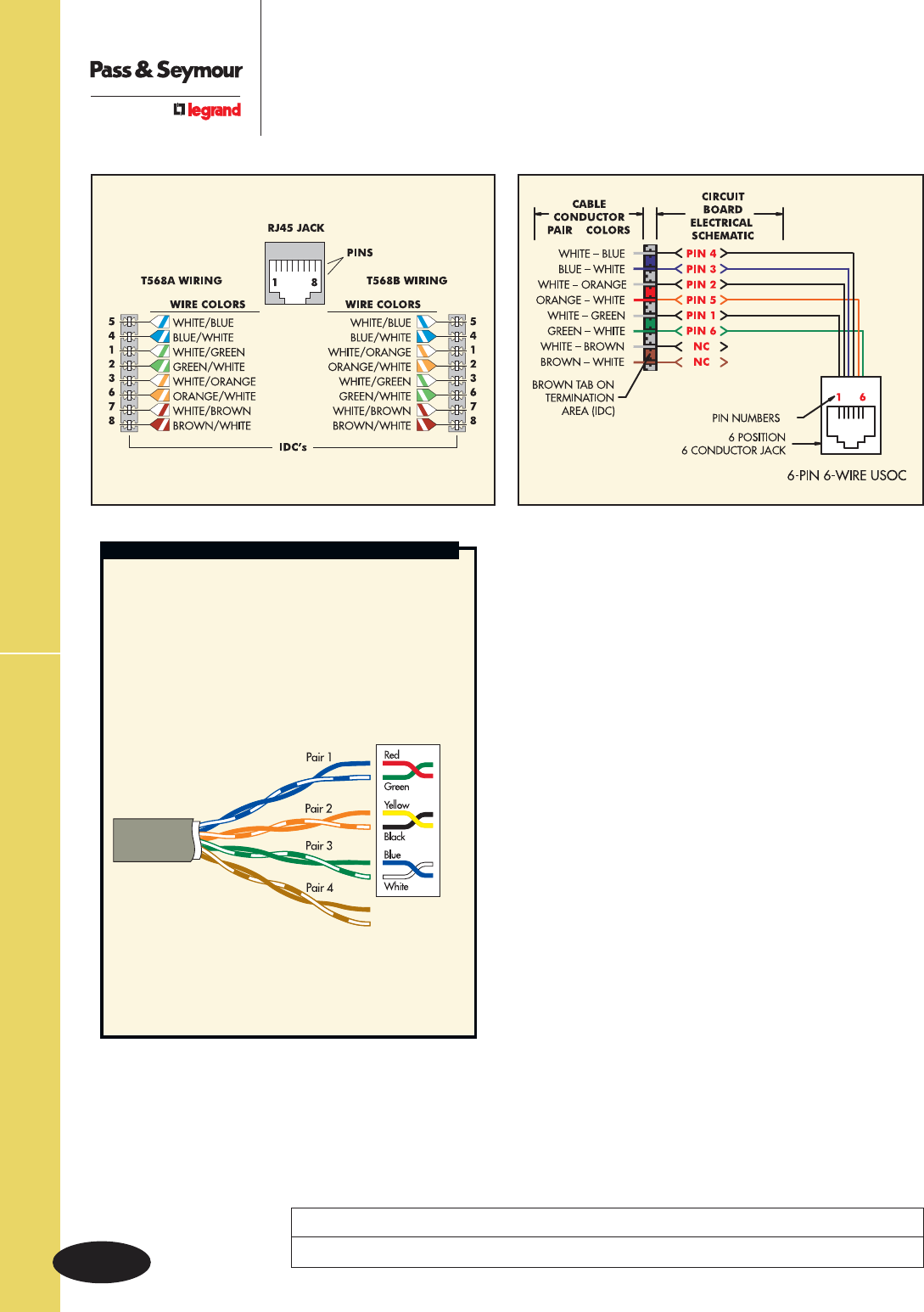

Network Wiring Universal & Six-Pin Wiring Guides & UTP Cabling Installation U-148

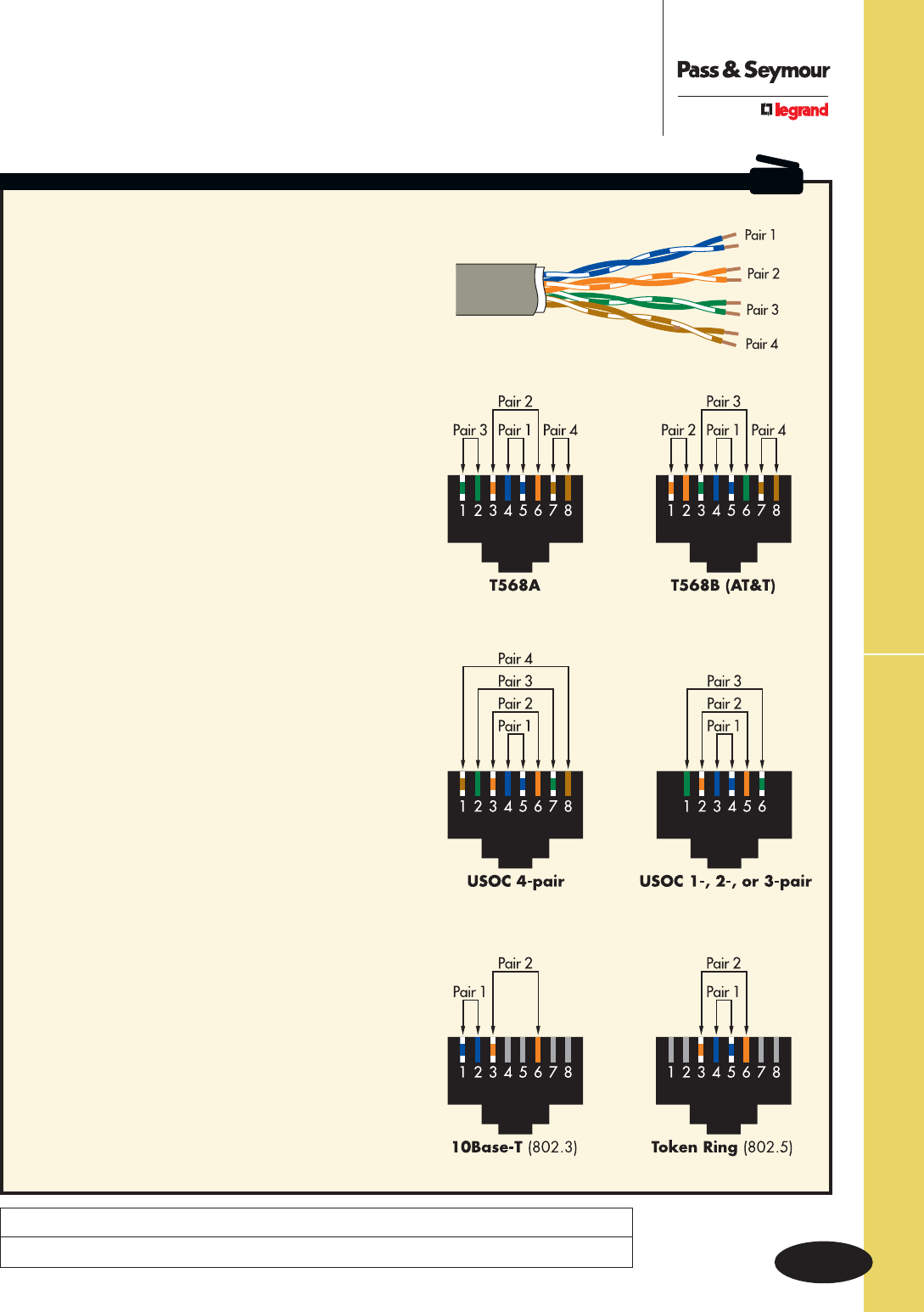

UTP Outlet Wiring Configurations U-147

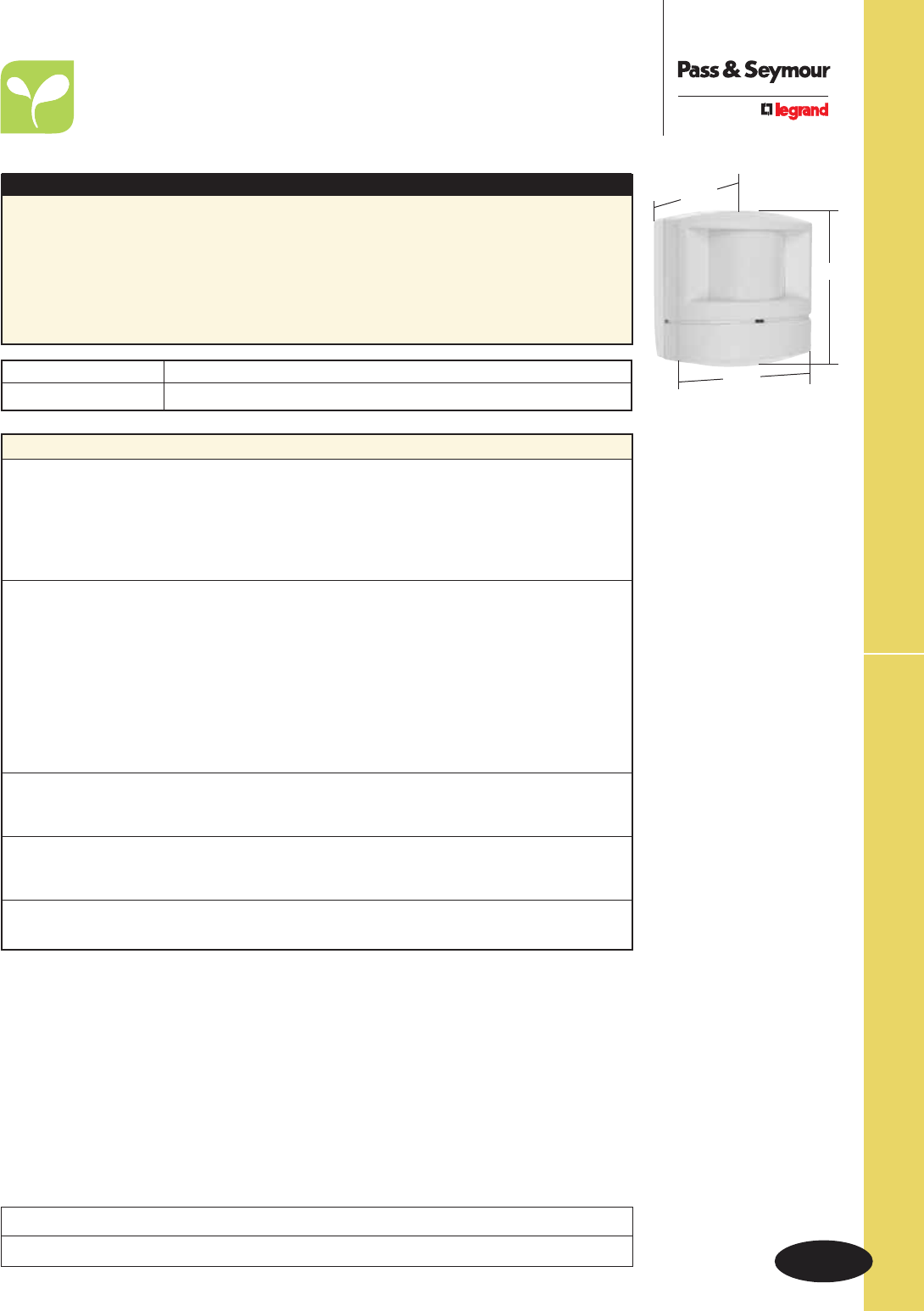

Occupancy Sensors Dual-Technology Ceiling Sensor U-132
Occupancy Sensors U-126
Passive Infrared Sensors U-128 – U-130
Passive Infrared Wall Switch U-127

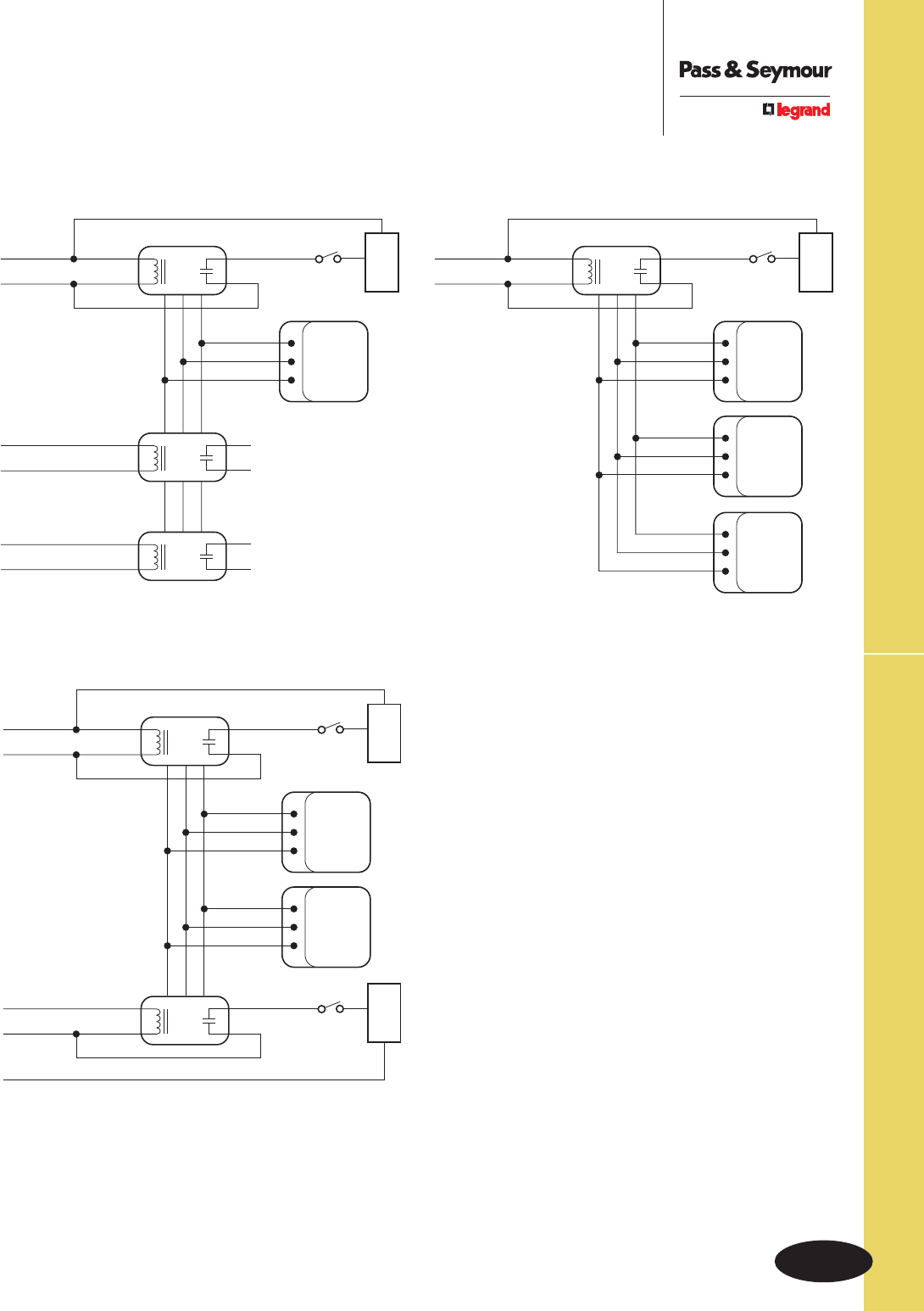

Power Packs & Add-A-Relays U-133
Ultrasonic Ceiling Sensors U-131
U-5
Technical Specifications
Technical Specifications
Category Description Page Number
Pin & Sleeve/Mechanical Interlock Watertight Pin & Sleeve Non-Fusible Mechanical Interlock U-124, U-125
Pin & Sleeve/Splashproof Splashproof Pin & Sleeve Connectors U-120, U-121
Splashproof Pin & Sleeve Inlets U-122, U-123
Splashproof Pin & Sleeve Plugs U-118, U-119
Splashproof Pin & Sleeve Receptacles U-116, U-117
Pin & Sleeve/Watertight Watertight Pin & Sleeve Connectors U-112, U-113
Watertight Pin & Sleeve Inlets U-114, U-115
Watertight Pin & Sleeve Plugs U-110, U-111
Watertight Pin & Sleeve Receptacles U-108, U-109
Receptacles Commercial Specification Grade Receptacles U-45
Construction Specification Grade Receptacles U-43, U-44
Extra Heavy-Duty Hospital Grade Receptacles U-36
Extra Heavy-Duty Hospital Grade MRI Receptacles U-37
Heavy-Duty Hospital Grade Receptacles U-38
Heavy-Duty Specification Grade Receptacles U-40
Heavy-Duty Tamper-Resistant Decorator Receptacles U-53
Industrial Extra Heavy-Duty Specification Grade Receptacles U-39
PlugTail™ Decorator Receptacles U-52
PlugTail™ Extra Heavy-Duty Hospital Grade Receptacles U-34
PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Receptacles U-35
PlugTail™ Extra Heavy-Duty Specification Grade Receptacles U-33
PlugTail™ Specification Grade Receptacles U-41
Specification Grade Combination Receptacles U-54
Tamper-Resistant Commercial Grade Receptacles U-48
Tamper-Resistant Construction Grade Single Receptacles U-49
Tamper-Resistant Hard Use Receptacles U-47
Tamper-Resistant Specification & Hospital Grade Receptacles U-46
Weather-Resistant Heavy-Duty Receptacles U-50
Weather-Resistant Commercial Grade Receptacles U-51
Straight Blade Plugs & Connectors Ground Continuity Monitoring (GCM) Connectors U-85
Ground Continuity Monitoring (GCM) Plugs U-84
MaxGrip® M3 Connectors U-87
MaxGrip® M3 Plugs U-86
Straight Blade Connectors U-83
Straight Blade Plugs U-82
Switches Commercial Specification Grade Switches U-28
Hard-Use Specification Grade Switches U-27
Industrial Extra Heavy-Duty Specification Grade Switches U-25, U-26
Manual Controller Switches U-29, U-30
Specification Grade Combination Switches U-32
Specification Grade Decorator Switches U-31
Symbols U-9
U-6
Technical Specifications
Technical Specifications
Category Description Page Number
Turnlok® Plugs, Connectors, Inlets & Outlets 15, 20 & 30A Heavy-Duty Ground Continuity Monitoring
(GCM) Connectors U-98
15, 20 & 30A Heavy-Duty Ground Continuity Monitoring (GCM) Plugs U-97
15A Turnlok® EHU Plugs & Connectors U-91
15A Turnlok® Flanged Inlets & Outlets U-99
15A Turnlok® Receptacles U-88
20A Turnlok® Connectors U-93
20A Turnlok® Flanged Inlets U-100
20A Turnlok® Flanged Outlets U-101
20A Turnlok® Plugs U-92
20A Turnlok® Receptacles U-89
20 & 30A Corrosion-Resistant Turnlok® Connectors U-94
30A Turnlok® Connectors U-96
30A Turnlok® Flanged Inlets U-102
30A Turnlok® Flanged Outlets U-103
30A Turnlok® Plugs U-95
30A Turnlok® Receptacles U-90
TVSS 15A Hospital Grade Duplex Receptacles U-72
15A Hospital Grade Isolated Ground Duplex Receptacles U-73
15A Specification Grade Duplex Receptacles U-80
15A Specification Grade Extra Heavy-Duty Duplex Receptacles U-76
15A Specification Grade Isolated Ground Duplex Receptacles U-77
20A Hospital Grade Duplex Receptacles U-74
20A Hospital Grade Isolated Ground Duplex Receptacles U-75
20A Specification Grade Duplex Receptacles U-78, U-81
20A Specification Grade Isolated Ground Duplex Receptacles U-79
UL Changes, Conversions & Wire Spec Chart U-12

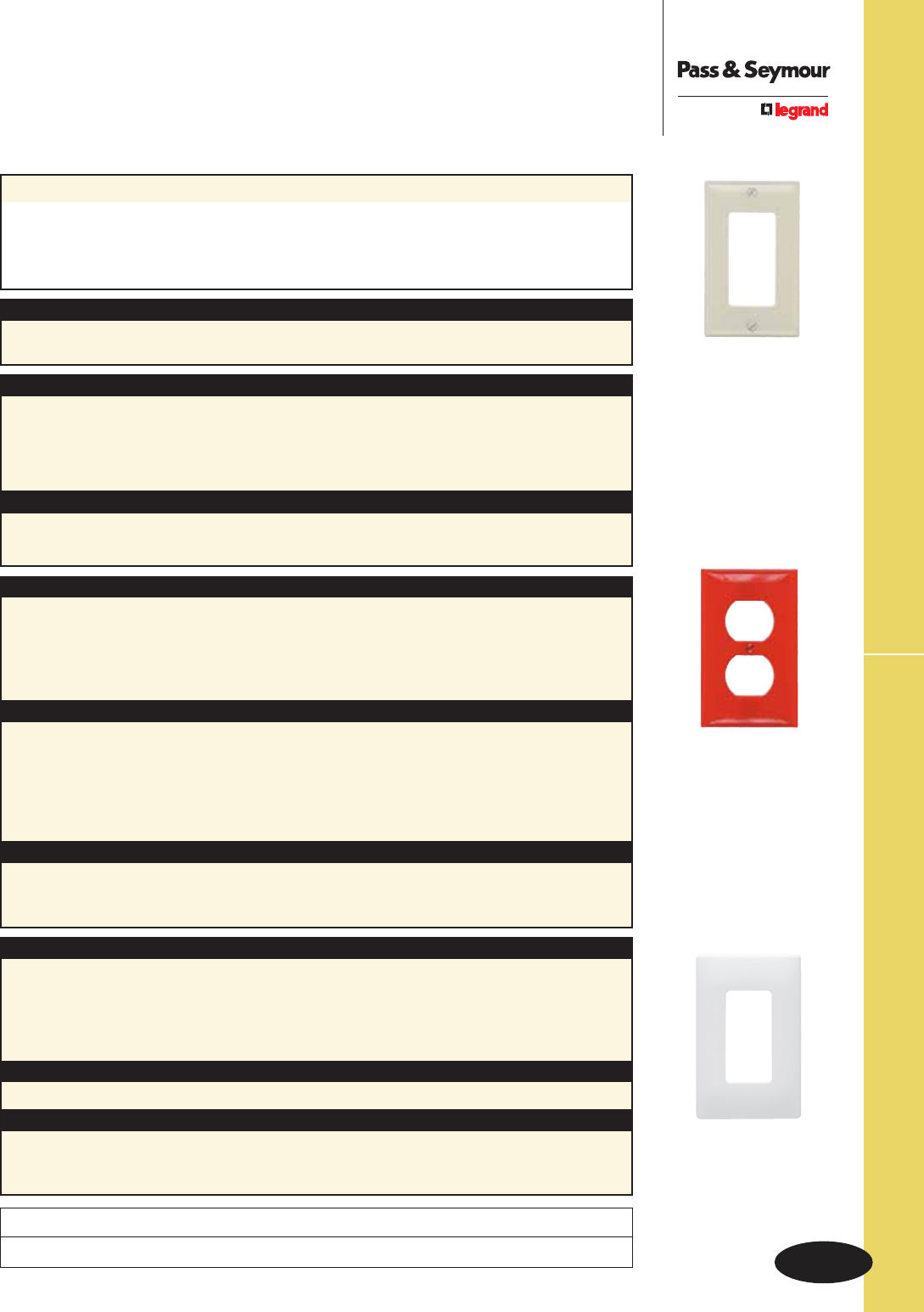

Wall Plates Dimensions U-151
Specifications U-149, U-150

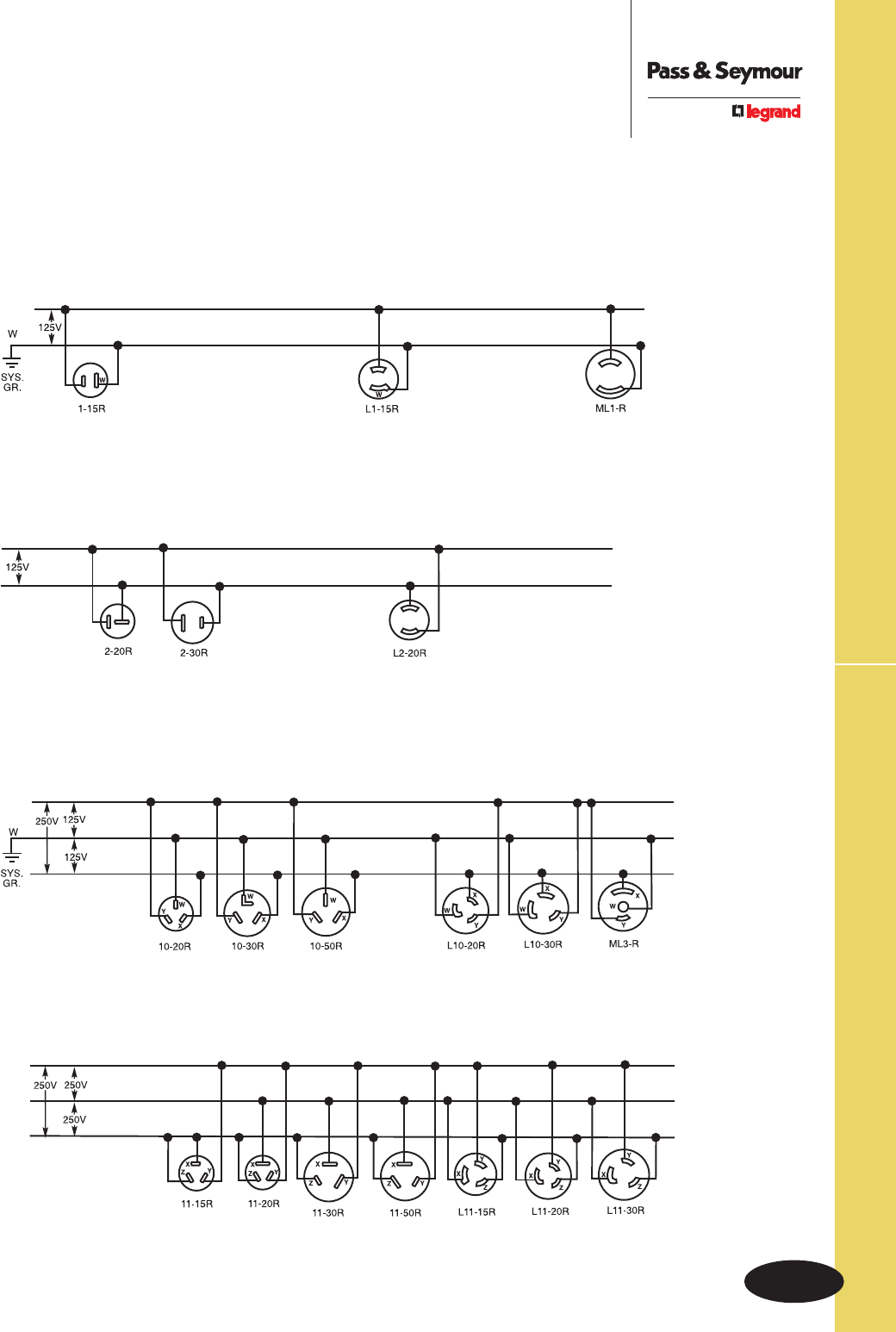

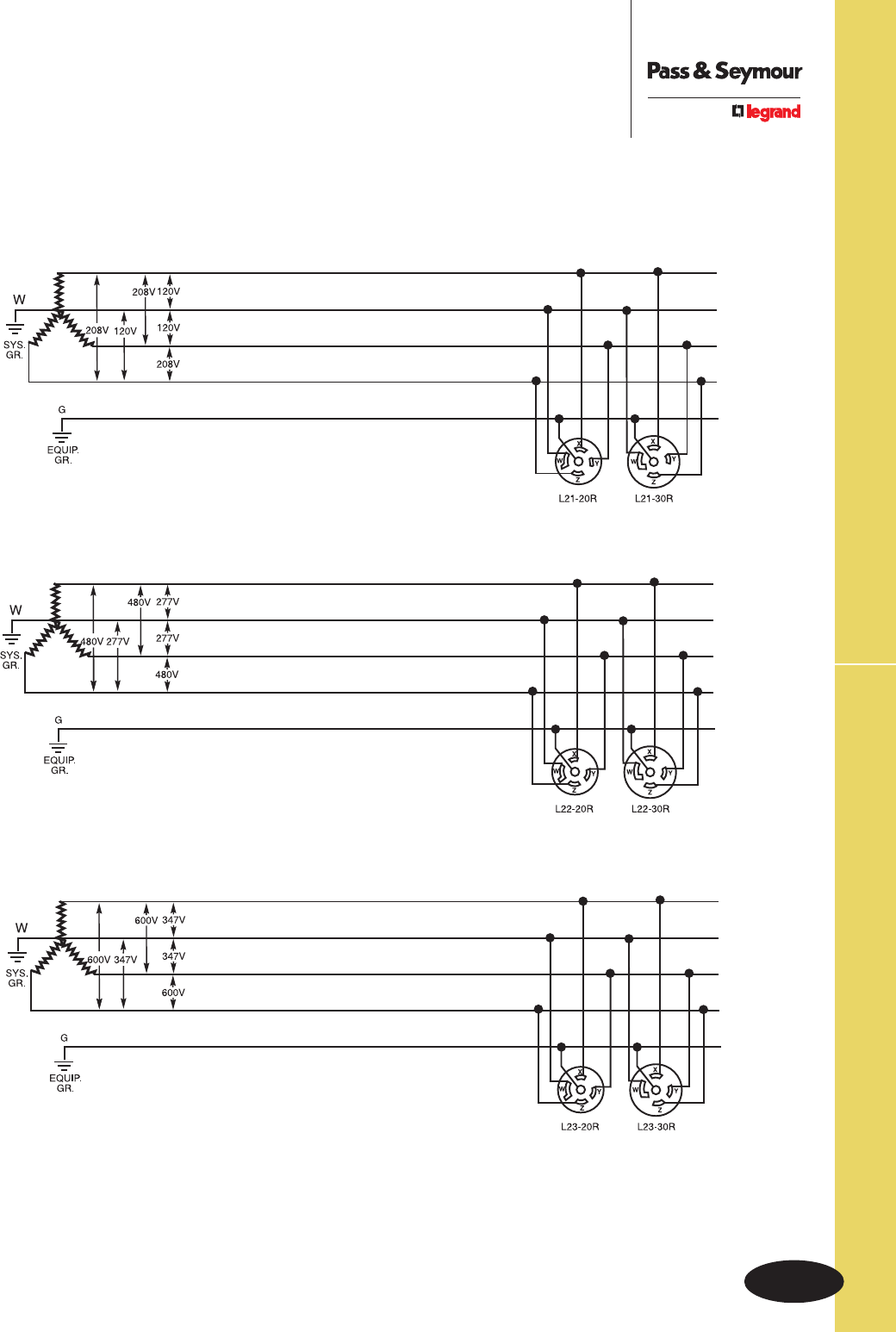

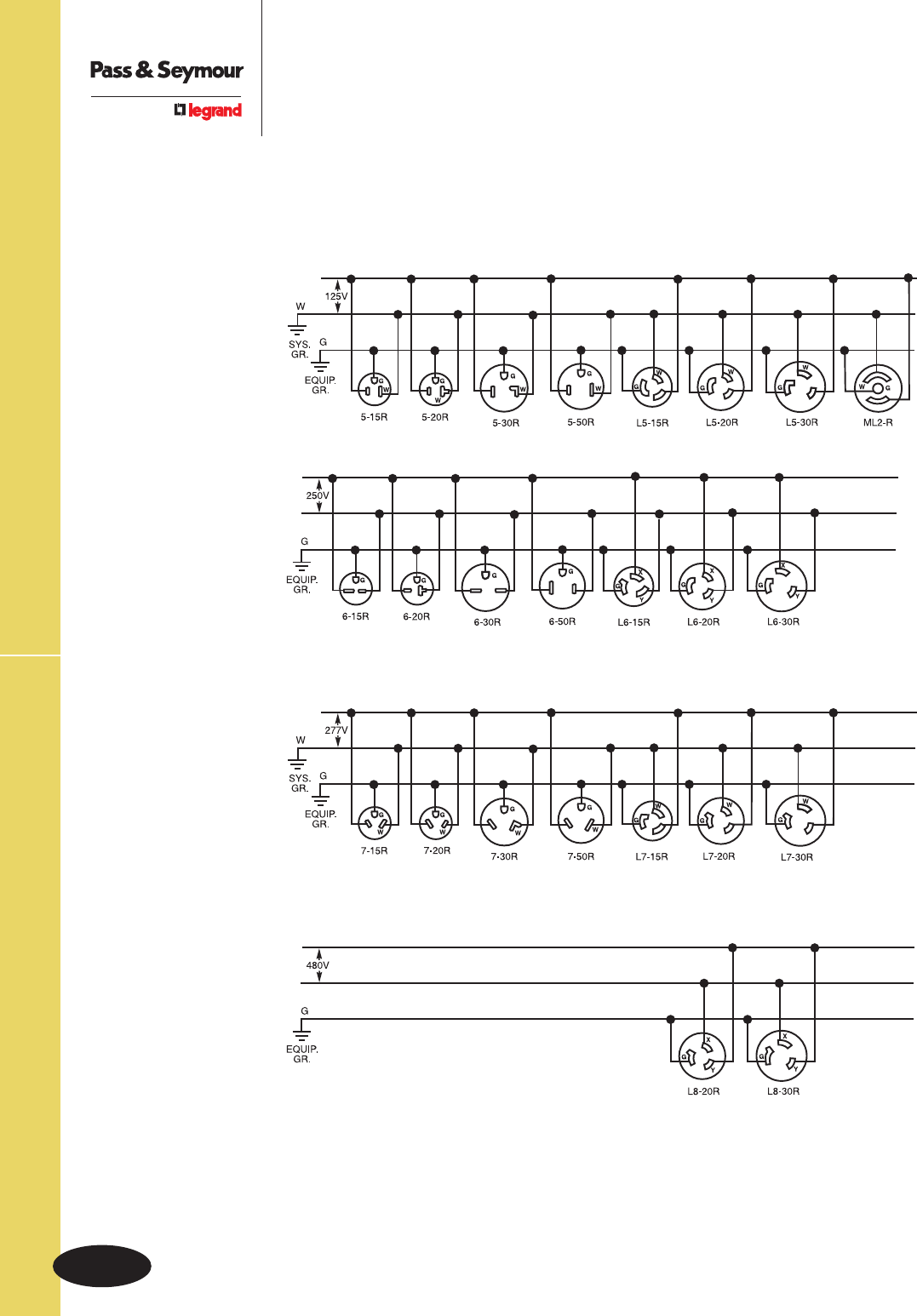

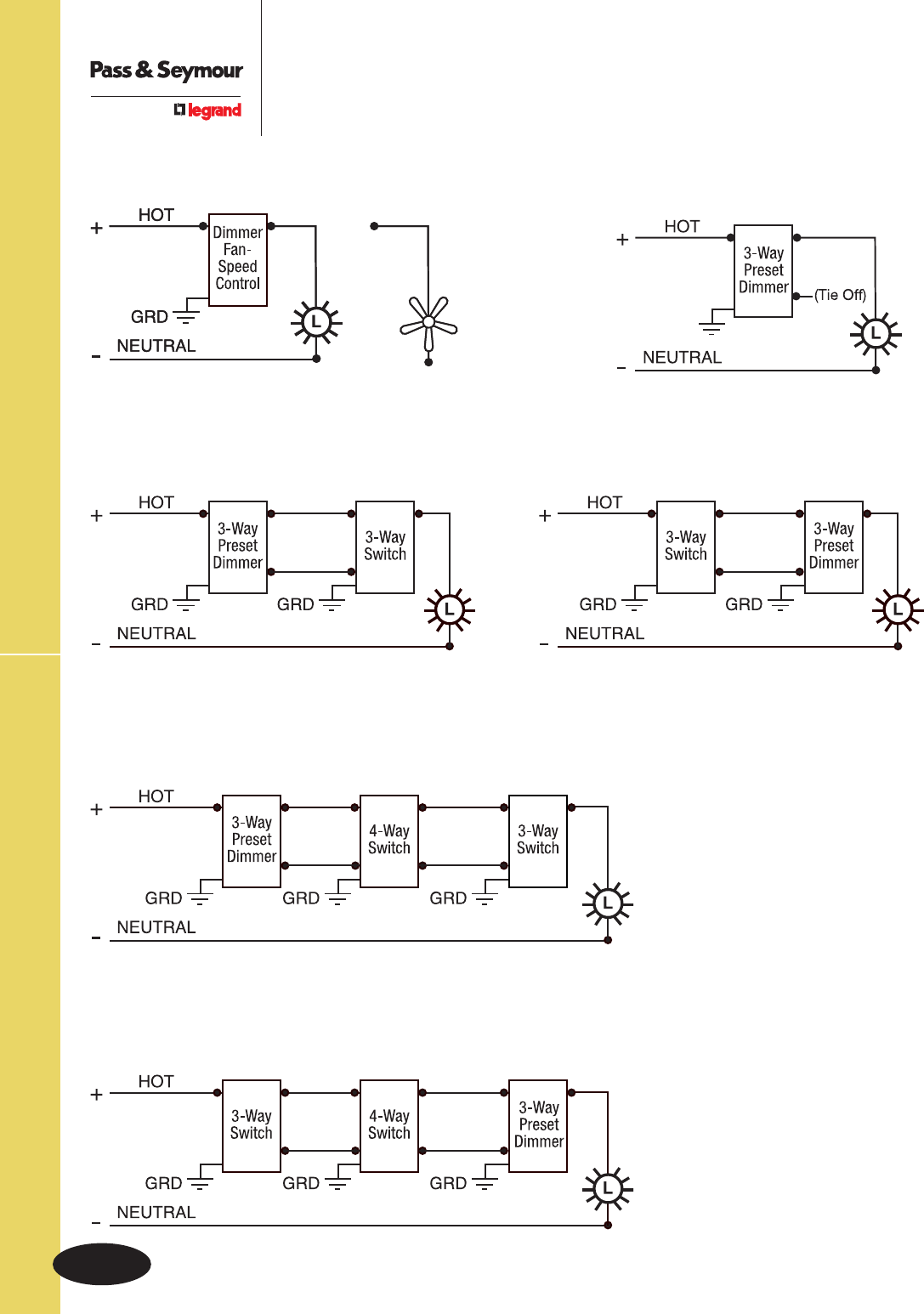

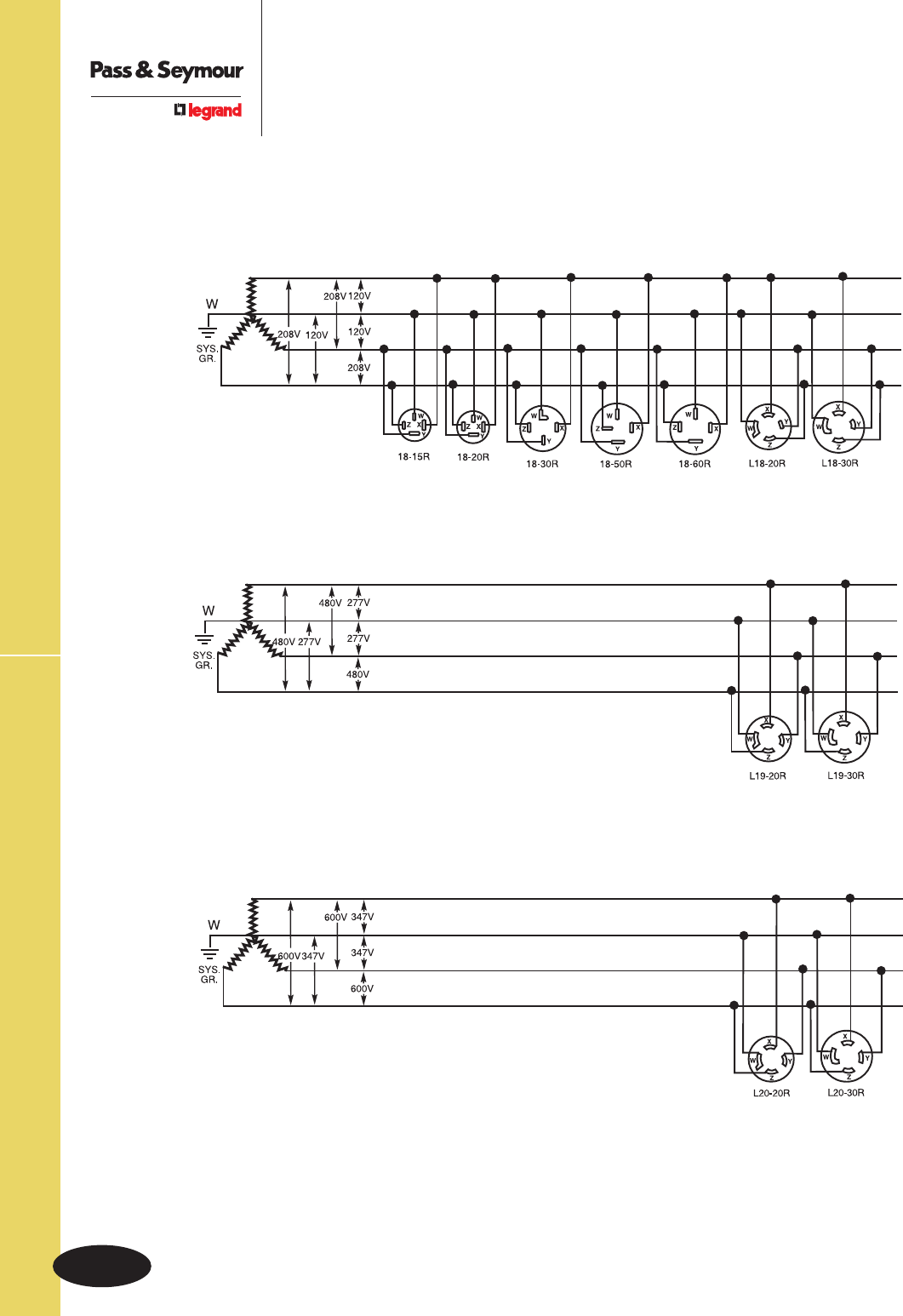

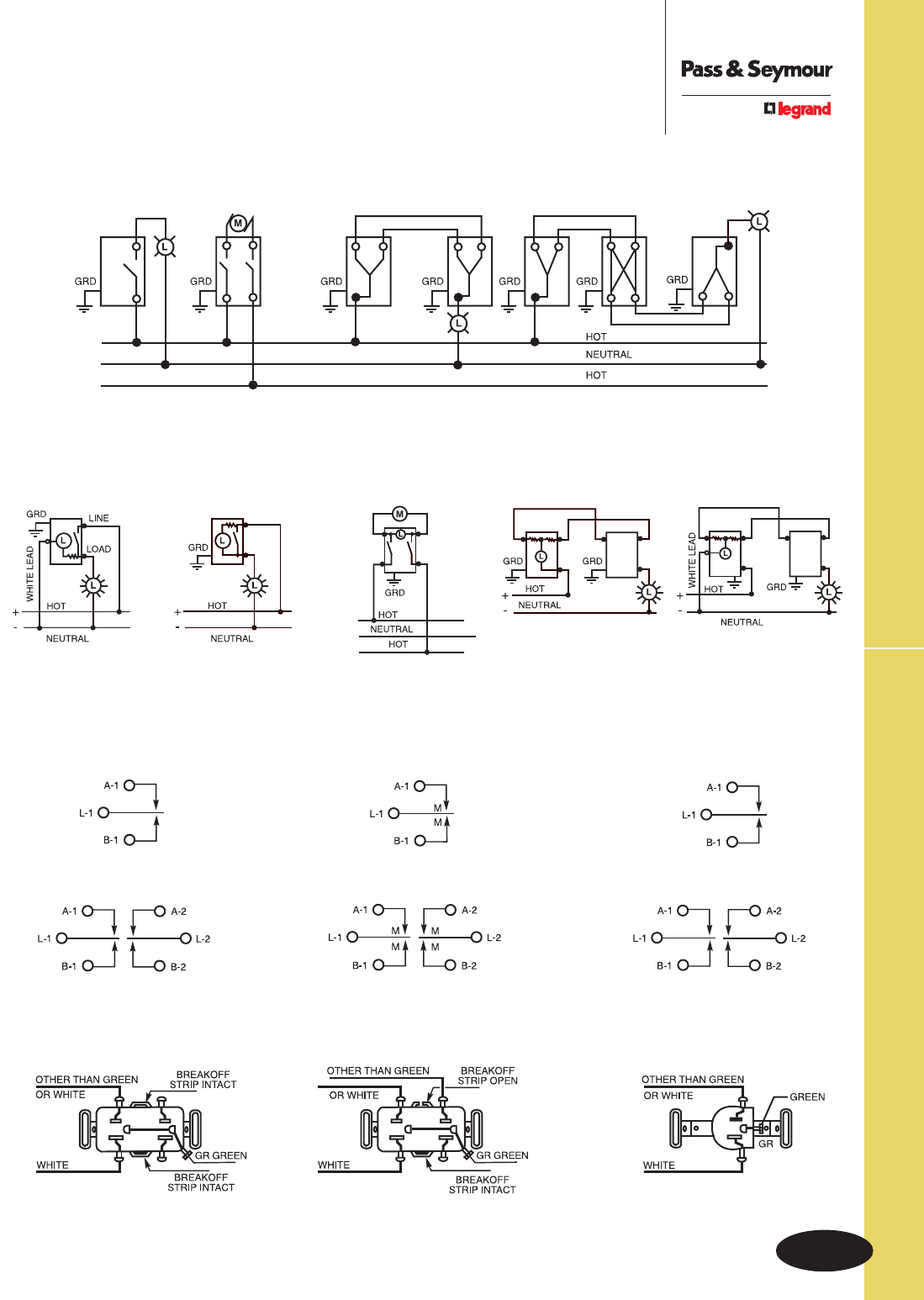

Wiring Diagrams U-15 – U-24
U-7
Technical Specifications Associations, Organizations & Standards
Technical Specifications
Associations, Organizations, & Standards
For convenience, the following listings define common acronyms for a variety of organizations.
Standards Development Organization
Organizations primarily involved in the development and/or promulgation of standards.
NFPA National Fire Protection Agency
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronics Engineers, Inc.
ANSI American National Standards Institute
CANENA Consejo de Armonizacion de Normas Electrotecnicas de Naciones America
(Council for Harmonization of Electrotechnical Standardization of the Nations
of the Americas)
SAE Society of Automotive Engineers
ISA Instrument Society of America
SME Society of Manufacturing Engineers
ISO International Standards Organization
Industry Associations
Associations of companies or individuals for the purpose of standardization, trade and
professional development, etc.
NMDA National Marine Distributor Association
NEMA National Electrical Manufacturers Association
ABYC American Boat and Yacht Council
EIA/TIA Electronics Industry Association/Telecommunications Industry Association
NAED National Association of Electrical Distributors
NAW National Association of Wholesalers
BICSI Building Industry Consulting Services International
IBI Intelligent Building Institute
EPRI Electric Power Research Institute
NEMRA National Electrical Manufacturers Representatives Association
IAEI International Association of Electrical Inspectors
IFMA International Facilities Management Association
BOMA Building Owner Management Association
SEMI Semi-Conductor Equipment and Material International
CEMRA Canadian Electrical Manufacturers Representative Association
NMRA National Marine Representative Association
EFI Electro-Federation Incorporated
NECA National Electrical Contractors Association
IECA Independent Electrical Contractors Association
ECOC Electrical Contractors of Canada
CANAME Camara Nacional de Manufacturas Electricas
HLCA Home Lighting Control Alliance
USGBC U.S. Green Building Council
Codes & Standards
Installation codes and product safety, performance on interchangeability standards.
NEC National Electrical Code
NOM Normas Oficiales de Mexicanas (Official Mexican Standard)
NMX Normas Mexicanas
CEC Canadian Electrical Code
U-8
Technical SpecificationsAssociations, Organizations & Standards
Technical Specifications
Associations, Organizations, & Standards
Certication Agencies
Primarily involved in certification of products or manufacturers to standards developed by
the certification agency or by others.
UL Underwritersʼ Laboratories, Inc.
cUL Tested to Canadian Safety Standards by
Underwritersʼ Laboratories, Inc.
cULus Tested to U.S. and Canadian Safety Standards by
Underwritersʼ Laboratories, Inc.
CSA Canadian Standards Association
ANCE National Association of Normalization and Certification
of the Electrical Sector, (Mexico)
TUV TUV Rheinland of N.A., Inc.
VDE Verband Deutscher Elektrotechniker
BSI British Standards Institute
FM Factory Mutual
NRTL Nationally Recognized Testing Laboratories
Government Agencies
OSHA Occupational Safety and Health Administration
FCC Federal Communications Commission
DSSC Defense Supply Center, Columbus
IAPA Independent Accident and Protection Association (Canada)
LEED Leadership in Energy and Environmental Design
Underwriters’ Laboratories, Inc. (UL)
1285 Walt Whitman Road
Melville, NY 11747
333 Pfingston Road
Northbrook, IL 60062
1655 Scott Boulevard
Santa Clara, CA 95050
12 Laboratory Drive
Research Triangle Park, NC 27709
2600 N.W. Lake Road
Camas, WA 98607
The Canadian Standards Association (CSA)
Standards Division
178 Rexdale Boulevard
Rexdale, Ontario
Canada M9W 1R3
The American National Standards Institute
(ANSI)
1430 Broadway
New York, NY 10018
National Electrical Manufacturers Association
(NEMA)
2101 L Street, NW, Suite 300
Washington, DC 20037
National Fire Protection Association (NFPA)
Batterymarch Park
Quincy, MA 02269
The International Electrotechnical Commission
(IEC)
Copies of IEC standards may be obtained from the
American National Standards Institute (ANSI) at
the above address.
American Boat and Yacht Council, Inc. (ABYC)
P.O. Box 806
Amityville, NY 11701
Asociacion Nacional de Normalizacion y
Certicacion del Sector Electrico A.C.
(NOM-ANCE)
Insurgentes Sur 664, 3ER Piso
Col. Del Valle
03100 Mexico D.F.
Phone: 011-525-227-1110
Fax: 011-525-227-1177
Occupational Safety and Health Administration
200 Constitution Avenue N.W.
Room 3647
Washington, DC 20210
Copies of standards referred to on the preceding pages may be purchased from the following:
U-9
Technical Specifications Symbols
Technical Specifications

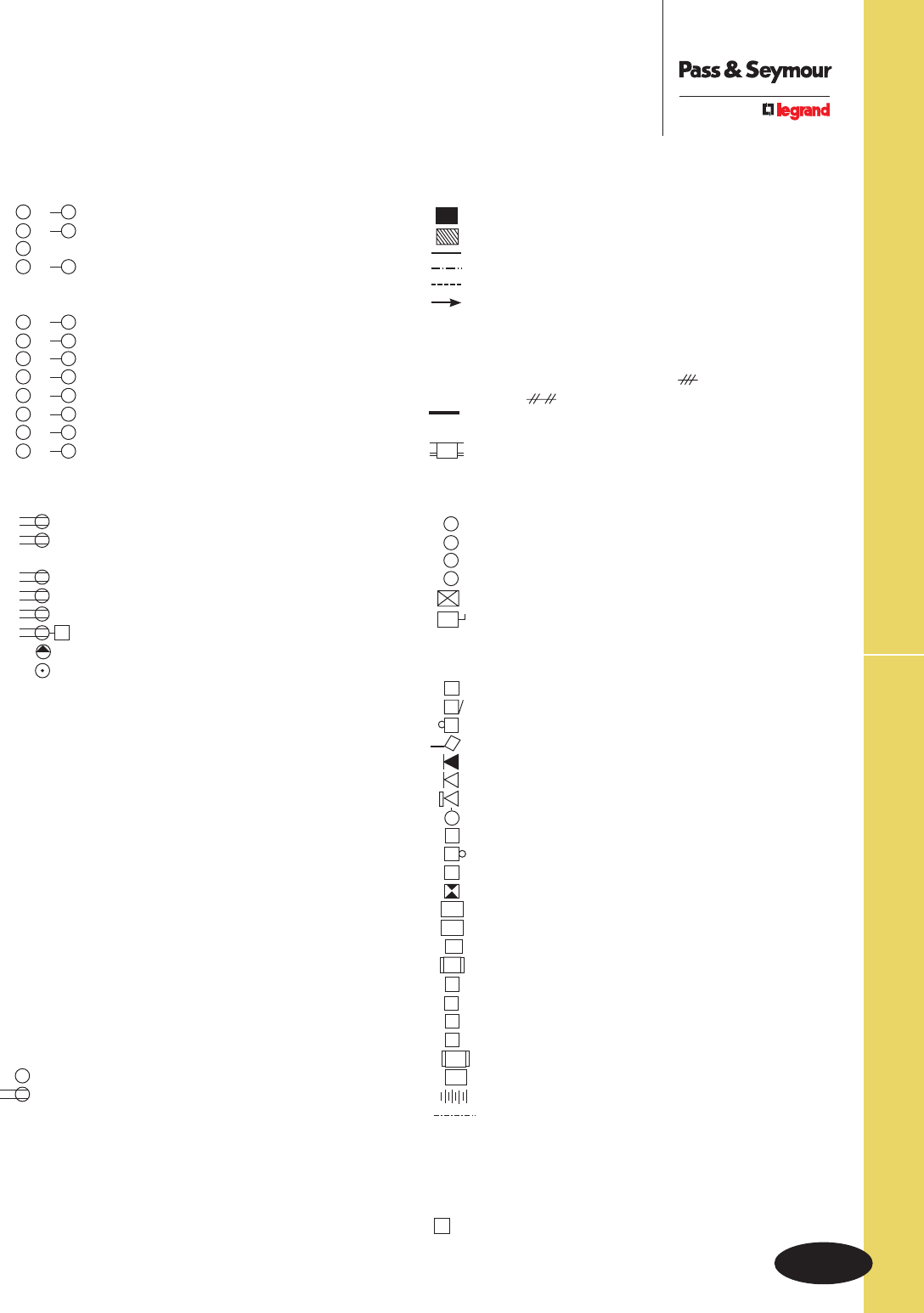

Symbols
Electrical Symbols & Abbreviations
In Accordance with American National Standards Institute
General Outlets
Outlet
Blanked Outlet
Drop Cord
Electrical Outlet: for use only when circle used
alone might be confused with columns, plumbing
symbols, etc.
Fan Outlet
Junction Box
Lamp Holder
Lamp Holder with Pull Switch
Pull Switch
Outlet for Vapor Discharge Lamp
Exit Light Outlet
Clock Outlet (Specify Voltage)
Convenience Outlets
Duplex Convenience Outlet
Convenience Outlet other than Duplex
1 = Single, 3 = Triplex, etc.
Weatherproof Convenience Outlet
Range Outlet
Switch and Convenience Outlet
Radio and Convenience Outlet
Special Purpose Outlet
Floor Outlet
Switch Outlets
S Single Pole Switch
S
2 Double Pole Switch
S
3 Three Way Switch
S
4 Four Way Switch
S
D Automatic Door Switch
S
E Electrolier Switch
S
K Key Operated Switch
S
P Switch and Pilot Lamp
S
CB Circuit Breaker
S
WCB Weatherproof Circuit Breaker
S
MC Momentary Contact Switch
S
RC Remote Control Switch
S
WP Weatherproof Switch
S
F Fused Switch
S
WF Weatherproof Fused Switch
Special Outlets
Any Standard Symbol as given above with the
addition of a lower case subscript letter may be used
to designate some special variation of Standard
Equipment of particular interest in a specific set
of Architectural Plans. When used they must be
listed in the Key of Symbols on each drawing and if
necessary further described in the specifications.
Panels, Circuits & Miscellaneous
Lighting Panel
Power Panel
Branch Circuit: Concealed in Ceiling or Wall
Branch Circuit: Concealed in Floor
Branch Circuit: Exposed
Home Run to Panel Board. Indicate number of Circuits by
number of arrows.
Note: Any circuit without further designation
indicates a two-wire circuit. For a greater number of
wires indicate as follows: (3 wires),
(4 wires), etc.
Feeders: Note: Use heavy lines and designate by number
corresponding to listing in Feeder Schedule.
Underfloor Duct and Junction Box. Triple System.
Note: For double or single systems eliminate one
or two lines. This symbol is equally adaptable to
auxiliary system layouts.
Generator
Motor
Instrument
Power Transformer. (Or draw to scale.)
Controller
Isolating Switch
Auxiliary Systems
Push Button
Buzzer
Bell
Annunciator
Outside Telephone
Interconnecting Telephone
Telephone Switchboard
Bell Ringing Transformer
Electric Door Opener
Fire Alarm Bell
Fire Alarm Station
City Fire Alarm Station
Fire Alarm Central Station
Automatic Fire Alarm Device
Watchmanʼs Station
Watchmanʼs Central Station
Horn
Nurseʼs Signal Plug
Maidʼs Signal Plug
Radio Outlet
Signal Central Station
Interconnection Box
Battery
Auxiliary System Circuits
Note: Any line without further designation indicates
System. For a greater number of wires designate
with numerals in manner similar to 12-No.
18 W-3/4" C., or designate by number
corresponding to listing in Schedule.
Special Auxiliary Outlets
Subscript letters refer to notes on plans or
detailed description in specifications.
.
T
D
F
F
FA
FS
W
W
C C
X X
V
S
L
L
J
F
V
S
L
L
J
F
E
D
B
E
B
R
S
R
WP
PS PS
[ 3
a.b.c.etc
a.b.c.etc
a.b.c.etc
S
T
I
M
G
R
M
N
H
SC
a.b.c.
U-10
Technical Specifications
NEMA Configurations – Straight Blade Devices
Technical Specifications
NEMA Configurations –
Straight Blade Devices
Labels and Their Meanings
X, Y, Z Hot Lead
W Neutral Lead
G Grounding Lead
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
Blade
Conguration
R = Female
(receptacle, connector,
anged outlet)
P = Male
(plug, anged inlet)
NEMA
Conguration
Line #
(refers to voltage) Amperage
5-15R
Straight Blade Plugs & Receptacles
15 AMPERE 20 AMPERE 30 AMPERE 50 AMPERE 60 AMPERE
RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG
2 Pole, 2 Wire Non-Grounding
1
125V
1-15R
2
250V
2-20P
2 Pole, 3 Wire Grounding
5
125V
5-15R 5-15P 5-20R 5-20P 5-30R 5-30P 5-50P
6
250V
6-15R 6-15P 6-20R 6-20P 6-30R 6-30P 6-50R 6-50P
7
277VAC
7-15R 7-15P 7-20R 7-20P 7-30P 7-50P
3 Pole, 3 Wire Non-Grounding
10
125/250V
10-20R 10-20P 10-30R 10-30P 10-50R 10-50P
3 Pole, 4 Wire Grounding
14
125/250V
14-20R
14-20P 14-30R 14-30P 14-50R 14-50P 14-60P
15
3ø250V
15-20P 15-30R 15-30P 15-50R 15-50P 15-60R 15-60P
4 Pole, 4 Wire Non-Grounding
18
3øY
120/208V
18-20R 18-20P 18-60R 18-60P
U-11
Technical Specifications NEMA Configurations – Turnlok
®
Devices
Technical Specifications
NEMA Configurations – Turnlok
®
Devices
Midget – Locking
15 AMPERE
RECEPTACLE PLUG
2 Pole, 2 Wire Non-Grounding
ML1
125V
ML-1R ML-1P
2 Pole, 3 Wire Grounding
ML2
125V
ML-2R ML-2P
3 Pole, 3 Wire Non-Grounding
ML3
125/250V
ML-3R ML-3P
W
15 AMPERE 20 AMPERE 30 AMPERE
RECEPTACLE PLUG RECEPTACLE PLUG RECEPTACLE PLUG
2 Pole, 2 Wire Non-Grounding
L1
125V
L1-15R L1-15P
L2
250V
L2-20R L2-20P
2 Pole, 3 Wire Grounding
L5
125V
L5-15R L5-15P L5-20R L5-20P L5-30R L5-30P
L6
250V
L6-15R L6-15P L6-20R L6-20P L6-30R L6-30P
L7
277VAC
L7-15R L7-15P L7-20R L7-20P L7-30R L7-30P
L24
347VAC
L24-20R L24-20P
L8
480VAC
L8-20R L8-20P L8-30R L8-30P
L9
600VAC
L9-20R L9-20P L9-30R L9-30P
3 Pole, 3 Wire Non-Grounding
L10
125/250V
L10-20R L10-20P L10-30R L10-30P
L11
3ø250V
L11-20R L11-20P L11-30R L11-30P
L12
3ø480V
L12-20R L12-20P L12-30R L12-30P
L13
3ø600V
L13-30R L13-30P
3 Pole, 4 Wire Grounding
L14
125/250V
L14-20R L14-20P L14-30R L14-30P
L15
3ø250V
L15-20R L15-20P L15-30R L15-30P
L16
3ø480V
L16-20R L16-20P L16-30R L16-30P
L17
3ø600V
L17-30R L17-30P
4 Pole, 4 Wire Non-Grounding
L18
3øY
120/208V
L18-20R L18-20P L18-30R L18-30P
L19
3øY
277/480V
L19-20R L19-20P L19-30R L19-30P
L20
3øY
347/600V
L20-20R L20-20P L20-30R L20-30P
4 Pole, 5 Wire Grounding
L21
3øY
120/208V
L21-20R L21-20P L21-30R L21-30P
L22
3øY
277/480V
L22-20R L22-20P L22-30R L22-30P
L23
3øY
347/600V
L23-20R L23-20P L23-30R L23-30P
Locking Plugs & Receptacles
Open Slots
Indicate receptacle
configurations (female).
Closed Slots
Indicate plug blade
configurations (male).
X, Y, Z Hot Lead
W Neutral Lead
G Grounding Lead
Labels & Their Meaning
U-12
Technical Specifications
UL Changes, Conversion & Wire Spec Chart
Technical Specifications
UL Changes, Conversion & Wire Spec Chart
AWG
Type* Size 2 Cond. 3 Cond.
SV,SVO,SVT,SVTO 18 .220-.255" .230-.265"
17 .235-.270" .250-.285"
AWG
Type* Size 2 Cond. 3 Cond. 4 Cond.
SJ,SJO,SJT,SJTO 18 .280-.315" .300-.335" .325-.365"
17 .290-.325" .310-.345" .340-.380"
16 .305-.340" .325-.360" .350-.395"
15 .315-.350" .335-.375" .370-.415"
14 .335-.375" .360-.395" .390-.435"
12 .405-.455" .425-.475" .465-.520"
10 .540-.605" .565-.635" .625-.700"
AWG
Type* Size 2 Cond. 3 Cond. 4 Cond. 5 Cond.
S,SO,ST,STO 18 .340-.385
"
.360-.400" .385-.430" .460-.510"
17 .350-.390
"
.370-.415" .400-.445" .465-.520"
16 .365-.410
"
.385-.430" .410-.460" .490-.550"
15 .475-.530
"
.500-.560" .540-.610" .615-.690"
14 .495-.550
"
.520-.575" .560-.620" .630-.705"
12 .565-.625
"
.590-.655" .640-.710" .700-.770"
10 .615-.685
"
.650-.720" .700-.775" .760-.840"
8 .780-.880
"
.830-.930" .925-1.050" 1.000-1.150"
6 .920-1.050
"
.970-1.100" 1.050-1.200
"
1.180-1.330"
4 1.060-1.210
"
1.130-1.280" 1.250-1.450
"
2 1.210-1.400
"
1.300-1.500" 1.450-1.650
"
*Actual sizes will vary by cord manufacturers.
Wire Specifications
Diameter Ranges of Jacketed Cord in Accordance with Standard “UL62”
UL Rating Changes
On July 1, 1983, UL cancelled listing of 3 non-NEMA dual-rated configurations and assigned new voltage ratings to them. There is
no change in the slot/blade configurations and the catalog numbers for each series are now UL listed under their new voltage ratings.
Affected configurations are:
1. 30A, 3 Pole, 3 Wire 2. 20A, 4 Pole, 4 Wire 3. 30A , 4 Pole, 4 Wire
not grounding Turnlok® not grounding Turnlok not grounding Turnlok
No. 3330 Series No. 7410 Series No. 3430 Series
*Old Rating New Rating *Old Rating New Rating *Old Rating New Rating
30A, 250V 30A,125/250V 20A, 250V 20A, 120/208V 3øY 30A, 600V 30A, 120/208V 3øY
10A, 600V 30A, 250V
Conversion Chart
Fractions to Decimals to Millimeters
Inches Inches Inches Inches
Fraction Decimal mm Fraction Decimal mm Fraction Decimal mm Fraction Decimal mm
1/64 0.0156 0.3969 17/64 0.2656 6.7469 33/64 0.5156 13.0969 49/64 0.7656 19.4469
1/32 0.0312 0.7938 9/32 0.2812 7.1438 17/32 0.5312 13.4938 25/32 0.7812 19.8437
3/64 0.0468 1.1906 19/64 0.2968 7.5406 35/64 0.5468 13.8906 51/64 0.7968 20.2406
1/16 0.0625 1.5875 5/16 0.3125 7.9375 9/16 0.5625 14.2875 13/16 0.8125 20.6375
5/64 0.0781 1.9844 21/64 0.3281 8.3344 37/64 0.5781 14.6844 53/64 0.8281 21.0344
3/32 0.0937 2.3812 11/32 0.3437 8.7312 19/32 0.5937 15.0812 27/32 0.8437 21.4312
7/64 0.1093 2.7781 23/64 0.3593 9.1281 39/64 0.6093 15.4781 55/64 0.8593 21.8281
1/8 0.1250 3.1750 3/8 0.3750 9.5250 5/8 0.6250 15.8750 7/8 0.8750 22.2250
9/64 0.1406 3.5719 25/64 0.3906 9.9219 41/64 0.6406 16.2719 57/64 0.8906 22.6219
5/32 0.1562 3.9688 13/32 0.4062 10.3188 21/32 0.6562 16.6688 29/32 0.9062 23.0188
11/64 0.1718 4.3656 27/64 0.4218 10.7156 43/64 0.6718 17.0656 59/64 0.9218 23.4156
3/16 0.1875 4.7625 7/16 0.4375 11.1125 11/16 0.6875 17.4625 15/16 0.9375 23.8125
13/64 0.2031 5.1594 29/64 0.4531 11.5094 45/64 0.7031 17.8594 61/ 64 0.9531 24.2094
7/32 0.2187 5.5562 15/32 0.4687 11.9062 23/32 0.7187 18.2562 31/32 0.9687 24.6062
15/64 0.2343 5.9531 31/64 0.4843 12.3031 47/64 0.7343 18.6531 63/64 0.9843 25.0031
1/4 0.2500 6.3500 1/2 0.5000 12.7000 3/4 0.7500 19.0500 1 1.0000 25.4000
U-13
Technical Specifications IP Codes & Their Meanings
Technical Specifications
IP Codes & Their Meanings
IP Suitability Rating
IP Suitability Ratings are an international system for classifying the
degree of protection provided by enclosures of electrical equipment.
The higher the number, the greater the degree of protection; they
apply ONLY to properly installed equipment. The numerals stand for
the following:
1. First Number: Degree of protection for persons against access to
hazardous parts inside the enclosure and/or against solid bodies.
2. Second Number: Degree of protection of equipment inside
enclosures against damage from the ingress of water.
IP44
Suitability
Example: IP44
=Ingress Protection; Solid bodies >=1.0mm; Splashing
Note: >= denotes greater than or equal to. Dimensions in Inches (mm)
Meaning for the Protection of Equipment
Code Letters First Number Second Number
Ingress Protection Against Ingress of Against Ingress of Water
Solid Bodies with Harmful Effects
IP 0 - Non-protected 0 – Non-protected
1 – >= 50 mm diameter 1 – Vertically dripping
2 – >=12.5 mm diameter 2 – Dripping (15° Tilted)
3 – >=2.5 mm diameter 3 – Spraying
4 – >=1.0 mm 4 – Splashing
5 – Dust-protected 5 – Jetting
6 – Dust-tight 6 – Power jetting
7 – Temporary immersion
8 – Continuous immersion
U-14
Technical SpecificationsHorsepower Ratings for NEMA
Technical Specifications
Horsepower Ratings for NEMA
Configuration Receptacles & Plugs Only
Ampere AC Voltage Phases Poles Horsepower NEMA
Rating Rating Rating Designation
15 125 1 2 1/2 1-15, L1-15, 5-15, L5-15
250 1 2 1-1/2# 6-15, L6-15
277 1 2 2 7-15, L7-15
125/250 1 3 1-1/2 L-L# 14-15
1/2 L-N
250 3 3 2 11-15, L11-15, 15-15
120/208 3 4 2 18-15
20 125 1 2 1 5-20, L5-20
250 1 2 2# 2-20, L2-20, 6-20, L6-20
277 1 2 2 7-20, L7-20
480 1 2 3 L8-20
125/250 1 3 2 L-L# 10-20, L10-20, 14-20, L14-20
1 L-N
250 3 3 3 11-20, L11-20, 15-20, L15-20
480 3 3 5 L12-20, L16-20
120/208 3 4 2 18-20, L18-20, L21-20
277/480 3 4 5 L19-20, L22-20
30 125 1 2 2 5-30, L5-30
250 1 2 2# 2-30, 6-30, L6-30
277 1 2 3 7-30, L7-30
480 1 2 5 L8-30
125/250 1 3 2 L-L# 10-30, L10-30
2 L-N 14-30, L14-30
250 3 3 3 11-30, L11-30, 15-30, L15-30
480 3 3 10 L12-30, L16-30
120/208 3 4 3 18-30, L18-30, L21-30
277/480 3 4 10 L19-30, L22-30
50 125 1 2 2 5-50
250 1 2 3 6-50
277 1 2 5 7-50
125/250 1 3 3 L-L# 10-50, 14-50
2 L-N
250 3 3 7-1/2 11-50, 15-50
120/208 3 4 7-1/2 18-50
60 125/250 1 3 3 L-L# 14-60
2 L-N
250 3 3 10 15-60
120/208 3 4 7-1/2 18-60
L-L: Motor connected line-to-line.
L-N: Motor connected line-to-neutral.
#: Also suitable for 208V motor applications at the indicated horsepower rating.
U-15
Technical Specifications Wiring Diagrams
Switches
Single Pole Double Pole 3-Way to 3-Way 3-Way to 4-Way to 3-Way
Pilot Light Switch & Lighted Toggle Switch
Single Pole Single Pole Double Pole 3-Way 3-Way Pilot
Pilot Light Switch Lighted Toggle Switch Pilot Light Switch Lighted Toggle Lighted Toggle
Toggle Glows when Toggle Glows when Toggle Glows when Switch Switch
Light is On Switch is Off Switch is On (Two Lighted or Pilots May Be Used)
Maintained & Momentary Contact
Maintained Contact Momentary Contact Maintained Contact
3-Position, 2-Circuit Either Direction Either Direction
Center “Off” 3-Position, Center “Off” 2-Position, No Center “Off”
Single Pole Single Pole Single Pole
Double Throw Double Throw Double Throw
Double Pole Double Pole Double Pole
Double Throw Double Throw Double Throw
1222 1256 1276
Receptacles
1 Circuit Split Circuit 1 Circuit
Technical Specifications
Wiring Diagrams –
Switches & Receptacles
U-16
Technical SpecificationsWiring Diagrams
Technical Specifications
Wiring Diagrams – GFCIs

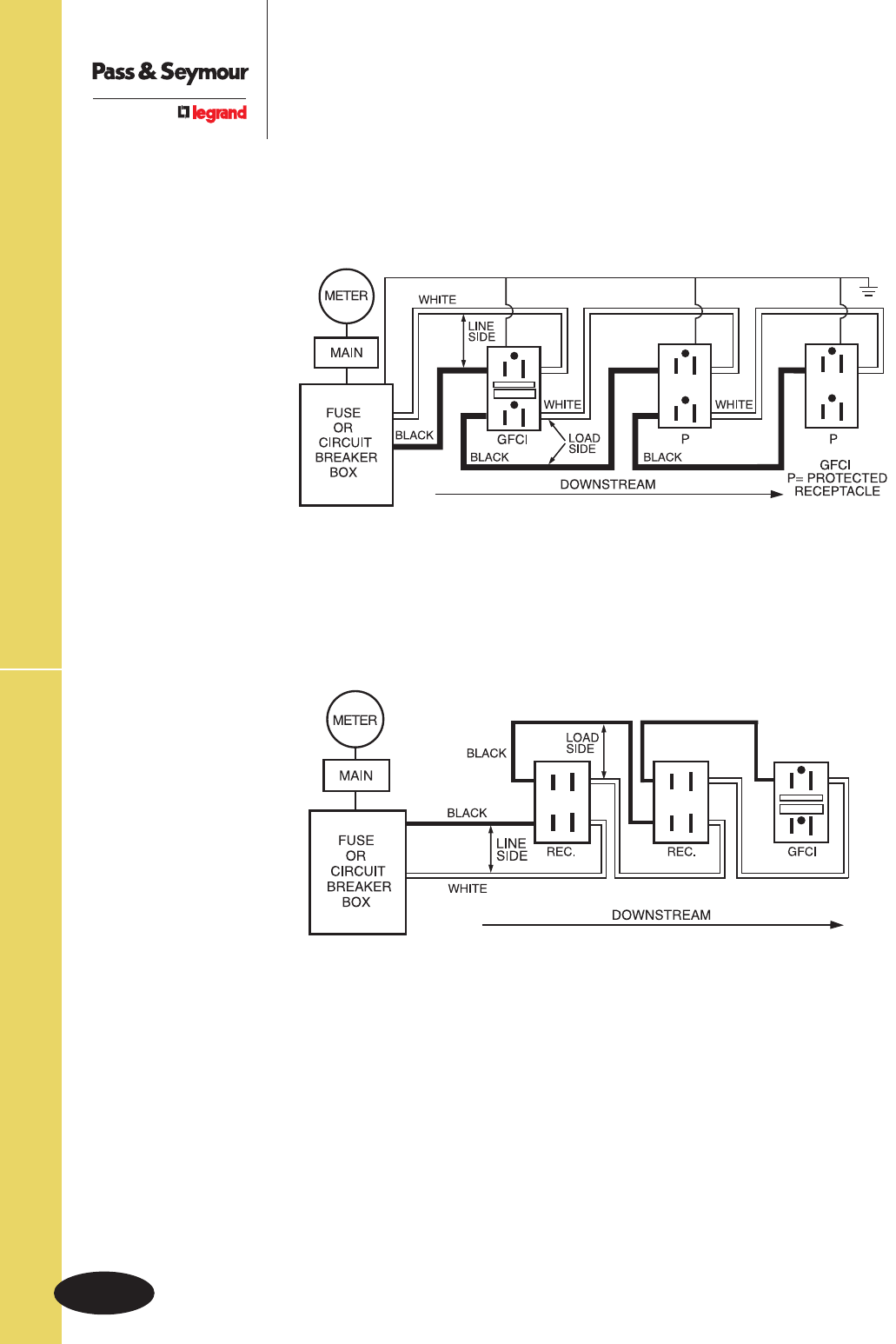

Wiring Diagram GFCI Receptacle, Feed-Thru Installation
To protect the entire branch circuit the GFCI must be the first receptacle from the fuse or circuit
breaker box. Receptacles on the circuit between the GFCI and the box will not be protected,
but receptacles downstream from the GFCI will have protection.
Wiring Diagram GFCI Receptacle, Non-Feed-Thru Installation
Terminal, or one-outlet-only protection can be achieved on a multi-outlet circuit by connecting
the hot and neutral line conductors to the corresponding line side terminals of the GFCI. Only
the GFCI receptacle will be protected.
U-17
Technical Specifications Wiring Diagrams
Technical Specifications
Wiring Diagrams –
2 Pole, 2 Wire Non-Grounding
3 Pole, 3 Wire Non-Grounding
2 Pole, 2 Wire Non-Grounding
125V
3ø250V
3 Pole, 3 Wire Non-Grounding
125V/250V
250V
U-18
Technical SpecificationsWiring Diagrams
Technical Specifications
Wiring Diagrams –
2 Pole, 3 Wire Grounding
2 Pole, 3 Wire Grounding
125V
250V
277VAC
480VAC
G
U-19
Technical Specifications Wiring Diagrams
Technical Specifications

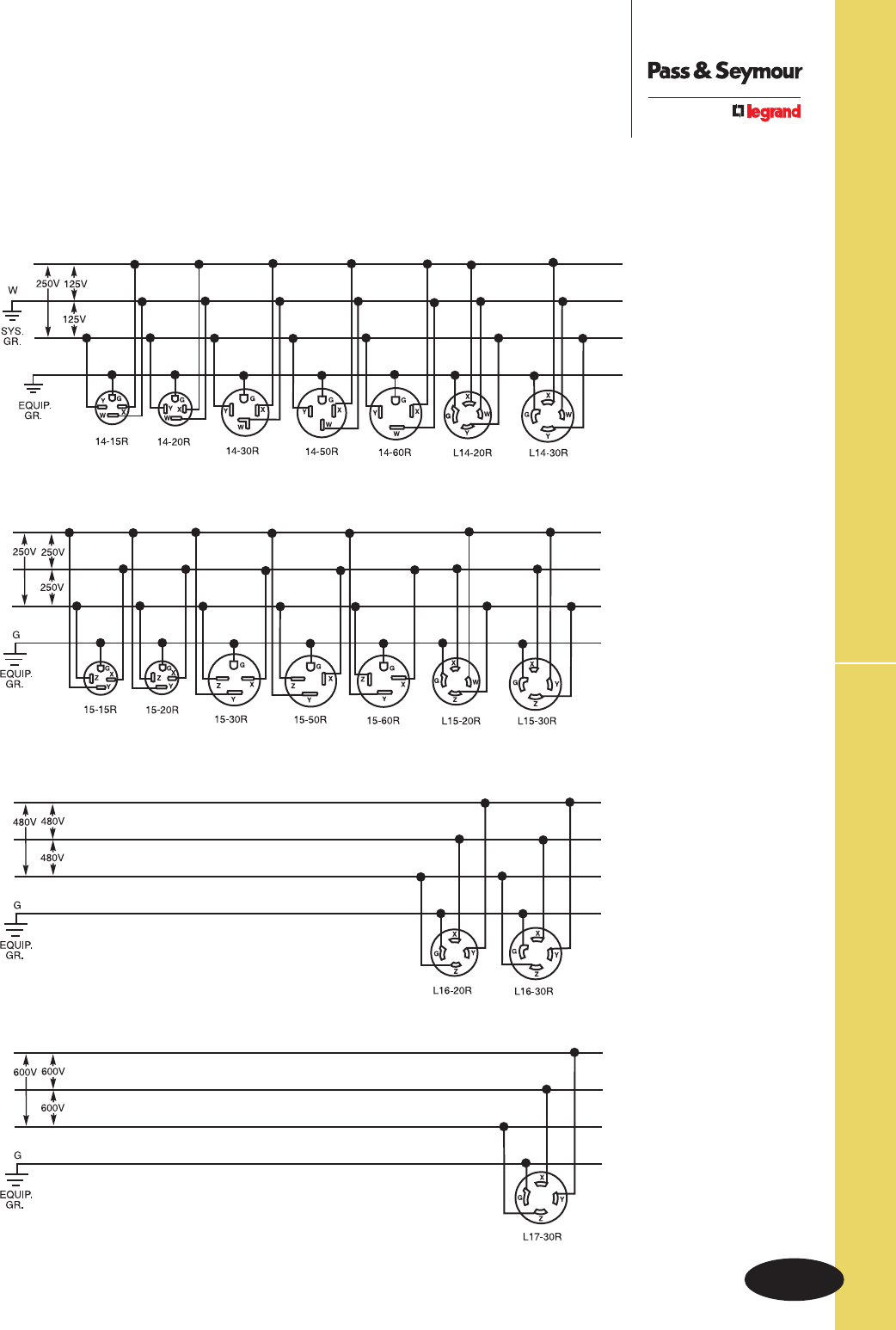

Wiring Diagrams –
3 Pole, 4 Wire Grounding
3 Pole, 4 Wire Grounding
125V/250V
3ø250V
3ø480V
3ø600V
G
U-20
Technical SpecificationsWiring Diagrams
Technical Specifications
Wiring Diagrams –
4 Pole, 4 Wire Non-Grounding
4 Pole, 4 Wire Non-Grounding
3øY120V/208V
3øY277/480V
3ø347/600V
U-21
Technical Specifications Wiring Diagrams
Technical Specifications
Wiring Diagrams –
4 Pole, 5 Wire Grounding
4 Pole, 5 Wire Grounding
3øY120V/208V
3øY277/480V
3øY347/600V
U-22
Technical SpecificationsWiring Diagrams
Technical Specifications
Wiring Diagrams –

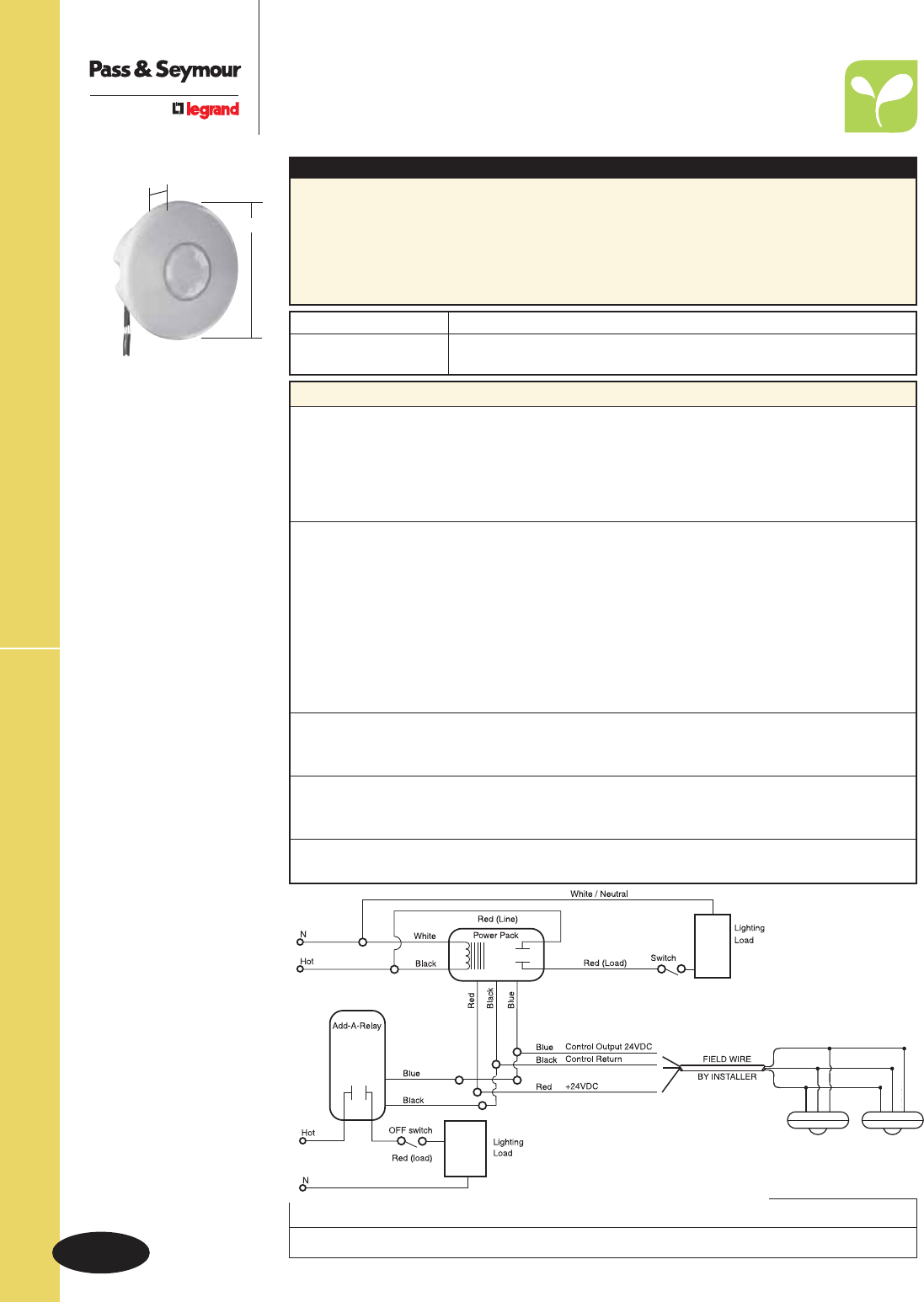

Sensors Connected to Power Packs
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Local
Off
Switch
Red
Red
Red
Blk
Blu
Hot Blk
Auxilliary
Relay Pack
Red
Red
Neutral
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Load
Hot
Neutral
Wht
Blk Power
Pack
Travelers
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Existing 3-Way
Switches
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Local
Off
Switch
Load
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
3-Wire
24VDC
Sensor
Control Output
Common
+24VDC
Load
1 Sensor, 1 Power Pack
Standard Wiring
1 Sensor, 1 Power Pack
Bi-Level Lighting
1 Sensor, 1 Power Pack
3-Way Switching
1 Sensor, 1 Power Pack
2 Lighting Loads
U-23
Technical Specifications Wiring Diagrams
Technical Specifications
Wiring Diagrams –
Sensors Connected to Power Packs
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Red
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Red
Blk
Blu
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Neutral
Hot
Wht
Blk Power
Pack
Red
TO OTHER
LOADS
Red
Red
Blk
Blu
Neutral
Hot
Wht
Blk Power
Pack
Red
TO OTHER
LOADS
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Red
Blk
Blu
Neutral
Hot
Wht
Blk Power
Pack
Local
Off
Switch
Red
Red
Neutral
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Any
24VDC
Ceiling/Wall
Sensor
Control Output
Common
+24VDC
Load
Load
1 Sensor & Up to 3 Power Packs Multiple Sensors, 1 Power Pack
Multiple Sensors, Multiple Power Packs
U-24
Technical SpecificationsWiring Diagrams
Technical Specifications
Wiring Diagrams –
Dimmers & Fan Speed Controls
Single-Pole Wiring Single-Pole Wiring
Using 3-Way Preset Dimmer
Control Line Side
OR
Control Load Side
3-Way Wiring
Control Line Side
Control Load Side
OR
4-Way Wiring
OR
For Scene Director
Wiring Diagrams,
see Page N-13.
For Leandro®
Wiring Diagrams,
see Page N-12.
For Dual Timer Cat.# 97352
Wiring Diagrams,
see Page M-19.
U-25
Technical Specifications Industrial EHD Spec Grade Switches
Performance
Electrical
Dielectric Withstand Voltage 1500V Minimum
Maximum Working Voltage 277VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current 277VAC
Endurance 50,000 cycles minimum, resistive, inductive, tungsten filament
lamp load (Fed Spec)
Mechanical
Terminal Accommodations #14 AWG – #10 AWG
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Glass-Reinforced Nylon
Front Body Nylon
Toggle Thermoplastic Polycarbonate
Terminals Brass
Terminal Screws Tri-Drive Brass
Mounting Strap Nickel-Plated Steel
Pressure Plate Brass
Contacts Silver Cadmium Oxide
Spring Arm Brass
Bumper Rubber
Spring Zinc-Plated Steel
Ground Terminal Brass
Ground Screw Tri-Drive Zinc-Plated Steel
Auto-Ground Clip Nickel-Plated Brass

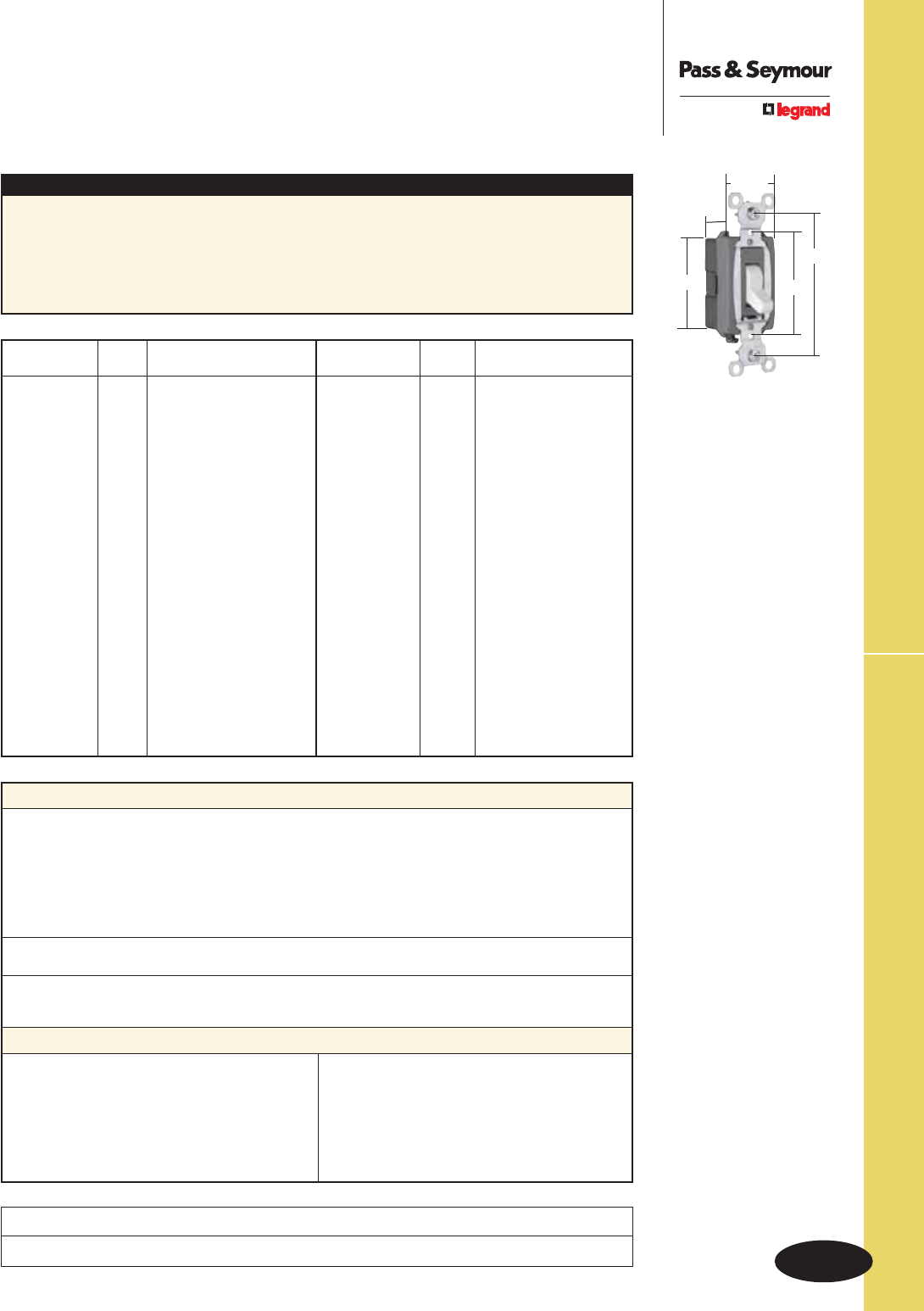

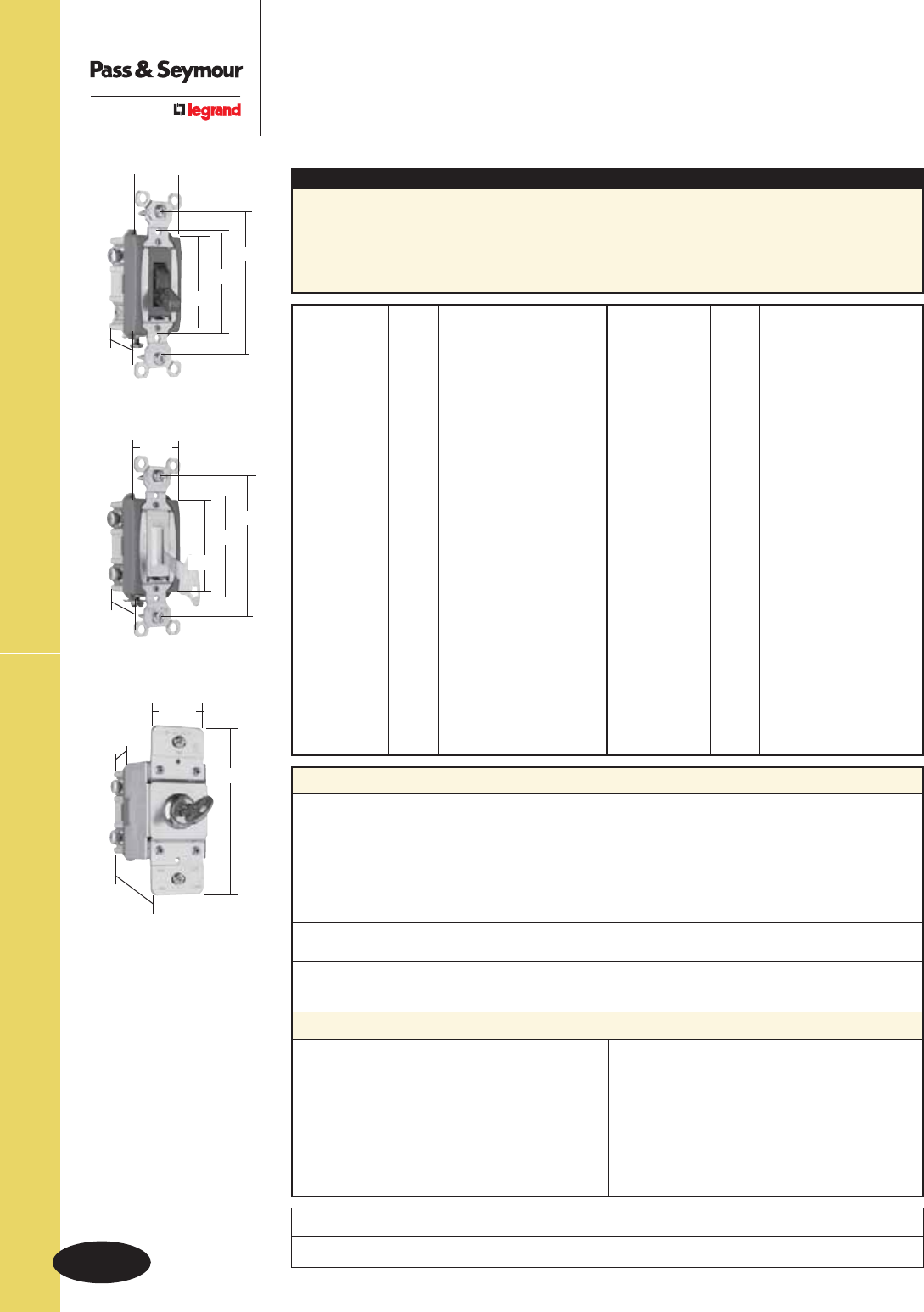

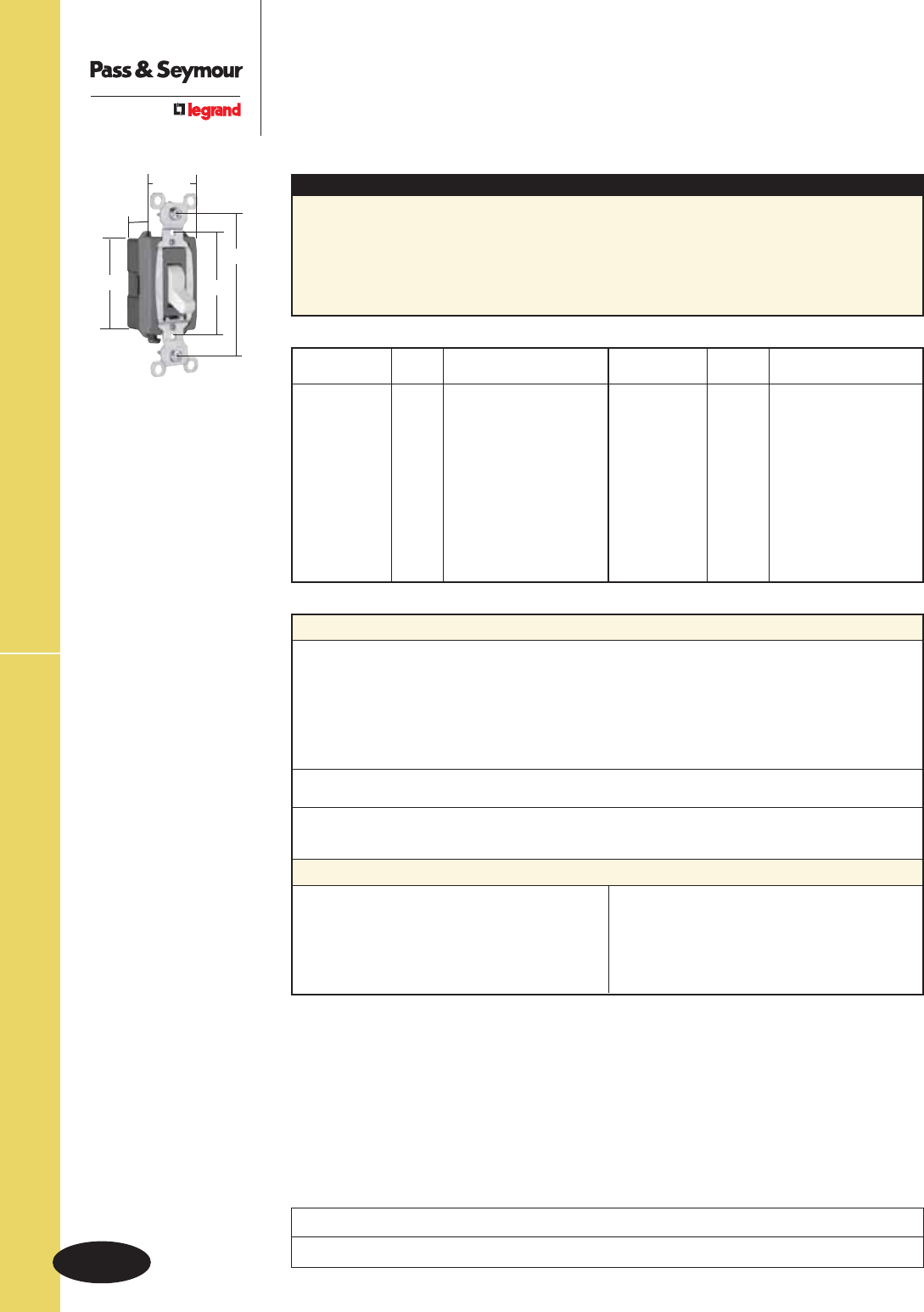

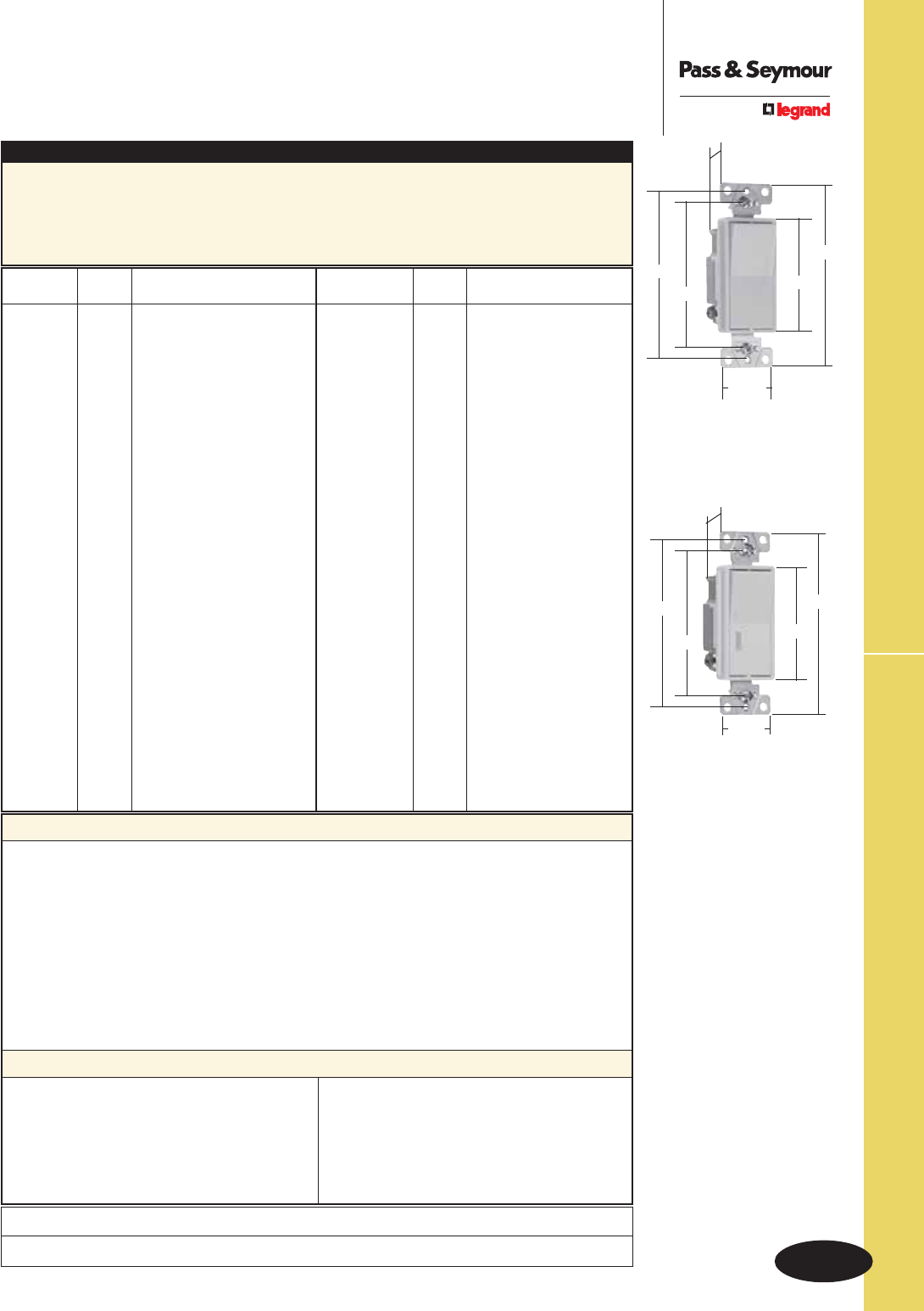

Technical Specifications
Industrial Extra Heavy-Duty
Specification Grade Switches
Back & Side Wire 15, 20 & 30A, 120/277VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS15AC1
Description: Industrial EHD Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed File Number E140597; Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp*
*30AC series is 1.437" wide
Catalog
Number Color Description/Rating
❒ PS15AC1I Ivory 15A 120/277VAC, Single Pole
❒ PS15AC1W White 15A 120/277VAC, Single Pole
❒ PS15AC1 Brown 15A 120/277VAC, Single Pole
❒ PS15AC1GRY Gray 15A 120/277VAC, Single Pole
❒ PS15AC1LA Lt. Al. 15A 120/277VAC, Single Pole
❒ PS15AC2I Ivory 15A 120/277VAC, Double Pole
❒ PS15AC2W White 15A 120/277VAC, Double Pole
❒ PS15AC2 Brown 15A 120/277VAC, Double Pole
❒ PS15AC2GRY Gray 15A 120/277VAC, Double Pole
❒ PS15AC2LA Lt. Al. 15A 120/277VAC, Double Pole
❒ PS15AC3I Ivory 15A 120/277VAC, 3-Way
❒ PS15AC3W White 15A 120/277VAC, 3-Way
❒ PS15AC3 Brown 15A 120/277VAC, 3-Way
❒ PS15AC3GRY Gray 15A 120/277VAC, 3-Way
❒ PS15AC3LA Lt. Al. 15A 120/277VAC, 3-Way
❒ PS15AC4I Ivory 15A 120/277VAC, 4-Way
❒ PS15AC4W White 15A 120/277VAC, 4-Way
❒ PS15AC4 Brown 15A 120/277VAC, 4-Way
❒ PS15AC4GRY Gray 15A 120/277VAC, 4-Way
❒ PS15AC4LA Lt. Al. 15A 120/277VAC, 4-Way
❒ PS20AC1I Ivory 20A 120/277VAC, Single Pole
❒ PS20AC1W White 20A 120/277VAC, Single Pole
❒ PS20AC1 Brown 20A 120/277VAC, Single Pole
❒ PS20AC1GRY Gray 20A 120/277VAC, Single Pole
❒ PS20AC1BK Black 20A 120/277VAC, Single Pole
❒ PS20AC1RED Red 20A 120/277VAC, Single Pole
❒ PS20AC1LA Lt. Al. 20A 120/277VAC, Single Pole
❒ PS20AC2I Ivory 20A 120/277VAC, Double Pole
Catalog
Number Color Description/Rating
❒ PS20AC2W White 20A 120/277VAC, Double Pole
❒ PS20AC2 Brown 20A 120/277VAC, Double Pole
❒ PS20AC2GRY Gray 20A 120/277VAC, Double Pole
❒ PS20AC2BK Black 20A 120/277VAC, Double Pole
❒ PS20AC2RED Red 20A 120/277VAC, Double Pole
❒ PS20AC2LA Lt. Al. 20A 120/277VAC, Double Pole
❒ PS20AC3I Ivory 20A 120/277VAC, 3-Way
❒ PS20AC3W White 20A 120/277VAC, 3-Way
❒ PS20AC3 Brown 20A 120/277VAC, 3-Way
❒ PS20AC3GRY Gray 20A 120/277VAC, 3-Way
❒ PS20AC3BK Black 20A 120/277VAC, 3-Way
❒ PS20AC3RED Red 20A 120/277VAC, 3-Way
❒ PS20AC3LA Lt. Al. 20A 120/277VAC, 3-Way
❒ PS20AC4I Ivory 20A 120/277VAC, 4-Way
❒ PS20AC4W White 20A 120/277VAC, 4-Way
❒ PS20AC4 Brown 20A 120/277VAC, 4-Way
❒ PS20AC4GRY Gray 20A 120/277VAC, 4-Way
❒ PS20AC4BK Black 20A 120/277VAC, 4-Way
❒ PS20AC4RED Red 20A 120/277VAC, 4-Way
❒ PS20AC4LA Lt. Al. 20A 120/277VAC, 4-Way
❒ PS30AC1I Ivory 30A 120/277VAC, Single Pole
❒ PS30AC1W White 30A 120/277VAC, Single Pole
❒ PS30AC1 Brown 30A 120/277VAC, Single Pole
❒ PS30AC2I Ivory 30A 120/277VAC, Double Pole
❒ PS30AC2W White 30A 120/277VAC, Double Pole
❒ PS30AC2 Brown 30A 120/277VAC, Double Pole
❒ PS30AC3I Ivory 30A 120/277VAC, 3-Way
❒ PS30AC3 Brown 30A 120/277VAC, 3-Way
1.320"
3.281"
2.375"
1.073"
2.196"
Project
Location/Type
U-26
Technical SpecificationsIndustrial EHD & EHD Spec Grade Switches

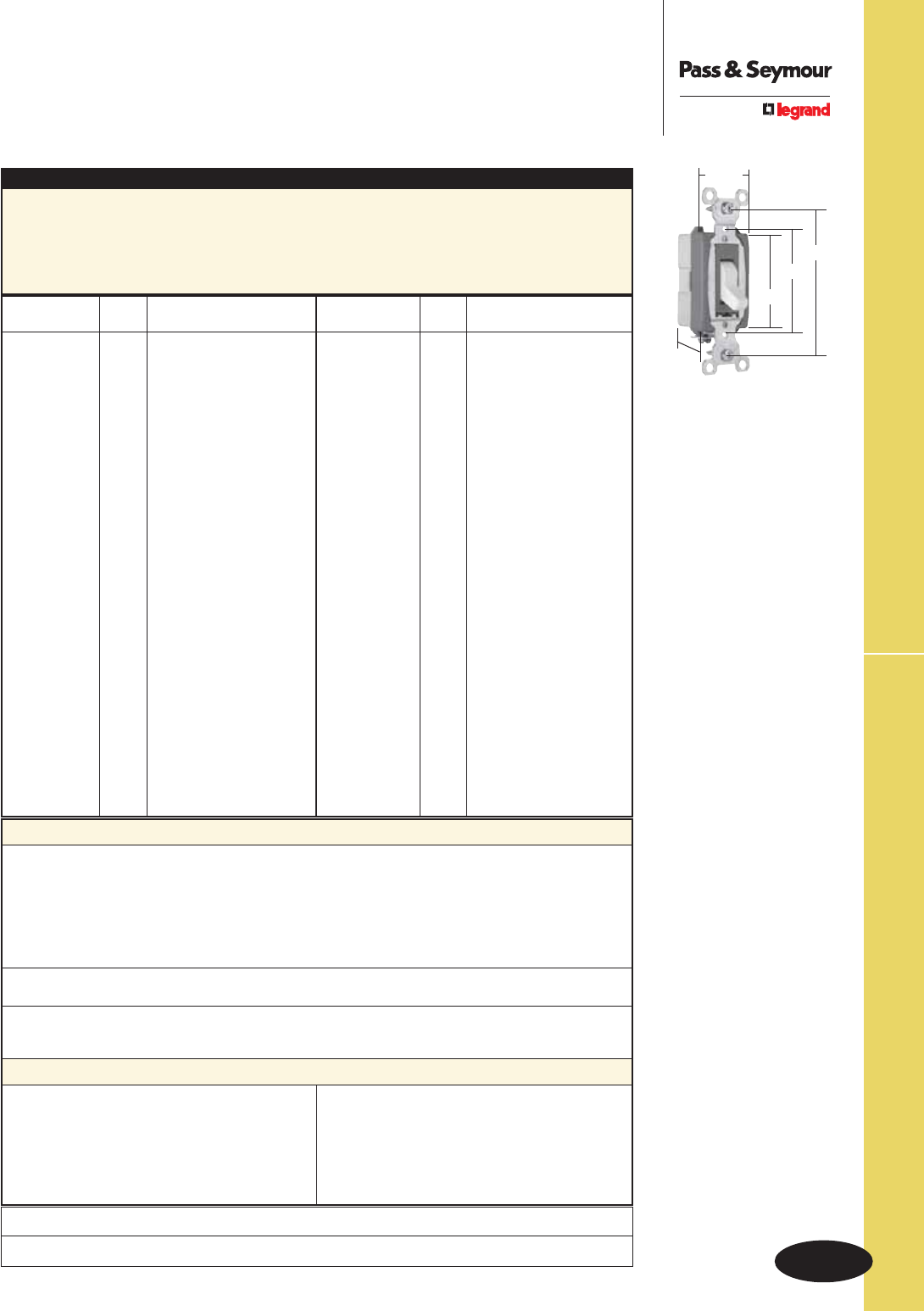

Technical Specifications
Industrial Extra Heavy-Duty & Extra
Heavy-Duty Specification Grade Switches
15, 20 & 30A, 120, 277 & 120/277VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS15AC1ISL
Description: Industrial EHD Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111,
General Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
Catalog
Number Color Description/Rating
❒ PS15AC1CSL Clear 15A 120/277VAC, Single Pole
❒ PS15AC1ISL Ivory 15A 120/277VAC, Single Pole
❒ PS15AC1WSL White 15A 120/277VAC, Single Pole
❒ PS15AC1CPL Clear 15A 120VAC, Single Pole
❒ PS15AC1RPL Red 15A 120VAC, Single Pole
❒ PS15AC1L Gray 15A 120/277VAC, Single Pole
❒ PS15AC3CSL Clear 15A 120/277VAC, 3-Way
❒ PS15AC3ISL Ivory 15A 120/277VAC, 3-Way
❒ PS15AC3WSL White 15A 120/277VAC, 3-Way
❒ PS15AC3CPL Clear 15A 120VAC, 3-Way
❒ PS15AC3RPL Red 15A 120VAC, 3-Way
❒ PS15AC3L Gray 15A 120/277VAC, 3-Way
❒ PS20AC1CSL Clear 20A 120/277VAC, Single Pole
❒ PS20AC1ISL Ivory 20A 120/277VAC, Single Pole
❒ PS20AC1WSL White 20A 120/277VAC, Single Pole
❒ PS20AC1LASL Lt. Al. 20A 120/277VAC, Single Pole
❒ PS20AC1LASL Lt. Al. 20A 120/277VAC, Single Pole
❒ PS20AC1CPL Clear 20A 120VAC, Single Pole
❒ PS20AC1CPL7 Clear 20A 277VAC, Single Pole
❒ PS20AC1RPL Red 20A 120VAC, Single Pole
❒ PS20AC1RPL7 Red 20A 277VAC, Single Pole
❒ PS20AC1CPL Clear 20A 120VAC, Single Pole
❒ PS20AC1CPL7 Clear 20A 277VAC, Single Pole
❒ PS20AC1RPL Red 20A 120VAC, Single Pole
❒ PS20AC1RPL7 Red 20A 277VAC, Single Pole
❒ PS20AC1IL Ivory 20A 120/277VAC, Single Pole
❒ PS20AC1WL White 20A 120/277VAC, Single Pole
❒ PS20AC1L Gray 20A 120/277VAC, Single Pole
❒ PS20AC1LAL Lt. Al. 20A 120/277VAC, Single Pole
Catalog
Number Color Description/Rating
❒ PS20AC1KL — 20A 120/277VAC, Single Pole
❒ PS20AC2CPL Clear 20A 120/277VAC, Double Pole
❒ PS20AC2RPL Red 20A 120/277VAC, Double Pole
❒ PS20AC2CPL Clear 20A 120/277VAC, Double Pole
❒ PS20AC2RPL Red 20A 120/277VAC, Double Pole
❒ PS20AC2IL Ivory 20A 120/277VAC, Double Pole
❒ PS20AC2WL White 20A 120/277VAC, Double Pole
❒ PS20AC2L Gray 20A 120/277VAC, Double Pole
❒ PS20AC2LAL Lt. Al. 20A 120/277VAC, Double Pole
❒ PS20AC2KL — 20A 120/277VAC, Double Pole
❒ PS20AC3LASL Lt. Al. 20A 120/277VAC, 3-Way
❒ PS20AC3CPL Clear 20A 120VAC, 3-Way
❒ PS20AC3RPL Red 20A 120VAC, 3-Way
❒ PS20AC3RPL7 Red 20A 277VAC, 3-Way
❒ PS20AC3IL Ivory 20A 120/277VAC, 3-Way
❒ PS20AC3WL White 20A 120/277VAC, 3-Way
❒ PS20AC3L Gray 20A 120/277VAC, 3-Way
❒ PS20AC3REDL Red 20A 120/277VAC, 3-Way
❒ PS20AC3LAL Lt. Al. 20A 120/277VAC, 3-Way
❒ PS20AC3KL — 20A 120/277VAC, 3-Way
❒ PS20AC4IL Ivory 20A 120/277VAC, 4-Way
❒ PS20AC4WL White 20A 120/277VAC, 4-Way
❒ PS20AC4L Gray 20A 120/277VAC, 4-Way
❒ PS20AC4REDL Red 20A 120/277VAC, 4-Way
❒ PS20AC4LAL Lt. Al. 20A 120/277VAC, 4-Way
❒ PS20AC4KL — 20A 120/277VAC, 4-Way
❒ PS30AC1RPL Red 30A 120VAC, Single Pole
❒ PS30AC2RPL Red 30A 120/ 277VAC, Double Pole
❒ PS30AC3RPL Red 30A 120VAC, 3-Way
Project
Location/Type
15 & 20 Amp Lighted &
Pilot Lighted
Locking
30AC series is 1.437" wide
1.320"
3.281"
2.375"
1.073"
2.196"
1.320"
3.281"
2.375"
1.073"
2.196"
Security Switch
1.475"
4.071"
2.261"
.610"
Performance
Electrical
Dielectric Withstand Voltage 1500V Minimum
Maximum Working Voltage 277VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current 277VAC
Endurance 50,000 cycles minimum, resistive, inductive, tungsten filament
lamp load (Fed Spec)
Mechanical
Terminal Accommodations #14 AWG – #10 AWG
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Glass-Reinforced Nylon
Front Body Nylon
Toggle Thermoplastic Polycarbonate
Key Slot** Thermoplastic Polycarbonate
Terminals Brass
Terminal Screws Tri-Drive Brass
Strap Nickel-Plated Brass
Pressure Plate Brass
Contacts Silver Cadmium Oxide
Spring Arm Brass
Bumper Rubber
Spring Zinc-Plated Steel
Ground Terminal† Brass
Ground Screw Tri-Drive Zinc-Plated Steel
Auto-Ground Clip† Nickel-Plated Brass
Illuminating Lamp* Neon
Lock Housing† Stainless Steel
* For Lighted versions. May not be
compatible with some fluorescent
lighting loads.
**For Locking versions.
†
For Security versions Ground
Terminal is Zinc-Plated Steel.
No Auto-Ground Clip on Security
Switches.
U-27
Technical Specifications Hard Use Spec Grade Switches
1.320"
3.281"
2.375"
1.073"
2.196"
Technical Specifications
Hard Use Specification Grade Switches
Back & Side Wire 15 & 20A, 120/277VAC
Catalog
Number Color Description/Rating
❒ CSB15AC1I Ivory 15A 120/277VAC, Single Pole
❒ CSB15AC1W White 15A 120/277VAC, Single Pole
❒ CSB15AC1 Brown 15A 120/277VAC, Single Pole
❒ CSB15AC1GRY Gray 15A 120/277VAC, Single Pole
❒ CSB15AC1LA Lt. Al. 15A 120/277VAC, Single Pole
❒ CSB20AC1I Ivory 20A 120/277VAC, Single Pole
❒ CSB20AC1W White 20A 120/277VAC, Single Pole
❒ CSB20AC1 Brown 20A 120/277VAC, Single Pole
❒ CSB20AC1GRY Gray 20A 120/277VAC, Single Pole
❒ CSB20AC1BK Black 20A 120/277VAC, Single Pole
❒ CSB20AC1LA Lt. Al. 20A 120/277VAC, Single Pole
❒ CSB15AC2I Ivory 15A 120/277VAC, Double Pole
❒ CSB15AC2W White 15A 120/277VAC, Double Pole
❒ CSB15AC2 Brown 15A 120/277VAC, Double Pole
❒ CSB15AC2GRY Gray 15A 120/277VAC, Double Pole
❒ CSB15AC2LA Lt. Al. 15A 120/277VAC, Double Pole
❒ CSB20AC2I Ivory 20A 120/277VAC, Double Pole
❒ CSB20AC2W White 20A 120/277VAC, Double Pole
❒ CSB20AC2 Brown 20A 120/277VAC, Double Pole
❒ CSB20AC2GRY Gray 20A 120/277VAC, Double Pole
❒ CSB20AC2LA Lt. Al. 20A 120/277VAC, Double Pole
Catalog
Number Color Description/Rating
❒ CSB15AC3I Ivory 15A 120/277VAC, 3-Way
❒ CSB15AC3W White 15A 120/277VAC, 3-Way
❒ CSB15AC3 Brown 15A 120/277VAC, 3-Way
❒ CSB15AC3GRY Gray 15A 120/277VAC, 3-Way
❒ CSB15AC3LA Lt. Al. 15A 120/277VAC, 3-Way
❒ CSB20AC3I Ivory 20A 120/277VAC, 3-Way
❒ CSB20AC3W White 20A 120/277VAC, 3-Way
❒ CSB20AC3 Brown 20A 120/277VAC, 3-Way
❒ CSB20AC3GRY Gray 20A 120/277VAC, 3-Way
❒ CSB20AC3BK Black 20A 120/277VAC, 3-Way
❒ CSB20AC3LA Lt. Al. 20A 120/277VAC, 3-Way
❒ CSB15AC4I Ivory 15A 120/277VAC, 4-Way
❒ CSB15AC4W White 15A 120/277VAC, 4-Way
❒ CSB15AC4 Brown 15A 120/277VAC, 4-Way
❒ CSB15AC4GRY Gray 15A 120/277VAC, 4-Way
❒ CSB15AC4LA Lt. Al. 15A 120/277VAC, 4-Way
❒ CSB20AC4I Ivory 20A 120/277VAC, 4-Way
❒ CSB20AC4W White 20A 120/277VAC, 4-Way
❒ CSB20AC4 Brown 20A 120/277VAC, 4-Way
❒ CSB20AC4GRY Gray 20A 120/277VAC, 4-Way
❒ CSB20AC4LA Lt. Al. 20A 120/277VAC, 4-Way
Performance
Electrical
Dielectric Withstand Voltage 1500V Minimum
Maximum Working Voltage 277VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current 277VAC
Endurance 50,000 cycles minimum, resistive, inductive, tungsten filament
lamp load (Fed Spec)
Mechanical
Terminal Accommodations #14 AWG – #10 AWG
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Glass-Reinforced Nylon
Front Body Nylon
Toggle Thermoplastic Polycarbonate
Terminals Brass
Terminal Screws Tri-Drive Brass-Plated Steel
Mounting Strap Zinc-Plated Steel
Pressure Plate Brass
Contacts Silver Cadmium Oxide
Spring Arm Brass
Bumper Rubber
Spring Zinc-Plated Steel
Ground Terminal Brass
Ground Screw Tri-Drive Zinc-Plated Steel
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CSB15AC1
Description: Hard Use Specification Grade Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard
CSA-C22.2 No. 111, General Use Snap Switches. Conforms to NEMA WD-1
and WD-6.
15 & 20 Amp
Project
Location/Type
U-28
Technical SpecificationsCommercial Spec Grade Switches
1.320"
3.281"
2.375"
1.073"
2.196"
Technical Specifications
Commercial Specification Grade Switches
Side Wire 15 & 20A, 120/277VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CS15AC1
Description: Commercial Specification Grade Switch, Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches.
Federal Specification WS896, CSA Certified, File Number LR17446, Standard
CSA-C22.2 No. 111, General Use Snap Switches. Conforms to NEMA WD-1
and WD-6.
Catalog
Number Color Description/Rating
❒ CS15AC1I Ivory 15A 120/277VAC, Single Pole
❒ CS15AC1W White 15A 120/277VAC, Single Pole
❒ CS15AC1 Brown 15A 120/277VAC, Single Pole
❒ CS15AC1GRY Gray 15A 120/277VAC, Single Pole
❒ CS15AC1BK Black 15A 120/277VAC, Single Pole
❒ CS15AC1LA Lt. Al. 15A 120/277VAC, Single Pole
❒ CS20AC1I Ivory 20A 120/277VAC, Single Pole
❒ CS20AC1W White 20A 120/277VAC, Single Pole
❒ CS20AC1 Brown 20A 120/277VAC, Single Pole
❒ CS20AC1GRY Gray 20A 120/277VAC, Single Pole
❒ CS20AC1LA Lt. Al. 20A 120/277VAC, Single Pole
Catalog
Number Color Description/Rating
❒ CS15AC3I Ivory 15A 120/277VAC, 3-Way
❒ CS15AC3W White 15A 120/277VAC, 3-Way
❒ CS15AC3 Brown 15A 120/277VAC, 3-Way
❒ CS15AC3GRY Gray 15A 120/277VAC, 3-Way
❒ CS15AC3BK Black 15A 120/277VAC, 3-Way
❒ CS15AC3LA Lt. Al. 15A 120/277VAC, 3-Way
❒ CS20AC3I Ivory 20A 120/277VAC, 3-Way
❒ CS20AC3W White 20A 120/277VAC, 3-Way
❒ CS20AC3 Brown 20A 120/277VAC, 3-Way
❒ CS20AC3GRY Gray 20A 120/277VAC, 3-Way
❒ CS20AC3LA Lt. Al. 20A 120/277VAC, 3-Way
For double pole and 4-Way switches refer to CSB version on Page U-27.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 277VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current 277VAC
Endurance 50,000 cycles minimum, resistive, inductive, tungsten filament
lamp load (Fed Spec)
Mechanical
Terminal Accommodations #14 AWG – #10 AWG
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Glass-Reinforced Nylon
Front Body Nylon
Toggle Thermoplastic Polycarbonate
Terminals Brass
Terminal Screws Tri-Drive Brass-Plated Steel
Mounting Strap Zinc-Plated Steel
Contacts Silver Cadmium Oxide
Spring Arm Brass
Bumper Rubber
Spring Zinc-Plated Steel
Ground Terminal Brass
Ground Screw Tri-Drive Zinc-Plated Steel
15 & 20 Amp
Project
Location/Type
U-29

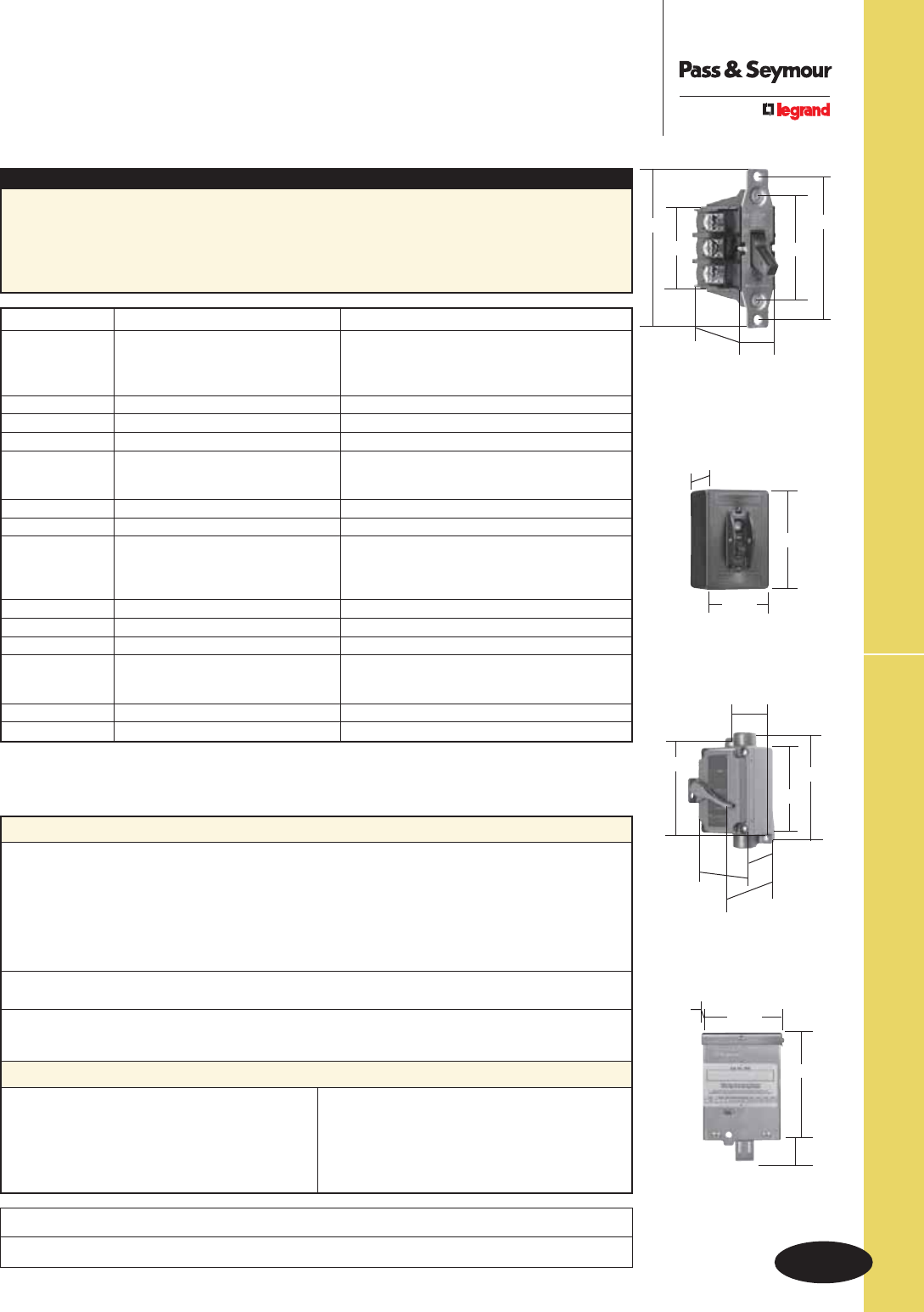

Technical Specifications Manual Controller Switches
Performance
Electrical
Dielectric Withstand Voltage 2000V Minimum
Maximum Working Voltage 600VAC
Overload 50 cycles, 132 Amps/600VAC .5 PF
Temperature Rise 50°C maximum
Maximum Continuous Current 30A
Endurance 1000 Cycles, 44Amp/600VAC 0.5 PF
5000 Cycles, 30Amp/600VAC 0.75 PF
Mechanical
Terminal Accommodations #14 AWG – #10 AWG copper or copper-clad wire
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C
Materials
Back Body Nylon
Front Body Nylon
Carrier Nylon
Toggle Nylon
Contact Arm Brass
Terminals Brass
Terminal Screws Brass
Leaf Springs Stainless Steel
Coil Springs Zinc-Plated Steel
Strap Zinc-Plated Steel
Rivets Brass
Contacts Silver Cadmium Oxide
7802
7803
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
7812EX
7813EX
2.250"
5.250" 5.875"
4.625"
4.250"
3.375"
3.000"
7812P
7813P
3.910"
2.825"
2.80"
Technical Specifications
Manual Controller Switches
30A, 600VAC, 1ø & 3ø
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 7802
Description: Manual Controller, Double Pole, Single Phase
Rating: 30A, 600VAC max.
3rd Party Compliance: UL Listed, File Number E31169, Standard UL508, Industrial Control Equipment;
CSA Certified, File Number LR17949, Standard CSA-C22.23, No. 14, Industrial
Control Equipment. Conforms to NEMA WD-1 and WD-6.
Project
Location/Type
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000 rms
amperes at 600VAC maximum or equivalent.
Footnote 1. Suitable as Motor Disconnect – 10KA @ 600VAC, 30A max. Class J Fuse
Catalog Number Rating Description
❒
7802 General Use 2 120 Double Pole, Single Phase AC
30 600Max. 3 240 Manual Motor Starting Switch
7.5 480 (No overload protection)
10 600
❒
7802MD Same as 7802 7802, See Footnote 1
❒
7812P Same as 7802 7802 in a NEMA 1 Enclosure
❒
7812PMD Same as 7802 7812P, See Footnote 1
❒
7812EX Same as 7802 7802 in a NEMA 7 & 9 Enclosure for
Hazardous Locations Class I – Groups C, D;
Class II – Groups E, F, G
❒
7832 Same as 7802 7802 in a NEMA 3R Enclosure
❒
7832MD Same as 7802 7832, See Footnote 1
❒
7803 General Use 3 120 Three Phase, Three Pole AC
30 600Max. 7.5 240 Manual Motor Starting Switch
10 480 (No overload protection)
20 600
❒
7803MD Same as 7803 7803, See Footnote 1
❒
7813P Same as 7803 7803 in a NEMA 1 Enclosure
❒
7813PMD Same as 7803 7813P , See Footnote 1
❒
7813EX Same as 7803 7803 in a NEMA 7 & 9 Enclosure for
Hazardous Locations Class I – Groups C, D;
Class II – Groups E, F, G
❒
7833 Same as 7803 7803 in a NEMA 3R Enclosure
❒
7833MD Same as 7803 7803, See Footnote 1
5.75"
1.80"
4.50"
3.25"
7832
7833
U-30
Technical SpecificationsManual Controller Switches

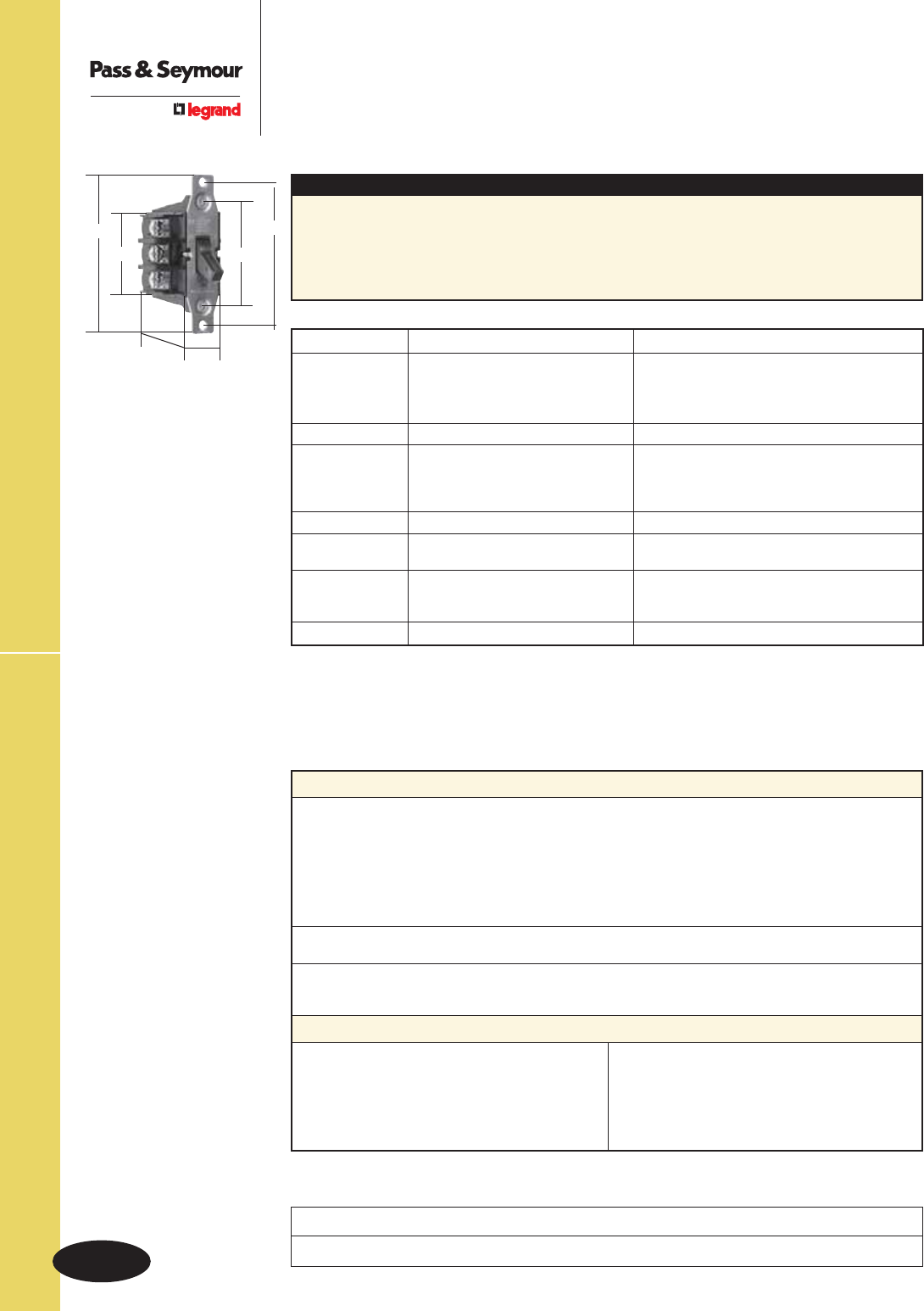

Technical Specifications
Manual Controller Switches
40A, 600VAC, 1ø & 3ø
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 7842
Description: Manual Controller, Double Pole, Single Phase
Rating: 40A, 600VAC max.
3rd Party Compliance: UL Listed, File Number E31169, Standard UL508, Industrial Control Equipment;
CSA Certified, File Number LR17949, Standard CSA-C22.23, No. 14, Industrial
Control Equipment. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2000V Minimum
Maximum Working Voltage 600VAC
Overload 50 cycles, 132 Amps/600VAC .5 PF
Temperature Rise 50°C maximum
Maximum Continuous Current 30A
Endurance 1000 Cycles, 44Amp/600VAC 0.5 PF
5000 Cycles, 30Amp/600VAC 0.75 PF
Mechanical
Terminal Accommodations #14 AWG – #10 AWG copper or copper-clad wire
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C
Materials
Back Body Nylon
Front Body Nylon
Carrier Nylon
Toggle Nylon
Contact Arm Brass
Terminals Brass
Terminal Screws Brass
Leaf Springs Stainless Steel
Coil Springs Zinc-Plated Steel
Strap Zinc-Plated Steel
Rivets Brass
Contacts Silver Cadmium Oxide
7842
7843
2.375"
2.155"
3.280"
1.825"
3.67"
1.753"
Catalog Number Rating Description
❒
7842 General Use 2 120 Double Pole, Single Phase AC
40 600Max. 5 240 Manual Motor Starting Switch
10 480 (No overload protection)
15 600
❒
7842MD Same as 7842 7842, See Footnote 2
❒
7843 General Use 3 120 Three Phase, Three Pole AC
40 600Max. 7.5 240 Manual Motor Starting Switch
15 480 (No overload protection)
20 600
❒
7843MD Same as 7843 7843, See Footnote 2
❒
7801P Handle Locking Guard has opening for padlock
to secure control in either ON or OFF position.
❒
7806P NEMA 1 Black Nylon Enclosure has
baked-on gray enamel finish with 1/2"
and 3/4" knockouts at each end.
❒
7830 NEMA 3R Aluminum Enclosure
All Industrial Control Equipment is suitable for use in a circuit capable of deliverable not more than 5,000 rms
amperes at 600VAC maximum or equivalent.
Footnote:
2. Suitable as Motor Disconnect – 10KA @ 600VAC, 60A max. Class J Fuse or
100A max. Ferraz Shawmut HSJ Fuse
Project
Location/Type
U-31
Technical Specifications
Project
Location/Type
Spec Grade Decorator Switches
Technical Specifications
Specification Grade Decorator Switches
15 & 20A, 120/277VAC; 20A, 120VAC
2601
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
2625, 2626, 2629
2.620"
4.200"
1.060"
3.281"
3.812"
1.300"
Catalog
Number Color Description/Rating
❒ 2601I Ivory 15A 120/277VAC, Single Pole
❒ 2601W White 15A 120/277VAC, Single Pole
❒ 2601GRY Gray 15A 120/277VAC, Single Pole
❒ 2601BK Black 15A 120/277VAC, Single Pole
❒ 2601LA Lt. Al. 15A 120/277VAC, Single Pole
❒ 2621I Ivory 20A 120/277VAC, Single Pole
❒ 2621W White 20A 120/277VAC, Single Pole
❒ 2621 Brown 20A 120/277VAC, Single Pole
❒ 2621GRY Gray 20A 120/277VAC, Single Pole
❒ 2621BK Black 20A 120/277VAC, Single Pole
❒ 2621RED Red 20A 120/277VAC, Single Pole
❒ 2621LA Lt. Al. 20A 120/277VAC, Single Pole
❒ 2622I Ivory 20A 120/277VAC, Double Pole
❒ 2622W White 20A 120/277VAC, Double Pole
❒ 2622 Brown 20A 120/277VAC, Double Pole
❒ 2622GRY Gray 20A 120/277VAC, Double Pole
❒ 2622BK Black 20A 120/277VAC, Double Pole
❒ 2622LA Lt. Al. 20A 120/277VAC, Double Pole
❒ 2603I Ivory 15A 120/277VAC, 3-Way
❒ 2603W White 15A 120/277VAC, 3-Way
❒ 2603GRY Gray 15A 120/277VAC, 3-Way
❒ 2603BK Black 15A 120/277VAC, 3-Way
❒ 2603LA Lt. Al. 15A 120/277VAC, 3-Way
❒ 2623I Ivory 20A 120/277VAC, 3-Way
❒ 2623W White 20A 120/277VAC, 3-Way
❒ 2623 Brown 20A 120/277VAC, 3-Way
❒ 2623GRY Gray 20A 120/277VAC, 3-Way
❒ 2623BK Black 20A 120/277VAC, 3-Way
Catalog
Number Color Description/Rating
❒ 2623RED Red 20A 120/277VAC, 3-Way
❒ 2623LA Lt. Al. 20A 120/277VAC, 3-Way
❒ 2604I Ivory 15A 120/277VAC, 4-Way
❒ 2604W White 15A 120/277VAC, 4-Way
❒ 2604LA Lt. Al. 15A 120/277VAC, 4-Way
❒ 2624I Ivory 20A 120/277VAC, 4-Way
❒ 2624W White 20A 120/277VAC, 4-Way
❒ 2624 Brown 20A 120/277VAC, 4-Way
❒ 2624GRY Gray 20A 120/277VAC, 4-Way
❒ 2624BK Black 20A 120/277VAC, 4-Way
❒ 2624RED Red 20A 120/277VAC, 4-Way
❒ 2624LA Lt. Al. 20A 120/277VAC, 4-Way
Illuminated*
❒ 2625I Ivory 20A 120VAC, Single Pole
❒ 2625W White 20A 120VAC, Single Pole
❒ 2625 Brown 20A 120VAC, Single Pole
❒ 2625LA Lt. Al. 20A 120VAC, Single Pole
❒ 2626I Ivory 20A 120VAC, 3-Way
❒ 2626W White 20A 120VAC, 3-Way
❒ 2626LA Lt. Al. 20A 120VAC, 3-Way
❒ 2628I Ivory 20A 120VAC, 4-Way
❒ 2628W White 20A 120VAC, 4-Way
❒ 2628LA Lt. Al. 20A 120VAC, 4-Way
Pilot Lighted
❒ 2629I Ivory 20A 120VAC, Single Pole
❒ 2629W White 20A 120VAC, Single Pole
❒ 2629LA Lt. Al. 20A 120VAC, Single Pole
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 2601
Description: Specification Grade Decorator Switch, Back & Side Wire
Rating: 15A, 120/277VAC
3rd Party Compliance: UL Listed, File Number E140597, Standard UL20, General Use Snap Switches,
CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111, General
Use Snap Switches. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 1500V Minimum
Maximum Working Voltage 277VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current 277VAC
Endurance 50,000 cycles minimum, resistive, inductive, tungsten filament
lamp load
Mechanical
Terminal Accommodation #14 AWG – #10 AWG
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Polycarbonate
Frame Polycarbonate
Paddle Thermoplastic
Terminals Brass
Terminal Screws Tri-Drive Brass-Plated Steel
Strap Steel
Pressure Plate Steel
Contacts Silver Cadmium Oxide
Spring Arm Brass
Bumper Rubber
Spring Zinc-Plated Steel
Ground Terminal Brass
Ground Screw Tri-Drive Zinc-Plated Steel
Illuminating Lamp* Neon
Lens* Polycarbonate *For Illuminated versions.
May not be compatible
with some fluorescent
lighting loads.
U-32

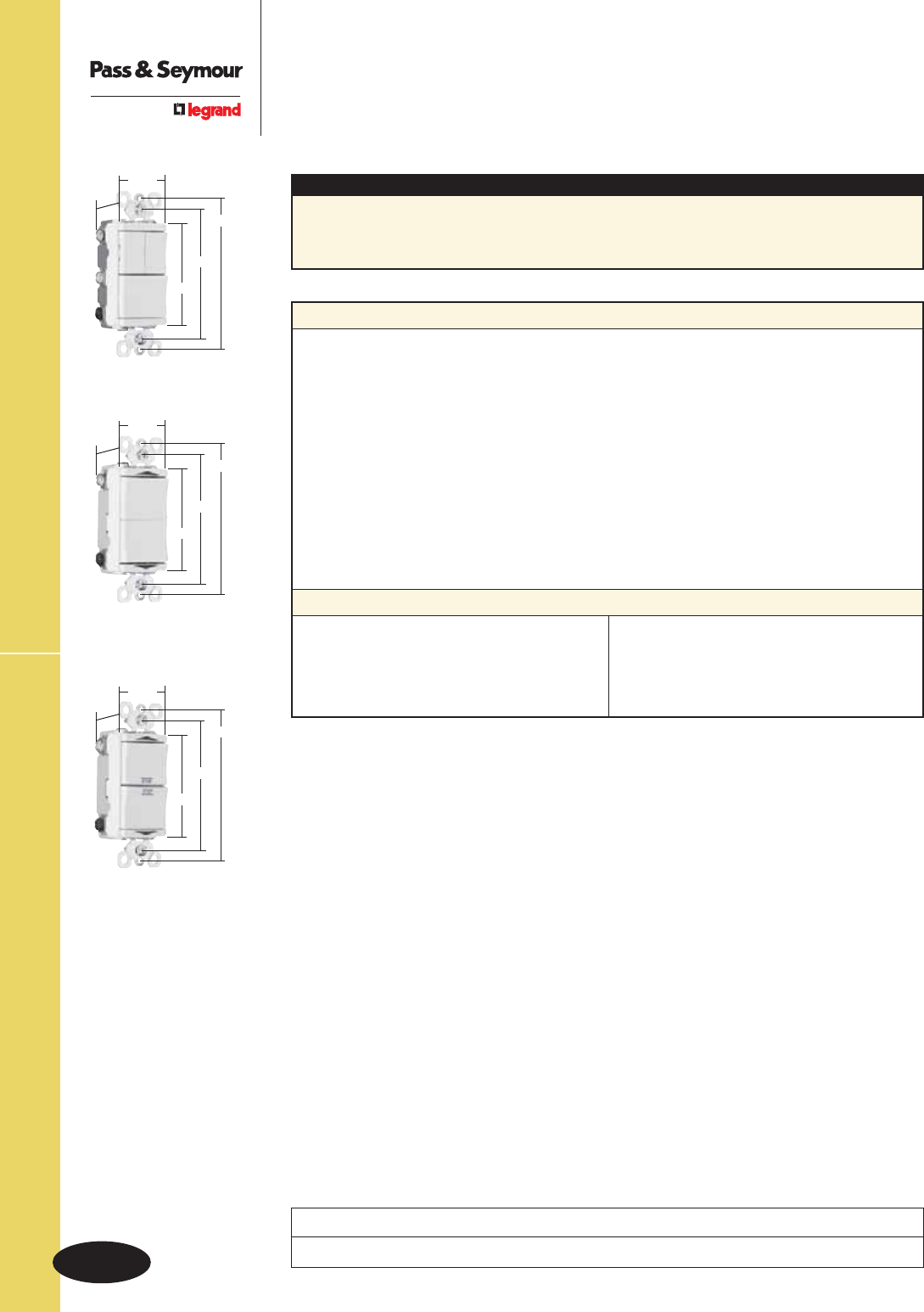

Technical SpecificationsSpec Grade Combination Switches
Technical Specifications
Specification Grade Combination Switches
15 & 20A, 120 & 277VAC
Momentary
Contact
Maintained
Contact
1.29"
1.59"
2.60"
3.281"
3.812"
1.29"
1.59"
2.60"
3.281"
3.812"
15 & 20 Amp
1.29"
1.59"
2.60"
3.281"
3.812"
Typical Specications
3rd Party Compliance: PS811-20, PS8111-20, TM811-DTMA: cULus Listed, File Number E140597,
Standard UL20, General Use Snap Switches.
TM811-DTMO: cULus Listed, File Number E31169, UL508, Industrial Control.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Maximum Amperage per Circuit PS811-20 and PS8111-20 = 20A
Maximum Amperage per Device PS811-20 = 30A, PS8111-20 = 35A
Dielectric Withstand Voltage 1500V Minimum
Maximum Working Voltage PS811-20 and PS8111-20 = 277VAC
TM811-DTMO and TM811-DTMA = 120VAC
Overload Minimum 4.8 times rated current for 100 cycles
Temperature Rise 30°C maximum at rated current
Maximum Continuous Current PS811-20 and PS8111-20 = 277VAC
TM811-DTMO and TM811-DTMA = 120VAC
Mechanical
Terminal Accommodation #14 AWG – #10 AWG
Product Identification Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C
Materials
Back Body Polycarbonate
Frame Polycarbonate
Paddle Thermoplastic
Terminals Brass
Terminal Screws Tri-Drive Brass-Plated Steel
Strap Steel
Pressure Plate Steel
Contacts Silver Cadmium Oxide
Spring Zinc-Plated Steel
Ground Terminal Brass
Ground Screw Tri-Drive Zinc-Plated Steel
Project
Location/Type
U-33
Technical Specifications
Project
Location/Type

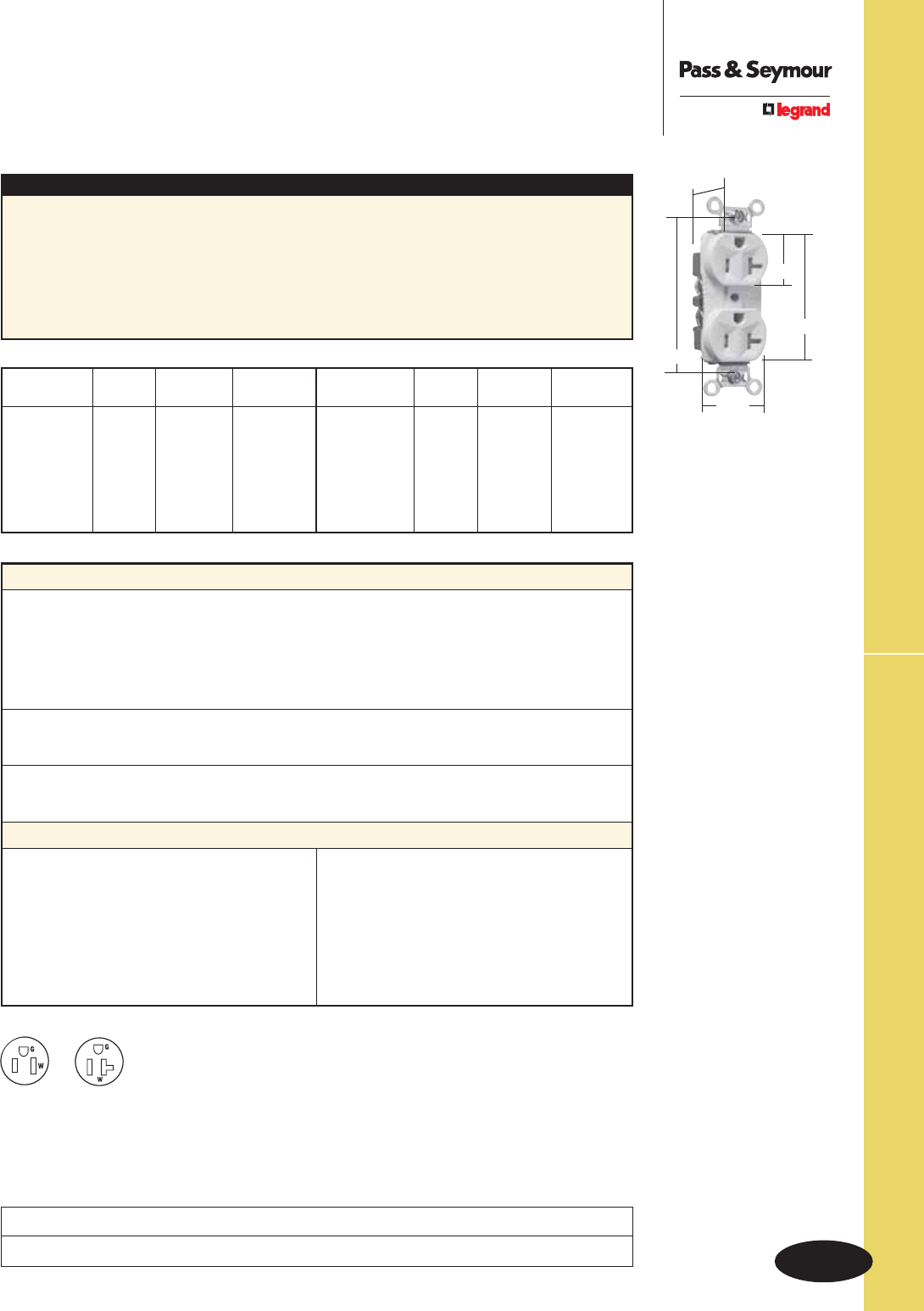

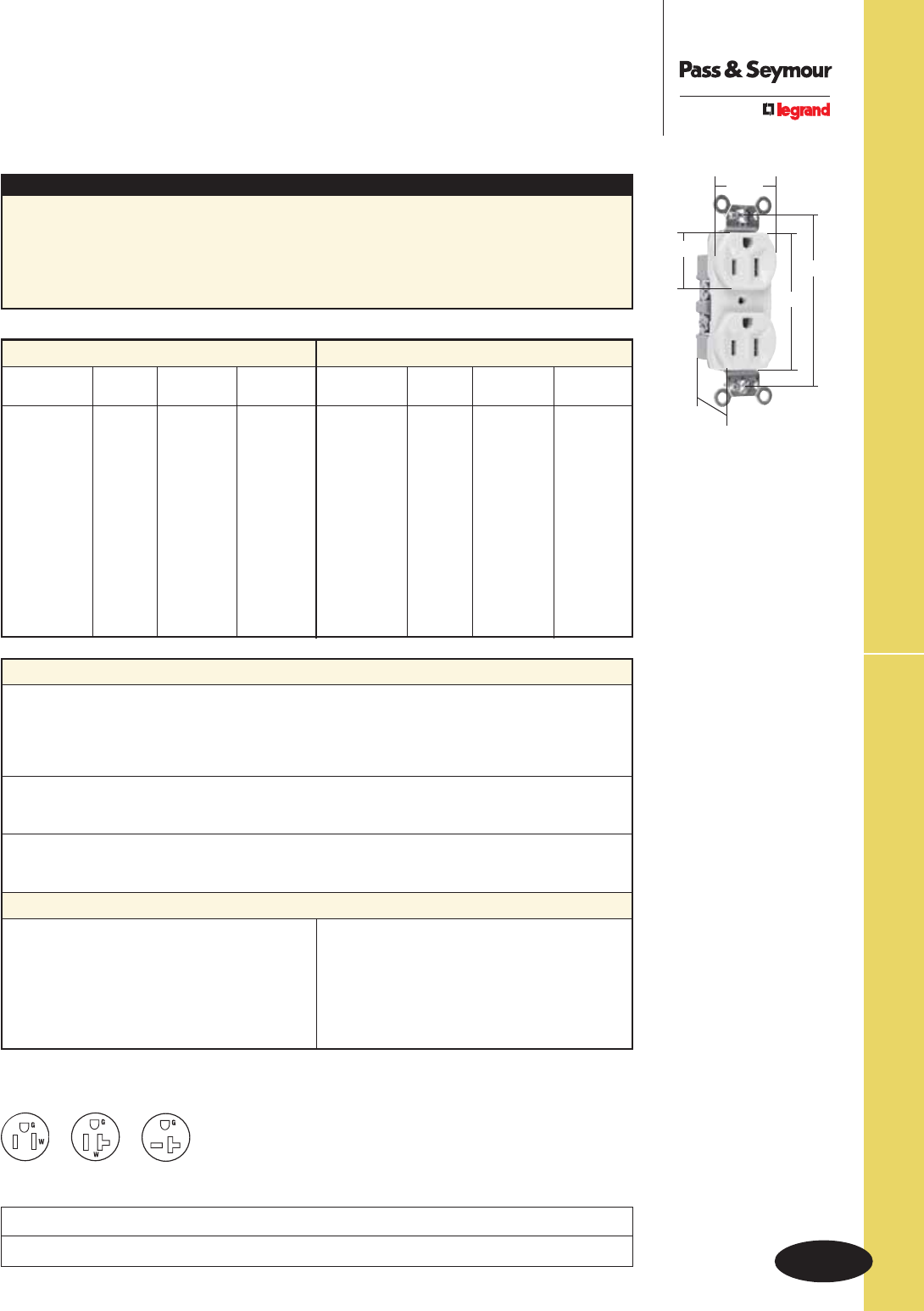

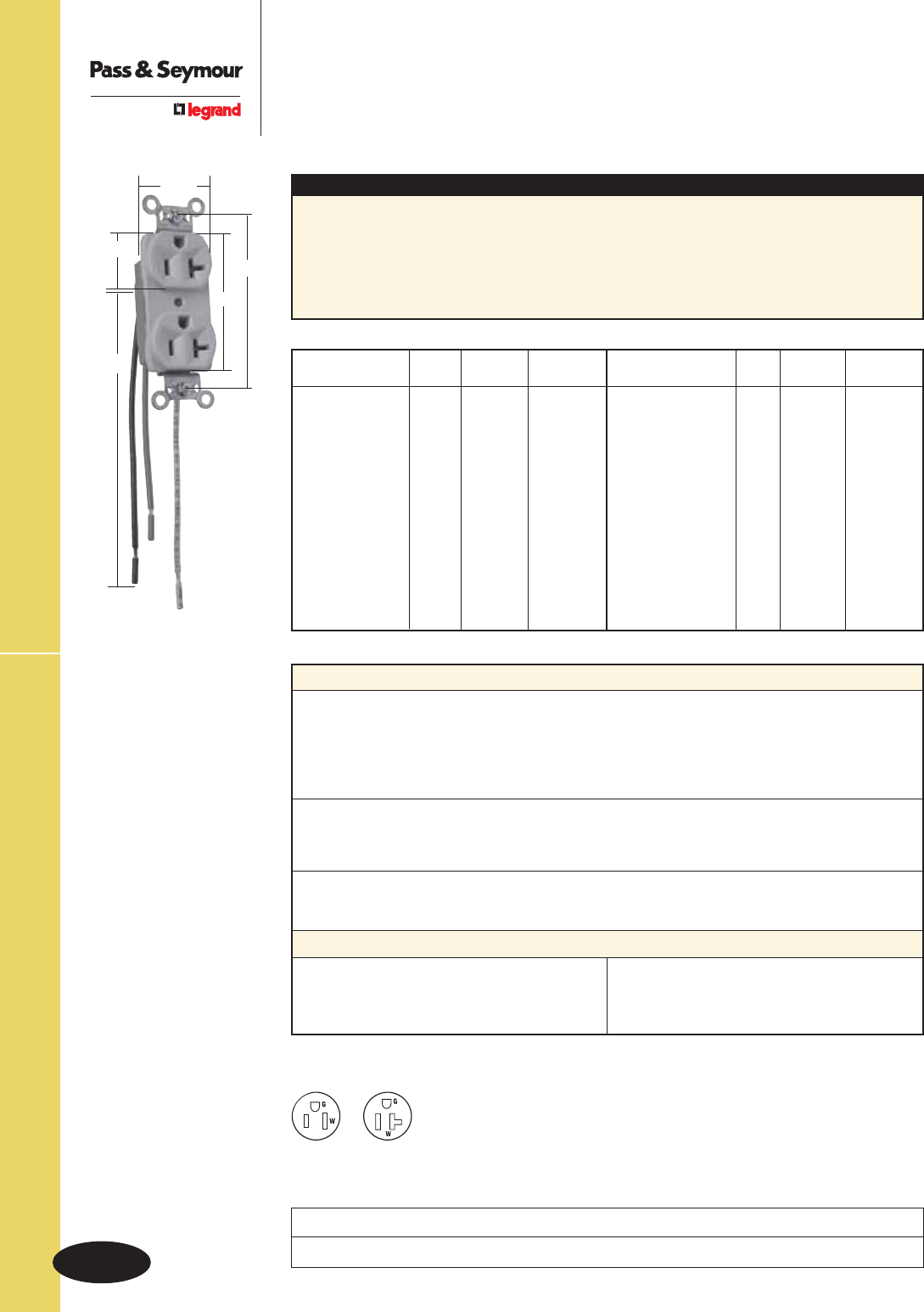

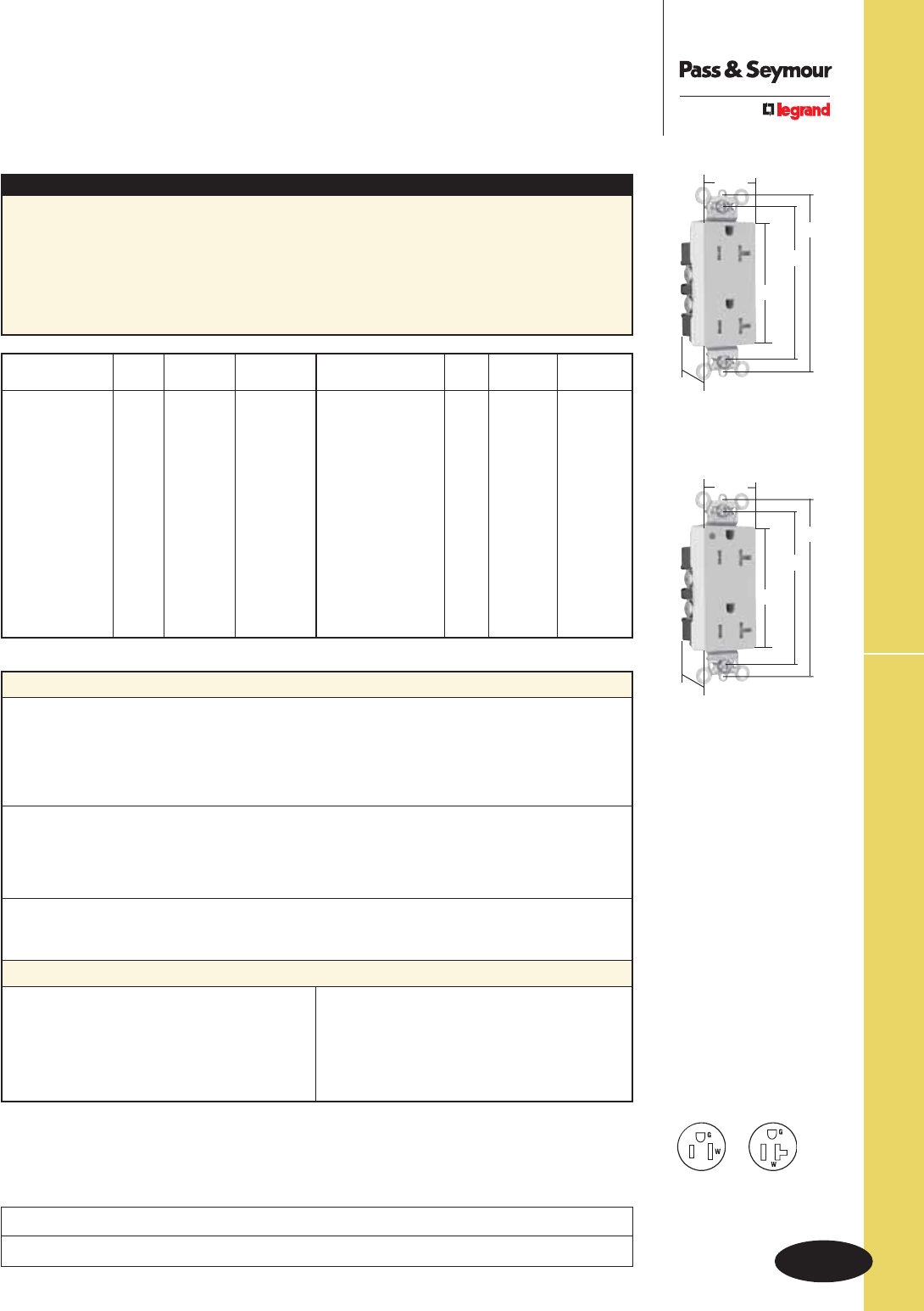

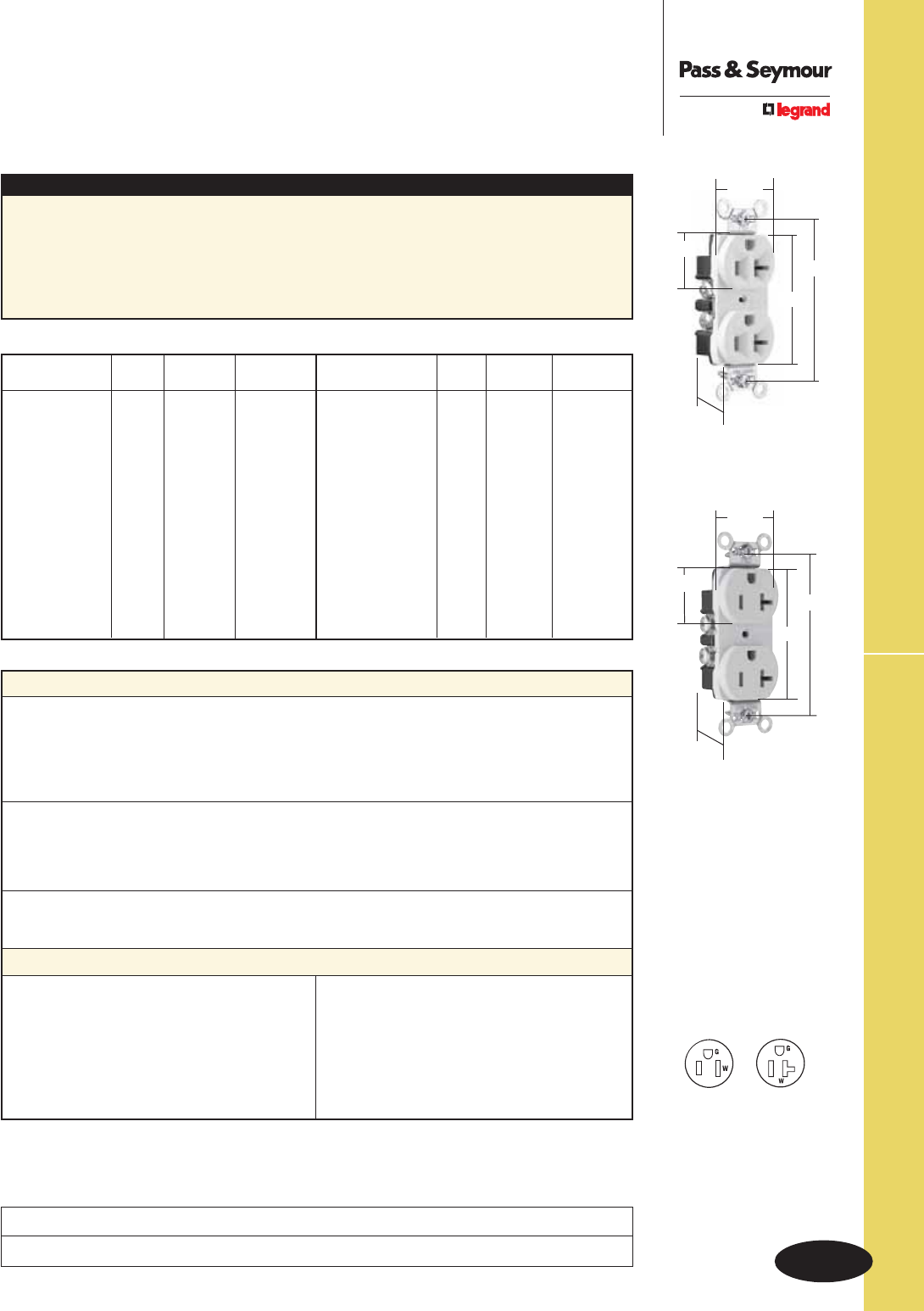

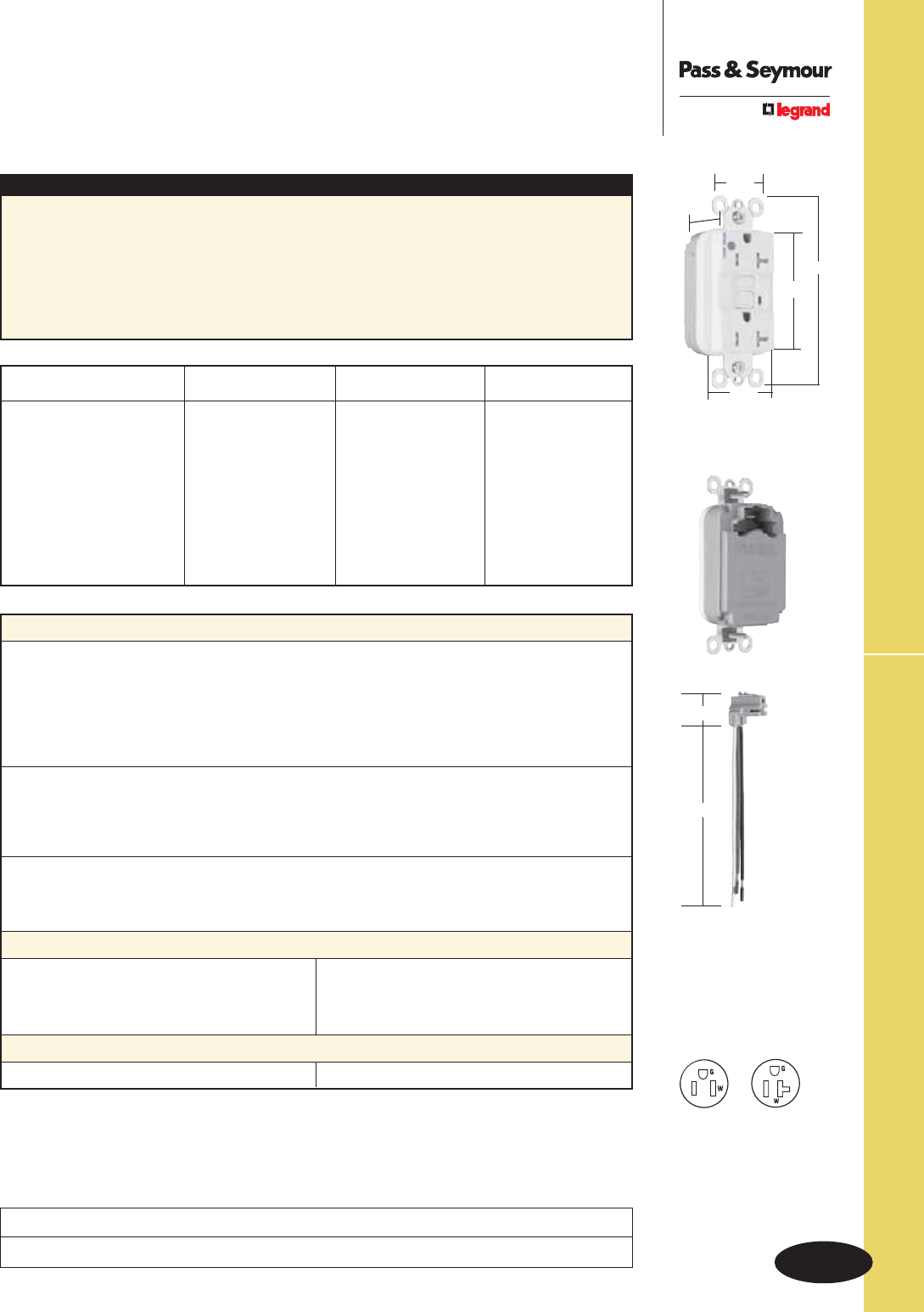

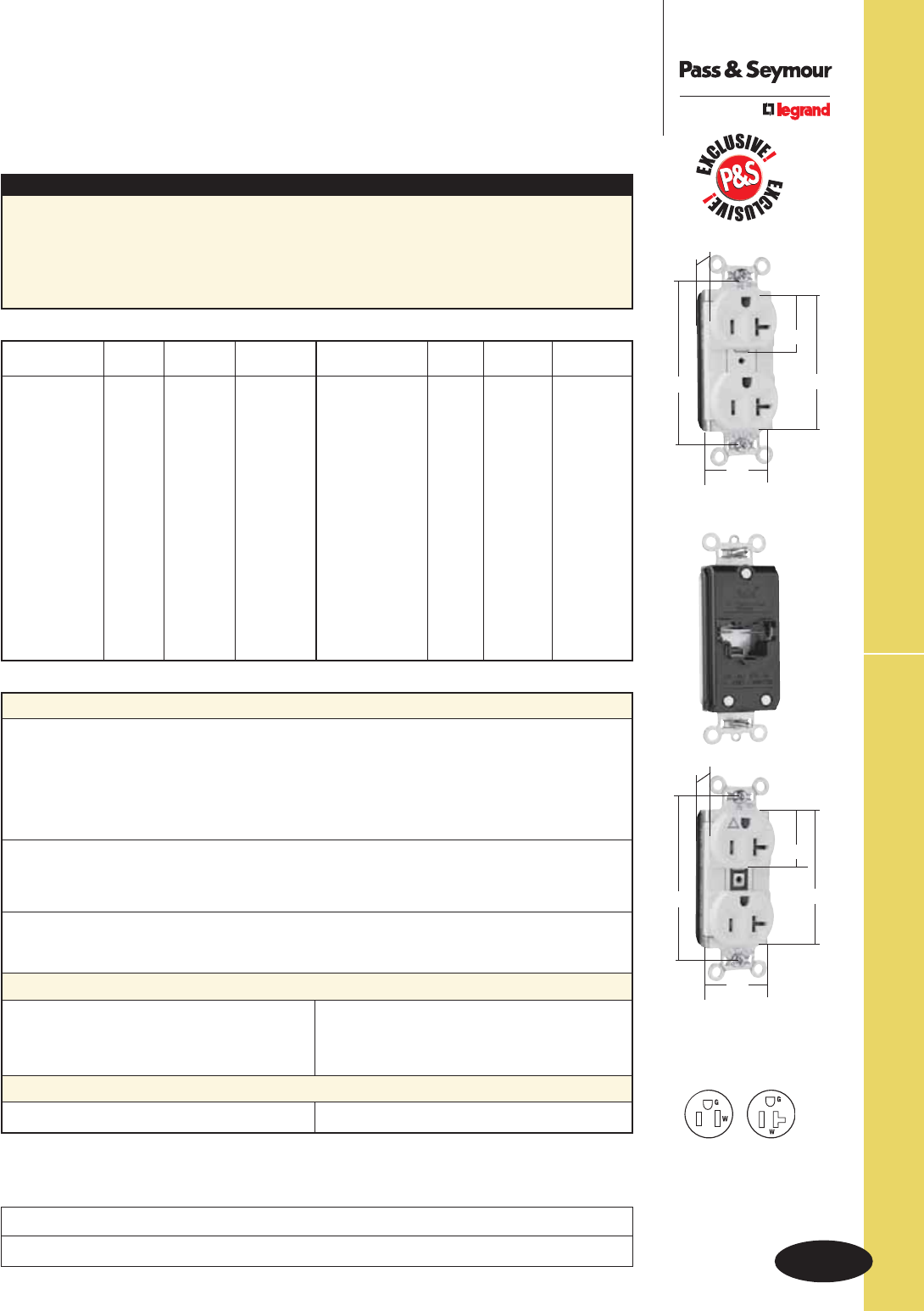

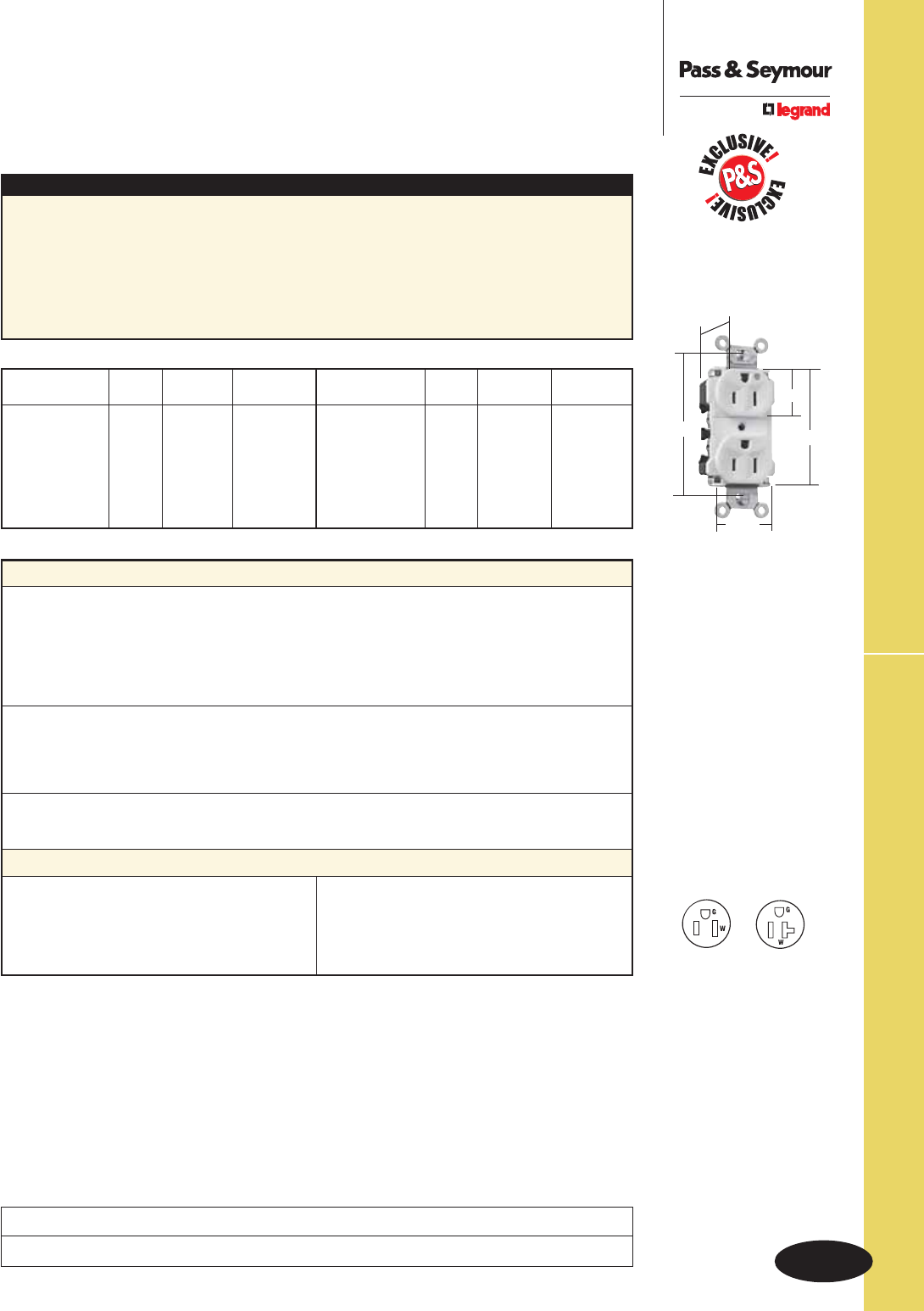

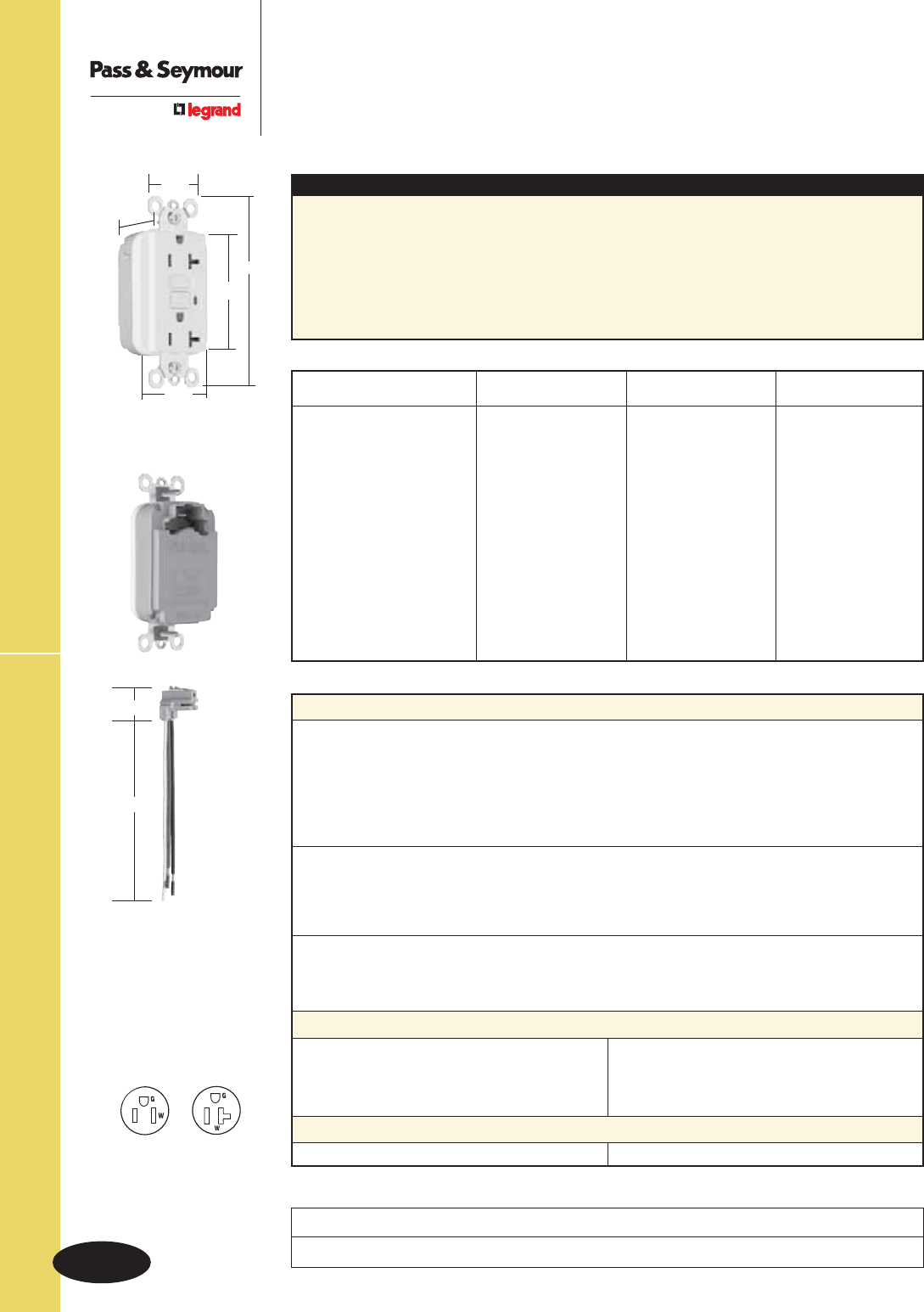

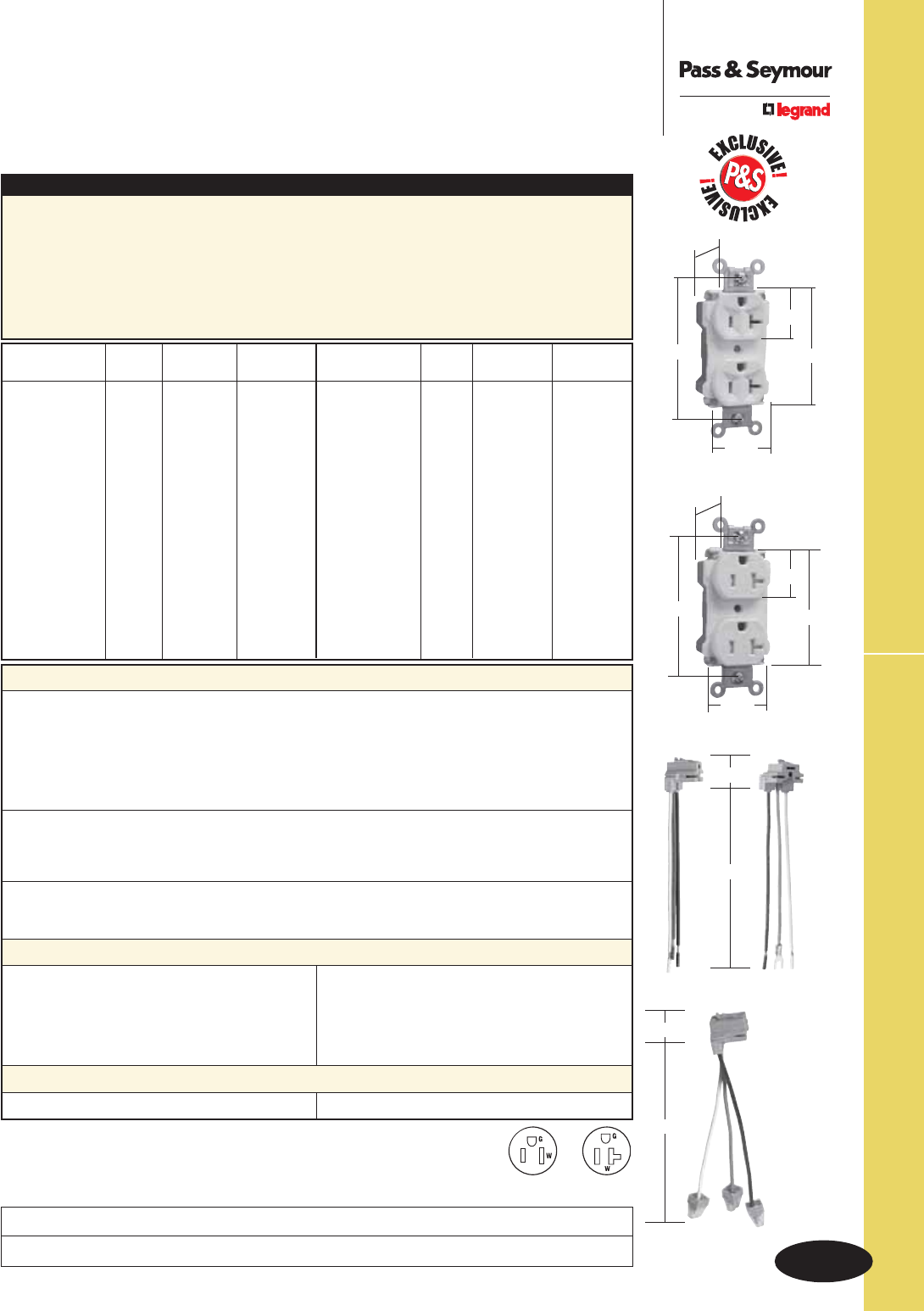

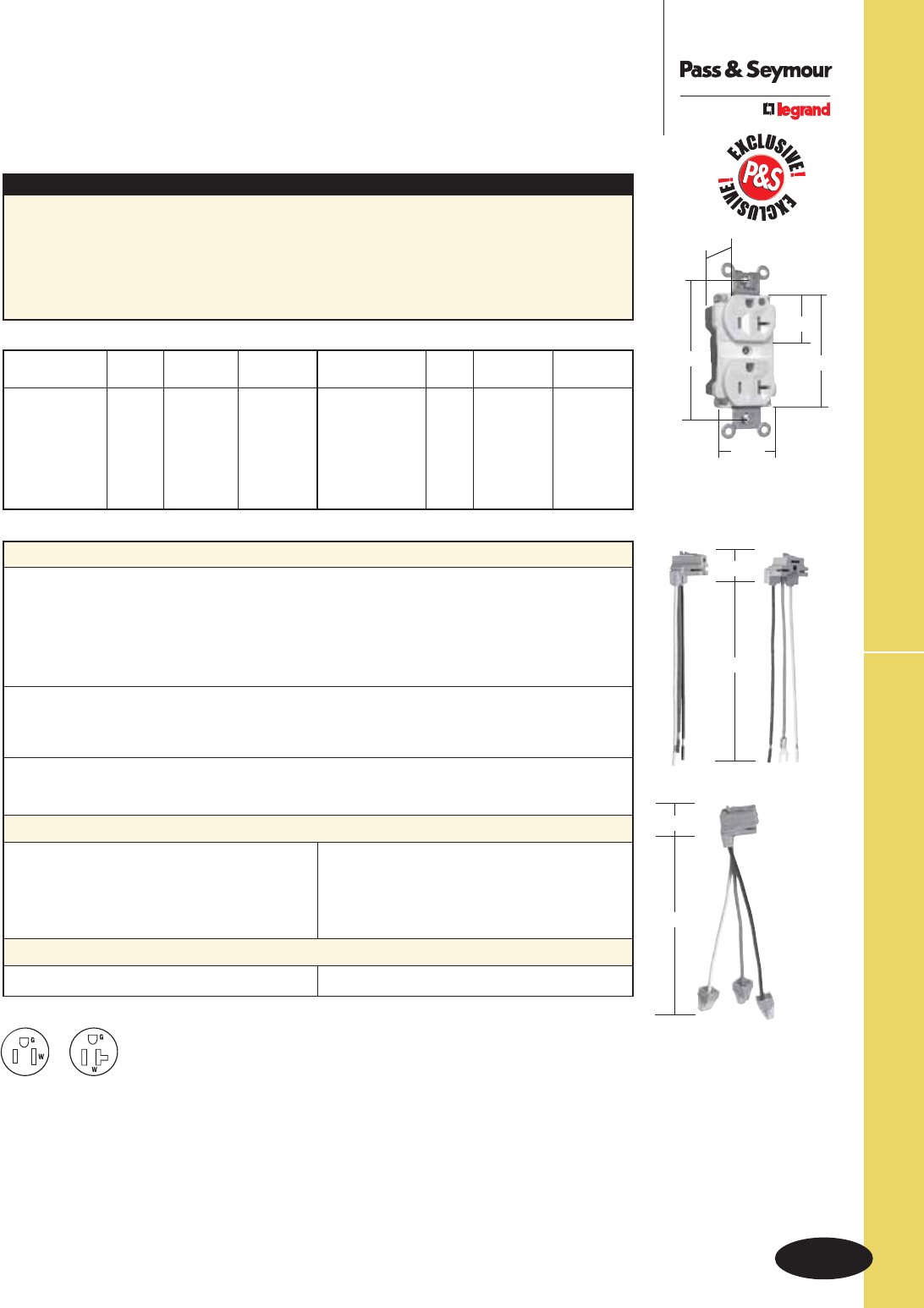

PlugTail™ EHD Specification Grade Receptacles
Technical Specifications
PlugTail™ Extra Heavy-Duty
Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT5262A & PTTR62
Description: PlugTail™ Straight Blade Duplex Receptacle & Tamper-Resistant Duplex Receptacle –
Extra Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal Specification WC596.
Conforms to NEMA WD-1 and WD-6.
*For Tamper-Resistant version.
Consult Straight Blade Section B for complete compliance listing.
Catalog NEMA
Number Color Rating Cong. No.
❒
PT5262AI Ivory 15A 125V 5-15R
❒
PT5262AW White 15A 125V 5-15R
❒
PT5262A Brown 15A 125V 5-15R
❒
PT5262AGRY Gray 15A 125V 5-15R
❒
PT5262ABK Black 15A 125V 5-15R
❒
PT5262ABL Blue 15A 125V 5-15R
❒
PT5262ARED Red 15A 125V 5-15R
❒
PT5262ALA Lt. Al. 15A 125V 5-15R
❒
PT5362AI Ivory 20A 125V 5-20R
❒
PT5362AW White 20A 125V 5-20R
❒
PT5362A Brown 20A 125V 5-20R
❒
PT5362AGRY Gray 20A 125V 5-20R
❒
PT5362ABK Black 20A 125V 5-20R
❒
PT5362ABL Blue 20A 125V 5-20R
❒
PT5362ARED Red 20A 125V 5-20R
❒
PT5362ALA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
PTTR62I Ivory 15A 125V 5-15R
❒
PTTR62W White 15A 125V 5-15R
❒
PTTR62 Brown 15A 125V 5-15R
❒
PTTR62GRY Gray 15A 125V 5-15R
❒
PTTR62BK Black 15A 125V 5-15R
❒
PTTR62BL Blue 15A 125V 5-15R
❒
PTTR62RED Red 15A 125V 5-15R
❒
PTTR62LA Lt. Al. 15A 125V 5-15R
❒
PTTR63I Ivory 20A 125V 5-20R
❒
PTTR63W White 20A 125V 5-20R
❒
PTTR63 Brown 20A 125V 5-20R
❒
PTTR63GRY Gray 20A 125V 5-20R
❒
PTTR63BK Black 20A 125V 5-20R
❒
PTTR63BL Blue 20A 125V 5-20R
❒
PTTR63RED Red 20A 125V 5-20R
❒
PTTR63LA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
PlugTail Connectors Identification #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 260 Brass
Tamper Shutter* Thermoplastic
Integral Ground System .036 260 Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
Housing Polycarbonate Contacts 036 688 Brass
NEMA
5-15R
NEMA
5-20R

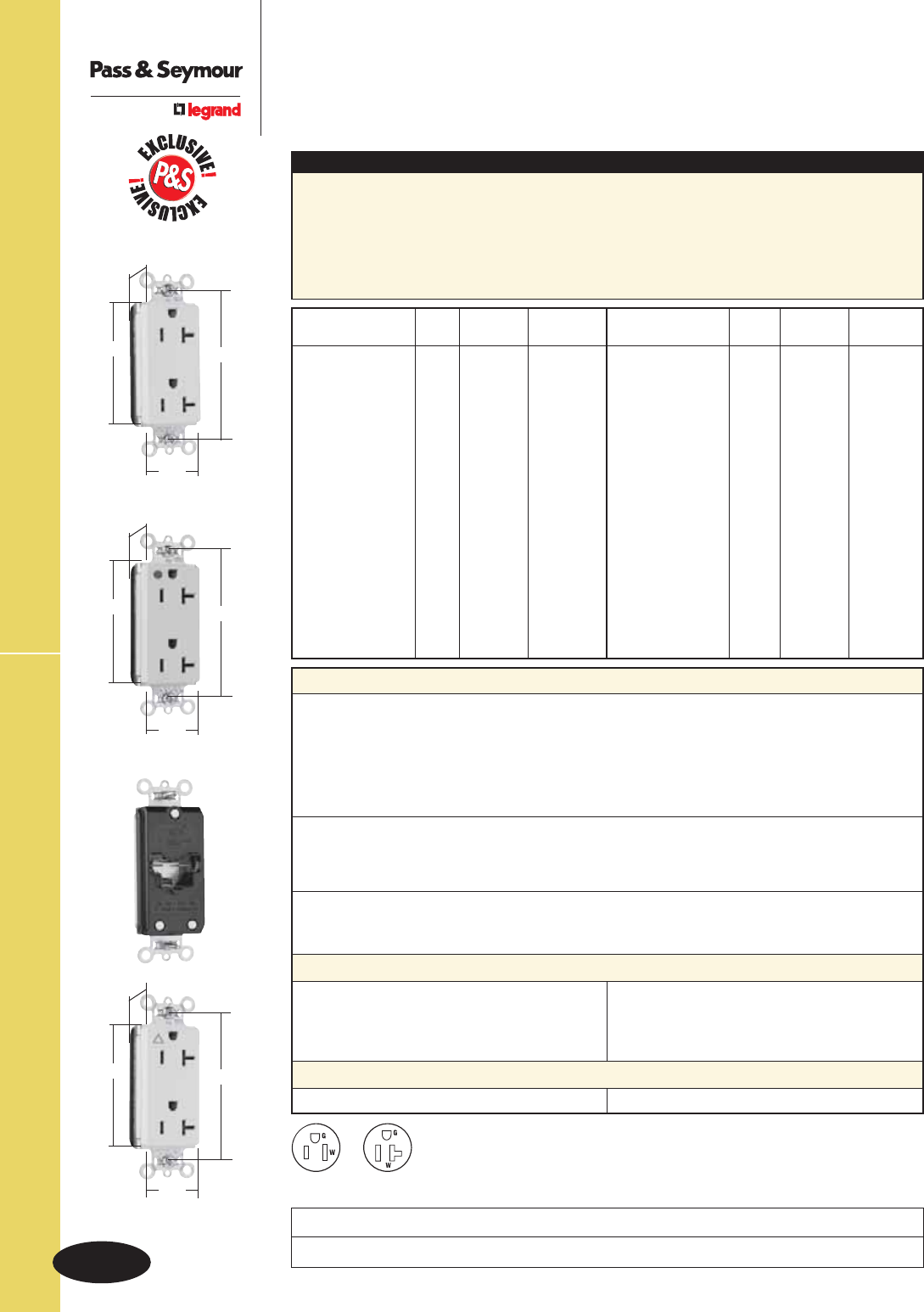

PT5362AW
.866"
3.281"
1.625"
1.104"
2.750"
PTTR63W
.866"
3.281"
1.625"
1.104"
2.750"
1.125"
6.375"
PTRA6STR
PTRA6STRBP
PTRA6STRG
1.125"
6.375"
U-34
Technical Specifications

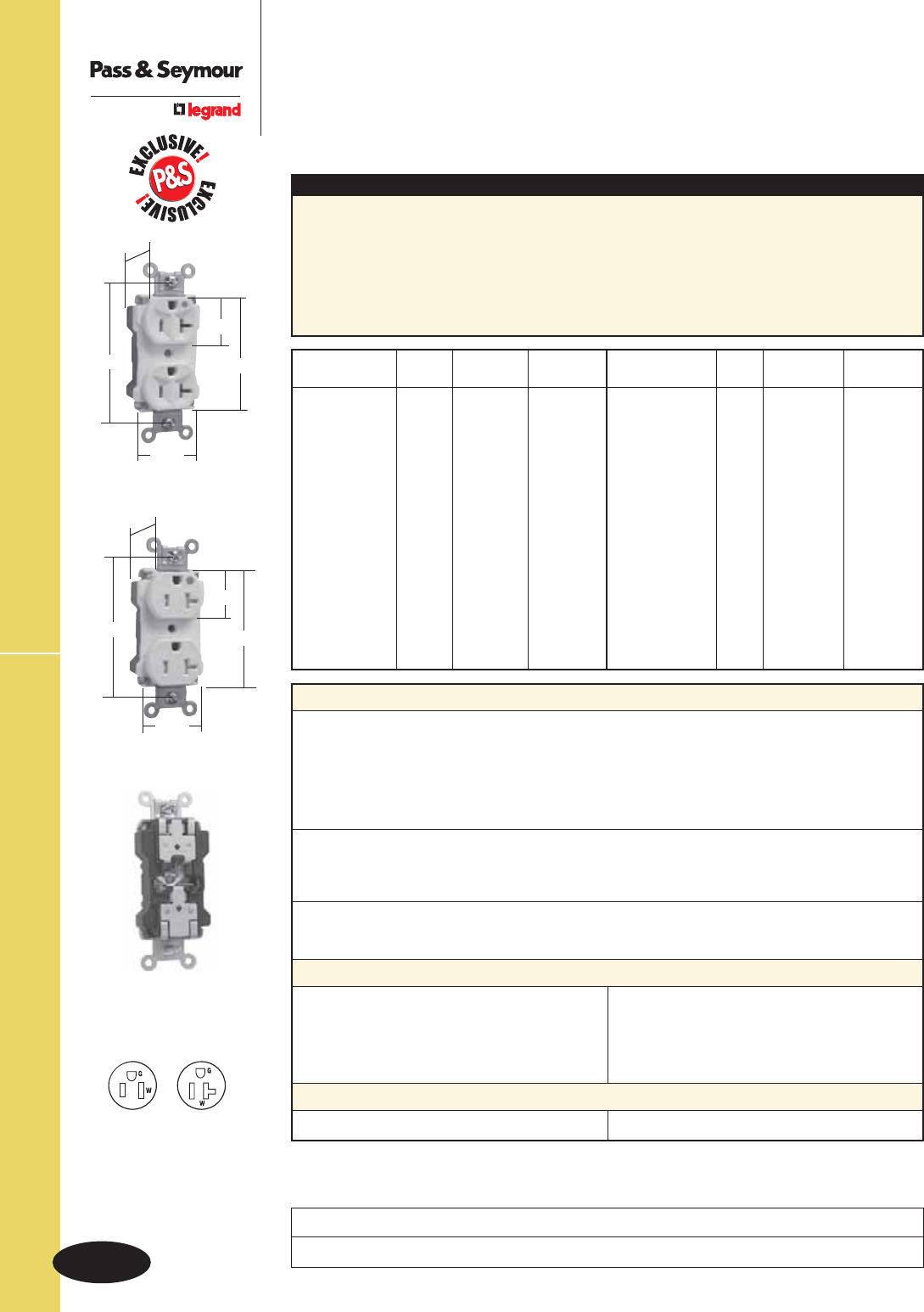

PlugTail™ EHD Hospital Grade Receptacles
Technical Specifications
PlugTail™ Extra Heavy-Duty
Hospital Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT8200 & PTTR62H
Description: PlugTail™ Straight Blade Duplex Receptacle & Tamper-Resistant Duplex Receptacle –
Extra Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal
Specification WC596, Hospital Grade. Conforms to NEMA WD-1 and WD-6.
*For Tamper-Resistant version.
Consult Straight Blade Section B and Hospital Grade Section F for complete compliance listing.
Catalog NEMA
Number Color Rating Cong. No.
❒ PT8200I Ivory 15A 125V 5-15R
❒ PT8200W White 15A 125V 5-15R
❒ PT8200 Brown 15A 125V 5-15R
❒ PT8200GRY Gray 15A 125V 5-15R
❒ PT8200BK Black 15A 125V 5-15R
❒ PT8200BL Blue 15A 125V 5-15R
❒ PT8200RED Red 15A 125V 5-15R
❒ PT8200LA Lt. Al. 15A 125V 5-15R
❒ PT8300I Ivory 20A 125V 5-20R
❒ PT8300W White 20A 125V 5-20R
❒ PT8300 Brown 20A 125V 5-20R
❒ PT8300GRY Gray 20A 125V 5-20R
❒ PT8300BK Black 20A 125V 5-20R
❒ PT8300BL Blue 20A 125V 5-20R
❒ PT8300RED Red 20A 125V 5-20R
❒ PT8300LA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ PTTR62HI Ivory 15A 125V 5-15R
❒ PTTR62HW White 15A 125V 5-15R
❒ PTTR62H Brown 15A 125V 5-15R
❒ PTTR62HGRY Gray 15A 125V 5-15R
❒ PTTR62HBK Black 15A 125V 5-15R
❒ PTTR62HBL Blue 15A 125V 5-15R
❒ PTTR62HRED Red 15A 125V 5-15R
❒ PTTR62HLA Lt. Al. 15A 125V 5-15R
❒ PTTR63HI Ivory 20A 125V 5-20R
❒ PTTR63HW White 20A 125V 5-20R
❒ PTTR63H Brown 20A 125V 5-20R
❒ PTTR63HGRY Gray 20A 125V 5-20R
❒ PTTR63HBK Black 20A 125V 5-20R
❒ PTTR63HBL Blue 20A 125V 5-20R
❒ PTTR63HRED Red 20A 125V 5-20R
❒ PTTR63HLA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
PlugTail Connectors Identification #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 260 Brass
Tamper Shutter* Thermoplastic
Integral Ground System .036 260 Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
Housing Polycarbonate Contacts .036 688 Brass
NEMA
5-15R
NEMA
5-20R
PTTR63HW
.866"
3.281"
1.625"
1.104"
2.750"
PT8300W
.866"
3.281"
1.625"
1.104"
2.750"
Project
Location/Type
U-35
Technical Specifications

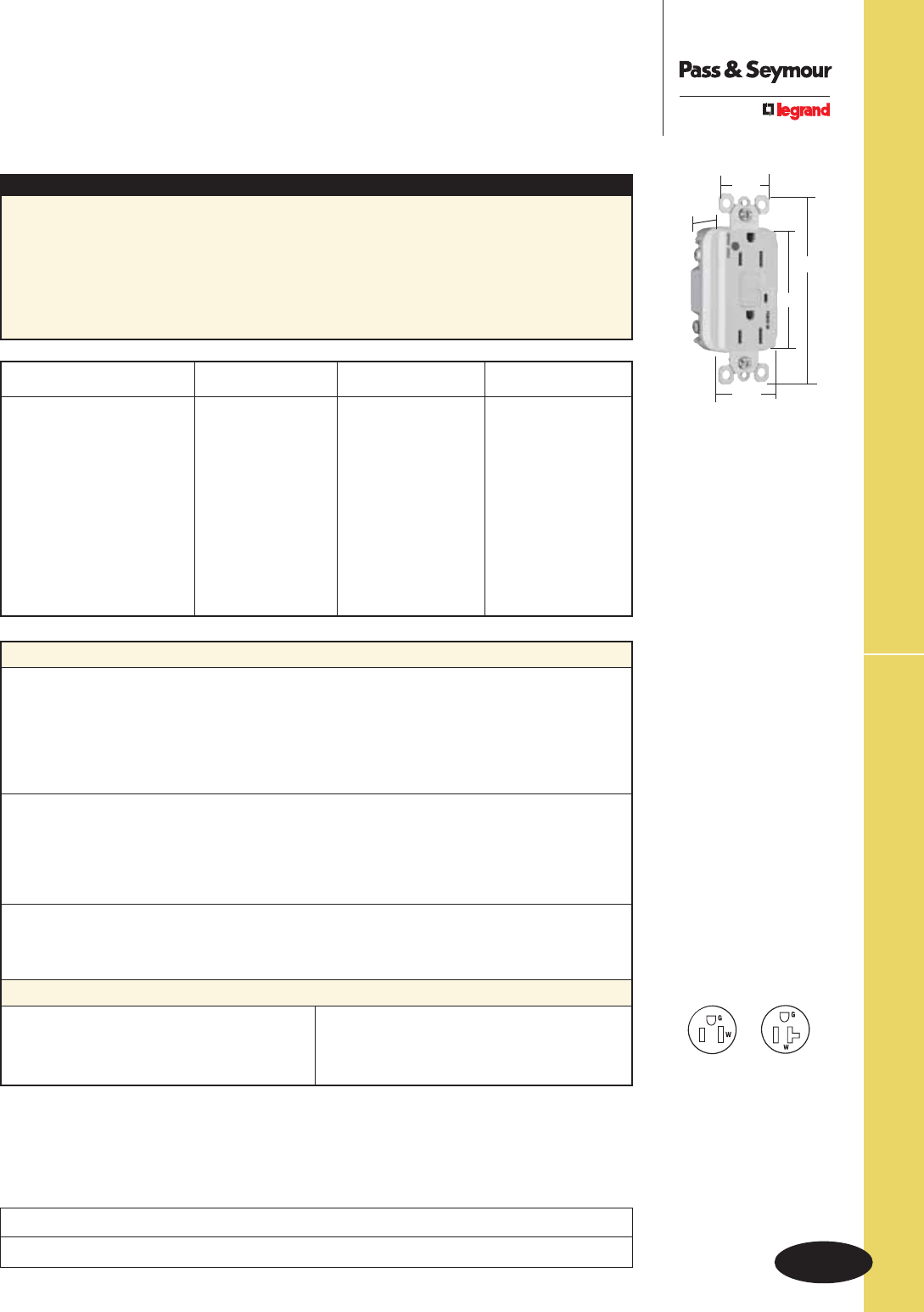

PlugTail™ EHD Hospital Grade Receptacles
Technical Specifications
PlugTail™ Extra Heavy-Duty
Hospital Grade Illuminated Receptacles
15 & 20A, 125V
PT8300ILLA
.866"
3.281"
1.625"
1.104"
2.750"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT8200IL
Description: PlugTail™ Straight Blade Illuminated Duplex Receptacle – Extra Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498, Federal
Specification WC596, Hospital Grade. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ PT8200ILI Ivory 15A 125V 5-15R
❒ PT8200ILW White 15A 125V 5-15R
❒ PT8200ILGRY Gray 15A 125V 5-15R
❒ PT8200ILBK Black 15A 125V 5-15R
❒ PT8200ILRED Red 15A 125V 5-15R
❒ PT8200ILLA Lt. Al. 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒ PT8300ILI Ivory 20A 125V 5-20R
❒ PT8300ILW White 20A 125V 5-20R
❒ PT8300IL Brown 20A 125V 5-20R
❒ PT8300ILGRY Gray 20A 125V 5-20R
❒ PT8300ILBK Black 20A 125V 5-20R
❒ PT8300ILRED Red 20A 125V 5-20R
❒ PT8300ILLA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
PlugTail Connectors Identification #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 260 Brass
Integral Ground System .036 260 Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
LED 8-9 Years
Housing Polycarbonate Contacts .036 688 Brass
1.125"
6.375"
PTRA6STR
PTRA6STRBP
PTRA6STRG
1.125"
6.375"
NEMA
5-15R
NEMA
5-20R
U-36
Technical Specifications
Extra Heavy-Duty Hospital Grade Receptacles
Technical Specifications
Extra Heavy-Duty
Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 8200
Description: Straight Blade Duplex Receptacle – Extra Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596,
Hospital Grade. CSA Certified, File Number LR16063, Standard CSA-C22.2, No. 42.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminals identified in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2 and UL94-5 VA
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body Nylon
Line Contacts .040 688 Nickel-Plated Brass
Mounting Strap .050 688 Brass
Ground Contacts Strap with Integral Ground
Pressure Plate .031 260 Nickel-Plated Brass
Terminal Screws #10 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #10 Hex Tri-Drive Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
Illuminating Lamp* Neon
*For LED Illuminated Face version.
Consult Straight Blade Section B and Hospital Grade Section F for complete compliance listing.
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
Catalog NEMA
Number Color Rating Cong. No.
❒
8200I Ivory 15A 125V 5-15R
❒
8200W White 15A 125V 5-15R
❒
8200 Brown 15A 125V 5-15R
❒
8200GRY Gray 15A 125V 5-15R
❒
8200BK Black 15A 125V 5-15R
❒
8200RED Red 15A 125V 5-15R
❒
8200LA Lt. Al. 15A 125V 5-15R
❒
8200ILI Ivory 15A 125V 5-15R
❒
8200ILRED Red 15A 125V 5-15R
❒
8300I Ivory 20A 125V 5-20R
❒
8300W White 20A 125V 5-20R
❒
8300 Brown 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
8300GRY Gray 20A 125V 5-20R
❒
8300BK Black 20A 125V 5-20R
❒
8300RED Red 20A 125V 5-20R
❒
8300LA Lt. Al. 20A 125V 5-20R
❒
8300ILI Ivory 20A 125V 5-20R
❒
8300ILRED Red 20A 125V 5-20R
❒
8300ILLA Lt. Al. 20A 125V 5-20R
❒
8800I Ivory 20A 250V 6-20R
❒
8800W White 20A 250V 6-20R
❒
8800 Brown 20A 250V 6-20R
❒
8800GRY Gray 20A 250V 6-20R
❒
8800BK Black 20A 250V 6-20R
❒
8800LA Lt. Al. 20A 250V 6-20R
❒
8800RED Red 20A 250V 6-20R
Project
Location/Type
U-37
Technical Specifications
EHD Hospital Grade MRI Receptacles
Technical Specifications
Extra Heavy-Duty Hospital Grade
MRI Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 8200MRI
Description: Straight Blade Duplex Receptacle – Extra Heavy-Duty Hospital Grade MRI
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard
CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒
8200IMRI Ivory 15A 125V 5-15R
❒
8200WMRI White 15A 125V 5-15R
❒
8200MRI Brown 15A 125V 5-15R
❒
8200GRYMRI Gray 15A 125V 5-15R
❒
8200BKMRI Black 15A 125V 5-15R
❒
8200REDMRI Red 15A 125V 5-15R
❒
8200LAMRI Lt. Al. 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
8300IMRI Ivory 20A 125V 5-20R
❒
8300WMRI White 20A 125V 5-20R
❒
8300MRI Brown 20A 125V 5-20R
❒
8300GRYMRI Gray 20A 125V 5-20R
❒
8300BKMRI Black 20A 125V 5-20R
❒
8300REDMRI Red 20A 125V 5-20R
❒
8300LAMRI Lt. Al. 20A 125V 5-20R
Consult Straight Blade Section B and Hospital Grade Section F for complete compliance listing.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of overload at 150% of rated current
with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 688 Brass
Ground Contacts Strap with Integral Ground
Pressure Plate .031 260 Brass
Terminal Screws #10 Tri-Drive Brass
Ground Screw #10 Hex Tri-Drive Brass
Auto-Ground Clip Brass
Mounting Screws Slotted Brass NEMA
5-15R
NEMA
5-20R
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
Project
Location/Type
U-38

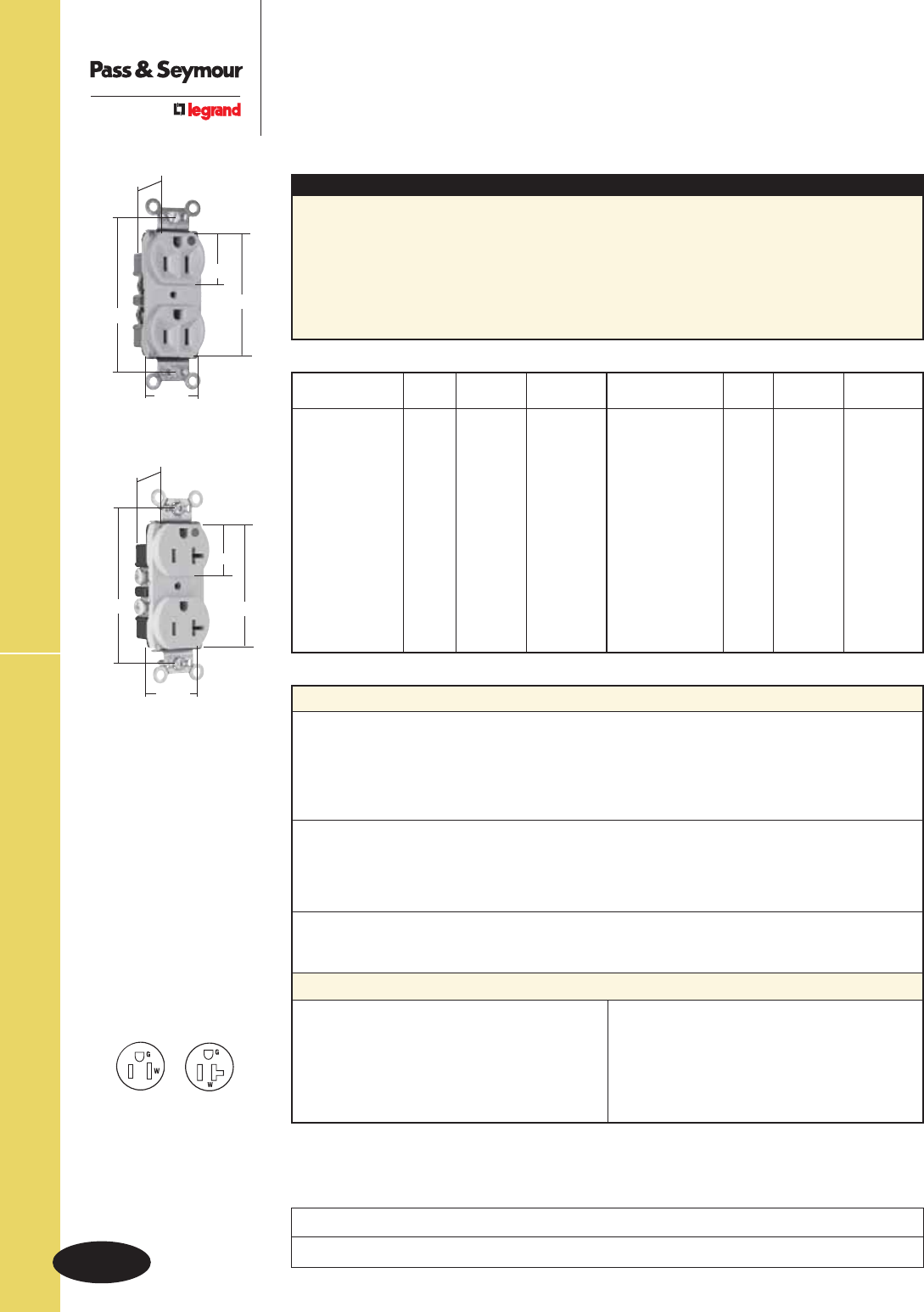

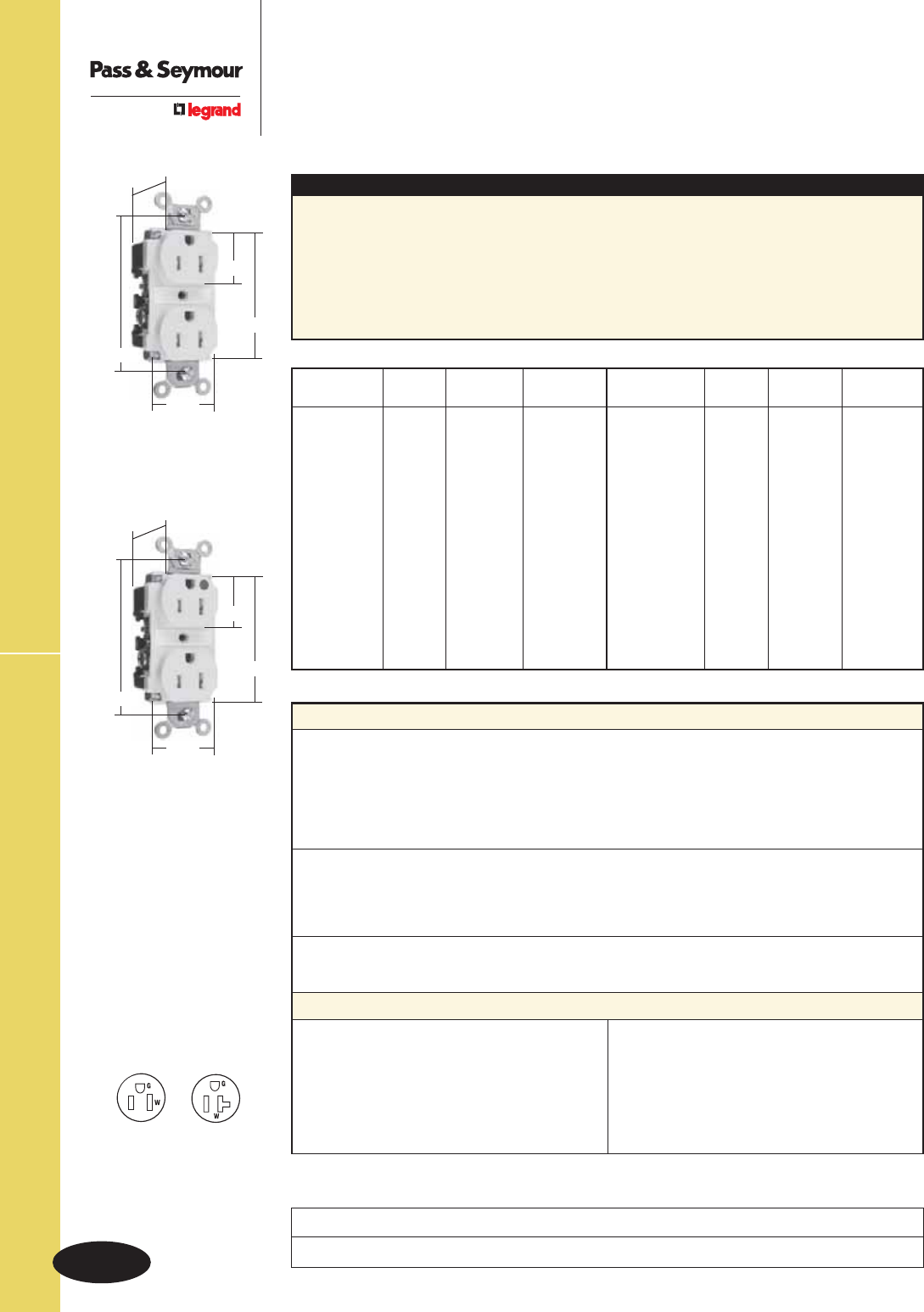

Technical SpecificationsHeavy-Duty Hospital Grade Receptacles
Technical Specifications
Heavy-Duty Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS8200H
Description: Straight Blade Duplex Receptacle – Heavy-Duty Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498. Federal Specification
WC596, Hospital Grade. CSA Certified, File Number LR16063, Standard CSA
C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ PS8200HI Ivory 15A 125V 5-15R
❒ PS8200HW White 15A 125V 5-15R
❒ PS8200H Brown 15A 125V 5-15R
❒ PS8200HGRY Gray 15A 125V 5-15R
❒ PS8200HRED Red 15A 125V 5-15R
❒ PS8200HLA Lt. Al. 15A 125V 5-15R
❒ PS8300HI Ivory 20A 125V 5-20R
❒ PS8300HW White 20A 125V 5-20R
❒ PS8300H Brown 20A 125V 5-20R
❒ PS8300HGRY Gray 20A 125V 5-20R
❒ PS8300HRED Red 20A 125V 5-20R
❒ PS8300HLA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ PS8200HSI Ivory 15A 125V 5-15R
❒ PS8200HSW White 15A 125V 5-15R
❒ PS8200HS Brown 15A 125V 5-15R
❒ PS8200HSGRY Gray 15A 125V 5-15R
❒ PS8200HSBK Black 15A 125V 5-15R
❒ PS8200HSRED Red 15A 125V 5-15R
❒ PS8200HSLA Lt. Al. 15A 125V 5-15R
❒ PS8300HSI Ivory 20A 125V 5-20R
❒ PS8300HSW White 20A 125V 5-20R
❒ PS8300HS Brown 20A 125V 5-20R
❒ PS8300HSGRY Gray 20A 125V 5-20R
❒ PS8300HSBK Black 20A 125V 5-20R
❒ PS8300HSRED Red 20A 125V 5-20R
❒ PS8300HSLA Lt. Al. 20A 125V 5-20R
PS8200HI
PS8300HSLA
.780"
3.281"
1.322"
1.104"
2.635"
.780"
3.281"
1.322"
1.104"
2.635"
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 AWG – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .043 260 Brass
Ground Contacts .040 688 Brass
Pressure Plate .080 Steel
Terminal Screws #8 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #8 Hex Tri-Drive Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Consult Straight Blade Section B and Hospital Grade Section F for complete compliance listing.
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-39
Technical Specifications

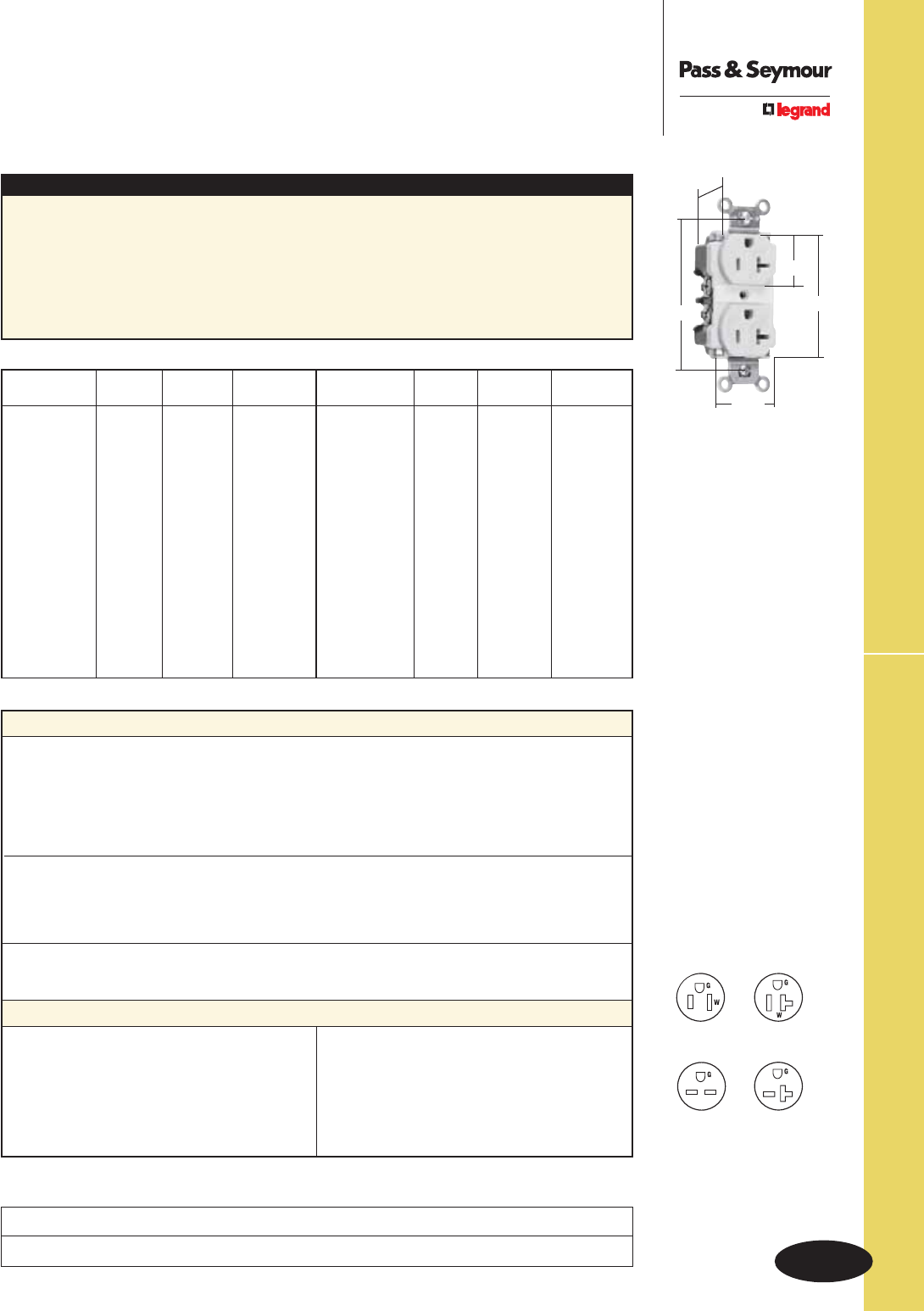

Industrial EHD Specification Grade Receptacles
Technical Specifications
Industrial Extra Heavy-Duty
Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
15 & 20 Amp
.900"
3.281"
1.625"
1.104"
2.750"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5262A
Description: Straight Blade Duplex Receptacle – Industrial Extra Heavy-Duty Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to
NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ 5262AI Ivory 15A 125V 5-15R
❒ 5262AW White 15A 125V 5-15R
❒ 5262A Brown 15A 125V 5-15R
❒ 5262AGRY Gray 15A 125V 5-15R
❒ 5262ABK Black 15A 125V 5-15R
❒ 5262ARED Red 15A 125V 5-15R
❒ 5262ALA Lt. Al. 15A 125V 5-15R
❒ 5662AI Ivory 15A 250V 6-15R
❒ 5662AW White 15A 250V 6-15R
❒ 5662A Brown 15A 250V 6-15R
❒ 5662AGRY Gray 15A 250V 6-15R
❒ 5662ABK Black 15A 250V 6-15R
❒ 5662ARED Red 15A 250V 6-15R
Catalog NEMA
Number Color Rating Cong. No.
❒ 5362AI Ivory 20A 125V 5-20R
❒ 5362AW White 20A 125V 5-20R
❒ 5362A Brown 20A 125V 5-20R
❒ 5362AGRY Gray 20A 125V 5-20R
❒ 5362ABK Black 20A 125V 5-20R
❒ 5362ARED Red 20A 125V 5-20R
❒ 5362ALA Lt. Al. 20A 125V 5-20R
❒ 5362ABL Blue 20A 125V 5-20R
❒ 5862AI Ivory 20A 250V 6-20R
❒ 5862AW White 20A 250V 6-20R
❒ 5862A Brown 20A 250V 6-20R
❒ 5862AGRY Gray 20A 250V 6-20R
❒ 5862ABK Black 20A 250V 6-20R
❒ 5862ARED Red 20A 250V 6-20R
❒ 5862ALA Lt. Al. 20A 250V 6-20R
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of overload at 150% of rated current
with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 688 Brass
Ground Contacts Strap with Integral Ground
Pressure Plate .031 260 Brass
Terminal Screws #10 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #10 Hex Tri-Drive Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
Project
Location/Type
U-40
Technical Specifications

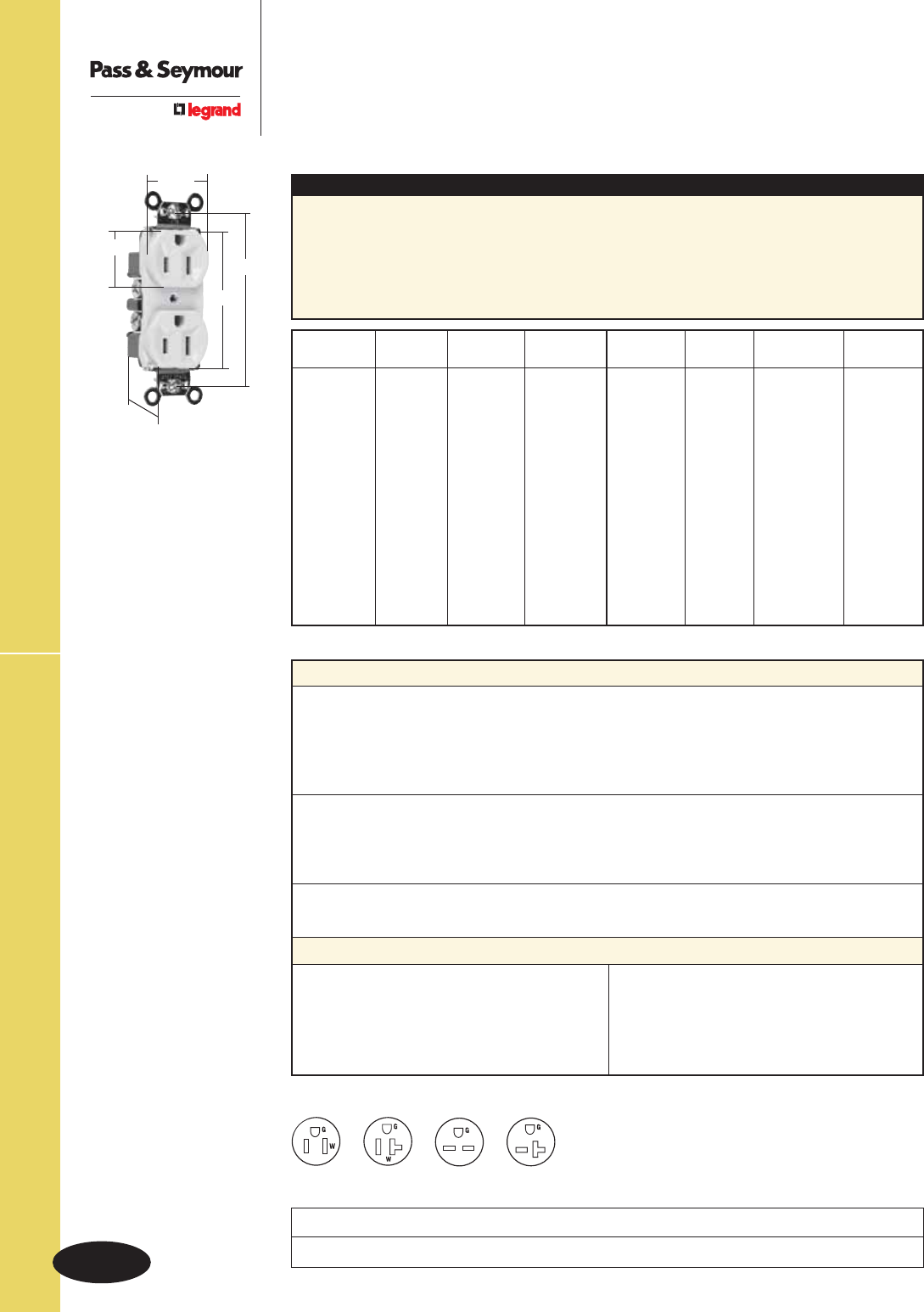

Heavy-Duty Specification Grade Receptacles
Technical Specifications
Heavy-Duty Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5262
Description: Straight Blade Duplex Receptacle – Heavy-Duty Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to
NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒
PS5262I Ivory 15A 125V 5-15R
❒
PS5262W White 15A 125V 5-15R
❒
PS5262 Brown 15A 125V 5-15R
❒
PS5262GRY Gray 15A 125V 5-15R
❒
PS5262BK Black 15A 125V 5-15R
❒
PS5262RED Red 15A 125V 5-15R
❒
PS5262BL Blue 15A 125V 5-15R
❒
PS5262LA Lt. Almond 15A 125V 5-15R
❒
5662I Ivory 15A 250V 6-15R
❒
5662W White 15A 250V 6-15R
❒
5662 Brown 15A 250V 6-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
PS5362I Ivory 20A 125V 5-20R
❒
PS5362W White 20A 125V 5-20R
❒
PS5362 Brown 20A 125V 5-20R
❒
PS5362GRY Gray 20A 125V 5-20R
❒
PS5362BK Black 20A 125V 5-20R
❒
PS5362RED Red 20A 125V 5-20R
❒
PS5362BL Blue 20A 125V 5-20R
❒
PS5362LA Lt. Almond 20A 125V 5-20R
❒
5862I Ivory 20A 250V 6-20R
❒
5862W White 20A 250V 6-20R
❒
5862 Brown 20A 250V 6-20R
❒
5862GRY Gray 20A 250V 6-20R
❒
5862BK Black 20A 250V 6-20R
❒
5862RED Red 20A 250V 6-20R
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Max 30°C temperature rise at full-rated current after 50 cycles
of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60oC, minimum -40o (without impact)
Materials
Face Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .043 688 Brass
Ground Contacts .040 688 Brass
Pressure Plate .080 Steel
Terminal Screws #8 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #8 Hex Tri-Drive Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Project
Location/Type
NEMA
6-15R
NEMA
6-20R
NEMA
5-15R
NEMA
5-20R
U-41
Technical Specifications
PlugTail™ Specification Grade Receptacles
Technical Specifications
PlugTail™ Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
NEMA
5-15R
NEMA
5-20R
PTIG5362LA
PT5362LA
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT5262
Description: Plugtail™ Straight Blade Duplex Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498.
Federal Specification WC596. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒
PT5262I Ivory 15A 125V 5-15R
❒
PT5262W White 15A 125V 5-15R
❒
PT5262 Brown 15A 125V 5-15R
❒
PT5262GRY Gray 15A 125V 5-15R
❒
PT5262BK Black 15A 125V 5-15R
❒
PT5262BL Blue 15A 125V 5-15R
❒
PT5262RED Red 15A 125V 5-15R
❒
PT5262LA Lt. Al. 15A 125V 5-15R
❒
PT5362I Ivory 20A 125V 5-20R
❒
PT5362W White 20A 125V 5-20R
❒
PT5362 Brown 20A 125V 5-20R
❒
PT5362GRY Gray 20A 125V 5-20R
❒
PT5362BK Black 20A 125V 5-20R
❒
PT5362BL Blue 20A 125V 5-20R
❒
PT5362RED Red 20A 125V 5-20R
❒
PT5362LA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
PTIG5262I Ivory 15A 125V 5-15R
❒
PTIG5262W White 15A 125V 5-15R
❒
PTIG5262 Orange 15A 125V 5-15R
❒
PTIG5262GRY Gray 15A 125V 5-15R
❒
PTIG5262RED Red 15A 125V 5-15R
❒
PTIG5262LA Lt. Al. 15A 125V 5-15R
❒
PTIG5362I Ivory 20A 125V 5-20R
❒
PTIG5362W White 20A 125V 5-20R
❒
PTIG5362 Orange 20A 125V 5-20R
❒
PTIG5362GRY Gray 20A 125V 5-20R
❒
PTIG5362RED Red 20A 125V 5-20R
❒
PTIG5362LA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face Nylon
Back Body PVC
Line Contacts .036 688 Brass
Mounting Strap .042 Zinc-Plated Steel
Integral Ground System .036 260 Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Steel
Mounting Screws Tri-Drive Steel
Housing Polycarbonate Contacts .030 Brass
Consult Straight Blade Section B for complete compliance listing.
3.281"
.625"
1.5"
2.750"
1.104"
3.281"
.625"
1.5"
1.104"
2.750"
Project
Location/Type
U-42

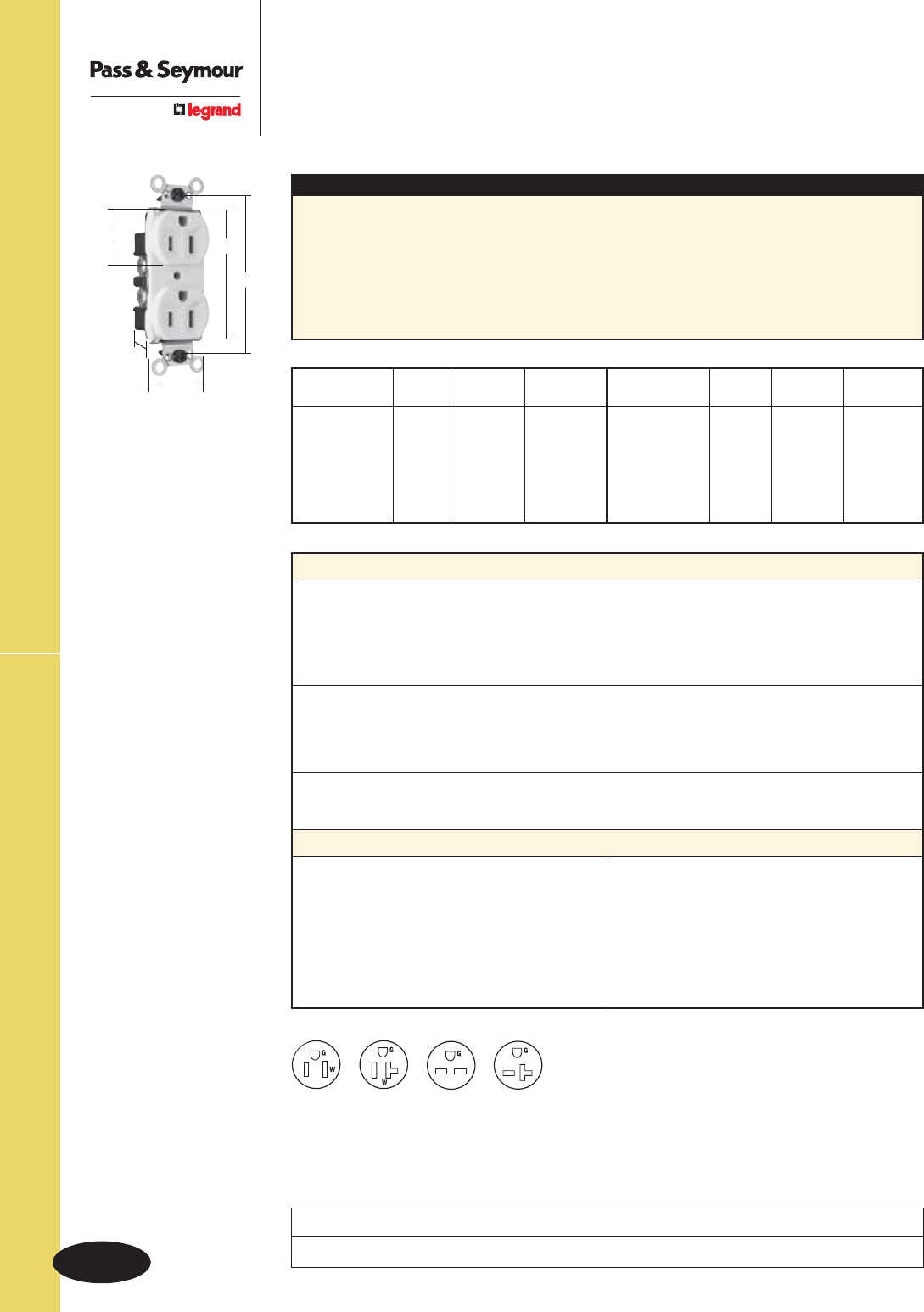

Technical SpecificationsHard Use Specification Grade Receptacles
Technical Specifications
Hard Use Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5262
Description: Straight Blade Duplex Receptacle – Hard Use Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42.27. Conforms
to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Max 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C (without impact)
Materials
Face Nylon
Back Body PVC
Contacts .032" (.8) Brass
Clamping Plate .080" Steel
Mounting Strap .042" Steel
Terminal Screws Tri-Drive Brass
Hex Head
Grounding Screw Tri-Drive Zinc-Plated Steel
Assembly Rivets Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
Consult Straight Blade Section B for complete compliance listing.
Catalog NEMA
Number Color Rating Cong. No.
❒
5262I Ivory 15A 125V 5-15R
❒
5262W White 15A 125V 5-15R
❒
5262 Brown 15A 125V 5-15R
❒
5262GRY Gray 15A 125V 5-15R
❒
5262BK Black 15A 125V 5-15R
❒
5262RED Red 15A 125V 5-15R
❒
5262LA Lt. Almond 15A 125V 5-15R
❒
5262BL Blue 15A 125V 5-15R
❒
5662I Ivory 15A 250V 6-15R
❒
5662 Brown 15A 250V 6-15R
❒
5662BK Black 15A 250V 6-15R
❒
5662LA Lt. Almond 15A 250V 6-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
5362I Ivory 20A 125V 5-20R
❒
5362W White 20A 125V 5-20R
❒
5362 Brown 20A 125V 5-20R
❒
5362GRY Gray 20A 125V 5-20R
❒
5362BK Black 20A 125V 5-20R
❒
5362RED Red 20A 125V 5-20R
❒
5362LA Lt. Almond 20A 125V 5-20R
❒
5642I* Ivory 15A 250V 6-15R
❒
5642* Brown 15A 250V 6-15R
❒
5290I* Ivory 15A 125/250V 5/6-15R
❒
5290* Brown 15A 125/250V 5/6-15R
❒
5890I* Ivory 20A 125/250V 5/6-20R
❒
5890W* White 20A 125/250V 5/6-20R
❒
5890* Brown 20A 125/250V 5/6-20R
*Side wire only.
Project
Location/Type
NEMA
6-15R
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
U-43
Technical Specifications Construction Specification Grade Receptacles
Technical Specifications
Construction Specification Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125V
Catalog NEMA
Number Color Rating Cong. No.
❒
CRB5262I Ivory 15A 125V 5-15R
❒
CRB5262W White 15A 125V 5-15R
❒
CRB5262 Brown 15A 125V 5-15R
❒
CRB5262GRY Gray 15A 125V 5-15R
❒
CRB5262BK Black 15A 125V 5-15R
❒
CRB5262LA Lt. Al. 15A 125V 5-15R
❒
CRB5262RED Red 15A 125V 5-15R
❒
CRB5362I Ivory 20A 125V 5-20R
❒
CRB5362W White 20A 125V 5-20R
❒
CRB5362 Brown 20A 125V 5-20R
❒
CRB5362GRY Gray 20A 125V 5-20R
❒
CRB5362BK Black 20A 125V 5-20R
❒
CRB5362LA Lt. Al. 20A 125V 5-20R
❒
CRB5362RED Red 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
CRB5262SI Ivory 15A 125V 5-15R
❒
CRB5262SW White 15A 125V 5-15R
❒
CRB5262S Brown 15A 125V 5-15R
❒
CRB5262SGRY Gray 15A 125V 5-15R
❒
CRB5262SRED Red 15A 125V 5-15R
❒
CRB5262SLA Lt. Al. 15A 125V 5-15R
❒
CRB5362SI Ivory 20A 125V 5-20R
❒
CRB5362SW White 20A 125V 5-20R
❒
CRB5362S Brown 20A 125V 5-20R
❒
CRB5362SGRY Gray 20A 125V 5-20R
❒
CRB5362SRED Red 20A 125V 5-20R
❒
CRB5362SLA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Max 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C (without impact)
Materials
Face Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .042 Plated Steel
Ground Contacts .040 260 Brass
Pressure Plate .080 Steel
Terminal Screws #8 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #8 Hex Tri-Drive Steel
with Green Zinc Coating
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Consult Straight Blade Section B for complete compliance listing.
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CRB5262
Description: Straight Blade Duplex Receptacle – Construction Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal
Specification WC596. CSA/CUL approved, File Number LR16063,
Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
15 & 20 Amp
1.104"
.780"
2.635"
3.281"
1.322"
CRB5362SLA
1.104"
.780"
2.635"
3.281"
1.322"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-44
Technical SpecificationsConstruction Specification Grade Receptacles
Technical Specifications
Construction Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Catalog NEMA
Number Color Rating Cong. No.
❒
CRL5262IB Ivory 15A 125V 5-15R
❒
CRL5262WB White 15A 125V 5-15R
❒
CRL5262B Brown 15A 125V 5-15R
❒
CRL5262GRYB Gray 15A 125V 5-15R
❒
CRL5262BKB Black 15A 125V 5-15R
❒
CRL5262REDB Red 15A 125V 5-15R
❒
CRL5262LAB Lt. Al. 15A 125V 5-15R
❒
CRL5362IB Ivory 20A 125V 5-20R
❒
CRL5362WB White 20A 125V 5-20R
❒
CRL5362B Brown 20A 125V 5-20R
❒
CRL5362GRYB Gray 20A 125V 5-20R
❒
CRL5362BKB Black 20A 125V 5-20R
❒
CRL5362REDB Red 20A 125V 5-20R
❒
CRL5362LAB Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
CRL5262SCIB Ivory 15A 125V 5-15R
❒
CRL5262SCWB White 15A 125V 5-15R
❒
CRL5262SCB Brown 15A 125V 5-15R
❒
CRL5262SCGRYB Gray 15A 125V 5-15R
❒
CRL5262SCBKB Black 15A 125V 5-15R
❒
CRL5262SCREDB Red 15A 125V 5-15R
❒
CRL5262SCLAB Lt. Al. 15A 125V 5-15R
❒
CRL5362SCIB Ivory 20A 125V 5-20R
❒
CRL5362SCWB White 20A 125V 5-20R
❒
CRL5362SCB Brown 20A 125V 5-20R
❒
CRL5362SCGRYB Gray 20A 125V 5-20R
❒
CRL5362SCBKB Black 20A 125V 5-20R
❒
CRL5362SCREDB Red 20A 125V 5-20R
❒
CRL5362SCLAB Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Lead Identification In accordance with UL498 (White, Black, Green) #12 AWG,
THHN, copper conductor, 6" leads, stripped, stranded wire
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .042 Plated Steel
Assembly Drive Screw Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Wire 6" Copper THHN
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CRL5262
Description: Straight Blade Duplex Receptacle – Construction Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498. Federal Specification WC596.
CSA/CUL approved, File Number LR16063, Standard CSA-C22.2 No. 42.
Conforms to NEMA WD-1 and WD-6.
CRL5362LA
1.104"
6.375"
2.635"
3.281"
1.322"
Consult Straight Blade Section B for complete compliance listing.
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-45

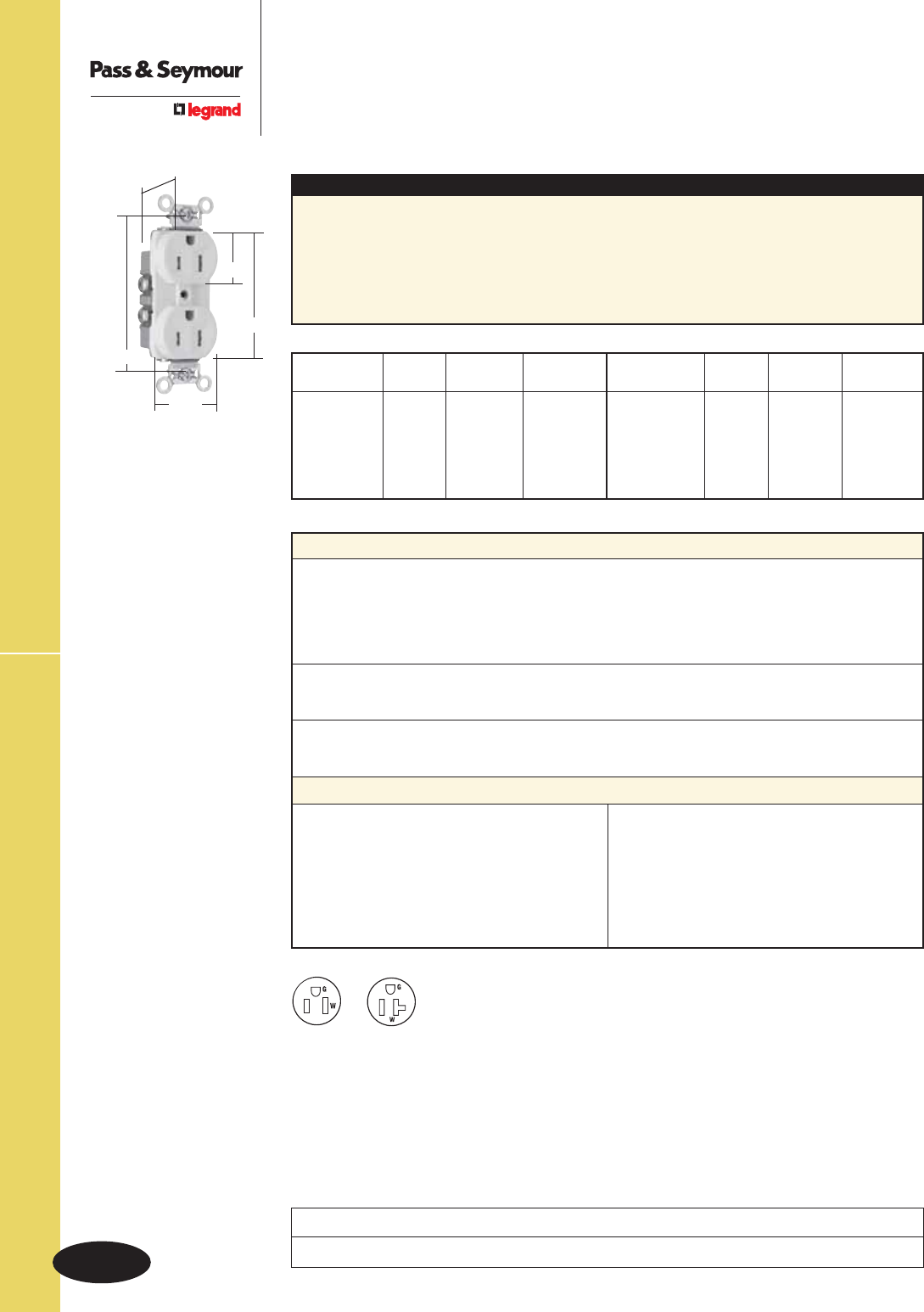

Technical Specifications
Commercial Specification Grade Receptacles
Technical Specifications
Commercial Specification Grade Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CR15/BR15/5850
Description: Straight Blade Duplex Receptacle – Commercial Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, CSA Certified, File Number
LR16063, Standard CSA-C22.2 No. 42. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage Withstands 1500V minimum
Maximum Working Voltage 125V
Maximum Continuous Current 15A – CR15/BR15; 20A – CR20/BR20/5850
Temperature Rise Maximum 30°C after 50 cycles at 150% of rated current
Mechanical
Terminal Accommodation #14 – #10 AWG
Product Identification Amp, Voltage, 3rd Party Compliance
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +50°C, minimum -40°C without impact
Materials
Face Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .042 Plated Steel
Ground Contacts .040 260 Brass
Terminal Screws #8 Tri-Drive Steel (Neutral
= Nickel-Plated Steel)
Ground Screw #8 Hex Tri-Drive Steel
with Green Zinc Coating
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Consult Straight Blade Section B for complete compliance listing.
Side Wire
Catalog NEMA
Number Color Rating Cong. No.
❒
CR15I Ivory 15A 125V 5-15R
❒
CR15W White 15A 125V 5-15R
❒
CR15 Brown 15A 125V 5-15R
❒
CR15GRY Gray 15A 125V 5-15R
❒
CR15LA Lt. Al. 15A 125V 5-15R
❒
CR20I Ivory 20A 125V 5-20R
❒
CR20W White 20A 125V 5-20R
❒
CR20 Brown 20A 125V 5-20R
❒
CR20GRY Gray 20A 125V 5-20R
❒
CR20BK Black 20A 125V 5-20R
❒
CR20RED Red 20A 125V 5-20R
❒
CR20LA Lt. Al. 20A 125V 5-20R
❒
5850I Ivory 20A 250V 6-20R
❒
5850W White 20A 250V 6-20R
Back & Side Wire
Catalog NEMA
Number Color Rating Cong. No.
❒
BR15I Ivory 15A 125V 5-15R
❒
BR15W White 15A 125V 5-15R
❒
BR15 Brown 15A 125V 5-15R
❒
BR15GRY Gray 15A 125V 5-15R
❒
BR15LA Lt. Al. 15A 125V 5-15R
❒
BR20I Ivory 20A 125V 5-20R
❒
BR20W White 20A 125V 5-20R
❒
BR20 Brown 20A 125V 5-20R
❒
BR20GRY Gray 20A 125V 5-20R
❒
BR20BK Black 20A 125V 5-20R
❒
BR20LA Lt. Al. 20A 125V 5-20R
15 & 20 Amp
1.104"
1.0 18 "
2.635"
3.281"
1.322"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
NEMA
6-20R
U-46
Technical Specifications
Tamper-Resistant Spec & Hospital Grade
Technical Specifications
Tamper-Resistant
Specification & Hospital Grade Receptacles
Back & Side Wire 2 Pole, 3 Wire Grounding 15 & 20A, 125
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand TR62
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Specification & Hospital Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification WC596.
CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42. Conforms to
NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ TR62I Ivory 15A 125V 5-15R
❒ TR62W White 15A 125V 5-15R
❒ TR62 Brown 15A 125V 5-15R
❒ TR62GRY Gray 15A 125V 5-15R
❒ TR62BK Black 15A 125V 5-15R
❒ TR62RED Red 15A 125V 5-15R
❒ TR62LA Lt. Al. 15A 125V 5-15R
❒ TR62BL Blue 15A 125V 5-15R
❒ TR63I Ivory 20A 125V 5-20R
❒ TR63W White 20A 125V 5-20R
❒ TR63 Brown 20A 125V 5-20R
❒ TR63GRY Gray 20A 125V 5-20R
❒ TR63BK Black 20A 125V 5-20R
❒ TR63RED Red 20A 125V 5-20R
❒ TR63LA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ TR62HI Ivory 15A 125V 5-15R
❒ TR62HW White 15A 125V 5-15R
❒ TR62H Brown 15A 125V 5-15R
❒ TR62HGRY Gray 15A 125V 5-15R
❒ TR62HRED Red 15A 125V 5-15R
❒ TR62HLA Lt. Al. 15A 125V 5-15R
❒ TR63HI Ivory 20A 125V 5-20R
❒ TR63HW White 20A 125V 5-20R
❒ TR63H Brown 20A 125V 5-20R
❒ TR63HGRY Gray 20A 125V 5-20R
❒ TR63HRED Red 20A 125V 5-20R
❒ TR63HLA Lt. Al 20A 125V 5-20R
❒ TR63HBL Blue 20A 125V 5-20R
Consult Straight Blade Section B for complete compliance listing.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of overload at 150% of rated current
with direct current
Mechanical
Terminal Identification Terminal Identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap .050 688 Brass
Ground Contacts Strap with Integral Ground
Pressure Plate .031 260 Brass
Tamper Shutter Thermoplastic
Terminal Screws #10 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #10 Hex Tri-Drive Brass
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Brass
Mounting Screws Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
TR62I
.900"
3.281"
1.625"
1.104"
2.750"
TR62HI
.900"
1.625"
1.104"
2.750"
3.281"
Project
Location/Type
U-47
Technical Specifications Tamper-Resistant Hard Use Recept.
Technical Specifications
Tamper-Resistant Hard Use Receptacles
15 & 20A, 125V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand TR5262
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Hard Use
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, CSA/CUL Approved, Standard CSA-C22.2 No. 42. Conforms to
NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ TR5262I Ivory 15A 125V 5-15R
❒ TR5262W White 15A 125V 5-15R
❒ TR5262 Brown 15A 125V 5-15R
❒ TR5262GRY Gray 15A 125V 5-15R
❒ TR5262BK Black 15A 125V 5-15R
❒ TR5262RED Red 15A 125V 5-15R
❒ TR5262LA Lt. Al. 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒ TR5362I Ivory 20A 125V 5-20R
❒ TR5362W White 20A 125V 5-20R
❒ TR5362 Brown 20A 125V 5-20R
❒ TR5362GRY Gray 20A 125V 5-20R
❒ TR5362BK Black 20A 125V 5-20R
❒ TR5362RED Red 20A 125V 5-20R
❒ TR5362LA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Maximum Continuous Current TR5262 = 15A
TR5263 = 20A
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face Nylon
Back Body PVC
Line Contacts .036 Olin 688 Brass
Mounting Strap .042 Zinc-Plated Steel
Ground Contacts .040 Olin 688 Brass
Pressure Plate .080 Steel
Tamper-Resistant
Shutters Thermoplastic
Terminal Screws #10 Tri-Drive Brass
(Neutral = Nickel-Plated
Steel)
Ground Screw #8 Hex Tri-Drive Steel;
Zinc Coating with
Green Chromate
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
Project
Location/Type
TR5362LA
1.130"
1.322"
1.104"
2.635"
3.281"
NEMA
5-15R
NEMA
5-20R
U-48
Technical Specifications
Technical Specifications
Tamper-Resistant Commercial Grade
Receptacles
15 & 20A, 125V
TR Commercial Grade Receptacles
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand TR15
Description: Straight Blade Duplex Receptacle – Tamper-Resistant Commercial Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULs Listed, File Number E140596, Standard UL498, Standard CSA-C22.2
No. 42. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ TR15I Ivory 15A 125V 5-15R
❒ TR15W White 15A 125V 5-15R
❒ TR15 Brown 15A 125V 5-15R
❒ TR15GRY Gray 15A 125V 5-15R
❒ TR15LA Lt. Al. 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒ TR20I Ivory 20A 125V 5-20R
❒ TR20W White 20A 125V 5-20R
❒ TR20 Brown 20A 125V 5-20R
❒ TR20GRY Gray 20A 125V 5-20R
❒ TR20BK Black 20A 125V 5-20R
❒ TR20LA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 1500V minimum
Maximum Working Voltage 125V
Maximum Continuous Current 15A – TR15; 20A – TR20
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Accommodation #14 – #10 AWG
Product Identification Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +50°C, minimum -40°C without impact
Materials
Face Nylon
Back Body PVC
Line Contacts .032 260 Brass
Mounting Strap .042 Zinc-Plated Steel
Ground Contacts .040 260 Brass
Tamper-Resistant
Shutters Thermoplastic
Terminal Screws #8 Tri-Drive Steel
(Neutral = Nickel-Plated Steel)
Ground Screws #8 Hex Tri-Drive Steel; Zinc
Coating with Green Chromate
Assembly
Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
TR15LA
1.130"
1.322"
1.104"
2.635"
3.281"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-49
Technical Specifications
Technical Specifications
Tamper-Resistant Construction Grade
Single Receptacles
15 & 20A, 125V
TR Construction Grade Single Receptacles
TR5351LA
1.190"
1.296"
1.38"
3.28"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand TR5251
Description: Straight Blade Single Receptacle – Tamper-Resistant Construction Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, CSA Certified, Standard CSA-C22.2 No. 42. Conforms to NEMA
WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ TR5251I Ivory 15A 125V 5-15R
❒ TR5251W White 15A 125V 5-15R
❒ TR5251 Brown 15A 125V 5-15R
❒ TR5251LA Lt. Al. 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒ TR5351I Ivory 20A 125V 5-20R
❒ TR5351W White 20A 125V 5-20R
❒ TR5351 Brown 20A 125V 5-20R
❒ TR5351LA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Materials
Face Nylon
Back Body PVC
Contacts .032" (.8)Brass
Clamping Plate .080" Steel
Mounting Strap .042" Steel
Tamper-Resistant Shutters Thermoplastic
Terminal Screws Tri-Drive Brass
Hex Head
Grounding Screw Tri-Drive Zinc-Plated Steel
Assembly Rivets Steel
Mounting Screws Tri-Drive Steel
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-50
Technical Specifications
Technical Specifications
Weather-Resistant Heavy-Duty
Receptacles
15 & 20A, 125 & 250V
Weather-Resistant Receptacles
Project
Location/Type
WR5262W
1.322"
1.104"
2.635"
3.281"
.780"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand WR5262
Description: Straight Blade Duplex Receptacle – Weather-Resistant Heavy-Duty
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42.
Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ WR5262I Ivory 15A 125V 5-15R
❒ WR5262W White 15A 125V 5-15R
❒ WR5262GRY Gray 15A 125V 5-15R
❒ WR5362I Ivory 20A 125V 5-20R
❒ WR5362W White 20A 125V 5-20R
❒ WR5362GRY Gray 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ WR5662I Ivory 15A 250V 6-15R
❒ WR5662W White 15A 250V 6-15R
❒ WR5662GRY Gray 15A 250V 6-15R
❒ WR5362I Ivory 20A 250V 6-20R
❒ WR5362W White 20A 250V 6-20R
❒ WR5362GRY Gray 20A 250V 6-20R
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V/250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
Materials
Face UV Resistant Nylon
Back Body PVC
Line Contacts .032 688 Brass
Mounting Strap .043 260 Brass
Ground Contact .040 688 Brass
Pressure Plate .080 Nickel-Plated Steel
Terminal Screws #8 Tri-Drive Steel
(Neutral = Nickel-Plated Steel)
Ground Screw #8 Hex Tri-Drive
Nickel-Plated Steel
Assembly Drive Screw .0004" Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel .0004"
Zinc-Plated Steel
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
U-51
Technical Specifications Weather-Resistant Receptacles
Technical Specifications

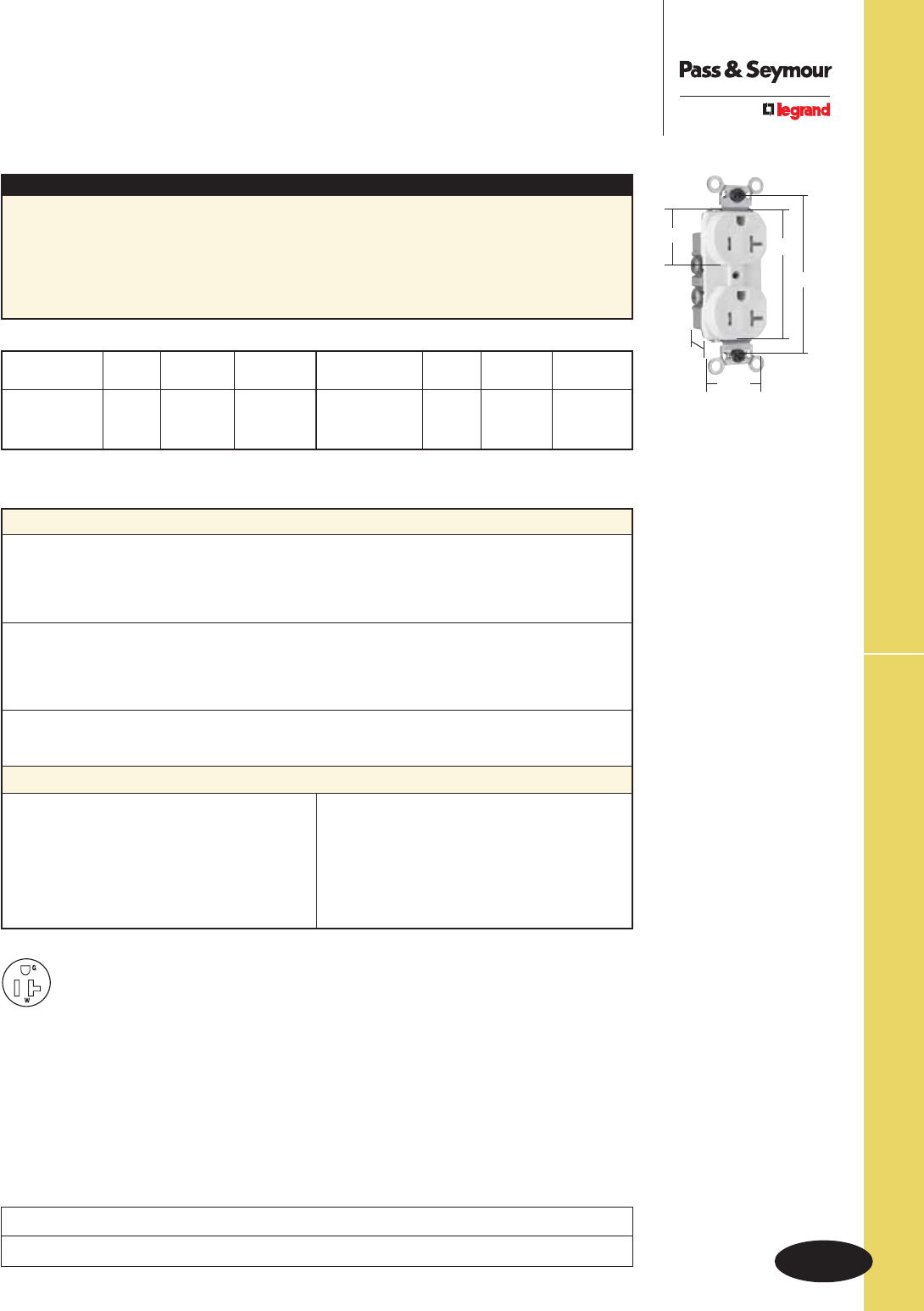

Weather-Resistant Commercial Grade
Receptacles
15 & 20A, 125 & 250V
Project
Location/Type
WR20TRW
1.322"
1.104"
2.635"
3.281"
1.130"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand WR20TR
Description: Straight Blade Duplex Receptacle – Weather-Resistant Commercial Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA 5-20R
3rd Party Compliance: cUL Listed, File Number E140596, Standard UL498, Standard CSA-C22.2
No. 42. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ WR20TRI Ivory 20A 125V 5-20R
❒ WR20TRW White 20A 125V 5-20R
❒ WR20TR Brown 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ WR20TRGRY Gray 20A 125V 5-20R
❒ WR20TRLA Lt. Al. 20A 125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 1500V minimum
Maximum Working Voltage 125V
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +50°C, minimum -40°C without impact
Materials
Face UV Resistant Nylon
Back Body PVC
Line Contacts .032 260 Brass
Mounting Strap .042 Nickel-Plated Steel
Ground Contact .040 260 Brass
Terminal Screws #8 Tri-Drive Brass
(Neutral = Nickel-Plated Brass)
Ground Screw #8 Hex Tri-Drive
Nickel-Plated Steel
Assembly Drive Screw Zinc-Plated Steel
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Steel
NEMA
5-20R
WR20TR models are Tamper-Resistant.
U-52
Technical Specifications
PT26352LA
2.75" 3.281"
.625"
1.5"
PTIG26362LA
2.75" 3.281"
.625"
1.5"
PT26362HGI
2.75" 3.281"
.625"
1.5"
PlugTail™ Decorator Receptacles
Technical Specifications
PlugTail™ Decorator Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125V
Catalog NEMA
Number Color Rating Cong. No.
❒
PT26252I Ivory 15A 125V 5-15R
❒
PT26252W White 15A 125V 5-15R
❒
PT26252 Brown 15A 125V 5-15R
❒
PT26252GRY Gray 15A 125V 5-15R
❒
PT26252BK Black 15A 125V 5-15R
❒
PT26252RED Red 15A 125V 5-15R
❒
PT26252LA Lt. Al. 15A 125V 5-15R
❒
PT26352I Ivory 20A 125V 5-20R
❒
PT26352W White 20A 125V 5-20R
❒
PT26352 Brown 20A 125V 5-20R
❒
PT26352GRY Gray 20A 125V 5-20R
❒
PT26352BK Black 20A 125V 5-20R
❒
PT26352RED Red 20A 125V 5-20R
❒
PT26352LA Lt. Al. 20A 125V 5-20R
❒
PT26262HGI Ivory 15A 125V 5-15R
❒
PT26262HGW White 15A 125V 5-15R
❒
PT26262HGGRY Gray 15A 125V 5-15R
❒
PT26262HGRED Red 15A 125V 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
PT26362HGI Ivory 20A 125V 5-20R
❒
PT26362HGW White 20A 125V 5-20R
❒
PT26362HGGRY Gray 20A 125V 5-20R
❒
PT26362HGRED Red 20A 125V 5-20R
❒
PT26362HGLA Lt. Al. 20A 125V 5-20R
❒
PTIG26262I Ivory 15A 125V 5-15R
❒
PTIG26262W White 15A 125V 5-15R
❒
PTIG26262 Orange 15A 125V 5-15R
❒
PTIG26262GRY Gray 15A 125V 5-15R
❒
PTIG26262RED Red 15A 125V 5-15R
❒
PTIG26262LA Lt. Al. 15A 125V 5-15R
❒
PTIG26362I Ivory 20A 125V 5-20R
❒
PTIG26362W White 20A 125V 5-20R
❒
PTIG26362 Orange 20A 125V 5-20R
❒
PTIG26362GRY Gray 20A 125V 5-20R
❒
PTIG26362RED Red 20A 125V 5-20R
❒
PTIG26362LA Lt. Al. 20A 125V 5-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT26252
Description: PlugTail™ Straight Blade Duplex Receptacle – Decorator Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Federal Specification
WC596. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 125V
Current Interrupting Certified for current interrupting at full-rated current
(receptacle only)
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or
stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
PlugTail Connector Materials
Face Nylon
Back Body PVC
Line Contacts .036 688 Brass
Mounting Strap .042 Plated Steel
Integral Ground System .036 260 Brass
Assembly Drive Screw Plated Steel
Auto-Ground Clip Steel
Mounting Screws Tri-Drive Steel
Housing Polycarbonate Contacts .030 Brass
Consult Straight Blade Section B for complete compliance listing.
NEMA
5-15R
NEMA
5-20R
Project
Location/Type
U-53
Technical Specifications
Technical Specifications
Heavy-Duty Tamper-Resistant
Decorator Receptacles
15 & 20A, 125V
Heavy-Duty TR Decorator Receptacles
Catalog NEMA
Number Color Rating Cong. No.
❒
TR26262I Ivory 15A 125V 5-15R
❒
TR26262W White 15A 125V 5-15R
❒
TR26262 Brown 15A 125V 5-15R
❒
TR26262GRY Gray 15A 125V 5-15R
❒
TR26262BK Black 15A 125V 5-15R
❒
TR26262RED Red 15A 125V 5-15R
❒
TR26262LA Lt. Al. 15A 125V 5-15R
❒
TR26362I Ivory 20A 125V 5-20R
❒
TR26362W White 20A 125V 5-20R
❒
TR26362 Brown 20A 125V 5-20R
❒
TR26362GRY Gray 20A 125V 5-20R
❒
TR26362BK Black 20A 125V 5-20R
❒
TR26362RED Red 20A 125V 5-20R
❒
TR26362LA Lt. Al. 20A 125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
TR26262HGI Ivory 15A 125V 5-15R
❒
TR26262HGW White 15A 125V 5-15R
❒
TR26262HG Brown 15A 125V 5-15R
❒
TR26262HGGRY Gray 15A 125V 5-15R
❒
TR26262HGBK Black 15A 125V 5-15R
❒
TR26262HGRED Red 15A 125V 5-15R
❒
TR26262HGLA Lt. Al. 15A 125V 5-15R
❒
TR26362HGI Ivory 20A 125V 5-20R
❒
TR26362HGW White 20A 125V 5-20R
❒
TR26362HG Brown 20A 125V 5-20R
❒
TR26362HGGRY Gray 20A 125V 5-20R
❒
TR26362HGBK Black 20A 125V 5-20R
❒
TR26362HGRED Red 20A 125V 5-20R
❒
TR26362HGLA Lt. Al. 20A 125V 5-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand TR26362
Description: PlugTail™ Straight Blade Duplex Receptacle – Heavy-Duty Tamper-Resistant Decorator
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Federal Specification
WC596, CSA Certified, File Number LR16063, Standard CSA-C22.2 No. 42.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Voltage Withstands 2000V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current after 50
cycles of overload at 150% of rated current with direct current
Mechanical
Terminal Identification Terminal identification in accordance with UL498
(Brass, White, Green)
Terminal Accommodation #14 – #10 AWG copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +60°C, minimum -40°C without impact
PlugTail Receptacle Materials
Face Nylon
Back Body Nylon
Line Contacts .036 688 Brass
Mounting Strap Plated Steel
Ground Contacts Strap with Integral Ground
Pressure Plate .031 260 Brass
Tamper Shutter Thermoplastic
Terminal Screws #10 Tri-Drive Brass
(Neutral = Nickel-Plated Steel)
Ground Screw #10 Hex Tri-Drive Brass
Auto-Ground Clip Steel
Mounting Screws Tri-Drive Steel
NEMA
5-15R
NEMA
5-20R
Project
Location/Type
TR26362I
2.635"
3.281"
1.322"
3.81"
.833"
TR26362HGI
2.635"
3.281"
1.322"
3.81"
.833"
U-54

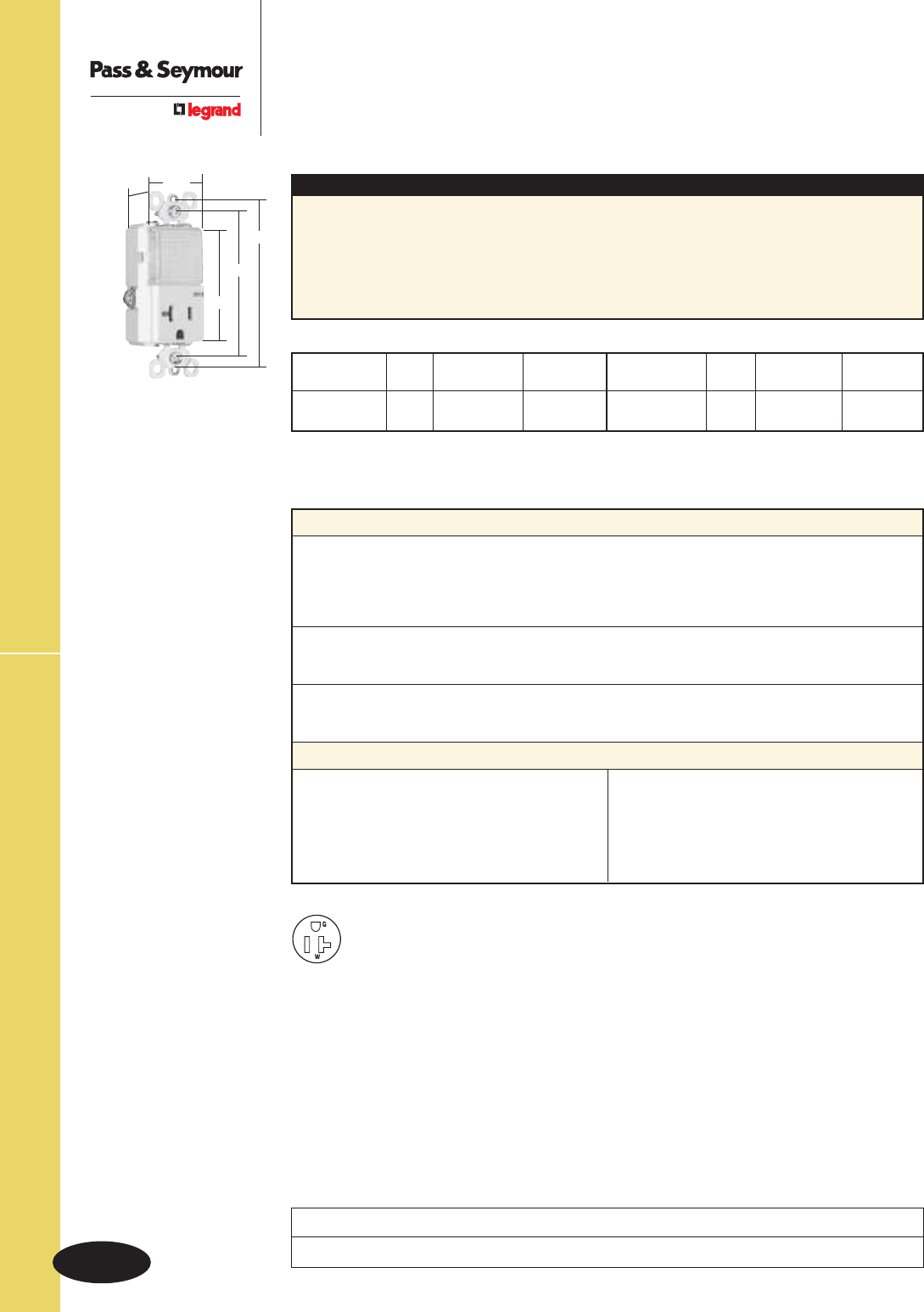

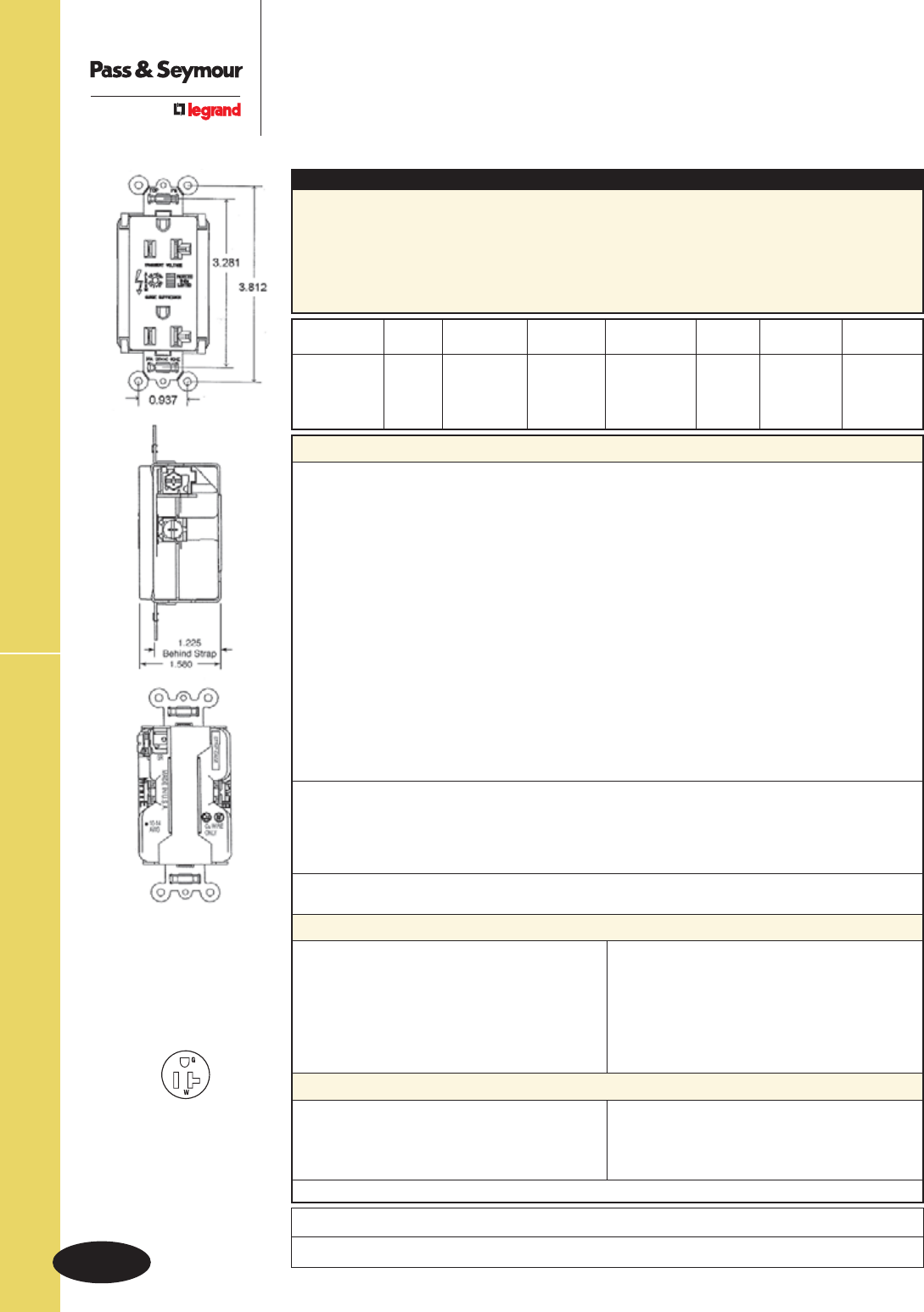

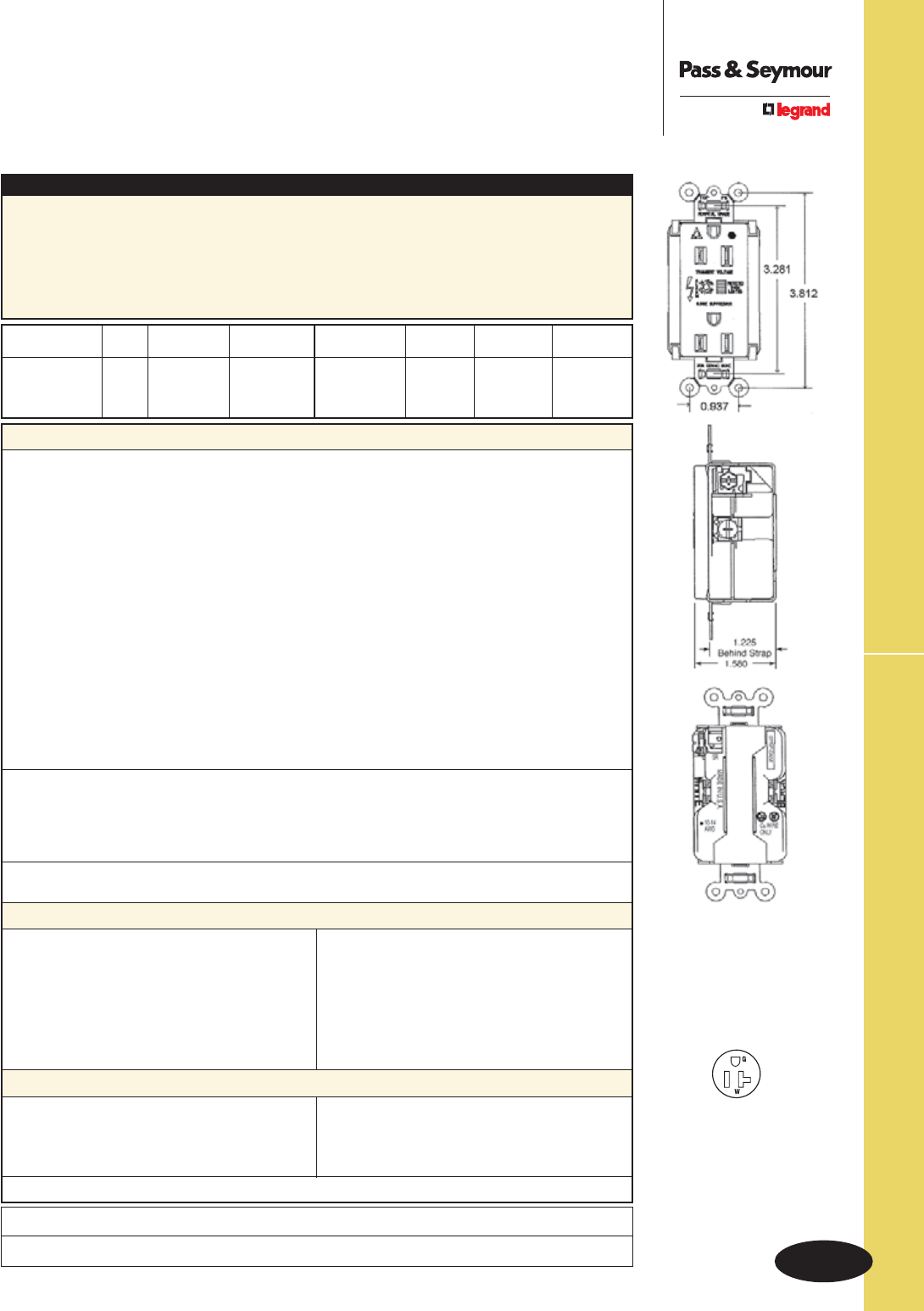

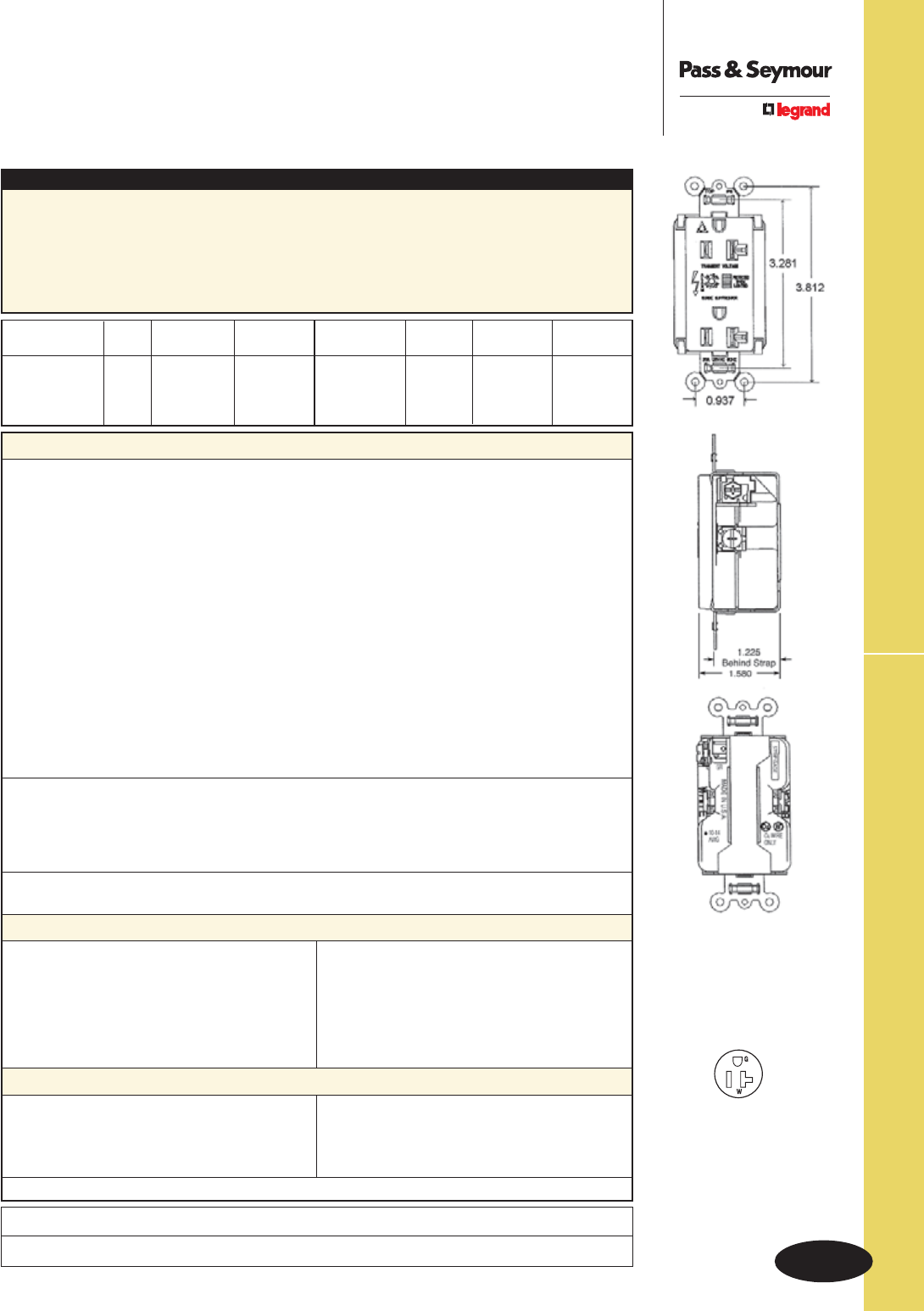

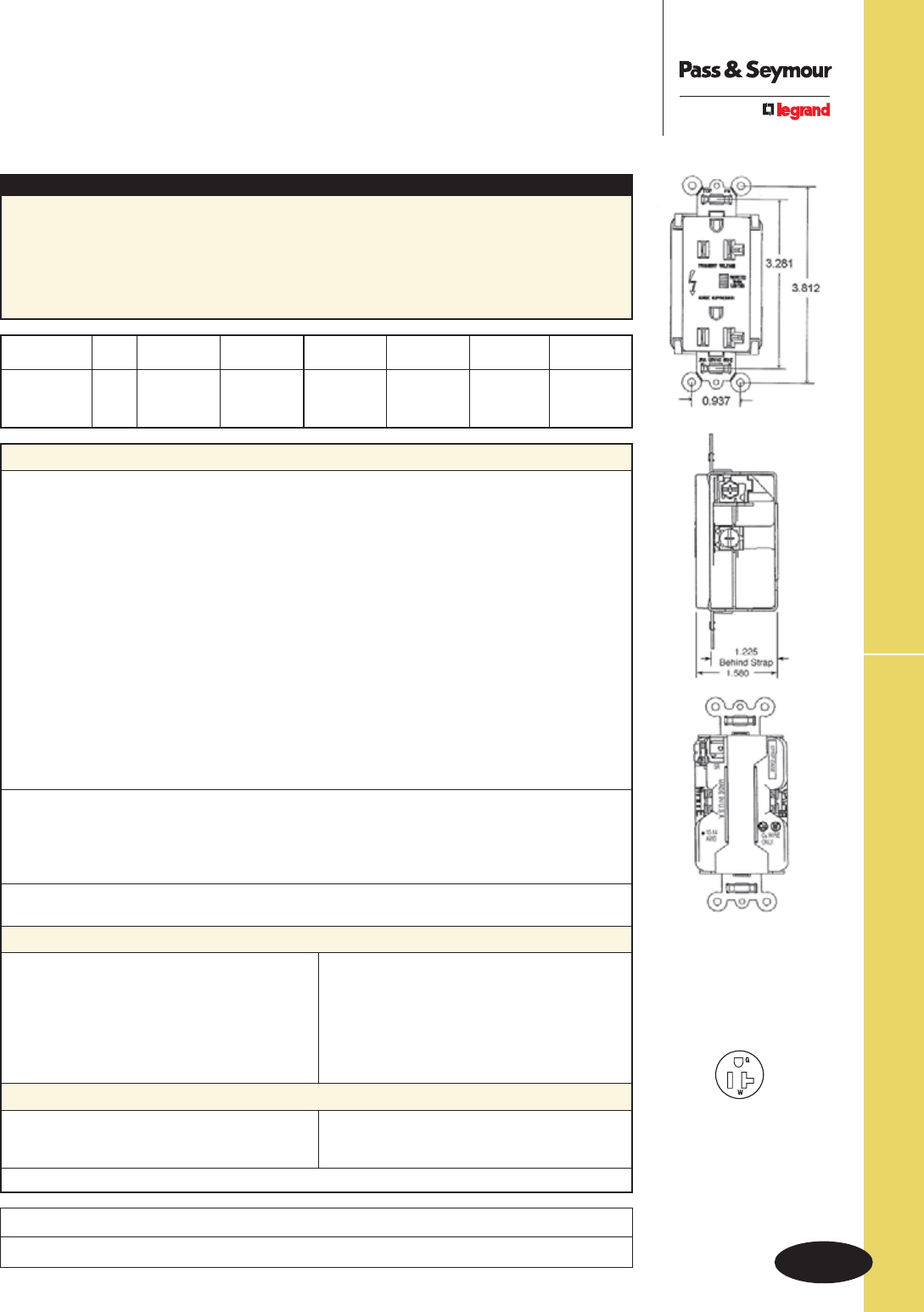

Technical SpecificationsSpec Grade Combination Receptacles
Technical Specifications

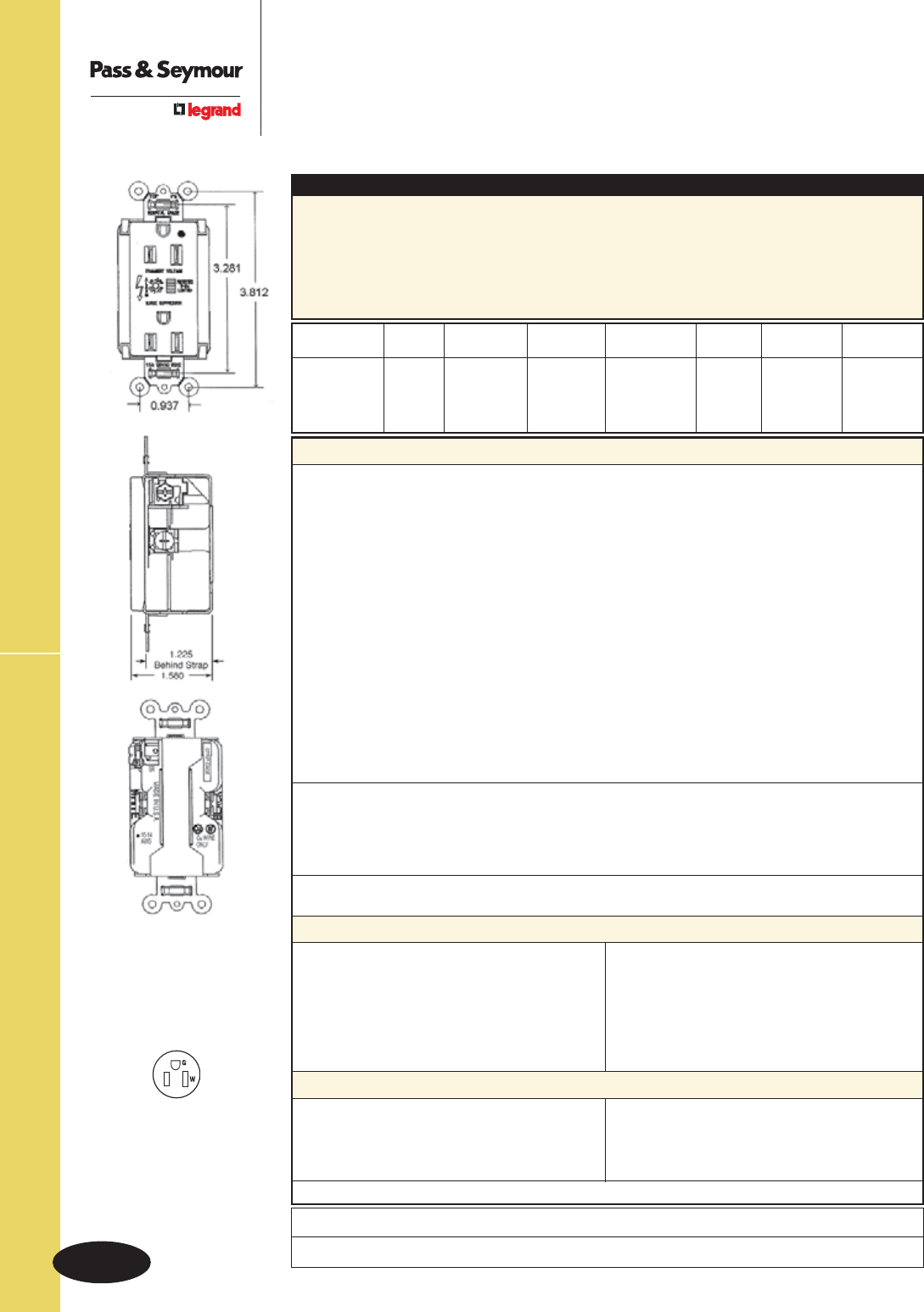

Specification Grade
Combination Receptacles
2 Pole, 3 Wire Grounding 20A, 120/125VAC
PS8HWLLA
3.281"
3.812"
2.60"
1.29"
1.59" Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS8HWL
Description: Combination Straight Blade Receptacle – Specification Grade
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120/125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E140596, Standard UL498. Conforms to NEMA
WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong. No.
❒ PS8HWLI Ivory 20A 120/125V 5-20R
❒ PS8HWLW White 20A 120/125V 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒ PS8HWLLA Lt. Al. 20A 120/125V 5-20R
Performance
Electrical
Dielectric Voltage Withstands 1500V minimum
Maximum Working Voltage 125V
Maximum Continuous Current 20A
Temperature Rise Maximum 30°C after 50 cycles at 150% of rated current
Mechanical
Terminal Accommodation #14 AWG – #10 AWG
Product Identification Amperage, Voltage, 3rd Party Compliance
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +50°C, minimum -40°C (without impact)
Materials
Face Polycarbonate
Back Body Polycarbonate
Line Contacts .031 688 Brass
Mounting Strap .047 Steel
Ground Contacts .040 260 Brass
Pressure Plate .031 260 Brass
Terminal Screws #8 Tri-Drive Brass
Ground Screw #8 Hex Tri-Drive Brass
Mounting Screws Tri-Drive Steel
Lens Polycarbonate
Illuminating Lamp 2 LED
Light output in 1' FCD = 0.2561. FCD = Foot Candle Distance. 1 Lumen = 1 FCD.
See Page U-55 for more information.
Project
Location/Type
NEMA
5-20R
U-55
Technical Specifications
Hallway Lights – Light Output Measurements
Technical Specifications
Hallway Lights
Light Output Measurements
Standard 4 Watt Incandescent Nightlight
16 Lumens
P&S Enhanced LED Nightlight
3 Lumens
P&S LED Nightlight
1 Lumen
Light
Output
Catalog Number Description in 1' FCD*
P&S Enhanced LED Nightlights
TMHWLECC Enhanced Decorator 1.079
Full Hallway Light with
Light Sensor
TMHWLENSCC Enhanced Decorator 1.113
Full Hallway Light
without Light Sensor
TMHWLLOUVCC Full Hallway Decorator 0.0843
Light for use with P&S
Metal Louver Plates
TM8HWLECC Enhanced Decorator 0.2561
Hallway Light &
Single Receptacle
TM8HWLTRCC Enhanced Decorator 0.2561
Hallway Light &
Tamper-Resistant
Single Receptacle
PS8HWL Specification Grade 0.2561
Enhanced Decorator
Hallway Light &
Single Receptacle
1595NTLTRCC4 Combination 0.180
Enhanced Nightlight/
GFCI (15 Amp)
2095NTLTR Combination 0.180
Enhanced Nightlight/
GFCI (20 Amp)
P&S LED Nightlights
TMHWLCC Decorator Full 0.1328
Hallway Light
TM8HWLCC Decorator Hallway 0.1442
Light & Single
Receptacle
*FCD = Foot Candle Distance. 1 Lumen = 1 FCD.
Project
Location/Type
U-56

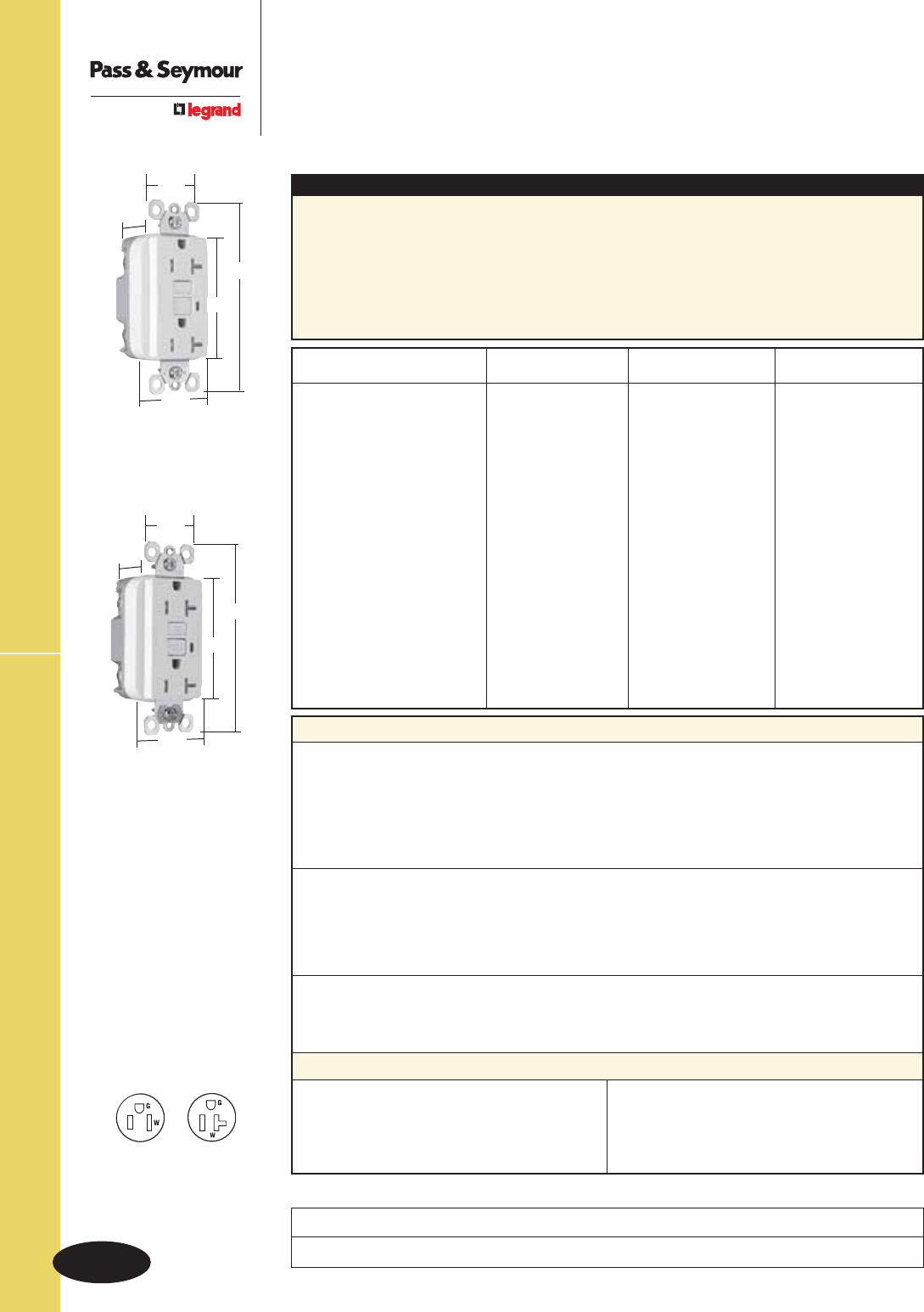

Technical Specifications
Technical Specifications

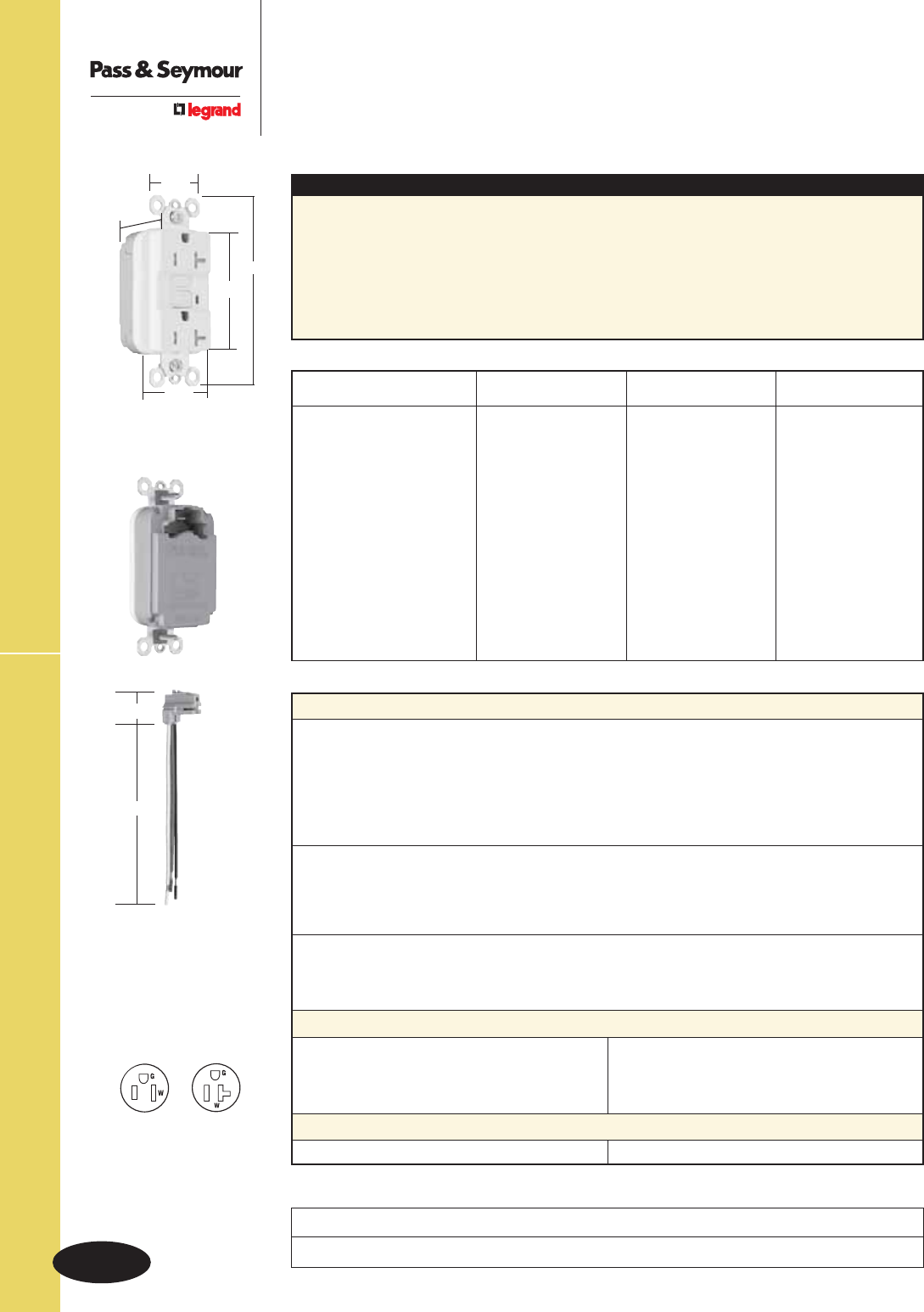

Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Tamper-Resistant GFCIs
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595TR
Description: Straight Blade Duplex Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Tamper-Resistant, Attachment
Plugs and Receptacles UL943 GFCIs. Federal Specification WC596. Standard
CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Straps .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Tamper-Resistant Shutter Thermoplastic
Auto-Ground Clip* Brass Alloy C260
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595TRI Ivory 15A 125VAC 5-15R
❒ 1595TRW White 15A 125VAC 5-15R
❒ 1595TR Brown 15A 125VAC 5-15R
❒ 1595TRBK Black 15A 125VAC 5-15R
❒ 1595TRLA Light Almond 15A 125VAC 5-15R
❒ 1595TRSI* Ivory 15A 125VAC 5-15R
❒ 1595TRSW* White 15A 125VAC 5-15R
❒ 1595TRSLA* Light Almond 15A 125VAC 5-15R
❒ 2095TRI Ivory 20A 125VAC 5-20R
❒ 2095TRW White 20A 125VAC 5-20R
❒ 2095TR Brown 20A 125VAC 5-20R
❒ 2095TRGRY Gray 20A 125VAC 5-20R
❒ 2095TRBK Black 20A 125VAC 5-20R
❒ 2095TRRED Red 20A 125VAC 5-20R
❒ 2095TRLA Light Almond 20A 125VAC 5-20R
❒ 2095TRSI* Ivory 20A 125VAC 5-20R
❒ 2095TRSW* White 20A 125VAC 5-20R
❒ 2095TRSLA* Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.13"
1.72"
1.25"
2.62"
4.20"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
With Auto-Ground
1.13"
1.72"
1.25"
2.62"
4.20"
*Tamper-Resistant GFCIs with Auto-Ground feature.
U-57

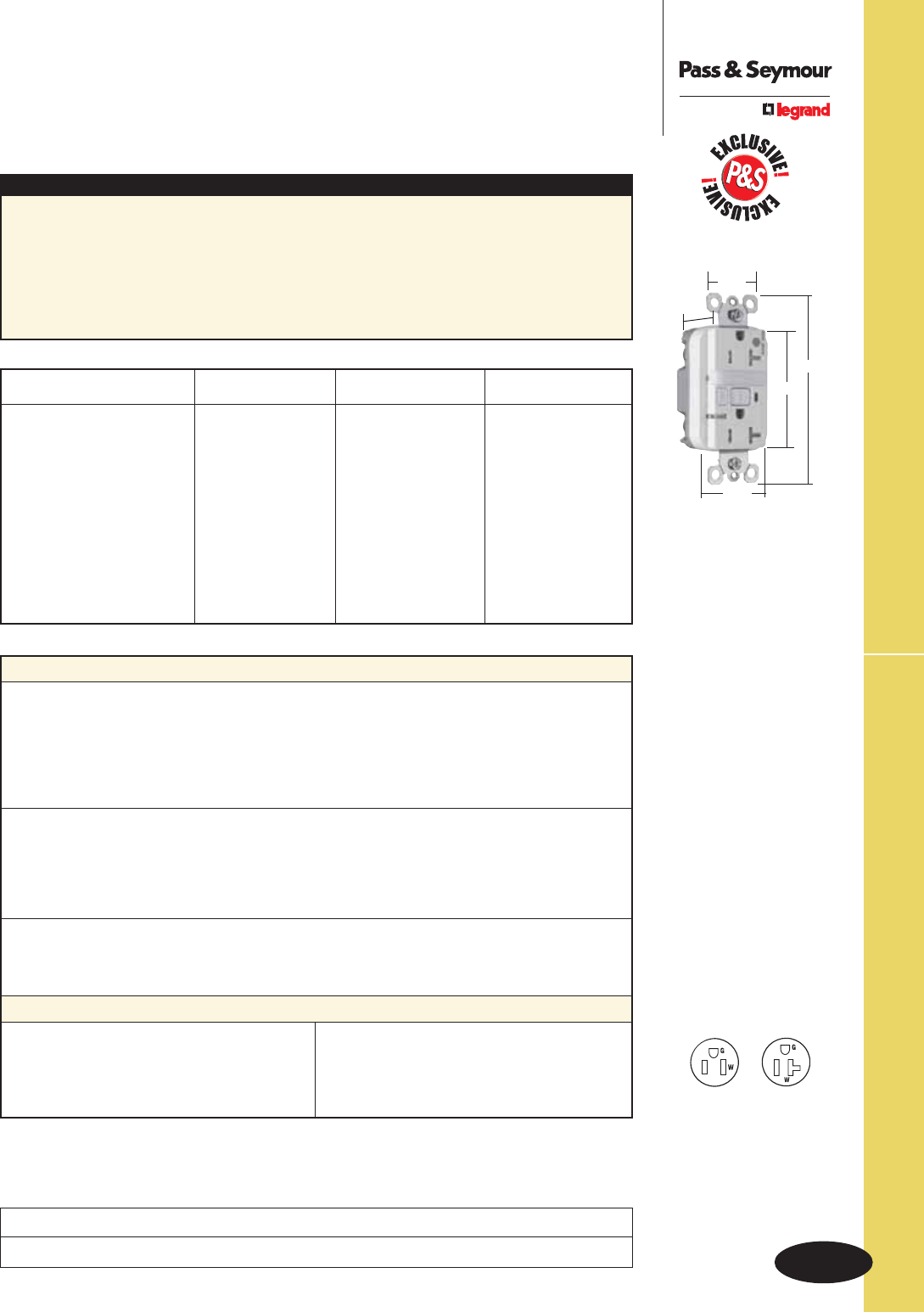

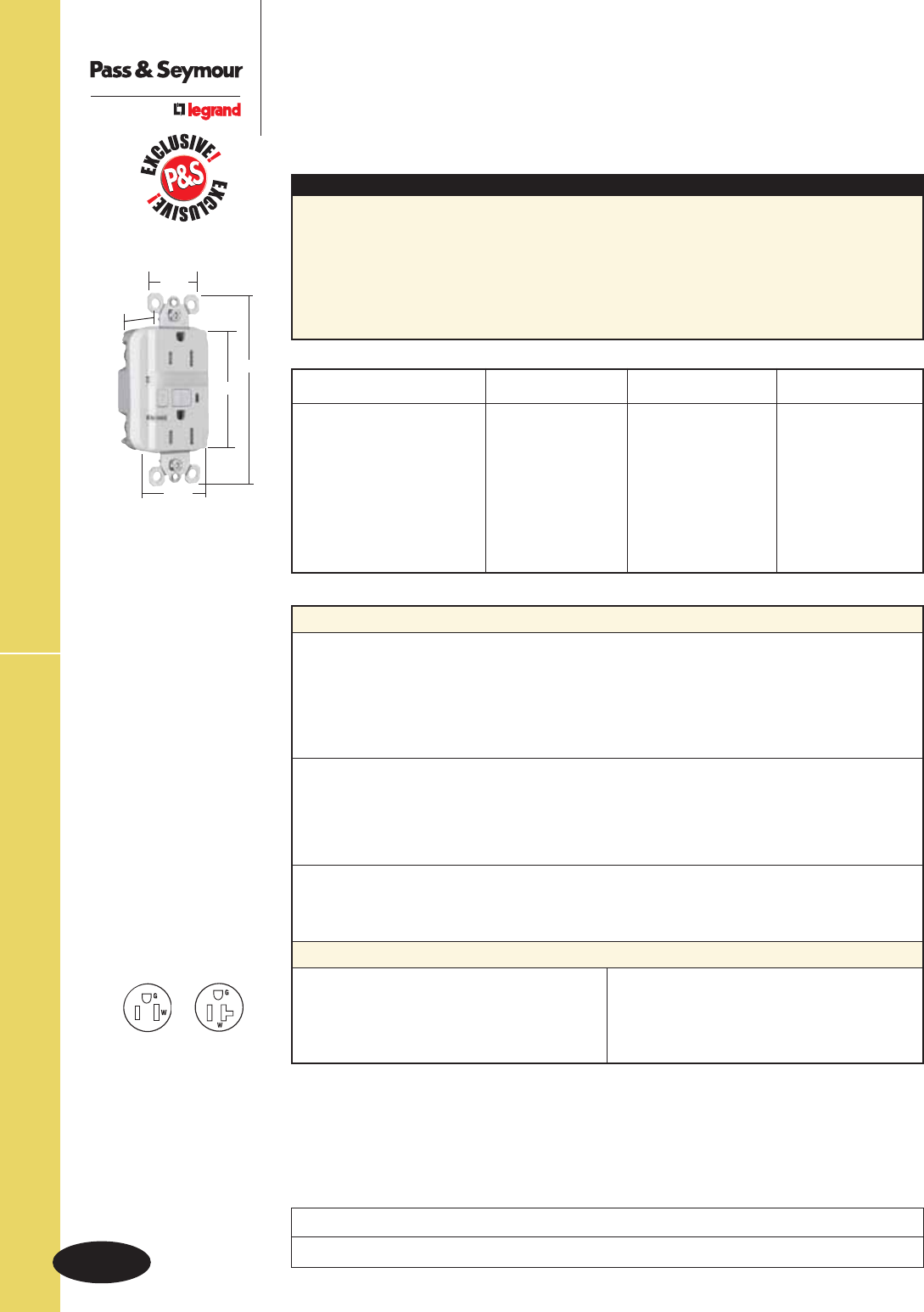

Technical Specifications Hospital Grade Tamper-Resistant GFCIs
Technical Specifications

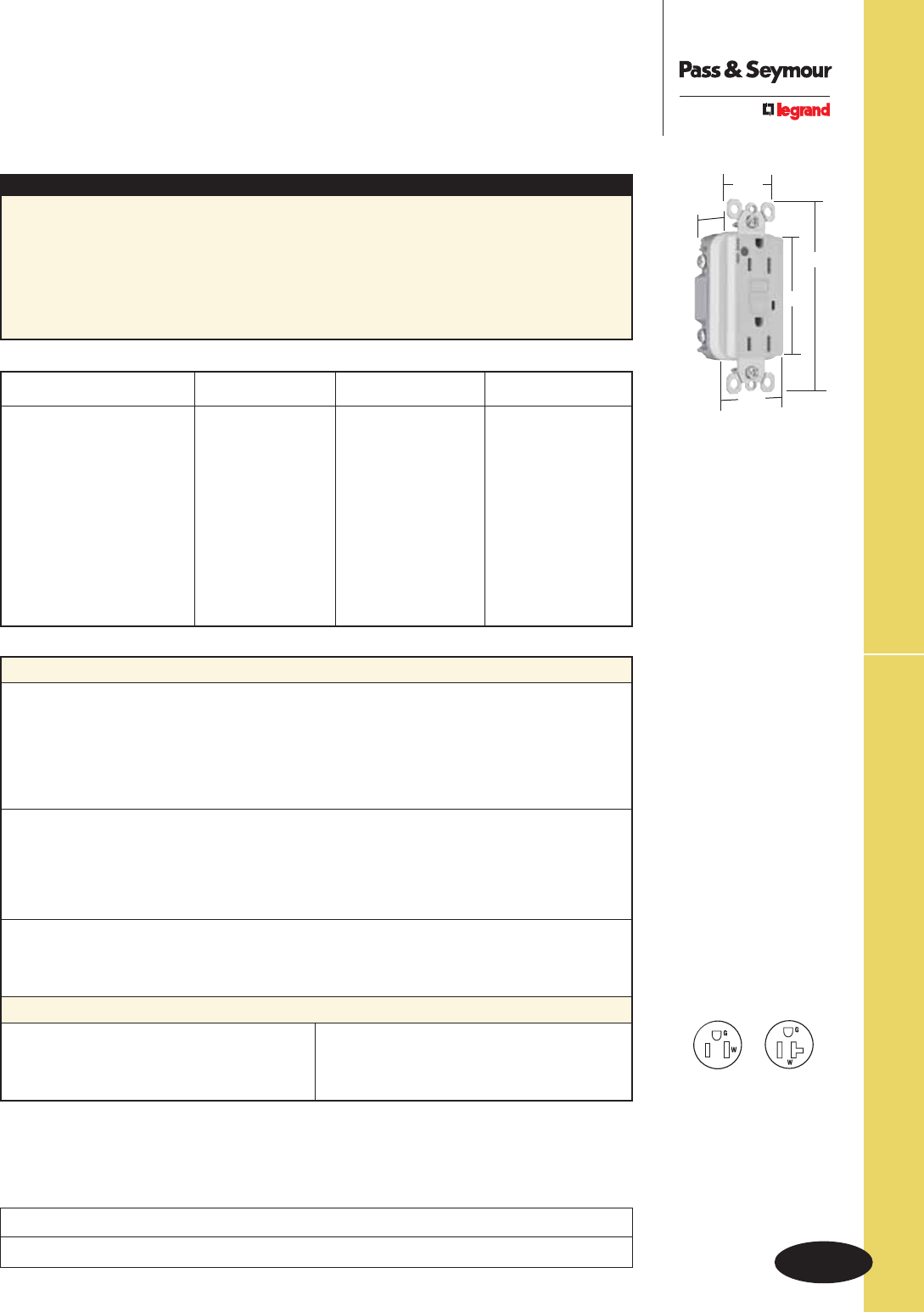

Hospital Grade Tamper-Resistant
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595HGTR
Description: Straight Blade Duplex Hospital Grade Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120V Feed Thru; 15A or 20A, 120V Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498 Tamper-Resistant,
Attachment Plugs and Receptacles UL943 GFCIs. Federal Specification WC596
Hospital Grade. Standard CSA-C22.2 No. 42, General Use Receptacles,
CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screw Zinc-Plated Steel
Test/Reset Buttons Nylon
Tamper-Resistant Shutter Thermoplastic
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595HGTRI Ivory 15A 125VAC 5-15R
❒ 1595HGTRW White 15A 125VAC 5-15R
❒ 1595HGTR Brown 15A 125VAC 5-15R
❒ 1595HGTRGRY Gray 15A 125VAC 5-15R
❒ 1595HGTRRED Red 15A 125VAC 5-15R
❒ 1595HGTRLA Light Almond 15A 125VAC 5-15R
❒ 2095HGTRI Ivory 20A 125VAC 5-20R
❒ 2095HGTRW White 20A 125VAC 5-20R
❒ 2095HGTR Brown 20A 125VAC 5-20R
❒ 2095HGTRGRY Gray 20A 125VAC 5-20R
❒ 2095HGTRRED Red 20A 125VAC 5-20R
❒ 2095HGTRLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.13"
1.72"
1.25"
2.62"
4.20"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-58
Technical SpecificationsTradeMaster
®
& Spec Grade GFCIs
Technical Specifications
TradeMaster
®
& Specification Grade
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595
Description: Straight Blade Duplex GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498, Attachment Plugs
and Receptacles UL943 GFCIs. Federal Specification WC596. Standard
CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Straps .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Auto-Ground Clip* Brass Alloy C260
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595I Ivory 15A 125VAC 5-15R
❒ 1595W White 15A 125VAC 5-15R
❒ 1595 Brown 15A 125VAC 5-15R
❒ 1595GRY Gray 15A 125VAC 5-15R
❒ 1595BK Black 15A 125VAC 5-15R
❒ 1595RED Red 15A 125VAC 5-15R
❒ 1595LA Light Almond 15A 125VAC 5-15R
❒ 1595SI* Ivory 15A 125VAC 5-15R
❒ 1595SW* White 15A 125VAC 5-15R
❒ 1595SLA* Light Almond 15A 125VAC 5-15R
❒ 2095I Ivory 20A 125VAC 5-20R
❒ 2095W White 20A 125VAC 5-20R
❒ 2095 Brown 20A 125VAC 5-20R
❒ 2095GRY Gray 20A 125VAC 5-20R
❒ 2095BK Black 20A 125VAC 5-20R
❒ 2095RED Red 20A 125VAC 5-20R
❒ 2095LA Light Almond 20A 125VAC 5-20R
❒ 2095SI* Ivory 20A 125VAC 5-20R
❒ 2095SW* White 20A 125VAC 5-20R
❒ 2095SLA* Light Almond 20A 125VAC 5-20R
*GFCIs with Auto-Ground feature.
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
4.20"
.98"
Dimensions for
15 & 20 Amp
With Auto-Ground
.98"
1.72"
1.25"
2.62"
4.20"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-59

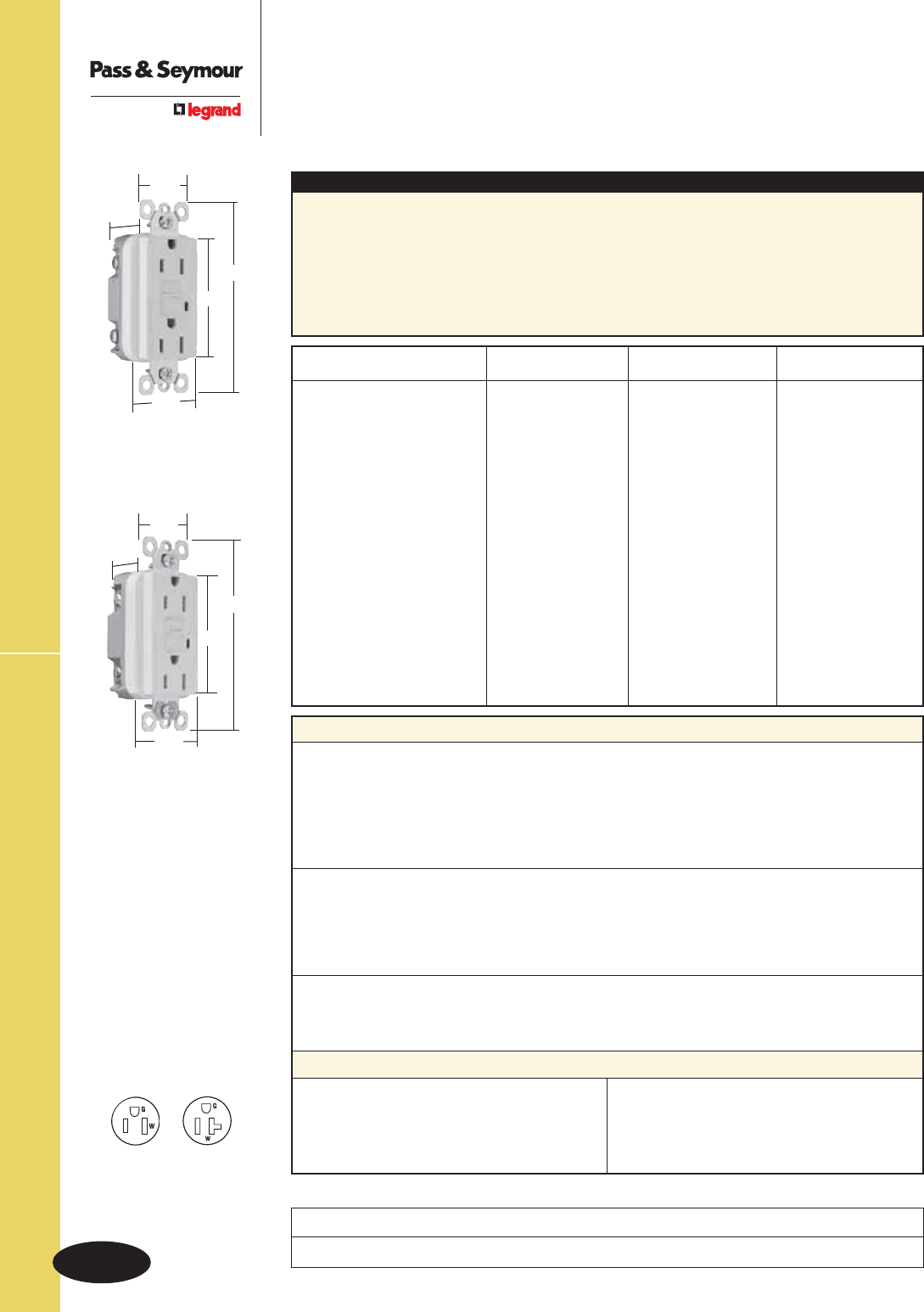

Technical Specifications Hospital Grade GFCIs
Technical Specifications
Hospital Grade GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595HG
Description: Straight Blade Duplex Hospital Grade GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120V Feed Thru; 15A or 20A, 120V Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade.
Standard CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144
GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screw Zinc-Plated Steel
Test/Reset Buttons Nylon
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595HGI Ivory 15A 125VAC 5-15R
❒ 1595HGW White 15A 125VAC 5-15R
❒ 1595HG Brown 15A 125VAC 5-15R
❒ 1595HGGRY Gray 15A 125VAC 5-15R
❒ 1595HGRED Red 15A 125VAC 5-15R
❒ 1595HGLA Light Almond 15A 125VAC 5-15R
❒ 2095HGI Ivory 20A 125VAC 5-20R
❒ 2095HGW White 20A 125VAC 5-20R
❒ 2095HG Brown 20A 125VAC 5-20R
❒ 2095HGGRY Gray 20A 125VAC 5-20R
❒ 2095HGRED Red 20A 125VAC 5-20R
❒ 2095HGLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.72"
1.25"
2.62"
.98"
4.20"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-60
Technical SpecificationsIlluminated GFCIs

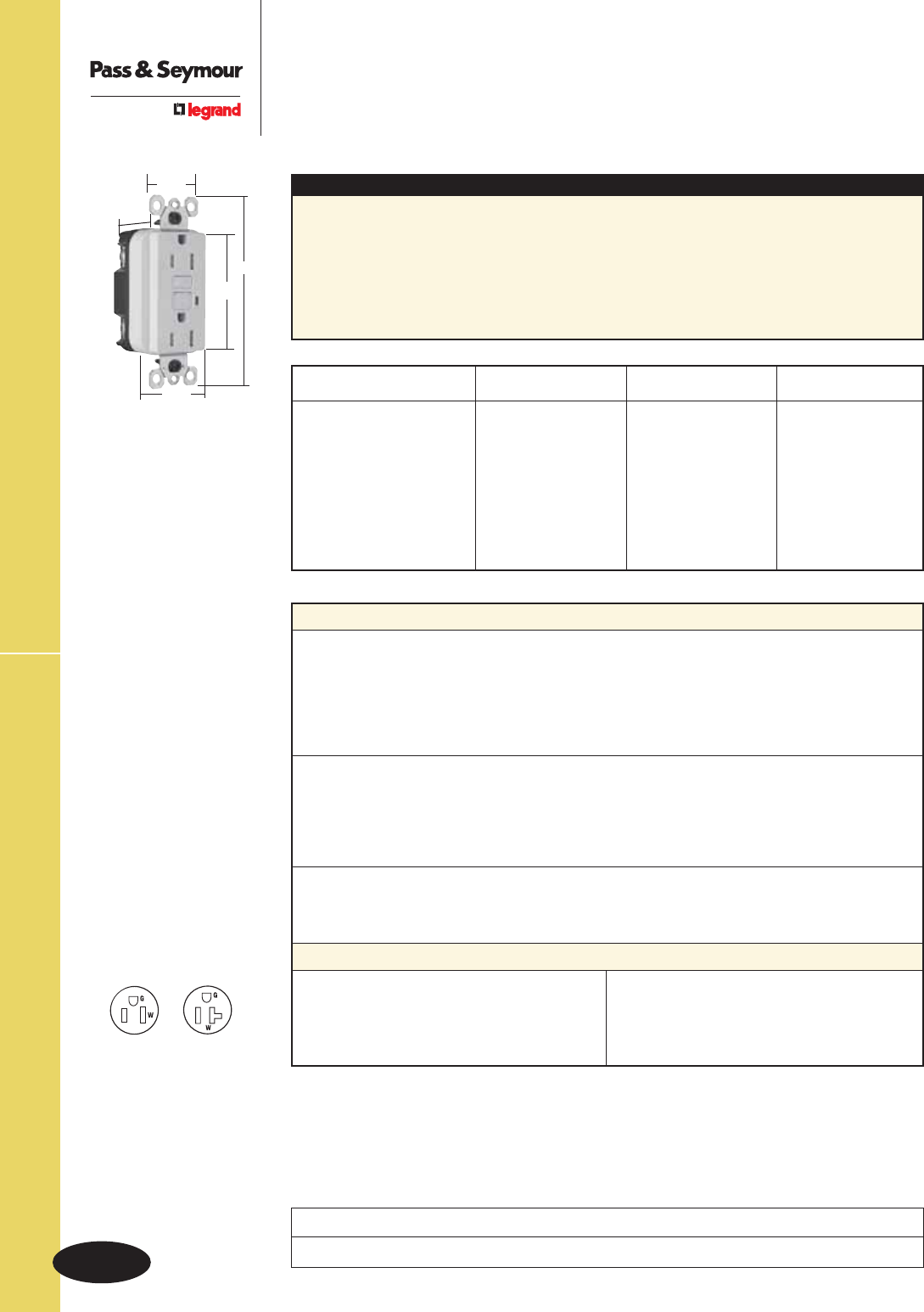

Technical Specifications
Illuminated GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595IL Ivory 15A 125VAC 5-15R
❒ 1595WL White 15A 125VAC 5-15R
❒ 1595L Brown 15A 125VAC 5-15R
❒ 1595LAL Light Almond 15A 125VAC 5-15R
❒ 2095IL Ivory 20A 125VAC 5-20R
❒ 2095WL White 20A 125VAC 5-20R
❒ 2095L Brown 20A 125VAC 5-20R
❒ 2095GRYL Gray 20A 125VAC 5-20R
❒ 2095LAL Light Almond 20A 125VAC 5-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595L
Description: Straight Blade Duplex Illuminated GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498, Attachment Plugs
and Receptacles UL943 GFCIs. Federal Specification WC596. Standard
CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Green, ON when power is available
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Straps .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Dimensions for
15 & 20 Amp
.98"
1.72"
1.25"
2.62"
4.20"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
U-61
Technical Specifications Hospital Grade Illuminated GFCIs
Technical Specifications
Hospital Grade Illuminated
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595HGIL Ivory 15A 125VAC 5-15R
❒ 1595HGWL White 15A 125VAC 5-15R
❒ 1595HGL Brown 15A 125VAC 5-15R
❒ 1595HGGRYL Gray 15A 125VAC 5-15R
❒ 1595HGREDL Red 15A 125VAC 5-15R
❒ 1595HGLAL Light Almond 15A 125VAC 5-15R
❒ 2095HGIL Ivory 20A 125VAC 5-20R
❒ 2095HGWL White 20A 125VAC 5-20R
❒ 2095HGL Brown 20A 125VAC 5-20R
❒ 2095HGGRYL Gray 20A 125VAC 5-20R
❒ 2095HGREDL Red 20A 125VAC 5-20R
❒ 2095HGLAL Light Almond 20A 125VAC 5-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595HGL
Description: Straight Blade Duplex Hospital Grade Illuminated GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120V Feed Thru; 15A or 20A, 120V Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498, Attachment Plugs and
Receptacles UL943 GFCIs. Federal Specification WC596 Hospital Grade.
Standard CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144
GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Green, ON when power is available
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screw Zinc-Plated Steel
Test/Reset Buttons Nylon
Dimensions for
15 & 20 Amp
.98"
1.72"
1.25"
2.62"
4.20"
NEMA
5-15R
NEMA
5-20R
Project
Location/Type
U-62
Technical SpecificationsTamper-Resistant Nightlight/GFCIs
Technical Specifications
Tamper-Resistant Nightlight/
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595NTLTRCC4
Description: Straight Blade Duplex Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Tamper-Resistant, Attachment
Plugs and Receptacles UL943 GFCIs. Federal Specification WC596. Standard
CSA-C22.2 No. 42, General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Straps .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Nightlight Lens Lexan®
Tamper-Resistant Shutter Thermoplastic
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595NTLTRICC4 Ivory 15A 125VAC 5-15R
❒ 1595NTLTRWCC4 White 15A 125VAC 5-15R
❒ 1595NTLTRBKCC4 Black 15A 125VAC 5-15R
❒ 1595NTLTRLACC4 Light Almond 15A 125VAC 5-15R
❒ 2095NTLTRI Ivory 20A 125VAC 5-20R
❒ 2095NTLTRW White 20A 125VAC 5-20R
❒ 2095NTLTRGRY Gray 20A 125VAC 5-20R
❒ 2095NTLTRRED Red 20A 125VAC 5-20R
❒ 2095NTLTRLA Light Almond 20A 125VAC 5-20R
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
NEMA
5-15R
NEMA
5-20R
Project
Location/Type
U-63
Technical Specifications Tamper-Resistant Nightlight/GFCIs
Technical Specifications
Hospital Grade Tamper-Resistant
Nightlight/ GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595HGNTLTR
Description: Straight Blade Duplex Hospital Grade Tamper-Resistant Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 120V Feed Thru; 15A or 20A, 120V Face
3rd Party Compliance: cULus Listed, File Number E42190, Standard UL498 Tamper-Resistant,
Attachment Plugs and Receptacles UL943 GFCIs. Federal Specification WC596
Hospital Grade. Standard CSA-C22.2 No. 42, General Use Receptacles,
CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Terminal Screws Steel #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screw Zinc-Plated Steel
Test/Reset Buttons Nylon
Nightlight Lens Lexan®
Tamper-Resistant Shutter Thermoplastic
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595HGNTLTRI Ivory 15A 125VAC 5-15R
❒ 1595HGNTLTRW White 15A 125VAC 5-15R
❒ 1595HGNTLTR Brown 15A 125VAC 5-15R
❒ 1595HGNTLTRGRY Gray 15A 125VAC 5-15R
❒ 1595HGNTLTRRED Red 15A 125VAC 5-15R
❒ 1595HGNTLTRLA Light Almond 15A 125VAC 5-15R
❒ 2095HGNTLTRI Ivory 20A 125VAC 5-20R
❒ 2095HGNTLTRW White 20A 125VAC 5-20R
❒ 2095HGNTLTR Brown 20A 125VAC 5-20R
❒ 2095HGNTLTRGRY Gray 20A 125VAC 5-20R
❒ 2095HGNTLTRRED Red 20A 125VAC 5-20R
❒ 2095HGNTLTRLA Light Almond 20A 125VAC 5-20R
U-64

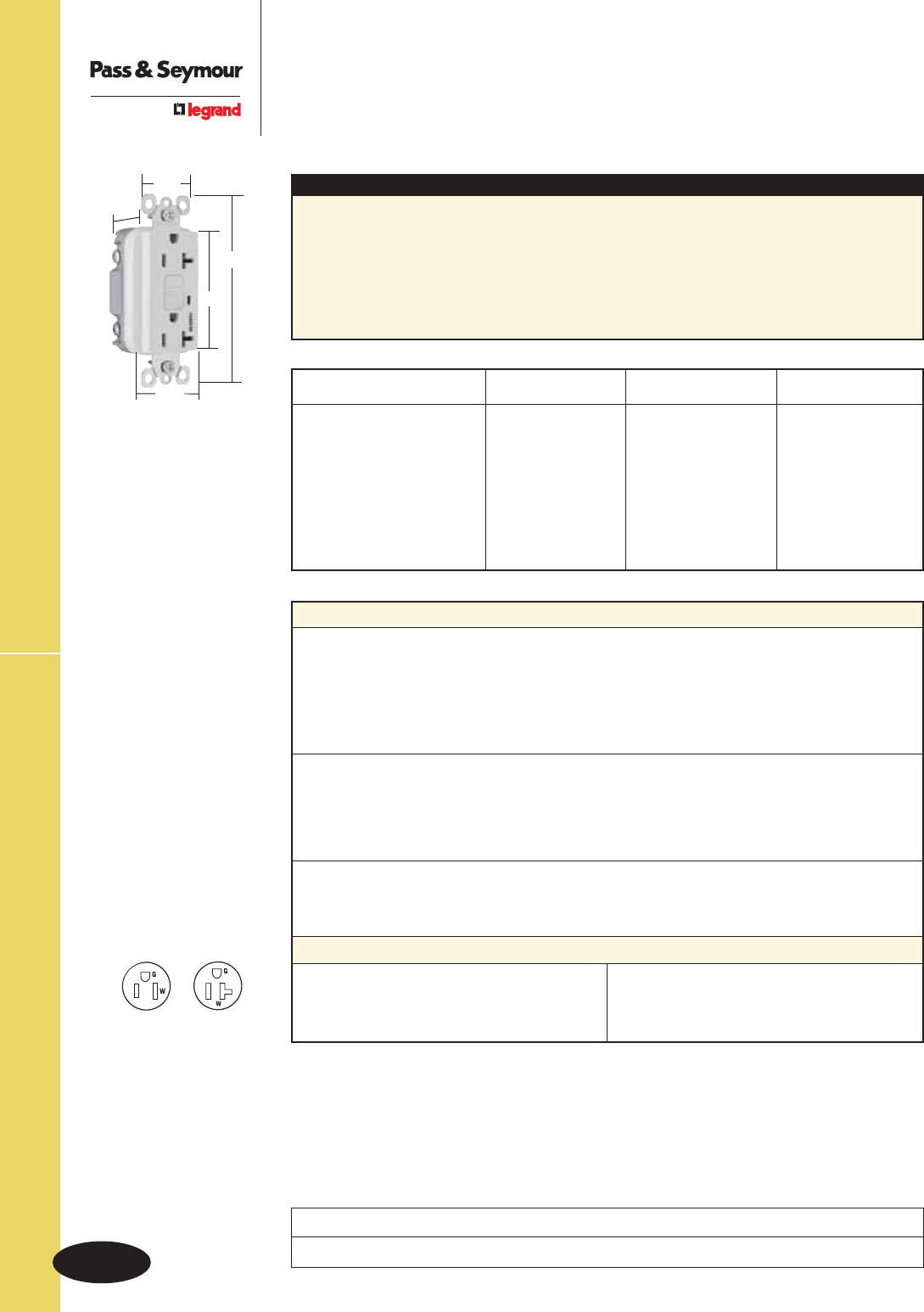

Technical SpecificationsWeather-Resistant GFCIs
Technical Specifications
Weather-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595TRWR
Description: Straight Blade Duplex Weather-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Weather-Resistant,
Tamper-Resistant, Attachment Plugs and Receptacles; UL943 GFCIs. Federal
Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles,
CSA-C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon 66
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Nickel Post-Plated
Steel (1.3)
Terminal Screws Brass #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon 66
Tamper-Resistant Shutter Thermoplastic
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595TRWRI Ivory 15A 125VAC 5-15R
❒ 1595TRWRW White 15A 125VAC 5-15R
❒ 1595TRWR Brown 15A 125VAC 5-15R
❒ 1595TRWRLA Light Almond 15A 125VAC 5-15R
❒ 2095TRWRI Ivory 20A 125VAC 5-20R
❒ 2095TRWRW White 20A 125VAC 5-20R
❒ 2095TRWR Brown 20A 125VAC 5-20R
❒ 2095TRWRGRY Gray 20A 125VAC 5-20R
❒ 2095TRWRLA Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.13"
4.20"
2.62"
1.72"
U-65

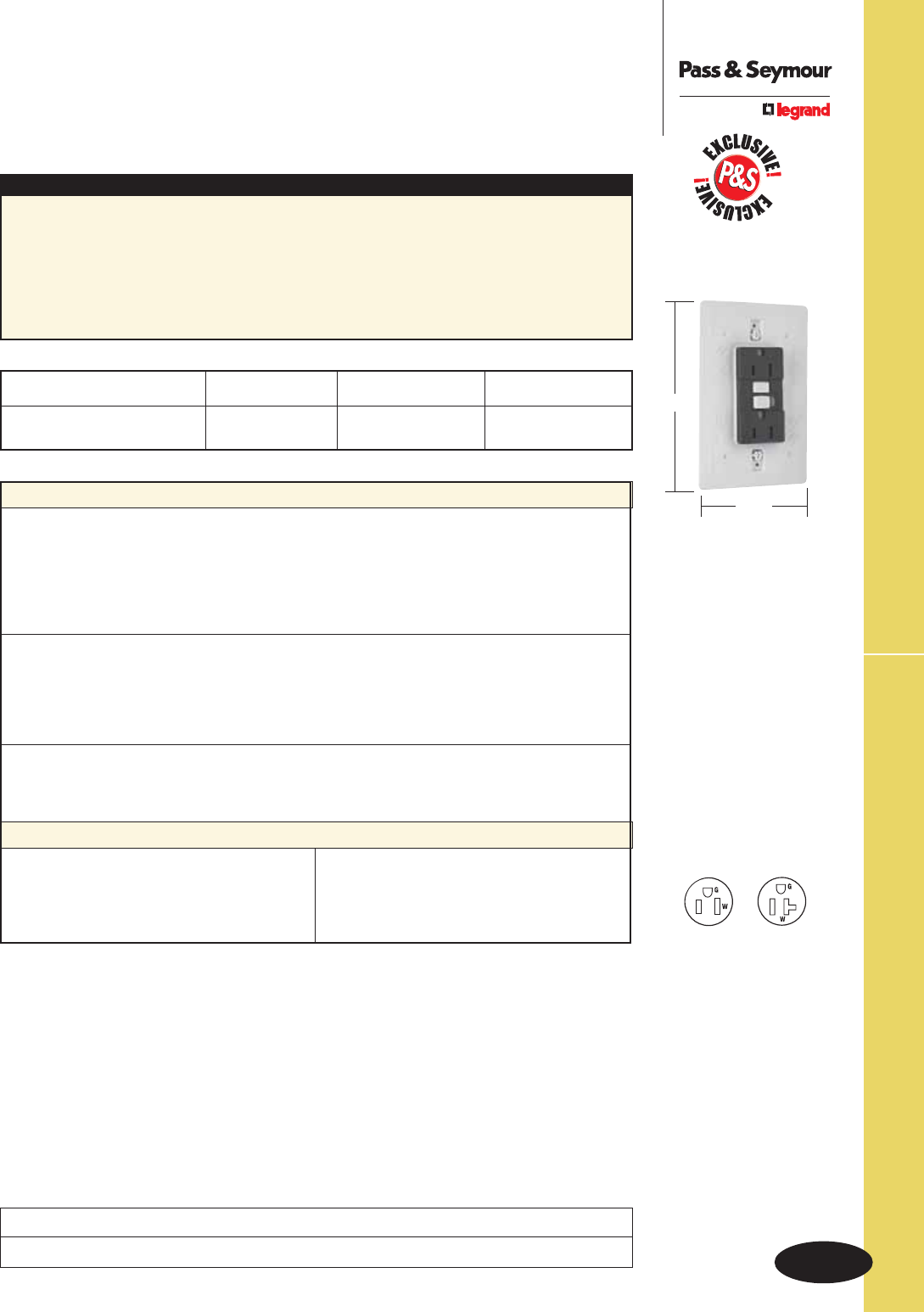

Technical Specifications Weather-Resistant DuraShield™ GFCIs
5.125"
3.313"
Technical Specifications
Weather-Resistant DuraShield™
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 1595DSWRBKCC4
Description: Straight Blade Duplex Weather-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed, File Number E42190; Standard UL498 Weather-Resistant,
Attachment Plugs and Receptacles; UL943 GFCIs. Standard CSA-C22.2 No. 42,
General Use Receptacles, CSA-C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
❒ 1595DSWRBKCC4 Black 15A 125VAC 5-15R
❒ 2095DSWRBK Black 20A 125VAC 5-20R
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
Terminal Identification Terminals identified in accordance with UL498
(Hot, White, Green)
Terminal Accommodation #14 – #10 AWG solid or stranded copper conductor only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
Materials
Face Nylon 66
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Nickel Post-Plated
Steel (1.3)
Terminal Screws Brass #8 - 32
Hex Head Grounding Screw Steel (Green)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon 66
Integral Gasket Santoprene®
Project
Location/Type
U-66

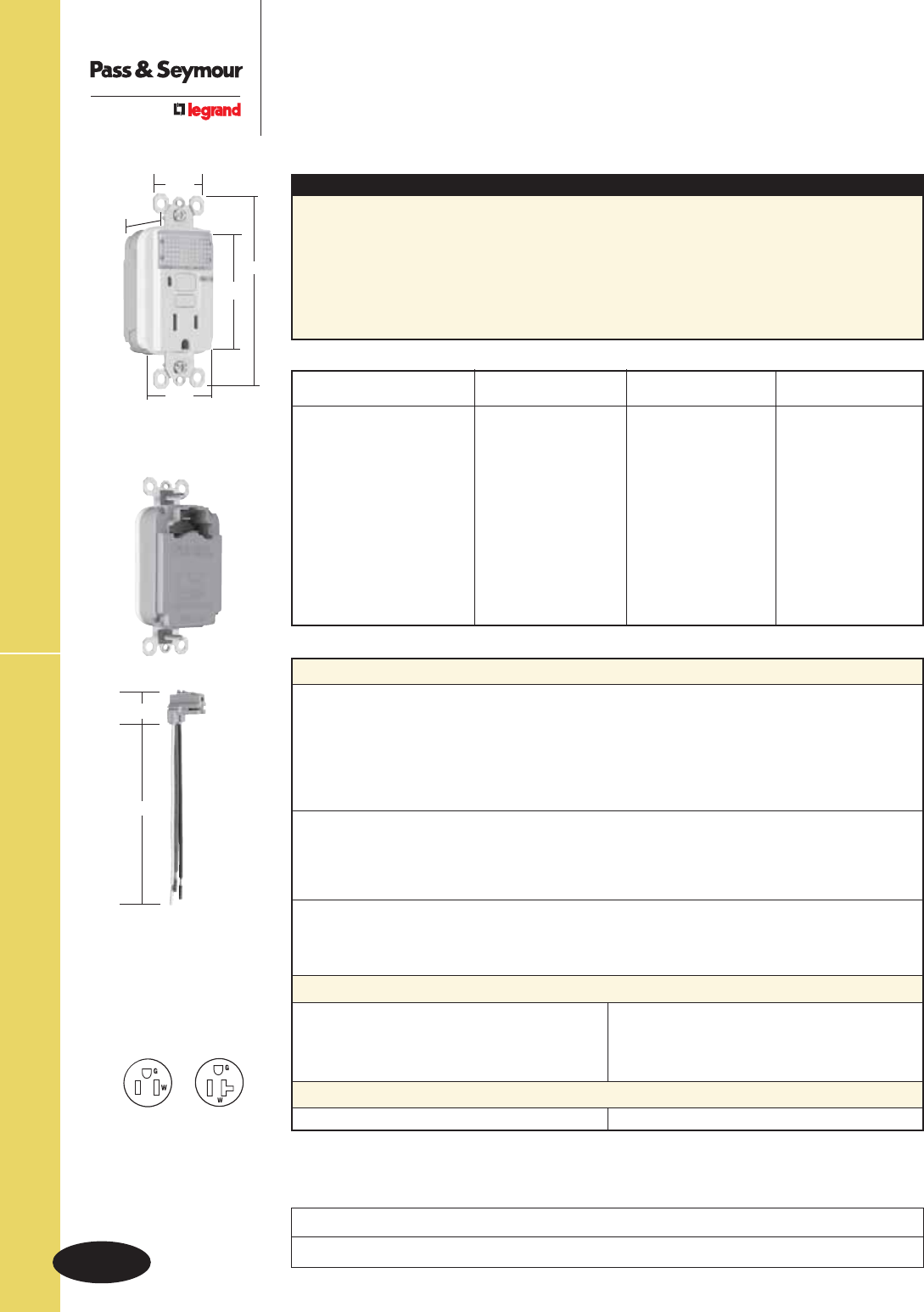

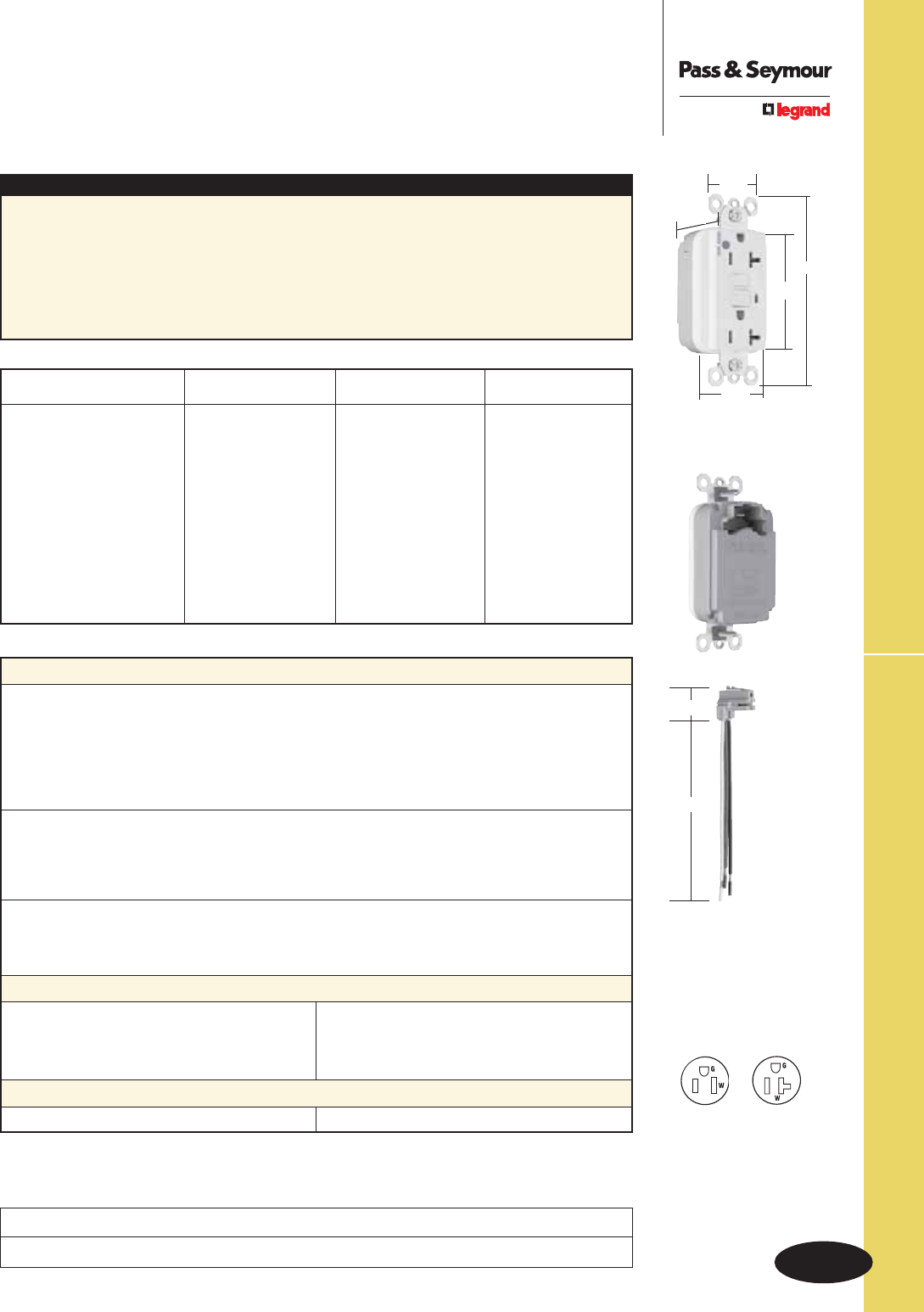

Technical SpecificationsPlugTailTM Spec Grade GFCIs
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
Technical Specifications
PlugTail
TM
Specification Grade
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595
Description: PlugTail™ Straight Blade Duplex GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596. Standard
CSA C22.2 No. 42 General Use Receptacles, CSA C22.2 No. 144 GFCIs.
Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
PT1595I ❐ Ivory 15A 125VAC 5-15R
PT1595W ❐ White 15A 125VAC 5-15R
PT1595 ❐ Brown 15A 125VAC 5-15R
PT1595GRY ❐ Gray 15A 125VAC 5-15R
PT1595BK ❐ Black 15A 125VAC 5-15R
PT1595RED ❐ Red 15A 125VAC 5-15R
PT1595LA ❐ Light Almond 15A 125VAC 5-15R
PT2095I ❐ Ivory 20A 125VAC 5-20R
PT2095W ❐ White 20A 125VAC 5-20R
PT2095 ❐ Brown 20A 125VAC 5-20R
PT2095GRY ❐ Gray 20A 125VAC 5-20R
PT2095BK ❐ Black 20A 125VAC 5-20R
PT2095RED ❐ Red 20A 125VAC 5-20R
PT2095LA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Flat Head
Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Housing Polycarbonate Contacts .030" Brass
U-67
Technical Specifications PlugTailTM Hospital Grade GFCIs
Technical Specifications
PlugTail
TM
Hospital Grade
GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596, Hospital
Grade. Standard CSA C22.2 No. 42 General Use Receptacles, CSA C22.2 No.
144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
PT1595HGI ❐ Ivory 15A 125VAC 5-15R
PT1595HGW ❐ White 15A 125VAC 5-15R
PT1595HG ❐ Brown 15A 125VAC 5-15R
PT1595HGGRY ❐ Gray 15A 125VAC 5-15R
PT1595HGRED ❐ Red 15A 125VAC 5-15R
PT1595HGLA ❐ Light Almond 15A 125VAC 5-15R
PT2095HGI ❐ Ivory 20A 125VAC 5-20R
PT2095HGW ❐ White 20A 125VAC 5-20R
PT2095HG ❐ Brown 20A 125VAC 5-20R
PT2095HGGRY ❐ Gray 20A 125VAC 5-20R
PT2095HGRED ❐ Red 20A 125VAC 5-20R
PT2095HGLA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Flat Head
Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Housing Polycarbonate Contacts .030" Brass
PTRA6STR
1.125"
6.375"
U-68
Technical SpecificationsPlugTailTM Tamper-Resistant GFCIs
Technical Specifications
PlugTail
TM
Specification Grade
Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595NTL
Description: PlugTail™ Straight Blade Duplex Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Tamper-
Resistant, Attachment Plugs and Receptacles, UL943 GFCIs. Federal
Specification WC596. Standard CSA C22.2 No. 42 General Use Receptacles,
CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
PT1595TRI ❐ Ivory 15A 125VAC 5-15R
PT1595TRW ❐ White 15A 125VAC 5-15R
PT1595TR ❐ Brown 15A 125VAC 5-15R
PT1595TRGRY ❐ Gray 15A 125VAC 5-15R
PT1595TRBK ❐ Black 15A 125VAC 5-15R
PT1595TRRED ❐ Red 15A 125VAC 5-15R
PT1595TRLA ❐ Light Almond 15A 125VAC 5-15R
PT2095TRI ❐ Ivory 20A 125VAC 5-20R
PT2095TRW ❐ White 20A 125VAC 5-20R
PT2095TR ❐ Brown 20A 125VAC 5-20R
PT2095TRGRY ❐ Gray 20A 125VAC 5-20R
PT2095TRBK ❐ Black 20A 125VAC 5-20R
PT2095TRRED ❐ Red 20A 125VAC 5-20R
PT2095TRLA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Tamper-Resistant Shutter Thermoplastic
Housing Polycarbonate Contacts .030" Brass
U-69
Technical Specifications PlugTailTM Tamper-Resistant GFCIs
Technical Specifications
PlugTail
TM
Hospital Grade
Tamper-Resistant GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade Tamper-Resistant GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Tamper-
Resistant, Attachment Plugs and Receptacles, UL943 GFCIs. Federal
Specification WC596, Hospital Grade. Standard CSA C22.2 No. 42 General Use
Receptacles, CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
PT1595HGTRI ❐ Ivory 15A 125VAC 5-15R
PT1595HGTRW ❐ White 15A 125VAC 5-15R
PT1595HGTRGRY ❐ Gray 15A 125VAC 5-15R
PT1595HGTRRED ❐ Red 15A 125VAC 5-15R
PT1595HGTRLA ❐ Light Almond 15A 125VAC 5-15R
PT2095HGTRI ❐ Ivory 20A 125VAC 5-20R
PT2095HGTRW ❐ White 20A 125VAC 5-20R
PT2095HGTRGRY ❐ Gray 20A 125VAC 5-20R
PT2095HGTRRED ❐ Red 20A 125VAC 5-20R
PT2095HGTRLA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
PTRA6STR
1.125"
6.375"
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Tamper-Resistant Shutter Thermoplastic
Housing Polycarbonate Contacts .030" Brass
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
U-70

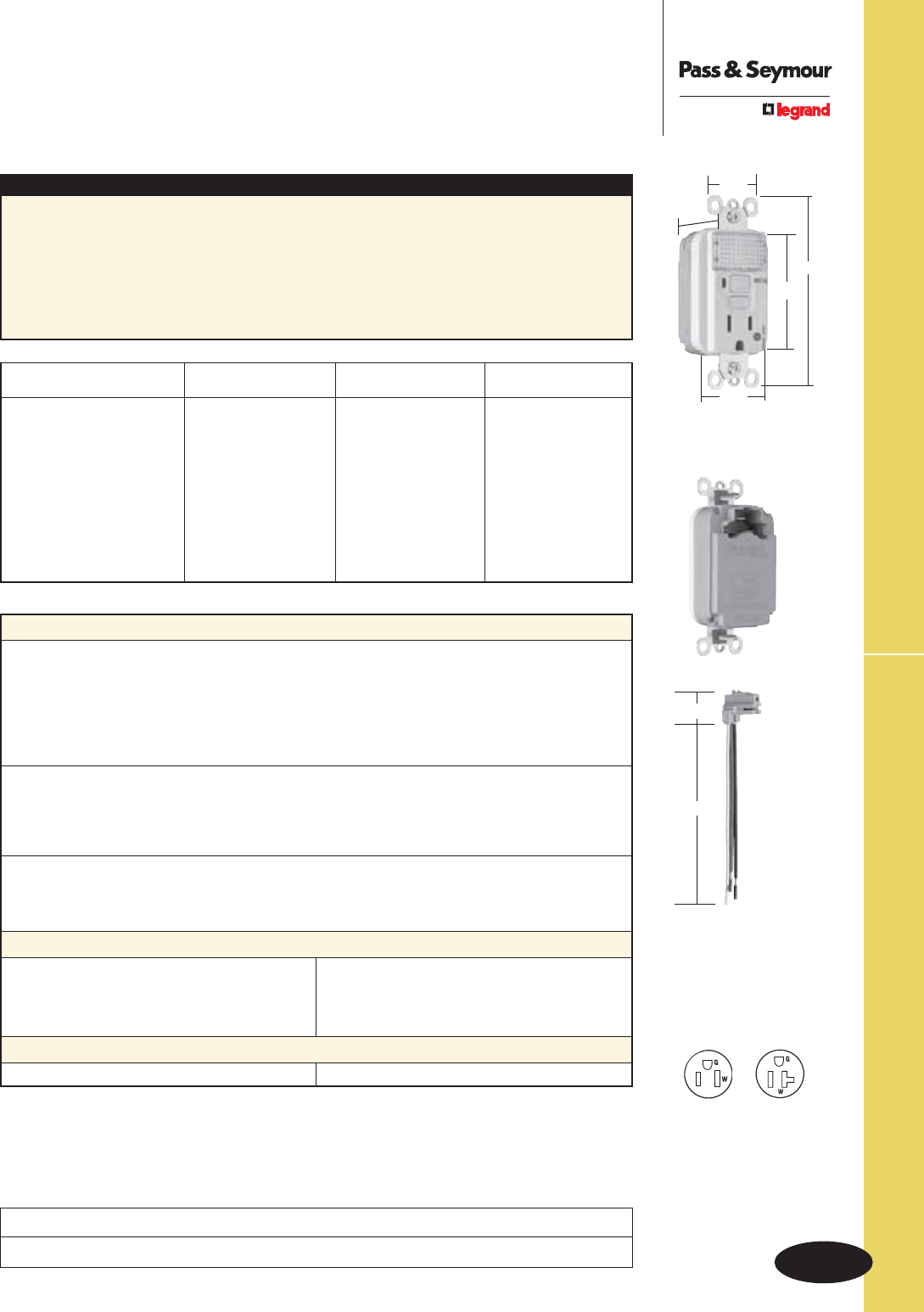

Technical SpecificationsPlugTailTM Nightlight/GFCIs
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Nickel-Plated Steel (1.3)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Nightlight Lens Lexan®
Housing Polycarbonate Contacts .030" Brass
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595NTL
Description: PlugTail™ Straight Blade Duplex Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Tamper-
Resistant, Attachment Plugs and Receptacles, UL943 GFCIs. Federal
Specification WC596. Standard CSA C22.2 No. 42 General Use Receptacles,
CSA C22.2 No. 144 GFCIs. Conforms to NEMA WD-1 and WD-6.
Technical Specifications
PlugTail
TM
Specification Grade
Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
NEMA
Catalog Number Color Rating Conguration No.
PT1595NTLI ❐ Ivory 15A 125VAC 5-15R
PT1595NTLW ❐ White 15A 125VAC 5-15R
PT1595NTLGRY ❐ Gray 15A 125VAC 5-15R
PT1595NTLBK ❐ Black 15A 125VAC 5-15R
PT1595NTLRED ❐ Red 15A 125VAC 5-15R
PT1595NTLLA ❐ Light Almond 15A 125VAC 5-15R
PT2095NTLI ❐ Ivory 20A 125VAC 5-20R
PT2095NTLW ❐ White 20A 125VAC 5-20R
PT2095NTLGRY ❐ Gray 20A 125VAC 5-20R
PT2095NTLBK ❐ Black 20A 125VAC 5-20R
PT2095NTLRED ❐ Red 20A 125VAC 5-20R
PT2095NTLLA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
U-71
Technical Specifications PlugTailTM Nightlight/GFCIs
Technical Specifications
PlugTail
TM
Hospital Grade
Nightlight/GFCI Receptacles
2 Pole, 3 Wire Grounding 15 & 20A, 125VAC
Performance
Electrical
Dielectric Withstands 1500V minimum
Trip Level 4 to 6 mA
Trip Time .025 Second Nominal
Frequency 60 Hz
Voltage 125VAC
Voltage Range 102-132VAC
Mechanical
Indicator Light (LED) Red, ON when GFCI is tripped
PlugTail Connector Identification #12 AWG, THHN, copper conductor, 6" leads, stripped,
solid or stranded, for use with PlugTail Receptacles only
Product Identification Ratings are a permanent part of the device
Environmental
Operating Temperature -35°C to +66°C
Maximum Humidity 95%
Flammability UL94 V2
PlugTail™ GFCI Receptacle Materials
PlugTail Connector Materials
Face Nylon
Body Nylon
Contacts .03" Brass (.8)
Mounting Strap .05" Zinc-Plated Steel (1.3)
Flat Head Mounting Screws Zinc-Plated Steel
Test/Reset Buttons Nylon
Nightlight Lens Lexan®
Housing Polycarbonate Contacts .030" Brass
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PT1595HG
Description: PlugTail™ Straight Blade Duplex Hospital Grade Nightlight/GFCI Receptacle
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125VAC Feed Thru, 15A, 125VAC or 20A, 125VAC FACE
3rd Party Compliance: cULus Listed File Number E42190 and E140596, Standard UL498 Attachment
Plugs and Receptacles, UL943 GFCIs. Federal Specification WC596, Hospital
Grade. Standard CSA C22.2 No. 42 General Use Receptacles, CSA C22.2 No.
144 GFCIs. Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Color Rating Conguration No.
PT1595HGNTLI ❐ Ivory 15A 125VAC 5-15R
PT1595HGNTLW ❐ White 15A 125VAC 5-15R
PT1595HGNTLGRY ❐ Gray 15A 125VAC 5-15R
PT1595HGNTLRED ❐ Red 15A 125VAC 5-15R
PT1595HGNTLLA ❐ Light Almond 15A 125VAC 5-15R
PT2095HGNTLI ❐ Ivory 20A 125VAC 5-20R
PT2095HGNTLW ❐ White 20A 125VAC 5-20R
PT2095HGNTLGRY ❐ Gray 20A 125VAC 5-20R
PT2095HGNTLRED ❐ Red 20A 125VAC 5-20R
PT2095HGNTLLA ❐ Light Almond 20A 125VAC 5-20R
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
Dimensions for
15 & 20 Amp
1.25"
1.20"
4.20"
2.62"
1.72"
PTRA6STR
1.125"
6.375"
U-72

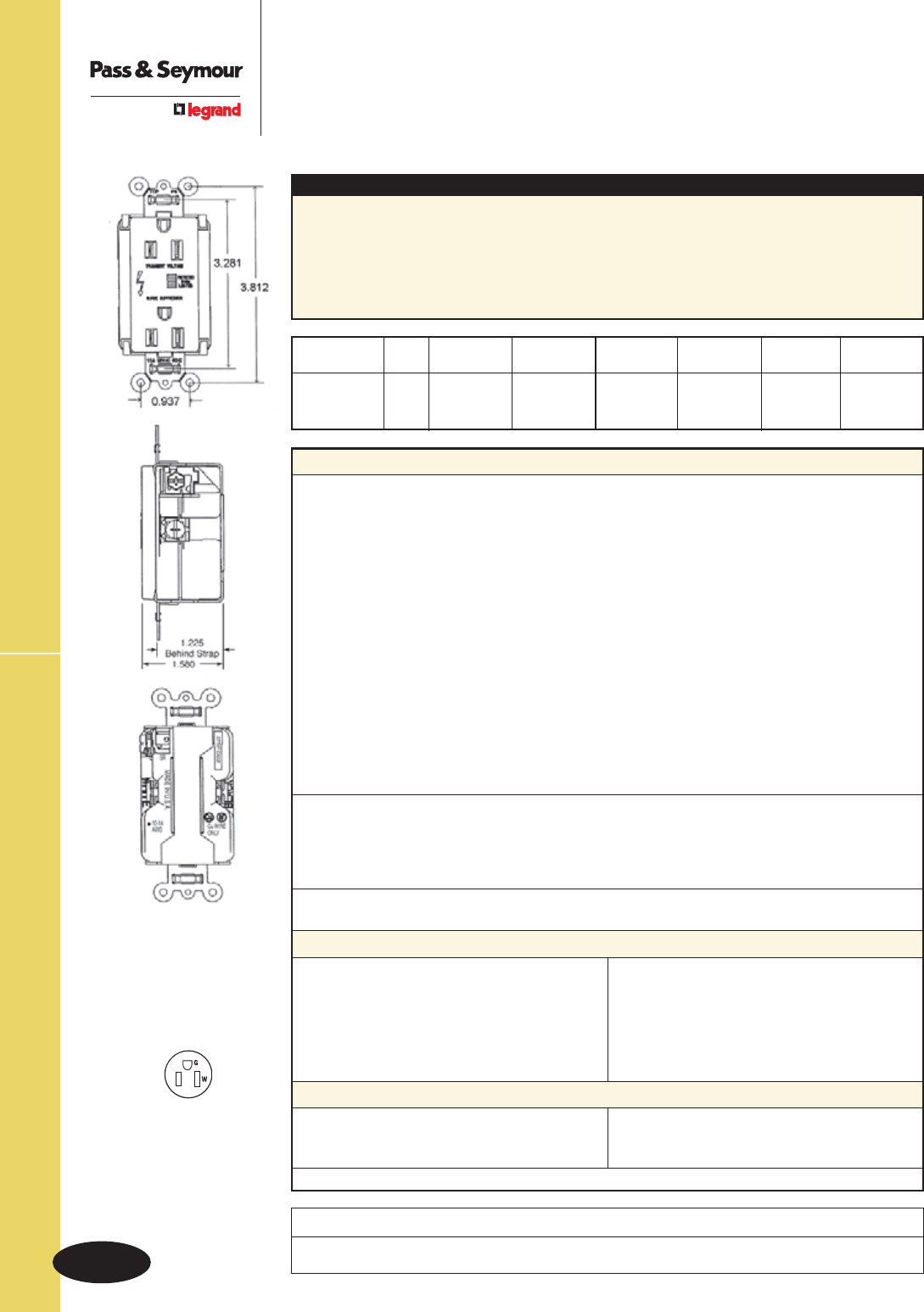

Technical SpecificationsHospital Grade TVSS Duplex Receptacles
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
Technical Specifications
Hospital Grade TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 15A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA
Number Color Rating Cong.No.
❒
8200ISP Ivory 15A 125VAC 5-15R
❒
8200WSP White 15A 125VAC 5-15R
❒
8200SP Brown 15A 125VAC 5-15R
❒
8200GRYSP Gray 15A 125VAC 5-15R
Catalog NEMA
Number Color Rating Cong.No.
❒
8200REDSP Red 15A 125VAC 5-15R
❒
8200LASP Lt. Almond 15A 125VAC 5-15R
❒
8200BLSP Blue 15A 125VAC 5-15R
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 280 Joules
Max Surge Capability 18kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
NEMA
5-15R
Project
Location/Type
U-73

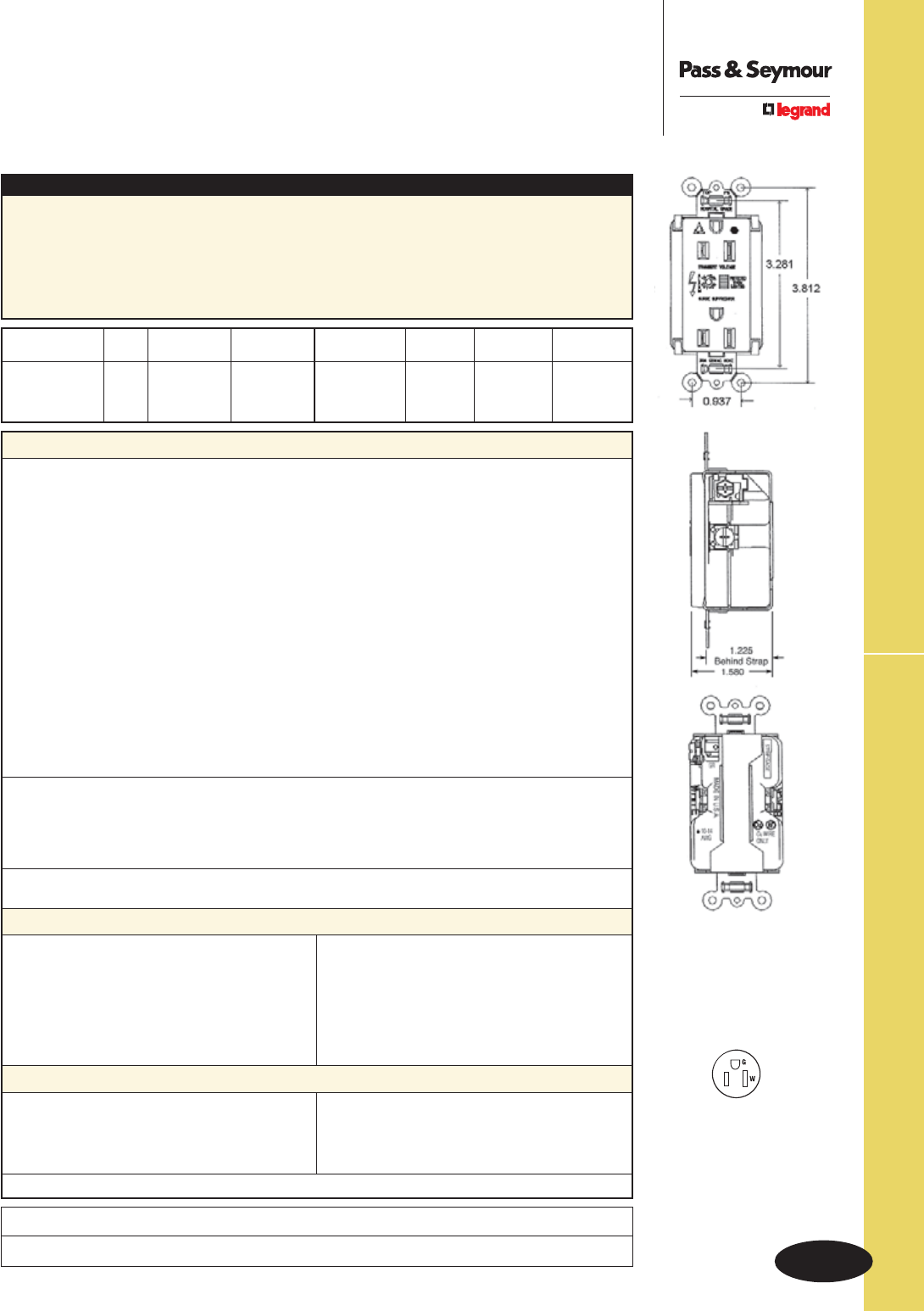

Technical Specifications Hospital Grade IG TVSS Duplex Recept.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Technical Specifications
Hospital Grade Isolated Ground
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 15A, 125VAC
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
Catalog NEMA
Number Color Rating Cong. No.
❒
IG8200ISP Ivory 15A 125VAC 5-15R
❒
IG8200WSP White 15A 125VAC 5-15R
❒
IG8200GRYSP Gray 15A 125VAC 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
IG8200LASP Lt. Almond 15A 125VAC 5-15R
❒
IG8200BLSP Blue 15A 125VAC 5-15R
❒
IG8200OSP Orange 15A 125VAC 5-15R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand IG8200ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) & 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
NEMA
5-15R
Project
Location/Type
U-74
Technical SpecificationsHospital Grade TVSS Duplex Receptacles
Technical Specifications
Hospital Grade TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 8300ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability
Catalog NEMA
Number Color Rating Cong. No.
❒
8300ISP Ivory 20A 125VAC 5-20R
❒
8300WSP White 20A 125VAC 5-20R
❒
8300SP Brown 20A 125VAC 5-20R
❒
8300GRYSP Gray 20A 125VAC 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
8300REDSP Red 20A 125VAC 5-20R
❒
8300LASP Lt. Almond 20A 125VAC 5-20R
❒
8300BLSP Blue 20A 125VAC 5-20R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45. Project
Location/Type
NEMA
5-20R
U-75
Technical Specifications Hospital Grade IG TVSS Duplex Recept.
Technical Specifications
Hospital Grade Isolated Ground
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 20A, 125VAC
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Catalog NEMA
Number Color Rating Cong. No.
❒
IG8300ISP Ivory 20A 125VAC 5-20R
❒
IG8300WSP White 20A 125VAC 5-20R
❒
IG8300GRYSP Gray 20A 125VAC 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
IG8300LASP Lt. Almond 20A 125VAC 5-20R
❒
IG8300BLSP Blue 20A 125VAC 5-20R
❒
IG8300OSP Orange 20A 125VAC 5-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand IG8300ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
NEMA
5-20R
Project
Location/Type
U-76
Technical Specifications
Spec Grade EHD TVSS Duplex Receptacles
Technical Specifications
Specification Grade
Extra Heavy-Duty TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 15A, 125VAC
NEMA
5-15R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Catalog NEMA
Number Color Rating Cong. No.
❒
5262ISP Ivory 15A 125VAC 5-15R
❒
5262WSP White 15A 125VAC 5-15R
❒
5262SP Brown 15A 125VAC 5-15R
❒
5262GRYSP Gray 15A 125VAC 5-15R
Catalog NEMA
Number Color Rating Cong. No.
❒
5262BKSP Black 15A 125VAC 5-15R
❒
5262REDSP Red 15A 125VAC 5-15R
❒
5262LASP Lt. Almond 15A 125VAC 5-15R
❒
5262BLSP Blue 15A 125VAC 5-15R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45. Project
Location/Type
U-77
Technical Specifications Spec Grade IG TVSS Duplex Receptacles
Technical Specifications
Specification Grade Isolated Ground
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 15A, 125VAC
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand IG5262ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Catalog NEMA
Number Color Rating Cong.No.
❒
IG5262ISP Ivory 15A 125VAC 5-15R
❒
IG5262WSP White 15A 125VAC 5-15R
❒
IG5262GRYSP Gray 15A 125VAC 5-15R
Catalog NEMA
Number Color Rating Cong.No.
❒
IG5262BLSP Blue 15A 125VAC 5-15R
❒
IG5262OSP Orange 15A 125VAC 5-15R
NEMA
5-15R
Project
Location/Type
U-78
Technical SpecificationsSpec Grade TVSS Duplex Receptacles
Technical Specifications
Specification Grade
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5362ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Catalog NEMA
Number Color Rating Cong. No.
❒
5362ISP Ivory 20A 125VAC 5-20R
❒
5362WSP White 20A 125VAC 5-20R
❒
5362SP Brown 20A 125VAC 5-20R
❒
5362GRYSP Gray 20A 125VAC 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
5362REDSP Red 20A 125VAC 5-20R
❒
5362LASP Lt. Almond 20A 125VAC 5-20R
❒
5362BLSP Blue 20A 125VAC 5-20R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
NEMA
5-20R
Project
Location/Type
U-79
Technical Specifications
Spec Grade IG TVSS Duplex Receptacles
Technical Specifications
Specification Grade Isolated Ground
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 20A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand IG5362ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 210 Joules
Max Surge Capability 13kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
Alarm
Alarm shut off/override
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Catalog NEMA
Number Color Rating Cong. No.
❒
IG5362ISP Ivory 20A 125VAC 5-20R
❒
IG5362WSP White 20A 125VAC 5-20R
❒
IG5362GRYSP Gray 20A 125VAC 5-20R
❒
IG5362SP Brown 20A 125VAC 5-20R
Catalog NEMA
Number Color Rating Cong. No.
❒
IG5362LASP Lt. Almond 20A 125VAC 5-20R
❒
IG5362BLSP Blue 20A 125VAC 5-20R
❒
IG5362OSP Orange 20A 125VAC 5-20R
NEMA
5-20R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
Project
Location/Type
U-80
Technical SpecificationsSpec Grade TVSS Duplex Receptacles
Technical Specifications
Specification Grade
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 15A, 125VAC
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5252ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA Catalog NEMA
Number Color Rating Cong. No. Number Color Rating Cong. No.
❒
5252ISP Ivory 15A 125VAC 5-15R
❒
5252LASP Light Almond 15A 125VAC 5-15R
❒
5252WSP White 15A 125VAC 5-15R
❒
5252BLSP Blue 15A 125VAC 5-15R
❒
5252GRYSP Gray 15A 125VAC 5-15R
NEMA
5-15R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45. Project
Location/Type
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 140 Joules
Max Surge Capability 9kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
LED Indicator – Indicates loss of protection in all
3 modes
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
U-81
Technical Specifications Spec Grade TVSS Duplex Receptacles
Project
Location/Type
Technical Specifications
Specification Grade
TVSS Duplex Receptacles
2 Pole, 3 Wire Grounding 20A, 125VAC
Performance
Electrical
Frequency 60 Hz
Voltage 125VAC
MOV Rating 150V 18mm Dual Pack
Suppressed Voltage 500V
Energy Rating 130 Joules
Max Surge Capability 9kA
Protection Modes Normal and Common Modes
Normal Mode (L-N) 500V Clamping
Common Mode (L-G) 500V Clamping
(N-G) 500V Clamping
Noise Attenuation Normal Mode (L-N)
Capacitance Value = 0.0056 μF
7:1 Average Noise Reduction
Thermal Protection Three Thermal Fuses (128°C or 262°F)
Overcurrent Protection Two Fuses Protects 3 Modes
Operating Temperature -20°C to 55°C (-4 to 131°F)
Storage Temperature -40°C to 85°C (-40 to 185°F)
Mechanical
Terminal Identification Brass = Hot, Nickel = Neutral, Green = Ground
Terminal Accommodation #14 – 10 AWG copper conductor only
Product Identification Ratings are a permanent part of device
Weight 4.8 ounces
Environmental
Flammability UL94 V2
Materials
Features
Warranty 1 year
Face Nylon
Body Nylon
Line Terminal 0.036" CDA 260 Brass
Grounding Terminal Olin #688
(Uni-Ground Assembly)
Mounting Strap .042" Zinc-Plated Steel
Clamping Plate 0.031" CDA 260 Brass
Terminal Screws Tri-Drive Brass #8 - 32
Hex Head Grounding Tri-Drive Steel (Green)
Screw
Auto-Ground Clip Stainless Steel
Mounting Screws Tri-Drive Zinc-Plated Steel
LED Red
Encapsulation Blue Epoxy
LED Indicator – Indicates loss of protection in all
3 modes
688 Brass 1-piece ground terminal assembly
Back and side wire capability including
ground terminal
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 5352ISP
3rd Party Compliance: UL Listed, File Number E140596, Standard UL498, Attachment Plugs and
Receptacles UL1449 Transient Voltage Surge Suppressor. Federal Specification
WC596. CSA Certified, File Number LR16063, Standard CSA-C22.2 No.
42, ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation
Categories “A” (Ring Wave) “B” (Unidirectional Impulse). Complies with NEC
410-56(c) and 250-74 exception 4. Conforms to NEMA WD-1 and WD-6.
Catalog NEMA Catalog NEMA
Number Color Rating Cong. No. Number Color Rating Cong. No.
❒
5352ISP Ivory 20A 125VAC 5-20R
❒
5352LASP Light Almond 20A 125VAC 5-20R
❒
5352WSP White 20A 125VAC 5-20R
❒
5352BLSP Blue 20A 125VAC 5-20R
❒
5352GRYSP Gray 20A 125VAC 5-20R
NEMA
5-20R
Conforms to the latest revision
ANSI/IEEE C62.41 (formerly
IEEE587), ANSI/IEEE C62.45.
U-82

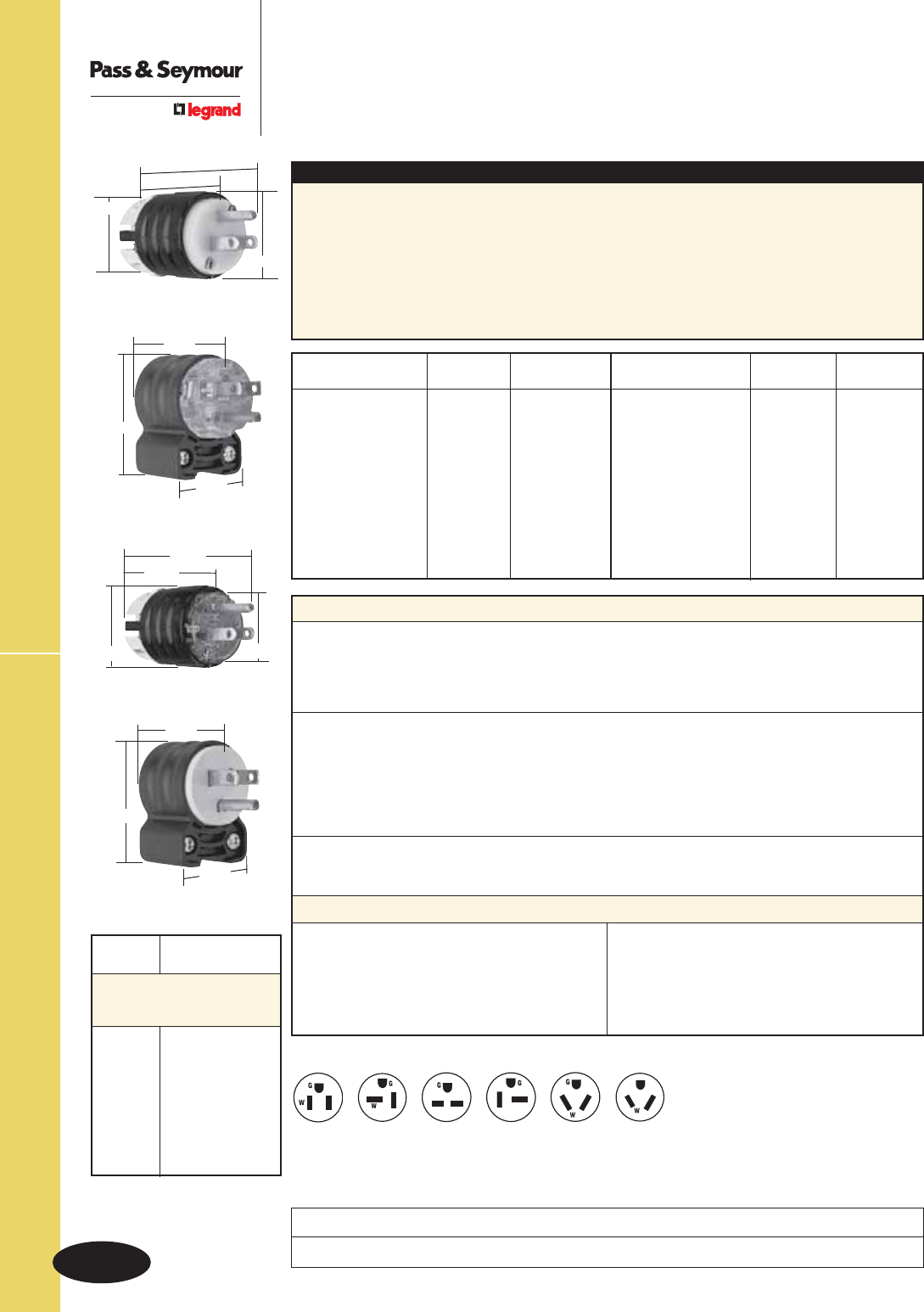

Technical SpecificationsStraight Blade Plugs
Technical Specifications
Straight Blade Plugs
2 Pole, 3 Wire Grounding 15 & 20A, 125, 250 & 277V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5266X
Description: Straight Blade Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765,
Standard CSA-C22.2 No. 42, General Use Receptacles and Attachment Plugs.
Conforms to NEMA WD-1 and WD-6.
NEMA
Catalog Number Rating Cong. No.
❒
PS5266XHG 15 125 5-15P
❒
PS5266HGAN 15 125 5-15P
❒
PS5366XHG 20 125 5-20P
❒
PS5366HGAN 20 125 5-20P
❒
PS5666XHG 15 250 6-15P
❒
PS5666HGAN 15 250 6-15P
❒
PS5466XHG 20 250 6-20P
❒
PS5466HGAN 20 250 6-20P
❒
PS5266X 15 125 5-15P
❒
PS5266SSAN 15 125 5-15P
❒
PS5266XGRY 15 125 5-15P
NEMA
Catalog Number Rating Cong. No.
❒
PS5266XBK 15 125 5-15P
❒
CR5266X 15 125 5-15P
❒
PS5366X 20 125 5-20P
❒
PS5366SSAN 20 125 5-20P
❒
PS5666X 15 250 6-15P
❒
PS5666SSAN 15 250 6-15P
❒
PS5466X 20 250 6-20P
❒
PS5466SSAN 20 250 6-20P
❒ PS5766X 15 277 7-15P
❒ PS5866X 20 277 7-20P
NEMA
6-15P
NEMA
6-20P
NEMA
5-15P
NEMA
7-15P
NEMA
5-20P
NEMA
7-20P
*Nickel-Plated for Corrosion-Resistant Product.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 277V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter, Angle Plugs – .320"–.655"
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Blades * Brass
Terminal Clamp * Zinc-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
2.791"
1.752"
PS5266X
1.516"
1.358"
PS5266XHG
1.752"
2.791"
1.516" 1.358"
PS5266HGAN
2.130"
1.350"
1.530"
PS5266SSAN
2.130"
1.350"
1.530"
Project
Location/Type
* Suitable for 208V motor
applications at the HP rating
specified.
NEMA AC HP
Cong. Rating
Straight Blade
Horsepower Rating for
NEMA Configuration
5-15 1⁄2
6-15 11⁄2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
U-83

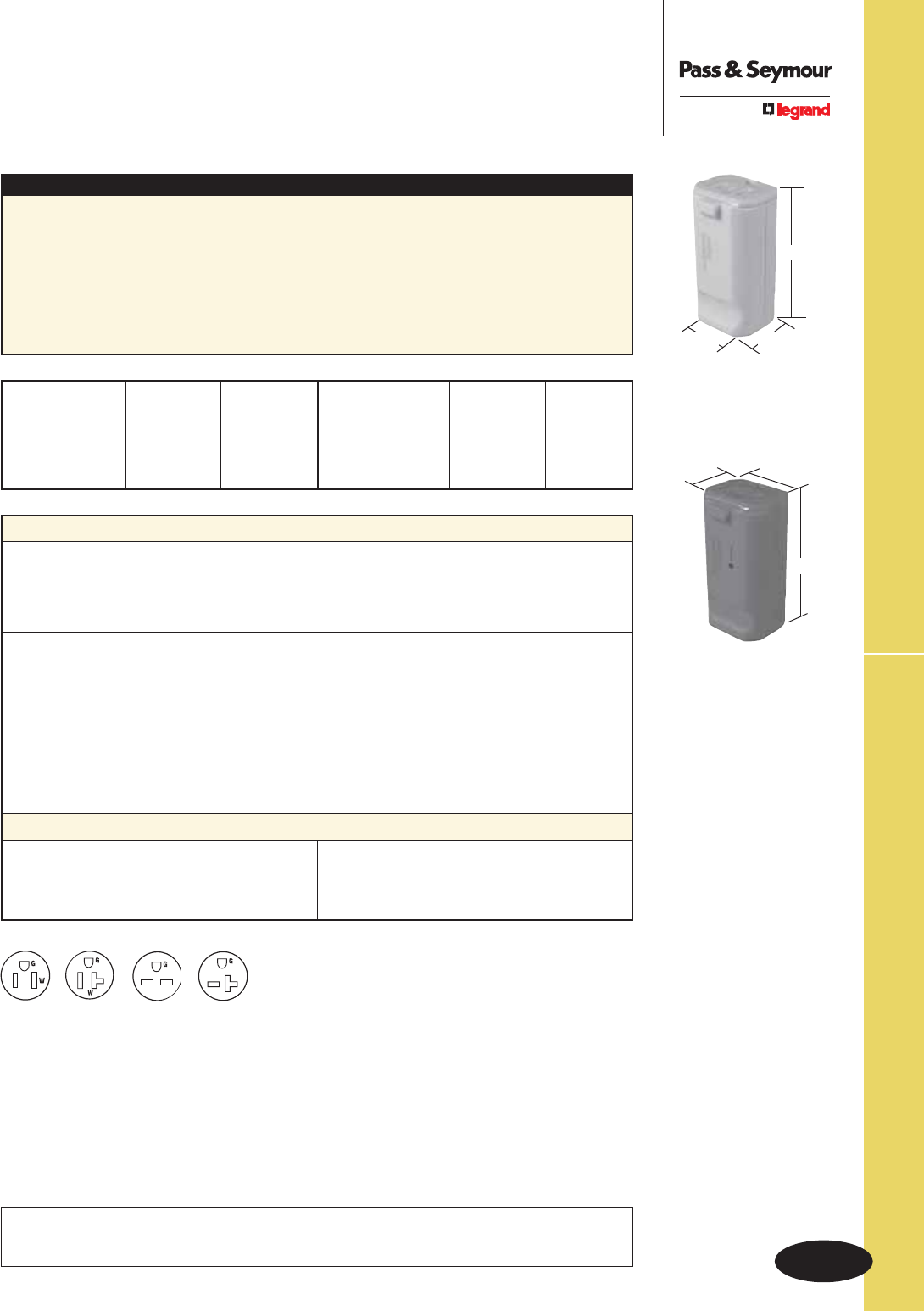

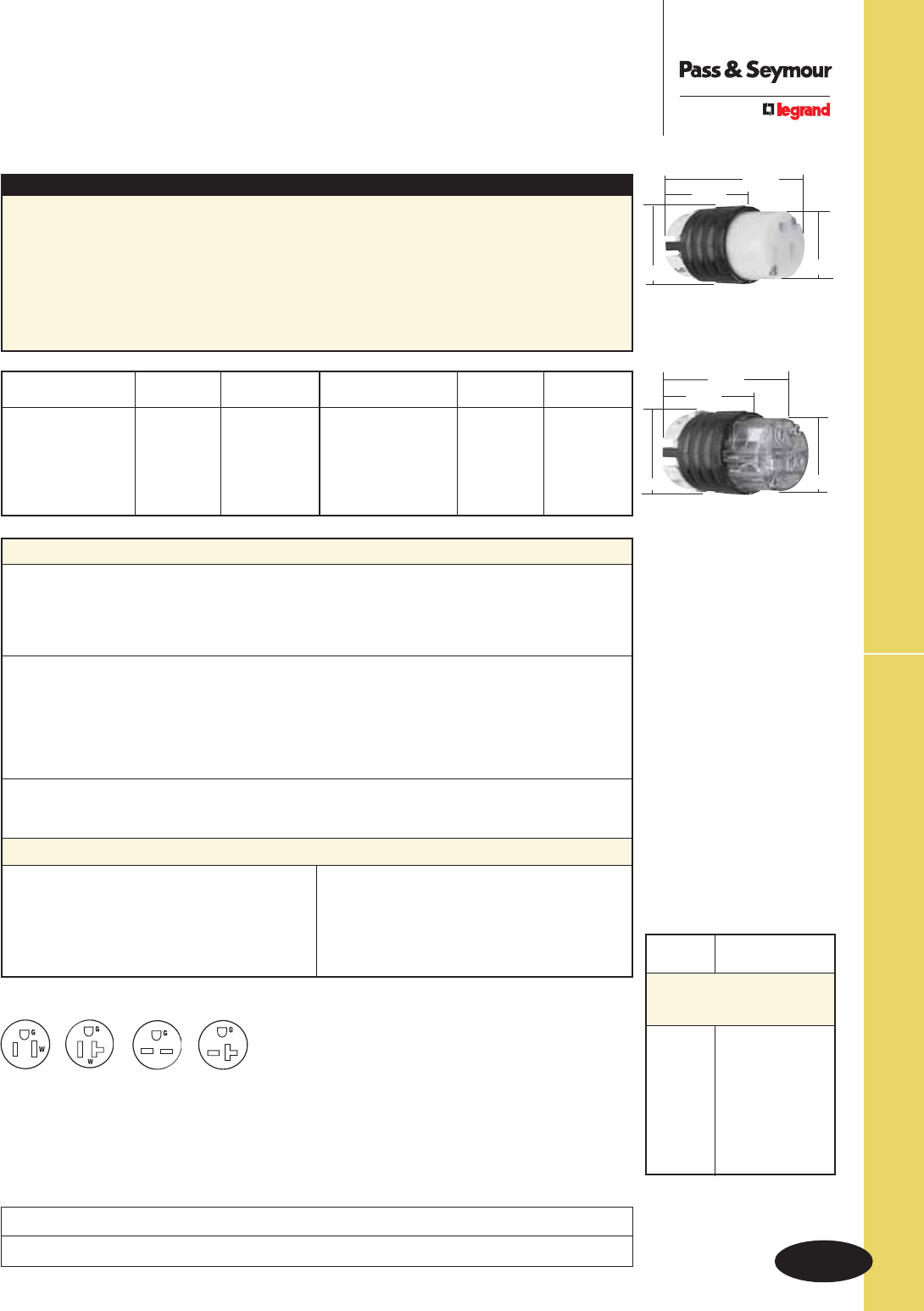

Technical Specifications Straight Blade Connectors
Technical Specifications
Straight Blade Connectors
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5269X
Description: Straight Blade Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A. 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765,
Standard CSA-C22.2 No. 42, General Use Receptacles and Attachment Plugs.
Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Contacts * Brass
Terminal Clamp * Zinc-Plated Steel
Terminal Screws Nickel- or Brass-
Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
* Nickel-Plated for Corrosion-Resistant Product.
NEMA
Catalog Number Rating Cong. No.
❒
PS5269XHG 15 125 5-15R
❒
PS5369XHG 20 125 5-20R
❒
PS5669XHG 15 250 6-15R
❒
PS5469XHG 20 250 6-20R
❒
PS5269X 15 125 5-15R
❒
PS5269XGRY 15 125 5-15R
NEMA
Catalog Number Rating Cong. No.
❒
PS5269XBK 15 125 5-15R
❒
CR5269X 15 125 5-15R
❒
PS5369X 20 125 5-20R
❒
PS5669X 15 250 6-15R
❒
PS5469X 20 250 6-20R
PS5269XHG
2.638"
1.516" 1.358"
1.752"
PS5269X
1.516" 1.358"
1.752"
2.638"
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
* Suitable for 208V motor
applications at the HP rating
specified.
NEMA AC HP
Cong. Rating
Straight Blade
Horsepower Rating for
NEMA Configuration
5-15 1⁄2
6-15 11⁄2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
U-84

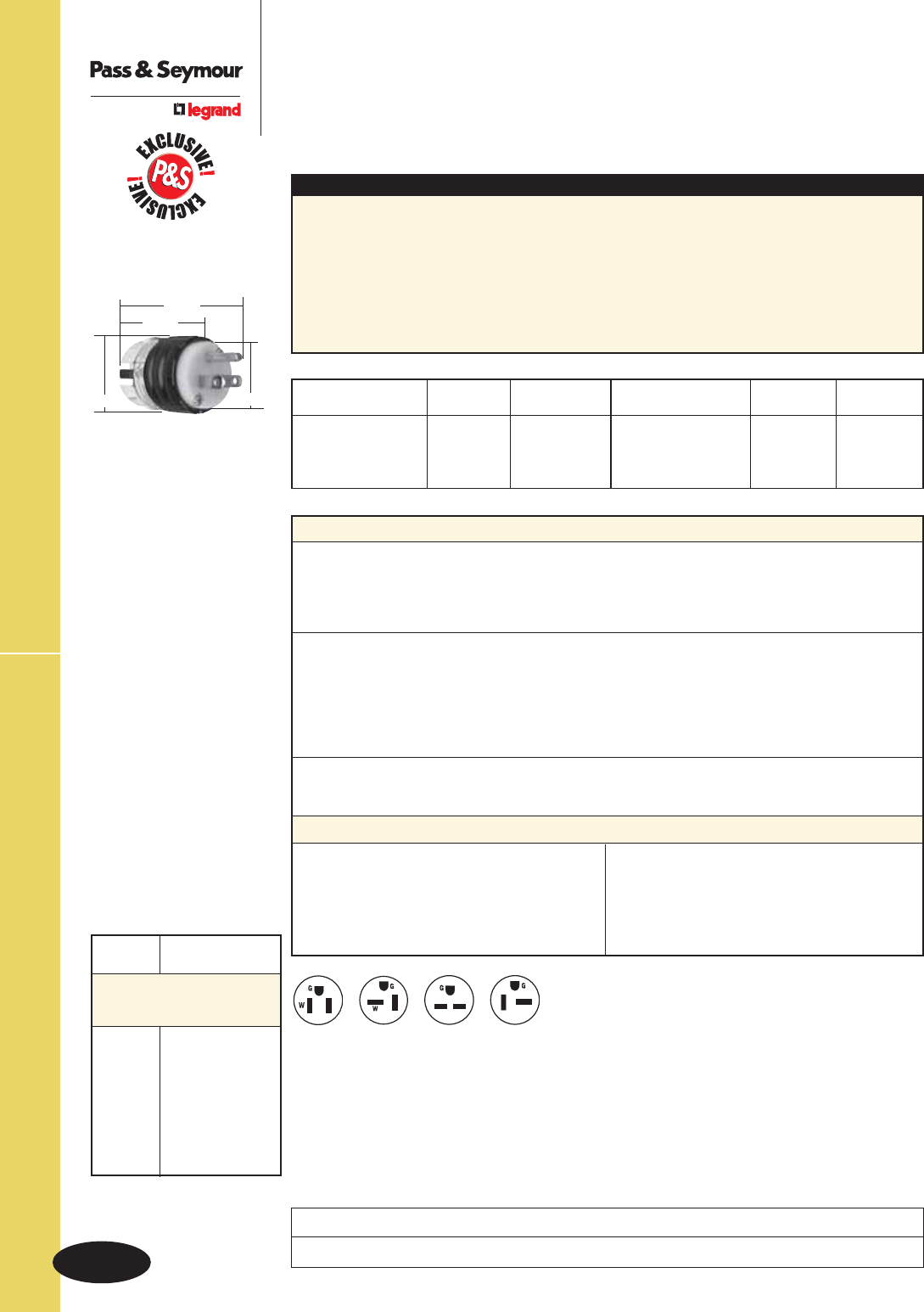

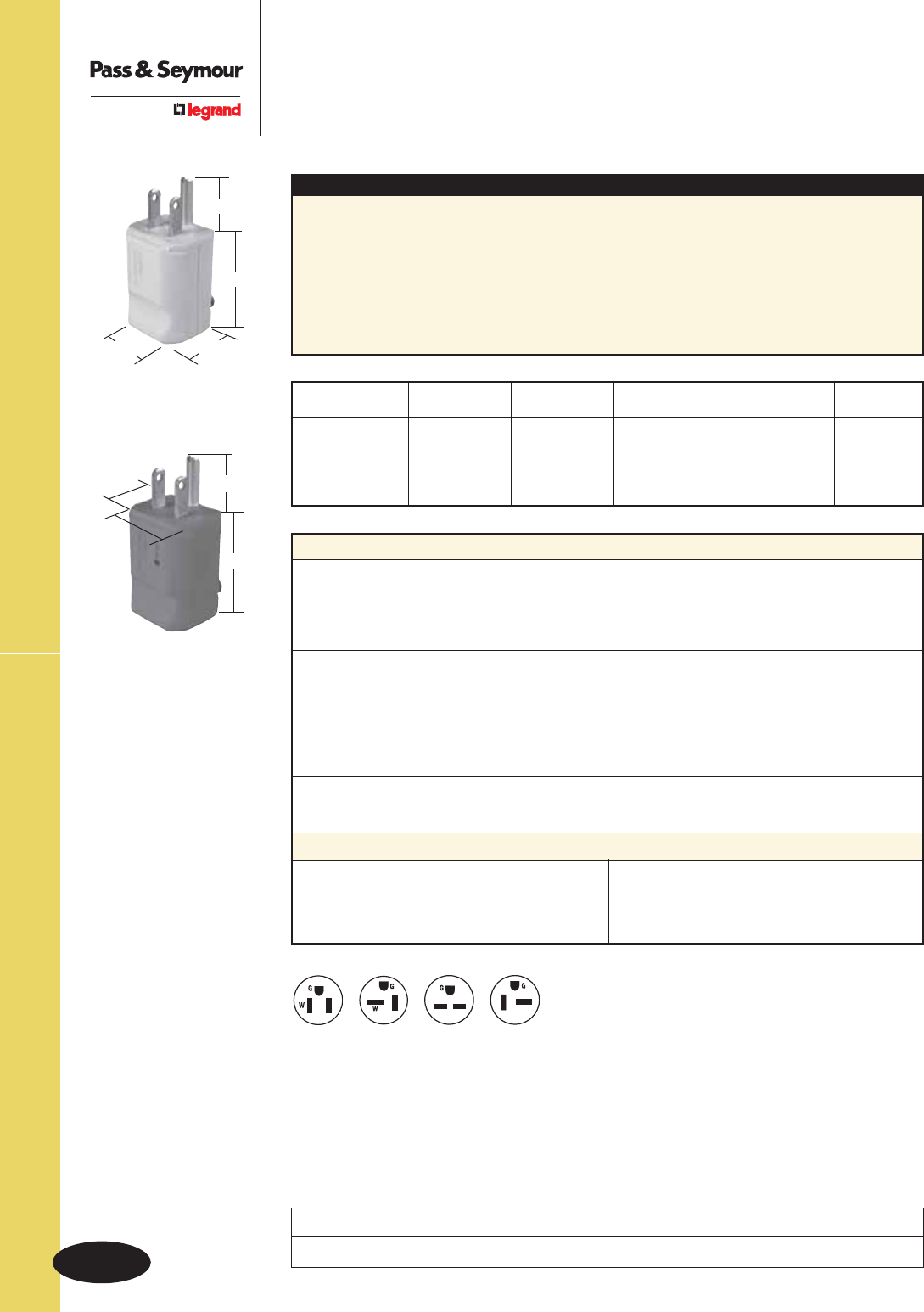

Technical SpecificationsStraight Blade GCM Plugs
Technical Specifications
Straight Blade Ground Continuity
Monitoring (GCM) Plugs
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5266XGCM
Description: Straight Blade Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42,
General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1
and WD-6.
NEMA
Catalog Number Rating Cong. No.
❒
PS5266XGCM 15 125 5-15P
❒
PS5266XGCMAN 15 125 5-15P
❒
PS5366XGCM 20 125 5-20P
❒
PS5366XGCMAN 20 125 5-20P
NEMA
Catalog Number Rating Cong. No.
❒
PS5666XGCM 15 250 6-15P
❒
PS5666XGCMAN 15 250 6-15P
❒
PS5466XGCM 20 250 6-20P
❒
PS5466XGCMAN 20 250 6-20P
NEMA
5-15P
NEMA
5-20P
NEMA
6-15P
NEMA
6-20P
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter, Angle Plugs – .320"–.655"
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Blades Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
PS5266XGCM
1.516" 1.358"
1.752"
2.791"
* Suitable for 208V motor
applications at the HP rating
specified.
NEMA AC HP
Cong. Rating
Straight Blade
Horsepower Rating for
NEMA Configuration
5-15 1⁄2
6-15 11⁄2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
Project
Location/Type
U-85

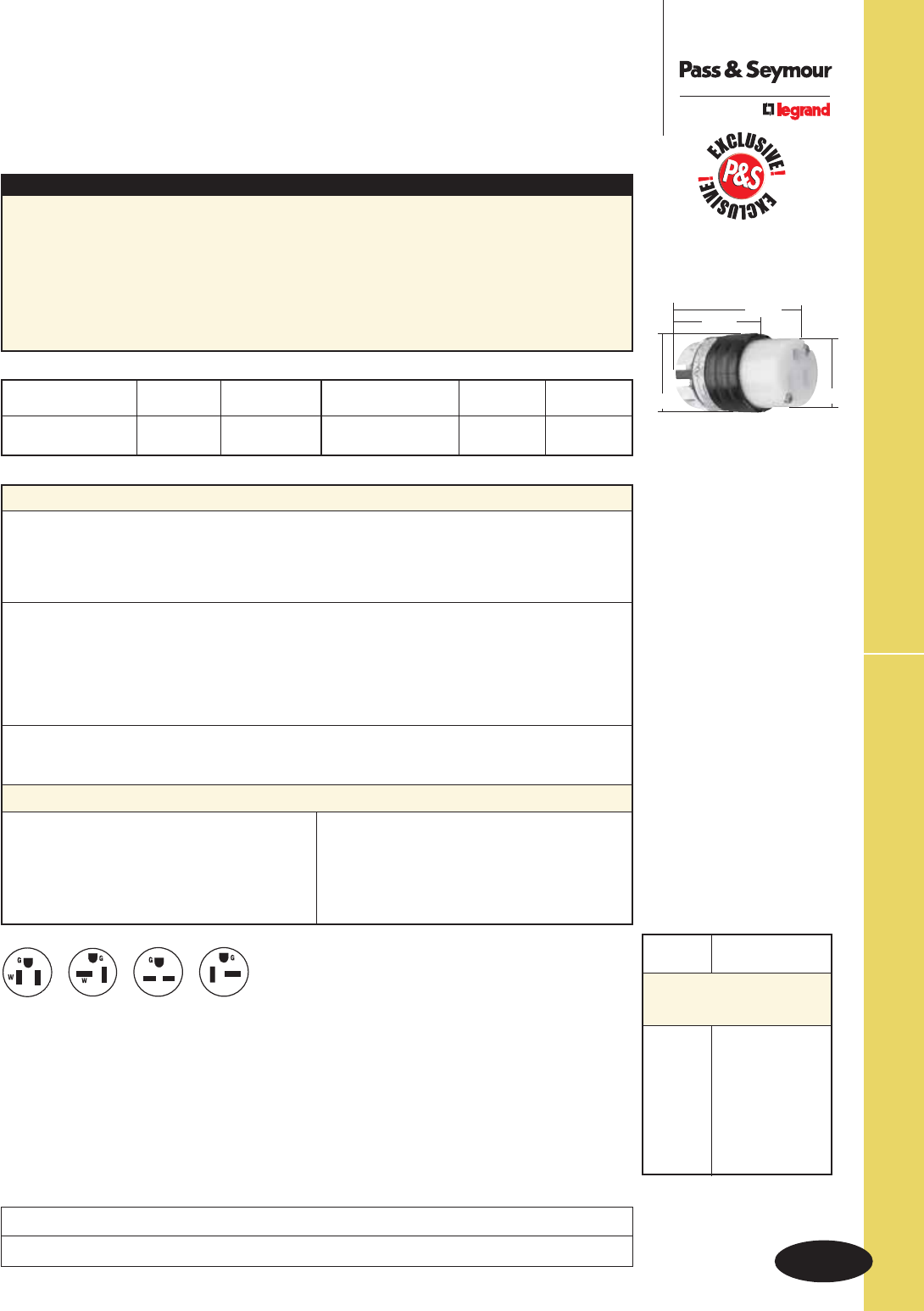

Technical Specifications Straight Blade GCM Connectors
Technical Specifications
Straight Blade Ground Continuity
Monitoring (GCM) Connectors
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5269XGCM
Description: Straight Blade Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A. 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42,
General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1
and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Contacts Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Nickel- or Brass-
Plated Steel
Ground Screws Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel #8
Assembly Screws Nickel-Plated Steel
NEMA
Catalog Number Rating Cong. No.
❒
PS5269XGCM 15 125 5-15R
❒
PS5369XGCM 20 125 5-20-R
NEMA
Catalog Number Rating Cong. No.
❒
PS5669XGCM 15 250 6-15R
❒
PS5469XGCM 20 250 6-20R PS5269XGCM
1.516" 1.358"
1.752"
2.638"
NEMA
5-15P
NEMA
5-20P
NEMA
6-15P
NEMA
6-20P
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
* Suitable for 208V motor
applications at the HP rating
specified.
NEMA AC HP
Cong. Rating
Straight Blade
Horsepower Rating for
NEMA Configuration
5-15 1⁄2
6-15 11⁄2*
7-15 2
5-20 1
6-20 2*
7-20 2
10-20 2 Line to Line*
1 Line to Neutral
Project
Location/Type
U-86
Technical SpecificationsMaxGrip® M3 Plugs
Technical Specifications
MaxGrip
®
M
3
Plugs
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
Catalog Number Rating Cong. No.
❒
PS8115 15A 125V 5-15P
❒
PS5965Y 15A 125V 5-15P
❒
PS5965GRY 15A 125V 5-15P
❒
PS5965IG 15A 125V 5-15P
❒
PS5965O 15A 125V 5-15P
NEMA
Catalog Number Rating Cong. No.
❒
PS5364Y 20A 125V 5-20P
❒
PS5364GRY 20A 125V 5-20P
❒
PS5666Y 15A 250V 6-15P
❒
PS5464Y 20A 250V 6-20P
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5965Y
Description: Plug Straight Blade, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765,
Standard CSA-C22.2 No. 42, General Use Receptacles and Attachment Plugs.
Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C, maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter cord
Terminal Identification Green = Ground, Silver = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #12 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 HB
Operating Temperatures Maximum continuous +75°C, minimum -40°C without impact
Materials
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- and Brass-Plated Steel
Ground Screw Zinc-Plated Steel
Blades Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
PS5965Y
.77"
1.83"
1.34" 1.21"
1.34"
1.21"
1.83"
PS8115
.77"
Project
Location/Type
NEMA
5-15P
NEMA
5-20P
NEMA
6-15P
NEMA
6-20P
U-87
Technical Specifications MaxGrip
®
M
3
Connectors
Technical Specifications
MaxGrip
®
M
3
Connectors
2 Pole, 3 Wire Grounding 15 & 20A, 125 & 250V
NEMA
Catalog Number Rating Cong. No.
❒
PS8119 15A 125V 5-15R
❒
PS5969Y 15A 125V 5-15R
❒
PS5969GRY 15A 125V 5-15R
❒
PS5969O 15A 125V 5-15R
NEMA
Catalog Number Rating Cong. No.
❒
PS5369Y 20A 125V 5-20R
❒
PS5369GRY 20A 125V 5-20R
❒
PS5669Y 15A 250V 6-15R
❒
PS5469Y 20A 250V 6-20R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS5969Y
Description: Connector Straight Blade, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765,
Standard CSA-C22.2 No. 42, General Use Receptacles and Attachment Plugs.
Conforms to NEMA WD-1 and WD-6.
Consult Straight Blade Plugs & Connectors Section H for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 1500V minimum
Maximum Working Voltage 250V
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C, maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodation Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodation .230"–.720" diameter cord
Terminal Identification Green = Ground, Silver = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #12 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 HB
Operating Temperatures Maximum continuous +75°C, minimum -40°C without impact
Materials
Body/Housing Nylon
Cord Grip Insert Nylon
Terminal Clamp Brass
Terminal Screws Zinc- and Brass-Plated Steel
Ground Screw Zinc-Plated Steel
Contacts Brass
Cord Clamp Assembly Screws Zinc-Plated Steel
PS5969Y
1.83"
1.21"
1.34"
1.34"
1.21"
1.83"
PS8119
Project
Location/Type
NEMA
5-15R
NEMA
5-20R
NEMA
6-15R
NEMA
6-20R
U-88
Technical Specifications15A Turnlok® Receptacles
Technical Specifications
15A Turnlok
®
Receptacles
4550
1.150"
.940"
3.281"
1.500"
2.270"
4750
1.104"
3.281"
2.635"
.938"
1.199"
1.322"
1.50"
4760
2.375"
2.25"
1.203"
1.0"
1.375"
3.281"
4.031"
1.437"
#6-32
TAP
2.375"
1.375"
1.500"
#6-32
TAP
.922"
1.125"
3.281"
4560
4710
1.203"
2.25"
3.281"
1.437"
1.375"
2.375"
1.0"
4.031"
4792
3.28"
1.50"
1.199"
NEMA
Amps Catalog Number Cong. No.
15
❒ 4710
L5-15R
15
❒
4700 L5-15R
15
❒
4792 L5-15R
15
❒
4560 L5-15R
NEMA
Amps Catalog Number Cong. No.
15
❒
4550 L6-15R
15
❒
4760 L7-15R
15
❒
4750 L7-15R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 4700
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Front Body Nylon
Back Body Nylon
Mounting Strap Steel
Contacts Brass
Terminal Clamps Brass
Terminal Screws Brass
Mounting Screws Zinc-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
4700
1.104"
.0625"
3.281"
2.635"
1.50"
1.199"
.9375"
1.322"
Project
Location/Type
NEMA
L6-15R
NEMA
L5-15R
NEMA
L7-15R
U-89
Technical Specifications 20A Turnlok
®
Receptacles
Technical Specifications
20A Turnlok
®
Receptacles
NEMA
Amps Catalog Number Cong. No.
20
❒
L520R L5-20R
20
❒
CRL520R L5-20R
20
❒
L620R L6-20R
20
❒
L720R L7-20R
20
❒
L820R L8-20R
20
❒
L920R L9-20R
20
❒
L1020R L10-20R
20
❒
L1120R L11-20R
20
❒
L1220R L12-20R
NEMA
Amps Catalog Number Cong. No.
20
❒
L1420R L14-20R
20
❒
L1520R L15-20R
20
❒
L1620R L16-20R
20
❒
L1820R L18-20R
20
❒
L1920R L19-20R
20
❒
L2020R L20-20R
20
❒
L2120R L21-20R
20
❒
L2220R L22-20R
20
❒
L2320R L23-20R
20A Receptacle
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L520R
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation #14 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Front Body Nylon Nylon
Back Body Nylon Nylon
Mounting Strap Brass Nickel-Plated Brass
Pressure Plate Brass Nickel-Plated Brass
Contacts Brass Nickel-Plated Brass
Terminal Clamps Brass Nickel-Plated Brass
Terminal Screws Brass Brass
Mounting Screws Zinc-Plated Steel Stainless Steel
Consult Turnlok® Section I for complete compliance listing.
Project
Location/Type
NEMA
L9-20R
NEMA
L8-20R
NEMA
L15-20R
NEMA
L10-20R
NEMA
L6-20R
NEMA
L5-20R
NEMA
L11-20R
NEMA
L7-20R
NEMA
L16-20R
NEMA
L12-20R
NEMA
L18-20R
NEMA
L14-20R
NEMA
L19-20R
NEMA
L20-20R
NEMA
L21-20R
NEMA
L22-20R
NEMA
L23-20R
U-90
Technical Specifications30A Turnlok® Receptacles
Technical Specifications
30A Turnlok
®
Receptacles
NEMA
Amps Catalog Number Cong. No.
30
❒
L530R L5-30R
30
❒
CRL530R L5-30R
30
❒
L630R L6-30R
30
❒
L730R L7-30R
30
❒
L830R L8-30R
30
❒
L930R L9-30R
30
❒
L1030R L10-30R
30
❒
L1130R L11-30R
30
❒
L1230R L12-30R
30
❒
L1330R L13-30R
NEMA
Amps Catalog Number Cong. No.
30
❒
L1430R L14-30R
30
❒
L1530R L15-30R
30
❒
L1630R L16-30R
30
❒
L1730R L17-30R
30
❒
L1830R L18-30R
30
❒
L1930R L19-30R
30
❒
L2030R L20-30R
30
❒
L2130R L21-30R
30
❒
L2230R L22-30R
30
❒
L2330R L23-30R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L530R
Description: Locking Receptacle, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Accommodation #14 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, NEMA Configuration molded into face
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Front Body Nylon Nylon
Back Body Nylon Nylon
Mounting Strap Brass Nickel-Plated Brass
Pressure Plate Brass Nickel-Plated Brass
Contacts Brass Nickel-Plated Brass
Terminal Clamps Brass Nickel-Plated Brass
Terminal Screws Brass Brass
Mounting Screws Zinc-Plated Steel Stainless Steel
Consult Turnlok® Section I for complete compliance listing.
30A Receptacle
2.29"
1.19"
1.61"
2.37"
3.28"
1.545"
.14"
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
Project
Location/Type
U-91
Technical Specifications 15A Turnlok
®
EHU Plugs & Connectors
Project
Location/Type
Technical Specifications
15A Turnlok
®
EHU Plugs & Connectors
NEMA
Amps Catalog Number Cong. No.
15
❒
PSL515C L5-15R
15
❒
PSL515P L5-15P
15
❒
CRL515C L5-15R
15
❒
CRL515P L5-15P
NEMA
Amps Catalog Number Cong. No.
15
❒
PSL615C L6-15R
15
❒
PSL615P L6-15P
15
❒
PSL715C L7-15R
15
❒
PSL715P L7-15P
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PSL515C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 1600V minimum
Max. Working Voltage 277VAC
Current Interrupting Certified for current interrupting at full-rated current.
Temperature Rise 30°C max. after 50 cycles at 150% rated current.
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance
with the device rating as defined in UL62.
Cord Grip Accommodations .230"-.720" diameter
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Plugs Standard Corrosion-Resistant
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Separator Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Blades Brass Nickel-Plated Brass
Terminal Clamp Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
Connectors Standard Corrosion-Resistant
Back Body Nylon Nylon
Front Body Nylon Nylon
Terminal Chamber Separator Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Contacts Brass Nickel-Plated Brass
Terminal Clamp Zinc-Plated Steel Nickel-Plated Steel
Terminal Screws Nickel- or Brass-Plated Steel Nickel-Plated Steel
Ground Screws Nickel-Plated Steel Nickel-Plated Steel
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
NEMA
L5-15R
NEMA
L5-15P
NEMA
L6-15R
NEMA
L6-15P
NEMA
L7-15R
NEMA
L7-15P
15A Connector
1.358"
1.516"
2.598"
1.752"
15A Plug
1.516" 1.358"
2.617"
1.844"
1.752"
U-92
Technical Specifications20A Turnlok® Plugs
Technical Specifications
20A Turnlok
®
Plugs
NEMA
Amps Catalog Number Cong. No.
20
❒
L520P L5-20P
20
❒
L520PBK L5-20P
20
❒
CRL520P L5-20P
20
❒
L620P L6-20P
20
❒
CRL620P L6-20P
20
❒
L720P L7-20P
20
❒
L820P L8-20P
20
❒
L920P L9-20P
20
❒
L1020P L10-20P
20
❒
L1120P L11-20P
20
❒
L1220P L12-20P
20
❒
L1420P L14-20P
20
❒
CRL1420P L14-20P
NEMA
Amps Catalog Number Cong. No.
20
❒
L1520P L15-20P
20
❒
L1520PBK L15-20P
20
❒
L1620P L16-20P
20
❒
L1820P L18-20P
20
❒
L1920P L19-20P
20
❒
L2020P L20-20P
20
❒
L2120P L21-20P
20
❒
L2220P L22-20P
20
❒
L2220PBK L22-20P
20
❒
L2320P L23-20P
20
❒
L3720P L24-20P
20
❒
7311SS Non-NEMA
20
❒
7411SS Non-NEMA
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L520P
Description: Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations 3 Wire = .325"–.750" diameter; 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Cover Neoprene Neoprene
Blades Brass Nickel-Plated Brass
Terminal Clamp Nickel-Plated Steel Nickel-Plated Steel
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
NEMA
L5-20P
NEMA
L7-20P
NEMA
L8-20P
NEMA
L9-20P
NEMA
L10-20P
NEMA
L11-20P
NEMA
L12-20P
NEMA
L14-20P
NEMA
L15-20P
NEMA
L16-20P
NEMA
L18-20P
NEMA
L20-20P
NEMA
L21-20P
NEMA
L22-20P
NEMA
L23-20P
NEMA
L24-20P
NEMA
L19-20P
NEMA
L6-20P
Non-NEMA
7311SS
Non-NEMA
7411SS
20A Plug
3.75"
2.57"
2.20"
Project
Location/Type
U-93
Technical Specifications 20A Turnlok
®
Connectors
Technical Specifications
20A Turnlok
®
Connectors
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L520C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
Amps Catalog Number Cong. No.
20
❒
L520C L5-20R
20
❒
L520CBK L5-20R
20
❒
CRL520C L5-20R
20
❒
L620C L6-20R
20
❒
CRL620C L6-20R
20
❒
L720C L7-20R
20
❒
L820C L8-20R
20
❒
L920C L9-20R
20
❒
L1020C L10-20R
20
❒
L1120C L11-20R
20
❒
L1220C L12-20R
20
❒
L1420C L14-20R
20
❒
CRL1420C L14-20R
NEMA
Amps Catalog Number Cong. No.
20
❒
L1520C L15-20R
20
❒
L1520CBK L15-20R
20
❒
L1620C L16-20R
20
❒
L1820C L18-20R
20
❒
L1920C L19-20R
20
❒
L2020C L20-20R
20
❒
L2120C L21-20R
20
❒
L2220C L22-20R
20
❒
L2220CBK L22-20R
20
❒
L2320C L23-20R
20
❒
L3720C L24-20R
20
❒
7313SS Non-NEMA
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations 3 Wire = .325"–.750" diameter; 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Cover Neoprene Neoprene
Contacts Brass Nickel-Plated Brass
Terminal Clamp Nickel-Plated Steel Nickel-Plated Steel
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
NEMA
L5-20R
NEMA
L7-20R
NEMA
L8-20R
NEMA
L9-20R
NEMA
L10-20R
NEMA
L11-20R
NEMA
L12-20R
NEMA
L14-20R
NEMA
L15-20R
NEMA
L16-20R
NEMA
L18-20R
NEMA
L20-20R
NEMA
L21-20R
NEMA
L22-20R
NEMA
L23-20R
NEMA
L19-20R
NEMA
L6-20R
Non-NEMA
7313SS
NEMA
L24-20R
20A Connector
2.20"
3.33"
Project
Location/Type
U-94
Technical Specifications
20 & 30A Turnlok
®
Corrosion-Resistant Connectors
Technical Specifications
20 & 30A Corrosion-Resistant
Turnlok
®
Connectors
NEMA
Amps Catalog Number Cong. No.
20
❒
CRL520C L5-20R
20
❒
CRL620C L6-20R
20
❒
CRL1420C L14-20R
NEMA
Amps Catalog Number Cong. No.
30
❒
CRL530C L5-30R
30
❒
CRL630C L6-30R
30
❒
CRL1430C L14-30R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand CRL520C
Description: Corrosion-Resistant Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in
accordance with the device ratings as defined in UL62
Cord Grip Accommodations 3 Wire = .325"–.750" diameter; 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Back Body Super Tough Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Dust Cover Neoprene
Contacts 20A = Nickel-Plated Brass
30A = Tin-Plated Brass
Terminal Clamp 20A = Nickel-Plated Steel
30A = Nickel-Plated Brass
Terminal Screws Nickel-Plated Brass
Ground Screws Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
20 & 30A Connector
2.20"
3.33"
Project
Location/Type
NEMA
L6-20R
NEMA
L14-20R
NEMA
L6-30R
NEMA
L5-20R
NEMA
L5-30R
NEMA
L14-30R
U-95
Technical Specifications 30A Turnlok
®
Plugs
Technical Specifications
30A Turnlok
®
Plugs
NEMA
Amps Catalog Number Cong. No.
30
❒
L530P L5-30P
30
❒
L530PBK L5-30P
30
❒
CRL530P L5-30P
30
❒
L630P L6-30P
30
❒
CRL630P L6-30P
30
❒
L730P L7-30P
30
❒
L830P L8-30P
30
❒
L930P L9-30P
30
❒
L1030P L10-30P
30
❒
L1130P L11-30P
30
❒
L1230P L12-30P
30
❒
L1330P L13-30P
30
❒
L1430P L14-30P
30
❒
CRL1430P L14-30P
NEMA
Amps Catalog Number Cong. No.
30
❒
L1530P L15-30P
30
❒
L1530PBK L15-30P
30
❒
L1630P L16-30P
30
❒
L1730P L17-30P
30
❒
L1830P L18-30P
30
❒
L1930P L19-30P
30
❒
L2030P L20-30P
30
❒
L2130P L21-30P
30
❒
L2230P L22-30P
30
❒
L2230PBK L22-30P
30
❒
L2330P L23-30P
30
❒
3331SS Non-NEMA
30
❒
3431SS Non-NEMA
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L530P
Description: Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L5-30P
NEMA
L6-30P
NEMA
L7-30P
NEMA
L8-30P
NEMA
L9-30P
NEMA
L10-30P
NEMA
L11-30P
NEMA
L12-30P
NEMA
L13-30P
NEMA
L14-30P
NEMA
L15-30P
NEMA
L16-30P
NEMA
L18-30P
NEMA
L19-30P
NEMA
L20-30P
NEMA
L21-30P
NEMA
L17-30P
NEMA
L22-30P
NEMA
L23-30P
Non-NEMA
3331-SS
Non-NEMA
3431-SS
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations 3 Wire = .325"–.750" diameter; 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Cover Neoprene Neoprene
Blades Brass Tin-Plated Brass
Terminal Clamp Brass Nickel-Plated Brass
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
30A Plug
3.75"
2.57"
2.20"
Project
Location/Type
U-96
Technical Specifications30A Turnlok® Connectors
NEMA
Amps Catalog Number Cong. No.
30
❒
L530C L5-30R
30
❒
L530CBK L5-30R
30
❒
CRL530C L5-30R
30
❒
L630C L6-30R
30
❒
CRL630C L6-30R
30
❒
L730C L7-30R
30
❒
L830C L8-30R
30
❒
L930C L9-30R
30
❒
L1030C L10-30R
30
❒
L1130C L11-30R
30
❒
L1230C L12-30R
30
❒
L1330C L13-30R
30
❒
L1430C L14-30R
30
❒
CRL1430C L14-30R
NEMA
Amps Catalog Number Cong. No.
30
❒
L1530C L15-30R
30
❒
L1530CBK L15-30R
30
❒
L1630C L16-30R
30
❒
L1730C L17-30R
30
❒
L1830C L18-30R
30
❒
L1930C L19-30R
30
❒
L2030C L20-30R
30
❒
L2130C L21-30R
30
❒
L2230C L22-30R
30
❒
L2230CBK L22-30R
30
❒
L2330C L23-30R
30
❒
3333SS Non-NEMA
30
❒
3433SS Non-NEMA
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L530C
Description: Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Turnlok® Section I for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance
with the device rating as defined in UL62
Cord Grip Accommodations 3 Wire = .325"–.750" diameter; 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification “GR” and Green Color = Ground, “WH” and
White Color = Neutral, “X”, “Y”, “Z” = Hot
Terminal Accommodation #18 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Standard Corrosion-Resistant
Back Body Super Tough Nylon Super Tough Nylon
Front Body Nylon Nylon
Terminal Chamber Polycarbonate Polycarbonate
Cord Clamp Nylon Nylon
Insert Nylon Nylon
Dust Cover Neoprene Neoprene
Contacts Brass Tin-Plated Brass
Terminal Clamp Brass Nickel-Plated Brass
Terminal Screws Brass Nickel-Plated Brass
Ground Screws Brass Nickel-Plated Brass
Cord Clamp Screws Nickel-Plated Steel Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel Nickel-Plated Steel
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
Non-NEMA
3333-SS
Non-NEMA
3433-SS
30A Connector
2.20"
3.33"
Technical Specifications
30A Turnlok
®
Connectors
Project
Location/Type
U-97
Technical Specifications Turnlok
®
Ground Continuity Monitoring
Technical Specifications
Turnlok
®
Heavy-Duty Ground Continuity
Monitoring (GCM) Plugs
15, 20 & 30A; 125, 250, 277 & 347V, 125/250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PSL515PGCM
Description: Ground Continuity Monitoring (GCM) Locking Plug, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15P
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles
and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
**Dust Shield for 20 & 30 Amp Plugs.
Consult Turnlok® Section I for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 15A = 1600V minimum, 20 & 30A = 2200V minimum
Maximum Working Voltage 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodations 15A = .230"–.720" diameter, 20 & 30A 3 Wire = .325"–.750" diameter,
20 & 30A 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification 15A = Green = Ground, White = Neutral, Brass = Hot
20 & 30A = "GR" and Green Color = Ground,
"WH" and white Color = Neutral, "X", "Y", "Z" = Hot
Terminal Accommodation 15A = #18 AWG min. - #10 AWG max.
20A = #18 AWG min. - #8 AWG max.
30A = #18 AWG min. - #6 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration hot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Terminal Clamp 15A = Zinc-Plated Steel
20A = Nickel-Plated Steel
30A = Brass
Terminal Screws 15A = Nickel- or Brass-Plated Steel
20 & 30A = Brass
Ground Screws 15A = Nickel-Plated Steel
20 & 30A = Brass
Cord Clamp Screws Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel
Back Body Super Tough Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Dust Shield** Neoprene
Blades Brass
NEMA
Catalog Number Rating Cong. No.
❒
PSL515PGCM 15 125 L5-15P
❒
PSL515PGCMAN 15 125 L5-15P
❒
L520PGCM 20 125 L5-20P
❒
L530PGCM 30 125 L5-30P
❒
PSL615PGCM 15 250 L6-15P
❒
PSL615PGCMAN 15 250 L6-15P
❒
L620PGCM 20 250 L6-20P
❒
L630PGCM 30 250 L6-30P
NEMA
Catalog Number Rating Cong. No.
❒
PSL715PGCM 15 277* L7-15P
❒
PSL715PGCMAN 15 277* L7-15P
❒
L720PGCM 20 277* L7-20P
❒
L730PGCM 30 277* L7-30P
❒
L3720PGCM 20 347 L24-20P
❒
L1420PGCM 20 125/250 L14-20P
❒
L1430PGCM 30 125/250 L14-30P
*AC only.
20 & 30A Plug
2.20"
2.57"
3.75"
15A Plug
1.358"
1.516"
1.752"
1.844"
2.617"
Project
Location/Type
NEMA
L6-20P
NEMA
L6-15P
NEMA
L14-20P
NEMA
L6-30P
NEMA
L5-20P
NEMA
L5-15P
NEMA
L7-15P
NEMA
L5-30P
NEMA
L14-30P
NEMA
L7-20P
NEMA
L24-20P
NEMA
L7-30P
U-98
Technical SpecificationsTurnlok® Ground Continuity Monitoring
Technical Specifications
Turnlok
®
Heavy-Duty Ground Continuity
Monitoring (GCM) Connectors
15, 20 & 30A; 125, 250, 277 & 347V, 125/250V
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PSL515CGCM
Description: Ground Continuity Monitoring (GCM) Locking Connector, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA 5-15R
3rd Party Compliance: cULus Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. Standard CSA-C22.2 No. 42, General Use Receptacles and
Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
**Dust Shield for 20 & 30A Connectors.
Consult Turnlok® Section I for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 15A = 1600V minimum, 20 & 30A = 2200V minimum
Maximum Working Voltage 15A = 277VAC, 20 & 30A = 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C maximum after 50 cycles at 150% rated current
Mechanical
Cord Accommodations Round portable service cords of diameters in accordance with
the device rating as defined in UL62
Cord Grip Accommodations 15A = .230"–.720" diameter, 20 & 30A 3 Wire = .325"–.750" diameter
20 & 30A 4 & 5 Wire = .325"–1.15" diameter
Terminal Identification 15A = Green = Ground, White = Neutral, Brass = Hot
20 & 30A = "GR" and Green Color = Ground,
"WH" and white Color = Neutral, "X", "Y", "Z" = Hot
Terminal Accommodation 15A = #18 AWG min. - #10 AWG max.
20A = #18 AWG min. - #8 AWG max.
30A = #18 AWG min. - #6 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configurationhot stamped onto device
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Terminal Clamp 15A = Zinc-Plated Steel
20A = Nickel-Plated Steel
30A = Brass
Terminal Screws 15A = Nickel- or Brass-
Plated Steel
20 & 30A = Brass
Ground Screws 15A = Nickel-Plated Steel
20 & 30A = Brass
Cord Clamp Screws Nickel-Plated Steel
Assembly Screws Nickel-Plated Steel
Back Body Super Tough Nylon
Front Body Nylon
Terminal Chamber Polycarbonate
Cord Clamp Nylon
Insert Nylon
Dust Shield** Neoprene
Contacts Brass
NEMA
Catalog Number Rating Cong. No.
❒
PSL515CGCM 15 125 L5-15R
❒
L520CGCM 20 125 L5-20R
❒
L530CGCM 30 125 L5-30R
❒
PSL615CGCM 15 250 L6-15R
❒
L620CGCM 20 250 L6-20R
❒
L630CGCM 30 250 L6-30R
NEMA
Catalog Number Rating Cong. No.
❒
PSL715CGCM 15 277* L7-15R
❒
L720CGCM 20 277* L7-20R
❒
L730CGCM 30 277* L7-30R
❒
L3720CGCM 20 347 L24-20R
❒
L1420CGCM 20 125/250 L14-20R
❒
L1430CGCM 30 125/250 L14-30R
*AC only.
15A Connector
20 & 30A Connector
2.20"
3.33"
1.516" 1.358"
1.752"
2.598"
Project
Location/Type
NEMA
L6-20R
NEMA
L6-15R
NEMA
L14-20R
NEMA
L6-30R
NEMA
L5-20R
NEMA
L5-15R
NEMA
L7-15R
NEMA
L5-30R
NEMA
L14-30R
NEMA
L7-20R
NEMA
L24-20R
NEMA
L7-30R
U-99
Technical Specifications 15A Turnlok
®
Flanged Inlets & Outlets
Technical Specifications
15A Turnlok
®
Flanged Inlets & Outlets
Project
Location/Type
4715SS
2.0"
.156"
2.562"
1.374"
1.660"
4716SS
2.0"
.156 "
2.562"
1.655"
1.725"
NEMA
5-15P
NEMA
5-15R
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand 4715SS
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 15A, 125V
Configuration: NEMA L5-15R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Turnlok® Section I for complete compliance listing.
Performance
Electrical
Dielectric Withstand Voltage 2000V minimum
Maximum Working Voltage 277VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #18 AWG min. – #10 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C without impact
Materials
Inlet Outlet
Flanged Casing Polycarbonate Polycarbonate
Body Contact Polycarbonate Polycarbonate
Blades Nickel-Plated Brass Brass
Terminal Clamp Zinc-Plated Steel Zinc-Plated Steel
Terminal Screws Zinc- or Brass-Plated Steel Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel Zinc-Plated Steel
Assembly Screws Zinc-Plated Steel Zinc-Plated Steel
NEMA
Amps Catalog Number Cong. No.
15
❒
4715SS L5-15R
NEMA
Amps Catalog Number Cong. No.
15
❒
4716SS L5-15P
U-100
Technical Specifications
20A Turnlok® Flanged Inlets
Technical Specifications
20A Turnlok
®
Flanged Inlets
Project
Location/Type
NEMA
Amps Catalog Number Cong. No.
20
❒
L520FI L5-20P
20
❒
L620FI L6-20P
20
❒
L720FI L7-20P
20
❒
L820FI L8-20P
20
❒
L920FI L9-20P
20
❒
L1020FI L10-20P
20
❒
L1120FI L11-20P
20
❒
L1220FI L12-20P
20
❒
L1420FI L14-20P
NEMA
Amps Catalog Number Cong. No.
20
❒
L1520FI L15-20P
20
❒
L1620FI L16-20P
20
❒
L1820FI L18-20P
20
❒
L1920FI L19-20P
20
❒
L2020FI L20-20P
20
❒
L2120FI L21-20P
20
❒
L2220FI L22-20P
20
❒
L2320FI L23-20P
Performance
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #12 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C without impact
Materials
Flanged Casing Polycarbonate
Blade Holder Polycarbonate
Blades Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Assembly Screws Zinc-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L520FI
Description: Locking Flanged Inlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L5-20P
NEMA
L7-20P
NEMA
L8-20P
NEMA
L9-20P
NEMA
L10-20P
NEMA
L11-20P
NEMA
L12-20P
NEMA
L14-20P
NEMA
L15-20P
NEMA
L16-20P
NEMA
L18-20P
NEMA
L20-20P
NEMA
L21-20P
NEMA
L22-20P
NEMA
L23-20P
NEMA
L19-20P
NEMA
L6-20P
2.09"
ø.187"
1.65"
2.87"
3 HOLES ON ø2.50" C/L@ 120°
U-101
Technical Specifications 20A Turnlok
®
Flanged Outlets
Technical Specifications
20A Turnlok
®
Flanged Outlets
Project
Location/Type
NEMA
Amps Catalog Number Cong. No.
20
❒
L520FO L5-20R
20
❒
L620FO L6-20R
20
❒
L720FO L7-20R
20
❒
L820FO L8-20R
20
❒
L920FO L9-20R
20
❒
L1020FO L10-20R
20
❒
L1120FO L11-20R
20
❒
L1220FO L12-20R
20
❒
L1420FO L14-20R
NEMA
Amps Catalog Number Cong. No.
20
❒
L1520FO L15-20R
20
❒
L1620FO L16-20R
20
❒
L1820FO L18-20R
20
❒
L1920FO L19-20R
20
❒
L2020FO L20-20R
20
❒
L2120FO L21-20R
20
❒
L2220FO L22-20R
20
❒
L2320FO L23-20R
20
❒
L3720FO L24-20R
Performance
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #12 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Flammability UL94 V2
Operating Temperature Maximum continuous +115°C, minimum -40°C without impact
Materials
Flanged Casing Polycarbonate
Contact Carrier Polycarbonate
Contacts Brass
Terminal Clamp Zinc-Plated Steel
Terminal Screws Zinc- or Brass-Plated Steel
Ground Screws Zinc-Plated Steel
Assembly Screws Zinc-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L520FO
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 20A, 125V
Configuration: NEMA L5-20R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L7-20R
NEMA
L9-20R NEMA
L11-20R
NEMA
L14-20R
NEMA
L16-20R
NEMA
L20-20R NEMA
L22-20R
NEMA
L19-20R NEMA
L24-20R
2.09"
1.34"
ø.187"
2.87"
3 HOLES ON ø2.50" C/L @ 120°
U-102
Technical Specifications30A Turnlok® Flanged Inlets
Technical Specifications
30A Turnlok
®
Flanged Inlets
Project
Location/Type
NEMA
Amps Catalog Number Cong. No.
30
❒
L530FI L5-30P
30
❒
L630FI L6-30P
30
❒
L730FI L7-30P
30
❒
L830FI L8-30P
30
❒
L930FI L9-30P
30
❒
L1030FI L10-30P
30
❒
L1130FI L11-30P
30
❒
L1230FI L12-30P
30
❒
L1330FI L13-30P
30
❒
L1430FI L14-30P
NEMA
Amps Catalog Number Cong. No.
30
❒
L1530FI L15-30P
30
❒
L1630FI L16-30P
30
❒
L1730FI L17-30P
30
❒
L1830FI L18-30P
30
❒
L1930FI L19-30P
30
❒
L2030FI L20-30P
30
❒
L2130FI L21-30P
30
❒
L2230FI L22-30P
30
❒
L2330FI L23-30P
Performance
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #12 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance,
NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Flanged Casing Polycarbonate
Blade Holder Nylon
Blades Tin-Plated Stresscon
Terminal Clamp Brass
Terminal Screws Brass
Ground Screws Brass
Assembly Screws Zinc-Plated Steel
Consult Turnlok® Section I for complete compliance listing.
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L530FI
Description: Locking Flanged Inlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30P
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
NEMA
L5-30P
NEMA
L6-30P
NEMA
L7-30P
NEMA
L8-30P
NEMA
L9-30P
NEMA
L10-30P
NEMA
L11-30P
NEMA
L12-30P
NEMA
L13-30P
NEMA
L14-30P
NEMA
L15-30P
NEMA
L16-30P
NEMA
L18-30P
NEMA
L19-30P
NEMA
L20-30P
NEMA
L21-30P
NEMA
L17-30P
NEMA
L22-30P
NEMA
L23-30P
2.26"
3.12"
1.750"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
U-103
Technical Specifications 30A Turnlok
®
Flanged Outlets
Technical Specifications
30A Turnlok
®
Flanged Outlets
Project
Location/Type
NEMA
Amps Catalog Number Cong. No.
30
❒
L530FO L5-30R
30
❒
L630FO L6-30R
30
❒
L730FO L7-30R
30
❒
L830FO L8-30R
30
❒
L930FO L9-30R
30
❒
L1030FO L10-30R
30
❒
L1130FO L11-30R
30
❒
L1230FO L12-30R
30
❒
L1330FO L13-30R
30
❒
L1430FO L14-30R
NEMA
Amps Catalog Number Cong. No.
30
❒
L1530FO L15-30R
30
❒
L1630FO L16-30R
30
❒
L1730FO L17-30R
30
❒
L1830FO L18-30R
30
❒
L1930FO L19-30R
30
❒
L2030FO L20-30R
30
❒
L2130FO L21-30R
30
❒
L2230FO L22-30R
30
❒
L2330FO L23-30R
Performance
Electrical
Dielectric Withstand Voltage 3000V minimum
Maximum Working Voltage 600VAC
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise 30°C max. after 50 cycles at 150% rated current
Mechanical
Terminal Identification Green = Ground, White = Neutral, Brass = Hot
Terminal Accommodation #12 AWG min. – #8 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Configuration
Environmental
Flammability UL94 V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Materials
Flanged Casing Polycarbonate
Contact Carrier Nylon
Contacts Tin-Plated Brass
Terminal Clamp Brass- or Nickel-Plated Steel
Terminal Screws Brass- or Nickel-Plated Steel
Ground Screws Nickel-Plated Brass
Assembly Screws Zinc-Plated Steel
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand L530FO
Description: Locking Flanged Outlet, Power Supply
Type: 2 Pole, 3 Wire Grounding
Rating: 30A, 125V
Configuration: NEMA L5-30R
3rd Party Compliance: UL Listed, File Number E146159, Standard UL498, Attachment Plugs and
Receptacles. Federal Specification WC596. CSA Certified, File Number LR1765, Standard CSA-C22.2
No. 42, General Use Receptacles and Attachment Plugs. Conforms to NEMA WD-1 and WD-6.
Consult Turnlok® Section I for complete compliance listing.
NEMA
L5-30R
NEMA
L6-30R
NEMA
L7-30R
NEMA
L8-30R
NEMA
L9-30R
NEMA
L10-30R
NEMA
L11-30R
NEMA
L12-30R
NEMA
L13-30R
NEMA
L14-30R
NEMA
L15-30R
NEMA
L16-30R
NEMA
L18-30R
NEMA
L19-30R
NEMA
L20-30R
NEMA
L21-30R
NEMA
L17-30R
NEMA
L22-30R
NEMA
L23-30R
2.26"
3.12"
ø.187"
1.765"
3 HOLES ON ø2.72" C/L @ 120°
U-104
Technical SpecificationsCam-Type Devices
Project
Location/Type
Technical Specifications
Cam-Type Devices
Series 16 In-Line Connectors
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Not for interrupting current
Temperature Rise 45°C maximum
Mechanical
Cord Accommodation Individual conductor, Type SC, SCE, SCT or W, 75°C,
copper wire only
Terminal Accommodation PS20 Series = #2 AWG min. – 2/0 AWG max.
PS40 Series = 2/0 AWG min. – 4/0 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Standards
molded into external product body
Environmental
Flammability UL94V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Enclosure NEMA Type 3R and 4
Materials
Body – Connectors Thermoplastic Elastomer
Body – Panel Mounts Nylon
Body – Adapters Thermoplastic Elastomer
Terminal / Pin / Cam Brass
Terminal Screw Plated Steel
Retaining Screw Plastic
Strain Relief Wire Copper
Shim Copper
Typical Specications
Manufacturerʼs Identification: Pass and Seymour Legrand PS40MBBK, PS40FBBK
Description: Series 16 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 400A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290.
Applicable standards: UL50, Enclosures for Electrical Equipment, UL498, Attachment Plugs and
Receptacles, UL1682, Plugs, Receptacles and Cable Connectors of the Pin & Sleeve Type, CSA-C22.2
No. 65-93, Wire Connectors, CSA-C22.2 No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No.
182.1-1988, Industrial Type, Special Use Attachment Plugs, Receptacles. Conforms to NEMA WD-1
and WD-6.
PS40MBBK
PS40FBBK
6.875"
6.800"
Catalog
Number Rating* Cable Size Color
❒
PS20MBBK 400 600 #2 - 2/0 Black
❒
PS20MBW 400 600 #2 - 2/0 White
❒
PS20MBR 400 600 #2 - 2/0 Red
❒
PS20MBBL 400 600 #2 - 2/0 Blue
❒
PS20MBG 400 600 #2 - 2/0 Green
❒
PS20MBBR 400 600 #2 - 2/0 Brown
❒
PS20MBO 400 600 #2 - 2/0 Orange
❒
PS20MBY 400 600 #2 - 2/0 Yellow
❒
PS40MBBK 400 600 2/0 - 4/0 Black
❒
PS40MBW 400 600 2/0 - 4/0 White
❒
PS40MBR 400 600 2/0 - 4/0 Red
❒
PS40MBBL 400 600 2/0 - 4/0 Blue
❒
PS40MBG 400 600 2/0 - 4/0 Green
❒
PS40MBBR 400 600 2/0 - 4/0 Brown
❒
PS40MBO 400 600 2/0 - 4/0 Orange
❒
PS40MBY 400 600 2/0 - 4/0 Yellow
Catalog
Number Rating* Cable Size Color
❒
PS20FBBK 400 600 #2 - 2/0 Black
❒
PS20FBW 400 600 #2 - 2/0 White
❒
PS20FBR 400 600 #2 - 2/0 Red
❒
PS20FBBL 400 600 #2 - 2/0 Blue
❒
PS20FBG 400 600 #2 - 2/0 Green
❒
PS20FBBR 400 600 #2 - 2/0 Brown
❒
PS20FBO 400 600 #2 - 2/0 Orange
❒
PS20FBY 400 600 #2 - 2/0 Yellow
❒
PS40FBBK 400 600 2/0 - 4/0 Black
❒
PS40FBW 400 600 2/0 - 4/0 White
❒
PS40FBR 400 600 2/0 - 4/0 Red
❒
PS40FBBL 400 600 2/0 - 4/0 Blue
❒
PS40FBG 400 600 2/0 - 4/0 Green
❒
PS40FBBR 400 600 2/0 - 4/0 Brown
❒
PS40FBO 400 600 2/0 - 4/0 Orange
❒
PS40FBY 400 600 2/0 - 4/0 Yellow
*All ratings are both AC/DC.
U-105
Technical Specifications Cam-Type Devices
Technical Specifications
Cam-Type Devices
Series 15 In-Line Connectors
Catalog
Number Rating Cable Size Color
❒
PSM2MBK 150 600 #8 – #2 Black
❒
PSM2MW 150 600 #8 – #2 White
❒
PSM2MR 150 600 #8 – #2 Red
❒
PSM2MBL 150 600 #8 – #2 Blue
❒
PSM2MG 150 600 #8 – #2 Green
Catalog
Number Rating Cable Size Color
❒
PSM2FBK 150 600 #8 – #2 Black
❒
PSM2FW 150 600 #8 – #2 White
❒
PSM2FR 150 600 #8 – #2 Red
❒
PSM2FBL 150 600 #8 – #2 Blue
❒
PSM2FG 150 600 #8 – #2 Green
Typical Specications
Manufacturerʼs Identification: Pass and Seymour Legrand PSM2MBK, PSM2FBK
Description: Series 15 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 150A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290.
Applicable standards: UL50, Enclosures for Electrical Equipment, UL498, Attachment Plugs and
Receptacles, UL1682, Plugs, Receptacles and Cable Connectors of the Pin & Sleeve Type, CSA-C22.2
No. 65-93, Wire Connectors, CSA-C22.2 No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No.
182.1-1988, Industrial Type, Special Use Attachment Plugs, Receptacles. Conforms to NEMA WD-1
and WD-6.
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Not for interrupting current
Temperature Rise 45°C maximum
Mechanical
Cord Accommodation Individual conductor, Type SC, SCE, SCT or W, 75°C,
copper wire only
Terminal Accommodation PSM Series = #8 AWG min. – #2 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Standards
molded into external product body
Environmental
Flammability UL94V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Enclosure NEMA Type 3R and 4
Materials
Body – Connectors Thermoplastic Elastomer
Body – Panel Mounts Nylon
Body – Adapters Thermoplastic Elastomer
Terminal / Pin / Cam Brass
Terminal Screw Plated Steel
Retaining Screw Plastic
Strain Relief Wire Copper
Shim Copper
PSM2MBK
PSM2FBK
4.300"
4.300"
Project
Location/Type
U-106
Technical SpecificationsCam-Type Devices
Technical Specifications
Cam-Type Devices
Series 18 In-Line Connectors
Project
Location/Type
Performance
Electrical
Dielectric Withstand Voltage 2200V minimum
Maximum Working Voltage 600VAC
Current Interrupting Not for interrupting current
Temperature Rise 45°C maximum
Mechanical
Cord Accommodation Individual conductor, Type SC, SCE, SCT or W, 75°C,
copper wire only
Terminal Accommodation PLS182 Series = #6 AWG min. – #2 AWG max.
PLS1820 Series = #2 AWG min. – 2/0 AWG max.
PLS1840 Series = 2/0 AWG min. – 4/0 AWG max.
Product Identification Amperage, Voltage, 3rd Party Compliance, NEMA Standards
molded into external product body
Environmental
Flammability UL94V2
Operating Temperature Maximum continuous +75°C, minimum -40°C without impact
Enclosure NEMA Type 3R and 4
Materials
Body – Connectors Thermoplastic Elastomer
Body – Panel Mounts Nylon
Body – Adapters Thermoplastic Elastomer
Terminal / Pin / Cam Brass
Terminal Screw Plated Steel
Retaining Screw Plastic
Strain Relief Wire Copper
Shim Copper
Typical Specications
Manufacturerʼs Identification: Pass and Seymour Legrand PLS182MBK, PLS182FBK
Description: Series 18 Single Pole In-Line Connector
Type: Single Pole
Electrical Rating: 400A, 600V
Enclosure Rating: NEMA 3R, 4
3rd Party Compliance: UL Listed, File Number E111198, cCSAus Certified, File Number LR81290.
Applicable standards: UL50, Enclosures for Electrical Equipment, UL498, Attachment Plugs and
Receptacles, UL1682, Plugs, Receptacles and Cable Connectors of the Pin & Sleeve Type, CSA-C22.2
No. 65-93, Wire Connectors, CSA-C22.2 No. 94-M91, Special Purpose Enclosures, CSA-C22.2 No.
182.1-1988, Industrial Type, Special Use Attachment Plugs, Receptacles. Conforms to NEMA WD-1
and WD-6.
PLS182MBK
PLS182FBK
6.875"
6.800"
Catalog Cable
Number Rating* Size Color
❒
PLS182MBK 400 600 #6 - #2 Black
❒
PLS182MW 400 600 #6 - #2 White
❒
PLS182MR 400 600 #6 - #2 Red
❒
PLS182MBL 400 600 #6 - #2 Blue
❒
PLS182MG 400 600 #6 - #2 Green
❒
PLS1820MBK 400 600 #2 - 2/0 Black
❒
PLS1820MW 400 600 #2 - 2/0 White
❒
PLS1820MR 400 600 #2 - 2/0 Red
❒
PLS1820MBL 400 600 #2 - 2/0 Blue
❒
PLS1820MG 400 600 #2 - 2/0 Green
❒
PLS1840MBK 400 600 4/0 Black
❒
PLS1840MW 400 600 4/0 White
❒
PLS1840MR 400 600 4/0 Red
❒
PLS1840MBL 400 600 4/0 Blue
❒
PLS1840MG 400 600 4/0 Green
Catalog Cable
Number Rating* Size Color
❒
PLS182FBK 400 600 #6 - #2 Black
❒
PLS182FW 400 600 #6 - #2 White
❒
PLS182FR 400 600 #6 - #2 Red
❒
PLS182FBL 400 600 #6 - #2 Blue
❒
PLS182FG 400 600 #6 - #2 Green
❒
PLS1820FBK 400 600 #2 - 2/0 Black
❒
PLS1820FW 400 600 #2 - 2/0 White
❒
PLS1820FR 400 600 #2 - 2/0 Red
❒
PLS1820FBL 400 600 #2 - 2/0 Blue
❒
PLS1820FG 400 600 #2 - 2/0 Green
❒
PLS1840FBK 400 600 4/0 Black
❒
PLS1840FW 400 600 4/0 White
❒
PLS1840FR 400 600 4/0 Red
❒
PLS1840FBL 400 600 4/0 Blue
❒
PLS1840FG 400 600 4/0 Green
*All ratings are both AC/DC.
U-107
Technical Specifications
Configuration & Clocking System
Technical Specifications
Configuration & Clocking System
Adapting To Worldwide Configuration
Standards
Application
Pass & Seymour/Legrand’s Pin & Sleeve products are designed
to meet IEC 309-1, 309-2 specifications. These specifications
are recognized around the world and are intended to prevent
the mating of plugs and receptacles of different voltage and
current ratings (see Section 406.3(F) of the National Electrical
Code
®
relating to this noninterchangeability feature).
Global Product Offering
Pass & Seymour/Legrand provides IEC 309-1, 309-2 Pin &
Sleeve products in both Series I (International) and Series II
(North American) current ratings:
Series I (International) 16, 32, 63, 125 Amps
Series II (North American) 20, 30, 60, 100 Amps
North American Catalog Numbering System
Catalog numbers within the North American product offering
are structured to communicate the following: manufacturer,
number of conductors, amperage rating, device type, clocking
position of the ground sleeve, and environmental rating. This
applies to all receptacles, inlets, plugs, and connectors in
the Pass & Seymour/Legrand North American Pin & Sleeve
product line (see sample below).
Here’s How It Works
The amperage rating is determined by the size of the device.
Voltage rating is determined by the location of the ground
sleeve on the receptacle and/or connector along with the
number of conductors.
Ground sleeve position for all connectors and receptacles is
based on a clock face with the keyway always being at 6
o’clock. The ground sleeve is positioned at a specific hour
point, depending on the device’s voltage rating.
The clocking position for plugs and inlets is a mirror image
of the mating device, allowing for interconnection.
In addition, voltage ratings for all Pin & Sleeve products are
color coded for visual identification.
IEC 309 Clocking System
12
3
9
6
1
2
11
10
8
75
4
125/250VAC 3 POLE, 4 WIRE
277VAC 2 POLE, 3 WIRE
250VAC 2 POLE, 3 WIRE
380-415VAC 3 POLE, 4 WIRE
220/380-240/415VAC 4 POLE, 5 WIRE
480VAC 2 POLE, 3 WIRE
3ø 480VAC 3 POLE, 4 WIRE
3øY 277VAC 4 POLE, 5 WIRE
3ø 250VAC
3 POLE, 4 WIRE
3øY 120/208VAC
4 POLE, 5 WIRE
380-415VAC
2 POLE, 3 WIRE
250VDC
2 POLE, 3 WIRE
380/440VAC
3 POLE, 4 WIRE
(REFRIGERANT
CONTAINERS)
125VAC 2 POLE, 3 WIRE
600VAC 3 POLE, 4 WIRE
600VAC 4 POLE, 5 WIRE
PREFIX
PS
=
PASS &
SEYMOUR
1ST DIGIT
3 = 3 WIRE
4 = 4 WIRE
5 = 5 WIRE
2ND-4TH DIGIT
20 = 20 AMP
30 = 30 AMP
60 = 60 AMP
100 = 100 AMP
LETTER
R = RECEPTACLE
P = PLUG
C = CONNECTOR
B = INLET
CLOCK POSITION
POSITION OF
GROUNDING
SLEEVE
WATERTIGHT
OR
SPLASHPROOF
W = WATERTIGHT
S = SPLASH-
PROOF
P S 4 6 0 R 7 W
North American Catalog Numbering System
▲
Application
Specific
50-500VAC
300-500 Hz
2 POLE, 3 WIRE
3 POLE, 4 WIRE
4 POLE, 5 WIRE
50-500VAC
100-300 Hz
3 POLE, 4 WIRE
U-108
Technical SpecificationsWatertight Pin & Sleeve Receptacles
Technical Specifications
Watertight Pin & Sleeve Receptacles
20, 30, 60 & 100A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460R7-W
Description: Receptacle, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2;
UL Classified to IEC 309-1 and IEC 309-2
Project
Location/Type
*Application specific.
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
20 ❒ 2P3W
125
PS320R4W
20 ❒ 2P3W
250
PS320R6W
20 ❒ 2P3W
480
PS320R7W
20 ❒ 2P3W
277
PS320R5W
20 ❒ 3P4W
125/250
PS420R12W
20 ❒ 3P4W
3ø250
PS420R9W
20 ❒ 3P4W
3ø480
PS420R7W
20 ❒ 3P4W
3ø600
PS420R5W
20 ❒ 4P5W
3øY120/208
PS520R9W
20 ❒ 4P5W
3øY277/480
PS520R7W
20 ❒ 4P5W
3øY347/600
PS520R5W
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
30 ❒ 2P3W
125
PS330R4W
30 ❒ 2P3W
250
PS330R6W
30 ❒ 2P3W
480
PS330R7W
30 ❒ 3P4W
125/250
PS430R12W
30 ❒ 3P4W
3ø250
PS430R9W
30 ❒ 3P4W
3ø480
PS430R7W
30 ❒ 3P4W
3ø600
PS430R5W
30 ❒ 3P4W
380/440
*PS430R3W
30 ❒ 4P5W
3øY120/208
PS530R9W
30 ❒ 4P5W
3øY277/480
PS530R7W
30 ❒ 4P5W
3øY347/600
PS530R5W
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
60 ❒ 2P3W
125
PS360R4W
60 ❒ 2P3W
250
PS360R6W
60 ❒ 2P3W
480
PS360R7W
60 ❒ 3P4W
125/250
PS460R12W
60 ❒ 3P4W
3ø250
PS460R9W
60 ❒ 3P4W
3ø480
PS460R7W
60 ❒ 3P4W
3ø600
PS460R5W
60 ❒ 4P5W
3øY120/208
PS560R9W
60 ❒ 4P5W
3øY277/480
PS560R7W
60 ❒ 4P5W
3øY347/600
PS560R5W
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
100 ❒ 2P3W
125
PS3100R4W
100 ❒ 2P3W
250
PS3100R6W
100 ❒ 2P3W
480
PS3100R7W
100 ❒ 3P4W
125/250
PS4100R12W
100 ❒ 3P4W
3ø250
PS4100R9W
100 ❒ 3P4W
3ø480
PS4100R7W
100 ❒ 3P4W
3ø600
PS4100R5W
100 ❒ 4P5W
3øY120/208
PS5100R9W
100 ❒ 4P5W
3øY277/480
PS5100R7W
100 ❒ 4P5W
3øY347/600
PS5100R5W
U-109
Technical Specifications Watertight Pin & Sleeve Receptacles
Technical Specifications
Watertight Pin & Sleeve Receptacles
20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing Polyamide 6 Polyamide 6 Valox Valox
Cover Polyamide 66 Polyamide 66 Valox Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket Neoprene Neoprene Neoprene Neoprene
Mounting Gasket Neoprene Neoprene Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Specimen
Amps Wire Cong. A B C D E F
Watertight Receptacles
2 Pole, 3 Wire inch 2.85 1.80 1.60 3.40 2.05 2.36
20 3 Pole, 4 Wire inch 3.20 1.90 1.60 3.80 2.36 2.75
4 Pole, 5 Wire inch 3.40 2.00 1.70 3.80 2.36 2.75
2 Pole, 3 Wire inch 3.72 2.60 1.80 4.30 2.75 3.15
30 3 Pole, 4 Wire inch 3.72 2.60 1.90 4.30 2.75 3.15
4 Pole, 5 Wire inch 3.98 2.70 1.95 4.30 2.75 3.15
2 Pole, 3 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
60 3 Pole, 4 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
4 Pole, 5 Wire inch 4.20 3.10 3.50 5.00 3.03 3.35
2 Pole, 3 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
100 3 Pole, 4 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
4 Pole, 5 Wire inch 5.20 2.20 4.40 5.60 4.88 4.88
A
E
F
CB
Project
Location/Type
U-110
Technical SpecificationsWatertight Pin & Sleeve Plugs
Technical Specifications
Watertight Pin & Sleeve Plugs
20, 30, 60 & 100A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460P7-W
Description: Plug, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
100 ❒ 2P3W
125
PS3100P4W
100 ❒ 2P3W
250
PS3100P6W
100 ❒ 2P3W
480
PS3100P7W
100 ❒ 3P4W
125/250
PS4100P12W
100 ❒ 3P4W
3ø250
PS4100P9W
100 ❒ 3P4W
3ø480
PS4100P7W
100 ❒ 3P4W
3ø600
PS4100P5W
100 ❒ 4P5W
3øY120/208
PS5100P9W
100 ❒ 4P5W
3øY277/480
PS5100P7W
100 ❒ 4P5W
3øY347/600
PS5100P5W
Device Size Con- A B
ductors Inches (mm) Inches (mm)
20 Amp All 1-1/8 29 1/2 12
30 Amp All 1-1/2 38 13/16 21
60 Amp All 2-3/4 70 13/16 21
100 Amp All 5-5/16 135 1-3/8 35
CABLE STRIPPING GUIDE
Terminal Cable Clamp Assembly Compression
Device Size Screw Screw Screw Nut
In-lbs N-m In-lbs N-m In-lbs N-m In-lbs N-m
20 Amp 7 .8 6 .8 7 .8 18-36 2-4
30 Amp 7 .8 6 .8 7 .8 18-36 2-4
60 Amp 17 1.9 12 1.4 7 .8 45-90 5-10
100 Amp 70 7.9 15 1.8 7 .8 45-90 5-10
TIGHTENING GUIDE
*Application specific.
Project
Location/Type
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
20 ❒ 2P3W
125
PS320P4W
20 ❒ 2P3W
250
PS320P6W
20 ❒ 2P3W
480
PS320P7W
20 ❒ 2P3W
277
PS320P5W
20 ❒ 3P4W
125/250
PS420P12W
20 ❒ 3P4W
3ø250
PS420P9W
20 ❒ 3P4W
3ø480
PS420P7W
20 ❒ 3P4W
3ø600
PS420P5W
20 ❒ 4P5W
3øY120/208
PS520P9W
20 ❒ 4P5W
3øY277/480
PS520P7W
20 ❒ 4P5W
3øY347/600
PS520P5W
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
30 ❒ 2P3W
125
PS330P4W
30 ❒ 2P3W
250
PS330P6W
30 ❒ 2P3W
480
PS330P7W
30 ❒ 3P4W
125/250
PS430P12W
30 ❒ 3P4W
3ø250
PS430P9W
30 ❒ 3P4W
3ø480
PS430P7W
30 ❒ 3P4W
3ø600
PS430P5W
30 ❒ 3P4W
380/440
*PS430P3W
30 ❒ 4P5W
3øY120/208
PS530P9W
30 ❒ 4P5W
3øY277/480
PS530P7W
30 ❒ 4P5W
3øY347/600
PS530P5W
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
60 ❒ 2P3W
125
PS360P4W
60 ❒ 2P3W
250
PS360P6W
60 ❒ 2P3W
480
PS360P7W
60 ❒ 3P4W
125/250
PS460P12W
60 ❒ 3P4W
3ø250
PS460P9W
60 ❒ 3P4W
3ø480
PS460P7W
60 ❒ 3P4W
3ø600
PS460P5W
60 ❒ 4P5W
3øY120/208
PS560P9W
60 ❒ 4P5W
3øY277/480
PS560P7W
60 ❒ 4P5W
3øY347/600
PS560P5W
U-111
Technical Specifications Watertight Pin & Sleeve Plugs
Technical Specifications
Watertight Pin & Sleeve Plugs
20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing Polyamide 6 Polyamide 6 Valox Valox
Locking Ring Polyamide 66 Polyamide 66 Valox Valox
Sealing Gasket Neoprene Neoprene Neoprene Neoprene
Housing Gasket Neoprene Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Pins Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Specimen
Amps Wire Cong. A B C D E F
Watertight Plugs
2 Pole, 3 Wire inch 5.30 2.85 .31-.59
20 3 Pole, 4 Wire inch 5.50 3.20 .31-.59
4 Pole, 5 Wire inch 6.00 3.40 .39-.71
2 Pole, 3 Wire inch 6.50 3.70 .39-.71
30 3 Pole, 4 Wire inch 6.50 3.70 .47-.87
4 Pole, 5 Wire inch 6.70 3.98 .47-.87
2 Pole, 3 Wire inch 10.00 4.50 .63-1.04
60 3 Pole, 4 Wire inch 10.00 4.50 .73-1.14
4 Pole, 5 Wire inch 10.00 4.50 .80-1.26
2 Pole, 3 Wire inch 13.40 5.20 .59-1.97
100/125 3 Pole, 4 Wire inch 13.40 5.20 .59-1.97
4 Pole, 5 Wire inch 13.40 5.20 .59-1.97
A
B
D
Project
Location/Type
U-112
Technical SpecificationsWatertight Pin & Sleeve Connectors
Technical Specifications
Watertight Pin & Sleeve Connectors
20, 30, 60 & 100A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460C7-W
Description: Connector, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
100 ❒ 2P3W
125
PS3100C4W
100 ❒ 2P3W
250
PS3100C6W
100 ❒ 2P3W
480
PS3100C7W
100 ❒ 3P4W
125/250
PS4100C12W
100 ❒ 3P4W
3ø250
PS4100C9W
100 ❒ 3P4W
3ø480
PS4100C7W
100 ❒ 3P4W
3ø600
PS4100C5W
100 ❒ 4P5W
3øY120/208
PS5100C9W
100 ❒ 4P5W
3øY277/480
PS5100C7W
100 ❒ 4P5W
3øY347/600
PS5100C5W
Device Size Con- A B
ductors inches (mm) inches (mm)
20 Amp All 1-1/8 29 1/2 12
30 Amp All 1-1/2 38 13/16 21
60 Amp All 2-3/4 70 13/16 21
100 Amp All 5-5/16 135 1-3/8 35
CABLE STRIPPING GUIDE
Terminal Cable Clamp Assembly Compression
Device Size Screw Screw Screw Nut
In-lbs N-m In-lbs N-m In-lbs N-m In-lbs N-m
20 Amp 7 .8 6 .8 7 .8 18-36 2-4
30 Amp 7 .8 6 .8 7 .8 18-36 2-4
60 Amp 17 1.9 12 1.4 7 .8 45-90 5-10
100 Amp 70 7.9 15 1.8 7 .8 45-90 5-10
TIGHTENING GUIDE
Config.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
60 ❒ 2P3W
125
PS360C4W
60 ❒ 2P3W
250
PS360C6W
60 ❒ 2P3W
480
PS360C7W
60 ❒ 3P4W
125/250
PS460C12W
60 ❒ 3P4W
3ø250
PS460C9W
60 ❒ 3P4W
3ø480
PS460C7W
60 ❒ 3P4W
3ø600
PS460C5W
60 ❒ 4P5W
3øY120/208
PS560C9W
60 ❒ 4P5W
3øY277/480
PS560C7W
60 ❒ 4P5W
3øY347/600
PS560C5W
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
20 ❒ 2P3W
125
PS320C4W
20 ❒ 2P3W
250
PS320C6W
20 ❒ 2P3W
480
PS320C7W
20 ❒ 2P3W
277
PS320C5W
20 ❒ 3P4W
125/250
PS420C12W
20 ❒ 3P4W
3ø250
PS420C9W
20 ❒ 3P4W
3ø480
PS420C7W
20 ❒ 3P4W
3ø600
PS420C5W
20 ❒ 4P5W
3øY120/208
PS520C9W
20 ❒ 4P5W
3øY277/480
PS520C7W
20 ❒ 4P5W
3øY347/600
PS520C5W
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
30 ❒ 2P3W
125
PS330C4W
30 ❒ 2P3W
250
PS330C6W
30 ❒ 2P3W
480
PS330C7W
30 ❒ 3P4W
125/250
PS430C12W
30 ❒ 3P4W
3ø250
PS430C9W
30 ❒ 3P4W
3ø480
PS430C7W
30 ❒ 3P4W
3ø600
PS430C5W
30 ❒ 3P4W
380/440
*PS430C3W
30 ❒ 4P5W
3øY120/208
PS530C9W
30 ❒ 4P5W
3øY277/480
PS530C7W
30 ❒ 4P5W
3øY347/600
PS530C5W
*Application specific.
Project
Location/Type
U-113
Technical Specifications Watertight Pin & Sleeve Connectors
Technical Specifications
Watertight Pin & Sleeve Connectors
20, 30, 60 & 100A
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Materials 20 Amp 30 Amp 60 Amp 100 Amp
Housing Polyamide 6 Polyamide 6 Valox Valox
Cover Polyamide 66 Polyamide 66 Valox Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Sealing Gasket Neoprene Neoprene Neoprene Neoprene
Housing Gasket Neoprene Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6 Polyamide 6
Sleeves Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Assembly Screws Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Specimen
Amps Wire Cong. A B C D E F
Watertight Connectors
2 Pole, 3 Wire inch 5.90 2.85 3.00 .31-.59
20 3 Pole, 4 Wire inch 6.00 3.20 3.40 .31-.59
4 Pole, 5 Wire inch 6.70 3.40 3.50 .39-.71
2 Pole, 3 Wire inch 7.00 3.70 3.90 .39-.71
30 3 Pole, 4 Wire inch 7.00 3.70 3.90 .47-.87
4 Pole, 5 Wire inch 7.30 3.98 4.10 .47-.87
2 Pole, 3 Wire inch 10.90 4.50 4.70 .63-1.04
60 3 Pole, 4 Wire inch 10.90 4.50 4.70 .73-1.14
4 Pole, 5 Wire inch 10.90 4.50 4.70 .80-1.26
2 Pole, 3 Wire inch 14.30 5.20 5.30 .59-1.97
100 3 Pole, 4 Wire inch 14.30 5.20 5.30 .59-1.97
4 Pole, 5 Wire inch 14.30 5.20 5.30 .59-1.97
C
A
D
B
Project
Location/Type
U-114
Technical SpecificationsWatertight Pin & Sleeve Inlets
Technical Specifications
Watertight Pin & Sleeve Inlets
60 & 100A
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Specimen
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460B7-W
Description: Inlet, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Watertight (IP67)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2;
UL Classified to IEC 309-1 and IEC 309-2
Project
Location/Type
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
60 ❒ 2P3W
125
PS360B4W
60 ❒ 2P3W
250
PS360B6W
60 ❒ 2P3W
480
PS360B7W
60 ❒ 3P4W
125/250
PS460B12W
60 ❒ 3P4W
3ø250
PS460B9W
60 ❒ 3P4W
3ø480
PS460B7W
60 ❒ 3P4W
3ø600
PS460B5W
60 ❒ 4P5W
3øY120/208
PS560B9W
60 ❒ 4P5W
3øY277/480
PS560B7W
60 ❒ 4P5W
3øY347/600
PS560B5W
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
100 ❒ 2P3W
125
PS3100B4W
100 ❒ 2P3W
250
PS3100B6W
100 ❒ 2P3W
480
PS3100B7W
100 ❒ 3P4W
125/250
PS4100B12W
100 ❒ 3P4W
3ø250
PS4100B9W
100 ❒ 3P4W
3ø480
PS4100B7W
100 ❒ 3P4W
3ø600
PS4100B5W
100 ❒ 4P5W
3øY120/208
PS5100B9W
100 ❒ 4P5W
3øY277/480
PS5100B7W
100 ❒ 4P5W
3øY347/600
PS5100B5W
U-115
Technical Specifications Watertight Pin & Sleeve Inlets
Technical Specifications
Watertight Pin & Sleeve Inlets
60 & 100A
Amps Wire Cong. A B C D E F
Watertight Inlets
2 Pole, 3 Wire inch 4.50 4.25 3.03 3.35
60 3 Pole, 4 Wire inch 4.50 4.25 3.03 3.35
4 Pole, 5 Wire inch 4.50 4.25 3.03 3.35
2 Pole, 3 Wire inch 5.75 5.71 4.88 4.88
100 3 Pole, 4 Wire inch 5.75 5.71 4.88 4.88
4 Pole, 5 Wire inch 5.75 5.71 4.88 4.88
Materials 60 Amp 100 Amp
Housing Valox Valox
Mounting Flange Valox Valox
Locking Ring Valox Valox
Sealing Gasket Neoprene Neoprene
Mounting Gasket Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6
Pins Brass with Nickel Plate Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel
A
B
E
F
Project
Location/Type
U-116
Technical SpecificationsSplashproof Pin & Sleeve Receptacles
Technical Specifications
Splashproof Pin & Sleeve Receptacles
20, 30 & 60A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460R7-S
Description: Receptacle, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Specimen
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
20 ❒ 2P3W
125
PS320R4S
20 ❒ 2P3W
250
PS320R6S
20 ❒ 2P3W
480
PS320R7S
20 ❒ 2P3W
277
PS320R5S
20 ❒ 3P4W
125/250
PS420R12S
20 ❒ 3P4W
3ø250
PS420R9S
20 ❒ 3P4W
3ø480
PS420R7S
20 ❒ 3P4W
3ø600
PS420R5S
20 ❒ 4P5W
3øY120/208
PS520R9S
20 ❒ 4P5W
3øY277/480
PS520R7S
20 ❒ 4P5W
3øY347/600
PS520R5S
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
30 ❒ 2P3W
125
PS330R4S
30 ❒ 2P3W
250
PS330R6S
30 ❒ 2P3W
480
PS330R7S
30 ❒ 3P4W
125/250
PS430R12S
30 ❒ 3P4W
3ø250
PS430R9S
30 ❒ 3P4W
3ø480
PS430R7S
30 ❒ 3P4W
3ø600
PS430R5S
30 ❒ 4P5W
3øY120/208
PS530R9S
30 ❒ 4P5W
3øY277/480
PS530R7S
30 ❒ 4P5W
3øY347/600
PS530R5S
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
60 ❒ 2P3W
125
PS360R4S
60 ❒ 2P3W
250
PS360R6S
60 ❒ 2P3W
480
PS360R7S
60 ❒ 3P4W
125/250
PS460R12S
60 ❒ 3P4W
3ø250
PS460R9S
60 ❒ 3P4W
3ø480
PS460R7S
60 ❒ 3P4W
3ø600
PS460R5S
60 ❒ 4P5W
3øY120/208
PS560R9S
60 ❒ 4P5W
3øY277/480
PS560R7S
60 ❒ 4P5W
3øY347/600
PS560R5S
Project
Location/Type
U-117
Technical Specifications Splashproof Pin & Sleeve Receptacles
Technical Specifications
Splashproof Pin & Sleeve Receptacles
20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing Polyamide 6 Polyamide 6 Valox
Cover Polyamide 66 Polyamide 66 Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel
Mounting Gasket Neoprene Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6
Sleeves Brass Brass Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Amps Wire Cong. A B C D E F
Splashproof Receptacles
2 Pole, 3 Wire inch 2.50 1.57 1.60 3.10 2.05 2.36
20 3 Pole, 4 Wire inch 2.90 1.57 1.73 3.46 2.36 2.75
4 Pole, 5 Wire inch 2.90 1.73 1.73 3.66 2.36 2.75
2 Pole, 3 Wire inch 3.30 2.10 1.97 4.06 2.75 3.15
30 3 Pole, 4 Wire inch 3.30 2.10 1.97 4.06 2.75 3.15
4 Pole, 5 Wire inch 3.30 2.20 2.05 4.20 2.75 3.15
2 Pole, 3 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
60 3 Pole, 4 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
4 Pole, 5 Wire inch 4.20 3.50 2.76 5.08 3.03 3.35
F
E
A
D
CB
Project
Location/Type
U-118
Technical SpecificationsSplashproof Pin & Sleeve Plugs
Technical Specifications
Splashproof Pin & Sleeve Plugs
20, 30 & 60A
Typical Specications
Description: Plug, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
20 ❒ 2P3W
125
PS320P4S
20 ❒ 2P3W
250
PS320P6S
20 ❒ 2P3W
480
PS320P7S
20 ❒ 2P3W
277
PS320P5S
20 ❒ 3P4W
125/250
PS420P12S
20 ❒ 3P4W
3ø250
PS420P9S
20 ❒ 3P4W
3ø480
PS420P7S
20 ❒ 3P4W
3ø600
PS420P5S
20 ❒ 4P5W
3øY120/208
PS520P9S
20 ❒ 4P5W
3øY277/480
PS520P7S
20 ❒ 4P5W
3øY347/600
PS520P5S
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
30 ❒ 2P3W
125
PS330P4S
30 ❒ 2P3W
250
PS330P6S
30 ❒ 2P3W
480
PS330P7S
30 ❒ 3P4W
125/250
PS430P12S
30 ❒ 3P4W
3ø250
PS430P9S
30 ❒ 3P4W
3ø480
PS430P7S
30 ❒ 3P4W
3ø600
PS430P5S
30 ❒ 4P5W
3øY120/208
PS530P9S
30 ❒ 4P5W
3øY277/480
PS530P7S
30 ❒ 4P5W
3øY347/600
PS530P5S
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
60 ❒ 2P3W
125
PS360P4S
60 ❒ 2P3W
250
PS360P6S
60 ❒ 2P3W
480
PS360P7S
60 ❒ 3P4W
125/250
PS460P12S
60 ❒ 3P4W
3ø250
PS460P9S
60 ❒ 3P4W
3ø480
PS460P7S
60 ❒ 3P4W
3ø600
PS460P5S
60 ❒ 4P5W
3øY120/208
PS560P9S
60 ❒ 4P5W
3øY277/480
PS560P7S
60 ❒ 4P5W
3øY347/600
PS560P5S
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Specimen
Project
Location/Type
U-119
Technical Specifications Splashproof Pin & Sleeve Plugs
Technical Specifications
Splashproof Pin & Sleeve Plugs
20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing Polyamide 6 Polyamide 6 Valox
Housing Gasket Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6
Pins Brass Brass Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws Stainless Steel Stainless Steel Stainless Steel
Assembly Screws Stainless Steel Stainless Steel Stainless Steel
Amps Wire Cong. A B C D E F
Splashproof Plugs
2 Pole, 3 Wire inch 5.30 2.17 .31-.59
20 3 Pole, 4 Wire inch 5.50 2.36 .31-.59
4 Pole, 5 Wire inch 6.00 2.60 .39-.71
2 Pole, 3 Wire inch 6.50 2.78 .39-.71
30 3 Pole, 4 Wire inch 6.50 2.78 .47-.87
4 Pole, 5 Wire inch 6.70 3.03 .47-.87
2 Pole, 3 Wire inch 10.00 4.02 .63-1.04
60 3 Pole, 4 Wire inch 10.00 4.02 .73-1.14
4 Pole, 5 Wire inch 10.00 4.02 .80-1.26 B
A
D
Project
Location/Type
U-120
Technical Specifications
Technical Specifications
Splashproof Pin & Sleeve Connectors
20, 30 & 60A
Typical Specications
Description: Connector, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Specimen
Project
Location/Type
Splashproof Pin & Sleeve Connectors
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
60 ❒ 2P3W
125
PS360C4S
60 ❒ 2P3W
250
PS360C6S
60 ❒ 2P3W
480
PS360C7S
60 ❒ 3P4W
125/250
PS460C12S
60 ❒ 3P4W
3ø250
PS460C9S
60 ❒ 3P4W
3ø480
PS460C7S
60 ❒ 3P4W
3ø600
PS460C5S
60 ❒ 4P5W
3øY120/208
PS560C9S
60 ❒ 4P5W
3øY277/480
PS560C7S
60 ❒ 4P5W
3øY347/600
PS560C5S
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
30 ❒ 2P3W
125
PS330C4S
30 ❒ 2P3W
250
PS330C6S
30 ❒ 2P3W
480
PS330C7S
30 ❒ 3P4W
125/250
PS430C12S
30 ❒ 3P4W
3ø250
PS430C9S
30 ❒ 3P4W
3ø480
PS430C7S
30 ❒ 3P4W
3ø600
PS430C5S
30 ❒ 4P5W
3øY120/208
PS530C9S
30 ❒ 4P5W
3øY277/480
PS530C7S
30 ❒ 4P5W
3øY347/600
PS530C5S
Cong.
Poles & Recep/ Voltage/ Catalog
Amps
Wires Conn. Color Coding Number
20 ❒ 2P3W
125
PS320C4S
20 ❒ 2P3W
250
PS320C6S
20 ❒ 2P3W
480
PS320C7S
20 ❒ 2P3W
277
PS320C5S
20 ❒ 3P4W
125/250
PS420C12S
20 ❒ 3P4W
3ø250
PS420C9S
20 ❒ 3P4W
3ø480
PS420C7S
20 ❒ 3P4W
3ø600
PS420C5S
20 ❒ 4P5W
3øY120/208
PS520C9S
20 ❒ 4P5W
3øY277/480
PS520C7S
20 ❒ 4P5W
3øY347/600
PS520C5S
U-121
Technical Specifications Splashproof Pin & Sleeve Connectors
Technical Specifications
Splashproof Pin & Sleeve Connectors
20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing Polyamide 6 Polyamide 6 Valox
Cover Polyamide 66 Polyamide 66 Valox
Cover Spring Stainless Steel Stainless Steel Stainless Steel
Housing Gasket Neoprene Neoprene Neoprene
Back Body Polyamide 6 Polyamide 6 Valox
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 66
Sleeves Brass Brass Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Cord Grip Polyamide 6 Polyamide 6 Polyamide 66
Grommet Natural Rubber Natural Rubber Natural Rubber
Cord Grip Screws Stainless Steel Stainless Steel Stainless Steel
Assembly Screws Stainless Steel Stainless Steel Stainless Steel
A
D
C
B
B
A
C
D
Amps Wire Cong. A B C D E F
Splashproof Connectors
2 Pole, 3 Wire inch 5.79 2.15 2.91 .31-.59
20 3 Pole, 4 Wire inch 5.94 2.42 3.19 .31-.59
4 Pole, 5 Wire inch 6.77 2.73 3.54 .39-.71
2 Pole, 3 Wire inch 6.97 2.80 3.66 .39-.71
30 3 Pole, 4 Wire inch 6.97 2.80 3.66 .47-.87
4 Pole, 5 Wire inch 7.20 3.05 3.94 .47-.87
2 Pole, 3 Wire inch 10.75 3.78 4.67 .63-1.04
60 3 Pole, 4 Wire inch 10.75 3.78 4.67 .73-1.14
4 Pole, 5 Wire inch 10.75 3.78 4.67 .80-1.26
Project
Location/Type
U-122
Technical SpecificationsSplashproof Pin & Sleeve Inlets
Technical Specifications
Splashproof Pin & Sleeve Inlets
20, 30 & 60A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS460B7-S
Description: Inlet, Power Supply
Type: 3 Pole, 4 Wire Grounding
Rating: 60A, 3 Phase 480VAC
Configuration: IEC 309-2, Clock Position 7, Splashproof (IP44)
3rd Party Compliance: UL Listed to UL Standard 1682; CSA Certified to CSA 22.2 No. 182.2; UL Classified to IEC 309-1 and IEC 309-2
Performance
Electrical
Dielectric Voltage Withstand 3000V maximum
Maximum Working Voltage 600 RMS
Current Interrupting Certified for current interrupting at full-rated current
Temperature Rise Maximum 30°C temperature rise at full-rated current
after 50 cycles of 150% overload (at 0.75 to 0.80 power factor)
Endurance 20 Amp: 5000 cycles with full-rated current and voltage
30, 60 & 100 Amp: 2000 cycles with full-rated current and voltage applied on every other cycle
Mechanical
Impact Resistance Device dropped 8 times from a height of 2.5 feet with 7.5 feet of cord attached (per CSA 182.1)
Cord Grip Retention Force, Lbs.* Torque, Ft. lbs.*
20A 30 .4
30A 75 .5
60A 150 1
100A 150 1
*Applied to minimum recommended cable size
Cord Accommodation Round portable service cords. Diameters commensurate with the device rating as defined in UL62,
CSA C22.2, No. 49, and the harmonized (HAR) European Standard
Terminal Identification Identified in accordance with North American convention, UL1682, and IEC 309-1, 309-2
Product Identification Identification and ratings are labeled on the device housing
Environmental
Moisture Resistance Watertight per IEC 309-1.
Flammability Contact with live parts: V2 or V0. Enclosure: HB or better per UL94
Operating Temperature +80°C maximum continuous, -50°C minimum without impact
Specimen
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
60 ❒ 2P3W
125
PS360B4S
60 ❒ 2P3W
250
PS360B6S
60 ❒ 2P3W
480
PS360B7S
60 ❒ 3P4W
125/250
PS460B12S
60 ❒ 3P4W
3ø250
PS460B9S
60 ❒ 3P4W
3ø480
PS460B7S
60 ❒ 3P4W
3ø600
PS460B5S
60 ❒ 4P5W
3øY120/208
PS560B9S
60 ❒ 4P5W
3øY277/480
PS560B7S
60 ❒ 4P5W
3øY347/600
PS560B5S
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
30 ❒ 2P3W
125
PS330B4S
30 ❒ 2P3W
250
PS330B6S
30 ❒ 2P3W
480
PS330B7S
30 ❒ 3P4W
125/250
PS430B12S
30 ❒ 3P4W
3ø250
PS430B9S
30 ❒ 3P4W
3ø480
PS430B7S
30 ❒ 3P4W
3ø600
PS430B5S
30 ❒ 4P5W
3øY120/208
PS530B9S
30 ❒ 4P5W
3øY277/480
PS530B7S
30 ❒ 4P5W
3øY347/600
PS530B5S
Cong.
Poles & Plug/ Voltage/ Catalog
Amps
Wires Inlet Color Coding Number
20 ❒ 2P3W
125
PS320B4S
20 ❒ 2P3W
250
PS320B6S
20 ❒ 2P3W
480
PS320B7S
20 ❒ 2P3W
277
PS320B5S
20 ❒ 3P4W
125/250
PS420B12S
20 ❒ 3P4W
3ø250
PS420B9S
20 ❒ 3P4W
3ø480
PS420B7S
20 ❒ 3P4W
3ø600
PS420B5S
20 ❒ 4P5W
3øY120/208
PS520B9S
20 ❒ 4P5W
3øY277/480
PS520B7S
20 ❒ 4P5W
3øY347/600
PS520B5S
Project
Location/Type
U-123
Technical Specifications Splashproof Pin & Sleeve Inlets
Technical Specifications
Splashproof Pin & Sleeve Inlets
20, 30 & 60A
Materials 20 Amp 30 Amp 60 Amp
Housing Polyamide 6 Polyamide 6 Valox
Mounting Flange Polyamide 6 Polyamide 6 Valox
Mounting Gasket Neoprene Neoprene Neoprene
Contact Carrier Polyamide 6 Polyamide 6 Polyamide 6
Pins Brass Brass Brass with Nickel Plate
Terminal Screws Zinc-Plated Steel Zinc-Plated Steel Zinc-Plated Steel
Amps Wire Cong. A B C D E F
Splashproof Inlets
2 Pole, 3 Wire inch 2.83 3.07 2.44 3.70
20 3 Pole, 4 Wire inch 3.70 3.39 3.27 4.29
4 Pole, 5 Wire inch 3.70 3.39 3.27 4.29
2 Pole, 3 Wire inch 3.98 4.37 3.54 5.86
30 3 Pole, 4 Wire inch 3.98 4.37 3.54 5.86
4 Pole, 5 Wire inch 3.98 4.25 3.54 5.86
2 Pole, 3 Wire inch 4.50 4.25 3.03 3.35
60 3 Pole, 4 Wire inch 4.50 4.25 3.03 3.35
4 Pole, 5 Wire inch 4.50 4.25 3.03 3.35
A
B
F
E
Project
Location/Type
U-124
Technical SpecificationsNon-Fusible Mechanical Interlock
Technical Specifications
Watertight Pin & Sleeve Non-Fusible
Mechanical Interlock
20, 30, 60 & 100A
Typical Specications
Manufacturerʼs Identification: Pass & Seymour/Legrand PS560MIR5W
Description: Non-Fusible Pin & Sleeve Mechanical Interlock
Electrical Type: 3 Pole + Neutral + Earth
Rating: 60A, 3ø, 600VAC 15 HP standard, 40 HP maximum
Configuration: IEC Clock Position 5
Enclosure Type: NEMA 4X (watertight, hosedown), 12K (dusttight, falling dirt), IP67 suitability
Conduit Location: Top or bottom feed. Unit shipped with no holes drilled; a top and bottom feed spot drill is provided for locating hole saw
or knockout. End user decides at installation whether top or bottom feed is appropriate. No closure plug kits required.
Voltage/Color Horsepower Rating
Amps Catalog Number Coding
20 ❒ PS420MIR12W 120/240VAC 1 HP @ 120V
2 HP @ 208-240V L-L
20 ❒ PS420MIR9W 3ø 240VAC 5
20 ❒ PS420MIR7W 3ø 480VAC 10
20 ❒ PS420MIR5W 3ø 600VAC 15
Voltage/Color Horsepower Rating
Amps Catalog Number Coding
30 ❒ PS330MIR4W 120VAC 2
30 ❒ PS430MIR12W 120/250VAC 2 @ 120V
3 @ 208-240V L-L
30 ❒ PS430MIR9W 3ø 240VAC 7.5
30 ❒ PS430MIR7W 3ø 480VAC 15
30 ❒ PS430MIR5W 3ø 600VAC 20
30 ❒ PS430MIR3W 380/440VAC 15
30 ❒ PS530MIR9W 3øY 120/208VAC 5
30 ❒ PS530MIR7W 3øY 277/480VAC 15
30 ❒ PS530MIR5W 3øY347/600 20
Voltage/Color Horsepower Rating
Amps Catalog Number Coding
60 ❒ PS360MIR6W 240VAC 7.5 @ 208-240V
60 ❒ PS360MIR7W 480VAC
60 ❒ PS460MIR12W 120/240VAC 3 @ 120V
7.5 @ 208-240VAC L-L
60 ❒ PS460MIR9W 3ø 240VAC 15
60 ❒ PS460MIR7W 3ø 480VAC 30
60 ❒ PS460MIR5W 3ø 600VAC 40
60 ❒ PS560MIR9W 3øY 120/208VAC 15
60 ❒ PS560MIR7W 3øY 277/480VAC 30
60 ❒ PS560MIR5W 3øY 347/600VAC 40
Voltage/Color Horsepower Rating
Amps Catalog Number Coding
100 ❒ PS3100MIR6W 240VAC 10 @ 208V
15 @ 240V
100 ❒ PS3100MIR7W 480VAC 30
100 ❒ PS4100MIR5W 3ø 600VAC 50
100 ❒ PS4100MIR7W 3ø 480VAC 50
100 ❒ PS4100MIR9W 3ø 240VAC 25
100 ❒ PS4100MIR12W 120/240VAC 5 @ 120V
10 @ 208V L-L
15 @ 240V L-L
100 ❒ PS5100MIR5W 3øY 347/600VAC 50
100 ❒ PS5100MIR7W 3øY 277/480VAC 50
100 ❒ PS5100MIR9W 3øY 120/208VAC 20
Project
Location/Type
U-125
Technical Specifications Non-Fusible Mechanical Interlock
Technical Specifications
Watertight Pin & Sleeve Non-Fusible
Mechanical Interlock
20, 30, 60 & 100A
Materials
Enclosure Cover Valox 357®
Enclosure Base Valox 357®
Enclosure Gasket Neoprene
Switch Handle Valox 357®
Switch Handle Seal Neoprene
Shaft Brass
Gear Mechanism 1/8" Zinc-Plated Steel
Locktab 10% Glass-Filled Nylon
Switch Key 10% Glass-Filled Nylon
Mounting Feet Valox 357®
Mounting Feet Screws 300 Series Stainless Steel
Enclosure Assembly Screws 300 Series Stainless Steel
Enclosure Assembly Inserts Brass
Receptacle Lid Valox 357®
Receptacle Gasketing Neoprene
Receptacle Lid Hinge Spring 300 Series Stainless Steel
Receptacle Contact Carrier Polyamide 6
Receptacle Sleeves Brass/Nickel-Plate
Receptacle Terminal Screws Zinc-Plated Steel
Grounding Plate Zinc-Plated Steel
Cover Chain 300 Series Stainless Steel
Conduit Hub Aluminum/Zinc
20/30 amp shipped with one (1) 1"
60 amp shipped with one (1) 11⁄4"
100 amp shipped with one (1) 11⁄2"
(will also fit a 2" hub, not provided)
Performance
Electrical
Dielectric Voltage Withstand 3000V minimum
Maximum Working Voltage 600V RMS
Current Interrupting Listed for current interrupting at
full-rated current and voltage
Short Circuit Withstand Rating For use on circuit capable of
delivering not more than 10,000
RMS amps at receptacle voltage
rating
Operations Mechanical: 15,000 cycles
Electrical: 10,000 cycles
Auxiliary Contacts 10A @ 600V
1 N.O. & 1 N.C.
Mechanical
Impact Resistance Per UL746C
Terminal Identification Per UL, CSA, and IEC
specifications
Product Identification Identification and rating on
external and internal labels
Mounting External adjustable feet with five
(5) positions.
Can be mounted directly
to channel or strut
(no washer required)
Environmental
Moisture Resistance Per UL50, section 35, NEMA
Enclosure Type 4X (watertight,
hosedown)
Per UL50, section 35, NEMA
Enclosure Type 12K (dusttight,
falling dirt) IP67 suitability
Flammability UL94 5VA and VO Classification
Operating Temperature Maximum continuous: +60ºC
Minimum continuous: -50ºC
without impact
UV Resistance All enclosure materials are
UV stable
Front
Non-Fusible Mechanical Interlock Dimensions
Side Back
All measurements shown in inches.
(See dimensions above.)
Amps A B C D E F G H I J K L
20 1.38 6.88 9.13 8.00 12.38 11.06 4.75 6.88 7.75 8.00 10.13 11.00
30 1.38 6.88 9.13 8.25 12.38 11.50 4.75 6.88 7.75 8.00 10.13 11.00
60 1.19 6.88 9.13 9.00 13.63 14.13 4.75 6.88 7.75 9.75 11.88 12.75
100 1.19 6.88 9.13 9.50 14.13 14.13 4.75 6.88 7.75 9.75 11.88 12.75
Project
Location/Type
U-126
Technical Specifications
Occupancy Sensors
Wall Box Switches
WSP200, OS300S, OSR300S Features & Benets
Zero Crossing This feature ensures the closing of the contacts as close to 0° as possible, extending the life of the
relay contacts, and limiting the effect of inrush current from some electronic ballasts.
ASIC Chip Application Specific Integrated Component chip is a custom-designed microprocessor that
improves reliability and boosts immunity to RFI and EMI.
30 sec. - 30 min. Time Delay
Such a large range allows users to adjust time delay to fit the application and ensure maximum
savings without compromising convenience.
180° Coverage Provides detection even along the wall it is mounted on.
Maximum Rating Allows for the combining of potential savings with room size. Wall switches that offer too much
wattage handling capacity are used in larger rooms where ceiling sensors should be used,
compromising the reliability of the installation.
Self-Adaptive On the OS units only: Units automatically adjust the delay time by monitoring room usage patterns.
No user adjustment required, automatically sets delay time for most efficient use of energy.
2 relays for bi-level switching The OSR300S is designed for areas with two lighting zones or bi-level lighting applications.
Adjustable Sensitivity
Enables the installer or user to adjust the sensitivity level to suit the application.
Voltage Drop Protection Protects the electronics to ensure long-term performance.
Five-Year Warranty Allows installer or user to receive a replacement or refund if a sensor is found to be defective
within 5 years of purchase.
PWP2120, PWP2277 & AR120/277 Features
Load Rating at 120V 20A Ballast 13A Incandescent
Load Rating at 277V 20A Ballast
Add-A-Relay Rating at 120V 20A Ballast 13A Incandescent
Add-A-Relay Rating at 277V 20A Ballast
HP Rating 1HP
Output Rating* 24VDC; 150mA
Power Packs & Add-A-Relay
Mounting Method 1/2" Knockout
Sized to Fit into Approved
Enclosure for Plenum Applications Yes
Teflon-Coated Leads Yes
Five Year Warranty Yes
* PWP unit only.
General Specications
1. Occupancy sensors shall control lighting and/or HVAC in
the sensed area only.
2. Controlled lighting and/or HVAC zones shall not be larger
than 2500 sq. ft.
3. The contractor shall be responsible for a complete,
operable system, and installation should be warranted for
a period of one year after acceptance.
4. The product shall be warranted for a period of (5) five years
for wall switch sensors, ceiling sensors, and power packs.
5. Occupancy sensors shall be installed as per manufacturerʼs
recommendations.
6. Specific low-voltage wire surface routing shall be approved
by the facilities engineer.
7. Sensor and control unit manufacturer must have experience
in the lighting and/or HVAC controls industry equal to a
minimum of (5) five years with a minimum of (5) five similar
projects.
8. Contractor shall be responsible for contacting the
manufacturer for proper placement and adjustment of sensor.
Technical Specifications
Occupancy Sensors
Project
Location/Type
Wall- and Ceiling-Mount Sensors
Feature WA1001 HS1001 CS500/CS1200 CSU600/1100/2200 CSD1000
Technology Passive Infrared Passive Infrared Passive Infrared Ultrasonic* Dual-Technology
Coverage Pattern Wide Angle Long Range 360° 360° 360°
Mounting Method Wall or Ceiling Wall or Ceiling Ceiling Ceiling Ceiling
Adjustable Sensitivity Yes Yes Yes Yes Yes
Viewing Range 1200 sq. ft. 90 x 20 ft. 500/1200 sq. ft. 600/1100/2200 sq. ft. 1000 sq. ft.
Fresnel Lens** Yes Yes Yes N/A Yes
ASIC† Yes Yes Yes Yes Yes
5-Year Warranty Yes Yes Yes Yes Yes
* Provides occupancy detection around obstacles.
** Dual tech has both Ultrasonic and PIR Fresnel lens.
† Improves reliability and boosts immunity to RFI and EMI.
U-127
Technical Specifications WSP200, OS300S, OSR300S
Technical Specifications
PIR Wall Switch – WSP200,
OS300S, OSR300S
Catalog Number Description
❒
WSP200 Passive Infrared Wall Switch
❒
OS300S Self-Adaptive Passive Infrared Occupancy/Vacancy Sensor
❒
OSR300S Dual-Relay Self-Adaptive Passive Infrared Occupancy/Vacancy Sensor
Performance
Electrical
Supply Voltage 120/277 Volt AC 60 Hz
Maximum Load 800W Incandescent/Fluorescent at 120V 1/4 HP
1200W Fluorescent at 277V
Minimum Load None
AC Switching WSP200, OS300S: Normally Open Relay, Zero Crossing Circuitry
OSR300S: 2 Normally Open Relays, Zero Crossing Circuitry
Sensor
Technology WSP200: Passive Infrared
OS300S, OSR300S: Self-Adaptive Passive Infrared
Time Delay WSP200: Adjustable 30 sec. to 30 min.
OS300S, OSR300S: Adjustable 5 min. to 30 min.
Light Level Adjustment WSP200: Adjustable from full daylight to 10 foot-candles
OS300S, OSR300S: 8-180 fcs
Sensitivity Adjustment WSP200: 20% to 100%
OS300S, OSR300S: Self-Adaptive and Fixed Low
Spectral Response WSP200: 6 to 14 μm
OS300S: 7 to 14 μm
OSR300S: 8 to 14 μm
Field of View Horizontal: 180°
Vertical: 2° and 8.6° down from the center
Indicator Light Red LED flashes when motion is detected
Lens Type Two-tier lens
Walk-through Mode WSP200: No; OS300S, OSR300S: Yes
Audible Alert WSP200: No; OS300S, OSR300S: Yes
Test Mode WSP200: No; OS300S, OSR300S: Yes
Environmental
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UV-resistant plastic
Color(s) WSP200: Ivory, White, Gray, Light Almond
OS300S, OSR300S: Ivory, White, Gray, Light Almond
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Typical Specications
Wall switch occupancy sensors shall be cULus Listed, and California Title 24 Compliant as provided
by Pass & Seymour/Legrand. Sensors shall be self-contained and fit in a standard wall box. Sensors
shall be capable of detecting changes in the infrared background caused by motion. Sensors shall be
capable of switching incandescent and fluorescent lighting loads on and off. Sensors shall use optics
that operate with a 180° field of view. The wall switch occupancy sensor shall be equipped with controls
to adjust sensitivity and ambient light threshold. The sensor shall also offer a time-delay adjustment from
30 seconds to 30 minutes, as well as an override. Conforms to NEMA WD-1 and WD-6.
WSP200-LA
3.272"
1.765"
3.813"
4.125"
2.610"
1.310"
Project
Location/Type
OS300SW
1.76"
2.73"
1.83"
OSR300SW
1.76"
2.73"
1.83"
Wiring Diagrams on Pages M-8, M-9, and M-10.
U-128
Technical SpecificationsWA1001
Technical Specifications
PIR Wide Angle Sensor – WA1001
Typical Specications
Wide angle motion sensors shall be cULus Listed, and California Title 24 Compliant as provided by Pass
& Seymour/Legrand. Sensors shall be ceiling or wall mount type, capable of detecting infrared emissions
from personnel movement, and switching lighting and HVAC systems on and off based on occupancy.
Wide angle motion sensor switch shall make use of optics that operate within an 88° field of view, offering
a typical coverage of up to 1200 sq ft. Mounting shall be wall or ceiling. Motion sensor switch must be
used in conjunction with the PWP120 (120VAC supply) or PWP277 (277VAC supply) switching modules,
and capable of handling additional loads with the support of an Add-A-Relay AR120/277. Also, the sensor
shall offer a time delay adjustment from 15 seconds to 30 minutes, as well as an override. Conforms to
NEMA WD-1 and WD-6.
Performance
Electrical
Supply Voltage + 24VDC Typical
Minimum Supply Voltage + 20VDC
Maximum Supply Voltage + 30VDC
Sensor Output + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology Passive Infrared
Time Delay Adjustable 15 sec. to 30 min.
Light Level Adjustment No
Sensitivity Adjustment 14% to 100%
Spectral Response 6 to 14 μm
Field of View 88°
Coverage Up to 1200 sq. ft.
Indicator Light Red LED flashes when motion is detected
Lens Type Four horizontal layers
Environment
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UV-resistant plastic
Color White
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Catalog Number Description
❒
WA1001 Passive Infrared Wall/Ceiling Sensor
WA1001
2.034"
3.335"
3.367"
Project
Location/Type
Wiring Diagrams on Page M-11.
U-129
Technical Specifications HS1001
Technical Specifications
PIR Hallway Sensor – HS1001
Performance
Electrical
Supply Voltage + 24VDC Typical
Minimum Supply Voltage + 20VDC
Maximum Supply Voltage + 30VDC
Sensor Output + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology Passive Infrared
Time Delay Adjustable 15 sec. to 30 min.
Light Level Adjustment No
Sensitivity Adjustment 14% to 100%
Spectral Response 6 to 14 μm
Field of View 13°
Coverage 90 linear feet typical
Indicator Light Red LED flashes when motion is detected
Lens Type Two horizontal layers
Environment
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UV-resistant plastic
Color White
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Catalog Number Description
❒
HS1001 Passive Infrared Wall/Ceiling Sensor for hallway applications
Typical Specications
Hallway motion sensors shall be cULus Listed, and California Title 24 Compliant as provided by Pass &
Seymour/Legrand. Sensors shall be ceiling or wall mount type, capable of detecting infrared emissions
from personnel movement, and switching lighting and HVAC systems on and off based on occupancy.
Hallway motion sensor switches shall make use of optics that operate within field of view 90 feet long
by 20 feet wide. Mounting shall be wall or ceiling. Motion sensor switch must be used in conjunction
with the PWP120 (120VAC supply) or PWP277 (277VAC supply) switching modules, and capable of
handling additional loads by including the support of an Add-A-Relay AR120/277. Also, the sensor
shall offer a time delay adjustment from 15 seconds to 30 minutes, as well as an override. Conforms to
NEMA WD-1 and WD-6.
HS1001
2.034"
3.335"
3.367"
Project
Location/Type
Wiring Diagrams on Page M-11.
U-130
Technical SpecificationsCS500, CS1200
Technical Specifications
PIR Occupancy Ceiling Sensors –
CS500, CS1200
Typical Specications
Motion sensor switches shall be cULus Listed, and California Title 24 Compliant as provided by Pass
& Seymour/Legrand. Sensors shall be ceiling mount type, capable of detecting infrared emissions from
personnel movement and switching incandescent and fluorescent lighting loads on and off. Motion
sensor switches shall make use of optics that operate within a 110° field of view. Motion sensors may
be mounted in a drop ceiling, solid ceiling, or wall. Motion sensor switch must be used in conjunction
with the PWP120 (120VAC supply) or PWP277 (277VAC supply) switching modules, and capable of
handling additional loads with the support of an Add-A-Relay AR120/277. Conforms to NEMA WD-1
and WD-6.
Catalog Number Description
❒
CS500 Ceiling Sensor , 500 sq. ft.
❒
CS1200 Ceiling Sensor , 1200 sq. ft.
Performance
Electrical
Supply Voltage + 24VDC Typical
Minimum Supply Voltage + 20VDC
Maximum Supply Voltage + 30VDC
Sensor Output + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology Passive Infrared
Time Delay 15 sec. to 30 min.
Light Level Adjustment No
Sensitivity Adjustment Yes
Spectral Response 6 to 14 μm
Field of View 110° Vertical, 360° Horizontal
Coverage Up to 900 sq. ft.
Indicator Light Red LED flashes when motion is detected
Lens Type Multi-zone fresnel type
Environment
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UV-resistant plastic
Color White
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Project
Location/Type
CS500
CS1200
2.2"
3.3"
CS500, CS1200
Wiring Diagram
Wiring Diagrams on Page M-12.
U-131
Technical Specifications
CSU600
1.5"
4.8"
CSU600, CSU1100, CSU2200
Technical Specifications
Ultrasonic Ceiling Sensors –
CSU600, CSU1100, CSU2200
Performance
Electrical
Supply Voltage + 24VDC Typical
Minimum Supply Voltage + 20VDC
Maximum Supply Voltage + 30VDC
Sensor Output + 24VDC for external relay DC coil drive
Maximum Output Current: 100mA DC
Sensor
Technology Ultrasonic
Time Delay Adjustable 15 sec. to 30 min.
Light Level Adjustment No
Sensitivity Adjustment 14% to 100%
Frequency 32 kHz +/- 4 Hz
Coverage Up to 600/1100/2200 sq. ft.
Indicator Light Red LED flashes when motion is detected
Sensor Type Multidirectional transmitter/receiver with quartz oscillator
Environment
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UV-resistant plastic
Color White
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Catalog Number Description
❒
CSU600 Ultrasonic Ceiling Sensor
❒
CSU1100 Ultrasonic Ceiling Sensor
❒
CSU2200 Ultrasonic Ceiling Sensor
Typical Specications
Ultrasonic motion sensors shall b e cULus Listed, and California Title 24 Compliant as provided by Pass
& Seymour/Legrand. Sensors shall be ceiling or wall mount ceiling mount type, capable of detecting
motion from personnel movement, and switching lighting and HVAC systems on and off based on
occupancy. Ultrasonic motion sensor switches shall use a multi-directional transmitter/receiver system to
broadcast ultrasonic 32 kHz sound waves generated by a quartz oscillator. The ultrasonic motion sensor
switch must be used in conjunction with PWP2120 (120VAC supply) or PWP2277 (277VAC supply)
switching modules, and capable of handling additional loads by including the support of an Add-A-Relay
AR120/277. Also, the sensor shall offer a time delay adjustment from 15 seconds to 30 minutes, as well
as an override. Conforms to NEMA WD-1 and WD-6.
Project
Location/Type
CSU1100
CSU2200
1.5"
4.8"
Wiring Diagrams on Page M-13.
U-132
Technical SpecificationsCSD1000
Technical Specifications
Dual-Technology Ceiling Sensor –
CSD1000
Performance
Electrical
Supply Voltage + 24VDC Typical
Sensor output + 24VDC for external relay DC coil drive
Current Consumption 35mA
Sensor
Technology Ultrasonic and Passive Infrared
Time Delay 15 seconds to 30 minutes
Ultrasonic Sensitivity Adjustment Min to max (trim pot)
Passive Infrared Sensitivity Adjustment 30% to 100% (dip switches)
Frequency 40 kHz
Ultrasonic Coverage 1076 sq. ft. (100 sq. m)
Passive Infrared Coverage 1290 sq. ft. (120 sq m)
Indicator Lights Red and Green LEDs
Environment
Temperature Range 32° to 131°F (0° to 55°C)
Non-condensing Relative Humidity 20 to 90%
Mechanical
Material Thermoplastic, UV-resistant plastic
Color White
Mounting Mounting hardware for acoustic ceiling tile and keyhole
mounting template included
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Catalog Number Description
❒
CSD1000 Dual-Technology Ceiling Sensor
Typical Specications
The P&S CSD1000 Dual Technology Ceiling Sensor shall be cULus Listed, and California Title 24
Compliant as provided by Pass & Seymour/Legrand. The sensor shall detect occupancy in the control
area by detecting Doppler shifts in transmitted ultrasound and passive infrared heat changes. Detection
verification of both technologies must occur in order to activate lighting systems. Upon verification,
detection by either shall hold lighting on. Unit shall be white, ceiling mounted with a flat, unobtrusive
appearance and provide 360° coverage. CSD1000 sensor shall operate at 24 VDC/VAC and utilize a
P&S power pack. For additional loads use the P&S Add-A-Relay Pack. Sensor shall have a time delay
that is adjustable from 15 seconds to 30 minutes, set by DIP switch. Each sensing technology shall
have an LED indicator that remains active at all times in order to verify detection within the area to be
controlled. Sensor shall have standard 5 year warranty. Conforms to NEMA WD-1 and WD-6.
Wiring Diagrams on Page M-14.
Project
Location/Type
CSD1000
1.02"
4.5"
U-133
Technical Specifications PWP2120, PWP2277 & AR120/277
Technical Specifications
Power Packs – PWP2120 & PWP2277
Add-A-Relay – AR120/277
Typical Specications
Switching modules shall be cULus Listed as provided by Pass & Seymour/Legrand. Switching modules
shall contain a 24VAC transformer, a full wave bridge rectifier, and a 24VDC coil-isolated relay capable
of handling both incandescent and fluorescent lighting loads as well as inductive loads. Normal current
consumption for the relay shall be 36mA, and the coil resistance shall be 660 Ohms. The transformer
input shall be 120VAC (PWP2120) or 277VAC (PWP2277); output shall be 24VDC, with a maximum
current of 150mA. Power Packs shall have Teflon-coated wire leads for use in plenum ceilings.
Add-A-Relay modules shall be UL and CUL Listed as provided by Pass & Seymour/Legrand. Add-A-
Relay modules shall contain a 24VDC coil-isolated relay capable of handling both incandescent and
fluorescent lighting loads as well as inductive loads. Nominal current consumption for the relay shall be
36mA, and the coil resistance shall be 660 Ohms. Add-A-Relay modules shall have Teflon-coated wire
leads for use in plenum ceilings. Conforms to NEMA WD-1 and WD-6.
Performance
Transformer (PWP2120 & PWP2277 only)
Supply Voltage PWP2120: 120 Volt AC 60 Hz
PWP2277: 277 Volt AC 60 Hz
Output 24VDC
Maximum Current: 150mA
Relay
Type Normally Open
Control Input:
Nominal Current 36mA
Coil Resistance 660 Ohms
Nominal Voltage 24VDC
Maximum Voltage 28.8VDC
Minimum Voltage 18VDC
AC Load Output:
Incandescent 13 Amp Max. (120V, 60 Hz only)
Fluorescent 20 Amp Max. (120V, 60 Hz or 277V, 60 Hz)
Motor Load 1 HP (120V, 60 Hz only)
Environment
Temperature Range 0°C to 35°C
Non-condensing Relative Humidity 20 to 90%
Mechanical
Enclosure Material Thermoplastic, UL flame class rating 94 V2
Color Gray
Third Party Compliance cULus Listed – UL508 and C22.2 No. 14
California Title 24 Compliant
Catalog Number Description
❒
PWP2120 Power Pack (120V)
❒
PWP2277 Power Pack (277V)
❒
AR120/277 Add-A-Relay (120V or 277V)
PWP2120
PWP2277
AR120/277
1.634"
2.805"
2.916" .842"
1.673"
Project
Location/Type
Wiring Diagrams on Page M-15.
U-134
Technical Specifications
Technical Specifications
Titan™ Series Incandescent &
Magnetic Low-Voltage
Titan™ Series
Project
Location/Type
Typical Specications
Manufacturerʼs Identification: Pass and Seymour Legrand CD700
Description: Incandescent Dimmer
Type: Single Pole
Rating: 120V, 700W
3rd Party Compliance: cULus Listed, File Number E95219 Standard UL1472 Solid State Dimming
Controls, Standard C22.2 No. 184-1; File Number E109655 Standard UL1917 Solid State Fan Controls,
Standard C22.2 No. 156. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Supply Voltage 120VAC 60Hz
Maximum Load Up to rating of device (including derating)
Environment
Ambient Temperature Between 0° and 40°C
Humidity Less than 95% non-condensing
Mechanical
Aluminum Heat Sink Thermoplastic enclosure, wall plate, and ganging parts
Materials
Back Body Thermoplastic Spacers Thermoplastic
Front Body Thermoplastic Heat Sink/Strap Aluminum
Wall Plate Thermoplastic Screws Plated Steel
End Caps Thermoplastic
Catalog Number Description Ratings Narrow or Wide
❒ CD700 Single Pole, Slide-to-OFF 120V, 700W Narrow
❒ CD703P Single Pole/3-Way, Preset 120V, 700W Narrow
❒ CD1100 Single Pole, Slide-to-OFF 120V, 1100W Narrow
❒ CD1103P Single Pole/3-Way, Preset 120V, 1100W Narrow
❒ CD1600 Single Pole, Slide-to-OFF 120V, 1600W Wide
❒ CD1603P Single Pole/3-Way, Preset 120V, 1600W Wide
❒
CD2000 Single Pole, Slide-to-OFF 120V, 2000W Wide
❒
CD2003P Single Pole/3-Way, Preset 120V, 2000W Wide
❒ CDLV700 Single Pole, Slide-to-OFF 120V, 700W Narrow
❒ CDLV703P Single Pole/3-Way, Preset 120V, 700W Narrow
❒ CDLV1100 Single Pole, Slide-to-OFF 120V, 1100W Narrow
❒ CDLV1103P Single Pole/3-Way, Preset 120V, 1100W Narrow
❒ CDLV1600 Single Pole, Slide-to-OFF 120V, 1600W Wide
❒ CDLV1603P Single Pole/3-Way, Preset 120V, 1600W Wide
CDLV1103PW
Wide
4.65"
4.87"
1.44"
CD1100W
Narrow
2.85"
4.87"
1.44"
CD703PW
Narrow
2.85"
4.87"
1.44"
CD1603PW
Wide
4.65"
4.87"
1.44"
U-135
Technical Specifications
Titan™ Series
Technical Specifications
Titan™ Series Incandescent
& Magnetic Low-Voltage
Project
Location/Type
Fins: NOT Removed Fins: Removed
Dimmer 1-Gang 2-Gang 3- or More Gang 2-Gang 3- or More Gang
Catalog No. Installation Installation Installation Installation Installation
CD700 700W 700W 700W 700W 700W
CDLV700 700VA 700VA 700VA 700VA 700VA
CD703P 700W 700W 700W 700W 700W
CDLV703P 700VA 700VA 700VA 700VA 700VA
CD1100 1100W 1100W 1000W 1000W 900W
CDLV1100 1100VA 1100VA 1000VA 1000VA 850VA
CD1103P 1100W 1100W 1000W 1000W 950W
CDLV1103P 1100VA 1100VA 1000VA 1000VA 850VA
CD1600 1600W 1600W 1600W 1600W 1550W
CDLV1600 1600VA 1600VA 1600VA 1600VA 1550VA
CD1603P 1600W 1600W 1600W 1600W 1550W
CDLV1603P 1600VA 1600VA 1600VA 1600VA 1550VA
CD2000 2000W 2000W 2000W — —
CD2003P 2000W 2000W 2000W — —
De-Rating for Multi-Gang Installations
FINS: NOT Removed
Wide Narrow Dimmers
Dimmers 0 1 2 3 4 5 6
0 0 1 1+1* 4 4+1* 7 7+1*
1 1 3 5 6 8 9 11
2 4 5 7 8 10 11 13
3 6 8 9 11 12 14 15
4 9 10 12 13 15 16
5 11 13 14 16
6 14 15
Wall box gang requirements
1. Choose fin style (not removed or removed).
2. Select the column for the number of narrow
dimmers to be installed.
3. Select the row for the number of wide dimmers
to be installed.
4. The number at the intersection of the selected
column and row indicates the number of wall
box gangs required.
* Refer to instruction sheets for exact placement of boxes
for even number of narrow dimmers.
FINS: Removed
Wide Narrow Dimmers
Dimmers 0 1 2 3 4 5 6
0 0 1 2 3 4 5 6
1 1 3 4 5 6 7 8
2 3 4 5 6 7 8 9
3 5 6 7 8 9 10 11
4 7 8 9 10 11 12 13
5 9 10 11 12 13 14 15
6 11 12 13 14 15 16 17
U-136
Technical Specifications
Titan™ Series
Technical Specifications
Titan™ Series Fluorescent 2 Wire
Typical Specications
Manufacturerʼs Identification: Pass and Seymour Legrand CDFB5
Description: Fluorescent Dimmer
Type: Single Pole 2 Wire
Rating: 5A, 120V
3rd Party Compliance: cULus Listed, File Number E95219 Standard UL1472 Solid State Dimming
Controls, Standard C22.2 No. 184-1; File Number E109655 Standard UL1917 Solid State Fan Controls,
Standard C22.2 No. 156. California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
Performance
Electrical
Supply Voltage 120VAC or 277VAC, 60Hz
Maximum Load Up to rating of device (including derating)
Environment
Ambient Temperature Between 0° and 40°C
Humidity Less than 95% non-condensing
Mechanical
Aluminum Heat Sink Thermoplastic enclosure, wall plate, and ganging parts
Materials
Back Body Thermoplastic Spacers Thermoplastic
Front Body Thermoplastic Heat Sink/Strap Aluminum
Wall Plate Thermoplastic Screws Plated Steel
End Caps Thermoplastic
Project
Location/Type
Catalog Number Description Ratings Narrow or Wide
❒ CDFB5 2 Wire, Electronic, Single Pole, Slide-to-OFF 5A, 120V Narrow
❒ CDFB8 2 Wire, Electronic, Single Pole, Slide-to-OFF 8A, 120V Narrow
❒ CDFB10 2 Wire, Electronic, Single Pole, Slide-to-OFF 10A, 120V Wide
❒ CDFB16 2 Wire, Electronic, Single Pole, Slide-to-OFF 16A, 120V Wide
❒ CDFB7277 2 Wire, Electronic, Single Pole, Slide-to-OFF 7A, 277V Wide
❒ CDFB10277 2 Wire, Electronic, Single Pole, Slide-to-OFF 10A, 277V Wide
❒ CDFB53P 2 Wire, Electronic, Single Pole/3-Way, Preset 5A, 120V Narrow
❒ CDFB83P 2 Wire, Electronic, Single Pole/3-Way, Preset 8A, 120V Narrow
❒ CDFB103P 2 Wire, Electronic, Single Pole/3-Way, Preset 10A, 120V Wide
❒ CDFB53P 2 Wire, Electronic, Single Pole/3-Way, Preset 16A, 120V Wide
❒ CDFB83P 2 Wire, Electronic, Single Pole/3-Way, Preset 7A, 277V Wide
❒ CDFB103P 2 Wire, Electronic, Single Pole/3-Way, Preset 10A, 277V Wide
CDFB5W
Narrow
2.85"
4.87"
1.44"
CDFB53PW
Narrow
2.85"
4.87"
1.44"
4.65"
4.87"
1.44
CDFB103PW
Wide
U-137
Technical Specifications
Technical Specifications
Titan™ Series Fluorescent
Titan™ Series
Fins: NOT Removed Fins: Removed
Dimmer 1-Gang 2-Gang 3- or More Gang 2-Gang 3- or More Gang
Catalog No. Installation Installation Installation Installation Installation
CDFB5 5A 5A 5A 5A 5A
CDFB8 8A 8A 8A 7.7A 6.3A
CDFB53P 5A 5A 5A 5A 5A
CDFB83P 8A 8A 8A 7.7A 6.3A
CDFB10 10A 10A 10A 10A 10A
CDFB16 16A 16A 16A — —
CDFB7277 7A 7A 7A 7A 7A
CDFB10277 10A 10A 10A 10A 10A
CDFB103P 10A 10A 10A 10A 10A
CDFB163P 16A 16A 16A — —
CDFB73P277 7A 7A 7A 7A 7A
CDFB103P277 10A 10A 10A 10A 10A
De-Rating for Multi-Gang Installations
CDFB 2 Wire Electronic Fluorescent Dimmer Ballast Compatibility
Compatible P&S Ballast
Catalog Number Voltage Manufacturer Model
CDFB5 120VAC Advance REZ-132-SC, REZ-2S32-SC, REZ-3S32-SC, REZ-154,
CDFB8 60Hz REZ-2554, REZ-1Q18-M2, REZ-2Q18-M2, REZ-1T42-
CDFB53P M2, REZ-2T42-M3, REZ-1TTS40/REZ-1TTS40-SC,
CDFB83P REZ-2TTS40/REZ-2TTS40-SC, IEZ-2S24-D,
CDFB10 REB-2S26-M1-LS-DIM/REB-2S26-M1-BS-DIM
CDFB16 Lutron 2W-T426-120-1-S, 2W-T426-120-2-S,
CDFB103P 2W-T432-120-1-S, 2W-T432-120-2-S,
CDFB163P 2W-T832-120-1-S, 2W-T832-120-2-S
Sylvania/Osram QTP1x32T8/UNV DIM, QTP2x32T8/UNV DIM,
QTP3x32T8/UNV DIM, QTP4x32T8/UNV DIM
CDFB7277 277VAC Advance VEZ-132-SC, VEZ-2S32-SC, VEZ-3S32-SC, VEZ-154,
CDFB10277 60Hz VEZ2S54, VEZ-1Q18-M2, VEZ-2Q18-M2,
CDFB73P277 VEZ-2T42-M3, VEZ-1TTS40/VEZ-1TTS40-SC,
CDFB103P277 VEZ-2TTS40/VEZ-2TTS40-SC, IEZ-2S24-D
Sylvania/Osram QTP1x32T8/UNV DIM, QTP2x32T8/UNV DIM,
QTP3x32T8/UNV DIM, QTP4x32T8/UNV DIM
Project
Location/Type
FINS: NOT Removed
Wide Narrow Dimmers
Dimmers 0 1 2 3 4 5 6
0 0 1 1+1* 4 4+1* 7 7+1*
1 1 3 5 6 8 9 11
2 4 5 7 8 10 11 13
3 6 8 9 11 12 14 15
4 9 10 12 13 15 16
5 11 13 14 16
6 14 15
Wall box gang requirements
1. Choose fin style (not removed or removed).
2. Select the column for the number of narrow
dimmers to be installed.
3. Select the row for the number of wide dimmers
to be installed.
4. The number at the intersection of the selected
column and row indicates the number of wall
box gangs required.
* Refer to instruction sheets for exact placement of boxes
for even number of narrow dimmers.
FINS: Removed
Wide Narrow Dimmers
Dimmers 0 1 2 3 4 5 6
0 0 1 2 3 4 5 6
1 1 3 4 5 6 7 8
2 3 4 5 6 7 8 9
3 5 6 7 8 9 10 11
4 7 8 9 10 11 12 13
5 9 10 11 12 13 14 15
6 11 12 13 14 15 16 17
U-138
Technical SpecificationsIncandescent Non-Preset Wide Slide
Technical Specifications
Incandescent Non-Preset
Wide Slide Dimmers
120VAC, 60 Hz
91181
4.25"
2.656"
2.5"
1.469"
1.641 "
Catalog Rated
Number Color Description Load
❒
90681I Ivory Single Pole 600W
❒
90681W White Single Pole 600W
❒
90681GRY Gray Single Pole 600W
❒
90681LAV Lt. Almond Single Pole 600W
Catalog Rated
Number Color Description Load
❒
91181I Ivory Single Pole 1000W
❒
91181W White Single Pole 1000W
❒
91181LA Lt. Almond Single Pole 1000W
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load (See Above) Incandescent Only
Filtering Radio Frequency Interference Filtering
Power Applied at Full On 100%
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Full On Bypass
Safety Power Off Switch
Physical
Size One Gang
Heat Sink Mounting Strap for 90681, 91181
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Front Cover and Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry that shall provide even control by means of a slide mechanism.
Dimmers shall fit in standard single gang wall boxes. California Title 24 Compliant. Conforms to NEMA
WD-1 and WD-6.
Features
■ Infinite variable dimming.
■ Maximum ratings are for continuous full load.
■ 91181 is rated for 1000W and matched with
a standard wall plate.
■ 600 Watt models may be ganged without
de-rating.
■ Installs in NEMA standard single-gang wall
boxes.
Full-ON Bypass Feature
When the dimmer is placed in the full-ON position, the dimming circuitry is bypassed by latching
contacts. This feature allows for 100% lighting output and extends dimmer life.
90681
1.688"
1.469"
4.25"
Project
Location/Type
U-139
Technical Specifications Incandescent Preset Wide Slide
Project
Location/Type
Technical Specifications
Incandescent Preset
Wide Slide Dimmers
120VAC, 60 Hz
Catalog Rated
Number Color Description Load
❒
90680I Ivory Single Pole 600W
❒
90680W White Single Pole 600W
❒
90680GRY Gray Single Pole 600W
❒
90680LAV Lt. Almond Single Pole 600W
❒
90683I Ivory Three-Way 600W
❒
90683W White Three-Way 600W
❒
90683GRY Gray Three-Way 600W
❒
90683LAV Lt. Almond Three-Way 600W
Catalog Rated
Number Color Description Load
❒
91180I Ivory Single Pole 1000W
❒
91180W White Single Pole 1000W
❒
91180GRY Gray Single Pole 1000W
❒
91180LA Lt. Almond Single Pole 1000W
❒
91183I Ivory Three-Way 1000W
❒
91183W White Three-Way 1000W
❒
91183GRY Gray Three-Way 1000W
❒
91183LA Lt. Almond Three-Way 1000W
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load (See Above) Incandescent Only
Filtering Radio Frequency Interference Filtering
Power Applied at Full On 100%
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed, CSA Certified
Controls
Output Full On Bypass, Safety Power Off Switch
Physical
Size One Gang
Heat Sink Mounting Strap for 90680, 90683, 91180, 91183
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Front Cover and Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade, with full
range solid-state circuitry that shall provide even control by means of a slide mechanism. Preset lighting levels
may be maintained by means of a separate ON/OFF switch. Dimmers shall fit in standard single gang wall boxes.
California Title 24 Compliant. Conforms to NEMA WD-1 and WD-6.
90680
90683
4.25"
1.688"
1.469"
91180
91183
4.25"
2.656"
2.5"
1.469"
1.641 "
Features
■ Infinite variable dimming.
■ Maximum ratings are for continuous full load.
■ Preset models include ON/OFF rocker switch
that allows ON/OFF switching without disturbing
preset intensity levels.
■ 91180 is rated for 1000W and matched with
a standard wall plate.
■ 600 Watt models may be ganged without de-rating.
■ Installs in NEMA standard single-gang wall boxes.
Full-ON Bypass Feature
When the dimmer is placed in the full-ON position, the dimming circuitry is bypassed by latching
contacts. This feature allows for 100% lighting output and extends dimmer life.
U-140
Technical Specifications
Magnetic Low-Voltage Wide Slide
Technical Specifications
Magnetic Low-Voltage
Wide Slide Dimmers
120VAC, 60 Hz
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load (See Above) Low-Voltage Only
Filtering Radio Frequency Interference Filtering
Power Applied at Full On 100%
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Full On Bypass
Safety Power Off Switch
Physical
Size One Gang
Heat Sink Mounting Strap for 95681
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Front Cover and Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Typical Specications
Low-voltage dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry that shall provide even control by means of a slide mechanism.
Dimmers shall fit in standard single gang wall boxes. California Title 24 Compliant. Conforms to NEMA
WD-1 and WD-6.
Features
■ Maximum ratings are for continuous full load.
■ 600VA dimmers may be ganged without de-rating.
■ Installs in NEMA standard single-gang wall boxes.
■ Compatible with Decorator wall plates.
■ RFI suppression built-in.
Full-ON Bypass Feature
When the dimmer is placed in the full-ON position, the dimming circuitry is bypassed by latching
contacts. This feature allows for 100% lighting output and extends dimmer life.
Catalog Rated
Number Color Description Load
❒
95681I Ivory Low-Voltage 600VA max.
❒
95681W White Low-Voltage 600VA max.
Catalog Rated
Number Color Description Load
❒
95681LA Lt. Almond Low-Voltage 600VA max.
95681
4.25"
1.688"
1.469"
Project
Location/Type
U-141
Technical Specifications Incandescent Rotary Dimmers
Technical Specifications
Incandescent Rotary Dimmers
120VAC, 60 Hz
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry giving even control by means of rotary action and positive ON/OFF
switching. All dimmers shall fit standard single gang wall boxes. California Title 24 Compliant. Conforms
to NEMA WD-1 and WD-6.
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load 600 Watt Incandescent Only
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Range Dial with Push On and Off
Output Safety Power Off Switch
Physical
Size Single Gang, No Derating Necessary
Heat Sink Aluminum Mounting Strap
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Unbreakable ABS
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Features
■ Maximum ratings are for continuous full load.
■ Push-ON/OFF rotary switch permits full-range
dimming control and switching at any pre-set level.
■ Excellent state-of-the-art solid-state electronic
circuitry design saves energy and extends bulb
life when lighting level is reduced.
■ 600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, 18-gauge wire,
insulation rated at 105°C.
■ Thick aluminum mounting strap provides
heat sink for electronic components.
■ Installs in NEMA standard single-gang
wall boxes.
■ May be ganged without de-rating.
■ RFI protected.
90621
4"
1.672"
2.672"
1.453"
1.438"
Project
Location/Type
R600PWV
1.74"
4.19"
1.28"
R1000WV
2.50"
4.19"
1.28"
Catalog Rated
Number Description Load
❒
R600V Rotary Dial ON/Dial OFF Incandescent Dimmer, Single Pole Rotate to OFF 600W
❒
R1000V Rotary Dial ON/Dial OFF Incandescent Dimmer, Single Pole Rotate to OFF 1000W
❒
R600P Rotary Preset Incandescent Dimmer, Single Pole Push ON/Push OFF 600W
❒
R603P Rotary Preset Incandescent Dimmer, 3-Way Push ON/Push OFF 600W
❒
R1000P Rotary Preset Incandescent Dimmer, Single Pole Push ON/Push OFF 1000W
❒
R1003P Rotary Preset Incandescent Dimmer, 3-Way Push ON/Push OFF 1000W
❒
R600PLV Rotary Preset Lighted Incandescent Dimmer, Single Pole Push ON/Push OFF 600W
❒
R603PLV Rotary Preset Lighted Incandescent Dimmer, 3-Way Push ON/Push OFF 600W
❒
90621V Low-Profile Rotary Dimmer, Rotate to OFF 600W
U-142
Technical SpecificationsHigh Wattage Rotary Dimmers
Technical Specifications
High Wattage Rotary Dimmers
Dial On/Off Incandescent 120VAC, 60 Hz
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry giving even control by means of rotary action and positive ON/OFF
switching. All dimmers shall fit standard single gang wall boxes. Conforms to NEMA WD-1 and WD-6.
Catalog Number Color Description Rated Load
❒
91101I Ivory Single Pole – Dial ON/OFF 1000W
❒
91101W White Single Pole – Dial ON/OFF 1000W
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load 1000 Watt Incandescent Only
Filtering Radio Frequency Interference Filtering
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Safety Power Off Switch
Physical
Size Gangable
Heat Sink Wide Mounting Strap
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Features
■ Maximum ratings are for continuous full load.
■ Dial-On/Off switch allows low-to-high operation.
■ Field-adjustable low limit trim adjust.
■ De-rates when ganged.
■ Installs in NEMA standard single-gang
wall boxes.
■ 16-gauge, 600V, UL/CSA hook-up wires,
multi-stranded, fray-resistant, pre-tinned,
insulation rated at 105°C.
■ Thick aluminum strap provides heat sink for
electronic components.
■ Superior state-of-the-art solid-state electronic
circuitry design increases energy savings and
extends bulb life as lighting level is reduced.
■ Unique “no fins” heavy-duty design allows
installation behind standard extra deep wall plate.
■ Includes line voltage compensation circuitry,
to reduce changes in light level caused by line
voltage fluctuation.
Project
Location/Type
91101
4.25"
2.50 "
1.40"
U-143
Technical Specifications High Wattage Rotary Dimmers
Project
Location/Type
Technical Specifications
High Wattage Rotary Dimmers
Dial On/Off Incandescent 120VAC, 60 Hz
91501
92001
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load (See Above) Incandescent Only
Filtering Radio Frequency Interference Filtering
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Safety Power Off Switch
Physical
Size Gangable
Heat Sink Finned Aluminum
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Snap-On Cover Plate Provided
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
1000 Watt White Cover Plate and Knob Kit Available: DAPK1W
1500/2000 Watt White Cover Plate and Knob Kit Available: DAPK2W
1000 Watt Brown Cover Plate and Knob Kit Available: DAPK1
1500/2000 Watt Brown Cover Plate and Knob Kit Available: DAPK2
Matching Rotary Switch Available: 90200
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry giving even control by means of rotary action and positive ON/OFF
switching. All dimmers shall fit standard single gang wall boxes. Conforms to NEMA WD-1 and WD-6.
Features
■ Maximum ratings are for continuous full load.
■ Superior state-of-the-art solid-state electronic
circuitry design increases energy savings and
extends bulb life as lighting level is reduced.
■ Field-adjustable trim control permits user to
set minimum light level as desired.
■ Includes line voltage compensation circuitry,
to reduce changes in light level caused by
line voltage fluctuation.
■ 600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, insulation rated
at 105°C.
■ Anodized extruded aluminum fins provide heat
sink for electronic components.
■ Installs in NEMA standard single-gang wall boxes.
■ De-rating required when fins are removed.
■ Includes the soft-start feature on some models,
to increase bulb life.
91001
4.516"
2.734"
1.313"
1.906"
2.672"
4.453"
1.313"
1.906"
2.672" 4.516"
Catalog Number Color Description Rated Load
❒
91001I Ivory Single Pole – Dial ON/OFF 1000W
❒
91001W White Single Pole – Dial ON/OFF 1000W
❒
91501I Ivory Single Pole – Dial ON/OFF 1500W
❒
91501W White Single Pole – Dial ON/OFF 1500W
❒
92001I Ivory Single Pole – Dial ON/OFF 2000W
❒
92001W White Single Pole – Dial ON/OFF 2000W
U-144
Technical SpecificationsHigh Wattage Rotary Dimmers
Project
Location/Type
Technical Specifications
High Wattage Rotary Dimmers
Preset Push On/Off Incandescent 120VAC, 60 Hz
Typical Specications
Incandescent dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand Specification Grade,
with full range solid-state circuitry giving even control by means of rotary action and positive ON/OFF
switching. All dimmers shall fit standard single gang wall boxes. Conforms to NEMA WD-1 and WD-6.
Catalog Number Color Description Rated Load
❒
91000I Ivory Single Pole – Preset Push ON/OFF 1000W
❒
91000W White Single Pole – Preset Push ON/OFF 1000W
❒
91003I Ivory Three-Way – Preset Push ON/OFF 1000W
❒
91003W White Three-Way – Preset Push ON/OFF 1000W
❒
91500I Ivory Single Pole – Preset Push ON/OFF 1500W
❒
91503I Ivory Three-Way – Preset Push ON/OFF 1500W
❒
91503W White Three-Way – Preset Push ON/OFF 1500W
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load (See Above) Incandescent Only
Filtering Radio Frequency Interference Filtering
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Safety Power Off Switch
Physical
Size Gangable
Heat Sink Finned Aluminum
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Snap-On Cover Plate Provided
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
1000 Watt White Cover Plate and Knob Kit Available: DAPK1W
1500/2000 Watt White Cover Plate and Knob Kit Available: DAPK2W
1000 Watt Brown Cover Plate and Knob Kit Available: DAPK1
1500/2000 Watt Brown Cover Plate and Knob Kit Available: DAPK2
Matching Rotary Switch Available: 90200
Features
■ Maximum ratings are for continuous full load.
■ Superior state-of-the-art solid-state electronic
circuitry design increases energy savings and
extends bulb life as lighting level is reduced.
■ Field-adjustable trim control permits user to set
minimum light level as desired.
■ Includes line voltage compensation circuitry, to
reduce changes in light level caused by line
voltage fluctuation.
■ 600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, insulation rated at
105°C.
■ Anodized extruded aluminum fins provide
heat sink for electronic components.
■ Installs in NEMA standard single-gang wall
boxes.
■ De-rating required when fins are removed.
91000
91003
4.516"
2.734"
2.672"
1.313"
1.906"
91500
91503
4.453"
1.313"
1.906"
4.516"
2.672"
U-145
Technical Specifications Magnetic Low-Voltage Rotary Dimmer
Technical Specifications
Magnetic Low-Voltage
Rotary Dimmer
Magnetic Low-Voltage Rotary Strap – 120VAC, 60 Hz
Typical Specications
Magnetic Low-Voltage lighting dimmer shall be UL Listed/CSA Certified Pass & Seymour/Legrand
low voltage, rated 600VA max., to control the primary side of the magnetic transformer for low voltage
fixtures. Dimmer shall provide even control by means of rotary action and positive ON/OFF switching.
They shall be capable of maintaining a desired preset lighting level. Dimmers shall fit in standard single
gang wall boxes. Conforms to NEMA WD-1 and WD-6.
95600
Catalog Number Color Description Rated Load
❒
95600I Ivory Preset – Push ON/OFF 600VA max.
❒
95600W White Preset – Push ON/OFF 600VA max.
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load 600VA Magnetic Ballast Low-Voltage Only
Filtering Radio Frequency Interference Filtering
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Range Dial with Push On and Off
Output Safety Power Off Switch
Physical
Size Single Gang, No Derating Necessary
Heat Sink Aluminum Mounting Strap
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Unbreakable ABS
Back Body Unbreakable ABS
Accessories
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
Features
■ Maximum ratings are for continuous load.
■ Push-ON/OFF at any setting.
■ Superior state-of-the-art solid-state electronic
circuitry design increases energy savings and
extends bulb life as lighting level is reduced.
■ Field-adjustable trim control permits user to set
minimum light level as desired.
■ 600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, 18-gauge wire, insulation
rated at 105°C.
■ Thick aluminum mounting strap provides
heat sink for electronic components.
■ Installs in NEMA standard single-gang wall
boxes.
■ Includes line voltage compensation circuitry,
to reduce changes in light level caused by
line voltage fluctuation.
4"
1.672"
2.672"
1.438"
1.453"
Project
Location/Type
U-146
Technical SpecificationsMagnetic Low-Voltage Rotary Dimmer
Technical Specifications
Magnetic Low-Voltage
Rotary Dimmer
High Wattage Rotary 120VAC, 60 Hz
Catalog Number Color Description Rated Load
❒
95100I Ivory Dial ON/OFF 1000VA
Performance
Electrical
Voltage 120VAC 60 Hz
Rated Load 1000VA
Filtering Radio Frequency Interference Filtering
Construction Printed Circuit Board for Reliability
3rd Party Compliance UL Listed
CSA Certified
Controls
Output Safety Power Off Switch
Physical
Size Gangable
Heat Sink Finned Aluminum
Wiring 6" Color-Coded Leads Pre-Stripped
Environmental
Application Indoor Use Only
Materials
Knob Flame Retardant UL94 V0, UV Stable Polycarbonate
Back Body Unbreakable ABS
Accessories
Snap-On Cover Plate Provided
Twist Wire Connectors Provided
Installation and Operating Instructions Provided
1000 Watt White Cover Plate and Knob Kit Available: DAPK1W
1500/2000 Watt White Cover Plate and Knob Kit Available: DAPK2W
1000 Watt Brown Cover Plate and Knob Kit Available: DAPK1
1500/2000 Watt Brown Cover Plate and Knob Kit Available: DAPK2
Features
■ Maximum ratings are for continuous full load.
■ Superior state-of-the-art solid-state electronic
circuitry design increases energy savings and
extends bulb life as lighting level is reduced.
■ Field-adjustable trim control permits user to set
minimum light level as desired.
■ Includes line voltage compensation circuitry, to
reduce changes in light level caused by line
voltage fluctuation.
■ 600V, UL/CSA hook-up wire, multi-stranded,
fray-resistant, pre-tinned, 16-gauge wire,
insulation rated at 105°C.
■ Anodized extruded aluminum fins provide heat
sink for electronic components.
■ Installs in NEMA standard single-gang wall
boxes.
■ De-rating required when fins are removed for
multi-gang installations.
Typical Specications
Magnetic Low-Voltage lighting dimmer shall be UL Listed and CSA Certified Pass & Seymour/Legrand,
rated at 1000 VA max., to control the primary side of the magnetic transformer for low voltage lighting
fixtures. Dimmer shall provide even control by means of rotary action and positive ON/OFF switching.
Dimmers shall fit in standard single wall boxes. Conforms to NEMA WD-1 and WD-6.
95100
4.516"
2.734"
1.313"
1.906"
2.67"
Project
Location/Type
U-147
Technical Specifications UTP Outlet Wiring Configurations
Technical Specifications
UTP Outlet Wiring Configurations
CABLING TIP
UTP Cable
T568A
■ Adopted by TIA/EIA
and 11801 standards.
■ Compatible with one- or
two-pair USOC.
■ May be used for ISDN.
■ Supports Categories
3, 4, 5, 5e, and 6.
UTP Outlet Wiring Configurations
Pair PIN
ID Number
T1 5
R1 4
T2 3
R2 6
T3 1
R3 2
T4 7
R4 8
T568B
■ Adopted by TIA/EIA
and 11801 standards.
■ Not compatible with
one- or two-pair USOC.
■ May be used for ISDN.
■ Supports Categories 3,
4, 5, 5e, and 6.
Pair PIN
ID Number
T1 5
R1 4
T2 1
R2 2
T3 3
R3 6
T4 7
R4 8
USOC
■ Available for 1-, 2-, 3-, or
4-pair systems.
■ Maintains pair continuity in
6-position plugs configured
with one, two, or three pairs.
■ Inferior performance compared
to T568A or T568B.
■ Not cabling standard compliant.
Pair PIN
ID Number
T1 5
R1 4
T2 3
R2 6
T3 2
R3 7
T4 1
R4 8
10Base-T/100Base-T
■ Eight-position jack, but only
two pairs used.
Pair PIN
ID Number
T1 1
R1 2
T2 3
R2 6
Token Ring
■ Uses either a six-position or
eight-position jack.
■ Eight-position compatible with
T568A, T568B, and USOC.
■ Six-position compatible with
one- or two-pair USOC.
Pair PIN
ID Number
T1 5
R1 4
T2 3
R2 6
Project
Location/Type
U-148
Technical SpecificationsUniversal & Six-Pin Wiring Guides
Technical Specifications
Universal & Six-Pin Wiring Guides
& UTP Cabling Installation
Basic practices for installing
unshielded twisted-pair (UTP)
network cabling
Minimize untwisting of twisted pairs.
When making terminations at jack modules, untwist no more than
1/2" for Category 5e cable or above; no more than 1" for Category
3. Untwisting pairs beyond these specifications can increase the
risk of failed cable performance testing.
Limit cable bend radius.
Cable should not bend more sharply than four times its diameter.
For Category 5e cable or above, that means a minimum bend
radius of about one inch. Bending cable to tighter-than-minimum
bend radius causes pairs to separate, compromising cable
performance.
Observe maximum pulling tension.
Cable is commonly pulled through walls, raceways, and other
passage ways. No more than 25 pounds of tension should be
applied. Excess pulling tension can distort twisted pairs, again
posing a threat to performance.
Stay away from high-voltage and
electromagnetism.
Avoid running cable in proximity to high-voltage sources or
electromagnetic fields, as these can cause interference. Examples
include ballasts, electric motors, transformers, and copiers.
Test to ensure performance.
Test completed cabling to ensure that customers get what theyʼre
paying for — and to prevent insufficient-perfor mance liability. Test
parameters are outlined in TIA/EIA-568-B.1 and vary depending on
type of cable.
Universal Wiring Guide Six-Pin
Wiring Guide
APPLICATION EXAMPLE
Pair 1 T White/Blue
R Blue/White
Pair 2 T White/Orange
R Orange/White
Pair 3 T White/Green
R Green/White
Pair 4 T White/Brown
R Brown/White
Twisted-pair wire
with band stripes
Solid-color
twisted-pair wire
Standard Four-Pair Wiring
In some retrofit applications you may encounter quad-wire.
This is the red, green, yellow, and black phone cable that
was common in most phone installations before the 90’s.
Pass & Seymour/Legrand recommends that you remove
this cable whenever possible and replace it with Category
5e cable and connectors. If removal is not possible, follow
the color-code guidelines below to make connections to
jacks bearing current UTP color markings.
Project
Location/Type
U-149
Technical Specifications Wall Plate Specifications
Technical Specifications
Wall Plate Specifications
Thermoset Smooth
TP Nylon Smooth
Application
Pass & Seymour/Legrandʼs broad line of Standard Size Plastic and Metal Wall Plates features the most
complete range of types, sizes, colors, and finishes available. Choose from more than 1,900 standard
plates in non-combustible thermoset plastic material, self-extinguishing nylon material, screwless
polycarbonate material, or attractively finished metal, for residential, commercial, institutional, and
industrial applications. All plastic wall plates color match to Pass & Seymour/Legrand devices.
Materials
Wall Plate Material Urea
Mounting Screws Metal, oval heads painted to match plate color
Thermoset Plastic Wall Plates Features
■ Molded of non-combustible mar-proof material.
■ Available in “SP” series in Standard, Junior-Jumbo,
and Jumbo sizes.
■ Seven standard colors available – Ivory, White,
Brown, Gray, Black, Red, and Light Almond.
■ Individually wrapped with color-matching
screws.
■ Resistant to discoloration, grease, oil, solvent
and moisture.
■ Nominal thickness, .070"
TradeMaster® Thermoplastic Wall Plates Features
■ Molded of rugged, practically indestructible
self-extinguishing nylon. (“TP” series only.)
■ Available in “TP” series, extra 3/16" width and
height than Standard size plates; and “TPJ” series,
extra 3/16" width and height than Junior-Jumbo
size plates.
■ Available in Ivory, White, Brown, Gray, Black,
Blue, Orange, Red, and Light Almond.
■ Preferred for hospital, industrial, institutional,
and other high-abuse applications.
■ Nominal thickness, .070"
Performance
Mechanical
Mechanical Strength Exceeds UL514 Bend Test
Deformation Exceeds UL514 Corner Peel
Environmental
Chemical-Resistant
Flammability UL94 V2
Materials
Wall Plate Material .070" Nylon 6
Wall Plate Finish Matte
Mounting Screws Steel, oval heads painted to match plate color
3rd Party Compliance
UL Listed, Standard UL514, Cover Plates for Flush-Mounted Wiring Devices.
CSA Certified.
Screwless
Polycarbonate
Project
Location/Type
Performance
Flammability UL94 V2
Materials
Wall Plate Material .065" Polycarbonate Plastic Subplate Material Polycarbonate
Wall Plate Finish Matte
Metal Subplate Material .042" Zinc-plated steel
Screwless Polycarbonate Wall Plates Features
■ Molded of .065" thick polycarbonate with matte
finish.
■ 2-piece plastic subplate made of polycarbonate
(“SWP” Series only).
■ Metal subplate made of .042" zinc-plated steel
(“SW” Series only).
■ Extra 1/8" width and height than Standard size
plates.
■ Available in Ivory, White, Brown, Gray, Black,
and Light Almond.
■ Oversized opening to accommodate all
NEMA 26 decorator-style openings.
U-150
Technical SpecificationsWall Plate Specifications
Technical Specifications
Wall Plate Specifications
Brushed Brass
Aluminum
302
Stainless Steel
Metal Wall Plates Features
Materials
■ Constructed of corrosion-resistant stainless
steel, brass, aluminum, chrome, brushed bronze
or galvanized steel.
■ Standard, Jumbo, and Tandem plates available,
as well as special Panel plates up to 5-gangs
high and 10-gangs wide.
■ Packaged in protective film, with finish-matching
screws.
■ Variety of special plated finishes. Paintable to
match plastic plates.
■ Can be silk-screened or engraved, and custom
punched with over 300 opening styles.
■ Type 302 Stainless Steel, non-magnetic, .032"
nominal thickness, brushed finish. This alloy
contains 18% chromium and 8% nickel for
superior resistance to corrosion. Recommended
for use in food processing plants, dairies,
chemical plants, and other industrial, institutional,
and commercial applications where corrosive
atmospheres exist.
■ Type 430 Stainless Steel, magnetic, .032"
nominal thickness, brushed finish. Less
corrosion-resistant than Type 302, but ideal for
general service in high abuse applications in
industrial plants, commercial, and institutional
buildings.
■ Chrome, Brushed and Polished Brass, .040"
thick. 70% copper, 30% zinc alloy gives warm,
appealing finish to modern decor as well as
retrofit applications. Lacquered to prevent
corrosion.
■ Aluminum, .040" thick. Lustrous satin finish.
Lacquered to prevent corrosion.
■ Galvanized Steel. Used only for Handy Box
Plates.
■ Brushed Bronze, .040" thick. 90% copper,
10% zinc. Lacquered to prevent corrosion.
3rd Party Compliance
UL Listed, Standard UL514, Cover Plates for Flush-Mounted Wiring Devices.
CSA Certified.
Polished Brass
Project
Location/Type
U-151
Technical Specifications Wall Plate Dimensions
Technical Specifications
Wall Plate Dimensions
STANDARD
TRADEMASTER STANDARD
TRADEMASTER JUMBO
JUMBO
JUNIOR-JUMBO
TradeMaster® Wall Plates
■ Extra 3/16" width and height than Standard size wall plates.
■ Provide better sheet rock coverage with standard size appearance.
■ Available in unbreakable nylon 6 construction only.
■ Screws pre-installed in the duplex, toggle, and decorator single gang plates.
Dimensions
1 gang 2.9375" x 4.6875"
2 gang 4.75" x 4.6875"
3 gang 6.563" x 4.6875"
4 gang 8.375" x 4.6875"
5 gang 10.188" x 4.6875"
6 gang 12" x 4.6875"
TradeMaster Jumbo Wall Plates
■ Extra 3/16" width and height than Junior-Jumbo size wall plates.
■ Provide additional coverage for sheet rock gaps, matching the appearance of the TradeMaster Plates.
■ Available in unbreakable nylon 6 construction only.
■ Screws pre-installed in the duplex, toggle, and decorator single gang plates.
Dimensions
1 gang 3.3125" x 5.0625"
2 gang 5.125" x 5.0625"
3 gang 6.9375" x 5.0625"
4 gang 8.75" x 5.0625"
Screwless Polycarbonate Wall Plates
■ Extra 1/8" width and height than Standard size wall plates.
■ Provide better sheet rock coverage with standard size appearance.
■ Molded of .065" thick polycarbonate.
■ 2-piece plastic subplate made of polycarbonate (“SWP” Series only).
■ Metal subplate made of .042" zinc-plated steel (“SW” Series only).
■ Available in 5 metallic and 3 wood finishes.
■ Oversized opening to accommodate all NEMA 26 decorator-style openings.
Wall Plate Dimensions
1 gang 3.10" x 4.87"
2 gang 4.912" x 4.87"
3 gang 6.724" x 4.87"
4 gang 8.536" x 4.87"
5 gang 10.348" x 4.87"
6 gang 12.16" x 4.87"
Subplate Dimensions
1 gang 2.85" x 4.62"
2 gang 4.662" x 4.62"
3 gang 6.474" x 4.62"
4 gang 8.286" x 4.62"
5 gang 10.098" x 4.62"
6 gang 11.910" x 4.62"
Standard Size Wall Plates
■ Standard size wall plates for all applications.
■ Best fit for surface mount boxes.
Dimensions
1 gang 2.75" x 4.5"
2 gang 4.56" x 4.5"
3 gang 6.375" x 4.5"
4 gang 8.125" x 4.5"
5 gang 10" x 4.5"
6 gang 11.812" x 4.5"
7 gang 13.62" x 4.5"
8 gang 15.44" x 4.5"
■ Available in plastic and metal only.
Jumbo Wall Plates
■ Extra 3/4" width and height than Standard size wall plates.
■ Largest size wall plates to cover larger wall damage.
Dimensions
1 gang 3.5" x 5.25"
2 gang 5.31" x 5.25"
3 gang 7.12" x 5.25"
4 gang 8.93" x 5.25"
■ Available in plastic and metal only.
SCREWLESS
Junior-Jumbo Wall Plates
■ Extra 3/8" width and height than Standard size wall plates.
■ Additional coverage for sheet rock gaps.
Dimensions
1 gang 3.125" x 4.87"
2 gang 4.93" x 4.87"
3 gang 6.75" x 4.87"
4 gang 8.56" x 4.87"
■ Available in plastic and metal only.
Project
Location/Type
U-152
U-153
British standardBritish standard
U-154
French standard
U-155
German standard
U-156

Navigation menu
