AC Drives & Soft Starts
Pricing Guide
8800PL9701R01/12
2012
Class 8800
S-Flex 212
Altivar 61
PowerGard
E-Flex
Altistart 01
Altistart 48
Altistart 22 M-Flex
Altivar 71
Altivar 312
Altivar 12 Altivar 32
CONTENTS
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
AC Drives for Centrifugal Pumps and Fans
(Variable Torque Applications)
Altivar™ 212 drives ......................................... 3
Altivar 61 drives ............................................ 4
S-Flex™ 212 enclosed drives with keypad ...................... 10
E-Flex™ enclosed drives ................................... 11
M-Flex™ enclosed drives ................................... 12
PowerGard™ Type CPD drives............................... 26
AC Drives for Conveyors, Mixers, Extruders and Material Handling
(Constant Torque Applications)

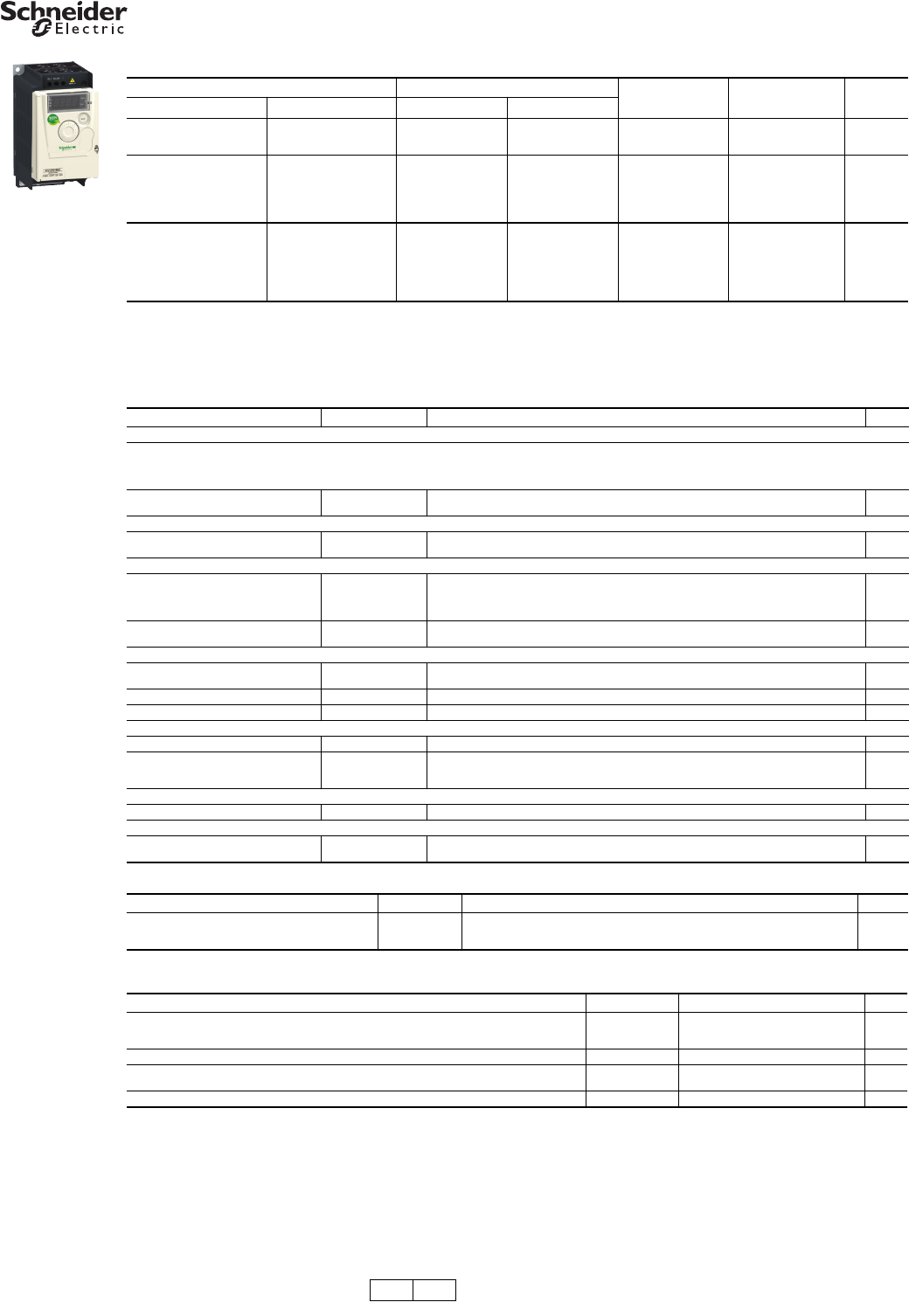

Altivar 12 drives ........................................... 35
Altivar 312 drives .......................................... 36
Altivar 32 drives ........................................... 39
Altivar 71 drives ........................................... 42
M-Flex™ enclosed drive controllers ........................... 12
PowerGard™ Type CPD .................................... 26
AC Soft Start for Reduced Voltage Control
(Variable Torque or Constant Torque Applications)

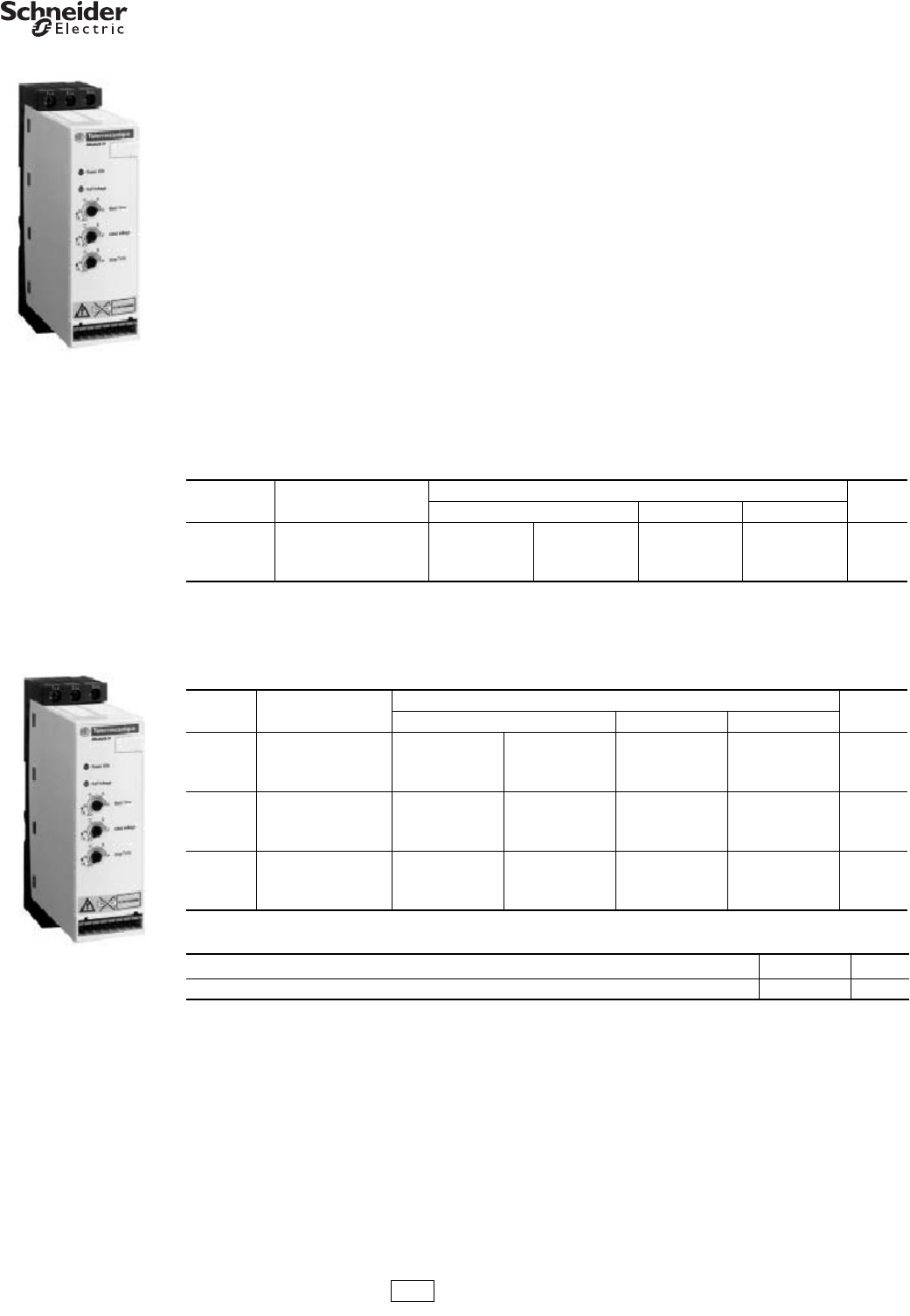

Altistart™ 01 soft start ...................................... 47
Altistart 22 soft start........................................ 49
Enclosed Altistart 22 soft start ................................ 51
Altistart 48 soft start........................................ 53
Enclosed Altistart 48 soft start ................................ 54

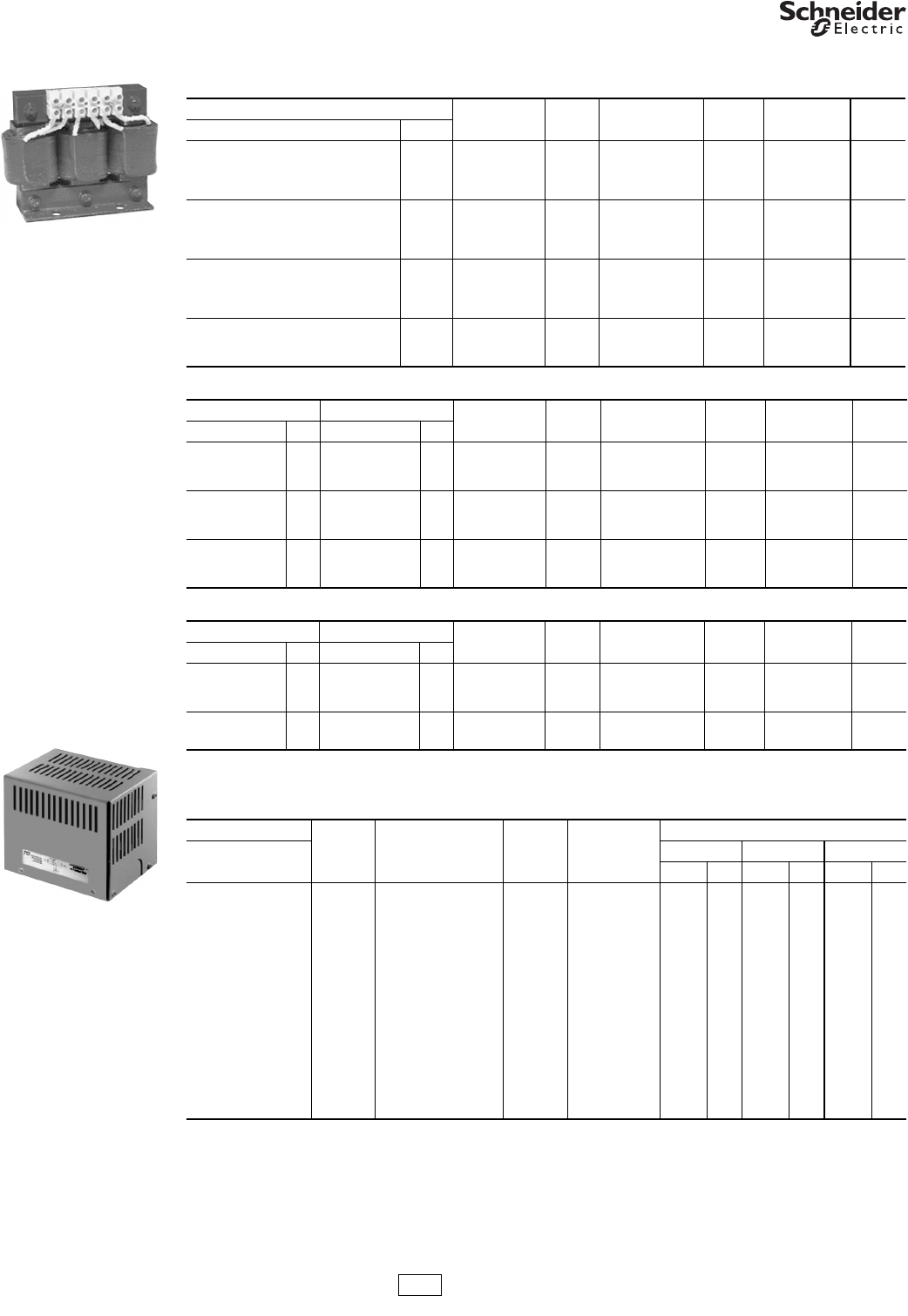

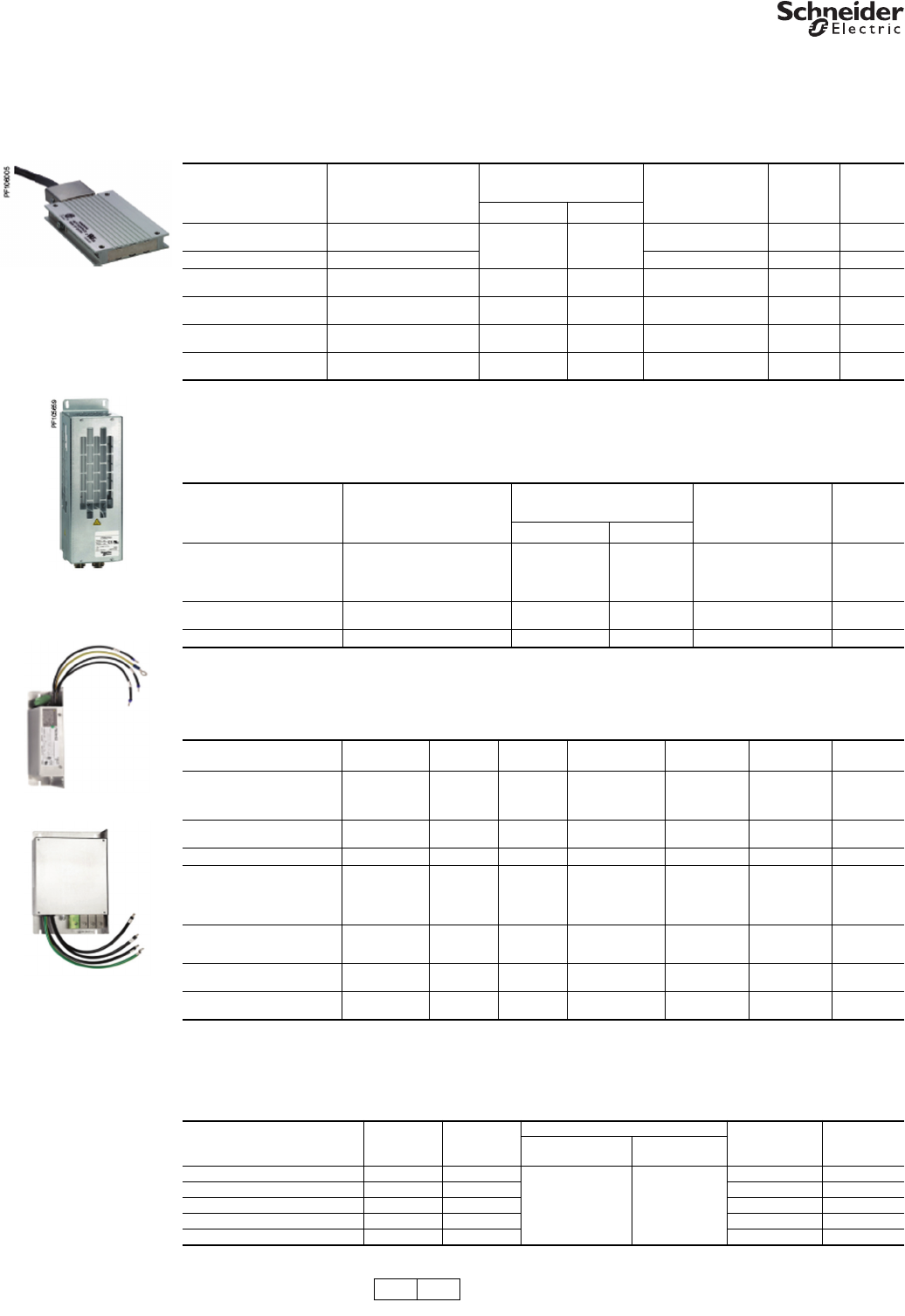

Line Reactors and Motor Protection Output Filters.................. 64

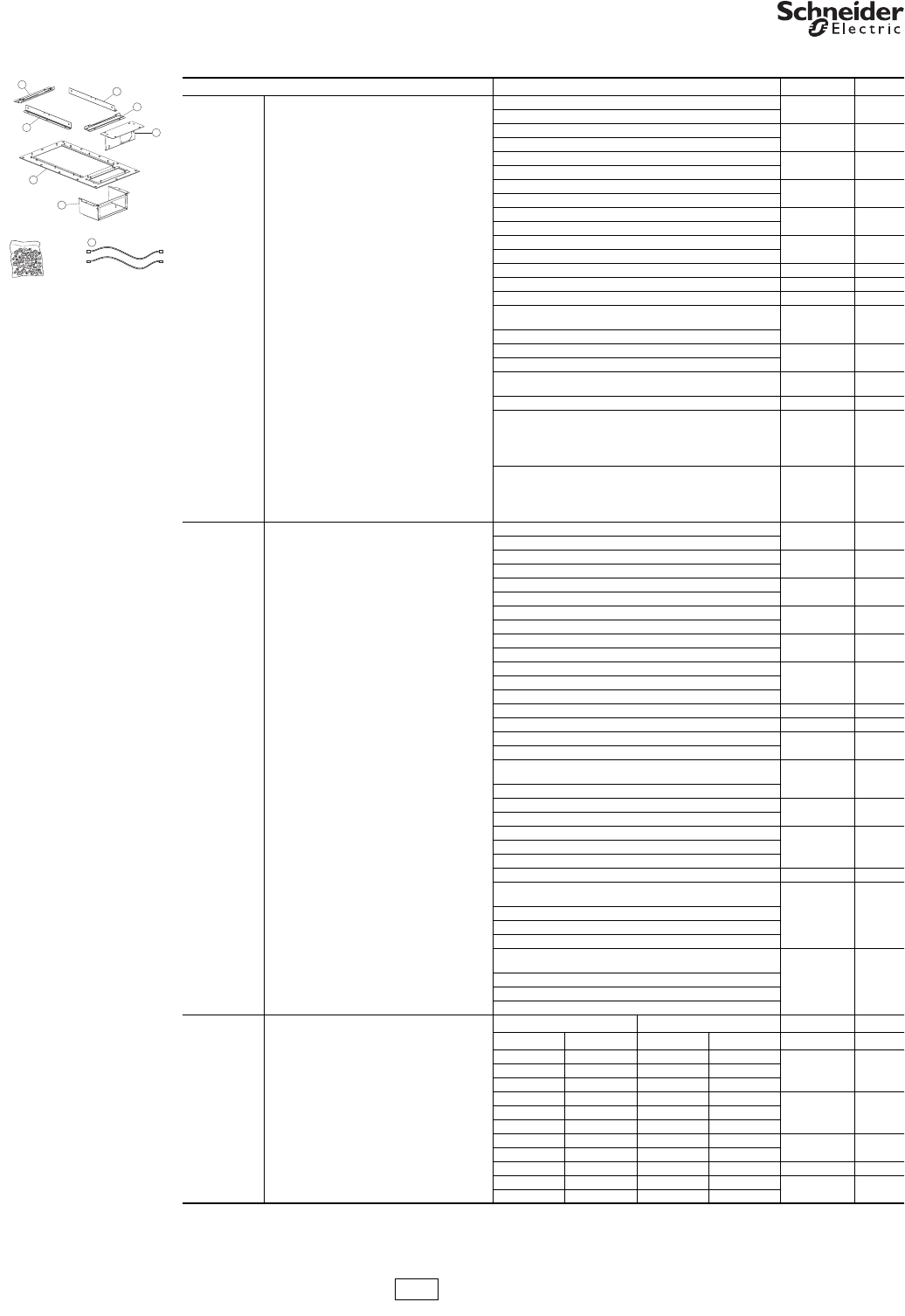

Spare Parts
Altivar 61/71 drives ........................................ 65
Altistart 48 soft start........................................ 78
Altivar 58 drives ........................................... 79
Altivar 21 drives ........................................... 82
Auxiliary Services ........................................... 82
™
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
3

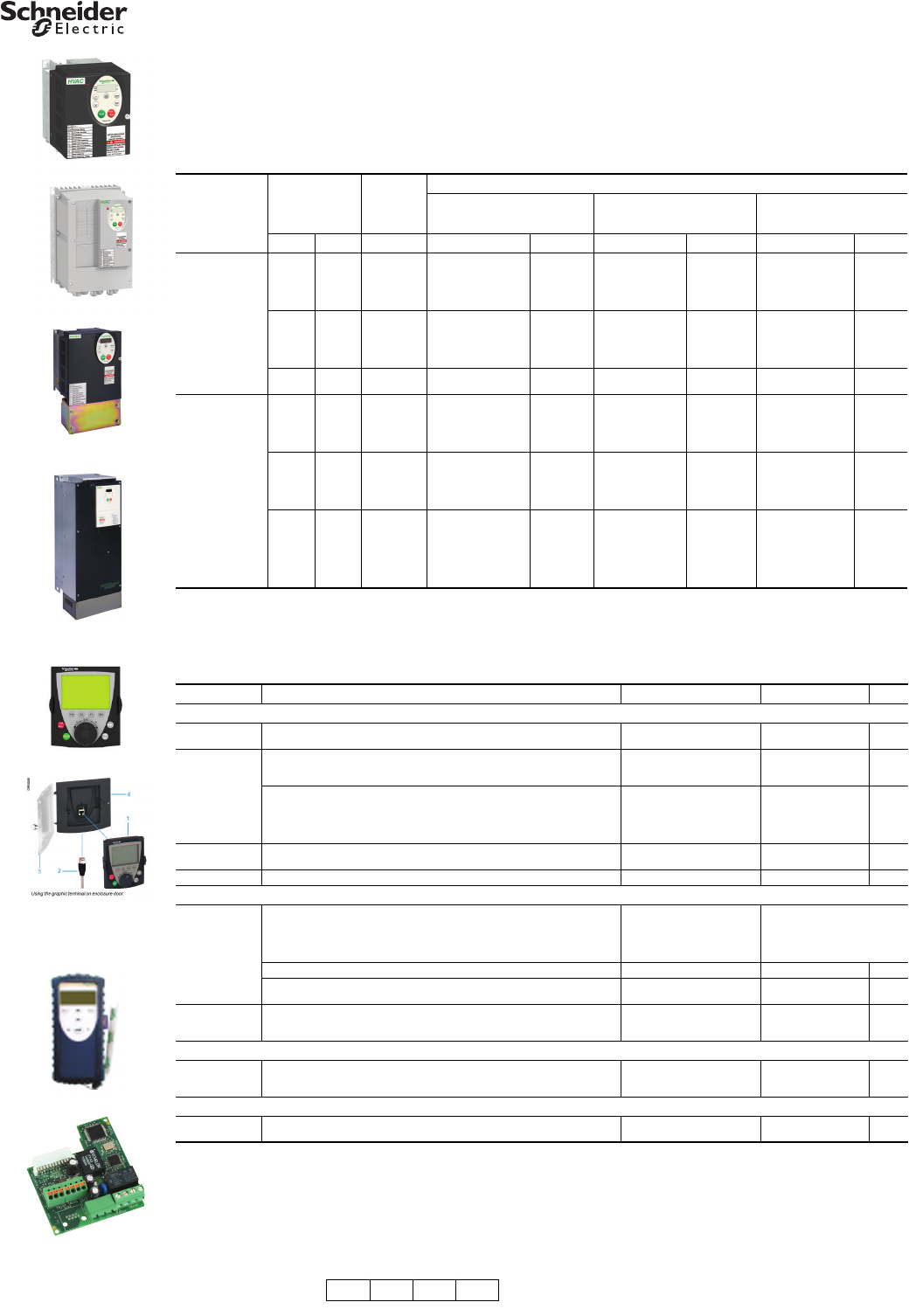

Pricing Guide AC Drives and Soft Starts
Altivar™ 212 Drives
The Altivar 212 drive is for use with three-phase asynchronous motors for variable torque pump and fan applications.
Select the Altivar 212 drive from Table 1 using the motor nameplate voltage and full load ampere ratings.
The Altivar 212 drive includes 3 logic inputs, 2 analog inputs, 1 analog output, and 2 relay outputs (with 1 NO and 1
NO/NC contacts). The Altivar 212 drive includes an integrated 4 digit, 7 segment LED display with a 7 button keypad
and includes an RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2, and Apogee P1
communication protocols. LonWorks®is available in an option card.
UL File E116875, CSA 2278406, Plenum rated per UL 508C for UL 1995 installations. NOM, CE
aThese horsepower, wattage and continuous ampere ratings apply to the default switching frequency and maximum 40 °C ambient. Refer to the
installation manual for derating curves as a function of switching frequency, ambient temperature, and mounting conditions.
bIP20 Altivar 212 drives can be installed as UL Type 1 with an optional conduit box by following the instructions in the Installation Manual.
cFor ATV212W... drives with Class B EMC filter, add the letter “C” to the end of the standard catalog number and multiply $ Price by 1.3.
aNot required if using VW3A1102.
bDiscount Schedule for this product is CP4C.
cDiscount Schedule for this product is CP1G.
dDiscount Schedule for this product is PC41.
Table 1: Altivar™ 212 Selection and Pricing
AC Input Line
Voltage
Three-Phase
Motor Powera
Continuous
Output
Current
Enclosure Rating
IP 20b
Open Style Product
Type 1 Conduit Kit
Purchase ATV212 and Conduit
Kit for Type 1 Installation
Type 12 / IP54c
HP kW AaCatalog Number $ Price Catalog Number $ Price Catalog Number $ Price
200/240 Vac
-15%, +10%
Three-Phase
1 0.75 4.6 ATV212H075M3X 309.00 VW3A31814 45.00 ——
2 1.5 7.5 ATV212HU15M3X 400.00 VW3A31814 45.00 ——
3 2.2 10.6 ATV212HU22M3X 454.00 VW3A31814 45.00 ——
4 3 13.7 ATV212HU30M3X 555.00 VW3A31815 45.00 ——
5 4 18.7 ATV212HU40M3X 618.00 VW3A31815 45.00 ——
7.5 5.5 24.2 ATV212HU55M3X 799.00 VW3A31816 45.00 ——
10 7.5 32 ATV212HU75M3X 963.00 VW3A31816 45.00 ——
15 11 46.2 ATV212HD11M3X 1225.00 VW3A31817 45.00 ——
20 15 61 ATV212HD15M3X 1532.00 VW3A31817 45.00 ——
25 18.5 74.8 ATV212HD18M3X 1795.00 VW3A31817 45.00 ——
30 22 88 ATV212HD22M3X 2188.00 VW3A9206 65.00 ——
40 30 117 ATV212HD30M3X 2806.00 VW3A9208 135.00 ——
380/480 Vac
-15%, +10%
Three-Phase
1 0.75 2.2 ATV212H075N4 400.00 VW3A31814 45.00 ATV212W075N4 500.00
2 1.5 3.7 ATV212HU15N4 472.00 VW3A31814 45.00 ATV212WU15N4 590.00
3 2.2 5.1 ATV212HU22N4 545.00 VW3A31814 45.00 ATV212WU22N4 681.00
4 3 7.2 ATV212HU30N4 618.00 VW3A31815 45.00 ATV212WU30N4 772.00
5 4 9.1 ATV212HU40N4 654.00 VW3A31815 45.00 ATV212WU40N4 817.00
7.5 5.5 12 ATV212HU55N4 798.00 VW3A31815 45.00 ATV212WU55N4 998.00
10 7.5 16 ATV212HU75N4 946.00 VW3A31816 45.00 ATV212WU75N4 1183.00
15 11 22.5 ATV212HD11N4 1145.00 VW3A31816 45.00 ATV212WD11N4 1489.00
20 15 30.5 ATV212HD15N4 1425.00 VW3A31817 45.00 ATV212WD15N4 1853.00
25 18.5 37 ATV212HD18N4 1705.00 VW3A31817 45.00 ATV212WD18N4 2131.00
30 22 43.5 ATV212HD22N4S 1780.00 VW3A31817 45.00 ——
30 22 43.5 ATV212HD22N4 1856.00 VW3A9206 65.00 ATV212WD22N4 2412.00
40 30 58.5 ATV212HD30N4 2284.00 VW3A9206 65.00 ATV212WD30N4 2855.00
50 37 79 ATV212HD37N4 2686.00 VW3A9207 65.00 ATV212WD37N4 3358.00
60 45 94 ATV212HD45N4 3372.00 VW3A9207 65.00 ATV212WD45N4 4215.00
75 55 116 ATV212HD55N4 3883.00 VW3A9208 135.00 ATV212WD55N4 4853.00
100 75 160 ATV212HD75N4 4433.00 VW3A9208 135.00 ATV212WD75N4 5541.00

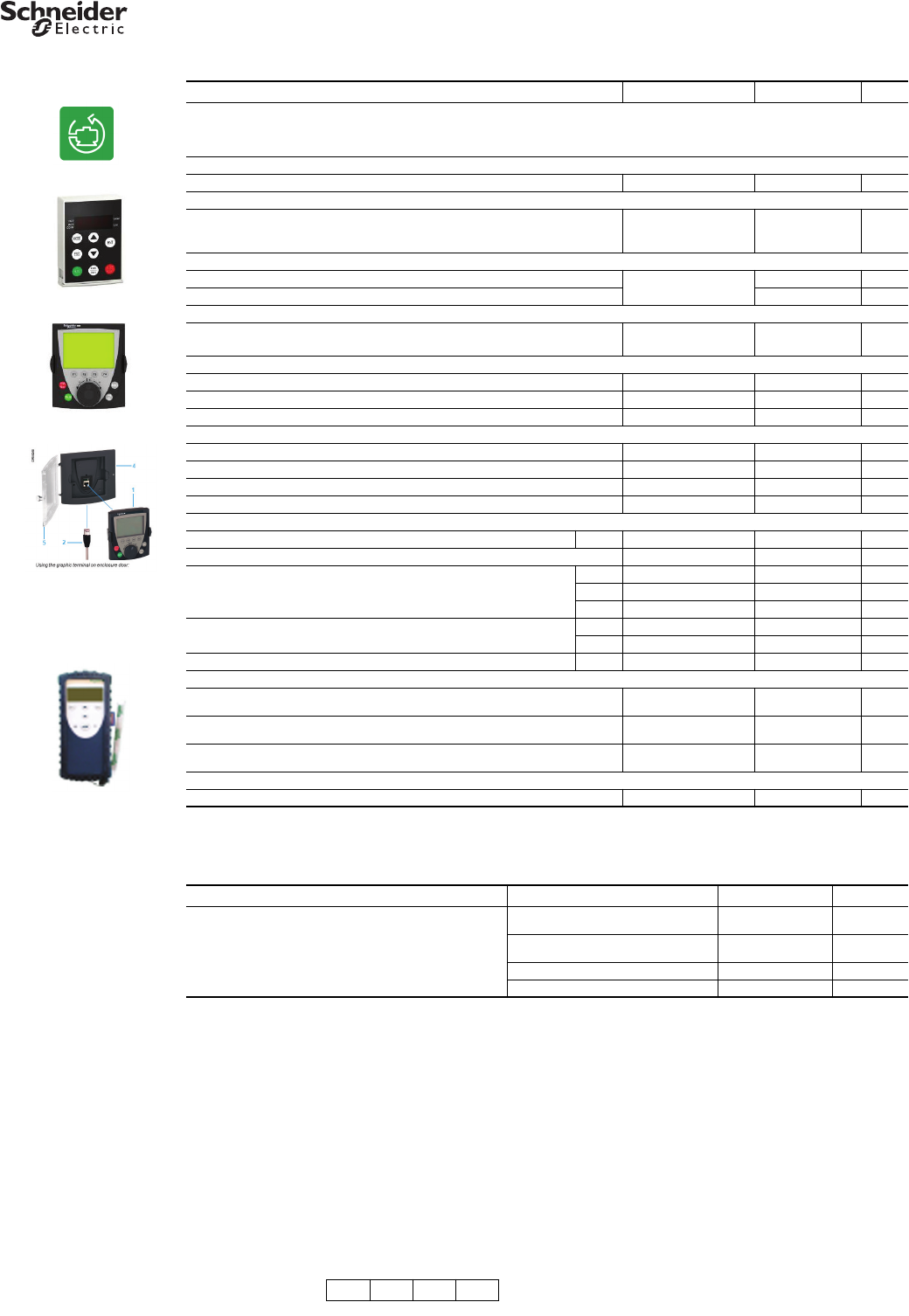

Table 2: Altivar 212 Options and Accessories
Description For Use on Drives Catalog Number $ Price
User Interface Options
Remote LCD
Display Keypad 8 line, 24 characters per line, plain text, 8 keys, rotary wheel, 60 °C IP54 rated Altivar 212, 312, 32
Altivar 61 & 71 VW3A1101b115.00
Remote LCD
Keypad Mounting
Accessories
IP54 rated kit for remote mounting LCD keypad on enclosure door.
Clear plastic door for use with VW3A1102 for IP65 rating and tamper resistant.
Female / Female right angle RJ45 adaptor, to connect cable and keypad.a
VW3A1101
VW3A1102
VW3A1101
VW3A1102b
VW3A1103b
VW3A1105b
55.00
35.00
35.00
Remote LCD Keypad Mounting Cables —Equipped with two RJ45 connectors
1 meter length
3 meter length
5 meter length
10 meter length
VW3A1101
VW3A1101
VW3A1101
VW3A1101
VW3A1104R10c
VW3A1104R30c
VW3A1104R50c
VW3A1104R100c
35.00
35.00
35.00
35.00
Multi-loader Use to copy configurations between like drives, PC Soft, or
SoMove PC Software
Altivar 12, 212, 312
32, 61, 71, & Altistart 22 VW3A8121 350.00
Potentiometer Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer Altivar 212 ATVPOT25K 69.00
Software
PCSoft
PC software configuring, monitoring and trouble shooting Altivar 212 drives.
Requires one of two cables (noted below) to connect a PC to the RJ45 Modbus
port on the drive
Altivar 212
Download at
http://products.schneider-
electric.us/products-
services/products/ac-drives-and-
soft-starts/
USB/RS485 cable: equipped with USB connector and RJ45 connector Altivar & Altistart TCSMCNAM3M002Pc52.00
RS 232-RS485 converter with SUB-D & RJ45 port, cable with two RJ45
connectors Altivar 212 VW3A8106b75.00
Universal
Bluetooth
Interface
Bluetooth connectivity to devices through serial RS-485, RJ45 Modbus port. For
permanent installation, to be used during commissioning, maintenance and
troubleshooting of equipment.
Altivar 12, 212, 312, 61, 71,
Altistart 22 TCSWAAC13FBd180.00
Communication Option
LonWorks
Communication
Card Option
Provides a four-screw terminal block for connection to LonWorks network. Install
in place of standard control board that comes mounted in the Altivar 212 drive.
The I/O count is reduced to 3LI, 1 AI and 1 NO/NC relay
Altivar 212 VW3A21212 375.00
Mounting Kit
DIN Rail Mounting
Kit For installation on 35 mm wide DIN rail Altivar 212H075M3X...U22M3X
Altivar 212H075N4...U22N4 VW3A31852 375.00
ATV212HU15N4
ATV212W075N4
ATV212HU30M3X
with Type 1 Conduit Kit
ATV212HD37N4
with Type 1 Conduit Kit
VW3A1101
VW3A1101
VW3A1102
VW3A1103
VW3A1104R10
VW3A8121
LonWorks Option Card
VW3A21212
CP1GcCP4B CP4CbPC41dDiscount
Schedule
4© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft StartSoft Starts

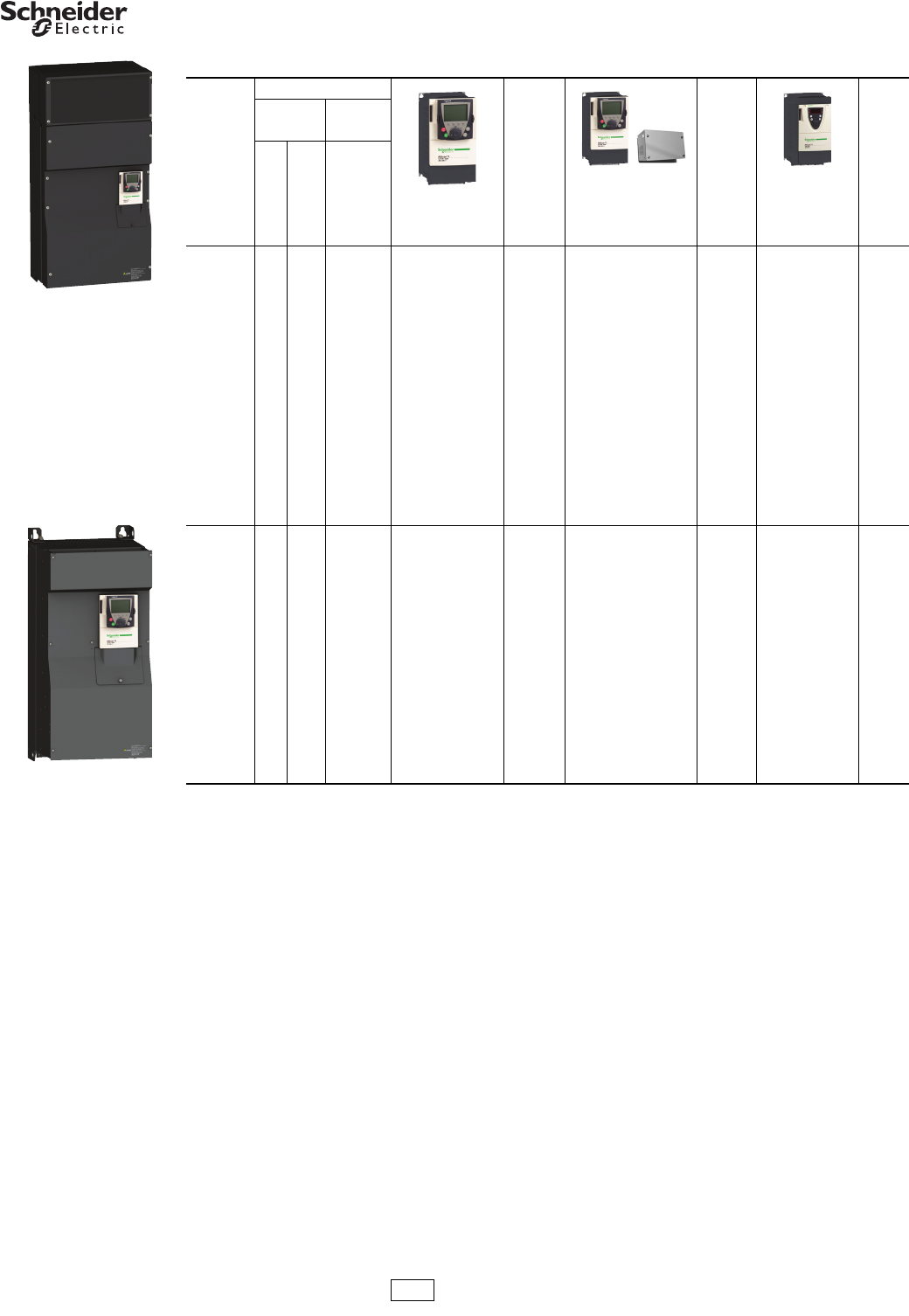

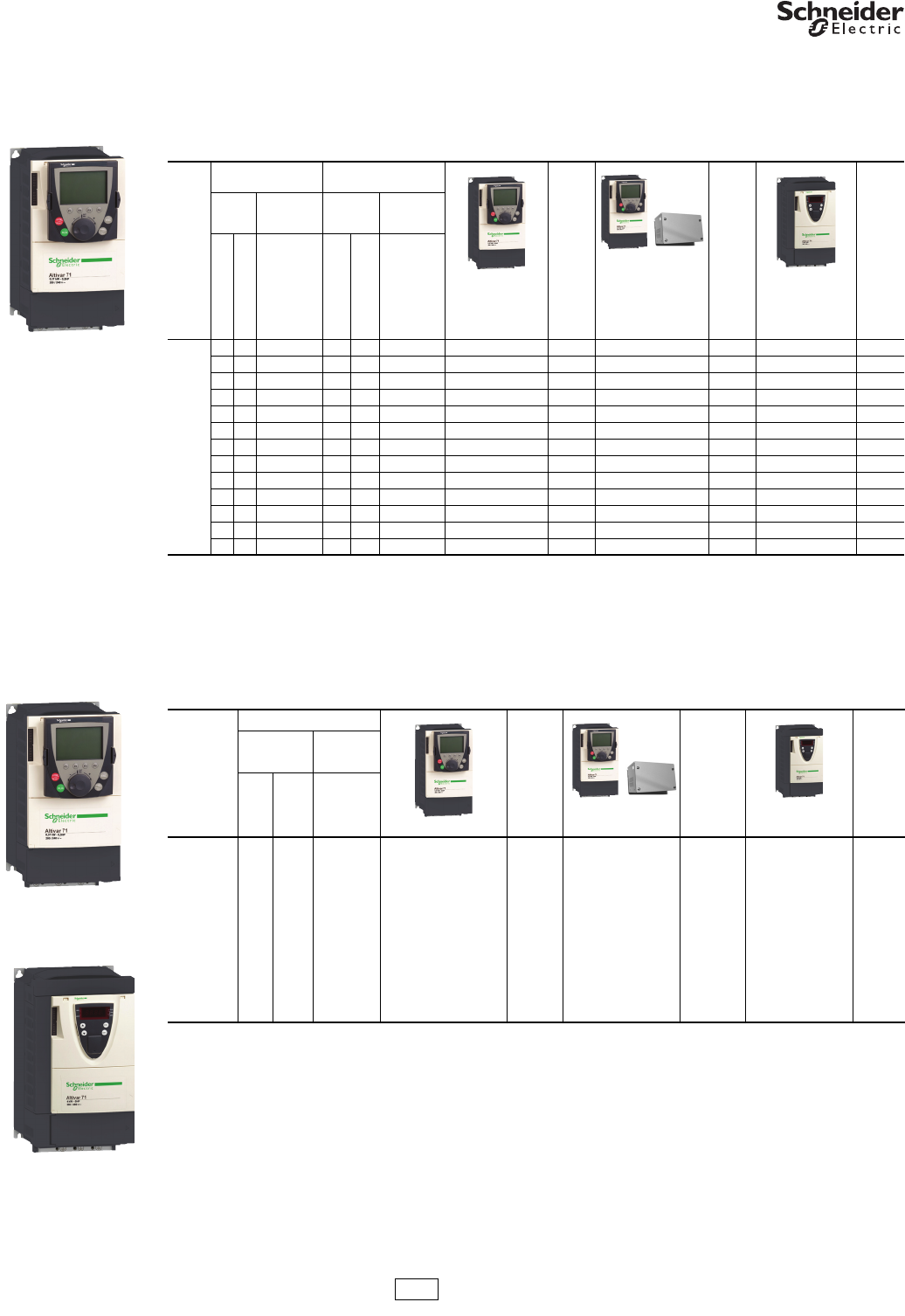

Altivar™ 61 Drives
Altivar™ 61 Single-Phase Drives
In an application where it is necessary to use a 240 V single-phase input for a 3-phase motor, the drive must be derated;
therefore, the power listed on the drive nameplate will be higher than the power rating on the motor nameplate.
For more information on wire and line reactor sizing, refer to Altivar 61 and 71 Supplementary Ratings (30072-451-38) and
page 64 for line reactor selection and pricing.
aOption to have product treated for increased protection for dusty and corrosive environments. This product is not stocked. On 0.5 hp to 5 hp at 230 Vac
single phase, add “S337” to the end of the catalog number. On 7.5 hp to 25 hp at 230 Vac single phase, add “337” to the end of the catalog number. In both
cases multiply price by 1.2 to obtain the new price. With this option, exposed copper is tinned, circuit boards are conformal coated in critical areas and
plastics are treated to better withstand the corrosive nature of certain oils.
bProduct does not contain an EMC filter.
Table 3: Altivar 61 Selection and Pricing
Input
Line
Voltage
With a 5% Line
Reactor Without a Line Reactor
Catalog Number
with LCD Keypad
List
Price $ Catalog Number
for ATV61 drive and
Type 1 conduit entry
kit shipped as
one line item. Field
installation required
(packaged as kit at
warehouse).
List
Price $
Catalog Number
with LED
Keypad
(Non-stocked)
List
Price $
Motor
Power
Continuous
Output
Current
Motor
Power
Continuous
Output
Current
HP kW A HP kW A
208/
240 Vac
Single
Phase
— — — 0.5 0.37 3 ATV61H075M3a639.00 ATV61H075M3T1 684.00 ATV61H075M3Za544.00
— — — 1 0.75 4.8 ATV61HU15M3a663.00 ATV61HU15M3T1 708.00 ATV61HU15M3Za568.00
— — — 2 1.5 8 ATV61HU22M3a764.00 ATV61HU22M3T1 809.00 ATV61HU22M3Za669.00
— — — 3 2.2 11 ATV61HU30M3a925.00 ATV61HU30M3T1 970.00 ATV61HU30M3Za830.00
— 3 13.7 — — — ATV61HU40M3a1035.00 ATV61HU40M3T1 1080.00 ATV61HU40M3Za940.00
5 4 17.5 — — — ATV61HU55M3a1292.00 ATV61HU55M3T1 1337.00 ATV61HU55M3Za1197.00
7.5 5.5 27.5 5 4 17.5 ATV61HU75M3a1586.00 ATV61HU75M3T1 1631.00 ATV61HU75M3Za1491.00
10 7.5 33 7.5 5.5 27.5 ATV61HD15M3Xab 2525.00 ATV61HD15M3XT1b2570.00 ATV61HD15M3XZab 2430.00
— — — 10 7.5 33 ATV61HD18M3Xab 2943.00 ATV61HD18M3XT1b3008.00 ——
15 11 54 — — — ATV61HD22M3Xab 3586.00 ATV61HD22M3XT1b3651.00 ——
20 15 66 15 11 54 ATV61HD30M3Xab 4599.00 ATV61HD30M3XT1b4684.00 ——
25 18 75 20 15 66 ATV61HD37M3Xab 5342.00 ATV61HD37M3XT1b5427.00 ——
30 22 88 25 18 75 ATV61HD45M3Xab 6326.00 ATV61HD45M3XT1b6411.00 ——
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
5
Pricing Guide AC Drives and Soft Starts
Altivar™ 61 Drives
Altivar™ 61 Three-Phase Drives
aOption to have product treated for increased protection for dusty and corrosive environments. This product is not stocked. On 1 hp to 10 hp at 230 Vac
3 phase and up to 100 hp at 460 V, add “S337” to the end of the catalog number. On 15 hp to 60 hp at 230 Vac 3 phase, add “337” to the end of the
catalog number. In both cases multiply price by 1.2 to obtain new price. With this option, exposed copper is tinned, circuit boards are conformal coated
in critical areas and plastics are treated to better withstand the corrosive nature of certain oils. This option is standard on 55 kW/75 hp @ 230 Vac
3 phase and higher and 90 kW/125 hp @ 460 Vac and higher.
bProduct does not contain an EMC filter.
cProduct ships with a DC choke that must be field mounted. A 5% line reactor may be purchased and installed in place of the DC choke. Add “D” to the
end of the catalog number to receive just the AC drive and multiply the listed price by 0.96 to obtain new price.
dThese products can be ordered with LonWorks®or BACnet communication option card shipped as one line item. Field installation required. Add “LW”
to the end of the part number to receive a LonWorks option card. Add $550 to the price. Add “BN” to the end of the part number to receive a BACnet
option card. Add $225 to the price.
eThese products do not contain a dynamic braking transistor. A separate transistor must be added for applications requiring dynamic braking.
fWhen ordering replacements for Square D™ brand E-Flex™, MCC and M-Flex™ enclosed drive controllers containing the Altivar 61 drive, identify the
replacement catalog number by referring to the applicable instruction manual, the side nameplate on power converter, or using the graphic keypad (menu
1.11 identification).

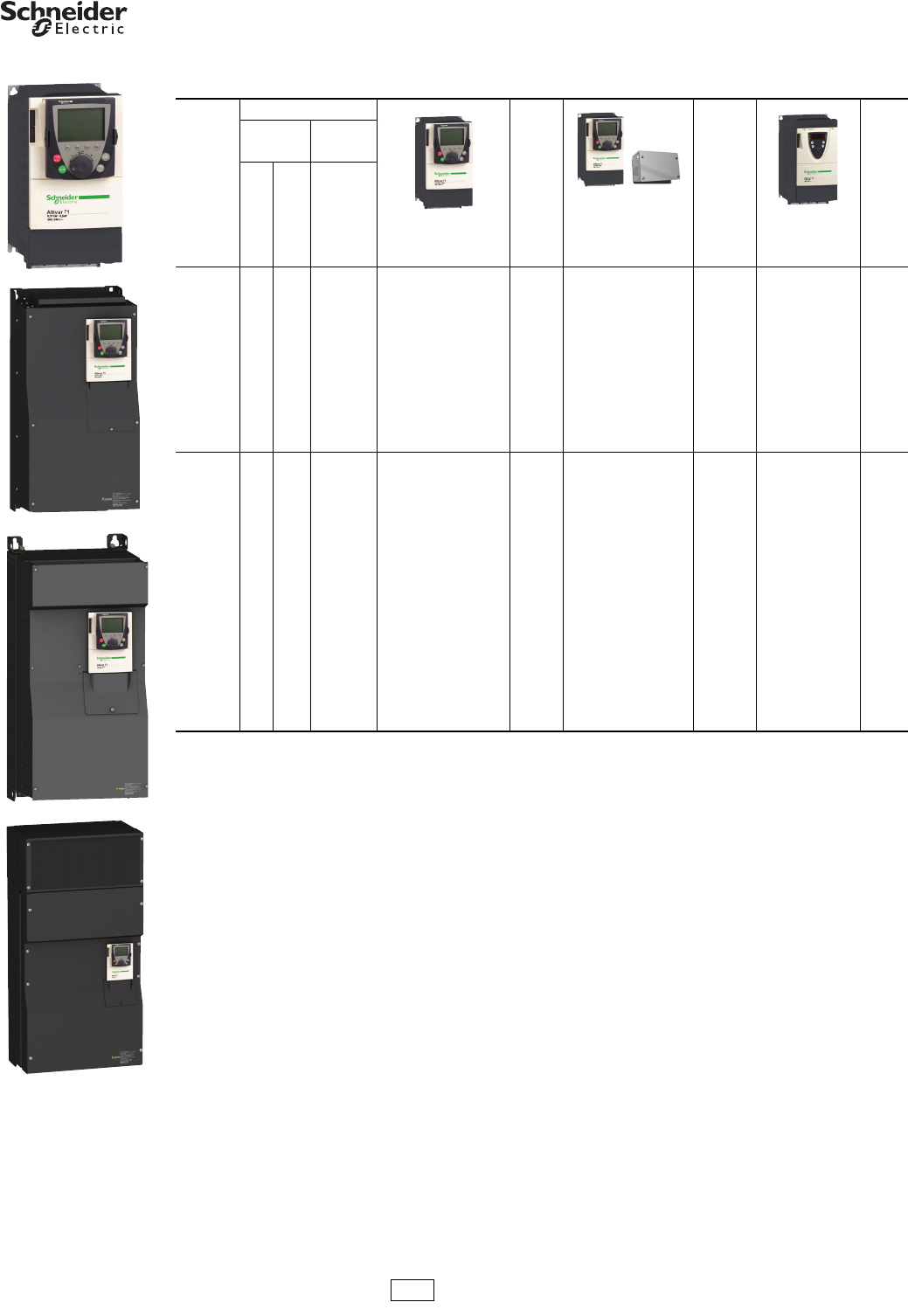

Table 4: Altivar 61 Selection and Pricing
Input
Line
Voltage
Variable Torque
Catalog Number
with LCD Keypad
(Stocked)f
$ Price
Catalog Number
to have ATV61 and Type 1
conduit \entry kit shipped
as one line item.
Field installation required
(Packaged as kit at
warehouse).
$ Price
Catalog Number
with LED
Keypad
(Non-stocked)
$ Price
Three-Phase
Motor Power
Continuous
Output
Current
HP kW A
208/240 Vac
Three
Phase
1 0.75 4.8 ATV61H075M3ad 639. ATV61H075M3T1d684. ATV61H075M3Z 544.
2 1.5 8 ATV61HU15M3ad 663. ATV61HU15M3T1d708. ATV61HU15M3Z 568.
3 2.2 11 ATV61HU22M3ad 764. ATV61HU22M3T1d809. ATV61HU22M3Z 669.
4 3 13.7 ATV61HU30M3ad 925. ATV61HU30M3T1d970. ATV61HU30M3Z 830.
5 4 17.5 ATV61HU40M3ad 1035. ATV61HU40M3T1d1080. ATV61HU40M3Z 940.
7.5 5.5 27.5 ATV61HU55M3ad 1292. ATV61HU55M3T1d1337. ATV61HU55M3Z 1197.
10 7.5 33 ATV61HU75M3ad 1586. ATV61HU75M3T1d1631. ATV61HU75M3Z 1491.
15 11 54 ATV61HD11M3Xabd 2011. ATV61HD11M3XT1bd 2056. ATV61HD11M3XZb1916.
20 15 66 ATV61HD15M3Xabd 2525. ATV61HD15M3XT1bd 2570. ATV61HD15M3XZb2430.
25 18 75 ATV61HD18M3Xabd 2943. ATV61HD18M3XT1bd 3008. ——
30 22 88 ATV61HD22M3Xabd 3586. ATV61HD22M3XT1bd 3651. ——
40 30 120 ATV61HD30M3Xabd 4599. ATV61HD30M3XT1bd 4684. ——
50 37 144 ATV61HD37M3Xabd 5342. ATV61HD37M3XT1bd 5427. ——
60 45 176 ATV61HD45M3Xabd 6326. ATV61HD45M3XT1bd 6411. ——
75 55 221 ATV61HD55M3Xbcd 7806. ATV61HD55M3XT1bd 8266. ——
100 75 285 ATV61HD75M3Xbcd 9379. ATV61HD75M3XT1bd 9839. ——
125 90 359 ATV61HD90M3Xbcd 11954. ATV61HD90M3XT1bd 12507. ——
400/480 Vac
Three
Phase
1 0.75 2.3 ATV61H075N4ad 754. ATV61H075N4T1d799. ATV61H075N4Z 659.
2 1.5 4.1 ATV61HU15N4ad 857. ATV61HU15N4T1d902. ATV61HU15N4Z 762.
3 2.2 5.8 ATV61HU22N4ad 999. ATV61HU22N4T1d1044. ATV61HU22N4Z 904.
4 3 7.8 ATV61HU30N4ad 1125. ATV61HU30N4T1d1170. ATV61HU30N4Z 1030.
5 4 10.5 ATV61HU40N4ad 1158. ATV61HU40N4T1d1203. ATV61HU40N4Z 1063.
7.5 5.5 14.3 ATV61HU55N4ad 1299. ATV61HU55N4T1d1344. ATV61HU55N4Z 1204.
10 7.5 17.6 ATV61HU75N4ad 1578. ATV61HU75N4T1d1623. ATV61HU75N4Z 1483.
15 11 27.7 ATV61HD11N4ad 1868. ATV61HD11N4T1d1913. ATV61HD11N4Z 1773.
20 15 33 ATV61HD15N4ad 2322. ATV61HD15N4T1d2367. ATV61HD15N4Z 2227.
25 18 41 ATV61HD18N4ad 2795. ATV61HD18N4T1d2840. ATV61HD18N4Z 2700.
30 22 48 ATV61HD22N4ad 3042. ATV61HD22N4T1d3107. ATV61HD22N4Z 2947.
40 30 66 ATV61HD30N4ad 3744. ATV61HD30N4T1d3809. ATV61HD30N4Z 3649.
50 37 79 ATV61HD37N4ad 4403. ATV61HD37N4T1d4468. ATV61HD37N4Z 4308.
60 45 94 ATV61HD45N4ad 5528. ATV61HD45N4T1d5563. ATV61HD45N4Z 5433.
75 55 116 ATV61HD55N4ad 6365. ATV61HD55N4T1d6500. ATV61HD55N4Z 6270.
100 75 160 ATV61HD75N4ad 7267. ATV61HD75N4T1d7402. ATV61HD75N4Z 7172.
125 90 179 ATV61HD90N4cd 7988. ATV61HD90N4T1d8448. ——
150 110 215 ATV61HC11N4cd 9022. ATV61HC11N4T1d9575. ——
200 130 259 ATV61HC13N4cd 10366. ATV61HC13N4T1d10939. ——
250 160 314 ATV61HC16N4cd 11711. ATV61HC16N4T1d12299. ——
350 220 427 ATV61HC22N4cd 13993. ATV61HC22N4T1d14581. ——
400 250 481 ATV61HC25N4cde 16475. ATV61HC25N4T1d17079. ——
500 315 616 ATV61HC31N4ce 23734. ————
600 400 759 ATV61HC40N4ce 31783. ————
700 500 941 ATV61HC50N4ce 44235. ————
900 630 1188 ATV61HC63N4ce 63935. ————
CP4C Discount
Schedule
6© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61 Drives
aConformal coating is standard.
bAn AC 5% line reactor is mandatory.
cThese products do not contain a dynamic braking transistor. A separate transistor must be added for applications requiring dynamic braking.
Altivar™ 61 Selection and Pricing (continued)
Input Line Voltage
Variable Torque
Catalog Number with LCD Keypad
(Stocked)
$ Price
Three-Phase Motor Power Continuous Output Current
HP kW A
575/690 Vac
Three Phase
3 3 3.9 ATV61HU30Ya1889.00
4 4 5.8 ATV61HU40Ya1990.00
5 5.5 6.1 ATV61HU55Ya2099.00
7.5 7.5 9 ATV61HU75Ya2380.00
10 11 11 ATV61HD11Ya2799.00
15 15 17 ATV61HD15Ya3380.00
20 18.5 22 ATV61HD18Ya3979.00
25 22 27 ATV61HD22Ya4790.00
30 30 32 ATV61HD30Ya5780.00
40 37 41 ATV61HD37Ya6999.00
50 45 52 ATV61HD45Ya8579.00
60 55 62 ATV61HD55Ya10379.00
75 75 77 ATV61HD75Ya12199.00
100 90 99 ATV61HD90Ya14399.00
125 110 125 ATV61HC11Yab 16899.00
150 132 150 ATV61HC13Yab 19179.00
— 160 180 ATV61HC16Yab 20795.00
200 200 220 ATV61HC20Yab 24290.00
250 250 290 ATV61HC25Yabc 28950.00
350 315 355 ATV61HC31Yabc 35950.00
450 400 420 ATV61HC40Yabc 46750.00
550 500 543 ATV61HC50Yabc 59590.00
700 630 675 ATV61HC63Yabc 78490.00
800 800 840 ATV61HC80Yabc 103390.00
Table 5: Altivar 61 UL Type 12 / IP54 Selection and Pricing
Three-Phase Motor Power Continuous
Output Current Catalog Number $ Price
Horsepower kW A
400/480 Vac
Three-Phase
UL Type 12/IP54
1 0.75 2.3 ATV61W075N4U 943.00
2 1.5 4.1 ATV61WU15N4U 1072.00
3 2.2 5.8 ATV61WU22N4U 1249.00
— 3 7.8 ATV61WU30N4U 1406.00
5 4 10.5 ATV61WU40N4U 1448.00
7.5 5.5 14.3 ATV61WU55N4U 1624.00
10 7.5 17.6 ATV61WU75N4U 1972.00
15 11 27.7 ATV61WD11N4U 2335.00
20 15 33 ATV61WD15N4U 2903.00
25 18 41 ATV61WD18N4U 3493.00
30 22 48 ATV61WD22N4U 3803.00
40 30 66 ATV61WD30N4U 4680.00
50 37 79 ATV61WD37N4U 5504.00
60 45 94 ATV61WD45N4U 6911.00
75 55 116 ATV61WD55N4U 7956.00
100 75 160 ATV61WD75N4U 9084.00
125 90 179 ATV61WD90N4U 9986.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
7
Pricing Guide AC Drives and Soft Starts
Altivar™ 61 and Altivar 71 Drives

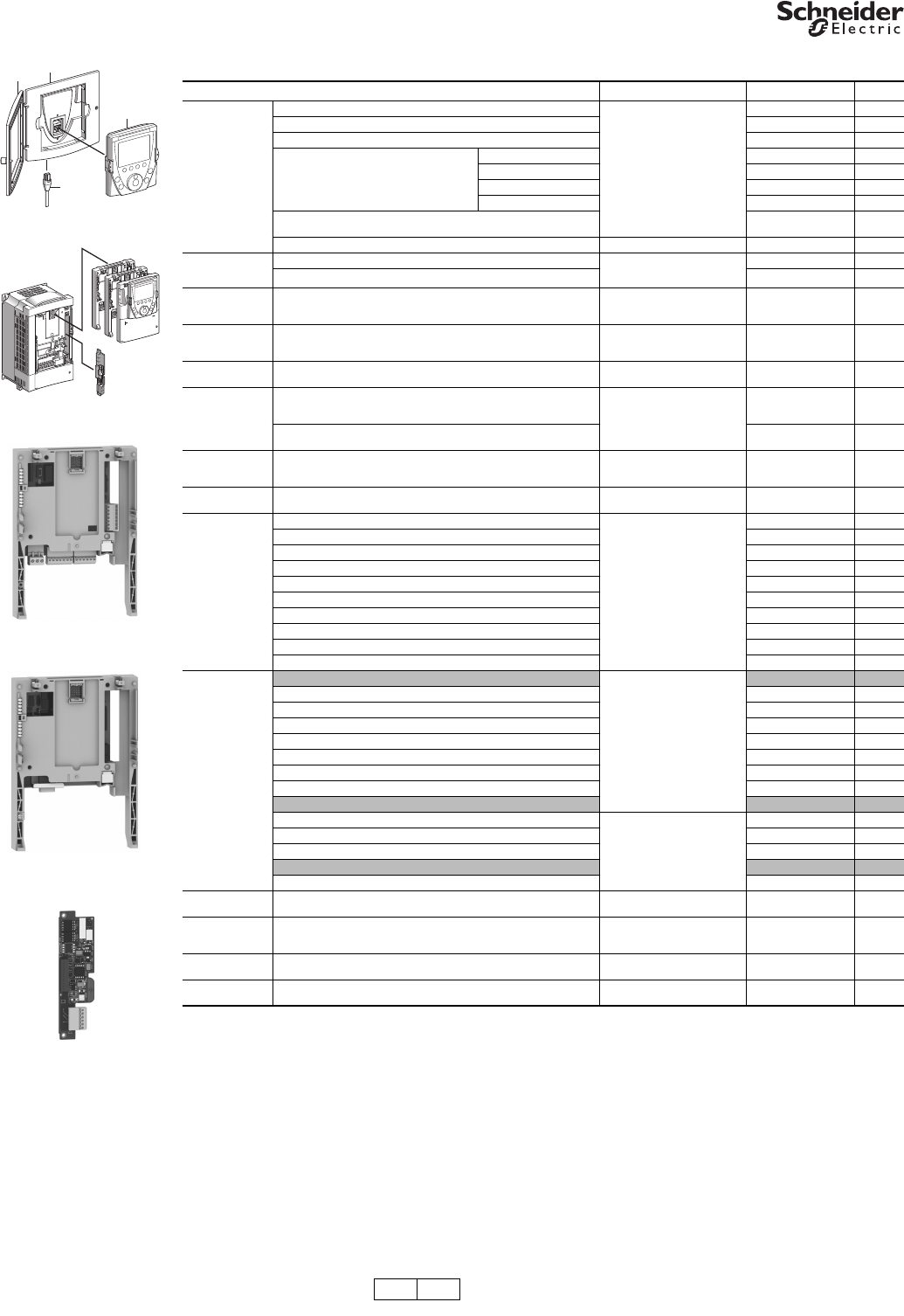

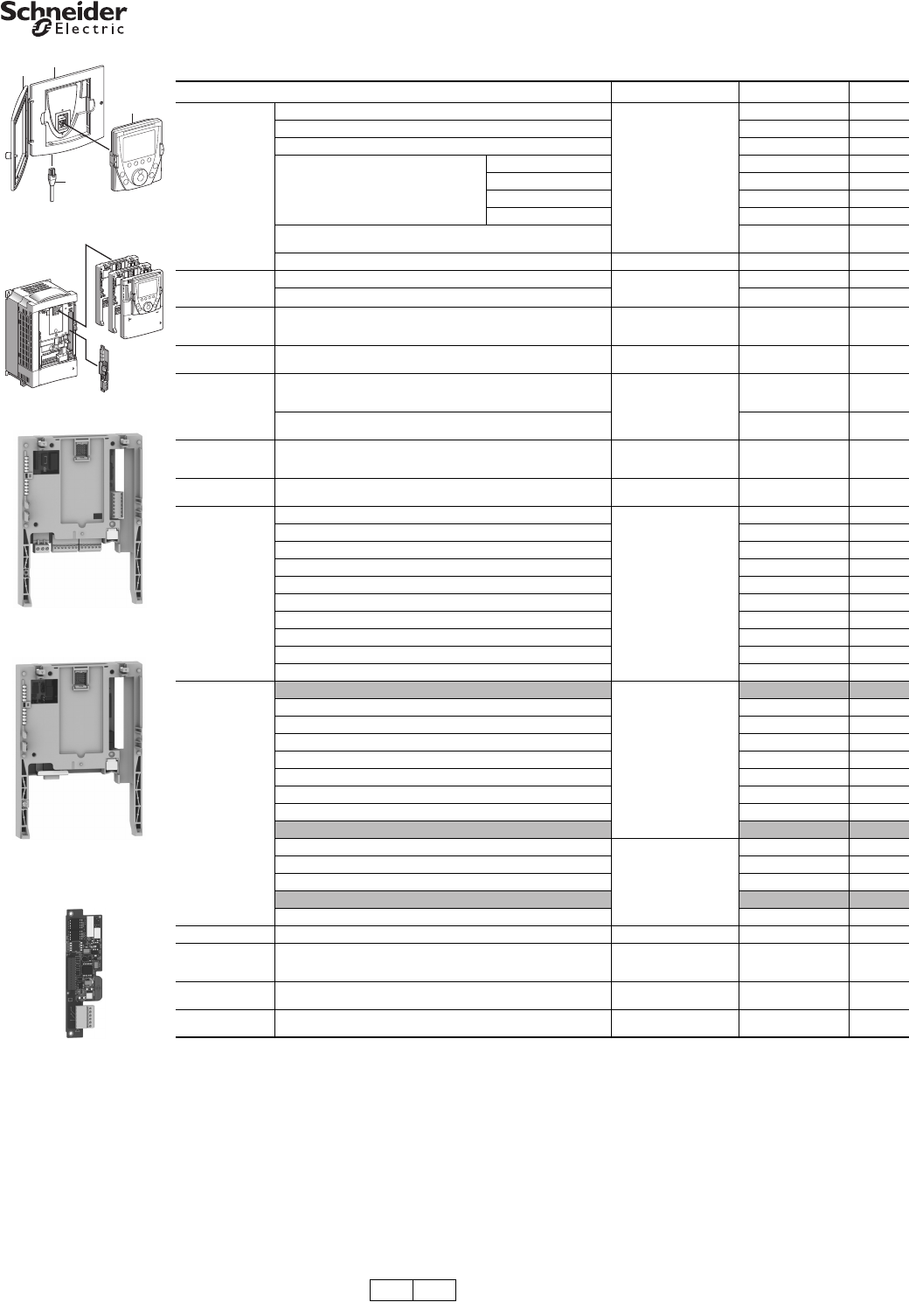

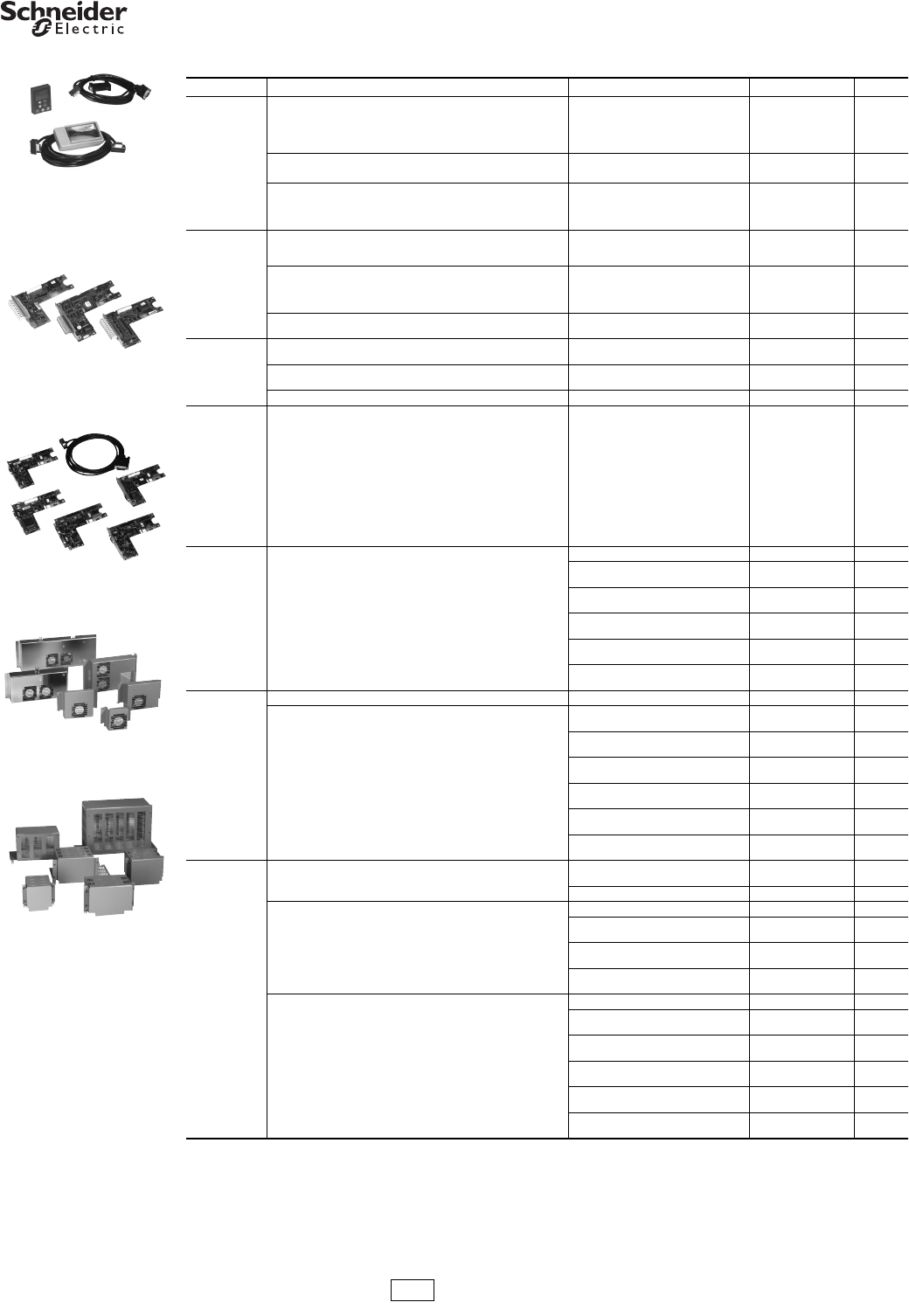

Table 6: Options—Field Installed
Description For Use on Drives Catalog No. $ Price
Operator
Interface
LCD graphic keypad: IP54 rating
any ATV61
any ATV71
VW3A1101 115.00
Remote mounting kit: includes bezel and mounting hardware VW3A1102 55.00
Door for use with remote mount kit for IP65 rating VW3A1103 45.00
Cable for remote mounting LCD graphic
keypad
RJ-45 connector on each end
1 meter VW3A1104R10 35.00
3 meters VW3A1104R30 35.00
5 meters VW3A1104R50 35.00
10 meters VW3A1104R100 45.00
RJ-45 female—female adaptor to connect LCD keypad and cable. Not
required if using VW3A1102. VW3A1105 35.00
Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer Altivar 61 ATVPOT25K 69.00
PowerSuite™
Software Options
PowerSuite software on CD for PC Altivar AC drives
Altistart™ 48
TeSys™ U-line
VW3A8104 150.00
USB/RS485 cord set (equipped with RJ45 socket) TCSMCNAM3M002P 52.00
Universal
Bluetooth
Interface
Bluetooth connectivity to devices through serial RS-485, RJ45 Modbus
port. For permanent installation, to be used during commissioning,
maintenance and troubleshooting of equipment.
Altivar 12, 212, 312, 61, 71,
and Altistart 22 TCSWAAC13FBd180.00
I/O Adaptor 115 Vac logic input adaptor adapts 7 logic inputs for use with
user supplied 115 Vac signals
any ATV61
any ATV71 VW3A3101 195.00
I/O Extension
Option Cards
Basic I/O option card—4 logic inputs, 2 logic outputs, 1 Form C relay
output, an input for PTC motor probes, a 24 Vdc output, and a 10 Vdc
output any ATV61
any ATV71
VW3A3201 165.00
Extended I/O option card—contains all the I/O on the Basic I/O option card
plus 2 analog inputs, 2 analog outputs, 1 pulse input VW3A3202 195.00
CANopen
Adapter
This adaptor connects to the RJ-45 port and provides a 9–pin male
SUB–D connector conforming to the CANopen standard
(CIA DRP 303–1)
any ATV61
any ATV71 VW3CANA71 45.00
CANopen
Connector
9-pin female SUB–D with line terminator (can be disabled). 180º cable
outlet CAN–H, CAN–L, CAN–GND connection
any ATV61
any ATV71 VW3CANKCDF180T 45.00
Incremental
Encoder
Interface
Option Cards
with RS-422 outputs, 5 Vdc
any ATV71
VW3A3401 85.00
with RS-422 outputs, 15 Vdc VW3A3402 85.00
with open collector outputs, 12 Vdc VW3A3403 85.00
with open collector outputs, 15 Vdc VW3A3404 85.00
with push–pull outputs, 12 Vdc VW3A3405 85.00
with push–pull outputs, 15 Vdc VW3A3406 85.00
with push–pull outputs, 24 Vdc VW3A3407 85.00
Resolver VW3A3408a85.00
Universal with SinCos, SinCos Hiperface®, SinCos EnDat®or SSI output VW3A3409a85.00
Incremental with RS422 outputs and encoder emulation VW3A3411a85.00
Communication
Option Cards
Modbus Plus card (limited availability)
any ATV61
any ATV71
VW3A3302 550.00
Modbus / Uni-Telway™ card VW3A3303 225.00
Modbus TCP/IP daisy chain VW3A3310D 275.00
Interbus®S card VW3A3304 550.00
Profibus DP card VW3A3307 550.00
Profibus DPv1 card VW3A3307S371 550.00
DeviceNet™ card VW3A3309 225.00
Ethernet/IP™ card VW3A3316 275.00
FIPIO™ card (limited availability) VW3A3311 550.00
LonWorks®card
any ATV61
VW3A3312 550.00
Metasys®N2 card VW3A3313 225.00
Apogee®FLN P1 card VW3A3314 225.00
BACnet card with female sub D 9 pin connector (limited availability) VW3A3315 225.00
BACnet card with removable 4 position screw terminal connector VW3A3319 225.00
IMC Option Card ATV IMC drive controller cardcVW3A3521S0d755.00
Controller Inside
Option Card
Programmable option card, conforms with IEC61131–3 programming
standard. (Software for this option card is available after completing training
class offered by Schneider Electric Services.)
any ATV61
any ATV71 VW3A3501b550.00
Water Solutions
Control Card
This option card contains a variety of pre-programmed functions and
features to manage multi–pump installations.
any ATV61
any ATV71 VW3A3503b650.00
Simple Loader Using RJ45 port connections, the configurations of a drive can be
downloaded then uploaded to compatible drive. ATV31, ATV61, and ATV71 VW3A8120 175.00
aFor use with the ATV71H...383 drive ONLY.
bThe drive cannot support the VW3A3503 water solutions card and the VW3A3501 controller inside option card simultaneously.
cSoMachine is required to use this product.
dDiscount Schedule for this product is PC41.
3
2
1
4
LCD Keypad
Mounting Kits
Option Card Assembly
I/O Option Card
Communication
Option Card
Incremental
Encoder Interface
Option Card
CP4C PC41dDiscount
Schedule
8© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61 and Altivar 71 Drives
Table 6: Options—Field Installed (continued)
Description For Use on Drives Fan Kit Catalog No. $ Price
Fan Kit
Installation of the fan kit enables the drive to operate in higher ambient
temperatures. The fan mounts on the drive. Consult the product catalog
for more information.
ATV61/71HD18M3X...HD22M3X,
ATV61/71HD22N4 VW3A9404 135.00
ATV61/71HD30N4...HD37N4 VW3A9405 145.00
ATV61/71HD30M3X...HD45M3X VW3A9406 165.00
ATV61/71HD45N4...HD75N4 VW3A9407 195.00
Description
ATV61: Options and Accessories — Variable Torque Applications
ATV58 Drive Replaced by Mounting Plate
Catalog No. $ Price
Mounting
Plate Kit
Kit includes: Mechanical adaptors required
for mounting an Altivar™ 61/71 drive in the
place of an Altivar 58 or Altivar 58F drive
using the same holes.
Single-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU09M2ZU ATV61H075M3 VW3A9301 83.00
ATV58HU18M2ZU ATV61HU15M3 VW3A9301 83.00
ATV58HU29M2ZU ATV61HU22M3 VW3A9303 83.00
ATV58HU41M2ZU ATV61HU30M3 VW3A9303 83.00
ATV58HU72M2ZU ATV61HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV61HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV61HU75M3 VW3A9307 133.00
Three-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU29M2ZU ATV61HU15M3 VW3A9302 83.00
ATV58HU41M2ZU ATV61HU22M3 VW3A9303 83.00
ATV58HU54M2ZU ATV61HU30M3 VW3A9304 93.00
ATV58HU72M2ZU ATV61HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV61HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV61HU75M3 VW3A9307 133.00
ATV58HD16M2XZU ATV61HD11M3X VW3A9309 170.00
ATV58HD16M2XZU ATV61HD15M3X VW3A9309 170.00
ATV58HD23M2XZU ATV61HD18M3X VW3A9310 170.00
ATV58HD28M2XZU ATV61HD22M3X VW3A9312 337.00
ATV58HD33M2XZU ATV61HD30M3X VW3A9312 337.00
ATV58HD46M2XZU ATV61HD37M3X VW3A9312 337.00
Three-phase supply voltage: 380…480 V 50/60 Hz
ATV58HU18N4ZU ATV61H075N4 VW3A9302 83.00
ATV58HU29N4ZU ATV61HU15N4 VW3A9302 83.00
ATV58HU41N4ZU ATV61HU22N4 VW3A9302 83.00
ATV58HU54N4XZU ATV61HU40N4 VW3A9304 93.00
ATV58HU72N4XZU ATV61HU55N4 VW3A9305 93.00
ATV58HU90N4XZU ATV61HU75N4 VW3A9305 93.00
ATV58HD12N4XZU ATV61HD11N4 VW3A9307 133.00
ATV58HD16N4XZU ATV61HD15N4 not available —
ATV58HD23N4XZU ATV61HD18N4 VW3A9308 138.00
ATV58HD28N4XZU ATV61HD22N4 VW3A9310 170.00
ATV58HD33N4XZU ATV61HD30N4 VW3A9310 170.00
ATV58HD46N4XZU ATV61HD37N4 VW3A9310 170.00
ATV58HD54N4XZU ATV61HD45N4 VW3A9312 337.00
ATV58HD64N4XZU ATV61HD55N4 VW3A9312 337.00
ATV58HD79N4XZU ATV61HD75N4 VW3A9312 337.00
ATV71: Options and Accessories—Constant Torque Applications
ATV58 Drive Replaced by Mounting Plate
Catalog No. $ Price
Single-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU09M2ZU ATV71H075M3 VW3A9301 83.00
ATV58HU18M2ZU ATV71HU15M3 VW3A9301 83.00
ATV58HU29M2ZU ATV71HU22M3 VW3A9303 83.00
ATV58HU41M2ZU ATV71HU30M3 VW3A9303 83.00
ATV58HU72M2ZU ATV71HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV71HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV71HU75M3 VW3A9307 133.00
Three-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU29M2ZU ATV71HU15M3 VW3A9302 83.00
ATV58HU41M2ZU ATV71HU22M3 VW3A9303 83.00
ATV58HU54M2ZU ATV71HU30M3 VW3A9304 93.00
ATV58HU72M2ZU ATV71HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV71HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV71HU75M3 VW3A9307 133.00
ATV58HD16M2XZU ATV71HD11M3X VW3A9309 170.00
ATV58HD23M2XZU ATV71HD15M3X VW3A9309 170.00
ATV58HD28M2XZU ATV71HD18M3X VW3A9312 337.00
ATV58HD33M2XZU ATV71HD22M3X VW3A9312 337.00
ATV58HD46M2XZU ATV71HD30M3X VW3A9312 337.00
Three-phase supply voltage: 380…480 V 50/60 Hz
ATV58HU18N4ZU ATV71H075N4 VW3A9302 83.00
ATV58HU29N4ZU ATV71HU15N4 VW3A9302 83.00
ATV58HU41N4ZU ATV71HU22N4 VW3A9302 83.00
ATV58HU54N4ZU ATV71HU30N4 VW3A9304 93.00
ATV58HU72N4ZU ATV71HU40N4 VW3A9304 93.00
ATV58HU90N4ZU ATV71HU55N4 VW3A9305 93.00
ATV58HD12N4ZU ATV71HU75N4 VW3A9306 133.00
ATV58HD16N4ZU ATV71HD11N4 VW3A9307 133.00
ATV58HD23N4ZU ATV71HD15N4 VW3A9308 138.00
ATV58HD28N4ZU ATV71HD18N4 VW3A9309 170.00
ATV58HD33N4ZU ATV71HD22N4 VW3A9310 170.00
ATV58HD46N4ZU ATV71HD30N4 VW3A9310 170.00
ATV58HD54N4ZU ATV71HD37N4 VW3A9312 337.00
ATV58HD64N4ZU ATV71HD45N4 VW3A9312 337.00
ATV58HD79N4ZU ATV71HD55N4 VW3A9312 337.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
9
Pricing Guide AC Drives and Soft Starts
Altivar™ 61 and Altivar 71 Drives
aThe symbol “•” indicates the part of the number that varies with controller size or rating.

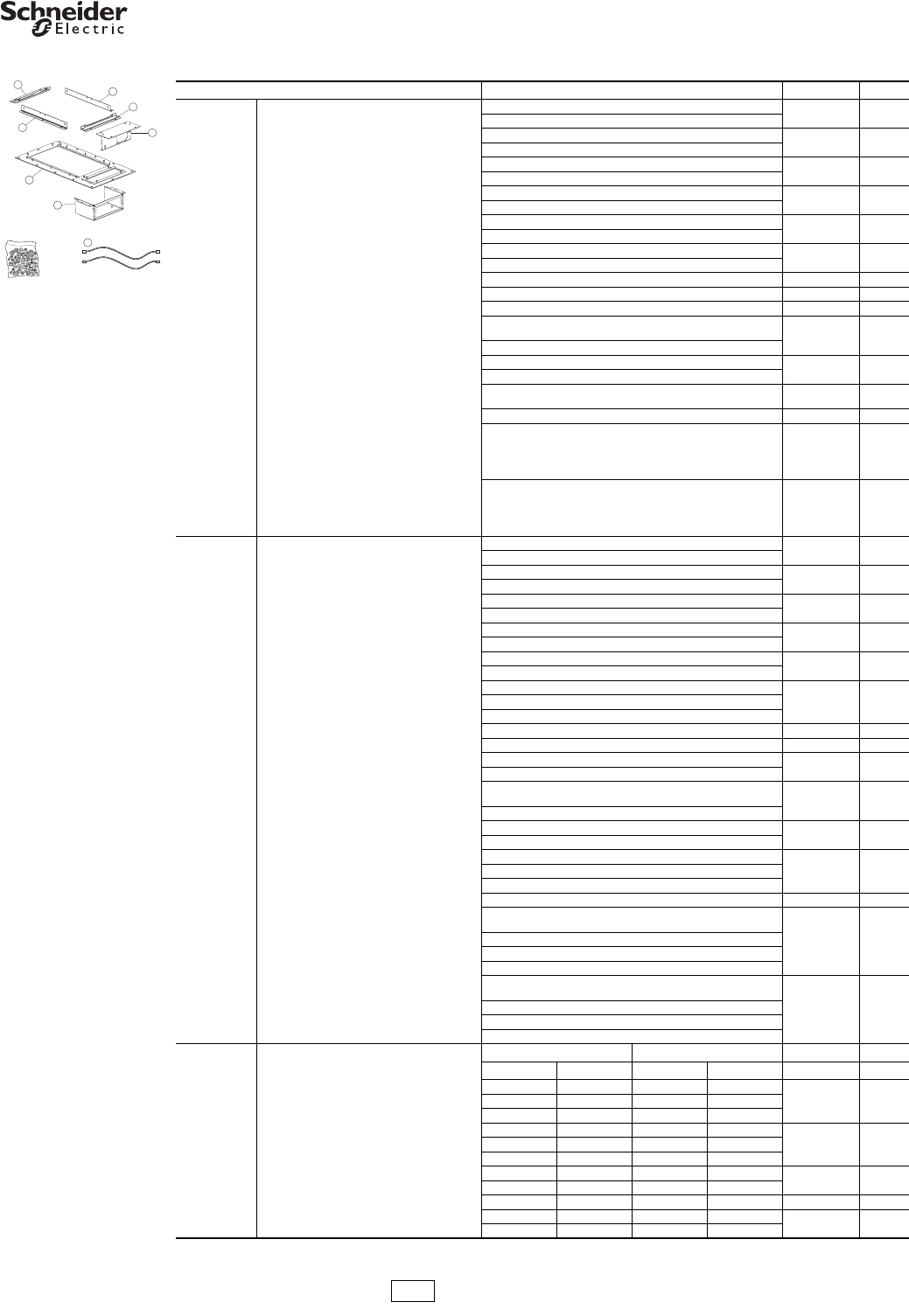

Table 6: Options—Field Installed (continued)
Description For Use on Drives Catalog No. $ Price
Flange Kit
Kit includes:
a metal frame, seals, mounting hardware, and a
bracket to mount the fan kit so the fan can be
accessed from the front of the drive template.
Kit used to mount the heatsink of the drive
outside of an enclosure.
ATV61/71H037M3...HU15M3 VW3A9501 255.00
ATV61/71H075N4...HU22N4
ATV61/71HU22M3...HU40M3 VW3A9502 279.00
ATV61/71HU30N4...HU40N4
ATV61/71HU55M3 VW3A9503 325.00
ATV61/71HU55N4, HU75N4
ATV61/71HU75M3 VW3A9504 358.00
ATV61/71HD11N4
ATV61/71HD11M3X..HD15M3X VW3A9505 419.00
ATV61/71HD15N4, HD18N4
ATV61/71HD18M3X..HD22M3X VW3A9506 438.00
ATV61/71HD22N4, ATV61/71HU30Y...HD30Y
ATV61/71HD30N4, HD37N4 VW3A9507 469.00
ATV61/71HD30M3X..HD45M3X VW3A9508 469.00
ATV61/71HD45N4...HD75N4, ATV61/71HD37Y...HD90Y VW3A9509 477.00
ATV61HD55M3X...HD75M3X
ATV61HD90N4...HC11N4 VW3A9510 500.00
ATV71HD55M3X, ATV71HD90N4
ATV61HD90M3X, ATV61HC13N4 VW3A9511 667.00
ATV71HD75M3X, ATV71HC11N4
ATV61HC16N4, ATV61HC20Y, ATV61/71HC11Y...HC16Y,
ATV71HC13N4 VW3A9512 1053.00
ATV61HC22N4, ATV71HC16N4 VW3A9513 1053.00
ATV61HC25N4…HC31N4
ATV61HC40Y
ATV61/71HC25Y, HC31Y
ATV71HC20N4...HC28N4
ATV71HC20Y
VW3A9514 1053.00
ATV61HC25N4…HC31N4 with VW3A7101 braking transistor
ATV61HC40Y
ATV61/71HC25Y, HC31Y
ATV71HC20N4...HC28N4 with VW3A7101 braking transistor
ATV71HC20Y
VW3A9515 1062.00
Type 1
Conduit Kit
Kit includes:
a metal box with conduit knockouts.
The kit provides conduit landing when wall
mounting the drive.
ATV61/71H037M3...HU15M3 VW3A9201 45.00
ATV61/71H075N4...HU22N4
ATV61/71HU22M3...HU40M3 VW3A9202 45.00
ATV61/71HU30N4...HU40N4
ATV61/71HU55M3 VW3A9203 45.00
ATV61/71HU55N4, HU75N4
ATV61/71HU75M3 VW3A9204 45.00
ATV61/71HD11N4
ATV61/71HD11M3X..HD15M3X VW3A9205 45.00
ATV61/71HD15N4, HD18N4
ATV61/71HD18M3X..HD22M3X
VW3A9206 65.00ATV61/71HD22N4
ATV61/71HU30Y...HD30Y
ATV61/71HD30N4, HD37N4 VW3A9207 65.00
ATV61/71HD30M3X..HD45M3X VW3A9217 85.00
ATV61/71HD45N4..HD75N4 VW3A9208 135.00
ATV61/71HD37Y...HD90Y
ATV61HD55M3X...HD75M3X
ATV61HD90N4...HC11N4 VW3A9209 460.00
ATV71HD55M3X, ATV71HD90N4, ATV61HC11N4
ATV61HD90M3X, ATV61HC13N4 VW3A9210 553.00
ATV71HD75M3X, ATV71HC11N4
ATV61HC16N4, ATV71HC13N4
VW3A9211 573.00ATV61/71HC11Y...HC16Y
ATV61HC20Y
ATV61HC22N4, ATV71HC16N4 VW3A9212 588.00
ATV61HC25N4...HC31N4
ATV71HC20N4...HC28N4
VW3A9213 604.00
ATV71HC20Y
ATV61/71HC25Y, HC31Y
ATV61HC40Y
ATV61HC25N4...HC31N4 with VW3A7101 braking transistor
ATV71HC20N4...HC28N4 with VW3A7101 braking transistor
VW3A9214 604.00
ATV71HC20Y
ATV61/71HC25Y, HC31Y
ATV61HC40Y
Profibus
Option Card
Cover
Type 1 cover for Profibus Option Card
230 V Drive controllers 480 V Drive controllers
ATV61H••••aATV71H••••aATV61H••••aATV71H••••a
075M3 037M3 075N4 075N4
VW3A9201PF 101.00U15M3 075M3 U15N4 U15N4
— U15M3 U22N4 U22N4
U22M3 U22M3 U30N4 U30N4
VW3A9292PF 102.00U30M3 U30M3 U40N4 U40N4
U40M3 U40M3 — —
U55M3 U55M3 U55N4 U55N4 VW3A9203PF 104.00
— — U75N4 U75N4
U75M3 U75M3 D11N4 D11N4 VW3A9204PF 107.00
D11M3X D11M3X D15N4 D15N4 VW3A9205PF 112.00
D15M3X D15M3X D18N4 D18N4
3
4
3
1
1
2
6
5
Flange Kit VW3A9506
CP4C Discount
Schedule
10 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts

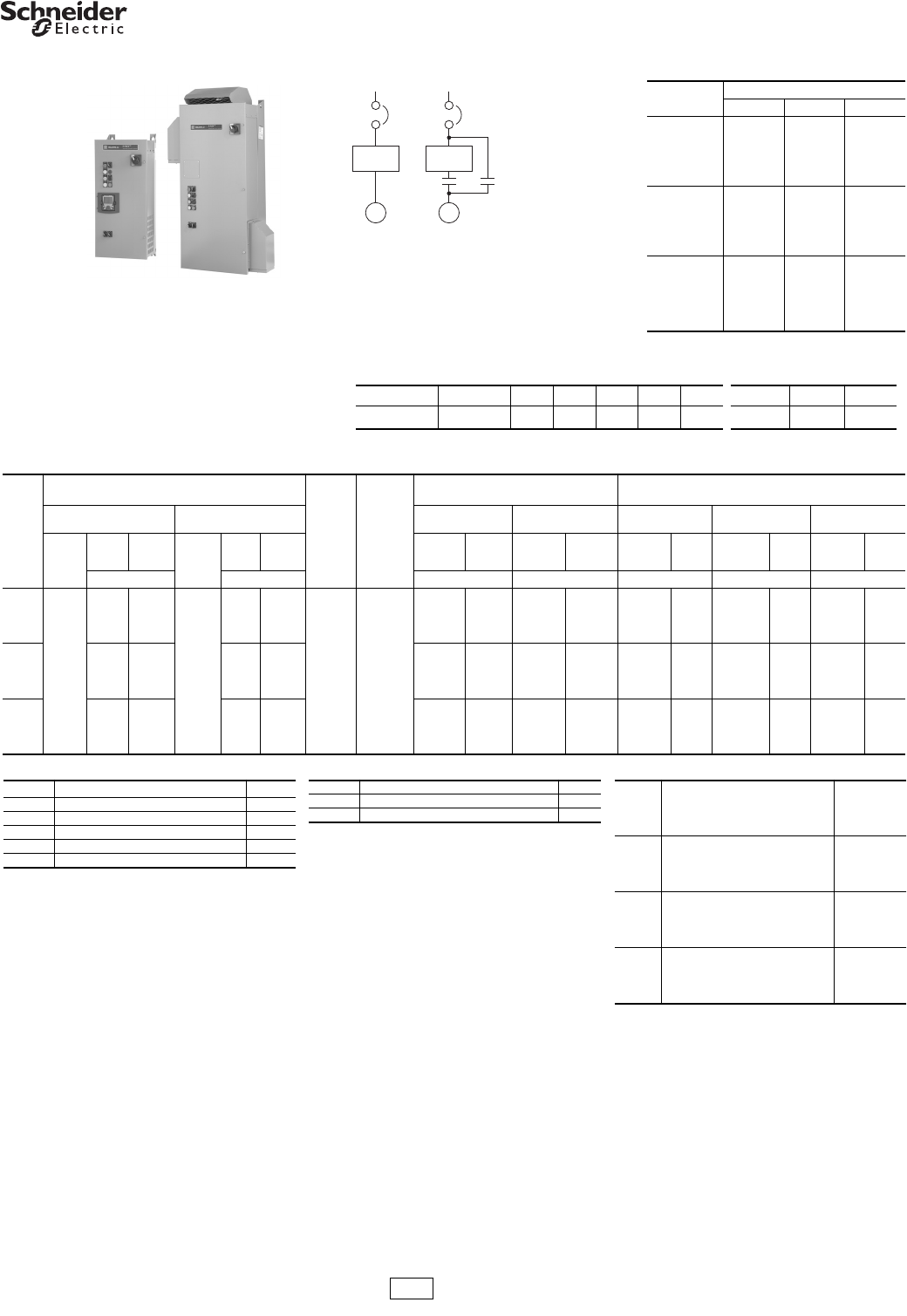

S-Flex™ 212 Enclosed Drive Controllers
Variable Torque AC Drive—208 V, 230 V, and 460 V Ratings
aWhen ordering a unit without bypass, insert a “W” in place of the “Y” in the Catalog Number.
bOptions A07 Disconnect Switch and B07 Line Contactor are available only when a full voltage bypass standard “Y” product is selected. Options A07 and
B07 are mutually exclusive.
aMiscellaneous Options A06, B06, C06, and D06 are mutually
exclusive. Add Misc. Option number to S-Flex 212 catalog number
when ordering communications factory installed.
bFor Modbus control, see the Instruction Manual.
Note: See the Instruction Bulletin for set up instructions.
cCan be downloaded from the internet at http://products.schneider-
electric.us/products-services/products/ac-drives-and-soft-starts/.
S-Flex 212 Enclosed
Drive Controller Type 1
Rated +14 to +140 °F
(-10 to +40 °C)
M
AFC
Power
Circuit Y
M
AFC
Power
Circuit W
Table 7: S-Flex™ 212 Enclosed Drive Controller Selection and Pricing
Input Line
Voltage HP kW
Output Current
Catalog
Number
Standard
Product List
$ Price
Options
Without
Bypass Disc Switch Line
Contactor
AMOD W
Price $a
MOD A07
Price $b
MOD B07
Price $b
208 Vac
Three-phase
1 0.75 4.8 SFD212CG2Y 1402.00 1048.00 1584.00 1480.00
2 1.5 7.8 SFD212DG2Y 1501.00 1123.00 1689.00 1585.00
3 2.2 11 SFD212EG2Y 1593.00 1193.00 1784.00 1682.00
5 4 17.5 SFD212FG2Y 1789.00 1342.00 1992.00 1889.00
7.5 5.5 25.3 SFD212GG2Y 1957.00 1468.00 2177.00 2066.00
10 7.5 32.2 SFD212HG2Y 2253.00 1700.00 2478.00 2378.00
15 11 48.3 SFD212JG2Y 2758.00 2089.00 3023.00 2886.00
20 15 62.1 SFD212KG2Y 3169.00 2389.00 3476.00 3316.00
25 18.5 78.2 SFD212LG2Y 3865.00 2910.00 4240.00 4044.00
30 22 92 SFD212MG2Y 4705.00 3542.00 5171.00 4950.00
40 30 120 SFD212NG2Y 5920.00 4911.00 6370.00 6294.00
230 Vac
Three-phase
1 0.75 4.2 SFD212CG3Y 1402.00 1048.00 1584.00 1480.00
2 1.5 6.8 SFD212DG3Y 1501.00 1123.00 1689.00 1585.00
3 2.2 9.6 SFD212EG3Y 1593.00 1193.00 1784.00 1682.00
5 4 15.2 SFD212FG3Y 1789.00 1342.00 1992.00 1889.00
7.5 5.5 22 SFD212GG3Y 1957.00 1468.00 2177.00 2066.00
10 7.5 28 SFD212HG3Y 2253.00 1700.00 2478.00 2378.00
15 11 42 SFD212JG3Y 2758.00 2089.00 3023.00 2886.00
20 15 54 SFD212KG3Y 3169.00 2389.00 3476.00 3316.00
25 18.5 68 SFD212LG3Y 3865.00 2910.00 4240.00 4044.00
30 22 80 SFD212MG3Y 4705.00 3542.00 5171.00 4950.00
40 30 104 SFD212NG3Y 5920.00 4911.00 6370.00 6294.00
460 Vac
Three-phase
1 0.75 2.1 SFD212CG4Y 1250.00 880.00 1314.00 1289.00
2 1.5 3.4 SFD212DG4Y 1317.00 928.00 1384.00 1358.00
3 2.2 4.8 SFD212EG4Y 1419.00 1000.00 1491.00 1463.00
5 4 7.6 SFD212FG4Y 1554.00 1095.00 1633.00 1602.00
7.5 5.5 11 SFD212GG4Y 1690.00 1190.00 1776.00 1742.00
10 7.5 14 SFD212HG4Y 1892.00 1333.00 1988.00 1950.00
15 11 21 SFD212JG4Y 2227.00 1624.00 2361.00 2296.00
20 15 27 SFD212KG4Y 2709.00 2060.00 2909.00 2864.00
25 18.5 34 SFD212LG4Y 3229.00 2455.00 3467.00 3409.00
30 22 40 SFD212MG4Y 3749.00 3037.00 3956.00 3903.00
40 30 52 SFD212NG4Y 4359.00 3641.00 4600.00 4538.00
50 37 65 SFD212PG4Y 5347.00 4545.00 5643.00 5567.00
60 45 77 SFD212QG4Y 6257.00 5444.00 6603.00 6514.00
75 55 96 SFD212RG4Y 7102.00 6392.00 7527.00 7379.00
100 75 124 SFD212SG4Y 8097.00 7293.00 8581.00 8413.00
Table 8: Miscellaneous Optionsa
Description Option Number $ Price
BACnet Factory Set Up A06 50.00
LonWorks®Communication Card B06 375.00
Metasys®N2 Factory Set Up C06 50.00
Apogee®FLN P1 Factory Set Up D06 50.00
LCD Text Keypad D07 250.00
Seismic Qualification S07 215.00
Table 9: Accessories
Description Catalog Number $ Price
Altivar 212
PCSoft Test and Commissioning Software.
For use with Microsoft Windows™ 95, 98, NT,
XP, and Vista operating systems for PCs only.
(Cable not included.)
Download from www.schneider-electric.us.
VW3A2104cN/C
PC Cable for Test and Commissioning
Software
Includes 3-meter (9.8 ft.) cable,
RS-485/RS-232C adaptor, and connectors
VW3A8106 75.00
USB to RJ45 Adaptor Kit
For use in connecting to a PC with a USB port TCSMCNAM3M002P 52.00
EZ-M Mounting Channel, 72 in. length EZM72MC 42.00
CP4D Discount
Schedule
All S-Flex 212 Enclosed Drives are supplied with:
•Altivar™ 212 power converter
•Square D™ circuit breaker disconnect (Power Fuses for 460 V
version only)
•UL 508C coordinated short circuit rating for 100,000 A
•Adjustable Frequency Controller-Off-Bypass selector switch
•Local/Remote configurable on controller
•Power On red LED
•Bypass Run green LED
•Fire/Freezestat interlock for Adjustable Frequency Drive and
Bypass mode
•Form C Adjustable Frequency Controller fault auxiliary contact
•Modbus RJ-45 communication port
•Smoke Purge Function
•Bypass Run Auxiliary Contact
•Drive Run Auxiliary Contact
•Full Voltage Bypass Power Circuit with overload relay
•120 Vac fused control power transformer
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
11
Pricing Guide AC Drives and Soft Starts
E-Flex™ Enclosed Drive Controllers – Class 8839
Variable Torque AC Drive—208, 230 V, and 460 V Ratings
Note: Standard packages are rated 100 k AIC
aControl Option C07 (Start-Stop, Speed Potentiometer)
is not compatible with Power Circuit Y Bypass or Light
Option A08 or B08.
bLight Options A08, B08 and C08 cannot be selected
together. Select only one.
cLight Option B08 (Power On, Run, Fault, Bypass) is not
compatible with Power Circuit W Without Bypass.
dMisc. Option B09 Line Contactor is not compatible with
Power Circuit W (Without Bypass).
eMisc. Option E09 Smoke Purge (Fireman’s Override)
permits motor to run at full speed.
fHand–Off—Auto switch must be placed in off position
for AFC fault reset.
gWhen Power Circuit Y Bypass selected, AFC–Off–
Bypass switch and Test–Normal switch is supplied.
hWhen communication options are selected, Control
Option D07 or E07 must be selected for control.
iMisc. Option C09 3–15 PSI Transducer is not
compatible with Control Options C07, D07 or E07, J09
0–10 Vdc Auto Speed Reference Option, H09 I/O
Extension Card, F09, L09, M09, O09, P09, Q09, R09
Serial Communication Cards.
jMisc. Option H09 I/O Extension Card is not compatible
with C09 3–15 PSI Transducer.
kMisc. Option J09 input programmed for 0–10 Vdc is not
compatible with Control Options C07, D07 or E07
Control Options or Misc. Option C09 3–15 PSI
Transducer.
lOmit the Keypad Option D09 from Enclosure Door. User
must buy a separate device to program the controller
inside.
mSerial Communication Options F09, L09, M09, O09,
P09, Q09, R09 cannot be selected together. Select only
one. Control Option D07 or E07 must be selected for
monitoring and control with Serial Communication
Options.
nLight Option A08 is compatible with Control Options
A07, B07, D07 and E07.
oMisc. Option S09 End Damper Control is not compatible
with Control Options D07 Hand–Off–Comm, Speed Pot.
Or E07 Hand–Off–Comm, Start–Stop, Speed Pot.
pMisc. Option B09 Line Contactor is not compatible with
Type 3R Enclosure.
qOption T09 service entrance rating and K09 (cUL) are
mutually exclusive. T09 only available in Type 3R
enclosures.
rT09 not available on 460 V (1–7.5 hp) and 208/230 V
(1–5 hp).
NOTE: Order part numbers by using the
Product Selectors.
E-Flex devices are supplied with:
•Circuit breaker as the overcurrent protective
device (OCPD) and have a coordinated short
circuit current rating of 100,000 A symmetrical.
•Equivalent 3% DC choke is standard. Option A09
replaces DC choke with 5% line reactor.
•Fire/Freezestats interlock locations wired to
customer terminal strip
•One Form C AFC run mode contact
•One Form C AFC fault contact
•Circuit Breaker Disconnect
•Analog Output terminals on terminal strip (A01
and COM)
•Modbus and CANopen communications built into
Drive. Modbus Uni-Telway card option provides
Modbus ASCII and 4 wire RS485 functions.
•Speed Potentiometer as part of keypad or
separately mounted on the enclosure door.
HP Output Amperes
208 V 230 V 460 V
1 4.6 4.2 2.1
2 7.5 6.8 3.4
3 10.6 9.6 4.8
5 16.7 15.2 7.6
7.5 24.2 22 11
10 30.8 28 14
15 46.2 42 21
20 59.4 54 27
25 74.8 68 34
30 88 80 40
40 114 104 52
50 143 130 65
60 — — 77
75 — — 96
100 — — 124
Type 1
Drive Controller
Rated -10 to 40 °C
Type 3R
Drive Controller
Rated -10 to 50 °C
M
AFC
Power
Circuit Y
M
AFC
Power
Circuit W
Class Type Modifications
Control Lights Misc
8839 EFD V A07
1 23456 7 8 9
Table 10: E-Flex™ Selection and Pricing
2
HP
Code
3 Enclosure Type
4
Voltage
Code
5
Application
Type
(Applied
Rating
Code)
6 Device Type 9 Miscellaneous Options
208/230 V 460 V W—Without
Bypass Package
Y—Bypass
Packageg
Mod X09
3% Line Reactor
Mod A09
5% Line Reactor
Mod B09
Line Contactor
G=
Type 1
A=
Type
12K
H=
Type 3R G=
Type 1
A=
Type
12K
H=
Type 3R 208/230 V 460 V 208/230 V 460 V 208/230 V 460 V 208/230 V 460 V 208/230 V 460 V
$ Price $ Price $ Price $ Price $ Price $ Price $ Price
C=1
Included
155.00 1500.00
Included
155.00 1500.00
2 = 208 V
3 = 230 V
4 = 460 V
V=Variable
Torque
1561.00 1530.00 1773.00 1739.00 173.00 173.00 216.00 216.00 50.00 50.00
D=2 155.00 1500.00 155.00 1500.00 1561.00 1653.00 1773.00 1878.00 188.00 188.00 235.00 235.00 50.00 50.00
E=3 155.00 1500.00 155.00 1500.00 1561.00 1791.00 1773.00 2036.00 188.00 188.00 235.00 235.00 60.00 50.00
F=5 155.00 1500.00 155.00 1500.00 1766.00 1928.00 2007.00 2191.00 202.00 202.00 253.00 253.00 70.00 50.00
G = 7.5 155.00 1700.00 155.00 1500.00 1887.00 2044.00 2144.00 2323.00 238.00 238.00 298.00 298.00 70.00 60.00
H=10 155.00 1700.00 155.00 1700.00 2183.00 2226.00 2480.00 2578.00 306.00 306.00 382.00 382.00 90.00 70.00
J=15 362.00 2625.00 155.00 1700.00 2838.00 2479.00 3225.00 2817.00 315.00 315.00 394.00 394.00 120.00 78.00
K=20 362.00 2625.00 155.00 1700.00 3621.00 2892.00 4115.00 3286.00 382.00 382.00 478.00 478.00 168.00 90.00
L=25 362.00 2625.00 155.00 1700.00 3694.00 3083.00 4198.00 3503.00 382.00 382.00 478.00 478.00 195.00 120.00
M=30 362.00 3750.00 362.00 2625.00 4635.00 3686.00 5267.00 4189.00 398.00 398.00 497.00 497.00 195.00 120.00
N=40 362.00 3750.00 362.00 2625.00 5850.00 4424.00 6647.00 4800.00 448.00 448.00 560.00 560.00 252.00 168.00
P=50 362.00 3750.00 516.00 2625.00 7316.00 5222.00 8314.00 5934.00 583.00 583.00 729.00 729.00 364.00 195.00
Q=60 — — 516.00 3750.00 —6604.00 —7505.00 —583.00 —729.00 —195.00
R=75 — — 516.00 3750.00 —7372.00 —8378.00 —649.00 —811.00 —252.00
S = 100 — — 516.00 3750.00 —8908.00 —10122.00 —777.00 —971.00 —364.00
7 Control Options
A07fn Hand-Off—Auto, Speed Pot. Included
B07fHand-Off—Auto, Start-Stop, Speed Pot. 100.00
C07aStart-Stop, Speed Pot. 75.00
D07fh Hand-Off-Comm, Speed Pot. N/C
E07fh Hand-Off-Comm, Start-Stop, Speed Pot. 100.00
N07 No operators; wired for remote operation -100.00
8 Light Options
A08bn Power On, Run, Fault, Auto Lights 80.00
B08bc Power On, Run, Fault, Bypass Lights 80.00
C08bPower On, Run, Fault Lights 65.00
9 Miscellaneous Options
A09 5% Line Reactor option See Above
B09dp Line Contactor See Above
C09i3–15 PSI Transducer 180.00
D09lOmit Keypad -40.00
E09eSmoke Purge (Fireman’s Override) 80.00
F09mProfibus DP 400.00
H09jI/O Extension Card, 0–20 mA Output 150.00
J09kInput programmed for 0–10 Vdc N/C
K09 cUL Listing Certification 140.00
L09mLonWorks®Card 400.00
M09mModbus™ / Uni-Telway™ Card 165.00
O09mApogee®P1 Card 165.00
P09mMetasys®N2 Card 165.00
Q09mEthernet TCP/IP 165.00
R09mBACnet Card 165.00
S09oEnd Damper Control 115.00
T09qr Service entrance rating 185.00
U09 Seismic Qualification 215.00
V09 Ethernet/IP™ Card 275.00
X09 3% Line Reactor option See Above
CP4C Discount
Schedule
12 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products

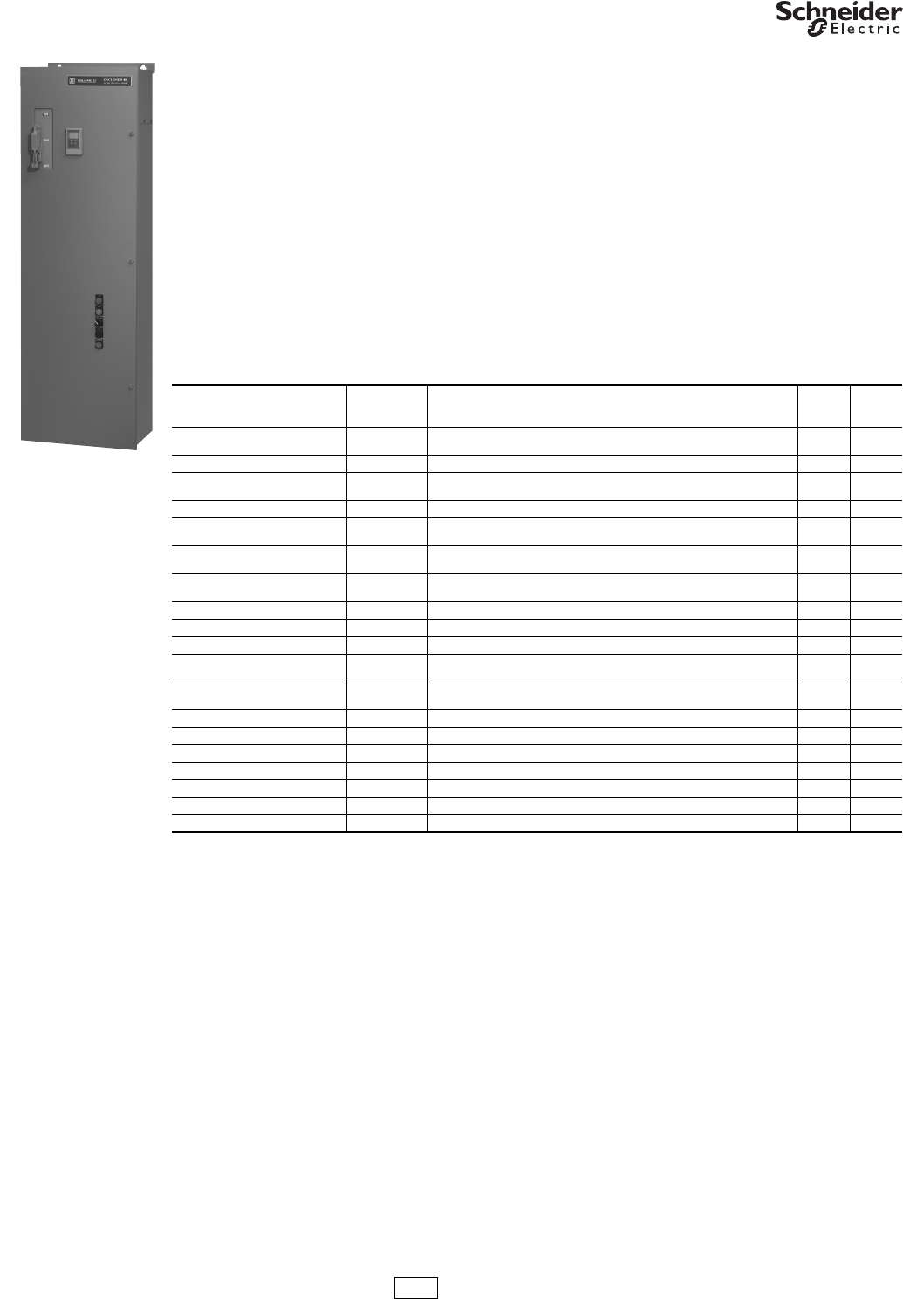

M-Flex™ Enclosed Drive Controllers
General Information
M-Flex™ enclosed adjustable frequency AC drive controllers are designed for industrial, commercial and municipal
process applications, where high functionality of features is required. Each M-Flex enclosed drive offers a platform of
standard, engineered and special features to meet the most demanding application and specification requirements.
M-Flex enclosed drive controllers are low voltage products in the following ratings:
Constant torque (Heavy duty ratings—150% current limit)
•Altivar™ 71 power converter
•1 to 450 hp, 460 V
•1 to 40 hp, 208/230 V
Variable torque (Light duty ratings—110% current limit)
•Altivar 61 power converter
•1 to 500 hp, 460 V
•1 to 50 hp, 208/230 V
Application Data
The table below outlines typical application characteristics with load requirements and should be used as a guideline
only. This information should be confirmed by the responsible system designer for a designated installation.
aPotential impact load.
b> 150% torque.
c100 to 150% torque.
d< 100% torque.
Application Speed-Torque
Relationship Breakaway Torque
Agitators
Liquid Variable TorqueaModeratec
Slurry Variable TorqueaModeratec
Blowers
Centrifugal Variable Torque Lowd
Positive Displacement Constant Torque Low (Unloaded)d
Calendars Constant Torque Lowd
Card Machines Constant Torque Moderatec
Centrifuges Constant Torque Moderatec
Chippers Constant TorqueaHighb
Compressors
Axial-Centrifugal Variable Torque Lowd
Reciprocating Constant TorqueaModeratec
Rotary Constant Torque Moderatec
Conveyors
Belt Constant Torque Moderatec
Screw Constant TorqueaHighb
Shaker Constant TorqueaModeratec
Cranes
Bridge Constant Torque Moderatec
Trolley Constant Torque Moderatec
Hoist Constant Torque Moderatec
Crushers Constant TorqueaHighb
Drill Presses Constant Horsepower Moderatec
Elevators Constant Torque Moderatec
Extruders Constant Torque Moderatec
Fans-Centrifugal Variable Torque Lowd
Frames-Spinning Constant Horsepower Lowd
Grinders Constant Horsepower Moderatec
Kiln Constant Torque Highb
Looms Constant Torque Moderatec
Lathes Constant HorsepoweraModeratec
Application Speed-Torque
Relationship Breakaway Torque
Machines
Boring Constant Torque Moderatec
Bottling Constant Torque Moderatec
Milling Constant HorsepoweraModeratec
Mills
Rolling Constant TorqueaModeratec
Rubber Constant TorqueaModeratec
Mixers
Chemical Constant Torque Highb
Dough Constant Torque Highb
Slurry Constant Torque Highb
Planers Constant Torque Moderatec
Plows-Conveyor Constant Torque Moderatec
Presses
Printing Constant Torque Moderatec
Punch Constant TorqueaModeratec
Pullers-Car Constant Torque Moderatec
Pumps
Centrifugal Variable Torque Lowd
Positive Displacement Constant Torque Moderatec
Slurry Constant Torque Highb
Roll Benders Constant Torque Moderatec
Sanders Constant Torque Lowd
Saws Constant TorqueaModeratec
Shakers Constant TorqueaHighb
Shears Constant TorqueaLowd
Tension Drives Constant Horsepower Moderatec
Tool Machines Constant Horsepower Moderatec
Walkways Constant Torque Lowd
Winches Constant Torque Moderatec
Winders Constant Horsepower Moderatec
Washers Constant Torque Moderatec
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
13
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Product Selection
To select an M-Flex™ enclosed drive controller, identify the basic drive and optional devices by Class, Type,
Modifications (MODS, E-MODS) and Special Features as required to create the catalog number shown below. In all
cases, Q2C/Product Selectors are preferred to price enclosed drives.
Contact Seneca TAG for pricing assistance with special features if required. Features highlighted in gray within this
selection are ENGINEERED and require special handling by factory personnel in lieu of system supported features.
NOTE: Type 12/12K pending UL approval of new UL 508C Section 9.6 testing requirements for insulation materials
and is subject to availability and Q2C/Product Selector support.
Standard M-Flex Features
•Type 12/12K dust/drip proof enclosure ratings
•Circuit Breaker Disconnect
•3% AC line reactor
•UL listed to UL 508C Power Conversion Equipment
•100,000 A symmetrical short circuit rating
•Heavy duty industrial disconnect handle with lockout/tag-out
provisions
•Hand-Off-Auto selector switch and manual speed
potentiometer
•0–10 Vdc and 4–20 mAdc speed reference input
•0–10 Vdc or x-y mAdc programmable output
•Door mounted graphic display terminal
•Auto Start Relay (120 Vac control)
•One Form ‘C’ AFC Run mode contact
•One Form ‘C’ AFC Fault contact
•Remote fault condition reset in AUTO mode with transition of
auto start contact
•Manual fault condition reset in OFF position of H-O-A selector
switch
•Safety interlock/Run permissive wired to customer terminal
strip
•Permanent wire markings
•White component mounting plate
•Conduit knockouts on top and bottom for wall mounted
enclosures
•Removable conduit entry plates on top and bottom for floor
mount enclosures
•ANSI #49 gray enclosure
•Class 10 electronic overload protection
•Custom wiring diagrams
Isolation/Bypass Standard Features
•Class 20 overload protection with door mounted reset
•AFC-Off-Bypass selector switch
•Test-Normal selector switch
•AC3 duty rated isolation and bypass contactors
(with mechanical and electrical interlocking)
•Bypass and isolation contactor sequencing provides true motor
isolation
•Remote automatic bypass operation using Auto Start Relay
•Custom wiring diagrams
CLASS 8839 TYPE MFD N G 4 V W MODS A07, H10, E301, SPL SERIES A
Series Designation
A = Altivar™ 61/71
Power converter platform
Combination Device
8839 = Circuit Breaker Type
Product Code (Prefix)
MFD = M-Flex Controller
Modifications (120+ Options)
A07 = Hand-Off-Auto selector switch
with manual speed potentiometer
H10 = Seismic qualified
E301 = ANSI #61 enclosure paint
SPL = Special features (specified)
Horsepower Rating
C=1hp Q=60hp
D=2hp R=75hp
E=3hp S=100hp
F=5hp T=125hp
G = 7.5 hp U = 150 hp
H=10hp W=200hp
J=15hp X=250hp
K=20hp Y=300hp
L=25hp Z=350hp
M=30hp 4=400hp
N=40hp 5=450hp
P=50hp 6=500hp
Power Circuit Type
R = Barriered Bypass – RVAT
S = Barriered Bypass – Soft Start
T = Isolation & transfer
W = Combination device (Drive only)
Y = Integrated bypass (IEC)
Z = Barriered bypass – Full Voltage
Application Type
C = Constant torque
(Heavy duty – 150% current limit)
V = Variable torque
(Light duty – 110% current limit)
Enclosure Environmental Rating
G = Type 1 general purpose
A = Type 12/12K dust/drip proof
B = Type 1 Filtered
Voltage Code
2 = 208 V, 60 Hz
3 = 230/240 V, 60 Hz
4 = 460/480 V, 60 Hz
14 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
aFactory engineered products—dimensions subject to design
modifications.
Table 11: Pricing – Constant Torque
HP
Reference
Code
HP
Ratings
Controller
Output
Current
Enclosure
Frame Size
Price—Power Circuits (Type 1 General Purpose Enclosures)
Constant Torque—Heavy Duty Rating (150% Current Limit)
Power
Circuit W:
Combination
DIsconnect
(Drive Only)
$ Price
Power
Circuit Y:
IEC Integrated
Isolation/
Bypass
$ Price
Power
Circuit S:
Soft Start
Isolation/
Bypassa
$ Price
Power
Circuit Z:
Full Voltage
Barriered
Isolation/Bypass
$ Price
Power
Circuit T:
Separate
Starter
Isolation/Transfera
$ Price
Power
Circuit R:
RVAT
Isolation/Bypassa
$ Price
208/230 V
C 1 4.6 A
C
4163.00 4730.00 N/A 5760.00 4730.00 N/A
D 2 7.5 A 4189.00 4760.00 N/A 5790.00 4760.00 N/A
E 3 10.6 A 4498.00 5111.00 N/A 6141.00 5111.00 N/A
F 5 16.7 A 4891.00 5218.00 N/A 6248.00 5218.00 N/A
G 7.5 24.2 A D5598.00 6247.00 N/A 7277.00 6247.00 N/A
H 10 30.8 A 6078.00 6906.00 N/A 7936.00 6906.00 N/A
J 15 46.2 A
E
6799.00 7725.00 N/A 8965.00 7725.00 N/A
K 20 59.4 A 8270.00 10175.00 N/A 11415.00 10175.00 N/A
L 25 74.8 A 9342.00 12932.00 N/A 14682.00 12932.00 N/A
M3088A F11129.00 14895.00 N/A 16645.00 14895.00 N/A
N 40 114 A 14379.00 16339.00 N/A 18799.00 16339.00 N/A
460 V
C 1 2.1 A
C
3753.00 4909.00 N/A 5939.00 4909.00 N/A
D 2 3.4 A 3985.00 5120.00 N/A 6150.00 5120.00 N/A
E 3 4.8 A 4343.00 5557.00 N/A 6587.00 5557.00 N/A
F 5 7.6 A 4829.00 6037.00 N/A 7067.00 6037.00 N/A
G 7.5 11 A 5778.00 6767.00 N/A 7797.00 6767.00 N/A
H 10 14A 6465.00 7333.00 N/A 8363.00 7333.00 N/A
J1521A 7053.00 8416.00 N/A 9656.00 8416.00 N/A
K2027A 8140.00 9250.00 N/A 10490.00 9250.00 N/A
L2534A 9594.00 11441.00 N/A 13191.00 11441.00 N/A
M3040A
E
11228.00 13351.00 N/A 15101.00 13351.00 N/A
N4052A 13071.00 14854.00 20594.00 17314.00 14854.00 21194.00
P5065A 15326.00 17416.00 24566.00 22086.00 17416.00 25656.00
Q6077A
F
17344.00 19709.00 27659.00 24379.00 19709.00 32009.00
R7596A 20130.00 22875.00 31325.00 27545.00 22875.00 35175.00
S 100 124 A 24200.00 31540.00 40540.00 34180.00 31540.00 43840.00
T 125 156 A H 28400.00 36050.00 46500.00 38740.00 36050.00 56250.00
U 150 180 A
I
34000.00 41990.00 53790.00 44740.00 41990.00 62190.00
W 200 240 A 39200.00 53590.00 66740.00 56430.00 53590.00 73790.00
X 250 302 A 46000.00 N/A 76130.00 64190.00 61230.00 81430.00
Y 300 361 A
J
52000.00 N/A 83800.00 71560.00 68450.00 106150.00
Z 350 414 A 59200.00 N/A 94920.00 80480.00 77170.00 114870.00
4 400 477 A 67600.00 N/A 108130.00 91710.00 88030.00 125730.00
5 450 515 A 76390.00 N/A 121880.00 102010.00 98080.00 135780.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
15
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
aFactory engineered products – dimensions subject to design modifications.
Table 12: Pricing – Variable Torque
HP
Reference
Code
HP
Ratings
Controller
Output
Current
Enclosure
Frame
Size
Price—Power Circuits (Type 1 General Purpose Enclosures)
Variable Torque—Light Duty Ratings (110% Current Limit)
Power
Circuit W:
Combination
DIsconnect
(Drive Only)
$ Price
Power
Circuit Y:
IEC Integrated
Isolation/
Bypass
$ Price
Power
Circuit S:
Soft Start
Isolation/
Bypassa
$ Price
Power
Circuit Z:
Full Voltage
Barriered
Isolation/Bypass
$ Price
Power
Circuit T:
Separate
Starter
Isolation/Transfera
$ Price
Power
Circuit R:
RVAT
Isolation/Bypassa
$ Price
208/230 V
C 1 4.6 A
C
4068.00 4623.00 N/A 5653.00 4623.00 N/A
D 2 7.5 A 4163.00 4730.00 N/A 5760.00 4730.00 N/A
E 3 10.6 A 4189.00 4760.00 N/A 5790.00 4760.00 N/A
F 5 16.7 A 4498.00 5111.00 N/A 6141.00 5111.00 N/A
G 7.5 24.2 A D4891.00 5218.00 N/A 6248.00 5218.00 N/A
H 10 30.8 A 5598.00 6247.00 N/A 7277.00 6247.00 N/A
J 15 46.2 A
E
6078.00 6906.00 N/A 7936.00 6906.00 N/A
K 20 59.4 A 6799.00 7725.00 N/A 8965.00 7725.00 N/A
L 25 74.8 A 8270.00 10175.00 N/A 11415.00 10175.00 N/A
M3088AF9342.00 12932.00 N/A 14682.00 12932.00 N/A
N 40 114 A 11129.00 14895.00 N/A 16645.00 14895.00 N/A
460 V
C 1 2.1 A
C
3528.00 4646.00 N/A 5676.00 4646.00 N/A
D 2 3.4 A 3753.00 4909.00 N/A 5939.00 4909.00 N/A
E 3 4.8 A 3985.00 5120.00 N/A 6150.00 5120.00 N/A
F 5 7.6 A 4343.00 5557.00 N/A 6587.00 5557.00 N/A
G 7.5 11 A 4829.00 6037.00 N/A 7067.00 6037.00 N/A
H1014A 5778.00 6767.00 N/A 7797.00 6767.00 N/A
J1521A 6465.00 7333.00 N/A 8363.00 7333.00 N/A
K2027A 7053.00 8416.00 N/A 9656.00 8416.00 N/A
L2534A 8140.00 9250.00 N/A 10490.00 9250.00 N/A
M3040A
E
9594.00 11441.00 N/A 13191.00 11441.00 N/A
N4052A 11228.00 13351.00 19091.00 15101.00 13351.00 19781.00
P5065A 13071.00 14854.00 22004. 00 17314.00 14854.00 23094.00
Q6077A
F
15326.00 17416.00 25366.00 22086.00 17416.00 29716.00
R7596A 17344.00 19709.00 28159.00 24379.00 19709.00 32009.00
S 100 124 A 20130.00 22875.00 31875.00 27545.00 22875.00 35175.00
T 125 156 A H 24200.00 31540.00 41990.00 34180.00 31540.00 51740.00
U 150 180 A
I
28400.00 36050.00 47850.00 38740.00 36050.00 56250.00
W 200 240 A 34000.00 41990.00 55140.00 44740.00 41990.00 62190.00
X 250 302 A 39200.00 N/A 68490.00 56430.00 53590.00 91290.00
Y 300 361 A
J
46000.00 N/A 76580.00 64190.00 61230.00 98930.00
Z 350 414 A 52000.00 N/A 86200.00 71560.00 68450.00 106150.00
4 400 477 A 59200.00 N/A 97270.00 80480.00 77170.00 114870.00
5 450 515 A 67600.00 N/A 111830.00 91710.00 88030.00 125730.00
6 500 590 A 76390.00 N/A 121880.00 102010.00 98080.00 162580.00
Table 13: Type 12 & 1G Environment Adders
Constant Torque Variable Torque
A = Type 12
(Dust/Drip)
$ Price
B=Type1G
(Gasket)
$ Price
HP @ 208/230 V
1–10 hp 1–10 hp 349.00 N/A
15–40 hp 15–50 hp 749.00 N/A
HP @ 460 V
1–20 hp 1–25 hp 349.00 N/A
25–40 hp 30–50 hp 749.00 N/A
50–75 hp 60–100 hp 949.00 N/A
100–450 hp 125–500 hp N/A 557.00
CP4C Discount
Schedule
16 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
aIntegrated bypass for 125 hp offered in 20" wide section adder (45" total width). Barriered bypass offered in 25" wide section adder (50" total width)—
standard product configuration
bIntegrated bypass for 150–200 hp offered in 20" wide section adder (50" total width). Barriered bypass offered in 25" wide section adder (55" total width)—
standard configuration
cIntegrated bypass for 250 hp offered in 20" wide section adder (50" total width). Barriered bypass offered in 30" wide section adder (60" total width)—
factory engineered configuration
dIntegrated bypass for 300–400 hp not available. Barriered bypass offered in 30" wide section adder (65" total width)—factory engineered configuration
eIntegrated bypass for 450–500 hp not available. Barriered bypass offered in 35" wide section adder (70" total width)—factory engineered configuration
Operator Control Device Options
Door mounted operator controls provide dedicated control for commanding operation of the power converter functions.
Select only one.
aControl option defined by default.
bAvailable only with Power Circuit W.
cProvides control and monitoring capabilities when supplied with any communication card.
Table 14: Dimensions
M-Flex™ Enclosed AC Drives Class 8839 Type MFD – With or Without Options Dimensions Weights Construction Data
HP/Voltage (VT) HP/Voltage (CT) Power Circuit
Configuration
Enclosure
Size
Height
(In)
Width
(In)
Depth
(In) lbs.
Wall or
Floor
Mount
Environment
Rating
Operating
Handle
1–25 hp @ 460 V 1–20 hp @ 460 V
Power Circuit W
Combination
Device or Power
Circuit &
Integrated Bypass
C 49.00 20 14.81 175 Wall
Type1or Type
12/12K
3" Metal
Rotary
1–5 hp @ 208/230 V 1–5 hp @ 208/230 V
7.5–10 hp @ 208/230 V 7.5–10 hp @ 208/230 V D 63.00 25 14.81 243 Wall
30–50 hp @ 460 V 25–40 hp @ 460 V E 93.87 20 20.38 170.5
Floor
Mount
6" Metal
Rotary
15–25 hp @ 208/230 V 15–20 hp @ 208/230 V
60–100 hp @460 V 50–75 hp @460 V F 93.87 25 20.38 249.1
30–50 hp @ 208/230 V 25–40 hp @ 208/230 V
1–25 hp @ 460 V 1–20 hp @ 460 V
Power Circuits
Z,S,TorR
Barriered Designs
with 2
Disconnects
Barriered C/D 93.87 20 20.38 379 3" Metal
Rotary
1–10 hp @ 208/230 V 1–10 hp @ 208/230 V
30–50 hp @ 460 V 25–40 hp @ 460 V Barriered E 93.87 25 20.38 512
6" Metal
Rotary
15–25 hp @ 208/230 V 15–20 hp @ 208/230 V
60–100 hp @ 460 V 50–75 hp @ 460 V Barriered F 93.87 30 20.38 684
30–50 hp @ 208/230 V 25–40 hp @ 208/230 V
125 hp @ 460 V 100 hp @ 460 V Power Circuit Wa25" Wide
Relay Section 94.58 25 20 489
Type1or Type
1G Filtered Flange150–250 hp @ 460 V 125–200 hp @ 460 V Power Circuit
Wbc
30" Wide
Relay Section 94.58 30 20 657
300–500 hp @ 460 V 250–450 hp @ 460 V Power Circuit
Wde
35" Wide
Relay Section 94.58 35 20 969
MOD Description $ Price
Hand-Off-Auto selector switch with manual speed potentiometera
A07
Provides a three position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The
speed may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed
potentiometer. The Off position will stop the motor. The Off position is also used to reset drive controller faults.
—
Hand-Off-Auto selector switch, Start/Stop push-buttons with manual speed potentiometer
B07
Provides a three-position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The
speed may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed
potentiometer. In the Hand position, Start/Stop push-buttons are use to start and stop the motor using a “three-wire” control strategy. The Off
position will also stop the motor. The Off position is also used to reset drive controller faults
100.00
Start/Stop push-buttons with manual speed potentiometerb
C07 Provides Start/Stop pushbuttons to start and stop the motor using a “three-wire” control strategy. The speed is adjusted by a door mounted
manual speed potentiometer. The drive disconnect is used to reset drive controller faults unless “Fault Reset” (P10) is ordered. 75.00
Start/Stop push-buttons, Forward-Reverse selector switch with manual speed potentiometerb
D07
Provides Start/Stop push-buttons to start and stop the motor using a “three-wire” control strategy. The speed is adjusted by a door mounted
manual speed potentiometer. Motor direction is controlled with a forward –reverse selector switch. The drive disconnect is used to reset drive
controller faults unless “Fault Reset” (P10) is ordered.
200.00
Hand-Off-Auto selector, Local-Remote selector switch with manual speed potentiometer
E07
Provides a three-position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The
speed may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed
potentiometer. The Off position will stop the motor. The Off position is also used to reset drive controller faults.
100.00
Communication-Hand-Off-Auto selector switch with manual speed potentiometerc
F07
Provides a four-position selector switch and manual speed potentiometer door mounted. The Communication-Hand-Off-Auto selector switch
is used to select between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote
contact. The speed may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed potentiometer.
The Off position will stop the motor. The Off position is also used to reset drive controller faults.
250.00
No Door Mounted Operators (wired for remote operation)
N07 No operators are provided on the enclosure door. The customer must provide remote mounted operator controls. Drive controllers are factory
programmed and configured for remote mounted Hand-Off-Auto operation.
Deduct
100.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
17
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Pilot Light Combination Options
Pilot lights are ordered in light groups and door mounted. Pilot light groups are selected with compatible control
options. Pilot lights are all 22 mm long life LED type. Select only one.
aNot available with C07 or D07.
bNot available with Power Circuit W.
cAvailable only with D07 or N07.
dAvailable only with Power Circuit W.
eAvailable only with A07, B07, E07 or N07.
fSupplied with AMR relay.
gAvailable only with F07 or N07.
Option Cards
All communication cards are provided without factory programming. Select only one.
MOD Description $ Price
Power On, Fault, AFC Run, Auto pilot lightsa
A08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run
(green) and auto (yellow). 245.00
Power On, Fault, AFC Run, Bypass pilot lightsb
B08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run
(green) and bypass (yellow). 245.00
Power On, Fault, AFC Run pilot lights
C08 Provides a combination of (3) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow) and AFC
run (green). 185.00
Power On, Fault, AFC Forward, AFC Reverse pilot lightscd
D08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), forward
(green) and reverse (green). 245.00
Power On, Fault, AFC Run, Hand, Auto pilot lightsef
E08 Provides a combination of (5) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run
(green), hand (blue) and auto (yellow). 305.00
Power On, Fault, AFC Run, Communication pilot lightsg
F08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run
(green) and communication (yellow). 245.00
MOD Description $ Price
Modbus™ Plus communication card
A09 Provides a factory installed plug-in Modbus Plus card, VW3A3302. This interface device connects to a Modbus Plus tap. 795.00
Modbus/Uni-Telway™ communication card
B09 Provides a factory installed plug-in Modbus/Uni-Telway card, VW3A3303. 476.00
Johnson Controls Metasys®N2 communication card
C09 Provides a factory installed plug-in Johnson Controls Metasys N2 card, VW3A3313. 476.00
Ethernet TCP/IP communication card
D09 Provides a factory installed plug-in Ethernet TCP/IP card, VW3A3310, with user termination to RJ45 plug-in interface connector. 476.00
LonWorks®communication card
E09 Provides a factory installed LonWorks card, VW3A3312. 795.00
DeviceNet™ communication card
F09 Provides a factory installed DeviceNet card, VW3A3309. 476.00
Profibus DP communication card
G09 Provides a factory installed Profibus DP card, VW3A3307. 795.00
I/O Extension card
H09 Provides a factory installed I/O Extension card, VW3A3202. Adds (2) analog outputs, 4 logic inputs, 2 logic outputs and 1 differential analog
input. 275.00
Siemens Apogee®FLN / P1 communication card
J09 Provides a factory installed Siemens Building Automation Apogee FLN / P1 card, VW3A3314. 476.00
BACnet communication card
K09 Provides a factory installed BACnet card, VW3A3315. 476.00
Interbus®S communication card
L09 Provides a factory installed Interbus S card, VW3A3304. 795.00
FIPIO™ communication card
M09 Provides a factory installed FIPIO card, VW3A3311 (limited availability) 795.00
R09 Ethernet/IP™ Option Card, provides a factory installed Ethernet/IP Card VW3A3316. 476.00
D09 Ethernet TCP/IP Daisy Chain Card, provides a factory installed Ethernet TCP/IP Daisy Chain Card VW3A3310D. 476.00
CP4C Discount
Schedule
18 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Miscellaneous Options
Additional system supported features that provide miscellaneous product modifications.
aAll M-Flex™ enclosed drive controllers include a 3% AC line reactor as standard. The selection of A10 substitutes a 5% line reactor in place of the 3%
AC line reactor.
bAvailable only with Power Circuit Y, unless factory engineered.
cFactory engineered for 125–500 hp ratings.
MOD Description
$ Price
208/230 V 460 V
5% AC line reactora
A10 Provides an integrally mounted, 5% AC line reactor factory-installed and wired between the circuit breaker
disconnect means and the power converter for harmonic mitigation.
1–3 hp 823.00 823.00
5–7.5 hp 949.00 949.00
10–15 hp 1054.00 1000.00
20 hp 1481.00 1000.00
25 hp 1481.00 1518.00
30–40 hp 1761.00 1518.00
50 hp 1938.00 1714.00
60 hp — 1714.00
75 hp — 1839.00
100 hp — 2000.00
125 hp — 2078.00
150 hp — 2291.00
200 hp — 3303.00
250 hp — 3697.00
300 hp — 3806.00
350–400 hp — 4988.00
450–500 hp — 5261.00
Line contactorbc
B10
A line contactor is added between the circuit breaker disconnect (or line reactor or harmonic filter when
provided) and the power converter for bypass configured Power Circuits. With the line contactor, the AFC Fault
light illuminates when the AFC-Off-Bypass selector switch is in the Off or Bypass position to indicate that the
power converter is not running. When the line contactor is open, serial communication is disabled.
1–5 hp 120.00 120.00
7.5–10 hp 197.00 157.00
15 hp 287.00 187.00
20 hp 402.00 213.00
25–30 hp 466.00 287.00
40 hp 601.00 402.00
50 hp 868.00 466.00
60 hp — 466.00
75 hp — 601.00
100 hp — 868.00
125 hp — 1065.00
150 hp — 1275.00
200 hp — 1750.00
250 hp — 2150.00
300 hp — 2750.00
350 hp — 3250.00
400 hp — 3680.00
450 hp — 4185.00
500 hp — 4695.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
19
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Miscellaneous Options (continued)
aNot available with C07 or D07.
bMutually exclusive with J09.
cFactory engineered for 125–500 hp ratings.
dPermanent wire marking is provided as standard.
eNot available with C07, D07 or C10.
fAvailable only with Power Circuits Y, S, Z, R and T.
gAvailable only with Power Circuit W.
hNot available on Fault pilot light if P10 is selected.
iNot available with B07, C07 or D07.
jMutually exclusive with V10 unless F10 is also selected.
kFor 125–500 hp, select E217.
lExclusive with U10 unless F10 is also selected.
MOD Description $ Price
3–15 PSI transducerabc
C10 Allows the controller to follow a user supplied 3–15 PSI input. 450.00
Omit door mounted graphic display terminal
D10 The graphic display terminal is not supplied. To alter the programming of the power converter, the user must buy a graphic display terminal
or PowerSuite™ software to program the drive controller.
Deduct
100.00
Smoke purge relay
E10
Provides a smoke purge operating mode controlled by a user-supplied 120 Vac signal wired to terminal block TB1. Smoke purge operation
is full speed bypass (when provided) or High Speed in the drive controller. This operation is designed run the motor from any operator control
setting except emergency stop or open safety interlocks
225.00
Additional control power VAc
F10
Provides additional control power VA using a larger control transformer (120 Vac) connected to terminal block TB1for customer use.
1–50 hp @ 208/230 V / 1–100 hp @ 460 V—50 VA 290.00
125–500 hp @ 460 V—50 VA 380.00
CSA / cUL certification
G10 Provides a Canadian cUL (or CSA) certification when required by local code requirements. 335.00
Seismic qualified
H10 Supplies a certification label and hardware qualified to seismic rating ICC ES AC156 acceptance criteria test protocol with an importance
factor of 1.5. 425.00
Permanent wire markers (sleeve type)d
I10 Provides permanent wire sleeve type markers on control wiring. 1750.00
0–10 Vdc Auto speed reference (programming)e
J10 Provides a controller interface for 0–10 Vdc user supplied auto speed reference signal to the AI2 input, on terminal block TB2.
The 0–10 V analog input is not isolated, but it does contain noise suppression circuitry and a programmable electronic filter. N/C
1 Additional N.O. auxiliary drive run contactc
K10 Provides 1 additional N.O. contact for drive run indication wired to TB1. 185.00
1 Additional N.C. auxiliary drive fault contactd
L10 Provides 1 additional N.C. contact for drive fault indication wired to TB1. 185.00
1 N.O. Auxiliary bypass run contactcf
M10 Provides 1 additional N.O. contact for bypass run indication wired to TB1. 185.00
1 N.O. Auxiliary auto mode contactac
O10 Provides 1 additional N.O. contact for auto mode indication wired to TB1. 185.00
AFC Fault reset push-button acg
P10 Provides factory installed door-mounted push button to fault reset LI4 on the power converter at terminal TB2 when Hand-Off-Auto is not
supplied. 100.00
Push-to-Test pilot lightsh
Q10 Provides push-to-test function on all pilot lights except Power On. 210.00
Auto transfer to bypassfi
R10
Provides an automatic transfer (time adjustable 0.1–10 s) to bypass in the event that the drive controller faults. A selector switch is provided
inside the enclosure to enable or disable this function. Longer transfer time requirements are available by replacing the plug-in adjustable
timer.
270.00
Motor elapsed time meterc
S10 Provides a dedicated non-resettable elapsed time meter to record the motor run time. Runs whenever the motor is running. 270.00
Emergency stop mushroom head push-button ac
T10 Provides door mounted maintained off emergency stop red mushroom pushbutton with turn-to-reset feature. 127.00
Motor space heater sequencing circuit (light duty)jk
U10 Provides 50 VA/120 V to terminal block TB1 for motor space heater whenever the motor is not running. 400.00
Seal water solenoidcl
V10 Provides 50 VA/120 V to terminal block TB1 for seal water solenoid whenever the motor is running. 400.00
Check valve sequencing circuit (gravity type)c
W10
Provides an automatic shutdown of the drive controller when the user supplied N.C. contact from the check valve limit switch does not open
within 5 seconds after the motor starts. The user limit switch contact connects to terminal block TB1. Circuit provides reset function with an
illuminated (blue) push-button.
520.00
ID engraved nameplates
X10 Provides an engraved laminated nameplate attached to the front door of the enclosure (engraved per user request at time of order). 100.00
CP4C Discount
Schedule
20 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Miscellaneous Options (continued)
aNot available with 1–3 hp controllers.
bMutually exclusive with A10
cFactory engineered for 125–500 hp
aOnly available: 460 V—Constant Torque 300–450 hp. 460 V—Variable Torque 300–500 hp.
MOD Description $ Price
Harmonic filter provisionsabc
Y10
Provides fused output terminals with return terminals for connection of an externally mounted harmonic filter
(provided separately). Class J fuses are provided. 208/230 V 460 V
For 125–500 hp VT units, the standard 3% line reactor is removed due to the line impedance of the
harmonic filter.
CT VT
5–10 hp 5–10 hp 740.00 740.00
15–20 hp 15–25 hp 850.00 850.00
25–40 hp 30–50 hp 960.00 960.00
50–200 hp 60–250 hp N/A 1070.00
250–450 hp 300–500 hp N/A 1515.00
MOD Description $ Price
24 Vdc power supply
Z10 Provides a 24 Vdc, 300 mA power supply at terminal block TB2. 370.00
RFI/EMI suppressor
410 Provides radio frequency interference suppression with ferrite cores which are factory supplied on the power wires ahead of the power
converter. 250.00
MOD Description $ Price
610 100k Circuit Breaker Ratinga2000.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
21
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Engineered Features
Factory orders with engineered features (E-MOD, SPL, etc.) are subject to review by factory personnel and have
longer lead-time availability. Standard M-Flex™ enclosure dimensions may no longer apply to orders containing any
combination of engineered features. In addition, factory orders containing engineered features may carry a UL 508A
(Industrial Control Equipment) label in lieu of a UL 508C (Power Conversion Equipment) label depending on
configuration.
Control Options
The E200 series features cover control circuit option configurations for M-Flex enclosed drive controllers.
E-MOD Description $ Price
Door mounted meters (dedicated displays)ab
Provides a dedicated door mounted meter display, analog or digital
E201 Analog percent speed meter scaled 0 to 120% base speed. 540.00
E202 Analog percent current scaled 0 to 100% of rated output current. 540.00
E203 Digital ammeter (amperes) scaled 0 to 2 times rated output amperes. 630.00
E204 Digital speed meter (frequency) scaled 0 to 72 Hz output frequency. 630.00
E205 Digital percent speed meter scaled 0 to 120% base speed. 630.00
E206 Digital percent current scaled 0 to 100% of rated output current. 630.00
Door mounted RJ45 port
E211 Provides (1) Sixnet RJ45 door mounted 30 mm bulk head connector and internal CAT5 cabling for access via PC with PowerSuite™
software. The RJ45 (Modbus/CANopen) drive port provides customer access through the enclosure door. 325.00
Auxiliary drive run contactscde
E212 Provides (3) Form ‘C’ contacts rated5A@120Vacwired to terminal blocks for customer use. 310.00
Auxiliary bypass run contactsfgh
E213 Provides (3) Form ‘C’ contacts rated5A@120Vacwired to terminal blocks for customer use. 310.00
Auxiliary drive fault contactsci
E214 Provides (3) Form ‘C’ contacts rated5A@120Vacwired to terminal blocks for customer use. 310.00
Auxiliary auto mode contactsjk
E215 Provides (3) Form ‘C’ contacts rated5A@120Vacwired to terminal blocks for customer use. 310.00
Adjustable restart delay timer
E216 Provides an adjustable On Time Delay Relay for power up restart function, mounted and wired for AFC mode (hand or auto) mode
and/or in the bypass mode (hand/auto). 240.00
Motor space heater (heavy duty)
E217 Provides control circuit contacts, 120 Vac, 500 VA supply and fusing wired to terminals for customer use. 1000.00
Signal loss follower alarm relayl
E218
Provides (1) Form ‘C’ contact rated5A@120Vacwired to terminal blocks for customer use. Intended for 4–20 mAdc control loop
applications where upon the loss of input signal it is desired to retain the output signal at the last input signal level. The relay provides an
alarm relay contact for signal loss alert.
360.00
Inhibit/shutdown sequence (timed operation)
E219 Provides a relay circuit operating in the fail safe mode where a remote initiating contact opens the relay, de-energizes and after a specified
time shuts the drive controller down in the AFC mode (hand or auto) and/or in the bypass mode (hand or auto). 580.00
Check valve sequence (motorized type)
E220
Provides relay circuitry sequenced from a check valve limit switch. A valve closed position limit switch will energize relays that will initiate a
remote valve operating solenoid limited to 50 VA and give a run permissive to the drive controller in the AFC mode (hand or auto) and/or in
the bypass mode (hand or auto). A valve closed position limit switch will de-energize a timer relay such that if this relay is not de-energized
within a specified time period, the drive controller will shut down in the AFC mode (hand or auto) and/or in the bypass mode (hand or auto).
710.00
Seal water solenoid—with pressure switch feedback
E221
Provides relay, which will energize a remote seal water solenoid limited to 50 VA during drive controller operation. Additionally, the remote
initiating contact will open the relay, de-energizing and after a specified time shuts the drive controller down in the AFC mode (hand or auto)
and/or in the bypass mode (hand or auto).
1220.00
Moisture detection relay circuit (without relay)m
E222 Provides 24 V or 120 V control power to a customer supplied moisture detection relay device, either electronic or electro-mechanical.
Factory provides pre-wired socket or mounting space only. 350.00
Moisture detection relay circuit (with relay options)n
E223A Relay option: Provides 24 V or 120 V control power to a moisture detection relay device, either electronic or electro-mechanical.
The moisture detection relay is mounted and wired by the factory. 1220.00
E223B
Relay and Pilot Light indication option: Provides 24 V or 120 V control power to a customer supplied moisture detection relay device, either
electronic or electro-mechanical. Includes a pilot light for discrete input(s). The customer supplied moisture detection relay is mounted and
wired by the factory.
1395.00
aLimited to one meter selection unless H09 is selected.
bIf H09 is selected, (1) additional meter can be selected.
cOne (1) Form ‘C’ contact for drive run indication is supplied as standard.
dAvailable only if K10 is selected.
eAvailable without K10 for 125–500 hp.
fOne (1) N.O. contact for bypass run indication is supplied as standard when bypass is provided.
gAvailable only if M10 is selected.
hAvailable without M10 for 125–500 hp.
iAvailable only if L10 is selected.
jOne (1) N.O. contact for auto mode indication is supplied as standard when auto mod operation is provided.
kAvailable only if O10 is selected.
lRequires use of logic output LO1.
mCustomer supplies relay. Details concerning type must also be provided at time of order entry in “Engineering Notes” within Q2C.
nDetails concerning type must be provided at time of order entry in “Engineering Notes” within Q2C.
CP4C Discount
Schedule
22 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
E-MOD Description $ Price
Substitute Type K operators
E224 Provides Class 9001 Type K 30 mm heavy duty multi-function operators in lieu of standard 22 mm pilot devices. 410.00
Spare control relays (for customer use)
E225 Provides control relays mounted and unwired for customer use. Up to (3) are available. 150.00
each
Substitute pilot light lens color(s)a
E226 Provides the flexibility to configure lens cap colors to contract equipment designations. —
Blown fuse indicators on control fuses
E227 Provides blown circuit fuse indicators on control circuit fuses in lieu of standard fuses. 750.00
Motor over temperature logic input
E228 Provides dedicated terminals using an external motor over temperature input (N.C. contact) factory wired and programmed. 186.00
RTD inputs (motor protection alarm)b
E229 Provides capability for accepting RTD inputs using an RTD limit alarm, factory mounted and wired. Limited to three (3) RTD inputs. 4122.00
Motor management relay optionc
Provides motor protection and metering functions using a selection of motor management relays. This relay provides protection for motor and load conditions:
overload, differential, stator temperature, high inertia loads, undercurrent, under power, jam and bearing over temperature. The motor management relay is factory
mounted and wired. Includes PT’s and CT’s.
E230A Schneider Electric Sepam™ Series 20 motor protective relay 2850.00
E230B Schneider Electric Sepam Series 41 motor protective relay 3975.00
E230C GE Multilin®269+ motor management relay 13995.00
E230D GE Multilin 469 motor management relay 14750.00
PowerLogic™ power meter display option
Provides a Class 3020 PM800 series power module true rms meter display with basic instrumentation, demand, THD, date/time stamping, neutral current,
min/max, alarms, event and data storage factory mounted and wired.
E231A PM820 power module 1400.00
E231B PM850 power module 1550.00
E231C PM870 power module 1995.00
PowerLogic circuit monitor option
Provides a Class 3020 CM3000 or CM4000 series circuit monitor display with instrumentation, 0.2% accuracy, data logging and waveform capture, factory mounted
and wired. Includes PT’s and CT’s.
E232A CM3250 circuit monitor 2415.00
E232B CM3350 circuit monitor 2415.00
E232C CM4000T circuit monitor 4275.00
E232D CM4250 circuit monitor 4275.00
Spare terminal blocks (unwired)
E234 Provides (10) spare terminal blocks 'unwired' for customer use using the Class 9080 Type G series terminals. 120.00
End damper control circuit
E235 Provides a damper control circuit to coordinate starting of the drive controller or the bypass with the position of the damper. Requires
connection to customer damper limit switch. 240.00
Emergency power off push-button
E236
Provides a shunt trip modified molded case switch or circuit breaker where a push-pull maintained mushroom head push-button energizes
the shunt trip coil and instantaneously opens to shut down power supplied to the drive controller in the AFC mode and/or bypass mode,
coasting to an uncontrolled stop.
540.00
Audible alarm horn with silencer
E238 Provides an audible alarm horn, timer to annunciate a user defined conditions with a silencer push-button, factory assembled and wired for
customer use. 625.00
Three-phase ammeter with selector switch
Provides 3 CT's with 3-position selector switch to indicate Phase A, B or C connected on the motor leads to monitor full load amps.
E239A Monitor input full load amps 1575.00
E239B Monitor output full load amps 1575.00
Basin high level alarm indication option
E240A Alarm with pilot light: Provides relay circuit and pilot light indicator alarm for high level alarm limit switch via contact closure. Includes master
reset push-button and (1) Form 'C' contact for customer use. 795.00
E240B
Command to run and alarm with pilot light indication: Provides relay circuit, timer and pilot light indicator sequenced for high level alarm limit
switch via contact closure, energizing the drive controller and/or bypass to run full speed. Includes master reset push-button and (1) Form
'C' contact for customer use
895.00
aSpecify lens cap colors desired at time of order in “Engineering Notes” field within Q2C.
bSpecify RTD values at time of order entry in “Engineering Notes” within Q2C.
cAvailable for 125–500 hp only.
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
23
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
aMutually exclusive to E221.
bMutually exclusive to E228.
cAvailable with Power Circuits Y, Z, S, T, or R only.
dMust also select E224.
Enclosure & Miscellaneous Modifications
The E300 series features cover enclosure and miscellaneous option configurations for the M-Flex™ enclosed drive
controller.
aAvailable on configurations 1–20 hp CT or 1–25 hp VT only.
bAvailable on configurations 1–50 hp CT or 1–60 hp VT only.
cAvailable on configurations 1–75 hp CT or 1–100 hp VT only.
E-MOD Description $ Price
Basin low-level stop with pilot light indication
E241 Provides relay circuit and pilot light indicator sequenced for low level alarm limit switch via N.O./N.C.contact closure, causing the drive
controller to stop. Includes master reset push-button and (1) Form 'C' contact for customer use. 795.00
Enclosure ventilation fan shutdown
E242 Provides interlocking and timer functions of enclosure ventilation fans to shutdown during drive controller idle conditions. 795.00
High discharge pressure with pilot light indication
E243 Provides relay circuitry with pilot light indicator sequenced from a pressure switch input, causing the drive controller to stop. Includes master
reset push-button and (1) Form 'C' contact for customer use. 795.00
Low discharge pressure with pilot light indication
E244 Provides relay circuit, timer with pilot light sequenced from a pressure switch input when low discharge condition. Includes master reset
push-button and (1) Form 'C' contact for customer use. 795.00
Low seal water shutdown with pilot light indicationa
E245 Provides relay circuitry, timer with pilot light sequenced from a pressure switch input when not enough seal water is supplied. Includes
master reset push-button and (1) Form 'C' contact for customer use. 795.00
Motor over temperature shutdown with pilot lightb
E246 Provides dedicated terminals using an external motor over temperature input (Form 'C' contact) and a pilot light indicator factory wired and
programmed. 380.00
Phase failure relayc
E247 Provides a phase failure relay (Tele RM4T series) mounted and wired to indicate phase reversal, phase loss and imbalance operating
conditions. 725.00
Single test pilot light push-buttond
E248 Provides a dedicated 30 mm push-to-test button for indication of operable pilot lights. 130.00
Substitute TeSys™ 600 V relay(s)
E249 Substitutes TeSys Type NEMA®rated relays rated 600 V, 10A. 985.00
E-MOD Description $ Price
ANSI #61 enclosure paint
E301 Provides option to configure enclosure paint to industry standard ANSI #61 light gray paint in lieu of ANSI #49 gray. 526.00
Free standing enclosurea
E302 Converts all standard wall mounted enclosure configurations to a floor mounted 90” high enclosure. 925.00
Enclosure expansionb
E303 Converts all standard wall and floor mounted enclosures up one enclosure size. 925.00
Barriered enclosure expansionc
E304 Uses Barriered enclosure for non-bypass drives controllers. Bypass space is configured with circuit breaker disconnect and handle only. 1450.00
Enclosure space heater option
E305A Space heater only; provides a Hoffman type enclosure strip heater and thermostat to maintain internal low temperature ambient ratings. 1500.00
E305B Space heater with storage operation provision; provides a Hoffman type enclosure strip heater and thermostat to maintain internal low
temperature ambient ratings. Includes 120 V remote source input terminals for operation during storage conditions. 1800.00
CP4C Discount
Schedule
24 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
Power Options
The E400 series features cover engineered power option configurations for M-Flex™ enclosed drive controllers.
aAvailable for Barriered design configurations only; requires selection of Power Circuit S, Z, T, or R.
E-MOD Description 208/230V
Rating $ Price 460 V
Rating $ Price
Dynamic braking resistors
E401
Provides dynamic braking resistor top mounted on the enclosure. Resistors are 10% duty cycle
constant torque (CT) applications. Overload protection for externally mounted dynamic braking
resistor is mounted inside the drive controller enclosure.
1hp 1035.00 1–3 hp 1415.00
2–5 hp 1245.00 5hp 1595.00
7.5 hp 1595.00 7.5 hp 1775.00
10–15 hp 2015.00 10–20 hp 2545.00
20–25 hp 2525.00 25–40 hp 2725.00
30–40 hp 3515.00 50 hp 4015.00
— — 60–75 hp 5335.00
Motor protection filter
E402 Provides a factory mounted and wired dV/dt filter on the drive output for long motor lead lengths considerations in excess of
published guidelines.
1hp 1120.00
2hp 1120.00
3hp 1145.00
5hp 1165.00
7.5 hp 1215.00
10 hp 1222.00
15 hp 1530.00
20 hp 1695.00
25 hp 1770.00
30 hp 1840.00
40 hp 1895.00
50–60 hp 2675.00
75 hp 3145.00
100 hp 3675.00
125 hp 5025.00
150 hp 5230.00
200 hp 5330.00
250 hp 5365.00
300 hp 5645.00
350 hp 6540.00
400 hp 6980.00
450–500 hp 7310.00
NEMA®rated contactorsa
E403 Provides NEMA rated contactors for isolation and bypass configuration in lieu of the IEC rated
contactors.
1–3 hp 1725.00 1–3 hp 1152.00
5–7.5 hp 2013.00 5–10 hp 1259.00
10–15 hp 2415.00 15–20 hp 2013.00
20–25 hp 2875.00 25–30 hp 2415.00
30 hp 3450.00 40–50 hp 2875.00
40–50 hp 4830.00 60 hp 3450.00
— — 75–100 hp 4830.00
— — 125 hp 5290.00
— — 150 hp 6240.00
— — 200 hp 7610.00
— — 250 hp 8870.00
— — 300 hp 8980.00
— — 350 hp 9450.00
— — 400 hp 11280.00
— — 450 hp 12260.00
— — 500 hp 12580.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
25
Pricing Guide AC Drive Products
M-Flex™ Enclosed Drive Controllers
aThe sum of the total connected motors must not exceed the drive controller FLA rating. Specify motor FLA values at time of order entry in “Engineering
Notes” within Q2C.
bSpecify mode of operation via “Motor A-Off-Motor B” selector switch, remote contact closure or rotation timer scheme at time of order entry in
“Engineering Notes” within Q2C.
cAvailable for 460/480 V rated devices only.
E-MOD Description $ Price
Transient voltage surge suppressor
E405 Provides supplementary surge protection using a Class 1310 TVSS XWF Series Transient Voltage Surge Suppressor
hard-wired and factory mounted. 100,000 peak volts of surge protection. 1885.00 E405
Note: Service connection type (Delta or Wye) must be specified in “Engineering Notes” within Q2C.
Dual motor overloads and branch short circuit protectiona
E406 Provides short circuit and overload protection for (2) motors connected to the output of the drive controller. Includes
thermal overload modules for each motor.
1–10 hp 720.00
15–25 hp 790.00
30–50 hp 880.00
60–100 hp 1250.00
125–200 hp 3650.00
Motor A or B contactor alternation schemeb
E407 Provides a contactor interlocked for the selection of one motor for load share via a selector switch or rotation timer
scheme.
1–10 hp 1310.00
15–25 hp 1950.00
30–50 hp 2450.00
60–100 hp 5520.00
125–200 hp 11450.00
250–500 hp 24950.00
Line contactor (without bypass)
E409 Provides a line contactor between the circuit breaker disconnect (or line reactor or harmonic filter where provided) and
the power converter. When the line contactor is open, serial communications is disabled.
1–10 hp 1169.00
15–25 hp 1675.00
30–50 hp 2176.00
60–100 hp 4891.00
125–200 hp 10862.00
Secondary surge arrestor
E413 Provides a secondary surge arrester Class 6671 SDSA3650 mounted and wired. 485.00
3% output reactorc
E414 Provides a 3% rated output reactor to address long lead considerations, mounted and wired.
1–5 hp 750.00
7.5–25 hp 850.00
30–40 hp 1450.00
50–60 hp 1650.00
75–100 hp 1750.00
125 hp 1850.00
150 hp 2050.00
200 hp 3150.00
250 hp 3450.00
300–350 hp 4350.00
400–450 hp CT /
400–500 hp VT 4850.00
CP4C Discount
Schedule
26 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
PowerGard™ Series CPD—18-Pulse Drives
Class 8839 Type CPD family of drive controllers now features the Altivar™ 61/71 platform in an integrated 18-Pulse AC
drive solution designed for the construction and industrial markets. An 18-Pulse converter design provides near linear
load performance for adjustable frequency controllers rated 40 hp and above. This product is strategically designed to
help the user comply with IEEE 519 guidelines.
Each PowerGard 18-Pulse enclosed drive offers a feature-rich platform of standard, engineered and user-configurable
options to meet the most demanding application and specification requirements with availability in the following ratings:
Constant torque (Heavy duty ratings—150% current limit)
•Altivar 71 power converter platform
•40 to 450 hp, 460 V
Variable torque (Normal duty ratings—110% current limit)
•Altivar 61 power converter platform
•50 to 500 hp, 460 V
Selection
To select a PowerGard 18-Pulse enclosed drive controller, identify the basic drive and optional devices by Class, Type,
Options (MODS, E-MODS,) and Special Features (if required) to create the catalog number as shown below. This
catalog number is used to identify the features of the product. In all cases, Q2C/Product Selectors must be used to price
enclosed drives.
aVT 75 hp and below.
Standard PowerGard Features
•Circuit Breaker Disconnect
•UL listed to UL 508
•100,000 A symmetrical short circuit rating
•Heavy duty industrial disconnect handle with lockout/tag-out
provisions
•18-Pulse transformer/reactor assembly
•18-Pulse bridge rectifier assembly
•Altivar 61/71 power converter
•120 V fused control transformer
•Hand-Off-Auto selector switch and manual speed
potentiometer
•Door mounted graphic display terminal
•Auto Start Relay (120 V control)
•One Form “C” AFC Run mode contact
•One Form “C” AFC Fault contact
•Remote fault condition reset in AUTO mode with transition of
auto start contact
•Manual fault condition reset in OFF position of H-O-A selector
switch
•Safety interlock (e.g., run permissive) wired to user terminal
block TB1
•Permanent wire markings
•White component mounting plate
•Top and bottom conduit access
•ANSI #49 gray enclosure
•Class 10 electronic overload protection
•Optional equipment as specified
•Customized wiring diagrams
Typical Isolation/Bypass Features
(when provided)
•Class 20 overload protection with door mounted reset
•120 V fused control transformer
•AFC-Off-Bypass selector switch
•Test-Normal selector switch
•AC3 duty rated isolation and bypass contactors (with
mechanical and electrical interlocking)
•Bypass and isolation contactor sequencing provides true motor
isolation
•Overload relay reset push button
•Customized wiring diagrams
CLASS 8839 TYPE CPD T G 4 V W MODS A07, etc. SERIES C
Series Designation
C = Altivar 61/71
Power converter platform
Combination Device
8839 = Circuit Breaker
Disconnect
Design
CPD = PowerGard
18-Pulse Controller
Modifications
(120+ Options are available)
A07 = Hand-Off-Auto selector switch with
manual speed potentiometer
Horsepower Rating
N=40hp W=200hp
P=50hp X=250hp
Q=60hp Y=300hp
R=75hp Z=350hp
S = 100 hp 4 = 400 hp
T = 125 hp 5 = 450 hp
U = 150 hp 6 = 500 hp
Power Circuit Type
R = Barriered Bypass—RVAT
S = Barriered Bypass—Soft Start
T = Isolation & transfer
W = Combination device (Drive only)
Y = Integrated bypass (IEC)a
Z = Barriered bypass—Full Voltage
Application Type
C = Constant torque (150% current limit)
V = Variable torque (110% current limit)
Enclosure Environmental
Rating
G = Type 1 general purpose
B = Type 1 Filtered
Voltage Code
4 = 460/480 V, 60 Hz
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
27
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Notes:
For Type 1B enclosures with fan filter option, add $550.
The listings define the available factory modifications. Modifications in gray shaded areas require order engineering support. All modifications follow specific
interoperability rules for selection and configuration. Modification selection can be validated at the time of quotation or order entry by the Q2C/Product Selector
process. Contact your nearest Schneider Electric sales office for details.
When options with an “E” and/or “SPL” prefix appear on the name plate, engineered-to-order options are provided.
Note:
All enclosures are 94.65” height and 24” depth standard switchboard enclosures.
Table 15: Selection and Pricing
Horsepower
HP @ 460 V HP Code
Output
Current
(A)
Power Circuit Configurations (Type 1 General Purpose Enclosures)
Combination
Drive Only
W
$ Price
Integrated Bypass
Full Voltage
Y
$ Price
Barriered Bypass
Full Voltage
Z
$ Price
Barriered Bypass
Soft Start
S
$ Price
Isolation & Transfer
Separate Starter
T
$ Price
Barriered Bypass
RVAT
R
$ Price
Constant Torque—Heavy Duty Ratings (150% Current Limit)
40 N 52 53059.00 57486.00 57935.00 65709.00 57141.00 66817.00
50 P 65 54032.00 60035.00 61806.00 69177.00 59690.00 73835.00
60 Q 77 54347.00 61224.00 62443.00 70941.00 60879.00 75024.00
75 R 96 55685.00 63057.00 64218.00 73407.00 62712.00 76857.00
100 S 124 65632.00 — 77960.00 86941.00 74579.00 97809.00
125 T 156 70980.00 — 86172.00 96648.00 82848.00 106078.00
150 U 180 75730.00 — 94601.00 106561.00 91094.00 114324.00
200 W 240 79874.00 — 99689.00 113558.00 94928.00 127933.00
250 X 302 98342.00 — 119261.00 133509.00 115512.00 154267.00
300 Y 361 120928.00 — 143422.00 160258.00 139501.00 182856.00
350 Z 414 129253.00 — 153725.00 173034.00 149574.00 195229.00
400 4 477 136845.00 — 164572.00 187710.00 159995.00 212550.00
450 5 515 138523.00 — 167986.00 190837.00 163122.00 237297.00
Variable Torque—Light Duty Ratings (110% Current Limit)
50 P 65 53059.00 57486.00 57935.00 65709.00 57141.00 66617.00
60 Q 77 54032.00 60035.00 61806.00 69177.00 59690.00 73835.00
75 R 96 54347.00 61224.00 62443.00 70941.00 60879.00 75024.00
100 S 124 55685.00 — 64218.00 73407.00 62712.00 76857.00
125 T 156 65632.00 — 77960.00 86941.00 74579.00 97809.00
150 U 180 70980.00 — 86172.00 96648.00 82848.00 106078.00
200 W 240 75730.00 — 94601.00 106561.00 91094.00 114324.00
250 X 302 79874.00 — 99689.00 113558.00 94928.00 127933.00
300 Y 361 98342.00 — 119261.00 133509.00 115512.00 154267.00
350 Z 414 120928.00 — 143422.00 160258.00 139501.00 182856.00
400 4 477 129253.00 — 153725.00 173034.00 149574.00 195229.00
450 5 515 136845.00 — 164572.00 187710.00 159995.00 212550.00
500 6 590 138523.00 — 167986.00 190837.00 163122.00 237297.00
Table 16: Dimensions
HP @ 480 V
PowerGard™ Series C enclosure width dimensions
Combination
Drive only
W
Integrated Bypass
Full Voltage
Y
Barriered Bypass
Full Voltage / Separate Starter
ZorT
Barriered Bypass
Soft Start
S
Barriered Bypass
RVAT
R
Total Extender Total Extender Total Extender Total Extender Total
50 to 75 36” — 36” 20” 56” 20” 56” 42” 78”
100 36” — 36” 20” 56” 36” 72” 42” 78”
125 36” 20” 56” 20” 56” 36” 72” 42” 78”
150 42” 20” 62” 20” 62” 36” 78” 48” 90”
200 42” 20” 62” 20” 62” 36” 78” 48” 90”
250 42” 20” 62” 20” 62” 42” 84” 54” 90”
300 48” 25” 73” 25” 73” 42” 90” 54” 102”
350 48” 25” 73” 25” 73” 42” 90” 54” 102”
400 48” 25” 73” 25” 73” 42” 90” 54” 102”
450 48” or 54” 36” 84” 36” 84” 48” 96” 54” 102”
500 48” or 54” 36” 84” 36” 84” 48” 96” 54” 102”
Table 17: Weights and Heat Loss Data
PowerGard Series C—Power Circuit W
HP @ CT rating Weight
lbs.
Estimated Heat Loss
HP @ VT rating Weight
Estimated Heat Loss
Watts Loss BTU/Hour Watts Loss BTU/Hour
40 1603 2478 8457 ————
50 1603 2674 9126 50 1603 2674 9126
60 1603 2838 9686 60 1603 2838 9686
75 1603 3027 10331 75 1603 3027 10331
100 1703 4776 16300 100 1703 3756 12819
125 2070 6333 21615 125 1703 4843 16529
150 2070 6637 22652 150 2070 6637 22652
200 2086 7074 24144 200 2086 7074 24144
250 2682 9582 32703 250 2086 9582 32703
300 2682 11216 38280 300 1682 11216 38280
350 2682 11684 39877 350 2682 11684 39877
400 2682 12894 44007 400 2682 12894 44007
450 3148 13793 47076 450 3148 13793 47076
————5003148 14691 50140
CP4C Discount
Schedule
28 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Operator Control Device Options
Door mounted operator controls provide dedicated control for commanding power converter speed and start/stop
functions. Select only one.
Pilot Light Options
Pilot lights are ordered in light groups and door mounted. Pilot light groups are selected with compatible control
options. Pilot lights are all 22 mm, long-life LED type. Select only one.
MOD Description $ Price
Hand-Off-Auto selector switch with manual speed potentiometer
A07
Provides a three position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The speed
may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed potentiometer. The Off position will stop
the motor. The Off position is also used to reset drive controller faults.
—
Rules: Control option defined by default.
Hand-Off-Auto selector switch, Start/Stop push-buttons with manual speed potentiometer
B07
Provides a three-position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The speed
may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed potentiometer. In the Hand position,
Start/Stop push-buttons are use to start and stop the motor using a “three-wire” control strategy. The Off position will also stop the motor. The Off
position is also used to reset drive controller faults.
100.00
Start/Stop push-buttons with manual speed potentiometer
C07 Provides Start/Stop pushbuttons to start and stop the motor using a “three-wire” control strategy. The speed is adjusted by a door mounted manual
speed potentiometer. The drive disconnect is used to reset drive controller faults unless “Fault Reset” (MOD P10) is ordered. 75.00
Rules: Available only with Power Circuit W.
Start/Stop push-buttons, Forward-Reverse selector switch with manual speed potentiometer
D07
Provides Start/Stop push-buttons to start and stop the motor using a “three-wire” control strategy. The speed is adjusted by a door mounted manual
speed potentiometer. Motor direction is controlled with a forward -reverse selector switch. The drive disconnect is used to reset drive controller
faults unless “Fault Reset” (Option P10) is ordered.
200.00
Rules: Available only with Power Circuit W.
Hand-Off-Auto selector, Local-Remote selector switch with manual speed potentiometer
E07
Provides a three-position selector switch and manual speed potentiometer door mounted. The Hand-Off-Auto selector switch is used to select
between the AI1 and AI2 analog inputs. In the Auto position the motor may be started and stopped by a user supplied remote contact. The speed
may be adjusted by a 4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed potentiometer. The Off position will stop
the motor. The Off position is also used to reset drive controller faults. The Local-Remote switch selects whether speed control is sent by a signal
into terminal AI1 (local) or AI2 (remote) on terminal block TB2, when the Hand-Off-Auto switch is in Auto mode.
100.00
Communication-Hand-Off-Auto selector switch with manual speed potentiometer
F07
Provides a four-position selector switch and manual speed potentiometer door mounted. The Communication-Hand-Off-Auto selector switch is
used to select between the AI1 and AI2 analog inputs. The communication position is for communication option card control of the drive controller.
In the Auto position the motor may be started and stopped by a user supplied remote contact. The speed may be adjusted by a
4–20 mAdc signal to analog input reference AI2 or the door mounted manual speed potentiometer. The Off position will stop the motor. The Off
position is also used to reset drive controller faults.
250.00
Rules: Provides control and monitoring capabilities when supplied with any communication card.
No Door Mounted Operators (wired for remote operation)
N07 No operators are provided on the enclosure door. The customer must provide remote mounted operator controls. Drive controllers are factory
programmed and configured for remote mounted Hand-Off-Auto operation.
Deduct
$100.00
MOD Description $ Price
Power On, Fault, AFC Run, Auto pilot lights
A08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run (green)
and auto (yellow). 245.00
Rules: Not available with C07 or D07.
Power On, Fault, AFC Run, Bypass pilot lights
B08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run (green)
and bypass (yellow). 245.00
Rules: Not available with Power Circuit W.
Power On, Fault, AFC Run pilot lights
C08 Provides a combination of (3) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow) and AFC run
(green). 185.00
Power On, Fault, AFC Forward, AFC Reverse pilot lights
D08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), forward (green)
and reverse (green). 245.00
Rules: 1. Available only with D07 or N07.
2. Available only with Power Circuit W.
Power On, Fault, AFC Run, Hand, Auto pilot lights
E08 Provides a combination of (5) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run
(green), hand (blue) and auto (yellow). 305.00
Rules: 1. Available only with A07, B07, E07 or N07.
2. Supplied with AMR relay.
Power On, Fault, AFC Run, Communication pilot lights
F08 Provides a combination of (4) pilot lights for visual indication of protective functions and circuit status; power on (red), fault (yellow), AFC run (green)
and communication (yellow). 245.00
Rules: Available only with F07 or N07.
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
29
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Option Cards
All communication cards are provided without factory programming. Select only one.
MOD Description $ Price
Modbus™ Plus communication card
A09 Provides a factory installed plug-in Modbus Plus card, VW3A3302. This interface device connects to a Modbus Plus tap. 795.00
Modbus/Uni-Telway™ communication card
B09 Provides a factory installed plug-in Modbus/Uni-Telway card, VW3A3303. 476.00
Johnson Controls Metasys®N2 communication card
C09 Provides a factory installed plug-in Metasys N2 card, VW3A3313. 476.00
Ethernet TCP/IP communication carD
D09 Provides a factory installed plug-in Ethernet TCP/IP card, VW3A3310, with user termination to RJ45 plug-in interface connector. 476.00
LonWorks®communication card
E09 Provides a factory installed LonWorks card, VW3A3312. 795.00
DeviceNet™ communication card
F09 Provides a factory installed DeviceNet card, VW3A3309. 476.00
Profibus DP communication card
G09 Provides a factory installed Profibus DP card, VW3A3307. 795.00
I/O Extension card
H09 Provides a factory installed I/O extension card, VW3A3202. Adds (2) analog outputs, 4 logic inputs, 2 logic outputs and 1 differential analog input. 275.00
Siemens Apogee®FLN / P1 communication card
J09 Provides a factory installed Apogee P1 card, VW3A3314. 476.00
BACnet communication card
K09 Provides a factory installed BACnet card, VW3A3315. 476.00
Interbus®S communication card
L09 Provides a factory installed Interbus card, VW3A3304. 795.00
FIPIO™ communication card
M09 Provides a factory installed FIPIO card, VW3A3311 (limited availability).795.00
Bluetooth®Modbus
P09 Provides a Bluetooth Modbus adapter, TCSWAAC13FB. 125.00
FIPIO communication card
R09 Ethernet/IP™ Option Card, Provides a factory installed Ethernet/IP Card VW3A3316 476.00
D09 Ethernet TCP/IP Daisy Chain Card, Provides a factory installed Ethernet TCP/IP Daisy Chain Card VW3A3310D 476.00
CP4C Discount
Schedule
30 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Miscellaneous Options
Pre-engineered and system supported options to provide miscellaneous product modifications.
MOD Description $ Price
3–15 PSI Transducer
C10 Allows the controller to follow a user supplied 3–15 PSI input. 450.00
Rules: 1. Not available with C07 or D07.
2. Mutually exclusive with J09.
Omit Door mounted graphic display terminal
D10 The graphic display terminal is not supplied. To alter the programming of the power converter, the user must buy a graphic display terminal or
PowerSuite™ software to program the drive controller.
Deduct
100.00
Smoke Purge Relay
E10
Provides a smoke purge operating mode controlled by a user-supplied 120 Vac signal wired to terminal block TB1. Smoke purge operation is full
speed bypass (when provided) or High Speed in the drive controller. This operation is designed run the motor from any operator control setting
except emergency stop or open safety interlocks.
225.00
Additional 200 VA Control Power
F10 Provides additional control power 200 VA using a larger 120 V control transformer connected to terminal block TB1 for customer use. 380.00
cUL Certification
G10 Provides a Canadian cUL certification when required by local code requirements. 335.00
Seismic Qualified
H10 Supplies a certification label and hardware qualified to seismic rating ICC ES AC156 acceptance criteria test protocol with an importance
factor of 1.5. 425.00
Permanent Wire Marker (Sleeve Type)
I10 Provides permanent wire sleeve type markers on control wiring. 1750.00
Note: Permanent wire markings are provided as standard.
Input programmed for 0–10 Vdc AI2 input
J10
Provides programming for 0–10 Vdc user supplied auto speed reference signal to the AI2 input, on terminal block TB2. The 0–10 Vdc analog input
is not isolated, but it does contain noise suppression circuitry and a programmable electronic filter. using a 0–10 V / 4–20 mA converter
(P/n# 31158-297-50). Source impedance: Z=40k .
—
Rules: Not available with C07, D07 or C10.
1 Additional N.O. Auxiliary Drive Run Contact
K10 Provides 1 additional N.O. contact for drive run indication wired to TB1. 185.00
1 Additional N.C. Auxiliary Drive Fault Contact
L10 Provides 1 additional N.C. contact for drive fault indication wired to TB1. 185.00
1 N.O. Auxiliary Bypass Run Contact
M10 Provides 1 additional N.O. contact for bypass run indication wired to TB1. 185.00
Rules: Available only with Power Circuits Y, S, Z, R and T.
1 N.O. Auxiliary Auto Mode Contact
O10 Provides 1 additional N.O. contact for auto mode indication wired to TB1. 185.00
Rules: Not available with C07 or D07.
AFC Fault Reset Push-button
P10 Provides factory installed door-mounted push button to fault reset LI4 on the power converter at terminal TB1 when Hand-Off-Auto is not supplied. 100.00
Rules: 1. Available only with C07 or D07.
2. Available only with Power Circuit W.
Push-to-Test Pilot Lights
Q10 Provides push-to-test function on all pilot lights except Power On pilot light. 210.00
Rules: Not available on Fault pilot light if P10 is selected.
Auto Transfer to Bypass
R10 Provides an automatic transfer (time adjustable 0.1–10 s) to bypass in the event that the drive controller faults. A selector switch is provided inside
the enclosure to enable or disable this function. Longer transfer time requirements are available by replacing the plug-in adjustable timer. 270.00
Rules: 1. Available only with Power Circuits Y, S, Z, T or R.
2. Not available with B07, C07 or D07.
Motor Elapsed Time Meter
S10 Provides a dedicated elapsed time meter to record the motor run time. Runs whenever the motor is running. The motor elapsed time meter is
non-resettable. 270.00
Emergency Stop Mushroom Head Push-button
T10 Provides door mounted maintained off emergency stop red mushroom pushbutton with turn-to-reset feature. 127.00
Rules: Not available with C07 or D07.
Motor Space Heater Sequencing Circuit—Light Duty
U10 Provides 50 VA/120 V to terminal block TB1 for motor space heater whenever the motor is not running. 400.00
Rules: Mutually exclusive with V10 unless F10 is also selected.
Ω
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
31
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Engineered Features
Factory orders with engineered features (E-MOD, SPL, etc.) are subject to review by factory personnel and have
longer lead-time availability. Standard PowerGard™ enclosure dimensions may no longer apply to orders containing
any combination of engineered features. In addition, factory orders containing engineered features may carry a
UL 508A (Industrial Control Equipment) label in lieu of a UL 508C (Power Conversion Equipment) label depending on
configuration.
Control Options
The E200 series features cover control circuit option configurations for PowerGard enclosed drive controllers.
MOD Description $ Price
Seal Water Solenoid
V10 Provides 50 VA/120 V to terminal block TB1 for seal water solenoid whenever the motor is running. 400.00
Rules: Exclusive with U10 unless F10 is also selected.
Check Valve Sequencing Circuit (Gravity Type)
W10
Provides an automatic shutdown of the drive controller when the user supplied N.C. contact from the check valve limit switch does not open within
5 seconds after the motor starts. The user limit switch contact connects to terminal block TB1. Circuit provides reset function with an illuminated
(blue) push-button.
520.00
54 inch wide enclosure
Y10 Provides a 54 inch wide switchboard enclosure for bottom conduit entry space provisions. 275.00
Rules: Available for 450–500 hp ratings only.
24 Vdc Power Supply
Z10 Provides a 24 Vdc, 300 mA power supply at terminal block TB1. 370.00
ID Engraved Nameplates
610 Provides an engraved laminated nameplate attached to the front door of the enclosure (engraved per user request at time of order). 100.00
E-MOD Description $ Price
Door mounted meters (dedicated displays)
Provides a dedicated door mounted meter display, analog or digital.
E201 Analog percent speed meter scaled 0 to 120% base speed. 540.00
E202 Analog percent current scaled 0 to 100% of rated output current. 540.00
E203 Digital ammeter (amperes) scaled 0 to 2 times rated output amperes. 630.00
E204 Digital speed meter (frequency) scaled 0 to 72 Hz output frequency. 630.00
E205 Digital percent speed meter scaled 0 to 120% base speed. 630.00
E206 Digital percent current scaled 0 to 100% of rated output current. 630.00
Rules: 1. Limited to one meter selection unless H09 is selected.
2. If H09 is selected, (1) additional meter can be selected.
Door mounted RJ45 port
E211 Provides (1) Sixnet RJ45 door mounted 30 mm bulk head connector and internal CAT5 cabling for access via PC with PowerSuite™ software.
The RJ45 (Modbus™/CANopen) drive port provides customer access through the enclosure door. 325.00
Auxiliary drive run contacts
E212 Provides (3) Form 'C' contacts rated5A@120Vwired to terminal blocks for customer use. 310.00
Note: One (1) Form 'C' contact for drive run indication is supplied as standard.
Rules: 1. Available only if K10 is selected.
2. Available without K10 for 100–450 hp CT /125–500 hp VT.
Auxiliary bypass run contacts
E213 Provides (3) Form 'C' contacts rated5A@120Vwired to terminal blocks for customer use. 310.00
Note: One (1) N.O. contact for bypass run indication is supplied as standard when bypass is provided.
Rules: 1. Available only if M10 is selected.
2. Available without M10 for 100–450 hp CT / 125–500 hp VT.
Auxiliary drive fault contacts
E214 Provides (3) Form 'C' contacts rated5A@120Vwired to terminal blocks for customer use. 310.00
Note: One (1) Form 'C' contact for drive fault indication is supplied as standard.
Rules: Available only if L10 is selected.
Auxiliary auto mode contacts
E215 Provides (3) Form 'C' contacts rated5A@120Vwired to terminal blocks for customer use. 310.00
Note: One (1) N.O. contact for auto mode indication is supplied as standard when auto mod operation is provided.
Rules: Available only if O10 is selected.
Adjustable restart delay timer
E216 Provides an adjustable On Time Delay Relay for power up restart function, mounted and wired for AFC mode (hand or auto) mode and/or in the
bypass mode (hand/auto). 240.00
CP4C Discount
Schedule
32 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
E-MOD Description $ Price
Motor space heater (heavy duty)
E217 Provides control circuit contacts, 120 V, 500 VA supply and fusing wired to terminals for customer use. 1000.00
Signal loss follower alarm relay
E218
Provides (1) Form 'C' contact rated5A@120Vwired to terminal blocks for customer use. Intended for 4–20 mAdc control loop applications
where upon the loss of input signal it is desired to retain the output signal at the last input signal level. The relay provides an alarm relay contact
for signal loss alert.
360.00
Note: Requires use of logic output LO1.
Inhibit/shutdown sequence (timed operation)
E219 Provides a relay circuit operating in the fail safe mode where a remote initiating contact opens the relay, de-energizes and after a specified time
shuts the drive controller down in the AFC mode (hand or auto) and/or in the bypass mode (hand or auto). 580.00
Check valve sequence (motorized type)
E220
Provides relay circuitry sequenced from a check valve limit switch. A valve closed position limit switch will energize relays that will initiate a remote
valve operating solenoid limited to 50 VA and give a run permissive to the drive controller in the AFC mode (hand or auto) and/or in the bypass
mode (hand or auto). A valve closed position limit switch will de-energize a timer relay such that if this relay is not de-energized within a specified
time period, the drive controller will shut down in the AFC mode (hand or auto) and/or in the bypass mode (hand or auto).
710.00
Seal water solenoid—with pressure switch feedback
E221
Provides relay, which will energize a remote seal water solenoid limited to 50 VA during drive controller operation. Additionally, the remote initiating
contact will open the relay, de-energizing and after a specified time shuts the drive controller down in the AFC mode (hand or auto) and/or in the
bypass mode (hand or auto).
1220.00
Moisture detection relay circuit (without relay)
E222 Provides 24 V or 120 V control power to a customer supplied moisture detection relay device, either electronic or electro-mechanical. Factory
provides pre-wired socket or mounting space only. 350.00
Note: Customer supplies relay. Details concerning type must also be provided at time of order entry in “Engineering Notes” within Q2C.
Moisture detection relay circuit (with relay options)
E223A Relay option: Provides 24 V or 120 V control power to a moisture detection relay device, either electronic or electro-mechanical. The moisture
detection relay is mounted and wired by the factory. 1220.00
E223B
Relay and Pilot Light indication option: Provides 24 V or 120 V control power to a customer supplied moisture detection relay device, either
electronic or electro-mechanical. Includes a pilot light for discrete input(s). The customer supplied moisture detection relay is mounted and wired
by the factory.
1395.00
Note: Details concerning type must be provided at time of order entry in “Engineering Notes” within Q2C.
Substitute Type K operators
E224 Provides Class 9001 Type K 30 mm heavy duty multi-function operators in lieu of standard 22 mm pilot devices. 410.00
Spare control relays (for customer use)
E225 Provides control relays mounted and unwired for customer use. Up to (3) are available. 150.00
each
Substitute pilot light lens color(s)
E226 Provides the flexibility to configure lens cap colors to contract equipment designations. —
Notes: Specify lens cap colors desired at time of order entry in “Engineering Notes” field within Q2C.
Blown fuse indicators on control fuses
E227 Provides blown circuit fuse indicators on control circuit fuses in lieu of standard fuses. 750.00
Motor over temperature logic input
E228 Provides dedicated terminals using an external motor over temperature input (N.C. contact) factory wired and programmed. 186.00
RTD inputs (motor protection alarm)
E229 Provides capability for accepting RTD inputs using an RTD limit alarm, factory mounted and wired. Limited to three (3) RTD inputs. 4122.00
Note: Specify RTD values at time of order entry in 'Engineering Notes' within Q2C.
Motor management relay option
Provides motor protection and metering functions using a selection of motor management relays. This relay provides protection for motor and load conditions:
overload, differential, stator temperature, high inertia loads, undercurrent, under power, jam and bearing over temperature. The motor management relay is factory
mounted and wired. Includes PT's and CT's.
E230A Schneider Electric Sepam™ Series 20 motor protective relay 2850.00
E230B Schneider Electric Sepam Series 41 motor protective relay 3975.00
E230C GE Multilin®269+ motor management relay 13995.00
E230D GE Multilin 469 motor management relay 14750.00
PowerLogic™ power meter display option
Provides a Class 3020 PM800 series power module true rms meter display with basic instrumentation, demand, THD, date/time stamping, neutral current, min/max,
alarms, event and data storage factory mounted and wired.
E231A PM820 power module 1400.00
E231B PM850 power module 1550.00
E231C PM870 power module 1995.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
33
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
E-MOD Description $ Price
PowerLogic™ circuit monitor option
Provides a Class 3020 CM3000/CM4000 series circuit monitor display with instrumentation, 0.2% accuracy, data logging and waveform capture, factory mounted
and wired. Includes PT's and CT's.
E232A CM3250 circuit monitor 2415.00
E232B CM3350 circuit monito 2415.00
E232C CM4000T circuit monitor 4275.00
E232D CM4250 circuit monitor 4275.00
Spare terminal blocks (unwired)
E234 Provides (10) spare terminal blocks 'unwired' for customer use using the Class 9080 Type G series terminals. 120.00
End damper control circuit
E235 Provides a damper control circuit to coordinate starting of the drive controller or the bypass with the position of the damper. Requires
connection to customer damper limit switch. 240.00
Emergency power off push-button
E236
Provides a shunt trip modified molded case switch or circuit breaker where a push-pull maintained mushroom head push-button energizes the
shunt trip coil and instantaneously opens to shut down power supplied to the drive controller in the AFC mode and/or bypass mode, coasting to
an uncontrolled stop.
540.00
Audible alarm horn with silence
E238 Provides an audible alarm horn, timer to annunciate a user defined conditions with a silencer push-button, factory assembled and wired for
customer use. 625.00
Three-phase ammeter with selector switch
Provides 3 CT's with 3-position selector switch to indicate Phase A, B or C connected on the motor leads to monitor full load amps.
E239A Monitor input full load amps 1575.00
E239B Monitor output full load amps 1575.00
Basin high level alarm indication option
E240A Alarm with pilot light: Provides relay circuit and pilot light indicator alarm for high level alarm limit switch via contact closure. Includes master reset
push-button and (1) Form 'C' contact for customer use. 795.00
E240B
Command to run and alarm with pilot light indication: Provides relay circuit, timer and pilot light indicator sequenced for high level alarm limit switch
via contact closure, energizing the drive controller and/or bypass to run full speed. Includes master reset push-button and (1) Form 'C' contact for
customer use.
895.00
Basin low level stop with pilot light indication
E241 Provides relay circuit and pilot light indicator sequenced for low level alarm limit switch via N.O./N.C. contact closure, causing the drive controller
to stop. Includes master reset push-button and (1) Form 'C' contact for customer use. 795.00
Enclosure ventilation fan shutdown
E242 Provides interlocking and timer functions of enclosure ventilation fans to shutdown during drive controller idle conditions. 795.00
High discharge pressure with pilot light indication
E243 Provides relay circuitry with pilot light indicator sequenced from a pressure switch input, causing the drive controller to stop. Includes master reset
push-button and (1) Form 'C' contact for customer use. 795.00
Low discharge pressure with pilot light indication
E244 Provides relay circuit, timer with pilot light sequenced from a pressure switch input when low discharge condition. Includes master reset
push-button and (1) Form 'C' contact for customer use. 795.00
Low seal water shutdown with pilot light indication
E245 Provides relay circuitry, timer with pilot light sequenced from a pressure switch input when not enough seal water is supplied. Includes master reset
push-button and (1) Form 'C' contact for customer use. 795.00
Rules: Mutually exclusive to E221.
Motor over temperature shutdown with pilot light
E246 Provides dedicated terminals using an external motor over temperature input (Form 'C' contact) and a pilot light indicator factory wired and
programmed. 380.00
Rules: Mutually exclusive to E228.
Phase failure relay
E247 Provides a phase failure relay (Tele RM4T series) mounted and wired to indicate phase reversal, phase loss and imbalance operating
conditions. 725.00
Rules: Available with Power Circuits Y, Z, S, T, or R only.
Single test pilot light push-button
E248 Provides a dedicated 30 mm push-to-test button for indication of operable pilot lights. 130.00
Rules: Must also select E224.
Substitute TeSys™ 600 V relay(s)
E249 Substitutes TeSys Type NEMA®rated relays rated 600 V, 10 A. 985.00
CP4C Discount
Schedule
34 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Enclosed AC Drives
PowerGard™ Series C Enclosed Drive Controllers — Class 8839
Enclosure & Miscellaneous Modifications
The E300 series features cover enclosure and miscellaneous option configurations for the PowerGard™ enclosed
drive controller.
Power Options
The E400 series features cover engineered power option configurations for PowerGard enclosed drive controllers.
E-MOD Description $ Price
ANSI #61 enclosure paint
E301 Provides option to configure enclosure paint to industry standard ANSI #61 light gray paint in lieu of ANSI #49 gray. 526.00
Enclosure space heater option
E305A Space heater only: Provides a Hoffman type enclosure strip heater and thermostat to maintain internal low temperature ambient ratings. 1500.00
E305B Space heater with storage operation provision: Provides a Hoffman type enclosure strip heater and thermostat to maintain internal low
temperature ambient ratings. Includes 120 V remote source input terminals for operation during storage conditions. 1800.00
E-MOD Description $ Price
Motor protection filter
Provides a factory mounted and wired dV/dt filter on the drive output for long motor lead lengths considerations in excess of our published guidelines, up to 1000 feet.
E402
40 hp CT 1895.00
50–60 hp 2675.00
75 hp 3145.00
100 hp 3675.00
125 hp 5025.00
150 hp 5230.00
200 hp 5330.00
250 hp 5365.00
300 hp 5645.00
350 hp 6540.00
400hp 6980.00
450–500 hp 7310.00
Transient voltage surge suppressor
E405 Provides supplementary surge protection using a Class 1310 TVSS XWF Series Transient Voltage Surge Suppressor hard-wired and factory
mounted. 100,000 peak volts of surge protection. 1885.00
Note: Service connection type (Delta or Wye) must be specified in “Engineering Notes” within Q2C.
Secondary surge arrestor
E413 Provides a secondary surge arrester Class 6671 SDSA3650 mounted and wired. 485.00
3% output reactor
Provides a 3% rated output reactor to address long lead considerations, mounted and wired.
E414
40 hp CT 1450.00
50–60 hp 1650.00
75–100 hp 1750.00
125 hp 1850.00
150 hp 2050.00
200 hp 3150.00
250 hp 3450.00
300–350 hp 4350.00
400–450 hp CT / 400–500 hp VT 4850.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
35
Pricing Guide AC Drive Products
Altivar™ 12 Drives
aThese power ratings are for use as switching frequency of 4 kHz, in continuous operation.
bThe ATV12 part numbers with the • are available as H or P version (reference installation manual BBV28587 for heatsink version). Replace the • with H for drives
with standard heatsink on the back of the drive. Example: ATV12H037M2 has a heatsink. Replace the • with P for drives without a heatsink. These drives do not
have a heatsink but have a smooth back that can be mounted to a thermally conductive machined surface. Example: ATV12P037M2 does not have a heatsink.
cAvailable in lots of 14 by adding TQ to the end of the reference number.
dAvailable in lots of 7 by adding TQ to the end of the reference number.
aAvailable 4th Qtr 2011.
bDiscount Schedule for this product is PC41.
Table 18: Selection and Pricing
Voltage + 10% -15% 50/60 Hz Motor PoweraNominal
Current Rating
A
Catalog
Numberb$ Price
Input Output Horsepower kW
115 V
single-phase
230 V
three-phase
0.25 0.18 1.4 ATV12H018F1 181.00
0.5 0.37 2.4 ATV12•037F1 188.00
1 0.75 4.2 ATV12H075F1 220.00
230 V
single-phase
230 V
three-phase
0.25 0.18 1.4 ATV12H018M2c181.00
0.5 0.37 2.4 ATV12•037M2c188.00
0.75 0.55 3.5 ATV12•055M2c201.00
1 0.75 4.2 ATV12•075M2c220.00
2 1.5 7.5 ATV12HU15M2d285.00
3 2.2 10 ATV12HU22M2d342.00
230 V
three-phase
230 V
three-phase
0.25 0.18 1.4 ATV12H018M3 166.00
0.5 0.37 2.4 ATV12•037M3 173.00
1 0.75 4.2 ATV12•075M3 202.00
2 1.5 7.5 ATV12•U15M3 262.00
3 2.2 10 ATV12•U22M3 314.00
— 3 12.2 ATV12•U30M3 364.00
5 3.7 16.7 ATV12•U40M3 427.00
Table 19: Options and Accessories
Description Part Number For Use on Drives $ Price
Software
SoMove™ Lite
This software enables the user to configure, set, debug and organize maintenance task for the Altivar 12 drive.
It can also be used to customize the integrated display terminal menus. It can be used with a direct connection or a Bluetooth®wireless connection.
Free download at http://products.schneider-electric.us/products-services/products/ac-drives-and-soft-starts/
USB to RJ45 adaptor: for use in
connecting to a PC with a USB port TCSMCNAM3M002P Compatible device families: Advantys™ OTB, Altistart™ motor starters, Altivar series including
HMI, Altivar controller 52.00
User Interface Options
Remote Keypad Display for ATV12 (IP54) VW3A1006 ATV12 and ATV312 56.00
Remote Keypad Display for ATV12 (IP65) VW3A1007 ATV12 and ATV312 56.00
Cable for remote mounting LCD graphic keypad RJ-45 connector on each end
1 meter VW3A1104R10
any Altivar drive
35.00
3 meters VW3A1104R30 35.00
5 meters VW3A1104R50 35.00
10 meters VW3A1104R100 45.00
Operator, mounting collar, 2.5 kilohm, 1⁄2
watt potentiometer ATVPOT25K any Altivar drive 69.00
Conformity Kits
EMC Conformity Kit VW3A9523 ATV12H018F1, H037F1, ATV12H018M2…H075M2, ATV12H018M3…H075M3, ATV12P037F1,
ATV12P037M2…P075M2, ATV12P037M3...P075M3 25.00
EMC Conformity Kit VW3A9524 ATV12H075F1, ATV12HU15M2, HU22M2, ATV12HU15M3,HU22M3, ATV12PU15M3, PU22M3 25.00
EMC Conformity Kit VW3A9525 ATV12HU30M3, ATV12HU40M3 25.00
Filters
EMC Filters for C1, C2, C3 VW3A4416 ATV12H018F1, H037F1, ATV12H018M2…H075M2, ATV12P037F1, ATV12P037M2…P075M2 130.00
EMC Filters for C1, C2, C3 VW3A4417 ATV12H075F1, ATV12HU15M2, HU22M2 125.00
EMC Filters for C1, C2, C3 VW3A4418 ATV12H018M3…H075M3, ATV12P037M3…P075M3 219.00
EMC Filters for C1, C2, C3 VW3A4419 ATV12HU15M3, HU22M3, ATV12PU15M3,PU22M3 233.00
Converters
15 / 24 voltage converter VW3A9317 All ATV12 ranges 88.00
Mounting Kits
Mounting Plate for 35 mm DIN rail VW3A9804 ATV12H018F1, H037F1, ATV12H018M2…H075M2, ATV12H018M3…H075M3 64.00
Mounting Plate for 35 mm DIN rail VW3A9805 ATV12H075F1, ATV12HU15M2, HU22M2, ATV12HU15M3,HU22M3 72.00
Table 20: Replacement Parts
Description Part Number For Use on Drives $ Price
Replacement Fan VZ3V1301 ATV12H075F1, ATV12U15M2, HU22M2 a
Replacement Fan VZ3V1302 ATV12HU15M3...HU40M3 a
Plastic part kit: door, upper and lower wire cover VY1A12A01 All ATV12 ranges a
Table 21: Configuration Tools
Description Part Number For Use on Drives $ Price
Universal Bluetooth Interface: Bluetooth connectivity to devices through serial RS-485, RJ45 Modbus
port. For permanent installation, to be used during commissioning, maintenance and troubleshooting
of equipment.
TCSWAAC13FBbAltivar 12, 212, 312, 61, 71,
and Altistart 22 180.00
Simple Loader: to transfer configuration between like drives. For use with the Altivar product line. VW3A8120 ATV12, ATV312,ATV32,ATV61,ATV71 175.00
Multi-loader: to copy a configuration from a drive or from SoMove via an SD card, and transferring to
another drive or to a PC VW3A8121 ATV12, ATV312, ATV212, ATV32,
ATV61, ATV71, ATS22 350.00
Guiding tool cable: for connection between the MultiLoader and an ATV12 that is in its packaging VW3A8126 ATV12, ATV32, Lexium 32 30.00
CP4B PC41bDiscount
Schedule
36 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products

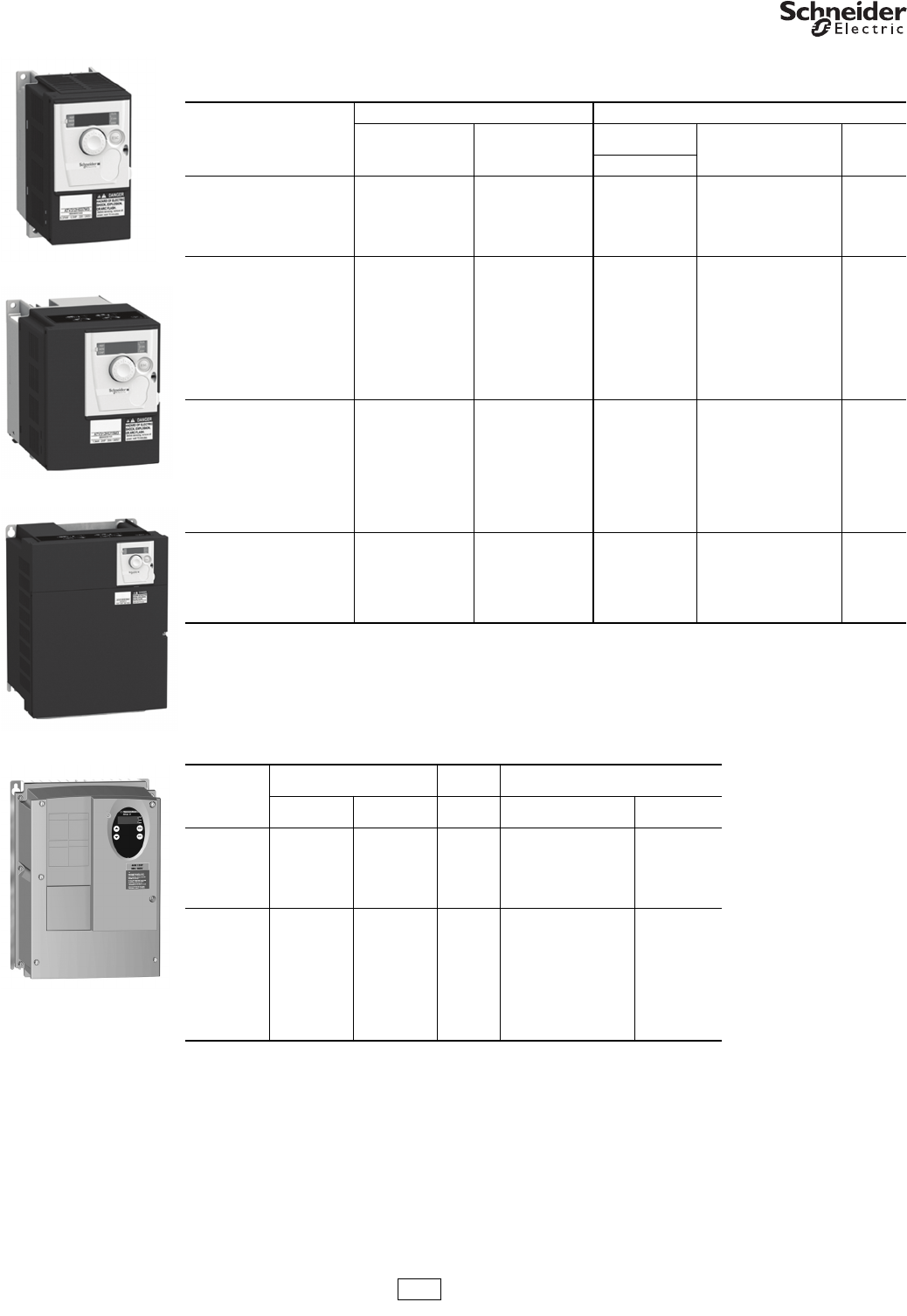

Altivar™ 312 / 31C Drives
Selection and Pricing
aThese horsepower, wattage, and continuous ampere ratings apply to 4 kHz switching frequency and maximum 50 °C ambient. Refer to the installation
manual for derating curves as a function of switching frequency, ambient temperature, and mounting conditions.
bOpen type Altivar 312 Drives can be installed as UL Type 1 with optional conduit box when following instructions in the installation manual.
cA minimum 3% line reactor is required on all 575 V drive installations.
Selection and Pricing
aThese horsepower, wattage, and continuous ampere ratings apply to 4 kHz switching frequency and maximum 50 °C ambient. Refer to the installation
manual for derating curves as a function of switching frequency, ambient temperature, and mounting conditions.
Table 22: Altivar™312 Selection and Pricing
Input Line Voltage
Three-Phase Motor PoweraOpen Drivesb
HP kW
Continuous
Output Current Catalog Number $ Price
A
208/230 Vac
Single-Phase
0.25 0.18 1.5 ATV312H018M2 268.00
0.5 0.37 3.3 ATV312H037M2 287.00
0.75 0.55 3.7 ATV312H055M2 306.00
1 0.75 4.6 ATV312H075M2 335.00
1.5 1.1 6.9 ATV312HU11M2 363.00
2 1.5 8 ATV312HU15M2 402.00
3 2.2 11 ATV312HU22M2 468.00
208/230 Vac
Three-Phase
0.25 0.18 1.5 ATV312H018M3 258.00
0.5 0.37 3.3 ATV312H037M3 287.00
0.75 0.55 3.7 ATV312H055M3 306.00
1 0.75 4.8 ATV312H075M3 325.00
1.5 1.1 6.9 ATV312HU11M3 363.00
2 1.5 8 ATV312HU15M3 421.00
3 2.2 11 ATV312HU22M3 478.00
4 3 13.7 ATV312HU30M3 554.00
5 — 17.5 ATV312HU40M3 650.00
7.5 5.5 27.5 ATV312HU55M3 841.00
10 7.5 33 ATV312HU75M3 1013.00
15 11 54 ATV312HD11M3 1338.00
20 15 66 ATV312HD15M3 1721.00
400/480 Vac
Three-Phase
0.5 0.37 1.5 ATV312H037N4 363.00
0.75 0.55 1.9 ATV312H055N4 392.00
1 0.75 2.3 ATV312H075N4 421.00
1.5 1.1 3 ATV312HU11N4 449.00
2 1.5 4.1 ATV312HU15N4 497.00
3 2.2 5.5 ATV312HU22N4 574.00
4 3 7.1 ATV312HU30N4 650.00
5 — 9.5 ATV312HU40N4 688.00
7.5 5.5 14.3 ATV312HU55N4 860.00
10 7.5 17 ATV312HU75N4 1052.00
15 11 27.7 ATV312HD11N4 1386.00
20 15 33 ATV312HD15N4 1721.00
575/600 Vac
Three-Phasec
1 0.75 1.7 ATV312H075S6 484.00
2 1.5 2.7 ATV312HU15S6 572.00
3 2.2 3.9 ATV312HU22S6 660.00
5 3.7/4.0 6.1 ATV312HU40S6 792.00
7.5 5.5 9 ATV312HU55S6 989.00
10 7.5 11 ATV312HU75S6 1209.00
15 11 17 ATV312HD11S6 1594.00
20 15 22 ATV312HD15S6 1979.00
Table 23: Altivar 31 UL Type 12 / IP54 Selection and Pricing
Input Line
Voltage
Three-Phase Motor PoweraOpen
DrivesbIP54 / UL Type 12 Enclosed
kW HP AaCatalog Number Standard
$ Price
208/230 Vac
Single-Phase
0.18 0.25 1.5 ATV31C018M2 362.00
0.37 0.5 3.3 ATV31C037M2 387.00
0.55 0.75 3.7 ATV31C055M2 413.00
0.75 1 4.6 ATV31C075M2 452.00
1.1 1.5 6.9 ATV31CU11M2 490.00
1.5 2 8 ATV31CU15M2 543.00
2.2 3 11 ATV31CU22M2 632.00
400/480 Vac
Three-Phase
0.37 0.5 1.5 ATV31C037N4 490.00
0.55 0.75 1.9 ATV31C055N4 529.00
0.75 1 2.3 ATV31C075N4 568.00
1.1 1.5 3 ATV31CU11N4 606.00
1.5 2 4.1 ATV31CU15N4 671.00
2.2 3 5.5 ATV31CU22N4 774.00
3 4 7.1 ATV31CU30N4 878.00
— 5 9.5 ATV31CU40N4 929.00
5.5 7.5 14.3 ATV31CU55N4 1162.00
7.5 10 17 ATV31CU75N4 1420.00
11 15 27.7 ATV31CD11N4 1733.00
15 20 33 ATV31CD15N4 2151.00
ATV31C
IP54 / UL Type 12
CP4B Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
37
Pricing Guide AC Drive Products
Altivar™ 312 Drives
NOTE: Reference Catalog #8800CT0401 for communication cables.
bDiscount Schedule for this product is PC41.
Table 24: Altivar™ 312 Options and Accessories
Description For Use on Drives Catalog Number $ Price
Software
SoMove™ Lite
This software enables the user to configure, set, debug and organize maintenance task for the Altivar 312 drive.
It can also be used to customize the integrated display terminal menus. It can be used with a direct connection or a Bluetooth®wireless connection.
Free download at http://products.schneider-electric.us/products-services/products/ac-drives-and-soft-starts/
Powersuite™ Test and
Commissioning Software Kit
Software on CD-ROM. For use with Microsoft Windows™ 95, 98, NT,
and XP operating systems for PCs ATV312 all ranges VW3A8104 150.00
User Interface Kits
USB to RJ45 Adaptor Kit For use in connecting to a PC with a USB port
Advantys™ OTB, Altistart™
motor starters, Altivar series
incl. HMI, Altivar controller
TCSMCNAM3M002P 52.00
Remote
Keypad Options and
Accessories
Remote Keypad Display (IP54) ATV312, ATV12 VW3A1006 56.00
Remote Keypad Display (IP65) ATV312, ATV12 VW3A1007 56.00
Remote Keypad Display and Mounting Kit ATV312 VW3A31101 175.00
Remote Keypad Display ATV312, ATV61, ATV71 VW3A1101 115.00
Cable for remote mounting
LCD graphic keypad. RJ-45
connector on each end.
1 meter Any ATV61, Any ATV71 VW3A1104R10 35.00
3 meters Any ATV61, Any ATV71 VW3A1104R30 35.00
5 meters Any ATV61, Any ATV71 VW3A1104R50 35.00
10 meters Any ATV61, Any ATV71 VW3A1104R100 45.00
Communication
Options
Profibus ATV312 VW3A31207 185.00
CANopen Daisy Chain ATV312 VW3A31208 185.00
DeviceNet ATV312 VW3A31209 185.00
Potentiometer Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer Altivar 312 ATVPOT25K 69.00
Table 25: Configuration Tools
Description Part Number For Use on Drives $ Price
Universal Bluetooth Interface: Bluetooth connectivity to devices through serial RS-485, RJ45
Modbus port. For permanent installation, to be used during commissioning, maintenance and
troubleshooting of equipment.
TCSWAAC13FBbAltivar 12, 212, 312, 61, 71, and
Altistart 22 180.00
Simple Loader: to transfer configuration between like drives. For use with the Altivar product
line. VW3A8120 ATV12, ATV312, ATV32, ATV61
and ATV71 175.00
Multi-loader: to copy a configuration from a drive or from SoMove via an SD card, and
transferring to another drive or to a PC VW3A8121 ATV12, ATV312, ATV212, ATV32,
ATV61, ATV71 and ATS22 350.00
Table 26: Options—Field Installed Kits
Description For Use on Drives Catalog Number $ Price
DIN Rail
Mount Kit DIN Rail Mounting Plate for 35 mm wide DIN rail
ATV312H018M2, ATV312H037M2,
ATV312H055M2, ATV312H075M2,
ATV312H018M3, ATV312H037M3,
ATV312H055M3, ATV312H075M3
VW3A9804 72.00
ATV312HU11M2, ATV312HU15M2,
ATV312HU11M3, ATV312HU15M3,
ATV312HU22M3, ATV312H037N4,
ATV312H055N4, ATV312H075N4,
ATV312HU11N4, ATV312HU15N4,
ATV312H075S6, ATV312HU15S6
VW3A9805 72.00
Conduit
Entrance Kit
Multiple knockout sizes
Installation of conduit entrance kit and retention of vent cover on
top of drive controller provides the ATV31 with UL Type 1 rating.
ATV312H018M2, ATV312H037M2,
ATV312H055M2, ATV312H075M2 VW3A31812 45.00
ATV312H018M3, ATV312H037M3,
ATV312H055M3, ATV312H075M3 VW3A31811 45.00
ATV312HU11M3, ATV312HU15M3 VW3A31813 45.00
ATV312HU11M2, ATV312HU15M2,
ATV312HU22M3, ATV312H037N4,
ATV312H055N4, ATV312H075N4,
ATV312HU11N4, ATV312HU15N4,
ATV312H075S6, ATV312HU15S6
VW3A31814 45.00
ATV312HU22M2, ATV312HU30M3,
ATV312HU40M3, ATV312HU22N4,
ATV312HU30N4, ATV312HU40N4,
ATV312HU22S6, ATV312HU40S6
VW3A31815 45.00
ATV312HU55M3, ATV312HU75M3,
ATV312HU55N4, ATV312HU75N4,
ATV312HU55S6, ATV312HU75S6
VW3A31816 45.00
ATV312HD11M3, ATV312HD15M3,
ATV312HD11N4, ATV312HD15N4,
ATV312HD11S6, ATV312HD15S6
VW3A31817 45.00
ATV28
Replacement
Kit
This kit contains brackets that adapt the spacing of the ATV312
mounting holes to be equivalent to that of an ATV28 with the
same rating. This will permit the ATV312 to be secured to the
panel holes and mounting hardware already in place for the
ATV28.
ATV312H018M2, ATV312H037M2,
ATV312H055M2, ATV312H075M2
ATV312H018M3, ATV312H037M3,
ATV312H055M3, ATV312H075M3
VW3A31821 25.00
ATV312HU11M2, ATV312HU15M2,
ATV312HU11M3, ATV312HU15M3,
ATV312HU22M3, ATV312H075S6,
ATV312HU15S6
VW3A31822 25.00
ATV312HU55M3, ATV312HU75M3,
ATV312HU55N4, ATV312HU75N4,
ATV312HU55S6, ATV312HU75S6
VW3A31823 25.00
Dynamic
Braking
Resistor Kit
DB resistors are provided in a Type 1 enclosure and are
thermally protected.
ATV312H018M2–037M2
VW3A66711 422.00ATV312H018M3–037M3
ATV312H037N4–U40N4
ATV312H055M2–U22M2
VW3A66712 633.00ATV312H055M3–U22M3
ATV312HU55N4–U75N4
ATV312HU30M3–U40M3 VW3A66713 950.00
ATV312HD11N4–D15N4
ATV312HU55M3–U75M3 VW3A66714 1266.00
ATV312HD11M3–D15M3 VW3A66715 1846.00
CP4B PC41bDiscount
Schedule
38 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
Altivar™ 312 Drives
Options—Field Installed Kits (Continued)
Description For Use on Drives Catalog Number $ Price
Line Reactors
230/460 V See page 56 of this Price Guide.
575 V
Open Style
ATV312H075S6 RL00202 158.00
ATV312HU15S6 RL00403 163.00
ATV312HU22S6
ATV312HU40S6 RL00803 245.00
ATV312HU55S6 RL00802 179.00
ATV312HU75S6 RL01202 200.00
ATV312HD11S6 RL01802 253.00
ATV312HD15S6 RL02502 291.00
Enclosed (Type 1)
ATV312H075S6 RL00212 289.00
ATV312HU15S6 RL00413 294.00
ATV312HU22S6
ATV312HU40S6 RL00813 379.00
ATV312HU55S6 RL00812 310.00
ATV312HU75S6 RL01212 332.00
ATV312HD11S6 RL01812 388.00
ATV312HD15S6 RL02512 507.00
RFI Input Filter
For compliance with European
(CE) conducted emissions
standard 55022 Class B
(Class A filter built into
230/460 V ATV31 drives)
Single-phase
supply voltage:
200–240 V 50/60 Hz
ATV312H037M2 ATV312H055M2
ATV312H075M2 VW3A31401 58.00
ATV312HU11M2 ATV312HU15M2 VW3A31403 79.00
ATV312HU22M2 VW3A31405 108.00
3 phase supply
voltage: 200–240 V
50/60 Hz
ATV312H018M3 ATV312H037M3
ATV312H055M3 ATV312H075M3 VW3A31402 72.00
ATV312HU11M3 ATV312HU15M3
ATV312HU22M3 VW3A31404 90.00
ATV312HU30M3 ATV312HU40M3 VW3A31406 133.00
ATV312HU55M3 ATV312HU75M3 VW3A31407 189.00
ATV312HD11M3 ATV312HD15M3 VW3A31408 297.00
ATV312HD11N4 ATV312HD15N4 VW3A31409 243.00
3 phase supply
voltage: 380–500 V
50/60 Hz
ATV312H037N4 ATV312H055N4
ATV312H075N4 ATV312HU11N4
ATV312HU15N4
VW3A31404 90.00
ATV312HU22N4 ATV312HU30N4
ATV312HU40N4 VW3A31406 133.00
ATV312HU55N4 ATV312HU75N4 VW3A31407 189.00
ATV312HD11N4 ATV312HD15N4 VW3A31409 243.00
CP4B Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
39
Pricing Guide AC Drive Products

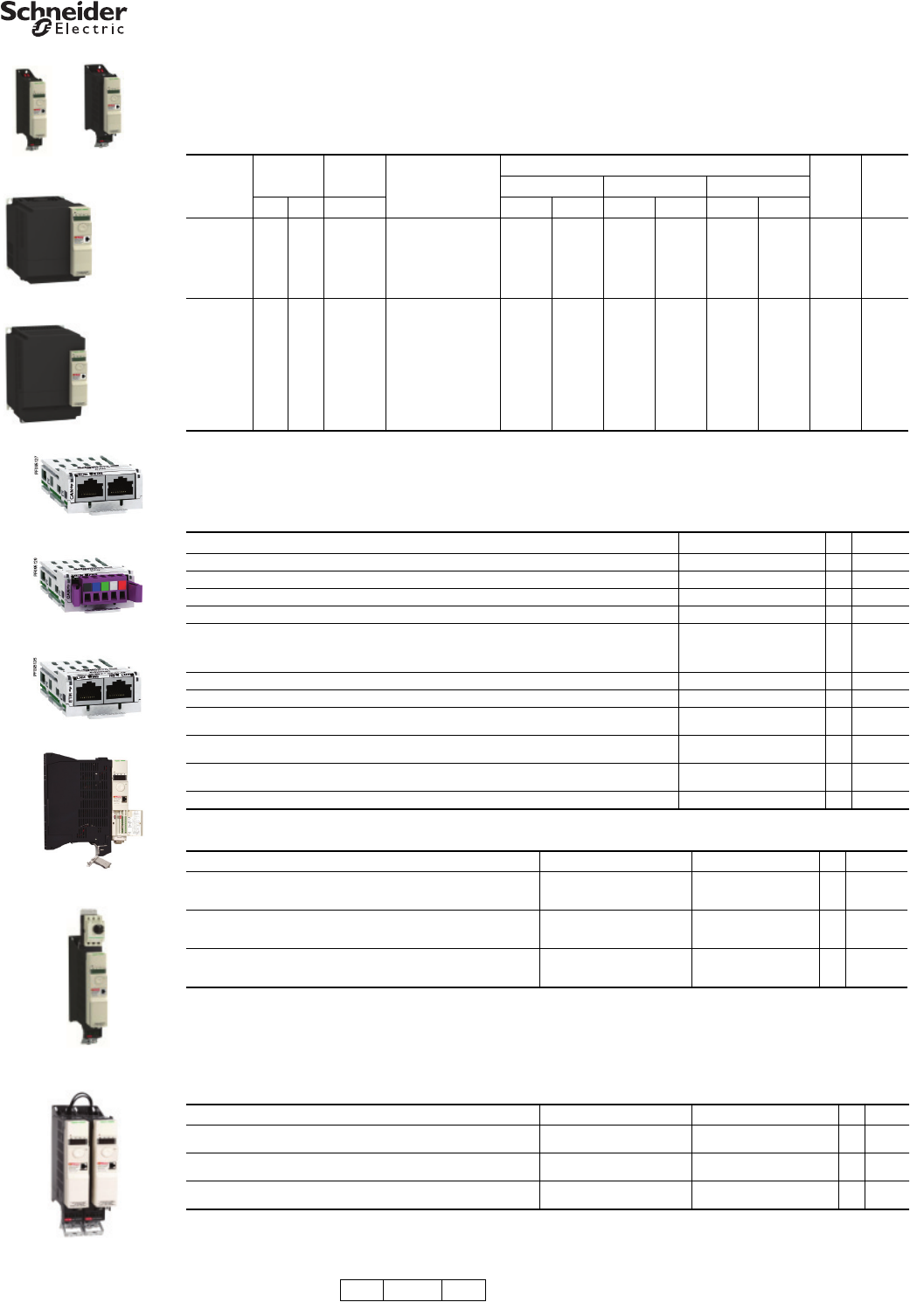

Altivar™ 32 Drives
Selection and Pricing
The Altivar™ 32 is intended for use with three-phase asynchronous and synchronous motors.
Select the Altivar 32 using the nameplate voltage and full load ampere rating of the motor and the table below. The
horsepower ratings are for reference only.
Network Communication Option Cards
The Altivar 32 can accept one of the following network communication option cards. The card slides into the Altivar 32
without taking up addition panel space, CANopen from the embedded port is disabled when an option card is
installed.
bDiscount Schedule for this product is PC51.
aDiscount Schedule for this product is I11.
DC Bus Connectors
Use these connectors to daisy chain multiple Altivar 32 drives together to balance acceleration and decelerating
loads. (Use in addition to dynamic braking resistors in this type of application.) Or use these connectors when the
drives are powered at the DC bus only.
bDiscount Schedule for this product is PC51.
Table 27: Altivar 32 Selection and Pricing
Input Line
Voltage
Three-Phase
Motor Power
Continuous
Output
Current Catalog Number
Dimensions
Frame
Size $ PriceWHD
HP kW A IN mm IN mm IN mm
200–240 Vac
Single-Phase
Input
0.25 0.18 1.5 ATV32H018M2 1.77 45 12.8 325 9.65 245 A 335.00
0.50 0.37 3.3 ATV32H037M2 1.77 45 12.8 325 9.65 245 A 365.00
0.75 0.55 3.7 ATV32H055M2 1.77 45 12.8 325 9.65 245 A 395.00
1 0.75 4.8 ATV32H075M2 1.77 45 12.8 325 9.65 245 A 420.00
1.5 1.10 6.9 ATV32HU11M2 2.36 60 12.8 325 9.65 245 B 475.00
2 1.50 8 ATV32HU15M2 2.36 60 12.8 325 9.65 245 B 525.00
3 2.20 11 ATV32HU22M2 2.36 60 12.8 325 9.65 245 B 620.00
380–480 Vac
Three-Phase
Input
0.50 0.37 1.5 ATV32H037N4 1.77 45 12.8 325 9.65 245 A 490.00
0.75 0.55 1.9 ATV32H055N4 1.77 45 12.8 325 9.65 245 A 525.00
1 0.75 2.3 ATV32H075N4 1.77 45 12.8 325 9.65 245 A 550.00
1.5 1.1 3 ATV32HU11N4 1.77 45 12.8 325 9.65 245 A 602.00
2 1.5 4.1 ATV32HU15N4 1.77 45 12.8 325 9.65 245 A 665.00
3 2.2 5.5 ATV32HU22N4 2.36 60 12.8 325 9.65 245 B 751.00
4 3 7.1 ATV32HU30N4 2.36 60 12.8 325 9.65 245 B 852.00
5 4 9.5 ATV32HU40N4 2.36 60 12.8 325 9.65 245 B 980.00
7.5 5.5 14.3 ATV32HU55N4 5.90 150 9.25 235 9.13 232 C 1191.00
10 7.5 17 ATV32HU75N4 5.90 150 9.25 235 9.13 232 C 1455.00
15 11 27.7 ATV32HD11N4 7.08 180 13 330 9.13 232 D 1825.00
20 15 33 ATV32HD15N4 7.08 180 13 330 9.13 232 D 2325.00
Table 28: Network Communication Option Card Selection and Pricing
Description Catalog Number Qty. $ Price
CANopen daisy chain option card, two RJ45 ports VW3A3608b130.00
0.3 meter CANopen cable with two RJ45 connectors VW3CANCARR03 25.00
1 meter CANopen cable with two RJ45 connectors VW3CANCARR1 25.00
CANopen end of line terminator with RJ45 connector TCSCAR013M120b220.00
IP20 CANopen junction box with:
2 screw terminal blocks for trunk cable tap connection
2 RJ45 connectors for connection to drives
1 RJ45 connector for connecting a PC
VW3CANTAP2 130.00
CANopen single port option card, 9 pin male SUB-D connector VW3A3618b149.00
CANopen single port option card, removable 5 position screw connector VW3A3628 130.00
Profibus DP V1 single port option card, 9 pin male SUB-D connector
Supports CiA 402 drive profile and Profidrive profile, Offers several message handling modes based on DP V1 VW3A3607b281.00
DeviceNet™ single port option card, removable 5 position screw connector
Supports CIP AC drive profile and CiA 402 drive profile. VW3A3609 185.00
Ethernet IP—Modbus™ TCP/IP daisy chain option card, two RJ45 ports
10/100 Mbps, half duplex and full duplex, embedded web server, VW3A3616b250.00
EtherCAT daisy chain option card, two RJ45 ports VW3A3601b300.00
Table 29: Mounting Accessories
Description For Use On Catalog Number Qty. $ Price
Adaptor to mount the ATV32 control module rotated 90°
Use this adaptor to mount the ATV32 control module rotated 90°, allowing the
ATV32 to be mounted in a shallow enclosure.
ATV32H…M2 to
ATV32H037N4…U40N4 VW3A9920 1 45.00
Bracket for mounting GV2 manual protector on an ATV 32
Metal bracket mounts to the ATV32 and holds a GV2. Requires a GV2AF4
adaptor for electrical connections. Must order in sets of 10.
ATV32H…M2 to
ATV32H037N4…U40N4 VW3A9921 1 4.50
Adaptor for use with mounting a GV2 on an ATV 32
Provides electrical power connections between GV2 and ATV32. Requires a
VW39921 bracket to mount the GV2. Must order in sets of 10.
ATV32H…M2 to
ATV32H037N4…U40N4 GV2AF4a13.20
Table 30: Mounting Accessories
Description Use To Connect Catalog Number Qty. $ Price
Daisy chain DC bus cord with two connectors ATV32H…M2
ATV32H037N4…U40N4 VW3M7101R01b583.00
Daisy chain DC bus cord with one connector and flying leads at one end ATV32H037N4…U40N4
to ATV32HU55N4…D15N4 VW3M7102R150b115.00
Daisy chain DC bus cord with two connectors ATV32H037N4…U40N4
to ATV32HU55N4…D15N4 VW3M2207b10 115.00
Size A Size B
Size C
Size D
VW3 A3 608
VW3 A3 628
VW3 A3 616
GV mounted using
VW3A9921 and GV 2AF4
Mounting using VW3A9920
Mounting using
VW3M7101R01
I11aPC51bCP4B Discount
Schedule
40 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
Altivar™ 32 Drives
Options and Accessories
IP 65 Rated Dynamic Braking Resistors for the Altivar™ 32
For use with high inertia motor loads, generating motor mode loads and machines with fast cycle times.
See Altivar 32 Installation Manual for sizing information
aDiscount Schedule for this product is PC51.
IP 20 Rated Dynamic Braking Resistors for the Altivar 32
For use with high inertia motor loads, generating motor mode loads and machines with fast cycle times. See Altivar 32
Installation Manual for sizing information
EMC Input Filters for the Altivar 32
Maximum length in meter of shielded cable between drive and motor in reference to IEC 61800-3.
Category 1 (C1) is for residential limits Category 2 (C2) is for industrial limit
Output Motor Filters for the Altivar 32
Motor filters can be installed between the Altivar 32 and the motor to: • limit the dV/dt at the motor terminals • filter
interference • reduce leakage current • filter the current wave form to create a smoother wave form to reduce motor
noise. This listing is a global offer. See page 64 of this document for additional filters available in the USA.
aDiscount Schedule for this product is PC51.
Table 31: Altivar 32 Options and Accessories
For Use On Minimum Resistor Value to
Connect to the Drive: ohms
Resistor Description
Ohmic Value: Average Power
Available at 50 °C Catalog Number
Cable
Length:
m
$ Price
ohms watts
ATV32H018M2…H075M2 40
100 100 VW3A7608R07a0.75 305.00
ATV32H037N4…H075N4 80
ATV32HU11N4…HU22N4 54 VW3A7608R30a3413.00
ATV32HU11M2…HU15M2 27 72 100 VW3A7605R07a0.75 180.00
VW3A7605R30a3243.00
ATV32HU22M2 25 27 200 VW3A7603R07a0.75 203.00
VW3A7603R30a3261.00
ATV32HU30N4 54 72 200 VW3A7606R07a0.75 203.00
ATV32HU40N4 36 VW3A7606R30a3261.00
ATV32HU55N4…HU75N4 27 27 400 VW3A7604R07a0.75 270.00
VW3A7604R30a3333.00
Table 32: Altivar 32 IP 20 Rated Dynamic Breaking Resistors
For Use On Minimum Resistor Value to
Connect to the Drive: ohms
Resistor Description
Ohmic Value: Average Power
Available at 50 °C Catalog Number $ Price
ohms watts
ATV32H018M2…H075M2 40
100 50 VW3A7701 575.00
ATV32HU11M2…HU15M2 27
ATV32H037N4…H075N4 80
ATV32HU11N4…HU30N4 54
ATV32HU40N4 36
ATV32HU22M2 25 60 100 VW3A7702 785.00
ATV32HU55N4…HU75N4 27
ATV32HD11N4…HD15N4 18 28 200 VW3A7703 1165.00
Table 33: Altivar 32 EMC Input Filters
For Use On Filter Mounts Heat Loss
Watts
Nominal
Current Amps
Category C1
m
Category C2
mCatalog Number $ Price
ATV32H018M2
on side of drive 3.7 10.1 20 50 VW3A4420 79.00
ATV32H037M2
ATV32H055M2
ATV32H075M2
ATV32HU11M2 on side of drive 6.9 17.6 20 50 VW3A4421 95.00
ATV32HU15M2
ATV32HU22M2 on side of drive 7.5 23.9 20 50 VW3A4426 120.00
ATV32H037N4
on side of drive 9.5 15 20 50 VW3A4422 79.00
ATV32H055N4
ATV32H075N4
ATV32HU11N4
ATV32HU15N4
ATV32HU22N4
on side of drive 15.8 25 20 50 VW3A4423 120.00ATV32HU30N4
ATV32HU40N4
ATV32HU55N4 underneath drive 19.3 47 20 50 VW3A4424 145.00
ATV32HU75N4
ATV32HD11N4 underneath drive 27.4 49 20 50 VW3A4425 175.00
ATV32HD15N4
Table 34: Altivar 32 Output Motor Filters
For Use On Heat Loss
Watts
Nominal
Current Amps
Cable Length
Catalog Number $ Price
Shielded
m
Unshielded
m
ATV32HU22M2 75 16
<100 <200
VW3A4553a1489.00
ATV32HU22N4…HU40N4 65 10 VW3A4552a1379.00
ATV32HU55N4 75 16 VW3A4553a1489.00
ATV32HU75N4…HD11N4 90 30 VW3A4554a1720.00
ATV32HD15N4 80 60 VW3A4555a2085.00
VW3 A7 608 R••
VW3 A7 701
VW3A4422
VW3A4424
CP4B PC51aDiscount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
41
Pricing Guide AC Drive Products
Altivar™ 32 Drives
aNot required if using VW3A1102.
bDiscount Schedule for this product is CP4B.
cAvailable 2nd Quarter 2012.
Table 35: Altivar™32 Options and Accessories
Description For Use On Catalog Number $ Price
Software
SoMove™ PC software enables the user to configure, set, diagnose and maintain the Altivar 32 drive. The ATV Logic and Safety functions embedded in the Altivar
32 drive must be configured with this software. The software can also be used to customize the integrated display terminal menus. It can be used with a direct
connection or a Bluetooth®wireless connection. Free download www.schneider-electric.us
Cable to connect PC to Altivar 32
USB/RS485 cord set (equipped with RJ45 socket) TCSMCNAM3M002P 52.00
Remote Display Keypad and cables
Remote LED Display Keypad Description: 4 digit, 8 keys, 50 °C rated
IP54 keypad, also select remote keypad cable below
IP65 keypad, also select remote keypad cable below
Altivar 12 & Altivar 32 VW3A1006b
VW3A1007b
65.00
65.00
Remote Keypad Cables—Equipped with 2 RJ45 Connectors
1 meter length Altivar & Altistart™ motor
starters
VW3A1104R10 35.00
3 meter length VW3A1104R30 35.00
Remote LCD Graphic Display Keypad, cables and accessories
Remote LCD Graphical Display Keypad Description:
8 line, 24 characters per line, plain text, 8 keys, rotary wheel, 600 °C IP54 rated Altivar 212, 312, 32, 61, & 71 VW3A1101 115.00
Remote LCD Graphical Keypad Mounting accessories
IP54 rated kit for remote mounting LCD Graphical keypad on enclosure door VW3A1101 VW3A1102 55.00
Clear plastic door for use with kit VbW3A1102 for IP65 rating and tamper resistance VW3A1102 VW3A1103 35.00
Female / Female right angle RJ45 adaptor, to connect cable and keypad.aVW3A1101 VW3A1105 35.00
Remote Keypad Cables—Equipped with 2 RJ45 Connectors
1 meter length VW3A1101 VW3A1104R10 35.00
3 meter length VW3A1101 VW3A1104R30 35.00
5 meter length VW3A1101 VW3A1104R50 35.00
10 meter length VW3A1101 VW3A1104R100 35.00
Modbus™ Serial Link—Connection via splitter box and RJ45 connectors
Length
Modbus splitter box (with 10 RJ45 Connectors) — LU9GC3a312.00
Cordsets for Modbus serial link (with 2 RJ45 connectors
.3 m LU9GC3 VW3A8306R03b20.00
1 m LU9GC3 VW3A8306R10b25.00
3 m LU9GC3 VW3A8306R30b30.00
Modbus T-junction boxes (with integrated cables) .3 m LU9GC3 VW3A8306TF03b75.00
1 m LU9GC3 VW3A8306TF10b85.00
RJ45 Line Terminators (Sold in lots of 2) — LU9GC3 VW3A8306RCb6.00
Configuration Loaders—Use to Upload Download and store drive configuration settings
Simple Loader—Using RJ45 port on product, one product configuration can be downloaded from
a product, stored & uploaded to similar products. Cable included. Altivar 12, 312, 32, 61, 71 VW3A8120 175.00
Multi-Loader—Multiple product configurations can be downloaded from a PC or drive, stored on
an SD card and uploaded to similar products.
Altivar 12, 212, 312, 32, 61, 71
Altistart 22 VW3A8121 350.00
Multi-loader Cable. Fitted with non-locking RJ45 connector and handle to reach into Altivar 12 &
Altivar 32 packaging. VW3A8121 VW3A8126 30.00
Operator Interface
Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer Altivar 32 ATVPOT25K 69.00
Table 36: Altivar 32 Replacement Cooling Fans
These replacement cooling fans have a quick connect connector and snap into the Altivar 32.
Description For Use On Reference Number $ Price
Replacement Cooling Fansc
ATV32H018M2...075M2
ATV32H037N4...HU15N4 VZ3V32A100 75.00
ATV32HU11M2...U22M2
ATV32HU22N4...HU40N4 VZ3V32B100 85.00
ATV32HU55N4...ATV32U75N4 VZ3V32C100 105.00
ATV32HD11N4...HD15N4 VZ3V32D100 135.00
VW3A1006
VW3A1101
VW3A1102
VW3A1103
VW3A1101
VW3A1104R10
Multi-loader
PC51 CP4BbCP1G CP4C Discount
Schedule
42 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
Altivar™ 71 Drives
Altivar™ 71 Single-Phase
In an application where it is necessary to use a 240 V single-phase input for a 3-phase motor, the drive must be derated;
therefore, the power listed on the drive nameplate will be higher than the power rating on the motor nameplate.
For more information on wire and line reactor sizing, refer to Altivar 61 and 71 Supplementary Ratings (30072-451-38).
aOption to have product treated for increased protection for dusty and corrosive environments. This product is not stocked. On 0.5 hp to 5 hp at 230 Vac
single-phase, add “S337” to the end of the catalog number. On 7.5 hp to 25 hp at 230 Vac single-phase, add “337” to the end of the catalog number. In
both cases multiply price by 1.2 to obtain new price. With this option, exposed copper is tinned, circuit boards are conformal coated in critical areas and
plastics are treated to better withstand the corrosive nature of certain oils.
bThese products can be ordered with LonWorks®or BACnet communication option card shipped as one line item. Field installation required. Add “LW” to
the end of the part number to receive a LonWorks option card. Add $550 to the price. Add “BN” to the end of the part number to receive a BACnet option
card. Add $225 to the price.
cProduct does not contain an EMC filter.
Altivar 71 Three-Phase
aOption to have product treated for increased protection for dusty and corrosive environments. This product is not stocked. On 0.5 hp to 10 hp at 230 Vac
3 phase and up to 100 hp at 460 V, add “S337” to the end of the catalog number. On 15 hp to 60 hp at 230 Vac 3 phase, add “337” to the end of the
catalog number. In both cases multiply price by 1.2 to obtain new price. With this option, exposed copper is tinned, circuit boards are conformal coated
in critical areas and plastics are treated to better withstand the corrosive nature of certain oils. This option is standard on 55 kW/75 hp @ 230 Vac 3 phase
and higher & 90 kW/125 hp @ 460 Vac and higher.
bProduct does not contain an EMC filter.
cProduct ships with a DC choke that must be field mounted. A 5% line reactor may be purchased and installed in place of the DC choke. Add “D” to the
end of the catalog number to receive just the AC drive and multiply the listed price by.96 to obtain new price.
dConformal coating is standard.
Table 37: Altivar 71 Selection and Pricing
Input
Line
Voltage
With a 5% Line
Reactor Without a Line Reactor
Catalog Number
with LCD Keypadb
Price $ Catalog Number
to have ATV71 and
Type 1 conduit entry
kit shipped as
one line item. Field
installation required
(Packaged as kit at
warehouse).
Price $
Catalog Number
with LED
Keypad
(Non-stocked)
Price $
Motor
Power
Continuous
Output
Current
Motor
Power
Continuous
Output
Current
HP kW A HP kW A
208/
240 Vac
Single
Phase
— — — 0.5 0.37 3 ATV71H075M3a652.00 ATV71H075M3T1 697.00 ATV71H075M3Za557.00
— — — 1 0.75 4.8 ATV71HU15M3a694.00 ATV71HU15M3T1 729.00 ATV71HU15M3Za589.00
— — — 2 1.5 8 ATV71HU22M3a796.00 ATV71HU22M3T1 841.00 ATV71HU22M3Za701.00
— — — 3 2.2 11 ATV71HU30M3a984.00 ATV71HU30M3T1 1029.00 ATV71HU30M3Za889.00
— 3 13.7 — — — ATV71HU40M3a1150.00 ATV71HU40M3T1 1195.00 ATV71HU40M3Za1055.00
5 4 17.5 — — — ATV71HU55M3a1458.00 ATV71HU55M3T1 1503.00 ATV71HU55M3Za1363.00
7.5 5.5 27.5 5 4 17.5 ATV71HU75M3a1790.00 ATV71HU75M3T1 1835.00 ATV71HU75M3Za1695.00
10 7.5 33 7.5 5.5 27.5 ATV71HD15M3Xac 2850.00 ATV71HD15M3XT1c2895.00 ATV71HD15M3XZa2755.00
— — — 10 7.5 33 ATV71HD18M3Xac 3422.00 ATV71HD18M3XT1c3487.00 ——
15 11 54 — — — ATV71HD22M3Xac 4170.00 ATV71HD22M3XT1c4253.00 ——
20 15 66 15 11 54 ATV71HD30M3Xac 5348.00 ATV71HD30M3XT1c5433.00 ——
25 18 75 20 15 66 ATV71HD37M3Xac 6212.00 ATV71HD37M3XT1c6297.00 ——
30 22 88 25 18 75 ATV71HD45M3Xac 7356.00 ATV71HD45M3XT1c7491.00 ——
Table 38: Altivar 71 Selection and Pricing
Input
Line
Voltage
Constant Torque
$ Price
Catalog Number
ATV71 drive and Type 1
conduit entry kit
$ Price
Catalog Number
with LED Keypad
(Non-stocked)
$ Price
Three-Phase
Motor Power
Continuous
Output
Current
HP kW A
208/240 Vac
Three
Phase
0.5 0.37 3 ATV71H037M3a616.00 ATV71H037M3T1 661.00 ATV71H037M3Za521.00
1 0.75 4.8 ATV71H075M3a652.00 ATV71H075M3T1 697.00 ATV71H075M3Za557.00
2 1.5 8 ATV71HU15M3a684.00 ATV71HU15M3T1 729.00 ATV71HU15M3Za589.00
3 2.2 11 ATV71HU22M3a796.00 ATV71HU22M3T1 841.00 ATV71HU22M3Za701.00
4 3 13.7 ATV71HU30M3a984.00 ATV71HU30M3T1 1029.00 ATV71HU30M3Za889.00
5 4 17.5 ATV71HU40M3a1150.00 ATV71HU40M3T1 1195.00 ATV71HU40M3Za1055.00
7.5 5.5 27.5 ATV71HU55M3a1458.00 ATV71HU55M3T1 1503.00 ATV71HU55M3Za1363.00
10 7.5 33 ATV71HU75M3a1790.00 ATV71HU75M3T1 1835.00 ATV71HU75M3Za1695.00
15 11 54 ATV71HD11M3Xab 2270.00 ATV71HD11M3XT1b2315.00 ATV71HD11M3XZab 2175.00
20 15 66 ATV71HD15M3Xab 2850.00 ATV71HD15M3XT1b2895.00 ATV71HD15M3XZab 2755.00
25 18 75 ATV71HD18M3Xab 3422.00 ATV71HD18M3XT1b3487.00 ——
30 22 88 ATV71HD22M3Xab 4170.00 ATV71HD22M3XT1b4235.00 ——
40 30 120 ATV71HD30M3Xab 5348.00 ATV71HD30M3XT1b5433.00 ——
50 37 144 ATV71HD37M3Xab 6212.00 ATV71HD37M3XT1b6297.00 ——
60 45 176 ATV71HD45M3Xab 7356.00 ATV71HD45M3XT1b7491.00 ——
75 55 221 ATV71HD55M3Xbcd 8870.00 ATV71HD55M3XT1b9330.00 ——
100 75 285 ATV71HD75M3Xbcd 10658.00 ATV71HD75M3XT1b11211.00 ——
LCD Keypad
LED Keypad
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
43
Pricing Guide AC Drive Products
Altivar™ 71 Drives
aOption to have product treated for increased protection for dusty and corrosive environments. This product is not stocked. Up to 100 hp at 460 V, add
“S337” to the end of the catalog number and multiply price by 1.2 to obtain new price. With this option, exposed copper is tinned, circuit boards are
conformal coated in critical areas and plastics are treated to better withstand the corrosive nature of certain oils. This option is standard on
90 kW/125 hp @ 460 Vac and higher.
bProduct ships with a DC choke that must be field mounted. A 5% line reactor may be purchased and installed in place of the DC choke. Add “D” to the
end of the catalog number to receive just the AC drive and multiply the listed price by.96 to obtain new price.
cAlso possible for use with a synchronous motor. Add “383” to the end of the catalog number and multiply the listed price by 1.2 to obtain new price.
dConformal coating is standard.
eAn AC 5% line reactor is mandatory.
fThese products do not contain a dynamic braking transistor. A separate transistor must be added for applications requiring dynamic braking.
Altivar™ 71 Selection and Pricing (continued)
Input
Line
Voltage
Constant Torque
Catalog Number
with LCD Keypad
(Stocked)
$ Price
Catalog Number
to have ATV71 drive and
Type 1 conduit entry kit
shipped as one line item.
Field installation required
(Packaged as kit at
warehouse).
$ Price
Catalog Number
with LED Keypad
(Non-stocked)
$ Price
Three-Phase
Motor Power
Continuous
Output
Current
HP kW A
400/480 Vac
Three
Phase
1 0.75 2.3 ATV71H075N4ac 794.00 ATV71H075N4T1 839.00 ATV71H075N4Za699.00
2 1.5 4.1 ATV71HU15N4ac 912.00 ATV71HU15N4T1 957.00 ATV71HU15N4Za817.00
3 2.2 5.8 ATV71HU22N4ac 1110.00 ATV71HU22N4T1 1155.00 ATV71HU22N4Za1015.00
4 3 7.8 ATV71HU30N4ac 1250.00 ATV71HU30N4T1 1295.00 ATV71HU30N4Za1155.00
5 4 10.5 ATV71HU40N4ac 1316.00 ATV71HU40N4T1 1361.00 ATV71HU40N4Za1221.00
7.5 5.5 14.3 ATV71HU55N4ac 1584.00 ATV71HU55N4T1 1629.00 ATV71HU55N4Za1489.00
10 7.5 17.6 ATV71HU75N4ac 1924.00 ATV71HU75N4T1 1969.00 ATV71HU75N4Za1829.00
15 11 27.7 ATV71HD11N4ac 2278.00 ATV71HD11N4T1 2323.00 ATV71HD11N4Za2183.00
20 15 33 ATV71HD15N4ac 2832.00 ATV71HD15N4T1 2877.00 ATV71HD15N4Za2737.00
25 18 41 ATV71HD18N4ac 3408.00 ATV71HD18N4T1 3453.00 ATV71HD18N4Za3313.00
30 22 48 ATV71HD22N4ac 3710.00 ATV71HD22N4T1 3775.00 ATV71HD22N4Za3615.00
40 30 66 ATV71HD30N4ac 4566.00 ATV71HD30N4T1 4631.00 ATV71HD30N4Za4471.00
50 37 79 ATV71HD37N4ac 5370.00 ATV71HD37N4T1 5435.00 ATV71HD37N4Za5275.00
60 45 94 ATV71HD45N4ac 6742.00 ATV71HD45N4T1 6877.00 ATV71HD45N4Za6647.00
75 55 116 ATV71HD55N4ac 7762.00 ATV71HD55N4T1 7897.00 ATV71HD55N4Za7667.00
100 75 160 ATV71HD75N4ac 8862.00 ATV71HD71N4T1 8997.00 ATV71HD75N4Za8767.00
125 90 179 ATV71HD90N4bc 9742.00 ATV71HD90N4T1 10202.00 ——
150 110 215 ATV71HC11N4bc 11002.00 ————
200 130 259 ATV71HC13N4bc 12642.00 ————
250 160 314 ATV71HC16N4bc 14282.00 ————
300 200 387 ATV71HC20N4bcf 16462.00 ————
400 250 481 ATV71HC25N4bcf 19382.00 ————
450 280 550 ATV71HC28N4bcf 23002.00 ————
500 310 616 ATV71HC31N4bcf 27922.00 ————
600 400 759 ATV71HC40N4bcf 37392.00 ————
700 500 941 ATV71HC50N4bcf 52041.00 ————
575/690 Vac
Three
Phase
2 2.2 2.7 ATV71HU22Yd1889.00 ————
3 3 3.9 ATV71HU30Yd1990.00 ————
4 4 5.8 ATV71HU40Yd2009.00 ————
5 5.5 6.1 ATV71HU55Yd2380.00 ————
7.5 7.5 9 ATV71HU75Yd2799.00 ————
10 11 11 ATV71HD11Yd3380.00 ————
15 15 17 ATV71HD15Yd3979.00 ————
20 18.5 22 ATV71HD18Yd4790.00 ————
25 22 27 ATV71HD22Yd5780.00 ————
30 30 32 ATV71HD30Yd6999.00 ————
40 37 41 ATV71HD37Yd8579.00 ————
50 45 52 ATV71HD45Yd10379.00 ————
60 55 62 ATV71HD55Yd12199.00 ————
75 75 77 ATV71HD75Yd14399.00 ————
100 90 99 ATV71HD90Yd16899.00 ————
125 110 125 ATV71HC11Yde 19179.00 ————
150 132 150 ATV71HC13Yde 23795.00 ————
175 160 180 ATV71HC16Yde 24290.00 ————
200 200 220 ATV71HC20Ydef 28950.00 ————
250 250 290 ATV71HC25Ydef 35950.00 ————
350 315 355 ATV71HC31Ydef 46750.00 ————
450 400 420 ATV71HC40Ydef 59590.00 ————
550 500 543 ATV71HC50Ydef 78490.00 ————
700 630 675 ATV71HC63Ydef 103390.00 ————
ATV71HC28N4
ATV71HC31Y
CP4C Discount
Schedule
44 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
Altivar™ 61 and Altivar 71 Drives
Table 39: Options—Field Installed
Description For Use on Drives Catalog No. $ Price
Operator
Interface
LCD graphic keypad: IP54 rating
any ATV61
any ATV71
VW3A1101 115.00
Remote mounting kit: includes bezel and mounting hardware VW3A1102 55.00
Door for use with remote mount kit for IP65 rating VW3A1103 45.00
Cable for remote mounting LCD graphic
keypad
RJ-45 connector on each end
1 meter VW3A1104R10 35.00
3 meters VW3A1104R30 35.00
5 meter VW3A1104R50 35.00
10 meters VW3A1104R100 45.00
RJ-45 female—female adaptor to connect LCD keypad and cable. Not
required if using VW3A1102. VW3A1105 35.00
Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer Altivar 71 ATVPOT25K 69.00
PowerSuite™
Software
Options
PowerSuite software on CD for PC Altivar™ AC drives
Altistart™ 48
TeSys™ U-line
VW3A8104 150.00
USB to RJ45 adaptor: for use in connecting to a PC with a USB port TCSMCNAM3M002P 52.00
Universal
Bluetooth
Interfacec
Bluetooth connectivity to devices through serial RS-485, RJ45 Modbus
port. For permanent installation, to be used during commissioning,
maintenance and troubleshooting of equipment.
Altivar 12, 212, 312, 61, 71
Altistart 22 TCSWAAC13FB 180.00
PC Cable for
Test and
Commissioning
Software Includes 3-meter (9.8 ft.) cable,
RS-485/RS-232C adaptor and connectors ATV58 all types VW3A8106 75.00
I/O Adaptor 115 Vac logic input adaptor adapts 7 logic inputs for use with
user supplied 115 Vac signals
any ATV61
any ATV71 VW3A3101 195.00
I/O Extension
Option Cards
Basic I/O option card—4 logic inputs, 2 logic outputs, 1 Form C relay
output, an input for PTC motor probes, a 24 Vdc output, a—10 Vdc
output any ATV61
any ATV71
VW3A3201 165.00
Extended I/O option card—contains all the I/O on the Basic I/O option
card plus 2 analog inputs, 2 analog outputs, 1 pulse input VW3A3202 195.00
CANopen
Adapter
This adaptor connects to the RJ-45 port and provides a 9–pin male
SUB–D connector conforming to the CANopen standard
(CIA DRP 303–1)
any ATV61
any ATV71 VW3CANA71 45.00
CANopen
Connector
9-pin female SUB–D with line terminator (can be disabled). 180º cable
outlet CAN–H, CAN–L, CAN–GND connection
any ATV61
any ATV71 VW3CANKCDF180T 45.00
Incremental
Encoder
Interface
Option Cards
with RS-422 outputs, 5 Vdc
any ATV71
VW3A3401 85.00
with RS-422 outputs, 15 Vdc VW3A3402 85.00
with open collector outputs, 12 Vdc VW3A3403 85.00
with open collector outputs, 15 Vdc VW3A3404 85.00
with push–pull outputs, 12 Vdc VW3A3405 85.00
with push–pull outputs, 15 Vdc VW3A3406 85.00
with push–pull outputs, 24 Vdc VW3A3407 85.00
Resolver VW3A3408a85.00
Universal with SinCos, SinCos Hiperface®, SinCos EnDat®or SSI output VW3A3409a85.00
incremental with RS422 outputs and encoder emulation VW3A3411a85.00
Communication
Option Cards
Modbus Plus card (limited availability)
any ATV61
any ATV71
VW3A3302 550.00
Modbus / Uni-Telway™ card VW3A3303 225.00
Modbus TCP/IP Daisy Chain VW3A3310D 275.00
Interbus®S card VW3A3304 550.00
Profibus DP card VW3A3307 550.00
Profibus DPv1 card VW3A3307S371 550.00
DeviceNet™ card VW3A3309 225.00
Ethernet/IP™ card VW3A3316 275.00
FIPIO™ card (limited availability) VW3A3311 550.00
LonWorks®card
any ATV61
VW3A3312 550.00
Metasys®N2 card VW3A3313 225.00
Apogee®FLN P1 card VW3A3314 225.00
BACnet card with female sub D 9 pin connector (limited availability) VW3A3315 225.00
BACnet card with removable 4 position screw terminal connector VW3A3319 225.00
IMC Option
Card ATV IMC drive controller cardcVW3A3521S0d755.00
Controller
Inside
Option Card
Programmable option card, conforms with IEC61131–3 programming
standard. (Software for this option card is available after completing
training class offered by Schneider Electric Services.)
any ATV61
any ATV71 VW3A3501b550.00
Water Solutions
Control Card
This option card contains a variety of pre-programmed functions and
features to manage multi–pump installations.
any ATV61
any ATV71 VW3A3503b650.00
Simple Loader Using RJ45 port connections, the configurations of a drive can be
downloaded then uploaded to compatible drive. ATV31, ATV61 and ATV71 VW3A8120 175.00
aFor use with the ATV71H...383 drive ONLY.
bThe drive cannot support the VW3A3503 water solutions card and the VW3A3501 controller inside option card simultaneously.
cSoMachine is required to use this product.
dDiscount Schedule for this product is PC41.
a
3
2
1
4
LCD Keypad
Mounting Kits
Option Card Assembly
I/O Option Card
Communication
Option Card
Incremental
Encoder Interface
Option Card
CP4C PC41dDiscount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
45
Pricing Guide AC Drive Products
Altivar™ 61 and Altivar 71 Drives
Table 39: Options—Field Installed (continued)
Description For Use on Drives Catalog No. $ Price
Fan Kit
Installation of kit enables the drive to operate in higher ambient
temperatures. Fan mounts on drive. Consult the product catalog for
more information.
ATV61/71HD18M3X...HD22M3X,
ATV61/71HD22N4 VW3A9404 135.00
ATV61/71HD30N4...HD37N4 VW3A9405 145.00
ATV61/71HD30M3X...HD45M3X VW3A9406 165.00
ATV61/71HD45N4...HD75N4 VW3A9407 195.00
Description
ATV61: Options and Accessories—Variable Torque Applications
ATV58 Drive Replaced by ReferenceMounting
Plate $ Price
Mounting
Plate Kit
Kit includes: Mechanical adaptors required
for mounting and Altivar™ 61/71 drive in the
place of an Altivar 58 or Altivar 58F drive
using same holes.
Single-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU09M2ZU ATV61H075M3 VW3A9301 83.00
ATV58HU18M2ZU ATV61HU15M3 VW3A9301 83.00
ATV58HU29M2ZU ATV61HU22M3 VW3A9303 83.00
ATV58HU41M2ZU ATV61HU30M3 VW3A9303 83.00
ATV58HU72M2ZU ATV61HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV61HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV61HU75M3 VW3A9307 133.00
Three-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU29M2ZU ATV61HU15M3 VW3A9302 83.00
ATV58HU41M2ZU ATV61HU22M3 VW3A9303 83.00
ATV58HU54M2ZU ATV61HU30M3 VW3A9304 93.00
ATV58HU72M2ZU ATV61HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV61HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV61HU75M3 VW3A9307 133.00
ATV58HD16M2XZU ATV61HD11M3X VW3A9309 170.00
ATV58HD16M2XZU ATV61HD15M3X VW3A9309 170.00
ATV58HD23M2XZU ATV61HD18M3X VW3A9310 170.00
ATV58HD28M2XZU ATV61HD22M3X VW3A9312 337.00
ATV58HD33M2XZU ATV61HD30M3X VW3A9312 337.00
ATV58HD46M2XZU ATV61HD37M3X VW3A9312 337.00
Three-phase supply voltage: 380…480 V 50/60 Hz
ATV58HU18N4ZU ATV61H075N4 VW3A9302 83.00
ATV58HU29N4ZU ATV61HU15N4 VW3A9302 83.00
ATV58HU41N4ZU ATV61HU22N4 VW3A9302 83.00
ATV58HU54N4XZU ATV61HU40N4 VW3A9304 93.00
ATV58HU72N4XZU ATV61HU55N4 VW3A9305 93.00
ATV58HU90N4XZU ATV61HU75N4 VW3A9305 93.00
ATV58HD12N4XZU ATV61HD11N4 VW3A9307 133.00
ATV58HD16N4XZU ATV61HD15N4 not available —
ATV58HD23N4XZU ATV61HD18N4 VW3A9308 138.00
ATV58HD28N4XZU ATV61HD22N4 VW3A9310 170.00
ATV58HD33N4XZU ATV61HD30N4 VW3A9310 170.00
ATV58HD46N4XZU ATV61HD37N4 VW3A9310 170.00
ATV58HD54N4XZU ATV61HD45N4 VW3A9312 337.00
ATV58HD64N4XZU ATV61HD55N4 VW3A9312 337.00
ATV58HD79N4XZU ATV61HD75N4 VW3A9312 337.00
ATV71: Options and Accessories—Constant Torque Applications
ATV58 Drive Replaced by ReferenceMounting
Plate $ Price
Single-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU09M2ZU ATV71H075M3 VW3A9301 83.00
ATV58HU18M2ZU ATV71HU15M3 VW3A9301 83.00
ATV58HU29M2ZU ATV71HU22M3 VW3A9303 83.00
ATV58HU41M2ZU ATV71HU30M3 VW3A9303 83.00
ATV58HU72M2ZU ATV71HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV71HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV71HU75M3 VW3A9307 133.00
Three-phase supply voltage: 200…240 V 50/60 Hz
ATV58HU29M2ZU ATV71HU15M3 VW3A9302 83.00
ATV58HU41M2ZU ATV71HU22M3 VW3A9303 83.00
ATV58HU54M2ZU ATV71HU30M3 VW3A9304 93.00
ATV58HU72M2ZU ATV71HU40M3 VW3A9304 93.00
ATV58HU90M2ZU ATV71HU55M3 VW3A9306 133.00
ATV58HD12M2ZU ATV71HU75M3 VW3A9307 133.00
ATV58HD16M2XZU ATV71HD11M3X VW3A9309 170.00
ATV58HD23M2XZU ATV71HD15M3X VW3A9309 170.00
ATV58HD28M2XZU ATV71HD18M3X VW3A9312 337.00
ATV58HD33M2XZU ATV71HD22M3X VW3A9312 337.00
ATV58HD46M2XZU ATV71HD30M3X VW3A9312 337.00
Three-phase supply voltage 380…480 V 50/60 Hz
ATV58HU18N4ZU ATV71H075N4 VW3A9302 83.00
ATV58HU29N4ZU ATV71HU15N4 VW3A9302 83.00
ATV58HU41N4ZU ATV71HU22N4 VW3A9302 83.00
ATV58HU54N4ZU ATV71HU30N4 VW3A9304 93.00
ATV58HU72N4ZU ATV71HU40N4 VW3A9304 93.00
ATV58HU90N4ZU ATV71HU55N4 VW3A9305 93.00
ATV58HD12N4ZU ATV71HU75N4 VW3A9306 133.00
ATV58HD16N4ZU ATV71HD11N4 VW3A9307 133.00
ATV58HD23N4ZU ATV71HD15N4 VW3A9308 138.00
ATV58HD28N4ZU ATV71HD18N4 VW3A9309 170.00
ATV58HD33N4ZU ATV71HD22N4 VW3A9310 170.00
ATV58HD46N4ZU ATV71HD30N4 VW3A9310 170.00
ATV58HD54N4ZU ATV71HD37N4 VW3A9312 337.00
ATV58HD64N4ZU ATV71HD45N4 VW3A9312 337.00
ATV58HD79N4ZU ATV71HD55N4 VW3A9312 337.00
aVerify motor/drive ratings and application for proper replacement selections.
bCatalog number may or may not contain an “X” in this position.
CP4C Discount
Schedule
46 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drive Products
Altivar™ 61 and Altivar 71 Drives
aThe symbol “•” indicates the part of the number that varies with controller size or rating.
Table 39: Options—Field Installed (continued)
Description For Use on Drives Catalog No. $ Price
Flange Kit
Kit includes:
a metal frame, seals, mounting hardware, and
bracket to mount fan kit so fan can be accessed
from the front of the drive template.
Kit used to mount the heatsink of the drive outside
of an enclosure.
ATV61/71H037M3...HU15M3 VW3A9501 255.00
ATV61/71H075N4...HU22N4
ATV61/71HU22M3...HU40M3 VW3A9502 279.00
ATV61/71HU30N4...HU40N4
ATV61/71HU55M3 VW3A9503 325.00
ATV61/71HU55N4, HU75N4
ATV61/71HU75M3 VW3A9504 358.00
ATV61/71HD11N4
ATV61/71HD11M3X..HD15M3X VW3A9505 419.00
ATV61/71HD15N4, HD18N4
ATV61/71HD18M3X..HD22M3X VW3A9506 438.00
ATV61/71HD22N4, ATV61/71HU30Y...HD30Y
ATV61/71HD30N4, HD37N4 VW3A9507 469.00
ATV61/71HD30M3X..HD45M3X VW3A9508 469.00
ATV61/71HD45N4...HD75N4, ATV61/71HD37Y...HD90Y VW3A9509 477.00
ATV61HD55M3X...HD75M3X
ATV61HD90N4...HC11N4 VW3A9510 500.00
ATV71HD55M3X, ATV71HD90N4
ATV61HD90M3X, ATV61HC13N4 VW3A9511 667.00
ATV71HD75M3X, ATV71HC11N4
ATV61HC16N4, ATV61HC20Y, ATV61/71HC11Y...HC16Y,
ATV71HC13N4 VW3A9512 1053.00
ATV61HC22N4, ATV71HC16N4 VW3A9513 1053.00
ATV61HC25N4…HC31N4
ATV61HC40Y
ATV61/71HC25Y, HC31Y
ATV71HC20N4...HC28N4
ATV71HC20Y
VW3A9514 1053.00
ATV61HC25N4…HC31N4 with VW3A7101 braking transistor
ATV61HC40Y
ATV61/71HC25Y, HC31Y
ATV71HC20N4...HC28N4 with VW3A7101 braking transistor
ATV71HC20Y
VW3A9515 1062.00
Type 1
Conduit Kit
Kit includes:
a metal box, with conduit knockouts
Kit provides conduit landing when wall mounting
the drive
ATV61/71H037M3...HU15M3 VW3A9201 45.00
ATV61/71H075N4...HU22N4
ATV61/71HU22M3...HU40M3 VW3A9202 45.00
ATV61/71HU30N4...HU40N4
ATV61/71HU55M3 VW3A9203 45.00
ATV61/71HU55N4, HU75N4
ATV61/71HU75M3 VW3A9204 45.00
ATV61/71HD11N4
ATV61/71HD11M3X..HD15M3X VW3A9205 45.00
ATV61/71HD15N4, HD18N4
ATV61/71HD18M3X..HD22M3X
VW3A9206 65.00ATV61/71HD22N4
ATV61/71HU30Y...HD30Y
ATV61/71HD30N4, HD37N4 VW3A9207 65.00
ATV61/71HD30M3X..HD45M3X VW3A9217 85.00
ATV61/71HD45N4..HD75N4 VW3A9208 135.00
ATV61/71HD37Y...HD90Y
ATV61HD55M3X...HD75M3X
ATV61HD90N4...HC11N4 VW3A9209 460.00
ATV71HD55M3X, ATV71HD90N4, ATV61HC11N4
ATV61HD90M3X, ATV61HC13N4 VW3A9210 553.00
ATV71HD75M3X, ATV71HC11N4
ATV61HC16N4, ATV71HC13N4
VW3A9211 573.00ATV61/71HC11Y...HC16Y
ATV61HC20Y
ATV61HC22N4, ATV71HC16N4 VW3A9212 588.00
ATV61HC25N4...ATV61HC31N4
ATV71HC20N4...HC28N4
VW3A9213 604.00
ATV71HC20Y
ATV61/71HC25Y, HC31Y
ATV61HC40Y
ATV61HC25N4...HC31N4 with VW3A7101 braking transistor
ATV71HC20N4...HC28N4 with VW3A7101 braking transistor
VW3A9214 604.00
ATV71HC20Y
ATV61/71HC25Y, HC31Y
ATV61HC40Y
Profibus
Option Card
Cover
Type 1 cover for Profibus Option Card
230V Drive controllers 480V Drive controllers
ATV61H••••aATV71H•••• ATV61H•••• ATV71H••••
075M3 037M3 075N4 075N4
VW3A9201PF 101.00U15M3 075M3 U15N4 U15N4
— U15M3 U22N4 U22N4
U22M3 U22M3 U30N4 U30N4
VW3A9292PF 102.00U30M3 U30M3 U40N4 U40N4
U40M3 U40M3 — —
U55M3 U55M3 U55N4 U55N4 VW3A9203PF 104.00
— — U75N4 U75N4
U75M3 U75M3 D11N4 D11N4 VW3A9204PF 107.00
D11M3X D11M3X D15N4 D15N4 VW3A9205PF 112.00
D15M3X D15M3X D18N4 D18N4
3
4
3
1
1
2
6
5
Flange Kit VW3A9506
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
47
Pricing Guide AC Soft Start Products
Altistart™ 01 Soft Starts
Altistart™ ATS•01N2 Soft Starts
Three-phase motors rated for 6 to 32 A at 230, 400, and 460 volts.
NOTE: The ATSU01N2 soft start must be externally supplied with 24 Vdc control power. If this is not available,
select from the ATS01N2 table below.
The ATSU01N2 soft start is shipped with a custom ATSU01N2 to TeSys U-line power connector.
aNo separate control voltage is needed.
TeSys™ U-line compatible Full motor control solution
Soft start and soft stop 1–10 second ramp
Motor voltage 230, 400, 460
Three-phase motor 1 to 20 hp, 0.75–15 kW
Internal shorting contactor Cool, reliable operation
Application Derate for high duty cycle, temperature > 40 °C, altitude > 1000 m
(see ATS01 Catalog 8637CT0401 for more detail)
Adjustments Start and stop times (1–10 s) and initial (starting) voltage (30–80%)
Voltage boost (Kickstart) Activated by BOOST logic input—full voltage for first 12 cycles of motor starting
(200 ms)
LED display Two: “Power ON” and “Full Voltage” (up to speed)
Control inputs and outputs 2 or 3 wire control, fault relay (also for isolation contactor control), “up to speed” logic
output
Plug-in control terminals Ease of wiring
Table 40: ATSU01N2 Family Selection and Pricing
For use with TeSys U-line motor starter (24 Vdc control power)
A Catalog Number
Three-Phase Motor Power
$ Price
230 V 400 V 460 V
6 ATSU01N206LT 0.75–1.1 kW 1–1.5 hp 1.5–2.2 kW 2–3 hp 133.00
9 ATSU01N209LT 1.5 kW 2 hp 3–4 kW 5 hp 152.00
12 ATSU01N212LT 2.2–3 kW 3 hp 5.5 kW 7.5 hp 175.00
22 ATSU01N222LT 4–5.5 kW 5–7.5 hp 7.5–11 kW 10–15 hp 219.00
32 ATSU01N232LT 7.5 kW 10 hp 15 kW 20 hp 300.00
Table 41: ATS01N2 Family Selection and Pricing
For use with TeSys U-linea, GV2, GV3, and other motor starters
A Catalog Number
Three-Phase Motor Power
$ Price
230 V 400 V 460 V
6 ATS01N206LU 0.75 / 1.1 kW 1 / 1.5 hp — — 133.00
9 ATS01N209LU 1.5 kW 2 hp — — 152.00
12 ATS01N212LU 2.2/3kW 3hp — — 175.00
22 ATS01N222LU 4 / 5.5 kW 5 / 7.5 hp — — 219.00
32 ATS01N232LU 7.5 kW 10 hp — — 300.00
6 ATS01N206QN — — 1.5 / 2.2 kW — 133.00
9 ATS01N209QN — — 3/4kW — 152.00
12 ATS01N212QN — — 5.5 kW — 175.00
22 ATS01N222QN — — 7.5 / 11 kW — 219.00
32 ATS01N232QN — — 15 kW — 300.00
6 ATS01N206RT — — — 2/3hp 133.00
9 ATS01N209RT — — — 5 hp 152.00
12 ATS01N212RT — — — 7.5 hp 175.00
22 ATS01N222RT — — — 10 / 15 hp 219.00
32 ATS01N232RT — — — 20 hp 300.00
Table 42: Accessory
Description Catalog No. $ Price
Custom power connector (between ATS01N2 and TeSys U-line motor starter) VW3G4104 10.00
CP1G Discount
Schedule
48 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
REDUCED
AVAILABILTY
Refer to Altistart22
for replacement

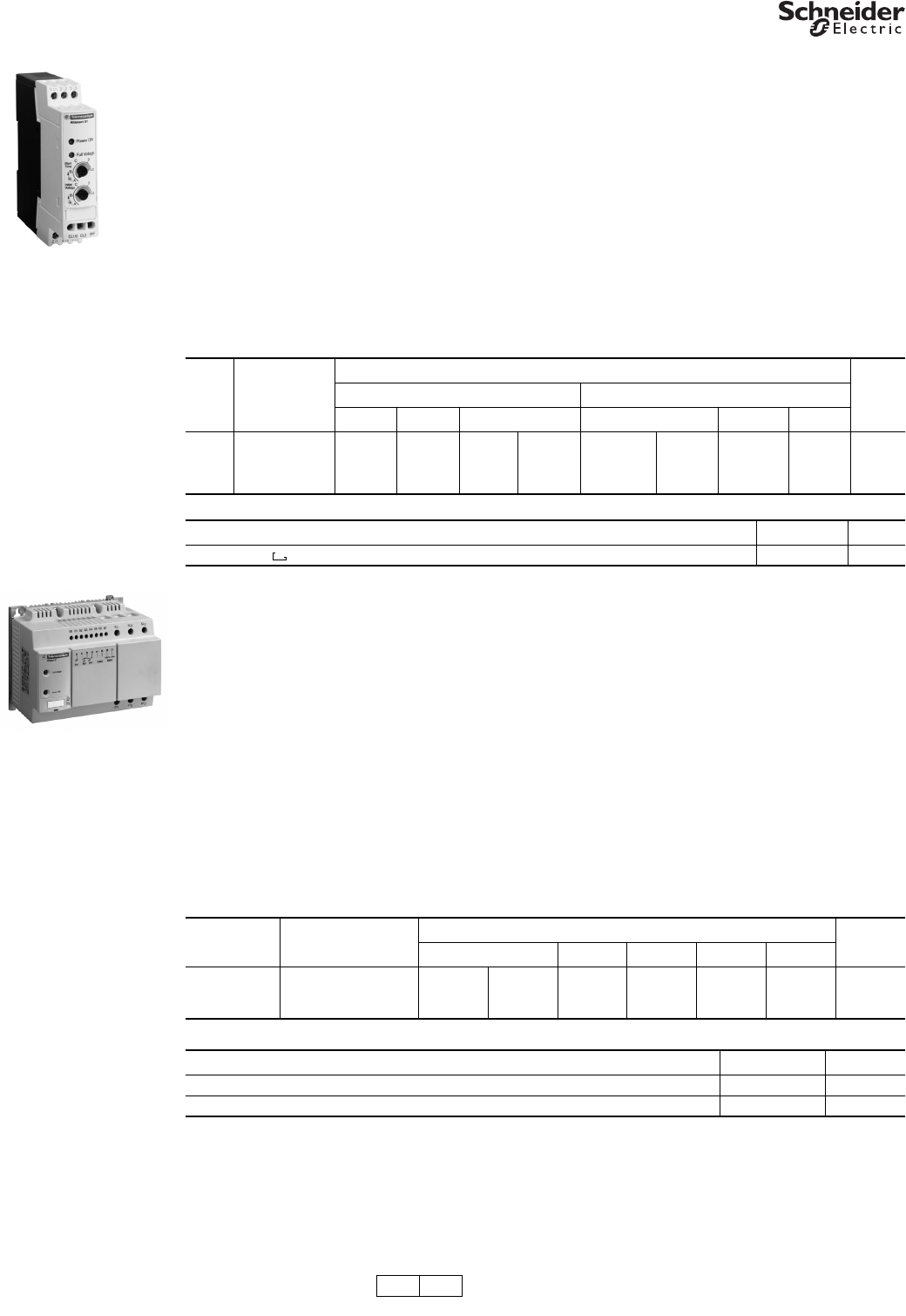

Pricing Guide AC Soft Start Products
Altistart™ 01 Soft Starts
Altistart™ ATS01N1 Soft Starts
Single or three-phase motors rated for 3 to 12 A at 110, 208, 230, 400 and 460 volts
aDiscount Schedule I.
Altistart ATS01 Higher Horsepower Soft Starts
Three-phase motors rated for 32 to 85 A at 230, 400, 460, 575, and 690 volts.
aDiscount Schedule I12.
Soft Start (no soft stop) 1–5 second ramp
Motor voltage 110, 208, 230, 400, 460
Three-phase motor 1/2 to 7.5 hp
Single-phase motor 1/4 to 2 hp
External control power 24 Vac/dc or 110–230 Vac
Internal shorting contactor 9 and 12 A models—cool, reliable operation
Application Derate for temperature > 40 °C, altitude > 1000 m
(
see ATS01 Catalog 8637CT0401 for more detail
)
Adjustments Start time (1–5 s) and initial (starting) voltage (30–80%)
LED display Two: “Power ON” and “Full Voltage” (up to speed)
Plug-in control terminals 9 and 12 A models—ease of wiring
Table 43: ATS01N1 Selection and Pricing
A Catalog Number
Motor Power
$ PriceSingle-Phase Three-Phase
110 V 208 V 230 V 230 V 400 kW 460 V
3 ATS01N103FT — 1/4 hp 0.37 kW 1/4 hp 0.37–0.55 kW 1/2 hp 1.1 kW 1–1.5 hp 100.00
6 ATS01N106FT 1/4 hp 1/2 hp 0.75 kW 1/2 hp 0.75–1.1 kW 1–1.5 hp 2.2 kW 2–3 hp 115.00
9 ATS01N109FT 1/3 hp 1 hp 1.1 kW 1 hp 1.5 kW 2 hp 4 kW 5 hp 130. 00
12 ATS01N112FT 1/2 hp 1.5 hp 1.5 kW 2 hp 2.2 kW 3 hp 5.5 kW 7.5 hp 145. 00
25 ATS01N125FT — — — — 3, 4, 5.5 kW 3, 4, 5.5 kW 7.5, 9, 11 kW 10–15 hp 240.00
Table 44: Accessory
Description Catalog No. $ Price
DZ5 MB DIN rail ( ) adaptor for 3 and 6 A models (sold only in packages of 10) RHZ66a3.60
Soft start and soft stop 1–25 second ramp
Motor voltage 230, 400, 460, 575, 690
Three-phase motor 10 to 75 hp, 7.5–85 kW
External control power 110 Vac
Internal shorting contactor Cool, reliable operation
Application Derate for high duty cycle and altitude > 2000 m.
(
see ATS01 Catalog 8637CT0401 for more detail
). Maximum temperature = 55 °C
Adjustments Start and stop times (1–25 s) and initial (starting) voltage (30–80%)
LED display “Power ON” and “Full Voltage” (up to speed)
Control inputs and outputs 2 or 3 wire control, fault relay (also for isolation contactor control),
“Up to Speed” auxiliary relay (accessory: LAD8N11)
Table 45: ATS01N2 Selection and Pricing
A Catalog Number
Three-Phase Motor Power
$ Price
230 V 400 V 460 V 575 V 690 V
32 ATS01N230LY 7.5 kW 10 hp 15 kW 20 hp 30 hp 30 kW 613.00
44 ATS01N244LY 11 kW 15 hp 22 kW 30 hp 40 hp 37 kW 799.00
72 ATS01N272LY 18.5 kW 25 hp 37 kW 50 hp 60 hp 55 kW 1013.00
85 ATS01N285LY 22 kW 30 hp 45 kW 60 hp 75 hp 85 kW 1227.00
Table 46: Accessories
Description Catalog No. $ Price
“Up to Speed” auxiliary relay contact (attaches to side of ATS01) LAD8N11a20.70
DIN rail adaptor (32 and 44 A models) VY1H4101 25.00
I11 CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
49

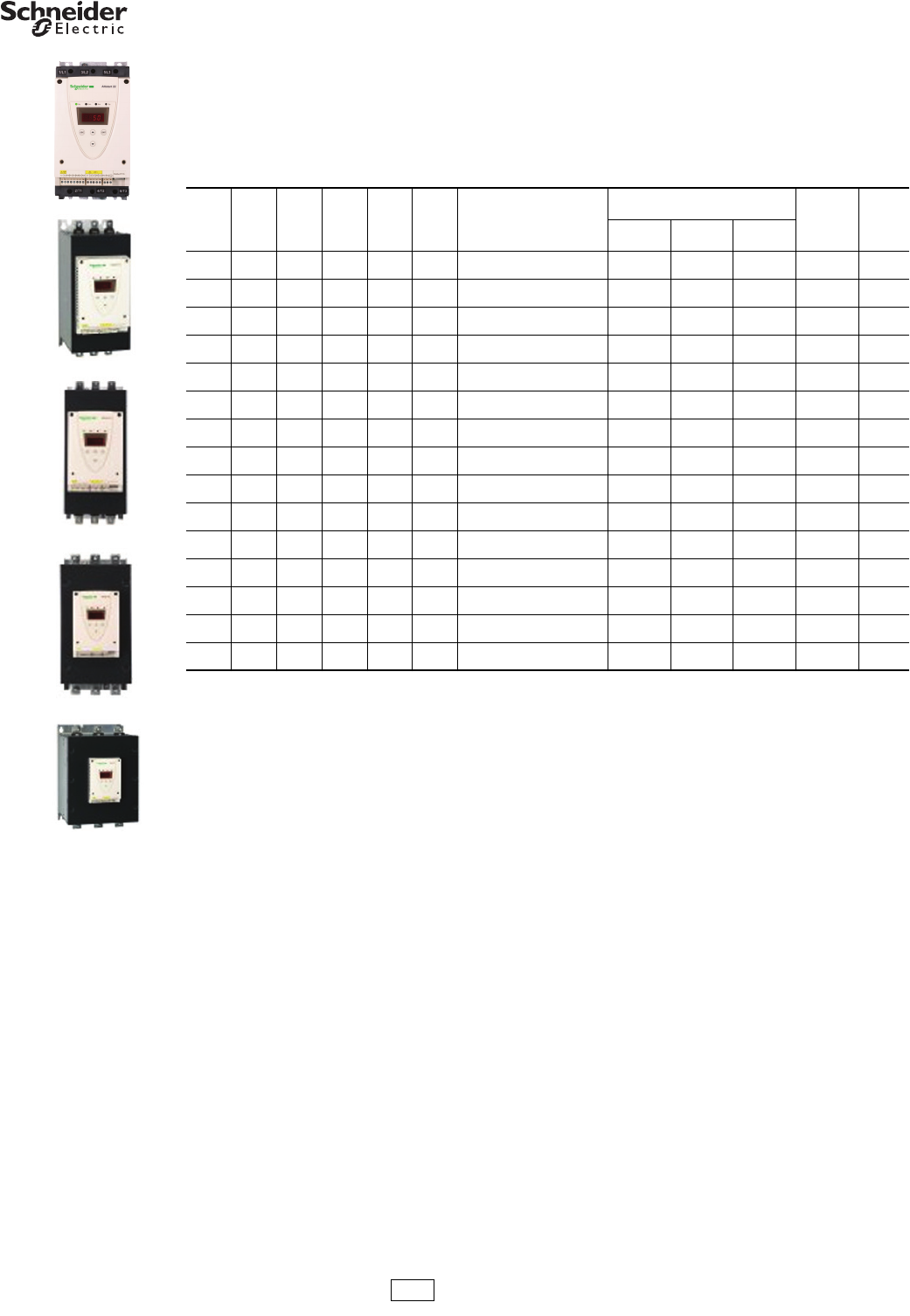

Pricing Guide AC Soft Start Products
Altistart™ 22 Soft Starts
Altistart™ 22 Open Style Soft Starter
The Altistart 22 unit uses both voltage and torque control to provide a soft start and soft stop for three-phase
asynchronous motors between 17 and 590 amps.
aValue not indicated when there is no corresponding standardized motor.
bS6 = 208–600 line voltage, 220 V control voltage
cS6U = 208–600 line voltage, 110 V control voltage
Table 47: ATS22 Selection and Pricing
Select the Altistart 22 soft start using the nameplate full-load ampere rating of the motor and the table below. The
horsepower ratings are for reference only.
208 V 230 V 400 kW 460 V 575 V Rated
A
Soft Start Reference
bor c
Dimensions (inches)
Frame
Size $ Price
WHD
3 5 5.5 10 15 17 ATS22D17S6,S6U 5.1 9.8 6.6 A 613.00
7.5 10 11 20 25 32 ATS22D32S6,S6U 5.1 9.8 6.6 A 654.00
—a15 18.5 30 40 47 ATS22D47S6,S6U 5.1 9.8 6.6 A 786.00
15 20 22 40 50 63 ATS22D62S6,S6U 5.7 10.9 8.1 B 945.00
20 25 30 50 60 75 ATS22D75S6,S6U 5.7 10.9 8.1 B 1083.00
25 30 37 60 75 88 ATS22D88S6,S6U 5.7 10.9 8.1 B 1266.00
30 40 45 75 100 110 ATS22C11S6,S6U 5.9 13 9 C 1468.00
40 50 55 100 125 140 ATS22C14S6,S6U 5.9 13 9 C 1792.00
50 60 75 125 150 170 ATS22C17S6,S6U 5.9 13 9 C 2056.00
60 75 90 150 200 210 ATS22C21S6,S6U 8.1 15.6 11.8 D 2383.00
75 100 110 200 250 250 ATS22C25S6,S6U 8.1 15.6 11.8 D 2714.00
100 125 132 250 300 320 ATS22C32S6,S6U 8.1 15.6 11.8 D 3083.00
125 150 160 300 350 410 ATS22C41S6,S6U 8.1 15.6 11.8 D 3573.00
150 — 220 350 400 480 ATS22C48S6,S6U 11.9 16.8 13.4 E 4263.00
— 200 250 400 500 590 ATS22C59S6,S6U 11.9 16.8 13.4 E 4862.00
CP1G Discount
Schedule
50 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Altistart™ 22 Soft Starts
Altistart™ Options: Fans and Accessories
aA remote keypad cord set is required.
bDiscount Schedule for this product is CP1C.
cDiscount Schedule for this product is I11.
dDiscount Schedule for this product is I12.
Table 48: Accessories Selection and Pricing
Description Length Catalog Number $ Price
Software
SoMove™ Lite This software enables the user to configure, set, debug and organize maintenance task for the Altistart 22 soft
starter. It can also be used to customize the integrated display terminal menus. It can be used with a direct connection or a
Bluetooth®wireless connection. Free download www.schneider-electric.us
Cable USB/RS485 cord set (equipped with RJ45 socket) TCSMCNAM3M002Pb52.00
Remote
Keypada
IP54/NEMA®12 keypad VW3G22101b65.00
IP65 keypad VW3G22102b65.00
Remote Keypad Cords
Equipped with 2 RJ45
Connectors
3 FT length VW3A1104R10b35.00
9 FT length VW3A1104R30b35.00
Modbus Serial Link
Connection via splitter box and
RJ45 connectors
Modbus™ splitter box (with 10 RJ45 Connectors) LU9GC3c312.00
Cordsets for Modbus serial link (with 2 RJ45 connectors
.3 m VW3A8306R03b20.00
1 m VW3A8306R10b25.00
3 m VW3A8306R30b30.00
Modbus T-junction boxes (with integrated cables)
.3 m VW3A8306TF03b75.00
1 m VW3A8306TF10b85.00
RJ45 Line Terminators (Sold in lots of 2) VW3A8306RCb6.00
Table 49: Fans Selection and Pricing
Power Supply Voltage For Control For Use On Altistart Catalog Number $ Price
The ATS22C21S6,S6U..C59S6,S6U units come with an integrated fan. The ATS22D17S6,S6U..C17S6,S6U units are ventilated by means of natural ventilation.
For more demanding applications, such as those with a greater number of starts, the Altistart 22 range offers fans as an option. The fans are powered by the Altistart
22 unit and attach to the back of the device. The fan's noise level is less than 60 dBA.
220 V
ATS22D17..D47S6 VW3G22400 65.00
ATS22D62..D88S6 VW3G22401 65.00
ATS22C11..C17S6 VW3G22402 75.00
110 V
ATS22D17..D47S6U VW3G22U400 65.00
ATS22D62..D88S6U VW3G22U401 65.00
ATS22C11..C17S6U VW3G22U402 75.00
Table 50: Protection Shrouds for Power Terminals
Description For Use On Altistart Catalog Number $ Price
Set of 6 power terminal protection
shrouds
ATS22C11S6,S6U ..C17S6,S6U LA9F702d61.00
ATS22C21S6,S6U ..C59S6,S6U LA9F703d82.00
Table 51: Multi-Loader Configuration Tools
Description Catalog Number $ Price
The Multi-Loader tool enables multiple configurations from a PC (with SoMove software) or drive/soft
starter to be copied and uploaded to another drive/soft starter. VW3A8121 350.00
CP1CbI11cI12dCP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
51
Pricing Guide AC Soft Start Products
Enclosed Altistart™ 22 Motor Controllers
Enclosed Altistart™ 22 Motor Controllers
Enclosed Altistart 22 (ATS22) solid-state combination motor
controllers are a pre-engineered, integrated solution for
reduced voltage starting and soft stopping of standard
three-phase asynchronous induction (squirrel cage) motors.
The Enclosed 22 controllers consist of a disconnect means
and an ATS22 soft starter in a stand-alone enclosure.
Enclosed 22 controllers integrate the ATS22 soft start
technology into a combination package for application
requirements up to 125 hp at 480 V.
•3–50 hp, 208 V
•5–60 hp, 230 V
•10–125 hp, 460 V
aOptions E10 and Z10 cannot be used together.
bIf you select option U10, you must separately order the remote keypad
(VW3G22101) and cable (VW3A1104R30) to commission the soft starter.
Refer to the ATS22 User Manual, BBV51330, for serial communication
programming and control capabilities.
cThis option is not selectable with power circuit option B05.
dSelect only one option.
eTo omit, do not include a selection in the catalog number.
fThis option is available only for enclosure size D.
gThis option is not selectable with power circuit option B05
hThis option is not selectable with power circuit option B05. This option is valid
only with the following control options: C06, D06, or E06.
iThis option is not selectable with power circuit option B05. The contacts are
available only when power circuit option Y05 is selected.
jThe contacts are not available when power circuit option R05 is selected.
This option is valid only with the following control options: C06, D06, or E06.
kOptions E10 and Z10 cannot be ordered together.
Option Pricing—
Phase 2 Options highlighted in green
Control Options (pick one)
Pilot Light Cluster Options (pick one)
Meter Display Options (pick one)
Miscellaneous Options
(multiple compatible options may be selected)
Rules: Available for power options S05, N05, R05, Y05.
Table 52: Catalog Number Description
Field Digit Characteristic Description
——
Controller
Class
8638 = Fused Disconnectc
8639 = Circuit Breaker Disconnect
01 1–3 Controller
Style
22F = Altistart 22 with Class J Fuse Clips and
Molded Case Switchc
22T = Altistart 22 with PowerPact Motor Circuit
Protector
22U = Altistart 22 with PowerPact Thermal-
02 4 Horsepower
A=3hp
B=5hp
C = 7.5 hp
D=10hp
E=15hp
F=20hp
G=25hp
H=30hp
J=40hp
K=50hp R=200hp
L=60hp S=250hp
M=75hp T=300hp
N = 100 hp U = 350 hp
P = 125 hp W = 400 hp
Q = 150 hp X = 500 hp
03 5 Enclosure
Type
G = UL Type 1 General Purpose
A = UL Type 12K Industrial Use, Dust-Tight/Drip-
Tight
H = UL Type 3R Outdoor Use
04 6 Voltage
2 = 208 Vac
3 = 230 Vac
4 = 460 Vac
5 = 575 Vac
05 7 Power Circuit
B = Basic Shunt Trip
S = Full-Featured Shunt Trip
N = Non-Reversing Isolation
R = Reversing Isolation
Y = Integral Full-Voltage Bypass
06 8–10 Control
Optionsde
A06 = Start-Stop Pushbuttons
B06 = Forward-Off-Reverse
C06 = Hand-Off-Auto (HOA) Selector Switch
D06 = Stop-Run Selector Switch
E06 = Hand-Auto Selector Switch/Start-Stop
Pushbuttons
07 11–13 Pilot Device
Optionsde
A07 = Run Light (Red), Off Light (Green)
B07 = Push-to-Test Run Light (Red), Push-to-Test
Off Light (Green)
C07 = Run Light (Red), Off Light (Green), Tripped
Light/Reset (Yellow)
D07 = PTT Run Light (Red), PTT Off Light
(Green), Tripped Light/Reset (Yellow)
08 14–16 Metering
Options B08 = Elapsed Run Time Metere
09 17–19 Miscellaneous
Options
A10 = Floor Mounting Kitf
B10 = Additional 150 VAg
C10 = Power-Up On Delay Relayh
D10 = Emergency Stop Pushbuttong
E10 = cUL Labela
F10 = Auxiliary Run Mode Contacts
G10 = Auxiliary FB Bypass Contactsi
H10 = Auxiliary Auto Mode Contactsj
J10 = Auxiliary Trip Indication Contacts
L10 = ID Engraved Nameplateg
M10 = 10 Spare Terminal Blocksg
P10 = Permanent Wire Markersg
R10 = MOV-Surge Arrestorg
U10 = Omit Door-Mounted Keypad Displayb
X10 = 50 °C Operation
Z10 = Service Entrance Ratingak
910 = American Recovery and Reinvestment Act
(ARRA) Option
Table 53: Catalog Number Example:
863922UCG4BA06A07
Field
—1234567
8639 22U C G 4 B A06 A07
Controller
Class
PowerPact™
Thermal-
Magnetic
Circuit Breaker
7.5
hp
Type 1
General
Purpose
460
Vac
Basic
Shunt
Trip
Start-Stop
Pushbutton
RunLight
(Red),
Off Light
(Green
Mod
A06
Start/Stop push buttons $ Price
Provides black start and red stop push buttons
(3-wire control scheme). 132.00
Mod
B06
Forward-Off-Reverse selector switch $ Price
Provides three-position selector switch to select between
forward, off and reverse. Uses 2-wire control. 240.00
Mod
C06
Hand-Off-Auto selector switch $ Price
Provides a three-position selector switch, 2-wire control
scheme. 132.00
Mod
D06
Stop-Run selector switch $ Price
Provides a two-position selector switch. 132.00
Mod
E06
Hand-Auto selector switch and Start/Stop push buttons $ Price
Provides a two-position selector switch and start/stop push
buttons (3-wire control). 264.00
Mod
A07
Pilot light cluster #1 $ Price
Consists of red “RUN” and green “OFF” pilot lights. Provides
standard red “RUN (ON)” and green “OFF” pilot lights for status
annunciation.
180.00
Mod
B07
Pilot light cluster #2 $ Price
Consists of red “RUN” (push-to-test) and green “OFF” (push-to-
test) pilot lights. Provides push-to-test type red “RUN (ON)” and
standard green “OFF” pilot lights for status annunciation.
360.00
Mod
C07
Pilot light cluster #3 $ Price
Consists of red “RUN”, green “OFF” and yellow “FAULT” pilot
lights. Provides standard red “RUN (ON)” green “OFF” and
yellow “FAULT” pilot lights for status annunciation.
270.00
Mod
D07
Pilot light cluster #4 $ Price
Consists of red “RUN (ON)” (push-to-test), green “OFF” (push-
to-test) and yellow “FAULT” (push-to-reset) pilot lights. Provides
push-to-test type red “RUN (ON)” standard green “OFF”, and
push-to-reset type yellow “FAULT” for status annunciation.
540.00
Mod
BO8
Elapsed time meter $ Price
Provides a seven-digit analog, non-resettable elapsed run time
meter. Not available on Type 3R Enclosures 348.00
Mod
A10
Floor mounting kit $ Price
Only available for size D enclosures. 105.00
Mod
B10
150 VA additional control power capacity $ Price
Provides 150 VA additional control VA capacity for customer
use. 150.00
CP1G Discount
Schedule
52 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart™ 22 Motor Controllers
Rules: Full Voltage Bypass must be selected. Must use Power Circuit N or R
(line isolation) contactor combination. Not compatible with Power
Circuit S (Shunt Trip)
Rules:MOD C06 (Hand-Off-Auto selector switch) or E06 (Hand-Auto selector
switch) must be specified.
Rules: To program or control the ATS22 soft starter with Modbus communication,
refer to the ATS22 User Manual, BBV51330.
Rules: Not available for wall mounted enclosures.
Rules: Service Entrance Rating is not available wit the Mod E10 (cUL Label).
l50 °C Operation and Type 3R Enclosure not available.
m50 °C Operation and Type 3R Enclosure not available.
Mod
C10
Power up on delay (start relay) $ Price
Provides an electronic time delay relay adjustable from 0.1 to
60 seconds. Relay is pre-wired to inhibit start for users set
delay time upon power-up of control.
150.00
Mod
D10
Emergency stop push button $ Price
Provides a push-button for immediate removal of all power. 140.00
Mod
E10
“cUL” label $ Price
Provides a Canadian Underwriters Laboratories label when
required by local code requirements. 200.00
Mod
F10
Auxiliary contacts for run mode $ Price
Provides one Form A, normally open (N.O.) contact rated 5 A
at 120 Vac to the terminal blocks for customer use. The
contact closes when the controller is applying power to the
motor.
550.00
Mod
G10
Auxiliary contacts for full voltage bypass run mode $ Price
Provides 1 Form C contact rated5A@120Vac
(8501 Type R relay or equivalent) wired to terminal blocks
for customer use. Contacts change state when motor is
operated across the line with full voltage by bypass starter.
550.00
Mod
H10
Auxiliary contacts for auto mode $ Price
Provides one Form A, normally open (N.O.) contact rated 5 A
@ 120 Vac to the terminal blocks for user use. The contact
closes when the controller is placed in Auto (remote) mode.
550.00
Mod
J10
Auxiliary contacts for trip status $ Price
Provides one Form A, normally open (N.O.) contact rated 5 A
@ 120 Vac to the terminal blocks for user use. The contact
closes when the controller has tripped.
650.00
Mod
L10
ID engraved nameplates $ Price
Provides a lamacold nameplate, engraved with equipment
designation. 50.00
Mod
M10
Spare terminal blocks $ Price
Provides up to 10 spare terminal blocks unwired for customer
use. Since Phoenix style terminal blocks will be used, extra
terminal points will be provided as standard 20 terminal
points are available as standard for all control wiring
(including any additional customer spare terminal points).
340.00
Mod
P10
Permanent wire markers $ Price
Provides a permanent sleeve type wire marker on control
wiring assemblies 1400.00
Mod
R10
MOV/Surge arrestor (custom engineered option) $ Price
Provides supplementary MOV protection using a Class 6671
SDSA3650 Surgebreaker Secondary Surge Arrester hard-
wired and factory mounted.
450.00
Mod
U10
Omit door mounted keypad display $ Price
Omits the door-mounted keypad display. A keypad closing
plate and gasket are provided on the door. (50.00)
Mod
Y10
Seismic qualification label $ Price
Provides a self-certified identification label with compliance to
2000 IBC, NFPA 5000, 2001 CBC, 1997 UBC, 1999 NBC,
1999SBC, ASCE-7 02 seismic qualification certification. The
label criteria will be uniform for all enclosed products.
Enclosures shall contain additional bracing as defined by the
seismic qualification certification criteria.
450.00
Mod
Z10
Service Entrance Rating $ Price
Provides a UL869A approved insulated ground neutral lug
assembly, mounting bracket with bonded enclosure ground
wire suitable for use as service entrance equipment.
185.00
Table 54: Enclosed Altistart 22 Motor Controllers
with Circuit Breaker—60 Hz, Three-Phase, 208/230/460/575 Volts—Standard Duty (40 °C)
Maximum Horsepower
Circuit Breaker Power Option—Type 1 Enclosure Enclosure Rating Modifiers
ShuntTrip
B
Shunt Trip
S
Non-Rev
N
Reversing
Isolation
R
Emergency
Bypass
Y
40 °C Rated
Type 12
50 °C Rated
Type 1/12 Type 3R
208 V 230 V 460 V 575 V add add add
3
5
7.5
10
—
15
20
25
30
40
50
60
75
100
125
150l
—
5
7.5
10
—
15
20
25
30
40
50
60
75
100
125
150
—
200
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
400
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
400
500
1400.00
1600.00
1800.00
1962.00
2124.00
2450.00
3226.00
3645.00
3944.00
4815.00
5673.00
6530.00
7387.00
8336.00
8878.00
9498.00
10740.00
1628.00
1870.00
2090.00
2286.00
2464.00
2832.00
3683.00
4146.00
4489.00
5438.00
6400.00
7391.00
8361.00
9310.00
10030.00
10751.00
12157.00
1822.00
2102.00
2336.00
2563.00
2753.00
3154.00
4061.00
4557.00
4938.00
5942.00
6990.00
7937.00
8927.00
10192.00
11181.00
12170.00
13863.00
2100.00
2400.00
2677.00
2930.00
3130.00
3640.00
4624.00
5189.00
5623.00
6710.00
7895.00
8933.00
10047.00
11470.00
12563.00
13656.00
15602.00
2190.00
2490.00
2780.00
3030.00
3280.00
3750.00
4825.00
5400.00
5888.00
7000.00
8150.00
9203.00
10337.00
11775.00
12880.00
13986.00
15947.00
160.00
160.00
160.00
160.00
160.00
240.00
240.00
240.00
360.00
360.00
360.00
510.00
510.00
510.00
735.00
735.00
735.00
450.00
450.00
450.00
450.00
550.00
550.00
550.00
1000.00
1000.00
1000.00
1000.00
1450.00
1450.00
1450.00
1900.00
1900.00
—
650.00
650.00
650.00
650.00
750.00
750.00
750.00
1200.00
1200.00
1200.00
1200.00
1650.00
1650.00
1650.00
2350.00
2350.00
—
Table 55: Enclosed Altistart 22 Motor Controllers
with Fusible Disconnect—60 Hz, Three-Phase, 208/230/460/575 Volts—Standard Duty (40 °C)
Maximum Horsepower
Fusible Power Option—Type 1 Enclosure Enclosure Rating Modifiers
Shunt Trip
S
Non-Rev
N
Reversing
Isolation
R
Emergency
Bypass
Y
40 °C Rated
Type 12
50 °C Rated
Type 1/12 Type 3R
208 V 230 V 460 V 575 V add add add
35
7.5
10
—
15
20
25
30
40
50
60
75
100
125
150
—
200
10
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
400
15
20
25
30
40
50
60
75
100
125
150
200
250
300
350
400
500
1705.00 1899.00
2182.00
2424.00
2657.00
2847.00
3262.00
4204.00
4718.00
5112.00
6128.00
7209.00
8183.00
9203.00
10507.00
11508.00
12509.00
14292.00
2177.00
2480.00
2765.00
3024.00
3224.00
3748.00
4767.00
5350.00
5797.00
6896.00
8114.00
9210.00
10358.00
11825.00
12952.00
14078.00
16085.00
2267.00 160.00
160.00
160.00
160.00
160.00
240.00
240.00
240.00
360.00
360.00
360.00
510.00
510.00
510.00
735.00
735.00
735.00
450.00
450.00
450.00
450.00
550.00
550.00
550.00
1000.00
1000.00
1000.00
1450.00
1450.00
1450.00
1450.00
1900.00
1900.00
—
650.00
650.00
650.00
650.00
750.00
750.00
750.00
1200.00
1200.00
1200.00
1650.00
1650.00
1650.00
1650.00
2350.00
2350.00
—
5
7.5
10
—
15
20
25
30
40
50
60
75
100
125
150m
—
1950.00 2570.00
2178.00 2868.00
2380.00 3124.00
2558.00 3374.00
2940.00 3858.00
3826.00 4968.00
4307.00 5561.00
4663.00 6062.00
5624.00 7186.00
6619.00
7620.00
8620.00
9598.00
10340.00
11083.00
12532.00
8369.00
9480.00
10628.00
12095.00
13222.00
14348.00
16355.00
CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
53
Pricing Guide AC Soft Start Products
Altistart™ 48 Soft Starts
Altistart™ 48 Soft Starts
The Altistart 48 soft start combines ease of selection with
simple installation and high motor control performance.
With its exclusive motor Torque Control System, the
Altistart 48 helps eliminate uncontrolled motor
acceleration and deceleration, a problem inherent with
standard voltage—ramp soft starts. The Altistart 48
includes features to help with motor and machine
protection and is available for motors ranging from 208 to
575 volts. In addition to a built-in display and
programming terminal, a remote keypad option and
programming software is available to ease integration
and commissioning. The Altistart 48 has a built-in
Modbus™ port and is offered with serial communication
gateways to such popular networks as Ethernet and
DeviceNet™.
Open Style Soft Starts 50–60 Hz, Three-Phase,
690 V Maximum—AC3 Duty
The Altistart 48 soft start must be selected using the table
below, based on nameplate full load ampere rating of the
motor. The horsepower ratings shown in table are for
reference only.
aMotor full load amperage (FLA) must not exceed the ampere rating of
the soft start.
bLow Inertia—Connected motor load inertia equal or less than 10 times
motor rotor inertia.
High Inertia—Connected motor load inertia greater than 10 times
motor rotor inertia.
NOTE: For severe duty or high inertia loads, derate
by 1 hp size.
cFor more information, see Data Bulletin 8806DB0001.
dDiscount Schedule for this product is I12.
eDiscount Schedule for this product is PC41.
fDiscount Schedule for this product is I11.
gDiscount Schedule for this product is CP4C.
For additional information on Altistart 48, reference
Catalog #8636CT0201.
Table 56: Altistart 48 Selection and Pricinga
Standard Duty (Low Inertia Loads)bMaximum Horsepower Altistart Soft Starts
208 V 230 V 400 kW 460 V 575 V Rated
A
Catalog
Number $ Price
3 5 5.5 10 15 17 ATS48D17Y 780.00
5 7.5 7.5 15 20 22 ATS48D22Y 810.00
7.5 10 11 20 25 32 ATS48D32Y 840.00
10 — 15 25 30 38 ATS48D38Y 900.00
— 15 18.5 30 40 47 ATS48D47Y 950.00
15 20 22 40 50 62 ATS48D62Y 1200.00
20 25 30 50 60 75 ATS48D75Y 1280.00
25 30 37 60 75 88 ATS48D88Y 1500.00
30 40 45 75 100 110 ATS48C11Y 1700.00
40 50 55 100 125 140 ATS48C14Y 2100.00
50 60 75 125 150 170 ATS48C17Y 2300.00
60 75 90 150 200 210 ATS48C21Y 2600.00
75 100 110 200 250 250 ATS48C25Y 2900.00
100 125 132 250 300 320 ATS48C32Y 3300.00
125 150 160 300 350 410 ATS48C41Y 3900.00
150 — 220 350 400 480 ATS48C48Y 4700.00
— 200 250 400 500 590 ATS48C59Y 5400.00
200 250 315 500 600 660 ATS48C66Y 6200.00
250 300 355 600 800 790 ATS48C79Y 7200.00
350 350 400 800 1000 1000 ATS48M10Y 8600.00
400 450 500 1000 1200 1200 ATS48M12Y 10600.00
Table 57: Altistart 48 Options
Description Catalog Number $ Price
Remote Keypad Display Mounting Kit, including:
Keypad with 3–character 7–segment display
IP65 cover and seal, mounting screws, and 3 meter cable to connect keypad display to Altistart 48
VW3G48101 165.00
Cover for power terminals—Set of 6 for ATS48C14Y and ATS48C17Y LA9F702d61.00
Cover for power terminals—Set of 6 for ATS48C21Y, ATS48C25Y, and ATS48C32Y LA9F703d82.00
Modbus Ethernet Gateway TSXETG100e1027.00
DeviceNet Gateway LUFP9f495.00
Profibus DP Gateway LUFP7f495.00
FIPIO™ Gateway LUFP1f495.00
1/3 meter connection cable (RJ–45 to RJ–45) VW3A8306R03 20.00
1 meter connection cable (RJ–45 to RJ–45) VW3A8306R10 25.00
3 meter connection cable (RJ–45 to RJ–45) VW3A8306R30 30.00
1/3 meter splitter cable (For RJ—45 daisy chain connection) VW3A8306TF03 75.00
1 meter splitter cable (For RJ–45 daisy chain connection) VW3A8306TF10 85.00
RJ45 terminator (2 per package) VW3A8306RC 6.00
Modbus hub (Eight RJ–45 ports) LU9GC3f208.00
PowerSuite™ commissioning software on CDcVW3A8104g150.00
PowerSuite upgrade CD from most recent to new versioncVW3A8105g98.00
PC connection kit. To connect PC to Altistart 48 soft startcVW3A8106g75.00
USB to RJ45 Adaptor Kit
For use in connecting to a PC with a USB port TCSMCNAM3M002P 52.00
Pocket PC connection kit. To connect JORNADA™ or iPAQ™ PPC to Altistart soft startcVW3A8111g95.00
Size M10 Bolt Kit W808780210111 8.00
Size M12 Bolt Kit W808780220111 10.00
CP1G I12dPC41eI11fCP4CgDiscount
Schedule
54 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
General Information
Enclosed Altistart™ 48 Soft Starts (Enclosed 48) are available from 11 to 604 amperes in Type 1, 12 and 3R
enclosures. The Enclosed 48 soft startsoft start can provide soft startsoft starting (reduced voltage) and stopping with
deceleration control with machine and motor protection of standard NEMA®Design B squirrel cage asynchronous
motors in the following ranges:
•3–200 hp, 208 V
•5–250 hp, 230 V
•10–500 hp, 460 V
•15–600 hp, 575 V
Selection
The Enclosed 48 controller must be selected based on three main criteria:
•AC mains voltage supply (distribution voltage):
Three-phase AC voltage: 208, 240, 480 or 600 V.
•The power and the nominal motor current (FLA) indicated on the motor nameplate.
•The type of application and the operating cycle. To simplify selection, applications are categorized as either standard duty or severe
duty applications. Standard or severe duty applications define the limiting values of the current and the duty cycle ratings. If severe
duty is required, select the next higher horsepower device.
Depending on the type of machine, the applications are categorized as standard or severe duty based on the starting
characteristics, which are given by example are illustrated within the table below.
Type of Machine Application Functions performed by the ATS48
Starting
Current
(% In)
Starting
Time
(secs)
Centrifugal pump Standard Deceleration (reduction in pressure surges)
Protection against underloads or inversion of the phase rotation direction 300 5to15
Piston pump Standard Control of running dry and direction of rotation of the pump 350 5 to 10
Fan Standard
Severe if > 30 s
Detection of overloads caused by clogging or underloads (motor fan transmission
broken) Braking torque on stopping 300 10 to 40
Cold compressor Standard Protection, even for special motors 300 5 to 10
Screw compressor Standard Protection against inversion of direction of phase rotation Contact for automatic
draining on stopping 300 3to20
Centrifugal compressor Standard
Severe if > 30 s
Protection against inversion of direction of phase rotation Contact for automatic
emptying on stopping 350 10 to 40
Piston compressor Standard Protection against inversion of direction of phase rotation Contact for automatic
emptying on stopping 350 5to10
Conveyor, transporter Standard Overload control for detecting faults or underload control for detecting breaks 300 3 to 10
Lifting screw Standard Overload control for detecting hard spots or underload control for detecting breaks 300 3 to 10
Drag lift Standard Overload control for detecting jamming or underload control for detecting breaks 400 2 to 10
Lift Standard Overload control for detecting jamming or underload control for detecting breaks
Constant starting with variable load 350 5to10
Circular saw, band saw Standard
Severe if > 30 s Braking for fast stop 300 10 to 60
Pulper, butchery knife Severe Torque control on starting 400 3 to 10
Agitator Standard The current display indicates the density of the product 350 5 to 20
Mixer Standard The current display indicates the density of the product 350 5 to 10
Grinder Severe Braking to limit vibrations during stopping, overload control to detect jamming 450 5 to 60
Crusher Severe Braking to limit vibrations during stopping, overload control to detect jamming 400 10 to 40
Refiner Standard Torque control on starting and stopping 300 5 to 30
Press Severe Braking to increase the number of cycles 400 20 to 60
CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
55
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
Special Applications
Contact Seneca Enclosed Drives TAG for additional application information and pricing for those applications requiring:
•Two-speed or delta-wye motors. The ATS48 soft start can operate with a 2-speed motor. A motor demagnetizing period must elapse
before changing from low speed to high speed in order to avoid anti-phase between the line supply and the motor, which would
generate very high currents.
•Motors other than NEMA®Design B.
•High efficiency motors.
•Low slip motors.
•Power factor correction capacitors. Do not connect power factor correction capacitors to the terminals of a motor controlled by an
ATS48 soft start. The power factor capacitors must be controlled and connected to a line side contactor sequenced by the ATS48 at
end of starting.
•Controller oversizing of more than 50%.
•Non-standard trip characteristics.
•Modifications not listed in this pricing guide.
•Horsepower greater than those listed in this pricing guide.
•Long motor cable lengths. Very long motor cables cause voltage drops due to the resistance of the cable. If the voltage drop is
significant, it could affect the current consumption and the torque available. This criterion must be taken into account when selecting
the motor and the starter.
•Miscellaneous application precautions. Do not use the ATS48 controller upstream of loads other than motors (i.e., transformers and
resistance type loads)
Pricing and Special Feature Assistance
Schneider Electric personnel are to use the Q2C computer-based pricing system to determine Enclosed 48 controller
pricing. For pricing and delivery assistance on equipment and options not listed in Q2C or this pricing guide, contact the
Seneca Enclosed Drives Technical Applications Group (TAG) located in the Seneca plant for further assistance.
Enclosed 48 Catalog Number Identification
Class Type Modifications
8639 48U K A 4 N C06, A07
Combination Device
8638 = Fusible Disconnect
8639 = Circuit Breaker
Factory Modifications (MODS)
C06 =Hand-Off-Auto selector switch
A07 =Run (Red) and Off (Green) lights
Soft Start Device
48U = Enclosed Altistart™ 48 Soft Start
Power Circuit Type
N=Non-reversing with isolation contactor
R=Reversing with isolation contactor
S=Shunt trip coil
Horsepower Rating
A=3hp J=40hp S=250hp
B=5hp K=50hp T=300hp
C = 7.5 hp L = 60 hp U = 350 hp
D=10hp M=75hp W=400hp
E = 15 hp N = 100 hp X = 500 hp
F = 20 hp P = 125 hp Z = 600 hp
G=25hp Q=150hp
H=30hp R=200hp
Voltage Code (utilization)
2=208 V, 60 Hz
3=230 V, 60 Hz
4=460 V, 60 Hz
5=575 V, 60 Hz
Enclosure Environment Rating
G=Type 1
A=Type 12
H=Type 3R
CP1G Discount
Schedule
56 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
aNot available in 575 V ratings.
Table 58: Combination Controller—Enclosed 48 Soft Starts (Fusible Disconnect)
60Hz, Three-Phase, 208/230/460/575 Volts—AC3 Duty
Class 8638 Enclosed 48—FUSIBLE Disconnect 8638 Power Circuit Type (Type 1 Enclosure)
(See page 58 for description)
Enclosure Type
Adders
Size ATS48_YU 208 V 230 V 460 V 575 V
Power Circuit
N
$ Price
Power Circuit
R
$ Price
Power Circuit
S
$ Price
Type 12
$ Price
Type 3R
$ Price
A
D17 3 5 10 15 2944.00 3327.00 2576.00 200.00 750.00
D22 5 7.5 15 20 3128.00 3535.00 2668.00 200.00 750.00
D32 7.5 10 20 25 3404.00 3847.00 2944.00 200.00 750.00
D38 10 — 25 30 3662.00 4138.00 3128.00 200.00 750.00
D47 — 15 30 40 3662.00 4138.00 3128.00 200.00 750.00
B
D62 15 20 40 50 4180.00 4723.00 3608.00 300.00 1200.00
D75 20 25 50 60 5315.00 6006.00 4752.00 300.00 1200.00
D88 25 30 60 75 5940.00 6712.00 5368.00 300.00 1200.00
C11 30 40 75 100 6442.00 7279.00 5808.00 300.00 1200.00
CC14 40 50 100 125 6800.00 7684.00 6205.00 450.00 1750.00
C17 50 60 125 150 7990.00 9029.00 7310.00 450.00 1750.00
D
C21 60 75 150 200 9070.00 10249.00 8415.00 600.00 2200.00
C25 75 100 200 250 10200.00 11526.00 9520.00 600.00 2200.00
C32 100 125 250 300 11645.00 13159.00 10600.00 600.00 2200.00
E
C41 125 150 300 350 11880.00 13424.00 10925.00 825.00 2900.00
C48 150 — 350 400 13864.00 15666.00 12240.00 825.00 2900.00
C59 — 200 400 500 15840.00 17899.00 13840.00 825.00 2900.00
C66 200 250 500 600 18920.00 21380.00 16480.00 825.00 2900.00
Table 59: Combination Controller—Enclosed 48 Soft Starts (Circuit Breaker Disconnect)
60Hz, Three-Phase, 208/230/460 Volts—AC3 Duty
Class 8639 Enclosed 48—CIRCUIT BREAKER Disconnect 8639 Power Circuit Type (Type 1 Enclosure)
(See page 58 for description)
Enclosure Type
Adders
Size ATS48_YU 208 V 230 V 460 V 575 V
Power Circuit
N
$ Price
Power Circuit
R
$ Price
Power Circuit
S
$ Price
Type 12
$ Price
Type 3R
$ Price
A
D17 3 5 10
a
2856.00 3227.00 2499.00 200.00 750.00
D22 5 7.5 15 3034.00 3429.00 2588.00 200.00 750.00
D32 7.5 10 20 3302.00 3731.00 2856.00 200.00 750.00
D38 10 — 25 3552.00 4013.00 3034.00 200.00 750.00
D47 — 15 30 3552.00 4013.00 3034.00 200.00 750.00
B
D62 15 20 40 4055.00 4582.00 3500.00 300.00 1200.00
D75 20 25 50 5156.00 5826.00 4609.00 300.00 1200.00
D88 25 30 60 5762.00 6511.00 5207.00 300.00 1200.00
C11 30 40 75 6248.00 7061.00 5634.00 300.00 1200.00
CC14 40 50 100 6596.00 7453.00 6019.00 450.00 1750.00
C17 50 60 125 7750.00 8758.00 7091.00 450.00 1750.00
D
C21 60 75 150 8797.00 9941.00 8163.00 600.00 2200.00
C25 75 100 200 9894.00 11180.00 9234.00 600.00 2200.00
C32 100 125 250 11296.00 12764.00 10282.00 600.00 2200.00
E
C41 125 150 300 11524.00 13022.00 10597.00 825.00 2900.00
C48 150 — 350 13448.00 15196.00 11873.00 825.00 2900.00
C59 — 200 400 15365.00 17362.00 13425.00 825.00 2900.00
C66 200 250 500 18352.00 20738.00 15986.00 825.00 2900.00
CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
57
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
Configuration & Factory Modifications
The Enclosed 48 combination controllers can be
configured with pre-engineered features and functions
identified below. Factory modifications (MODS) identified
by “custom engineered option” has extended lead times
and will be handled by a factory order engineer for
processing.
Enclosed 48 Features
•Class 8638 fusible disconnect version with provisions for Class
J or L fuses are provided. Fuses are not installed at the factory.
•Class 8639 circuit breaker version provided with MAG-GARD
or thermal-magnetic circuit breaker as OCPD.
•Three power circuit configurations—shunt trip, non-reversing
and reversing options.
•Industrial rated flange disconnect operating handle and
mechanism.
•Shorting contactors (AC1 duty) provided on all Enclosed 48
soft starts.
•Input isolation contactor option.
•Full voltage bypass (AC3 duty) option.
•Transient suppression modules on all contactors.
•Agency listing to UL 508 Industrial Control Equipment. cUL
and/or CSA label available as an option.
•Coordinated short circuit ratings:
•Type 1, 12 or 3R enclosure environmental ratings.
•22 mm LED long life pilot light clusters with option for push-to-
test configurations.
•120 Vac control power transformers, with or without an
additional 150 VA for customer use.
•Top and bottom conduit knockouts on wall-mounted
enclosures
•Removable conduit entry plates on floor mounted enclosures.
•Cabinet component identification.
•ANSI #49 gray enclosure paint.
•Door mounted keypad on Type 1 and 12 units.
•Wire marking identification.
•Factory specific drawings.
Altistart™ 48 Soft Start Device Features
TCS™ Torque Control System
The Atlistart 48 soft start uses TCS ramping to accelerate
the motor to full voltage. Basing the acceleration ramp on
the motor torque rather than current or voltage, as used in
traditional soft starts, provides a linear speed ramp
independent of the motor loading without tachometer
feedback. The TCS ramp is also used for improved control
of deceleration independent of motor loading. When used
in pumping applications, TCS ramping can eliminate water
hammer problems and provide an alternative to expensive
motorized control values.
Starting and Stopping
Four types of starting are available:
•TCS soft start—adjustable from 1 to 60 seconds
•TCS with “boost”—adjustable 50 to 100% of mains voltage
•Current limit—adjustable from 150 to 500% of controller rating
•Voltage ramping
Modes of stopping
•Freewheel or coast to stop
•TCS soft stop—adjustable from 1 to 60 seconds
Device Protective Features
•Solid State motor thermal overload protection—programmable
from Class 10 through 30
•Soft start thermal protection
•Motor phase loss protection
•Line supply failure
•Overcurrent fault
•Locked rotor fault
•Line frequency outside limits ±5% or ±20%—EGSA
compliance with Class 3 application (droop operation)
generators.
•Selectable protection, including:
— Phase reversal
— Stall and jam
— Thermal overload pre-alarm
— Current threshold alarm
— Underload fault
Enclosure
Size
Horsepower Rating 8638
Fusible
Disconnect
8639
Circuit
Breaker@ 208 V @ 230 V @ 460 V @ 575 V
A–C 3–50 5–60 10–125 15–150 100k 25k
D 60–100 75–125 150–250 200–300 100k 30k
E 125–200 150–250 300–500 350–600 65k 30k
CP1G Discount
Schedule
58 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
Device Monitoring and Indication
Door mounted keypad:
•Displays setup parameters and fault codes.
•Factory presets for most common adjustments.
•Security to avoid accidental controller modifications is
provided by dipswitches on the back of the keypad, which
must be adjusted to provide access to three programming
levels.
Real time indication via the digital keypad of:
•Motor current
•Load Torque
•Motor thermal state
•Power factor
•Fault status
Two logic outputs:
•Motor thermal overload or indication of motor current present
•Current threshold alarm
•Motor underload alarm
One analog output for 4 to 20 or 0 to 20 mA indication of
motor current, torque, thermal state, active power or
power factor.
Two logic inputs, which are configurable for force to
freewheel, thermal overload reset or indication of external
fault.
Refer to the Altistart™ 48 product catalog (8636CT0201)
for additional information.
Power Circuit Descriptions (pick one)
Power Circuit N—
Non-Reversing with Isolation Contactor
A contactor ahead of the soft start is coordinated to
automatically disconnect the motor from the ac line in the
conditions of a fault. In addition, the isolation contactor is
coordinated to open when the motor is not running. This
provides protection from voltage transients when the
electronics are most susceptible to damage. The isolation
contactor operation shall be coordinated via the R1 relay
in isolation contactor control mode. The control scheme
and contactor sequencing shall maintain the control power
and remove the main power to the soft start after a fault or
normal stop. Not available with shunt trip option, and is
required with full voltage bypass option.
Power Circuit R—
Reversing with Isolation Contactor
The reversing combination starter is configured for
forward and reverse operation through a reversing
contactor and appropriate logic control. The reversing
contactor also provides isolation for the motor from the
line supply power following a stop command (and
deceleration period, if selected) or in the condition of a
fault. Control of the forward and reverse contactors shall
use time delay relays (time set for 2 seconds) and the R1
fault relay in fault configuration. Not available with NEMA®
contactors or full voltage bypass.
Power Circuit S—
Shunt Trip Coil
If a fault is detected, a shunt trip coil on the disconnect
means removes all power on the load side of the
disconnect. The disconnect must be reset before
restarting is permitted after all fault conditions. The shunt
trip function shall be coordinated via a time delay relay
(time set for 2 seconds) signaled from the R1 relay in fault
configuration. Shunt trip coils shall be standard for MCC &
option S for enclosed, and available on both circuit
breaker & molded case switch versions. Not available with
input isolation contactor option (Power Circuit N).
CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
59
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
Control Options (pick one)
Rules:Not available on Power Circuit R (Reversing).
Rules:Available for Power Circuit R (Reversing) configurations only.
Rules:Not available on Power Circuit R (Reversing).
Rules:Not available on Power Circuit R (Reversing).
Rules:Not available on Power Circuit R (Reversing).
Pilot Light Cluster Options (pick one)
Rules: Not available with Power Circuit S (Shunt Trip).
Rules:Not available on Power Circuit S (Shunt Trip).
Meter Display Options (pick one)
Rules:Not available on Type 3R Enclosed.
Rules:Not available on Type 3R Enclosed.
Communications/Gateway Options
(pick one)
Factory installed communication features shall be available
as a custom engineered option utilizing the RJ45
communications port for control and annunciation of the
soft start in “link” mode.
Mod
A06
Start/Stop push buttons $ Price
Provides black start and red stop push buttons
(3 wire control scheme). 132.00
Mod
B06
Forward-Off-Reverse selector switch $ Price
Provides three-position selector switch to select between
forward, off and reverse. Uses 2-wire control. 240.00
Mod
C06
Hand-Off-Auto selector switch $ Price
Provides a three-position selector switch, 2-wire control
scheme. 132.00
Mod
D06
Stop-Run selector switch $ Price
Provides a two-position selector switch. 132.00
Mod
E06
Hand-Auto selector switch and Start/Stop push buttons $ Price
Provides a two-position selector switch and start/stop push
buttons (3-wire control). 264.00
Mod
A07
Pilot light cluster #1 $ Price
Consists of red “RUN” and green “OFF” pilot lights. Provides
standard red “RUN (ON)” and green “OFF” pilot lights for status
annunciation.
180.00
Mod
B07
Pilot light cluster #2 $ Price
Consists of red “RUN” (push-to-test) and green “OFF” (push-to-
test) pilot lights. Provides push-to-test type red “RUN (ON)” and
standard green “OFF” pilot lights for status annunciation.
360.00
Mod
C07
Pilot Light Cluster #3 $ Price
Consists of red “RUN”, green “OFF” and yellow “FAULT” pilot
lights. Provides standard red “RUN (ON)”, green “OFF”, and
yellow “FAULT” pilot lights for status annunciation.
270.
Mod
D07
Pilot light cluster #4 $ Price
Consists of red “RUN (ON)” (push-to-test), green “OFF” (push-
to-test) and yellow “FAULT” (push-to-reset) pilot lights. Provides
push-to-test type red “RUN (ON)”, standard green “OFF”, and
push-to-reset type yellow “FAULT” for status annunciation.
540.00
Mod
A08
Ammeter $ Price
Provides a single-phase ammeter fed from the ATS48 analog
output. Dial is in percent of device rated current. 1188.00
Mod
B08
Elapsed Time Meter $ Price
Provides a seven-digit analog, non-resettable elapsed run time
meter. 348.00
Mod
A09
Modbus™ $ Price
Provides Modbus communications (native protocol) 850.00
Mod
B09
Modbus Plus $ Price
Provides Modbus communications. 950.00
Mod
C09
Ethernet $ Price
Provides Ethernet gateway communications protocol. 950.00
Mod
D09
DeviceNet™ $ Price
Provides DeviceNet gateway communications protocol. 950.00
CP1G Discount
Schedule
60 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts
Miscellaneous Options (multiple compatible options may be selected)
Rules:Only available for Power Circuit N (Non-Reversing). Not available with
Power Circuit S (Shunt Trip) SCR fault isolation scheme.
Rules:Only available on 2-wire control circuits.
Rules:Requires Power Circuit S (Shunt Trip).
Rules:MOD A10 (Full Voltage Bypass) must be selected. Must use Power Circuit
N or R (line isolation contactor combination). Not compatible with Power
Circuit S (Shunt Trip).
Rules:MOD C06 (Hand-Off-Auto selector switch) or E06 (Hand-Auto selector
switch) must be specified.
Rules:Available on Class 8639 circuit breaker disconnect configurations only.
Rules: Only for Type 3R size D and E enclosures.
Rules:Not available with Power Circuit R (Reversing) or MOD A10 (Full voltage
bypass.
Rules:Standard on Type 3R enclosures.
Rules:Not available for Enclosure Sizes A–C (wall mounted enclosures).
Mod
A10
Full voltage bypass $ Price
Provides an AC3 duty rated bypass/shorting contactor,
normal/bypass selector switch, Class 20 bi-metal motor OL
relay, door mounted OL reset push-button for across the line
starting capability.
Enclosure Size A adder: 500.00
Enclosure Size B adder: 600.00
Enclosure Size C adder: 700.00
Enclosure Size D adder: 750.00
Enclosure Size E adder: 900.00
Mod
B10
150 VA additional control power capacity $ Price
Provides 150 VA additional control VA capacity for customer
use. 150.00
Mod
C10
Power Up ON delay (start relay) $ Price
Provides an electronic time delay relay adjustable from 0.1 to
60 seconds. Relay is pre-wired to inhibit start for users set
delay time upon power-up of control power circuit.
150.00
Mod
D10
Emergency Stop push button $ Price
Provides a push-button for immediate removal of all power. 140.00
Mod
E10
“cUL” Label $ Price
Provides a Canadian Underwriters Laboratories label when
required by local code requirements. 200.00
Mod
F10
Auxiliary contacts for run mode $ Price
Provides 1 Form 'C' contact rated5A@120Vac
(8501 Type R relay or equivalent) wired to terminal blocks for
customer use. Contacts change state when soft start is
sending current to the motor. Controlled by the R3 relay
programmed for “rnl”.
550.00
Mod
G10
Auxiliary contacts for full voltage bypass run mode $ Price
Provides 1 Form 'C' contact rated5A@120Vac
(8501 Type R relay or equivalent) wired to terminal blocks for
customer use. Contacts change state when motor is operated
across the line with full voltage bypass starter.
550.00
Mod
H10
Auxiliary contacts for auto mode $ Price
Provides an auxiliary starter mode (auto) contact that
will energize a relay with 1 Form 'C' contact rated5A@120
Vac (8501 Type R relay or equivalent) wired to terminal blocks
for customer use.
550.00
Mod
J10
Auxiliary contacts for fault mode $ Price
Provides an auxiliary starter mode (auto) contact that
will energize a relay with 1 Form 'C' contact rated5A@120
Vac (8501 Type R relay or equivalent) wired to terminal blocks
for customer use.
650.00
Mod
K10
Motor space heater provisions
(custom engineered option) $ Price
Provides control circuit contacts, 120 V, 150–500 kW supply
and fusing, wired to terminals (9080 GM6) for customer use. 640.00
Mod
L10
ID engraved nameplates $ Price
Provides a lamacoid nameplate, engraved with equipment
designation. 50.00
Mod
M10
Spare terminal blocks $ Price
Provides up to (10) spare terminal blocks 'unwired' for
customer use. Since Phoenix style terminal blocks will be
used, extra terminal points will be provided as standard.
20 terminal points are available as standard for all control
wiring (including any additional customer spare terminal
points).
340.00
Mod
P10
Permanent wire markers $ Price
Provides permanent sleeve type wire markers on control
wiring assemblies. 1400.00
Mod
Q10
ANSI #61 painted enclosure
(custom engineered option) $ Price
Provides the option to configure the enclosure paint scheme to
standard ANSI #61 paint instead of ANSI #49 paint. 375.00
Mod
R10
MOV / Surge arrestor (custom engineered option) $ Price
Provides supplementary MOV protection using a
Class 6671 SDSA3650 Surgebreaker™ secondary surge
arrester hard-wired and factory mounted.
450.00
Mod
S10
Dual motor overloads and branch circuit protection
(custom engineered option) $ Price
Provides dual-rated motor OLs rated equally, one-half
the hp of the selected starter. Motor branch short circuit
protection is provided per NEC™. Maximum total current
rating of the combined motors not to exceed the continuous
current rating of the starter package.
Enclosure Size A adder: 820.00
Enclosure Size B adder: 1874.00
Enclosure Size C adder: 2645.00
Enclosure Size D adder: 3160.00
Enclosure Size E adder: 6570.00
Mod
U10
Omit door mounted keypad display $ Price
Removes the keypad display from outside the enclosure door.
The keypad on the ATS48 soft start can be used for
programming and commissioning.
(50.00)
Mod
W10
NEMA®style contactors (custom engineered option) $ Price
Provides horsepower rated NEMA rated contactors instead
of AC3 rated IEC TeSys™ or F-line contactors.
Enclosure Size A adder: 400.00
Enclosure Size B adder: 600.00
Enclosure Size C adder: 700.00
Enclosure Size D adder: 2000.00
Enclosure Size E adder: 4500.00
Mod
X10
50 Degrees C operation $ Price
Provides extended range high ambient equipment rating
above 40 °C (104 °F) to a maximum of 50 °C (122 °F) without
de-rating.
125.00
Mod
Y10
Seismic Qualification label $ Price
Provides a self-certified identification label with compliance to
2000 IBC, NFPA™ 5000, 2001 CBC, 1997 UBC, 1999 NBC,
1999SBC, ASCE-7 02 seismic qualification/certification. The
label criteria will be uniform for all enclosed products.
Enclosures shall contain additional bracing as defined by the
seismic qualification/certification criteria.
450.00
Mod
Z10
Service Entrance Rating $ Price
Provides a UL869A approved insulated ground neutral lug
assembly, mounting bracket with bonded enclosure ground
wire suitable for use as service entrance equipment.
185.00
Mod
610
100 k Circuit Breaker Rating $ Price
Only available:
208 V, 125–200 hp
230 V, 150–250 hp
460 V, 300–500 hp
2000.00
CP1G Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
61
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts — Class 8636, 8638, and 8639
aThese Type 1 and 12 units are not shipped with a shorting contactor installed.
Table 60: Renewal Parts
Description Line
Voltage
Class 8636 Controllers Class 8638/8639 Combination Controllers
Catalog Number $ Price
Type 1
No Shorting
Type
1 and 12
W/Shorting
Standard
Duty
Heavy
Duty
Standard
W/Bypass
Heavy
W/Bypass
Control Power
Primary Fuse
FU8
Standard VA
460 V 10–20 hp a10–20 hp 7.5–15 hp 2543020020 11.00
208 V 3–7.5 hp a3–7.5 hp 2–5 hp
2543020050 11.00230 V 5–10 hp a5–10 hp 3–7.5 hp
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp
230 V 15–30 hp 15–40 hp 15–40 hp 10–30 hp 2543020100 11.00
460 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp
208 V 10–25 hp 10–30 hp 10–30 hp 7.5–25 hp 2543020112 11.00
460 V 125 hp 150 hp 150 hp 125 hp 2543020125 14.76
460 V 250–400 hp 300–500 hp 300–500 hp 150–400 hp 2543020150 11.00
460 V 150–200 hp 200–250 hp 200–250 hp 150–200 hp 150 hp 125 hp 2543020180 11.00
230 V 40–50 hp 50–60 hp 50– 60 hp 40–50 hp 40 hp 2543020200 11.00
208 V 30–40 hp 40–50 hp 40–50 hp 30–40 hp 30 hp 2543020250 13.68
230V 60hp 75hp 75hp 60hp
208V 50hp 60hp 60hp 50hp 2543020300 11.00
230 V 125–200 hp 150–250 hp 150–250 hp 125– 200 hp
208 V 100–150 hp 125–200 hp 125–200 hp 100–150 hp 2543020350 11.00
230 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp 60 hp
208 V 60–75 hp 75–100 hp 75–100 hp 60–75 hp 60 hp 50 hp 2543020400 11.00
Control Power
Primary Fuse
FU8
Form T41
100 Additional VA
460 V 10–20 hp a10–20 hp 7.5–15 hp 2543020060 11.00
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp 2543020100 11.00
230 V 5–10 hp a5–10 hp 3–7.5 hp 2543020150 11.00
460 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp
208 V 3–7.5 hp a3 –7.5 hp 2 –5 hp 2543020160 14.76
460 V 125 hp 150 hp 150 hp 125 hp 2543020180 11.00
230 V 15–30 hp 15–40 hp 15–40 hp 10–30 hp 2543020200 11.00
208 V 10–25 hp 10–30 hp 10 –30 hp 7.5–25 hp 2543020250 13.68
460 V 150–400 hp 200–500 hp 200–500 hp 150–400 hp 150 hp 125 hp
230 V 40–50 hp 50–60 hp 50–60 hp 40–50 hp 40 hp 2543020300 11.00
230 V 75–200 hp 100–250 hp 100–250 hp 75–200 hp 75 hp 60 hp 2543020320 11.00
208 V 30–40 hp 40–50 hp 40–50 hp 30– 40 hp 30 hp 2543020350 11.00
230V 60hp 75hp 75hp 60hp
208 V 50–150 hp 60–200 hp 60–200 hp 50–150 hp 60 hp 50 hp 2543020400 11.00
Control Power
Primary Fuse
FU8
Form T42
200 Additional VA
460 V 10–20 hp a10–20 hp 7.5–15 hp 2543020125 14.67
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp 2543020150 11.00
230 V 5–10 hp a5–10 hp 3–7.5 hp
2543020250 13.68460 V 75–125 hp 100–150 hp 100–150 hp 75–125 hp 75 hp
460 V 250–400 hp 300–500 hp 300–500 hp 250–400 hp
208 V 3–7.5 hp a3–7.5 hp 2–5 hp 2543020300 11.00
230 V 15–30 hp 15–40 hp 15–40 hp 10–30 hp
230 V 40–60 hp 50–75 hp 50–75 hp 40–60 hp 40 hp 2543020320 11.00
230 V 125–200 hp 150–250 hp 150–250 hp 125–200 hp
208 V 10–25 hp 10–30 hp 10–30 hp 7.5–25 hp 2543020350 11.00
460 V 150–200 hp 200–250 hp 200–250 hp 150–200 hp 150 hp 125 hp
208 V 30–50 hp 40–60 hp 40– 60 hp 30–50 hp 30 hp 2543020400 11.00
208 V 100–150 hp 125–200 hp 125–200 hp 100–150 hp
230 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp 60 hp 2543020500 11.00
208 V 60–75 hp 75–100 hp 75–100 hp 60–75 hp 60 hp 50 hp 2543020600 11.00
CP4C PE4 Discount
Schedule
62 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts — Class 8636, 8638, and 8639
aThese Type1&12units are not shipped with a shorting contactor installed.
bDiscount Schedule for this product is PE4.
Table 61: Renewal Parts
Description Line
Voltage
Class 8636 Controllers Class 8638/8639 Combination Controllers
Catalog Number $ Price
Type 1
No Shorting
Type
1&12
W/Shorting
Standard
Duty
Heavy
Duty
Standard
W/Bypass
Heavy
W/Bypass
Control Power
Secondary Fuse
FU6&7
Standard VA
208 V 3–7.5 hp a3–7.5 hp 2–5 hp
2543020060 11.00230 V 5–10 hp a5–10 hp 3–7.5 hp
460 V 10–20 hpa10–20 hp 7.5 –15 hp
208 V 10–25 hp 10–30 hp 10–30 hp 7.5–25 hp
2543020125b14.76230 V 15–30 hp 15– 40 hp 15–40 hp 10–30 hp
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp
208 V 30–40 hp 40–50 hp 40–50 hp 30–40 hp 30 hp
2543020250b13.68230 V 40–50 hp 50–60 hp 50–60 hp 40–50 hp 40 hp
460 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp
208V 50hp 60hp 60hp 50hp
2543020300 11.00230V 60hp 75hp 75hp 60hp
460 V 125 hp 150 hp 150 hp 125 hp
208 V 100–150 hp 125–200 hp 125–200 hp 100–150 hp
2543020400 11.00230 V 125–200 hp 150–250 hp 150–250 hp 125–200 hp
460 V 250–400 hp 300–500 hp 300–500 hp 250–400 hp
208 V 60–75 hp 75–100 hp 75–100 hp 60–75 hp 60 hp 50 hp
2543020500 11.00230 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp 60 hp
460 V 150–200 hp 200–250 hp 200–250 hp 150–200 hp 150 hp 125 hp
Control Power
Secondary Fuse
FU6&7
Form T41
100 Additional VA
208 V 3–7.5 hp a3–7.5 hp 2–5 hp
2543020200 11.00230 V 5–10 hp a5–10 hp 3–7.5 hp
460 V 10–20 hp a10–20 hp 7.5–15 hp
208 V 10–25 hp 10–30 hp 10–30 hp 7.5–25 hp
2543020250b13.68230 V 15–30 hp 15– 40 hp 15–40 hp 10–30 hp
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp
208 V 30–40 hp 40–50 hp 40–50 hp 30–40 hp 30 hp
2543020400 11.00230 V 40–50 hp 50–60 hp 50–60 hp 40–50 hp 40 hp
460 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp
208V 50hp 60hp 60hp 50hp
2543020500 11.00230V 60hp 75hp 75hp 60hp
460 V 125 hp 150 hp 150 hp 125 hp
208 V 60–150 hp 75–200 hp 75–200 hp 60–150 hp 60 hp 50 hp
2543020700 11.00230 V 75–200 hp 100–250 hp 100–250 hp 75–200 hp 75 hp 60 hp
460 V 150–400 hp 200–500 hp 200–500 hp 150–400 hp 150 hp 125 hp
Control Power
Secondary Fuse
FU6&7
Form T42
200 Additional VA
208 V 3–7.5 hp a3–7.5 hp 2–5 hp
2543020300 11.00230 V 5–10 hp a5–10 hp 3–7.5 hp
460 V 10–20 hp a10–20 hp 7.5–15 hp
208 V 10–25 hp 10–30 hp 10–30 hp 7.5–25 hp
2543020400 11.00230 V 15–30 hp 15–40 hp 15–40 hp 10–30 hp
460 V 30–60 hp 30–75 hp 30–75 hp 20–60 hp
208 V 30–50 hp 40–60 hp 40–60 hp 30–50 hp 30 hp
2543020700 11.00
208 V 100–150 hp 125–200 hp 125–200 hp 100–150 hp
230 V 40–60 hp 50–75 hp 50–75 hp 40–60 hp 40 hp
230 V 125–200 hp 150–250 hp 150–250 hp 125–200 hp
460 V 75–125 hp 100–150 hp 100–150 hp 75–125 hp 75 hp
460 V 250–400 hp 300–500 hp 300–500 hp 250–400 hp
208 V 60–75 hp 75–100 hp 75–100 hp 60–75 hp 60 hp 50 hp
2543021000 11.00230 V 75–100 hp 100–125 hp 100–125 hp 75–100 hp 75 hp 60 hp
460 V 150–200 hp 200–250 hp 200–250 hp 150–200 hp 150 hp 125 hp
CP4C PE4bDiscount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
63
Pricing Guide AC Soft Start Products
Enclosed Altistart 48 Soft Starts — Class 8636, 8638, and 8639
aUnits with the following hp ratings are not shipped with shorting contactors: 3–7.5 hp (208 V), 5–10 hp (230 V) and 10–20 hp (460 V)
bDiscount Schedule for this product is PE4.
Description Line
Voltage
Class 8636 Controllers 8638/8639 Combination Controllers
Catalog Number $ Price
Type 1
No Shorting
Type1&12
W/Shorting
Standard
Duty
Heavy
Duty
Altistart™
CL1-CL2
Control Power Fuse
FU4&5
208 V 3–7.5 hp 3–10 hp a3–10 hp 2–7.5 hp
2543020025 11.00230 V 5–10 hp 5–15 hp a5–15 hp 3–10 hp
460 V 10–75 hp 10–100 hp a10–100 hp 7.5–75 hp
208 V 10–30 hp 15–40 hp 15–40 hp 10–30 hp
2543020050 11.00
230 V 15–40 hp 20–50 hp 20–50 hp 15–40 hp
460 V 100–200 hp 125–250 hp 125–250 hp 100–200 hp 2543020080 11.00
460 V 250–400 hp 300–500 hp 300–500 hp 250–400 hp 2543020100 11.00
208 V 40–75 hp 50–100 hp 50–100 hp 40–75 hp
2543020160b14.76
230 V 50–100 hp 60–125 hp 60–125 hp 50–100 hp
208 V 100–150 hp 125–200 hp 125–200 hp 100–150 hp
2543020200 11.00
230 V 125–200 hp 150–250 hp 150–250 hp 125–200 hp
Auxiliary CPT
Primary Fuses
FU9&10
208 V 10–150 hp 10–200 hp 10–200 hp 7.5–150 hp
2543021500 11.00230 V 15–200 hp 15–250 hp 15–250 hp 10–200 hp
460 V 30–400 hp 30–500 hp 30–500 hp 20–500 hp
1.2 VA / 6 V Bulb
for Pilot Lights
208 V ALL ALL ALL ALL
DL1CB006b5.30230 V ALL ALL ALL ALL
460 V ALL ALL ALL ALL
CP4C PE4bDiscount
Schedule
64 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Line Reactors and Motor Protection Output Filters
Options
Options—Field Installed
aSuitable for use with ATV 312 drives, 575 V. See Altivar™ 31 Options for selection.
Table 62: Line Reactors—480 V Rated Three-Phase
460 V Drive Rating Open Style
Part Number $ Price
Enclosed
Part Number
(Type 1)
Approx.
Wt.
(Lbs.)
Enclosure
Dimensions
HxWxD (In.)
$ Price
Horsepower kW
1 — RL00202a169.00 RL00212a11 8x8x6 310.00
2–3 — RL00403a174.00 RL00413a12 8x8x6 315.00
5 — RL00803a262.00 RL00813a18 15x13x13 405.00
7.5 — RL01203 308.00 RL01213 25 15x13x13 455.00
10 — RL01803 357.00 RL01813 49 15x13x13 590.00
15 — RL02503 368.00 RL02513 49 15x13x13 602.00
20–25 — RL03503 487.00 RL03513 61 15x13x13 727.00
30 — RL04503 571.00 RL04513 70 15x13x13 816.00
40 — RL05503 578.00 RL05513 72 15x13x13 822.00
50–60 — RL08003 939.00 RL08013 86 15x13x13 1200.00
75 — RL10003 1096.00 RL10013 105 15x13x13 1366.00
100 — RL13003 1120.00 RL13013 105 15x13x13 1392.00
125 — RL16003 1260.00 RL16013 105 15x13x13 1539.00
150 — RL20003 1539.00 RL20013 131 15x13x13 1831.00
200 — RL25003 2727.00 RL25013 185 24x17x17 3447.00
250 — RL32003 2915.00 RL32013 235 24x17x17 3646.00
300 — RL40003 3576.00 RL40013 245 24x17x17 4338.00
350–400 — RL50003 4150.00 RL50013 335 24x17x17 5761.00
450–500 — RL60003 5740.00 RL60013 335 24x17x17 7431.00
Table 63: Line Reactors—208/230 V Rated Three-Phase
208 V Drive Rating 230 V Drive Rating Open Style
Part Number $ Price
Enclosed
Part Number
(Type 1)
Approx.
Wt.
(Lbs.)
Enclosure
Dimensions
HxWxD (In.)
$ Price
Horsepower kW Horsepower kW
1 — 1 — RL00402 168.00 RL00412 11 8x8x6 308.00
1.5–2 — 1.5–2 — RL00802a192.00 RL00812a15 8x8x6 332.00
3 — 3 — RL01202a214.00 RL01212a17 8x8x6 356.00
5 — 5 — RL01802a270.00 RL01812a19 8x8x6 416.00
7.5 — 7.5 — RL02502a311.00 RL02512a45 15x13x13 542.00
10 — 10 — RL03502 327.00 RL03512 47 15x13x13 559.00
15 — 15 — RL04502 431.00 RL04512 59 15x13x13 669.00
20 — 20 — RL05502 455.00 RL05512 59 15x13x13 693.00
25 — 25–30 — RL08002 534.00 RL08012 82 15x13x13 776.00
30 — 40 — RL10002 746.00 RL10012 82 15x13x13 999.00
40 — 50 — RL13002 848.00 RL13012 88 15x13x13 1106.00
50 — — — RL16002 1048.00 RL16012 88 15x13x13 1317.00
Table 64: Line Reactors—208/230 V Rated Single-Phase
208 V Drive Rating 230 V Drive Rating Open Style
Part Number $ Price
Enclosed
Part Number
(Type 1)
Approx.
Wt.
(Lbs.)
Enclosure
Dimensions
HxWxD (In.)
$ Price
Horsepower kW Horsepower kW
.5 — .5–1 — RL00801 171.00 RL00811 15 8x8x6 311.00
1 — 2 — RL01201 202.00 RL01211 17 8x8x6 344.00
2 — 3 — RL01801 263.00 RL01811 19 8x8x6 407.00
3 — — — RL02501 275.00 RL02511 45 15x13x13 504.00
— 3 — 3 RL01801 246.00 RL01811 47 15x13x13 380.00
5 — 5 — RL03501 311.00 RL03511 59 15x13x13 542.00
7.5 — 7.5 — RL04501 410.00 RL04511 82 15x13x13 646.00
Table 65: Motor Protecting Output Filters—480 V Rated Type 1 Enclosed Motor Protection Output Filters
(UL 508A)
Horsepower
Amperes KLCUL Filter Enclosed
Part Number $ Price Approximate
Weight (lbs)
Enclosure Dimensions
Drive 460 V Rating
HWD
IN mm IN mm IN mm
1–2 4 KLCUL4A1 1126.00 15 12.25 311 12.50 318 6.75 171
3 6 KLCUL6A1 1148.00 15 12.25 311 12.50 318 6.75 171
5 8 KLCUL8A1 1171.00 15 12.25 311 12.50 318 6.75 171
7.5 12 KLCUL12A1 1224.00 15 12.25 311 12.50 318 6.75 171
10 16 KLCUL16A1 1249.00 17 12.25 311 12.50 318 6.75 171
15 25 KLCUL25A1 1355.00 20 12.25 311 12.50 318 6.75 171
20–25 35 KLCUL35A1 1485.00 20 12.25 311 12.50 318 6.75 171
30 45 KLCUL45A1 1535.00 20 12.25 311 12.50 318 6.75 171
40 55 KLCUL55A1 1672.00 20 12.25 311 12.50 318 6.75 171
50–60 80 KLCUL80A2 2178.00 56 19.13 486 15.50 394 15.50 394
75 110 KLCUL110A2 3005.00 60 19.13 486 15.50 394 15.50 394
100 130 KLCUL130A2 3368.00 66 19.13 486 15.50 394 15.50 394
125 160 KLCUL160A2 3617.00 80 19.13 486 15.50 394 15.50 394
150 200 KLCUL200A3 3766.00 102 22.13 562 20.50 521 24.37 619
200 250 KLCUL250A3 3841.00 110 22.13 562 20.50 521 24.37 619
250 300 KLCUL300A3 3863.00 115 22.13 562 20.50 521 24.37 619
300 360 KLCUL360A3 4300.00 125 22.13 562 20.50 521 24.37 619
350 420 KLCUL420A3 4659.00 145 22.13 562 20.50 521 24.37 619
400 480 KLCUL480A3 5221.00 150 22.13 562 20.50 521 24.37 619
450–500 600 KLCUL600A3 5393.00 167 22.13 562 20.50 521 24.37 619
NOTE: Line reactors and filters are intended for separate mounting and wiring by the user.
Based on NEC™ (NFPA™ 70) 430–150 current ratings. If drive has higher FLA rating, use the
“amperes” rating to select the appropriate filter.
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
65
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aSCR: Silicon controlled rectifier.
Table 66: Kit Contents and Required Documentation
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VX4A1103 Control front cover with 4x7 Segments 1 Front cover assembly All ATV61/ATV71 All ATV61/ATV71 144.00
VX4A1104 Control terminal board kit
1
2
1
1
Terminal PCBA
Insulated jumpers
Terminal PCBA lower cap
Terminal PCBA upper cap
All ATV61/ATV71 All ATV61/ATV71 142.00
VX4A1106 Filter board 1 Filter board 6
ATV61HD18M3X
ATV61HD22M3X
ATV71HD18M3X
ATV71HD22M3X
46.00
VX4A1107 Filter board 1 Filter board 6 ATV61HD22N4
ATV71HD22N4 260.00
VX4A1108 Filter board 1 Filter board 7A
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
149.00
VX4A1109 Filter board 1 Filter board 7B
ATV61HD30M3X
ATV61HD37M3X
ATV61HD45M3X
ATV71HD30M3X
ATV71HD37M3X
ATV71HD45M3X
84. 00
VX4A1110 Filter board 1 Filter board 8
ATV61HD45N4
ATV61HD55N4
ATV61HD75N4
ATV71HD45N4
ATV71HD55N4
ATV71HD75N4
130.00
VX4A1113 Filter board 1 Filter board 11 ATV61HC16N4
ATV71HC13N4 294.00
VX4A1114 Filter board 1 Filter board 12 ATV71HC16N4
ATV61HC22N4 382.00
VX4A1115 Filter board 1 Filter board 13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
412.00
VX4A1116 Filter board
1 Filter board 9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
151.00
1 Filter board 10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
244.00
VX4A1117 Filter board 1 Filter board
14B ATV61HC50N4
ATV71HC40N4 333.00
15 ATV61HC63N4
ATV71HC50N4 294.00
VX4A1118 Filter board 1 Filter board 14A ATV61HC40N4
ATV71HC31N4 144.00
VX4A1200 SCRaSnubber Board 1 SCR snubber board
11 ATV61HC16N4
ATV71HC13N4 142.00
12 ATV71HC16N4
ATV61HC22N4 46.00
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
260.00
14A ATV61HC40N4
ATV71HC31N4 149.00
14B ATV61HC50N4
ATV71HC40N4 84. 00
15 ATV61HC63N4
ATV71HC50N4 130.00
CP4C Discount
Schedule
66 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VX4A61100Y ATV61 Control board kit, <90 kW
1
1
4
1
9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Screw, captive washer,
M4x8
Screw, captive washer,
M4x10
Screws with washers,
M3x8
Spring,5mmx14mm
Screws, M3 x 8, thread
forming
Application PCBA insulate
sheet
Flat washer, M4
Screw, M4 x 20
Control ground bar
Terminal PCBA lower cap
Control support
Display support
Terminal PCBA upper cap
Keyboard
Application PCBA
Motor control PCBA
Display PCBA
Terminal PCBA
Application PCBA / motor control
Option LED label
Brand marking label
Relay label
AI label
LI label
Control switch label
Modbus™ label
Motor control insulate sheet
2, 3, 4, 5A, 5B, 6, 7A,
7B, 8
ATV61H075M3 H075N4,
HU15N4
HU22N4, HU22M3 HU15M3,
HU30M3 HU30N4, HU40M3
HU40N4, HU55M3 HU55N4,
HU75N4 HD11N4, HU75M3
HD11M3X, HD15M3X,
HD15N4
HD18N4, HD18M3X
HD22M3X, HD22N4
HU30Y, HU40Y
HU55Y, HU75Y
HD11Y, HD15Y
HD18Y, HD22Y
HD30Y, HD30N4
HD37N4, HD30M3X
HD37M3X
HD45M3X,HD45N4
HD55N4, HD75N4 HD37Y,
HD45Y HD55Y, HD75Y
HD90Y,
325.00
VX4A61101Y ATV61 Control board kit, ≥90 kW
1
9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Spring,5mmx14mm
Screws, M3 x 8, thread
forming
Motor control PCBA
Interface PCBA
Application/interface PCBA
cable
Application PCBA insulate
sheet
Flat washer, M4
Screw, captive washer,
M4x20
Control ground bar
Terminal PCBA lower cap
Control support
Display support
Control trap
Terminal PCBA upper cap
Keyboard
Application PCBA
Display PCBA
Terminal PCBA
Application PCBA / motor
control
Spacing assembly
Control trap label kit
Option LED label
Brand marking label
Relay label
AI label
LI label
Control switch label
Modbus label
9, 10, 11, 12, 13, 14, 15
ATV61HD75M3X HD90N4,
HD55M3X HC11N4,
HC13N4 HD90M3X
HC16N4
HC22N4, HC25N4 HC31N4,
HC40N4
HC50N4, HC63N4
HC11Y, HC13Y HC16Y,
HC20Y HC25Y, HC31Y
HC40Y, HC50Y HC63Y
HC80Y
375.00
VX4A71100Y ATV71 control board kit, <90 kW
1
1
4
1
9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Screw, captive washer,
M4x8
Screw, captive washer,
M4x10
Screws with washers,
M3x8
Spring,5mmx14mm
Screws, M3 x 8, thread
forming
Application PCBA insulate
sheet
Flat washer, M4
Screw, M4 x 20
Control ground bar
Terminal PCBA lower cap
Control support
Display support
Terminal PCBA upper cap
Keyboard
Application PCBA
Motor control PCBA
Display PCBA
Terminal PCBA
Application PCBA / motor
control
Option LED label
Brand marking label
Relay label
AI label
LI label
Control switch label
Modbus label
Motor control insulate sheet
2, 3, 4, 5A, 5B, 6, 7A,
7B, 8
ATV71H037M3, H075M3,
H075N4 HU15M3, HU15N4
HU22N4, HU22M3 HU30M3,
HU30N4 HU40M3, HU40N4
HU55M3, HU55N4 HU75N4,
HD11N4 HU75M3,
HD11M3X HD15M3X
HD15N4 HD18N4,
HD18M3X HD22M3X,
HD22N4
HU22Y, HU30Y
HU40Y, HU55Y
HU75Y, HD11Y
HD15Y, HD18Y
HD22Y, HD30Y HD30N4,
HD37N4 HD30M3X
HD37M3X
HD45M3X HD45N4
HD55N4, HD75N4
HD37Y, HD45Y
HD55Y, HD75Y
HD90Y
325.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
67
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VX4A71101Y ATV71 control board kit, >=90 kW
1
9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Spring,5mmx14mm
Screws, M3 x 8, thread
forming
Motor control PCBA
Interface PCBA
Application/interface PCBA
cable
Application PCBA insulate
sheet
Flat washer, M4
Screw, captive washer,
M4x20
Control ground bar
Terminal PCBA lower cap
Control support
Display support
Control trap
Terminal PCBA upper cap
Keyboard
Application PCBA
Display PCBA
Terminal PCBA
Application PCBA / motor
control
Spacing assembly
Control trap label kit
Option LED label
Brand marking label
Relay Label
AI label
LI label
Control switch label
Modbus™ label
9, 10, 11, 12, 13, 14, 15
ATV71HC11N4, HD75M3X,
HD55M3X, HD90N4
HC13N4, HC16N4 HC11Y,
HC13Y HC16Y, HC20Y
HC20N4, HC28N4
HC25N4, HC25Y HC31Y,
HC40Y HC50N4, HC31N4
HC40N4, HC50Y HC63Y
375.00
VX5A1200 Gate driver board 1
6
Gate driver PCBA
Plastic supports 11 ATV61HC16N4
ATV71HC13N4 1294.00
VX5A1201 Gate driver board
1
2
Gate driver PCBA
Cable clamps 12 ATV71HC16N4
ATV61HC22N4 647.00
1
2
Gate driver PCBA
Cable clamps 13 ATV61HC25N4
ATV71HC20N4
VX5A1202 Gate driver board 1
2
Gate driver PCBA
Cable clamps 13
ATV61HC31N4
ATV71HC25N4
ATV71HC28N4
647.00
VX5A1203 Gate driver board
1
7
Gate driver PCBA
Cable clamps 14A ATV61HC40N4
ATV71HC31N4 1084.00
1
7
Gate driver PCBA
Cable clamps 14B ATV61HC50N4
ATV71HC40N4
VX5A1204 Gate driver board 1
8
Gate driver PCBA
Cable clamps 15 ATV61HC63N4
ATV71HC50N4 1220.00
VX5A1300 Soft charge board
1
4
4
4
Soft charge board
Mounting standoffs,
8/18/BM4/SNAP4
Mounting standoffs,
8/22.2/BM4/SNAP4
Mounting standoffs
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
126.00
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
11 ATV61HC16N4
ATV71HC13N4
12 ATV71HC16N4
ATV61HC22N4
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VX5A1400 Fan control board 1 Fan control board
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
160.00
11 ATV61HC16N4
ATV71HC13N4
12 ATV71HC16N4
ATV61HC22N4
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
CP4C Discount
Schedule
68 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aIGBT: Insulated-gate bipolar transistor
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VX5A1HC1113 Power board 1 Power board 10 ATV61HC13N4
ATV71HC11N4 737.00
VX5A1HC1316 Power board
1
5
4
Power board
PCBA mounting standoffs
Cable clamps
11 ATV61HC16N4
ATV71HC13N4 1235.00
VX5A1HC1622 Power board
1
5
4
Power board
PCBA mounting standoffs
Cable clamps
12 ATV71HC16N4
ATV61HC22N4 1824.00
VX5A1HC2025 Power board
1
5
5
Power board
PCBA mounting standoffs
Cable clamps
13 ATV61HC25N4
ATV71HC20N4 1824.00
VX5A1HC2531 Power board
1
5
5
Power board
PCBA mounting standoffs
Cable clamps
13 ATV71HC25N4
ATV61HC31N4 1824.00
VX5A1HC3140 Power board
1
7
1
Power board
PCBA mounting standoffs
Cable clamp
14A ATV61HC40N4
ATV71HC31N4 2792.00
VX5A1HC4050 Power board
1
8
1
Power board
PCBA mounting standoffs
Cable clamp
14B ATV61HC50N4
ATV71HC40N4 2846.00
VX5A1HC5063 Power board
1
8
1
Power board
PCBA mounting standoffs
Cable clamp
15 ATV61HC63N4
ATV71HC50N4 2846.00
VX5A1HD18M3X Power board
5
4
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power supply cable
6ATV61HD18M3X
ATV71HD18M3X 486.00
VX5A1HD22M3X Power board
5
4
1
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power supply cable
Power insulate sheet
6ATV61HD22M3X
ATV71HD22M3X 486.00
VX5A1HD22N4 Power board
5
4
1
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power supply cable
Power insulate sheet
6ATV61HD22N4
ATV71HD22N4 475.00
VX5A1HD30M3X Power board
6
3
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power insulate sheet
7B ATV61HD30M3X
ATV71HD30M3X 459.00
VX5A1HD37M3X Power board
6
3
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power insulate sheet
7B ATV61HD37M3X
ATV71HD37M3X 459.00
VX5A1HD45M3X Power board
6
3
1
1
1
Lock spacers
Screws, M4 x 10
Power board
Fan control cable
Power insulate sheet
7B ATV61HD45M3X
ATV71HD45M3X 459.00
VX5A1HD5575 Power board 1 Power board 9 ATV61HD55M3X
ATV71HD55M3X 459.00
VX5A1HD7590 Power board 1 Power board
9 ATV61HD75M3X 956.00
10 ATV61HD90M3X
ATV71HD75M3X 956.00
VX5A1HD9011 Power board 1 Power board 9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4
737.00
VX5A71HC13N4 Measuring board
1
5
7
Measuring board
PCBA mounting standoffs
Cable clamps
11 ATV61HC16N4
ATV71HC13N4 1147.00
VX5A71HC28N4 Power board
1
5
5
Power board
PCBA mounting standoffs
Cable clamps
13 ATV71HC28N4 1904.00
VX5IM2145M1271 Power board and power IGBTamodules
3
1
1
IGBT 1200 V, 220 A modules
Power board 30 kW, 480 V
Thermal compound
7A ATV61HD30N4
ATV71HD30N4 1139.00
VX5IM2195M1271 Power board and power IGBT modules
3
1
1
IGBT 1200 V, 220 A modules
Power board 37 kW, 480 V
Thermal compound
7A ATV61HD37N4
ATV71HD37N4 1139.00
VX5IM2200M1271 Power board and power IGBT modules
3
1
1
IGBT 1200 V, 300 A modules
Power board 45 kW, 480 V
Thermal compound
8ATV61HD45N4
ATV71HD45N4 1379.00
VX5IM2300M1271 Power board and power IGBT modules
3
1
1
IGBT 1200 V, 300 A modules
Power board
Thermal compound
8ATV61HD55N4
ATV71HD55N4 1252.00
VX5IM2400M1271 Power board and power IGBT modules
3
1
1
IGBT 1200 V, 400 A modules
Power board 75 kW, 480 V
Thermal compound
8ATV61HD75N4
ATV71HD75N4 992.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
69
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VY1A1105 Current sensor 3 Motor current sensors, 314 A
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X 106.00
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
VY1A1107 Current sensor 1 Motor current sensor, 366 A 11 ATV61HC16N4
ATV71HC13N4 118.00
VY1A1108 Current sensor 1 Motor current sensor, 622 A
12 ATV71HC16N4
ATV61HC22N4
176.00
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
VY1A1109 Current sensor 1 Motor current sensor, 1188 A
14A ATV61HC40N4
ATV71HC31N4
190.0014B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VY1A1202 Plastic parts
1
1
1
2
1
1
IP4X top cover
Wiring trap cover
Powertrapcover
Side caps
Top cap
Danger label
2
ATV61H075M3
ATV61HU15M3
ATV61H075N4
ATV61HU15N4
ATV61HU22N4
ATV71H075M3
ATV71HU15M3
ATV71H037M3
ATV71H075N4
ATV71HU15N4
ATV71HU22N4
33.00
VY1A1203 Plastic parts
1
1
1
2
1
1
1
Front cap
Wiring trap cover
Powertrapcover
Side caps
Top cap
IP4X top cover
Danger label
3
ATV61HU22M3
ATV61HU30M3
ATV61HU40M3
ATV61HU30N4
ATV61HU40N4
ATV71HU22M3
ATV71HU30M3
ATV71HU40M3
ATV71HU30N4
ATV71HU40N4
33.00
VY1A1204 Plastic parts
1
1
1
1
1
2
1
Top cap
IP4X top cover
Front cap
Wiring trap cover
Powertrapcover
Side caps
Danger label
4
ATV61HU55M3
ATV61HU55N4
ATV61HU75N4
ATV71HU55M3
ATV71HU55N4
ATV71HU75N4
52.00
VY1A1205 Plastic parts
1
1
1
1
1
2
1
Top cap
IP4X top cover
Front cap
Wiring trap cover
Powertrapcover
Side caps
Danger label
5B
ATV61HD11M3X
ATV61HD15M3X
ATV61HD15N4
ATV61HD18N4
ATV71HD11M3X
ATV71HD15M3X
ATV71HD15N4
ATV71HD18N4
56.00
VY1A1210 Front cover and I/O terminal cover 1 Front cover assembly 9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
283.00
VY1A1211 Front cover and I/O terminal cover 1 Front cover assembly 10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
283.00
VY1A1212 Front cover assembly 1 Front cover assembly 11 ATV61HC16N4
ATV71HC13N4 441.00
VY1A1213 Front cover assembly 1 Front cover assembly 12 ATV71HC16N4
ATV61HC22N4 500.00
VY1A1214 Front cover assembly 1 Front cover assembly 13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
529.00
VY1A1215 Plastic parts kit
1
1
1
2
1
1
1
IP4X top cover
Front cap
Powertrapcover
Side caps
Top cap
Wiring trap cover
Danger label
5A
ATV61HU75M3
ATV61HD11N4
ATV71HU75M3
ATV71HD11N4
58.00
VY1A1216 Front cover assembly 1 Front cover assembly
14A ATV61HC40N4
ATV71HC31N4 813.00
14B ATV61HC50N4
ATV71HC40N4
CP4C Discount
Schedule
70 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VY1A1217 Front cover assembly 1 Front cover assembly 15 ATV61HC63N4
ATV71HC50N4 1111.00
VY1A1401 Plastic parts kit
1
1
1
1
1
1
1
1
1
EMC tray
Conduit tray
Power terminal shield
Soft charge board tray
Fan control board plate
DC reactor terminal shield
Filter board shield
Labels size 11
Danger label
11 ATV61HC16N4
ATV71HC13N4 882.00
VY1A1402 Plastic parts kit
1
1
1
1
1
1
1
EMC tray
Conduit tray
Power terminal shield
SCR snubber board shield
Filter board shield
IT jumper warning label
Danger label
12 ATV61HC22N4
ATV71HC16N4 618.00
VY1A1403 Plastic parts kit
1
1
1
1
1
1
1
EMC tray
Conduit tray
Power terminal shield
SCR assembly shield
Filter board shield
IT jumper warning label
Danger label
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
706.00
VY1A1404 EMC tray and power terminal shield 1
1
Control channel box
Terminal cover with lid 9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
131.00
VY1A1405 EMC tray and power terminal shield 1
1
Control channel box
Terminal cover with lid 10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
134.00
VY1A1406 Plastic parts kit
4
6
1
1
1
1
1
1
1
1
1
1
1
Bus bar brackets
Insulation tubes for bus bar
brackets
Rectifier shield
Conduit tray
Right terminal shield
Left terminal shield
EMC tray
Motor control board insulator
Brake board insulator
Power board insulator
Bus plate shield
IT jumper warning label
Danger label
14A ATV61HC40N4
ATV71HC31N4
1111.00
14B ATV61HC50N4
ATV71HC40N4
VY1A1407 Plastic parts kit
4
6
1
1
1
1
1
1
1
1
1
1
1
Bus bar brackets
Insulation tubes for bus bar
brackets
Rectifier shield
Conduit tray
Right terminal shield
Left terminal shield
EMC tray
Motor control board insulator
Brake board insulator
Power board insulator
Bus plate shield
IT jumper warning label
Danger label
15 ATV61HC63N4
ATV71HC50N4 1274.00
VY1ADC1110 Capacitor assembly 1 4-capacitor assembly 9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4
628.00
VY1ADC1111 Capacitor assembly 1 6-capacitor assembly 10 ATV61HC13N4
ATV71HC11N4 910.00
VY1ADC1112 Capacitors 6
6
Capacitors
Gaskets
11 ATV61HC16N4
ATV71HC13N4
1088.00
13
ATV61HC31N4
ATV71HC25N4
ATV71HC28N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VY1ADC1113 Capacitors 8
8
Capacitors, 5200 μF / 400 V
Gaskets 12 ATV71HC16N4
ATV61HC22N4 1441.00
VY1ADC1114 Capacitors 6
6
Capacitors, 3600 μF / 400 V
Gaskets
13 ATV61HC25N4
ATV71HC20N4 794.00
14A ATV61HC40N4
ATV71HC31N4
VY1ADC1115 Capacitor assembly 1 3-capacitor assembly 9
ATV61HD75M3X
ATV61HD55M3X
ATV71HD55M3X
693.00
VY1ADC1116 Capacitor assembly 1 4-capacitor assembly 10 ATV61HD90M3X
ATV71HD75M3X 453.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
71
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VY1ADV1105 Screw kit 1Set of screws, bolts, and nuts used in the drive 9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
107.00
VY1ADV1106 Screw kit 1Set of screws, bolts, and nuts used in the drive 10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
109.00
VY1ADV1107 Screw kit 1Set of screws, bolts, and nuts used in the drive 11 ATV61HC16N4
ATV71HC13N4 76.00
VY1ADV1108 Screw kit 1Set of screws, bolts, and nuts used in the drive 12 ATV71HC16N4
ATV61HC22N4 76.00
VY1ADV1109 Screw kit 1Set of screws, bolts, and nuts used in the drive 13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
76.00
VY1ADV1110 Screw kit 1Set of screws, bolts, and nuts used in the drive
14A ATV61HC40N4
ATV71HC31N4 70.00
14B ATV61HC50N4
ATV71HC40N4
VY1ADV1111 Screw kit 1Set of screws, bolts, and nuts used in the drive 15 ATV61HC63N4
ATV71HC50N4 70.00
VZ3DM1600M1671 Diode module 1
1
Diode module, 600A, 1600V
Thermal compound
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
412.00
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VZ3F1110 Dynamic braking kit
1
1
2
2
1
1
1
1
Braking control PCBA
Diode module, 75 A, 1200 V
Brackets
Bus bars
Input PA bus bar
Input PB bus bar
IGBT module, 600 A, 1200 V
Thermal compound
11 ATV61HC16N4
ATV71HC13N4
1030.00
12 ATV71HC16N4
ATV61HC22N4
VZ3F1113 Dynamic braking kit 1
6
Brake board
PCB standoffs
14A ATV61HC40N4
ATV71HC31N4
413.0014B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VZ3G1102 Temperature sensor wire 1 Temperature sensor
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X 41.00
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
VZ3G1104 Temperature sensor wire 2 Temperature sensors
11 ATV61HC16N4
ATV71HC13N4
71.00
12 ATV71HC16N4
ATV61HC22N4
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VZ3IM1145M1271 Braking IGBT module 1
1
IGBT module, 1200 V, 175 A
Thermal compound 7A
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
160.00
VZ3IM1195M0671 Braking IGBT module 1
1
IGBT module, 600 V, 250 A
Thermal compound 7B ATV61HD30M3X
ATV71HD30M3X 154.00
VZ3IM1300M0671 Braking IGBT module 1
1
IGBT module, 600 V, 400 A
Thermal compound 7B
ATV61HD37M3X
ATV61HD45M3X
ATV71HD37M3X
ATV71HD45M3X
211.00
CP4C Discount
Schedule
72 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aLetter designations in the wire kit contents correspond to component and terminal designations on the wiring diagrams in the associated document.
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3IM1300M1271 Braking IGBT module 1
1
IGBT module, 1200 V, 345 A
Thermal compound 8
ATV61HD45N4
ATV61HD55N4
ATV61HD75N4
ATV71HD45N4
ATV71HD55N4
ATV71HD75N4
212.00
VZ3IM1400M1271 Power IGBT module 1
1
IGBT module, 1200 V, 400 A
Thermal compound
9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4 606.00
10 ATV61HC13N4
ATV61HC11N4
VZ3IM1402M1271 Power IGBT module 1
1
IGBT module, 1200 V, 400 A
Thermal compound
12 ATV71HC16N4
ATV61HC22N4 794.00
13 ATV61HC25N4
ATV71HC20N4
VZ3IM1600M1271 Power IGBT module 1
1
IGBT module, 1200 V, 600 A
Thermal compound 11 ATV61HC16N4
ATV71HC13N4 529.00
VZ3IM1602M1271 Power IGBT module 2
1
IGBT modules, 1200 V, 600 A
Thermal compound 13
ATV61HC31N4
ATV71HC25N4
ATV71HC28N4
1059.00
VZ3IM1603M1271 Power IGBT module 3
2
IGBT modules, 1200 V, 600 A
Thermal compound
14A ATV61HC40N4
ATV71HC31N4 1491.00
14B ATV61HC50N4
ATV71HC40N4
VZ3IM1604M1271 Power IGBT module 4
2
IGBT modules, 1200 V, 600 A
Thermal compound 15 ATV61HC63N4
ATV71HC50N4 1952.00
VZ3IM2195M1271 Power IGBT modules 3
1
IGBT modules, 1200 V, 220 A
Thermal compound 7A ATV61HD37N4
ATV71HD37N4 223.00
VZ3IM2201M1271 Power IGBT modules 3
1
IGBT modules, 600 V, 200 A
Thermal compound 7B ATV61HD30M3X
ATV71HD30M3X 487.00
VZ3IM2301M1271 Power IGBT modules 3
1
IGBT modules, 600 V, 300 A
Thermal compound 7B ATV61HD37M3X
ATV71HD37M3X 625.00
VZ3IM2401M1271 Power IGBT modules 3
1
IGBT modules, 600 V, 400 A
Thermal compound 7B ATV61HD45M3X
ATV71HD45M3X 798.00
VZ3N1205 Power terminal block
1
1
1
1
1
Power terminal
DC warning label
Motor warning label
Input warning label (240 V)
Input warning label (480 V)
5B
ATV61HD11M3X
ATV61HD15M3X
ATV61HD15N4
ATV61HD18N4
ATV71HD11M3X
ATV71HD15M3X
ATV71HD15N4
ATV71HD18N4
65.00
VZ3N1206 Power terminal block
1
1
1
1
1
1
1
Bottom power terminal block
Top power terminal block
DC warning label A#1
DC warning label A#2
Motor warning label
Input warning label (240 V)
Input warning label (480 V)
6
ATV61HD18M3X
ATV61HD22M3X
ATV71HD18M3X
ATV71HD22M3X
ATV61HD22N4
ATV71HD22N4
229.00
VZ3N1207 Power terminal block
1
1
1
1
1
1
Bottom power terminal block
Top power terminal block
DC warning label A#1
DC warning label A#2
Motor warning label
Input warning label
7A
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
229.00
VZ3N1301 Wire kita
1
1
1
1
1
1
1
1
1
Brake cable
DCCT cable
LR cable
Charge LED
Fan control cable
DR cable
Fan supply cable
PSU cable
SCR cable
6
ATV61HD18M3X
ATV61HD22M3X
ATV71HD18M3X
ATV71HD22M3X
89.00
VZ3N1302 Wire kita
1
1
1
1
1
1
1
1
1
Brake cable
DCCT cable
LR cable
Charge LED
Fan control cable
DR cable
Fan supply cable
PSU cable
SCR cable
6ATV61HD22N4
ATV71HD22N4 86.00
VZ3N1307 Wire kita
1
3
1
1
1
1
1
1
1
1
Fan supply cable
IGBT cables
PSU cable
SCR cable
LR cable
Charge LED
DCCT cable
Brake cable
Fan control cable
DR cable
7A
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
179.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
73
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aLetter designations in the wire kit contents correspond to component and terminal designations on the wiring diagrams in the associated document.
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3N1310 Wire kita
1
3
1
1
1
1
1
1
1
1
Fan supply cable
IGBT cables
SCR cable
DCCT cable
LR cable
Charge LED
PSU cable
Brake cable
Fan control cable
DR cable
7B
ATV61HD30M3X
ATV61HD37M3X
ATV61HD45M3X
ATV71HD30M3X
ATV71HD37M3X
ATV71HD45M3X
138.00
VZ3N1313 Wire kita
1
1
1
1
1
1
1
1
1
1
Fan supply cable
IGBT cables
SCR cable
DCCT cable
LR cable
Charge LED
PSU cable
Brake cable
Fan control cable
DR cable
8
ATV61HD45N4
ATV61HD55N4
ATV61HD75N4
ATV71HD45N4
ATV71HD55N4
ATV71HD75N4
138.00
VZ3N1316 Wire kita
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Flat cable A1:X3-A4:X31
Cable A2:X81-A4:X81
Cable A1:X8-A2:X82
Cable A4:X21/22/23-A1:X5
SCR 1 gate cable (CNL1G)
SCR 2 gate cable (CNL2G)
SCR 3 gate cable (CNL3G)
Cable RFS board X1 (Green)
Cable RFS board X4 (Red)
Cable RFS board X5 (Black)
Cable UD0-A2 X50(Blue)
Cable UD0-A4 X51 (Blue)
Cable UD(+)-A2:UD+1 Red
Cable A30:X1/2/3-A7:X1
Cable A30:X11/12/13-A2:X7
Cable A2:X10 -A31:X10/X11
Cable A6:CN2A-A1:X30/A2:X20
Cable A1:X31-A6:CN7A Cable
T1,T2,T3-A1:X11
Cable A1:X21-X31 (internal fan)
Cable A7:X2-A1:X14
Cable A1:X6
Flat cable A10:X3-A3:X3
Flat cable A1:X4-A10:X4
Flat cable A1:X2-A2:X2
Cable X3-A7:X4
DBB A20 X6 (Red)
11 ATV61HC16N4
ATV71HC13N4 382.00
VZ3N1317 Wire kita
1
1
1
2
1
1
1
1
3
2
2
1
1
1
1
1
1
1
1
1
1
1
1
Flat cable A3:X32-A4:X31
Flat cable A4:X32-A5:X31-A1:X3
Flat cable A1:X8-A3:X81
Flat cables A3/A4:X82-A4/A5:X81
SCR 1 gate cable (CNL1G)
SCR 2 gate cable (CNL2G)
SCR 3 gate cable (CNL3G)
Cable A3/A4/A5:X2-A1:X5
Cables RFS board
Cables UD0-A1/A5
Cables UD0-A3/A4/A5
Cable A1:X21-X31
Cable A30-A1/A7
Cable A7:X2-A1:X14
Cable A1:X30-A6:CN2A
Cable A1:X31-A6:CN7A
Cable T1/T2/T3-A1:X11
Cable A1:X6
Flat cable A10:X3-A3:X3
Flat cable A1:X4-A10:X4
Flat cable A1:X2-A2:X2
Cable X3-A7:X4
Connector, fan feed through
12 ATV71HC16N4
ATV61HC22N4 471.00
VZ3N1318 Wire Kita
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
Flat cable A3:X32-A4:X31
Flat cable A4:X32 -A5:X31- A1:X3
Flat cable A3:X82-A4:X81-A1:X8
Flat cable A4:X82-A5:X81
Cable A3/A4/A5:X2-A1:X5
SCR 1 gate cable (CNL1G)
SCR 2 gate cable (CNL2G)
SCR 3 gate cable (CNL3G)
Cable RFS board
Cables UD0-A1/ A5
Cables UD0 A3/A4/A5
Cable BU-preparation
Cable A1:X21/X22-X31/X32
Cable loom A30-A1/A7
Cable A31:X10/X11-A1
Cable T1,T2,T3-A1:X11
Cable X10-X11-X12
Cable UD0
Cable A7:X2-A1:X14
Cable A1:X30-A6:CN2A
Cable A1:X31-A6:CN7A
Cable A1:X6
Flat cable A10:X3-A2:X3
Flat cable A1:X4-A10:X4
Flat cable A1:X2-A2:X2
Cable X3-A7:X4
Connectors, fan feed through
13
ATV61HC31N4
ATV61HC25N4
ATV71HC25N4
ATV71HC28N4
ATV71HC20N4
2765.00
CP4C Discount
Schedule
74 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aLetter designations in the wire kit contents correspond to component and terminal designations on the wiring diagrams in the associated document.
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—
$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3N1323 Wire kita
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Relay connectors
Charge LED cable w/ LED
Wire power for motor control board (CNX2)
IGBT U gate cable (CNU)
IGBT X gate cable (CNX)
IGBT V gate cable (CNV)
IGBT Y gate cable (CNY)
IGBT W gate cable (CNW)
IGBT Z gate cable (CNZ)
Thyristor R gate cable (blue wire with 2 connectors)
Braking IGBT (CNPB)
SCR1 gate cable (CNL1G)
SCR2 gate cable (CNL2G)
SCR3 gate cable (CNL3G)
Cable red sleeve (CN7)
Line sense (CN5)
SCR control cable (CN2)
Jumper (CNX5-CNX6)
Bus sense (CN6)
Current sense (red)
Current sense (white)
Current sense (blue)
Internal fan cable (CN12)
Heatsink fan cable (CN25)
Control module cable, 10 position (CNX2)
Control module cable, 26 position (CNX1)
PA power cable (red)
PB power cable (white)
Braking IGBT cable white (TAB1)
Snubber cap cable, 400 V
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
244.00
VZ3N1324 Wire kita
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Relay connector
Charge LED cable w/ LED
Wire power for motor control board (CNX2)
IGBT U gate cable (CNU)
IGBT X gate cable (CNX)
IGBT V gate cable (CNV)
IGBT Y gate cable (CNY)
IGBT W gate cable (CNW)
IGBT Z gate cable (CNZ)
Thyristor R gate cable (blue wire with 2 connectors)
Braking IGBT (CNPB)
SCR1 gate cable (CNL1G)
SCR2 gate cable (CNL2G)
SCR3 gate cable (CNL3G)
Cable red sleeve (CN7)
Line sense (CN5)
SCR control cable (CN2)
Jumper (CNX5-CNX6)
Bus sense (CN6)
Current sense (red)
Current sense (white)
Current sense (blue)
Internal fan cable (CN12)
Internal fan cable (INT)
Internal fan cable (EXT)
Control module cable, 26 position (CNX1)
PA power cable (red)
PB power cable (white)
Braking IGBT cable (white) (TAB1)
Snubber cap cable, 400 V
CN13 X2 cable
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
242.00
VZ3N1333 Wire kita
1
1
1
1
1
1
1
1
2
1
2
1
1
1
1
1
1
2
1
2
1
1
2
1
1
1
1
1
1
1
2
Cable A30-A70-A1
Cable SCB-V31/33/35
Cable L1,L2,L3-A31
Cable A30-A70-A71
Cable A70-A71-X3
Cable A1:X7-A30/A40
Cable SCB-V31/33/35
Cable L1,L2,L3-A31,A32
Cable UD(+)-A31:X4
Cable UD(+)-A32:X11
Cable UD(-)-A31:X5
Cable A5:X62-A41:X10
Cable A70/A71-X11,X12,X13
Flat Cable A10:X3-A3:X3
Flat Cable A1:X4-A10:X4
Flat Cable A4:X82-A5:X81
Flat Cable A1:X8-A4:X81-A3:X82
Flat Cable A4:X31-A3:X32
Flat Cable A1:X3-A5:X31
Cable UD0 connectors
Cable UD0-A1:UD0
Cable UD0-A4:X52
Cable gate drive UD0 connectors
Cable A5:X53-test connector
Cable motor voltage measurement A1:X5
Cable A1:X30-A60:CN2A
Cable A1:X31-A6:CN7A
Cable A1:X30-A6:CN2A
Cable A1:X31-A6:CN7A
Cable A1:X21/X22-X30,31,32
Flat Cable A1:X2-A2:X2
14A ATV61HC40N4
ATV71HC31N4 1135.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
75
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
aLetter designations in the wire kit contents correspond to component and terminal designations on the wiring diagrams in the associated document.
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3N1334 Wire kita
1
1
1
1
1
3
2
1
1
1
1
1
1
2
1
2
1
1
2
1
1
1
1
1
1
1
1
2
1
1
Cable A30-A70-A71
Cable A70-A71-X3
Cable A1:X7-A30/A40
Cable SCB-V31/33/35
Cable L1,L2,L3-A31,A32
Cable UD(+)-A31/A32:X4-A32:X11
Cable UD(-)-A31:X5
Cable A5:X62-A41:X10
Cable A70/A71-X11-X14
Flat cable A10:X3-A3:X3
Flat cable A1:X4-A10:X4
Flat cable A4:X82-A5:X81
Flat cable A4:X81-A1:X8-A3:X82
Flat cable A4:X31-A3:X32
Flat cable A1:X3-A5:X31
Cable UD0 connectors
Cable UD0-A1:UD0
Cable UD0-A4:X52
Cable gate drive UD0 connectors
Cable A5:X53-test connector
Cable motor voltage measurement
Cable A1:X30-A60:CN2A
Cable A1:X31-A6:CN7A
Cable A1:X30-A6:CN2A
Cable A1:X31-A6:CN7A
Cable A1:X21/X22-X30-33
Flat cable A1:X2-A2:X2
Cable A7:X2-A1:X14
Cable A1:X6
Cable T1/T2/T3-A1:X11
15 ATV61HC63N4
ATV71HC50N4 894.00
VZ3S1910 Snubber capacitor kit
1
1
1
3
2
2
1
Snubber board
Negative DC link bus bar
Positive DC link bus bar
Snubber capacitors (1200 V-0.47 μF)
Hexagonal metal supports, M4, 20 mm length
Torx™ screws w/ captive washers, M4 x 10
Wire
9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4
407.00
VZ3S1911 Snubber capacitor kit
1
3
1
1
Snubber board
Capacitors
Snubber capacitor (1200 V-0.47 μF)
Plastic nylon tie
9
ATV61HD75M3X
ATV61HD55M3X
ATV71HD55M3X 68.00
10 ATV61HD90M3X
ATV71HD75M3X
VZ3S1912 Snubber capacitor kit
1
1
1
3
2
2
1
Snubber board
Link N thyristor
Link P thyristor
Snubber capacitors (1200 V-0.47 μF)
Hexagonal metal supports, M4, 20 mm length
Torx screws w/ captive washers, M4 x 10
Wire
10 ATV61HC13N4
ATV71HC11N4 102.00
VZ3TD1057M1671 SCR modules 3
1
Thyristor/diode modules, 1600 V, 55 A
Thermal compound 7A ATV61HD30N4
ATV71HD30N4 44.00
VZ3TD1072M1671 SCR modules 3
1
Thyristor/diode modules, 1600 V, 72 A
Thermal compound
7A ATV61HD37N4
ATV71HD37N4 156.
8ATV61HD45N4
ATV71HD45N4
VZ3TD1092M1671 SCR modules 3
1
Thyristor/diode modules, 1600 V, 92 A
Thermal compound
7B ATV61HD30M3X
ATV71HD30M3X 155.00
8ATV61HD55N4
ATV71HD55N4
VZ3TD1132M1671 SCR modules 3
1
Thyristor/diode modules, 1600 V, 132 A
Thermal compound
7B ATV61HD37M3X
ATV71HD37M3X 290.00
8ATV61HD75N4
ATV71HD75N4
VZ3TD1162M1671 SCR modules 3
1
Thyristor/diode modules, 1600 V, 162 A
Thermal compound 7B ATV61HD45M3X
ATV71HD45M3X 309.00
VZ3TD1250M1671 SCR module 1
1
Thyristor/diode module,1600 V, 250 A
Thermal compound 9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4
310.00
VZ3TD1285M1671 SCR module 1
1
Thyristor/diode module,1600 V, 285 A
Thermal compound
10 ATV61HC13N4
ATV71HC11N4 353.00
11 ATV61HC16N4
ATV71HC13N4
CP4C Discount
Schedule
76 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3TD1330M1601 SCR module
1
1
Thyristor/diode module,
1200 V, 330 A
Thermal compound
9
ATV61HD75M3X
ATV61HD55M3X
ATV71HD55M3X
412.00
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
12 ATV71HC16N4
ATV61HC22N4
VZ3TM1400M0671 Braking IGBT module 1
1
IGBT module, 600 V, 400 A
Thermal compound 9
ATV61HD75M3X
ATV61HD55M3X
ATV71HD55M3X
370.00
VZ3TM1400M1271 Braking IGBT module 1
1
IGBT module, 1200 V, 400 A
Thermal compound
9
ATV61HD90N4
ATV61HC11N4
ATV71HD90N4 407.00
10 ATV61HC13N4
ATV71HC11N4
VZ3TM1425M1671 SCR module 1
1
SCR module, 425 A, 1600 V
Thermal compound
13 ATV61HC25N4
ATV71HC20N4 382.00
14B ATV61HC50N4
ATV71HC40N4
VZ3TM1600M1671 SCR module 1
1
SCR module, 600 A, 1200 V
Thermal compound
13
ATV61HC31N4
ATV71HC25N4
ATV71HC28N4
407.00
14A ATV61HC40N4
ATV71HC31N4
15 ATV61HC63N4
ATV71HC50N4
VZ3V1203 Fan kit
1
1Fan support
Fan, 50x50x10 mm, 24 Vdc, IP21 2
ATV61H075M3
ATV61HU15M3
ATV61H075N4
ATV61HU15N4
ATV61HU22N4
ATV71H075M3
ATV71HU15M3
ATV71H037M3
ATV71H075N4
ATV71HU15N4
ATV71HU22N4
44.00
VZ3V1204 Fan kit
1
1
Fan support
Fan, 60x60x25 mm, 24 Vdc,
IP55
4
ATV61HU55M3
ATV61HU55N4
ATV61HU75N4
ATV71HU55M3
ATV71HU55N4
ATV71HU75N4
61.00
VZ3V1205 Fan kit 1
1
Fan support
Fan assembled, 80x38 mm 5B
ATV61HD11M3X
ATV61HD15M3X
ATV61HD15N4
ATV61HD18N4
ATV71HD11M3X
ATV71HD15M3X
ATV71HD15N4
ATV71HD18N4
98.00
VZ3V1206 Fan kit
2
2
4
Fans, 92x92x38 mm, 24 Vdc IP55
Fan supports
Screws with washers, M4x16
7A
ATV61HD30N4
ATV61HD37N4
ATV71HD30N4
ATV71HD37N4
104.00
VZ3V1207 Fan kit
4
1
2
Screws with washers, M4x16
Fan support
Fans, 92x92x38 mm, 24 Vdc, IP55
7B
ATV61HD30M3X
ATV61HD37M3X
ATV61HD45M3X
ATV71HD30M3X
ATV71HD37M3X
ATV71HD45M3X
137.00
VZ3V1208 Fan kit
4
1
2
Screws with washers, M4x16
Fan support
Fans, IP55
8
ATV61HD45N4
ATV61HD55N4
ATV61HD75N4
ATV71HD45N4
ATV71HD55N4
ATV71HD75N4
137.00
VZ3V1209 Fan kit
1
2Fan Support
Fans, 60x60x25 mm, 24 Vdc, IP55 3
ATV61HU22M3
ATV61HU30M3
ATV61HU40M3
ATV61HU30N4
ATV61HU40N4
ATV71HU22M3
ATV71HU30M3
ATV71HU40M3
ATV71HU30N4
ATV71HU40N4
55.00
VZ3V1210 Fan kit
1
1
1
Fan support
Fan, 60x25 mm
Fan, 80x38 mm
5A
ATV61HU75M3
ATV61HD11N4
ATV71HU75M3
ATV71HD11N4
78.00
VZ3V1211 Fan kit
2
1
1
Screws with washers, M4X16
Fan support
Fan, 92x92x38 mm, 24 Vdc, IP55
6
ATV61HD18M3X
ATV61HD22M3X
ATV61HD22N4
ATV71HD18M3X
ATV71HD22M3X
ATV71HD22N4
104.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
77
Pricing Guide AC Drives and Soft Starts
Altivar™ 61/71 Spare Parts Kits and Required Documentation
Kit Contents and Required Documentation (Continued)
1—Identify Your Spare Parts Kit: 2—Identify Your Drive: 3—$ Price
Kit Catalog Number Description Qty Kit Contents Frame Size Catalog Number
VZ3V1212 Heatsink fan kit 1 Blower, 400 V
10 ATV61HC13N4
ATV71HC11N4
578.00
11 ATV61HC16N4
ATV71HC13N4
12 ATV61HC22N4
ATV71HC16N4
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VZ3V1213 Internal fan 1 Fan, 24 Vdc
11 ATV61HC16N4
ATV71HC13N4
47.00
12 ATV71HC16N4
ATV61HC22N4
13
ATV61HC25N4
ATV61HC31N4
ATV71HC20N4
ATV71HC25N4
ATV71HC28N4
14A ATV61HC40N4
ATV71HC31N4
14B ATV61HC50N4
ATV71HC40N4
15 ATV61HC63N4
ATV71HC50N4
VZ3V1214 Internal fan 1
1
Fan, 80x80
Finger guard
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X 42.00
10
ATV61HC13N4
ATV61HD90M3X
ATV71HC11N4
ATV71HD75M3X
VZ3V1215 Fan kit
3
1
6
Fans, 92x92
Fan Support
Screws with captive washers, M4x10
9
ATV61HD75M3X
ATV61HD90N4
ATV61HD55M3X
ATV61HC11N4
ATV71HD90N4
ATV71HD55M3X
199.00
VZ3V1216 Heatsink fan kit 1 Blower, 200 V 10 ATV61HD90M3X
ATV71HD75M3X 1278.00
CP4C Discount
Schedule
78 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide Renewal Parts List
Altistart™ 48 Motor Controls
Description For Soft Start: Catalog Number $ Price
Control Board All ATS48 soft starts VX4G481 530.00
Power Board
ATS48D17Y VX5G48D17Y 625.00
ATS48D22Y VX5G48D22Y 635.00
ATS48D32Y VX5G48D32Y 650.00
ATS48D38Y VX5G48D38Y 675.00
ATS48D47Y VX5G48D47Y 715.00
ATS48D62Y VX5G48D62Y 840.00
ATS48D75Y VX5G48D75Y 900.00
ATS48D88Y VX5G48D88Y 1050.00
ATS48C11Y VX5G48C11Y 1110.00
ATS48C14Y VX5G48C14Y 1260.00
ATS48C17Y VX5G48C17Y 1315.00
ATS48C21Y VX5G48C21Y 1425.00
ATS48C25Y VX5G48C25Y 1515.00
ATS48C32Y VX5G48C32Y 1650.00
ATS48C41Y VX5G48C41Y 1795.00
ATS48C48Y VX5G48C48Y 1880.00
ATS48C59Y VX5G48C59Y 1975.00
ATS48C66Y VX5G48C66Y 2070.00
ATS48C79Y VX5G48C79Y 2180.00
ATS48M10Y VX5G48M10Y 2330.00
ATS48M12Y VX5G48M12Y 2650.00
Filter Board
ATS48D17, D22, D32, D38, D47Y VX4G48161Y 175.00
ATS48D62, D75, D88, C11Y VX4G48162Y 215.00
ATS48C14, C17Y VX4G48163Y 330.00
ATS48C21, C25, C32Y VX4G48164Y 435.00
Firing Board ATS48C41-C79, M10-M12Y VX4G48165Y 340.00
SCR Power Module
ATS48D17, D22, D32Y VZ3TM2056M18 243.00
ATS48D38, D47Y VZ3TM2091M18 277.00
ATS48D62, D75Y VZ3TM2132M18 372.00
ATS48D88, C11Y VZ3TM2162M18 478.00
ATS48C14, C17Y VZ3TM2250M18 658.00
ATS48C21, C25, C32Y VZ3TM2500M18 872.00
ATS48C41, C79Y VZ3TP2600M18 1125.00
ATSC48-C66Y, M10-M12Y VZ3TP2M12M18 1495.00
Temperature Sensor ATS48D17-D88Y, C11-C32Y VZ3G001 25.00
ATS48C41-C79Y, M10-M12Y VZ3G002 19.00
Fan
ATS48D32, D38Y VZ3V481 65.00
ATS48D47Y VZ3V4811 71.00
ATS48D62-D88, C11Y VZ3V482 105.00
ATS48C14, C17Y VZ3V483 165.00
ATS48C21, C25, C32Y VZ3V484 218.00
ATS48C41-C79Y, M10-M12Y VZ3V485 293.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
79
REDUCED
AVAILABILTY
Pricing Guide Reduced Availability
Altivar™ 58 TRX AC Drives
aThis kit can be used on ATV58..U41M2 product with a date code of 0126 or later. ATV58..U41M2 product manufactured prior to this date had the fan
leads soldered to the power board and should be sent to the factory for repair or exchange.
Note: We anticipate offering renewal parts for 5 years through 2012. The ATV61 and ATV71 AC drive should be used in new applications.
Description For Use on Drives Catalog Number $ Price
Replacement
Parts
ATV58 TRX Control Board Kit ATV58 Type E, F, H and N VX4A581U 625.00
ATV58 Flux Vector Control Board FVC only VX4A58F1 1195.00
Removable ATV58 Control Board Terminal Strips
(Includes relay terminal strip and both 9 pin and
10 pin terminal strips)
ATV58 Type E, F, H and N VZ3N581U 25.00
Internal Fan Kit for ATV58 Frame 2 and Frame 3
(2 Fans)
ATV58..U29M2, U41M2a, U54M2, U72M2 and
ATV58..U18N4, U29N4, U41N4, U54N4,
U72N4, U90N4
VZ3V58223U 125.00
Internal Fan Kit for ATV58 Frame 4 and Frame 5
(3 Fans)
ATV58..U90M2, D12M2 and
ATV58..D12N4, D16N4, D23N4 VZ3V58245U 158.00
Internal Fan Kit for ATV58 Frame 6 (4 Fans) ATV58..D16M2, D23M2 and
ATV58..D28N4, D33N4, D46N4 VZ3V58260U 198.00
Internal Fan Kit for ATV58 Frame 7 (4 Fans) ATV58..D28M2, D33M2, D46M2 and
ATV58..D54N4, D64N4, D79N4 VZ3V58270U 235.00
Power Terminal Block for ATV58 Frame 6 ATV58..D16M2 and
ATV58..D28N4, D33N4 VZ3N58160U 155.00
Power Terminal Block for ATV58 Frame 6 ATV58..D23M2 and
ATV58..D46N4 VZ3N58165U 165.00
Power Terminal Block for ATV58 Frame 7 ATV58..D28M2, D33M2, D46M2 and
ATV58..D54N4, D64N4, D79N4 VZ3N58170U 175.00
Internal EMC Filter Kit
ATV58 ..D28N4 VX4A58861U 325.00
ATV58 ..D33N4 VX4A58862U 475.00
ATV58 ..D46N4 VX4A58863U 485.00
ATV58 ..D54N4 VX4A58871U 547.00
ATV58 ..D64N4 VX4A58872U 634.00
ATV58 ..D79N4 VX4A58873U 883.00
Power Board
ATV58 ..D16M2 VX5A58D16M2U 1138.00
ATV58 ..D23M2 VX5A58D23M2U 1138.00
ATV58 ..D28M2 VX5A58D28M2U 1510.00
ATV58 ..D33M2 VX5A58D33M2U 1595.00
ATV58 ..D46M2 VX5A58D46M2U 1595.00
ATV58 ..D28N4 VX5A58D28N4U 1138.00
ATV58 ..D33N4 VX5A58D33N4U 1138.00
ATV58 ..D46N4 VX5A58D46N4U 1138.00
ATV58 ..D54N4 VX5A58D54N4U 1510.00
ATV58 ..D64N4 VX5A58D64N4U 1595.00
ATV58 ..D79N4 VX5A58D79N4U 1595.00
Output Transistor Kit
[Six (6) transistors included per kit]
ATV58 ..D28N4 VZ3IM6075M1258U 740.00
ATV58 ..D16M2 & D33N4 VZ3IM6100M1258U 905.00
ATV58 ..D23M2, D28M2 & D46N4, D54N4 VZ3IM6150M1258U 1036.00
ATV58 ..D33M2, D46M2 & D64N4, D79N4 VZ3IM2200M1258U 1308.00
Dynamic Braking Transistor
ATV58 ..D16M2, D23M2, & D28N4, D33N4, D46N4 VZ3IM1050M1258U 310.00
ATV58 ..D28M2 & D54N4 VZ3IM1100M1258U 340.00
ATV58 ..D33M2, D46M2 & D64N4, D79N4 VZ3IM1150M1258U 380.00
Input Diode/Thyristor Bridge Kit for all three (3) phases
ATV58 ..D16M2, & D28N4, D33N4 VZ3TD1055M1658U 410.00
ATV58 ..D23M2, D28M2 & D46N4, D54N4 VZ3TD1090M1658U 456.00
ATV58 ..D33M2, D46M2 & D64N4, D79N4 VZ3TD1130M1658U 520.00
CP4C Discount
Schedule
80 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
REDUCED
AVAILABILTY
Pricing Guide Renewal Parts List
Altivar™ 58 TRX AC Drives
Note: We anticipate offering renewal parts for 5 years through 2012. The ATV61 and ATV71 AC drive should be used in new applications.
aMust contact Schneider Electric Services Division for replacement.
Description For Use on Drives Catalog Number $ Price
Replacement
Parts
(For ATV58
Type H 125 hp
to 500 hp VT)
Control Board ATV58H..C10N4–C33N4 VX4A381 680.00
Interface Board ATV58H.. C10N4–C33N4 VX4A382a300.00
Gate Drive Board ATV58H.. C10N4–C33N4 VX5A38C10N4a820.00
Gate Board ATV58H.. C10N4 VX5A38C11a180.00
Current Gait Board
ATV58H.. C10N4 VX5A38C12a400.00
ATV58H..C13N4–C15N4 and C25N4 VX5A38C13N4a400.00
ATV58H.. C19N4 VX5A38C14a400.00
ATV58H.. C23N4 and C28N4 VX5A38C15N4a400.00
ATV58H.. C31N4 VX5A38C16a400.00
ATV58H.. C33N4 VX5A38C17a400.00
Pre-Charge Contactor Kit
ATV58H.. C10N4 VY1A38101a360.00
ATV58H.. C13N4 VY1A38102a370.00
ATV58H.. C15N4–C19N4 VY1A38103a890.00
ATV58H.. C23N4–C33N4 VY1A38104a1565.00
Current Transformer
ATV58H.. C10N4 VY1A38111a100.00
ATV58H.. C13N4 VY1A38112a100.00
ATV58H.. C15N4–C19N4 VY1A38113a100.00
ATV58H.. C23N4–C25N4 VY1A38114a260.00
ATV58H.. C28N4–C33N4 VY1A38115a260.00
Power Supply Board ATV58H.. C10N4–C33N4 VY1A38120a820.00
Insulating Sheets
ATV58H.. C10N4 VY1A38210a120.00
ATV58H.. C13N4–C19N4 VY1A38211a240.00
ATV58H.. C23N4–C33N4 VY1A38212a320.00
Thermal Grease VY1A58856a80.00
Screw Kit
ATV58H.. C10N4 VY1ADV384a85.00
ATV58H.. C13N4 VY1ADV385a100.00
ATV58H.. C15N4 VY1ADV386a100.00
ATV58H.. C19N4 VY1ADV387a100.00
ATV58H.. C23N4–C25N4 VY1ADV388a150.00
ATV58H.. C28N4–C33N4 VY1ADV389a160.00
Capacitor Kit
ATV58H.. C10N4 VZ3C3810a2455.00
ATV58H.. C13N4–C19N4 VZ3C3811a3560.00
ATV58H.. C23N4–25 VZ3C3812a6230.00
ATV58H.. C28N4–C33N4 VZ3C3813a7350.00
Input Diode Bridge ATV58H.. C10N4–C33N4 VZ3D381a345.00
Input Filter ATV58H.. C10N4–C33N4 VZ3D382a145.00
Power Fuse
ATV58H.. C10N4 VZ3F3801a305.00
ATV58H.. C13N4–C19N4 VZ3F3802a320.00
ATV58H.. C23N4–25 VZ3F3804a565.00
ATV58H.. C28N4–C33N4 VZ3F3803a565.00
Thermal Sensor ATV58H.. C10N4–C33N4 VZ3G381a180.00
Output Transistor ATV58H.. C10N4 VZ3I381a1120.00
Output Transistor Kit
ATV58H.. C13N4–C19N4 VZ3I382a2225.00
ATV58H.. C23N4–C25N4 VZ3I383a4305.00
ATV58H.. C28N4–C33N4 VZ3I384a5340.00
Internal Cable Kit
ATV58H.. C10N4 VZ3N3808a455.00
ATV58H.. C13N4–C19N4 VZ3N3809a475.00
ATV58H.. C23N4–C33N4 VZ3N3810a1040.00
Pre-Charge Resistor
ATV58H.. C10N4 VZ3R3810a335.00
ATV58H.. C13N4–C19N4 VZ3R3811a195.00
ATV58H.. C23N4–C33N4 VZ3R3812a240.00
Control Transformer
ATV58H.. C10N4 VZ3TR381a180.00
ATV58H.. C13N4–C19N4 VZ3TR382a305.00
ATV58H.. C23N4–C33N4 VZ3TR383a350.00
Heatsink Fans
ATV58H.. C10N4 VZ3V3808a675.00
ATV58H.. C13N4–C19N4 VZ3V3809a970.00
ATV58H.. C23N4–C33N4 VZ3V3810a1780.00
Internal Fan Kit
ATV58H.. C10N4–C19N4 VZ3V3818a120.00
ATV58H.. C19N4 VZ3V3819a60.00
ATV58H.. C23N4–C33N4 VZ3V3820a225.00
CP4C Discount
Schedule
© 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
81
REDUCED
AVAILABILTY
Pricing Guide Renewal Parts List
Altivar™ 58 TRX AC Drives
aPL7 Software provides pre-defined configuration selections for 1/2to 100 hp Type H products.
Note: Note: We anticipate offering renewal parts for 5 years through 2012. The ATV61 and ATV71 AC drive should be used in new applications.
Table 67: Options—Field Installed
Description For Use on Drives Catalog Number $ Price
Operator
Interface
Keypad ATV58 Type E, F, H, N and FVC VW3A58101U 115.00
Keypad Remote Mount Kit (IP65 rating) ATV58 Type H and FVC VW3A58103 125.00
Power Suite test & commissioning software for PC & PPC on CD ATV58 all types VW3A8104 150.00
PowerSuite™ upgrade CD from most recent to new version ATV58 all types VW3A8105 98.00
PC Cable connection kit to connect to PC to drive ATV58 all types VW3A8106 75.00
USB to RJ45 Adaptor Kit
For use in connecting to a PC with a USB port
Advantys™ OTB, Altistart™ motor
starters, Altivar™ series incl. HMI, TCSMCNAM3M002P 52.00
Pocket PC connection kit to connect hp Jornada to drive
Closing Plate Kit ATV58 Type N VW3A58836 25.00
Keypad Mount Kit ATV58 Type N VW3A58837 55.00
Operator, mounting collar, 2.5 kilohm, 1⁄2watt potentiometer All Altivar drives ATVPOT25K 69.00
I/O Extension
Cards
Analog I/O Option Card
Provides 2 Logic Inputs, 1 Logic Output, 1 Analog Output, and
1 Bi-polar Analog Input
ATV58 Type E, F, H, N and FVC VW3A58201U 200.00
Digital I/O Option Card
Provides 2 Logic Inputs, 1 Logic Output, 1 Analog Output, and
A,A-,B,B- Logic Inputs for
Encoder Speed Feedback.
ATV58 Type E, F, H, N and FVC VW3A58202U 200.00
General Purpose Option Card
Provides 1 Form C Relay Output and 3 Analog Outputs ATV58 Type E, F, H and N VW3A58253U 350.00
Application
Option Cards
Pump Switching Card
Sequences up to five pumps with one ATV58 ATV58 Type E, F, H and N VW3A58210U 550.00
115 Vac ATV58 Logic Input Module
Provides 115 Vac conversion for logic inputs LI1,LI2, LI3 & LI4 ATV58 Type H and N VW3A58275U 195.00
0–10 volt to 4–20 mA Adapter Card ATV58 all types 3115829750 175.00
Communication
FIPIO™ Communication Card ATV58 Type E, F, Haand N VW3A58301U 550.00
Modbus™ + Communication Card ATV58 Type E, F, H, N and FVC VW3A58302U 550.00
Modbus/Uni-Telway™ Communication Card ATV58 Type E, F, H, N and FVC VW3A58303U 300.00
Interbus™ S Communication Card ATV58 Type E, F, H, N and FVC VW3A58304EU 550.00
RS485 Cable w/ Modbus Mapping Guide ATV58 Type E, F, H, N and FVC VW3A58306U 50.00
Profibus DP Communication Card ATV58 Type E, F, H, N and FVC VW3A58307U 550.00
Device Net Communication Card ATV58 Type E, F, H, N and FVC VW3A58309U 550.00
Ethernet Modbus TCP/IP Communication Card ATV58 Type E, F, H, N and FVC VW3A58310U 550.00
FIPIO Communication Card ATV58 Type H 125–500 hp and FVC VW3A58311U 550.00
LonWorks®to Modbus DIN Rail Mount Gateway ATV58 Type E, F, H and N VW3A58312PU 495.00
Johnson Controls N2 Communication Card ATV58 Type E, F, H and N VW3A58354U 300.00
Fan Kit
Ventilation Fan Kit
These kits mount directly to the top of the
ATV58 Type H and Type FVC products.
They are powered from the drive.
ATV58..U09M2, U18M2 VW3A58821 100.00
ATV58..U29M2, U41M2 and
ATV58..U18N4, U29N4, U41N4 VW3A58822 100.00
ATV58..U54M2, U72M2 and
ATV58..U54N4, U72N4, U90N4 VW3A58823 150.00
ATV58..U90M2, D12M2 and
ATV58..D12N4, D16N4, D23N4 VW3A58824 175.00
ATV58..D16M2, D23M2 and
ATV58..D28N4, D33N4, D46N4 VW3A58825 195.00
ATV58..D28M2, D33M2, D46M2 and
ATV58..D54N4, D64N4, D79N4 VW3A58826 225.00
Braking
Components
DB Transistor ATV58..U09M2, U18M2 VW3A58701 280.00
Protected DB Resistors in Type 1 Enclosure.
For use with ATV58 Type E, F, FVC, H and N.
ATV58..U09M2, U18M2: U18N4,
U29N4, U41N4, U54N4, U72N4 VW3A66711 422.00
ATV58..U29M2, U41M2: U90N4,
D12N4 VW3A66712 633.00
ATV58..U54M2, U72M2: D16N4,
D23N4 VW3A66713 950.00
ATV58..U90M2, D12M2 and
ATV58..D28N4, D33N4, D46N4 VW3A66714 1266.00
ATV58..D16M2, D23M2 and
ATV58..D54N4 VW3A66715 1846.00
ATV58..D28M2, D33M2, D46M2 and
ATV58..D64N4, D79N4 VW3A66716 2321.00
Hardware
Line Reactor for Single-Phase Input
IP00 Rating for use with ATV58 Type E, F, H and N
ATV58..U09M2, U18M2, U29M2,
U41M2, U72M2 VW3A58501 350.00
ATV58..U90M2, D12M2 VW3A58502 380.00
EMC Wiring Plate
Assist in compliance with Level A EMC directive.
These plates are used to land the shield of shielded
motor cables. For use with ATV58 Type FVC and Type H.
ATV58..U09M2, U18M2 VW3A58831 25.00
ATV58..U29M2, U41M2 and
ATV58..U18N4, U29N4, U41N4 VW3A58832 25.00
ATV58..U54M2, U72M2 and
ATV58..U54N4, U72N4, U90N4 VW3A58833 25.00
ATV58..U90M2, D12M2 and
ATV58..D12N4, D16N4, D23N4 VW3A58834 25.00
Conduit Entrance Kit
These kits have various sized knockouts to land
conduit and provide wire bending space to wire line
and load cables. For use with ATV58 Type FVC and Type H.
ATV58..U09M2, U18M2 VW3A58842 45.00
ATV58..U29M2, U41M2 and
ATV58..U18N4, U29N4, U41N4 VW3A58843 45.00
ATV58..U54M2, U72M2 and
ATV58..U54N4, U72N4, U90N4 VW3A58844 45.00
ATV58..U90M2, D12M2 and
ATV58..D12N4, D16N4, D23N4 VW3A58845 45.00
ATV58..D16M2, D23M2 and
ATV58..D28N4, D33N4, D46N4 VW3A58846 65.00
ATV58..D28M2, D33M2, D46M2 and
ATV58..D54N4, D64N4, D79N4 VW3A58847 65.00
Operator Interface Options
I/O Extension Cards
Communication Options
Ventilation Fan Kits
Conduit Entrance Kits
CP4C Discount
Schedule
82 © 2012 Schneider Electric All Rights Reserved
Prices subject to change without notice.
01/2012
Pricing Guide AC Drives and Soft Starts
Auxiliary Services
Drive Product Support Group
For support and assistance, contact the Drive Product Support Group.
The Drive Product Support Group is staffed from 8:00 am until 6:00 pm
Eastern time to assist with product selection, start-up, and diagnosis of
product or application problems.
EMERGENCY Technical phone support is available 24 hours a day, 365
days a year.
Toll Free: 1-888-778-2733
E-mail: drive.products.support@us.schneider-electric.com
Fax: 919-217-6508
Schneider Electric Service (On-Site)
The Schneider Electric Services division is committed to providing
quality on-site service that consistently meets customer expectations.
Services responds to your requests, seven days a week, 24 hours a
day. Phone: 1-888-778-2733
Schneider Electric Customer Training
Schneider Electric offers a variety of instructor-led skill enhancing and
technical product training programs for customers. For a complete list of
drives/soft start training with dates, locations and pricing please call:
Phone: 978-975-9306
Fax: 978-975-2821
Customer Care Center
(Assist with stock checks, assist with claims, and assist with order
management issues)
To provide additional support, Schneider Electric has rolled out new
Technical Service Representatives in local offices which have the
strongest needs.
Due to time zone changes and different time operation requirements,
business operation times vary.
Phone: 888-778-2733
Fax: 888-329-9773
Web Address: http://www.schneider-electric.us
Literature Fulfillment Center
To obtain support literature for your product or application needs,
contact the Schneider Electric Literature Fulfillment Center.
Phone: 800-888-2448
Fax: 920-766-6675
E-mail: SquareD@banta.com
Documentation, Start-up and Training
Standard Documentation
Each AC Drive or Soft Start shipped includes one set of instruction
bulletins. Additional instruction bulletins are available for $30.00 net
each. Each set of instruction bulletins includes installation, start-up,
trouble shooting and wiring diagram information. Separate Approval
and/or Record Drawings are not included.
Approval Drawings
Standard approval drawings are available for the enclosed drives and
soft starts. The price adder for custom approval drawings are listed in
the table below.
NOTE: Before manufacturing of the enclosed drive/soft start can
begin, the approving parties must stamp and sign the
transmittal forms that accompany the drawings. In the unlikely
event that approval drawings are not approved and must be
resubmitted, the approving parties must mark up, stamp and
sign the drawings before a second set of approval drawings
can be submitted.
Record Drawings
Record drawings are available for the enclosed drives and soft starts.
The price adders for record drawings are listed in the table below.
aEnter drawing requirement as a separate line item on purchase order.
bPricing for Approval Drawings include pricing for Record Drawings
cOne set equals a maximum of 8 copies. Additional copies are available at $75.00 net
each.
dThe drawings are available in several formats. They are. DWG; .DXF; .IGS; and Microcad.
Notes:
•Maximum of six drives or soft starts can be tested per day.
•When less than three days (72 hours) notice of start-up date is provided, the
premium rate will be charged.
Travel Time and Expenses
Travel time and expenses will be calculated based on actual “round trip”
mileage traveling from the Schneider Electric Sales Office to the job site
and return.
Travel and living expenses will be billed at cost plus an administrative
charge.
Travel and expense pricing will be based on actual number of trips with
travel charges applied to each separate trip Schneider Electric Service
makes to the job site.
Table 63: Pricing a
Drawing Size
Approval Drawings bRecord Drawings
One set per drive
c
$ Price
DVD d
$ Price
One set per drive
c
$ Price
DVD d
$ Price
A 8.5x11 250.00 net 350.00 net 175.00 net 270.00 net
B 11x17 250.00 net 350.00 net 175.00 net 270.00 net
C 17x22 250.00 net 350.00 net 175.00 net 270.00 net
Table 64: Schneider Electric Services Drives Start-up Pricing
Schneider Electric Service offers standard pricing for start-up under
conditions as described below. The pricing is for Drives and Soft Starts
located within the U.S., excluding Alaska and Hawaii.
Call 1-888-Square D for scheduling.
Service
Standard Price
(Work Performed on weekdays
during normal business hours)
$ Price
Premium Price
(Work performed outside of
normal business hours, Saturday,
Sunday or Holidays)
$ Price
On Site Labor $165.00/Drive $300.00/Drive
Traveland Expense See Below See Below
8800PL9701R01/12 © 2012 Schneider Electric All Rights Reserved
Replaces 8800PL9701R11/11 dated 11/2011
01/2012
Schneider Electric USA, Inc.
8001 Knightdale Blvd.
Knightdale, NC 27545
1-888-778-2733
www.schneider-electric.us
Advantys™, Altistart™, Altivar™, E-Flex™, FIPIO™, M-Flex™, Modbus™, PowerGard™,
PowerLogic™, PowerSuite™, Sepam™, S-Flex™, SoMove™, Square D™, TCS™, TeSys™,
and Uni-Telway™ are trademarks or registered tradmarks of Schneider Electric or its affiliates in
the United States and other countries. Other trademarks used herein are the property of their
respective owners.

Navigation menu
