Agilent 2100 Bioanalyzer
2100 Expert User’s Guide
Contents ▲2▼Index
Notices
© Agilent Technologies, Inc. 2000-2006
No part of this manual may be reproduced in any form or by
any means (including electronic storage and retrieval or
translation into a foreign language) without prior agreement
and written consent from Agilent Technologies, Inc. as
governed by United States and international copyright laws.
Manual Part number: G2946-90004
Edition: June 2006
Agilent Technologies
Hewlett-Packard Str. 8
76337 Waldbronn
Germany
Adobe and Acrobat are U.S. registered trademarks of Adobe
Systems Incorporated.
Microsoft® and Windows® are U.S. registered trademarks
of Microsoft Corporation.
Technology Licenses
The hardware and/or software described in this document
are furnished under a license and may be used or copied
only in accordance with the terms of such license.
Warranty
The material contained in this document is provided “as is,”
and is subject to being changed, without notice, in future
editions. Further, to the maximum extent permitted by appli-
cable law, Agilent disclaims all warranties, either express or
implied, with regard to this manual and any information con-
tained herein, including but not limited to the implied war-
ranties of merchantability and fitness for a particular
purpose. Agilent shall not be liable for errors or for inciden-
tal or consequential damages in connection with the fur-
nishing, use, or performance of this document or of any
information contained herein. Should Agilent and the user
have a separate written agreement with warranty terms
covering the material in this document that conflict with
these terms, the warranty terms in the separate agreement
shall control.
Restricted Rights Legend
If software is for use in the performance of a U.S. Govern-
ment prime contract or subcontract, Software is delivered
and licensed as “Commercial computer software” as
defined in DFAR 252.227-7014 (June 1995), or as a “com-
mercial item” as defined in FAR 2.101(a) or as “Restricted
computer software” as defined in FAR 52.227-19 (June
1987) or any equivalent agency regulation or contract
clause. Use, duplication or disclosure of Software is subject
to Agilent Technologies’ standard commercial license
terms, and non-DOD Departments and Agencies of the U.S.
Government will receive no greater than Restricted Rights
as defined in FAR 52.227-19(c)(1-2) (June 1987). U.S. Gov-
ernment users will receive no greater than Limited Rights as
defined in FAR 52.227-14 (June 1987) or DFAR 252.227-7015
(b)(2) (November 1995), as applicable in any technical data.
Contents ▲3▼Index
Contents
About this Manual .................................................................................................................. 5
In this Manual............................................................................................................................. 6
Related Documents ................................................................................................................... 8
How to Use this Manual ......................................................................................................... 11
Quick Start............................................................................................................................. 15
Looking at 2100 Expert ......................................................................................................... 29
Introduction to the Key Features of the 2100 expert.......................................................... 30
Starting 2100 Expert ................................................................................................................ 32
2100 Expert Work Area ........................................................................................................... 33
Closing 2100 Expert ................................................................................................................. 44
Running and Evaluating Electrophoretic Assays ..............................................................46
Principles of Nucleic Acid and Protein Analysis on a Chip............................................... 47
Preparing and Running an Electrophoretic Assay.............................................................. 51
Analyzing and Evaluating the Results of an Electrophoretic Assay ................................ 82
Result Flagging....................................................................................................................... 157
Running and Evaluating Flow Cytometric Assays...........................................................171
Principles of Flow Cytometric Measurements .................................................................. 172
Overview of Flow Cytometric Assays ................................................................................. 181
Contents ▲4▼Index
Preparing and Running a Flow Cytometric Assay ............................................................ 184
Analyzing and Evaluating the Results of a Flow Cytometric Assay............................... 217
Working with Chip Data and Assays................................................................................264
2100 Expert Data Overview .................................................................................................. 265
Handling Assays..................................................................................................................... 268
Handling Chip Data ................................................................................................................ 273
Organizing, Backing up, and Archiving 2100 Expert Data ............................................... 275
Importing Data........................................................................................................................ 277
Exporting Data ........................................................................................................................ 283
Printing Reports ..................................................................................................................... 292
Configuring Tables................................................................................................................. 299
Administering System Functions ......................................................................................305
Configuring 2100 expert........................................................................................................ 306
Using Log Books .................................................................................................................... 316
Running Instrument Diagnostics ......................................................................................322
How to Run Instrument Diagnostics Tests........................................................................ 327
Performing Verifications ....................................................................................................331
Products, Spare Parts, and Accessories..........................................................................340
Glossary ............................................................................................................................... 344
Contents ▲5▼Index
About this Manual
Welcome to the User’s Guide for the Agilent 2100 expert software. This manual provides
beginners and advanced users with information needed to successfully run
electrophoretic and flow cytometric assays with the bioanalyzer.
The 2100 expert software allows the control of the bioanalyzer (including diagnostic
functions) and, in combination with a LabChip kit, the acquisition, interpretation and
result presentation of data generated during the analysis of DNA, RNA, proteins, and
cells.
Contents ▲6▼Index
In this Manual
This manual provides bioanalyzer users with the following information:
•“About this Manual” on page 5 gives an overview of the subjects in this manual, and
lists major innovations and improvements of the 2100 expert software. It also lists
supplemental literature and shows you how to make efficient use of this manual.
•“Quick Start” on page 15 is meant for experienced users. It briefly summarizes the
necessary steps to prepare and run an assay.
•“Looking at 2100 Expert” on page 29 shows how to get started with the 2100 expert
software, and outlines its main operational possibilities.
•“Running and Evaluating Electrophoretic Assays” on page 46 explains how
electrophoretic measurements are made using the bioanalyzer, gives detailed
descriptions of all steps necessary to run electrophoretic assays, and shows how to
analyze and evaluate results using electropherograms and gel-like images.
•“Running and Evaluating Flow Cytometric Assays” on page 171 explains how flow
cytometric measurements are made using the bioanalyzer, gives detailed descriptions
of all steps necessary to run flow cytometric assays, and shows how to analyze and
evaluate results using histograms and dot plots.
•“Working with Chip Data and Assays” on page 264 shows you what to do to open, save,
import and export files, and how to print the results.
•“Administering System Functions” on page 305 is your guideline for configuring the
2100 expert software.
•“Running Instrument Diagnostics” on page 322 shows how to use the diagnostic tests
to check the bioanalyzer hardware for proper functioning.
Contents ▲7▼Index
•“Performing Verifications” on page 331 describes how you can validate your
bioanalyzer system.
•“Products, Spare Parts, and Accessories” on page 340 lists all parts and
accessories—including reorder numbers—that are required for electrophoretic and
flow cytometric measurements.
•“Glossary” on page 344 explains terms in context with flow cytometry, electrophoresis,
and terms specific to the bioanalyzer software and hardware.
If you have any questions this manual cannot answer, please refer to the supplemental
literature listed in “Related Documents” on page 8. If you still have questions, contact
Agilent for additional support at:
http://www.agilent.com/chem/labonachip
Contents ▲8▼Index
Related Documents
A collection of supplemental literature is given in the following.
Bioanalyzer Manuals
CD-ROM
Reagent Kit Guides
The Reagent Kit Guides give you information on how to perform specific assays,
including sample and chip preparation.
Publication Number Title
G2938-90006 Agilent 2100 Bioanalyzer Installation and Safety Manual
G2946-90003 Agilent 2100 Bioanalyzer Maintenance and Troubleshooting
Guide
Publication Number Title
G2946-60002 Agilent 2100 Bioanalyzer – How to Use Multimedia CD-ROM
P/N Title
G2938-90301 Kit Guide Binder english (including new Reagent Kit Guides)
G2938-90012 Reagent Kit Guide DNA 1000 Assay
G2938-90022 Reagent Kit Guide DNA 7500 and DNA 12000 Assay
Contents ▲9▼Index
Quick Guides
The Quick Guides give you short information on how to prepare samples.
G2938-90032 Reagent Kit Guide RNA 6000 Nano Assay
G2938-90042 Reagent Kit Guide RNA 6000 Pico Assay
G2938-90052 Reagent Kit Guide Protein 230 Assay
G2938-90062 Reagent Kit Guide Protein 80 Assay
G2938-90072 Reagent Kit Guide Cell Assay
G2938-90082 Reagent Kit Guide Cell Checkout Kit
P/N Title
G2938-90011 Quick Guide 1000 Assay
G2938-90021 Quick Guide DNA 7500 and DNA 12000 Assay
G2938-90031 Quick Guide RNA 6000 Nano Assay
G2938-90041 Quick Guide RNA 6000 Pico Assay
G2938-90051 Quick Guide Protein 230 Plus Assay
G2938-90061 Quick Guide Protein 80 Assay
G2938-90071 Quick Guide Cell Assay
G2938-90081 Quick Guide Cell Checkout Kit
P/N Title
Contents ▲10 ▼Index
Application Notes and Technical Notes
Application Notes and Technical Notes are available from the Agilent 2100 Bioanalyzer
Help Desk or from the lab-on-a-chip web pages:
http://www.agilent.com/chem/labonachip
Newly Published Documentation
Follow this link to see if there is any new documentation:
http://www.chem.agilent.com/scripts/Library.asp
Contents ▲11 ▼Index
How to Use this Manual
This manual uses convenient online navigation features and follows certain typographic
conventions.
Online Navigation
Use the interactive bookmarks in this
frame to move to your desired topic.
Use Acrobat Reader’s navigation bar
to move around within a topic.
Here is the current page number.
▲Displays the previous page.
▼Displays the next page.
Click here to go to the index.Click here to go to the table of contents.
Contents ▲12 ▼Index

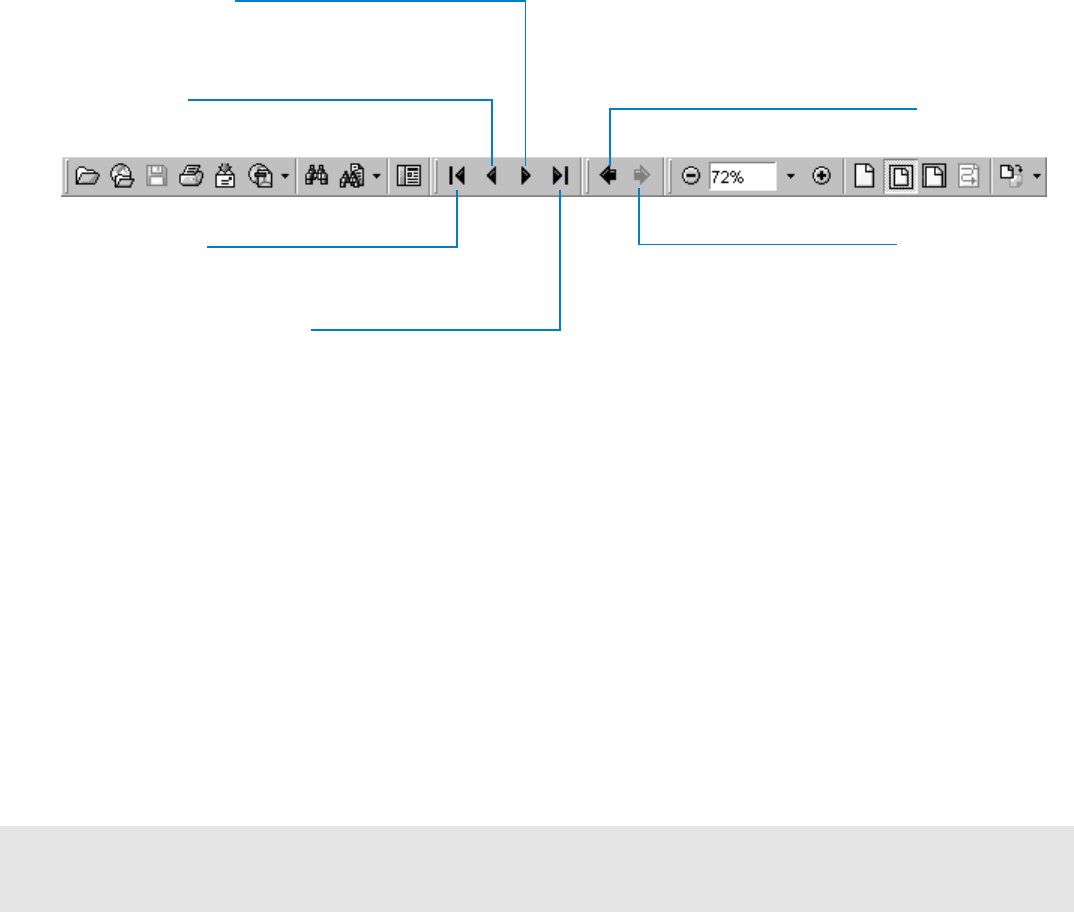

After you have chosen a topic with the bookmarks, use the buttons in Acrobat Reader’s
toolbar to move around within the topic.
Displays the first page.
Displays the last page.
Returns to the next view.
Click several times to redo
more view changes.
Returns to the previous view.
Click several times to undo
more view changes.
Displays the previous page.
Displays the next page.
Contents ▲13 ▼Index
Layout Conventions
The following typographic conventions are used in this manual:
Highlight Meaning
Italic On-screen element
Example: ... the OK button.
Emphasis
Example: Right-click the ...
Ter m

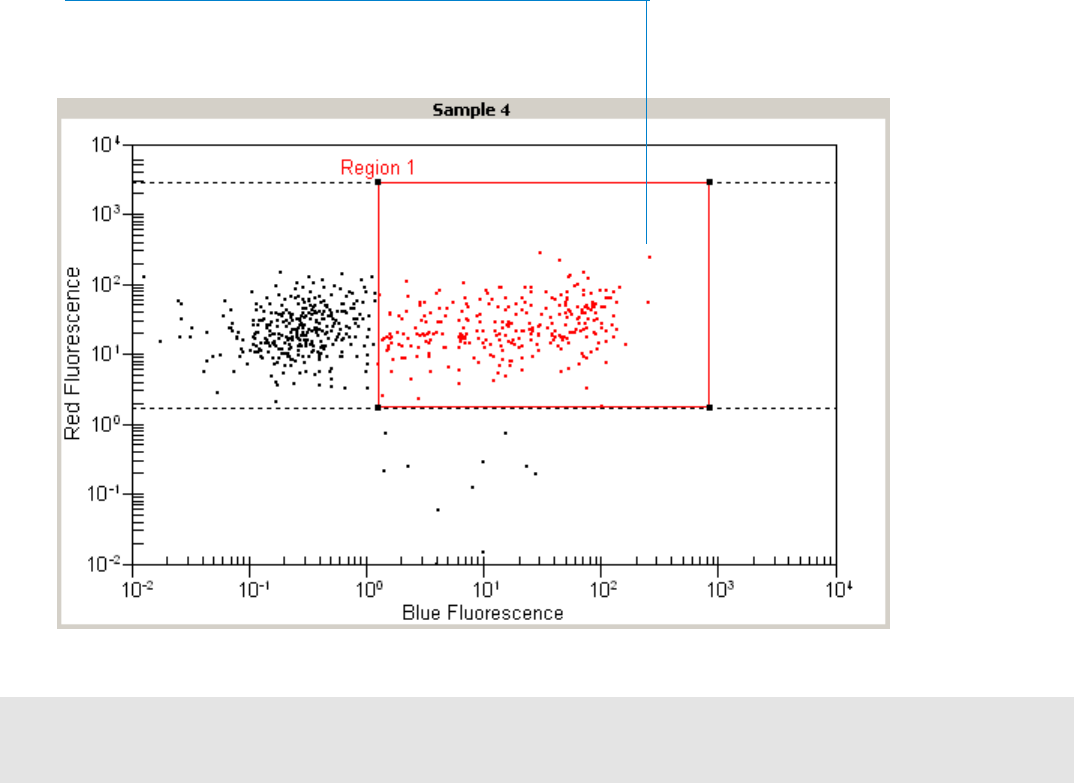

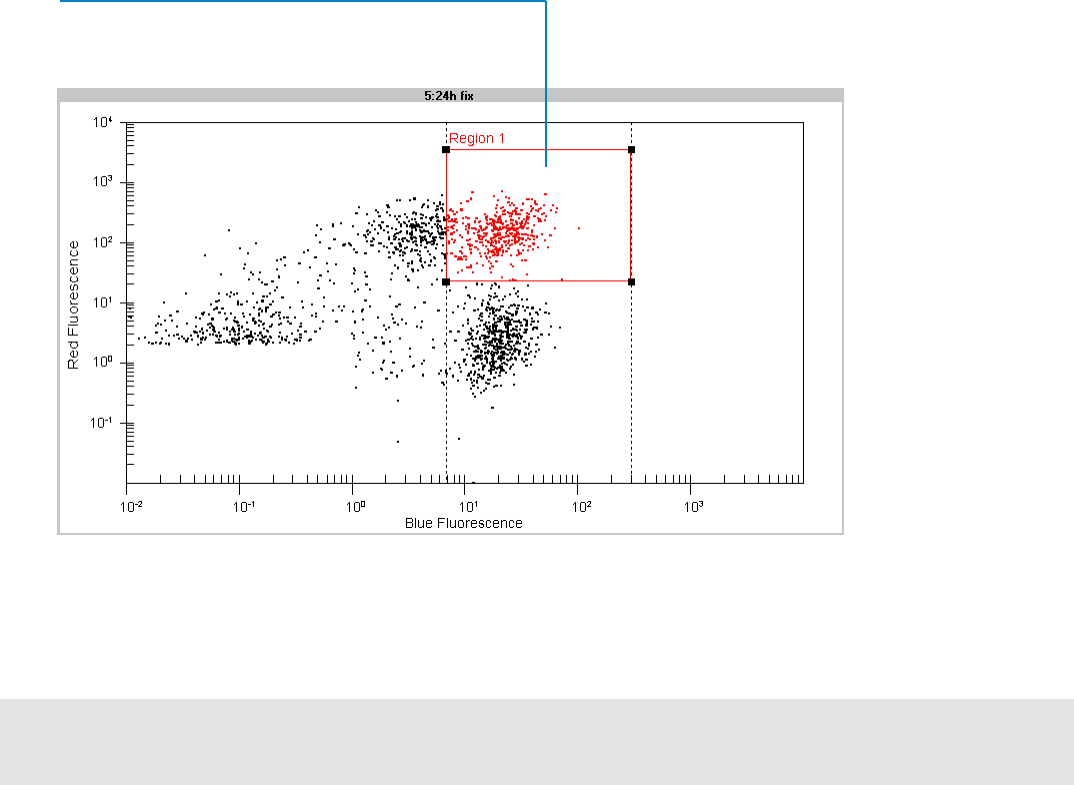

Example: Dot plots show events as dots.
Reference to another document
Example: Refer to the Agilent 2100 Bioanalyzer Troubleshooting and
Maintenance Guide.
Blue Cross-reference or hyperlink
Examples:
“Introduction to the Key Features of the 2100 expert” on page 30
http://www.agilent.com/chem/labonachip
Courier
Code
Example: .. the command line parameter
-port 2
...
Courier
bold
User input
Example: Enter 50 MB.
Contents ▲14 ▼Index
Safety Notices, Notes and Tips
Safety notices, notes and tips in this document have the following meaning:
WARNING
A warning notice denotes a hazard. It calls attention to an operating procedure,
practice, or the like that, if not correctly performed or adhered to, could result in
personal injury or death. Do not proceed beyond a warning notice until the indicated
conditions are fully understood and met.
CAUTION
A caution notice denotes a hazard. It calls attention to an operating procedure,
practice, or the like that, if not correctly performed or adhered to, could result in
damage to the product or loss of important data. Do not proceed beyond a caution
notice until the indicated conditions are fully understood and met.
NOTE
A note contains important, helpful, or additional information.
TIP
A tip usually points out a timesaving feature.
Contents ▲15 ▼Index
Quick Start
The following step-by-step instructions guide you through a measurement with the
Agilent 2100 bioanalyzer.
Preparing the Agilent 2100 Bioanalyzer
1Ensure that the proper cartridge is installed in the bioanalyzer. You can identify the
installed cartridge by the number engraved at the front.
! = Electrode Cartridge for electrophoretic assays
" = Pressure Cartridge for flow cytometric assays
Engraved number
Note that there are also electrode cartridges
without an engraved number.
Contents ▲16 ▼Index
2If you have to change the cartridge, follow the instructions in “Loading the
Electrophoresis Chip into the Bioanalyzer” on page 59 or “Loading the Cell Chip into the
Bioanalyzer” on page 194, respectively.
Switching on the Agilent 2100 Bioanalyzer
1Make sure the bioanalyzer is connected to line power and connected to the PC.
2Turn on the line switch at the rear of the instrument.

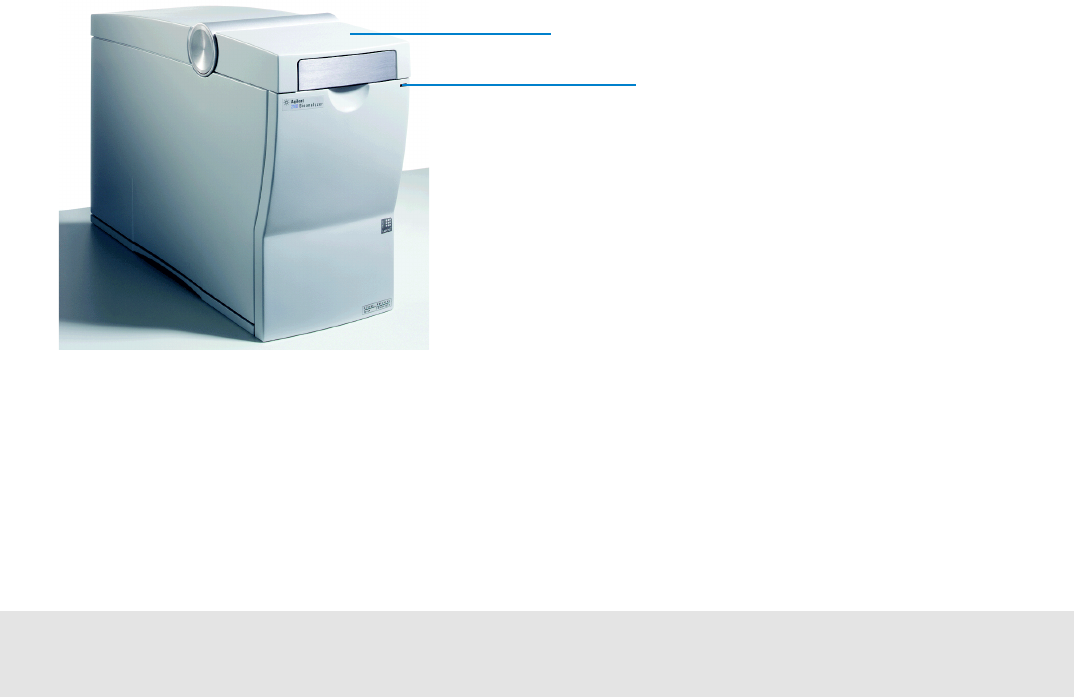

The status LED at the front of the bioanalyzer should light up.

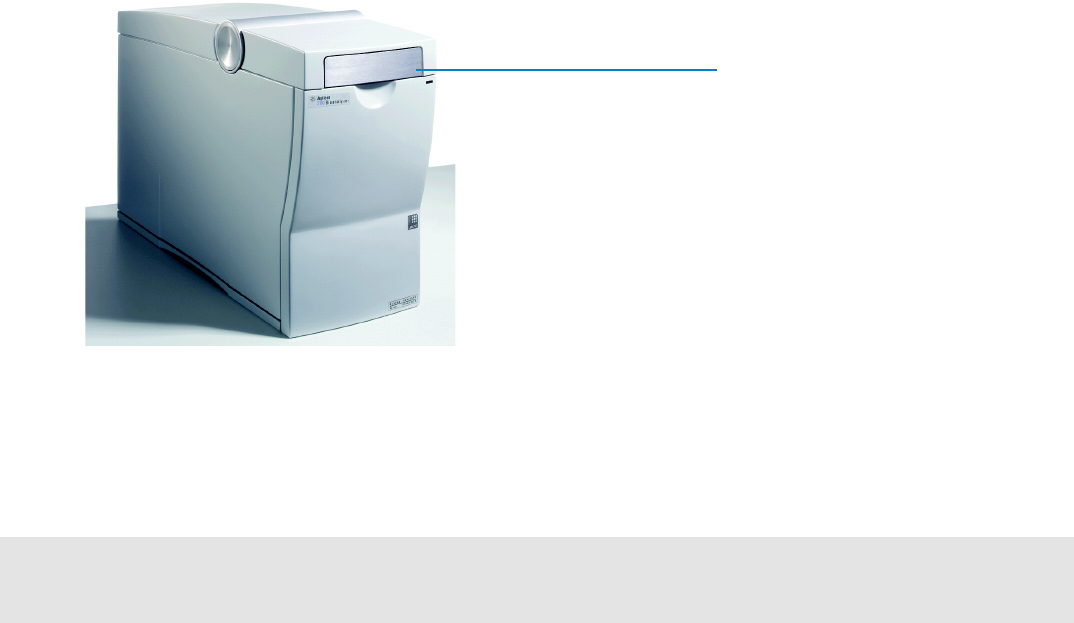

Lid
Status LED
Contents ▲17 ▼Index
The status LED shows you the current status of the instrument.
Running a Measurement

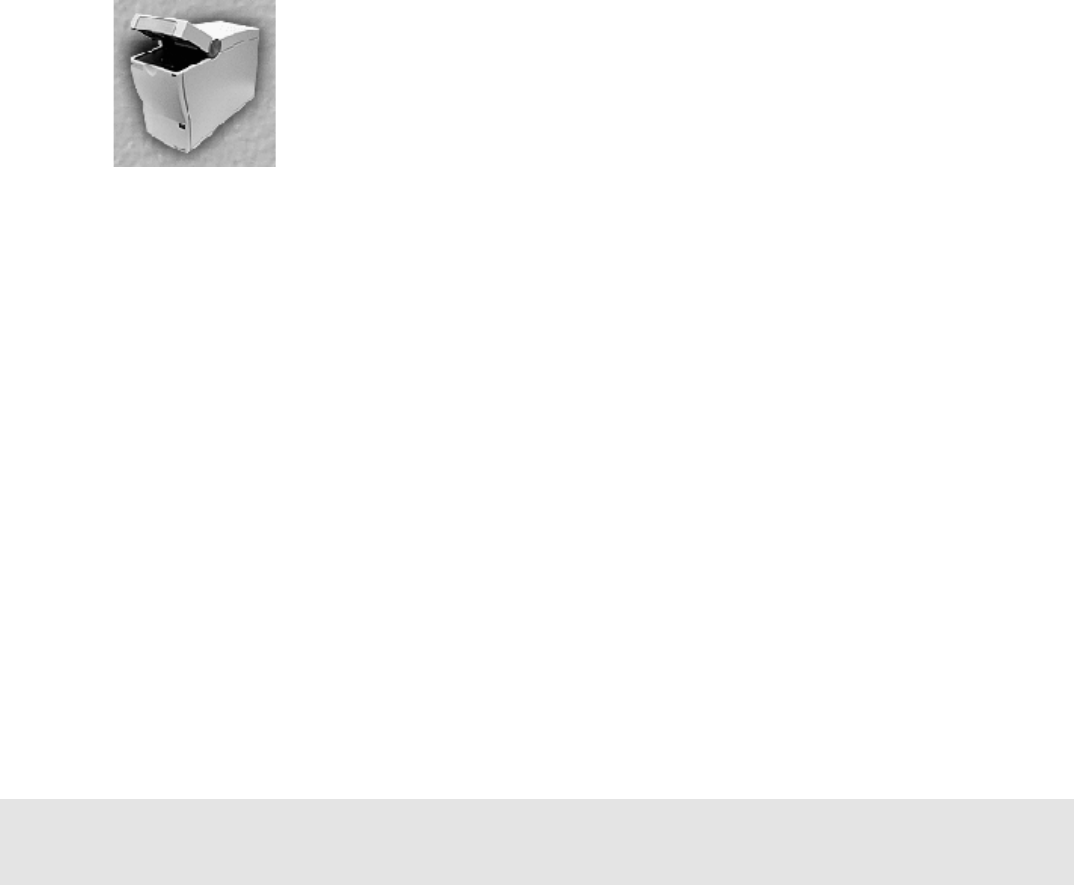

1To start the 2100 expert software on the connected PC, go to your desktop and
double-click the following icon:
Signal Meaning
Green light Instrument is switched on and ready for measurement.
Green blinking Measurement is running.
Orange blinking Instrument is busy (running self diagnostic, for example).
Red light Instrument is not ready for measurement. Switch the instrument off
and on again. If the problem persists, call Agilent service.
Contents ▲19 ▼Index

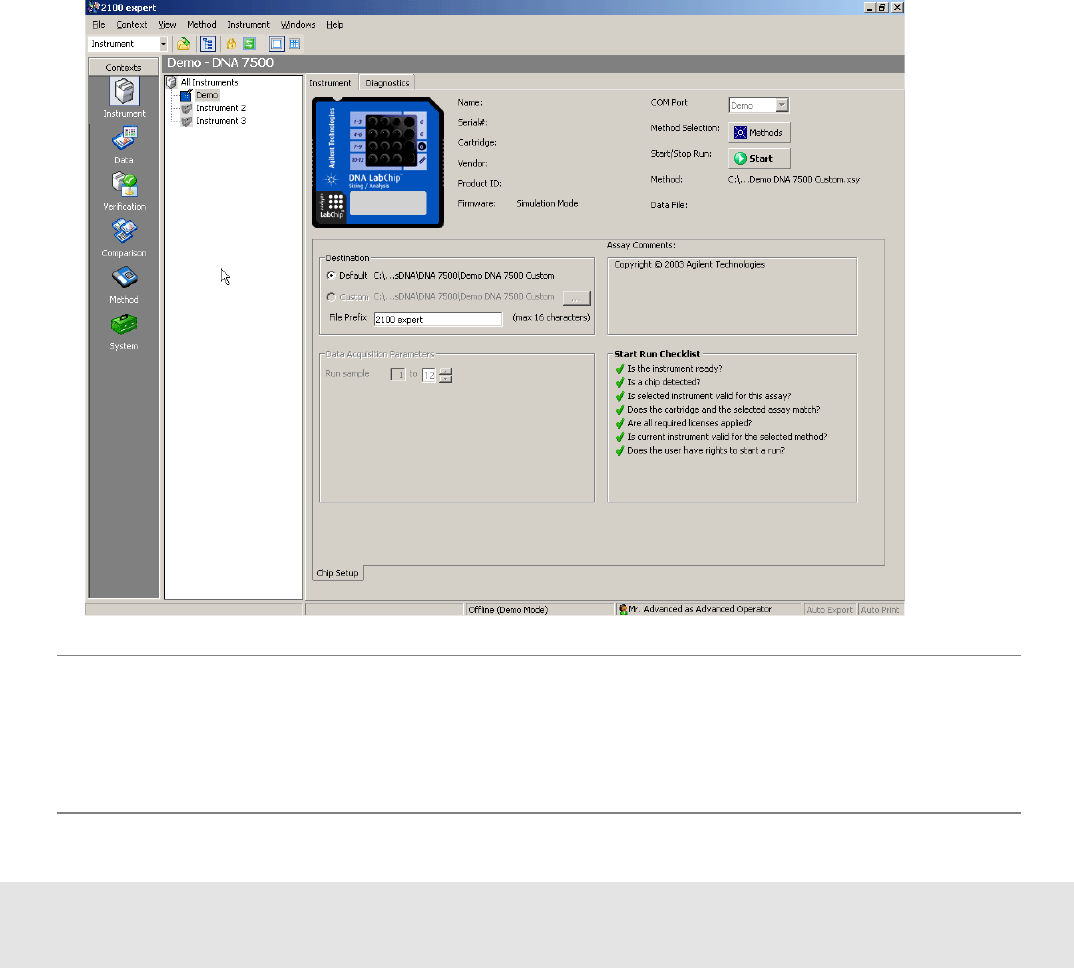

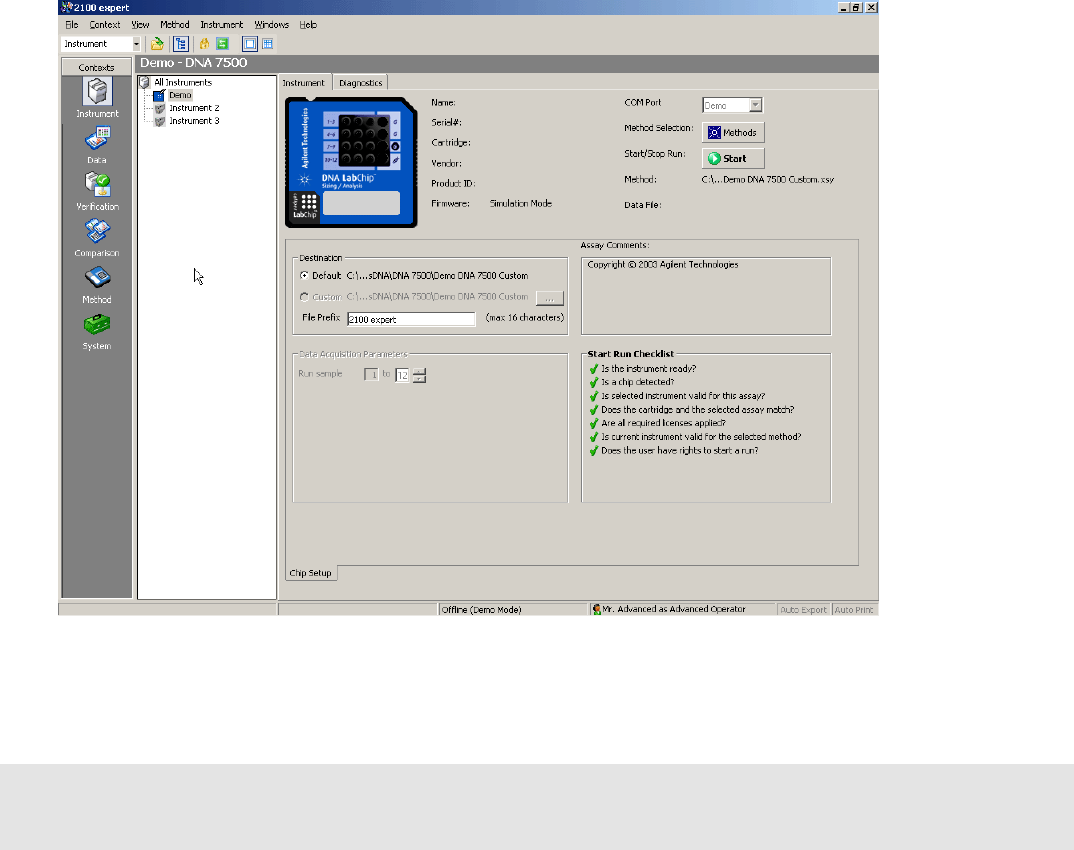

The Instrument tab shows you the status of the bioanalyzer:
2Make sure that a bioanalyzer has been detected before continuing.
Icons Meaning
Bioanalyzer detected, lid is open.
Bioanalyzer detected. Lid is closed, but no chip is inserted.
No bioanalyzer has been detected.

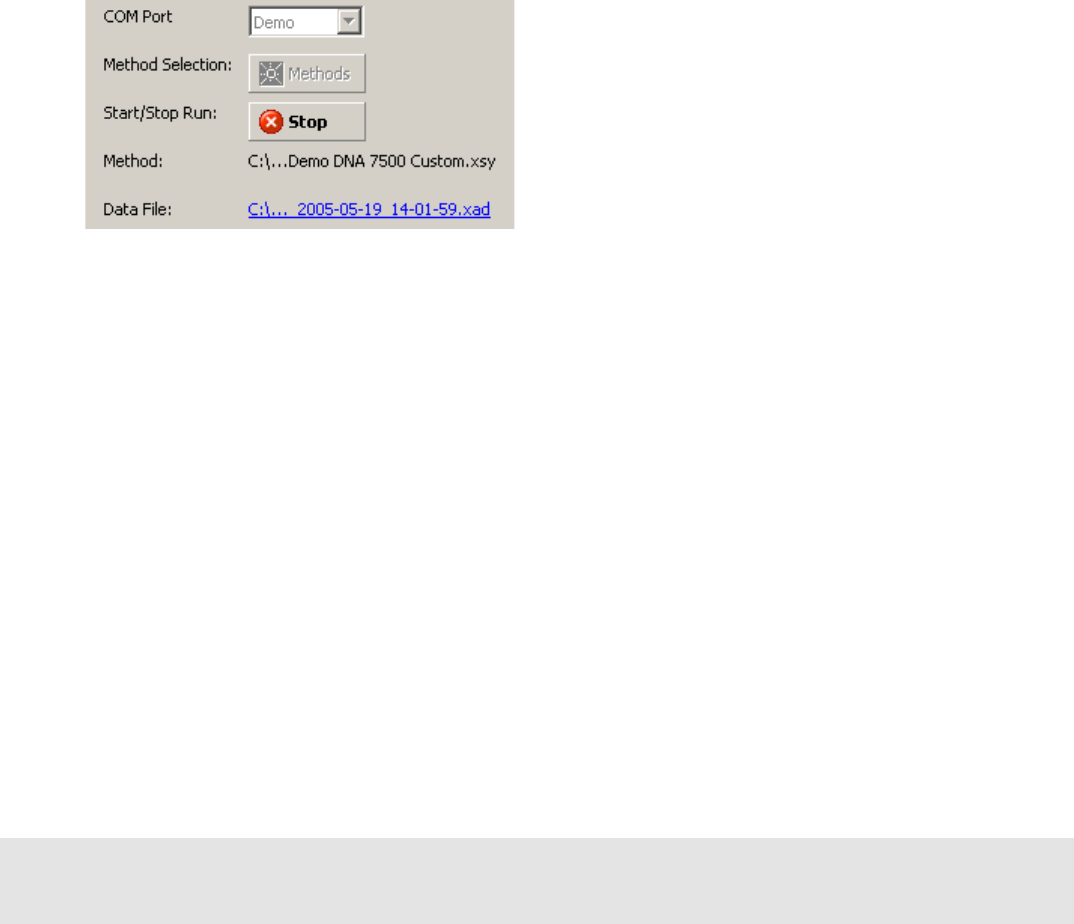

Check the COM Port setting (see figure under step 3), the RS 232
connection cable, the power cable, and the power switch. For
details on how to set up the bioanalyzer and connect it to a PC, see
Agilent 2100 Bioanalyzer Installation and Safety Guide.
Contents ▲20 ▼Index
3Select an assay for the chip run.
On the Instrument tab, click the Assays button.
– OR –
Click the Assays menu.
Both will open a menu, allowing you to select an assay for the measurement.

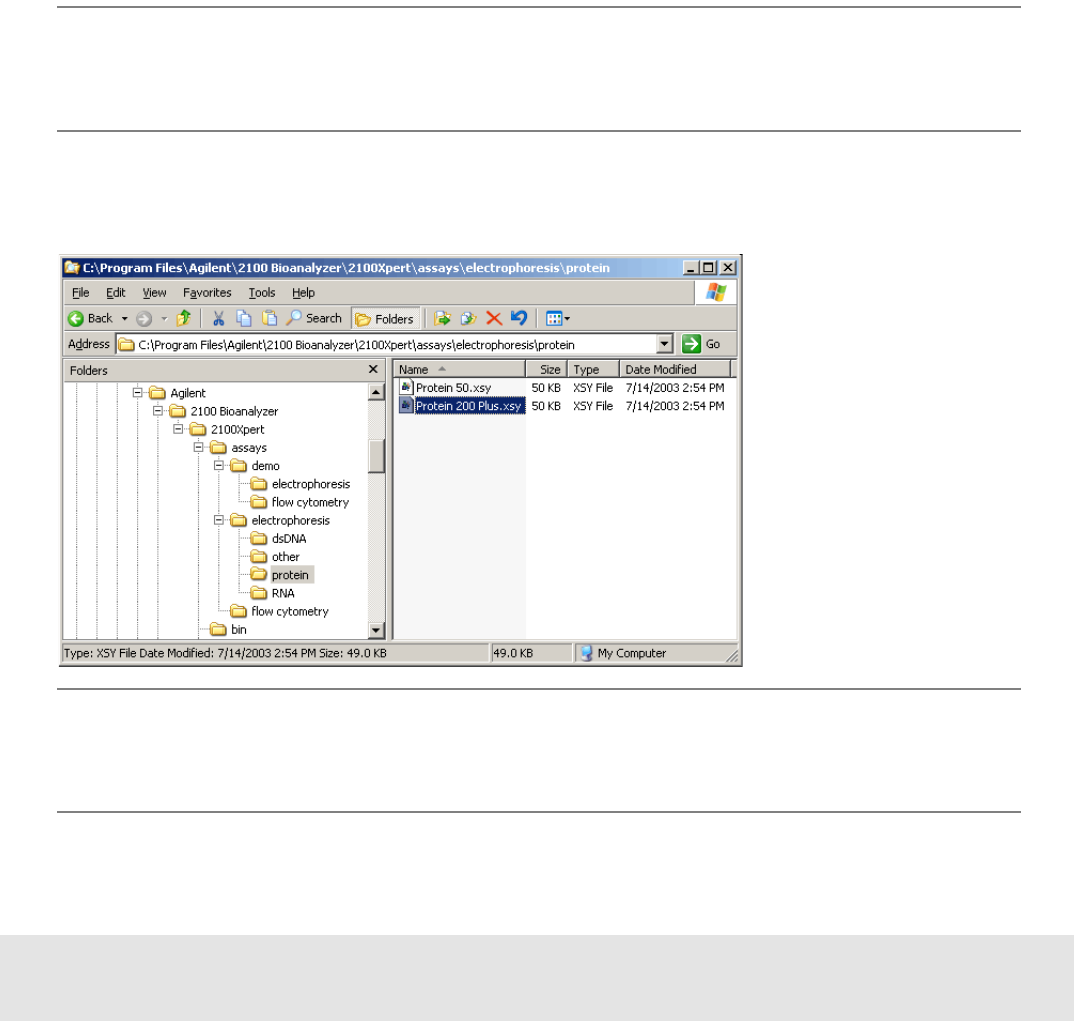

Note that you can also select File > Open File to Run. This opens a dialog box allowing
you to load either an assay (.xsy) or a chip data file (.xad).
4Prepare the samples and the chip.
For detailed information on sample and chip preparation refer to:
–Reagent Kit Guides that are available for each reagent kit
–Application Notes that are available for specific kits and applications
NOTE
When preparing chip and samples, pay attention to the essential measurement
practices described in “Essential Measurement Practices (Electrophoretic Assays)”
on page 56 and “Essential Measurement Practices (Flow Cytometric Assays)” on
page 192 or as described in the respective Reagent Kit Guide.
Contents ▲21 ▼Index

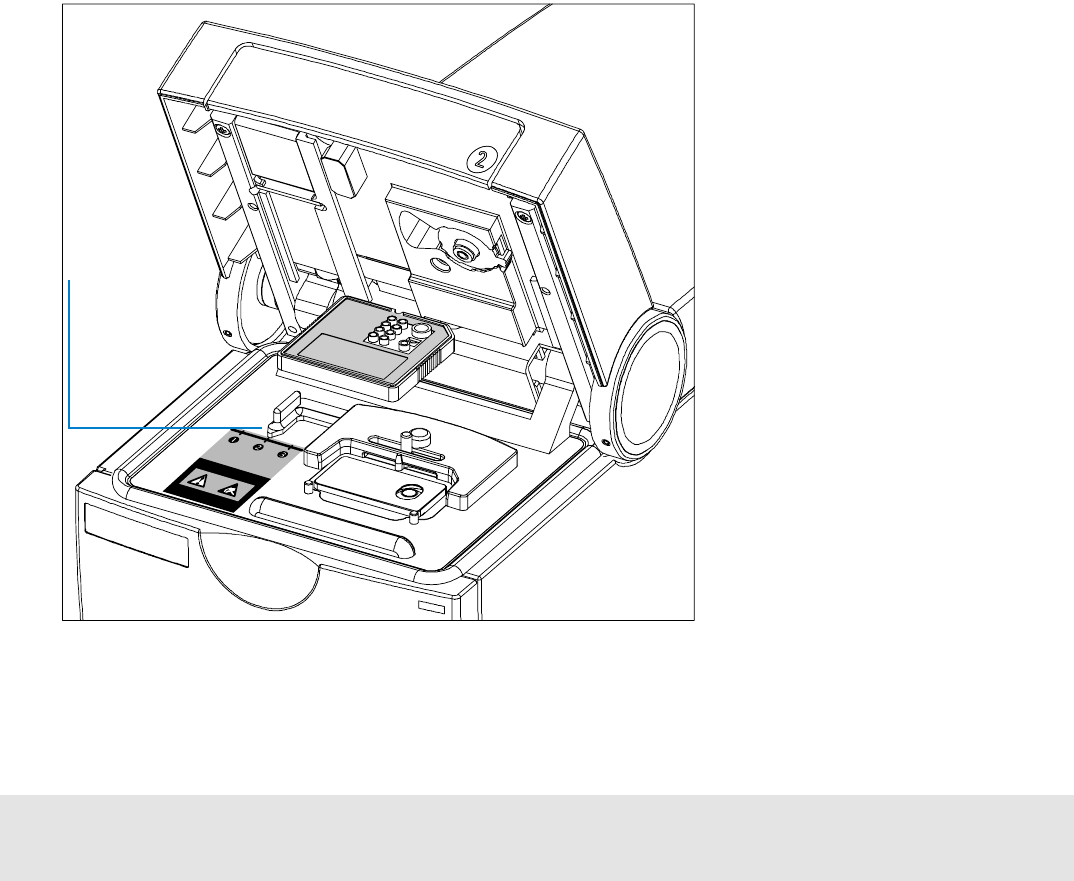

5Insert the chip in the Agilent 2100 bioanalyzer:
aOpen the lid.
The status of the bioanalyzer is updated on the Instrument tab.
bCheck that the cartridge is inserted properly and the chip selector is in the correct
position (“1” for electrophoretic assays, “2” for flow cytometric assays).
For details, please refer to “Loading the Electrophoresis Chip into the Bioanalyzer”
on page 59 or “Loading the Cell Chip into the Bioanalyzer” on page 194, respectively.
Contents ▲22 ▼Index

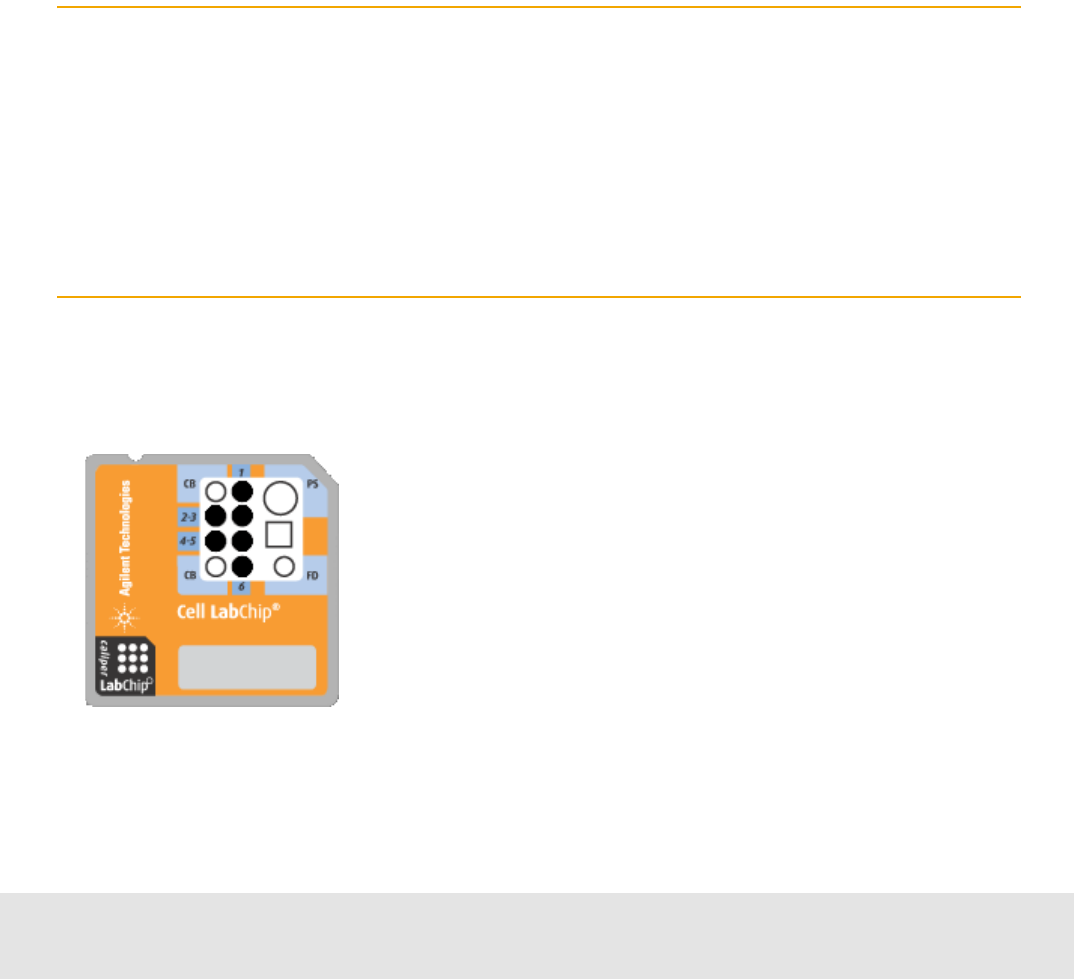

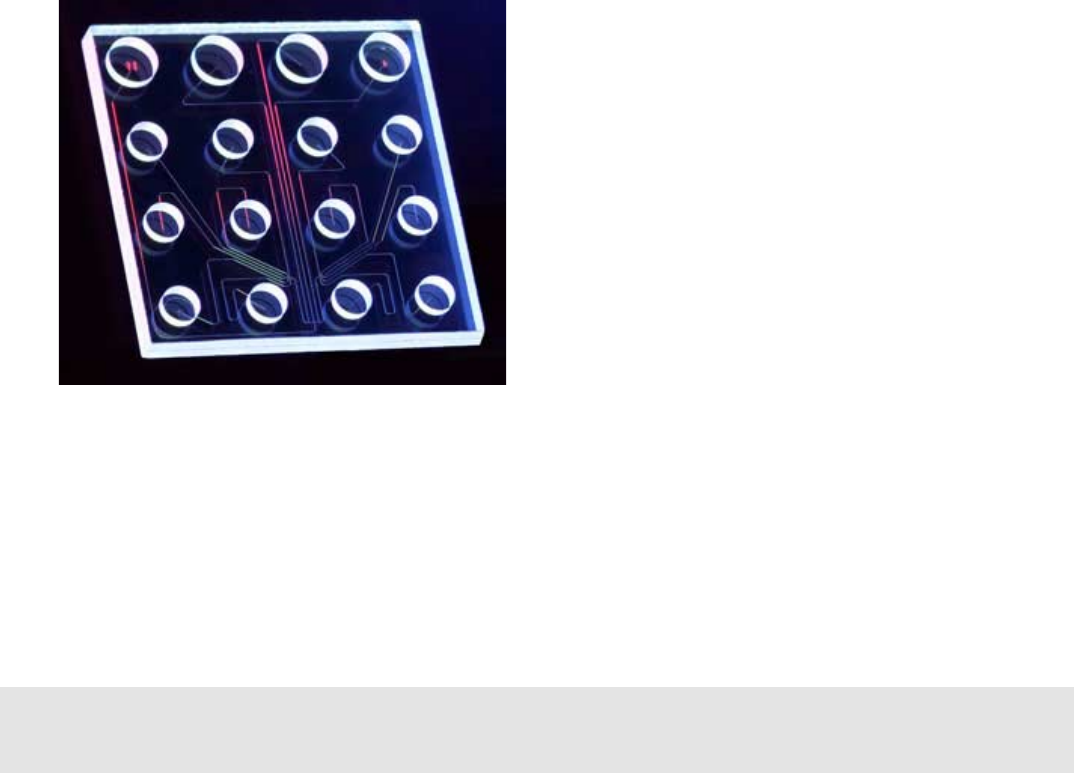

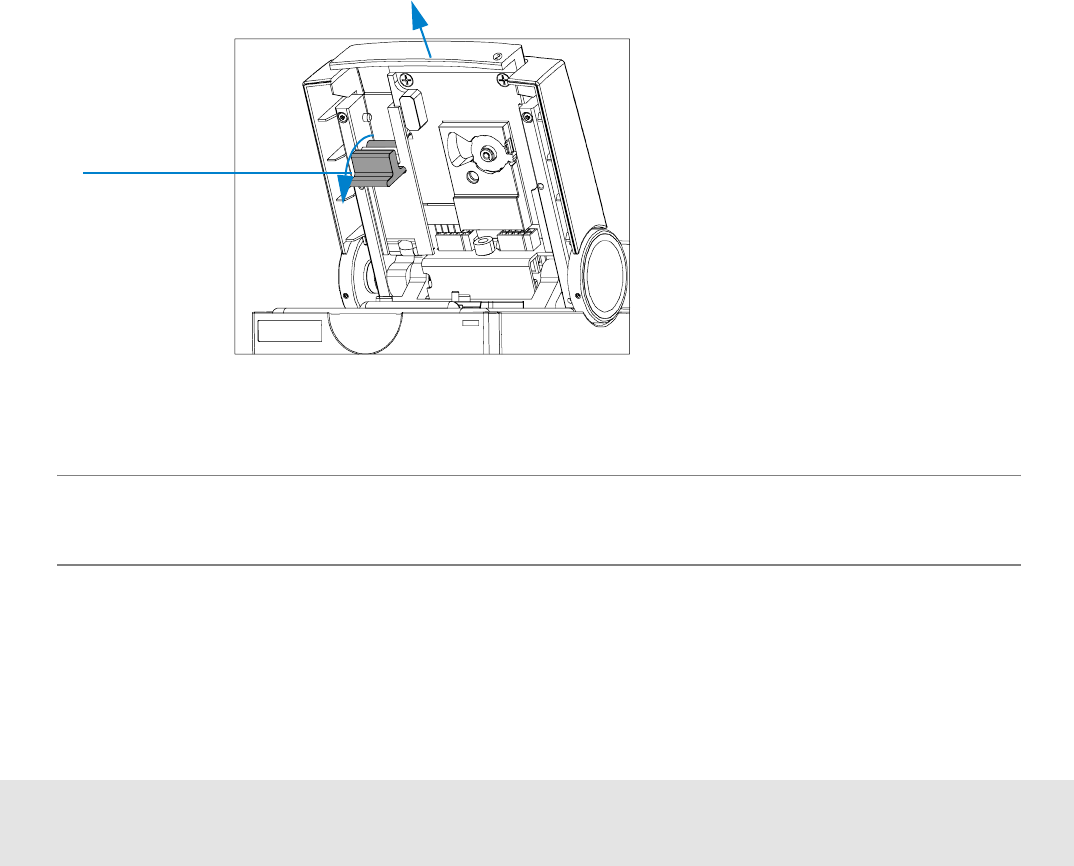

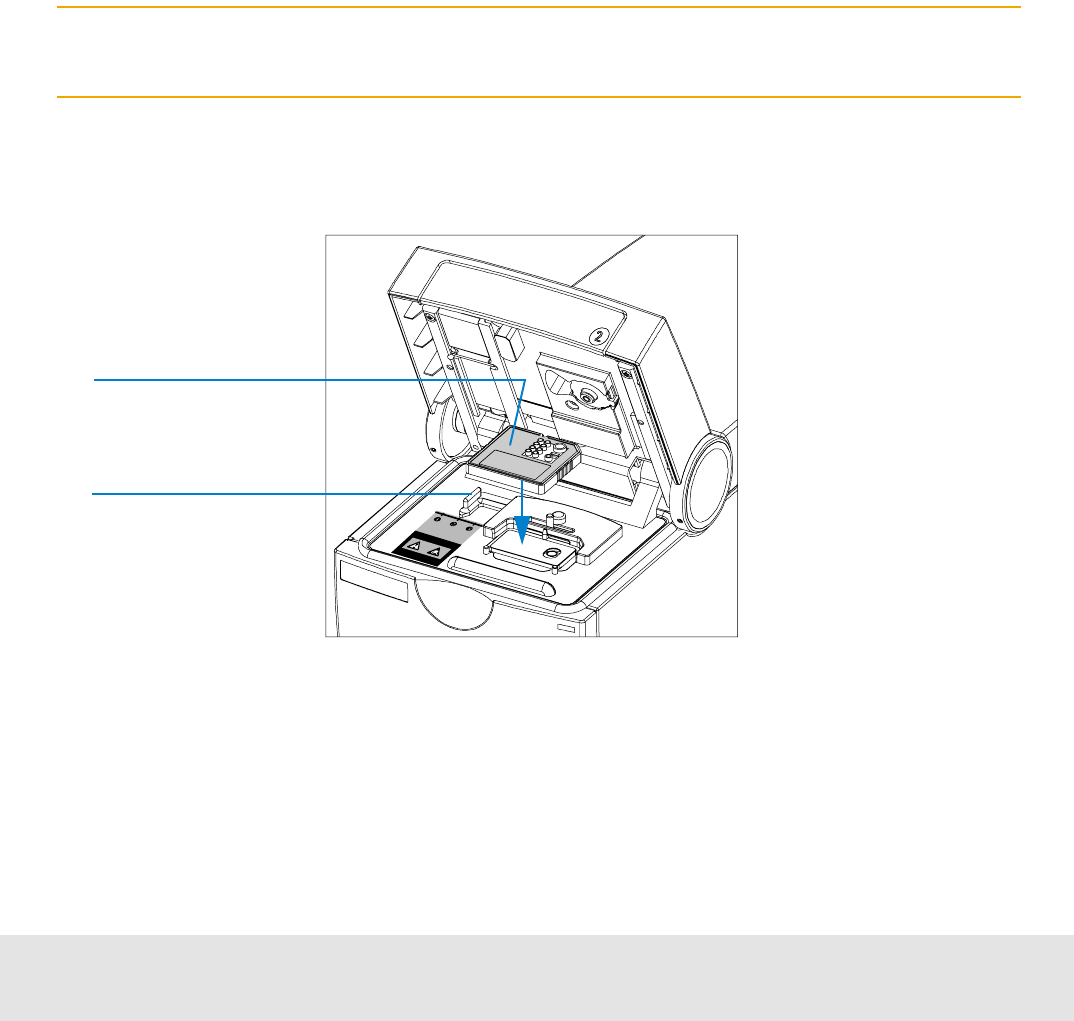

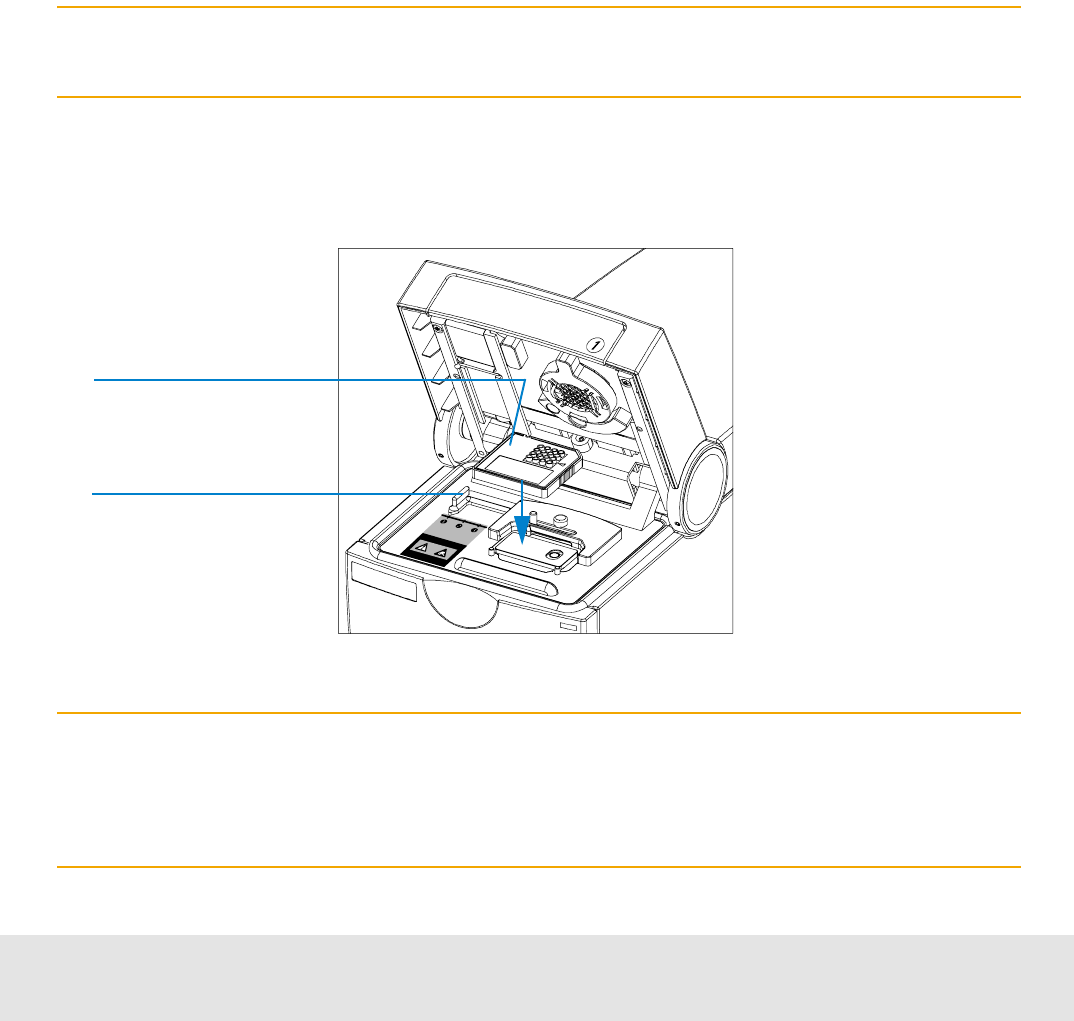

cPlace the chip into the receptacle. The figure shows this for an electrophoresis chip.
The chip fits only one way. Do not force it into place.
CAUTION
Do not force the lid closed. This may damage the cartridge.
dCarefully close the lid.
Electrophoretic assays: the electrodes in the cartridge fit into the wells of the chip.
Flow cytometric assays: the adapter with the gasket in the cartridge fits onto the
priming well of the chip.
Chip
Contents ▲23 ▼Index

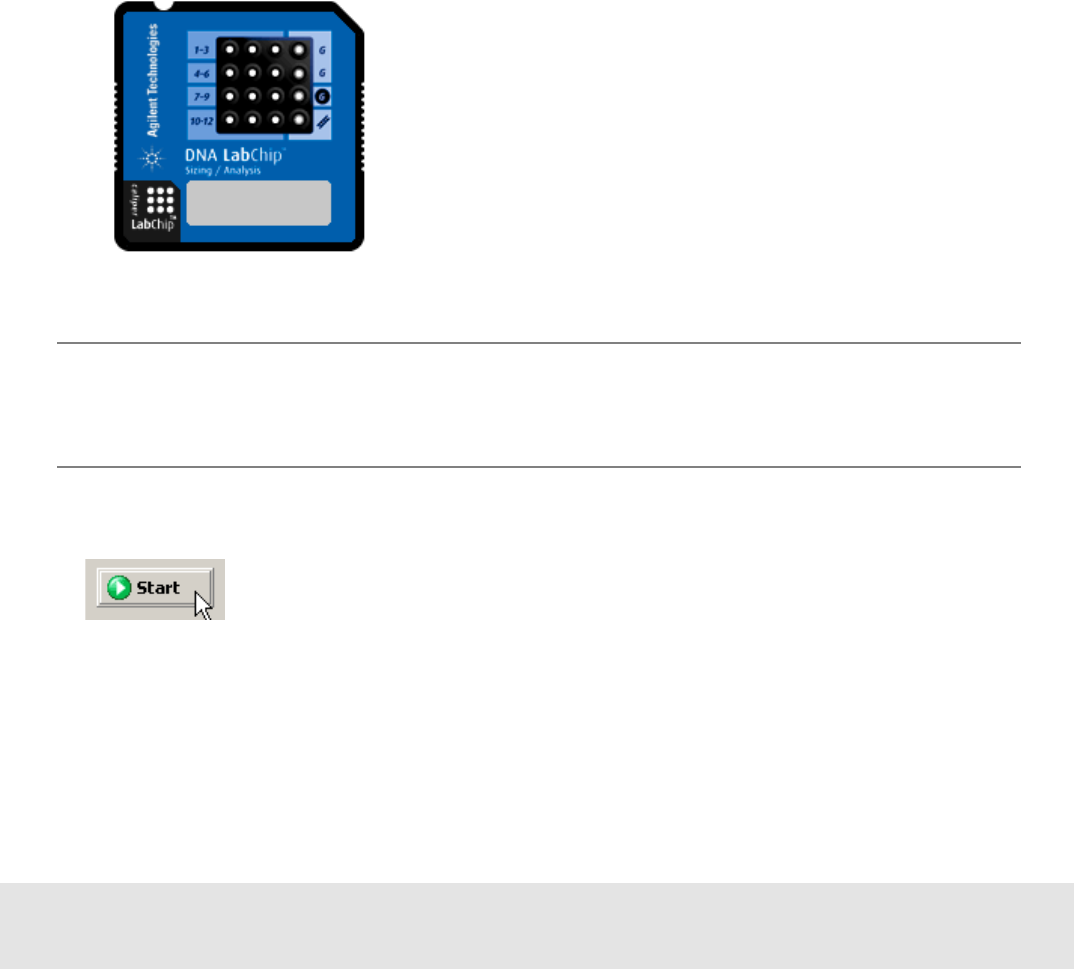

When the chip is detected, the image on the Instrument tab changes to a chip.
If the chip is not detected, open and close the lid again.
NOTE
If the AutoRun option is active, the chip run starts automatically once a chip has been
inserted and the lid has been closed.
6On the Instrument tab, click the Start button.

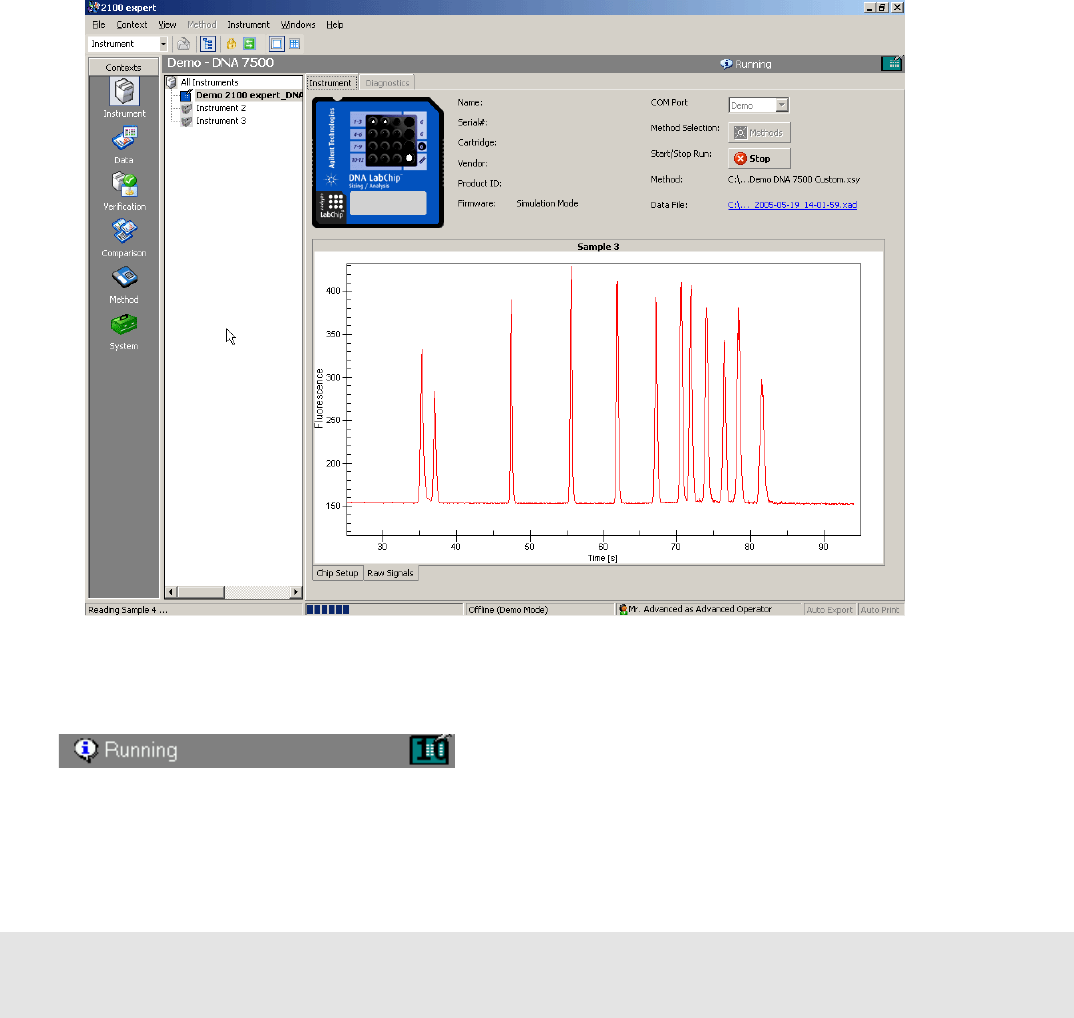

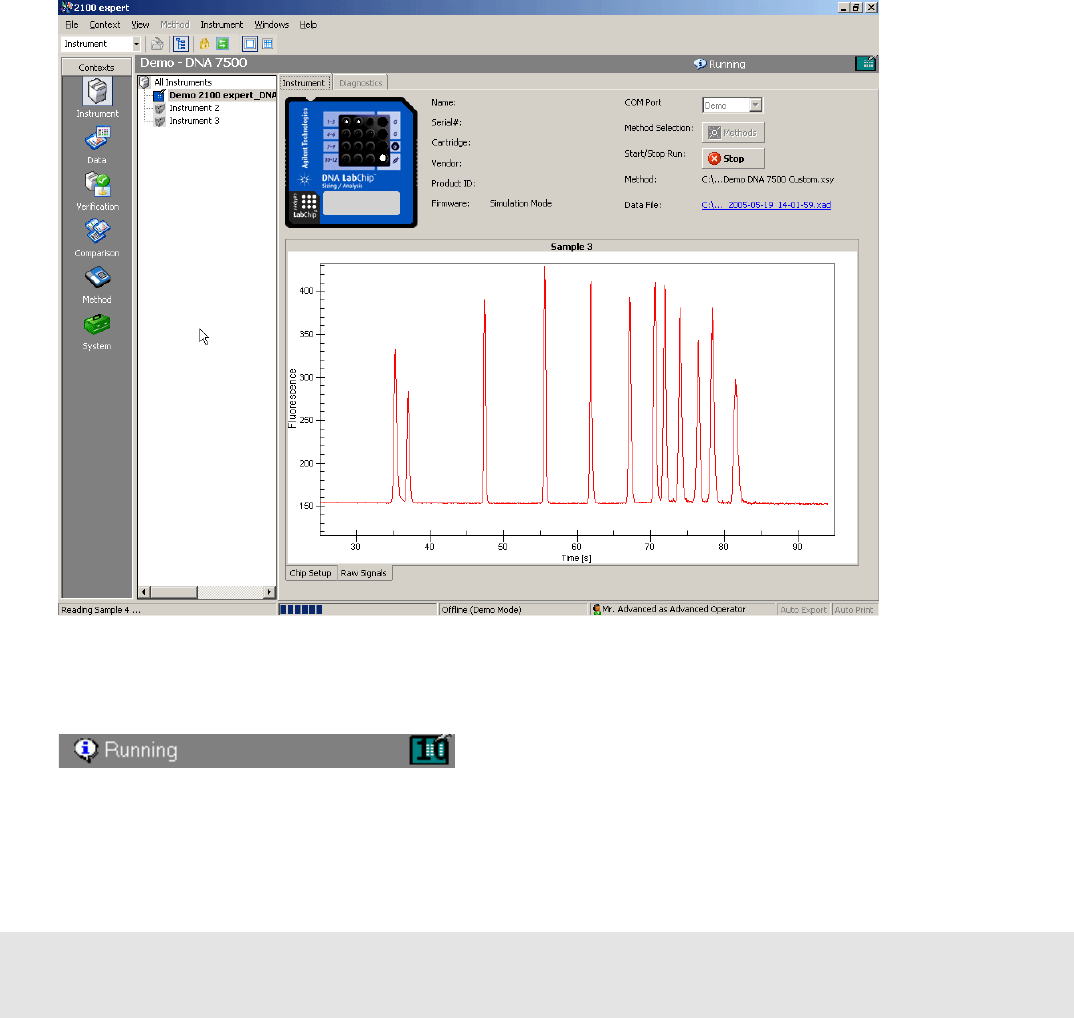

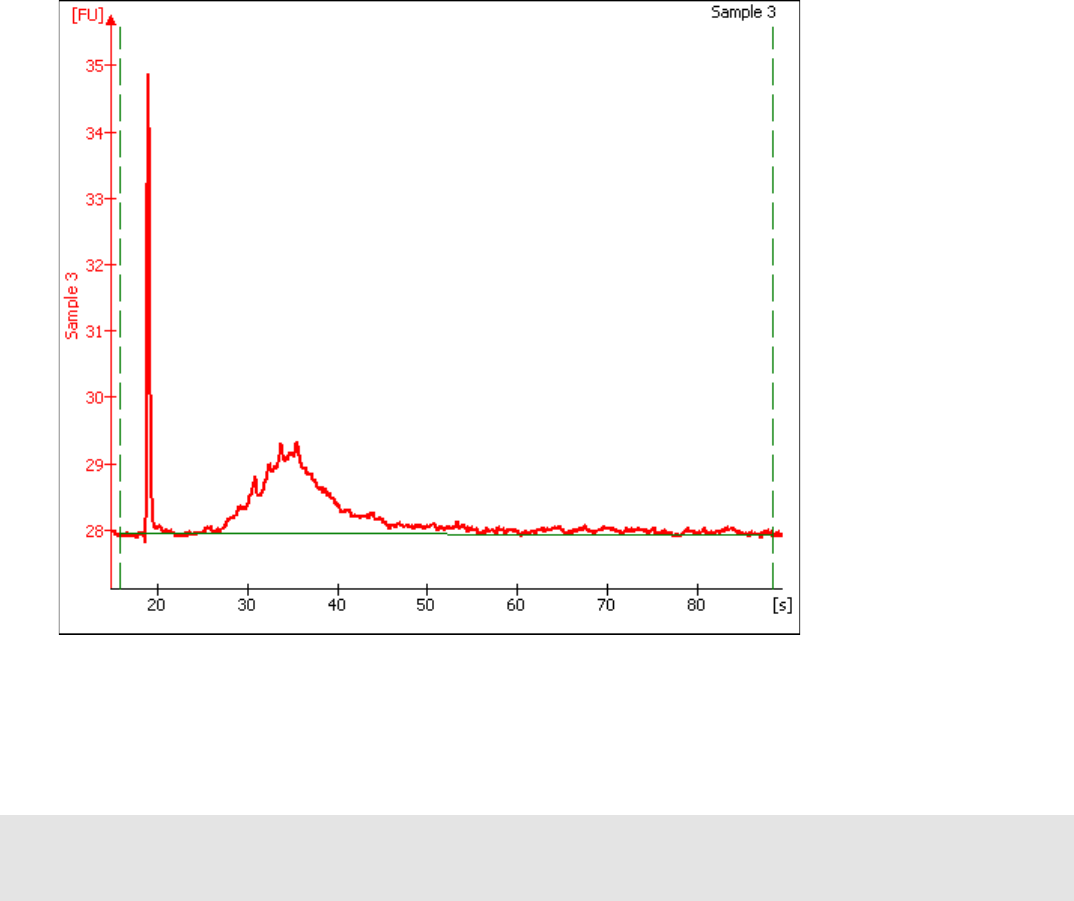

The chip run starts. The Raw Signals sub-tab shows an electropherogram of the currently
measured sample. The name of the sample is displayed above the graph. The graph is a
“live” plot of the migration time against fluorescence units (raw data, including
background fluorescence, for example).
Contents ▲25 ▼Index

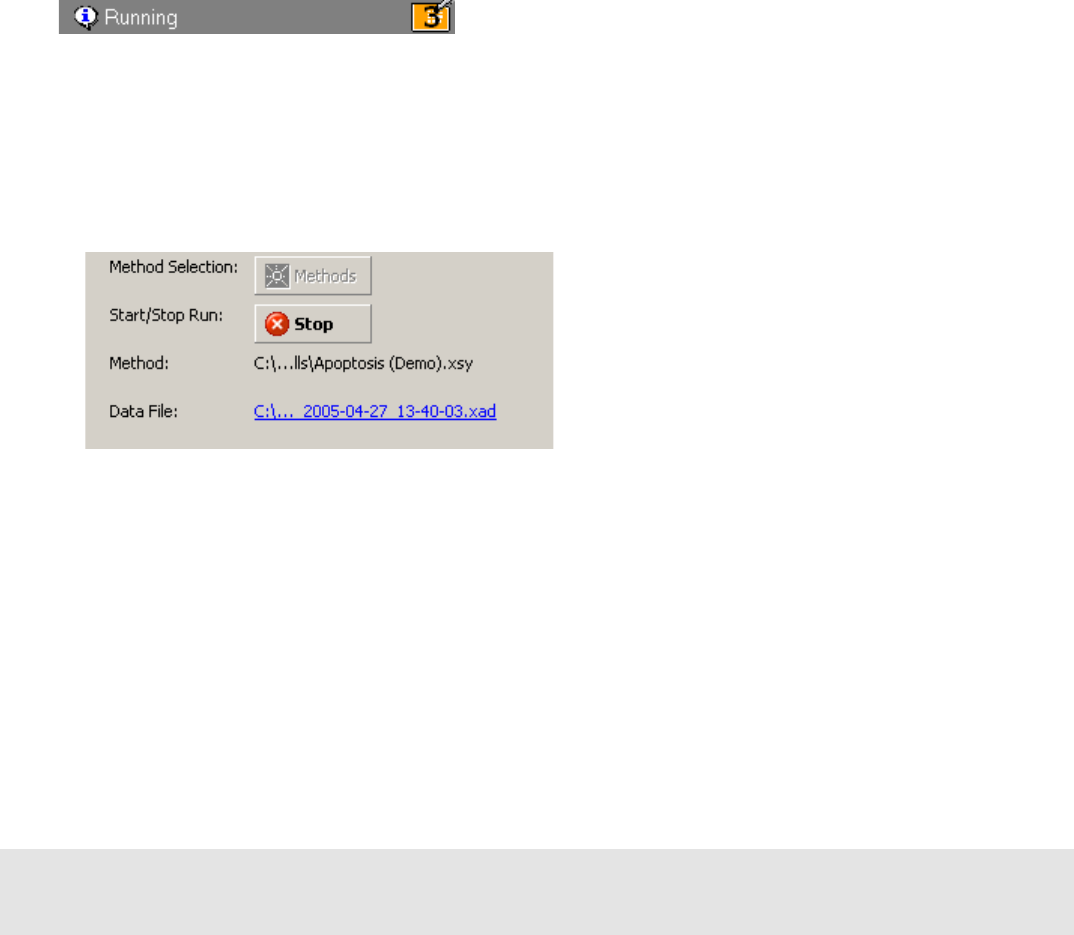

During the chip run, you can do the following:
•View the chip data file in the Data context by clicking on the name of the Data File:
•Switch to any other context. For example, you can evaluate any chip data file in the Data
context, or compare samples in the Comparison context.

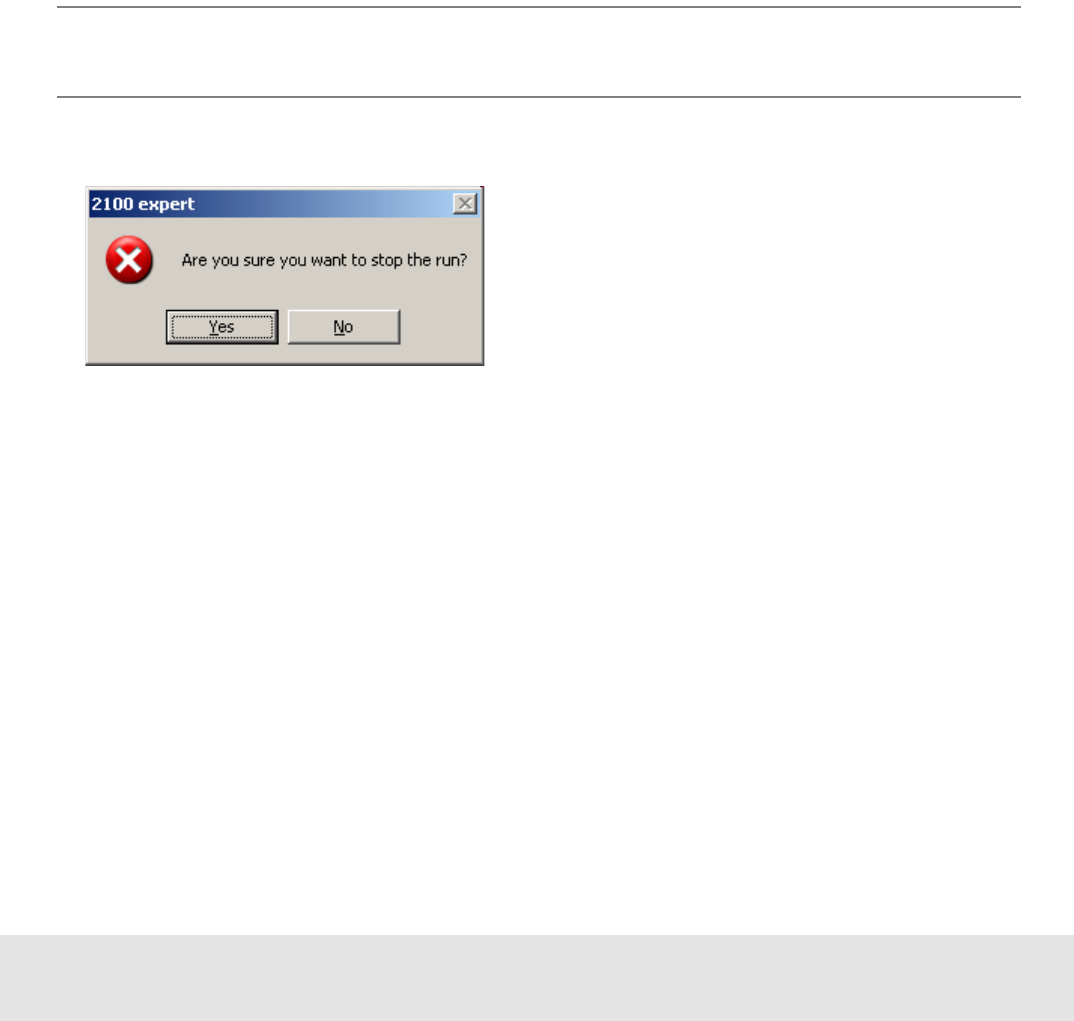

•If necessary, abort the chip run by clicking on the Stop button.
All data that was collected up to the stop point will be saved.
Contents ▲26 ▼Index
Viewing the Measurement Results

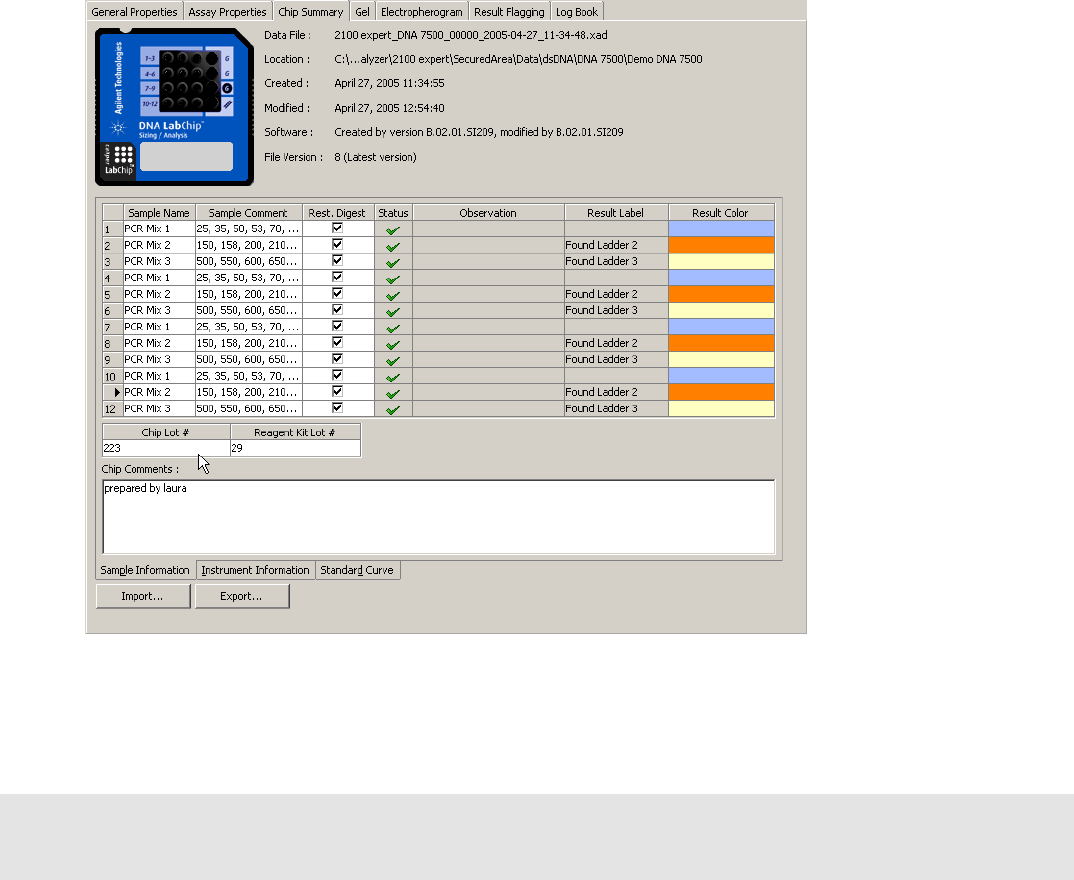

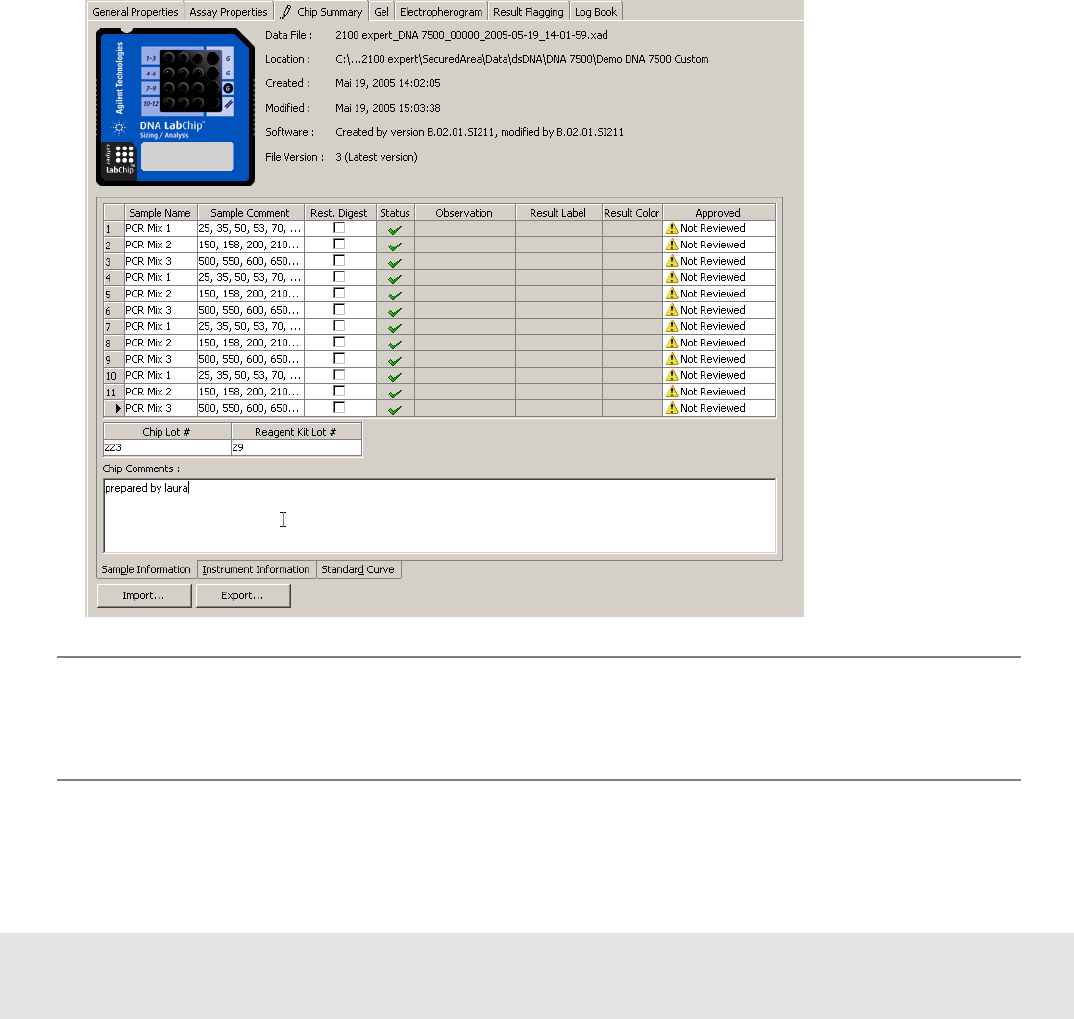

To view the results, switch to the Data context. The data file that has just been

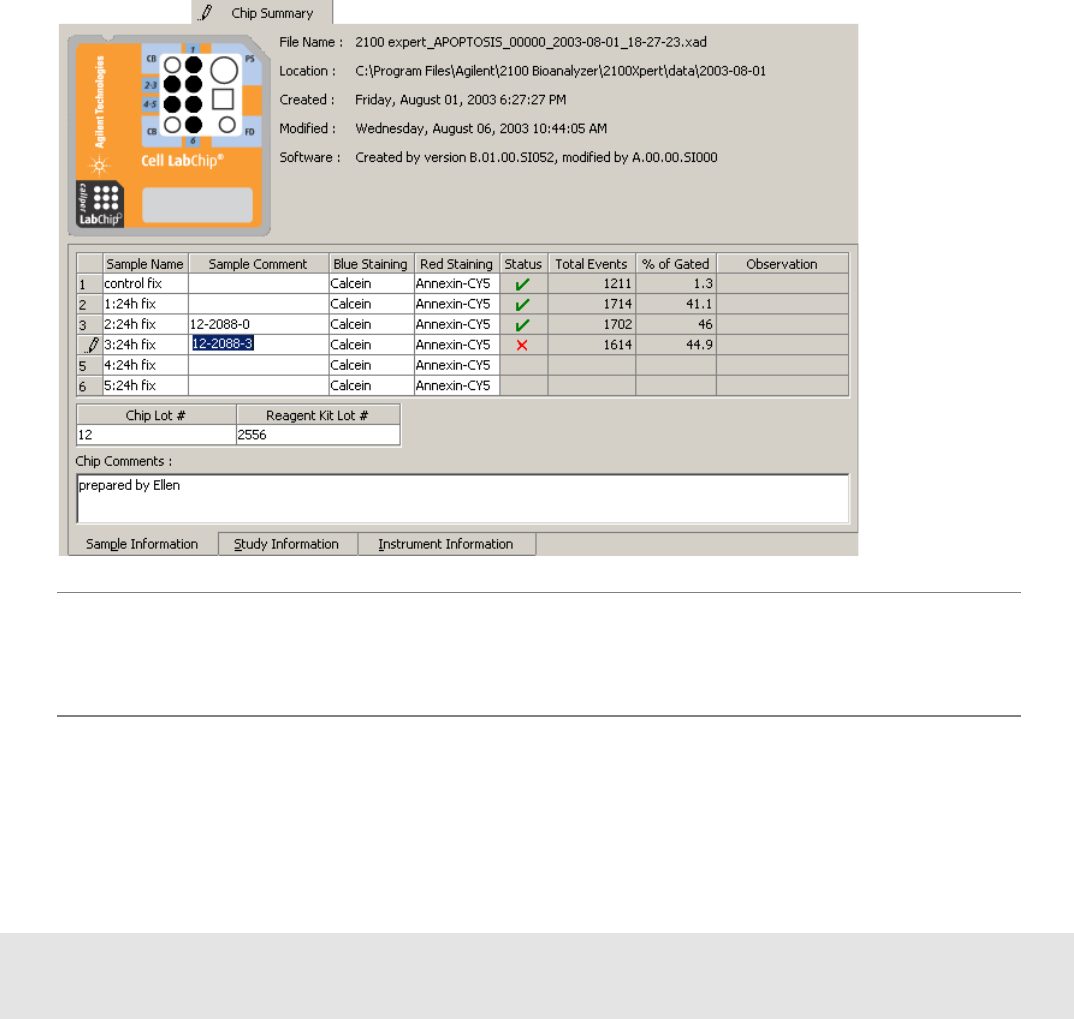

generated by your chip run is displayed. The Chip Summary tab shows information on
your chip data file, and lets you enter comments regarding chip, samples, and study.
In the tree view panel, click any sample name or the ladder.
Contents ▲27 ▼Index

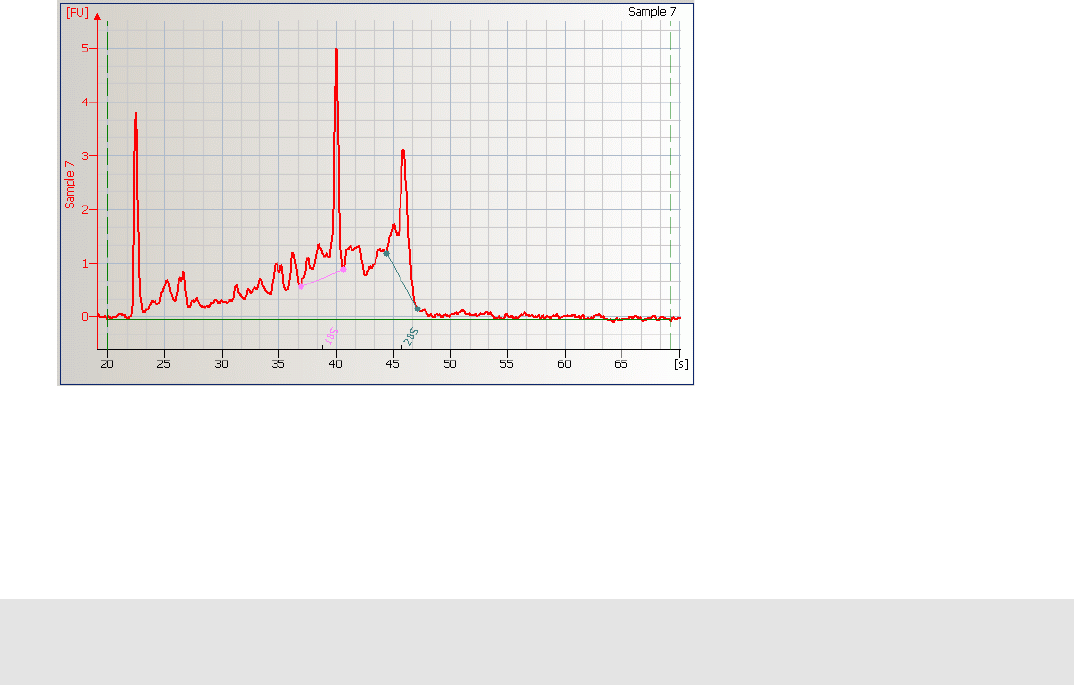

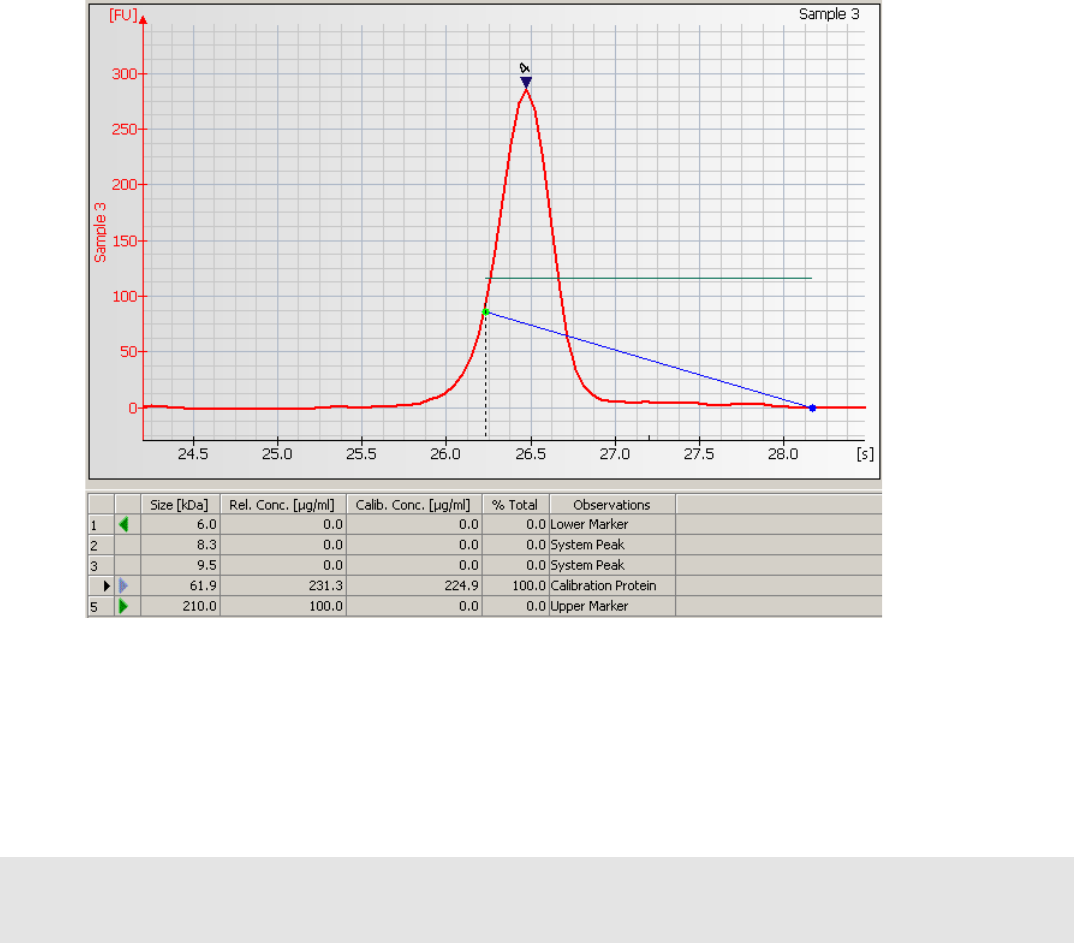

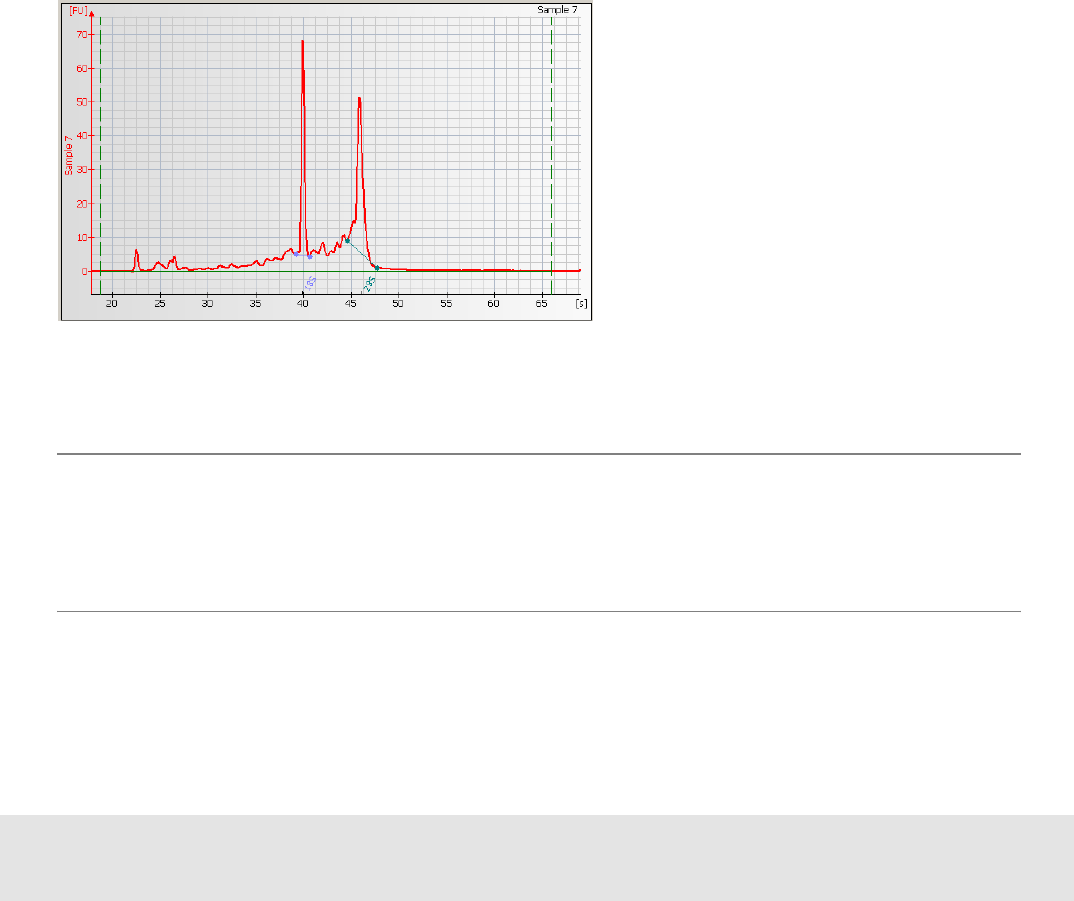

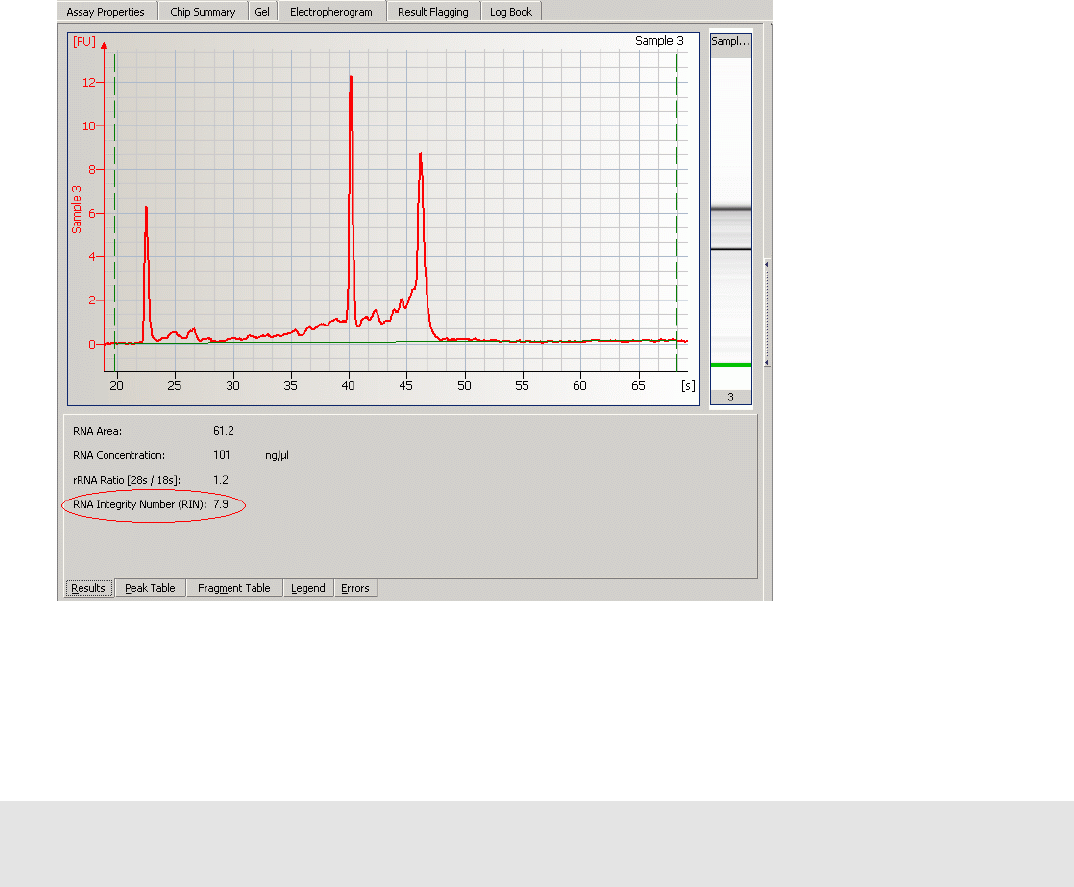

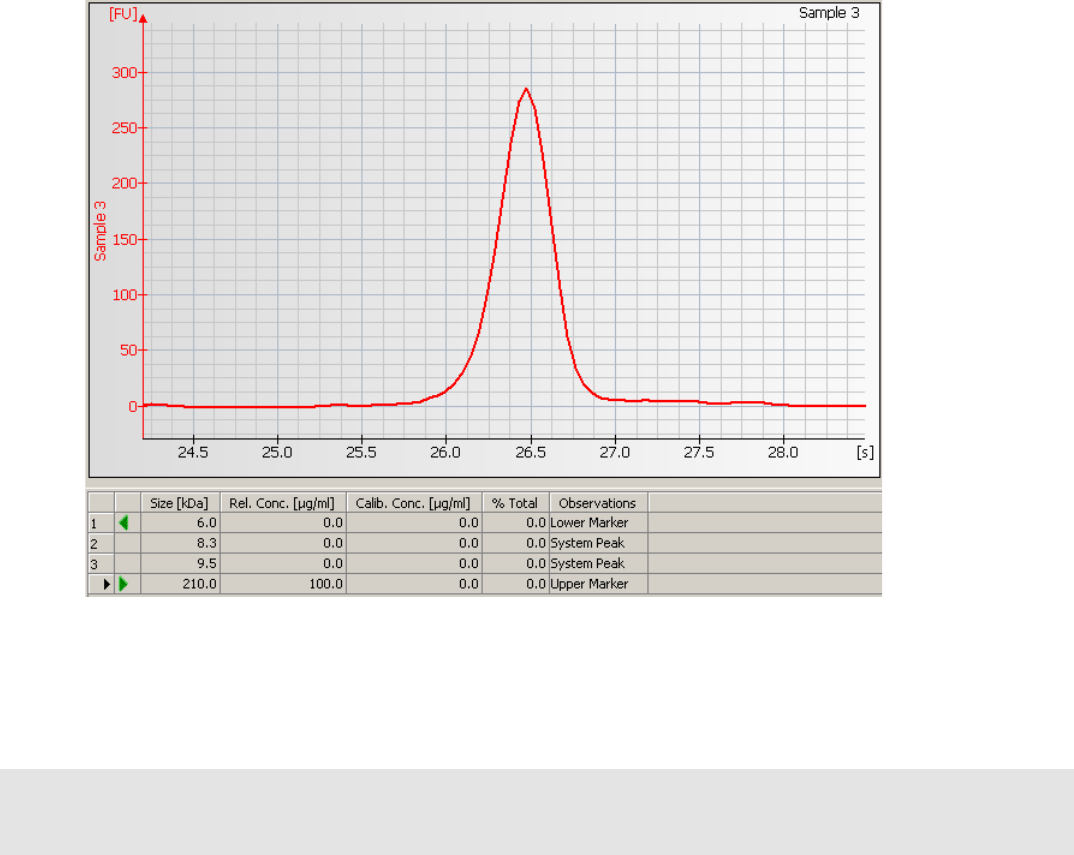

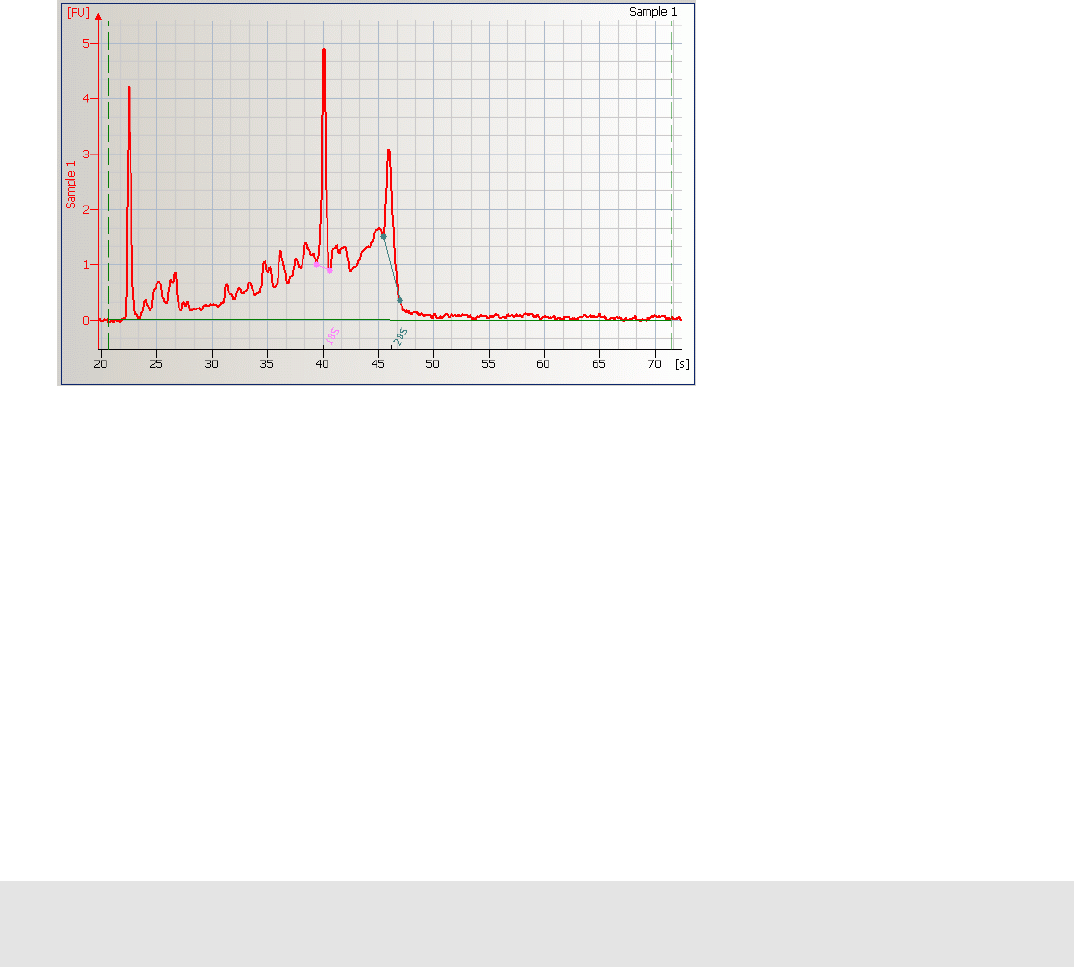

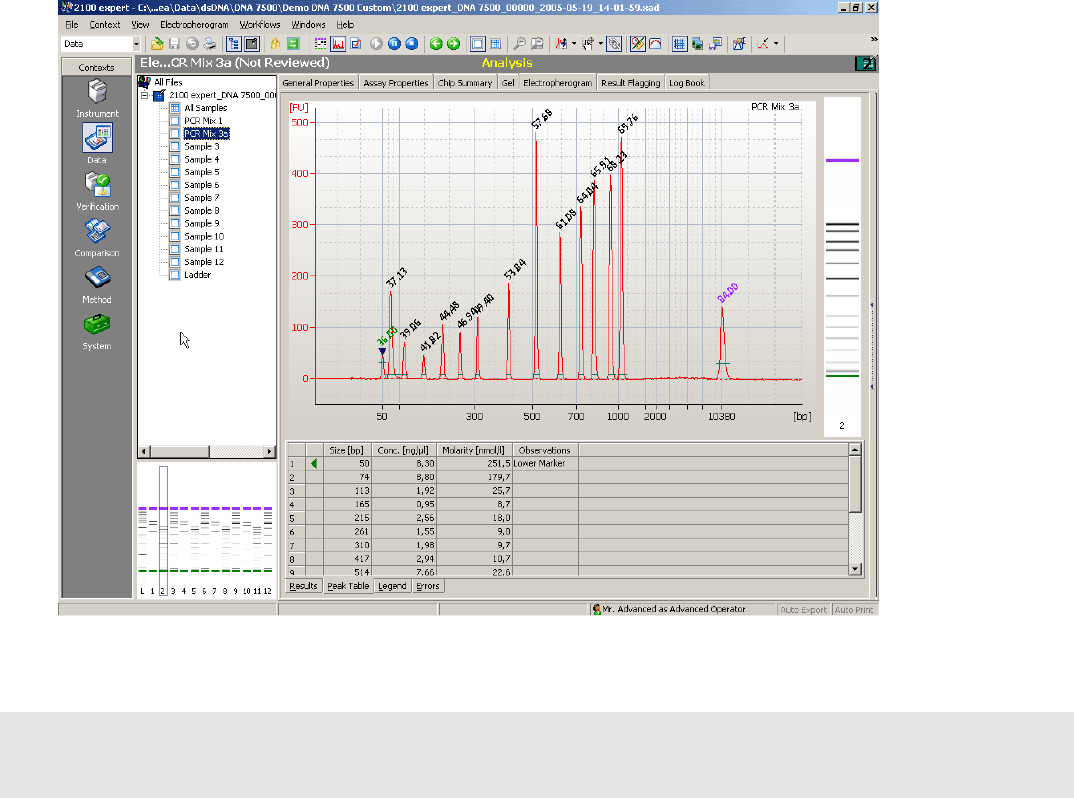

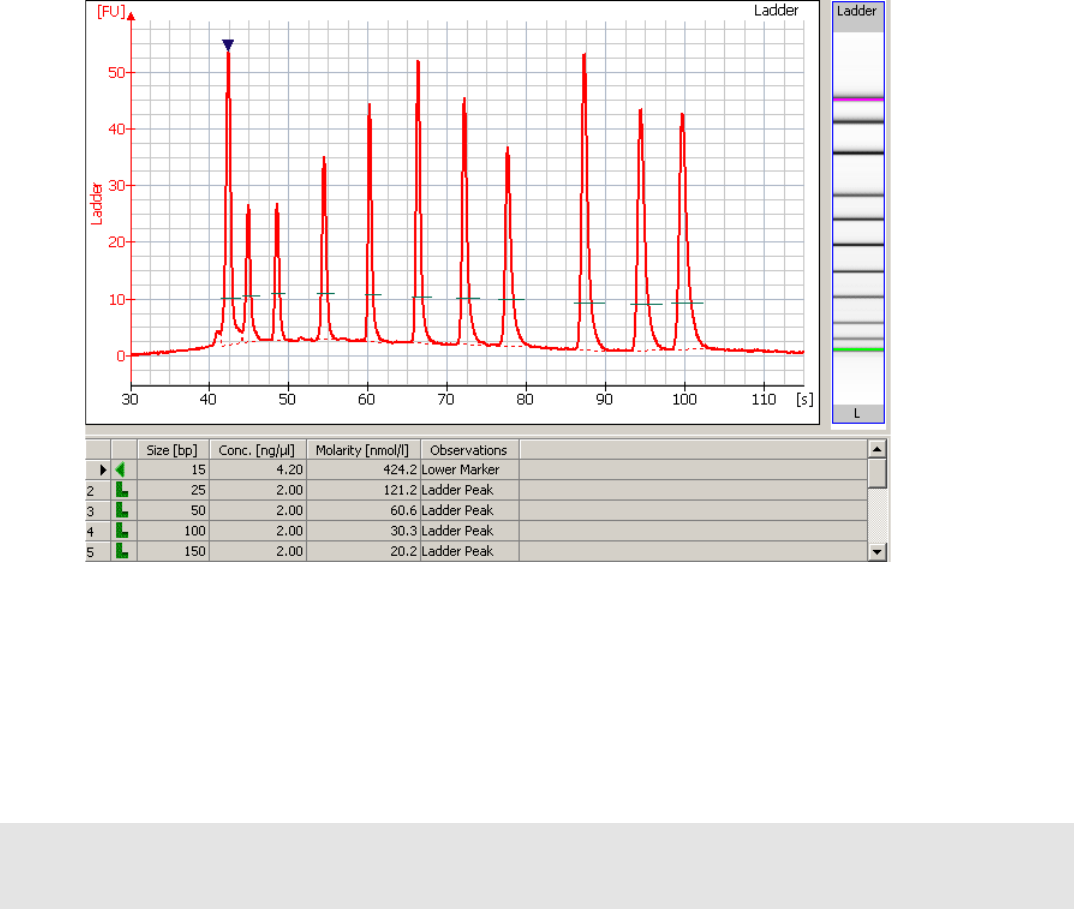

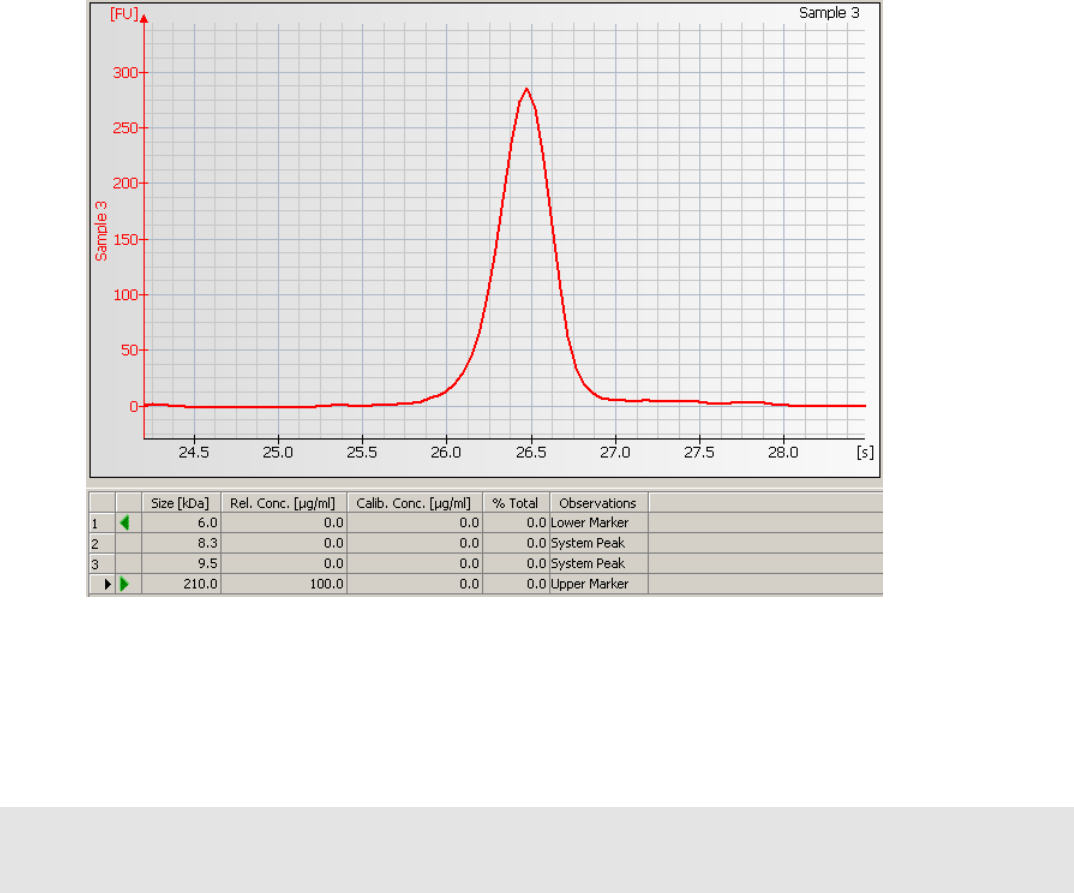

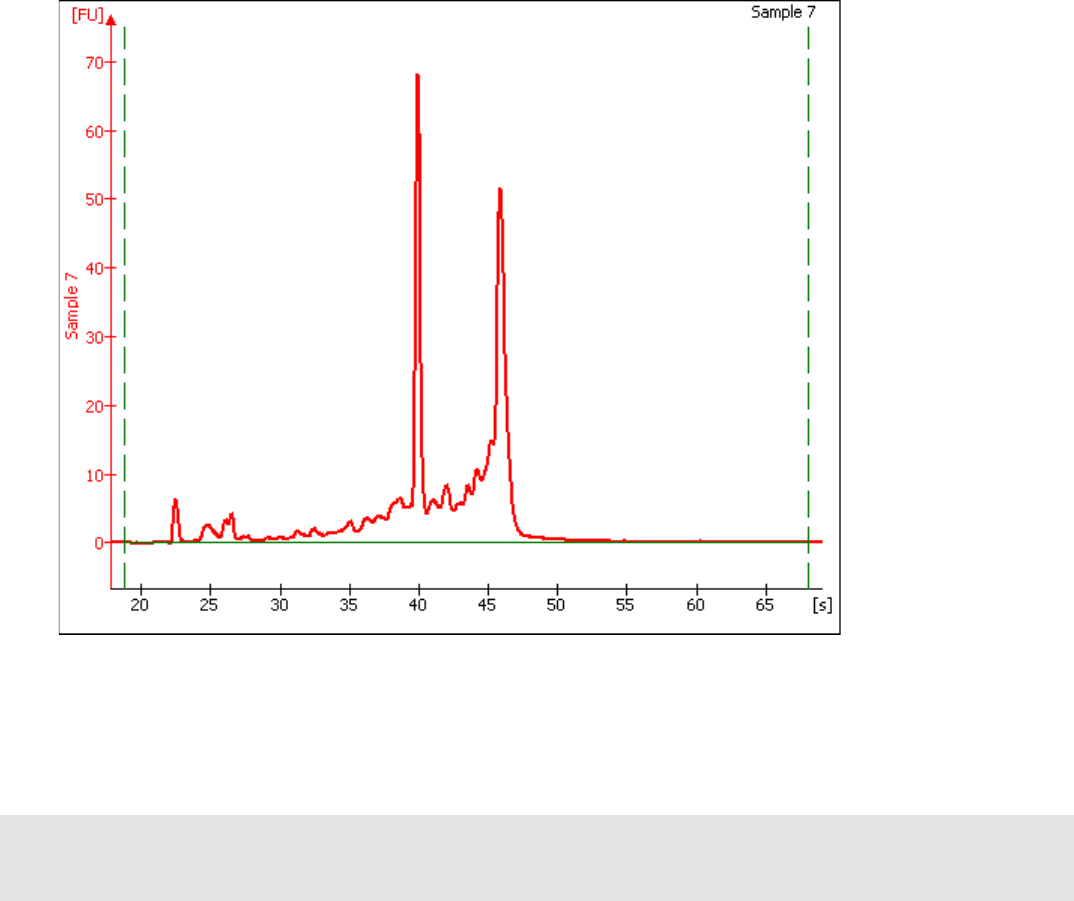

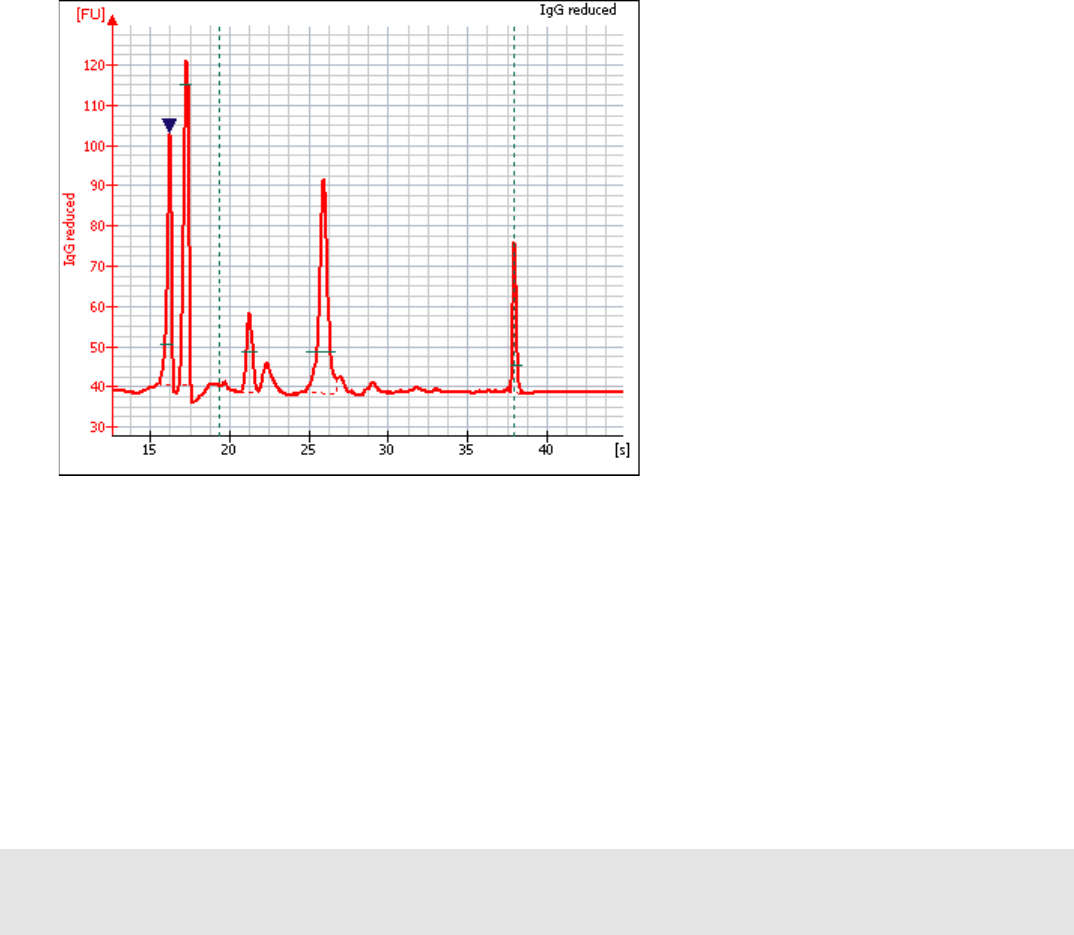

This selects the Electropherogram tab, which displays a data plot of size/migration
time versus fluorescence intensity.

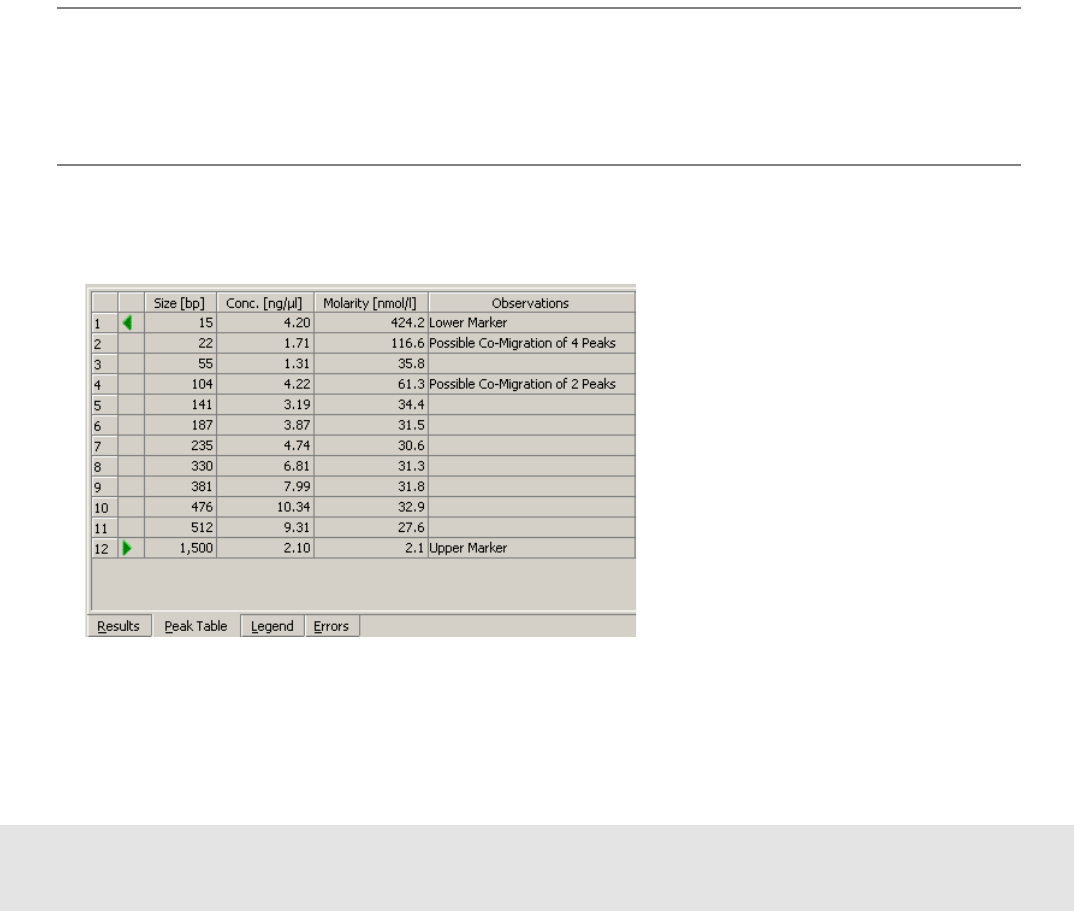

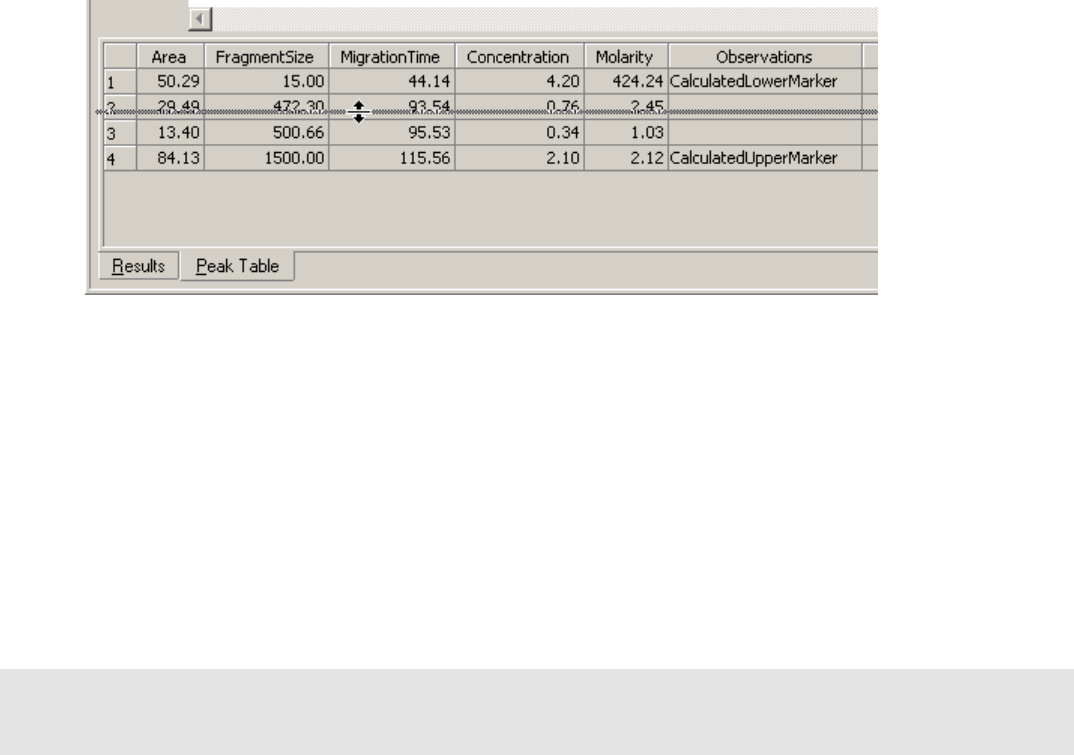

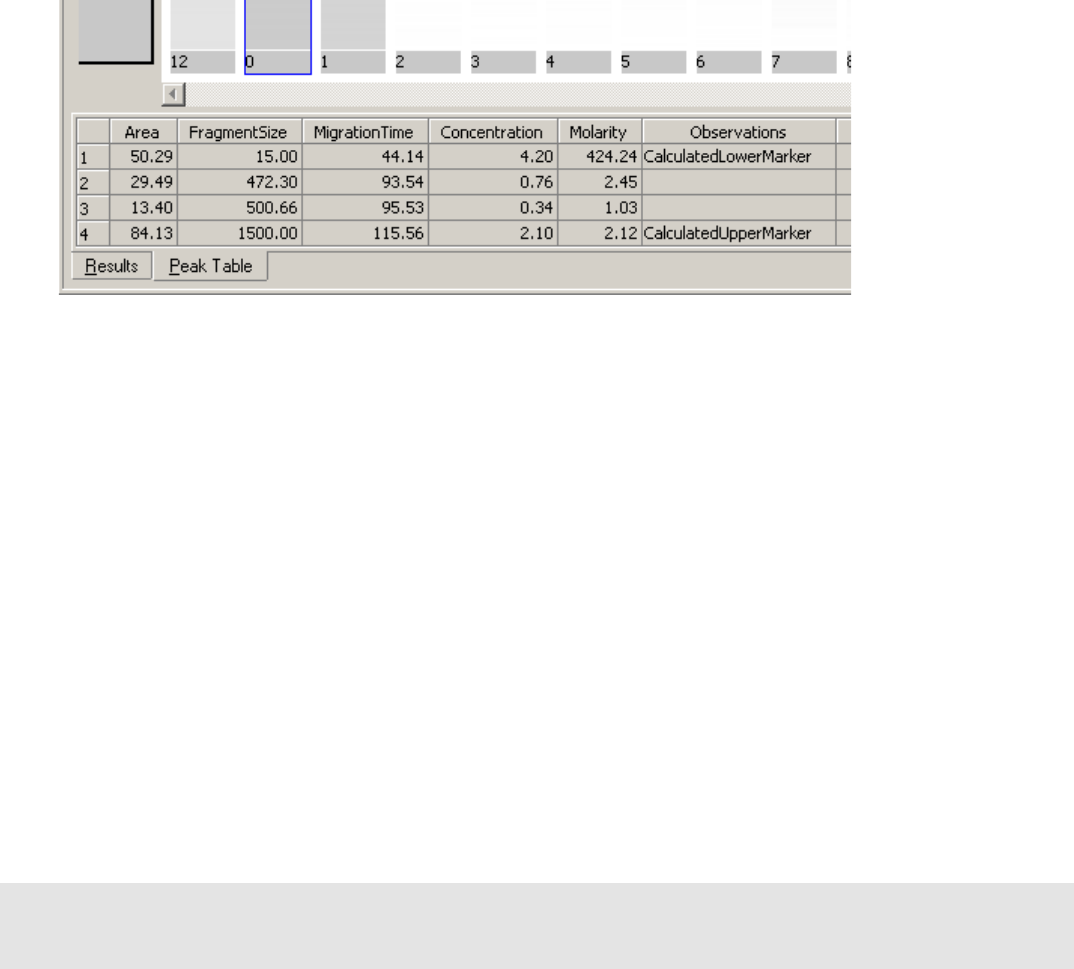

Peaks have automatically been detected, and their characteristics such as size,
concentration, purity, or molarity have been calculated and are shown in the Peak Table
at the bottom of the window.
Contents ▲28 ▼Index
What You Can do When the Measurement is Finished
When the measurement is finished, you can:
•Document your chip run by entering sample names, chip comments, and study
information, for example.

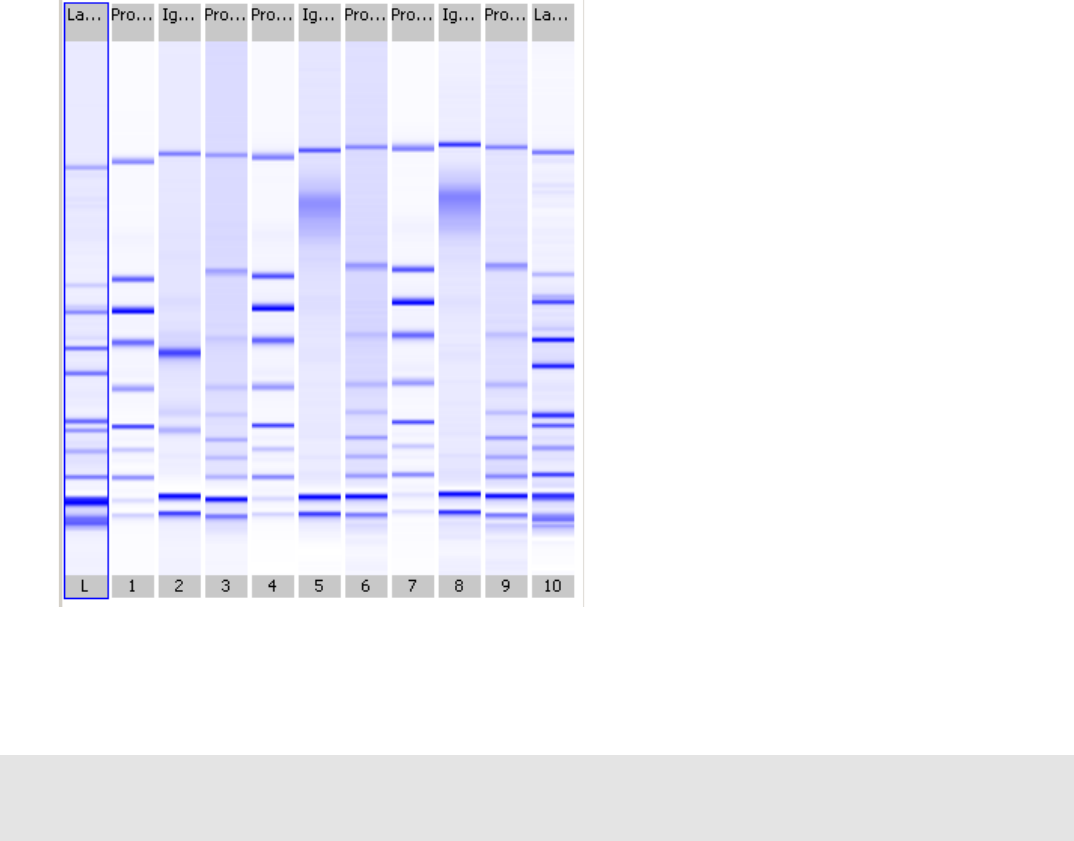

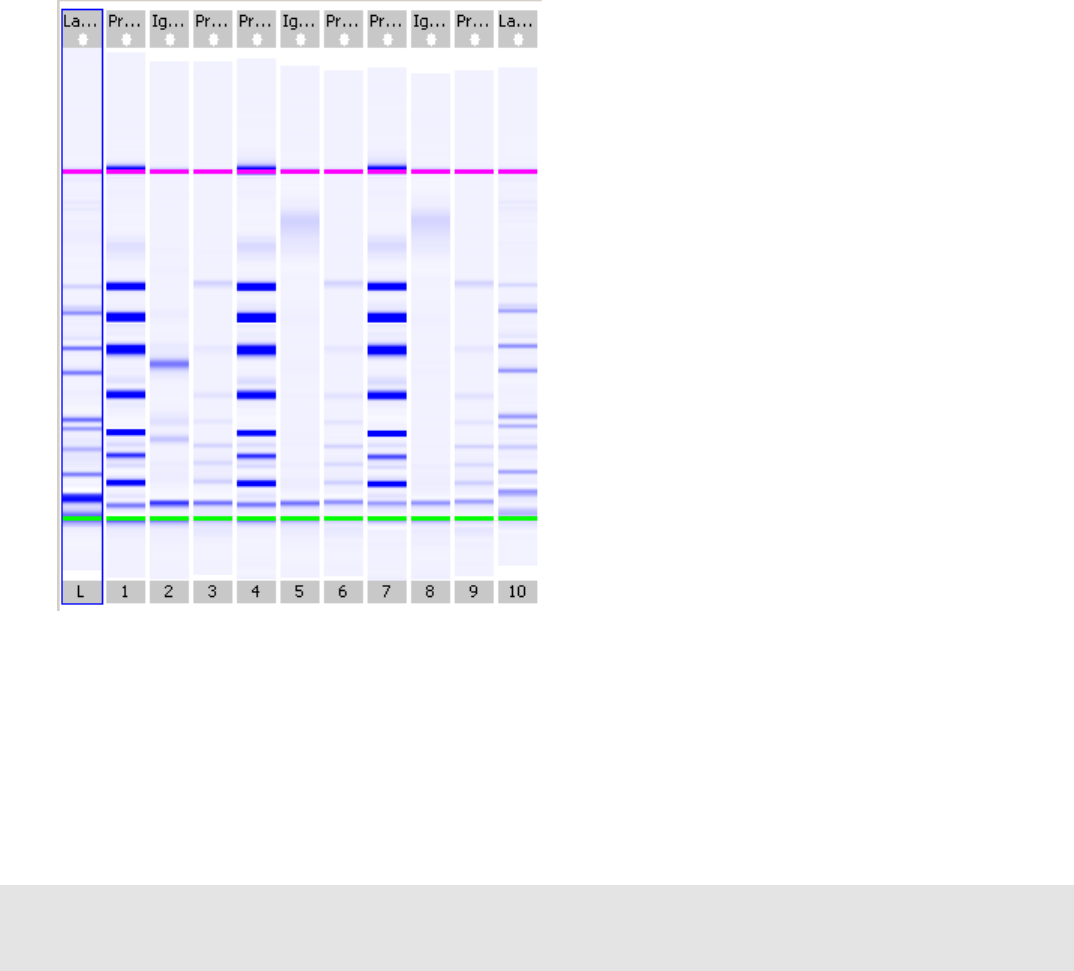

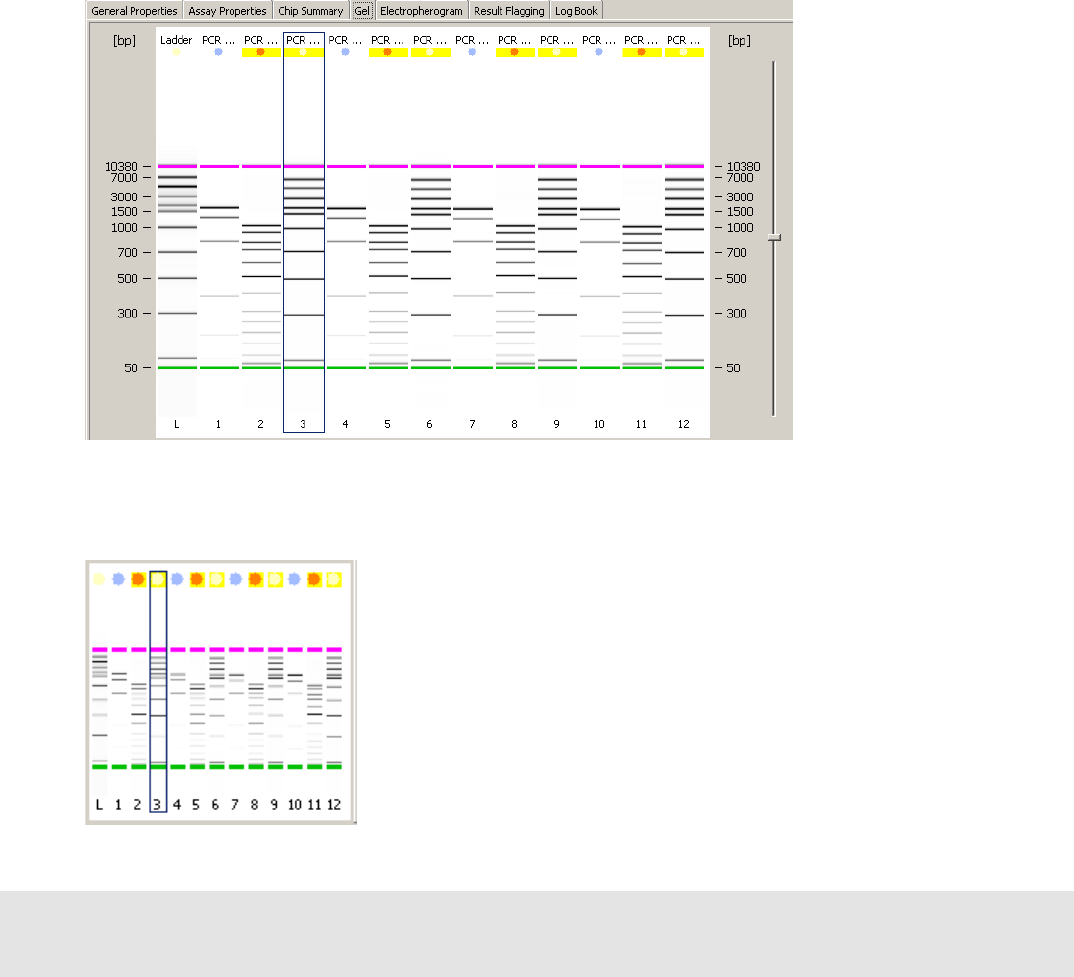

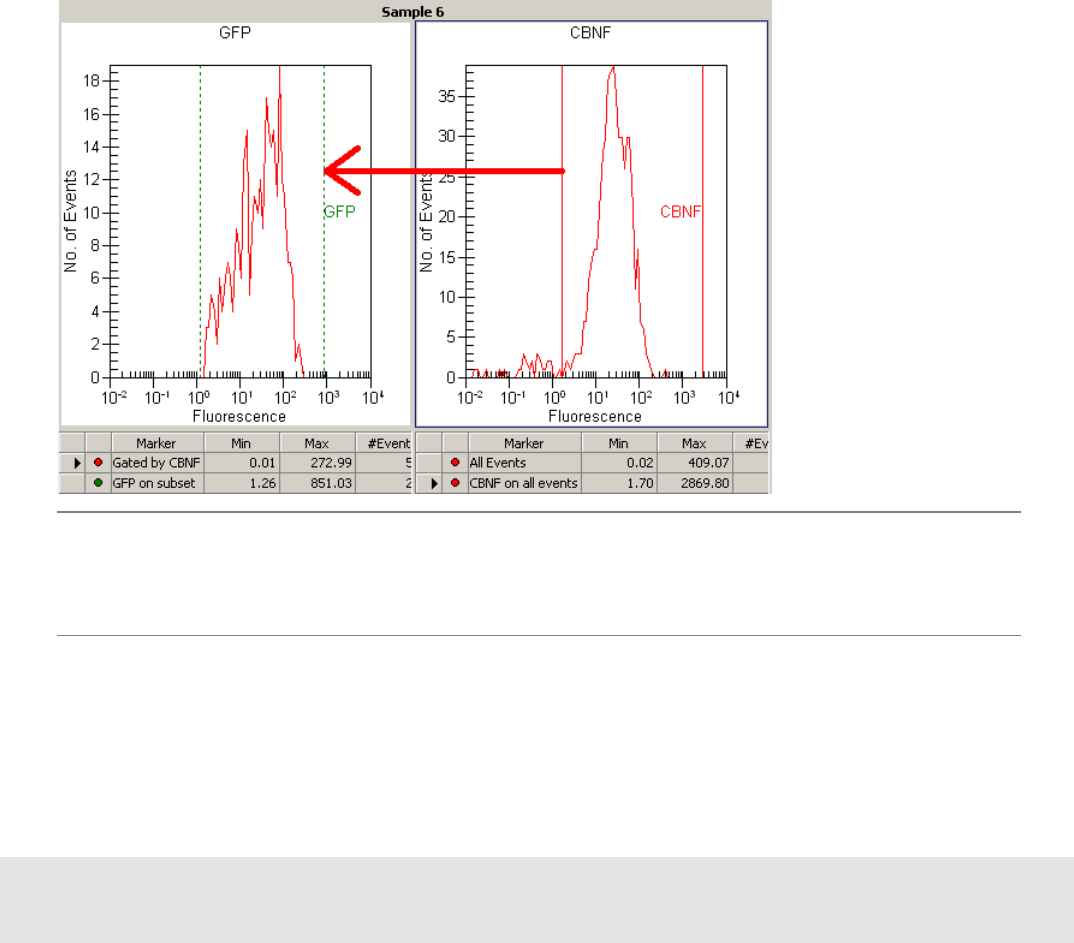

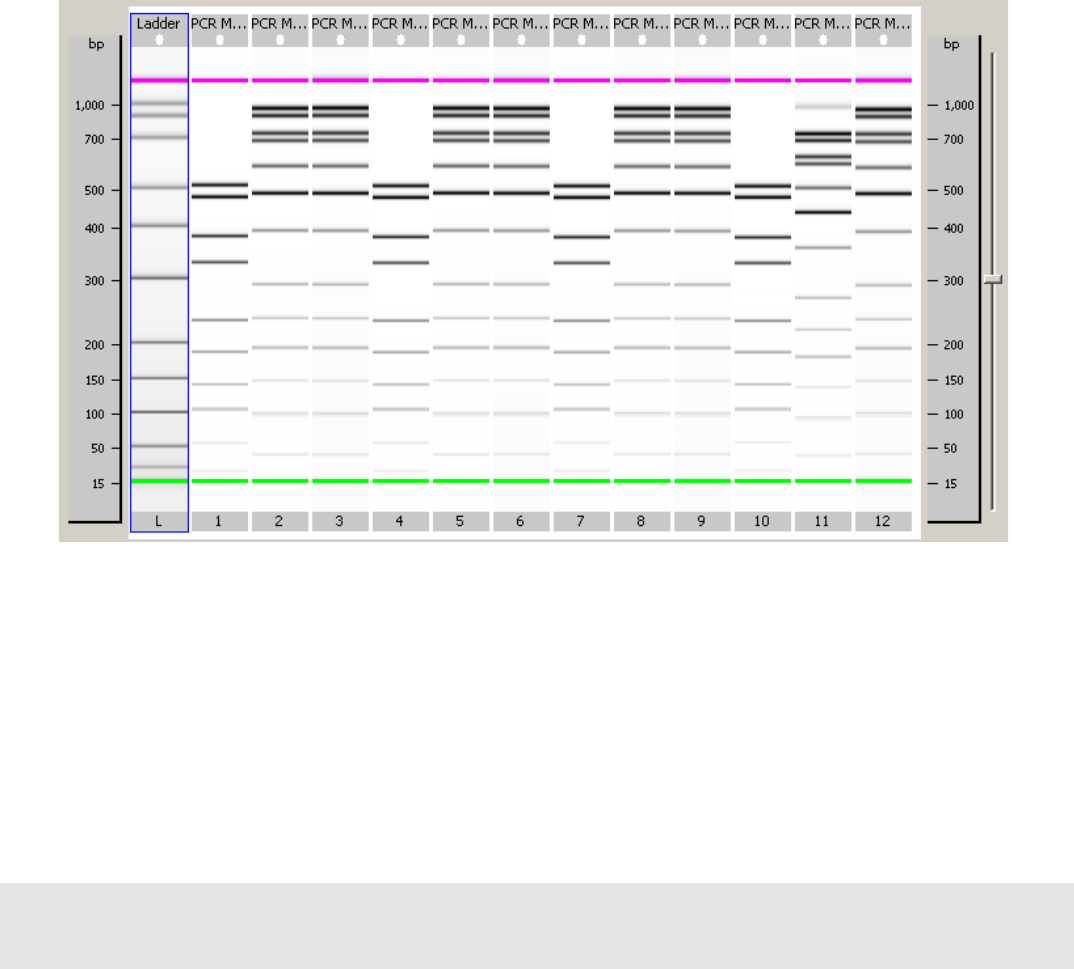

•Evaluate the measurement results by analyzing gel-like images and electropherograms

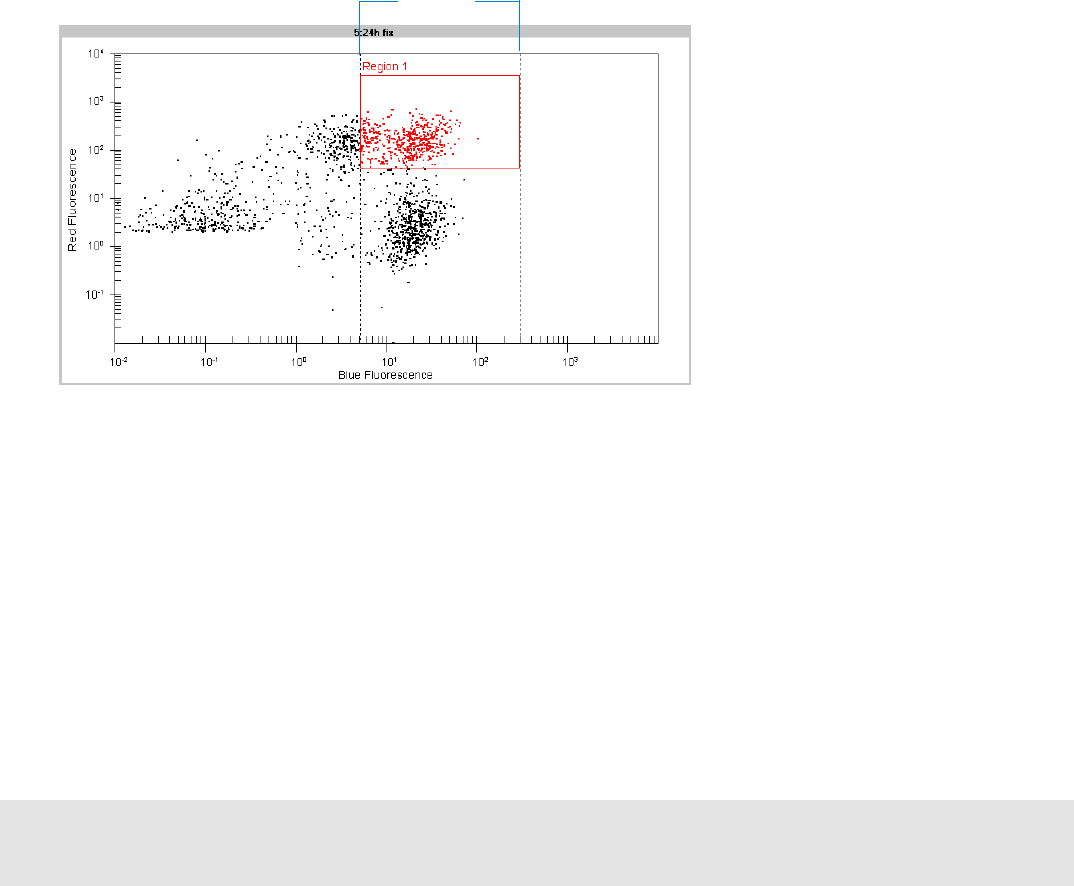

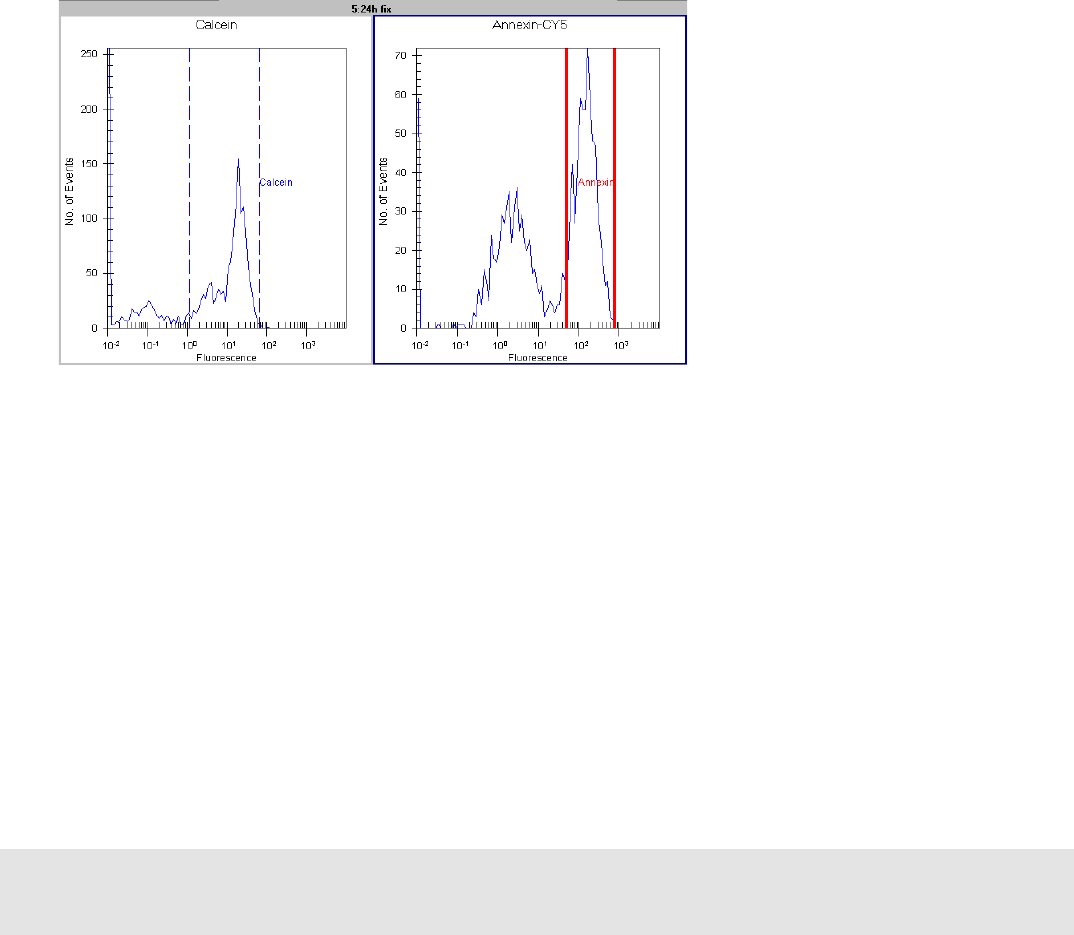

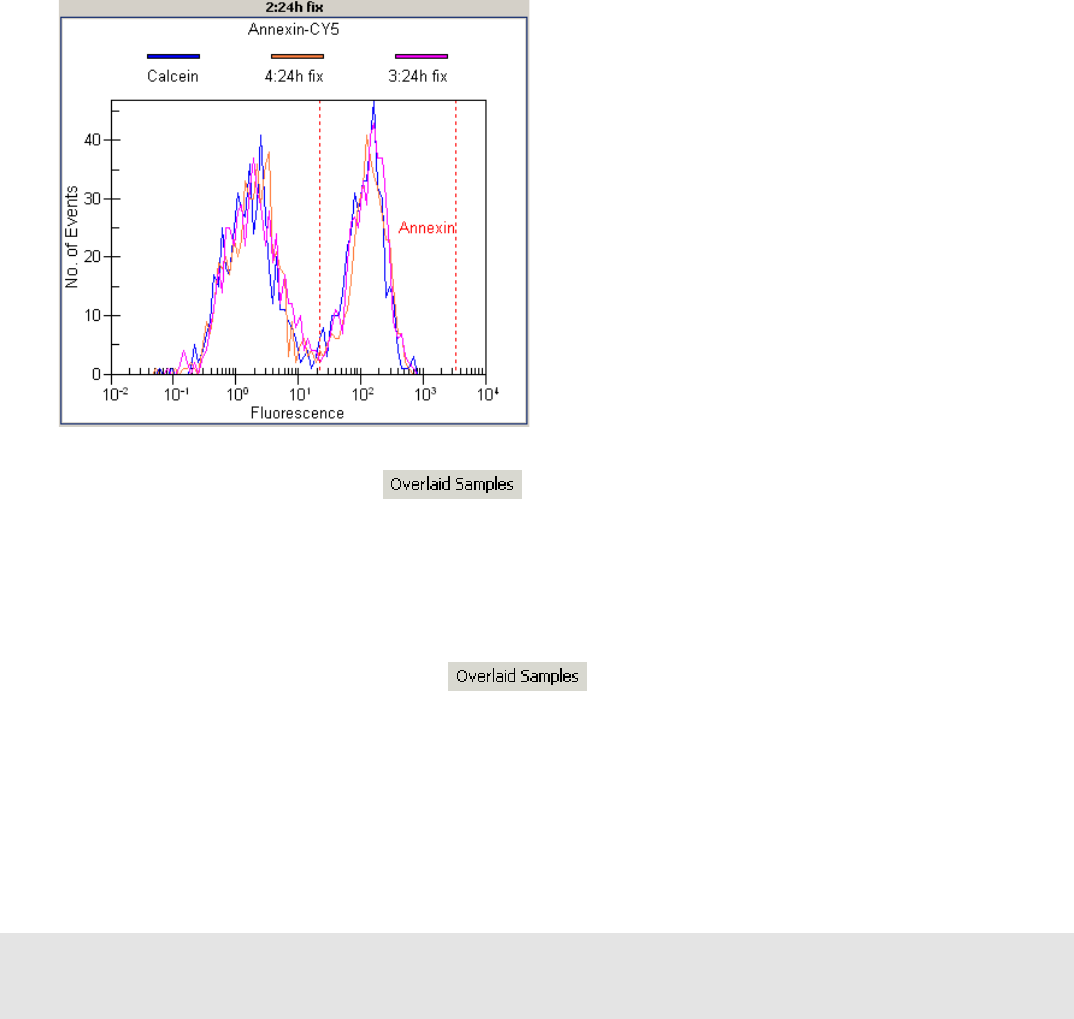

(electrophoretic assays), or histograms and dot plots (flow cytometric assays):
–“Analyzing and Evaluating the Results of an Electrophoretic Assay” on page 82
–“Analyzing and Evaluating the Results of a Flow Cytometric Assay” on page 217

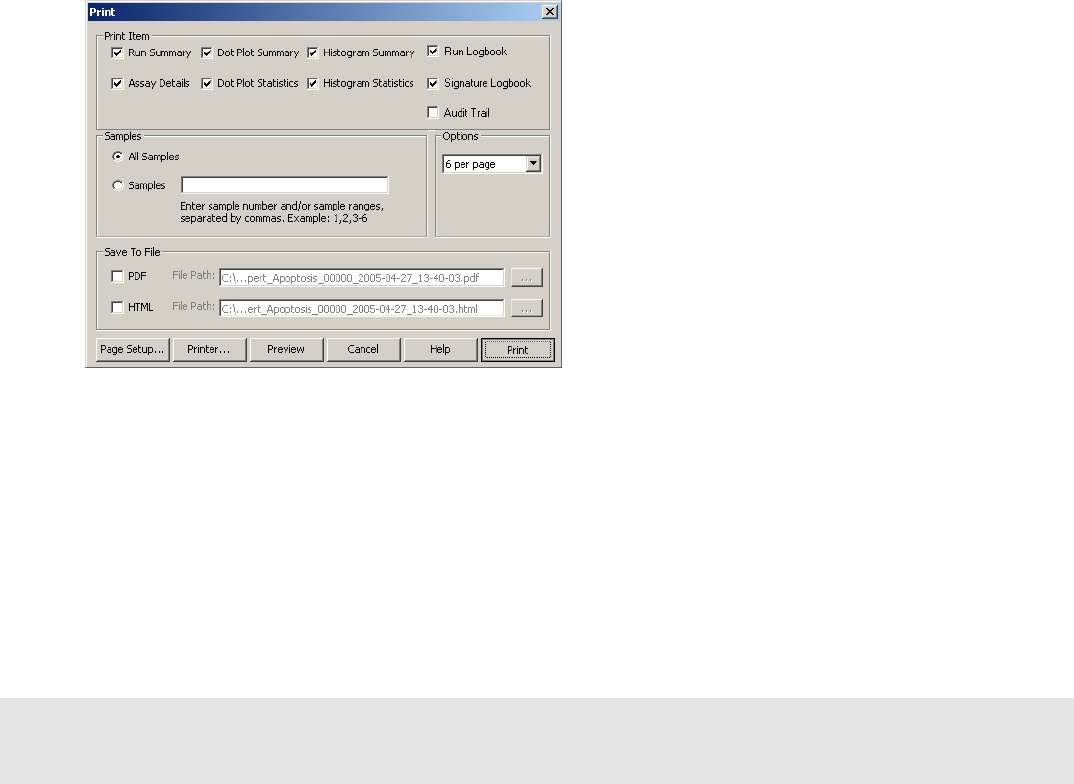

•Print the results to document them on paper or an electronic format, such as HTML or
PDF.
See “Printing Reports” on page 292.
•Export the results or parts of them for further evaluation in other applications.
See “Exporting Data” on page 283.

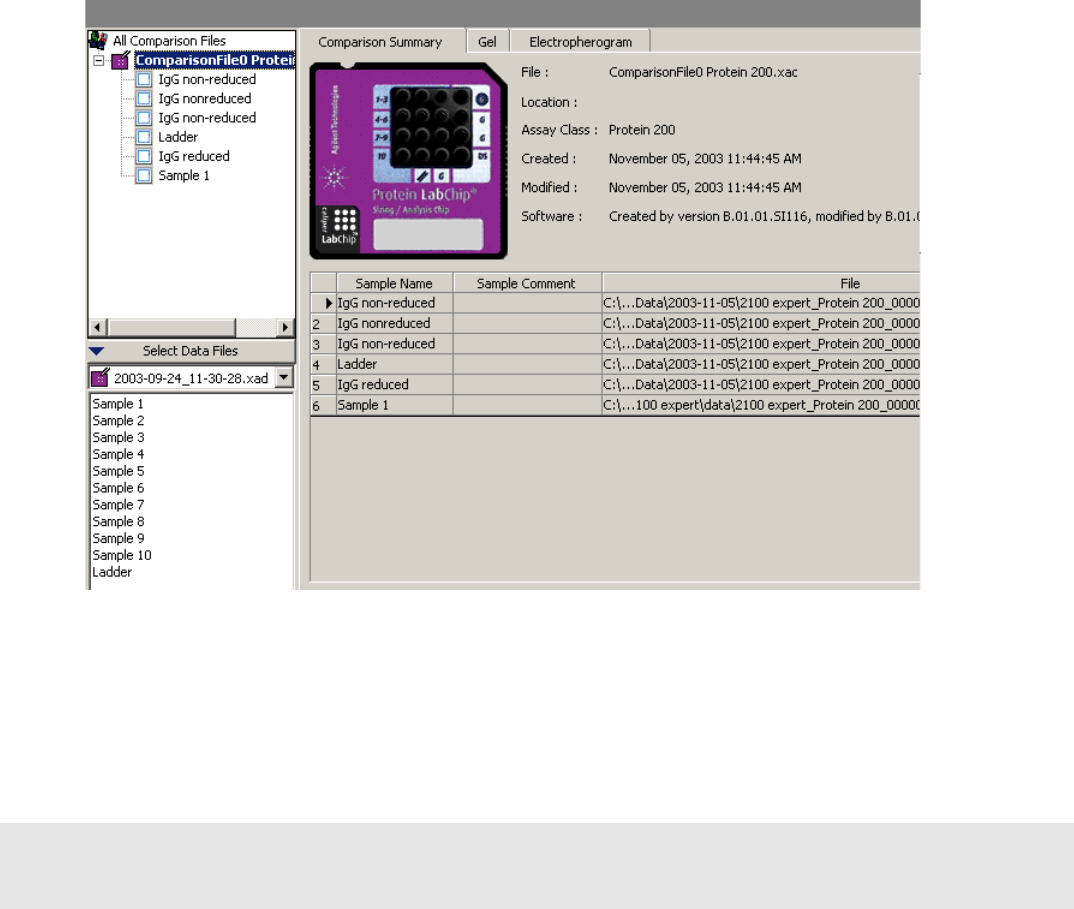

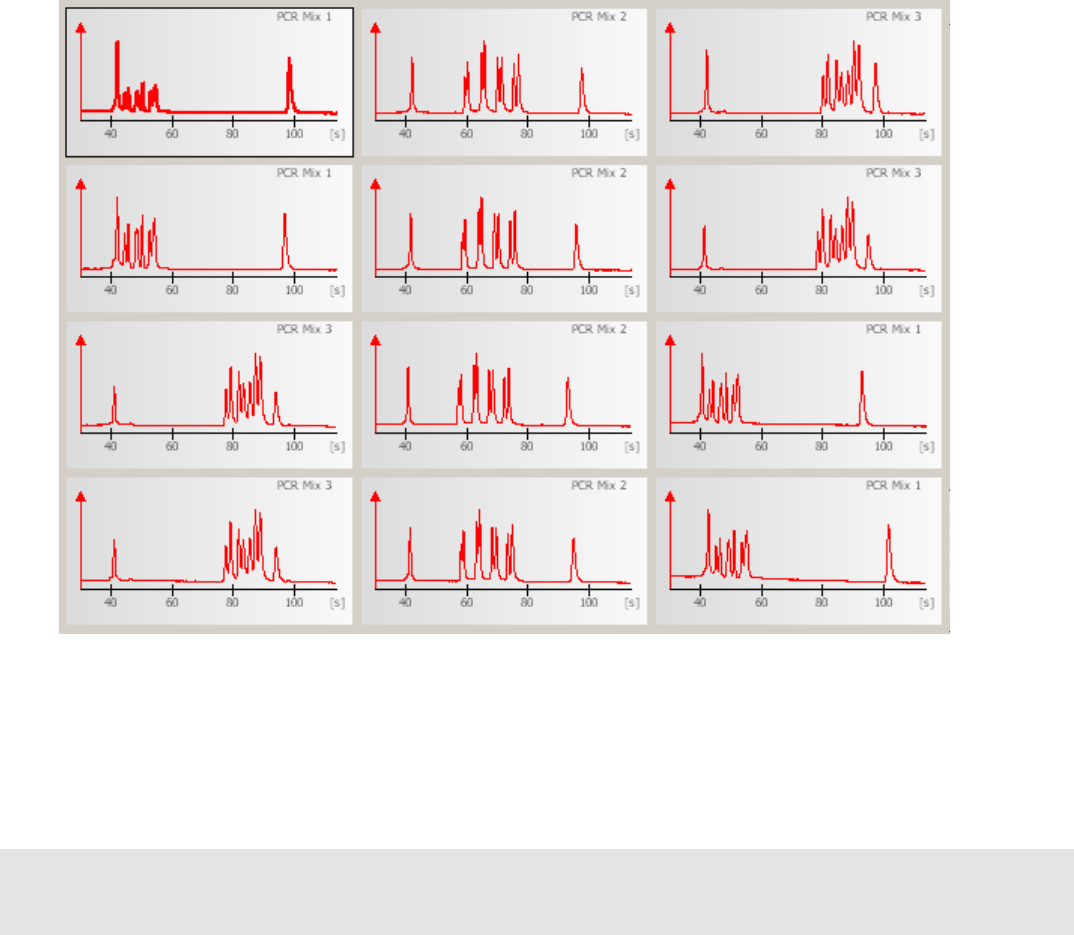

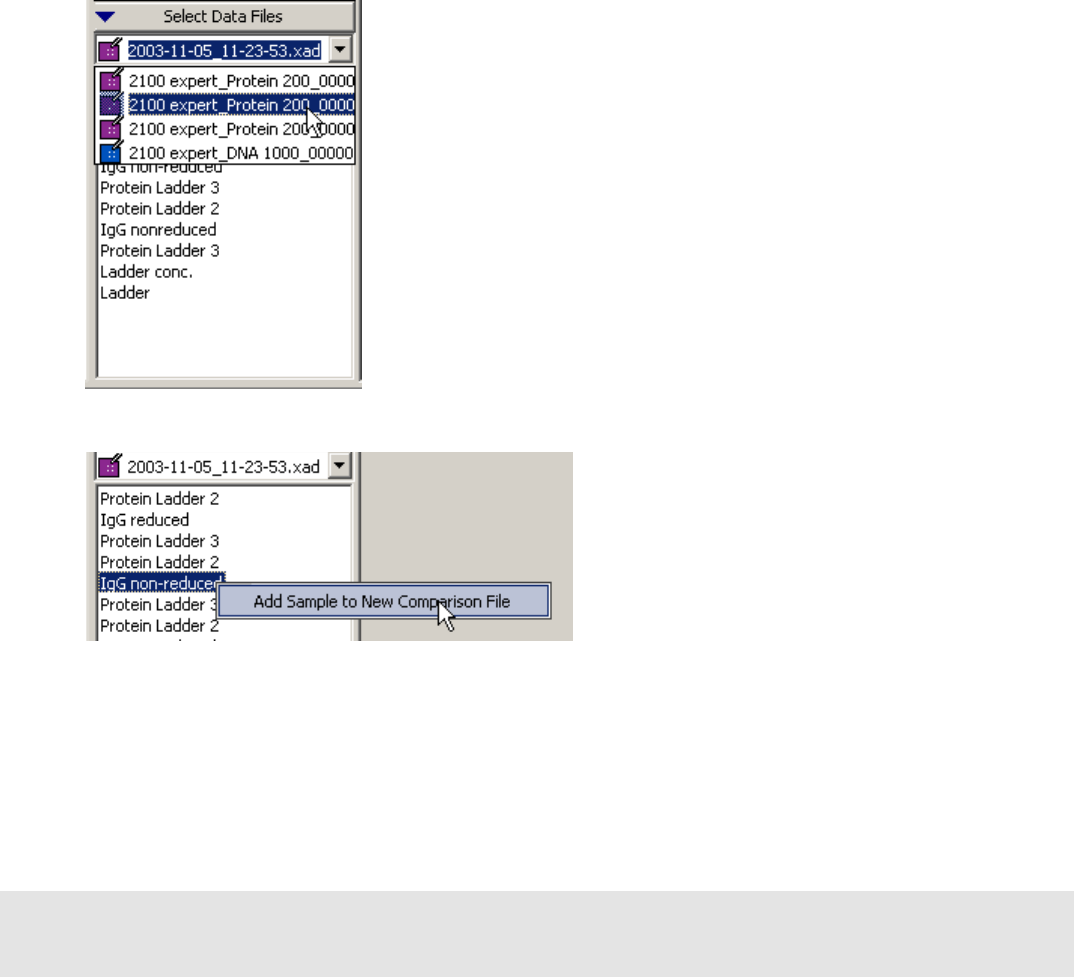

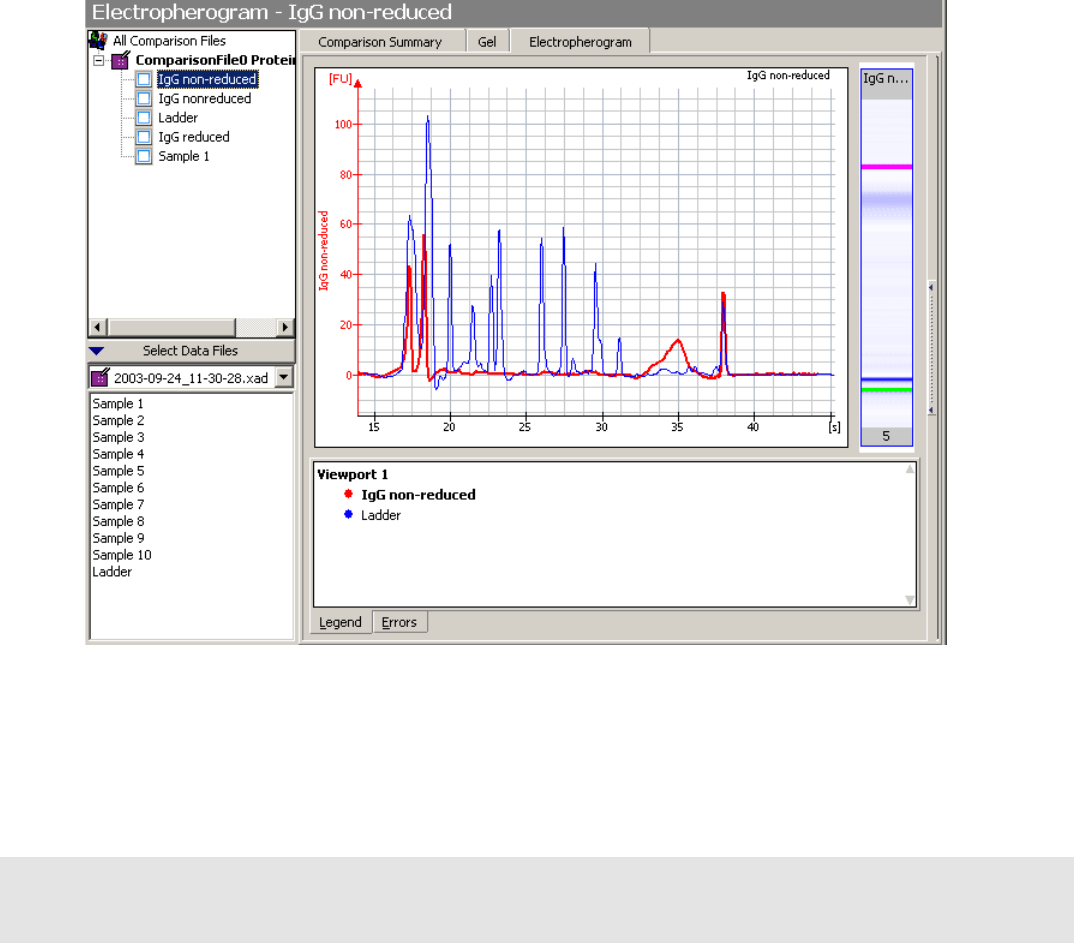

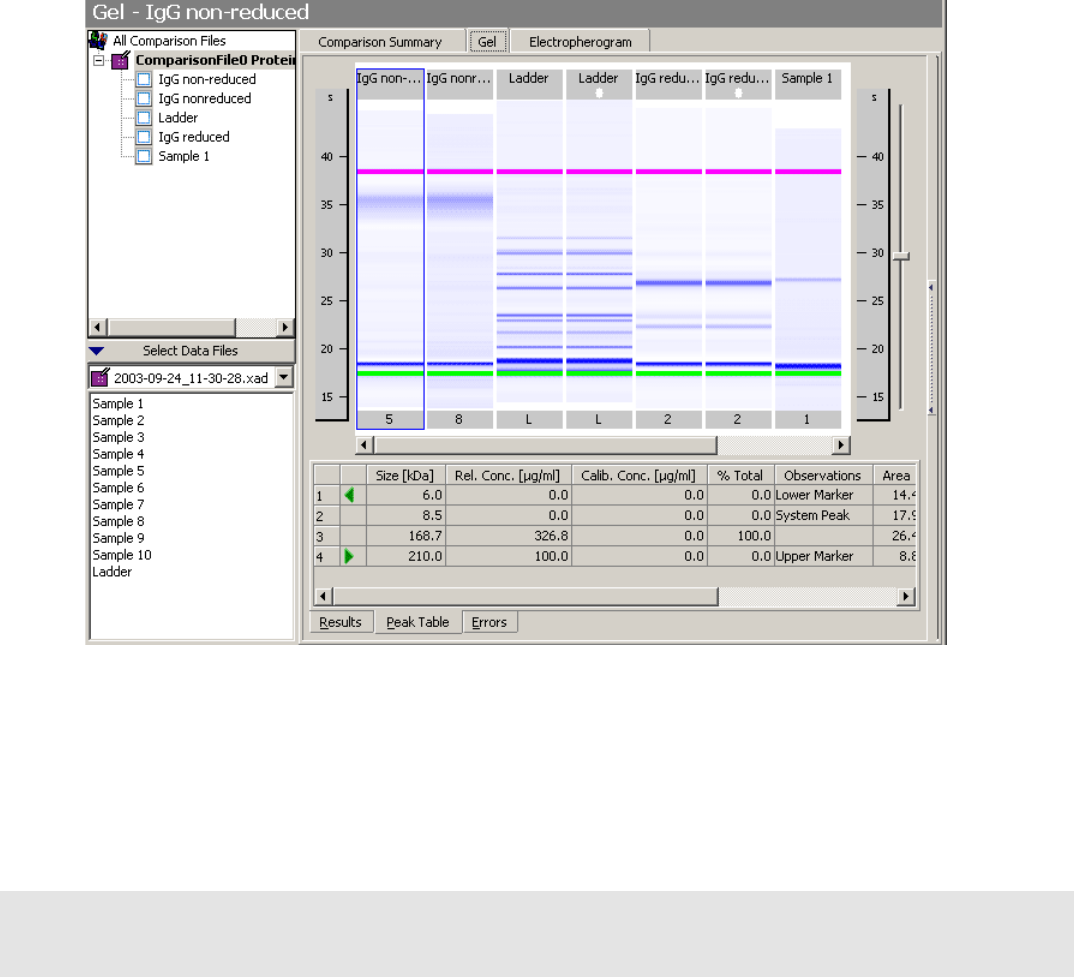

•Compare the results with the results of other chip runs in the Comparison context. See
“Comparing Samples from Different Electrophoretic Chip Runs” on page 148.
•Insert the next chip in the bioanalyzer and start a new chip run.
Contents ▲29 ▼Index
Looking at 2100 Expert
Before you start running assays on the Agilent 2100 bioanalyzer, you should familiarize
yourself with the 2100 expert software:
•“Introduction to the Key Features of the 2100 expert” on page 30
•“Starting 2100 Expert” on page 32
•“2100 Expert Work Area” on page 33

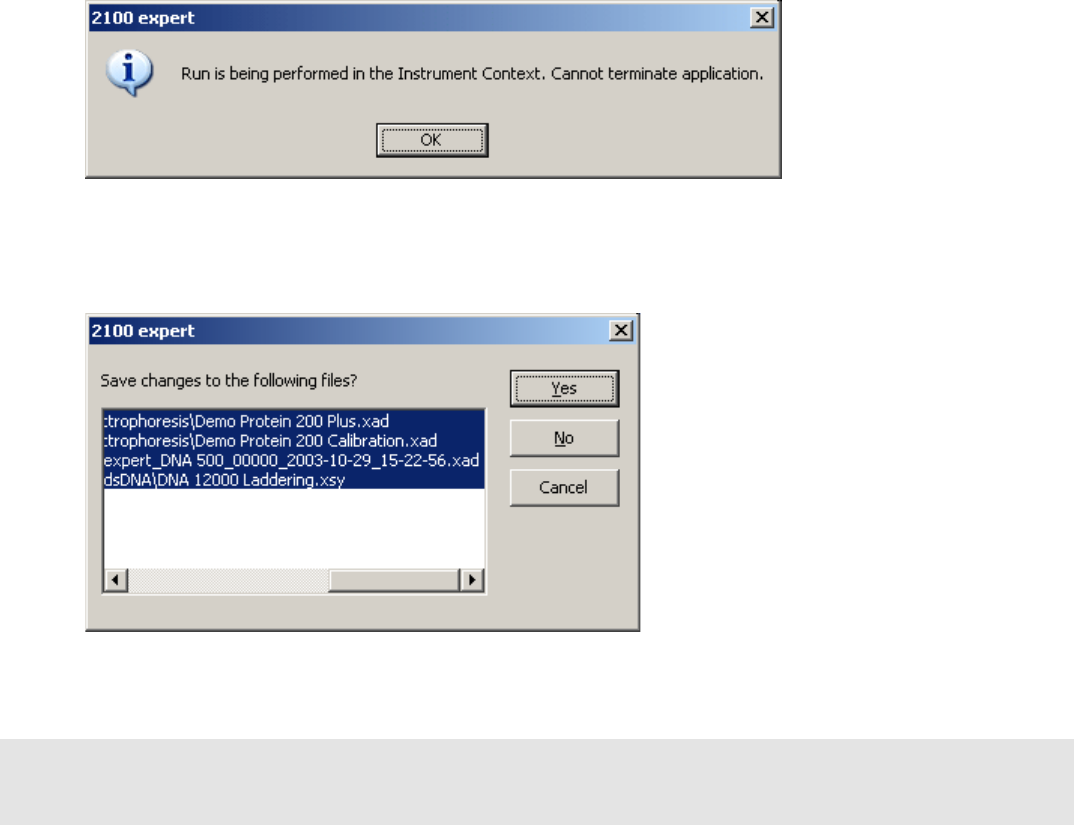

•“Closing 2100 Expert” on page 44
Contents ▲30 ▼Index
Introduction to the Key Features of the 2100 expert
The Agilent 2100 expert is characterized by the following key features:
•2100 expert provides a single software platform with a common user interface for
running, analyzing, evaluating, presenting, and comparing DNA, RNA, protein and cell
parameters.

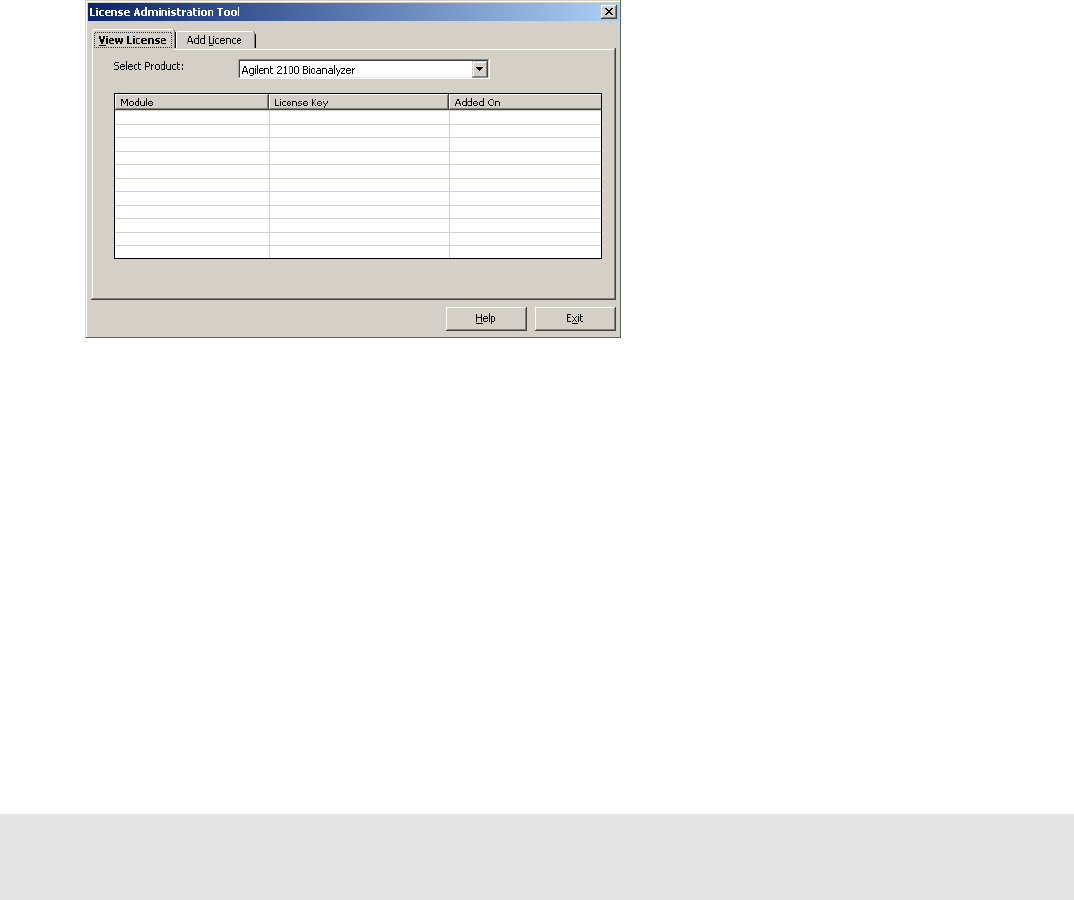

•2100 expert is installed in one go. After installation, the functionality for electrophoretic
and flow cytometric assays can be activated separately with license keys.

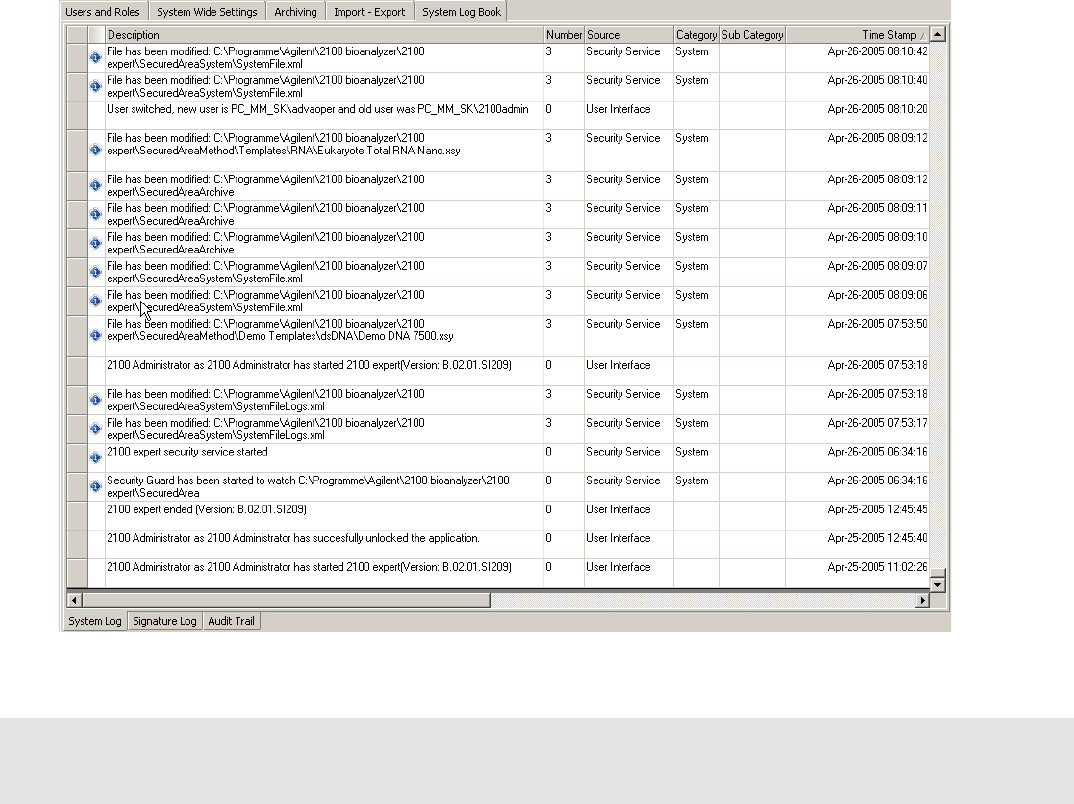

•2100 expert provides an optional security pack that needs to be ordered separately as
G2949CA and is then activated with a license key. This security pack activates user
management functions and electronic signature to meet the Food and Drug
Administration (FDA) requirements (21 CFR Part 11).

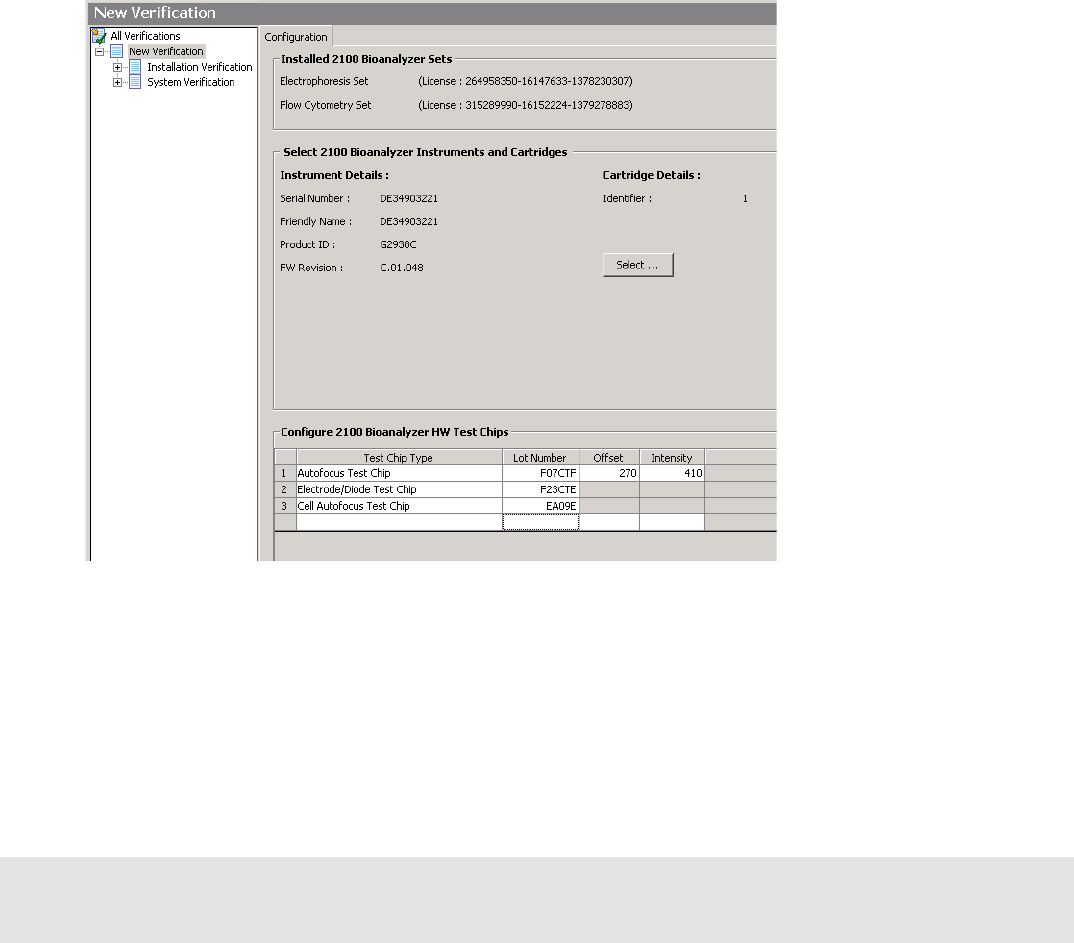

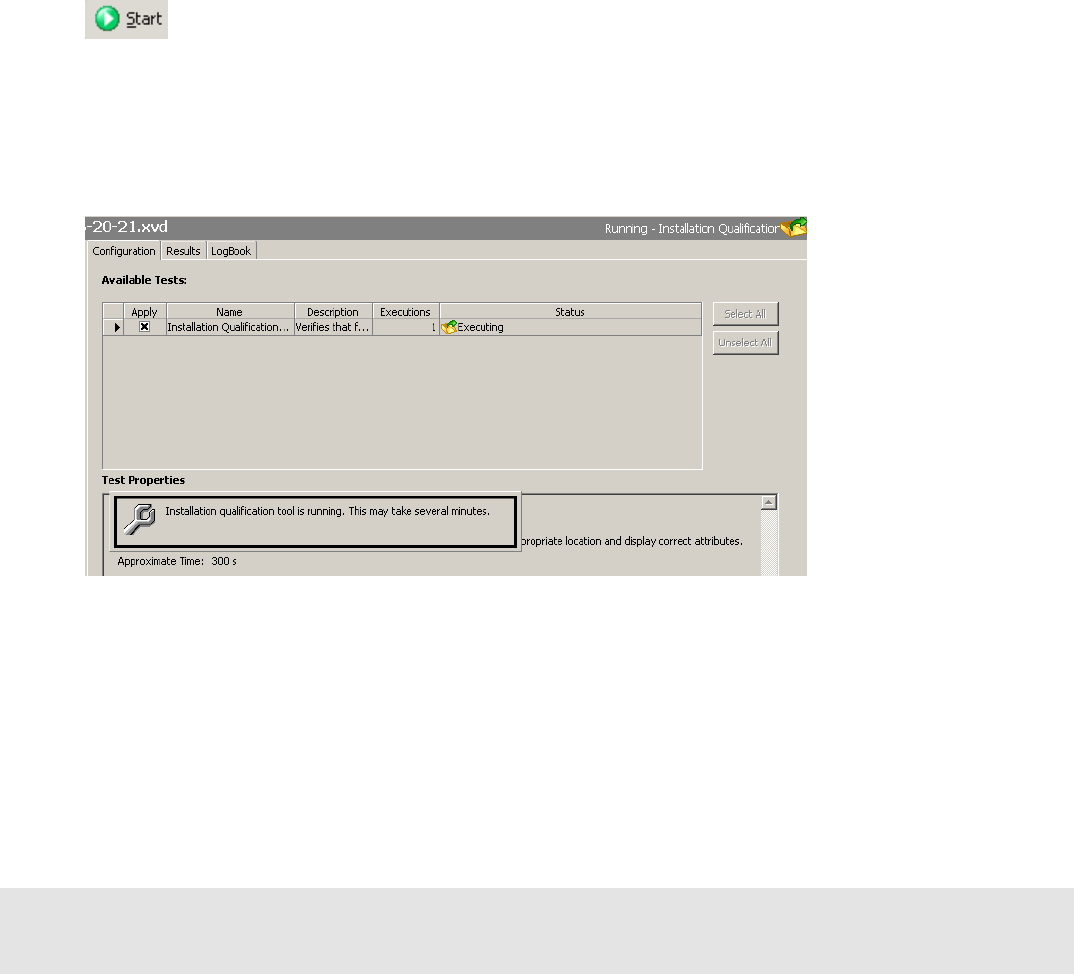

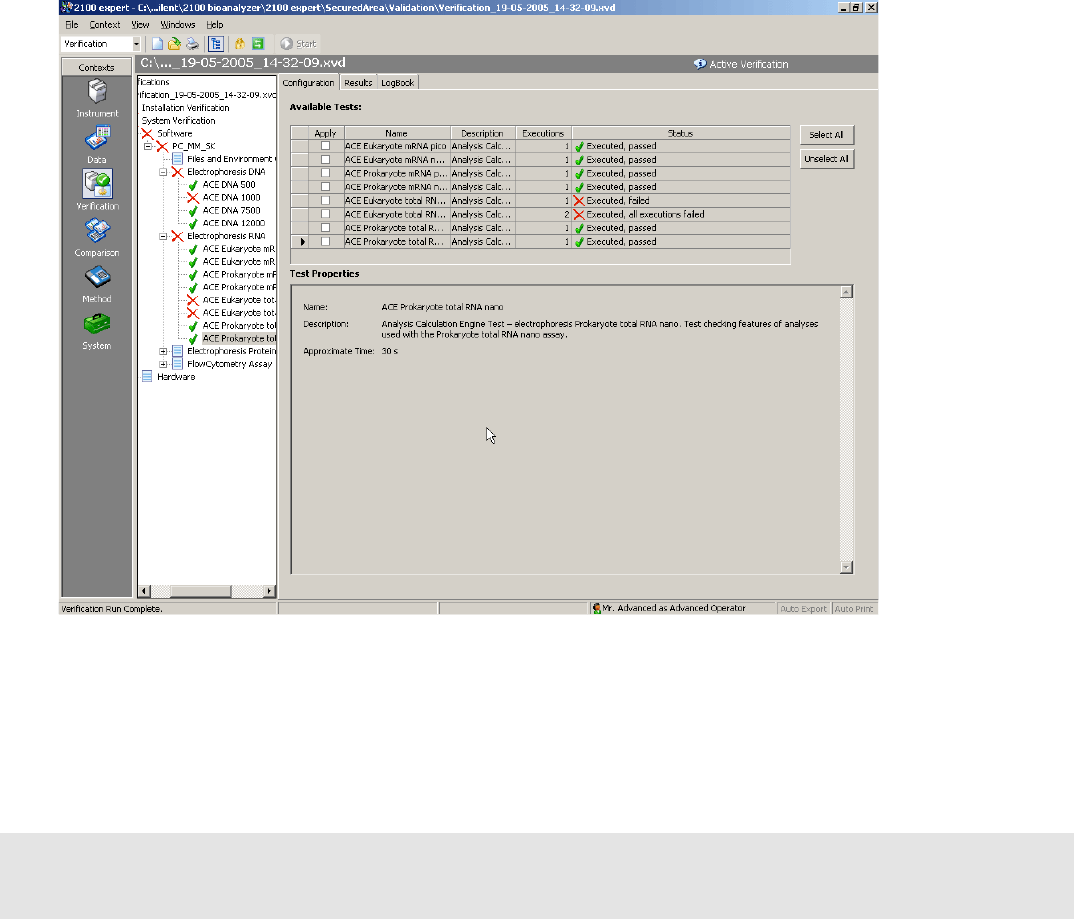

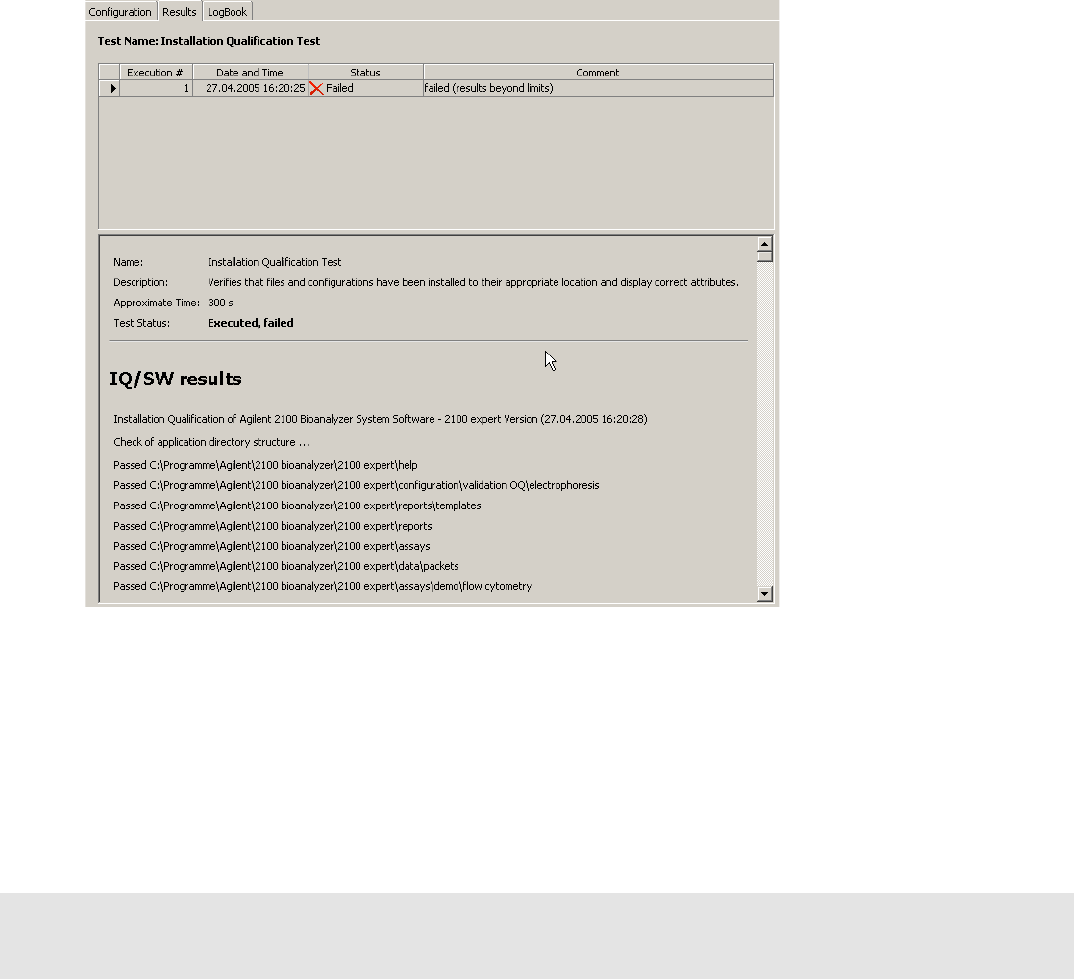

•2100 expert provides detailed installation verification and system verification tests on
both the bioanalyzer hardware and software.
•2100 expert allows having multiple chip data and/or assay files open at the same time.
•2100 expert features a new integrated data evaluation tool (Comparison context)
allowing comparison of measurement results (of same assay class) from different chips
directly. A separate data evaluation tool is no longer necessary.

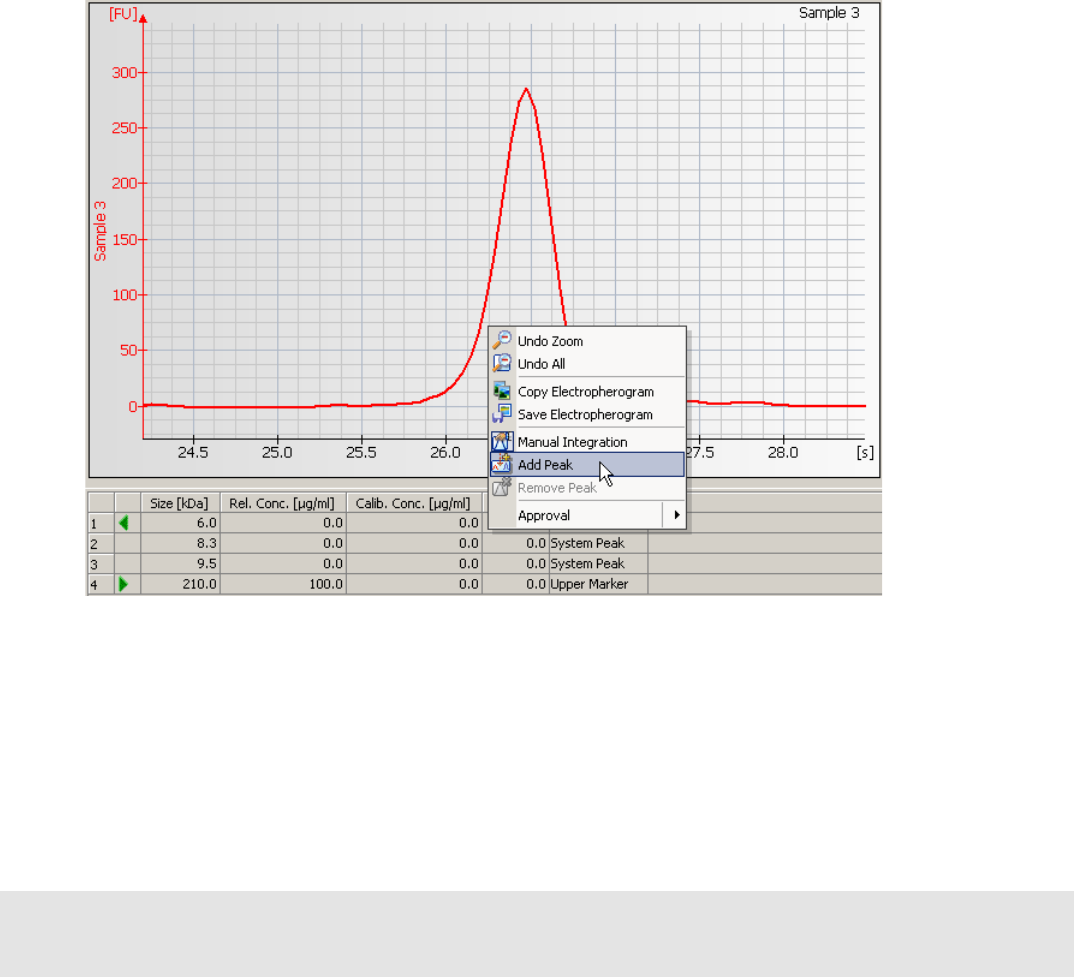

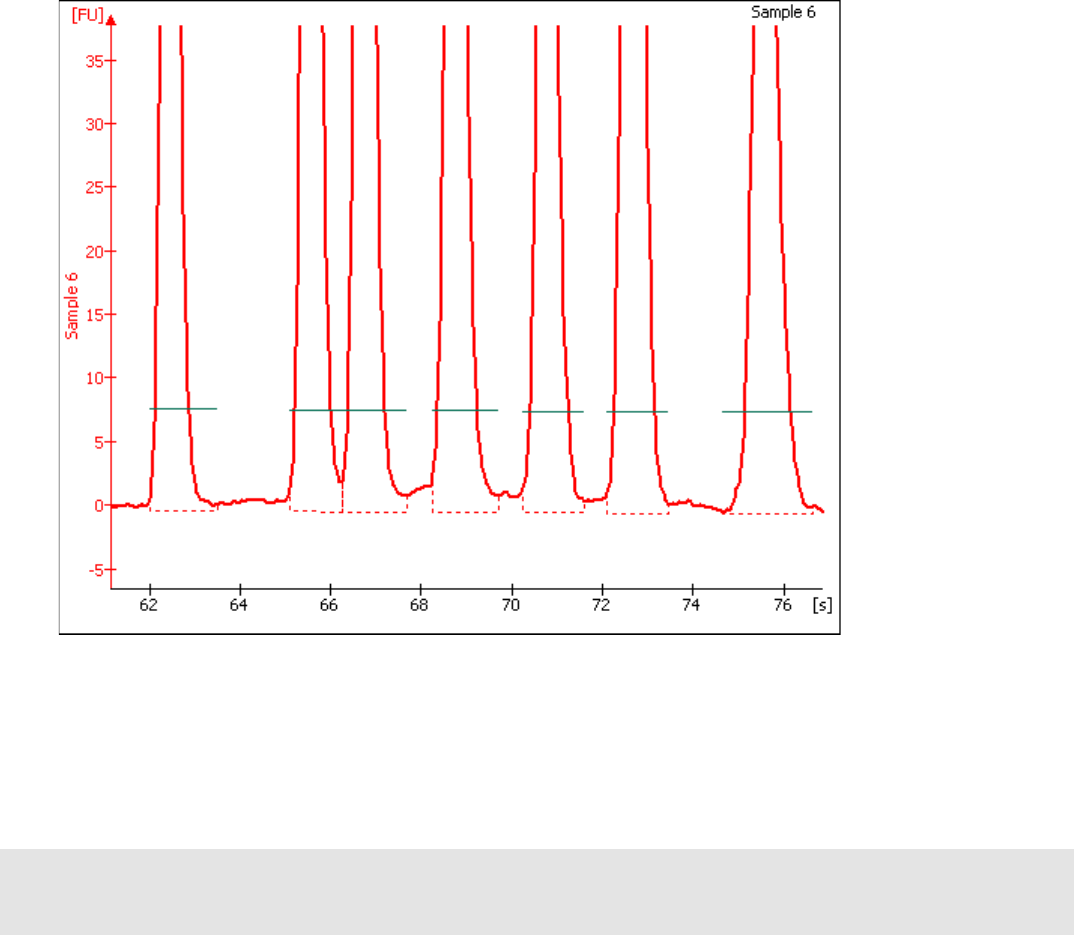

•2100 expert features improved integration including manual integration (available for
DNA and Protein assays only).

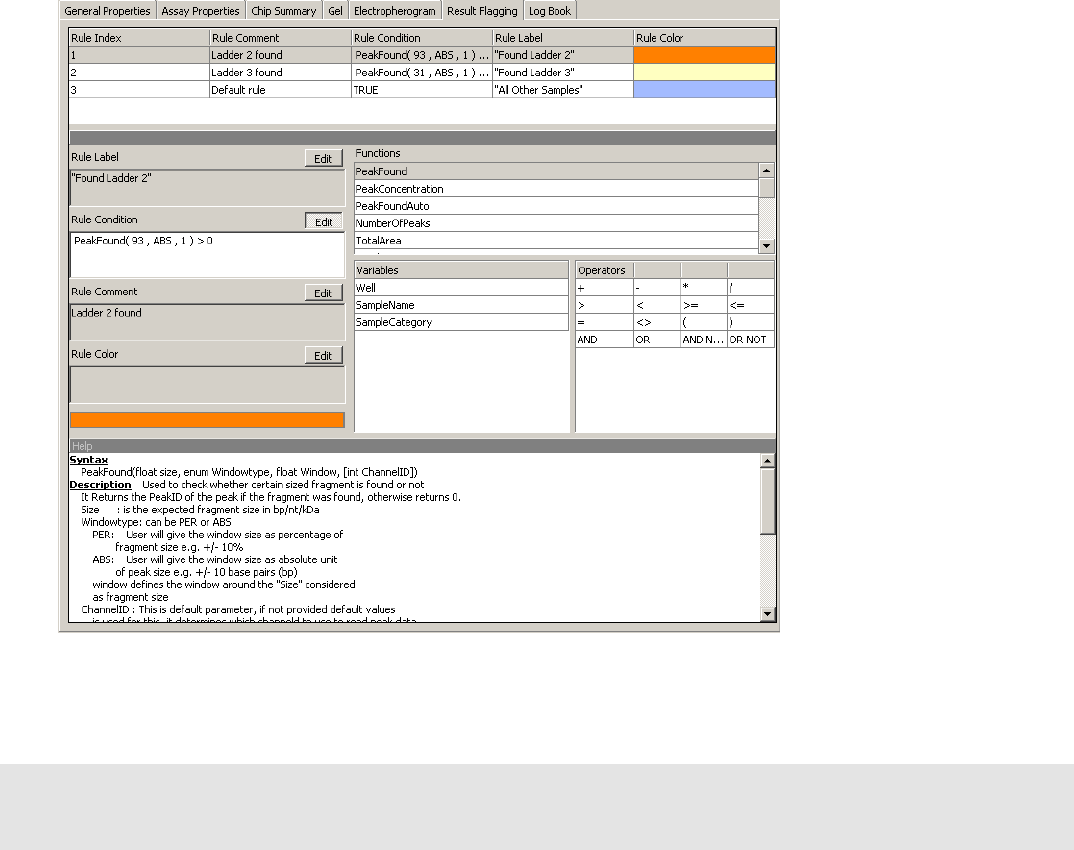

•2100 expert allows color-coded result flagging with pre-defined or custom result
flagging rules. Flagging rules can be applied to measurement results.

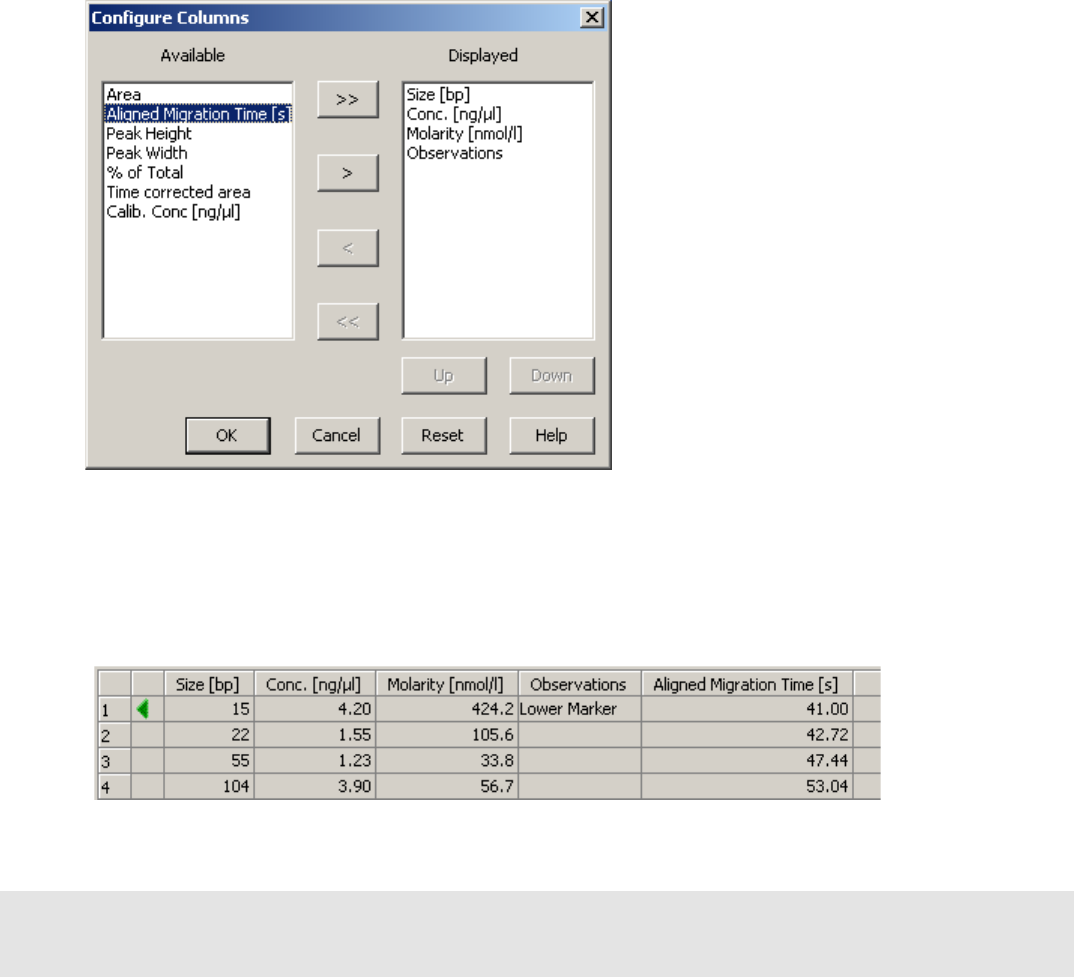

•2100 expert now has customizable result tables and gel-like images.
Contents ▲31 ▼Index
•2100 expert has improved instrument control. Two bioanalyzers can be controlled at
one time. It is possible to run measurements as well as diagnostics tests on two
bioanalyzers at the same time.
•2100 expert has improved printing and reporting functions.

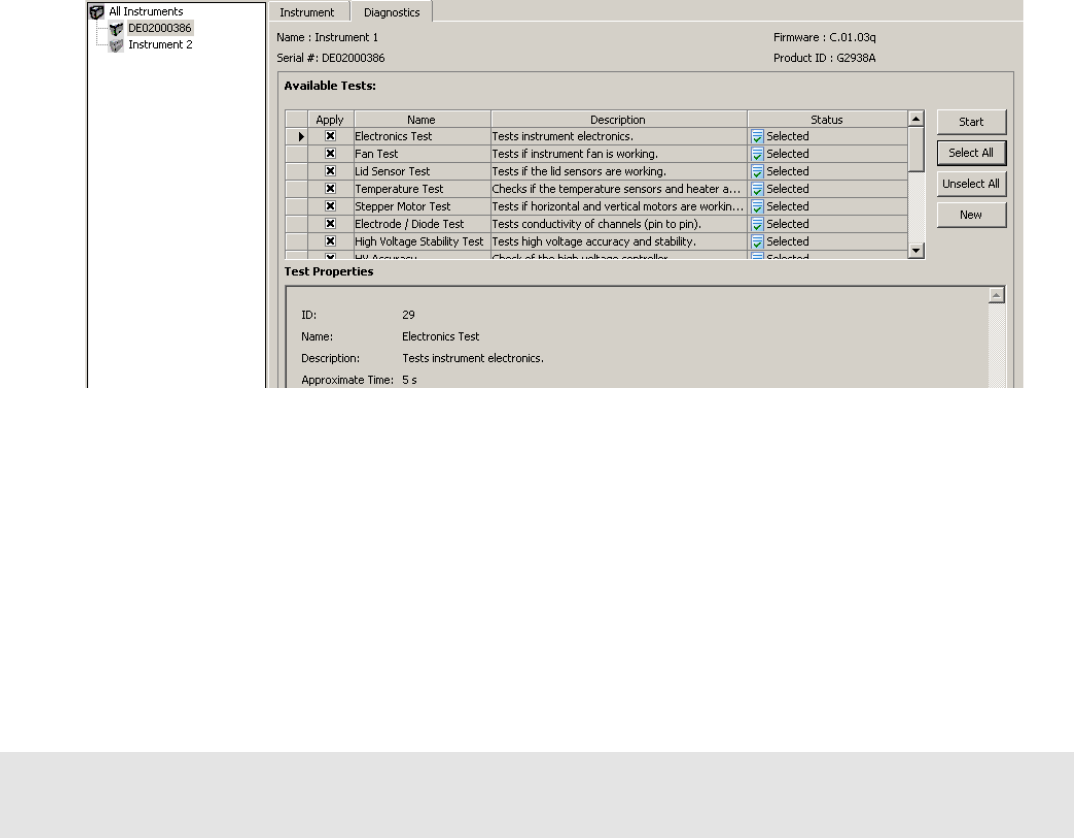

•2100 expert has extended instrument diagnostics functionality.
Contents ▲33 ▼Index

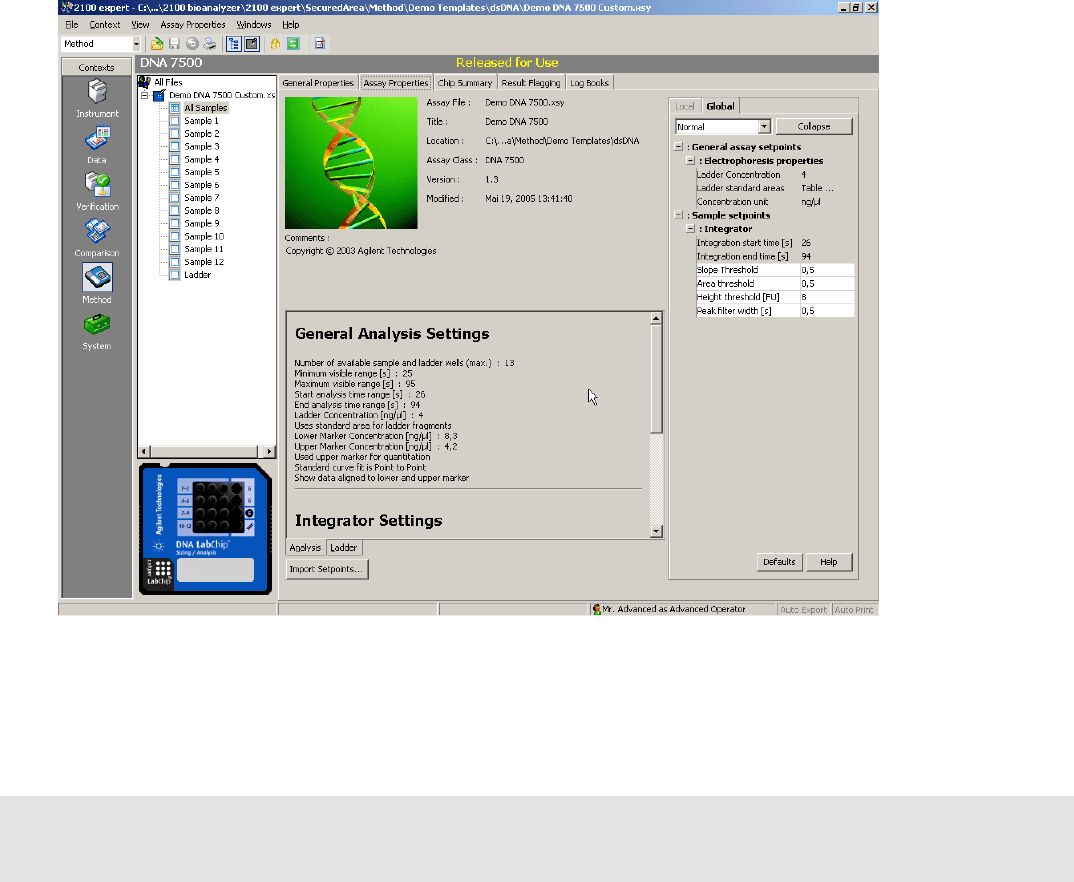

2100 Expert Work Area
The 2100 expert software has standard elements such as pull-down menus and toolbars,
and the main working area, which contains several tabs, some of which have sub-tabs.
The 2100 expert work area has the following regions (demonstrated at the Data context):
Menu Bar
Info Bar
Tree View
Ta b s
Status Bar
To o l b ar
Title Bar
Lower
Panel
Sub-tabs
Setpoint Explorer
Context Bar
Contents ▲34 ▼Index
The 2100 expert software can be operated in six modes, called contexts”:
•Instrument Context
•Data Context
•Verification Context
•Comparison Context
•Assay Context

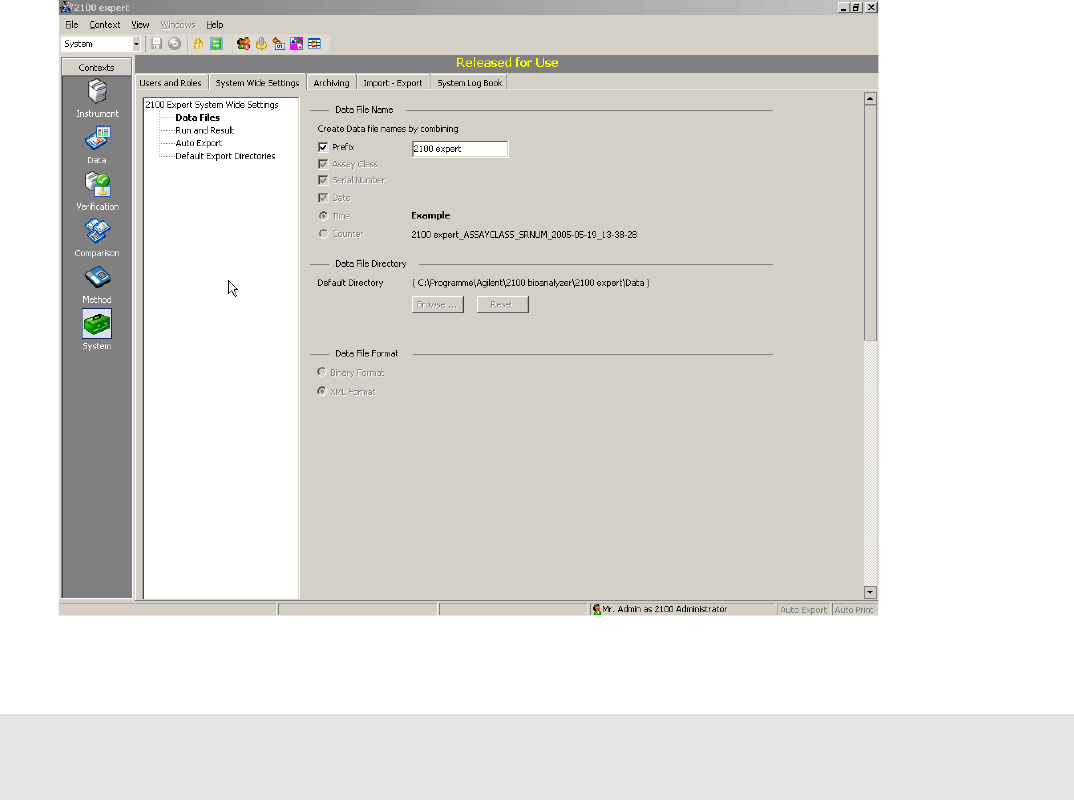

•System Context
NOTE
The contexts work independent from each other regarding their data. This means, for
example, that you can review data and run measurements at the same time.
Contents ▲35 ▼Index
Using the Contexts bar, the Context menu, or the selection list in the toolbar, you can
switch between the contexts:
NOTE
Menus, toolbars, the tree view, and the main working area (tabs) significantly change
when you switch between the contexts.
An introduction to the six contexts is given in the following.
Contents ▲36 ▼Index
Instrument Context
On startup, 2100 expert enters the Instrument context, where you can run DNA, RNA,
protein or cell assays by selecting an assay file and starting the chip run—provided that
the bioanalyzer is properly connected, a chip is inserted, and the bioanalyzer lid is closed.
Contents ▲37 ▼Index
NOTE
If two bioanalyzers are connected to your PC, you can run both in parallel.
During the chip run(s), you can view the status of the bioanalyzer(s): instrument
information and real time acquisition data.

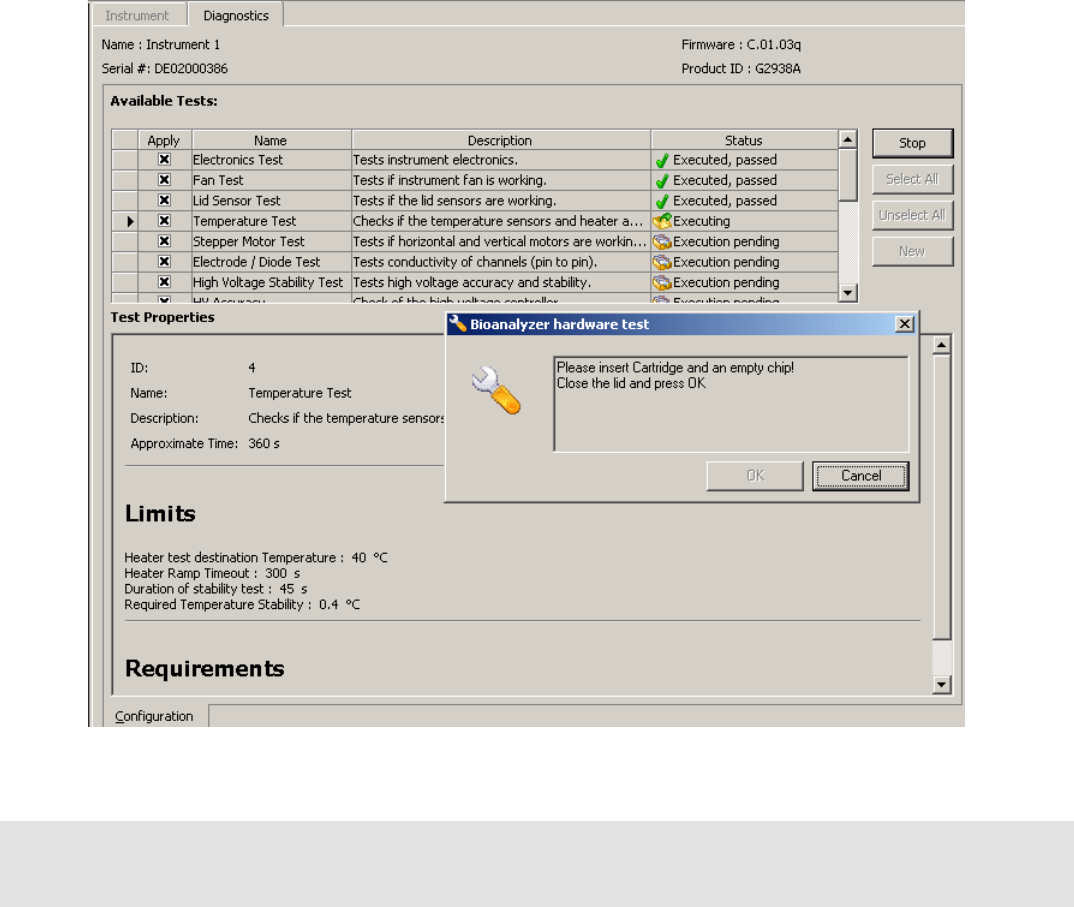

In the Instrument context, it is also possible to run hardware diagnostic tests on all
connected bioanalyzers. Refer to “Running Instrument Diagnostics” on page 322 for
details.
Contents ▲38 ▼Index
Data Context
In the Data context, you can
•view, analyze, and evaluate the results of your chip runs that are presented as

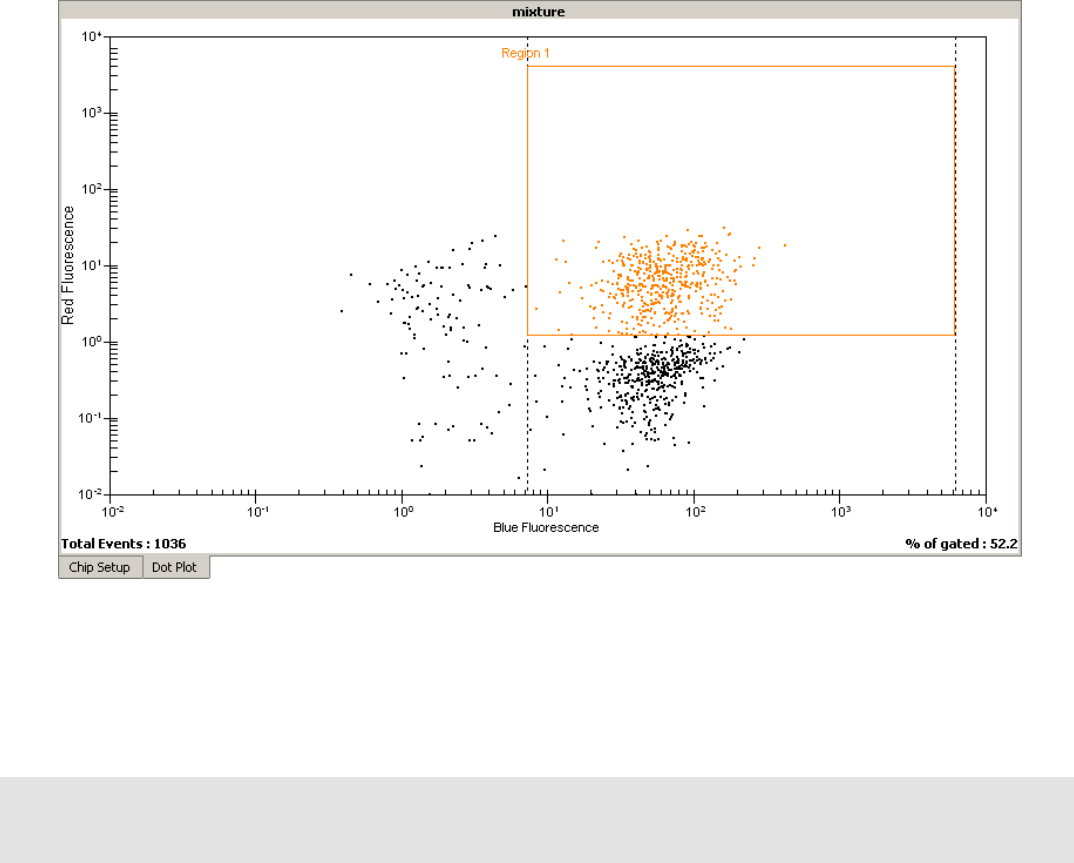

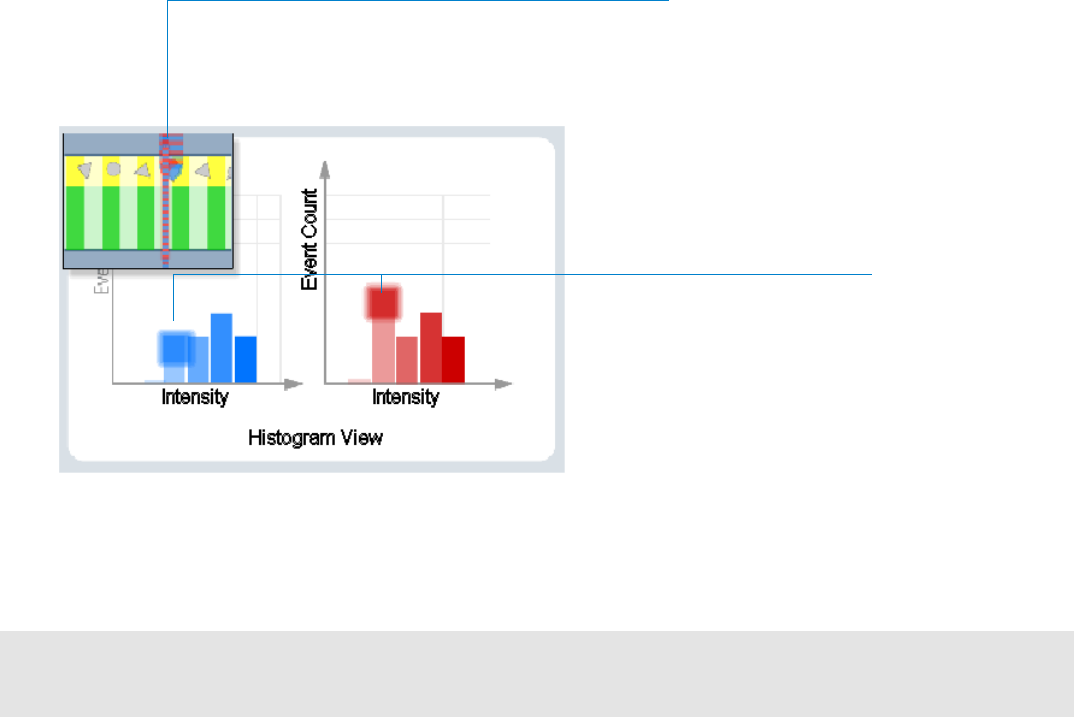

electropherograms, gel-like images, histograms, dot plots, and result tables.

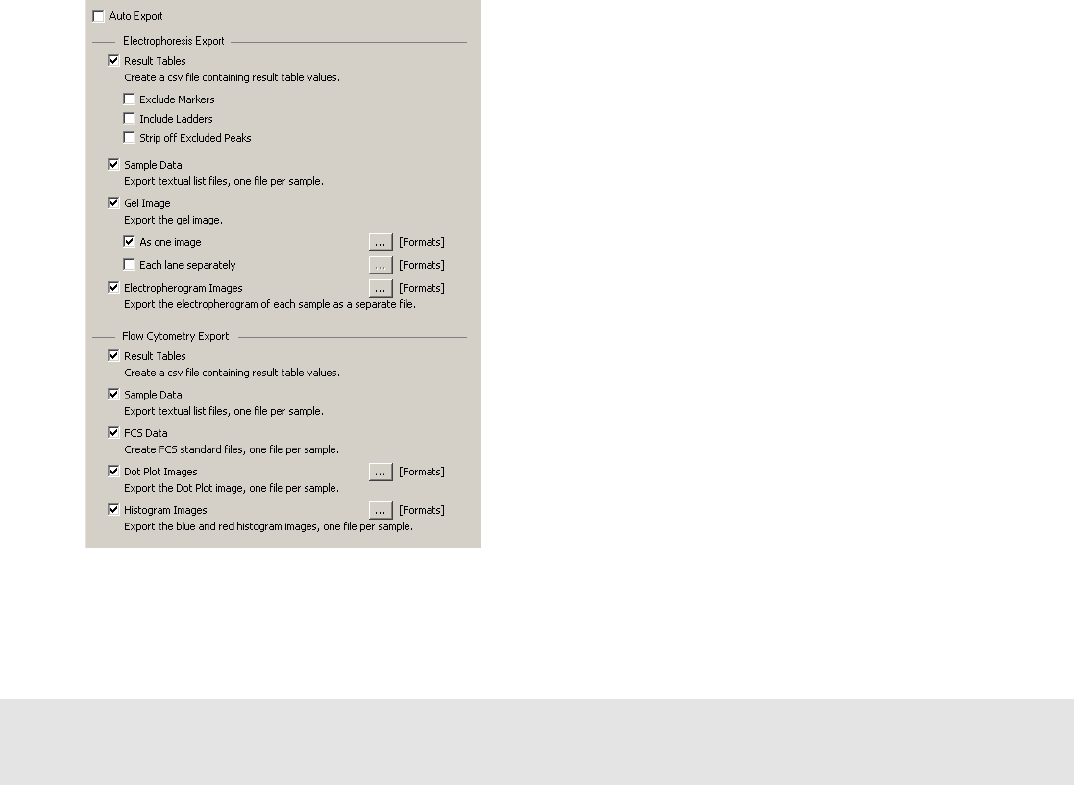

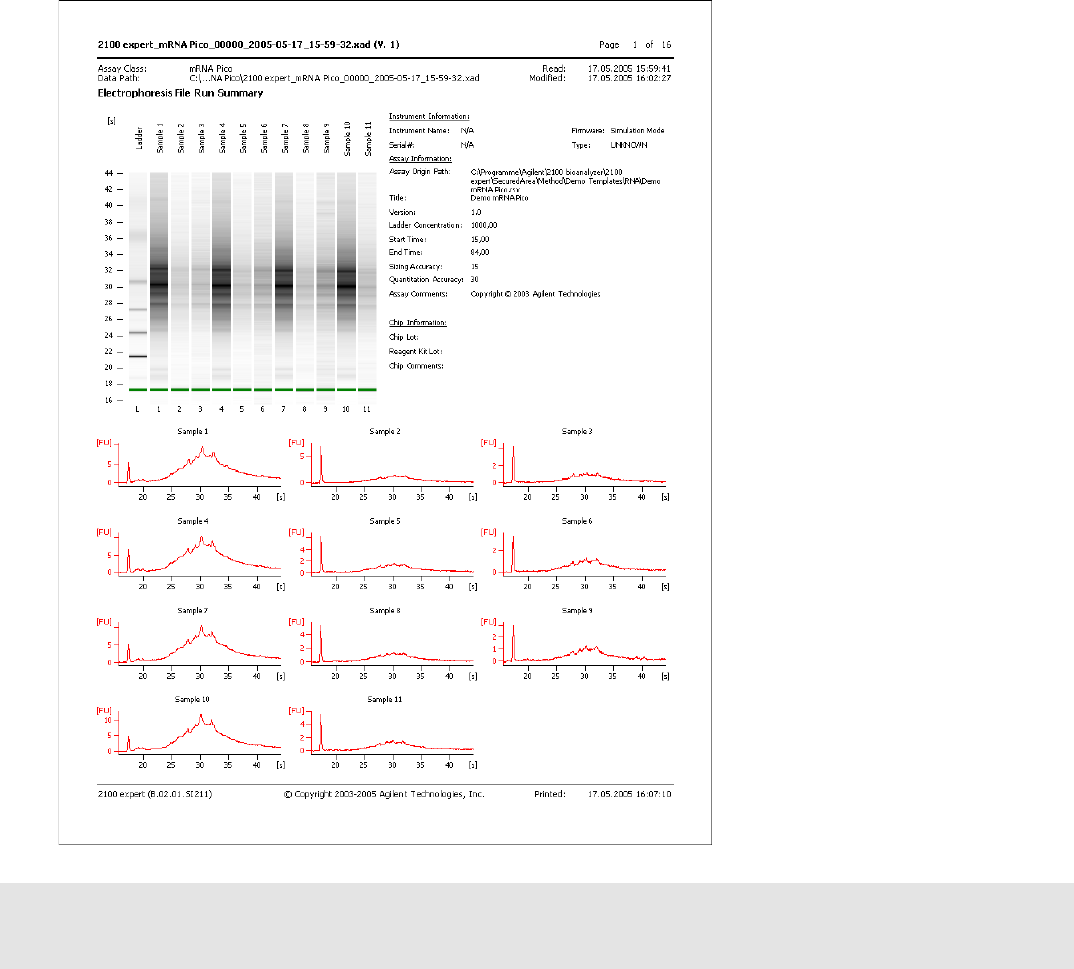

•export and print the results of your chip runs.
The measurement data is stored in .xad files.
Contents ▲41 ▼Index
Comparison Context

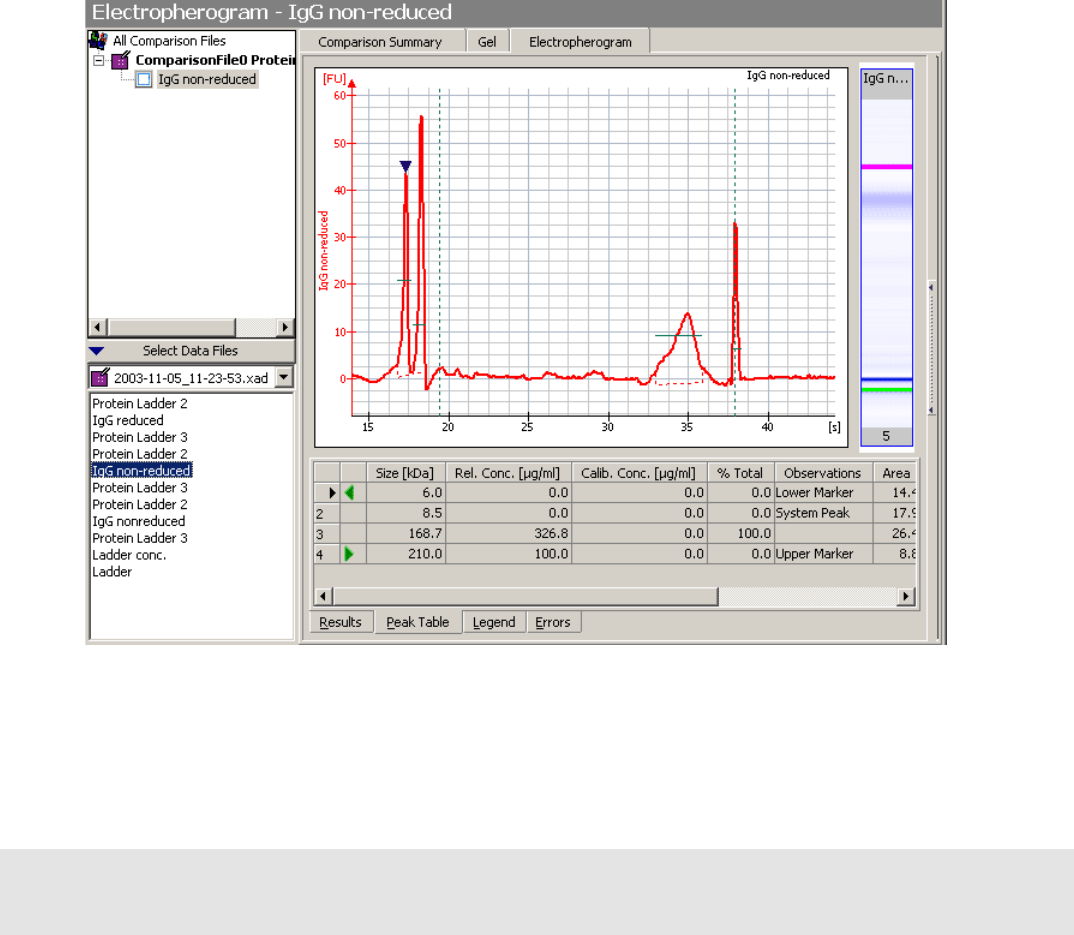

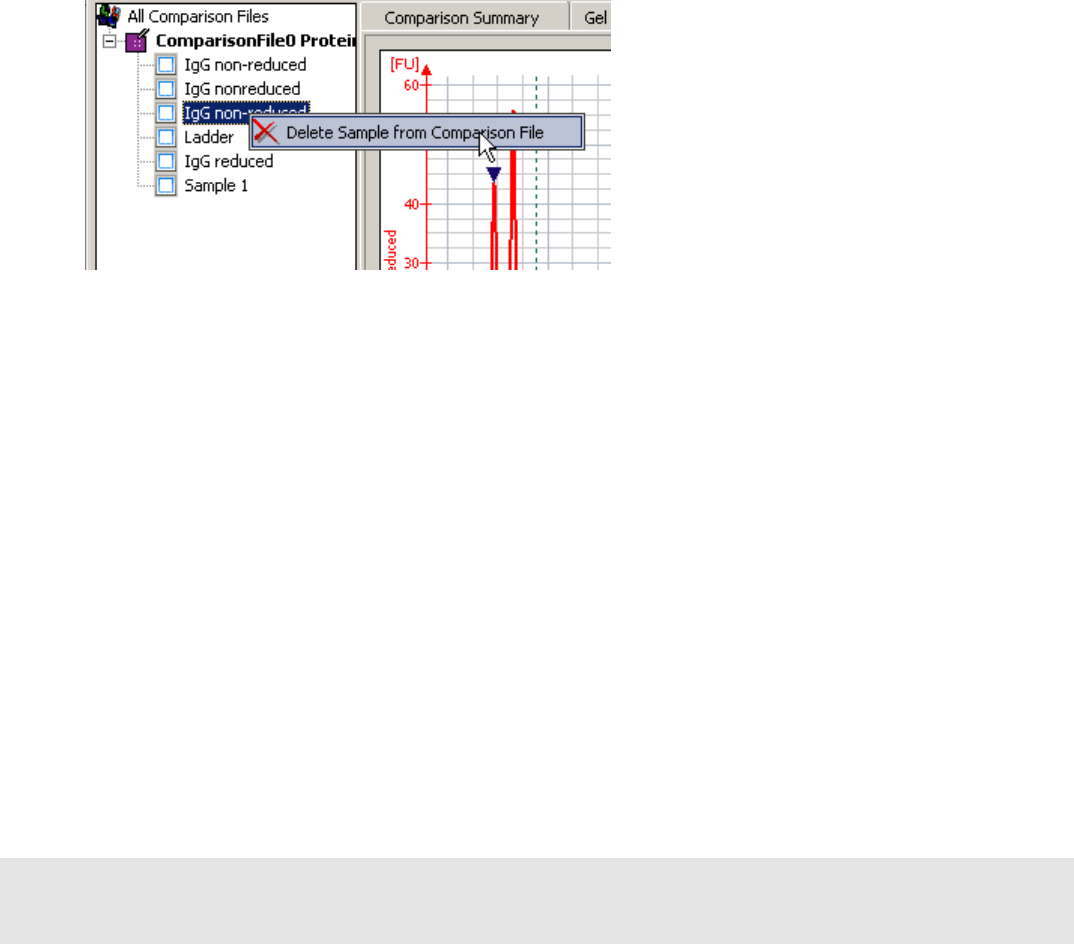

In the Comparison context, you can open multiple electrophoretic chip data files and
compare samples of the same assay class (DNA 1000, for example). It is possible to
overlay electropherograms recorded by the bioanalyzer and compare the results.
Comparison results can be saved in .xac files. You can re-open .xac files to review the
comparison results and to add further samples for comparison.
Contents ▲45 ▼Index
NOTE
This dialog box may also appear if you try to switch between contexts while there is
unsaved data.
2Click Yes to save the changes to the selected files and continue quitting 2100 expert.
If you want to save changes only to particular files, select these files in the list by
single-clicking them. By default, all files with unsaved changes are selected.
If you click No, 2100 expert quits without saving any changes.
If you do not want to quit 2100 expert at this time, click Cancel to return to your
2100 expert session without saving anything.
After you have confirmed the messages, 2100 expert quits.
Contents ▲46 ▼Index
Running and Evaluating Electrophoretic Assays
For running and evaluating electrophoretic assays you need to know the following:
•“Principles of Nucleic Acid and Protein Analysis on a Chip” on page 47
•“Preparing and Running an Electrophoretic Assay” on page 51
•“Analyzing and Evaluating the Results of an Electrophoretic Assay” on page 82
•“Result Flagging” on page 157
Contents ▲47 ▼Index
Principles of Nucleic Acid and Protein Analysis on a Chip
The electrophoretic assays are based on traditional gel electrophoresis principles that
have been transferred to a chip format. The chip format dramatically reduces separation
time as well as sample and reagent consumption. The system provides automated sizing
and quantitation information in a digital format. On-chip gel electrophoresis is performed
for the analysis of DNA, RNA and proteins.

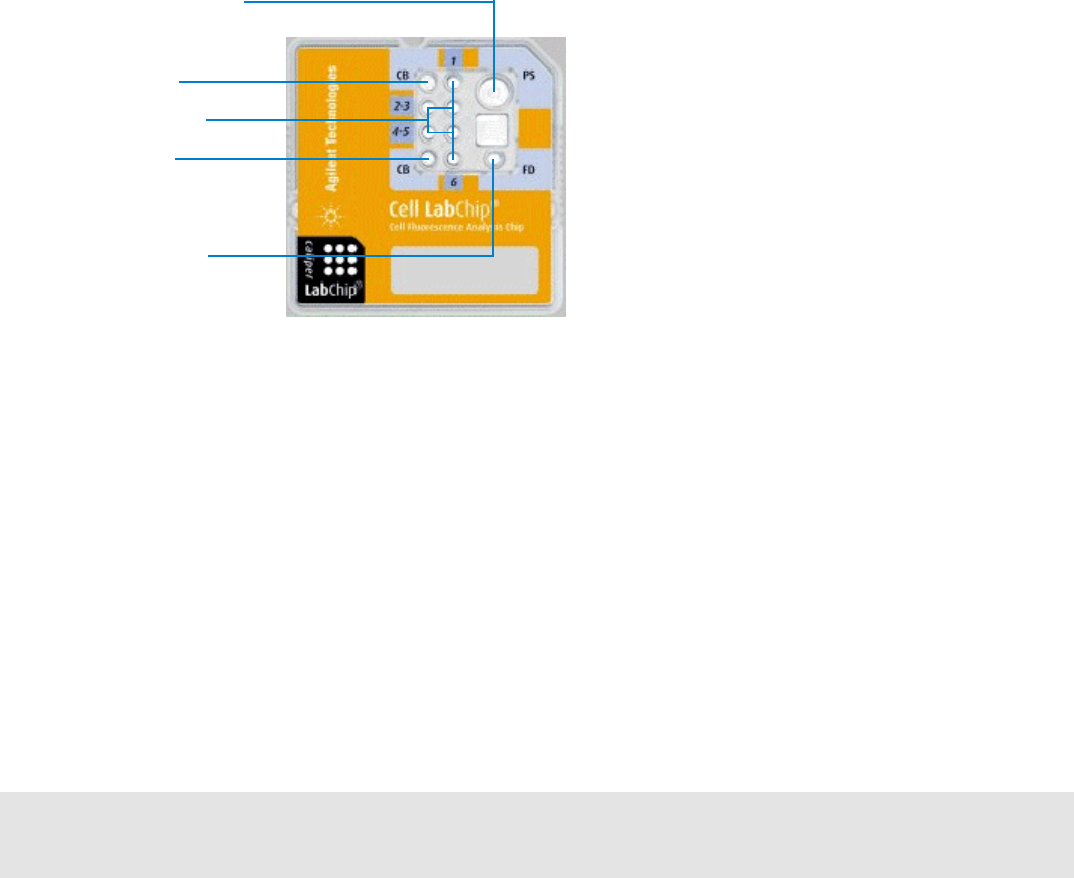

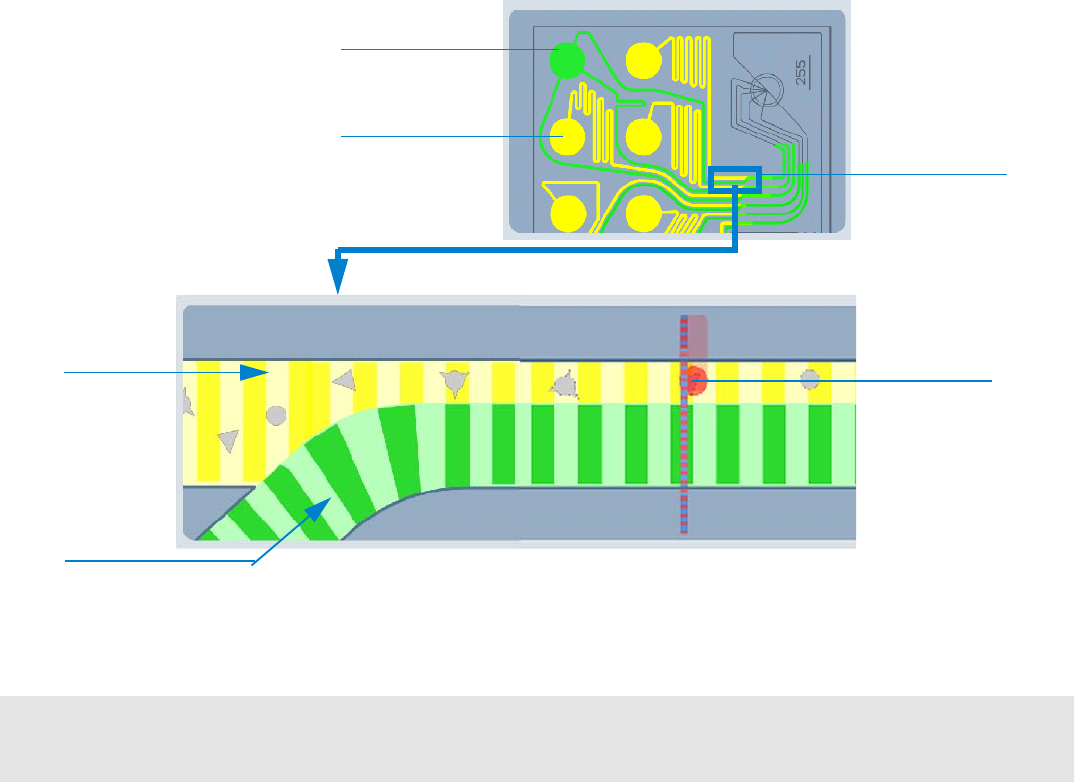

The chip accommodates sample wells, gel wells and a well for an external standard
(ladder). Micro-channels are fabricated in glass to create interconnected networks
among these wells. During chip preparation, the micro-channels are filled with a sieving
polymer and fluorescence dye. Once the wells and channels are filled, the chip becomes
an integrated electrical circuit. The 16-pin electrodes of the cartridge are arranged so that
they fit into the wells of the chip. Each electrode is connected to an independent power
supply that provides maximum control and flexibility. Charged biomolecules like DNA,
Contents ▲48 ▼Index
RNA, or protein/LDS micells are electrophoretically driven by a voltage gradient—similar
to slab gel electrophoresis. Because of a constant mass-to-charge ratio and the presence
of a sieving polymer matrix, the molecules are separated by size. Smaller fragments are
migrating faster than larger ones. Dye molecules intercalate into DNA or RNA strands or
protein/LDS micells. These complexes are detected by laser-induced fluorescence. Data

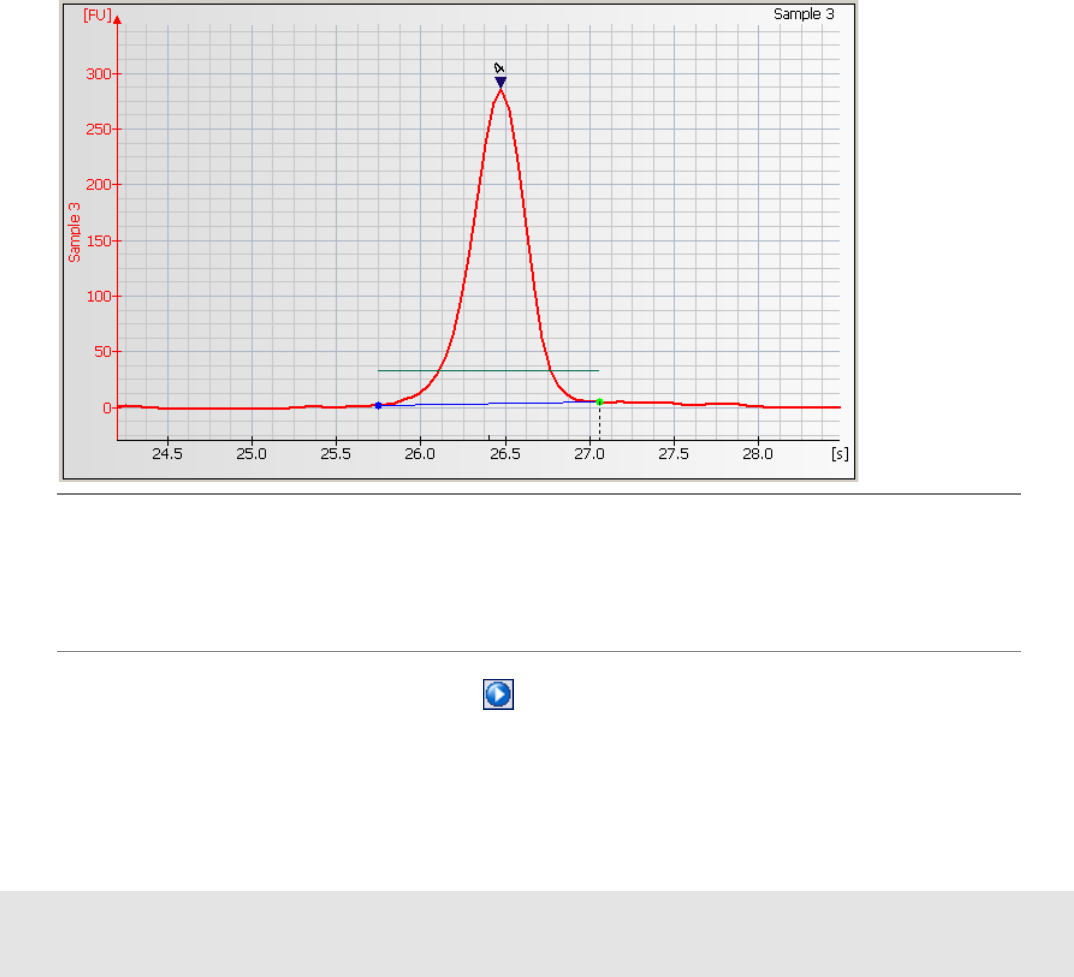

is translated into gel-like images (bands) and electropherograms (peaks). With the help

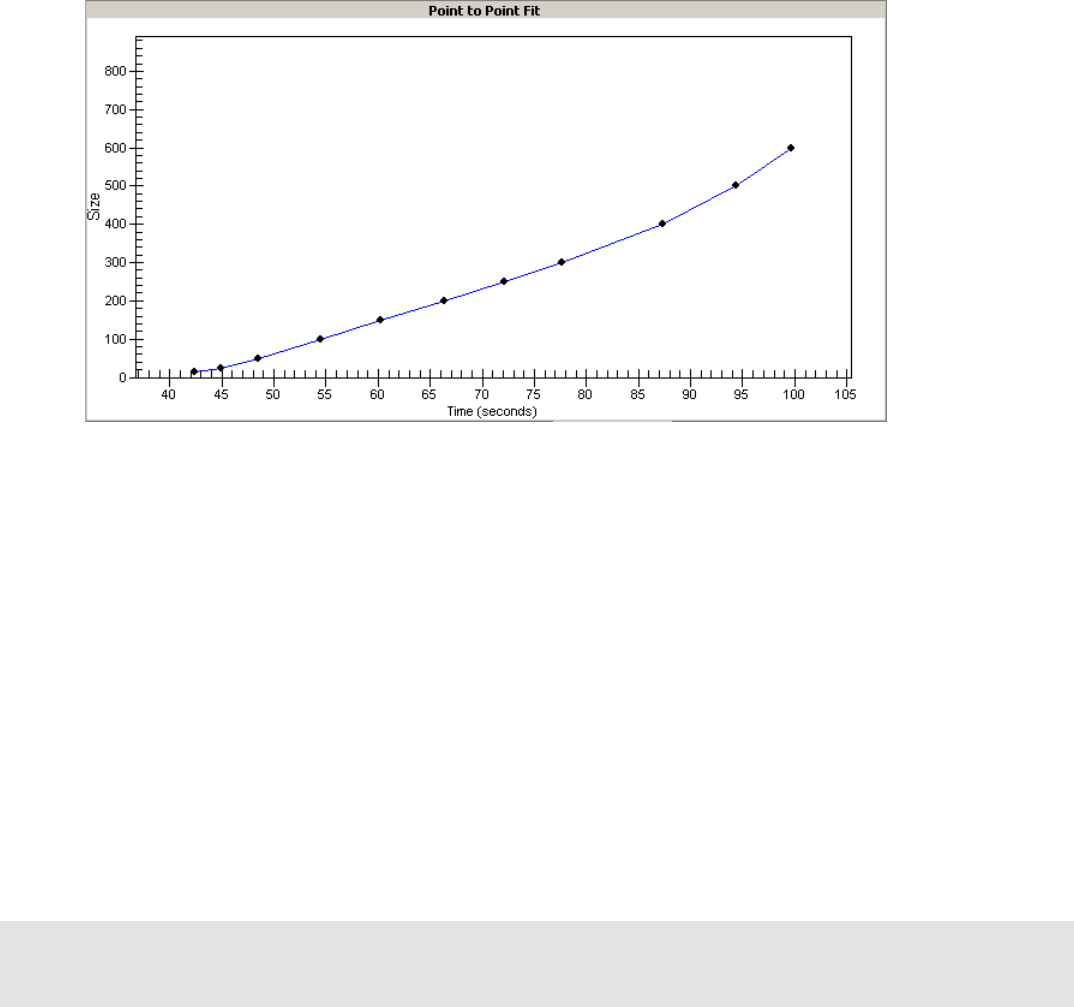

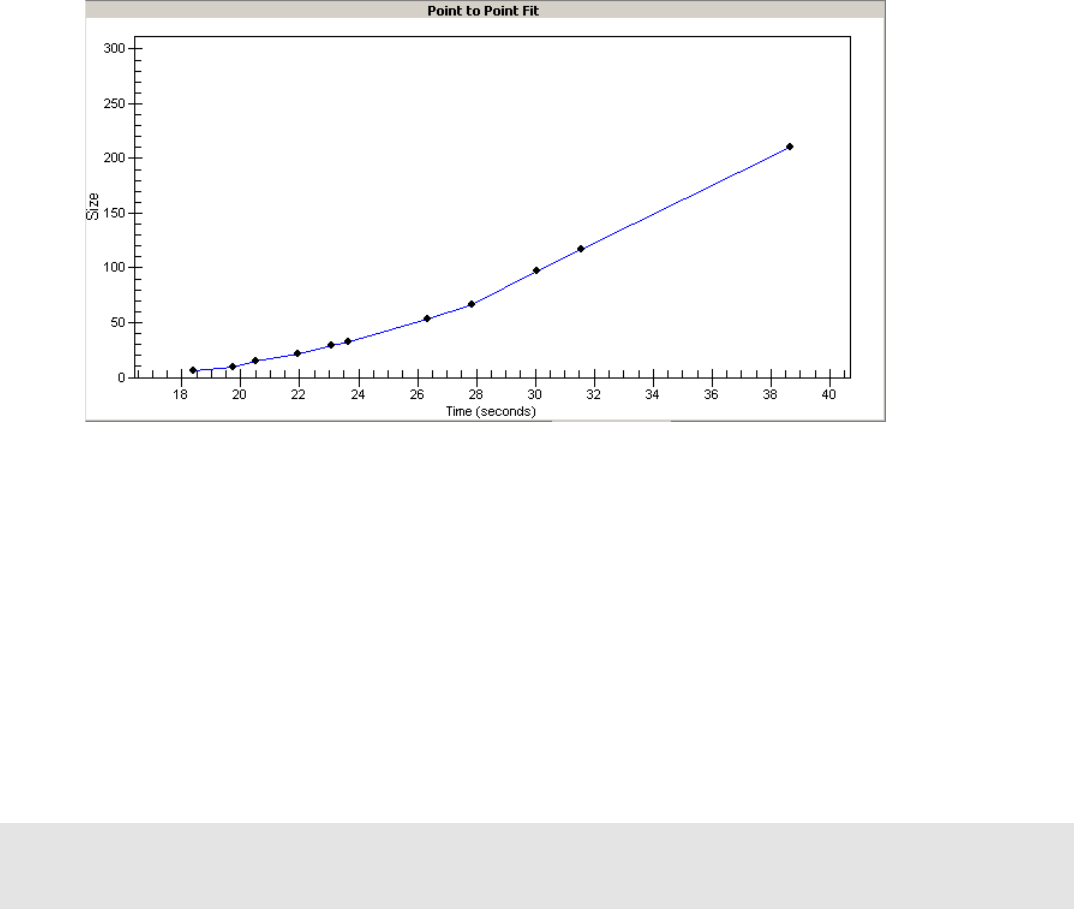

of a ladder that contains components of known sizes, a standard curve of migration time
versus fragments size is plotted. From the migration times measured for each fragment in
the sample, the size is calculated. Two markers (for RNA only one marker) are run with
each of the samples bracketing the overall sizing range. The “lower” and “upper”
markers are internal standards used to align the ladder data with data from the sample
wells. This is necessary to compensate for drift effects that may occur during the course
of a chip run.

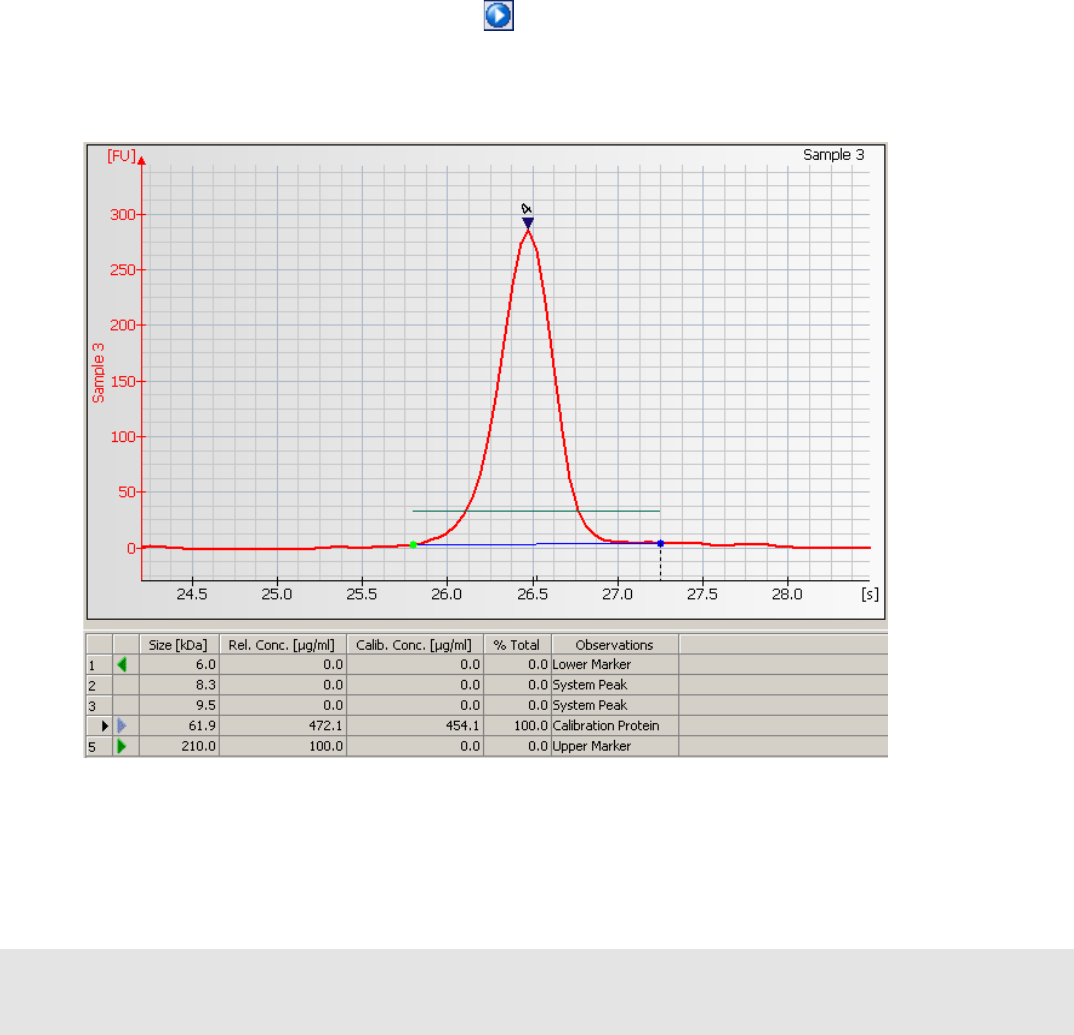

For DNA and protein assays, quantitation is done with the help of the upper marker. The
area under the upper marker peak is compared with the sample peak areas. Because the
concentration of the upper marker is known, the concentration for each sample can be
calculated. Besides this relative quantitation, an absolute quantitation is available for
protein assays, using external standard proteins.
For RNA assays, quantitation is done with the help of the ladder area. The area under the
ladder is compared with the sum of the sample peak areas. The area under the “lower”
marker is not taken into consideration. For total RNA assays, the ribosomal ratio is
determined, giving an indication on the integrity of the RNA sample. Additionally, the
RNA integrity number (RIN) can be utilized to estimate the integrity of total RNA samples
based on the entire electrophoretic trace of the RNA sample, including the presence or
absence of degradation products.
Contents ▲51 ▼Index
Preparing and Running an Electrophoretic Assay
An electrophoretic chip run requires the following steps:
1. Switch on the Agilent 2100 bioanalyzer and start the 2100 expert software.
See “Starting 2100 Expert” on page 32.
2. Select an electrophoretic assay.
See “Selecting an Electrophoretic Assay for a Chip Run” on page 52.
3. Prepare reagents, chip, and samples.
See “Preparing Samples, Reagents, and Chips for Electrophoretic Assays” on page 55
and the appropriate Application Note or Reagent Kit Guide.
4. Load the chip into the bioanalyzer.
See “Loading the Electrophoresis Chip into the Bioanalyzer” on page 59.
5. Start the chip run.
See “Running an Electrophoretic Assay” on page 65.
When the chip run has finished, you can:
•Have a first look at the results (see “Displaying the Measurement Results
(Electrophoresis)” on page 73).
•
Document the chip run (see “Entering Chip, Sample, and Study Information” on page 70).
•Analyze and evaluate the results:
–See “Analyzing and Evaluating the Results of an Electrophoretic Assay” on page 82.
–See “Result Flagging” on page 157.
Contents ▲52 ▼Index
Selecting an Electrophoretic Assay for a Chip Run
To select an assay:
1Switch to the Instrument context.
2In the Tree View Panel, select the bioanalyzer you want to use.
In the upper left of the Instrument tab, an icon shows the status of the bioanalyzer. You
should see one of the following icons (lid open/closed), indicating that the bioanalyzer
is detected by the system:
3If you do not see one of these icons, check that the bioanalyzer is switched on and
properly connected:
–Check the COM port setting.
–Make sure the bioanalyzer is physically connected to the PC (over the serial
interface).
–Check the power connection.
–Check the power switch.
Contents ▲53 ▼Index
If you need additional help, please refer to the Agilent 2100 Bioanalyzer Maintenance
and Troubleshooting Guide.
4Select an assay for the chip run.
On the Instrument tab, click the Assay button.
– OR –
Click the Assays menu.
Both will open the Assays menu, allowing you to select an assay from the submenus.
– OR –
Select File > Open File to Run. This opens a dialog box, allowing you to load either an
assay (.xsy) or a chip data file (.xad).
The type of assay you have to select depends on the required measurement and the
Reagent Kit you use to prepare your samples. Details on these assays are described in
the Application Notes available for each assay and in the Reagent Kit Guide.
5Select the desired assay, DNA 1000, for example.
The assay is loaded and its name appears on the Information Bar:
NOTE
After a chip run, the results can be evaluated using parameters from a different
electrophoretic chip data file (.xad) of the same assay type (DNA 1000 in this example).
Refer to “Importing Data Analysis Setpoints” on page 279.
Contents ▲54 ▼Index
6Select a Destination for the chip data file (.xad) that will be generated as the result of
the chip run. You can also specify a custom File Prefix for this file.
7Under Data Acquisition Parameters, enter the number of samples you want to have
measured.
The total number of samples that can be measured varies with the type of assay
selected. With DNA and RNA Nano assays, 12 samples may be run; with RNA Pico
assays, 11 samples may be run; and with Protein assays, the maximum number of
samples is 10. When preparing the chip (see “Preparing Samples, Reagents, and Chips
for Electrophoretic Assays” on page 55), keep in mind that you have to follow the
sequence of the sample wells. For example, if you want to measure only 3 samples, you
have to fill the wells 1, 2, and 3 of your chip.
Contents ▲55 ▼Index
Preparing Samples, Reagents, and Chips for Electrophoretic Assays
Before you can load a chip, you have to prepare the samples and reagents. To find out
how to prepare the samples and reagents, refer to the various Reagent Kit Guides
available for each LabChip kit. Please refer to these documents for further information
and analytical specifications.
In general, preparing an electrophoretic assay involves the following steps:
•Check that you have everything that is listed in the appropriate Reagent Kit Guide.
Be aware that there can be small but important differences between the different
assays even for the same type of molecules (for example, between DNA 1000 and DNA
7500 assays).
•Make sure you are familiar with the essential measurement practices (see next page).
•Before running the first RNA assay: decontaminate the electrodes.
•Prepare all the reagent mixtures (for example, the gel-dye mix).

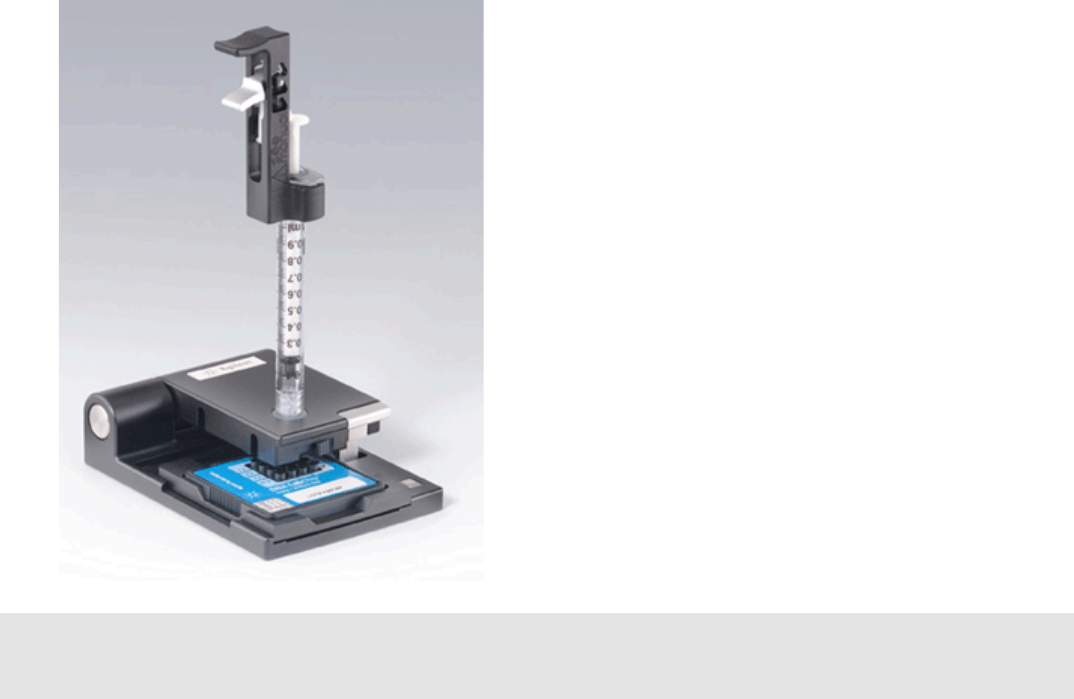

•Load the gel-dye mix using the priming station.
•Load the DNA/RNA marker solution and buffer.
•Load the destaining solution for protein assays.
•Load the chip with ladder and samples.
Contents ▲56 ▼Index
Essential Measurement Practices (Electrophoretic Assays)
General:
WARNING
Wear hand and eye protection and follow good laboratory practices when preparing
and handling reagents and samples.
WARNING
No data is available addressing the mutagenicity or toxicity of the dye/DMSO
reagent. Because the dye binds to nucleic acids, it should be treated as a potential
mutagen and used with appropriate care. The DMSO mixtures should be handled
with particular caution as DMSO is known to facilitate the entry of organic
molecules into tissues. We strongly recommend using double gloves when handling
DMSO mixtures.
•Handle and store all reagents according to the instructions given in the Reagent Kit
Guides.
•Avoid sources of dust or other contaminants. Foreign matter in reagents and samples
or in the wells of the chip will interfere with assay results.
•Always insert the pipette tip to the bottom of the well when dispensing the liquid.
Placing the pipette at the edge of the well may lead to poor results due to the formation
of a bubble on the bottom of the well.
Contents ▲57 ▼Index
•Protect dye and gel-dye mix from light. Remove light covers only when pipetting. Dye
decomposes when exposed to light.
•Use a new syringe and electrode cleaner with each new LabChip kit.
•Do not touch the Agilent 2100 bioanalyzer during a chip run and never place it on a
vibrating ground.
•Keep all reagents and reagent mixes refrigerated at 4 °C when not in use.
•Allow all reagents and samples to equilibrate to room temperature for 30 minutes
before use.
•Use loaded chips within 5 minutes. Reagents might evaporate, leading to poor results.
RNA Assays:
•Always wear gloves when handling RNA, and use RNase-free tips, microfuge tubes and
water.
•It is recommended to denature all RNA samples and RNA ladder by heat before use
(70 °C, 2 minutes).
•Always vortex the dye concentrate for 10 seconds before preparing the gel-dye mix.
Contents ▲58 ▼Index
Protein Assays:
•Store Protein sample buffer at -20 °C upon arrival. Keep the vial in use at 4 °C to avoid
freeze-thaw cycles.
•Allow the dye concentrate to equilibrate to room temperature for 20 minutes before
use, to make sure the DMSO is completely thawed. Protect the dye from light during
that time. Vortex before use.
•Allow all other reagents to equilibrate to room temperature for 10 minutes before use.
•Use 0.5 ml tubes to denature samples. Using larger tubes may lead to poor results,
caused by evaporation.
Contents ▲59 ▼Index
Loading the Electrophoresis Chip into the Bioanalyzer
The Agilent 2100 bioanalyzer uses different cartridges for electrophoretic and flow
cytometric assays. For electrophoretic measurements, the electrode cartridge is required.
The electrode cartridge contains 16 electrodes that fit into the wells of DNA, RNA, and
Protein chips. Each electrode in the cartridge has an individual power supply. All
electrophoretic assays (DNA, RNA, and Protein) require an electrode cartridge. The
electrode cartridges will either have an engraved “1” at the front, or will have no
engraving at all. Cartridges with a different number are not electrode cartridges.
Contents ▲60 ▼Index
If the bioanalyzer is set up for flow cytometric assays, but you want to run electrophoretic
assays, proceed as follows:
1Open the lid and pull down the metal locking lever into the open position as shown in
the figure below.
The cartridge is pushed out.
2Gently pull the cartridge out of the lid.
NOTE
Store the pressure cartridge in the provided box.
Metal lever
in open
position
Contents ▲61 ▼Index
3Slide the electrode cartridge into the lid as shown below.
CAUTION
Do not touch the electrodes while the cartridge is in the Agilent 2100 bioanalyzer. The
electrodes and the high voltage power supplies can be damaged.
4Push the metal front of the cartridge to ensure a tight connection.
5Push the metal locking lever into the flat (closed) position.
Metal lever
Push here to ensure
tight connection
Contents ▲62 ▼Index
To load the prepared chip into the Agilent 2100 bioanalyzer:
1Open the lid and remove any chip.
2Adjust the chip selector to position “1” as shown in the following figure.
These steps are required for inserting DNA, RNA, and Protein chips in the bioanalyzer.
Move chip
selector in
position “1”
To a vo id u s i n g
incompatible chips and
cartridges, a chip selector
is installed in the
bioanalyzer. This ensures
that the chip matches to
the installed cartridge.
Contents ▲63 ▼Index
CAUTION
Do not force the chip selector handle when a chip is inserted in the bioanalyzer.
3Place the prepared chip into the receptacle.
The chip fits only one way. Do not force it into place.
4Carefully close the lid.
CAUTION
Do not force the lid closed. This may damage the cartridge. If the lid does not close
completely, check that the cartridge and chip are inserted properly, and the chip
selector is in the correct position.
Chip selector
in position “1”
Chip
Contents ▲64 ▼Index
When the chip is detected, the image on the Instrument tab changes to a chip.
If the chip is not detected, open and close the lid again.
NOTE
The displayed image depends on the assay selected in the software, not the type of
chip inserted. If you would like to run a DNA chip but a protein chip appears, you have
selected the wrong assay.
NOTE
If the AutoRun option is active, the chip run starts automatically once a chip has been
detected and the lid has been closed.
Contents ▲65 ▼Index
Running an Electrophoretic Assay
NOTE
You can stop a chip run at any time, for example, if errors occurred or if you are not
satisfied with the quality of the measurement results that you can observe during the
chip run. See “Stopping a Chip Run” on page 68.
Starting the Chip Run
When you have loaded the chip, you can start the chip run:
1On the Instrument tab, click the Start button.
The chip run starts. The Raw Signals sub-tab shows an electropherogram of the currently
measured sample. The name of the sample is displayed above the graph. The graph is a
“live” plot of the migration time against fluorescence units (raw data, including
background fluorescence, for example).
Contents ▲67 ▼Index
During the chip run, you can do the following:
•View the chip data file in the Data context by clicking on the name of the Data File:
•Switch to any other context. For example, you can evaluate any chip data file in the Data
context, or compare samples in the Comparison context.
•If necessary, abort the chip run by clicking on the Stop button.
All data that was collected up to the stop point will be saved.
After the chip run is completed, you can:
•Switch to the Data context, where you can view, analyze, and evaluate the results of
your chip run (see “Displaying the Measurement Results (Electrophoresis)” on page 73
and “Analyzing and Evaluating the Results of an Electrophoretic Assay” on page 82).
•Stay in the Instrument context and start a new assay, for example.
Contents ▲68 ▼Index
Stopping a Chip Run
You can stop a chip run at any time, for example,
•if the quality of the measurement results does not meet your expectations,
•if, for example, after three samples you already have the information you desired and
you want to start another chip run.
NOTE
You cannot resume a stopped chip run.
NOTE
If you stop a chip run, automatic export (see “Exporting Chip Run Data Automatically”
on page 286) and automatic print (see “How to Turn on and Configure Automatic
Printing of Chip Run Reports” on page 297) does not take place.
To stop the assay:
1Click the Stop button.
– OR –
Select Stop from the Instrument menu.
Contents ▲69 ▼Index
NOTE
Data acquisition of the current sample will be aborted.
The following message appears:
2Click Yes to stop the chip run.
When the chip run is aborted, you can:
•Switch to the Data context, where you can view, analyze, and evaluate the results (if
any) of your chip run (see “Displaying the Measurement Results (Electrophoresis)” on
page 73 and “Analyzing and Evaluating the Results of an Electrophoretic Assay” on
page 82).
•Stay in the Instrument context, where you can start the next chip run, for example.
Contents ▲70 ▼Index
Entering Chip, Sample, and Study Information
During or after a chip run, you can document the run by entering information on chip,
samples, and study.
1In the Data context, select the Chip Summary tab.
2On the Sample Information sub-tab, you can enter additional information such as
sample names and comments.
On the Study Information sub-tab, you can enter information such as the name of the
current study, the laboratory location, and the experimenter, for example.
Contents ▲72 ▼Index
3From the File menu, select Save.
TIP
You can import chip, sample, and study information from .txt or .csv files. This is
especially helpful and time-saving, if you already have documented a similar chip run
in another chip data file. Refer to “Importing Chip, Sample, and Study Information” on
page 281 for details.
Contents ▲73 ▼Index

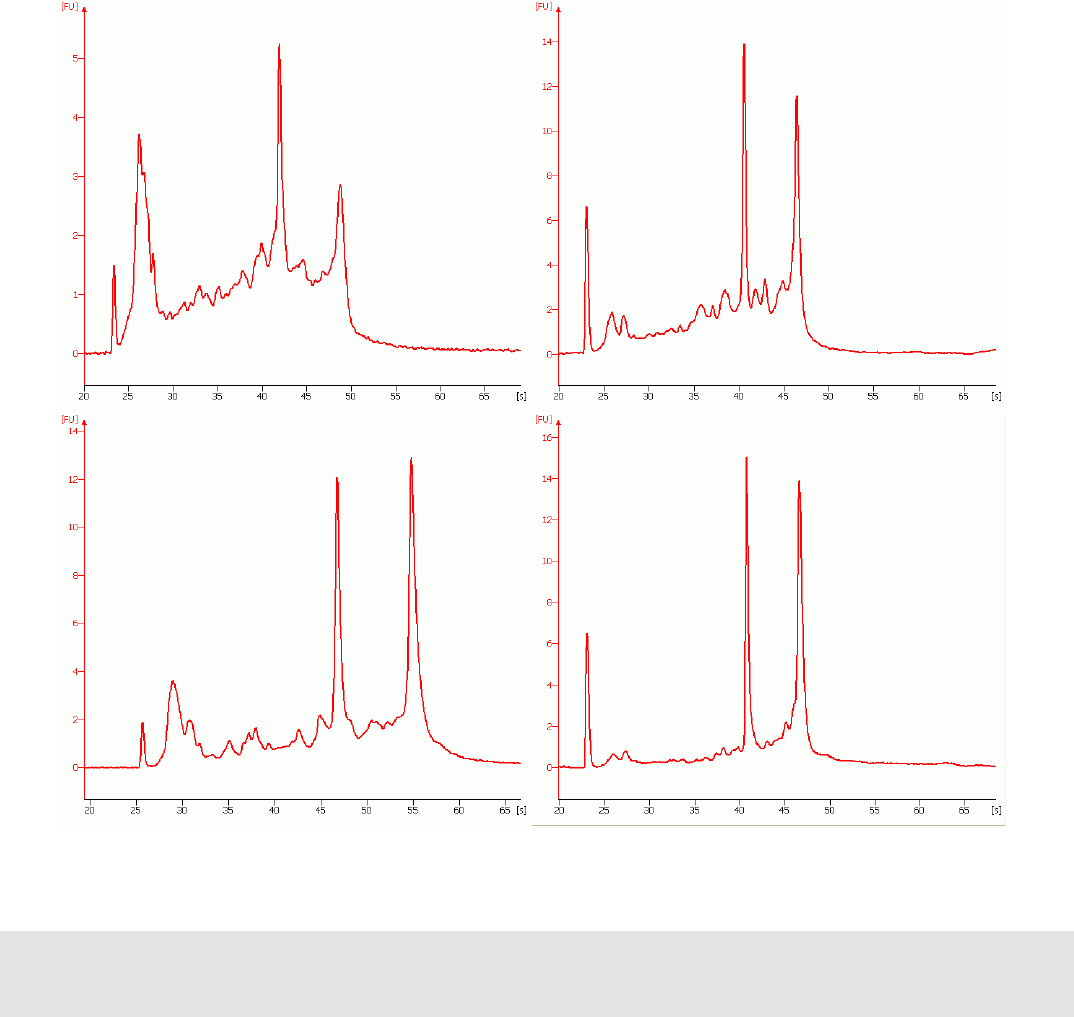

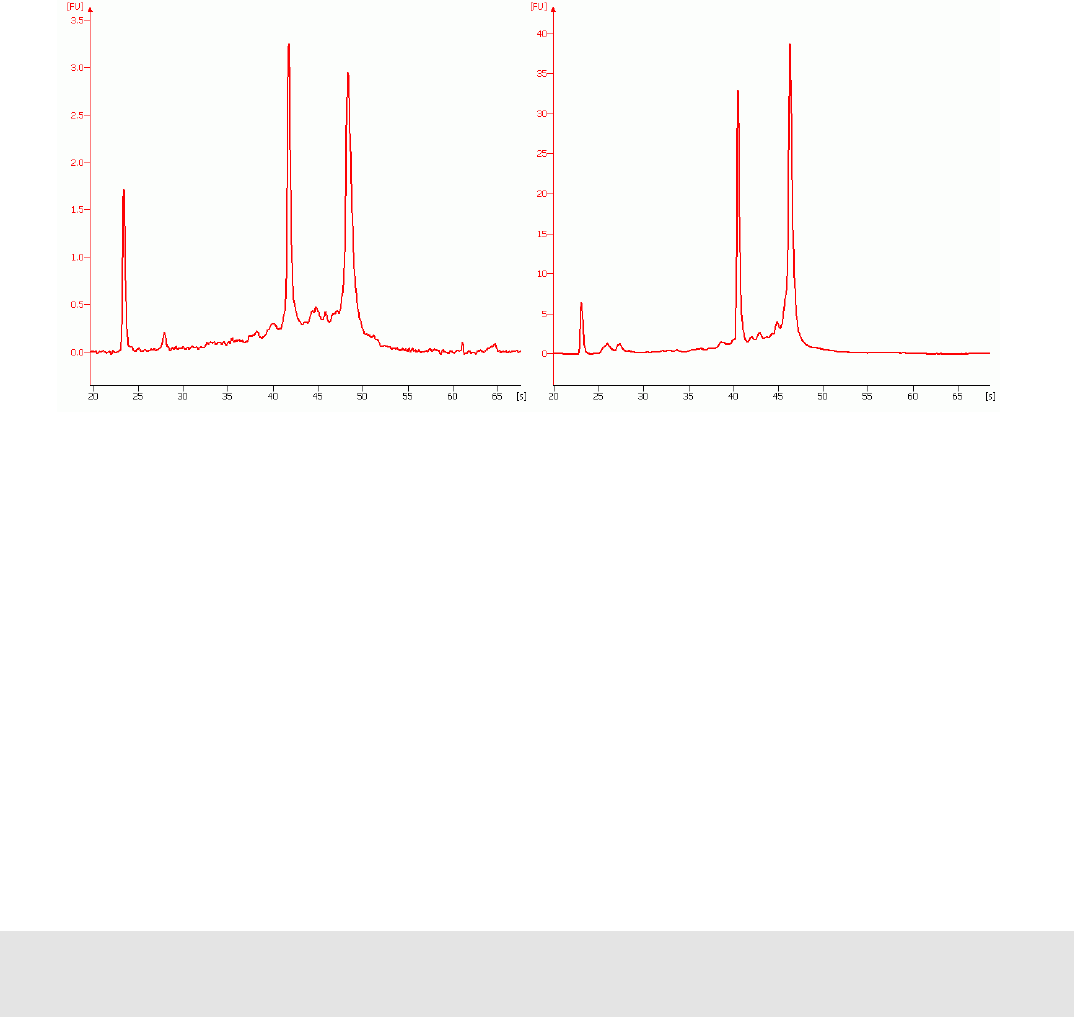

Displaying the Measurement Results (Electrophoresis)
You can view the measurement results of an electrophoretic chip run as
electropherograms or gel-like images.
•You can display the electropherograms either one sample at a time, or all samples at
the same time to get an overview of the chip run, for example, to see the progress of a
reaction. See “How to Switch Between Single View and Grid View
(Electropherograms)” on page 74.
•You can navigate through the samples. See “How to Navigate Through the Samples” on
page 75.
•You can change the display of electropherograms and gel-like images to make details
better visible. See “How to Change the Display of Electropherograms and Gel-like
Images” on page 76.
Contents ▲74 ▼Index
How to Switch Between Single View and Grid View (Electropherograms)
To switch between single view and grid view:
From the Electropherogram menu, select View Single Sample or View All Samples.
– OR –
Click the View Single Sample or View All Samples button on the
Electropherogram toolbar.
– OR –
Click the All Samples entry in the Tree View Panel to switch to the grid view, or any
sample name to switch to the single view.
– OR –
Double-click any electropherogram the grid view to switch to single view:
Contents ▲75 ▼Index
How to Navigate Through the Samples
At any time—even during a chip run—you can scroll through all samples—either in
electropherogram or gel view.
To navigate through samples using the Tree View Pa nel:
1If the tree view is not visible, select View > Tree View.
The tree view panel appears to the left of the tabs, and shows all chip data and assay
files as nodes.
2Click any sample name.
Electropherogram view: the electropherogram of the selected sample is shown in
single view
Gel view: the lane of the gel-like image corresponding to the selected sample is
highlighted.
To navigate through samples using the Lower Panel:
1If the lower panel is not visible, select View > Lower panel.
The lower panel appears in the lower left corner.
2Electropherogram view: Click any lane of the small gel image.
Gel view: Click any well on the chip icon.
Contents ▲76 ▼Index
To browse through samples:
1From the Electropherogram or Gel menu, select Next Sample or Previous Sample.
– OR –
Click the Next Sample or Previous Sample button in the toolbar.
To switch between electropherogram and gel view:
1Click the Electropherogram or Gel tab to display the results of the selected sample as
an electropherogram or as a gel-like image.
How to Change the Display of Electropherograms and Gel-like Images
It is possible to change the display of electropherograms and gel-like images.
In electropherograms and gel-like images you can:
•zoom (enlarge or reduce using the mouse) the graphs to display details, for example.
In electropherograms, you can additionally:
•show data points.
•pan and scale the graph using the mouse.
•change the background from a gray-to-white gradient to white.
•add a grid to the electropherograms.
In gel-like images, you can additionally:
•change the gel color.
•change order of gel lanes in gel like images.
Contents ▲77 ▼Index

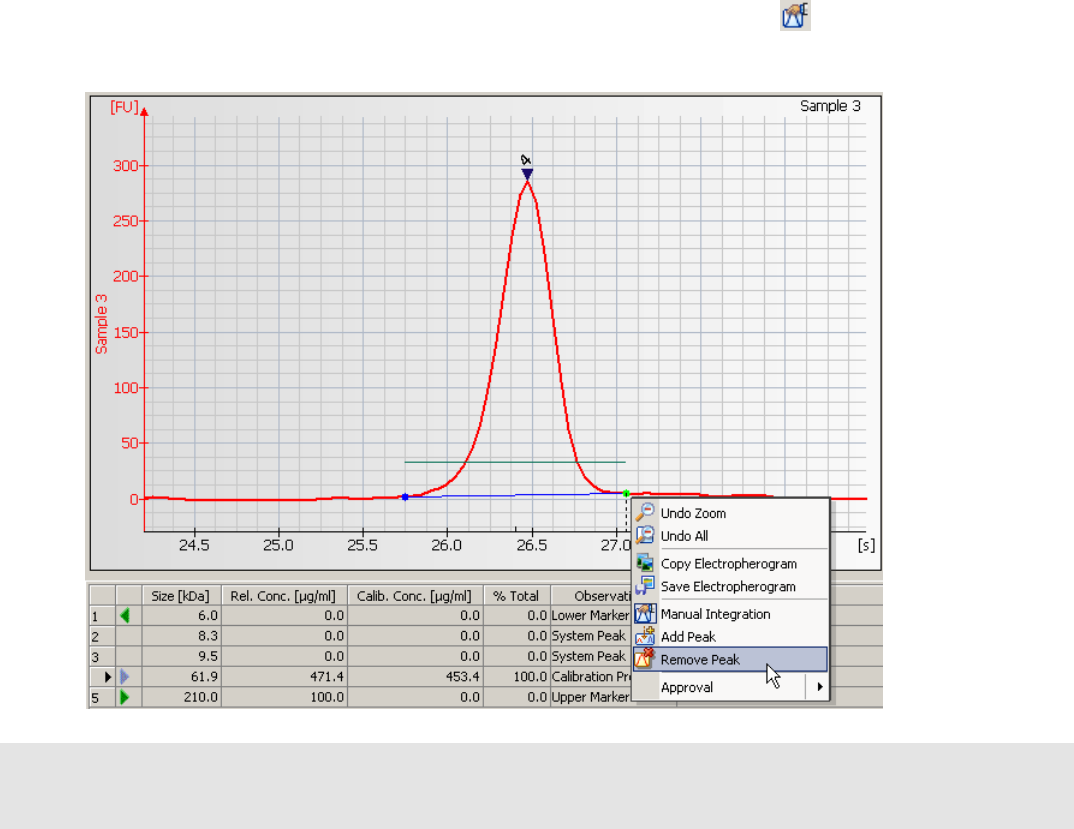

To zoom into an electropherogram:
1From the Electropherogram menu, select Graph Mode > Zoom (default setting).
2Position the mouse pointer in the electropherogram.
3Click and hold down the left mouse button.
The mouse pointer changes its shape to a magnifying glass .
4Drag the mouse.
A rectangle shows the part of the an electropherogram to be enlarged.
5Release the mouse button.
Contents ▲78 ▼Index
To pan and scale an electropherogram:
1From the Electropherogram menu, select Graph Mode > Pan or Scale.
2Position the mouse pointer in the electropherogram.
3Click and hold down the left mouse button.
The mouse pointer changes its shape to a double-arrow or to a double crosshair.
4Drag the mouse.
As you drag the mouse, the electropherogram curve moves in the drag direction (Pan
mode), or the scales of the X and/or Y axes change (Scale mode).
5Release the mouse button.
You can perform several zoom, pan and scale steps in a row.
To undo the last zoom, pan, or scale step:
Click the Undo Zoom button or double-click in the electropherogram.
To undo all zoom, pan, and scale steps:
Click the Undo All button.
Contents ▲79 ▼Index

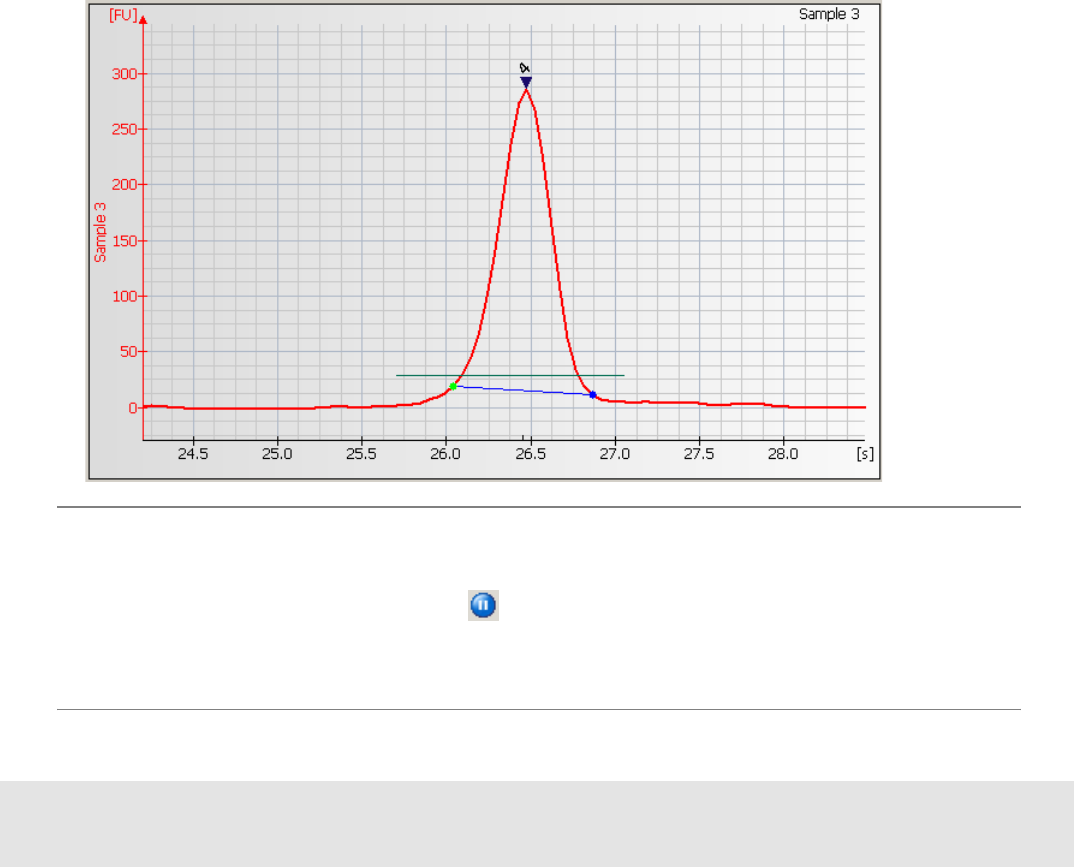

To display data points in an electropherogram:
From the Electropherogram menu, select Show Data Points or click the button in the
toolbar.
Data points used to generate the graph are now shown as bullets. Data points are 0.05
seconds apart.
To remove the gray-to-white gradient from the background of an electropherogram:
From the Electropherogram menu, select Show Gradient.
The color gradient disappears and a white background is displayed.
To show/hide the grid lines on an electropherogram:
From the Electropherogram menu, select Show Grid.
Contents ▲80 ▼Index
Cleaning the Electrodes after an Electrophoretic Assay
When the assay is complete, remove the used chip from the bioanalyzer and dispose of it
according to the guidelines established by your laboratory safety officer. Remove the chip
quickly to prevent a buildup of residues from the solutions on the electrodes.
Then perform the cleaning procedure to ensure that the electrodes are clean (i.e., no
residues left from the previous assay). The cleaning procedures are described in detail in
the appropriate Reagent Kit Guide and in the Agilent 2100 Bioanalyzer Maintenance and
Troubleshooting Guide.
Contents ▲81 ▼Index
Good Practices
•Empty and refill the electrode cleaner at regular intervals (e.g., every five assays).
•The electrode cleaner can be used for 25 assays.
CAUTION
Never use a cloth to clean the electrodes. Electrostatic discharge could damage the
high-voltage power supplies.
CAUTION
Wet electrodes can cause severe damage to the on-board high voltage power
supplies. Always make sure the electrodes are dry before inserting them into the
bioanalyzer again.
Contents ▲82 ▼Index
Analyzing and Evaluating the Results of an Electrophoretic Assay
The purpose of electrophoretic assays is to separate sample components and determine
their size, concentration, purity, or molarity. Results for a particular sample are calculated
after all data for that sample has been read.
The steps in data analysis differ depending on the type of assay in use:
•“Data Analysis: DNA” on page 83
•“Data Analysis: RNA and Cy5-Labeled Nucleic Acids” on page 88
•“The RNA Integrity Number (RIN)” on page 91
•“Data Analysis: Protein” on page 105
•“Smear Analysis” on page 113
Further steps in analysis are:
•“Changing the Data Analysis” on page 117
•“Manual Integration” on page 136
•“Reanalyzing a Chip Data File” on page 146
•“Comparing Samples from Different Electrophoretic Chip Runs” on page 148
•“How to Use the Form Mode” on page 164
Contents ▲83 ▼Index
Data Analysis: DNA
The data analysis process for DNA assays consists of the following steps:
1. Raw data is read and stored by the system for all of the individual samples.
2. The data is filtered and the resulting electropherograms of all samples are plotted. You
can change the settings of the data analysis after the run and reanalyze your data.
3. Peaks are identified for all samples and are tabulated by peak ID. You can change the
settings of the peak find algorithm and reanalyze the data after the run has finished.
(Note that peak find settings can be changed for all or only certain samples.)
Contents ▲84 ▼Index
4. A sizing ladder (see the following example electropherogram), which is a mixture of
DNA fragments of known sizes, is run first from the ladder well. The concentrations and
sizes of the individual base pairs are preset in the assay and cannot be changed.
5. A standard curve of migration time versus DNA size is plotted from the DNA sizing
ladder by interpolation between the individual DNA fragment size/migration points.
The standard curve derived from the data of the ladder well should resemble the one
shown below.
Contents ▲86 ▼Index
6. Two DNA fragments are run with each of the samples, bracketing the DNA sizing range.
The “lower marker” and “upper marker” are internal standards used to align the ladder
data with data from the sample wells. The figure below shows an example of assigned
marker peaks in a sample well.
NOTE
The software performs alignment by default. Turning automatic data analysis off
suspends data analysis until you turn it on again.
7. The standard curve, in conjunction with the markers, is used to calculate DNA fragment
sizes for each sample from the migration times measured.
Lower marker
Upper marker
Contents ▲87 ▼Index

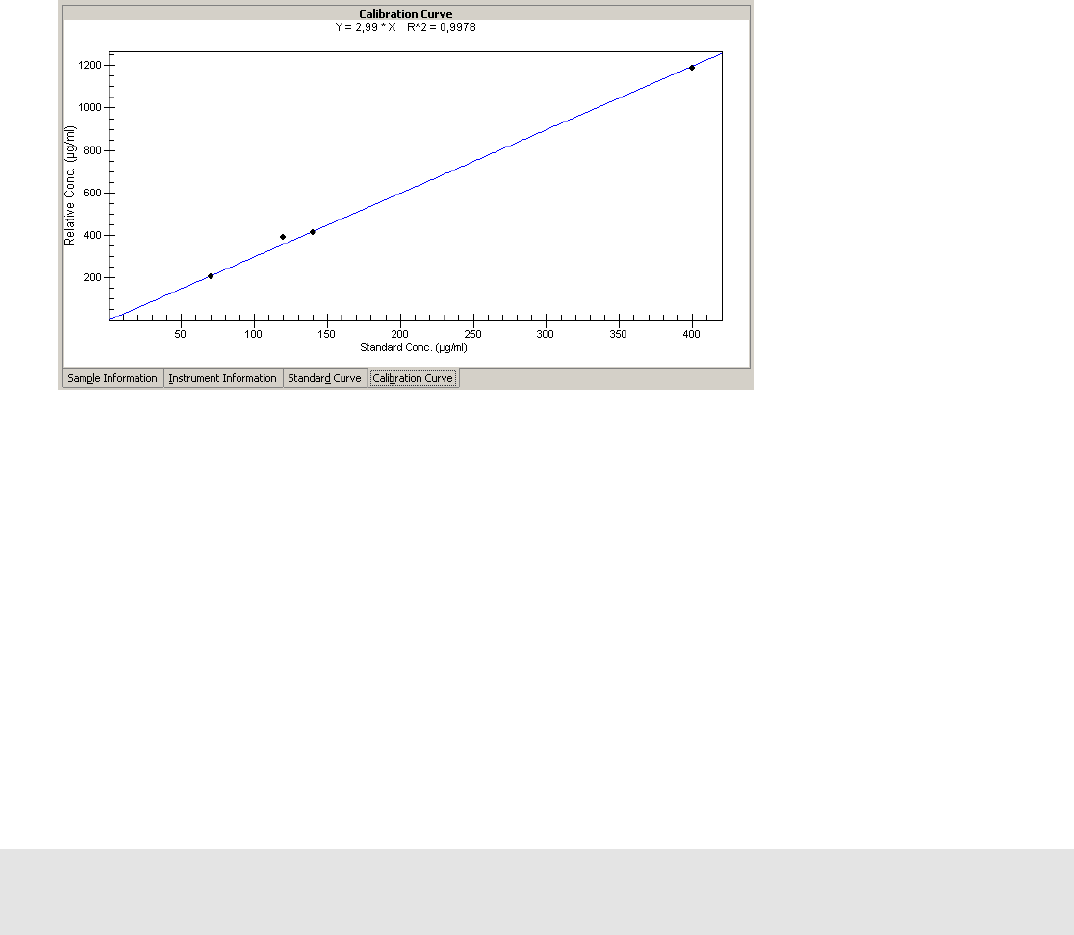

8. To calculate the concentration of the individual DNA fragments in all sample wells, the
upper marker, in conjunction with an assay-specific concentration against base-pair
size calibration curve, is applied to the individual sample peaks in all sample wells.
NOTE

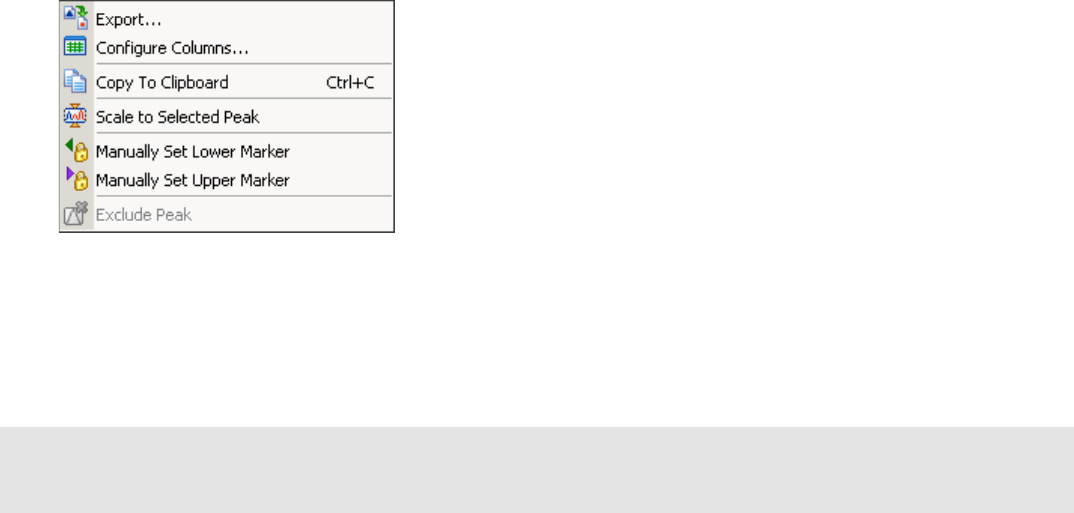

The software allows you to redefine the peaks chosen as upper and lower markers. A
change in marker selection will cause quantitative changes in the calibration
procedure, however, and therefore in the entire data evaluation.
9. If the check box Rest. Digest on the Chip Summary Tab is enabled, the 2100 expert
software flags peaks that may have co-migrated:
Since it is assumed that the molarity of all the fragments in a restriction digest should
be the same, any peaks or clusters having a molarity that is significantly larger than the
rest are flagged as potentially co-migrating peaks, allowing you to examine them in
more detail.
Contents ▲88 ▼Index
Data Analysis: RNA and Cy5-Labeled Nucleic Acids
The data analysis process for RNA and the Cy5-labeled nucleic acids assays consists of
the following steps:
1. Raw data is read and stored by the system for all of the individual samples.
2. The data is filtered and the resulting electropherograms of all samples are plotted. You
can change the settings of the data analysis after the run and reanalyze your data.
3. Fragments are identified for all samples and tabulated by peak ID. You can change the
settings of the peak find algorithm for any or all samples and reanalyze the data.
4. An RNA ladder (containing a mixture of RNA of known concentration) is run first (see
the electropherogram below). The concentrations and sizes of the individual base pairs
are preset in the assay and cannot be changed.
Electropherogram of RNA 6000 Ladder (Ambion, Inc. cat. no. 7152)
Contents ▲89 ▼Index
NOTE
Peak ratios for the RNA ladder may vary from one batch of RNA 6000 ladder to the
next. Assay performance will not be affected by this variation.
5. For the Eukaryote or Prokaryote Total RNA assay, the RNA fragments (either 18S and
28S for eukaryotic RNA or 16S and 23S for prokaryotic RNA) are detected. After
detection, the ratio of the fragment areas is calculated and displayed.
6. To calculate the concentration of the RNA, the area under the entire RNA
electropherogram is determined. The ladder, which provides the concentration/area
ratio, is applied to transform the area values into concentration values.
Contents ▲90 ▼Index
Alignment of RNA Samples
The marker solution that is part of each RNA LabChip kit, contains a 50 bp DNA fragment.
This fragment is used as lower marker to align all samples.
By default the RNA alignment and the subtraction of the lower marker are enabled for
RNA Nano assays.
The marker is displayed as the first peak in the electropherogram.
Contents ▲91 ▼Index
The RNA Integrity Number (RIN)
The RNA integrity number (RIN) is a tool designed to help scientists estimate the
integrity of total RNA samples. The RIN extension automatically assigns an integrity
number to a eukaryote total RNA sample analyzed on the Agilent 2100 bioanalyzer. Using
this tool, sample integrity is no longer determined by the ratio of the ribosomal bands
alone, but by the entire electrophoretic trace of the RNA sample, including the presence
or absence of degradation products. In this way, interpretation of an electropherogram is
facilitated, comparison of samples is enabled and repeatability of experiments is
ensured.
Scope
What the RIN can do:
•Obtain an assessment of the integrity of RNA.
•Directly compare RNA samples (e.g. before and after shipment, compare integrity of
same tissue across different labs, etc.).
•Ensure repeatability of experiments (e.g. if RIN shows a given value and is suitable for
microarray experiments, then the RIN of the same value can always be used for
microarray experiments given that the same organism/tissue/extraction method was
used).
What it cannot do:
•Tell a scientist ahead of time whether an experiment will work or not if no prior
verification was done (e.g. RIN of 5 might not work for microarray experiments, but
might work well for an appropriate RT-PCR experiment. Also, an RIN that might be good
for a 3' amplification might not work for a 5' amplification).
Contents ▲93 ▼Index
NOTE
Until now, the computation of the RIN has only been validated for eukaryote total RNA
Nano samples. The 2100 expert software also calculates the RIN for prokaryote total
RNA samples and for the RNA 6000 Pico assay. Be aware that for these samples, the
RIN has not been validated in extensive downstream experiments.
Although the lower quantitative limit of the RNA 6000 Nano assay is specified as 25
ng/µl it is recommended to use at least 50 ng/µl for a meaningful RNA integrity number.
When using lower concentrations, higher sample to sample variances of the RIN may be
observed.

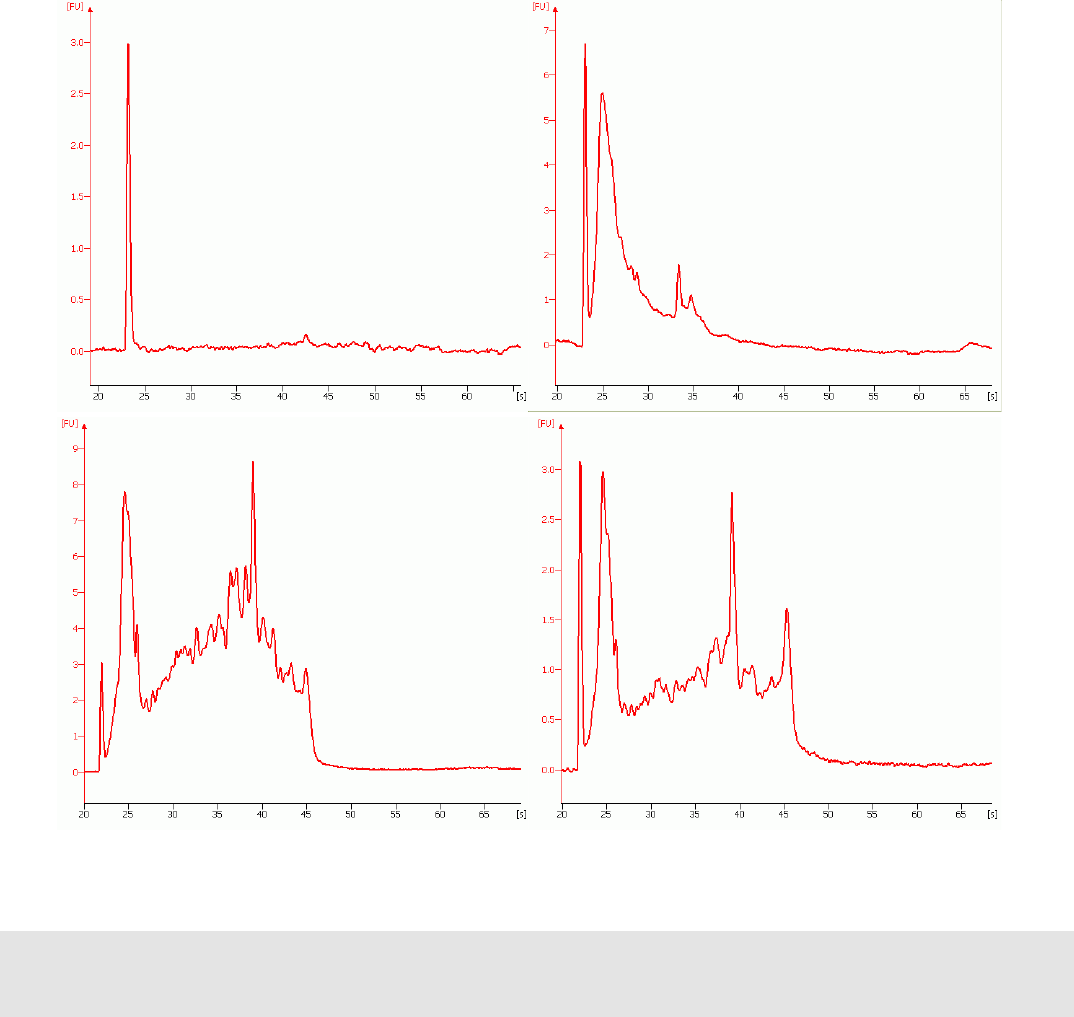

Examples for RNA Integrity Numbers
A database of about 1300 mammalian total RNA samples was created using the RNA
6000 Nano assay. The samples came from different species (mainly human, rat and
mouse), tissues, preparation methods, concentrations and degradation states. All
samples were classified according to their degradation state. Numbers from ’1’ to ’10’
were used as labels. ’10’ stands for a perfect RNA sample without any degradation
products, whereas ’1’ marks a completely degraded sample. The labels in-between are
used to indicate progressing degradation states of the RNA sample. The following figure
shows typical representatives for each of the 10 RNA integrity classes.
Contents ▲97 ▼Index
Computation of the RNA Integrity Number and Signal Anomalies
For the computation or the RNA integrity number, the electropherogram is partitioned
into regions as shown in the figure below. The lower marker and the 18S and 28S
fragments divide the electropherogram into nine regions:
Signal Anomalies
In addition to the computation of the RIN, the data analysis detects various unexpected
signals, disturbing the computation of the RIN. Such disturbances are called anomalies.
Region anomaly detectors recognize unexpected signals in each region. If detected, the
anomaly is displayed in the Error sub-tab of the Electropherogram and Gel tab.
pre-region
marker
5S-region
fast-region
18S-fragment
inter-region
28S-fragment
precursor-region
post-region
Contents ▲98 ▼Index
Two categories of anomalies were introduced, critical and non-critical. Anomalies in
regions interfering with the customer sample RNA are considered critical. The
corresponding gel lane is flagged red.
The baseline anomaly, for example, is detected for signals with fluctuating or steep
baseline. The ribosomal ratio anomaly detects unexpected ratios of the 28S fragment
area and the 18S fragment area. The unexpected sample type anomaly is detected for
samples which do not fit the standard total RNA profile.
Anomaly Description Critical?
Unexpected baseline signal Yes
Unexpected signal in pre-region No
Unexpected signal in 5S-region Yes
Unexpected signal in fast-region Yes
Unexpected signal in inter-region Yes
Unexpected signal in precursor-region No
Unexpected signal in post-region No
Unexpected ribosomal ratio Yes
Unexpected sample type Yes
Unexpected lower marker (compared to previous well) No
Contents ▲99 ▼Index
If a non-critical anomaly is detected, the RIN can still be computed accurately. Therefore
non-critical anomalies are not flagged. Non-critical region anomalies are pre-region
anomaly, precursor-region anomaly and post-region anomaly. The electropherogram
below gives an example for a non-critical anomaly in the post-region.
Contents ▲100 ▼Index
Troubleshooting the RIN
To obtain meaningful and reproducible results, the lower marker and ribosomal bands
must be identified correctly. Although the ribosomal fragment identification has been
improved, in rare cases (i.e. when analyzing degraded RNA samples) the fragment
baseline is not properly set. In this case the user should adjust the baseline settings
manually.
Example:
’Incorrect’ software identification of the ribosomal fragments: RIN=7.2
Contents ▲102 ▼Index

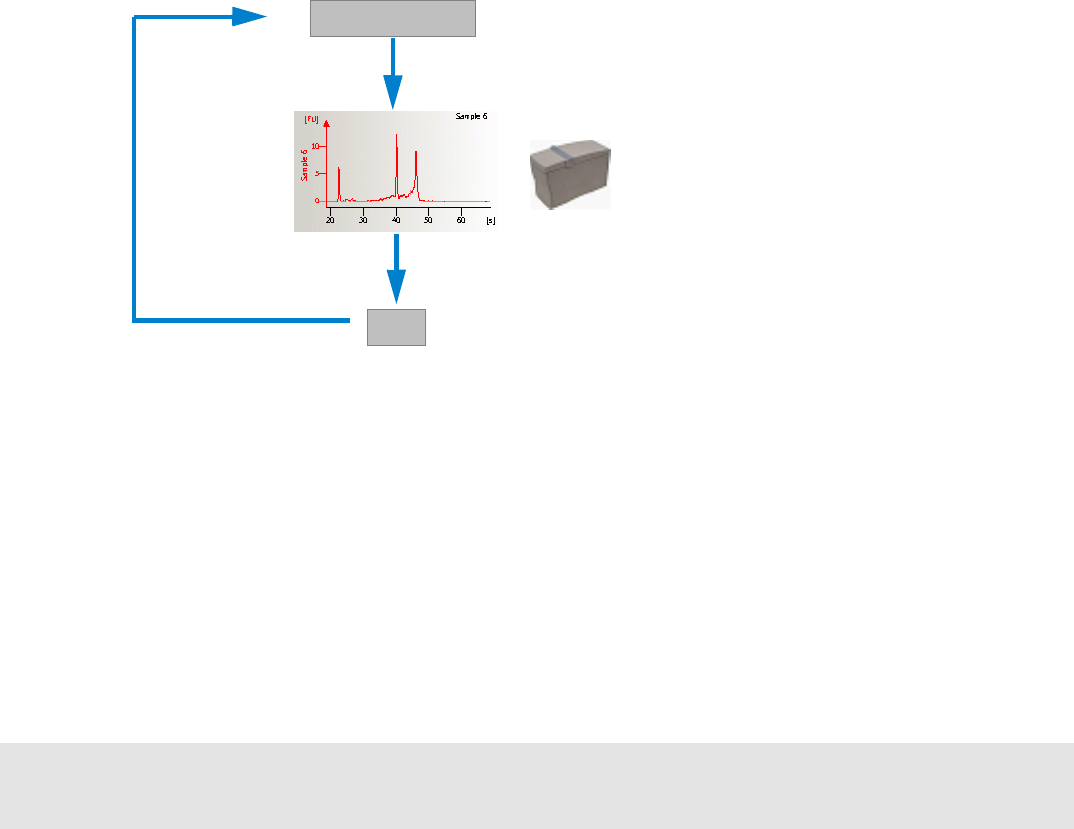

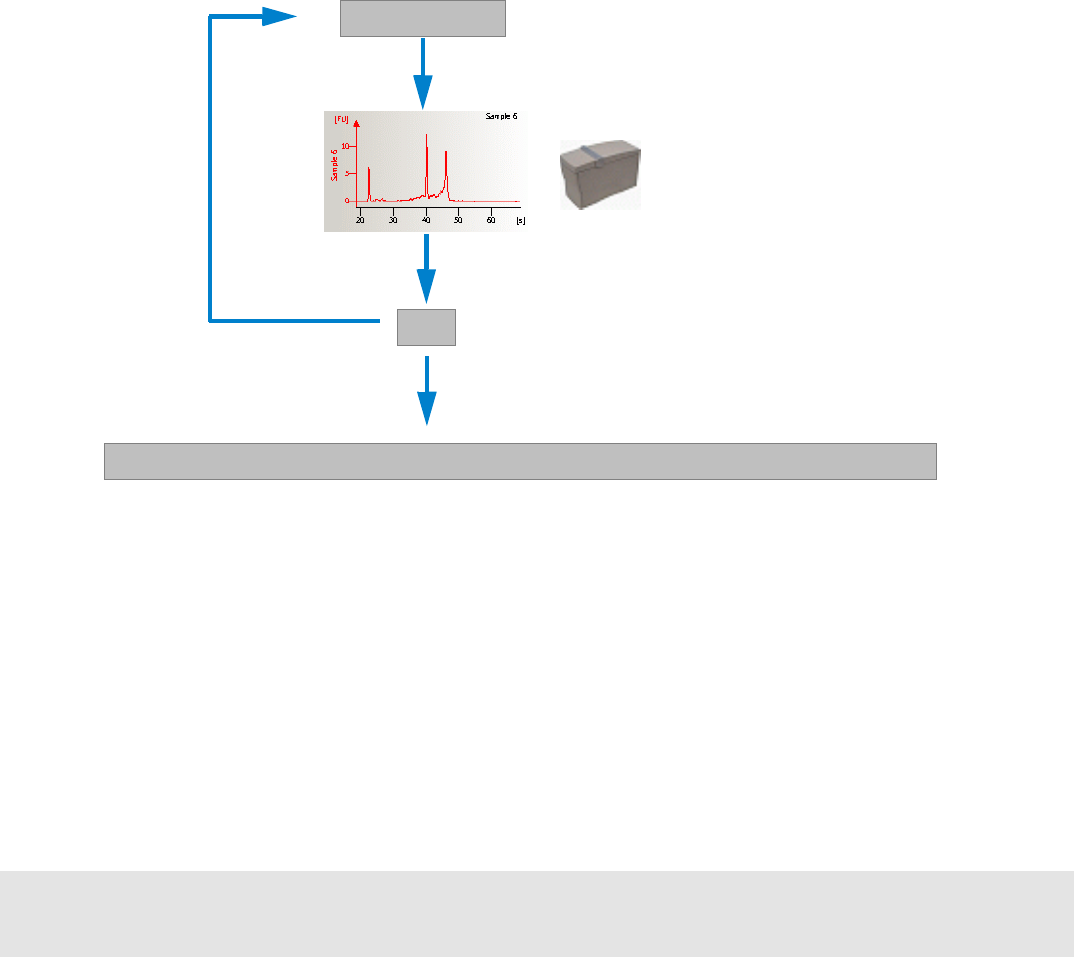

Use Models for the RNA Integrity Number
To take full advantage of the RIN feature, a 2 step use-model is suggested:
1Determine the threshold value for the RIN that results in meaningful downstream
experiments:
Cells/Culture
RIN
Isolation of total RNA
RNA QC via
Agilent 2100 bioanalyzer
Correlate RIN with downstream experiment and determine threshold RIN
for meaningful results (iterative process)
Contents ▲104 ▼Index
RNA Integrity Number Setpoints
Various setpoints are available to customize the display of the RIN (RNA Integrity
Number). With these setpoints, you can modify the predefined thresholds for anomaly
detection. You can find them in the advanced user mode of the setpoint explorer.
To adjust the setpoints for a single sample, switch to the Local tab of the setpoint
explorer and open the RNA Integrity Number group.
To adjust the setpoints for the whole chip, switch to the Global tab of the setpoint
explorer and open the RNA Integrity Number group in the Sample Setpoints group. For
the chip, you can additionally switch between integer and decimal representation of the
RIN.
For more information on how to use the setpoint explorer, see “About the Setpoint
Explorer” on page 118.
Contents ▲105 ▼Index
Data Analysis: Protein
The data analysis process for protein assays consists of the following steps:
1. Raw data is read and stored by the system for all of the individual samples.
2. The data is filtered and the resulting electropherograms of all samples are plotted. You
can change the settings of the data analysis after the run and reanalyze your data.
3. Peaks are identified for all samples and are tabulated by peak ID. You can change the
settings of the peak find algorithm and reanalyze the data after the run has finished.
(Note that peak find settings can be changed for all or only certain samples.)
Contents ▲106 ▼Index
4. A sizing ladder (see the example electropherogram below), which is a mixture of
proteins of different known sizes, is run first from the ladder well. The sizes of the
individual proteins are preset as kDa in the assay and cannot be changed. Please note
that the concentrations may vary slightly from ladder lot to ladder lot.
Contents ▲108 ▼Index
6. Two proteins are run with each of the samples, bracketing the sizing range. The “lower
marker” and “upper marker” proteins are internal standards used to align the ladder
data with data from the sample wells. The figure below shows an example of assigned
marker peaks in a sample well.
NOTE
The software performs alignment by default. Turning automatic data analysis off
suspends analysis until you turn it on again.
Lower marker
Upper marker
Contents ▲109 ▼Index
7. The standard curve, in conjunction with the markers, is used to calculate protein sizes
for each sample from the migration times measured.
8. To calculate the concentration of the individual proteins in all sample wells, the upper
marker is applied to the individual sample peaks in all sample wells.
NOTE
The software allows you to define upper and lower markers yourself. A change in the
selection of the markers will lead to quantitative changes in the calibration procedure,
however, and therefore in the entire data evaluation.
Contents ▲110 ▼Index
Protein Absolute Quantitation
Absolute quantitation is calculated based on the relative concentration of a sample and
the user-defined standard and the known concentration of this user-defined standard.
For protein samples you can enable the use of calibration for each sample and enter the
concentration of the standard protein. This allows you to generate a calibration curve,
which can be used to analyze and quantitate this protein within different samples on the
same chip.
Using Calibration in Protein Assays
The calibration feature for protein assays allows absolute quantitation based on external
standard calibration.
On the Chip Summary tab, use the sample table on the Sample Information sub-tab to
define the samples that you want to use as calibration standards and enter a
concentration.
Contents ▲111 ▼Index
The calibration standard should be run in different concentrations to generate a
calibration curve. The software will automatically produce this calibration curve based on
these inputs to determine the actual concentration of samples within the same chip. In
the peak tables of the samples, a remark is added to the observation column to identify
the calibration protein and the calibrated proteins:
Contents ▲113 ▼Index
Smear Analysis
The 2100 expert software allows to perform a smear analysis for all electrophoresis
assays.
When the smear analysis is enabled, the software allows you to define regions of
interest. These regions are used to define the area of broad peaks and determine their
part of the total area. Smear analysis provide a means to analyze broad signals that can
be hardly evaluated with the normal peak assignment.
You therefore can define regions of interest that contain the peaks (base pair size) that
you are interested in. For these regions you can determine the covered area in relation to
the total area.
Enabling Smear Analysis
To enable smear analysis:
1Go to the Electropherogram tab in the Data context:

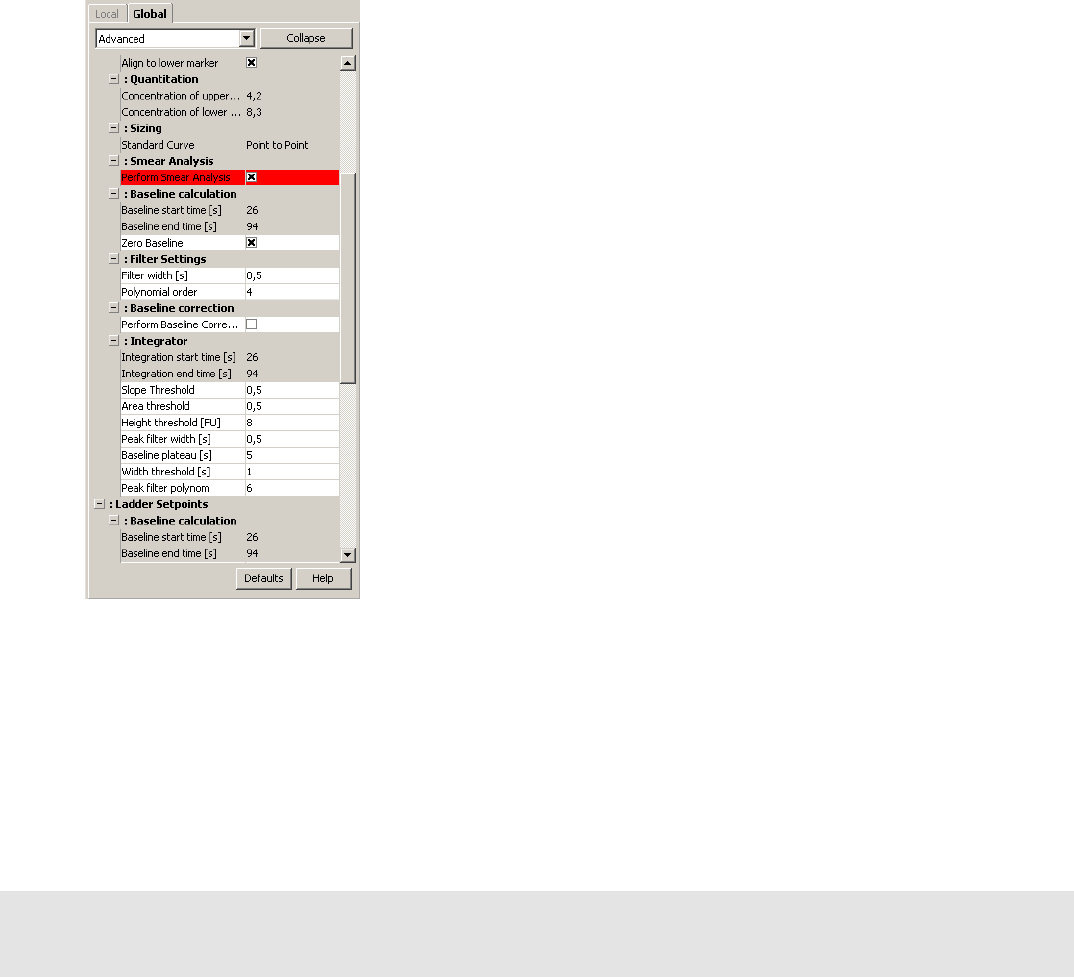

2Go to the setpoint explorer and select the Local or Global tab, depending on which
samples should be analyzed.
3Select the Advanced mode.
Contents ▲115 ▼Index

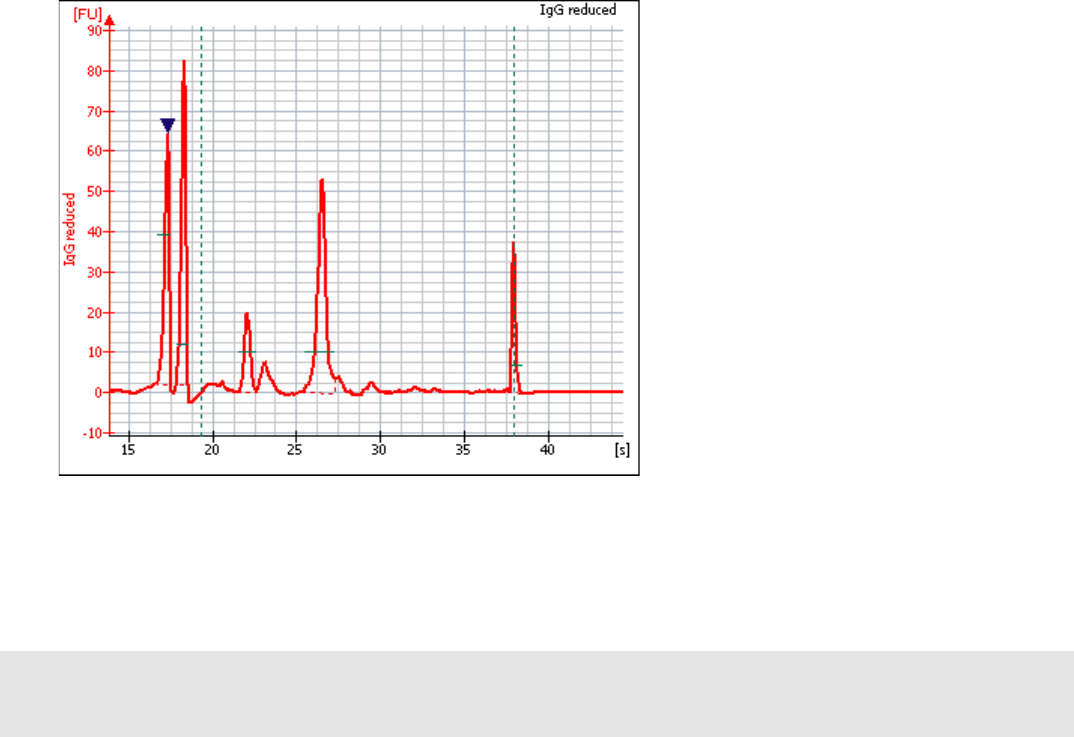

Performing Smear Analysis
After enabling the smear analysis in the setpoint explorer, you are able to insert regions
of interest in the electropherogram.
To d o so :
1Select the Region Table sub-tab in the Electropherogram tab.
2Right-click the electropherogram and select Add region.
A region will be inserted into the electropherogram. The Region Table shows the values
for the inserted region.
3Repeat the previous step until the number of required regions is inserted.

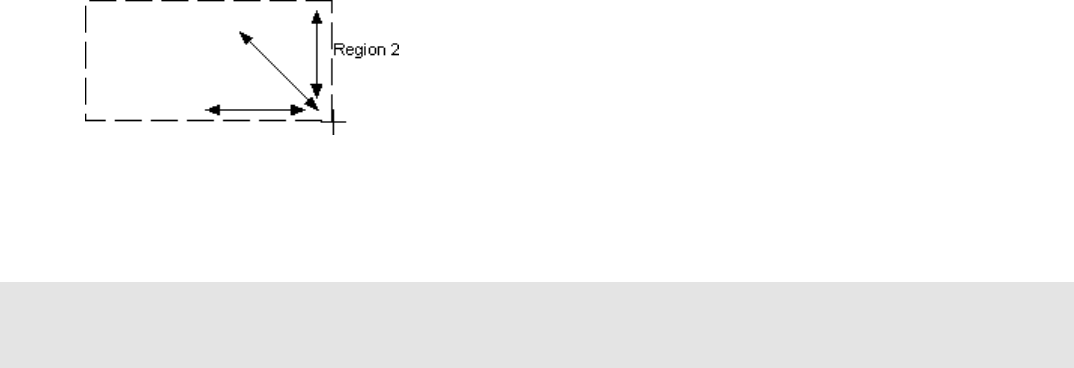

4Adjust the regions by directly moving the dashed lines in the electropherogram.
5To remove a region, right-click the dashed line in the electropherogram and select
Remove Region from the context menu.
NOTE

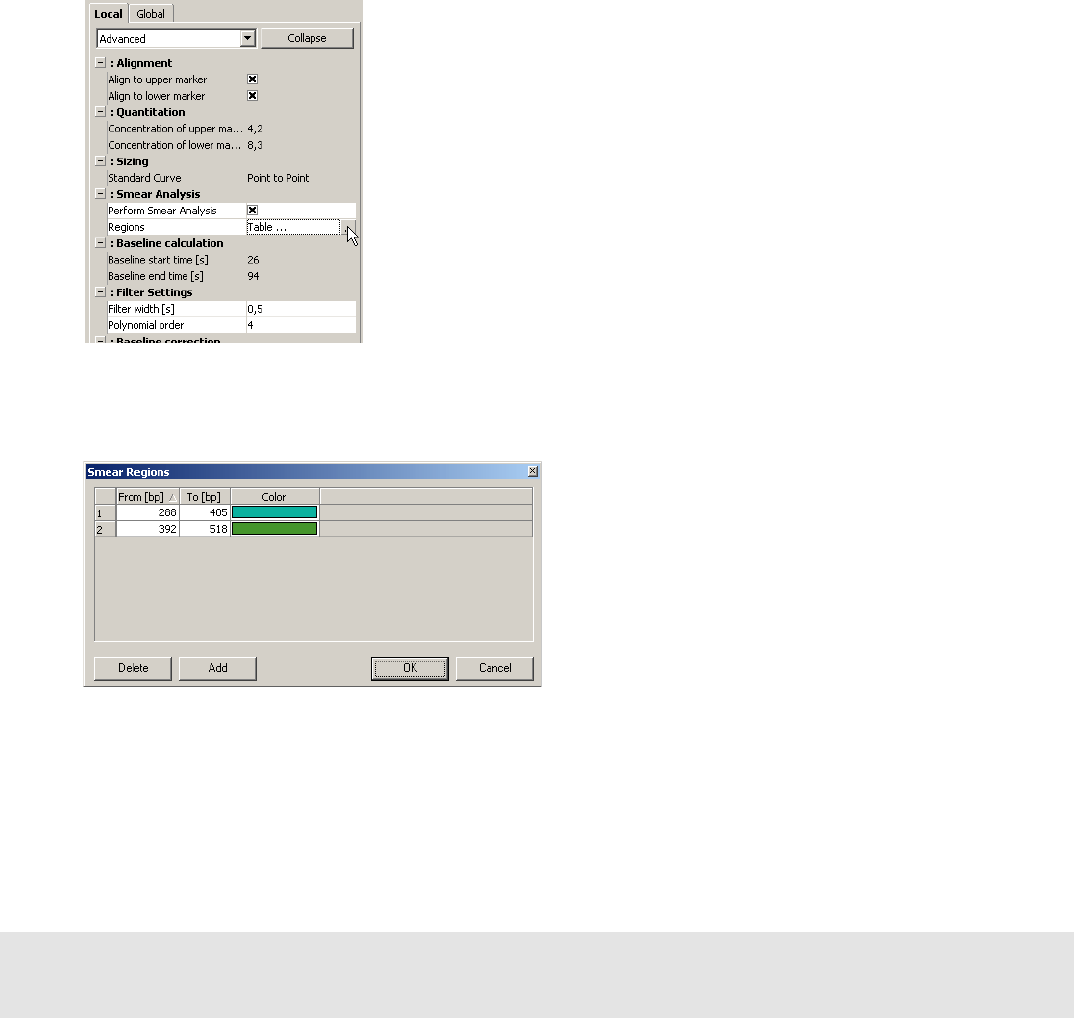

The smear analysis table can be directly edited by selecting the region table under
Smear Analysis in the setpoint explorer.
Contents ▲117 ▼Index
Changing the Data Analysis
Different sets of parameters (data analysis setpoints) can be changed in the software in
order to modify the data evaluation for sample analysis:
•Filtering parameters
•Peak find parameters for all samples/peak height for individual samples
•Enabling smear analysis
•Align to upper and/or lower marker
•Adding/deleting ribosomal fragments (for RNA assays only)
•Manual integration (for protein and DNA assays only)
•Absolute quantitation (for protein assays only)
These settings can be made before a new run is started or when reanalyzing a previously
saved data file.
Contents ▲120 ▼Index

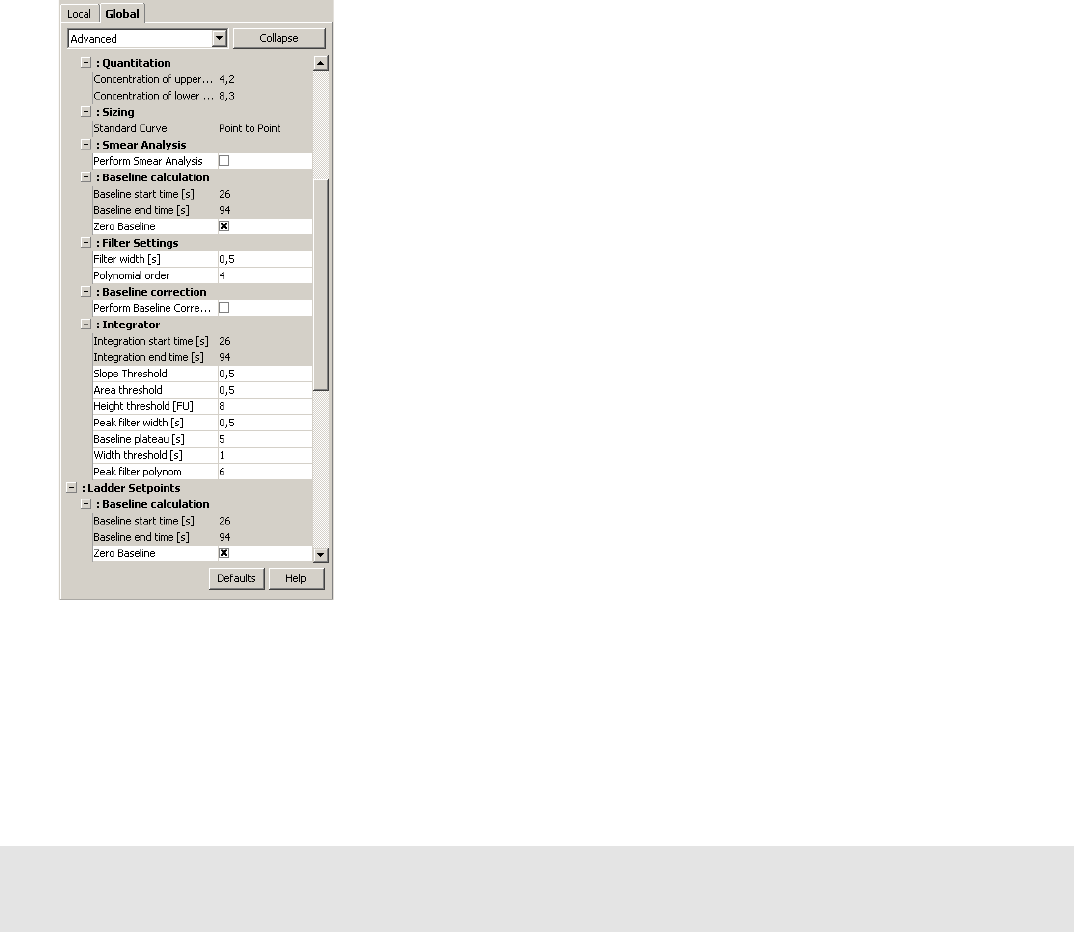

To show the setpoint explorer, on the Electropherogram/Gel tab, click the vertical bar on
the right edge of the application window:
The setpoint explorer appears.
For electrophoretic assays, you can modify the setpoints
•globally, that is, for all samples (Global tab)
•locally, for the current sample (Local tab)
Click the + nodes to expand, and the – nodes to collapse branches. Setpoints that you
can change are white. To edit a setpoint, double-click the value, enter the new value, and
press enter. They are applied automatically.
Contents ▲121 ▼Index
When you try to change any global setpoints where local settings have been applied, the
software prompts you as to whether you want to overwrite the local (custom) settings.
If you decide to overwrite the custom sample settings, all local settings you made will be
discarded. If you decide not to overwrite the custom sample settings, the global settings
will not be applied where local settings have been changed.
Contents ▲122 ▼Index

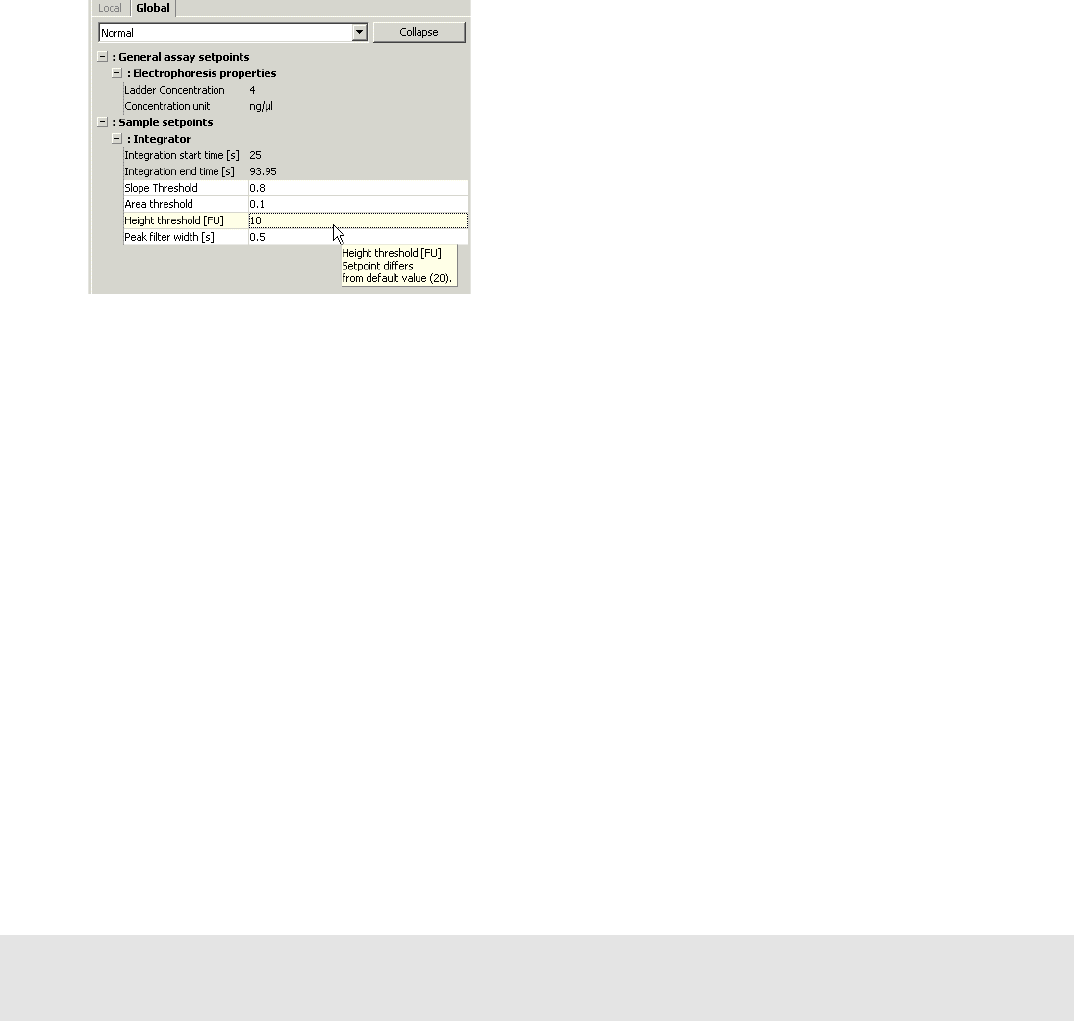

Color Coding of Setpoint Values
Specific color coding indicates differences between local setpoint values and global
setpoint values. The following differences are indicated:
•One local setpoint value differs from the global setpoint value as defined for this assay.
On the Local tab, a yellow background indicates that a local setpoint value has been
modified and differs from the current global setpoint value.
A tooltip displays the global default value originally defined for this assay.
Right-click the local setpoint value to access the following functions:
Copy to Clipboard: The current local setpoint value is copied to the clipboard.
Restore Default: The local setpoint value is reset to the setpoint value as currently
defined on the Global tab.
Set as Default: The local setpoint value is set as new global setpoint value, but not
automatically applied to all other samples.
Contents ▲123 ▼Index
On the Global tab, the corresponding global setpoint value for which a local setpoint
value has been modified is displayed in blue font color.
A tooltip displays the corresponding local values of all samples in sequential order.
•Local setpoint values differ from the global values as preset by Agilent but match the
global setpoints as currently defined for this assay.
On the Global tab, a yellow background indicates that the global setpoint value differs
from the value as preset by Agilent but all local setpoints have the same value as the
current global value.
Contents ▲124 ▼Index
A tooltip displays the global value as preset by Agilent.
•Local setpoint values differ from the global values as preset by Agilent as well as from
the global setpoints as currently defined for this assay.

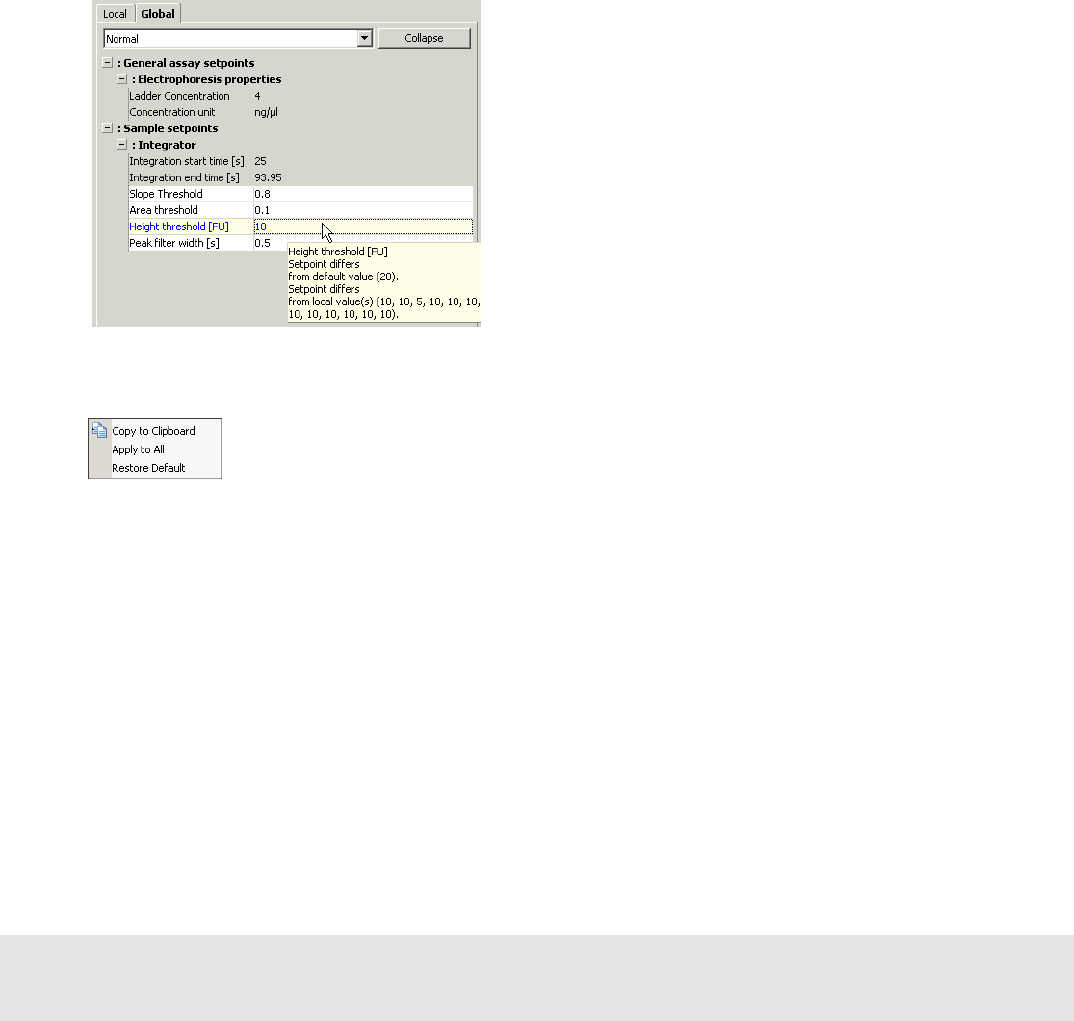

On the Global tab, a blue font color on yellow background indicates that the global
setpoint value differs from the global setpoint values as preset by Agilent and at least
one local setpoint value.
Contents ▲125 ▼Index
Right-click the global setpoint value to access the following functions:
Copy to Clipboard: The current global setpoint value is copied to the clipboard.
Apply to All: The current global setpoint will be applied to all samples and override their
current value.
Restore Default: The current global setpoint will be reset to default as preset by Agilent,
but will not override current local setpoint values.
Contents ▲126 ▼Index
Filtering Setpoints
The first step the software takes in analyzing the raw data is to apply data filtering. The
following filtering setpoints can be changed:
Integrator Setpoints

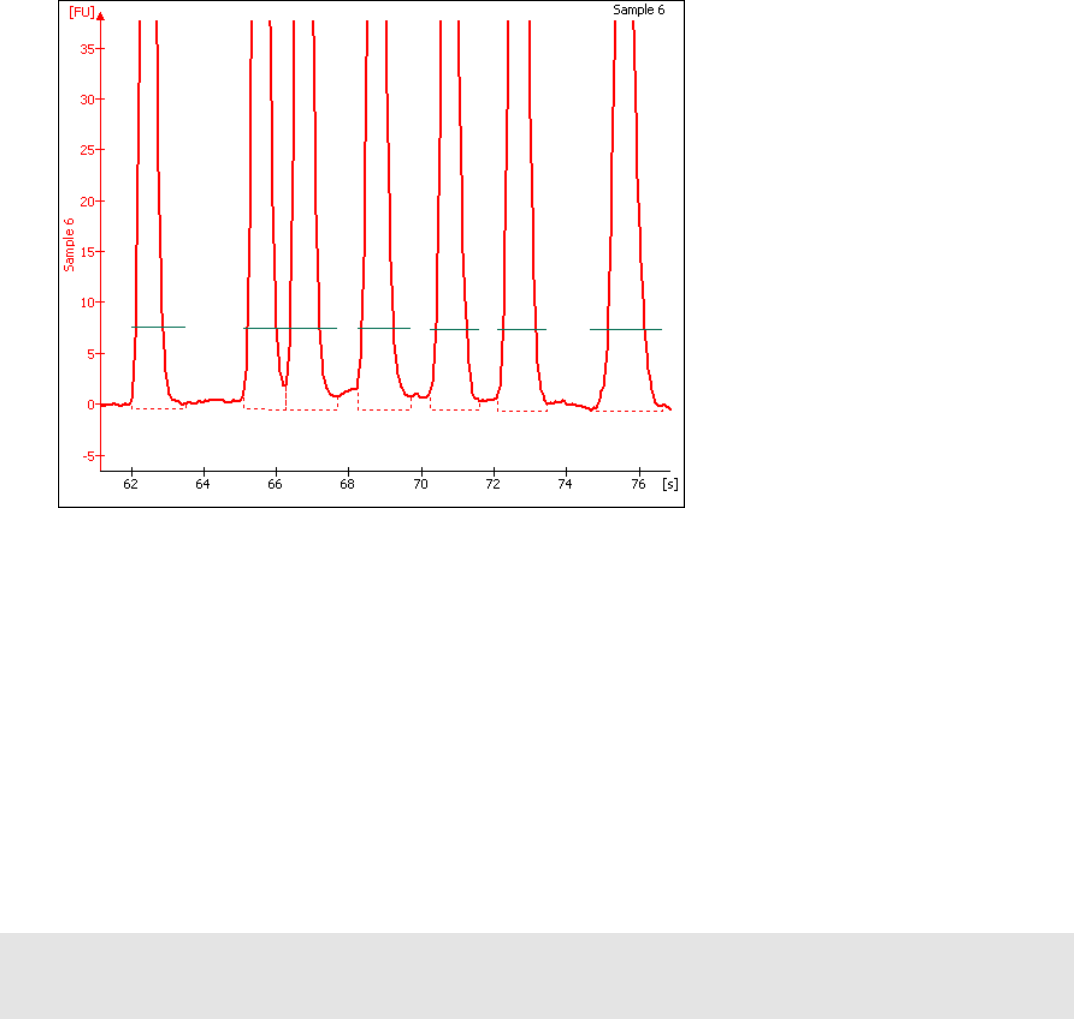

After data filtering, the peak find algorithm locates the peaks and calculates the local
peak baselines. The algorithm begins by finding all the peaks above the noise threshold
in order to determine the baseline, after which any peaks below the noise threshold are
rejected. A local baseline is calculated for each peak to allow for baseline drift.
Filter Width Defines the data window, given in seconds, used for averaging. The
broader the filter width, the more raw data points are used for
averaging. As a result, the noise level will decrease, but peaks will
become lower and broader. Overall, changing the Filter Width has
more effect on the result of the filtering procedure applied then
does changing the Polynomial Order.
Polynomial Order This setting is used to define the power series applied to fit the raw
data. The higher the number, the more the fit function will follow
the noisy raw data curve. As a result, the noise level of the filtered
curve will increase.
Contents ▲127 ▼Index
The integrator setpoints that can be changed are:
Slope Threshold The Slope Threshold setpoint determines the difference in the
slope that must occur in order for a peak to begin. The inverse of
this value is used to determine the peak end.
Area Threshold The Area Threshold determines the minimum amount of peak area
that must be detected before a peak is recognized.
Height Threshold The Height Threshold setpoint determines whether a peak is kept.
It represents the minimal peak height. For each peak, the difference
between the start point value and the center point value (local
baseline) must be greater than the Height Threshold value.
Peak Filter Width The Peak Filter Width setpoint determines the minimum amount of
time that must elapse before a peak is recognized.
Baseline Plateau The Baseline Plateau setpoint is a parameter that assists in finding
peaks. The signal is recognized to be at baseline whenever the
slope of the data is less than the Slope Threshold setpoint (either
positive or negative) for longer than the time set for the Baseline
Plateau. This setting rejects brief, low slope areas such as between
non-baseline-resolved peaks.
Contents ▲128 ▼Index
Manually Moving Fragment Start and End Points (RNA and Cy5-Labeled Nucleic
Acids)
It is also possible to alter the start and end points manually for individual fragments in an
RNA or Cy5-labeled nucleic acids assay. The integration borders of detected
RNA-fragments are displayed in the Fragment Table sub-tab. Zooming in on the base of a
particular fragment allows you to see the start and end points. Placing the cursor over
one of these points changes the cursor to a pointing hand, allowing you to click and drag
the point along the line of the fragment until it is positioned as desired.
Move any other start or end points as desired.
Contents ▲129 ▼Index
TIP
The fragment table can be directly edited in the setpoint explorer:
NOTE
Changing the start or end points of the fragment will change the calculated rRNA ratio.
It might be convenient to pause the automatic analysis (Electropherogram > Pause
Automatic Analysis) until all changes are done.
Setting the Baseline for Calculation of RNA Concentration
At low signal-to-noise ratios, the baseline that defines the area used for calculating the
concentration of RNA assays is highly dependent on the settings for the Start and End
Time. You can adjust the Start and End Times manually (thereby adjusting the baseline)
Contents ▲130 ▼Index
to ensure a good result even at very low signal-to-noise ratios. Choose a single sample.
Two vertical green long-dashed lines indicating the setpoints for the Start and End Times
(with the baseline drawn between them) are displayed in the window.
Move the cursor over the long-dashed line on the left (Start Time setting) and drag the
line to the desired position. Do the same with the long-dashed line on the right (End Time
setting) until you have a flat baseline.
NOTE
Changing the start and end times will change the calculated RNA concentration. It
might be convenient to pause the automatic analysis (Electropherogram > Pause
Automatic Analysis) until all changes are done.
Contents ▲131 ▼Index
Assigning Upper and Lower Marker Peaks
For each DNA or protein sample, the upper and lower marker peaks are assigned first and
then the data is aligned so that the sample markers match the ladder markers in time,
allowing the size and concentration of the sample peaks to be determined. RNA samples
are aligned to a lower marker exclusively.
The first peak is assigned to be the lower marker and is then offset to match the lower
marker in the ladder. The upper marker is then assigned to the last peak in the sample
well or to the peak nearest the ladder’s upper marker. See an example of assigned
marker peaks below.

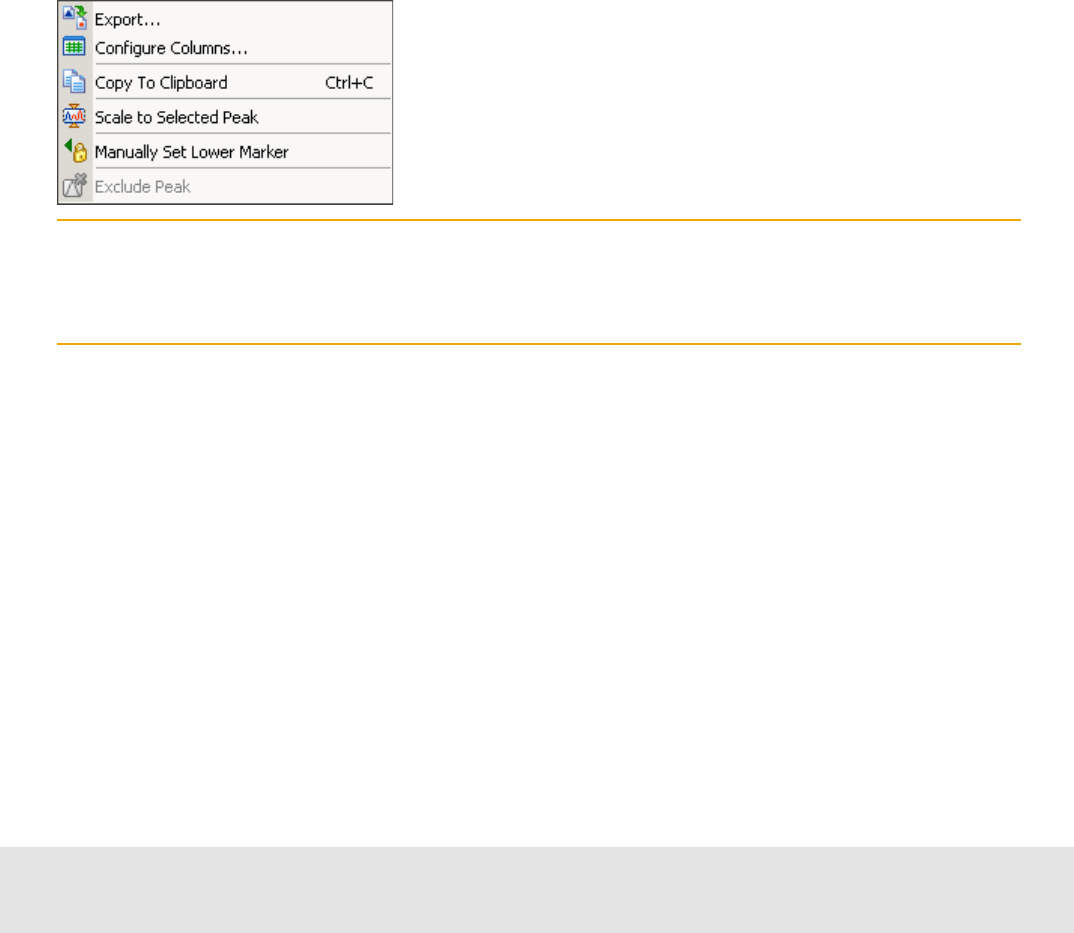

If you get unexpected peaks in the ladder analysis or find that the markers have been set
incorrectly, you may exclude peaks manually from the ladder or set a peak to be used as a
marker. Right-clicking in the peak table causes a context menu to appear, allowing you to
do so:
Contents ▲135 ▼Index
NOTE
With DNA and protein assays, the height of marker peaks is assay dependent. Ladder
peaks are analyzed to calculate a marker peak threshold that is used to locate the
marker peaks in the sample wells. If the marker peaks found using this calculated
method fail to align with those of a sample, the 2100 expert software will use the
minimum peak height threshold setting instead (if this value is lower than the value for
the marker peak). For example, the calculated threshold might be too high to find the
sample's markers if they happen to be very small for some reason. Either no markers
will be found or the wrong peaks will be assumed to be markers and these may not
align with the ladder markers. Consequently, the software attempts to use the
minimum peak height threshold that, if it is set low enough, will catch the real
markers, allowing the sample to align.
NOTE
After alignment, peaks are shown with relative migration times that are different from
the real times with data unaligned.
Contents ▲136 ▼Index
Manual Integration
For DNA and Protein assays, the 2100 expert software allows to manually integrate
peaks. Manual integration allows you to move, add or delete peak baselines.
TIP
To move a peak baseline, point along the vertical line, press the CTRL key and left
mouse button. To move a peak baseline, point along the signal, press the left mouse
button only.
Example: Adjusting peak baselines
To manually change peak baselines:
1Switch to the Electropherogram tab in the Data context and zoom into the
electropherogram to enlarge the peak of interest.
2Select Electropherogram > Manual Integration to switch off the automatic integration.
As an alternative you can click the Manual Integration button in the toolbar.
Contents ▲137 ▼Index
The baseline points become visible as blue or green dots. Highlighted baseline points
are labelled green and can be moved either along the vertical line (press CTRL key and
left mouse button) or along the signal trace (left mouse button). The blue baseline
points are fixed and cannot be moved. To highlight a baseline point, click it.
TIP
If you want to change several baseline points, deactivate the automatic analysis by
clicking the Pause Analysis button in the toolbar. This way, the software will not
recalculate the data analysis with every change. Once you have changed all baseline
points, click the Pause Analysis button again to activate automatic analysis.
Contents ▲138 ▼Index
3Adjust the baseline points as appropriate.
TIP
To move a peak baseline point along the vertical line, press the CTRL key and the left
mouse button. To move a peak baseline point along the signal, press the left mouse
button only.
4Click the Automatic Analysis button to enable the integration again.
The integration results in the result and peak tables will change according to the
changes done.
Contents ▲139 ▼Index
Example: Removing peaks
To r e mo ve p ea k s:
1Highlight the Electropherogram tab in the Data context and zoom into the
electropherogram to enlarge the peak of interest.
2Select Electropherogram > Manual Integration to switch off the automatic integration.
As an alternative you might click the Manual Integration button in the toolbar. The
baseline points become visible as blue or green dots.
Contents ▲144 ▼Index
TIP
If you want to change several baseline points, deactivate the automatic analysis by
clicking the Pause Analysis button in the toolbar. This way, the software will not
recalculate the data analysis with every change. Once you have changed all baseline
points, click the Pause Analysis button again to activate automatic analysis.
4Adjust the baseline points as appropriate.
TIP
To move a peak baseline point along the vertical line, press the CTRL key and the left
mouse button. To move a peak baseline point along the signal, press the left mouse
button only.
Contents ▲146 ▼Index
Reanalyzing a Chip Data File
NOTE
Occasionally you may wish to open and view or reanalyze a chip data file that was run
and saved previously. The raw data values are saved in the data file, along with the
analysis settings that were chosen for the run, so that the data can be reanalyzed with
different settings.
To d o th i s:
1Click File > Open to open a chip data file (.xad).
2. Choose the filename from the list of data files.
3. Click OK.
The items that can be changed for reanalysis are:
All Electrophoresis Assays:
•Global peak find settings
•Individual sample peak find settings
•Gel color
•Sample names and comments
RNA Assays Only:
•Fragment names and colors associated with labels
•Fragment start/end times, additional fragments (or delete fragments found)
Contents ▲147 ▼Index
•Reassign lower marker
DNA and Protein Assays Only:
•Exclude peaks from analysis
•Reassign upper/lower markers
•Alignment or no alignment with marker peaks
•Manual integration
Protein Assays Only:
•Absolute quantitation
TIP
When applying modified data analysis setpoints, the software will (by default)
immediately recalculate the raw data, which takes some time. Select Don’t Analyze
from the Gel Menu or Electropherogram Menu to temporarily switch off automatic
data analysis while you modify setpoints.
If you save the data file after making changes, it will keep a record of the changes such
as gel color, sample names, and peak find settings that were in effect at the time the file
is resaved. If you do not want to change the original file, choose File > Save As… and give
the file a new name or save it to a different location.
Contents ▲148 ▼Index
Comparing Samples from Different Electrophoretic Chip Runs
The 2100 expert software allows you to compare the measurement results of samples
from different electrophoretic chip runs. Samples to be compared must be from chip runs
of the same assay type.
In the Comparison context, you can create comparison files, include samples from
different chip runs, and compare the samples by overlaying electropherograms, for
example.
To compare samples from different electrophoretic chip runs:
1Switch to the Comparison context.
2From the File menu select Open, and open all chip data files (.xad) that contain the
samples you want to compare.
The .xad files appear in the Select Data Files list of the Tree View Panel.
NOTE
The Select Data Files list also contains all electrophoretic .xad files that are currently
open in the Data context.
Contents ▲151 ▼Index
5You can now add further samples from any of the open .xad files to the comparison file.
TIP
Double-clicking a sample name in the lower part of the tree view or dragging a sample
name into the tree view adds the sample to the comparison file that is currently
selected in the upper part of the tree view. Or, if no comparison file is selected, creates
a new comparison file and adds the sample to it.
You are notified if you try to add a sample of a .xad file that has the wrong assay type.
Contents ▲156 ▼Index
10From the File menu, select Save to save the comparison file (.xac) under the default
name, or select Save As to save it under a new name.
The default name is derived from the assay class: “ComparisonFileX [Assay Class].xac”
where “X” is an autoincremented number. Example: “ComparisonFile0 Protein 200.xac”
NOTE
You can re-open comparison files to review the comparison results, and to
add/remove samples.
Contents ▲157 ▼Index
Result Flagging
Result flagging can be used to assign a user-defined color code to a sample. This lets you
easily identify samples with certain properties immediately after a chip run.
The color assignment is carried out by applying a sequence of rules to the measurement
results obtained for the sample. The rules are defined on chip level and are applied to all
samples of the chip.
Two modes are available to define result flagging rules:
•Form Mode
In this mode, you can easily compose an expression by selecting functions and
operators from given lists. If necessary, additional attributes have to be provided.
By selecting a logical operator (
AND/AND NOT/OR/OR NOT
), further terms can be
combined to form a more complex expression. The last term of the expression ends
with the operator
NONE
.
•Editor Mode
This mode is more flexible and allows you to write arbitrary complex expressions by
using functions, variables and operators.
TIP
You can export result flagging rules and import rules from other assay or chip data
files. See “Exporting Result Flagging Rules” on page 291 and “Importing Result
Flagging Rules” on page 282.
Contents ▲158 ▼Index
Regardless of how you create the result flagging rules, there are two options available for
the order in which the rules are applied:
•In Normal mode, the rules are applied in the given order, and the first matching rule will
determine the color of the sample. All rules are applied subsequently. The first rule
which applies to the sample defines its color. So you should start with the most specific
rule. If that one does not apply, a less specific one may apply. If none of the defined rules
apply, the final default rule defines the color code.
•In Ta r g e t mode, all rules are applied subsequently. If the next rule applies, the color
code changes to the color code defined by the rule, otherwise the previous color code
is kept. Therefore, the last matching rule defines the color code of the sample. This
mode is called target mode because later rules refine the result color code. The first
default color code is the most general and the last one the most specific.
You can define the flagging rules already in the assay, or—after the chip run is
finished—modify these rules or define new rules in the chip data file, and apply the rules
to the measurement results. Defined rules can also be saved, loaded and applied to other
data files.
Contents ▲159 ▼Index
TIP
The examples shown in this chapter are taken from the demo assay “Demo Protein
200 Plus.xsy”, that comes with the 2100 expert software. You can find this demo assay
in the “..\assays\demo\electrophoresis” subdirectory of the 2100 expert installation
folder.
In the “..\data\samples\resultflagging” subdirectory of the 2100 expert installation
folder, you can find further examples for result flagging rules (.xml), which you can
import in the “Protein 200 Plus” demo assay.
Contents ▲161 ▼Index
A result flagging rule consists of the following:
•Label Expression
An optional description for the rule used to label samples meeting this rule.
•If Expression
An expression built from predefined functions, variables, and logical operators.
•Comment
An optional comment for the rule.
•Color Expression
A solid color or a color gradient built from two colors, used for flagging samples that
meet the rule.
“How to Use the Form Mode” on page 164 shows how to proceed when defining rules.
You can reuse result flagging rule definitions, see “Exporting Result Flagging Rules” on
page 291 and “Importing Result Flagging Rules” on page 282.
Contents ▲164 ▼Index
•On the Results tab:
Result Flagging Color: color of the result flagging rule that the current sample matches.
Result Flagging Label: label of the result flagging rule that the current sample matches.
How to Use the Form Mode
The Form Mode provides some pre-defined rules (forms) that you can use to define the
result flagging rules to color-code your samples. You can set up any number of rules for
evaluation. As a typical example of how these forms are used, you can use the form mode
to flag DNA samples that have a fragment purity of 10% for fragment sizes of 150 bp.
To do this, proceed as follows:
1Open the job that contains the results to be analyzed in the Data context and switch to
the Result Flagging tab.
2Switch to the form mode by clicking the Switch to Form Mode icon .
3Choose the Search Fragment with Purity form from the Select Form selection list.
Contents ▲165 ▼Index
The Search Fragment with Purity form is displayed.
4Define the fragment size(s) to be searched for.
5Define the required purity for the fragment size(s) and the tolerance.
6If you defined several fragment sizes and want all of these to be present in the flagged
samples, select the option All of them must be present. If you only require that one of
the sizes is present, select the option Any of them can be present.
Fragment/
protein list
Toleran c e
Labels and color
definitions
Logic operation
Purity
Contents ▲166 ▼Index
7Select the color with which the samples that meet the criteria should be marked.
8Optionally select the color with which samples that do not meet the criteria should be
marked.
9Apply this rule to the samples by clicking the Apply Result Flagging icon .
All samples are re-evaluated according to the result flagging rule and displayed with the
respective colors. See “Color Indication” on page 162 for more information on the color
codes.
Additional information is available in the Help panel at the bottom of the screen. This
panel provides context-specific help, including examples.
How to Use the Editor Mode
The editor mode for result flagging is a powerful way of creating your own result flagging
rules.
To define a result flagging rule for a selected job:
1Open the job in question in the Data context and switch to the Result Flagging tab.
2Switch to the editor mode by clicking the Switch to Editor Mode icon .
3Edit a rule that was created within the form mode.
–OR–
Create a new rule by clicking the Add icon or Duplicate Selected Rule icon .
4Click the Edit button next to the Rule Label field and enter the result label for this rule.
Contents ▲167 ▼Index
The result label can be any arbitrary text or be a logic expression. Expressions are built
up of functions, variables, operators, and values. You can manually type in the
expressions. But you can also double-click the items in the Functions, Variables, and
Operators lists, to insert them in the respective fields.
For example, defining the result label as
"Number of peaks is" + NumberOfPeaks()
returns Number of peaks is 10, if the sample contains ten peaks.
Detailed descriptions of the available functions as well as the required syntax and
examples are shown in the Help field at the bottom of the screen.
NOTE
If the entered syntax is not correct, the invalid part is displayed in red color.
5Click the Edit button next to the Rule Condition field and enter the logic expression for
this rule.
As an example for a logic expression for the rule condition, enter
NumberOfPeaks() >
9 AND PeakFoundAuto(150)
. With this rule, all samples can be found that have more
than nine peaks while one of them is located at 150 bp +/- 10%.
6Click the Edit button next to the Rule Comment field and enter a comment for this rule.
7Click the Edit button next to the Rule Color field and select a color for the rule. If you
check the Gradient check box, you can assign a color gradient to the rule. This allows
to imply further information in the displayed results.
Contents ▲168 ▼Index
For example, the rule condition
NumberOfPeaks() > 0
marks all samples with peaks.
If you want to indicate the actual number of peaks with the color code, you need to
enter
NumberOfPeaks()
in the Rule Color field. Then you define light green for the
Minimum Value 1 and dark green for 10 peaks as the Maximum Value. As a result, a
darker green will be displayed for samples with more peaks.
8If necessary, generate additional rules. Rearrange the order of the rules with the Move
Selected Rule Up and Move Selected Rule Down icons.
9To apply the rules to your measurement results, click the Apply Result Flagging icon .
If there still are syntax errors in the rule definitions, an error message appears.
All samples are re-evaluated according to the result flagging rules and displayed with
the respective colors. See “Color Indication” on page 162 for more information on the
color codes.
Contents ▲169 ▼Index
Example: Result Flagging
Sample 1 contains 100 µg/ml proteins. The electropherogram shows 2 peaks for 2
different proteins, which could be separated. One peak can be found at 32 kDa (LDH).
Sample 2 contains 60 µg/ml proteins and shows 3 peaks.
Sample 3 contains 80 µg/ml proteins and shows 5 peaks.
Now, the following rules are defined:
1. Is there a peak at 30 kDa +/- 7%?
Rule 1:
PeakFound(30, PER, 7)
2. Is the total concentration of proteins higher than 90 µg/ml?
Rule 2:
TotalConcentration() > 90
3. Were 5 to 10 peaks found?
Rule 3:
NumberOfPeaks() >= 5 AND NumberOfPeaks <= 10
Alternative Rule 3:
NumberOfPeaks() BETWEEN (5,10)
Applying these rules in the given order (in Normal mode) leads to the following results:
Contents ▲170 ▼Index
For sample 1, rule 1 matches and defines the color. Rule 2 would also match, but is not
checked, because the procedure stops at the first match.
For sample 2, none of the rules match, if there is no peak at 30 kDa +/- 7%. Therefore,
this sample will get the default color.
For sample 3, only rule 3 matches and defines the color.
Contents ▲171 ▼Index
Running and Evaluating Flow Cytometric Assays
For running and evaluating flow cytometric assays, you need to know the following:
•“Principles of Flow Cytometric Measurements” on page 172
•“Overview of Flow Cytometric Assays” on page 181
•“Preparing and Running a Flow Cytometric Assay” on page 184
•“Analyzing and Evaluating the Results of a Flow Cytometric Assay” on page 217
Contents ▲172 ▼Index
Principles of Flow Cytometric Measurements
Besides electrophoretic assays (DNA, RNA, and proteins), the Agilent 2100 bioanalyzer
supports flow cytometric assays:
•First, cells are stained with two fluorescent dyes that correspond to biologically
relevant parameters, as described in the application notes available for each assay.
“Staining Cells” on page 173 explains the principle.
•Next, the stained cells are analyzed on the chip. They pass the detector in single file and
are analyzed individually for their red and blue fluorescence intensities. The results are
displayed as histograms or dot plots. Refer to “Cell Detection with the Agilent 2100
Bioanalyzer” on page 175 for a detailed explanation.
Contents ▲173 ▼Index
Staining Cells
With the 2100 expert software, you can differentiate several properties of a cell. The
characteristics that are examined depend on the dye, which binds specifically to a
cellular constituent or is metabolized by the cell to generate a fluorescent product. You
usually use two dyes with different colors. Typically, one of the two dyes is used as
reference dye to select the target cells (living/dead, cell line type, etc.). The second dye
can be used to detect another characteristic of the cell.
Recommended dyes
The tables below list dyes that match to the detection optics specification (Excitation
max: 470 & 630 nm; Emission max: 525 & 680 nm).
The following dyes are recommended for use as the blue stain:
Dye (blue fluorescence) Max. Excitation
wavelength
Max. Emission
wavelength
Calcein (living cell stain) 493 nm 514 nm
Cell Tracker green (cell tracing,
viability stain)
492 nm 517 nm
GFP (green fluorescent protein) 490 nm 510 nm
SYTO16 (DNA dye) 485 nm 530 nm
Contents ▲174 ▼Index
The following dyes are recommended for use as the red stain:
Dye (red fluorescence) Max. Excitation
wavelength
Max. Emission
wavelength
CBNF (Carboxynaphthofluorescein,
living cell stain)
595 nm 675 nm
APC (Allophycocyanin, intra- and
extra cellular antibody staining)
650 nm 660 nm
Cy5 (labeled Streptavidin and
labeled anti-IgG, Apoptosis,
intra- and extra-cellular antibody
staining)
647 nm 665 nm
Alexa 647 650 nm 668 nm
Contents ▲175 ▼Index
Cell Detection with the Agilent 2100 Bioanalyzer
LabChip technology allows cell measurements by integrating cell flow, hydrodynamic
focusing, and fluorescence detection into a microfluidic chip. A cell suspension can be
confined or “pinched” to a portion of a microfluidic channel, causing cells to line up in
single file for individual cell detection. The following images illustrate the pinching
process.
Up to six cell samples can be analyzed on a chip. They are measured sequentially.
Cell Buffer
Cells Detector
Buffer well
Sample well
Pinching area
Contents ▲176 ▼Index
Measuring Events
The bioanalyzer counts cells stained with fluorescent dyes and measures their
fluorescence intensities. Each cell or bead that passes the detector and emits
fluorescence above a threshold value is counted as an event. For each event, the
intensity of two different fluorescent signals (red and blue) is recorded. The intensity of
the fluorescent signal depends on the amount of stain bound to the cell (and therefore a
specific cell property) and the physical properties of the stain itself.
The Agilent 2100 bioanalyzer lets you determine the number of cells characterized by a
specific pattern of fluorescence.
For example, to differentiate between dead and living cells, you can use a
non-fluorescent dye that becomes fluorescent when metabolized by living cells. After
staining with such a dye, living cells have a higher fluorescence value than dead cells.
The second dye could bind to a specific surface marker on a subpopulation of the cells.
This allows you to determine the number of living cells that contain your marker of
interest.
For evaluation, 2100 expert displays the results as histograms and as dot plots.
Contents ▲177 ▼Index

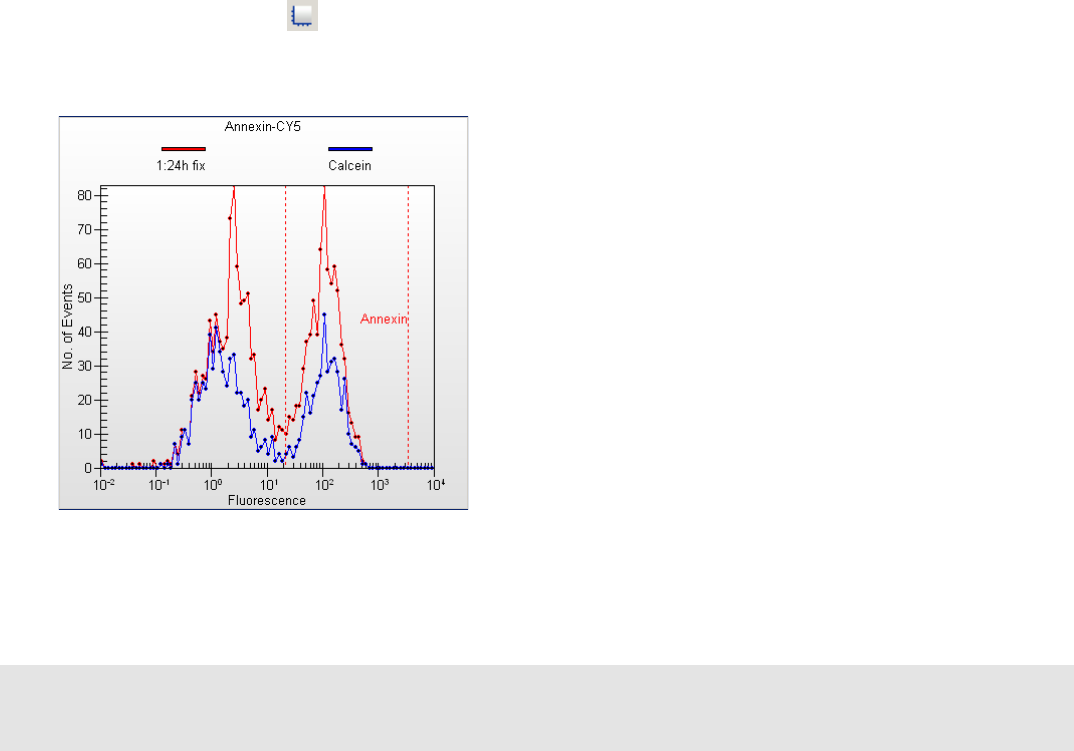

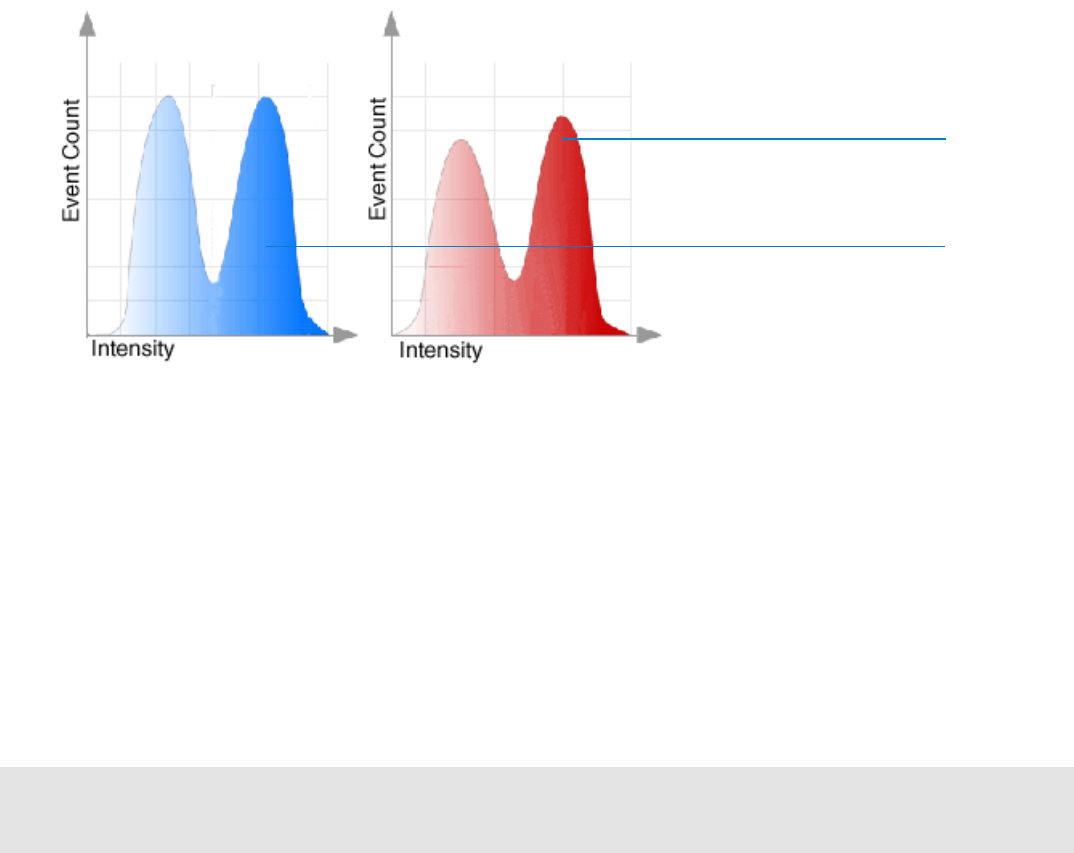

Generating Histograms
2100 expert counts the events, sorts them and displays them according to their
fluorescence intensity in histograms. For each color measured, a histogram displays the
number of events related to the fluorescence intensity. A large number of events with a
high fluorescence value means that a large number of cells containing the fluorescence
dye were detected.

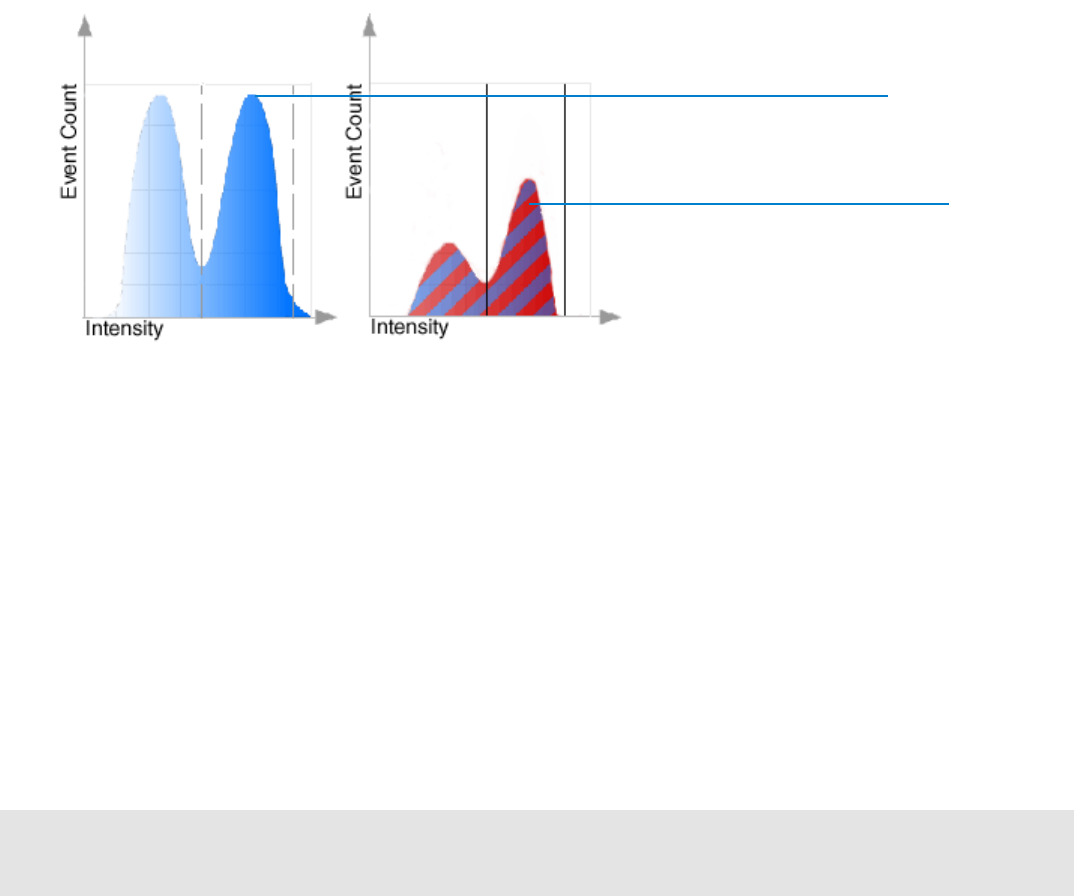

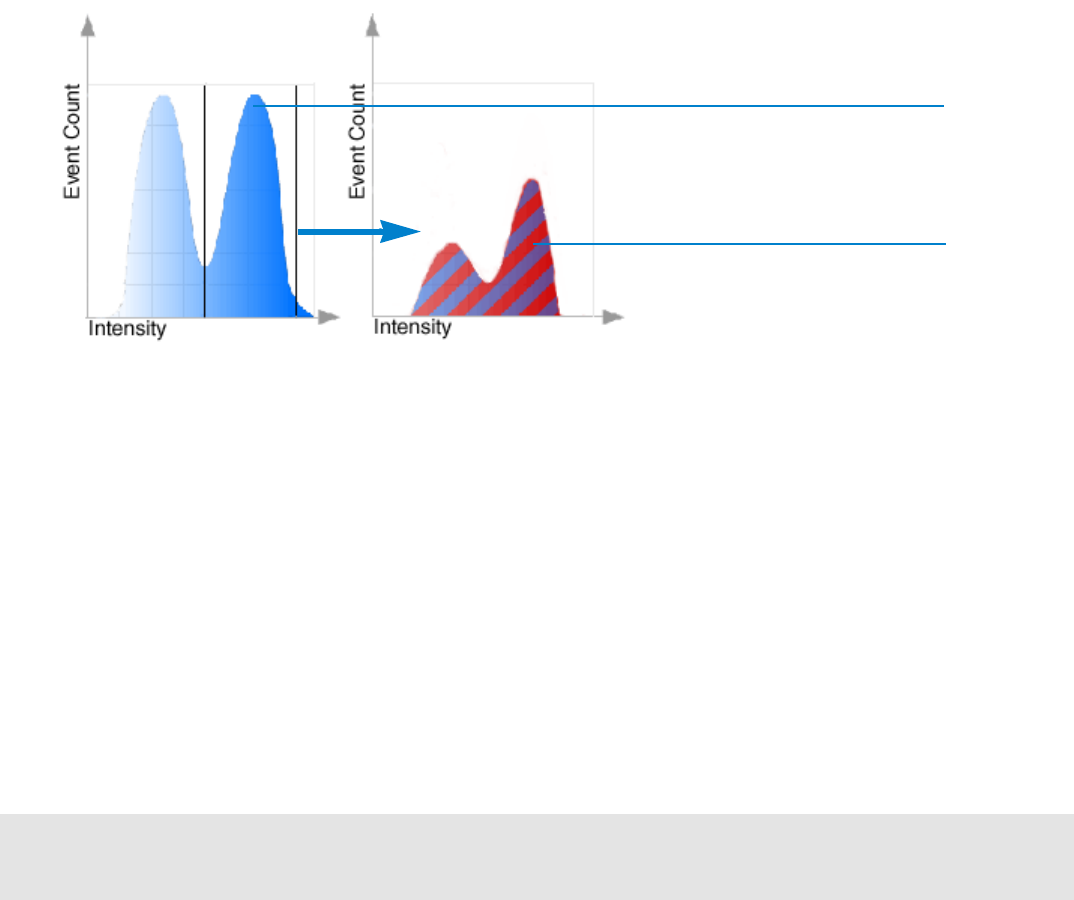

In the following illustration, cells which fluoresce in both colors are highlighted.
As a cell passes through the detector, its blue and red fluorescence values
are measured and the count is increased for both channels at the
appropriate intensity.
Illustrates a cell that
fluoresces in blue and
red. The height of the
bars is related to the
number of cells with this
fluorescence value.
Contents ▲179 ▼Index
Generating Dot Plots
Single events can also be displayed related to both fluorescence values, generating a
map of dot plots. In dot plot view, the events (cells with a minimum fluorescence
intensity) are displayed in a coordinate system (logarithmic axis scaling). Each axis
represents a fluorescence color. A high number of events (cells) with similar
fluorescence values are displayed as a dense cluster of dots, as shown in the following
image.
To determine the number of cells whose blue and red fluorescence lies within a defined
range, you can insert regions. Additionally, a gate can be set for either red or blue
fluorescence to obtain percent values on a defined population.
As a cell passes through the detector, its blue
and red fluorescence values are measured.
Contents ▲180 ▼Index
In predefined assays, the borders of the rectangular region represent the markers defined
in the corresponding blue and red histograms.
The lower left region of a dot plot usually shows no events, due to the defined peak
detection threshold that the fluorescence values must exceed.
For detailed information, see “Using Dot Plots for Evaluation” on page 239.
Gate
Contents ▲181 ▼Index
Overview of Flow Cytometric Assays
The cell characteristic to be measured requires not only specific dyes. Several
measurement parameters to control the measurement and the data acquisition
parameters also have to be specified. These so-called “setpoints” are stored in assay
files (.xsy) and are read by the 2100 expert software before it starts the measurement.
2100 expert supports the following assays based on flow cytometry:
Predefined assays
•Apoptosis
•Apoptosis – fast protocol
For reduced background, this assay has an increased threshold and uses blue events
only for peak detection.
•Antibody Staining
•On-chip Antibody Staining
For reduced background, this assay has an increased threshold in the blue signal.

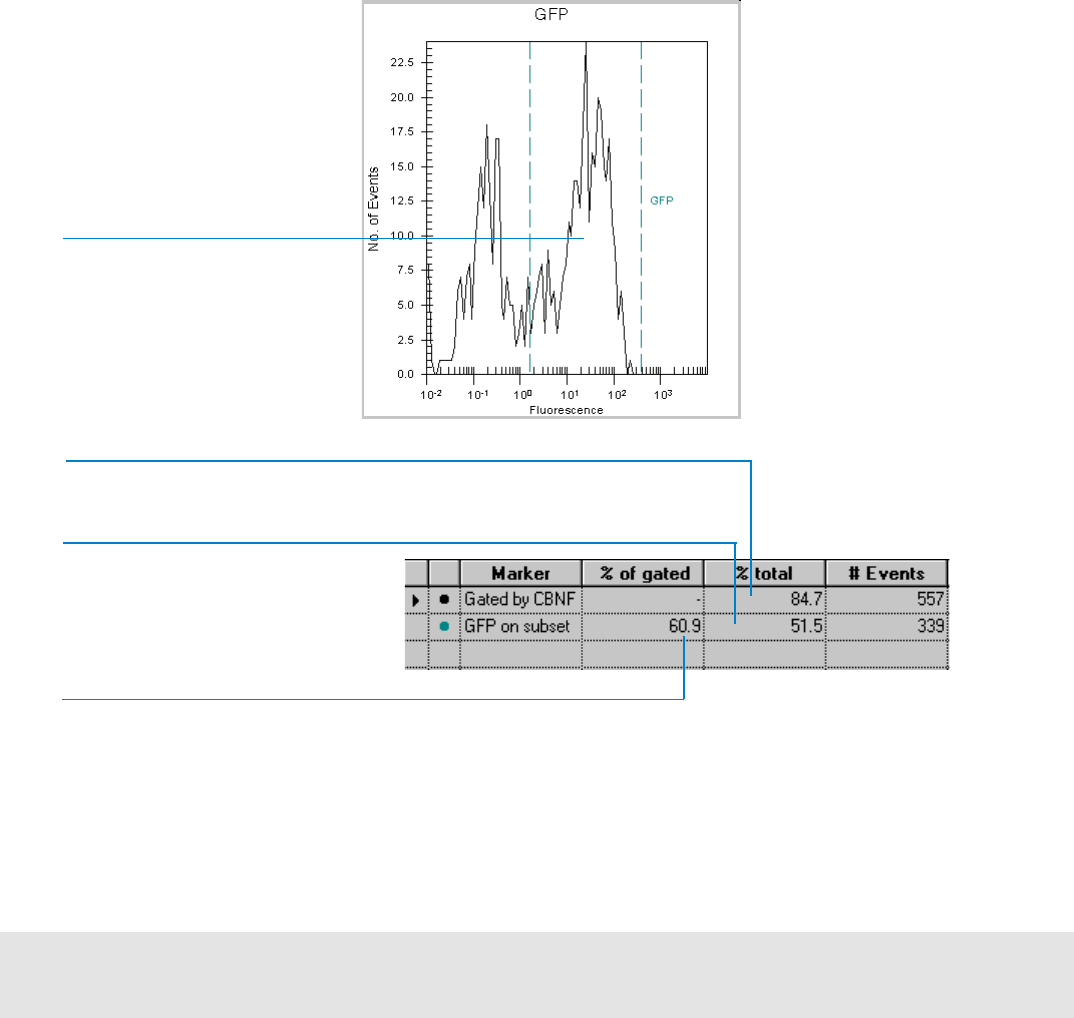

•GFP
•On-chip GFP
This assay allows a rapid and accurate detection of green fluorescent protein
expression.
•Blue to red
This assay is for applications that apply a blue reference dye and analyze red
fluorescent cells within a blue population.
Contents ▲182 ▼Index
•Red to blue
This assay is for applications that apply a red reference dye and analyze blue
fluorescent cells within a red population.
•Checkout Beads
Red checkout beads are loaded into the wells 1, 3 and 5 and blue checkout beads into
the wells 2, 4 and 6. Markers are set according to expected fluorescence levels of the
red and blue beads. The Checkout Beads assay has the properties of a generic assay
(see below).
•siRNA Transfection Viability
Transfection Viability analysis as described in the Application Note: siRNA transfection
optimization with the Agilent 2100 bioanalyzer (Agilent publication number:
5988-9782EN). This assay enables the automatic calculation of transfection efficiency
(TE) in histogram view and viability in transfected cells (ViT) in dot plot view. Required
gating directions and regions are provided as example, but can be adjusted. Final
Transfection Viability (TV) can be calculated by multiplication TE and ViT values derived
from histograms and dot plots.
The settings of predefined assays are optimized to measure the appropriate cell
characteristics. For evaluation, it is only necessary to adjust the markers in histograms or
regions in dot plots.
Predefined assays contain all necessary markers and regions for evaluation. The gating
direction for histograms is given (for details on the gating direction, refer to “Gating” on
page 220). The markers in all samples are connected (changing a marker changes the
corresponding markers in all samples).
Contents ▲183 ▼Index
The regions of the dot plots are related to the markers of the histograms. Thus, the
results of the dot plots are identical to the results of the histograms.
Generic assay
This assay has no specific settings and can be used to define individual assays. You can
freely add markers or regions, and define the gating direction.
The generic assay is recommended for chips with different samples and stainings, where
regions would need to be defined individually. Dot plot and histogram regions are not
linked, making it possible to evaluate an individual sample with different settings.
Flow cytometry assay icons
On the Assay Properties tab, the following icons are used to visualize the assay type:
Antibody Staining
Blue to Red
Apoptosis GFP
Red to Blue
Generic
Checkout Beads
siRNA Transfection
Viability
Contents ▲184 ▼Index
Preparing and Running a Flow Cytometric Assay
A flow cytometric chip run requires the following steps:
1. Switch on the Agilent 2100 bioanalyzer and start the 2100 expert software.
Details are given in “Starting 2100 Expert” on page 32.
2. Select a flow cytometric assay.
See “Selecting a Flow Cytometric Assay for a Chip Run” on page 186.
3. Prepare chip and samples.
Refer to “Preparing Samples and Chips for Flow Cytometric Assays” on page 190 and
to the appropriate Application Note and Reagent Kit Guide.
4. Load the chip into the bioanalyzer.
For details refer to “Loading the Cell Chip into the Bioanalyzer” on page 194.
5. Start the chip run.
This is described in “Running a Flow Cytometric Assay” on page 201.
When the chip run has finished, you can:
•Have a first look at the results (see “Displaying the Measurement Results (Flow
Cytometry)” on page 210).
•Document the chip run (see “Entering Chip, Sample, and Study Information” on
page 207).
Contents ▲186 ▼Index
Selecting a Flow Cytometric Assay for a Chip Run
To select an assay:
1Switch to the Instrument context.
2In the Tree View Panel, select the bioanalyzer you want to use.
In the upper left of the Instrument tab, an icon shows the status of the bioanalyzer. You
should see one of the following icons (lid open/closed), indicating that the bioanalyzer
is detected by the system:
3If you do not see one of these icons, check that the bioanalyzer is switched on and
properly connected:
–Check the COM port setting.
–Make sure the bioanalyzer is physically connected to the PC (over the serial
interface).
–Check the power connection.
–Check the power switch.
Contents ▲187 ▼Index
If you need additional help, please refer to the Agilent 2100 Bioanalyzer Maintenance
and Troubleshooting Guide.
4Select an assay for the chip run.
On the Instrument tab, click the Assay button.
– OR –
Click the Assays menu.
Both will open the Assays menu, allowing you to select an assay from the submenus.
Note that you can also select File > Open File to Run. This opens a dialog box, allowing
you to load either an assay (.xsy) or a chip data file (.xad).
The type of assay you have to select depends on the experiment and the staining
protocol you use to prepare your cell samples. Details on these assays are described in
the Application Notes available for each assay.
5Select the desired assay, for example, Apoptosis.
The assay is loaded and its name appears on the Information Bar:
NOTE
After a chip run, the results can be evaluated using a different flow cytometric chip
data or assay file. Refer to “Importing Data Analysis Setpoints” on page 279.
Contents ▲188 ▼Index
6Select a Destination for the chip data file (.xad) that will be generated as the result of
the chip run. You can also specify a custom File Prefix for this file.
7If required, change the Data Acquisition Parameters:
aEnter the number of samples you want to be measured.
When preparing the chip (see “Preparing Samples and Chips for Flow Cytometric
Assays” on page 190), keep in mind that you have to follow the sequence of the
sample wells. For example, if you want to measure 3 samples, you have to fill the
wells 1, 2, and 3 with your samples, and the remaining wells with cell buffer solution.
Contents ▲189 ▼Index
bSelect the Data Acquisition Mode.
Select Default, if you want the measurement time to be set to the default value
(240 s/sample). The maximum time is shown in brackets.
– OR –
Select Fixed time and enter the time in [s] that the measurement of each sample is
to take.
– OR –
Select Number of Cells and enter the minimum number of events that should be
measured. In the and no longer than field, enter the maximum time in [s] a
measurement can take, regardless of whether or not the defined number of events is
reached. The maximum time is shown in brackets.
NOTE
The overall run time for a chip is limited to 1440 s. The individual run time for one
sample depends on the number of samples that are measured per chip. If only one
sample is measured, you can set the run time up to 1440 s.
Contents ▲190 ▼Index
Preparing Samples and Chips for Flow Cytometric Assays
WARNING
Several substances such as dyes can have toxic, carcinogenic, or mutagenic
potential. Therefore, carefully follow the safety instructions from the dye safety data
sheet and the Reagent Kit Guides. Also read the “Essential Measurement Practices
(Flow Cytometric Assays)” on page 192.
Before you can fill a chip, you have to prepare the samples. To find out which protocols
you should use to prepare the samples, refer to the various Application Notes available
for each assay.
Sample and chip preparation is described in detail in the Reagent Kit Guide available for
each LabChip kit.
Contents ▲191 ▼Index
Chip Reagents
Several reagents have to be added to the chip to prepare it for measurement. The
following image shows which reagents have to be filled in which wells.
Make sure you follow these directions when preparing the sample:
•The priming solution has to be added first. It fills all channels (removes all air from the
micro channels).
•The focusing dye is used to adjust the optic. The optics are focused horizontally and
vertically before each chip is measured.
•If you do not use all six wells, always load the first sample in well 1, the second sample
in well 2 etc. Unused wells have to be filled with cell buffer solution, otherwise they may
run dry during the chip run. Because all channels are connected to the priming well, this
may led to bubbles and to a clogging of the pressure adapter filter.
•The cell buffer is used to focus the cells before they pass the detection point. You have
to fill both buffer wells with cell buffer.
Priming solution
Cell buffer
Sample 1 – 6
Cell buffer
Focusing dye
solution
Contents ▲192 ▼Index
Essential Measurement Practices (Flow Cytometric Assays)
•Handle and store all reagents according to the instructions given in the Reagent Kit
Guides.
•Avoid sources of dust or other contaminants. Foreign matter in reagents and samples
or in the wells of the chip will interfere with assay results.
•Store all reagent and reagent mixes in the dark and refrigerated at 4 °C when not in use.
•Allow all reagents to equilibrate to room temperature for 30 minutes before use.
•Protect focusing dye from light. The dye decomposes when exposed to light.
•Use appropriate pipette tips. For each pipetting step use a fresh, new pipette tip.
•Always insert the pipette tip to the bottom of the well when dispensing the liquid.
Placing the pipette at the edge of the well may lead to poor results due to the formation
of a bubble on the bottom of the well.
•For chip preparation, use inverse pipetting.
•When filling the pipette tip, push slightly over the first resistance. Empty the pipette tip
only to the first resistance. This procedure avoids the introduction of bubbles and
ensures pipetting the right volume.
•Never leave any wells empty, or the pressure adapter may become clogged. Pipette
10 µl of cell buffer or sample replicate in any empty sample well.
Contents ▲193 ▼Index
•Before bead preparation, vortex bead vials for 15 seconds.
•Prepared chips must be used within 5 minutes. If a chip is not run within 5 minutes,
beads may settle or reagents may evaporate, leading to poor results.
•Never touch the instrument lens.
•Never touch the Agilent 2100 bioanalyzer during a chip run and never place it on a
vibrating ground.
Contents ▲194 ▼Index
Loading the Cell Chip into the Bioanalyzer
The Agilent 2100 bioanalyzer uses different cartridges for electrophoretic and flow
cytometric assays. For flow cytometric measurements, the pressure cartridge is required.
The pressure cartridge contains a tubing and filter assembly that connect to the vacuum
pump. The seal has to match the priming well on the chip so that the required low
pressure can be built up. The pressure cartridge can be identified by the engraved
number “2” on the front.
NOTE
Any cartridges without engraved numbers are electrode cartridges.
Contents ▲195 ▼Index
If the bioanalyzer is set up for electrophoretic assays, but you want to run flow cytometric
assays, proceed as follows:
1Open the lid and pull down the metal locking lever in the open position as shown in the
following figure.
CAUTION
Do not touch the electrodes while the cartridge is in the Agilent 2100 bioanalyzer. The
electrodes and the high voltage power supplies can be damaged.
The cartridge is pushed out.
Metal lever
in open
position
Contents ▲196 ▼Index
2Gently pull the cartridge out of the lid.
CAUTION
Improper handling of the electrode cartridge will damage it.
Always store the electrode cartridge in the provided box. If the pins of the electrode
cartridge are bent or misaligned, poor quality results or pre-terminated chip runs will
result.
3Slide the pressure cartridge in the lid as shown in the following figure.
4Push the metal front of the cartridge until it is securely in place.
5Push the metal locking lever in the flat (closed) position.
Metal lever
Push here to ensure
tight connection
Contents ▲197 ▼Index
To load the prepared chip into the Agilent 2100 bioanalyzer:
1Open the lid and remove any chip.
2Adjust the chip selector to position “2” as shown in the following figure.
This will allow you to insert cell chips in the bioanalyzer.
Move chip
selector in
position “2”
To avoid using
incompatible chips and
cartridges, a chip selector
is installed in the
bioanalyzer. This ensures
that the chip matches to
the installed cartridge.
Contents ▲199 ▼Index
4Carefully close the lid.
CAUTION
Do not force the lid closed. This can damage the pressure cartridge. If the lid does not
close without force, check that chip is inserted correctly and that the chip selector is
at the correct position for this chip type.
When the software recognizes an inserted chip, the chip is shown on the Instrument
tab. If you have closed the lid, and the software has not recognized the chip, verify that
the cartridge and chip are inserted properly and the chip selector is in the correct
position. Close the lid.
The adapter with the gasket in the cartridge fits onto the priming well of the chip. A
small gap between the lid and the instrument mainframe is normal and no cause for
malfunction. The icon on the Instrument tab changes to a cell chip icon:
If the chip is not detected, open and close the lid again.
Contents ▲201 ▼Index
Running a Flow Cytometric Assay
Running a flow cytometric assay in 2100 expert just means pressing a button.
NOTE
You can stop a chip run at any time, for example, if errors occurred, or if you are not
satisfied with the quality of the measurement results, which you can observe during
the chip run. See “Stopping a Chip Run” on page 205.
Starting the Chip Run
When you have loaded the chip, you can start the chip run:
1On the Instrument tab, click the Start button.
Contents ▲203 ▼Index
The number of the sample that is currently being measured is indicated on the
information bar:
The status bar at the bottom of the screen shows the measurement progress for the chip
run and the COM port number used for data acquisition.
During the chip run, you can do the following:
•View the chip data file in the Data context by clicking on the name of the Data File:
•Evaluate any chip data file in the Data context.
•Compare samples in the Comparison context.
•If necessary, abort the chip run by clicking on the Stop button (see also “Stopping a Chip
Run” on page 205).
All data that was collected up to the stop point will be saved.
Contents ▲204 ▼Index
After the chip run is completed, you can:
•Switch to the Data context, where you can view, analyze, and evaluate the results of
your chip run (see “Displaying the Measurement Results (Flow Cytometry)” on
page 210 and “Analyzing and Evaluating the Results of a Flow Cytometric Assay” on
page 217).
•Stay in the Instrument context, where you can start a new chip run, for example.
Contents ▲205 ▼Index
Stopping a Chip Run
You can stop a chip run at any time, for example,
•if the quality of the measurement results does not meet your expectations,
•if, for example, after three samples you already have the information you desired and
you want to start another chip run.
NOTE
You cannot resume a stopped chip run.
NOTE
If you stop a chip run, automatic export (see “Exporting Chip Run Data Automatically”
on page 286) and automatic print (see “How to Turn on and Configure Automatic
Printing of Chip Run Reports” on page 297) does not take place.
To stop the assay:
1Click the Stop button.
– OR –
Select Stop from the Instrument menu.
Contents ▲206 ▼Index
NOTE
Data acquisition of the current sample will be aborted.
The following message appears:
2Click Yes to stop the chip run.
When the chip run is aborted, you can:
•Switch to the Data context, where you can view, analyze, and evaluate the results (if
any) of your chip run (see “Displaying the Measurement Results (Flow Cytometry)” on
page 210 and “Analyzing and Evaluating the Results of a Flow Cytometric Assay” on
page 217).
•Stay in the Instrument context, where you can start the next chip run, for example.
Contents ▲207 ▼Index
Entering Chip, Sample, and Study Information
During or after a chip run, you can document the run by entering information on chip,
samples, and study.
1In the Data context, select the Chip Summary tab.
2On the Sample Information sub-tab, you can enter additional information for samples,
such as names for blue and red stain.
On the Study Information sub-tab, you can enter information such as the name of the
current study, the laboratory location, and the experimenter.
Contents ▲209 ▼Index
3From the File menu, select Save.
TIP
You can import chip, sample, and study information from .txt or .csv files. This is
especially helpful and time-saving, if you already have documented a similar chip run
in another chip data file. Refer to “Importing Chip, Sample, and Study Information” on
page 281 for details.
Contents ▲210 ▼Index
Displaying the Measurement Results (Flow Cytometry)
You can view the measurement results of a flow cytometric chip run as histograms or dot
plots.
•You can display the histograms/dot plots either one sample at a time, or all samples at
the same time to get an overview of the chip run, for example, to see the progress of a
reaction. See “How to Switch Between Single View and Grid View” on page 211.
•You can navigate through the samples. See “How to Navigate Through the Samples” on
page 212.
•You can change the display of histograms and dot plots to make details better visible.
See “How to Change the Display of Histograms and Dot Plots” on page 214.
Contents ▲211 ▼Index
How to Switch Between Single View and Grid View
To switch between single view and grid view:
From the Histogram or Dot Plot menu, select Single View or Grid View.
– OR –
Click the Single View or Grid View button on the histogram/dot plot toolbar.
– OR –
Click the All Samples entry in the Tree View Panel to switch to the grid view, or any
sample to switch to the single view.
– OR –
Double-click any histogram or dot plot in the grid view to switch to single view.
The following example shows switching between grid view and single view for
histograms.
Contents ▲212 ▼Index
How to Navigate Through the Samples
At any time—even during a chip run—you can scroll though all samples—either in
histogram or dot plot view.
To navigate through samples using the Tree View Pa nel:
1If the tree view is not visible, select View > Tree View.
The Tree View Panel appears to the left of the tabs, and shows all chip data and assay
files as nodes.
2Click any sample name.
The histogram or dot plot of the sample is shown in single view.
To navigate through samples using the Lower Panel:
If the lower panel is not visible, select View > Lower panel.
The lower panel appears in the lower left corner, showing a chip icon.
Contents ▲213 ▼Index
3Click any well on the chip icon.
To browse through samples:
From the Histogram or Dot Plot menu, select Next Sample or Previous Sample.
– OR –
Click the Next Sample or Previous Sample button in the histogram/dot plot
toolbar.
To switch between histogram and dot plot view:
Click the Histogram or Dot Plot tab to display the results of the selected sample as a
histogram or dot plot.
Contents ▲214 ▼Index
How to Change the Display of Histograms and Dot Plots
In single view, it is possible to change the display of histograms and dot plots.
In histograms and dot plots you can:
•zoom (enlarge or reduce using the mouse) the graphs to display details, for example.
•put a color gradient on the background of the graphs.
In histograms, you can additionally:
•show data points.
To zoom into a histogram or dot plot:
1Position the mouse pointer in the histogram/dot plot.
2Click and hold down the left mouse button.
The mouse pointer changes its shape to a magnifying glass .
3Drag the mouse.
A rectangle shows the part of the histogram/dot plot to be enlarged.
4Release the mouse button.
Contents ▲215 ▼Index
You can perform several zoom steps in a row. When you have zoomed a histogram or dot
plot, the Undo Zoom and Undo All buttons are enabled.
To undo one zoom step:
Click the Undo Zoom button or double-click in the histogram or dot plot.
To undo all zoom steps:
Click the Undo Zoom All button.
Contents ▲216 ▼Index
To display data points in histograms:
From the Histogram menu, select Show Data Points.
All events are shown as bullets.
To put a color gradient on the background of a histogram or dot plot:
From the Histogram or Dot Plot menu, select Gradient.
– OR –
Click the Gradient button the histogram or dot plot toolbar.
A color gradient (gray to white) appears on the background of the graph.
Contents ▲217 ▼Index
Analyzing and Evaluating the Results of a Flow Cytometric Assay
You can analyze and evaluate result data of flow cytometric assays using either the dot
plot or the histogram view. In both views, you can evaluate the detected cells by defining
areas of interest.
•Histograms show the distribution of events related to the red and blue fluorescence
intensity. Gating is used to generate subsets based on markers in one histogram. See
“Using Histograms for Evaluation” on page 218 for detailed information.
•Dot plots show events as dots in a coordinate system where the blue fluorescence
value is related to the red. Regions and gates are used to determine the number of cells
with a fluorescence intensity lying in a defined range. See “Using Dot Plots for
Evaluation” on page 239 for detailed information.
If you use predefined assays, the markers and regions are set at the approximate position
where the events are expected. Refer to “Evaluating Antibody Staining, Apoptosis, and
GFP Assays” on page 248 for information on how to evaluate the predefined assays.
TIP
You can analyze and evaluate results while a chip run is still in progress.
Contents ▲218 ▼Index

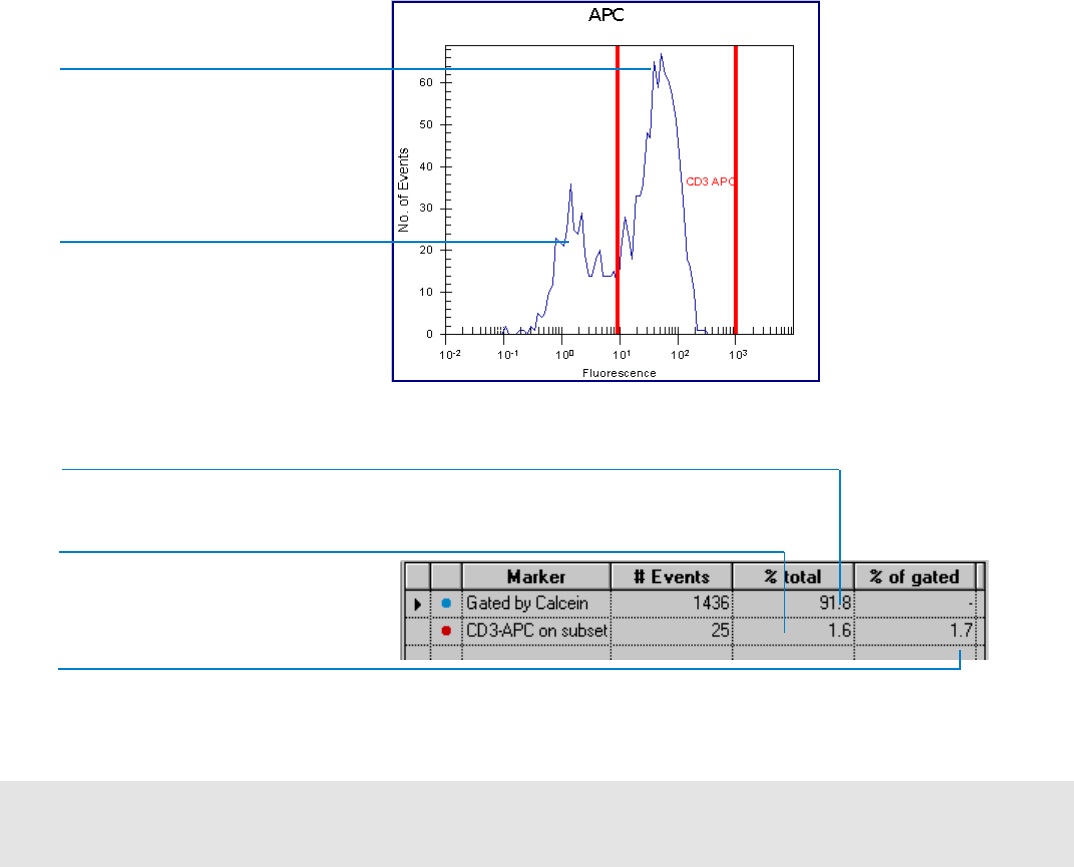

Using Histograms for Evaluation
Histograms are graphical representations of the measurement results, where the number
of events (cells) is mapped to the Y axis and their fluorescence values to the X axis. The
resulting curves show the frequency distribution of the events in relation to their
fluorescence intensity values, as shown in the following image. In real histograms, the
bin is reduced to a dot (data point).
The histograms can be evaluated statistically with markers that allow you to define
ranges of fluorescence intensity values. One histogram can be used to represent a range
of fluorescence values to define a subset of events. Only cells with a fluorescence value
within this range are displayed in the second histogram. This method is called gating.
50 cells were detected with a
fluorescence intensity between
30 and 40
Contents ▲219 ▼Index
Markers
Markers are used to define a range of fluorescence intensity values in a histogram. The
upper and lower limits of the range are displayed as vertical lines, as shown in the
following image.
The numerical values for each defined marker are displayed in a separate row in the
result table. One marker is used as a gate for the second histogram, to define a subset of
events.
In predefined assays, the markers are set by default and you only need to adjust their
position. If you want to define your own assays, select the Generic assay for acquisition,
where you can define your own markers and/or regions together with gates.
If you use several markers within one histogram, only one of them can be used for gating.
The other markers can only be used to evaluate regions in the histogram they cover. The
values belonging to these markers are also displayed in the result table.
Events (cells) of interest
Low intensity
Lower limit of the marker
Upper limit of the marker
Contents ▲220 ▼Index
Gating
Gating is used to restrict the number of events that are evaluated by gating out (filtering)
events that do not have the fluorescence values set by a marker. For example, by gating
on a blue marker, you can exclude all events with low blue fluorescence (allowing you,
for example, to gate out dead cells, unbound dye and debris). Only events with blue
fluorescence values within the marker range are evaluated. Thereby, you can exclude any
dead cells, and evaluate only the living cells for another property.
The gating direction defines the reference histogram:
•Gating from blue to red uses the blue histogram to define the subset by a marker
(Apoptosis and Antibody Staining assays).
Contents ▲222 ▼Index
The following figures illustrate gating from blue to red.
The two histograms display all measured events in the blue histogram and in the red
histogram without gating. In this case, you cannot see which cells fluoresce only in the
blue and which fluoresce only in the red.
All events that show
red fluorescence
All events that show
blue fluorescence
Contents ▲223 ▼Index
By setting a marker on the blue histogram, you can define the blue fluorescence range
that must be met for a cell to be considered for the red histogram. You use the gating on
the blue histogram to define a subset for the red histogram.
Subset of the events,
defined by the marker
Events of the subset that
show also red fluorescence
Contents ▲224 ▼Index
The red histogram displays now only cells with blue and red fluorescence within the
marker. To evaluate this subset, you can set a marker in the red histogram. This second
marker filters out all cells that do not have fluorescence in this range.
The result table (see also “Displaying the Results of Histogram Evaluations” on page 236)
of the gated histogram (here the red one) shows the values numerically:
•The % total value shows the number of events that have both high blue and high red
fluorescence, in relation to all measured events.
•The % of gated value shows the number of events that have high blue and high red
fluorescence in relation to the blue (or red) events.
Events that show both high
blue and high red
fluorescence
Events with high blue
fluorescence
Contents ▲225 ▼Index
The following image shows two histograms with a gating direction from blue to red (left
to right) of an apoptosis assay. The blue histogram shows calcein fluorescence, which
indicates living or dead cells (high fluorescence value means living cells). The red
histogram shows the subpopulation of living cells with annexin V fluorescence indicating
apoptosis (high fluorescence value means the cell is apoptotic). As a result you can see a
subset of living, apoptotic cells.
Number of
events
Fluorescence
value
Histogram
Marker
Contents ▲226 ▼Index
How to Insert a Marker in a Histogram
A marker is shown as two vertical lines that define a region of fluorescence values. It is
used to select a subset of events according to this fluorescence region.
NOTE
You can insert markers only in generic assays.
To add a new marker:
In the toolbar of the Histogram tab, click the Insert Marker button .
A marker is added to the selected histogram window.
To insert an existing marker:
1Click the Insert Existing Marker button to open the Insert Existing Markers window.
2Select a marker in the list and click Insert Marker.
The marker lines are added at the defined positions. The label identifies the marker.
Contents ▲227 ▼Index
You can remove markers that you do not need any more:
1Click one of the vertical lines in the histogram to select the marker.
The lines of the selected marker are displayed bold.
TIP
You can also click the corresponding row in the result table to select the marker.
2Click the Delete Marker button to remove the marker.
Contents ▲228 ▼Index
How to Configure Markers
You can change the color, name, and the upper and lower limits of the marker:
1Double-click the desired marker.
– OR –
Right-click the corresponding row in the result table and select Configure Marker from
the context menu.
– OR –
Select the marker and click the Configure Marker button in the toolbar.
The Configure Marker dialog box appears.
2Enter a name for the marker, for example, the used dye (it is advisable to use names that
identify the marker).
3Enter a Lower Value (left vertical line).
Contents ▲230 ▼Index
How to Move the Upper and Lower Limits of Markers
You can change the position of both marker lines by dragging them with the mouse:
1Position the mouse pointer on a marker line.
The mouse pointer changes its shape to a hand.
2Drag the line to the desired position.
3Release the mouse button.
4Repeat these steps for the other marker line, if necessary.
NOTE
You can change the marker limits also by entering fluorescence values in the
Configure Marker dialog box (see “How to Configure Markers” on page 228).
Contents ▲231 ▼Index
How to Copy Markers to All Histograms
Once a marker is defined, you can copy it in the histograms of all samples (generic assays
only):
1Select the marker in the histogram or in the result table.
The Insert the selected marker into all histograms button is now enabled.
2Click this button.
The Copy Marker dialog box appears. This dialog box asks you whether or not you want
to use the marker as reference.
3Click Yes to use this marker as reference. The marker will be inserted in all other
histograms of the blue or red channel. When the properties of this marker are changed,
the changes will be applied to all samples.
– OR –
Click No. The marker will be inserted in all other histograms of the blue or red channel.
When the properties of this marker are changed, the changes are only applied to the
current sample.
How to Set the Gating Direction (Generic assay only)
You can use one marker to define the gating direction. In other words, you define whether
red or blue fluorescence is used as a gate to define a subset in the other histogram. This
also depends on the dyes that you have used for staining.
You can set both gating directions: either from the blue histogram to the red histogram or
from red to blue.
Contents ▲232 ▼Index
To set the gating direction:
1Select the marker in the red or blue histogram you want to use as a gate for the other
histogram.
The corresponding gating button in the toolbar is now enabled.
2Click or to set the gating direction.
– OR –
Right-click the marker in the histogram or in the result table, and select Gate in
Red/Blue histogram from the context menu.
The gating direction is displayed in the Information Bar.
If the gating direction is already set, you first have to remove the existing gating.
To r e mo ve g at i n g :
Click the Remove Gate button .
The gating is removed and the corresponding gating button is enabled.
NOTE
To change the gating direction in non-generic assays, you first have to change the
assay to generic. To achieve this, use the Import Setpoints button on the Assay
Properties tab (refer to “Importing Data” on page 277).
Contents ▲233 ▼Index
How to Overlay Histograms
You can compare samples by overlaying their gated histograms. This is useful, for
example, if you want to see the progress of a reaction or if one sample is used as
reference.
Overlaying histograms might also be helpful for adjusting the marker position. You can
overlay all measured samples. Both red and blue histograms are overlaid.
NOTE
You can configure the colors of the overlaid histograms and adjust the scale
graduation as described in “How to Set Signal Colors for Overlaid Histograms” on
page 235.
To o v e r lay hi s to g r a m s:
1Select the main sample and display the Histogram tab.
2Click the Overlaid Samples button to open a drop-down list.
3Click the sample that you want to use as overlay.
The histogram curve of the selected sample appears in the histogram view, the
corresponding entry in the drop-down list is marked with a check, and a color legend
appears above the graph.
4Repeat steps 2 and 3 to overlay further histograms.
Contents ▲234 ▼Index
To overlay all samples:
1Click the Overlaid Samples button to open a drop-down list.
2Select All Samples to overlay the histogram curves of all samples.
To remove histograms from the overlay:
1Select the sample that contains the overlaid histograms.
2Click the Overlaid Sample button to open the drop-down list.
3Click the sample that you want to be removed.
– OR –
Click No Overlay to remove all overlaid curves from the histogram.
Contents ▲235 ▼Index
How to Set Signal Colors for Overlaid Histograms
You can use the Graph Settings tab in the Options dialog box to configure the signal
colors (colors of curves in histograms):
1Select Tools > Options.
2Click the Graph Settings tab to bring it to the front.
To configure the signal color:
1Click the colored square corresponding to the signal.
The Color dialog box appears.
2Select a color for the signal and assign it by clicking OK.
Contents ▲236 ▼Index
Displaying the Results of Histogram Evaluations
The calculated results are displayed in result tables, one table below each histogram.
Markers, gates, several statistical values, and the %-values of events are shown in the
result tables.
Each marker you insert in the histogram gets its own row. Note that you can only use one
marker for gating. The additional markers can be used to evaluate different parts of the
histogram statistically.
If the option Hide superset curve is disabled in the setpoint explorer, two additional rows
are displayed in the gated histogram’s result table. The superset curve shows a
histogram of all measured events; the gate is not considered.
You can export the table data for further evaluation in other applications. See “Exporting
Data” on page 283.
NOTE

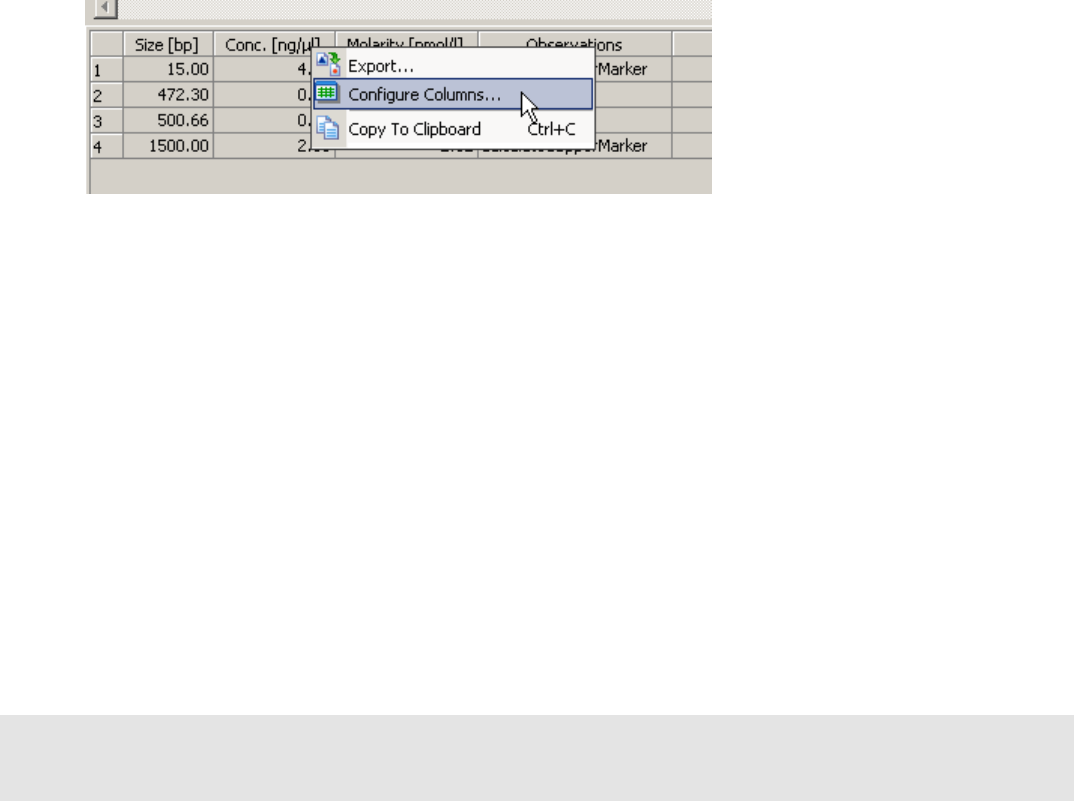

The layout of the result table can be configured (see “Configuring Tables” on
page 299). Not all of the values listed below may therefore be visible.
Contents ▲237 ▼Index
The content of the result tables depends on the gating direction. The histogram that is
used for gating can display the following results:
Marker All events – this row shows the data for all measured events, for
example, for all living and dead cells.
The following rows show the data for the subset of cells defined by
the inserted marker. If you use a predefined assay, the entry can be
“Calcein on all events”, for example.
Min Minimum fluorescence value of the corresponding marker.
Max Maximum fluorescence value of the corresponding marker.
Events Number of events covered by the marker. For the histogram you use
for gating, the number of all detected events is displayed in the row
“All Eve n t s ” .
% total % of selected events in relation to the total number of events. The
row “All Events” shows 100%.
% of gated % of events covered by the marker in the gated histogram. Shows no
value for the gating histogram.
Mean Mean fluorescence value of the events inside the marker.
StdDev Standard deviation to the mean value.
%CV Coefficient of variation.
GMean Geometric mean.
Contents ▲238 ▼Index
The histogram that displays the gated data can show the following data:
Marker All events – this row shows the data for all events that pass the gate.
The following rows show the data for all events covered by the
inserted marker. If you use a predefined assay, the entry can be
“Annexin V on subset”, for example.
Min Minimum fluorescence value of the corresponding marker.
Max Maximum fluorescence value of the corresponding marker.
Events Number of events covered by the marker. For the histogram you use
for gating, the number of all detected events is displayed in the row
“All events”.
% total % of selected events in relation to the total number of events. The
marker used for gating is 100%, the table of the gated histogram
shows the value of the subset.
% of gated % of the gated events in relation to the total number of events. These
are the events that have passed the gate and are covered by the
marker of the histogram, for example, by annexin V.
Mean Mean fluorescence value of the events inside the marker
StdDev Standard deviation to the mean value.
%CV Coefficient of variation.
GMean Geometric mean.
Contents ▲239 ▼Index
Using Dot Plots for Evaluation
On the Dot Plot tab, cells are displayed as dots, where their red fluorescence intensity is
mapped on the Y axis and their blue fluorescence intensity is mapped on the X axis.
NOTE
The lower left region of the dot plot area may show no events, because of the
threshold for event detection. Dots are only displayed if their fluorescence intensity
exceeds a minimum limit. The limits are specified in the assay—separately for red and
blue fluorescence.
To evaluate the dot plots, you can add regions. Regions are rectangles that can be
changed in size and position until they include a specific event subset. As a result you get
the number of cells included in the region related to the total number of cells.
NOTE
You can add/remove regions and gates only in Generic assays.
Additionally, you can insert a horizontal or a vertical gate for one region. This is useful for
counting all cells that have fluorescence intensities within the horizontal or vertical
borders of the region. In predefined assays, the vertical side of a region corresponds to
the marker of the blue histogram, the horizontal side to the red one (see “Using
Histograms for Evaluation” on page 218). The gate is always displayed and corresponds
to the range of the marker that is used for gating. If you move a marker in a histogram, the
region and gate are automatically updated. If you change a region or gate, the marker is
also updated. Statistics are displayed in the result table below the dot plot.
Contents ▲240 ▼Index
How to Add Regions to Dot Plots (Generic Assay only)
You can draw regions in dot plots of generic assays. If there are regions already defined in
other samples, you can copy these regions in the dot plot of the current sample.
To draw a new region:
1Click the Insert Region button in the toolbar.
The mouse pointer changes its shape to a crosshair.
2Draw a rectangle into the dot plot.
New regions are automatically named “Region x”, where x is an auto-incremented
number. By default, the border color of new regions is black. To make it easier to
differentiate between regions, you can change their border color (see “How to Configure
Regions” on page 242).
Contents ▲241 ▼Index
To insert an existing region:
1Select the sample where you want to insert an existing region from another sample and
click Insert existing region .
The Insert Region dialog box appears.
2Select the region that you want to insert and click Insert Region.
The region is inserted at its predefined position.
To remove a region:
1Click the region border to select the region that you want to remove.
The selected region is highlighted. and the Delete Regions button is enabled.
2Click this button.
The region disappears from the dot plot.
Contents ▲242 ▼Index
How to Configure Regions
You can change the color of the region border, edit the region’s name, and define the
position and size of the region.
To configure a region:
1Double-click the border of the region that you want to configure.
– OR –
Right-click the corresponding row in the result table and select Configure Region from
the context menu.
– OR –
Click the region border to select the region, and click the Configure Region button
in the toolbar.
The Configure Region dialog box appears.
2Enter a Name for the region.
It is advisable to use an easy-to-understand name.
Contents ▲243 ▼Index
3Enter fluorescence values for the left, right, bottom, and top side of the rectangle to
define position and size of the region.
These values correspond to the upper and lower marker limits of the blue and red
histograms.
4Click the ... button next to the color square to open the Color dialog box, and select a
color for the region border.
5Click OK.
To color dots inside regions:
Click the Color Dots button in the toolbar.
All dots inside the regions now have the same color as the region border. In case of
overlapping regions, dots are colored with the color of the last added, re-positioned or
resized region.
Contents ▲244 ▼Index
How to Change Position and Size of a Region
You can change the size and position of regions to restrict the number of included events.
You can work graphically with the mouse or enter the values in the Configure Region
dialog box.
To m o v e a re g i o n :
1While pressing the Shift key, click the region border, and drag the region to the new
position.
2Release the mouse button.
To change size and position with the mouse:
1Click the region border to select the region.
2Position the mouse pointer on any corner of the selected region.
The mouse pointer changes its shape to a double arrow.
3Click and drag the border to the new size.
Upon moving, the mouse pointer changes its shape to a crosshair and the borders of
the region appear as dashed lines.
4Release the mouse button.
Contents ▲245 ▼Index
To change size and position numerically:
1Double-click the region to open the Configure Region dialog box.
2Enter fluorescence values for the left, right, bottom, and top side of the rectangle to
define position and size of the region.
These values correspond to the upper and lower marker limits of the blue and red
histograms.
3Click OK.
How to Insert a Region in All Dot Plots
If you have defined a region for one sample, you can copy it to the other samples of the
assay.
To insert a region in all dot plots:
1Left-click the region border to select the region that you want to use as source.
The Insert region into all dot plots button is enabled.
2Click this button
The Copy Region dialog box appears, which asks whether or not the source region
should be used as reference. The region will be inserted in the dot plots of all other
samples. When you change the properties of the region, all copies of the region will also
be changed.
3Click Yes to define the source region as reference.
– OR –
Contents ▲246 ▼Index
Click No to create new regions that are not “connected”. The region will be inserted in
the dot plots of all other samples. When the properties of the region are changed, the
changes affect only the selected sample.
The region is copied to all samples of the assay.
How to Work with Gates in Dot Plots
You can insert gates only in generic assays. For predefined assays, the gate is already
defined.
Before you can insert a gate, you have to draw a region (see “How to Add Regions to Dot
Plots (Generic Assay only)” on page 240). If a gate is already set, you first have to remove
the existing gate.
To add a gate to a region:
1Left-click the region border to select the region to which you want to add the gate.
The gating buttons in the toolbar are enabled.
2Click the Horizontal Gate button or the Vertical Gate button to set a gate along
the horizontal or the vertical borders of the selected region.
In the result table, a value appears in the % of gated column.
If the gating direction is already set, you first have to remove the existing gate:
1Left-click the region border to select the region.
If a gate already exists, the Remove Gate button is enabled.
2Click this button.
The gate is removed and the gating buttons are enabled.
Contents ▲247 ▼Index
Displaying the Results of Regions
The measurement results and calculations for regions are displayed in the result table
below the dot plot. In predefined assays, only one region is available, while for generic
assays, dot plots can have as many regions as you like.
The following values are displayed:
Region The default region All Events is always displayed in the first row and
shows the values for all detected events. For each further region (see
“How to Add Regions to Dot Plots (Generic Assay only)” on
page 240), a row is added to the table.
XMean Mean fluorescence values in x direction.
YMean Mean fluorescence values in y direction.
#Events Number of events for each region added to the dot plot.
% Total Percentage of events for each region added to the dot plot.
% of gated Percentage of the gated events in the region.
StdDevX Standard deviation to the mean fluorescence value in x direction.
StdDevY Standard deviation to the mean fluorescence value in y direction.
CV%X Coefficient of variation of the x values.
CV%Y Coefficient of variation of the y values.
X GMean Geometric mean of the x values.
Y GMean Geometric mean of the y values.
Contents ▲248 ▼Index
Evaluating Antibody Staining, Apoptosis, and GFP Assays
With the 2100 expert software, several predefined assays are supplied. You should only
use each assay for the specific experiment for which it was developed. For example, you
have to use the read dye for detection of apoptosis (calcein and Cy5, for example):
•“Evaluating Antibody Staining Assays” on page 249.
•“Evaluating Apoptosis Assays” on page 253.
•“Evaluating GFP Assays” on page 259.
Contents ▲249 ▼Index
Evaluating Antibody Staining Assays
Antibody staining lets you measure protein expression on the surface or inside a cell by
means of specific antibodies. Either the primary antibody itself is conjugated with a dye
or you must use a labeled secondary antibody that recognizes the primary antibody.
When you measure the fluorescence of the cells, you can compare the relative
expression of protein in individual cells and use this information for population analysis.
Typically, you can use a red dye such as APC (Allophycocyanin) or Cy5 to measure
antibody presence.
You can use a blue dye like calcein to detect whether or not the cells are living, or like
SYTO 16 to stain the nucleic acids of all cells. For detailed information, refer to the
application note Detecting Cell Surface and Intracellular Proteins with the Agilent 2100
Bioanalyzer by Antibody Staining.
For a detailed description on how to evaluate the results using markers and regions, refer
to “Using Histograms for Evaluation” on page 218, and to “Using Dot Plots for
Evaluation” on page 239.
Gating direction
The gating direction is from blue fluorescence to red fluorescence. Depending on the dye
you use, you should use all cells (nucleic acid dye) or only living cells (calcein living dyes)
for gating.
Contents ▲250 ▼Index
Histogram Evaluation
The blue histogram is used for gating. High fluorescence in the blue histogram means
that the cells are living (if a life-indicating dye is used). Low fluorescence means the cells
are dead. If you use a nucleic acid dye, you cannot distinguish between living and dead
cells, you can only count all measured cells. See the following image as an example:
The values are displayed in the result table below the blue histogram:
Low fluorescence
value indicates dead
or non-healthy cells
High fluorescence
value indicates living
cells
All measured events
All events in relation to
the blue marker (here
calcein)
Living cells related to all measured cells (high calcein fluorescence)
Contents ▲251 ▼Index
When using the calcein marker in the blue histogram for gating, only living cells are
considered for building the histogram of the red dye. High red fluorescence values
indicate living cells with bound antibodies, low red fluorescence values living cells
without bound antibodies. See the following example.
The values are displayed in the result table below the red histogram:
Low fluorescence values
indicate low binding of
labeled antibodies
High fluorescence
values indicate binding
of labeled antibodies
Percentage of all cells with
high red fluorescence
selected by the red marker
Percentage of the living cells
Amount of living cells with high red fluorescence in relation to the amount of living cells
Contents ▲252 ▼Index
Dot plot evaluation
If you switch to the Dot Plot tab, one region is displayed in the dot plot. The red
fluorescence values of the region are related to the marker in the red histogram, the blue
fluorescence values to the marker in the blue histogram. As in the histogram evaluation,
high blue fluorescence and high red fluorescence mean living cells with bound
antibodies. See the following example.
Cumulation of high blue and high red fluorescence
indicates strong binding of labeled antibodies in living cells
Contents ▲253 ▼Index
The results of the dot plot evaluation are numerically displayed in the result table:
Evaluating Apoptosis Assays
The apoptosis assay can be used to examine how many apoptotic cells are within a living
cell population. Dead (or necrotic) cells can be excluded from the evaluation.
For a detailed description on how to evaluate the results using histograms and regions,
refer to “Using Histograms for Evaluation” on page 218 and “Using Dot Plots for
Evaluation” on page 239.
Living or dead cells
In most cases, you want to know whether cells are dead or alive at a specific time. For
this, you can use calcein-AM as living cell dye, for example. This dye accumulates in
intact cells, whereas it will leak out of damaged cells. Once inside the cells, the colorless
AM ester is cleaved by esterases, resulting in the formation of the highly fluorescent
calcein. The number of events resulting from a calcein-related staining thus gives you the
All measured events
Events covered by the region
Amount of living cells in relation to all measured cells
Amount of living cells with high antibody binding in relation to all living cells
Contents ▲254 ▼Index
number of living cells in a sample. For detailed information, refer to the application note
Apoptosis Detection by Annexin V and Active Caspase 3 with the Agilent 2100
Bioanalyzer.
Apoptotic cells
In apoptotic cells, phosphatidylserine is no longer confined to the inner leaflet of the
plasma membrane bilayer. Phosphatidylserine becomes accessible on the outer surface
of the cell membrane and can be bound with high affinity by the protein annexin V, which
can be labeled with biotin or dyes such as Cy5.
Gating direction
The gating direction is from blue fluorescence (living cells) to red fluorescence (annexin).
Histogram evaluation
The two histograms displaying the results of the assay are related to calcein (blue
fluorescence) and annexin V (red fluorescence). High fluorescence values in the blue
histogram indicate living cells, low values correspond to dead cells. See the following
image as an example.
Contents ▲255 ▼Index
The values are displayed in the result table, each histogram has its own table:
When using the calcein marker in the blue histogram for gating, only the living cells are
considered for building the red histogram. High red fluorescence values indicate living,
apoptotic cells, low red fluorescence values indicate living, non-apoptotic cells. See the
following example.
Low fluorescence value
indicates dead cells
High fluorescence value
indicates living cells
All measured events
All events in relation to the
blue marker (here calcein)
Living cells in relation to all measured cells (high calcein fluorescence)
Contents ▲256 ▼Index
Low fluorescence value
indicates living non-apoptotic
cells
High fluorescence value
indicates living apoptotic cells
Percentage of all cells with
high red fluorescence
selected by the red marker
Amount of the living cells in relation to all measured events
Amount of living cells with high red fluorescence in relation to the amount of living cells
Contents ▲257 ▼Index
Dot plot evaluation
If you switch to the Dot Plot tab, one region is displayed in the dot plot. The red
fluorescence values of the region are related to the marker in the red histogram, the blue
fluorescence values to the marker in the blue histogram. As in the histogram evaluation,
high blue fluorescence and high red fluorescence represent living cells with annexin V
binding. See the following example.
Cumulation of high blue and high red
fluorescence indicate living apoptotic cells
Contents ▲258 ▼Index
The results of the dot plot evaluation are displayed in the result table.
All measured events
Events covered by the
region
Amount of living cells with high red fluorescence in relation to the amount of
living cells
Amount of living cells with high red fluorescence in relation to the
amount of all cells
Contents ▲259 ▼Index
Evaluating GFP Assays
With GFP (Green Fluorescent Protein) assays, the fluorescent substance is not a dye, but
a protein. Cells can be transfected with a target gene together with the GFP-producing
gene. Transfected cells produce the fluorescent protein, which can be detected. The
fluorescence shows you the success of the transfection experiment. For detailed
information on GFP assays, refer to the application note Monitoring transfection
efficiency by green fluorescent protein (GFP) detection with the Agilent 2100 Bioanalyzer.
For a detailed description on how to evaluate the results using histograms and regions,
refer to “Using Histograms for Evaluation” on page 218 and “Using Dot Plots for
Evaluation” on page 239.
Gating direction
The GFP has a green fluorescence (absorption in the blue). Because the reference dye
(CBNF) fluoresces in the red, the gating direction is from red to blue. CBNF stains living
cells, so you can detect living, GFP-positive cells.
Histogram evaluation
The two histograms displaying the results of the assay are related to CBNF (red
fluorescence) and GFP (blue fluorescence). High fluorescence values in the red
histogram indicate a staining with CBNF, which is associated with living cells. See the
following image as example.
Contents ▲260 ▼Index
The values are displayed in the result table, each histogram has its own table.
After gating by using the red histogram, in the blue histogram only CBNF-stained cells
are displayed. High blue fluorescence values indicate GFP-producing cells. See the
following example.
Low fluorescence value
indicates dead cells
High fluorescence value is
associated with living cells
All measured events
All events related to the red marker (here CBNF)
Contents ▲262 ▼Index
Dot plot evaluation
If you switch to the Dot Plot tab, one region is displayed in the dot plot. The red
fluorescence values of the region are related to the marker in the red histogram, the blue
fluorescence values to the marker in the blue histogram. Corresponding to the histogram
evaluation, high blue fluorescence and high red fluorescence indicate living
GFP-producing cells. See the following example.
Cumulation of high blue and high red fluorescence
indicates living GFP expressing cells
Contents ▲263 ▼Index
The results of the dot plot evaluation are displayed in the result table.
All measured events
Events covered by the region
Amount of cells with high CBNF fluorescence and high GFP
fluorescence in relation to all measured events
Amount of cells with high GFP fluorescence in relation to the amount of
CBNF-stained cells.
Contents ▲264 ▼Index
Working with Chip Data and Assays
You can make efficient use of the chip and assay data generated by the 2100 expert
software, if you know the following fundamentals and operating techniques:
•“2100 Expert Data Overview” on page 265
•“Handling Assays” on page 268
•“Handling Chip Data” on page 273
•“Organizing, Backing up, and Archiving 2100 Expert Data” on page 275
•“Importing Data” on page 277
•“Exporting Data” on page 283
•“Printing Reports” on page 292
•“Configuring Tables” on page 299
Contents ▲265 ▼Index
2100 Expert Data Overview
The 2100 expert software manages data in the following different formats:
•Assay files (.xsy)
•Chip data files (.xad)
•Comparison files (.xac)
•Verification result files (.xvd)
•Diagnostics result files (. xdy)
•Result flagging rule files (.xml)
Assay files
Assay files (.xsy) contain the following information:
•Data acquisition and analysis setpoints
Acquisition setpoints are instrument commands and acquisition parameters. Analysis
setpoints are evaluation parameters, some of which you can modify.
•Assay information
All parameters defined by the assay, such as assay type, title, and version.
•Chip and sample information
These are chip comments, sample names and comments.
•Marker and region definitions (flow cytometric assays only)
Included are associated parameters, such as the gating direction.
Contents ▲266 ▼Index
•Ladder table and peak table (electrophoretic assays only)
•Result flagging rules (electrophoretic assays only)
Chip data files
Chip data files (.xad) contain the following information:
•Measurement results
After each chip run, the measurement results—also called “raw data”—are
automatically saved in a new chip data file. Electrophoretic measurement results are
pairs of migration time and fluorescence intensity values, flow cytometric
measurements are triplets of migration time, red fluorescence, and blue fluorescence.
•Base assay information
Because a chip run is always based on an assay file, all information from the assay file
becomes part of the chip data file.
•Run log
Events occurring during the chip run, such as the start and end time, or any errors or
problems are entered in a “run log”, which is also saved in the chip data file.
•Evaluation information
These are modifications you made during data evaluation, such as modified gel
coloring, manually set markers, manual integration, modified setpoints, modified result
flagging rules, or definitions of new markers and regions.
Contents ▲267 ▼Index
Comparison files
You can compare the measurement results from different chip runs (electrophoretic chip
data files of same assay class only) by collecting samples from different chip data files
(.xad) and storing them in a comparison files (.xac). It is then possible to overlay
electropherograms of these samples, for example, but also to compare gel-like images or
data tables.
Verification result files
Verification result files (.xvd) contain results of qualification tests regarding the
bioanalyzer hardware and software. The files are stored in the “..\validation” subfolder of
the 2100 expert installation directory. For each verification run, an .xvd file is generated.
Date and time of the verification run are included in the file name. Example:
“Verification_23-05-2005_10-28-40.xvd”.
Diagnostics result files
To ensure proper functioning of the bioanalyzer hardware you should run hardware
diagnostics tests on a regular basis. The results of these hardware tests are stored in
diagnostics results files (.xdy) in the “..\diagnosis” subfolder of the 2100 expert
installation directory.
Result flagging rule files
You can export and import result flagging rules from other assay or chip data files. Result
flagging rules are stored in .xml files.
Contents ▲268 ▼Index
Handling Assays
Predefined Assays
Predefined assays are provided with 2100 expert. They are meant and prepared for
measurements using the available LabChip kits.
Predefined assays such as Apoptosis or DNA 1000 are write-protected. Although you can
open predefined .xsy files and edit some of their properties, you cannot save any changes
under the original file name.
Custom Assays
You can derive your own assays from the predefined assays as described in “How to
Create a Custom Assay” on page 270.
The main benefit of custom assays is that you have to do the following only once in the
assay file, instead of doing it again and again in the chip data files:
•Modify assay setpoints (data analysis setpoints).
•Enter information on chip, samples, and study.
For example, if your sample names are to be the same for a series of chip runs.
•Define rules for result flagging (electrophoretic assays only).
•Define markers and regions for evaluation (flow cytometric assay Generic only).
For example, if you want to adjust marker positions and use these for future chip runs.
You can modify custom assays at any time. See “How to Modify a Custom Assay” on
page 271.
Contents ▲269 ▼Index
TIP
If you just want to view the properties of a custom assay, you can open the assay file
in read-only mode, ensuring you do not make accidental changes.
The Assays menu is dynamically built from the structure and contents of the “..\assays”
subdirectory of the 2100 expert installation folder.
TIP
You can add items to the Assays menu by placing assay (.xsy) files—your own assays,
for example—in subdirectories of the “..\assays” directory.
Contents ▲270 ▼Index
How to Create a Custom Assay
To create a custom assay:
1Switch to the Assay context.
2From the Assays menu, select an assay.
– OR –
Select File > Open and open an assay (.xsy) file.
The file appears in the Tree View Panel.
NOTE
If you want to create a new flow cytometric assay with free gating direction or with
more than one marker or region, open and modify the assay “Generic.xsy”.
3Switch to the Assay Properties Tab to modify the assay setpoints if required.
4Switch to the Chip Summary Tab to enter chip, sample, and study information.
5For flow cytometric assays, define markers and regions on the Histogram Tab
(Single/Grid View) and Dot Plot Tab (Single/Grid View).
6For electrophoretic assays, define flagging rules on the Result Flagging Tab.
7Select File > Save As to open the Save As dialog box.
8Under Save as type, select (.xsy), and enter a name and location for the new assay.
9Click Save to create the new assay.
Contents ▲271 ▼Index
How to Modify a Custom Assay
NOTE
You cannot save modifications to predefined assays such as Apoptosis or DNA 1000.
To modify a custom assay:
1From the File menu select Open.
The Open dialog box appears.
2Select an assay (.xsy) file and click Open.
The assay appears in the Tree View Panel and the Assay Properties Tab is displayed.
3Modify the assay by making changes on the following tabs:
–Modify assay setpoints on the Assay Properties Tab.
–Modify or enter additional chip, sample, and study information on the Chip Summary
Tab.
NOTE
The study description is stored in the 2100 expert system file. Altering the study
description of an assay will not affect the entries in the data files that were previously
generated from this assay. To update this information in the data files, too, they must
be opened, and the study must be assigned again.
–For flow cytometric assays, define or modify markers and regions on the Histogram
Tab (Single/Grid View) and Dot Plot Tab (Single/Grid View).
Contents ▲273 ▼Index
Handling Chip Data
Chip data (.xad) files are automatically generated at the end of a chip run. The .xad files
are given names that correspond to the choices you have made in the Options dialog box
(see “How to Specify Data File Names and Directories” on page 306).
Modifying and saving chip data files
2100 expert allows to re-open chip data files, reanalyze them using different evaluation
parameters and store the new results. You can save modifications either to the original
file (File > Save) or under a new file (File > Save As).
NOTE
Raw data acquired from the bioanalyzer is not changed—only evaluation and display
of the results can be changed and saved.
If you alter the data shown in any way after it has been saved and try to exit the program
or switch to a different context (to acquire new data, for example), a dialog box will
appear asking whether or not you wish to save the changes.
Opening chip data files as read-only
A chip data file can be opened as read-only; the Title Bar will show “(Read-Only)” at the
end of the filename. The read-only file can be edited but may not be saved under the
same name. If you attempt to save an edited read-only file, and error message will be
displayed explaining that the file is a read-only file.
Contents ▲274 ▼Index
The benefit of opening chip data files as read-only is to prohibit you or other users from
making changes that would alter the file in any way. Because the 2100 expert software
allows you to open chip data files, modify data, and save them, you may prefer to ensure
that the original parameters that were used to create the file are not altered.
Contents ▲275 ▼Index
Organizing, Backing up, and Archiving 2100 Expert Data
As you begin to work with the 2100 expert software, it is good practice to organize your
files. If you are not the only user of the bioanalyzer, creating a directory within which to
save your files is recommended; having each person save files to their own directory will
speed the process of finding a particular file when someone wishes to examine the data
again. Even if only one person uses the 2100 expert software, it is still wise to review
your files periodically, archive files you are no longer using but wish to save, and discard
unneeded files.
Organizing 2100 Expert Data
Each user in your laboratory may want to specify a particular prefix that will easily
differentiate their data files from any others.
To do this, switch to the System context, go to the System Wide Settings tab, and select
Data Files in the tree navigation. Then activate the Prefix check box, and edit the prefix
string as you require. Note that you can also modify the file prefix before you start a chip
run. Additionally, you may specify that a new directory is created each day for storage of
that day’s runs. To do this, activate the Create Daily Subdirectories check box on the
same screen.
Backing up 2100 Expert Data
It is strongly recommended to save your files to a backup disk or on CD/DVD on a regular
basis. This allows to retrieve the data in case of a system crash or other cases of data
loss.
Contents ▲276 ▼Index
Archiving 2100 Expert Data
The difference between archiving and backing up is that in the archiving process the data
will be removed from its original place and moved while during the backup process only a
copy is taken (depending on the tools you use).
It is a good idea to periodically archive your files to a CD/DVD to remove them from your
hard disk. Depending on the amount of hard disk space available to the 2100 expert
software, you may need to clear space on your hard drive to ensure that you will have
enough room to save upcoming chip run data.
Contents ▲277 ▼Index
Importing Data
When working with assay (.xsy) or chip data (.xad) files, you enter specific information
that you may want to reuse. To support the reuse of data, 2100 expert has the following
import capabilities:
•“Importing Bioanalyzer Files” on page 278
•“Importing Data Analysis Setpoints” on page 279
•“Importing Chip, Sample, and Study Information” on page 281
You can import result flagging rules definitions for result flagging into electrophoretic
assay or chip data files:
•“Importing Result Flagging Rules” on page 282
Contents ▲278 ▼Index
Importing Bioanalyzer Files
You can import data, assay and method files that were generated with other Agilent 2100
bioanalyzer systems. You can even import data and assay files from the older Bio Sizing
and Cell Fluorescence software applications.
To import assay files:
1Switch to the Assay context.
2From the File menu, select Import to display the Open dialog box.
3Select a file of any of the following types:
–.xsy (2100 expert assay file)
–.asy (Bio Sizing assay file)
–.csy (Cell Fluorescence assay file)
4Click Open.
The imported file appears in the Tree View Panel, and the Assay Properties tab shows
information about the assay.
Upon importing, the file gets converted to a new 2100 expert assay file (.xsy).
To import chip data files:
1Switch to the Data context.
2From the File menu select Import to display the Open dialog box.
3Select a file of any of the following types:
–.xad (2100 expert assay file)
Contents ▲279 ▼Index
–.cld (Bio Sizing assay file)
–.cad (Cell Fluorescence assay file)
4Click Open.
The imported file appears in the Tree View Panel, and the electropherogram grid view
shows an overview of all samples.
Upon importing, the file gets converted to a new 2100 expert chip data file (.xad).
Importing Data Analysis Setpoints
You can import data analysis setpoints from other assay (.xsy) or chip data (.xad) files of
the same type.
Note the following when importing:
•Electrophoresis files to be imported must be of the same assay type. This means that
you cannot import setpoints from a DNA 1000 assay into a DNA 500 assay, for example.
•Flow cytometry files to be imported can be of any flow cytometric assay type, but the
import will change the type of the current file to Generic.
To import data analysis setpoints:
1On the Assay Properties tab, click Import Setpoints.
2The Open dialog box appears.
3Select the file from which you want to import, and click Open.
Contents ▲280 ▼Index
NOTE
For flow cytometry files, the import will delete all existing markers and regions in the
current file, and change the current assay to a Generic assay. A message box appears
that prompts you to confirm this change.
4Click Yes.
NOTE
Importing data analysis setpoints overwrites all current setpoint values.
–All files: the setpoint values are updated in the setpoint explorer, and immediately
applied to the measurement results (if any).
–Flow cytometry files: the new markers and regions are now available for evaluation,
and calculations based on the new markers and regions are immediately done.
5From the File menu, select Save to make the changes permanent.
Contents ▲281 ▼Index
Importing Chip, Sample, and Study Information
On the Sample Information and Study Information sub-tabs of the Chip Summary tab, you
can enter names and comments regarding chip, samples, and study. The information you
enter here may be very similar for further chip runs or other assays. Once you have
entered the information, you can export it into a separate file (see “Exporting Chip Run
Data” on page 284), which you can then import into other chip data (.xad) or assay (.xsy)
files instead of typing it anew.
The import/export files can have the extension .txt or .csv, and have a fixed form, which
differs for electrophoretic and flow cytometric assays.
To import chip, sample, and study information:
1On the Chip Summary tab, click Import.
2The Import Sample Information dialog box appears.
3Select the file that contains the information you want to import, and click Open.
The Sample Information and Study Information sub-tabs update to show the imported
data.
4From the File menu, select Save to make the changes permanent.
Contents ▲282 ▼Index
Importing Result Flagging Rules
You can import result flagging rules into electrophoretic assay (.xsy) or chip data (.xad)
files. Result flagging rules can be stored in .xml files (see “Exporting Result Flagging
Rules” on page 291).
To import result flagging rules:
1Open an electrophoretic assay or chip data file in the respective context.
2Switch to the Result Flagging Tab.
3In the Result Flagging toolbar click .
The Load Rules dialog box appears.
4Select the .xml file that contains the set of result flagging rules, and click Open.
The imported rules appear in the rule list.
Contents ▲283 ▼Index
Exporting Data
2100 expert allows you to export the results of your chip runs in a variety of formats. The
exported data can be used for further evaluation with other applications, such as text
processors, graphic tools, MS Excel®, or flow cytometry applications.
You can export the chip run data of the currently loaded file either manually or
automatically:
•“Exporting Chip Run Data” on page 284
•“Exporting Chip Run Data Automatically” on page 286
If you want to export only parts of your measurement results:
•“Exporting Tables” on page 287
•“Exporting Graphs” on page 288
•“Copying Graphs and Tables into the Clipboard” on page 289
Information that you have entered to document a chip run can be exported for reuse in
future chip runs:
•“Exporting Chip, Sample, and Study Information” on page 290
From electrophoretic assay or chip data files, you can also export rule definitions for result
flagging:
•“Exporting Result Flagging Rules” on page 291
Contents ▲284 ▼Index
Exporting Chip Run Data
To export chip run data:
1Switch to the Data context.
2In the Tree View Panel, select a chip data (.xad) .file or load a file.
3From the File menu, select Export.
If you selected an electrophoretic chip data file, the Electrophoresis Export Options
dialog box appears.
If you selected a flow cytometric chip data file, the Flow Cytometry Export Options
dialog box appears.
4Select the export categories, and specify a target directory.
Contents ▲285 ▼Index
NOTE
Keep in mind that exporting a chip data file can require up to 20 MB of disk space. In
particular, exporting electropherograms and gel-like images as .tif or .bmp files may
take up a lot of disk space.
5Click Export.
Several system dialog boxes appear, one for each export category, allowing you to
check and modify names and locations of the export files. Clicking the Save button in
these dialog boxes finally starts the export.
TIP
Chip run data can be automatically exported every time a chip run has finished. Refer
to “Exporting Chip Run Data Automatically” on page 286 for details.
Contents ▲286 ▼Index
Exporting Chip Run Data Automatically
NOTE
Keep in mind that exporting a chip data file can require up to 20 MB of disk space. In
particular, exporting electropherograms and gel-like images as .tif or .bmp files may
take up a lot of disk space.
To enable and configure automatic export:
1Switch to the System context and select Auto Export in the tree navigation.
2Activate the Auto Export check box.
3Specify the export categories that are to be included in the exported files for
electrophoretic and flow cytometric chip runs.
4Switch to Default Export Directories in the tree navigation and specify the target
directories.
From now on, chip run data is automatically exported every time a chip run has finished.
NOTE
If you stop a chip run, auto export does not take place.
Contents ▲287 ▼Index
Exporting Tables
You can export:
•Result tables, peak tables, fragment tables, and ladder tables as .csv files or .xls files.
•Log book tables as .html or .txt files.
To export a result table, peak table, fragment table, or ladder table:
1On the Assay Properties, Electropherogram, Gel, Histogram, or Dot Plot tab, right-click
the heading row of a table.
2From the context menu, select Export.
The Save As dialog box appears.
3Enter a file name and choose the destination directory.
4Select .csv or .xls as export file format.
5Click Save.
TIP
Result tables can be automatically exported every time a chip run has finished. Refer
to “Exporting Chip Run Data Automatically” on page 286 for details.
To export a log book table:

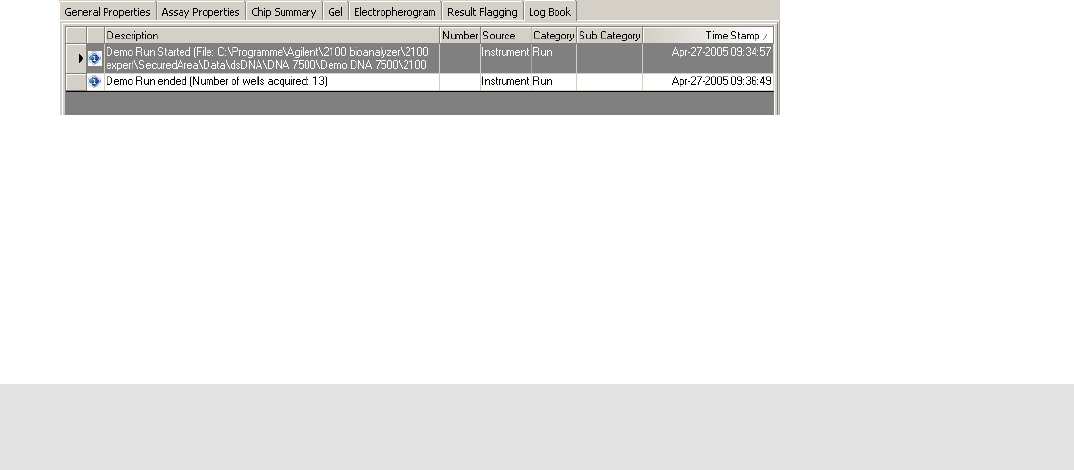

1On the Log Book tab, right-click a table.
2From the context menu, select Export.
The Export Data dialog box appears.
Contents ▲288 ▼Index
3Click the ... button to specify the file name, the destination directory, and the file type.
You can choose between HTML file for .html output and Tabbed text file for .txt output.
4Specify whether you want to export the Selected rows only or All visible rows.
5Click OK.
Exporting Graphs
You can export graphs as individual graphic files. This applies to all graphs that can be
displayed in 2100 expert such as electropherograms or dot plots.
To ex p or t a gr a p h :
1Right-click the graph, and select the appropriate entry (e.g. Save Gel or Save
Electropherogram) from the context menu.
– OR –
Click the button in the toolbar.
The Save As dialog box appears.
2Under File name, enter a name and choose the destination directory.
3Under Save as type, select a graphic file format: .bmp, .jpg, .wmf, .tif or .gif.
4Click Save.
The graph is written to the specified file.
Contents ▲289 ▼Index
Note the following:
•Histograms: only one histogram graph is exported, either the red or the blue histogram.
•Electropherograms: if the grid view is active, an overview image of the
electropherograms (of all samples and the ladder) is exported.
TIP
Electropherograms, gel-like images, histograms, and dot plots can be automatically
exported every time a chip run has finished. Refer to “Exporting Chip Run Data
Automatically” on page 286 for details.
Copying Graphs and Tables into the Clipboard
You can copy graphs into the clipboard. This applies to all graphs that can be displayed in
2100 expert, such as electropherograms or dot plots.
You can also copy tables (or parts of tables) into the clipboard. This applies to most of the
tables that can be displayed in 2100 expert, such as result tables or log book tables.
To copy a graph or table into the clipboard:
1Right-click the graph or table (region).
2From the context menu, select Copy Gel/Copy Electropherogram (graphs) or Copy To
Clipboard (tables).
– OR –
Click the button in the toolbar.
Contents ▲290 ▼Index
You can now switch to a word processing, spreadsheet, graphics, or other application,
and paste the graph or table there.
Exporting Chip, Sample, and Study Information
On the Sample Information and Study Information sub-tabs of the Chip Summary tab, you
can enter names and comments regarding chip, samples, and study. The information you
enter here may be very similar for further chip runs or other assays. Once you have
entered the information, you can export it into a separate file, which you can then import
into other chip data (.xad) or assay (.xsy) files instead of typing it anew.
The import/export files can have the extension .txt or .csv, and have a fixed form, which
differs for electrophoretic and flow cytometric assays.
To export chip, sample, and study information to a file:
1On the Chip Summary tab, click Export.
The Export Sample Information dialog box appears.
2Specify a file name and location for the file to which you want to export.
3Click Save.
Contents ▲291 ▼Index
Exporting Result Flagging Rules
You can export result flagging rules for reuse in other electrophoretic assay (.xsy) or chip
data (.xad) files (see “Importing Result Flagging Rules” on page 282). Result flagging
rules are stored in .xml files.
To export result flagging rules:
1Open the electrophoretic assay or chip data file with the desired result flagging rules in
the respective context.
2Switch to the Result Flagging Tab.
3In the Result Flagging toolbar click .
The Save Rule Definitions dialog box appears.
4Browse for a folder where you want to store the rules, and specify a name for the .xml
file.
5Click Save.
Contents ▲292 ▼Index
Printing Reports
For documentation and presentation purposes, you can print reports for assay (.xsy), chip
data (.xad), verification results (.xvd), and comparison (.xac) files.
You can print all reports manually, see “How to Print a Chip Run Report” on page 293.
When printing manually, a preview function allows you to view the printout before
starting the print job.
The 2100 expert program can also be set to print customized chip run reports
automatically at the end of the run. These reports can be set up to contain different
information (settings for the manual and automatic print functions are maintained
separately). See “How to Turn on and Configure Automatic Printing of Chip Run Reports”
on page 297 for more information.
TIP
Beside sending reports to a printer, you can also create .pdf and .html files.
Contents ▲293 ▼Index
How to Print a Chip Run Report
The following information can be included in a chip run report:
•You can always include:
–Run summary—general data about the assay, and sample information.
–Assay details—complete list of data analysis setpoints.
–Run Logbook
–Signature Logbook
–Audit Trail
•For flow cytometric chip data files (.xad) you can include:
–Dot plot summary—all regions shown in an overview.
–Dot plot statistics—all statistical data of the result table.
–Histogram summary—all histograms shown in an overview.
–Histogram statistics—all statistical data of the blue and red histograms’ result
tables.
•For electrophoretic chip data files (.xad), depending on the assay type you can include:
–Electropherograms
–Gel-like image
–Result tables
–Standard curve
–Calibration curve
Contents ▲294 ▼Index
To print a report:
1Switch to the Data context.
2In the Tree View Panel select the chip data (.xad) file you want to generate a report of.
3From the File menu select Print.
Depending on the file type different dialog boxes appear.
4You generally have the following possibilities:
–select the items to be included in the report from the Print Item section
–select the wells to be included from the Wells section
–select the appropriate options
–specify whether you want to generate the report as a file (PDF or HTML)
Contents ▲295 ▼Index
NOTE
Your selections here are separate from the Auto Print selections (they do not affect
each other). Both are used by default the next time you print (even after restarting the
program).
5Use the Page Setup and Printer buttons to access system dialog boxes, allowing you to
select a printer, and specify the print medium and page layout.
6Click the Preview button to get a preview of the printouts or files to be generated.
7Click Print to print out the pages or generate the file(s).
Contents ▲297 ▼Index
How to Turn on and Configure Automatic Printing of Chip Run Reports
A report can be automatically printed on a printer or generated as a file at the end of each
chip run. Saving reports as files can be helpful for documentation purposes.
To enable and configure automatic printing:
1Switch to the System context.
2Select Run and Result in the tree navigation.
3Activate the Auto Print check box and click the Settings button next to this check box.
The Auto Print dialog box appears.
NOTE
The Auto Print settings are independent from those made via the Print command of
the File menu .
4Adjust the settings:
Contents ▲298 ▼Index
–In the Print Item section, select the options that are to be included in the report.
–In the Save To File section, you can redirect the automatic printouts to .pdf and .html
files.
Note that no print output is generated if you select the PDF and/or HTML option.
–Using the Page Setup and Printer buttons, you can access system dialog boxes,
allowing you to select a printer for the automatic print, and specify the print medium
and page layout.
5Click OK to confirm the automatic print settings.
Contents ▲299 ▼Index
Configuring Tables
2100 expert uses various tables to present data:
•Result tables
•Peak tables
•Fragment tables
•Log book tables
In some cases, you might want to reorganize the way the data is presented. To do so, you
can hide or show columns, change the column sequence, and adapt the table height.
The following example demonstrates how to add the migration time to the Peak Table.
Contents ▲302 ▼Index
Changing the Column Sequence
TIP
You can set the column sequence also using the Up and Down buttons in the
Configure Columns dialog box.
To change the column sequence of a table:
1Position the mouse pointer on a column header.
2Click and hold the left mouse button, and drag the header cell to the desired position.
While dragging, a green arrow indicates the target position.
3Release the mouse button.
The column has moved to its new position:
Contents ▲303 ▼Index
Changing the Table Height
You can customize the view by changing the height of the table.
To increase or reduce the table height:
1Position the mouse pointer above the heading row of the table and move it upwards
until the cursor’s shape changes to a double arrow.
2Click and hold the left mouse button and drag up or down.
3Release the mouse button.
Contents ▲305 ▼Index
Administering System Functions
The 2100 expert software provides the following configuration options and system
functions:
•Default data file names and directories can be specified. Also, settings such as for
automatic printing or automatic data export can be set up. See “Configuring
2100 expert” on page 306 for details.
•Log books are provided that record all important actions and messages in the
2100 expert software. See “Using Log Books” on page 316 for details.
Contents ▲306 ▼Index
Configuring 2100 expert
The available options for configuring the 2100 expert software can be found in the
System context on the System Wide Settings tab.
How to Specify Data File Names and Directories
The measurement results are stored automatically when the chip run is complete. To
make it easier for you to identify the chip data files, you can configure an automatic
naming scheme for the files.
Contents ▲307 ▼Index
To specify the names and destination for generated chip data files:
1Switch to the System context and select the System Wide Settings tab.
2Select Data Files in the tree navigation.
The Data Files screen becomes visible:
3In the Data File Name section, select the check boxes of the strings you want to insert
in the file names:
Option Meaning
Prefix Inserts an arbitrary string to identify the data file. This string can be
modified. The default file prefix is “2100 expert”.
Assay Class Inserts the assay class in the file name. Examples: “DNA1000”,
“GFP”, “Apoptosis”.
Contents ▲308 ▼Index
4In the Data File Directory section, specify the Default Directory where the chip data files
are to be stored. Use the Browse button to select a directory or click Reset if you want
to use the “..\Data” directory under the 2100 expert installation directory.
5Optionally, you can select the check box Create Daily Subdirectories if you want daily
subdirectories to be created.
This option helps you to better organize your chip data files. If selected, a subdirectory
is created for every day in which a chip run was started. The name of the subdirectory
has the format “YYYY-MM-DD”, for example, “2005-01-22“. All chip data files generated
on this day will be stored in this subdirectory.
6In the Data File Format section, select whether you want to save the data files in Binary
Format or in XML Format.
7Use the Prefix field to specify a default prefix for the created files. This default prefix can
be changed by every analyst in the Instrument context for each chip run.
Serial Number Inserts the serial number of the Agilent 2100 bioanalyzer
instrument used for the chip run.
Date Inserts the date of the chip run.
Time/Counter Inserts the time of the chip run/inserts an auto-incremented
3-digit number.
Option Meaning
Contents ▲309 ▼Index
How to Set Run and Result Options
You can select several options such as to pause the analysis on setpoint changes, the
maximum log file size, or the graph colors.
To set the Run and Result options:
1Switch to the System context and select the System Wide Settings tab.
2Select Run and Result in the tree navigation.
The Run and Result screen becomes visible:
3In the Advanced section, you can
–select Limit the storage of system log if you want to limit the disk space for the
system log file “SystemLogBook.log” (located in the “..\log” subdirectory), and enter
an upper limit in MB.
Contents ▲310 ▼Index
If the limit is exceeded, a message appears that prompts you to delete or move the
log file to get free disk space.
–select Auto Run to activate the automatic start of a chip run once the lid of the
Agilent 2100 bioanalyzer is closed and a chip suiting the selected assay is detected.
–select Auto Print to enable the automatic report printing function.
You can now click Settings to display the Autoprint dialog box, where you set the
options for automatic printing after a chip run is complete.
NOTE
The Auto Print settings are independent from those made via the Print command of
the File menu.
4In the Analysis section, you can activate the Pause Analysis on Setpoint Change
function.
If this function is not active, the measurement results are recalculated every time after
you change a setpoint. If you need to change several setpoints at once, activating this
function saves you time, because the results are only recalculated when leaving the
setpoint explorer or when starting the analysis manually with the start button.
5In the Graph Signal Color section, click the colored rectangles to the right of the signals.
You can now choose a new color for the selected signal in the Color dialog box.
Contents ▲311 ▼Index
How to Set Auto Export Options
To define auto export options:
1Switch to the System context and select the System Wide Settings tab.
2Select Auto Export in the tree navigation.
The Auto Export screen becomes visible:
3Activate the Auto Export check box, if you want a data file to be exported automatically
after every chip run.
Contents ▲312 ▼Index
4In the Electrophoresis Export section, specify which elements are to be included in the
exported file for electrophoresis measurements.
5In the Flow Cytometry Export section, specify which elements are to be included in the
exported file for flow cytometry measurements.
6Select Default Export Directories in the tree navigation and define the default
directories for the various file types. Optionally, you can activate the Create daily
subdirectories check box to automatically export the files of each day to separate
directories.
How to Activate Software Licenses
By installing the 2100 expert software you have also installed a license administration
tool. This tool is used to activate the different software modules. The following licenses
can be ordered separately:
•2100 electrophoresis license
•2100 flow cytometry license
•2100 security pack license
•2100 instrument control license
Contents ▲314 ▼Index
4In the Select Module field, select the license for the software module that you want to
activate.
5Enter the correct License Key and click the Add button.
A message box informs you whether the license key was added successfully.
6If you want to add more licenses, repeat the previous two steps for every license key.
7Click the Exit button to close the License Administration Tool window.
The licensed software modules are now activated and can be used.
NOTE
If you added the license key to activate the security pack, the 2100 expert software
closes and the secured file area will be set up. Follow the instructions displayed in the
different pages of the setup wizard.
Contents ▲316 ▼Index
Using Log Books
2100 expert provides several log books to document all relevant actions and changes.
Due to requirements of data integrity and data security, none of the log books can be
cleared.
Run Logs
The run log books can be found in the following contexts as sub-tabs of the Log Book tab:
•Data context
•Verification context
•Comparison context
•Assay context
They contain events such as the start and end time of a chip run, and any errors or
problems that occurred during the run.
All run logs are saved in the data files within the respective context.
Contents ▲318 ▼Index
The system log book is saved in
config/SystemFile.xml
. The log book entries can be
exported from this file.
How to Change the Display of the Log Books
To sort a log book table:
1Click the column header you want to sort the table by.
The log book table is sorted by the entries in the selected column in ascending order.
2Click the column header again to reverse the order.
To filter a log book table:
1In the Log Book toolbar, click Filter .
The Filter dialog box appears.
2To define a filter for events from a specified period of time, specify a Start Time and an
End Time.
3To define a filter for events with certain entries in a column, specify the column name
and the value to search for.
4Use the Filter Action radio buttons to define whether only events that match the filter
criteria are displayed (FilterActionHide) or whether those events are highlighted while
the others are still listed (FilterActionHide).
5Click OK to apply the filter to the log book table.

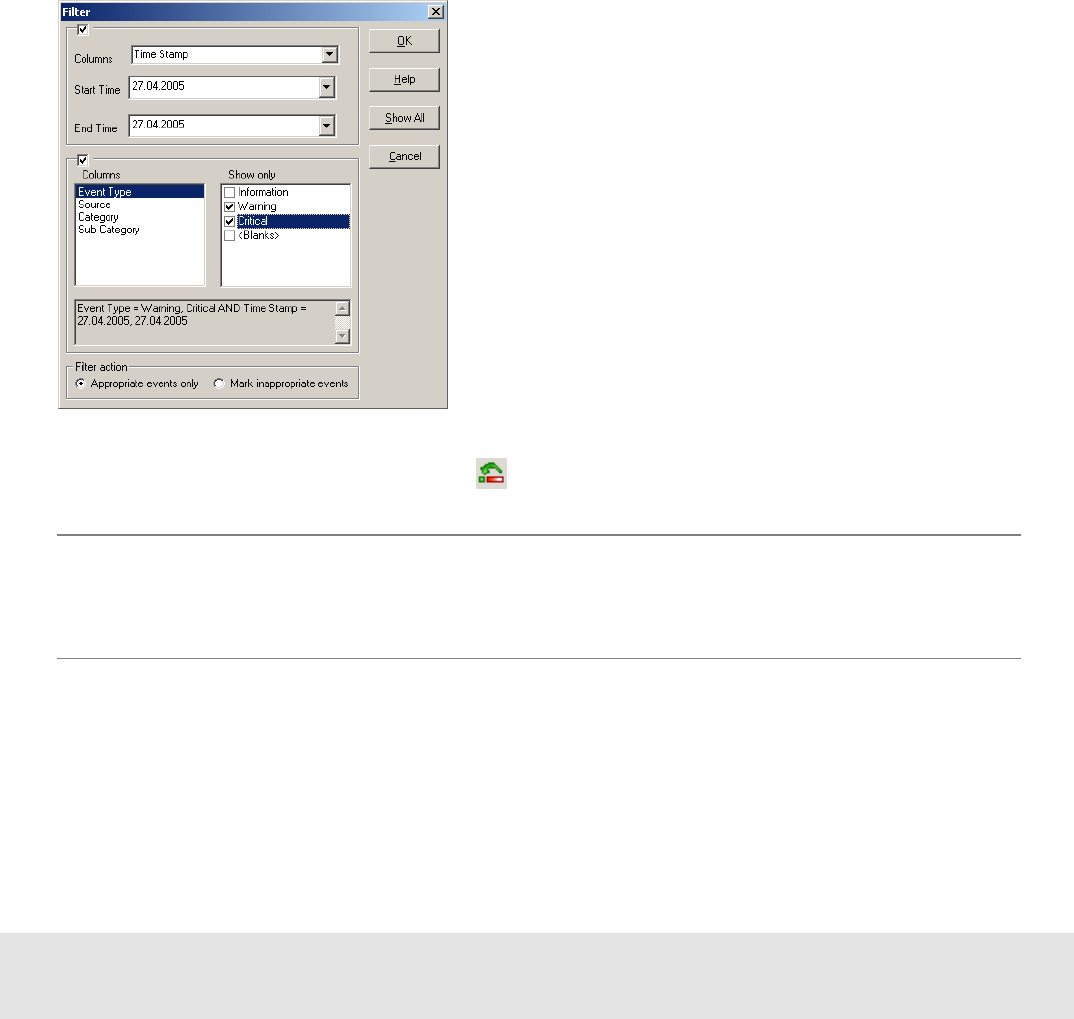

The filter definition in the following example excludes all events from the Run Log in the
Data context with an Event Type other than Critical.
Contents ▲320 ▼Index
How to Search the Log Book
You can search the various log books for any string.
To s ea r c h t h e Log Book:
1In the Log Book toolbar, click Find .
The Find dialog box appears.
2Enter a search string in the Find What field.
3Use the Column selection list to specify whether you want to search all columns or a
particular column only.
4Select the search Direction.
Contents ▲322 ▼Index
Running Instrument Diagnostics
2100 expert provides several tests to check proper functioning of the bioanalyzer
hardware. You should perform the tests on a regular basis, or if incorrect measurements
occur.
You can test the following:
•Generic bioanalyzer tests, which can be run with both types of cartridges (electrode or
pressure cartridge)
•Bioanalyzer in combination with electrode cartridge (electrophoresis setup)
•Bioanalyzer in combination with pressure cartridge (flow cytometry setup)
Contents ▲323 ▼Index
Generic Bioanalyzer Tests
Diagnostics Test Purpose
Electronics Test Verifies proper functioning of all electronic boards in the
bioanalyzer.
Fan Test Checks if the fan is running at the appropriate speed.
Lid Sensor Test Verifies proper operation of the lid sensor, ensuring that the
laser and LED are off when the lid is open.
Stepper Motor Test Checks for proper movement of the stepper motor.
Temperature Test Checks if the temperature ramp-up speed of the heater plate is
within specifications.
Contents ▲324 ▼Index
Electrode Cartridge Tests
Diagnostics Test Purpose
HV Stability and
Accuracy Test
Tests high voltage accuracy and stability of all 16 high voltage
power supplies and the high voltage controller. Unused chip
(DNA, RNA, or protein) required.
HV Accuracy Test
(On-Load)
Check of channel-reference diode in transmission direction.
Short Circuit Test Checks for instrument leak currents using an empty chip.
Note: the limits of this test specify an ambient temperature of
25 °C and relative humidity less than or equal to 60 %. Higher
temperatures or relative humidity could result in a leak current.
Electrode/Diode Test Checks the photo diode and current-versus-voltage
performance of the bioanalyzer. Electrode/diode test chip
required.
Optics Test Checks for proper alignment of internal optics and proper
function of the laser and LED.
Electrophoresis
Autofocus Test
Checks the focusing capability of the optical system.
Autofocus test chip required.
Laser Stability Test Measurement of stability of red laser signal.
Contents ▲325 ▼Index
Pressure Cartridge Tests
NOTE
With bioanalyzer model G2938A only diagnostic tests in combination with the
electrode cartridge can be performed.
Diagnostics Test Purpose
Pressure Offset Test The vacuum system of the pressure cartridge consists of a
pump and the corresponding tubes. This test calibrates the
pressure sensors to zero.
Pressure Control Test Checks if the bioanalyzer is able to hold the working pressure
of -140 mbar. During the test pumps stay on, while the system
tries to regulate pressure to be kept at -140 mbar. Cell
Autofocus test chip required.
System Leak Test Checks if the bioanalyzer is able to maintain a vacuum.
Produces a test pressure of -100 mbar and monitors for
changes. Cell Autofocus test chip required.
Flow Cytometry
Autofocus Test
Checks that the optical system of the bioanalyzer is correctly
calibrated. Cell Autofocus test chip required.
Contents ▲326 ▼Index
Test C hi p s
Depending on your bioanalyzer setup (electrophoresis or flow cytometry), different test
chips are required to run some of the diagnostics tests. Test chip kits are part of the
bioanalyzer electrophoresis set (G2947CA) and flow cytometry set (G2948CA):
Test Chip Kit for Electrophoresis Assays (reorder no. G2938-68100)
Test Chip Kit for Flow Cytometry Assays (reorder no. G2938-68200)
Test Chip Comment Quantity
Autofocus Test Chip Values for fluorescence and offset are printed on
the chip. Can be used multiple times.
1
Electrode/Diode Test Chip Can be used multiple times. 1
Test Chip Comment Quantity
Cell Autofocus Test Chip Required for Pressure Control Test, System
Leakage Test, and Optical Drive Test. Can be
used multiple times.
1
Contents ▲327 ▼Index
How to Run Instrument Diagnostics Tests
NOTE
Diagnostics tests cannot be run while the 2100 expert software is performing a chip
run.
To run diagnostics tests:
1Switch to the Instrument context.
2In the Tree View Panel, select the bioanalyzer on which you want to run the tests.
3Switch to the Diagnostics tab.
All available tests are displayed in the Available Tests list. The tests that can be
executed depend on the type of cartridge that is installed in the bioanalyzer.
The 2100 expert software will generate an error message if a wrong cartridge type is
detected for the selected assay. To run the selected test please insert the requested
cartridge type (see “Loading the Electrophoresis Chip into the Bioanalyzer” on page 59
or “Loading the Cell Chip into the Bioanalyzer” on page 194, respectively).
Contents ▲330 ▼Index
The Status column indicates the status of each test:
–Executing
–Execution pending
–Executed, passed
–Executed, failed
7If any test failed, redo the test.
8If failures still persist, contact Agilent service.
The results of diagnostics tests are stored in .xdy files in the 2100 expert installation
folder under “..\diagnosis”. If tests fail, send the .xdy files to the Agilent service.
Contents ▲331 ▼Index
Performing Verifications
To ensure a validated Agilent 2100 bioanalyzer system, verification steps have to be
performed at installation and operation level.
2100 expert allows for detailed installation verification and system verification on both
the bioanalyzer hardware and software. Each verification comprises a series of tests and
measurements that you can run and document in the Verification context of the
2100 expert software.
Installation Verification
Installation verification includes tests to verify that the bioanalyzer software and
hardware are installed properly and that all electrical and pressure connections are
correct.
Installation verification must be performed once after installation.
Contents ▲332 ▼Index
System Verification
System verification proves that the bioanalyzer system is suitable for its intended use,
that is, that it will function according to its operational specifications in the selected
environment.
System verification should be performed:
•at first use of the instrument,
•after relocating the instrument,
•after changing essential parts of the system, for example software updates or exchange
of cartridges,
•after instrument repair,
•on regular time intervals.
Verification Procedure
To p e rf o r m ver ifi c a t i o n t e st s :
1Switch to the Verification context.
2From the File menu select New.
3A New Verification item appears in the Tree View Panel.
4Under Cartridge Details, click Select and specify details on the cartridge that is currently
installed in the bioanalyzer.
Contents ▲334 ▼Index
6In the Tree View Panel, navigate to the test category you want to execute. Select the
category via Installation/System Verification – Software/Hardware – PC
name/Bioanalyzer name – Te s t C a t e g o r y.
NOTE
To execute hardware tests (HW branch) the bioanalyzer must be properly connected
and switched on.
The Configuration tab now lets you select verification tests to be executed in the
verification run:
To select tests, check the Apply check box next to the test(s).

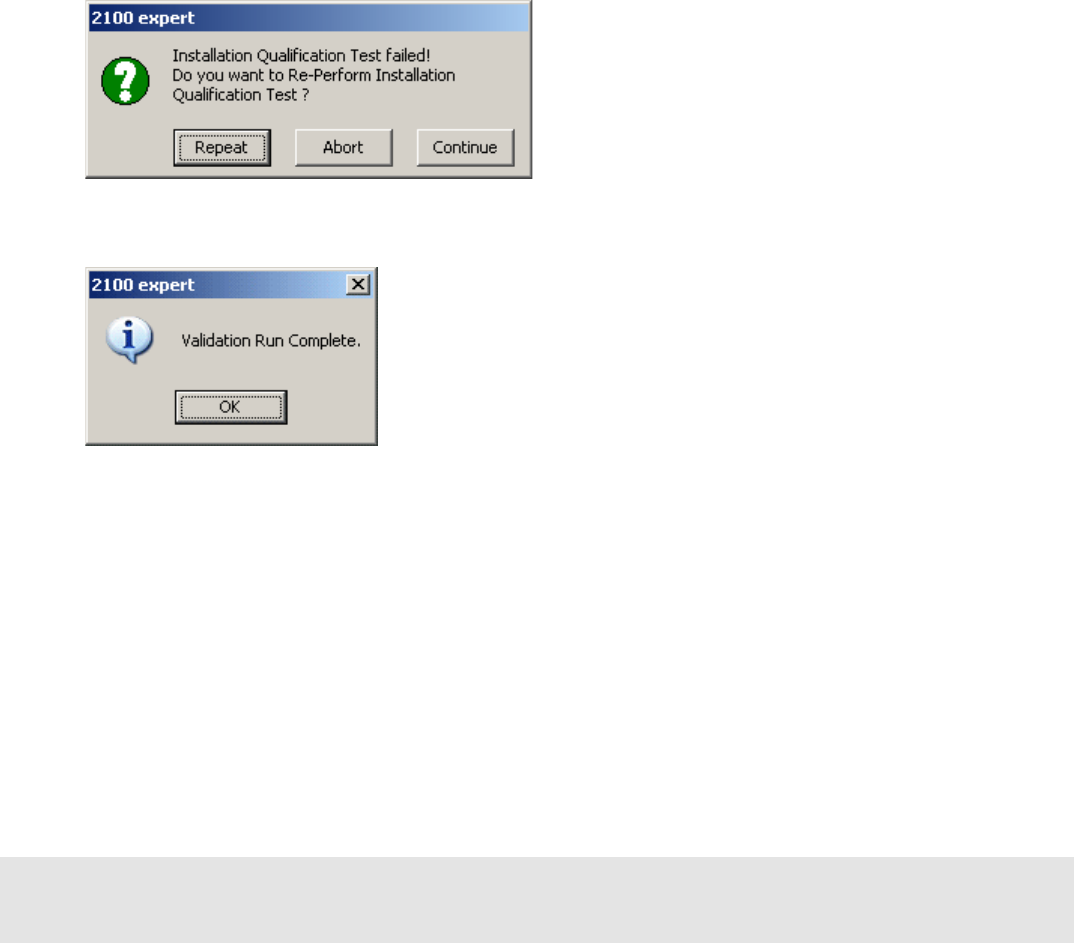

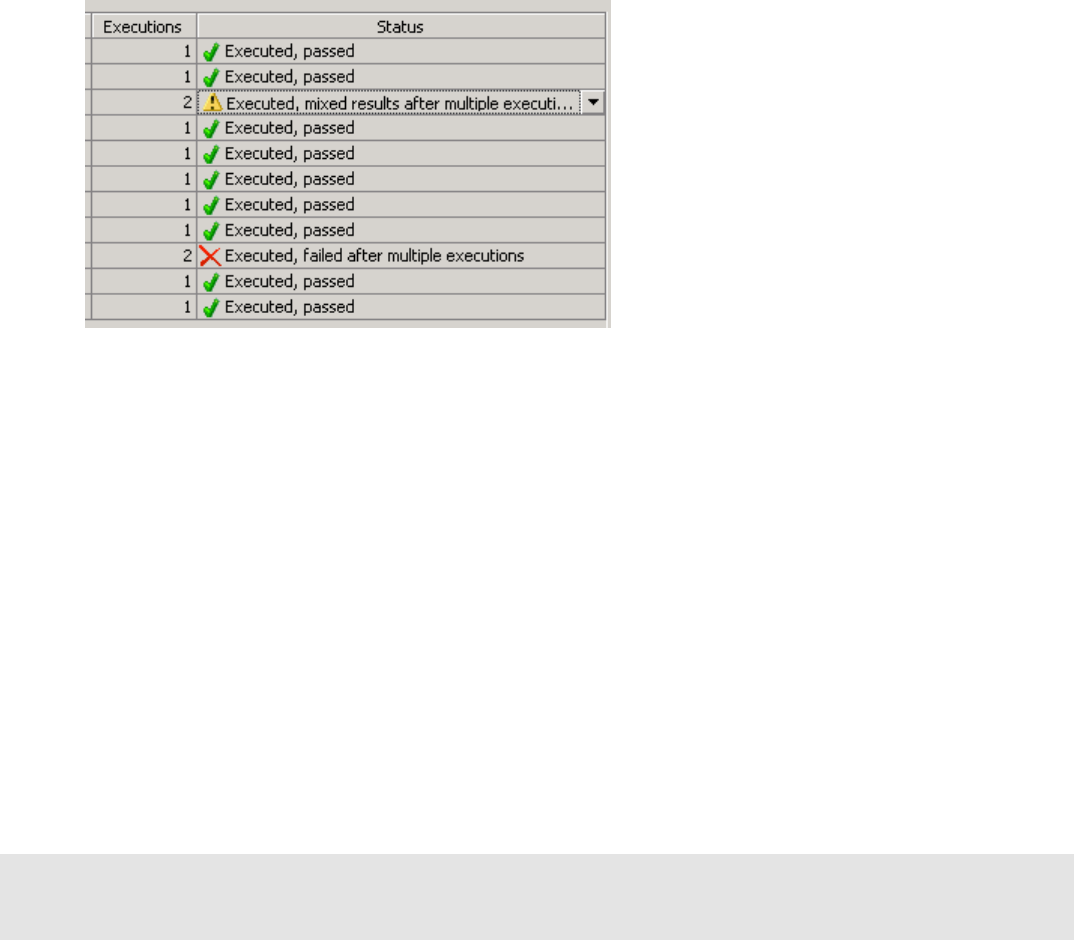

Contents ▲339 ▼Index
15When you close the verification result file (File > Close), try to switch to another
context, or exit 2100 expert, the following message appears:
If you select No, you return to the Verification context and can run further verification
tests.
If you select Yes, the verification result file (.xvd) is closed and becomes read-only.
NOTE
You can re-open verification result files only for viewing and printing.
TIP
Select File > Print to generate a printed report of the verification run.
Contents ▲340 ▼Index
Products, Spare Parts, and Accessories
To buy the following products, spare parts and accessories for the Agilent 2100
bioanalyzer, please refer to the Agilent Online Store:
http://www.agilent.com/home/buyonline.html
Bundles
•G2940CA – Agilent 2100 bioanalyzer desktop system
Includes Agilent 2100 bioanalyzer, HP Compaq desktop PC, color printer, system
software, vortexer, and accessories. Cartridge and license must be purchased
separately.
•G2943CA – Agilent 2100 bioanalyzer laptop system
Includes Agilent 2100 bioanalyzer, HP Compaq laptop PC, color printer, system
software, vortexer, and accessories. Cartridge and license must be purchased
separately.
Contents ▲341 ▼Index
Hardware
•G2938C – Agilent 2100 bioanalyzer
Includes 1 chip priming station, 1 test chip kit, serial cable, Installation and Safety
Manual. Cartridge and license must be purchased separately.
•G2947CA – Agilent 2100 bioanalyzer electrophoresis set
Includes test chip kit, electrode cartridge, license key for electrophoresis assays, and
start-up service.
•G2948CA – Agilent 2100 bioanalyzer flow cytometry set
Includes checkout kit, test chip kit, pressure cartridge, license key for flow cytometry
assays, and start-up service.
Software and Services
•G2946CA – Agilent 2100 expert software upgrade
Software package for upgrade to the latest 2100 bioanalyzer system software revision.
•G2949CA – Agilent 2100 expert security pack
Additional services for Installation Qualification (IQ) and Operation
Qualification/Performance Verification (OQ/PV) as well as assay consulting are
available and can be ordered separately.
Contents ▲342 ▼Index
Spare Parts and Accessories
•5065-4413 – Electrode cartridge
•5065-4492 – Pressure cartridge
•5065-4478 – Pressure Adapter Kit
Contains 5 plastic adapters and 1 mounting ring for use with the pressure cartridge
•G2938-68100 – Test Chip Kit for Electrophoretic Assays
Comprises 1 Autofocus, 1 Electrode/Diode, and 5 Leak Current Clips
•G2938-68200 – Test Chip Kit for Flow Cytometric Assays
Comprises 1 Cell Autofocus Chip
•G2938-81605 – RS 232 cable
Communication cable PC – Agilent 2100 Bioanalyzer
•2110-0007 – Fuse
•5042-1398 – Adjustable Clip for use as spare part for the chip priming station
•5065-4401 – Chip Priming Station including gasket kit and adjustable clip
•G2938-68716 – Gasket Kit
Includes spare parts for the chip priming station: 1 plastic adapter, 1 ring and 10 gaskets
•5065-4428 – IKA Vortexer (115V)
Must be ordered at IKA (http://www.ika.de)
•5065-4429 – IKA Vortexer (230V)
Must be ordered at IKA (http://www.ika.de)
Contents ▲344 ▼Index
Glossary
This glossary explains terms in context with flow cytometry, electrophoresis, and
software or hardware of the Agilent 2100 bioanalyzer.
A
Area Threshold
The Area Threshold setpoint determines the minimum amount of peak area that must be
detected before a peak is recognized.
Assay
An assay is a solution with defined chip, chemicals, instrument methods, data analysis,
data output settings and data display settings.
ASY file
In Bio Sizing electrophoretic assays were stored as .asy files. 2100 expert can import .asy
files. See also XSY file.
Contents ▲345 ▼Index
Audit Trail
Audit trails are available in the 2100 expert software only with the security pack installed.
They are used to record the activities of the logged-in users and cannot be modified. The
audit trails as well as log books are subject to data protection. Only authorized users are
allowed to inspect them. They are saved with the data files or into an audit file repository,
which is automatically archived.
B
Baseline
A baseline is established just after the First Peak Time setpoint. After the overall baseline
is established, a local baseline is calculated for each peak to compensate for baseline
drift.
For isolated peaks, the local peak baseline is simply a straight line connecting the Start
Point of the peak with the End Point. For peaks that are very close together, an average
baseline is used when the value between the peaks does not drop to the actual baseline.
Contents ▲349 ▼Index
NOTE
With RNA assays, you can move the lines marking the start and end points for data
analysis (shown by the long-dashed vertical green lines) which will adjust the entire
baseline for calculation of the area of the total sample.
Baseline Plateau
This setpoint (found in the setpoint explorer) rejects brief, low slope areas such as at
peaks and between non-baseline-resolved peaks. The signal is recognized to be at
baseline whenever the slope of the data is less than the Slope Threshold setpoint (either
positive or negative) for longer than the time set for the Baseline Plateau.
BMP file
BMP is the standard Windows image format. The BMP format supports RGB,
indexed-color, grayscale, and bitmap color modes.
Bubble
If the tip of a pipette is not positioned all the way to the bottom of a well, bubbles can
result (and sometimes bubbles happen even when you are very careful). The vortexing
step that occurs after samples are loaded into the chip is designed to rid the wells of
bubbles and is usually very effective.
If a large bubble is seen at the bottom of a well, remove the sample from the well, pipette
it back in, and continue with the loading procedure.
Contents ▲350 ▼Index
C
CAD file
In Cell Fluorescence flow cytometric chip runs were stored as .cad files. 2100 expert can
import .cad files. See also XAD file.
Center Point
After locating a start point, the peak find algorithm looks for the first negative slope value
and saves the previous point as the center. If the value of the center point is less than the
Minimum Peak Height, the algorithm starts looking for a new peak.
CLD file
In Bio Sizing electrophoretic chip runs were stored as .cld files. 2100 expert can import
.cld files. See also XAD file.
COM Port
See Serial port.
CSV file
Comma-separated variable file. The simplest form of file for holding tabular data. Data is
listed in columns in a text file, each value being separated by a comma. Each new line
represents a new set of data. Import and export with Microsoft Excel is possible.
CSY file
In Cell Fluorescence flow cytometric assays were stored as .csy files. 2100 expert can
import .csy files. See also XSY file.
Contents ▲351 ▼Index
D
Data Filtering
The first step 2100 expert takes in analyzing raw data is to apply data filtering. Data
filtering is done by means of a polynomial “filter” that is applied to the raw data. The
setting for the Polynomial Order in the setpoint explorer determines the amount of data
to be applied: the smaller the number, the more data that is applied and the more filtering
that takes place.
Data Points
Data points are 0.05 seconds apart.
Show Data Points is an option that enables the display of the data points used to
generate the graph.
E
Electrode Cleaner
An electrode cleaner should be used to clean the electrodes after each run is complete.
The cleaning procedure is slightly different depending upon the type of assay that was
just performed (DNA or RNA).
The electrode cleaner looks like a chip except that it is clear. With RNA assays you must
use two different electrode cleaners: one for general cleaning using RNAse-free water
and another for decontamination using RNAseZAP. It is recommended to use a
permanent marker to label the electrode cleaners so as not to mix them up.
Contents ▲352 ▼Index
Electrokinetic forces
Electrokinetic forces are used to move, switch and separate the samples. Active control
over voltage gradients directs the movement of materials using the phenomenon of
electrophoretic flow.
Electroosmotic Flow
A phenomenon that results from an electrical double layer formed by ions in the fluid and
surface electrical charges immobilized on the capillary walls. When an electric field is
applied, the bulk solution moves towards one of the electrodes. This phenomenon can be
used to move fluids through microfabricated channels.
Electrophoresis
A standard technique of separating molecules on the basis of their mobility
(charge-to-mass ratios). An electrical potential is applied across a capillary containing a
sample in a fluid medium. Positive molecules migrate towards the cathode and negative
molecules migrate towards the anode at different speeds, depending on their
electrophoretic mobility.
Electrophoretic flow
A macroscopic phenomenon that results from an electrical double layer formed by ions in
the fluid and surface electrical charges immobilized on the capillary walls. When an
electric field is applied, the bulk solution moves towards one of the electrodes (cathode).
Electrodes sit in the reservoirs that connect to the ends of the various channels.
Electrode potentials are applied to the various reservoirs in a time-dependent fashion to
move the fluid in the required direction. The gel-filled channels of the LabChip devices do
not exhibit a measurable flow because of dynamic channel coating and viscosity of the
polymer matrix.
Contents ▲353 ▼Index
End Point
The peak find algorithm looks for a leveling off when the value of the slope is less than
the value set for the slope threshold. This is considered to be the end point of the peak.
With RNA assays, individual peak end times can be moved manually by dragging the
diamond-shaped end points shown in the single-well display.
End Time
This setpoint determines the time after the start of a run before which the last peak or
fragment will be located (any peaks appearing after this time are ignored). In RNA
assays, the end time is shown on the single-well display as a long-dashed vertical green
line.
With RNA assays, another End Time setpoint is available that controls the end time for
an individual peak. Additionally, individual peak end times can be moved manually by
dragging the diamond-shaped end points shown in the single view.
F
Filter Width
This setpoint determines the width of the polynomial (in seconds) to be applied to the
data for filtering (noise reduction). The default depends on the assay selected. This
setting should be less than twice the width of the peaks of interest or the peaks will be
distorted. Peaks that are distorted by the filter have positive and negative peaks on both
sides. To see an example of such distortion, increase the filter width to 5.
Contents ▲354 ▼Index
Firmware
The firmware is a program to control the hardware of the Agilent 2100 bioanalyzer. It is
downloaded from your computer to the Agilent 2100 bioanalyzer and controls, among
others, data transfer or the measurement procedures.
Flow Cytometry
A method to detect cells with certain properties. In a continuous stream, stained cells
pass through a light beam. The emitted fluorescence is used for counting and
differentiation.
Flow Cytometry Standard—FCS
The FCS file format is the standard format used in flow cytometry to exchange data
between several applications.
G
GIF file
Graphics Interchange Format, GIF is a graphics file format that uses a compression
scheme originally developed by CompuServe. Because GIF files are compressed, the file
can be quickly and easily transmitted over a network. This is why it is the most commonly
used graphics format on the World Wide Web.
H
Height Threshold
The Height Threshold setpoint determines whether a peak is kept. It represents the
minimal peak height. For each peak, the difference between the start point value and the
Contents ▲355 ▼Index
center point value (local baseline) must be greater than the Height Threshold value.
This setting is chosen in the setpoint explorer.
Histogram
Histograms are bar charts to display, for example, a frequency distribution.
HTML file
HTML (Hyper Text Markup Language) is the authoring language used to create
documents on the World Wide Web. HTML defines the page structure, fonts, graphic
elements and hypertext links to other documents on the Web.
J
JPG file
Joint Photographic Experts Group Image File. A JPEG file is a compressed raster or
bitmapped graphic image. When a JPEG is created, a range of compression qualities may
be considered. JPEG compression is a lossy process, which means that you sacrifice
quality for file size the more you compress the image (the highest quality images results
in the largest file size). Whereas GIF images are limited to 256 colors (8-bit), JPEG images
may contain millions of colors (24-bit) as well as additional information including
PostScript clipping paths.
Contents ▲356 ▼Index
L
Lab-on-a-chip
The generic term for a microfluidic product, signifying a chemical process or material
movement taking place on a microchip. In contrast to analysis in a standard laboratory
that relies on human intervention at several stages to manipulate or observe samples
and record results, the self-contained lab-on-a-chip represents an almost hands-free
technology.
Lab-on-a-chip technology means downsizing of analytical techniques from lab-scale to
chip-scale:
•using techniques like electrophoresis, chromatography, and sieving.
•with fluorescence, absorbance, and MS detection.
•with a higher degree of automation, integrating multiple steps of a complex protocol
into a miniaturized system.
Virtually any biochemical testing that can be done in a laboratory can theoretically be
done on a chip.
Ladder
Each electrophoretic LabChip Reagent kit contains a ladder. A ladder contains DNA, RNA
fragments or proteins of known sizes and concentrations.
A ladder well is located at the bottom right of the chip. The ladder is analyzed first before
sample analysis takes place.
Contents ▲357 ▼Index
The peak sizes and markers defined for the ladder are assigned consecutively, starting
with the first peak detected in the ladder. Peaks appearing above the upper marker do not
have to be detected. The peak table for the ladder well shows the peak size and
concentration.
Lower Marker
An internal standard that is added to a sample in a well to assist in determining size of
the sample. The lower marker is the same as the first peak found in the DNA ladder.
M
Method
Methods are available in the 2100 expert software only with the security pack installed. A
method is referred to as an electrophoretic or flow cytometric assay with additional
information stored to it. This additional information includes instrument information,
study information, report settings, and workflow definitions.
Microfluidics
The movement of liquids through micro-fabricated structures by means of electrical
fields or pressure/vacuum, holding the promise of greater functionality with significantly
improved reliability:
•small glass or plastic devices with micro-channels as experimental platform
•active control of fluids without moving parts on-chip through miniature electrodes or
pumps controlled by software scripts
•emulation of conventional liquid pumps, valves, dispensers, reactors, separation
systems, etc.
Contents ▲358 ▼Index
•capability of liquid transfer, separation, dilution, reactions and more
Molarity
where:
Molarity is measured in nanomoles per liter (nmol/l)
Concentration is measured in nanograms per microliter (ng/µL)
Size is measured in base pairs (bp)
is the molecular weight of a single base pair
Miniaturized laboratories on a microchip
Expression used to describe lab-on-a-chip technology.
Molecular separation techniques
Processes such as gel electrophoresis, liquid chromatography and capillary
electrophoresis that can separate bimolecular organic substances from other
compounds.
Contents ▲359 ▼Index
P
PDF file
PDF (Portable Document Format) is a file format created by Adobe Systems Incorporated
that preserves all of the fonts, formatting, colors, and graphics of any source document,
regardless of the software and computer platform used to create it.
Peak Baseline
A local peak baseline is calculated for each peak. For isolated peaks, the local peak
baseline is simply a straight line connecting the start point with the end point. For peaks
that are very close together, an average baseline is used when the value between the
peaks does not drop to the actual baseline.
Contents ▲360 ▼Index
Peak Filter Width
The Peak Filter Width setpoint determines the minimum amount of time that must elapse
before a peak is recognized.
Peak Height
The value at the center point of the peak minus the local baseline start value.
Point-to-Point Fit
This curve fit is composed of line segments between each pair of data points that are
used to interpolate data between those points.
Contents ▲361 ▼Index
Polynomial Filter
The first step 2100 expert takes in analyzing the raw data is to apply data filtering. Data
filtering is done by means of a polynomial “filter” that is applied to the raw data.
Priming Station
Consists of a chip holder that has a syringe mounted on the lid that seals over the chip.
The syringe is used to force the buffer solution loaded into the well marked “G” with a
circle around it into all the passageways inside the chip prior to running it in the
bioanalyzer.
Contents ▲362 ▼Index
S
Serial port
The serial ports (COM ports) are used to connect your computer with the Agilent 2100
bioanalyzer. The number of available ports depends on the computer you use.
Signature
Signatures are available in the 2100 expert software only with the security pack installed.
All activities on data such as creating, modifying, and deleting data must be confirmed by
the user with an electronic signature (user name and password). By requesting this
signature it is ensured that only authorized users can create, modify, and delete data.
Slope Threshold
The Slope Threshold setpoint determines the difference in the slope that must occur in
order for a peak to begin. The inverse of this value is used to determine the peak end.
Standard Curve
The standard curve is obtained by plotting the size of the ladder peaks vs. time using a
point-to-point fit. For each sample peak, the center time is interpolated from the Standard
Curve to determine the peak size in base pairs.
Start Point
The peak find algorithm walks the data from time zero looking for a slope greater than the
Slope Threshold. This is considered to be the start point of a peak.
With RNA assays, individual peak start times can be moved manually by dragging the
diamond-shaped start points shown in the single view.
Contents ▲363 ▼Index
Start Time
This setting determines the time after which the first peak or fragment will be located
(any peaks appearing before this time are ignored). In RNA and Protein assays, the start
time is shown on the single view display as a long-dashed vertical green line (note that
this is true for protein assays when analysis is on; the start time is shown as a solid
green line when analysis is off for protein assays).
With RNA assays, another start time setting is available that determines the start time
for an individual peak. With RNA assays, individual peak start times can be moved
manually by dragging the diamond-shaped start points shown in the single view.
T
Tool Tip
A small box containing text that describes the item indicated by the mouse pointer. To
view a Tool Tip, position the mouse pointer over an object on the screen. Leave the
mouse stationary for a moment and a Tool Tip (if one exists for that item) will appear.
TIF file
A file extension indicating one of a set of popular bitmap graphics formats. Tiffs are
commonly used in DTP work because of their support for color specification.
Contents ▲364 ▼Index
U
Upper Marker
An internal standard that is added to a DNA or Protein sample in a well to assist in
determining size and concentration of the sample. The upper marker is the same as the
last peak found in the sizing ladder.
W
WAV file
A type of computer file used to store a sound digitally.
Workflow
The workflow defines the order of steps that need to be taken for a measurement to
ensure data validity and data reliability. This includes steps such as the execution of
methods, result reviews, and the final approval.
The workflow definition is part of the methods and is available in the 2100 expert
software only with the security pack installed.
WMF file
Windows Metafile. Windows metafile documents can contain any mix of vector and
raster (or bitmapped) information to describe the contents of an image. WMF graphics
are generally used on the Windows platform as a standard format for clip art and other
graphically rich information such as charts.
Contents ▲365 ▼Index
X
XAD file
2100 expert chip data file. The files contain raw data, assay information, data analysis
setpoints, information on chip, samples and study, and the run log information.
XAC file
2100 expert comparison file.
XLS file
Microsoft Excel spreadsheet file.
XML file
Extensible Markup Language files. XML is the Extensible Markup Language, a system for
defining specialized markup languages that are used to transmit formatted data. XML is
conceptually related to HTML, but XML is not itself a markup language. Rather it is a
metalanguage, a language used to create other specialized languages.
2100 expert uses the XML format to:
•export chip data
•save and load result flagging rules.
XSY file
2100 expert assay file. The files contain the assay properties, data acquisition settings,
and information on chip, samples, and study.
Contents ▲366 ▼Index
XVD file
2100 expert verification result file. The files contain results of verification tests regarding
the bioanalyzer hardware and software. xvd. files are stored in the “..\validation”
subfolder of the 2100 expert installation directory. For each verification run, an .xvd file is
generated.
Date and time of the verification run are included in the file name. Example:
“Verification_23-05-2005_10-28-40”.
Contents ▲367 ▼Index
Z
Zero Baseline
All electropherograms produced with the bioanalyzer show some amount of background
fluorescence. By default, the 2100 expert software enables the zero baseline function.
Enabling this setting offsets the graphs shown for the individual wells but does not affect
analysis. The mean of 100 points before the baseline time (derived when calculating well
noise) is used as the zero baseline value.
Zero Baseline
Contents ▲369 ▼
Index
A
Accessories, 340
Adding regions, 240
Agilent Online Store, 340
Alignment, 133
Antibody staining, 249
APC, 174
Apoptosis assays, 253
Assay setpoints, 268
Assays
Creating new, 270
Generic, 183
Opening, 271
Predefined, 181
Stopping, 68, 205
Auto Print, 310
Auto Run, 310
B
Base pair, 358
Baseline, 129
Bioanalyzer manuals, 8
Bioanalyzer tests, 323
Bubbles, how to avoid, 192
C
Calcein, 173
Capillary electrophoresis, 358
Cartridges, 59, 194
CBNF, 174
Cell detection, 175
Chip reagents, 191
Color
overlaid histograms, 235
Color indicators on setpoints, 122
Comparing samples, 148
Comparison context, 148
Configuring markers, 228
Context
definition, 34
Copy
Markers, 231
Regions, 245
Creating new assays, 270
