Communications Systems | LBB 1965/00 Plena Message Manager
The Plena message manager is a high performance, highly
versatile stand-alone digital message player. Applications
range from spot announcements in supermarkets and
theme parks to warning and evacuation messages in
emergency situations.
Functions
Messages
Up to 12 messages can be stored in the internal 64Mbit
EEPROM, without the need for data retention battery
backup. Each message can have any length within the
total available capacity. A PC uploads messages and
configurations via RS-232 to the unit, which can then
operate without a PC. The standard WAV format is used
for messages with sample rates of 8 kHz to 24 kHz with
16-bit word length (linear PCM). This gives up to
500 seconds of recording time with a CD‑quality signal-to-
noise ratio. The use of linear PCM instead of a
compressed audio format, such as MP3, ADPCM and u-
law/A-law, ensures high-quality playback of all types of
audio signals, including sound effects and special tones,
such as attention chimes.
The unit has 12 contact closure trigger inputs for
announcements. Each can be configured for a sequence of
up to four messages from those available. In this way
messages can be used in combination with other
messages, optimizing flexibility and storage space usage.
When used together with the six-zone LBB 1925/10 Plena
System Pre-Amplifier, a zone selection can be configured
for each trigger input. The message manager
communicates this selection to the LBB 1925/10 via an
RS-232 connection. Continuous activation of a trigger
input causes the corresponding message sequence to
repeat.
Trigger Inputs
The trigger inputs have a serial priority, i.e., input 1 has
priority over input 2, input 2 over input 3, etc. The high
priority trigger inputs 1-6 are only accessible as contacts
on the rear panel to prevent accidental use. The lower
priority trigger inputs 7-12 are also available as trigger
switches on the front panel.
Integrity and Dependability
The LBB 1965/00 can also play emergency/evacuation
messages, as it fulfills the IEC 60849 standard. The
microcontroller continually checks the data integrity of
the system, and a watchdog circuit, in turn, checks the
microcontroller. The unit monitors the D/A converter with
a pilot tone, and the high priority trigger inputs (one to
six) for cable short circuits and breaks. A 24 V battery

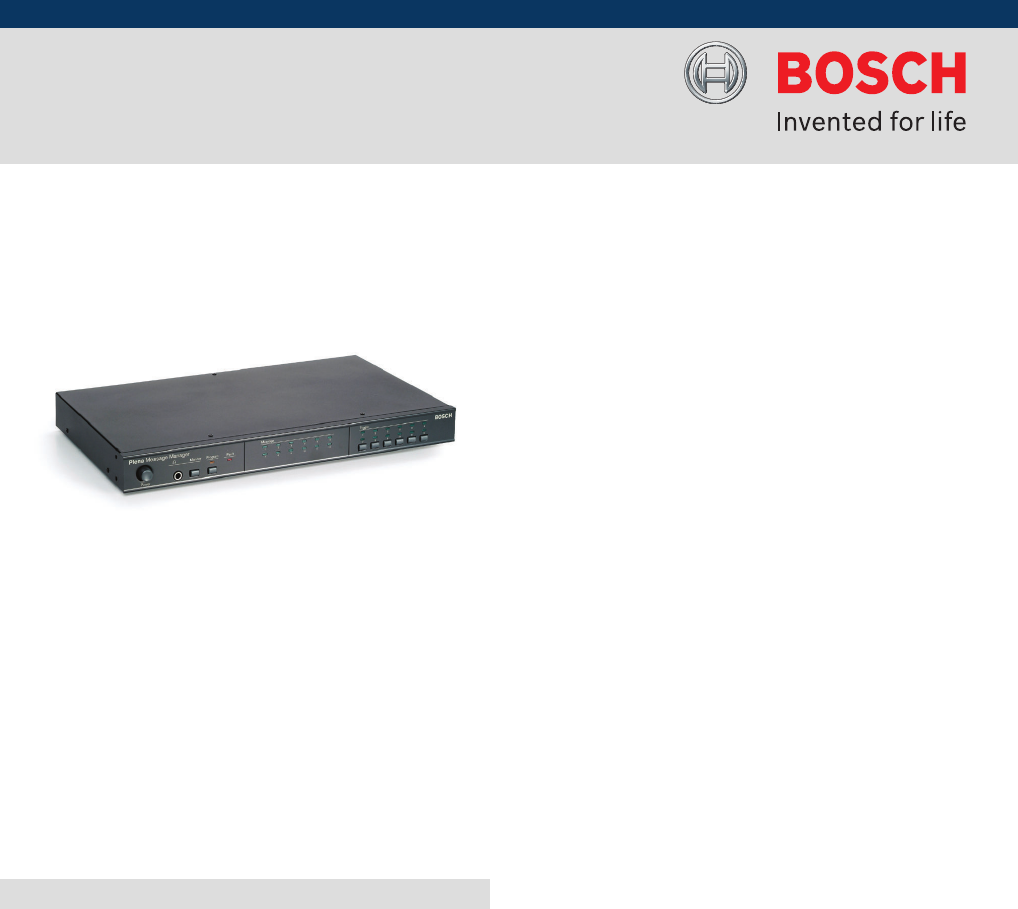

LBB 1965/00 Plena Message Manager
▶Highly flexible stand‑alone digital message player
▶Up to 12 messages and 12 trigger inputs
▶Downloads messages from a PC in WAV format
▶Compliant with standards for emergency sound
systems
▶Zone control for Plena system preamplifier
LBB 1925/10
▶Front panel control and remote control
www.boschsecurity.com
2 | LBB 1965/00 Plena Message Manager
backup connection with automatic fail-safe provides
continued operation if the mains power should fail. A
20 kHz pilot tone can be mixed with the output signal to
supervise the link to the next amplifier. This also works for
loudspeaker supervision in combination with 20 kHz
detectors. Any failure causes a red LED fault indication,
and activates a fault output contact.
Loop-through Facility
The LBB 1965/00 provides a loop-through facility with
balanced XLR and unbalanced cinch inputs and outputs.
This allows the unit to be inserted into an existing audio
link. As long as no announcements are playing, the signal
input is routed to the output. If an announcement begins,
the input signal is interrupted and the announcement is
routed to the output.
Updating
Messages and configuration settings are uploaded from a
PC. After uploading, the trigger inputs 7-12 can be
configured by using the front panel switches, without the
need for a new upload or even a PC. Message content can
be monitored using the available headphone jack.
Certifications and Approvals
Region Certification
Europe CE Declaration of Conformity
Safety according to EN 60065
Immunity according to EN 55103-2
Emission according to EN 55103-1
Installation/Configuration Notes

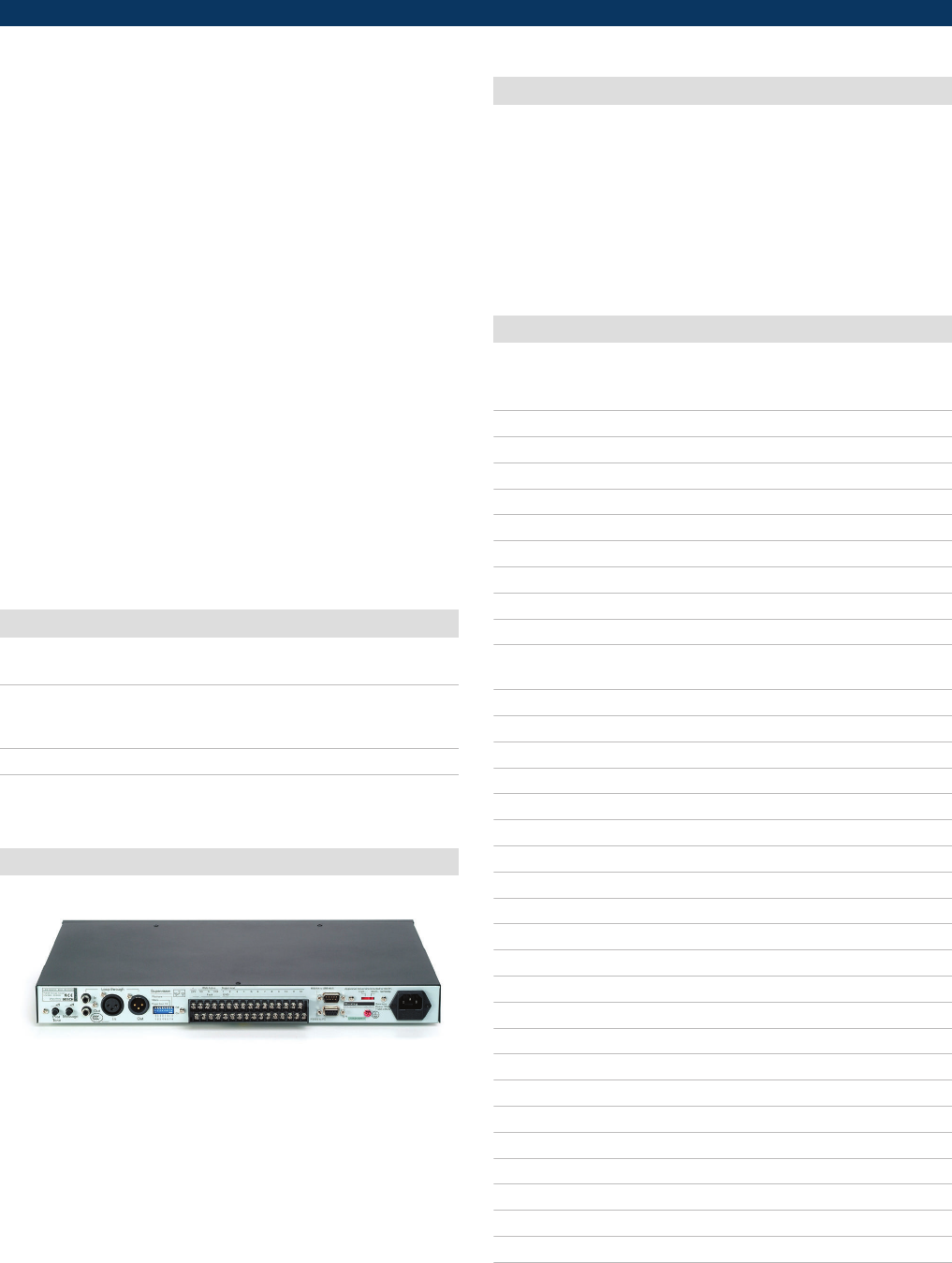

LBB 1965/00 back view
Parts Included
Quantity Component
1 LBB 1965 Plena Message Manager
1 Power cord
1 Set of 19" mounting brackets
1 Plena CD
1 Installation and User Instructions
Technical Specifications
Electrical
Mains power supply
Voltage 230/115 VAC, ±10%, 50/60 Hz
Inrush current 1.5 A at 230 VAC / 3 A at 115 VAC
Max power consumption 50 VA
Battery power supply
Voltage 24 VDC, +15% / -15%
Current max 1 A
Performance
Supported sample rates (fs) 24 / 22.05 / 16 / 12 / 11.025 / 8 kHz
Frequency response
@ fs=24kHz
@ fs=22.05kHz
100 Hz to 11 kHz (+1 / -3 dB)
100 Hz to 10 kHz (+1 / -3 dB )
@ fs=16kHz 100 Hz to 7.3 kHz (+1 / -3 dB )
@ fs=12kHz 100 Hz to 5.5 kHz (+1 / -3 dB)
@ fs=11.025kHz 100 Hz to 5 kHz (+1 / -3 dB)
@ fs=8kHz 100 Hz to 3.6 kHz (+1 / -3 dB)
Distortion <0.1% at 1 kHz
S/N (flat at max volume) >80 dB
Supervision DAC 1 Hz pilot tone
Line input 1 x
Connector 3-pin XLR, balanced
Sensitivity 1 V
Impedance 20 kohm
CMRR >25 dB (50 Hz-to 20 kHz)
Line input 1 x
Connector Cinch, unbalanced
Sensitivity 1 V
Impedance 20 kohm
Trigger input 6 x
Connector Screw
Activation Contact closure
Supervision method Cable loop resistance check
Line output 1 x
Connector 3-pin XLR, balanced
Nominal level 1 V, adjustable
LBB 1965/00 Plena Message Manager | 3
Mains power supply
Impedance <100 ohm
Line output 1 x
Connector Cinch, unbalanced
Nominal level 1 V, adjustable
Impedance <100 ohm
Message active output 1 x
Connector Screw
Relay 100 V, 2 A (voltage free, SPDT)
Fault output 1 x
Connector Screw
Relay 100 V, 2 A (voltage free, SPDT)
Interconnection 1 x
Connector 9-pin D-sub (RS-232)
PC protocol 115 kb/s, N, 8, 1, 0 (upload)
LBB 1925/10 protocol 19.2 kb/s, N, 8, 1, 0 (zone control)
Messages
Data format WAV-file, 16-bit PCM, mono
Memory capacity 64 Mb EEPROM
Recording/playback time 500 s @ fs=8 kHz
167 s @ fs=24 kHz
Number of messages 12 (maximum)
Data retention time >10 years
Mechanical
Dimensions (H x W x D) 56 x 430 x 270 mm
2.20 x 16.92 x 10.62 inch
(19" wide, 1U high, with feet)
Weight Approx. 3 kg
Mounting Stand‑alone, 19” rack
Color Charcoal
Environmental
Operating temperature -10 ºC to +55 ºC (14 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity <95%
Ordering Information
LBB 1965/00 Plena Message Manager
high performance, highly versatile stand-
alone digital message player
LBB1965/00
www.boschsecurity.com
