CE Report

2016-04-12

: Pdf Ce - Report CE_-__Report CertsReports 561105 ProductFiles

Open the PDF directly: View PDF PDF.
Page Count: 62

Scroll down to view the document on your mobile browser.
Report No.:R13111404E CE EMC Testing Report Page 1 of 62 EMC Test Report Applicant： eten Technologies Inc. Address of Applicant： 2F, No.6, Lane 497, Zhongzheng Road, Xindian Dist., New Taipei City 231, Taiwan, R.O.C. Equipment Under Test：24-Port 10/100/1000Base-T + 2-Port 10G SFP+ Stackable Layer 2+ Full Management High Power PoE Switch Model Number： PSG-6526XS Series： PSG-6528, PSG-652Y(Y=0~9) Matrix Test Laboratory 2F, No.146, Jian Yi Rd., Chung-Ho District, New Taipei City, Taiwan, R.O.C. TEL.：+886 2 2228-6610 FAX.：+886 2 2228-6580

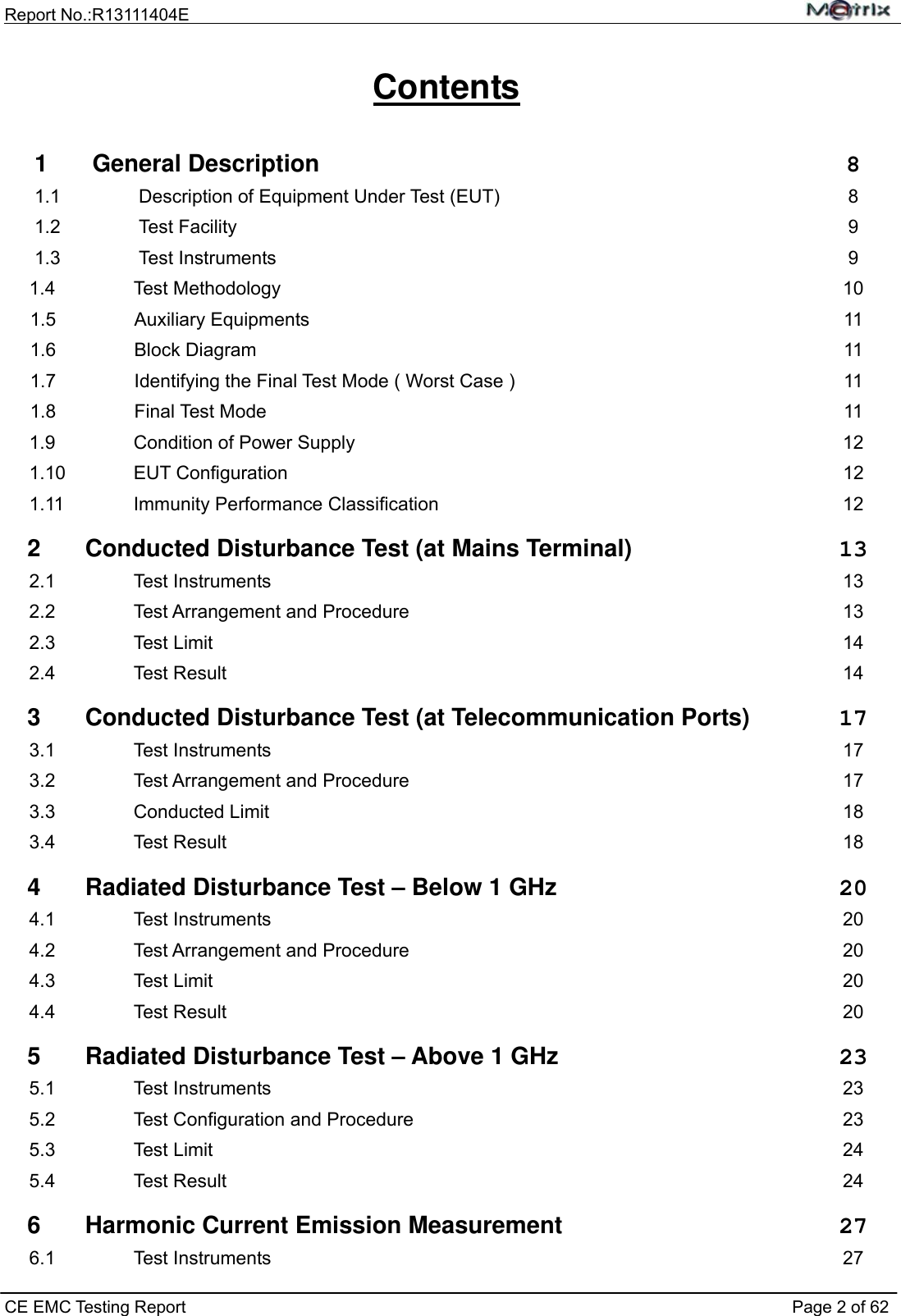

Report No.:R13111404E CE EMC Testing Report Page 2 of 62 Contents 1 General Description 8 1.1 Description of Equipment Under Test (EUT) 8 1.2 Test Facility 9 1.3 Test Instruments 9 1.4 Test Methodology 10 1.5 Auxiliary Equipments 11 1.6 Block Diagram 11 1.7 Identifying the Final Test Mode ( Worst Case ) 11 1.8 Final Test Mode 11 1.9 Condition of Power Supply 12 1.10 EUT Configuration 12 1.11 Immunity Performance Classification 12 2 Conducted Disturbance Test (at Mains Terminal) 13 2.1 Test Instruments 13 2.2 Test Arrangement and Procedure 13 2.3 Test Limit 14 2.4 Test Result 14 3 Conducted Disturbance Test (at Telecommunication Ports) 17 3.1 Test Instruments 17 3.2 Test Arrangement and Procedure 17 3.3 Conducted Limit 18 3.4 Test Result 18 4 Radiated Disturbance Test – Below 1 GHz 20 4.1 Test Instruments 20 4.2 Test Arrangement and Procedure 20 4.3 Test Limit 20 4.4 Test Result 20 5 Radiated Disturbance Test – Above 1 GHz 23 5.1 Test Instruments 23 5.2 Test Configuration and Procedure 23 5.3 Test Limit 24 5.4 Test Result 24 6 Harmonic Current Emission Measurement 27 6.1 Test Instruments 27
