• For Retrofit Meter Solutions
• Extends Switchgear Capability
• Optional BACnet®* or LonWorks®*
Communication Protocols
• Pre-Wired and Configured
• Nema Type 1 Rated Enclosure
• Eliminates Wiring and Installation
Errors
www.electroind.com
Electro Industries/GaugeTech
The Leader in Power Monitoring and Smart Grid Solutions
For Three Phase and Single Phase MP200TM
Metering Systems
Pre-wired Multipoint Metering Solution
Ready for Installation
ENCMP200
Description
EIG's MP200TM in enclosure lets you
expand your switchgear capability and/or
easily meter circuits without expensive and
time-consuming redesign. Simply mount
the enclosure in any convenient location,
next to your switchgear or on a wall, and
you are ready to go with no downtime.
Using the MP200TM in enclosure allows
you to meter up to 24 single phase or 8
three phase loads and send the data with
a variety of communication protocols.
This is a perfect solution for a retrofit
where there is no metering compartment
available. The meter comes standard with
a NEMA 1 rated enclosure and is factory
wired with the meter installed. Standard
equipment includes voltage fuses and
shorting blocks for current transformers.
The system will work directly with 120/208
and 277/480 Volt power systems.
The enclosure can be ordered with either
the three phase MP200TM-Y or the single
phase MP200TM-S meter. Optional CTs are
available for each circuit. The CTs can be
ordered as either split core or solid core
depending on the needs of the installation.
Optional ProtoCom and ProtoCom-Lon
modules offer BACnet®* and LonWorks®*
communication, enabling the MP200TM in
enclosure to fit seamlessly into existing
Building Automation System applications.
The unit is equipped with either a 3.5" or
5.7" color touchscreen display to make
data reading simple and easy. The display
provides extensive circuit data for every
load, including circuit analysis.

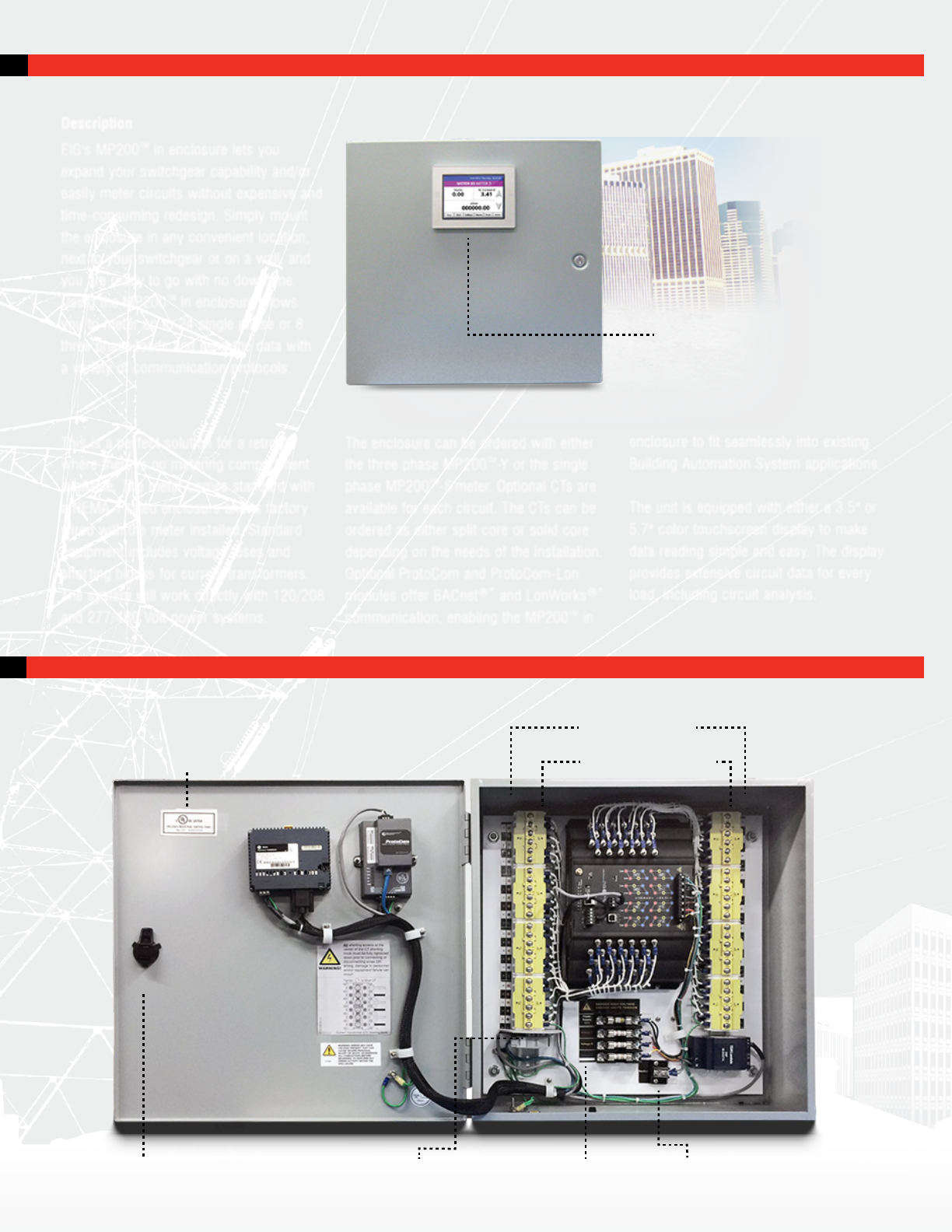

MP200TM in ENCLOSURE LAYOUT
MP200TM in ENCLOSURE INFORMATION
Key Lock Optional Protocol
Additions
Fused Voltage
Inputs
Neutral
Connection
CT Shorting Blocks
CT Connections
Color
Touchscreen
Display
UL Listing
2

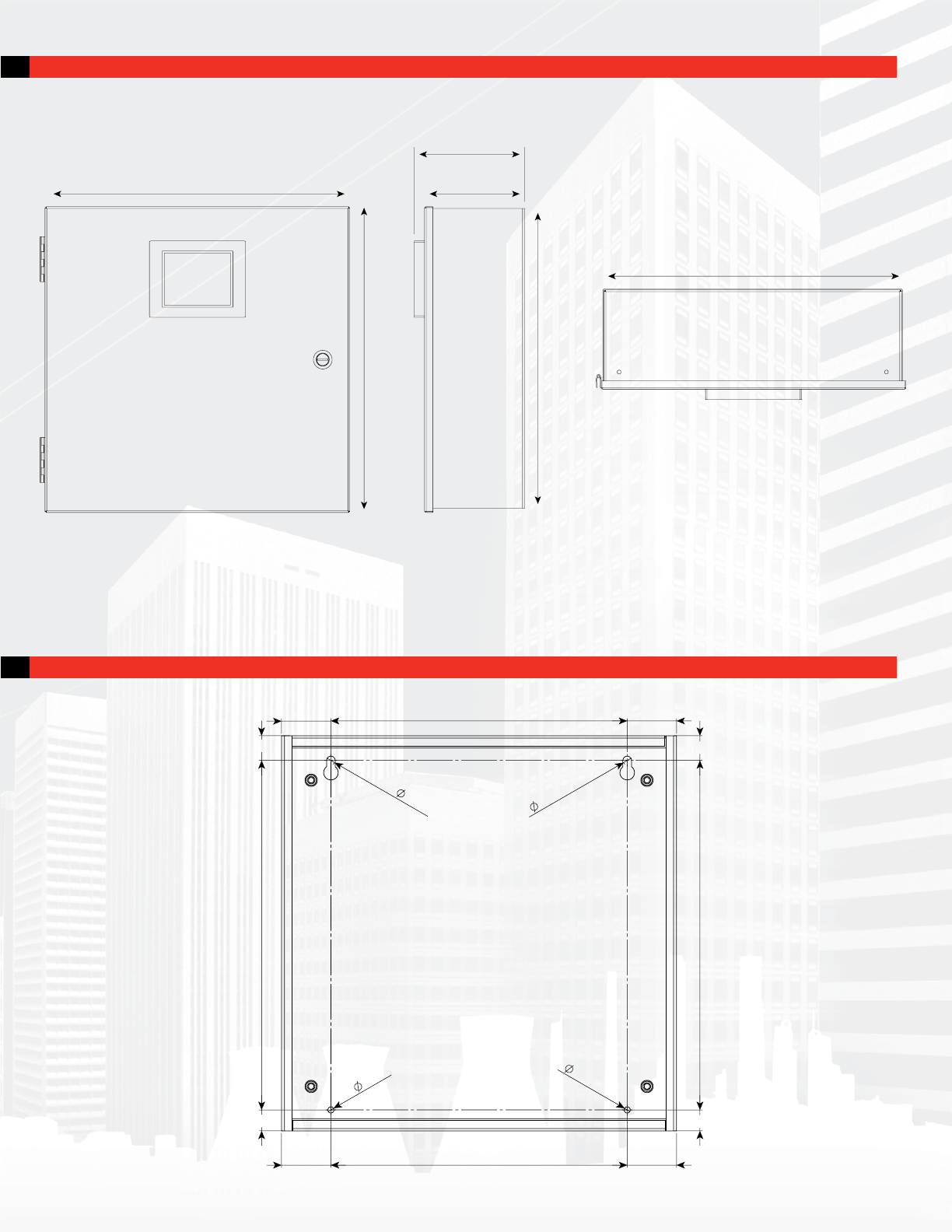

DIMENSIONAL DRAWINGS
MP200TM in Enclosure
Front Dimensions
MP200TM in Enclosure
Side Dimensions
MP200TM in Enclosure
Top Dimensions
20.00in
[50.80cm]
20.00in
[50.8cm]
20.00in
[50.80cm]
20.00in
[50.80cm]
6.60in
[16.76cm]
7.35in
[18.69cm]
2.500
1.250
0.436
0.436
0.312
0.312
17.690
1.060
2.500
15.000
1.060
2.500
17.690
1.250
2.500
15.000
MP200TM in Enclosure
Mounting Dimensions
MOUNTING DRAWINGS
3
SHARK®MP200 METER ASSEMBLY
.
.
.
.
.
..
.
.
.
CURRENT 1 HI
CURRENT 1 LO
CURRENT 2 HI
CURRENT 2 LO
WHITE
BLACK
WHITE
N
V1
L+
VOLTAGE A
VOLTAGE B
VOLTAGE C
UNIT POWER L +
TO MP200 VOLTAGE/ POWER INPUTS
V2
GND
N
LINE
NEUTRAL
CT SHORTING BLOCK
ONLY ONE CIRCUIT IS SHOWN.
DUPLICATE FOR ADDITIONAL CIRCUITS.
BLACK
LOAD
FUSE BLOCK
TO MP200 CURRENT INPUTS
V1
V2
.
.
.
.
L+
.
.
.
.
.
.
.
CURRENT A HI
CURRENT A LO
CURRENT B HI
CURRENT B LO
CURRENT C HI
CURRENT C LO
WHITE
BLACK
WHITE
BLACK
WHITE
N
V3
V2
V1
VOLTAGE A
VOLTAGE B
VOLTAGE C
UNIT POWER L +
TO MP200 VOLTAGE/ POWER INPUTS
GND
V3 V2 V1
N
LINE
NEUTRAL
CT SHORTING BLOCK
ONLY ONE 3 PHASE CIRCUIT IS SHOWN.
DUPLICATE IT FOR ADDITIONAL CIRCUITS.
BLACK
LOAD
FUSE BLOCK
TO MP200 CURRENT INPUTS
Ordering Information
Electro Industries/GaugeTech
1800 Shames Drive • Westbury, NY 11590
1- 877-EIMETER (1-877-346-3837) • E-Mail: sales@electroind.com
Tel: 516-334-0870 • Web Site: www.electroind.com • Fax: 516-338-4741
E180702 061914 V.1.01
Model
MP200 Metering
System in Nema 1
Enclosure
All fields must be filled in to create a valid part number.
Option
Numbers:
Example: ENCMP200
-
-
Frequency
60
50
50HZ
60
60HZ
-
-
-
-
Current Class
10
10
10 Amp
Secondary
2
2 Amp
Secondary
Current Configuration
Y
Y
Three Phase
WYE
S
Single Phase
ONLY
MP200TM in Enclosure
V-Switch Pack
V2
V1
Transducer
V2
Basic Logger
V3
Advanced Logger
-
-
-
-
Communication
WIFI
X
RS485 Only
(Modbus®)*
WIFI
Ethernet and
WiFi
(Modbus®)*
-
-
Add-on Protocol
ProtoCom
X
No Add-on
Protocol
ProtoCom
BACnet®*
ProtoCom-Lon
LonWorks®*
-
-
Display
MDSN
MDSN
3.5" Display
MDLN
5.7" Display

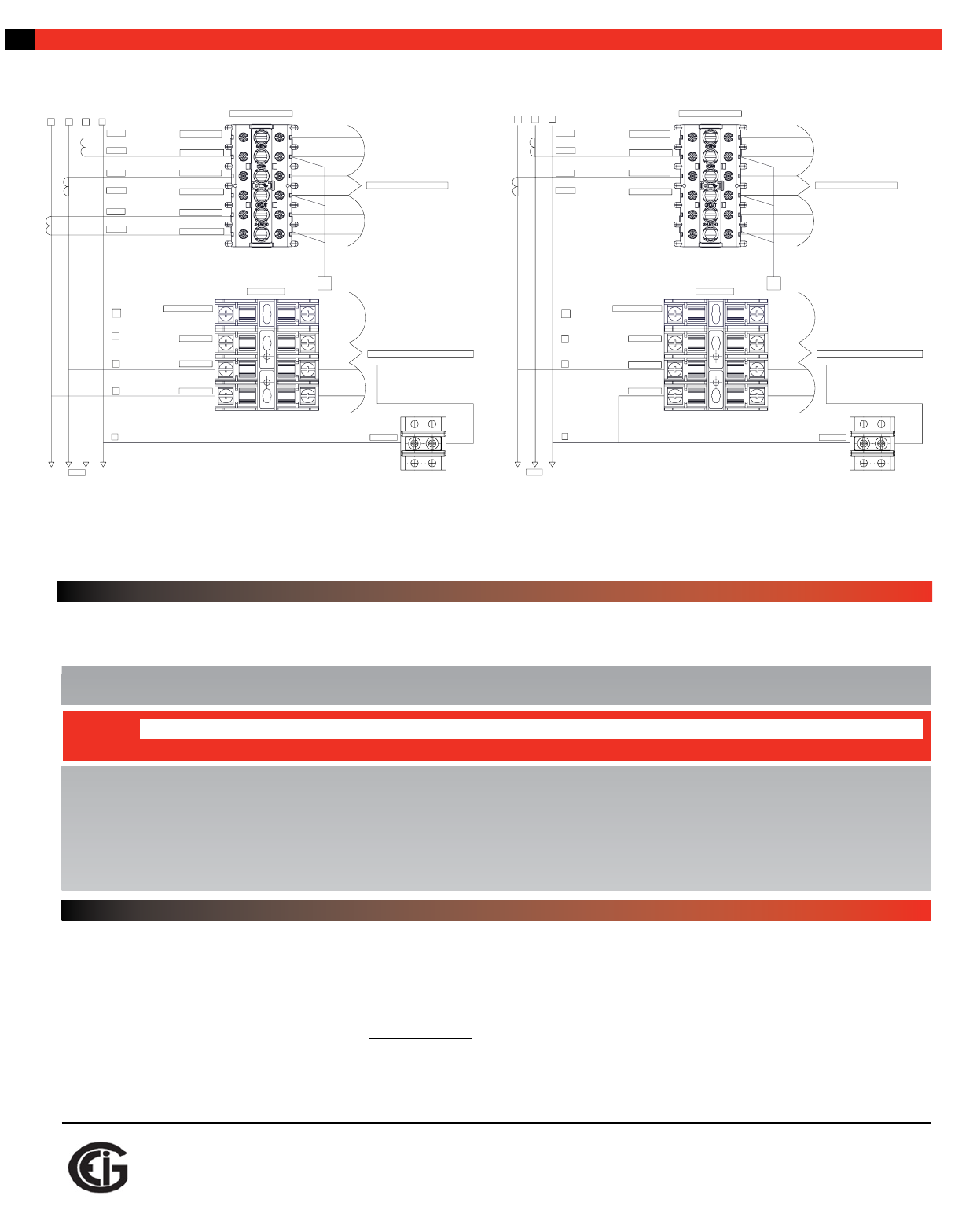

WIRING DIAGRAMS
Three Phase Wiring for
MP200TM-Y
Single Phase Wiring for
MP200TM-S
Solid Core Transformers
100/5 : EI-2DARL-101
200/5 : EI-2DARL-201
400/5 : EI-5ARL-401
Split Core Transformers
100/5 : EI-1SP-100-00
200/5 : EI-1SP-200-00
400/5 : EI-WC-400-RA05
Specifics are available online at the EIG website.
www.electroind.com
WIFI Antenna (Required for WIFI)
ANTI8769 - Remote mounted WiFi Antenna for
mounting on outside of enclosure.
Optional Available Current Transformers
*LonWorks® is a registered trademark of Echelon Corp. Modbus® is a registered trademark of Schneider Electric, licensed to the Modus Organization,
Inc. BACnet® is a registered trademark of ASHRAE. MP200TM is a trademark of Electro Industries/GaugeTech.
