ii AccessData FTK2 User Guide
AccessData Forensic Toolkit i
AccessData Forensic Toolkit
LEGAL INFORMATION
AccessData Corp. makes no representations or warranties with respect to the contents
or use of this documentation, and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. Further, AccessData
Corp. reserves the right to revise this publication and to make changes to its content, at
any time, without obligation to notify any person or entity of such revisions or changes.
Further, AccessData Corp. makes no representations or warranties with respect to any
software, and specifically disclaims any express or implied warranties of merchantability
or fitness for any particular purpose. Further, AccessData Corp. reserves the right to
make changes to any and all parts of AccessData software, at any time, without any
obligation to notify any person or entity of such changes.
You may not export or re-export this product in violation of any applicable laws or
regulations including, without limitation, U.S. export regulations or the laws of the
country in which you reside.
© 2008 AccessData Corp. All rights reserved. No part of this publication may be
reproduced, photocopied, stored on a retrieval system, or transmitted without the
express written consent of the publisher.
AccessData Corp.
384 South 400 West
Suite 200
Lindon, Utah 84042
U.S.A.
www.accessdata.com
ii AccessData FTK2 User Guide
ACCESSDATA TRADEMARKS
• AccessData is a registered trademark of AccessData Corp.
• AccessData Certified Examiner is a registered trademark of AccessData Corp.
• ACE is a registered trademark of AccessData Corp.
• Distributed Network Attack is a registered trademark of AccessData Corp.
• DNA is a registered trademark of AccessData Corp.
• AccessData eDiscovery is a registered trademark of AccessData Corp.
• AccessData Enterprise is a registered trademark of AccessData Corp.
• Forensic Toolkit is a registered trademark of AccessData Corp.
• FTK is a registered trademark of AccessData Corp.
• FTK Imager is a trademark of AccessData Corp.
• Known File Filter is a trademark of AccessData Corp.
• KFF is a trademark of AccessData Corp.
• LicenseManager is a trademark of AccessData Corp.
• Password Recovery Toolkit is a registered trademark of AccessData Corp.
• PRTK is a registered trademark of AccessData Corp.
• Registry Viewer is a registered trademark of AccessData Corp.
• Ultimate Toolkit is a registered trademark of AccessData Corp.
• UTK is a registered trademark of AccessData Corp.
DOCUMENTATION CONVENTIONS
In AccessData documentation, a greater-than symbol (>) is used to separate actions
within a step.
A trademark symbol (®, ™, etc.) denotes an AccessData trademark. An asterisk (*)
denotes a third-party trademark. All third-party trademarks and copyrights are property
of the trademark and copyright holders. AccessData claims no responsibility for the
function or performance of third-party items.
We value all feedback from our customers. For technical and customer support issues,
please email us at support@accessdata.com. For documentation issues, please email
us at documentation@accessdata.com.
Contents iii
Contents
AccessData Forensic Toolkit...................................................................................................................... i
Legal Information............................................................................................... ......................... i
AccessData Trademarks................................................................................................ ii
Documentation Conventions ........................................................................................... ii
Contents................................................................................................................................................... iii
Chapter 1 Welcome and Overview .......................................................................................................... 1
Audience ............................................................................................................ ........................ 1
Handling Evidence ............................................................................................. ........................ 1
What is a Case? ............................................................................................................ 2
Role of Forensic Toolkit...................................................................................... ........................ 3
Other AccessData Products ................................................................................ ........................ 3
Password Recovery Software ........................................................................................... 3
AccessData Enterprise................................................................................................... 4
AccessData eDiscovery................................................................................................... 4
Product Overview................................................................................................ ........................ 4
Managing a Case................................................................................................ ........................ 5
Defining the Evidence ......................................................................................... ........................ 5
Hashing.........................................................................................................................5
Searching .......................................................................................................................6
iv AccessData
Known File Filter .......................................................................................................... 6
Presenting Evidence ............................................................................................ ........................ 7
Chapter 2 Installation and Upgrade ....................................................................................................... 9
Installation Options............................................................................................ ........................ 9
System Overview................................................................................................. ...................... 10
Estimating hard disk space requirements............................................................. ...................... 11
Installation......................................................................................................... ...................... 11
CodeMeter Stick Installation ....................................................................................... 13
Oracle Installation ....................................................................................................... 13
Single Computer Installation............................................................................... ...................... 18
Installing the FTK PROGRAM........................................................................... 18
Choosing an Evidence Server........................................................................................ 20
Installing the KFF.............................................................................................. ...................... 23
Installing on Separate Computers........................................................................ ...................... 26
Additional Programs .......................................................................................... ...................... 26
Upgrading to FTK 2.1....................................................................................... ...................... 27
Upgrading a Two-Computer Configuration ......................................................... ...................... 32
Chapter 3 Concepts .............................................................................................................................. 33
Starting FTK..................................................................................................... ...................... 33
Setting Up the Application Administrator ................................................................... 33
Using the CodeMeter Stick .......................................................................................... 34
Using the Case Manager Window................................................................................ 34
The FTK Window ............................................................................................. ...................... 37
Toolbar Components.................................................................................................... 42
File List Pane ............................................................................................................. 43
Properties Pane ............................................................................................................ 45
Hex Interpreter Pane................................................................................................... 47
File Content................................................................................................................. 49
Using Tabs to Explore and Refine Evidence....................................................... ...................... 52
Explore Tab................................................................................................................ 52
Overview Tab .............................................................................................................. 57
Contents v
Email Tab .................................................................................................................. 61
Graphics Tab .............................................................................................................. 62
Bookmarks Tab .......................................................................................................... 64
Search Tabs................................................................................................................. 66
Creating Tabs.............................................................................................................. 67
Chapter 4 Starting a New FTK2.1 Case............................................................................................... 69
Launch FTK2.1 ................................................................................................ ...................... 69
Acquiring and Preserving the Evidence................................................................ ...................... 73
Creating a Case.................................................................................................. ...................... 73
Selecting Evidence Processing Options........................................................................... 74
Selecting Evidence Discovery Options............................................................................ 77
Selecting Evidence Refinement (Advanced) Options ...................................................... 79
Selecting Index Refinement (Advanced) Options........................................................... 83
Creating the Case......................................................................................................... 87
Adding Evidence ......................................................................................................... 87
Processing Evidence...................................................................................................... 88
Viewing Processed Items .............................................................................................. 88
Backing Up the Case.......................................................................................... ...................... 89
Restoring a Case................................................................................................. ...................... 89
Deleting a Case .................................................................................................. ...................... 90
Storing Case Files............................................................................................... ...................... 90
Chapter 5 Working with Cases............................................................................................................... 91
Opening an Existing Case.................................................................................. ......................91
Adding Evidence ................................................................................................ ...................... 91
Selecting a Language........................................................................................... ...................... 94
Additional Analysis........................................................................................... ...................... 95
File Content, Properties, and Hex Interpreter Tabs............................................. ...................... 97
Properties Tab ............................................................................................................. 98
The Hex Interpreter Tab ...........................................................................................101
Using the Bookmark Information Pane .............................................................. ....................103
Creating a Bookmark................................................................................................104
vi AccessData
Viewing Bookmark Information................................................................................106
Adding Evidence to an Existing Bookmark ..............................................................108
Creating Email or Email Attachment Bookmarks ....................................................109
Moving a Bookmark .................................................................................................113
Removing a Bookmark ..............................................................................................113
Deleting Files from a Bookmark................................................................................114
Verifying Drive Image Integrity .......................................................................... ....................114
Copying Information from FTK.......................................................................... ....................115
Export File List Info ................................................................................................117
Exporting Files .........................................................................................................118
Exporting File List Info............................................................................................120
Exporting the Word List...........................................................................................120
Fuzzy Hashing .................................................................................................. ....................120
Creating a Fuzzy Hash Library................................................................................121
Selecting Fuzzy Hash Options During Initial Processing............................................121
Additional Analysis Fuzzy Hashing.........................................................................123
Comparing Files Using Fuzzy Hashing.....................................................................124
Viewing Fuzzy Hash Results....................................................................................124
Chapter 6 Searching a Case ..................................................................................................................127
Conducting a Live Search ................................................................................... ....................127
Customizing the Live Search Tab ..............................................................................129
Conducting a Pattern Search............................................................................... ....................130
Simple Pattern Searches .............................................................................................130
Complex Pattern Searches..........................................................................................131
Predefined Regular Expressions .................................................................................133
Conducting Hex Searches...........................................................................................139
Conducting Text Searches ..........................................................................................139
Conducting an Index Search ............................................................................... ....................140
Search Terms.............................................................................................................141
Search Criteria...........................................................................................................142
Documenting Search Results ............................................................................... ....................145
Using Copy Special to Document Search Results ........................................................145
Contents vii
Bookmarking Search Results .....................................................................................146
Chapter 7 Data Carving ...................................................................................................................149
Searching for Embedded and Deleted Files (Data Carving)................................. ....................149
Data Carving Files When Processing a New Case .....................................................150
Data Carving Files in an Existing Case....................................................................150
Chapter 8 Using Filters .....................................................................................................................151
The Filter Toolbar.............................................................................................. ....................151
Applying an Existing Filter ............................................................................... ....................152

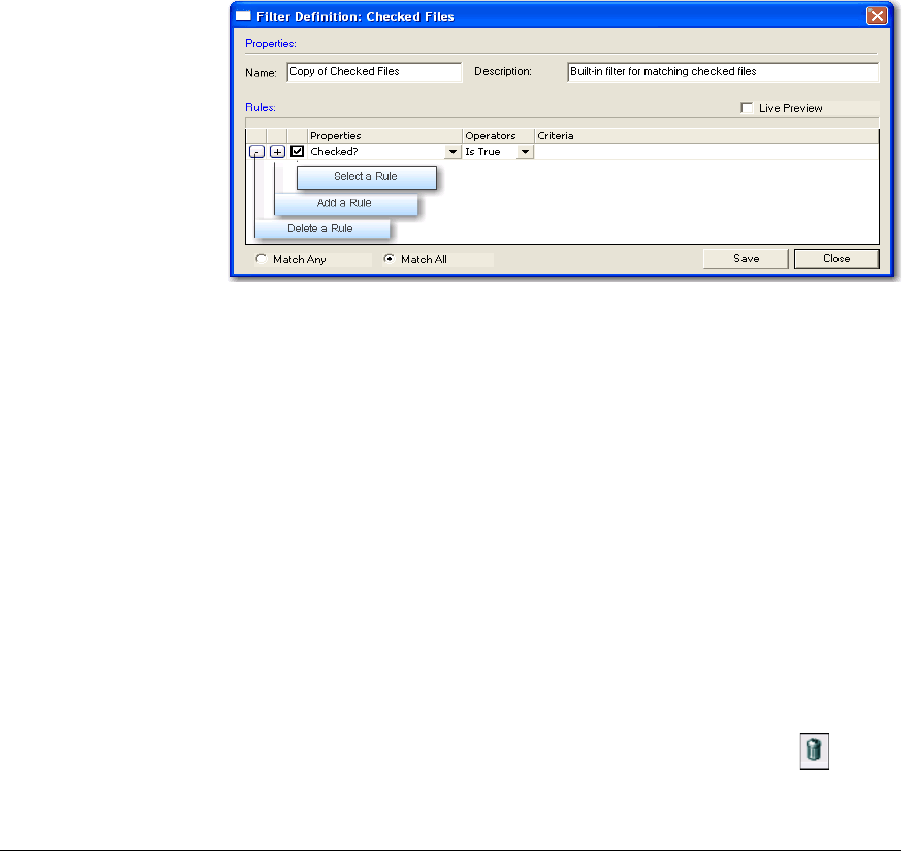

Creating a Filter................................................................................................. ....................154
Refining a Filter ........................................................................................................155
Deleting a Filter ................................................................................................. ....................155
Using the Known File Filter ............................................................................... ....................156
Understanding KFF Hashes .....................................................................................156
Importing KFF Hashes.............................................................................................156
Exporting KFF Hashes............................................................................................159
Understanding the KFF Database ............................................................................159
Storing Hashes in the KFF Database .......................................................................159

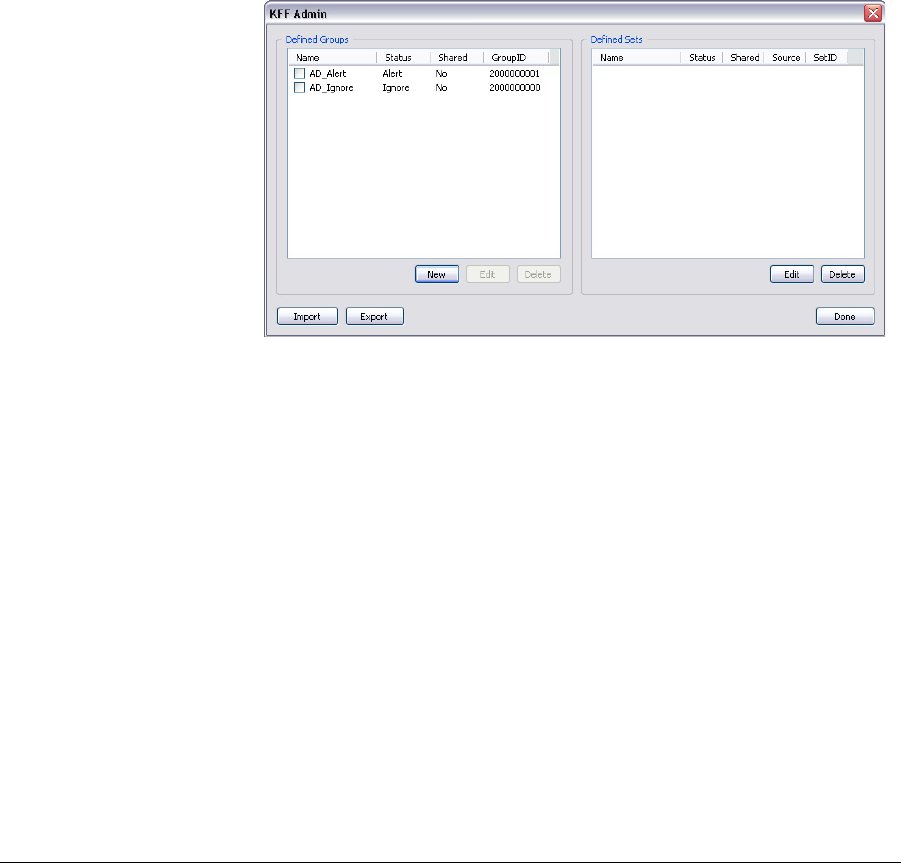

Creating Sets and Groups ..........................................................................................161
Chapter 9 Decrypting Encrypted Files................................................................................................163
Decrypting Files and Folders............................................................................... ....................163
Decrypting Windows EFS FILES..................................................................... 165
Viewing Decrypted Files..................................................................................... ....................165
Decrypting Domain Account EFS Files........................................................... ....................167
Decrypting Credant Files .................................................................................... ....................169
Using an Offline Key Bundle......................................................................................169
Using an Online Key Bundle......................................................................................170
Decrypting Safeguard Utimaco Files ................................................................... ....................172
Decrypting SafeBoot Files ..........................................................................................173
viii AccessData
Chapter 10 Working with Reports.....................................................................................................175
Creating a Report............................................................................................... ....................175
Saving Settings...........................................................................................................176
Entering Basic Case Information................................................................................177
Including Bookmarks.................................................................................................179
Including Graphics.....................................................................................................181
Selecting a File Path List...........................................................................................182
Selecting a File Properties List ...................................................................................183
Registry Selections ......................................................................................................184
Running the report.............................................................................................. ....................185
Selecting the Report Location......................................................................................185
Creating the Report....................................................................................................186
Viewing a Report ............................................................................................... ....................187
International Date and Time Stamp Issue..................................................................188
Modifying a Report............................................................................................. ....................189
Printing a Report................................................................................................ ....................189
Chapter 11 Customizing the Interface.................................................................................................191
Customizing Overview ........................................................................................ ....................191
Using the View Menu to Customize the FTK Interface .................................... ....................191
Customizing the Tab Views.......................................................................................193
Using the Tab Layout Menu .....................................................................................194
Moving View Panes...................................................................................................195

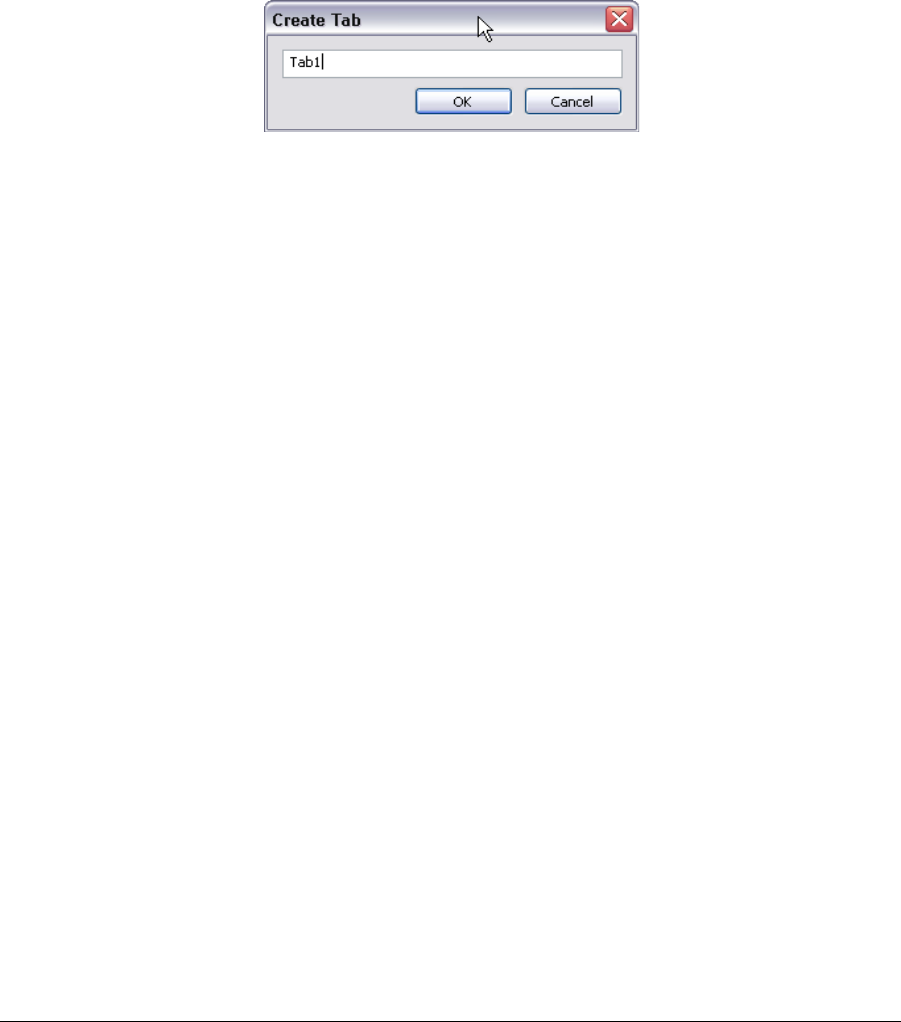

Creating Custom Tabs...............................................................................................197
Customizing File List Columns.......................................................................... ....................197
Creating and Modifying Column Settings ...................................................................198
Available Columns....................................................................................................199
Chapter 12 Other AccessData Applications ......................................................................................213
Accessing Additional Products............................................................................ ....................213
Capturing Evidence with Imager ......................................................................... ....................213
Recovering Passwords with PRTK ...................................................... ...............214
Contents ix
How PRTK Works..................................................................................................215
PRTK Features ........................................................................................................215
Obtaining Protected Information with Registry Viewer ........................................ ....................216
Managing Licenses with LicenseManager............................................................ ....................216
Starting LicenseManager............................................................................................217
LicenseManager Interface ...........................................................................................218
Opening and Saving Security Device Packet Files.......................................................223
Viewing Product Licenses ..........................................................................................223
Adding and Removing Product Licenses.....................................................................224
Managing Product Licenses on Isolated Machines.......................................................225
Updating Products .....................................................................................................227
Purchasing Product Licenses.......................................................................................228
Sending a Security Device Packet File to Support.......................................................228
Selecting the Application Language..................................................................... ....................229
Appendix A Recognized File Types ......................................................................................................231
Document File Types.......................................................................................... ....................231
Spreadsheet File Types........................................................................................ ....................235
Database File Types........................................................................................... ....................236
Graphic File Types............................................................................................. ....................237
Email Message Programs ................................................................................... ....................238
Instant Messaging Programs ............................................................................... ....................239
Executable File Types ........................................................................................ ....................239
Archive File Types ............................................................................................. ....................240
Other Known File Types..................................................................................... ....................241
.......................................................................................................................... ....................243
Appendix B File Systems and Drive Image Formats...........................................................................245
File Systems ....................................................................................................... ....................245
Hard Disk Image Formats ................................................................................ ....................245
CD and DVD Image Formats.......................................................................... ....................246
Appendix C Recovering Deleted Material ............................................................................................247
x AccessData
FAT 12, 16, and 32 ...................................................................................... ....................247
NTFS ...................................................................................... ...............248
ext2 ................................................................................................................... ....................248
ext3 ................................................................................................................... ....................248
HFS ......................................................................................... ...............249
Appendix D Program Files ..................................................................................................................251
Files and Folders for the Application .................................................................. ....................251
Files and Folders for the Database...................................................................... ....................252
Changing Registry Options ................................................................................. ....................252
Changing the Logging Registry Options ......................................................................252
Appendix E Securing Windows Registry Evidence...............................................................................255
Understanding the Windows Registry.................................................................. ....................255
Windows 9x Registry Files........................................................................................256
Windows NT and Windows 2000 Registry Files .....................................................257
Windows XP Registry Files ......................................................................................258
Possible Data Types...................................................................................................260
Additional Considerations .........................................................................................261
Registry Quick Find Chart ............................................................................... ....................263
System Information ....................................................................................................264
Networking ...............................................................................................................266
User Data.................................................................................................................266
User Application Data..............................................................................................268
..................................................................................................................................269
Appendix F Troubleshooting................................................................................................................271
Finding Answers ................................................................................................ ....................271
Troubleshooting Tables ....................................................................................... ....................272
Diagnostics Tools................................................................................................ ....................273
Database Diagnostics.................................................................................................273
Uninstalling Manually ....................................................................................... ....................275
Contents xi
Automated Uninstall.................................................................................................275
Manually Uninstalling the Database .........................................................................276
Find and Delete FTK Folders and Keys....................................................................277
Handling Oracle Folders and Keys.............................................................................278
Other Issues........................................................................................................ ....................279
dtSearch Noise File List............................................................................................279
Appendix G Corporate Information.....................................................................................................281
Contacting AccessData Corporation by Mail ...................................................... ....................281
Registration ........................................................................................................ ....................281
Technical Support............................................................................................... ....................282
Documentation ................................................................................................... ....................282
FTK Glossary.......................................................................................................................................283
xii AccessData
Welcome and Overview 1
Chapter 1 Welcome and Overview
Welcome to AccessData® Forensic Toolkit® (FTK®). FTK enables law enforcement
and corporate security professionals to perform complete and thorough computer
forensic examinations. FTK features powerful file filtering and search functionality, and
is recognized as a leading forensic tool.
AUDIENCE
The FTK2 User Guide target audience consists of law enforcement and corporate
security professionals with the following competencies:
• Basic knowledge of and training in forensic policies and procedures
• Basic knowledge of and experience with personal computers
• Familiarity with the fundamentals of collecting digital evidence
• Understanding of forensic disk images and how to acquire forensically sound disk
images
• Experience with case studies and reports
• Familiarity with the Microsoft* Windows* environment
HANDLING EVIDENCE
Computer forensics involves the acquisition, preservation, analysis, and presentation of
digital evidence. This type of evidence is fragile and can easily be altered, destroyed, or
rendered inadmissible if improperly obtained, preserved, and analyzed.
2 AccessData FTK2 User Guide
WHAT IS A CASE?
To build a case involving a computer system, find evidence or supportive evidence of a
civil wrong or a criminal act by the systematic inspection of the computer system and
its contents. Building such a case has come to be known as Computer Forensics.
Since computer forensics must adhere to the standards of evidence that are admissible
in a court of law, it requires specialized expertise and tools that go above and beyond
the normal data collection and preservation techniques available to end-users or system
support personnel. Often, the forensic examiner must render an opinion, based on the
examination of the material that has been recovered, on whether the evidence indicates
criminal activity.
Computer forensics experts investigate data storage devices such as hard drives,
portable data devices (USB drives), external drives, micro drives and many more).
Computer forensics experts perform the following tasks:
1. Identify sources of documentary or other digital evidence.
2. Preserve the evidence.
3. Analyze the evidence.
4. Present the findings.
To preserve the integrity of case evidence, forensic investigators do not work on the
original files. Instead, they create an exact replica of the files, called an image, and work
with the image to ensure that the original files remain intact.
To verify the files on which they are working have not been altered, investigators can
compare a hash of the original files at the time they were seized with a hash of the
imaged files used in the investigation. Hashing provides mathematical validation that a
forensic disk image exactly matches the contents of the original computer disk.
Another important legal element in computer forensics is the “chain of custody.” The
chain of custody is the line of people who have controlled the evidence. Forensic
investigators must be able to account for all that has happened to the evidence between
its point of acquisition and its eventual appearance in court.
Only properly trained computer forensics specialists should obtain and examine digital
evidence. Even the most incriminating digital evidence can be made legally inadmissible
because of reckless or ill-conceived examinations.
Welcome and Overview 3
ROLE OF FORENSIC TOOLKIT
To acquire digital evidence, FTK Imager and other imaging software tools can be used
to create a disk image of the source drives or files. A hash of the original disk image can
be created to later use as a benchmark to prove the validity of the gathered case
evidence. FTK Imager verifies that the disk image hash and the drive hash match when
the disk image is created.
After creating the disk image and hash of the data, FTK can then perform a complete
and thorough computer forensic examination, and create a report of the investigatory
findings.
OTHER ACCESSDATA PRODUCTS
In addition to FTK and FTK Imager, AccessData offers other industry-leading
products. These two products are included as part of the FTK package, but are also
available for separate purchase. For other products and services, please refer to our
Web site, www.accessdata.com.
PASSWORD RECOVERY SOFTWARE
AccessData has been the leader in the field of commercial software decryption since
1987. AccessData has multiple tools available for password recovery:
Password Recovery Toolkit® (PRTK®) has a wide variety of individual password-
breaking modules that can help you recover lost passwords.
For more information about PRTK, see the AccessData Web site (http://
www.accessdata.com/Products.htm).
Distributed Network Attack® (DNA®) provides a new approach to recovering
password-protected files. Rather than using a single machine, DNA uses machines
across the network or across the world to conduct key space and dictionary attacks.
For more information about DNA, see the AccessData Web site (http://
www.accessdata.com/Products.htm).
4 AccessData FTK2 User Guide
ACCESSDATA ENTERPRISE
AccessData Enterprise is a powerful, enterprise-scale investigative solution built on the
forensic technology of FTK. With an integrated Oracle* database on the back-end, true
multi-processor support and robust processing capabilities, Enterprise provides the
most powerful investigative solution on the market. It handles larger data sets than
other investigative solutions and processes data at greater speeds.
Enterprise gives visibility into data and systems across an enterprise network. It enables
proactive or reactive location, preservation, and containment of confidential and
personal data leakage, as well as addresses the most sensitive employee issues.
It optimizes incident response by enabling easy and quick deep analysis to determine
the “who”, “what”, “when”, “where” and “how” of any given event and to zero-in on
all affected machines. With the seamless integration of static and volatile data,
examiners are able to analyze, collect, contain and report on any type of data.
For more information on Enterprise, see the AccessData Web site, http://
www.accessdata.com/Enterprise.html.
ACCESSDATA EDISCOVERY
AccessData eDiscovery is a product designed to gather the data required to investigate
a legal matter. eDiscovery is designed to allow the tracking of multiple legal matters and
the groupings of their data, termed “collections.” Each collection can contain human,
share, or computer “custodians” (or combinations of the three) of data required for the
legal matter. Filters can be designed to exclude or include specific types of files. The
collection can be run across the entire enterprise network of a company.
For more information about eDiscovery, see the AccessData Web site at http://
www.accessdata.com/ediscovery.html.
PRODUCT OVERVIEW
This section provides a synopsis of how FTK can be used to acquire, preserve, analyze,
and present digital evidence. This section also covers how to manage a case with FTK.
For information on acquiring and preserving evidence, and beginning case analysis, see,
“Chapter 4 Starting a New FTK2.1 Case” on page 69.
Welcome and Overview 5
MANAGING A CASE
Any forensic digital examination requires these basic steps:
1. Acquire the evidence.
2. Preserve the evidence.
3. Analyze the evidence.
4. Present digital evidence by creating a case report to document the evidence and
investigation results.
DEFINING THE EVIDENCE
To define the evidence, FTK uses hashing, searching, and the Known File Filter (KFF®)
database.
HASHING
Hashing a file or files refers to the process of generating a unique value based on a file’s
contents. Hash values are used to verify file integrity and identify known and duplicate
files. Known files can be standard system files that can be ignored in the investigation,
as well as specific files known to contain illicit or dangerous materials that the program
can alert the investigator to.
Three hash functions are available in FTK: Message Digest 5* (MD5*) and Secure Hash
Algorithms 1 and 256 (SHA-1* and SHA-256*).

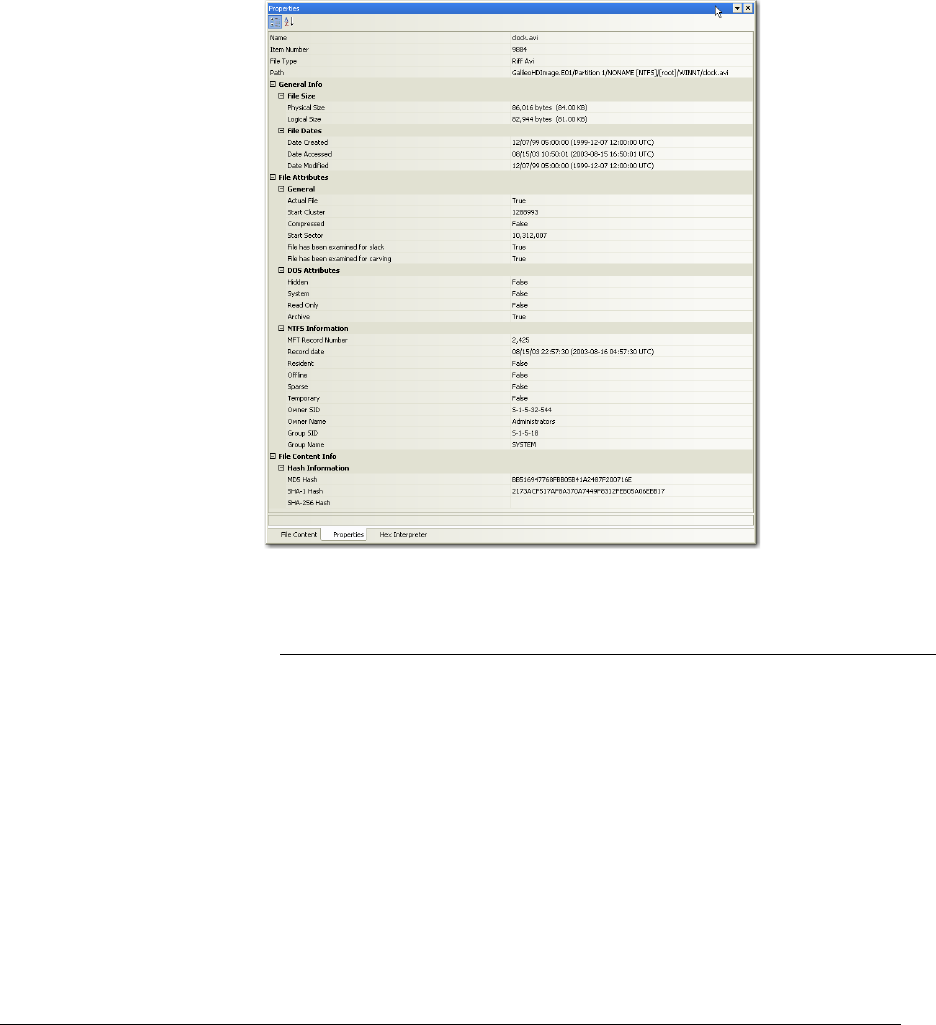

The following graphic shows a sample file with a list of MD5 and SHA hashes.
Typically, individual file hashes (each file is hashed as it is indexed and added to a case)
compare the results with a known database of hashes, such as the KFF. However, you
can also hash multiple files or a disk image to verify that the working copy is identical to
the original.
6 AccessData FTK2 User Guide
Hashes can be generated with both FTK Imager and FTK. For information on creating
hashes with FTK, see “Creating a Case” on page 73.
SEARCHING
FTK can conduct live or indexed searches of the acquired images.
A live search is an item-by-item comparison with the search term, and can be very time-
consuming because it searches the entire data set bit-by-bit. Live searches allow you to
search non-alphanumeric characters and perform pattern searches, such as regular
expressions and hex values.
An index search uses an index file containing discrete words or number strings found in
both the allocated and unallocated space in the case evidence. The investigator can
choose to generate an index file during preprocessing, or later, using the tools in the
program.
FTK uses dtSearch*, one of the leading search tools available, in its index search engine.
dtSearch can quickly search gigabytes of text.
For more information on searching, see “Chapter 6 Searching a Case” on page 127.
KNOWN FILE FILTER
The Known File Filter (KFF) is an FTK utility used to compare file hashes in a case
against a database of hashes from files known to be ignorable (such as known system
and program files), or alert status (such as known contraband or illicit material). The
KFF allows quick elimination or pinpointing of these files during an investigation.
Files which contain other files, such as ZIP, CAB, and email files with attachments, are
called container files. When KFF identifies a container file as ignorable or alert; FTK
does not extract its component files.
AccessData’s KFF includes hashes from the National Institutue of Standards and
Technology (NIST) National Software Reference Library (NSRL) hash database, and
from the National Drug Intelligence Center (NDIC) HashKeeper hash database. The
AD KFF is updated periodically and is available for download from
www.accessdata.com webpage. Click the Downloads link, then find and select the link
for downloading the KFF library.
Welcome and Overview 7
For more information on the KFF, see “Using the Known File Filter” on page 156.
PRESENTING EVIDENCE
FTK presents digital evidence by creating a case report containing the evidence and
investigation results in a readable, accessible format.
Use the FTK report wizard to create and modify reports. A report can include
bookmarks (information selected during the examination), customized graphic
references, and selected file listings. Selected files, such as bookmarked files and
graphics, can be exported to make them available with the report. The report is
generated in HTML or PDF or can be generated in both formats simultaneously.
For information about creating a report, see “Creating a Report” on page 175.
8 AccessData FTK2 User Guide
Installation and Upgrade 9
Chapter 2 Installation and
Upgrade
This chapter details the steps for the installation of the required components for the
operation of AccessData Forensic Toolkit (FTK) 2.1. The following components are
required to run FTK:
• CodeMeter 3.30a Runtime software for the CodeMeter Stick:
• Oracle 10g Database
• FTK Program
These additional programs are available to aid in processing cases:
• FTK Known File Filter (KFF) Library
• AccessData LanguageSelector
• AccessData LicenseManager
INSTALLATION OPTIONS
FTK can be set up in three different configurations, each with its own benefits and
advantages. The three configurations listed below are represented in the graphic
following:
• Single Machine
• Separate Machines
• Separate Machines with an existing Oracle install
10 AccessData FTK2 User Guide
Note: AccessData recommends that you turn off firewalls and anti-virus software during
installation.
Figure 2-1. Three Different Configurations
SYSTEM OVERVIEW
The more powerful the available hardware, the faster FTK can analyze and prepare case
evidence; larger evidence files require more processing time than smaller evidence files.
While the components can be installed on a single workstation, it is recommended to
install them on separate workstations in order to make more hardware resources
available to each.
The ideal configuration uses two workstations connected by a Gigabit ethernet
connection. The Oracle database can be installed on a separate computer, or on the
same computer as the FTK Program. If the KFF is installed, it must be installed on the
same computer as the Oracle database. Ideally, the CodeMeter Runtime 3.30a software,
LanguageSelector, and LicenseManager should be installed on the computer with the
FTK Program.
To further maximize performance, AccessData recommends the following:
Installation and Upgrade 11
• For both the single- and separate-workstation configurations, install Oracle to a
large hard disk drive of which Oracle can make exclusive use.
• Do not run other applications that will compete with FTK or the Oracle database
for hardware resources.
The FTK Program can also be installed on one workstation, and connected to an
existing instance of Oracle 10g already running on a separate workstation. This is
displayed in the above figure.
ESTIMATING HARD DISK SPACE REQUIREMENTS
The FTK Program requires a minimum of 500 megabytes of disk space for installation,
although 5 gigabytes is recommended. Oracle, where images are stored, requires a
minimum of 6 gigabytes (5 gigabytes for the basic installation) and additional room for
case processing. Additional space is required for cases and case data.
If disk space depletes while processing a case, the case data is erased.
To estimate the amount of hard drive space needed, apply these suggested factors:
• Data: every 500,000 items require one gigabyte of space in the Oracle storage
location.
• Index: every 100 megabytes of text in the evidence requires 20 megabytes of space
for processing in the case storage folder.
INSTALLATION
To install FTK 2.1, follow these steps:
12 AccessData FTK2 User Guide
1. Insert the FTK 2.1 DVD into the drive.
2. Click Install Forensic Toolkit 2.1.
Installation and Upgrade 13
CODEMETER STICK INSTALLATION
Install the WIBU CodeMeter Runtime 3.30a software for the CodeMeter Stick. Click
Install CodeMeter Software to launch the CodeMeter installation wizard, as displayed in the
following figure.
Figure 2-2. CodeMeter Installation Wizard
Follow the directions for installation, accepting all defaults, and click Finish to complete
the installation.
If the user attemps to install FTK 2 before installing the CodeMeter 3.0a software and
the Wibu* CmStick*, the following error messagewill be displayed.
Figure 2-3. CodeMeter Error

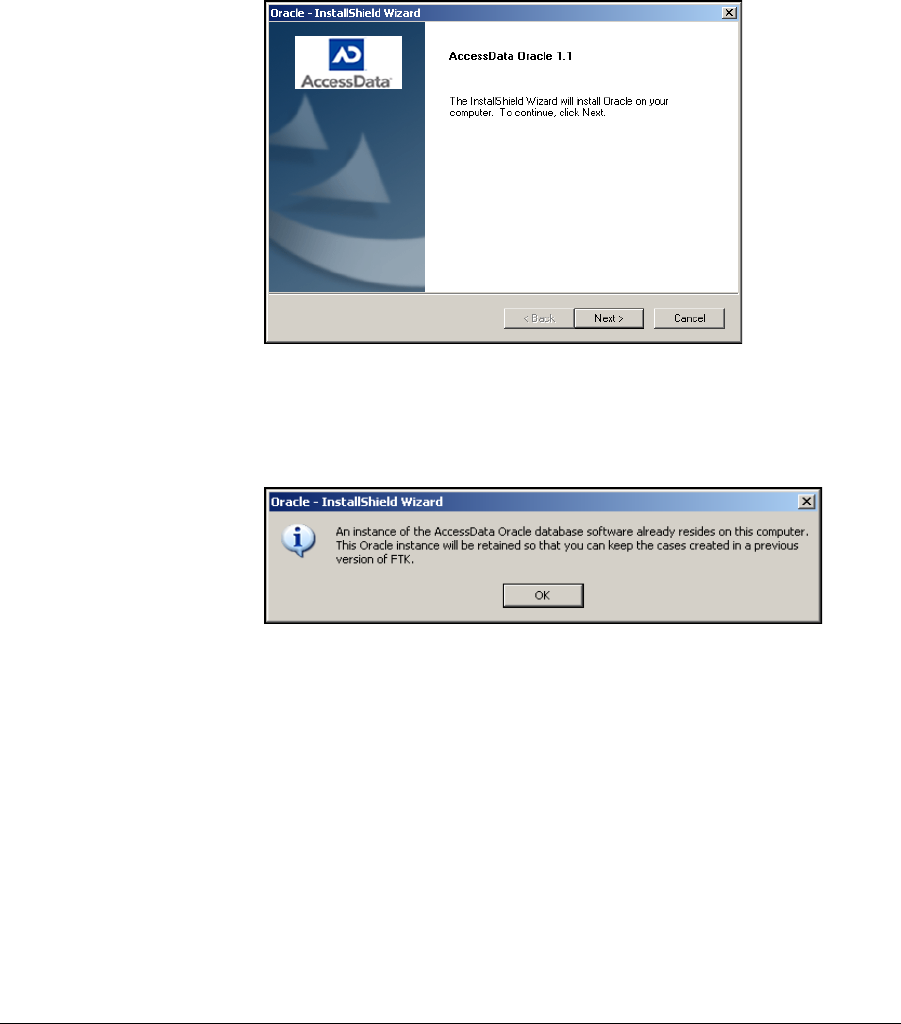

ORACLE INSTALLATION
FTK must link to an Oracle database. If one already exists in the network or domain
(with sufficient space for storage and processing) it can be leveraged for use with FTK.
If no Oracle database exists, it must be installed either on the same computer as the
FTK Program within the same network or domain, or a separate computer.
14 AccessData FTK2 User Guide
If the FTK installation is attempted before installation of Oracle, or if an install of
Oracle 10g patched to version 10.2.0.3 resides elsewhere on the network or in the
domain, the FTK installer warns of its dependency on Oracle and prompts the user to
continue with or terminate the install, as displayed in the following figure.
Figure 2-4. Oracle Dependency Warning
At this point the user is prompted to continue or terminate as in the following figure.
Figure 2-5. Continue or Terminate
If the user continues, they will isntall the FTK Program, as detailed in “Installing the
FTK Program” on page 14 of the User Guide.
From the FTK New Install screen, perform the following steps as displayed in the
following figure.
Installation and Upgrade 15
Figure 2-6. Install Oracle Button
1. Launch the installer.
2. Click Next.
16 AccessData FTK2 User Guide
3. Read the license argeement, agree to it, and click Next.
4. Wait for the installer to configure the installation.
5. Select the installation drive letter.
Installation and Upgrade 17
6. Click Next.
7. Agree to the Oracle Admin Password Agreement and click Next.
8. Provide an Oracle System Administrator password.
9. Click Submit.
10. Wait for the installation and configuration to finish.
18 AccessData FTK2 User Guide
Note: This step can take up to forty minutes.
11. Click Finish to end the installation process.
SINGLE COMPUTER INSTALLATION
The FTK Program can be installed on the same computer as the installed Oracle
database, as displayed in the following figure.
Figure 2-7. Single Computer Installation
INSTALLING THE FTK PROGRAM
From the FTK New Install screen, perform the steps displayed in the following
figure.
Installation and Upgrade 19
Figure 2-8. Install FTK 2.1 Button
1. Click Install FTK 2.1.
2. Click Next.
3. Read and accept the AccessData license agreement.
4. Click Next.
5. Select the location for the FTK components.
20 AccessData FTK2 User Guide
Note: If another directory is desired instead of the default, click Browse to navigate to or create
the file using the Windows Browse functionality.
6. Click Next.
CHOOSING AN EVIDENCE SERVER
After installing the FTK Program, choose the server on which contains the evidence
data. These files can be stored locally or remotely in the same domain as the computer
running FTK or external to the domain. To select an evidence source location, perform
the following steps:
1. Select This computer if evidence files are stored on a volume on the computer running
FTK, or on another computer that is not part of a domain. Some of these extra-
Installation and Upgrade 21
domain examples include machines in a Workgroup or a mixed-platform
environment.
2. If the evidence is stored elsewhere on a domain network, set up access to the
evidence storage computer by choosing Another computer on the network.
3. Click Next.
EVIDENCE ON THE SAME DOMAIN
If the computer with the FTK Program resides in the same domain as the computer with
the evidence, perform the following steps to connect the FTK computer to the
evidence storage location.
1. When asked if the evidence computer belongs to the same domain as the FTK
computer, click Yes.
22 AccessData FTK2 User Guide
2. Enter the domain name, username, and password into the Worker Account dialog.
If the domain and username is unknown, click Browse to find them. The account
must have administrative access to the computer and evidence repository computer.
The password must be the password of the account selected.
3. Click OK.
4. Enter the correct password.
5. Click Next.
6. Finish the installation and restart the machine.
EVIDENCE EXTERIOR TO A DOMAIN
If the evidence is stored on a computer exterior to a domain or in a mixed-platform
environment, follow these steps to connect FTK to that server.
Note: An identical user with identical privileges must be set up on the evidence server as well as
the FTK Program server. This is called Mirrored Local Accounts.
Installation and Upgrade 23
1. When asked whether the machines belong to the same domain, click No.
2. Set up identical mirrored user accounts on the FTK computer and on the evidence
machine to access the data on a remote (network) computer outside of the domain.
3. Enter the username and password into the User Account Credentials dialog.
4. Click Next to finish the install.
5. Restart the machine.
INSTALLING THE KFF
The FTK KFF Library can be installed to help shorten the investigation time on the
case. The KFF Library must be installed on the same volume as the Oracle database. To
perform step 4 and install the KFF, perform the following steps from the Install New
FTK window, as displayed in the following figure.
24 AccessData FTK2 User Guide
Figure 2-9. Install KFF Button
1. Click Install KFF Library
2. Click Next.
Installation and Upgrade 25
3. Accept the KFF license agreement.
4. Click Next.
5. Allow installation to progress.
6. Click Finish to end the installation.
26 AccessData FTK2 User Guide
INSTALLING ON SEPARATE COMPUTERS
FTK 2.1 can be installed on two separate computers. To do this, change the steps, as
shown again in the following figure, to 2, 4, 1, 3. Perform steps 2 and 4 on the computer
to run Oracle. (The KFF Library installs into the Oracle installation.) Then perform
steps 1 and 3 on the computer designated to run the FTK Program.
Figure 2-10. Install New FTK Screen
INSTALLATION RESULTS
If the default install location was selected, the FTK Program installation puts the
program files in the following folder: C:\ProgramFiles\AccessData\ForensicTool kit\
2.1.0\.
ADDITIONAL PROGRAMS
To change to another supported language other than the default English (United
States) that ships with FTK, LanguageSelector must be installed. For more information
on LanguageSelector, see “Selecting the Application Language” on page 201 of the
User Guide.
Installation and Upgrade 27
If licenses need to be managed, LicenseManager must be installed. For more
information on LicenseManager, see “Managing Licenses with LicenseManager” on
page 190 of the User Guide.
Also, make sure the current versions of any other programs required for the
investigation are installed, this includes AccessData RegistryViewer, and AccessData
Password Recovery Toolkit, or AccessData Distributed Network Attack.
UPGRADING TO FTK 2.1
The following instructions describe how to upgrade from AccessData® Forensic
Toolkit® (FTK®) version 2.0 to FTK 2.1. For the upgrade, the original FTK 2.0, must
already be installed.
Note: As a best practice, back up all case data (if possible) before upgrading your software.
1. Insert the FTK 2.1 DVD in your computer.
Alternatively, if you downloaded the .zip file from the AccessData Web site, extract
the contents to a folder and double-click the autorun.exe file.
If the installation utility does not launch automatically, browse to the DVD and
double-click the autorun.exe file.
28 AccessData FTK2 User Guide
2. Click Upgrade to FTK 2.1 to display the seven steps required to upgrade from FTK 2.0
to FTK 2.1.
3. On Step 1, click Uninstall FTK 2.0.
Important: To avoid losing case files, it is very important that you follow the
instructions in this dialog carefully.
This automatically uninstalls the FTK Package from the computer. Allow the
computer to restart after the unstallation process has completed.
Note: You may need to manually end the FTK Installation program before Windows* can
restart.
4. Run the autorun.exe file again.
5. On Step 2, click Uninstall old CodeMeter Software.
The only entry for CodeMeter* in Add or Remove Programs should be CodeMeter
Runtime Kit v3.30a. If any previous version (containing titles such as “CodeMeter”
or “AccessData CodeMeter”) are installed, they need to be removed.
This process is automatically completed by this step.
Installation and Upgrade 29
6. On Step 3, click Install new CodeMeter Software.
7. Click Next and follow the wizard installation instructions to install the CodeMeter
Runtime software.
8. When CodeMeter installs successfully, click Finish to return to the FTK Upgrade
Install window.
9. On Step 4, click Transition the Database.
This patch file converts the database schema to the format required by FTK 2.1.
After the batch file runs, it indicates success or failure. If the batch file installed
correctly, close the window and return to the FTK Upgrade Install window. If
running the batch was unsuccessful, contact AccessData Customer Support.
30 AccessData FTK2 User Guide
10. On Step 5, click Update Oracle.
This step only updates the current installation of Oracle, it does not reinstall Oracle.
11. Click Next and follow the on-screen instructions.
The Oracle install wizard runs and the following dialog should appear indicating
that Oracle already resides on the computer and that cases created in previous
versions of FTK will be retained.
12. Click Finish at the Install Complete dialog to return to the FTK Upgrade Install
window.
Installation and Upgrade 31
13. On Step 6, click Install FTK 2.1 and follow the online installation instructions.
14. When FTK 2.1 installs successfully, click Finish to return to the FTK Upgrade Install
window.
15. On Step 7, click Update KFF Library.
16. Click Next and follow the on-screen installation instructions.
17. After the KFF Update installs successfully, click Finish to return to the FTK
Upgrade Install window.
18. Click Back to Main Menu.
FTK 2.0.4 is now upgraded to FTK 2.1.
32 AccessData FTK2 User Guide
UPGRADING A TWO-COMPUTER CONFIGURATION
To upgrade a two-computer configuration (FTK Package and associated programs on
one box and Oracle and the KFF on the other machine) follow the directions specified
in the following figure.
Figure 2-11. Seven Uninstall Steps
Case data is preserved through the upgrade, but it is good practice to back up all cases
and perform the upgrade in this order, 1, 2, 3 on the FTK Package box (You uninstall
the FTK Package and install the FTK Program indicating a major difference between
FTK 2.0 and 2.1.) Then 4, 5 on the Oracle box. Then 6 on the FTK Program box. And,
finally, 7 on the Oracle box to update the KFF. This process is illustrated in the table
below:.
TABLE 2-1 What to do Where
Steps to Perform on FTK Machine Steps to Perform on Oracle Machine
1. Uninstall FTK 2.0x application 4. Database Transition
2. Uninstall CodeMeter Software 5. Update Oracle database for 2.1.0.
3. Install New CodeMeter Software 7. Update the KFF Library
6. Install FTK 2.1 Program
Concepts 33
Chapter 3 Concepts
Before using AccessData Forensic Toolkit (FTK), a basic knowledge of the FTK
interface is helpful. The FTK interface contains six main tabs, organized like tabbed
pages, each with a specific focus. Most tabs also contain a common toolbar and file list
with customizable columns.
STARTING FTK
After you complete the installation, start FTK by selecting Start > All Programs >
AccessData > Forensic Toolkit > AccessData Forensic Toolkit 2.1, or by selecting the
AccessData Forensic Toolkit 2.1 shortcut on the desktop.
Important: Close any virus scanner program while running FTK and
processing evidence. Virus scanners can slow performance
significantly.
SETTING UP THE APPLICATION ADMINISTRATOR
On first launch a application administrator must be created to manage the database.
The Add New User dialog box opens automatically. The first added user is the case and
database administrator or superuser. The superuser can add new users to the database
to administer (Case Administrator) or review (Case Reviewer) the case as needed by
clicking Database > Add User to open the Add New User dialog. The following figure
displays the Add New User dialog.
34 AccessData FTK2 User Guide
Figure 3-1 Add New User Dialog
Complete the fields to assign a new user a role and a password. Every field is required.
Click OK to save the new user and close the dialog.
USING THE CODEMETER STICK
AccessData provides a USB CodeMeter Stick security license device with FTK. The
WIBU-SYSTEM AG* CodeMeter Stick* is a security compliance license device. Insert
the CodeMeter Stick into the USB port prior to installation. It maintains your FTK
licensing and subscription information and is required by FTK.
You can use the LicenseManager application to monitor your FTK subscription. For
more information, see “Managing Licenses with LicenseManager” on page 216.
Note: FTK.2.0 does not work with the KEYLOK (green) dongle used with previous versions of FTK.
USING THE CASE MANAGER WINDOW
FTK manages cases from a central database. The Case Administrator administers the
case from the Case Manager window. The following figure displays the Case Manager
window.
Concepts 35
Figure 3-2 Case Manager Window.
After logging into FTK, the Case Manager window appears with the following menus:
• File
• Database
• Case
• Tools
• Help
The following tables shows the available Case Manager menu options.
TABLE 3-1 Case Manager File Menu
Option Description
Exit Exits FTK.
TABLE 3-2 Case Manager Database Menu
Option Description
Log In Opens the authentication dialog for users to log into the database.
36 AccessData FTK2 User Guide
Log Out Logs the user out of the current case.
Add User Create a user with either Reviewer or Administrator rights to the
database. This can only be done by the application administrator.
TABLE 3-3 Case Manager Case Menu
Option Description
New Start a new case with the logged-in user as the Administrator.
Case Reviewers cannot start a case.
Open Opens the highlighted case with its included evidence.
Administer Users Allows the Administrator to adjust or control the rights of added
users.
Backup Backs up selectedcases.
Restore Brings back a selected, saved case.
Delete Deletes selected cases.
TABLE 3-4 Case Manager Tools Menu
Option Description
Tools Preferences settings:
•Choose temporary file path
•Choose network security device location. Options are:
•Ip Address
•Port
TABLE 3-2 Case Manager Database Menu
Option Description
Concepts 37
THE FTK WINDOW
When a case is created and assigned a user, the FTK Case window opens with the
following menus:
• File
• Edit
• View
• Evidence
• Filter
• Tools
• Help
The following tables show the available options from the FTK2.1 window menus.
TABLE 3-5 Case Manager Help Menu
Option Description
Diagnostics View the activity of the databases on which cases are stored, and
of the Worker machines assigned to each case.
User Guide Opens the FTK User Guide in PDF. The manual is formatted for
two-sided printing.
About Provides copyright and trademark information about FTK and
other intellectual property of AccessData.
TABLE 3-6 FTK2.1 File Menu
Option Description
Export Exports selected files and associated evidence to a designated
folder.
Export to Image Exports one or more files as AD1 files to a storage desination.
Export File List Info Exports selected file information to files formatted as the
Column List in .csv, .tsv, and .txt formats.
Export Word List Exports the index as a text file from which a dictionary for PRTK
can be created.
38 AccessData FTK2 User Guide
Report Opens the Report Options window for creating a case report.
Close Closes the FTK Window and returns to the Case Manager
window.
Exit Closes both the FTK and Case Manager windows.
TABLE 3-7 FTK2.1 Edit Menu
Option Description
Copy Special Duplicates information about the object copied as well as the
object itself, and places the copy in the clipboard.
TABLE 3-8 FKTK2.1 View Menu
Option Description
Refresh Reloads the current view.
Filter Bar Inserts the filter toolbar into the current tab. These features are
available also from the Filter menu.
Timezone Display Opens the Time Zone Display dialog.
Thumbnail Size Selects the size of the thumbnails displayed from the Graphics
tab. Select from:
•Large-default
•Medium
•Small
•Tiny
TABLE 3-6 FTK2.1 File Menu
Option Description
Concepts 39
Tab Layout Manages tab settings: the user can lock an existing setting, add
and remove settings, save settings one tab at a time or all at once.
The user can also restore previous settings. or reset them to the
default settings. These options are in the following list:
•Lock
•Add
•Remove
•Save
•Save All Layouts
•Restore
•Reset to Default
Explore Tree Displays the Explore Tree in the upper-left pane.
Graphics Tree Displays the Graphics Tree in the upper-left pane.
Overview Tree Displays the Overview Tree in the upper-left pane.
Email Tree Displays the Email Tree in the upper-left pane.
Bookmark Tree Displays the Bookmark pane in the upper-left pane.
Indexed Searches Displays the Index Search Results pane in the upper-left pane.
Live Searches Displays the Live SearchResults pane in the upper-left pane.
Bookmark Information Inserts the Bookmark Information pane into the current tab.
File List Inserts the File List pane into the current tab.
File Content Inserts the File Content pane into the current tab.
Email Attachments Displays the attachments to email object found in the case.
Available only in the email tab.
Properties Inserts the Object Properties pane into the current tab view.
Hex Value Interpreter Displays a pane that provides an interpretation of Hex values
selected from the Hex View pane.
Thumbnails Displays a pane containing thumbnails of all graphics found in
the case.
Progress Window Opens the Progress dialog, from which you can monitor tasks
and/or cancel them.
TABLE 3-8 FKTK2.1 View Menu
Option Description
40 AccessData FTK2 User Guide
The tree and search views are exclusive settings, meaning that you can use only one tree
view per pane, and only one search view per pane. For more information on using the
View menu see, .
TABLE 3-9 FTK2.1 Evidence Menu
Option Description
Add/Remove Opens the Manage Evidence dialog, used to add and remove
evidence.
Additional Analysis Opens the Additional Analysis dialog with many of the same
processing options available when the evidence was added.
Allows the user to reprocess using options not selected the
previous time.
TABLE 3-10 FTK2.1 Filter Menu
Option Description
New Opens the Filter Definition dialog to define a filter. This feature is
also available from the Filter toolbar.
Duplicate Duplicates a selected filter. This feature is also available from the
Filter toolbar.
Delete Deletes a selected filter. This feature is also available from the
Filter toolbar.
On Applies the global filter to the application. The file list changes
color to indicate that the filter is applied. This feature is also
available from the Filter toolbar.
Import Opens the system file manager allowing the user to import a pre-
existing filter. This feature is also available from the Filter toolbar.
Export Opens the system file manager allowing the user to save a filter.
This feature is also available from the Filter toolbar.
Tab Filter Allows the selection of a filter to apply to a current tab.
Concepts 41
TABLE 3-11 FTK2.1 Tools Menu
Option Description
KFF Known File Filter (KFF) sets and groups can be managed,
archived, and cleared. The following menu option is available:
•Manage
Fuzzy Hash Allows you to
•Find Similar Files
•Manage Library
Decrypt Files Decrypts EFS and Office files passwords that matched those
entered.
Verify Image Integrity Generates hash values of the disk image file for comparison.
Credant Decryption Opens the tools for Credant® decryption. Credant is a third party
encryption tool that encrypts files, folders, partitions, or entire
disks. This will be discussed in detail later in this manual.
Disk Viewer Opens a viewer that allows you to see and search evidence items.
Other Applications Opens other AccessData tools to complement the investigational
analysis:
•Imager
•PRTK
•Registry Viewer
•LicenseManager
•Language Selector
TABLE 3-12 FTK2.1 Help Menu
Option Description
User Guide Provides a link to the FTK 2.1 User Guide.
Diagnostics Allows the troubleshooting of database connections.
About Provides information about the current FTK release.
42 AccessData FTK2 User Guide
UNDOCKING
The File List, Properties/Hex Interpreter, and File Content panes can be undocked and
moved around the screen, even outside the FTK window. For information on
undocking moving, and customizing your FTK window view, see “Customizing the
Interface” on page 191.
TOOLBAR COMPONENTS
The FTK interface provides a toolbar for applying QuickPicks and filters to the case.
The following section lists the toolbars and their components.
The following table shows the available components of the toolbar.
TABLE 3-13 Toolbar Components
Component Description
Turns the filter on or off. Filtered data is shown in a
colored pane to indicate that it is filtered.
Applies the selected filter. A drop-down menu lists
defined filters.
Opens the filter definition dialogue to define the rules
of the current filter, or allows the creation of a new
one.
Deletes the selected filter
Creates a new filter
Concepts 43
FILE LIST PANE
The File List pane lists the files selected from the Evidence Items pane. In this pane the
user can choose which columns to display, as well as the order of those columns, create
bookmarks, create labels, copy or export file lists.
When viewing data in the File List, use the type-down control feature to locate sought
information. When the list is sorted by name, select an item in the list, then type the
first letter of the desired file. FTK will move down the list to the first file beginning with
that letter.
For more information, see “Customizing File List Columns” on page 197.
Creates a copy of the selected filter
Imports the selected filter from an XML file
Exports the selected filter to an XML file
Turns the QuickPicks filter on or off. The QuickPicks
filter is used in the Explore tab to populate the file list
with only items the investigator wishes to analyze.
Locks the movable panes in the application, making
them immovable. When the lock is applied, the blue
box turns grey.
TABLE 3-13 Toolbar Components
Component Description
44 AccessData FTK2 User Guide
FILE LIST TOOLBAR
The File List pane includes a toolbar containing these buttons for managing the File
List::
TABLE 3-14 File List Toolbar
Component Description
Checks all of the files in the current list.
Unchecks all of the files in the current list.
Unchecks all of the files in the current case.
Opens Create New Bookmark dialog box.
Opens Manage Labels dialog box.
Opens the Export File List,allowing the user to save
selected files to another folder..
Opens Copy Special dialog box.
Concepts 45
PROPERTIES PANE
The Properties pane displays information about a selected file. The following graphic
displays a portion of the information contained in the Properties pane. This
information corresponds to information displayed in the File List.
Opens the Column Settings dialog box.
Sets the columns to a specific set from the following
list:
•Default
•Email
•File Listing
•Normal (default)
•Reports: File Path Section
•Reports: Standard
TABLE 3-14 File List Toolbar
Component Description
46 AccessData FTK2 User Guide
Figure 3-3 Properties Pane
The following table highlights the components of the Properties pane:
TABLE 3-15 Properties Pane Components
Option Description
Name The filename of the selected file.
Item Number The arbitrary number assigned to the item during case processing.
File Type The type of selected file.
Path The path to the selected file.
General Info General information about the selected file:
•File Size: lists the physical and logical sizes of the file.
•File Dates: lists the dates and times when the file was created,
last accessed, and last modified on the imaged system.
Concepts 47
HEX INTERPRETER PANE
The Hex Interpreter pane interprets hexadecimal values selected in the viewer into
decimal integers and possible time and date values as well as unicode strings. The
following graphic displays the Hex Interpreter Pane:
File Attributes The attributes of the file:
•General: indicates Actual File status, Start Cluster, Compres-
sion status, Start Sector, and whether the document has been
examined for slack and/or carving.
•DOS Attributes: indicates attribute status for Hidden, Sys-
tem, Read Only, Archive, and 8.3 Name.
•NTFS Information: Indicates MFT Record Number, Record
Date, indicatesTrue or False status on whether the file is Resi-
dent, Offline, Sparse, or Temporary, and displays the Owner
SID and Group SID.
File Content Info The content information and verification information of the file:
•Hash Information: lists the file’s MD5 hash, SHA-1 hash, and
SHA-256 hashes.
TABLE 3-15 Properties Pane Components
Option Description
48 AccessData FTK2 User Guide
Figure 3-4 Hex Interpreter Pane and Corresponding File Content Pane Hex View Tab
To convert hexadecimal values, highlight one to eight adjacent bytes of hexadecimal
code in the File Content Viewer, Hex tab. Select two or more bytes for the Unicode
string, depending on the type of data you wish to interpret and view. Switch to the Hex
Interpreter tab at the bottom of the File Content Viewer, Hex tab, or open it next to
the File Content Hex Tab view, and the possible valid representations, or
interpretations, of the selected code automatically display in the Hex Value Interpreter.
Little-endian and big-endian refer to which bytes are most significant in multi-byte data
types, and describe the order in which a sequence of bytes is stored in a computer’s
memory. Microsoft* Windows* generally runs as Little Endian, because it was
developed on and mostly runs on Intel-based, or Intel-compatible machines.
In a big-endian system, the most significant bit value in the sequence is stored first (at
the lowest storage address). In a little-endian system, the least significant value in the
sequence is stored first. These rules apply when reading from left to right, as we do in
the English language. As a rule, Intel* based computers store data in a little-endian
fashion, where RISC-based systems such as Macintosh*, store data in a big-endian
fashion. This would be fine, except that a) AccessData’s products image and process
data from both types of machines, and b) there are many applications that were
Concepts 49
developed on one type of system or the other, and are now “ported” to the other
system. You can’t always just apply one rule and automatically know which it is.
FTK2.1 uses Little-endian as the default setting. If you view a data selection in the Hex
Interpreter and it does not seem right, try choosing Big endian to see if the data
displayed makes more sense.
For further information on using the Hex Interpreter pane, see “The Hex Interpreter
Tab” on page 100.
FILE CONTENT
The File Content pane shows you a file’s contents in several different views to help you
see potential evidence.
NATURAL TAB
The Natural tab displays a file’s contents as it would appear normally. The tab includes
Default, Media, and Web viewers, indicated by tabs on the right.
DEFAULT TAB
This viewer uses the Oracle Stellent* INSO* filters for viewing hundreds of file formats
without the native application installed.
Note: Viewing large items in their native applications is often faster than waiting for them to be
rendered in an FTK viewer.
MEDIA TAB
The Media Tab plays embedded audio and video files through an embedded Windows
Media Player.
WEB TAB
The Web view uses Internet Explorer to display the contents of the selected file in a
contained field. The following figure displays an email displayed in a web tab.
50 AccessData FTK2 User Guide
Figure 3-5 Web Tab
In the Web view, the top-left border of the pane holds two toggle buttons for enabling,
or disabling HTML content: Disable CSS Formatting, and Disable External Hyperlinks.
FTK displays the view (Web, Media, or Default) that is best for the selected file.
FILTERED TAB
The Filtered tab shows the file text created during indexing. The following figure
represents content displayed in the filtered tab.
TABLE 3-16 Natural Tab: Web Tab Toggle Buttons
Component Description
Disable CSS Formatting. This button disables any fonts, colors, and
layout from cascading style sheets. HTML formatting not part of a
cascading style sheet may remain.
Disable External Hyperlinks. This button disables any hyperlinks in
the file.
Concepts 51
Figure 3-6 Filtered Tab
The text is taken from an index created for the current FTK session if indexing was not
previously selected.
TEXT TAB
The Text tab displays the file’s context as text from the code page selected from the
drop-down menu. The following figure represents a portion of the drop-down
selection list.
Figure 3-7 Text View Drop-Down Menu
52 AccessData FTK2 User Guide
The FTK File Content pane currently provides many code pages from which to choose.
HEX TAB
The Hex tab displays file contents in hexadecimal format. Use this view with the Hex
Interpreter pane. The following figure shows the Hex tab selected, with a portion of
the code selected and interpreted in the Hex Interpreter pane. For more information
on the Hex Interpreter Pane, see“Hex Interpreter Pane” on page 47.
Figure 3-8 Hex Tab
This feature is most useful if the investigator is familiar with the internal code structure
of different file types, and knows exactly where to look for specific data patterns or for
time and date information.
USING TABS TO EXPLORE AND REFINE EVIDENCE
Changing tabs helps the investigation team to explore and refine evidence. The
following sections look at each of the tabs in more detail.
EXPLORE TAB
The Explore tab displays all the contents of the case evidence files and drives as the
original user would have seen them. The following figure displays the FTK window
with the My Documents folder selected in the Explore Evidence Items tree.
Concepts 53
Figure 3-9 Explore Tab
The Explore tab contains the following panes:
TABLE 3-17 Explore Tab Panes
Pane Description
Explorer Tree Lists directory structure of each evidence item, similar to the way
one would view directory structure in Windows Explorer. An
evidence item is a physical drive, a logical drive or partition, or
drive space not included in any partitioned drive, as well as any
file, folder, or image of a drive.
File List Displays information about a file, such as filename, file path, and
file type.
54 AccessData FTK2 User Guide
QUICKPICKS FILTER
The QuickPicks feature is a type of filter that allows the selection of multiple folders
and files in order to focus analysis on specific content. The following figure represents
the Explore Evidence Items tree with a partially selected set of folders and sub-folders
using the QuickPicks feature.
Figure 3-10 QuickPicks Filter Folder Selection
The QuickPicks filter simultaneously displays open and shut descendent containers of
all selected tree branches in the File List at once. The colors of the compound icons
indicate whether descendents are selected.
The icons are a combination of an arrow, representing the current tree level, and a
folder, representing any descendent.
File Content Viewer Displays the contents of the currently selected file from the File
List. The Viewer toolbar allows the choice of different view
formats.
Properties Displays characteristics and attributes, depending on the column
settings being used, of the file selected in the File List.
Hex Interpreter Pane Provides possible meanings of a selection of a hexadecimal
selection in the file content Viewer.
TABLE 3-17 Explore Tab Panes
Pane Description
Concepts 55
The icons’ colors indicate the levels and descendent selected. Green means all are
selected, yellow means some are selected, and white means none are selected.
In the illustration above, the decedent folder 10-1 Graphics is unselected. Its arrow icon
is white.
The folder icons for the folders above item “10-1 Graphics” are yellow to indicate that
not all descendent folders are selected. The top-most level item “Evidence” has a white
arrow icon, indicating that it is not selected, and a yellow folder icon, indicating that
some of its descendent folders are not selected.
The folder icon for “DT Search Stuff ” is green, indicating that all contents of the folder
have been selected.
DATA PROCESSING STATUS DIALOG
The Progress dialog displays an estimation of how tasks are progressing. In the
examples below, the dialog shows the progress of evidence being added to the case,
both while it is in progress, and after successful completion:
Figure 3-11 Data Processing Status: In Progress
56 AccessData FTK2 User Guide
Figure 3-12 Data Processing Status: Successfully Completed
A blue progress bar for each task measures percentage complete by a ratio, or simply by
a moving bar as each task progresses. An hourglass icon at the front of the bar indicates
that the task is in progress, while a checkmark indicates that the task completed. When
the task is complete, the blue progress bar turns green.
• Click and drag the Scroll Bar to view processing jobs that do not display withing the
default viewing area.
• Click Close All Completed to leave the Data Processing Status window open while
any incomplete tasks remain open.
• Click the Close button adjacent to any individual task to remove that task and its
progress bar from the dialog.
• Check Close Progress Bars when completed to automatically close each task bar as its task
completes.
• Click the Close button to close the Data Processing Status Window. This closes
only the display and does not cancel any current tasks.
Concepts 57
OVERVIEW TAB
The Overview tab provides a general view of a case. The number of items in various
categories, view lists of items, and look at individual files by category, status, and
extension are displayed, as in the following figure.
Figure 3-13 Overview Tab
Evidence categories are represented by trees in the upper-left Case Overview pane of
the application.
FILE ITEMS CONTAINER
The File Items container itemizes files by whether they have been checked and lists in a
tree view the evidence files added to the case.
58 AccessData FTK2 User Guide
FILE EXTENSION CONTAINER
The File Extension container itemizes files by their extensions, such as .txt, .mapimail,
and .doc and lists them in a tree view.
The File Extension Container content numbers do not synchronize or match up with
the overall number of case items. This is because case items, such as file folders, do not
have extensions and, therefore, are not listed in the File Extension Container.
FILE CATEGORY CONTAINER
File Category Container itemizes files by function, such as a word processing
document, graphic, email, executable (program file), or folder, and lists them in a tree
view.
The statistics for each category are automatically listed. Expand the category tree view
to see the file list associated with it.
The following table provides more detail for File Categories:
TABLE 3-18 File Categories
Category Description
Archives Archive files include Email archive files, Zip, Stuffit
,Thumbs.db thumbnail graphics, and other archive formats.
Databases A list of MS Access and other types of databases.
Documents Includes most word processing, HTML, WML, HTML, or text
files.
Email Includes Email messages from Outlook*, Outlook Express*,
AOL*, Endoscope*, Yahoo*, Rethink*, Udder*, Hotmail*, and
MSN*.
Executables Includes Win32 executables and DLLs, OS/2, Windows VxD,
Windows NT, JavaScript, and other executable formats.
Folders Folders or directories that are located in the evidence.
Graphics Includes the standard graphic formats such as .tif, .gif, .jpeg,
and .bmp.
Internet Chat Files Lists Microsoft* Internet Explorer* cache and history indexes.
Mobile Phone Data Lists data acquired from supported mobile phone device(s).
Multimedia Lists .aif, .wav,.asf, and other audio and video files.
Concepts 59
FILE STATUS CONTAINER
File Status covers a number of file categories that can alert the investigator to problem
files or help narrow down a search.
The statistics for each category are automatically listed. Click the category button to see
the file list associated with it. The following table displays the file status categories.
OS/File System Files Partitions, file systems, registry files, and so forth.
Other Encryption Files Found encrypted files, as well as files needed for decryption
such as EFS search strings, SKR files, and so forth.
Other Known Types A miscellaneous category that includes audio files, help files,
dictionaries, clipboard files, link files, and alternate data stream
files such as those found in Word .docfiles, etc.
Presentations Lists multimedia file types such as MS PowerPoint or Corel
Presentation files.
Slack/Free Space Files, or fragments of files that are no longer seen by the file
system, but have not been completely overwritten.
Spreadsheets Includes spreadsheets from Lotus*, Microsoft Excel*,
QuattroPro*, and others.
Unknown Types File types that AD FTK2.1 cannot identify.
User Types User-defined file types such as those defined in a custom
File Identification File.
TABLE 3-19 File Status Categories
Category Description
Bad Extension Files with an extension that does not match the file type identified
in the file header, for example, a .gif image renamed as graphic.txt.
Data Carved Files The results of data carving when the option was chosen for
preprocessing.
Decrypted Files The files decrypted by applying the option in the Tools menu.
Deleted Files Complete files or folders recovered from slack or free space that
were deleted by the owner of the image, but not yet written over by
new data.
TABLE 3-18 File Categories
Category Description
60 AccessData FTK2 User Guide
BOOKMARK CONTAINER
The Bookmark Container lists bookmarks as they are nested in the Processed and the
user-defined folders. Bookmarks are defined by the investigator as the case is being
investigated and analyzed.
Duplicate Items Any items that have an identical hash.
Because the filename is not part of the hash, identical files may
actually have different filenames.
The primary item is the first one found by FTK.
Email Attachments Files attached to the email in the evidence.
Encrypted Files Files that are encrypted or have a password. This includes files that
have a read-only password; that is, they may be opened and
viewed, but not modified by the reader.
If the files have been decrypted with EFS and you have access to
the user’s login password, you can decrypt these files. See
“Decrypting Files and Folders” on page 163.
Flagged Ignore Files that are flagged to be ignored are probably not important to
the case.
Flagged Privileged Files that are flagged as privileged cannot be viewed by the case
reviewer.
From Email All email related files including email messages, archives, and
attachments.
From Recycle Bin Files retrieved from the Windows Recycle Bin.
KFF Alert Files Files identified by the HashKeeper Web site as contraband or illicit
files.
KFF Ignorable Files identified by the HashKeeper and NIST databases as
common, known files such as program files.
OLE Subitems Items or pieces of information that are embedded in a file, such as
text, graphics, or an entire file. This includes file summary
information (also known as metadata) included in documents,
spreadsheets, and presentations.
User Decrypted Files you’ve previously decrypted yourself and added to the case.
TABLE 3-19 File Status Categories
Category Description
Concepts 61
EMAIL TAB
The Email tab displays email mailboxes and their associated messages and attachments.
The display is a coded HTML format. For the list of the supported email applications,
see “Email Message Programs” on page 238. The following figure represents the email
tab.
Figure 3-14 Email Tab
EMAIL STATUS TREE
The Email Status tree lists information such the sender of th email, and whether an
email has attachments. They are listed according to their inclusions in their groups.
62 AccessData FTK2 User Guide
EMAIL TREE
The Email tree lists message counts, DBX counts, PST counts, and other such counts.
GRAPHICS TAB
The Graphics tab displays the case in photo-album style. Each graphic file is shown in a
thumbnail view. A graphic displays when its thumbnail is checked in the File Contents
pane. The following figure displays the Graphics tab with a selected thumbnail graphic.
Figure 3-15 Graphics Tab
Beneath each thumbnail image is a checkbox. When creating a report, choose to
include all of the graphics in the case or only those graphics that are checked. For more
information on selecting graphics, see “Including Graphics” on page 181.
Concepts 63
The Evidence Items pane shows the Overview tree by default. Use the View menu to
change the tree. Only graphic files appear in the File List when the tab filter is applied.
Shut the tab filter off to view additional files.
USING THUMBNAILS
The thumbnail settings allow large amounts of graphic data to be displayed for
evidence investigation. The investigator does not need to see details to pick out
evidence; scan the thumbnails for flesh tones, photographic-type graphics, and perhaps
particular shapes. Once found, the graphics can be inspected more closely in the
Content Viewer.
MOVING THE THUMBNAILS PANE
The thumbnail feature is especially useful when you move the undocked graphics pane
to a second monitor, freeing your first monitor to display the entire data set for the
graphics files being analyzed. Do the following to move the Thumbnails pane to
maximize space usage.
1. Undock the Thumbnails pane, and expand it across the screen.
64 AccessData FTK2 User Guide
2. Open the Thumbnails Settings sub-menu, and scale the thumbnails down to fit as
many as possible in the pane.
BOOKMARKS TAB
The Bookmarks tab displays all the items bookmarked as important items in the case.
Add comments on the bookmarks where needed. For more information about
bookmarking, see “Using the Bookmark Information Pane” on page 103.
Concepts 65
Figure 3-16 Bookmarks Tab
The following table describes the features of the Bookmark tab.
TABLE 3-20 Bookmark Tab
Features Description
Bookmark Comment Displays notes included with a bookmark.
Bookmark Name Displays the name given to the bookmark when it was created.
Clear Changes Removes comments that have not been saved.
Selections Remembers the highlighted text in the bookmarked file and
automatically highlights it when the bookmark is retrieved. The
highlighted text also prints in the report.
This can be done for multiple files with multiple selections.
Save Changes Saves changes to the bookmark.
File Comment Displays notes included with a file.
Selection Comment Displays notes included with a selection.
Supplementary Files Lists additional files attached to the bookmark.
66 AccessData FTK2 User Guide
SEARCH TABS
The Search Tabs allow the user to conduct an indexed search or a live search on the
evidence. An indexed search is faster, while a live search is more flexible and powerful.
The results of each search appear as line items in the search results list. Click the plus
icon (+) next to a search line to expand the search results branch. To view a specific
item, select the file in the search results or file lists. All search terms are highlighted in
the file. For information on searching, see “Chapter 6 Searching a Case” on page 127.
LIVE SEARCH TAB
The live search is a process involving an item-by-item comparison with the search term.
The following figure represents a selected Live Search tab.
Figure 3-17 Live Search Tab
Concepts 67
A live search is flexible because it can find non-alphanumeric character patterns.
Comparatively, an Index search has to stick with the alphanumeric patterns created with
an initial search index when the case is initially processed.
INDEX SEARCH TAB
The indexed search uses the index file generally created in pre-processing or through
additional analysis to find the search term. The following figure represents the Index
Search being performed.
Figure 3-18 Index Search Tab
Evidence items can be indexed when they are first added to the case or at a later time.
CREATING TABS
Create custom tabs by selecting View > Tab Layout > Add to bring up the Create Tab
dialog, as in the following figure.
68 AccessData FTK2 User Guide
Figure 3-19 Create Tab Dialog
For more information on tab creation, see “Creating Custom Tabs” on page 197.
Chapter 4 Starting a New FTK2.1 Case 69
Chapter 4 Starting a New
FTK2.1 Case
After collecting the files or drive images to examine, start a case using AccessData
Forensic Toolkit (FTK2.1).
LAUNCH FTK2.1
FTK harnesses the power of multiple investigators and computer processors to analyze
cases. The application administrator is created when FTK2.1 is launched the firts time,
and the Case Manager window opens. Run FTK2.1 by doing the following:
1. Click Start> All Programs > AccessData > Forensic Toolkit > AccessData Forensic Toolkit
2.1.
Note: Please note that it may take a few moments for FTK2.1 to run. This is because it is
also launching the Oracle* database.
2. Log in using the case-sensitive username and password provided by the application
administrator, as shown in the following figure:
70 AccessData FTK2 User Guide
Figure 4-1
A successful login brings up the Case Manager window, as in the following figure:
Figure 4-2 Case Manager Window
The Application Administrator can add additional users from the Case Manager
window. The following steps can be used by the Application Administrator to set up
new users as needed:
Chapter 4 Starting a New FTK2.1 Case 71
3. Click Database > Add User to open the Add New User dialog.
4. Enter a username.
5. Enter the full name of the user as it is to appear in reports.
6. Assign a role.
7. Enter a password.
8. Verify the password.
9. Click OK to save the new user and close the dialog.
The following table gives information on the fields available in the Add New User
dialog.
TABLE 4-1 Add New User Information Fields
Field Description
User Name Enter the name by which the user is known in program logs and
other system information.
Role Assign rights to the user name:
Full Name Enter the full name of the user as it will appear on case reports.
Password Enter and verify a password for this user.
After completing the dialog, the log in prompt returns again for a login name and
password for the newly created user to login. The Case Management window shows the
•Application Administrator: can perform all types of tasks, includ-
ing adding and managing users.
•Case Administrator: can process data and change settings to
FTK, although only the application administrator can add new
users.
•Case Reviewer: cannot create cases; can only process cases.
72 AccessData FTK2 User Guide
name you just created, indicating that the user can view and modify cases within that
database.
ASSIGNING ROLES
New users require a role, or a set of permissions to perform specific sets of actions. A
user having the Case Administrator role can perform the following tasks which are
made unavailable to a user having the Case Reviewer role:
• Create cases
• Configure log options
• Data Carve
• Manually data carve
• Use the KFF Alert Editor
• Add Hashes to the KFF
• Add evidence
• Decrypt Files from the Tools menu
• Add Passwords from the Tools menu
• View items flagged as “ignorable” or “privileged.”
• Use FTK Imager
• Use Registry Viewer
• Use PRTK
• Use Find on Disk
• Use the Disk Viewer
• View file sectors
• Access the analysis tools menu
• Export files or folders
• Define, edit, delete, copy, export, or import filters
CASE ADMINISTRATOR
A user assigned the Case Administrator role can do any of the above, however cannot
create new users.
Chapter 4 Starting a New FTK2.1 Case 73
ACQUIRING AND PRESERVING THE EVIDENCE
For digital evidence to be valid, it must be preserved in its original form. The disk
image must be forensically sound, or identical in every way to the original.
Two types of tools can do this: hardware acquisition tools and software acquisition
tools.
• Hardware acquisition tools duplicate, or clone, disk drives at the bit level, and allow
read-only mode access to the hard drive.
• Software acquisition tools create a disk image that usually requires a hardware
write-blocker, and makes no changes to the data or information on the hard drive.
Use write-blocking devices when using these tools, because some operating systems,
such as Windows, may make changes to the drive as it is reads the data to be imaged.
FTK Imager is a software acquisition tool. It can quickly preview evidence and, if the
evidence warrants further investigation, create a forensically sound image of the disk. It
makes a bit-by-bit duplicate of the media, rendering a forensic disk image identical in
every way to the original, including file slack and unallocated or free space.
CREATING A CASE
FTK stores each case in an Oracle database, and allows case administration as they are
created. When a Case Administrator creates a case, that user becomes that case’s
administrator. Start a new case from the Case Manager window with the following
steps:
1. Launch FTK 2.1 and login. This opens the Case Manager window
2. Click Case > New.
74 AccessData FTK2 User Guide
3. Enter a name for the case in the Case Name field.
4. Enter the specific reference information in the Reference field. This field is not
required to create a case.
5. Enter a short description of the case in the Description field.
6. If you wish to specify a different location for the case, click the browse button
7. Click Detailed Options to choose settings for the case.
7a. Click the Evidence Processing icon in the left pane, and select the processing
options to run on the evidence. For more information, see “Selecting Evidence
Processing Options” on page 74.
7b. Click the Evidence Discovery icon to specify the location of the File Identification
File, is one is to be used. For more information, see Figure , “Selecting
Evidence Discovery Options,” on page 77.
7c. Click the Evidence Refinement (Advanced) icon to select the custom file
identification file to use on this case. For more information, see “Selecting
Evidence Discovery Options” on page 77.
7d. Click the Index Refinement (Advanced) icon to select which types of evidence to
not index. For more information, see “Selecting Evidence Refinement
(Advanced) Options” on page 79.
7e. Click OK.
8. Mark the Open the Case check box to see the case after clicking OK to close the New
Case Options dialog.
9. Click OK.
Note: If the c:\ftk2-data folder is not set as shared, an error occurs during case creation.
SELECTING EVIDENCE PROCESSING OPTIONS
The Evidence Processing options allow selection of processing tasks to perform on the
current evidence. Select only those tasks that are relevant to the evidence being added
to the case. The following figure represents the detailed options dialog. Different
processing options can be selected and un-selected depending on the specific
requirements of the case.
At the bottom of every Detailed Options selection screen you will find five buttons:
• Reset: resets the current settings to the currently defined defaults.
• Save as My Defaults: saves current settings as the default for the current user.
• Reset to Factory Defaults: Resets current settings to the factory defaults.
Chapter 4 Starting a New FTK2.1 Case 75
• OK: accepts current settings without saving for future use.
• Cancel: cancels the entire Detailed Options dialog without saving settings or
changes, and returns to the New Case Options dialog.
Figure 4-3 Detailed Options Dialog
Another factor that can determine which processes to select is schedule. Time
restraints may not allow for all tasks to be performed initially. If you disable indexing, it
shortens the time needed to process a case. You can return at a later time and index the
case if needed.
The following table outlines the Evidence Processing options:
TABLE 4-2
Process Description
MD5 Hash Creates a digital fingerprint based on the contents of the file.
This fingerprint can be used to verify file integrity and to
identify duplicate files. For more information about MD5
hashes, see “Message Digest 5” on page 293.
SHA-1 Hash Creates a digital fingerprint based on the contents of the file.
This fingerprint can be used to verify file integrity and to
identify duplicate files. For more information about SHA
hashes, see “Secure Hash Algorithm” on page 295.
76 AccessData FTK2 User Guide
SHA-256 Hash Creates a digital fingerprint based on the contents of the file.
This fingerprint can be used to verify file integrity and to
identify duplicate files. SHA-256 is a hash function computed
with 32-bit words, giving it a longer digest than SHA-1. For
more information about SHA hashes, see “Secure Hash
Algorithm” on page 295.
Fuzzy Hash Mark this box to enable Fuzzy hash options to make options
and Match fuzzy hash library. Fuzzy hash options allow you
to specify the size of files to hash.
Flag Duplicate Files Identifies files that are found more than once in the
evidence.
KFF Using a database of hashes from known files, this option
eliminates ignorable files and alerts to known illicit or
dangerous files.
For more information about Known File Filter (KFF), see
“Using the Known File Filter” on page 156.
Flag Bad Extensions Identifies files whose types do not match their extensions.
Expand Compound Files Automatically opens and processes the contents of
compound files such as .zip files.
Entropy Test Determines if the data in unknown file types is compressed
or encrypted.
The compressed and encrypted files identified in the entropy
test are not indexed.
dtSearch Index Stores the words from evidence in an index for quick
retrieval. Additional space requirement is approximately 25%
of the space required for all evidence in the case.
Generate Thumbnails for
Graphics
Creates thumbnails for large graphics.
HTML File Listing Creates an HTML version of the File Listing in the case
folder.
Data Carve Carves data immediately after pre-processing. Click Carving
Options, then select the file types to carve. Uses file signatures
to identify deleted files contained in the evidence.
For more information on Data Carving, see “Data Carving”
on page 149.
Meta Carve Carves deleted directory entries.
TABLE 4-2
Process Description
Chapter 4 Starting a New FTK2.1 Case 77
SELECTING DATA CARVING OPTIONS
When you choose to carve data select which types of data to carve:
1. Select Data Carve.
2. Click Carving Options.
3. Mark the Exclude KFF Ignorables box to specify not to carve those files.
4. Select the types of files you want carved.
• Click Select All to select all file types to be carved.
• Click Clear All to unselect all file types.
• Select individual file types by marking the checkboxes.
5. Define the limiting factors to be applied to each file.
• Define the minimum byte file size for the selected type.
• Define the minimum pixel height for graphic files.
• Define the minimum pixel width for graphic files
6. Click OK.
INDEXING A CASE
All evidence should be indexed to aid in searches. Index evidence when it is added to
the case by checking the dtSearch Text Index box on the Evidence Processing Options
dialog.
SELECTING EVIDENCE DISCOVERY OPTIONS
The Custom File Identification file is a text file that overrides the file types assigned by
FTK during preprocessing. With this file, FTK can assign custom file types to specific
files.
The Evidence Discovery Options dialog lets you select the Custom File Identification
file to apply to new case. This file is stored elsewhere on the system, and the location is
determined by the user. The following figure represents the Evidence Discovery
Options window in the detailed options dialog. The location can be browsed to, by
clicking Browse, or reset to the root drive folder by clicking Reset.
78 AccessData FTK2 User Guide
Figure 4-4 Evidence Discovery Options
CREATING THE CUSTOM FILE IDENTIFICATION FILE
The Custom File Identification file, or Custom Identifier, creates the new branch “File
Category\User Types” on the Overview tab, under which the new file type assignments
appear.
The Custom File Identification file can be created in a text editor or similar utility. Each
line in the file represents a custom file type assignment. The general format is:
name,description,category[,offset:value[|offeset:value]*]+
For example, the line,
"MyGIF","Tim'sGIF","Graphics",0:"4749463837"|0:"4749463839"
creates a branch called “MyGIF” under “File Category\User Types.” The offset:value
rules in this case look for the string “GIF87” or “GIF89” at offset 0.
Chapter 4 Starting a New FTK2.1 Case 79
The following table describes the parameters for Custom File Identification files:
Note: The investigator must use at least one offset:value pair (hence the [...]+), and use zero or
more OR-ed offset:value pairs (the [...]*). All of the offset:value conditions in an OR-ed
group are OR-ed together, then all of those groups are AND-ed together.
SELECTING EVIDENCE REFINEMENT (ADVANCED) OPTIONS
The Evidence Refinement (Advanced) Options dialog allows you to specify how the
evidence is sorted and displayed. The Evidence Refinement (Advanced) option allows
you to exclude specific data from an individual evidence item.
Many factors can affect which processint tasks to select. For example, if you have
specific information available, you may not need to perform a full text index. Or, if it is
known that compression or encryption are not used, an entropy test may not be
needed.
After data is excluded from an evidence item, it cannot be added back into the case.
FTK does not allow the user to add the same evidence item more than once. If data that
was previously excluded is found necessary, the user must create a new case.
Consequently, AccessData strongly recommends the use of Include All Items unless
you are absolutely certain that the excluded items are not necessary.
The following steps are for refining case evidence:
1. Click the Evidence Refinement (Advanced) icon in the left pane.
The Evidence Refinement (Advanced) dialog is organized into two tabs:
• Refine Evidence by File Status/Type
TABLE 4-3 Custom Identification File Parameters
Parameter Description
name The type displayed in the Overview tree branch. It also appears in the
Category column.
description Accompanies the Overview tree branch’s name.
category The Overview tree branch under which the file would normally
appear relative to “File Category\user types\.”
offset A decimal representation of the offset into the file (the first byte of
the file is 0).
value An even number of hex bytes or characters with arbitrary white
space.
80 AccessData FTK2 User Guide
• Refine Evidence by File Date/Size
2. Click the corresponding tab to access the desired refinement type.
3. Set the needed refinements for the current evidence item.
4. To reset the menu to the default settings, click Reset.
REFINING EVIDENCE BY FILE STATUS/TYPE
Refining evidence by file status and type allows the user to focus on specific files
needed for a case. The following figure displays the detailed options dialog with
Evidence Refinement selected.
Figure 4-5 Evidence Refinement by File Status/Type
Chapter 4 Starting a New FTK2.1 Case 81
The following table outlines the options in the Refine Evidence by File Status/Type
dialog:
TABLE 4-4 Refine Evidence by File Status/Type Options
Options Description
Include File Slack Mark to include file slack space in which evidence
may be found.
Include Free Space Mark to include unallocated space in which
evidence may be found.
Include KFF Ignorable Files Mark to include files flagged as ignorable in the KFF
for analysis.
Deleted Specifies the way to treat deleted files for cases
where the scope of the warrant permits.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “ignore status.”
Encrypted Specifies the way to treat encrypted files for cases
where the scope of the warrant permits.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “ignore status.”
From Email Specifies the way to treat email files for cases where
the scope of the warrant permits.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “ignore status.”
Include Duplicate Files Includes duplicate files for analysis.
Include OLE Streams Includes encrypted files for cases where the scope
of the warrant permits.
82 AccessData FTK2 User Guide
REFINING EVIDENCE BY FILE DATE/SIZE
Make the addition of evidence items dependent on a date range or file size specified by
the investigator. The following figure represents this type of selection dialog.
Figure 4-6 Evidence Refinement Dialog
File Types Specifies types of files to include and exclude.
Match using both File Type and
File Status criteria
Applies both criteria to the refinement.
TABLE 4-4 Refine Evidence by File Status/Type Options
Options Description
Chapter 4 Starting a New FTK2.1 Case 83
The following table outlines the options in the Refine Evidence by File Date/Size
dialog:
SELECTING INDEX REFINEMENT (ADVANCED) OPTIONS
The Index Refinement (Advanced) feature allows you to specify types of data that do
not need to be indexed. Data can be excluded to save time and resources and to
increase searching efficiency.
Note: AccessData strongly recommends using the default index settings.
To refine an index, in the Detailed Options dialog perform the following steps:
1. Click Index Refinement (Advanced) in the left pane.
2. The Index Refinement (Advanced) dialog is organized into two tabs:
• Refine Index by File Status/Type
• Refine Index by File Date/Size
3. Click the corresponding tab to access the desired refinement type.
4. Set the refinements for the current evidence item.
To reset the menu to the default settings, click Reset.
REFINING AN INDEX BY FILE STATUS/TYPE
Refining an index by file status and type allows the investigator to focus attention on
specific files needed for a case through a refined index defined in a dialog as contained
in the following figure.
TABLE 4-5 Define Evidence by File Date/Size Options
Exclusion Description
Refine
Evidence by
File Date
To refine evidence by file date:
1. Select Created, Last Modified, or Last Accessed.
2. In the two date fields, enter beginning and ending dates.
Refine
Evidence by
File Size
To refine evidence by file size:
1. In the two size fields, enter the At Least and At Most file size values.
2. In the drop-down list, select Bytes, KB, or MB.
84 AccessData FTK2 User Guide
Figure 4-7 Index Refinement Dialog
The following table outlines the options in the Refine Index by File Status/Type dialog:
TABLE 4-6 Refine Index by File Status/Type Options
Options Description
Include File Slack Mark to include unallocated space in which evidence may
be found.
Include Free Space Mark to include unallocated space in which evidence may
be found.
Include KFF Ignorable Files Mark to include files flagged as ignorable in the KFF for
analysis.
Deleted Specifies the way to treat deleted files for cases where the
scope of the warrant permits. Options are:
•Ignore status
•Include only
•Exclude
Chapter 4 Starting a New FTK2.1 Case 85
REFINING AN INDEX BY FILE DATE/SIZE
Refine index items dependent on a date range or file size specified by the user as
displayed in the following figure.
Encrypted Specifies the way to treat encrypted files for cases where
the scope of the warrant permits. Options are:
•Ignore status
•Include only
•Exclude
From Email Specifies the way to treat email files for cases where the
scope of the warrant permits. Options are:
•Ignore status
•Include only
•Exclude
Include Duplicate Files Mark to include duplicate files for analysis.
Include OLE Streams Mark to include encrypted files for cases where the scope
of the warrant permits.
File Types Specifies types of files to include and exclude.
Match using both File Type
and File Status criteria
Applies both criteria to the refinement.
TABLE 4-6 Refine Index by File Status/Type Options
Options Description
86 AccessData FTK2 User Guide
Figure 4-8 Index Refinement by File Date/Size
The following table outlines the options in the Refine Index by File Date/Size dialog:
TABLE 4-7 Refine Index by File Date/Size Options
Exclusion Description
Refine Index by File Date To refine evidence by file date:
1. Select Created, Last Modified, or Last Accessed.
In the date fields, enter beginning and ending dates.
Refine Index by File Size To refine evidence by file size:
1. In the two size fields, enter minimum and maximum
file sizes.
2. In the drop-down lists, select whether the specified
minimum and maximum file sizes refer to Bytes, KB, or
MB.
Chapter 4 Starting a New FTK2.1 Case 87
CREATING THE CASE
When you have finished selecting all the processing options needed for the current
case, click OK >OK to begin case creation. FTK indicates that it is creating the case and
asks you to please wait.
ADDING EVIDENCE
When case creation is complete, the Manage Evidence dialog appears. Evidence items
added here will be processed using the options you selected in pre-processing.
To add evidence to a case, do the following:
1. Click Add. The Select Evidence Type dialog appears.
2. Select the type of evidence item(s) to add to the case at this time.
3. Click OK.
4. Browse to the evidence item(s) to add. Select the item(s). Click Open.
5. Complete the Manage Evidence dialog as indicated in the following table:
TABLE 4-8
Option Description
Display Name The filename of the evidence being added.
Path The fill pathname of the evidence file.
ID/Name The optional ID/Name of the evidence being added.
Description The options description of the evidence being added. This can be
the source of the data, or other description that may prove helpful
later.
Time Zone The time zone of the original evidence. Select a time zone from
the drop-down list.
Language Setting Select the code page for the language to view the case in. The
Language Selection dialog contains a drop-down list of available
code pages. Select a code page and click OK.
88 AccessData FTK2 User Guide
6. When you are satisfied with the evidence options selected, click OK.
PROCESSING EVIDENCE
FTK shows a progress bar like the following figure.
Figure 4-9 Data Processing Status Progress Bar
Note: The count displayed in the progress bar is not equal to the number of items in the case.
VIEWING PROCESSED ITEMS
It is not necessary to wait for the program to finish processing the case to start
analyzing data. The metadata—the information about the evidence—can be viewed in
Case KFF Options Displays the KFF Admin dialog. Here you can view, create, edit,
or delete Defined Groups and view, edit or delete Defined Sets.
You can also choose to import or export groups or sets. Click
done when you are finished using the KFF Admin dialog.
Refinement Options Displays the Refinement Options for Evidence Processing. This
dialog has limited options compared to the Refinement Options
selectable prior to case creation. For example, here you cannot
choose Flag Duplicate Files, and you cannot create an HTML file
listing. You cannot select Save as My Dafaults, and you cannot
Reset to Factory Defaults. Select the options to apply to the
evidence being added, then click OK to close the dialog.
TABLE 4-8
Option Description
Chapter 4 Starting a New FTK2.1 Case 89
several modes before the evidence processing is complete. When processing completes
you can view all the evidence from the various tabs.
BACKING UP THE CASE
Backup your case from the Case Manager window.
When backing up a case, FTK copies case information and database files (but not
evidence) to a chosen folder. Keep copies of your drive images and other evidence
independent of the backed-up case. Individual files and folders processed into the case
are converted to an .AD1 (custom content) image and stored in the case folder.
Case administrators backup cases and must maintain the library of backups against
unauthorized restoration, because the user that restores an archive becomes the case
administrator.
Note: FTK does not compress the backup file. A backed up case requires the same amount of
space as does the database plus the case folder.
To back up a case perform the following steps:
1. In the Case Manager window, click Case > Backup.
2. Select an archive folder location.
3. Click Save.
RESTORING A CASE
If a case is prematurely or accidentally deleted, or becomes corrupted it can be restored
from the backup.
To restore a case:
1. In the Case Manager window, click Case > Restore.
90 AccessData FTK2 User Guide
2. Browse to and select the archive folder to be restored.
3. Click OK.
DELETING A CASE
To delete a case from the database:
1. In the Case Manager window, highlight the case to delete from the database.
2. Click Case > Delete.
3. Click Yes to confirm deletion.
STORING CASE FILES
Storing case files and evidence on the same drive substantially taxes the processors’
throughput. The system slows as it saves and reads huge files. For desktop systems in
laboratories, increase the processors’ speed by saving evidence files to a separate server
For more information, see Figure , “Choosing an Evidence Server,” on page 20.
If taking the case off-site, you can choose to compromise some processor speed for the
convenience of having your evidence and case on the same drive.
Chapter 5 Working with Cases 91
Chapter 5 Working with Cases
After creating a case in AccessData Forensic Toolkit (FTK) Case Manager, open the
case. Investigate the case by bookmarking and exporting relevant files, verifying the
drive image integrity, defining the evidence, and performing other tasks.
OPENING AN EXISTING CASE
Open an existing case from the FTK Case Manager. To open an existing case perform
the following steps:
1. Log on to FTK2.1.
2. Double-click on the case you want to open, or highlight the case and click Case >
Open.
ADDING EVIDENCE
After setting up a case, evidence must be added to it for processing. Additional
evidence files and images can be added and processed later, if needed, as evidence in
the case.
If a new case is being created, click OK on the New Case Options dialog to open the
Manage Evidence dialog as represented in the following figure. If evidence is being
added to an existing case, select Evidence > Add/Remove from the menu bar and
continue as shown below.
Note: Use universal naming convention (UNC) syntax in your evidence path for best results.
92 AccessData FTK2 User Guide
Figure 5-1 Managing Evidence
To add new evidence to the case perform the following steps.
1. Click Add to choose the type of evidence items to insert into a new case.
Note: Evidence taken from any physical source that is removable, whether it is a “live” drive or
an image, will become inaccessible to the case if the drive letters change or the evidence-
bearing source is moved. Instead create a disk image of this drive, save it locally, or to the
drive you specified during installation, then add the disk image to the case. Otherwise, be
sure the drive will be available whenever working on the case.
2. Mark the type of evidence to add, then click OK.
3. Browse to and select the evidence item from the stored location.
4. Click OK.
Note: Folders and files not contained in an image when added to the case will be imaged in the
AD1 format and stored in the case folder.
Chapter 5 Working with Cases 93
4a. (Optional) Click the ellipsis button at the end of the Path field to browse
to another path.
5. Fill in the ID/Name field with any specific ID or Name data applied to this evidence
for this case.
6. Use the Description field to enter a description of the evidence being added.
7. Select the Time Zone of the evidence where it was seized in the Time Zone field.
This is required to save the added evidence.
After selecting an Evidence Type, and browsing to and selecting the evidence item,
the selected evidence displays under Display Name. The Status column shows a plus
(+) symbol to indicate that the file is being added to the case.
8. Click Refinement Options to open the Refinement Options dialog with a set similar to
the Refinement Options set at case creation.
The sections available are:
• Evidence Processing
• Evidence Refinement (Advanced)
• Index Refinement (Advanced)
For more information on Evidence Processing options, see “Selecting Evidence
Processing Options” on page 74.
94 AccessData FTK2 User Guide
For more information on Evidence Refinement (Advanced) options, see “Selecting
Evidence Refinement (Advanced) Options” on page 79.
For more information on Index Refinement (Advanced), see “Selecting Index
Refinement (Advanced) Options” on page 83.
9. Click OK to accept the settings and to exit the Manage Evicence dialog.
10. Select the KFF Options button to display the KFF Admin dialog.
See “Using the Known File Filter” on page 156 for detailed information about the KFF.
11. Click Done to accept settings and return to the Manage Evidence dialog.
12. Click Language Settings to change the codepage for the language to view the
evidence in.
13. Click OK to add and process the evidence.
SELECTING A LANGUAGE
If you are working with a case including evidence in another language, or you are
working with a different language OS, click Language Settings from the Manage Evidence
dialog.
Chapter 5 Working with Cases 95
Figure 5-2
The Language Setting dialog appears, allowing you to select a code page from a drop-
down list. When the setting is made, click OK.
ADDITIONAL ANALYSIS
To further analyze selected evidence, click Evidence > Additional Analysis. The following
figure represents the Additional Analysis dialog.
Figure 5-3 Additional Analysis Dialog
96 AccessData FTK2 User Guide
Most of the tasks available during the initial evidence processing remain available with
Additional Analysis. Specific items can also targeted. Multiple processing tasks can be
performed at the same time.
Make your selections based on the information in the table below. Click OK when you
are ready to continue.
TABLE 5-1 Additional Analysis Options
Field Description
File Hashes These options create file hashes for the evidence.
•MD5 Hash
•SHA-1
•SHA-256
•Fuzzy Hash
•Flag Duplicates
Choosing one of these hash options creates a digital fingerprint based
on the contents of the file. This fingerprint can be used to verify file
integrity and to identify duplicate files. To flag the identified duplicate
files select Flag Duplicates.
Flag Duplicates is only available if selected during case creation.
For more information about MD5 hashes, see “Message Digest 5” on
page 293. For more information about SHA hashes, see “Secure Hash
Algorithm” on page 295.For more information about Fuzzy Hashing,
see, “Fuzzy Hashing” on page 120.
Target Items Select the items on which to perform the additional analysis. Checked
items will be unavailable if no items are checked. The following list
shows the available options:
•Highlighted Items: Performs the additional analysis on the items
highlighted in the File List pane when you select Additional Anal-
ysis.
•Checked Items: Performs the additional analysis on the checked
evidence items in the File List pane when you select Additional
Analysis.
•Currently Listed Items: Performs the additional analysis on the
evidence items in the File List pane when you selected Additional
Analysis.
•All Items: Performs the additional analysis on all evidence items in
the case.
Chapter 5 Working with Cases 97
FILE CONTENT, PROPERTIES, AND HEX INTERPRETER TABS
The File Content, Properties, and Hex Interpreter tabbed panes default to the bottom
left of the File Content pane in any tab where it is used. Click any of these tabs to switch
Search Indexes Choose dtSearch® Index to create a dtSearch index that allows index
searches.
Select Entropy Test to exclude compressed or encrypted items from the
index.
KFF Select KFF Lookup to filter targeted files in the KFF. When KFF is
selected, the user can select to Recheck previously processed items when
searching for new information.
Carving Click Carving Options, to select the file types to carve.
Select to either
•Data Carve
•Meta Carve
Carving uses file signatures to identify deleted files contained in the
evidence.
For further information on these selections see “Selecting Evidence
Processing Options” on page 74.
For more information on Data Carving, see “Data Carving” on
page 149.
Miscellany These miscellaneous options apply when performing the additional
analysis:
•Expand Compound Files: Opens compound files such as ZIP
and indexes the contained files.
•Generate Thumbnails for Graphics: Generates thumbnail
graphics of the analyzed graphics.
•Flag Bad Extensions: Lists file extensions where the extension
does not match the data type from the selected and analyzed files.
•Generate File Listing (HTML): Generates a list of processed files
to an HTML file stored in C:\ftk2‐data\caseID. This option is
unavailable if this option was not selected during case generation..
For further information on using the EFS, see “Decrypting Files and
Folders” on page 163.
TABLE 5-1 Additional Analysis Options
Field Description
98 AccessData FTK2 User Guide
between them. The information displayed applies to the currently selected file in the
File List pane.
PROPERTIES TAB
The Properties pane is organized into the following sections:
• General Info
• File Attributes
• File Content Info
The following figure shows the File Properties pane:
Figure 5-4 Properties Tab Pane
Chapter 5 Working with Cases 99
PROPERTIES INFO
The Properties pane contains the following file information:
GENERAL INFO
The General Info section displays the following information:
TABLE 5-3 Properties General Information
Property Description
File Size
Physical Size The physical file size. This value includes file slack.
Logical Size The logical file size. This value excludes file slack.
File Dates
Date Created The date that the file was created, shown in UTC time format.
Date Accessed The date that the file was last accessed, shown in UTC time format.
Date Modified The date that the file was last modified, shown inUTC time format.
TABLE 5-2 Properties File Information
Property Description
Name The name of the file.
Item Number The unique number assigned to the item.
File Type The file type, such as an HTML file or a Microsoft Word 98 document.
FTK uses the file header to identify each item’s file type.
100 AccessData FTK2 User Guide
FILE ATTRIBUTES
This section lists the characteristics of the item selected in the File List pane. The
attributes correspond with the columns in the File List pane, but are not editable. The
following table provides more detail:
TABLE 5-4 General File Attributes
Property Description
Actual True if an actual file. False if derived from an actual file.
Start Cluster The start cluster of the file on the disk.
Compressed True if compressed. False otherwise.
Start Sector The start sector of the file on the disk.
File has been examined for slack. True if the file has been examined for slack. False
otherwise.
TABLE 5-5 DOS File Attributes
Property Description
Hidden True if Hidden attribute was set on file. False otherwise.
System True if file is a DOS system file. False Otherwise
Read Only True if Read Only attribute was set on file. False otherwise
Archive True if Archive bit was set on file. False otherwise
TABLE 5-6 NTFS File Attributes
Property Description
MFT Record Number Number of the file in the MFT record.
Record Date UTC date and time record was created.
Resident True if the item was Resident, meaning it was stored in
the MFT and the entire file fit in the available space. False
otherwise. (If false, the file would be stored FAT fashion,
and its record would be in the $I30 file in the folder
where it was saved.)
Chapter 5 Working with Cases 101
FILE CONTENT INFO
The File Content Info section displays the following information:
The information displayed in the Properties tab is file-type-dependent, so the selected
file determines what displays. Additional information, if available and depending on file
type, also displays.
THE HEX INTERPRETER TAB
The Hex Value Interpreter tab converts hexadecimal values selected in the File Content
View from the Hex tab into decimal integers and possible time and date values, as well
as Unicode strings. This feature is most useful if you are familiar with the internal code
structure of different file types and know where to look for specific data patterns or
time and date information.
Note: The bar symbol indicates that the character font is not available, or that an unassigned
space is not filled.
Offline True or False value
Sparse True or False value
Temporary True if the item was a temporary file. False otherwise.
Owner SID The Windows-assigned security identifier of the owner of
the object.
Group SID The Windows-assigned security identifier of the group
that the owner of the object belongs to.
TABLE 5-7 File Content Information
Property Description
KFF Status Indicates if the file is identified by the KFF as an illicit or contraband file,
or ignorable file.
MD5 Hash The MD5 (16 bytes) hash of the file (default).
SHA-1 Hash The SHA-1 (20 bytes) hash of the file (default).
SHA-256 Hash The SHA-256 (32 bytes) hash of the file (default).
TABLE 5-6 NTFS File Attributes
Property Description
102 AccessData FTK2 User Guide
To use the interpreter, complete the following procedure:
1. Switch the File Content pane to Hex view.
2. Select one to eight (more with the Unicode string) couplets.
A variety of possible values of the selected code display in the interpreter. Select Big-
endian or Little-endian to change the byte order view,
3. Right-click the Hex view to see a context menu with more options.
The following table lists the available options and their descriptions:
TABLE 5-8 File Content Hex View Right-click Menu Options
•Select all •Show decimal offsets
•Copy text •Show text only
•Copy hex •Fit to windows
•Copy Unicode •Save current settings
•Copy raw data •Got to offset
•Save Selection •Save selection as carved file
Chapter 5 Working with Cases 103
4. Click Save selection as carved file to manually carve data from files, and the Go to Offset
dialog to specify offset amounts and origins. Click OK to close Go To Offset dialog.
USING THE BOOKMARK INFORMATION PANE
A bookmark contains a group of files that you want to reference in your case. These are
selected and the list is stored for use in the report output.
Bookmarks help organize the case evidence by grouping related or similar files. For
example, you can create a bookmark of graphics that contain similar drive images. The
bookmark information pane is highlighted in the following figure.
104 AccessData FTK2 User Guide
Figure 5-5 Bookmark Information Pane
The Bookmarks tab lists all bookmarks that have been created in the current case
CREATING A BOOKMARK
Files can be bookmarked from any tab in FTK. To create a bookmark follow these
steps:
Chapter 5 Working with Cases 105
1. Right-click the files or thumbnails you want to bookmark, and click Create Bookmark
or click the Bookmark button on the File List Toolbar to open the Create New
Bookmark dialog.
2. Enter a name for the bookmark in the Bookmark Name field.
3. (Optional) In the Bookmark Comment field, type comments about the bookmark or
its contents.
4. Click one of the following options to specify which items to add to the bookmark:
• All Highlighted: Highlighted items from the current file list. Items remain
highlighted only as long as the same tab is displayed.
• All Checked: All items checked in the case.
• All Listed: Bookmarks the contents of the File List.
5. (Optional)Type a description for each file in the File Comment field.
6. Click Attach to add files external to the case that should be referenced from this
bookmark. The files appear in the Supplementary Files pane, and are copied to the
case folder.
106 AccessData FTK2 User Guide
7. For FTK to remember the highlighted text in a file and automatically highlight it
when the bookmark is re-opened, check Bookmark Selection in File. The highlighted
text also prints in the report.
8. Select the parent bookmark under which you would like to save the bookmark.
FTK provides a processed tree for bookmarks available to all investigators, and a
bookmark tree specific to the case owner.
If the bookmark is related to an older bookmark it can be added with the older
bookmark as the parent.
9. Click OK.
VIEWING BOOKMARK INFORMATION
The Bookmark Information pane displays information about the selected bookmark
and the selected bookmark file. The data in this pane is editable by anyone with
sufficient rights.
Select a bookmark in the Bookmarks view of the Bookmarks tab, or in the Bookmarks
node in the tree of the Overview tab to view information about a bookmark. The
Overview tab view provides limited information about the bookmarks in the case. The
Bookmark tab provides all information about all bookmarks in the case. In the
Bookmark tab, the Bookmark Information pane displays the Bookmark Name, Creator
Name, Bookmark Comment, and Supplementary files. When selected, a list of files
contained in the bookmark displays in the File List. If you select a file from the File List
the comment and selection information pertaining to that file display in the Bookmark
Information pane.
The Bookmark Information pane contains these fields:
TABLE 5-9 Bookmark Information Pane Information
Field Description
Bookmark Name The name of the bookmark, click Save Changes to store any
changes made to this field.
Bookmark Comment The investigator can assign a text comment to the bookmark.
Click Save Changes to store any changes made to this field at
any time.
Creator Name The FTK2 user who created the bookmark.
Supplementary Files Displays a list of external, supplementary files associated with
the bookmark.
Chapter 5 Working with Cases 107
Change any of the information displayed from this pane. Changes are automatically
saved when you change the bookmark selection, but you must manually save your
changes if you plan on closing FTK before selecting a different bookmark.
BOOKMARKING SELECTED TEXT
Bookmarked selections are independent of the view in which they were made. Select
hex data in the Hex view of a bookmarked file and save it; bookmark different text in
the Filtered view of the same file and save that selection as well.
To add selected text in a bookmark perform the following steps:
1. Open the file containing the text you want to select.
2. From the Natural, Text, Filtered or Hex views, make your selection.
Note: If the file is a graphic file, you will not see, nor be able to make selections in the Text
or the Natural views.
File Comment The investigator can assign a different comment to each file
in the bookmark. Click Save Changes to store any changes
made to this field.
Attach File Allows the investigator to add external supplementary files to
the bookmark, these files are copied to a subdirectory within
the case folder and referenced from there.
Remove File Removes a selected supplementary file from the bookmark.
Selection(s) Displays a list of stored selections within the selected file.
Add Selection Stores the cursor position, selection boundaries, and tab
selection of the swept text in the File Content pane. This
button does not store selection information for the Media or
Web tabs.
Remove Selection Remove the highlighted selection from the Selections list.
Selection Comment Each file within the bookmark may contain an unlimited
number of selections, each of which the investigator may
assign a comment. Click Save Changes to store any changes
made to this field. These notes can be edited.
Save Changes Stores the changes made to the bookmark information.
Clear Changes Clears any unsaved changes made to the bookmark
information.
TABLE 5-9 Bookmark Information Pane Information
Field Description
108 AccessData FTK2 User Guide
3. Click Create Bookmark in the File List toolbar to open the Create New Bookmark
dialog.
4. When creating your bookmark, check Bookmark Selection in File.
The selection remains in the bookmark.
ADDING EVIDENCE TO AN EXISTING BOOKMARK
Sometimes additional evidence is desired in a bookmark. To add the evidence, follow
these steps:
1. Right-click the new file.
Chapter 5 Working with Cases 109
2. Click Add to Bookmark.
3. Select the parent bookmark.
4. Select the child bookmark to add the file to.
5. Click OK.
CREATING EMAIL OR EMAIL ATTACHMENT BOOKMARKS
When bookmarking an email FTK allows the addition of any attachments. FTK also
allows the inclusion of a parent email when bookmarking attachments to an email.
To create a bookmark for an email, follow the steps for creating a bookmark. Select the
email to include in the bookmark. Right-click and choose Create Bookmark. Note that
the Email Attachments box is active, but unmarked. If only the parent email is needed
the Email Attachments box can remain unselected. The following figure displays the
Create New Bookmark dialog for an email with the Email Attachments checkbox
selected.
110 AccessData FTK2 User Guide
Figure 5-6 Create New Bookmark with Email Attachments
If you need to bookmark only an attachment of the email, select and right-click on the
attachment. Choose Create Bookmark. (For more information on creating bookmarks,
see, “Creating a Bookmark” on page 104.) Note that the Parent Email box is
automatically active, allowing you to include the parent email. If the Parent Email box is
checked, the Email Attachments box becomes active, allowing you to also include all
attachments to the parent email. To add only the originally selected attachment to the
bookmark, do not check the Parent Email box. The following figure displays the Create
New Bookmark dialog with the Parent Email checkbox selected.
Chapter 5 Working with Cases 111
Figure 5-7 Create New Bookmark with Parent Email Selected
ADDING EMAIL AND EMAIL ATTACHMENTS TO BOOKMARKS
To add an email to a bookmark, select the email to add, then right-click on the email
and choose Add To Bookmark. (For more information see, “Adding Evidence to an
Existing Bookmark” on page 108). Note that the Email Attachments box is active, but
not marked. If only the parent email is needed the Email Attachments box can remain
unselected. To include the attachment’s parent email, mark the box. The following
figure displays the Add Files to Bookmark dialog with the Email Attachments
checkbox selected.
112 AccessData FTK2 User Guide
Figure 5-8 Add Files to Bookmark with Email Attachments Selected
If only an attachment of an email is needed to be added to the bookmark, select the
attachment and follow the instructions for adding to a bookmark. (For more
information on adding to bookmarks, see, “Adding Evidence to an Existing
Bookmark” on page 108.) Note that the Parent Email box is automatically active, but
not selected, giving the opportunity to select the parent email if you wish to include it
with the attachment to the bookmark.The following figure displays the Add Files to
Bookmark dialog with the Parent Email checkbox selected.
Chapter 5 Working with Cases 113
Figure 5-9 Add Files to Bookmark with Parent Email Selected
MOVING A BOOKMARK
The following steps detail how to move a bookmark:
1. From either the Bookmark or Overview tab, select the bookmark you want to move.
2. Using the left or right mouse button, drag the bookmark to the desired location and
release the mouse button.
REMOVING A BOOKMARK
Use the following steps to remove a bookmark:
1. In the Bookmark tab, expand the bookmark list and highlight the bookmark to be
removed.
2. Press the Delete key.
114 AccessData FTK2 User Guide
DELETING FILES FROM A BOOKMARK
Use the following steps to delete files from bookmarks:
1. Right-click the file in the Bookmark File List.
2. Select Remove from Bookmark.
VERIFYING DRIVE IMAGE INTEGRITY
A drive image can be altered or corrupted due to bad media, bad connectivity during
image creation, or by deliberate tampering. To validate the integrity of your case
evidence, FTK allows you to determine if a drive image has changed from the original
evidence drive, or the original image. This feature works with file types that store the
hash within the drive image itself, such as EnCase* and SMART* images.
To verify a drive image’s integrity, FTK generates a hash of the current file and
compares that to the hash of the originally acquired drive image.
To verify that a drive image has not changed do the following steps:
1. Select Tools > Verify Image Integrity to open the Verify Image Integrity dialog.
In case the image file does not contain a stored hash, FTK can calculate one. The
Verify Image Integrity dialog provides the following information:
TABLE 5-10 Verify Image Integrity
Column Description
Image Name Displays the filename of the drive image to be verified.
Path Displays the path to the location of the drive image file.
Command Click Verify to begin hashing the drive image file.
Chapter 5 Working with Cases 115
2. Click either Calculate, or Verify according to what displays in the Command column,
to begin hashing the evidence file.
The Progress Dialog appears and displays the status of the verification. If the image file
has a stored hash, when the verification is complete, the dialog shows and compares
both hashes. Completing the processes may take some time, depending on the size of
the evidence, the processor type, and the amount of available RAM.
COPYING INFORMATION FROM FTK
The Copy Special dialog allows you to copy information about the files in your case to
the clipboard. The file information can include any column item, such as filename, file
path, file category and so forth. The data is copied in a tab-delimited format.
To copy file information perform the following steps:
1. In the file list on any tab, select the files that you want to copy information about.
116 AccessData FTK2 User Guide
2. Select Edit > Copy Special, click the Copy Special button on the file list pane, or right-
click the file in the file list and click Copy Special.
3. In the Copy Special dialog, select from the following:
TABLE 5-11 Copy Special Dialog Options
Choose Columns From the drop-down, select the column template to use, or click
Column Settings to create a custom template.
Include header row Mark box to include a header row that uses the column headings you
selected. Leave box empty to export the data with no header row.
All Highlighted All items highlighted in the current file list. Items remain highlighted
only as long as the same tab is displayed.
All Checked All items checked in all file lists. The user can check files in multiple
lists. Checked items remain checked until user unchecks them.
Currently Listed All items in the current file list.
All All items in the case.
4. In the Choose Columns drop-down list, select the column template that contains the
file information that you want to copy.
5. To define a new column settings template click Column Settings to open the Column
Settings manager.
5a. Create the column settings template you need.
5b. Click Save to save the changes.
Item Description
Chapter 5 Working with Cases 117
5c. Close the Column Settings manager.
5d. Select the new columns setting template from the drop-down list.
For more information about Column Settings, see “Creating and Modifying Column
Settings” on page 198.
6. Click OK to initiate the Copy Special task.
EXPORT FILE LIST INFO
The Export File List Info dialog, as displayed in the following figure, provides the copy
special options with the ability to save the information to a file. This file can be saved in
.tsv, .txt, or .csv format. Text files of this sort are .tsv files that displayed in a text editor
program like Notepad*. Files saved in .tsv or .csv display in the default spreadsheet
program.
Figure 5-10 Export File List Info Dialog
Select the Save As options, All Highlighted, All Checked, All Listed, or All, and choose
whether to include a Header Row for the exported file. Select the file type for the
exported data. The default filename is FileList; change it if you choose. The location for
the file is the case folder. Choose the data set to use from the Choose Columns drop-
118 AccessData FTK2 User Guide
down, or click Column Settings to define your own columns template. For information
on Copy Special, see “Copying Information from FTK” on page 115.
EXPORTING FILES
FTK allows the export of files used in the investigation. Files can be exported for
additional processing or distribution to other parties. For example, encrypted files can
be exported to decrypt using Password Recovery Toolkit (PRTK). Similarly, registry files
can be exported to analyze them using the Registry Viewer. (Neither PRTK or Registry
Viewer can read files within a drive image.) The following figure represents the Export
Files dialog.
Figure 5-11 Export Files Dialog
Note: Bookmarked files and graphics can be automatically exported with reports. For more
information about exporting files with a report, see “Creating a Bookmark” on page 104.
To export files do the following:
1. Click File > Export, or right click on a file in the File List pane and choose Export.
Chapter 5 Working with Cases 119
2. Select the export options you want from the Export dialog based on the table below.
TABLE 5-12
Option Description
Append Item number to Filename Appends the FTK unique File ID to a filename.
Append extension to filename if
bad/absent
Adds the extension to a filename if it is bad or missing,
based on the file’s header information.
Expand containers (email archives,
email attachments, etc.)
Expands container-type files and exports their
contents.
Save HTML view (if available) If a file can be exported and saved in HTML format, it
will be done.
Export directory as file Creates a file containing the binary data of the directory
being exported.
Export children Exports all child files of a parent folder.
Include original path Includes the full path from the root to the file;
maintains folder structure for exported files.
Export slack space as files Exports slack space from files and saves it as files for
easier viewing.
3. Select the Items to Include..
TABLE 5-13 Export Files Selection Options
Target Item Description
All Highlighted Files All items highlighted in the current file list. Items remain
highlighted only as long as the same tab is displayed.
All Checked Files All items checked in all file lists. You can check files in multiple
lists.
All Currently Listed Files All items in the current file list.
All Files in Case All items in the case.
Each item displays its filename and path.
4. In the Destination Path field, browse to and select the export the file location.
The default path is C:\case_folder\Report\Export\.
5. Click OK to begin the export.
120 AccessData FTK2 User Guide
EXPORTING FILE LIST INFO
To export a list containing column headings and other information from the File List
perform the following steps:
1. Select File > Export File List Info, or click Export File List on the File List pane, or
right-click on a file in the File List pane and select Export File List Info.
2. Select the File List Items to Export
3. Choose whether to include a header row in the exported file
4. Select column information
5. Specify the filename for the exported information.
6. Browse to and select the destination folder for the exported file.
7. Click Save.
EXPORTING THE WORD LIST
The contents of the case index can be exported to use as the basis for a custom
dictionary in the password recovery process. You must have indexed the case to export
the word list. If you have not done so, click Evidence > Additional Analysis. In the
Additional Analysis dialog, under Search Indexes, mark the dtSearch Index check box,
then click OK. When the index is complete, you can export the word list by doing the
following:
1. Select File > Export Word List.
2. Select the file and location to which you want to write the word list.
The default filename is Ftk2WordList.txt. If you intend to use the wordlist as the
basis for a custom dictionary in DNA or PRTK, it is a good idea to name the
wordlist by the casename. For example, FTK2PreciousWordList.txt
3. Click Save.
FUZZY HASHING
Fuzzy hashing is a tool which provides the ability to compare two distinctly different
files and determine a fundamental level of similarity. This similarity is expressed as
score from 1-100. The higher the score reported the more similar the two pieces of
data. A score of 100 would indicate that the files are close to identical. Alternatively a
score of 0 would indicate no meaningful sequence of data between the two files.
Chapter 5 Working with Cases 121
Traditional forensic hashes (MD5, SHA1, SHA256, etc) are useful to quickly identify
known data and to ensure that files have been forensically preserved. However, these
types of hashes cannot indicate how closely two non-identical files match. This is when
fuzzy hashing is useful.
In AccessData applications fuzzy hashes are organized into a library. This library is
very similar in concept to the AccessData KFF library. The fuzzy hash library contains
of a set of hashes for known files that can be compared to evidence files in order to
determine if there are any files which may be relevant to a case. Fuzzy hash libraries are
organized into groups. Each group contains a set of hashes and a threshold. The group
threshold is a number the investigator chooses to indicate how closely an evidence item
must match a hash in the group to be considered a match and to be included as
evidence.
CREATING A FUZZY HASH LIBRARY
There are two ways to create a fuzzy hash library. The first way is to drag and drop a
file, or files, from a disk into the Fuzzy Hash Library screen. The second way is to right
click on the file and select, ‘Add to Fuzzy Hash Library ’. To get to the Fuzzy Hash
Library screen go to Tools>Fuzzy Hash>Manage Library.
SELECTING FUZZY HASH OPTIONS DURING INITIAL PROCESSING
Follow these steps to initialize fuzzy hashing during initial processing or when adding
additional evidence to a case:
122 AccessData FTK2 User Guide
1. After choosing to create a new case, click Detailed Options.
2. Select Fuzzy Hash.
2a. (Optional) If FTK already refers to a fuzzy hash library, you can select to match
the new evidence against the existing library by selecting Match Fuzzy Hash
Library.
2b. Click Fuzzy Hash Options to set additional options for fuzzy hashing.
Chapter 5 Working with Cases 123
2c. Set the size of files to hash. The size defaults to 20 MB, 0 indicates no limit.
2d. Click OK to set the value.
3. Select OK to close the detailed options dialog.
ADDITIONAL ANALYSIS FUZZY HASHING
Fuzzy hashing can also be initialized on the current data by the following steps:
1. Click Evidence > Additional Analysis.
2. Select Fuzzy Hash.
2a. (Optional) Select if the evidence needs to matched against the fuzzy hash
library.
2b. (Optional) If performing this additional analysis after adding new information,
the fuzzy hashing can be done again against previously processed items.
124 AccessData FTK2 User Guide
2c. (Optional) Click Fuzzy Hash Options to open the Fuzzy Hash Options dialog.
2d. Set the file size limit on the files to be hashed.
2e. Click OK.
3. Click OK to close the Additional Analysis dialog and begin the fuzzy hashing.
COMPARING FILES USING FUZZY HASHING
To compare a file to another file or group of files go to Tools>Fuzzy Hash>Find Similar
Files. This option allows you to select a file hash to compare against. You can specify
the minimum match similarity that you want in this screen. This screen can also be
accessed by right clicking on a file and selecting Find Similar Files.
VIEWING FUZZY HASH RESULTS
To view the fuzzy hash results in FTK, several pre-defined column settings can be
selected in the Column Settings field under the Common Features category. Those
settings are: Fuzzy Hash, Fuzzy Hash blocksize, Fuzzy Hash library group, Fuzzy Hash
library score, and Fuzzy Hash library status.
Chapter 5 Working with Cases 125
The following table shows the column settings and the description of each:
TABLE 5-14 Fuzzy Hash Column Settings
Column Setting Description
Fuzzy Hash blocksize Dictates which fuzzy hash values can be used to
compare against a file. Fuzzy hashes can only be
compared to another fuzzy hash value which is half
the fuzzy hash value, the actual fuzzy hash value, or
two times the fuzzy hash value.
Fuzzy Hash Library Group The highest matching group value for a file. To find all
of the library groups which have been used to
compare a file against, double click on the value in
column settings.
Fuzzy Hash is the actual fuzzy hash value given to a file.
Fuzzy Hash Library Score The value of the highest group score a file has been
compared against. To find all of the library scores,
double click on the value in the column settings.
Fuzzy Hash Library Status Set to either alert or ignore, which is similar to the KFF alert
or ignore settings.
126 AccessData FTK2 User Guide
Chapter 6 Searching a Case 127
Chapter 6 Searching a Case
Searching evidence for information pertaining to a case can be one of the most crucial
steps in the examination. AccessData Forensic Toolkit (FTK) provides three different
live search modes: hexadecimal, pattern (or “regular expression”), and text. Search
results, or “hits,” appear highlighted in the File Content view.
CONDUCTING A LIVE SEARCH
The live search is a time-consuming process involving an item-by-item comparison
with the search term. A live search is flexible because it can find patterns of non-
alphanumeric characters.
Live search also supports pattern searches. Pattern searches, also called regular
expression searches, are searches for mathematical statements that describe a data
pattern such as a credit card or social security number. Pattern searches allow the
discovery of data items that conform to the pattern described by the expression. For
more information about regular expressions and syntax, see “Conducting a Pattern
Search” on page 130.
AccessData recommends live searching for items an index search cannot find.
To perform a live search do the following steps:
1. In the Live Search tab, click the Text, Pattern, or Hex tab.
In the Text or Pattern tabs, check the character sets to include in the search. If
Unicode is selected, you To include sets other than ANSI and Unicode, check Other
Code Pages, then click Select.
128 AccessData FTK2 User Guide
Note: You must select at least one of the CodePage choices. If you try to unselect all of the
choices on the CodePage selection bar, the next available option is automatically marked.
2. Click to select the needed sets.
3. Click to include EBCDIC, Mac, and Multibyte as needed.
4. Click OK to close the dialog.
5. Click to mark Case Sensitive if you want to search specifically uppercase or
lowercase letters. FTK ignores case if this box is not checked.
6. Enter the term in the Search Term field.
7. Click Add to add the term to the Search Terms window.
8. Click Clear to remove all search terms.
9. In the Max Hits Per File field, enter the maximum number of times you want a
search hit to be listed per file. The default is 200.
10. (Optional) Apply a filter from the drop-down list. Applying a filter speeds searching
by eliminating items that do not match the filter.
11. Click Search.
Note: Click Cancel in the Data Processing Status dialog to halt the search.
Chapter 6 Searching a Case 129
12. Select the results to see from the Live Search Results pane. Click the plus icon (+)
next to a search line to expand the branch. Individual search results are listed in the
Live Search Results pane, and the corresponding files are listed in the File List. To
view a specific item, select the file in the search results. All search results are
highlighted in the Hex View tab.
Right-click on a search result in the Live Searhc Results pane to display more
options. The available right-click options are as follows:
TABLE 6-1 Right-Click Options in Live Search Results Pane
Option Description
Create Bookmark Opens the Create New Bookmark dialog.
Copy to Clipboard Opens a new context-sensitive menu. Options are:
Export to File Opens a new context-sensitive menu. Options are:
Set Context Data Width Opens the Data Export Options window. Allows you to set
a context width from 32 to 2000 characters within which to
fine the search hit.
Delete All Search Results Deletes all search results from the Live Search Results pane.
Delete this Line Deletes only the highlighted search results line from the Live
Search Results pane.
Important: Searching before the case has finished processing will return
incomplete results. Wait to search until the case has finished processing
and the entire body of data is available.
CUSTOMIZING THE LIVE SEARCH TAB
Change the order of the Live Search tabs by dragging and dropping them into the
desired order. The following figure shows the live search tabs.
•All Hits In Case
•All Hist In Search
•All File Stats In Case
•All File Stats In Search
•All Hits In Case
•All Hist In Search
•All File Stats In Case
•All File Stats In Search
130 AccessData FTK2 User Guide
Figure 6-1 Live Search Tabs
For more information on customizing the FTK user interface, see “Customizing the
Interface” on page 191.
CONDUCTING A PATTERN SEARCH
Pattern searching, also known as regular expression searching, allows forensics analysts
to search through large quantities of text information for repeating formats of data
such as:
• Telephone Numbers
• Social Security Numbers
• Computer IP Addresses
• Credit Card Numbers
Pattern searches are similar to arithmetic expressions that have operands, operators,
sub-expressions, and a value. For example, the following table identifies the
mathematical components in the arithmetic expression, 5/((1+2)*3):
Note: Unlike arithmetic expressions, which can only have numeric operands, operands in
pattern searches can be any characters that can be typed on a keyboard, such as
alphabetic, numeric, and symbolic characters.
SIMPLE PATTERN SEARCHES
A simple pattern search can be made up entirely of operands. For example, the pattern
search dress causes the search engine to return a list of all files that contain the sequence
TABLE 6-2 Mathematical Components of Arithmetic Expressions
Component Example
Operands 5, 1, 2, 3
Operators /, ( ), +, *
Sub-Expressions (1+2), ((1+2)*3)
Value Approximately 0.556
Chapter 6 Searching a Case 131
of characters d r e s s. The pattern search dress corresponds to a very specific and
restricted pattern of text, that is, sequences of text that contain the sub-string dress. Files
containing the words “dress,” “address,” “dressing,” and “dresser,” are returned in a
search for the pattern search dress.
The search engine searches left to right. So in searching the pattern search dress, the
search engine opens each file and scans its contents line by line, looking for a d,
followed by an r, followed by an e, and so on.
COMPLEX PATTERN SEARCHES
Operators allow regular expressions to search patterns of data rather than specific
values. For example, the operators in the following expression enables the FTK search
engine to find all Visa and MasterCard credit card numbers in case evidence files:
\<((\d\d\d\d)[\– ]){3}\d\d\d\d\>
Without the use of operators, the search engine could look for only one credit card
number at a time.
The following table identifies the components in the Visa and MasterCard regular
expression:
As the pattern search engine evaluates an expression in left-to-right order, the first
operand it encounters is the backslash less-than combination (\<). This combination is
also known as the begin-a-word operator. This operator tells the search engine that the
first character in any search hit immediately follows a non-word character such as white
space or other word delimiter.
TABLE 6-3 Visa and MasterCard Regular Expressions
Component Example
Operands \–, spacebar space
Operators \, <, ( ), [ ], {3}, \>
Sub-expressions (\d\d\d\d), ((\d\d\d\d)[\– ])
Value Any sequence of sixteen decimal digits that is delimited by three
hyphens and bound on both sides by non-word characters (xxxx–
xxxx–xxxx–xxxx).
132 AccessData FTK2 User Guide
Note: A precise definition of non-word characters and constituent-word characters in regular
expressions is difficult to find. Consequently, experimentation by FTK users may be the
best way to determine if the forward slash less-than (\<) and forward slash greater-than
(\>) operators help find the data patterns relevant to a specific searching task. The
hyphen and the period are examples of valid delimiters or non-word characters.
The begin-a-word operator illustrates one of two uses of the backslash or escape
character ( \ ), used for the modification of operands and operators. On its own, the
left angle bracket (<) would be evaluated as an operand, requiring the search engine to
look next for a left angle bracket character. However, when the escape character
immediately precedes the (<), the two characters are interpreted together as the begin-
a-word operator by the search engine. When an escape character precedes a hyphen (-)
character, which is normally considered to be an operator, the two characters (\ -)
require the search engine to look next for a hyphen character and not apply the hyphen
operator (the meaning of the hyphen operator is discussed below).
The parentheses operator ( ) group together a sub-expression, that is, a sequence of
characters that must be treated as a group and not as individual operands.
The \d operator, which is another instance of an operand being modified by the escape
character, is interpreted by the search engine to mean that the next character in search
hits found may be any decimal digit character from 0-9.
The square brackets ([ ]) indicate that the next character in the sequence must be one of
the characters listed between the brackets or escaped characters. In the case of the
credit card expression, the backslash-hyphen-spacebar space ([\-spacebar space]) means
that the four decimal digits must be followed by a hyphen or a spacebar space.
The {3} means that the preceding sub-expression must repeat three times, back to
back. The number in the curly brackets ({ }) can be any positive number.
Finally, the back slash greater-than combination (\ >), also know as the end-a-word
operator, means that the preceding expression must be followed by a non-word
character.
Sometimes there are ways to search for the same data using different expressions. It
should be noted that there is no one-to-one correspondence between the expression
and the pattern it is supposed to find. Thus the preceding credit card pattern search is
not the only way to search for Visa or MasterCard credit card numbers. Because some
pattern search operators have related meanings, there is more than one way to compose
Chapter 6 Searching a Case 133
a pattern search to find a specific pattern of text. For instance, the following pattern
search has the same meaning as the preceding credit card expression:
\<((\d\d\d\d)(\–| )){3}\d\d\d\d\>
The difference here is the use of the pipe ( | ) or union operator. The union operator
means that the next character to match is either the left operand (the hyphen) or the
right operand (the spacebar space). The similar meaning of the pipe ( | ) and square
bracket ([ ]) operators give both expressions equivalent functions.
In addition to the previous two examples, the credit card pattern search could be
composed as follows:
\<\d\d\d\d(\–| )\d\d\d\d(\–| )\d\d\d\d(\–| )\d\d\d\d\>
This expression explicitly states each element of the data pattern, whereas the {3}
operator in the first two examples provides a type of mathematical shorthand for more
succinct regular expressions.
PREDEFINED REGULAR EXPRESSIONS
FTK provides the following predefined regular expressions to be used in pattern
searches, such as items on the following list:
• U.S. Social Security Numbers
• U.S. Phone Numbers
• U.K. Phone Numbers
• IP Addresses
• Visa and MasterCard Numbers
Select regular expressions from drop-down lists under the arrows:
• Click the black arrow to see a list, as displayed in the following figure, of the
basic components for regular expressions. You can create your own pattern by
combing these components into a longer expression.
134 AccessData FTK2 User Guide
Figure 6-2 Regular Expressions Components
• Click the white arrow to see a list of predefined expressions, as displayed in
the following table:
TABLE 6-4 Predefined Pattern Searches
MAC Address URL {http, https, ftp, ftps}
Mailto: ... .com
... .edu ... .info
... .net ... .org
... .gov ... .museum
Chapter 6 Searching a Case 135
The Social Security Number, U.S. Phone Number, and IP Address expressions are
discussed in the following sections.
... .tv ... .<any>
...@... .com ...@... .edu
...@... .gov ...@... .net
...@... .org ...@... .<any> email address
AMEX Visa
Mastercard 1 Discover
Credit Card Standard
Web Credit Card Transaction Receipt
with X or #
Kazaa DAT file Kazaa DBB
Limewire DAT
Link File Parser (fast) - (Run on
Unallocated)
Info2 Files FAST All Years
INFO2-Expanded (Run on
Unallocated)
MSN Hotmail Beginning MSN Hotmail End
HTML Search Engine Return - Google
Search
INDEX.dat entries and Search Engine
Return - Google Search
HTML Search Engine Return -
Ebay.com, search.aol.com, mamma.com THTML Search Engine - Ask Jeeves
Orphaned Index.dat Files (with date)
Orphaned Index.dat Files (Without
Date)
Orphaned Histore Index.dat Files Orphaned Index.dat Cookie Files
IP Address US Phone Number
UK Phone Number Social Security Number
Edit Expressions
TABLE 6-4 Predefined Pattern Searches
136 AccessData FTK2 User Guide
SOCIAL SECURITY NUMBER
The pattern search for Social Security numbers follows a relatively simple model:
\<\d\d\d[\– ]\d\d[\– ]\d\d\d\d\>
This expression reads as follows: find a sequence of text that begins with three decimal
digits, followed by a hyphen or spacebar space. This sequence is followed by two more
decimal digits and a hyphen or spacebar space, followed by four more decimal digits.
This entire sequence must be bounded on both ends by non-word characters.
U.S. PHONE NUMBER
The pattern search for U.S. phone numbers is more complex:
((\<1[\–\. ])?(\(|\<)\d\d\d[\)\.\–/ ] ?)?\<\d\d\d[\.\– ]\d\d\d\d\>
The first part of the above expression, ((\<1[\–\. ])?(\(|\<)\d\d\d[\)\.\–/ ] ?)?, means
that an area code may or may not precede the seven digit phone number. This meaning
is achieved through the use of the question mark (?) operator. This operator requires
that the sub-expression immediately to its left appear exactly zero or one times in any
search hits. The U.S. Phone Number expression finds telephone numbers with or
without area codes.
This expression also indicates that if an area code is present, a number one (1) may or
may not precede the area code. This meaning is achieved through the sub-expression
(\<1[\–\. ])?, which says that if there is a “1” before the area code, it will follow a non-
word character and be separated from the area code by a delimiter (period, hyphen, or
spacebar space).
The next sub-expression, (\(|\<)\d\d\d[\)\.\–/ ] ?, specifies how the area code must
appear in any search hits. The \(|\<) requires that the area code begin with a left
parenthesis or other delimiter. The left parenthesis is, of necessity, escaped. The initial
delimiter is followed by three decimal digits, then another delimiter, a right parenthesis,
a period, a hyphen, a forward slash, or a spacebar space. Lastly, the question mark (?)
means that there may or may not be one spacebar space after the final delimiter.
The latter portion of this expression, \<\d\d\d[\.\– ]\d\d\d\d\>, requests a seven-digit
phone number with a delimiter (period, hyphen, or spacebar space) between the third
and fourth decimal digit characters. Note that typically, the period is an operator. It
means that the next character in the pattern can be any valid character. To specify an
Chapter 6 Searching a Case 137
actual period (.), the character must be escaped ( \ .). The backslash period combination
is included in the expression to catch phone numbers delimited by a period character.
IP ADDRESS
An IP address is a 32-bit value that uniquely identifies a computer on a TCP/IP network,
including the Internet. Currently, all IP addresses are represented by a numeric
sequence of four fields separated by the period character. Each field can contain any
number from 0 to 255. The following pattern search locates IP addresses:
\<[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\>
The IP Address expression requires the search engine to find a sequence of data with
four fields separated by periods (.). The data sequence must also be bound on both
sides by non-word characters.
Note that the square brackets ([ ]) still behave as a set operator, meaning that the next
character in the sequence can be any one of the values specified in the square brackets
([ ]). Also note that the hyphen (-) is not escaped; it is an operator that expresses ranges
of characters.
Each field in an IP address can contain up to three characters. Reading the expression
left to right, the first character, if present, must be a 1 or a 2. The second character, if
present, can be any value 0–9. The square brackets ([ ]) indicate the possible range of
characters and the question mark (?) indicates that the value is optional; that is, it may
or may not be present. The third character is required; therefore, there is no question
mark. However, the value can still be any number 0–9.
You can begin building your own regular expressions by experimenting with the default
expressions in FTK. You can modify the default expressions to fine-tune your data
searches or to create your own expressions.
138 AccessData FTK2 User Guide
COMMON OPERATORS
The following is a list of common operators:
TABLE 6-5 Common Regular Expressions Operators
Operators Description
+Matches the preceding sub-expression one or more times. For example,
“ba+” will find all instances of “ba,” “baa,” “baaa,” and so forth; but it will
not find “b.”
$Matches the end of a line.
*Matches the preceding sub-expression zero or more times. For example,
“ba*” will find all instances of “b,” “ba,” “baa,” “baaa,” and so forth.
?Matches the preceding sub-expression zero or one times.
[ ] Matches any single value within the square brackets. For example, “ab[xyz]”
will find “abx,” “aby,” and “abz.”
A hyphen (-) specifies ranges of characters with the brackets. For example,
“ab[0-3]” will find “ab0,” “ab1,” “ab2,” and “ab3.” You can also specify case
specific ranges such as [a-r], or [B-M].
‘(Back quote) Starts the search at the beginning of a file.
‘(Single quote) Starts the search at the end of a file.
\< Matches the beginning of a word. In other words, the next character in any
search hit must immediately follow a non-word character.
\> Matches the end of a word.
|Matches either the sub-expression on the left or the right. For example, A|u
requires that the next character in a search hit be “A” or “u.”
\b Positions the cursor between characters and spaces.
\B Matches anything not at a word boundary. For example, will find Bob in the
name Bobby.
\d Matches any decimal digit.
\l Matches any lowercase letter.
\n Matches a new line.
\r Matches a return.
\s Matches any white space character such as a space or a tab.
\t Matches a tab.
\u Matches any uppercase letter.
\w Matches any whole character [a-z A-Z 0-9].
Chapter 6 Searching a Case 139
CONDUCTING HEX SEARCHES
Click the Hex (Hexadecimal) Search tab, to enter a term by typing it directly into the
search field, or by clicking the Hexadecimal character buttons provided, as displayed in
the following figure.
Figure 6-3 Hex Search Tab
The instructions for conducting a live search on the hex tab are similar to conducting
searches on the Pattern tab. For more information on conducting a Pattern search, see
the beginning of this section, “Conducting a Pattern Search” on page 130.
CONDUCTING TEXT SEARCHES
The difference between a Pattern search and a Text search is that a text search searches
for the exact typed text, there are no operands so the results return exactly as typed.
Also, there are no arrows to click for operand selection as displayed in the following
graphic.
^Matches the start of a line.
[[:alpha:]] Matches any alpha character (short for the [a-z A-Z] operator).
[[:alnum:]] Matches any alpha numerical character (short for the [a-z A-Z 0-9] operator).
[[:blank:]] Matches any whitespace, except for line separators.
{n,m}Matches the preceding sub-expression at least n times, but no more than m
times.
TABLE 6-5 Common Regular Expressions Operators
Operators Description
140 AccessData FTK2 User Guide
Figure 6-4 Live Search: Text Search Tab
Otherwise apply the instructions for the pattern search to this search. For more
information on conducting a pattern search see “Conducting a Pattern Search” on
page 130.
CONDUCTING AN INDEX SEARCH
The index search uses index files to find the search term. Evidence items may be
indexed when they are first added to the case or at a later time. AccessData
recommends always indexing a case before beginning analysis.
For more information about indexing an evidence item, see “Indexing a Case” on
page 77. The following figure displays the FTK window with the Index Seach tab
selected.
Chapter 6 Searching a Case 141
Figure 6-5 Index Search Tab
The index files contain all discrete words or number strings found in both the allocated
and unallocated space in the case evidence. FTK2 does not index spaces or symbols,
including the following:
. , : ; " ’ ~ ! # $ % ^ & = + .
In addition to performing searches within the case, you can also use the index as a
dictionary for password recovery processes in the Password Recovery Toolkit (PRTK).
You can export the index by selecting File > Export Word List.
SEARCH TERMS
Type the term or its dialog in the Search Term field. The term and terms like it appear
in the Indexed Words column displaying the number of times that particular term was
found in the data. Click Add to place the term to the Search Terms list, or double-click
a term from the indexed words column to add it to the Search Terms list.
142 AccessData FTK2 User Guide
SEARCH CRITERIA
Refine a search even more by using the Boolean operators AND and OR. You can
specify the terms to use in an indexed search by selecting specific entries, or by
searching against all entries. Click Clear to clear these search criteria. If any items are
selected, clicking Clear will clear the selected item(s) only. If no items, or all items, are
selected, clicking Clear will clear all items from the list.
Important: When creating your search criteria, try to focus your search to
bring up the smallest number of meaningful hits per search.
Click Export to save a set of search terms, then save the file.
Click Import to apply a set of search terms then select the file you previously saved.
INDEX SEARCH OPTIONS
To conduct an index search, select the Options button to refine the search by opening
the Indexed Search Options dialog, as in the following figure.
Figure 6-6 Index Search Options Dialog
Chapter 6 Searching a Case 143
The following tables review the individual search and result options:
Important: When running the search, limit the number of files with hits (200
is default) to list at one time, and try to have only one tree node in the
Index Search Results list expanded at a time for either Allocated or
Unallocated space hits. Having too many tree items expanded (to display
TABLE 6-6 Individual Search and Result Options
Option Result
Stemming Words that contain the same root, such as raise and raising.
Phonic Words that sound the same, such as raise and raze.
Synonym Words that have similar meanings, such as raise and lift.
Fuzzy Words that have similar spellings, such as raise and raize.
Click the arrows to increase or decrease the number of letters in a
word that can be different from the original search term.
TABLE 6-7 Max Files to List and Max Hits per File
Option Result
Max Files to List Maximum number of files with hits that are listed in the results.
You can change the maximum number in the field. The default is
200, if no entry is made. Searches limited in this way will be
indicated by an asterisk (*) and the text “(files may be limited by
“Max files to list” option)” which may be cut off if the file name
exceeds the allowed line length.
Max Hits per File Maximum number of hits per file. You can change the maximum
number in the field. Searches limited in this way will be indicated
by an asterisk (*) and the text “(files may be limited by “Max hits
per file” option)” which may be cut off if the file name exceeds
the allowed line length.
The maximum number applies separately tofiles with hits from
both Allocated and Unallocated disk space. Reducing the number
of hits to display per file reduces the time it takes to display all
items.
144 AccessData FTK2 User Guide
3,000 or more files with hits) can cause long delays in viewing selected
hits..
TABLE 6-8 Search by Date and Time
Option Description
All Files Search all the files in the case.
File Name Pattern Limits the search to files that match the filename pattern.
The pattern can include "?" to match a single character or "*" to
match zero or more characters. Operator characters can be used
to fill in for unknown characters. The asterisk (*) and question-
mark (?) operators are the only allowed characters in the search.
The "*" means any or no unknown characters and the "?" means
any one unknown character.
For example, if you set the filename pattern to "d?ugl*", the
search could return results from files named "douglas",
"douglass", or "druglord."
To enter a filename pattern:
Check the box.
In the field, enter the filename pattern.
Files Saved Between Beginning and ending dates for the last time a file was saved. Do
the following to set these parameters:
Files Created Between Beginning and ending dates for the creation of a file. Do the
following to set these parameters:
File Size Between Minimum and maximum file sizes, specified in bytes.
Check the box.
In the size fields, enter the minimum and maximum size in bytes
of the files that you want to search.
Save as Default Check this box to make you settings apply to all index searches.
When search criteria are prepared and you are ready to perform the search, click Search
Now.
1. Check the box.
2. In the date fields, enter the beginning and ending dates to
search.
1. Check the box.
2. In the date fields, enter the beginning and ending dates that
you want to search.
Chapter 6 Searching a Case 145
DOCUMENTING SEARCH RESULTS
Right-click an item in the Search Results list to open the quick menu with the following
options:
• Copy to Clipboard: Copies the selected data to the clipboard where it can be
copied to another Windows application, such as an Excel spreadsheet
Note: 10,000 is the maximum number of evidence items that can be copied in a single copy
operation.
• Export to File: Copies information to a file. Select the name and location for the
information file.
Copy or export the hits and the statistics of a search result using the options on the
following table:
After the information is copied to the clipboard, it can be pasted into a text editor or
spreadsheet and saved.
Search results can then be added to the case report as supplementary files.
USING COPY SPECIAL TO DOCUMENT SEARCH RESULTS
The Copy Special feature allows the copying of specific information about files to the
clipboard or a file.
To copy information about the files in your search results:
1. In the Index Search Results list, highlight the search hit you want to document.
2. Find that file highlighted in the File List view.
3. Right-click on the desired file.
TABLE 6-9 Result Copy or Export Options
Option Description
All Hits in Case Saves all the search terms found from the entire case.
All Hits in Search Saves all the search terms found in each search branch.
All File Stats in Case Creates a CSV file of all file information in the case.
All File Stats in Search Creates a CSV file of the file information requested in the search.
146 AccessData FTK2 User Guide
4. Select Copy Special.
5. In the Copy Special dialog, under Choose Columns, click the dropdown select the
columns definition to use, or click Column Settings to define a new column template.
5a. Modify the column template in the Column Settings Manager. For more
information on customizing column templates, see “Customizing File List
Columns” on page 197.
6. Mark Include Header Row if you want a header row included in the exported file.
7. Under File List Items to Copy, select from All Highlighted, All Checked, Currently
Listed, or All to specify which files you want the Copy Special to apply to.
8. Click OK.
BOOKMARKING SEARCH RESULTS
To keep track of the files that were returned in a particular search, bookmark the search
results. Bookmarks from the search results in the file list can be created or added to a
bookmark as with any other data.
To create a bookmark from the file list:
1. Select the files you want to include in the bookmark.
2. Right-click the selected files then select Create Bookmark.
3. Complete the Create New Bookmark dialog. For more information, see “Creating a
Bookmark” on page 104.
Chapter 6 Searching a Case 147
4. Click OK.
The bookmark now appears in the Bookmark tab.
148 AccessData FTK2 User Guide
Data Carving 149
Chapter 7 Data Carving
AccessData Forensic Toolkit (FTK) has the ability to carve data. Data carving is the
ability to locate files that have been deleted or that are embedded in other files.
SEARCHING FOR EMBEDDED AND DELETED FILES (DATA
CARVING)
Because embedded items and deleted files can contain information that may be helpful
in forensic investigations, FTK simplifies the process of recovering these items and
adding them to the case.
The data carving feature allows searching for items, such as graphics, embedded in
other files. It allows the recovery of previously deleted files located in unallocated
space. Users can also carve directory entries to find information about data or
metadata.
To recover embedded or deleted files, FTK searches the case evidence for specific file
headers. Using the data from a file header for a recognized file type, FTK determines
the length of that file, or looks for the file footer, and “carves” the associated data. A
new filename is determined and the file is saved. FTK can find any embedded or
deleted item as long as the file header still exists.
Data carving can be done when adding evidence to a case, or by clicking Evidence >
Additional Analysis > Data Carve from within a case. You can search all items for the
following file types:
• AOL Bag Files
150 AccessData FTK2 User Guide
• BMP Files
• EMF Files
• GIF Files
• HTML Files
• JPEG Files
• Link Files
• PDF Files
• OLE Archive Files (Office Documents)
• PDF Files
• PNG Files
DATA CARVING FILES WHEN PROCESSING A NEW CASE
Select to data carve when a case is created by selecting Data Carve in the Evidence
Processing dialog. Select Carving Options and the file types to carve.
For more information, see “Selecting Evidence Processing Options” on page 74.
DATA CARVING FILES IN AN EXISTING CASE
Data carving can be performed on previously processed data.
To data carve files in an existing case:
1. From the Evidence > Additional Analysis.
2. Check Data Carve.
3. Click Carving Options.
4. Set the data carving options to use.
5. Click OK to close the Carving Options dialog.
6. Select the target items to carve data from.
7. Click OK.
The carved files are added to the case, and can be searched, bookmarked, and
organized along with the existing files. For more information, see “Chapter 5 Working
with Cases” on page 91.
Using Filters 151
Chapter 8 Using Filters
AccessData Forensic Toolkit (FTK) can filter files by their metadata to find specific
evidence. For example, FTK can filter a large number of graphics by creation date to
see only those made during a certain time frame
The interface for the Filter function is intended to work as a handy side-utility. It can be
dragged to any part of the screen and used at any time.
THE FILTER TOOLBAR
The Filter toolbar contains the tools you need to create and manage filters for viewing
your case data.
Figure 8-1 The Filter Toolbar
For an explanation of the filter toolbar and its components, see “Toolbar Components”
on page 42.
152 AccessData FTK2 User Guide
APPLYING AN EXISTING FILTER
FTK contains the following predefined filters:
TABLE 8-1 Pre-defined Filters
Filter Description
Archive Files Shows only archive file items.
Bad Extension Files Shows only the files with extensions that don’t match the file.
Carved Files Shows only the items that have been carved.
Checked Files Shows only the items that you have selected with a checkmark.
Decrypted Files Shows only the items that have been decrypted by AccessData
tools, or have been decrypted by the user then added to the case.
Deleted Files Shows only those items that have the deleted status.
Duplicate Files Shows only items that have duplicates. Displays the primary copy
and all secondary copies of each file that has multiple instances..
Email Attachments Shows all items sent as attachments to a message, but does not
include the most recent email “container” message.
Email Files Shows only those items that have the email status.
Email Files and
Attachments
Shows all email items including email messages, related attachments,
and others, such as notes, appointments, and so forth.
Encrypted Files Shows only those items flagged as EFS files or other encrypted or
compressed files.
Evidence Items Shows all items from the root-level tree.
Flagged Ignorable Shows only those items you have identified as Ignorable.
Flagged Privileged Shows only those items you have identified as Privileged.
Folders Show only folder items.
From Recycle Bin Shows only those items taken from the recycle bin.
Graphic Files Show only those items that have been identified as graphics.
KFF Alert Files Shows all KFF alert files that are in a case.
Microsoft Office Files Show Word, Access, PowerPoint, and Excel files.
KFF Ignore Files Shows KFF ignore files that are in a case.
No Deleted Shows all but deleted items.
Using Filters 153
To apply an existing filter, use the Filter drop-down list on the File List toolbar,
displayed in the following figure.
No Duplicate Shows all files, but where duplicates are found, includes only the
primary (generally the first instance encountered by the program
during processing) copy, and does not display any secondary (all
subsequent instances of a file whose hash exactly matches another
instance of a file already added to the case) duplicate files.
No KFF Ignore Files Shows all items but KFF ignore files.
Not Flagged Ignorable Shows all items but those you indicated Ignorable.
No KFF Ignore or OLE
Subitems
Shows all items but KFF ignore files or OLE subitems.
No KFF Ignore or OLE
Subitems or Duplicate
Shows all items but KFF ignore files, OLE subitems, or duplicate
items.
Not Flagged Privileged Shows all items but those you flagged Privileged.
OLE Subitems Shows only OLE archive items and archive contents.
Reclassified Files Shows only those item you have changed the classification.
Registry Files Shows Window 9x and NT registry files.
Thumbs.db Files Shows Thumbs.db files.
Unchecked Files Shows only those items that you have not checked.
User-decrypted Files Shows only those items that you have decrypted and added to the
case.
Web Artifacts Shows HTML, Index.dat, and empty Index.dat files.
TABLE 8-1 Pre-defined Filters
Filter Description
154 AccessData FTK2 User Guide
Figure 8-2 File List Toolbar Filter Dropdown List
CREATING A FILTER
You can create or modify your own filters. These custom filters are saved with the case
in which they are created.
Filters consist of a name, a description, and as many rules as you need. A filter rule
consists of a property, an operator, and one or two criteria. (You might have two criteria
in something like a date range.)
Note: Using filters adds work and time to processing a case. The more filters applied, the more
time needed to process. Shut down the FTK user interface to speed up case processing.
1. Select Unfiltered from the Select a Filter drop-down menu.
2. Click Filter > New, or click Define on the Filter toolbar.
3. Type a name and a short description of the filter.
4. Select a property from the drop-down menu.
5. Select an operator from the Operators drop-down menu.
6. Select the applicable criteria from the Criteria drop-down menu.
Each property has its own set of operators, and each operator has its own set of
criteria. The combinations are vast to allow you to customize filters that fit your
needs.
7. Select the Match Any operator to filter out data that satisfies any one of the filter
rules or the Match All operator to filter out data that satisfies all rules of the filter.
8. Click Save.
Test the filter without having to save it first by selecting the Live Preview checkbox to
test the filter while creating it.
Using Filters 155
REFINING A FILTER
As the investigation progresses, investigators become more familiar with patterns and
file types needed in the case, and can adjust the filters to find this specific data. The
following figure displays the Filter Definition dialog used for changing and refining
filters.
Figure 8-3 Filter Definition Dialog
To modify an existing filter:
1. Select the filter you want to modify from the Filter drop-down list.
2. Click Define.
3. To make your filters more precise, click the Plus (+) button to add a rule, or the
Minus (–) button to remove one.
4. When you are satisfied with the filter you have created or modified, click Save, then
Close.
DELETING A FILTER
You can delete a custom filter if you no longer need it. Predefined, or system filters
cannot be deleted.
To delete a custom filter:
1. Select the filter to delete from the Filter drop-down menu list.
2. Click Filter > Delete or click the Delete Filter button on the Filter toolbar .
3. Confirm the deletion.
156 AccessData FTK2 User Guide
USING THE KNOWN FILE FILTER
The Known File Filter (KFF) uses a collection of hash values of known files to filter the
files found in the evidence. When you add evidence to the case, you can compare all the
files in the case to the hash values contained in the KFF database.
FTK creates and records hashes of the files it discovers in the evidence to demonstrate
that the files have not been modified since acquisition, and to allow for quick
determination if two files have the same contents.
UNDERSTANDING KFF HASHES
FTK includes hashes from two major reporting agencies, The National Institute of
Standards and Technology (NIST), and Hashkeeper. The toolkit also provides a
mechanism for the addition of hashes from other sources to the KFF database. When
you select a set in FTK the source reporting agency is displayed in a text box. It is good
practice when creating sets to put your own agency in the source field so that other
investigators know where the hashes came from.
IMPORTING KFF HASHES
When using the Import KFF Hashes feature, you can import hashes from several
supported formats.
To import hashes to the KFF database do the following steps:
Using Filters 157
1. Click Tools > KFF > Manage to open the KFF Administration dialog.
2. Click Import to open the KFF Hash Import dialog.
3. Click Add File and select one of the following file types:
• AccessData Hash Database (.hdb)
• FTK Imager Hash List (.csv)
• Hashkeeper Hash Set (.hke,hke.txt)
• Tab Separated Value (.tsv)
158 AccessData FTK2 User Guide
• National Software Reference Library (.nsrl)
• Hash (.hash)
• FTK.0 (.KFF)
3a. If you need to create a source, click Create New to open the KFF Source
Management dialog.
3b. Click New to open the Add New KFF Source dialog.
3c. Type name for the new source.
3d. Click OK.
4. Close the dialogs back to the KFF Administration dialog, and click Import.
The imported hash set is merged into the existing hash set and saved. Duplicate
hashes are overwritten.
Using Filters 159
EXPORTING KFF HASHES
To export a KFF hash file, follow these steps:
1. Click Tools > KFF > Manage.
2. Click Export.
3. Select the location to which you want to save the exported KFF file. FTK saves the
file as .kff by default.
4. Click Save.
UNDERSTANDING THE KFF DATABASE
FTK divides hashes into three table: AccessData, Case-specific, and Shared.
TABLE 8-2 KFF Library Groups
Table Description
AccessData These tables contain the hashes, sets and groups which are distributed with
FTK. You can create groups from these sets, but the sets are read-only.
Shared Create your own sets and groups. You should create non-case specific hash
sets and groups here. Sets or groups in these tables are accessible to anyone
using the same KFF database instance (cases are stored in the same
database). Groups in these tables may include sets from the AccessData or
shared tables but not from the case specific tables.
When setting the status of sets or groups it is important to be mindful of other
investigators or cases which may be using the KFF database. Remember that all cases
will have access to the AccessData and user tables so if you want to adjust statuses for
your case without interfering with other investigations you should create case specific
sets or groups.
STORING HASHES IN THE KFF DATABASE
The KFF database organizes hashes into sets and groups.
A set represents a related collection of evidence files. For example, WordPerfect 5.1,
Quicken 7, or a collection of photographs taken at a suspects home.
160 AccessData FTK2 User Guide
A group represents a collection of related sets. For example, legitimate software,
known child pornography, or known hacker tools.
Sets and groups allow investigators to rapidly specify what kind of files to which they
want to be alerted, to more easily comply with search warrant limitations by rapidly
disregarding files outside the warrant, and make the KFF more manageable and easier
to use.
Each set or group is assigned a status so that FTK can respond when it encounters
hashes that belong to the set or group.
Assign any of the following statuses to a set or group:
The group’s status supersedes the statuses of any of it’s sets without actually changing
the sets’ statuses. You can manually change the status of thousands of sets that don’t
apply to your case, or you can simply organize all of those sets into related groups and
change each group’s status. Any time you dissolve a group, each set in that group
retains the status it had prior to forming the group.
Only groups are analyzed. The two default groups: Alert and Ignore update
dynamically as a user modifies sets. They contain all sets in the KFF and cannot be
modified manually by the user.
If you have included the same set in two different groups, FTK prioritizes the status and
returns the highest priority status:
TABLE 8-3 KFF Group Status Options
Status Description
Alert Selecting this status indicates to the Forensic Toolkit that you want to be
alerted to the existence of any file in the set or group.
Disregard This case specific status allows the investigator to avoid violating search
warrant limitations. You can mark a group with the disregard status to treat
any matching files as if they were unknown. The files will still be indexed,
carved, and can be searched but the Forensic Toolkit will not automatically
alert the investigator to their presence in the suspect’s drive image.
Ignore This status is used to identify files that are without forensic significance
(known software packages or shared DLLs, for example). Utilizing this status
allows the Forensic Toolkit to sift these uninteresting files away from the
investigators view.
Using Filters 161
1. Disregard
2. Alert
3. Ignore
CREATING SETS AND GROUPS
To create sets and organize them into groups, follow these steps:
1. Select Tools > KFF > Manage.
2. Click New.
3. Name the group.
4. Assign the group a status.
5. Select the sets you want in the group from the Available Sets list and move them to
the Items in Group list by clicking the arrow button.
6. Click Apply to create the group without closing the Create New KFF dialog.
7. Click OK to save the group and close.
162 AccessData FTK2 User Guide
Decrypting Encrypted Files 163
Chapter 9 Decrypting Encrypted
Files
DECRYPTING FILES AND FOLDERS
FTK2.1 is designed to decrypt EFS, Microsoft Office, and Lotus Notes (NSF) files and
folders. To do so, the password must already be known. To find the passwords, export
encrypted files and add them as jobs in PRTK or DNA. When passwords are found,
you are ready to decrypt the encrypted files in FTK2.
Click Tools > Decrypt Files... to begin decryption. The following figure displays the
decryption menu:
164 AccessData FTK2 User Guide
Figure 9-1 Decrypt Files Dialog
To use the decryption menu, do the following:
1. Type a password in the Password box
1a. Confirm the password by typing it again in the Confirm Password box
2. Mark Permanently Mask to display the password in the Saved Passwords list as
asterisks, hiding the actual password.
3. Click Save Password to save the password into the Saved Password List.
4. Mark Attempt Blank Password to decrypt files with no password, or whose password is
blank.
Note: FTK 2.1 will automatically detect encrypted files in the case. Decrypt File Types will
automatically be marked according to the file types found. Unselect any file types you
wish not to decrypt.
5. Click Decrypt to begin the decryption process.
Note: The Decrypt button is disabled until at least one password is entered, or until Attempt
Blank Password is marked.
6. Click Cancel to return to the case.
Decrypting Encrypted Files 165
DECRYPTING WINDOWS EFS FILES
Windows 2000, XP Professional, 2003, and Vista include the ability to encrypt files and
folders through the Encrypting File System (EFS). AccessData Forensic Toolkit (FTK)
can break file encryption so that additional evidence can be uncovered.
UNDERSTANDING EFS
EFS is built in to Windows 2000, XP Professional, 2003, and Vista. It is not supported in
Windows XP Home Edition.
EFS can be used to encrypt files or folders. Within Windows, EFS files or folders can be
viewed only by the user who encrypted them or by the user who is the authorized
Recovery Agent. When the user logs in, encrypted files and folders are seamlessly
decrypted and the files are automatically displayed.
There are certain files that cannot be encrypted, including system files, NTFS compressed files,
and files in the C:\Windows_System_Root and its subdirectories.
Note: All EFS decryption requires the user’s or Recovery Agent’s password.
VIEWING DECRYPTED FILES
Find the decrypted files in the Overview tree, under the File Status > Decrypted Files
branch. Click on an individual file in the File List to view the file in the File Content
pane.
166 AccessData FTK2 User Guide
Figure 9-2 Overview Tab Viewing Decrypted Files
Note: Regardless of the encryption type, once decrypted, the files will appear in the File List
Name column as “Decrypted copy of <file name>,” as seen in the following figure:
Decrypting Encrypted Files 167
Figure 9-3
DECRYPTING DOMAIN ACCOUNT EFS FILES
This section deals with decrypting domain account EFS files using FTK. These can be
decrypted from image files, individually, or the whole image may contain the encrypted
files.
To decrypt EFS files from a file image, perform the following steps:
1. Create a new case with no evidence added.
168 AccessData FTK2 User Guide
2. From the main menu, click Evidence > Add/Remove.
3. Click Add.
4. Select Individual File(s).
5. Click OK.
6. Navigate to the PFX file (domain recovery key).
Or type the full path and filename into the File Name field of the Open dialog.
7. Click Open.
8. Click No when the application asks if you want to create an image of the evidence
you are adding.
9. Select the proper time zone for the PFX file from the Time Zone drop-down list in
the Manage Evidence window, and click OK.
FTK2.1 begins processing the PFX file and the progress dialog appears.
Note:
Decrypting Encrypted Files 169
DECRYPTING CREDANT FILES
Credant encryption is file-based and works much like EFS. Process drives with Credant
encryption normally. The Credant Decryption option in the tools menu is unavailable
unless the image contains Credant encryption.
Click Tools > Credant Decryption to open the Credent decryption options, as displayed in
the following figure:
Figure 9-4 Credant Decryption Dialog
The Credant integration for FTK allows two options for decryption; offline, and online.
For a key bundle located on the user’s local machine or network, use the offline option
with. For a key bundle located on a remote server use the online option.
USING AN OFFLINE KEY BUNDLE
Offline decryption is a quicker and more convenient option if the key bundle can be
placed on the investigator’s computer. Perform the following steps to decrypt a
Credant encrypted image offline: select the key bundle file and enter the password used
to decrypt it.
170 AccessData FTK2 User Guide
1. Open the Credant decryption options dialog.
2. Select the key bundle file by entering its location or browsing to it.
3. Enter the password.
4. Re-enter the password.
5. Click OK.
USING AN ONLINE KEY BUNDLE
Online decryption can only occur when the machine processing the image can directly
access the Credant server over the network. The following figure displays the online
tab:
Decrypting Encrypted Files 171
Figure 9-5 Credant Decryption Online Options
Usually FTK auto-populates the Credant Machine ID and Credant Shield ID fields. The
Credant Machine ID can be found on the Credant server as the Unique ID on the Properties
tab. The Credant Shield ID can be found as the "Recovery ID" on the "Shield" tab. It
looks like this: "ZE3HM8WW".
The Server Data group box contains information on how to contact the Credant
server. It includes the Credant Server user name, password, and IP. The port should
be 8081 (and is auto-populated).
The offline decryption requires you to get a key bundle file from the server. You need
to select the key bundle file and enter the password used to decrypt it. You can get the
key bundle file by executing the CFGetBundle.exe file with a command like that looks
like this:
CFGetBundle -Xhttps://10.1.1.131:8081/xapi -asuperadmin -Achangeit -
dcredantxp1.accessdata.lab -sZE3HM8WW -oKeyBundle.bin -ipassword
-X for the server address
-a for administrator name
-A for the administrator password
-d for the Machine ID
172 AccessData FTK2 User Guide
-s for the Shield ID
-o for the output file
-i for the password used to encrypt the keybundle
Once you have either used the online or offline method, the files will be decrypted
immediately and the decrypted file will become a child of the encrypted file. After
decryption, the files will be processed with the same settings last used to process a file.
DECRYPTING SAFEGUARD UTIMACO FILES
Safeguard* Utimaco* is a full-disk encryption program.
Figure 9-6 Decryption_SafeguardEncryptionCredentials
The Safeguard dialog box appears only when FTK2.1 reads a valid Utimaco-encrypted
image.
The username and password used to create the encrypted image are required for
decryption. Once the credentials have been added, click OK to return to the Manage
Evidence dialog. Select a timezone fromthe Time Zone drop-down, then click OK to
begin processing.
Important: Type the User Name and Password carefully and verify before
clicking OK. If this information is entered incorrectly, FTK2.1 checks the
entire image for matching information before returning with an error
message. Each wrong entry results in a longer wait.
Decrypting Encrypted Files 173
DECRYPTING SAFEBOOT FILES
SafeBoot is a program that encrypts drives and/or partitions. When FTK2.1 detects a
SafeBoot-encrypted drive or partition, the following dialog is displayed.
Figure 9-7 SafeBoot Encryption Key Entry
The encryption key must be available to enter into the Key field. All recognized
partitions are selected by default, up to a maximum of eight. You can unselect any
partition you wish not to add to the case.
Once the key has been added and the appropriate partitions selected, click OK to return
to the Manage Evidence dialog. Select a timezone fromthe Time Zone drop-down,
then click OK to begin processing.
174 AccessData FTK2 User Guide
Working with Reports 175
Chapter 10 Working with
Reports
Upon completion of the case investigation, AccessData Forensic Toolkit (FTK) can
create a report that summarizes the relevant evidence of the case. The final report is
made available in several formats and is viewable in a standard Web browser.
CREATING A REPORT
You create a report with the Report Wizard, as displayed in the following figure. You
access the Report Wizard by selecting File > Report.
176 AccessData FTK2 User Guide
Figure 10-1 Report Options Dialog
To create a report:
1. Enter basic case information.
2. Select the properties of bookmarks.
3. Decide how to handle graphics.
4. Decide whether to add a file path list.
5. Decide whether to add a file properties list.
6. Select the properties of the file properties list.
7. Add the Registry Viewer sections.
Each step is discussed in detail in the following sections.
SAVING SETTINGS
Report settings are auromatically saved when you finish specifying the report settings,
and click OK to generate the report.
Export report settings at anytime while creating a report, and after you finish specifying
the report settings. Import and reapply those settings to a new report, or a report in a
new case, as desired.
To export report settings do the following:
Working with Reports 177
1. Click Export. The Export Selections dialog opens.

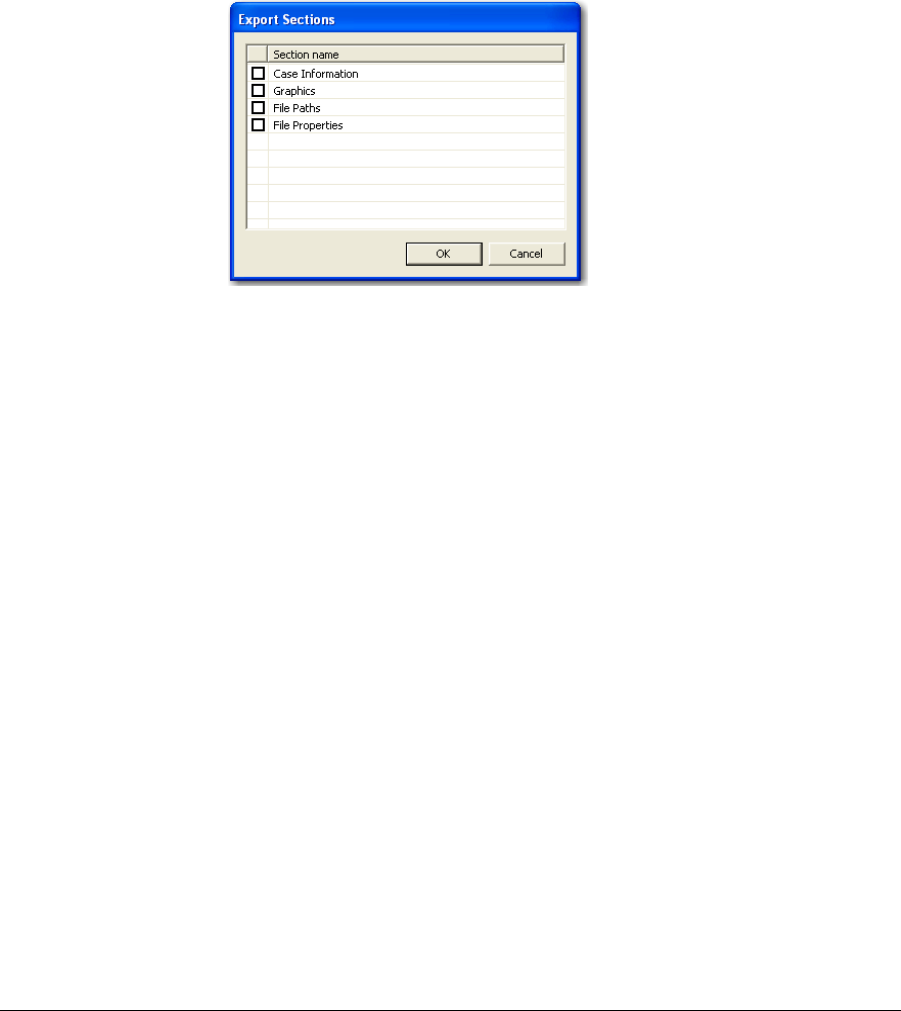

2. Check the sections to export the settings for.
3. Click OK.
4. Type a name for the setting file. Click OK to save the settings as an .XML file.
To import settings to a new report in another case, perform the following steps:
1. Open a different case.
1. Click File > Report > Import.
2. Browse to and select the settings file you want to import.
3. Click Open to import the settings file to your current case and report.
ENTERING BASIC CASE INFORMATION
The Case Information dialog provides fields for basic case information, such as the
investigator and the organization that analyzed the case. The following figure displays
the Report Options dialog with the basic case information displayed.
178 AccessData FTK2 User Guide
Figure 10-2 Basic Case Information
To include basic case information in the report, check the Case Information box in the
Report Outline on the left side of the screen. In the Default Entries pane, check the
entries to include in the report (all are checked by default). Double-click the Value field
to enter the required information.
Add and remove entries with the Add and Remove buttons below Default Entries. Mark
the Include File Extensions box to ensure that file extensions are included in case
information exported to the report.
To add an entry for case information do the following:
1. Click Add.
A new entry line appears at the bottom of the list.
2. Provide a label and a value for the new entry.
To remove a Case Information entry, do the following:
1. Highlight the entry line to be removed.
2. Click Remove.
Working with Reports 179
INCLUDING BOOKMARKS
Marking the Bookmarks dialog creates a section in the report that lists the bookmarks
that were created during the case investigation,as displayed in the following figure.
The investigator can also choose to not create a bookmark section by unselecting the
Bookmarks checkbox.
Figure 10-3 Bookmark Report Options
Mark the boxes to include Shared and/or User bookmarks. Choose whether to export
the files and include links to themin the report when it is generated and whether to
include graphic thumbnails that may be part of any bookmarks.
SELECTING SORT OPTIONS
Select the primary sort criterion for the bookmarks by clicking Sort Options. To set the
sort order for the bookmarks in the report, do the following:
180 AccessData FTK2 User Guide
1. Click Sort Options to open the Sort Options dialog.
2. Add a sort line by clicking Plus (+). Remove a sort line by clicking Minus (-).
3. Add sorting criteria by clicking the drop-down list button at the right end of the sort
line.
4. Click OK to close the dialog when you are satisfied with the sort options you have
selected.
SETTING BOOKMARK COLUMNS
The columns can be modified to display specific information about bookmarks
included in the report.
Figure 10-4
Working with Reports 181
To modify the column setting, click Columns. The Column Settings dialog opens. Select
a pre-defined columns template, or create your own. For more information on setting
columns, see “Customizing File List Columns” on page 197.
INCLUDING GRAPHICS
Mark the Graphics box under Report Outline to include graphics in the report. The
Graphics section in the report displays thumbnail images of the graphics in the case
and can link them to original graphics if desired, as displayed in the following figure.
Figure 10-5 Report Options: Graphics
Select the options as follows:
1. Apply no filter, or one of several filters to your graphics files.
2. If desired, mark the box to Export and link full-size graphics to thumbnails. This
allows the person viewing the report to click on a thumbnail and see the original
graphic that was found in the case.
3. Choose either of the following:
• Include all graphics in the case
• Include checked graphics only
4. Set the number of graphics to display per row.
182 AccessData FTK2 User Guide
5. If you want filenames displayed all together at the end of the report, mark the box
for Group all filenames at end of report. If this box is not marked, each filename
displays with its respective thumbnail.
6. Click Sort Options to access the Sort Options Page.
Figure 10-6 Report Graphics Sort Options
7. Set the desired sort options (note that only two options are available here).
8. Click OK to return to the Bookmark Options page for the report.
SELECTING A FILE PATH LIST
The List by File Path dialog creates a section in the report that lists the file paths of files
in selected categories. The List by File Path section simply displays the files and their
file paths; it does not contain any additional information. The files can be exported and
link to the files in the File Path list by selecting category item checkboxes to be
exported.
Working with Reports 183
Figure 10-7 File Path Report Options
Drag and drop an item to the Selected Categories window to copy an item and its
parent category. You can then check a category itemto export its contents to the report.
Checking an item automatically selects the files and folders under it.
SELECTING A FILE PROPERTIES LIST
The File Properties options allow the creation a section in the report that lists file
properties for files in selected categories. The options are displayed in the following
figure.
184 AccessData FTK2 User Guide
Figure 10-8 File Properties Report Options
Drag and drop items from the Available Categories box to the Selected Categories box.
Check items in the Selected Categories box items to export them tothe report.
Checking an item automatically selects the files and folders under it.
To modify the Sort Options, click Sort Options. For more information on modifying the
Sort Options, see “Selecting Sort Options” on page 179.
To modify column settings, click Columns. The Column Settings dialog opens. For more
information on setting columns, see “Customizing File List Columns” on page 197.
REGISTRY SELECTIONS
If the evidence drive image contains registry files, they can be included in the report
through the Registry Selections report options.
Working with Reports 185
Figure 10-9 Registry Selections Report Options
In the Registry File Types window, check the file types for headings to include in the
report. In the right window, check the registry file paths to included in the report.
RUNNING THE REPORT
When all report options have been selected, click OK to display the Report Output
dialog.
SELECTING THE REPORT LOCATION
The Report Output dialog allows the selection of the report location. The investigator
can also recreate the directory structure of exported items.
186 AccessData FTK2 User Guide
Figure 10-10 Report Output Dialog
To select the report location do the following:
1. Type the folder to save the report to, or use the Browse button to find a location.
2. Use the drop-down arrow to select the output language of the report.
3. Indicate the output format to publish the report.
4. Select the optional Export Options for the report:
4a. Use object identification number for filename.
4b. Append extension to filename if bad/absent.
5. When output selections have been made, click OK to being report generation.
CREATING THE REPORT
When the options are selected and you click OK, the Data Processing Status windows
appears. The progress bar dialog indicates the progress of the report.
The report displays when processing is complete. You can process only one report at a
time.
If another report generation is attempted while a report is generating, the investigator is
prompted to wait, as in the following dialog.
Working with Reports 187
Figure 10-11 Wait Dialog
VIEWING A REPORT
The report contains the information that you selected in the Report Wizard. When
included in the report, files appear in both raw data and in the report format. An
example of the main page of the HTML (index.htm)report is displayed in the following
figure.
Figure 10-12 HTML Case Report
The following figure represents the PDF version of the report as displayed in a viewer.
188 AccessData FTK2 User Guide
Figure 10-13 PDF Report
To view the report without opening it from FTK, browse to the report file and click on
the report file. The report will open in the appropriate program for the report file type
selected. For example:
• Click on index.htm to open an HTML document in a Web browser.
• Click on the file report.pdf to open the report in a PDF viewer.
• Click on the file report.docx to open the report in Microsoft Word 2007.
INTERNATIONAL DATE AND TIME STAMP ISSUE
Be sure, when distributing a report that the date and time stamp are in the format of
the intended recipient of the report. Once dates, as interpreted HTML views of binary
files in FTK, are put into a report, the output is always in the preferred format for the
computer that generated the report. So if the date and time are placed in the report in a
European format of dd/mm/yyyy versus the United States format of mm/dd/yyyy, some
problems can be presented. For example, a situation of 02/01/2003 could be interpreted
as 2 January 2003 (in the European format) or 1 February 2003 (in the United States
format). This interpretation could cause problems with internationally circulated cases
and reports.
Working with Reports 189
MODIFYING A REPORT
Recreate the report with the added evidence or changed report settings to modify the
report. Change the report settings for each report as needed. All previously distributed
reports should be retracted fromthe recipients to keep all recipients current.
PRINTING A REPORT
Print the report from the program used to view it. The PDF report is designed
specifically for printing hard copies, and will hold its formatting better than the HTML
report.
190 AccessData FTK2 User Guide
Customizing the Interface 191
Chapter 11 Customizing the
Interface
The AccessData Forensic Toolkit (FTK) interface provides a highly visual user interface
to make evidence more recognizable and easy to process. To help further, adjust the
interface to accommodate the current case and the user’s personal style.
CUSTOMIZING OVERVIEW
Adjust the size of the panes in the tabs by clicking on a border and dragging it to a new
size. The order of the tabs are rearranged by dragging and dropping them in the desired
order.
Users can add or remove panes from the current tab using the View menu. Click View
and click the pane you would like to add to the current view.
To save the new arrangement, Click View > Tab Layout > Save.
USING THE VIEW MENU TO CUSTOMIZE THE FTK INTERFACE
Use the View menu to control the pane views displayed in each tab. Several tabs are
available by default, but tabs can be customized, or new ones created to fit your needs.
192 AccessData FTK2 User Guide
Figure 11-1 FTK View Menu
The View menu contains the following options:
• Refresh the current view’s data
• View the Filter Bar
• Select the desired time zone for viewing
• Choose the display size for graphic thumbnails. Select from the following:
• Large - default
• Medium
• Small
• Tiny
• Customize the Tab Layout. Options are:
• Lock the tabs to prevent changes.
• Add a new tab.
Customizing the Interface 193
• Remove a tab.
• Save an individual tab
• Save all tab Layouts
• Restore to before previous change.
• Reset to factory defaults.
• Explorer Tree
• Graphics Tree
• Overview Tree
• Email Tree
• Bookmark Tree
• Index Searches
• Live searches.
• Bookmark Information
• File List
• File Content
• Email Attachments
• Properties
• Hex Value Interpreter
• Thumbnails
• Progress Window
CUSTOMIZING THE TAB VIEWS
From the View menu you can add panes to the current tab. Note that the Tree panes,
such as Explorer Tree, or Overview Tree, are “exclusive”, and only one can exist on a
single tab at any time.
194 AccessData FTK2 User Guide
To add other panes to a tab, Click View, then click to checkmark the pane to add.
Options are described in the table below:
USING THE TAB LAYOUT MENU
Use the options in the Tab Layout menu to save changes to tabs, restore original
settings, and lock settings to prevent changes.
The following table describes the options in the Tab Layout menu:
TABLE 11-1 View Panes Available from the View Menu
View Pane Description
Bookmark Information
File List Adds the File List Pane to the current tab.
File Content Adds the File Content Pane to the current tab.
Email Attachments Adds the Email Attachment Pane to the current tab.
Properties Adds the Properties Pane to the current tab.
Hex Value Interpreter Adds the Hex Value Interpreter to the current tab.
Thumbnails. Adds the Thumbnails Viewer Pane to the current tab.
TABLE 11-2 Tab Layout Menu Options
Option Description
Lock Locks the panes in place so that they cannot be moved.
Add Adds a blank tab to the FTK window. The new tab will be like the one
selected when this option is used.
Remove Removes the selected tab from the FTK window.
Save Saves the changes made to the tab.
Save All Layouts Saves the changes made to all tabs.
Restore Restores the FTK window to the settings from the last saved layout.
Custom settings can be restored.
Reset to Default Resets the FTK window to the setting that came with the program.
Custom settings will be lost.
Customizing the Interface 195
MOVING VIEW PANES
Move view panes on the interface by placing the cursor on the title of the pane,
clicking, dragging, and dropping the pane on the location desired. Hover the mouse
over the title bar of the pane until a Move icon (a four-direction arrow) appears. Hold
down the mouse button to undock the pane. Use the guide icons to dock the pane in a
pre-set location. The pane can be moved outside of the interface frame.
Figure 11-2 Pane in Movement
To place the view pane at a specific location on the application:
1. Place the mouse (while dragging a view pane) onto a docking icon. The icon changes
color.
2. Release the mouse button and the pane seats in its new position.
196 AccessData FTK2 User Guide
The following table indicates the docking options available:
TABLE 11-3 Docking Options
Docking Icon Description
Docks the view pane to the top half of the tab.
Docks the view pane to the right half of the tab.
Docks the view pane to the left half of the tab
Docks the view pane to the bottom half of the tab
Docks the view pane to the top, right, left, bottom, or center of the
pane. When docked to the center, the new pane overlaps the
original pane, and the both are indicated by tabs on the perimeter
of the pane.
Docks the view pane to the top, right, left, or bottom of the tree
pane. The tree panes cannot be overlapped.
Locks the panes in the application down, making them immovable.
When the lock is applied, the blue box turns grey.
Customizing the Interface 197
CREATING CUSTOM TABS
Create a custom tab to specialize an aspect of an investigation, add in desired features,
apply filters as needed, and to accommodate conditions specific to a case.
To create a custom tab, do the following:
1. Click View > Tab Layout > Add.
2. Enter a name for the new tab and click OK. The resulting tab is a copy of the tab
your were on when you created the new one.
3. From the View menu, select the features you need in your new tab.
Note: Features marked with diamonds are mutually exclusive, only one can exist on a tab at a
time. Features with check marks can co-exist in more than one instance on a tab.
4. When satisfied with your new tab’s content, click Save to save the current tab’s
settings, or View > Tab Layout > Save.
5. (Optional) Click View > Tab Layout > Save All to save all changed and added
features.
6. To remove tabs, click View > Tab Layout > Remove.
CUSTOMIZING FILE LIST COLUMNS
The Column Settings dialog allows the modification or creation of new definitions for
the information that displays in the File List, and in what order. Column settings are
also used to define what file information appears in the Bookmark and List File
Properties sections of case reports.
Using custom column settings, as displayed in the following figure, narrows the
information provided in the File List and case reports. Columns display specific
information about the listed files.
198 AccessData FTK2 User Guide
Figure 11-3 Column Options
Custom column settings can be exported as an .XML file, and imported for use in other
cases.
To export column settings to an .xml file, do the following:
1. Click Export.
2. Select a folder and provide a filename for the exported column settings file.
3. Click Save.
To import a column settings file, do the following:
1. From the Column Settings dialog, click Import.
2. Find and select the column settings .xml file.
3. Click Open.
CREATING AND MODIFYING COLUMN SETTINGS
To modify or create column settings:
Customizing the Interface 199
1. Right-click a heading in the File List, or click the Column Settings button to open
the Manage Columns context menu.
2. Click Column Settings. The Column Settings dialog opens.
3. From the Available Columns pane, select a category from which to use a column
heading. Add the entire contents of a category or expand the category to select
individual headings.
Note: Column widths in most view panes can be adjusted by dragging the column borders
wider or narrower.
Click on a column heading in the file list view to sort by that column. Hold down the
Shift key while clicking a column heading to make that column the primary sorted
column while the previously sorted column becomes the secondary sorted column.
To undo a secondary sort, click on a column heading to make it the primary sorted
column.
AVAILABLE COLUMNS
The following tables describe all available columns in the File List. The columns you
actually see depend on what tab and columns category you are in.
Note: When viewing data in the File List, use the type-down control feature to locate the
information you are looking for. Sort the column first, then type the first letter of what
you are searching for. FTK will move down the list to the first file containing that letter.
As you continue to type, the search gets more specific until you have typed the entire
name of the item. You may find exactly what you are looking for with only a few
characters. You can use the scroll button to move up and down the list at any point.
When you find the item in the list, select it.
COMMON FEATURES
The following column headings tend to be most shared among objects.
TABLE 11-4 Common Column Headings
Column Description
Accessed Date The timestamp showing when the object was last accessed.
Accessed Date (FAT) The date the object was last accessed.
200 AccessData FTK2 User Guide
Actual File Yes (Y) or No (N) value to indicate whether this is an Actual
File which is the file as the user or file system normally sees it,
as opposed to a member of All Files which includes metadata,
document summary info, etc.
Bad Extension Indicates if the file type does not match its header.
Carved Indicates whether the object has been carved.
Compressed Indicates whether the object is compressed. Only set on files.
Compressed File Size Displays the size of the compressed files. Only set on
compressed files.
Container Indicates whether the object has child objects.
Created Date Indicates the date the object was created.
Decrypted Indicates that the object has been decrypted.
Decrypted by User Indicates that the object has been decrypted by the user
before having been added to the case.
Deleted Yes (Y) or No (N) value to indicate whether an item was
deleted.
Duplicate File The file is a duplicate of another file in the case.
Encrypted Indicates whether the object is encrypted. Only set on files.
Extension Displays the object’s extension.
File Class Matches a branch on the Overview tree.
File Type An ID reflecting the identified or reclassified type of a file.
Flagged Ignorable Indicates that the object was marked as ignorable. Not
accessible to a reviewer.
Flagged Privileged Indicates that the object was marked as privileged. Not
accessible to a reviewer.
From Recycle Bin Yes (Y) or No (N) value to indicate a Recycle Bin index file, or
a recycled file still in the Recycle Bin folder.
Fuzzy Hash Opens the Fuzzy Hash dialog where you can specify the
number of words files must have in common to determine
how closely files relate to each other.
Fuzzy hash blocksize Fuzzy hash blocksize
Fuzzy hash library group Fuzzy hash library group
Fuzzy hash library score Fuzzy hash match score
TABLE 11-4 Common Column Headings
Column Description
Customizing the Interface 201
DISK IMAGE FEATURES
The following table displays the stored hashes for the logical image.
TABLE 11-5 Column Headings for Viewing Hashes
Column Description
Validate MD5 Indicates the validated MD5 hash of the object. This is the internal
stored hash of an image such as E01 or SMART.
Validate SHA-1 Hash Indicates the validated SHA-1 hash of the object. This is the internal
stored hash of an image such as E01 or SMART.
Fuzzy hash libarry status Fuzzy hash libarry status
Item Number Displays a unique ID number assigned the object by FTK.
Logical Size Indicates the logical size of an object.
MD5 Hash Indicates the MD5 hash of the object’s contents.
Modified Date Indicates the date the object was last modified.
Name Indicates the name of the object.
Object Type The type of the object.
Original File Type Indicates the original type of an object whose type has been
changed.
Path Shows the full path of an object.
Physical Size Indicates the amount of space the object takes up on a disk.
Recycle Bin Original Name Displays the name of a file in the Recycle Bin folder before
the file was recycled.
SHA-1 Hash Indicates the SHA-1 hash of the object’s contents.
SHA-256 Hash Indicates the SHA-256 hash of the object’s contents.
TABLE 11-4 Common Column Headings
Column Description
202 AccessData FTK2 User Guide
EMAIL FEATURES
These column headings listed in this table are features specific to email in general, to
Microsoft Outlook*/Exchange*, and to Outlook Express.
TABLE 11-6 Common Email Column Headings
Column Description
Lotus Notes-specific features Options include:
Outlook Express-specific Features See below, table titled Microsoft Outlook Express
Column Headings
Outlook/Exchange-specific Features See below, table titled Microsoft Outlook/
Exchange Column Headings
Attachment Whether the email contained an attachment
BCC Indicates addresses in the Blind Carbon Copy field.
CC Indicates addresses in the Carbon Copy field.
Delivery Time For outgoing email, it indicates the time the object was
sent; for incoming email, it indicates the time the
object was received.
Email File True if file is part of email.
From Lists the addresses in the object’s From field.
From Email Indicates whether the object came from an email or an
email archive.
Has Attachment Indicates whether the object has an attachment.
Subject Lists the text in the object’s Subject field.
To Lists the addresses in the object’s To field.
Unread Indicates whether the object is marked as Unread.
Unsent Indicates whether the object was marked as Sent.
•Note ID: The Lotus Notes NOTE_ID (unique to
the NSF file).
•UNID: The Lotus Notes Universal Note ID
(globally unique).
Customizing the Interface 203
MICROSOFT OUTLOOK EXPRESS HEADINGS
These email headings are set for Microsoft Outlook Express only:
TABLE 11-7 Microsoft Outlook Express Column Headings
Column Description
Account Name Indicates the name of the account associated with the object.
Account Registry Key Indicates the registry key associated with the object’s account.
Answered Indicates whether the object was answered. True if the Email
has been answered, false otherwise.
Answered Message ID Displays the ID of the email’s answered message.
Digitally Signed Indicates whether the email was digitally signed.
Email Size Indicates the size of the email. Only set on emails from
Outlook Express.
Has Attachment
(Outlook Express)
Indicates whether the email has an attachment. True if the
email has at least one attachment, false otherwise. Only set
on emails from Outlook Express.
Hotmail Message ID Displays the ID of a Hotmail email message.
Marked Indicates whether the email has been marked. True if the
email has been marked, false othewise. Only set on emails
from Outleook Express.
Message ID Displays the message ID. Only set for Outlook Express.
Message Offset Shows the message offset of the email.
News Indicates whether the email was a news item. True if the
email is a news item, false otherwise. Only set on emails from
Outlook Express.
Priority Shows the priority assigned the email. Only set for Outleook
Express.
Recipient Address Lists the addresses in the email’s recipient field. Only set for
Outleook Express.
Recipient Name Lists the names in the email’s recipient field. Only set for
Outleook Express.
Sender Address Lists the addresses in the email’s sender field. Only set for
Outleook Express.
Sender Address and Name Lists the addresses and names in the email’s sender field.
Only set for Outleook Express.
204 AccessData FTK2 User Guide
MICROSOFT OUTLOOK/EXCHANGE HEADINGS
These email headings are set for Microsoft Outlook/Exchange only:
Sender Name Lists the name in the email’s sender field. Only set for
Outleook Express.
Server Lists the server used to send the email. Only set for Outleook
Express.
Server Info Lists the server information the email. Only set for Outleook
Express.
Subject
(Outlook Express)
Lists the text on the email’s subject field. Only set for
Outleook Express.
Subject Without Prefix Lists the text without the prefix on the email’s subject field.
Only set for Outleook Express.
Thread Ignored Indicates whether a thread was marked as Ignore. Only set
for Outleook Express.
Thread Watched Indicates whether a thread was marked as Watch. Only set for
Outleook Express.
Time Message Saved
(Outlook Express)
Indicates the time an email was Saved. Only set for Outleook
Express.
Time Received
(Outlook Express)
Indicates the time an incoming email was received. Only set
for Outleook Express.
Time Sent
(Outlook Express)
Indicates the time an outgoing email was sent. Only set for
Outleook Express.
TABLE 11-8 Microsoft Outlook/Exchange Column Headings
Column Description
Attachment MIME Tag Lists the attachment MIME tag of the email.
Client Submit Time Indicates the time the client submitted the email.
Comment Lists any comment associated with the email.
Content Count Indicates the content count of the email.
Content Unread Indicates whether the email is marked Unread.
Conversation Topic Indicates the email’s conversation topic.
TABLE 11-7 Microsoft Outlook Express Column Headings
Column Description
Customizing the Interface 205
Delete After Submit Indicates whether the email was marked for deletion after it
was submitted.
Display Name Lists the email’s display name.
From Me Indicates whether the email was marked From Me.
Importance Indicates the email’s assigned importance.
Message Class Indicates the class assigned to the message in the email.
Message Size Indicates the size of the email.
Originator Delivery Report
Requested
Indicates whether an Originator Delivery Report was
requested.
Provider Submit Time Indicates the time at which the provider submitted the email.
Read Receipt Requested Indicates whether the email sent requested confirmation of
the email.
Received By Email Address Indicates the time at which the addressee received the email.
Received By Name Lists the name on the addresses that received the email.
Received Representing Email
Address
Displays the address of a Representing email recipient.
Reply Recipient Names Lists the addresses in the Reply To: field.
Resend Indicates whether the email was marked Resend.
Sender Email Address Lists the address in the email’s Sender field.
Sensitivity Indicates the sensitivity assigned the email.
Sent Representing Email
Addresses
Displays the address of a Representing email sender.
Sent Representing Name Displays the name of the Representing email sender.
Submitted Indicates whether the email was marked as Submit.
Transport Message Headers Lists the Simple Mail Transfer Protocol (SMTP) headers.
Unmodified Indicates whether the email has been marked as Modified.
TABLE 11-8 Microsoft Outlook/Exchange Column Headings
Column Description
206 AccessData FTK2 User Guide
ENTROPY STATISTICS
These column headings list information that indicate entropy statistic possibilities such
as encryption and compression.
TABLE 11-9 Entropy Statistics Column Headings
Column Description
Arithmetic Mean The result of summing all the bytes and dividing by the file length.
If random, the value should be about 1.75; if the mean departs
from this value, the values are consistently high or low.
Chi Squared Error
Percent
This distribution is calculated for the stream of bytes in the file and
expressed as an absolute number. This percentage indicates how
frequently a truly random number would exceed the value
calculated.
Entropy Shows the information density of a file in bits per character.
Amounts close to 8 indicate randomness.
MCPI Error Percent Monte Carlo algorithm, named after Monte Carlo, Monaco, is a
method involving statistical techniques for finding solutions to
problems.
This heading shows the result of using a Monte Carlo algorithm to
approximate Pi.
Serial Correlation
Coefficient
Indicates the amount to which each byte in an email relies on the
previous byte. Amounts close to 0 indicate randomness.
FILE STATUS FEATURES
The file status columns show hash set names that match the file and their status.
TABLE 11-10 File Status Column Headings
Column Description
Hash Set Indicates the set from which the hash came. Lists the sequence
entered into the database, or the program that generated the hash.
KFF Status Lists the KFF status of the file.
Label Label associated with an object.
Customizing the Interface 207
If a file has matches from more that one set, the status with the height value is used.
For more information, see “Using Filters” on page 151.
FILE SYSTEM FEATURES
These column headings list information specific to a particular file system.
TABLE 11-11 File Status Column Headings
Column Description
DOS Features See below, in the table titled DOS File System Column
Headings.
ext2 Features See below, in the table titled ext2 File System Column
Headings.
HFS Features See below, in the table titled HFS File System Column
Headings
NTFS Features See below, in the table titled NTFS File System Column
Headings
Unix* Security Features See below, in the table titled Unix Security File System Column
Headings
Start Cluster Indicates the starting cluster of a file on a disk or volume.
Start Sector Indicates the starting sector of a file on a disk or volume.
Not KFF Ignore or OLE
Subitem
True if the file is not marked KFF Ignore, or the file is not an
OLE subitem.
Not KFF Ignore, OLE
Subitem, or Duplicate
True if the file is not marked KFF Ignore or the file is not an
OLE subitem, or the file is not a duplicate of another file.
TABLE 11-10 File Status Column Headings
Column Description
208 AccessData FTK2 User Guide
DOS FILE SYSTEMS
These column headings list information specific to DOS.
TABLE 11-12 DOS File System Column Headings
Column Description
8.3 Name Lists the 8.3 format name of the object.
Archive Indicates whether the Archive attribute was set on the object.
Hidden Indicates whether the Hidden attribute was set on the object.
Read Only Indicates whether the Read Only attribute was set on the object.
System Indicates whether the System attribute was set on an object.
EXT2 FILE SYSTEMS
These column headings list information specific to ext2.
TABLE 11-13 ext2 File System Column Headings
Column Description
Deleted Date Lists the date on which the object was deleted. Set on Unix objects only.
inode Number Lists the inode Number of an object. Set on Unix objects only. Data
structures that contain information about files in Unix file systems that
are created when a file system is created. Each file has an inode and is
identified by an inode number (i-number) in the file system where it
resides. User and group ownership, access mode (read, write, execute
permissions) and type inodes provide important information on files.
There are a set number of inodes, which indicates the maximum
number of files the system can hold.
A file's inode number can be found using the ls -i command, while the
ls -l command will retrieve other inode information.
Customizing the Interface 209
HFS FILE SYSTEMS
These column headings list information specific to HFS.
NTFS FILE SYSTEMS
These column headings list information specific to NTFS.
TABLE 11-14 HFS File System Column Headings
Column Description
Backup Date Displays the date on which the object was backed up.
Catalog Node ID Displays the catalog node ID of the object.
Color (HFS) Indicates the color of the object.
File Creator (HFS) Lists the object’s creator.
File Locked (HFS) Indicates whether the object was locked.
File Type (HFS) Indicates the object’s file type.
Folder Valence (HFS) Lists the number of files and folders directly contained in any
given object.
Invisible (HFS) Indicates whether the object is invisible.
Name Locked (HFS) Indicates whether the object’s file name is locked.
Put Away Folder ID (HFS)Lists the ID of the object’s Put Away folder.
TABLE 11-15 NTFS File System Column Headings
Column Description
Alternate Date Stream Count The number of alternate data streams contained in the object.
Group Name Displays the Group Name of the object’s owner.
Group SID Displays the group SID of the object owner.
MFT Record Number Displays the object’s Master File Table (MFT) record number,
indicating what metadata is needed to retrieve an object.
Offline Indicates whether the object’s Offline attribute is set.
Owner Name Displays the name of the object owner.
Owner SID Displays the SID of the object owner.
Record Date Indicates the record date of the object.
Resident? Indicates whether the Resident attribute is set for the object.
210 AccessData FTK2 User Guide
UNIX SECURITY FILE SYSTEMS
These column headings list information specific to the Unix security file system.
STEGANOGRAPHY
These column hedings list information specific to files where steganography is found:
Sparse? Indicates whether the Sparse attribute is set for the object.
Temporary Indicates whether the Temporary attribute is set for the
object.
TABLE 11-16 Unix Security File System Column Headings
Column Description
GID Displays the Group ID of the object.
Group Name (Unix) Displays the Group Name of the object.
Permissions Lists the Permission settings for the object.
UID Displays the User ID of the object.
Username Displays the Username of the object.
TABLE 11-17 Steganography Column Headings
Column Description
Confidence Level of confidence that this file contains a
steganographic payload
Highest Confidence Level of highest confidence that this file contains a
steganographic payload among all the candidate
steganography applications.
Stego App Application used to extract this steganographic payload.
Stego Password Password used by steganography application to extract
this steganograpyhic payload.
TABLE 11-15 NTFS File System Column Headings
Column Description
Customizing the Interface 211
ZIP-SPECIFIC FEATURES
These column headings list information specific to files zipped (combined) or
compressed into a single file.
TABLE 11-18 Zip-Specific Column Headings
Column Description
Checksum Displays the checksum value of the object.
Compression Method Displays the compression method of the object.
Extract Version Displays the extract version of the object.
212 AccessData FTK2 User Guide
Other AccessData Applications 213
Chapter 12 Other AccessData
Applications
In addition to AccessData Forensic Toolkit (FTK), other AccessData products can be
used to capture and further analyze data.
ACCESSING ADDITIONAL PRODUCTS
Click Tools > Other Applications to access the following choices.
• Imager
• PRTK & DNA
• Registry Viewer
• LicenseManager
• Language Selector
For more in formation on these products, see the users’ manuals on the AccessData
Downloads Web page at www.accessdata.com/support.
CAPTURING EVIDENCE WITH IMAGER
FTK Imager is a data preview and imaging tool used to quickly assess electronic
evidence to determine if further analysis with FTK is warranted. Imager creates forensic
images (exact copies) of computer data without making changes to the original
214 AccessData FTK2 User Guide
evidence. The forensic image is identical in every way to the original, including file slack
and unallocated space or and drive free space.
Imager performs the following tasks:
• Preview files and folders on local hard drives, network drives, floppy diskettes, Zip
disks, CDs, DVDs, and USB storage devices.
• Create forensic images of local hard drives, floppy diskettes, Zip disks, CDs, DVDs,
and USB storage devices.
• Preview the contents of forensic images stored on the local computer or on a
network drive.
• Export files and folders from forensic images.
• Generate hash reports for regular files and disk images (including files inside disk
images)
Important: When using Imager to create a forensic image of a hard drive, use
a hardware-based, write-blocking device as well. This ensures that the
operating system does not alter the hard drive data while attached to the
imaging computer.
Create a hash of the original drive image that can be referenced later as a benchmark to
prove the integrity of the case evidence. Imager verifies that the drive image hash and
the drive hash match when the drive image is created. Two hash functions are available
in FTK Imager: Message Digest 5 (MD5) and Secure Hash Algorithm (SHA-1).
After you create a drive image of the data, use FTK to perform a complete and
thorough forensic examination and create a report of your findings.
RECOVERING PASSWORDS WITH PRTK
Password Recovery Toolkit (PRTK) is a software solution that provides tools to recover
passwords and gain access to computer files:
• Passworded and/or encrypted files law enforcement needs access to as part of an
investigation
• Vital personal files protected by a forgotten password
• Password-protected network files
PRTK provides password-breaking modules for manu popular software applications
you encounter.
Other AccessData Applications 215
HOW PRTK WORKS
PRTK analyzes passworded and encrypted files to determine passwords and decryption
keys using recovery modules for supported applications. Before recovering passwords
for protected files, PRTK creates hash values that can be used to establish that the
content of a file was not changed during the password recovery.
PRTK ships with many default dictionary files and rule sets that it uses in cracking
passwords. PRTK also uses custom dictionaries created from word lists you import,
(often exported from an FTK case), and and rules you define, to attempt every
conceivable password possibility against a file. Whenever a password is successfully
found, that password is added to the Golden dictionary.
After recovering passwords, PRTK lets you verify hashes, print reports, and decrypt/
open recovered files.
PRTK FEATURES
PRTK performs the following functions:
• Hash files: Hashing a file uses a unique algorithm that verifies the identity of a file.
Before recovering the password of a file, PRTK automatically hashes that file. This
is particularly helpful to law enforcement personnel who need to verify that a file
has not been changed while recovering a password.
• Recover passwords: PRTK can recover passwords for files created in most
popular software applications by using a variety of methods, including the
dictionary attack, which recovers a password using different dictionaries and word
combinations. PRTK also recovers multi-lingual passwords.
• Decrypt files: many PRTK modules include a keyspace attack in addition to a
dictionary attack. A keyspace attack attempts to determine the decryption key of a
file where no password has been used.
• Generate reports: Print file information for password recovery jobs.
• Open recovered files: Open recovered files in their native if the applications using
the password or key provided by PRTK.
216 AccessData FTK2 User Guide
OBTAINING PROTECTED INFORMATION WITH REGISTRY
VIEWER
The Windows Registry stores all the information necessary for the Windows operating
system to control hardware, software, user information, and the overall functionality of
the Windows interface. Unlike Windows Registry Editor, which only displays the
registry settings for the currently authenticated user, AccessData Registry Viewer lets
you examine registry files from any user on the computer, or network. Registry Viewer
also provides access to a registry’s protected storage, which contains passwords,
usernames, and other information not accessible in Windows Registry Editor.
Detailed information on Registry Viewer functionality is available in the Registry
Viewer manual.
Integrating Registry Viewer with FTK allows you to view registry files and create
registry reports from within FTK. Any created reports are saved by default in the
current FTK case folder.
Integration also allows you to extract and open registry files on the fly from hard drive
images. FTK automatically creates a temporary registry file from the drive image and
opens it in Registry Viewer. FTK deletes the temporary file when the user finishes with
the temporary file.
For more information, see Appendix E: “Appendix E Securing Windows Registry
Evidence” on page 255.
MANAGING LICENSES WITH LICENSEMANAGER
LicenseManager manages AccessData product licenses on a Keylok dongle or Wibu
CodeMeter Stick security device, or in a security device packet file. LicenseManager and
the CodeMeter Stick installation are no longer integrated with FTK2 installation.
LicenseManager displays license information, allows you to add or remove existing
licenses to a dongle or CmStick. LicenseManager can also be used to export a security
device packet file. Packet files can be saved and reloaded onto the dongle or CmStick,
or sent via email to AccessData support.
In addition, you can use LicenseManager to check for product updates and download
the latest product versions.
Other AccessData Applications 217
LicenseManager displays CodeMeter Stick information (including packet version and
serial number) and licensing information for AccessData such products as FTK,
eDiscovery, Enterprise, PRTK, DNA, and Registry Viewer. The Purchase Licenses button
connects directly to the AccessData website and allows you to browse the site for
information about products you may wish to purchase. Contact AccessData by phone
to speak with a Sales Representative for answers to product questions, and to purchase
products and renew licenses and subscriptions.
The licensing information provides the following:
• Names of programs
• Versions of programs
• Subscription expiration date
• Number of licensed clients
STARTING LICENSEMANAGER
LicenseManager.exe is located in C:\ProgramFiles\AccessData\Common
Files\AccessDataLicenseManager\. When starting LicenseManager, License Manager
reads licensing and subscription information from the installed CodeMeter Stick.
From within FTK2, click Tools > Other Applications > LicenseManager,
OR
Click Start > All Programs > AccessData > LicenseManager > LicenseManager,
OR
Click or double-click (depending on your Windows settings) the LicenseManager icon on
your desktop .
The LicenseManager program opens.
If using a CodeMeter Stick, and LicenseManager either does not open or displays the
message, “Device Not Found”, do the following:
• Make sure the CodeMeter Runtime 3.30a software is installed. It is available at
www.accessdata.com/support. Click Downloads and browse to the product. Click
on the download link. Once the CodeMeter Runtime software is installed and
running, you will see a gray icon in your system tray .
218 AccessData FTK2 User Guide
• Make sure the CodeMeter Stick is connected to the USB port. When the CmStick is
then connected, you will see the icon change to look like this: .
If the CodeMeter Stick is not connected, LicenseManager still lets you to manage
licenses using a security device packet file if you have exported and saved the file
previously.
To open LicenseManager without a CodeMeter Stick installed:
1. Click Tools > LicenseManager.
LicenseManager displays the message, “Device not Found”.
2. Click OK, then browse for a security device packet file to open.
Note: Although you can run LicenseManager using a packet file, FTK2.1 will not run with a
packet file alone. You must have the CmStick connected to the computer to run FTK2.1.
LICENSEMANAGER INTERFACE
The LicenseManager interface consists of two tabs that organize the options in the
LicenseManager window: the Installed Components tab and the Licenses tab.
THE INSTALLED COMPONENTS TAB
The Installed Components tab lists the AccessData programs installed on the machine.
The Installed Components tab is displayed in the following figure.
Other AccessData Applications 219
Figure 12-1 Licence Manager Installed Components
The following information is displayed on the Installed Components tab:
TABLE 12-1 LicenseManager Installed Components Tab Features
Item Description
Program Shows a list of AccessData products installed on the host.
Installed Version Shows the version of each AccessData product installed on the
host.
Newest Version Shows the latest version available of each AccessData product
installed on the host.
Product Notes Displays notes and information about the product selected in the
program list.
AccessData Link Links to the AccessData product page where you can learn more
about AccessData products.
Help Opens the LicenseManager Help web page.
220 AccessData FTK2 User Guide
Use the Installed Components tab to manage your AccessData products and stay up to
date on new releases.
THE LICENSES TAB
The Licenses tab displays CodeMeter Stick information for the current security device
packet file and licensing information for AccessData products available to the owner of
the CodeMeter Stick, as displayed in the following figure.
Install Newest Button Installs the newest version of the programs checked in the product
window. You can also get the latest versions from our website
using your Internet browser.
Newest Button Downloads a list of AccessData’s available products and their
latest versions.
About Displays the About LicenseManager screen. Provides version,
copyright, and trademark information for LicenseManager.
Done Closes LicenseManager.
TABLE 12-1 LicenseManager Installed Components Tab Features
Item Description
Other AccessData Applications 221
Figure 12-2 License Manager Licenses Tab
The Licenses tab provides the following information:
TABLE 12-2 LicenseManager Licenses Tab Features
Column Description
Program Shows the owned licenses for AccessData products.
Expiration Date Shows the date on which your current license expires.
Status Shows these status of that product’s license:
•None: the product license is not currently owned
•Days Left: displays when less than 31 days remain on the
license.
•Never: the license is permanently owned. This generally applies
to Hash Tables and Portable Office Rainbow Tables.
Name Shows the name of additional parameters or information a product
requires for its license.
222 AccessData FTK2 User Guide
The following license management actions can be performed in the License tab:
Value Shows the values of additional parameters or information a product
requires for its license.
Show Unlicensed When checked, the License window displays all products, whether
licensed or not.
TABLE 12-3 License Management Options
Button Function
Remove License Removes a selected license from the Licenses window and from
the CodeMeter Stick or dongle. Opens the AccessData License
Server web page to confirm success.
Refresh Device Connects to the AccessData License Server. Downloads and
overwrites the info on the CodeMeter Stick or dongle with the
latest information on the server..
Reload from Device Begins or restarts the service to read the licenses stored on the
CodeMeter Stick or dongle.
Release Device Click to stop the program reading the dongle attached to your
machine, much like Windows’ Safely Remove Hardware feature.
Click this button before removing a dongle.
This option is disabled for the CodeMeter Stick.
Open Packet File Opens Windows Explorer, allowing you to navigate to a .pkt file
containing your license information.
Save to File Opens Windows Explorer, allowing you to save a .pkt file
containing your license information. The default location is My
Documents.
Finalize Removal Finishes the removal of licenses in the unbound state. Licenses
must be unbound from the CmStick or dongle before this button
takes effect.
View Registration Info Displays an HTML page with your CodeMeter Stick number and
other license information.
Add Existing License Allows you to bind an existing unbound license to your CodeMeter
Stick, through an internet connection to the AccessData License
Server.
TABLE 12-2 LicenseManager Licenses Tab Features
Column Description
Other AccessData Applications 223
OPENING AND SAVING SECURITY DEVICE PACKET FILES
Open or save security device packet files using LicenseManager. You must save a packet
file to create it before you can open it.
To save a security device packet file, on the Licenses tab do the following:
1. Click Save to File.
2. The packet file is already named. The default folder is My Documents. Accept, or
specify a different folder location for the.pkt file, then click Save.
Note: When started, LicenseManager attempts to read licensing and subscription information
from the installed CodeMeter Stick. If the CodeMeter Stick is not installed,
LicenseManager opens a browse window to locate a security device packet file.
To open a security device packet file, open the Licenses tab and do the following:
1. Click Open Packet File.
2. Browse for a security device packet file to open, then click Open.
VIEWING PRODUCT LICENSES
LicenseManager lets you view product license information for products registered (or
associated) with your CodeMeter Stick or security device packet file.
To view product licenses that are currently associated with the connected CodeMeter
Stick, click Reload from Device.
To view all available product licenses that are or can be associated with a CodeMeter
Stick (according to Web site database), click View Registration Info.
Purchase License Brings up the AccessData product page from which you can learn
more about AccessData products.
About Displays the About LicenseManager screen. Provides version,
copyright, and trademark information for LicenseManager.
Done Closes LicenseManager.
TABLE 12-3 License Management Options
Button Function
224 AccessData FTK2 User Guide
To synchronize a CodeMeter Stick with the product license information in the
AccessData Web site database, click Refresh Device.
ADDING AND REMOVING PRODUCT LICENSES
On a computer with an Internet connection, LicenseManager adds or removes
available product licenses on a CodeMeter Stick.
ADDING A PRODUCT LICENSE
To add, or “bind” an existing product license follow these steps:
1. Click the Licenses tab
2. Click Add Existing License.
3. On the Web site that comes up, click the box labeled Bind to select the product
license you want to add.
4. Click Submit.
5. The Web site displays a window confirming the license has been associated with the
attached security device.
6. Close the internet browser.
7. Click Yes when the LicenseManager prompts, “Were you able to associate a new
product with this Device?”
8. Click OK on the Packet Update Successful dialog.
REMOVE A PRODUCT LICENSE
The following steps help to remove, or “unbind,” a product license from the current
CodeMeter Stick or dongle in the computer:
1. Open LicenseManager
2. Click the Licenses tab.
3. Select the program licenses to remove.
Other AccessData Applications 225
4. Click Remove License.
5. Click Yes.
6. Click OK on the Packet Update Successful dialog.
7. Close the Web browser.
Note: The licenses remain under your name and your control. They are simply “unbound”
from the device they were bound to, and remain available to be re-bound to the same
device later, or bound to a different device.
MANAGING PRODUCT LICENSES ON ISOLATED MACHINES
When unable to connect to the Internet, the easiest way to move licenses from one
CodeMeter Stick to another is to physically move the CodeMeter Stick to a computer
with an Internet connection, add or remove product licenses as necessary using
LicenseManager, then physically move the CodeMeter Stick back to the original
computer. However, if the CodeMeter Stick cannot be moved or removed from its
current machine or area and there is no machine available with Internet access or email,
contact your AccessData Sales Representative for special instructions.
ADDING OR REMOVING A PRODUCT LICENSE ON AN ISOLATED MACHINE
To add (associate) a product license do the following:
1. On the computer where the CodeMeter Stick resides do the following:
1a. Click Reload from Device in the Licenses tab to read the CodeMeter Stick license
information.
1b. Save the security device packet file to the local machine.
2. Copy the security device packet file to a computer with an Internet connection.
3. On the computer with an Internet connection:
3a. Open the copied security device packet file in LicenseManager.
3b. Click Add Existing License.
226 AccessData FTK2 User Guide
Ignore the prompt for now; you will answer it inthe next step. Complete the
process to add a product license on the Web site instead. When complete, move
to the next step.
3c. Click Yes when the LicenseManager prompts, “Were you able to associate a new
product with this security device?”
When LicenseManager does not detect a dongle or the serial number of the
security device does not match the serial number in the dongle packet file, it
prompts to save the updated file (an executable).
4. After the update file is downloaded, copy the update file to the computer where the
dongle resides.
5. On the computer where the dongle resides do the following:
5a. Run the update file.
5b. Click Reload From Device in the Licenses tab to verify the product license has
been added to the dongle.
Note: On the computer with an Internet connection, click View > Registration Info in
LicenseManager to see license information for associated and unassociated product
licenses.
REMOVING A PRODUCT LICENSE FROM AN ISOLATED MACHINE
To remove (unbind) a product license:
1. On the computer where the dongle resides do the following:
1a. Click Reload from Device in the Licenses tab to read the dongle license
information.
1b. Save the security device packet file to the local machine.
2. Copy the file to a computer with an Internet connection.
3. On the computer with an Internet connection:
3a. Open the copied security device packet file in LicenseManager.
3b. Select the product license to unbind then click Remove License.
3c. When prompted to remove the selected license from the security device, click
Yes.
When LicenseManager does not detect a dongle or the serial number of the
dongle does not match the serial number in the dongle packet file,
LicenseManager prompts to save the update file.
3d. Save the updated file to the local machine.
4. After the update file is downloaded, copy the update file to the computer where the
dongle resides.
Other AccessData Applications 227
5. On the computer where the dongle resides:
5a. Double-click to execute the update file.
5b. Click Reload From Device in the Licenses tab to verify the product license is
removed from the dongle.
5c. Save the security device packet file to the local machine.
6. Copy the file to a computer with an Internet connection.
7. On the computer with an Internet connection:
7a. Open the copied security device packet file in LicenseManager.
7b. Click Finalize Removal.
Note: On the computer with an Internet connection, click View > Registration Info in
LicenseManager to see license information for associated and unassociated product
licenses.
UPDATING PRODUCTS
Use LicenseManager to check for product updates and download the latest product
versions.
For more information on the general features of the subscription service, contact your
AccessData Sales Representative.
CHECKING FOR PRODUCT UPDATES
When checking for updates, LicenseManager checks for an updated version of
LicenseManager. If there is one, a prompt appears. When prompted whether to update
LicenseManager, click Yes to download and install the latest product version of
LicenseManager, or click No to update product version information for the products
listed in the LicenseManager window.
To check for product updates, click Newest from the Installed Components tab.
To determine whether you have the latest version of a product, check for updates, then
compare the installed version with the latest version number listed in the Products
window.
DOWNLOADING PRODUCT UPDATES
To download a product update do the following:
228 AccessData FTK2 User Guide
1. Ensure that LicenseManager displays the latest product information.
2. Check the programs to download.
3. Click Install Newest.
4. When prompted, click Yes to download the latest install program for that product.
5. Follow the installation wizard to install the product update.
Note: Due to the size and nature of certain of AccessData programs, downloading updates for
those programs is not practical or possible. These programs include FTK2.x, Enterprise,
eDiscovery, and SilentRunner. The FTK2.x installer can be downloaded from the
AccessData Support website, but the others cannot at this time. You will need to contact
your AccessData Sales Representative for updates to Oracle (there are none at this time),
Enterprise, eDiscovery, and SilentRunner, as they become available.
PURCHASING PRODUCT LICENSES
Use LicenseManager to link to the AccessData Web site to purchase products.
To purchase a product, click Purchase Licenses from the Licenses tab.
Note: Once a product has been purchased and appears in the AccessData License Server, add
the product license to a CodeMeter Stick, dongle, or security device packet file by clicking
Refresh Device.
SENDING A SECURITY DEVICE PACKET FILE TO SUPPORT
Send a security device packet file only when specifically directed to do so by AccessData
support.
To send a security device packet file, email a security device packet file to
support@accessdata.com.
Other AccessData Applications 229
SELECTING THE APPLICATION LANGUAGE
Use the Language Selector tool to choose the language in which the FTK interface is
displayed. Language Selector is not installed with FTK and must be installed to change
FTK2’s language. Select one of the following languages:
TABLE 12-4 Available Application Languages
Chinese German
Dutch Italian
English (US) Japanese
French Spanish
Korean Portuguese
Hindi Russina
Swedish Turkish
Selections take effect with an application.
230 AccessData FTK2 User Guide
Appendix A Recognized File Types 231
Appendix A Recognized File
Types
This appendix lists the different file types that are recognized by AccessData (AD)
FTK2. The file type is a string in the document header that identifies the program used
to create the document. AD FTK2 looks at the document headers to identify the file
types.
DOCUMENT FILE TYPES
The following table lists the AD FTK2 recognized document file types:
TABLE A-1 Document File Types
7-Bit Text Acrobat Portable Document Format
(PDF)
Ami Pro Document Ami Pro Snapshot
Ami Professional AreHangeul
CEO Word CEO Write
CHTML (Compact HTML) Cyrillic (Ansi 1251)
Cyrillic (KOI8-R) DEC DX 3.0 and lower
DEC DX 3.1 DisplayWrite 4
DisplayWrite 5 Enable Word Processor 3.x
Enable Word Processor 4.x Excel 2000 Save As... HTML
FTDF Hana
232 AccessData FTK2 User Guide
HDML (Handheld Device Markup Language) HTML - Central European
HTML - Chinese Big5 HTML - Chinese EUC
HTML - Chinese GB HTML - CSS
HTML - Cyrillic (KOI8-R) HTML - Japanese EUC
HTML - Japanese ShiftJIS HTML - Korean Hangul
HTMLAG HTMLWCA
Hypertext Document IBM DCA/RFT
IBM FFT IBM Writing Assistant
IchiTaro 3 IchiTaro 4
IchiTaro 8 Interchange File Format Text File
Interleaf Interleaf (Japanese)
JustWrite 1 JustWrite 2
Legacy Legacy Clip
Lotus Manuscript 1 Lotus Manuscript 2
Lotus screen snapshot MacWrite II
Mass 11 Mass 11 (Vax)
Matsu 4 Matsu 5
Microsoft Windows Write Microsoft Word 1 Document
Microsoft Word 2 Document Microsoft Word 2000 Document
Microsoft Word 3 Document (Mac) Microsoft Word 4 Document (DOS)
Microsoft Word 4 Document (Mac) Microsoft Word 5 Document (DOS)
Microsoft Word 5 Document (Japanese) Microsoft Word 5 Document (Mac)
Microsoft Word 6 Document Microsoft Word 6 Document (DOS)
Microsoft Word 6 Document (Mac) Microsoft Word 7 Document
Microsoft Word 8 Document (Mac) Microsoft Word 97 Document
Microsoft Word Document Microsoft Works (Windows)
Microsoft Works 1 Microsoft Works 2
Microsoft Works 2 (Mac) MIFF
MIFF 3 MIFF 3 (Japanese)
MIFF 4 MIFF 4 (Japanese)
MIFF 5 MIFF 5 (Japanese)
MIFF 5.5 MIFF 6
TABLE A-1 Document File Types
Appendix A Recognized File Types 233
MIFF 6 Japanese MS Works/Win 3 (Windows)
MS Works/Win 4 MultiMate 3.6
MultiMate 4 MultiMate Advantage II
MultiMate Note Navy DIF
OfficeWriter P1
PC File 5.0 - Letter PerfectWorks 1
PFS: First Choice 2.0 PFS: First Choice 3.0
PFS: WRITE A PFS: WRITE B
Pocket Word PowerPoint 2000 Save As... HTML
Professional Write 1 Professional Write 2
Professional Write PLUS Professional Write PLUS Clip
Q&A Write Q&A Write 3
Rainbow Rich Text Format
Rich Text Format (Japanese) Samna
Signature SmartWare II
Sprint StarOffice Writer 5.2
TotalWord Unicode Text Document
vCard Electronic Business Card Volkswriter
Wang WangIWP
WML - Chinese Big 5 WML - Chinese EUC
WML - Chinese GB WML - CSS
WML - Cyrillic 1251 WML - Cyrillic KOI8
WML - Japanese EUC WML - Japanese JIS
WML - Japanese Shift JIS WML - Korean Hangul
WML - Latin 2 Word 2000 Save As... HTML
WORDMARC WordPad
WordPerfect 4 Document WordPerfect 4.2
WordPerfect 5 WordPerfect 5 Asian
WordPerfect 5 Mac WordPerfect 6.0
WordPerfect 6.0 Asian WordPerfect 6.0 Asian (Enh)
WordPerfect 6.0 (Enh) WordPerfect 6.0 Mac
WordPerfect 6.0 Mac (Enh) WordPerfect 6.1
TABLE A-1 Document File Types
234 AccessData FTK2 User Guide
WordPerfect 6.1 Asian WordPerfect 6.1 Asian (Enh)
WordPerfect 6.1 (Enh) WordPerfect 6.1 Mac
WordPerfect 6.1 Mac (Enh) WordPerfect 7
WordPerfect 7 Asian WordPerfect 7 Asian (Enh)
WordPerfect 7 (Enh) WordPerfect 7 Mac
WordPerfect 7 Mac (Enh) WordPerfect 8
WordPerfect 8 Asian WordPerfect 8 Asian (Enh)
WordPerfect 8 (Enh) WordPerfect 8 Mac
WordPerfect 8 Mac (Enh) WordPerfect 9
WordPerfect 9 (Enh) WordPerfect 9 Mac (Enh)
WordPerfect 9 Mac WordPerfect Document
Word Pro Document Word Pro 96 Document
Word Pro 97 Document WordStar 4 and lower
WordStar 5 WordStar 5.5
WordStar 6 WordStar 7
WordStar 2000 WordStar for Windows
WPF Encrypt WPF Unknown
WPS Plus WWrite ChineseBig5
WWrite ChineseGB WWrite Hangeul
WWrite Shift-JIS XHTMLB
XML XyWrite / Nota Bene
TABLE A-1 Document File Types
Appendix A Recognized File Types 235
SPREADSHEET FILE TYPES
TABLE A-2 Spreadsheet File Types
1-2-3 1.A Document 1-2-3 2.0 Document
1-2-3 2.01 Document 1-2-3 3.0 Document
1-2-3 4.0 Document 1-2-3 97 Document
1-2-3 Document 1-2-3 Japanese Document
1-2-3 Seal Document CEO Spreadsheet
Enable SpreadSheet First Choice (Spreadsheet)
Generic WKS format Lotus 1-2-3 2 (FRM)
Lotus 1-2-3 6 Lotus 1-2-3 9
Lotus 1-2-3 OS/2 2 Lotus 1-2-3 OS/2 Chart
Lotus Symphony 1.0 Document Mac Works 2 (SS)
Microsoft Excel 2 Worksheet Microsoft Excel 2000 Worksheet
Microsoft Excel 3 Workbook Microsoft Excel 3 Worksheet
Microsoft Excel 4 Workbook Microsoft Excel 4 Workbook (Mac)
Microsoft Excel 4 Worksheet Microsoft Excel 4 Worksheet (Mac)
Microsoft Excel 5 Worksheet (Mac) Microsoft Excel 7 Worksheet
Microsoft Excel 97 Worksheet Microsoft Excel Worksheet
Microsoft Multiplan 4.xMosaic Twin
MS Works Spreadsheet MS Works/Win 3 (SS)
MS Works/Win 4 (SS) MS Works/Win Spreadsheet
PFS Plan PlanPerfect File
Quattro Pro 4 Quattro Pro 7.0 Graph
Quattro Pro 9 for Windows Quattro Pro Notebook
Quattro Pro Notebook 1.0 Quattro Pro Notebook 1.0J
Quattro Pro Notebook 3.0 (DOS) Quattro Pro Notebook 4.0 (DOS)
Quattro Pro Notebook 5.0 Quattro Pro Notebook 5.5 (DOS)
Quattro Pro Notebook 6.0 Quattro Pro Notebook 7.0
Quattro Pro Notebook 8.0 Smart SpreadSheet
SuperCalc 5 VP Planner
236 AccessData FTK2 User Guide
DATABASE FILE TYPES
TABLE A-3 Database File Types
DBase IV/V File First Choice (Database)
Framework III Mac Works 2 (DB)
Microsoft Project98 Microsoft Works (DB)
MS Jet 2 Database MS Jet 3 Database
MS Jet 4 Database MS Jet Database
MS Money 1 File MS Money 2 File
MS Money 2000 File MS Money 3 File File
Paradox 3 MS Money 4 File
MS Money 5 File MS Money 98 File
MS Money File MS Works Database
MS Works/Win 3 (DB) MS Works/Win 4 (DB)
MS Works/Win Database Organizer 1.1 File
Organizer 2 File Organizer 3 File
Organizer 4 Paradox 3.5
Paradox 4 Paradox Database File
Paradox Script File Quicken 5 File
Quicken 6 File Quicken 98 File
Quicken 99 File Q&A Database
Quickbooks 2 File Quickbooks 2000 File
Quickbooks 3.1 File Quickbooks 5 File
Quickbooks 6 File Quickbooks 99 File
Quickbooks File Quicken 2000 File
Quicken 2001 File Quicken 3 File
Quicken 4 File Quicken File
RBase 5000 RBase File 1
RBase File 3 RBase V
Reflex 2.0 Database Smart DataBasez
Appendix A Recognized File Types 237
GRAPHIC FILE TYPES
TABLE A-4 Graphics File Types
Acrobat Portable Document Format (Mac) Adobe Illustrator
Adobe Photoshop File Ami Professional Draw
Animated Cursor Animatic Film File
Animation AOL Art Files version 3.0
Apple Quicktime File AutoCAD Drawing Exchange File
AutoCAD Drawing Interchange (DXF-ASCII) AutoCAD Drawing Interchange (DXF-Binary
AutoCAD DWG 12 AutoCAD DWG 13
AutoCAD Native Drawing Format (DWG) AutoCAD Native Drawing Format 14 (DWG)
AutoCAD Drawing Exchange Format (DXB) Autodesk 3D Studio File
Autodesk Animator File AutoShade (RND)
Bentley Microstation DGN Bitmap File
CALS Raster File Format Candy 4
CAS Fax File CCITT Group 3
Computer Graphic Metafile ComputerEyes Raw Data FileCorel Draw 2
Harvard Graphics Presentation Hewlett Packard Graphics Language
HP Gallery IBM Graphics Data Format (GDF)
IBM Picture Interchange Format Icon
IGES Drawing Intel Digital Video File
JNG File (JPEG Network Graphics) JPEG File Interchange Format
JPEG/JFIF File Kodak Flash Pix (FPX)
Kodak Photo CD Lotus PIC
Lotus screen snapshot Macintosh Picture 1
Macintosh Picture 2 MAC-Paint File
Micrografx Designer (DRW) Micrografx File
MIFFG MiNG File (Multiple-image Network Graphics)
Multi-page PCX (DCX) NEOChrome Animation File
Windows DIB Windows Icon
Windows Metafile WordPerfect Graphic (WPG)
WordPerfect Graphic File WordPerfect MAC SOFT Graphics
Corel Draw 3 Corel Draw 4
Corel Draw 5 Corel Draw 6
Corel Draw 7 Corel Draw 8
238 AccessData FTK2 User Guide
EMAIL MESSAGE PROGRAMS
AD FTK2 handles email messages differently from other categories. It recognizes the
source of the email messages based on email archives and special headers.
Corel Draw 9 Corel Draw Clipart
Cursor Cyber Paint Sequence File
DrawPerfect File Dual PowerPoint 95/97
Encapsulated PostScript (EPS) Enhanced Windows Metafile
Excel 3 Chart Excel 4 Chart
Excel 5 Chart Excel Chart
Framemaker Freelance
Freelance 96 GEM Bitmap (IMG)
GEM IMG File GEM Metafile
GIF File Graphic File
Hanako 1 Hanako 2
Harvard Graphics Harvard Graphics 2.x Chart
Harvard Graphics 3.x Chart OS/2 PM Metafile
OS/2 Warp Bitmap Paintshop Pro (PSP)
PCPAINT File PCX Paintbrush File
PNG File (Portable Network Graphics) Portable Bitmap (PBM)
Portable Graymap (PGM) Portable Pixmap (PPM)
PostScript PowerPoint 2000
PowerPoint 3 PowerPoint 3 (Mac)
PowerPoint 4 PowerPoint 4 (Mac)
PowerPoint 7 PowerPoint 97/98
Progressive JPEG Sun Raster File
Targa File TIFF File
Video Clip Visio 2000
Visio 4 Visio 5
WordPerfect Presentations WordPerfect Presentations 7
XBM - X-Windows Bitmap XPM - X-Windows Pixmap
XWD - X-Windows Dump
TABLE A-4 Graphics File Types
Acrobat Portable Document Format (Mac) Adobe Illustrator
Appendix A Recognized File Types 239
AD FTK2 includes extended support for AOL including buddy lists, global settings,
user history, URL history, thumbnail extraction, and address book extraction.
The following are supported email applications:
INSTANT MESSAGING PROGRAMS
AD FTK2 can recover instant messaging chat logs, if set to save conversations locally,
and additional information such as buddy lists.
The following are supported instant messaging applications:
EXECUTABLE FILE TYPES
AD FTK2 recognizes these executable file types:
TABLE A-7 Recognized Executable File Types
Executable File (EXE) Executable File (COM)
JavaScript NT Executable File
OS/2 Executable File Windows VxD Executable File
TABLE A-5 Supported Email Applications
AOL Earthlink
Eudora Hotmail
Lotus Notes MSN Email
Netscape Outlook
Outlook Express ThunderBird
Yahoo
TABLE A-6 Supported Instant Messaging Programs
AOL IM Google Chat
Yahoo Messenger MSN Messenger
240 AccessData FTK2 User Guide
ARCHIVE FILE TYPES
AD FTK2 Identifies but does not extract the following file types:
TABLE A-8 Identified Archive File Types
File Types Identified but not Extracted File Types Identified and Extracted
ARC Archive
BestCrypt GOST/BLOWFISH
BestCrypt GOST/DES
BestCrypt GOST/GOST
BestCrypt GOST/TWOFISH
BestCrypt GOST/Unknown
BestCrypt SHA/BLOWFISH
BestCrypt SHA/DES
BestCrypt SHA/GOST
BestCrypt SHA/TWOFISH
BestCrypt SHA/Unknown
BestCrypt Unknown Key Generation
CAB Archive
Email Archive
GZIP Archive
Jetico BestCrypt Container
MS Exchange/Outlook
Old Format PGP Secret Key Ring
OLE Archive
OLE Embedded Object
OLE Embedded Storage Container
Outlook Express 5 Archive
Outlook Express Archive
PGP Disk 4.0 File
PGP Disk File
PGP Secret Key Ring
PK Zip Archive
Appendix A Recognized File Types 241
OTHER KNOWN FILE TYPES
AD FTK2 identifies and adds the following known file types to a case:
Self-Extracting Zip Archive
Stuffit Archive
Thumbs.db Thumbnail Graphics
UNIX TAR Archive
Zip Archive
TABLE A-9 Other Known File Types
8 Bit Sample Voice Access File
Access System File AccessData Recovery 5.0 Biographical
Data
AccessData Recovery 5.0 Biographical
Dictionary
AccessData Recovery 5.0 Dictionary
AccessData Recovery 5.0 Hard Drive
Dictionary
AccessData Recovery 5.0 Password Data
AccessData Recovery 5.0 Profile Data AccessData Recovery 5.0 Status Report
ACT File Address Book Entry
Appointment Approach
Audio Clip Audio Director
Audio Flash Contact Information
Drive Free Space Email Folder
Encapsulated PostScript File Envoy
Envoy 7 Escher
File Slack File System Slack
Help File ICF
Internet Cookie File Internet Explorer Link Files
Journal Entry LZH Compress
Microsoft Office Binder MIDI Sequence
MPEG Version 1.0 MPEG Version 2.0
TABLE A-8 Identified Archive File Types
File Types Identified but not Extracted File Types Identified and Extracted
242 AccessData FTK2 User Guide
MPEG Version 2.5 QuickFinder
Sample Music Scheduler File
Self-Extracting LZH Shortcut FileSticky Note
UNIX Compress Wave Sound
Win95 Screensaver Settings Windows Clipboard File
Windows Swap File WordPerfect 4.2 (Vax)
WordPerfect Application Resource Library WordPerfect Block File
WordPerfect Calculator WordPerfect Calendar
WordPerfect Character Map WordPerfect Column Block
WordPerfect Dictionary WordPerfect Dictionary -- Rules
WordPerfect Display Resource File WordPerfect Equation Resource
WordPerfect External Spell Code Module WordPerfect External Spell Dictionary
WordPerfect File Manager WordPerfect Graphic Driver
WordPerfect Help File WordPerfect Hyph Lex Module
WordPerfect Hyphenation Code Module WordPerfect Hyphenation Data Module
WordPerfect InFor ms 1 WordPerfect Install Options
WordPerfect Keyboard Definition WordPerfect Macro Editor
WordPerfect Macro File WordPerfect Macro Resource
WordPerfect Mouse Driver WordPerfect Notebook
WordPerfect Office WordPerfect Overlay File
WordPerfect Printer WordPerfect Printer Q Codes
WordPerfect Printer Resource File WordPerfect Program Editor
WordPerfect Rectangular Block WordPerfect Rhymer Pronunciation
WordPerfect Rhymer Word File WordPerfect Scheduler
WordPerfect Setup File WordPerfect Shell
WordPerfect Spell Code Module--Rules WordPerfect Spell Code Module--Word
List
WordPerfect Thesaurus WordPerfect Unix Setup File
WordPerfect Vax Keyboard Definition WordPerfect Vax Setup
TABLE A-9 Other Known File Types
8 Bit Sample Voice Access File
Appendix A Recognized File Types 243
244 AccessData FTK2 User Guide
Appendix B File Systems and Drive Image Formats 245
Appendix B File Systems and
Drive Image Formats
This appendix lists the file systems and image formats that AD FTK2 analyzes.
FILE SYSTEMS
• FAT 12, FAT 16, FAT 32
• NTFS
• Ext2, Ext3
• HFS, HFS+
• ReiserFS 3
HARD DISK IMAGE FORMATS
• Encase
• SnapBack
• Safeback 2.0 and under
• Expert Witness
• Linux DD
• ICS
• Ghost (forensic images only)
246 AccessData FTK2 User Guide
• SMART
• AccessData Logical Image (AD1)
CD AND DVD IMAGE FORMATS
• Alcohol (*.mds)
• CloneCD (*.ccd)
• ISO
• IsoBuster CUE
• Nero (*.nrg)
• Pinnacle (*.pdi)
• PlexTools (*.pxi)
• Roxio (*.cif)
• Virtual CD (*.vc4)
Appendix C Recovering Deleted Material 247
Appendix C Recovering Deleted
Material
AD FTK2 finds deleted files on the supported file systems by their file header.
FAT 12, 16, AND 32
When parsing FAT directories, AD FTK2 identifies deleted files by their names. In a
deleted file, the first character of the 8.3 filename is replaced by the hex character 0xE5.
The file's directory entry provides the files's starting cluster (C) and size. From the size
of the file and the starting cluster, AD FTK2 computes the total number of clusters (N)
occupied by the file.
AD FTK2 then examines the File Allocation Table (FAT) and counts the number of
unallocated clusters starting at C (U). It then assigns the recovered file [min (N, U)]
clusters starting at C.
If the deleted file was fragmented, the recovered file is likely to be incorrect and
incomplete because the information that is needed to find subsequent fragments was
wiped from the FAT system when the file was deleted.
AD FTK2 uses the long filename (LFN) entries, if present, to recover the first letter of
the deleted file's short filename. If the LFN entries are incomplete or absent, it uses an
exclamation mark (“!”) as the first letter of the filename.
248 AccessData FTK2 User Guide
AD FTK2 meta carves, or searches the volume free space for deleted directories that
have been orphaned. An orphaned directory is a directory whose parent directory or
whose entry in its parent directory has been overwritten.
NTFS
AD FTK2 examines the Master File Table (MFT) to find files that are marked deleted
because the allocation byte in a record header indicates a deleted file or folder. It then
recovers the file’s data using the MFT record’s data attribute extent list if the data is
non-resident.
If the deleted file's parent directory exists, the recovered file is shown in the directory
where it originally existed. Deleted files whose parent directories were deleted are
shown in their proper place as long as their parent directory's MFT entry has not been
recycled.
EXT2
AD FTK2 searches to find inodes that are marked deleted. The link count is zero and
the deletion timestamp is nonzero.
For each deleted inode, AD FTK2 processes the block pointers as it does for a normal
file and adds blocks to the deleted file. However, if an indirect block is marked allocated
or references an invalid block number, the recovered file is truncated at that point
because the block no longer contains a list of blocks for the file that the application is
attempting to recover.
AD FTK2 does not recover the filenames for files deleted on ext2 systems. Instead,
deleted files are identified by inode number because ext2 uses variable-length directory
entries organized in a linked list structure. When a file is deleted, its directory entry is
unlinked from the list, and the space it occupied becomes free to be partially or
completely overwritten by new directory entries. There is no reliable way to identify and
extract completely deleted directory entries.
EXT3
AD FTK2 does not recover deleted files from ext3 volumes because ext3 zeroes out a
file's indirect block pointers when it is deleted.
Appendix C Recovering Deleted Material 249
HFS
AD FTK2 does not recover deleted files from HFS.
250 AccessData FTK2 User Guide
Appendix D Program Files 251
Appendix D Program Files
The following tables list key FTK2 files and folders, their functions, and their locations.
FILES AND FOLDERS FOR THE APPLICATION
These files and folders exist on the computer running FTK.
File or Folder Location Function
FTK2-Data (shared) Root of system drive or partition
(C:\ftk2‐data\)
Contains all case data not stored
in the database.
summary_install_log.txt C:\Program
Files\AccessData\AccessData
ForensicTool kit2
Points to a set of log files
including a summary installation
log to help Technical Support
with troubleshooting.
KFF Logs C:\Program
Files\AccessData\AccessData
ForensicTool kit2
Records whether the Known
File Filter was added to the
schema.
FTK2.exe C:\Program
Files\AccessData\AccessData
ForensicTool kit2\Application
Program executable
FTK2_log.txt C:\Program
Files\AccessData\AccessData
ForensicTool kit2\Application
Log file recording information
specific to the application.
252 AccessData FTK2 User Guide
FILES AND FOLDERS FOR THE DATABASE
These files and folders exist on the computer running the Oracle database.
File or Folder Location Function
ftk2 C:\Oracle Contains files FTK uses to work with the Oracle
database, such as JRE, libraries, configuration
scripts, etc.
logs C:\Program
Files\Oracle\Inventory
Contains installation logs intended to help
Technical Support with installation
troubleshooting.
FTK2_KFF.DBF C:\Oracle\ftk2\database Contains the hashes that make up the AccessData
Known File Filter
CHANGING REGISTRY OPTIONS
The following sections cover small changes that can be made to items in the registry to
aid in the functionality and desired efficiency of FTK.
CHANGING THE LOGGING REGISTRY OPTIONS
To make changes in the registry for the available logging options do the following:
1. Click Start > Run.
2. Enter regedit and click OK.
3. Open HKLM\SOFTWARE\AccessData\Shared\VersionManager\sds\
4. Change any of the following values to the desired setting:
• errorlog = controls if LOG_WARN/LOG_ERROR logs to
ftkWorker.errorlog.txt (defaults to 1)
FTK2crash[timestamp].dmp C:\Program
Files\AccessData\AccessData
ForensicTool kit2\Application
Dump file with a timestamp
from an FTK crash
File or Folder Location Function
Appendix D Program Files 253
• infolog = controls if LOG_INFO logs to ftkWorker.infolog.txt (defaults to 1)
• userlog = controls if LOG_USER logs to ftkWorker.userlog.txt (defaults to 0)
This is required by ediscovery.
• tracelog = controls LOG_TRACE logs to ftkWorker.tracelog.txt (defaults to 0)
Logs object created/complete messages.
• memlog = controls memory logging to ftkWorker.infolog.txt (defaults to 0)
• timelog = controls time logging to ftkWorker.infolog.txt (defaults to 0)
Note: Log files initialize when ftkworker.exe starts. Registry keys read only during the startup
process.
CHATTY WORKER
In the worker diagnostic page, "Chatty" now controls if the worker LEVEL_* logs to
stdout/stderr (therefore showing up in the text pane).
254 AccessData FTK2 User Guide
Appendix E Securing Windows Registry Evidence 255
Appendix E Securing Windows
Registry Evidence
This appendix contains information about the Windows Registry and what information
can be gathered for evidence.
UNDERSTANDING THE WINDOWS REGISTRY
For forensic work, registry files are particularly useful because they can contain
important information such as the following:
• Usernames and passwords for programs, email, and Internet sites.
• A history of Internet sites accessed, including dates and times.
• A record of Internet queries (i.e., searches performed on Internet search engines
like Google, Yahoo, etc.).
• Lists of recently accessed files (e.g., documents, images, etc.).
• A list of all programs installed on the system.
AccessData Registry Viewer™ allows you to view the contents of Windows operating
system registries. Unlike the standard Windows Registry Editor, which only displays the
current system’s registry, Registry Viewer lets you examine registry files from any
system or user. Registry Viewer also provides access to a registry’s protected storage,
which contains passwords, usernames, and other information not accessible in
Windows Registry Editor.
256 AccessData FTK2 User Guide
The files that make up the registry differ depending on the version of Windows. The
tables below list the registry files for each version of Windows, along with their
locations and the information they contain.
WINDOWS 9X REGISTRY FILES
The following table describes each item on the Windows 9x registry files:
TABLE E-1 Windows 9x Registry files
Filename Location Contents
system.dat \Windows •Protected storage for all users on the
system. Protected Storage is an access-
restricted area of the registry that stores
confidential user information including
usernames and passwords for Internet
Web sites, email passwords for Microsoft
Outlook* or Outlook Express, and a
record of Internet queries (i.e., searches
performed on Internet search engines
like Google, Yahoo, etc.), including the
time and date when they were per-
formed.
•Lists installed programs, their settings,
and any usernames and passwords asso-
ciated with them.
•Contains the System settings.
user.dat \Windows
If there are multiple user
accounts on the system,
each user has a user.dat
file located in
\Windows\profiles\user
account
•MRU (Most Recently Used) list of files.
MRU Lists maintain a list of files so
users can quickly re-access files. Regis-
try Viewer allows you to examine these
lists to see what files have been recently
used and where they are located. Regis-
try Viewer lists each program’s MRU
files in order from most recently
accessed to least recently accessed.
•User preference settings (desktop con-
figuration, etc.).
Appendix E Securing Windows Registry Evidence 257
WINDOWS NT AND WINDOWS 2000 REGISTRY FILES
The following table describes each item in the Windows NT and Windows 2000 registry
files:
TABLE E-2 Windows NT and Windows 2000 Registry Files
Filename Location Contents
NTUSER.DAT \Documentsand
Settings\useraccount
If there are multiple user
accounts on the system,
each user has an ntuser.dat
file.
default \Winnt\system32\config System settings
SAM \Winnt\system32\config User account management and security
settings
SECURITY \Winnt\system32\config Security settings
software \Winnt\system32\config All installed programs, their settings, and
any usernames and passwords associated
with them
system \Winnt\system32\config System settings
•Protected storage for all users on the
system. Protected Storage is an access-
restricted area of the registry that
stores confidential user information
including usernames and passwords for
Internet Web sites, email passwords for
Microsoft Outlook or Outlook
Express, and a record of Internet que-
ries (i.e., searches performed on Inter-
net search engines like Google, Yahoo,
etc.), including the time and date when
they were performed.
•All installed programs, their settings, and
any usernames and passwords associ-
ated with them
•User preference settings (desktop con-
figuration, etc.)
258 AccessData FTK2 User Guide
WINDOWS XP REGISTRY FILES
The following table describes each item in the Windows XP registry files:
The logical registry is organized into the following tree structure:
The top level of the tree is divided into hives. A hive is a discrete body of keys, subkeys,
and values that is rooted at the top of the registry hierarchy. On Windows 9x systems,
the registry hives are as follows:
• HKEY_CLASSES_ROOT(HKCR)
TABLE E-3 Windows XP Registry Files
Filename Location Contents
NTUSER.DAT \Documentsand
Settings\useraccount
If there are multiple user
accounts on the system,
each user has an ntuser.dat
file.
•Protected storage for all users on the
system. Protected Storage is an access-
restricted area of the registry that
stores confidential user information
including usernames and passwords
for Internet Web sites, email passwords
for Microsoft Outlook or Outlook
Express, and a record of Internet que-
ries (i.e., searches performed on Inter-
net search engines like Google, Yahoo,
etc.), including the time and date when
they were performed.
•All installed programs, their settings,
and any usernames and passwords
associated with them
•User preference settings (desktop con-
figuration, etc.)
default \Winnt\system32\config System settings
SAM \Winnt\system32\config User account management and security
settings
SECURITY \Winnt\system32\config Security settings
software \Winnt\system32\config All installed programs, their settings, and
any usernames and passwords associated
with them
system \Winnt\system32\config System settings
Appendix E Securing Windows Registry Evidence 259
• HKEY_CURRENT_USER(HKU)
• HKEY_LOCAL_MACHINE(HKLM)
• HKEY_USERS(HKCU)
• HKEY_CURRENT_CONFIG(HKCC)
• HKEY_KYN_DATA(HKDD)
HKEY_LOCAL_MACHINEand HKEY_USERS are the root hives. They contain
information that is used to create the HKEY_CLASSES_ROOT, HKEY_CURRENT_USER,
and HKEY_CURRENT_CONFIG hives.
HKEY_LOCAL_MACHINE is generated at startup from the system.dat file and contains
all the configuration information for the local machine. For example, it might have one
configuration if the computer is docked, and another if the computer is not docked.
Based on the computer state at startup, the information in HKEY_LOCAL_MACHINE is
used to generate HKEY_CURRENT_CONFIGand HKEY_CLASSES_ROOT.
HKEY_USERS is generated at startup from the system User.dat files and contains
information for every user on the system.
Based on who logs in to the system, the information in HKEY_USERS is used to
generate HKEY_CURRENT_USER, HKEY_CURRENT_CONFIG, and
HKEY_CLASSES_ROOT.
Keys and sub-keys are used to divide the registry tree into logical units off the root.
When you select a key, Registry Editor displays the key’s values; that is, the information
associated with that key. Each value has a name and a data type, followed by a
representation of the value’s data. The data type tells you what kind of data the value
contains as well as how it is represented. For example, values of the REG_BINARY type
contain raw binary data and are displayed in hexadecimal format.
260 AccessData FTK2 User Guide
POSSIBLE DATA TYPES
The following table lists the Registry’s possible data types:
TABLE E-4 Possible Data Types
Data Type Name Description
REG_BINARY Binary Value Raw binary data. Most hardware component
information is stored as binary data and is
displayed in hexadecimal format.
REG_DWORD DWORD
Value
Data represented by a number that is 4 bytes
long (a 32-bit integer). Many parameters for
device drivers and services are this type and are
displayed in binary, hexadecimal, or decimal
format. Related values are
DWORD_LITTLE_ENDIAN (least
significant byte is at the lowest address) and
REG_DWORD_BIG_ENDIAN (least
significant byte is at the highest address).
REG_EXPAND_SZ Expandable
String Value
A variable-length data string. This data type
includes variables that are resolved when a
program or service uses the data.
REG_MULTI_SZ Multi-String
Value
A multiple string. Values that contain lists or
multiple values in a format that people can read
are usually this type. Entries are separated by
spaces, commas, or other marks.
REG_SZ String Value A text string of any length.
REG_RESOURCE_LIST Binary Value A series of nested arrays designed to store a
resource list used by a hardware device driver or
one of the physical devices it controls. This data
is detected by the system and is displayed in
hexadecimal format as a Binary Value.
REG_RESOURCE_
REQUIREMENTS_LIST
Binary Value A series of nested arrays designed to store a
device driver's list of possible hardware
resources it or one of the physical devices it
controls can use. This data is detected by the
system and is displayed in hexadecimal format
as a Binary Value.
Appendix E Securing Windows Registry Evidence 261
ADDITIONAL CONSIDERATIONS
If there are multiple users on a single machine, you must be aware of the following
issues when conducting a forensic investigation:
• If there are individual profiles for each user on the system, you need to locate the
USER.DAT file for the suspect.
• If all the users on the system are using the same profile, everyone’s information is
stored in the same USER.DAT file. Therefore, you will have to find other
corroborating evidence because you cannot associate evidence in the USER.DAT
file with a specific user profile.
• On Windows 9x systems, the USER.DAT file for the default user is used to create
the USER.DAT files for new user profiles. Consequently, the USER.DAT files for new
profiles can inherit a lot of junk.
To access the Windows registry from an image of the suspect’s drive, you can do any of
the following:
• Boot the suspect’s image to view his or her registry in Registry Editor.
• Mount a restored image as a drive, launch Registry Editor at the command line
from your processing machine, export the registry files from the restored image,
then view them in a third-party tool.
REG_FULL_RESOURCE_
DESCRIPTOR
Binary Value A series of nested arrays deigned to store a
resource list used by a physical hardware device.
This data is displayed in hexadecimal format as
a Binary Value.
REG_NONE None Data with no particular type. This data is
written to the registry by the system or
applications and is displayed in hexadecimal
format as a Binary Value.
REG_LINK Link A Unicode string naming a symbolic link.
REG_QWORD QWORD
Value
Data represented by a number that is a 64-bit
integer.
TABLE E-4 Possible Data Types
Data Type Name Description
262 AccessData FTK2 User Guide
Note: The problem with this method is that you can only view the registry as text. Registry
Editor displays everything in ASCII so you can’t see hex or binary values in the
registry.
• Export the registry files from the image and view them in a third-party tool.
• Use Registry Viewer. Registry Viewer integrates seamlessly with AD FTK2 to
display registry files within the image and create reports.
Important: Registry Viewer shows everything you normally see in live systems
using the Windows Registry Editor. However, unlike Registry Editor and
other tools that use the Windows API, Registry Viewer decrypts
protected storage information so it displays values in the Protected
Storage System Provider key (PSSP). Registry Viewer also shows
information that is normally hidden in null-terminated keys.
SEIZING WINDOWS SYSTEMS
Information stored in the registry—Internet Messenger sessions, Microsoft Office
MRU lists, usernames and passwords for Internet Web sites accessed through Internet
Explorer, and so forth—are temporarily stored in HKEY_CURRENT_USER. When the
user closes an application or logs out, the hive’s cached information is pulled out of
memory and written to the user’s corresponding USER.DAT.
Note: Passwords and MRU lists are not saved unless these options are enabled.
Important: Because normal seizure procedures require that there be no
alteration of the suspect’s computer in any way, you must be able to
articulate why you closed any active applications before pulling the plug
on the suspect’s computer. Sometimes it is better to simply pull the plug
on the computer; other times, it makes more sense to image the
computer in place while it is on. It may depend on what is the most
important type of data expected to be found on the computer.
For example, Windows updates some program information in the
registry when the changes are made. Other information is not updated
until a program is closed. The Registry Quick Find Chart gives more
information.
Appendix E Securing Windows Registry Evidence 263
REGISTRY QUICK FIND CHART
The following charts discuss common locations where you can find data of forensic
interest in the registry.
264 AccessData FTK2 User Guide
SYSTEM INFORMATION
TABLE E-5 System Information
Information File Location Description
Registered
Owner
Software Microsoft\WindowsNT\
CurrentVersion
This information is entered during
installation, but can be modified
later.
Registered
Organization
Software Microsoft\WindowsNT\
CurrentVersion
This information is entered during
installation, but can be modified
later.
Run Software Microsoft\Windows\Current
Version\Run
Programs that appear in this key run
automatically when the system
boots.
Logon Banner
Message
Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeText
This is a banner that users must click
through to log on to a system.
Mounted
Devices
System MountedDevices Database of current and prior
mounted devices that received a
drive letter.
Current Control
Set
System Select Identifies which control set is
current.
Shutdown Time System ControlSetXXX\Control\Windows System shutdown time.
Event Logs System ControlSetXXX\Services\Eventlog Location of Event logs.
Dynamic Disk System ControlSetXXX\Services\DMIO\
BootInfo\PrimaryDiskGroup
Identifies the most recent dynamic
disk mounted in the system.
Pagefile System ControlSetXXX\Control\
SessionManager\Memory
Management
Location, size, set to wipe, etc.
Last User
Logged In
Software Microsoft\WindowsNT\
CurrentVersion\Winlogon
Last user logged in - can be a local
or domain account.
Product ID Software Microsoft\WindowsNT\
CurrentVersion
O\S Version Software Microsoft\WindowsNT\
CurrentVersion
Logon Banner
Title
Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeCaption
User-defined data.
Appendix E Securing Windows Registry Evidence 265
Logon Banner
Message
Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeCaption
User-defined data.
Time Zone System ControlSet001(or002)\Control\
TimeZoneInformation\Standard
Name
This information is entered during
installation, but can be modified
later.
TABLE E-5 System Information
266 AccessData FTK2 User Guide
NETWORKING
TABLE E-6 Networking
Information File Location Description
USER DATA
Map Network
Drive MRU
NTUSER.DAT Software\Microsoft\Windows
\
CurrentVersion\Explorer\Map
NetworkDriveMRU
Most recently used list
of mapped network
drives.
TCP\IP data System ControlSetXXX\Services\
TCPIP\Parameters
Domain, hostname
data.
TCP\IP Settings
of a Network
Adapter
System ControlSetXXX\Services\
adapter\Parameters\TCPIP
IP address, gateway
information.
Default
Printer
NTUSER.DAT Software\Microsoft\Windows
NT\CurrentVersion\Windows
Current default printer.
Default
Printer
NTUSER.DAT \printers Current default printer.
Local Users SAM Domains\Account\Users\
Names
Local account security
identifiers.
Local Groups SAM Domains\Builtin\Aliases\
Names
Local account security
identifiers.
Profile list Software Microsoft\WindowsNT\
CurrentVersion\ProfileList
Contains user security
identifiers (only users
with profile on the
system).
Network Map NTUSER.DAT Documentsand
Settings\username
Browser history and
last-viewed lists
attributed to the user.
TABLE E-7 User Data
Information File Location Description
Run NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Run
Programs that appear in this
key run automatically when the
user logs on.
Appendix E Securing Windows Registry Evidence 267
Media Player
Recent List
NTUSER.DAT Software\Microsoft\Media
Player\Player\RecentFileList
This key contains the user's
most recently used list for
Windows Media Player.
O\S Recent
Docs
NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Explorer\
RecentDocs
MRU list pointing to shortcuts
located in the recent directory.
Run MRU NTUSER.DAT \Software\Microsoft\Windows\
CurrentVersion\Explorer\RunM
RU
MRU list of commands
entered in the “run” box.
Open And Save
As Dialog
Boxes MRU
NTUSER.DAT \Software\Microsoft\Windows\
CurrentVersion\Explorer\
ComDlg32
MRU lists of programs\files
opened with or saved with the
“open” or “save as” dialog
box(es).
Current Theme NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Themes
Desktop theme\wallpaper.
Last Theme NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Themes\Last
Theme
Desktop theme\wallpaper.
File Extensions\
Program
Association
NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Explorer\
FileExts
Identifies associated programs
with file extensions.
TABLE E-7 User Data
268 AccessData FTK2 User Guide
USER APPLICATION DATA
TABLE E-8 User Application Data
Information File Location Description
Word User Info NTUSER.DAT Software\Microsoft\office\
version\Common\UserInfo
This information is entered
during installation, but can be
modified later.
Word Recent
Docs
NTUSER.DAT Software\Microsoft\office\
version\Common\Data
Microsoft word recent
documents.
IE Typed
URLs
NTUSER.DAT Software\Microsoft\Internet
Explorer\TypedURLs
Data entered into the URL
address bar.
IE Auto-
Complete
Passwords
NTUSER.DAT \Software\Microsoft\
InternetExplorer\IntelliForms
Web page auto complete
password-encrypted values.
IE Auto-
Complete
Web Addresses
NTUSER.DAT \Software\Microsoft\Protected
StorageSystemProvider
Lists Web pages where auto
complete was used.
IE Default
Download
Directory
NTUSER.DAT Software\Microsoft\Internet
Explorer
Default download directory
when utilizing Internet Explorer.
Outlook
Temporary
Attachment
Directory
NTUSER.DAT Software\Microsoft\office\
version\Outlook\Security
Location where attachments are
stored when opened from
Outlook.
AIM NTUSER.DAT Software\AmericaOnline\AOL
InstantMessenger\
CurrentVersion\Users\username
IM contacts, file transfer
information, etc.
Word User Info NTUSER.DAT Software\Microsoft\office\
version\Common\UserInfo
This information is entered
during installation, but can be
modified later.
ICQ NTUSER.DAT \Software\Mirabilis\ICQ\* IM contacts, file transfer
information, etc.
MSN
Messenger
NTUSER.DAT Software\Microsoft\MSN
Messenger\ListCache\.NET
MessngerService\*
IM contacts, file transfer
information, etc.
Kazaa NTUSER.DAT Software\Kazaa\* Configuration, search,
download, IM data, etc.
Appendix E Securing Windows Registry Evidence 269
Yahoo NTUSER.DAT Software\Yahoo\Pager\
Profiles\*
IM contacts, file transfer
information, etc.
Google Client
History
NTUSER.DAT Software\Google\NavClient\
1.1\History
Adobe NTUSER.DAT Software\Adobe\* Acrobat, Photo deluxe, etc.
TABLE E-8 User Application Data
270 AccessData FTK2 User Guide
Appendix F Troubleshooting 271
Appendix F Troubleshooting
FTK2.1 is a complex program and troubleshooting can be challenging. While this
section attempts to present some basic solutions to commonly asked questions, and
directions for using AccessData Forensic Toolkit (FTK) Diagnostics Tools, it would not
be practical to list every possibility here. Thus, this section is limited.
FINDING ANSWERS
The most up-to-date troubleshooting and problem solving information is available on
the AccessData website, in our Knowledgebase.
Here's how to get into the Knowledge Base:
1. Open your Internet browser to http://www.accessdata.com/support.html
2. Click on link to KnowledgeBase
3. Be sure to log in using "Sign In" link located at the upper right hand corner to see
the majority of articles.
4. If you are unable to log in, please contact support at:
support@accessdata.com or 800-658-5199
272 AccessData FTK2 User Guide
TROUBLESHOOTING TABLES
The following table provides limited, basic information for troubleshooting FTK 2.1.
TABLE F-1 FTK 2.1 Troubleshooting
Problem Suggested Resolution
Application GUI cannot connect to
the Oracle database.
Ensure connectivity on port 1521.
The File List pane may not always
seem to correspond with the graphic
selected.
Refresh the File List pane to match up with the
selected graphics. Press F5 or click View > Refresh to
manually update the view.
The installer cannot connect to your
Oracle database.
When you change the name or
domain affiliation of the Oracle host,
the Oracle instance on that host will
not work.
Check to see if the Oracle host has been changed.
Test connectivity at port 1521.
Verify that the SYS password is entered correctly.
Changing the Host name or Domain affiliation
causes the FTK2.exe connection to Oracle to fail.
Windows will allow a workgroup or domain change
at any time, and Oracle has no way to know about
that change until you tell it. Since Oracle currently is
using a fully qualified name, it fails when the
domain or workgroup name changes.
Log in to the host running Oracle.
Stop the listener control program by entering
“lsnrctl stop” at a command prompt.
From a text editor, open the file:
c:\Oracle\ftk2\NETWORK\ADMIN\listener.ora.
Edit the line containing the Oracle hostname. For
example, if the Oracle hostname were changed
from “privateeye” to “ciaoperative,” the line should
be changed from (ADDRESS=(PROTOCOL=
TCP)(HOST=privateeye)(PORT=1521))to:
(ADDRESS=(PROTOCOL=TCP)(HOST=
ciaoperative)(PORT=1521))
Save the change and exit the text editor.
Restart the listener service by entering “lsnrctl
start” at a command prompt.
Appendix F Troubleshooting 273
DIAGNOSTICS TOOLS
FTK provides a Diagnostics tool to help troubleshoot problems with evidence
processing. It also displays the activity of the databases where cases are stored and a list
of the Worker machines assigned to each case.
DATABASE DIAGNOSTICS
To access the FTK Database Diagnostics tool:
The file names listed in my Explorer
tree have boxes in place of characters.
The characters in the file name are non-ASCII, and
the character set FTK is using does not have a
character to represent the value contained in the file
name.
Even after several minutes, the
progress bar indicates that FTK is not
processing the evidence I just added.
The user that launched FTK2.1 may not have rights
to access the computer on which the data is found.
Manually change the user’s access to the evidence.
User operates several non-Network
License Service (NLS) applications
but cannot open FTK 2.1 using an
NLS license. Error message reads:
“No more user licenses are available.”
FTK 2.1 is looking on the local CmStick for a
license. To correct the problem, remove the local
CmStick. Launch FTK2.1, reattach the local
CmStick for other applications to access.
TABLE F-1 FTK 2.1 Troubleshooting
Problem Suggested Resolution
274 AccessData FTK2 User Guide
1. Select Help > Diagnostics to open the database in the browser.
2. Click on the database hostname link in the Database box. The FTK Version
Management Diagnostics page opens. The page displays the following information:
• Host IP address or hostname
• Time and date of the host’s connection
• Refresh rate
• GUI Information
• Host ID
• Version ID
• User ID
• Case ID number for each open case
• Case Information (“Cases”)
• Case Number(s)
• User logged in to work on that case
• Worker Helper Status
• Database Helper Status
• Time and date at which the case was opened, in the following format:
MM/DD/YYYY TimeHoursMinutesDecimalSeconds AM/PM.
• Logging options
Appendix F Troubleshooting 275
• Log of database activity
UNINSTALLING MANUALLY
If for any reason you need to uninstall FTK, and in particular in the case of a failed
FTK 2.1 install, there are steps you can follow to ensure a successful uninstall. Do not
try to reinstall FTK over the top of a failed installation. In this situation, it is essential to
completely clean off the FTK components as described in this section, and then run the
install again.
This section covers the steps necessary for a successful uninstall of FTK2.1.
AUTOMATED UNINSTALL
Try uninstalling in Add or Remove Programs in the Windows Control Panel. If for any
reason this process fails, move to the instructions for Manually Uninstalling the
Database.
276 AccessData FTK2 User Guide
MANUALLY UNINSTALLING THE DATABASE
Carefully read and follow these instructions before attempting to run the installation
again. All previously installed components should be cleared out before attempting to
re-install.
If, for any reason, you are unable to uninstall the Oracle database using Windows Add
or Remove Programs, you need to run the FTK Oracle uninstall .bat file.
1. Open Windows Explorer.
2. Browse to C:\ProgramFiles\AccessData\Oracle\OracleSQL\.
3. Double-click UninstallOracleTroubleshoot.bat.
4. Answer Yes by typing “y.”
Appendix F Troubleshooting 277
5. Press enter.
6. Reboot (shutdown and restart) your system before continuing.
FIND AND DELETE FTK FOLDERS AND KEYS
The first program folder to delete is the main program folder, C:\Program
Files\AccessData\ForensicToolkit.
FIND AND DELETE FTK REGISTRY KEYS
Before continuing, AccessData recommends that you back up your registry. Run the
Registry Editor. Click File > Export. Name the exported registry file. The default folder
is My Documents. You may select a different location. When the name and location are
specified, click Save.
These entries are numerous. Take great care deleting registry entries to avoid
corrupting the OS or disabling another application’s software.
These entries differ from FTK 2.0.2 to FTK 2.1.0 Both registry path sets are listed
below.
1. From the Windows Run prompt, start regedit.
2. If uninstalling FTK 2.0.2, find and delete these keys:
• C:\ProgramFiles\AccessData\ForensicToolkit\2.0.2
• C:\ProgramFiles\AccessData\KFFLibraryFTK2.0.2
• HKEY_LOCAL_MACHINE\SOFTWARE\AccessData\ForensicTool kit
• HKEY_LOCAL_MACHINE\SOFTWARE\AccessData\Products\ForensicToolkit
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\AccessData‐
DatabaseMonitor
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\AccessData‐
WorkerMonitor
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Un
install\{E6596466‐BD67‐490F‐AC56‐101DA884E90D}
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Un
install\{556A689E‐CA83‐4FF7‐976E‐0F49BA6D048C}
3. If uninstalling FTK 2.1, find and delete these keys:
• C:\Program Files\AccessData\Forensic Toolkit\2.1.0
278 AccessData FTK2 User Guide
• C:\Program Files\AccessData\KFF Library FTK 2.1
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVers
ion\Uninstall\GUID will not be known until final build.
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVers
ion\Uninstall\{6F9DBF75-D45D-4266-8854-ADCD6D74CB64}
HANDLING ORACLE FOLDERS AND KEYS
The following steps are to be used in case of failure of the automated removal of the
Oracle database through the batch file referenced in “Uninstalling Manually” on
page 275.
STOP ORACLE SERVICES
Before deleting the Oracle folders and registry keys stop the affected Oracle services
that may be installed and running. The following lists the Oracle Services associated
with FTK.
• OracleDBConsoleftk2
• Oracleftk2TNSListner
• OracleJobSchedulerFTK2
• OracleServiceFTK2
DELETE ORACLE FOLDERS
Delete the following Oracle folders and their contents:
• C:\ProgramFiles\Oracle
• C:\Oracle
DELETE THE ORACLE KEYS
These entries are numerous, and you should take great care in deleting registry entries
to avoid corrupting your OS, or disable some other applications software.
1. From the Windows Run prompt, start regedit.
2. Find and delete these registry keys:
• C:\Oracle
• C:\ProgramFiles\AccessData\Oracle
Appendix F Troubleshooting 279
• HKEY_LOCAL_MACHINE\SOFTWARE\AccessData\Oracle
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Oracleftk2TNS
Listener
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\OracleJobSche
dulerFTK2
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\OracleServiceF
TK2
• HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\OracleDBCons
oleftk2
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Un
install\{25C2FB0D‐7CC4‐4B4E‐B587‐A12C549DF2AC} --Use for Version 1.2
• HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Un
install\{25C2FB0D‐7CC4‐4B4E‐B587‐A12C549DF2AC} -- Use for Version 1.1
Note: Verify that C:\Oracle\ftk2\bin is not listed in the System Path Environment
Variable.
OTHER ISSUES
The following issues may also be encountered while using FTK.
DTSEARCH NOISE FILE LIST
The noise file (noise.dat) shipped with FTK contains a list of common words like “is,”
“about,” and “what” that are excluded from the case index when evidence is added.
When these words are included in an index search, dtSearch allows any word to replace
the noise word. If, for example, the string “what about bob” was searched, since the
words “what” and “about” are included in the noise.dat file list, the search returns any
hit with two words followed by the word “bob.”
Some cases require an empty or customized noise.dat file. The following steps are a
way of creating an empty or customized noise.dat file.
1. Open the alerting the investigator toc:\ProgramFiles\AccessData\Forensic
Toolkit\2.1.0\bin folder.
2. Back up noise.dat by renaming it or copying and pasting it into the same folder.
3. Open noise.dat in a text editor.
4. Select all the words in the list.
280 AccessData FTK2 User Guide
5. Press Delete.
6. Add any words (if any) to the list that you wish to be considered “noise”. If you want
the file to be empty, save it with no content.
7. Save the file as noise.dat.
Appendix G Corporate Information 281
Appendix G Corporate
Information
This appendix contains information about AccessData and its products.
CONTACTING ACCESSDATA CORPORATION BY MAIL
Please send correspondence through the US Postal Service to:
AccessData Corp.
384 South 400 West, Suite 200
Lindon, Utah 84042
USA
REGISTRATION
AccessData provides a USB CodeMeter Stick with AD FTK2 as a registration
compliance and security device that is configured as part of the installation process. It
maintains AD FTK2 licensing and subscription information and is required to use AD
FTK2.
In addition, the licensing of the product takes place when the product is purchased, and
the licensing information is stored in our database. If you receive your CodeMeter
Stick and it does not have a license on it, with the CodeMeter Stick connected, run
282 AccessData FTK2 User Guide
LicenseManager and refresh the device. If this does not resolve your issue, please
contact Customer Support by phone or by email.
If you have sales questions or questions regarding the CodeMeter Stick and licensing
issues, please contact your Sales Rep at 801-377-5410.
TECHNICAL SUPPORT
AccessData offers free technical support on all of its software from 7:00 a.m. to 6:00
p.m. Mountain Standard Time. When contacting Customer Support by phone, please
have your CodeMeter Stick or dongle serial number ready, and always include it in any
email or fax correspondence. Please do not send a fax unless requested by a Support
Agent.
DOCUMENTATION
Please email any problems you find with the documentation to:
documentation@accessdata.com.
TABLE G-1 Contacting AccessData Support
Contact Us By Using This Information
Phone: 801.377.5410 (Toll)
800.658.5199 (Toll Free)
Fax 800.765.4370; ATTN: Support
Web site http://www.accessdata.com
Product-specific FAQs that list common questions and their
quick fixes.
Find both the AccessData Forum and the Online Support
Form to submit support requests at http://www.access‐
data.com/support. All support inquiries are typically
answered within 24 hours. If there is an urgent need for sup-
port, contact AccessData via phone.
Email support@accessdata.com
FTK Glossary 283
FTK Glossary
AccessData Recovery Session
In PRTK, selecting one or more files and starting the password recovery process is called
an AccessData Recovery (ADR) session. Typically, each case has one session unless you
have a large number of encrypted files.
Address
A location of data, usually in main memory or on a disk. You can think of computer
memory as an array of storage boxes, each of which is one byte in length. Each
computer has an address (a unique number) assigned to it. By specifying a memory
address, programmers can access a particular byte of data. Disks are divided into tracks
and sectors, each of which has a unique address.
Advanced Encryption Standard
A common symmetric encryption system that has replaced Data Encryption Standard
as the encryption standard. It uses a 128, 192, or 256-bit key.
Application Administrator
The first user created in an AccessData FTK2 system. The Application Administrator
has all rights within the application, including adding users and assigning roles.
Application Administrators can assign the role of Application Administrator to new
users as they are created.
284 AccessData FTK2 User Guide
Asymmetric Encryption
A type of encryption in which the encryption and decryption keys are different.
Asymmetric encryption uses a public key (which can be posted on an Internet site or
made “public” through other means) and a private key, which remains secret. In this
system, something that has been encrypted with the private key can be decrypted only
by the public key, and vice versa. Asymmetric algorithms are slower than symmetric
algorithms, but can nonetheless be very useful. They are often used in combination with
symmetric algorithms, as with EFS Encryption.
The number of possible key values refers to the actual number of different key words or
passwords that can exist, based on the particular algorithm used to create the key value
in question. A n-bit key has 2n possible values. For example, a 40-bit key has 240 possible
values, or 1,099,511,627,776 possibilities.
The security of an algorithm should rely on the secrecy of the key only, not the secrecy
of the algorithm.
Do not compare key sizes between symmetric and asymmetric algorithms. For example,
a 128-bit symmetric key is approximately as strong as a 512-bit asymmetric key.
BestCrypt
A common symmetric encryption system that can be used with any of the following
hash functions and encryption algorithms:
• GOST
• SHA-1 Hash
• Blowfish
• IDEA
• Twofish
• CAST
• AES
• RC6
• 3DES encryption
Binary
Pertaining to a number system that has just two unique digits. Computers are based on
the binary numbering system, which consists of just two unique numbers, 0 and 1. All
FTK Glossary 285
operations that are possible in the decimal system (addition, subtraction, multiplication,
and division) are equally possible in the binary system.
BIOS
Acronym for Basic Input/Output System. The BIOS is built-in software that
determines what a computer can do without accessing programs from a disk. On PCs,
the BIOS contains all the code required to control the keyboard, display screen, disk
drives, serial communications, and a number of miscellaneous functions.
Bit-stream Image
See “Forensic Image” on page 290.
Bookmark
A menu entry or icon on a computer that is most often created by the user and that
serves as a shortcut to a previously viewed location (as an Internet address). The term
“bookmark” as used in a Computer Crimes Unit report refers to locating a file, folder
or specific item of interest to the examiner or to the investigator. The location of the
data (file name, file location, relative path, and hardware address) is identified. Other
data can be addressed as well.
Boot
To load the first piece of software that starts a computer. Because the operating system
is essential for running all other programs, it is usually the first piece of software loaded
during the boot process.
Boot Record
All the three types of FAT have a boot record, which is located within an area of
reserved sectors. The DOS format program reserves 1 sector for FAT12 and FAT16 and
usually 32 sectors for FAT32.
Chunk Size
The number of passwords the supervisor machine can process in the amount of time
specified.
286 AccessData FTK2 User Guide
Cluster
Fixed-length blocks that store files on the FAT media. Each cluster is assigned a unique
number by the computer operating system. Only the part of the partition called the
“data area” is divided into clusters. The remainder of the partition are defined as
sectors. Files and directories store their data in these clusters. The size of one cluster is
specified in a structure called the Boot Record, and can range from a single sector to
128 sectors. The operating system assigns a unique number to each cluster and the
keeps track of files according to which cluster they use.
CMOS
Short for Complementary Metal Oxide Semiconductor. Pronounced SEE-moss, CMOS
is a widely used type of semiconductor. CMOS semiconductors use both NMOS
(negative polarity) and PMOS (positive polarity) circuits. Since only one of the circuit
types is on at any given time, CMOS chips require less power than chips using just one
type of transistor. This makes them particularly attractive for use in battery-powered
devices, such as portable computers. Personal computers also contain a small amount
of battery-powered CMOS memory to hold the date, time, and system setup
parameters.
CRC
Short for Cyclical Redundancy Check. It performs a complex calculation on every byte
in the file, generating a unique number for the file in question. If so much as a single
byte in the file being checked were to change, the cyclical redundancy check value for
that file would also change. If the CRC value is known for a file before it is downloaded,
you can compare it with the CRC value generated by this software after the file has been
downloaded to ascertain whether the file was damaged in transit. The odds of two files
having the same CRC value are even longer than the odds of winning a state-run
lottery—along the lines of one in 4,294,967,296.
Cylinder
A single-track location on all the platters making up a hard disk. For example, if a hard
disk has four platters, each with 600 tracks, then there will be 600 cylinders, and each
cylinder will consist of 8 tracks (assuming that each platter has tracks on both sides).
dd
FTK Glossary 287
(Linux) Makes a copy of a input file (STDIN) using the specified conditions, and sends
the results to the output file (STDOUT).
Data Carving
Data carving is the process of extracting a collection of data from a larger data set. Data
carving techniques frequently occur during a digital investigation when the unallocated
file system space is analyzed to extract files. The files are “carved” from the unallocated
space using file type-specific header and footer values. File system structures are not
used during the process.
Data Encryption Standard
A 56-bit symmetric encryption system that is considered weak by current standards. It
has been broken in a distributed environment.
Device
Any machine or component that attaches to a computer. Examples of devices include
disk drives, printers, mice, and modems. These particular devices fall into the category
of peripheral devices because they are separate from the main computer.
Most devices, whether peripheral or not, require a program called a device driver that
acts as a translator, converting general commands from an application into specific
commands that the device understands.
Disk
A round plate on which data can be encoded. There are two basic types of disks:
magnetic disks and optical disks.
EnScript (also “e script”)
EnScript is a language and API that has been designed to operate within the EnCase
environment. EnScript is compatible with the ANSI C++ standard for expression
evaluation and operator meanings but contains only a small subset of C++ features. In
other words, EnScript uses the same operators and general syntax as C++ but classes
and functions are organized differently.
288 AccessData FTK2 User Guide
Evidence Item
A physical drive, a logical drive or partition, or drive space not included in any
partitioned virtual drive.
File Allocation Table (FAT)
A table that the operating system uses to locate files on a disk. A file may be divided
into many sections that are scattered around the disk. The FAT keeps track of all these
pieces.
There is a field in the Boot Record that specifies the number of FAT copies. With
FAT12 and FAT16, MS-DOS uses only the first copy, but the other copies are
synchronized. FAT32 was enhanced to specify which FAT copy is the active one in a 4-
bit value part of a Flags field.
Think of the FAT as a singly linked list. Each of the chains in the FAT specify which
parts of the disk belong to a given file or directory.
A file allocation table is a simple array of 12-bit, 16-bit, or 32-bit data elements. Usually
there will be two identical copies of the FAT.
FAT12: The oldest type of FAT uses a 12-bit binary number to hold the cluster number.
A volume formatted using FAT12 can hold a maximum of 4,086 clusters, which is 212
minus a few values (to allow for reserved values to be used in the FAT). FAT12 is most
suitable for very small volumes, and is used on floppy disks and hard disk partitions
smaller than about 16 MB (the latter being rare today.)
FAT16: The FAT used for older systems, and for small partitions on modern systems,
uses a 16-bit binary number to hold cluster numbers. When you see someone refer to a
FAT volume generically, they are usually referring to FAT16, because it is the de facto
standard for hard disks, even with FAT32 now more popular than FAT16. A volume
using FAT16 can hold a maximum of 65,526 clusters, which is 216 less a few values (again
for reserved values in the FAT). FAT16 is used for hard disk volumes ranging in size
from 16 MB to 2,048 MB. VFAT is a variant of FAT16.
FTK Glossary 289
FAT32: The newest FAT type, FAT32 is supported by newer versions of Windows,
including Windows 95’s OEM SR2 release, as well as Windows 98, Windows ME, and
Windows 2000. FAT32 uses a 28-bit binary cluster number—not 32 because 4 of the 32
bits are reserved. 28 bits is still enough to permit very large volumes—FAT32 can
theoretically handle volumes with over 268 million clusters, and will theoretically
support drives up to 2 TB in size. To do this, however, the size of the FAT grows very
large.
VFAT features the following key improvements compared to FAT12 and FAT16:
• Long File Name Support: Prior to Windows 95, FAT was limited to the eleven-
character (8.3) file name restriction. VFAT’s most important accomplishment
enabled the use of long file names by the Windows 95 operating system and
applications written for it, while maintaining compatibility with older software
that had been written before VFAT was implemented.
• Improved Performance: The disk access and file system management routines
for VFAT were rewritten using 32-bit protected-mode code to improve
performance. At the same time, 16-bit code was maintained, for use when
required for compatibility.
• Better Management Capabilities: Special support was added for techniques like
disk locking to allow utilities to access a disk in exclusive mode without fear of
other programs using it in the meantime.
File Header
The data at the beginning of a file that identifies the file type: .gif, .doc, .txt, etc.
File Footer
The data at the end of the file signifying the file is complete and allows the file to be
understood by the operating system.
File Item
Any item FTK can parse from the evidence. This includes complete files as well as sub-
elements such as graphics, files, or OLE objects embedded in other files; deleted items
recovered from unallocated space; and so forth.
File Slack
290 AccessData FTK2 User Guide
Unused space. Operating systems store files in fixed-length blocks called clusters.
Because few files are a size that is an exact multiple of the cluster size, there is typically
unused space between the end of the file and the end of the last cluster used by that file.
Forensic Image
A process where all areas of a physical disk are copied, sector by sector, to storage
media. This image may be a raw file, as in the case of the Linux utility DD, or it may be
a forensically correct copy, such as SPADA provides. These images replicate exactly all
sectors on a given storage device. All files, unallocated data areas, and areas not
normally accessible to a user are copied.
Forensically Prepared Media
Digital media (such as a diskette, tape, CD, hard drive) that is sanitized (wiped clean) of
all data. This means computer media that may be sanitized up to the Department of
Defense standards 5220.22-M (National Industrial Security Program Operating Manual
Supplement) using software wipe utilities such as Dan Mares (Maresware) Declassify,
New Technologies Inc (NTI) Disk Scrub or M-Sweep Pro or Symantec (Norton)
WipeInfo to remove all data by overwriting the existing data with random or pre-
defined characters. The Linux OS may also be used to write out a value of zero (0) to a
device.
The media is then examined using tools to determine that no data exists (MD5, SHA-1
or Diskedit). The partition information is removed and the media is sanitized from the
physical address of (cylinder/head/sector) 0/0/1 to the physical (versus logical) end of
the media.
The partition information is removed and the media is sanitized from the physical
address of (cylinder/head/sector) 0/0/1 to the physical (versus logical) end of the
media. This process involves using a program such as I-wipe, Encase, Linux, Drivespy,
SPADA or any program capable of writing multiple passes of a single character over the
entire drive.
Checksum is a form of redundancy check, a very simple measure for protecting the
integrity of data by detecting errors in data. It works by adding up the basic
components of a message, typically the bytes, and storing the resulting value. Later,
anyone can perform the same operation on the data, compare the result to the
authentic checksum and (assuming that the sums match) conclude that the message was
probably not corrupted.
FTK Glossary 291
Redundancy check is extra data added to a message for the purposes of error detection
and error correction.
The value of the checksum of forensically prepared media will be zero (0) provided the
write process is done using zeros.
Graphic Image Files
Computer graphic image files such as photos, drawings, etc. Come in various standard
formats. Some of the most common file types include but are not limited to Joint
Photographic Experts Group (JPEG, JPG), Bitmap (BMP), Graphics Interchange Format
(GIF, JFIF) and AOL image file (ART).
Golden Dictionary
The Golden Dictionary file, ADPasswords.dat, contains all recovered passwords for all
PRTK sessions on the current computer. It is stored in the AccessData program
directory (C:\ProgramFiles\AccessData\Recovery\). Recovered passwords are used as
the first level of attack in all password recovery sessions. Most people use the same
password for different files, so recovering the password for a simple file often opens
the door to more difficult files.
Graphic Interchange Format (GIF)
A common graphics format that can be displayed on almost all Web browsers. GIFs
typically display in 256 colors and have built-in compression. Static or animated GIF
images are the most common form of banner creation.
Hard Disk (Drive)
A magnetic disk on which you can store computer data. The term hard is used to
distinguish it from a soft or floppy disk. Hard disks hold more data and are faster than
floppy disks. A hard disk, for example, can store anywhere from 10 megabytes to
several gigabytes, whereas most floppies have a maximum storage capacity of 1.4
megabytes.
Hashing
292 AccessData FTK2 User Guide
Generating a unique alphanumeric value based on a file’s contents. The alphanumeric
value can be used to prove that a file copy has not been altered in any way from the
original. It is statistically impossible for an altered file to generate the same hash
number.
Head
The mechanism that reads data from or writes data to a magnetic disk or tape. Hard
disk drives have many heads, usually two for each platter.
Hexadecimal
The base-16 number system, which consists of 16 unique symbols: the numbers zero
through nine and the letters A to F. For example, the decimal number 15 is represented
as F in the hexadecimal numbering system. The hexadecimal system is useful because it
can represent every byte (eight bits) as two consecutive hexadecimal digits. It is easier
for humans to read hexadecimal numbers than binary numbers.
Markov Permutation
The Markov permutation records the times certain words, letters, punctuation, and
spaces occur together in a given amount of text, then generates random output that has
the same distribution of groups.
For example: if you were to scan through the text and create a huge frequency table of
what words come after the words “up the,” you might find “tree,” “ladder,” and
“creek” most often. You would then generate output from the words “up the,” and get
the results “up the tree,” “up the creek,” and “up the ladder” randomly.
If the words “up the” were followed most frequently by the word “creek” in your
sample text, the phrase “up the creek” would occur most frequently in your random
output.
Andrey Andreyevich Markov (June 14, 1856–July 20, 1922) was a Russian
mathematician.
Memory
Internal storage areas in the computer. The term memory identifies data storage that
comes in the form of chips; the word storage is used for memory that exists on tapes or
FTK Glossary 293
disks. Moreover, the term memory is usually used as shorthand for physical memory,
which refers to the actual chips capable of holding data.
Message Digest 5
A 128-bit digital fingerprint based on a file's content. An algorithm created in 1991 by
Professor Ronald Rivest of RSA that is used to create digital signatures, or a 128-bit
digital fingerprint based on a file's content. Message Digest 5 (MD5) takes as input an
arbitrary-length file and outputs a fixed-length number referred to as a hash or digest. It
is intended for use with 32 bit machines and is safer than the MD4 algorithm, which has
been broken. MD5 is a one-way hash function, meaning that it takes a message and
converts it into a fixed string of digits, also called a message digest. When using a one-
way hash function, one can compare a calculated message digest against the message
digest that is decrypted with a public key to verify that the message hasn’t been
changed. This comparison is called a hash check. The number is derived from the input
in such a way that it is computationally infeasible to derive any information about the
input from the hash. It is also computationally infeasible to find another file that will
produce the same output.
MD5 hashes are used by the KFF to identify known files.
Metadata
Literally data about data. Metadata describes how, when, and by whom a particular set
of data was collected and how the data is formatted. Metadata is essential for
understanding information stored in data warehouses and has become increasingly
important in XML-based Web applications.
Mount
To make a mass storage device available to the OS, or to a user or user group. In may
also mean to make a device physically accessible. In a Unix environment, the mount
command attaches discs or directories logically rather than physically. The Unix mount
command makes a directory accessible by attaching a root directory of one file system
to another directory, which makes all the file systems usable as if they were
subdirectories of the file system they are attached to. Unix recognizes devices by their
location, while Windows recognizes them by their names (C: drive, for example). Unix
organizes directories in a tree-like structure in which directories are attached by
294 AccessData FTK2 User Guide
mounting them on the branches of the tree. The file system location where the device
is attached is called a mount point. Mounts may be local or remote. A local mount
connects disk drives on one machine so that they behave as one logical system. A
remote mount uses Network File System (NFS) to connect to directories on other
machines so that they can be used as if they were all part of the user’s file system.
NT File System (NTFS)
One of the file systems for the Windows NT operating system (Windows NT also
supports the FAT file system). NTFS has features to improve reliability, such as
transaction logs to help recover from disk failures. To control access to files, you can set
permissions for directories or individual files. NTFS files are not accessible from other
operating systems, such as DOS. For large applications, NTFS supports spanning
volumes, which means files and directories can be spread out across several physical
disks.
Pagefile (.sys)
The paging file is the area on the hard disk that Windows uses as if it were random
access memory (RAM). This is sometimes known as virtual memory. By default,
Windows stores this file on the same partition as the Windows system files.
Pretty Good Privacy
A common symmetric encryption system used for exchanging files and email. It
provides both privacy and authentication.
RC4
RC4, or ARC4, is a variable key-length stream cipher designed by RSA. Stream ciphers
are key-dependent, pseudo-random number generators whose output is XORed with
the data <plaintext> XOR <random-looking stream> = <random-looking
ciphertext>. Because XOR is symmetric (in other words, [A XOR B] XOR B = A),
XORing the ciphertext with the stream again returns the plaintext. Microsoft Word and
Excel use RC4 and a 40-bit key to encrypt their files. An exhaustive key space attack has
a much better chance at succeeding with a 40-bit key space.
Sector
FTK Glossary 295
A sector is a group of bytes within a track and is the smallest group of bytes that can be
addressed on a drive. There are normally tens or hundreds of sectors within each track.
The number of bytes in a sector can vary, but is almost always 512. The maximum
number of sectors in a cluster is 64. CDROMS normally have 2048 bytes per sector.
Sectors are numbered sequentially within a track, starting at 1. The numbering restarts
on every track, so that “track 0, sector 1” and “track 5, sector 1” refer to different
sectors. Modern drives use a system known as Logical Block Addressing (LBA) instead
of CHS to track sectors.
During a low-level format, hard disks are divided into tracks and sectors. The tracks are
concentric circles around the disk and the sectors are segments within each circle. For
example, a formatted disk might have 40 tracks, with each track divided into ten sectors.
Physical sectors are relative to the entire drive. Logical sectors are relative to the
partition.
Secure Hash Algorithm
A 160-bit digital fingerprint based on a file’s content. Designed by the National Institute
of Standards and Technology (NIST), Secure Hash Algorithm (SHA) takes as input an
arbitrary-length file and outputs a fixed-length number referred to as a hash or digest.
The number is derived from the input in such a way that it is computationally
impossible to derive any information about the input from the hash. It is also
computationally impossible to find another file that will produce the same output.
SHA-1 hashes are used by the KFF to identify known files.
FTK uses SHA-1 and SHA-256. The KFF library contains some A hashes.
SHA
The SHA (Secure Hash Algorithm) family is a set of related cryptographic hash
functions. The most commonly used function in the family, SHA-1, is employed in a
large variety of popular security applications and protocols, including TLS, SSL, PGP,
SSH, S/MIME, and IPSec. SHA-1 is considered to be the successor to MD5, an earlier,
widely-used hash function. The SHA algorithms were designed by the National Security
Agency (NSA) and published as a US government standard.
The first member of the family, published in 1993, is officially called SHA; however, it is
often called SHA-0 to avoid confusion with its successors. Two years later, SHA-1, the
first successor to SHA, was published. Four more variants have since been issued with
296 AccessData FTK2 User Guide
increased output ranges and a slightly different design: SHA-224, SHA-256, SHA-384, and
SHA-512—sometimes collectively referred to as SHA-2.
Attacks have been found for both SHA-0 and SHA-1. No attacks have yet been reported
on the SHA-2 variants, but since they are similar to SHA-1, researchers are worried, and
are developing candidates for a new, better hashing standard.
Spool (spooling, print spool)
Acronym for Simultaneous Peripheral Operations On-Line, spooling refers to putting
jobs in a buffer, a special area in memory or on a disk where a device can access them
when it is ready. Spooling is useful because devices access data at different rates. The
buffer provides a waiting station where data can rest while the slower device catches up.
The most common spooling application is print spooling. In print spooling, documents
are loaded into a buffer (usually an area on a disk), and then the printer pulls them off
the buffer at its own rate. Because the documents are in a buffer where they can be
accessed by the printer, you can perform other operations on the computer while
printing takes place in the background. Spooling also lets you place a number of print
jobs on a queue instead of waiting for each one to finish before specifying the next one.
(File and RAM) Slack
Files are created in varying lengths depending on their contents. DOS, Windows and
Windows NT-based computers store files in fixed length blocks of data called clusters.
Rarely do file sizes exactly match the size of one or multiple clusters perfectly. The data
storage space that exists from the end of the file to the end of the last cluster assigned
to the file is called file slack. Cluster sizes vary in length depending on the operating
system involved and, in the case of Windows 95, the size of the logical partition
involved. Larger cluster sizes mean more file slack and also the waste of storage space
when Windows 95 systems are involved.
File slack potentially contains randomly selected bytes of data from computer memory.
This happens because DOS/Windows normally writes in 512 byte blocks called sectors.
Clusters are made up of blocks of sectors. If there is not enough data in the file to fill
the last sector in a file, DOS/Windows makes up the difference by padding the
remaining space with data from the memory buffers of the operating system. This
randomly selected data from memory is called RAM Slack because it comes from the
memory of the computer.
FTK Glossary 297
RAM Slack can contain any information that may have been created, viewed, modified,
downloaded or copied during work sessions that have occurred since the computer was
last booted. Thus, if the computer has not been shut down for several days, the data
stored in file slack can come from work sessions that occurred in the past.
RAM slack pertains only to the last sector of a file. If additional sectors are needed to
round out the block size for the last cluster assigned to the file, then a different type of
slack is created. It is called drive slack and it is stored in the remaining sectors which
might be needed by the operating system to derive the size needed to create the last
cluster assigned to the file. Unlike RAM slack, which comes from memory, drive slack is
padded with what was stored on the storage device before. Such data could contain
remnants of previously deleted files or data from the format pattern associated with
disk storage space that has yet to be used by the computer.
For example, take a file that is created by writing the word “Hello.” Assuming that this
is the only data written in the file and assuming a two sector cluster size for the file, the
data stored to disk and written in file slack could be represented as follows:
________________________________________
Hello+++++++|————(EOC)
RAM Slack is indicated by "+"
Drive Slack is indicated by "–"
________________________________________
File Slack is created at the time a file is saved to disk. When a file is deleted under DOS,
Windows, Windows 95, Windows 98 and Windows NT/2000/XP, the data associated
with RAM slack and drive slack remains in the cluster that was previously assigned to the
end of the deleted file. The clusters which made up the deleted file are released by the
operating system and they remain on the disk in the form of unallocated storage space
until the space is overwritten with data from a new file.
File slack potentially contains data dumped randomly from the computer’s memory. It
is possible to identify network login names, passwords, and other sensitive information
associated with computer usage. File slack can also be analyzed to identify prior uses of
the subject computer and such legacy data can help the computer forensics investigator.
File slack is not a trivial item. On large hard disk drives, file slack can involve several
hundred megabytes of data. Fragments of prior email messages and word processing
documents can be found in file slack. From a computer forensic standpoint, file slack is
very important as both a source of digital evidence and security risks
298 AccessData FTK2 User Guide
String Searches
A string search is a data string containing standard text or non-text data. The term may
be a word, phrase or an expression. Keyword searches are designed to aid in the
identification of potentially relevant data on the examined media.
Superuser Administrator
Aperson with unlimited access privileges who can perform any and all operations on
the computer and within the operating system and file system. These privileges do not
necessarily transfer to the applications installed on the computer.
Symmetric Encryption
A type of encryption in which the encryption and decryption keys are the same. Some
common symmetric encryption systems are Data Encryption Standard, Triple-DES,
Pretty Good Privacy, BestCrypt, and Advanced Encryption Standard.
Thumbnail
A smaller-sized version of a graphics image.
Unallocated Space
Also called free space, it consists of all the clusters on a drive that are not currently
assigned to a file. Some of these clusters may still contain data from files that have been
deleted but not yet overwritten by other files.
Until the first file is written to the data storage area of a computer storage device, the
clusters are unallocated by the operating system in the File Allocation Table (FAT). These
unallocated clusters are padded with format pattern characters and the unallocated
clusters are not of interest to the computer forensics specialist until data is written to the
clusters. As the computer user creates files, clusters are allocated in the File Allocation
Table (FAT) to store the data. When the file is deleted by the computer user, the clusters
allocated to the file are released by the operating system so new files and data can be
stored in the clusters when needed. However, the data associated with the deleted file
remains behind. This data storage area is referred to as unallocated storage space and it
is fragile from an evidence preservation standpoint. However, until the unallocated
storage space is reassigned by the operating system, the data remains behind for easy
discovery and extraction by the computer forensics specialist. Unallocated file space
FTK Glossary 299
potentially contains intact files, remnants of files and subdirectories and temporary files,
which were transparently created and deleted by computer applications and also the
operating system. All of such files and data fragments can be sources of digital evidence
and also security leakage of sensitive data and information.
URL
Abbreviation of Uniform Resource Locator, the global address of documents and
other resources on the World Wide Web. The first part of the address indicates what
protocol to use and the second part specifies the IP address or the domain name where
the resource is located.
Volume
A volume refers to a mounted partition. There may be only one volume on a disk, such
as a floppy disk or a zip disk. There may be several volumes on a disk as on a
partitioned hard drive. A volume is a logical structure, not a physical device. There can
be up to 24 of these logical volumes on a disk and they show up as drive “c,” “d,” or “e”
in DOS.
Volume Boot Sector
Since every partition may contain a different file system, each partition contains a
volume boot sector which is used to describe the type of file system on the partition
and usually contains boot code necessary to mount the file system.
300 AccessData FTK2 User Guide
301
A
archiving
see backing up case 93
B
backing up case 93
bookmarks 104
creating 105
export files to report 171
including in report 171
moving 114
tab 68
viewing 107
C
carved files
adding 81
carving
see data carving 145
case 35
adding evidence 95
backing up 93
creating 77
entering information in a report 169
indexing 82
processing of evidence 78
refining evidence 84
Case Manager Window 36
CmStick 36, 207, 209
CodeMeter 36
column headings
common 188
compressed 200
DOS 197
email 190
ext2 197
file status 195
file system 196
HFS 198
NTFS 199
Outlook/Exchange 193
stored hashes 190
Unix 200
302 AccessData FTK2 User Guide
Creating 71
custom identification file 83
customizing 184
data carving 201
file list columns 186
tab layout 183
view panes 183
D
data carving 145
customizing 201
existing case 146
new case 81, 146
Database File Types 239
decrypted files
locating 80
decrypting 161
viewing decrypted files 163
diagnostics
workers 223
docking
options 184
Document File Types 234
dongle 36, 209
dtSearch 8, 82
E
EFS 161
decrypting files 80
email
file types 243
window 68
evidence
excluding from index 89
processing of 78
refining 84
exporting
bookmarked files to report 171
files 118
index 138
registry files 121
F
303
file
exporting 118
file category 60
file content 50
filter tab 52
hex tab 53
natural tab 51
text tab 53
file list columns
customizing 186
file listing database 80
file properties
in report 174
viewing 102
file status 60, 61
file types
email message 243
filter 149
Known File Filter (KFF) 154
toolbar 149
filtering
creating or modifying 152
FTK 2 window 38
FTK Imager 77
G
Graphic File Types 241
H
hardware acquisition tools 76
hashing
databases of 9
overview of 8
sample of 8
HashKeeper database 9
hex interpreter 49
hexadecimal 49
HTML file listing 80
I
index
contents of 138
selecting 78
304 AccessData FTK2 User Guide
L
License Manager
updating 216
M
MD5
see Message Digest 5 8
Message Digest 5 8
selecting 78
N
NTFS 161, 249
decrypt EFS files 80
O
or 35
P
packet file 212
partition
evidence item 278
NTFS 80, 249
Password Recovery Toolkit 138, 204
features 205
progress dialog 57
Properties Pane 48
PRTK
see Password Recovery Toolkit 204
Q
QuickPicks 45
QuickPicks Filter 56
R
registry files 206
Registry Viewer 206, 257
regular expression 123
reports
entering case information 169
including bookmarks in 171
305
including list of file properties in 174
modifying 180
sample of 178
selecting location of 176
viewing 178
roles 75
S
searching 8
regular expressions 129
Secure Hash Algorithim 8
Secure Hash algorithim
selecting 78
security device 212
SHA-1
see Secure Hash Algorithim 8
software acquisition tools 76
Spreadsheet File Types 238
status 158
T
tab
Bookmark 68
Email 63
Explore 54
Graphics 65
Overview 58
Search 69
User-defined 71
Tab Layout menu 183
temporary file folder 200
thumbnails
creating 78
marking 65
see Graphics Tab 66
toolbar 45
file list 47
U
updating
products 216
V
306 AccessData FTK2 User Guide
View menu 182
view panes
moving 183
W
window
email 68
Windows Registry
file types 258
Windows 9x file types 258
Windows NT and 2000 file types 259
Windows XP file types 260
