Visit www.gansystems.com for the latest version of this user’s guide.
This evaluation kit is designed for engineering evaluation in a controlled
lab environment and should be handled by qualified personnel ONLY.
High voltage will be exposed on the board during the test and even brief
contact during operation may result in severe injury or death.
Never leave the board operating unattended. After it is de-energized,
always wait until all capacitors are discharged before touching the board.
This product contains parts that are susceptible to damage by electrostatic
discharge (ESD). Always follow ESD prevention procedures when
handling the product.
The GS665XXX-EVBDB daughter board style evaluation kit consists of two GaN Systems 650V GaN
Enhancement-mode HEMTs (E-HEMTs) and all necessary circuits including half bridge gate drivers,
isolated power supplies and optional heatsink to form a functional half bridge power stage. It allows
users to easily evaluate the GaN E-HEMT performance in any half bridge-based topology, either with the
universal mother board (P/N: GS665MB-EVB) or users’ own system design.
Serves as a reference design and evaluation tool as well as deployment-ready solution for easy in-
system evaluation.
Vertical mount style with height of 35mm, which fits in majority of 1U design and allows
evaluation of GaN E-HEMT in traditional through-hole type power supply board.
Current shunt position for switching characterization testing
Universal form factor and footprint for all products
The daughter board and universal mother board ordering part numbers are below:
Part Number
GaN E-HEMT P/N:
Description
GS66502B-EVBDB
GS66502B
GaN E-HEMT 650V/7.5A, 200mΩ
GS66504B-EVBDB
GS66504B
GaN E-HEMT 650V/15A, 100mΩ
GS66508B-EVBDB
GS66508B
GaN E-HEMT 650V/30A, 50mΩ
GS66508T-EVBDB
GS66508T
GaN E-HEMT top side cooled 650V/30A, 50mΩ
GS66516T-EVBDB
GS66516T
GaN E-HEMT top side cooled 650V/60A, 25mΩ
GS665MB-EVB
Universal 650V Mother Board

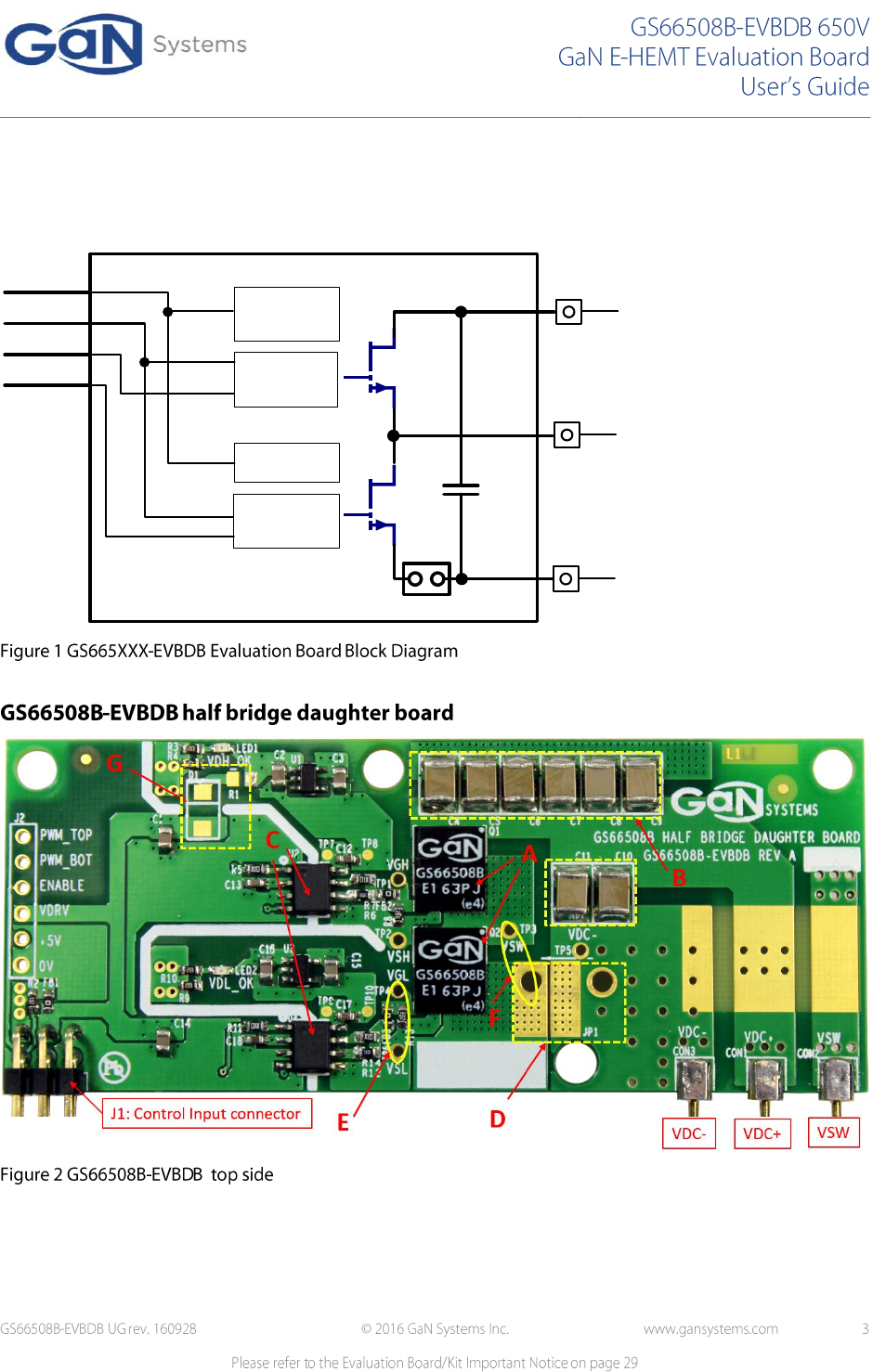

The daughter board GS665XXX-EVBDB circuit diagram is shown in Figure 1. The control logic inputs on
2x3 pin header J1 are listed below:
Pin
Descriptipon
ENA
Enable input. It is internally pulled up to VCC, a low logic disables all the PWM gate
drive outputs.
VCC
+5V auxillary power supply input for logic circuit and gate driver. On the daughter
board there are 2 isolated 5V to 9V DC/DC power supplies for top and bottom switches.
VDRV
Optional 9V gate drive power input. This pin allows users to supply separate gate drive
power supply. By default VDRV is connected to VCC on the daughter board via a 0 ohm
jumper FB1. If bootstrap mode is used for high side gate drive, connect VDRV to 9V
PWMH
High side PWM logic input for top switch Q1. It is compatible wth 3.3V and 5V
PWML
Low side PWM logic input for bottom switch Q2. It is compatible wth 3.3V and 5V
0V
Logic inputs and gate drive power supply ground return.
The 3 power pins are:
VDC+: Input DC Bus voltage
VSW: Switching node output
VDC-: Input DC bus voltage ground return. Note that control ground 0V is isolated from VDC-.
Si8271 Iso.
Gate Driver Q1
Q2
Si8271 Iso.
Gate Driver
Iso. DC/DC
or Bootstrap
Iso. DC/DC
VDC+
VSW
VDC-
VCC
ENABLE
JP1
C4-10
PWMH
PWML
A. 2x GaN Systems 650V E-HEMT GS66508B, 30A/50mΩ
B. Decoupling capacitors C4-C11
C. Isolated gate driver Silab Si8271GB-IS
D. Optional current shunt position JP1.
E. Test points for bottom Q2 VGS.
F. Recommended probing positions for Q2 VDS.
G. Optional bootstrap circuit D1/R1 (unpopulated).
H. 5V-9V isolated DC/DC gate drive power supply
This daughter board includes two GaN Systems E-HEMT GS66508B (650V/30A, 50mΩ) in a
GaNPx™ B type package. The large S pad serves as source connection and thermal pad. The pin
4 is the kelvin source connection for gate drive return.

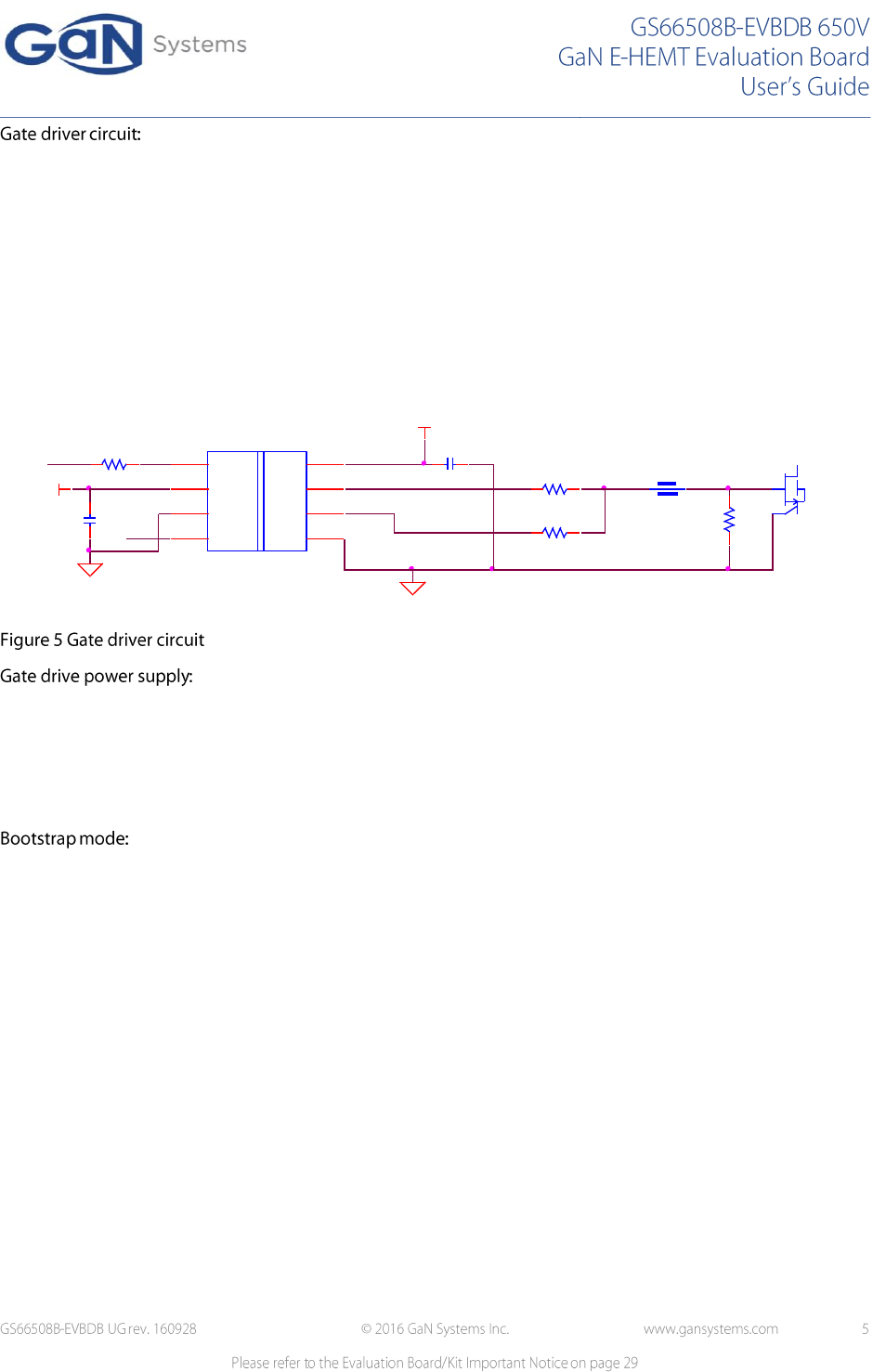

Silab Si8271GB-IS isolated gate driver is chosen for this design. This driver is compatible with 6V
gate drive with 4V UVLO and has CMTI dv/dt rating up to 200V/ns. It has separated source and
sink drive outputs which eliminates the need for additional diode.
GaN E-HEMT switching speed and slew rate can be directly controlled by the gate resistor. By
default the turn-on Rgate (R6/R12) is 10Ω and Rg_off (R7/R14) is 1Ω. User can adjust the values
of gate resistors to fine tune the turn-on and off speed.
FB1/FB2 are footprints for optional ferrite bead. By default they are populated with 0Ω jumpers.
If gate oscillation is observed, it is recommended to replace them with ferrite bead with Z=10-
20Ω@100MHz.
5V-9V isolated DC/DC converters are used for gate drive. 9V output is then regulated down to
6V for gate driver.
By default gate drive supply input VDRV is tied to VCC +5V via 0Ω jumper (FB1). Remove FB1 if
separate gate drive input voltage is to be used.

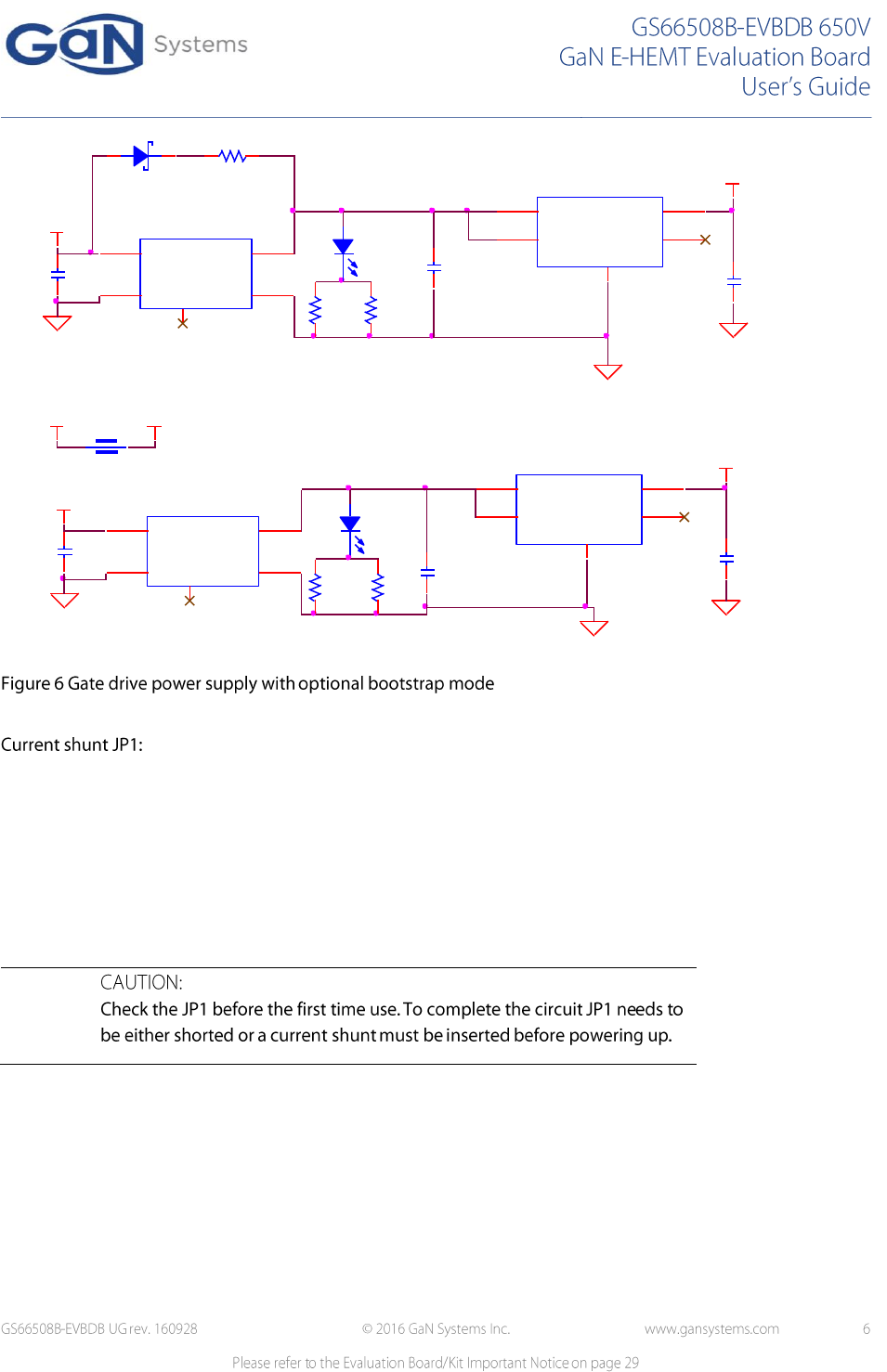

The board has option for users to experiment with non-isolated bootstrap circuit with following
circuit changes:
o Remove PS2 and short circuit pin 2 to 5 and pin 1 to 4.
o Populate D1/ R1 (not supplied): D1 is the high voltage bootstrap diode (for example ES1J)
and use 1-2Ω 0805 SMD resistor on R1. Depopulate PS1, LED1 and replace C2 with 1uF
capacitor.
o Remove 0Ω jumper at FB1 and supply +9V at VDRV.
The board provides an optional current shunt position JP1 between the source of Q2 and power
ground return. This allows drain current measurement for switching characterization test such as
Eon/Eoff measurement.
The JP1 footprint is compatible with T&M Research SDN series coaxial current shunt
(recommended P/N: SDN-414-10, 2GHz B/W, 0.1Ω)
If current shunt is not used JP1 must be shorted. JP1 affects the power loop inductance and its
inductance should be kept as low as possible. Use a copper foil or jumper with low inductance.
D1
600V 1A
DO-214AC
R1
0R
R0805
DNP
DNP
PS1
PES1-S5-S9-M
GND
1
VIN
2+VO 5
0V 4
NC
8
U1
LP2985IM5-6.1
IN
1
GND
2
ON/OFF
3BYP 4
OUT 5
GNDH
0V
VDRV
C1
4.7uF
C0805
VDDH_+6V
C3
4.7uF
C0805
GNDH
R4
3.3K
C2
4.7uF
C0805
R3
3.3K
LED1
LED-0603
VDDH_+9V
PS2
PES1-S5-S9-M
GND
1
VIN
2+VO 5
0V 4
NC
8
GNDL
U3
LP2985IM5-6.1
IN
1
GND
2
ON/OFF
3BYP 4
OUT 5
0V
VDRV
C14
4.7uF
C0805
VDDL_+6V
C15
4.7uF
C0805
GNDL
C16
4.7uF
C0805
R9
3.3K
LED2
LED-0603
VDDL_+9V
FB1
0R
VDRV VCC_+5V
R10
3.3K

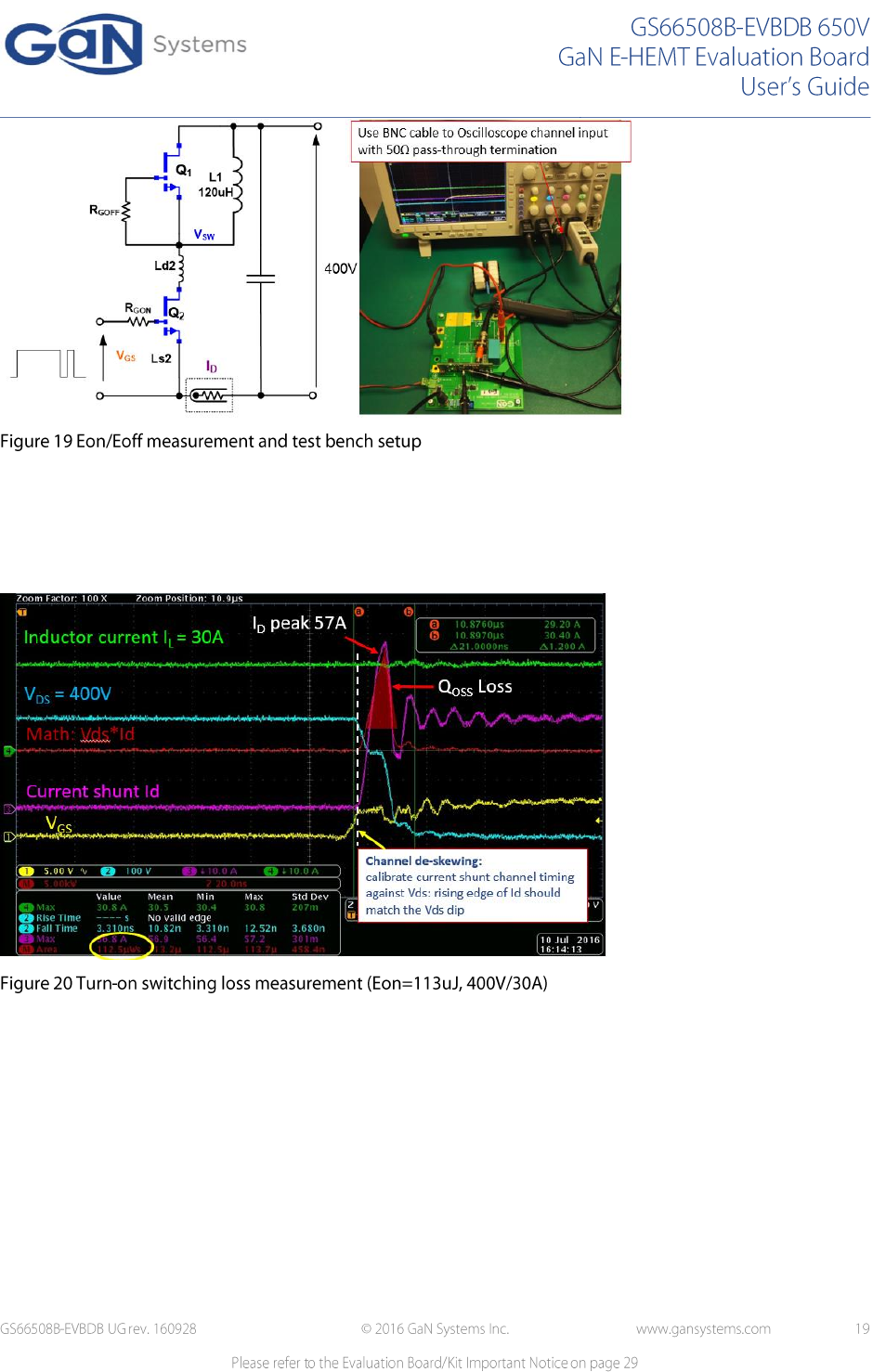

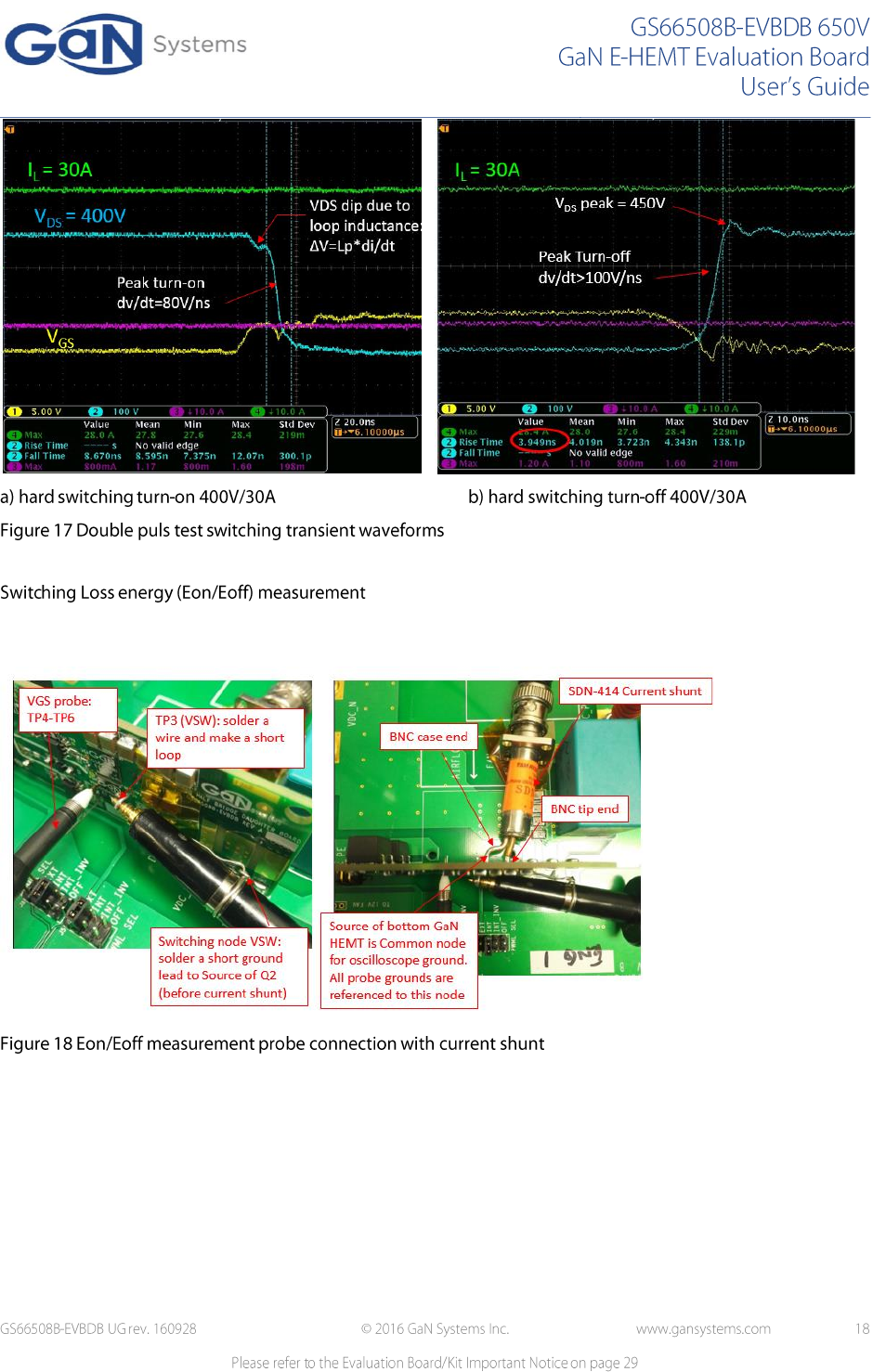

1. When measuring VSW with current shunt, ensure all channel probe grounds and current shunt
BNC output case are all referenced to the source end of Q2 before the current shunt. The
recommended setup of probes is shown as below.
2. The output of coaxial current shunt can be connected to oscilloscope via 50Ω termination
impedance to reduce the ringing.
3. The measured current is inverted and can be scaled by using: Id=Vid/Rsense.

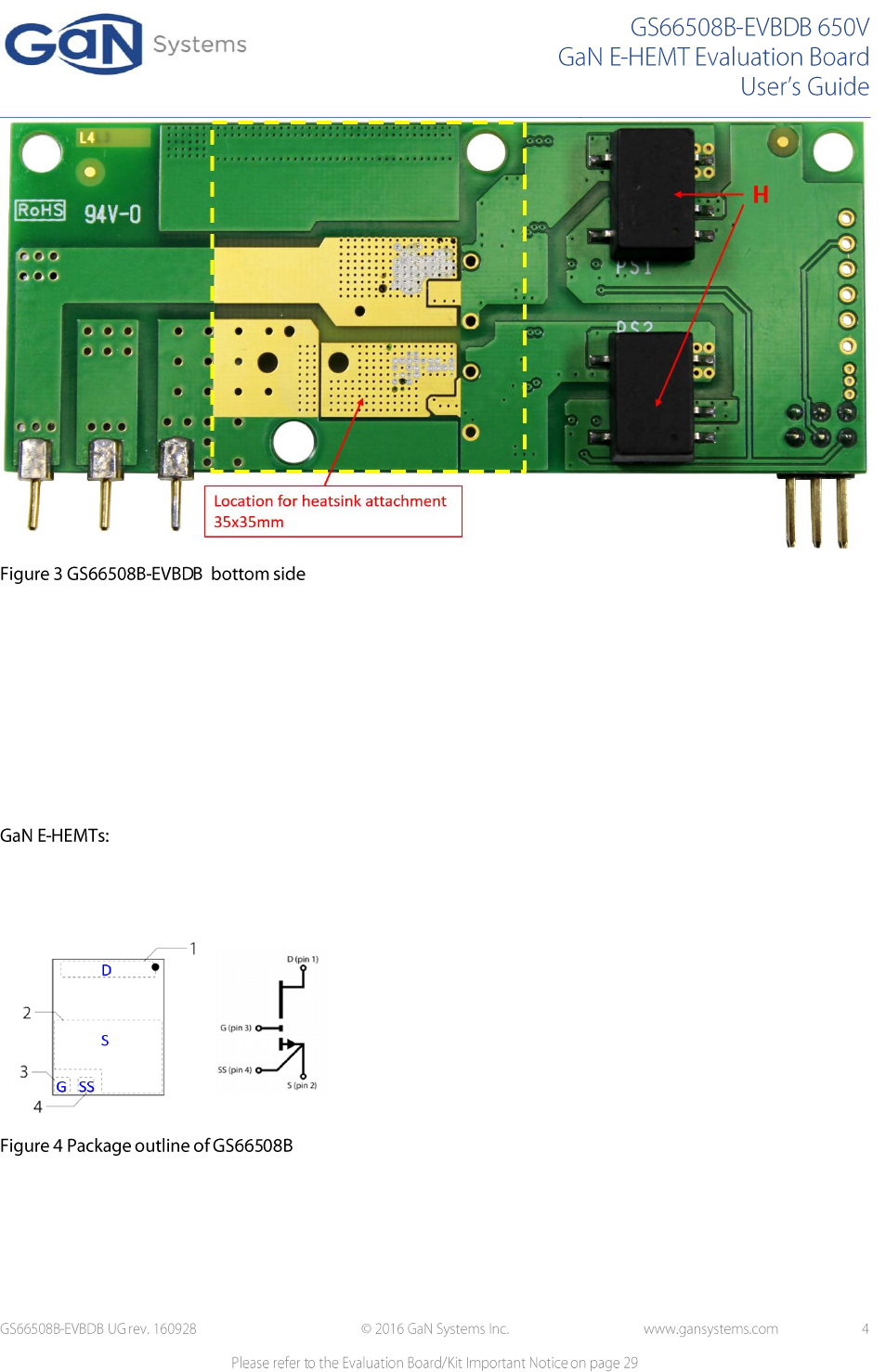

1. GS66508B has a thermal pad at the bottom side for heat dissipation. The heat is transferred to the
bottom side of PCB using thermal vias and copper plane.
2. A heatsink (35x35mm size) can be attached to the bottom side of board for optimum cooling.
Thermal Interface Material (TIM) is needed to provide electrical insulation and conformance to
VGL
VSL
VSW
BNC case
To oscilloscope
probe input (use
50Ω termination)
BNC tip
VDS
VGS
ID

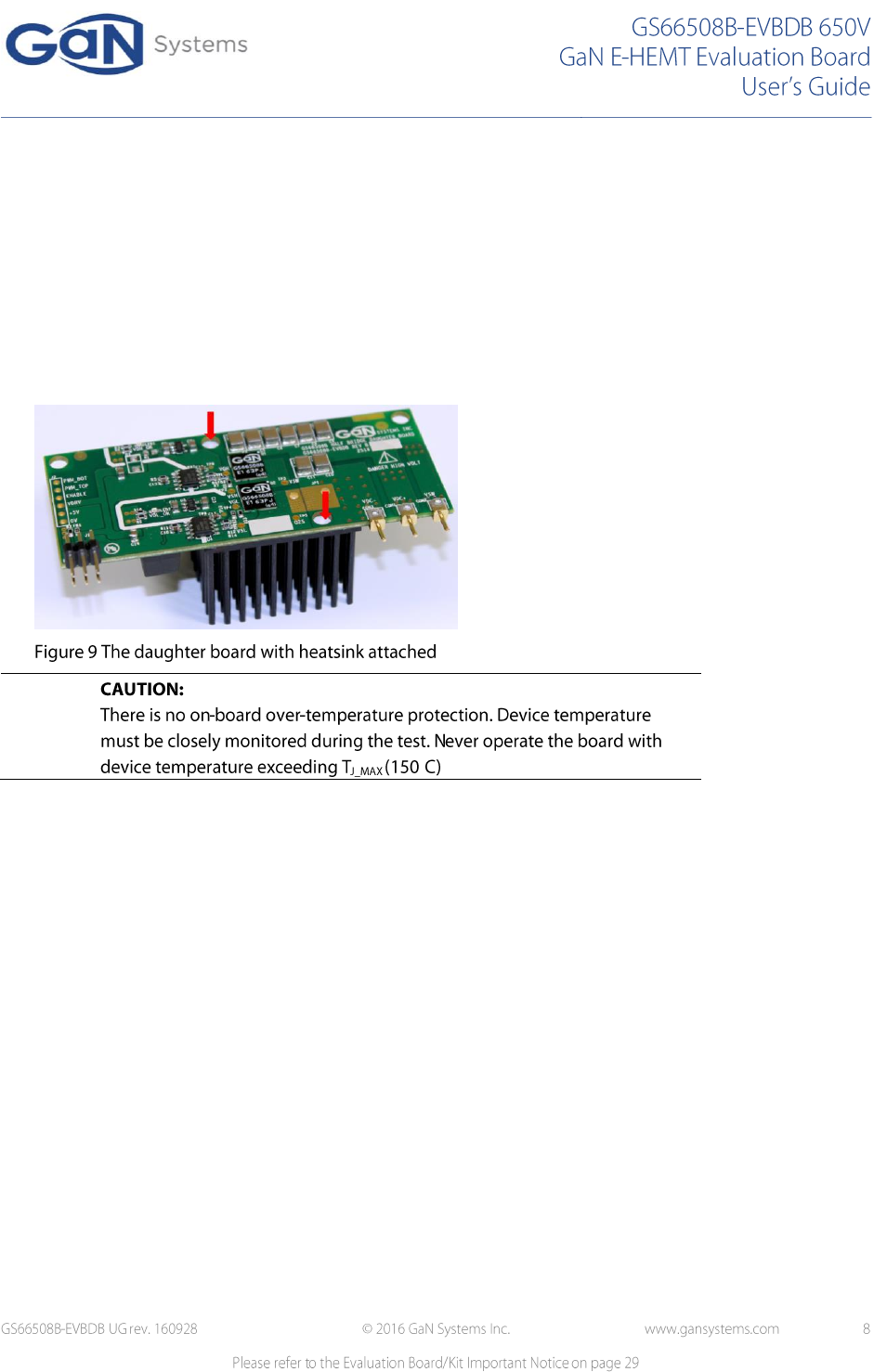

the PCB surface. The daughter board evaluation kit supplies with a sample 35x35mm fin heatsink
(not installed), although other heatsinks can also be used to fit users’ system design.
3. A thermal tape type TIM (Berguist® Bond-Ply 100) is chosen for its easy assembly. The supplied
heatsink has the thermal tape pre-applied so simply peel off the protective film and attach the
heatsink to the back of board as marked in Figure 3.
4. Two optional mounting holes as shown in Figure 9 are provided for mounting customized
heatsink using screws.
5. Using the supplied heatsink and TIM, the overall junction to ambient thermal resistance RthJ-A is
~9°C/W with 500LFM airflow.
6. Forced air cooling is recommended for power testing.
°

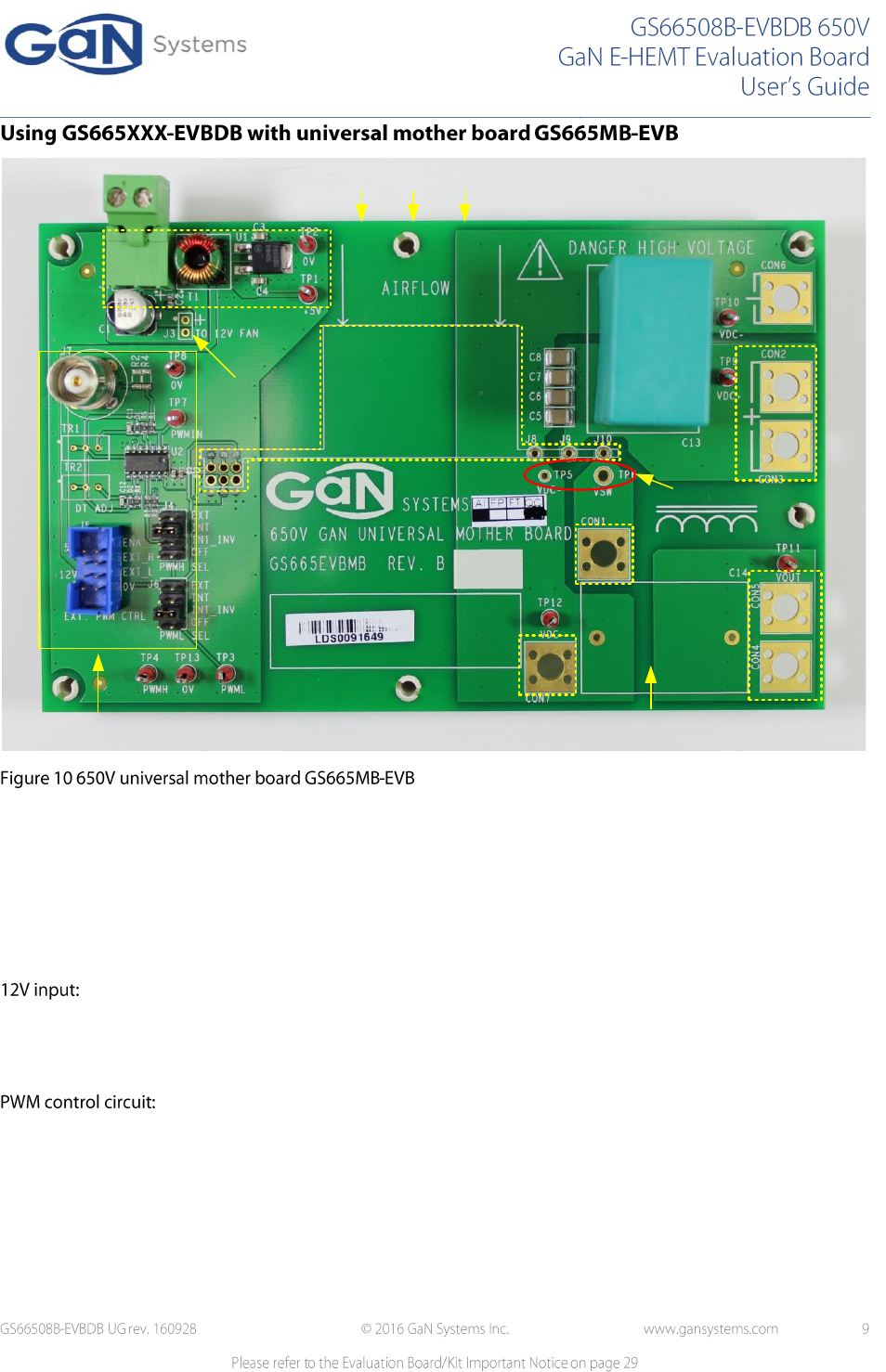

GaN Systems provides a universal 650V mother board (ordering part number: GS665MB-EVB, sold
separately) that can be used as the basic evaluation platform for all the daughter boards.
The universal 650V mother board evaluation kit includes following items:
1. Mother board GS665MB-EVB
2. 12VDC Fan
The board can be powered by 9-12V on J1. On-board voltage regulator creates to 5V for daughter board
and control logic circuits. J3 is used for external 12VDC fan.
12V INPUT
(+)5V Power Supply
CIN
VSW
PWM control & dead
time circuit
Daughter Board
Probing point for VSW
For Ext.
12VDC Fan
Airflow direction
Optional Cout
VDC- VOUT
VDC-
VDC+

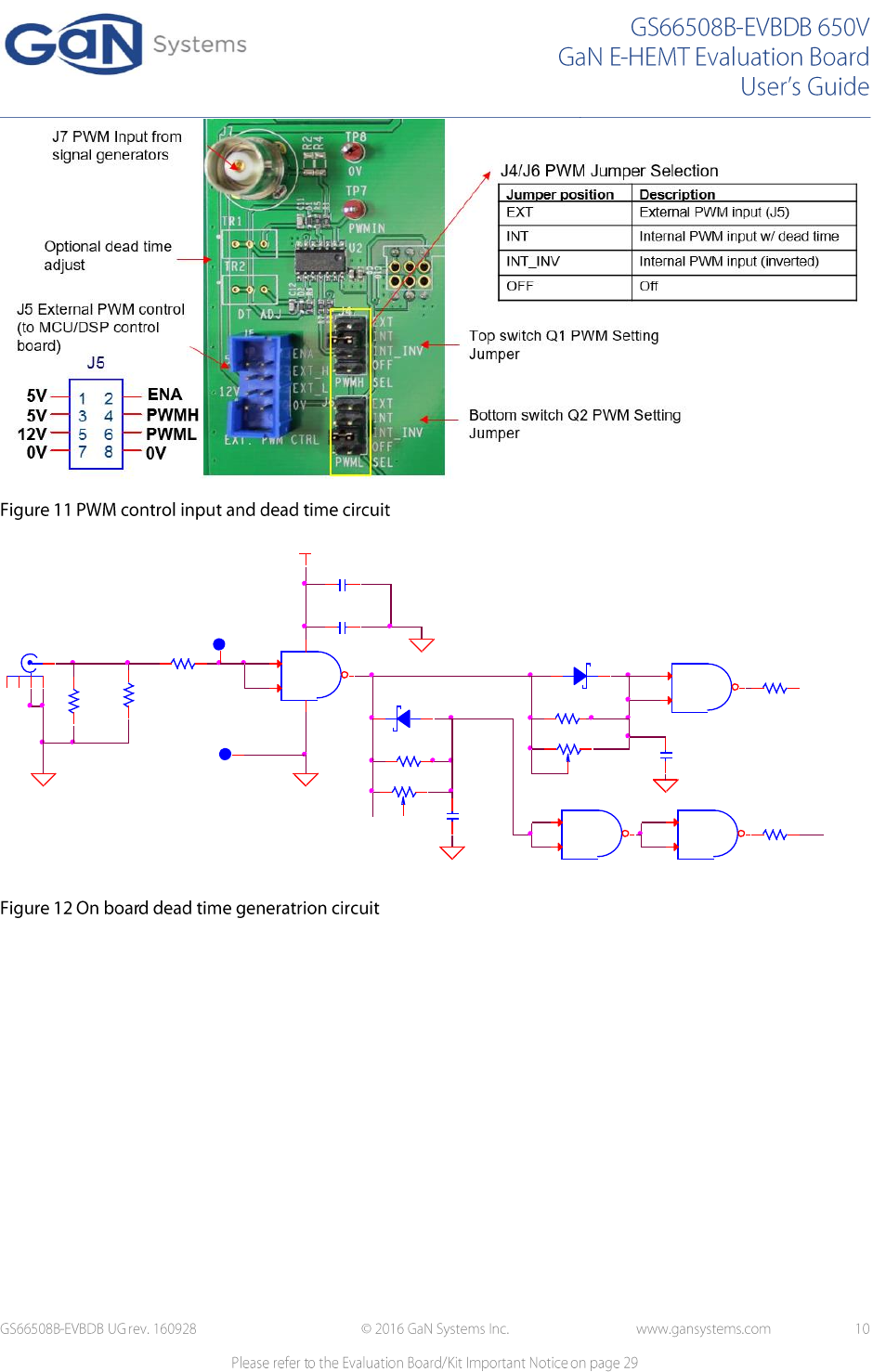

The top and bottom switches PWM inputs can be individually controlled by two jumpers J4 and J6. Users
can choose between a pair of complementary on-board internal PWM signals (non-inverted and inverted,
controlled by J7 input) with dead time or external high/low side drive signals from J5 (users’ own control
board).
An on-board dead time generation circuit is included on the mother board. Dead time is controlled by
two RC delay circuits, R6/C12 and R5/C11. The default dead time is set to about 100ns. Additionally two
potentiometers locations are provided (TR1/TR2, not included) to allow fine adjustment of the dead time
if needed.
0V
D1 PMEG2005EB
SOD523
R6
1K00
TR12K C11
100pF
0V
R5
1K00
C10
1uF
C9
0.1uF
+5V
J7
112538 1
2
3
4
5
R4
100R
R1206
R2
100R
R1206
U2A
74VHC132
3
1
2
14
7
0V
R1
49R9
0V
D2 PMEG2005EB
SOD523
TR22K
C12
100pF
0V
U2B
74VHC132
4
56
U2C
74VHC132
9
10 8
U2D
74VHC132
12
13 11
TP7
TP8
DNP
DNP
PWM
OUTPUT
INVERTED
PWM OUTPUT
R3
49R9
DNP
DNP
R7
49R9
Test points are designed in groups/pairs to facilitate probing:
Test points
Name
Description
TP1/TP2
+5V/0V
5V bias power
TP7/TP8
PWMIN/0V
PWM input signal from J7
TP4/TP3/TP13
PWMH/PWML/0V
High/low side gate signals to daughter board
TP9/TP10
VDC+/VDC-
DC bus voltage
TP11/TP12
VOUT/VDC-
Output voltage
TP6/TP5
VSW/VDC-
Switching node output voltage (for HV oscilloscope
probe)
CON1-CON7 mounting pads are designed to be compatible with following mounting terminals:
#10-32 Screw mount,
Banana Jack PCB mount (Keystone P/N: 575-4), or
PC Mount Screw Terminal (Keystone P/N: 8191)
An external power inductor (not included) can be connected between VSW (CON1) and VOUT (CON4/5)
or VDC+ (CON2/3) for double pulse test. Users can choose their inductor size to meet the test
requirement. Generally it is recommended to use power inductor with low inter-winding capacitance to
obtain best switching performance. For the double pulse testing we use 2x 60uH/40Amp inductor (CWS,
P/N: HF467-600M-40AV) in series. C14 is designed to accommodate a film capacitor as output filter.
CON1
Q1
CON2
Q2
VDC-
CON4
CON3
LOUT
400V DC
+
VDC+
CON7CON6
VSW
CON5
+5V
0V
PWM
INPUT
(J7)
VDS
IL
ISW
VGL
+6V
0VVDS
VGL
IL
t0 t1 t2 t3
TON1

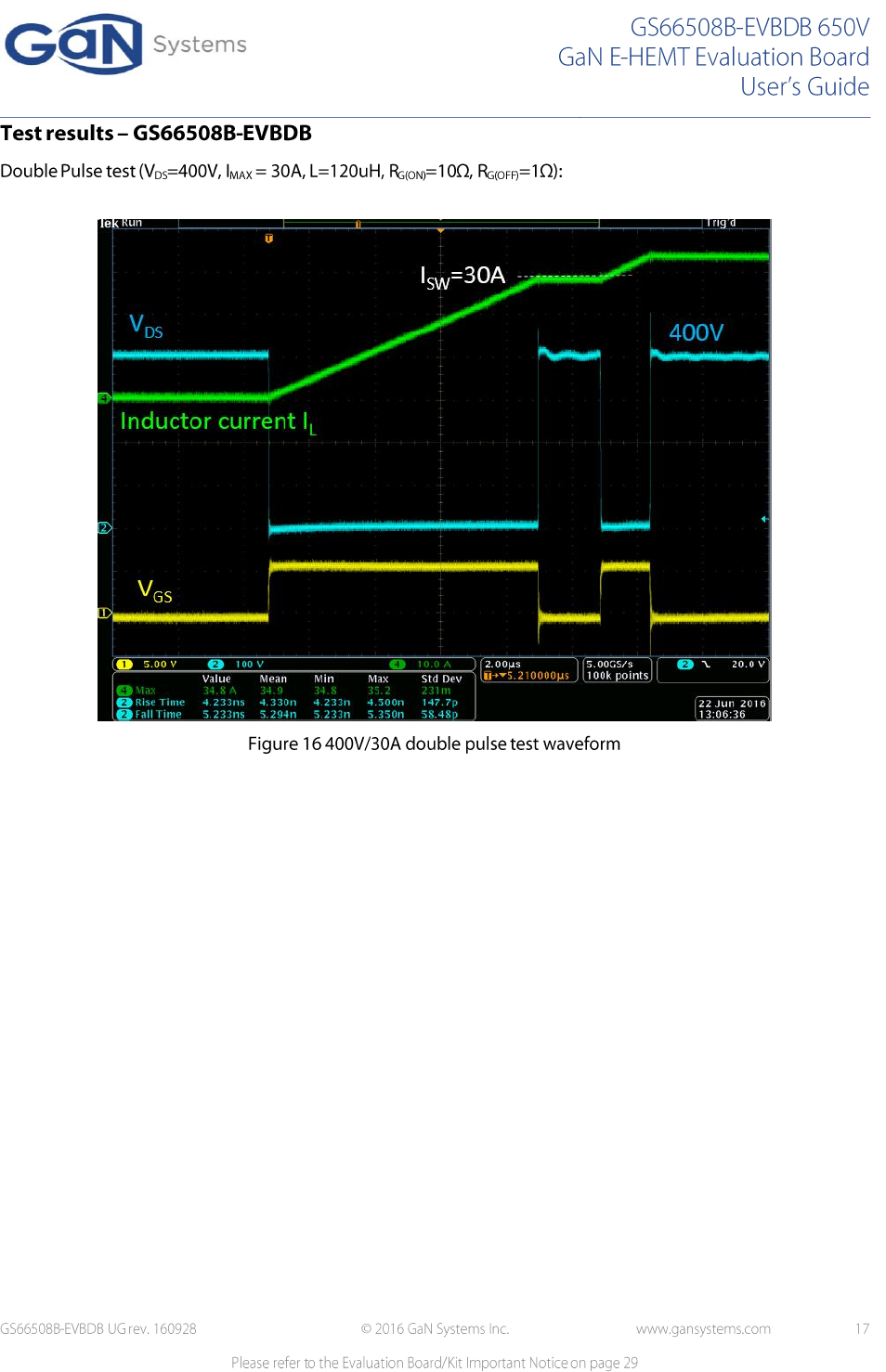

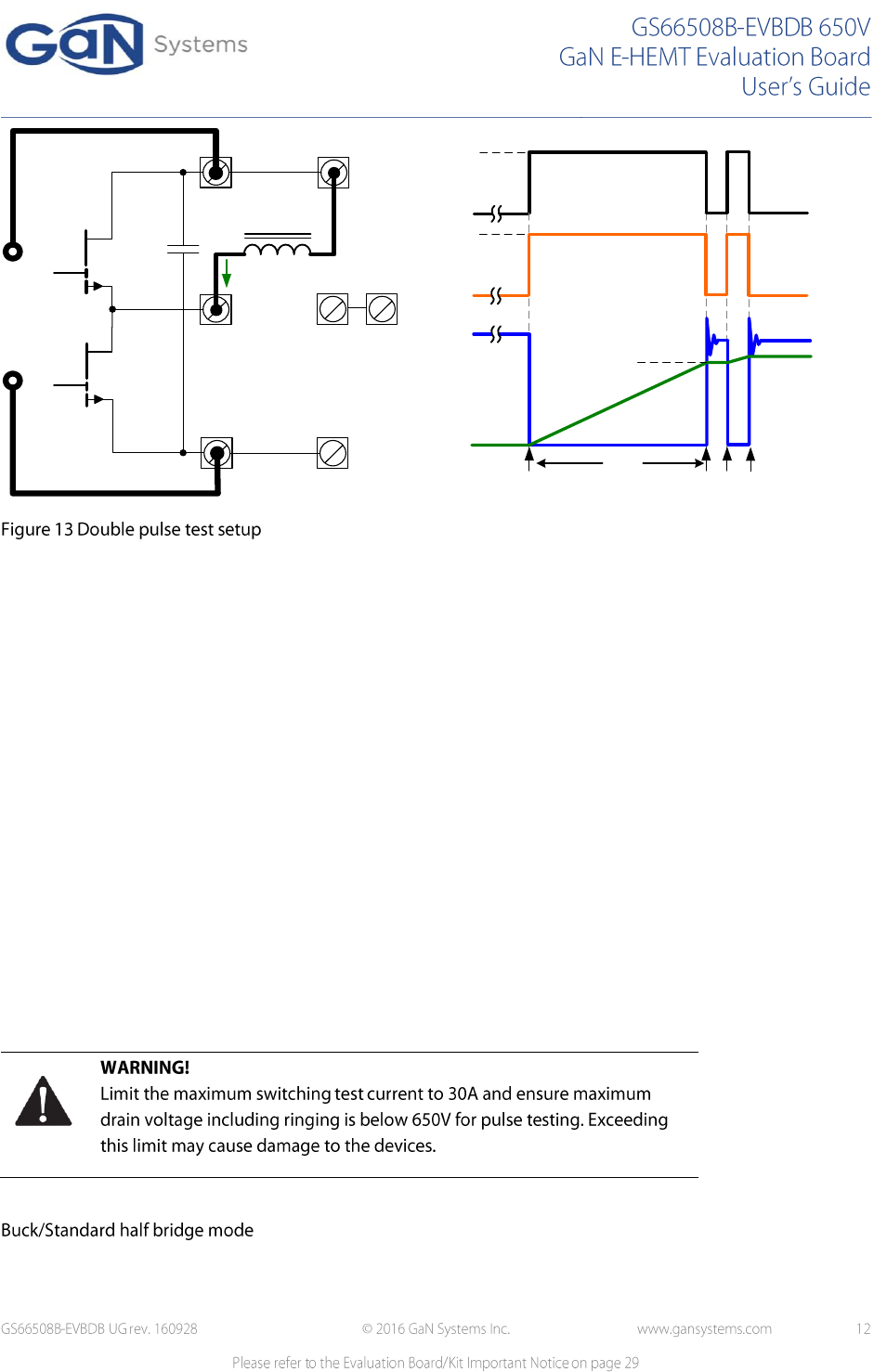

Double pulse test allows easy evaluation of device switching performance at high voltage/current
without the need of actually running at high power. It can also be used for switching loss (Eon/Eoff)
measurement and other switching characterization parameter test.
The circuit configuration and operating principle can be found in Figure 13:
1. The output inductor is connected to the VDC+.
2. At t0 when Q2 is switched on, the inductor current starts to ramp up until t1. The period of first
pulse Ton1 defines the switching current ISW = (VDS*TON1) / L.
3. t1-t2 is the free wheeling period when the inductor current IL forces Q1 to conduct in reverse.
4. t1 (turn-off) and t2 (turn-on) are of interest for this test as they are the hard switching trasients for
the half bridge circuit when Q2 is under high switching stress.
5. The second pulse t2-t3 is kept short to limit the peak inductor current at t3.
The double pulse signal can be generated using programmable signal generaotor or microcontroller/DSP
board. As this test involves high switching stress and high current, it is recommended to set the double
pulse test gate signal as single trigger mode or use long repetition period (for example >50-100ms) to void
excess stress to the switches. Q1 can be kept off during the test or driven synchronously (J4 set to OFF or
INT_INV) and Q2 is set to INT (or EXT position if PWM signal is from J5).
CON1
Q1
CON2
Q2
VDC-
CON4
CON3
LOUT
400V DC
+
VDC+
CON7
CON6
VSW
CON5
COUT RLoad
This is standard half bridge configuration that can be used in
following circuits :
Synchronous Buck DC/DC
Single phase half bridge inverter
ZVS half bridge LLC
Phase leg for full bridge DC/DC or
Phase leg for a 3-phase motor drive
Jumper setting:
J4 (Q1): INT
J6 (Q2): INT_INV
CON1
Q1
CON2
Q2
VDC-
CON4
CON3
LIN
VDC+
CON7
CON6
VSW
CON5
INPUT
VIN

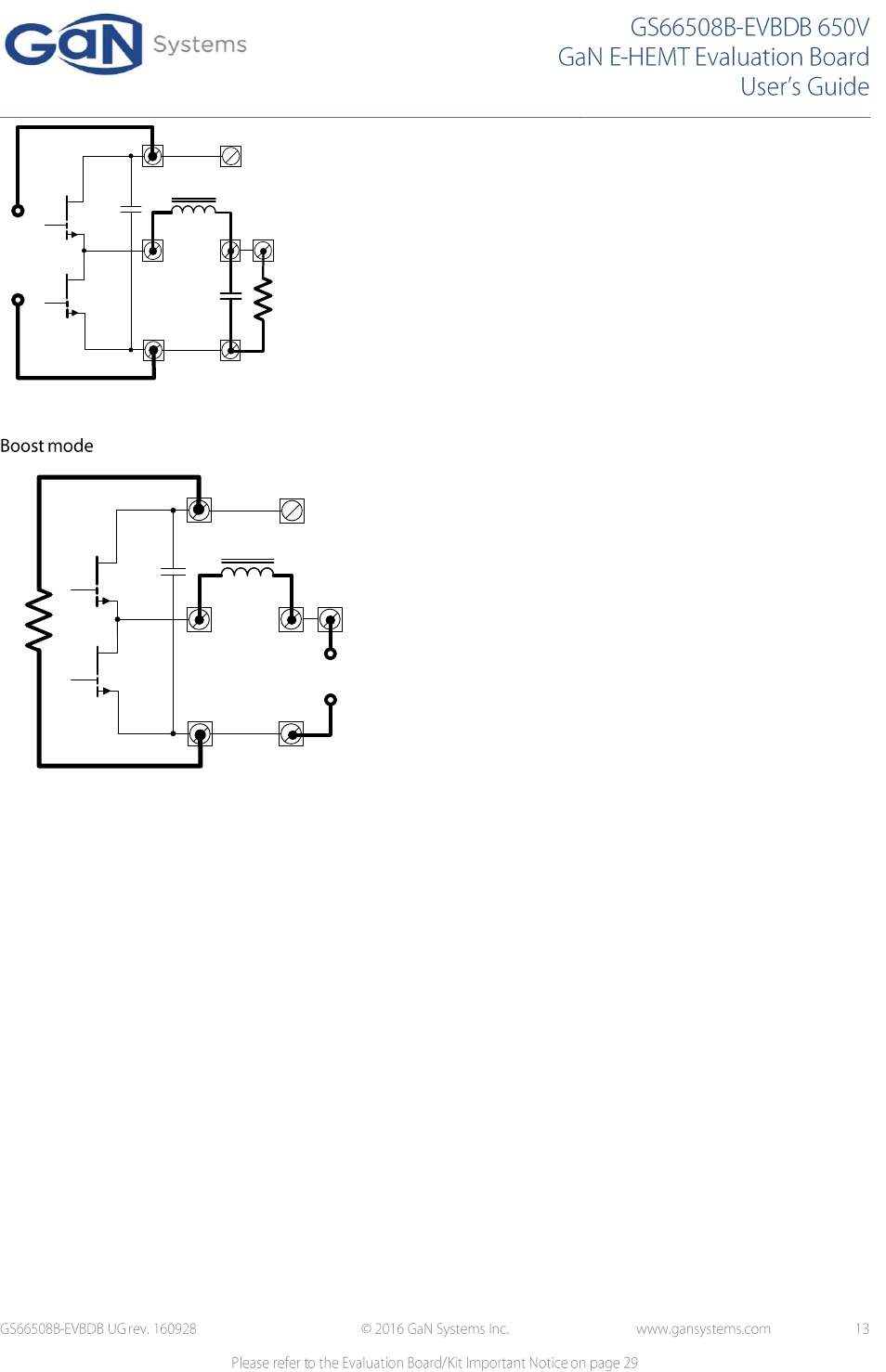

When the output becomes the input and the load is
attached between VDC+ and VDC-, the board is
converted into a boost mode circuit and can be used for:
Synchronous Boost DC/DC
Totem pole bridgeless PFC
Jumper setting:
J4 (Q1): INT_INV
J6 (Q2): INT
The daughter board allows users to easily evaluate the GaN performance in their own systems. Refer to

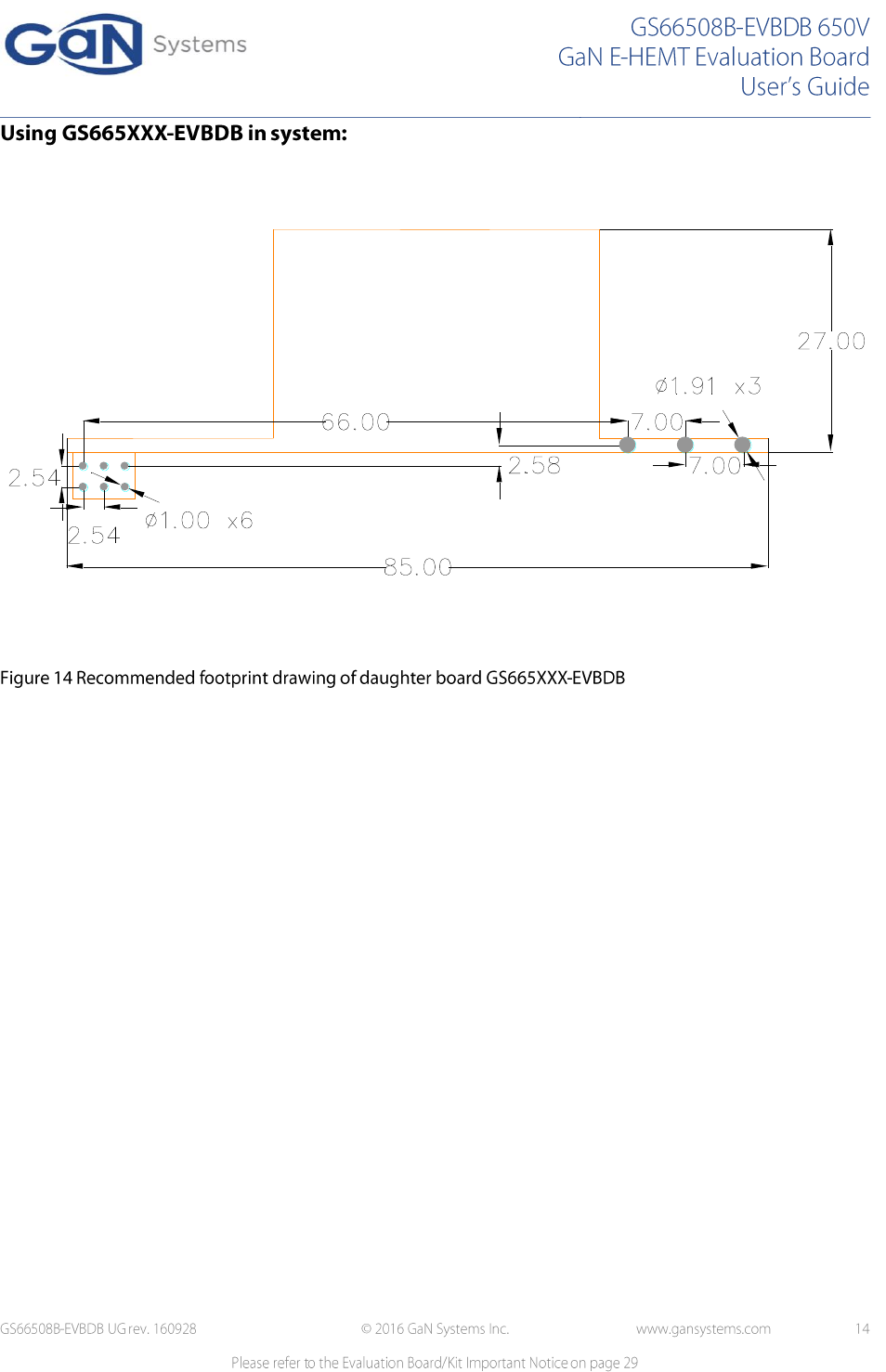

the footprint drawing of GS665XXX-EVBDB as shown below:
1 3 5
2 4 6
78 9
1. All units are in mm.
2. Pin 1-6: Dia. 1mm
3. Pin 7-9: 1.91mm (75mil) mounting hole for Mill-max Receptacle P/N: 0312-0-15-15-34-27-10-0.
Follow the instructions below to quickly get started with your evaluation of GaN E-HEMT. Equipment
and components you will need:
Four-channel oscilloscope with 500MHz bandwidth or higher
high bandwidth (500MHz or higher) passive probe
high bandwidth (500MHz) high voltage probe (>600V)
AC/DC current probe for inductor current measurement
12V DC power supply
Signal generator capable of creating testing pulses
High voltage power supply (0-400VDC) with current limit.
External power inductor (recommend toroid inductor 50-200uH)
1. Check the JP1 on daughter board GS665XXX-EVBDB. Use a copper foil and solder to short JP1.
2. Install GS665XXX-EVBDB on the mother board. Press all the way down until you feel a click. Connect
probe between VGL and VSL for gate voltage measurement.
3. Set up the mother board:
a. Connect 12VDC bias supply to J1.
b. Connect PWM input gate signal (0-5V) to J7. If it is generated from a signal generator ensure
the output mode is high-Z mode.
c. Set J4 to OFF position and J7 to INT.
d. Set High voltage (HV) DC supply voltage to 0V and ensure the output is OFF. Connect HV
supply to CON2 and CON6.
e. Use HV probe between TP6 and TP5 for Vds measurement.
f. Connect external inductor between CON1 and CON3. Use current probe to measure inductor
current IL.
4. Set up and check PWM gate signal:
a. Turn-on 12VDC power.
b. Check the 2 LEDs on the daughter board. They should be turned on indicating the isolated
9V is present.
c. Set up signal generator to create the waveforms as shown in Figure 13. Use equation ISW =
(VDS*TON1) / L to calculate the pulse width of the first pulse and ensure the Isw_max is ≤30A at
400VDC.
d. Set the operation mode to either single trigger or Burst mode with repetition period of 100ms.
e. Turn on the PWM output and check on the oscilloscope to make sure the VGL waveform is
present and matches the PWM input.
5. Power-on:
a. Turn on the output of the HV supply. Start with low voltage and slowly ramp the voltage up
until it reaches 400VDC. During the ramping period closely observe the the voltage and
current waveforms on the oscilloscope.
6. Power-off:
a. After the test is complete, slowly ramp down the HV supply voltage to 0V and turn off the
output. Then turn off the 12V bias supply and signal generator output.
Figure 16 shows the hard switching on waveforms at 400V/30A. A Vds dip can be seen due to the rising
drain current (di/dt in the power loop ΔV=Lpxdi/dt, where Lp is the total power loop inductance). After
the drain current reaches the inductor current, the Vds starts to fall. The Vgs undershoot spike is caused
by the miller feedback via Cgd under negative dv/dt.
Due to the low gate charge and small RG(OFF) , GaN E-HEMT gate has limited control on the turn-off
dv/dt. Instead the Vds rise time is determined by how fast the turn-off current charges switching node
capacitance (Coss).
The low Coss of GaN E-HEMT and low parasitic inductance of GaNPX™ package together with
optimized PCB alyout, enables a fast and clean turn-off Vds waveform with only 50V the turn-off Vds
overshoot at dv/dt > 100V/ns. The measured rise time is 3.9ns at 400V and 30A hard turn-off。
A T&M search coaxial current shunt (SDN-414-10, 0.1Ω) is installed for switching loss measurement as
shown below.
The switching energy can be calculated from the measured switching waveform Psw = Vds*Id. The
integral of the Psw during switching period is the measured switching loss. The channel deskewing is
critical for measurement accurary. It is recommended to manually deskew Id against Vds as shown in
Figure 20. The drain current spike is caused by charging the high side switch Coss (Qoss loss).

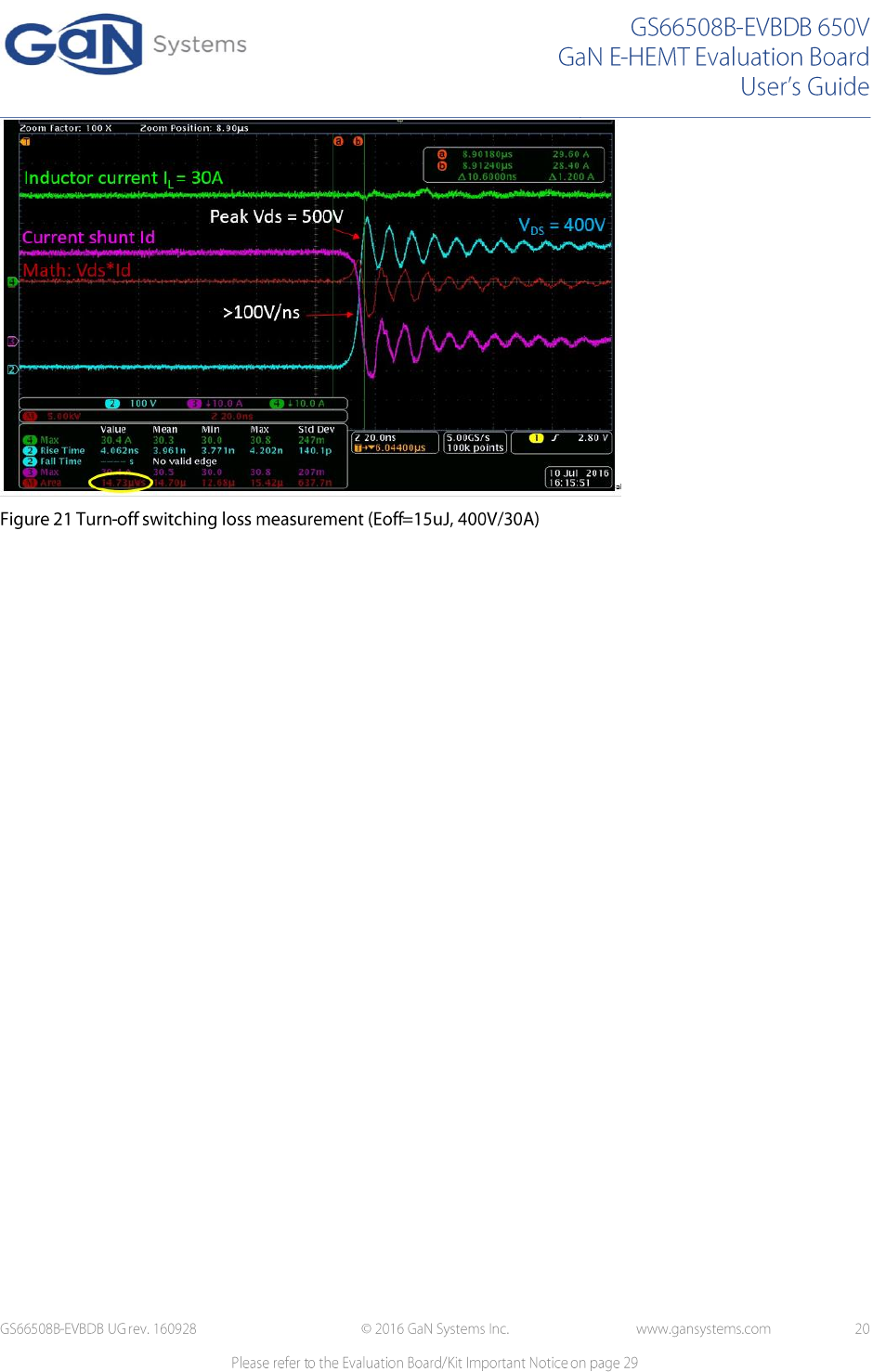

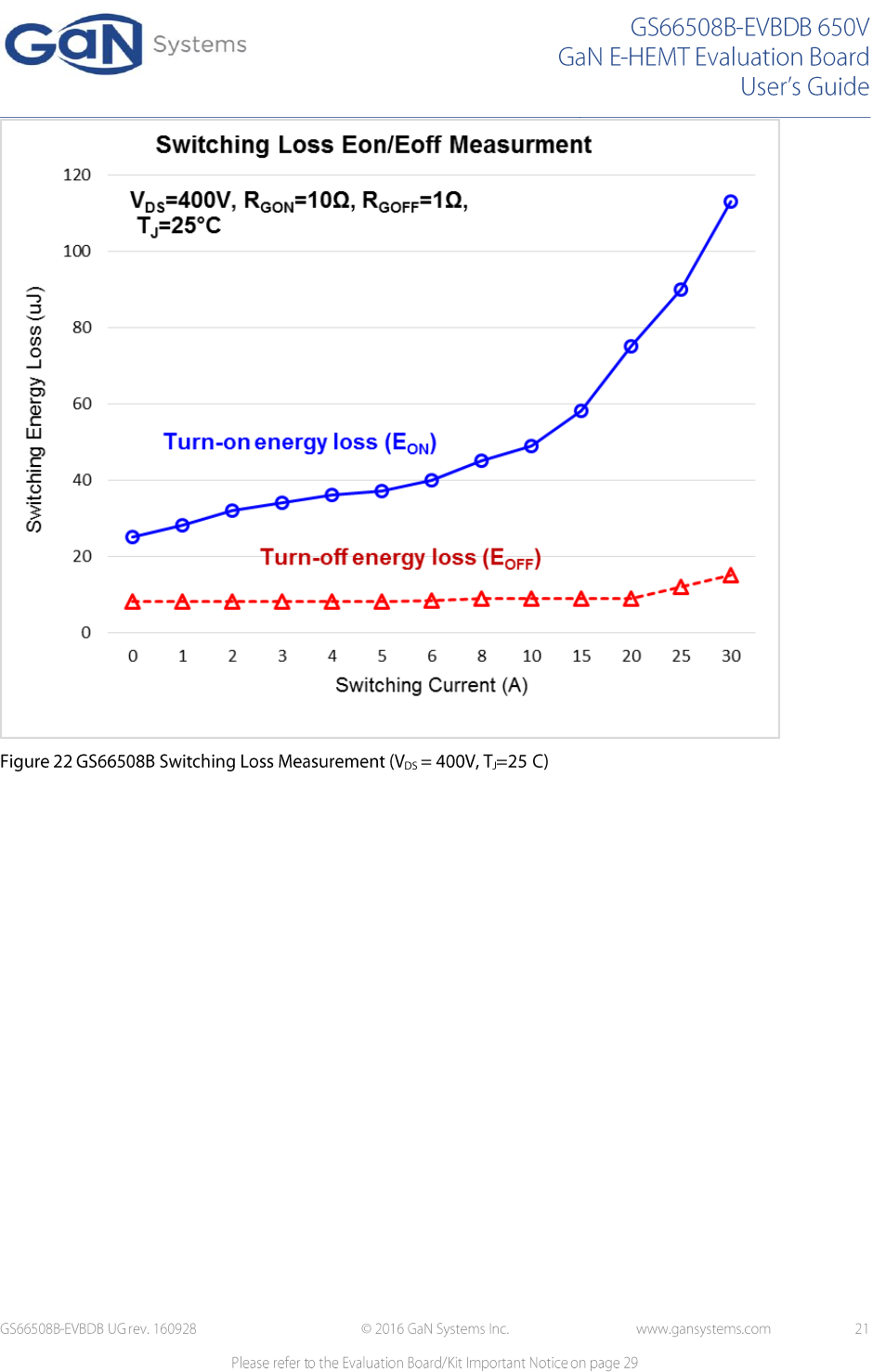

The switching loss measurements with drain current from 0 to 30A can be found in Figure 22. The turn-
on loss dominates the overall hard switching loss. Eon at 0A is the Qoss loss caused by the Coss at high
side switch.
The turn-off loss remain almost constant from 0A up to 20A about 8uJ. the measured Eoff matches well
with the Eoss @400V, which indicates that turn-off energy is dominated by Eoss, the energy required to
charge Coss from 0V to bus voltage. This energy is not part of loss at turn-off, but actually part of turn-on
loss at next hard switching turn-on period. This means that with the fast turn-off speed the GaN E-HEMT
can achieve near zero turn-off switching loss.
°

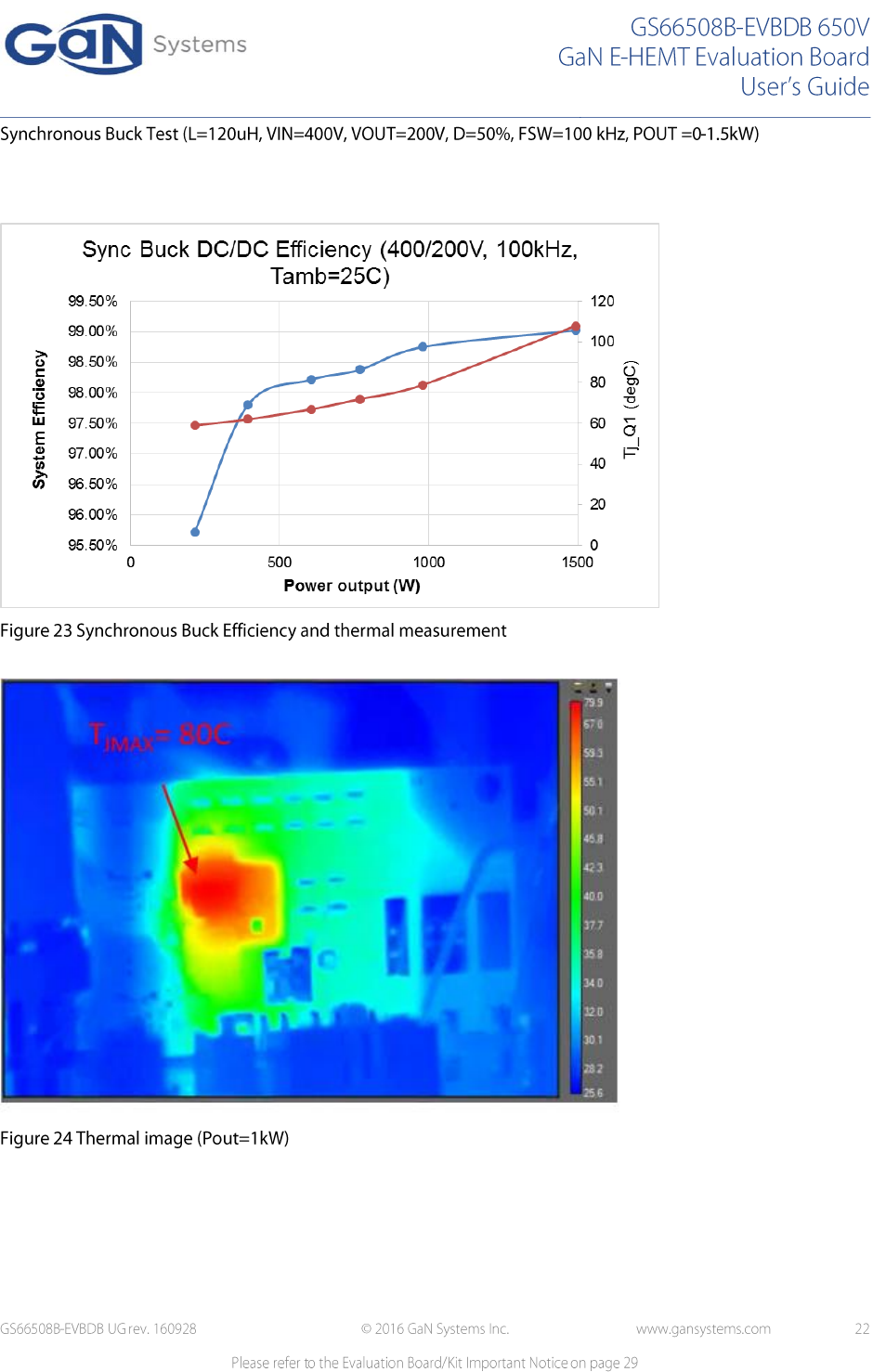

The board is converted to a synchronous buck DC/DC converter and demonstrates efficiency 99% at
1.5kW. With forced air cooling, the peak device temperature TJ_MAX was measured at 80°C at 1kW output.

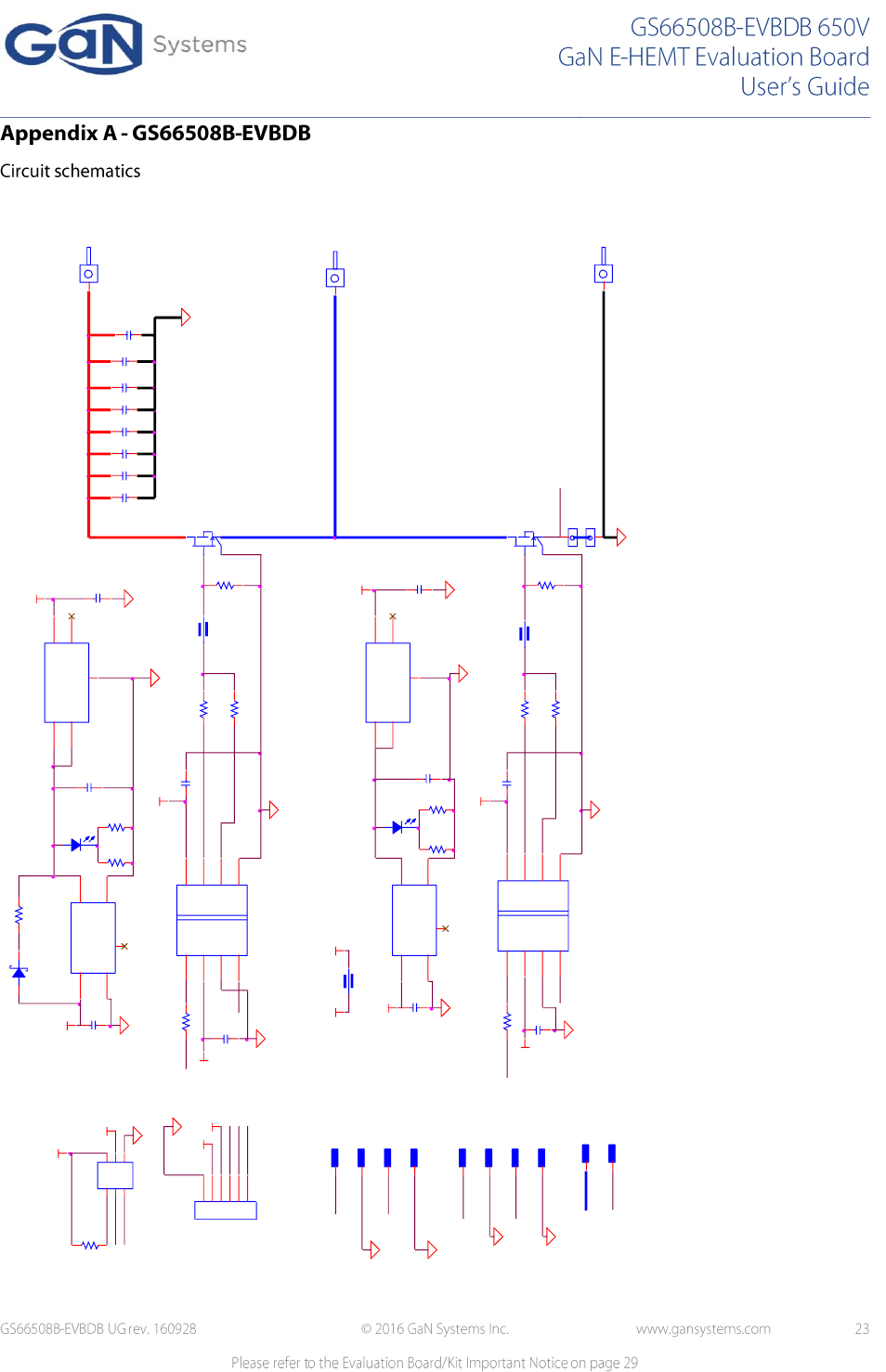

TP1
TPTH-1MM
PS2
PES1-S5-S9-M
GND
1
VIN
2+VO 5
0V 4
NC
8
Q1G
GNDL
U3
LP2985IM5-6.1
IN
1
GND
2
ON/OFF
3BYP 4
OUT 5
TP2
TPTH-1MM
0V
VDRV
TP4
TPTH-1MM C14
4.7uF
C0805
VDDL_+6V
Q2G
C15
4.7uF
C0805
U2
SI8271GB-IS
VI
1
VDDI
2
GNDI
3
EN
4GNDA 5
VO- 6
VO+ 7
VDD 8
TP6
TPTH-1MM
GNDL
GNDH
C16
4.7uF
C0805
R9
3.3K
LED2
LED-0603
GNDL
VDDL_+9V
U4
SI8271GB-IS
VI
1
VDDI
2
GNDI
3
EN
4GNDA 5
VO- 6
VO+ 7
VDD 8
D1
600V 1A
DO-214AC
TP3
TPTH-1MM
PH
R1
0R
R0805
TP5
TPTH-1MM
Q2S
DNP
DNP
TP7
TPSMD-1mm-cir
PWMH
PWML
PROBE TEST POINT
INPUT CONNECTORS
VDDH_+6V
TP8
TPSMD-1mm-cir
TP9
TPSMD-1mm-cir
VDDL_+6V
TP10
TPSMD-1mm-cir
J2
1
2
3
4
5
6
GNDL
VCC_+5V
VDRV
0V
C4 C5
GNDH
C6 C7
VIN+
ENABLE
PWMH_IN
PGND
PWML_IN
JP1
CON-JMP-CSHUNT
PH
R8
3.3K
Q1G
ENABLE
CON1
CON-EDGE-MNT-3260
CON2
CON-EDGE-MNT-3260
CON3
CON-EDGE-MNT-3260
VCC_+5V
R2
3.3K
ENABLE
PWMH_IN
FB2
0R
PWML_IN
PS1
PES1-S5-S9-M
GND
1
VIN
2+VO 5
0V 4
NC
8
VDRV
0V
U1
LP2985IM5-6.1
IN
1
GND
2
ON/OFF
3BYP 4
OUT 5
GNDH
Q1
GS66508B
1
2
4
3
0V
Q2
GS66508B
1
2
4
3
R6
10R
R7
1R
Q1_GOUT
VDRV
C1
4.7uF
C0805
VDDH_+6V
C3
4.7uF
C0805
GNDH
FB1
0R
VDRV VCC_+5V
VSW
VDC+
VDC-
PWMH_INR5
10R Q1_VO+
Q1_VO-
GNDH
R4
3.3K
R10
3.3K
C2
4.7uF
C0805
R11
10R
PWML_IN
C9 C10
C12
1uF
C11
0.1uF 1kV
C1812
PGND
VIN-
Q2S
C8
VDDH_+6V
C13
1uF
VCC_+5V
0V
R3
3.3K
LED1
LED-0603
VDDH_+9V
ENABLE
R13
3.3K
Q2G
FB3
0R
R12
10R
R14
1R
Q2_GOUTQ2_VO+
GNDL
Q2_VO-
C17
1uF
VDDL_+6V
C18
1uF
0V
VCC_+5V
J1
1 2
3 4
5 6

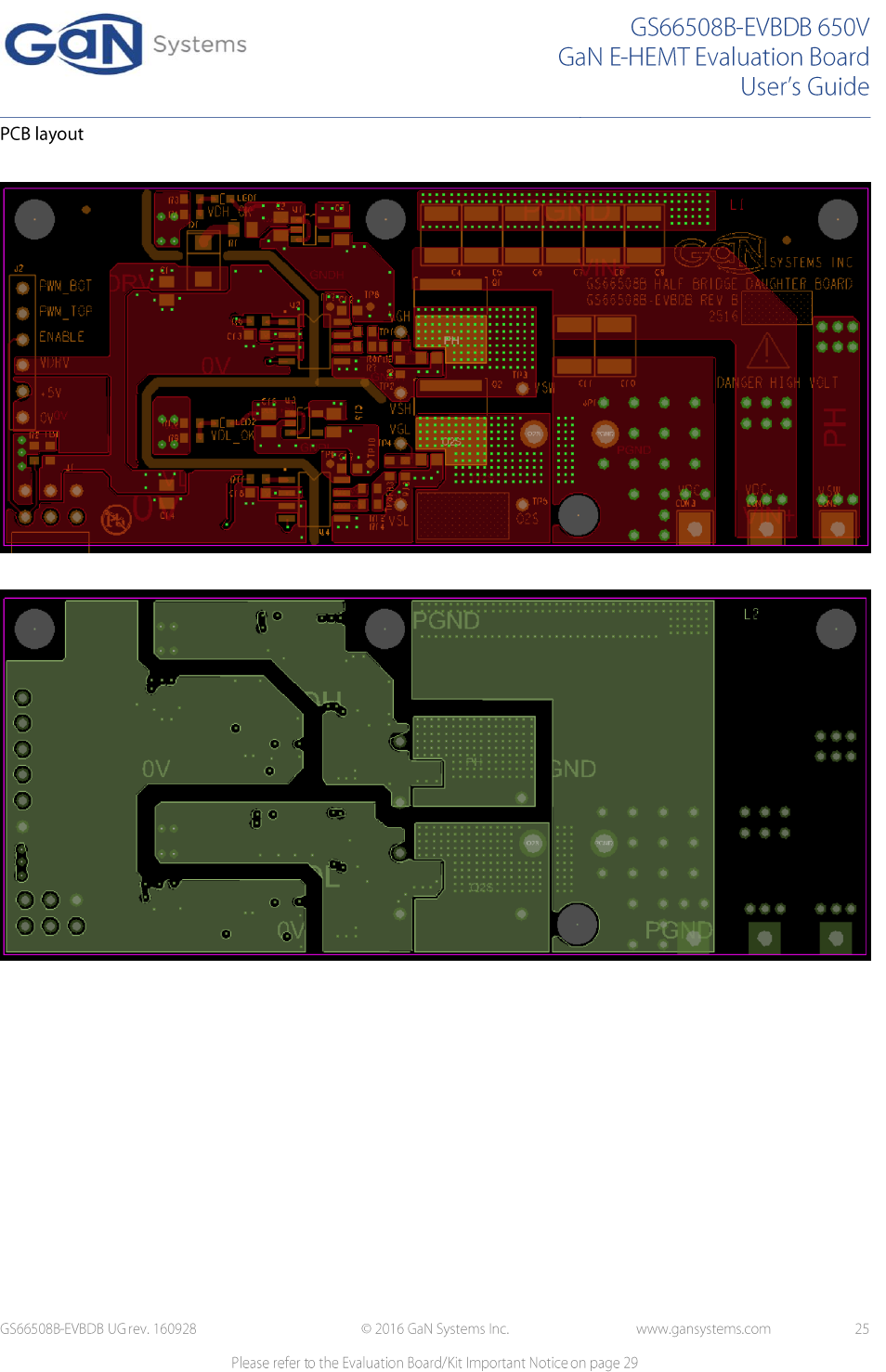

Top Layer
Mid Layer 1
Mid Layer 2
Bottom Layer

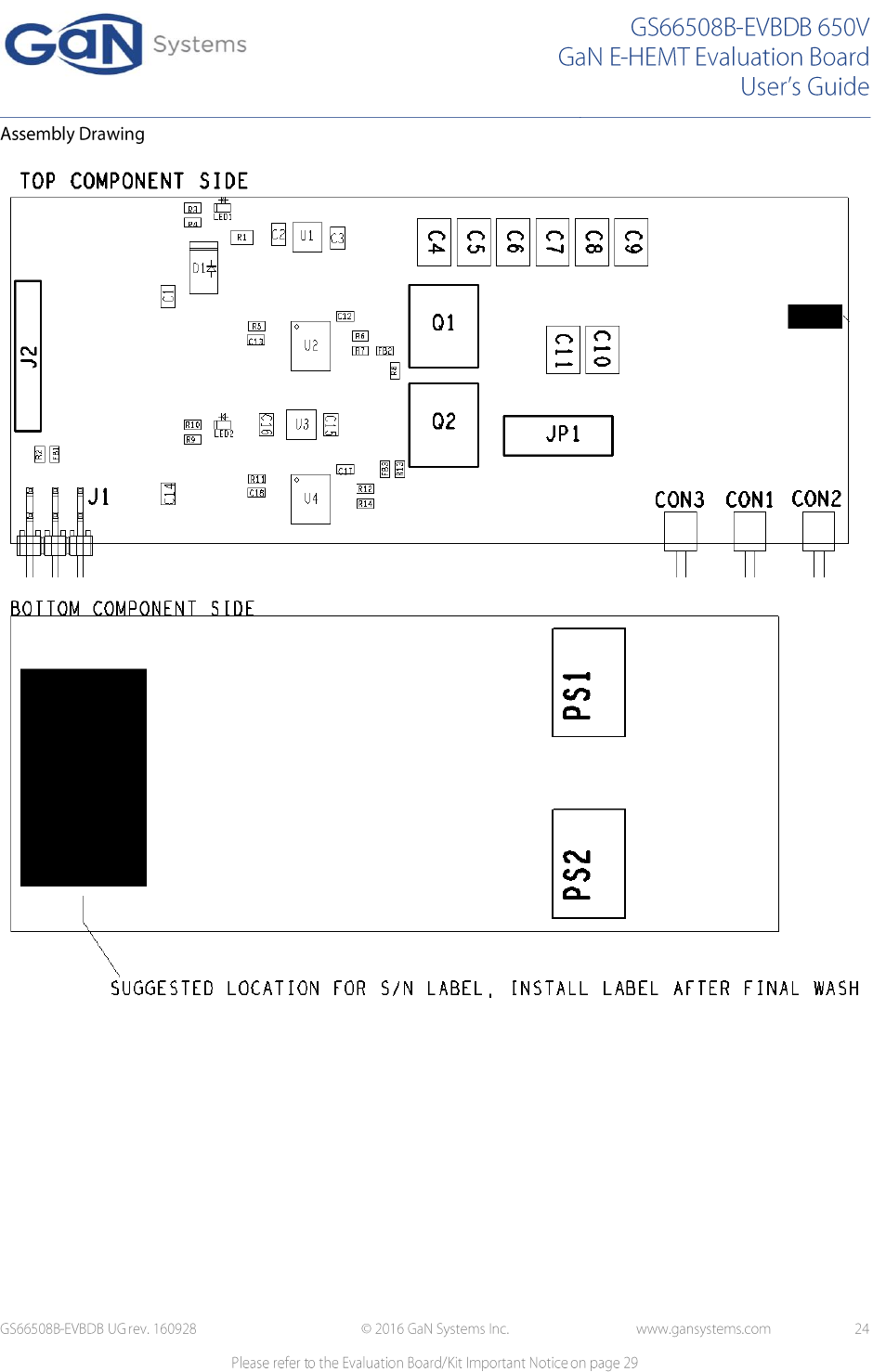

GS66508B HALF BRIDGE DAUGHTER CARD 2016-06-10
BOARD NAME: GS66508B-EVBDB
Revision B1
Last Update 20160624
Quantity Reference Description Value Manufacturer Part number
Assembly Note
1 PCB PCB bare 4-layer 2oz Cu.
1 3 CON1,CON2,CON3 CONN PC PIN EDGE MNT
CON-EDGE-MNT-3260
Mill-Max 3620-2-32-15-00-00-08-0
mating receptacle on mother
board:0312-0-15-15-34-27-10-0
2 6 C1,C2,C3,C14,C15,C16 CAP, CER, 4.7UF, 25V, +/-10%, X7R, 0603 4.7uF
TAIYO YUDEN TMK212AB7475KG-T
3 8
C4,C5,C6,C7,C8,C9,C10,C11
CAP, CER, 0.1UF,1KV, +/-10%, X7R, 1812 0.1uF 1kV
KEMET C1812C104KDRAC7800
4 4 C12,C13,C17,C18 CAP, CER, 1UF, 25V, +/-10%, X7R, 0603 1uF
TAIYO YUDEN TMK107B7105KA-T
5 1 D1 DIODE ULTRAFAST 600V 1A SMA 600V 1A FAIRCHILD ES1J
For bootstrap mode, DO NOT
INSTALL
6 3 FB1,FB2,FB3 0R JUMPER 0603 0R generic 1% 100ppm 0603
7 1 JP1 CURRENT SHUNT JUMPER CON-JMP-CSHUNT - -
For current measurement, footprint
compatible with T&M SDN-414-010
current shunt. Use wide copper foil to
short the connection if not used for
better
8 1 J1 CONN 3PIN DUAL ROW, 0.1" PITCH, R/A CON-HDR-2X3 HARWIN INC. M20-9950345
9 1 J2 CON-6POS
DO NOT INSTALL
10 2 LED1,LED2 LED, GREEN, SMD 0603 LED-SMD-0603 liteon ltst-c191kgkt
11 2 PS1,PS2 ISO. DC/DC 5-9V, 1W PES1-S5-S9-M cui PES1-S5-S9-M
12 2 Q1,Q2 GaN E-HEMT 650V/30A GS66508B GaN Systems GS66508B
13 1R1 RES,0 R, 1%, 0805 0R
For bootstrap mode, DO NOT
INSTALL
14 7 R2,R3,R4,R8,R9,R10,R13 RES, 3.3K, 1%,1/10W, 0603 3.3K generic 1% 100ppm 0603
15 4 R5,R6,R11,R12 RES, 10R, 1%,1/10W, 0603 10R generic 1% 100ppm 0603
16 2 R7,R14 RES, 1R, 1%,1/10W, 0603 1R generic 1% 100ppm 0603
17 6
TP1,TP2,TP3,TP4,TP5,TP6
Probe test point CON-TP-1POS
DO NOT INSTALL
18 4 TP7,TP8,TP9,TP10 Probe test point CON-TP-1POS
DO NOT INSTALL
19 2 U1,U3 REG LDO 6V, 100mA, STO23-5 LP2985IM5-6.1
TEXAS INSTRUMENTS LP2985IM5-6.1/NOPB
20 2 U2,U4 IC ISO GATE DRIVER 2.5KV HIGH CMTI SI8271GB-IS SILICON LABS SI8271GB-IS
Off the board components:
21 1 heatsink, 35x35mmx25.4mm, black anodized Cool Innovation 3-141410UBLAN
DO NOT install on the PCB
assembly, supply loose with pre-
applied Thermal sheet (item #22)
22 1 Thermal sheet cut to 35x35mm square bergquist BOND PLY 100
Bondply 100 thermal adhesive
tape cut to 35x35mm and apply to
heatsink surface (item #21)
C14
10uF 700V
FOOTPRINT FOR GS665XX-EVBDB
M1 M2 M3 M4
PCB STANDOFF 4.75MM MNT HOLE
KEYSTONE 8839-8834
J1
1
2
VAUX_RTN
U1
MC7805
IN
1OUT 3
GND
4
C4
10u
C0805
+5V
VAUX
0V
0V
CON2
1
CON6
1
ENABLE
CON3
1
J5
1 2
3 4
5
76
8
0V
PWM_EXT_H
PWM_INT
R6
1K00
D1 PMEG2005EB
SOD523
PWM_INT_INV
TR12K C11
100pF
0V
PWM_EXT_L
PWM_INT
PWM_INT_INV
VDC-
R5
1K00
C10
1uF
C9
0.1uF
+5V
J7
112538 1
2
3
4
5
C13
10uF 700V
R4
100R
R1206
R2
100R
R1206
U2A
74VHC132
3
1
2
14
7
0V
R1
49R9
0V
D2 PMEG2005EB
SOD523
VDC+
TR22K
C12
100pF
0V
U2B
74VHC132
4
56
U2C
74VHC132
9
10 8
U2D
74VHC132
12
13 11
VDC-
CON5
1
CON7
1
TP3
TP4
TP1
TP2
TP7
+5V
TP8
0V
0V
VAUX 12V IN
EXTERNAL PWM INPUT
TO DSP/MCU CONTROL BOARD
PWM INPUT SELECTION
ON BOARD DEAD TIME GENERATION CIRCUIT
USE TR1 AND TR2 TO ADJUST DEAD TIME
POS 2/3: INTERNAL PWM SIGNAL
VOUT
C1
220uF 25V
CAPAL-PANA-F
C2
1uF 25V
VDC_P
VDC_N
VOUT
+5V VCC
CON1
1
J3
1
1
2
2
TO 12V FAN
CON4
1
POS 1: EXT. PWM SIGNAL
DNP
DNP
DNP
VSW
TP6
TP9
TP-KEYSTONE-5010
+5V
PWMH_IN
TP10
TP-KEYSTONE-5010
TP11
TP-KEYSTONE-5010
TP12
TP-KEYSTONE-5010
TP13
0V
+12V
PWNL_IN
PWM
OUTPUT
INVERTED
PWM OUTPUT
VSW
NOTES - UNLESS OTHERWISE SPECIFIED
1. ALL SMD RESISTORS AND CAPACITORS ARE 0603 SIZE
0V
0V
J2
1 2
3 4
5 6
J4
POS 4: OFF
C5 C6
T1
CMC-08
14
23
J6
VDRV
R3
49R9
DNP
DNP
+12V
R7
49R9
C3
10u
C0805
C7 C8
0.1uF 1kV
C1812 VDC+
2. DO NOT INSTALL TR1,TR2,R2,R3 AND C14
J8
1
J9
1
J10
1
TP5

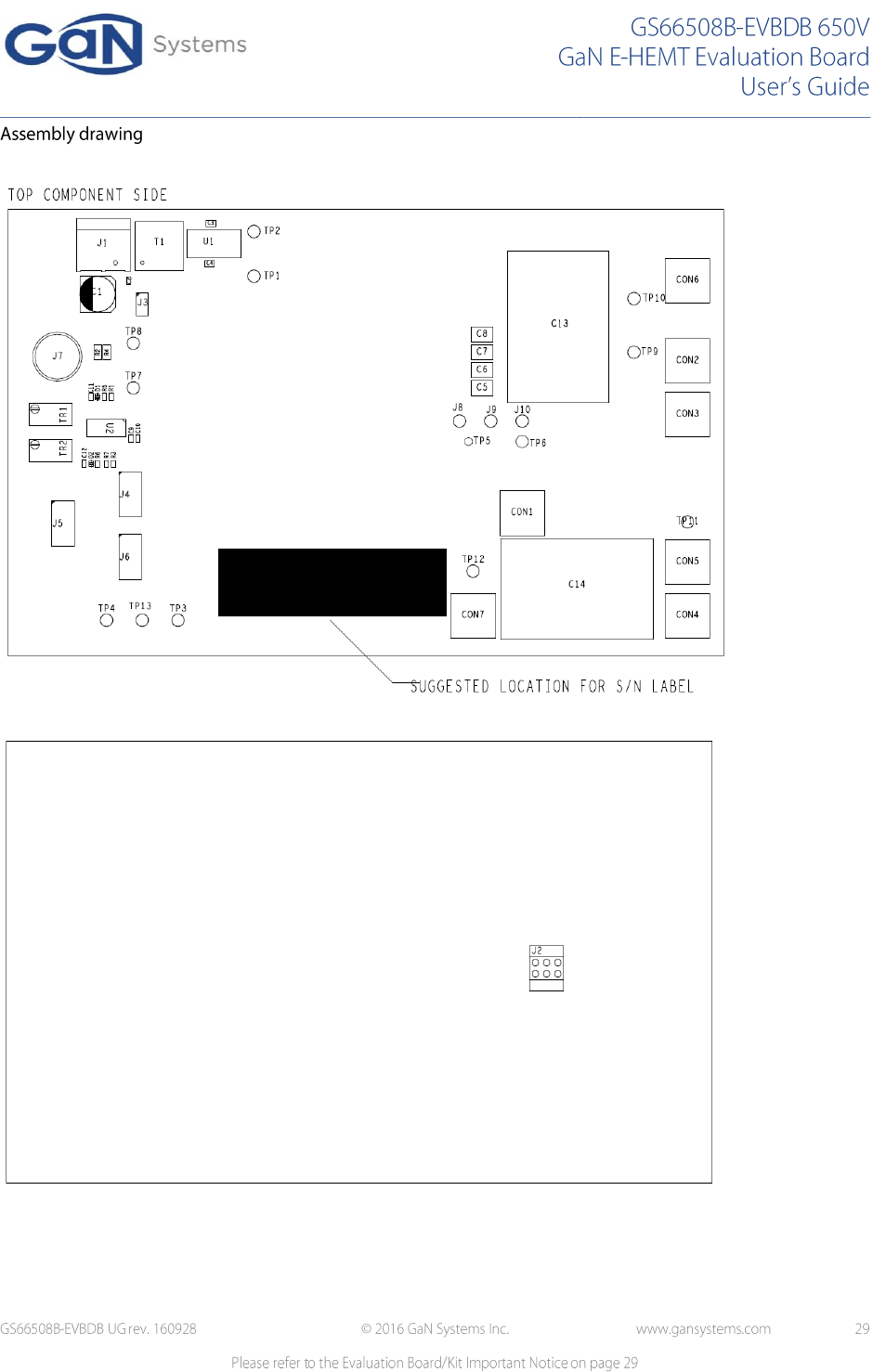

Assembly Top
Assembly Bottom
GAN SYSTEMS 650V GAN UNIVERSAL MOTHER BOATRD
BOARD P/N:
GS665EVBMB
Revision
B1
Last Update
6/30/2016
Quantity Reference Description Value Manufacturer Part number Assembly Note
1
PCB PCB bare 2-layer 2oz Cu.
1 7
CON1,CON2,CON3,CON4,C
ON5,CON6,CON7
TERMINAL SCREW VERTICAL PC MNT CON-10-32-SCRWMNT KEYSTONE 8191 DO NOT INSTALL
2 1
C1 CAP ALUM 220UF 20% 25V SMD 220uF 25V Panasonic EEE-FK1E221P
3 1
C2,C10 GENERIC 1UF/25V, 10% X7R SMD 0603 1uF TAIYO YUDEN TMK107B7105KA-T
4 2
C3,C4 GENERIC 10UF/25V, 10% SMD 0805 10uF TAIYO YUDEN TMK212BBJ106KG-T
5 4
C5,C6,C7,C8 GENERIC 0.1uF/1000V, SMD 1812 0.1uF 1kV KEMET C1812C104KDRAC7800
6 1
C9 GENERIC 0.1UF/25V, 10% X7R SMD 0603 0.1uF TAIYO YUDEN TMJ107BB7104KAHT
7 2
C11,C12 GENERIC 100PF/25V 5% NP0 SMD 0603 100pF KEMET C0603C101J3GACTU
81
C13,C14
CAP FILM 10UF/600VDC 5%, 27.5MM LEAD
SPACING
10uF 700V
KEMET C4AEHBU5100A11J DO NOT INSTALL C14
9 2
D1,D2 DIODE SCHOTTKY 20V 500MA SOD523 PMEG2005EB NXP PMEG2005EB,115
10 1
J1 TERM BLOCK HDR 2POS R/A 5.08MM CON-TERM-BLK-2POS-RA TE CONNECTIVITY 796638-2
11 1
J1-PLUG TERM BLOCK BLUG 2POS 5.08MM TE CONNECTIVITY 796634-2
12 1
J2 CONN RCPT 6POS .100 DBL STR PCB CON-RCPT-2X3-BOT HARWIN M20-7850342 MOUNT FROM BOTTOM SIDE
13 1
J3 CON-2POS
CONNECTOR FOR 12V FAN, DO NOT
INSTALL
14 2
J4,J6 CONN HEADER 8POS DUAL VERT PCB CON-JMP-4POS HARWIN M20-9980445
15 1
J5 CONN 8-POS, DUAL ROW 2.54MM CON-HDR-4X2 AMPHENOL 75869-132LF
16 1
J7 CONN BNC JACK STR 50 OHM PCB 112538 AMPHENOL 112538
17 3
J8,J9,J10 CONN RECEPT PIN .032-.046" .075" CON-RCPT-EDGEMNT MILLMAX 0312-0-15-15-34-27-10-0
MATING SOCKET FOR MILLMAX
EDGE MNT PIN
18 3
R1,R3,R7 generic 1% smd 0603 49R9 VISHAY DALE CRCW060349R9FKEA
19 2
R2,R4 generic 1% smd 1206 100R DO NOT INSTALL
20 2
R5,R6 generic 1% snd 0603 1K00 VISHAY DALE CRCW06031K00FKEA
21 11
TP1,TP2,TP3,TP4,TP7,TP8,
TP9,TP10,TP11,TP12,TP13
TEST POINT PCB TP-KEYSTONE-5010
KEYSTONE 5010
22 2
TR1,TR2 2K RECOM CMC-08 DO NOT INSTALL
23 1
T1 COMM MODE CHOKE 5.2A T/H CMC-08
24 1
U1 IC REG LDO 5V 1A DPAK MC7805 ON SEMI MC7805BDTRKG
25 1
U2 1 IC GATE NAND 4CH 2-INP 14-SOIC 74VHC132 FAIRCHILD 74VHC132MX
Off the board components:
26 6
M1,M2,M3,M4,M5,M6
PCB STANDOFF NYLON STACKABLE 4.75MM HOLE
MECH-STDOFF-KEYSTONE-8830
KEYSTONE 8833
PCB SPACER, INSTALL FROM
BOTTOM SIDE
27 1
FAN FAN AXIAL 38X20MM 12VDC WIRE SUNON FANS PMD1238PKB1-A.(2).GN
SUPPLY LOOSE, DO NOT INSTALL
ON THE ASSEMBLY
28 2
JUMPER JUMPER SHUNT GENERIC TE CONNECTIVITY 382811-8
INSTALL ON J4 "INT" POSITION AND
J6 "INT_INV" POSITION
GaN Systems Inc. (GaN Systems) provides the enclosed product(s) under the following AS IS conditions:
This evaluation board/kit being sold or provided by GaN Systems is intended for use for ENGINEERING
DEVELOPMENT, DEMONSTRATION, and OR EVALUATION PURPOSES ONLY and is not considered by GaN
Systems to be a finished end-product fit for general consumer use. As such, the goods being sold or provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective
considerations, including but not limited to product safety and environmental measures typically found in end
products that incorporate such semiconductor components or circuit boards. This evaluation board/kit does not fall
within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances
(RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the technical requirements of these directives,
or other related regulations.
If this evaluation board/kit does not meet the specifications indicated in the User’s Guide, the board/kit may be
returned within 30 days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE
EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL
BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user
indemnifies GaN Systems from all claims arising from the handling or use of the goods. Due to the open construction
of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic
discharge.
No License is granted under any patent right or other intellectual property right of GaN Systems whatsoever. GaN
Systems assumes no liability for applications assistance, customer product design, software performance, or
infringement of patents or any other intellectual property rights of any kind.
GaN Systems currently services a variety of customers for products around the world, and therefore this
transaction is not exclusive.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to
handling the product. Persons handling the product(s) must have electronics training and observe good
engineering practice standards.
This notice contains important safety information about temperatures and voltages. For further safety concerns,
please contact a GaN Systems’ application engineer.

Navigation menu
