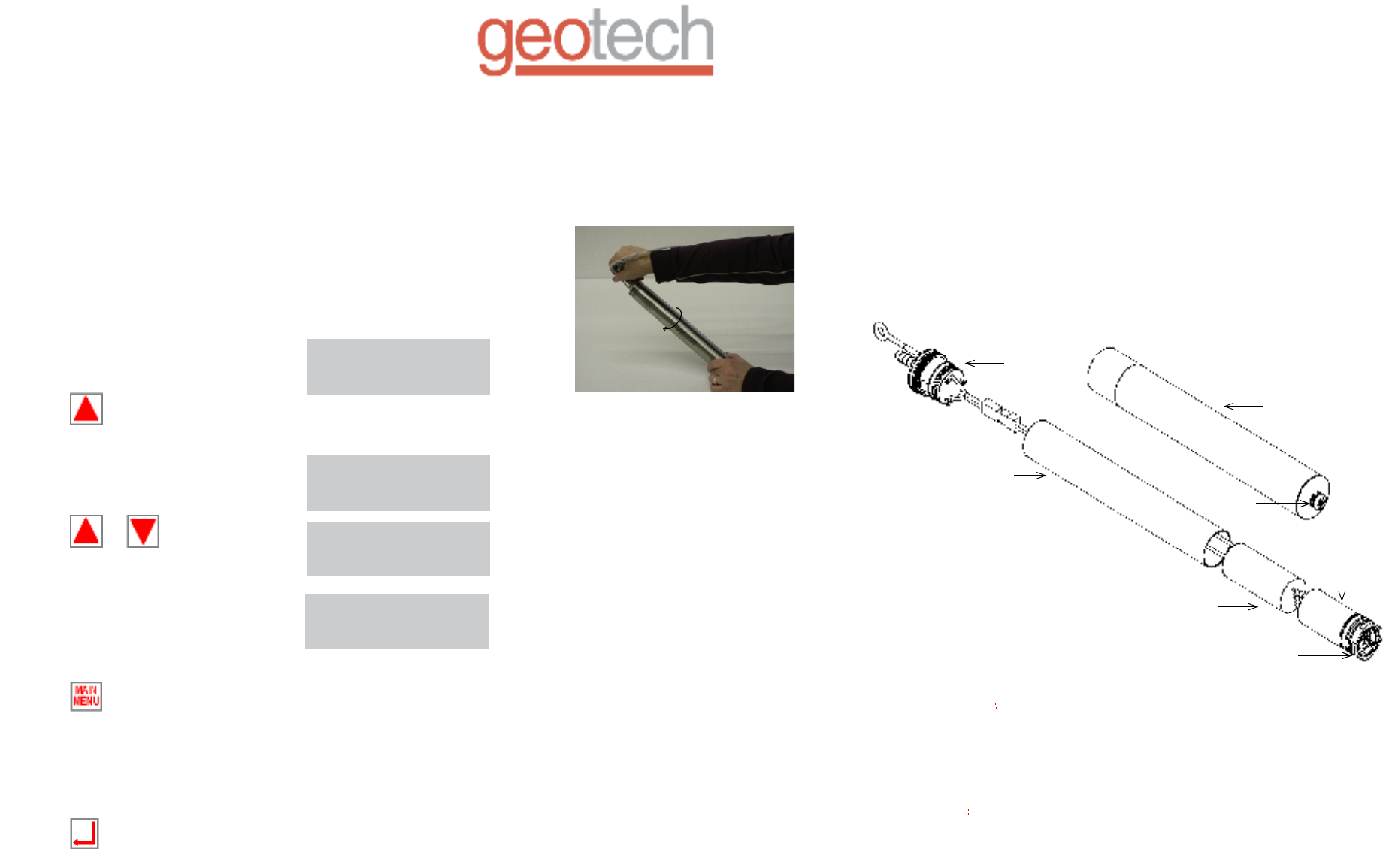

DIS-ASSEMBLY AND CLEANING
Disconnect pump cable from controller. •
Unscrew outer housing (No tools needed).•
Remove inner housing by pulling apart, •
slightly twisting while pulling may help.
The control module may become disconnected •
from the motor lead while pulling apart, this is
normal.
Remove motor assembly from inner housing •
by pulling apart, slightly twisting while pulling
may help.
Inspect motor assembly, impeller, and control •
module for damage or wear.
Inspect internal wires for cuts or breaks, mak •
sure all wires have insulation covering them.
Inspect all o-rings for nicks, cuts, brittleness •
Decontaminate outer and inner housing. •
Decontaminate the motor assembly and control •
module.
Decontaminate top cap and hose barb •
Clean all threads thoroughly to make sure noth •
will bind them.
Insert motor assembly back into inner housing, •
be careful not to damage O-rings.
Connect control module wires back onto motor •
lead.
BASIC OPERATION
Verify main power switch is in OFF position.•
Plug power cord into controller.•
Plug power cord into AC supply outlet.•
• Switch main power to ON position.
• Wait for initialization sequence to
complete.
From main menu:•
Press • to start the pump at default settings.
Wait for pump start up to fi nish.•
Press • or to adjust pump
speed to achieve desired fl ow rate.
OR
Pump water at desired pump speed.•
Press • to stop pump and return to main menu.
SETTING DRY RUN
NOTE: Set point must be above 100 for Dry Run protection
to be activated
Press • to toggle Dry Run ON and OFF
AC CONTROLLER INSTRUCTIONS AND PUMP MAINTENANCE
PUMPING WELL #nn
PUMP START UP
PUMPING WELL #nn
nnn DR ON nn
UP START PUMP
DOWN LOAD WELL
PARTS PART #
1. AC CONTROLLER 300 WATT 120 volts 81200031
2. AC CONTROLLER 300 WATT 230 volts 81200032
3. FUSE 11200746
4. MANUAL 11200813
5. GOLD CONNECTORS & HEAT SHRINK 11200754
6. O-RING KIT 51200088
7. CHECK VALVE 81200033
Geotech Environmental Equipment, Inc
2650 East 40th Avenue Denver, Colorado 80205
1-800-833 -7958 website: www.geotechenv.com
FOR MAINTENANCE AND SERVICE PLEASE CALL
GEOTECH DIRECTLY AT 1-800-833-7958
NOTE: LOADING WELL #0 WILL LOAD DEFAULT START
UP CONFIGURATION
ing
Rev. 3/04/2009 Part # 11200828
PUMPING WELL #nn
nnn DR OFF nn
ing
Note: A very small amount of inert grease may be used to
help lubricate O-ring seals.
Twist the motor assembly and inner housing assembly 180 •
degrees, twisting the wires to create more room.
Push the inner housing over the top cap, • be careful not to
damage O-rings.
Install the outer housing • making sure the threads do not
bind.
Intake
Impeller
Top Cap
21200076
Inner Housing
21200072
Outer Housing Weldment
51200186
Control Module
51200083
Motor Assembly
51200089
