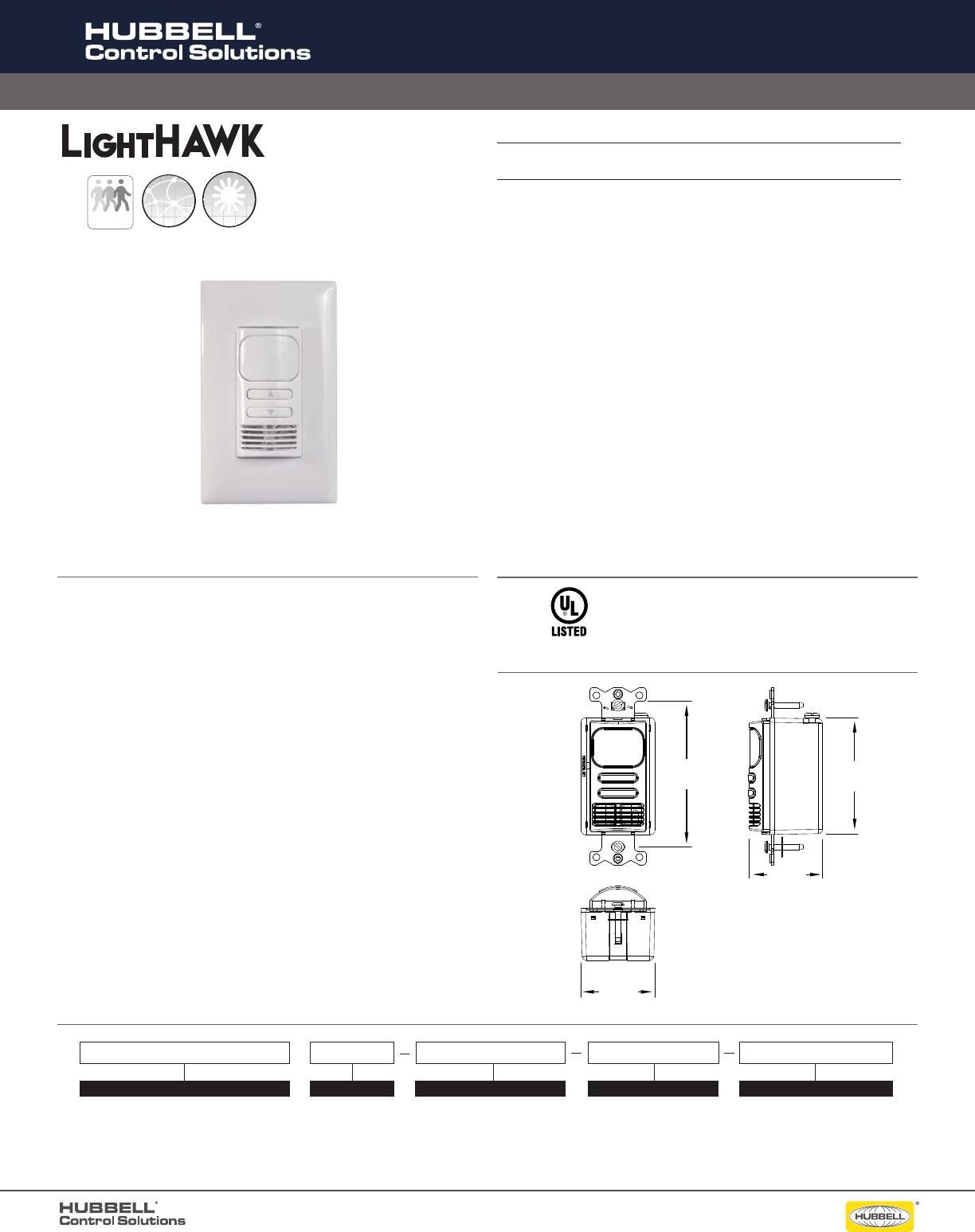

LHDMMT Series
Dimming Wall Switch Occupancy Sensors
1
Project Name
Catalog No. Date
1123B 121018
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2018 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
• Digital dual technology passive infrared (PIR) and ultrasonic (US) sensor
• IntelliDAPT self-adaptive technology—no manual adjustment required
• 1 relay model for single-level switching
• Occupancy (auto-on) and Vacancy (manual-on) operating modes
• 1,000 square-foot, 180° coverage area
• RhinoTu™ vandal resistant lens
• 120/277VAC and 347VAC Models
• No minimum load requirement
• Zero Arc Point Switching
• Five-year warranty
The LightHAWK2 Dimming Dual Technology Wall Switch Sensor
combines passive infrared (PIR) and ultrasonic (US) technologies with
the additional energy savings of 0-10V dimming. The user can set the
occupied level to a predetermined level or set the sensor to activate
to the last-used dimming level. With ON/OFF and Dimming Control,
the user can easily adjust the light level for their area. This sensor has a
coverage area of up to 1,000 square feet and 180° of detection.
LHDMMT sensors feature Hubbell Controls' patented IntelliDAPT®
technology, which makes all the sensor adjustment decisions
automatically. Throughout the product’s lifespan, smart software
analyzes the controlled area and makes digital adjustments to
sensitivity and timer settings. Occupancy sensors with IntelliDAPT
provide a maintenance-free install-and-forget operation. With
selectable operating modes — automatic ON/OFF or manual ON/
automatic OFF, occupancy on to predetermined dimming level go to
last dimming setting upon occupancy — and a built-in photosensor
for automatic daylight harvesting, LHDMMT sensors are the best
choice in today’s market place.
TITLE
24
COMPLIANCE
OCCUPANCY
SENSING
IntelliDAPT
DAYLIGHT
HARVESTING
MODEL
LHDMMTS LightHAWK2™ Dimming Dual
Technology, Single Relay
LHDMMTS
COLOR
WH White
IV Ivory
LA Light Almond
GY Gray
BK Black
BUTTONS
2
2
MODE
Blank Switchable Vacancy or
Occupancy Mode
MVacancy Mode Only
WIRING
NNeutral (120/277V)
N347 Neutral (347V)
Product Features Compliance and Certication
Dimensional Data
Ordering Information
3.38"
[85.91]
1.72"
[43.61]
2.70"
[68.69]
1.70"
[43.26]
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2018 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Dimming Wall Switch Occupancy Sensors
21123B 121018
Coverage Pattern
Wiring Diagrams
(15.24m)
(6.4m) (7.9m)
(7.3m)
(8.8m)
(17.1m)
COVER RELEASE
CATCH
LINE CIRCUIT
BLACK
PHOTOCELL
PUSH BUTTON
NEUTRAL
WHITE
GROUND
CONNECTION
BUTTON A
(ON/RAISE BUTTON)
BUTTON B
(OFF/LOWER BUTTON)
RED
VIOLET
GRAY
DIMMING
FIXTURE
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2018 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Dimming Wall Switch Occupancy Sensors
31123B 121018
IntelliDAPT Technology
Self-adjusting timer
Self-adjusting passive infrared (PIR) and ultrasonic (US) sensitivity
Automatic false-on/ false-o corrections
No manual adjustments required
Time Delay
Auto mode: 4-20 minutes; self-adjusts based on occupancy
Fixed mode: 4, 8, 15, and 20 minutes
Test mode: 5 seconds
Passive Infrared (PIR) Quad-element pyrometer and 12-element cylindrical RhinoTu lens
Dimming 0-10V, Sink up to 30mA
Photocell Natural light override range: 10-500 foot-candles
Coverage 1,000 square-foot, 180° coverage area
Power Requirements 120/277VAC;50/60Hz
347VAC; 50/60Hz
Electrical Ratings
120VAC: 0-1000W Ballast, E-Ballast, LED, Tungsten; Motor Rating: 1/6 HP
277VAC: 0-1200W Ballast, E-Ballast, LED; Motor Rating: 1/6 HP
347VAC: 0-1500W Ballast, LED; Motor Rating: None
Operating Environment
Indoor use only
Operating temperature: 32° to 104°F (0° to 40°C)
Relative humidity (non-condensing): 0% to 95%
Construction
Casing- high- Impact injection-molded plastic (UL-94-5V)
Impact-resistant lens
Color- coded leads are 6” (152.4mm) long
Wrap-around galvanized steel mounting strap
Dimensions 2.70"H x 1.72"W x 1.70"D (68.69mm H x 43.61mm W x 43.26mm D)
Weight 2.9 oz (82.21g)
Color White; Ivory; Light Almond; Gray; Black
Mounting Single-gang NEMA-style switch box (standard switch box)
Decorator-style wall plate sold separately
Certications Listed UL and cUL
Warranty Five-year limited
General Specications
