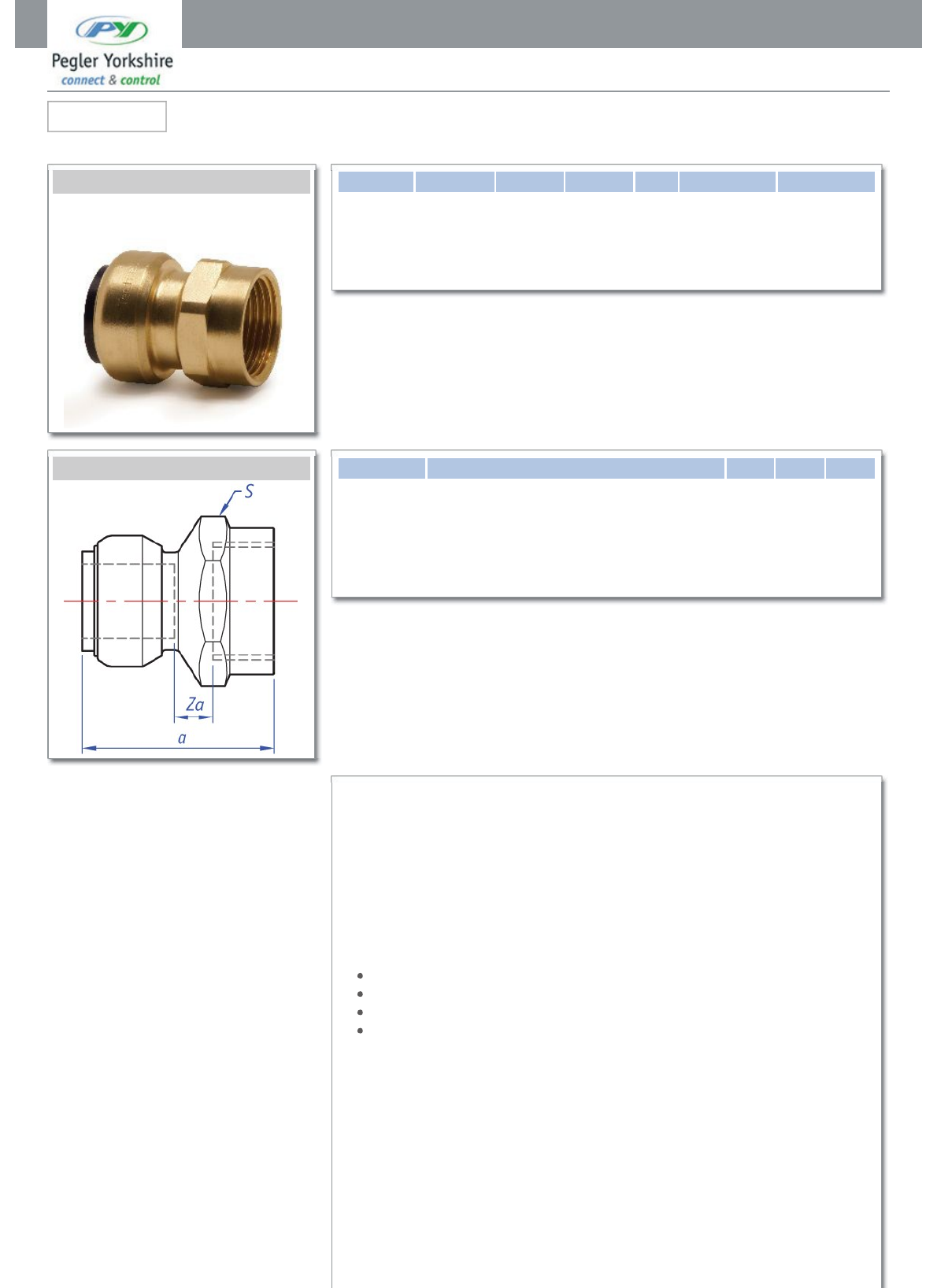

Straight female connector. push-fit x BSP parallel female thread.
TX2/TX270G Size Pattern No. Pack 1 Qty Pack 2 Qty Code Barcode Price(£)exVAT
15mm x 1/2" TX2/TX270G 10 200 65206 5022050652065 £7.21
22mm x 3/4" TX2/TX270G 5100 65222 5022050652225 £8.37
22mm x 1" TX2/TX270G 580 65223 5022050652256 £10.97
28mm x 1" TX2/TX270G 250 65225 5022050652287 £19.60
TX2/TX270G Code Description aZa s
65206 15mm x 1/2" TX2/TX270G 40 325
65222 22mm x 3/4" TX2/TX270G 47 332
65223 22mm x 1" TX2/TX270G 49 238
65225 28mm x 1" TX2/TX270G 53 137
Pegler Yorkshire reserve the right to change specifications
Pegler Yorkshire Tectite Sprint, Classic, Pro and 316 Guarantee - Terms and Conditions
Products are subject to a guarantee that is between Pegler Yorkshire and the final purchaser of the
product. When correctly assembled with the stated tubes and pipe the length of guarantee is as follows:
25 Years Where Tectite Sprint, Tectite Classic, Tectite Pro and Tectite 316 fittings, Tectite-PEX barrier
pipe and 316 System tube are installed in pipelines with products from other manufacturers, they are
guaranteed for 25 years.
30 Years Where pipelines are constructed exclusively using Tectite fittings and recommended tubes,
the resulting installations will be deemed Tectite Systems and qualify for a 30 year guarantee.
Qualifying systems are:
Tectite Sprint fittings with Yorkex copper tube and/or Tectite-PEX pipe
Tectite Classic fittings with Yorkex copper tube and/or Tectite-PEX pipe
Tectite Pro fittings with Yorkex copper tube and/or Tectite-PEX pipe
Tectite 316 fittings and stainless steel 316 System tube.
The guarantee is subject to proof of purchase being supplied.
This guarantee does not affect any statutory rights the consumer may have in law.
The guarantee covers manufacturing or material defects when installed in accordance with our
instructions on specified tube materials and applications, and does not cover parts subject to normal
wear and tear.
This product range has been designed for the use of homeowners, domestic and commercial
applications and therefore the Guarantee is subject to the product being properly selected for their
intended service conditions.
The guarantee is not applicable where the product is fitted contrary to the conditions in the fitting
instructions.
This is reinforced where valves are covered by the European Pressure Equipment Directive
(PED97/23/EC) where Installation, Operating and Maintenance Instructions are supplied with each
product and/or carton.
Provided it is installed correctly and receives adequate preventative maintenance it should give years of
trouble–freeservice.
Abusive behaviour and accidental damage to the product are not covered by this guarantee.
The extent of this liability is limited to the cost of the replacement of the defective item and not to
installation or consequential damages.
CSN
[460.7k]
DVGW
[132.8k]
KIWA Tectite
[3.6mb]
OVGW
[354.9k]
TRL
[41.0k]
WRAS
[87.4k]
Tectite Fitting Tube/pipe used with Min temperature Max temperature
Pro up to 28mm Copper 24˚C*at20bar 30˚Cat20bar 65˚Cat16bar 114˚Cat10bar
Pro over 35mm Copper 24˚C*at16bar 30˚Cat16bar 65˚Cat10bar 90˚Cat6bar
Care
No regular aesthetic care is required for this product
Maintenance
No regular maintenance is required for this product.
For any further help please contact the Service Support Team on: 0800 1560050.
Component Material
Body DZR Brass
O ring EPDM
Pipe guide Glass filled nylon 6
Demount collar Brass
Grab ring Stainless steel
Pegler Yorkshire Group Ltd, St Catherine's Ave, Doncaster, S Yorkshire, DN4 8DF
Telephone: Phone +44 (0) 844 243 4400 Fax: +44 (0) 844 243 9870 Website: www.pegleryorkshire.co.uk
Registered office : Pegler Yorkshire Group Ltd, St Catherine's Ave, Doncaster, S Yorkshire, DN4 8DF Company no : 00401507

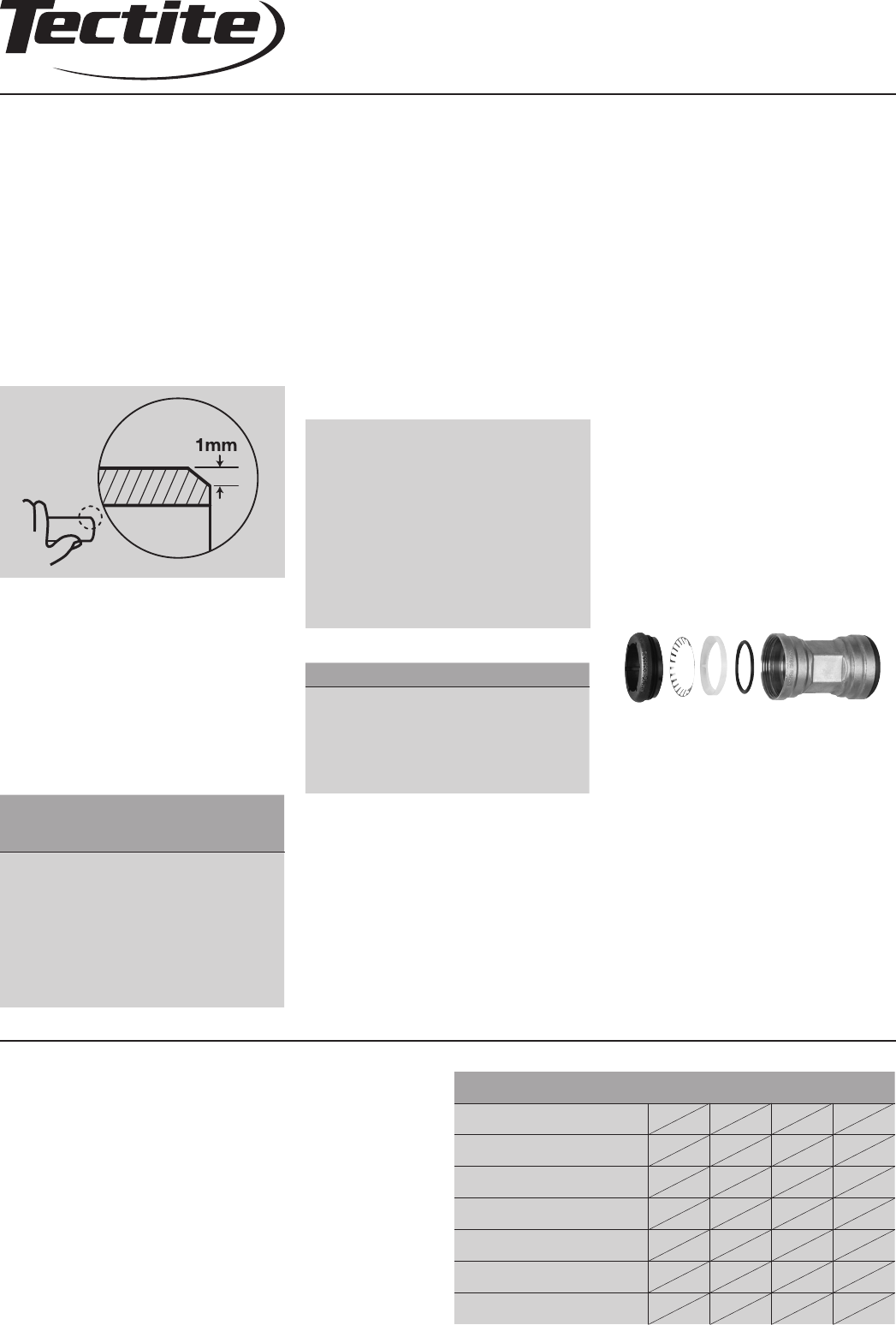

For joints 10 to 54mm
Always cut the tube square, using a rotary tube
cutter whenever possible. Ensure the cutter wheel
appropriate for the material been cut (Carbon steel
requires a higher grade of cutter wheel, Pegler
Yorkshire recommend using the TC155 with a REMS
Cento)
If you are using PEX or PB pipe cut the pipe using
pipe shears. When using plastic coated carbon
steel tube remove the coating using the S115
stripping tool.
Deburr the tube end, both internally and externally
to create a 1mm chamfer on the outside of the
tube.
Check the tube ends are free from damage and
clean, wiping away any swarf to avoid damaging
the ‘O’ ring on tube insertion. Tube end must also
be free from stickers, tape and adhesive residues.
Where using PEX or PB you must use always insert
a support liner ensuring it is the correct liner as
specified by the pipe manufacturer. If the pipe
has been used on previous installations you will
need to cut it back to behind the teeth or score
marks.
Mark the socket depth with a marker.
For chrome plated copper tube you must scribe the
tube using the correct Tectite Scribing tool.
Select the correct type and size of fitting for
pipework.
The fitting should be kept in its bag until point of
use to protect the ‘O’ ring.
Check the fitting ensuring the grab rings/’O’rings
have not been contaminated with grit or debris.
Insert the tube/pipe firmly with a slight twisting
action until it reaches the tube stop with a
positive “click”.
Ensure the depth insertion mark corresponds with
the mouth of the fitting, then pull firmly on the
tube/pipe to ensure the fitting is secure.
Note: Tectite Sprint and Tectite Carbon
fittings must not be used with male ended
fittings from other Tectite ranges (except
T526S). Other third party male ended
products should not be used with any
Tectite fittings.
Do not use Tectite fittings on gas services.
Tectite Classic fittings do not provide
electrical continuity, other Tectite fittings
only provide electrical continuity when
installed with metal tube.
For sizes 10mm to 28mm
Place the forks of the disconnecting tool around
the fitting assembly. The fork side carrying the
Tectite brand logo should be positioned around the
tube/pipe with the opposite side around the neck
of the fitting.
Squeeze the disconnecting tool with one hand
until the release collar in the fitting is compressed.
With the other hand, twist out the tube/pipe using
the thumb as a lever against the tool to assist
disconnection.
Check the fitting and tube/pipe for damage before
remaking the joint.
The plastic disconnecting clip may be used where
only an occasional disconnecting facility is
needed.
For sizes 35mm to 54mm
Have replacement parts for the discarded items
ready for insertion. Using a spanner on the fitting
flats to prevent the fitting from rotating, insert
the Tectite DTX end cap tool into the slots in the
end cap. Turn the tool anti-clockwise to unscrew
the end cap and slide it along the tube away from
the fitting body.
Pull the tube out of the fitting body.
Remove and discard the ‘O’ ring.
Remove and retain the alignment ring.
Snip off the grab ring with side cutters and
discard. Before re-assembly replace the
discarded parts, Tectite Pro grab rings (TX105)
and Tectite 316 grab rings (TS106) these are not
interchangeable.
The components must be clean and the ‘O’ ring
lubricated using S130 Silicone lubricant. Replace
the components in the correct order, as shown,
and check they are fully seated in the fitting body.
Screw the end cap back into the fitting until hand
tight. If resistance is felt and the end cap is not
flush with the fitting body, remove the end cap
and ensure the grab ring is fully located i.e. fully
in contact with the alignment ring. Again screw
the end cap into the fitting until hand tight.
Temporarily insert a 300mm length of deburred
tube into the fitting BUT NOT THROUGH the grab
ring to help locate the demount tool. Tighten
the end cap a further 8mm to 10mm (radically).
Remove the tube.
Before reinstalling the fitting back into the
system, check the end of the tube for damage.
If the tube is scored or damaged, remove the
affected section with a tube cutter and prepare
the tube end as described in preliminaries and
tube preparation.
The advantages of Tectite
n A totally heat-free jointing solution
n Major reductions in installation times provides major installed
cost savings
n No need for hot works permits or additional costly insurance
n Sizes from 10mm up to 54mm
n Systems have an exceptionally clean bore with no flux residues
n System guarantees* of up to 30 Years for Tectite Sprint, Tectite
Classic, Tectite Pro Tectite 316 and 20 Years for Tectite Carbon
and Tectite Flexifit connectors
Last revised 01 August 2012
*The definition of what constitutes a Tectite System can be found in the Guarantee section of the Tectite databook
Tectite Fitting Tube/Pipe used with Min Performance Max Performance
Classic Copper -24°C
16 bar
30°C
16 bar
65°C
10 bar
95°C
6 bar
Sprint & Classic PEX & PB -20°C
12 bar
20°C
12 bar
65°C
6 bar
92°C
3 bar
Sprint & PRO
upto 28mm Copper -24°C
20 bar
30°C
20 bar
65°C
16 bar
114°C
10 bar
PRO over 35mm Copper -24°C
16 bar
30°C
16 bar
65°C
10 bar
90°C
6 bar
316 upto 28mm Stainless steel -24°C
20 bar
30°C
20 bar
65°C
16 bar
114°C
10 bar
316 over 35mm Stainless steel -24°C
16 bar
30°C
16 bar
65°C
10 bar
90°C
6 bar
Carbon Carbon Steel -24°C
20 bar
30°C
20 bar
65°C
16 bar
114°C
10 bar
Fitting socket depths for Tectite:
Size Sprint Classic, PRO
& 316 Carbon
10mm
12mm
15mm
18mm
22mm
28mm
35mm
42mm
54mm
15mm
17mm
16mm
-
19mm
20mm
-
-
-
23mm
23mm
23mm
23mm
27mm
31mm
57mm
62mm
68mm
-
-
28mm
28mm
30mm
32mm
40mm
42mm
45mm
Installation instructions
De-mounting Tectite fittings
Range De-mountability
Sprint
Classic
PRO
316
Carbon
No
Yes
Yes
Yes
No
