Titan®
High-Performance Hoist
Capability
• Speed: Up to 650 fpm (3.3 m/s)
• Travel: Up to 8 lines @ 90 . (27.4 m)
Up to 10 lines @ 67 . (20.4 m)
• Gross Capacity: Up to 3,300 lbs. (1,496 kg)
• Max batten length: 96 . (29.3 m)
page 1 of 5
Titan is a high-performance hoist for applications requiring large capacity, speed and/or long
travel. Titan is a customizable pre-engineered hoist – it is engineered and manufactured to
your requirements yet provides the economic benets of an “o-the-shelf” system.
Features
• Integrated gearmotor and brake provide proven
reliability and feature an iron case for
vibration and noise control.
• Reliable head block with nylon sheaves provide long,
trouble-free life and meet or exceed wire rope manu-
facturer recommendations.
• Zero-fleet design allows for a compact, efficient
hoist. Pre-loaded chase rollers ensure cables stay in
grooves.
• Closed loop vector drives provide pinpoint accuracy.
• A complete suite of load and safety features is
available including slack line, over/under load, and
cross-groove detection. Load monitoring, acoustic
dampening, and safety covers can also be added.
• Hoists can be mounted vertically or horizontally. For
theatres without grids, vertical mounting can save space
and offers easier access for maintenance.
• Steel backbone adapts to your mounting and load
requirements.
• Center-to-center spacing
• ANSI E1.6.1 Compliant
• Quick-connect clamps – upright, underhung, vertical
• Encoder for precise target
• Quiet operation
DATA SHEET

Safety
• Dual braking system with a primary brake on the motor and
an independent SureBrake® II operating directly on the drum
shaft. SureBrake II is spring applied and electrically released
for maximum safety.
• Emergency-stop system meets NFPA 79 (Electrical Standard
for Industrial Machinery) with ramped stops for high speed
equipment to reduce mechanical shock loads.
• Two levels of limit switches with normal travel and over
travel switches using separate, redundant circuits for added
safety.
• Loft block idlers contain individual grooves to keep lines
contained, prevent binding, friction, and eliminate rubbing of
adjacent lines.
• Touch safe interior of all electrical enclosures guards to
prevent contact with live components, per IEC 204-1
Protection.
Control Options
• Titan works with the entire range of J.R. Clancy
motion control systems.
Loft Block Options
• 1/4" Universal Series upright or underhung
• 1/4" 19 Series underhung
Batten Termination Options
• Trim Chain
• Pipe Clamp and Turnbuckle
• Batten Trim Plate
• Batten Trim Clamp
Batten Options
• 1.5” (48 mm) Schedule 40 batten
• 1.5” (48 mm) Schedule 80 batten
• 1.5” (48 mm) Schedule 40 truss batten
Titan® High-Performance Hoist
page 2 of 5

page 3 of 5
Titan® High-Performance Hoist
6'-0" (1.83 m) MIN C/C
12'-0" (3.7 m) MAX C/C
VERTICAL AND HORIZONTAL
INSTALLATIONS SHOWN
8 LINE: 90'-0" (27.4 m)MAX BATTEN TRAVEL
10 LINE: 67'-0" (20.4 m) MAX BATTEN TRAVEL
1'-0" (305 mm) MIN BETWEEN
TITAN BACKBONE AND
BOTTOM OF HEADBLOCK
1'-6" MIN
(457 mm)
8 LINE: 76'-0" (23.2 m) MAX BATTEN LENGTH
10 LINE: 96'-0" (29.3 m) MAX BATTEN LENGTH
Loading
Information
Loft Block: (Typical of 7) The
combined load on the loft blocks
associated with a single Titan hoist
will not exceed the hoist capacity.
Loads may be unevenly distributed
on the batten with a maximum
load of 750 lb (340 kg) on any
individual loft block. Hoists are not
recommended to be used for lifting
people.
750 lb
(340 kg)
max
750 lb
(340 kg)
max
Hoist
Capacity
Hoist
Capacity
Hoist Capacity
Hoist
self
weight
Product CAD files and other
documents available for
download on our website.
www.jrclancy.com/
titan-high-performance-
hoist.php

page 4 of 5
Titan® High-Performance Hoist

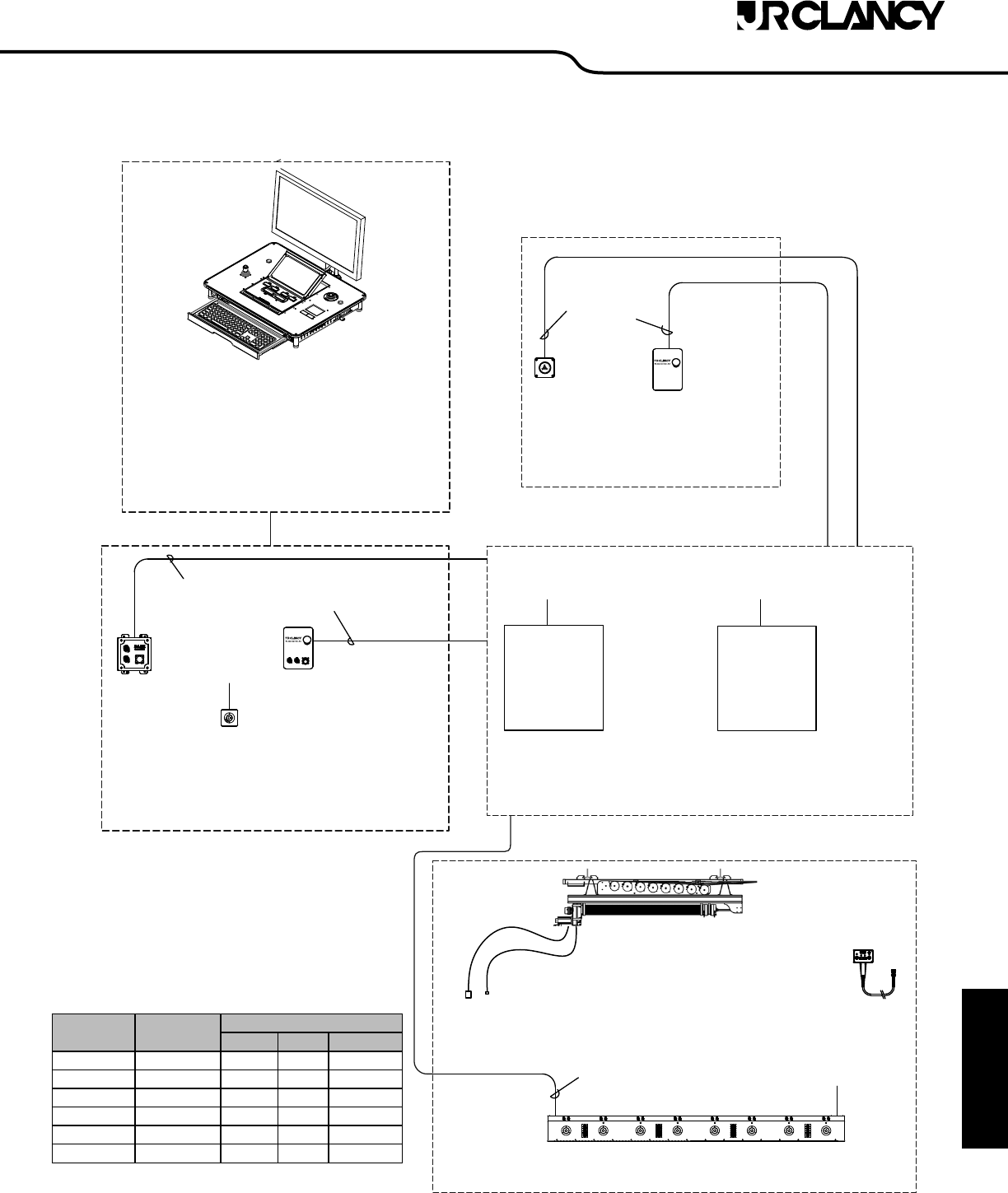

Titan Riser — Typical Power and Wiring Information: Titan is available for
virtually any 3-phase voltage world wide. Control wiring is
dependent on your control system.
SERVICE:
208-480VAC, 50-60Hz, 3Ă,
SINGLE FEED AT 100A MAX.
PER WIREWAY SECTION
BY OTHERS
E-STOP RELAY CABINET WITH NETWORK SWITCH: AVAILABLE IF
FEWER THAN FOUR E-STOPS WITH NO ANNUNCIATION OR
ILLUMINATION
SIZE: AS REQUIRED FOR QUANTITY OF AXES UNDER CONTROL
LOCATION: AS REQUIRED FOR VENUE LAYOUT
SERVICE:
110-240VAC,
50-60Hz, 1Ă
20A, 2W+GND
BY OTHERS
CONTROL POINT W/ E-STOP
SIZE: 8.5"Hx6"Wx5.7"D
LOCATION: 44"AFF, TBD
1- BELDEN 8468
2- BELDEN 1583A
BY OTHERS
SERVICE:
110-240VAC,
50-60Hz, 1Ă,
20A, 2W+GND
BY OTHERS
CONSOLE POWER OUTLET
ON 4" SQUARE COVER -
ENCLOSURE BY OTHERS
LOCATION: 18" AFF, NEAR
EACH CONTROL POINT
TITAN HOIST W/ 8' CONTROL AND POWER TAILS
208/380/480VAC 3Ă 50/60Hz
HP PER CHART
TYPICAL OF NUM (#) PROVIDED
FACTORY-WIRED
CONTROL POINT
SIZE: 6.3"Hx6.3"Wx4.2"D
LOCATION: 18" AFF,
TBD
E-STOP PORT
NETWORK 2
NETWORK 1
1- BELDEN 8468
2- BELDEN 1583A
BY OTHERS
REMOTE E-STOP STATION
- COMPACT
SIZE: 3.7"Hx3.7"Wx3.2"D
LOCATION: 44"AFF, TBD
1- BELDEN 8469
BY OTHERS
CONSOLE OPTIONS:
SCENECONTROL 24+ (DESK OR CART-MOUNT) 30' CABLE
SCENECONTROL 24 (DESK, PEDESTAL OR CART-MOUNT) 30' CABLE
SCENECONTROL 15 (DESK OR PEDESTAL-MOUNT), 30' CABLE
ABOVE CONNECTS TO ANY CONTROL POINT AND POWER OUTLET
SCENECONTROL 10 (WALL-MOUNT, 19" RACK-MOUNT OR PENDANT
WITH 30' CABLE - PENDANT CONNECTS TO ANY CONTROL POINT)
AT LEAST ONE CONSOLE REQUIRED PER SYSTEM.
OTHER OPTIONS:
CONSOLE PEDESTAL
CONSOLE CART
25' CONTROL EXTENSION CABLE
SC5000 HC-1O0B
LOCAL CONTROL PENDANT
TYPICAL OF ONE (1) PER
CONTROL SYSTEM
(TYPICAL)
NOTE:
MINIMUM OF ONE (1) CONTROL POINT (WITH OR WITHOUT REMOTE
E-STOP) REQUIRED PER SYSTEM
CONTROL POINT(S)
NOTE:
BASE SYSTEM SUPPORTS UP TO FOUR (4) REMOTE E-STOP STATIONS
(WITHOUT ANNUNCIATION OR ILLUMINATION) WITHOUT AN
E-STOP MASTER.
REMOTE E-STOP STATION
WITH GUARD
SIZE: 8.5"Hx6"Wx5.7"D
LOCATION: 44"AFF, TBD
TO CENTRAL CABINET
OR E-STOP SLAVE
TO CENTRAL CABINET
TO CENTRAL CABINET
SERVICE:
110-240VAC,
50-60Hz, 1Ă
20A, 2W+GND
BY OTHERS
E-STOP MASTER WITH NETWORK SWITCH -
REQUIRED IF REMOTE E-STOP STATIONS REQUIRE ANNUNCIATION
OR ILLUMINATION, OR IF MORE THAN FOUR (4) REMOTE
E-STOPS. ONE E-STOP MASTER SUPPORTS UP TO SIXTEEN (16)
CONSOLE PORTS AND REMOTE E-STOP STATIONS.
SIZE: AS REQUIRED FOR QUANTITY OF AXES AND E-STOPS
UNDER CONTROL
LOCATION: AS REQUIRED FOR VENUE LAYOUT.
CENTRAL CABINET OPTIONS: ONE (1) REQUIRED
TO CENTRAL CABINET
OR E-STOP
EXPANSION
E-STOP STATIONS
TITAN HOIST SYSTEM
CONTROL CONSOLE OPTIONS
HOIST POWER AND CONTROL WIREWAY - EACH SECTION
8.5"H x 5"D x 96"L (MAXIMUM SECTION LENGTH)
ADDITIONAL WIREWAY SECTIONS AS REQUIRED
1 - BELDEN 8469 PER WIREWAY SECTION
1 - BELDEN 1583A PER HOIST RECEPTACLE
(UP TO EIGHT (8) PER WIREWAY SECTION)
BY OTHERS
NETWORK 1 NETWORK 2 E-STOP I/O PORT
HC - 100
UP
CONTROL
DOWN
FAULT
E-STOP
OFF ON
AUTOMATED RIGGING SYSTEM
EMERGENCY STOP
ACTIVATION WILL STOP AND INHIBIT ALL MOTION
AUTOMATED RIGGING SYSTEM
EMERGENCY STOP
ACTIVATION WILL STOP AND INHIBIT ALL MOTION
OVER TRAVEL
DN UP
BYPASS
E
M
E
R
G
E
N
C
Y
S
T
O
P
Titan Electrical Requirements
Model HP Current Draw
208 V 380 V 480 V
018-P0220G 1.5 (1.12 kW) 5 A 2.8 A 2.2 A
018-P0220R 1.5 (1.12 kW) 5 A 2.8 A 2.2 A
018-P1212R 5 (3.73 kW) 14.5 A 5.5 A 6.3 A
018-P1220R 7.5 (5.6 kW) 20 A 11 A 8.7 A
018-P1812R 7.5 (5.6 kW) 20 A 11 A 8.7 A
010-P1817R 10 (7.5 kW) - 28 A 23 A

page 5 of 5
Titan® High-Performance Hoist
Model Number Hoist Speed Hoist Capacity
018-T0224 20 fpm (0.1 m/s) 2,400 lb (1,089 kg)
018-T0233 20 fpm (0.1 m/s) 3,300 lb (1,497 kg)
018-T2022 200 fpm (1.0 m/s) 2,200 lb (998 kg)
018-T2030 200 fpm (1.0 m/s) 3,000 lb (1,361 kg)
018-T2633 260 fpm (1.3 m/s) 3,300 lb (1,497 kg)
018-T3413 340 fpm (1.7 m/s) 1,300 lb (590 kg)
018-T3417 340 fpm (1.7 m/s) 1,750 lb (794 kg)
018-T4022 400 fpm (2.0 m/s) 2,200 lb (998 kg)
018-T6514 650 fpm (3.3 m/s) 1,400 lb (635 kg)
Warranty and Support
Three-Year Warranty against defects in materials or workmanship
is provided on all J.R. Clancy equipment. Our warranty is contingent
on operation by trained per sonnel and an annual equipment
inspection of a J.R. Clancy authorized technician.
24/7 factory technical support with additional service and
assistance provided by a worldwide network of J.R. Clancy
authorized dealers.
Inspection and maintenance are available through J.R. Clancy’s
T.I.M.® (Training, Inspection, Maintenance) Program.
Ordering Information
Additional Information
For more information on Titan, visit www.jrclancy.com to access:
• Detailed structural loading
• Specifications
• Electrical risers diagrams
