PRX710

Features:

䉴

Maximum SPL Output 133 dB Peak

䉴

10" low-frequency driver for low-distortion and

higher SPL

䉴

1.5" diameter next generation JBL neodymium

compression driver

䉴

1500W (dual 750 watt) highly efficient Class-D

amplifier

䉴

Normal and Boost user selectable EQ presets

䉴

DSP input section, crossover, dynamic limiting,

component optimization, selectable system EQ

䉴

Professional XLR-1/4" combination inputs, RCA

inputs, and XLR loop-through

䉴

Integrated 36 mm pole mount socket with angle

down tilt

䉴

Integrated 9 x M10 suspension points

䉴

Lightweight poplar plywood cabinets made

structurally sound with tongue and groove

joints and protected by JBL’s tour proven

DuraFlex™ finish

Application:

䉴

The PRX710 is the most compact and versatile

speaker in the PRX700 Series. Designed to

deliver maximum performance for its weight

and size as a front of house main PA. Two user

selectable EQ settings are provided to optimize

the system for either application. With a single

socket pole mount the PRX710 is a perfect

match with a PRX715XLF subwoofer offering a

high performance self-powered sub/sat system.

䉴

The PRX710 is comprised of a 10" woofer, a

2408H-2, 37.5 mm (1.5 in) annular polymer

diaphragm, neodymium compression driver

mounted to a 100° by 60° horn, all driven by

1500 watt Class-D digital power amplifier.

Sophisticated DSP is at the core of a fully

featured input section, providing user selectable

system EQ, protection, input sensitivity

selection, cross-over functionality, dynamic

limiting and discrete component optimization.

䉴

All PRX700 cabinets are built from a

combination of 25 mm (on the top and bottom

for added rigidity) and 18 mm, strong, light-

weight poplar plywood made structurally sound

with tongue and groove joints. All PRX700

Series cabinets are protected by JBL’s tour

proven DuraFlex™ finish. Grilles are made from

dent-resistant 16 gauge steel and handles are

made from light-weight glass-filled nylon for

added strength and durability. All M10

suspension points are constructed from 14

gauge steel and have been tested with a yield-

strength of 1000 lbs. each.

䉴

The amplifier input panel offers XLR or ¼ inch

jack compatibility and a sensitivity switch

provides extra flexibility, making it possible to

connect literally any sound source without

using a mixer. Signal present and limiter lights

indicate the system status and assist in setting

the optimum level via the level control knob.

Specifications:

System:

System Type: Self Powered 10", two-way, bass-reflex

Maximum SPL Output: 133 dB peak

Frequency Range (-10 dB): Normal: 50 Hz – 19.6 kHz

Boost: 42.9 Hz – 20 kHz

Frequency Response (±3 dB): Normal: 63.5 Hz – 18.5 kHz

Boost: 53 Hz – 18.6 kHz

Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA

input

Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)

Signal Indicators: Limit: Yellow LED indicates peak output has been reached

and dsp limiter is acting

Signal: Green LED indicates signal present

Power/Standby: Blue indicates system has power and ready

to pass audio, Red indicates system has power but is in a

power saving mode and will not pass audio.

EQ: User selectable presets for Normal and Boost

Dynamic Control (Input): dbx Type IV™ limiter circuit

Crossover Frequency: 1.9 kHz

Amplifier:

Design: Highly efficient Class-D amplifier

Power Rating: 1500W (750W x 2)

AC Power Input: 100V - 240V ∼50/60 Hz

Speaker:

LF Driver: 1 x JBL M110-4 250 mm (10 in) woofer

HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer

diaphragm, neodymium compression driver

Coverage Pattern: 100° x 60° nominal

Directivity Index (DI): 9 dB

Directivity Factor (Q): 8

Enclosure: Trapezoidal, 18 mm, plywood

Suspension / Mounting: Single 36 mm pole socket, 8 x M10 Suspension Points, 1 x

M10 pull back point

Transport: 1 x integrated handle with injection molded backing cup

Finish: Obsidian DuraFlex™ finish

Grille: Powder coated, Obsidian, 16 gauge perforated steel with

acoustical transparent black cloth backing.

Dimensions (H x W x D): 498.7 mm x 335.6 mm x 322.3 mm

(19.63 in x 13.21 in x 12.69 in)

Net Weight: 13.6 kg (30.0 lb)

Gross Weight: 16.4 kg (36.0 lb)

JBL continually engages in research related to product improvement. Some materials, production methods and design

refinements are introduced into existing products without notice as a routine expression of that philosophy. For this

reason, any current JBL product may differ in some respect from its published description, but will always equal or

exceed the original design specifications unless otherwise stated.

10" Two-Way Multipurpose

Self-Powered Sound

Reinforcement System

83497_JBL_PRX710_83497_JBL_PRX710 3/30/15 10:04 AM Page 1

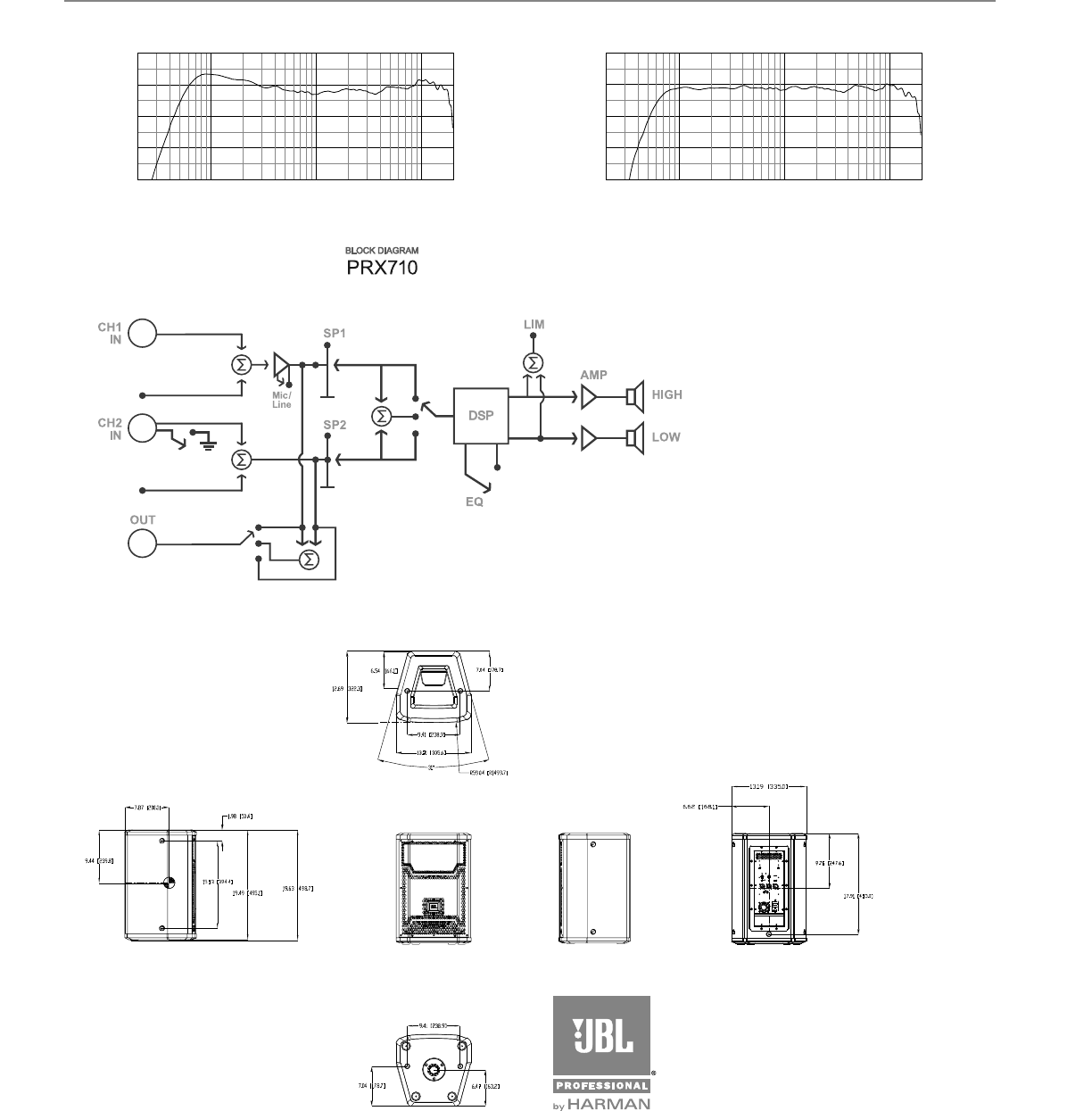

䉴PRX710

10" Two-Way Multipurpose Self-Powered Sound Reinforcement System

Dimensions in mm (in)

SS PRX710

CRP

03/15

JBL Professional

8500 Balboa Boulevard, P.O. Box 2200

Northridge, California 91329 U.S.A.

© Copyright 2015 JBL Professional

www.jblpro.com

20 100 1000 10000 20000

Frequency (Hz)

70

80

90

100

110

SPL (dB)

Frequency Response (Normal)

Frequency Response (Boost)

20 100 1000 10000 20000

Frequency (Hz)

70

80

90

100

110

SPL (dB)

Dimensions
