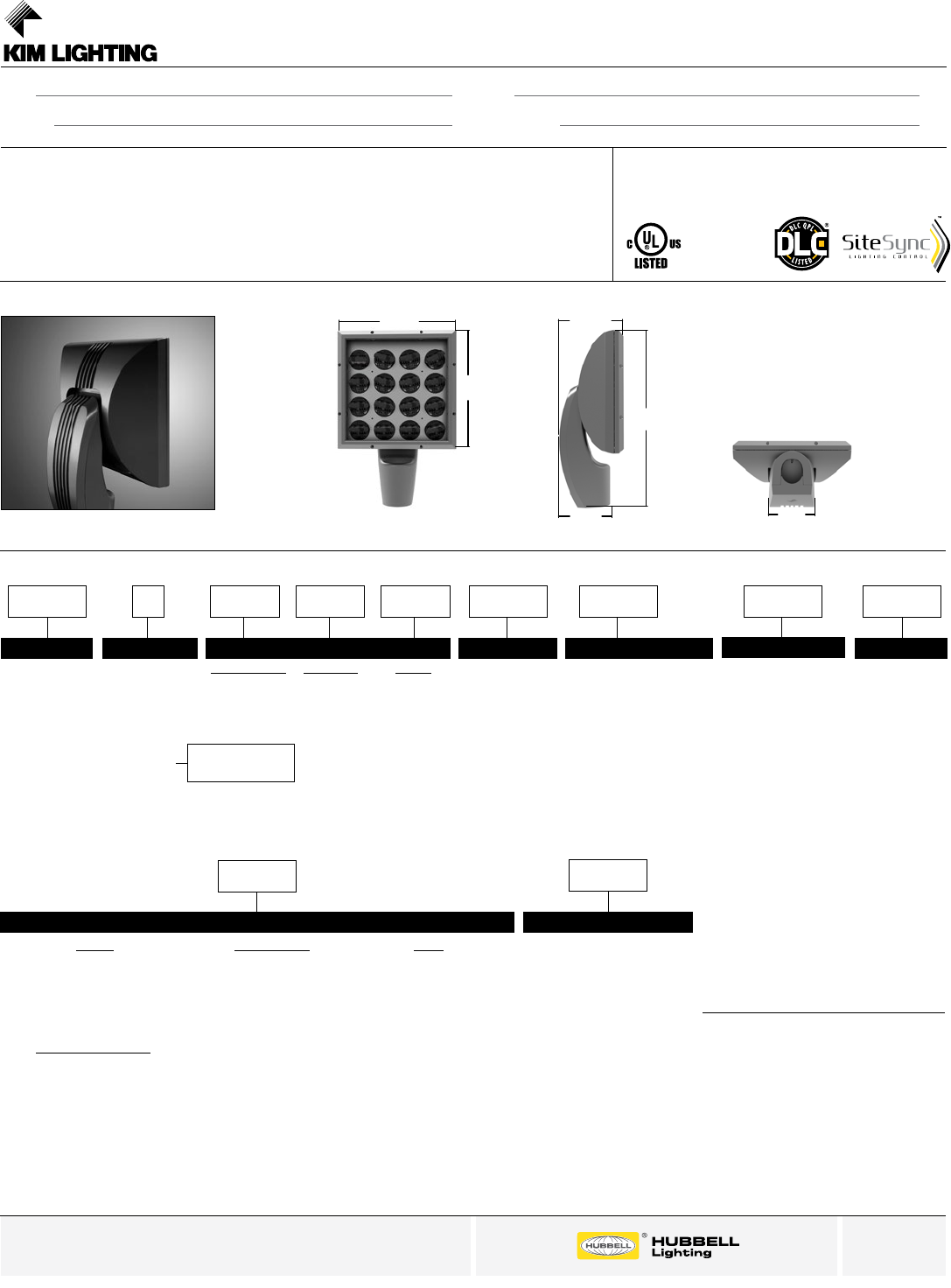

ARFX16

ArcheType® X Flood Luminaire

kl_arfx16_spec.pdf

Kim Lighting reserves the right to change specications without notice.

SPECIFICATIONS

ORDERING CODE

FEATURES Certications

 Independently aimed LEAR™ modules

 355° rotation and 70° tilt module

adjustment and -5° to +30° housing adjustment

 Wide range of drive currents available

 Design software interface for user-dened

Type X distribution creation

 Traditional NEMA distributions available

 IP66 sealed optical chamber

16.37”

(415.8 mm)

16.37”

(415.8 mm)

9”

(228.6 mm)

24.75”

(628.6 mm)

7.535”

(191.3 mm)

6.5”

(165.1 mm)

16.37”

(415.8 mm)

16.37”

(415.8 mm)

9”

(228.6 mm)

24.75”

(628.6 mm)

7.535”

(191.3 mm)

6.5”

(165.1 mm)

16.37”

(415.8 mm)

16.37”

(415.8 mm)

9”

(228.6 mm)

24.75”

(628.6 mm)

7.535”

(191.3 mm)

6.5”

(165.1 mm)

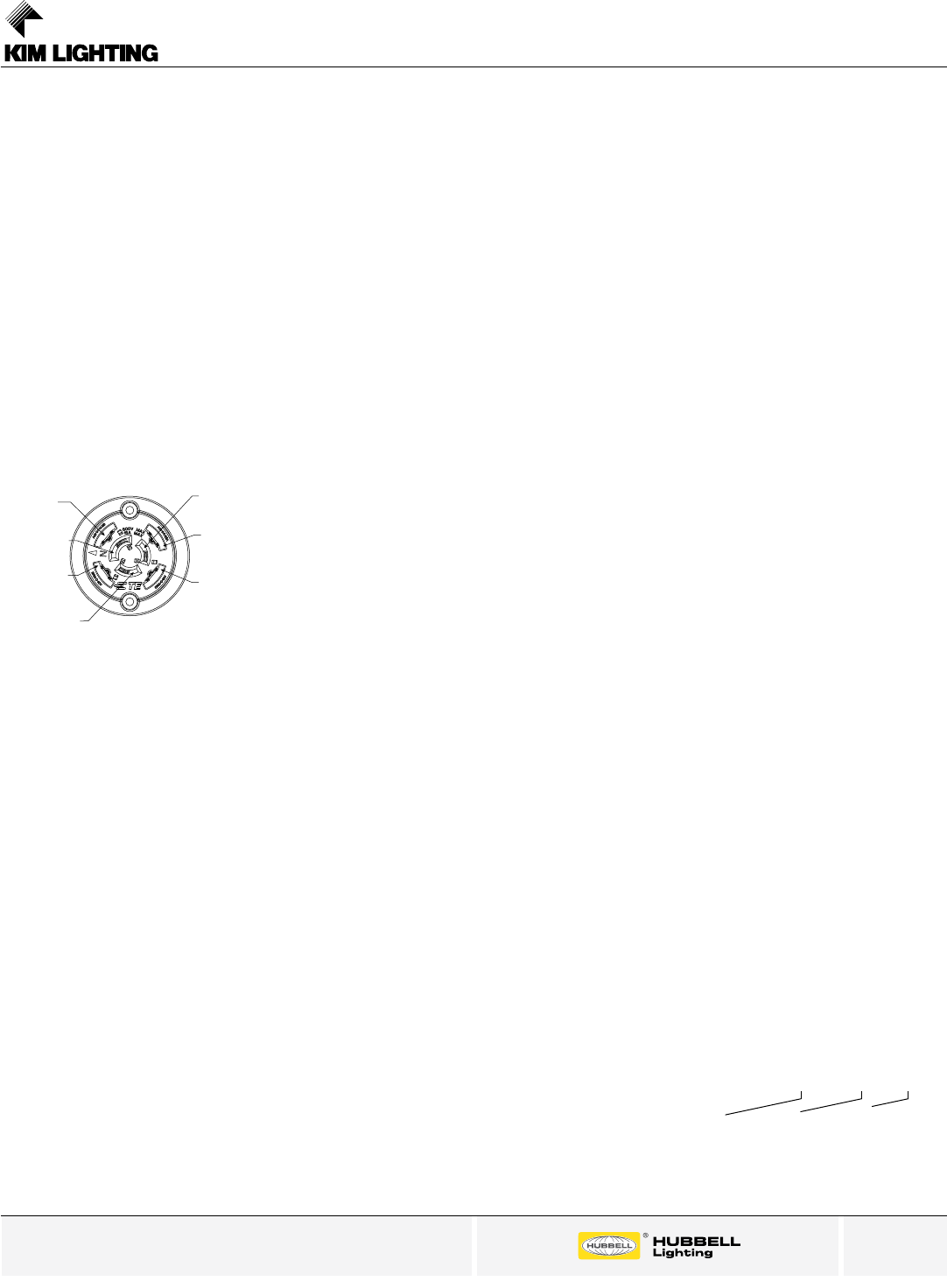

Photocell Options

A25-7H 7-pin Photocell

Receptacle Horizontal

3

A25-7V 7-pin Photocell

Receptacle Vertical

3

A30 120V Button Photocell

A31 208V Button Photocell

A32 240V Button Photocell

A33 277V Button Photocell

A34 347V Button Photocell

A35 480V Button Photocell

Fuse Options

SF 120, 277, 347 Line Volts

DF 208, 240, 480 Line Volts

Fixture Finish

LG Light Gray

BL Black

DB Dark Bronze

GT Graphite

PS Platinum Silver

TT Titanium

WH White

CC Custom Color

2

DistributionFixture NFO OptionElectrical Module

Voltages

UV 120-277V

347 347V

480 480V

Color Temperature

3K 3000K

4K 4000K

5K 5000K

NFO Neighbor

Friendly Optic

ARFX16

EPA 0.87EPA 2.63

Bottom

SideFront

EPA 1.35

Max Weight = 51 lbs.

WF Wide Flood

VF Vertical Flood

MF Medium Flood

NF Narrow Flood

XType X

1

Type X IES

File Name

Drive Current

35 350mA

40 400mA

45 450mA

50 500mA

55 550mA

60 600mA

65 650mA

70 700mA

IK09

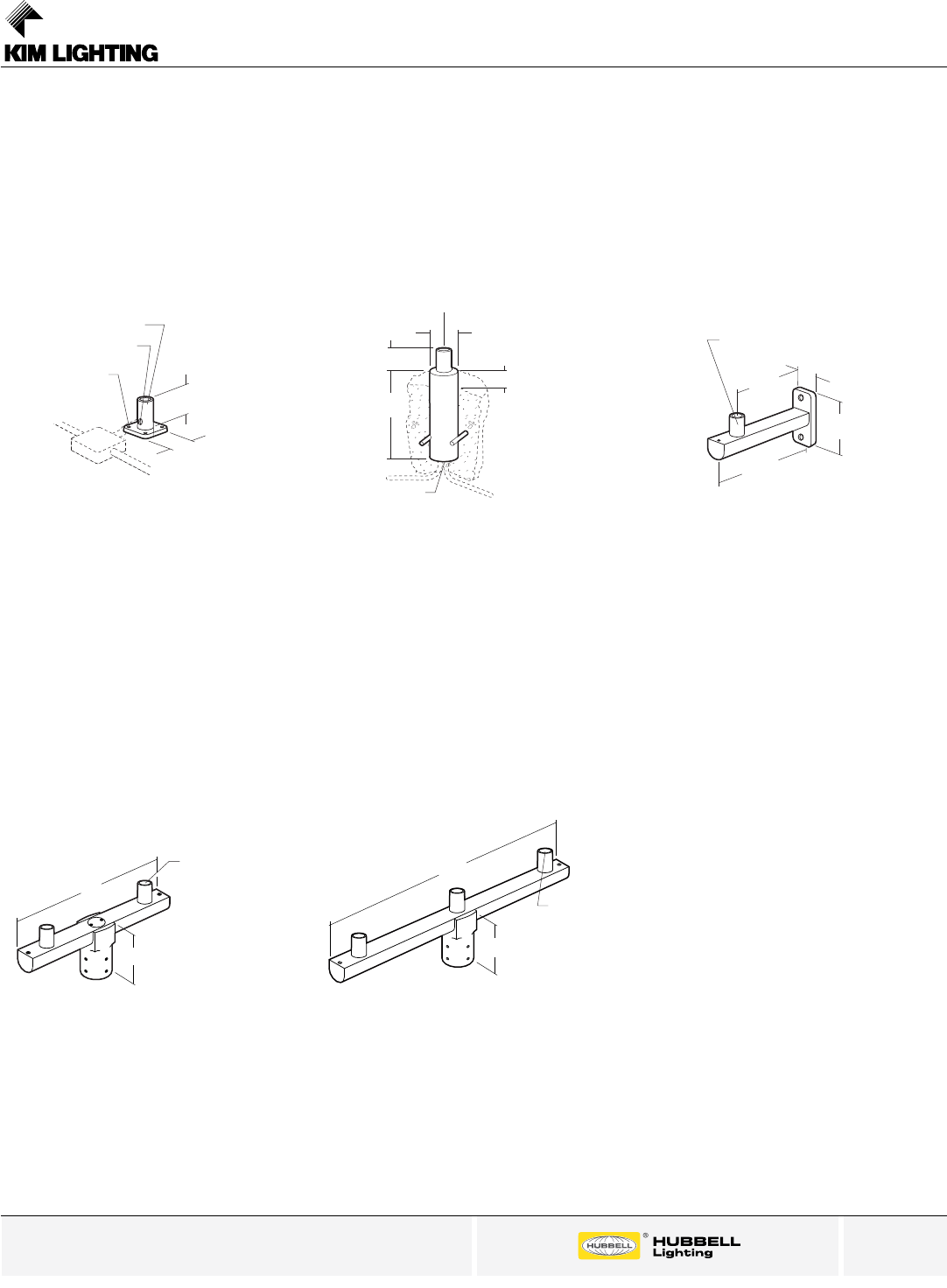

Mounting Options

SMT Surface Mount Tenon

7

SM2 Stanchion Mount Tenon

7

WM2 Wall Mount Tenon

7

MTM-2B Twin Mount Tenon

MTM-3E Triple Mount Tenon

Control Options

Wireless

WIR-RMI-IO 120 - 347V 1000 Foot Range

WiScape RF mesh control

system with off/on/dim,

motion, photo, GPS location,

alert, monitoring and

metering capabilities.

SiteSync Lighting Control

SWP4,5 SiteSync Wireless

Pre-Commission

SWPM4,5,6 SiteSync Wireless

Pre-Commission

w/ Occupancy Sensor

Motion

SCL-R Round Pole Mounted

Occupancy Sensor up to 16'

SCL-S Square Pole Mounted

Occupancy Sensor up to 16'

SCH-R Round Pole Mounted

Occupancy Sensor 16' to 30'

SCH-S Square Pole Mounted

Occupancy Sensor 16' to 30'

Catalog Number

SWUSB

†

SiteSync loaded

on USB ash drive

(Windows® operating

system only)

SWTAB

†

SiteSync Windows®

based Tablet

SWBRG

†

SiteSync Wireless

Bridge Node

† When ordering with SiteSync, one of

the following interface options must be

chosen and ordered separately.

Each option contains the SiteSync

License, GUI and Bridge Node.

Microsoft, Encarta, MSN, and Windows are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

1

2

3

4

5

6

7

User-dened distributions must include IES# le

where indicated

Custom colors subject to additional charges,

minimum quantites and extended lead times.

Consult representative.

Indicates mounting position of xture.

Not available with other control or sensor options.

Specify group and zone. See SiteSync product

page www.hubbelllighting.com/controls/sitesync

for more details.

Specify time delay; dimming level and

mounting height.

Not for use with MTM-2B or MTM-3E options.

For Pole Spec Select: http://www.kimlighting.com/

products/arms_and_poles/

For Control Spec Select: http://trpssl.com/index.html

ARFX16

ArcheType® X Flood Luminaire

kl_arfx16_spec.pdf

| 2 |

Kim Lighting reserves the right to change specications without notice.

© 2017 KIM LIGHTING | 17760 Rowland Street | City of Industry | CA 91748

P 626.968.5666 | F 626.369.2695 | www.kimlighting.com | Rev. Aug. 01, 2017

ARFX16 — FLOOD

Distribution Type Photometrics (3000K)

Field Angle -

10% max Lumens

350 mA 400 mA 450 mA 500 mA 550 mA 600 mA 650 mA 700 mA

Wide Flood 10385 11431 12305 13323 14342 15372 16403 17433

Vertical Flood 11540 12702 13673 14804 15936 17081 18226 19371

Medium Flood 10887 11984 12900 13968 15035 16115 17196 18276

Narrow Flood 11503 12661 13629 14757 15885 17026 18168 19309

Distribution Type Photometrics (4000K)

Field Angle -

10% max Lumens

350 mA 400 mA 450 mA 500 mA 550 mA 600 mA 650 mA 700 mA

Wide Flood 10975 12106 13306 14464 15621 16751 17882 19012

Vertical Flood 12721 14032 15423 16765 18107 19417 20727 22037

Medium Flood 12749 14063 15458 16802 18147 19460 20773 22086

Narrow Flood 13250 14616 16066 17463 18860 20225 21589 22954

Distribution Type Photometrics (5000K)

Field Angle -

10% max Lumens

350 mA 400 mA 450 mA 500 mA 550 mA 600 mA 650 mA 700 mA

Wide Flood 11954 13442 14930 16418 17757 19097 20437 21777

Vertical Flood 12733 14318 15903 17488 18915 20343 21770 23197

Medium Flood 12110 13617 15125 16632 17990 19347 20705 22062

Narrow Flood 12867 14469 16070 17672 19114 20557 21999 23441

ELECTRICAL CHARACTERISTICS

Optical System

Electrical Dimming

Current System

Watts

Line Voltage Amps AC Min.

Power

Factor

Max THD

(%)

Dimming

Range

Source current

out of 0-10V

purple wire

Absolute voltage

range on 0-10V (+)

purple wire

Min Max Min Max

VAC Hz 120 208 240 277 347 480

LEAR™

350 mA 110

120-480 50/60

0.92 0.53 0.46 0.40 0.32 0.23

>0.9 20

10% to

100% 0mA 1mA 0V 10V

400 mA 124 1.03 0.60 0.52 0.45 0.36 0.26

450 mA 138 1.15 0.66 0.58 0.50 0.40 0.29

500 mA 152 1.27 0.73 0.63 0.55 0.44 0.32

550 mA 167 1.39 0.80 0.70 0.60 0.48 0.35

600 mA 182 1.52 0.88 0.76 0.66 0.52 0.38

650 mA

196 1.63 0.94 0.82 0.71 0.56 0.41

700 mA

211 1.76 1.01 0.88 0.76 0.61 0.44

TM-21 LIFETIME CALCULATION

Optical System Ambient Environment °CProjected Lumen Maintenance

Reported L70

16 26 TM-21 60 100

LEAR™ 25

97.55% 96.37% 92.45% 88.05%

> 36,000 hrs

LED COLOR

Spectroradiometric

3K 4K 5K

Designation 3000K 4000K 5000K

CRI Minimum ≥72 ≥72 ≥72

S/P Ratio 1.33 1.66 1.78

Consult factory for Amber, Turtle Friendly, Gulf Coast and Observatory applications.

ARFX16

ArcheType® X Flood Luminaire

kl_arfx16_spec.pdf

| 3 |

Kim Lighting reserves the right to change specications without notice.

© 2017 KIM LIGHTING | 17760 Rowland Street | City of Industry | CA 91748

P 626.968.5666 | F 626.369.2695 | www.kimlighting.com | Rev. Aug. 01, 2017

SPECIFICATIONS

Housing:

 Low copper aluminum alloy die-casting

designed as one-piece with external

cooling ribs.

 Solid cast aluminum walls between

the housing and arm create a thermal

barrier between the optical and electrical

compartments.

 Molded silicone gaskets throughout to insure

sealing between the two compartments and

ingress protection.

 Housing designed with integral Type X thermal

transfer “turrets” utilized for both thermal

transfer and to secure location of the LEAR™

Optical Module. The turrets are spaced in rows

of 4 X 4, designed to optimize photometric

performance for standard and Type X user-

dened distributions.

 Tempered UV coated at lens for low glare.

 IK09 rated enclosure protects electrical

equipment against external mechanical

impacts.

Lens Frame:

 One-piece, die-cast, low copper aluminum

alloy secured to housing with eight captive,

tamper-resistant stainless steel fasteners.

 Molded silicone gasket assembles into a cast

channel in the doorframe sealing the 3/16”

thick low iron-content, tempered glass lens

against the housing upon closure.

 IP66 certied to protect the interior

components from dust and water ingress.

Type X LEAR™ Optical Module:

 Turret alignment and thermal transfer design

allow for freedom of adjustability and precision

of the LEAR LED array.

 Optimized standard distribution or user-

dened beam patterns.

 

3000K, 4000K, 5000K standard CCT. Amber

and other custom color temperatures available.

 Factory adjusted distributions created from

user-dened IES les.

 Toolless 355° rotation adjustment and 70° tilt

adjustment with a tamper resistant fastener.

 Type X LEAR modules are IP66 rated and utilize

six high output LEDs, positioned beneath a

precision, high purity molded acrylic prism.

 Targeted optics minimize pixilation concerns to

provide outstanding performance, uniformity

and glare control.

Electrical Components:

 Standard programmable driver for variable

drive current settings from 350mA to 700mA.

 Electrical components are located in the arm.

Molded silicon gasket seal to isolate arm from

the optical chamber.

 Maximum lightning surge current 20KA with

thermally protected varistor technology. Surge

suppression is series circuited preventing total

xture failure.

 Open circuit fault will turn off the luminaire

protecting the sensitive electronics and acting

as a signal for maintenance.

 Programmable Driver is rated for -40°F starting.

 “Thermal Shield” Primary Side thermister

Protection for sustainable life of LEAR modules

and electronic components.

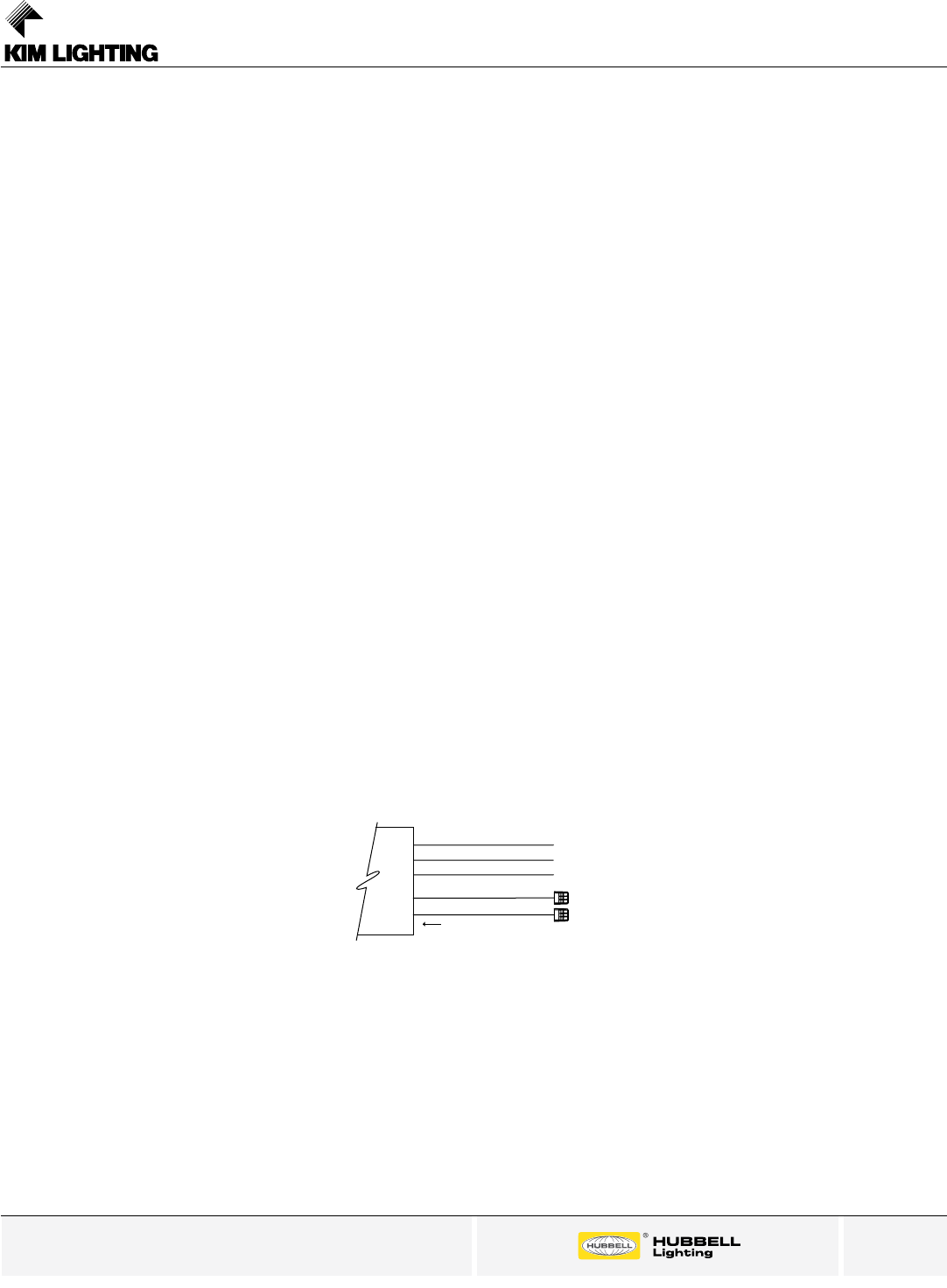

Dimming:

 Dimming range from 10% to 100% by the

use of its standard 0-10V interface on the

programmable driver.

  Modular wiring harness in the service area

provided for user access to the dimming

circuitry.

 Dimming circuitry compatible with 0-10V

user-dened control devices.

 Optional factory programmed dimming prole.

Arm:

 

Low copper aluminum alloy, two piece

die-casting designed and gasketed to function

as one-piece.

 

External cooling ribs create continuous

aesthetic and thermal path.

 

Molded silicone gasket seals the wiring channel

separating the arm from the housing thermally

insulating the electronic components.

 

Internally accessible slip-tter provided.

Attaches to a 1-1/4” to 2-3/8” tenon.

 

Luminaire housing adjustable +30° and -5 via

locking fastener under the arm cover.

Finish:

 



Fade and abrasion resistant, electrostatically

applied, thermally cured, triglycidal

isocyanurate (TGIC) polyester powdercoat.

 Standard colors include (BL) Black, (DB) Dark

Bronze, (GT) Graphite, (PS) Platinum Silver,

(LG) Light Gray, (TT) Titanium, (WH) White,

and (CC) Custom Color (Include RAL#).

Fuse Options:

SF for 120, 277 and 347 Line Volts

DF for 208, 240 and 480 Line Volts.

 



High temperature fuse holders factory installed

inside the xture arm. Fuse is included.

Certications and Listings:

 UL 1598 Standard for Luminaires.

 UL 8750 Standard for Safety for Light

Emitting Diode (LED) Equipment for use in

Lighting Products.

 CSA C22.2#250.0 Luminaires.

 ANSI C136.31-2010 3G Vibration tested

and compliant.

 RoHS compliant.

 IP66 certied.

 IEC 66262 Mechanical Impact Code IK09.

CAUTION:

 

Fixtures must be grounded in accordance

with national, state and/or local electrical codes,

Failure to do so may result in serious

personal injury.

WARRANTY:

 For full warranty see: http://www.

hubbelllighting.com/resources/warranty

Fixture

Housing 30 mA Max

Gray Dimming Lead (-)

Standard Input Black (+)

White (-)

Green (GND)

Purple Dimming Lead (+)

ARFX16

ArcheType® X Flood Luminaire

kl_arfx16_spec.pdf

| 4 |

Kim Lighting reserves the right to change specications without notice.

© 2017 KIM LIGHTING | 17760 Rowland Street | City of Industry | CA 91748

P 626.968.5666 | F 626.369.2695 | www.kimlighting.com | Rev. Aug. 01, 2017

CONTROLS

Photocell Receptacle

A25-7H or A25-7V

Fully gasketed and wired 7-pin receptacle

standard. Easy access location above the

electrical compartment. 7-pin construction allows

user-dened interface and control denition of

operational performance. ANSI twist-lock control

module by-others. H (Horizontal) or V (Vertical)

indicates mounting position of xture.

Standard customer operation modes:

1. Tradional on/off photoelectric control.

2. 5-pin wireless photoelectric control

for added dimming feature.

3. 7-pin wireless photoelectric control for

dimming and additional I/O connections for

customer use.

Button Photocell

A30 for 120V, A31 for 208V, A32 for 240V,

A33 for 277V, A35 for 347V, A34 for 480V,

Factory installed photocell inside housing with

a fully gasketed sensor on the side wall. For

multiple xture mountings, one xture is supplied

with a photocell to operate the others.

Wireless Control

Hubbell Control Solutions' wiSCAPE™ In-Fixture

Module is a bidirectional wireless RF device that

allows an individual xture to be managed,

monitored and metered. The wiSCAPE In-Fixture

Module communicates wirelessly over a robust

2.4GHz ISM (Industrial, Scientic and Medical)

certied meshed radio signal. The wiSCAPE

Fixture Module drastically simplies control and

automation of projects, especially in retrot

environments and challenges the legacy world

of wired-systems. wiSCAPE wireless control

technology adapts easily to complex automation

situations for quick, simple and economical

commissioning. On-Fixture Module is compatible

with A-25-7H option.

WIR-RMI-IO

120 - 347V 1000 Foot Range WiScape RF mesh

control system with off/on/dim, motion, photo,

GPS location, alert, monitoring and metering

capabilities.

SiteSync™1

SiteSync™ wireless control system for reduction

in energy and maintenance cost while optimizing

light quality 24/7. See ordering information or

visit www.hubbelllighting.com/products/sitesync

for more details.

Pole Mounted

Round Pole-Mounted Occupancy

Sensor up to 16'

SCL-R

Round Pole-Mounted Occupancy Sensor up to

16’ - an outdoor occupancy sensor with 0-10V

interface dimming control that mounts directly

to the pole. Wide 360° pattern. Module colors

are available in Black, Gray, and White. Module

is cut for round pole mounting. Pole diameter is

needed upon order. Poles to be drilled in the eld

will be provided with installation instructions.

Ordering Example: SCL-R42/2773/BL4

Square Pole-Mounted Occupancy

Sensor up to 16'

SCL-S

Square Pole-Mounted Occupancy Sensor up to

16’ - an outdoor occupancy sensor with 0-10V

interface dimming control that mounts directly

to the pole. Wide 360° pattern. Module colors

are available in Black, Gray, and White. Module

is cut for square pole mounting. Pole diameter is

needed upon order. Poles to be drilled in the eld

will be provided with installation instructions.

Ordering Example: SCL-L/2773/BL4

Round Pole-Mounted Occupancy

Sensor 16’ to 30’

SCH-R

Round Pole-Mounted Occupancy Sensor: 16' to

30’ - an outdoor occupancy sensor with 0-10V

interface dimming control that mounts directly

to the pole. Wide 360° pattern. Module colors

are available in Black, Gray, and White. Module

is cut for round pole mounting. Pole diameter is

needed upon order. Poles to be drilled in the eld

will be provided with installation instructions.

Ordering Example: SCH-R42/2773/BL4

Square Pole-Mounted Occupancy

Sensor 16’ to 30’

SCH-S

Square Pole-Mounted Occupancy Sensor: 16 to

30’ - an outdoor occupancy sensor with 0-10V

interface dimming control that mounts directly

to the pole. Wide 360° pattern. Module colors

are available in Black, Gray, and White. Module

is cut for round pole mounting. Pole diameter is

needed upon order. Poles to be drilled in the eld

will be provided with installation instructions.

Ordering Example: SCH-S/2773/BL4

SCP

The SCP is a photo-control with motion sensing

accessory thats mounts to the side of any new

or existing 3”-5” round or square straight pole.

The SCP enables any pole mounted luminaire in

excess of 75 watts, to meet California Title 24

requirements with integral 20KV/10KA surge

protection for added reliability and serviceability.

For more detail:

http://www.aal.net/products/sensor_control_

programmable

Dimming

Grey Wire

Dimming

Grey Wire

Orange Wire

Red Wire

Brown Wire

Black Wire

White Wire

2Voltage, 3Color, 4Pole Diameter,

1

PRECOMMISSIONED SITESYNC ORDERING INFORMATION: When ordering

a xture with the SiteSync lighting control option, additional information

will be required to complete the order. The SiteSync Commissioning Form

or alternate schedule information must be completed. This form includes

Project location, Group information, and Operating schedules. For more

detailed information please visit www.HubbellLighting.com/products/

sitesync or contact Hubbell Lighting tech support at (800) 345-4928.

SiteSync xtures with occupancy sensor (SWPM) require the mounting

height of the xture for selection of the lens.

Examples:

SiteSync only : ARX25/1/3K35UV/PS/US/SWP

SiteSync with Motion Control: ARX25/1/3K35UV/PS/US/SWPM-20F

MOB ORDERING INFORMATION: When ordering a xture with a

dimming occupancy sensor option (MOB), please specify the appropriate

information. These settings are specied in the ordering as shown in the

example below.

ARX25/1/3k35UV/PS/US/MOB - 1 to 30 min - 33%or 50% - ?? / DBT

High to Dim Delay Low Level Mounting Height (ft.)

ARFX16

ArcheType® X Flood Luminaire

kl_arfx16_spec.pdf

| 5 |

Kim Lighting reserves the right to change specications without notice.

© 2017 KIM LIGHTING | 17760 Rowland Street | City of Industry | CA 91748

P 626.968.5666 | F 626.369.2695 | www.kimlighting.com | Rev. Aug. 01, 2017

MOUNTING OPTIONS

Surface Mount Tenon

SMT/BL

2" pipe-size tenon (2-3/8“ O.D., 2" I.D.).

Welded to a cast aluminum plate. Plate has four

1/2” mounting holes, and tenon has one 1/2”

NPT for side conduit entry. Black nish.

Triple Mount Tenon

MTM-3E/BL, MTM-3E/DB, MTM-3E/LG,

MTM-3E/SG, MTM-3E/PS, MTM-3E/WH

Extruded aluminum support continuously

welded to a heavy cast aluminum sliptter

hub which cradles the arm for strength. The

sliptter hub contains four recessed 3/8"

stainless steel allen head set point screws for

mounting to steel pole with steel 2" pipe size

tenon (2-3/8“ O.D. x 4-1/4"). Cast aluminum

end caps and center cap provide access to eld

splice connections.

CAUTION: Approved for mounting to poles

with steel tenons only.

Twin Mount Tenon

MTM-2B/BL, MTM-2B/DB, MTM-2B/LG,

MTM-2B/SG, MTM-2B/PS, MTM-2B/WH

Extruded aluminum support continuously

welded to a heavy cast aluminum sliptter

hub which cradles the arm for strength. The

sliptter hub contains four recessed 3/8"

stainless steel allen head set point screws for

mounting to steel pole with steel 2" pipe size

tenon (2-3/8“ O.D. x 4-1/4"). Cast aluminum

end caps and center cap provide access to eld

splice connections.

CAUTION: Approved for mounting to poles

with steel tenons only.

Wall Mount Tenon

WM2/BL, WM2/DB, WM2/LG, WM2/SG,

WM2/PS, WM2/WH

2" pipe-size tenon (2-3/8“ O.D., 2" I.D.).

Welded to an extruded aluminum arm with a

removable end cap for wiring access. Arm is

welded to a cast aluminum plate with two 1/2”

mounting holes.

Stanchion Mount Tenon

SM2/BL

2" tenon. 4" O.D. cast low copper (<0.6% Cu)

aluminum stanchion with 2" pipe-size tenon

(2-3/8“ O.D., 1-3/8“ I.D.) for mounting a single

xture or multiple top-mounts. Black nish.

(4) K" DIA.

(13 mm)

Holes on

5" circle

(127 mm)

2" (51 mm)

Pipe-Size Tenon

K" NPT (13 mm)

Conduit Entry

5K"

5" sq.

(140 mm)

(127 mm)

2" Pipe-Size Tenon (51 mm)

12J"

16F"

4"

7"

(311 mm)

(101.6 mm)

(178 mm)

(411 mm)

2" Pipe-Size Tenon (51 mm)

1" MIN. (25 mm)

7K" MAX. (192 mm)

4" DIA.

4K"

13K"

I.D. 3K"

(102 mm)

(114 mm)

(343 mm)

(89 mm)

(2) 2" Pipe-Size

Tenons 25"

on center

33"

(838 mm)

(3) 2" Pipe-Size

Tenons 25"

on center

57K"

(1461 mm)

8"

(203 mm)

8"

(203 mm)

(4) K" DIA.

(13 mm)

Holes on

5" circle

(127 mm)

2" (51 mm)

Pipe-Size Tenon

K" NPT (13 mm)

Conduit Entry

5K"

5" sq.

(140 mm)

(127 mm)

2" Pipe-Size Tenon (51 mm)

12J"

16F"

4"

7"

(311 mm)

(101.6 mm)

(178 mm)

(411 mm)

2" Pipe-Size Tenon (51 mm)

1" MIN. (25 mm)

7K" MAX. (192 mm)

4" DIA.

4K"

13K"

I.D. 3K"

(102 mm)

(114 mm)

(343 mm)

(89 mm)

(2) 2" Pipe-Size

Tenons 25"

on center

33"

(838 mm)

(3) 2" Pipe-Size

Tenons 25"

on center

57K"

(1461 mm)

8"

(203 mm)

8"

(203 mm)

(4) K" DIA.

(13 mm)

Holes on

5" circle

(127 mm)

2" (51 mm)

Pipe-Size Tenon

K" NPT (13 mm)

Conduit Entry

5K"

5" sq.

(140 mm)

(127 mm)

2" Pipe-Size Tenon (51 mm)

12J"

16F"

4"

7"

(311 mm)

(101.6 mm)

(178 mm)

(411 mm)

2" Pipe-Size Tenon (51 mm)

1" MIN. (25 mm)

7K" MAX. (192 mm)

4" DIA.

4K"

13K"

I.D. 3K"

(102 mm)

(114 mm)

(343 mm)

(89 mm)

(2) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (50.8 mm)

(SM2, SMT or Steel KIM Pole)

27K"

10"

(699 mm)

(254.0 mm)

(3) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (51 mm)

(SM2, SMT or Steel KIM Pole)

47K"

10"

(1207 mm)

(254 mm)

(4) K" DIA.

(13 mm)

Holes on

5" circle

(127 mm)

2" (51 mm)

Pipe-Size Tenon

K" NPT (13 mm)

Conduit Entry

5K"

5" sq.

(140 mm)

(127 mm)

2" Pipe-Size Tenon (51 mm)

12J"

16F"

4"

7"

(311 mm)

(101.6 mm)

(178 mm)

(411 mm)

2" Pipe-Size Tenon (51 mm)

1" MIN. (25 mm)

7K" MAX. (192 mm)

4" DIA.

4K"

13K"

I.D. 3K"

(102 mm)

(114 mm)

(343 mm)

(89 mm)

(2) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (50.8 mm)

(SM2, SMT or Steel KIM Pole)

27K"

10"

(699 mm)

(254.0 mm)

(3) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (51 mm)

(SM2, SMT or Steel KIM Pole)

47K"

10"

(1207 mm)

(254 mm)

(4) K" DIA.

(13 mm)

Holes on

5" circle

(127 mm)

2" (51 mm)

Pipe-Size Tenon

K" NPT (13 mm)

Conduit Entry

5K"

5" sq.

(140 mm)

(127 mm)

2" Pipe-Size Tenon (51 mm)

12J"

16F"

4"

7"

(311 mm)

(101.6 mm)

(178 mm)

(411 mm)

2" Pipe-Size Tenon (51 mm)

1" MIN. (25 mm)

7K" MAX. (192 mm)

4" DIA.

4K"

13K"

I.D. 3K"

(102 mm)

(114 mm)

(343 mm)

(89 mm)

(2) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (50.8 mm)

(SM2, SMT or Steel KIM Pole)

27K"

10"

(699 mm)

(254.0 mm)

(3) 2" Pipe-Size Tenons (51 mm)

20" on center (508 mm)

Option with Steel

2" Pipe-Size Tenon (51 mm)

(SM2, SMT or Steel KIM Pole)

47K"

10"

(1207 mm)

(254 mm)
