1 | P a g e
Ryerson University
Department of Electrical and Computer Engineering
COE/BME 328 – Digital Systems
Lab 6
35 Marks (3 weeks)
Design of a Simple General-Purpose Processor
Due Date: Week 12
Objective:
This objective of this laboratory experiment is to design and construct an Arithmetic and Logic
Unit (ALU) in VHDL environment and implement it on an FPGA board.
Design and build all functions of the ALU.
Design, simulate and program the ALU using VHDL on an Altera FPGA board (Based
on Functional Simulation in Quartus Simulator).
Download the program on the FPGA board and display the desired outputs on LEDs and
7-segment displays.
Procedure:
This unit consists of different parts that would come together to create a functional ALU. A
processing unit is usually divided to 4 distinct components. The control unit performs the
fetching of instructions and signals. The bus controls access to data values throughout the
processing unit - these registers act as temporary storage units. The ALU Core performs the
arithmetic and logical operations on desired inputs and produces the required outputs. This
project focuses on all four components of a typical ALU.
Part I: Procuring input data
The ALU is to perform a set of arithmetical and logical functions on two 8-bit inputs A and B.
These inputs are first utilized in simulation phase through waveform editor on Quartus II, and
then will also be used when the program is downloaded on the FPGA board through DIP
switches. Inputs A and B are procured using the last four digits of your lab partner’s student ID.
For instance, if the student ID of your partner is 500864395, then and ,
translating to
Make sure that you ask for the last four digits of your lab partner’s student ID and utilize those
values for the rest of this project as inputs A and B. Ensure to report these values at the
beginning of your lab session to your TA.
2 | P a g e

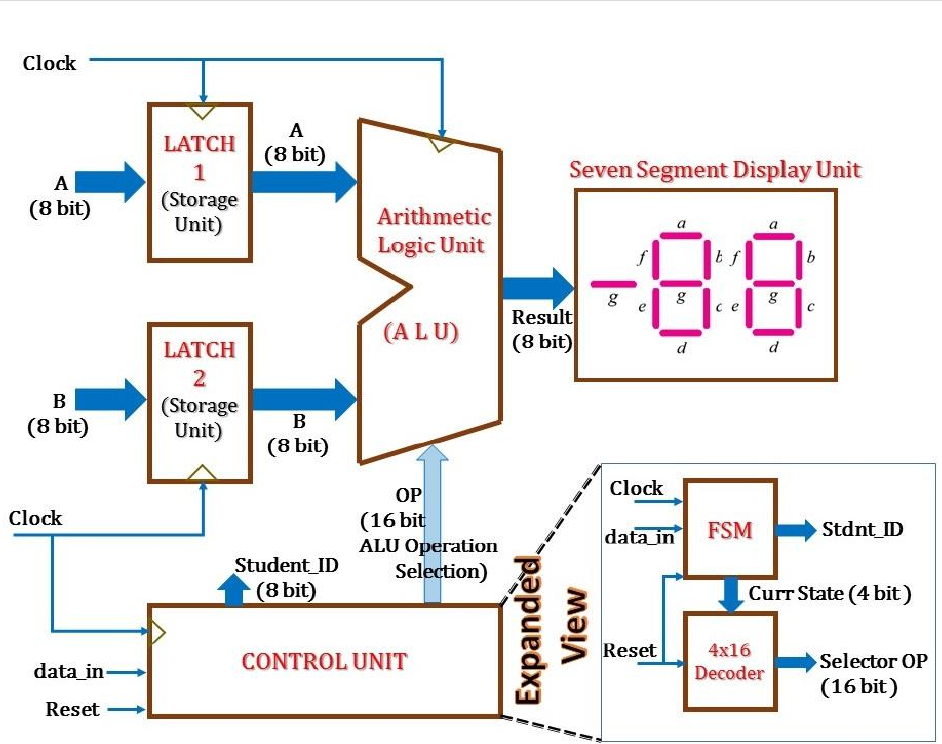

Figure 1. The Block Diagram of the GPU
Part II: Storage Unit (Register)
The storage units which are sometimes called Registers are utilized to temporary store the input
values and then pass them to the following components in the system. As portrayed in Figure 1,
two 8-bit register units are utilized in the ALU to store inputs A and B. The register reads the bit
values on its input on the rising edge of the clock signal and passes those bit values to the output
port on the next rising edge of the clock signal.
Write the VHDL code using Figure 2 for a register unit and confirm its functionality with the
help of a truth table. Thereafter, create a symbol of your design to be utilized in the final circuit
design. Next, import the symbol to the GPU project. Import the same symbol twice as the system
needs one register unit for each respective 8-bit input.
3 | P a g e

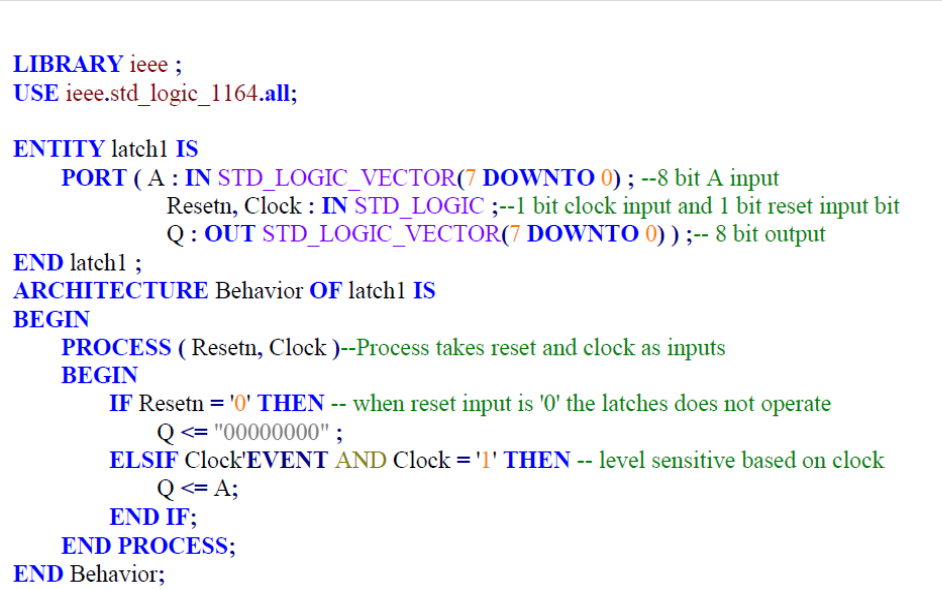

Figure 2. Code template for implementing Register Storage Unit.
Part III: Control Unit
The Control unit decides the microcode that is to be delivered to the ALU core and will act as the
operations-selector for the ALU core. The Control Unit produces an output OP, which is passed
to ALU core as the operations selector. This component consists of two sub-components – the
FSM and a 4 to 16 decoder.
Part III (a): Finite State Machine (FSM)
The FSM component of the Control unit decides the pattern of the controller sequence. The
student has the option to utilize the FSM design from one of the previous labs in this section
while some modification may still be required. The FSM designed in the previous lab has 9
different states which are cycled through using the clock signal. The same design is to be
implemented in this section.
In the initial design of the Control unit, the current state of the FSM is to be passed to the
decoder unit. In other words, the FSM sub-component in the initial Control unit design will only
act as an up-counter, cycling through states 0 to 8 consecutively (modification required for
consecutive state transition) and back to state 0 while the student_id will be displayed on a 7-
segment. The FSM takes the clock signal as the input, and produces the 4-bit output
current_state and passes it to the decoder sub-component. Upon completing the FSM design,
create a symbol representing the FSM sub-component which is to be used in the final design.
4 | P a g e
Part III (b): 4 to 16 Decoder (4x16 Dec)
The decoder is tasked with receiving the signal current_state from FSM and decoding it to the
operation-selector microcode. In the initial design of the Control unit, the Decoder unit passes
the signal OP to the ALU core, which will then translate to operations selector for the ALU core
and follow the functions enlisted in Table 1.
A 3x8 decoder design has been designed and utilized in the previous labs. You can import the
same design and extend it to the 4x16 decoder following the schematics portrayed in Figure 2.
When the decoder design is completed, create a symbol of the sub-component to be utilized in
the final circuit design.
Figure 3. Implementation of 4x16 Decoder using 3x8 decoders
5 | P a g e
Part IV: Description of the ALU core
The heart of every GPU unit is the ALU core where all arithmetic and logical operations are to
be implemented and applied as required. In this part students are required to implement all
functionalities and operations using VHDL syntax compatible with Altera FPGA boards. The
ALU core will take two 8-bit inputs (A and B) and a 16-bit input from Control unit. The
microcode input from controller unit is the operation-selector signal, deciding the operation that
is to be applied on the inputs A and B. Although the microcode received from the Control unit is
16 bits, only 9 distinct operations are to be implemented. The functionalities of the ALU core
and their corresponding microcode are listed in Table 1. The microcode is delivered from the
Control unit and will decide what operation the inputs would undergo.
Operations listed in Table 1 are to be implemented in the ALU core by writing the proper VHDL
code for the ALU core. The 8-bit output (Result) of the ALU Core is to be displayed on two 7-
segment display or LEDs. When the ALU Core design is completed, create a symbol to represent
this component in the final design.
Table 1. ALU Core Operations for Problem 1
Function #
Microcode
Boolean Operation /
Function
1
0000000000000001
sum(A, B)
2
0000000000000010
diff(A, B)
3
0000000000000100
4
0000000000001000
5
0000000000010000
6
0000000000100000
AB
7
0000000001000000
A B
8
0000000010000000
A + B
9
0000000100000000
6 | P a g e
Figure 4. Code Template for ALU Core.
Part V: Displaying the Output
The ALU core produces an 8-bit output called Result, which is the result of the operations
applied on A and B.
In the simulation phase of the design, the output Result is to be displayed in bit-value format in
the waveform editor window. In implementation phase where the design is programed on the
FPGA board, this output is to be displayed on two 7-segment displays in hexadecimal format.
7 | P a g e
For example, if then the 7-segment combined unit displays as illustrated in
Figure 4.

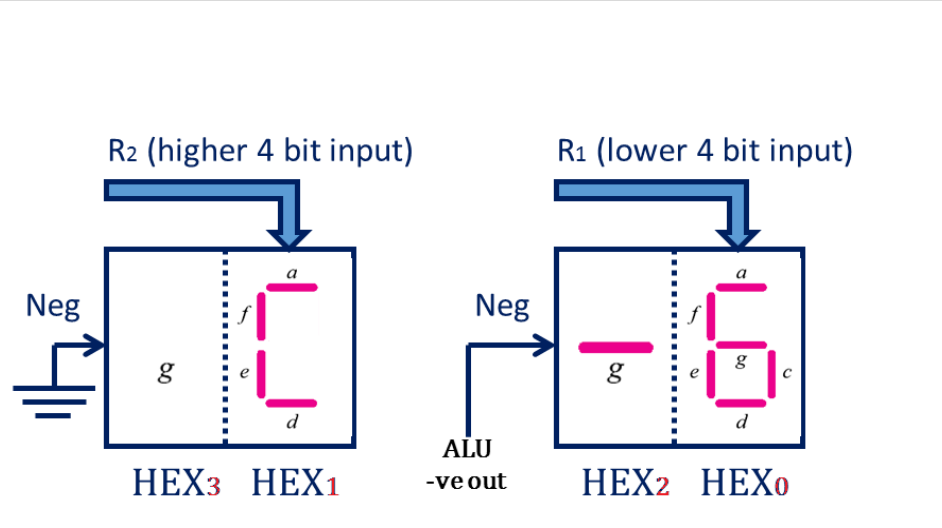

Figure 5. Typical 8-bit Seven Segment Display
Part VI: Final Design
As the designs for different components (Register, ALU Core, FSM and Decoder units) are
completed, they should all be ported to one final circuit design.
1. Open a new schematic design and import all the required units. When importing is
completed, you should have the following components: two Registers (one per input),
one ALU Core, one FSM, Decoder, three 7-segment displays (one for student_id and
two for the output Result from the ALU).
2. Create the 8-bit input ports A and B, 8-bit output port Result and the single-bit input
Clock port.
3. Connect all the components using single and multi-bit data buses. Follow the schematics
portrayed in Appendix A. Figure 6.
4. Name the data buses to represent the proper signals, for e.g. OP and A.
When your final circuit looks similar to Appendix A. Figure 6, synthesize and simulate your
design. Verify the functionality of your ALU and present the results to the TA. The waveforms
must be included as part of the final report submission.
Part VII: Implementation on FPGA board
Now that the final design has been simulated and its functionality is confirmed, you can
implement the ALU circuit design on the FPGA board.
1. Compile the final circuit design.
2. Assign dedicated I/O pins to the ports using the pin assignment
a. Assign A[7..0] to toggle switch SW[7..0]
8 | P a g e
b. Assign B[7..0] to toggle switch SW[15..8]
c. Assign Clock to push button KEY[3].
d. Assign output Result to the 7-segment displays for 7-Seg Digit 2 and 7-Seg Digit 3.
e. Assign data_in to SW[17].
f. Assign common circuit Reset to KEY[0].
3. Recompile the block schematic design.
4. Program the FPGA board with the updated pin assignments.
5. Test your design and demonstrate functionality and results to your TA
Part VIII: Problem Sets
In this section, you should address the following problems and showcase the results to your TA.
Problem 1: Initial Design
Implement the initial design of the General Processor Unit (GPU). In this design, the FSM output
current_state follows an up-counting pattern, which will then dictate the operation selector
signal to the ALU core. Thus, the output of the ALU core, Result, will represent the outputs of
operations shown in Table 1 and following the same order. This result shall be represented on
two 7-segment digits on the FPGA board.
Design, compile and download the program on the FPGA board. Test the outputs and showcase
the results to your TA.
Problem 2: Modified ALU Core
In this problem, the student is tasked to modify the ALU core and its functionalities. The TA will
assign each student with one of the following modifications to the ALU core.
a)
Function #
Operation / Function
1
Increment A by 2
2
Shift B to right by two bits, input bit = 0 (SHR)
3
Shift A to right by four bits, input bit = 1 (SHR)
4
Find the smaller value of A and B and produce the results ( Min(A,B) )
5
Rotate A to right by two bits (ROR)
6
Invert the bit-significance order of B
7
Produce the result of XORing A and B
8
Produce the summation of A and B, then decrease it by 4
9
Produce all high bits on the output
b)
Function #
Operation / Function
1
Swap the lower and upper 4 bits of A
2
Produce the result of ORing A and B
9 | P a g e
3
Decrement B by 5
4
Invert all bits of A
5
Invert the bit-significance order of A
6
Find the greater value of A and B and produce the results ( Max(A,B) )
7
Produce the difference between A and B
8
Produce the result of XNORing A and B
9
Rotate B to left by three bits (ROL)
c)
Function #
Operation / Function
1
Produce the difference between A and B
2
Produce the 2’s complement of B
3
Swap the lower 4 bits of A with lower 4 bits of B
4
Produce null on the output
5
Decrement B by 5
6
Invert the bit-significance order of A
7
Shift B to left by three bits, input bit = 1 (SHL)
8
Increment A by 3
9
Invert all bits of B
d)
Function #
Operation / Function
1
Shift A to right by two bits, input bit = 1 (SHR)
2
Produce the difference of A and B and then increment by 4
3
Find the greater value of A and B and produce the results ( Max(A,B) )
4
Swap the upper 4 bits of A by the lower 4 bits of B
5
Increment A by 1
6
Produce the result of ANDing A and B
7
Invert the upper four bits of A
8
Rotate B to left by 3 bits (ROL)
9
Show null on the output
e)
Function #
Operation / Function
1
Replace the odd bits of A with odd bits of B
2
Produce the result of NANDing A and B
3
Calculate the summation of A and B and decrease it by 5
4
Produce the 2’s complement of B
5
Invert the even bits of B
6
Shift A to left by 2 bits, input bit = 1 (SHL)
7
Produce null on the output
8
Produce 2’s complement of A
9
Rotate B to right by 2 bits (ROR)
10 | P a g e
f)
Function #
Operation / Function
1
Decrement B by 9
2
Swap the lower and upper 4 bits of B
3
Shift A to left by 2 bits, input bit = 0 (SHL)
4
Produce the result of NANDing A and B
5
Find the greater value of A and B and produce the results ( Max(A,B) )
6
Invert the even bits of B
7
Produce null on the output
8
Replace the upper four bits of B by upper four bits of A
9
Show A on the output
g)
Function #
Operation / Function
1
Invert the bit-significance order of A
2
Shift A to left by 4 bits, input bit = 1 (SHL)
3
Invert upper four bits of B
4
Find the smaller value of A and B and produce the results ( Min(A,B) )
5
Calculate the summation of A and B and increase it by 4
6
Increment A by 3
7
Replace the even bits of A with even bits of B
8
Produce the result of XNORing A and B
9
Rotate B to right by 3 bits (ROR)
h)
Function #
Operation / Function
1
Rotate A to right by 4 bits (ROR)
2
Produce the result of XORing A and B
3
Invert the bit-significance order of B
4
Calculate the summation of A and B and decrease it by 2
5
Rotate B to left by 2 bits (ROL)
6
Invert the even bits of B
7
Swap the lower 4 bits of B with lower 4 bits of A
8
Shift B to right by 2 bits, input bit = 0 (SHR)
9
Invert lower four bits of A
Problem 3: Modified Control Unit (FSM)
In this problem, students are assigned the task to utilize the student_id output from the FSM
sub-component of the Control Unit. Use the ALU and the microcode from the initial design
section as described in Figure 1 and modify it so that it can process 4 inputs as per the diagram in
Appendix A. Figure 7. Implement the functionalities described below which are assigned by
11 | P a g e
your TA. Some modifications to the 7 segment may also be needed to display “y” or “n”. The
TA shall assign one of the following problems for each student.
a) For each microcode instruction, display 'y' if the FSM output (student_id) is odd and 'n'
otherwise
b) For each microcode instruction, display 'y' if the FSM output (student_id) is even and 'n'
otherwise
c) For each microcode instruction, display 'y' if the FSM output (student_id) had an odd parity
and 'n' otherwise
d) For each microcode instruction, display 'y' if the FSM output (student_id) had an even parity
and 'n' otherwise
e) For each microcode instruction, display 'y' if one of the 2 digits of A are greater than FSM
output (student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
f) For each microcode instruction, 'y' if one of the 2 digits of A are less than FSM output
(student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
g) For each microcode instruction, 'y' if one of the 2 digits of A are equal to FSM output
(student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
h) For each microcode instruction, display 'y' if one of the 2 digits of B are greater than FSM
output (student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
i) For each microcode instruction, 'y' if one of the 2 digits of B are less than FSM output
(student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
j) For each microcode instruction, 'y' if one of the 2 digits of B are equal to FSM output
(student_id) and 'n' otherwise. Use the microcode instruction from part 1 of the lab.
12 | P a g e
Appendix A
Figure 6. Typical Block Schematic for Problem 1
13 | P a g e
Figure 7. Typical Block Schematic for Problem 3
