Page 1

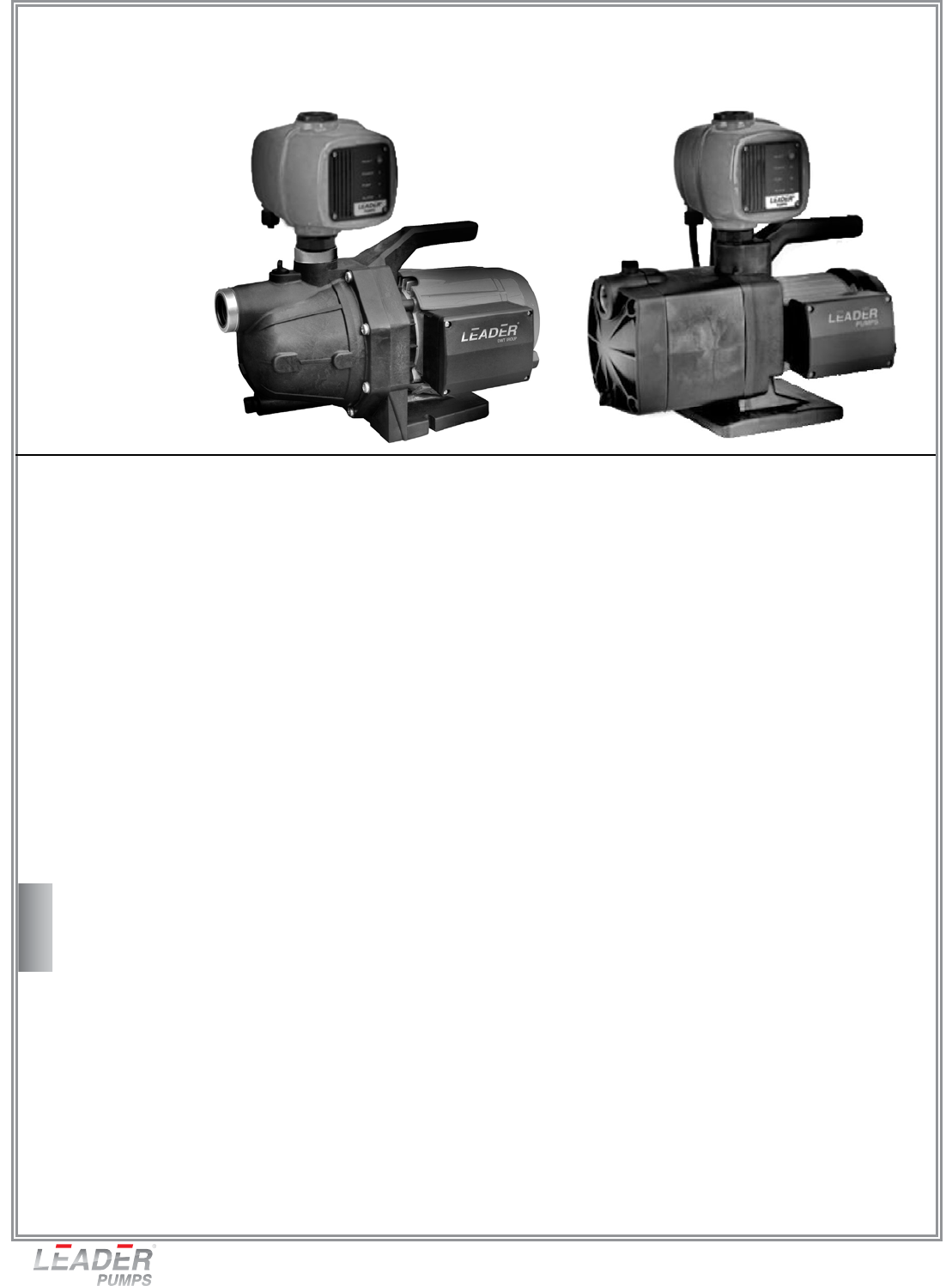

ECOTRONIC
GENERAL DATA
Applications
ECOTRONIC 110, 120 & 130 ECOJET self priming single impeller pump fitted with the Hydrotronic pump control system
ECOTRONIC 230, 240 & 250 ECOPLUS self priming multistage pump (with 2,3 or 4 impellers) fitted with the Hydrotronic pump
control system to supply water for systems including
Pressure Boosting
* Residential Homes
* Farming Applications
* Residential Irrigation
* Garden Irrigation Drip/Low Flow
* Hydroponics
* Rain Water Harvesting
* Water Supply from Shallow Wells
F version supplied with 5” filter housing and filter cartridge
Constructional features of the pump .
Technopolymer pump body and motor support.
Carbon/ceramic mechanical seal.
Technopolymer impeller, diffuser, venturi and nozzle in ECOJET
Technopolymer impeller, diffuser, self-priming disc in ECOPLUS
Construction of the motor
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life.
Built-in thermal and current overload protection on ECOTRONIC 110 & 230
Bult-in thermal and resettable overload protection on ECOTRONIC 120, 130, 240 & 250
Motor protection: NEMA 3
Insulation class: F
Standard voltage: 115v 60Hz
Page 2
TECHNICAL DATA
Operating Range: ECOTRONIC 110 to 130 From 1 to 21gpm with a head up to 164ft ( 71 psi )
ECOTRONIC 230 to 250 From 1 to 27gpm with a head up to 197ft ( 85 psi )
Liquid quality requirements:
clean, free from solids or abrasive substances,
non viscous, non aggressive, non crystallized, chemically
neutral, close to the characteristics of water
Liquid temperature Range: From 32°F to 104°F
Maximum suction depth 26 ft
Maximum ambient temp. 104°F
Maximum operating pressure 116 psi
Installation: fixed or portable in a horizontal position
Special version on request other voltages and/or frequencies

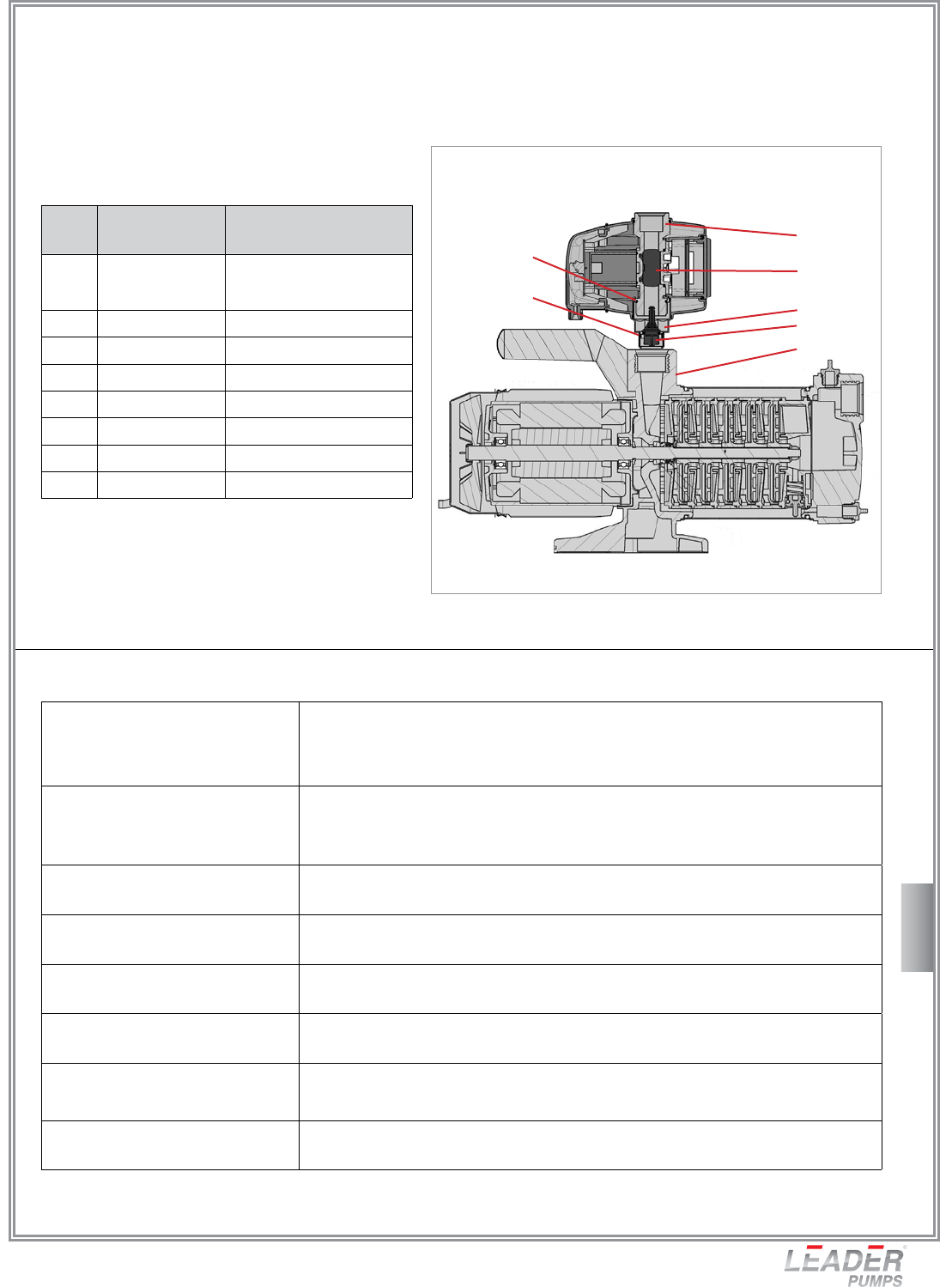

N° PARTS* MATERIALS
1PUMP SEE ECOJET 110, 120 , 130
SEE ECOPLUS 230, 240, 250
2NON-RETURN VALVE TECHNOPOLYMER
3VALVE BODY TECHNOPOLYMER
4FLOW SENSOR TECHNOPOLYMER
5FLOW SENSOR BODY TECHNOPOLYMER
6 OR GASKET NBR
7 OR GASKET NBR
15 BODY TECHNOPOLYMER
* In contact with liquid
MATERIALS
5
2
1
3
4
6
7
Page 3

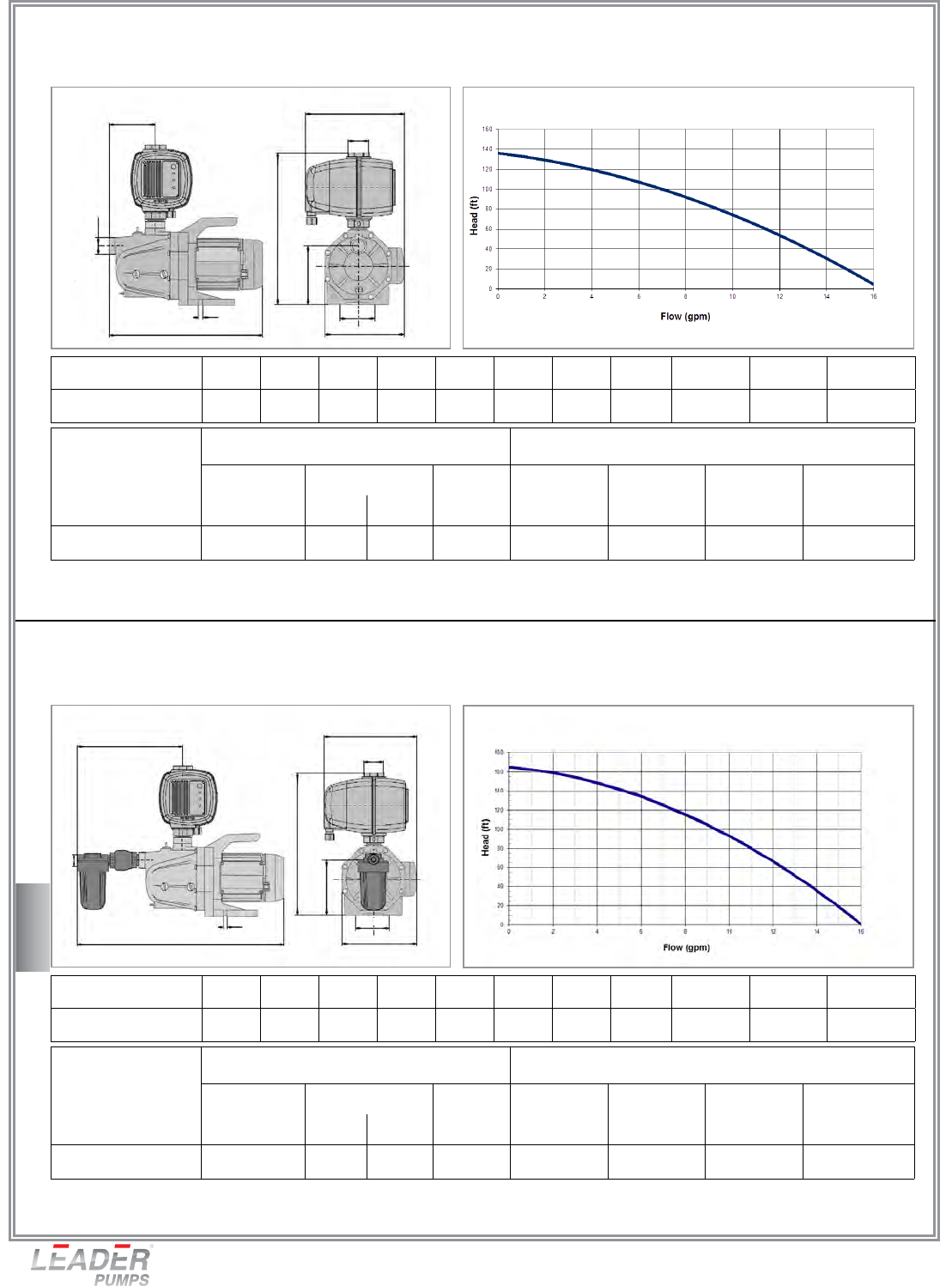

MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 110 15 3/4” 8 3/4” 4 5/8” 9 1/2” 5 3/4”3/8” 15 1/2” 6 1/2” 1” NPT 1 ” NPT 26.4 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 110 115v 800 1/2 8.0 23 psi 16 gpm 138 ft 60 psi
MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 120 F 22 3/4” 8 3/4” 11 5/8” 9 1/2” 5 3/4”3/8” 15 1/2” 6 1/2” 1” NPT 1 ” NPT 29.5 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 120 F 115v 1000 3/4 10.0 23 psi 16 gpm 164 ft 71 psi
* IF version supplied with a 5” fliter housing and sediment filter housing.
ECOTRONIC 120 F
ECOTRONIC 110
DNM
A
H
H1
B
D
C
DNA
EF
DNM
A
H
H1
B
D
C
DNA
EF
Page 4

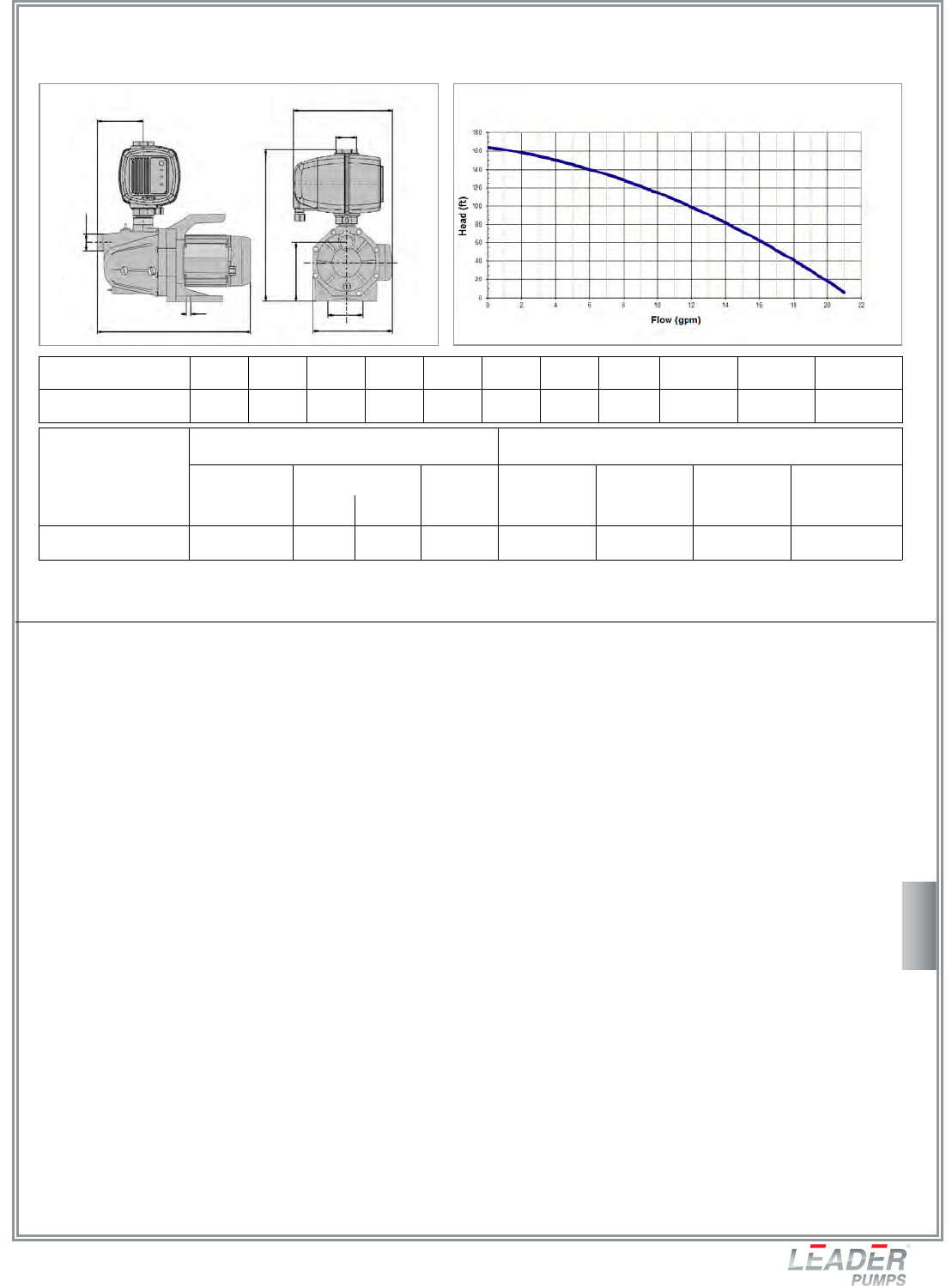

MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 130 15 3/4” 8 3/4” 4 5/8” 9 1/2” 5 3/4”3/8” 15 1/2” 6 1/2” 1” NPT 1 ” NPT 27.2 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 130 115v 1250 1 13.0 23 psi 21 gpm 164 ft 71 psi
ECOTRONIC 130
DNM
A
H
H1
B
D
C
DNA
EF
Page 5
MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 230 16 1/8” 9 1/2” 7 1/8” 6 3/4” 8 1/2” 5 5/8” 15 3/8” 5 5/8” 1” NPT 1 ” NPT 26.4 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 230 115v 800 1/2 7.5 23 psi 27 gpm 118 ft 51 psi

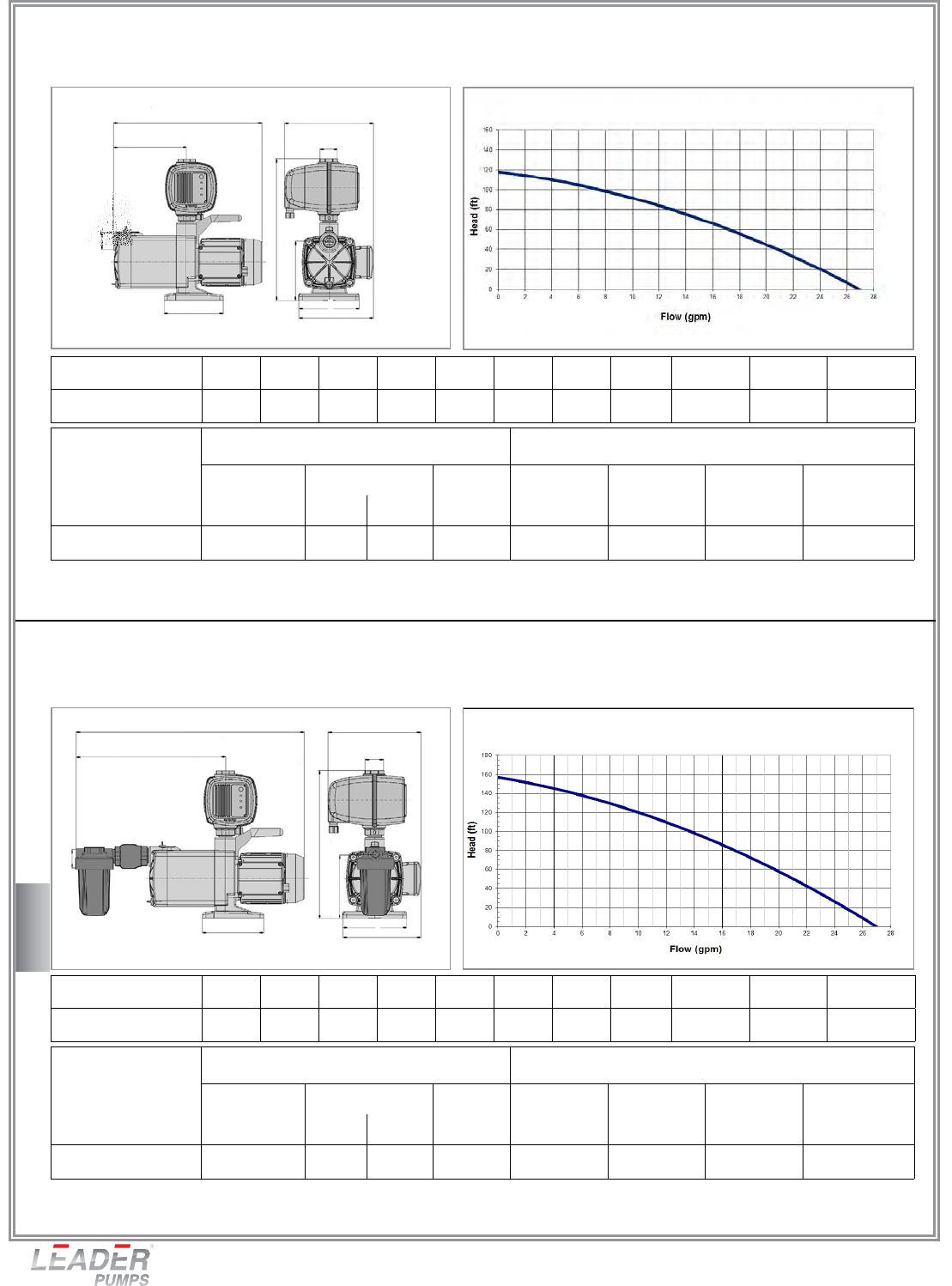

MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 240 F 24 ” 9 1/2” 15 1/4” 6 3/4” 8 1/2” 5 5/8” 15 3/8” 5 5/8” 1” NPT 1 ” NPT 29.5 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 240 F 115v 1000 3/4 10.0 23 psi 27 gpm 157 ft 68 psi
* IF version supplied with a 5” fliter housing and sediment filter housing.
ECOTRONIC 240 F
ECOTRONIC 230
DNM
A
H
H1
B
DE
DNA
DNM
A
H
B
DE
DNA
C
H1
C
F
F
Page 6

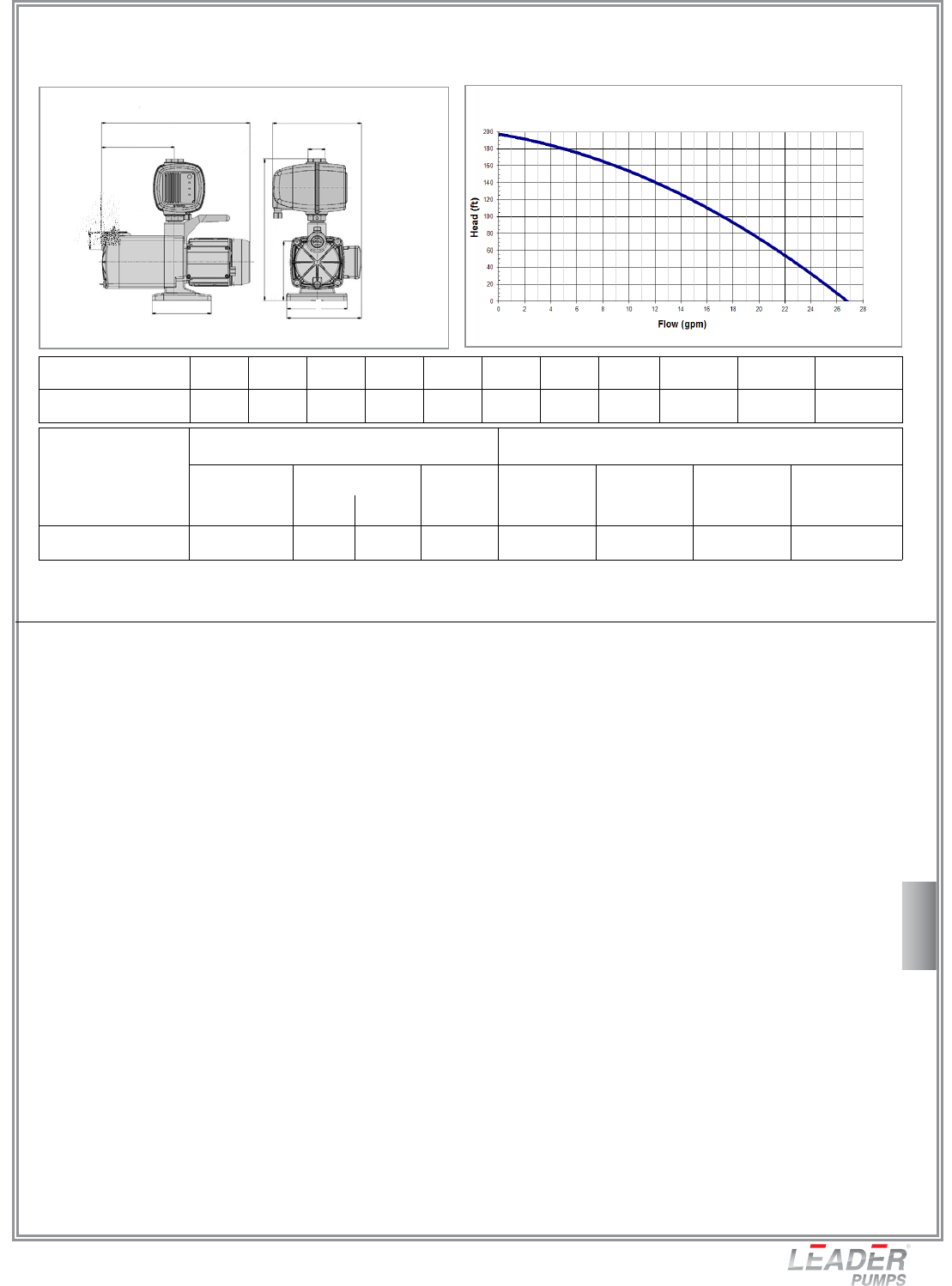

MODEL A B C D E F H H1 DNA DNM Weight
ECOTRONIC 250 18 ” 9 1/2” 9 1/4” 6 3/4” 8 1/2” 5 5/8” 15 3/8” 5 5/8” 1” NPT 1 ” NPT 27.2 lbs
MODEL
ELECTRICAL DATA HYDRAULIC DATA
Voltage
60Hz
P1 In
A
Start
Pressure
MAX
Flow
Max
Head
Max
Pressure
Watt Hp
ECOTRONIC 250 115v 1200 1 13.0 23 psi 27 gpm 197 ft 85 psi
ECOTRONIC 250
DNM
A
H
H1
B
DE
DNA
C
F
