R Instruction Manual High Voltage Power Supply MODEL : SERIAL# : DATE : SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION 475 Wireless Blvd. Hauppauge, New York, 11788 +1(631) 630-3000*FAX: +1(631) 435-1620* E-mail: sales@spellmanhv.comWebsite: www.spellmanhv.com SLM MANUAL 118072-001 Rev A SLM SERIES

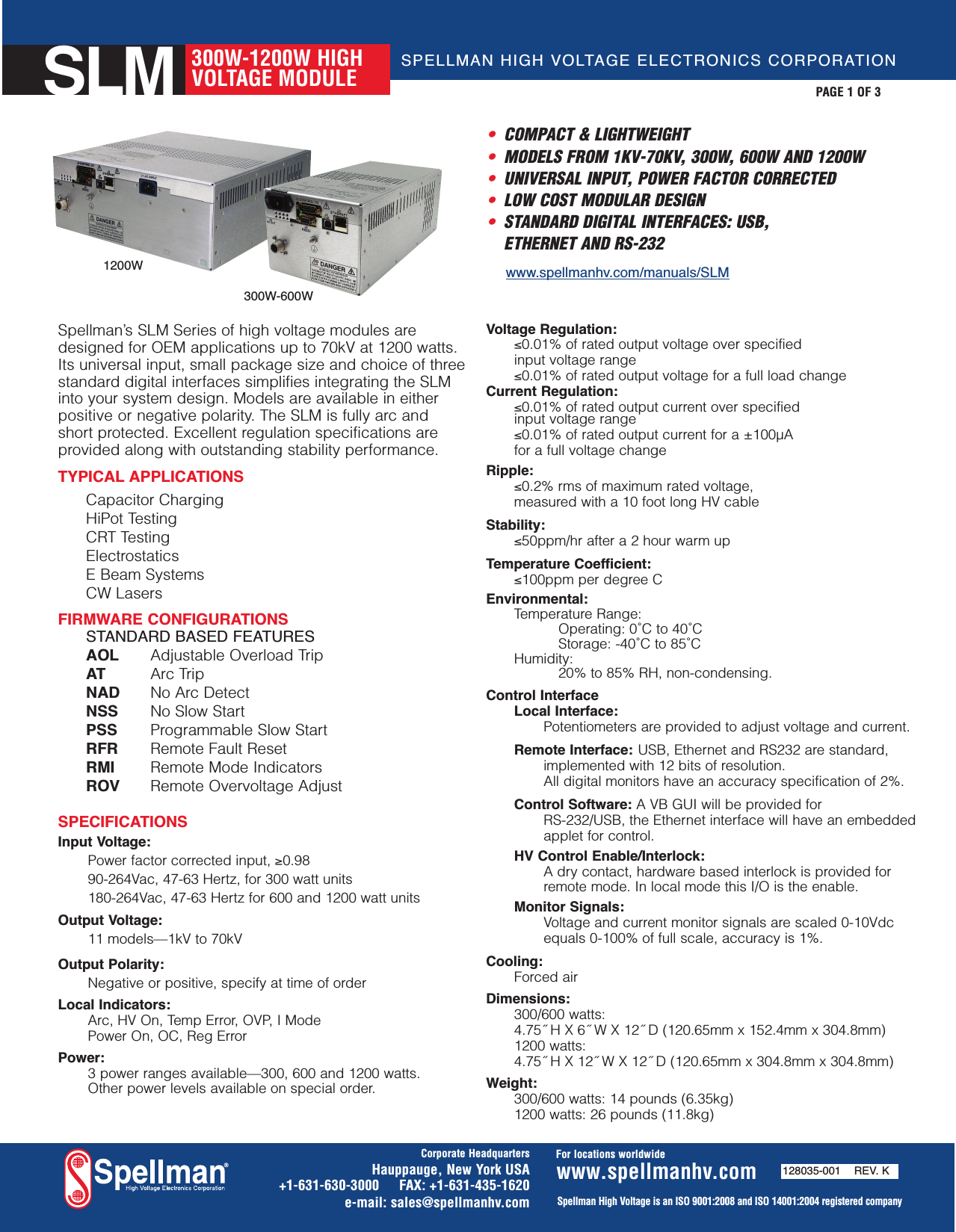

PAGE 1 OF 3SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION300W-1200W HIGHVOLTAGE MODULESpellman’s SLM Series of high voltage modules aredesigned for OEM applications up to 70kV at 1200 watts.Its universal input, small package size and choice of threestandard digital interfaces simplifies integrating the SLMinto your system design. Models are available in eitherpositive or negative polarity. The SLM is fully arc andshort protected. Excellent regulation specifications areprovided along with outstanding stability performance.TYPICAL APPLICATIONSCapacitor ChargingHiPot TestingCRT TestingElectrostaticsE Beam SystemsCW LasersFIRMWARE CONFIGURATIONSSTANDARD BASED FEATURESAOL Adjustable Overload TripAT Arc TripNAD No Arc DetectNSS No Slow StartPSS Programmable Slow StartRFR Remote Fault ResetRMI Remote Mode IndicatorsROV Remote Overvoltage AdjustSPECIFICATIONSInput Voltage:Power factor corrected input, ≥0.9890-264Vac, 47-63 Hertz, for 300 watt units180-264Vac, 47-63 Hertz for 600 and 1200 watt unitsOutput Voltage:11 models—1kV to 70kVOutput Polarity:Negative or positive, specify at time of orderLocal Indicators:Arc, HV On, Temp Error, OVP, I ModePower On, OC, Reg ErrorPower:3 power ranges available—300, 600 and 1200 watts.Other power levels available on special order.Voltage Regulation:≤0.01% of rated output voltage over specifiedinput voltage range≤0.01% of rated output voltage for a full load changeCurrent Regulation:≤0.01% of rated output current over specifiedinput voltage range≤0.01% of rated output current for a ±100µAfor a full voltage changeRipple:≤0.2% rms of maximum rated voltage,measured with a 10 foot long HV cableStability:≤50ppm/hr after a 2 hour warm upTemperature Coefficient:≤100ppm per degree CEnvironmental:Temperature Range:Operating: 0˚C to 40˚CStorage: -40˚C to 85˚CHumidity:20% to 85% RH, non-condensing.Control InterfaceLocal Interface:Potentiometers are provided to adjust voltage and current.Remote Interface: USB, Ethernet and RS232 are standard,implemented with 12 bits of resolution.All digital monitors have an accuracy specification of 2%.Control Software: A VB GUI will be provided forRS-232/USB, the Ethernet interface will have an embeddedapplet for control.HV Control Enable/Interlock:A dry contact, hardware based interlock is provided forremote mode. In local mode this I/O is the enable.Monitor Signals:Voltage and current monitor signals are scaled 0-10Vdcequals 0-100% of full scale, accuracy is 1%.Cooling:Forced airDimensions:300/600 watts:4.75˝ H X 6˝ W X 12˝ D (120.65mm x 152.4mm x 304.8mm)1200 watts:4.75˝ H X 12˝ W X 12˝ D (120.65mm x 304.8mm x 304.8mm)Weight:300/600 watts: 14 pounds (6.35kg)1200 watts: 26 pounds (11.8kg)•COMPACT & LIGHTWEIGHT•MODELS FROM 1KV-70KV, 300W, 600W AND 1200W•UNIVERSAL INPUT, POWER FACTOR CORRECTED•LOW COST MODULAR DESIGN•STANDARD DIGITAL INTERFACES: USB,ETHERNET AND RS-232SLM1200W300W-600Wwww.spellmanhv.com/manuals/SLMCorporate HeadquartersHauppauge, New York USA+1-631-630-3000 FAX: +1-631-435-1620e-mail: sales@spellmanhv.comwww.spellmanhv.com 128035-001 REV. KSpellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered companyFor locations worldwide
