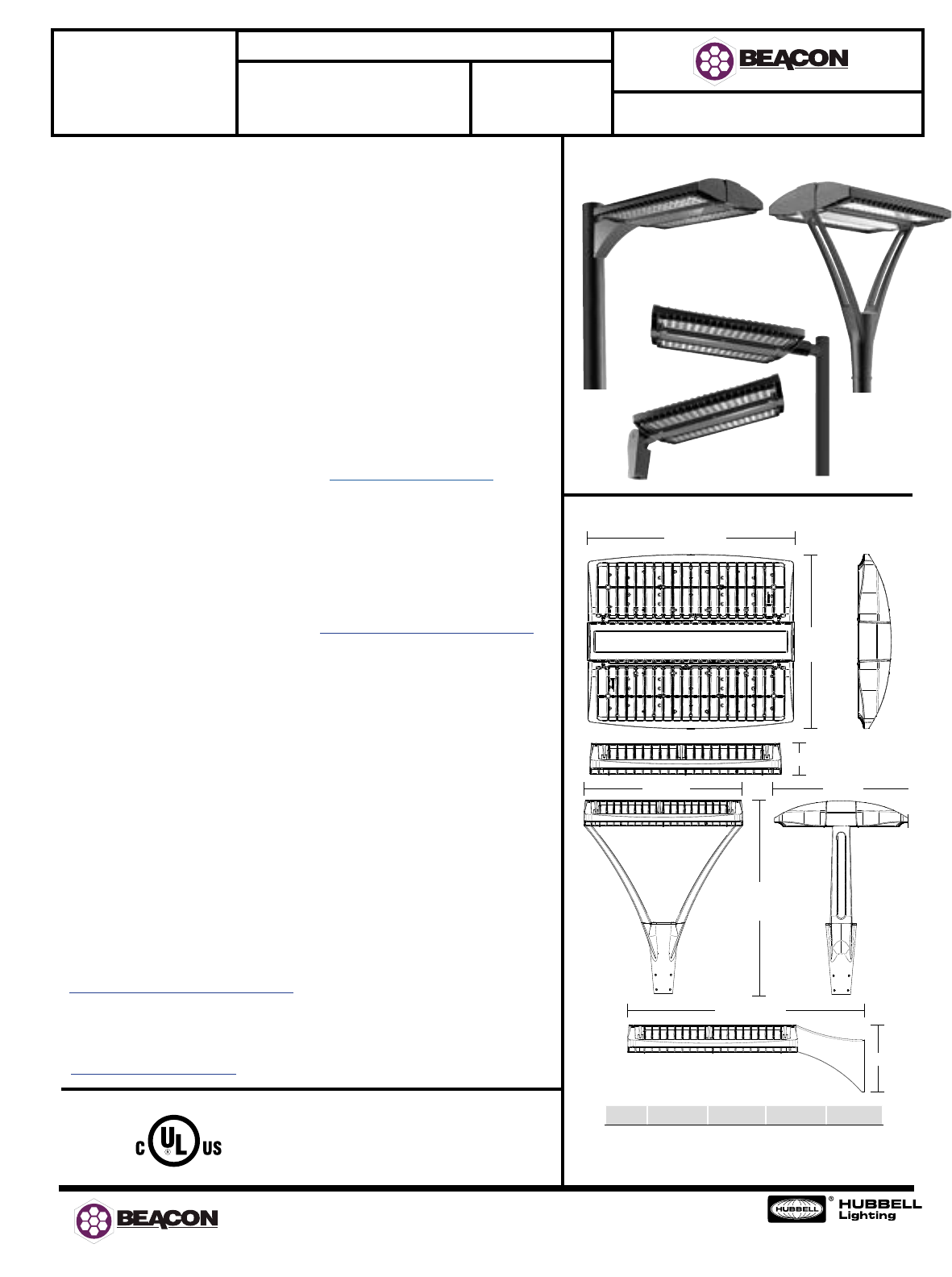

MATRIX
AreA/PoST ToP
Intended Use:
The Beacon Matrix luminaire is available in three
congurations with a wide choice of different LED
wattage congurations and optical distributions
designed to replace HID lighting up to 1000W MH
or HPS. Luminaires are suitable for wet locations.
Construction:
• Manufactured with die cast aluminum.
• Coated with a polyester nish that meets
ASTM B117 corrosion test requirements
and ASTM D522 cracking and loss of
adhesion test requirements.
• External hardware is corrosion resistant.
• One piece optical cartridge system consisting
of an LED engine, LED lamps, optics, gasket
and stainless steel bezel.
• Cartridge can be eld replaced as a one piece
optical system.
• Silicone gasket ensures a weather-proof seal
around each individual optic.
Electrical:
• Luminaire accepts 100V through 277V, 50 Hz
to 60 Hz (UNV), 347V, or 480V input.
• Power factor is ≥ .90 at full load.
• Dimming drivers are standard, but must
contact factory to request wiring leads for
purpose of external dimming controls.
• Component-to-component wiring within the
luminaire may carry no more than 80% of
rated load and is certied by UL for use at
600VAC at 90°C or higher.
• Fixture electrical compartment shall contain all
LED driver components and optional push-button
terminal block for AC power connections.
• Optional 7-pin ANSI C136.41-2013 twist-lock
photo control receptacle available. Compatible
with ANSI C136.41 external wireless control
devices.
• Ambient operating temperature -40°C to 40°C
• Surge protection - 20kA. ANSI/IEEE category
C high
Controls/Options:
• Available with an optional passive infrared
(PIR) motion sensor capable of detecting
motion 360° around the luminaire. When
no motion is detected for the specied time,
the motion response system reduces the
wattage to factory preset level, reducing the
light level accordingly. When motion is
detected by the PIR sensor, the luminaire
returns to full wattage and full light output.
Please contact Beacon Products if project
requirements vary from standard conguration.
• Available with Energeni for optional set
dimming, timed dimming with simple delay, or
timed dimming based on time of night (see
www.beaconproducts.com/products/energeni).
• In addition, Matrix can be specied
with SiteSync™ wireless control system
for reduction in energy and maintenance costs
while optimizing light quality 24/7. For more
details, see ordering information or visit:
www.hubbelllighting.com/sitesync
Installation:
• Mounting options for horizontal arm, vertical
tenon or traditional arm mounting available.
Mounting hardware included.
Finish:
• IFS polyester powder-coat electrostatically
applied and thermocured. IFS nish consists of a
ve stage pretreatment regimen with a polymer
primer sealer and top coated with a thermoset
super TGIC polyester powder coat nish.
• The nish meets the AAMA 2604
performance specication which includes
passing a 3000 hour salt spray test for
corrosion resistance and resists cracking or
loss of adhesion per ASTM D522 and resists
surface impacts of up to 160 inch-pounds.
Certications/Ratings:
• DesignLights Consortium (DLC) qualied,
consult DLC website for more details:
http://www.designlights.org/QPL
• Certied to UL 1598, UL 8750, and CSA C22.2
No. 250.0
• 3G rated for ANSI C136.31 high vibration
applications with MAF mounting
• IP65 optical assembly
• IDA approved
Warranty:
Five year limited warranty for more information visit:
www.hubbelllighting.com/resources/warranty
DIMENSIONS
29.7
25.0
4.9
29.7 25.0
36.2
41.9
11.7
PRELIMINARY
Upswept Arm Post Top
Mast ArmKnuckle
Model Mount Weight lbs. Weight kgs. EPA, Sq. ft.
Area MAF
ARM
Post-Top
Knuckle, 0˚
Knuckle, 30˚
73.5
80.0
89.5
86.0
33.4
36.4
40.7
39.1
1.7
1.7
2.5
1.7
3.8
IP65
Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928
Due to our continued efforts to improve our products, product specifications are subject to change without notice.
© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA November 9, 2017 2:58 Pm
design . performance . technology
PRECOMMISSIONED SITESYNC ORDERING INFORMATION: When ordering a fixture with the SiteSync lighting
