Report No.: NEI-FCCE-1-E0903103 Page 1 of 22
Neutron Engineering Inc.
FCC Test Report
Issued Date : Apr. 09, 2009
Project No. : E0903103
Equipment : 2.5” SATA HDD External Enclosure
Model Name : SUB2A8
Applicant : Age Star Inc.
Address : 6F-1, No. 23, Sec. 1, Sichuan Road,
Banqiao City 22063, Taipei Hsien,
Taiwan
Tested by:
Neutron Engineering Inc. EMC Laboratory
Date of Test:
Mar. 24, 2009 ~ Apr. 08, 2009
Testing Engineer:
(Pike Lee)
Technical Manager :
(Jeff Yang)
Authorized Signatory :
(Andy Chiu)
Neutron Engineering Inc.
B1, No. 37, Lane 365, YangGuang St.,
NeiHu District 114, Taipei, Taiwan.
TEL: +886-2-2657-3299
FAX: +886-2-2657-3331

Report No.: NEI-FCCE-1-E0903103 Page 2 of 22
Neutron Engineering Inc.
Declaration
Neutron represents to the client that testing is done in accordance with standard procedures as applicable
and that test instruments used has been calibrated with the standards traceable to National Measurement
Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A.
Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s
responsibility to ensure that additional production units of this model are manufactured with the identical
electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o
r
generalizations drawn by the client or others from Neutron issued reports.
Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any
agency of the Government.
This report is the confidential property of the client. As a mutual protection to the clients, the public and
Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized
written approval.
Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025
requirements, and accredited by the conformity assessment authorities listed in this test report.
Limitation
For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this
test report is (are) included in the conformity assessment authorities acceptance respective.

Report No.: NEI-FCCE-1-E0903103 Page 3 of 22
Neutron Engineering Inc.
Table of Contents
Page
1 . CERTIFICATION 4
2 . SUMMARY OF TEST RESULTS 5
2.1 TEST FACILITY 6
2.2 MEASUREMENT UNCERTAINTY 6
3 . GENERAL INFORMATION 7
3.1 GENERAL DESCRIPTION OF EUT 7
3.2 DESCRIPTION OF TEST MODES 8
3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9
3.4 DESCRIPTION OF SUPPORT UNITS 10
4 . EMC EMISSION TEST 11
4.1 CONDUCTED EMISSION MEASUREMENT 11
4.1.1 POWER LINE CONDUCTED EMISSION 11
4.1.2 MEASUREMENT INSTRUMENTS LIST 11
4.1.3 TEST PROCEDURE 12
4.1.4 DEVIATION FROM TEST STANDARD 12
4.1.5 TEST SETUP 12
4.1.6 EUT OPERATING CONDITIONS 13
4.1.7 TEST RESULTS 14
4.2 RADIATED EMISSION MEASUREMENT 16
4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 16
4.2.2 MEASUREMENT INSTRUMENTS LIST 17
4.2.3 TEST PROCEDURE 17
4.2.4 DEVIATION FROM TEST STANDARD 17
4.2.5 TEST SETUP 18
4.2.6 EUT OPERATING CONDITIONS 18
4.2.7 TEST RESULTS 19
5 . EUT TEST PHOTO 21

Report No.: NEI-FCCE-1-E0903103 Page 4 of 22
Neutron Engineering Inc.
1. CERTIFICATION
E q u i p m e n t : 2.5” SATA HDD External Enclosure
Brand Name : AGE STAR
Model Name : SUB2A8
A p p l i c a n t : Age Star Inc.
Date of Test : Mar. 24, 2009 ~ Apr. 08, 2009
Standards :
FCC Part 15, Subpart B, Class B
CISPR 22: 1997+A1: 2000, Class B
ICES-003: 2004, Class B
ANSI C63.4-2003
The above equipment has been tested and found compliance with the requirement of the relative
standards by Neutron Engineering Inc. EMC Laboratory.
The test data, data evaluation, and equipment configuration contained in our test report (Ref No.
NEI-FCCE-1-E0903103) were obtained utilizing the test procedures, test instruments, test sites
that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality
assessment standard and technical standard(s).

Report No.: NEI-FCCE-1-E0903103 Page 5 of 22
Neutron Engineering Inc.
2. SUMMARY OF TEST RESULTS
Test procedures according to the technical standards:
Emission
Standard Test Item Limit Judgment Remark
Conducted Emission Class B PASS
FCC Part15, Subpart B
CISPR 22:1997+A1: 2000
ICES-003: 2004 Radiated Emission Class B PASS
NOTE:
(1) ” N/A” denotes test is not applicable in this Test Report.
(2) For client’s request and manual description, the test will not be executed.

Report No.: NEI-FCCE-1-E0903103 Page 6 of 22
Neutron Engineering Inc.
2.1 TEST FACILITY
The test facilities used to collect the test data in this report is C01/OS02 at the location of
No.132-1, Lane 329, Sec. 2, Palian Road, Shijr City, Taipei, Taiwan.
2.2 MEASUREMENT UNCERTAINTY
The reported uncertainty of measurement y ± U,where expended uncertainty U is based on a
standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of
approximately 95%。
A. Conducted Measurement :
Test Site Method Measurement Frequency Range U,(dB) NOTE
C01 ANSI 150 KHz ~ 30MHz 1.94
B. Radiated Measurement :
Test Site Method Measurement Frequency
Range
Ant.
H / V U,(dB) NOTE
30MHz ~ 200MHz V 2.86
30MHz ~ 200MHz H 2.56
200MHz ~ 1,000MHz V 2.88
OS-01 ANSI
200MHz ~ 1,000MHz H 2.98
30MHz ~ 200MHz V 2.48
30MHz ~ 200MHz H 2.16
200MHz ~ 1,000MHz V 2.50
OS-02 ANSI
200MHz ~ 1,000MHz H 2.66

Report No.: NEI-FCCE-1-E0903103 Page 7 of 22
Neutron Engineering Inc.
3. GENERAL INFORMATION
3.1 GENERAL DESCRIPTION OF EUT
Equipment 2.5” SATA HDD External Enclosure
Brand Name AGE STAR
Model Name SUB2A8
OEM Brand/Model Name N/A
Model Difference N/A
Product Description
The EUT is a 2.5” SATA HDD External Enclosure.
Based on the application, features, or specification
exhibited in User's Manual, the EUT is considered as an
ITE/Computing Device. More details of EUT technical
specification, please refer to the User's Manual.
Power Source Supplied from PC USB port.
Power Rating N/A
Connecting I/O Port(s) Please refer to the User's Manual
Products Covered N/A
EUT Modification(s) N/A
Note:
1. For a more detailed features description, please refer to the manufacturer’s specifications
or the User's Manual.

Report No.: NEI-FCCE-1-E0903103 Page 8 of 22
Neutron Engineering Inc.
3.2 DESCRIPTION OF TEST MODES
To investigate the maximum EMI emission characteristics generates from EUT, the test system
was pre-scanning tested base on the consideration of following EUT operation mode or test
configuration mode which possible have effect on EMI emission level. Each of these EUT
operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively.
Pretest Test Mode Description
Mode 1 USB READ/WRITE
For Conducted Test
Final Test Mode Description
Mode 1 USB READ/WRITE
For Radiated Test
Final Test Mode Description
Mode 1 USB READ/WRITE

Report No.: NEI-FCCE-1-E0903103 Page 9 of 22
Neutron Engineering Inc.

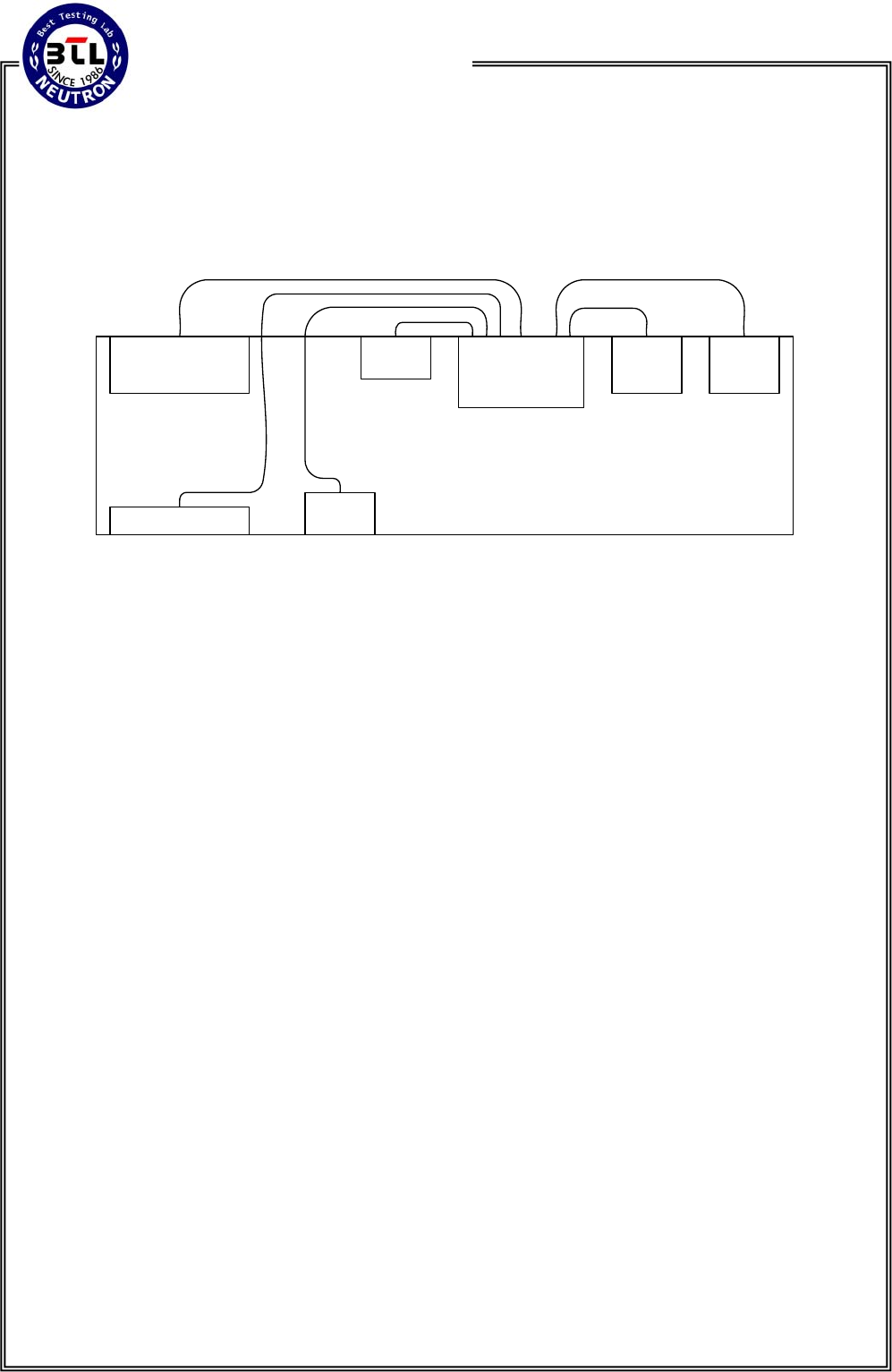

3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED
E-2 Monitor E-6
Printer
E-3 Keyboard
E-4
Mouse
E-5
Modem
C-4
C-3
C-5C-1
C-2
C-1 D-SUB Cable
C-2 PS/2 Cable
C-3 PS/2 Cable
C-4 Parallel Cable
C-5 RS232 Cable
C-6 USB Cable
E-1
EUT E-7
PC
C-6

Report No.: NEI-FCCE-1-E0903103 Page 10 of 22
Neutron Engineering Inc.
3.4 DESCRIPTION OF SUPPORT UNITS
The EUT has been tested as an independent unit together with other necessary accessories or
support units. The following support units or accessories were used to form a representative test
configuration during the tests.
Item Equipment Mfr/Brand Model/Type No. FCC ID Series No. Note
E-1
2.5” SATA
HDD
External
Enclosure
AGE STAR SUB2A8 DOC N/A EUT
E-2 19” LCD
Monitor Samsung SyncMaster 193P DOC DI19H4JXC05517A
E-3 PS/2 K/B Logitech Y-SJ17(ACK260A) DOC SYU44664880
E-4 PS/2 Mouse Logitech M-SBF69 DOC HCA44601156
E-5 Modem ACEEX DM-1414V DOC 8041708
E-6 Printer SII DPU-414 DOC 1045105A
E-7 PC HP HP Compaq
dx7300 MT DOC SGH71505LH
Item Shielded Type Ferrite Core Length Note
C-1 YES YES 1.8M
C-2 YES NO 1.5M
C-3 YES NO 1.7M
C-4 YES NO 1.8M
C-5 YES NO 1.7M
C-6 YES NO 1.0M
Note:
(1) The support equipment was authorized by Declaration of Conformity.
(2) For detachable type I/O cable should be specified the length in cm in『Length』column.

Report No.: NEI-FCCE-1-E0903103 Page 11 of 22
Neutron Engineering Inc.
4. EMC EMISSION TEST
4.1 CONDUCTED EMISSION MEASUREMENT
4.1.1 POWER LINE CONDUCTED EMISSION (FREQUENCY RANGE 150KHZ-30MHZ)
Class A (dBuV) Class B (dBuV)
FREQUENCY (MHz) Quasi-peak Average Quasi-peak Average
0.15 -0.5 79.00 66.00 66 - 56 * 56 - 46 *
0.50 -5.0 73.00 60.00 56.00 46.00
5.0 -30.0 73.00 60.00 60.00 50.00
Note:
(1) The tighter limit applies at the band edges.
(2) The limit of " * " marked band means the limitation decreases linearly with the
logarithm of the frequency in the range.
4.1.2 MEASUREMENT INSTRUMENTS LIST
Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until
1 Test Cable N/A SR03_C_01
&02 N/A Oct. 19, 2009
2 LISN EMCO 3816/2 00042991 Jan. 21, 2010
3 Pulse Limiter Electro-Metrics EM-7600 112644 Dec. 28, 2009
4 50Ω Terminator N/A N/A N/A May 13, 2009
5 EMI Test Receiver R&S ESCI 100082 Mar. 17, 2010
6 LISN EMCO 3816/2 00066528 Apr. 27, 2009
Remark: ” N/A” denotes No Model Name , Serial No. or No Calibration specified.

Report No.: NEI-FCCE-1-E0903103 Page 12 of 22
Neutron Engineering Inc.
4.1.3 TEST PROCEDURE
a. The EUT was placed 0.8 meters from the horizontal ground plane with EUT being connected
to the power mains through a line impedance stabilization network (LISN). All other support
equipments powered from additional LISN(s). The LISN provide 50 Ohm/ 50uH of coupling
impedance for the measuring instrument.
b. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded back
and forth in the center forming a bundle 30 to 40 cm long.
c. I/O cables that are not connected to a peripheral shall be bundled in the center. The end of the
cable may be terminated, if required, using the correct terminating impedance. The overall
length shall not exceed 1 m.
d. LISN at least 80 cm from nearest part of EUT chassis.
e. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.1.4 DEVIATION FROM TEST STANDARD
No deviation

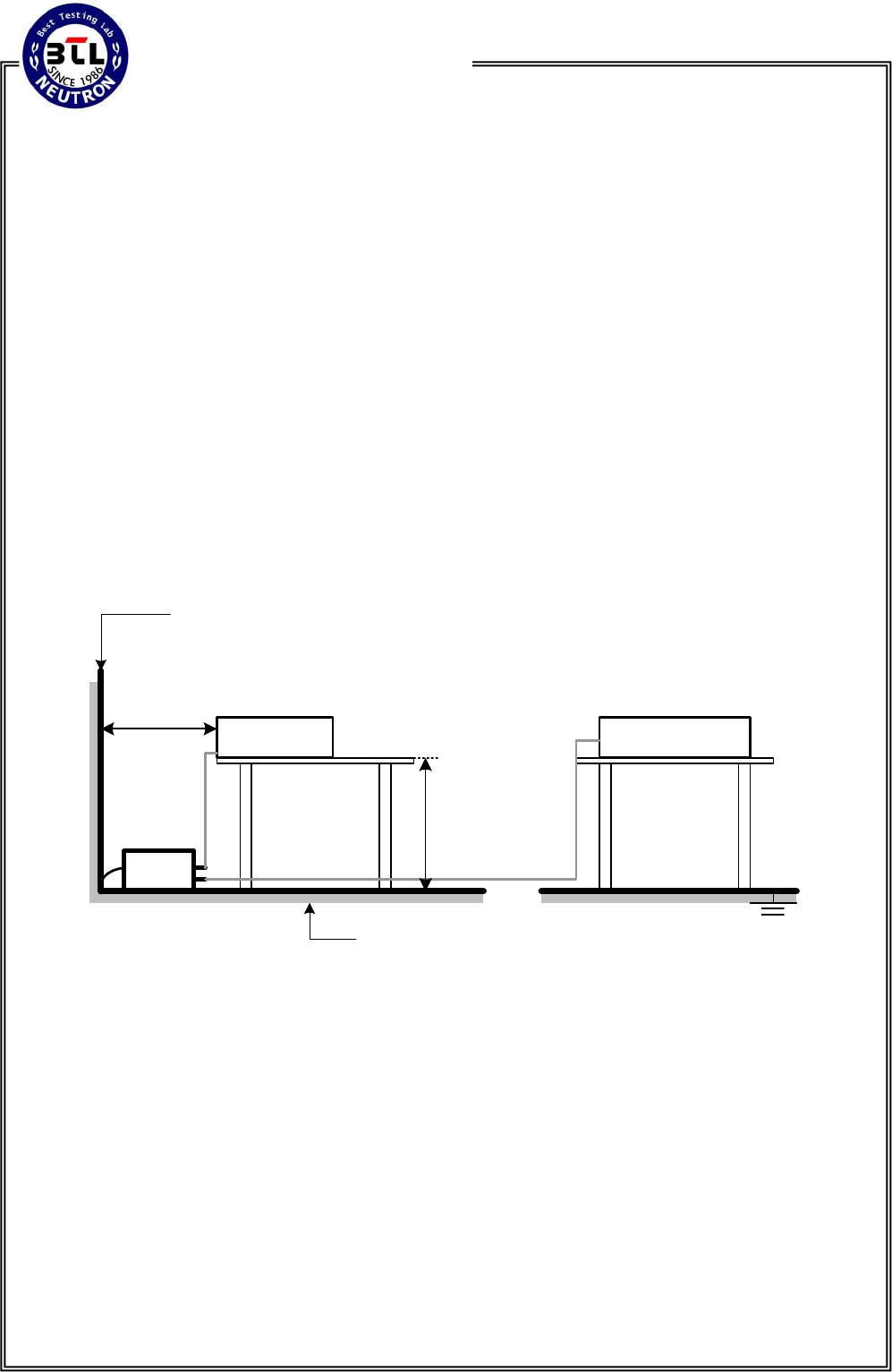

4.1.5 TEST SETUP
LISN
EUT Test Receiver
40 cm
80 cm
Horizontal Reference Ground Plane
Vertical Reference Ground Plane

Report No.: NEI-FCCE-1-E0903103 Page 13 of 22
Neutron Engineering Inc.
4.1.6 EUT OPERATING CONDITIONS
The EUT exercise program (EMC.exe) used during radiated and/or conducted emission
measurement was designed to exercise the various system components in a manner similar to a
typical use. The program contained on a PC hard disk and is auto-starting on power-up. Once
loaded, the program sequentially exercises each system component in turn. The sequence used
is:
1. Read (write) from (to) mass storage device (EUT).
2. Send "H" pattern to video port device (Monitor).
3. Send " H " pattern to parallel port device (Printer).
4. Send " H " pattern to serial port device (Modem).
5. Repeated from 2 to 4 continuously.
As the keyboard and mouse are strictly input devices, no data is transmitted to (from) them during
test. They are, however, continuously scanned for data input activity.

Report No.: NEI-FCCE-1-E0903103 Page 14 of 22
Neutron Engineering Inc.

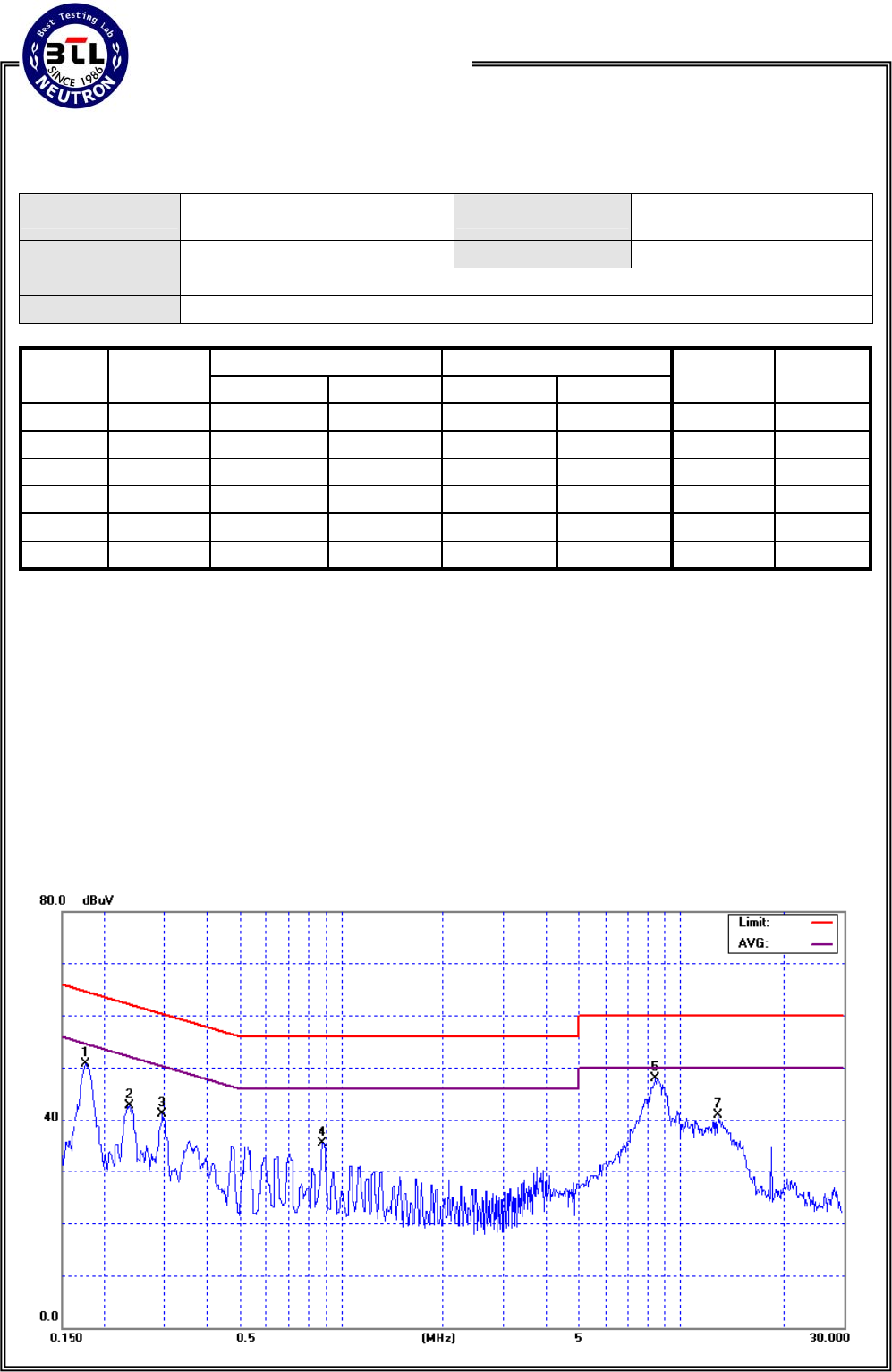

4.1.7 TEST RESULTS

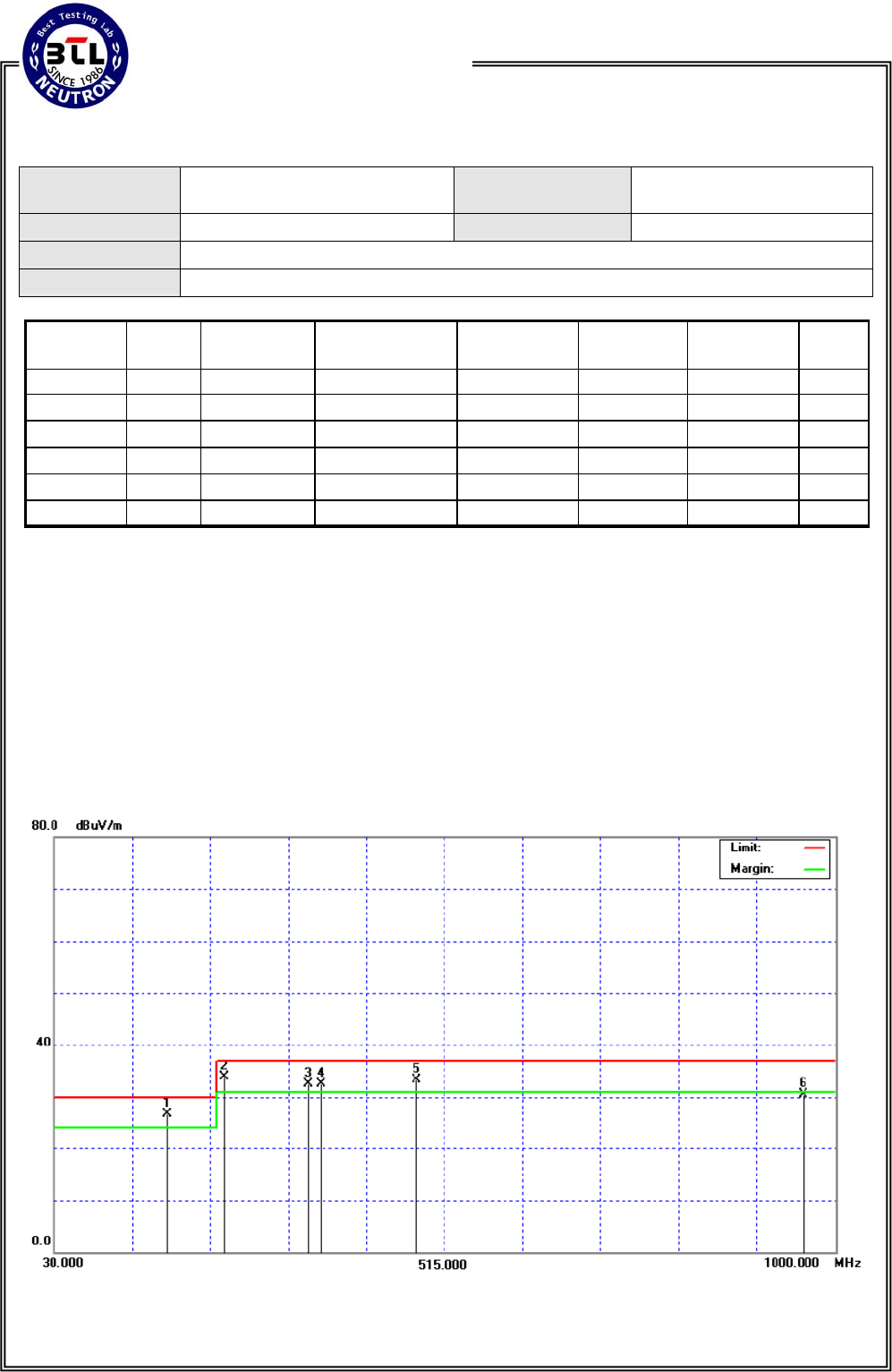

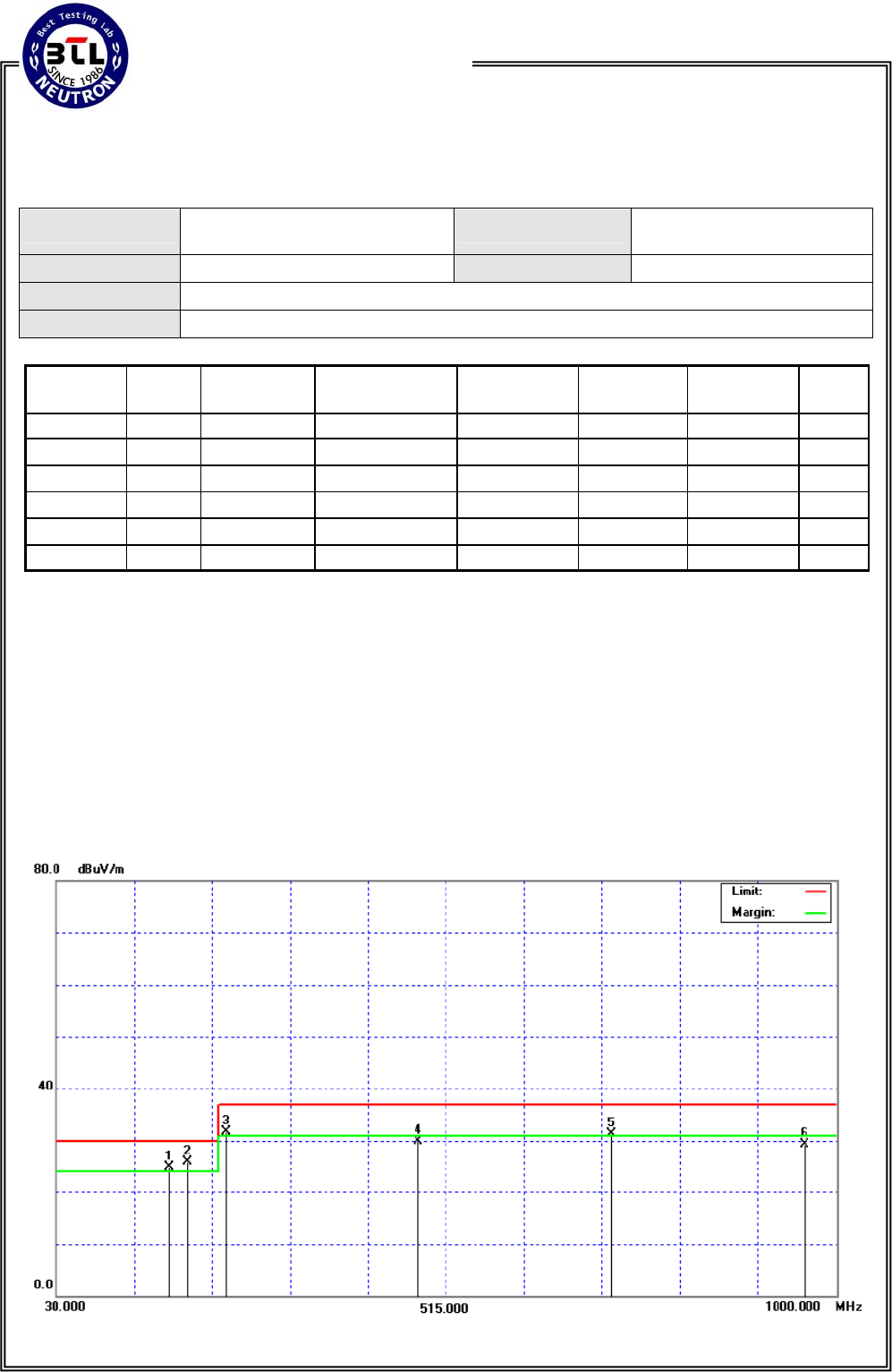

E.U.T : 2.5” SATA HDD External
Enclosure Model Name : SUB2A8
Temperature : 25°C Relative Humidity : 60%
Test Voltage : AC 120V/60Hz
Test Mode : USB READ/WRITE
Freq. Terminal Margin
(MHz) L/N QP-Mode AV-Mode QP-Mode AV-Mode (dB)
0.18 Line 50.67 * 64.63 54.63 -13.96 (QP)
0.24 Line 42.75 * 62.17 52.17 -19.42 (QP)
0.30 Line 41.13 * 60.32 50.32 -19.19 (QP)
0.88 Line 35.56 * 56.00 46.00 -20.44 (QP)
8.46 Line 47.99 40.21 60.00 50.00 -9.79 (AV)
12.85 Line 40.89 * 60.00 50.00 -19.11 (QP)
Measured(dBuV) Limits(dBuV) Note
Remark
:
(1) Reading in which marked as QP means measurements by using are Quasi-Peak Mode with
Detector BW=9KHz;SPA setting in RBW=10KHz,VBW =10KHz, Swp. Time = 0.2 sec./MHz。
Reading in which marked as AV means measurements by using are Average Mode with
instrument setting in RBW=10KHz,VBW=10KHz, Swp. Time =0.2 sec./MHz。
(2) All readings are QP Mode value unless otherwise stated AVG in column of『Note』. If the QP
Mode Measured value compliance with the QP Limits and lower than AVG Limits, the EUT
shall be deemed to meet both QP & AVG Limits and then only QP Mode was measured,
but AVG Mode didn‘t perform。In this case, a “ * ” marked in AVG Mode column of
Interference Voltage Measured。
(3) Measuring frequency range from 150KHz to 30MHz。

Report No.: NEI-FCCE-1-E0903103 Page 15 of 22
Neutron Engineering Inc.
E.U.T : 2.5” SATA HDD External
Enclosure Model Name : SUB2A8
Temperature : 25°C Relative Humidity : 60%
Test Voltage : AC 120V/60Hz
Test Mode : USB READ/WRITE
Freq. Terminal Margin
(MHz) L/N QP-Mode AV-Mode QP-Mode AV-Mode (dB)
0.18 Neutral 52.10 * 64.55 54.55 -12.45 (QP)
0.24 Neutral 43.95 * 62.22 52.22 -18.27 (QP)
0.30 Neutral 40.75 * 60.37 50.37 -19.62 (QP)
0.88 Neutral 35.38 * 56.00 46.00 -20.62 (QP)
8.64 Neutral 48.25 41.20 60.00 50.00 -8.80 (AV)
11.68 Neutral 40.54 * 60.00 50.00 -19.46 (QP)
Measured(dBuV) Limits(dBuV) Note
Remark
:
(1) Reading in which marked as QP means measurements by using are Quasi-Peak Mode with
Detector BW=9KHz;SPA setting in RBW=10KHz,VBW =10KHz, Swp. Time = 0.2 sec./MHz。
Reading in which marked as AV means measurements by using are Average Mode with
instrument setting in RBW=10KHz,VBW=10KHz, Swp. Time =0.2 sec./MHz。
(2) All readings are QP Mode value unless otherwise stated AVG in column of『Note』. If the QP
Mode Measured value compliance with the QP Limits and lower than AVG Limits, the EUT
shall be deemed to meet both QP & AVG Limits and then only QP Mode was measured,
but AVG Mode didn‘t perform。In this case, a “ * ” marked in AVG Mode column of
Interference Voltage Measured。
(3) Measuring frequency range from 150KHz to 30MHz。

Report No.: NEI-FCCE-1-E0903103 Page 16 of 22
Neutron Engineering Inc.
4.2 RADIATED EMISSION MEASUREMENT
4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT (BELOW 1000MHZ)
Class A (at 10m) Class B (at 10m)
FREQUENCY (MHz) dBuV/m dBuV/m
30 – 230 40 30
230 – 1000 47 37
Notes:
(1) The limit for radiated test was performed according to as following:
CISPR 22/ FCC PART 15B /ICES-003.
(2) The tighter limit applies at the band edges.
(3) Emission level (dBuV/m)=20log Emission level (uV/m).
LIMITS OF RADIATED EMISSION MEASUREMENT (ABOVE 1000MHZ)
Class A (dBuV/m) (at 3m) Class B (dBuV/m) (at 3m)
FREQUENCY (MHz) PEAK AVERAGE PEAK AVERAGE
Above 1000 80 60 74 54
Notes:
(1) The limit for radiated test was performed according to FCC PART 15B.
(2) The tighter limit applies at the band edges.
(3) Emission level (dBuV/m)=20log Emission level (uV/m).
FREQUENCY RANGE OF RADIATED MEASUREMENT (FOR UNINTENTIONAL
RADIATORS)
Highest frequency generated or Upper
frequency of measurement used in the
device or on which the device operates
or tunes (MHz)
Range (MHz)
Below 1.705 30
1.705 – 108 1000
108 – 500 2000
500 – 1000 5000
Above 1000 5th harmonic of the highest frequency or
40 GHz, whichever is lower

Report No.: NEI-FCCE-1-E0903103 Page 17 of 22
Neutron Engineering Inc.
4.2.2 MEASUREMENT INSTRUMENTS LIST
Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until
1 Turn Table Chance Most CMTB-1.5 N/A N/A
2 Log-Bicon Antenna Schwarzbeck VULB 9160 3173 Jul. 02, 2009
3 Test Cable N/A 10M_OS02 N/A Oct. 08, 2009
4 Test Cable N/A OS02 N/A Oct. 08, 2009
5 Pre-Amplifier Anritsu MH648A M98457 Nov. 26, 2010
6 EMI Test Receiver R&S ESCI 100082 Mar. 17, 2010
7 System Controller
(OS02) CT SC100 N/A N/A
Remark: ” N/A” denotes No Model Name / Serial No. and No Calibration specified.
4.2.3 TEST PROCEDURE
a. The measuring distance of at 10 m shall be used for measurements at frequency up to 1GHz.
For frequencies above 1GHz, any suitable measuring distance may be used.
b. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3m or 10
meter open area test site. The table was rotated 360 degrees to determine the position of the
highest radiation.
c. The height of the equipment or of the substitution antenna shall be 0.8 m; the height of the test
antenna shall vary between 1 m to 4 m. Both horizontal and vertical polarizations of the
antenna are set to make the measurement.
d. The initial step in collecting radiated emission data is a spectrum analyzer peak detector mode
pre-scanning the measurement frequency range. Significant peaks are then marked and then
Quasi Peak detector mode re-measured.
e. If the Peak Mode measured value compliance with and lower than Quasi Peak Mode Limit, the
EUT shall be deemed to meet QP Limits and then no additional QP Mode measurement
performed.
f. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.2.4 DEVIATION FROM TEST STANDARD
No deviation

Report No.: NEI-FCCE-1-E0903103 Page 18 of 22
Neutron Engineering Inc.

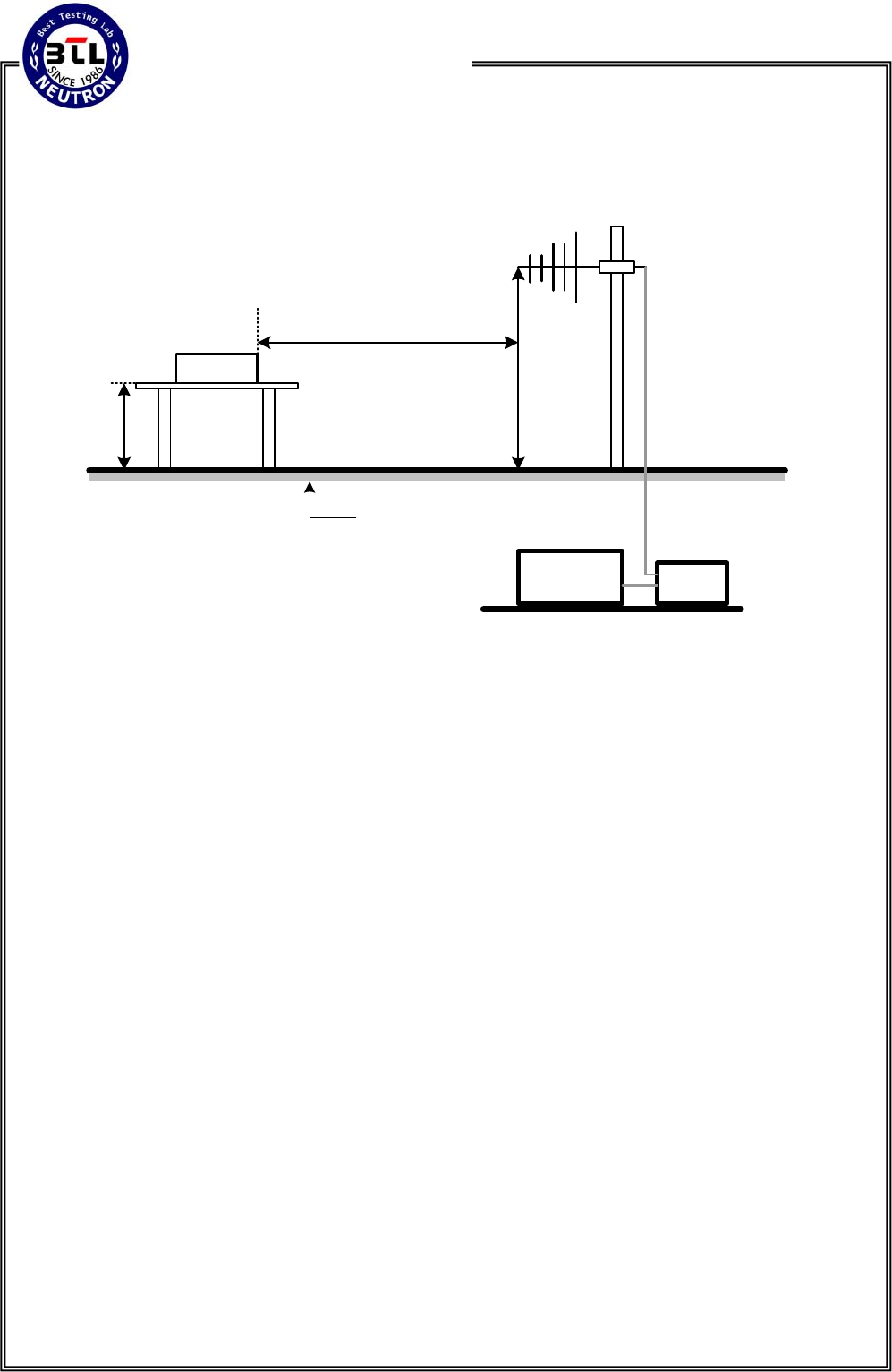

4.2.5 TEST SETUP
Amp.
EUT
80 cm
Ground Plane
1-4 m
3 or 10 m
Test
Receiver
4.2.6 EUT OPERATING CONDITIONS
The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special
operating condition is specified in the follows during the testing.

Report No.: NEI-FCCE-1-E0903103 Page 19 of 22
Neutron Engineering Inc.
4.2.7 TEST RESULTS
E.U.T : 2.5” SATA HDD External
Enclosure Model Name : SUB2A8
Temperature : 17°C Relative Humidity : 72%
Test Voltage : AC 120V/60Hz
Test Mode : USB READ/WRITE
Freq. Ant. Reading(RA) Corr.Factor(CF) Measured(FS) Limits(QP) Margin
(MHz) H/V (dBuV) (dB) (dBuV/m) (dBuV/m) (dB)
168.00 V30.50 -5.53 24.97 30.00 - 5.03 (QP)
192.01 V33.50 -7.66 25.84 30.00 - 4.16
240.00 V37.90 -6.26 31.64 37.00 - 5.36 (QP)
479.99 V29.70 0.11 29.81 37.00 - 7.19 (QP)
720.03 V26.25 4.96 31.21 37.00 - 5.79
960.86 V20.06 9.25 29.31 37.00 - 7.69
Note
Remark:
(1) Reading in which marked as QP or Peak means measurements by using are Quasi-Peak
Mode or Peak Mode with Detector BW=120KHz;SPA setting in RBW=120KHz, VBW
=120KHz, Swp. Time = 0.3 sec./MHz。
(2) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes
that the Peak reading compliance with the QP Limits and then QP Mode measure-ment
didn‘t perform。
(3) Measuring frequency range from 30MHz to 1000MHz。
(4) If the peak scan value is under the limit for more than 20dB, the signal will not show in
table。

Report No.: NEI-FCCE-1-E0903103 Page 20 of 22
Neutron Engineering Inc.
E.U.T : 2.5” SATA HDD External
Enclosure Model Name : SUB2A8
Temperature : 17°C Relative Humidity : 72%
Test Voltage : AC 120V/60Hz
Test Mode : USB READ/WRITE
Freq. Ant. Reading(RA) Corr.Factor(CF) Measured(FS) Limits(QP) Margin
(MHz) H/V (dBuV) (dB) (dBuV/m) (dBuV/m) (dB)
168.01 H32.21 -5.53 26.68 30.00 - 3.32
240.01 H40.10 -6.26 33.84 37.00 - 3.16 (QP)
344.39 H35.60 -3.10 32.50 37.00 - 4.50 (QP)
360.01 H35.24 -2.74 32.50 37.00 - 4.50
480.02 H33.10 0.11 33.21 37.00 - 3.79 (QP)
960.01 H21.20 9.23 30.43 37.00 - 6.57
Note
Remark:
(1) Reading in which marked as QP or Peak means measurements by using are Quasi-Peak
Mode or Peak Mode with Detector BW=120KHz;SPA setting in RBW=120KHz, VBW
=120KHz, Swp. Time = 0.3 sec./MHz。
(2) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes
that the Peak reading compliance with the QP Limits and then QP Mode measure-ment
didn‘t perform。
(3) Measuring frequency range from 30MHz to 1000MHz。
(4) If the peak scan value is under the limit for more than 20dB, the signal will not show in
table。

Report No.: NEI-FCCE-1-E0903103 Page 21 of 22
Neutron Engineering Inc.

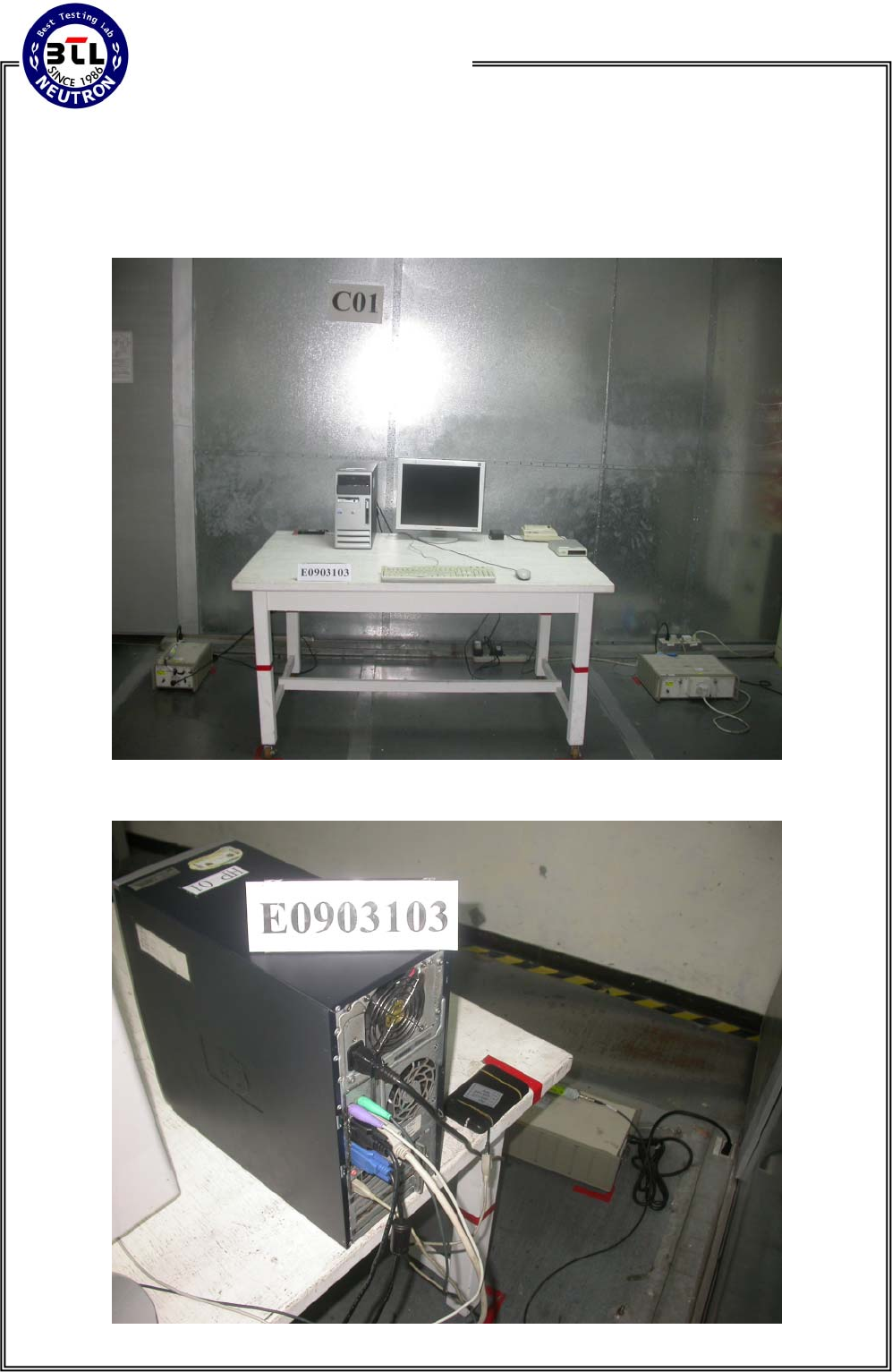

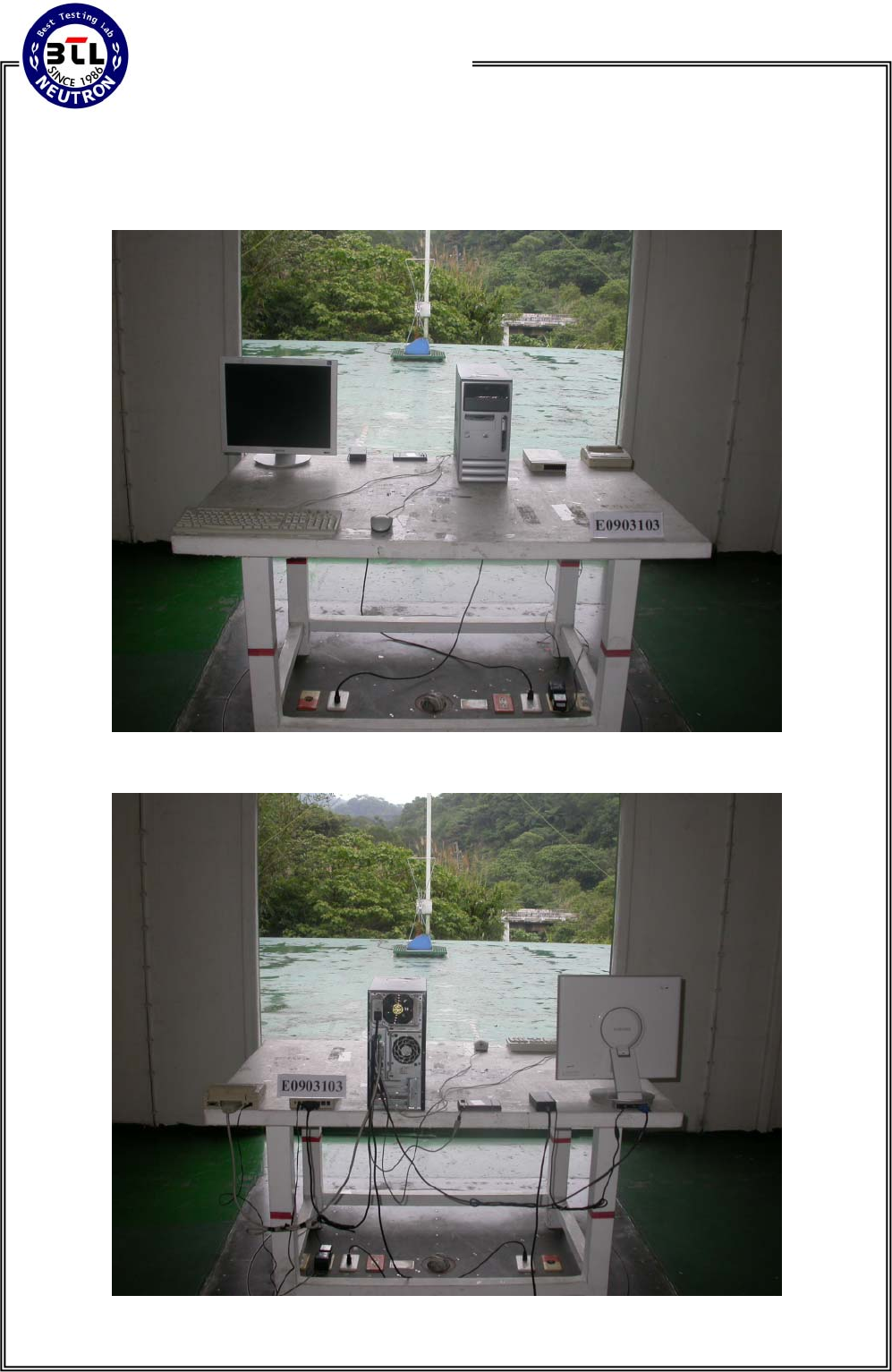

5. EUT TEST PHOTO
Conducted Measurement Photos

Report No.: NEI-FCCE-1-E0903103 Page 22 of 22
Neutron Engineering Inc.
Radiated Measurement Photos
