Electro Industries/GaugeTech™

The Leader in Power Monitoring and Smart Grid Solutions™

www.electroind.com

Advanced Metering and

Communication

• Constant Calibration™ Architecture Provides Highly

Stable Readings, as the Meter Self-calibrates

Every 10 Seconds

• Critical Metering Needs are Met by 0.06% Accuracy in

Energy Metrology

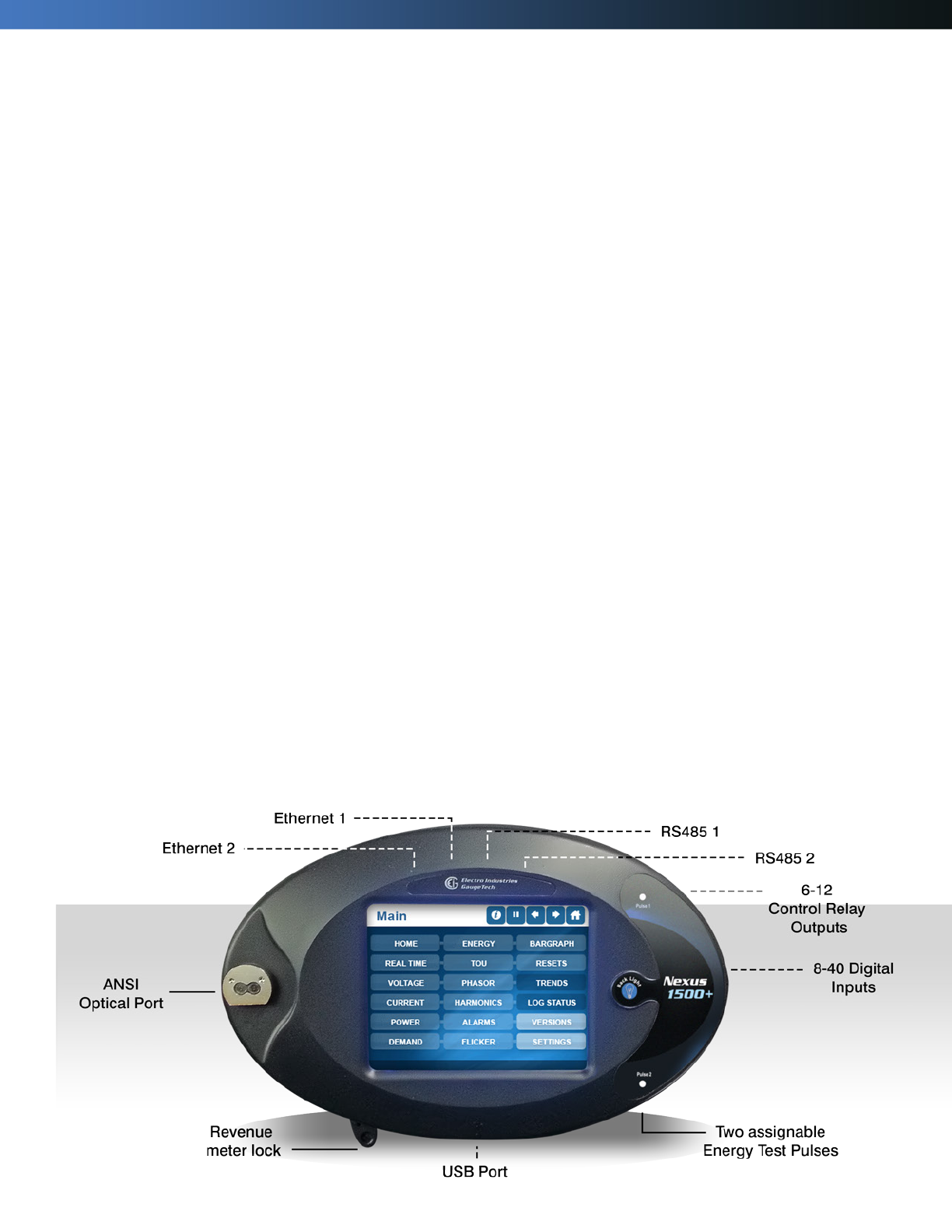

• Color Touchscreen Programmable Display Enhances the

Meter's Functionality

• 6 Available Communication Ports, Including Dual

Ethernet Ports

• Ethernet Ports Offer Secure, Configurable Port

Services Control

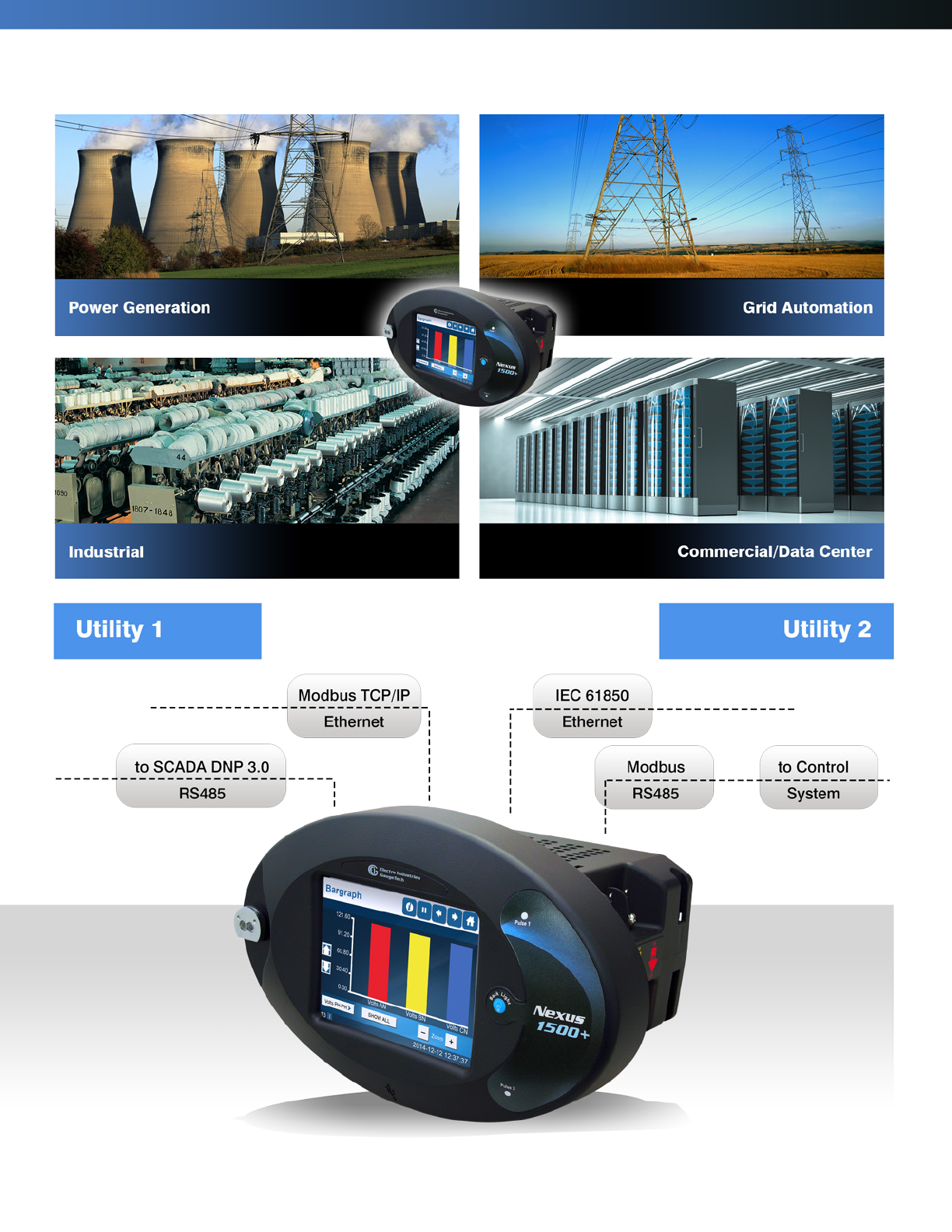

• Supported COM Protocols Include Modbus, DNP 3.0,

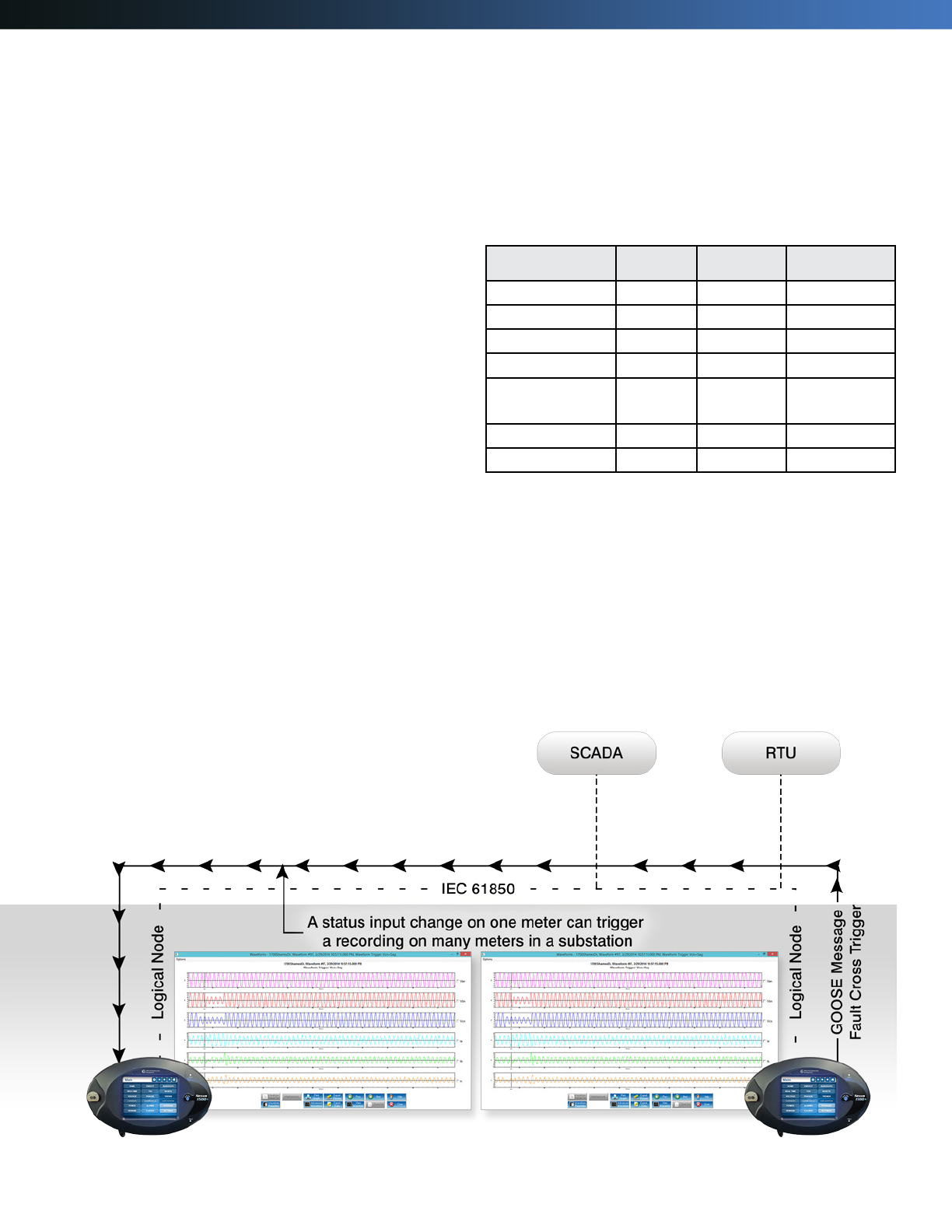

IEC 61850, and GOOSE Messaging

Superior Recording and Power

Quality Analysis

• Class A IEC 61000-4-30 Power Quality Measurement

• Class A IEC 61000-4-15 Flicker Measurement

• Class A IEC 61000-4-7 Harmonics Measurement

• Supports Customized EN 50160 Power Quality Reporting

• Offers up to 4 GB of Memory for Storage

• Offers 50 MHz Transient Capture Speed

• The Perfect Meter for Co-generation and Independent

Power Providers

• Supports Substation Automation, Grid Monitoring, and

Distribution Substation Reliability Measurements

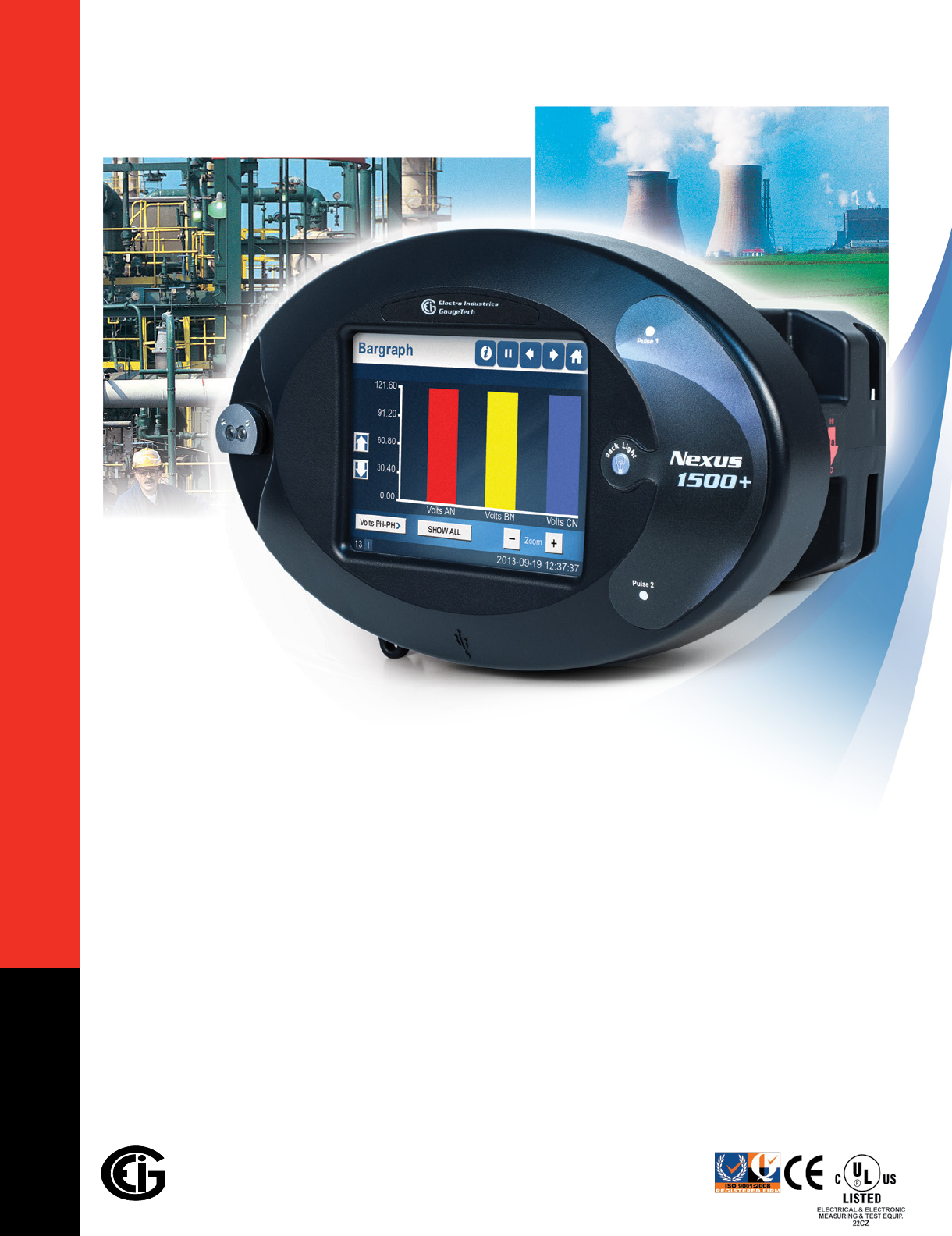

Nexus® 1500+

Next Generation Power Meter for Critical Energy Circuits

Introduction

The Nexus® 1500+ meter is designed to be a primary and testable

revenue meter that additionally provides advanced power quality analysis

functions. It records every aspect of electrical power, including power

quality and transients, and gives you access to this information both in

real time and through reports on the quality of the electrical circuit in

compliance with the IEC 61000-4-30 Class A and EN 50160 international

standards. In this way, the Nexus® 1500+ meter provides you with a

comprehensive picture of your circuits’ power usage and reliability.

The Nexus® 1500+ meter’s capabilities insure that essential data is

captured and stored, so that critical information about important electrical

circuits is not lost. Designed with superior processing power that lets it

measure energy usage precisely, large amounts of memory for recording

events, and advanced power quality reporting compliance, the Nexus®

1500+ meter is the clear choice for your applications where critical me-

tering is an absolute necessity, be it for power utility, industrial, or other

critical metering usage.

Highly Accurate Energy Metrology

The Nexus® 1500+ meter incorporates one of the most advanced

metrologies available for measuring energy. Providing highly accurate

measurements exceeding the ANSI C12.20 (0.2 Class) standard and the

IEC 62053-22 (0.2S Class) standard, the 1500+ provides an Energy

Class accuracy of 0.06%, with typical shipping accuracies of 0.02%.

Additionally, the meter has a highly accurate front panel test pulse that

lets you test on one pulse at low pulse weight, which you can use to

quickly determine accuracy. The meter also features a new precision real

time clock that offers accuracy of 3.5 ppm, or less than 10 seconds per

month drift.

New Constant Calibration™ Architecture Increases

the Stability of Measurement Accuracy

The Nexus® 1500+ meter improves on existing Nexus® architecture

by providing one of the best auto-calibration methods available. Earlier

Nexus® models relied on AccuMeasure™ technology that auto-calibrated

the meter every 12 hours or 5 degree temperature change. Constant

Calibration™ architecture improves significantly on this, by providing

considerably faster, ongoing auto-calibration.

With Constant Calibration™ architecture, the meter utilizes a separate

calibration channel to calibrate the incoming signal in real time every

10 seconds, thereby insuring that the meter experiences minimal drift in

accuracy over time and temperature. With this auto-calibrating circuit,

right out of the box the Nexus® 1500+ meter will stabilize its readings

within 10 seconds. This means you no longer have to wait for the meter to

stabilize in temperature to achieve optimal accuracy. With Constant

Calibration™ architecture, the meter will hold its accuracy throughout

its operation range. Once the meter is tested, it will maintain the precise

accuracy even if the operating conditions are less than ideal.

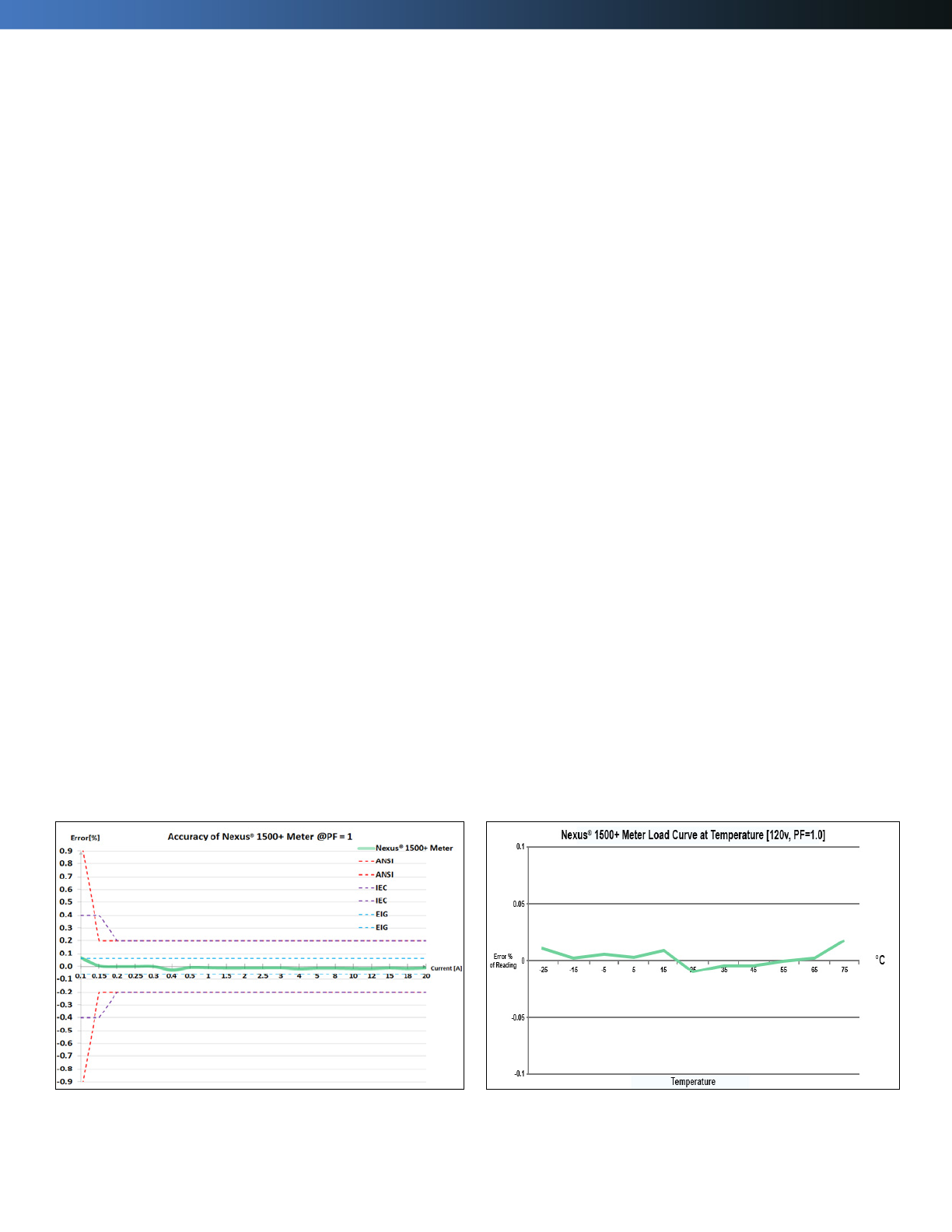

Typical Meter

Accuracy Charts

Typical 0.02% Accuracy over Full Range

Note that typical accuracy is 0.02%; however, the meter specification should be

consulted for accuracy details.

Meter Maintains Accuracy over Changing Temperature

Typical Accuracy over Current Range Drift over Temperature

Advanced Revenue Meter for

Primary Loads

The Nexus® 1500+ unit is a primary revenue meter designed to be used

for any important applications. In addition to highly accurate energy

measurement, the meter features:

• Full 4 quadrant metering

• Energy load profiling: log virtually unlimited historical trending

• Time of Use perpetual calendar that supports multiple tariffs

• Transformer and Line Loss compensation: for both iron and

copper and total substation losses

• CT and PT compensation: correct for errors in current and voltage

transformers

• Coincidental readings: e.g., PF or VARs at time of Peak Demand,

to identify number of capacitors needed, peak inefficiencies, etc.

• Load aggregation/universal metering: pulse inputs can be used to

aggregate or accumulate different loads; utility products such as

gas and water can also be accumulated

System Events Logging

The unit provides extensive usage information for detection of

unauthorized access. The unit records:

• Resets

• Programming changes

• Password access changes

• Time changes

• Power up/down

• Change of Firmware

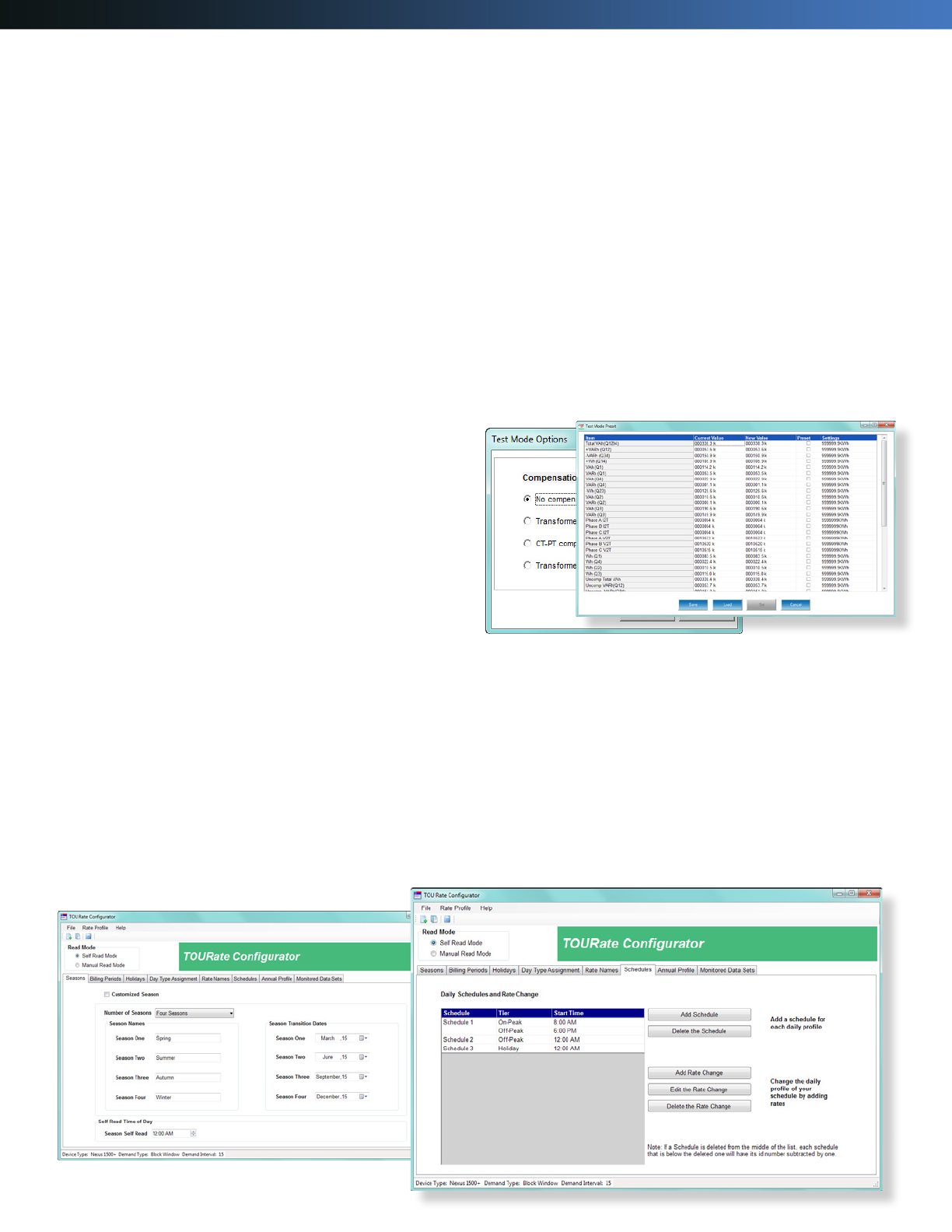

Test Mode and Energy Presets

The Nexus® 1500+ meter offers a Test Mode for testing meter accuracy.

Test Mode allows the meter to be tested for watt-hour and VAR-hour

accuracy without affecting the stored readings. Using Test Mode, users

can verify the meter’s readings over the lifespan of an installed meter

without having to reset energy or disturb the load profiling and

demand recording.

The Energy Preset feature allows a user to program the energy accumu-

lator values upon exiting Test Mode. This lets the user compensate for

accumulations missed during testing time, or easily swap a new meter for

a meter being replaced.

Perpetual Time of Use for Complex Metering

The Nexus® 1500+ meter uses a perpetual Time of Use (TOU) calendar

that only needs to be set up once. The TOU implementation allows the

user to set up multiple tariffs to meet any contractual obligations. It also

allows the user to customize any energy parameter for TOU. The 16

available TOU registers can be configured not only for TOU built-in energy

readings, but also for any stored data from pulses or RTU Master readings

that might need TOU functionality.

Class A Power Quality Recorder

EIG’s Nexus® 1500+ meter is one of the industry’s premier fault and

voltage disturbance recorders. This instrument captures and stores a

comprehensive picture of the history of voltage reliability and power

quality events, for detailed and extensive forensic engineering analysis.

The Nexus® 1500+ meter offers a multitude of power quality

functionality that helps the user identify power quality problems, including

harmonics, sags, swells and transients. Power quality features include:

IEC 61000-4-30 Class A Power Quality Meter:

The Nexus® 1500+ meter is a comprehensive Class A power quality

recorder. Designed specifically to meet the rigorous IEC 61000-4-30

Class A standard, it measures and analyzes power quality precisely. All

reporting is available via the EN 50160 reporting format, which provides

a weekly report of power quality indices system-wide. Additionally, the

report can be fully customized to meet the required application or

jurisdictional needs.

• IEC 61000-4-30 Reporting: Class A Reporting – supports the

most stringent international power quality standards; the Nexus®

1500+ meter offers full reporting of power quality conditions

using the IEC 61000-4-30 Class A methodology

• Automatic generation of EN 50160 reports and EN 50160 report

customization to support different jurisdictional requirements

IEC 61000-4-15 Class A Flicker Meter:

• Flicker compliant with the IEC 61000-4-15 Class A standard

• Operates on both 220 volt/50 Hz and 120 volt/60 Hz throughout

standard test points

IEC 61000-4-7 Class A Harmonics and

Interharmonics Analysis:

• View harmonic magnitudes to the 511th order for each voltage

and current channel

• Harmonic magnitudes and phase angles in real time are resolved

to the 127th order

• Obtain %THD, TDD, and K-Factor

• Conduct power quality analysis at the high end of the harmonic

magnitude spectrum

Phasor Analysis:

The monitor reads a phase angle analysis between the voltage and current

channels, allowing you to analyze efficiency and system integrity.

High-speed Voltage Reliability Measurements:

The Nexus® 1500+ meter provides industry leading

voltage measurement.

• Real time single cycle RMS measurements

• Customizable high-speed readings – can be set from 2 to 20

cycles RMS

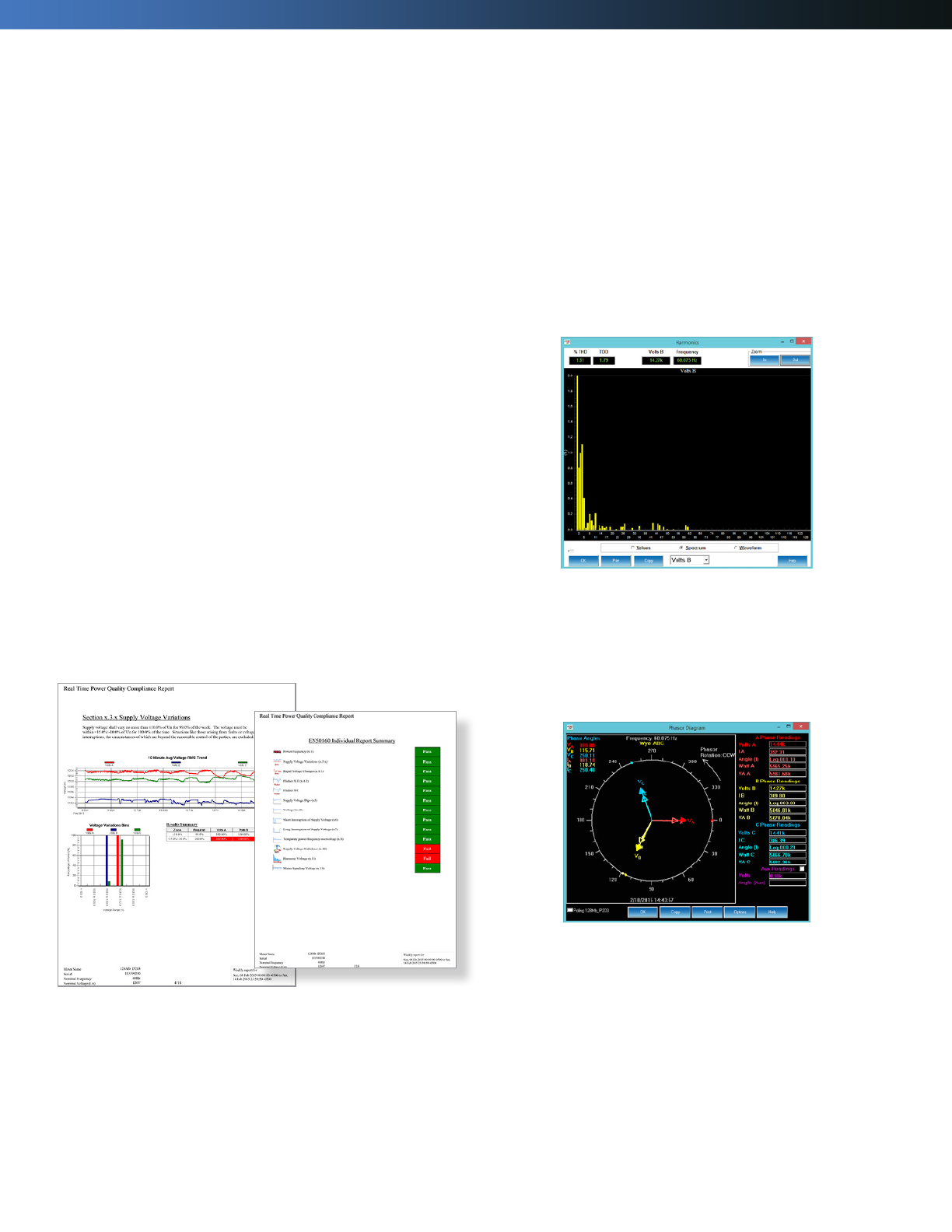

Easy-to-Understand Reports Displaying PQ Compliance

Set Limit Control:

The Nexus® 1500+ power monitor provides the user with programmable

setpoints. This feature allows a user to configure the meter to be used

as a control device for many applications, such as:

• Capacitor control

• Load shedding

• Automatic transfer schemes

• Transformer monitoring & control

• Redundant protection (not designed for primary over-current

protection)

• Many other control functions

Alarm Notification:

• The Nexus® 1500+ meter lets you set multiple

programmable limits for any measured value, as well as those

set up in a Boolean logic tree, and limits set up in the IEC 61850

protocol implementation. Users can be notified of alarm

conditions via email.

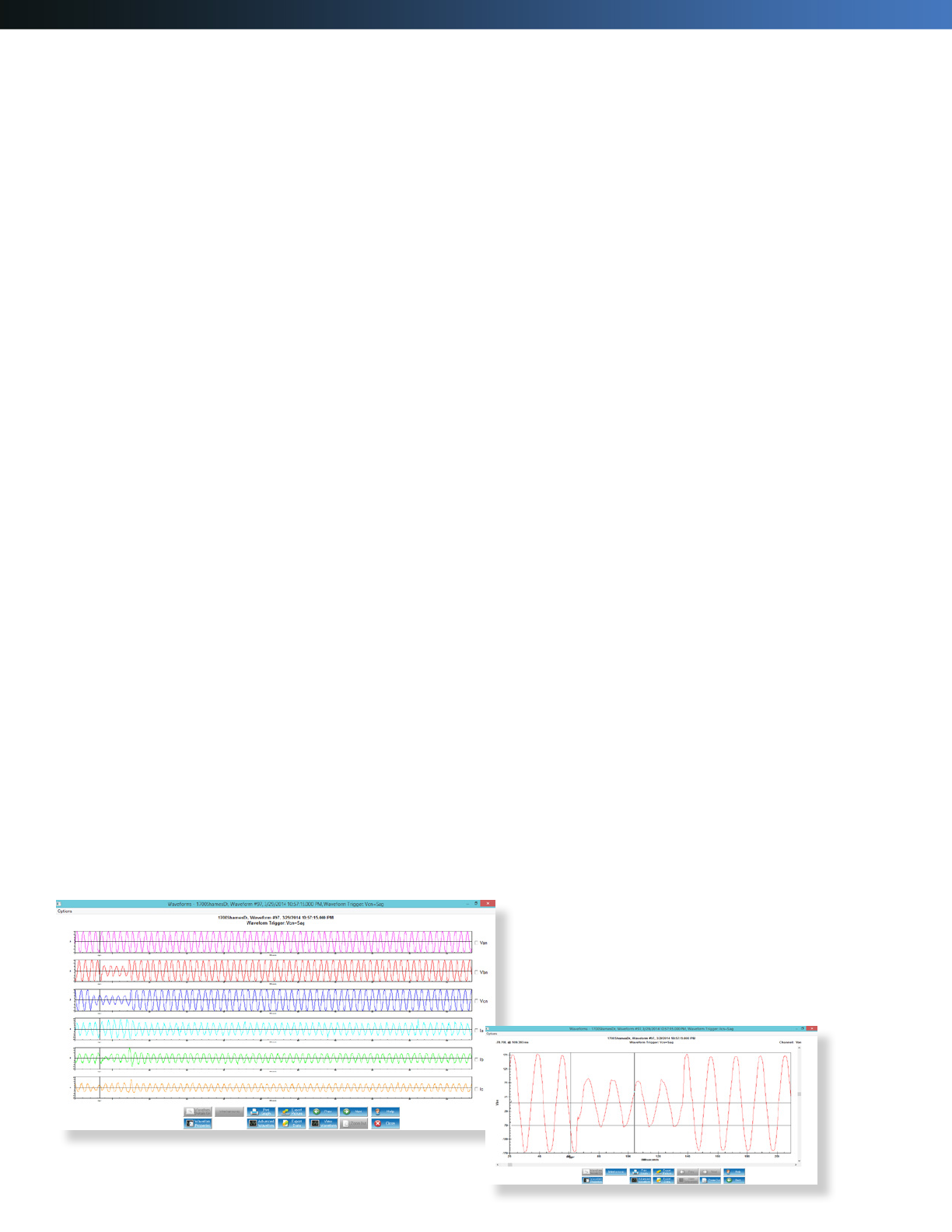

16 Bit Waveform and Fault Recorder:

• Record up to 1024 samples per cycle; capture a transient at over

800,000 samples per cycle or at 50 MHz sampling speed

• Voltage and current recording with pre and post-event analysis

• Fault recording offers 8 times full scale capture capability

• 16 bit A/D converter provides precise waveform resolution

• Both hardware and software triggers are available

High-speed Status Input Triggers:

• Waveforms are recorded at time of status change

• Input change and waveform recording are time-stamped to a

100 micro second resolution

• Inputs and waveforms can be displayed together to time breakers

and relays

Subcycle 50 MHz Transient Recorder (V3 Option):

Transients often cause intermittent, expensive periods of downtime. The

subcycle transient recorder allows you to:

• Record subcycle transients at 50 MHz resolution

• Monitor switching noise from capacitors, static transfer switches,

SCRs, and other devices that negatively impact power quality

This feature is essential for critical applications such as hospitals,

wafer-fabs plants, data centers and other highly power quality sensitive

applications.

Independent ITIC/CBEMA Log Plotting:

• Quickly view total surges, sags, and average duration in the

independent ITIC/CBEMA log

• SEMI F47 graphing for power quality compliance in semi-

conductor industry

Compatible Waveform Formats

Using Communicator EXT™ software, the meter will provide all

waveform data via COMTRADE and PQDIF compatible formats. This

allows the waveform PQ and fault records to be read by most third-party

waveform analysis software programs.

• COMTRADE (common format for transient data exchange) is

defined by IEEE Std C37.111

• PQDIF (power quality data interchange format) is defined by IEEE

Std 1159.3-2003

Record and Analyze Waveform Fault and

Transient Data

Multiport Communication

The Nexus® 1500+ meter offers up to 6 simultaneous communication

ports and multiple protocols to meet almost every need.

Hardware Features:

• 2 optional RS485 ports speaking Modbus and/or DNP 3.0

• USB front panel port

• ANSI optical front panel port

• 2 separately addressable Ethernet ports

• Optional Fiber or RJ45 media on one Ethernet port

Ethernet Communication Port Capabilities:

• 2 Ethernet ports provide multiple simultaneous communication

• Each port has separate MAC address and IP address

• Supports Modbus TCP/IP, DNP 3.0 and IEC 61850

• GOOSE messaging protocol supported for IEC 61850

• Up to 32 Modbus TCP/IP sockets per Ethernet port

• Highly secure port control to disable unneeded services

and ports

• Email Function - SMTP email to client on alarm

• Precise Time Synchcronization - SNTP Time Sync protocol

• File Transfer Protocol - High-speed file data transfer

Industry-Leading DNP 3.0 Level 2 Plus - Complies

with DNP Level 1 and Level 2 Certification

Requirements:

• Up to 136 measurements (64 Binary Inputs, 8 Binary Counters,

64 Analog Inputs) can be mapped to DNP static points

• Up to 16 relays and 8 resets can be controlled through DNP

• Report-by-exception processing (DNP Events) deadbands

with unsolicited response for serial communication

• 250 available events, in four event types (Binary Input Change,

Frozen Counter, Counter Change, and Analog Change)

8 Built-in Digital High-speed Status Inputs:

• Inputs automatically sense whether the circuit is externally wetted

• If externally wetted, input up to 150 VDC is accepted

• If internally wetted, the meter supplies the necessary voltage for

the contol application

VAUX Input:

• Neutral to ground or aux voltage readings

• Synchronizing schemes, for example, obtaining the frequency,

magnitude, and phase angle on both sides of a switch or between

generator and bus voltage

Highly Capable Communication Options

Substation Automation

V-Switch™ key levels V2 and above offer an embedded IEC 61850

Protocol Server for seamless integration with substation automation

applications. Features of the Nexus® 1500+ meter’s IEC 61850

implementation include:

• The IEC 61850 Protocol Server allows up to 6 simultaneous

MMS clients.

• Either Ethernet port can be configured for IEC 61850 (only one

port at a time can run IEC 61850).

• GOOSE publisher/subscriber functionality is supported.

• Buffered and unbuffered reports are supported for the following

triggers: general meter interrogation, for example, the report is

generated in response to a query; meter integrity, for example,

the report is generated according to a programmed interval; and

data change, for example, the report is generated due to a change

in the contents of a dataset.

• File transfer is supported.

• Embedded Web Protocol Server support is available for IEC

61850 CID file uploading, IEC 61850 Protocol Server status and

for displaying incoming and outgoing GOOSE messages.

• Multiple Logical Nodes, which map flicker, harmonics, digital

inputs/outputs, limit state, voltage, current, energy and other

data, are supported.

• Waveform capture can be triggered by status input data inside

GOOSE messages. The user can program up to 16 status inputs

that will trigger a waveform capture when the information is

received via a GOOSE message. The status inputs include digital

inputs, limit states, and any other status input supported by the

meter.

V-Switch™ Key Technology

The Nexus® 1500+ meter is equipped with V-Switch™ key upgrade

technology that lets you upgrade meter functionality even after

installation. This means you can purchase what you need now and then

upgrade whenever you need the additional features. Following are the

available V-Switch™ keys:

Feature V1 V2 V3

Basic Measurements * * *

Memory 512 MB 1 GB 4 GB

Sampling Speed 512 1024 Up to 800,000

50 MHz Transients *

EN61000-4-30

Class A

* * *

IEC 61850 Server * *

IEC 61850 GOOSE * *

Unique GOOSE Cross Trigger:

• Fault-based cross trigger of waveform based on GOOSE message

• Provides system-wide distribution fault analysis on an event

• Timing better than 200 microseconds is typical

• Many different circuits can be viewed after an event occured

Intelligent Substation IEC 61850 Design

Cross Trigger Fault Readings for Simultaneous Station-wide Fault Analysis

The Meter of Choice for Critical Energy Measurement

Designed for use between two utility tie points

or for critical SCADA data

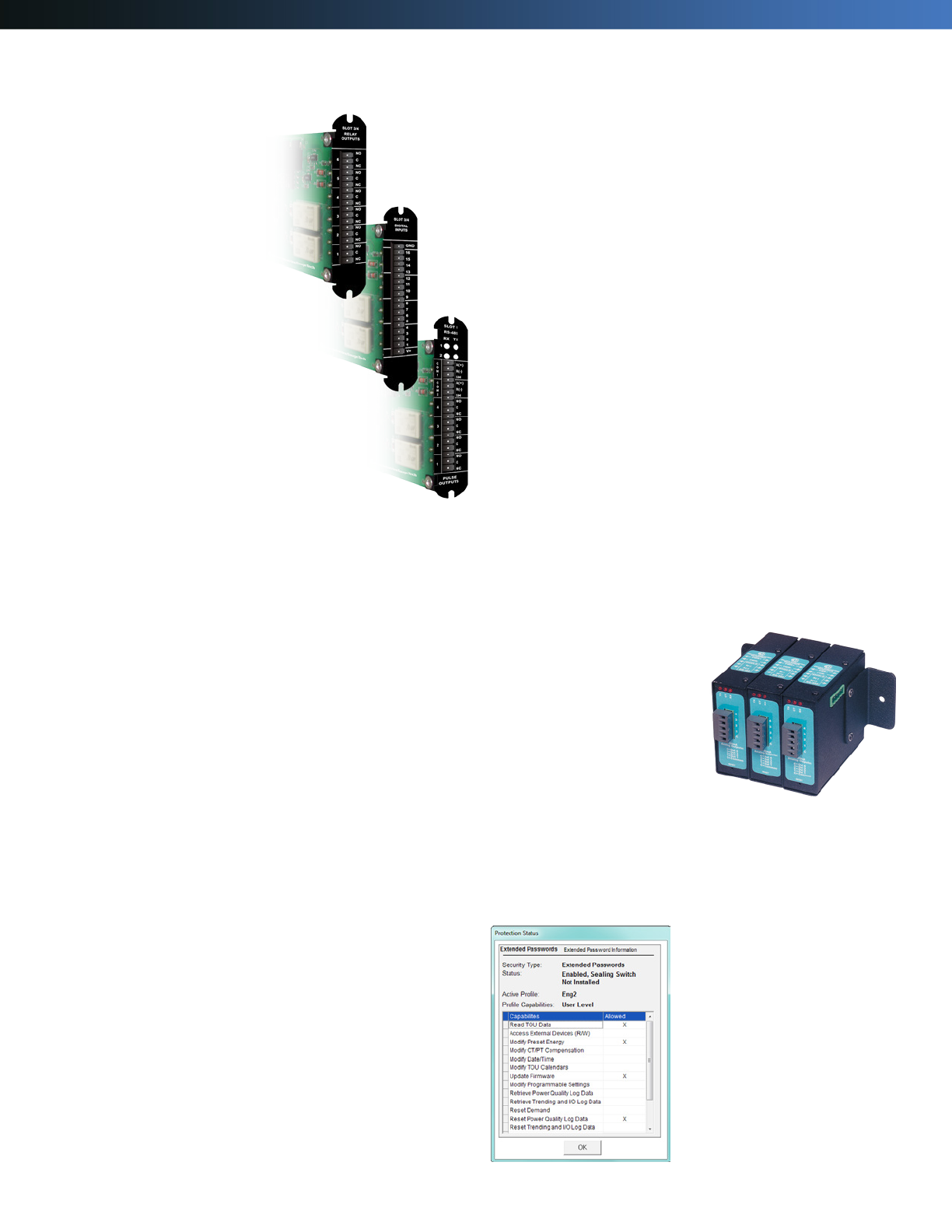

Internal I/O

Pulse Outputs:

485P: Dual RS485/Pulse Output Card

• 4 KYZ pulses - Solid State

• Pulse width: 5 ms

• Two RS485 ports

Relay Outputs:

6RO1: 6 Relay Output Card

• 5 A, 250 VAC/30 VDC

• Form C (Latching)

Digital Input Status:

16DI1: 16 Status Inputs Card

• Used for alarm detect or pulse accumulation

• Up to 150 VDC wetted or non-wetted (24 VDC

internally provided)

Note: The Nexus® 1500+ meter provides one I/O slot for the 485P

(Slot 1), and two I/O slots for the 6RO1 and 16DI1 (Slots 3 and 4).

External I/O

Analog Outputs:

• 1mAON4/1mAON8: 4 or 8 Analog Outputs, 0-1 mA,

self-powered, scalable, bidirectional

• 20mAON4/20mAON8: 4 or 8 Analog Outputs, 4-20 mA,

self-powered, scalable

• Wiring: Common Mode

• Accuracy: 0.1% of Full Scale

• Calibration: Self-calibrating

• Scaling: Programmable

• Ordering: Up to 4 Analog Output modules

Analog Inputs:

• 8AI1: 8 Analog Inputs, 0±1 mA

• 8AI2: 8 Analog Inputs, 4-20 mA

• 8AI3: 8 Analog Inputs, 0±5 VDC

• 8AI4: 8 Analog Inputs, 0±20 VDC

• Wiring: Common Mode

• Accuracy: 0.25% of Full Scale

• Scaling: Programmable

• Ordering: Up to 4 Analog Input modules

Digital Dry Contact Relay Outputs:

• 4RO1: 4 Relay Outputs, 5 A, 250 VAC/30 VDC, Form-C Latching

• Ordering: 1 module in addition to internal modules

Digital Solid State Pulse Outputs:

• 4PO1: 4 Solid State Pulse Outputs, Form A or C KYZ pulses

• Maximum Pulse Speed: 20 pulses per second

• Ordering: Up to 4 Digital Solid State Output modules

I/O Module Accessories (Required):

• PSIO: Power supply required

when using an external

I/O module. The Nexus®

1500+ meter does not have

internal power for external

I/O modules.

• MBIO: Mounting bracket for

external I/O modules. Must

be ordered with external I/O

module.

Secure Communication

The Nexus® 1500+ meter offers 9

levels of password security to protect

the meter from unauthorized use. Each

level can be configured to enable spe-

cific capabilities, so that a Utility can

control access to functions according

to the type of user. For example, one

user level is able to create and change

TOU calendars, while a different user

level is able to read TOU data, but not

change anything.

Expandable Inputs and Outputs to Extend Measurements

Expandable

External

I/O Modules

The Nexus® 1500+ meter features an LCD color display with touch

screen capability. The display uses bright TFT glass with a high tempera-

ture and long life LED backlight. LED is superior to CCFL solutions due to

better temperature and half-life specifications. Screen displays include:

• Real-time viewing (voltage,

current, power, demand)

• Accumulated energy and

time of use readings

• Flicker readings

• Alarms

• Phasor Analysis

• Harmonic spectrum

analysis and waveforms

• Real time trending

• Log status

• Configuration settings

• Multi-language Support

Vaux

N/U

CTs

CBA

Vaux

N/U

CTs

PTs

NCBA

Vaux

CTs

N/U

NCBA

Vaux

PTs

CTs

N/U

Earth Ground

Earth

Ground

Shorting

Block

Earth

Ground

Shorting

Block

Earth

Ground

Shorting

Block

Earth

Ground

Shorting

Block

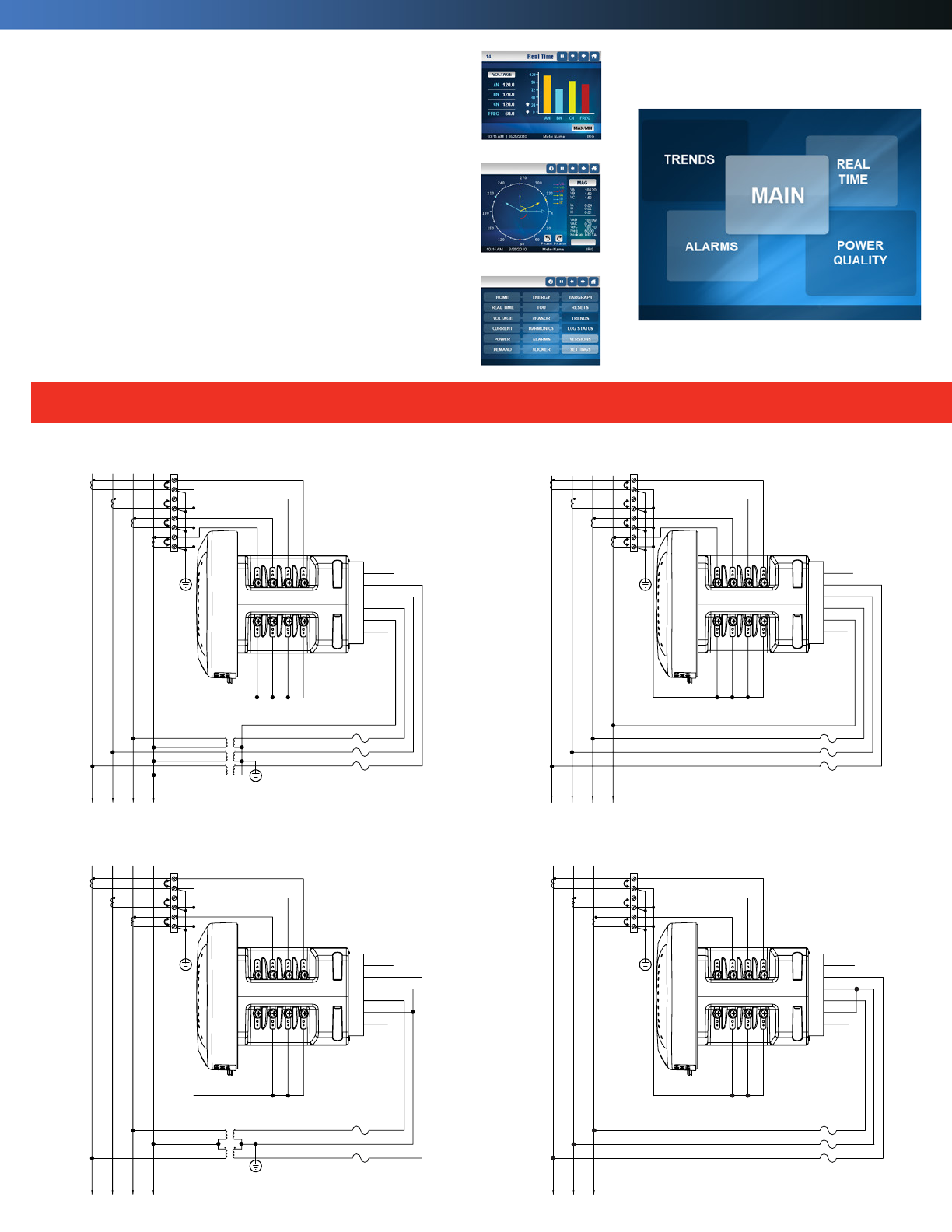

Wiring Diagrams

4-Wire Wye, 2.5 Element, 3 CTs and 2 PTs

Vivid Color Display

4-Wire Wye, 3 Element with 4 CTs and 3 PTs

*Note: Optional CT for Current Measurement Only

3-Wire, 2 Element Delta Direct with 2 CTs

4-Wire Wye, 3 Element with 4 CTs and no PTs

*Note: Optional CT for Current Measurement Only

Vibrant LCD Touch Screen Display

Specifications

Voltage Input Range:

• (5-347)VAC, Line to Neutral

• (10-600)VAC, Line to Line

Voltage Input Withstand Capability:

• Voltage Inputs isolated to 2500 VAC

Current Input Range:

• Programmable to any CT ratio

• Class 2: Nominal 1 A, with 2 times over range

• Class 2: fault current recording to +/- 16 A

peak

• Class 20: Nominal 5 A, with 4 times over range

• Class 20: fault current recording to +/- 80 A

peak

Current Input Withstand Capability

(at 23°C):

• 100 A for 10 seconds

• 300 A for 3 seconds

• 500 A for 1 second

Burden:

• Voltage Inputs: 0.072 VA/phase max at 600

volts, 0.003 VA/phase max at 120 volts

• Current Inputs: 0.008 VA per phase max at 20 A

Isolation:

• All inputs to outputs are isolated to 2500 VAC

Temperature Rating:

• Operating temperature: (-20 to +70)°C

• Storage temperature: (-30 to +80)°C

• Humidity: Up to 95% RH non-condensing

Sensing Method:

• Up to 1024 samples per cycle (programmable)

• 16 Bit A/D resolution – multiple converters

• Constant Calibration™ technology

• True RMS

• Transient at 50 million samples per second

Accuracy Rating:

• Energy measurement accuracy at 0.06%

• Full accuracy specifications available in

Nexus® 1500+ meter User Manual

• Time clock: 3.5 ppm for -40 to +85 °C - less

than 10 seconds drift per month on crystal

sync; 2.0 ppm Typical from 0 - +40 °C - less

than 6 seconds per month drift

Update Time:

• 1 Second - Revenue accurate readings

• 1 Cycle - Faster updated readings

• Customizable high-speed readings - from 2 to

20 cycles RMS

Control Power Requirements:

• D2 Option: (100–240)VAC @50/60 Hz or

(100-240)VDC

• 115AC Option: (100-240)VAC @50/60 Hz

• D Option: (18-60)VDC (24-48 VDC Systems)

• Burden: 25 VA Max

Frequency Range:

• 45 Hz–69.9 Hz

Communication:

• Programmable parity and stop bits

• Communication protocols: Modbus TCP/IP,

ASCII/RTU; DNP 3.0; IEC 61850 (V2 and above)

• ANSI optical port

• USB 1.1/2.0 Virtual COM port

• RJ45 Ethernet port 10/100BaseT

• Optional 2nd Ethernet port - RJ45 or Fiber Optic

• 2 RS485 ports (optional)

Shipping:

• Total shipping weight: approx. 6.5 lbs (2.9 kgs)

• Shipping container dimensions: 16" x 15.5" x

11.5" (40.64 am x 39.37 cm x 29.21 cm)

Compliance:

• ANSI C12.20 (0.2 Class) and IEC 62053-22

(0.2S Class) Accuracy

• ANSI C12.1 (Code for Electricity Metering)

• ANSI C62.41 (Burst)

• ANSI/IEEE C37.90.1 – Surge Withstand

• FCC Part 15, Subpart B, Class A

• IEC 61000-4-2 – ESD

• IEC 61000-4-3 – Radiated Immunity

• IEC 61000-4-4 – Fast Transient

• IEC 61000-4-5 – Surge Immunity

• IEC 61000-4-6 - Conducted Immunity

• IEC 61000-4-7 – Harmonics

• IEC 61000-4-15 – Flicker Meter

• IEC 61000-4-30 – Class A

• IEC 62052-11 - General Requirements

• IEC/CISPR 14-1 - Continuous EM Disturbance

• CE Marked

• UL and cUL Listed

External I/O Modules

• 1mAON4: 4 Analog Outputs, 0±1 mA

• 1mAON8: 8 Analog Outputs, 0±1 mA

• 20mAON4: 4 Analog Outputs, 4-20 mA

• 20mAON8: 8 Analog Outputs, 4-20 mA

• 8AI1: 8 Analog Inputs, 0±1 mA

• 8AI2: 8 Analog Inputs, 4-20 mA

• 8AI3: 8 Analog Inputs, 0±5 VDC

• 8AI4: 8 Analog Inputs, 0±10 VDC

• 4RO1: 4 Relay Outputs

• 4PO1: 4 Solid State Pulse Outputs

• PSIO: Power Supply for I/O modules (must be

ordered with external I/O module)

• MBIO: I/O mounting bracket (must be ordered

with external I/O module)

Note: Please see product User Manual for

comprehensive specifications.

Wiring Diagrams

Front Side Back

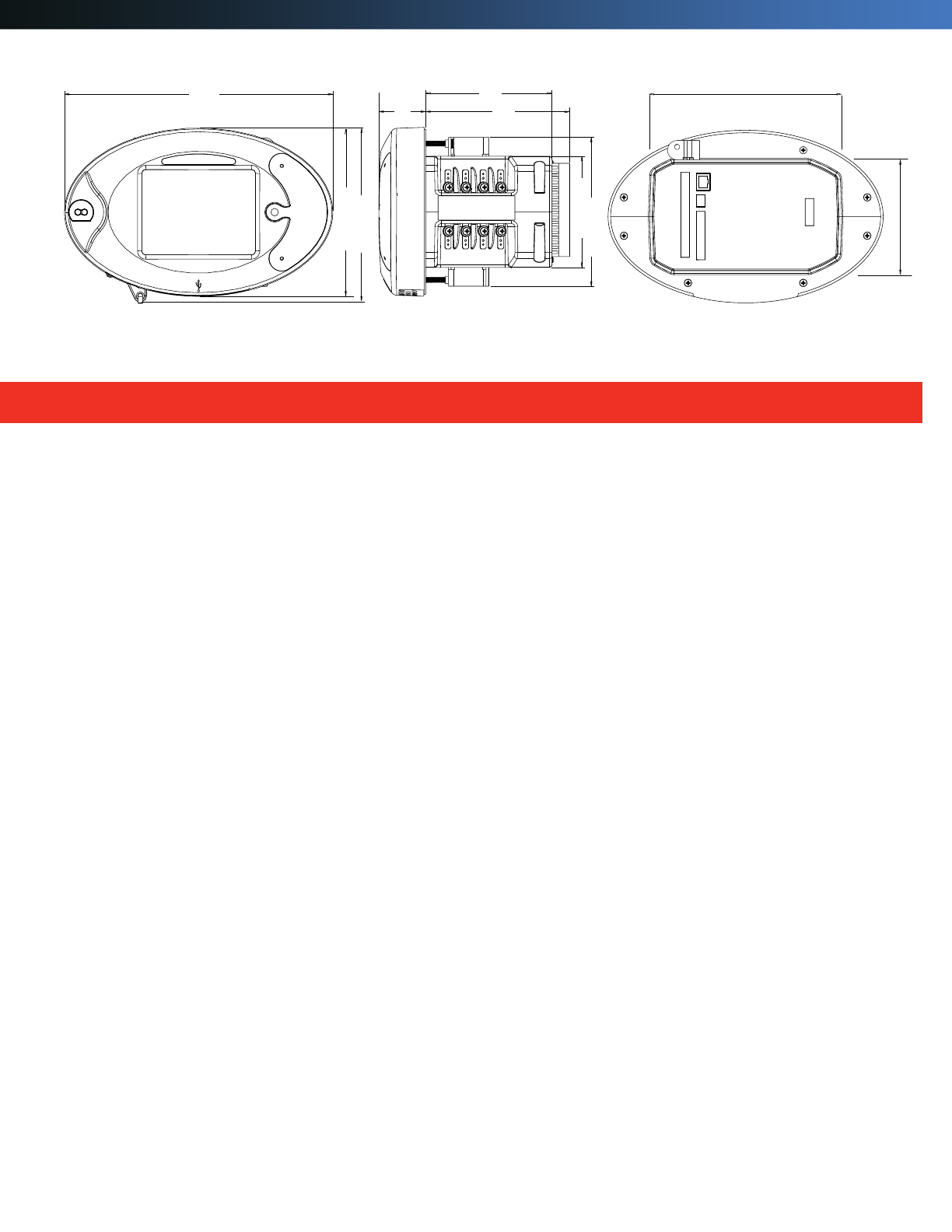

Dimensional Drawings

4.44”

[11.28cm]

7.6”

[19.30cm]

5.94” [15.09cm]

4.44” [11.28cm]

5.04”

[12.80cm]

5.73”

[14.55cm]

1.87”

[4.75cm]

10.74”

[27.28cm]

6.96” [17.68cm]

6.74” [17.12cm]

To order a Nexus® 1500+ meter:

• Fill out the options you want in the order chart shown below:

list accessories separately.

• Specify Communicator EXT™ 4.0 software.

• EIG can also provide current and potential transformers.

• Email or fax order information and quantity to the email address or fax

number listed below, or call the phone number listed below to place

your order.

About Electro Industries: Electro Industries/GaugeTech is one of the oldest and largest manufacturers of microprocessor-based digital power meters in the

United States. EIG's success is attributable to our willingness to support our users with on-staff technical expertise. Contact us and we will assist you in solving your

complex metering applications.

Nexus® 1500+ web page:

http://electroind.com/product-info/nexus-1500_plus-next-

generation-power-quality-revenue-meter/

1800 Shames Drive, Westbury, NY 11590 1-877-EIMETER (1-877-346-3837)

Tel: 516-334-0870 Fax: 516-338-4741 Email: sales@electroind.com

www.electroind.com

Ordering Information

Nexus®

Base Meter

Control

Power

Frequency

Range

Current

Class

Virtual

Switch

Communication

Expansion/Slot 1

I/O

Slot 2

I/O

Slot 3

I/O

Slot 4

Option

Numbers:

Example: Nexus 1500+ D2 60 20 V2 485P NTRJ 6RO1 6RO1

Nexus®

1500+ Meter

115AC

(100-240)VAC

@50/60 Hz

60 Hz

20 A

Standard

Nexus® 1500+ Meter

512 MB memory / 512 s/c

No Option

Universal

(100-240)VAC

@50/60 Hz

or (100-240)VDC

50 Hz

2 A

V1 + 1 GB memory /

1024 s/c

IEC 61850

485P

2 RS485 and

4 Pulse Outputs

NTRJ

Second RJ45

Network Card

6RO1

6 Relay

Outputs

6RO1

6 Relay

Outputs

(18-60)VDC

V2 + 4 GB memory /

50 MHz

Transient Recording

NTFO

Second Fiber

Network Card

(ST terminated)

16DI1

16 Status

Inputs

16DI1

16 Status

Inputs

Accessory Options

Software

COMEXT4P1Y Communicator EXT™ 4.0

Software for Windows

Single-Computer License (One

Site)

I/O Modules

1mAON4

1mAON8

20mAON4

20mAON8

8AI1

8AI2

8AI3

8AI4

4RO1

4PO1

4 Analog Outputs, 0±1 mA

8 Analog Outputs, 0±1 mA

4 Analog Outputs, 4-20 mA

8 Analog Outputs, 4-20 mA

8 Analog Inputs, 0±1 mA

8 Analog Inputs, 4-20 mA

8 Analog Inputs, 0±5 VDC

8 Analog Inputs, 0±10 VDC

4 Relay Outputs

4 Solid State Pulse Outputs

*PSIO

*MBIO

Power Supply for

External I/O Modules

I/O Mounting Bracket

* Must be ordered with an external

I/O module.

- - -- -- - -

Electro Industries/GaugeTech

™

The Leader in Power Monitoring and Smart Grid Solutions™

E154718 012016 V.1.05

Nexus 1500+ Power Quality Meter Brochure V.1.05 E154718 1500

Navigation menu

Versions of this User Manual:

Views

Navigation
