Page 1
Project Name
Catalog No. Date

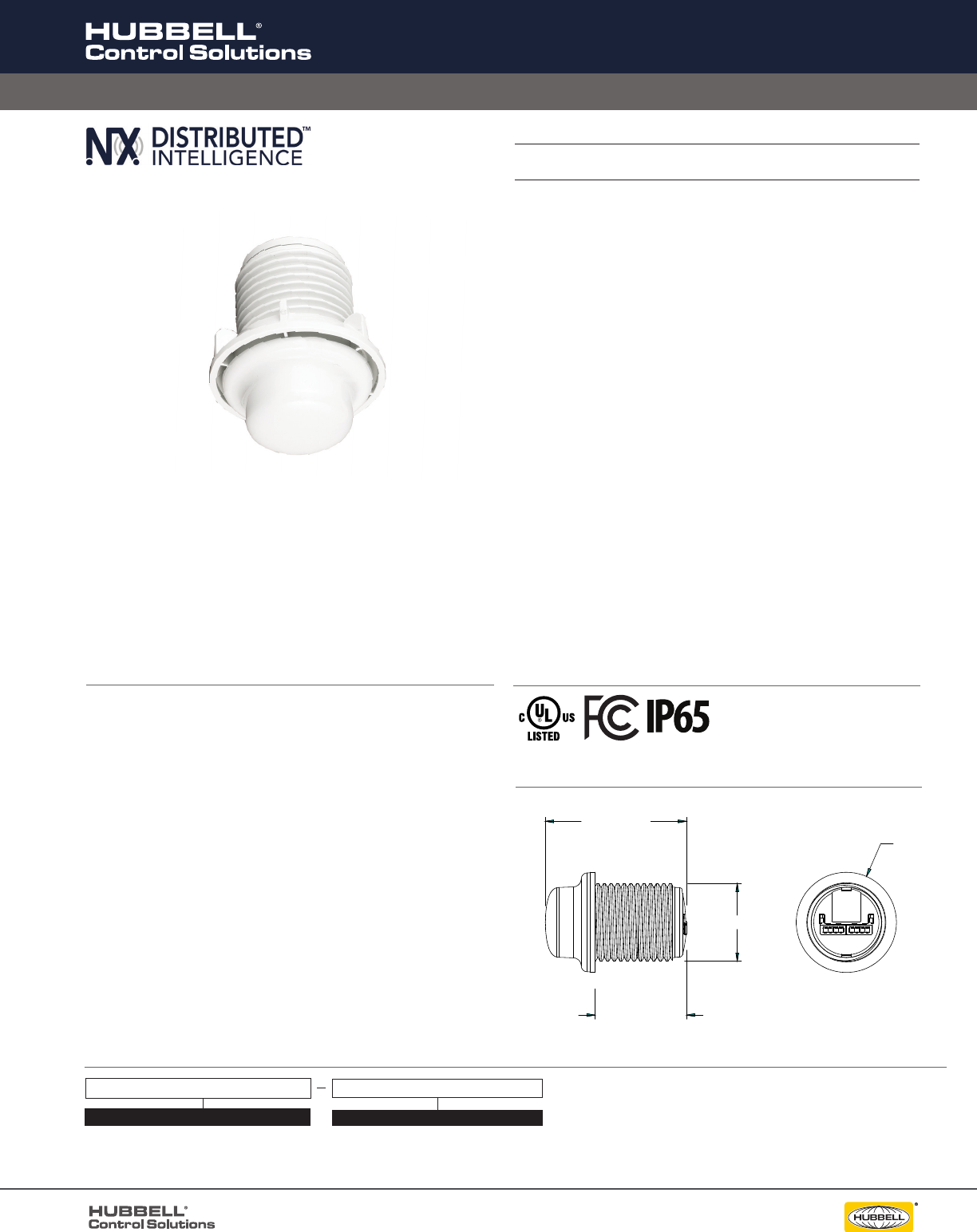

NXRM SERIES
HubbNETTM Radio Module
• Low prole housing for minimal visual impact
• Mounts in 1.25” round aperture
• O-ring gasket provides watertight seal to luminaire housing
• Robust & reliable IEEE 802.15.4 2.4GHz wireless self-organizing and
self-healing mesh network
• Integral compact PCB F antenna; no external antenna is required
• Integrates seamlessly into the NX HubbNET distributed lighting
control network
• 12 VDC, 30 mA supplied by SmartPORT controller
The Hubbell Control Solutions NX Radio Module allows a
luminaire equipped with the NXFM in-xture module to
be promoted wirelessly from standalone operation to full
network participation. The radio module simply plugs into the
SmartPORTTM connector on the xture module and is mounted
through an aperture in the luminaire housing giving the integral
antenna line of sight access outside the xture housing. The
exposed portion of the NXRM radio module is low prole, with
very little visual impact on the aesthetics of the luminaire.
The NXRM is the ideal solution for applications where
interconnecting xtures with control wire is not practical or
desired. Typical applications would include outdoor pole
lighting, warehouse, exhibition halls, or any application that
could benet from wireless integrated xture control.
Dimensional Data
Product Features Compliance and Certication
Ordering Information
2.1”
1.2”
1.4”
1.5”
H HubbNET Radio Module
NXRM NX Radio Module
RADIO TYPE
MODEL
NXRM H
3703A 101217
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
NXRM SERIES HubbNETTM Radio Module
Wiring Information

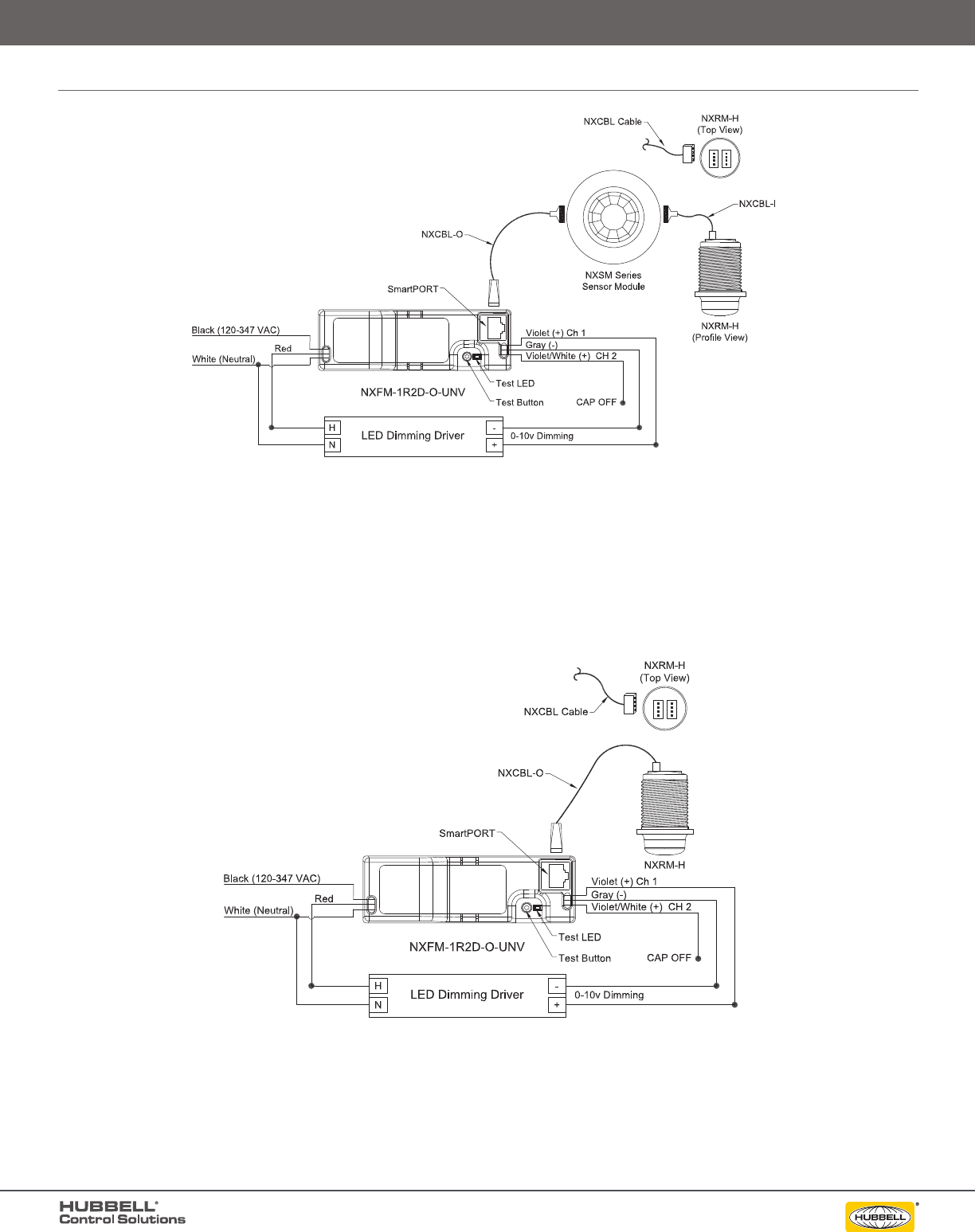

NXRM-H with Sensor
NXRM-H without Sensor
3703A 101217
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 3
NXRM SERIES HubbNETTM Radio Module
Wiring Information

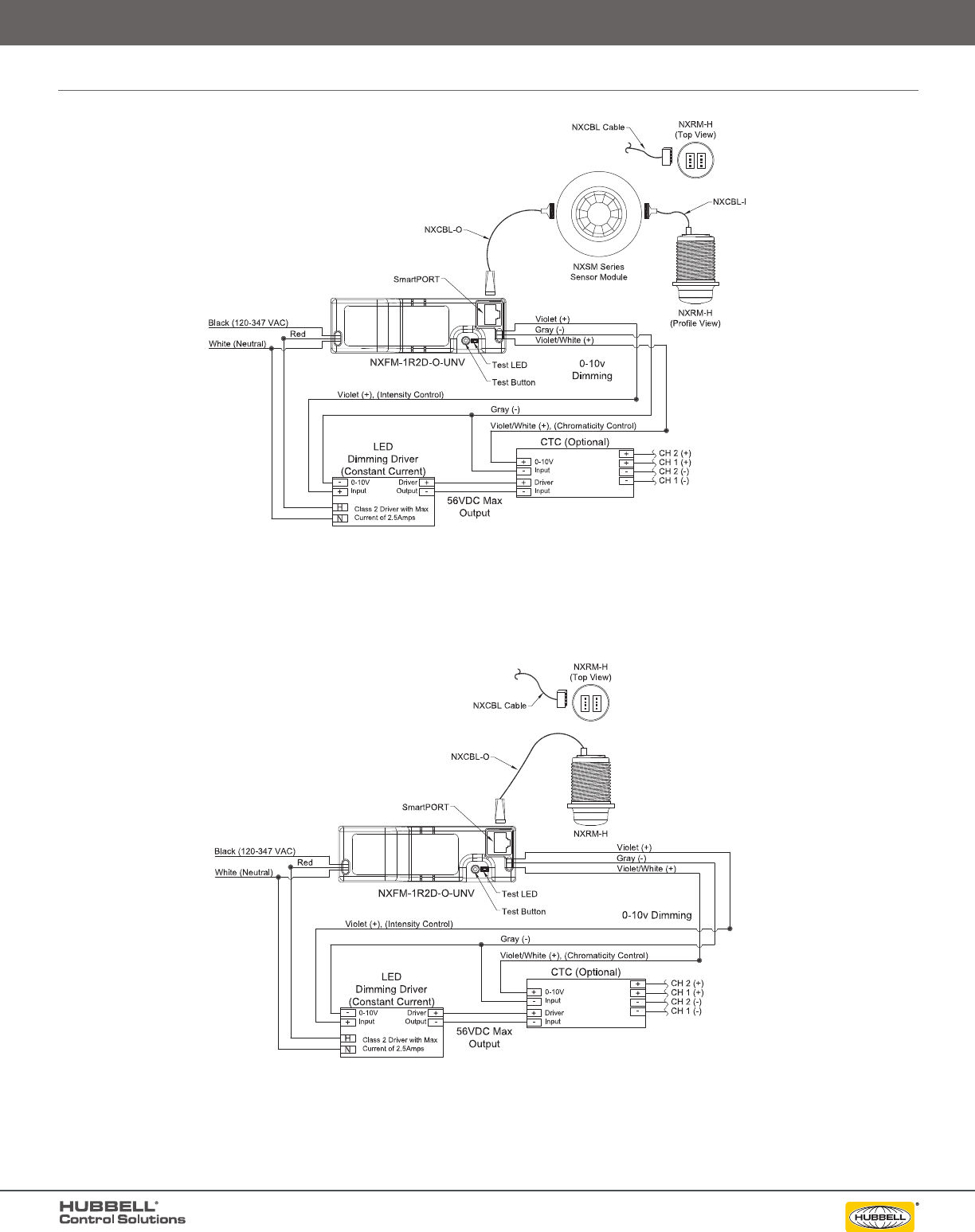

NXRM-H with Sensor and Optional CTC
NXRM-H without Sensor and Optional CTC
For SpectraSync™ applications, the
highest CCT LED should be on CH1 and
the lower CCT LED should be on CH2.
For SpectraSync™ applications, the
highest CCT LED should be on CH1 and
the lower CCT LED should be on CH2.
3703A 101217
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 4
NXRM MODEL HubbNETTM Radio Module
General Specications
RF Frequency ISM 2.4GHz
RF Range Up to 1000 ft (Clear Line of Sight)
Operating Environment
Operating Temperature: -40°F to 185°F (-40° Cto 85°C)
Relative humidity (non-condensing): 0 to 95%
IP65 Rated
Suitable for use in return air plenum
Construction Housing: GSM UL Rated 94 HB Plastic
Dimensions 2.1”L x 1.5”D Overall (1.4”L x 1.2”D Stem)
53.34mm L x 38.1mm D Overall (35.56mm L x 30.48mm D Stem)
Weight 4.0 oz [113.4g]
Color White, Black, Gray
Mounting Mounts in 1.25” diameter aperture, secured by supplied nut on threaded body
Certications cULus listed, FCC Part 15.247, Conforms with UL916 and certied to CAN/CSA C22.2 No. 205-M1983, IC approved
Warranty 5-year limited
