November 2016 DocID025833 Rev 11 1/69
1
UM1724
User manual
STM32 Nucleo-64 board
Introduction
The STM32 Nucleo-64 board (NUCLEO-F030R8, NUCLEO-F070RB, NUCLEO-F072RB,
NUCLEO-F091RC, NUCLEO-F103RB, NUCLEO-F302R8, NUCLEO-F303RE,
NUCLEO-F334R8, NUCLEO-F401RE, NUCLEO-F410RB, NUCLEO-F411RE,
NUCLEO-F446RE, NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE, NUCLEO-
L452RE, NUCLEO-L476RG) provides an affordable and flexible way for users to try out new
concepts and build prototypes with the STM32 microcontrollers in LQFP64 package,
choosing from the various combinations of performance, power consumption and features.
The Arduino™ Uno V3 connectivity support and the ST morpho headers allow to expand
easily the functionality of the Nucleo open development platform with a wide choice of
specialized shields. The STM32 Nucleo board does not require any separate probe as it
integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes
with the STM32 comprehensive software HAL library together with various packaged
software examples, as well as direct access to the ARM® mbed™ online resources at
http://mbed.org/
.
Figure 1. STM32 Nucleo-64 board (1)
1. Picture is not contractual.
www.st.com
Content UM1724
2/69 DocID025833 Rev 11
Content
1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Product marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3 Development toolchains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.4 NUCLEO-L476RG bootloader limitations . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.5 Hardware configuration variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6 Hardware layout and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.1 Cuttable PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2 Embedded ST-LINK/V2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2.1 Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2.2 ST-LINK/V2-1 firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2.3 Using the ST-LINK/V2-1 to program and debug the STM32 on board . 18
6.2.4 Using ST-LINK/V2-1 to program and debug an external
STM32 application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.3 Power supply and power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3.1 Power supply input from the USB connector . . . . . . . . . . . . . . . . . . . . . 20
6.3.2 External power supply inputs: VIN and E5V . . . . . . . . . . . . . . . . . . . . . 21
6.3.3 External power supply input: + 3.3V . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.3.4 External power supply output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5 Push-buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.6 JP6 (IDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.7 OSC clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.7.1 OSC clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.7.2 OSC 32 KHz clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DocID025833 Rev 11 3/69
UM1724 Content
3
6.8 USART communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.9 Solder bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.10 Extension connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.11 Arduino connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.12 ST morpho connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Appendix A Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
List of Tables UM1724
4/69 DocID025833 Rev 11
List of Tables
Table 1. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 2. Codification explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 3. ON/OFF conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 4. Jumper states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 5. Debug connector CN4 (SWD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 6. JP1 configuration table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 7. External power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 8. Power-related jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 9. +3.3V external power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 10. Solder bridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 11. Arduino connectors on NUCLEO-F030R8, NUCLEO-F070RB,
NUCLEO-F072RB, NUCLEO-F091RC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table 12. Arduino connectors on NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Table 13. Arduino connectors on NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table 14. Arduino connectors on NUCLEO-F303RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 15. Arduino connectors on NUCLEO-F334R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table 16. Arduino connectors on NUCLEO-F401RE and NUCLEO-F411RE . . . . . . . . . . . . . . . . . . 43
Table 17. Arduino connectors on NUCLEO-L053R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Table 18. Arduino connectors on NUCLEO-L073RZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Table 19. Arduino connectors on NUCLEO-F446RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Table 20. Arduino connectors on NUCLEO-F410RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Table 21. Arduino connectors on NUCLEO-L152RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Table 22. Arduino connectors on NUCLEO-L452RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Table 23. Arduino connectors on NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 24. ST morpho connector on NUCLEO-F030R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Table 25. ST morpho connector on NUCLEO-F070RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Table 26. ST morpho connector on
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F303RE, NUCLEO-F334R8. . . . . . . . . 55
Table 27. ST morpho connector on NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table 28. ST morpho connector on NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Table 29. ST morpho connector on NUCLEO-F401RE,
NUCLEO-F411RE, NUCLEO-F446RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Table 30. ST morpho connector on
NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE . . . . . . . . . . . . . . . . . . . . . . . . . 59
Table 31. ST morpho connector on NUCLEO-L452RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Table 32. ST morpho connector on NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Table 33. ST morpho connector on NUCLEO-F410RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Table 34. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
DocID025833 Rev 11 5/69
UM1724 List of Figures
5
List of Figures
Figure 1. STM32 Nucleo-64 board (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

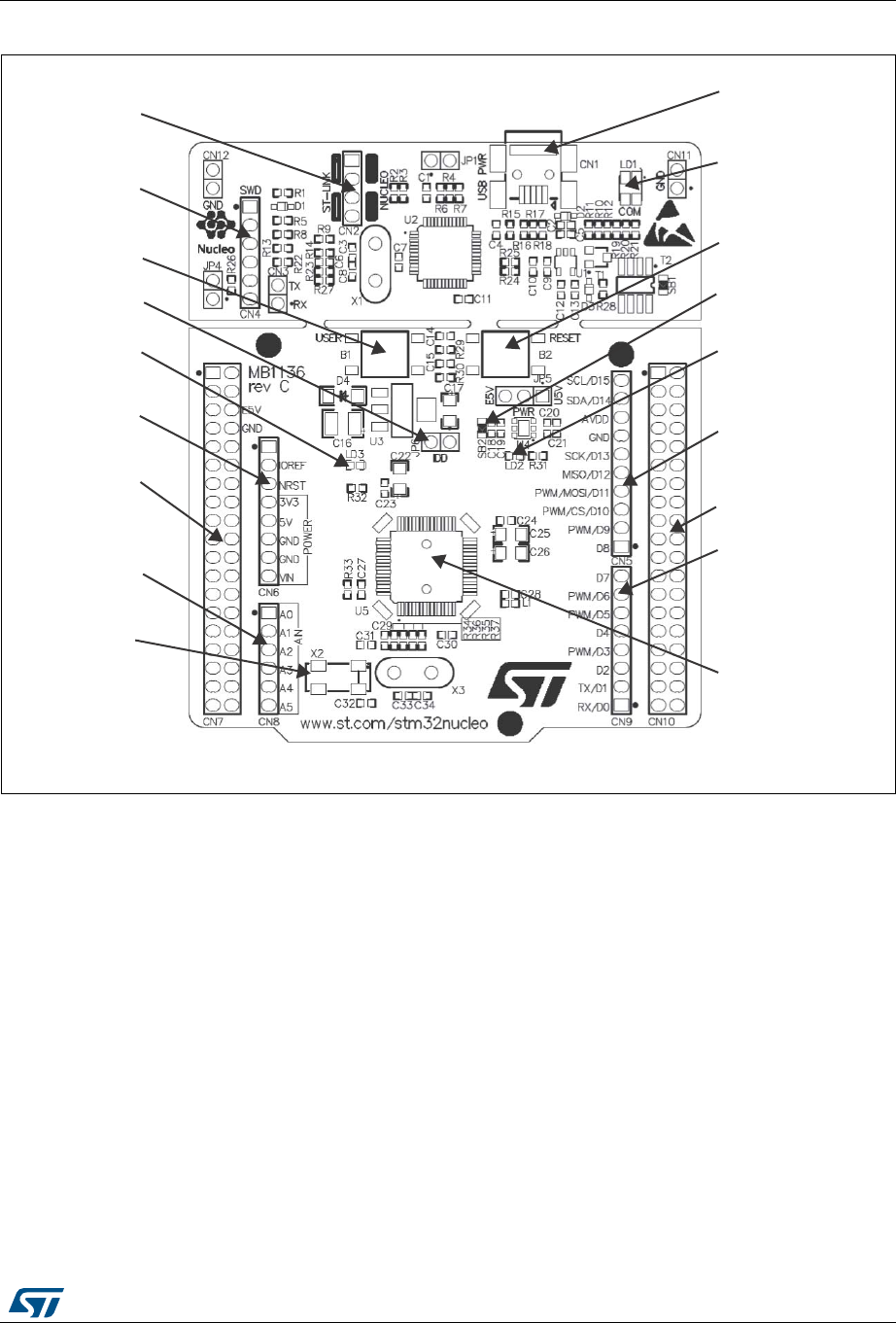

Figure 3. Top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

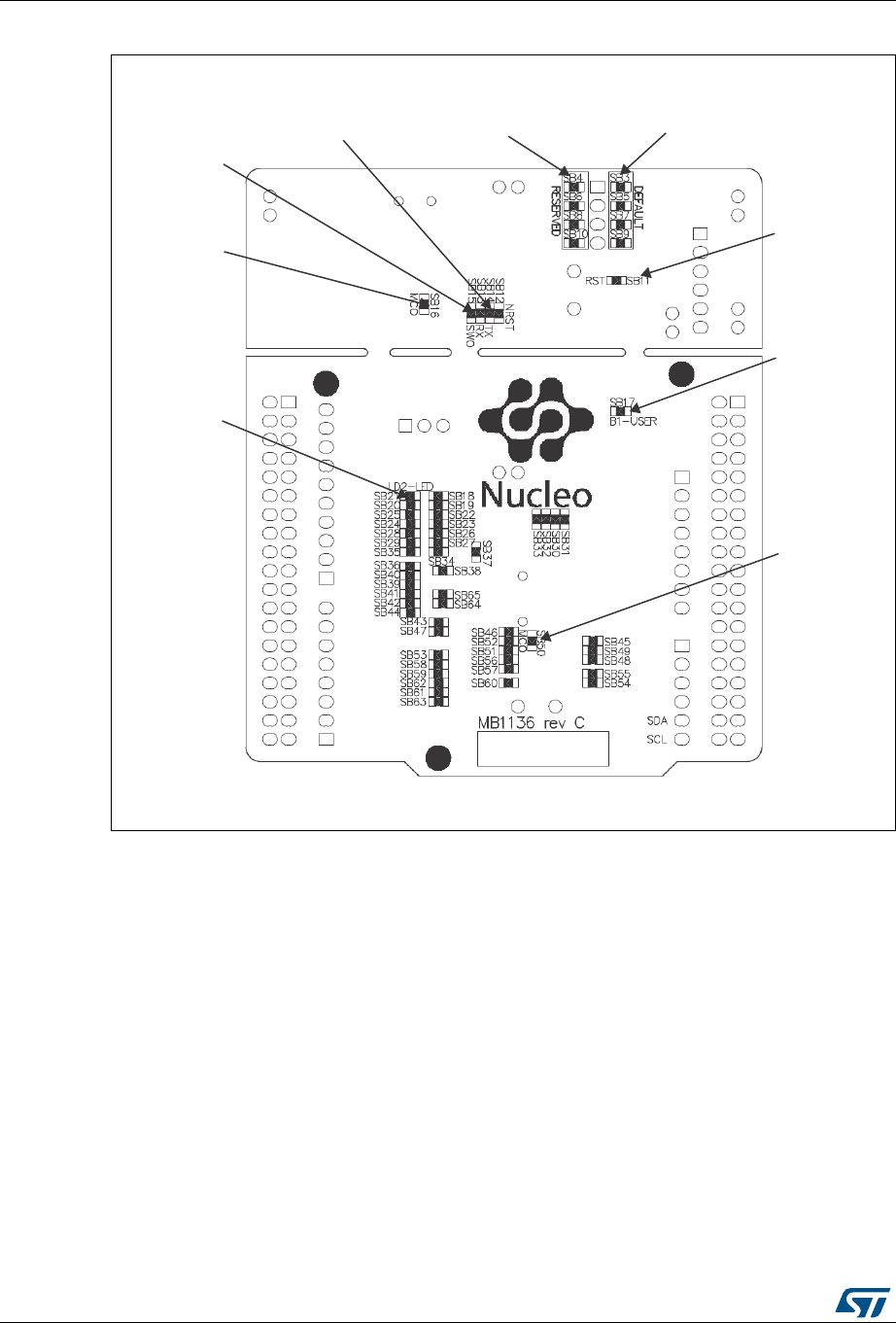

Figure 4. Bottom layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

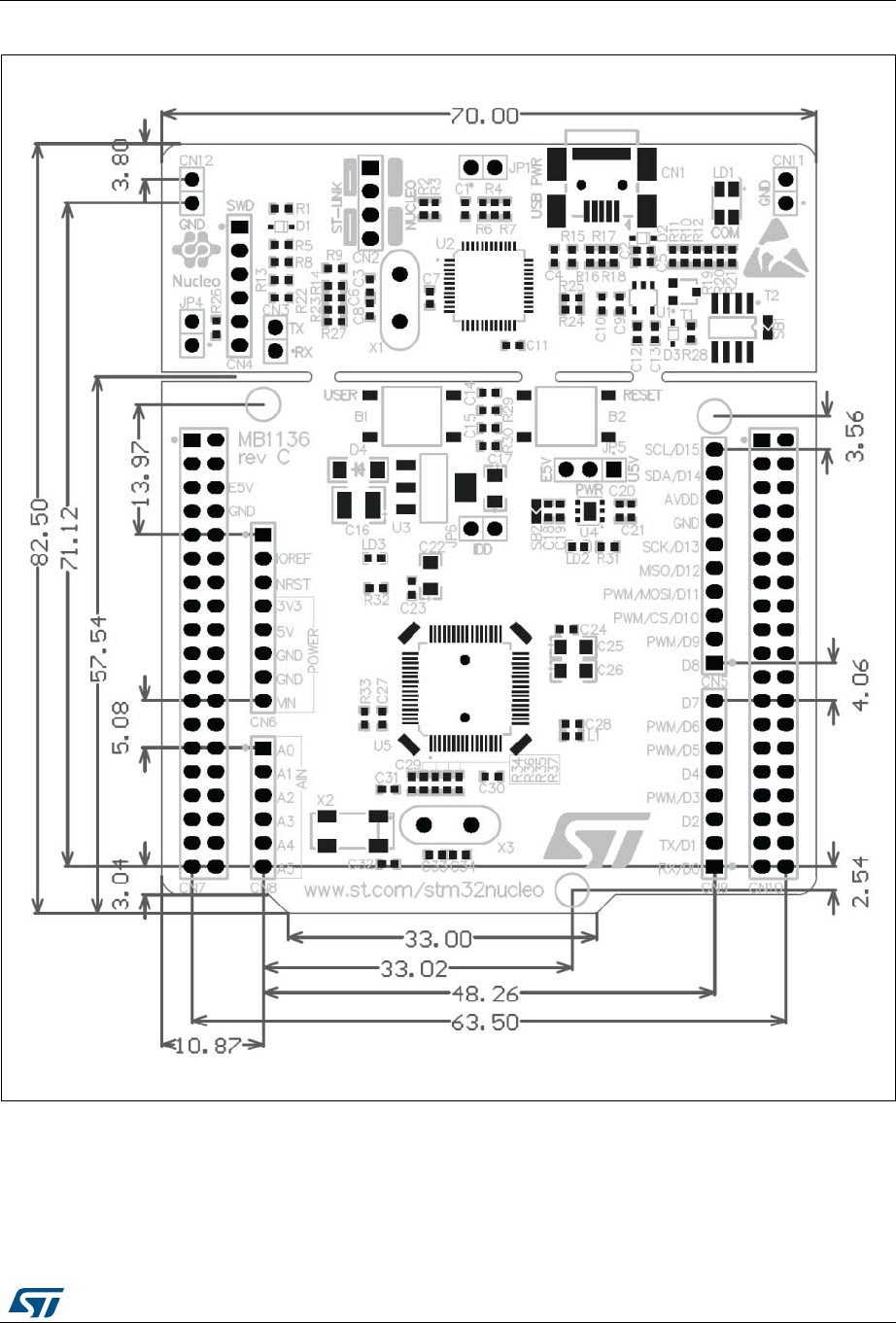

Figure 5. STM32 Nucleo board mechanical dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 6. Typical configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

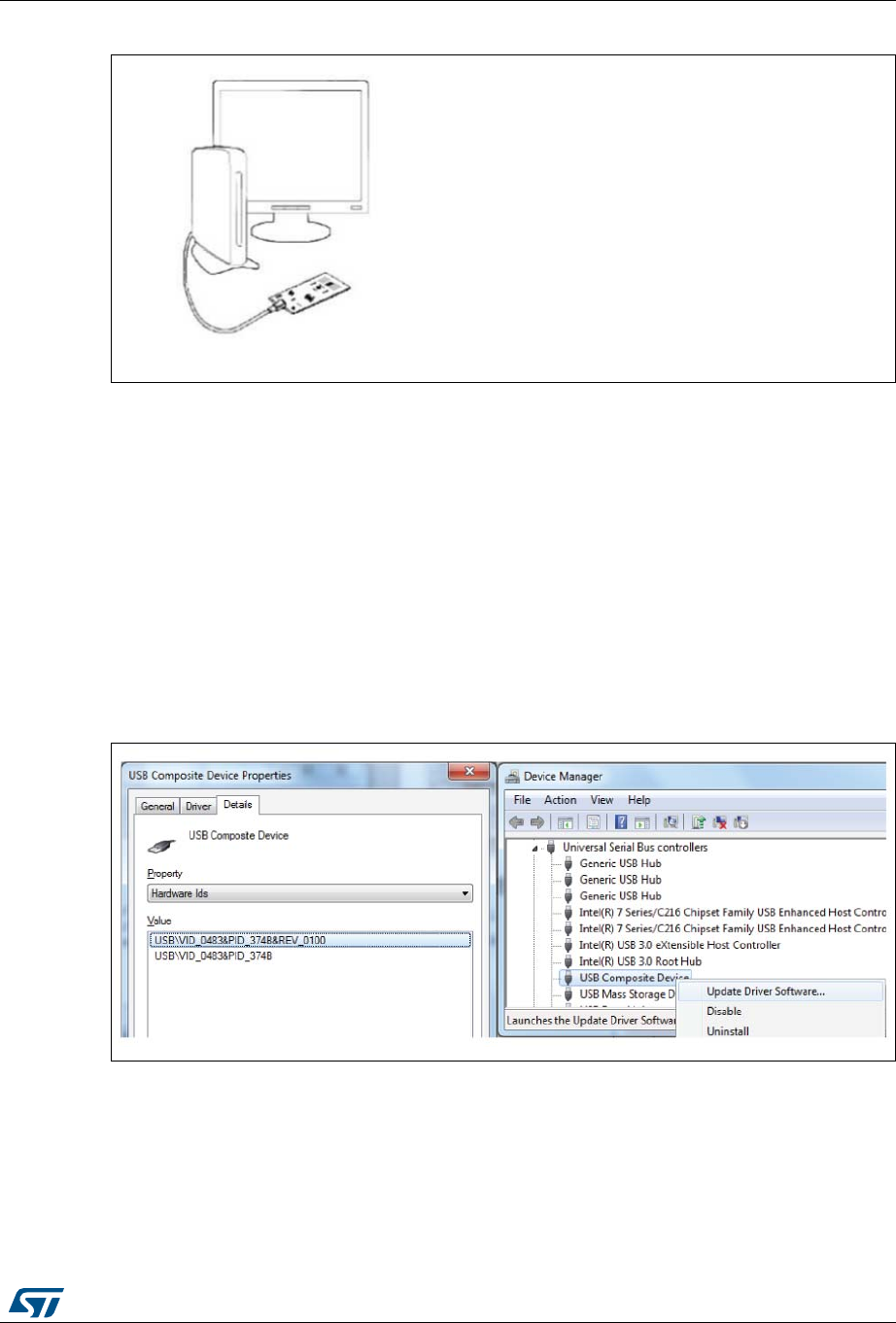

Figure 7. Updating the list of drivers in Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 8. Connecting the STM32 Nucleo board to program the on-board STM32 . . . . . . . . . . . . . . 18
Figure 9. Using ST-LINK/V2-1 to program the STM32 on an external application . . . . . . . . . . . . . . 19
Figure 10. NUCLEO-F030R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 11. NUCLEO-F070RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 12. NUCLEO-F072RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 13. NUCLEO-F091RC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 14. NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 15. NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 16. NUCLEO-F303RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 17. NUCLEO-F334R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 18. NUCLEO-F401RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 19. NUCLEO-F411RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 20. NUCLEO-L053R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 21. NUCLEO-L073RZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 22. NUCLEO-L152RE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 23. NUCLEO-L452RE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 24. NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 25. NUCLEO-F446RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 26. NUCLEO-F410RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 27. Top and Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 28. STM32 MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 29. ST-LINK/V2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 30. Extension connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Features UM1724
6/69 DocID025833 Rev 11
1 Features
The STM32 Nucleo board offers the following features:
•STM32 microcontroller in LQFP64 package
•Two types of extension resources
– Arduino™ Uno V3 connectivity
– ST morpho extension pin headers for full access to all STM32 I/Os
•ARM® mbed™ (see http://mbed.org)
•On-board ST-LINK/V2-1 debugger and programmer with SWD connector
– Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
•Flexible board power supply:
– USB VBUS or external source (3.3V, 5V, 7 - 12V)
– Power management access point
•Three LEDs:
– USB communication (LD1), user LED (LD2), power LED (LD3)
•Two push-buttons: USER and RESET
•USB re-enumeration capability. Three different interfaces supported on USB:
– Virtual COM port
– Mass storage
– Debug port
•Comprehensive free software HAL library including a variety of software examples
2 Product marking
Evaluation tools marked as "ES" or "E" are not yet qualified and therefore they are not ready
to be used as reference design or in production. Any consequences deriving from such
usage will not be at ST charge. In no event, ST will be liable for any customer usage of
these engineering sample tools as reference design or in production.
"E" or "ES" marking examples of location:
•On the targeted STM32 that is soldered on the board (for illustration of STM32 marking,
refer to the section “Package information” of the STM32 datasheet available at
www.st.com).
•Next to the evaluation tool ordering part number, that is stuck or silk-screen printed on
the board.
DocID025833 Rev 11 7/69
UM1724 Ordering information
68
3 Ordering information
Table 1 lists the order codes and the respective targeted STM32.
The meaning of the NUCLEO-TXXXRY codification is explained in Table 2 with an example:
The order code is printed on a sticker placed at the top or bottom side of the board.
Table 1. Ordering information
Order code Targeted STM32
NUCLEO-F030R8 STM32F030R8T6
NUCLEO-F070RB STM32F070RBT6
NUCLEO-F072RB STM32F072RBT6
NUCLEO-F091RC STM32F091RCT6
NUCLEO-F103RB STM32F103RBT6
NUCLEO-F302R8 STM32F302R8T6
NUCLEO-F303RE STM32F303RET6
NUCLEO-F334R8 STM32F334R8T6
NUCLEO-F401RE STM32F401RET6
NUCLEO-F410RB STM32F410RBT6
NUCLEO-F411RE STM32F411RET6
NUCLEO-F446RE STM32F446RET6
NUCLEO-L053R8 STM32L053R8T6
NUCLEO-L073RZ STM32L073RZT6
NUCLEO-L152RE STM32L152RET6
NUCLEO-L452RE STM32L452RET6
NUCLEO-L476RG STM32L476RGT6
Table 2. Codification explanation
NUCLEO-TXXXRY Description Example: NUCLEO-L452RE
TXXX STM32 product line STM32L452
R STM32 package pin count 64 pins
Y
STM32 Flash memory size
(8 for 64 Kbytes, B for
128 Kbytes, C for 256 Kbytes, E
for 512 Kbytes, G for 1 Mbyte, Z
for 192 Kbytes)
512 Kbytes
Conventions UM1724
8/69 DocID025833 Rev 11
4 Conventions
Table 3 provides the conventions used for the ON and OFF settings in the present
document.
In this document the references are “STM32 Nucleo board” and “STM32 Nucleo boards” for
all information that is common to all sale types.
Table 3. ON/OFF conventions
Convention Definition
Jumper JP1 ON Jumper fitted
Jumper JP1 OFF Jumper not fitted
Solder bridge SBx ON SBx connections closed by solder or 0 ohm resistor
Solder bridge SBx OFF SBx connections left open
DocID025833 Rev 11 9/69
UM1724 Quick start
68
5 Quick start
The STM32 Nucleo board is a low-cost and easy-to-use development platform used to
quickly evaluate and start a development with an STM32 microcontroller in LQFP64
package.
Before installing and using the product, accept the Evaluation Product License Agreement
from the www.st.com/epla webpage.
For more information on the STM32 Nucleo board and to access the demonstration
software, visit www.st.com/stm32nucleo website.
5.1 Getting started
Follow the sequence below to configure the STM32 Nucleo board and launch the demo
software:
1. Check the jumper position on the board, JP1 off, JP5 (PWR) on U5V, JP6 on (IDD),
CN2 on (NUCLEO) selected.
2. For correct identification of all device interfaces from the host PC, install the Nucleo
USB driver available from the www.st.com/stm32nucleo webpage, prior to connecting
the board.
3. Connect the STM32 Nucleo board to a PC with a USB cable ‘Type-A to Mini-B’ through
USB connector CN1 to power the board. The red LED LD3 (PWR) and LD1 (COM)
should light up. LD1 (COM) and green LED LD2 should blink.
4. Press button B1 (left button).
5. Observe the blinking frequency of the three LEDs LD1 to LD3, by clicking on the button
B1.
6. The demonstration software and several software examples on how to use the STM32
Nucleo board features are available at the www.st.com/stm32nucleo webpage.
7. Develop the application using the available examples.
5.2 System requirements
•Windows® OS (XP, 7, 8) or Linux 64-bit or Mac OS® X
•USB Type-A to Mini-B cable
5.3 Development toolchains
•ARM® Keil®: MDK-ARM(a)
•IAR™ EWARM(a)
•GCC-based IDEs (free AC6: SW4STM32, Atollic® TrueSTUDIO®(a) and others)
•ARM® mbed™ online
a. On Windows® only.
Quick start UM1724
10/69 DocID025833 Rev 11
5.4 NUCLEO-L476RG bootloader limitations
Boot from system Flash memory results in executing bootloader code stored in the system
Flash memory, protected against write and erase. This allows in-system programming (ISP),
that is, flashing the STM32 user Flash memory. It also allows writing data into RAM. The
data come in via one of the communication interfaces such as USART, SPI, I2C bus, USB or
CAN.
Bootloader version can be identified by reading Bootloader ID at the address 0x1FFF6FFE.
The STM32L476RGT6 part soldered on the NUCLEO-L476RG main board is marked with a
date code, corresponding to its date of manufacturing. STM32L476RGT6 parts with the date
code prior or equal to week 22 of 2015 are fitted with bootloader V 9.0, affected by the
limitations to be worked around, as described hereunder. Parts with the date code starting
from week 23 of 2015 contain bootloader V 9.2 in which the limitations no longer exist.
To locate the visual date code information on the STM32L476RGT6 package, refer to the
section “Package information” of the datasheet (DS10198) available at www.st.com. Date
code related portion of the package marking, takes Y WW format, where Y is the last digit of
the year and WW is the week. For example, a part manufactured in week 23 of 2015 bares
the date code 5 23.
Bootloader ID of the bootloader V 9.0 is 0x90.
The following limitations exist in the bootloader V 9.0:
1. RAM data get corrupted when written via USART/SPI/I2C/USB interface
Description:
Data write operation into RAM space via USART, SPI, I2C bus or USB results in wrong or no
data written.
Workaround:
To correct the issue of wrong write into RAM, download STSW-STM32158 bootloader V 9.0
patch package from the www.st.com website and load "Bootloader V9.0 SRAM patch" to the
STM32, following the information in readme.txt file available in the package.
2. User Flash memory data get corrupted when written via CAN interface
Description:
Data write operation into user Flash memory space via CAN interface results in wrong or no
data written.
Workaround:
To correct the issue of wrong write into Flash memory, download STSW-STM32158
bootloader V 0.9 patch package from the www.st.com website and load "Bootloader V9.0
CAN patch" to the STM32, following the information in readme.txt file available in the
package.
DocID025833 Rev 11 11/69
UM1724 Quick start
68
5.5 Hardware configuration variants
The board can be delivered with different configurations of the oscillator of the target
STM32. For all the details concerning high-speed configurations of the oscillator refer to
Section 6.7.1. For all the details concerning low-speed configurations of the oscillator refer
to Section 6.7.2.
Hardware layout and configuration UM1724
12/69 DocID025833 Rev 11
6 Hardware layout and configuration
The STM32 Nucleo board is designed around the STM32 microcontrollers in a 64-pin LQFP
package.
Figure 2 shows the connections between the STM32 and its peripherals (ST-LINK/V2-1,
push-button, LED, Arduino connectors and ST morpho connector).
Figure 3 and Figure 4 show the location of these features on the STM32 Nucleo board.
Figure 5 shows the mechanical dimension of the STM32 Nucleo board.
Figure 2. Hardware block diagram
5(6(7
0LQL
86%
,2
,2 ,2
,2
67/,1.SDUW
(PEHGGHG
67/,1.9
670
0LFURFRQWUROOHU
%
86(5
%
5(6(7
/('
/'
0&8SDUW
6:'
67PRUSKRH[WHQVLRQKHDGHU
$UGXLQRFRQQHFWRU
$UGXLQRFRQQHFWRU
67PRUSKRH[WHQVLRQKHDGHU
069
DocID025833 Rev 11 13/69
UM1724 Hardware layout and configuration
68
Figure 3. Top layout
1. Crystal may be present or not depending on board version, refer to Section 6.7.2.
8 
670
PLFURFRQWUROOHU 
/'
*UHHQ/('
6%
9UHJXODWRURXWSXW
&1
67PRUSKRFRQQHFWRU
&1
$UGXLQRFRQQHFWRU
&1
$UGXLQRFRQQHFWRU
&1
67/,1.86%
PLQL%FRQQHFWRU
/'
5HG*UHHQ/('
&20
%
5(6(7EXWWRQ
&1
$UGXLQR
FRQQHFWRU
&1
67PRUSKR
FRQQHFWRU
&1
$UGXLQR
FRQQHFWRU
/'
5HG/('
SRZHU
-3,''
PHDVXUHPHQW
%86(5
EXWWRQ
&1
6:'FRQQHFWRU
&1
67/,1.1XFOHR
VHOHFWRU
069
.+]
FU\VWDO
Hardware layout and configuration UM1724
14/69 DocID025833 Rev 11
Figure 4. Bottom layout
4#4#4#4#
3&4&37&%
4#4#4#4#
%&'"6-5
.47
6%
86(5EXWWRQ
6%
67/,1.
5(6(7
6%
86(5/('
4#4#
45-*/,64"35
4#
45-*/,480
4#
45-*/,.$0
6%
67/,1.0&2
DocID025833 Rev 11 15/69
UM1724 Hardware layout and configuration
68
Figure 5. STM32 Nucleo board mechanical dimensions
Hardware layout and configuration UM1724
16/69 DocID025833 Rev 11
6.1 Cuttable PCB
The STM32 Nucleo board is divided into two parts: ST-LINK part and target STM32 part.
The ST-LINK part of the PCB can be cut out to reduce the board size. In this case the
remaining target STM32 part can only be powered by VIN, E5V and 3.3V on ST morpho
connector CN7 or VIN and 3.3V on Arduino connector CN6. It is still possible to use the
ST-LINK part to program the main STM32 using wires between CN4 and SWD signals
available on ST morpho connector (SWCLK CN7 pin 15 and SWDIO CN7 pin 13).
6.2 Embedded ST-LINK/V2-1
The ST-LINK/V2-1 programming and debugging tool is integrated in the STM32 Nucleo
board.
The ST-LINK/V2-1 makes the STM32 Nucleo boards mbed enabled.
The embedded ST-LINK/V2-1 supports only SWD for STM32 devices. For information about
debugging and programming features refer to ST-LINK/V2 in-circuit debugger/programmer
for STM8 and STM32 User manual (UM1075), which describes in details all the ST-LINK/V2
features.
The changes versus ST-LINK/V2 version are listed below.
•New features supported on ST-LINK/V2-1:
– USB software re-enumeration
– Virtual COM port interface on USB
– Mass storage interface on USB
– USB power management request for more than 100 mA power on USB
•Features not supported on ST-LINK/V2-1:
–SWIM interface
– Minimum supported application voltage limited to 3 V
•Known limitation:
– Activating the readout protection on ST-LINK/V2-1 target prevents the target
application from running afterwards. The target readout protection must be kept
disabled on ST-LINK/V2-1 boards.
There are two different ways to use the embedded ST-LINK/V2-1 depending on the jumper
states (see Table 4 and Figure 6):
•Program/debug the on-board STM32 (Section 6.2.2)
•Program/debug an MCU in an external application board using a cable connected to
SWD connector CN4 (Section 6.2.4).
Table 4. Jumper states
Jumper state Description
Both CN2 jumpers ON ST-LINK/V2-1 functions enabled for on board programming
(default)
Both CN2 jumpers OFF ST-LINK/V2-1 functions enabled for external CN4 connector
(SWD supported)
DocID025833 Rev 11 17/69
UM1724 Hardware layout and configuration
68
Figure 6. Typical configuration
6.2.1 Driver
Before connecting the Nucleo-64 board to a Windows 7, Windows 8 or Windows XP PC via
USB, a driver for ST-LINK/V2-1 must be installed. It can be downloaded from the
www.st.com website.
In case the STM32 Nucleo-64 board is connected to the PC before installing the driver, the
PC device manager may report some Nucleo interfaces as “Unknown”.
To recover from this situation, after installing the dedicated driver, the association of
“Unknown” USB devices found on the STM32 Nucleo-64 board to this dedicated driver,
must be updated in the device manager manually.
Note: It is recommended to proceed using USB Composite Device, as shown in Figure 7.
Figure 7. Updating the list of drivers in Device Manager
6.2.2 ST-LINK/V2-1 firmware upgrade
The ST-LINK/V2-1 embeds a firmware upgrade mechanism for in-situ upgrade through the
USB port. As the firmware may evolve during the life time of the ST-LINK/V2-1 product (for
example new functionality, bug fixes, support for new microcontroller families), it is
recommended to visit www.st.com website before starting to use the STM32 Nucleo board
and periodically, in order to stay up-to-date with the latest firmware version.
069
+DUGZDUHUHTXLUHPHQWV
86%FDEOHW\SH$WRPLQL%
FRPSXWHUZLWK:LQGRZV;3
'HYHORSPHQWWRROFKDLQ
,$5(:$50
.HLO0'.$50
*&&EDVHG,'(
Hardware layout and configuration UM1724
18/69 DocID025833 Rev 11
6.2.3 Using the ST-LINK/V2-1 to program and debug the STM32 on board
To program the STM32 on the board, plug in the two jumpers on CN2, as shown in red in
Figure 8. Do not use the CN4 connector as this could disturb the communication with the
STM32 microcontroller of the STM32 Nucleo board.

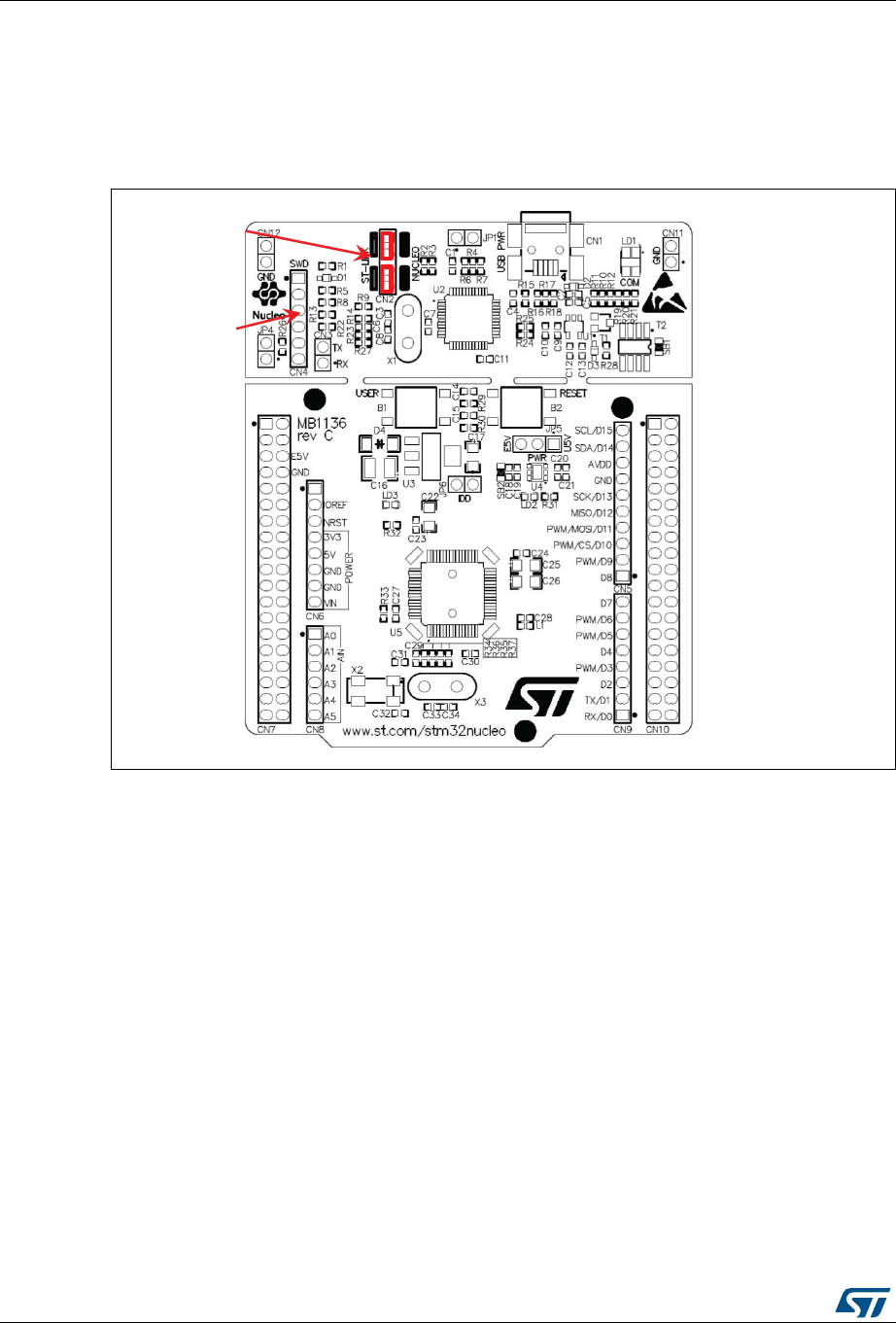

Figure 8. Connecting the STM32 Nucleo board to program the on-board STM32
6.2.4 Using ST-LINK/V2-1 to program and debug an external
STM32 application
It is very easy to use the ST-LINK/V2-1 to program the STM32 on an external application.
Simply remove the two jumpers from CN2 as illustrated in Figure 9: Using ST-LINK/V2-1 to
program the STM32 on an external application, and connect the application to the CN4
debug connector according to Table 5.
Note: SB12 NRST (target STM32 RESET) must be OFF if CN4 pin 5 is used in the external
application.
069
EϮũƵŵƉĞƌƐKE
Eϰ^t
ĐŽŶŶĞĐƚŽƌ
DocID025833 Rev 11 19/69
UM1724 Hardware layout and configuration
68
Figure 9. Using ST-LINK/V2-1 to program the STM32 on an external application
Table 5. Debug connector CN4 (SWD)
Pin CN4 Designation
1 VDD_TARGET VDD from application
2 SWCLK SWD clock
3 GND ground
4 SWDIO SWD data input/output
5 NRST RESET of target STM32
6 SWO Reserved
.47
$/KVNQFST0''
$/
48%DPOOFDUPS
Hardware layout and configuration UM1724
20/69 DocID025833 Rev 11
6.3 Power supply and power selection
The power supply is provided either by the host PC through the USB cable, or by an
external source: VIN (7V-12V), E5V (5V) or +3.3V power supply pins on CN6 or CN7. In
case VIN, E5V or +3.3V is used to power the STM32 Nucleo board, using an external power
supply unit or an auxiliary equipment, this power source must comply with the standard
EN-60950-1: 2006+A11/2009, and must be Safety Extra Low Voltage (SELV) with limited
power capability.
6.3.1 Power supply input from the USB connector
The ST-LINK/V2-1 supports USB power management allowing to request more than
100 mA current to the host PC.
All parts of the STM32 Nucleo board and shield can be powered from the ST-LINK USB
connector CN1 (U5V or VBUS). Note that only the ST-LINK part is power supplied before
the USB enumeration as the host PC only provides 100 mA to the board at that time. During
the USB enumeration, the STM32 Nucleo board requires 300 mA of current to the host PC.
If the host is able to provide the required power, the targeted STM32 microcontroller is
powered and the red LED LD3 is turned ON, thus the STM32 Nucleo board and its shield
can consume a maximum of 300 mA current, not more. If the host is not able to provide the
required current, the targeted STM32 microcontroller and the MCU part including the
extension board are not power supplied. As a consequence the red LED LD3 remains
turned OFF. In such case it is mandatory to use an external power supply as explained in
the next Section 6.3.2: External power supply inputs: VIN and E5V.
When the board is power supplied by USB (U5V) a jumper must be connected between pin
1 and pin 2 of JP5 as shown in Table 8.
JP1 is configured according to the maximum current consumption of the board when
powered by USB (U5V). JP1 jumper can be set in case the board is powered by USB and
maximum current consumption on U5V does not exceed 100 mA (including an eventual
extension board or Arduino shield). In such condition USB enumeration will always succeed
since no more than 100mA is requested to the PC. Possible configurations of JP1 are
summarized in Table 6.
Warning: If the maximum current consumption of the NUCLEO and its
extension boards exceeds 300 mA, it is mandatory to power
the NUCLEO using an external power supply connected to
E5V or VIN.
Note: In case the board is powered by an USB charger, there is no USB enumeration, so the led
LD3 remains set to OFF permanently and the target STM32 is not powered. In this specific
case the jumper JP1 needs to be set to ON, to allow target STM32 to be powered anyway.
Table 6. JP1 configuration table
Jumper state Power supply Allowed current
JP1 jumper OFF
USB power through CN1
300 mA max
JP1 jumper ON 100 mA max
DocID025833 Rev 11 21/69
UM1724 Hardware layout and configuration
68
6.3.2 External power supply inputs: VIN and E5V
The external power sources VIN and E5V are summarized in the Table 7. When the board is
power supplied by VIN or E5V, the jumpers configuration must be the following:
•Jumper on JP5 pin 2 and pin 3
•Jumper removed on JP1
Using VIN or E5V as external power supply
VIN or E5V can be used as external power supply in case the current consumption of the
STM32 Nucleo and extensions boards exceeds the allowed current on USB. In this
condition it is still possible to use the USB for communication, for programming or
debugging only, but it is mandatory to power supply the board first using VIN or E5V then
connect the USB cable to the PC. Proceeding this way ensures that the enumeration occurs
thanks to the external power source.
The following power sequence procedure must be respected:
Table 7. External power sources
Input
power name
Connectors
pins
Voltage
range
Max
current Limitation
VIN CN6 pin 8
CN7 pin 24 7 V to 12 V 800 mA
From 7 V to 12 V only and input current
capability is linked to input voltage:
800 mA input current when Vin=7 V
450 mA input current when 7 V<Vin (< or =)
9 V
250 mA input current when 9 V<Vin (< or =)
12 V
E5V CN7 pin 6 4.75 V to
5.25 V 500 mA -
Table 8. Power-related jumper
Jumper Description
JP5
U5V (ST-LINK VBUS) is used as power source when JP5 is set as shown below
(Default setting)
VIN or E5V is used as power source when JP5 is set as shown below.
(9
89
(9
89
Hardware layout and configuration UM1724
22/69 DocID025833 Rev 11
1. Connect the jumper between pin 2 and pin 3 of JP5
2. Check that JP1 is removed
3. Connect the external power source to VIN or E5V
4. Power on the external power supply 7 V< VIN < 12 V to VIN, or 5 V for E5V
5. Check that LD3 is turned ON
6. Connect the PC to USB connector CN1
If this order is not respected, the board may be supplied by VBUS first then by VIN or E5V,
and the following risks may be encountered:
1. If more than 300 mA current is needed by the board, the PC may be damaged or the
current supply can be limited by the PC. As a consequence the board is not powered
correctly.
2. 300 mA is requested at enumeration (since JP1 must be OFF) so there is risk that the
request is rejected and the enumeration does not succeed if the PC cannot provide
such current. Consequently the board is not power supplied (LED LD3 remains OFF).
6.3.3 External power supply input: + 3.3V
It can be of interest to use the +3.3V (CN6 pin 4 or CN7 pin 12 and pin 16) directly as power
input for instance in case the 3.3V is provided by an extension board. When the STM32
Nucleo board is power supplied by +3.3V, the ST-LINK is not powered thus the
programming and debug features are unavailable. The external power sources +3.3V is
summarized in the Table 9.
Two different configurations are possible when using +3.3V to power the board:
•ST-LINK is removed (PCB cut) or
•SB2 (3.3V regulator) and SB12 (NRST) are OFF.
6.3.4 External power supply output
When powered by USB, VIN or E5V, the +5V (CN6 pin 5 or CN7 pin 18) can be used as
output power supply for an Arduino shield or an extension board. In this case, the maximum
current of the power source specified in Table 7 must be respected.
The +3.3V (CN6 pin 4 or CN7 pin 12 and 16) can be used also as power supply output. The
current is limited by the maximum current capability of the regulator U4 (500 mA max).
Table 9. +3.3V external power source
Input power
name Connectors pins Voltage range Limitation
+3.3V CN6 pin 4
CN7 pin 12 and pin 16 3 V to 3.6 V Used when ST-LINK part of PCB is cut
or SB2 and SB12 OFF
DocID025833 Rev 11 23/69
UM1724 Hardware layout and configuration
68
6.4 LEDs
The tricolor LED (green, orange, red) LD1 (COM) provides information about ST-LINK
communication status. LD1 default color is red. LD1 turns to green to indicate that
communication is in progress between the PC and the ST-LINK/V2-1, with the following
setup:
•Slow blinking Red/Off: at power-on before USB initialization
•Fast blinking Red/Off: after the first correct communication between the PC and
ST-LINK/V2-1 (enumeration)
•Red LED On: when the initialization between the PC and ST-LINK/V2-1 is complete
•Green LED On: after a successful target communication initialization
•Blinking Red/Green: during communication with target
•Green On: communication finished and successful
•Orange On: Communication failure
User LD2: the green LED is a user LED connected to Arduino signal D13 corresponding to
STM32 I/O PA5 (pin 21) or PB13 (pin 34) depending on the STM32 target. Refer to Table 11
to Table 23 when:
•the I/O is HIGH value, the LED is on
•the I/O is LOW, the LED is off
LD3 PWR: the red LED indicates that the STM32 part is powered and +5V power is
available.
6.5 Push-buttons
B1 USER: the user button is connected to the I/O PC13 (pin 2) of the STM32
microcontroller.
B2 RESET: this push-button is connected to NRST, and is used to RESET the STM32
microcontroller.
Note: The blue and black plastic hats that are placed on the push buttons can be removed if
necessary, for example when a shield or when an application board is plugged on top of the
Nucleo board. This will avoid pressure on the buttons and consequently a possible
permanent target STM32 RESET.
6.6 JP6 (IDD)
Jumper JP6, labeled IDD, is used to measure the STM32 microcontroller consumption by
removing the jumper and by connecting an ammeter:
•Jumper ON: STM32 microcontroller is powered (default).
•Jumper OFF: an ammeter must be connected to measure the STM32 microcontroller
current. If there is no ammeter, STM32 microcontroller is not powered.
Hardware layout and configuration UM1724
24/69 DocID025833 Rev 11
6.7 OSC clock
6.7.1 OSC clock supply
There are four ways to configure the pins corresponding to external high-speed clock
(HSE):
•MCO from ST-LINK: MCO output of ST-LINK MCU is used as input clock. This
frequency cannot be changed, it is fixed at 8 MHz and connected to
PF0/PD0/PH0-OSC_IN of the STM32 microcontroller.
The following configuration is needed:
– SB55 OFF and SB54 ON
– SB16 and SB50 ON
– R35 and R37 removed
•HSE oscillator on-board from X3 crystal (not provided): for typical frequencies and
its capacitors and resistors, refer to STM32 microcontroller datasheet. Refer to the
AN2867 Application note for oscillator design guide for STM32 microcontrollers.The X3
crystal has the following characteristics: 8 MHz, 16 pF, 20 ppm, and DIP footprint. It is
recommended to use 9SL8000016AFXHF0 manufactured by Hong Kong X'tals
Limited.
The following configuration is needed:
– SB54 and SB55 OFF
– R35 and R37 soldered
– C33 and C34 soldered with 20 pF capacitors
– SB16 and SB50 OFF
•Oscillator from external PF0/PD0/PH0: from an external oscillator through pin 29 of
the CN7 connector.
The following configuration is needed:
–SB55 ON
–SB50
OFF
– R35 and R37 removed
•HSE not used: PF0/PD0/PH0 and PF1/PD1/PH1 are used as GPIO instead of clock
The following configuration is needed:
– SB54 and SB55 ON
– SB16 and SB50 (MCO) OFF
– R35 and R37 removed
There are two possible default configurations of the HSE pins, depending on the version of
the STM32 Nucleo board hardware.
The board version MB1136 C-01 or MB1136 C-02 is mentioned on the sticker, placed on the
bottom side of the PCB.
The board marking MB1136 C-01 corresponds to a board, configured as HSE not used.
The board marking MB1136 C-02 (or higher) corresponds to a board, configured to use
ST-LINK MCO as clock input.
DocID025833 Rev 11 25/69
UM1724 Hardware layout and configuration
68
Note: For NUCLEO-L476RG and NUCLEO-L452RE the ST-LINK MCO output is not connected to
OSCIN to reduce power consumption in low power mode. Consequently NUCLEO-L476RG
and NUCLEO-L452RE configuration corresponds to HSE not used.
6.7.2 OSC 32 KHz clock supply
There are three ways to configure the pins corresponding to low-speed clock (LSE):
•On-board oscillator: X2 crystal. Refer to the Oscillator design guide for STM8S,
STM8A and STM32 microcontrollers application note (AN2867) for oscillator design
guide for STM32 microcontrollers. It is recommended to use ABS25-32.768KHZ-6-T,
manufactured by Abracon corporation.
•Oscillator from external PC14: from external oscillator through the pin 25 of CN7
connector.
The following configuration is needed:
– SB48 and SB49 ON
– R34 and R36 removed
•LSE not used: PC14 and PC15 are used as GPIOs instead of low speed clock.
The following configuration is needed:
– SB48 and SB49 ON
– R34 and R36 removed
There are three possible default configurations of the LSE depending on the version of the
STM32 Nucleo board hardware.
The board version MB1136 C-01 or MB1136 C-02 is mentioned on the sticker placed on the
bottom side of the PCB.
The board marking MB1136 C-01 corresponds to a board configured as LSE not used.
The board marking MB1136 C-02 (or higher) corresponds to a board configured with
on-board 32KHz oscillator.
The board marking MB1136 C-03 (or higher) corresponds to a board using new LSE crystal
(ABS25) and C26, C31 and C32 value update.
6.8 USART communication
The USART2 interface available on PA2 and PA3 of the STM32 microcontroller can be
connected to ST-LINK MCU, ST morpho connector or to Arduino connector. The choice can
be changed by setting the related solder bridges. By default the USART2 communication
between the target STM32 and ST-LINK MCU is enabled, in order to support virtual COM
port for mbed (SB13 and SB14 ON, SB62 and SB63 OFF). If the communication between
the target STM32 PA2 (D1) or PA3 (D0) and shield or extension board is required, SB62 and
SB63 should be ON, SB13 and SB14 should be OFF. In such case it is possible to connect
another USART to ST-LINK MCU using flying wires between ST morpho connector and
CN3. For instance on NUCLEO-F103RB it is possible to use USART3 available on PC10
(TX) and PC11 (RX). Two flying wires need to be connected as follow:
•PC10 (USART3_TX) available on CN7 pin 1 to CN3 pin RX
•PC11 (USART3_RX) available on CN7 pin 2 to CN3 pin TX
Hardware layout and configuration UM1724
26/69 DocID025833 Rev 11
6.9 Solder bridges
Table 10. Solder bridges
Bridge State(1) Description
SB54, SB55 (X3 crystal)(2)
OFF
X3, C33, C34, R35 and R37 provide a clock as shown in Section Appendix A:
Electrical schematics PF0/PD0/PH0, PF1/PD1/PH1 are disconnected from
CN7.
ON PF0/PD0/PH0, PF1/PD1/PH1 are connected to CN12. (R35, R37 and SB50
must not be fitted).
SB3,5,7,9 (DEFAULT) ON Reserved, do not modify.
SB4,6,8,10 (RESERVED) OFF Reserved, do not modify.
SB48,49
(X2 crystal)(3)
OFF X2, C31, C32, R34 and R36 deliver a 32 kHz clock. PC14, PC15 are not
connected to CN7.
ON PC14, PC15 are only connected to CN7. Remove only R34, R36.
SB17
(B1-USER)
ON B1 push button is connected to PC13.
OFF B1 push button is not connected to PC13.
SB12 (NRST)
ON The NRST signal of the CN4 connector is connected to the NRST pin of the
STM32.
OFF The NRST signal of the CN4 connector is not connected to the NRST pin of
the STM32.
SB15 (SWO)
ON The SWO signal of the CN4 connector is connected to PB3.
OFF The SWO signal is not connected.
SB11 (STM_RST)
OFF No incidence on STM32F103CBT6 (ST-LINK MCU) NRST signal.
ON STM32F103CBT6 (ST-LINK MCU) NRST signal is connected to GND.
SB1 (USB-5V)
OFF USB power management is functional.
ON USB power management is disabled.
SB2 (3.3 V)
ON Output of voltage regulator LD39050PU33R is connected to 3.3V.
OFF Output of voltage regulator LD39050PU33R is not connected.
SB21 (LD2-LED)
ON Green user LED LD2 is connected to D13 of Arduino signal.
OFF Green user LED LD2 is not connected.
SB56,SB51 (A4 and A5)
ON
PC1 and PC0 (ADC in) are connected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST morpho connector CN7. Thus SB46 and
SB52 should be OFF.
OFF PC1 and PC0 (ADC in) are disconnected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST morpho connector CN7.
SB46,SB52
(I2C on A4 and A5)
OFF PB9 and PB8 (I2C) are disconnected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST morpho connector CN7.
ON
PB9 and PB8 (I2C) are connected to A4 and A5 (pin 5 and pin 6) on Arduino
connector CN8 and ST morpho connector CN7 as I2C signals. Thus SB56
and SB51 should be OFF.
DocID025833 Rev 11 27/69
UM1724 Hardware layout and configuration
68
All the other solder bridges present on the STM32 Nucleo board are used to configure
several I/Os and power supply pins for compatibility of features and pinout with STM32
supported.
All STM32 Nucleo boards are delivered with the solder-bridges configured according to the
target supported STM32.
6.10 Extension connectors
Figure 10 to Figure 26 show the signals connected by default to Arduino Uno V3 connectors
(CN5, CN6, CN8, CN9) and to ST morpho connector (CN7 and CN10), for each STM32
Nucleo board.
SB45 (VBAT/VLCD)
ON VBAT or VLCD on STM32 is connected to VDD.
OFF VBAT or VLCD on STM32 is not connected to VDD.
SB57 (VDDA/VREF+)
ON VDDA/VREF+ on STM32 is connected to VDD.
OFF VDDA/VREF+ on STM32 is not connected to VDD and can be provided from
pin 8 of CN5 (Used for external VREF+ provided by Arduino shield)
SB62, SB63 (USART)
OFF PA2 and PA3 on STM32 are disconnected to D1 and D0 (pin 2 and pin 1) on
Arduino connector CN9 and ST morpho connector CN10.
ON
PA2 and PA3 on STM32 are connected to D1 and D0 (pin 2 and pin 1) on
Arduino connector CN9 and ST morpho connector CN10 as USART signals.
Thus SB13 and SB14 should be OFF.
SB13, SB14
(ST-LINK-USART)
ON
PA2 and PA3 on STM32F103CBT6 (ST-LINK MCU) are connected to PA3
and PA2 on STM32 to have USART communication between them. Thus
SB61,SB62 and SB63 should be OFF.
OFF PA2 and PA3 on STM32F103CBT6 (ST-LINK MCU) are disconnected to PA3
and PA2 on STM32.
SB16,SB50(MCO)(2)
OFF MCO on STM32F103CBT6 (ST-LINK MCU) are disconnected to
PF0/PD0/PH0 on STM32.
ON MCO on STM32F103CBT6 (ST-LINK MCU) are connected to PF0/PD0/PH0
on STM32.
1. The default SBx state is shown in bold.
2. Default configuration depends on board version. Refer to Section 6.7.1: OSC clock supply for details.
3. Default configuration depends on board version. Refer to Section 6.7.2: OSC 32 KHz clock supply for details.
Table 10. Solder bridges (continued)
Bridge State(1) Description
Hardware layout and configuration UM1724
28/69 DocID025833 Rev 11
Figure 10. NUCLEO-F030R8
Figure 11. NUCLEO-F070RB
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
3)
3)
%227
9''
3&
18&/(2)5
3)
3)
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9''
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5%
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
DocID025833 Rev 11 29/69
UM1724 Hardware layout and configuration
68
Figure 12. NUCLEO-F072RB
Figure 13. NUCLEO-F091RC
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5%
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
3)%227
9''
3&
18&/(2)5&
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
Hardware layout and configuration UM1724
30/69 DocID025833 Rev 11
Figure 14. NUCLEO-F103RB
Figure 15. NUCLEO-F302R8
06Y9
1&
5(6(7
1&
18&/(2)5%
$UGXLQR 0RUSKR
3&
3&
9%$7
3'
3'
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
3&
3&
3&
3%
3$
3$
3$
9,1
*1'
*1'
9
9
,25()
*1'
(9
3'
3&
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&



























































&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5
1&
1&
3&
$*1'
3$
3$
3$
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3%
3%
3%
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
DocID025833 Rev 11 31/69
UM1724 Hardware layout and configuration
68
Figure 16. NUCLEO-F303RE
Figure 17. NUCLEO-F334R8
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
Hardware layout and configuration UM1724
32/69 DocID025833 Rev 11
Figure 18. NUCLEO-F401RE
Figure 19. NUCLEO-F411RE
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
DocID025833 Rev 11 33/69
UM1724 Hardware layout and configuration
68
Figure 20. NUCLEO-L053R8
Figure 21. NUCLEO-L073RZ
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
18&/(2/5=
06Y9
Hardware layout and configuration UM1724
34/69 DocID025833 Rev 11
Figure 22. NUCLEO-L152RE
Figure 23. NUCLEO-L452RE
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
ƌĚƵŝŶŽ DŽƌƉŚŽ
3&



























































&1 &1&1
&1
&1
&1
DocID025833 Rev 11 35/69
UM1724 Hardware layout and configuration
68
Figure 24. NUCLEO-L476RG
Figure 25. NUCLEO-F446RE
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5*
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
06Y9
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
Hardware layout and configuration UM1724
36/69 DocID025833 Rev 11
Figure 26. NUCLEO-F410RB
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3%
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5%
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3& 


























































&1 &1&1
&1
&1
&1
DocID025833 Rev 11 37/69
UM1724 Hardware layout and configuration
68
6.11 Arduino connectors
CN5, CN6, CN8 and CN9 are female connectors compatible with Arduino standard. Most
shields designed for Arduino can fit to the STM32 Nucleo boards.
The Arduino connectors on STM32 Nucleo board support the Arduino Uno V3.
For compatibility with Arduino Uno V1, apply the following modifications:
•SB46 and SB52 should be ON,
•SB51 and SB56 should be OFF to connect I2C on A4 (pin 5) and A5 (pin 6 of CN8).
Caution 1: The I/Os of STM32 microcontroller are 3.3 V compatible instead of 5 V for Arduino Uno V3.
Caution 2: SB57 should be removed before implementing Arduino shield with VREF+ power being
provided on CN5 pin 8. Refer to Table 10: Solder bridges for details on SB57.
Table 11 to Table 23 show the pin assignment of each main STM32 microcontroller on
Arduino connectors.
Table 11. Arduino connectors on NUCLEO-F030R8, NUCLEO-F070RB,
NUCLEO-F072RB, NUCLEO-F091RC
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6GND - ground
7GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1) ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
10 D15 PB8 I2C1_SCL
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7GND - ground
Hardware layout and configuration UM1724
38/69 DocID025833 Rev 11
CN5 digital
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM16_CH1N or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3(2)
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2(3)
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
2. PWM is not supported by D6 on STM32F030 and STM32F070 since the timer is not available on PB10.
3. PWM is not supported by D3 on STM32F030 and STM32F070 since the timer is not available on PB3.
Table 11. Arduino connectors on NUCLEO-F030R8, NUCLEO-F070RB,
NUCLEO-F072RB, NUCLEO-F091RC (continued)
Connector Pin Pin name STM32 pin Function
DocID025833 Rev 11 39/69
UM1724 Hardware layout and configuration
68
Table 12. Arduino connectors on NUCLEO-F103RB
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC --
2 IOREF 3.3V Ref
3 RESET NRST RESET
4 +3.3V
-
3.3V input/output
5 +5V 5V output
6 GND ground
7 GND ground
8 VIN Power input
CN8 analog
1 A0 PA0 ADC_0
2 A1 PA1 ADC_1
3 A2 PA4 ADC_4
4 A3 PB0 ADC_8
5 A4 PC1 or PB9(1) ADC_11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8AREF -AVDD
7 GND ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM3_CH2 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Hardware layout and configuration UM1724
40/69 DocID025833 Rev 11
Table 13. Arduino connectors on NUCLEO-F302R8
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC_IN1
2 A1 PA1 ADC_IN2
3 A2 PA4 ADC_IN5
4 A3 PB0 ADC_IN11
5 A4 PC1 or PB9(1) ADC_IN7 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PB13 SPI2_SCK
5 D12 PB14 SPI2_MISO
4 D11 PB15 TIM15_CH2 or SPI2_MOSI
3 D10 PB6 TIM16_CH1N or SPI2_CS
2D9 PC7 -
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM16_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
DocID025833 Rev 11 41/69
UM1724 Hardware layout and configuration
68
Warning: PWM is not supported by D9 on STM32F302 since the timer is not
available on PC7.
Table 14. Arduino connectors on NUCLEO-F303RE
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC1_IN1
2 A1 PA1 ADC1_IN2
3 A2 PA4 ADC2_IN1
4 A3 PB0 ADC3_IN12
5 A4 PC1 or PB9(1) ADC12_IN7 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC12_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
Hardware layout and configuration UM1724
42/69 DocID025833 Rev 11
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1. Refer to Table 10: Solder bridges for details.
Table 14. Arduino connectors on NUCLEO-F303RE (continued)
Connector Pin Pin name STM32 pin Function
Table 15. Arduino connectors on NUCLEO-F334R8
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC1_IN1
2 A1 PA1 ADC1_IN2
3 A2 PA4 ADC2_IN1
4 A3 PB0 ADC1_IN11
5A4PC1 or PB9
(1) ADC_IN7 (PC1) or I2C1_SDA (PB9)
6A5PC0 or PB8
(1) ADC_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM16_CH1N or SPI1_CS
DocID025833 Rev 11 43/69
UM1724 Hardware layout and configuration
68
CN5 digital
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 15. Arduino connectors on NUCLEO-F334R8 (continued)
Connector Pin Pin name STM32 pin Function
Table 16. Arduino connectors on NUCLEO-F401RE and NUCLEO-F411RE
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6GND - ground
7GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC1_0
2 A1 PA1 ADC1_1
3 A2 PA4 ADC1_4
4 A3 PB0 ADC1_8
5 A4 PC1 or PB9(1) ADC1_11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC1_10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7GND - ground
Hardware layout and configuration UM1724
44/69 DocID025833 Rev 11
CN5 digital
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM1_CH1N or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 16. Arduino connectors on NUCLEO-F401RE and NUCLEO-F411RE (continued)
Connector Pin Pin name STM32 pin Function
DocID025833 Rev 11 45/69
UM1724 Hardware layout and configuration
68
Table 17. Arduino connectors on NUCLEO-L053R8
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6GND - ground
7GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1) ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM12_CH2 or SPI1_MOSI
3 D10 PB6 SPI1_CS
2 D9 PC7 TIM12_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM12_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Hardware layout and configuration UM1724
46/69 DocID025833 Rev 11
Warning: PWM is not supported by D10 on STM32L053 since the timer is not
available on PB6.
Table 18. Arduino connectors on NUCLEO-L073RZ
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1) ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM22_CH2 or SPI1_MOSI
3 D10 PB6 SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
DocID025833 Rev 11 47/69
UM1724 Hardware layout and configuration
68
Warning: PWM is not supported by D10 on STM32L073 since the timer is not
available on PB6.
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 18. Arduino connectors on NUCLEO-L073RZ (continued)
Connector Pin Pin name STM32 pin Function
Table 19. Arduino connectors on NUCLEO-F446RE
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC123_IN0
2 A1 PA1 ADC123_IN1
3 A2 PA4 ADC12_IN4
4 A3 PB0 ADC12_IN8
5A4PC1 or PB9
(1) ADC123_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC123_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
10 D15 PB8 I2C1_SCL
Hardware layout and configuration UM1724
48/69 DocID025833 Rev 11
CN5 digital
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM14_CH1 || SPI1_MOSI
3 D10 PB6 TIM4_CH1 || SPI1_CS
2 D9 PC7 TIM8_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 19. Arduino connectors on NUCLEO-F446RE (continued)
Connector Pin Pin name STM32 pin Function
DocID025833 Rev 11 49/69
UM1724 Hardware layout and configuration
68
Table 20. Arduino connectors on NUCLEO-F410RB
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC1_0
2 A1 PA1 ADC1_1
3 A2 PA4 ADC1_4
4 A3 PB0 ADC1_8
5 A4 PC1 or PB9(1) ADC1_11 (PC1) or I2C1_SDA (PB9)
6A5PC0 or PB8
(1) ADC1_10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 PB8 D15 I2C1_SCL
9 PB9 D14 I2C1_SDA
8 - AREF AVDD
7 - GND ground
6 PA5 D13 SPI1_SCK
5 PA6 D12 SPI1_MISO
4 PA7 D11 TIM1_CH1N || SPI1_MOSI
3 PB6 D10 SPI1_CS
2 PC7 D9 -
1PA9 D8 -
CN9 digital
8PA8 D7 -
7 PB10 D6 -
6 PB4 D5 -
5 PB5 D4 -
4 PB3 D3 -
3PA10 D2 -
2 PA2 D1 USART2_TX
1 PA3 D0 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Hardware layout and configuration UM1724
50/69 DocID025833 Rev 11
Warning: PWM is not supported by D3, D5, D6, D9 and D10 on STM32F410RB
since timer is not available on PB6, PC7, PB10, PB4, PB3.
Table 21. Arduino connectors on NUCLEO-L152RE
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6GND - ground
7GND - ground
8 VIN - Power input
CN8 analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1) ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM11_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5D4 PB5 -
DocID025833 Rev 11 51/69
UM1724 Hardware layout and configuration
68
CN9 digital
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 21. Arduino connectors on NUCLEO-L152RE (continued)
Connector Pin Pin name STM32 pin Function
Table 22. Arduino connectors on NUCLEO-L452RE
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC1_IN5
2 A1 PA1 ADC1_IN6
3 A2 PA4 ADC1_IN9
4 A3 PB0 ADC1_IN15
5 A4 PC1 or PB9(1) ADC1_IN2 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC1_IN1 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM1_CH1N or SPI1_MOSI
3 D10 PB6 TIM16_CH1N or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital 8 D7 PA8 -
Hardware layout and configuration UM1724
52/69 DocID025833 Rev 11
CN9 digital
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 22. Arduino connectors on NUCLEO-L452RE (continued)
Connector Pin Pin name STM32 pin Function
Table 23. Arduino connectors on NUCLEO-L476RG
Connector Pin Pin name STM32 pin Function
Left connectors
CN6 power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3.3V - 3.3V input/output
5 +5V - 5V output
6 GND - ground
7 GND - ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC12_IN5
2 A1 PA1 ADC12_IN6
3 A2 PA4 ADC12_IN9
4 A3 PB0 ADC12_IN15
5 A4 PC1 or PB9(1) ADC123_IN2 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC123_IN1 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5 digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
DocID025833 Rev 11 53/69
UM1724 Hardware layout and configuration
68
6.12 ST morpho connector
The ST morpho connector consists in male pin headers (CN7 and CN10) accessible on both
sides of the board. They can be used to connect the STM32 Nucleo board to an extension
board or a prototype/wrapping board placed on top or on bottom side of the STM32 Nucleo
board. All signals and power pins of the STM32 are available on ST morpho connector. This
connector can also be probed by an oscilloscope, logical analyzer or voltmeter.
Table 24 to Table 33 show the pin assignments of each STM32 on ST morpho connector.
CN5 digital
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9 digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Refer to Table 10: Solder bridges for details.
Table 23. Arduino connectors on NUCLEO-L476RG (continued)
Connector Pin Pin name STM32 pin Function
Table 24. ST morpho connector on NUCLEO-F030R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1) GND 8 7 AVDD U5V(2) 8
9PF6 -109GND-10
11 PF7 IOREF 12 11 PA5 PA12 12
13 PA13 RESET 14 13 PA6 PA11 14
15 PA14 +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13(3) VIN 24 23 PA8 PB1 24
25 PC14(3) - 26 25 PB10 PB15 26
Hardware layout and configuration UM1724
54/69 DocID025833 Rev 11
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4) 36 35 PA2 PF5 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 PF4 38
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers are
available on CN11 and CN12 (bottom side of the board).
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
4. Refer to Table 10: Solder bridges for details.
Table 25. ST morpho connector on NUCLEO-F070RB
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VDD PB0 34 33 PA10 PC4 34
35 PC2 PC1 or PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or PB8(4) 38 37 PA3 - 38
Table 24. ST morpho connector on NUCLEO-F030R8 (continued)
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
DocID025833 Rev 11 55/69
UM1724 Hardware layout and configuration
68
Table 26. ST morpho connector on
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F303RE, NUCLEO-F334R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)(2)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers are
available on CN11 and CN12 (bottom side of the board).
2. CN7 pin 7 (BOOT0) can be configured by engineering byte as PF11 on NUCLEO-F091RC.
GND 8 7 AVDD U5V(3)
3. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(4)
4. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommended to use them
as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(4) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(5)
5. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(5) 38 37 PA3 - 38
Table 27. ST morpho connector on NUCLEO-F103RB
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
Hardware layout and configuration UM1724
56/69 DocID025833 Rev 11
7BOOT0
(1) GND 8 7 AVDD U5V(2) 8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3) RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PD0 PA1 30 29 PB5 PB13 30
31 PD1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4) 36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
1. The default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers
are available on CN11 and CN12 (bottom side of the board).
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5 V.
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommended to use them
as IO pins if ST-LINK part is not cut.
4. Refer to Table 10: Solder bridges for details.
Table 27. ST morpho connector on NUCLEO-F103RB (continued)
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
DocID025833 Rev 11 57/69
UM1724 Hardware layout and configuration
68
Table 28. ST morpho connector on NUCLEO-F302R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers are
available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PB13 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PB14 PA11 14
15 PA14(3) +3.3V 16 15 PB15 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PA7 26
27 PC15 PA0 28 27 PB4 PA6 28
29 PF0 PA1 30 29 PB5 PA5 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Hardware layout and configuration UM1724
58/69 DocID025833 Rev 11
Table 29. ST morpho connector on NUCLEO-F401RE,
NUCLEO-F411RE, NUCLEO-F446RE
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers are
available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 - 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
DocID025833 Rev 11 59/69
UM1724 Hardware layout and configuration
68
Table 30. ST morpho connector on
NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused jumpers are
available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VLCD PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Hardware layout and configuration UM1724
60/69 DocID025833 Rev 11
Table 31. ST morpho connector on NUCLEO-L452RE
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7PH3 /
BOOT0(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pins 5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2
PC1
or
PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3
PC0
or
PB8(4) 38 37 PA3 - 38
DocID025833 Rev 11 61/69
UM1724 Hardware layout and configuration
68
Table 32. ST morpho connector on NUCLEO-L476RG
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Hardware layout and configuration UM1724
62/69 DocID025833 Rev 11
Table 33. ST morpho connector on NUCLEO-F410RB
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin Name Name Pin Pin Name Name Pin
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PB11 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5V power from ST-LINKV2-1 USB connector and it rises before +5V.
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to use them as
IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3.3V 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 - 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or PB9(4)
4. Refer to Table 10: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or PB8(4) 38 37 PA3 - 38
DocID025833 Rev 11 67/69
UM1724 Revision history
68
Revision history
Table 34. Document revision history
Date Revision Changes
10-Feb-2014 1 Initial release.
13-Feb-2014 2 Updated Figure 1, Chapter 5.5 and Table 10.
11-Apr-2014 3
Extended the applicability to NUCLEO-F302R8. Updated Table 1:
Ordering information, Section 6.11: Arduino connectors and
Section 6.12: ST morpho connector.
Updated Figure 1
10-June-2014 4
Updated the board figure: Figure 1.
Updated HSE and LSE configuration description: Section 6.7.1,
Section 5.5 and Section 6.7.2. Extended the applicability to
NUCLEO-F334R8, NUCLEO-F411RE and NUCLEO-L053R8.
20-June-2014 5
Updated the electrical schematics figures: Figure 27, Figure 28,
Figure 29 and Figure 30.
Refer to the AN2867 for oscillator design guide for STM32
microcontrollers in Section 6.7.1: OSC clock supply and
Section 6.7.2: OSC 32 KHz clock supply.
30-Sept-2014 6
Extended the applicability to NUCLEO-F091RC and NUCLEO-
F303RE;
Updated Table 1: Ordering information;
Updated Table 11: Arduino connectors on NUCLEO-F030R8,
NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC;
Updated Table 26: ST morpho connector on NUCLEO-F072RB,
NUCLEO-F091RC, NUCLEO-F303RE, NUCLEO-F334R8;
Updated Figure 6: Typical configuration;
Added Figure 13: NUCLEO-F091RC;
Added Figure 16: NUCLEO-F303RE;
Updated Section 6.7.2: OSC 32 KHz clock supply;
Updated Figure 27: Top and Power(1/4) ,Figure 28: STM32 MCU;
Revision history UM1724
68/69 DocID025833 Rev 11
19-Jan-2015 7
Extended the applicability to NUCLEO-F070RB, NUCLEO-
L073RZ and NUCLEO-L476RG;
Updated Table 1: Ordering information;
Updated Section 6.2: Embedded ST-LINK/V2-1;
Updated Section 6.7.1: OSC clock supply;
Added Figure 11: NUCLEO-F070RB;
Added Figure 21: NUCLEO-L073RZ;
Added Figure 24: NUCLEO-L476RG
Updated Table 11: Arduino connectors on NUCLEO-F030R8,
NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC
Added Table 18: Arduino connectors on NUCLEO-L073RZ
Added Table 23: Arduino connectors on NUCLEO-L476RG
Added Table 25: ST morpho connector on NUCLEO-F070RB
Updated Table 30: ST morpho connector on NUCLEO-L053R8,
NUCLEO-L073RZ, NUCLEO-L152RE
Added Table 32: ST morpho connector on NUCLEO-L476RG
Updated schematics from Figure 27: Top and Power(1/4) to
Figure 30: Extension connectors
08-Jul-2015 8
Extended the applicability to Updated Table 1: Ordering
information;
Added Figure 25: NUCLEO-F446RE and Figure 26: NUCLEO-
F410RB
Updated Section 6.11: Arduino connectors on page 37 and
Section 6.12: ST morpho connector on page 53
04-Aug-2015 9 Added Section 5.4: NUCLEO-L476RG bootloader limitations.
17-Nov-2015 10 Updated Section 6.9: Solder bridges and Section 6.7.1: OSC clock
supply.
29-Nov-2015 11
Updated Introduction, Section 3: Ordering information,
Section 6.10: Extension connectors, Section 6.11: Arduino
connectors, Section 6.12: ST morpho connector to add NUCLEO-
L452RE.
Table 34. Document revision history (continued)
Date Revision Changes
DocID025833 Rev 11 69/69
UM1724
69
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2016 STMicroelectronics – All rights reserved

Navigation menu
