TECHNICAL NOTE TN-1072
T2000 - Obsolescence of the
MRF1946A Final PA Transistor for the T20XX-
4XX-FXX
21st August 2005
Applicability This Technical Note applies only to the T20XX-4XX-FXX.
1. Introduction
Due to the obsolescence of the MRF1946a final PA transistor, the SD1275
final PA transistor is being introduced into the T2000 product range as a
replacement where appropriate. The first change is to the T20XX-4XX-FXX.
With this change to the SD1275 the Tx frequency range of the radio will
change from 175MHz-235MHz to 175MHz-208MHz. The Rx frequency
range remains at 175MHz-235MHz.
2. Information
What Is Changing? The following components are changing or will need to be changed if the
Final PA is replaced with an SD1275
Changes to X2R400 to use SD1275 (as used in X2R401):
Component From To
Q306 000-00032-90
MRF1946A
000-00012-75
SD1275
C329 015-02220-06
22p GRM42
015-02270-06
27p GRM42
R308, R310 030-53820-20
820R
030-53270-20
270R
R309, R313 030-52100-20
10R
030-52390-20
39R
R312 036-13390-10
390R
036-13270-00
270R
R315 036-12470-00
47R
036-12180-00
18R
R322 036-12220-00
22R
036-11680-10
6R8
R700B,
R700C
Not Placed 036-10000-00
0E

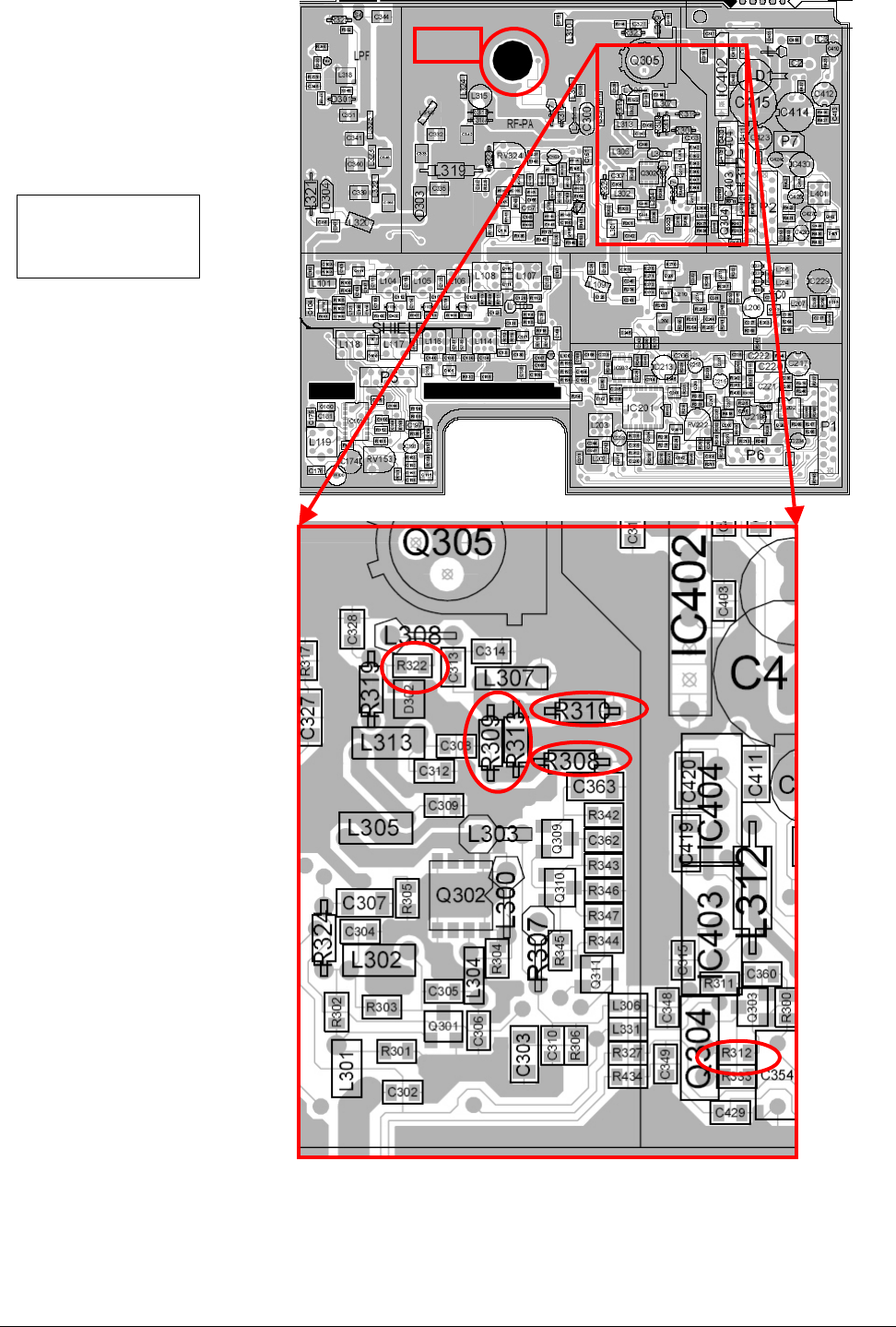

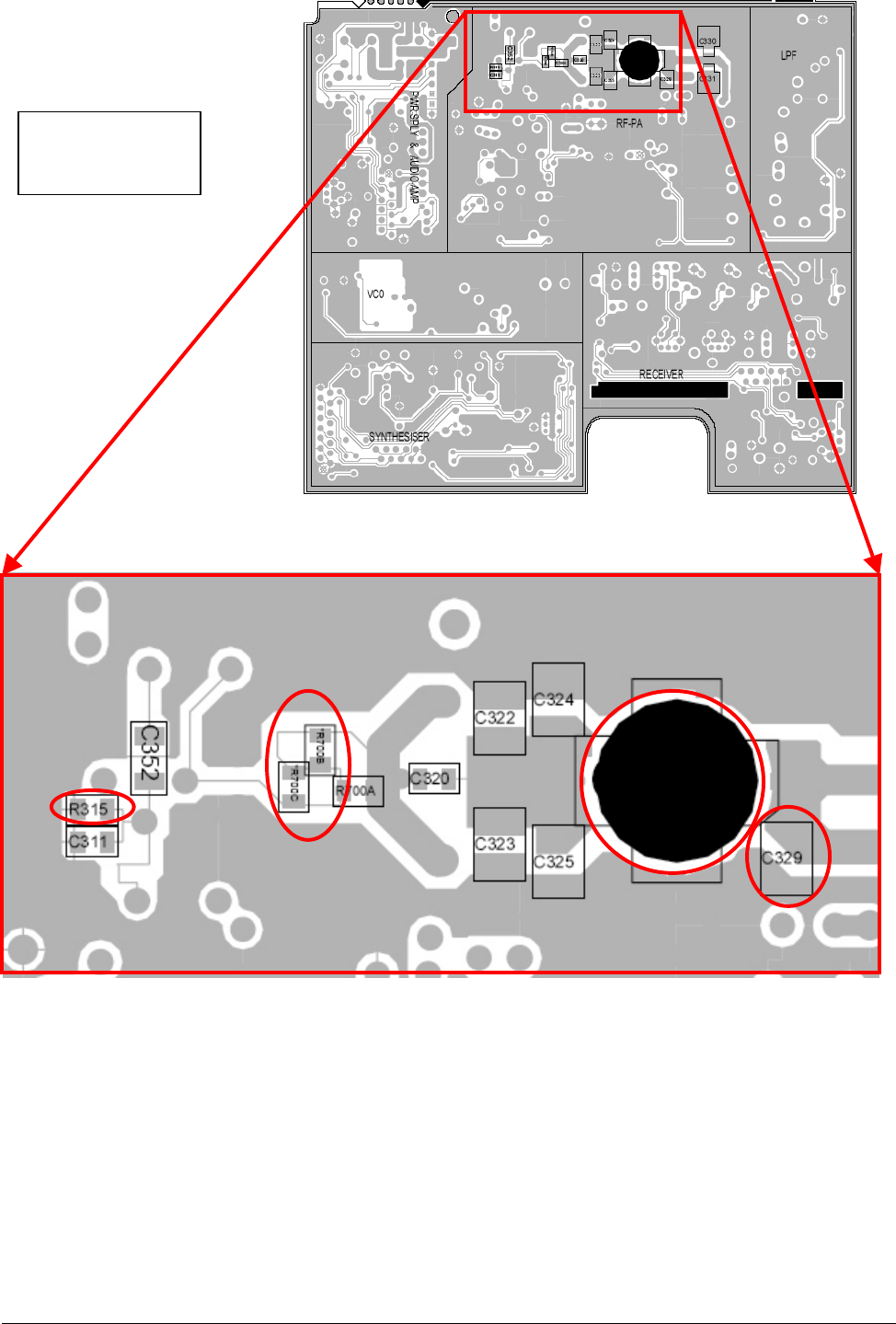

See diagrams on the next two pages for component locations.
The first serial number using the SD1275 is 17340692.
Telephone:+64-3-357-9991 TN-1072_MRF1946A_Obsolescence_T2k-
4xx-fxx.doc
support@taitworld.com
http://support.taitworld.com Date of Print: 14/09/05 Page 1 of 4
Tait Confidential Tait Electronics Ltd
Q
306
Topside RF
View
Telephone:+64-3-357-9991 TN-1072_MRF1946A_Obsolescence_T2k-
4xx-fxx.doc
support@taitworld.com
http://support.taitworld.com Date of Print: 14/09/05 Page 2 of 4
Tait Confidential Tait Electronics Ltd
Bottom side
RF View
Telephone:+64-3-357-9991 TN-1072_MRF1946A_Obsolescence_T2k-
4xx-fxx.doc
support@taitworld.com
http://support.taitworld.com Date of Print: 14/09/05 Page 3 of 4
Tait Confidential Tait Electronics Ltd
Compliance Issues No compliance issues although CSO’s will need to note the change to the
top of the Tx range (208MHz, down from 235MHz).
CSO Instruction CSO’s – Please inform all technical staff, and dealers of these changes.
3. Issuing Authority
Name and Position
of Issuing Officer
Paul Anderson
Technical Support Engineer
Confidentiality Confidential – This message or document contains proprietary information
intended only for the person(s) or organisation(s) to whom it is addressed.
All Recipients are legally obliged to not disclose Tait technological or
business information to any persons or organisations without the written
permission of Tait.
Distribution Level Associate
Document History Original Release 21st August 2005 PRA
Title Change 14th September 2005 PRA
