Project No.
F
140643
File
E313867
Page
1
14
LABORATORY DATA PACKAGE
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 1 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
The wire should be 18AWG confirmed with IC.
Project No.
F
140643
File
E313867
Page
2
14
LABORATORY DATA PACKAGE
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 2 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
Number of pages in this package _14___
(Fill in when using printed copy as record)
CLIENT INFORMATION
Manufacturer
Name
NINGBO XUANHUA ELECTRIC CO LTD
Manufacturer
Subscriber No.
100030-765
AUDIT IN
FORMATION:
[X] Description
of Tests
Per
Standard
No.
[X] UL 62
[] UL 2556
[X] CSA C22.2 No. 49
[] UL 507
[] UL 1042
[] UL 1278
Edition/
Revision
date
Nineteenth/
2014-03-14
Third/
2013-03-22
Fourteenth/
2014-03
Ninth/
2010-04-20
Fifth/
2010-06-16
Third/
2010-06-16
[ ] Tests Conducted by +
- -
Printed name Signature
[] UL Staff conducting or
witnessing testing (WTDP,
TMP, WMT only)
[] UL Staff supervising
UL Staff in training
- -
[] Authorized Signatory
(
CTDP, TPTDP, TCP, PPP, SMT
)
Printed name Signature. Include date for
CTDP, TPTDP, TCP, PPP, WMT,
TMP, SMT
Reviewed and accepted by
qualified Project Handler
- Jessie Wu
Printed Name Signature
Project No.
F
140643
File
E313867
Page
3
14
LABORATORY DATA PACKAGE
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 3 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
TESTS TO BE CONDUCTED:
Test
No.
Done
+++ Test Name
[] Comments/Parameters
[X]Tests Conducted by ++
1 X PHYSICAL PROPERTIES Jerry Shen/ Jerry Shen
2 X MECHANICAL STRENGTH
Randy Wang/ Randy Wang
3 X VERTICAL FLAME TEST - VW-1 OR FV2
Randy Wang/ Randy Wang
4 X VERTICAL FLAME TEST - FT1 OR FV1
Randy Wang/ Randy Wang
Project No.
F
140643
File
E313867
Page
4
14
LABORATORY DATA PACKAGE
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 4 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
Instructions -
+ - When all tests are conducted by one person, printed name and signature
can be inserted here instead of including printed name and signature on each
page containing data. Must indicate number of pages in the data package.
++ - When test conducted by more than one person, printed name and signature
of person conducting the test can be inserted next to the test name instead
of including printed name and signature on each page containing data. Test
dates may be recorded here instead of entering test dates on the individual
datasheet pages. Must indicate number of pages in the data package.
+++ - Use of this field is optional and may be employed differently. If used
to include a date instead of entering the testing date on the individual
datasheet pages, the date shall be the date the test was conducted.
Special Instructions
[x] It shall be permitted to use a mandrel with a smaller size for heat
shock, cold bend & flexibility test. If nonconforming results are obtained,
a mandrel as specified on these data sheets shall be used.
Unless specified otherwise in the individual Methods, the tests shall be
conducted under the following ambient conditions. Confirmation of these
conditions shall be recorded at the time the test is conducted.
Ambient
Temperature, C
23
±
5
Relative
Humidity, %
Barometric
Pressure, mBar
[x] No general environmental conditions are specified in the Standard(s) or
have been identified that could affect the test results or measurements.
Refer to individual test method for the requirement of ambient condition.
RISK ANALYSIS RELATED TO TESTING PERFORMANCE:
The following types of risks have been identified. Take necessary
precautions. This list is not all inclusive.
[
]
Electric shock
Radiation
[ ] Energy related hazards [ ] Chemical hazards
[
X
]
Fire
[
X
]
Noise
[
X
]
Heat related hazards
Vibration
[X] Mechanical [X] Other (Specify)
occupational injury
To Lab Staff:
Refer to the below table for the unit conversion on the following datasheet.
1 mm = 0.03937 inch
1 KN = 224.8089lbf
Project No.
F
140643
File
E313867
Page
5
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 5 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
TEST LOCATION:
(To be completed by Staff Conducting the Testing)
[X] UL or Affiliate
[] WTDP
[] CTDP [] TPTDP
[] WMT [] TMP [] SMT
Company Name
UL-CCIC Company Limited
Address
2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122,
China
TEST EQUIPMENT INFORMATION
Inst.
ID No.
Instrument
Type
Test Number +, Test
Title or
Conditioning
Function
/Range
Last Cal.
Date
Next Cal.
Date
- - - - - -
+ - If Test Number is used, the Test Number must be identified on the data
sheet pages or on the Data Sheet Package cover page.
The following additional information is required when using client’s or
rented equipment, or when a UL ID Number for an instrument number is not used.
The Inst. ID No. below corresponds to the Inst. ID No. above.
Inst.
ID No. Make/Model/Serial Number/Asset No.
- -
[x] UL test equipment information is recorded on Meter Use in UL’s Laboratory
Project Management (LPM) database.
TEST SAMPLE IDENTIFICATION:
The table below is provided to establish correlation of sample numbers to
specific product related information. Refer to this table when a test
identifies a test sample by "Sample No." only.

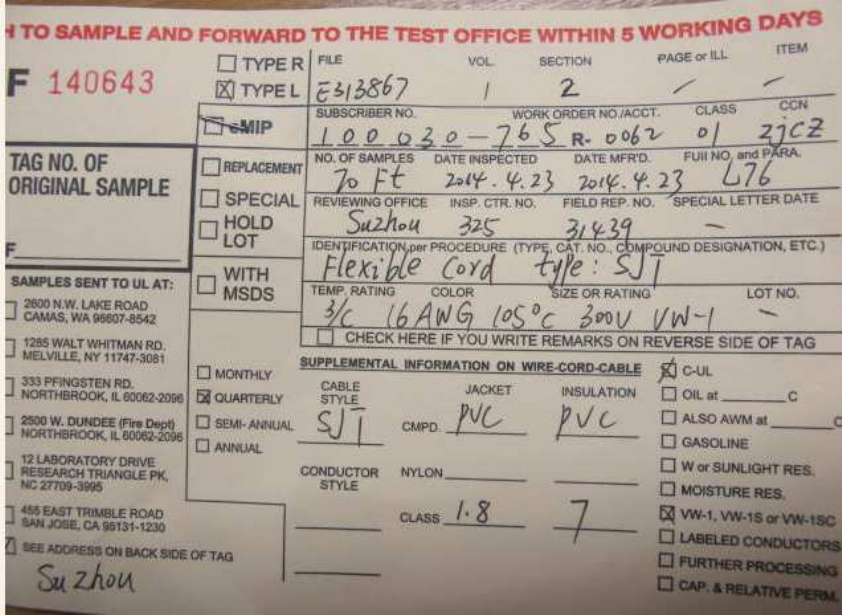

Sample Card
No. Date Received
[
X
]
Test
No.
Sample
No. Manufacturer, Product Identification and Ratings
1865376 2014-04-29 1-4 W1-W16
Referred to the attached sample tag
+ - If Test Number is used, the Test Number or Numbers the sample was used in
must be identified on the data sheet pages or on the Data Sheet Package cover
page.
[] Sampling Procedure –
[] This document contains data using color and if printed, should be printed
in color to retain legibility and the information represented by the color.
Project No.
F
140643
File
E313867
Page
6
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 6 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
PHYSICAL PROPERTIES: UL 62 and CSA C22.2 No. 49, Clauses 5.1.1
Sample Card No.:
1865376 Sample No.: W1
Material: PVC Ins/Jkt: Ins. Color: Black
Ambient Temp.: 23°C Humidity: 55% RH
Ambient Temperature Requirement : 24 ± 8 °C
Sample Type: [x] Insulation [ ] Jacket
Sample Preparation: [x] Tubular [ ] Die Cut [ ] Buffed [ ]
Planed
Speed of Separation:
20 Inches Per Minute
Actual Speed of
Separation:
20 Inches Per Minute
Conditioning: [X] Unaged
Specimen No.
1 2* 3* 4*
O.D., mils. 109.1 - - -
Cond dia, mils. 51.3 - - -
Area, in
2
- - - -
Peak load, lbf 17.85 - - -
Tensile strength, lbf/in
2
2450.8 - - -
Bench marks broke at, in. 3.87 - - -
Elongation, percent 287 - - -
Results Results of *
Requirement
Average tensile strength, lbf/in
2
2450.8 - Min. 1500
Average elongation, percent 287 - Min. 100
All Specimens were broken within gauge mark. J.S. 2014-05-21
2014-05-13~
2014-05-21
Project No.
F
140643
File
E313867
Page
7
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 7 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
PHYSICAL PROPERTIES:
(CONT’D)
UL 62 and CSA C22.2 No. 49, Clauses 5.1.1
Sample Card No.:
1865376 Sample No.: W2.W3
Material: PVC Ins/Jkt: Ins. Color: Black
Ambient Temp.: 23°C Humidity: 55% RH
Conditioning:
[X] After 7 Days In Air Oven at 136 °C
[ ] After Hrs / Days in IRM902 Oil at _____ °C
Test Start Date/Time: 2014-05-13/17:00
Test End Date/Time: 2014-05-20/17:00
Actual Aging Temperature: 136°C
Specimen No.
1 2 3* 4* 5*
O.D., mils. 109.1 109.1 - - -
Cond dia, mils. 51.3 51.3 - - -
Area, in
2
- - - - -
Peak load, lbf 18.83 19.07 - - -
Tensile strength, lbf/in
2
2586.2 2618.7 - - -
Bench marks broke at, in. 3.61 3.24 - - -
Elongation, percent 261 224 - - -
Results Results of *
Requirement
Average tensile strength, lbf/in
2
2602.5 - --
Percent of original 106.2 - Min. 85
Average elongation, percent 242.5 - --
Percent of original 84.5 - Min. 65
All Specimens were broken within gauge mark. J.S. 2014-05-21
2014-05-13~
2014-05-21
Project No.
F
140643
File
E313867
Page
8
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 8 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
PHYSICAL PROPERTIES: UL 62 and CSA C22.2 No. 49, Clauses 5.1.2
Sample Card No.:
1865376 Sample No.: W4
Material: PVC Ins/Jkt: Jkt. Color: Black
Ambient Temp.: 23°C Humidity: 55% RH
Ambient Temperature Requirement: 24 ± 8 °C
Sample Type: [ ] Insulation [x] Jacket
Sample Preparation: [ ] Tubular [X] Die Cut [ ] Buffed [ ] Planed
Speed of Separation:
20 Inches Per Minute
Actual Speed of
Separation:
20 Inches Per Minute
Conditioning: [X] Unaged
Specimen No.
1 2* 3* 4*
width of die, mils. 250.0 - - -
thickness of die, mils. 31.5 - - -
Area, in
2
- - - -
Peak load, lbf 21.07 - - -
Tensile strength, lbf/in
2
2676.2 - - -
Bench marks broke at, in. 3.82 - - -
Elongation, percent 282 - - -
Results Results of *
Requirement
Average tensile strength, lbf/in
2
2676.2 - Min. 1500
Average elongation, percent 282 - Min. 100
All Specimens were broken within gauge mark. J.S. 2014-05-21
2014-05-13~
2014-05-21
Project No.
F
140643
File
E313867
Page
9
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 9 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
PHYSICAL PROPERTIES:
(CONT’D)
UL 62 and CSA C22.2 No. 49, Clauses 5.1.2
Sample Card No.:
1865376 Sample No.: W5.W6
Material: PVC Ins/Jkt: Jkt. Color: Black
Ambient Temp.: 23°C Humidity: 55% RH
Conditioning:
[X] After 7 Days In Air Oven at 136 °C
[ ] After Hrs / Days in IRM902 Oil at _____ °C
Test Start Date/Time: 2014-05-13/17:00
Test End Date/Time: 2014-05-20/17:00
Actual Aging Temperature: 136°C
Specimen No.
1 2 3* 4* 5*
width of die, mils. 250.0 250.0 - - -
thickness of die, mils. 31.5 31.5 - - -
Area, in
2
- - - - -
Peak load, lbf 26.61 24.68 - - -
Tensile strength, lbf/in
2
3378.7 3134.1 - - -
Bench marks broke at, in. 2.81 2.80 - - -
Elongation, percent 181 180 - - -
Results Results of * Requirement
Average tensile strength, lbf/in
2
3256.4 - --
Percent of original 121.7 - Min. 85
Average elongation, percent 180.5 - --
Percent of original 64.0 - Min. 45
All Specimens were broken within gauge mark. J.S. 2014-05-21
2014-05-13~
2014-05-21
Project No.
F
140643
File
E313867
Page
10
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 10 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
MECHANICAL STRENGTH UL 62 and CSA C22.2 No. 49, Clause 5.1.4
Sample Card No.:
1865376 Sample No.:
W7
Material: PVC Jacket: -- Color: Black
Ambient Temp.: 22 °C Humidity: 59 % RH
[X] Dead Weight Method [ ] Tensile Testing Machine Method
Applied force, lb. 150
Actual force applied, lb. 150
Requirement: There shall be no breaking of grounding or circuit conductors.
RESULTS
Specimen # 1
Were there any broken conductors? [Yes] [No]
2014
-
05
-
22
Project No.
F
140643
File
E313867
Page
11
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 11 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
VERTICAL FLAME TEST – VW-1 OR FV2 UL 62 and CSA C22.2 No. 49, Clause 5.1.5.4
Sample Card No.:
1865376 Sample No.:
W8-W10
Material: PVC Ins./Jkt.: Ins. Color: Black
Ambient Temp.: 23 °C Humidity: 51 % RH
Requirement: There shall be no ignition of cotton, burns shall not exceed
60 sec, and no more than 25% of the indicator flag shall be consumed.
Specimen
# 1 # 2 # 3
Duration after 1st application (sec)
1 1 1
Duration after 2nd application (sec)
1 0 1
Duration after 3rd application (sec)
0 0 0
Duration after 4th application (sec)
0 0 0
Duration after 5th application (sec)
0 0 0
Percent of indicator flag burned 0 0 0
Cotton ignition? [Yes] [No]
[Yes] [No] [Yes] [No]
2014
-
05
-
22
Project No.
F
140643
File
E313867
Page
12
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 12 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
VERTICAL FLAME TEST – VW-1 OR FV2 UL 62 and CSA C22.2 No. 49, Clause 5.1.5.4
Sample Card No.:
1865376 Sample No.:
W11-W13
Material: PVC Ins./Jkt.: Jkt. Color: Black
Ambient Temp.: 23 °C Humidity: 51 % RH
Requirement: There shall be no ignition of cotton, burns shall not exceed
60 sec, and no more than 25% of the indicator flag shall be consumed.
Specimen
# 1 # 2 # 3
Duration after 1st application (sec)
0 0 0
Duration after 2nd application (sec)
0 0 0
Duration after 3rd application (sec)
0 0 0
Duration after 4th application (sec)
0 0 0
Duration after 5th application (sec)
0 0 0
Percent of indicator flag burned 0 0 0
Cotton ignition? [Yes] [No]
[Yes] [No] [Yes] [No]
2014
-
05
-
22
Project No.
F
140643
File
E313867
Page
13
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 13 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
VERTICAL FLAME TEST – FT1 OR FV1 UL 62 and CSA C22.2 No. 49, Clause 5.1.5.1
Sample Card No.:
1865376 Sample No.:
W14-W16
Material: PVC Ins./Jkt.: Jkt. Color: Black
Ambient Temp.: 23 °C Humidity: 51 % RH
Requirement: Burns shall not exceed 60 sec, and more than 25% of the
indicator flag shall not be consumed.
[ ] Note: Conduct Vertical Flame Test – FT1 OR FV1 only when Vertical Flame
Test – VW-1 or FV2 fails.
Specimen
# 1 # 2 # 3
Duration of specimen flaming after
5
th
flame application (sec.)
0 0 0
Dripping of flaming particles Yes / No Yes / No Yes / No
Percent of indicator flag burned 0 0 0
2014
-
05
-
22
Project No.
F
140643
File
E313867
Page
14
14
Tested by: Date
Printed Name Signature
ULS-00062-ZJCZ-DataSheet-2001 Form Issued: 2004-02-20
Form Page 14 Form Revised: 2011-05-16
Copyright 2012 UL LLC
Only those products bearing the UL Mark should be considered as being covered by UL.
END OF DATASHEET PACKAGE.THIS PAGE INTENTIONALLY LEFT BLANK
2014
-
05
-
22

Navigation menu
