February 2018 UM2179 Rev 7 1/53
1
UM2179
User manual
STM32 Nucleo-144 boards
Introduction
The STM32 Nucleo-144 boards (NUCLEO-L496ZG, NUCLEO-L496ZG-P,
NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG) provide an affordable and
flexible way for users to try out new concepts and build prototypes by choosing from the
various combinations of performance and power consumption features, provided by the
STM32 microcontroller. The ST Zio connector, which extends the Arduino™ Uno V3
connectivity, and the ST morpho headers provide an easy means of expanding the
functionality of the Nucleo open development platform with a wide choice of specialized
shields. The STM32 Nucleo-144 board does not require any separate probe as it integrates
the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-144 board comes with the
STM32 comprehensive free software libraries and examples available with the STM32Cube
package.
Pictures are not contractual.

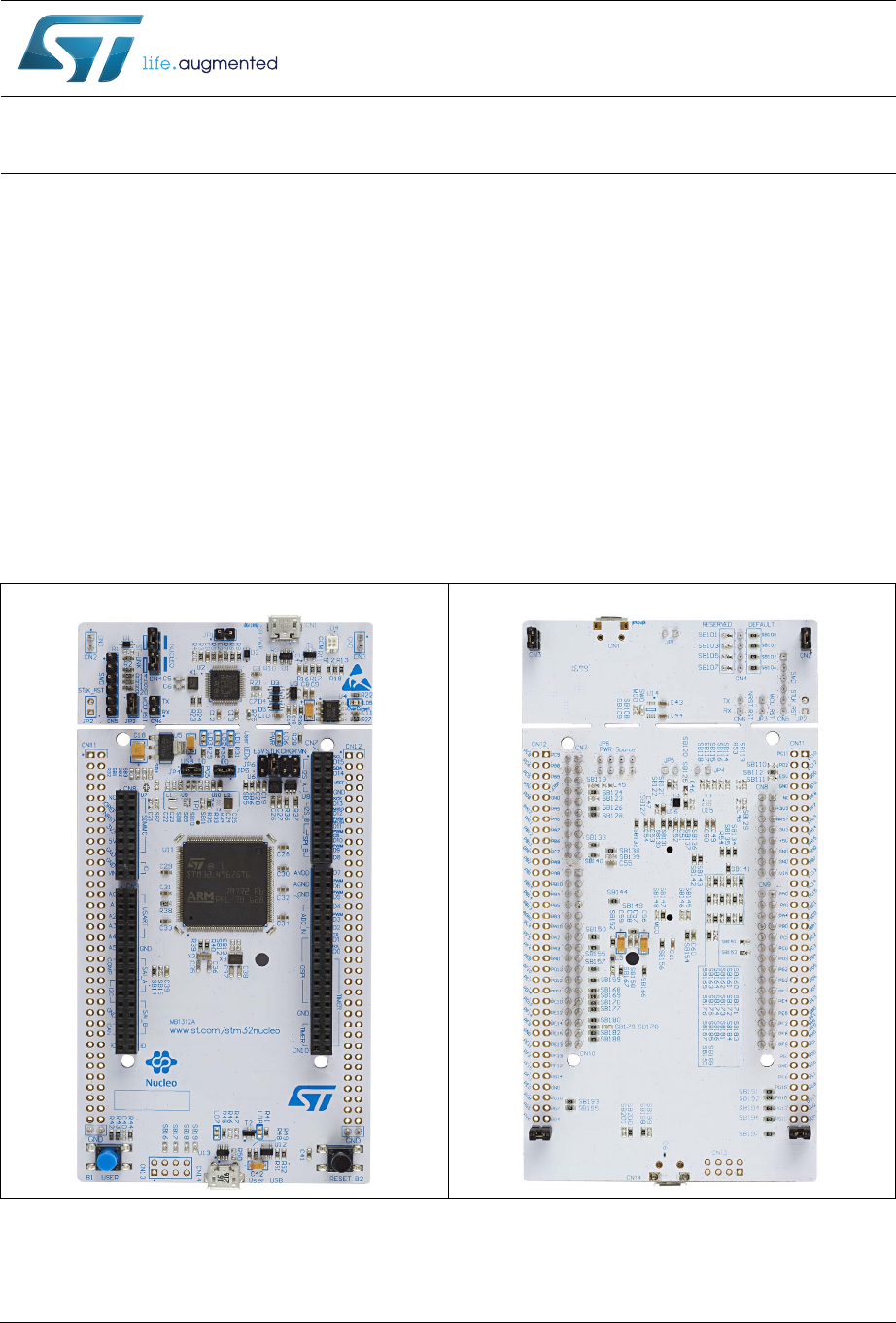

Figure 1. Nucleo-144 board (top view) Figure 2. Nucleo-144 board (bottom view)
www.st.com
Contents UM2179
2/53 UM2179 Rev 7
Contents
1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Product marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Development toolchains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Demonstration software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Hardware layout and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1 STM32 Nucleo-144 board layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2 STM32 Nucleo-144 board mechanical drawing . . . . . . . . . . . . . . . . . . . . 14
6.3 Cuttable PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.4 Embedded ST-LINK/V2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.4.1 Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4.2 ST-LINK/V2-1 firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4.3 Using the ST-LINK/V2-1 to program and debug the on-board STM32 . 17
6.4.4 Using ST-LINK/V2-1 to program and debug an external STM32
application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.5 Power supply and power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.5.1 Power supply input from ST-LINK/V2-1 USB connector . . . . . . . . . . . . 21
6.5.2 External power supply inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.5.3 External power supply output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.4 SMPS power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.6 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.7 Push-buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.8 JP5 (IDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.9 OSC clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.9.1 OSC clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
UM2179 Rev 7 3/53
UM2179 Contents
3
6.10 OSC 32 KHz clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.11 LPUART1 communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.12 USB FS OTG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.13 Solder bridges and jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.14 Expansion connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.15 ST Zio connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.16 ST morpho connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.17 Bootloader limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.17.1 Bootloader operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.17.2 Bootloader identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.17.3 Bootloader limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.17.4 Affected parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.17.5 Workarounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

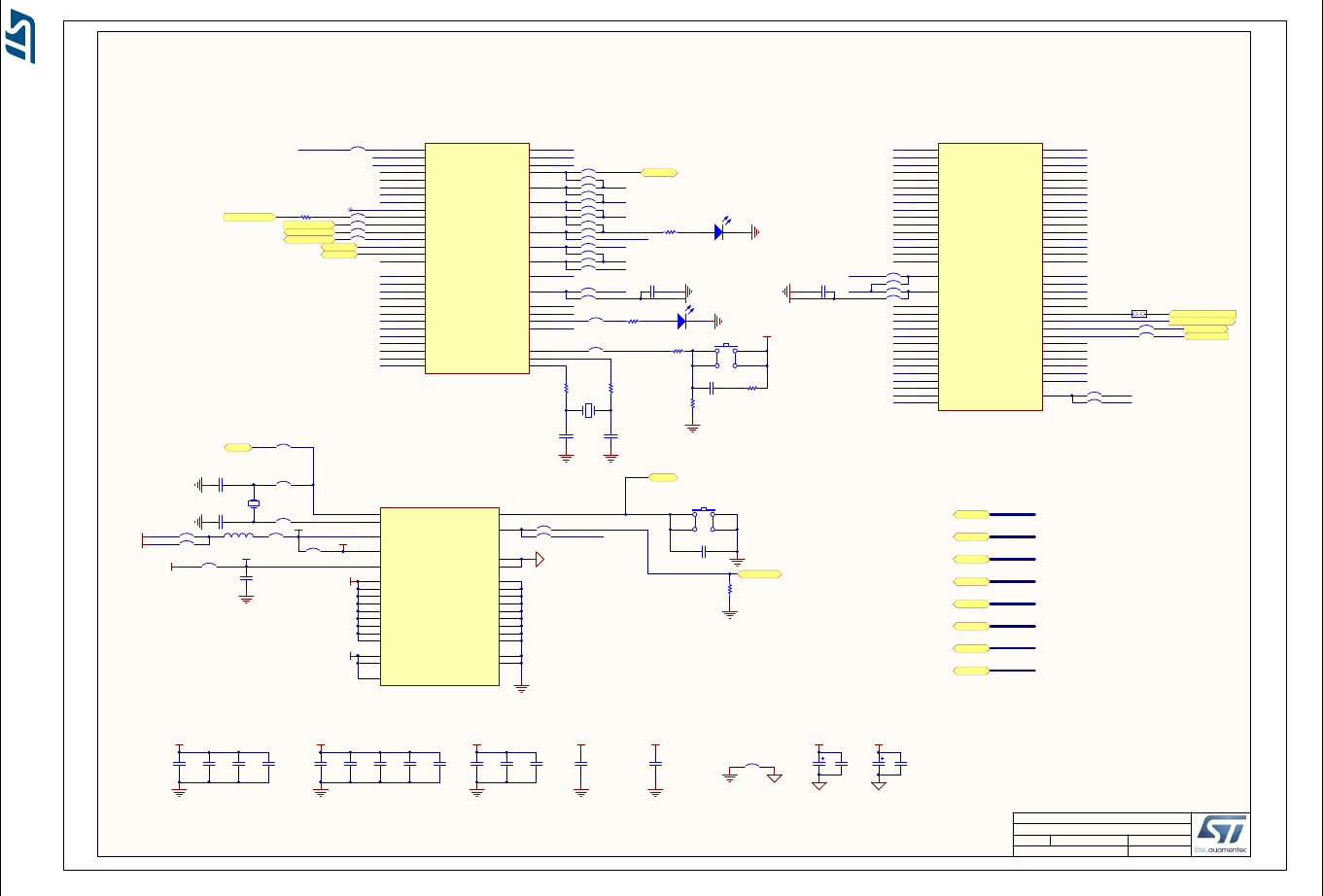

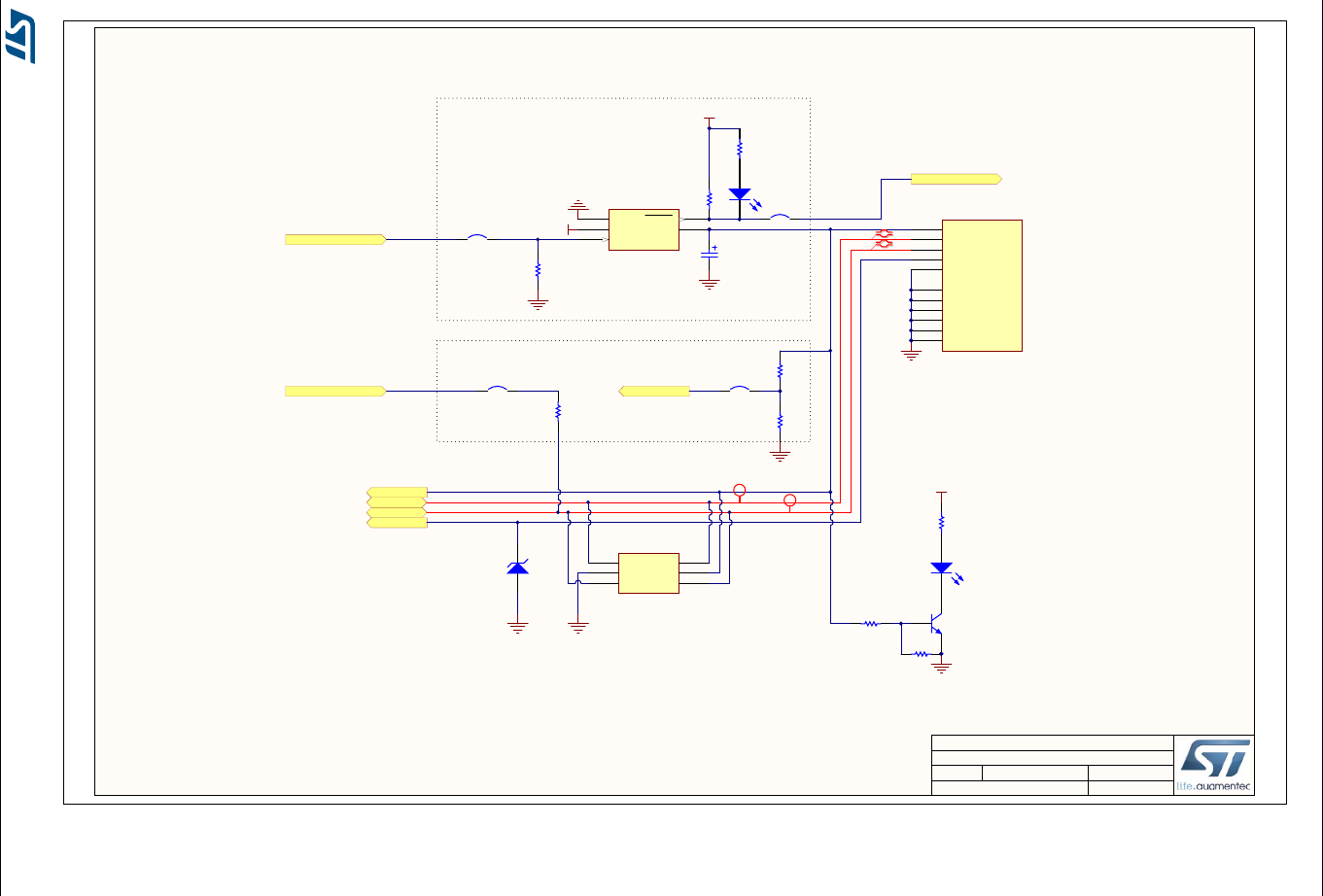

Appendix A Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Appendix B Board revision history and limitations . . . . . . . . . . . . . . . . . . . . . . 50
Appendix C Federal Communications Commission (FCC)
and Industry Canada (IC) Compliance . . . . . . . . . . . . . . . . . . . . . . . 51
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
List of tables UM2179
4/53 UM2179 Rev 7
List of tables
Table 1. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 2. Codification explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 3. ON/OFF conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

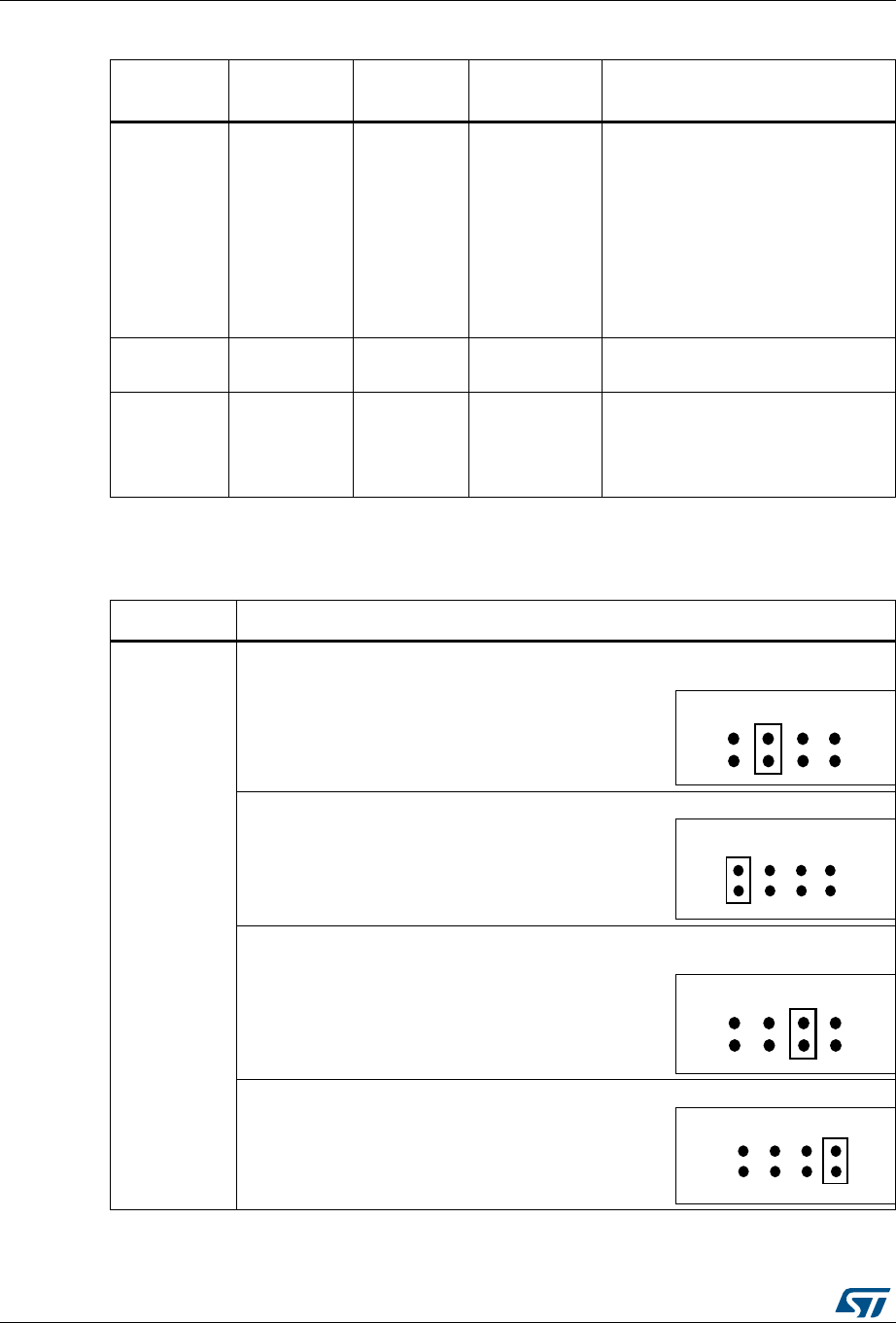

Table 4. CN4 states of the jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 5. Debug connector CN5 (SWD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 6. External power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 7. Power related jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 8. LPUART1 pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 9. USB pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 10. Configuration of the solder bridges and jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Table 11. NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments . . . . . . . . . . . . . . . . . . . . . . 37
Table 12. ST morpho connector pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table 13. Board revision history and limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Table 14. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
UM2179 Rev 7 5/53
UM2179 List of figures
5
List of figures
Figure 1. Nucleo-144 board (top view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2. Nucleo-144 board (bottom view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 3. Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

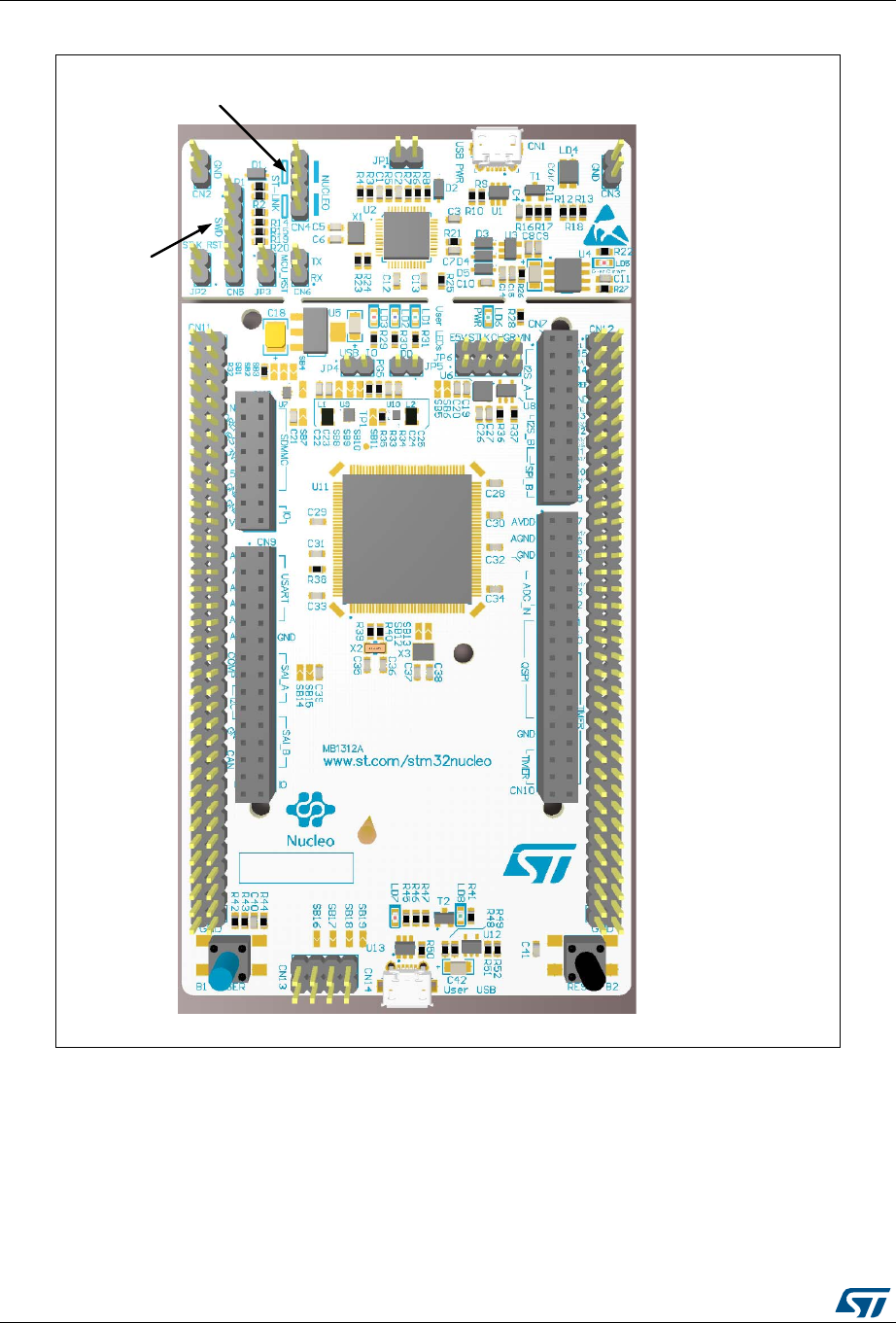

Figure 4. STM32 Nucleo-144 board top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

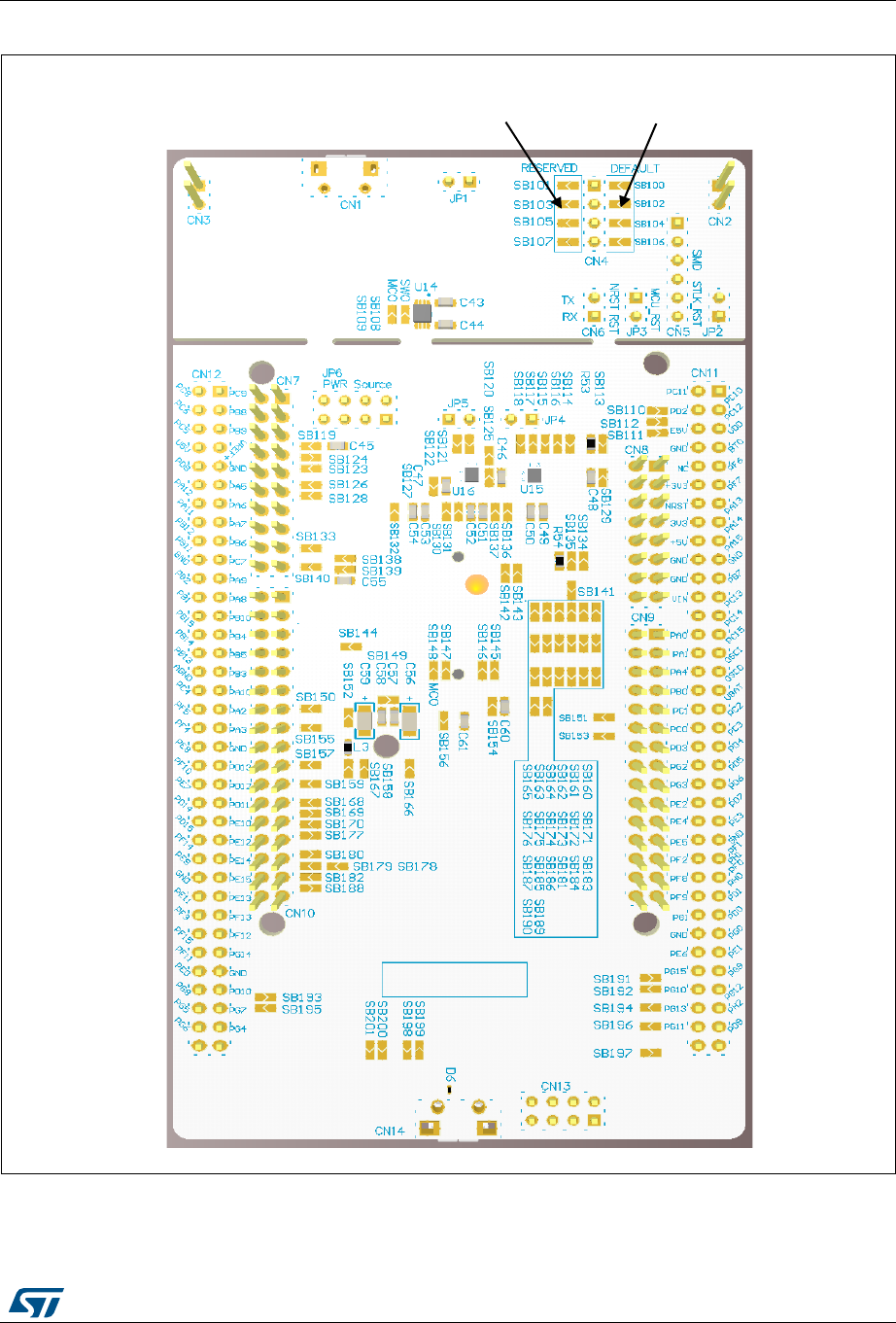

Figure 5. STM32 Nucleo-144 board bottom layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

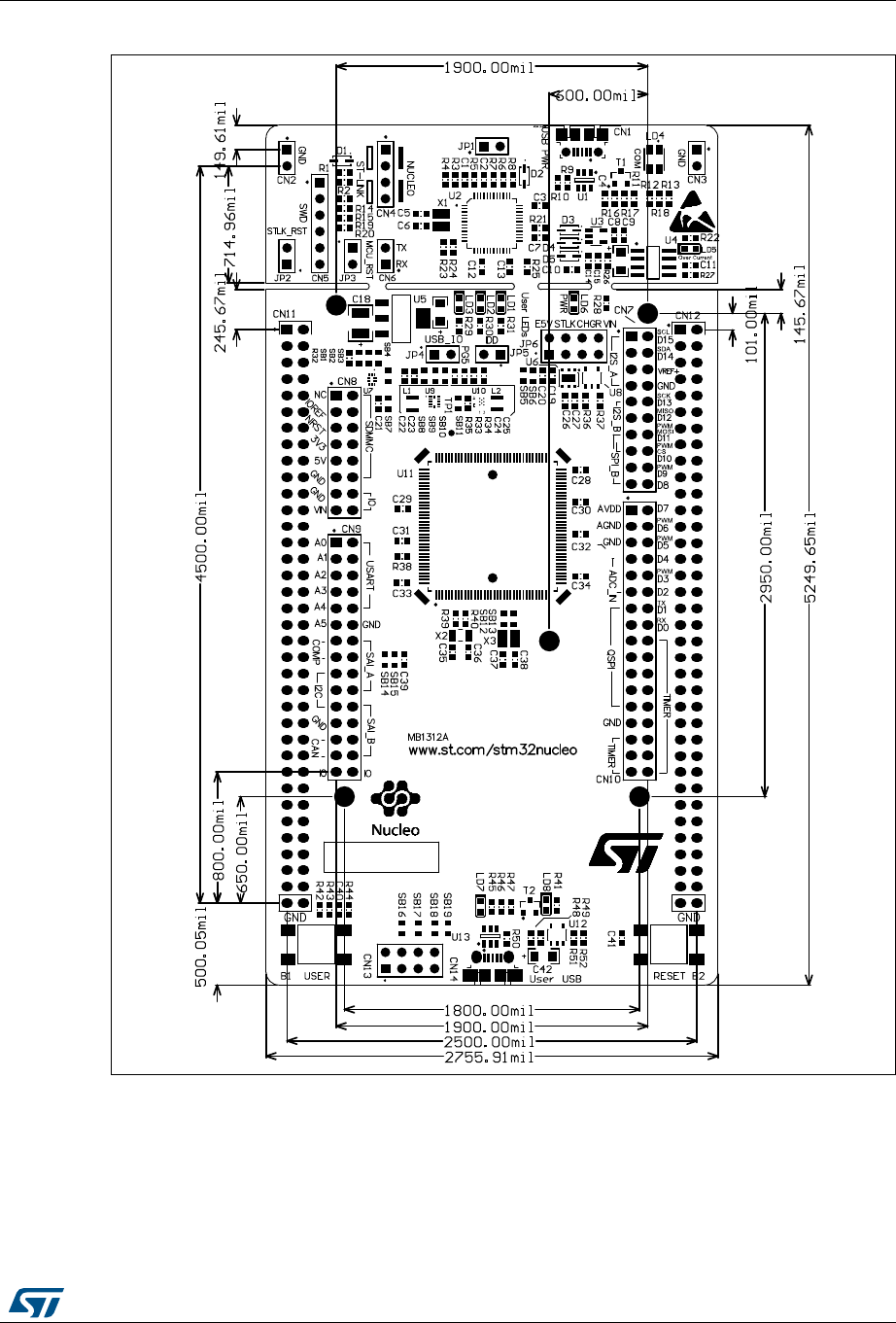

Figure 6. STM32 Nucleo-144 board mechanical drawing in millimeter . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 7. Nucleo-144 board mechanical drawing in mils . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

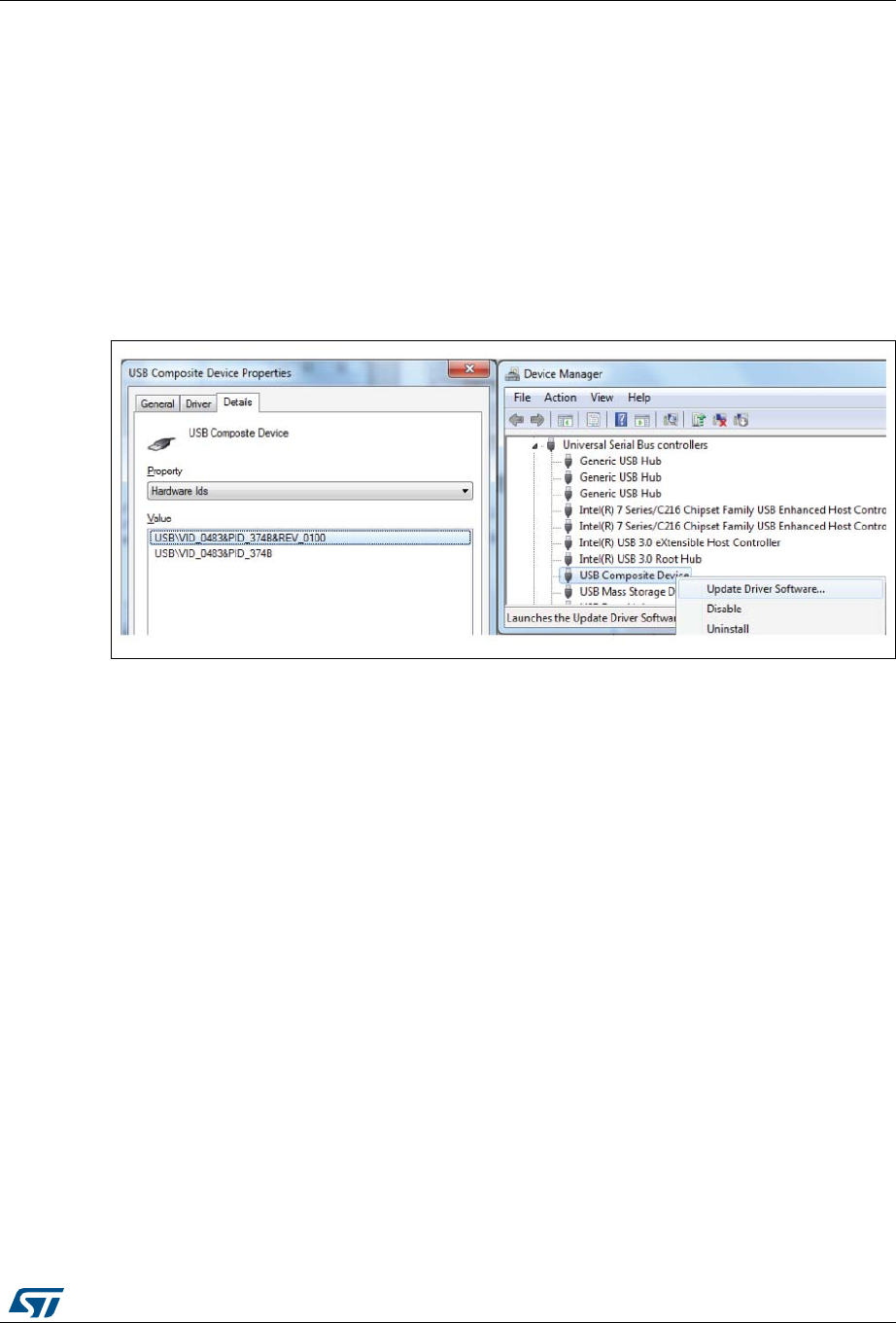

Figure 8. USB composite device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 9. Connecting the STM32 Nucleo-144 board to program the on-board STM32 . . . . . . . . . . . 18
Figure 10. Using ST-LINK/V2-1 to program an external STM32 application . . . . . . . . . . . . . . . . . . . . 20
Figure 11. NUCLEO-L496ZG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 12. NUCLEO-L496ZG-P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 13. NUCLEO-L4A6ZG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 14. NUCLEO-L4R5ZI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 15. NUCLEO-L4R5ZI-P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 16. Top and power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 17. MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 18. ST-LINK/V2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Figure 19. USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 20. Extension connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 21. SMPS power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Features UM2179
6/53 UM2179 Rev 7
1 Features
The STM32 Nucleo-144 boards offer the following features:
•STM32 Arm®-based microcontroller in LQFP144 package
•External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards)(a)
•USB OTG FS
•3 user LEDs
•2 user and reset push-buttons
•32.768 kHz crystal oscillator
•Board connectors:
– USB with Micro-AB
–SWD
•Board expansion connectors:
– ST Zio connector including Arduino™ Uno V3
–ST morpho
•Flexible power-supply options:
– ST-LINK USB VBUS or external sources
•On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability:
mass storage, virtual COM port and debug port
•Comprehensive free software libraries and examples available with the STM32Cube
package
•Support of a wide choice of Integrated Development Environments (IDEs) including
IAR™, Keil®, GCC-based IDEs
a. SMPS significantly reduces power consumption in Run mode, by generating Vcore logic supply from an external
DC/DC converter.
UM2179 Rev 7 7/53
UM2179 Product marking
52
2 Product marking
Evaluation tools marked as “ES” or “E” are not yet qualified and therefore not ready to be
used as reference design or in production. Any consequences deriving from such usage will
not be at ST charge. In no event, ST will be liable for any customer usage of these
engineering sample tools as reference design or in production.
“E” or “ES” marking examples of location:
•On the targeted STM32 that is soldered on the board (for illustration of STM32 marking,
refer to the STM32 datasheet “Package information” paragraph at the www.st.com
website).
•Next to the evaluation tool ordering part number that is stuck or silk-screen printed on
the board.
This board features a specific STM32 device version which allows the operation of any
stack or library. This STM32 device shows a "U" marking option at the end of the standard
part number and is not available for sales.
2.1 System requirements
•Windows® OS (7, 8 and 10), Linux® 64-bit or macOS®
•USB Type-A to Micro-B cable
2.2 Development toolchains
•Keil® MDK-ARM(a)
•IAR™ EWARM(a)
•GCC-based IDEs including free SW4STM32 from AC6
2.3 Demonstration software
The demonstration software, included in the STM32Cube package corresponding to the
on-board MCU, is preloaded in the STM32 Flash memory for easy demonstration of the
device peripherals in standalone mode. The latest versions of the demonstration source
code and associated documentation can be downloaded from the www.st.com/stm32nucleo
webpage.
a. On Windows® only.
Ordering information UM2179
8/53 UM2179 Rev 7
3 Ordering information
To order the Nucleo-144 board corresponding to the targeted STM32, use the order code
given below in Table 1.
The meaning of the NUCLEO-TXXXRY codification is explained in Table 2 with an example.
The order code is mentioned on a sticker placed on the top side of the board.
Table 1. Ordering information
Order code Target STM32
NUCLEO-L496ZG STM32L496ZGT6
NUCLEO-L496ZG-P STM32L496ZGT6P
NUCLEO-L4A6ZG STM32L4A6ZGT6
NUCLEO-L4R5ZI STM32L4R5ZIT6
NUCLEO-L4R5ZI-P STM32L4R5ZIT6P
Table 2. Codification explanation
NUCLEO-TXXXRY(-P) Description Example: NUCLEO-L496ZG-P
TXXX STM32 product line STM32L496
R STM32 package pin count 144 pins
Y
STM32 Flash memory size:
– G for 1 Mbyte
– I for 2 Mbytes
1 Mbyte
P STM32 has SMPS function SMPS
UM2179 Rev 7 9/53
UM2179 Conventions
52
4 Conventions
Table 3 provides the conventions used for the ON and OFF settings in the present
document.
In this document the references for all information that is common to all sale types, are
“STM32 Nucleo-144 board” and “STM32 Nucleo-144 boards”.
5 Quick start
This section describes how to start a development quickly using the STM32 Nucleo-144
board.
Before installing and using the product, accept the Evaluation Product License Agreement
from the www.st.com/epla webpage. For more information on the STM32 Nucleo-144 board
and for demonstration software, visit the www.st.com/stm32nucleo webpage.
5.1 Getting started
Follow the sequence below to configure the Nucleo-144 board and launch the demonstration
application (for components location refer to Figure 4: STM32 Nucleo-144 board top layout).
1. Check the jumper position on the board:
JP1 (PWR-EXT) OFF (see Section 6.5.1: Power supply input from ST-LINK/V2-1 USB
connector for more details)
JP6 (Power source) on STLK side (for more details see Table 7: Power related jumper)
JP5 (IDD) ON (for more details see Section 6.8: JP5 (IDD))
CN4 ON selected (for more details see Table 4: CN4 states of the jumpers).
2. For the correct identification of the device interfaces from the host PC and before
connecting the board, install the Nucleo USB driver available on the
www.st.com/stm32nucleo website.
3. To power the board connect the STM32 Nucleo-144 board to a PC with a USB ‘Type-A
to Micro-B’ cable through the USB connector CN1 on the ST-LINK. As a result, the
green LED LD6 (PWR) and LD4 (COM) light up and the red LED LD3 blinks.
Table 3. ON/OFF conventions
Convention Definition
Jumper JPx ON Jumper fitted
Jumper JPx OFF Jumper not fitted
Solder bridge SBx ON SBx connections closed by solder or 0 ohm resistor
Solder bridge SBx OFF SBx connections left open
Quick start UM2179
10/53 UM2179 Rev 7
4. Press button B1 (left button).
5. Observe that the blinking frequency of the three LEDs LD1 to LD3 changes, by clicking
on
the button B1.
6. The software demonstration and the several software examples, that allow the user to
use the Nucleo features, are available at the www.st.com/stm32nucleo webpage.
7. Develop an application, using the available examples.
UM2179 Rev 7 11/53
UM2179 Hardware layout and configuration
52
6 Hardware layout and configuration
The STM32 Nucleo-144 board is designed around the STM32 microcontrollers in a 144-pin
LQFP package.
Figure 3 shows the connections between the STM32 microcontroller and its peripherals (ST-
LINK/V2-1,
push-buttons, LEDs, USB, ST Zio connectors and ST morpho headers).
Figure 4 and Figure 5 show the location of these features on the STM32 Nucleo-144 board.
Figure 6 and Figure 7 show the mechanical dimensions of the STM32 Nucleo-144 board.
Figure 3. Hardware block diagram
1. Ext SMPS function is only available on '-P' suffixed boards.
Embedded
ST-LINK/V2-1
STM32
Microcontroller
RESET
SWD
ST ŵorpho extension Header
ST ŵorpho extension Header
Micro-B
USB
Đonnector
IO
USB
B2
RST
B1
USER
IO
Zio Đonnector
LED
LD1
ST-LINK Part
MCU Part
LED
LD2/3
Micro-AB or
Micro-B USB
Đonnector
Zio Đonnector
Ext
SMPS
IO
Hardware layout and configuration UM2179
12/53 UM2179 Rev 7
6.1 STM32 Nucleo-144 board layout
Figure 4. STM32 Nucleo-144 board top layout
CN1
ST
-
LINK Micro
USB connector
CN4
ST
-LINK/
NUCLEO selector
LD1-LD3
User LEDs
B1
User button
CN11
ST Porpho
pin header
CN13
SMPS signal
connector
JP1
PWR
-
EXT
CN5
SWD
connector
JP5
IDD
measurement
U11
STM32
Microcontroller
LD7
USB over
CN7, CN10
Zio connectors
SB6
3.3V regulator
output
JP6
Power Source
selection
LD6
Power (Green
LED)
LD5
(Red LED) ST-/,1.9
Power Over
FXUUHQWDODUP
LD4
(Red/Green
LED) COM
LD8
USB VBUS
CN14
User USB
connector
B2
Reset button
CN8, CN9
Zio connectors
CN12
ST Porpho
pin header
Hardware layout and configuration UM2179
16/53 UM2179 Rev 7
6.3 Cuttable PCB
The STM32 Nucleo-144 board is divided into two parts: ST-LINK and target STM32. The
ST-LINK part of the PCB can be cut out to reduce the board size. In this case the remaining
target STM32 part can only be powered by VIN, E5V and 3.3 V on the ST morpho connector
CN11, or by VIN and 3.3 V on the ST Zio connector CN8. It is still possible to use the ST-
LINK part to program the STM32, using wires between the CN5 and SWD available signals
on the ST morpho connector (SWCLK CN11 pin 15, SWDIO CN11 pin 13 and NRST CN11
pin 14, same I/O level as VDD_MCU).
6.4 Embedded ST-LINK/V2-1
The ST-LINK/V2-1 programming and debugging tool is integrated in the STM32 Nucleo-144
board.
The embedded ST-LINK/V2-1 supports only SWD for STM32 devices. For information about
debugging and programming features refer to ST-LINK/V2 in-circuit debugger/programmer
for STM8 and STM32, User manual (UM1075), which describes in details all the ST-
LINK/V2 features.
The changes versus ST-LINK/V2 version are listed below.
New features supported on ST-
LINK/V2-1:
•USB software re-enumeration
•Virtual COM port interface on USB
•Mass storage interface on USB
•USB power management request for more than 100 mA power on USB
Features not supported on ST-LINK/V2-1:
•SWIM interface
•Minimum supported application voltage limited to 3 V
There are two different ways to use the embedded ST-LINK/V2-1, depending on the jumper
state (see Table 4):
•Program/debug the STM32 on board
•Program/debug the STM32 in an external application board, using a cable connected
to
SWD connector CN5
Table 4. CN4 states of the jumpers
Jumper state Description
Both CN4 jumpers ON ST-LINK/V2-1 functions enabled for on-board programming
(default). See Section 6.4.3.
Both CN4 jumpers OFF ST-LINK/V2-1 functions enabled for external CN5 connector
(SWD supported). See Section 6.4.4.
UM2179 Rev 7 17/53
UM2179 Hardware layout and configuration
52
6.4.1 Drivers
Before connecting the Nucleo-144 board to a Windows® (XP, 7, 8 and 10) PC via USB,
install the driver for ST-LINK/V2-1 that can be downloaded from the www.st.com website.
If the STM32 Nucleo-144 board is connected to the PC before installing the driver, the PC
device manager may report some Nucleo interfaces as “Unknown”.
To recover from this situation, after installing the dedicated driver, the association of
“Unknown” USB devices found on the STM32 Nucleo-144 board to this dedicated driver,
must be updated in the device manager manually.
Note: It is recommended to proceed by using USB Composite Device, as shown in Figure 8.
Figure 8. USB composite device
6.4.2 ST-LINK/V2-1 firmware upgrade
The ST-LINK/V2-1 embeds a firmware upgrade mechanism for in-situ upgrade through the
USB port. As the firmware may evolve during the lifetime of the ST-LINK/V2-1 product (for
example new functionalities, bug fixes, support for new microcontroller families), it is
recommended to keep the ST-LINK/V2-1 firmware up to date before starting to use the
STM32 Nucleo-144 board. The latest version of this firmware is available from the
www.st.com website.
6.4.3 Using the ST-LINK/V2-1 to program and debug the on-board STM32
To program the on-board STM32, place the two jumpers marked in red on the connector
CN4, as shown in Figure 9. The CN5 connector must not be used, since it could disturb the
communication with the STM32 microcontroller of the Nucleo-144 board.
Hardware layout and configuration UM2179
18/53 UM2179 Rev 7
Figure 9. Connecting the STM32 Nucleo-144 board to program the on-board STM32
6.4.4 Using ST-LINK/V2-1 to program and debug an external STM32
application
It is very easy to use the ST-LINK/V2-1 to program the STM32 on an external application.
Simply remove the two jumpers from CN4, as shown in Figure 10 and connect the
application to the SWD debug connector according to Table 5.
Note: JP4 NRST (target STM32 RESET) must be open when CN3 pin 5 is used in an external
application.
06Y9
&1MXPSHUV21
&16:'
FRQQHFWRU
UM2179 Rev 7 21/53
UM2179 Hardware layout and configuration
52
6.5 Power supply and power selection
The power supply is provided either by the host PC through the USB cable or by an external
source: VIN (7 V-12 V), E5V (5 V) or +3.3 V power supply pins on CN8 or CN11. If VIN,
E5V
or +3.3 V is used to power a Nucleo-144 board, this power source must comply with the
standard EN-60950-1: 2006+A11/2009 and must be Safety Extra Low Voltage (SELV) with
limited power capability.
If the power supply is +3.3 V, the ST-LINK is not powered and cannot be used.
6.5.1 Power supply input from ST-LINK/V2-1 USB connector
The STM32 Nucleo-144 board and shield can be powered from the ST-LINK USB connector
CN1 (U5V), by placing a jumper between the pins 3 and 4 of JP6, as shown in Table 7:
Power related jumper. Note that only the ST-LINK part is power supplied before the USB
enumeration, as the host PC only provides 100 mA to the board at that time. During the
USB enumeration, the STM32 Nucleo-144 board requires 300 mA of current to the host PC.
If the host is able to provide the required power, the targeted STM32 microcontroller is
powered and the green LED LD6 is turned ON, thus the STM32 Nucleo-144 board and its
shield can consume a maximum current of 300 mA, not more. If the host is not able to
provide the required current, the targeted STM32 microcontroller and the extension boards
are not power supplied. As a consequence the green LED LD6 stays turned OFF. In such
case it is mandatory to use an external power supply as explained in the next section.
After the USB enumeration succeeds, the ST-LINK U5V power is enabled, by asserting the
PWR_EN pin. This pin is connected to a power switch (ST890), which powers the board.
This power switch also features a current limitation to protect the PC if a short-circuit happens
on the board. If an overcurrent (more than 500 mA) happens on the board, the red LED LD5
lits up.
Warning: If the maximum current consumption of the STM32 Nucleo-
144 board and its shield boards exceed 300 mA, it is
mandatory to power the STM32 Nucleo-144 board, using an
external power supply connected to E5V, VIN or +3.3 V.
Note: If the board is powered by a USB charger, there is no USB enumeration, so the green
LED
LD6 stays in OFF state permanently and the target STM32 is not powered. In this specific
case a jumper must be placed between pins 5 and 6 of JP6, to allow the board to be powered
anyway.
6.5.2 External power supply inputs
Depending on the used voltage, an external power source supplies in three different ways
the STM32 Nucleo-144 board and its shield boards. The three power sources are listed in
Table 6.
When the STM32 Nucleo-144 board is power supplied by VIN or E5V, the jumper
configuration must be as showed below:
•Jumper JP6 on pin 1 and pin 2 for E5V or jumper JP3 on pin 7 and pin 8 for VIN
•Jumper JP1 OFF
Hardware layout and configuration UM2179
22/53 UM2179 Rev 7
The 5 V power source is selected by the jumper JP6 as shown in Table 7.
Table 6. External power sources
Input power
name
Connector
pins
Voltage
range Max current Limitation
VIN
CN8 pin 15
CN11 pin 24 7 V to 12 V 800 mA
From 7 V to 12 V only and input
current capability is linked to input
voltage:
– 800 mA input current when
VIN=7 V
– 450 mA input current when
7V<VIN<9V
– 250 mA input current when
9 V<VIN<12 V
E5V CN11 pin 6 4.75 V to
5.25 V 500 mA -
+3.3 V CN8 pin 7
CN11 pin 16 3 V to 3.6 V -
Two possibilities:
–ST-LINK PCB is cut
– SB3 and SB111 OFF (ST-LINK not
powered)
Table 7. Power related jumper
Jumper Description
JP6
STLK (ST-LINK VBUS) is used as power source when JP6 is set as shown on the
right (Default setting)
E5V is used as power source when JP6 is set as shown on the right:
CHGR (USB Charger on CN1) is used as power source when JP6 is set as shown
on the right:
VIN is used as power source when JP6 is set as shown on the right:
E5V
STLK
CHGR VIN
E5V
STLK
CHGR VIN
E5V
STLK
CHGR VIN
E5V
STLK
CHGR VIN
UM2179 Rev 7 23/53
UM2179 Hardware layout and configuration
52
Using VIN or E5V as an external power supply
When powered by VIN or E5V, it is still possible to use the ST-LINK for only programming or
debugging, but it is mandatory to power the board first using VIN or E5V, then to connect the
USB cable to the PC. In this way the enumeration succeeds, thanks to the
external power
source.
The following power-sequence procedure must be respected:
1. Connect jumper JP6 between pin 1 and pin 2 for E5V or between pin 7 and pin 8 for
VIN
2. Check that JP1 is removed
3. Connect the external power source to VIN or E5V
4. Power on the external power supply 7 V< VIN < 12 V to VIN, or 5 V for E5V
5. Check that the green LED LD6 is turned ON
6. Connect the PC to the USB connector CN1
If this order is not respected, the board may be powered by USB (U5V) first, then by VIN or
E5V as the following risks may be encountered:
1. If the board needs more than 300 mA, the PC may be damaged or the
current supplied
can be limited by the PC. As a consequence the board is not powered correctly.
2. 300 mA is requested during the enumeration phase (since JP1 must be OFF) so there
is the risk that the request is rejected and the enumeration does not succeed if the PC
cannot provide such current. Consequently the board is not power supplied (LED LD6
remains OFF).
External power supply input: + 3.3 V
If 3.3 V is provided by a shield board, it is worth using the +3.3 V (CN8 pin 7 or CN11 pin 16)
directly as power input. In this case the ST-LINK is not powered thus
the programming and
debugging features are not available.
When the board is powered with +3.3 V, two different configurations are possible:
•ST-LINK is removed (PCB cut)
•SB6 (3.3 V regulator) and JP3 (NRST) are OFF
6.5.3 External power supply output
When powered by USB, VIN or E5V, the +5 V (CN8 pin 9 or CN11 pin 18) can be used as
output power supply for an ST Zio shield or an extension board. In this case the maximum
current of the power source specified in Table 6: External power sources must be respected.
The +3.3 V (CN8 pin 7 or CN11 pin 16) can also be used as power supply output. The
current is limited by the maximum current capability of the regulator U6 (500 mA max).
6.5.4 SMPS power supply
Power figures in Run Mode are significantly improved, by generating Vcore logic supply from
the external DC/DC converter (this function is only available on '-P' suffixed boards).
Board is populated with two different SMPS mounted on U15 and U16:
•SMPS U15 allows to dynamically supply the VDD_1V2 pins in Run mode at 1.1 V with a
maximum current of 30 mA. For the NUCLEO-L4R5ZI-P, the VDD_1V2 pins in Run
mode are supplied at 1.2 V with a maximum current of 40 mA.
Hardware layout and configuration UM2179
24/53 UM2179 Rev 7
•SMPS U16 allows to supply the VDD_MCU pins at 1.8 V with a maximum current of
50 mA. When SB125 is opened and SB120 closed, the SMPS can deliver higher
current but with higher consumption. This SMPS is disabled by default (See Table 10:
Configuration of the solder bridges and jumpers).
VDD_MCU solder bridge configuration:
•3.3 V (default): SB122 closed, SB121 and SB127 open
•1.8 V: SB122 open, and SB121 and SB127 closed (best ULPBench score)
Note: The ST-LINK is still available in this configuration thanks to the level shifter U14.
6.6 LEDs
User LD1: a green user LED is connected to the STM32 I/O PC7 (SB124 ON and SB123
OFF) or PA5 (SB123 ON and SB124 OFF) corresponding to the ST Zio D13. It only works
when VCC_MCU is 3.3 V.
User LD2: a blue user LED is connected to PB7.
User LD3: a red user LED is connected to PB14.
These user LEDs are on when the I/O is HIGH value, and are off when the I/O is LOW.
LD4 COM: the tricolor LED LD4 (green, orange and red) provides information about ST-LINK
communication status. LD4 default color is red. LD4 turns to green to indicate that
the
communication is in progress between the PC and the ST-LINK/V2-1, with the following
setup:
•Slow blinking red/off: at power-on before USB initialization
•Fast blinking red/off: after the first correct communication between PC and ST-LINK/V2-
1 (enumeration)
•Red LED on: when the initialization between the PC and ST-LINK/V2-1 is complete
•Green LED on: after a successful target communication initialization
•Blinking red/green: during communication with target
•Green on: communication finished and successful
•Orange on: communication failure
LD5 USB power fault: LD5 indicates that the board power consumption on USB exceeds
500 mA, consequently the user must power the board using an external power supply.
LD6 PWR: the green LED indicates that the STM32 part is powered and +5 V power is
available on CN8 pin 9 and CN11 pin 18.
LD7 and LD8 USB FS: refer to Section 6.12: USB FS OTG .
Note:1 LD1 is connected to U8 and it is driven by PC7 or PA5 which may be changed to 1.8 V I/O,
so LD1 cannot be lit when VDD is set to 1.8 V.
Note:2 LD2, LD3 cannot work with VDD_MCU= 1.8 V
6.7 Push-buttons
B1 USER: the user button is connected to the I/O PC13 by default (Tamper support, SB197
ON and SB178 OFF) or PA0 (Wakeup support, SB178 ON and SB197 OFF) of the STM32.
B2 RESET: this push-button is connected to NRST and is used to RESET the STM32.
UM2179 Rev 7 25/53
UM2179 Hardware layout and configuration
52
6.8 JP5 (IDD)
The jumper JP5, labeled IDD, is used to measure the STM32 microcontroller consumption by
removing the jumper and by connecting an ammeter:
•JP5 ON: STM32 is powered (default)
•JP5 OFF: an ammeter must be connected to measure the STM32 current. If there is no
ammeter, the STM32 is not powered
6.9 OSC clock
6.9.1 OSC clock supply
There are four ways to configure the pins corresponding to the external high-speed clock
(HSE):
•HSE not used (Default): PF0/PH1 and PF1/PH1 are used as GPIOs instead of as
clock. The
configuration must be:
– SB147 and SB156 ON
– SB109 and SB148 (MCO) OFF
– SB12 and SB13 removed
•MCO from ST-LINK: MCO output of ST-LINK is used as input clock. This
frequency
cannot be changed, it is fixed at 8 MHz and connected to the
•PF0/PH0-OSC_IN of STM32 microcontroller. The configuration must be:
–SB147 OFF
– SB109 and SB148 ON
– SB12 and SB13 OFF
•HSE on-board oscillator from X3 crystal (not provided): for typical frequencies and
its capacitors and resistors, refer to the STM32 microcontroller datasheet and for the
oscillator design guide refer to the Oscillator design guide for STM8S, STM8A and
STM32 microcontrollers Application
note (AN2867). The X3 crystal has the following
characteristics: 8 MHz, 8 pF, 20 ppm. It is recommended to use the NX3225GD-8.000M-
EXS00A-CG04874 crystal manufactured by NIHON DEMPA KOGYO CO., LTD. The
configuration must be:
– SB147 and SB156 OFF
– SB12 and SB13 soldered
– C37 and C38 soldered with 4.3 pF capacitors
– SB109 and SB148 OFF
•Oscillator from external PF0/PH0: from an external oscillator through the pin 29 of
the
CN11 connector. The configuration must be:
–SB147 ON
– SB109 and SB148 OFF
– SB12 and SB13 removed
Hardware layout and configuration UM2179
26/53 UM2179 Rev 7
6.10 OSC 32 KHz clock supply
There are three ways to configure the pins corresponding to low-speed clock (LSE):
•On-board oscillator (Default): X2 crystal. Refer to the Oscillator design guide for
STM8S, STM8A and STM32 microcontrollers Application note (AN2867) for oscillator
design guide for STM32 microcontrollers. It is recommended to use the NX3214SA-
32.768KHZ-EXS00A-MU00525 (32.768 KHz, 6 pF load capacitance, 200 ppm) crystal
from Nihon Dempa Kogyo CO, LTD.
•Oscillator from external PC14: from external oscillator through the pin 25 of CN11
connector. The configuration must be:
– SB145 and SB146 ON
– R39 and R40 removed
•LSE not used: PC14 and PC15 are used as GPIOs instead of low-speed clock. The
configuration must be:
– SB145 and SB146 ON
– R39 and R40 removed
6.11 LPUART1 communication
The LPUART1 interface available on PG7 and PG8 of the STM32 can be connected to the
ST-LINK or to the ST morpho connector. Another option to do this connection is to set the
related solder bridges. By default the LPUART1 communication between the target STM32
and the ST-LINK is enabled, to support the virtual COM port (SB130 and SB131 ON). Refer
to Table 8.
6.12 USB FS OTG
The STM32 Nucleo-144 board supports the USB OTG as host or as device-full-speed
communication through a USB Micro-AB connector (CN14) and USB power switch (U12)
connected to VBUS.
Warning: The USB Micro-AB connector (CN14) cannot power a Nucleo-
144 board. To avoid damaging the STM32, it is mandatory to
power the board before connecting a USB cable on CN14.
Otherwise there is a risk of current injection on STM32 I/Os.
Table 8. LPUART1 pin configuration
Pin
name Function Virtual COM port
(default
configuration) ST morpho connection
PG7 LPUART1 TX SB131 ON and SB195 OFF SB131 OFF and SB95 ON
PG8 LPUART1 RX SB130 ON and SB193 OFF SB130 OFF and SB193 ON
UM2179 Rev 7 27/53
UM2179 Hardware layout and configuration
52
A green LED LD8 lits up in one of these cases:
•Power switch (U12) is ON and STM32 Nucleo-144 board works as a USB host
•VBUS is powered by another USB host when the STM32 Nucleo-144 board works as a
USB device.
The red LED LD7 lits up if overcurrent occurs when +5 V is enabled on VBUS in USB
host
mode.
Note:1 It is recommended to power the Nucleo-144 board with an external power supply when
using the USB OTG or the host function.
Note:2 JP4 must be closed when using the USB OTG FS.
Note:3 Limitation: when the cable is not connected, PA9 (VBUS) is not floating, because internal pull
up of PA12 (D+) impacts PA9 through ESD protection part USBLC6-2SC6 (U13).
For pin configuration refer to Table 9.
6.13 Solder bridges and jumpers
SBxx are located on top layer and SB1xx-SB2xx on bottom layer of the STM32 Nucleo-144
board. The configuration of the solder bridges and jumpers is showed in Table 10.
Table 9. USB pin configuration
Pin
name Function
Configuration
when
using USB
connector
Configuration
when
using ST
morpho
connector
Remark
PA8 USB SOF - - Test point TP1
PA9 USB V BUS SB135 ON SB135 OFF -
PA10 USB ID SB134 ON SB134 OFF -
PA11 USB DM SB142 ON SB142 OFF -
PA12 USB DP SB143 ON SB143 OFF -
PG6 USB GPIO OUT OTG:SB201 OFF,
SB200 ON OTG:SB200 OFF OTG:USB power switch
control
PG5 USB GPIO IN JP4 ON, SB199
OFF
SB198 ON JP4 OFF USB overcurrent alarm
Table 10. Configuration of the solder bridges and jumpers
Bridge/jumper State(1) Description
SB5 (+3V3_PER)
ON Peripheral power +3V3_PER is connected to +3.3 V.
OFF Peripheral power +3V3_PER is not connected.
SB6 (3.3 V)
ON Output of voltage regulator LD39050PU33R is connected
to 3.3 V.
OFF Output of voltage regulator LD39050PU33R is not connected.
Hardware layout and configuration UM2179
28/53 UM2179 Rev 7
SB195, SB193 (GPIO)
ON
PG7 and PG8 on STM32 are connected to ST morpho
connectors CN12. If these pins are used on ST morpho
connectors, SB130 and SB131 should be OFF.
OFF PG7 and PG8 on STM32 are disconnected to ST morpho
connectors CN12.
SB131, SB130
(ST-LINK-USART)
ON
PA2 and PA3 on ST-LINK STM32F103CBT6 are connected to
PG7 and PG8 to enable the virtual COM port. Thus PG7 and
PG8 on ST morpho connectors cannot be used.
OFF PA2 and PA3 on ST-LINK STM32F103CBT6 are disconnected
to PG7 and PG8 on STM32.
SB152 (VDDA)
ON VDDA on STM32 MCU is connected to VDD.
OFF VDDA on STM32 MCU is disconnected to VDD.
SB100,102,104,106
(DEFAULT) ON Reserved, do not modify.
SB101,103,105,107
(RESERVED) OFF Reserved, do not modify.
SB141 (SWO)
ON SWO signal of the STM32 (PB3) is connected to ST-LINK SWO
input.
OFF SWO signal of STM32 is not connected.
SB110, SB111,SB112
(IOREF)
OFF, OFF,
ON IOREF is connected to VDD_MCU.
ON, OFF,
OFF IOREF is connected to +3.3 V.
OFF, ON,
OFF IOREF is connected to +3V3_PER.
SB119 (VREF+)
OFF Pin 6 of CN7 and Pin 7 of CN12 are disconnected to VREF+ on
STM32.
ON Pin 6 of CN7 and Pin 7 of CN12 are connected to VREF+ on
STM32.
SB137 (SDMMC_D0),
SB136 (SDMMC_D1)
ON These pins are connected to ST morpho connector CN12.
OFF These pins are disconnected from ST morpho connector CN12
to avoid stub of SDMMC data signals on PCB.
SB124, SB123
(LD1-LED)
ON, OFF Green user LED LD1 is connected to PC7.
OFF,ON Green user LED LD1 is connected to D13 of Arduino signal
(PA5).
OFF, OFF Green user LED LD1 is not connected.
ON,ON Forbidden.
SB172 (Legacy)
SB173 (SMPS) (LD2-
LED)
ON Blue user LED LD2 is connected to PB7.
OFF Blue user LED LD2 is not connected.
Table 10. Configuration of the solder bridges and jumpers (continued)
Bridge/jumper State(1) Description
UM2179 Rev 7 29/53
UM2179 Hardware layout and configuration
52
SB132 (LD3-LED)
ON Red user LED LD3 is connected to PB14.
OFF Red user LED LD3 is not connected.
SB145,146
(X2 crystal)
OFF PC14, PC15 are not connected to ST morpho connector CN11.
(X2 used to generate 32 KHz clock).
ON PC14, PC15 are connected to ST morpho connector CN11.
(R37 and R38 should be removed).
SB147 (PH0), SB156
(PH1) (Main clock)
ON, ON PH0 and PH1 are connected to ST morpho connector CN11.
(SB12, SB13 and SB148 must be removed).
OFF, ON
PH0 is not connected to ST morpho
PH1 is connected to ST morpho connector CN11 (MCO is used
as main clock for STM32 on PH0).
OFF, OFF
PH0, PH1 are not connected to ST morpho connector CN11
(X3, C37, C38, SB12 and SB13 provide a clock as shown in
Section Appendix A: Electrical schematics. In this case SB148
must be removed).
SB109, SB148 (MCO)
OFF MCO of ST-LINK (STM32F103CBT6) is not connected to PH0
of
STM32.
ON MCO of ST-LINK (STM32F103CBT6) is connected to PH0 of
STM32.
SB12, SB13 (external
8M crystal)
OFF PH0 and PH1 are not connected to external 8 MHz crystal X3.
ON PH0 and PH1 are connected to external 8 MHz crystal X3.
SB154 (VBAT)
ON VBAT pin of STM32 is connected to VDD.
OFF VBAT pin of STM32 is not connected to VDD.
SB197, SB178
(B1-USER)
ON, OFF B1 push-button is connected to PC13.
OFF, ON B1 push-button is connected to PA0 (Set SB179 OFF if ST Zio
connector is used).
OFF,
OFF B1 push-button is not connected.
SB179 (PA0)
ON PA0 is connected to ST Zio connector (Pin 29 of CN10).
OFF PA0 is not connected to ST Zio connector (Pin 29 of CN10).
SB151,SB153
OFF Default setting.
ON Forbidden.
SB158, SB167 (AVDD)
ON, OFF AVDD on STM32 is connected to VDD.
OFF, ON AVDD on STM32 is connected to VDD_MCU.
SB142 (PA11), SB143
(PA12)
ON These pins are used as D+ and D- on USB connector CN14.
OFF These pins are used as GPIOs on ST morpho connectors.
SB149 (VREF+)
ON VREF+ on STM32 is connected to AVDD.
OFF VREF+ on STM32 is disconnected to AVDD.
Table 10. Configuration of the solder bridges and jumpers (continued)
Bridge/jumper State(1) Description
Hardware layout and configuration UM2179
30/53 UM2179 Rev 7
All the other solder bridges present on the STM32 Nucleo-144 board are used to configure
several I/Os and power supply pins for compatibility of features and pinout with the target
STM32 supported.
STM32 Nucleo-144 boards are delivered with the solder bridges configured according to the
target STM32 supported.
SB144 (QSPI_IO1)
ON These pins are connected to ST morpho connector CN11.
OFF These pins are disconnected from ST morpho connector CN11
to avoid stub of QSPI_IO1 signals on PCB.
JP2(2) (STM_RST)
OFF No incidence on ST-LINK STM32F103CBT6 NRST signal.
ON ST-LINK STM32F103CBT6 NRST signal is connected to GND
(ST-LINK reset to reduce power consumption).
JP3 (NRST)
ON Board RESET signal (NRST) is connected to ST-LINK reset
control I/O
(T_NRST).
OFF Board RESET signal (NRST) is not connected to ST-LINK reset
control I/O (T_NRST).
SB122, SB121, SB127
(VDD_MCU)
ON,
OFF,OFF VDD_MCU is connected to VDD directly (3.3 V fixed).
OFF, ON,
ON VDD_MCU is connected to output of DC-DC (1.8 V fixed).
1. Default SBx state is shown in bold.
2. The jumper JP2 is not mounted on the board by default.
Table 10. Configuration of the solder bridges and jumpers (continued)
Bridge/jumper State(1) Description
UM2179 Rev 7 31/53
UM2179 Hardware layout and configuration
52
6.14 Expansion connectors

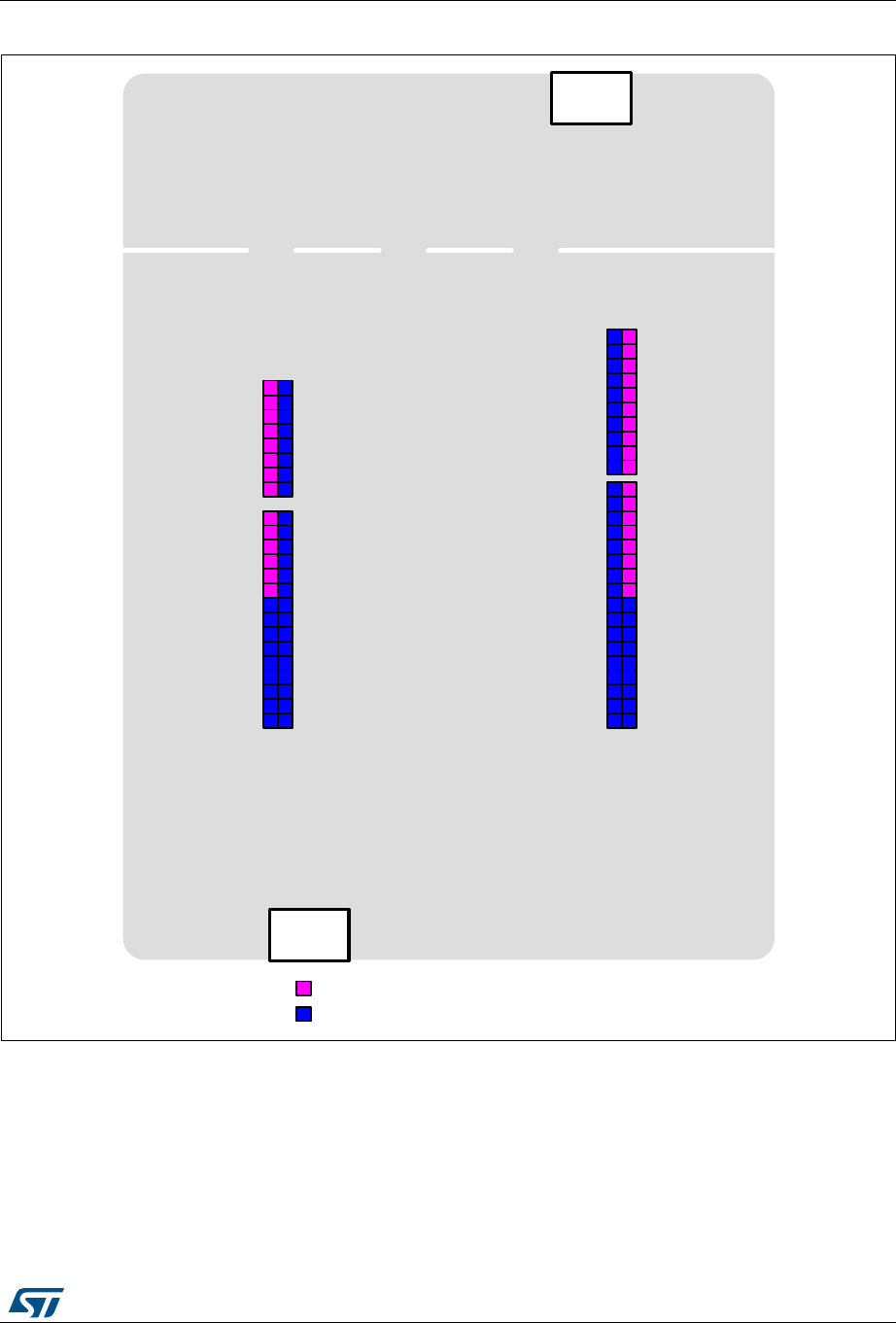

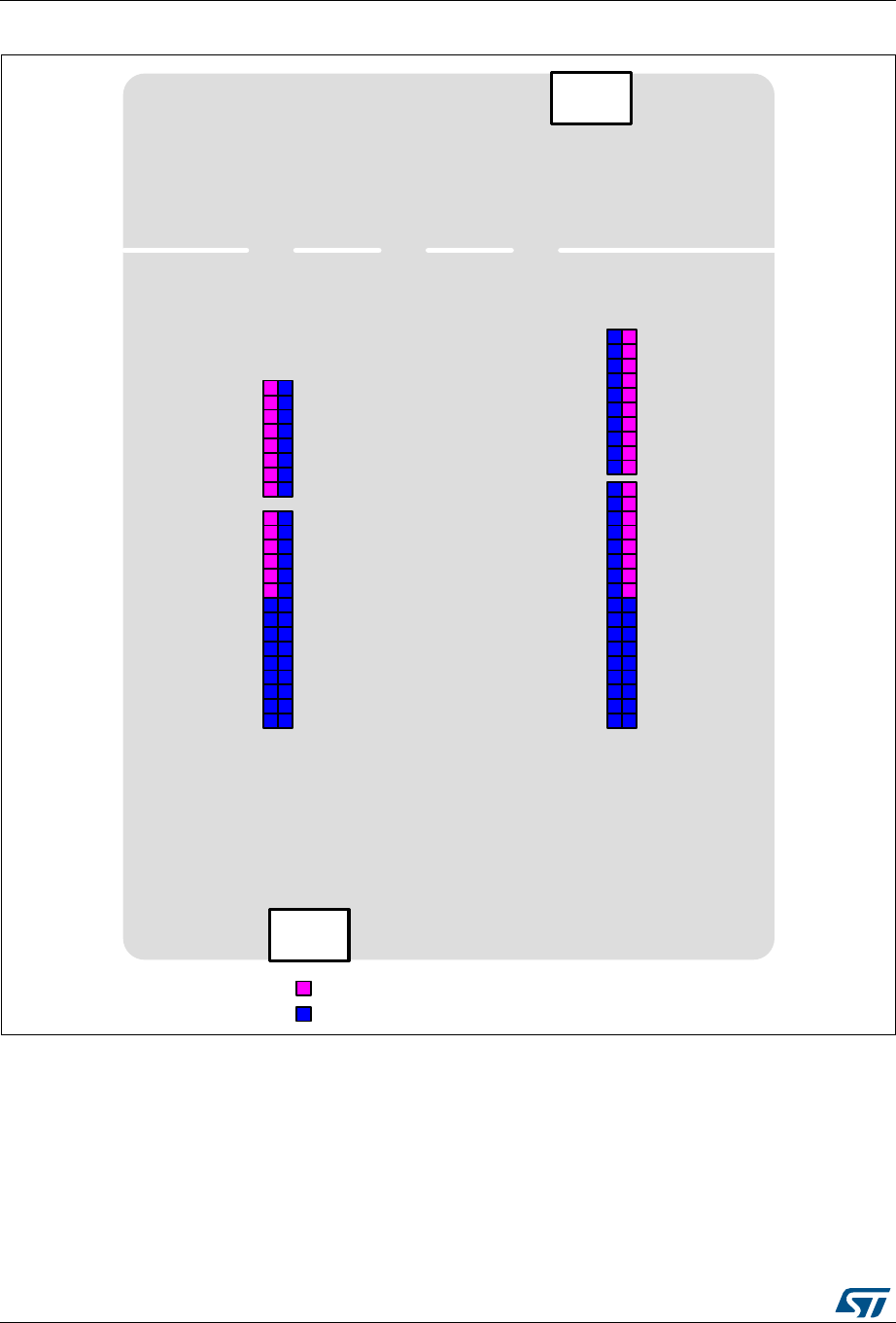

For each STM32 Nucleo-144 board the Figure 11, Figure 12 and Figure 13 show the signals
connected by default to the ST Zio connectors (CN7, CN8, CN9 and CN10), including the
support for Arduino Uno V3.

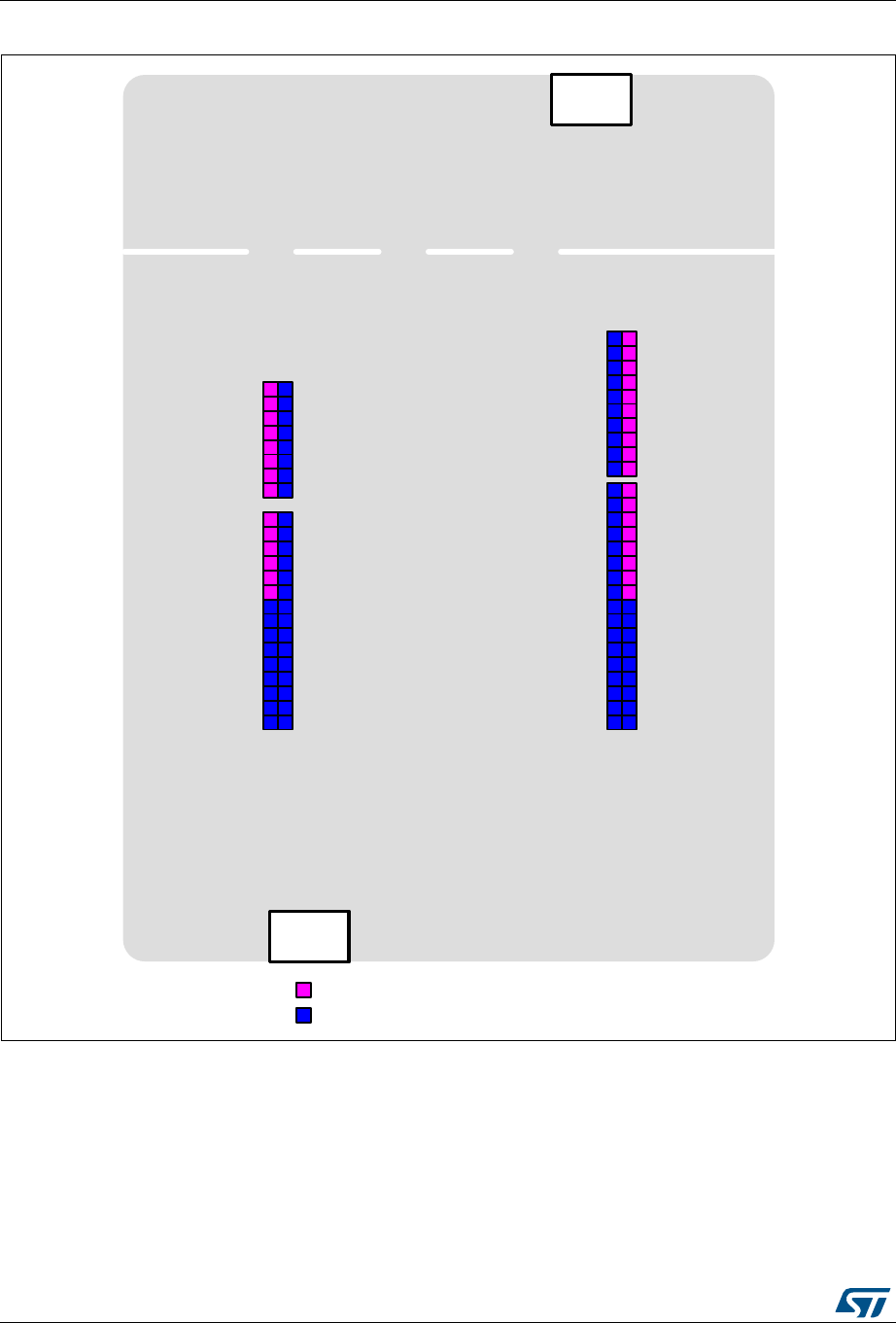

Figure 11. NUCLEO-L496ZG
NUCLEO-L496ZG
CN7
CN10
CN8
CN9
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PC8
PF5
PF3
PD2
PC12
PC11
PC10
PC9
GND
PD3
PD4
PD5
PD6
PD7
PG1
PF9
PF7
PF8
PE3
PE6
PE4
PE2
PE5
D34
D33
D32
GND
D31
D30
D29
D28
GND
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D27
D26
A8
A7
A6
GND
AGND
AVDD
PE0
PB0
PA0
GND
PE14
PE12
PB0
PE15
GND
PB4
PA4
PB3
PB5
PB4
PA4
PB12
PB13
PB15
PC6
PB10
PA2
PA1
PC2
PB1
GND
AGND
AVDDD50
D49
D48
D47
D46
D45
D44
D43
GND
D55
D54
D53
D52
D51
D64
D63
D62
D61
D60
D59
D58
D57
D56
Arduino subset of Zio = A0 to A5 and D0 to D15
Zio extension = A6 to A8 and D16 to D72
USB
OTG
USB
ST-LINK
D65
D66
D67
GND
D68
D69
D70
D71
D72
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
A5
A4
A3
A2
A1
A0
PG0
PD1
PD0
GND
PF0
PF1
PF2
PB6
PB2
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
PC5
PC4
PC1
PC3
PC0
PA3
PF12
PD15
PD14
PA7
PA6
PA5
GND
NC
PB9
PB8
PD9
PD8
PF15
PE13
PF14
PE11
PE9
PF13
PB11
PB10
PE15
PE14
PE12
PE10
PE7
PE8
GND
D8
D9
D10
D11
D12
D13
GND
AVDD
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D35
D36
D37
D38
D39
D40
GND
D41
D42
Hardware layout and configuration UM2179
32/53 UM2179 Rev 7
Figure 12. NUCLEO-L496ZG-P
NUCLEO-L496ZG-P
CN7
CN10
CN8
CN9
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PC8
PF5
PF3
PD2
PC12
PC11
PC10
PC9
GND
PD3
PD4
PD5
PD6
PD7
PG1
PF9
PF7
PF8
PE3
PE6
PE4
PE2
PE5
D34
D33
D32
GND
D31
D30
D29
D28
GND
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D27
D26
A8
A7
A6
GND
AGND
AVDD
PE0
PB0
PA0
GND
PE14
PE12
PB0
PE15
GND
PB4
PA4
PB3
PB5
PB4
PA4
PB12
PB13
PB15
PC6
PB10
PA2
PA1
PC2
PB1
GND
AGND
AVDDD50
D49
D48
D47
D46
D45
D44
D43
GND
D55
D54
D53
D52
D51
D64
D63
D62
D61
D60
D59
D58
D57
D56
Arduino subset of Zio = A0 to A5 and D0 to D15
Zio extension = A6 to A8 and D16 to D72
USB
OTG
USB
ST-LINK
D65
D66
D67
GND
D68
D69
D70
D71
D72
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
A5
A4
A3
A2
A1
A0
PG0
PD1
PD0
GND
PF0
PF1
PF2
PB6
PB2
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
PC5
PC4
PC1
PC3
PC0
PA3
PF12
PD15
PD14
PA7
PA6
PA5
GND
NC
PB9
PB8
PD9
PD8
PF15
PE13
PF14
PE11
PE9
PF13
NC
PB10
PE15
PE14
PE12
PE10
PE7
PE8
GND
D8
D9
D10
D11
D12
D13
GND
AVDD
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D35
D36
D37
D38
D39
D40
GND
D41
D42
UM2179 Rev 7 33/53
UM2179 Hardware layout and configuration
52
Figure 13. NUCLEO-L4A6ZG
NUCLEO-L4A6ZG
CN7
CN10
CN8
CN9
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PC8
PF5
PF3
PD2
PC12
PC11
PC10
PC9
GND
PD3
PD4
PD5
PD6
PD7
PG1
PF9
PF7
PF8
PE3
PE6
PE4
PE2
PE5
D34
D33
D32
GND
D31
D30
D29
D28
GND
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D27
D26
A8
A7
A6
GND
AGND
AVDD
PE0
PB0
PA0
GND
PE14
PE12
PB0
PE15
GND
PB4
PA4
PB3
PB5
PB4
PA4
PB12
PB13
PB15
PC6
PB10
PA2
PA1
PC2
PB1
GND
AGND
AVDDD50
D49
D48
D47
D46
D45
D44
D43
GND
D55
D54
D53
D52
D51
D64
D63
D62
D61
D60
D59
D58
D57
D56
Arduino subset of Zio = A0 to A5 and D0 to D15
Zio extension = A6 to A8 and D16 to D72
USB
OTG
USB
ST-LINK
D65
D66
D67
GND
D68
D69
D70
D71
D72
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
A5
A4
A3
A2
A1
A0
PG0
PD1
PD0
GND
PF0
PF1
PF2
PB6
PB2
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
PC5
PC4
PC1
PC3
PC0
PA3
PF12
PD15
PD14
PA7
PA6
PA5
GND
NC
PB9
PB8
PD9
PD8
PF15
PE13
PF14
PE11
PE9
PF13
PB11
PB10
PE15
PE14
PE12
PE10
PE7
PE8
GND
D8
D9
D10
D11
D12
D13
GND
AVDD
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D35
D36
D37
D38
D39
D40
GND
D41
D42
Hardware layout and configuration UM2179
34/53 UM2179 Rev 7
Figure 14. NUCLEO-L4R5ZI
NUCLEO-L4R5ZI
CN7
CN10
CN8
CN9
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PC8
PF5
PF3
PD2
PC12
PC11
PC10
PC9
GND
PD3
PD4
PD5
PD6
PD7
PG1
PF9
PF7
PF8
PE3
PE6
PE4
PE2
PE5
D34
D33
D32
GND
D31
D30
D29
D28
GND
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D27
D26
A8
A7
A6
GND
AGND
AVDD
PE0
PB0
PA0
GND
PE14
PE12
PB0
PE15
GND
PB4
PA4
PB3
PB5
PB4
PA4
PB12
PB13
PB15
PC6
PB10
PA2
PA1
PC2
PB1
GND
AGND
AVDDD50
D49
D48
D47
D46
D45
D44
D43
GND
D55
D54
D53
D52
D51
D64
D63
D62
D61
D60
D59
D58
D57
D56
Arduino subset of Zio = A0 to A5 and D0 to D15
Zio extension = A6 to A8 and D16 to D72
USB
OTG
USB
ST-LINK
D65
D66
D67
GND
D68
D69
D70
D71
D72
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
A5
A4
A3
A2
A1
A0
PG0
PD1
PD0
GND
PF0
PF1
PF2
PB6
PB2
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
PC5
PC4
PC1
PC3
PC0
PA3
PF12
PD15
PD14
PA7
PA6
PA5
GND
NC
PB9
PB8
PD9
PD8
PF15
PE13
PF14
PE11
PE9
PF13
PB11
PB10
PE15
PE14
PE12
PE10
PE7
PE8
GND
D8
D9
D10
D11
D12
D13
GND
AVDD
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D35
D36
D37
D38
D39
D40
GND
D41
D42
UM2179 Rev 7 35/53
UM2179 Hardware layout and configuration
52
Figure 15. NUCLEO-L4R5ZI-P
NUCLEO-L4R5ZI-P
CN7
CN10
CN8
CN9
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
PC8
PF5
PF3
PD2
PC12
PC11
PC10
PC9
GND
PD3
PD4
PD5
PD6
PD7
PG1
PF9
PF7
PF8
PE3
PE6
PE4
PE2
PE5
D34
D33
D32
GND
D31
D30
D29
D28
GND
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D27
D26
A8
A7
A6
GND
AGND
AVDD
PE0
PB0
PA0
GND
PE14
PE12
PB0
PE15
GND
PB4
PA4
PB3
PB5
PB4
PA4
PB12
PB13
PB15
PC6
PB10
PA2
PA1
PC2
PB1
GND
AGND
AVDDD50
D49
D48
D47
D46
D45
D44
D43
GND
D55
D54
D53
D52
D51
D64
D63
D62
D61
D60
D59
D58
D57
D56
Arduino subset of Zio = A0 to A5 and D0 to D15
Zio extension = A6 to A8 and D16 to D72
USB
OTG
USB
ST-LINK
D65
D66
D67
GND
D68
D69
D70
D71
D72
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
A5
A4
A3
A2
A1
A0
PG0
PD1
PD0
GND
PF0
PF1
PF2
PB6
PB2
VIN
GND
GND
+5V
+3V3
RESET
IOREF
NC
PC5
PC4
PC1
PC3
PC0
PA3
PF12
PD15
PD14
PA7
PA6
PA5
GND
NC
PB9
PB8
PD9
PD8
PF15
PE13
PF14
PE11
PE9
PF13
NC
PB10
PE15
PE14
PE12
PE10
PE7
PE8
GND
D8
D9
D10
D11
D12
D13
GND
AVDD
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D35
D36
D37
D38
D39
D40
GND
D41
D42
Hardware layout and configuration UM2179
36/53 UM2179 Rev 7
6.15 ST Zio connectors
The connectors CN7, CN8, CN9 and CN10 are female on top side and male on bottom side
of the STM32 Nucleo-144 board.
They include support for Arduino Uno V3. Most shields
designed for Arduino Uno V3 can fit to the STM32 Nucleo-144 board.
Caution: The I/Os of the STM32 microcontroller are 3.3 V compatible, while Arduino Uno V3 is 5 V
compatible.
Table 11 shows the pin assignments for the STM32 on the ST Zio connector.
UM2179 Rev 7 37/53
UM2179 Hardware layout and configuration
52
Table 11. NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments
Connector Pin Pin
name Signal name STM32 pin Function Remark
Left connectors
CN8
1NC NC
-
-
Arduino
support
3 IOREF IOREF 3.3 V Ref
5 RESET RESET NRST RESET
7 +3.3 V +3.3 V
-
3.3 V
input/output
9 +5 V +5 V 5 V output
11 GND GND
ground
13 GND GND
15 VIN VIN Power input
2 D43 SDMMC_D0 PC8
SDMMC/I2S_A
-
4D44 SDMMC_D1/
I2S_A_CKIN PC9
6 D45 SDMMC_D2 PC10
8 D46 SDMMC_D3 PC11
10 D47 SDMMC_CK PC12
12 D48 SDMMC_CMD PD2
14 D49 I/O PF3
I/O
16 D50 I/O PF5
CN9
1 A0 ADC PA3 ADC12_IN8
Arduino
support
3 A1 ADC PC0 ADC123_IN1
5 A2 ADC PC3 ADC123_IN4
7 A3 ADC PC1 ADC123_IN2
9A4
(1) ADC PC4 ADC12_IN13
11 A5(1) ADC PC5 ADC12_IN14
13 D72 COMP1_INP PB2 COMP
-
15 D71 COMP2_INP PB6
I2C_2
17 D70 I2C_B_SMBA PF2
19 D69 I2C_B_SCL PF1
21 D68 I2C_B_SDA PF0
23 GND GND - ground
25 D67 CAN_RX PD0
CAN_1
27 D66 CAN_TX PD1
29 D65 I/O PG0 I/O
2 D51 USART_B_SCLK PD7 USART_2
Hardware layout and configuration UM2179
38/53 UM2179 Rev 7
CN9
4 D52 USART_B_RX PD6
USART_2
-
6 D53 USART_B_TX PD5
8 D54 USART_B_RTS PD4
10 D55 USART_B_CTS PD3
12 GND GND - ground
14 D56 SAI_A_MCLK PE2
SAI_1_A
16 D57 SAI_A_FS PE4
18 D58 SAI_A_SCK PE5
20 D59 SAI_A_SD PE6
22 D60 SAI_B_SD PE3
SAI_1_B
24 D61 SAI_B_SCK PF8
26 D62 SAI_B_MCLK PF7
28 D63 SAI_B_FS PF9
30 D64 I/O PG1 I/O
Right connectors
CN7
1 D16 I2S_A_MCK PC6
SAI_2_A
-
3 D17 I2S_A_SD PB15
5 D18 I2S_A_CK PB13
7 D19 I2S_A_WS PB12
9 D20 I2S_B_WS PA4
SAI_1_B/
SPI3(2)
11 D21 I2S_B_MCK PB4
13 D22 I2S_B_SD/
SPI_B_MOSI PB5
15 D23 I2S_B_CK/
SPI_B_SCK PB3
17 D24 SPI_B_NSS PA4
19 D25 SPI_B_MISO PB4
2 D15 I2C_A_SCL PB8 I2C1_SCL
Arduino
support
4 D14 I2C_A_SDA PB9 I2C1_SDA
6 AREF AREF
-
VREF+(3)
8 GND GND ground
10 D13 SPI_A_SCK PA5 SPI1_SCK
12 D12 SPI_A_MISO PA6 SPI1_MISO
14 D11 SPI_A_MOSI/
TIM_E_PWM1 PA7 SPI1_MOSI/
TIM17_CH1
Table 11. NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments (continued)
Connector Pin Pin
name Signal name STM32 pin Function Remark
UM2179 Rev 7 39/53
UM2179 Hardware layout and configuration
52
CN7
16 D10 SPI_A_CS/
TIM_B_PWM3 PD14 SPI1_CS/
TIM4_CH3 Arduino
support18 D9 TIMER_B_PWM2 PD15 TIM4_CH4
20 D8 I/O PF12 -
CN10
1AVDD AVDD
-
Analog VDD
-
3 AGND AGND Analog ground
5 GND GND ground
7 A6 ADC_A_IN PB1 ADC12_IN16
9 A7 ADC_B_IN PC2 ADC123_IN3
11 A8 ADC_C_IN PA1 ADC12_IN6
13 D26 QSPI_CS PA2(4) QSPI_BK1
15 D27 QSPI_CLK PB10(4) QSPI_CLK
17 GND GND - ground
19 D28 QSPI_BK1_IO3 PE15(4)
QSPI_BK1
21 D29 QSPI_BK1_IO1 PB0(4)
23 D30 QSPI_BK1_IO0 PE12(4)
25 D31 QSPI_BK1_IO2 PE14(4)
27 GND GND - ground
29 D32 TIMER_C_PWM1 PA0(4) TIM2_CH1
31 D33 TIMER_D_PWM1 PB0(4) TIM3_CH3
33 D34 TIMER_B_ETR PE0 TIM4_ETR
2D7 I/O PF13 -
Arduino
support
4 D6 TIMER_A_PWM1 PE9 TIM1_CH1
6 D5 TIMER_A_PWM2 PE11 TIM1_CH2
8D4 I/O PF14 -
10 D3 TIMER_A_PWM3 PE13 TIM1_CH3
12 D2 I/O PF15 -
14 D1 USART_A_TX PD8
USART3
16 D0 USART_A_RX PD9
18 D42 TIMER_A_PWM1N PE8 TIM1_CH1N
-
20 D41 TIMER_A_ETR PE7 TIM1_ETR
22 GND GND - ground
24 D40 TIMER_A_PWM2N PE10 TIM1_CH2N
26 D39 TIMER_A_PWM3N PE12(4) TIM1_CH3N
Table 11. NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments (continued)
Connector Pin Pin
name Signal name STM32 pin Function Remark
Hardware layout and configuration UM2179
40/53 UM2179 Rev 7
6.16 ST morpho connector
The ST morpho connector consists in male pin header footprints CN11 and CN12 (not
soldered by default). They can be used to connect the STM32 Nucleo-144 board to an
extension board or a prototype/wrapping board placed on top of the STM32 Nucleo-144
board. All signals and power pins of the STM32 are available on the ST morpho connector.
This connector can also be probed by an oscilloscope, logical analyzer or voltmeter.
Table 12 shows the pin assignments for the STM32 on the ST morpho connector.
CN10
28 D38 I/O PE14(4) I/O
-
30 D37 TIMER_A_BKIN1 PE15(4) TIM1_BKIN1
32 D36 TIMER_C_PWM2 PB10(4) TIM2_CH3
34 D35 TIMER_C_PWM3 PB11(5) TIM2_CH4
1. To be compatible with the previous versions of the Arduino Uno V3 board, A4/A5 do not support I2C.
2. I2S_B group has the same port as SAI_B group, but they have a different pin map.
3. VREF+ is not connected to CN7 by default.
4. QSPI signals (PA2, PB10, PE15, PB0, PE12 and PE14) are shared with timer signals on CN10.
5. PB11 is not available on ‘-P’ suffixed boards.
Table 11. NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments (continued)
Connector Pin Pin
name Signal name STM32 pin Function Remark
Table 12. ST morpho connector pin assignments
CN11 odd pins CN11 even pins CN12 odd pins CN12 even pins
Pin Pin name Pin Pin name Pin Pin name Pin Pin name
1PC102PC111PC92PC8
3 PC12 4 PD2 3 PB8 4 PC6
5V
DD 6 E5V 5 PB9 6 PC5
7PH3-
BOOT0(1) 8GND7V
REF+(2) 8 U5V(3)
9PF610 - 9GND10PD8
11 PF7 12 IOREF 11 PA5 12 PA12
13 PA13(4) 14 RESET 13 PA6 14 PA11
15 PA14(4) 16 +3.3 V 15 PA7 16 PB12
17 PA15 18 +5 V 17 PB6 18 PB11
19 GND 20 GND 19 PC7 20 GND
21 PB7 22 GND 21 PA9 22 PB2
23 PC13 24 VIN 23 PA8 24 PB1
25 PC14 26 - 25 PB10 26 PB15
27 PC15 28 PA0 27 PB4 28 PB14
UM2179 Rev 7 41/53
UM2179 Hardware layout and configuration
52
6.17 Bootloader limitation
6.17.1 Bootloader operation
Boot from system Flash memory runs bootloader code stored in the system Flash memory
protected against writing and erasing. This allows in-system programming (ISP) with
flashing of the STM32 user Flash memory. It also allows writing data into the RAM. The data
is written via the USART, SPI, I2C, USB or CAN communication interface.
29 PH0 30 PA1 29 PB5 30 PB13
31 PH1 32 PA4 31 PB3 32 AGND
33 VBAT 34 PB0 33 PA10 34 PC4
35 PC2 36 PC1 35 PA2 36 PF5
37 PC3 38 PC0 37 PA3 38 PF4
39 PD4 40 PD3 39 GND 40 PE8
41 PD5 42 PG2 41 PD13 42 PF10
43 PD6 44 PG3 43 PD12 44 PE7
45 PD7 46 PE2 45 PD11 46 PD14
47 PE3 48 PE4 47 PE10 48 PD15
49 GND 50 PE5 49 PE12 50 PF14
51 PF1 52 PF2 51 PE14 52 PE9
53 PF0 54 PF8 53 PE15 54 GND
55 PD1 56 PF9 55 PE13 56 PE11
57 PD0 58 PG1 57 PF13 58 PF3
59 PG0 60 GND 59 PF12 60 PF15
61 PE1 62 PE6 61 PG14 62 PF11
63 PG9 64 PG15(5) 63 GND 64 PE0
65 PG12 66 PG10 65 PD10 66 PG8
67 - 68PG1367 PG7 68 PG5
69 PD9 70 PG11 69 PG4 70 PG6
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is plugged on the pins 5-7 of CN11.
2. VREF+ is not connected to CN12 by default.
3. U5V is the +5V power signal, coming from the ST-LINKV2-1 USB connector. It rises before the +5V signal
of the board.
4. PA13 and PA14 are shared with SWD signals connected to ST-LINK/V2-1. If ST-LINK part is not cut, it is
not recommended to use them as I/O pins.
5. PB11 and PG15 are not available on the ‘-P’ suffixed boards.
Table 12. ST morpho connector pin assignments (continued)
CN11 odd pins CN11 even pins CN12 odd pins CN12 even pins
Pin Pin name Pin Pin name Pin Pin name Pin Pin name
Hardware layout and configuration UM2179
42/53 UM2179 Rev 7
6.17.2 Bootloader identification
The bootloader version is identified by reading the bootloader ID at address 0x1FFF 6FFE:
•the bootloader ID is 0x91 for bootloader version V9.1.
•the bootloader ID is 0x92 for bootloader version V9.2.
6.17.3 Bootloader limitation
The limitation existing in bootloader V9.1 causes user Flash memory data to get randomly
corrupted when written via the bootloader SPI interface.
As a result, during bootloader SPI Write Flash operation, some random 64-bits (2 double-
words) may be left blank at 0xFF.
6.17.4 Affected parts
The STM32L496ZGT6, STM32L496ZGT6P, and STM32L4R5ZIT6 parts respectively
soldered on the NUCLEO-L496ZG, NUCLEO-L496ZG-P, and NUCLEO-L4R5ZI main
boards are marked with a date code corresponding to their manufacturing dates.
The STM32L496ZGT6, STM32L496ZGT6P, and STM32L4R5ZIT6 parts with a date code
prior or equal to week 37 of 2017 are fitted with bootloader V9.1. They are affected by the
limitation described in Section 6.17.3 and require one of the workarounds proposed in
Section 6.17.5.
The parts with a date code equal to week 38 of 2017 or later contain bootloader V9.2. They
are not affected by the limitation.
To locate the visual date code information on the STM32L496ZGT6, STM32L496ZGT6P, or
STM32L4R5ZIT6 package, refer to the Package Information section in the data sheet
available at www.st.com. The date code related portion of the package marking is in the
Y WW format, where Y is the last digit of the year and WW is the week number. For
example, a part manufactured in week 38 of 2017 bears the 7 38 date code.
6.17.5 Workarounds
Three workarounds are proposed to overcome the limitation existing with bootloader V9.1.
Workaround 1
Add a delay between sending a Write command and its ACK request. The delay duration
must be the duration of the 256-byte Flash-write time.
Workaround 2
Read back after each write operation (256 bytes or end of user code flashing) and, in case
of error, perform the write operation again.
Workaround 3
Using the bootloader, load a patch code in RAM to write in Flash memory through the same
Write Memory write protocol as the bootloader This patch is provided by
STMicroelectronics. The patch code is available for download from the www.st.com website
with a readme.txt file containing the instructions of use.
UM2179 Rev 7 43/53
UM2179 Electrical schematics
52
Appendix A Electrical schematics
This section provides the design schematics for the STM32 Nucleo-144 board:
•Top and Power (see Figure 16)
•MCU (see Figure 17)
•ST-LINK/V2-1 (see Figure 18)
•USB (see Figure 19)
•Extension connector (see Figure 20)
•SMPS power supply (see Figure 21)
Electrical schematics UM2179
44/53 UM2179 Rev 7

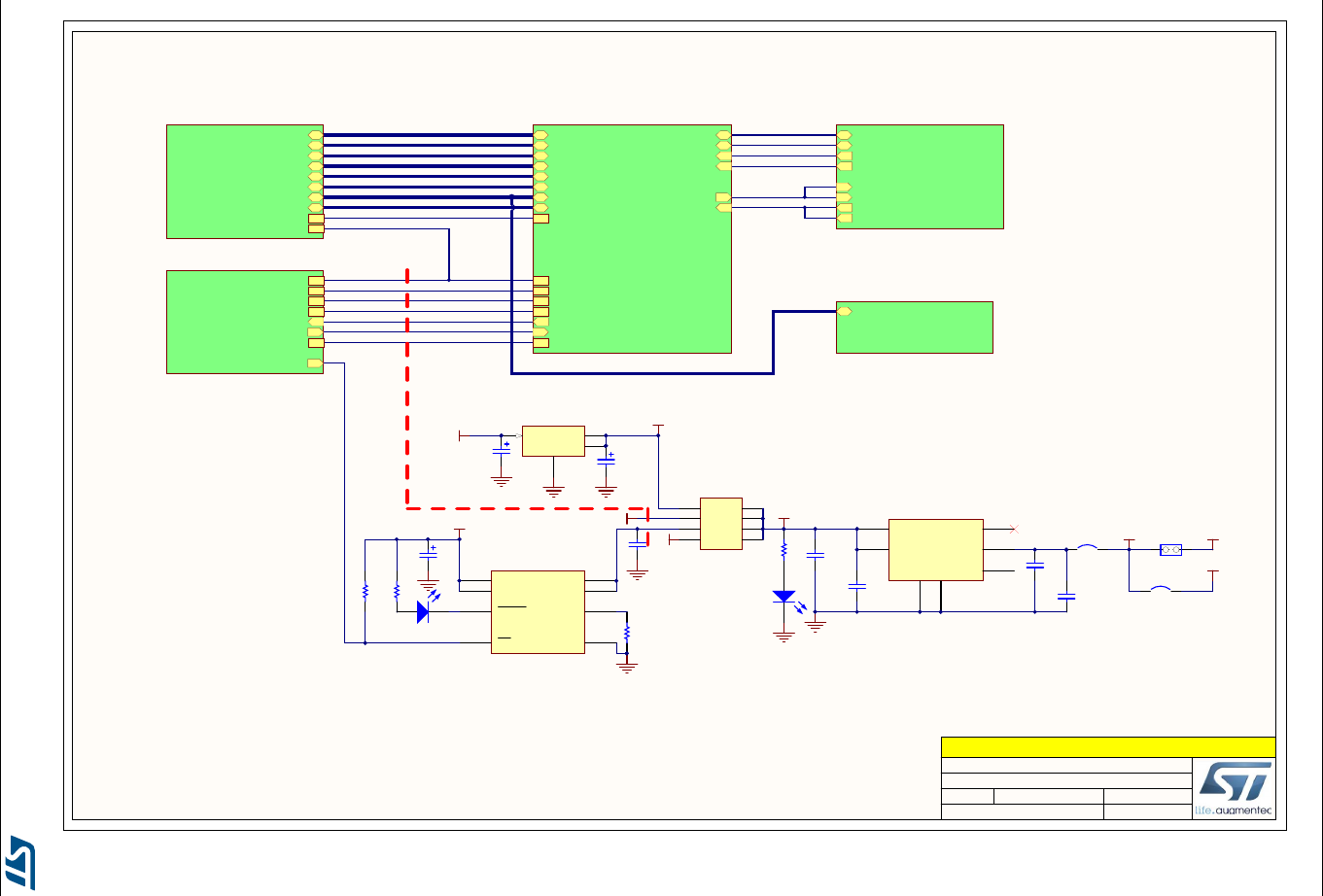

Figure 16. Top and power
16
TOP & POWER
MB1312 A-01
12/8/2016
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-LXXXZXProject:
+3V3
C19
1uF_X5R_0603
C26
100nF C20
100nF
VIN
+5V
VDD
JP5
R28
1K
C18
10uF(25V) C17
10uF
Vin
3Vout 2
1
Tab 4
U5
LD1117S50TR
EN
1
GND
2
VO 4
NC 5
GND
0
VI
6PG 3
U6 LD39050PU33R
Note1: Text in italic placed on a wire does not correspond to net name. It just
hel
p
s to identif
y
ra
p
idl
y
Arduino's si
g
nal related to this wire.
C27
1uF_X5R_0603
E5V
Power Switch to supply +5V
from STLINK USB
C16
4.7uF
IN
1
IN
2
ON
3GND 4
SET 5
OUT 6
OUT 7
FAULT
8
U4
ST890CDR
R26
10K
R27
2K7
C11
100nF
1 2 LD5
Red
R22
1K
U5V
SB6 Closed
VIN_5V
SB5 Closed
+3V3_PER
12
LD6
Green
NRST
MCO
STLK_TX
STLK_RX
PA[0..15]
PB[0..15]
PC[0..15]
TCK
TMS
SWO
PH3-BOOT0
PD[0..15]
PE[0..15]
PF[0..15]
PG[0..15]
PH[0..1]
USB_DM
USB_DP
USB_GPIO_OUT
USB_GPIO_IN
USB_ID
USB_VBUS
U_STM32L_144
STM32L_144.SchDoc
PA[0..15]
PB[0..15]
PC[0..15]
NRST
PH3-BOOT0
PD[0..15]
PE[0..15]
PF[0..15]
PG[0..15]
PH[0..1]
U_Connectors
Connectors.SchDoc
TMS
TCK
MCO
NRST
STLK_RX
STLK_TX
SWO
PWR_ENn
U_ST_LINK_V2-1
ST_LINK_V2-1.SCHDOC
USB_PowerSwitchOn
USB_OverCurrent
USB_DM
USB_DP
USB_ID
USB_VBUS
USB_Disconnect
VBUS_DET
U_USB
USB.SchDoc
PG[0..15]
U_SMPS power supply
SMPS power supply.SchDoc
6 5
4 3
2 1
8 7
JP6
Header 4X2
U5V
CuttableLineonPCB
UM2179 Electrical schematics
UM2179 Rev 7 45/53
Figure 17. MCU
26
MCU
MB1312 A-01
12/8/2016
Title:
Size: Reference:
Date: Sheet: of
A3 Revision:
NUCLEO-LXXXZXProject:
C38 4.3pF[N/A]
C37 4.3pF[N/A]
C36
2.7pF
C35
2.7pF
R40
0
R39
0
C41
100nF
R38
10K
PA4
PA5
PA6
PA7
PA11
PA12
PA0
PA1
PA15
PA3
PA13
PA14
PA2
PA8
NRST
PB5
PB6
PB7
PB14
PB15
PB10
PB8
PB9
PB1
PB2
PB3
PB0
PB4
PB11
PB12
PB13
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PC8
PC9
PC10
PC11
PC12
PC13
PC14
PC15
NRST
MCO
STLK_TX
STLK_RX
L3
BEAD
AVDD
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
TCK
TMS
SWO
PH0
PH1
AVDD
C58
100nF
AGND
C60
1uF_X5R_0603
VBAT
PH3-BOOT0
AGND
VDD
VDD
AGND
C29
100nF
C61
100nF
C49
100nF
C33
100nF
C34
100nF
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
PD8
PD9
PD10
PD11
PD12
PD13
PD14
PD15
PE0
PE1
PE2
PE3
PE4
PE5
PE6
PE14
PE15
PE9
PE8
PE11
PE10
PE12
PE13
PE7
PF0
PF1
PF2
PF3
PF4
PF5
PF14
PF15
PF9
PF8
PF11
PF10
PF12
PF13
PF6
PF7
PG0
PG1
PG2
PG3
PG4
PG5
PG14
PG9
PG8
PG11
PG10
PG12
PG13
PG6
PG7
PG15
PD[0..15]
PD[0..15]
PE[0..15]
PE[0..15]
PF[0..15]
PF[0..15]
PG[0..15]
PG[0..15]
PH[0..1]
PH[0..1]
SB152
Closed
SB154 Closed
SB197 Closed
SB166 Closed
X2
NX3215SA-32.768KHZ-EXS00A-MU00525
C31
100nF
C50
100nF
C51
100nF
C53
100nF
C30
100nF
C32
100nF
C28
100nF
USB_DM
USB_DP
SB142 Closed
SB143 Closed
USB_GPIO_OUT
USB_GPIO_IN
R42
220K
C40 [N/A] R44
100
R43
330
JP4
PA9
PA10
R54,SB134 & SB135 removed for USB device only
USB_ID
USB_VBUS R54 10K
SB134
LPUART1_TX
LPUART1_RX
TP1
USB_SOF
SB130 Closed
SB131 Closed
1
4 3
2
B1
USER (Blue)
1
43
2
B2
TD-0341 [RESET/Black]
1 2
X3
NX3225GD-8.000M-E XS 00A-CG04874[N/A]
1 2LD3
Red
R30
680
R29
1K
SB132 Closed
SB12 Open
SB13 Open
C54
4.7uF_X5R_0603
SB135
SB178 Open
Usr_But
Usr_But
1 2
LD2 Blue
SB148 Open
VDD_1V2 VDD_1V2
SB139 SB15
C39 and C55, non mounted 1nF
capacitances on Legay (when
SB15 and SB139 are open)
SB185
SB187 PE0
SB186
SB181
SB172
SB171 PH3-BOOT0
PH3-BOOT0
SB174
SB173
SB176
SB175
SB163
SB165
SB162
SB164
SB138
VREF+
SB149
Closed
1uF
C59 C57
100nF
AGND
1uF
C56
VREF+VDD
SB190
SB189
SB14
SB183
SB184 PB8
SB160
SB161 PB3
PA0
34
PA1
35
PA2
36
PA3
37
PA4
40
PA5
41
PA6
42
PA7
43
PB0 46
PB1 47
PB2 48
PB10 69
PB11/SMPSVDD12 70
PB12 73
PB13 74
PB14 75
PB15 76
PA8
100
PA9
101
PA10
102
PA11
103
PA12
104
PA13
105
PA14
109
PA15
110
PB3/PB4 133
PB4/PB5 134
PB5/PB6 135
PB6/PB7 136
PB7/PH3-BOOT0 137
PB8/PB9 139
PB9/PE0 140
PC13 7
PC14-OSC32_IN 8
PC15-OSC32_OUT 9
PC0
26
PC1
27
PC2
28
PC3
29
PC4
44
PC5
45
PC6
96
PC7
97
PC8
98
PC9
99
PC10
111
PC11
112
PC12
113
U11A
STM32L_LQFP144
PE2
1
PE3
2
PE4
3
PE5
4
PE6
5
PE7
58
PE8
59
PE9
60
PE10
63
PE11
64
PE12
65
PE13
66
PE14
67
PE15
68
PD8
77
PD9
78
PD10
79
PD11
80
PD12
81
PD13
82
PD14
85
PD15
86
PD0
114
PD1
115
PD2
116
PD3
117
PD4
118
PD5
119
PD6
122
PD7
123
PE0/PE1
141
PE1/SMPSVDD12
142
PF2 12
PF3 13
PF4 14
PF5 15
PF6 18
PF7 19
PF8 20
PF9 21
PF10 22
PF11 49
PF12 50
PF13 53
PF14 54
PF15 55
PF0 10
PF1 11
PG2 87
PG3 88
PG4 89
PG5 90
PG6 91
PG7 92
PG8 93
PG9 124
PG10 125
PG11 126
PG12 127
PG13 128
PG14 129
PG15/PB3 132
PG0 56
PG1 57
U11B
STM32L_LQFP144
VSS_5 16
VDD_5
17
VSSA/VREF- 30
VREF+
32
VDD_10
121
VDDIO_2
95
VDD_6
52
VDD_7
62
VDD_8
84
VDDIO_2
131
VSS_10 120
VSSIO_1 94
VSS_6 51
VSS_7 61
VSS_8 83
VSSIO_2 130
VDDUSB
106
VSS_3 143
PH0-OSC_IN
23
PH1-OSC_OUT
24 NRST 25
PH3-BOOT0/PB8 138
VDDA
33
VDD_4
39
VDD_1
72
VDD_2
108
VDD_3
144
VBAT
6VREF-/VSSA 31
VSS_2 107
VSS_4 38
VSS_1 71
U11C
STM32L_LQFP144
VDD_MCU
VDD_MCU
VDD_MCU
SB158 Closed
SB167 Open
VDD_MCU VDD_MCU VDD_MCU
C55 1nF C39 1nF
C52
4.7uF_X5R_0603
VDD
VDD_MCU
Electrical schematics UM2179
46/53 UM2179 Rev 7

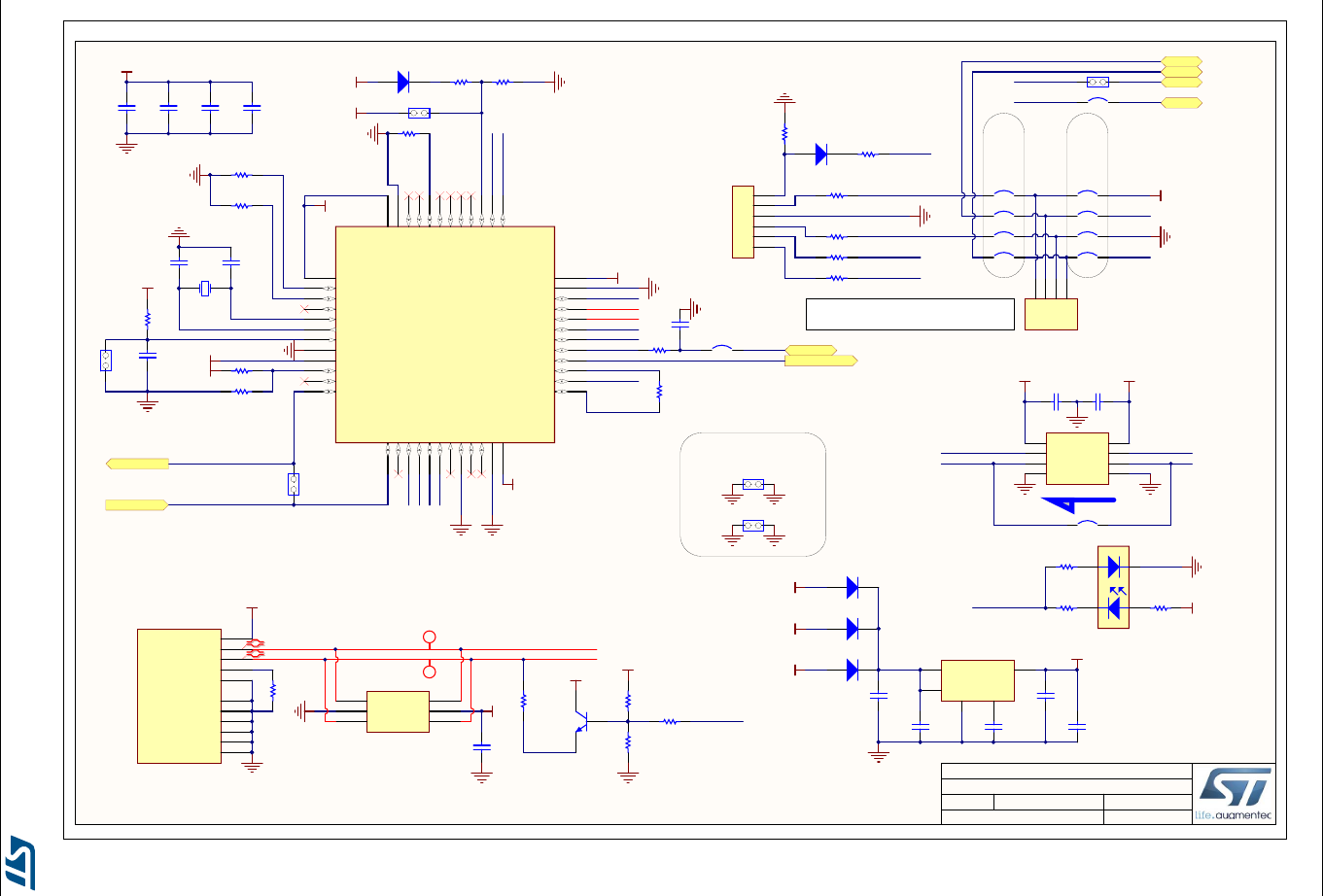

Figure 18. ST-LINK/V2-1
36
STLINK/V2-1
MB1312 A-01
12/8/2016
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-LXXXZXProject:
STLINK_USB_DM
STLINK_USB_DP
STM_RST
T_JTCK
T_JTCK
T_JTDO
T_JTDI
T_JTMS
STM_JTMS
STM_JTCK
OSC_IN
OSC_OUT
T_NRST
AIN_1
USB ST-LINK U5V
COM
PWR
Jumpers ON --> NUCLEO Selected
Jumpers OFF --> ST-LINK Selected
Board Ident: PC13=0
T_JTCK
T_JTMS
SWD
1
2
3
4
CN4
STM_JTMS
STM_JTCK
SWCLK
SWDIO
SWD
RESERVED
DEFAULT
T_SWDIO_IN
LED_STLINK
LED_STLINK
TMS
TCK
TCK/SWCLK
TMS/SWDIO
MCO MCO
T_JRST
AIN_1
T_NRST
T_SWO
NRST
T_NRST
D1
BAT60JFILM
CN6
TX
RX
STLK_RX
STLK_TX
STLINK_USB_DM
STLINK_USB_DP
T_SWO
SWO
SWO_MCU
Red
_Green
2 1
3 4
LD4
LD_BICOLOR_CMS
R9
1K5
R10
100K
R18
100
R12
100
R13
0
R1 100[N/A]
R14 22
R15 22
R19 22
R20 22
R21 100
R25
100[N/A]
R2
10K
R4 10K[N/A]
R5
100K
R7
100K
R3 10K
R23 4K7
R24 4K7
C1
100nF
C12
100nF
C13
100nF
C3
100nF
C7
20pF[N/A]
C5
10pF
C6
10pF
C2
100nF
1
2
3
4
5
6
CN5
Header 6X1
U5V
USB_RENUMn
USB_RENUMn
PWR_ENn
R8
2K7
R6
4K7
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
JP1
+3V3_ST_LINK
PWR_EXT
+3V3_ST_LINK
D5
BAT60JFILM
D3
BAT60JFILM
C14
1uF_X5R_0603
C15
10nF_X7R_0603
C9
1uF_X5R_0603
C10
100nF
C8
100nF
+3V3_ST_LINK
R11
10K
R17
36K
U5V
R16 100
+3V3_ST_LINK
CN3
Wired on Solder Side
CN2
E5V
VBAT
1
PA7
17
PC13
2
PA12 33
PC14
3
PB0
18
PC15
4JTMS/SWDIO 34
OSCIN
5
PB1
19
OSCOUT
6
VSS_2 35
NRST
7
PB2/BOOT1
20
VSSA
8
VDD_2 36
VDDA
9
PB10
21
PA0
10
JTCK/SWCLK 37
PA1
11
PB11
22
PA2
12
PA15/JTDI 38
PA3
13
VSS_1
23
PA4
14
PB3/JTDO 39
PA5
15
VDD_1
24
PA6
16
PB4/JNTRST 40
PB12 25
PB5 41
PB13 26
PB6 42
PB14 27
PB7 43
PB15 28
BOOT0 44
PA8 29
PB8 45
PA9 30
PB9 46
PA10 31
VSS_3 47
PA11 32
VDD_3 48
U2
STM32F103CBT6
D2
BAT60JFILM
SB100
Closed
SB102
Closed
SB104
Closed
SB106
Closed
SB101
Open
SB103
Open
SB105
Open
SB107
Open
SB141 Closed
+5V
1 2
X1
NX3225GD-8.000M-EXS00A-CG04874
I/O1
1
GND
2
I/O2
3I/O2 4
Vbus 5
I/O1 6
U1
USBLC6-2SC6
C4
100nF
U5V
i
Diff Pair 90ohm
i
Diff Pair 90ohm
VBUS 1
DM 2
DP 3
ID 4
GND 5
Shield 6
USB_Micro-B receptacle
Shield 7
Shield 8
Shield 9
EXP 10
EXP 11
CN1
1050170001
VIN_5V
D4
BAT60JFILM
3
1
2
T1
9013
+3V3_PER
SB109 Open
VccA
1
A1
2
A2
3
GND
4DIR 5
B2 6
B1 7
VccB 8
U14
SN74LVC2T45DCUT
100nF
C44
100nF
C43
+3V3_ST_LINK
T_JTMST_SWDIO_IN
T_SWO SWO_MCU
SB108 Open
JP3
VDD_MCU
JP2
51
2
GND
3
4
BYPASS
EN
Vin Vout
U3 LDK120M33R
UM2179 Electrical schematics
UM2179 Rev 7 47/53
Figure 19. USB
46
USB
MB1312 A-01
12/8/2016
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-LXXXZXProject:
+5V
USB_PowerSwitchOn
USB_OverCurrent
12
LD7
Red
R45
620
USB_DM
USB_DP
USB_ID
C42
4.7uF
GND
2
IN
5
EN
4OUT 1
FAULT 3
U12
STMPS2151STR
R41
330
12
LD8
Green
R48
22K
R52
10K
R51
47K
R49
47K
3
1
2
T2
9013
USB_VBUS
PA10
PA9
PA12
PA11
PG6
PG5
i
Diff Pair 90ohm
i
Diff Pair 90ohm +3V3_PER
+3V3_PER
Remove for USB device only
USB_Disconnect
R50
1K5
PG6
Solder only for USB device only
VBUS_DET
R46
430K
R47
620K
SB200
SB198
SB199
SB201
D6
ESDALC6V1-1U2 I/O1
1
GND
2
I/O2
3I/O2 4
Vbus 5
I/O1 6
U13
USBLC6-2SC6
USB Micro-AB receptacle:475891001
VBUS
1
DM
2
DP
3
ID
4
GND
5
Shield
6
Shield
7
Shield
8
Shield
9
EXP
10
EXP
11
CN14
Micro-AB or Micro-B
USB Micro-B receptacle:1050170001 used for device only
PG5
Electrical schematics UM2179
48/53 UM2179 Rev 7

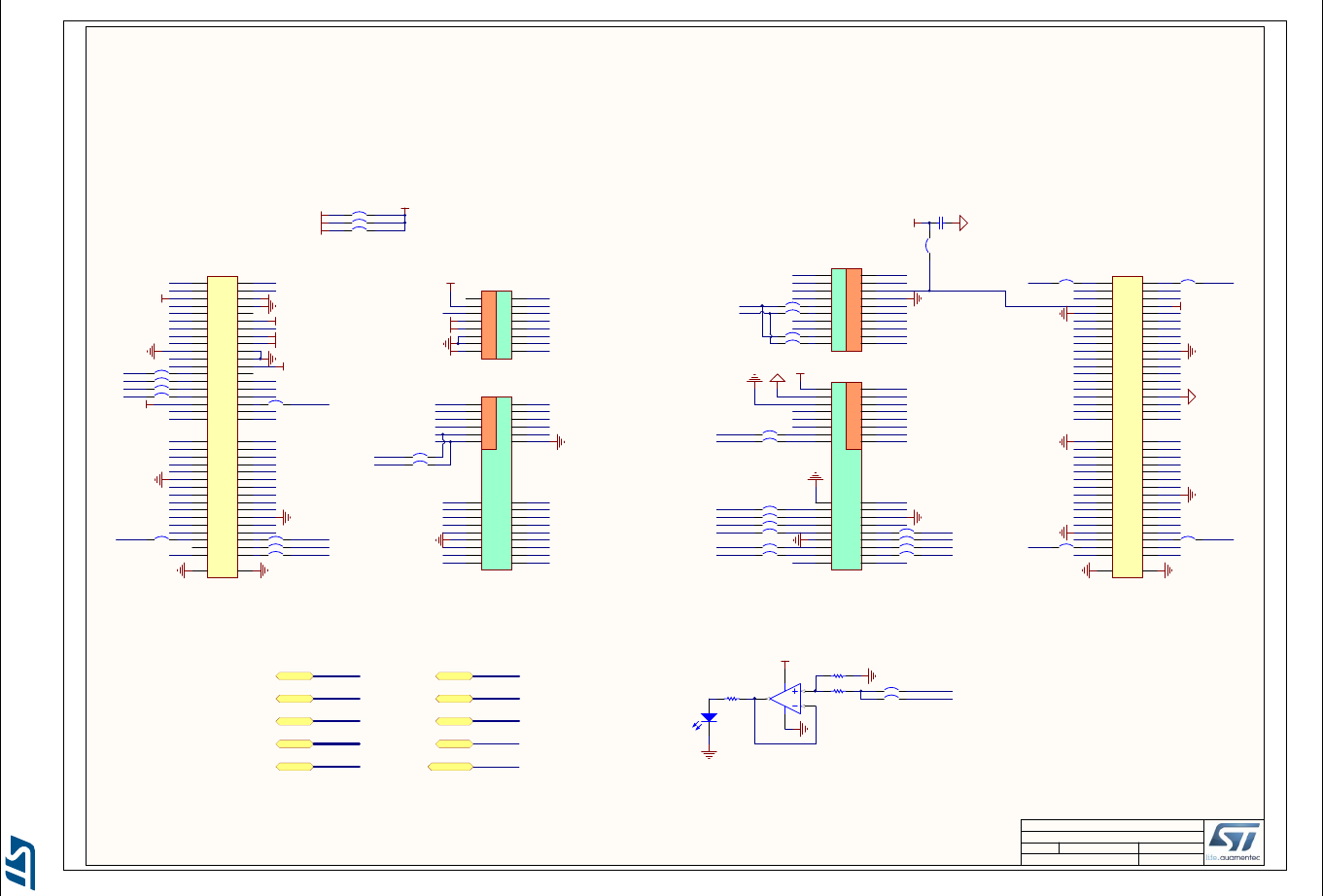

Figure 20. Extension connectors
56
Extension conn ectors
MB1312 A-01
12/8/2016
Title:
Size: Reference:
Date: Sheet: of
A3 Revision:
NUCLEO-LXXXZXProject:
Extension connectors
A0
A1
A2
A3
A4
A5
VIN
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
AGND
NRST NRST
AVDD
PH3-BOOT0 PH3-BOOT0
SB151/SB153 Close only for I2C on A4/A5
12
LD1
Green
R31
510
PD[0..15]
PD[0..15]
PE[0..15]
PE[0..15]
PF[0..15]
PF[0..15]
PG[0..15]
PG[0..15]
SB153 Open
SB151 Open
PH[0..1]
PH[0..1]
R36 200K
3
1
4
2 5
U8
TSV631AILT R37
10K
SDMMC_CK
SDMMC_CMD
SDMMC_D0
SDMMC_D1/I2S_A_CKIN
SDMMC_D2
SDMMC_D3
TIMER_A_PWM1N
TIMER_A_PWM2N
TIMER_A_PWM3N
TIMER_A_BKIN1
TIMER_A_BKIN2
TIMER_A_ETR
SAI_A_SD
SAI_A_SCK
SAI_A_FS
SAI_A_MCLK
SAI_B_SD
SAI_B_SCK
SAI_B_FS
SAI_B_MCLK
TIMER_D_PWM1 TIMER_C_PWM2
TIMER_B_ETR
TIMER_C_PWM1
TIMER_C_PWM3
I2S_A_SD
I2S_A_CK
I2S_A_WS
I2S_A_MCK
I2S_B_SD/SPI_B_MOSI
I2S_B_CK/SPI_B_SCK
I2S_B_WS
I2S_B_MCK
QSPI_CLK
QSPI_CS
QSPI_BK1_IO0
QSPI_BK1_IO2
QSPI_BK1_IO1
QSPI_BK1_IO3
ADC_A_IN
ADC_B_IN
ADC_C_IN
I2C_B_SCL
I2C_B_SDA
I2C_B_SMBA
SPI_B_MISO
SPI_B_NSS
USART_B_TX
USART_B_RX
USART_B_SCLK
USART_B_CTS
USART_B_RTS
CAN_TX
CAN_RX PA0
PA3
PB5
PB15
PB10
PB1
PB3
PB11
PB12
PC0
PC2PC3
PC6
PC8
PC9
PC10
PC11
PC12
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
PD15
PE0
PE2
PE3
PE4
PE5
PE6
PE14
PE15
PE8
PE10
PE12
PE7
PF0
PF1
PF2
PF9
PF8
PF7
PG0 PG1
PF12
NRST
+5V
+3V3
PF14
PF15
PF13
D0
D1
D2
D4
D3
D5
D6
D7
D8
D9
D10
D14
D15
D13
D12
D11
PA5
PA6
PB8
PB9
COMP1_INP
USART_A_TX
USART_A_RX
TIMER_B_PWM2
SPI_A_CS/TIM_B_PWM3
SPI_A_MOSI/TIM_E_PWM1
SPI_A_SCK
SPI_A_MISO
I2C_A_SCL
I2C_A_SDA
PA7
PD14
IO
IO
IOIO
PC1
PC4
PC5
PE9
PE11
PE13
PB0
PB2
PB6
PB13
PB8
PB9
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
CN8
Header 8X2_Female
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
CN7
Header 10X2_Female
PA1
2
4
6
8
10
12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
1
3
5
7
9
11
CN9
Header 15X2_Female
1
3
5
7
9
11
13
15
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
2
4
6
8
10
12
14
16
CN10
Header 17X2_Female
SB124 Closed
PA0
PA4
PB0
PA1
PA15
PA13
PA14
PC2
PC3
PB7
PC10 PC11
PC12
PC13
PC14
PC15
PF6
PF7
NRST
PD2
PH0
PH1
VDD
VBAT
E5V
SB156 Closed
SB146 Open
SB145 Open
PC1
PC0
+3V3
VIN
+5V
PE0
PE1
PE2
PE3 PE4
PE5
PE6
PE14
PE15
PE9
PE8
PE11
PE10
PE12
PE13
PE7
PD0
PD1
PD3PD4
PD5
PD6
PD7
PD9
PD10
PD11
PD12
PD13
PD14
PD15
SB193Closed
PA2
PA5
PA6
PA7
PA10
PA3
PB1
PB3
PB4
PB8
PB9
PA11
PA12
PA9
PA8
PC4
PC5
PC6
PC7
PB5
PB6
PB14
PB15
PB2
PB11
PB12
PB13
PC8PC9
PB10
PD8
PF4
AGND
U5V
PF5
Morpho connector
SB195 Closed
PG0
PG1
PG2
PG3
PG4
PG5
PG14
PG9
PG8
PG11
PG10PG12
PG13
PG6
PG7
PG15
PF0
PF1 PF2
PF3
PF14
PF15
PF9
PF8
PF11
PF10
PF12
PF13
Morpho connector
TIMER_A_PWM1
TIMER_A_PWM2
TIMER_A_PWM3
Arduino Uno compatible
SB136 Closed SB137Closed
+3V3_PER
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33
35
37
39
41
43
45
47
49
51
53
55
57
59
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
40
61
63
67
69
65
34
36
38
71 72
CN11
Header 36X2
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33
35
37
39
41
43
45
47
49
51
53
55
57
59
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
40
61
63
67
69
65
34
36
38
71 72
CN12
Header 36X2
+3V3 SB110 Open
+3V3_PER
IOREF
IOREF
IOREF
Zio connector
Arduino Uno compatible
Zio connector
PA5SB123 Open
SB179 Closed
D43
D44
D45
D46
D47
D48
D49
D50
D72
D71
D70
D69
D68
D67
D66
D65
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63
D64
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
A6
A7
A8
D26
D27
D28
D29
D30
D31
D32
D33
D34 D35
D36
D37
D38
D39
D40
D41
D42
PB10 SB155 Closed
SB150 ClosedPA2
SB168 ClosedPE12
SB159 ClosedPB0
SB157 ClosedPE15
SB170 ClosedPE14
SB182 Closed SB188 Closed
SB177 Closed
SB180 Closed
SB169 Closed
PC7
PB4
PA4 SB126 Closed
SB133 Closed
SB128 Closed
SB140 Closed
COMP2_INP
SB147 Closed
SB136/SB137 to avoid
stub of SDMMC signals
SB192 Closed
SB194 Closed
SB196 Closed
SB191 Closed
PD8
PD9
VREF+
C45 [N/A]
SB119
Open
AGND
PH3-BOOT0
SB111 Open
PF3
PF5
SB112 Closed
VDD_MCU
SB144 Closed
SB144 to avoid
stub of QSPI_IO1 signals
UM2179 Electrical schematics
UM2179 Rev 7 49/53

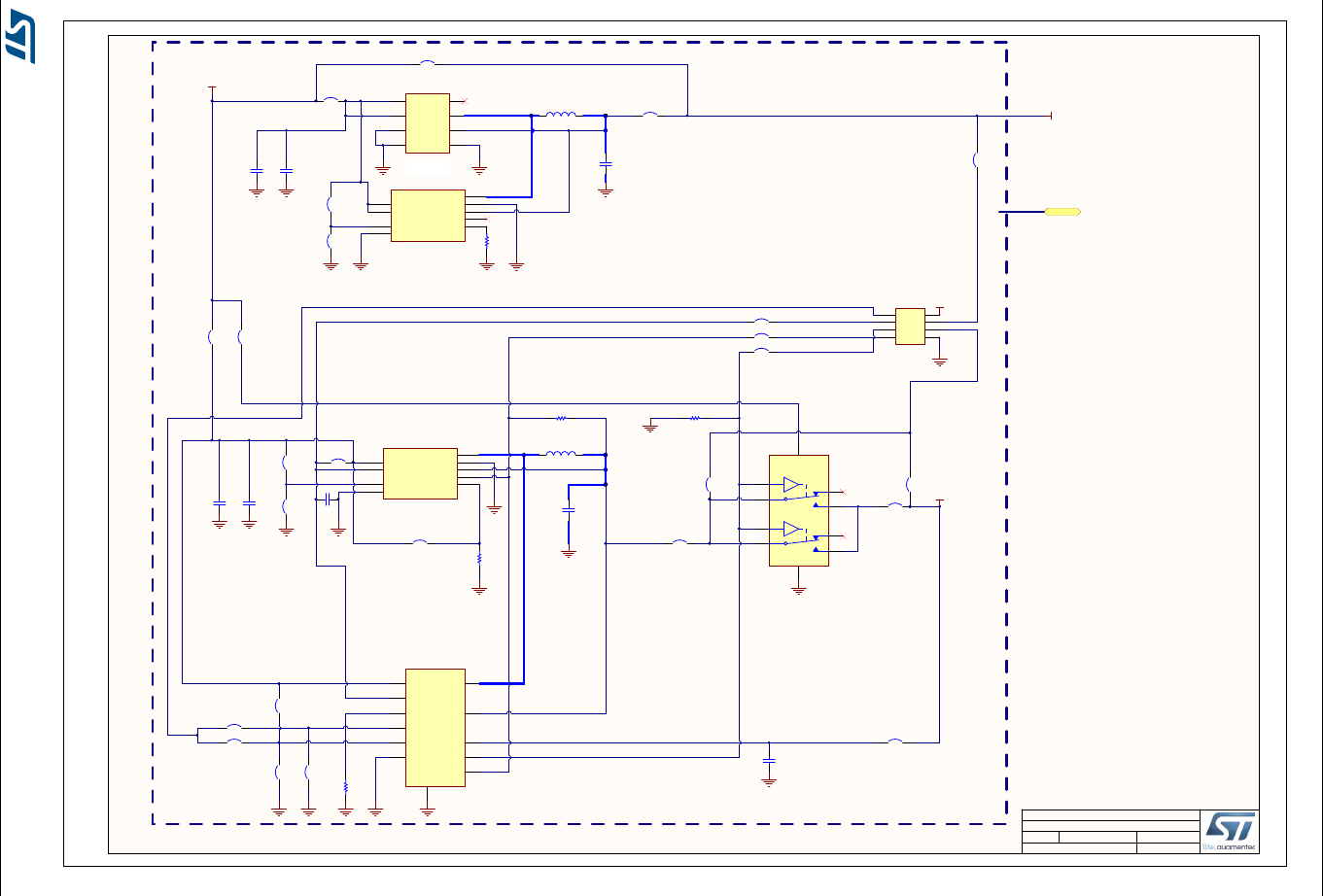

Figure 21. SMPS power supply
66
SMPS power supply
MB1312 A-01
2/21/2017
Title:
Size: Reference:
Date: Sheet: of
A3 Revision:
NUCLEO-LXXXZXProject:
VIN
2
EN
12
CTRL
8
D2
11
D1
10
D0
9
SW 3
VOUT 5
VOUT2 6
PG 7
GND
4
AUX 1
U9
ST1PS02D1QTR
1
10
2
9
1IN
D1
1S2
1S1
6
5
7
4
2IN
D2
2S2
2S1
VCC 3
GND
8
U7
STG3684AUTR
VIN
A3
EN
B2
D0
C1
D1
A1
SW C3
VOUT E3
PG E1
GND D2
U10
ST1PS01EJR
SMPS_V1
SMPS_EN
SMPS_PG
SMPS_SW
VOUTVDD
VOUTCORE
U9 and U15 are
exclusively populated
SB7
Closed:If ADI5301(U15) is
used or ST1PS02(U9)
VOUT is used
Open: If ST1PS02(U9)
VOUT2 is used
SB1
Closed:Default
Open:
If external switch
(
U7
)
is needed
SB8
Closed: Default
Open: If using
External SMPS
on CN13
SB4
Open: Default
Closed: If using
External SMPS on
CN13 and U7 is
needed
SB11:
Closed: If ST 1PS02
(U9) VOUT2 is used
Open: If ADI5301(U15)
is used or ST1PS02(U9)
VOUT is used
Mode SB10 SB118 SB115 SB117 SB9 Volt Ivdd
ST1PS02D
Default Open Open Open Closed Closed 1.25 na
DualVlow Closed Open Closed Open Open 1.05/1.15 50
DualVhi Open Closed Open Open Closed 1.05/1.25 100
SW A1
PVIN
A2
EN
A3 PGND B1
AGND
B2 SYNC/MODE
B3 VOUTOK C1
FB C2
VID C3
U15
ADP5301ACBZ-2-R7
SW A1
PVIN
A2
EN
A3 PGND B1
AGND
B2 SYNC/MODE
B3 VOUTOK C1
FB C2
VID C3
U16
ADP5301ACBZ-2-R7
U10 and U16
are exclusive
D
efault volatge will be Vout = 1.2V
B
UT Some board to be equiped with
A
DP5301_Opt1 and R53=25.5K for
Vout = 1.1V
VDD
VDD_1V2
VDDPG10
PG11
PG12
PG13
Componants mounted based on different board reference
PG[0..15] PG[0..15]
C24
100nF
C23
100nF
SB125
Closed
SB120
Open
SB8 SB1
SB114
SB116
SB113 SB7
SB4 SB3
SB2
SB11
SB16
SB18
SB17
SB10
SB118
SB117
SB115 SB9
L2
2.2uH[VLS252010HBX-2R2M-1]
L1
2.2uH[VLS252010HBX-2R2M-1]
VDD_MCU
SB2
Closed:Default
Open:
I
f external switch (U7)
is needed
SB3
Open: Default
Closed: If using
External SMPS on
CN13 and U7 is
not needed
Solder bridges default setting
A
DI5301(U15):
Closed:SB1,SB2,SB7,SB8,SB16,SB17,SB18,SB114
Open: SB3, SB4, SB9, SB10, SB11, SB113, SB115, SB116,
SB117, SB118, SB129
ST1PS02(U9):
Closed: SB8, SB9, SB11, SB16, SB17, SB18, SB117
Open: SB1, SB2, SB3, SB4, SB7, SB10, SB113, SB114,
SB115, SB116, SB118, SB129
SB19
Open
C25
10uF
C47
10uF
C22
10uF C21
10uF
R35
19.6K[1%]
R53
11.8K[1%]
R33
0
R34
1M
R32
33K
SB122 Closed
SB121
Open
SB127 Open
C48
100nF
SB129
C46
10uF[N/A]
6 5
4 3
2 1
8 7
CN13
Header 4X2[N/A]
Board revision history and limitations UM2179
50/53 UM2179 Rev 7
Appendix B Board revision history and limitations
Table 13. Board revision history and limitations
Board Version Revision details Known limitations
MB1312 A-04 Initial version
A4/A5 on Arduino Uno V3
connector CN9 cannot be used as
I2C function.
MB1312 (SMPS) A-03 Initial version for
NUCLEO-L496ZG-P
A4/A5 on Arduino Uno V3
connector CN9 cannot be used as
I2C function.
UM2179 Rev 7 51/53
UM2179 Federal Communications Commission (FCC) and Industry Canada (IC) Compliance
52
Appendix C Federal Communications Commission (FCC)
and Industry Canada (IC) Compliance
This kit is designed to allow:
•(1) Product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished
product and
•(2) Software developers to write software applications for use with the end product.
This kit is not a finished product and when assembled may not be resold or otherwise
marketed unless all required FCC equipment authorizations are first obtained.
Operation is subject to the condition that this product not cause harmful interference to
licensed radio stations and that this product accept harmful interference. Unless the
assembled kit is designed to operate under part 15, part 18 or part 95 of 47 CFR,
Chapter I (“FCC Rules”), the operator of the kit must operate under the authority of an
FCC license holder or must secure an experimental authorization under part 5 of this
chapter.
Revision history UM2179
52/53 UM2179 Rev 7
Revision history
Table 14. Document revision history
Date Revision Changes
28-Feb-2017 1 Initial version.
27-Mar-2017 2
Document now also scopes NUCLEO-L496ZG-P product.
Added:
Section 6.5.4: SMPS power supply
Figure 12: NUCLEO-L496ZG-P
Updated:
– cover page features (to cover LL library)
– cover page description
–Section 1: Features (SMPS function)
–Section 6.6: LEDs
–Section 6.13: Solder bridges and jumpers
–Section Appendix B: Board revision history and limitations
–Table 1: Ordering information
–Table 2: Codification explanation
–Table 11: NUCLEO-L496ZG, NUCLEO-L496ZG-P and
NUCLEO-L4R5ZI pin assignments
–Figure 3: Hardware block diagram
–Figure 4: STM32 Nucleo-144 board top layout
–Figure 5: STM32 Nucleo-144 board bottom layout
08-Aug-2017 3
Document now also scopes NUCLEO-L4R5ZI product.
Added Figure 13: NUCLEO-L4R5ZI.
Updated:
– The cover page Introduction
–Table 1: Ordering information
–Table 2: Codification explanation
31-Aug-2017 4 Updated Table 1: Ordering information.
7-Nov-2017 5 Updated Chapter 2: Product marking. Added Section 6.17:
Bootloader limitation.
15-Dec-2017 6
Expanded document scope to the NUCLEO-L4A6ZG product:
– Updated Introduction
– Updated Table 1: Ordering information and Table 11:
NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI
and NUCLEO-L4A6ZG pin assignments
– Added Figure 13: NUCLEO-L4A6ZG
1-Feb-2018 7
Expanded document scope to the NUCLEO-L4R5ZI-P product:
– Updated Introduction
– Updated Section 6.5.4: SMPS power supply
– Updated Table 1: Ordering information and Table 11:
NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4R5ZI,
NUCLEO-L4R5ZI-P and NUCLEO-L4A6ZG pin assignments
– Added Figure 15: NUCLEO-L4R5ZI-P
UM2179 Rev 7 53/53
UM2179
53
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
