CERTIFICATIONS/LISTINGS

PRODUCT IMAGE(S)SPECIFICATIONS

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2016 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA SPEC 11/16

Cat.#

Approvals

Job Type design . performance . technology

design . performance . technology

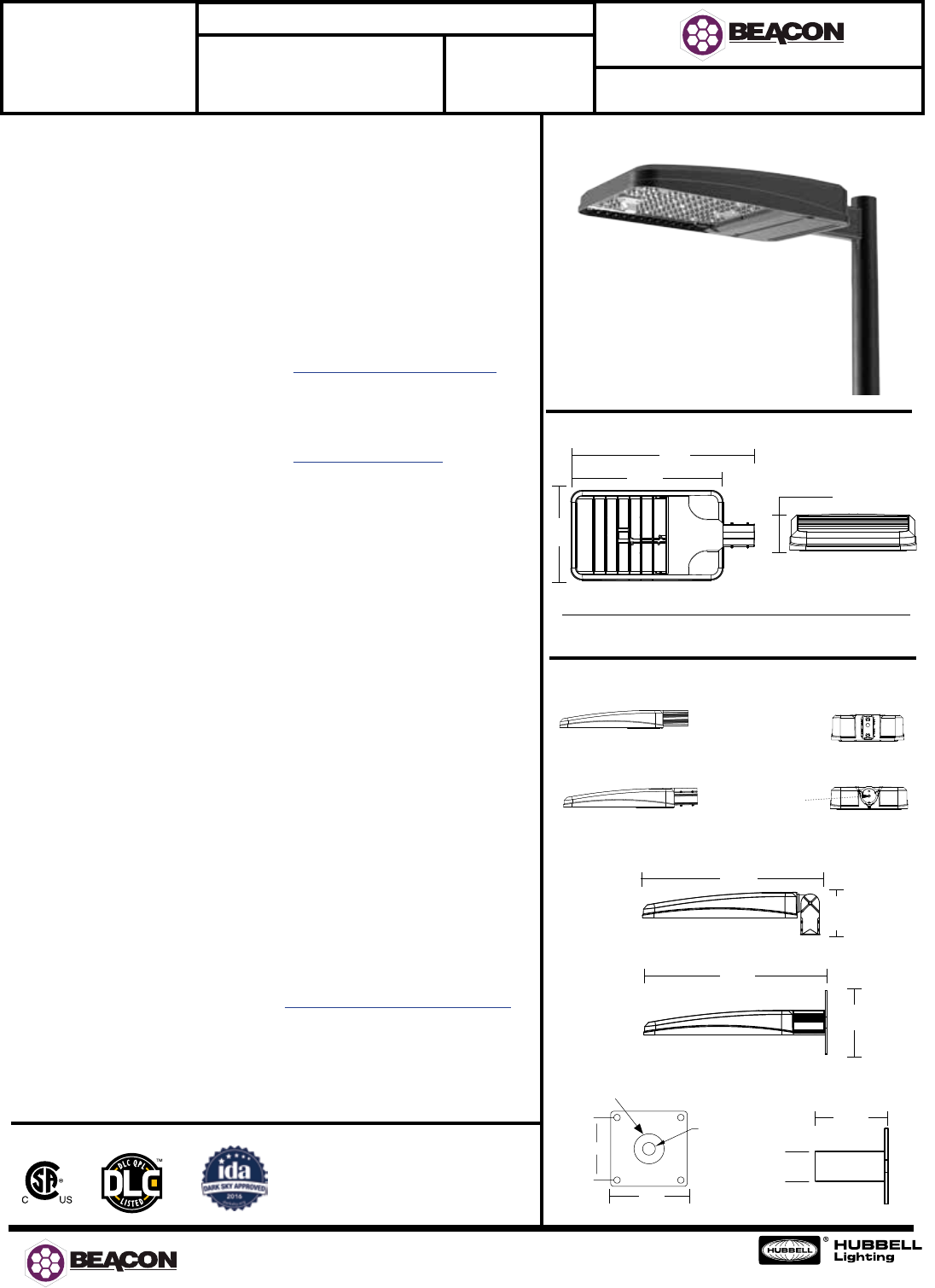

VIPER L

SERIES

ENHANCED LARGE VIPER LUMINAIRE

Intended Use:

The Beacon Viper luminaire is available in two

sizes with a wide choice of different LED Wattage

congurations and optical distributions designed

to replace HID lighting up to 1000W MH or HPS.

Luminaires are suitable for wet locations.

Construction:

• Manufactured with die cast aluminum.

• Coated with a polyester nish that meets

ASTM B117 corrosion test requirements

and ASTM D522 cracking and loss of

adhesion test requirements.

• External hardware is corrosion resistant.

• One piece optical cartridge system consisting

of an LED engine, LED lamps, optics, gasket

and stainless steel bezel.

• Cartridge is held together with internal brass

standoffs soldered to the board so that it can

be eld replaced as a one piece optical system.

• Two-piece silicone and micro-cellular

polyurethane foam gasket ensures a

weather-proof seal around each individual LED.

Electrical:

• Luminaire accepts 100V through 277V, 50 Hz

to 60 Hz (UNV) 347V or 480V input.

• Power factor is ≥ .90 at full load.

• All electrical components are rated at 50,000

hours at full load and 25°C ambient conditions

per MIL- 217F Notice 2.

• Dimming drivers are standard, but must

contact factory to request wiring leads for

purpose of external dimming controls.

• Component-to-component wiring within the

luminaire may carry no more than 80% of

rated load and is certied by UL for use at

600VAC at 90°C or higher.

• Plug disconnects are certied by UL for use

at 600 VAC, 13A or higher. 13A rating

applies to primary (AC) side only.

• Fixture electrical compartment shall contain all

LED driver components and shall be provided

with a push-button terminal block for AC

power connections.

• Ambient operating temperature -40°C to 40°C

• Optional 7-pin ANSI C136.41-2013 twist-lock

photo control receptacle available. Compatible

with ANSI C136.41 external wireless control

devices.

• Surge protection - 20KA.

• Lifeshield™ Circuit - protects luminaire from

excessive temperature. The device

shall activate at a specic, factory-preset

temperature, and progressively reduce power

over a nite temperature range. Operation shall

be smooth and undetectable to the eye.

Thermal circuit is designed to “fail

on”, allowing the luminaire to revert to full

power in the event of an interruption of its

power supply, or faulty wiring connection to

the drivers. The device shall be able to

co-exist with other 0-10V control devices

(occupancy sensors, external dimmers, etc.).

Controls/Options:

• Available with an optional passive infrared

(PIR) motion sensor capable of detecting

motion 360° around the luminaire. When

no motion is detected for the specied time,

the Motion Response system reduces the

Wattage to factory preset level, reducing the

light level accordingly. When motion is

detected by the PIR sensor, the luminaire

returns to full Wattage and full light output.

Please contact Beacon Products if project

requirements vary from standard conguration.

• Available with Energeni for optional set

dimming, timed dimming with simple delay, `

or timed dimming based on time of night (see

www.beaconproducts.com/products/energeni).

• In addition, Viper can be specied with

SiteSync™ wireless control system

for reduction in energy and maintenance cost

while optimizing light quality 24/7. See

ordering information or visit

www.hubbelllighting.com/sitesync for more details.

Installation:

• Mounting options for horizontal arm, vertical

tenon or traditional arm mounting available.

Mounting hardware included.

Finish:

• IFS polyester powder-coat electro-

statically applied and thermocured.

• IFS nish consists of a ve stage

pretreatment regimen with a polymer primer

sealer and top coated with a thermoset

super TGIC polyester powder coat

nish.

• The nish meets the AAMA 605.2

performance specication which includes

passing a 3000 hour salt spray test for

corrosion resistance and resists cracking or

loss of adhesion per ASTM D522 and resists

surface impacts of up to 160 inch-pounds.

Listings:

• DesignLights Consortium (DLC) qualied,

consult DLC website for more details: http://

www.designlights.org/QPL

• Listed to UL1598 and CSA22.2#250.0-24

for wet locations and 40°C ambient

temperatures

• 3G rated for ANSI C136.31 high vibration

applications with SF2 mounting

• IDA approved

Warranty:

Five year limited warranty for more information

visit:

www.hubbelllighting.com/resources/warranty

DIMENSIONS

MOUNTING OPTIONS

Front

B

A

C

D

PK2 2-3/8” Adjustable Knuckle

18 3/4”

6 5/8”

Accepts 2 3/8” OD

tenon, min 4” long.

SF2 2-3/8” OD Slip Fitter

Side View Back View

A B

29.12” 24.19”

(704 mm) (614 mm)

Weight:

25.0 lbs

(11.3 kg)

C

14.25”

(362 mm)

D

4.13”

(105 mm)

EPA

1.0 ft2

RA Rectangular Arm

Side View Back View

*3000K and warmer CCTs only

WB Wall Bracket

31 1/4”

6”

2 3/8”

1”

5”

5 1/2”

6”

2 3/8”

IK05

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2016 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA SPEC 11/16

design . performance . technology

VPL

SERIES

VPL viper-large

VOLTAGE

UNV 120-277V

347V 347V

480V 480V

CONTROL OPTIONS

GENI-XX6energeni

SWP1,5 SiteSync Wireless

Pre-Commission

SWPM2,5 SiteSync Wireless

Pre-Commission w/

Motion Detection

LED COLOR

3K 3000K

4K 4000K

5K 5000K

ENGINE-WATTS

64NB-135 135W,

LED array

80NB-180 180W,

LED array

80NB-235 235W,

LED array

96NB-220 220W,

LED array

96NB-280 280W,

LED array

96NB-395 395W,

LED array

SENSOR OPTIONS

MDD2,5 motion dimming

detector

DesignLights Consortium qualied.

Consult DLC website for more details:

http://www.designlights.org/QPL

ELECTRICAL

OPTIONS

PCR-TL 7 pin

twist lock

receptacle

with photo

control

PCR-SC 7 pin twist

lock recep-

tacle with

shorting

cap

2PF7dual power

feed

PCRU 7 pin twist

lock recep-

tacle

1 Must specify group and zone information at time of order. See www.hubbelllighting.com/sitesync for further details

2 Specify time delay; dimming level and mounting height.

3 T4 optic only.

4 To rotate optics Left or right 90 degrees, specify L or R after the optical distribution example T4L.

5 Not available with other control or sensor options.

6 When ordering Energeni, specifiy the routine setting code (example GENI-04). See Energeni brochure and instructions for setting

table and options. Not available with sensor options.

7 Not available for 347V or 480V input.

ORDERING EXAMPLE: VPL/96NB-280/5K/T4/UNV/PCR-TL/GENIXX/BLC/RA/BBT

HOUSE SIDE SHIELD

OPTIONS

HSS-90 house side

shield 90°

HSS-180 house side

shield 180°

BLC3backlight

control

MOUNTING OPTIONS

RA rectangular arm for round

or square pole mount.

Round Pole Adapter

included.

SF2 2 3/8” OD slip-fitter

PK2 2 3/8” adjustable knuckle

WB wall bracket (use with SF2

or PK2), SF2 standard

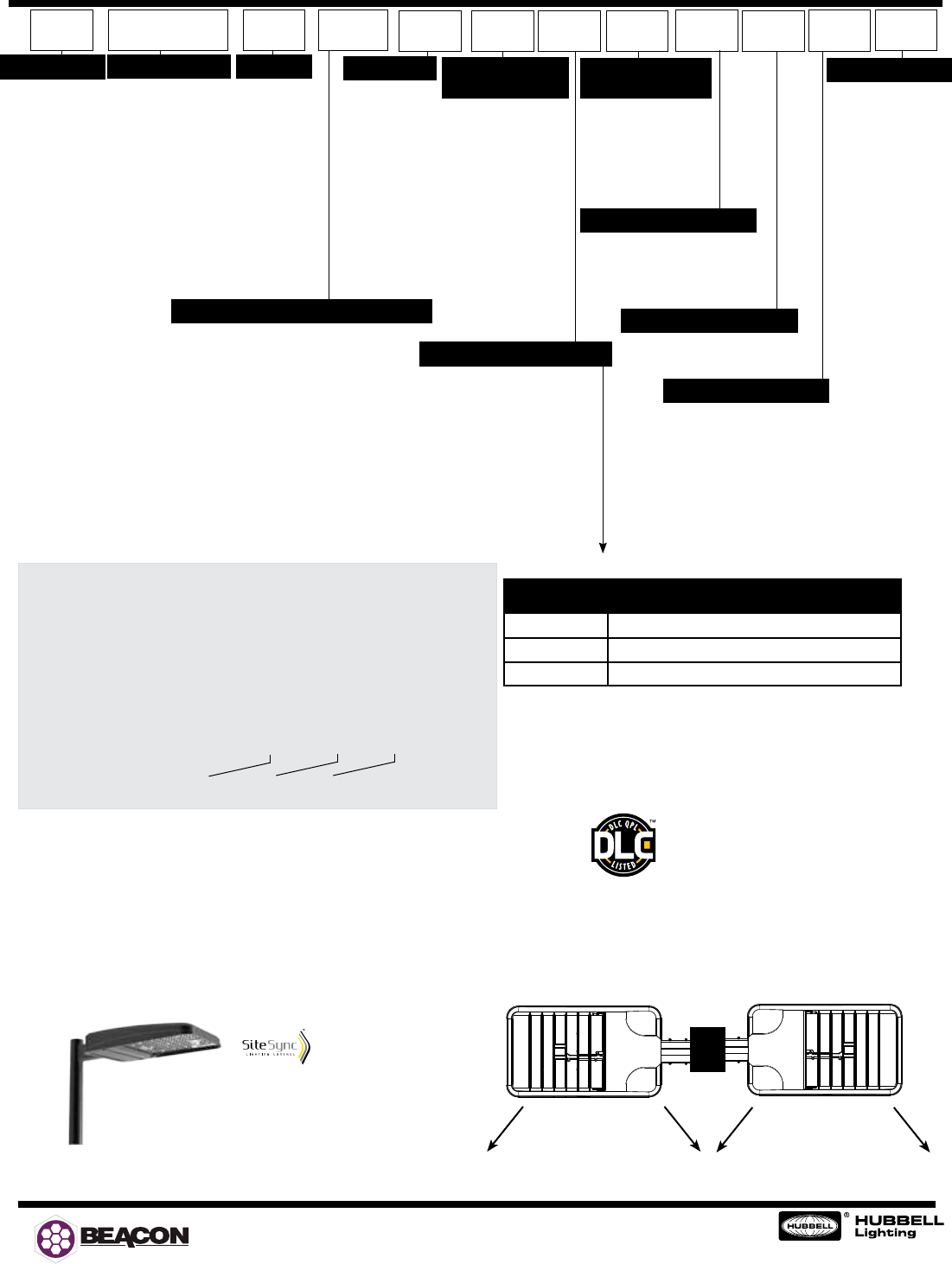

ORDERING INFORMATION

LEFT RIGHT OPTICS4

T1L type 1 left

T1R type 1 right

T2L type 2 left

T2R type 2 right

T3L type 3 left

T3R type 3 right

T4L type 4 left

T4R type 4 right

FRL front row left

FRR front row right

OPTICS4

T1 type I

T2 type II

T3 type III

T4 type IV

T5R type V, rectangular

T5QM type V, square

medium

T5W type V, round wide

FR front row auto

optic

LEFT ROTATED OPTIC RIGHT ROTATED OPTIC

Catalog Number Description

SWUSB* SiteSync loaded on USB flash drive (Windows based only)

SWTAB* SiteSync Windows Tablet

SWBRG+SiteSync Wireless Bridge Node

* When ordering with SiteSync, one of the following interface options must be chosen and ordered

separately. Each option contains the SiteSync License, GUI and Bridge Node.

+ If needed, an additional Bridge Node can be ordered.

Accessories and Services (Ordered Separately)

PRECOMMISSIONED SITESYNC ORDERING INFORMATION: When ordering a fixture with the SiteSync lighting

control option, additional information will be required to complete the order. The SiteSync Commissioning Form

or alternate schedule information must be completed. This form includes Project location, Group information, and

Operating schedules. For more detailed information please visit www.HubbellLighting.com/sitesync or contact Hubbell

Lighting tech support at (800) 345-4928.

SiteSync fixtures with Motion control (SWPM) require the mounting height of the fixture for selection of the lens.

Examples: VP-L/80NB-235/5K/T3/UNV/SWP/RA/DBT SiteSync only

VP-L/80NB-235/5K/T3/UNV/SWPM-20F/RA/DBT SiteSync with Motion Control

MDD ORDERING INFORMATION: When ordering a fixture with the motion detection option (MDD), please specify the

appropriate information. These settings are specified in the ordering as shown in the example below.

VP-L/80NB-235/5K/T3/UNV/MDD - __________ - __________ - _____ / RA/DBT

1 to 30 min.33% or 50% ??

High to Dim Delay Low Level Mounting Height (ft.)

SiteSync Lighting Control is available from

our most popular brands in a broad range of

award-winning product families.

FINISH

BBT basic black

textured

BMT black matte

textured

WHT white textured

MBT metallic bronze

textured

BZT bronze textured

DBT dark bronze

textured

GYS gray smooth

DPS dark platinum

smooth

GNT green textured

MST metallic silver

textured

MTT metallic titanium

textured

OWI old world iron

RAL _____________

BIRD DETERRENT

BSP bird spike

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2016 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA SPEC 11/16

design . performance . technology

5K

(5000K nominal, 70 CRI)

4K

(4000K nominal, 70 CRI)

3K

(3000K nominal, 80 CRI)

# LED’S

DRIVE

CURRENT

(MILLIAMPS)

SYSTEM

WATTS

DISTRIBUTION TYPE

LUMENS

LPW

1

B

U

G

LUMENS

LPW

1

B

U

G

LUMENS

LPW

1

B

U

G

64 625 mA 136W

FR/T1

15922

116

2

0

1

15762

115

2

0

1

13534

99

2

0

1

T2 14274 104 3 0 3 14131 103 3 0 3 12133 89 3 0 3

T3 14137 103 3 0 3 13996 102 3 0 3 12017 88 3 0 3

T4

15511

113

2

0

4

15356

112

2

0

3

13184

96

2

0

3

T5QM

15511

113

4

0

2

15356

112

4

0

2

13184

96

3

0

2

T5R

15785

115

4

0

4

15627

114

4

0

4

13417

98

4

0

4

T5W 15372 112 4 0 2 15217 111 4 0 2 13067 95 4 0 2

80 700 mA 180W

FR/T1 21132 117 2 0 2 20322 113 2 0 2 17447 97 2 0 2

T2

18888

105

3

0

4

18699

104

3

0

4

16055

89

3

0

3

T3

18700

104

3

0

3

18513

103

3

0

3

15895

88

3

0

3

T4

20571

114

3

0

4

20365

113

3

0

4

17485

97

3

0

3

T5QM 20571 114 4 0 2 20365 113 4 0 2 17485 97 4 0 2

T5R 20944 116 4 0 4 20733 115 4 0 4 17803 99 4 0 4

T5W

20290

113

5

0

3

20088

112

5

0

3

17065

95

4

0

2

80 875 mA 235 W

FR/T1

24866

106

2

0

2

24615

105

2

0

2

21136

90

2

0

2

T2

23070

98

3

0

4

22839

97

3

0

4

19609

83

3

0

4

T3 21947 93 3 0 3 21725 92 3 0 3 18655 79 3 0 3

T4 24360 103 3 0 4 24028 102 3 0 5 20632 88 3 0 4

T5QM

23138

98

4

0

2

22905

97

4

0

2

19667

84

4

0

2

T5R

24779

105

5

0

5

24541

104

5

0

5

21070

90

4

0

4

T5W

24175

103

5

0

3

23931

102

5

0

3

20548

87

5

0

3

96 700 mA 220 W

FR/T1 25358 113 2 0 2 25104 112 2 0 2 21554 96 2 0 2

T2 22665 101 3 0 4 22438 100 3 0 4 19265 86 3 0 4

T3

22440

100

3

0

4

22216

99

3

0

4

19134

86

3

0

3

T4

24685

110

3

0

5

24438

109

3

0

5

20982

94

3

0

4

T5QM

24685

110

4

0

2

24438

109

4

0

2

20982

94

4

0

2

T5R 25133 112 5 0 5 24882 111 5 0 5 21363 96 4 0 4

T5W 24349 109 5 0 3 24106 108 5 0 3 20803 93 5 0 3

96 875 mA 280 W

FR/T1

29839

106

3

0

2

29541

105

3

0

2

25363

90

2

0

2

T2

27369

98

4

0

5

27096

97

4

0

5

23264

83

3

0

4

T3

26336

93

3

0

4

26073

92

3

0

4

22365

79

3

0

4

T4 29128 102 3 0 5 28837 103 3 0 5 24759 88 3 0 5

T5QM 28889 103 5 0 3 28601 102 5 0 3 24556 88 4 0 2

T5R

29184

105

5

0

5

28893

104

5

0

5

24809

89

5

0

5

T5W

29010

102

5

0

4

28720

101

5

0

4

24263

86

5

0

3

96 1225mA 395 W

FR/T1

39653

101

3

0

2

39260

100

3

0

2

33371

85

3

0

2

T2 35997 91 4 0 5 35641 90 4 0 5 30295 77 4 0 5

T3 35840 91 4 0 5 35485 90 4 0 5 30162 77 3 0 4

T4

35455

90

3

0

5

35104

89

3

0

5

29839

76

3

0

4

T5QM

38388

97

5

0

3

38008

96

5

0

3

32306

82

5

0

2

T5R

39117

99

5

0

5

38730

98

5

0

5

32921

83

5

0

5

T5W 36984 93 5 0 4 36528 93 5 0 4 31049 79 5 0 4

PERFORMANCE DATA

1Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations shown. Actual performance may differ as a result of end-user environment and application.

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2016 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA SPEC 11/16

design . performance . technology

PROJECTED LUMEN MAINTENANCE

AMBIENT

TEMP. 025,000 50,000

1

TM-21-11

60,000 100,000

Calculated L70

(HOURS)

25°C / 77°C 1.00 0.95 0.93 0.93 0.89 >377,000

1 Projected per IESNA TM-21-11

Data references the extrapolated performance projections for the 700mA base model in a 25°C

ambient, based on 10,000 hours of LED testing per IESNA LM-80-08.

AMBIENT

TEMPERATURE

LUMEN

MULTIPLIER

0°C

32°F

1.02

10°C

50°F

1.01

20°C

68°F

1.00

25°C

77°F

1.00

40°C

86°F

.98

40°C

104°F

.98

# OF LEDS

NUMBER

OF

DRIVERS

DRIVE

CURRENT

(mA)

INPUT VOLTAGE

(V)

SYSTEM POWER

(w)

CURRENT

(Amps)

64 1625

120

136

1.1

277

0.5

347

0.4

480

0.3

80 2700

120

180

1.5

277

0.6

347

0.5

480

0.4

80 2875

120

235

2.0

277

0.8

347

0.7

480

0.5

96 2700

120

220

1.8

277

0.8

347

0.6

480

0.5

96 2875

120

280

2.3

277

1.0

347

0.8

480

0.6

96 21225

120

395

3.3

277

1.4

347

1.1

480

0.8

ELECTRICAL DATA

Use these factors to determine relative lumen

output for average ambient temperatures from

0-40°C (32-104°F).

4” Suggested

distance from

top of pole 2.50”

2X Ø5/16”

Ø5/8”

Rectangular

Arm Ø4” Pole

Ø5” Pole

Ø6” Pole

DRILL PATTERN EPA

Config. EPA

1 1

2 @ 90˚ 1.36

2 @ 180˚ 2

Config. EPA

3 @ 120˚ 2

3 @ 90˚ 2.2

4 @ 90˚ 2.2

Compatible with Pole drill pattern B3

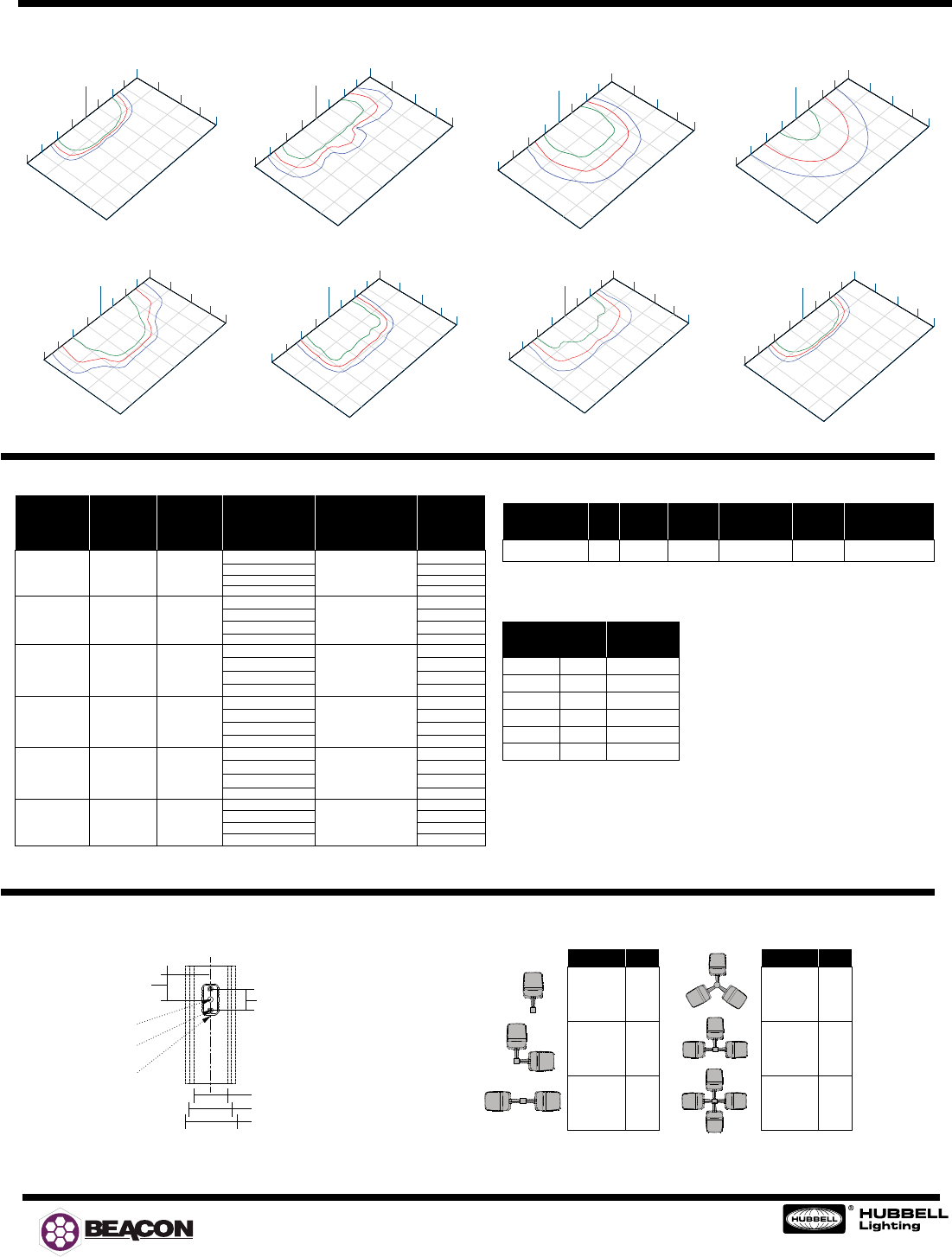

PHOTOMETRICS

Type II

VP-L-96NB-280-5K-T2

Type IV

VP-L96NB-280-5K-T4

Type III

VP-L-96NB-280-5K-T3

Type V Square Medium

VP-L-96NB-280-5K-T5QM

Type V Round Wide

VPL-96NB-280-5K-T5W

Front Row Auto Optic / Type I

VP-L-96NB-280-5K-FR

VP-L-96NB-280-5K-T1

Type V Rectangular

VP-L-96NB-280-5K-T5R

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

2fc

100‘

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

2fc

100‘25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

2fc

100‘

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

2fc 100‘

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

2fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

2fc

100‘

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

2fc

100‘

1fc

.5fc

Type I

VP-L-96NB-280-5K-T1

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

2fc

100‘

1fc

.5fc
