VIPER S

SERIES

SMALL VIPER LUMINAIRE

Intended Use:

The Beacon Viper luminaire is available with a wide

choice of different LED Wattage congurations

and optical distributions designed to replace HID

lighting up to 400W MH or HPS.

Construction:

• Manufactured with die cast aluminum.

• Coated with a polyester nish that meets

ASTM B117 corrosion test requirements

and ASTM D522 cracking and loss of

adhesion test requirements.

• External hardware is corrosion resistant.

• One piece optical cartridge system consisting

of an LED engine, LED lamps, optics, gasket

and stainless steel bezel.

• Cartridge is held together with internal brass

standoffs soldered to the board so that it can

be eld replaced as a one piece optical system.

• Two-piece silicone and micro-cellular

polyurethane foam gasket ensures a

weather-proof seal around each individual LED.

Electrical:

• 100V through 277V, 50 Hz to 60 Hz (UNV), or

347V or 480V input.

• Power factor is ≥.90 at full load.

• Dimming drivers are standard, but must

contact factory to request wiring leads for

purpose of external dimming controls.

• Component-to-component wiring within the

luminaire may carry no more than 80% of

rated load and is certied by UL for use at

600VAC at 90°C or higher.

• Plug disconnects are certied by UL for use

at 600 VAC, 13A or higher. 13A rating

applies to primary (AC) side only.

• Fixture electrical compartment shall contain all

LED driver components and shall be provided

with a push-button terminal block for AC

power connections.

• The housing is designed for an optional twist

lock photo control receptacle.

• Ambient operating temperature -40°C to 40°C

• Surge protection - 20KA.

• Optional 7-pin ANSI C136.41-2013 twist-lock

photo control receptacle available. Compatible

with ANSI C136.41 external wireless control

devices.

• Lifeshield™ Circuit - protects luminaire from

excessive temperature. The device

shall activate at a specic, factory-preset

temperature, and progressively reduce power

over a nite temperature range. Operation shall

be smooth and undetectable to the eye.

Thermal circuit is designed to “fail on”,

allowing the luminaire to revert to full power

in the event of an interruption of its power

supply, or faulty wiring connection to the

drivers. The device shall be able to co-exist

with other 0-10V control devices (occupancy

sensors, external dimmers, etc.).

Controls/Options:

• Available with an optional passive infrared

(PIR) motion sensor capable of detecting

motion 360° around the luminaire. When

no motion is detected for the specied time,

the Motion Response system reduces the

wattage to factory preset level, reducing the

light level accordingly. When motion is

detected by the PIR sensor, the luminaire

returns to full wattage and full light output.

Please contact Beacon Products if project

requirements vary from standard conguration.

• Available with Energeni for optional set

dimming, timed dimming with simple delay, or

timed dimming based on time of night (see

www.beaconproducts.com/products/energeni).

• In addition, Viper can be specied with

SiteSync™ wireless control system

for reduction in energy and maintenance cost

while optimizing light quality 24/7. See

ordering information or visit

www.hubbelllighting.com/sitesync for more

details.

Installation:

• Mounting options for horizontal armd, vertical

tenon or traditional arm mounting available.

Mounting hardware included.

Finish:

• IFS polyester powder-coat electro-statically

applied and thermocured.

• IFS nish consists of a ve stage pretreatment

regimen with a polymer primer sealer and top

coated with a thermosetsuper TGIC polyester

powder coat nish.

• The nish meets the AAMA 605.2

performance specication which includes

passing a 3000 hour salt spray test for

corrosion resistance and resists cracking or

loss of adhesion per ASTM D522 and resists

surface impacts of up to 160 inch-pounds.

Listings:

• DesignLights Consortium (DLC) qualied,

consult DLC website for more details: http://

www.designlights.org/QPL

• Certied to UL 1598 and CSA C22.2 No.250.0

• IDA approved

• This product is approved by the

Florida Fish and Wildlife Conservation

Commission. Separate spec available at:

http://www.beaconproducts.com/products/vipersmall

Warranty:

Five year limited warranty for more information visit:

www.hubbelllighting.com/resources/warranty

CERTIFICATIONS/LISTINGS

DIMENSIONS

PRODUCT IMAGE(S)SPECIFICATIONS

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2015 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA OCTOBER 10, 2017 9:53 AM

Cat.#

Approvals

Job Type design . performance . technology

design . performance . technology

B

A

MOUNTING OPTIONS

RA Rectangular Arm

Side View Back View

Side View Back View

SF2 2-3/8” OD Slip Fitter

Accepts

2 3/8” OD

tenon, min

4” long.

PK2 2-3/8” Adjustable Knuckle

18 3/4”

6 5/8”

Front

4 1/8”

A B

22.75” 16.75”

(578 mm) (425 mm)

Weight:

15.0 lbs

(6.8 kg)

C

11.25”

(286 mm)

EPA

.67 ft2

*3000K and warmer CCTs only

C

5 1/2”

4x 0.50”

6.00”

2.38”

5.00”

Wall Bracket (WB)

22.50”

6.0”

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA OCTOBER 10, 2017 9:53 AM

design . performance . technology

CONTROL OPTIONS

GENI-XX6Energeni

SWP1,5 SiteSync Wireless Pre-Commission

SWPM1,2,5 SiteSync Wireless Pre-Commission

w/ Motion Detection

MDD2,5 Motion Dimming Detector

ORDERING INFORMATION ORDERING EXAMPLE: VPS/36NB-80/5K/T4/UNV/PCR-TL/SWP/BLC/RA/BBT

VPS

SERIES

VPS viper-small

OPTICS4

T1 type I

T2 type II

T3 type III

T4 type IV

T5R type V, rectangular

T5QM type V, square

medium

T5W type V, round wide

FR front row auto

optic

VOLTAGE

UNV 120-277V

347V 347V

480V 480V

FINISH

BBT basic black

textured

BMT black matte

textured

WHT white textured

MBT metallic bronze

textured

BZT bronze textured

DBT dark bronze

textured

GYS gray smooth

DPS dark platinum

smooth

GNT green textured

MST metallic silver

textured

MTT metallic titanium

textured

OWI old world iron

RAL _____________

LED COLOR8

3K 3000K

4K 4000K

5K 5000K

ENGINE-WATTS

24NB-55 55W, LED

array

30NB-70970W, LED

array

36NB-80 80W, LED

array

48NB-110 110W,

LED array

60NB-136 136W,

LED array

ELECTRICAL

OPTIONS

PCR-TL Twist lock

receptacle

with photo

control

PCR-SC Twist lock

receptacle

with short-

ing cap

PCRU Twist lock

receptacle

2PF7dual power

feed

HOUSE SIDE SHIELD

OPTIONS

BLC3backlight

control

DesignLights Consortium qualied.

Consult DLC website for more details:

http://www.designlights.org/QPL

MOUNTING OPTIONS

RA rectangular arm for round

or square pole mount. RPA

included.

SF2 2 3/8” OD slip-fitter

PK2 2 3/8” adjustable knuckle

WB wall bracket (use with SF2

or PK2), SF2 standard

Catalog Number Description

SWUSB* SiteSync loaded on USB flash drive (Windows based only)

SWTAB* SiteSync Windows Tablet

SWBRG+SiteSync Wireless Bridge Node

* When ordering with SiteSync, one of the following interface options must be chosen and ordered

separately. Each option contains the SiteSync License, GUI and Bridge Node.

+ If needed, an additional Bridge Node can be ordered.

Accessories and Services (Ordered Separately)

PRECOMMISSIONED SITESYNC ORDERING INFORMATION: When ordering a fixture with the SiteSync lighting

control option, additional information will be required to complete the order. The SiteSync Commissioning Form

or alternate schedule information must be completed. This form includes Project location, Group information, and

Operating schedules. For more detailed information please visit www.HubbellLighting.com/products/sitesync or

contact Hubbell Lighting tech support at (800) 345-4928.

SiteSync fixtures with Motion control (SWPM) require the mounting height of the fixture for selection of the lens.

Examples: VP-S/24NB-55/5K/T3/UNV/SWP/RA/DBT SiteSync only

VP-S/24NB-55/5K/T3/UNV/SWPM-20F/RA/DBT SiteSync with Motion Control

MDD ORDERING INFORMATION: When ordering a fixture with the motion detection option (MDD), please specify the

appropriate information. These settings are specified in the ordering as shown in the example below.

VP-S/24NB-55/5K/T3/UNV/MDD - __________ - __________ - _____ / RA/DBT

1 to 30 min.33% or 50% ??

High to Dim Delay Low Level Mounting Height (ft.)

1 Must specify group and zone information at time of order. See www.hubbelllighting.com/controls/sitesync for further details.

2 Specify time delay; dimming level and mounting height.

3 T4 optic only.

4 To rotate optics Left or right 90 degrees, specify L or R after the optical distribution example T4L.

5 Not available with other wireless control or sensor options.

6 When ordering Energeni, specifiy the routine setting code (example GENI-04). See Energeni brochure and instructions for setting

table and options. Not available with sensor options.

7 Not available for 347V or 480V input.

8 This product is approved by the Florida Fish and Wildlife Conservation Commission. Separate spec available at:

http://cdn.beaconproducts.com/content/products/specs/specs_files/Viper_Small_LED_turtle_spec_sheet.pdf

9 Not available with SWP and SWPM SiteSync options

SiteSync Lighting Control is available from

our most popular brands in a broad range of

award-winning product families.

BIRD DETERRENT

BSP bird spike

Catalog Number Description HCS System

NXOFM-1R1D-UNV On-fixture Module (7-pin), On / Off / Dim, Daylight Sensor

with HubbNET Radio and Bluetooth® Radio, 120-480VAC

NX Distributed

Intelligence™

WIR-RME-L On-fixture Module (7-pin or 5-pin), On / Off / Dim, Daylight

Sensor with wiSCAPE Radio, 110-480VAC

wiSCAPE™

Lighting Control

For additional information related to these accessories please visit www.hubbellcontrolsolutions.com. Options provided for use with

integrated sensor, please view specification sheet ordering information table for details.

Hubbell Control Solutions - Accessories (sold separately)

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA OCTOBER 10, 2017 9:53 AM

design . performance . technology

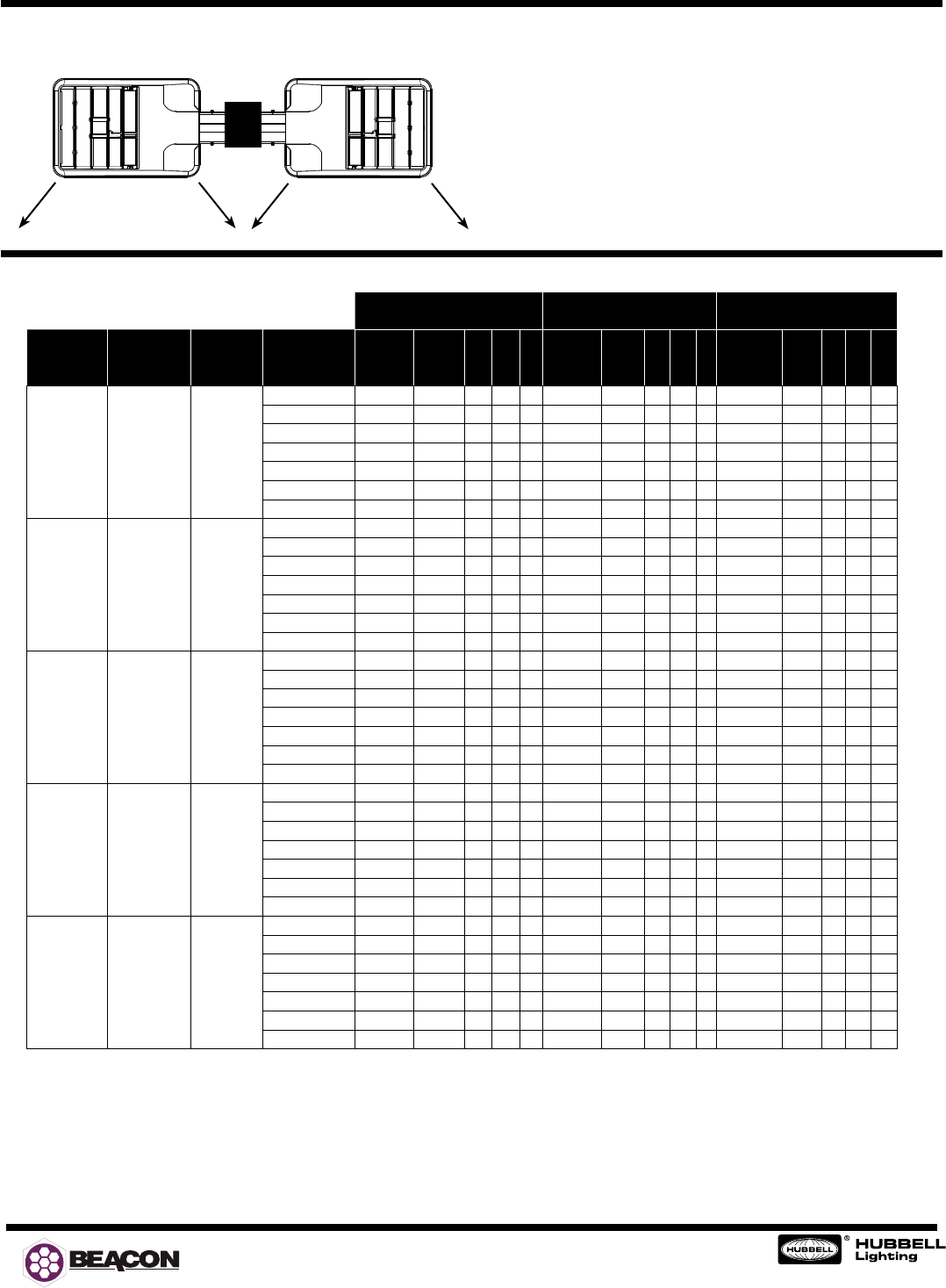

5K

(5000K nominal, 70 CRI)

4K

(4000K nominal, 70 CRI)

3K

(3000K nominal, 70 CRI)

# LED’S

DRIVE

CURRENT

(MILLIAMPS)

SYSTEM

WATTS

DISTRIBUTION

TYPE LUMENS LPW1B U G LUMENS LPW1B U G LUMENS LPW1B U G

24 700 mA 55 W

FR/T1

6339

114

1

0

1

6276

112

1

0

1

5389

97

1

0

1

T2

5666

102

2

0

2

5610

101

2

0

2

4816

86

1

0

2

T3

5610

101

1

0

2

5554

100

1

0

2

4784

86

1

0

2

T4 6171 111 1 0 2 6110 109 1 0 2 5245 94 1 0 2

T5R 6283 113 3 0 3 6221 111 3 0 3 5341 96 3 0 3

T5QM

6171

111

3

0

1

6110

109

3

0

1

5245

94

2

0

1

T5W

6087

109

3

0

1

6027

108

3

0

1

5201

93

3

0

1

30 700 mA 70 W

FR/T1

8096

113

1

0

1

8016

112

1

0

1

6882

96

1

0

1

T2 7204 101 2 0 2 7133 100 2 0 2 6123 86 2 0 2

T3 7743 108 2 0 2 7666 107 2 0 2 6659 93 2 0 2

T4

7896

111

1

0

2

7817

110

1

0

2

6791

95

1

0

2

T5R

8035

112

3

0

3

7954

111

3

0

3

6829

95

3

0

3

T5QM

7846

110

3

0

1

7768

109

3

0

1

6669

93

3

0

1

T5W 8305 116 3 0 2 8222 115 3 0 2 7142 100 3 0 2

36 700 mA 80 W

FR/T1 9515 114 1 0 1 9414 112 1 0 1 8083 96 1 0 1

T2

8505

101

2

0

3

8415

100

2

0

3

7224

87

2

0

2

T3 8415 100 2 0 2 8331 99 2 0 2 7175 86 2 0 2

T4 9256 110 1 0 3 9164 109 1 0 3 7868 94 1 0 3

T5R

9425

112

3

0

3

9331

111

3

0

3

8011

96

3

0

3

T5QM

9257

110

3

0

1

9164

109

3

0

1

7868

94

3

0

1

T5W

9131

109

3

0

2

9040

108

3

0

2

7801

93

3

0

2

48 700 mA 110 W

FR/T1 12679 114 2 0 1 15522 113 2 0 1 10777 97 1 0 1

T2 11332 102 3 0 3 11220 101 3 0 3 9633 87 2 0 3

T3

11220

101

2

0

3

11108

100

2

0

3

9567

86

2

0

3

T4

12342

111

2

0

3

12219

110

2

0

3

10491

95

2

0

3

T5R

12567

113

4

0

4

12441

112

4

0

4

10682

96

3

0

3

T5QM 12342 111 3 0 2 12219 111 3 0 2 10491 95 3 0 2

T5W 12175 110 4 0 2 12053 109 4 0 2 10402 94 4 0 2

60 700 mA 136 W

FR/T1

15848

116

2

0

1

15690

115

2

0

1

13471

98

2

0

1

T2

14165

103

3

0

3

14025

102

3

0

3

12041

88

3

0

3

T3

14025

102

3

0

3

13885

101

3

0

3

11959

87

3

0

3

T4 15427 113 2 0 3 15274 111 2 0 3 13114 96 2 0 3

T5R 15708 115 4 0 4 15259 111 4 0 4 13352 97 4 0 4

T5QM

15427

113

4

0

2

15274

111

4

0

2

13314

96

3

0

2

T5W

15218

111

4

0

2

15066

111

4

0

2

13002

95

4

0

2

PERFORMANCE DATA

1Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations shown. Actual performance may differ as a result of end-user environment and application.

LEFT ROTATED OPTIC RIGHT ROTATED OPTIC

Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA OCTOBER 10, 2017 9:53 AM

design . performance . technology

Config. EPA

1 .67

2 @ 90˚ 1.06

2 @ 180˚ 1.34

Config. EPA

3 @ 120˚ 1.68

3 @ 90˚ 1.73

4 @ 90˚ 2.12

EPA

4” Suggested

distance from top

of pole 2.50”

2X Ø5/16”

Ø5/8”

Rectangular

Arm Ø4” Pole

Ø5” Pole

Ø6” Pole

DRILL PATTERN

Compatible with Pole drill pattern B4

PROJECTED LUMEN MAINTENANCE

AMBIENT

TEMP.

0

25,000

50,000

1

TM-21-11

60,000

100,000

Calculated L70

(HOURS)

25°C / 77°C 1.00 0.97 0.95 0.95 0.92 >470,000

1 Projected per IESNA TM-21-11

Data references the extrapolated performance projections for the base model in a 40°C ambient, based on 10,000

hours of LED testing per IESNA LM-80-08.

ELECTRICAL DATA

AMBIENT TEMPERATURE LUMEN MULTIPLIER

0°C

32°F

1.02

10°C

50°F

1.01

20°C

68°F

1.00

25°C

77°F

1.00

30°C

86°F

0.98

40°C

104°F

0.98

Use these factors to determine relative lumen output for average ambient

temperatures from 0-40°C (32-104°F).

# OF LEDS

NUMBER

OF

DRIVERS

DRIVE

CURRENT

(mA)

INPUT VOLTAGE

(V)

SYSTEM POWER

(w)

CURRENT

(Amps)

24 2700 mA

120

55

0.5

277

0.2

347

0.2

480

0.1

30 2700 mA

120

70

0.6

277

0.3

347

0.2

480

0.1

36 1700 mA

120

80

0.7

277

0.3

347

0.2

480

0.2

48 1700 mA

120

110

0.9

277

0.4

347

0.3

480

0.2

60 1700 mA

120

136

1.1

277

0.5

347

0.4

480

0.3

PHOTOMETRICS

Type II

VP-S-60NB-136-5K-T2

Type III

VP-S-60NB-136-5K-T3

Type V Square Medium

VP-S-60NB-136-5K-T5QM

Type V Rectangular

VP-S-60NB-136-5K-T5R

Type IV

VP-S-60NB-136-5K-T4

Front Row Auto Optic / Type I

VP-S-60NB-136-5K-FR

VP-S-60NB-136-5K-T1

Type V Round Wide

VP-S-60NB-136-5K-T5W

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

.5fc

1fc

100‘

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc

25‘

25’ 25‘

75‘

100’

100‘

50‘

50‘

75‘

50‘

25‘

75‘

1fc

100‘

.5fc
