Report NO.:10808002E
Page: 1 of 59
EMC TEST REPORT
Issued Date: 2009-09-25
Report No. : I0808002E
Equipment : AC/DC TRAVEL CHARGER
Model No. : ZB-01-XXYYZ(XX indicates output Voutage,YY indicates output current
10W max,Z=EU,EN;EU indicate for EU plug,EN indicate for BS plug
Input: 100-240Vac 50/60Hz
Output: SeePage9
Applicant : ZHONGBAI ELECTRONIC CO., LTD.
Address : NO.9, YingCheng 1ST ROAD ,XIABIAN VILLAGE,CHANGAN
TOWN DONGGUAN CITY CHINA
Tested by: ATT Product Service Co., Ltd
Data of Test: 09/10/2009 –09/18/ 2009
Testing Engineer :
Reviewer :
Authorized Signatory :
Testing Laboratory：ATT Product Service Co., Ltd
Address :：2F., B2/B3 Area, City Plaza, ChangAn Town,
DongGuan City, GuangDong, P.R.China
TEL: 0769 8509 8000 FAX: 076985098777
Website: http://www.attps.cn E-mail: att@attps.cn
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 2 of 59
Declaration
ATT represents to the client that testing is done in accordance with standard procedures as applicable and
that test instruments used has been calibrated with the standards traceable to National Measurement
Laboratory (NML)ofR.O.C., or National Institute of Standards and Technology (NIST)ofU.S.A.
ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility
to ensure that additional production units of this model are manufactured with the identical electrical and
mechanical components. ATT shall have no liability for any declarations, inferences or generalizations
drawn by the client or others from ATT issued reports.
ATT’s reports must not be used by the client to claim product endorsement by the authorities or any
agency of the Government.
This report is the confidential property of the client. As a mutual protection to the clients, the public and
ATT-self, extracts from the test report shall not be reproduced except in full with ATT’s authorized written
approval.
ATT’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements,
and accredited by the conformity assessment authorities listed in this test report.
Limitation
For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this
test report is (are) included in the conformity assessment authorities acceptance respective.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 3 of 59
Table of Contents Page
1 . CERTIFICATION 6
2 . SUMMARY OF TEST RESULTS 7
2.1 MEASUREMENT UNCERTAINTY 8
2.1 GENERAL DESCRIPTION OF EUT 9
2.2 DESCRIPTION OF TEST MODES 10
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11
2.4 DESCRIPTION OF SUPPORT UNITS 12
3 . EMC EMISSION TEST 13
3.1 CONDUCTED EMISSION MEASUREMENT 13
3.1.1 POWER LINE CONDUCTED EMISSION 13
3.1.2 MEASUREMENT INSTRUMENTS LIST 13
3.1.3 TEST PROCEDURE 14
3.1.4 DEVIATION FROM TEST STANDARD 14
3.1.5 TEST SETUP 14
3.1.6 EUT OPERATING CONDITIONS 14
3.1.7 TEST RESULTS 15
3.2 RADIATED EMISSION MEASUREMENT 19
3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 19
3.2.2 MEASUREMENT INSTRUMENTS LIST 20
3.2.3 TEST PROCEDURE 20
3.2.4 DEVIATION FROM TEST STANDARD 20
3.2.5 TEST SETUP 21
3.2.6 EUT OPERATING CONDITIONS 21
3.2.7 TEST RESULTS 22
3.3 HARMONICS CURRENT MEASUREMENT 26
3.3.1 LIMITS OF HARMONICS CURRENT MEASUREMENT 26
3.3.2 MEASUREMENT INSTRUMENTS LIST 26
3.3.3 TEST PROCEDURE 27
3.3.4 DEVIATION FROM TEST STANDARD 27
3.3.5 TEST SETUP 27
3.3.6 EUT OPERATING CONDITIONS 27
3.3.7 TEST RESULTS 28
3.4 VOLTAGE
FLUCTUATION
AND FLICKS MEASUREMENT 31
3.4.1 LIMITS OF VOLTAGE
FLUCTUATION
AND FLICKSMEASUREMENT 31
3.4.2 MEASUREMENT INSTRUMENTS LIST 31
3.4.3 TEST PROCEDURE 31
3.4.4 DEVIATION FROM TEST STANDARD 31
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 4 of 59
3.4.5 TESTSETUP
32
3.4.6 EUT OPERATING CONDITIONS
32
3.4.7 TEST RESULTS
33
EMC IMMUNITY TEST 34
4.1 STANDARD
COMPLIANCE/SERVRITY
LEVEL/CRITERIA
34
4.2 GENERAL PERFORMANCE CRITERIA
35
4.3 GENERAL PERFORMANCE
CRITERIA
TEST SETUP
35
4.4 ESD TESTING
36
4.4.1 TEST SPECIFICATION
36
4.4.2 MEASUREMENT INSTRUMENTS
36
4.4.3 TEST PROCEDURE
36
4.4.4 DEVIATION FROM TEST STANDARD
37
4.4.5 TEST SETUP
37
4.4.6 TEST RESULTS
38
4.5 RS TESTING
39
4.5.1 TEST SPECIFICATION
39
4.5.2 MEASUREMENT INSTRUMENTS
39
4.5.3 TEST PROCEDURE
39
4.5.4 DEVIATION FROM TEST STANDARD
39
4.5.5 TEST SETUP
40
4.5.6 TEST RESULTS
41
4.6 EFT/BURST TESTING
42
4.6.1 TEST SPECIFICATION
42
4.6.2 MEASUREMENT INSTRUMENTS
42
4.6.3 TEST PROCEDURE
42
4.6.4 DEVIATION FROM TEST STANDARD
42
4.6.5 TEST SETUP
43
4.6.6 TEST RESULTS
44
4.7 SURGE TESTING
45
4.7.1 TEST SPECIFICATION
45
4.7.2 MEASUREMENT INSTRUMENTS
45
4.7.3 TEST PROCEDURE
45
4.7.4 DEVIATION FROM TEST STANDARD
46
4.7.5 TEST SETUP
46
4.7.6 TEST RESULTS
47
4.8 INJECTION CURRENT TESTING
48
4.8.1 TEST SPECIFICATION
48
4.8.2 MEASUREMENT INSTRUMENTS
48
4.8.3 TEST PROCEDURE
48
4.8.4 DEVIATION FROM TEST STANDARD
48
Table of Contents Page
4.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 5 of 59
Table of Contents Page
4.8.5 TEST SETUP 49
4.8.6 TEST RESULTS 50
5 . EUT TEST PHOTO 57
4.9 POWER FREQUENCY MAGNETIC FIELD TESTING
51
4.9.1 TEST SPECIFICATION
51
4.9.2 MEASUREMENT INSTRUMENTS
51
4.9.3 TEST PROCEDURE
51
4.9.4 DEVIATION FROM TEST STANDARD
51
4.9.5 TEST SETUP
52
4.9.6 TEST RESULTS
53
4.10 VOLTAGE
INTERRUPTION/DIPS
TESTING
54
4.10.1 TEST SPECIFICATION
54
4.10.2 MEASUREMENT INSTRUMENTS
54
4.10.3 TEST PROCEDURE
54
4.10.4 DEVIATION FROM TEST STANDARD
54
4.10.5 TEST SETUP
55
4.10.6 TEST RESULTS
56
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 6 of 59
1. CERTIFICATION
Equipment : AC/DC TRAVEL CHARGER
Trade Name : N/A
Model No. : ZB-01
Applicant : ZHONGBAI ELECTRONIC CO., LTD.
Data of Test : 09/10/2009 –09/18/ 2009
Test Item : ENGINEERING SAMPLE
Standards : EN 55022:1998+A1: 2000+A2: 2006
EN 55024:1998+A1: 2000+A2: 2003
EN 61000-3-2:2006
EN 61000-3-3:1995+A1+A2
IEC 61000-4-2:1995+A1+A2
IEC 61000-4-3: 2006
IEC 61000-4-4: 2006
IEC 61000-4-5: 2006
IEC 61000-4-6: 1996+A1
IEC 61000-4-8: 1994+A1
IEC 61000-4-11: 2004
The above equipment has been tested and found compliance with the requirement of the relative standards by
ATT Engineering Inc. EMC Laboratory.
The test data, data evaluation, and equipment configuration contained in our test report (Ref No.
NEI-EMC-1-0609C001) were obtained utilizing the test procedures, test instruments, test sites that has been
accredited by the Authority of CNAS according to the ISO-17025 quality assessment standard and technical
standard(s).
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 7 of 59
2. SUMMARY OF TEST RESULTS
Test procedures according to the technical standards:
NOTE:
(1)” N/A” denotes test is not applicable in this Test Report
(2) The power consumption of EUT is less than 75W and no Limits apply.
(3) Voltage dip: ＞95% reduction – Performance Criteria B
Voltage dip: 30% reduction – Performance Criteria C
Voltage Interruption: ＞95% reduction – Performance Criteria C
EMC
Emission
Limit Judgment Remark
Standard Test Item
EN 55022:1998
+A1+A2 :2006
Conducted Emission Class B PASS
Radiated Emission Class B PASS
EN 61000-3-2:2006 Harmonic Current Emission Class A PASS
EN 61000-3-3:1995
+A1+A2 Voltage Fluctuations & Flicker ------ PASS
EMC
Immuni
t
y
(
EN 55024: 1998+A1:2001+A2:2003
)
Performance
Criteria Judgment Remark
Section Test Item
IEC 61000-4-2:1995
+A1+A2 Electrostatic Discharge B PASS
IEC 61000-4-3:2006 RF electromagnetic field A PASS
IEC 61000-4-4:2004 Fast transients B PASS
IEC 61000-4-5: 1995
+A1+A2 Surges B PASS
IEC 61000-4-6:1996
+A1+A2 Injected Current A PASS
IEC 61000-4-8:1994+A1 Power Frequency Magnetic Field A PASS
IEC 61000-4-11:2004 Volt. Interruptions Volt. Dips B/C/C
NOTE (3) PASS
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 8 of 59
2.1 MEASUREMENT UNCERTAINTY
The reported uncertainty of measurement y±U，where expended uncertainty Uis based on a standard
uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95
%。
A. Conducted Measurement :
B. Radiated Measurement :
Test Site Method Measurement Frequency Range U，(dB) NOTE
C01 ANSI 150 KHz ~ 30MHz 1.94
Test Site Method Ant.
H/V U，(dB) NOTE
Measurement Frequency Range
OS02 ANSI 30MHz ~ 200MHz V 3.82
30MHz ~ 200MHz H 3.60
200MHz ~ 1,000MHz V 3.86
200MHz ~ 1,000MHz H 3.94
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 9 of 59
2.2. GENERAL INFORMATION
2.1 GENERAL DESCRIPTION OF EUT
Equipment : AC/DCTRAVEL CHARGER
Model No.: ZB-01
Model Difference: N/A
Input: 100-240Vac 50/60Hz
Output: SeePage9
Test Sample: ZB-01
EUT Modification(s): N/A
Factory: ZHONGBAI ELECTRONIC CO., LTD.
Factory Address: NO.9 Yingcheng 1st Rd,Xiabian.Changan Town Dongguan
City,GuangDong Prorince China
Model No. Input Output Transformer
ZB-01-42~55YYZ DC4.2~5.5V 2A/10W (max) EE1910-ZB40
ZB-01-56~68YYZ DC5.6~6.8V 1.78A/10W(max) EE1910-ZB50
ZB-01-70~82YYZ DC7.0~8.2V 1.42A/10W(max) EE1910-ZB60
ZB-01-83~95YYZ DC8.3~9.5V 1.2A/10W(max) EE1910-ZB70
ZB-01-12YYZ DC12V 0.8A(max) EE1910-ZB80
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 10 of 59
2.2 DESCRIPTION OF TEST MODES
To investigate the maximum EMI emission characteristics generates from EUT, the test system was
pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode
which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test
configuration mode(s) mentioned above was evaluated respectively.
Pretest Mode Description
Mode 1 FULL LOAD
For Conducted Test
Final Test Mode Description
Mode 1 FULL LOAD
For Radiated Test
Final Test Mode Description
Mode 1 FULL LOAD
For Harmonics / Flicks Test
Final Test Mode Description
Mode 1 FULL LOAD
For EMS Test
Final Test Mode Description
Mode 1 FULL LOAD
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 11 of 59
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED
C-1
E-1 EUT
E-2
Dummy
Load
C-1 Power
Cable
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 12 of 59
2.4 DESCRIPTION OF SUPPORT UNITS
The EUT has been tested as an independent unit together with other necessary accessories or support
units. The following support units or accessories were used to form a representative test configuration
during the tests.
Item Equipment Mfr/Brand Model/Type No. FCC ID Series No. Note
E-1 AC ADAPTER N/A ZB-01-5020EU N/A N/A EUT
E-2 Dummy Load N/A N/A N/A N/A
Item Shielded Type Ferrite Core Length Note
C-1 NO NO 1.5M
Note:
(1) Unless otherwise marked as
※
ment to the tested system.
in 『Remark 』column, ATT consigns the support equip-
(2) For detachable type I/O cable should be specified the length in cm in『Length』column.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 13 of 59
3. EMC EMISSION TEST
3.1 CONDUCTED EMISSION MEASUREMENT
3.1.1 POWER LINE CONDUCTED EMISSION (Frequency Range 150KHz-30MHz)
Note:
(1) The tighter limit applies at the band edges.
(2) The limit of " * " marked band means the limitation decreases linearly with the logarithm of the
frequency in the range.
3.1.2 MEASUREMENT INSTRUMENTS LIST
Remark: ” N/A” denotes No Model No. , Serial No. or No Calibration specified.
FREQUENCY (MHz) ClassA(dBuV) ClassB(dBuV)
Quasi-peak Average Quasi-peak Average
0.15 -0.5 79.00 66.00 66 - 56 * 56 - 46 *
0.50 -5.0 73.00 60.00 56.00 46.00
5.0 -30.0 73.00 60.00 60.00 50.00
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1LISN SCHWARZBECK
MESS-ELEKTRONIK NSLK 8127 8127-432 06/12/2009
2 Pulse Limiter Agilent 11947A 3107A03668 06/12/2009
3 Test Cable N/A C01 N/A 06/12/2009
4 EMI Test Receiver SCHWARZBECK
MESS-ELEKTRONIK FCKL1528 1528-184 06/12/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 14 of 59
3.1.3 TEST PROCEDURE
a. The EUT was placed 0.4 meters from the horizontal ground plane with EUT being connected to the
power mains through a line impedance stabilization network (LISN). All other support equipments
powered from additional LISN(s). The LISN provide 50 Ohm/ 50uH of coupling impedance for the
measuring instrument.
b. Interconnecting cables that hang closer than 40 cm to the ground plane shall be folded back
and forth in the center forming a bundle 30 to 40 cm long.
c. I/O cables that are not connected to a peripheral shall be bundled in the center. The end of the
cable may be terminated, if required, using the correct terminating impedance. The overall
length shall not exceed 1 m.
d. LISN at least 80 cm from nearest part of EUT chassis.
e. For the actual test configuration, please refer to the related Item –EUT Test Photos.
3.1.4 DEVIATION FROM TEST STANDARD
No deviation

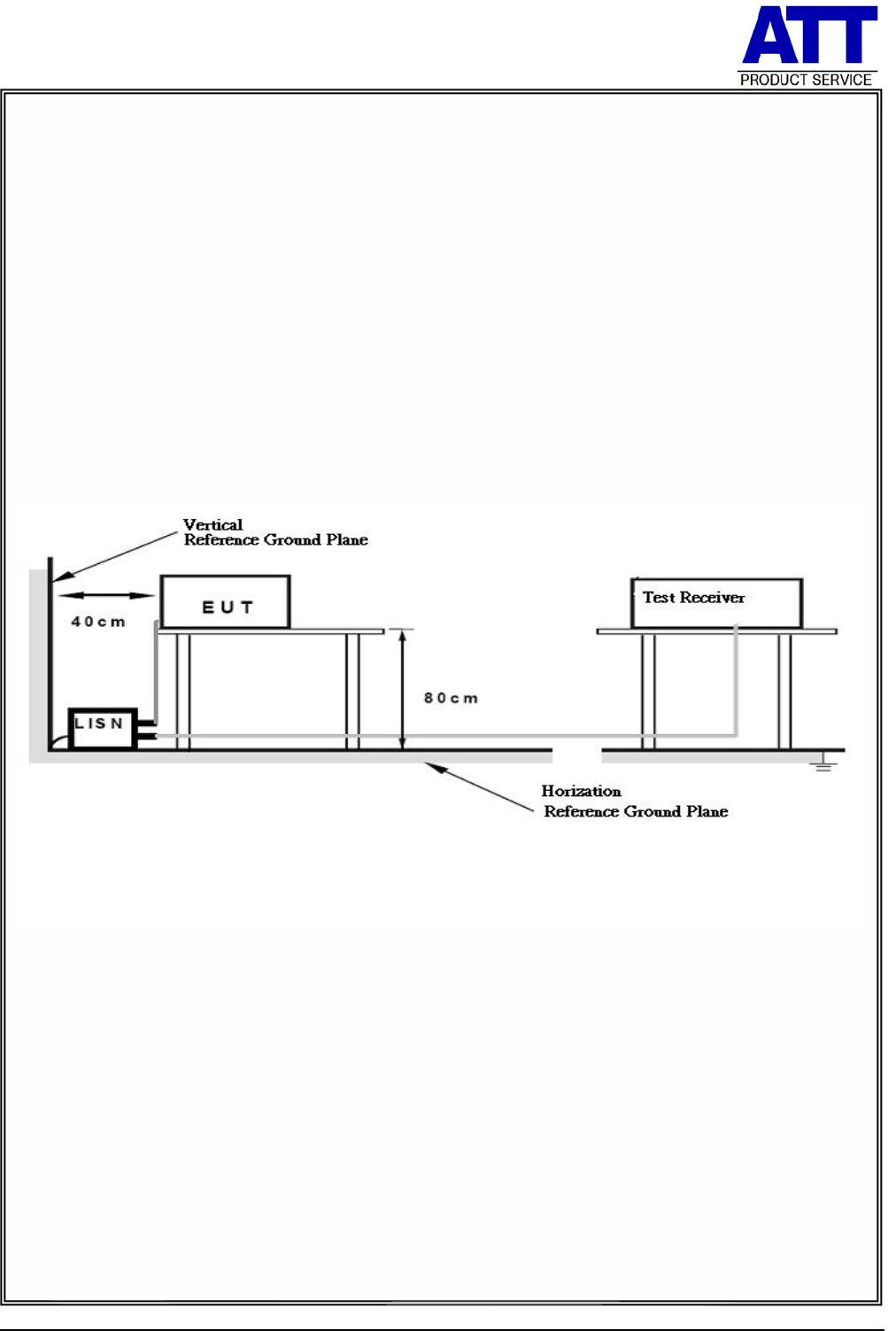

3.1.5 TEST SETUP
3.1.6 EUT OPERATING CONDITIONS
The EUT exercise program used during radiated and/or conducted emission measurement was designed to
exercise the various system components in a manner similar to a typical use.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 15 of 59
3.1.7 TEST RESULTS
Remark
(1) Reading in which marked as QP means measurements by using are Quasi-Peak Mode with Detector
BW=9KHz；SPA setting in RBW=10KHz,VBW =10KHz, Swp. Time = 0.3 sec./MHz。Reading in which
marked as AV means measurements by using are Average Mode with instrument setting in
RBW=1MHz,VBW=10Hz, Swp. Time =0.3 sec./MHz。
(2) All readings are QP Mode value unless otherwise stated AVG in column of『Note』. If the QP Mode
Measured value compliance with the QP Limits and lower than AVG Limits, the EUT shall be
deemed to meet both QP & AVG Limits and then only QP Mode was measured, but AVG Mode didn‘t
perform。In this case, a “ * ” marked in AVG Mode column of Interference Voltage Measured。
(3) Measuring frequency range from 150KHz to 30MHz。
EUT：AC ADAPTER Model No. ：ZB-01-5020EU
T
emperature：26℃Relative Humidit
：48 %
Pressure：1008 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Freq.
(
MHz
)
Terminal
L/N
Measured(dBuV)
Limits(
dBuV) Margin
(
dB
)
Note
QP-Mode
A
V-Mode QP-Mode
A
V-Mode
0.17 Line 62.41 52.21 65.03 55.03 -2.62 (QP)
0.25 Line 54.26 47.05 61.69 51.69 -4.64 (AV)
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 16 of 59

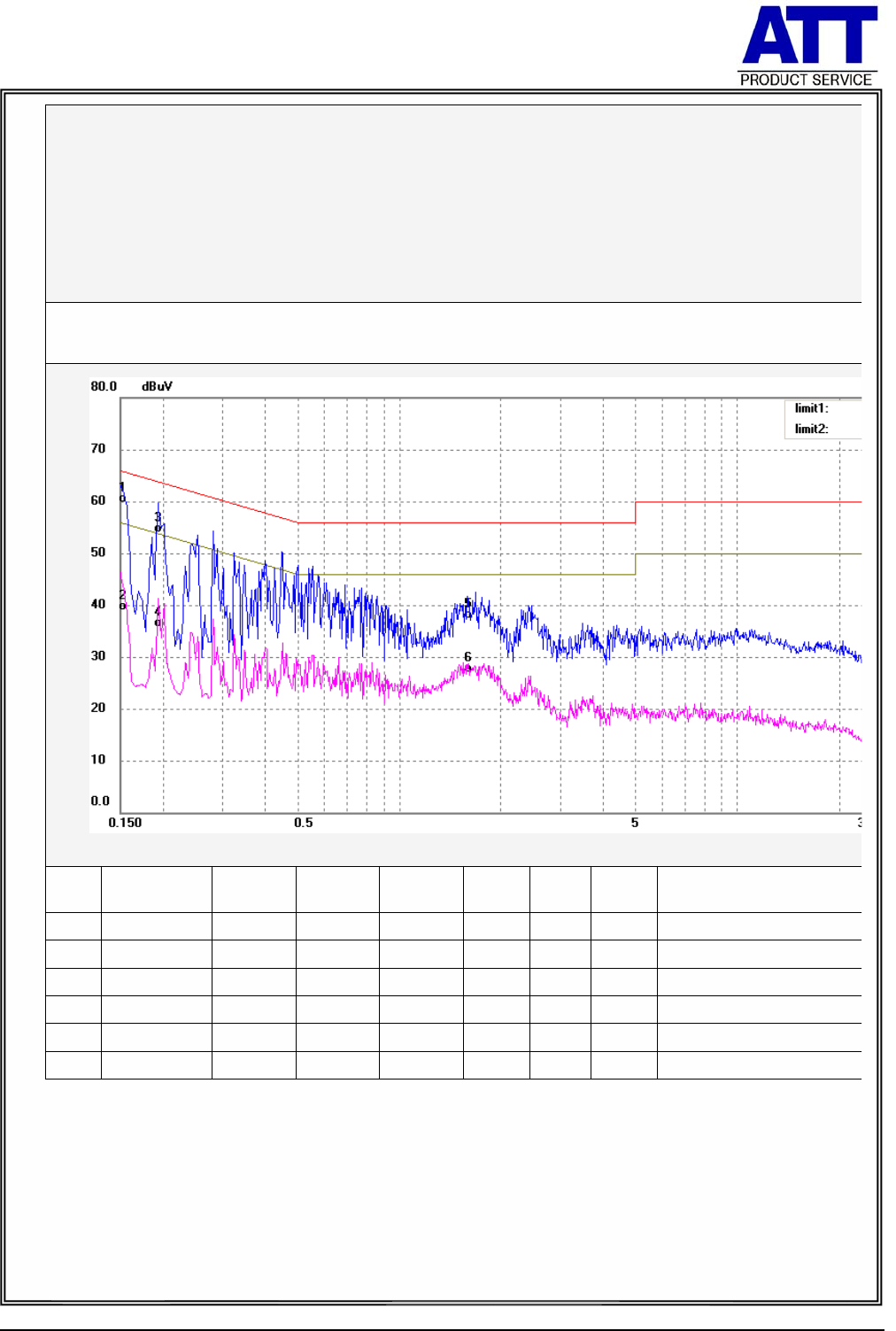

Job No.: ZB09103415 Phase: L1
Standard: FCC Part15 CE-Class B_QP Power Source: AC 230V/50
Test item: Conduction Test Date: 09/09/11/
Temp.( C)/Hum.(%) 25.5 C / 51 % Time: 9/27/34
EUT: ADAPTER Engineer Signature:
Mode: FULL LOAD
Model: ZB-01-5020
Note:
No. Freq.
(MHz) Reading
(dBuV) Factor
(dB) Resu
lt
(dBuV) Limit
dBuV Margin
(dB) Detector Remark
1 0.1539 49.07 10.64 59.71 65.78 -6.07 QP
2 0.1539 28.26 10.64 38.90 55.78 -16.88 AVG
3 0.1940 43.33 10.67 54.00 63.86 -9.86 QP
4 0.1940 25.01 10.67 35.68 53.86 -18.18 AVG
5 1.5980 26.16 11.20 37.36 56.00 -18.64 QP
6 1.5980 15.72 11.20 26.92 46.00 -19.08 AVG
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 17 of 59
Remark
(1) Reading in which marked as QP means measurements by using are Quasi-Peak Mode with Detector
BW=9KHz；SPA setting in RBW=10KHz,VBW =10KHz, Swp. Time = 0.3 sec./MHz。Reading in which
marked as AV means measurements by using are Average Mode with instrument setting in
RBW=1MHz,VBW=10Hz, Swp. Time =0.3 sec./MHz。
(2) All readings are QP Mode value unless otherwise stated AVG in column of『Note』. If the QP Mode
Measured value compliance with the QP Limits and lower than AVG Limits, the EUT shall be
deemed to meet both QP & AVG Limits and then only QP Mode was measured, but AVG Mode didn‘t
perform。In this case, a “ * ” marked in AVG Mode column of Interference Voltage Measured。
(3) Measuring frequency range from 150KHz to 30MHz。
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：48 %
Pressure：1008 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Freq.
(
MHz
)
Terminal
L
/
N
Measured(dBuV) Limits(dBuV) Margin
(
dB
)
Note
QP-Mode AV-Mode QP-Mode AV-Mode
0.17 Neutral 62.77 50.82 64.92 54.92 -2
.
15 (QP)
0.25 Neutral 53.76 45.92 61.50 51.50 -5
.
58 (AV)
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 18 of 59
Job No.: ZB 09103415 Phase: N
Standard: FCC Part15 CE-Class B_QP Power Source: AC 230V/50
Test item: Conduction Test Date: 09/09/
Temp.( C)/Hum.(%) 25.5 C / 51 % Time: 9/29/30
EUT: ADAPTER Engineer Signature:
Mode: FULL LOAD
Model: ZB-01-5020
Note:
No. Freq.
(MHz) Reading
(dBuV) Factor
(dB) Resu
lt
(dBuV) Limit
dBuV Margin
(dB) Detector Remark
1 0.1940 40.65 10.67 51.32 63.86 -12.54 QP
2 0.1940 23.15 10.67 33.82 53.86 -20.04 AVG
3 0.3700 35.53 10.72 46.25 58.50 -12.25 QP
4 0.3700 18.32 10.72 29.04 48.50 -19.46 AVG
5 1.8620 25.38 11.23 36.61 56.00 -19.39 QP
6 1.8620 15.04 11.23 26.27 46.00 -19.73 AVG
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 19 of 59
3.2 RADIATED EMISSION MEASUREMENT
3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT (Below 1000MHz)
Notes:
(1) The limit for radiated test was performed according to as following:
CISPR 22/ FCC PART 15B /ICES-003.
(2) The tighter limit applies at the band edges.
(3) Emission level (dBuV/m)=20log Emission level (uV/m).
LIMITS OF RADIATED EMISSION MEASUREMENT (Above 1000MHz)
Notes:
(1) The limit for radiated test was performed according to FCC PART 15B.
(2) The tighter limit applies at the band edges.
(3) Emission level (dBuV/m)=20log Emission level (uV/m).
FREQUENCY RANGE OF RADIATED MEASUREMENT (For unintentional radiators)
FREQUENCY (MHz) Class A (at 10m) Class B (at 10m)
dBuV/m dBuV/m
30 – 230 40 30
230 – 1000 47 37
FREQUENCY (MHz) Class A (dBuV/m) (at 3m) Class B (dBuV/m) (at 3m)
PEAK AVERAGE PEAK AVERAGE
Above 1000 80 60 74 54
Highest frequency generated or
Upper frequency of
measurement used in the device
or on which the device operates
or tunes (MHz)
Range (MHz)
Below 1.705 30
1.705 – 108 1000
108 – 500 2000
500 – 1000 50000
Above 1000 5
harmonic of the highest frequency or 40 GHz, whichever is
lower
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 20 of 59
3.2.2 MEASUREMENT INSTRUMENTS LIST
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
3.2.3 TEST PROCEDURE
a. The measuring distance of at 10 m shall be used for measurements at frequency up to 1GHz. For
frequencies above 1GHz, any suitable measuring distance may be used.
b. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3m or 10 meter
open area test site. The table was rotated 360 degrees to determine the position of the highest
radiation.
c. The height of the equipment or of the substitution antenna shall be 0.8 m; the height of the test antenna
shall vary between 1 m to 4 m. Both horizontal and vertical polarizations of the antenna are set to make
the measurement.
d. The initial step in collecting conducted emission data is a spectrum analyzer peak detector mode
pre-scanning the measurement frequency range. Significant peaks are then marked and then Quasi
Peak detector mode re-measured.
e. If the Peak Mode measured value compliance with and lower than Quasi Peak Mode Limit, the EUT
shall be deemed to meet QP Limits and then no additional QP Mode measurement performed.
f. For the actual test configuration, please refer to the related Item –EUT Test Photos.
3.2.4 DEVIATION FROM TEST STANDARD
No deviation
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1 Log-Bicon Antenna SCHWARZBECK VuLB9168 9168-192 06/29/2009
2 Test Cable N/A 10M_OS01 N/A 06/29/2009
3 Test Cable N/A C01-1/-2 N/A 06/29/2009
4 Pre-Amplifier HP 8447D 2944A09491 06/29/2009
5 Spectrum Analyzer HP 8591A 10201103 06/29/2009
6 Test Receiver R&S ESVS 10 825475/002 06/29/2009
7 Antenna Mast N/A N/A N/A N/A
8 Turn Table N/A N/A N/A N/A
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 21 of 59

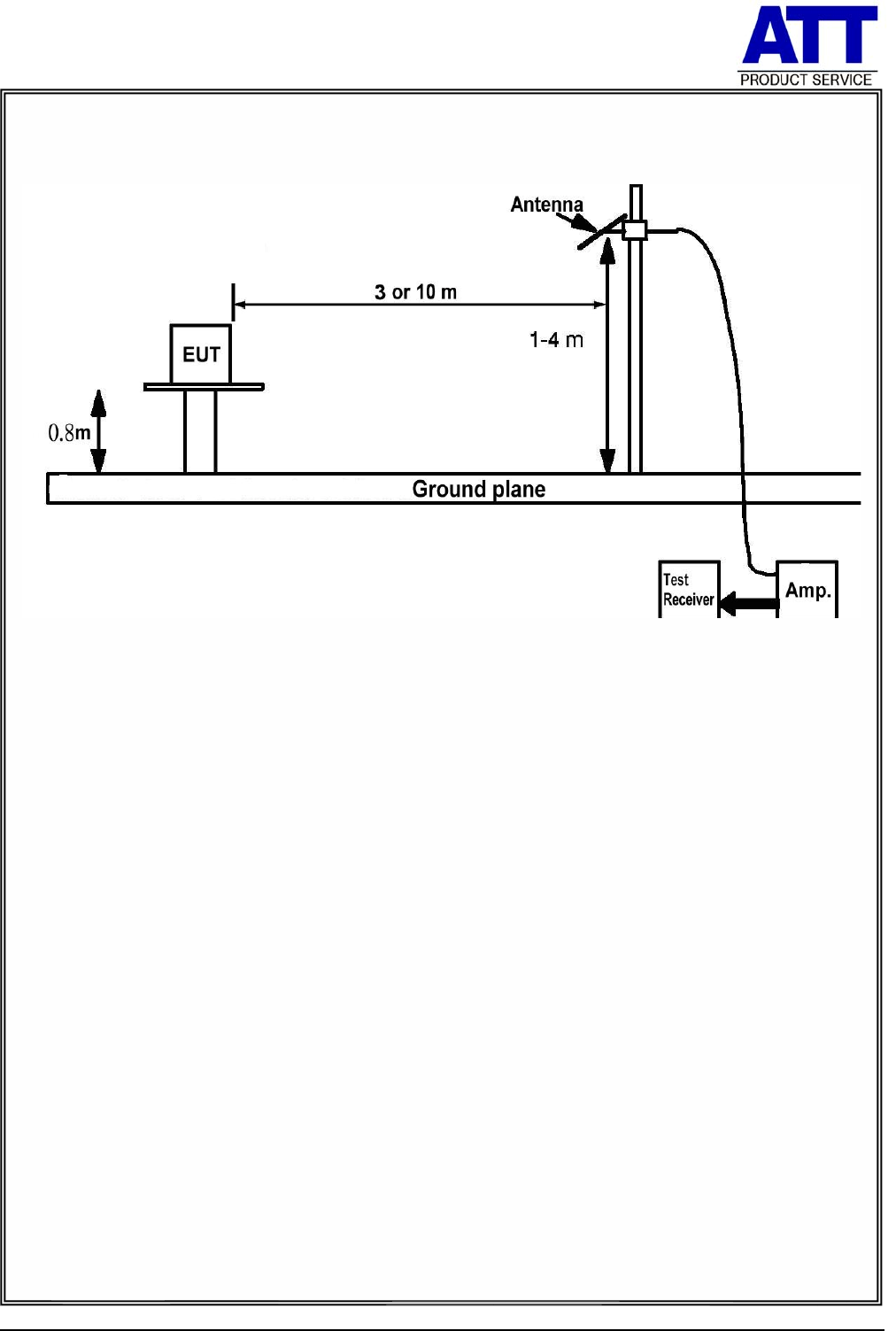

3.2.5 TEST SETUP
3.2.6 EUT OPERATING CONDITIONS
The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating
condition is specified in the follows during the testing.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 22 of 59
3.2.7 TEST RESULTS
Remark：
(1) Reading in which marked as QP or Peak means measurements by using are Quasi-Peak Mode or
Peak Mode with Detector BW=120KHz；SPA setting in RBW=120KHz, VBW =120KHz, Swp. Time =
0.3 sec./MHz。
(2) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes
that the Peak reading compliance with the QP Limits and then QP Mode measure-ment didn‘t
perform。
(3) Measuring frequency range from 30MHz to 1000MHz。
(4) If the peak scan value lower limit more than 20dB, then this signal data does not how in table。
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：48 %
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Freq.
(MHz)
Ant.
H/V
Reading(RA)
(dBuV)
Corr
.Factor
(CF)
(dB)
Measured(FS)
(dB
uV/m
)
Lim its(QP)
(dBuV/m)
Margin
(dB) Note
49.40 v 35.35 -6.89 28.46 40.00
-
11.54
68.80 v 33.02 -5.55 27.47 40.00
-
12.53
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 23 of 59

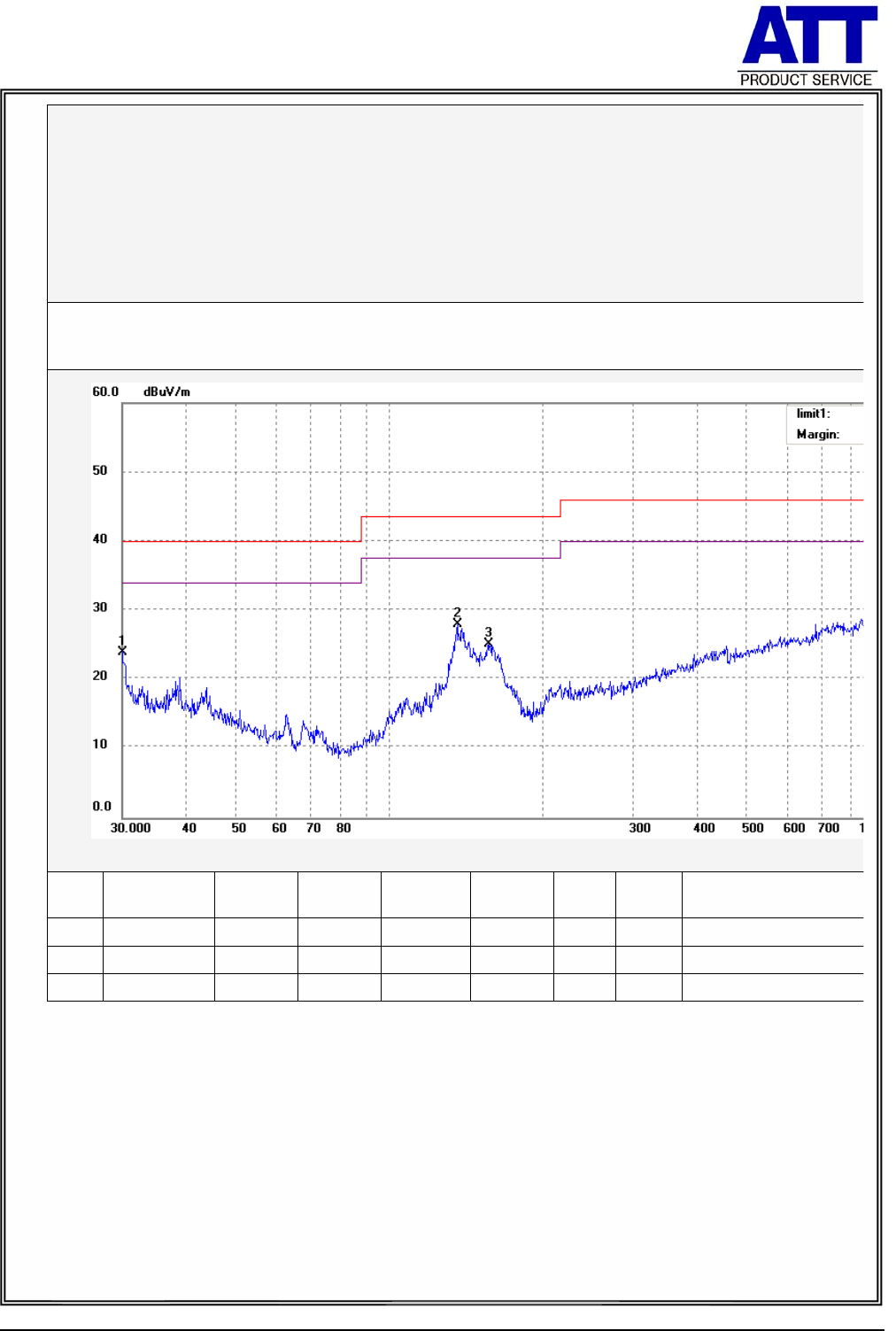

Job No.: ZB09103415 Polarization: Horizontal
Standard: FCC Part15 RE-Class B_30-1000MHz Power Source: AC 230V/50
H
Test item: Radiation Test Date: 2009-09-11
Temp.( C)/Hum.(%) 25.5 C / 51 % Time: 9:56:24
EUT: 开关电源 Engineer Signature:
Mode: FULL LOAD Distance: 3m
Model: ZB-01-5020
Note:
No. Freq.
(MHz) Reading
(dBuV/m) Factor
(dB) Resu
lt
(dBuV/m) Limit
(dBuV/m) Margin
(dB) Detector Remark
1 30.0000 6.60 17.40 24.00 40.00 -16.00 peak
2 135.9163 15.05 12.98 28.03 43.50 -15.47 peak
3 156.9765 10.98 14.08 25.06 43.50 -18.44 peak
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 24 of 59
Remark：
(1) Reading in which marked as QP or Peak means measurements by using are Quasi-Peak Mode or
Peak Mode with Detector BW=120KHz；SPA setting in RBW=120KHz, VBW =120KHz, Swp. Time =
0.3 sec./MHz。
(2) All readings are Peak unless otherwise stated QP in column of『Note』. Peak denotes
that the Peak reading compliance with the QP Limits and then QP Mode measure-ment didn‘t
perform。
(3) Measuring frequency range from 30MHz to 1000MHz。
(4) If the peak scan value lower limit more than 20dB, then this signal data does not how in table。
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：48%
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Freq.
(MHz)
Ant.
H/V
Reading(RA)
(dBuV)
Corr
.Factor
(CF)
(dB)
Measured(FS)
(dB
uV/m
)
Lim its(QP)
(dBuV/m)
Margin
(dB) Note
44.55 H 44.65 -15.92 28.73 40.00
-
11.27
182.77 H 38.65 -11.09 27.56 40.00
-
12.44
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 25 of 59
Job No.: ZB09103415 Polarization: Vertical
Standard: FCC Part15 RE-Class B_30-1000MHz Power Source:AC 230V/50H
z
Test item: Radiation Test Date: 09/09/11/
Temp.( C)/Hum.(%) 25.5 C / 51 % Time: 9/34/27
EUT: 开关电源 Engineer Signature:
Mode: FULL LOAD Distance: 3m
Model: ZB-01-5020
Note:
No. Freq.
(MHz) Reading
(dBuV/m) Factor
(dB) Resu
lt
(dBuV/m) Limit
(dBuV/m) Margin
(dB) Detector Remark
1 30.0000 12.03 17.40 29.43 40.00 -10.57 QP
2 134.4911 9.10 12.91 22.01 43.50 -21.49 QP
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 26 of 59
3.3 HARMONICS CURRENT MEASUREMENT
3.3.1 LIMITS OF HARMONICS CURRENT MEASUREMENT
3.3.2 MEASUREMENT INSTRUMENTS LIST
IEC 555-2
Table - I Table - II
Equipment
Category
Harmonic
Order
n
Max. Permissible
Harmonic Current
(in Ampers)
Equipment
Category
Harmonic
Order
n
Max. Permissible
Harmonic Current
(in Ampers)
Odd Harmonics Odd Harmonics
Non
Portable
Tools
or
3
5
7
9
11
13
15≤n≤39
2.30
1.14
0.77
0.40
0.33
0.21
0.15．15/n
TV
Receivers
3
5
7
9
11
13
15≤n≤39
0.80
0.60
0.45
0.30
0.17
0.12
0.10．15/n
TV Even Harmonics Even Harmonics
Receivers 2
4
8
8≤n≤40
1.08
0.43
0.30
0.23．8/n
2
4
DC
0.30
0.15
0.05
EN 61000-3-2/IEC 61000-3-2
Equipment
Category
Max. Permissible
Harmonic Current
(in Ampers)
Equipment
Category
Harmonic
Order
n
Max. Permissible
Harmonic Current
(in A) (mA/w)
Class A Same as Limits
Specified in
4-2.1, Table - I, but
only odd harmonics
required
Class D
3
5
7
9
11
13≤n≤39
2.30
1.14
0.77
0.40
0.33 see
Table I
3.4
1.9
1.0
0.5
0.35
3.85/n
only odd harmonics required
Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until
1Harmonic & Flicker California PACS-1 72344 06/29/2009
2Power Source California 3001iX 56309 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 27 of 59
3.3.3 TEST PROCEDURE
a. The EUT was placed on the top of a wooden table 0.8 meters above the ground and operated to
produce the maximum harmonic components under normal operating conditions.
b. The classification of EUT is according to section 5 of EN 61000-3-2: 2000.The EUT is classified as
follows:
Class A: Balanced three-phase equipment, Household appliances excluding equipment as Class D,
Tools excluding portable tools, Dimmers for incandescent lamps, audio equipment,
equipment not specified in one of the three other classes.
Class B: Portable tools. Portable tools.; Arc welding equipment which is not professional equipment.
Class C: Lighting equipment.
Class D: Equipment having a specified power less than or equal to600 W of the following types:
Personal computers and personal computer monitors and television receivers.
c. The correspondent test program of test instrument to measure the current harmonics emanated from
EUT is chosen. The measure time shall be not less than the time necessary for the EUT to be
exercised.
d. For the actual test configuration, please refer to the related item –EUT Test Photos.
3.3.4 DEVIATION FROM TEST STANDARD
No deviation

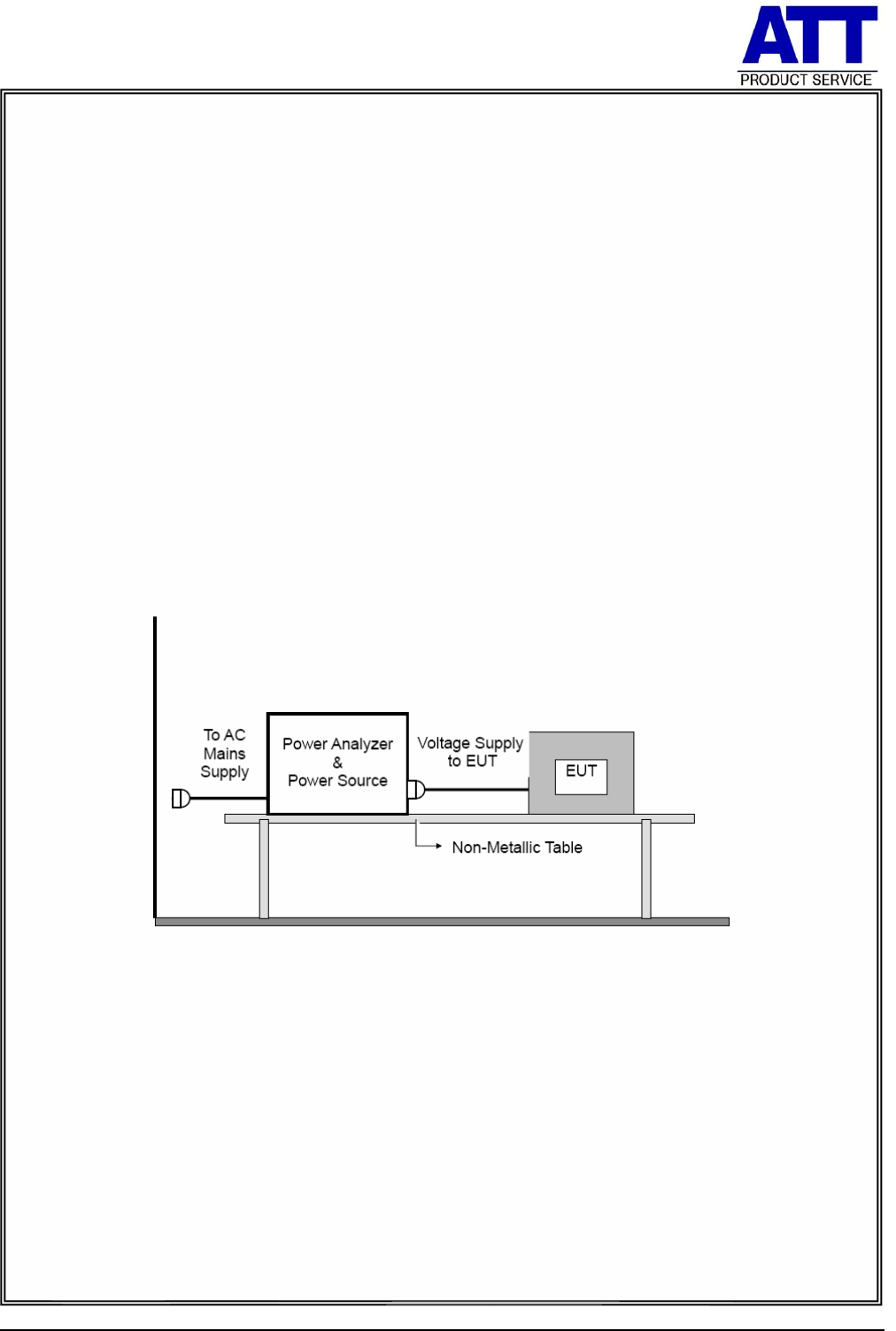

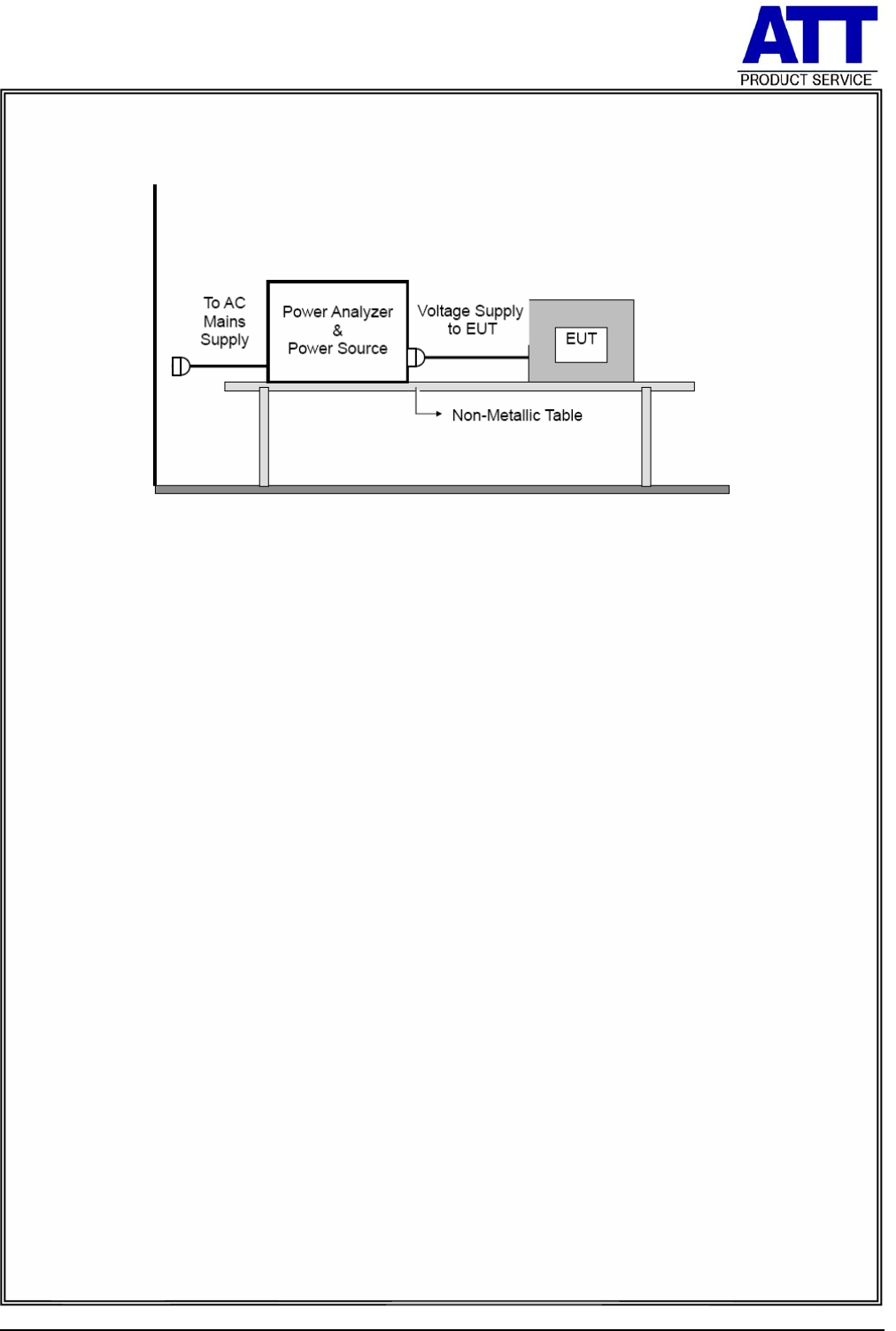

3.3.5 TEST SETUP
3.3.6 EUT OPERATING CONDITIONS
The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating
condition is specified in the follows during the testing.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 28 of 59
Voltage
(Volts)
Current
(Amps)

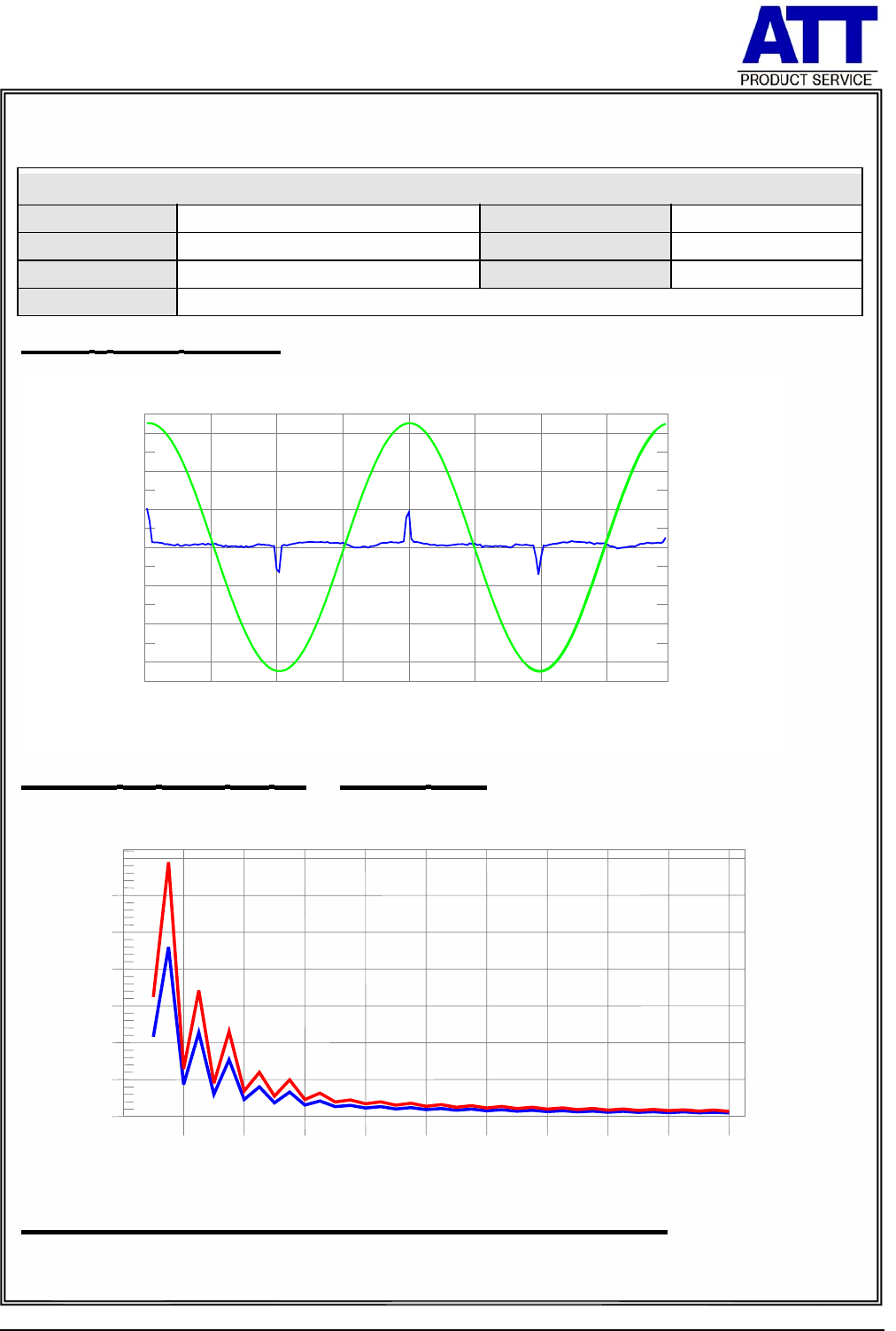

3.3.7 TEST RESULTS
Current & voltage waveforms
Harmonics
–
Class-D
p
er Ed. 2.1
(
Run time
)
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：48%
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
0.15
0.10
0.05
0.00
-0.05
-0.10
-0.15
300
200
100
0
-100
-200
-300
Harmonicsand ClassA limit lineEuropean Limits
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
4 8 12 16 20 24 28 32 36 40
Harmonic #
Test result: Pass Worst harmonic was #25with 0.94% of the limit.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 29 of 59
Harm# Harms(avg) 100%Limit %of Limit Harms(max) 150%Limit %of Limit Status
Note: Dynamic limits were applied for this test. The highest harmonics values in the above table
may not occur at the same window as the maximum harmonics/limit ratio.
Current Test Result Summary (Run time)
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26℃Relative Humidit
：48 %
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
Highest parameter values during test:
V_RMS (Volts): 230.03 Frequency(Hz): 50.00
I_Peak (Amps): 0.055 I_RMS (Amps): 0.009
I_Fund (Amps): 0.003 Crest Factor: 7.075
Power (Watts): 15.53 Power Factor: 0.318
Test Mode: Full Load
2 0.001 1.080 0.1 0.001 1.620 0.08 Pass
3 0.002 2.300 0.1 0.003 3.450 0.09 Pass
4 0.001 0.430 0.2 0.001 0.645 0.15 Pass
5 0.002 1.140 0.2 0.002 1.710 0.13 Pass
6 0.000 0.300 0.1 0.000 0.450 0.10 Pass
7 0.002 0.770 0.2 0.002 1.155 0.19 Pass
8 0.000 0.230 0.0 0.000 0.345 0.04 Pass
9 0.002 0.400 0.4 0.002 0.600 0.32 Pass
10 0.000 0.184 0.1 0.000 0.276 0.08 Pass
11 0.002 0.330 0.5 0.002 0.495 0.38 Pass
12 0.000 0.153 0.1 0.000 0.230 0.10 Pass
13 0.002 0.210 0.8 0.002 0.315 0.57 Pass
14 0.000 0.131 0.1 0.000 0.197 0.08 Pass
15 0.002 0.150 1.1 0.002 0.225 0.76 Pass
16 0.000 0.115 0.0 0.000 0.173 0.04 Pass
17 0.002 0.132 1.2 0.002 0.199 0.82 Pass
18 0.000 0.102 0.1 0.000 0.153 0.08 Pass
19 0.001 0.118 1.2 0.002 0.178 0.88 Pass
20 0.000 0.092 0.1 0.000 0.138 0.08 Pass
21 0.001 0.107 1.3 0.001 0.161 0.91 Pass
22 0.000 0.084 0.1 0.000 0.125 0.06 Pass
23 0.001 0.098 1.3 0.001 0.147 0.93 Pass
24 0.000 0.077 0.1 0.000 0.115 0.06 Pass
25 0.001 0.090 1.3 0.001 0.135 0.94 Pass
26 0.000 0.071 0.1 0.000 0.106 0.07 Pass
27 0.001 0.083 1.3 0.001 0.125 0.94 Pass
28 0.000 0.066 0.1 0.000 0.099 0.06 Pass
29 0.001 0.078 1.3 0.001 0.116 0.94 Pass
30 0.000 0.061 0.1 0.000 0.092 0.06 Pass
31 0.001 0.073 1.3 0.001 0.109 0.91 Pass
32 0.000 0.058 0.1 0.000 0.086 0.07 Pass
33 0.001 0.068 1.2 0.001 0.102 0.88 Pass
34 0.000 0.054 0.1 0.000 0.081 0.08 Pass
35 0.001 0.064 1.2 0.001 0.096 0.83 Pass
36 0.000 0.051 0.1 0.000 0.077 0.08 Pass
37 0.001 0.061 1.1 0.001 0.091 0.78 Pass
38 0.000 0.048 0.1 0.000 0.073 0.08 Pass
39 0.001 0.058 1.0 0.001 0.087 0.71 Pass
40 0.000 0.046 0.1 0.000 0.069 0.08 Pass
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 30 of 59
Voltage Source Verification Data (Run time)
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26℃Relative Humidit
：48 %
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
Highest parameter values during test:
V_RMS (Volts): 230.03 Frequency(Hz): 50.00
I_Peak (Amps): 0.055 I_RMS (Amps): 0.009
I_Fund (Amps): 0.003 Crest Factor: 7.075
Power (Watts): 15.23 Power Factor: 0.318
Test Mode: Full Load
Harm#
2
Harmonics V-rms
0.160
Limit V-rms
0.460
%ofLimit
34.75
Status
OK
3 0.598 2.070 28.90 OK
4 0.104 0.460 22.50 OK
5 0.077 0.920 8.41 OK
6 0.057 0.460 12.40 OK
7 0.057 0.690 8.22 OK
8 0.027 0.460 5.98 OK
9 0.062 0.460 13.57 OK
10 0.024 0.460 5.31 OK
11 0.032 0.230 14.01 OK
12 0.024 0.230 10.22 OK
13 0.014 0.230 6.12 OK
14 0.020 0.230 8.61 OK
15 0.013 0.230 5.78 OK
16 0.015 0.230 6.39 OK
17 0.014 0.230 6.18 OK
18 0.017 0.230 7.21 OK
19 0.018 0.230 7.76 OK
20 0.019 0.230 8.46 OK
21 0.013 0.230 5.46 OK
22 0.015 0.230 6.40 OK
23 0.015 0.230 6.71 OK
24 0.010 0.230 4.31 OK
25 0.007 0.230 2.87 OK
26 0.007 0.230 3.04 OK
27 0.009 0.230 4.07 OK
28 0.006 0.230 2.39 OK
29 0.011 0.230 4.83 OK
30 0.005 0.230 2.37 OK
31 0.011 0.230 4.95 OK
32 0.007 0.230 2.85 OK
33 0.007 0.230 3.25 OK
34 0.008 0.230 3.35 OK
35 0.012 0.230 5.28 OK
36 0.009 0.230 3.81 OK
37 0.010 0.230 4.46 OK
38 0.009 0.230 3.91 OK
39 0.009 0.230 3.80 OK
40 0.010 0.230 4.49 OK
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 31 of 59
3.4 VOLTAGE FLUCTUATION AND FLICKS MEASUREMENT
3.4.1 LIMITS OF VOLTAGE FLUCTUATION AND FLICKSMEASUREMENT
3.4.2 MEASUREMENT INSTRUMENTS LIST
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
3.4.3 TEST PROCEDURE
a. Harmonic Current Test:
Test was performed according to the procedures specified in Clause 5.0 of IEC555-2 and/or Sub-clause
6.2 of IEC/EN 61000-3-2 depend on which standard adopted for compliance measurement.
b. Fluctuation and Flickers Test:
Tests was performed according to the Test Conditions/Assessment of Voltage Fluctuations specified in
Clause 5.0/6.0 of IEC555-3 and/or Clause 6.0/4.0 of IEC/EN 61000-3-3 depend on which standard
adopted for compliance measurement.
c. All types of harmonic current and/or voltage fluctuation in this report are assessed by direct
measurement using flicker-meter.
d. For the actual test configuration, please refer to the related Item –EUT Test Photos.
3.4.4 DEVIATION FROM TEST STANDARD
No deviation
Tests Limits Descriptions
IEC555-3 IEC/EN 61000-3-2
Pst ≤1.0, Tp= 10 min. ≤1.0, Tp= 10 min. Short Term Flicker Indicator
Plt N/A ≤0.65, Tp=2 hr. Long Term Flicker Indicator
dc ≤3% ≤3.3 % Relative Steady-State V-Chang
dmax ≤4% ≤4 % Maximum Relative V-change
d(t) N/A ≤3.3% for >500 ms Relative V-change characteristic
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1Harmonic & Flicker California PACS-1 72344 06/29/2009
2Power Source California 3001iX 56309 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 32 of 59
3.4.5 TESTSETUP
3.4.6 EUT OPERATING CONDITIONS
The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating
condition is specified in the follows during the testing.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 33 of 59
3.4.7 TEST RESULTS
Pstiand limit line European Limits
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：25 ℃Relative Humidit
：56 %
Pressure：1009 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
1.00
0.75
0.50
0.25
0.00
10:12:18
Time is too short for Plt plot
Parameter values recorded during the test:
Vrms at the end of test (Volt): 229.67
Highest dt (%): 0.00 Test limit (%): 3.30 PASS
Time(mS) > dt: 0.0 Test limit (mS): 500.0 PASS
Highest dc (%): 0.00 Test limit (%): 3.30 PASS
Highest dmax (%): 0.00 Test limit (%): 4.00 PASS
Highest Pst (10 min. period): 0.001 Test limit: 1.000 PASS
Highest Plt (2 hr. period): 0.001 Test limit: 0.650 PASS
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 34 of 59
4. EMC IMMUNITY TEST
4.1 STANDARD COMPLIANCE/SERVRITY LEVEL/CRITERIA
*Remark:
(1) “N/A”: denotes test is not applicable in this Test Report.
:
Tests
Standard No.
TEST
SPECIFIC
A
TION
Test Mode
Test Ports
Perform.
Criteria Remark
Level
8KV air discharge
4KV contact discharge Direct Mode B
1. ESD
IEC/EN 61000-4-2 4KV HCP discharge
4KV VCP discharge Indirect Mode B
80 MHz to 1000 MHz
3V/m(rms), 1 KHz, 80%,
AM modulated Enclosure
A
2. RS
IEC/EN 61000-4-3 900 +/- 5MHz
3V/m(rms), Duty cycle 50%
Repetition frequency:200Hz
B
3. EFT/Burst
IEC/EN 61000-4-4
1.0KV(peak)
5/50ns Tr/Th
5KHz Repetition Freq.
AC ADAPTER
Port B
0.5 KV(peak)
5/50ns Tr/Th
5KHz Repetition Freq.
CTL/Signal
Data Line
Port
BN/A
4. Surges
IEC/EN 61000-4-5
1 KV(5P/5N)
1.2/50(8/20) Tr/Th us L-N B
2 KV(5P/5N)
1.2/50(8/20) Tr/Th us
L-PE
N-PE B
0.15 MHz to 80 MHz
3V(rms), 1KHz 80%,
AM Modulated
150Ωsource impedance
CTL/Signal Port A N/A
0.15 MHz to 80 MHz
3V(rms), 1KHz 80%,
AM Modulated
150Ωsource impedance
AC Power Port A
5 Injected Current
IEC/EN 61000-4-6
0.15 MHz to 80 MHz
3V(rms), 1KHz 80%,
AM Modulated
150Ωsource impedance
DC Power Port A N/A
6. Power Frequency
Magnetic Field
IEC/EN 61000-4-8
50 Hz, 1A/m Enclosure A
7. Volt. Interruptions
Volt. Dips
IEC/EN 61000-4-11
Voltage dip＞95% / 30%
Interruption＞95%
＜5% / 70%
＜5% B/C
C
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 35 of 59
4.2 GENERAL PERFORMANCE CRITERIA
According to EN55024:1998+A1:2001+A2:2003 standard, the general performance criteria as following:
4.3 GENERAL PERFORMANCE CRITERIA TEST SETUP
The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating
condition is specified in the follows during the testing.
Criterion A
The equipment shall continue to operate as intended without operator intervention. No
degradation of performance or loss of function is allowed below a performance level
specified by the manufacturer when the equipment is used as intended. The
performance level may be replaced by a permissible loss of performance.
If the minimum performance level or the permissible performance loss is not specified by
the manufacturer, then either of these may be derived from the product description and
documentation, and by what the user product description and documentation, and by
what the user may reasonably expect from the equipment if used as intended.
Criterion B
After the test, the equipment shall continue to operate as intended without operator
Intervention. No degradation of performance or loss of function is allowed, after the
application of the phenomenon below a performance level specified by the
manufacturer, when the equipment is used as intended. The performance level may be
replaced by a permissible loss of performance.
During the test, degradation of performance is allowed. However, no change of
operating state if stored data allowed to persist after the test. If the minimum
performance level (or the permissible performance loss ) is not specified by the
manufacturer, then either of these may be derived from the product description and
documentation, and by what the user may reasonably expect from the equipment if used
as intended.
Criterion C
Loss of function is allowed, provided the function is self-recoverable, or can be restored
by the operation of the controls by the user in accordance with the manufacturer’s
instructions.
Functions, and/or information stored in non-volatile memory, or protected by a battery
backup, shall not be lost.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 36 of 59
4.4 ESD TESTING
4.4.1 TEST SPECIFICATION
4.4.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.4.3 TEST PROCEDURE
The test generator necessary to perform direct and indirect application of discharges to the EUT in the
following manner:
a. Contact discharge was applied to conductive surfaces and coupling planes of the EUT.
During the test, it was performed with single discharges. For the single discharge time
between successive single discharges was at least 1 second. The EUT shall be exposed to at least 200
discharges, 100 each at negative and positive polarity, at a minimum of four test points. One of the test
points shall be subjected to at least 50 indirect discharges to the center of the front edge of the
horizontal coupling plane. The remaining three test points shall each receive at least 50 direct contact
discharges.
If no direct contact test points are available, then at least 200 indirect discharges shall be applied in the
indirect mode. Test shall be performed at a maximum repetition rate of one discharge per second.
Vertical Coupling Plane (VCP):
The coupling plane, of dimensions 0.5m x 0.5m, is placed parallel to, and positioned at a distance 0.1m
from, the EUT, with the Discharge Electrode touching the coupling plane.
The four faces of the EUT will be performed with electrostatic discharge.
Horizontal Coupling Plane (HCP):
The coupling plane is placed under to the EUT. The generator shall be positioned vertically at a
distance of 0.1m from the EUT, with the Discharge Electrode touching the coupling plane.
The four faces of the EUT will be performed with electrostatic discharge.
b. Air discharges at insulation surfaces of the EUT.
It was at least ten single discharges with positive and negative at the same selected point.
c. For the actual test configuration, please refer to the related Item –EUT Test Photos.
Basic Standard: IEC/EN 61000-4-2
Discharge Impedance: 330 ohm / 150 pF
Required Performance B
Discharge
V
oltage: Air Discharge：2kV/4kV/8kV (Direct)
Con
t
act Discharge：2kV/4kV (Direct/Indirec
t
)
Polarit
:Positive & Negative
Number of Discharge: Air Discharge: min. 20 times at each test point
Contact Discharge: min. 200 times in total
Discharge Mode: Single Discharge
Discharge Period: 1 second minimum
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1ESD Simulator Noiseken ESS-2002 ESS0625214 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 37 of 59
4.4.4 DEVIATION FROM TEST STANDARD
No deviation

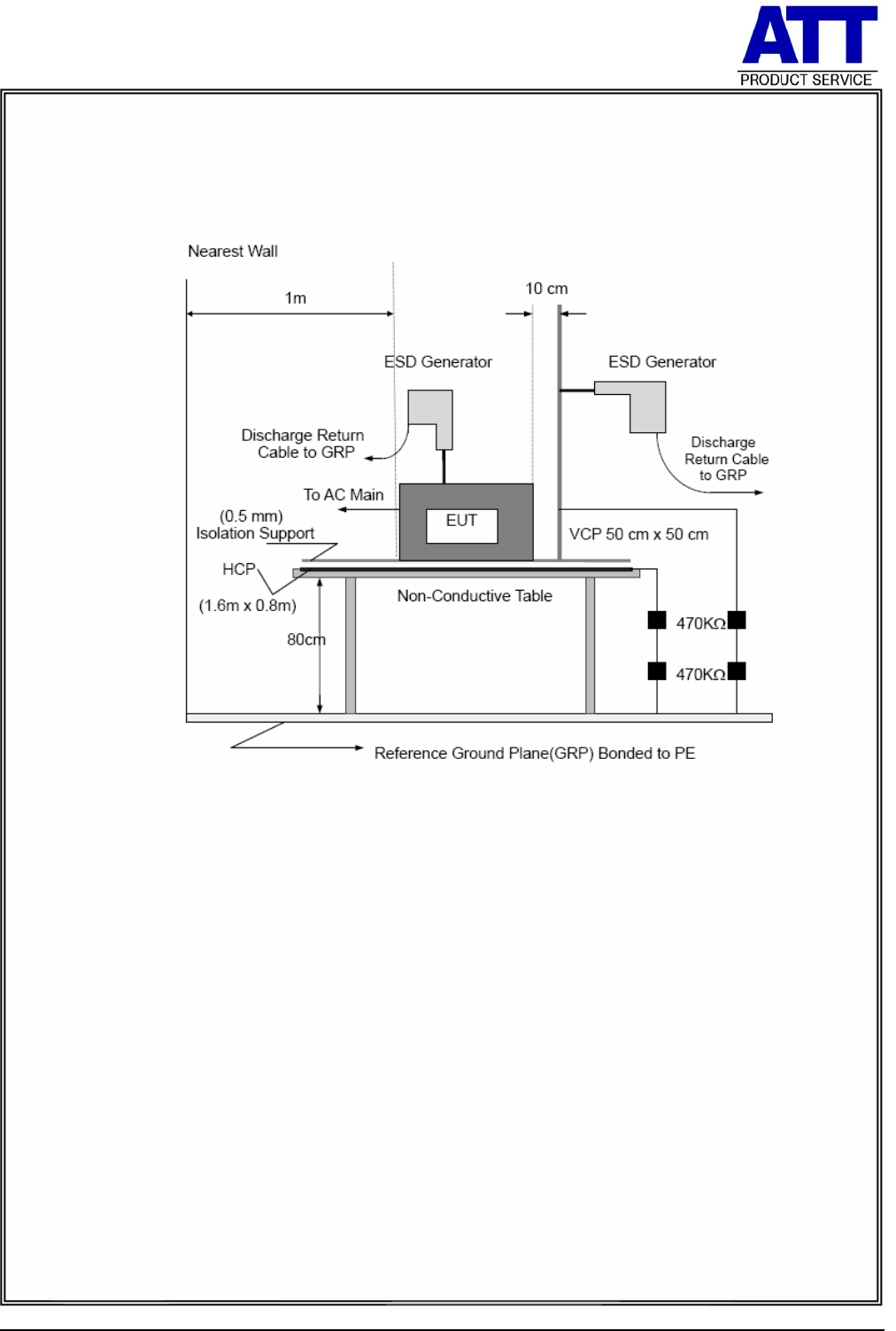

4.4.5 TEST SETUP
Note:
TABLE-TOP EQUIPMENT
The configuration consisted of a wooden table 0.8 meters high standing on the Ground Reference Plane.
The GRP consisted of a sheet of aluminum at least 0.25mm thick, and 2.5 meters square connected to the
protective grounding system. A Horizontal Coupling Plane (1.6m x 0.8m) was placed on the table and
attached to the GRP by means of a cable with 940k total impedance. The equipment under test, was
installed in a representative system as described in section 7 of IEC /EN 61000-4-2, and its cables were
placed on the HCP and isolated by an insulating support of 0.5mm thickness. A distance of1-meter minimum
was provided between the EUT and the walls of the laboratory and any other metallic structure.
FLOOR-STANDING EQUIPMENT
The equipment under test was installed in a representative system as described in section 7 of IEC/EN
61000-4-2, and its cables were isolated from the Ground Reference Plane by an insulating support
of0.1-meter thickness. The GRP consisted of a sheet of aluminum that is at least 0.25mm thick, and
2.5meters square connected to the protective grounding system and extended at least 0.5 meters from the
EUT on all sides.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 38 of 59
4.4.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：23 ℃Relative Humidit
：51 %
Pressure：1007 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Mode Air Discharge Contact Discharge
2KV 4KV 8KV 12KV 2KV 4KV 6KV 8KV
Location PNPNPNPN P N P N PNPN
1AAAAAA AAAA
2AAAAAA AAAA
3 AAAAAA
4 AAAAAA
5 AAAAAA
6
7
8
9
Criteria BB
Result AA
Judgment PASS PASS
Mode HCP Discharge VCP Discharge
2KV 4KV 6KV 8KV 2KV 4KV 6KV 8KV
LocationPNPNPNPNP NPNPNPN
1AAAA AAAA
2AAAA AAAA
3AAAA AAAA
4AAAA AAAA
Criteria BB
Result AA
Judgment PASS PASS
Note: 1) P/N denotes the Positive/Negative polarity of the output voltage.
2) Test condition:
Direct / Indirect (HCP/VCP) discharges: Minimum 50 times (Positive/Negative) at each
point. Air discharges: Minimum 10 times (Positive/Negative) at each point.
3) Test location(s) in which discharge (Air and contact discharge) to be applied illustrated by photos
shown in next page(s)
4) The Indirect (HCP/VCP) discharges description of test point as following:
1.left side 2.right side 3.front side 4.rear side
5) N/A - denotes test is not applicable in this test report
7) Criteria B: The EUT function loss during the test, but self-recoverable after the test.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 39 of 59
4.5 RS TESTING
4.5.1 TEST SPECIFICATION
4.5.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.5.3 TEST PROCEDURE
The EUT and support equipment, which are placed on a table that is 0.8 meter above ground and the testing
was performed in a fully-anechoic chamber.
The testing distance from antenna to the EUT was 3 meters.
The other condition as following manner:
a. The field strength level was 3V/m.
b. The frequency range is swept from 80 MHz to 1000 MHz, with the signal 80%amplitude modulated with
a 1kHz sine wave. The rate of sweep did not exceed 1.5x 10-3 decade/s. Where the frequency range is
swept incrementally, the step size was 1% of fundamental.
c. The dwell time at each frequency shall be not less than the time necessary for the
EUT to be able to respond.
d. The test was performed with the EUT exposed to both vertically and horizontally
polarized fields on each of the four sides.
e. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.5.4 DEVIATION FROM TEST STANDARD
No deviation
Basic Standard: IEC/EN 61000-4-3
Required Performance A
Frequency Range: 80 MHz - 1000 MHz
Field Strength: 3V/m
Modulation: 1kHz Sine Wave, 80%, AM Modulation
Frequency Step: 1 % of fundamental
Polarity of Antenna: Horizontal and Vertical
T
est Distance: 3m
Antenna Height: 1.5 m
Dwell Time: at least 3 seconds
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1Signal Generator R&S SMT 06 832080/007 06/29/2009
2Power Amplifier(RS) M2S AC8113-800/25
0A 9904-113 06/29/2009
3Antenna(500W) MESS-ELEKTRONIK VULB9161 4022 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 40 of 59

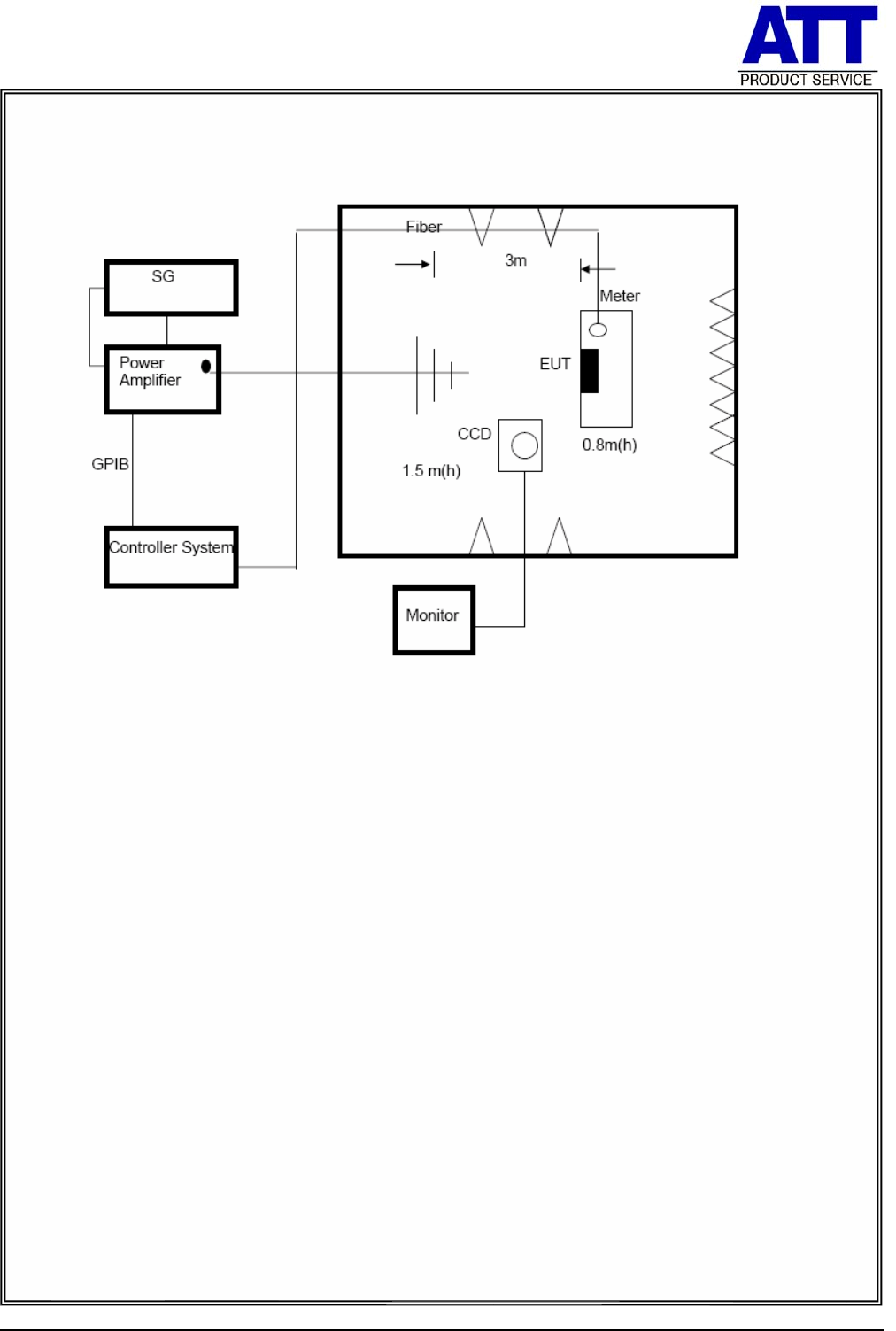

4.5.5 TEST SETUP
Note:
TABLE-TOP EQUIPMENT
The EUT installed in a representative system as described in section 7 of IEC/EN 61000-4-3 was placed on
a non-conductive table 0.8 meters in height. The system under test was connected to the power and signal
wire according to relevant installation instructions.
FLOOR-STANDING EQUIPMENT
The EUT installed in a representative system as described in section 7 of IEC/EN 61000-4-3 was placed on
a non-conductive wood support 0.1 meters in height. The system under test was connected to the power
and signal wire according to relevant installation instructions.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 41 of 59
4.5.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：57 %
Pressure：1004 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Frequency Range
(MHz)
RF Field
Position
R.F.
Field Strength Azimuth Perform.
Criteria Results Judgment
80MHz - 1000MHz H / V
3V/m(rms)
AM Modulated
1000Hz, 80%
0
AAPASS
90
180
270
Note:
1) P/N denotes the Positive/Negative polarity of the output voltage.
2) N/A - denotes test is not applicable in this test report.
3) Criteria A: There was no change operated with initial operating during the test.
4) Criteria B: The EUT function loss during the test, but self-recoverable after the test.
5) Criteria C: The system shut down during the test.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 42 of 59
4.6 EFT/BURST TESTING
4.6.1 TEST SPECIFICATION
4.6.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.6.3 TEST PROCEDURE
The EUT and support equipment, are placed on a table that is 0.8 meter above a metal ground plane
measured 1m*1m min. and 0.65mm thick min.
The other condition as following manner:
a. The length of power cord between the coupling device and the EUT should not exceed 1 meter.
b. Both positive and negative polarity discharges were applied.
c. The duration time of each test sequential was 1 minute
d. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.6.4 DEVIATION FROM TEST STANDARD
No deviation
Basic Standard: IEC/EN 61000-4-4
Required Performance B
T
est
V
oltage: Power Line：1kV
Signal/Control Line：0.5 KV
Polarit
:Positive & Negative
Impulse Frequenc
:5kHz
Impulse
W
ave shape : 5/50 ns
Burst Duration: 15 ms
Burst Period: 300 ms
T
est Duration: Not less than 1 min.
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1EMC Immunity Test
System Thermo EMCPRO
PLUS 0502214 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 43 of 59

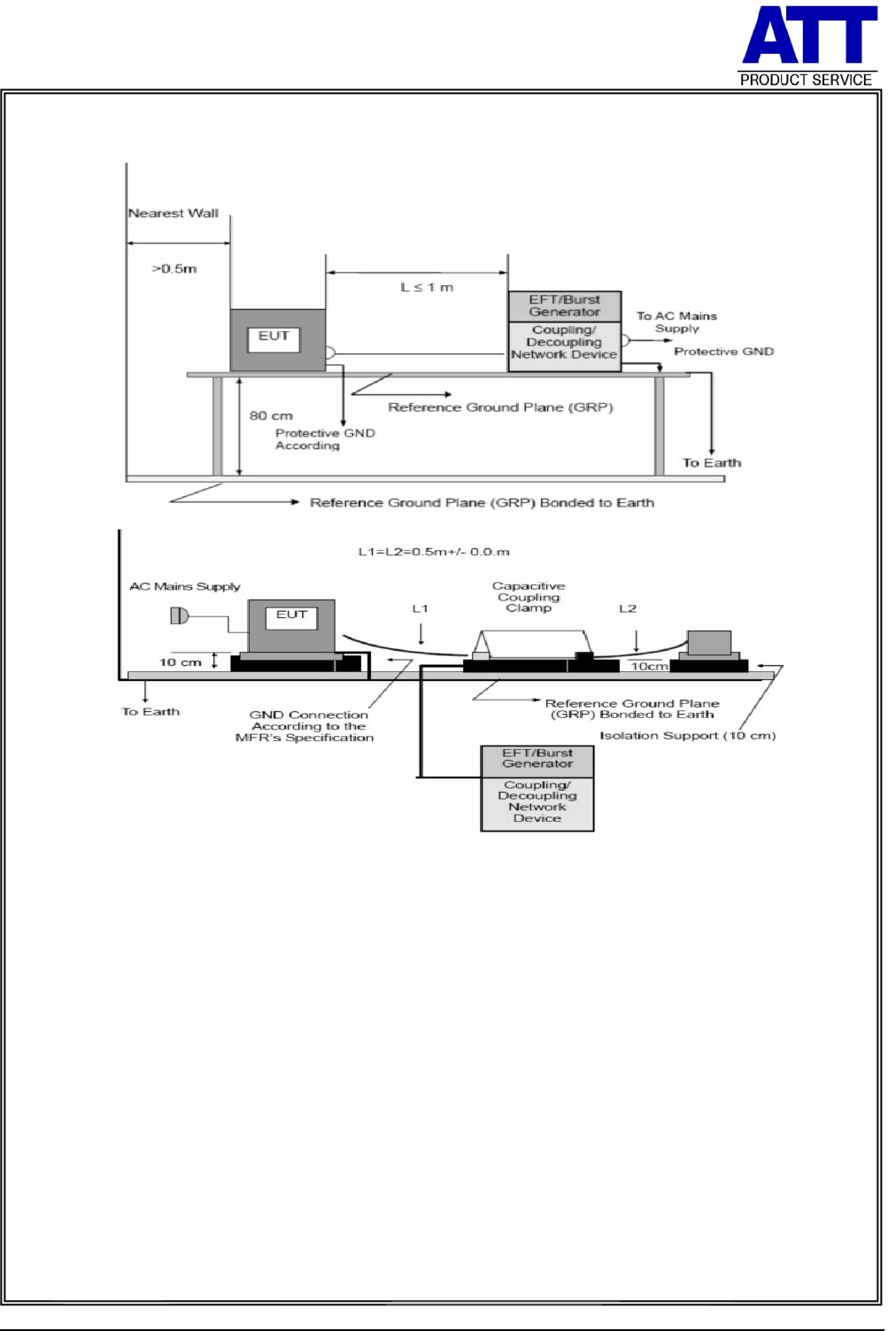

4.6.5 TEST SETUP
Note:
TABLE-TOP EQUIPMENT
The configuration consisted of a wooden table (0.8m high) standing on the Ground Reference Plane. The
GRP consisted of a sheet of aluminum (at least 0.25mm thick and 2.5m square) connected to the protective
grounding system. A minimum distance of 0.5m was provided between the EUT and the walls of the
laboratory or any other metallic structure.
FLOOR-STANDING EQUIPMENT
The EUT installed in a representative system as described in section 7 of IEC/EN 61000-4-4 and its cables,
were isolated from the Ground Reference Plane by an insulating support that is 0.1-meter thick. The GRP
consisted of a sheet of aluminum (at least 0.25mm thick and 2.5m square) connected to the protective
grounding system.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 44 of 59
4.6.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：57 %
Pressure：1004 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Mode (X) AC Power Line ( ) DC Power Line ( ) Signal/Control Line
Test Level 1KV 0.5KV 0.5KV
Port(s) Polarity Results Polarity Results Polarity Results
Line (L) PAP P
NAN N
Neutral (N) PAP P
NAN N
Ground (PE) PPP
NNN
Signal/Control
Line
PPP
NNN
Criteria BBB
Result AN/AN/A
Judgment PASS N/A N/A
Note: 1) P/N denotes the Positive/Negative polarity of the output voltage.
2) N/A - denotes test is not applicable in this test report
3) Criteria A: There was no change operated with initial operating during the test.
4) Criteria B: The EUT function loss during the test, but self-recoverable after the test.
5) Criteria C: The system shut down during the test.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 45 of 59
4.7 SURGE TESTING
4.7.1 TEST SPECIFICATION
4.7.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.7.3 TEST PROCEDURE
a. For EUT AC ADAPTER:
The surge is to be applied to the EUT AC ADAPTER terminals via the capacitive coupling network.
Decoupling networks are required in order to avoid possible adverse effects on equipment not under
test that may be powered by the same lines, and to provide sufficient decoupling impedance to the
surge wave. The power cord between the EUT and the coupling/decoupling networks shall be 2meters
in length (or shorter).
b. For test applied to unshielded unsymmetrically operated interconnection lines of EUT:
The surge is applied to the lines via the capacitive coupling. The coupling /decoupling networks shall not
influence the specified functional conditions of the EUT. The interconnection line between the EUT and
the coupling/decoupling networks shall be 2 meters in length (or shorter).
c. For test applied to unshielded symmetrically operated interconnection /telecommunication lines of EUT:
The surge is applied to the lines via gas arrestors coupling. Test levels below the ignition point of the
coupling arrestor cannot be specified. The interconnection line between the EUT and the
coupling/decoupling networks shall be 2 meters in length (or shorter).
d. For the actual test configuration, please refer to the related Item –EUT Test Photos.
Basic Standard: IEC/EN 61000-4-5
Required Performance B
W
ave-Shape: Combination Wave
1.2/50 us Open Circuit Voltage
8 /20 us Short Circuit Current
T
est
V
oltage: Power Line：0.5 kV, 1 kV, 2 kV
Surge Input
/
Output: L1-L2, L1-PE, L2-PE
Generator Source: 2 ohm between networks
Impedance: 12 ohm between network and ground
Polarit
:Positive/Negative
Phase Angle: 0 /90/180/270
Pulse Repetition Rate: 1 time / min. (maximum)
Number of
T
ests: 5 positive and 5 negative at selected points
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1EMC Immunity Test
System Thermo EMCPRO
PLUS 0502214 06/29/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 46 of 59
4.7.4 DEVIATION FROM TEST STANDARD
No deviation

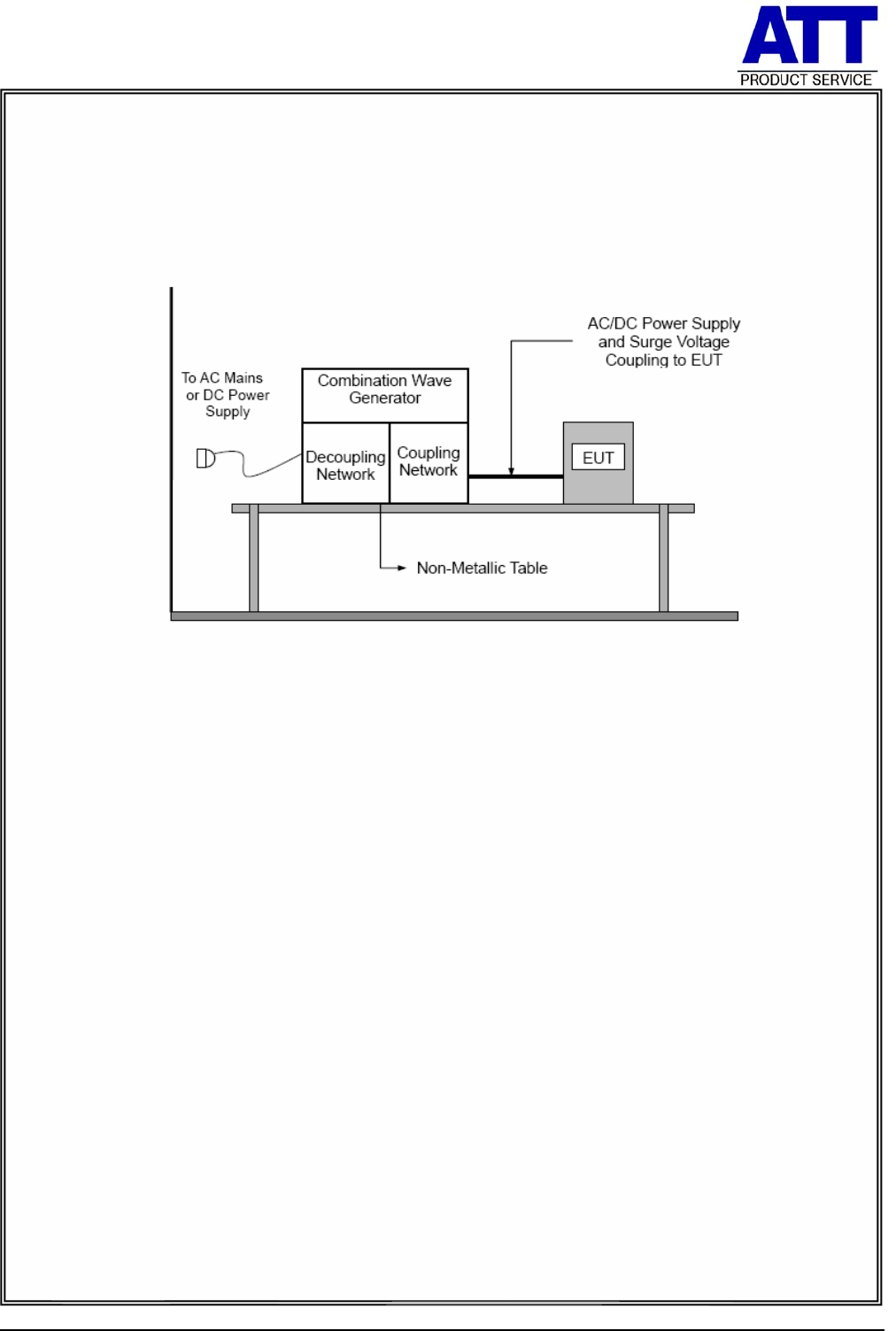

4.7.5 TEST SETUP
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 47 of 59
4.7.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：57 %
Pressure：1004 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Wave Form
EUT Ports Tested
1.2/50(8/20)Ti/Th us Criteria Judgment
Polarity Phase Voltage
0.5kV 1kV 1.5kV 2kV
L-N
+/- 0
°
AA
BPASS
+/- 90
°
AA
+/- 180
°
AA
+/- 270
°
AA
L-PE
+/- 0
°
BN/A
+/- 90
°
+/- 180
°
+/- 270
°
N-PE
+/- 0
°
BN/A
+/- 90
°
+/- 180
°
+/- 270
°
Signal Line
(N/A)
+/- 0
°
BN/A
+/- 90
°
+/- 180
°
+/- 270
°
Signal Line
(N/A)
+/- 0
°
BN/A
+/- 90
°
+/- 180
°
+/- 270
°
Note:
1) P/N denotes the Positive/Negative polarity of the output voltage.
2) Polarity and Numbers of Impulses：5 Pst / Ngt at each tested mode
3) N/A - denotes test is not applicable in this Test Report
4) All voltages of the lower levels shall be satisfied
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 48 of 59
4.8 INJECTION CURRENT TESTING
4.8.1 TEST SPECIFICATION
4.8.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.8.3 TEST PROCEDURE
The EUT and support equipment, are placed on a table that is 0.8 meter above a metal ground plane
measured 1m*1m min. and 0.65mm thick min.
The other condition as following manner:
a. The field strength level was 3V.
b. The frequency range is swept from 150 KHz to 80 MHz, with the signal 80%amplitude modulated with a
1kHz sine wave. The rate of sweep did not exceed 1.5x 10-3 decade/s. Where the frequency range is
swept incrementally, the step size was 1% of fundamental.
c. The dwell time at each frequency shall be not less than the time necessary for the
EUT to be able to respond.
d. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.8.4 DEVIATION FROM TEST STANDARD
No deviation
Basic Standard: IEC/EN 61000-4-6
Required Performance A
Frequency Range: 0.15 MHz - 80 MHz
Field Strength: 3Vr.m.s.
Modulation: 1kHz Sine Wave, 80%, AM Modulation
Frequency Step: 1 % of fundamental
Dwell Time: at least 3 seconds
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1Signal Generator IFR 2023A 202301/368 06/29/2008
2Power Amplifier(CS) M2S A0122-250 9902-111 06/29/2008
3CDN MEB M3 13389 06/29/2008
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 49 of 59

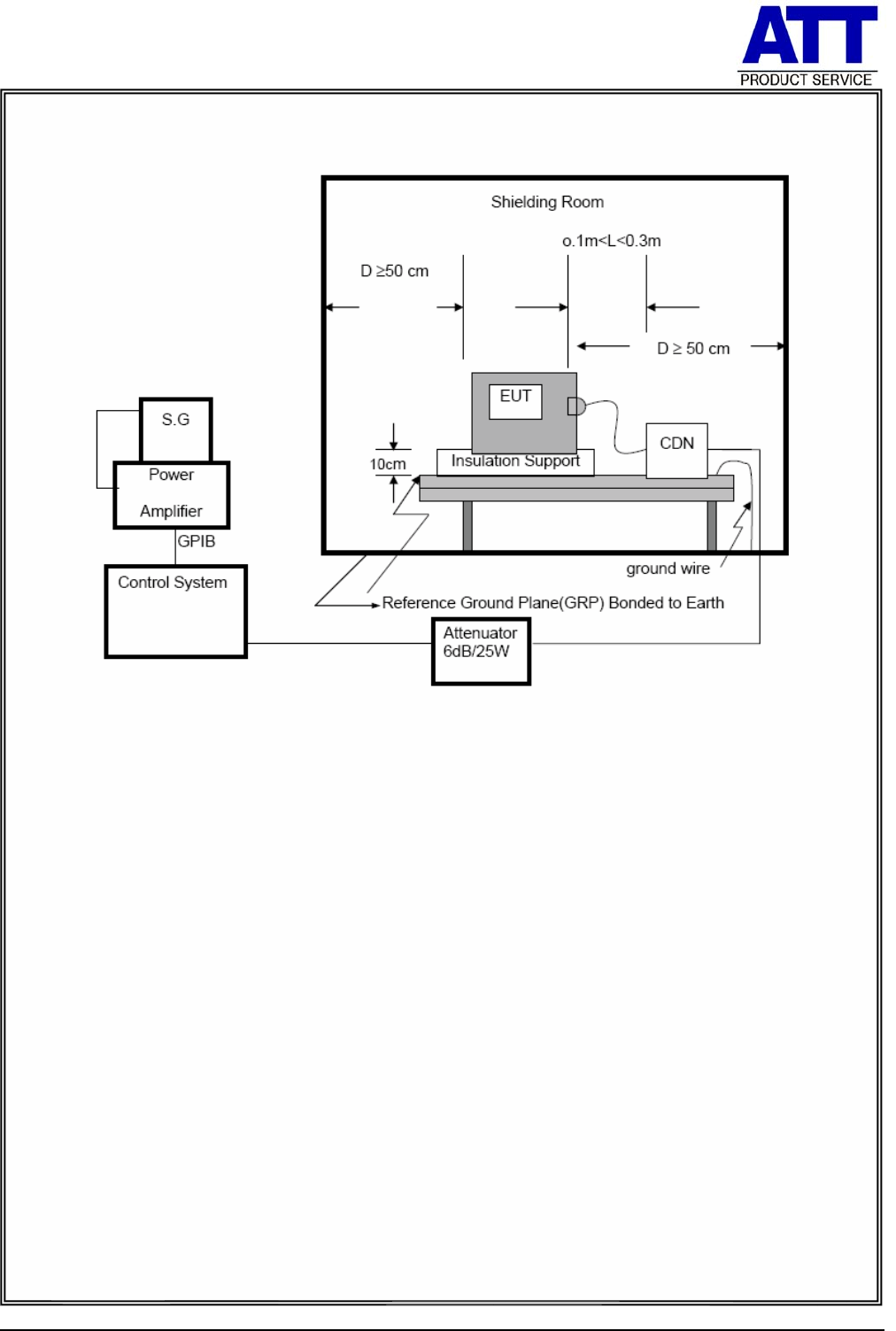

4.8.5 TEST SETUP
For the actual test configuration, please refer to the related Item –EUT Test Photos.
NOTE:
FLOOR-STANDING EQUIPMENT
The equipment to be tested is placed on an insulating support of 0.1 meters height above a ground
reference plane. All relevant cables shall be provided with the appropriate coupling and decoupling devices
at a distance between 0.1 meters and 0.3 meters from the projected geometry of the EUT on the ground
reference plane.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 50 of 59
4.8.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：57 %
Pressure：1004 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Test Ports
(Mode)
Freq. Range
MHz) Field Strength Perform.
Criteria Results Judgment
Input/ Output
AC. Power Port 0.15 ---80
3V(rms)
AM Modulated
1000Hz, 80%
AAPASS
Input/ Output
DC. Power Port 0.15 --- 80 AN/AN/A
Signal Line
(N/A) 0.15 --- 80 AN/AN/A
Signal Line
(N/A) 0.15 --- 80 AN/AN/A
Note:
1) P/N denotes the Positive/Negative polarity of the output voltage.
2) N/A - denotes test is not applicable in this Test Report.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 51 of 59
4.9 POWER FREQUENCY MAGNETIC FIELD TESTING
4.9.1 TEST SPECIFICATION
4.9.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.9.3 TEST PROCEDURE
The EUT and support equipment, are placed on a table that is 0.8 meter above a metal ground plane
measured 1m*1m min. and 0.65mm thick min.
The other condition as following manner:
a. The equipment cabinets shall be connected to the safety earth directly on the GRP via the earth
terminal of the EUT.
b. The cables supplied or recommended by the equipment manufacturer shall be used. 1 meter of all
cables used shall be exposed to the magnetic field.
c. For the actual test configuration, please refer to the related Item –EUT Test Photos.
4.9.4 DEVIATION FROM TEST STANDARD
No deviation
Basic Standard: IEC/EN 61000-4-8
Required Performance A
Frequency Range: 50Hz
Field Strength: 1A/m
Observation Time: 1 minute
Inductance Coil: Rectangular type, 1mx1m
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1Magnetic Field Test
Generator FCC F-100-4-8-G-1
25A 04032 06/27/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 52 of 59
4.9.5 TEST SETUP

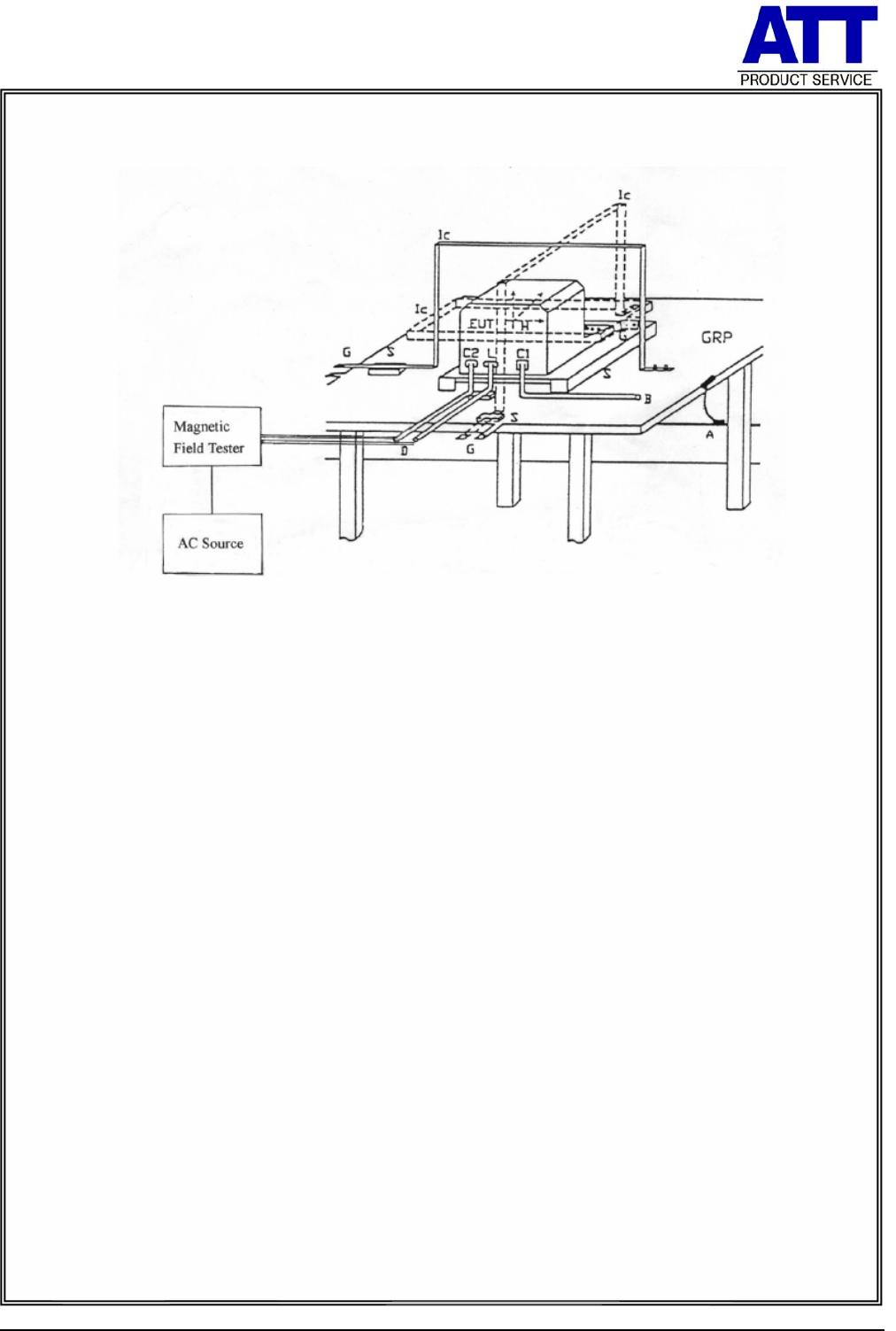

Note:
TABLE-TOP EQUIPMENT
The equipment shall be subjected to the test magnetic field by using the induction coil of standard
dimension (1 m x 1 m). The induction coil shall then be rotated by 90 degrees in order to expose the EUT to
the test field with different orientations.
FLOOR-STANDING EQUIPMENT
The equipment shall be subjected to the test magnetic field by using induction coils of suitable dimensions.
The test shall be repeated by moving and shifting the induction coils, in order to test the whole volume of the
EUT for each orthogonal direction. The test shall be repeated with the coil shifted to different positions along
the side of the EUT, in steps corresponding to 50 % of the shortest side of the coil. The induction coil shall
then be rotated by 90 degrees in order to expose the EUT to the test field with different orientations.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 53 of 59
4.9.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：57 %
Pressure：1004 hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Test Mode Test Level Antenna
aspect
Duration
(s)
Perform
Criteria Results Judgment
Enclosure 1A/m X30sAAPASS
Enclosure 1A/m Y30sAAPASS
Enclosure 1A/m Z30sAAPASS
Note:
1) P/N denotes the Positive/Negative polarity of the output voltage.
2) N/A - denotes test is not applicable in this test report
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 54 of 59
4.10 VOLTAGE INTERRUPTION/DIPS TESTING
4.10.1 TEST SPECIFICATION
4.10.2 MEASUREMENT INSTRUMENTS
Remark: ” N/A” denotes No Model No. / Serial No. and No Calibration specified.
4.10.3 TEST PROCEDURE
The EUT shall be tested for each selected combination of test levels and duration with a sequence of
three dips/interruptions with intervals of 10 s minimum (between each test event). Each representative
mode of operation shall be tested. Abrupt changes in supply voltage shall occur at zero crossings of the
voltage waveform.
4.10.4 DEVIATION FROM TEST STANDARD
No deviation
Basic Standard: IEC/EN 61000-4-11
Required Performance:B (For >95% Voltage Dips)
C(For30%VoltageDips)
C (For >95% Voltage Interruptions)
T
est Duration Time: Minimum three test events in sequence
Interval between Event: Minimum ten seconds
Phase Angle: 0°/45°/90°/135°/180°/225°/270°/315°/360°
T
est C
cle: 3times
Item Kind of Equipment Manufacturer
T
pe No. Serial No. Calibrated until
1EMC Immunity Test
System Thermo EMCPRO
PLUS 0502214 06/27/2009
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 55 of 59

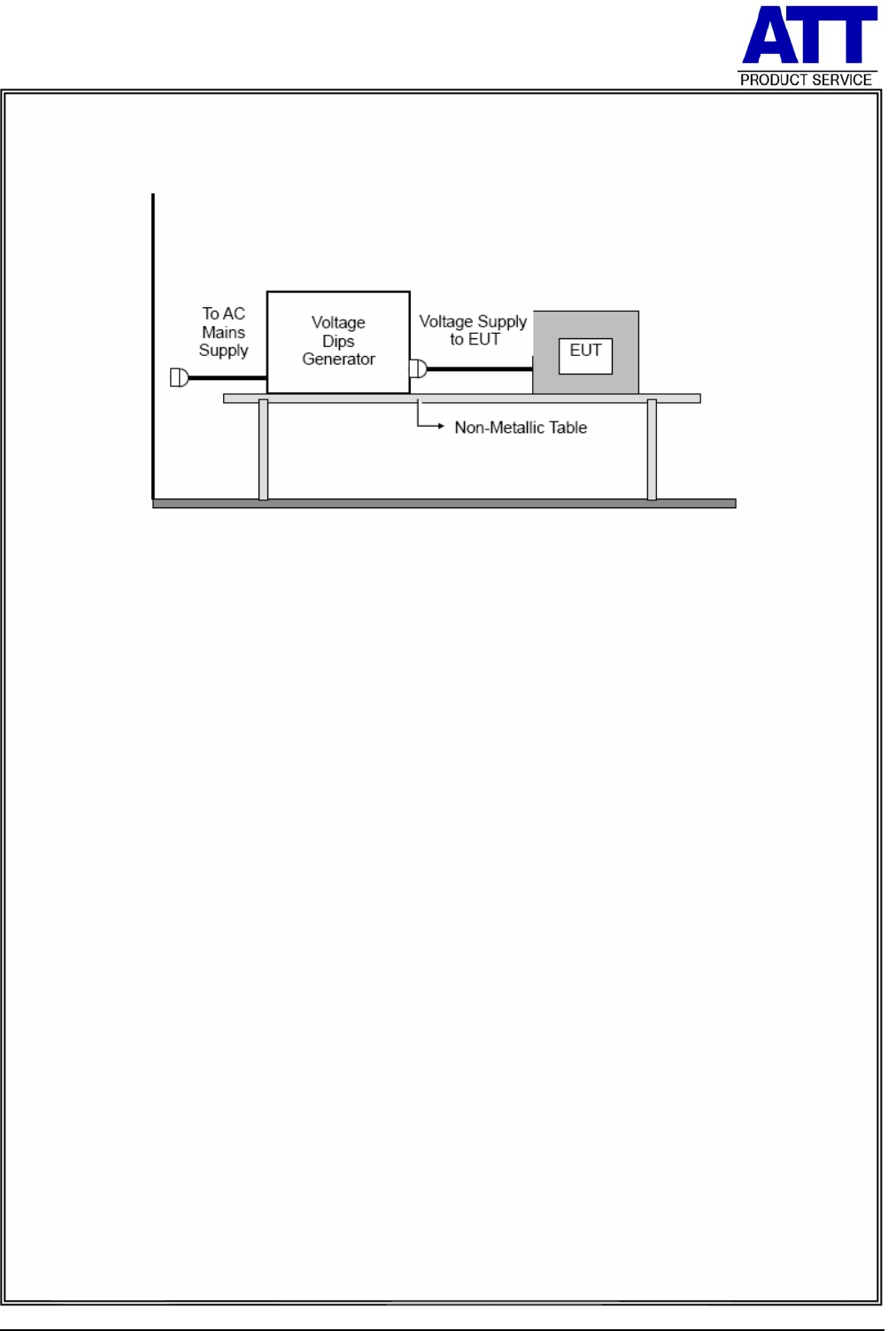

4.10.5 TEST SETUP
For the actual test configuration, please refer to the related Item –EUT Test Photos.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 56 of 59
4.10.6 TEST RESULTS
EUT：AC ADAPTER Model No. ：ZB-01-5020
T
emperature：26 ℃Relative Humidit
：48%
Pressure：1004hPa
T
est Power ：AC 230V/50Hz
T
est Mode ：Full Load
Voltage
Reduction Periods Perform
Criteria Results Judgment
Voltage dip ＞95% 0.5 BAPASS
Voltage dip 30% 25 CAPASS
Interruption＞95% 250 CC
PASS
Note:
1) P/N denotes the Positive/Negative polarity of the output voltage.
2). N/A - denotes test is not applicable in this test report.
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 57 of 59

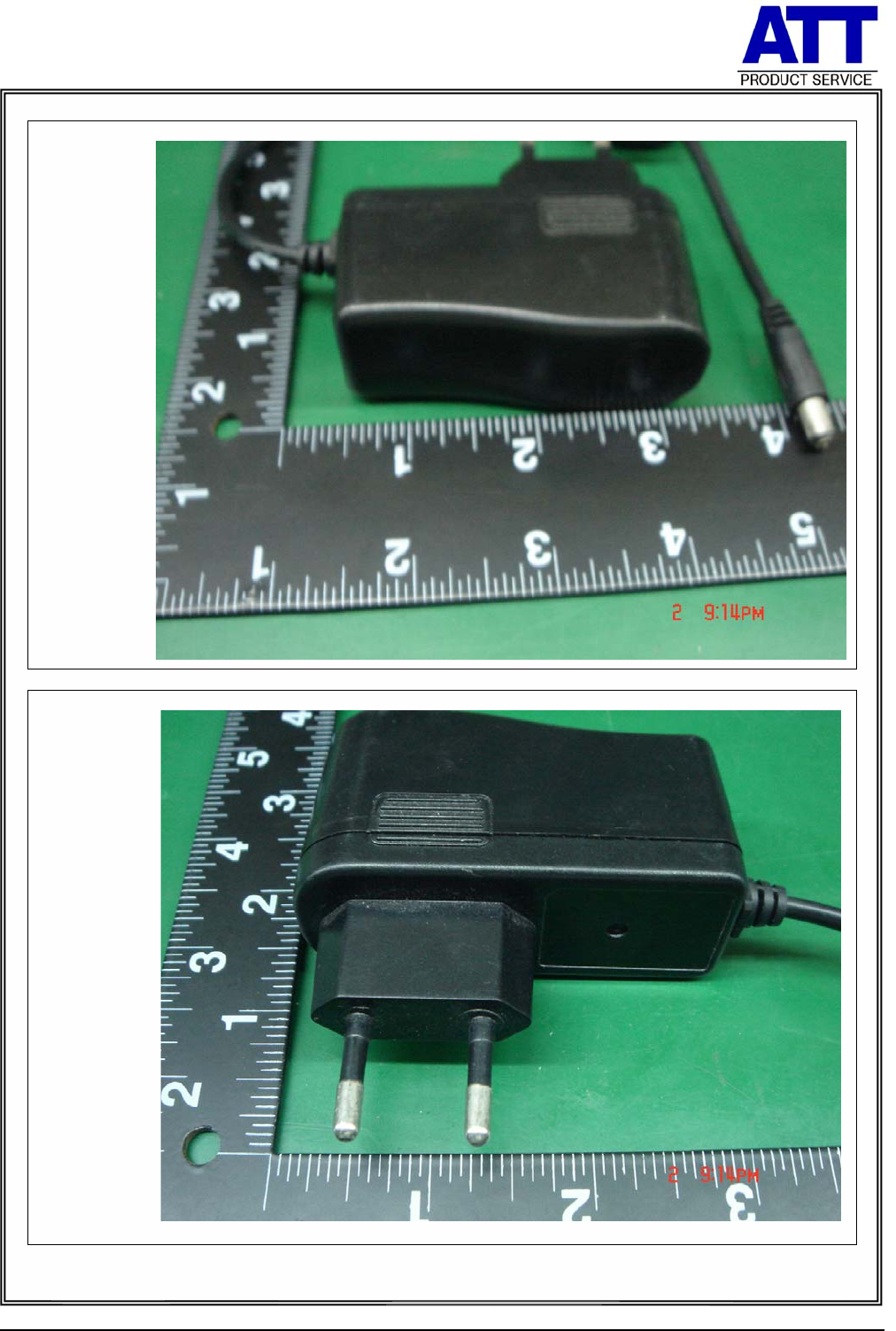

EUT
Type of equipment, model: ZB-18USB
[x]general
[ ] front
[]rear
[ ] right
[]left
[]top
[ ] bottom
View:
[x]general
[ ] front
[]rear
[ ] right
[]left
[]top
[ ] bottom
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 58 of 59

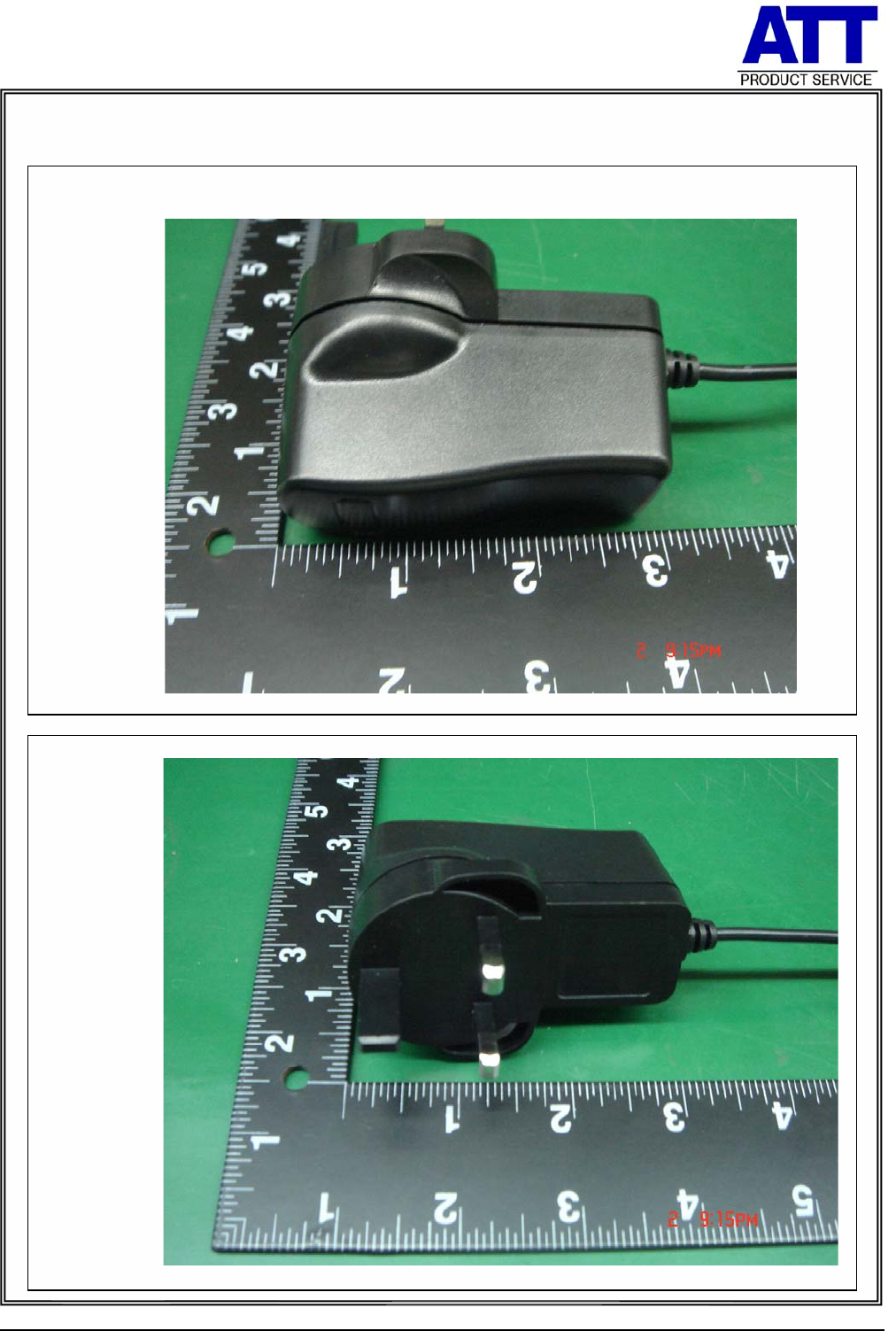

View:
[x]general
[ ] front
[]rear
[ ] right
[]left
[]top
[ ] bottom
View:
[x]general
[ ] front
[]rear
[ ] right
[]left
[]top
[ ] bottom
ATT Product Service Co., Ltd
2 F., B2/B3 Area, City Plaza, ChangAn Town, DongGuan City,
GuangDong, P.R.China
Phone: 86-769-8509 8000; Fax: 86-769 8509 8777
Report NO.:10808002E
Page: 59 of 59

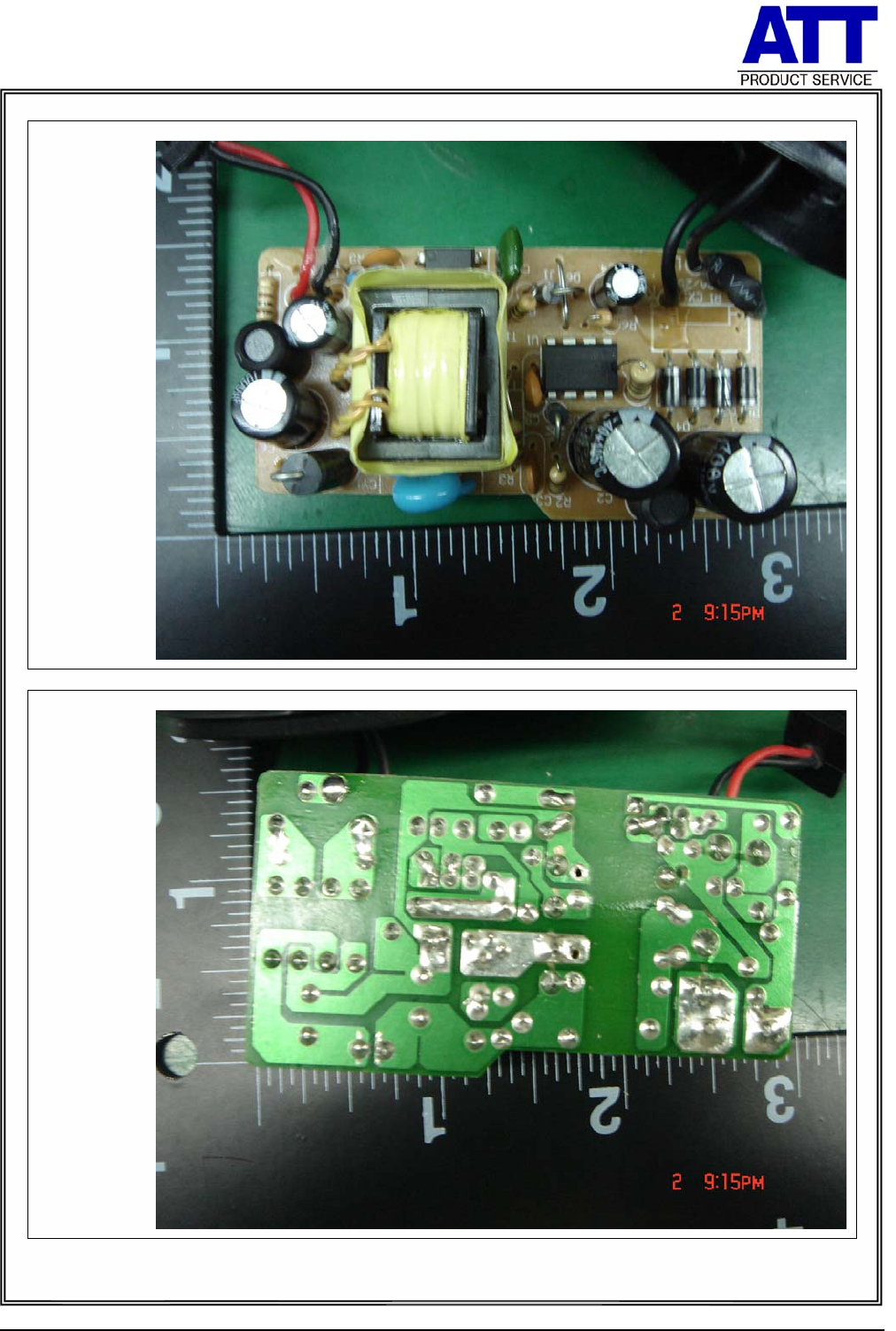

View:
[]general
[x]front
[]rear
[ ] right
[]left
[]top
[ ] bottom
View:
[]general
[x]front
[]rear
[ ] right
[]left
[]top
[ ] bottom

Navigation menu
