CC5BCBW Series
Heavy-Duty Spectra®
Back Box
Installation Manual
C2434M (7/01)
Pelco • 3500 Pelco Way, Clovis • CA 93612-5699 USA • www.pelco.com
In North America and Canada: Tel (800) 289-9100 or FAX (800) 289-9150
International Customers: Tel +1 (559) 292-1981 or FAX +1 (559) 348-1120
®
2Pelco Manual C2434M (7/01)
IMPORTANT SAFEGUARDS AND WARNINGS
Prior to installation and use of this product, the following WARNINGS should be observed.
1. Installation and servicing should only be done by qualified service personnel and
conform to all local codes.
2. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X ,6 or 6P
enclosure, it is designed for indoor use only and it must not be installed where
exposed to rain and moisture.
3. Only use replacement parts recommended by Pelco.
4. After replacement/repair of this unit’s electrical components, conduct a resistance
measurement between line and exposed parts to verify the exposed parts have not
been connected to line circuitry.
5. The installation method and materials should be capable to supporting four times the
weight of the enclosure, pan/tilt, camera and lens combination.
The product and/or manual may bear the following marks:
Please thoroughly familiarize yourself with the information in this manual prior to installation
and operation.
This symbol indicates that dangerous
voltage constituting a risk of electric shock
is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
CAUTION:
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Pelco Manual C2434M (7/01) 3
DESCRIPTION
The Heavy-Duty Spectra is perfect for installations where structural integrity and vandalism
are a priority. The system features heavy-duty construction and tamper-resistant barrel key
locks. The in-ceiling model has a reinforced bracket mounting system for installation in a
fixed ceiling. Pendant models can be mounted to a pole, corner or directly to a wall.
SYSTEM MODELS
CC5BCBW-HF1 Heavy-duty, in-ceiling back box; standard clear dome; and color/black
and white camera.
CC5BCBW-HBF1 Heavy-duty, in-ceiling back box; heavy-duty clear dome; and color/
black and white camera.
CC5BCBW-HP1 Pendant style back box, standard clear dome, and color/black and
white camera.
CC5BCBW-HBP1 Pendant style back box, heavy-duty clear dome, and color/black and
white camera.
Each heavy-duty lower dome is designed for a specific back box model. Install the correct
lower dome to the right back box. See the following chart.
System Model Back Box Lower Dome Dome Drive
CC5BCBW-HF1 BB5HD-F CLCLD5HDF-1 DD5BCBW
CC5BCBW-HBF1 BB5HD-F CLCLD5HDBF-1 DD5BCBW
CC5BCBW-HP1 CLCBB5HD-PG CLCLD5HDPG-1 DD5BCBW
CC5BCBW-HBP1 CLCBB5HD-PG LD5HDPG-1 DD5BCBW
4Pelco Manual C2434M (7/01)
00535
SPRING CLIP
8-32X.275 INCH SCREW
00537
00530
00531
00532
CEILIN
G
MOUNTING
RING
S
00533
ATTACH SAFETY CHAIN HERE
00534

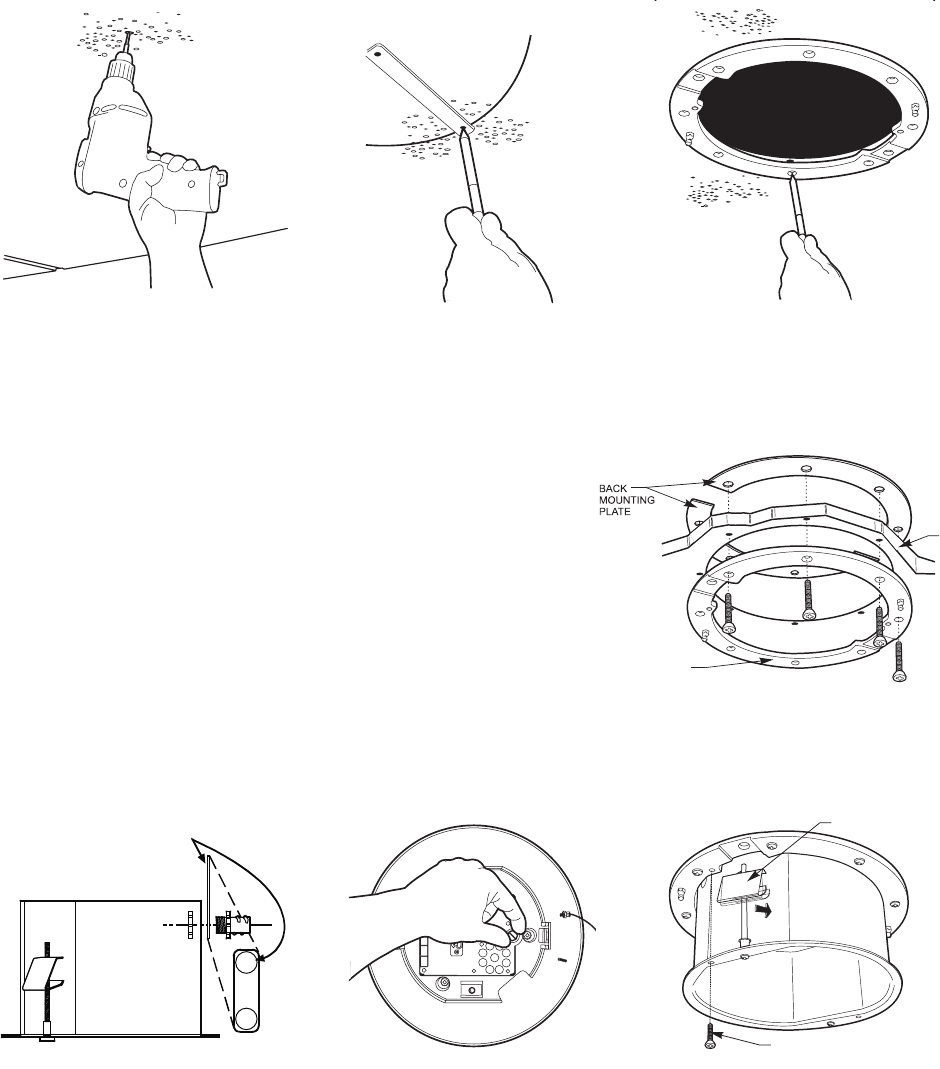

INSTALLATION OF IN-CEILING MODEL
STEP 1 - PREPARE CEILING
a. Locate the center point of the mount-
ing location. Drill a hole in the ceiling
using a 3/32-inch drill.
b. Insert the compass tool into the hole.
Draw a circle on the ceiling using the
compass tool and a pencil. Cut the
circle out of the ceiling.
c. Use the mounting ring as a template
and mark the hole pattern onto the
mounting surface. Prepare the holes.
STEP 2 - INSTALL THE MOUNTING PLATES
Use the eight 10-32 x 3-inch screws (supplied) and install the mounting ring and
two back mounting plates.
a. Line up the mounting ring with the eight
fastener holes.
b. Feed one back mounting plate through
the hole in the ceiling and line up with
four fastener holes.
c. Install fasteners through the mounting
ring, ceiling and out the back mounting
plate.
d. Install second back mounting plate.
STEP 3 - INSTALL THE BACK BOX
a. Attach the conduit fitting, lock nut, and
safety chain bracket. Install a safety
chain/cable (not supplied) that will
support up to 16 pounds (7.3 kg).
b. Turn the thumbscrew and open the
hinged door to the back box. Pull wiring
into the back box through the conduit
fitting. Refer to Tables A and B in the
Appendix
for wiring distances.
c. Compress the spring clips on the back
box and push it through the hole until
the clips spring back. Tighten the screws
until you hear a clicking noise. Insert the
two 8-32 x .275-inch screws to secure
the back box to the mounting ring.
Pelco Manual C2434M (7/01) 5
LABEL
SW1
LABEL
SW2
SW1
SW2
RS-422 TERMINATION SWITCH
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW2
00538
GREEN
TAB
RED
TAB
00539
BARREL
KEY LOCK
BALL STUD
RECEIVER
BALL STUD
00497
TRIM LEASH
TO USE YOUR DOME, REFER TO THE OPERATION AND
PROGRAMMING MANUAL.
+5 to +24 VDC
NOT USED
NOT USED
TX-
TX+
VIDEO IN
CONTROLLER
TX-
TX+
RX-
RX+
SWITCHES
(WIRING EXAMPLE)
1
2
3
4
5
6
7
ALARM
INPUTS
GROUND
+5 VDC
AUX 2 HEATER/FAN (NOT USED)
VIDEO OUT
GROUND AUX 2
(NO)
(NC)
RELAY
(AUX 1)
CONTROL
(RS-422)
LOGIC GATE
(WIRING EXAMPLE)
EXTERNAL RELAY
(WIRING EXAMPLE)
24 VAC
TRANFORMER
COAXITRON
CONTROLLER
2 WIRE
CONTROLLER
POWER
(24 VAC ONLY)
SPECTRA II ONLY
00542

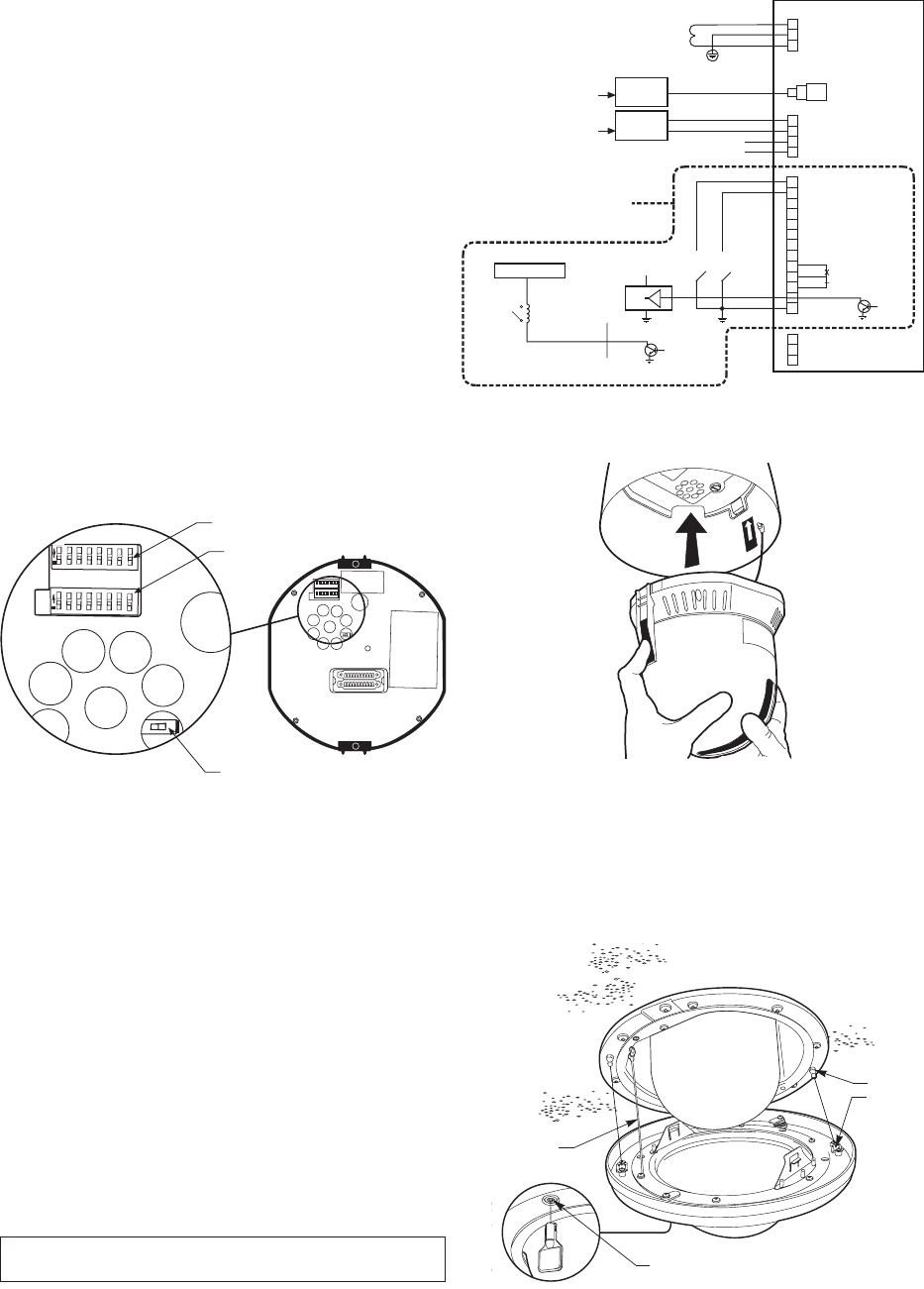

STEP 4 - WIRE CIRCUIT BOARD
Attach the wiring to the circuit board inside the back box. When
finished, close the door to the back box and turn on the power.
The red LED will light.
IMPORTANT: If the LED does not light, refer to the
Trouble-
shooting section
.
NOTE: Aux 1 - Maximum 2A at low voltage (<40V)
Aux 2 - Maximum 150 vA at 32 VDC
STEP 5 - INSTALL DOME DRIVE
a. Set the DIP switches for SW1 and SW2 on the bottom of the
dome drive for the appropriate receiver address. Refer to the
labels on the dome drive or Tables C through E in the
Appendix
in the back of this manual.
b. Line up the green and red tabs with the green and red labels.
Push in on the tabs. Insert the side with the green tab, then the
side with red tab. Continue pushing on the ends of the tabs
until both sides click into place.
STEP 6 - INSTALL LOWER DOME
a. Attach the lower dome trim leash to one of the 8-32 x .275-
inch screws that secure the back box to the mounting ring.
b. Insert both keys in the barrel locks. Turn keys clockwise to the
unlocked position. Keys can not be removed from lock in the
unlocked position.
c. Align pegs (located on the mount ring) with the peg recep-
tacles (located on the inside of the lower dome).
d. Place lower dome over back box. Hold and turn both keys to
the locked position.
6Pelco Manual C2434M (7/01)
INSTALLATION OF PENDANT MODELS

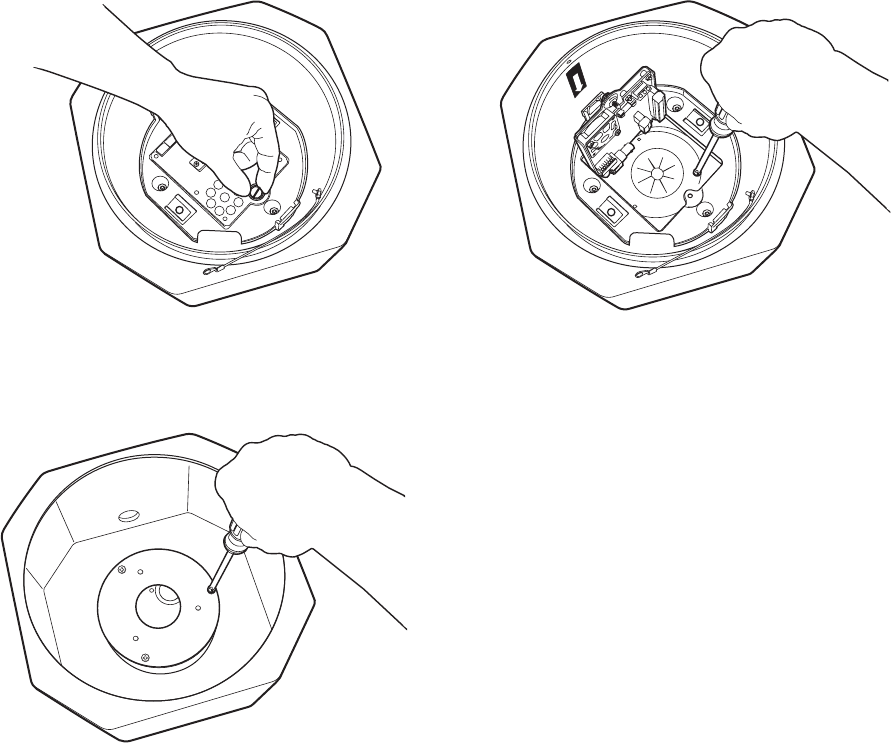

STEP 1 - DISASSEMBLE BACK BOX
a. Turn the thumbscrew and open the hinged door located
inside the back box.
01082
01081
01080
b. Unscrew the three Phillips screws located underneath the
hinged door. Remove the inside portion of the back box.
c. Remove the inside mounting plate by loosening the three
Phillips screws.
STEP 2 - PREPARE INSTALLATION AREA
NOTE:
If installing outdoors make sure the installation is properly sealed to keep moisture out.
Prepare cable and wiring for the system. Refer to Tables A and B in the
Appendix
for wiring distances.
There are three different methods of installation:
1. Direct Mounting to a Wall – Use the mounting side of the octagonal back box as a template and mark the three fastener holes
and conduit hole onto the mounting surface. Set the back box to the side and prepare the holes for the installation.
2. Corner Mounting – Refer to the instructions supplied with the CLCCM corner mount.
3. Pole Mounting – Refer to the instructions supplied with the CLCPA pole adapter.
Pelco Manual C2434M (7/01) 7
STEP 3 - INSTALL THE BACK BOX
01079
01078
a. Secure the conduit fitting to the hole located on the inside
base of the octagonal back box.
b. Pull the cable and wiring for the system through the
octagonal back box and conduit fitting. Mount the back
box to the mounting surface, corner, or pole mount.
c. Thread the cable/wiring through the back box mounting
plate. Attach the plate to the mounting base using the
screws previously removed. Pull cable/wiring into the
inside back box (the back box hinged door should be
opened). Attach the inside back box to the mounting plate.
Use the three Phillips head screws previously removed.
STEP 4 - WIRE CIRCUIT BOARD
Attach the wiring to the interconnect circuit board inside
the back box. Close the door to the back box. Turn on
power to the back box. The red LED will light.
IMPORTANT: If the LED does not light, refer to the
Troubleshooting
section.
NOTE: Aux 1 - Maximum 2A at low voltage (<40V)
Aux 2 - Maximum 150 vA at 32 VDC
+5 to +24 VDC
NOT USED
NOT USED
TX-
TX+
VIDEO IN
CONTROLLER
TX-
TX+
RX-
RX+
SWITCHES
(WIRING EXAMPLE)
1
2
3
4
5
6
7
ALARM
INPUTS
GROUND
+5 VDC
AUX 2 HEATER/FAN (NOT USED)
VIDEO OUT
GROUND AUX 2
(NO)
(NC)
RELAY
(AUX 1)
CONTROL
(RS-422)
LOGIC GATE
(WIRING EXAMPLE)
EXTERNAL RELAY
(WIRING EXAMPLE)
24 VAC
TRANFORMER
COAXITRON
CONTROLLER
2 WIRE
CONTROLLER
POWER
(24 VAC ONLY)
SPECTRA II ONLY
00542
8Pelco Manual C2434M (7/01)
STEP 5 - INSTALL DOME DRIVE
LABEL
SW1
LABEL
SW2
SW1
SW2
RS-422 TERMINATION SWITCH
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW2
00538
a. Set the DIP switches for SW1 and SW2 on the bottom of
the dome drive for the appropriate receiver address. Refer
to the labels on the dome drive or Tables C through E in
the
Appendix
in the back of this manual.
b. Daisy Chain Operation Only – When connecting more
than one Spectra dome system to a single controller,
terminate the last unit in the chain (farthest from the
controller). To terminate the dome drive set the RS-422
termination switch to the left.
c. Line up the green and red tabs with the green and red
labels. Push in on the tabs. Insert the side with the green
tab, and then the side with red tab. Continue pushing on
the ends of the tabs until both sides click into place.
01083
STEP 6 - INSTALL LOWER DOME
00543
TRIM
LEASH O-RING
BARREL
LOCK
01084
a. Lightly apply O-ring lubricant to the O-ring. Install the
O-ring in the groove on the trim ring of the lower dome.
Attach the back box trim leash to a retainer screw inside
the lower dome.
Environmental Model only – Plug the two-pin heater connection
in the lower dome into the mating connector in the back box.
b. Align barrel locks in lower dome with the holes located on
each side of the back box. Push lower dome onto back
box. Press the pins of the barrel locks IN to secure the
lower dome.
TO USE YOUR DOME, REFER TO THE OPERATION AND
PROGRAMMING MANUAL.
Pelco Manual C2434M (7/01) 9

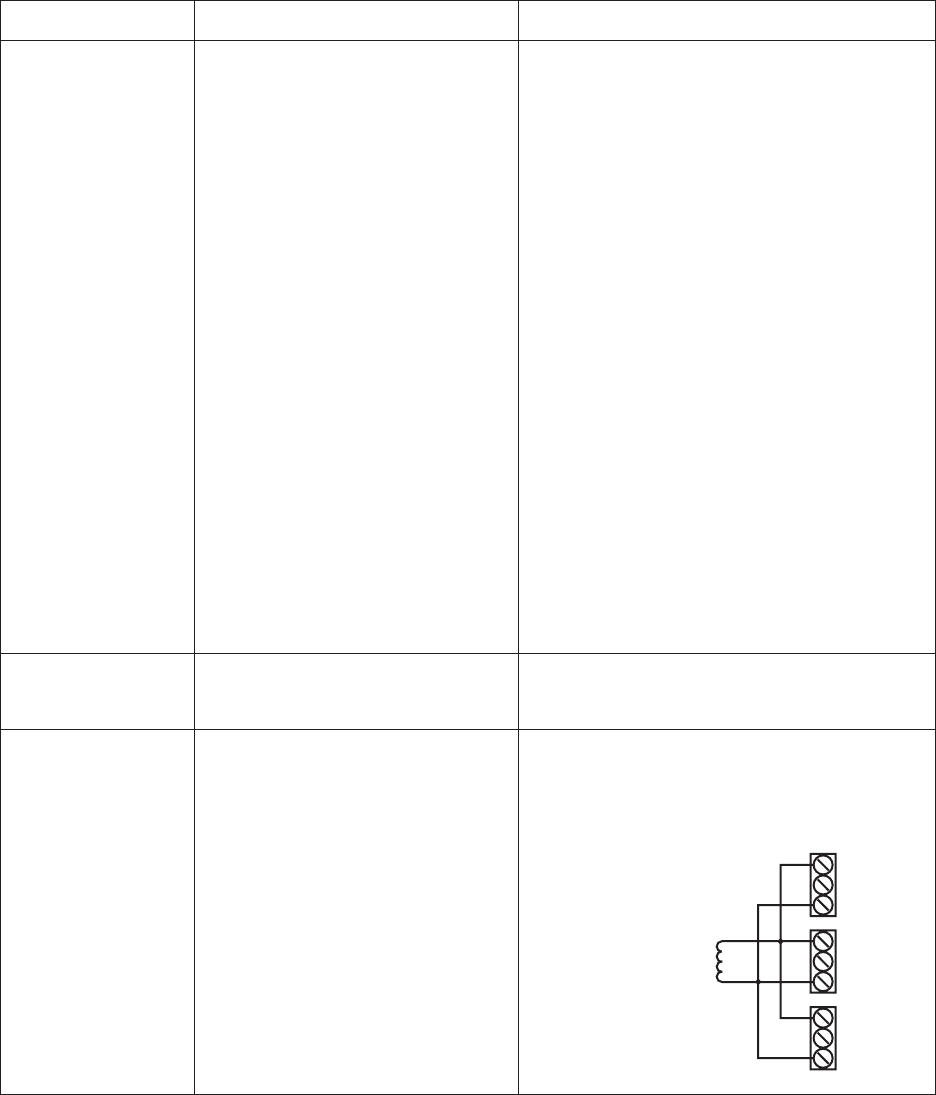

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Unit does not operate.
The controller is not
communicating with
the Spectra unit.
Fan does not
operate.
Ver tical roll on monitor
when switching
between cameras.
DOME 1
POWER
DOME 2
POWER
DOME 3
POWER
Check to see if the red LED on the circuit
board in the back box is lit.
1. The red LED is not lit.
a. Fuse is bad.
b. 24 VAC power source is not con-
nected or back box is bad.
2. The red LED is lit.
a. Wiring is incorrect or is not fully
seated.
b. DIP switch settings are incorrect.
Fan connections are not fully seated.
Cameras are out of phase.
a. Check fuse on the circuit board. Replace fuse if it is
bad. To order a fuse from Pelco, specify the part
number FUS1.6-5X20FAST. This is a 1.6-ampere
fuse, 5 x 20 mm, fast blow.
b. Use a voltmeter to check if 24 VAC is getting to the
power connector on the circuit board. If NO, check
your power supply. If YES, return the back box to
the factory for repair.
a. Check all connections to the circuit board.
Make sure that all connections are fully seated and
the board is wired correctly.
b. Check the DIP switch settings on the dome drive
(refer to Tables C, D, and E). If the unit still does
not operate, turn off power and replace the dome
drive with a good unit, if you have a spare. Check
the switch settings on the substitute dome drive
before installing it. (If you do not have a spare,
return the dome drive and back box to the factory.)
If you substituted a dome drive and the unit
operates, the original dome drive is bad (return
the dome drive to the factory). If the unit still
does not operate, then the circuit board is bad
(return the back box to the factory).
Make sure the connector for the fan is fully seated. If
the fan still does not operate, return the back box and
dome drive to the factory for repair.
If you are wiring more than one dome to the same
transformer, it is important to wire the power connec-
tor in each dome the same way. That is, the wiring
from one side of the transformer must be connected
to the same connector on each dome.
WARNING: Make
sure you wire power
to the outer connec-
tors of the terminal
block and ground to
the middle connec-
tor. Otherwise, you
could damage the
10 Pelco Manual C2434M (7/01)
APPENDIX
Table A. Video Coaxial Cable Requirements
Cable Type* Maximum Distance
RG59/U 750 ft (229 m)
RG6/U 1,000 ft (305 m)
RG11/U 1,500 ft (457 m)
* Minimum cable requirements:
75 ohms impedance. All-copper center conductor.
95% braided copper shield.
Table B. 24 VAC Wiring Distances
The following are the recommended maximum distances for 24 VAC with a 10-
percent voltage drop. (Ten percent is generally the maximum allowable voltage
drop for AC-powered devices.)
Wire Gauge
20 18 16 14 12 10
30 vA 94 ft 150 ft 238 ft 380 ft 603 ft 960 ft
(28 m) (45 m (115 m) (72 m) (183 m) (292 m)
75 vA 37 ft 60 ft 95 ft 152 ft 241 ft 384 ft
(11 m) (18 m) (29 m) (46 m) (73 m) (117 m)
NOTE:
Input power for the dome is 24 VAC only. Power consumption is 30 vA
per dome for indoor models and 75 vA for outdoor models.
Use a 24 VAC transformer with the following minimum vA:
40 vA per dome For indoor models (without heater)
100 vA per dome For outdoor models (with heater)
Table C. Switch Settings for SW1
Control Type Switch Setting
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
Coaxitron®OFF OFF OFF OFF OFF OFF OFF OFF**
P-Type Control ON OFF OFF OFF OFF OFF OFF OFF**
D-Type Control OFF ON OFF OFF OFF OFF OFF* OFF**
NOTES:
Switches SW 1-3 through SW 1-6 MUST be OFF.
D-type control is RS-422 that is compatible with Pelco’s CM6700, MPT9500, CM8500, and Genex
®
controllers or with
American Dynamics control systems using the AD2083 Translator.
P-type control is RS-422 that is compatible with Pelco’s CM6700/CM9750/CM9760 and Genex
control systems.
*OFF- Use with controllers that have more than 32 presets.
ON- Use with American Dynamics controllers (32 presets).
** OFF - Use with all control systems except CM9502 with
variable
speed keyboards.
For CM9502 with
fixed
speed keyboards, set switch OFF.
ON - Use with CM9502 with
variable
speed keyboards for smoother joystick control.
Pelco Manual C2434M (7/01) 11
Table D. Switch Settings for SW2 – P-Type Control
NOTE:
For Coaxitron controls, SW2 is not used; set all switches OFF. For D-type control systems, refer to Table E.
Baud Rate Switch Setting
SW2-6 SW2-7 SW2-8
2400 OFF OFF OFF
4800 ON OFF OFF
9600 OFF ON OFF
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5
1OFF OFF OFF OFF OFF
2ONOFF OFF OFF OFF
3OFF ON OFF OFF OFF
4ONONOFF OFF OFF
5OFF OFF ON OFF OFF
6ONOFF ON OFF OFF
7OFF ON ON OFF OFF
8ONONON OFF OFF
9OFF OFF OFF ON OFF
10 ON OFF OFF ON OFF
11 OFF ON OFF ON OFF
12 ON ON OFF ON OFF
13 OFF OFF ON ON OFF
14 ON OFF ON ON OFF
15 OFF ON ON ON OFF
16 ON ON ON ON OFF
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5
17 OFF OFF OFF OFF ON
18 ON OFF OFF OFF ON
19 OFF ON OFF OFF ON
20 ON ON OFF OFF ON
21 OFF OFF ON OFF ON
22 ON OFF ON OFF ON
23 OFF ON ON OFF ON
24 ON ON ON OFF ON
25 OFF OFF OFF ON ON
26 ON OFF OFF ON ON
27 OFF ON OFF ON ON
28 ON ON OFF ON ON
29 OFF OFF ON ON ON
30 ON OFF ON ON ON
31 OFF ON ON ON ON
32 ON ON ON ON ON
Table E. Switch Settings for SW2 – D-Type Control
NOTE:
For Coaxitron controls, SW2 is not used; set all switches OFF. For P-type control systems, refer to Table D.
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
1ONOFF OFF OFF OFF OFF OFF OFF
2OFF ON OFF OFF OFF OFF OFF OFF
3ONONOFF OFF OFF OFF OFF OFF
4OFF OFF ON OFF OFF OFF OFF OFF
5ONOFF ON OFF OFF OFF OFF OFF
6OFF ON ON OFF OFF OFF OFF OFF
7ONONONOFF OFF OFF OFF OFF
8OFF OFF OFF ON OFF OFF OFF OFF
9ONOFF OFF ON OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF
19 ON ON OFF OFF ON OFF OFF OFF
20 OFF OFF ON OFF ON OFF OFF OFF
21 ON OFF ON OFF ON OFF OFF OFF
22 OFF ON ON OFF ON OFF OFF OFF
23 ON ON ON OFF ON OFF OFF OFF
24 OFF OFF OFF ON ON OFF OFF OFF
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
25 ON OFF OFF ON ON OFF OFF OFF
26 OFF ON OFF ON ON OFF OFF OFF
27 ON ON OFF ON ON OFF OFF OFF
28 OFF OFF ON ON ON OFF OFF OFF
29 ON OFF ON ON ON OFF OFF OFF
30 OFF ON ON ON ON OFF OFF OFF
31 ON ON ON ON ON OFF OFF OFF
32 OFF OFF OFF OFF OFF ON OFF OFF
33 ON OFF OFF OFF OFF ON OFF OFF
34 OFF ON OFF OFF OFF ON OFF OFF
35 ON ON OFF OFF OFF ON OFF OFF
36 OFF OFF ON OFF OFF ON OFF OFF
37 ON OFF ON OFF OFF ON OFF OFF
38 OFF ON ON OFF OFF ON OFF OFF
39 ON ON ON OFF OFF ON OFF OFF
40 OFF OFF OFF ON OFF ON OFF OFF
41 ON OFF OFF ON OFF ON OFF OFF
42 OFF ON OFF ON OFF ON OFF OFF
43 ON ON OFF ON OFF ON OFF OFF
44 OFF OFF ON ON OFF ON OFF OFF
45 ON OFF ON ON OFF ON OFF OFF
46 OFF ON ON ON OFF ON OFF OFF
47 ON ON ON ON OFF ON OFF OFF
48 OFF OFF OFF OFF ON ON OFF OFF
(Continued on next page)
12 Pelco Manual C2434M (7/01)
Table E. Switch Settings for SW2 – D-Type Control (continued)
(Continued on next page)
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
49 ON OFF OFF OFF ON ON OFF OFF
50 OFF ON OFF OFF ON ON OFF OFF
51 ON ON OFF OFF ON ON OFF OFF
52 OFF OFF ON OFF ON ON OFF OFF
53 ON OFF ON OFF ON ON OFF OFF
54 OFF ON ON OFF ON ON OFF OFF
55 ON ON ON OFF ON ON OFF OFF
56 OFF OFF OFF ON ON ON OFF OFF
57 ON OFF OFF ON ON ON OFF OFF
58 OFF ON OFF ON ON ON OFF OFF
59 ON ON OFF ON ON ON OFF OFF
60 OFF OFF ON ON ON ON OFF OFF
61 ON OFF ON ON ON ON OFF OFF
62 OFF ON ON ON ON ON OFF OFF
63 ON ON ON ON ON ON OFF OFF
64 OFF OFF OFF OFF OFF OFF ON OFF
65 ON OFF OFF OFF OFF OFF ON OFF
66 OFF ON OFF OFF OFF OFF ON OFF
67 ON ON OFF OFF OFF OFF ON OFF
68 OFF OFF ON OFF OFF OFF ON OFF
69 ON OFF ON OFF OFF OFF ON OFF
70 OFF ON ON OFF OFF OFF ON OFF
71 ON ON ON OFF OFF OFF ON OFF
72 OFF OFF OFF ON OFF OFF ON OFF
73 ON OFF OFF ON OFF OFF ON OFF
74 OFF ON OFF ON OFF OFF ON OFF
75 ON ON OFF ON OFF OFF ON OFF
76 OFF OFF ON ON OFF OFF ON OFF
77 ON OFF ON ON OFF OFF ON OFF
78 OFF ON ON ON OFF OFF ON OFF
79 ON ON ON ON OFF OFF ON OFF
80 OFF OFF OFF OFF ON OFF ON OFF
81 ON OFF OFF OFF ON OFF ON OFF
82 OFF ON OFF OFF ON OFF ON OFF
83 ON ON OFF OFF ON OFF ON OFF
84 OFF OFF ON OFF ON OFF ON OFF
85 ON OFF ON OFF ON OFF ON OFF
86 OFF ON ON OFF ON OFF ON OFF
87 ON ON ON OFF ON OFF ON OFF
88 OFF OFF OFF ON ON OFF ON OFF
89 ON OFF OFF ON ON OFF ON OFF
90 OFF ON OFF ON ON OFF ON OFF
91 ON ON OFF ON ON OFF ON OFF
92 OFF OFF ON ON ON OFF ON OFF
93 ON OFF ON ON ON OFF ON OFF
94 OFF ON ON ON ON OFF ON OFF
95 ON ON ON ON ON OFF ON OFF
96 OFF OFF OFF OFF OFF ON ON OFF
97 ON OFF OFF OFF OFF ON ON OFF
98 OFF ON OFF OFF OFF ON ON OFF
99 ON ON OFF OFF OFF ON ON OFF
100 OFF OFF ON OFF OFF ON ON OFF
101 ON OFF ON OFF OFF ON ON OFF
102 OFF ON ON OFF OFF ON ON OFF
103 ON ON ON OFF OFF ON ON OFF
104 OFF OFF OFF ON OFF ON ON OFF
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
105 ON OFF OFF ON OFF ON ON OFF
106 OFF ON OFF ON OFF ON ON OFF
107 ON ON OFF ON OFF ON ON OFF
108 OFF OFF ON ON OFF ON ON OFF
109 ON OFF ON ON OFF ON ON OFF
110 OFF ON ON ON OFF ON ON OFF
111 ON ON ON ON OFF ON ON OFF
112 OFF OFF OFF OFF ON ON ON OFF
113 ON OFF OFF OFF ON ON ON OFF
114 OFF ON OFF OFF ON ON ON OFF
115 ON ON OFF OFF ON ON ON OFF
116 OFF OFF ON OFF ON ON ON OFF
117 ON OFF ON OFF ON ON ON OFF
118 OFF ON ON OFF ON ON ON OFF
119 ON ON ON OFF ON ON ON OFF
120 OFF OFF OFF ON ON ON ON OFF
121 ON OFF OFF ON ON ON ON OFF
122 OFF ON OFF ON ON ON ON OFF
123 ON ON OFF ON ON ON ON OFF
124 OFF OFF ON ON ON ON ON OFF
125 ON OFF ON ON ON ON ON OFF
126 OFF ON ON ON ON ON ON OFF
127 ON ON ON ON ON ON ON OFF
128 OFF OFF OFF OFF OFF OFF OFF ON
129 ON OFF OFF OFF OFF OFF OFF ON
130 OFF ON OFF OFF OFF OFF OFF ON
131 ON ON OFF OFF OFF OFF OFF ON
132 OFF OFF ON OFF OFF OFF OFF ON
133 ON OFF ON OFF OFF OFF OFF ON
134 OFF ON ON OFF OFF OFF OFF ON
135 ON ON ON OFF OFF OFF OFF ON
136 OFF OFF OFF ON OFF OFF OFF ON
137 ON OFF OFF ON OFF OFF OFF ON
138 OFF ON OFF ON OFF OFF OFF ON
139 ON ON OFF ON OFF OFF OFF ON
140 OFF OFF ON ON OFF OFF OFF ON
141 ON OFF ON ON OFF OFF OFF ON
142 OFF ON ON ON OFF OFF OFF ON
143 ON ON ON ON OFF OFF OFF ON
144 OFF OFF OFF OFF ON OFF OFF ON
145 ON OFF OFF OFF ON OFF OFF ON
146 OFF ON OFF OFF ON OFF OFF ON
147 ON ON OFF OFF ON OFF OFF ON
148 OFF OFF ON OFF ON OFF OFF ON
149 ON OFF ON OFF ON OFF OFF ON
150 OFF ON ON OFF ON OFF OFF ON
151 ON ON ON OFF ON OFF OFF ON
152 OFF OFF OFF ON ON OFF OFF ON
153 ON OFF OFF ON ON OFF OFF ON
154 OFF ON OFF ON ON OFF OFF ON
155 ON ON OFF ON ON OFF OFF ON
156 OFF OFF ON ON ON OFF OFF ON
157 ON OFF ON ON ON OFF OFF ON
158 OFF ON ON ON ON OFF OFF ON
159 ON ON ON ON ON OFF OFF ON
160 OFF OFF OFF OFF OFF ON OFF ON
Pelco Manual C2434M (7/01) 13
Table E. Switch Settings for SW2 – D-Type Control (continued)
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
161 ON OFF OFF OFF OFF ON OFF ON
162 OFF ON OFF OFF OFF ON OFF ON
163 ON ON OFF OFF OFF ON OFF ON
164 OFF OFF ON OFF OFF ON OFF ON
165 ON OFF ON OFF OFF ON OFF ON
166 OFF ON ON OFF OFF ON OFF ON
167 ON ON ON OFF OFF ON OFF ON
168 OFF OFF OFF ON OFF ON OFF ON
169 ON OFF OFF ON OFF ON OFF ON
170 OFF ON OFF ON OFF ON OFF ON
171 ON ON OFF ON OFF ON OFF ON
172 OFF OFF ON ON OFF ON OFF ON
173 ON OFF ON ON OFF ON OFF ON
174 OFF ON ON ON OFF ON OFF ON
175 ON ON ON ON OFF ON OFF ON
176 OFF OFF OFF OFF ON ON OFF ON
177 ON OFF OFF OFF ON ON OFF ON
178 OFF ON OFF OFF ON ON OFF ON
179 ON ON OFF OFF ON ON OFF ON
180 OFF OFF ON OFF ON ON OFF ON
181 ON OFF ON OFF ON ON OFF ON
182 OFF ON ON OFF ON ON OFF ON
183 ON ON ON OFF ON ON OFF ON
184 OFF OFF OFF ON ON ON OFF ON
185 ON OFF OFF ON ON ON OFF ON
186 OFF ON OFF ON ON ON OFF ON
187 ON ON OFF ON ON ON OFF ON
188 OFF OFF ON ON ON ON OFF ON
189 ON OFF ON ON ON ON OFF ON
190 OFF ON ON ON ON ON OFF ON
191 ON ON ON ON ON ON OFF ON
192 OFF OFF OFF OFF OFF OFF ON ON
193 ON OFF OFF OFF OFF OFF ON ON
194 OFF ON OFF OFF OFF OFF ON ON
195 ON ON OFF OFF OFF OFF ON ON
196 OFF OFF ON OFF OFF OFF ON ON
197 ON OFF ON OFF OFF OFF ON ON
198 OFF ON ON OFF OFF OFF ON ON
199 ON ON ON OFF OFF OFF ON ON
200 OFF OFF OFF ON OFF OFF ON ON
201 ON OFF OFF ON OFF OFF ON ON
202 OFF ON OFF ON OFF OFF ON ON
203 ON ON OFF ON OFF OFF ON ON
204 OFF OFF ON ON OFF OFF ON ON
205 ON OFF ON ON OFF OFF ON ON
206 OFF ON ON ON OFF OFF ON ON
207 ON ON ON ON OFF OFF ON ON
208 OFF OFF OFF OFF ON OFF ON ON
Receiver Switch Setting
Address SW2-1 SW2-2 SW2-3 SW2-4 SW2-5 SW2-6 SW2-7 SW2-8
209 ON OFF OFF OFF ON OFF ON ON
210 OFF ON OFF OFF ON OFF ON ON
211 ON ON OFF OFF ON OFF ON ON
212 OFF OFF ON OFF ON OFF ON ON
213 ON OFF ON OFF ON OFF ON ON
214 OFF ON ON OFF ON OFF ON ON
215 ON ON ON OFF ON OFF ON ON
216 OFF OFF OFF ON ON OFF ON ON
217 ON OFF OFF ON ON OFF ON ON
218 OFF ON OFF ON ON OFF ON ON
219 ON ON OFF ON ON OFF ON ON
220 OFF OFF ON ON ON OFF ON ON
221 ON OFF ON ON ON OFF ON ON
222 OFF ON ON ON ON OFF ON ON
223 ON ON ON ON ON OFF ON ON
224 OFF OFF OFF OFF OFF ON ON ON
225 ON OFF OFF OFF OFF ON ON ON
226 OFF ON OFF OFF OFF ON ON ON
227 ON ON OFF OFF OFF ON ON ON
228 OFF OFF ON OFF OFF ON ON ON
229 ON OFF ON OFF OFF ON ON ON
230 OFF ON ON OFF OFF ON ON ON
231 ON ON ON OFF OFF ON ON ON
232 OFF OFF OFF ON OFF ON ON ON
233 ON OFF OFF ON OFF ON ON ON
234 OFF ON OFF ON OFF ON ON ON
235 ON ON OFF ON OFF ON ON ON
236 OFF OFF ON ON OFF ON ON ON
237 ON OFF ON ON OFF ON ON ON
238 OFF ON ON ON OFF ON ON ON
239 ON ON ON ON OFF ON ON ON
240 OFF OFF OFF OFF ON ON ON ON
241 ON OFF OFF OFF ON ON ON ON
242 OFF ON OFF OFF ON ON ON ON
243 ON ON OFF OFF ON ON ON ON
244 OFF OFF ON OFF ON ON ON ON
245 ON OFF ON OFF ON ON ON ON
246 OFF ON ON OFF ON ON ON ON
247 ON ON ON OFF ON ON ON ON
248 OFF OFF OFF ON ON ON ON ON
249 ON OFF OFF ON ON ON ON ON
250 OFF ON OFF ON ON ON ON ON
251 ON ON OFF ON ON ON ON ON
252 OFF OFF ON ON ON ON ON ON
253 ON OFF ON ON ON ON ON ON
254 OFF ON ON ON ON ON ON ON
14 Pelco Manual C2434M (7/01)
SPECIFICATIONS
MECHANICAL
Construction
Back box: Aluminum
Dome drive: Aluminum, ABS plastic
Lower dome: Acrylic
Cable Entry
In-Ceiling: .75-inch (1.91 cm) conduit fitting
Pendant: Through 1.5-inch (3.81 cm) NPT pendant mount
Pan Movement: 360° continuous pan rotation
Vertical Tilt: Unobstructed +2° to -92°
Manual Pan/Tilt Speeds*
Pan: 0.1-80° /sec manual operation, 150° /sec turbo
Tilt: 0.1-40° /sec
Preset Speeds
Pan: 250° /sec
Tilt: 200° /sec
*For variable-speed operation an appropriate controller is required. With fixed-speed
controllers, pan/tilt speed is 24°/sec. The CM6700 controller with the KBD200 keyboard
has programmable fixed speeds.
ELECTRICAL
Input Voltage: 18-30 VAC, 24 VAC nominal
Input Power: 30 vA nominal (indoor, w/o heater)
75 vA nominal (outdoor, with heater)
Fuse: 1.6 A
Relay Contacts AUX 1 AUX 2 Output
Type: Form C Open collector transistor output
Voltage: Low voltage (<40 V) 32 VDC maximum
Current: 2 A maximum 150 mA maximum
CAMERA
Signal Format: NTSC (model DD5BCBW)
Scanning System: 2:1 interlace
Image Sensor: 1/4-inch interline transfer CCD
Effective Pixels: 768 (H) x 494 (V)
Horizontal Resolution: >470 TV lines
Lens Minimum f-stop: F1.4
Focal Length: 4.1 mm to 73.8 mm optical
Zoom Ratio: 18X optical zoom, 4X electronic zoom
Digital Slow Shutter: Auto/manual speed selection
Horizontal Angle of View: 48° (at 4.1 mm wide zoom), 2.7° (at 73.8 mm telephoto zoom)
MTBF: >500,000 cycles at room temperature (zoom, focus, irs)
Focus: Automatic and manual override
Sensitivity: . 2 lux at 1/4-second shutter speed (color)
.2 lux at 1/60-second shutter speed (black & white)
Sync System: AC line lock, phase adjustable via remote control*
White Balance: Automatic with manual override*
Shutter: Speed Automatic (electronic iris)/manual
1/4 to 1/10,000*
Iris Control: Automatic with manual override*
Gain Control: Automatic with manual override*
Video Output: 714V ± .07V (100 IRE ± 10 IRE)
Signal to Noise Ratio: >46 dB
*Manual control of camera setup functions can be done with CM6700, CM6800, CM8500,
CM9500, CM9740, CM9760 and MPT9500 controllers, but not with CM7500, MPT9000
or KBD9000 controllers.
Pelco Manual C2434M (7/01) 15
GENERAL
Environment
In-Ceiling: Indoor only
Pendant: Indoor/outdoor
Operating Range
In-Ceiling: 32 to 122°F (0 to 50°C)
Pendant: (Assumes no wind chill factor; for detailed test conditions,
contact Pelco)
Maximum: 140°F (60°C) absolute maximum
122°F (50°C) sustained maximum
Minimum -15°F (-9.4°C) absolute minimum
Dimensions: See Figure 1
Weight Unit
Back Box and Lower Dome
In-ceiling: 3 lb (1.36kg)
Pendant: 7 lb (3.17 kg)
Dome Drive: 2.65 lb (1.20 kg)
(Design and product specifications subject to change without notice.)
6.8
(17.27)
10.25
(26.03)
10.37
(33.95)
fl6.13
(fl15.57)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES

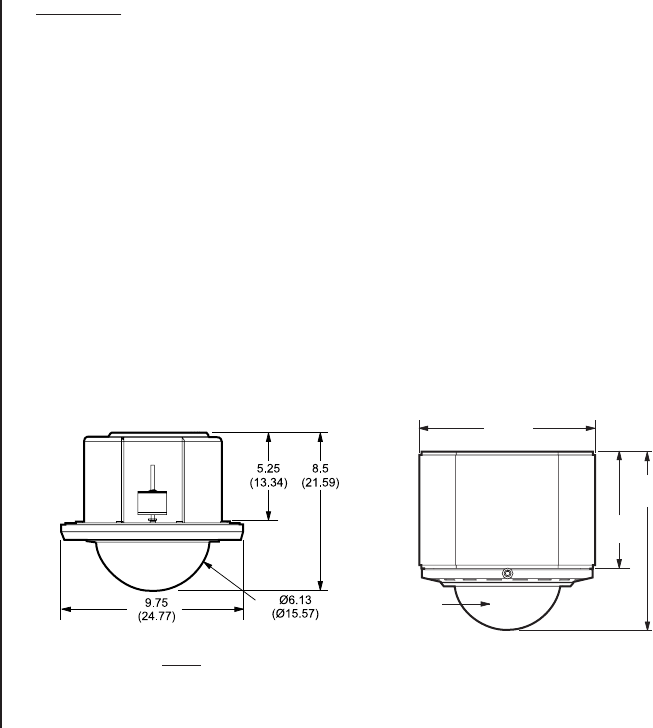

Figure 1. Dimension Diagram
16 Pelco Manual C2434M (7/01)
REVISION HISTORY
Manual # Date Comments
C2434M 7/01 Original version.
Pelco, the Pelco logo, Camclosure, Esprit, Genex, Legacy, and Spectra are registered trademarks of Pelco. © Copyright 2001, Pelco.
Endura and ExSite are trademarks of Pelco. All rights reserved.
PRODUCT WARRANTY AND RETURN INFORMATION
WARRANTY
Pelco will repair or replace, without charge, any merchandise proved defective in material or
workmanship for a period of one year after the date of shipment.
Exceptions to this warranty are as noted below:
• Five years on FT/FR8000 Series fiber optic products.
• Three years on Genex
®
Series products (multiplexers, server, and keyboard).
•Three years on Camclosure
®
and fixed camera models, except the CC3701H-2,
CC3701H-2X, CC3751H-2, CC3651H-2X, MC3651H-2, and MC3651H-2X camera models,
which have a five-year warranty.
•Two years on standard motorized or fixed focal length lenses.
•Two years on Legacy
®
, CM6700/CM6800/CM9700 Series matrix, and DF5/DF8 Series
fixed dome products.
•Two years on Spectra
®
, Esprit
®
, ExSite
™
, and PS20 scanners, including when used in
continuous motion applications.
•Two years on Esprit
®
and WW5700 Series window wiper (excluding wiper blades).
•Eighteen months on DX Series digital video recorders, NVR300 Series network video
recorders, and Endura
™
Series distributed network-based video products.
•One year (except video heads) on video cassette recorders (VCRs). Video heads will be
covered for a period of six months.
•Six months on all pan and tilts, scanners or preset lenses used in continuous motion
applications (that is, preset scan, tour and auto scan modes).
Pelco will warrant all replacement parts and repairs for 90 days from the date of Pelco
shipment. All goods requiring warranty repair shall be sent freight prepaid to Pelco, Clovis,
California. Repairs made necessary by reason of misuse, alteration, normal wear, or accident
are not covered under this warranty.
Pelco assumes no risk and shall be subject to no liability for damages or loss resulting from
the specific use or application made of the Products. Pelco’s liability for any claim, whether
based on breach of contract, negligence, infringement of any rights of any party or product
liability, relating to the Products shall not exceed the price paid by the Dealer to Pelco for
such Products. In no event will Pelco be liable for any special, incidental or consequential
damages (including loss of use, loss of profit and claims of third parties) however caused,
whether by the negligence of Pelco or otherwise.
The above warranty provides the Dealer with specific legal rights. The Dealer may also have
additional rights, which are subject to variation from state to state.
If a warranty repair is required, the Dealer must contact Pelco at (800) 289-9100 or
(559) 292-1981 to obtain a Repair Authorization number (RA), and provide the following
information:
1. Model and serial number
2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice number
3. Details of the defect or problem
If there is a dispute regarding the warranty of a product which does not fall under the
warranty conditions stated above, please include a written explanation with the product
when returned.
Method of return shipment shall be the same or equal to the method by which the item was
received by Pelco.
RETURNS
In order to expedite parts returned to the factory for repair or credit, please call the factory at
(800) 289-9100 or (559) 292-1981 to obtain an authorization number (CA number if returned
for credit, and RA number if returned for repair).
All merchandise returned for credit may be subject to a 20% restocking and refurbishing
charge.
Goods returned for repair or credit should be clearly identified with the assigned CA or RA
number and freight should be prepaid. Ship to the appropriate address below.
If you are located within the continental U.S., Alaska, Hawaii or Puerto Rico, send goods to:
Service Department
Pelco
3500 Pelco Way
Clovis, CA 93612-5699
If you are located outside the continental U.S., Alaska, Hawaii or Puerto Rico and are
instructed to return goods to the USA, you may do one of the following:
If the goods are to be sent by a COURIER SERVICE, send the goods to:
Pelco
3500 Pelco Way
Clovis, CA 93612-5699 USA
If the goods are to be sent by a FREIGHT FORWARDER, send the goods to:
Pelco c/o Expeditors
473 Eccles Avenue
South San Francisco, CA 94080 USA
Phone: 650-737-1700
Fax: 650-737-0933

Navigation menu
