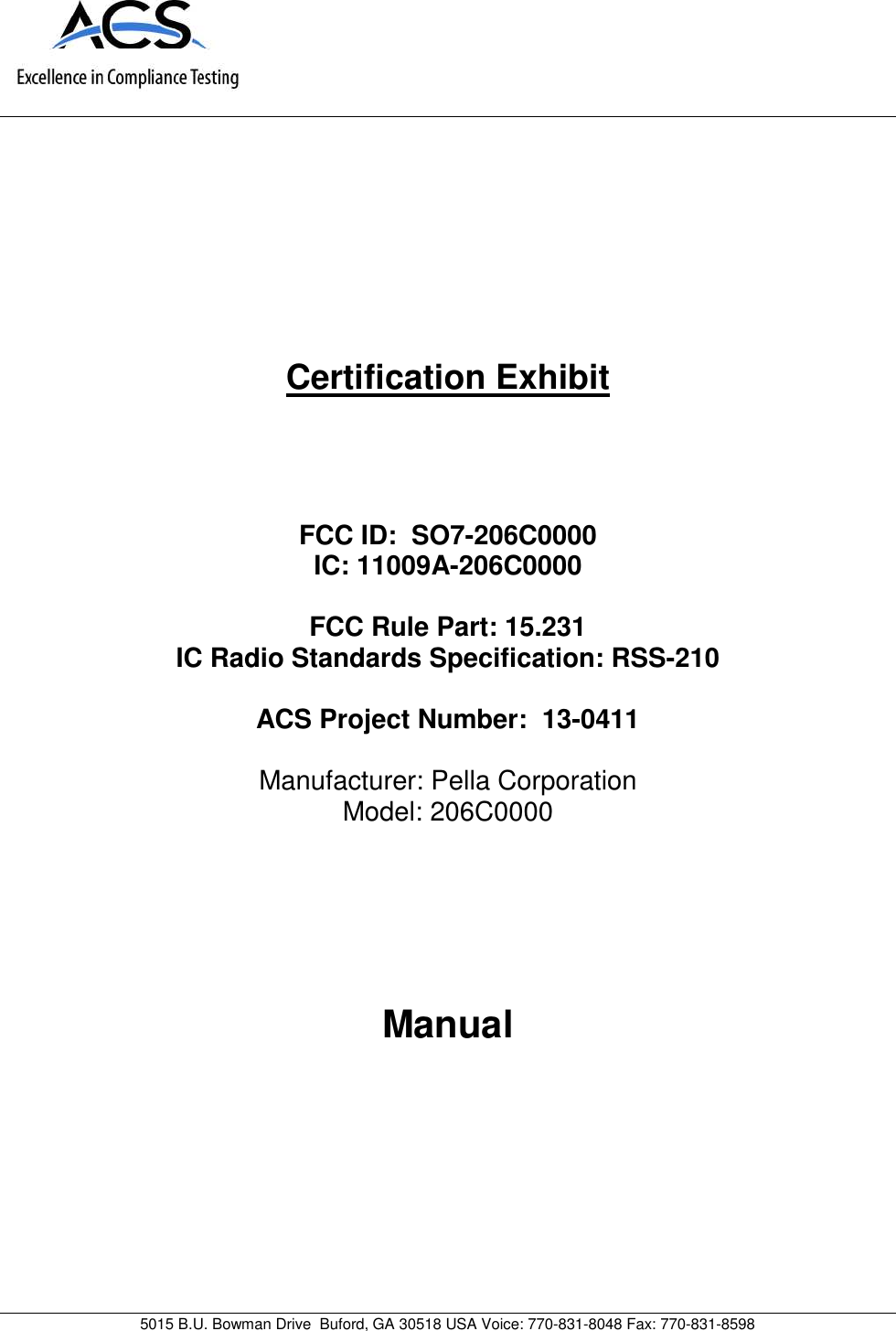

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598Certification ExhibitFCC ID: SO7-206C0000IC: 11009A-206C0000FCC Rule Part: 15.231IC Radio Standards Specification: RSS-210ACS Project Number: 13-0411Manufacturer: Pella CorporationModel: 206C0000Manual

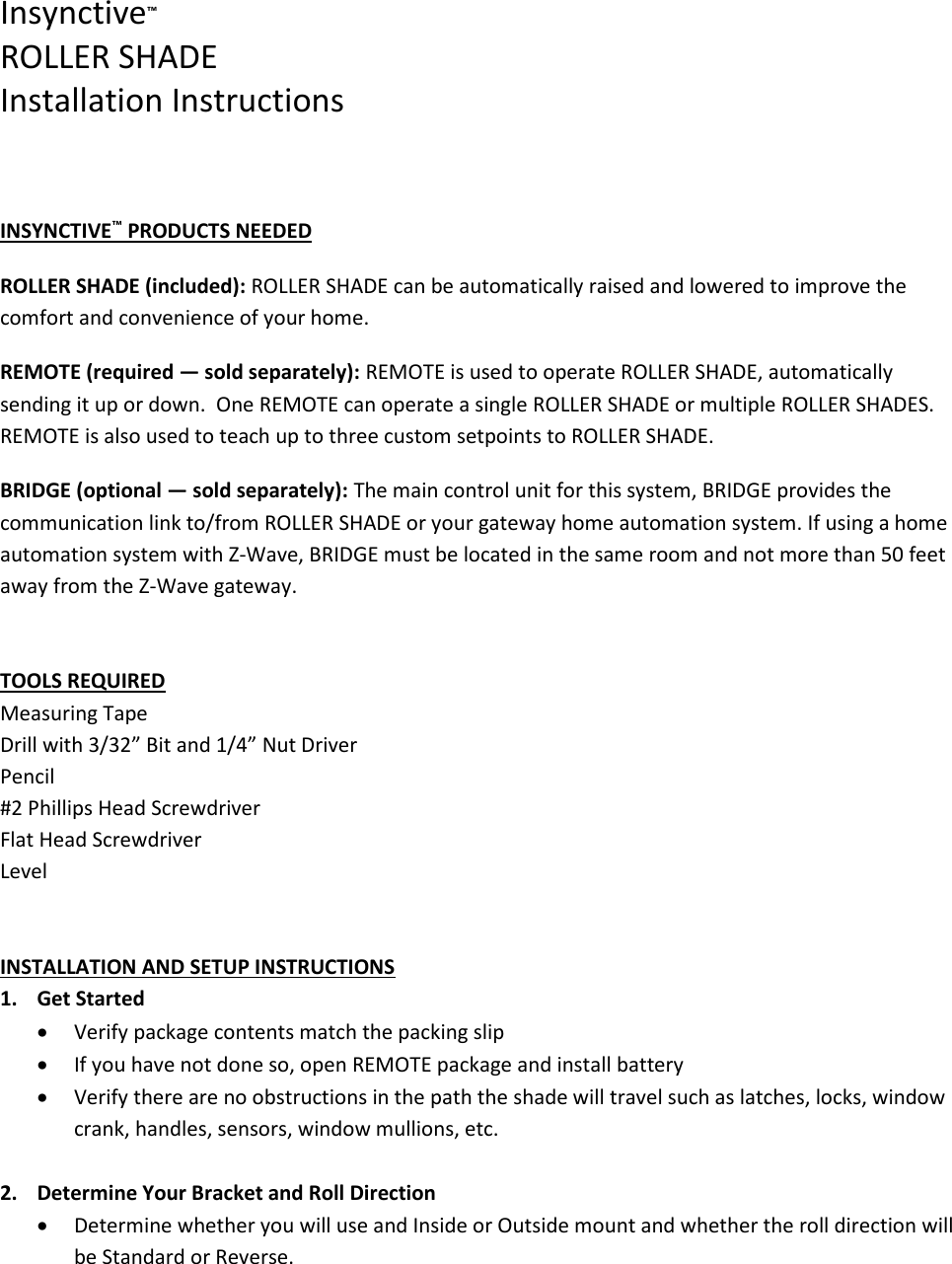

Insynctive™ROLLER SHADEInstallation InstructionsINSYNCTIVE™PRODUCTS NEEDEDROLLER SHADE (included): ROLLER SHADE can be automatically raised and lowered to improve thecomfort and convenience of your home.REMOTE (required — sold separately): REMOTE is used to operate ROLLER SHADE, automaticallysending it up or down. One REMOTE can operate a single ROLLER SHADE or multiple ROLLER SHADES.REMOTE is also used to teach up to three custom setpoints to ROLLER SHADE.BRIDGE (optional — sold separately): The main control unit for this system, BRIDGE provides thecommunication link to/from ROLLER SHADE or your gateway home automation system. If using a homeautomation system with Z-Wave, BRIDGE must be located in the same room and not more than 50 feetaway from the Z-Wave gateway.TOOLS REQUIREDMeasuring TapeDrill with 3/32” Bit and 1/4” Nut DriverPencil#2 Phillips Head ScrewdriverFlat Head ScrewdriverLevelINSTALLATION AND SETUP INSTRUCTIONS1. Get StartedVerify package contents match the packing slipIf you have not done so, open REMOTE package and install batteryVerify there are no obstructions in the path the shade will travel such as latches, locks, windowcrank, handles, sensors, window mullions, etc.2. Determine Your Bracket and Roll DirectionDetermine whether you will use and Inside or Outside mount and whether the roll direction willbe Standard or Reverse.

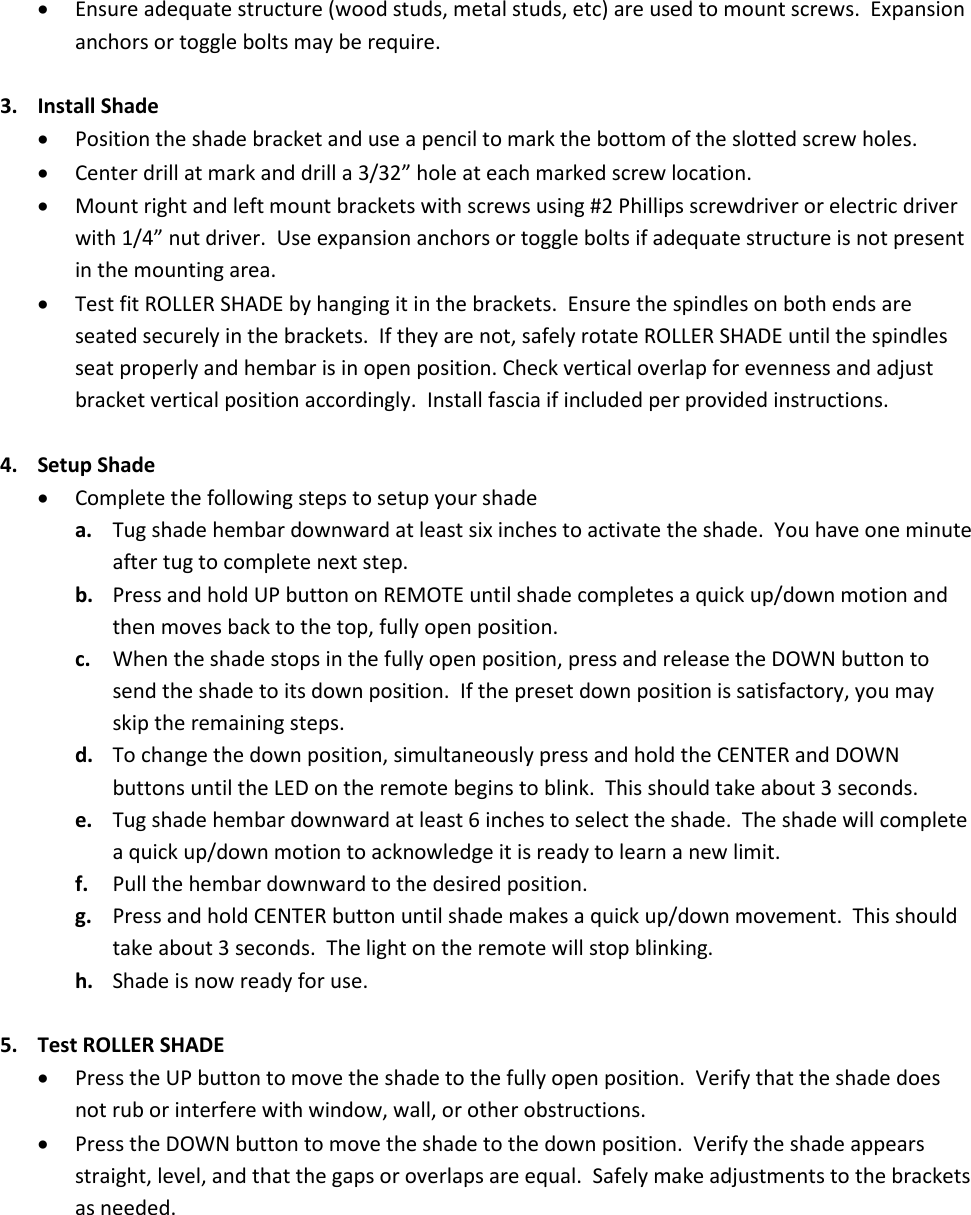

Ensure adequate structure (wood studs, metal studs, etc) are used to mount screws. Expansionanchors or toggle bolts may be require.3. Install ShadePosition the shade bracket and use a pencil to mark the bottom of the slotted screw holes.Center drill at mark and drill a 3/32” hole at each marked screw location.Mount right and left mount brackets with screws using #2 Phillips screwdriver or electric driverwith 1/4” nut driver. Use expansion anchors or toggle bolts if adequate structure is not presentin the mounting area.Test fit ROLLER SHADE by hanging it in the brackets. Ensure the spindles on both ends areseated securely in the brackets. If they are not, safely rotate ROLLER SHADE until the spindlesseat properly and hembar is in open position. Check vertical overlap for evenness and adjustbracket vertical position accordingly. Install fascia if included per provided instructions.4. Setup ShadeComplete the following steps to setup your shadea. Tug shade hembar downward at least six inches to activate the shade. You have one minuteafter tug to complete next step.b. Press and hold UP button on REMOTE until shade completes a quick up/down motion andthen moves back to the top, fully open position.c. When the shade stops in the fully open position, press and release the DOWN button tosend the shade to its down position. If the preset down position is satisfactory, you mayskip the remaining steps.d. To change the down position, simultaneously press and hold the CENTER and DOWNbuttons until the LED on the remote begins to blink. This should take about 3 seconds.e. Tug shade hembar downward at least 6 inches to select the shade. The shade will completea quick up/down motion to acknowledge it is ready to learn a new limit.f. Pull the hembar downward to the desired position.g. Press and hold CENTER button until shade makes a quick up/down movement. This shouldtake about 3 seconds. The light on the remote will stop blinking.h. Shade is now ready for use.5. Test ROLLER SHADEPress the UP button to move the shade to the fully open position. Verify that the shade doesnot rub or interfere with window, wall, or other obstructions.Press the DOWN button to move the shade to the down position. Verify the shade appearsstraight, level, and that the gaps or overlaps are equal. Safely make adjustments to the bracketsas needed.

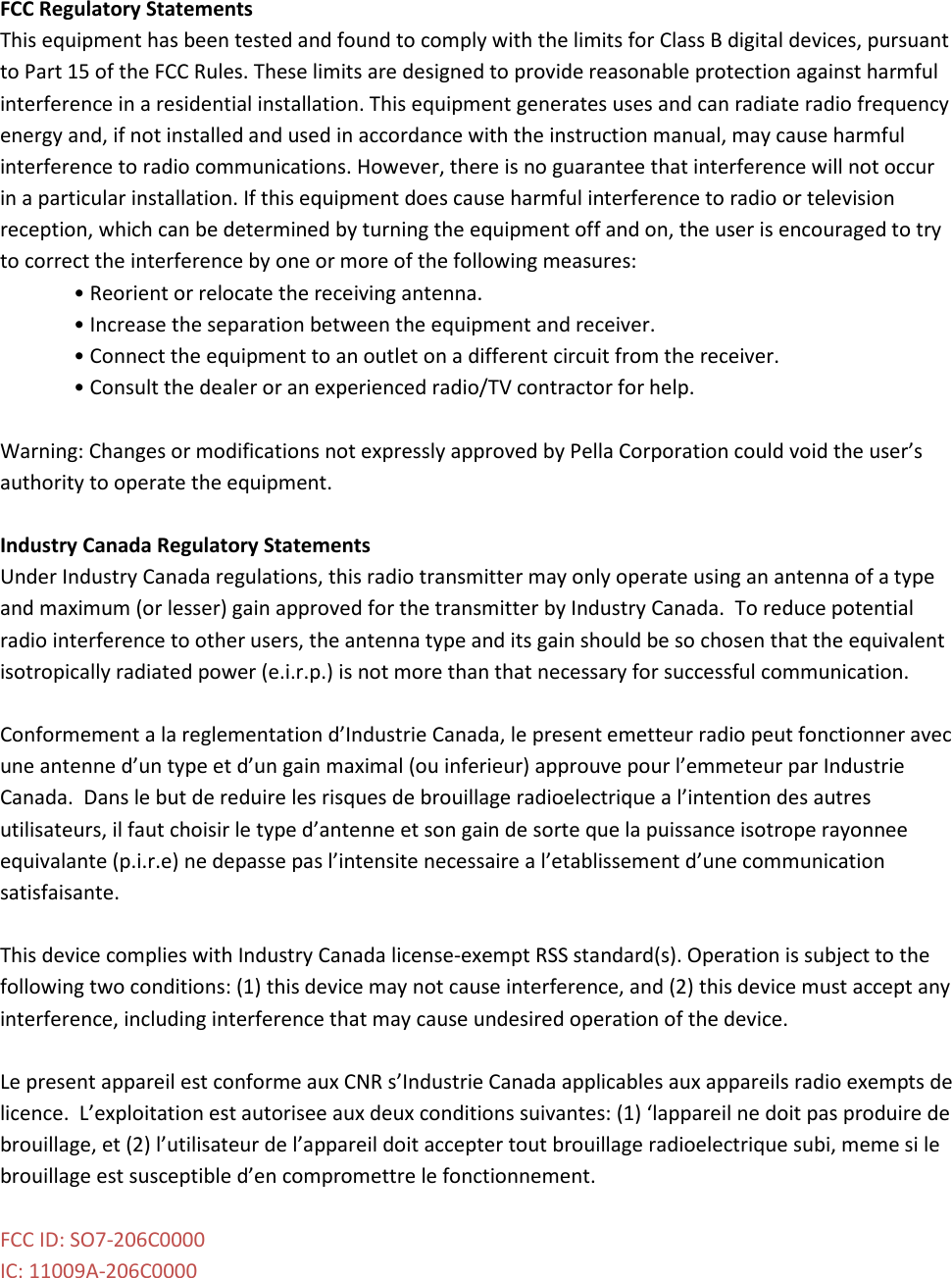

FCC Regulatory StatementsThis equipment has been tested and found to comply with the limits for Class B digital devices, pursuantto Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instruction manual, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment to an outlet on a different circuit from the receiver.• Consult the dealer or an experienced radio/TV contractor for help.Warning: Changes or modifications not expressly approved by Pella Corporation could void the user’sauthority to operate the equipment.Industry Canada Regulatory StatementsUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a typeand maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potentialradio interference to other users, the antenna type and its gain should be so chosen that the equivalentisotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformement a la reglementation d’Industrie Canada, le present emetteur radio peut fonctionner avecune antenne d’un type et d’un gain maximal (ou inferieur) approuve pour l’emmeteur par IndustrieCanada. Dans le but de reduire les risques de brouillage radioelectrique a l’intention des autresutilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonneeequivalante (p.i.r.e) ne depasse pas l’intensite necessaire a l’etablissement d’une communicationsatisfaisante.This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to thefollowing two conditions: (1) this device may not cause interference, and (2) this device must accept anyinterference, including interference that may cause undesired operation of the device.Le present appareil est conforme aux CNR s’Industrie Canada applicables aux appareils radio exempts delicence. L’exploitation est autorisee aux deux conditions suivantes: (1) ‘lappareil ne doit pas produire debrouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si lebrouillage est susceptible d’en compromettre le fonctionnement.FCC ID: SO7-206C0000IC: 11009A-206C0000
