Penclic K3 Penclic wireless keyboard User Manual CEDECFDFCBB5C3F7CAE92E706466

Penclic AB Penclic wireless keyboard CEDECFDFCBB5C3F7CAE92E706466

Users Manual

12www.penclic.se

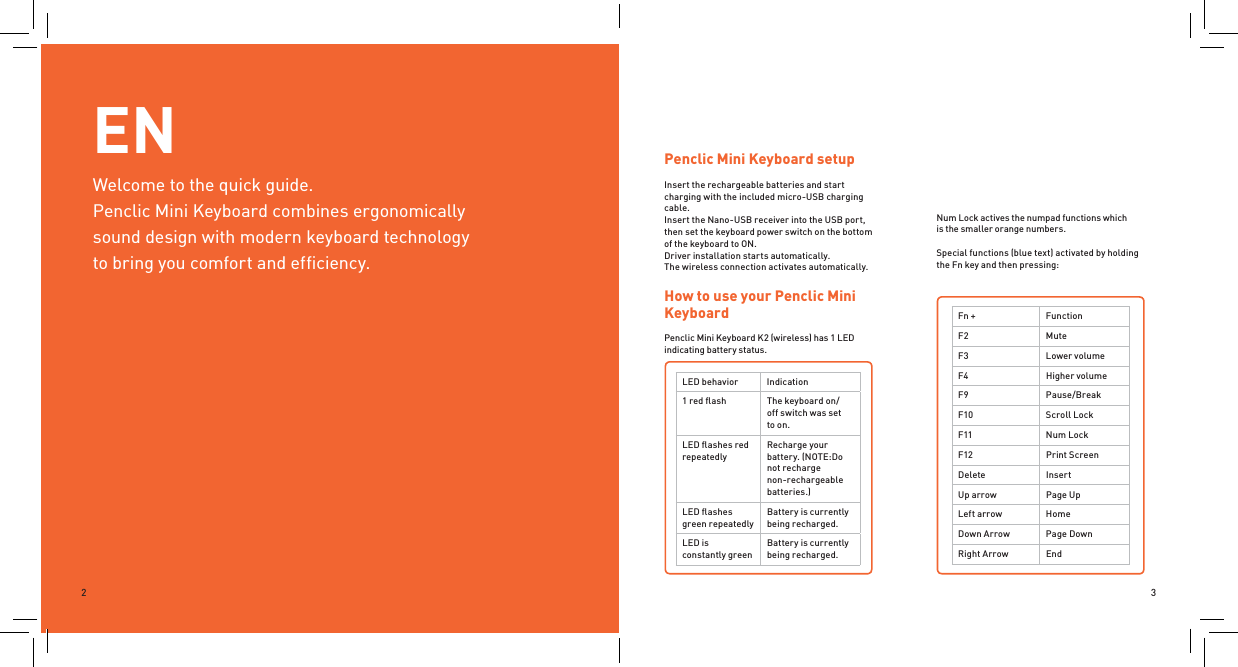

32ENWelcome to the quick guide.Penclic Mini Keyboard combines ergonomically sound design with modern keyboard technology WREULQJ\RXFRPIRUWDQGHIʖFLHQF\Penclic Mini Keyboard setupInsert the rechargeable batteries and start charging with the included micro-USB charging cable. Insert the Nano-USB receiver into the USB port, then set the keyboard power switch on the bottom of the keyboard to ON. Driver installation starts automatically. The wireless connection activates automatically. How to use your Penclic Mini Keyboard Penclic Mini Keyboard K2 (wireless) has 1 LED indicating battery status.Fn + FunctionF2 MuteF3 Lower volumeF4 Higher volumeF9 Pause/BreakF10 Scroll LockF11 Num LockF12 Print ScreenDelete InsertUp arrow Page UpLeft arrow HomeDown Arrow Page DownRight Arrow EndLED behavior IndicationUHGʗDVK The keyboard on/off switch was set to on./('ʗDVKHVUHGrepeatedlyRecharge your battery. (NOTE:Do not recharge non-rechargeable batteries.)/('ʗDVKHVgreen repeatedlyBattery is currently being recharged.LED is constantly greenBattery is currently being recharged.Num Lock actives the numpad functions which is the smaller orange numbers.Special functions (blue text) activated by holding the Fn key and then pressing:

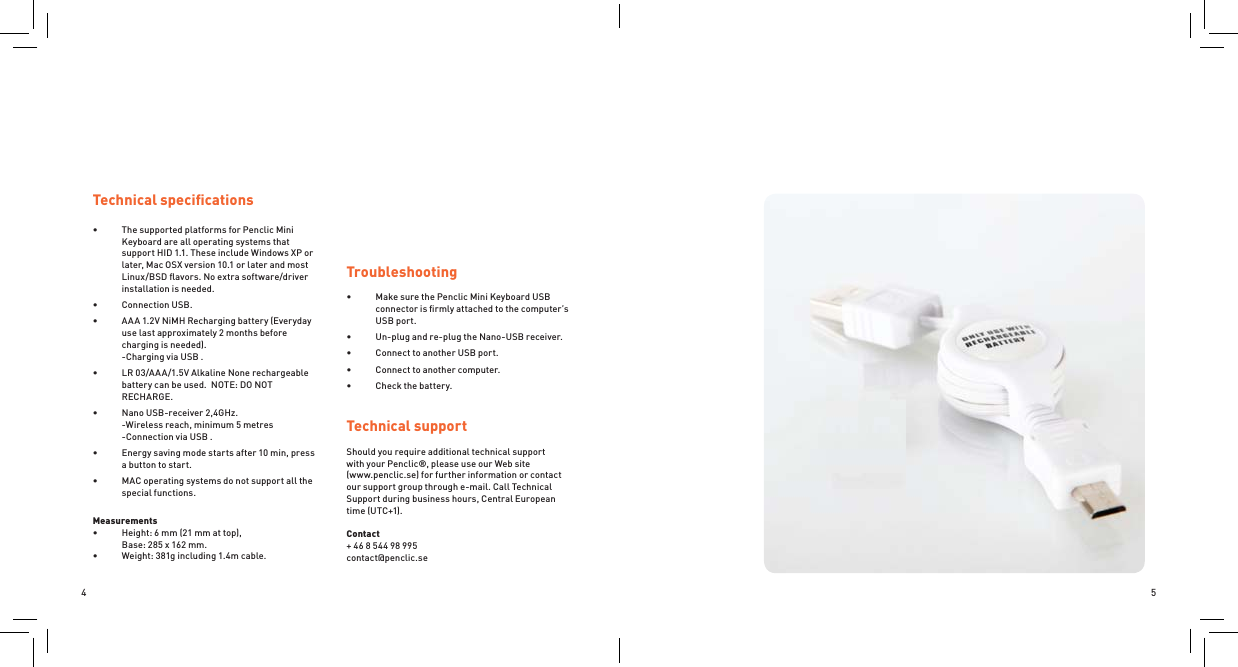

47HFKQLFDOVSHFLʖFDWLRQVɒ The supported platforms for Penclic Mini Keyboard are all operating systems that support HID 1.1. These include Windows XP or later, Mac OSX version 10.1 or later and most /LQX[%6'ʗDYRUV1RH[WUDVRIWZDUHGULYHUinstallation is needed.ɒ Connection USB.ɒ AAA 1.2V NiMH Recharging battery (Everyday use last approximately 2 months before charging is needed). -Charging via USB .ɒ /5$$$ 9$ONDOLQH1RQHUHFKDUJHDEOHbattery can be used. NOTE: DO NOT RECHARGE.ɒ Nano USB-receiver 2,4GHz. :LUHOHVVUHDFKPLQLPXPPHWUHV -Connection via USB .ɒ Energy saving mode starts after 10 min, press a button to start.ɒ MAC operating systems do not support all the special functions.Measurementsɒ Height: 6 mm (21 mm at top), %DVH[PPɒ Weight: 381g including 1.4m cable.Troubleshootingɒ Make sure the Penclic Mini Keyboard USB FRQQHFWRULVʖUPO\DWWDFKHGWRWKHFRPSXWHUɋVUSB port.ɒ Un-plug and re-plug the Nano-USB receiver.ɒ Connect to another USB port.ɒ Connect to another computer.ɒ Check the battery.Technical supportShould you require additional technical support with your Penclic®, please use our Web site (www.penclic.se) for further information or contact our support group through e-mail. Call Technical Support during business hours, Central European time (UTC+1). Contact contact@penclic.se

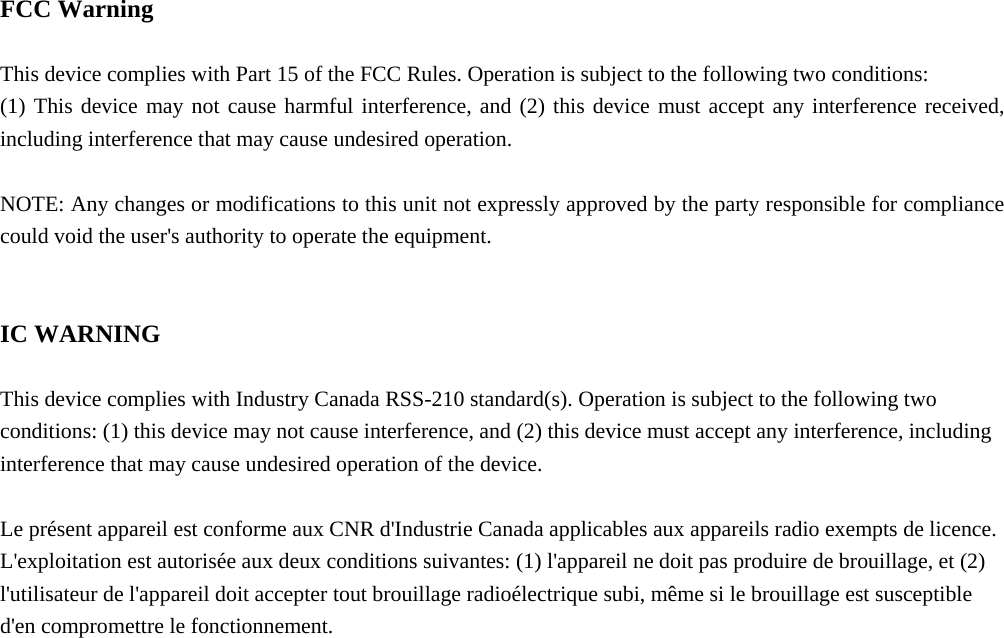

FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device complies with Industry Canada RSS-210 standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
