Users Manual

12
www.penclic.se
3
2
EN
Welcome to the quick guide.
Penclic Mini Keyboard combines ergonomically
sound design with modern keyboard technology
WREULQJ\RXFRPIRUWDQGHIʖFLHQF\
Penclic Mini Keyboard setup

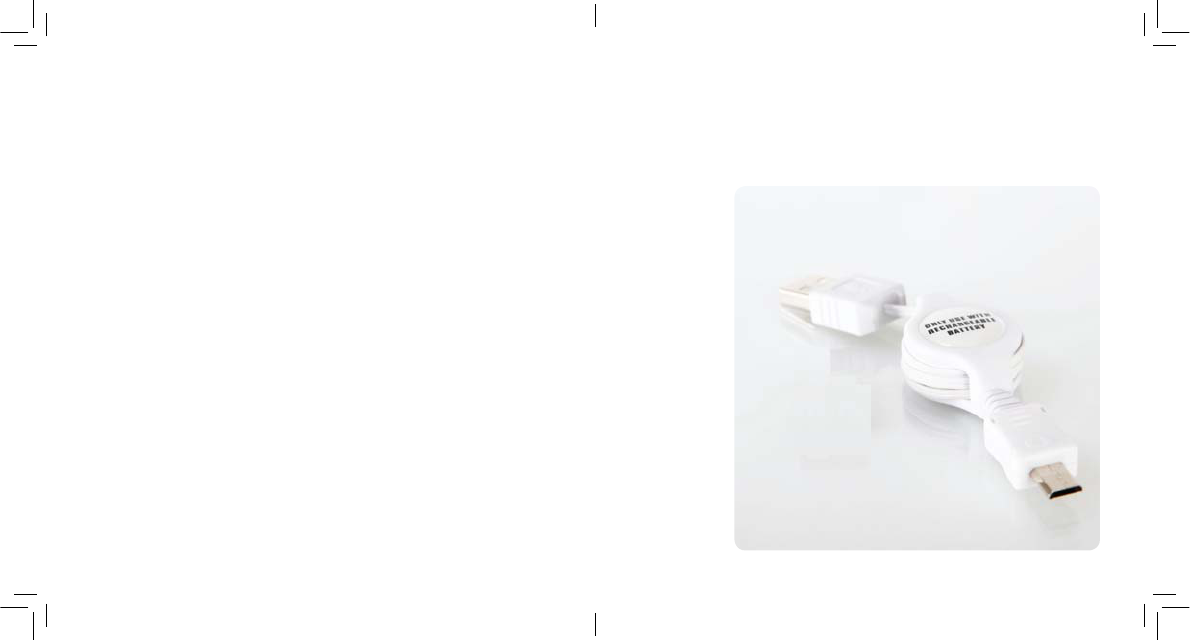

Insert the rechargeable batteries and start
charging with the included micro-USB charging
cable.
Insert the Nano-USB receiver into the USB port,
then set the keyboard power switch on the bottom
of the keyboard to ON.
Driver installation starts automatically.
The wireless connection activates automatically.
How to use your Penclic Mini
Keyboard
Penclic Mini Keyboard K2 (wireless) has 1 LED
indicating battery status.
Fn + Function
F2 Mute
F3 Lower volume
F4 Higher volume
F9 Pause/Break
F10 Scroll Lock
F11 Num Lock
F12 Print Screen
Delete Insert
Up arrow Page Up
Left arrow Home
Down Arrow Page Down
Right Arrow End
LED behavior Indication
UHGʗDVK The keyboard on/
off switch was set
to on.
/('ʗDVKHVUHG
repeatedly
Recharge your
battery. (NOTE:Do
not recharge
non-rechargeable
batteries.)
/('ʗDVKHV
green repeatedly
Battery is currently
being recharged.
LED is
constantly green
Battery is currently
being recharged.
Num Lock actives the numpad functions which
is the smaller orange numbers.
Special functions (blue text) activated by holding
the Fn key and then pressing:
4
7HFKQLFDOVSHFLʖFDWLRQV
ɒ The supported platforms for Penclic Mini
Keyboard are all operating systems that
support HID 1.1. These include Windows XP or
later, Mac OSX version 10.1 or later and most
/LQX[%6'ʗDYRUV1RH[WUDVRIWZDUHGULYHU
installation is needed.
ɒ Connection USB.
ɒ AAA 1.2V NiMH Recharging battery (Everyday
use last approximately 2 months before
charging is needed).
-Charging via USB .
ɒ /5$$$ 9$ONDOLQH1RQHUHFKDUJHDEOH
battery can be used. NOTE: DO NOT
RECHARGE.
ɒ Nano USB-receiver 2,4GHz.
:LUHOHVVUHDFKPLQLPXPPHWUHV
-Connection via USB .
ɒ Energy saving mode starts after 10 min, press
a button to start.
ɒ MAC operating systems do not support all the
special functions.
Measurements
ɒ Height: 6 mm (21 mm at top),
%DVH[PP
ɒ Weight: 381g including 1.4m cable.
Troubleshooting
ɒ Make sure the Penclic Mini Keyboard USB
FRQQHFWRULVʖUPO\DWWDFKHGWRWKHFRPSXWHUɋV
USB port.
ɒ Un-plug and re-plug the Nano-USB receiver.
ɒ Connect to another USB port.
ɒ Connect to another computer.
ɒ Check the battery.
Technical support
Should you require additional technical support
with your Penclic®, please use our Web site
(www.penclic.se) for further information or contact
our support group through e-mail. Call Technical
Support during business hours, Central European
time (UTC+1).
Contact

contact@penclic.se
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
IC WARNING
This device complies with Industry Canada RSS-210 standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
