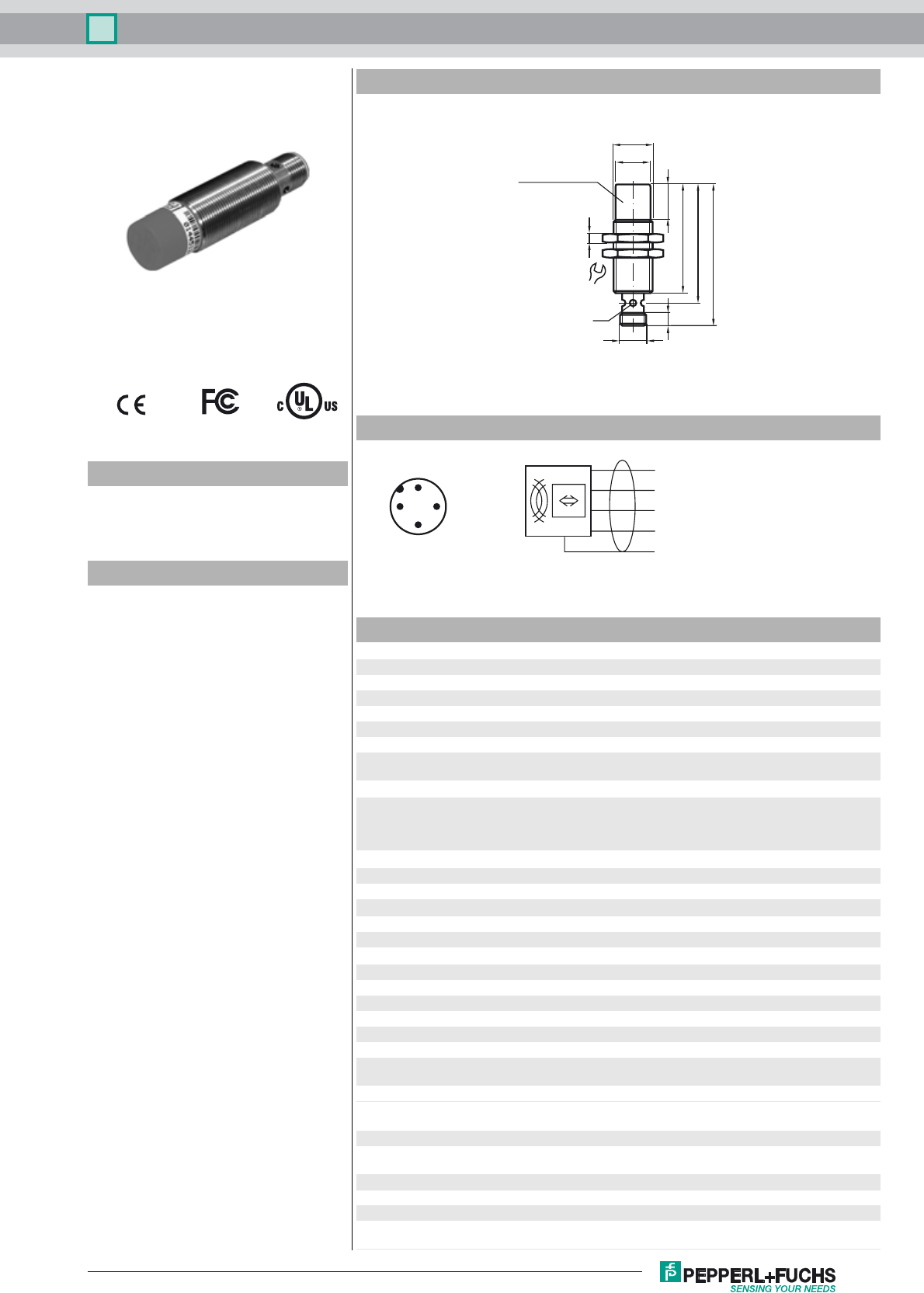

Read/write head IQH1-18GM-V1
1
Release date: 2014-02-21 09:23 Date of issue: 2014-02-21 204622_eng.xml
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
Model Number
IQH1-18GM-V1
Read/write head
for IDENTControl
Features
• Operating frequency 13.56 MHz
• Conforms to ISO 15693
• Suitable for FRAM transponder
• Read/write head with thread M18 x 1
• Connection via V1 (M12 x 1) plug
connection
• Multihole-LED for function display
• Degree of protection IP67
Dimensions
Electrical connection
Technical data
General specifications
Operating frequency 13.56 MHz
Tra n s f e r r ate 2 6 k B i t / s
Sensing range
Read distance 0 ... 55 mm
Write distance 0 ... 55 mm
Width max. 45 mm
UL File Number E87056 only from low voltage, limited energy source (SELV or
PELV) or listed Class 2 source
Indicators/operating means
LED green/yellow Multihole-LED:
green: power on
green flashing: read/write attempt performed
yellow: data carrier detected
Electrical specifications
Power consumption P0≤ 1.2 W
Supply from the IDENTControl
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Degree of protection IP67
Connection M12 x 1 connector
Material
Housing PBT/stainless steel
Encapsulation compound CY 221/HY 2966
Installation non-flush
Distance between two heads Multiplex on: ≥ 30 mm
Multiplex off: ≥ 80 mm
Mass approx. 40 g
Compliance with standards and direc-
tives
Directive conformity
R&TTE Directive 1995/5/EC EN 301489-1 V1.8.1 (2008-04), EN 301489-3 V1.4.1 (2002-08),
EN 300330-2 V1.3.1 (2006-04), EN 60950-1:2006
Standard conformity
Electromagnetic compatibility EN 61000-6-2:2006 , EN 61000-6-4:2007
Degree of protection EN 60529:2000
RFID ISO/IEC 15693-2:2006 , ISO/IEC 15693-3:2009 , ISO/IEC
18000-3:2008
Metal-free zone
16.4
50
55
66
4
M18 x 1
16
M12 x 1
24
6
LED
Shield
+
A
-
B
1
2
3
4
1
42
3
Release date: 2014-02-21 09:23 Date of issue: 2014-02-21 204622_eng.xml
2
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
IQH1-18GM-V1Read/write head
Accessories
IQC21-50P
Data carrier
IQC21-58
Data carrier
IQC22-C5
Data carrier
IQC33-20
Data carrier
IQC33-30
Data carrier
IQC33-50
Data carrier
V1-G-5M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
V1-G-10M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
IQC24-27-T12
Data carrier
IQC31-22-T9
Data carrier
IQC22-22CT-T9
Data carrier
IQC22-C1 UNPRINTED
Data carrier
Approvals and certificates
FCC approval This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Notes
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
