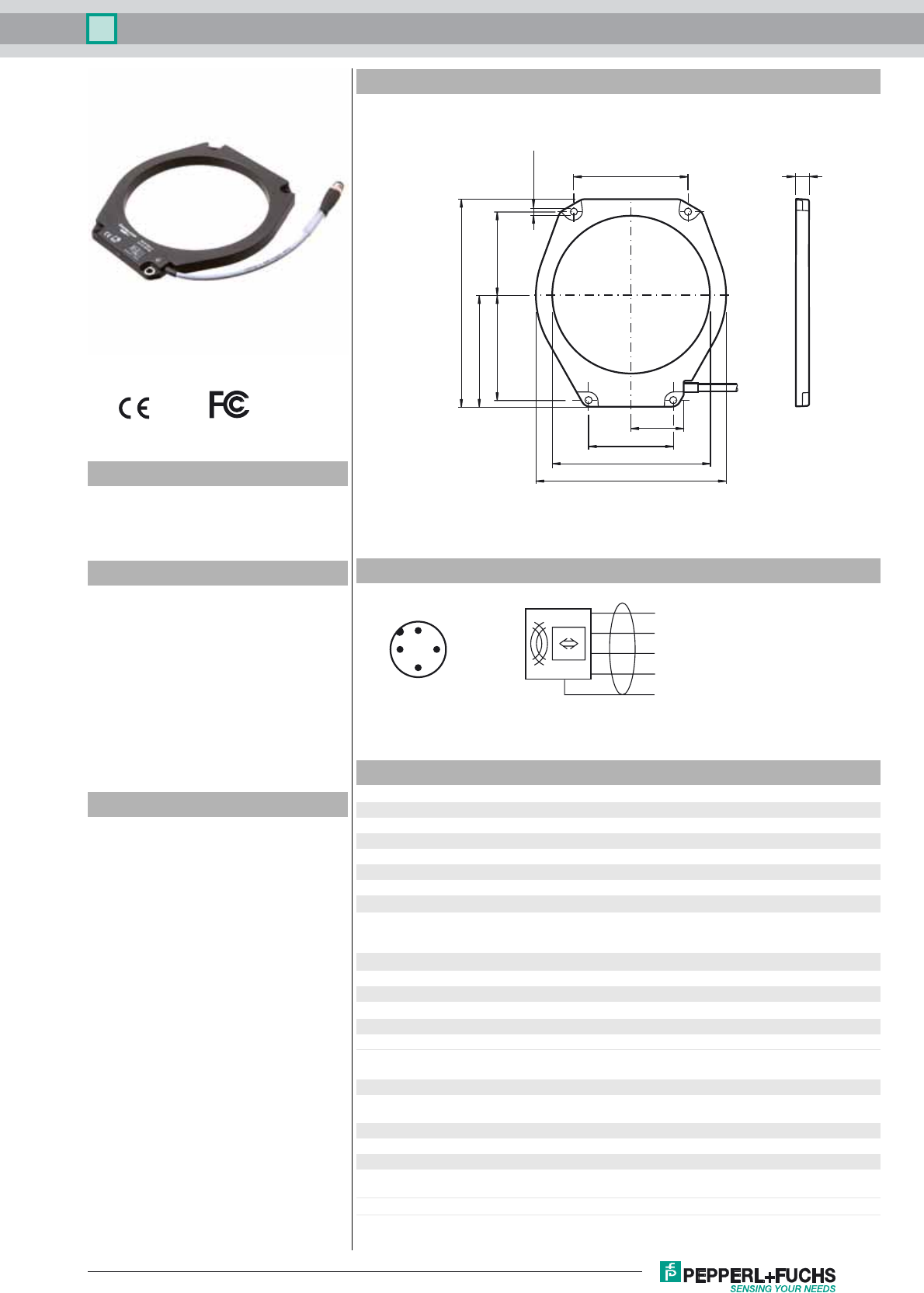

Read/write head IQH1-F198-V1
1
Release date: 2017-09-19 13:04 Date of issue: 2017-10-06 t187851_eng.xml
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
Model Number
IQH1-F198-V1
HF read/write head, ISO 15693, for
IDENTControl
Features
Operating frequency 13.56 MHz
Conforms to ISO 15693
Suitable for FRAM transponder
Particularly flat construction
Connection cable with V1 plug
(M12 x 1)
Degree of protection IP67
•For connection to IDENTControl con-
trol interface
Accessories
IQC21-30P
Data carrier
IQC21-50P
Data carrier
IQC21-58
Data carrier
IQC33-20
Data carrier
IQC22-C1
Data carrier
IQC33-30
Data carrier
IQC33-50
Data carrier
V1-G-5M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
V1-G-10M-PUR-ABG-V1-W
Connecting cable, M12 to M12, PUR ca-
ble 4-pin, shielded
Dimensions
Electrical connection
Technical data
General specifications
Operating frequency 13.56 MHz
Tra n s f e r r ate 2 6 k B i t / s
Sensing range
Read distance 0 ... 150 mm
Write distance 0 ... 150 mm
Width max. 145 mm
Indicators/operating means
LED green/yellow green: power on
green flashing: read/write attempt performed
yellow: data carrier detected
Electrical specifications
Power consumption P0 1.3 W
Supply from the IDENTControl
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Compliance with standards and direc-
tives
Directive conformity
R&TTE Directive 1995/5/EC EN 301489-1:2011 V1.9.2, EN 301489-3:2013 V1.6.1,
EN 300330-2:2015 V1.6.1, EN 60950-1:2006
Standard conformity
Electromagnetic compatibility EN 61000-6-2:2005, EN 61000-6-4:2006
Degree of protection EN 60529
RFID ISO/IEC 15693-2:2006 , ISO/IEC 15693-3:2009 , ISO/IEC
18000-3 ,
Approvals and certificates
105
78
ø 145
175
ø 6.6 (4x)
48.5
96.5 76.5
102.5
190.5
12
Shield
+
A
-
B
1
2
3
4
1
42
3
Release date: 2017-09-19 13:04 Date of issue: 2017-10-06 t187851_eng.xml
2
Germany: +49 621 776 4411Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: +1 330 486 0001 Singapore: +65 6779 9091
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@sg.pepperl-fuchs.com
fa-info@de.pepperl-fuchs.com
IQH1-F198-V1Read/write head
FCC approval This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
IC approval This device complies with Industry Canada licence-exempt RSS
standard(s) and with part 15 of the FCC Rules. Operation is sub-
ject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploita-
tion est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioé-
lectrique subi, même si le brouillage est susceptible d'en com-
promettre le fonctionnement.
Radio approval USA: FCC IREIQH1F198V1
Canada: IC 7037A-IQH1F198V1
Notes
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference when the equipment is operated in a commercial environ-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his
own expense.
