Perfect Toys International Co Ltd Sport-F1 Users Manual

Manual

Digital Proportional Double-channels R/C SystemP-30133P-30133User's ManualUser's ManualRig htLeftCenterSteerin g controlServo

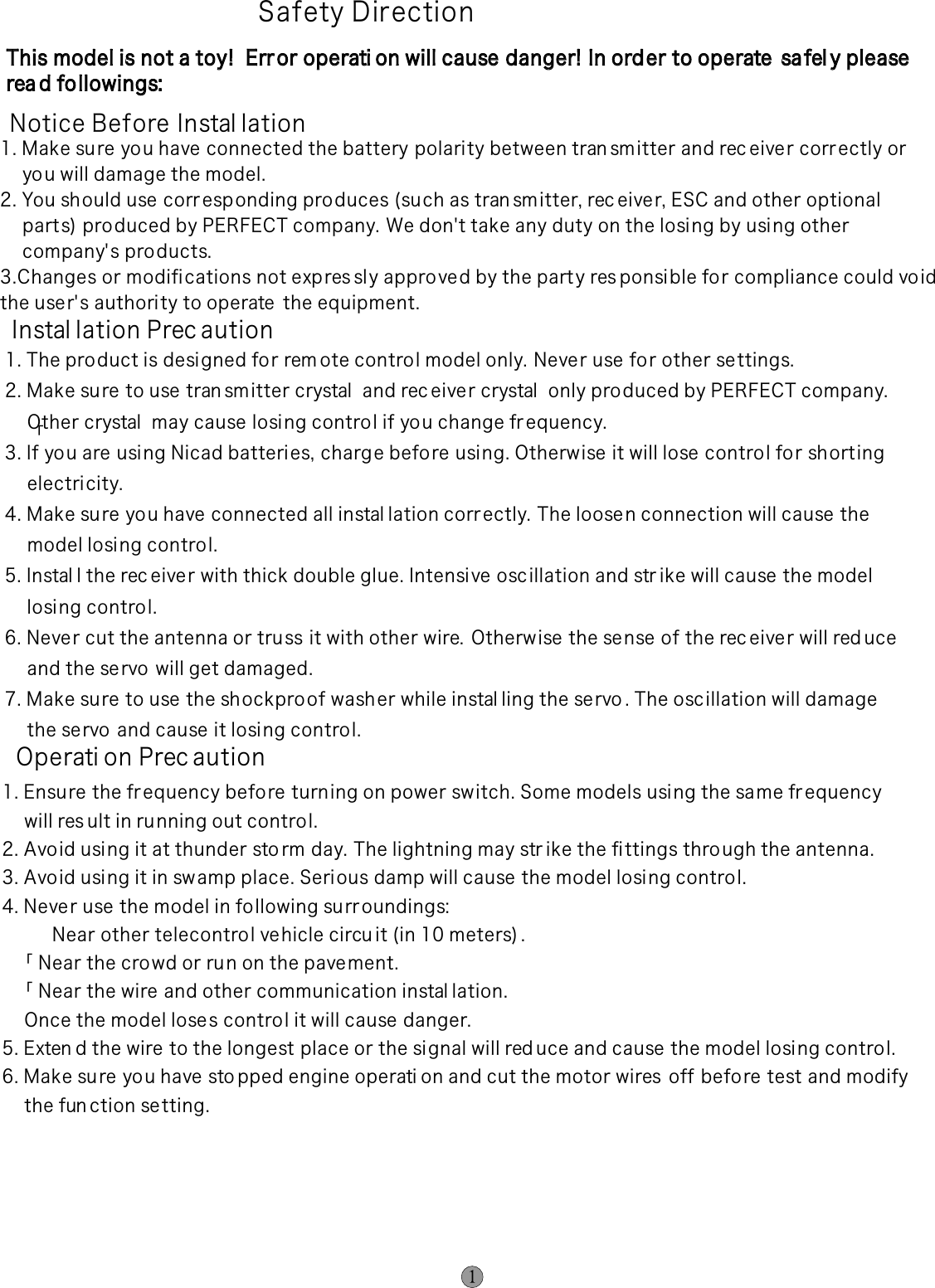

Safety DirectionThis model is not a toy! Err or operati on will cause danger! In ord er to operate sa fel y pleaserea d fo llowings:This model is not a toy! Err or operati on will cause danger! In ord er to operate sa fel y pleaserea d fo llowings:Notice Before Instal lationInstal lation Prec aution1. Make sure you have connected the battery polarity between tran smitter and rec eiver correctly or yo u will damage the model.2. You sh ould use corr esponding produces (su ch as tran sm itter, rec eiver, ESC and other optional part s) pro duced by PERFECT company. We don't take any duty on the losing by using other company' s products.3.Changes or modifi cations not expres sl y appro ve d by the party res ponsi ble fo r compliance could vo id the user' s authori ty to operate the equipment. 1. The product is designed for rem ote contro l model only. Never use for other se ttings.2. Make sure to use tran sm itter crystal and rec eive r crystal only produced by PERFECT company. Other crystal may cause losi ng control if you change fr equency.3. If yo u are using Nicad batteri es, charge before using. Otherwise it will lose control fo r sh ort ing electricity. 4. Make sure you have connected all instal lation corr ectly. The loose n connection will cause the model losi ng control.5. Instal l the rec eive r with thick double glue. Intensive oscillation and str ike will cause the model losi ng control.6. Never cut the antenna or tru ss it with other wire. Otherw ise the sense of the rec eiver will red uce and the servo will get damaged. 7. Make sure to use the shockpro of wash er while instal ling the servo . The oscillation will damage the se rvo and cause it losi ng control.Operati on Prec aution1. Ensure the frequency before turn ing on power sw itch. Some models usi ng the sa me fr equency will res ult in running out contro l.2. Avo id usi ng it at thunder sto rm day. The lightning may str ike the fi ttings thro ugh the antenna.3. Avo id usi ng it in swamp place. Seri ous damp will cause the model losi ng control.4. Never use the model in following surr oundings: Near other telecontrol ve hicle circu it (in 10 meters) . ｢ Near the cro wd or ru n on the pavement. ｢ Near the wire and other communication instal lation. Once the model lose s contro l it will cause danger.5. Exten d the wire to the longest place or the signal will red uce and cause the model losing contro l.6. Make sure you have sto pped engine operati on and cut the motor wires off before test and modify the fun ction setting. ｢

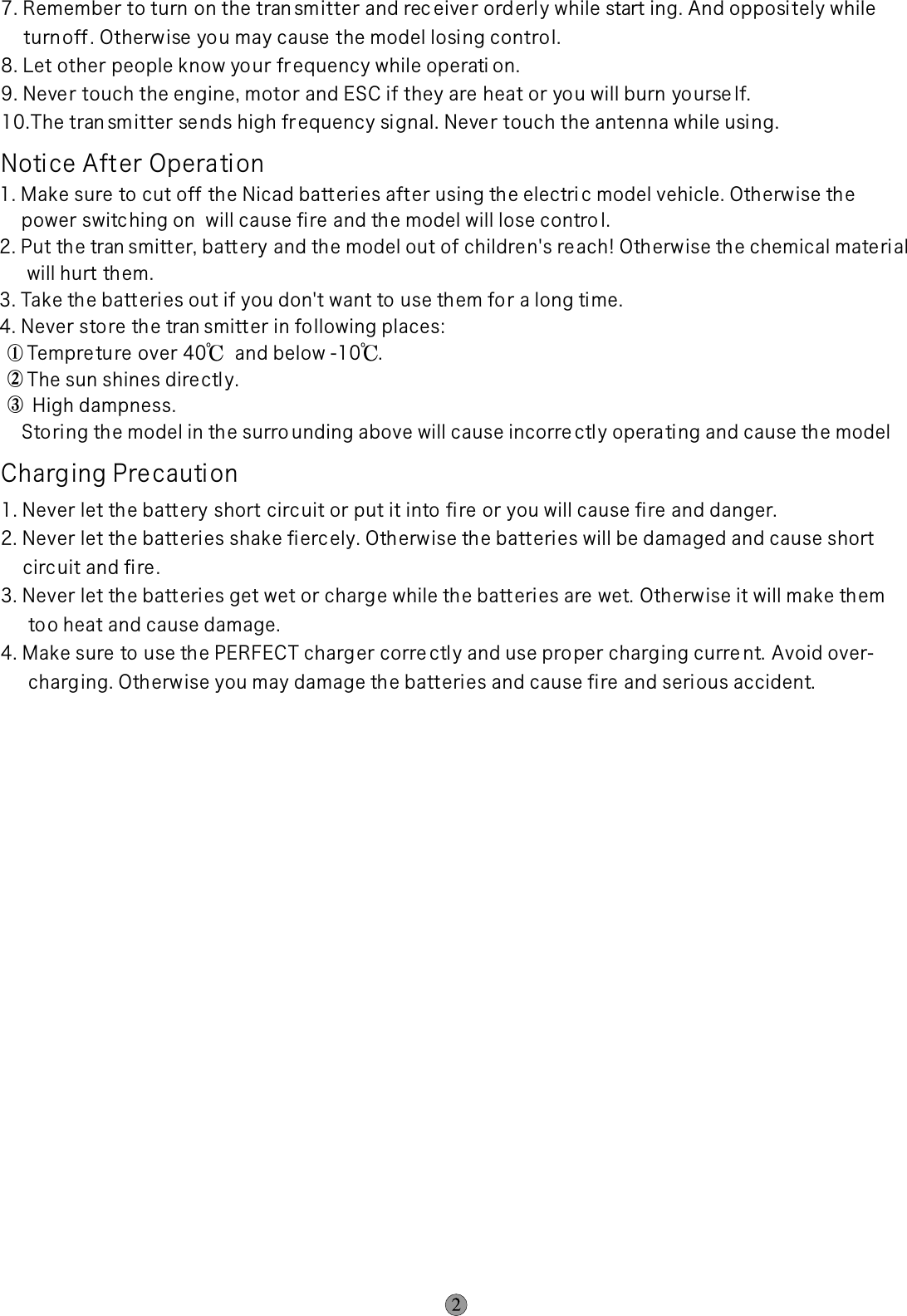

① ② ③Charging Pre caution1. Never let th e batt ery short circ uit or put it into fire or you will cause fi re and danger. 2. Never let th e batt eri es shake fiercely. Oth erw ise th e batt eries will be damaged and cause short circ uit and fire .3. Never let th e batt eri es get wet or charg e while the batteries are wet. Otherwise it will make th em to o heat and cause damage.4. Make sure to use the PERFECT charg er corre ctl y and use proper charg ing curre nt. Avoid over- charging. Oth erwise you may damage th e batteri es and cause fi re and seri ous accident.Noti ce Aft er Opera ti on1. Make sure to cut off th e Nicad batteries after using th e electri c model vehicle. Oth erw ise th e power switc hing on will cause fire and th e model will lose contro l.2. Put the tran smitt er, batt ery and the model out of children's reach! Oth erw ise th e chemical mate ri al will hurt th em.3. Take the batteries out if you don't want to use th em fo r a long ti me.4. Never sto re the tran smitter in following places: Tempretu re over 40 and below -10 .℃ ℃ The sun shines dire ctly. High dampness. Sto ring the model in th e surro unding above will cause incorre ctl y operati ng and cause th e model7. Remember to turn on the tran sm itter and rec eive r ord erl y while start ing. And opposi tely while turn off . Otherwise you may cause the model losi ng control.8. Let other people know your frequency while operati on.9. Never touch the engine, motor and ESC if they are heat or you will burn yo urse lf.10.The tran smitter se nds high frequency signal. Neve r touch the antenna while usi ng.

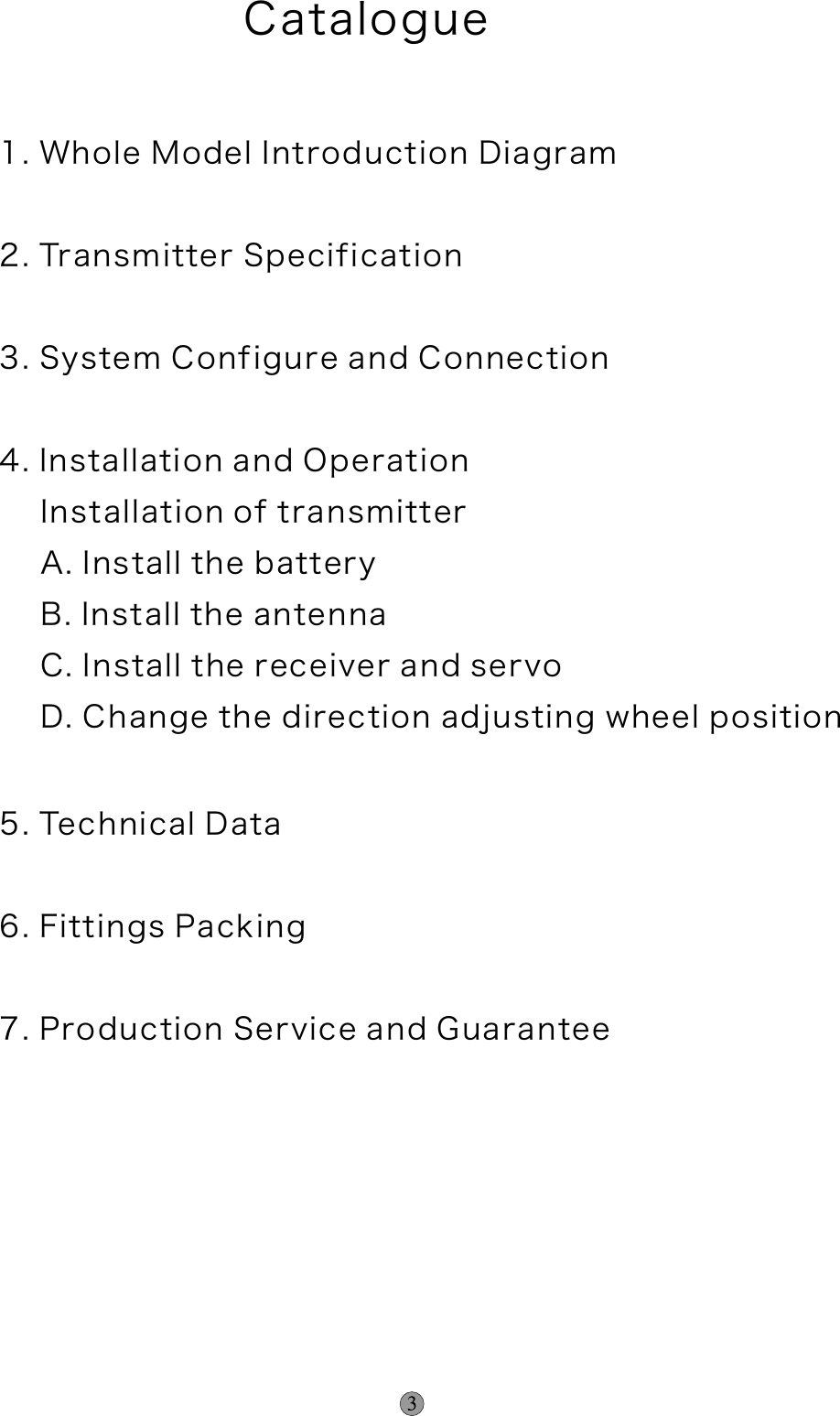

Catalogue 1. Whole Model Introduction Diagram2. Transmitter Specification3. System Configure and Connection4. Installation and Operation Installation of transmitter A. Install the battery B. Install the antenna C. Install the receiver and servo D. Change the direction adjusting wheel position 5. Technical Data6. Fittings Packing7. Production Service and Guarantee

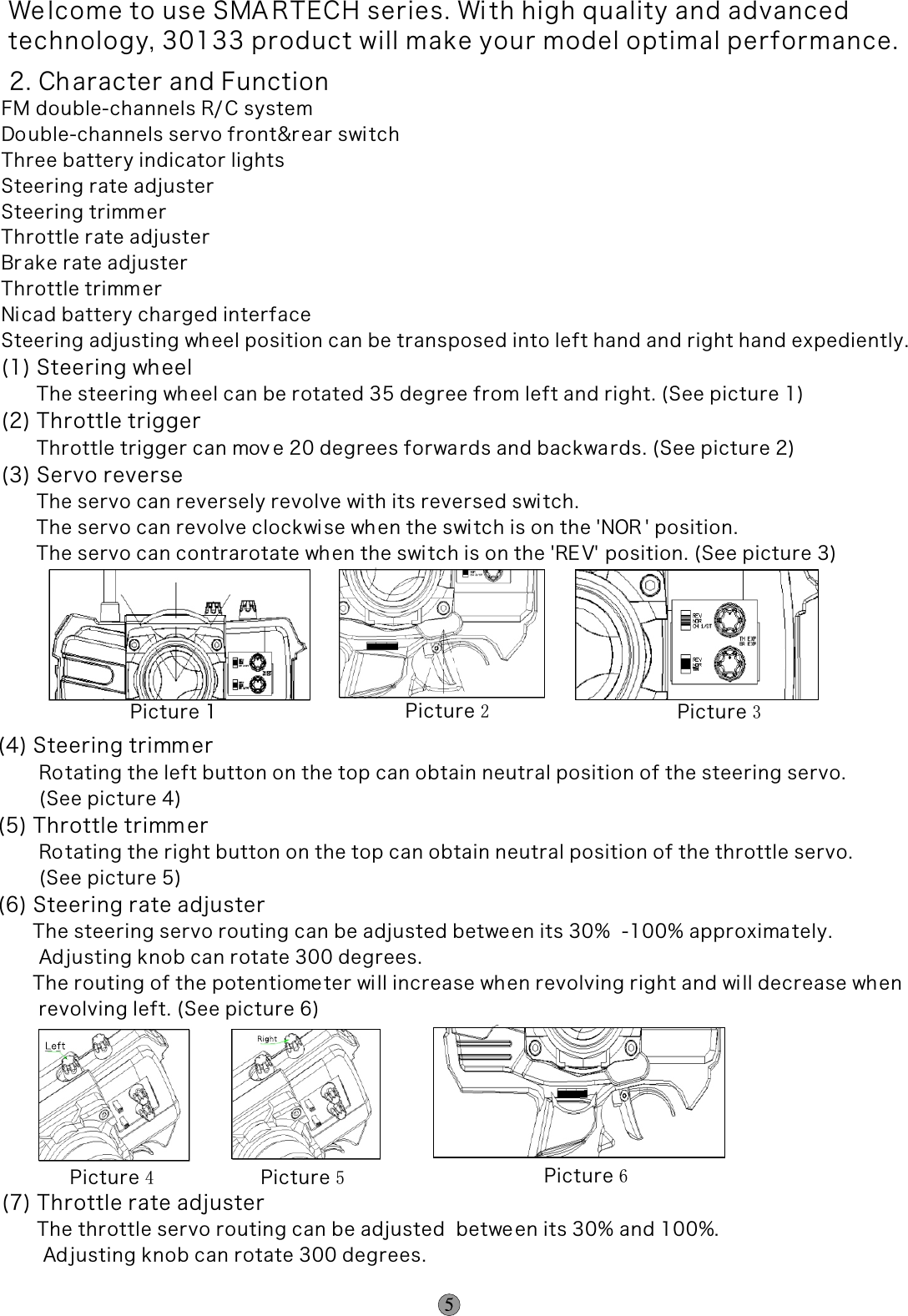

We lcome to use SMA RTECH series. Wi th high quality and advancedtechnology, 30133 product will make your model optimal performance. 2. Character and FunctionFM double-channels R/ C systemDo uble-channels servo front&r ear switchThree battery indicator lightsSteering rate adjuster Steering trimm er Throttle rate adjusterBr ake rate adjusterThrottle trimm erNi cad battery charged interfaceSteering adjusting wh eel position can be transposed into left hand and right hand expediently.(1) Steering wh eel The steering wh eel can be rotated 35 degree from left and right. (See picture 1)(2) Throttle trigger Throttle trigger can mov e 20 degrees forwa rds and backwards. (See picture 2)(3) Servo reverse The servo can reversely revolve wi th its reversed switch. The servo can revolve clockwise when the switch is on the 'NOR ' position. The servo can contrarotate when the swi tch is on the 'RE V' position. (See picture 3)(4) Steering trimm er Ro tating the left button on the top can obtain neutral position of the steering servo. (See picture 4)(5) Throttle trimm er Ro tating the right button on the top can obtain neutral position of the throttle servo. (See picture 5)(6) Steering rate adjuster The steering servo routing can be adjusted betwe en its 30% -100% approximately. Ad justing knob can rotate 300 degrees. The routing of the potentiometer wi ll increase when revolving right and wi ll decrease when revolving left. (See picture 6) Picture 1 Picture 2Picture 3Picture 4Picture 5Picture 6(7) Throttle rate adjuster The throttle servo routing can be adjusted betwe en its 30% and 100%. Ad justing knob can rotate 300 degrees.THTH

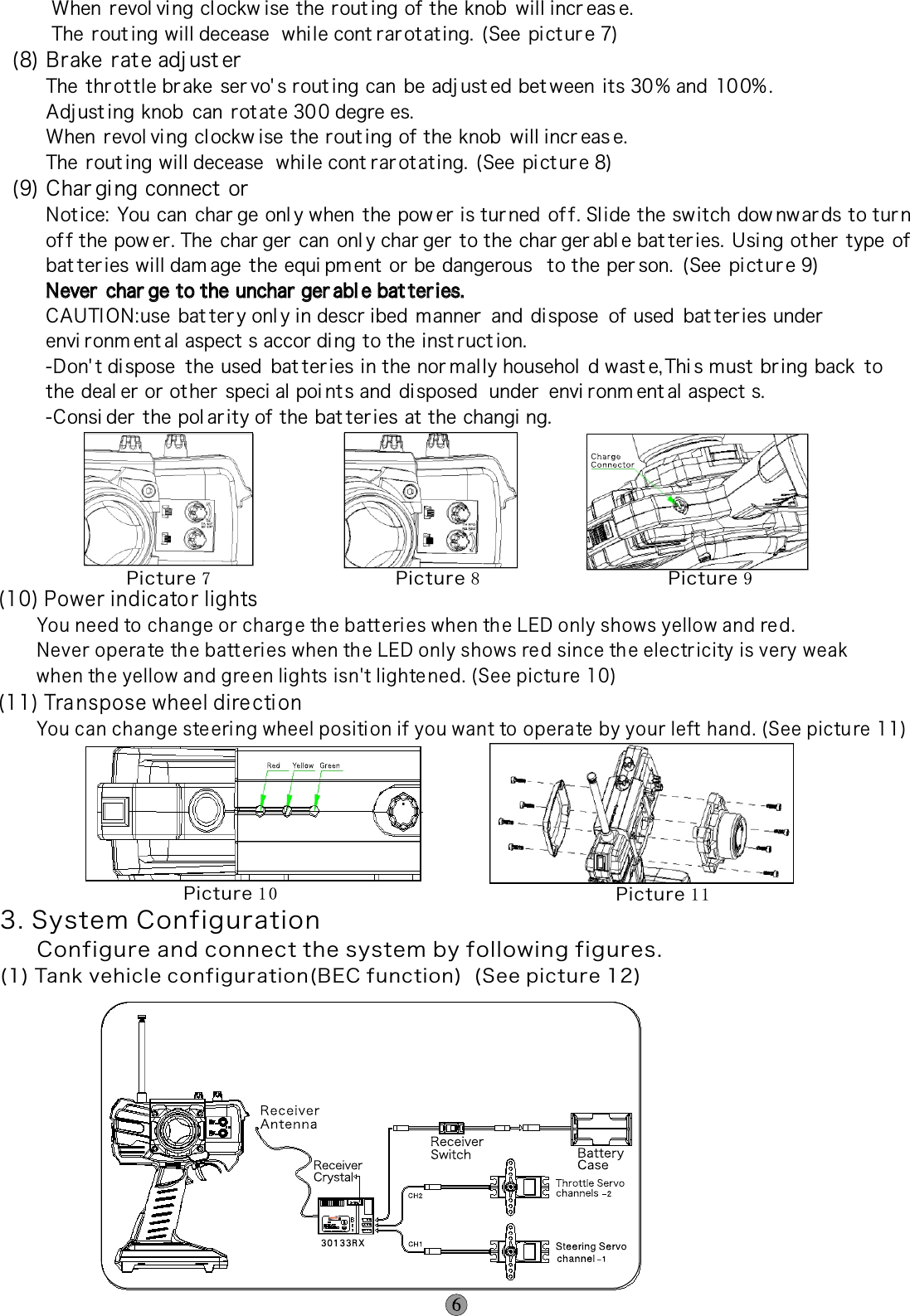

When revol vi ng clockw ise the rout ing of the knob will incr eas e. The rout ing will decease whi le cont rar ot at ing. (See pi ct ur e 7)(8) Brake rate adj ust er The thr ot tle brake ser vo' s rout ing can be adj ust ed bet ween its 30% and 10 0% . Adj ust ing knob can rot at e 30 0 degre es. When revol vi ng clockw ise the rout ing of the knob will incr eas e. The rout ing will decease whi le cont rar ot at ing. (See pi ct ur e 8)(9) Char gi ng connect or Not ice: You can char ge onl y when the pow er is tur ned of f. Slide the switch dow nw ar ds to turn of f the pow er. The char ger can onl y char ger to the char ger abl e bat teries. Usi ng ot her type of bat teries will dam age the equi pm ent or be dangerous to the per son. (See pi ct ur e 9) Never char ge to the unchar ger abl e bat ter ies. CAUTION:use bat tery onl y in descr ibed manner and di spose of used bat teries under envi ronm ent al aspect s accor ding to the inst ruct ion. -Don' t di spose the used bat ter ies in the nor mal ly househol d wast e, Thi s must br ing back to the deal er or ot her speci al poi nt s and di sposed under envi ronm ent al aspect s. -Consi der the pol ar ity of the bat ter ies at the changi ng.Never char ge to the unchar ger abl e bat ter ies. (10) Power indicator lights You need to change or charg e th e batt eries when the LED only shows yellow and red. Never opera te th e batt eri es when the LED only shows red since the electr icity is very weak when the yellow and gre en lights isn't lighte ned. (See pictu re 10)(11) Transpose wheel dire ction You can change ste eri ng wheel positi on if you want to operate by your left hand. (See pictu re 11)Picture 7Picture 8 Picture 9 Picture 1 0 Picture 1 13. System Configuration Configure and connect the system by following figures.(1) Tank vehicle configuration(BEC function) (See picture 12)Picture 12

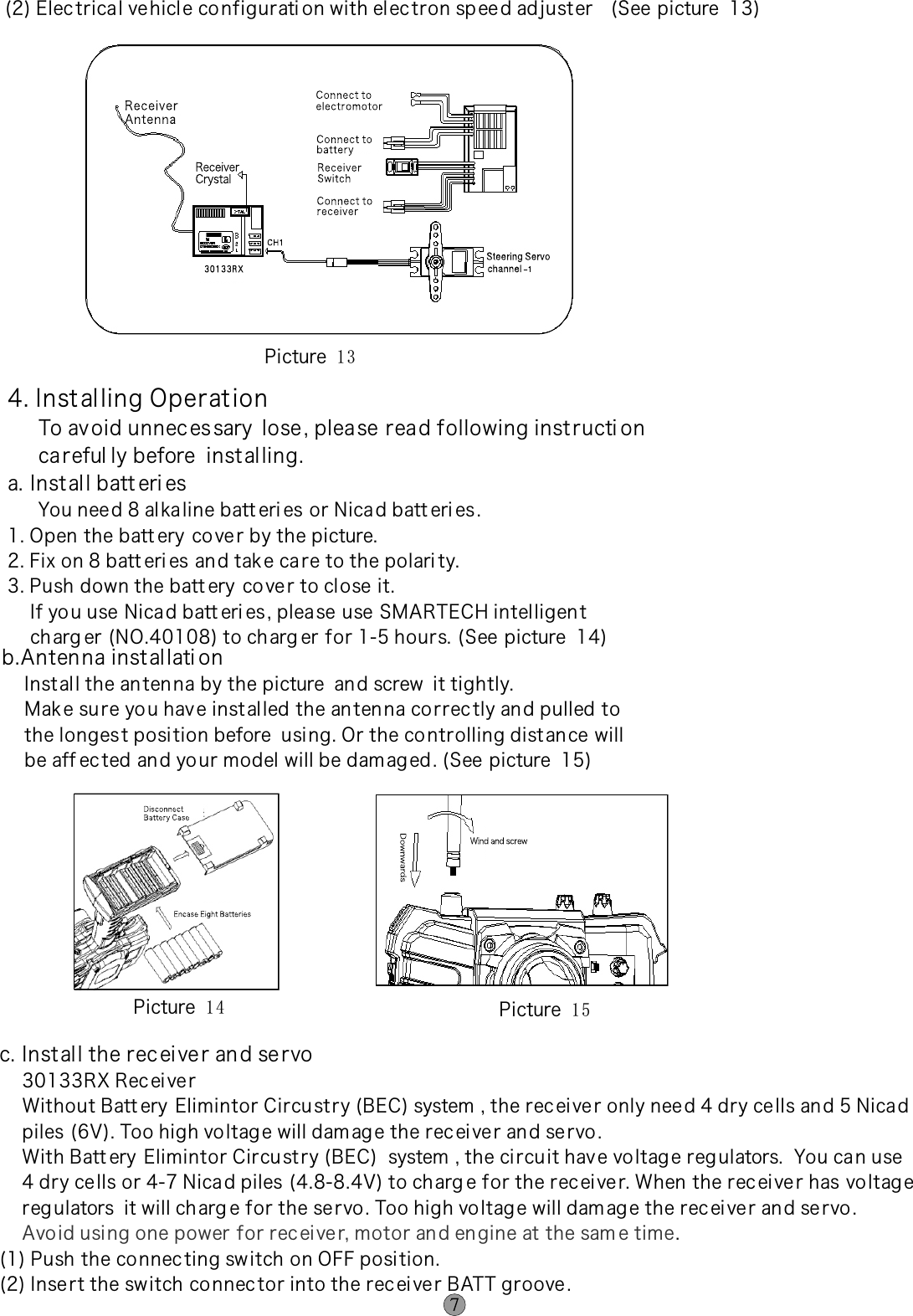

4. Instal ling Operat ion To av oid unnec es sary lose , plea se read following inst ructi on ca reful ly before instal ling.a. Inst al l batt eri es You need 8 al ka line batt eri es or Nica d batt eri es . 1. Open the batt ery co ve r by the picture.2. Fix on 8 batt eri es an d take ca re to the polari ty.3. Push down the batt ery co ve r to close it. If yo u use Nicad batt eri es, plea se use SMARTECH intelligen t ch arg er (NO.40108) to charg er for 1-5 hours. (See picture 14)(2) Elec trical ve hicl e co nfigurati on with elec tron spee d ad juster (See picture 13) b.Anten na inst al lati on Inst al l the anten na by the picture an d screw it tightly. Mak e su re yo u have inst al led the an ten na correc tly an d pulled to the longest posi tion before usi ng. Or the co ntrolling dist an ce will be aff ec ted and yo ur model will be dam ag ed . (See picture 15)Picture 1 3 Picture 1 4 Picture 1 5 c. Inst al l the rec ei ve r an d se rvo 30133RX Rec ei ve r Without Batt ery Elimintor Circust ry (BEC) system , the rec ei ve r only nee d 4 dry ce lls an d 5 Nica d piles (6V). Too high voltag e will dam ag e the rec ei ve r an d se rvo . With Batt ery Elimintor Circu st ry (BEC) system , the ci rcuit hav e vo ltage reg ulators. You ca n use 4 dry ce lls or 4-7 Nica d piles (4.8-8.4V) to ch arg e for the rec ei ve r. When the rec ei ve r has vo ltag e reg ulators it will charg e for the servo . Too high vo ltag e will dam ag e the rec ei ve r an d se rvo . .(1) Push the co nnec ting switch on OFF posi tion.(2) Inse rt the switch co nnec tor into the recei ve r BATT groove .Avo id usi ng one power for rec ei ve r, motor and en gine at the sam e time

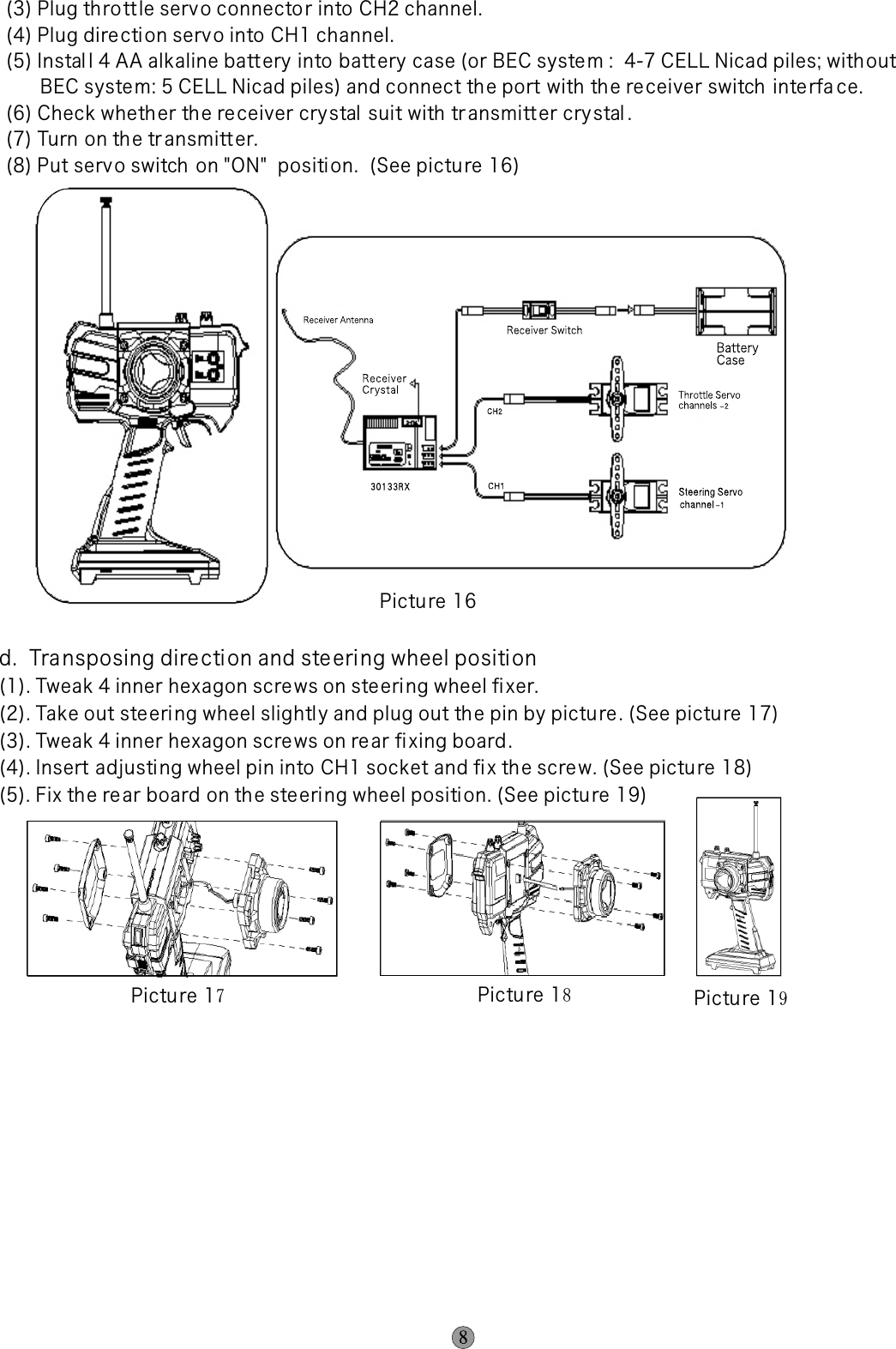

(3) Plug th ro tt le servo connecto r into CH2 channel.(4) Plug dire cti on serv o into CH1 channel.(5) Instal l 4 AA alkaline batt ery into batt ery case (or BEC syste m : 4-7 CELL Nicad piles; with out BEC syste m: 5 CELL Nicad piles) and connect th e port with the re ceiver switch inte rfa ce.(6) Check wheth er the re ceiver crystal suit with transmitt er cry stal .(7) Turn on th e tr ansmitt er.(8) Put servo switch on "ON" position. (See pictu re 16)d. Transposing directi on and steering wheel positi on(1). Tweak 4 inner hexagon screws on ste eri ng wheel fi xer.(2). Take out ste ering wheel slightl y and plug out th e pin by pictu re . (See pictu re 17)(3). Tweak 4 inner hexagon screws on rear fixing board . (4). Insert adjusting wheel pin into CH1 socket and fix th e scre w. (See pictu re 18)(5). Fix th e re ar board on th e ste eri ng wheel position. (See picture 19)Picture 17Pictu re 18Pictu re 19Picture 16

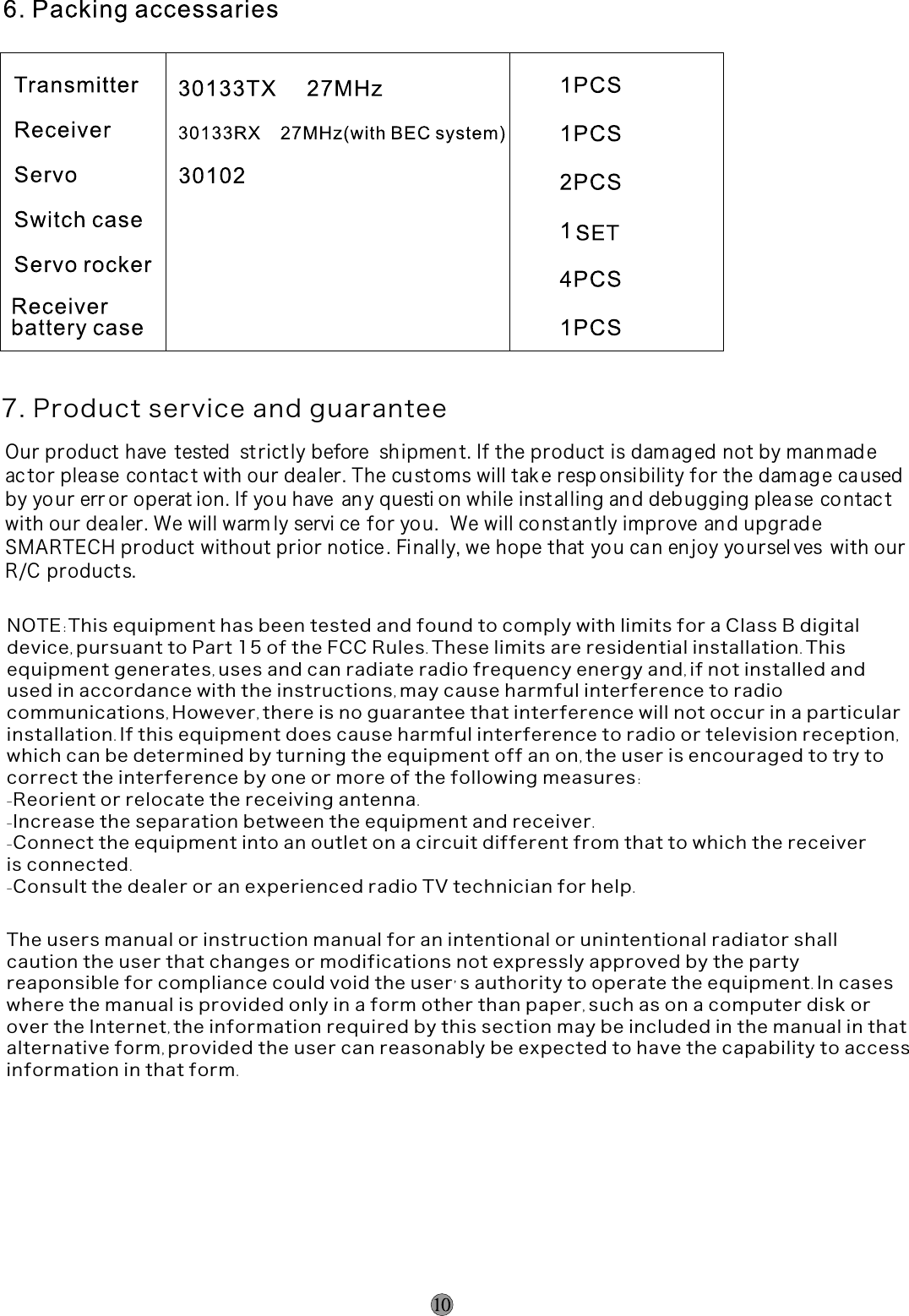

7. Product service and guaranteeOur product have tested st rict ly before sh ipmen t. If the product is dam ag ed not by man made ac tor plea se co ntac t with our dealer. The cu st oms will tak e resp onsi bility for the damag e ca usedby yo ur err or operat ion. If you have an y questi on while inst al ling an d debugging plea se co ntac t with our dealer. We will warm ly servi ce for yo u. We will constan tly improve and upgrade SMARTECH product without prior notice . Fi nal ly, we hope that you ca n en joy yoursel ves with ourR/C product s.NOTE:This equipment has been tested and found to comply with limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are residential installation.This equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications,However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off an on,the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.-Consult the dealer or an experienced radio TV technician for help.The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party reaponsible for compliance could void the user's authority to operate the equipment.In caseswhere the manual is provided only in a form other than paper,such as on a computer disk orover the Internet,the information required by this section may be included in the manual in thatalternative form,provided the user can reasonably be expected to have the capability to accessinformation in that form.
