PHYSICAL SETUP: POWER

1If you are using a battery, make

sure that the battery is charged.

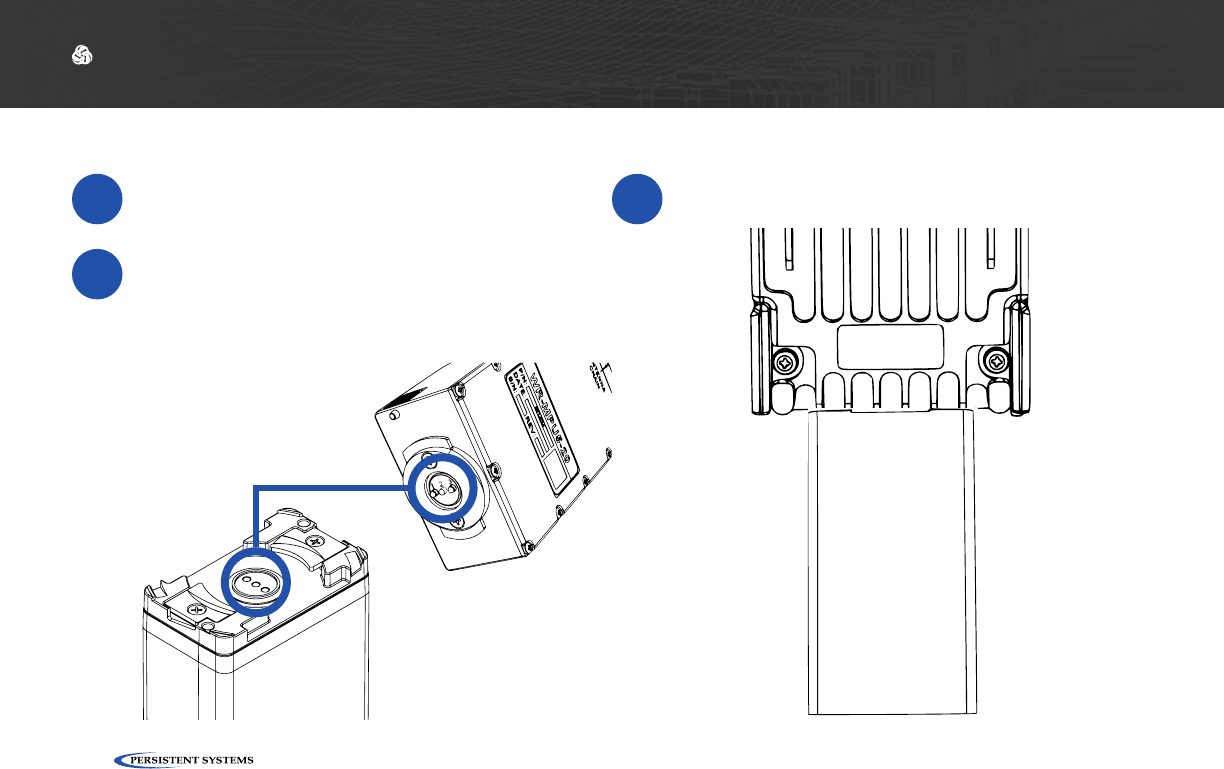

2Align the circular three pin connector on

the power source with the circular three

pin connector on the bottom of the MPU5.

3Push the connectors together. Make sure

the connector is seated properly.

Connecting Power

PHYSICAL SETUP: POWER

4Twist clockwise 90°. You will hear a click

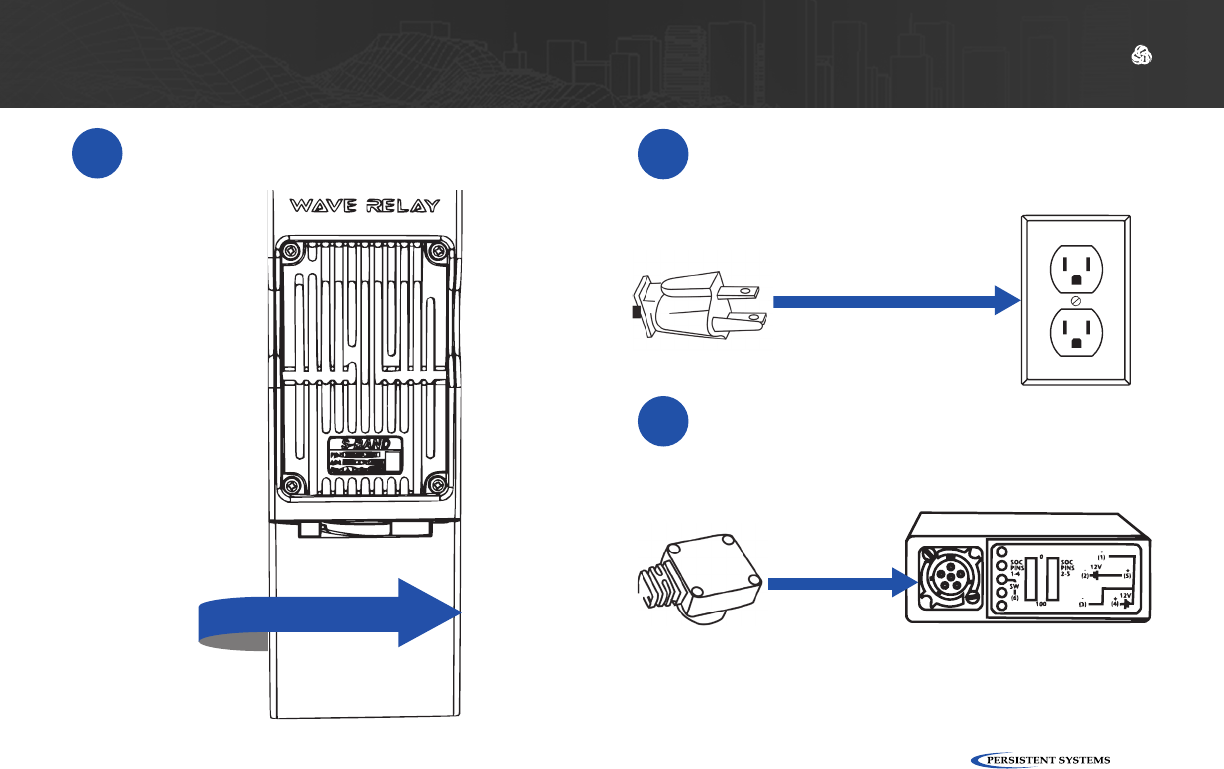

when it is locked. 5If you are using a Wall Battery Eliminator,

plug the standard wall plug into a stan-

dard wall outlet.

6If you are using a BB Battery Eliminator,

plug the BB plug into a BB Battery.

30

PHYSICAL SETUP: POWER

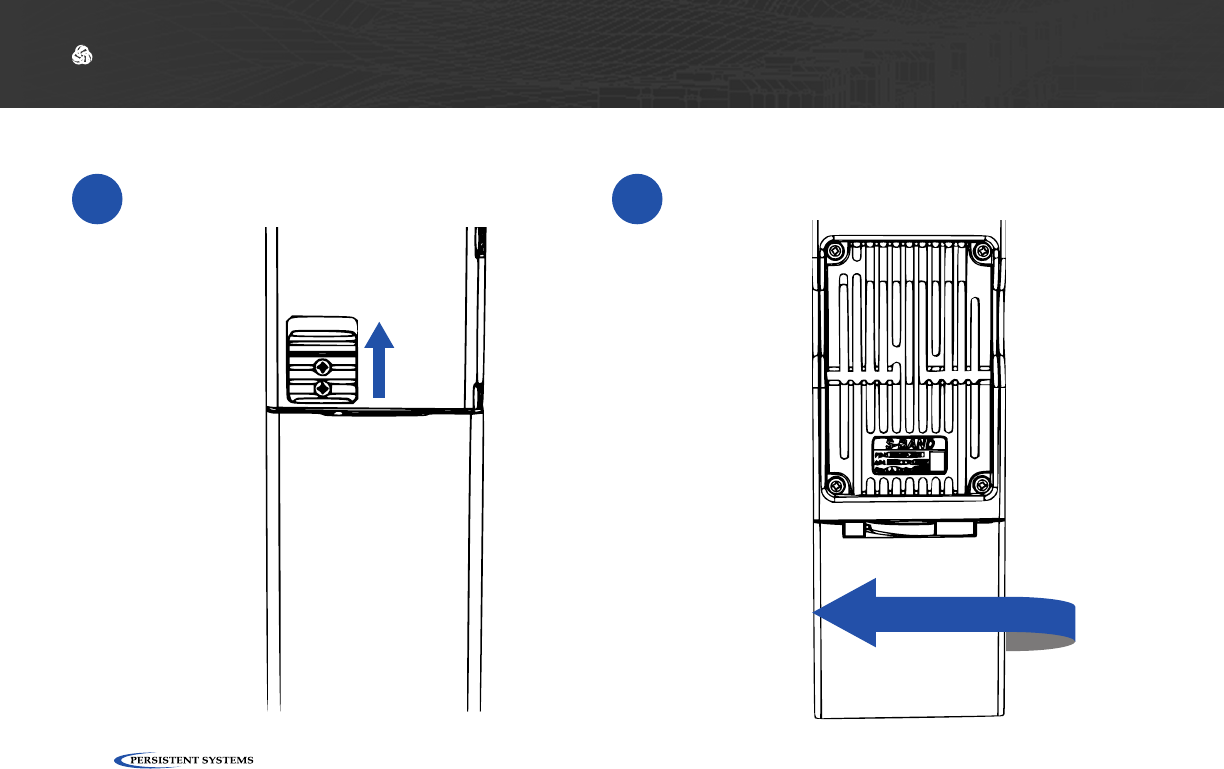

1Slide up the battery latch on the side of

the MPU5. 2Twist the battery counterclockwise until it

disconnects.

Removing Power

PHYSICAL SETUP: POWER

What do I do if my power accessory

will not ﬁt the battery connector?

What do I do if my power accessory will

not lock?

? ?

Ensure that no parts (pins, plates, etc.) on either

connector are bent or damaged.

Ensure that the battery latch moves freely by sliding

it up and down.

Ensure that there are no foreign objects in either

connector.

Ensure that the battery latch is not stuck in the

unlocked position.

1 1

2 2

32

PHYSICAL SETUP: POWER

1Ensure that antennas, a radio module, and

an appropriate power source are connect-

ed.

4If the unit is powered and has turned on,

the LED on the top of the unit will glow

a color indicating unit status.

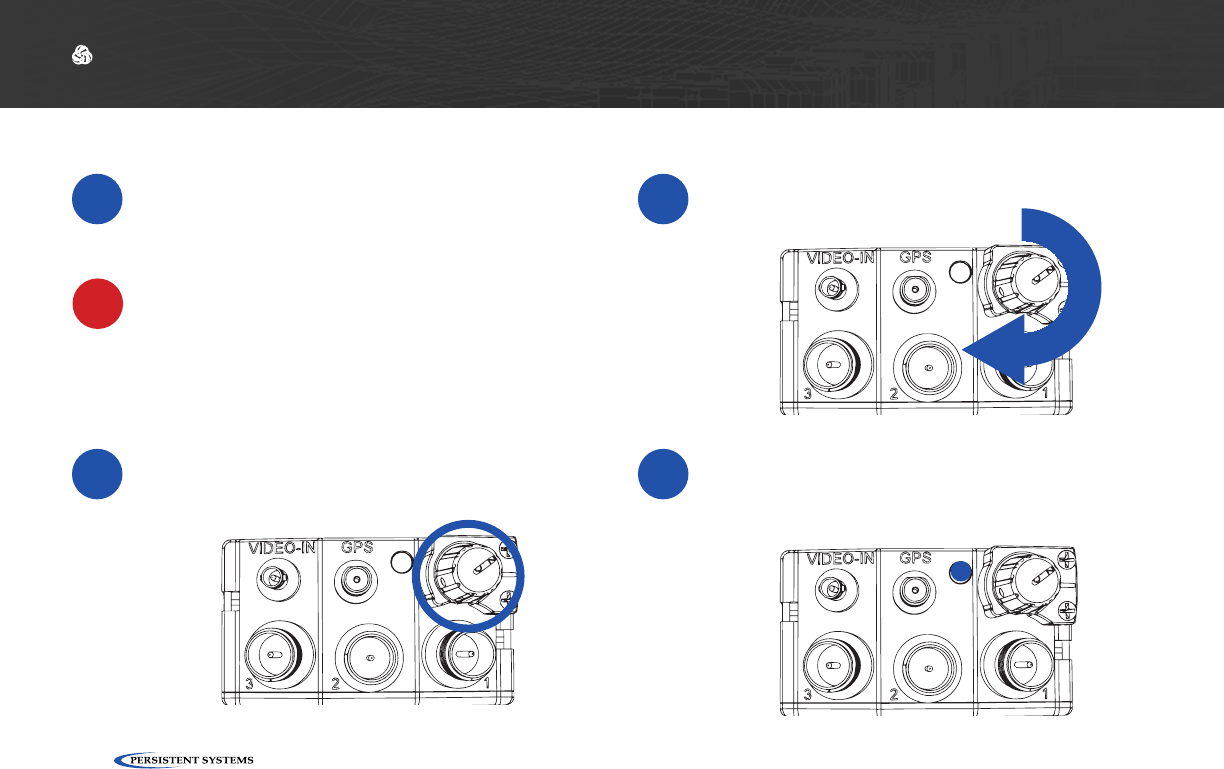

2Locate the Power Knob on the top of the

unit.

3Twist the Power Knob clockwise 1 click.

Powering On the Unit

!WARNING!: Antennas MUST be installed prior

to powering on the unit.

PHYSICAL SETUP: POWER

What do I do if my Power Knob does

not rotate?

What do I do if the Power Knob does

not click when I twist it?

??

Make sure that you are twisting it in the correct

direction (clockwise). The Power Knob may be broken. Contact Persistent

Systems Support.

Make sure that no foreign objects are blocking the

rotation of the knob.

If the knob still does not rotate, it may be broken.

Contact Persistent Systems Support.

Ensure that the battery latch is not stuck in the

unlocked position.

11

2

3

2

LED Color Unit Status

Blue Booting

Yellow Running, no neighbors

Green Running, neighbors

Red Crypto Fail (No key or FIPS)

Orange Low Battery

Purple Loading Firmware

Quick Reference:

34

PHYSICAL SETUP: SIDE CONNECTORS

What Can I Do Now?

What Will I Learn?

✓

▶Provide power to an MPU5 via a battery or standard wall socket

▶Power on/off the unit

▶Replace dead batteries

▶How to connect a cable to the MPU5 side connectors

→

Section C: Side Connector Cables

PHYSICAL SETUP: SIDE CONNECTORS

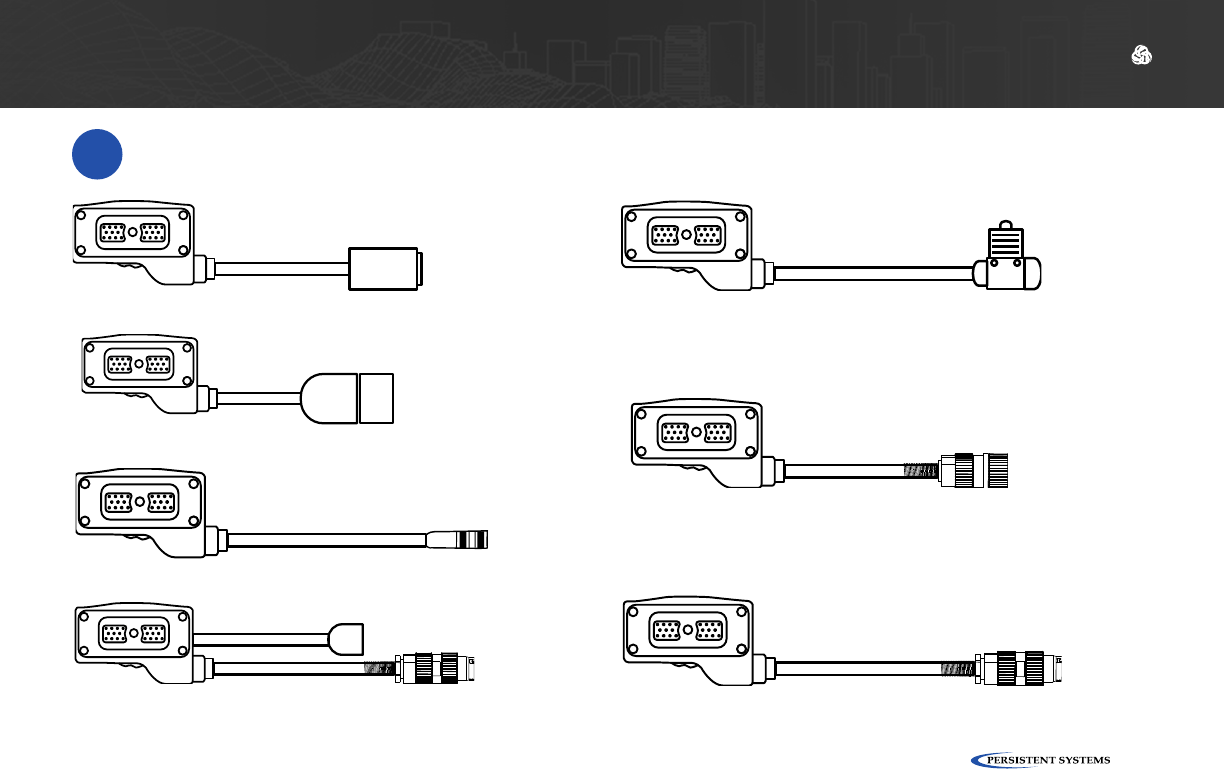

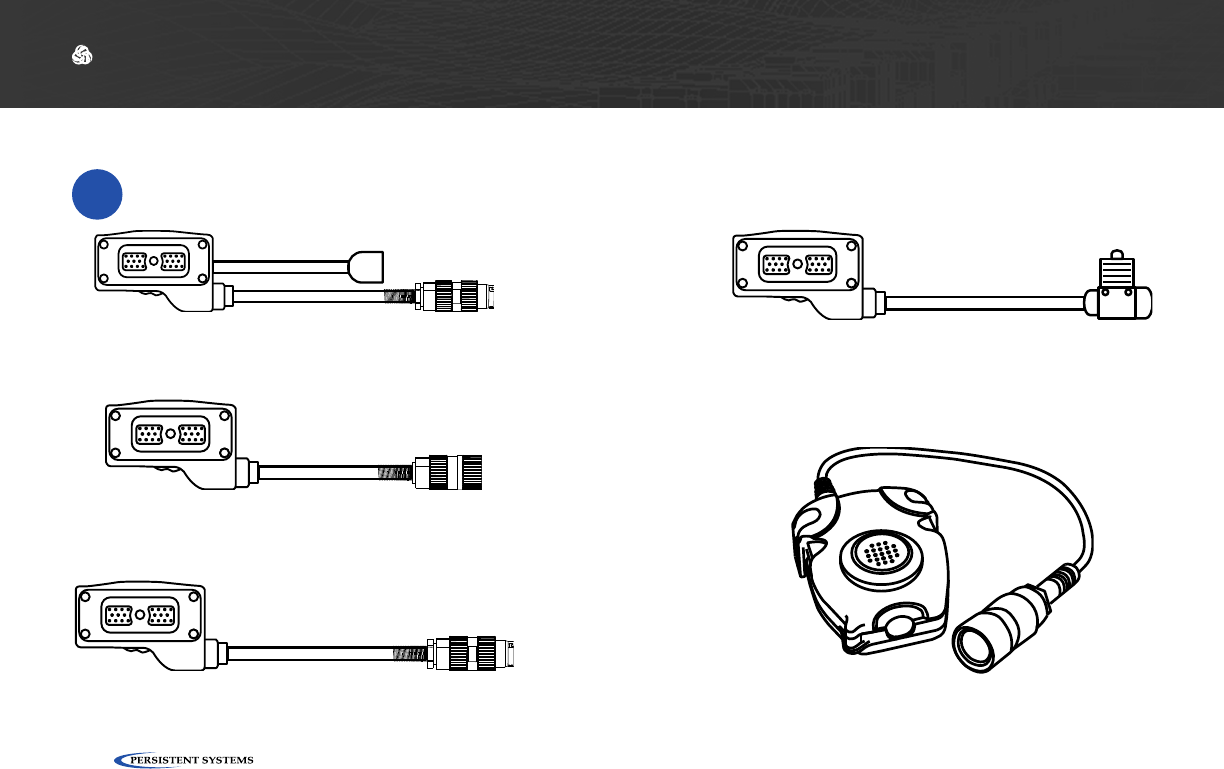

Parts List/Interchangeable Parts

≈

22-Pin to USB 2.0 Type A Receptacle

CBL-DATA-2003

22-Pin to Audio and Video Out

CBL-DATA-3001

22-Pin to RJ45 Receptacle

CBL-DATA-2001

22-Pin to U-329

CBL-AUD-0001

22-Pin to U-328

CBL-AUD-0002

22-Pin to U94

CBL-AUD-0003

22-Pin to 6-Pin Push Pull USB Tether

CBL-DATA-2004

36

PHYSICAL SETUP: SIDE CONNECTORS

1

!

The 22-Pin connector on

every cable is keyed so

that it will only attach to

a compatible side con-

nector. If a cable can

attach to multiple side

connectors, it is keyed

(or not keyed) so that it

will attach to all compati-

ble side connectors.

WARNING!: Ensure that

the unit is POWERED

OFF before attaching a

cable to a side connec-

tor.

2To connect a cable to a

side connector, locate

the appropriate side

connector.

3Align the key pins on

the 22-Pin spin connec-

tor with the key holes

on the case. Push the

key pins into the key

holes.

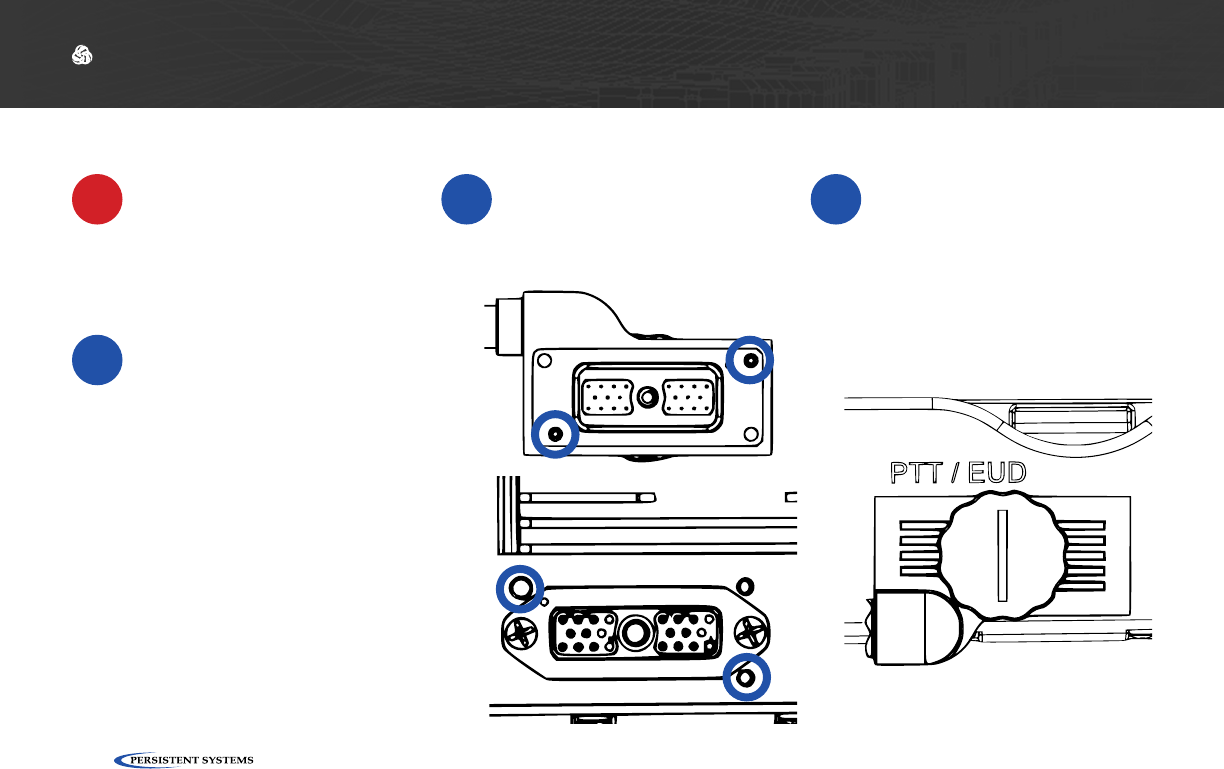

Connecting a Cable to a Side Connector

PHYSICAL SETUP: SIDE CONNECTORS

4

5

Twist the spin connector clockwise to at-

tach the cable to the device.

Ensure that the cable is ﬁrmly attached and

the connector is sitting ﬂush with the case.

Ensure that there are no foreign objects in the spin

connector or side connector.

4

Ensure that the cable connector is ﬂush with the

case.

5

What do I do if the cable won’t mate

with the side connector?

?

Ensure that you are trying to connect the cable to

the correct side connector.

1

Ensure that you are aligning the key pin properly

and the cable is not upside down.

2

Ensure that no parts of the spin connecotr and the

side connector are bent or damaged.

3

38

PHYSICAL SETUP: SIDE CONNECTORS

Quick Reference:

Part Number Description Side Con-

nector(s)

Uses

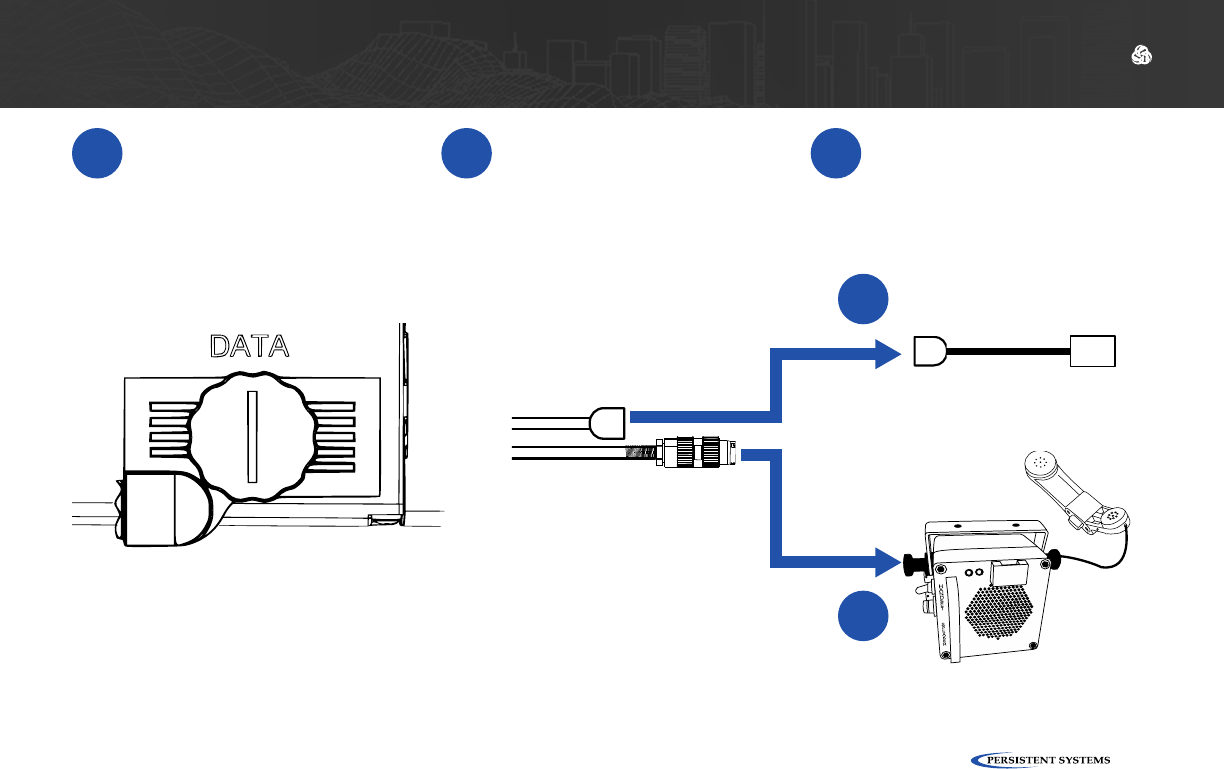

CBL-DATA-2001 22-Pin to RJ45 Recep-

tacle

DATA This cable allows you to connect the

MPU5 to a standard RJ45 Ethernet cable.

Use this cable to connect the unit to a

computer for conﬁguration.

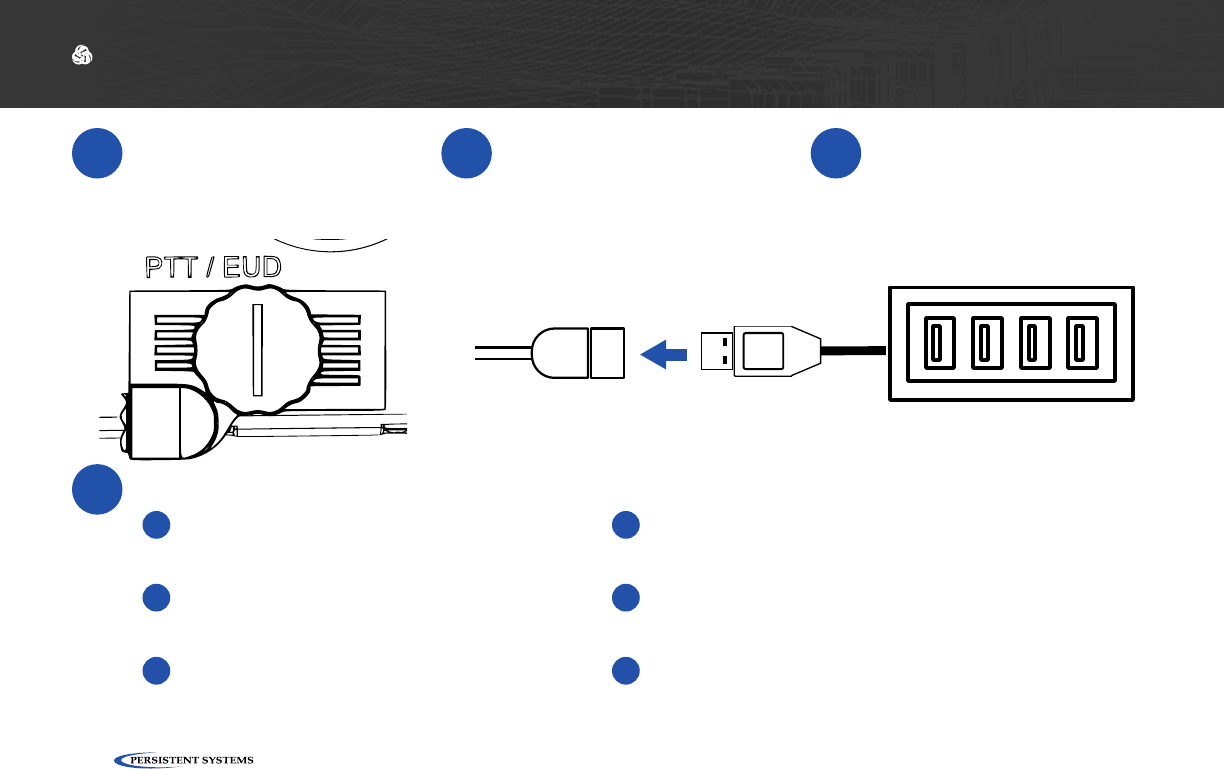

CBL-DATA-2003 22-Pin to USB 2.0 Type

A Female

PTT/EUD,

DATA, RoIP

This cable allows you to connect USB

accessories to the unit via a standard USB

A port.

CBL-DATA-2004 22-Pin to 6-Pin Push

Pull Android™ USB

PTT/EUD This cable allows you to connect an An-

droid™ EUD or Screen to the unit.

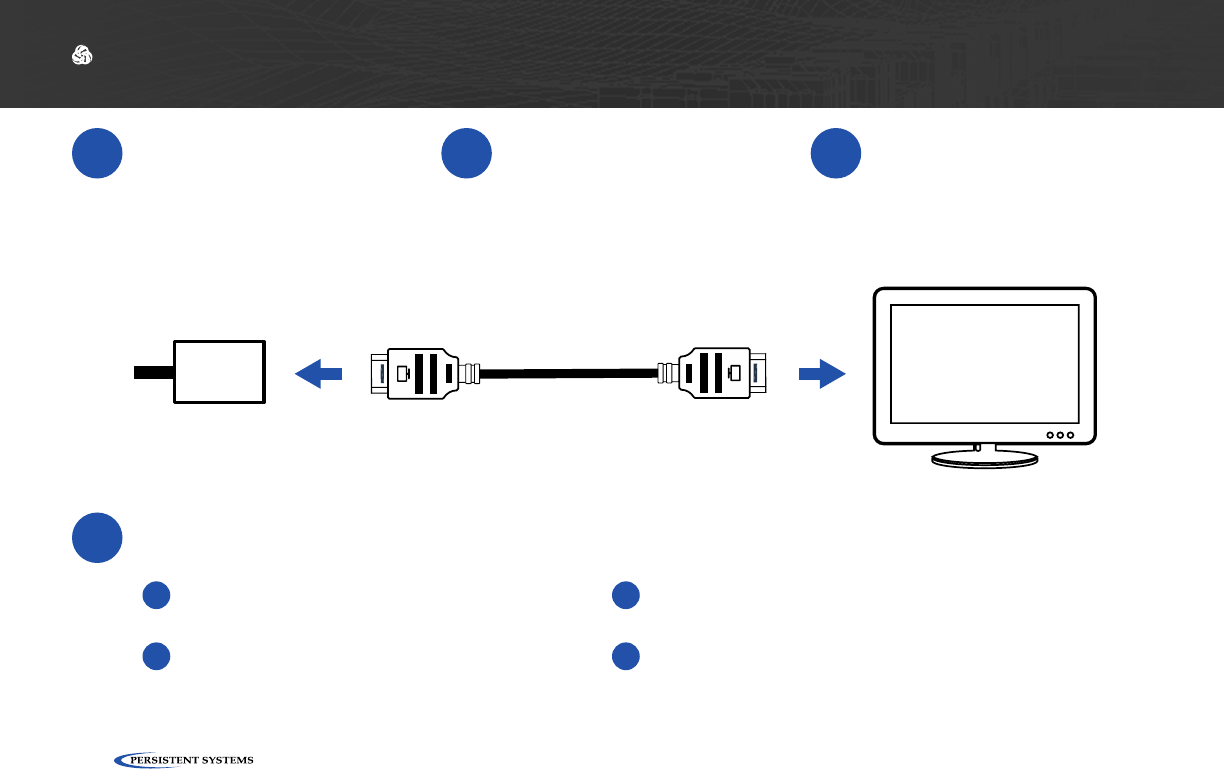

CBL-DATA-3001 22-Pin to Audio and

Video Out

PTT/EUD This cable allows you to connect the unit

to a standard HDMI cable to display vid-

eo on a TV or Monitor as well as connect

the unit to a speaker box or headset.

CBL-AUD-0001 22-Pin to U-329 RoIP This cable allows you to connect the unit

to a PTT device with a U-329 connector.

PHYSICAL SETUP: SIDE CONNECTORS

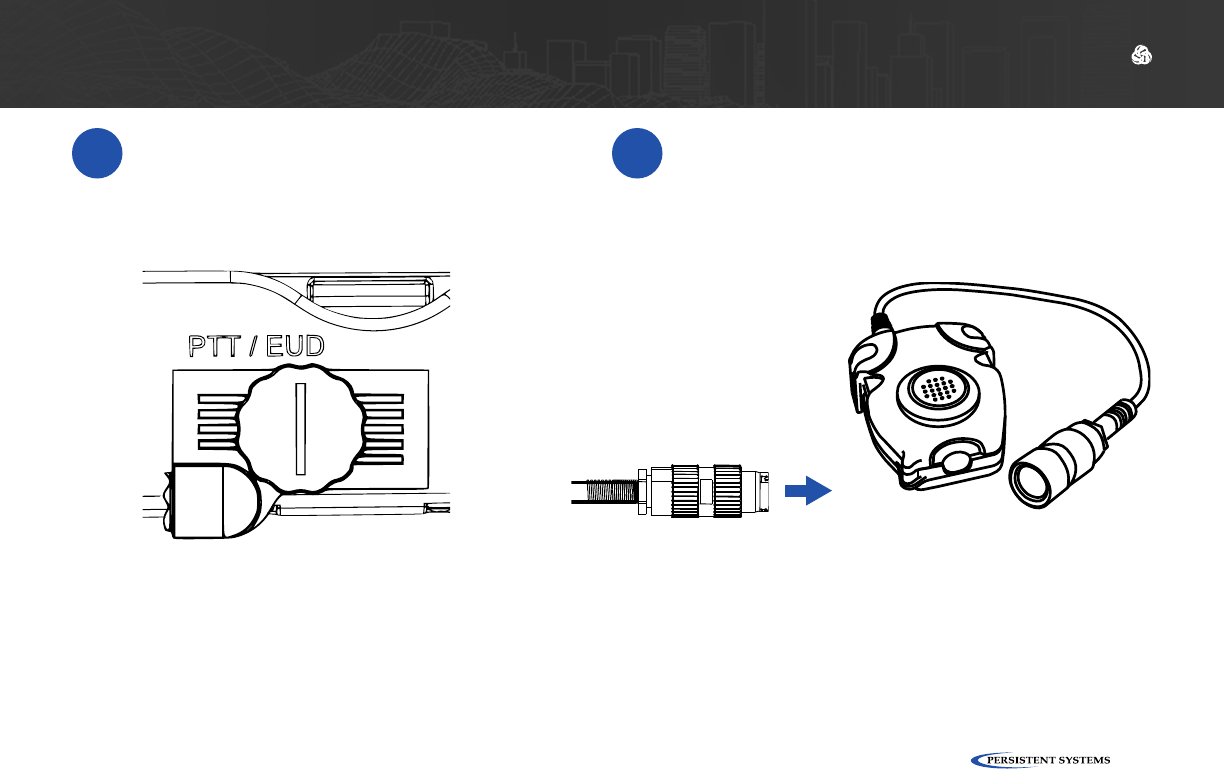

CBL-AUD-0002 22-Pin to U-328 PTT/EUD This cable allows you to connect the unit

to a headset with a U-328 connector.

CBL-AUD-0003 22-Pin to U94 PTT/EUD This cable allows you to connect the unit

to a headset with a U94 connector.

What Can I Do Now?

✓

▶Identify which cable you need for your conﬁguration

▶Identify which side connector your cables attach to

▶Connect a cable to a side connector

40

SOFTWARE SETUP: MANAGEMENT COMPUTER

What Will I Learn?

▶How to conﬁgure your computer to be able to communicate with an MPU5

→

Section A: Conﬁguring the Management Computer

Part II: Software Setup

Parts List/Interchangeable Parts

≈

Management Computer with Administrator Access

SOFTWARE SETUP: MANAGEMENT COMPUTER

!IMPORTANT INFORMATION!:

▶To communicate with an MPU5, the computer must have an IP address in the same subnet

mask as the MPU5’s IP address.

▶For example, with a subnet mask of 255.255.255.0, the computer and MPU5 will be able

to communicate if they share the same ﬁrst three numbers in their respective IP addresses

(e.g. 10.3.1.10 and 10.3.1.254).

▶If the computer and MPU5 do not share a subnet mask, the computer and MPU5 will not

be able to communicate.

▶If either the computer or MPU5 do not have an IP address in the same subnet mask, the

computer and MPU5 device will not be able to communicate.

42

SOFTWARE SETUP: MANAGEMENT COMPUTER

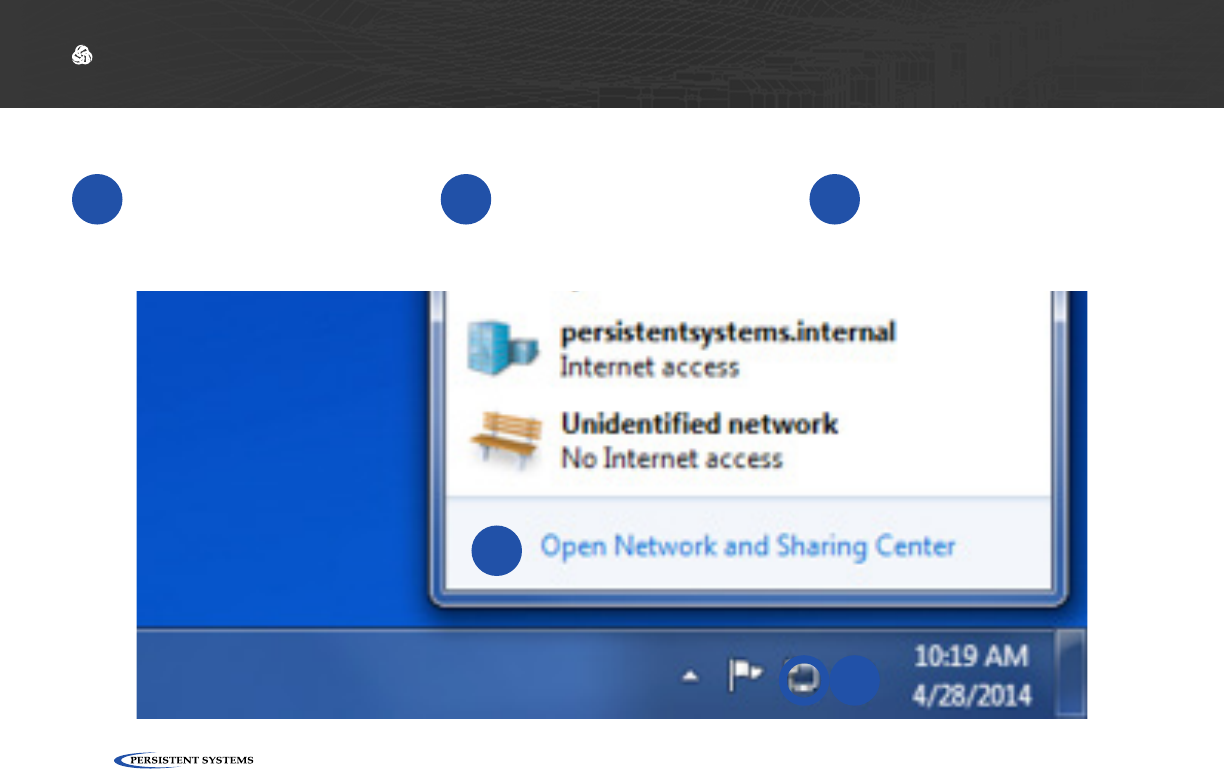

1Locate the Network

icon at the bottom right

of the taskbar.

2Right click the Network

icon. 3Click Open Network

and Sharing Center.

Conﬁguring the Management Computer (Windows)

2

3

SOFTWARE SETUP: MANAGEMENT COMPUTER

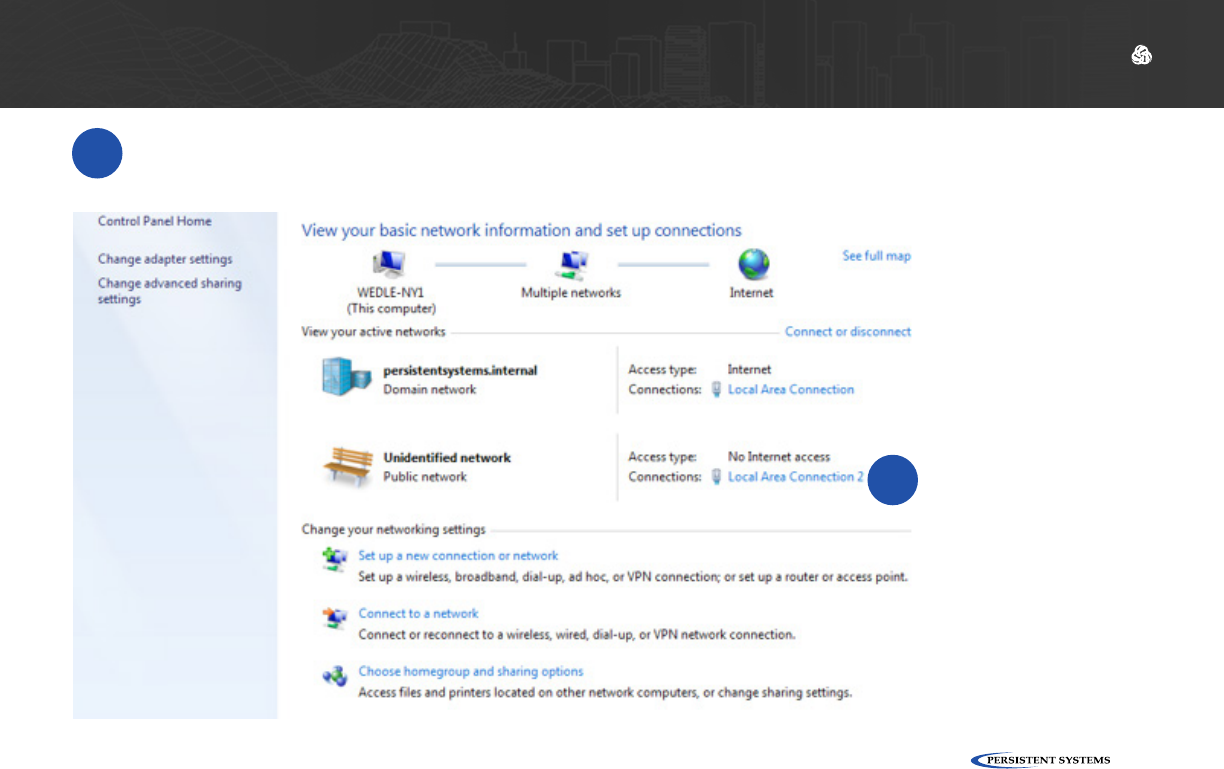

4Click Local Area Connection 2.

4

44

SOFTWARE SETUP: MANAGEMENT COMPUTER

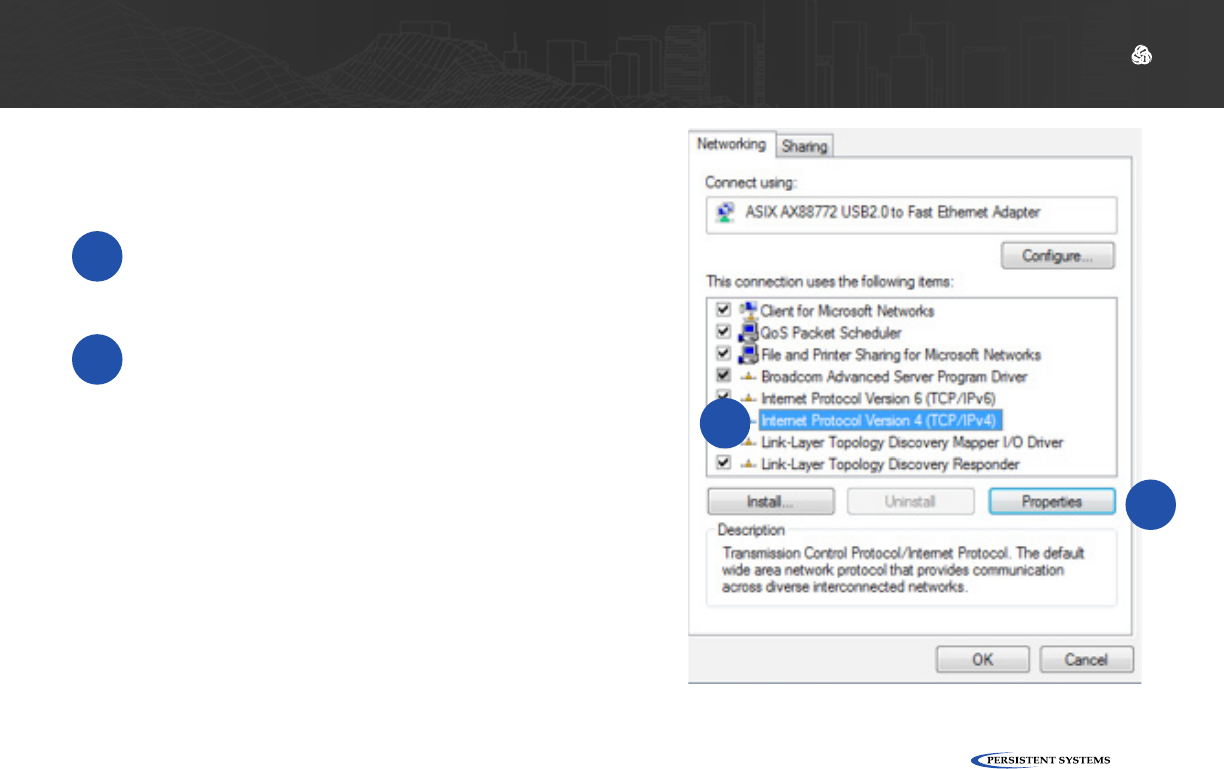

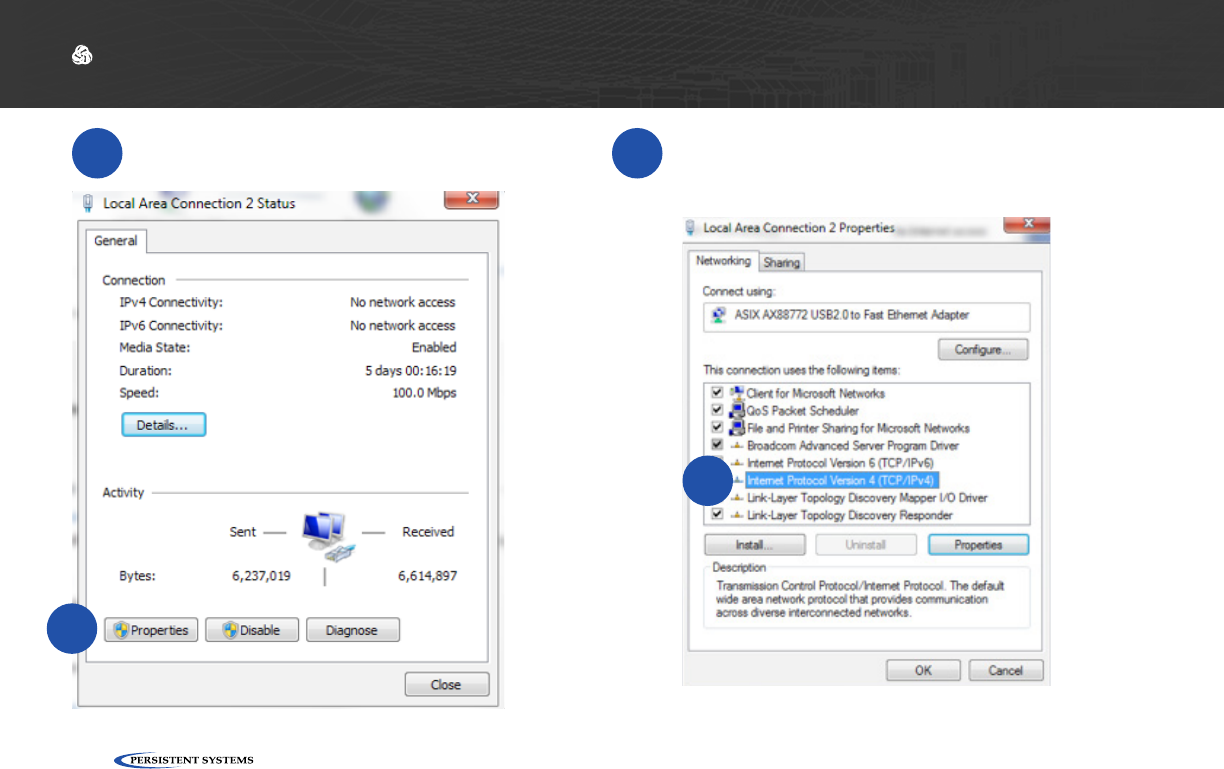

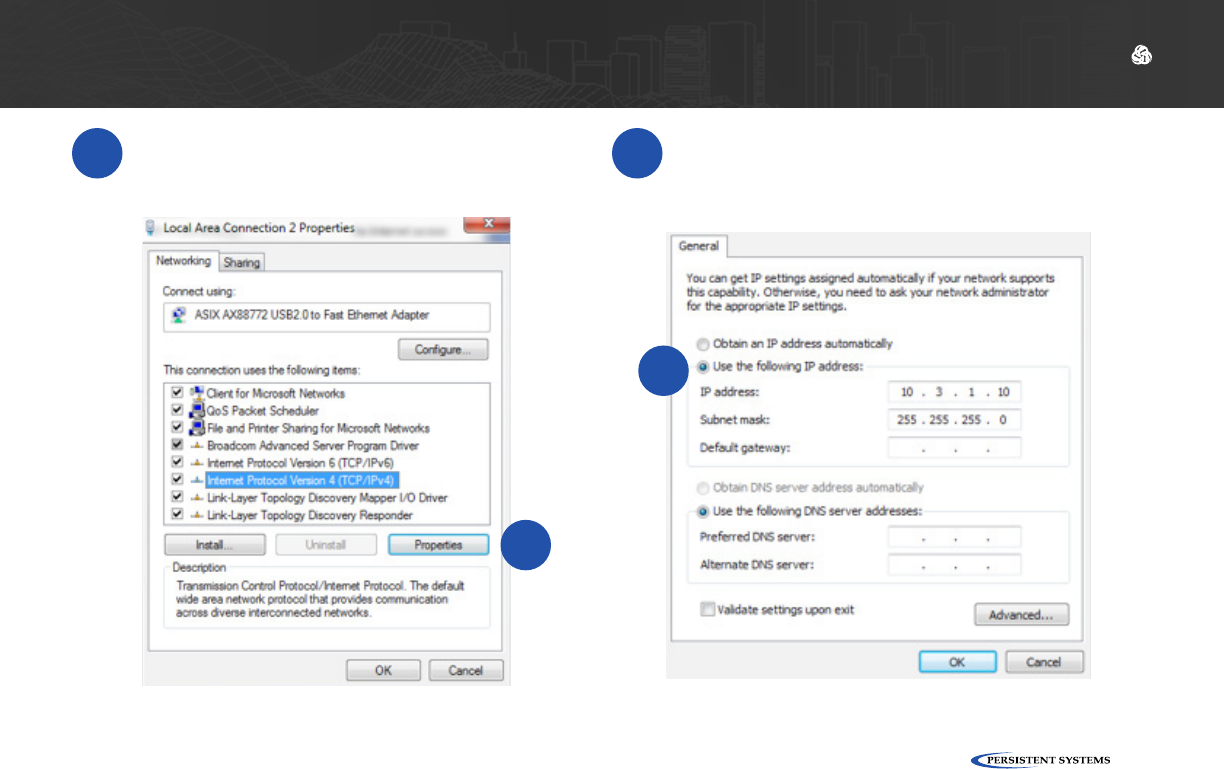

5Click Properties.6Select Internet Protocol Version 4 (TCP/

IPv4) and ensure that it is highlighted as

pictured.

6

5

SOFTWARE SETUP: MANAGEMENT COMPUTER

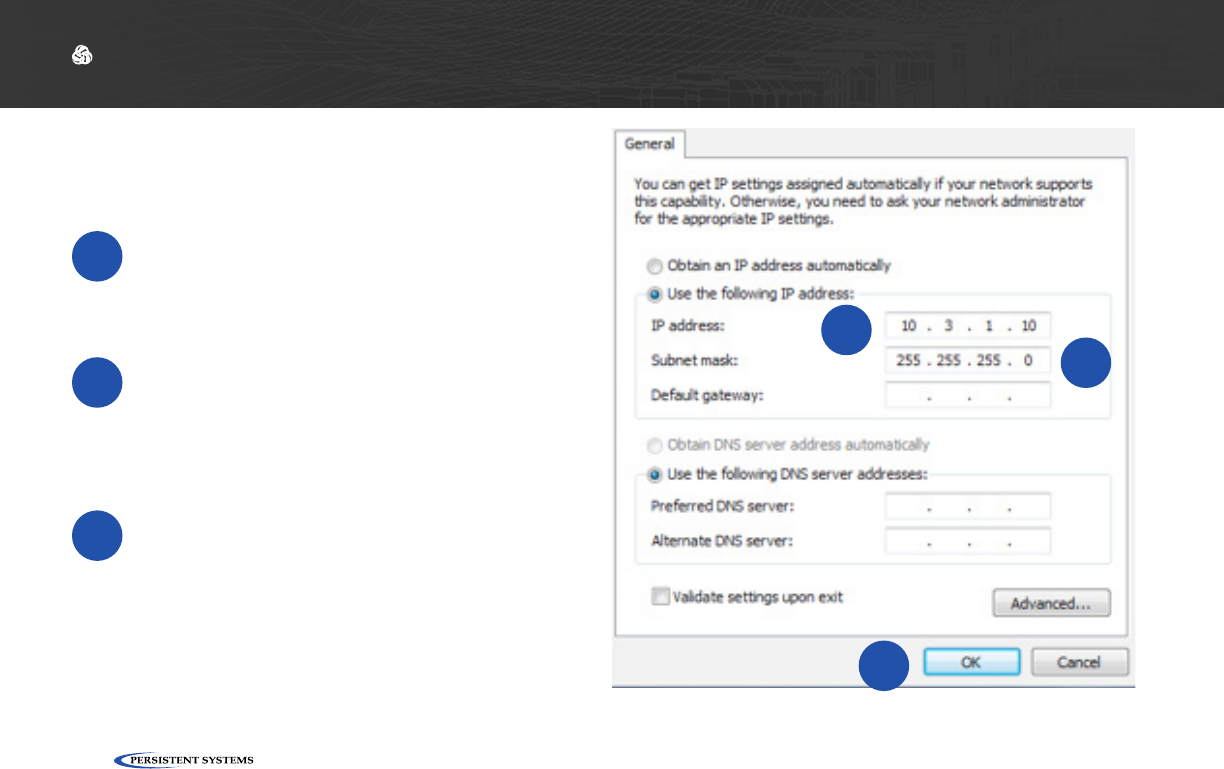

8Click Use the following IP address.

7Click Properties.

7

8

46

SOFTWARE SETUP: MANAGEMENT COMPUTER

9Enter 10.3.1.10 into the

IP address ﬁeld.

10 Enter 255.255.255.0

into the Subnet mask

ﬁeld.

Click OK.

11

910

11

SOFTWARE SETUP: MANAGEMENT COMPUTER

12 Select Internet Protocol Version 4 (TCP/

IPv4) and ensure that it is highlighted.

13 Click Properties.

12

13

48

SOFTWARE SETUP: MANAGEMENT COMPUTER

14 Click Advanced... 15 Under IP addresses, click Add...

14

15

SOFTWARE SETUP: MANAGEMENT COMPUTER

16 In the IP address ﬁeld, enter

10.3.1.10.

17 In the Subnet mask ﬁeld,

enter 255.255.255.0

Click Add.

18

16

17

18

19 Click OK.

19

50

1Open the command line.

2Type:

sudo ifcong eth0 10.4.1.10/24

Conﬁguring the Management Computer (Linux)

4Type:

sudo ip addr add 10.3.2.10/24 dev eth0

3Type:

sudo ip addr add 10.3.1.10/24 dev eth0

What Can I Do Now?

✓

▶Conﬁgure computers to be able to communicate with Wave Relay® devices.

▶Have a computer that is able to conﬁgure a Wave Relay® device.

SOFTWARE SETUP: MANAGEMENT COMPUTER

Connecting the MPU5 to the Management Computer

What Will I Learn?

▶How to physically connect the MPU5 to the Management Computer

→

Parts List/Interchangeable Parts

≈

22-Pin to RJ45 Receptacle

CBL-DATA-2001

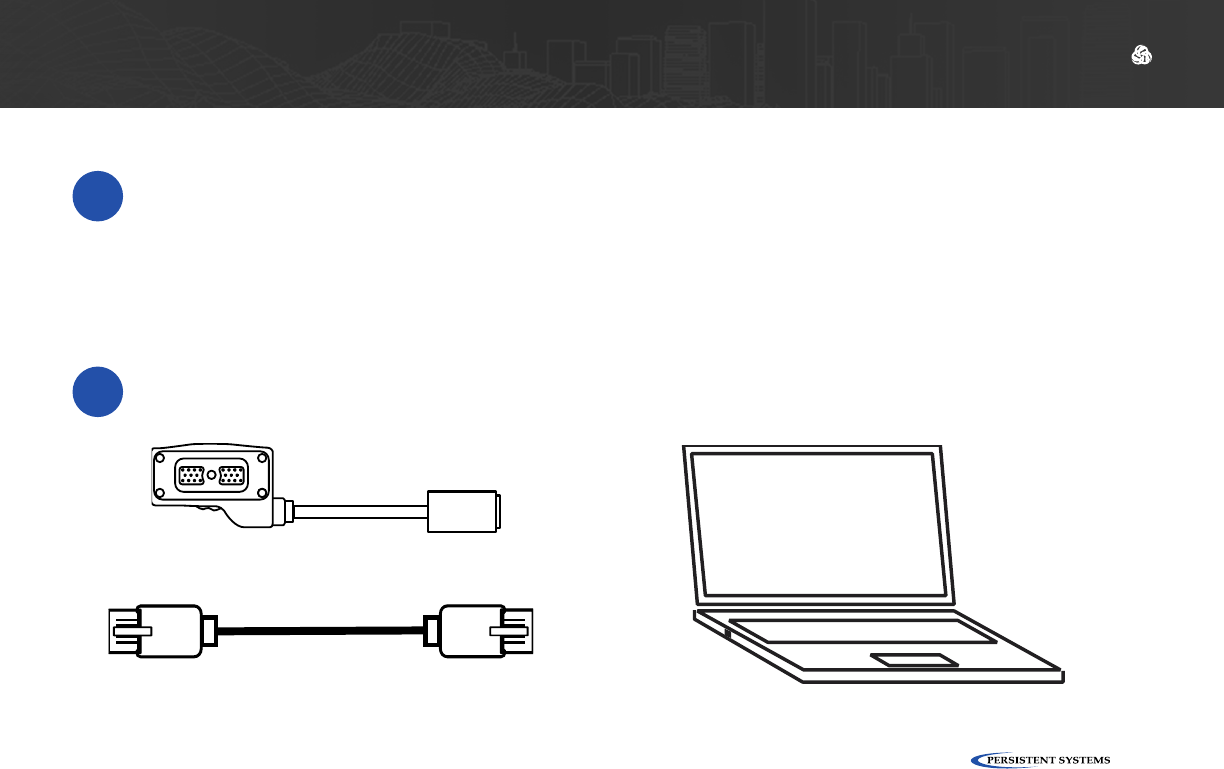

Properly Conﬁgured Management ComputerStandard RJ45 Ethernet Cable

52

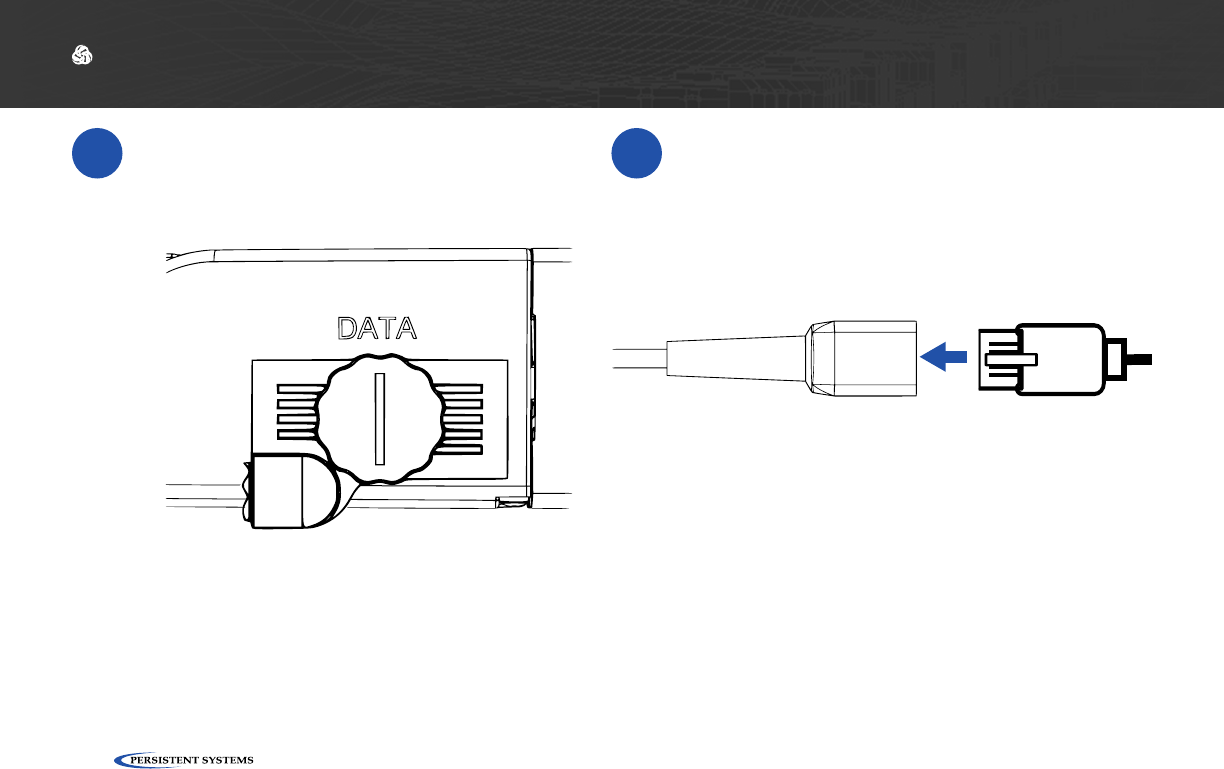

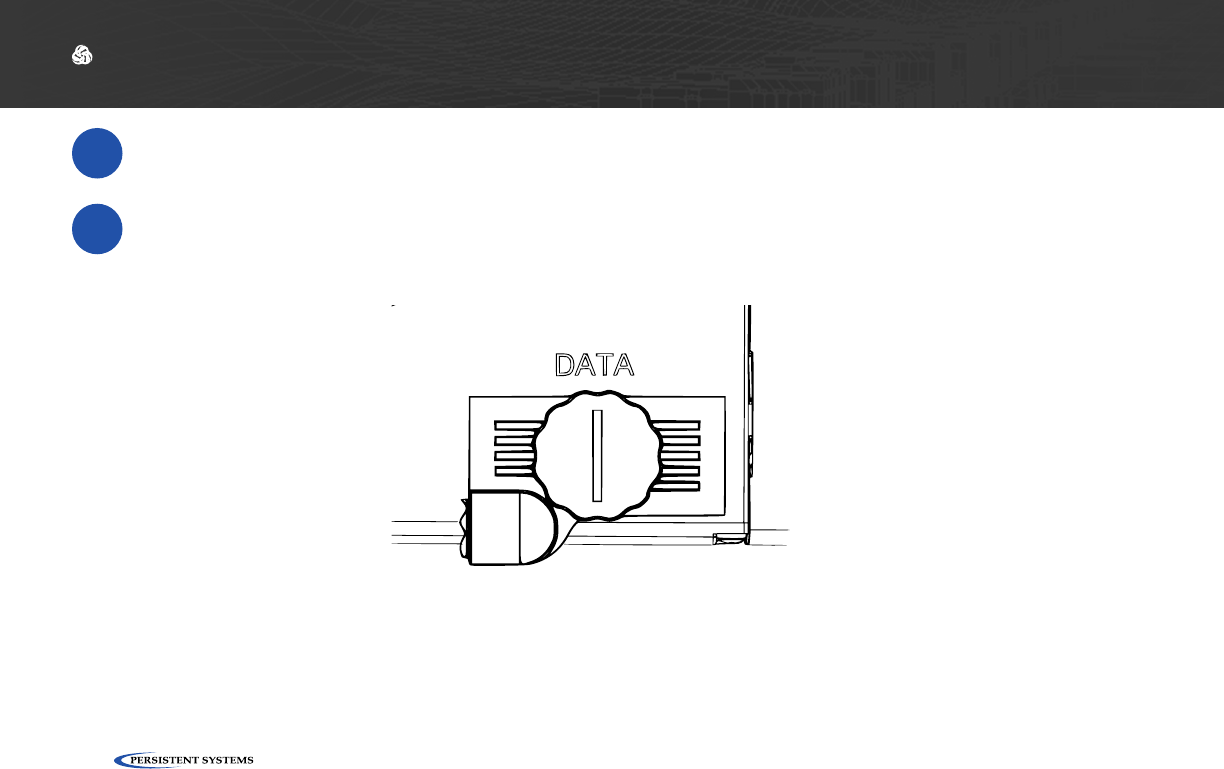

1Connect CBL-DATA-2001 to the DATA

side connector on the MPU5. 2Plug one end of the standard RJ45 Ether-

net cable into the Ethernet receptacle on

CBL-DATA-2001.

SOFTWARE SETUP: MANAGEMENT COMPUTER

3Plug the other end of the standard RJ45 Ethernet cable into an Ethernet port on the Man-

agement Computer.

What Can I Do Now?

✓

▶Connect an MPU5 to a computer for conﬁguration

54

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

Accessing the Web Management Interface

What Will I Learn?

▶How to access the Web Management Interface to conﬁgure the MPU5

→

Parts List/Interchangeable Parts

≈

Web Browser (Internet Explorer 7+,

Firefox 3+, or Chrome

Management Computer with properly con-

ﬁgured IP address and subnet mask

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

1Open the web browser

Microsoft Internet Explorer 7+

Google Chrome

Mozilla Firefox 3+

2In the address bar, type https://10.3.1.254

then press the Enter key.

56

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

3

a

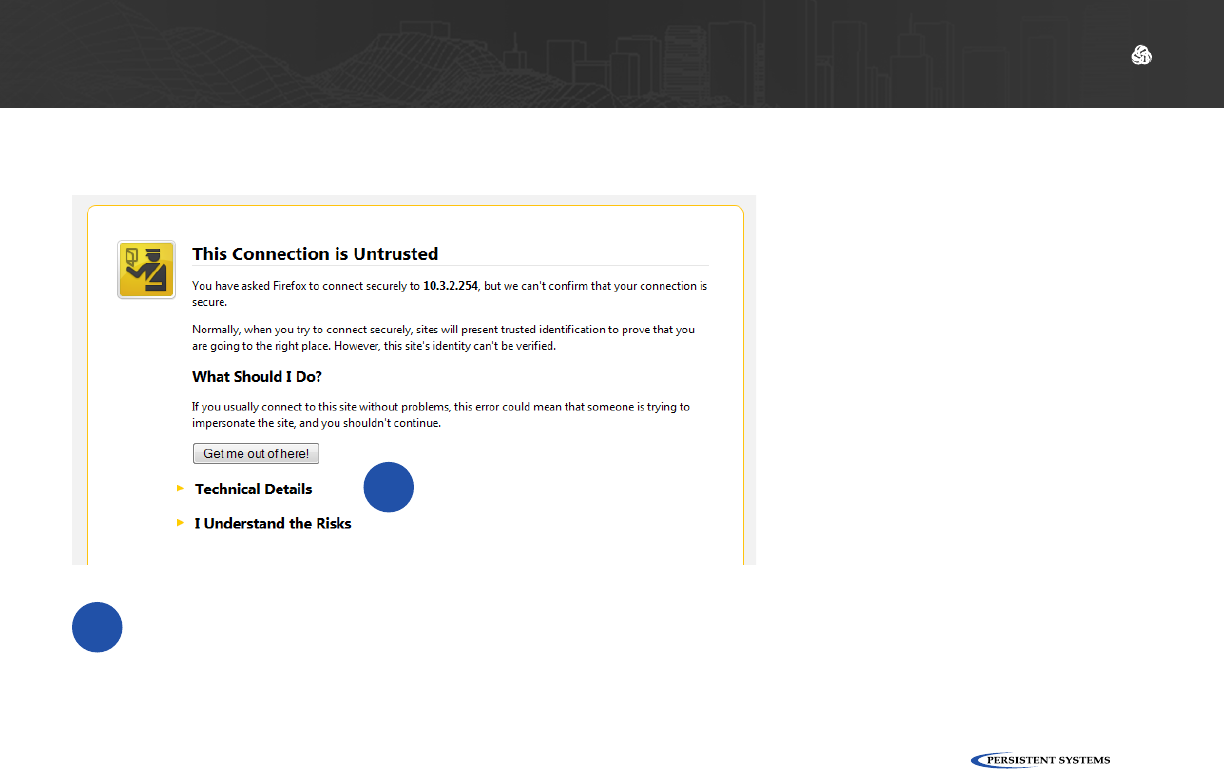

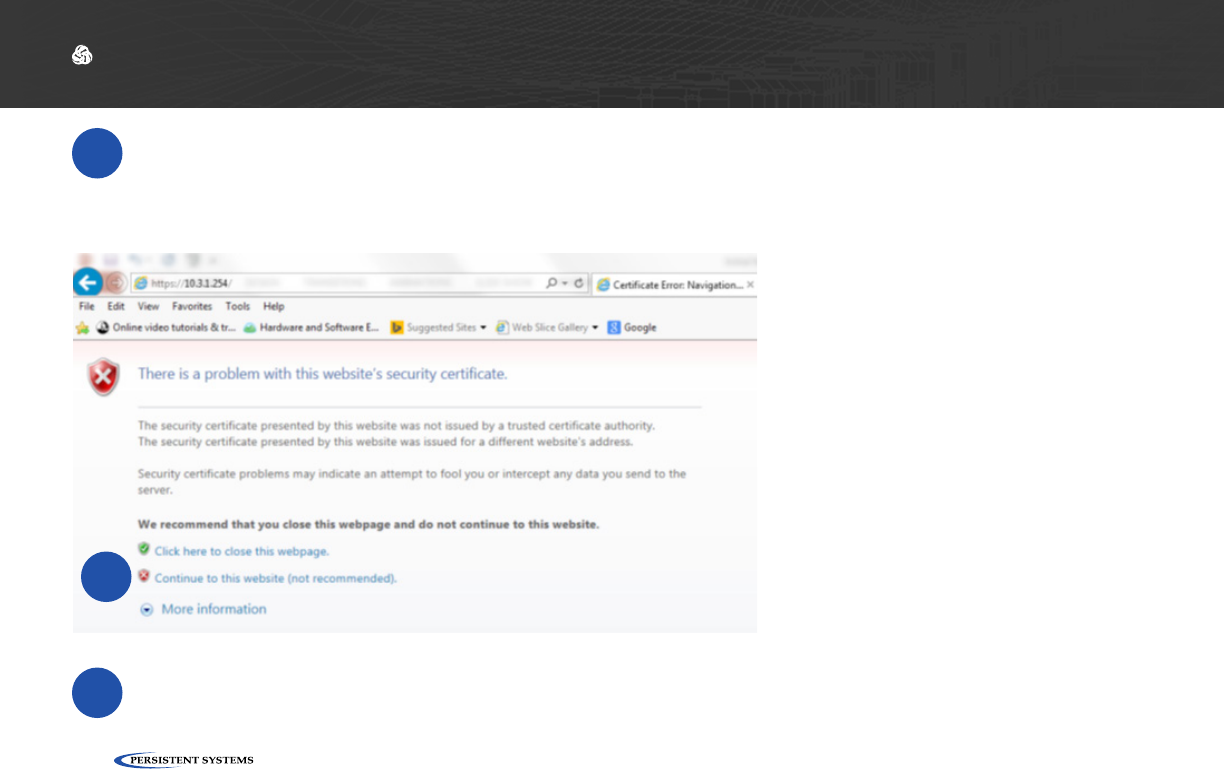

The web browser will ask you to accept a security certiﬁcate.

In Internet Explorer:

Click Continue to this website (not recommended)

a

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

b

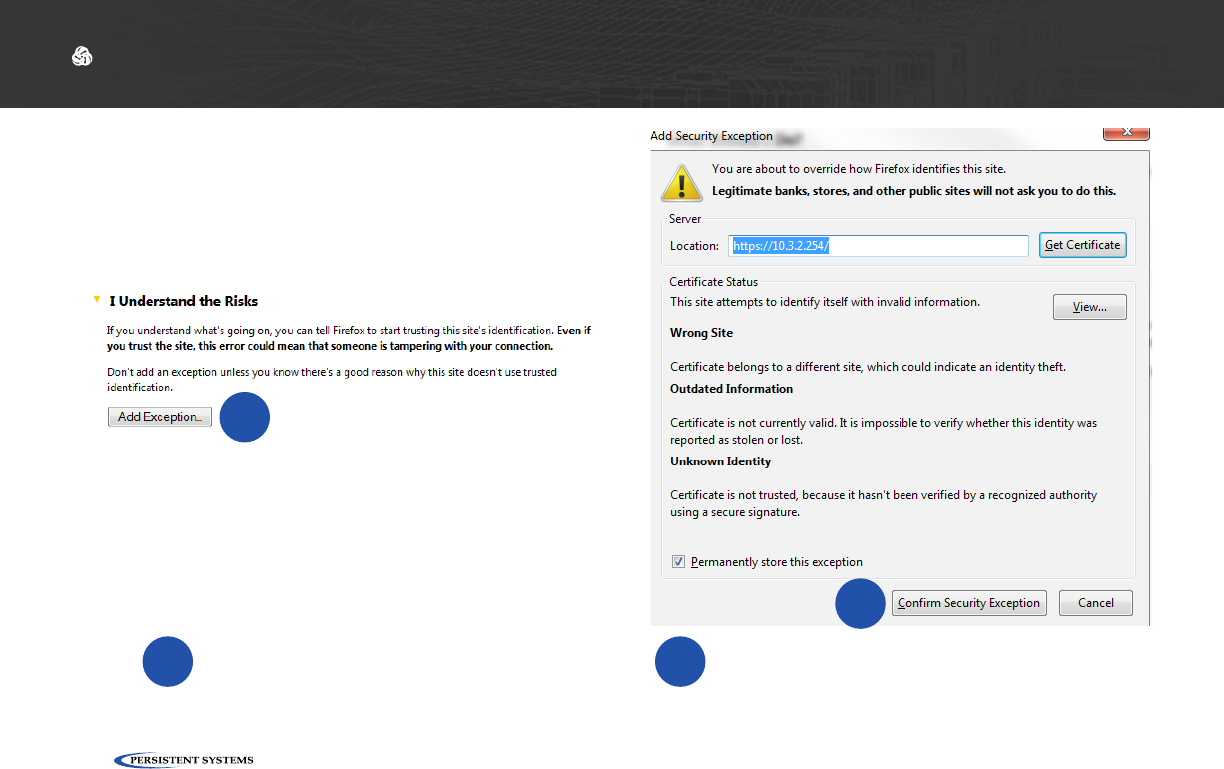

In Firefox:

Click I Understand the Risks

b

58

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

Click Add Exception Click Conﬁrm Security Exceptioncd

d

c

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

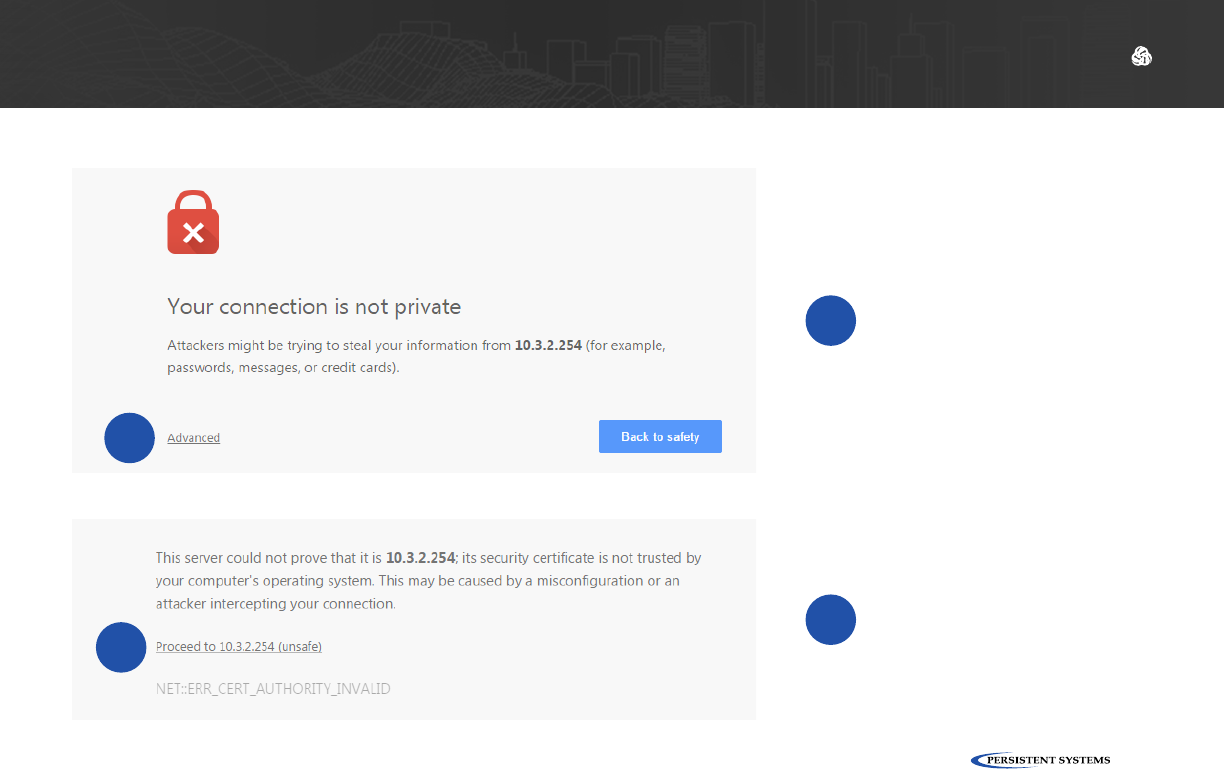

In Chrome:

Click Advanced

Click Proceed to

10.3.1.254 (unsafe)

e

f

e

60

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

4Wait for the Web Man-

agement Interface page

to load

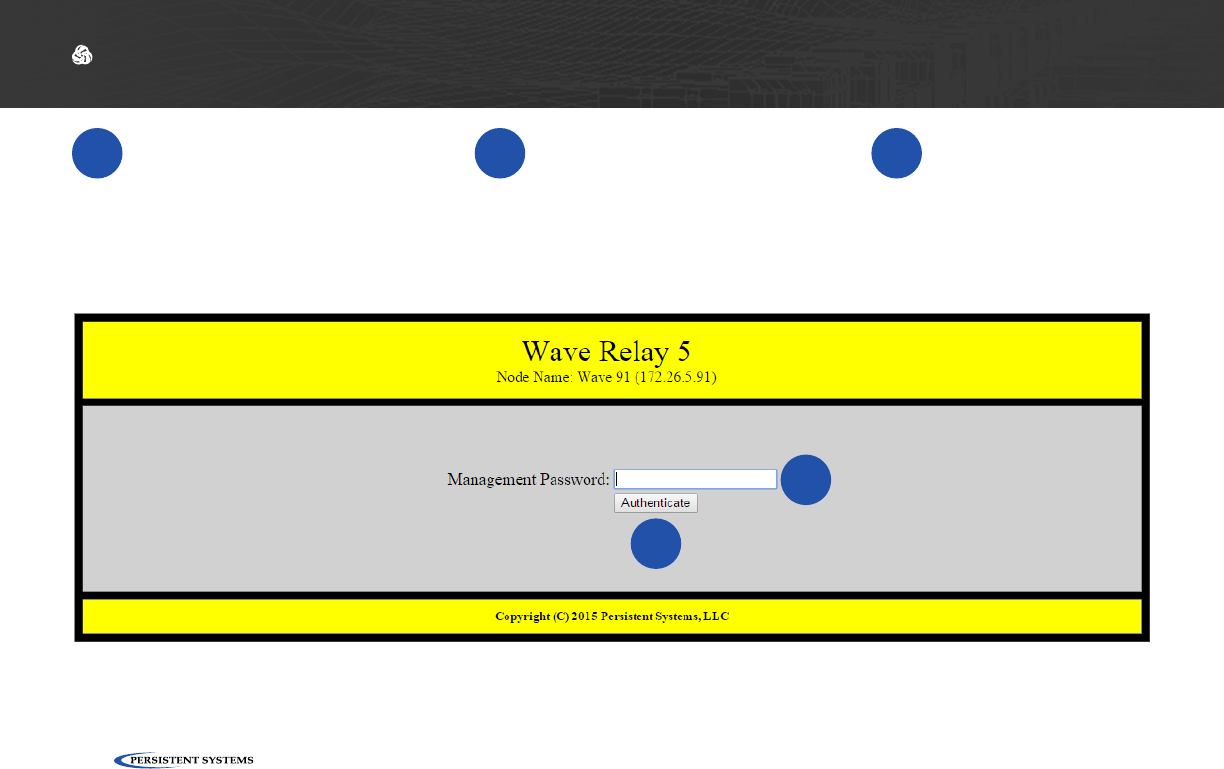

5In the Management

password ﬁeld, type

password

6Click Authenticate.

5

6

SOFTWARE SETUP: WEB MANAGEMENT INTERFACE

Why does the Security Exception Page or the Web Management Interface page not

load?

?

Verify that you conﬁgured the Management Com-

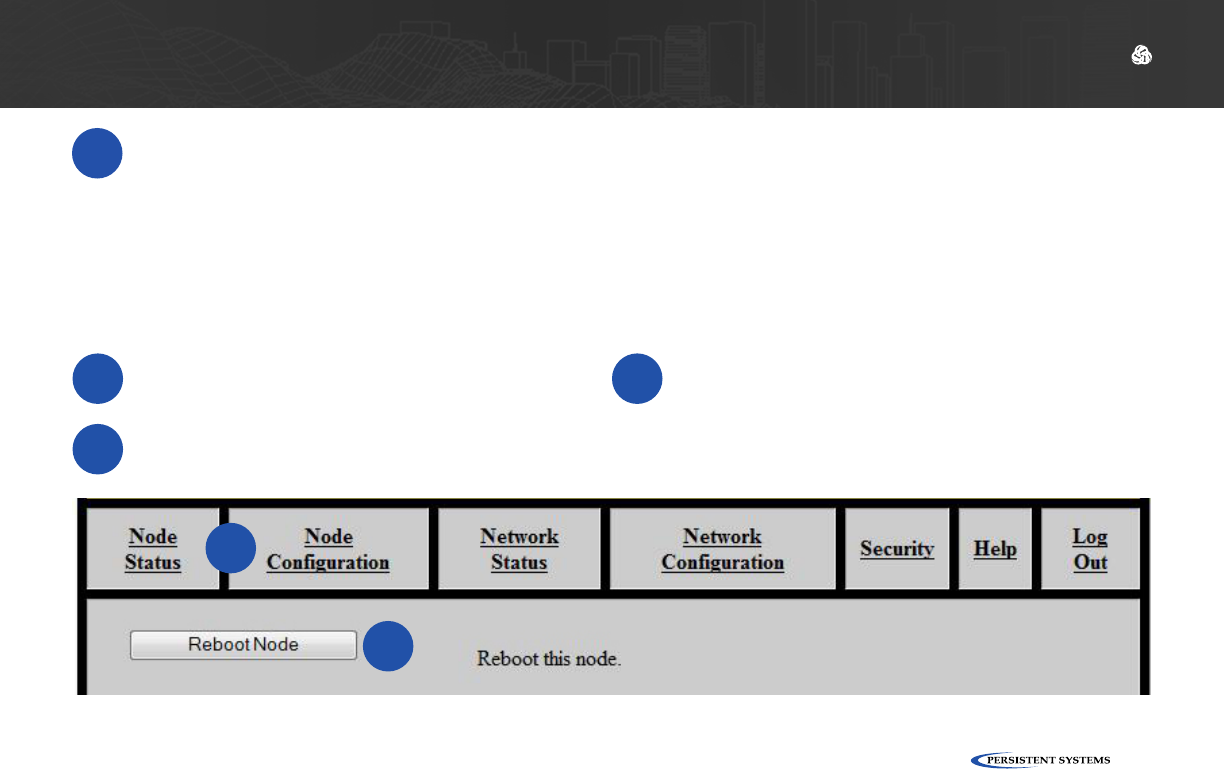

puter IP address and subnet mask properly.

1Ensure that you are using a compatible web

browser.

4

Ensure that all cables are connected properly2Reboot the node.5

Ensure that you are accessing the correct manage-

ment IP address (10.3.1.254).

3

What Can I Do Now?

✓

▶Access the Web Management Interface for any node you connect to your computer.

62

SOFTWARE SETUP: SECURITY KEY

Security Key

What Will I Learn?

▶How to set the security key and crypto mode on an MPU5

→

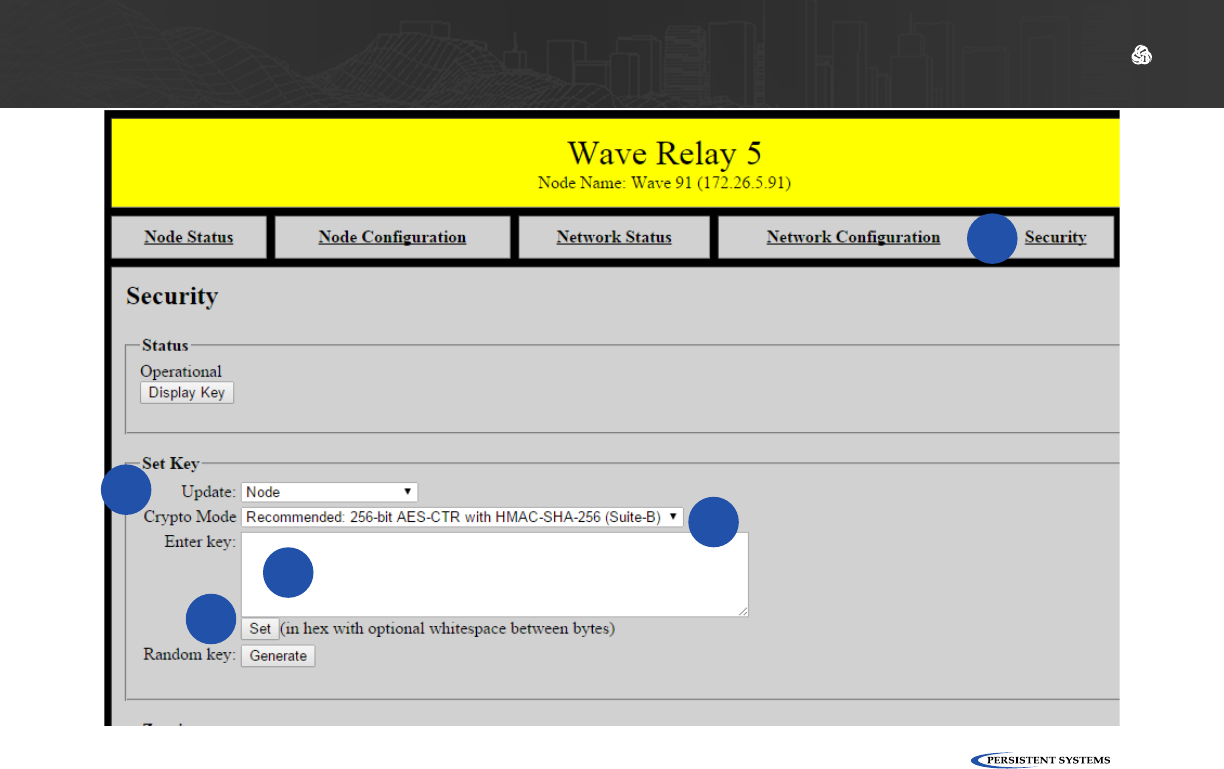

1Click the Security tab. 2In the Set Key section, locate the Update

drop down menu. Select Node.

3In the Crypto Mode drop down menu,

select the desired Crypto Mode.

Note: All nodes must have the same Crypto

Mode in order to communicate.

4In the Enter key ﬁeld, type the desired

security key or click the Generate button

to generate a random key.

65 Copy and paste the security key to a

text ﬁle in a secure place on the Man-

agement Computer.

Click the Set button to set the key for the

node.

SOFTWARE SETUP: SECURITY KEY

1

23

4

6

64

SOFTWARE SETUP: SECURITY KEY

What Can I Do Now?

✓

▶Set or change the security key and crypto mode for a single node

▶Generate a random security key

▶Save a security key in a text ﬁle to copy to other nodes

Assigning IP Address and Interface Names

What Will I Learn?

▶How to set and change the Node Name and IP Address of a node

→

SOFTWARE SETUP: ASSIGNING IP ADDRESS AND INTERFACE NAMES

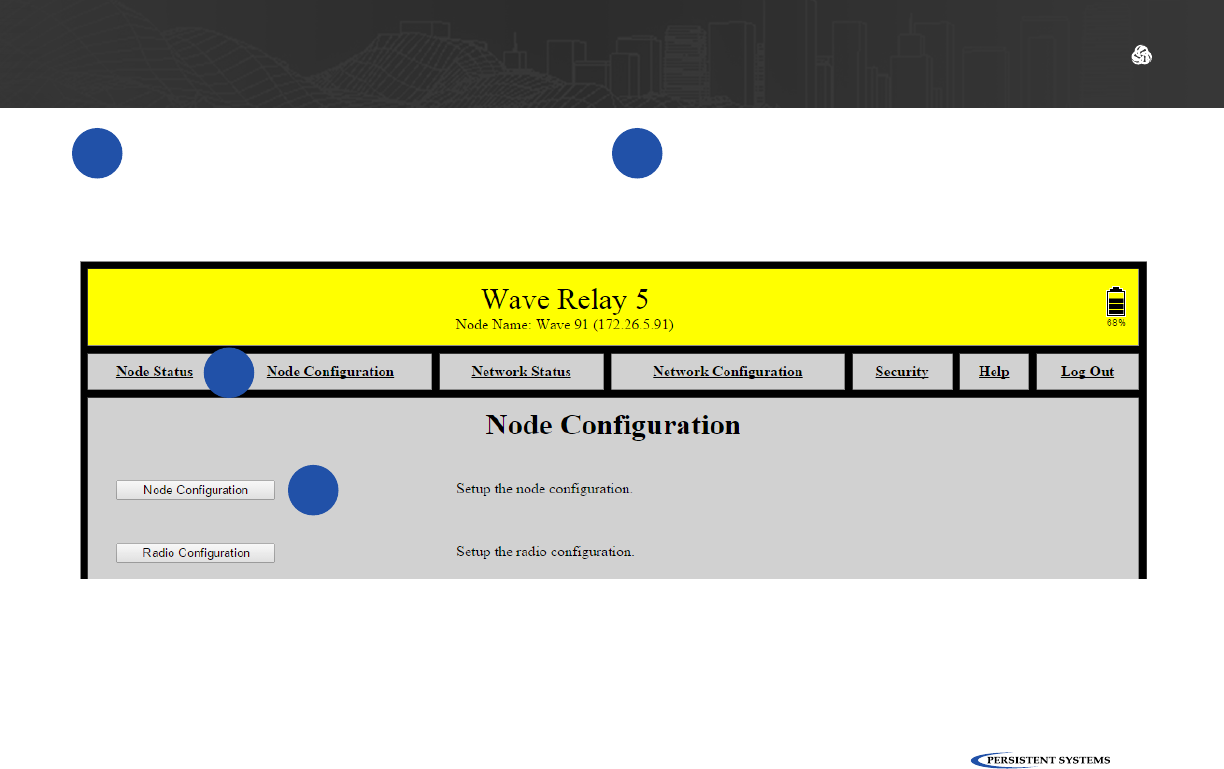

1Click the Node Conﬁguration tab. 2Click the Node Conﬁguration button.

1

2

66

SOFTWARE SETUP: ASSIGNING IP ADDRESS AND INTERFACE NAMES

3In the Management section, ﬁnd the Node

Name ﬁeld and enter the desired Node

Name.

4In the IP Address ﬁeld, enter the desired

IP Address. 6Scroll to the bottom of the page and click

the Save & Reconﬁgure Unit button.

5Enter a Netmask and Gateway, if re-

quired. Otherwise, check the Factory

Default box.

7Wait for the page to reload.

3

4

5

SOFTWARE SETUP: REBOOTING AN INDIVIDUAL NODE

What Can I Do Now?

✓

▶Access the Node Conﬁguration page for an individual node

▶Set the Node Name and IP Address of a node to ﬁt the node into your IP scheme and identify

the node in status functions

Rebooting an Individual Node

1Log into the node.

2Click the Node Conﬁguration tab.

3Scroll down and click the Reboot

Node button.

2

3

68

TESTING CONNECTIVITY: NEIGHBOR NODE STATUS

What Will I Learn?

▶How to tell if nodes are connected

▶How to see the connection strength between Neighbor Nodes

▶Neighbor Nodes are nodes connected without hops through other nodes

▶How to test bandwidth between nodes

→

Check Neighbor Node Status

Part III: Testing Connectivity

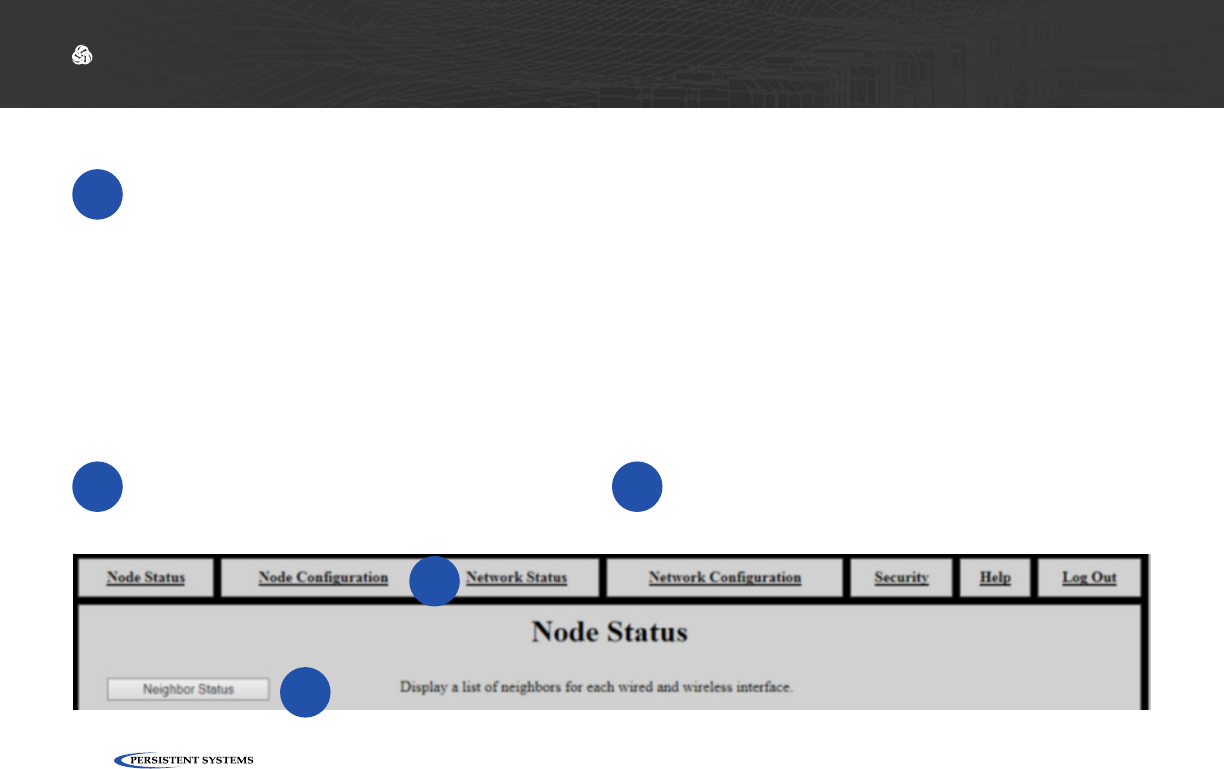

1Click the Network Status tab. 2Click the Neighbor Status button.

1

2

TESTING CONNECTIVITY: NEIGHBOR NODE STATUS

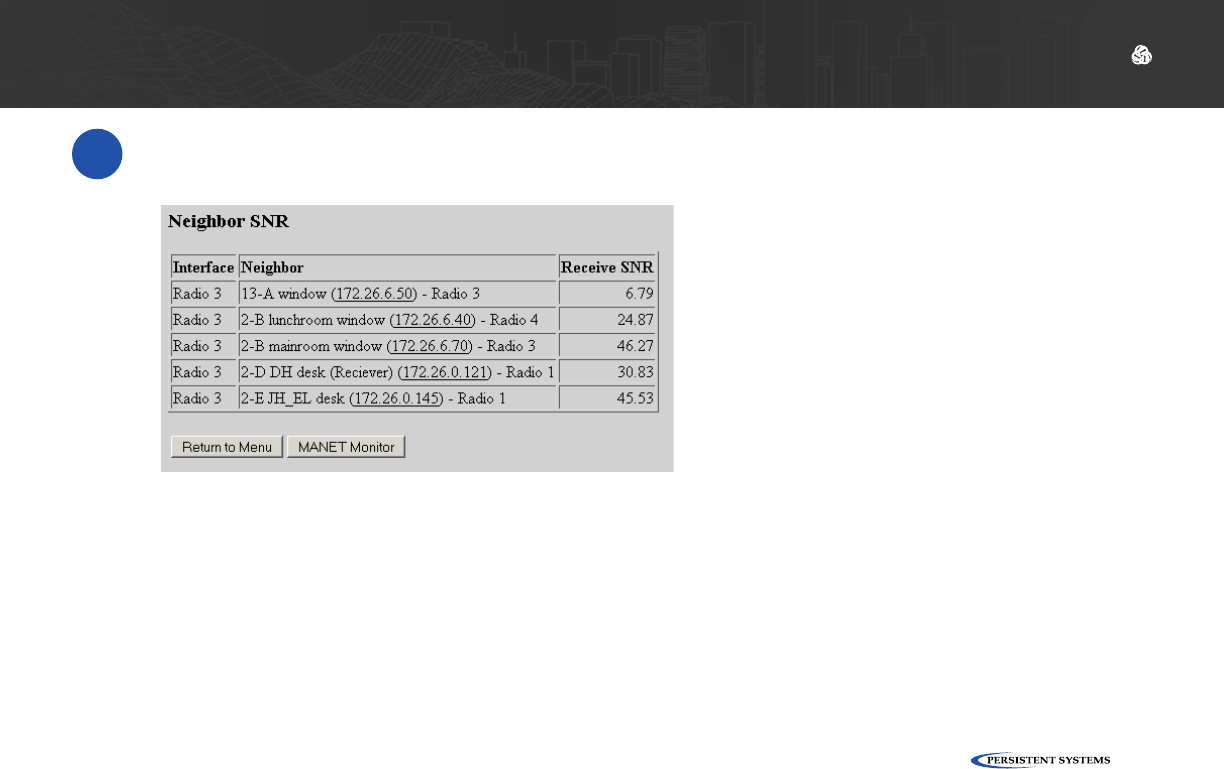

3Verify that all nodes are communicating with the network.

Notes:

▶This table only displays Neighbor Nodes (nodes directly connected without hops through other nodes. If you

spread nodes apart, they may disappear from the Neighbor Nodes Status page when they become connected via a

hop.

▶The Neighbor Nodes status page displays:

▶Node Names

▶IP Addresses

▶Receive Signal-to-Noise Ratio (SNR) between nodes

70

TESTING CONNECTIVITY: THROUGHPUT TEST

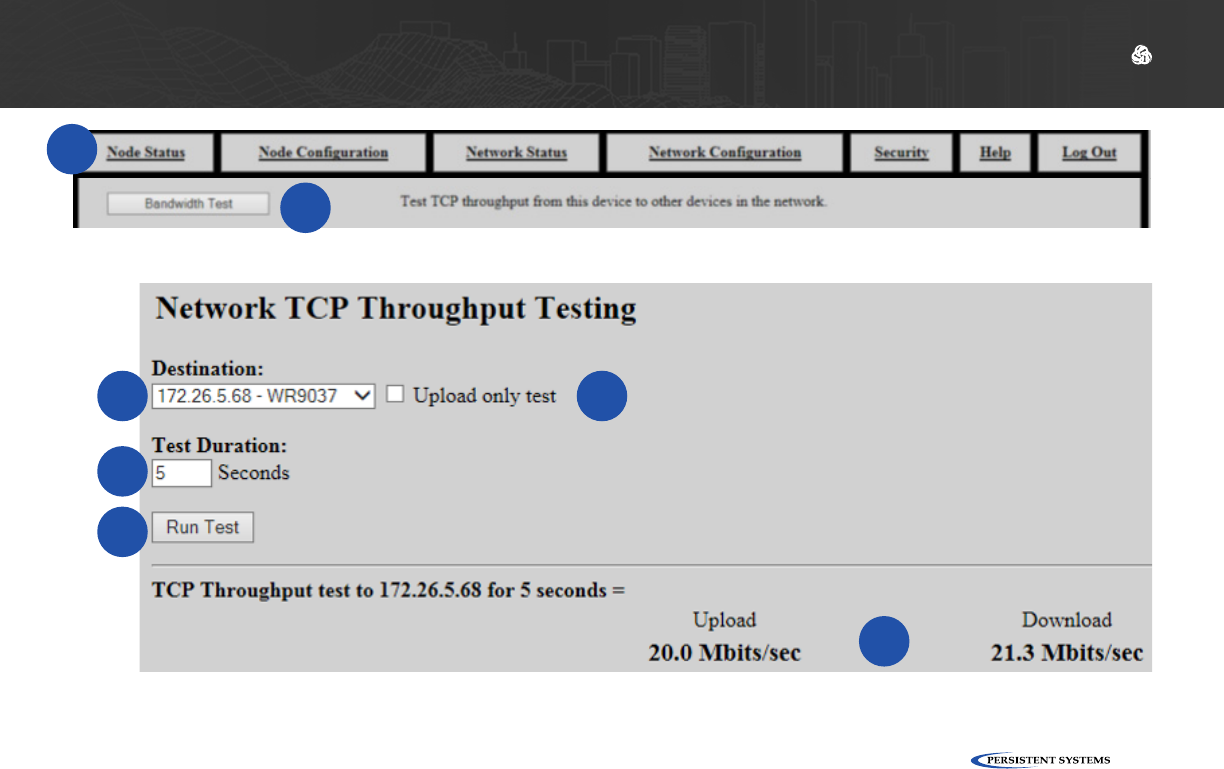

Perform a Throughput Test

1Click the Node Status tab.

2Click the Bandwidth Test button.

3Select a destination node for the through-

put test from the Destination drop-down

menu.

4Check or uncheck the Upload only test

box. If this box is checked, only upload

speed to the destination node will be test-

ed.

5Enter the desired test duration (in sec-

onds) in the Test Duration ﬁeld.

Note: Persistent Systems recommends the test

duration to be set to a minimum of 5 seconds.

6Click Run Test and wait for the test to com-

plete.

7The page will display the upload speed to

and download speed from the destination

node.

!WARNING!: During long duration tests,

data will continue to be sent for the full

speciﬁed duration even if a different data

ﬂow is started or the web broser is exited.

TESTING CONNECTIVITY: THROUGHPUT TEST

1

2

3 4

5

6

7

72

USING THE WEB MANAGEMENT INTERFACE: INDIVIDUAL NODE INFO

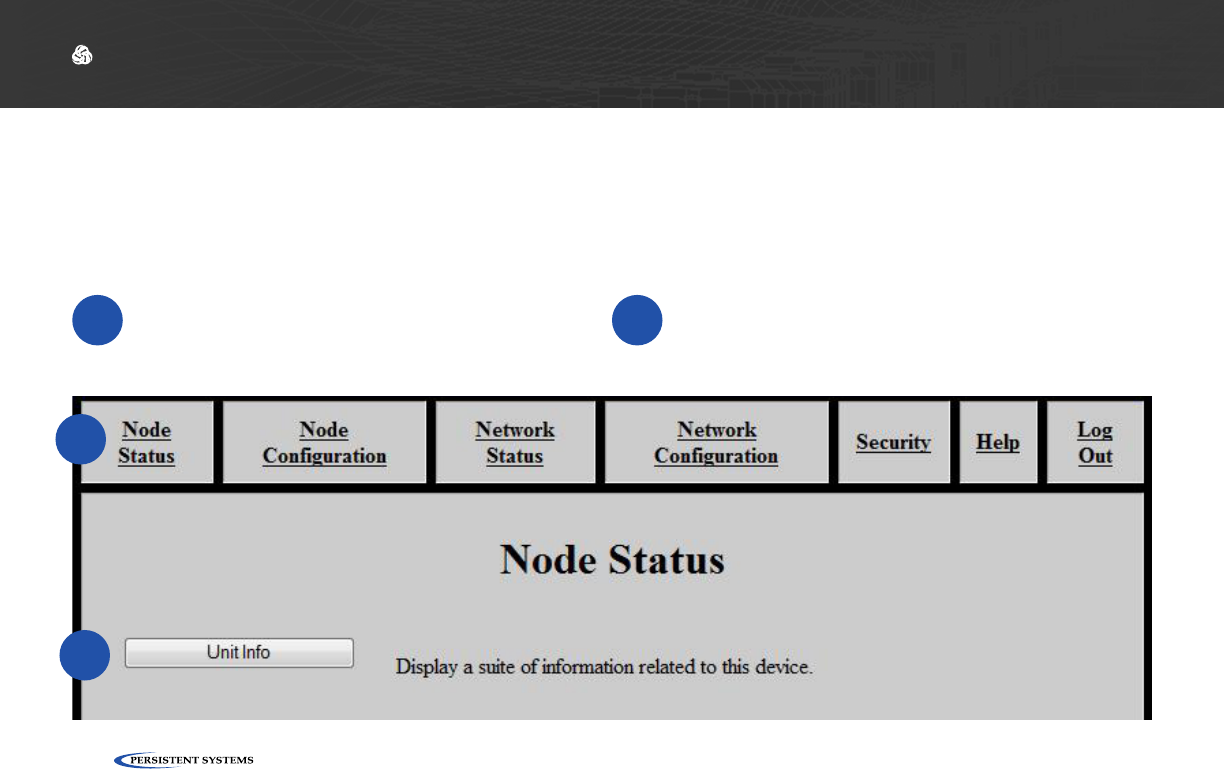

View Individual Node Information

Part IV: Using the Web Management Interface

1Click the Node Status tab. 2Click the Unit Info button.

1

2

USING THE WEB MANAGEMENT INTERFACE: INDIVIDUAL NODE INFO

3The page will display:

Firmware Version: Wave Relay® ﬁrmware version

loaded on the node

Wave Relay Model: Device model

Serial No.: Serial number of the node

Uptime: Operating time since the node was last

powered on or rebooted

Temperature: Temperature of the power board,

main board CPU, and all three RF chains

Input Power Voltage: Voltage supplied to node

Battery Status: Battery percentage remaining

Battery Temperature: Appx. temperature of battery

Real Time Clock Battery: Voltage of real-time-clock

keep-alive battery (on units with RTC)

Current System Time: Current system time of the

node (in both UTC and current time zone if not UTC)

Management HW MAC Address: MAC Address for

the management hardware of the node

Radio 1 HW MAC Address: MAC Address and fre-

quency band for the radio installed in the node

Ethernet 1 HW MAC Address: MAC Address for

the ethernet port in the node

74

USING THE WEB MANAGEMENT INTERFACE: INDIVIDUAL NODE INFO

Conﬁguring Radio Settings for a Single Node

1Click the Node Con-

ﬁguration tab. 2Click the Radio Con-

ﬁguration button. 3Scroll to the Radio

Conﬁguration section

USING THE WEB MANAGEMENT INTERFACE: INDIVIDUAL NODE INFO

4Conﬁgure settings if needed.

Note: changing these settings may cause poor performance or loss of connectivity.

Radio Name: Assign a name to the radio - check the Factory Default box to use the factory default name.

Frequency: Assign a frequency to operate on. Radios must be operating on the same frequency to com-

municate. Ensure that the frequency is set to match the radio module installed in the unit.

5Scroll to the bottom of the page and click Save & Reconﬁgure Unit.

!

WARNING!: User MUST refer to the Professional Installer – Compliance Section of this manual

for approved power levels and approved channels

WARNING!: User MUST refer to the Professional Installer – Compliance Section of this manual

for approved power levels and approved channels

Bandwidth: Assign a bandwidth to operate on. Nodes must be set to the same bandwidth to communi-

cate. Bandwidth should be increased for shorter distances and decreased for longer distances.

Max Link Distance: Set Max Link Distance to the maximum distance any individual link between nodes in

the network may need to be. All nodes on the network must be set to the same Max Link Distance.

Channel Density: Select the menu item that corresponds to the number of nodes in the network.

Radio Preference: Increasing radio preference will make the routing protocol more likely to choose this

radio when routing trafﬁc in the network.

Max Transmit Power: Adjust transmit power of the radio

Transmit Chain Select: Choose which RF chains to use to transmit - you may select one, two, or three

chains.

Receive Chain Select: Choose which RF chains to use to receive - you may select one, two, or three chains

76

USING THE WEB MANAGEMENT INTERFACE: UPGRADING FIRMWARE

Upgrading Firmware

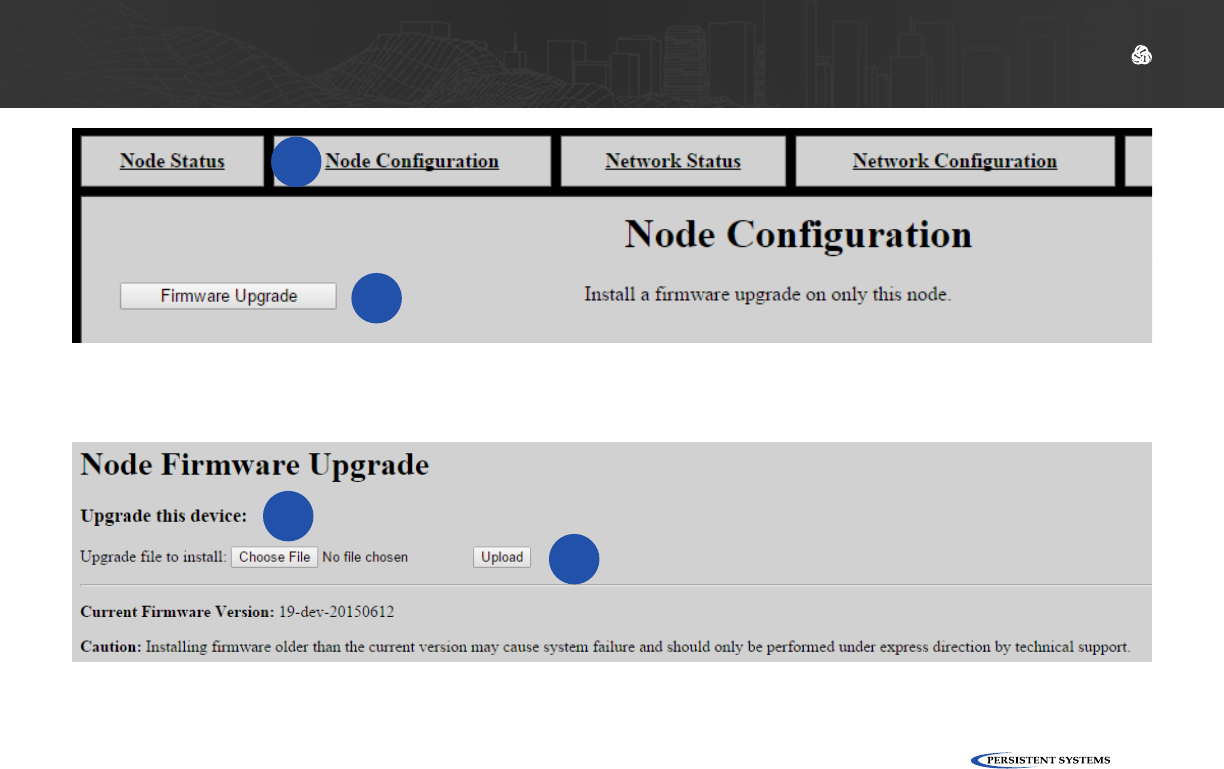

1Click the Node Conﬁguration tab. 2Click the Firmware Upgrade button.

3Click Choose File, then navigate to and select the ﬁrmware ﬁle you wish to load.

4Click Upload.

WARNING!: A ﬁrmware upgrade will cause the node to be reconﬁgured, an operation that

causes a period of downtime. Do not perform a ﬁrmware upgrade during mission critical

operations that cannot tolerate such disruptions. Perform ﬁrmware upgrades only during

scheduled maintenance or other appropriate times.

!

!WARNING!: when upgrading or downgrading a node’s ﬁrmware, the LED will turn purple.

Do not unnecessarily disturb devices during an upgrade. Loss of power during the upgrade

can permanently damage the device.

Note: when new ﬁrmware is available for the MPU5, you will receive an email with the new ﬁrm-

ware ﬁle to upgrade your units.

Note: MPU5 ﬁrmware will NOT load on legacy Wave Relay® devices (MPU4, MPU3, QUAD).

USING THE WEB MANAGEMENT INTERFACE: UPGRADING FIRMWARE

1

2

3

4

78

USING THE WEB MANAGEMENT INTERFACE: CONFIGURATION FILES

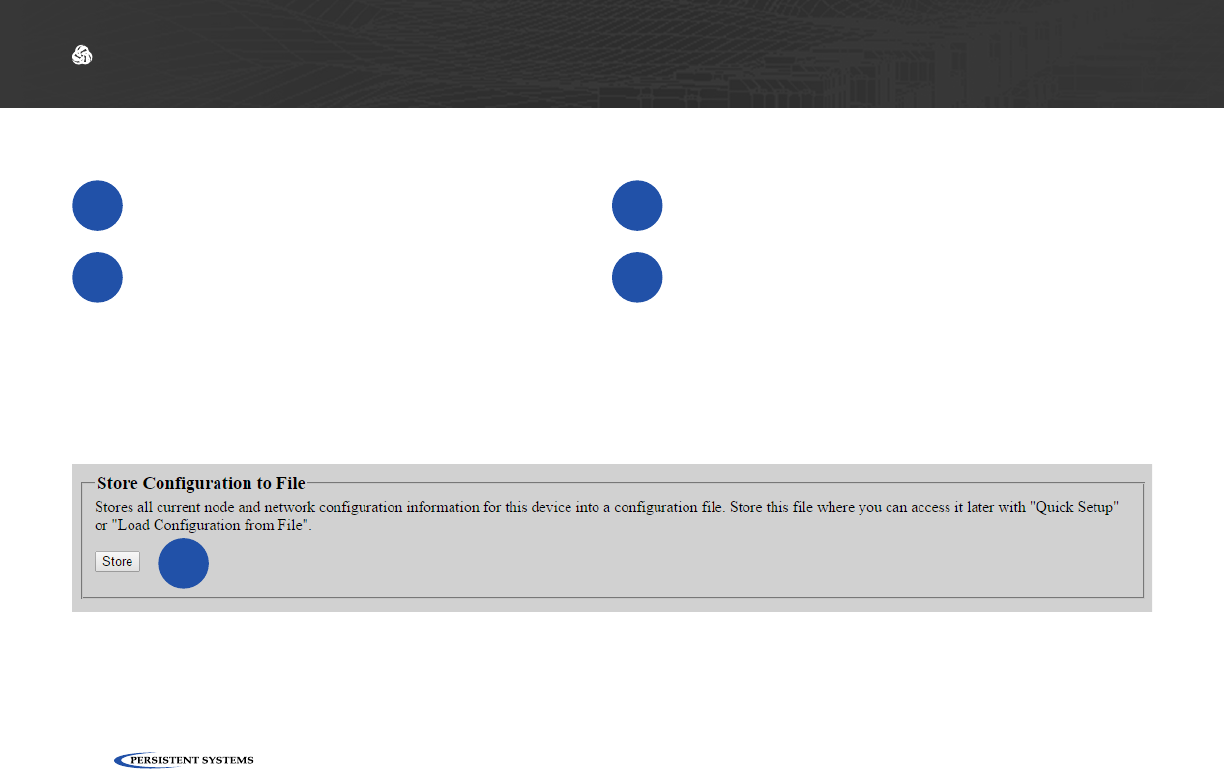

Creating a Conﬁguration File

1Click the Node Conﬁguration tab.

2Click the Conﬁg Management button.

3Click the Store button.

4A prompt will appear to choose where

to save the conﬁguration ﬁle.

Note: this ﬁle contains settings (both Network

Conﬁguration and Node Conﬁguration settings)

for the current node only.

3

USING THE WEB MANAGEMENT INTERFACE: CONFIGURATION FILES

Loading Settings from a Conﬁguration File

1Click the Node Conﬁguration tab.

2Click the Conﬁg Management button.

3Scroll to the Load Conﬁguration section.

4In the update section, select node.

5Click Choose File.

6Navigate to the desired conﬁguration ﬁle

to load.

Note: the conﬁguration ﬁle should be from a de-

vice with the same ﬁrmware version and radio hard-

ware conﬁguration as the device being conﬁgured.

7Click Load.

3

4

5 7

80

Reset Node to Factory Conﬁguration

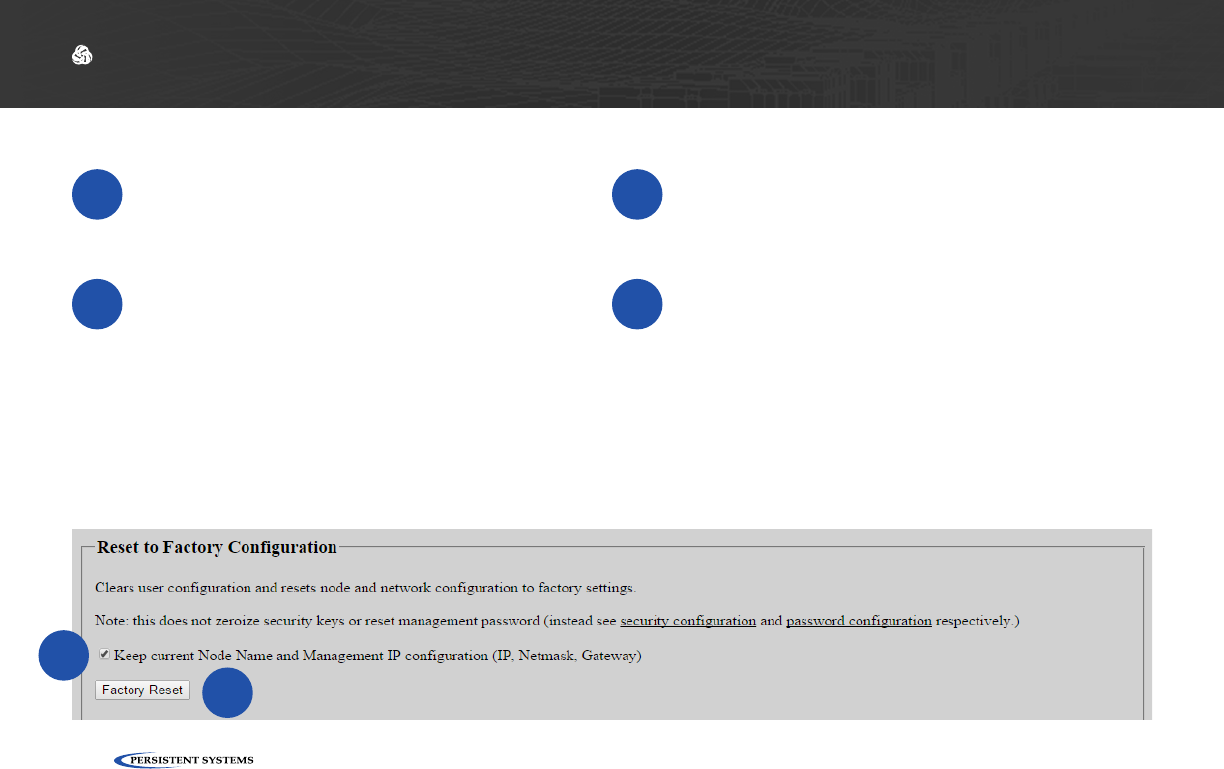

1Click the Node Conﬁguration tab. 2Click the Conﬁg Management button.

3Check the box at the bottom of the page

to retain the current Node Name and

Management IP conﬁguration after the re-

set. Otherwise, all custom conﬁguration

will be removed and the IP address will be

reset to 10.4.1.254. The node’s security

key will not be zeroized.

4When you are ready to remove all custom

conﬁguration and restore the node to

factory settings, click the Factory Reset

button.

USING THE WEB MANAGEMENT INTERFACE: RESET TO FACTORY CONFIG

3

4

USING THE WEB MANAGEMENT INTERFACE: CHECK GPS STATUS

Check GPS Status

1Click the Node Status tab.

2Click the GPS Status button.

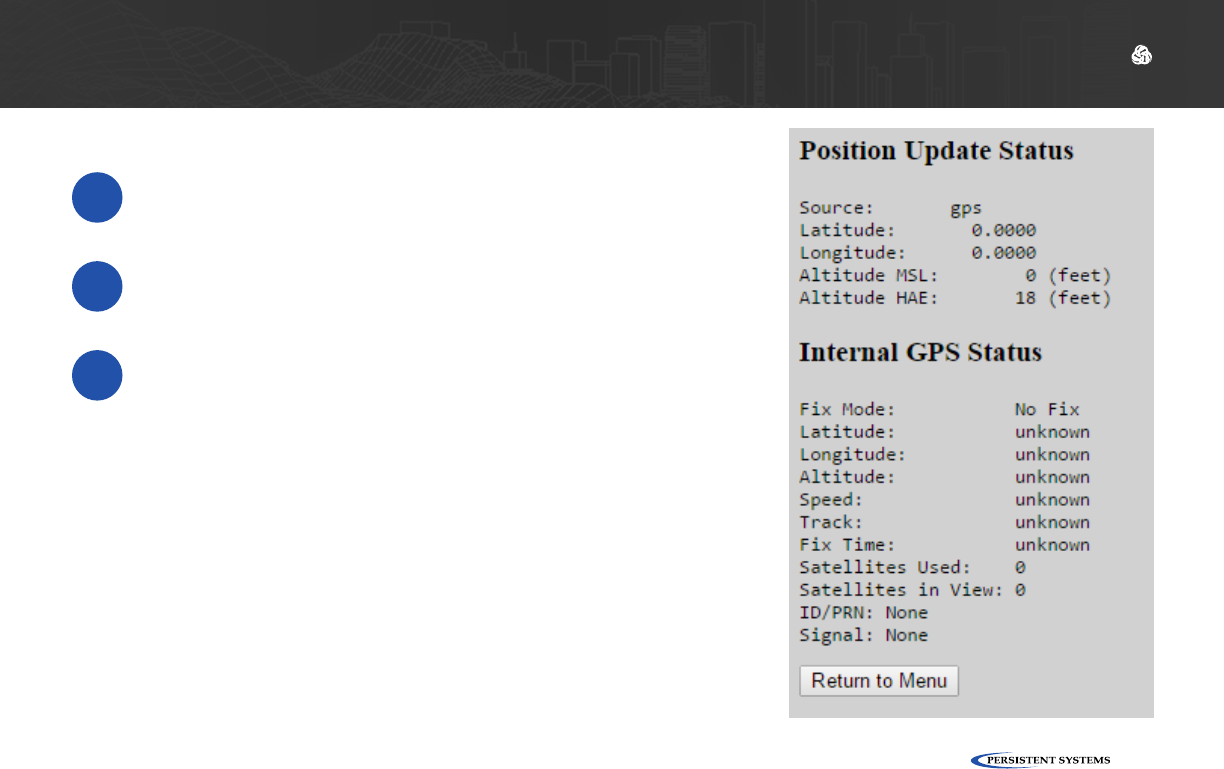

3The page will display:

Source: GPS information source

Latitude: Current latitude of the node

Longitude: Current longitude of the node

Altitude: Current altitude above sea level of

the node

82

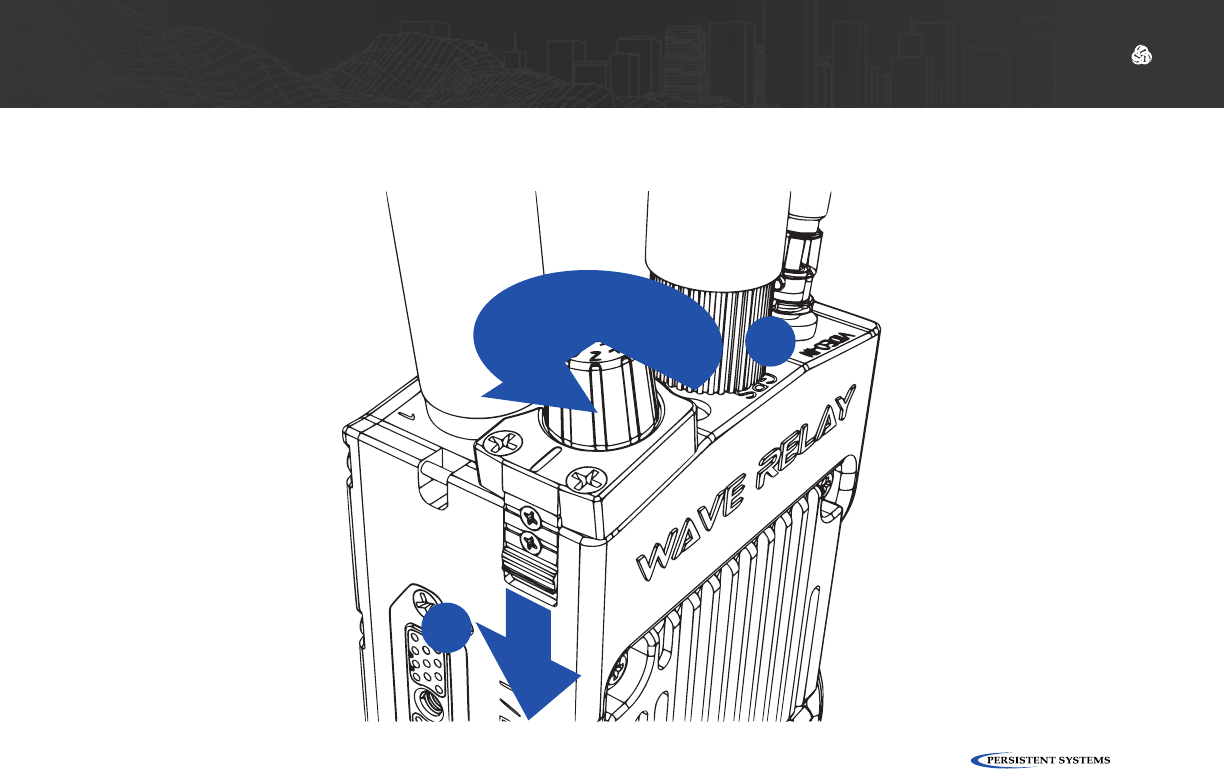

Zeroize the Security Key

1Pull down the zeroize latch on the top of the unit.

2With the zeroize latch held down, twist the Power Knob counterclockwise past the home

position.

Part V: Device Operation

DEVICE OPERATION: ZEROIZE THE SECURITY KEY

1

2

84

DEVICE OPERATION: CONNECTING A CAMERA

Connect a Camera to the MPU5

Parts List/Interchangeable Parts

≈

Camera with BNC output

HD-BNC to BNC Cable (CBL-VID-2001)

DEVICE OPERATION: CONNECTING A CAMERA

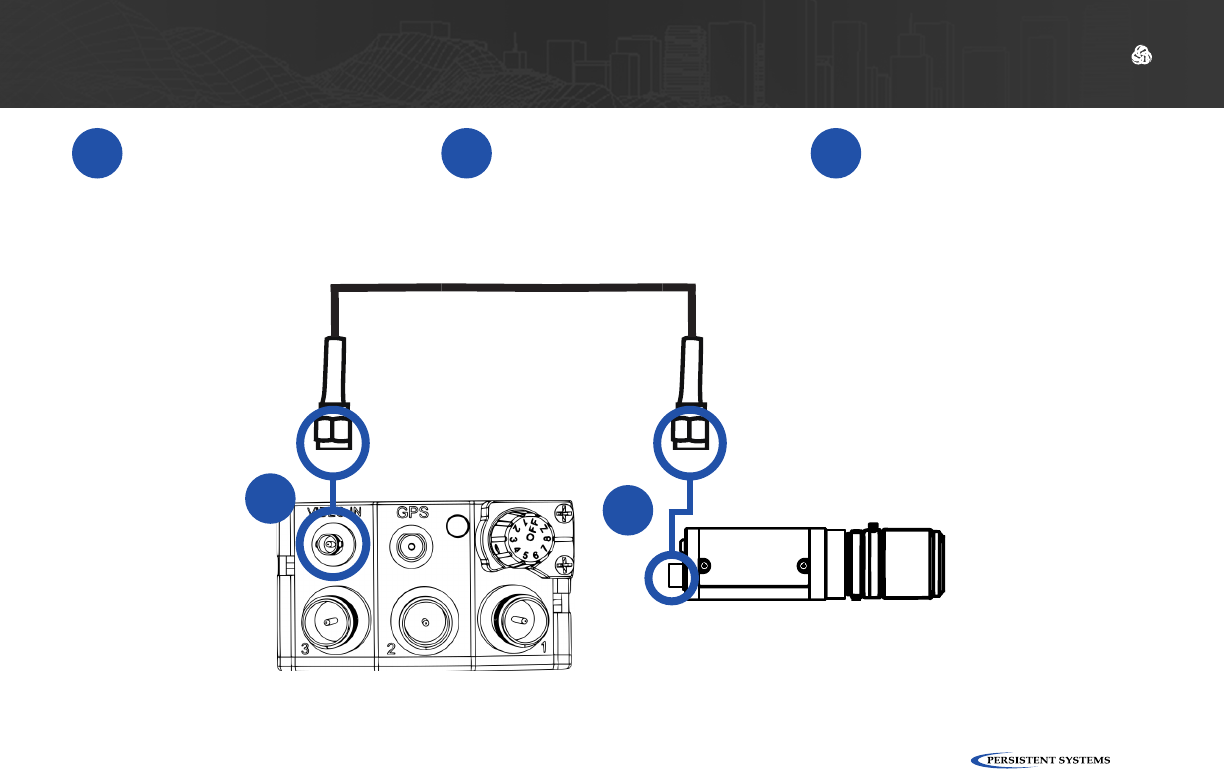

1Connect the HD-BNC end

of CBL-VID-2001 to the

HD-BNC connector on the

top of the MPU5.

2

Connect the BNC end of

CBL-VID-2001 to the BNC

connector on the camera.

3Streaming video will be

available on the network.

1

86

DEVICE OPERATION: CONNECTING AN EUD OR HANDHELD DISPLAY

Connect an EUD or Handheld Display to the MPU5

Parts List/Interchangeable Parts

≈

EUD IP67 Enclosure

MOLLE-IP67-N3

22-Pin to 6-Pin USB Push Pull Android™ Tether Cable

CBL-DATA-2004

Android™ EUD

ACC-EUD-0001

DEVICE OPERATION: CONNECTING AN EUD OR HANDHELD DISPLAY

1Connect CBL-DATA-2004

to the PTT/EUD side con-

nector on the MPU5.

2Insert the Android™ EUD

into the Juggernaut Case. 3

4

Connect the 6-Pin Push

Pull connector on the

Juggernaut Case to the

6-Pin Push Pull connec-

tor on CBL-DATA-2004.

The MPU5 Android™ OS will be displayed on the EUD or Display.

88

DEVICE OPERATION: CONNECTING A MONITOR OR TV

Connect a Monitor or TV to the MPU5

Parts List/Interchangeable Parts

≈

Monitor or TV with HDMI Input

Speaker Box or Headset with U-328 Connector

MyDP to HDMI

ACC-VID-1002

Standard HDMI Cable

22-Pin to Audio and Video Out

CBL-DATA-3001

DEVICE OPERATION: CONNECTING A MONITOR OR TV

1Connect CBL-DATA-3001

to the DATA side connec-

tor on the MPU5.

2Connect the speaker box

or headset to the U-328

audio connector on

CBL-DATA-3001.

3Connect the MyDP

end of CBL- to the

MyDP plug on CBL-DA-

TA-3001.

2

3

90

DEVICE OPERATION: CONNECTING A MONITOR OR TV

4Connect one end of the

standard HDMI cable to

the HDMI receptacle on

of CBL-DATA-3001.

5Connect the other end of

the standard HDMI cable

to the HDMI input on the

Monitor or TV.

6The MPU5 Android™

OS will be displayed on

the Monitor or TV.

Why can’t I see video on my Monitor or TV?

?

Ensure that the Monitor or TV is powered on.

1

Ensure that all cables are connected properly.2

Ensure that the Monitor or TV is set to the correct

HDMI input.

3

Reboot the node.4

DEVICE OPERATION: CONNECTING USB ACCESSORIES

Connect USB Accessories to the MPU5

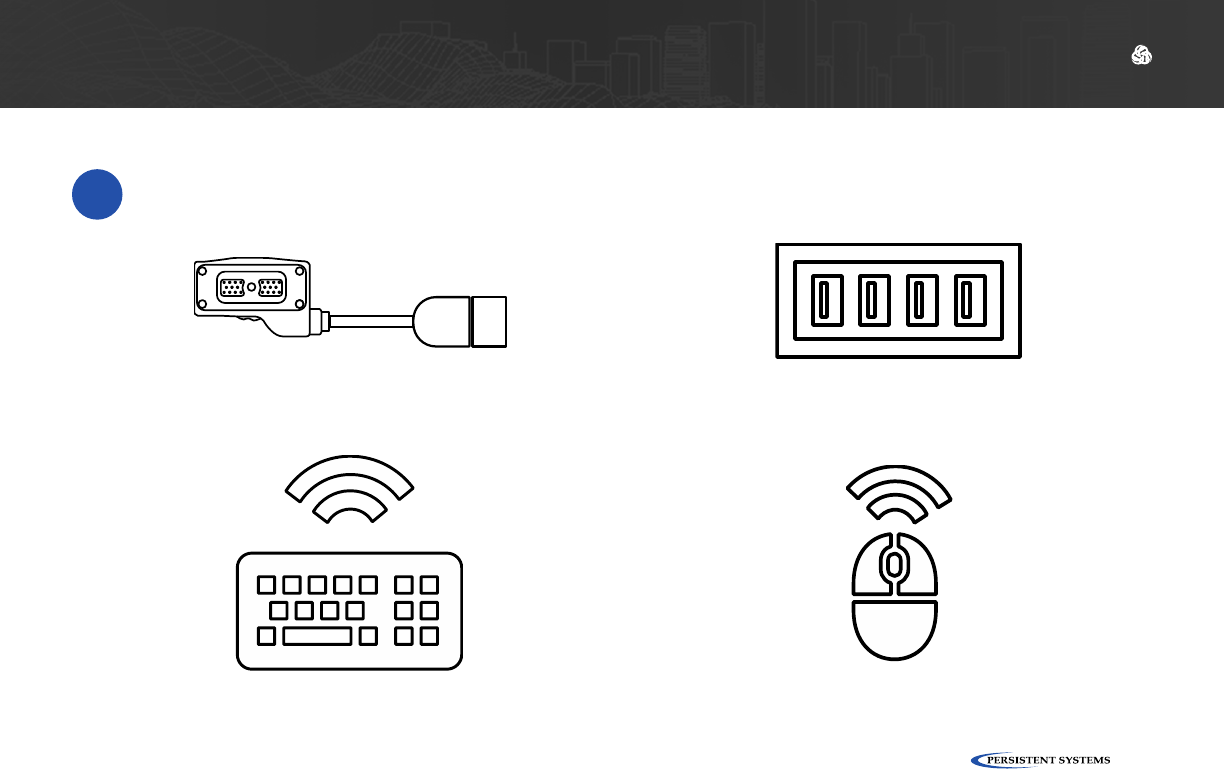

Parts List/Interchangeable Parts

≈

USB Hub

(Optional)

USB Keyboard

(Optional)

USB Mouse

(Optional)

22-Pin to Type A Female USB 2.0 Receptacle

CBL-DATA-2003

92

DEVICE OPERATION: USB ACCESSORIES

1Connect CBL-DATA-2003

to an unused side connec-

tor on the MPU5.

2Connect the USB Hub or

one USB accessory to the

USB receptacle on the

end of CBL-DATA-2003.

3If you are using a USB

Hub, connect USB acces-

sories to the USB recep-

tacles in the USB Hub.

Why don’t my USB accessories work?

?Ensure all cables are connected properly.

1

Ensure that all wireless accessories (key-

boards/mice/etc.) are powered (i.e. batteries

are not dead)

2

If you are using a USB Hub, connect the USB

accessory directly to CBL-DATA-2003. If the

accessory works, replace the USB hub.

3

If available, test a different CBL-DATA-2003. If the

accessory works, the original CBL-DATA-2003 may be

defective.

4

Your USB accessory may not be compatible. Contact

Persistent Systems support.

4

Reboot the node.5

DEVICE OPERATION: INSTALLING APPS

Install Android Apps on the MPU5

Parts List/Interchangeable Parts

≈

.apk ﬁle for Android™ App(s) Management Computer

94

DEVICE OPERATION: INSTALLING APPS

1

2

Attach an EUD to the MPU5.

Connect CBL-DATA-2003 to the Data side connector on the MPU5.

DEVICE OPERATION: INSTALLING APPS

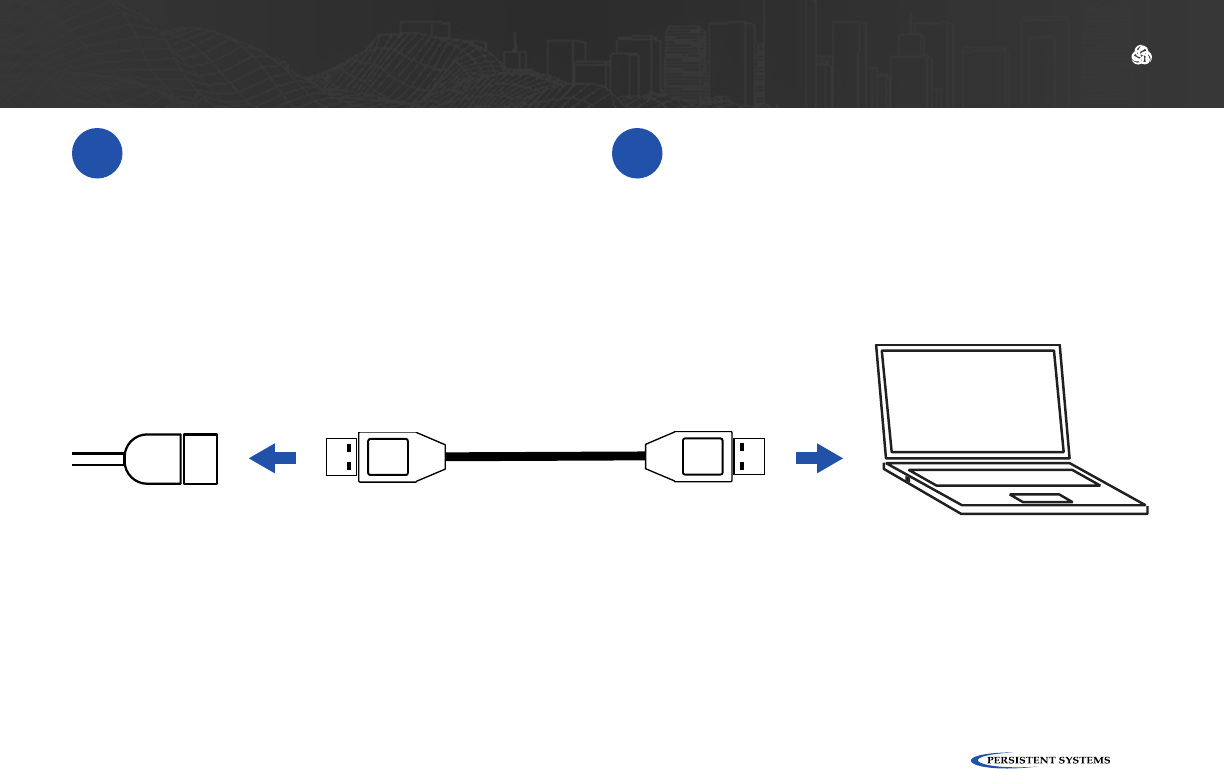

3Connect one end of the USB exten-

sion cable to the USB receptacle on

CLB-DATA-2003.

4Connect the other end of the USB exten-

sion cable to a USB port on the Manage-

ment Computer. Wait for drivers to auto-

matically install.

96

DEVICE OPERATION: INSTALLING APPS

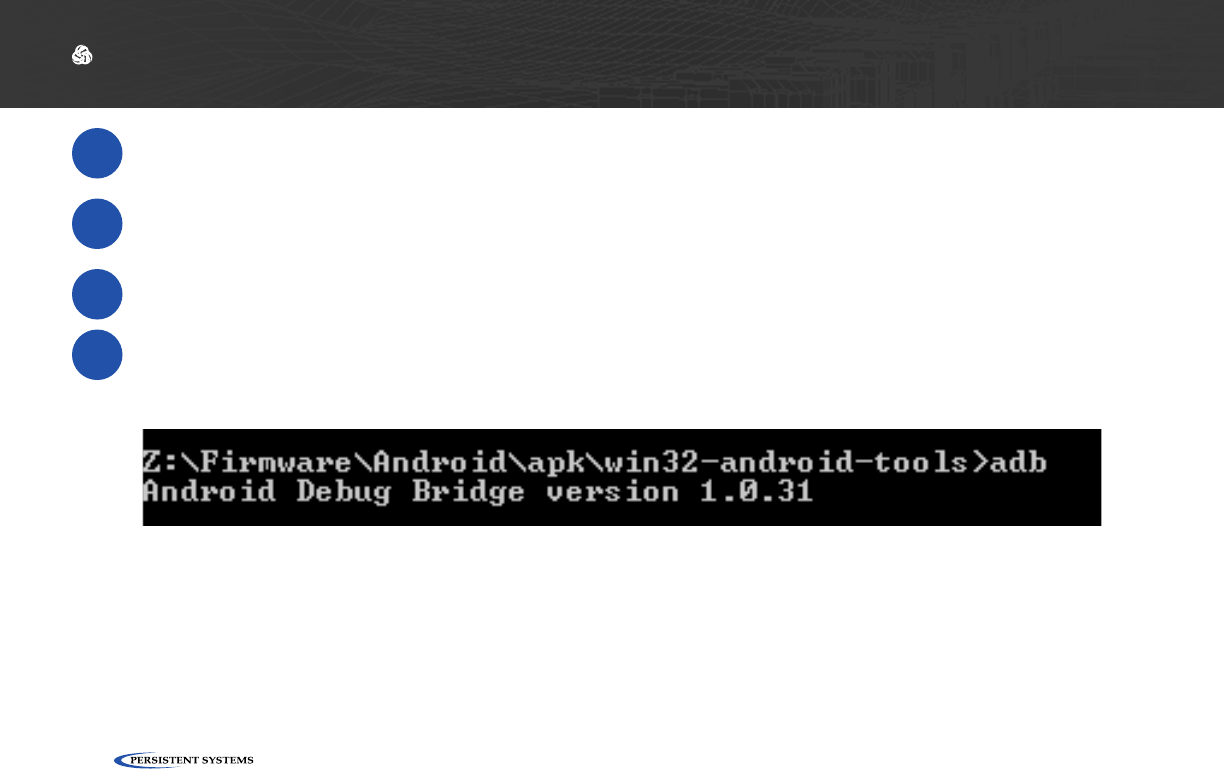

5Download and install the Android Debug Bridge (ADB).

6Open Command Prompt.

7Navigate to the folder containing ADB.

8To run ADB, type: adb

DEVICE OPERATION: INSTALLING APPS

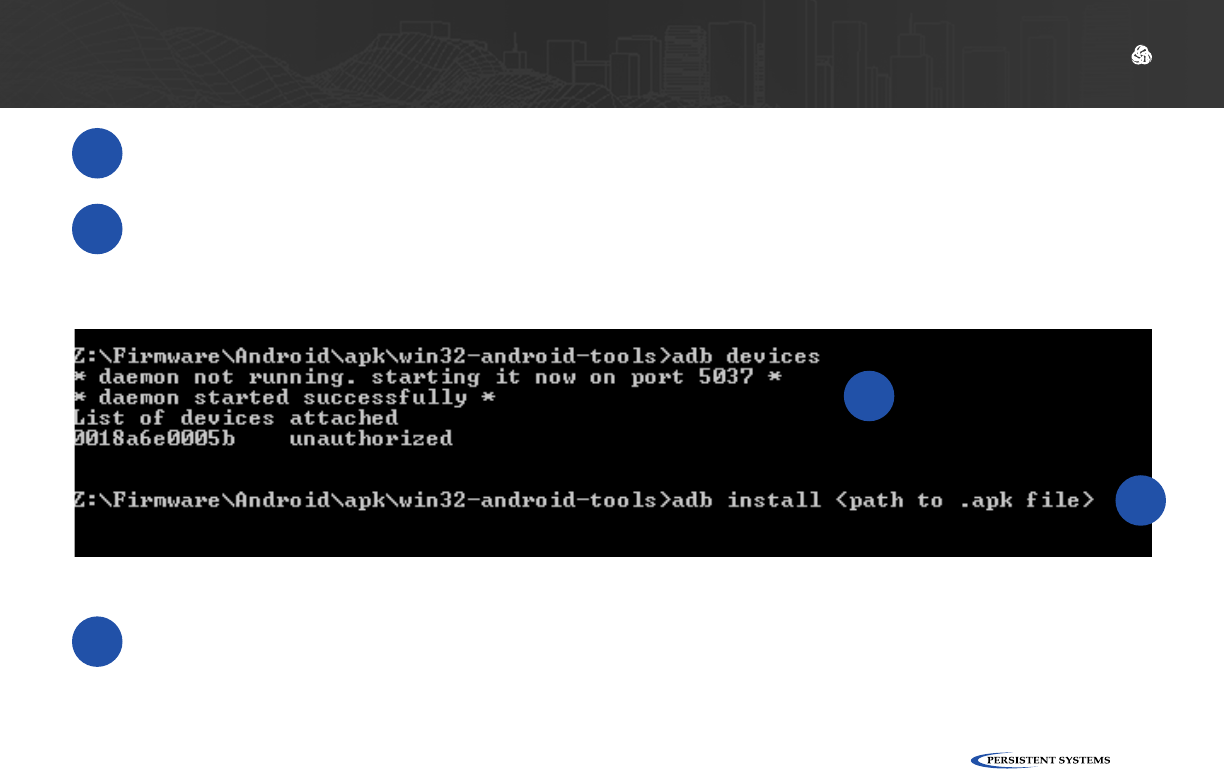

9Type: adb devices

The MPU5 will appear.

10 Type: adb install <le path>

Replace <ﬁle path> with the path to the .apk ﬁle you wish to install.

Wait for the app to install.

11 A message will appear on the EUD asking if you want to allow USB debugging.

Click OK.

9

10

98

DEVICE OPERATION: CONNECTING A PTT DEVICE

Connect a PTT Device to the MPU5

Parts List/Interchangeable Parts

≈

22-Pin to audio and Video Out

CBL-DATA-3001

22-Pin to U-329

CBL-AUD-0001

22-Pin to U-328

CBL-AUD-0002

22-Pin to U94 Receptacle

CBL-AUD-0003

The cable you need is dependent on what connec-

tor your PTT device has.

Compatible Push-to-Talk device

DEVICE OPERATION: CONNECTING A PTT DEVICE

1Connect the cable to the PTT/EUD side

connector on the MPU5. 2Connect the PTT device to the connector

on the end of the cable.

100

DEVICE OPERATION: CONFIGURING PTT SETTINGS

Conﬁgure PTT Settings

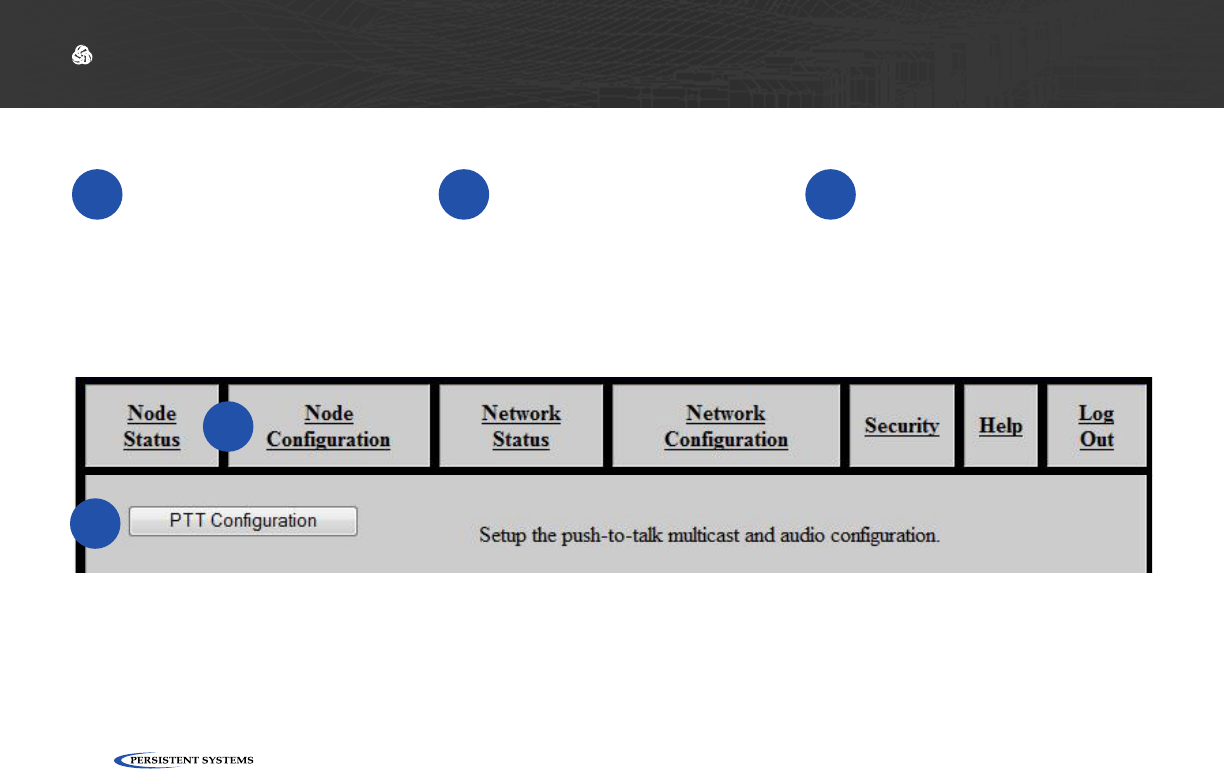

1Connect the MPU5 to the

Management Computer

and log into the Web Man-

agement Interface.

2Click the Node Conﬁgura-

tion tab. 3Click the PTT Conﬁgura-

tion button.

2

3

DEVICE OPERATION: CONFIGURING PTT SETTINGS

Set Earpiece Volume

1Next to Volume, check the Network De-

fault box to use the Network Default ear-

piece volume.

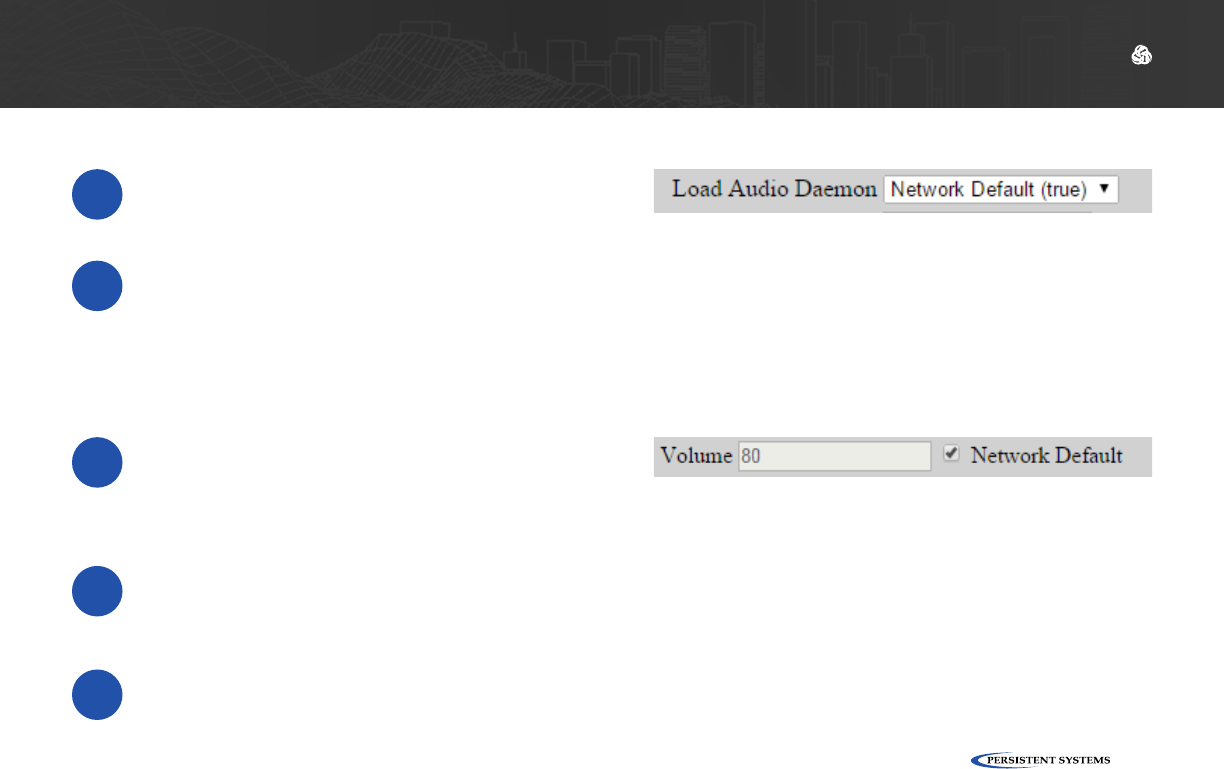

Enable Push-to-Talk

1In the Load Audio Daemon drop-down

menu, select Enabled.

2To disable Push-to-Talk, select Disabled.

2To customize earpiece volume, uncheck

the Network Default box.

3In the Volume ﬁeld, enter a value 0 - 125.

Values above 100 are digitally ampliﬁed.

102

DEVICE OPERATION: CONFIGURING PTT SETTINGS

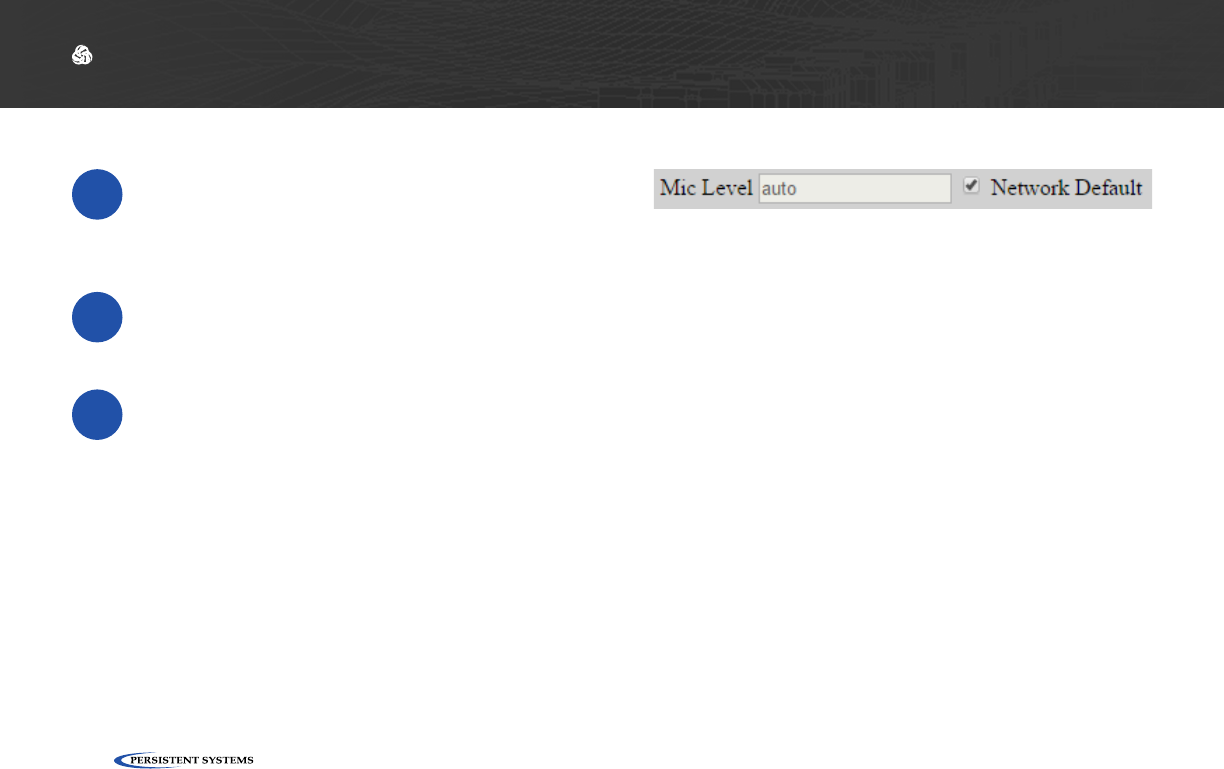

Set Microphone Level

1Next to Microphone Level, check the Net-

work Default box to use the Network De-

fault microphone level.

2To customize microphone level, uncheck the

Network Default box.

3In the Microphone Level ﬁeld, enter a val-

ue:

auto: Uses automatic gain control for mi-

crophone input - recommended for most

users

0 - 100: valid microphone level volumes

DEVICE OPERATION: CONFIGURING PTT SETTINGS

Set Transmit Mode

1Select a setting from the Transmit Mode

drop-down menu:

OnKeyPress: audio is transmitted only

when the PTT button is pressed on the

headset

Continuous: audio is continuously trans-

mitted.

Note: other nodes may monitor

the channel only. Selected Channel

audio transmissions will interrupt

monitored continuously transmitted

audio.

104

DEVICE OPERATION: CONFIGURING PTT SETTINGS

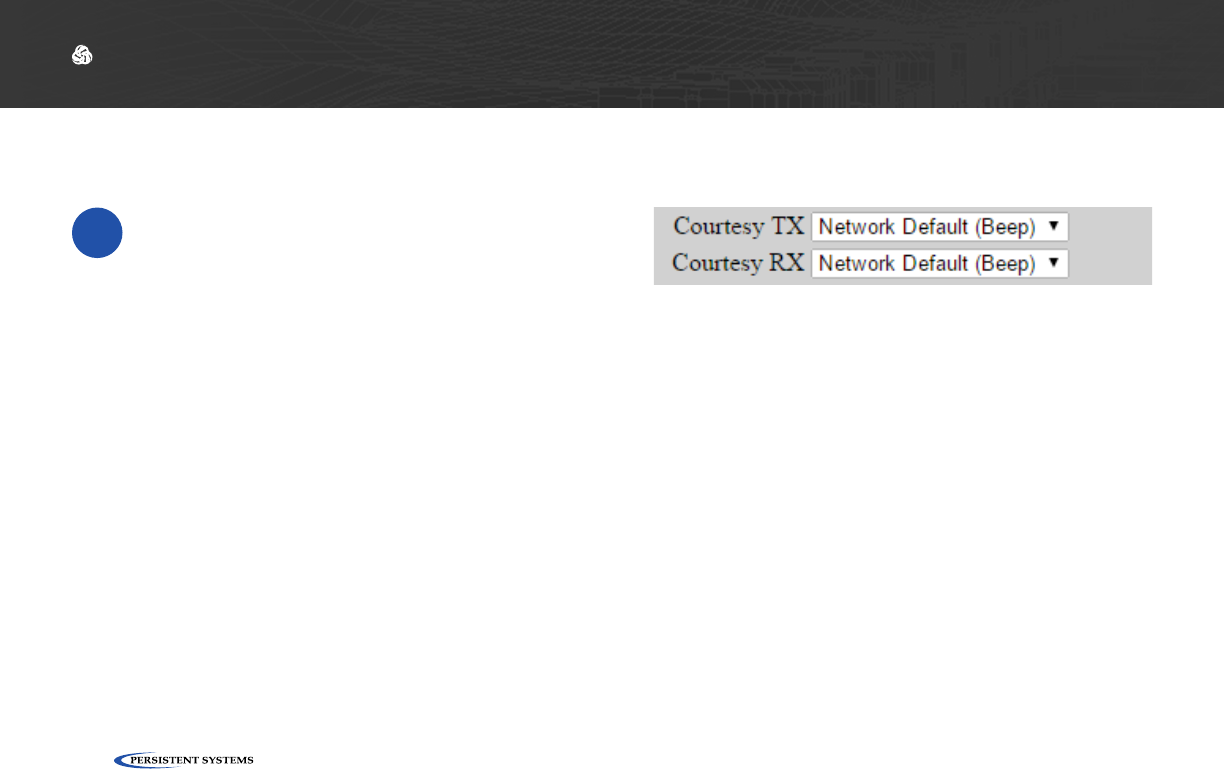

Set Transmit or Receive Audible Checktone

1From the Courtesy TX and Courtesy RX

drop down menus, select:

Quiet: no audible checktone

Beep: audible checktone will be set to a

beep

Voice: audible checktone will be a vocal-

ized “one”

Network Default: audible checktone will

be set to the network default setting

DEVICE OPERATION: CONFIGURING PTT SETTINGS

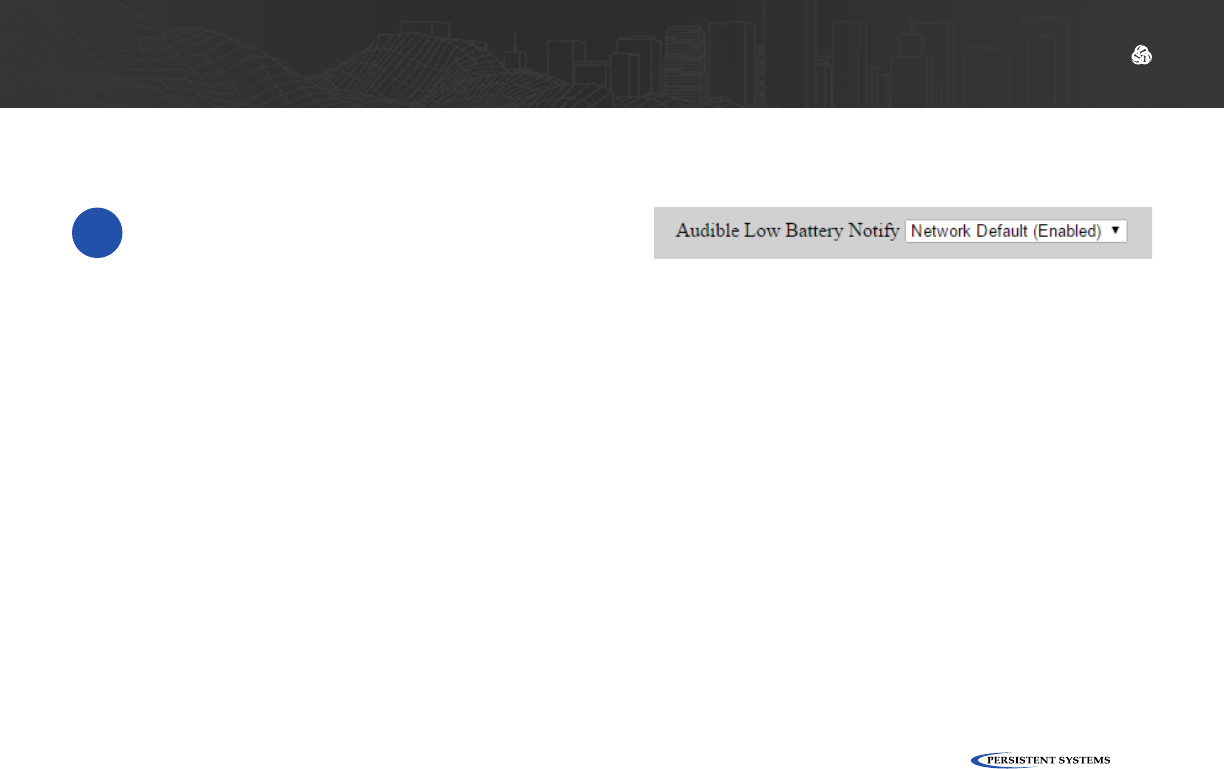

Enable/Disable Low Battery Audible Notiﬁcation

1Select a setting in the Low Battery drop-

down menu:

Enabled: when the battery is depleted to

5%, the node will play an audible notiﬁca-

tion every 5 minutes.

Disabled: no low battery audible notiﬁca-

tion will occur.

Network Default: network default set-

ting

106

DEVICE OPERATION: CONFIGURING PTT SETTINGS

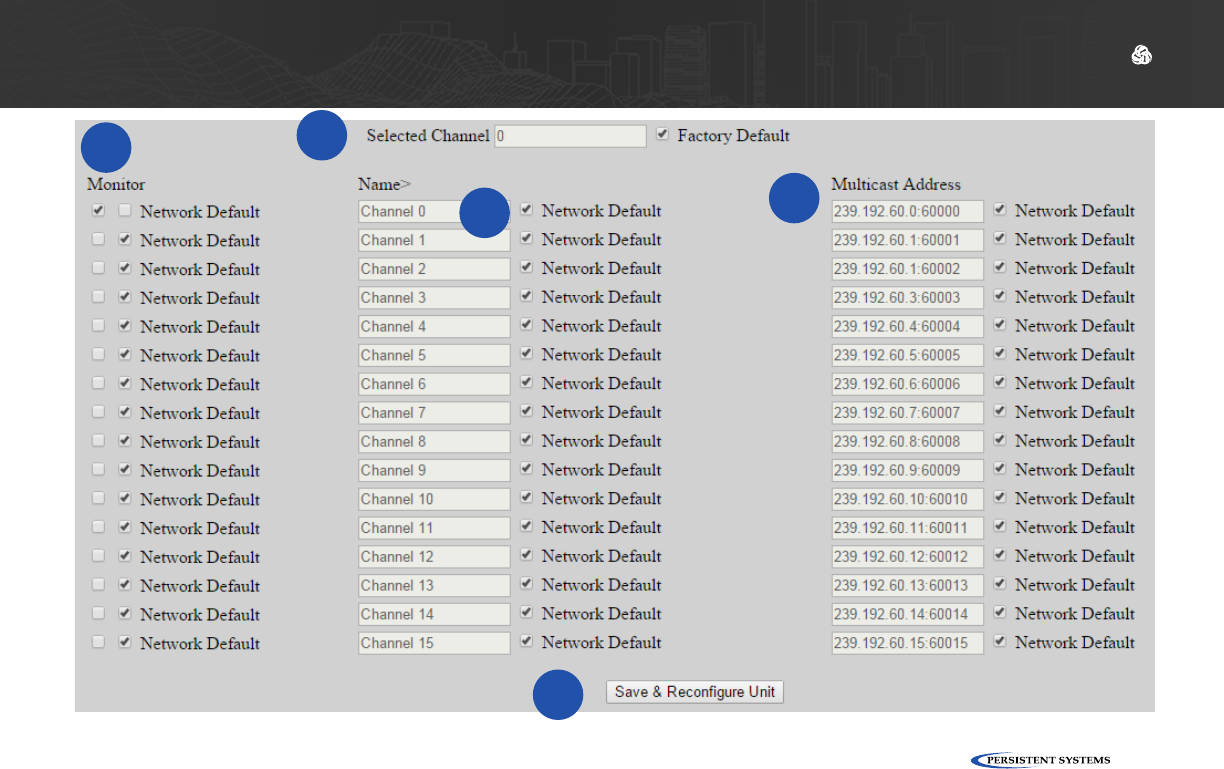

Selecting Channels

1In the Selected Channel ﬁeld, enter the channel(s) you wish to transmit on.

2In the Monitor column, check the left box for each channel you wish to monitor. You will be

able to hear PTT audio on the monitored channel.

Pro Tip: you may select any number of channels to monitor. In the Monitor column, check

the box for each channel you wish to monitor. You will NOT be able to transmit PTT audio on

channels other than the one you selected in Step 3.

Customize a PTT Channel

3In the Channel ﬁeld, uncheck the Network Default box and enter the desired channel name.

4In the Multicast Address ﬁeld, uncheck the Network Default box and enter the desired mul-

ticast address and multicast port in the form <multicast address>:<multicast port>.

Note: valid multicast address values are in the range 224.0.0.0 - 239.255.255.255

Note: valid multicast portvalues are in the range 1 - 65534

Note: each channel MUST have a unique multicast address and multicast port.

5Scroll to the bottom of the page and click Save.

DEVICE OPERATION: CONFIGURING PTT SETTINGS

1

2

34

5

108

DEVICE OPERATION: CONFIGURING PTT SETTINGS

Using Wave Relay® Push-to-Talk

1Ensure that your PTT device is connected and channel settings have been conﬁgured proper-

ly and as desired.

2Press and hold the PTT button on the PTT device.

3Wait to hear a single beep.

4Talk.

5Release the PTT button when you are ﬁnished talking.

▶You may talk or listen, but you may not do both simultaneously.

▶Transmissions from an individual user are broadcast to all other users on the network using the

same channel.

▶Only one person may talk on a channel at one time. If you try to PTT while another user is trans-

mitting, you will hear a busy signal.

▶Selected Channel audio will interrupt Monitored Channel audio.

▶Flash Override audio will interrupt both Selected Channel and Monitored Channel audio.

DEVICE OPERATION: CONFIGURING PTT SETTINGS

Using Flash Override

1To activate Flash Override, “tap-tap-hold” the PTT button (press and release the PTT button

quickly in succession, then press and hold the PTT button for the duration of the transmis-

sion)

2The transmitting user and all receiving users will hear three beeps.

3Talk.

4Release the PTT button when you are ﬁnished talking.

Flash Override is a feature that allows a user to transmit audio to all nodes on the network regard-

less of which channel they are operating on.

Flash Override audio will interrupt all audio on all channels.

110

PROFESSIONAL INSTALLER – COMPLIANCE

The following notes refer to these part numbers: RF-2001

This device complies with part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is

Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit

pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAU-

THORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORI-

TY TO OPERATE THE EQUIPMENT.

NOTE II: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at their own expense.

OPERATING FREQUENCY: Operating frequency is determined by the installer. It is important that the frequency con-

ﬁgured meets local regulations.

PROFESSIONAL INSTALLER – COMPLIANCE

US- Power Limits

Mode: SISO: Only One Port Active MIMO (2x2): 2 Ports Active

Power Setting / Port

MIMO (3x3): All 3 Ports Active

Power Setting / Port

CHANNEL: Max. Power Setting

Approved (dBm)

Max. EIRP

(dBm)

Max. Power Setting

Approved (dBm)

Max. EIRP

(dBm)

Max. Power Setting

Approved (dBm)

Max. EIRP

(dBm)

1 28 32 26 31 24 30.5

2 30 35 26 32 24 30.5

3 30 36 26 32 24 30.5

4 30 36 26 32 24 30.5

5 30 36 26 32 24 30.5

6 30 36 26 32 24 30.5

7 30 36 26 32 24 30.5

8 30 36 26 32 24 30.5

9 30 36 26 32 24 30.5

10 30 33 26 32 24 30.5

11 29 32 26 31 24 30.5

Approved Antenna Type:

• Dipole Antenna with up to 7.4 dBi gain

EIRP (Isotropic Radiated Power) = Power Setting + Antenna Gain - Cable Loss

National regulations may require that operations may be limited to portions of the frequency range shown in the channel selection

page of the interface.

112

PROFESSIONAL INSTALLER – COMPLIANCE

Minimum Safe Distance (MSD)

Antenna Gain (dBi) *Occupational Expo-

sure Distance (cm)

Non Occupational Ex-

posure Distance (cm)

Dipole (Omnidirec-

tional)

2.1 7.0 20.0

4.0 8.0 20.0

7.4 **11.0 **25

In addressing the MSD for operation of the RF-2100 S-Band (2200MHz – 2500MHz) radio mod-

ule, the applicable Maximum Permissible Exposure (MPE) limits were obtained IAW the FCC rules

for radio frequency radiation exposure limits under

FCC Title 47, Chapter 1 Subpart 1 Article

1.1310

.

Notes:

*Occupational/controlled exposure limits apply in situations in which persons are exposed as a con-

sequence of their employment provided those persons are fully aware of the potential for exposure

and can exercise control over their exposure. Limits for occupational/controlled exposure also apply

in situations when a person is transient through a location where occupational/controlled limits

apply provided he or she is made aware of the potential for exposure. The phrase

fully aware

in the

PROFESSIONAL INSTALLER – COMPLIANCE

context of applying these exposure limits means that an exposed person has received written and/

or verbal information fully explaining the potential for RF exposure resulting from his or her employ-

ment. With the exception of

transient

persons, this phrase also means that an exposed person has

received appropriate training regarding work practices relating to controlling or mitigating his or

her exposure. Such training is not required for

transient

persons, but they must receive written and/

or verbal information and notiﬁcation (for example, using signs) concerning their exposure poten-

tial and appropriate means available to mitigate their exposure. The phrase

exercise control

means

that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative

or engineering controls and work practices, such as use of personal protective equipment or time

averaging of exposure.

** Cable loss is the minimum cable loss that may exist between the antenna port and the 7.4dBi

antenna. 0.50db cable loss was taken into consideration when calculating minimum distance.

114

ATTACHMENTS

BAT-06 Technical Datasheet

Rechargeable, Lithium-Ion Battery

Features

• Communicates using a Single Wire DQ interface.

• UN/DOT 38.3 Rating: 73Wh

• Comparable to: BT-70716BE

Typical Applications

• Wave Relay System

• AN/PRC-148

• TRC-9110

Recommended Charging Platforms

Charger Part Number Required Adapter Part Number

BTC-70801 BTA-70810

BTC-70844 BTA-70810

BTC-70819, -1, -3 BTA-70810

BTC-70836 BTA-70830, BTA-70830-1

BTC-70870, -1, -3 BTA-70830, BTA-70830-2

BTC-70824-1 BTA-70810S

BTC-70663 BTA-70810S

BTC-70716-1 Not Required

ATTACHMENTS

Technical Speciﬁcations

National Stock Number Pending

BT Part Number BT-70716BG

Dimensions

Length: 2.8 in. (71 mm) Width: 1.6 in.

(41 mm)

Height: 3.4 in. (86 mm)

Weight 0.75 lbs (0.34 kg)

Nominal Voltage 10.8V

Maximum Voltage 12.6V

Capacity 6.4Ah

Discharge 6A Max Continuous

Pulse Discharge 40A ≤ 1 ms

Operating Temperature -30°C to +60°C (-22°F to +140°F)

Recommended Storage Temperature -40°C to +40°C (-40°F to +104°F)

Connector Flat Contacts (bottom), Fly Wheel

Connection (top)

State of Charge Indicator Not Applicable

Disposal Check local regulations (Contains 0%

Mercury or Cadmium)

116

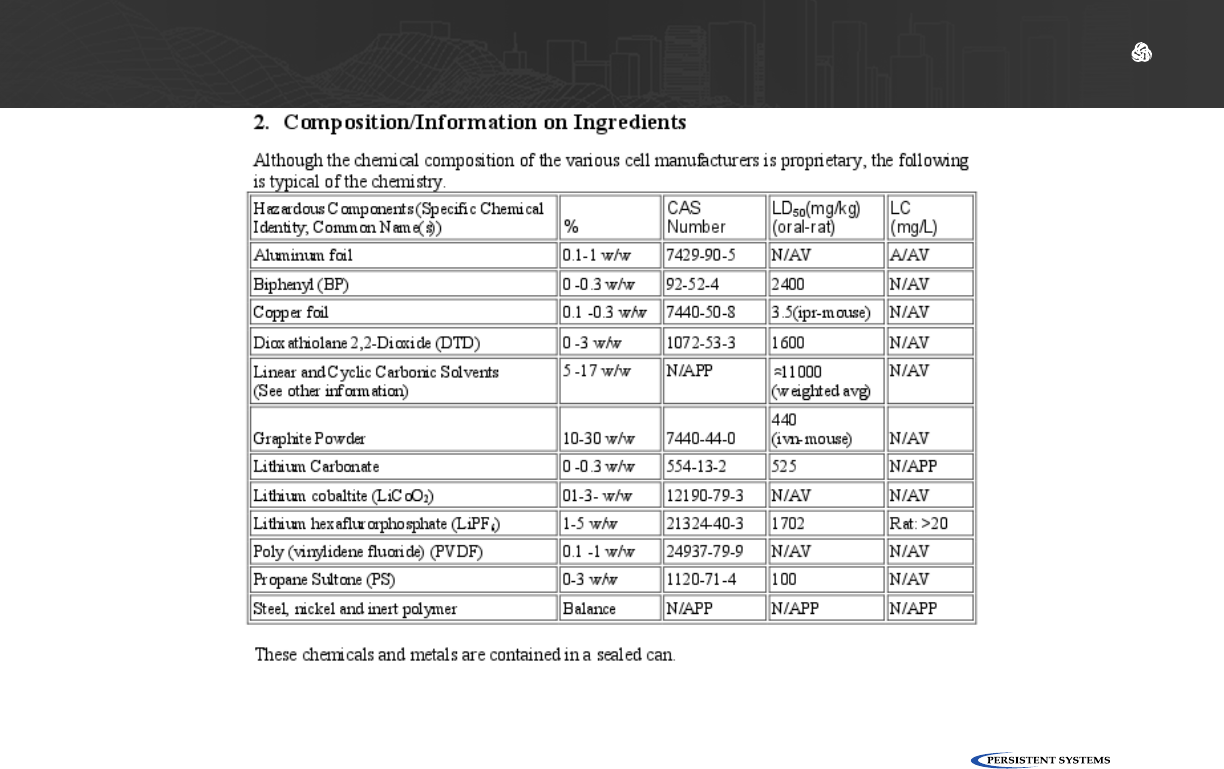

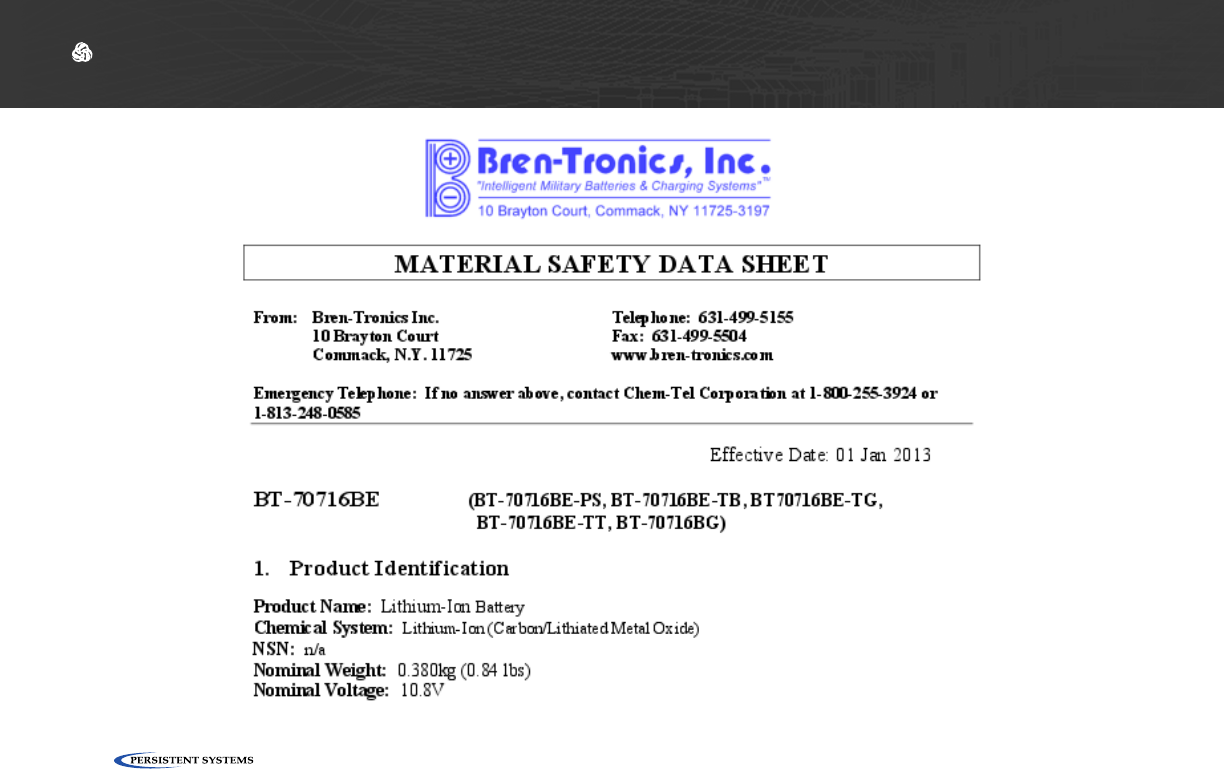

ATTACHMENTS

118

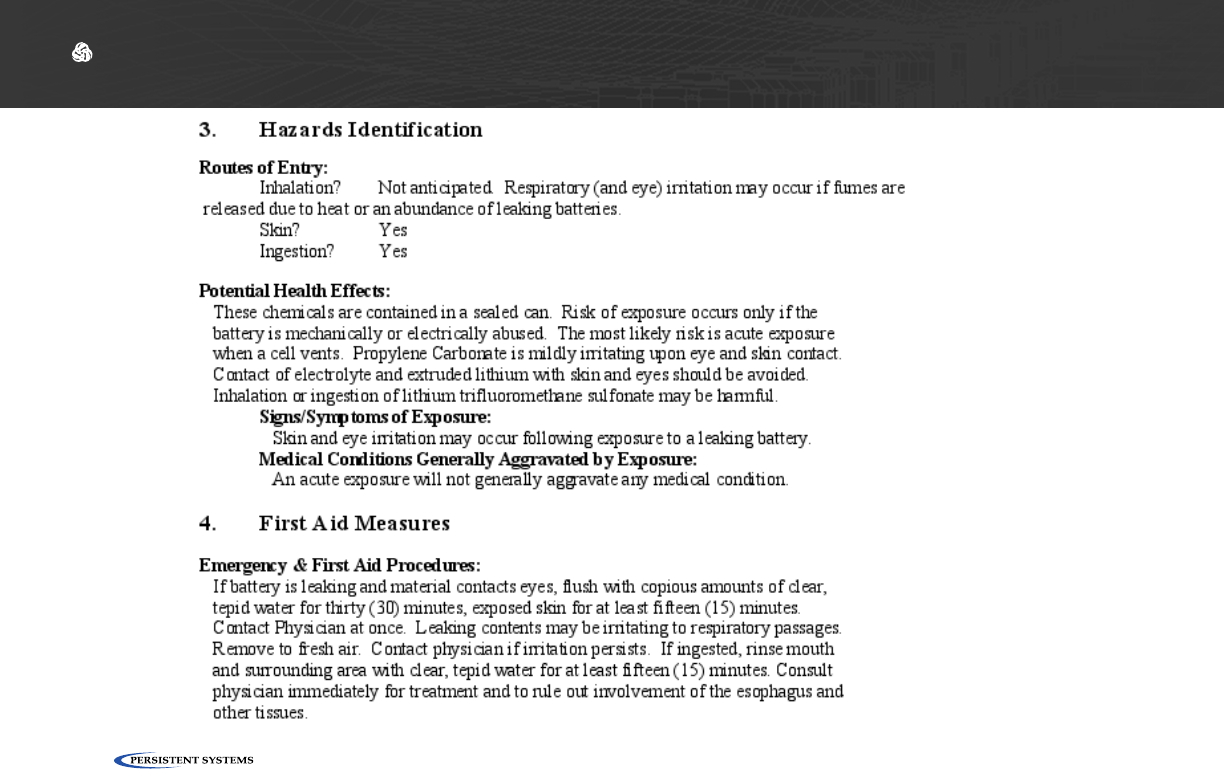

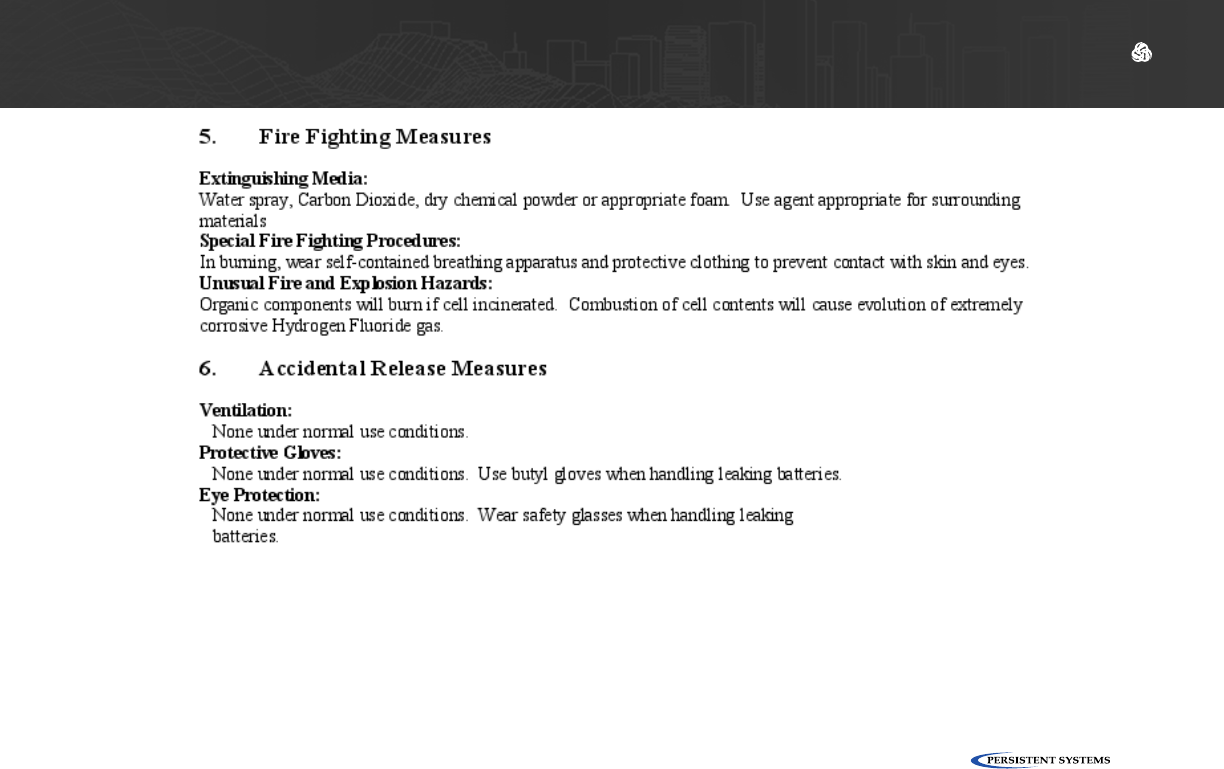

ATTACHMENTS

120

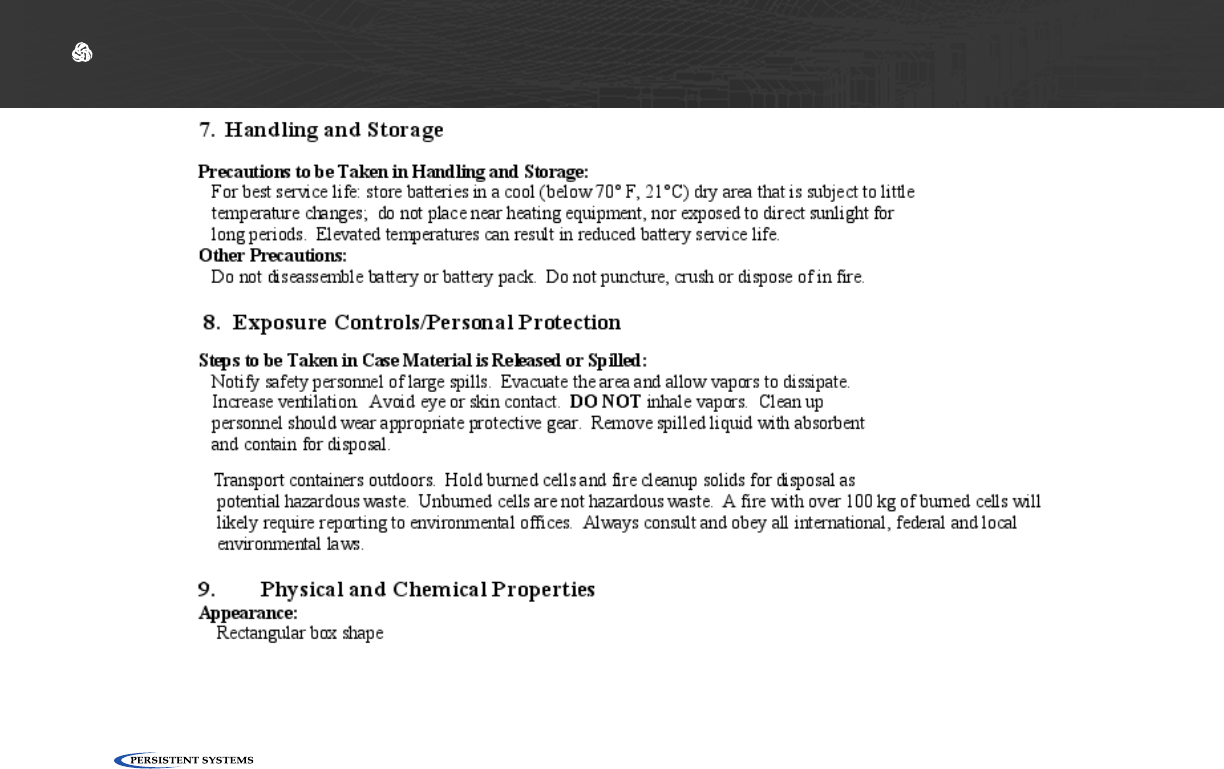

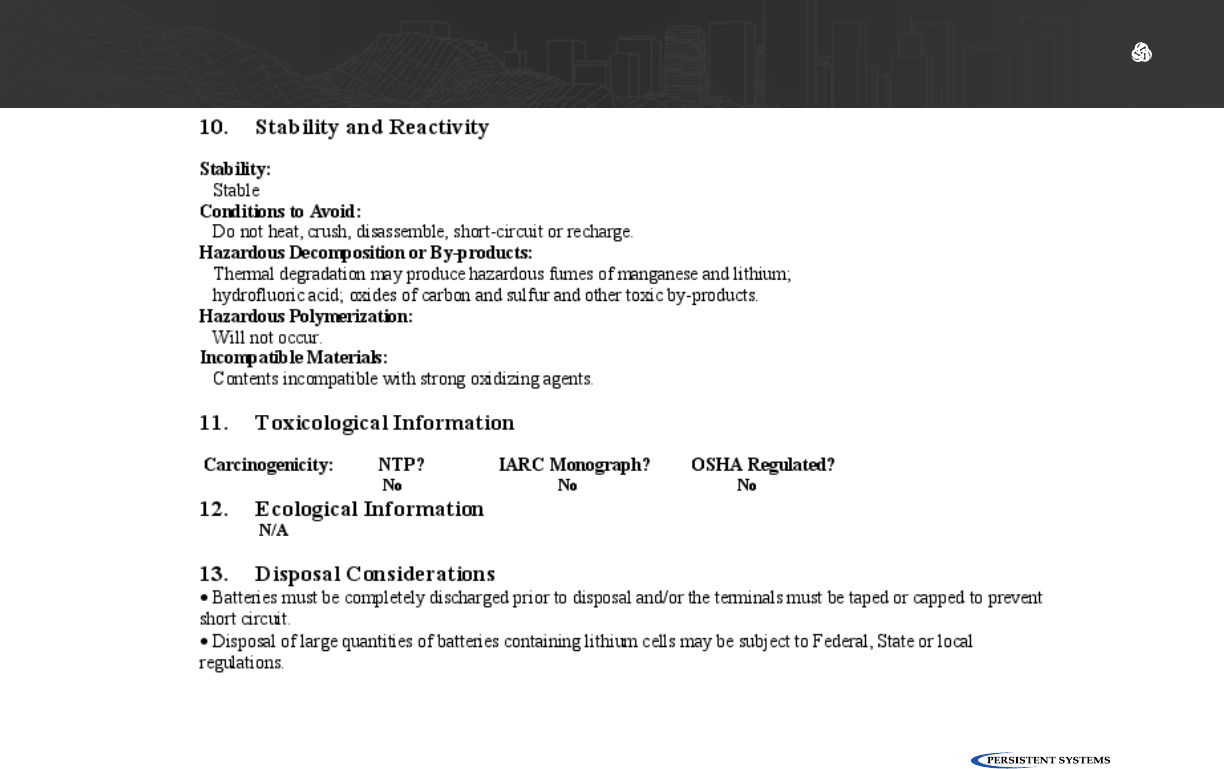

ATTACHMENTS

122

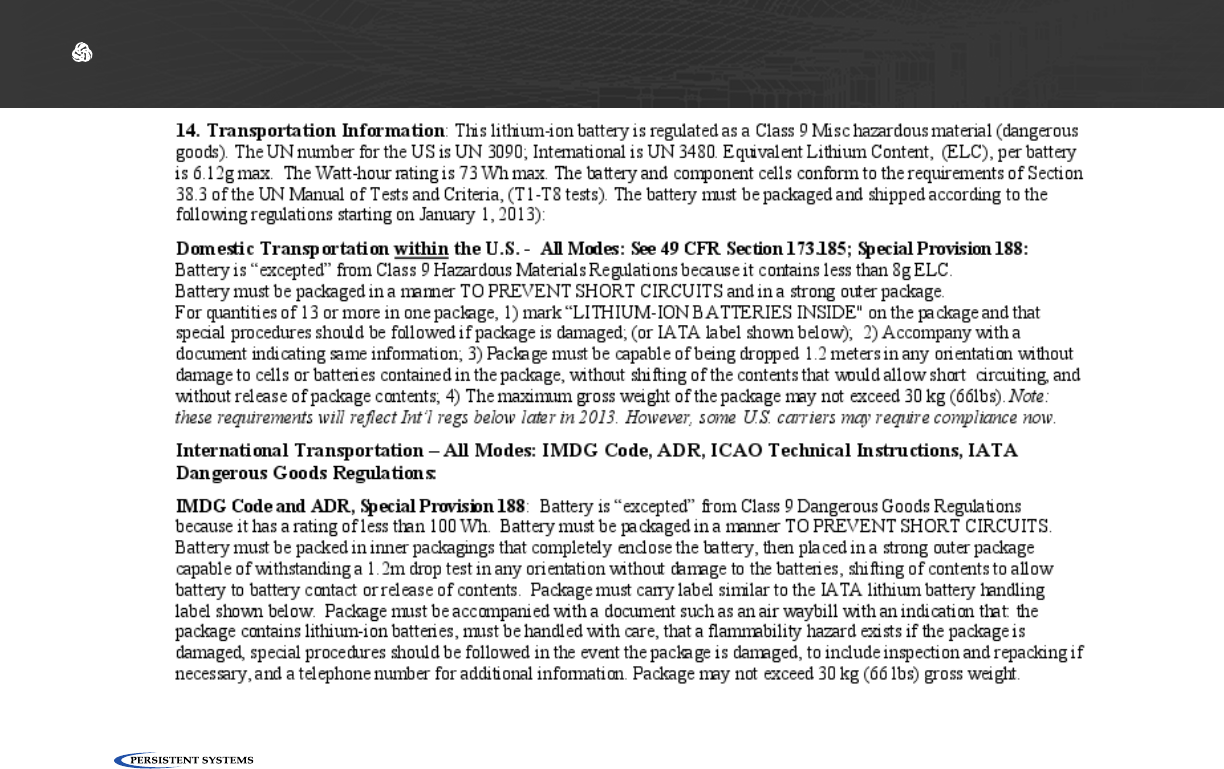

ATTACHMENTS

MPU5

BASIC OPERATOR MANUAL

VERSION 2.0

303 Fifth Avenue Suite 306

New York, NY 10016

www.persistentsystems.com

Persistent systems RF2100 S-Band Radio Module User Manual 2

Persistent systems LLC S-Band Radio Module Users Manual 2

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
