4 Touch the numbers to enter the frequency.

Touch <-- to clear the last entered

number.

Touch [Clear] to clear all the entered

numbers.

5 Touch [Enter] to save.

Select tuner sensitivity

Before you start to search for radio stations,

you can select tuner sensitivity.

1 Touch [Local on] or [Local off].

[Local on]: Only stations with strong

signals can be broadcast.

[Local off]: Stations with strong and

weak signals can be broadcast.

Store radio stations in

memory

You can store up to 6 stations in each band.

Store stations automatically

1 Touch [Search].

Auto search starts. The six strongest

stations of the selected band are saved

in preset channels 1-6 automatically.

Store stations manually

1 Tune to the station that you want to store.

2 Touch [Preset].

The preset screen is displayed.

•

4 Listen to radio

Tune to a radio station

automatically

1 Press SOURCE to select [Radio].

Band and frequency information is

displayed.

2 To select band, touch FM1 or AM1 rst,

then touch [Band].

FM band options: FM1, FM2, FM3

AM band options: AM1, AM2

3 Touch or to tune to a radio station

automatically.

Tune to a radio station

manually

1 Press SOURCE to select [Radio].

2 Touch FM1 or AM1 rst, then touch

[Band] to select band.

3 Touch [Tune].

The manual tune screen is

displayed.

•

English

3 Touch one of the preset statations.

The station is saved in the selected

channel.

Tune to a preset station

1 Touch FM1 or AM1 rst, then touch

[Band] to select band.

2 Touch or to select a preset station.

Skip/Search

Search by step

1 Press DISP to display menu on the screen.

2 Touch or to skip to the previous/

next chapter/le.

Direct search

1 Press DISP to display menu on the screen.

2 Touch [Options], then [Goto].

The search screen is displayed.

3 Touch the numbers to enter chapter/le

number, then touch [Enter].

Select audio language

For video discs that contain two or more audio

channels.

1 During play, press DISC AUDIO on

the remote control repeatedly until the

language is selected.

Select subtitle language

For DVD or DivX discs that contain two or

more subtitle languages.

1 During play, press SUBTITLE on the

remote control repeatedly until the

language is selected.

Repeat

For DVD/VCD/DivX movie:

5 Play video

You can play DVD video, VCD and DivX video

les with the system.

Play/Pause

1 Load discCE-CED750-Load discs (see

‘Load discs’ on page 18), or insert USB

device (see ‘Insert USB device’ on page 19)

or SD/MMC card (see ‘Insert SD/MMC

card’ on page 19) with video les.

The system switches to the connected

device in a few seconds.

To switch to other device, press

SOURCE repeatedly until the device

name is displayed.

2 For video discs, if a menu appears, press

to start play.

For video les on an USB or SD/MMC

device,

Touch to return to home menu.

Touch xx (video le icon), then touch

to display available video folder.

Select a folder by touching on it, then

touch [Select].

Select a video le by touching on it,

then touch to start play.

3 To pause, touch .

To resume play, touch again.

1 To stop, press .

•

English

1 During play, press REPT repeatedly to

select:

[Repeat chapter]: play the current chapter

repeatedly.

[Repeat title]:play all chapters in the title

repeatedly.

[Repeat off] : cancel repeat play.

For VCD karaoke:

1 During play, press REPT repeatedly to

select:

[Repeat 1]: play the current track

repeatedly.

[Repeat all]: play all tracks repeatedly.

[Repeat off]: cancel repeat play.

Selecting a different camera

angle

Some DVDs contain alternate scenes, such

as scenes recorded from different camera

angles. For such DVDs, you can select from the

available alternate scenes.

1 During play, touch [Options].

2 Touch [Angle], then .

Note

Only applicable to discs contain sequences recorded

from different camera angles.

•

3 To pause, touch .

To resume play, touch again.

1 To stop, press .

Skip/Search

Search by step

1 Press DISP to display menu on the screen.

2 Touch or to skip to the previous/

next audio le.

Direct search

1 Press DISP to display menu on the screen.

2 Touch [Options], then [Goto].

The search screen is displayed.

3 Touch the numbers to enter le number,

then touch [Enter].

Intro play

For audio tracks, you can play the rst 10

seconds of each track.

1 During play, press INTRO.SCH. on the

system.

Intro play starts.

After the rst 10 seconds of each track

have been played, play stops. To cancel

intro play, press INTRO.SCH again.

Repeat

For audio disc

•

6 Play audio files

With the system, you can play audio les from

disc, USB device, SD/MMC card and your

bluetooth device.

Note

For CDs recorded in multiple sessions, only the rst

session is played.

This system does not support MP3PRO audio format.

If any special characters are present in the MP3 track

name (ID3) or album name, it may not display correctly

on the screen because these characters are not

supported.

Some WMA is protected by Digital Rights Management

(DRM), it cannot be played on this system.

Folders/les exceed the supported limit of this system

are not displayed or played.

•

Play/Pause

1 Load discCE-CED750-Load discs (see

‘Load discs’ on page 18), insert USB device

(see ‘Insert USB device’ on page 19), insert

SD/MMC card (see ‘Insert SD/MMC card’

on page 19) or pair the bluetooth device

with the system (see ‘Pairing bluetooth

devices’ on page 19).

The system switches to the connected

device in a few seconds.

To switch to other device, press

SOURCE repeatedly until the device

name is displayed.

2 For audio disc, play starts automatically.

For audio les on USB device, SD/MMC

card, or bluetooth device:

Touch to return to home menu.

Touch xx (audio le icon), then touch

to display available audio folder.

Select a folder by touching on it, then

touch [Select].

Select an audio le by touching on it,

then touch to start play.

•

English

1 During play, press REPT repeatedly to

select:

[Repeat 1]: play the current track

repeatedly.

[Repeat all]: play all tracks repeatedly.

[Repeat off]: cancel repeat play.

ForMP3/WMAaudiole

1 During play, press REPT repeatedly to

select:

[Repeat 1]: play the current le

repeatedly.

[Repeat folder]: play all les in the

current folder repeatedly.

[Repeat off]: cancel repeat play.

Random play

You can play audio tracks/les in random order.

1 During play, touch on repeatedly to

select:

[Shufeon] : start random play.

[Shufeoff] : cancel random play.

•

Zoom

You can zoom in pictures for a close view.

1 When you view the picture, press DISP.

The menu is displayed.

2 Touch [Zoom] repeatedly to zoom in the

picture.

3 Touch , or to pan through the

enlarged picture.

Select slide show duration

You can sets the amount of time that a picture

is shown.

1 Press to display menu.

2 Touch [Duration].

3 Touch numbers to set slide show duration

(???).

4 Touch [Enter] to conrm (???).

7 Browse pictures

With the system, you can also view pictures

stored on CD/DVD disc, USB device, and

SD/MMC card.

1 Load discCE-CED750-Load discs (see

‘Load discs’ on page 18), or insert USB

device (see ‘Insert USB device’ on page 19)

or SD/MMC card (see ‘Insert SD/MMC

card’ on page 19) with JPEG les.

The system switches to the connected

device in a few seconds.

To switch to other device, press

SOURCE repeatedly until the device

name is displayed.

2 For picture disc, touch to start slide

show.

For picture les on USB or SD/MMC card,

Touch to return to home menu.

Touch xx (picture le icon), then

touch to display available picture

folder.

Select a folder by touching on it, then

touch [Select].

Select an picutre le by touching on it,

then touch to start slideshow.

Rotate pictures

1 When you view the picture, press DISP.

The menu is displayed.

2 Touch [Rotate] repeatedly to rotate the

picture.

•

English

Receive call

If there is another incoming call during call,

[Incoming call…] ashes on the screen.

1 Touch to receive the call.

2 When conversation ends, touch to

terminate the call.

Call transfer

You can transfer voice from loudspeaker to

mobile phones during call.

1 Press .

8 Make/receive

phone call

With this car audio system, you can make/

receive phone calls if bluetooth is available on

your phone.

Make a call

1 Pair the phone with the system (see ‘Install

remote control battery’ on page 18).

2 Press SOURCE repeatedly to select

[Bluetooth].

The bluetooch menu is displayed.

3 Touch or to select phone number from the

following list:

[Dial pad]: dial number directly

[Dialed calls list]: dialed number

[Missed calls list]: missed call

[Received calls list]: received call

[Phone book list]: Phone directory

[SIM phonebook]: SIM directory

4 Touch to dial.

•

[MPF]middle pass lter range: 500, 1K,

1.5K, 2.5K.

[HPF]high pass lter range:10K, 12.5K,

15K, 17.5K.

3 Press to exit.

Adjut fader/balance

You can also adjust the front and rear speaker

balance, the left and right speaker balance, and

subwoofer settings.

1 Press AUDIO.

Below options are displayed:

2 Touch or repeatedly to select the item

to be adjusted:

[Bal] balance range: 12Lto 12R. (L =

left speaker, R = right speaker)

[Fad]fader range: 12R to 12F. (R =

rear speaker, F = front speaker)

[Sub.w] subwoofer volume: 0 to -24.

3 Touch to exit.

•

9 Adjust sound

Adjust volume

1 Turn clockwise/anticlockwise to

increase/decrease volume.

Mute

You can turn off the sound of your audio.

1 During play, press MUTE .

To turn the sound back on, press

MUTE again.

Select preset equalizer

You can select preset equalizer:

[User]

[Techno]

[Rock]

[Classic]

[Jazz]

[Opitmal]

[Flat]

[Pop]

Note

Only when you selected the [USER] equalizer, the

sound value adjusted can be retained.

•

1 Press EQ.

The current Equalizer setting is

displayed.

2 Touch to adjust below settings:

[BAS]bass range: -7 to +7

[MID]middle range: -7 to +7.

[TRE]treble range: -7 to +7

[LPF] low pass lter range: 60, 80, 100,

200.

•

English

[Clock

mode]

[12hr] 12-hour mode.

[24hr] 24-hour mode.

[Time] Set clock.

[LCD panel

open]

[Auto] Open/close screen

automatically when

the system is turn

on/off.

[Manual] Press OPEN/CLOSE

to open or close

screen.

[Beep] [On] Turn on the beep

sound. Each time you

press a button, the

unit beeps.

[Off] Turn off the beep

sound.

[Calibration] Calibrate the touch

screen.

[Key color] [Red] Button backlight

turns red.

[Blue] Button backlight

turns blue.

5 Touch on the options to select an option.

6 Press to exit.

Adjust sound settings

1 Press MENU.

2 Touch [Setting].

3 Touch [Sound].

4 Touch or to select the setting to be

adjusted.

10 Adjust settings

Adjust general system

settings

1 Press MENU.

The main menu is displayed.

2 Touch [Setting].

The settiing menu is displayed.

3 Touch [General].

4 Touch or to select the setting to be

adjusted.

[Aspect

ratio]

[Wide] For widescreen display.

[Normal] For normal display.

[Video

input]

[Auto] The correct format is

set automatically. Select

this option if you are

not sure which format

should be selected.

NTSC Used in the United

States, Canada, Japan,

Mexico, the Philippines,

South Korea, Taiwan, and

some other countries.

PAL Used in the United

States, Canada, Japan,

Mexico, the Philippines,

South Korea, Taiwan, and

some other countries.

SECAM ???

[Rear

camera]

[Auto] Turn on rear view

camera automatically

during reverse driving.

[Manual] Turn off rear view

camera manually.

[Parking] [On] Turn on rear view

camera automatically

during parking.

[Off] Turn off rear view

camera automatically

during parking.

[DivX

(R) reg

code]

View code for DivX

registration.

5 Touch on the options to select an option.

6 Press to exit.

Adjust bluetooth settings

1 Press MENU.

2 Touch [Setting].

3 Touch [Bluetooth].

[Sub.w] [On] Turn on the

subwoofer.

[Off] Turn off the

subwoofer.

[Sub.w

lter]

80 Hz Select subwoofer

lter creteria.

120 Hz

160 Hz

[DBB] [DBB on] The Dynamic

Bass Boost (DBB)

function is on.

[DBB off] The DBB function

is off.

[DRC] [On]

[Off]

5 Touch on the options to select an option.

6 Press to exit.

Adjust video settings

1 Press MENU.

2 Touch [Setting].

3 Touch [Videos].

4 Touch or to select the setting to be

adjusted.

English

[OSD] [English] Select on-screen-

display language.

[Spanish]

[Portuguese]

[DVD

audio]

[English] Select DVD audio

language. Options

available are depends

on DVD disc.

[Spanish]

[Portuguese]

[DVD

subtitle]

[English] Select DVD subtitle

language. Options

available are depends

on DVD disc.

[Spanish]

[Portuguese]

[Auto] Display the default

subtitle language of

the loaded DVD disc.

[Off] Turn off subtitle

language display.

[Disc

menu]

[English] Select DVD menu

language. Options

available are depends

on DVD disc.

[Spanish]

[Portuguese]

5 Touch on the options to select an option.

6 Press to exit.

Adjust volume settings

1 Press MENU.

2 Touch [Setting].

3 Touch [Volume].

The volume setting sub-menu is

displayed.

4 Select source by touching on it.

5 Touch or to set value..

6 Press to exit.

4 Touch or to select the setting to be

adjusted.

[Bluetooth] [On] Turn on the bluetooth

function.

[Off] Turn off the bluetooth

function.

[Auto

connect]

[On] If the pre-paired device

is within the effective

range, the system re-

connects to pre-paired

device automatically.

[Off] Need to re-connect

manually.

[Auto

answer]

[On] Answer paired phone

call automatically.

[Off] Answer hone call

manually.

[Pairing

code]

View code for pairing

the system with other

bluetooth devices.

5 Touch on the options to select an option.

6 Press to exit.

Adjust language settings

1 Press MENU.

2 Touch [Setting].

3 Touch [Language].

4 Touch or to select the setting to be

adjusted.

Adjust DVD rating

1 Press MENU.

2 Touch [Setting].

3 Touch [DVD rating].

4 Touch or to select the setting to be

adjusted.

[Set

password]

Set password to restric

the play of discs. The

default password is 0000.

[Rating] [1. Kid

safe]

Acceptable for children.

[2. G] Acceptable for general

viewers.

[3. PG] Parental guidance

suggested.

[4. PG-

13]

Unsuitable for children

under age 13.

[5. PG-

Recommend parents to

restrict children under 17

to view.

[6. R] Restricted. Recommend

parent to guide children

under 17 to view.

[7. NC-

17]

Unsuitable for children

under age 17.

[8.

Adult]

Acceptable for adults

only.

[Load

factory]

Restore to default

settings.

5 Touch on the options to select an option.

6 Press to exit.

English

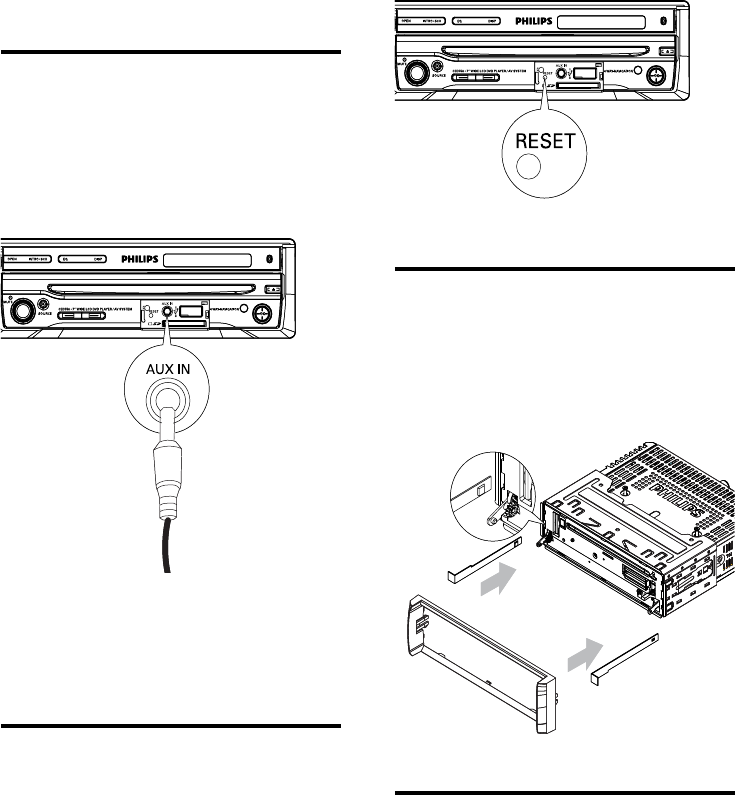

Remove the unit

To repair, replace fuse, or replace the unit

with another car audio, remove it from the

dashboard.

1 Remove the unit with the removal keys.

Replace fuse

If there is no power, the fuse may be damaged

and need to be replaced.

1 Take out the unit from dashboard.

2 Check the electric connection.

3 Buy a fuse that matches the voltage of the

damaged fuse (15A)

11 Others

Listen to other devices

You can connect an external sound device to

the unit.

1 Connect the external sound device to the

unit by using a 3.5 mm plug.

2 Press SOURCE repeatedly until [AUX] is

displayed.

3 Operate the device (refer to the

instructions supplied with the device).

Reset

When mail-function is found, you can reset the

unit.

1 Press RESET by using a ball-point pen or a

similar tool.

All settings are erased except clock.

4 Replace the fuse.

If the fuse gets damaged immediately after it

has been replaced, there may be an internal

malfunction. In such case, consult your Philips

dealer.

English

Frequency range

- FM

87.5 - 108.0 MHz (Europe)

65.0 - 74.0 MHz.(OIRT)

87.5 - 107.9 MHz

(American)

Frequency range

- AM(MW)

522 - 1620 KHz (Europe)

530 - 1710 HKz

(American)

Usable sensitivity

- FM

8 uV

Usable sensitivity

- AM(MW) (S/N

= 20 dB)

30 uV

Frequency

response

30 Hz - 15 KHz

Stereo separation 30 db (1 kHz)

Signal/noise ratio >55 dB

LCD

Screen size 3.5 inches (16:9l)

Display resolution 320 x 234 dots

Active area 76.32 x 42.822 mm

Dot pitch 0.2385 x 0.183 mm

Contrast ratio 350

Brightness 220 cd/m

Compatible USB devices:

USB ash memory (USB 2.0 or

USB1.1)

USB ash players (USB 2.0 or USB1.1)

memory cards

Supported formats:

USB or memory le format FAT12,

FAT16, FAT32 (sector size: 512 bytes)

MP3 bit rate (data rate): 32-320 Kbps

and variable bit rate

WMA v9 or earlier

Directory nesting up to a maximum

of 8 levels

Number of albums/ folders: maximum

Number of tracks/titles: maximum 999

ID3 tag v2.0 or later

File name in Unicode UTF8

(maximum length: 128 bytes)

Unsupported formats:

•

12 Product

information

Note

Product information is subject to change without prior

notice.

•

General

Power supply 12 V DC (11 V - 16

V), negative ground

Fuse 15 A

Suitable speaker

impedance

4 - 8

Maximum power output 50 W x 4 channels

Continuous power

output

24 W x 4 channels

(4 10% T.H.D.)

Pre-Amp output voltage 2.0 V ( CD play

mode; 1 kHz, 0 dB,

10 k load)

Subwoofer output

voltage

2.0 V (CD play

mode)

Aux-in level 500 mV

Dimensions (W x H

x D)

188 x 58 x 193 mm

Weight 1.7 kg

Disc player

System Disc digital audio

system

Frequency response 20 Hz - 20k Hz

Signal/noise ratio >75dB

Total harmonic

distortion

Less than 0.30% (1K

Hz)

Channel separation >55dB

Video signal format NTSC/PAL/AUTO

Video output 1 +/- 0.2V

Tuner

Empty albums: an empty album is an

album that does not contain MP3/

WMA les, and is not be shown in the

display.

Unsupported le formats are skipped.

For example, Word documents (.doc)

or MP3 les with extension .dlf are

ignored and not played.

AAC, WAV, PCM audio les

DRM protected WMA les (.wav,

.m4a, .m4p, .mp4, .aac)

WMA les in Lossless format

ISO9660, Joliet

Maximum title number: 512 (depending on

le name length)

Maximum album number: 255

Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

Supported Bit-rates: 32~256 (kbps),

variable bit rates

•

English

Disc region code is not compatible with

the unit. Use disc with proper region code.

No image

Parking brake wire connection is incorrect.

Check the parking wiring.

Imageashesordistorted

Video DVD settings do not match with the

DVD. Adjust video DVD settings.

Video connection is improper. Check the

connections.

Noise in broadcasts.

Signals are too weak. Select other stations

with stronger signals.

Check the connection of the car antenna.

Change broadcast from stereo to mono.

Preset stations lost.

Battery cable is not correctly connected.

Connect the battery cable to the terminal

that is always live.

Fuse is broken

The Fuse type is incorrect. Replace it with

a 15A fuse.

Speaker wire or power wire is grounded.

Check the connections.

Display show ERR-12

USB/SD/MMC data error. Check the USB

device or SD/MMC card.

•

13 Troubleshooting

Caution

Never remove the casing of this system. •

To keep the warranty valid, never try to repair

the system yourself.

If you encounter problems when using this

system, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips web site (www.

Philips.com/support). When you contact Philips,

ensure that your system is nearby and the

model number and serial number are available

(see ‘Get started’ on page 12).

No power

Car engine has not been started. Start the

car engine.

Connections is incorrect.

Fuse has been damaged. Replace fuse.

No sound

Volume is too low. Adjust volume.

Speaker connections is incorrect.

No response to the remote control

Ensure that the path between the

remote control and the unit iis clear from

obstacles.

From a close distance, point the remote

control directly at the unit.

Replace the remote control battery.

The function does not work. Refer to the

instructions.

Disc does not play

Disc is upside down. Ensure the printed

side is upwards.

Disc is dirty. Clean the disc with a clean,

soft, lint-free cloth. Wipe the disc outwards

from the center.

Disc is defective. Try another disc.

Imcompatible disc is used. Try another disc.

Disc rating exceeds the restric setting.

Change the rating settings to lower one.

•

technology, and Windows Media Audio

encoding technology.

14 Glossary

MMC

MultimediaCard. A type of memory card with a

ash memory.

MP3

A le format with a sound data compression

system. MP3 is the abbreviation of Motion

Picture Experts Group 1 (or MPEG-1) Audio

Layer 3. With the MP3 format, one CD-R or

CD-RW can contain about 10 times more data

than a regular CD.

Region code

A system that allows discs to be played only in

the region designated. This unit only plays discs

that have compatible region codes. You can nd

the region code of your unit on the product

label. Some discs are compatible with more

than one region (or ALL regions.)

Secure Digital. A type of memory card with a

ash memory.

SDHC

Secure Digital High Capacity (SDHC) is a type

of ash memory card based on the SDA 2.00

specication. The SDA 2.00 specication enables

SD cards to reach higher capacities from 4GB

to 32GB, and growing.

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a

part of Microsoft Windows Media technology.

Includes Microsoft Digital Rights Management

tools, Windows Media Video encoding

English

Philips Consumer Lifestyle CED750 7" TFT DVD PLAYER / AV SYSTEM In-Car Entertainment User Manual 2

Philips Consumer Lifestyle 7" TFT DVD PLAYER / AV SYSTEM In-Car Entertainment 2

Contents

User Manual 2

Navigation menu

Namespaces

Views

Navigation
