2 3ENEN
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical
equipment.
Keep this apparatus away from direct sunlight, naked
Make sure that you always have easy access to the
power cord, plug, or adaptor to disconnect the
apparatus from the power.
Note
The type plate is located on the bottom of the product.
1 Important
Know these safety symbols
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electric
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation mark' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
shock, this apparatus should not be exposed to
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs: To prevent electric shock, match wide
blade to wide slot.)
Important safety instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
k Unplug this apparatus during lightning
storms or when unused for long periods
of time.
l
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
m Apparatus shall not be exposed to
dripping or splashing.
n Do not place any sources of danger on
o This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
p Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
4 5ENEN
3 Get started
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of this product.
Risk of electric shock! When you unplug the AC power
adaptor, always pull the plug from the socket. Never
pull the cord.
Connect the AC power adaptor between
the DC IN socket at the back of this
product, and
the power supply.
Turn on
Press POWER.
» The product switches to the last
selected source.
Switch to standby mode
Press POWER again to switch the product to
standby mode.
» The clock (if set) is displayed.
DC IN
Select a source
Press SOURCE/SET repeatedly to select a
source: FM preset, FM, Bluetooth, or AUX in.
Set time
1 Press and hold SOURCE/SET for two
seconds.
» [24H] or [12H] begins to blink.
2 Press - TUNE/TIME or TUNE/TIME+ to
select [24H] or[12H] for 12 or 24 hour
format.
3 Press SOURCE/SET
» The hour and minute digits begin to
blink.
4 Press - TUNE/TIME or TUNE/TIME+
repeatedly to set the hour.
5 Press SOURCE/SET
» Minute digits begin to blink.
6 Press - TUNE/TIME or TUNE/TIME+
repeatedly to set the minute.
7 Press SOURCE/SET
» The set time is displayed.
2 Your product
Congratulations on your purchase, and
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this product, you can
enjoy audio from your Bluetooth devices
or other external audio devices,
listen to FM radio, and
wake up to buzzer alarm or radio.
What's in the box
Check and identify the contents of your
package:
Main unit
Power adaptor
Audio input cable (3.5 mm connectors)
Short user manual
SB170
Short User Manual
www.philips.com/welcome
Always there to help you
Register your product and get support at
Question?
Contact
Philips
6 7ENEN
4 On your Bluetooth device, follow the on-
screen instructions to complete the pairing
and connection.
Disconnect a device
On your device, disable the Bluetooth
connection with this product.
Note
Before connecting another Bluetooth device, disconnect
Reconnect a device
For a paired Bluetooth device on which
the automatic reconnection is enabled,
this product reconnects with it once it is
detected.
For a paired Bluetooth device that does
not support the automatic reconnection,
reconnect it with this product manually.
Clear pairing history
In Bluetooth mode, press and hold POWER for
5 seconds.
4 Use Bluetooth
devices
With this product, you can enjoy audio from a
connected Bluetooth device.
Note
Philips does not guarantee the compatibility with all
Bluetooth devices.
Before pairing a device with this product, read its user
manual for Bluetooth compatibility. Make sure that the
connected Bluetooth device supports the Advanced
The product can memorize a maximum of 4 paired
devices.
Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
The operational range between this product and a
Bluetooth device is approximately 10 meters (30 feet).
Any obstacle between this product and a Bluetooth
device can reduce the operational range.
Keep away from any other electronic device that may
cause interference.
Connect a Bluetooth device
Connect a Bluetooth device to this product,
and then you can stream audio to this product
through Bluetooth.
Connect manually
1 Press POWER to turn on this product.
2 Press SOURCE/SET to select Bluetooth
mode.

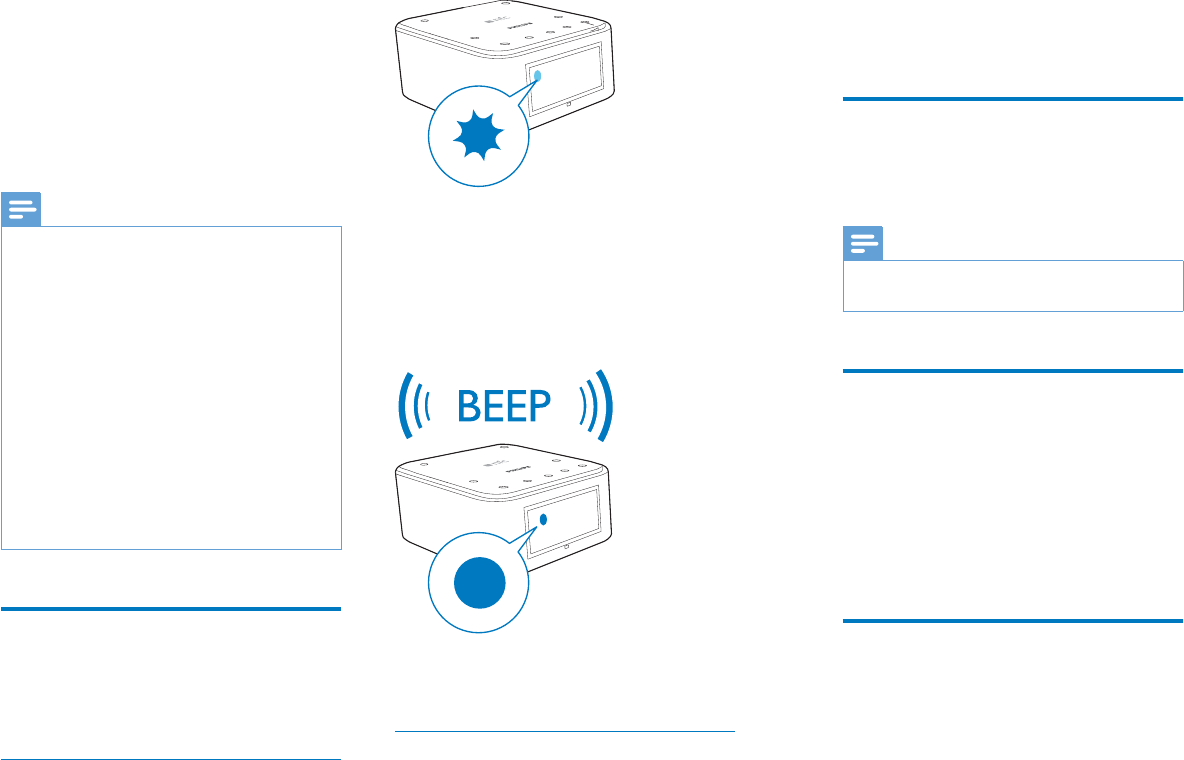

» The Bluetooth indicator blinks on the
display panel.
3 On your Bluetooth device, enable the
Bluetooth feature and search for devices.
4 In the device list, tap PHILIPS SB170.
» If the Bluetooth connection is
established, this productbeeps twice
and the Bluetooth indicator turns solid.
5 Play audio on your Bluetooth device.
» Audio comes out from this product.
Connect easily by NFC
If your Bluetooth device supports NFC (Near
Field Communication), you can connect it with
this product easily.
1 Press SOURCE/SET to switch this product
to Bluetooth mode.
2 On your device, enable NFC and
Bluetooth functions.
3 Tap the back of your Bluetooth device on
the NFC tag on this product.
8 9ENEN
6 Listen to FM
radio
Tune to FM radio stations
Tip
other radiation source.
For better reception, fully extend and adjust the
position of the antenna.
1 Press SOURCE/SET repeatedly to select
FM preset/FM mode.
In FM preset mode:
2 Press and hold - TUNE/TIME or TUNE/
TIME + for two seconds.
» The product tunes to a station with
strong reception automatically.
3 Repeat step 2 to tune to more radio
stations.
In FM mode:
To tune to a radio station automatically,
Press and hold - TUNE/TIME or
TUNE/TIME + for two seconds.
To tune to a radio station manually,
Press - TUNE/TIME or TUNE/TIME
+
reception.
Store FM radio stations
automatically
Note
You can store a maximum of 20 FM radio stations.
In FM preset mode:
press an hold SOURCE/SET for two seconds.
» After available FM radio stations are
automatically.
To store FM radio stations automatically
afterwards,
In FM mode, press and hold SOURCE/SET
for two seconds.
Store FM radio stations
manually
1 Tune to an FM radio station.
2 Press and hold SOURCE/SET for two
seconds.
» The preset number begins to blink.
3 Press - TUNE/TIME or TUNE/TIME +
repeatedly to select a number.
4 Press SOURCE/SET for two seconds again
5 Repeat steps 1 to 4 to store other stations.
Note
To remove a pre-stored station, store another station
in its place.
Select a preset radio station
In FM preset mode, press - TUNE/TIME or
TUNE/TIME + repeatedly to select a preset
number.
5 Charge through
USB socket
You can connect your USB device to this
product for charging.

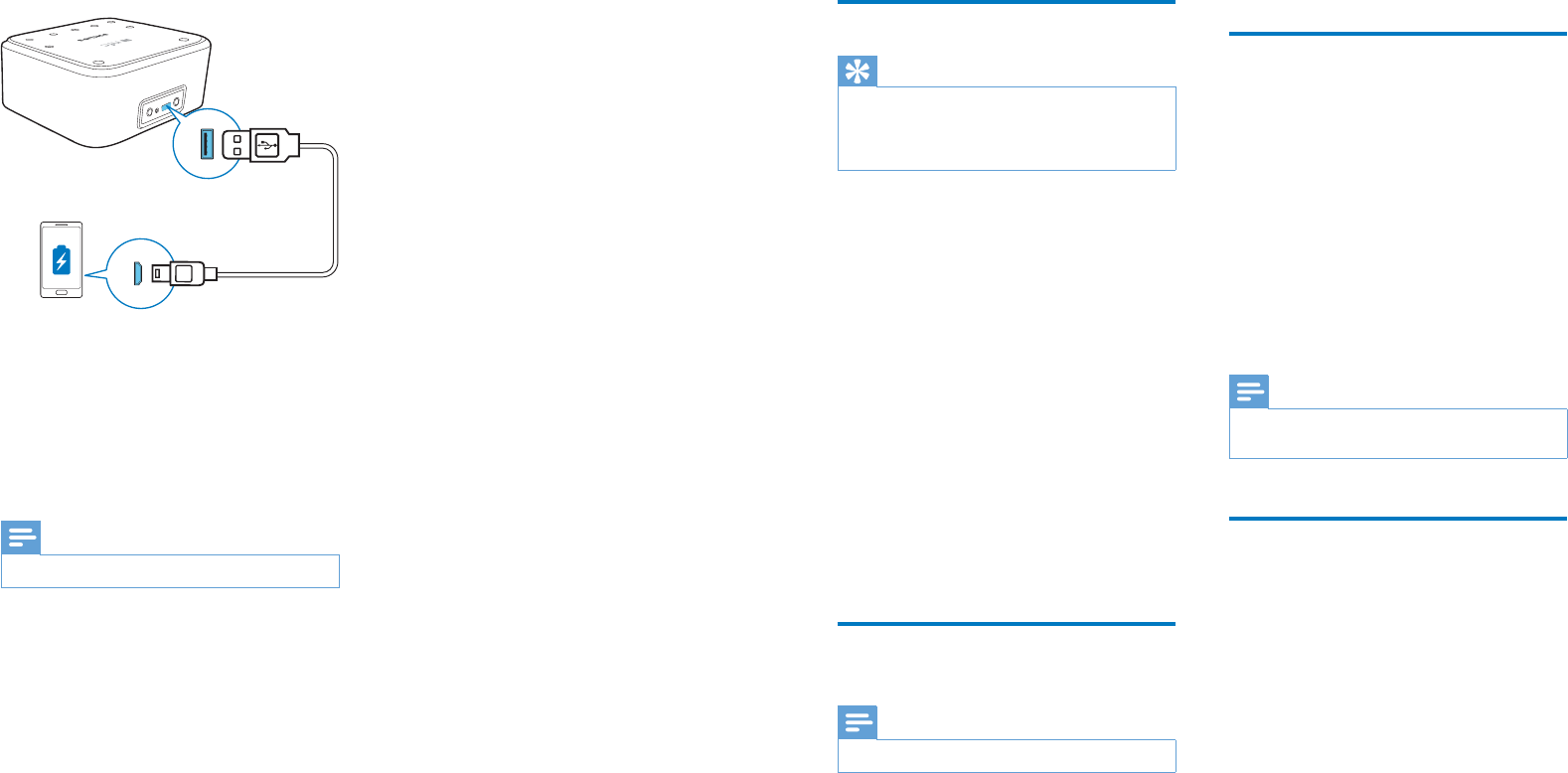

1 Connect a USB cable between
the USB socket on the back of this
product, and
the USB socket on your USB device.
2 Connect this product to power.
» Once the USB device is recognized,
the charging starts.
Note
The USB socket is used for charging only.
10 11ENEN
8 Other features
Set alarm timer
Note
Make sure that you have set the clock correctly.
1 Press and hold AL1/AL2 for 2 seconds to
activate alarm setting.
» The hour digits blink.
2 Press - TUNE/TIME or TUNE/TIME+
repeatedly to adjust hour.
3 Press SOURCE/SET
» The minute digits blink.
4 Repeat steps 2-3 to set the minute.
5 Repeat steps 2-3 to select an alarm source.
TUNE: select your last listened FM
channel as alarm sound.
BUZ: select buzzer as alarm sound.
6 Repeat steps 2-3 to set the alarm volume.
» The alarm time and icon are displayed.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or
deactivate the alarm timer.
» The alarm icon appears if alarm timer
is on and disappears if it is off.
To stop the ringing alarm, press the
corresponding AL1/AL2.
» The alarm repeats ringing for the next
day.
Snooze alarm
When alarm sounds, press SNOOZE.
» The alarm snoozes and repeats ringing
nine minutes later.
Set sleep timer
This prodcut can switch to standby mode
automatically after a preset period.
Press SLEEP repeatedly to select the sleep
timer period (in minutes).
» When the sleep timer is activated,
appears.
To deactivate the sleep timer
Press SLEEP repeatedly until [OFF] (off)
appears.
Adjust display brightness
Press BRIGHTNESS repeatedly to select
different brightness levels.
15 30 60 90 120
OFF
7 Play through
audio cable
Through an MP3 link cable, you can also play
audio input that is transfered from an external
audio device, for example, an MP3 player.
1 Connect an audio input cable with a 3.5
mm connector on both ends between
the AUDIO IN socket on this product,
and
the headphone socket of an external
device.
2 Press SOURCE/SET to select AUDIO IN
mode.
3 Play audio on the external device (refer to
its user manual).
12 13ENEN
10 Troubleshooting
Warning
Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
General
No power
Ensure that the AC power plug of the unit
is connected properly.
Ensure that there is power at the AC
outlet.
No sound or poor sound
Adjust the volume of this product and the
connected Bluetooth device.
Make sure that the Bluetooth connection
is valid between your Bluetooth device and
this product.
Clock setting erased
Power has been interrupted or the power
adapter has been disconnected.
Reset the clock.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
Cannot connect with the device.
The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this product.
9 Product
information
Note
Product information is subject to change without prior
notice.
General information
AC Power Model: AS100-050-
AA200
50/60 Hz, 0.5 A
2.0 A
Operation Power
Consumption
< 15 W
Standby Power
Consumption
< 1 W
Max. load of USB
output
1.6 A
Dimensions - Main
Unit (W x H x D)
137 x 98 x 141 mm
Weight
- With Packing
- Main Unit
1.0 kg
0.56 kg
Bluetooth
Range 10 m (Free space)
!"#
Tuning Range 87.5 - 108
MHz
Sensitivity
- Mono, 26dB S/N Ratio
< 22 dBf
Search Selectivity > 28 dBf
Total Harmonic Distortion < 3%
Signal to Noise Ratio > 50 dB
$
Rated Output Power 2 X 2.5W RMS
Speakers
Speaker impedance 4 Ohm
Speaker driver 1.5'' full range
14 15ENEN
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the United
States and in other countries.
Copyright
notice. Trademarks are the property of
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
11 Notice
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
Notice for the USA and Canada
This device complies with Part 15 of the FCC
Rules and RSS standard of Industry Canada.
Operation is subject to the following two
conditions:
1 this device may not cause harmful
interference, and
2 this device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules
and ICES-003 of Industry Canada . These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses,
and can radiate radio frequency energy and,
if not installed and used in accordance with
the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
Relocate the receiving antenna.
Increase the separation between
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
RF Radiation Exposure Statement: This
equipment complies with FCC’s and IC’s RF
radiation exposure limits set forth for an
uncontrolled environment. The antenna(s)
used for this transmitter must be installed and
operated to provide a separation distance of
at least 20 cm from all persons and must not
be collocated or operating in conjunction with
any other antenna or transmitter. Installers must
ensure that 20cm separation distance will be
maintained between the device (excluding its
handset) and users.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Disposal of your old product
and batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 000000000000
