Model RC9500 User Guide
Touch Screen Remote Control
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 1
For US and Canada
FCC Compliancy:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rule. These limits are designed to
provide reasonable protection against harmful interference in residential installation.
This equipment generates, uses, and can radiate radio frequency energy and , if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is not guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a different circuit from the receiver.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
The user changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For Europe
Declaration of Conformity N° V03ECRC9500:
We, Marantz Europe B.V., PO Box 8744, 5605 LS Eindhoven, The Netherlands
declare under our responsibility that the Marantz product described in this user
guide is in compliance with the corresponding technical standards such as
EN301 489-1 of 2002-08, EN301 489-3 of 2002-08, EN300 220-1 of 2002-09 and
IEC60950 of Edition 2001.
Eihdhoven, The Netherland
Bert Kiggen
Marketing manager of Marantz Europe B.V.
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 2
Dear customer,
Please be informed that this carton only contains a copy of the user manual in English. For
German, French, Dutch, Spanish and Italian please visit our website www.marantz.com and
check the download section (touch screen remotes).
Sehr geehrter Verbraucher,
bitte beachten Sie, dass diese Verpackung lediglich eine englischsprachige
Bedienungsanleitung enthält. Eine deutsche Bedienungsanleitung erhalten Sie als
Download File (Software - Fernbedienungen) über unsere Internetseite www.marantz.de
oder telefonisch unter 0541-4046630.
Cher client,
Vous trouverez dans cette boîte une copie du manuel d'utilisation en anglais. Les versions
allemande, française, hollandaise, espagnole ou italienne sont disponibles sur notre site:
www.marantz.com (choisir Download et Touch screen remotes ).
Geachte klant,
Wij informeren u dat deze doos enkel een engelse gebruiksaanwijzing bevat. Voor gebruik
van een duitse, franse, nederlandse, spaanse of italiaanse versie verwijzen we u naar onze
website www.marantz.com waar u talenversies kunt downloaden via touch screen remotes.
Estimado consumidor,
Le informamos que este paquete sólo contiene la versión inglesa del manual de usuario. Si
desea obtener la versión española, alemana, francesa u holandesa, podrá conseguirla en
nuestra página web www.marantz.com, sección "download, touch screen remotes" (mandos
con pantalla táctil).
Attenzione: le istruzioni per l'uso a corredo di questo telecomando sono soltanto in lingua
inglese. Le istruzioni in tedesco, francese, olandese, spagnolo ed italiano sono scaricabili
dal sito www.marantz.com sezione "DOWNLOAD" - Touch Screen Remotes.
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 3
Automating Your Home Theater
With The Marantz RC9500
RC9500 Remote Control User Guide
The information in this manual is copyright-protected. No part of this user guide
may be copied or reproduced in any form without prior written consent from
Marantz.
MARANTZ SHALL NOT BE LIABLE FOR OMISSIONS OR FOR TECHNICAL
OR EDITORIAL ERRORS CONTAINED IN THIS USER GUIDE. MARANTZ
SHALL NOT BE HELD LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE SUPPLYING OR USE OF THIS
INFORMATION. MARANTZ SHALL NOT BE HELD LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE PERFORMANCE
OR USE OF THE MATERIALS DESCRIBED IN THIS USER GUIDE.
The information in this user guide may be subject to change without prior notice.
All other brand or product names are trademarks or registered trademarks of
their respective companies or organizations.
© 2004 Marantz America, Inc
All rights are reserved. Reproduction in whole or in part is prohibited without
prior consent of the copyright owner.
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 4
User Guide
1
Introduction 2
1. The Marantz RC9500 2
2. The Battery 3
Getting Started 6
1. Activating the RC9500 6
2. Navigating the RC9500 7
3. Operating a Device 11

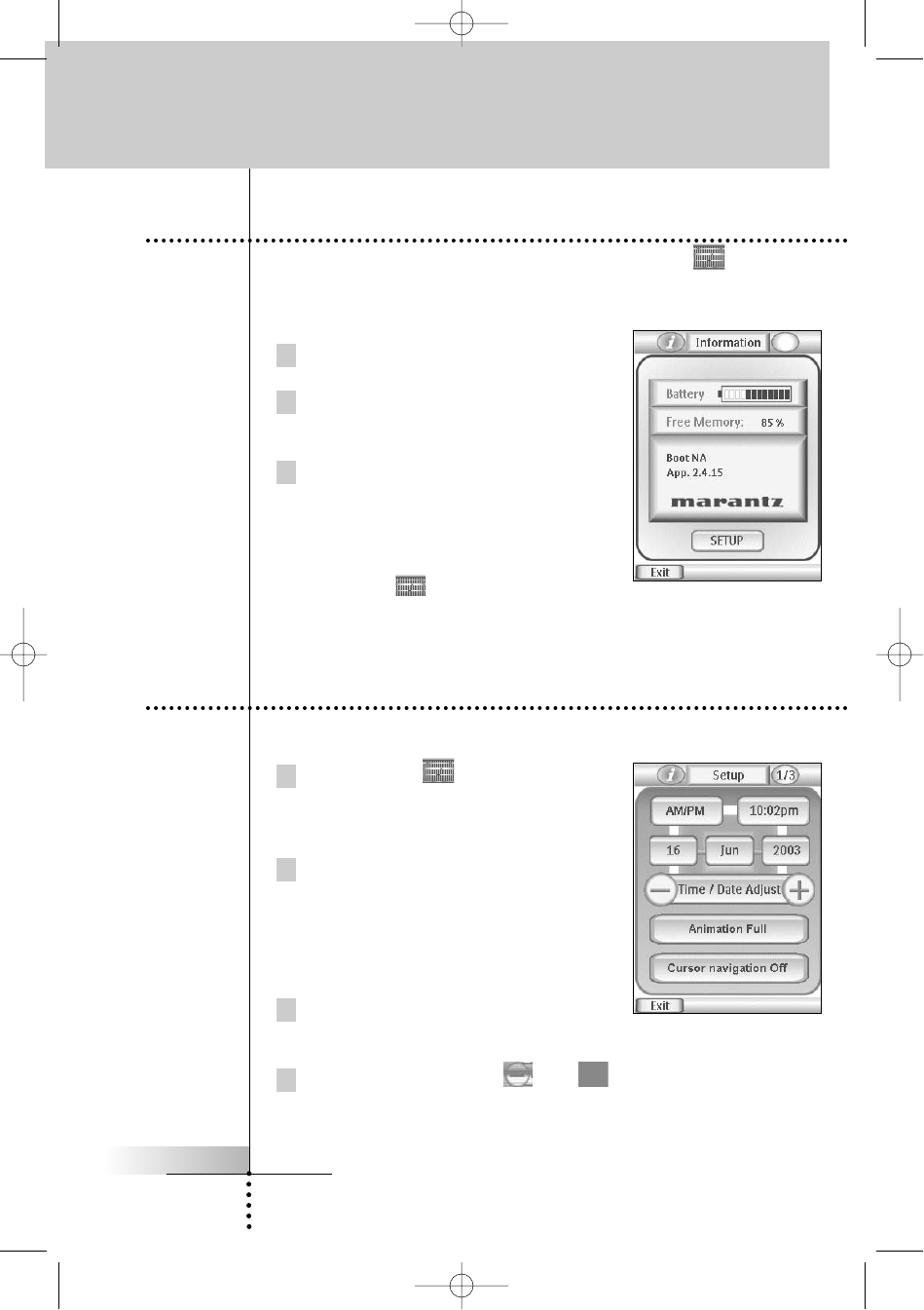

4. Check Battery Life - The Information Page 12

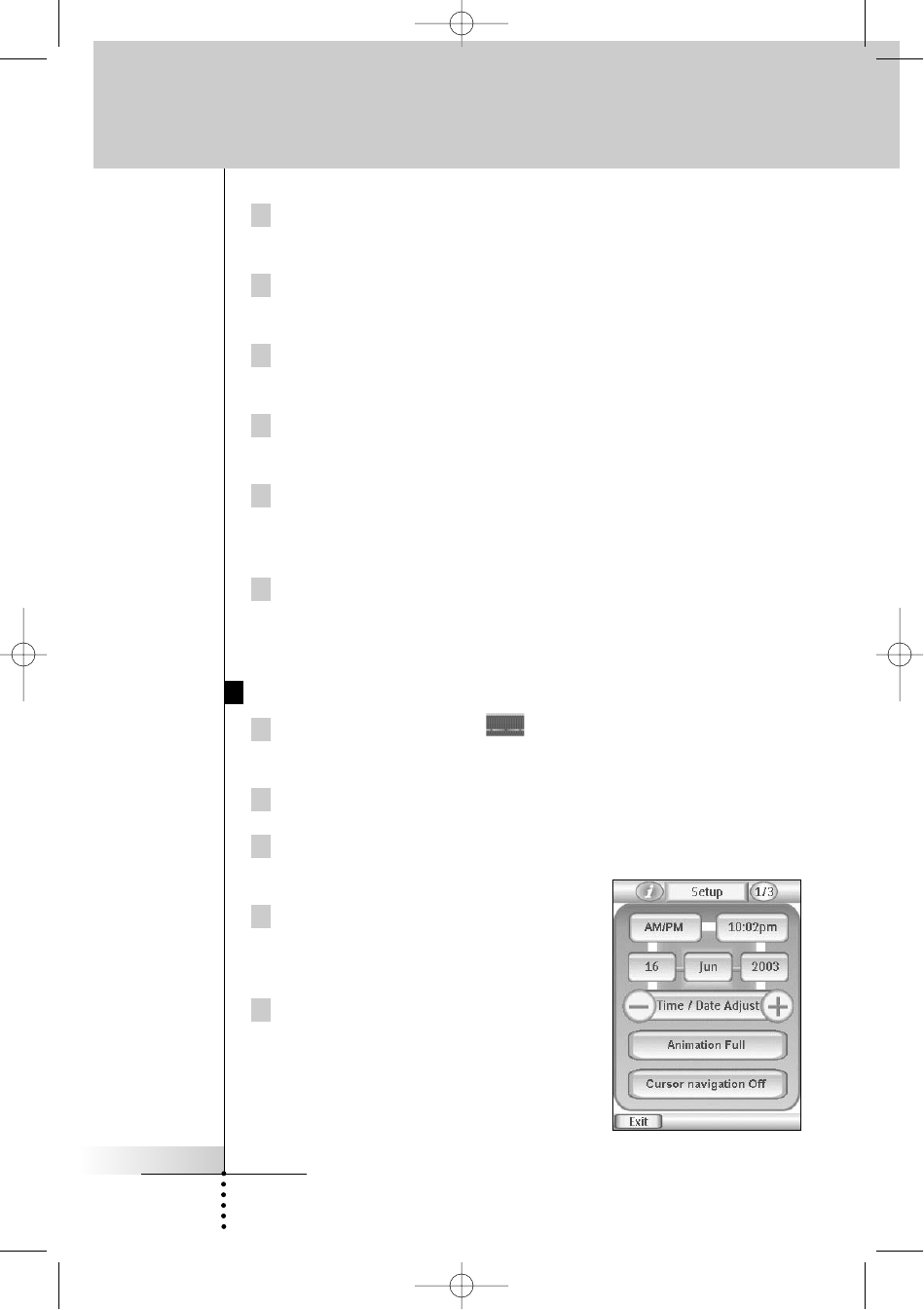

5 The Setup Pages 12

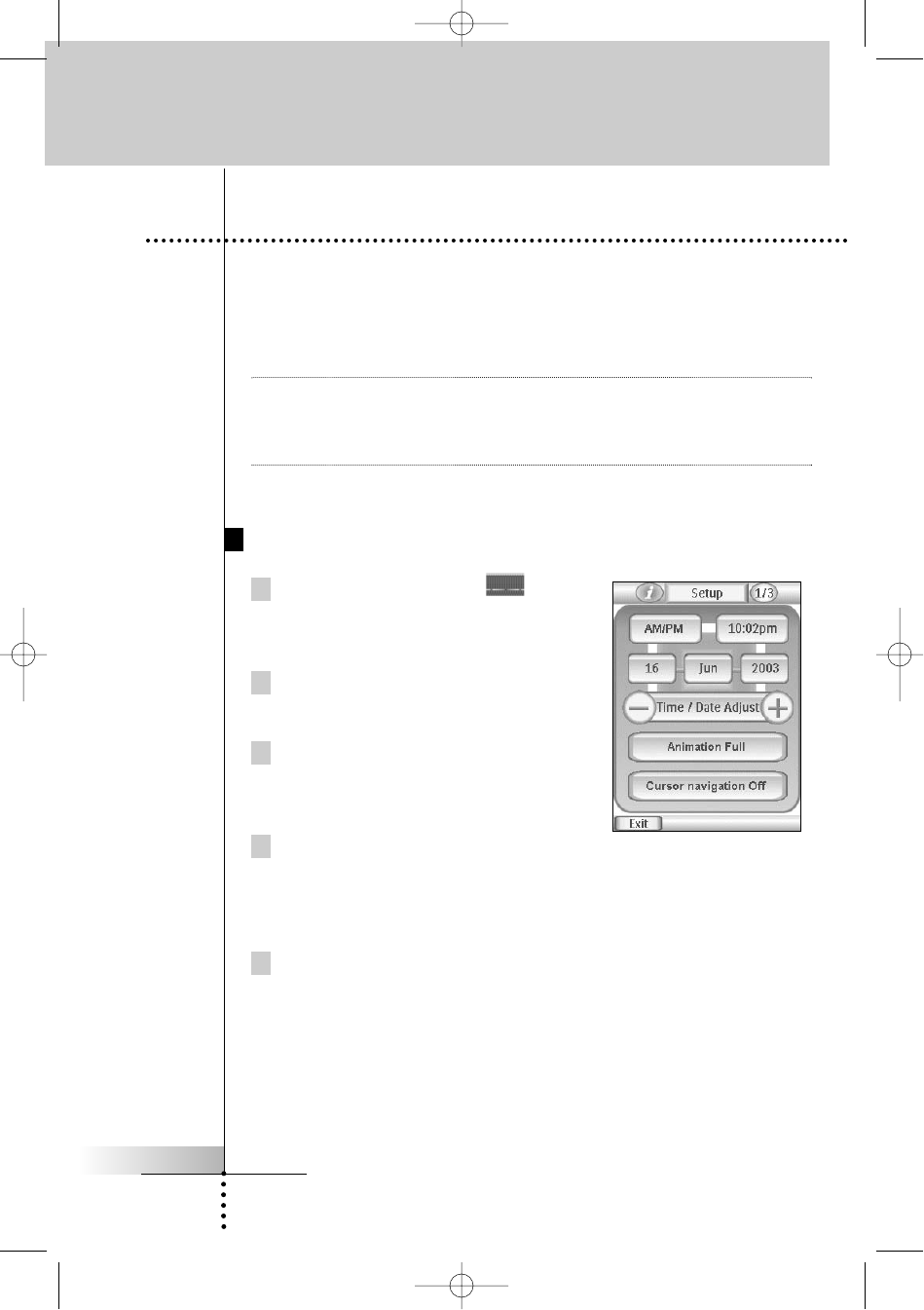

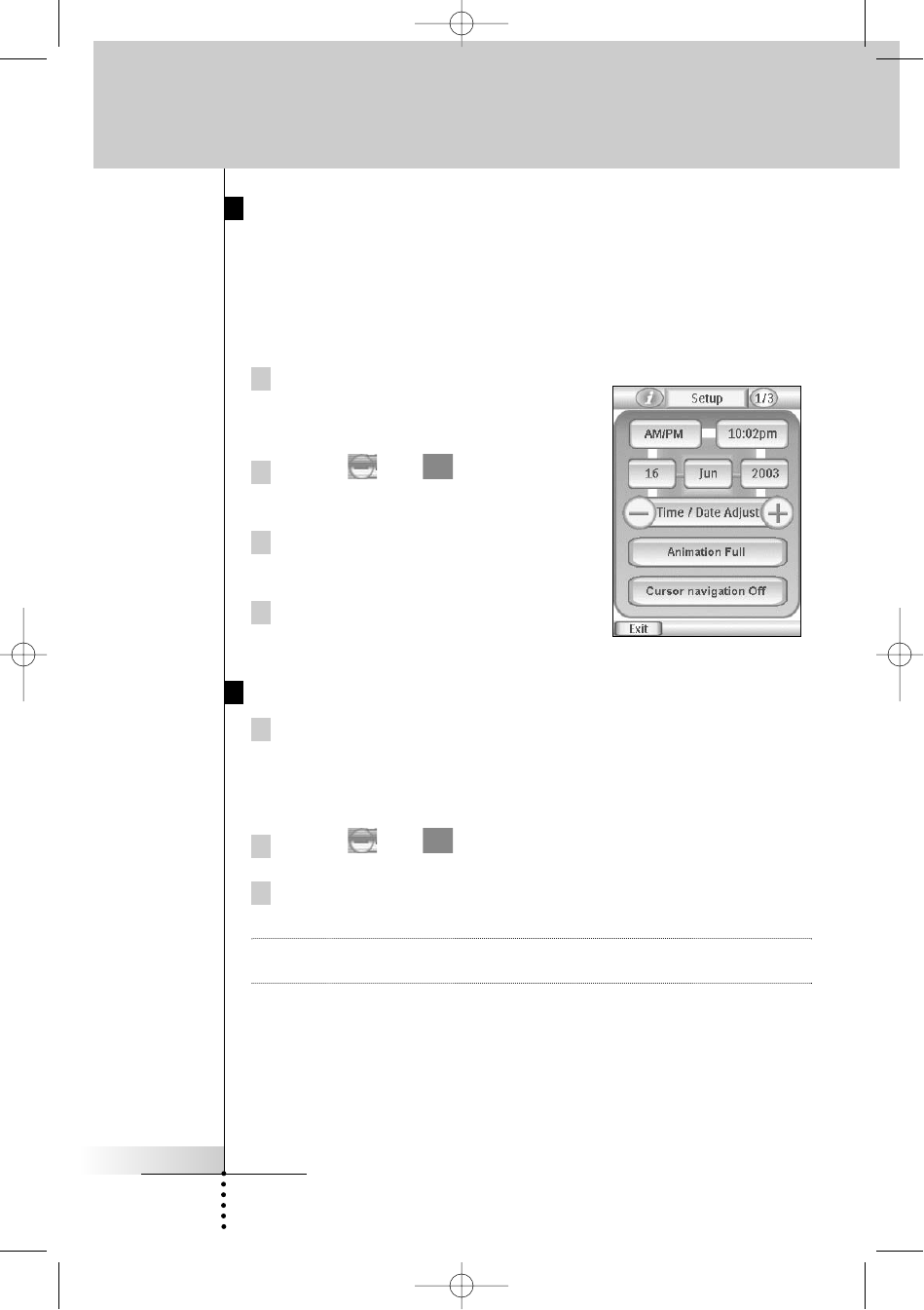

6. Setting Time and Date 14
7. The Mode Menus 16
8. Adjusting the Touch Screen Brightness 17
Customizing Your RC9500 18
1. Introduction 18
2. Cloning All Your Existing Remotes 18
3 Complex Operation? Macros or Help... 20
4. Programming Help Lists 22
5. Macro/Page Jump Capabilities 23
6. Programming Macros & page Jumps 25
Reference 28
1. Learning IR Commands 28

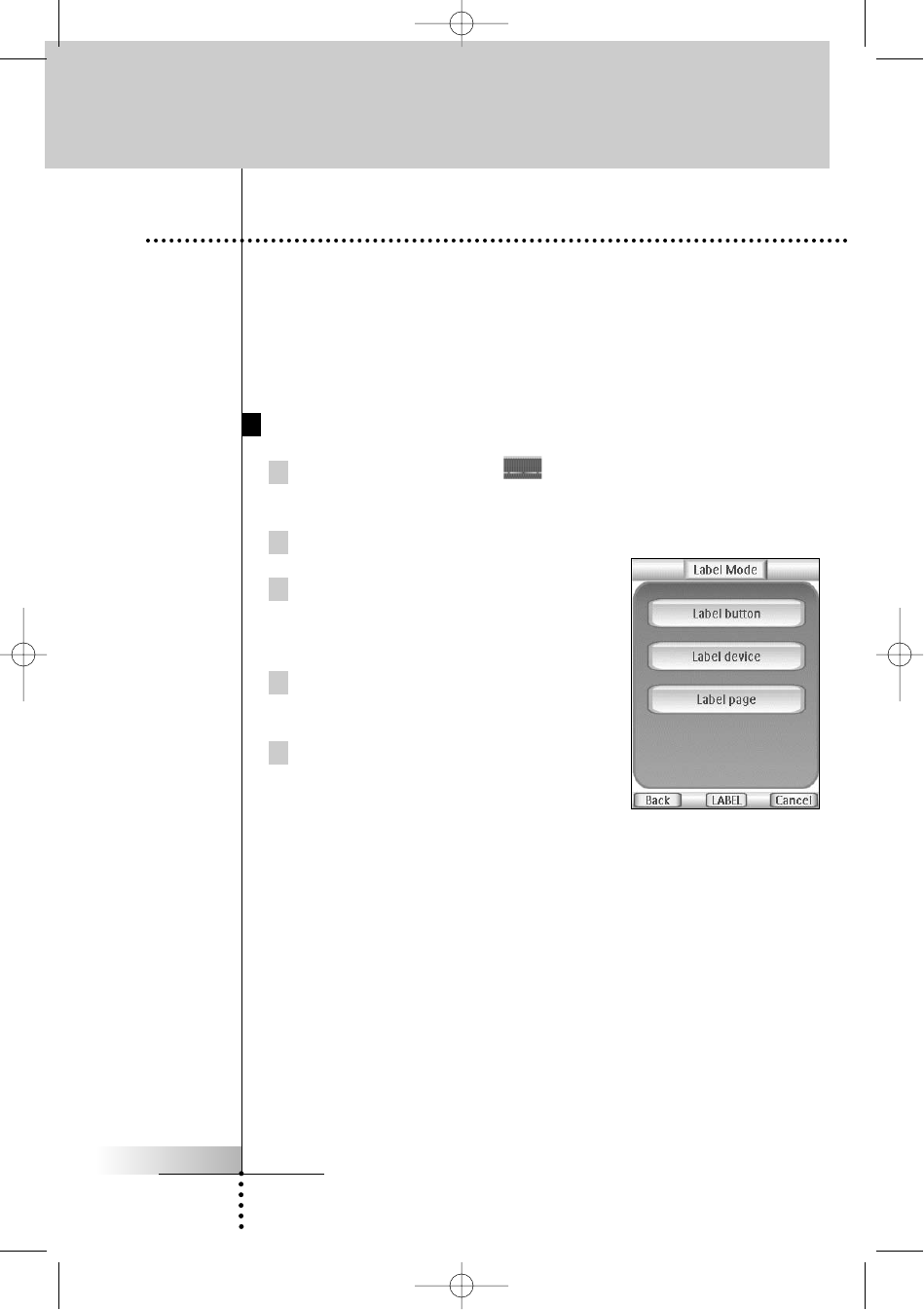

2. Labeling Buttons, Pages and Devices 32
3. Adding Devices 35
4. Deleting Buttons and Devices 39

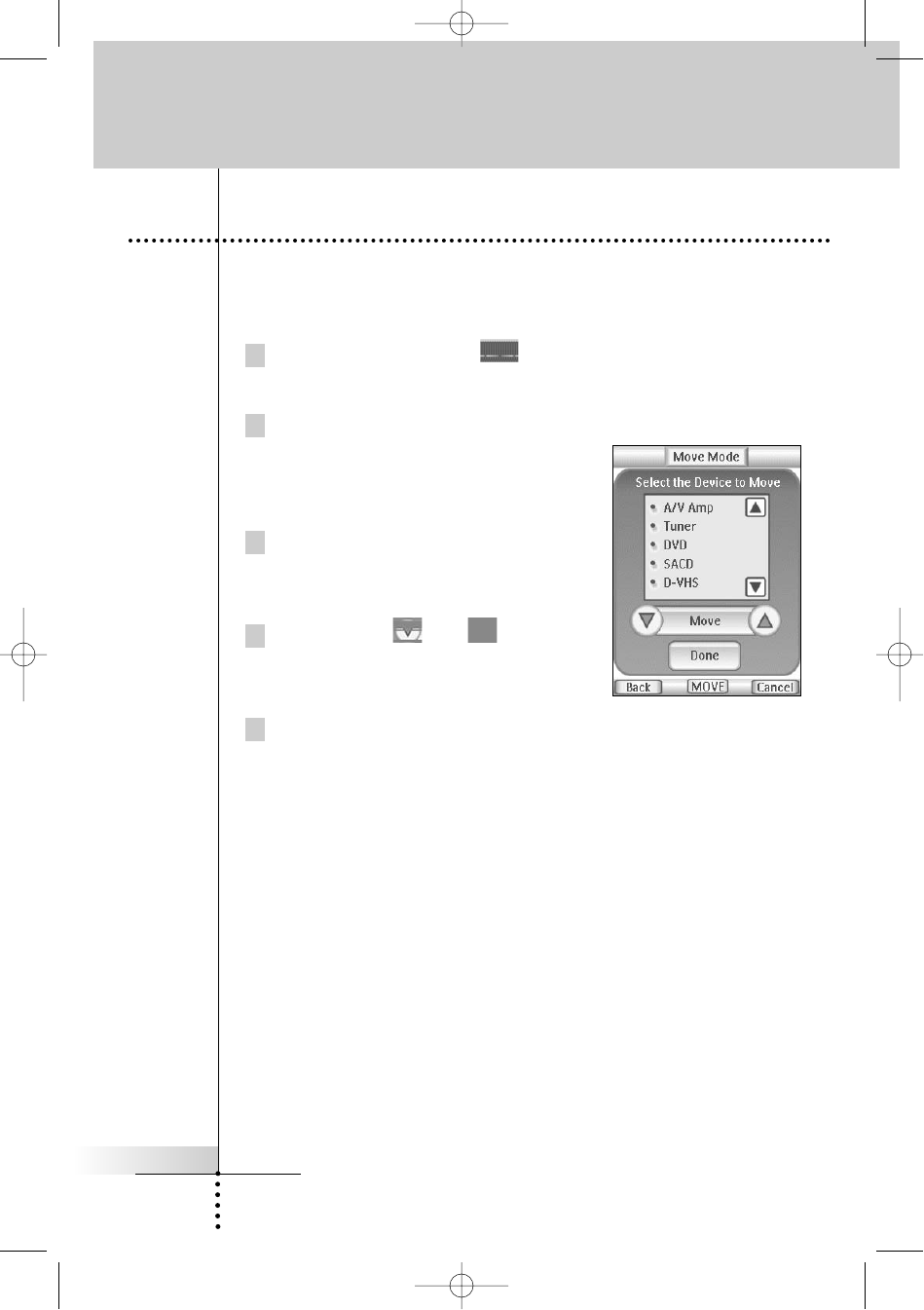

5. Moving Devices 41

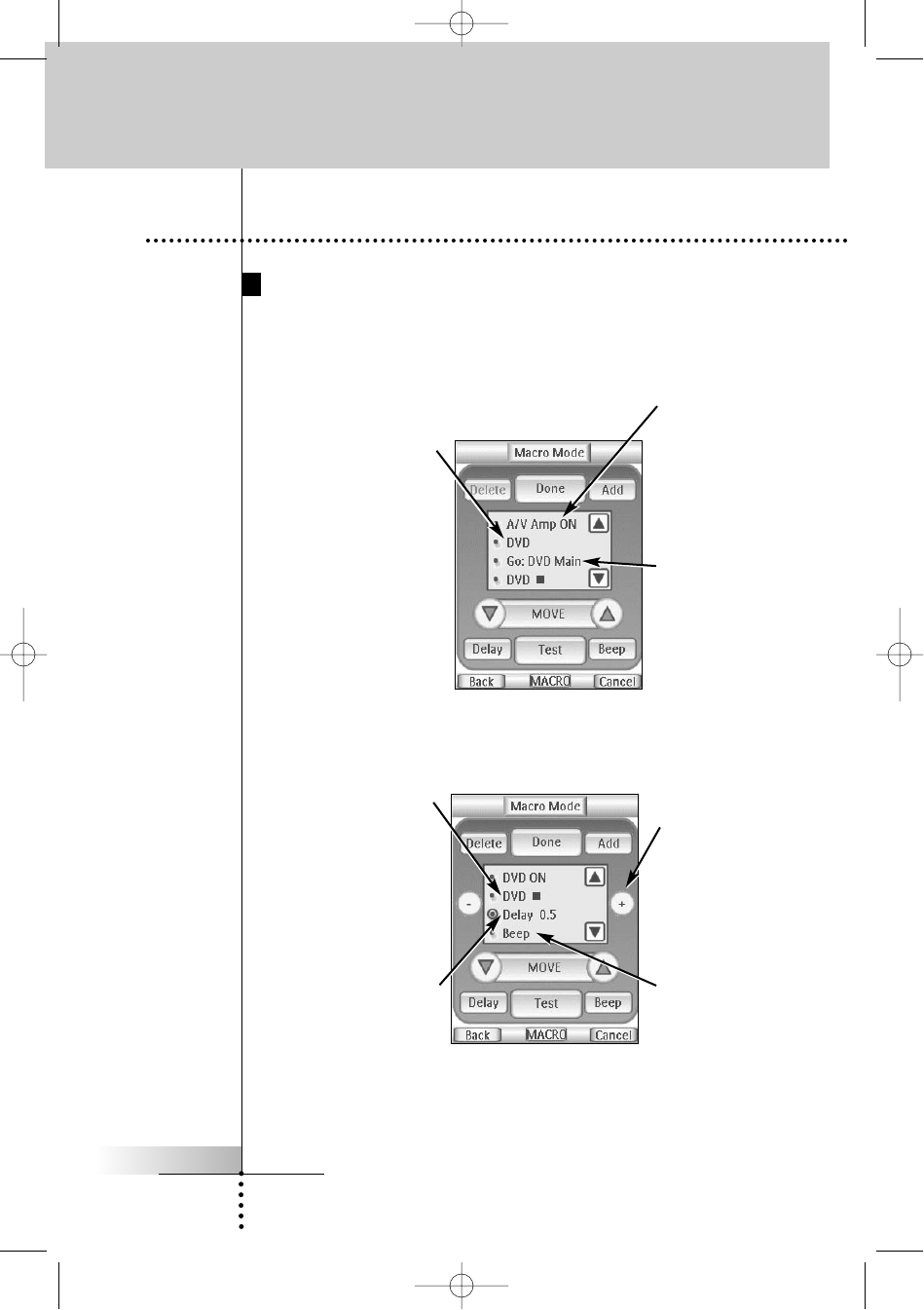

6. Programming Macros 42
7. Creating and Editing Timers 46

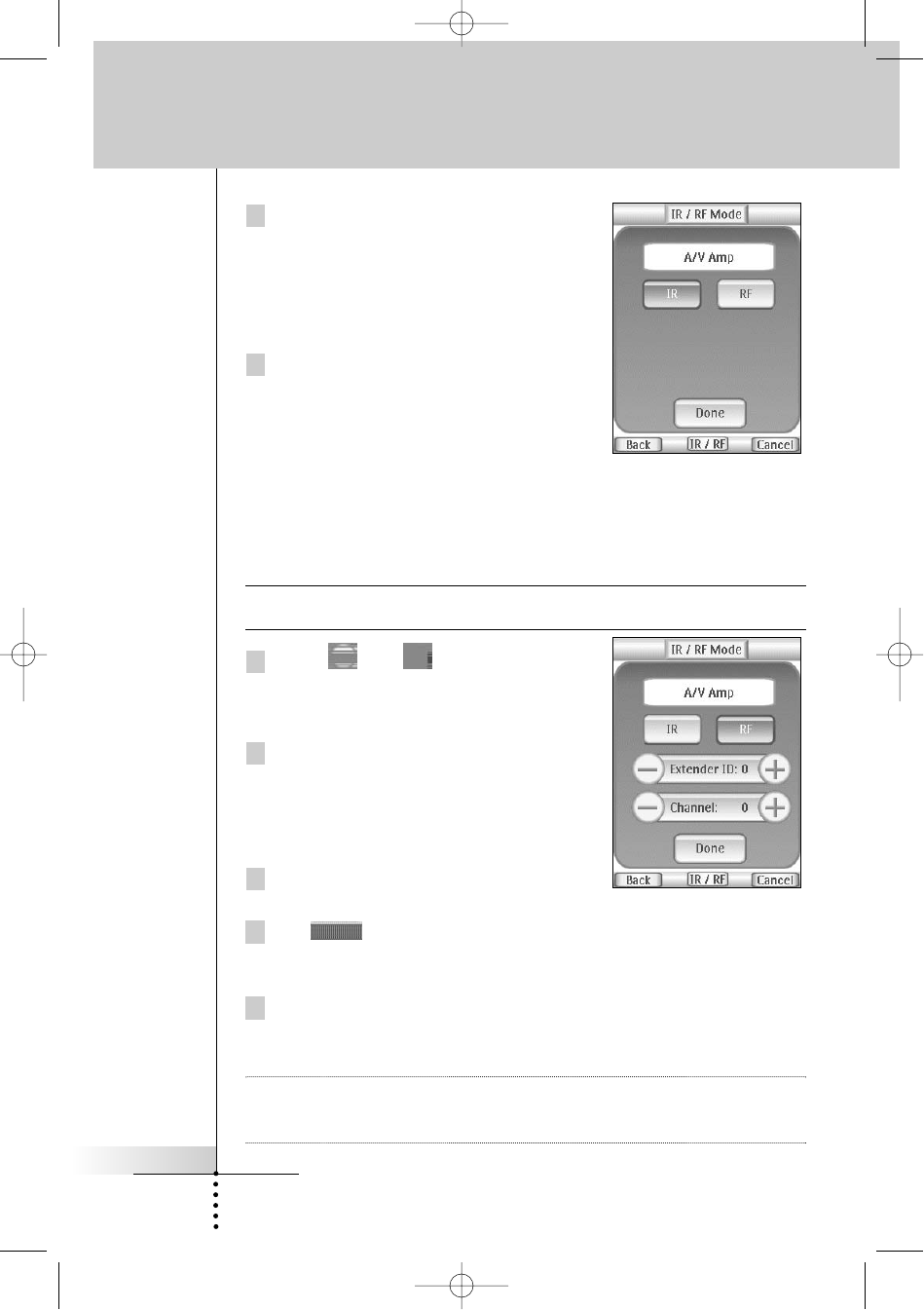

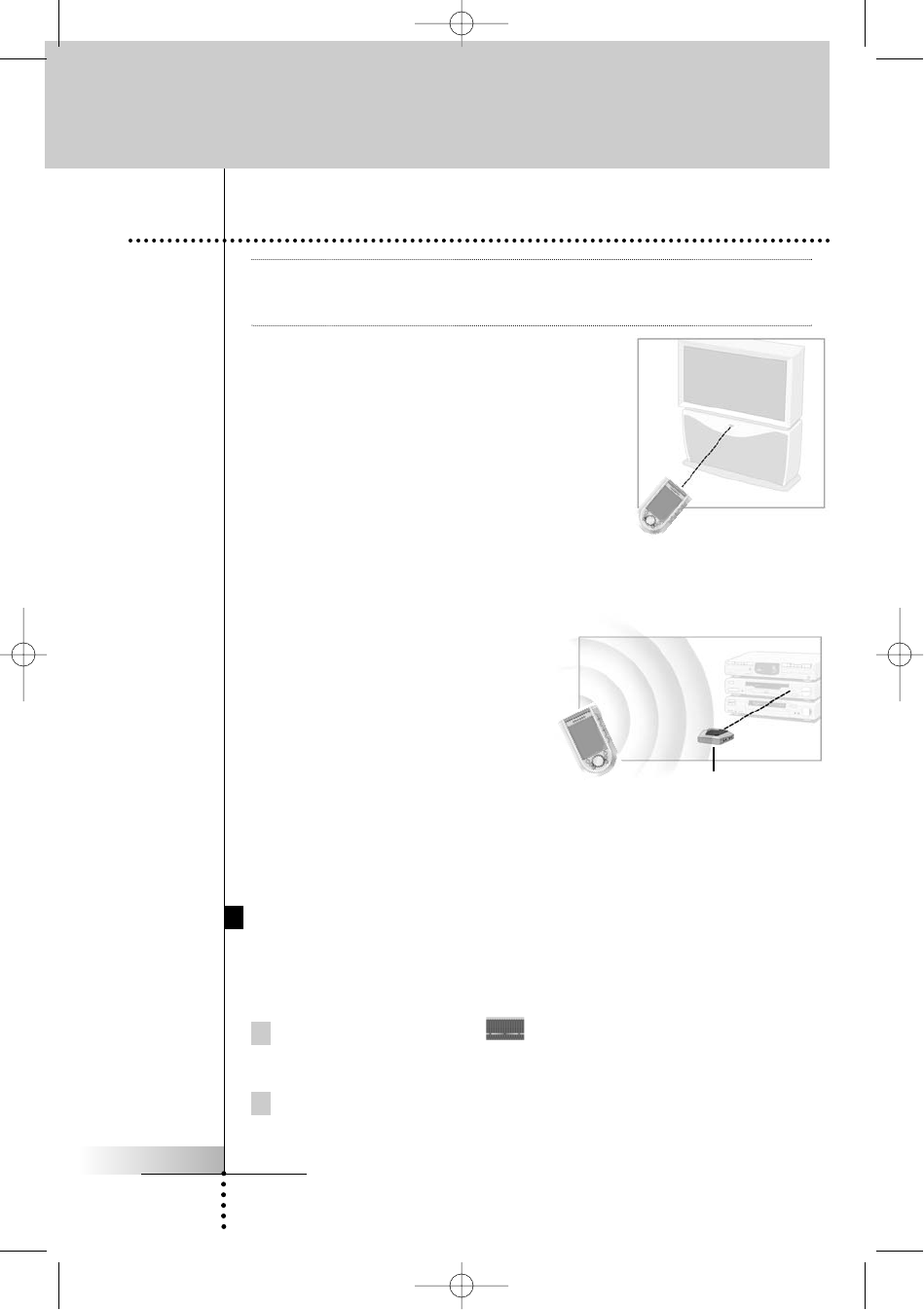

Using the Remote Control with RF (Radio Frequency) 54
9. Wizz.it 9 Software 46
Maintaining the RC9500 58
Troubleshooting 59
Frequently Asked Questions 62

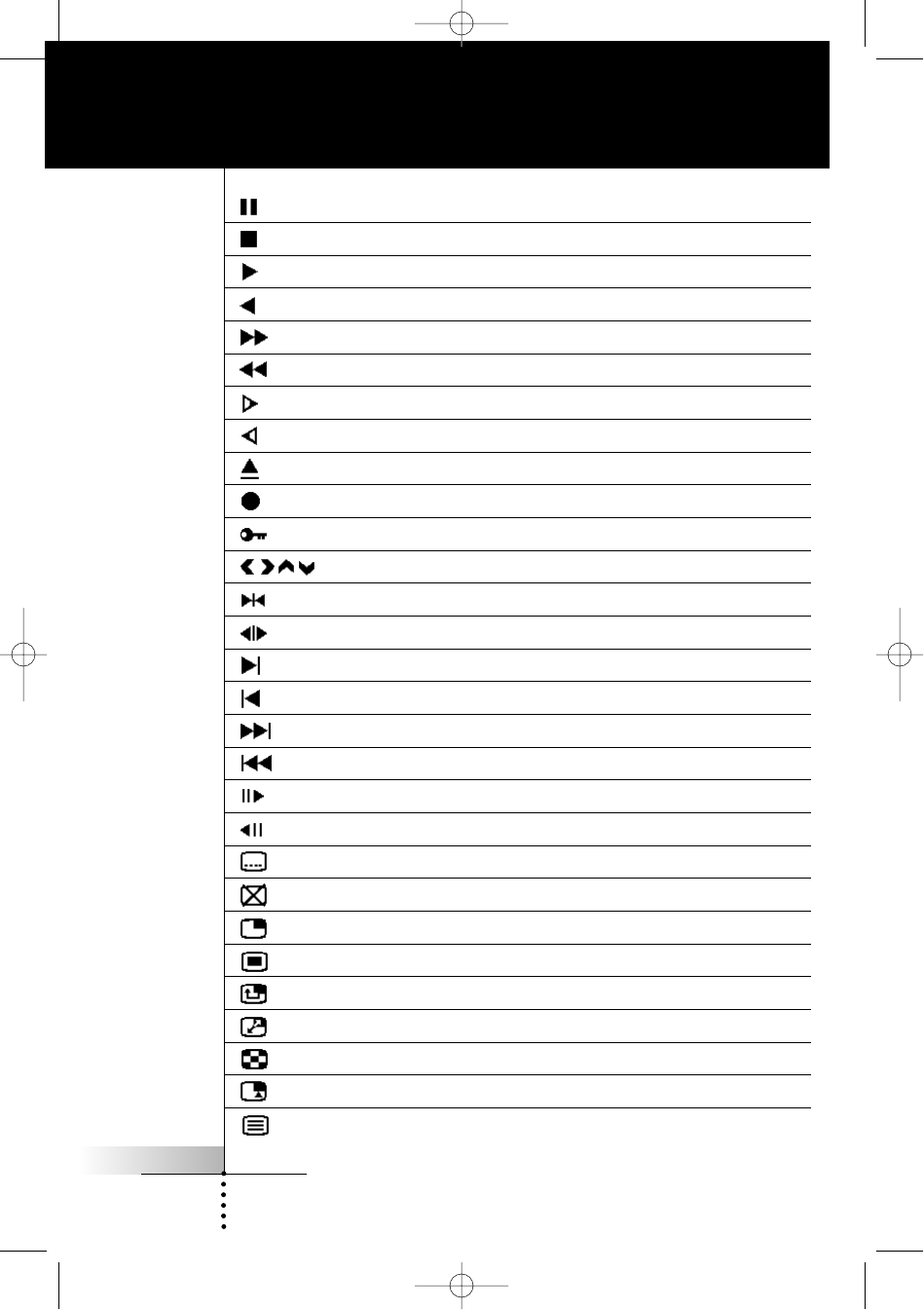

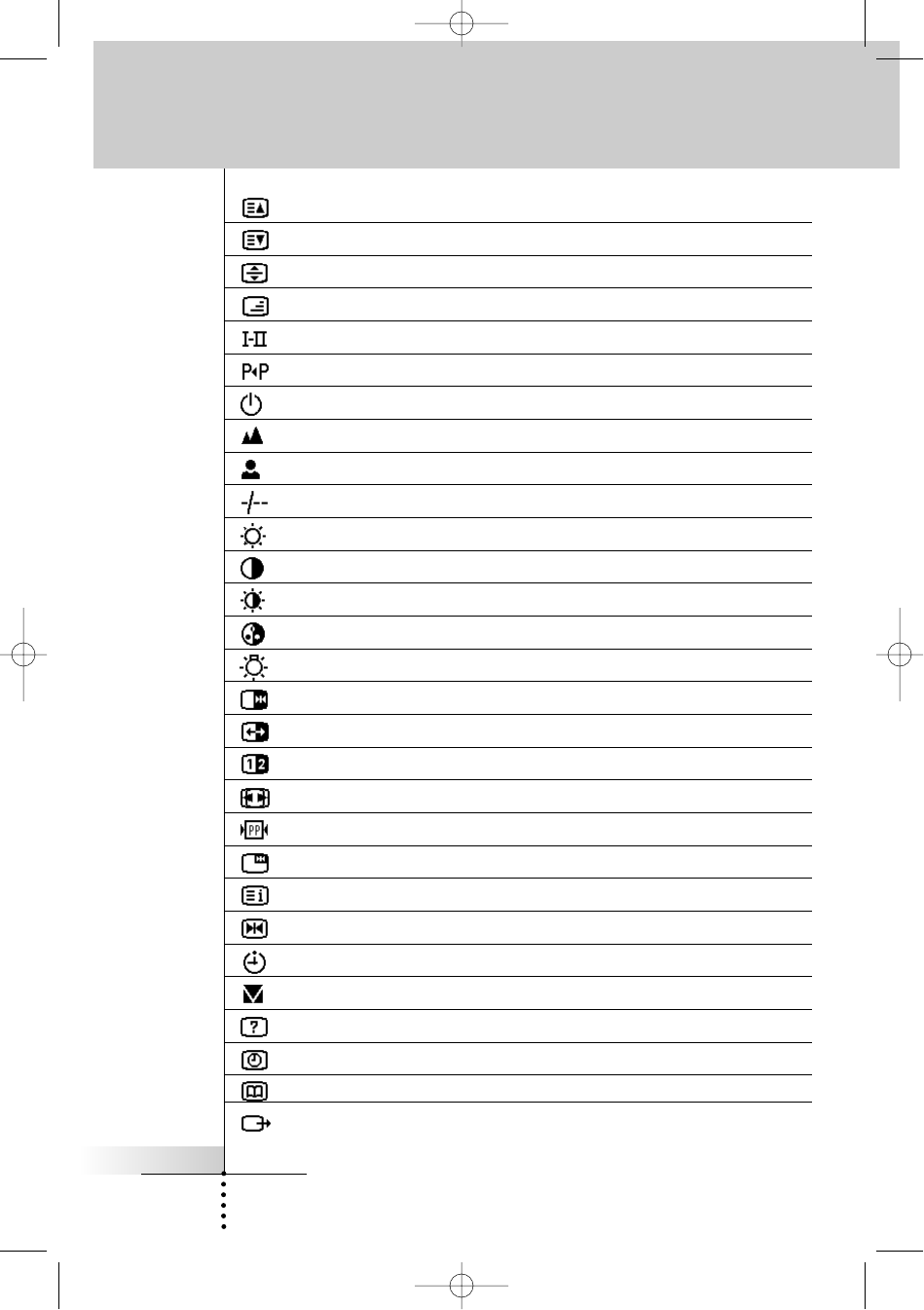

Overview of Symbols 64
Specifications 66
Index 67
Service and Support 72
Table of Contents
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 5
User Guide
2
The RC9500 is designed to control most devices that understand
infrared (IR) remote control signals. Its easy-to-use Touch Screen and
its intuitive interface make it a perfect remote control for every user.
The RC9500 is completely customizable and programmable. You can
add devices and functions, re-label buttons, record macros and animate
your macros. Although the RC9500 is pre-programmed for Marantz
components, a vast collection of built-in tab guided panels with pre-
arranged button art enables you to easily choose the perfect interface
for any non-Marantz component. The RC9500 easily “learns”
commands from the vast majority of manufacturers’ remote controls.
Introduction
VOLUME Up/Down
CHANNEL Up/Down
MUTE buttons
(page 11)
Infrared (IR) Eyes (page 26)
Right Function
button (page 8)
4-Way Cursor Navigation
buttons (page 11)
Page +/ -
buttons (page 10)
Backlight
button (page 6)
USB Port
(page 47)
HOME
button (page 7)

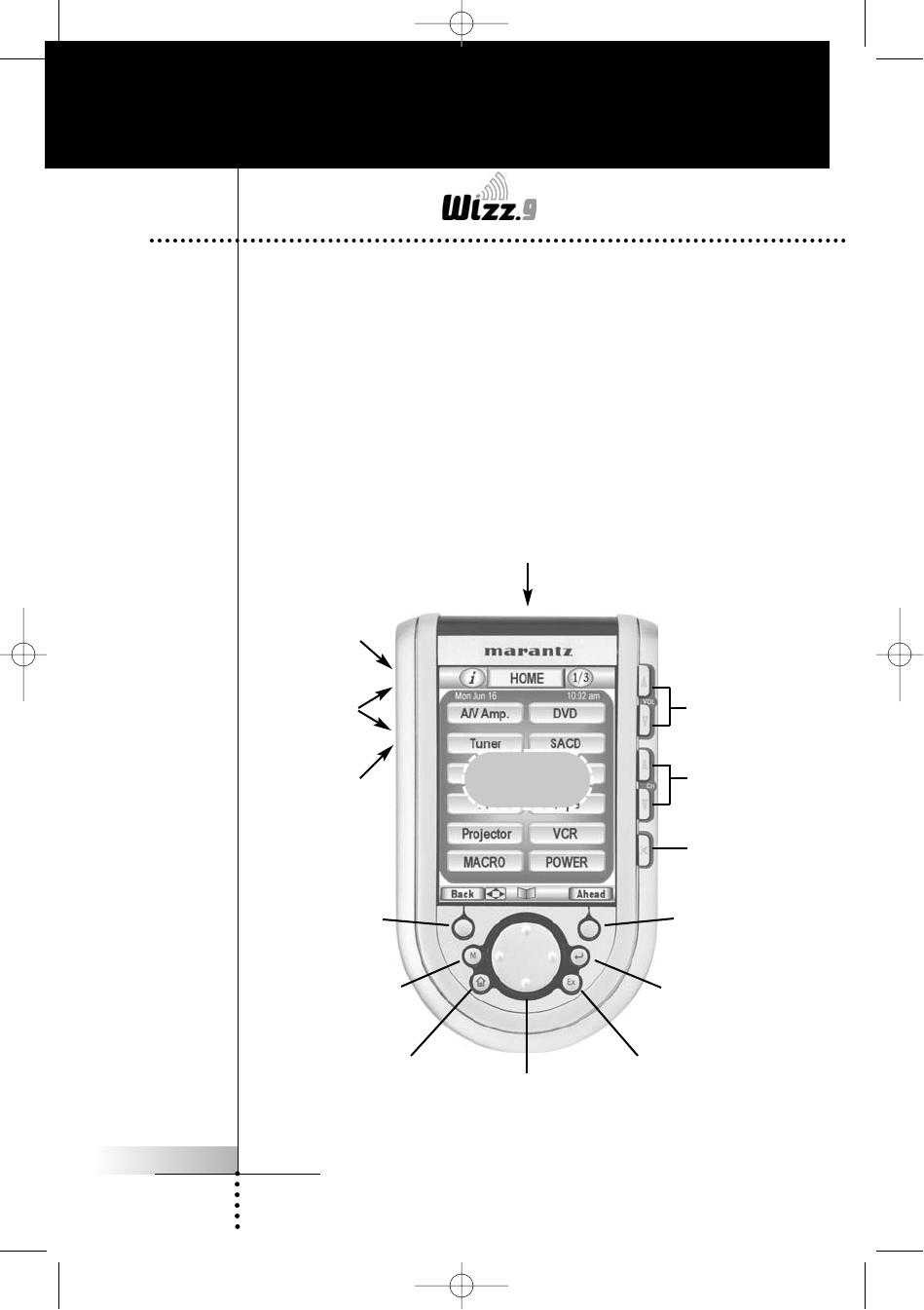

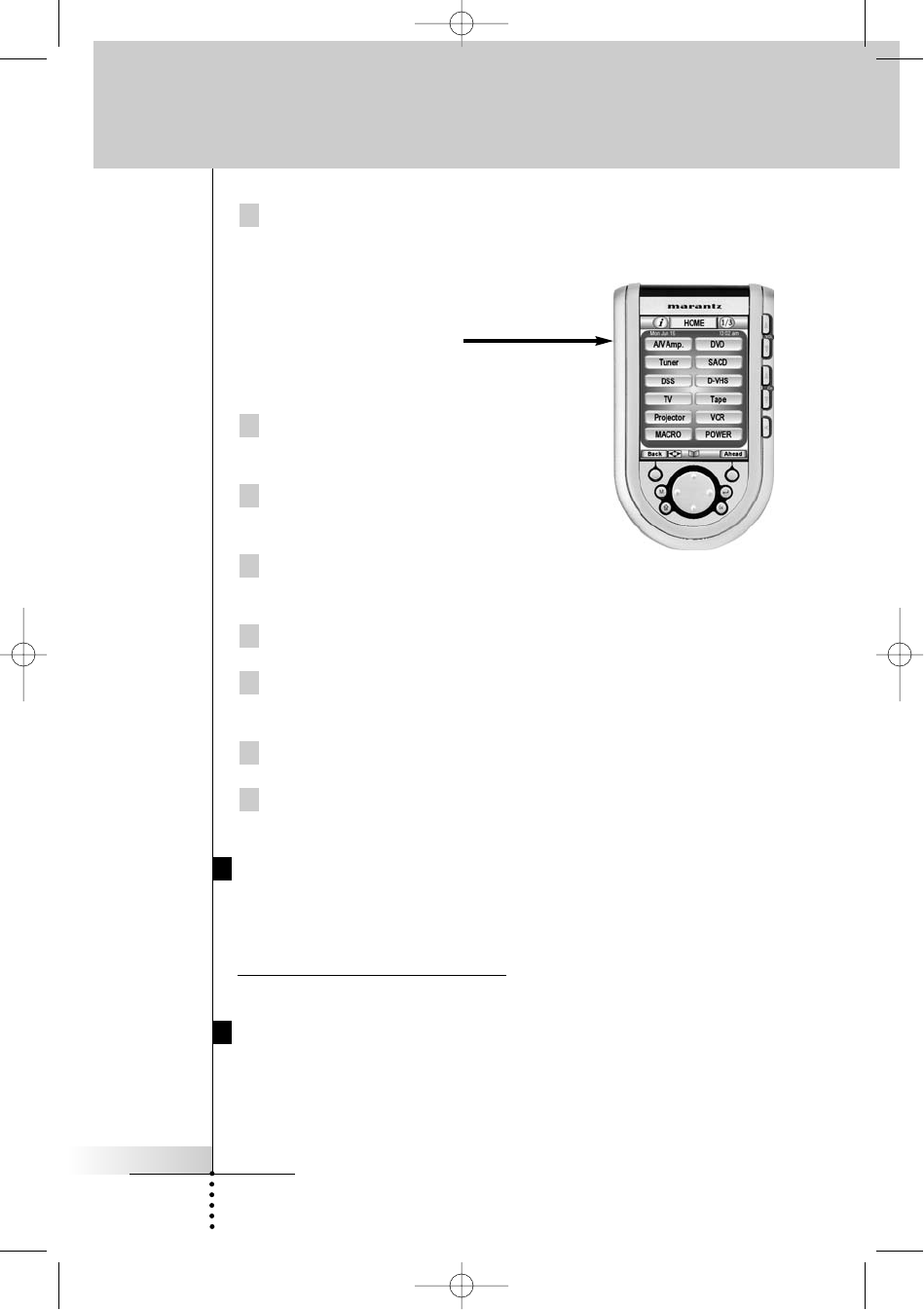

1. The Marantz RC9500
Touch Screen
Left Function
button (page 8)
MENU
button (page 11)
ENTER
button (page 11)
EXIT
button (page 11)
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 6

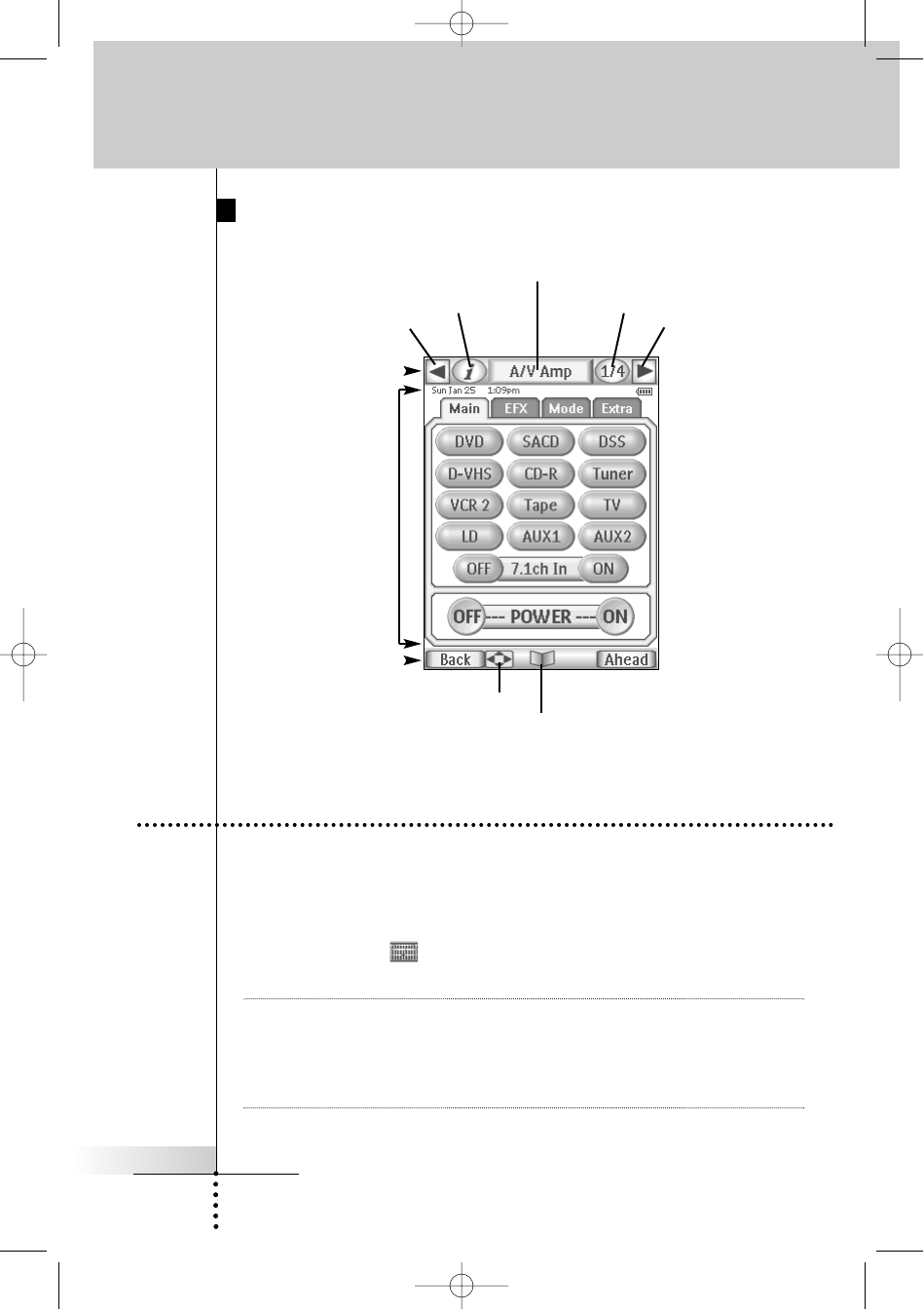

The Touch Screen
When you use the RC9500 for the first time, you will have to:
• Install the battery pack.
• Place the RC9500 in the docking station (DS9500) and charge
the RC9500.
• Tap the INFO button on the UPPER TOOL BAR to check
battery life.
Warning:Use the docking station only with supplied NiMH rechargeable
battery pack.
We strongly advise you NOT to plug other appliances (like mobile
phones, PDA’s) into the docking station. This will damage both
the docking station and the appliance.
User Guide
3
Introduction
MODE icon
(page 7)
INFO
button(page 3)
DEVICE SCROLL
button (page 9)
DEVICE OVERVIEW
button (page 8)
UPPER TOOL BAR
CURSOR NAVIGATION
button (page 9)
USER CONTROL
AREA
LOWER TOOL BAR
PAGE OVERVIEW
button (page 9)
2. The Battery
DEVICE SCROLL
button (page 9)
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 7

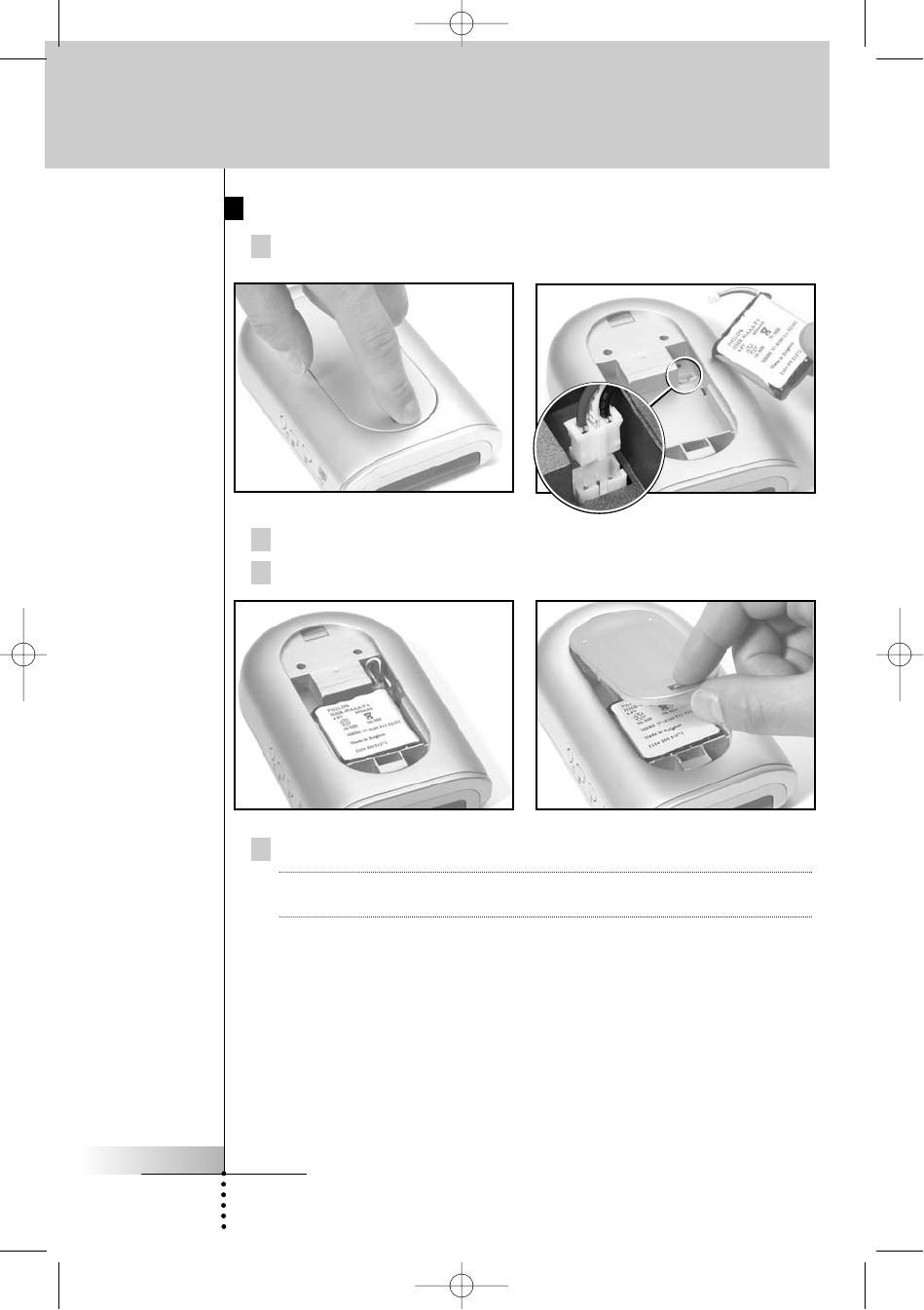

Installing the Battery Pack
1 Press the latch on the battery cover and remove the battery
cover from the RC9500.
2 Plug the cable of the battery pack in the connector as illustrated.
3 Place the battery pack in the battery compartment.
4 Place the battery cover back on.
Note Make sure the cable of the battery pack does not get stuck
between the molded interior and the battery cover.
After a few seconds, the RC9500 starts up automatically and an
Introduction screen appears. The RC9500 beeps twice to
indicate that it has finished starting up.
Because the battery pack of the RC9500 is not fully pre-
charged, you will have to charge it as described in the next
page.
User Guide
4
Introduction
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 8

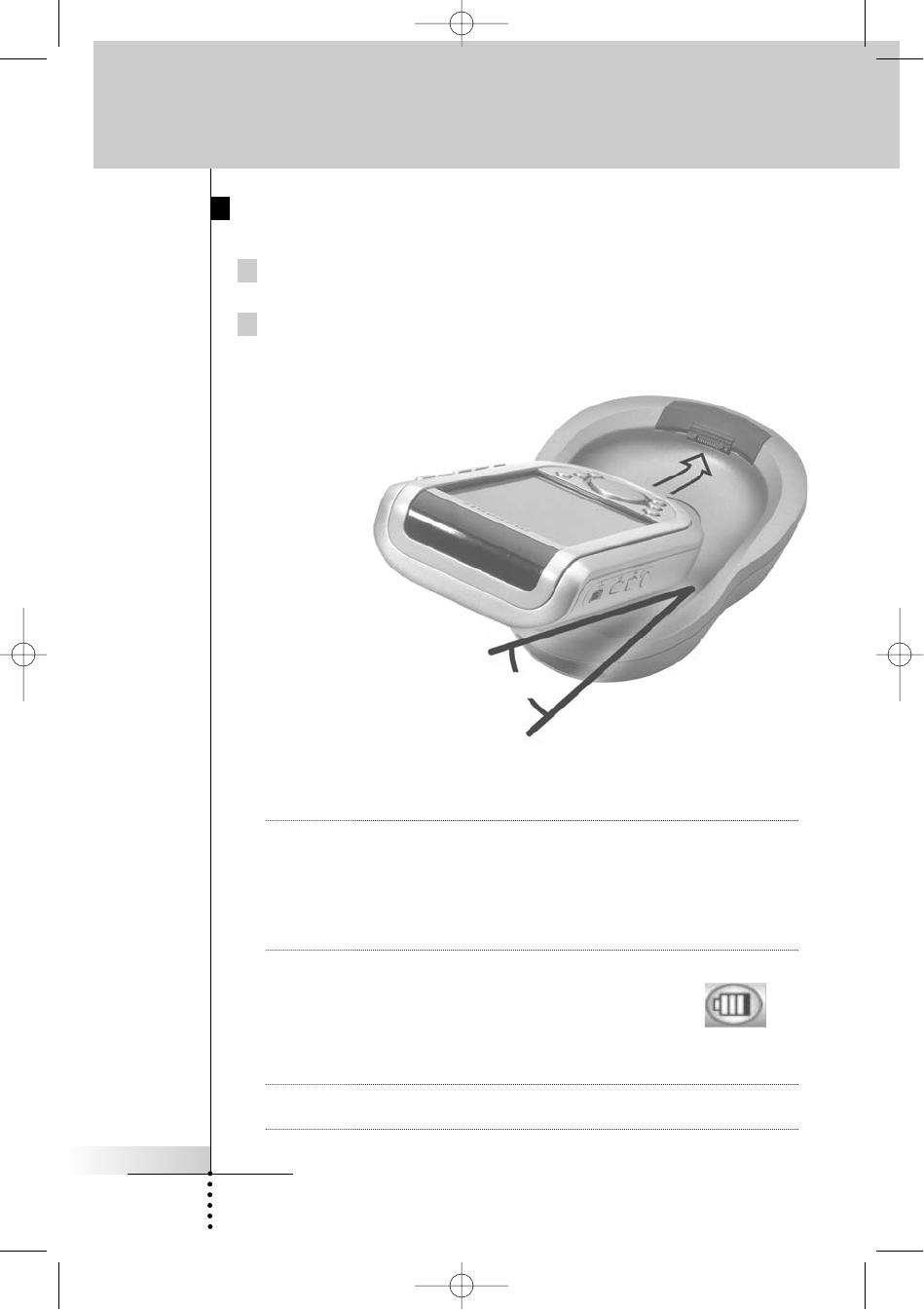

Charging the RC9500
For charging the RC9500, you use the docking station DS9500.
1 Connect the power adapter to the docking station and plug it
into a wall outlet.
2 Slide the RC9500 into the docking station.
Charging starts immediately. The blue charging LED on the front
of the docking station indicates charging takes place.
When the RC9500 is fully charged,
the LED goes off.
Make sure you lift the RC9500 up at an angle of 30° to 45°
when you take the RC9500 out from the docking station.
Note Normal charging time is 2 to 3 hours, depending on the
condition of the battery pack.
You can operate the RC9500 while it is being charged.
The battery pack does not have to be entirely empty before
recharging.
You can place the RC9500 in the docking station at any time.
When the battery is running low, the Low Battery
icon appears in the UPPER TOOL BAR. Recharge
the RC9500 as soon as possible to ensure
perfect performance.
Note The RC9500 retains all settings when the battery is completely
dead. You will only have to reset the clock.
User Guide
5
Introduction
30° to 45°
Low Battery icon
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 9
User Guide
6

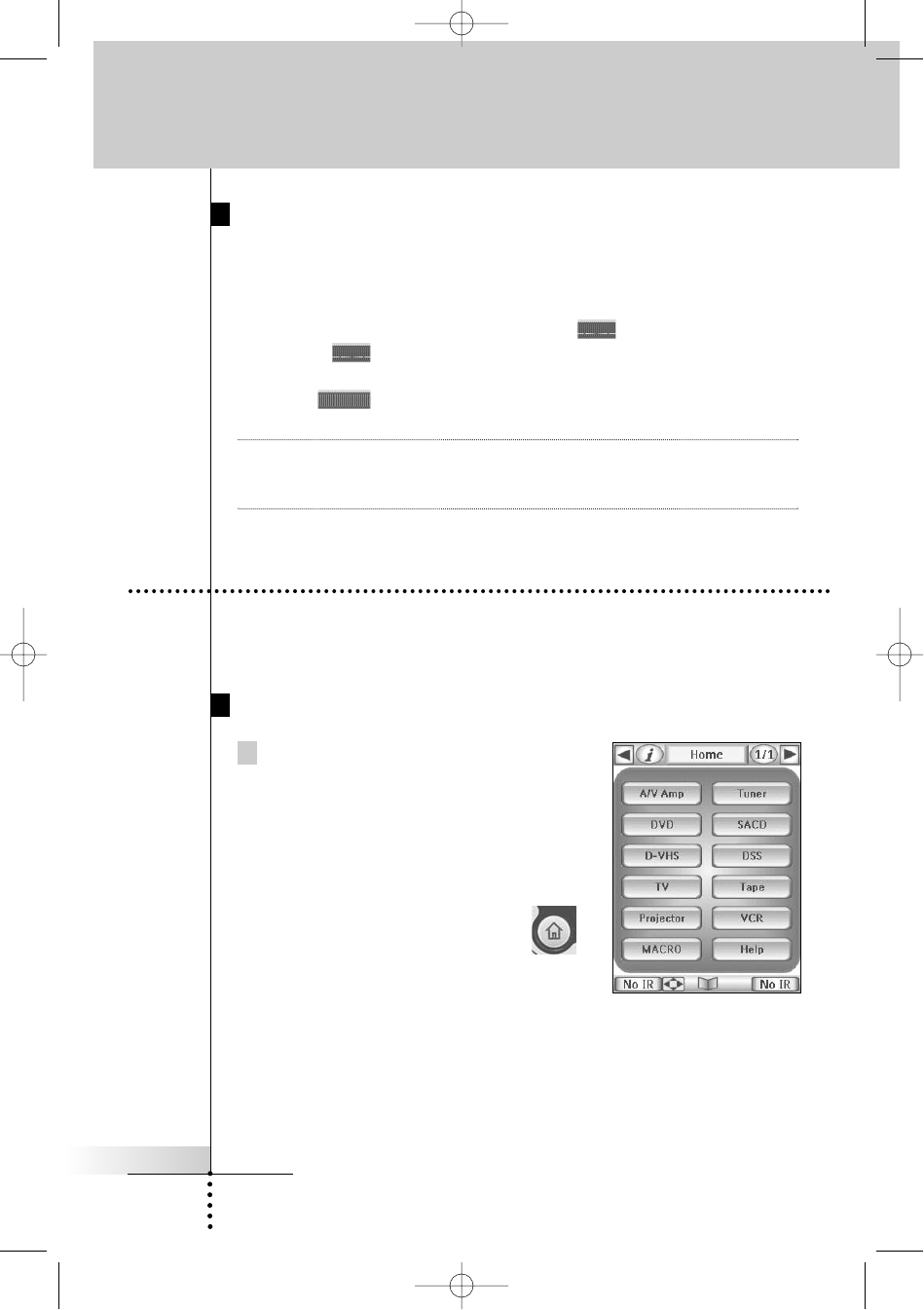

Turning on the Touch Screen
Tap the Touch Screen gently with your finger or a blunt, soft
object like a pencil eraser.
The display is activated and you see the Home page.
Notes · If the display stays blank or becomes black, adjust the contrast
using the buttons on the left side (see page 15).
· If another panel is displayed, press the HOME button.
· The RC9500 shuts down automatically after being
left alone for a few seconds (you can adjust the
time out period in the Setup pages).
Using the Backlight
RC9500’s backlight can be activated in three different ways,
Pressing the BACKLIGHT button
By pressing the BACKLIGHT button on the left side of the
RC9500, the backlight is turned on.
Picking up the RC9500
The RC9500 has the Pickup sensor in it. By picking your
RC9500 from the docking station and tilting more than 50°,
the backlight is turned on.
Note To enable this function, the “Pickup sensor” setting in the Setup
has to be set to “Active” (see page 13) .
Tapping the Touch Screen
By tapping the Touch Screen,the backlight is turned on.
Note To enable this function, the “Auto backlight” setting in the Setup
has to be set to “Active” (see page 13).
The backlight shuts off after a few seconds to save power.
Getting Started
1. Activating the RC9500
HOME button
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 10
Modes
The RC9500 has different “Modes”. When you activate the RC9500
for the first time, it starts up in USE mode allowing you to
immediately operate your devices. In USE mode, the center of
LOWER TOOL BAR displays the MODE icon .Tap and hold
the MODE icon more than 3 seconds. The Mode Menu page
will appeares. If the center of LOWER TOOL BAR shows another
icon, like , tap it to reveal the Mode Menu and press the Left
Function button labeled “Exit” to return to USE mode.
Note If you do not see the Mode icon; it has been deactivated via the
Setup. To enable this function, the “Mode Menu” setting in the
Setup has to be set to “Active” (see page 13).
Your RC9500 is capable of displaying hundreds of different control
pages. RC9500 presents you various ways to navigate to the
specific device and page easily.
Navigating the Devices
Home — The Home Page displays
convenient instant jump buttons to the
main control page of your system
devices (Amp., TV, DVD player etc.).
These buttons also select the Input of
your Home Theater Receiver or Preamp.
Access Home page by
pressing the HOME button at
the bottom left of the remote.
zDevice buttons in the Home page perform two actions
when pressed;
1. Jumps to the main page of the Device.
2. Changes your home theater receiver/preamp to the
appropriate input. To program for a non-Marantz
receiver/preamp, see page 28.
User Guide
Getting Started
2. Navigating the RC9500
7
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 11
The commands assigned to the device button called
the Device Action.

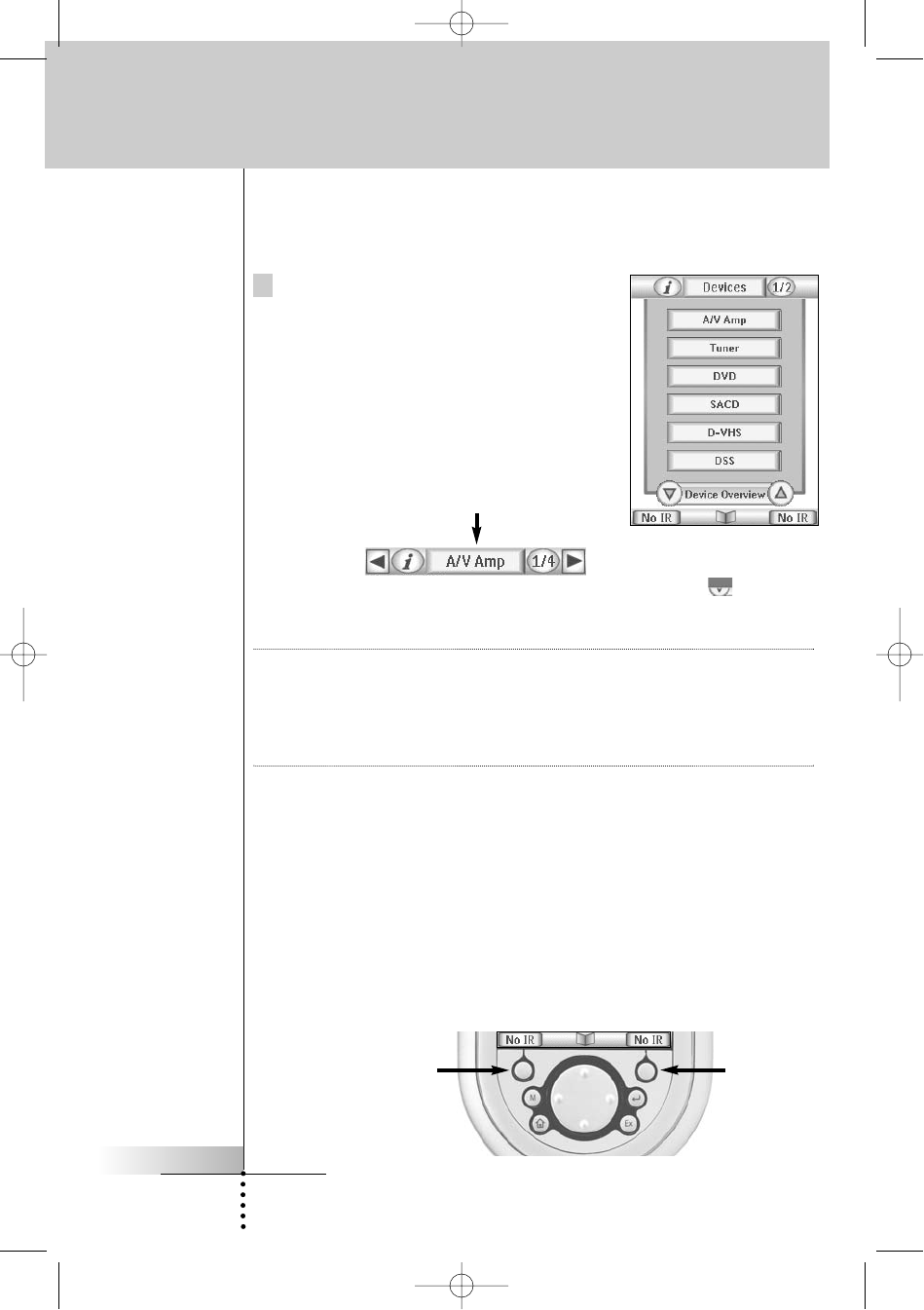

Device Overview
— The Device Overview page also
displays a list of all the devices you
can control. You can jump to the main control
page of your device by tapping the
device button in the list.
Access Device Overview page by
tapping the DEVICE OVERVIEW button
at the middle of UPPER TOOL BAR.
If you have more than seven devices, scroll arrows enable
you to navigate to the next Device Overview page.
Note When you jump to a Device by tapping the device button in the
Device Overview pages, the RC9500 will change the input of
your home theater receiver/preamp.
Using the buttons in the Home page is exactly the same thing
as pressing a button in the Device Overview page.
zUsing Device Overview without Changing Input (No IR)
If you don’t want to change the input for your
receiver/preamp, you can only jump to a Device without
changing the input by the following steps;
1. Display the Device Overview page, by tapping
the DEVICE OVERVIEW button.
2. Look at the label for the Left and Right Function
buttons. Now, they are labeled “No IR”.
User Guide
8
Getting Started
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 12
User Guide
9
3. Press and hold either of the two Left and Right
Function buttons, then tap the device you would like to
jump to. No “input select” commands will be sent to
your receiver/preamp.
Device Scroll — You can also navigate the devices by
tapping the DEVICE SCROLL buttons on the left and right side of
the UPPER TOOL BAR. Tap the Left arrow button to navigate to
the previous device. Tap the Right arrow button to navigate to the
next device.
Cursor Navigation — This function enables you to navigate to
the devices by pressing the Left and Right direction of the 4-way
Navigation button.
Note This function is deactivated by the factory setting.
You can activate it in the Setup pages (see page 13).
To switch this function on, tap the button in the LOWER TOOL
BAR. When this function was activated, the button is changed
to the button and icon is displayed in the UPPER TOOL
BAR where the left device scroll arrow button was. To switch
this function off, tap the button in the LOWER TOOL BAR
again.
Navigating the Pages
Page Overview
— The Page Overview page displays
a list of all the pages for one device.
You can jump immediately to another
control page in onedevice by tapping
the page buttons in the list.
Access Page Overview page by tapping
the PAGE OVERVIEW button
(Page number) in the UPPER TOOL BAR.
Getting Started
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 13
User Guide
10
Page Scroll — You can navigate the pages by pressing the
Page + and Page - buttons on the left side of RC9500.
Cursor Navigation — This function enables you to navigate to
the different pages as well as the device by pressing the Up and
Down direction of the 4-way Navigation button.
Note This function is deactivated by the factory setting.
You can activate it in the Setup pages (see page 13).
To switch this function on, tap the button in the LOWER TOOL
BAR. When this function is activated, the button is changed to
the button and icon is displayed in the UPPER TOOL BAR
where the left arrow button was. To switch this function off, tap
the button in the LOWER TOOL BAR again.
Tab Buttons — All of your devices
have been programmed with
“one-touch” jump buttons called
Tab button. By tapping the Tab button,
you can jump to the appropriate page
in your operation device.
Other Navigation
Ahead and Back Function buttons — Press the Left Function
buttons labeled “Back” to navigate to last ten pages you’ve
viewed. Use the Right Function button labeled “Ahead” to
navigate in the other direction.
Getting Started
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 14
You can operate the devices using two kinds of buttons;
Soft buttons - Virtual buttons on the Touch Screen.
Hard buttons - Seven buttons below the screen (HOME, Left
and Right Function buttons are not included) and five to the right
of the screen (Vol +/-, Ch Up/Down & Mute)
Using the Soft Buttons
By tapping the Soft buttons on the Touch Screen you send
Infrared (IR) commands to the device you have selected.
The name of the device you are controlling is always displayed on
the DEVICE OVERVIEW button.
Sending commands
IR commands are invisible. However, when you send a command,
an animated icon appears in the INFO button at the UPPER TOOL
BAR to show that a command is being sent.
Using the Hard Buttons
Hard buttons can be operated at any time, even without turning on
the Touch Screen. They can change their function depending on
which device is active (teach commands to the specific device).
For example:
Since VOLUME Up, VOLUME Down and MUTE are typically
receiver/preamp commands in most home theaters, these direct access
buttons have been pre-programmed to always operate a Marantz
receiver/preamp as the default. Should you own another brand, see the
programming instructions on page 28-29.
MENU, ENTER, EXIT, 4-Way Cursor Navigation, CHANNEL Up and
CHANNEL Down are typically programmed to change with the device
selected. So when you are operating your DVD player, you use them to
navigate DVD menus and change chapters. While you are watching
TV, the MENU buttons operate the TV menus and the CHANNEL
buttons change channels.
Getting Started
User Guide
11
3. Operating a Device
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 15
4. Check Battery Life- The Information Page
Access the Information page by tapping the INFO button in the
UPPER TOOL BAR.
You can check;
The percentage of the battery life.
The percentage of the free memory
available for new programming.
Software version information
installed on to your RC9500.
To exit the Information page,
Tap the INFO button again or press
the Left Function button labeled “Exit”.
Most of the RC9500’s features can be set to your own wishes.
1 Tap the INFO button in the
UPPER TOOL BAR.
The Information page appears.
2 Tap the “SETUP” button in the
Information page. The first Setup page
appears. You can display the second
and third Setup page by using the
Page + and Page - buttons.
3 Tap the button of the setting you want
to adjust. The color of the button will be changed.
4 Tap the button again or and buttons to to adjust the
setting.
User Guide
12
Getting Started
5. The Setup Pages
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 16
First Setup page
Setting Function Adjusting
Time Mode Sets the time display mode. Tap the “Time Mode” button
(AM/PM, 24H, No Time) Repeatedly.
Time, Day, Month Sets the time, Day, Month Tap the each label, and then adjust
and Year and Year individually by tapping + and - buttons.
Pickup Sensor Turn the Pickup Sensor On/Off. Tap the “Pickup sensor” button
Screen Timeout Sets the timeout of the TouchScreen. Tap the + and - buttons both side
of the “Screen” label.
Button Tomeout Sets the timeout of the Buttons. Tap the + and - buttons both side
of the “Button” label.
Second Setup page
Setting Function Adjusting
Brightness Sets the Brightness of the Tap the + and - buttons both side
TouchScreen. of the “Brightness” label.
Auto Button Light Turn the Auto Button Light On/Off. Tap the “Auto button light” button
Cursor Navigation Turns the Cursor Navigation mode Tap the “Cursor navigation”
On/Off. button repeatedly.
Animation Selects the Animation mode Tap the “Animation” button.
(Full, Page, Mode, None). repeatedly.
Screen (beep) Selects the beep volume (Off, 1,2,3) Tap the “Screen” button
for Touchscreen repeatedly.
Button (beep) Selects the beep volume (Off, 1,2,3) Tap the “Button” button
for Hard buttons. repeatedly.
Third Setup page
Setting Function Adjusting
Mode Menu Active - Normal. Anyone can access. Tap the “Mode Menu” button
Deactive - Hide the Mode icon.repeatedly
SPECIAL NOTE Good when children are tech-savvy.
Device Menu Active- Turns On the Device Overview. Tap the “Device Menu”
Deactive - Turns Off the Device Overview. repeatedly.
Page Menu Active- Turns on Page Overview. Tap the “Page Menu”
DeActive - Turns off Page Overview. repeatedly.
Calibration Calibrates the Touchscreen. Tap the “Calibration” button
See page 53 for more detail.
Revert* Reverts the RC5400 to the default Tap the “Revert” button and
configuration. follow the on-screen instruction
* When you revert the RC9500, all customization items on the remote (macros, learned IR
commands,..) are lost permanently. only the settings are remained.
Getting Started
User Guide
13
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 17
User Guide
14
When you have installed the battery pack and turned on RC9500,
you have to set the current time.
Note Every time you reset your RC9500 you will have to set the time
again.

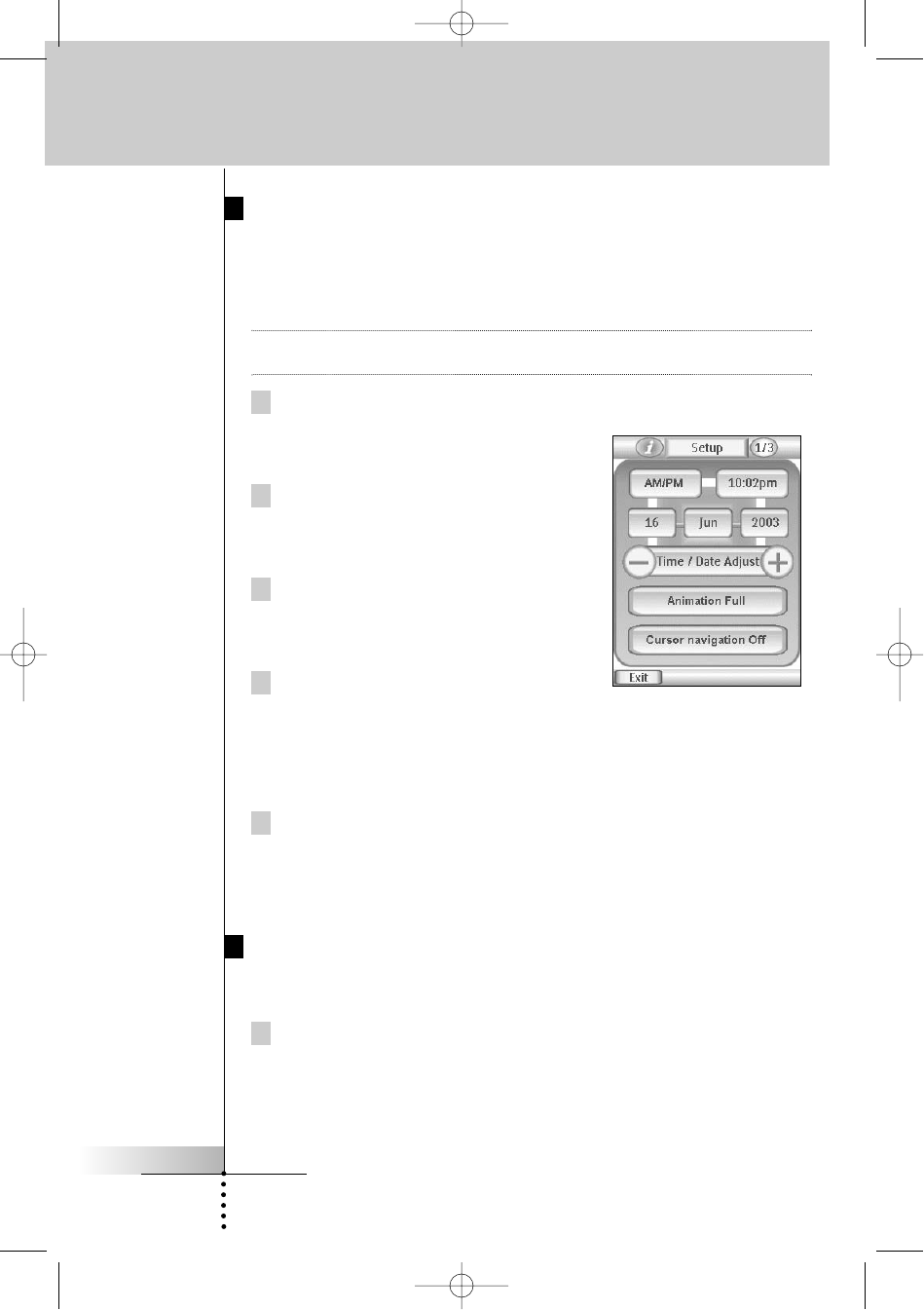

Changing the Time Format
1 Tap the INFO button in the
UPPER TOOL BAR.
The Information page appears.
2 Tap the “SETUP” button in the
Information page. The first Setup page
appears.
3 Tap the Time Format button toggles
between the three time formats:
12 hour (AM/PM): This is the default format
24 hour
No time
4 Tap Tap the Left Functionront button labeled "Exit" to exit the
Setup page.

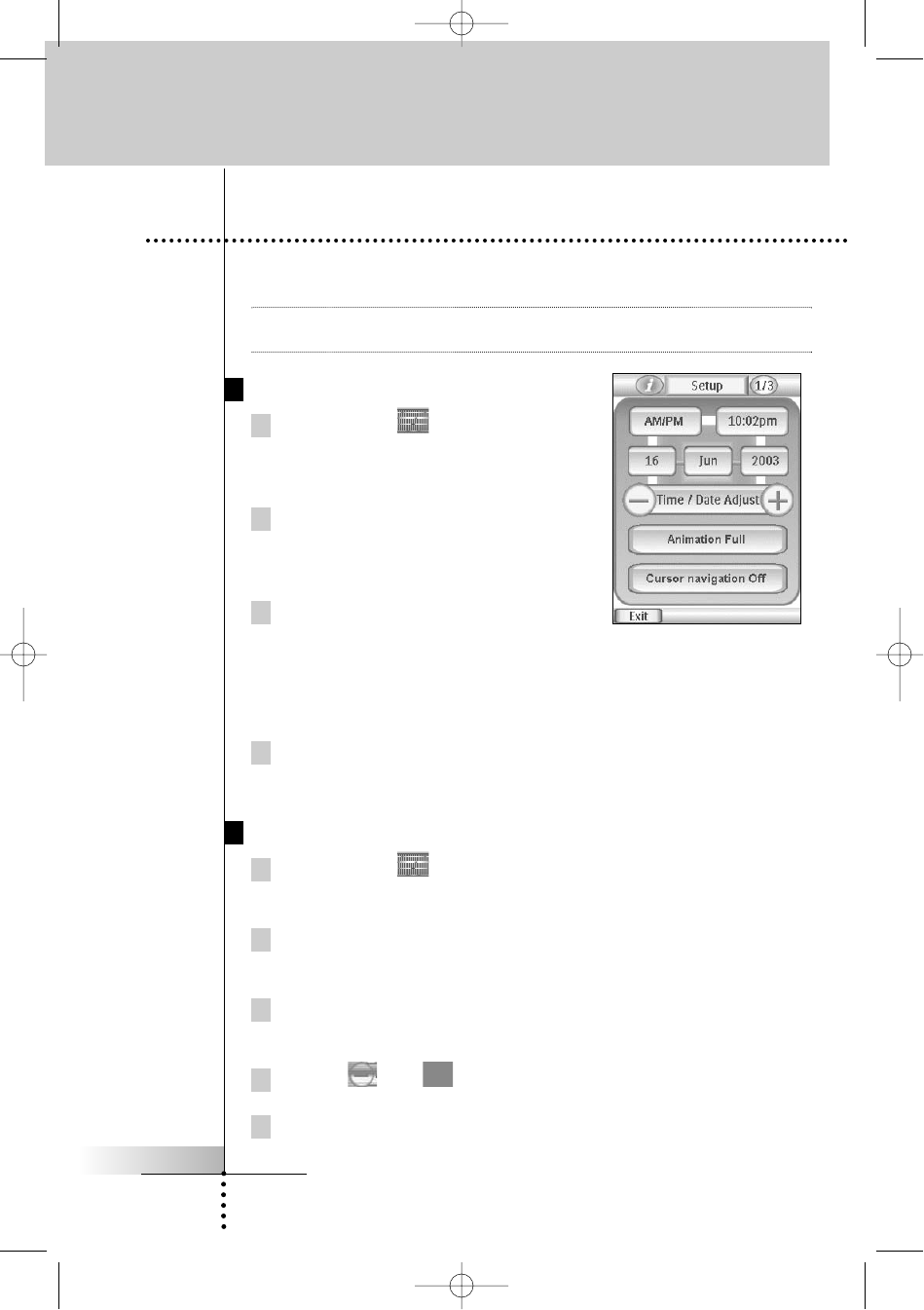

Changing the Time
1 Tap the INFO button in the UPPER TOOL BAR.
The Information page appears.
2 Tap the “SETUP” button in the Information page.
The first Setup page appears.
3 Tap the Time button in the first Setup page.
The color of the Time button is changed.
4 Tap the and buttons to adjust the time.
5 Tap the Time button again. The new time is set.
Getting started
6. Setting Time and Date
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 18
User Guide
15
6 Tap Tap the Left Functionront button labeled "Exit" to exit the
Setup page.
Changing the Date
1 Tap the INFO button in the UPPER TOOL BAR.
The Information page appears.
2 Tap the “SETUP” button in the Information page.
The first Setup page appears.
To Change the Day
1. Tap the Day button in the first Setup page.
The color of the Day button is cahnged.
2. Tap the and buttons to adjust the day.
3. Tap the Day button again.
The new day is set.
To Change the Month
1. Tap the Month button in the first Settings Page.
The color of the Month button is changed.
2. Tap the and buttons to adjust the month.
3. Tap the Month button again.
The new month is set.
To Change the Year
1. Tap the Year button in the first Setup page.
The color of the Year button is changed.
2. Tap the and buttons to adjust the year.
3. Tap the Year button again.
The new year is set.
3 Tap the Left Function button labeled "Exit" to exit the Setup
page.
Getting Started
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 19
User Guide
16
RC9500 provides different modes. For customizing your RC9500
you have to switch to the appropriate mode via the Mode Menu
page.
The mode menus are utilized like this:
1 Tap and hold the MODE icon more
than 3 seconds in the LOWER TOOL
BAR. The Mode Menu page will appears.
2 Select the mode you wish to use to
customize your RC9500 by tapping the
appropriate button on the Mode Menu.
When you operate your devices, the
RC9500 is in USE mode.
For actions other than operating (like
learning IR commands, recording macros, adding devices, and so
on), you have to switch to the appropriate mode:
For learning IR commands from other remotes. (Page 26)
For labeling buttons, pages and devices. (Page 30)
For adding new devices and copying existing devices. (Page 33)
For deleting buttons and devices. (Page 37)
For changing the order of devices in the device overview. (Page 39)
For selecting the commands sending mode IR or RF. (Page 40)
For recording and editing macros. (page 44)
For Creating and editing timers. (Page xx)
Getting Started
7. The Mode Menu
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 20
User Guide
17
To switch to another mode
1 Tap the label of the mode (i.e ) you are using in the
LOWER TOOL BAR.
The Mode Menu page appears.
2 Tap the appropriate mode button you want to use.
The label of the active mode appears in the LOWER TOOL
BAR. You can now work in the selected mode.
Note RC9500 will not return automatically to the USE mode.
To return to the USE mode, you have to go back to the Mode
Menu page and press "Exit" (Left Function button) or press
"Cancel" (Right Function button).
You can adjust the brightness level of the Touch Screen using the
buttons on the left side of the RC9500.
The adjust the Touch Screen brightness;
1 Press and hold the BACKLIGHT button on the left side of the
RC9500.
2 While still holding the BACKLIGHT button, press Page + button
once to increase the brightness one level up (getting brighter).
Or, press Page - button once to decrease the brightness one
level down (getting darker).
3 Release the BACKLIGHT button when the brightness is
satisfactory. The brightness can be adjusted 4 levels.
Note To adjust the contrast multiple levels, you have to press the
Page + or - button multiple times. When you press and hold the
Page + or - button, the contrast will only change one level.
Tip In the Setup, you can also adjust the brightness and confirm the
brightness level which you selected .
8. Adjusting the Touch Screen Brightness
Getting Started
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 21
User Guide
18
It is best to proceed with customizing in several stages.
The first stage is to teach all of your existing remote codes to the
RC9500. The second stage is to practice using your home theater
system with the RC9500. As you gain familiarity with your system,
you’ll notice that many operations in a home theater require several
steps. In the third stage of customization, you will record multiple
step operations as either a “Macro” that you can play back with one
button push or as a list of numbered steps recorded in a “Help List”
device group.
In the next few pages you’ll find step by step guidelines on each of
the three stages. When a more detailed explanation can be found
in the Reference section, we’ve noted the page.
1 Gather all of your remote controls in front of you.
2 Play with all of the example devices. Compare the devices with
your existing remote controls. Can you use any as templates for
non-Marantz components?

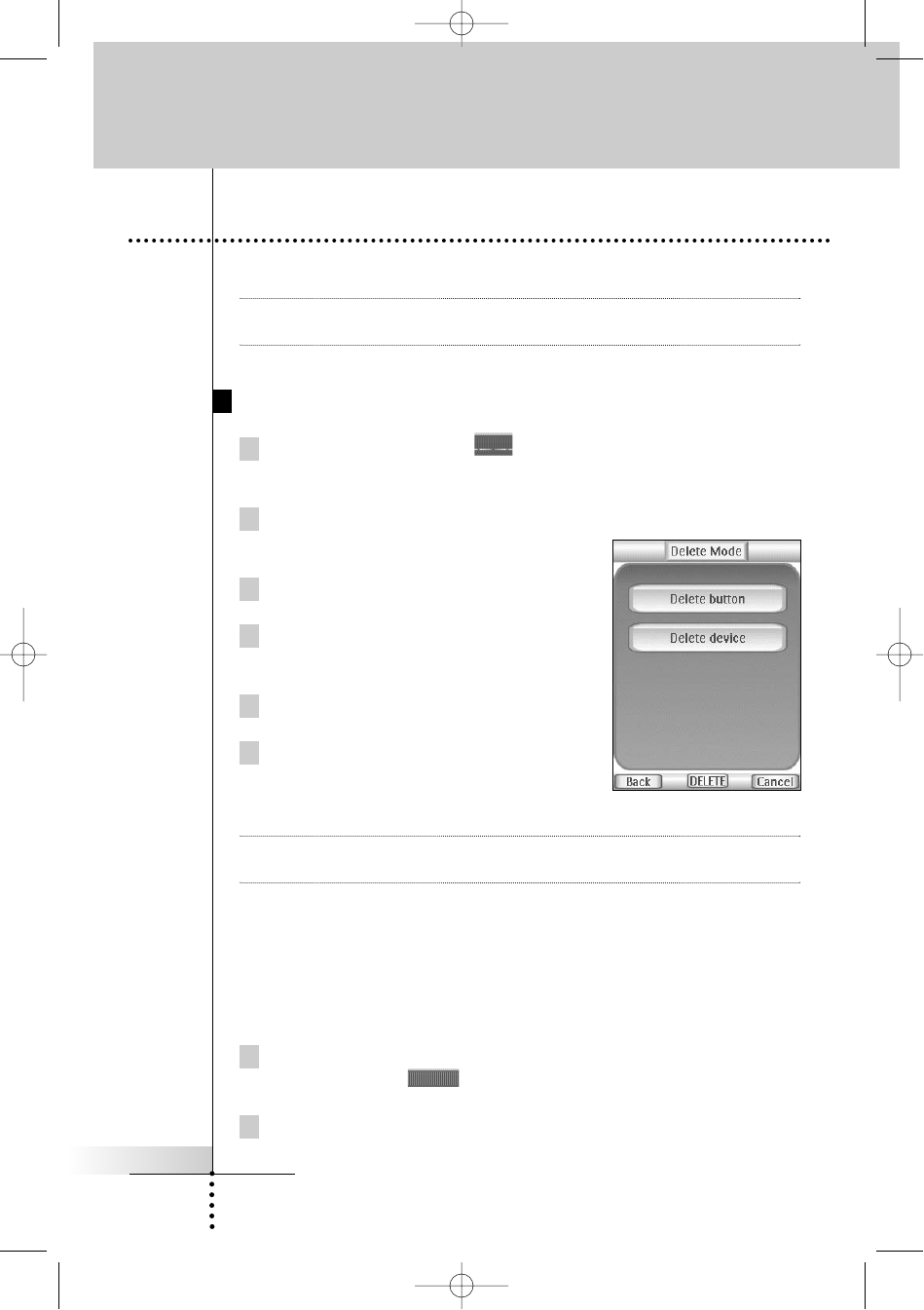

3 Use DELETE mode to delete all of the devices that you don’t
use (see page 37).
4 Use ADD mode to add the devices for each Marantz
component (see page 35-36).
When you are prompted to add with or without RC codes,
choose “Create with RC codes”.
5 Use ADD mode to add a devices for each non-Marantz
component (see page 36). Choose “Create without RC
codes”.
6 Switch to LEARN Mode to evaluate the page layouts of the new
devices.
Customizing your RC9500
1. Introduction
2. Cloning All Your Existing Remotes
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 22
User Guide
19
Customizing your RC9500
7 Switch back to DELETE mode and delete the device if it is not a
good match to your component. Repeat steps 4 through 7 until
all of your remote controls have matching devices.
8 Switch to LABEL mode to relabel each device
(see page 30-32).
9 Switch to MOVE mode to re-order your devices, so that your
Device Overview page is arranged the way you want (see page
39).
10 Switch to LABEL mode to relabel any buttons as needed to
match your existing remote controls. Check all of your devices.
12 Switch to LEARN mode and teach the RC9500 all of your non-
Marantz components’ RC Codes (see page 26-30).
13 Switching back and forth between USE and LEARN modes, test
all codes and reteach as necessary.
Note Be very careful to NEVER delete the jump tabs; they can only
be restored with a Editor software using PC. (see page 46-47).
14 Switch back to LEARN mode. Teach each Device the
appropriate Preamp/Receiver Input (source switching) IR
command (see page 28) as the Device Action.
Congratulations!
You have completed the first stage of customization. Take a well
deserved break.
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 23
User Guide
20
Customizing Your RC9500
If your entire system is new to you, practice using the RC9500
manually for a few days before programming any macros. You’ll find
that your home theater requires many operations that require multiple
steps to do. You have to decide whether to use a:
Macro - The entire operation happens in an automated sequence
when you touch one button.
Help List - The operation happens manually but is prompted by large
sequentially numbered buttons with friendly labels on one sequence of
pages linked together.
Some multiple step operations require you to make decisions before
you proceed. An example is turning on a non-Marantz home theater
system. Many components turn on and off with a single “Power”
button. Before you press a “Power” button, the manufacturer expects
you to look at the component to see whether it is on or off. If you want
it on and it’s off, you press the “Power” button. If you forget to look,
and it is already on, you will turn it off when you press the “Power”
button. The Remote cannot “look” at your components to see if they
are on or off. So, if you recorded a macro intended to power up a non-
Marantz home theater, it wouldn’t be very reliable.
Here’s an example:
Your spouse goes out to the local video store and rents a video tape.
When he/she gets home, they pop the tape in the VCR (most VCR’s
automatically turn on when a tape is inserted). Your spouse touches the
macro button you programmed to power up the system. The recorded
sequence of “power” buttons is played back. Unfortunately, since the VCR
was already on, it is now off and everything else is on. Your spouse sees
no picture, assumes the macro didn’t work, so he/she touches the button
again. This time, the macro turns the VCR on and every thing else off.
Frustrating!
Marantz builds components that are “macro-friendly”. Instead of a
single “power” button, the remote controls have a discrete “On” and a
discrete “Off” button. With a Marantz system, you can record a Macro
that is very reliable from a series of “On” commands. Take a look at

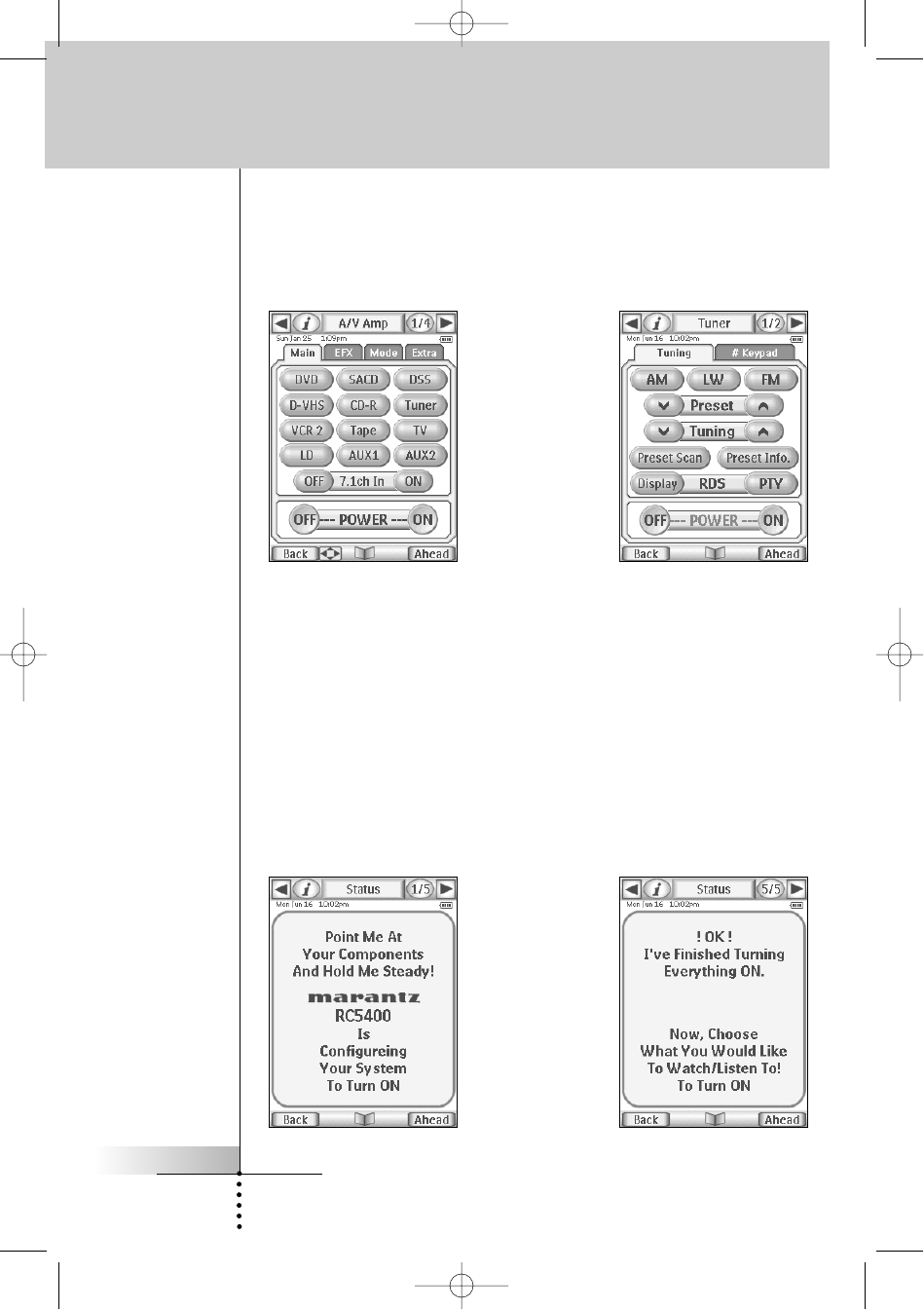

the example ALL ON and ALL OFF macros preprogrammed in the
default configuration.
3. Complex Operation? Macro or Help...
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 24
The problems don’t stop with powering up a system. Often, you will
want to construct a macro to watch or listen to a specific source. This
may require that both the Television and the Surround Receiver be set
to new inputs. Some components have “discrete” commands to select
sources (meaning the command will only have one effect on the
components, like the CD input on most receivers). Other components
have “toggle” commands (these are commands that require you to
look at the component, evaluate its state and sometimes issue the
command over and over again). An example of a “toggle” command is
the Input or TV/VCR button found on many television remote controls.
You have to look at the TV, decide that it is on the wrong input, then
toggle or scroll through the inputs to select the one you want.
Evaluate each of the multiple step operations you would like to record
as macros. If all of the commands in the process are “discrete,” the
macro will work reliably. If even one command is a “toggle” command,
you should program a help list for the operation instead of a macro.
Tip Sometimes there is a reliable way to use toggle type commands in macros.
Unfortunately, it will not be written down in your component’s instruction
manual. You will have to find it through experimentation and imagination.
What you are looking for is an “anchor” command that will put your component
in a known state. Once it is in a known state, you can use toggle commands
in your macro.
An example for Powering Up DVD Players:
Most DVD players will turn on when off when they receive a Play command.
Thus a discrete On command is two steps,
1) DVD Play
2) DVD Stop
A discrete off command is constructed by:
1) DVD Play
2) DVD Power
An example for Selecting Source on a TV:
Many televisions will return to a particular input with either a channel up or
down command or by selecting a particular channel.
Thus, to construct a macro that selects the EXT1 input:
1) Channel Up (selects the Antenna A input)
2) Input (toggles to the Antenna B input)
3) Input (toggles to the EXT 1 input)
User Guide
21
Customizing Your RC9500
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 25
User Guide
22

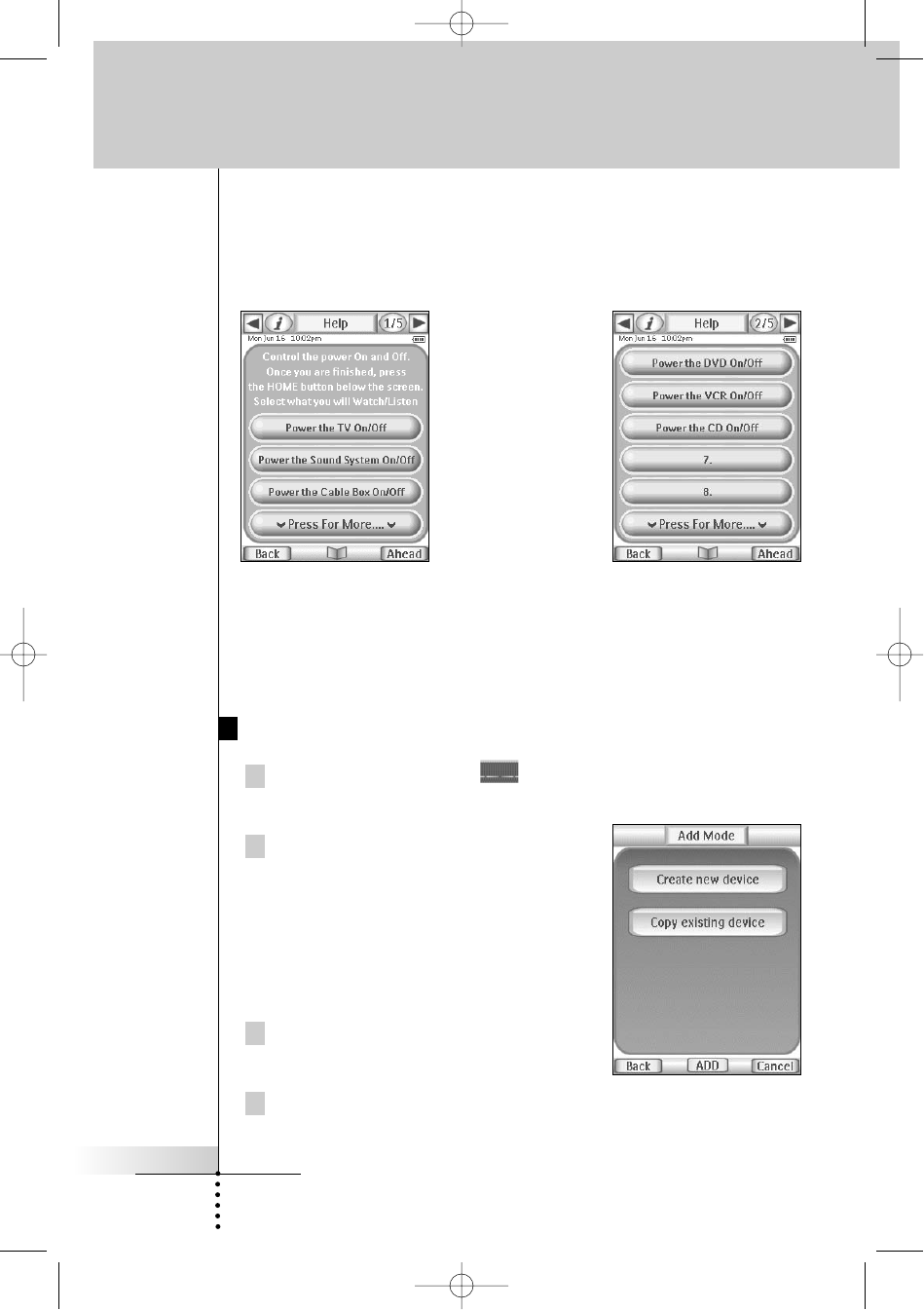

1 Write a list of all of the actions in the operation you want to
record.
2 Gather all of the remote controls you will need for the operation.
3 Select ADD from the Mode menu. Choose “Copy Existing
DEVICE” when prompted (see page 33-36).
In the device list, there is a device labeled “Help”.
Tap it to add the “Help” device.
4 Switch to LABEL mode. Relabel the new device currently
labeled “Help 1” (for details on relabeling devices, see page 30-
32).
Try to use a descriptive title like POWER, RECORD, etc.
5 Stay in LABEL mode. Relabel as many of the buttons on the
five pages as you need.
Tip Do not relabel the buttons labeled “Press for More ....” unless
the button is the last step in the operation.
6 Switch to LEARN mode. Teach each button the appropriate
command.
7 Switch to MOVE mode. Move the new device to the appropriate
position in the device list (remember, this determines the button
position on Device Overview page).
8 Return to USE mode and test out your new list.
9 You can make as many Help lists as you like. Simply repeat
steps 1 through 8 for each operation you would like to program
a help list.
Customizing Your RC9500
4. Programming Help List
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 26
User Guide
23
Macros allow you to send a sequence of commands, jumps, delays
and beeps with up to 250 steps using one single touch.
Basically, you can assign any button as a macro button. However,
it is recommended that you use the macro buttons in the reserved
macro device. However any button can be reprogrammed to be a
Macro.
In order to plan your macros, you should understand the
capabilities as follows,
Any Button Perform Macros/Jumps
You can program a macro to be played back when a button is
selected by pressing a button on a device page or Home page
(see page 41).
You can program a macro to be played back when a device is
selected by selecting the device via the Device Overview page
(see page 42).
Macros Perform Jumps to Any Device
The RC9500 has the unique capability of jumping to any device
panel during a macro.
You can make any or all of the 250 steps a jump to any
devices. This provides you with the opportunity to give some
feedback to the end user while a macro is being played back.
For example: you can reveal the CD device panel to show the user
that commands are being sent to the CD player, then jump to an
A/V Amp panel to show the user that commands are being sent to
the amp. (see page 41-42)
You can Add/Create a Status device (located in new devices in
the division named OTHER) and custom label each page to give
the end user more specific feedback as to what the macro is
doing. You can then program jumps to each Status page to
occur during the macro. (see page 33-34)
Customizing Your RC9500
5. Macro/Page Jump Capability
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 27
User Guide
24
Customizing Your RC9500
You cannot jump to any Home page, Device Overview and
Page Overview page. You are only allowed to jump to first page
of each devices when programming with the RC9500 stand
alone.
Macros Send Commands To Your System
You can make any or all of the 250 steps send a remote control
command to your system. The step is actually just a recording
of the location of any button on any device page. To record an
RC command, you simply navigate to the panel and button you
want, then touch it. Thus, all RC commands in a Macro must
first be taught to a button location first (see page 40-42).
You can record a “Device Action” which is what the device
button on the Device Overview page really does (see page 42).
Macros Can Contain Delay and Beep Between Steps
You can program a Delay/Beep as any or all of the 250 steps of
a macro (see page 41).
You can adjust that delay in 1/10th of a second intervals
between 0.1 and 10.0 seconds (see page 41).
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 28
User Guide
25

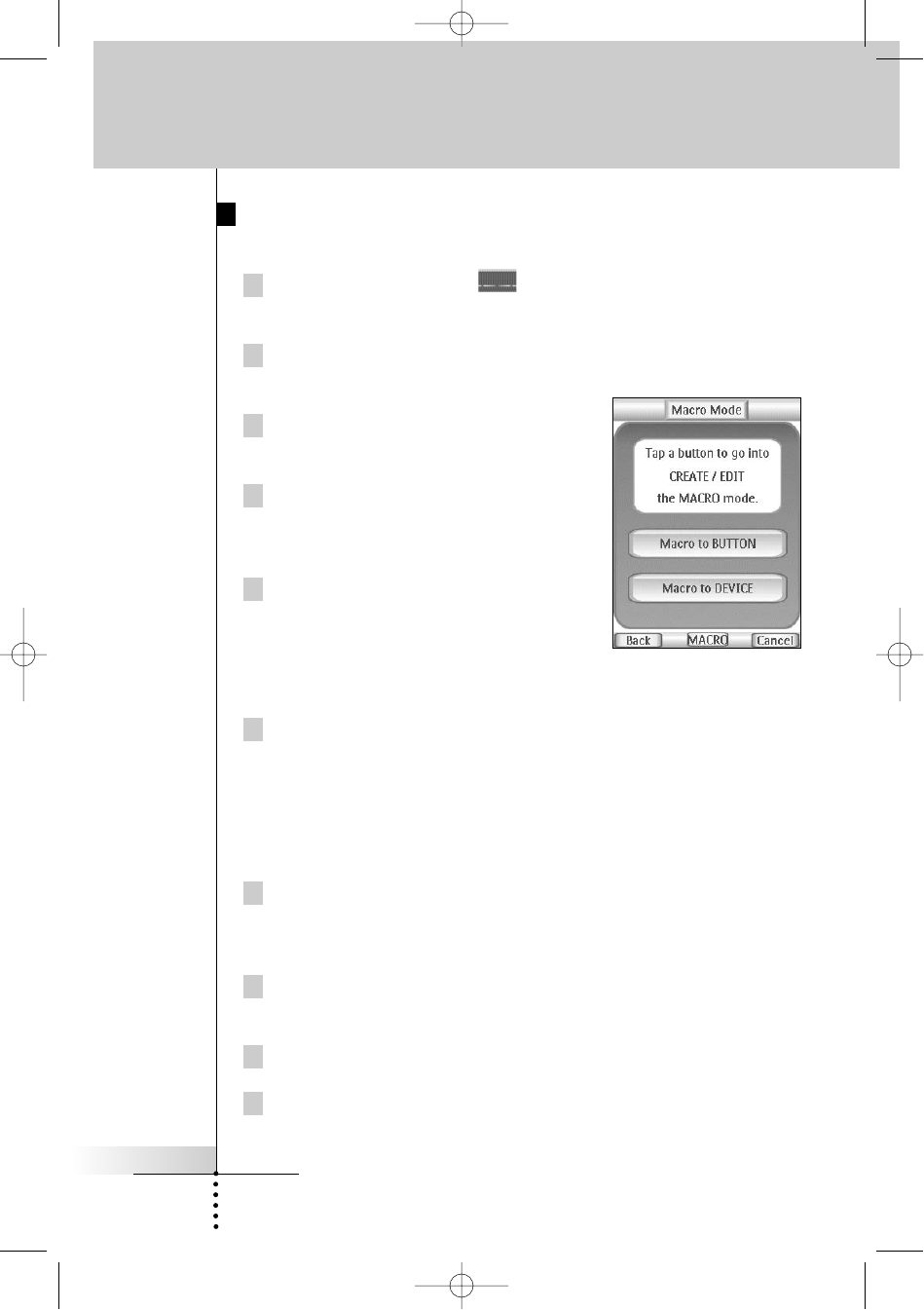

You will do all of your Macro/Jump programming within a screen
that will appear after you press the Macro button on the Mode
menupage. Before proceeding with programming, make sure that
you understand how to move around in the MACRO mode and how
to read the RC9500’s shorthand notation for each macro step (see
page 40).
1 Write a list of all of the actions in the operation you want to
record.
2 Play with all of the example Macro buttons in MACRO device.
Are any of these examples adaptable to your purposes?
3 Use DELETE mode to delete all of the macro devices that you
don’t like (see page 38).
4 Use ADD mode to add a new macro device empty of any
programming from the device list (see page 35-36).
5 Switch to LABEL mode to re-label your macro devices.
(see page 32).
6 Switch to MOVE mode to re-order your macro devices, so that
the most commonly used Macro devices are near the top (see
page 39).
7 Switch to LABEL mode and navigate to the your new macro
device. Relabel the macro buttons with an appropriate name.
The buttons are large so try to imagine a descriptive name even
if it requires a few words.
8 Switch to MACRO mode. Tap the “Macro to button” to
proceed.
Note If you like to create a macro to the Device button, tap the
“Macro to device” button instead of the “Macro to button”
button.
Customizing Your RC9500
6. Programming Macros & Page Jumps
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 29
User Guide
26
9 Navigate to your new macro device and press your newly
named macro button to enter the MACRO edit page.
The MACRO edit page will appears. If you had any previously
programmed commands in this button, they will appear for you
to edit.
10 Working from your written list, navigate to the desired device
and page to program all of the steps in the Macro
(see page 41).
Commands - When you touch a button, you will record an RC
command step (see page 41).
Jumps - When you select a device from the Device Overview
while holding down the Left Function button (now labeled
“Jump”), you will record a page jump to the first page of that
device (see page 42).
Device Action - When you select a device from the Device
Overview while holding down the Right Function button (now
labeled “Action”), you will record a Device Action of that device
(see page 42).
Delays - When you select a “Delay”, use the “+” and “-” buttons
to set the amount of delay (see page 41).
Beeps - When you select a “Beep”, you will record a beep (see
page 41).
Note Use the Page + / -buttons, Device Overview or Page Overview
to navigate pages; the Tab buttons will work as a Jump. If you
accidentally record a Tab button as a macro step, it is better to
delete it.
11 Once all steps have been programmed, test your macro by
tapping the “Test” button on the page.
Customizing Your RC9500
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 30
User Guide
27
12 Typically you will need to adjust the timing of the macro. Simply
putting in lots of delays will make the macro work, but may
make the macro unnecessarily long.
Try moving commands, so that a TV command alternates with
another component command before another TV command is
issued. To move a command, simply select it and use the
and buttons to reposition it within the Macro page.
When a delay is added to the macro, the default timing is 0.5
seconds. If the macro works with a 0.5 second delay, try a
smaller delay to shorten the macro.
When programming Channel number macros, use 0.1 second
delays between different digits and 0.5 second delays between
identical digits.
13 Once you are happy with the macro, press the “Done” button on
the screen to save it.
14 Continue to program macros until you have recorded all that you
plan.
Congratulations!
You are now a Home Theater Automator!
Customizing Your RC9500
RC9500 1st 040604b.qxd 4/4/2004 6:40 PM Page 31
You program the RC (Remote Control)
commands by transmitting
IR (infrared) signals from your
existing remote controls to the
RC9500’s learning eye.
To do this, place the RC9500 and
the device’s remote control on a flat
surface, 1 to 10cm (0.5 to 3.6 inches)
apart. With each new remote control,
you have to find the correct learning distance.
It is best to be systematic and teach all of
the buttons from one remote control before
proceeding to the next. Start with the remotes
close together; if you receive a “Failed” message,
move them farther apart in one inch increments.
Although rare, some component remotes require
a very large distance between the sending LED and
the RC9500’s learning eye.
Test the first command from any new remote control to find the
correct learning distance.
Once you have found the correct learning distance, do not
change it for any other button on that particular remote control.
Most commands learn correctly when you press and hold them
until the “OK” indicator appears. However, sometimes the
RC9500 will say “OK”, yet the command will not operate the
component properly. If this occurs, try re-teaching the command
with a brief tap. After a short delay the “OK” indicator will
appear. Test the code. If this improves operation, continue to
use the “tap” technique for all other buttons on the remote. The
only buttons that you MUST use the press and hold technique
for are buttons that you will press and hold when you are
operating the component (i.e. Volume Up/Down, Scan, etc.).
The following buttons can be programmed: Soft buttons
(operation page buttons, device buttons) and Hard buttons.
User Guide
28
Reference
1. Learning IR command
1 to 10 cm apart
(0.5 to 3.6 inches)
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 32
User Guide
29
Reference
You cannot program the buttons in the Devece Overview page
directly. You have to program them using “Learn device action”
function (see page 28).
The RC9500 also offers empty control panel buttons which you
can program and label as existing buttons. They are visible in
USE mode as grayed-out.

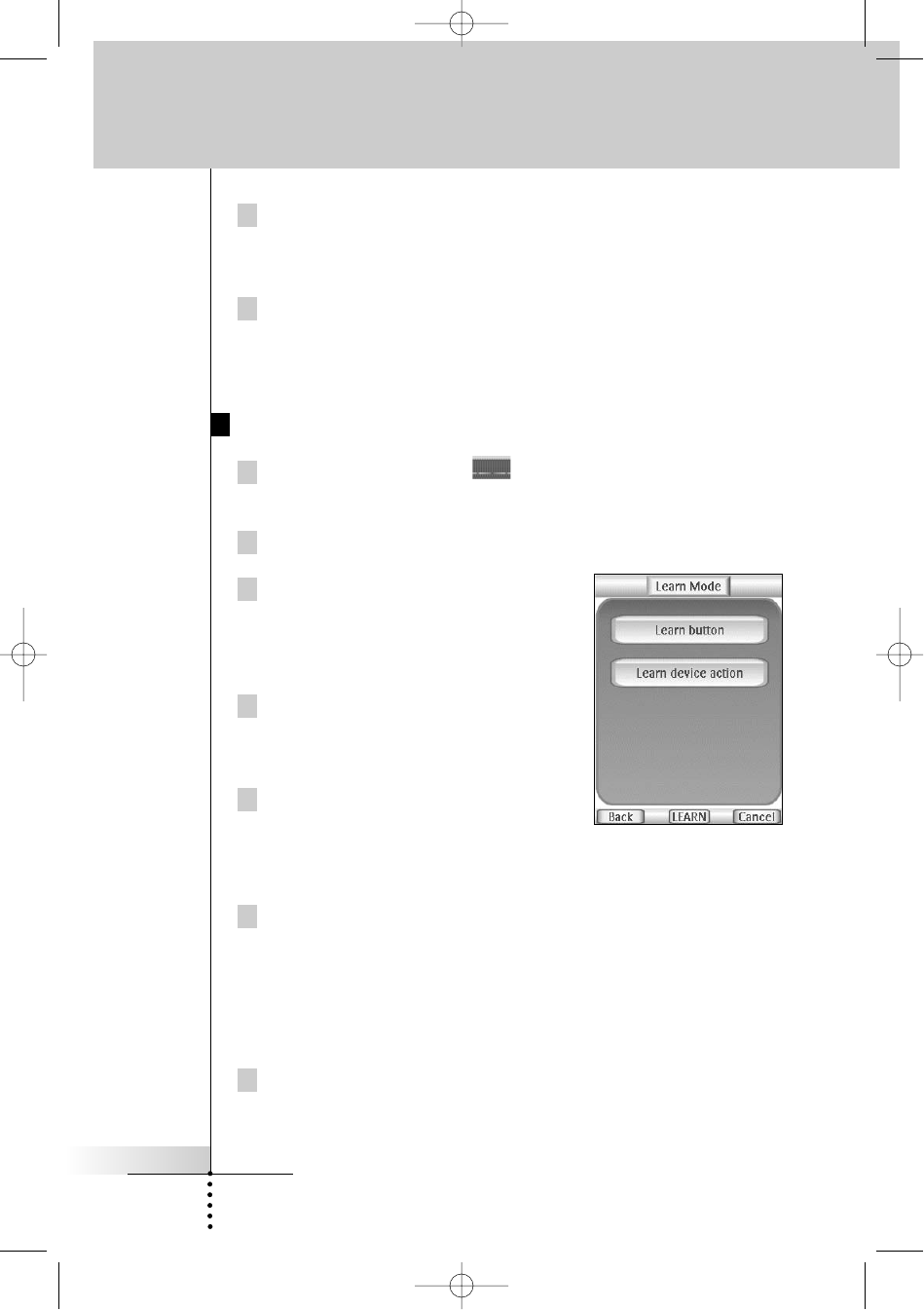

Programming Touch Screen Buttons
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “LEARN” button to switch to the LEARN mode.
3 Select the “Learn button” button
and then navigate to the device page
which contains the button you want to
program.
4 Point the device’s original remote
control to the RC9500’s learning eye
as shown on page 26.
5 Tap the button you want to program
on the RC9500.
“Learning” will be displayed on the DEVICE OVERVIEW button
and the button’s color is reversed.
6 Press and hold the corresponding button on your device’s
original remote control.
If the RC9500 has learned the command successfully, “OK”
appears on the Device Overview button. You can let go of the
button you’re holding. If the RC9500 has not learned
successfully, you hear a short buzz and “Failed” appears.
7 Program all other buttons you want and relabel them if
necessary (see page 30-31).
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 33
Reference
8 Return to the Mode Menu page by tapping label in the
LOWER TOOL BAR.
9 Return to USE mode by pressing the Left Function button
labeled “Exit” via the Mode Menu page.
Programming The Device Buttons to Switch Sources
Note When you teach a command as a Device Action, this command
will be sent when you select the Device from the Device
Overview page.
Remember, the only way to NOT issue this command is to reveal
the Device Overview page, press and hold the Left or Right
Function buttons (now labeled “No IR”) and select the device.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “LEARN” button to switch to the LEARN mode.
3 Select the “Learn device action” button.
The Device Overview page appears.
4 Complete steps 4 to 9 in “Programming Touch Screen buttons”
on page 27. Instead of tapping a button on the Touch Screen,
press the Device button you want to program.
Programming Hard Buttons Globally
And/Or Locally Per Device
The Hard buttons are defined as the five hard buttons on the right
side of the Touch Screen (Channel Up/Down, Volume Up/Down,
Mute) and the seven buttons below the Touch Screen (except the
HOME, Left and Right Function buttons, since you cannot program
them).
Note It is not possible to teach commands to the HOME, LEFT and
RIGHT Function buttons on the remote.
Only via a PC, you can re-program them.
User Guide
30
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 34
User Guide
31
Reference
Hard buttons can be programmed for a device specific command
for a particular device on the remote (Programming locally).
Only via PC, hard buttons can be programmed with a grobal
function for all devices (Programming grobally).
When a command is taught to a hard button from a device page,
it will only be issued when that device is active, even if a command
has been programmed globally. Local learning overrides global
programming.
For example: One could program the CH+ & CH- buttons as the
Chapter +/- command when the DVD is active. Now, if you program
the TV channel +/- globally (and any device other than the DVD is
selected) the TV channel +/- commands will be issued.
Programming a Hard Button Locally
1 Switch to the device for which you want to program the button.
2 Complete steps 1 to 9 in the programming Touch Screen
buttons on page 27 to 28. Instead of tapping a button on the
Touch Screen, press the button you want to program.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 35
User Guide
32
The following elements can be labeled: Buttons on a device page
and Home page, Page (the name that appears on the Page
Overview page), and Device (the name that appears on the Device
Overview button and Device Overview page).
Labeling a Button
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “LABEL” button to switch to the LABEL mode.
3 Tap the “Label button” button on
the page. The last visited page in
USE mode appears.
4 Navigate to the page contains
the button you want to label.
5 Tap the button you want to label.
The virtual “auto-zooming”
mini-keyboard shows up.
The button/frame you want to label is
displayed above the keyboard.
Reference
2. Labeling Buttons, Pages and Devices
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 36
User Guide
33

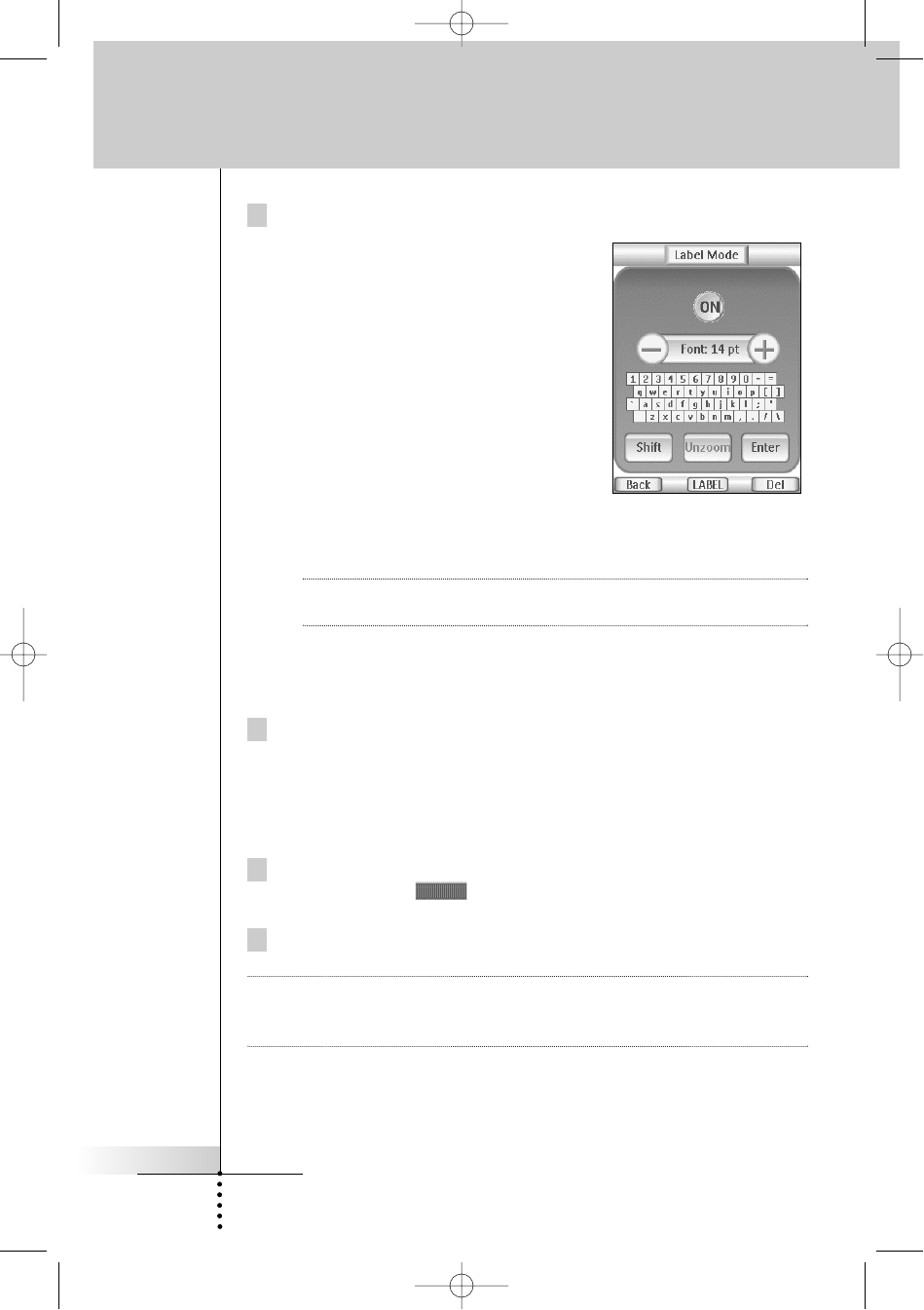

6 Edit the label.
To delete a character, press the
Right Function button labeled
“Delete”.
To change the font size, Tap
the “+” or “-” buttons beside the
“Font” label on the page.
To enter a character, tap the
keyboard near the character you
want to use.The keyboard is
zoomed in, allowing you to tap
exactly the character you need.
After you have tapped the character,
the keyboard is zoomed out. Repeat
this action for every character.
Note You can zoom out again without tapping a character by
tapping the “Unzoom” button.
For capital characters and symbols, tap the “Shift” button
repeatedly to display the keyboard you want.
7 Tap “Enter” button to save the changes and return to the page
you were at.
-or-
Press the Left Function button labeled “Back” to return to the
page you were at without saving changes.
8 Label all other items you want and return to the Mode Menu
page by tapping label in the LOWER TOOL BAR.
9 Return to USE mode by pressing the Left Function button
labeled “Exit”.
Note You cannot label buttons on the Device Overview page directly.
You have to label them using “Label device” function in the
LABEL mode (see page 32).
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 37
User Guide
34
Labeling a Device
You can label all devices which are displayed in the Device
Overview page.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “LABEL” button to switch to the LABEL mode.
3 Tap the “Label device” button on the page.
The Device Overview page appears.
4 Tap the device button which you want to label.
5 Complete steps 6 to 9 in “Labeling a Button” on page 30-31.
Labeling a Page
You can label all pages which are displayed in the Page Overview
page.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “LABEL” button to switch to the LABEL mode.
3 Tap the “Label page” button on the page.
The Page Overview page appears.
You can navigate to other device by tapping the DEVICE
SCROLL buttons .
4 Tap the page button which you want to label.
5 Complete steps 6 to 9 in “Labeling a Button” on page 30-31.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 38
User Guide
35
If you have a device that is not provided in the Device Overview
page, you can add it to the RC9500.
There are two possible ways to add a device:
Create New Device
Copy Existing Device
In the following sections we’ll discuss what these options offer you.
Description for the Template Device
You will be able to choose from a list of preprogrammed templates
“with” or “without” Marantz RC codes.
The Device list box will appear. As you scroll down the list using the
Down arrow button, you will notice Device Type Dividers and
Devices you can add. Only select the Device to ADD. Although it is
possible to ADD the Device Type Divider as a Device, it is not
useful. Should you accidentally Add a divider to your device list,
delete it.
With the and arrows, you can scroll through the complete
device list.
Reference
3. Adding Devices
Device Type
Divider
This is not
a device template to
add; it is simply an
indication of the type
of device.
Device
Template
When you add this for
a Marantz component,
you should add “with
RC codes”. When you
plan to teach codes
from an existing
remote control, add
“without RC codes”.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 39
Receivers are both A/V Amps and Tuners - Since you typically
use the two sections of your Marantz receiver at different times, we
have separated them into two devices. You will find the amp section
in Amp and the Tuner section in Tuner.
All of the devices are shown Marantz model number with the
exception of the first division, called “Other.” Below the “Other”
division are three device templates that are meant for other
purposes.
STATUS - This template is used to provide status screens you can
jump to during a macro. Five pages are created with the device
name “Status.” If you add additional Status devices, they will be
named Status2, Status3, Status4 and so on. Each page is named
according to its numbered position (1/5, etc.), so that if you are
editing a macro, you will know which panel you have jumped to.
User Guide
36
Reference
The Marantz SR9300
Receiver is actually
two templates: The
SR9300 AMP
template for all
Preamp/Surround
functions and the
SR9300 Tuner
template for all Radio
functions.
Status panels help
your family hold the
remote steady during
long complex macros.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 40
User Guide
37
Reference
HELP - This template is used to create a Help List that will help
users through a multiple step process that cannot be reliably
programmed as a macro. See page 18-20 for more information
about help lists.
DSS - Since Marantz does not make a DSS receiver, we included a
template. Simply teach the RC9500 from your original remote.
Creating a New Device Step by Step
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “ADD” button to switch to
ADD mode.
The RC9500 displays the following
choices:
Create New DEVICE
Copy Existing DEVICE
2 Tap the “Create new device” button
on the screen.
3 Tap the device you want to add from the device list box.
Help List panels are a
good way to help
casual users through
a long operation with
lots of steps.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 41
User Guide
38
Reference
4 You can add the device with or without RC codes.
Create with RC codes: Choose this option if you have the
exact Marantz component listed. The new device is added
with operational buttons.
Create without RC codes: If you choose this option, the
new device is added with greyed-out buttons. Program them
using LEARN and LABEL mode.
Note When you add a device without RC codes, all buttons are visible
as grayed-out.
By experimentally adding devices and inspecting them in USE
mode, you can decide which is the best match to your
component and delete the ones not used.
Tap the button of your choice.
The new device will be automatically displayed once you
return to USE mode.
5 Add all other devices you want and return to the Mode Menu
page by tapping label in the LOWER TOOL BAR.
6 Return to USE mode by pressing the Left Function button
labeled “Exit”.
Copy Existing Device
Tap the “Copy existing device” button in the ADD mode page to
copy a device that is already active.
TIP It is often useful to have two almost identical devices for your
Television. The only difference between the two is one would
have the Vol+ and Vol- Direct Access buttons programmed
locally with the televisions internal volume + and - commands.
Label this device TV Only (for use late at night without Surround
Sound). The other TV device has no programming in its Direct
Access buttons; as a result, the surround receiver’s Vol+ and
Vol- (programmed globally on the Home panel) is issued when
the TV device is selected.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 42
User Guide
39
You can delete the Buttons in device pages and the Device itself.
Note Left, Right Function, Home buttons, Pages and Frames (texts
with non-button function) can not be deleted.
Deleting a Button
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “DELETE” button to switch to
the DELETE mode.
3 Tap the “Delete button” button.
4 Navigate to the page that contains
the button you want to delete.
5 Tap the button you want to delete.
6 Tap “Yes” to delete or “No” to cancel.
The label “Undo” appears above
the Right Function button when you have deleted the button.
Note By pressing the “Undo” function button, the button you just
deleted is restored.
The result depends on the element you are deleting:
Soft buttons (Touch Screen button): The button
disappears from the display.
Hard buttons: The button becomes inactive.
7 Delete all the buttons you want and return to the Mode Menu
page by tapping label in the LOWER TOOL BAR.
8 Return to USE mode by pressing the Left Function button
labeled “Exit”.
Reference
4. Deleting Buttons and Devices
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 43
User Guide
40
Deleting a Device
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “DELETE” button to switch to DELETE mode.
3 Tap the “Delete device” button.
The Device Overview page appears.
4 Tap the device name you want to delete.
5 Tap “Yes” to delete or “No” to cancel.
The label “Undo” appears above the Right Function button
when you have deleted the device.
Note By pressing the “Undo” function button, the device you just
deleted is restored.
6 Delete all the devices you want and return to the Mode Menu
page by tapping label in the LOWER TOOL BAR.
7 Return to USE mode by pressing the Left Function button
labeled “Exit”.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 44
You can change the order of device buttons in the Device Overview
pages.
1Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2Tap the “MOVE” button to switch to
the MOVE mode.
The RC9500 displays the Device
list box.
3 Tap the device name of your choice.
The dot next to the selected device
name is highlighted.
4 Tap the Move and buttons
below the Device list box to move
the device up or down.
5 Tap the “Done” button to save the changes.
You return to Mode Menu page.
User Guide
41
Reference
5. Moving Devices
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 45
Macro Page Notation
Before you begin to program a Macro, study the notation used in
the MACRO mode. Each type of action has its own notation.
User Guide
42
Reference
6. Programming Macros
DVD
- When only a device
name is listed, the macro
step will be a Device
Action (the action that
occurs when the Device
is selected, which is
typically the
receiver/preamp’s source
selection or input
command).
GO: DVD Main
- A Go command
indicates a panel jump.
In this case, “TV” means
a jump to the TV device
and Main is the name
for the particular panel
(sometimes panels just
have numbers, not
names).
AMP - ON - When a
device name and a
button name are listed,
that particular button’s
IR command will be
issued.
DVD-
- A device name and the
Stop symbol means that
this particular button’s IR
command will be issued.
The symbol list can be
found on page 54.
Delay
- A delay counts as one
of the 250 macro steps.
Delays can be adjusted
in 0.1 second intervals
to be any value between
0.1 second to 10.0
seconds.
Adjusting Delays
- When a delay is
“Selected,” you can
adjust the delay with
the + and - buttons.
Beep - A beep counts
as one of the 250 macro
steps. Useful to notify
when the macro
execution is finished
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 46
User Guide
43
Recording a Macro to a Operation Button
Step By Step
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “MACRO” button to switch to MACRO mode.
The RC9500 displays first Macro mode page.
3 Tap the “Macro to BUTTON” button
to proceed to the next step.
4 Navigate to the device and the page
that contains the button for which
you want to create a macro.
5 Tap the button you want to create a
macro.
If the selected button cannot be used
for a macro, you hear a beep which
signifies a failure.
6 Tap the “Add” button to enter the sequence of commands in a
macro.
You can navigate to whatever control page you want, just as you
do in USE mode except using Tab buttons. When you have
selected the sequence, the RC9500 back to the Macro edit
page.
7 Tap the “Delay” button to enter the delay in a macro.
The delay is added in the macro list. You can adjust the delay
time by pressing “+” and “-” buttons beside the list box.
8 Tap the “Beep” to enter the beep in a macro.
The Beep is added in the macro list.
9 Tap the “Test” button to try if the macro performes properly.
10 Tap the “Done” button to finish the macro if it performed
properly. By pressing the Right Function button labeled
“Cancel”, you can cancel creating a macro.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 47
User Guide
44
Reference
There are two extra commands you can record as any step in a
macro;
Recording a Device Action (Source or Input Switching)
To record a Device Action containing a source switching command,
open the Device Overview page, hold down the Right Function
button (labeled “Action”) and tap the device you want to record the
device action. This action places the entire Device Action in the
Macro.
Note If a macro has been recorded as a Device Action, you can
include all of it as a single step in another Macro, effectively
nesting one macro inside another.
Recording a Jump to a Device page
To jump to any device, open the Device Overview page, hold down
the Left Function button (labeled “Jump”) and tap the device you
want to jump to. This action places the jump to the selected
device’s main page in the Macro.
Recording a Macro to a Device Button
Step By Step
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “MACRO” button to switch to MACRO mode.
The RC5400 displays first Macro mode page.
2 Tap the “Macro to DEVICE” button to proceed to the next step.
The Device Overview page appears.
3 Tap the device you want to program a macro.
4 Complete steps 6 to 10 in “Recording a Macro to an Operation
Button” on page 41.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 48
User Guide
45
Reference
Editing Macros
You can edit any macro you have recorded.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “MACRO” button to switch to MACRO mode.
The RC5400 displays first Macro mode page.
3 Tap the “Macro to button” button if you want to edit the macro
for the operation button, or “Macro to device” button for the
device to proceed to the next step.
4 Navigate to the device and the page that contains the button
you want to edit a macro.
5 Tap the button which holds the macro you want to edit.
The “Macro edit” page appears.
6 You can move or delete the listed commands, or you can add
new commands.
Tap “Add”
Browse to the page, choose button
Use the arrow buttons and to move the command to
the right place
7 You can also add delays and beeps to the macro (for example,
to insert a short pause between turning on a device and sending
commands to it, allowing the device to warm up).
Delay timing can be adjusted:
Tap a delay.
Tap or buttons beside the list box to decrease or
increase the length of the delay.
8 Press the “Test” button to check if edited macro performs
properly.
9 Tap “Done” to store and finish editing.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 49
With the Timer Mode, you can define actions to be carried out at
predefined times.
For instance, you can switch on the lights or program your VCR to
record your favourite daily TV-show.
Note When a timer is executed, you will hear a double beep and a Timer
message appears on screen. If RC9500 is performing another task
(sending out IR codes, testing a macro, ...) when a timer is due to
be executed, RC9500 first continues performing the current task.
Activating Timers
1 Tap and hold the MODE icon in
the LOWER TOOL BAR more than
3 seconds. Mode Menu page appears.
2 Tap the “TIMER” button to switch to
the TIMER mode.
3 Tap "Go" button to proceed to the
next step.
The Timer List page apperas.
4 Tap the check box XX in front of the
timer that you want to activate.
The color of the check box is changed and the timer is
activated.
5 Tap "OK" button In the Timer list page or "TIMER" label in the
LOWER TOOL BAR.
The Timer List page closes and the Mode menu page appears
again. The Timer icon appears next to the time indication.
-or-
Press the Left Function button labeled "Back" to return the Mode
Menu page without activating the timer.
User Guide
46
Reference
7. Creating and Editing Timers
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 50
User Guide
47
6 Return to USE mode by pressing the Left Function button
labeled "Exit".
Note In the Timers list, activated timers are displayed first, followed by
the notactivated timers. Both activated and not-activated timers are
listed chronologically.
Adding a Timer
1 Tap and hold the MODE icon in
the LOWER TOOL BAR more than
3 seconds. Mode Menu page appears.
2 Tap the “TIMER” button to switch to
the TIMER mode.
3 Tap "Go" button to proceed to the
next step. The Timer List page apperas.
4 Tap "Add" button to add a new timer
to the list.
A new timer is added to the Timers list.
By default, a new timer is labelled Timer and a number.
It has no start and stop actions defined.
5 To label the timer, tap "Label" button, as described in 'Labelling
a Timer' on page XX.
6 To define the start and stop actions for the timer, tap "Edit"
button, as described in 'Editing a Timer' on page XX.
7 Tap "OK" button In the Timer list page or "TIMER" label in the
LOWER TOOL BAR.
The Timer List page closes and the Mode menu page appears
again. The new timer is added.
-or-
Press the Left Function button labeled "Back" to return the
Mode Menu page without adding the timer.
8 Return to USE mode by pressing the Left Function button
labeled "Exit".
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 51
User Guide
48
Deleting a Timer
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “TIMER” button to switch to the TIMER mode.
3 Tap "Go" button to proceed to the next step.
The Timer List page apperas.
4 Tap the label of the timer you want to delete.
The color of the selected timer is changed.
5 Tap "Delete" button in the Timer List page.
The Message page appears.
6 If you really want to delete, tap "Delete" button in the Message
page.
The timer is deleted from the list.
7 Tap "OK" button In the Timer list page or "TIMER" label in the
LOWER TOOL BAR.
The Timer List page closes and the Mode menu page appears
again. The timer is deleted.
-or-
Press the Left Function button labeled "Back" to return the Mode
Menu page without deleting the timer.
8 Return to USE mode by pressing the Left Function button
labeled "Exit".Deleting a Timer
Labeling a Timer
The default name for a timer is 'Timer' followed by a number, for
example Timer 5.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “TIMER” button to switch to the TIMER mode.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 52
3 Tap "Go" button to proceed to the next step.
The Timer List page apperas.
4 Tap the label of the timer you want to label.
The color of selected timer is changed.
5 Tap "Label" button in the Timer List page.
The Labelling page appears.
6 Label the timer as described in “Labelling buttons, Pages and
Devices” on page XX.
7 When you finish labeling, tap "Enter" button in the Labelling
page.
The Timer List page appears again and the timer is relabelled.
8 Tap "OK" button In the Timer list page or "Timer" label in the
LOWER TOOL BAR.
The Mode Menu page appears again.
Editing a Timer
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “TIMER” button to switch to the TIMER mode.
3 Tap "Go" button to proceed to the next step.
The Timer List page apperas.
4 Tap the label of the timer you want
to edit.
The color of selected timer is changed.
5 Tap "Edit" button in the Timer List page.
The Editing Timer page appears.
User Guide
49
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 53
User Guide
50
6 To edit the timer, execute the following steps:
1. Set the Start Date.
See 'Setting the Start Date' on page XX for more information.
2. Set the Start Time.
See 'Setting the Start Time or Stop Time' on page XX for
more information.
3. Define the Start Action.
See 'Defining the Start Action or Stop Action' on page
XX for more details.
4. Set the Stop Time.
See 'Setting the Start Time or Stop Time' on page XX for
more information.
5. Define the Stop Action.
See 'Defining the Start Action or Stop Action' on page XX for
more details.
6. Define the Repeat Settings.
See 'Defining the Repeat Settings' on page XX for more
information.
7 Tap "OK" button in the Editing Timer page.
The timer settings are defined. The Timer List page appears
again.
8 Tap "OK" button In the Timer list page or "Timer" label in the
LOWER TOOL BAR.
The Mode Menu page appears again.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 54
Setting the Start Date
When you add a new timer, the Start Date is the current date by
default. The Stop Date is calculated automatically based on the
Start Date, the Start Time and the Stop Time.
To change the Start Date:
1 Tap the Day button in the Editing
Timer page.
The color of Day button is changed.
2 Tap the and buttons to
adjust the day.
3 Tap Day button again.
The Day is set.
4 Repeat step 1 to 3 for Month button.
The Start Date is set.
Setting the Start Time or Stop Time
1 Tap the "Start Time" button or "Stop Time" buttonIn the Editing
Timer page.
The color of the Start Time button or Stop Time button is
changed.
2 Tap the and buttons to adjust the time.
3 Tap the Time button again.
The new Start Time or Stop Time is set.
Note If the Stop Time lies before the Start Time, the Stop Date
automatically jumps to the next day.
User Guide
51
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 55
Defining the Start Action or Stop Action
RC9500 uses a similar procedure to define the Action List for the
Start Action or the Stop Action of the selected timer as in the Macro
Tool. See 'Creating and Editing Macros' on page XX for more
information.
Example Some examples of timer actions are: switching on your
lights at a specific time
1 Tap the "Start Action" button or "Stop Action" button in the
Editing Timer page.
The Macro edit page appears.
2 Tap "Add" button in the Macro
Edit page.
The last visited page appears again.
3 Navigate to the Device and the Page
that contains the button you want to
add to the macro.
4 Tap the button you want to add to
the action list of the timer.
The Macro Edit page appears.
The action of the selected button is added at the bottom of the
Action List.
5 Tap "OK" button in the Macro Edit page.
The Start Action or Stop Action is defined.
The Editing Timer page appears again.
Defining the Repeat Setting
If you want the timer to repeat itself on more than one occasion,
you can use the repeat settings.
1 Tap "Repeat Settings" button in the Editing Timer page.
The Repeat Settings page appears.
User Guide
52
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 56
2 Tap the repeat toggle button "No".
By default 'No' is selected.
The Repeat button toggles between the three settings:
No: This is the default setting
Daily
Weekly
1. To change the setting to “Daily”,
tap the button again.
Every day of the week is
automatically selected.
2. If you want to set an end date for
the repeating timer, select the
End Date check box.
The End Date is enabled.
3. Define the End Date, as described in 'Setting the Start Date'
on page XX.
The End Date is defined.
-or-
1. To change the setting to “Weekly”, tap the button again.
The current day is selected.
2. Select or deselect the different days of the week on which
the timer has to be executed.
3. If you want to set an end date for the repeating timer, select
the End Date check box.
The End Date is enabled.
4. Define the End Date, as described in 'Setting the Start Date'
on page XX.
The End Date is defined.
-or-
1. To change the setting to “No”, tap the button again.
The timer will not be repeated.
3 Tap "OK" button in the Repeat Settings page.
The Editing Timer page appears again. Feedback about the
repeat settings is provided below the "Repeat Settings" button.
User Guide
53
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 57
User Guide
54
Warning To use the Remote Control with Radio Frequency (RF) you need
an Marantz RX-77 RF Extender.
This is an optional accessory for the RC9500.
By default, the RC9500 uses
infrared (IR) signals to operate devices.
This means that you have to point the
RC9500’s IR sending eye towards
the devices you’re operating. IR signals
have an operating distance of approximately
10 meters (33 feet).
You can choose to operate devices using Radio Frequency (RF)
signals instead of IR signals. RF signals can, unlike IR signals, go
through obstacles like furniture or walls.
The RF signals sent out by the
RC9500 are picked up by the RX-77
RF Extender. The RX-77 translates
the RF signals in IR signals and
sends the IR signals to the
appropriate devices. Therefore, the
RX-77 has to be placed near the
devices you’re operating with the
RX-77’s sending eye pointed to the device.
Your devices will always receive IR signals either directly from the
RC9500 or from the RX-77.
Changing the IR / RF Settings
All devices are set up by default to work with IR signals. To be able
to operate one or more devices with RF signals, you have to
change the RC5400’s IR/RF settings for those devices.
1 Tap and hold the MODE icon in the LOWER TOOL BAR
more than 3 seconds. Mode Menu page appears.
2 Tap the “IR / RF” button to switch to IR/RF Setting mode.
The RC9400 displays the device list box.
Reference
8. Using the RC9500 with Radio Frequency
IR signal
IR signal
RF signal
RX-77
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 58
User Guide
55
3 Select the device for which you want to
change the IR / RF settings.
The IR / RF setting page appears.
The reversed color button labeled “IR”
indicates that the selected device is
currently operated with IR signals.
4 Tap “RF” button. The IR/RF settings for
the selected device are
changed from IR to RF.
When you have several RX-77s to operate
devices, you have to assign the correct Extender ID to the selected
device. Continue with Step 5.
-or-
When you have only one RX-77, you can accept the default
settings for the Extender ID and the Channel. Skip to step 6.
Note The ID on the RF Extender has to match the Extender ID on the
Remote Control.
5 Press and buttons beside the
Extendor ID label to change the
Extender ID number.
The RC9500 offers 16 Extender IDs.
6 Tap “Done” to save the IR/RF settings
for the selected device or Press the
Right Function button labeled “Cancel”
to return without changing the IR/RF
settings for the selected device.
7 Repeat instructions 1 to 3 for all devices
for which you want to change the IR/RF settings.
8 Tap label to return to the Mode Menu page.
The RC9500 is configured to operate the devices you have set
with RF signals.
9 Return to USE mode by pressing the Left Function button
labeled “Exit” and try out the devices for which you just changed
the IR/RF settings.
Note It is possible that a device does not respond properly when
operated with RF signals. In that case, you have to reconfigure the
Remote Control to operate the device with IR signals again.
Reference
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 59
User Guide
56
Reference
Choosing Another Channel
When you notice RF interference or unreliable operation you should
try choosing another channel to operate your devices.
Note All devices you want to operate with RF signals use the same
channel. If you choose another channel for one device, the Remote
Control will automatically change the channel for all devices that
work with RF signals.
1 Switch back to IR / RF mode. The Device list box appears.
2 Select a device that is set with RF signals.
The IR / RF setting page appears.
3 Tap the “+” and “-” buttons beside the Channel label to change
the Channel number.
The RC9500 offers 4 RF Channels.
Note The Channel (CH) on the RF Extender has to match the Channel
on the Remote Control.
4 Tap the “Done” button to finish.
If you want to personalize your RC9500 even more, beyond its
standard programming features, Wizz.it 9 is the tool for you to use.
Wizz.it 9 is the RC9500’s companion software that you can
download from the following internet address;
http://www.marantz.com
With Wizz.it 9, you can;
Add, delete, move and modify control pages, devices and
commands anywhere on the touch screen.
Save, duplicate and share configuration files, codes or devices
with other RC9500.
Preview new configuration files on Wizz.it 9 Simulator. In this
way you can check how the RC9500’s interface will look like.
9. Software
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 60
User Guide
57
Reference
Upload and download new configurations to and from your
RC9500. You do this with the USB cable supplied with your
RC9500 connected to the USB port on the left side of the
remote.
Convert the RC9200/5200/5000’s
configuration files (.ccf) for your RC9500.
Import new graphics to create new
buttons and designs.
Personalize configuration files to optimize the use of your
RC9500.
Programming the macro easily.
Customize the system area and make the whole Touch Screen
to your operation area.
Share your work with other enthusiasts on the internet.
Create animated slide shows using your own photos or art.
Internet Fun
A community of enthusiasts helping each other to learn how to use
PC’s to configure their remote controls exists at;
www.remotecentral.com
PC Requirements
Windows 98SE/ME/2000/XP
64 MB of RAM
75 MB of free hard disk space
Free USB port
Connect the USB cable to the
port above the Page + button
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 61
User Guide
58
Maintaining Your RC9500
Important Notice
Take care not to scratch the Touch Screen
Use your finger to tap the Touch Screen or use plastic-tipped
pens intended for use with other touch screen products.
Never use an actual pen, pencil or other sharp object on the
Touch Screen.
Protect the RC9500 from extreme temperatures
Keep the RC9500 away from heaters and other heat sources.
RC9500 is NOT waterproof
RC9500 should not be exposed to rain or moisture. Do not store
or use the RC9500 in any location that is extremely damp or
wet. When you have spilled water on the RC9500, you have to
take out the batteries and let the RC9500 dry for 48 hours
before you place the batteries back. When you have spilled
other liquids like coffee on the RC9500, you can clean it with
distilled water.
IMPORTANT: Make sure no water gets into the housing.
The Touch Screen of the RC9500 contains a glass element
Do not drop the RC9500 or subject it to any strong impact.
Cleaning the RC9500
Use a clean, soft and damp cloth to clean the RC9500.
If the Touch Screen is soiled, clean it with soft cloth moistened with
diluted window-cleaning solution. Do not use a corrosive detergent
or an abrasive sponge. Avoid the use of abundant water.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 62
User Guide
59
Troubleshooting
General Problems
The display is blank
Tap the screen to make sure the RC9500 is turned on.
Adjust the screen contrast using the buttons on the left side
(page 15).
Make sure the batteries are properly installed (page 4).
Recharge the battery pack using the docking station (page 5).
The display is too light or too dark
Adjust the screen contrast using the buttons on the left side
(page 15).
The RC9500 shuts itself off
This is a feature of the RC9500 to save power. You can change
the length the RC9500 stays on in the Setup (page 13).
Devices do not respond to commands from the RC9500
Make sure the RC9500 is in USE mode (page 7).
Make sure the RC9500’s IR sending eye is pointed towards the
device you’re operating.
Check if the Low Battery icon appears. If so, recharge the
battery pack using the docking station.
Check if the button you are trying to use is programmed
properly (page 18).
Check if your device understands these particular Marantz
infrared codes. Re-add the device with the correct model
number (page 33).
The RC9500 beeps 4 times after inserting the batteries
Use the Firmware Updater to update the RC9500’s software.
The Firmware Updater file will be provided from our website.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 63
User Guide
60
Troubleshooting
Programming Problems
Hard buttons are not sending the correct commands
Check whether the button is programmed per device or globally
(page 28). The MACRO mode is usefull to cinfirm the
programmed commands for buttons (page 43).
Macros or Tab Style Jump buttons do not work
Make sure the RC9500’s IR sending eye is pointed towards the
device the entire time the macro is being executed.
Insert delays to allow devices to start up properly (page 41).
Check that you have included greyed-out buttons in your macro.
Check that you haven’t reprogrammed the buttons. Macros do
not store commands, they store button locations. If you reteach
a button, the macro will execute the newly learned code, not the
code that you taught to the original button.
The RC9500 won’t learn, edit, label or delete commands
Make sure your devices are positioned as shown on page 26.
Avoid programming the RC9500 under bright fluorescent light, it
might affect the infrared signals.
If the buttons in the Mode menu page do not respond, the
configuration file might been protected to prevent unwanted
changes. You cannot modify or delete commands for on the
RC9500. the protection for the configulation file has to be
released by using Wizz.it 9.
Make sure the button you want to edit has a border. Text frames
cannot be programmed with commands.
The RC9500 won’t switch the modes
When the batteries are low, the RC9500 prevents you from
switching to customizing modes so that no customization can
get lost. Recharge the battery pack (page 5).
The RC9500 is low on memory
The RC9500 displays a message to clean up the memory.
Please delete unneccesary devices, macros and learned
commands as many as posible manually.
Warning DO NOT REVERT the RC9500. When you revert the RC9500,
all customization which you made is lost permanently and the
RC9500 goes back to the default configuration.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 64
User Guide
61
Troubleshooting
The TV goes blank or the input source changes
The Device Overview page item might be programmed to switch
the input source. Select the device without issuing IR codes
(page 8).
The configuration file is corrupted
When this very unlikely event occurs, you can use Wizz.it 9 to
upload a new configuration file. Taken into account that all your
customized commands, devices, and macros will be lost and
you will have to reprogram your RC9500. The “Rivert” function
on the third Setup page is also available to get the smaller size
of the default configuration file.
Error messages
If one of the following error messages occurs, please contact
your Marantz authorized dealer or Marantz customer service:
zCan’t open configuration file
zConfiguration file error
zNo configuration file found
zInvalid configuration file version
Tip The bulletin boards and friendly users at www.remotecentral.com
can often give you help with problems on weekends or in
evenings when your Marantz authorized dealer or Marantz
technical support may not be available.
Recharging Problems
The batteries won’t recharge
Make sure you are using the rechargeable battery pack and the
docking station (DS9500) supplied with your RC9500.
Make sure the battery pack is installed properly in your RC9500
(see page 4).
The indicator light on the docking station flashes
Check if the contacts on the docking station are clean and free
of obstructions.
Make sure the RC9500 lies properly on the docking station.
Make sure the battery pack is installed properly (see page 5).
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 65
User Guide
62
Frequently Asked Questions
Can I program a device button to execute more than one
command?
Yes, you can. You can program a macro to the device button in the
MACRO mode. (see page 42).
How do I program source switching?
See “Programming The Device Buttons ...” on page 28.
How can I edit buttons which are programmed macro on
Device overview pages?
You can do this using “Macro to device” function via the MACRO
mode. (page 43).
How can I label buttons on Device overview pages?
You can do this using “Label device” function via the LABEL mode.
All changes you make to these items are automatically updated in
the Home page (page 32).
How can I delete buttons on Device overview pages?
You can do this using “Delete device” function via the DELETE
mode. All changes you make to these items are automatically
updated in the Home page (page 38).
How do I reset the RC9500?
Normally, you never have to reset the RC9500. However, if the
RC9500’s display freezes or if you notice unusual behavior, you
might need to reset the RC9500. You will not lose any saved
programmed commands or macros.
Carefully press the reset button near the battery connector inside
the battery compartment of the RC9500 with a paperclip or sharp
pencil. The RC9500 restarts and beeps to indicate it is ready for
use.
Can I revert to the original configuration?
Yes, by using the “Revert” function on the third Setup page or
Wizz.it 9 with Windows PC. By using Wizz.it 9, once the program
is installed, open a configuration file named “RC9500_default” in
C/:Program Files/Wizzit9/Samples. Downloading this configuration
to your RC9500 will restore your RC9500 to its factory state except
the setup items.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 66
User Guide
63
Frequently Asked Questions
How do I calibrate the Touch Screen?
The RC9500 is calibrated when it leaves the factory, so normally
you do not have to calibrate it yourself. It is possible that the
RC9500 displays a message to calibrate the Touch Screen. If this
message appears do the following.
1 Tap the INFO button in the Upper Tool Bar.
The information page will appear.
2 Tap the “SETUP” button in the Information page.
The first Setup page appears.
Navigate to third Setup page by using the Page + and Page -
buttons.
3 Tap the “Calibration” button.
4 Tap as close as possible the marker in the upper left corner
using a blunt tip of a pencil.
You will see the instruction “Touch TOP LEFT corner”.
5 Tap as close as possible the marker inthe upper left corner
using a blunt tip of a pencil.
You will see the instruction “Touch BOTTOM RIGHT corner”.
6 Tap as close as possible the bottom right corner using a blunt tip
of a pencil.
You will see the message “Calibration succeeded”.
7 Return to USE mode by tapping the INFO button again or
press the Left Function button labeled “Exit“.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 67
Pause
Stop
Play, Normal run, normal speed
Reverse Play, Normal run, normal speed
Fast Forward, Scan Forwards, Fast run, fast speed
Rewind, Scan Backwards, Fast run, fast speed
Slow Motion Forwards, Slow run, slow speed
Slow Motion Backwards, Slow run, slow speed
Eject, Open/Close
Record, general
Key, Lock
Navigate in the direction of the arrow
Still mode, Freeze Frame
Autoreverse a tape, Tape running direction
Next track, Next chapter, Next song
Previous track, Previous chapter, Previous song
Fast forward to index
Rewind to index
Frame by frame, general
Frame by frame, general
Subtitle
Cancel picture
Picture-in-picture mode
Menu
Picture-in-picture shift
Picture-in-picture swap
Multi-picture display
Picture-in-picture select
Teletext mode
User Guide
64
Overview of Symbols
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 68
Page number up
Page number down
Page enlargement
TV and text mixed
1st or 2nd language
Last view, previous program
Power, Stand-by
Zone focus: long distance
Zone focus: very short distance
Single or multi-digit selection
Brightness, brilliance
Contrast
Brightness/contrast
Color saturation
Lamp, lighting, illumination
Split screen freeze / double screen freeze
Split screen swap / double screen swap
Split screen / double screen
Movie expand
Personal preference
Picture-in-picture freeze
Main index page
Picture freeze
Programmable timer, general
Tracking
Application assistance
Actual time on screen
EPG / Electronic Program Guide
Video output
User Guide
65
Overview of Symbols
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 69
User Guide
66
Specifications
Display 64k color 3.8” TFT touch screen LCD
320x240 pixels (QVGA) resolution
White LED backlighting for LCD and Blue LED for hard buttons
Interface USB 1.1-port for PC connection
Infrared (IR) Sending LED (x4) and learning LED (x1)
Operating distance of approximately 10m (33 ft)
Learns from the vast majority of remotes with a carrier frequency of
up to 78 KHz and 455 KHz
(most Bang & Olufsen commands can be learned)
Radio Operating distance of approximately 20m (66ft) in open-air condition
frequency Carrier frequency: 418 MHz (for US), 434MHz (for Europe)
(RF) *The distance may vary depending on the surrounding conditions.
Memory 16MB non-volatile flash memory (software upgradeable to 48MB)
Batteries NiMH rechargeable battery pack
Software Dynamic, animated interface
Editable macros (up to 250 commands per macro)
Built-in Marantz components codes
Total number of devices and macros limited only by memory
Power Power On: By tapping the Touch Screen, by pressing buttons,
management by picking up the RC5400
Power Off: Auto shut off by adjustable timer
Dimensions 6inch x 3.5inch x 1.2inch (153mm x 90mm x 33.5mm)
Operating 41°F to 113°F
temperature (5°C to 45°C)
Accessories USB cable for PC connection
NiMH 4.8V Rechargeable battery pack
DS9500 Recharging docking station
AC to DC power adapter for docking station
Option RX-77 RF Extender
The specifications and design of this product are subject to change without notice.
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 70
Index
User Guide
67
A
Activating 6
Pickup sensor 6, 14
ADD mode 33
Switch Modes 15
AMPS 34
Copy Existing Device 33
Create New Device 33
Device Template 33
Device Type Divide 33
DSS 35
Help 35
Receivers 34
Status 34
TUNERS 34
With RC Codes 36
Without RC Codes 36
Adjusting
Contrast 15
Delay 20, 40
Animation 13
Auto Backlight 6, 13
B
Backlight Button 2, 3
Backlight Timeout 13
Battery 4
Battery Compartment 5
Battery Cover 5
Battery Pack 5
Charging 5
Docking Station 4
Low Battery Icon 5
Beep
Button 13
Macro 22, 40
Screen 13
Button 2
4-Way Cursor 2, 11
Backlight 2, 6
CHANNEL 2, 11
Cursor Navigation 3
Device Overview 3
Device Scroll 3
ENTER 2, 11
EXIT 2, 11
Function 2
Hard Buttons 11
HOME 2, 11
INFO 3
MENU 2, 7
Mode icon 3, 7
MUTE 2, 11
Page + 2, 10
Page - 2, 10
Page Overview 3
Soft buttons 11
VOLUME 2, 11
C
Calibrate 53
Calibration 13
CHANNEL Buttons 2, 11
Charging 5
Choosing Channel 46
Cleaning 48
Cloning 16
Command 24, 41
Configuration File 46
Contrast 15
Copy Existing Device 33
Create New Device 33
Cursor Navigation 9, 13
Cursor Navigation Button 3
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 71
User Guide
68
Index
D
Day 13
Delay 22, 40
DELETE Mode 37
Button 37
Device 38
Undo 37
Device Action 8, 24, 42
Device Menu 13
Device Overview Button 3
Device Overview Page 8
Device Scroll Buttons 3
Device Scroll 9
Device Template 33
Device Type Divider 33
Discrete Command 19
Docking Station 4
Download 47
DSS 35
E
Edit Software 46
Editing 43
ENTER Button 2, 11
Error Message 51
EXIT Button 2, 11
Extender ID 45
F
FAQ
Calibrate 53
Original Configuration 52
Reset 52
Font Size 31
Free Memory 12
Function Buttons 2
G
General Problem 49
Globally 28
GO 40
H
Hard Button 11
Help 35
Help List 18, 20
HOME Button 2, 11
Home Page 7
I
Import Graphics 47
Important Notice 48
INFO Button 3
Information 12
Battery Life 12
Free Memory 12
Software Version 12
Infrared 2
Infrared Eyes 2
IR 2
Internet Address 46
Internet Fun 47
IR / RF Mode 44
Choosing Channel 46
Extender ID 45
Optional Accessory 44
Radio Frequency 44
RF 44
RF Extender 44
RX-77 44
Setting 44
IR 2
IR Command 11, 26
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 72
User Guide
69
Index
J
Jump 42
LCD Sleep 13
Learning 26
Locally 28
Low Battery Icon 5
Lower System Area 3
L
LABEL Mode 30
Button 30
Device 32
Font Size 31
Page 32
Symbols 31
Text Frame 30
LEARN Mode 27
Button 27
Device 28
Globally 28
Localy 28
Learning 26
Tap Technique 26
Lower Tool Bar 3
M
Macro-Friendly 18
MACRO Mode 18
Add 41
Adjusting Delay 22, 40
Anchor Command 19
Beep 22, 40
Button 41
Command 24, 41
Delay 22, 40
Delete 43
Device 42
Device Action 24, 42
Discrete Command 19
Editing 43
GO 40
Jump 42
Macro-Friendly 18
Move 43
Multiple Step 18
Page Jump 21
Page Notation 40
RC Command 22
Status Device 21
Test 24, 41
Toggle Command 19
Maintaining 48
Cleaning 48
Important Notice 48
Memory 56
MENU Button 2, 7
Mode Icon 3, 7
Mode Menu 14
Setup 13
Modes 7
ADD 14
DELETE 14
IR / RF 14
LABEL 14
LEARN 14
MACRO 14
MOVE 14
USE 7
Month 13
MOVE Mode 39
Device 39
Multiple Step Operation 18
MUTE Button 2, 11
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 73
User Guide
70
N
Navigating 7
Cursor Navigation 9
Device Action 8
Device Overview page 8
Device Scroll 9
Home Page 7
Devices 7
Pages 9
NO IR 8
Page Overview Page 9
Tab Button 10
NO IR 8
O
Operating 11
Device 11
Hard Button 11
IR Command 11
Soft Button 11
Operation Page Button 26
Optional Accessory 44
Original Configuration 52
P
Page +, - Button 2, 10
Page Jump 21, 24
Page Menu 13
Page Notation 40
Page Overview Button 3
Page Overview Page 9
Pickup Sensor 6, 13
Programming 20
Command 24
Device Action 24
Help List 20
Macro 24
Page Jump 24
Programming Problem 50
R
Radio Frequency 44
RC Command 22
Receivers 34
Recharging Problem 51
Remote Central 47
Reset 52
Revert 13, 51
RF 44
RF Extender 44
RX-77 44
S
Setting IR / RF 44
Service & Support 64
Updates 64
Setup Page 12
Setup 12
Animation 13
Auto Backlight 6, 13
Backlight Timeout 13
Button (Beep) 13
Calibration 13
Cursor Navigation 13
Day 13
Device Menu 13
LCD Sleep 13
Mode Menu 13
Month 13
Page Menu 13
Pickup Sensor 13
Revert 13
Screen (Beep) 13
Setup Button 12
Setup Page 12
Time 13
Time Mode 13
Year 13
Simulator 46
Soft Button 11
Software 46
Index
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 74
User Guide
71
Software Version 12
Specification 56
Memory 56
Option 56
Symbols 31, 54
System Requirement 47
T
Tab Button 10
Tap Technique 26
Teach 17
Test 24, 41
Text Frame 30
Time 13
Time Mode 13
Toggle Command 19
Touch Screen 2, 3
Contrast 15
Lower Tool Bar 3
Upper Tool Bar 3
User Operation Area 3
Troubleshooting 49
Error Message 51
General Problem 49
Programming Problem 50
Recharging Problem 51
Revert 51
TUNERS 34
Turning On 6
U
Undo 37
Updates 64
Upload 47
Upper Tool Bar 3
USB Cable 47
USB Port 2, 47
USE mode 7
User Operation Area 3
V
VOLUME Buttons 2
W
With RC Codes 16, 36
Without RC Codes 16, 36
Wizz.it 9 46
.ccf 47
Configuration file 46
Download 47
Import Graphics 47
Internet Address 46
Internet Fun 47
Remote Central 47
Simulator 46
Software 46
System Requirement 47
Upload 47
USB cable 47
Y
Year 13
Other
.ccf 47
4-Way Cursor Navigation 2
Index
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 75
Service and Support
For service and support, please contact your Marantz authorized
dealer or Marantz customer service.
On the Marantz internet site you can find more contact details.
When you contact Marantz customer service, you will be asked for
the technical information listed on the Information page.
To view this information, follow these steps.
1 Tap the INFO icon to display the Information page.
2 When you wish to return to USE mode, tap the INFO icon again
or press the Left function button labeled “Exit”.
Updates and New Products
For news about updates and new products, please visit us on the
World Wide Web at;
http://www.marantz.com
User Guide
72
Service and Support
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 76
User Guide
73
Memo
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 77
www.marantz.com
You can find your nearest Marantz authorized dealer or distributor on our website.
JAPAN Marantz Japan, Inc. 7-35-1 Sagami Ohno, Sagamihara-shi, Kanagawa 228-8505, Japan
U.S.A Marantz America, Inc. 1100 Maplewood Drive, Itasca, IL 60143, U.S.A
EUROPE Marantz Europe B.V. P.O. Box 8744, 5605 LS Eindhoven, The Netherlands
is a registered trademark.
Printed in Belgium 2004/04 MAI RC95851010
RC9500 1st 040604b.qxd 4/4/2004 6:41 PM Page 78
