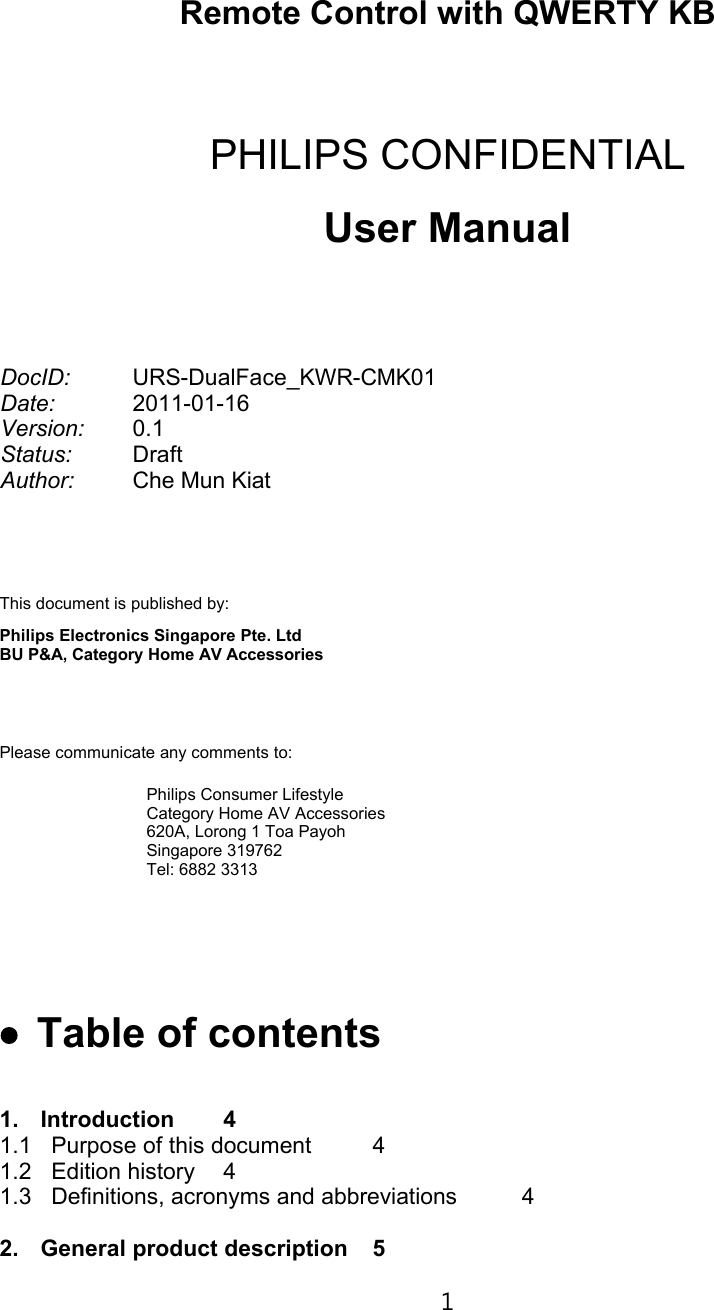

Remote Control with QWERTY KBPHILIPS CONFIDENTIALUser ManualDocID: URS-DualFace_KWR-CMK01Date: 2011-01-16Version: 0.1Status: DraftAuthor: Che Mun KiatThis document is published by:Philips Electronics Singapore Pte. Ltd BU P&A, Category Home AV AccessoriesPlease communicate any comments to:Philips Consumer LifestyleCategory Home AV Accessories620A, Lorong 1 Toa PayohSingapore 319762Tel: 6882 3313ۥ Table of contents1. Introduction 41.1 Purpose of this document 41.2 Edition history 41.3 Definitions, acronyms and abbreviations 42. General product description 51
2.1 Product perspective 52.2 Product functions overview 52.3 Remote Control 62.4 QWERTY Keyboard Control 72.5 Using Capital Characters 72.6 Using Special Characters 72.7 QWERTY Keyboard key lock 72.8 Other special keyboard feature 82.9 Mouse Cursor Control 92.10 Indicator light behaviour 112.11 Wireless link pairing 113. Approbation Regulations 12€‚ Introduction€ƒ Purpose of this documentThe purpose of this document is to define and describe the UI, function and feature requirements of KWR.€„ Edition historyVersionStatus Date Author Modification(s)0.1 Draft 16-Jan-11 CMK Initial version€… Definitions, acronyms and abbreviationsUI User InterfaceIR Infra RedIP Internet ProtocolSTB Set Top BoxOTT Over The TopRAM Random Access MemoryMCU Micro Controller UnitLED Light Emitting Diode2

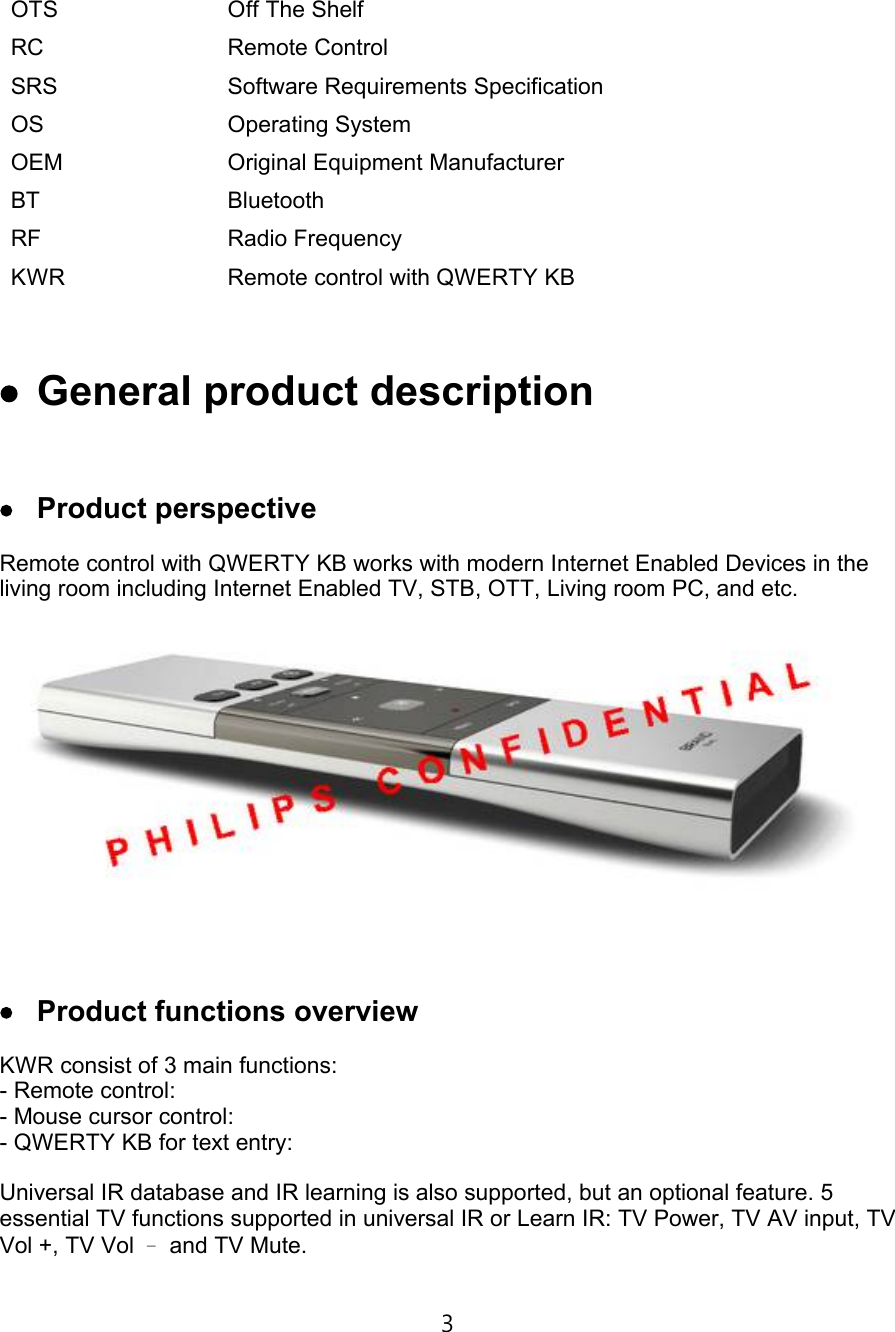

OTS Off The ShelfRC Remote ControlSRS Software Requirements SpecificationOS Operating SystemOEM Original Equipment ManufacturerBT BluetoothRF Radio FrequencyKWR Remote control with QWERTY KB €† General product description €‡ Product perspectiveRemote control with QWERTY KB works with modern Internet Enabled Devices in the living room including Internet Enabled TV, STB, OTT, Living room PC, and etc.€ˆ Product functions overviewKWR consist of 3 main functions:-Remote control: -Mouse cursor control:-QWERTY KB for text entry:Universal IR database and IR learning is also supported, but an optional feature. 5 essential TV functions supported in universal IR or Learn IR: TV Power, TV AV input, TV Vol +, TV Vol –and TV Mute.3

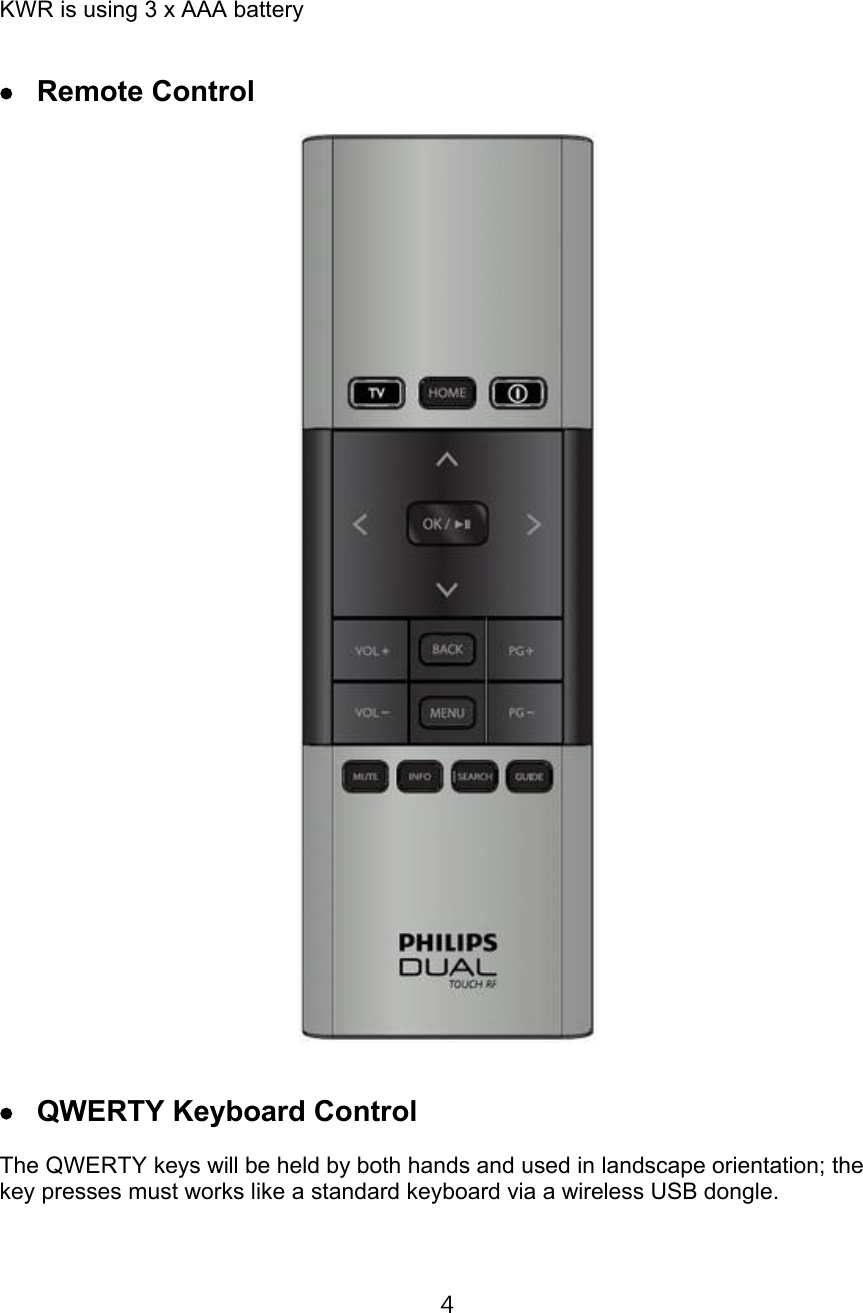

KWR is using 3 x AAA battery€‰ Remote Control€Š QWERTY Keyboard Control The QWERTY keys will be held by both hands and used in landscape orientation; the key presses must works like a standard keyboard via a wireless USB dongle. 4

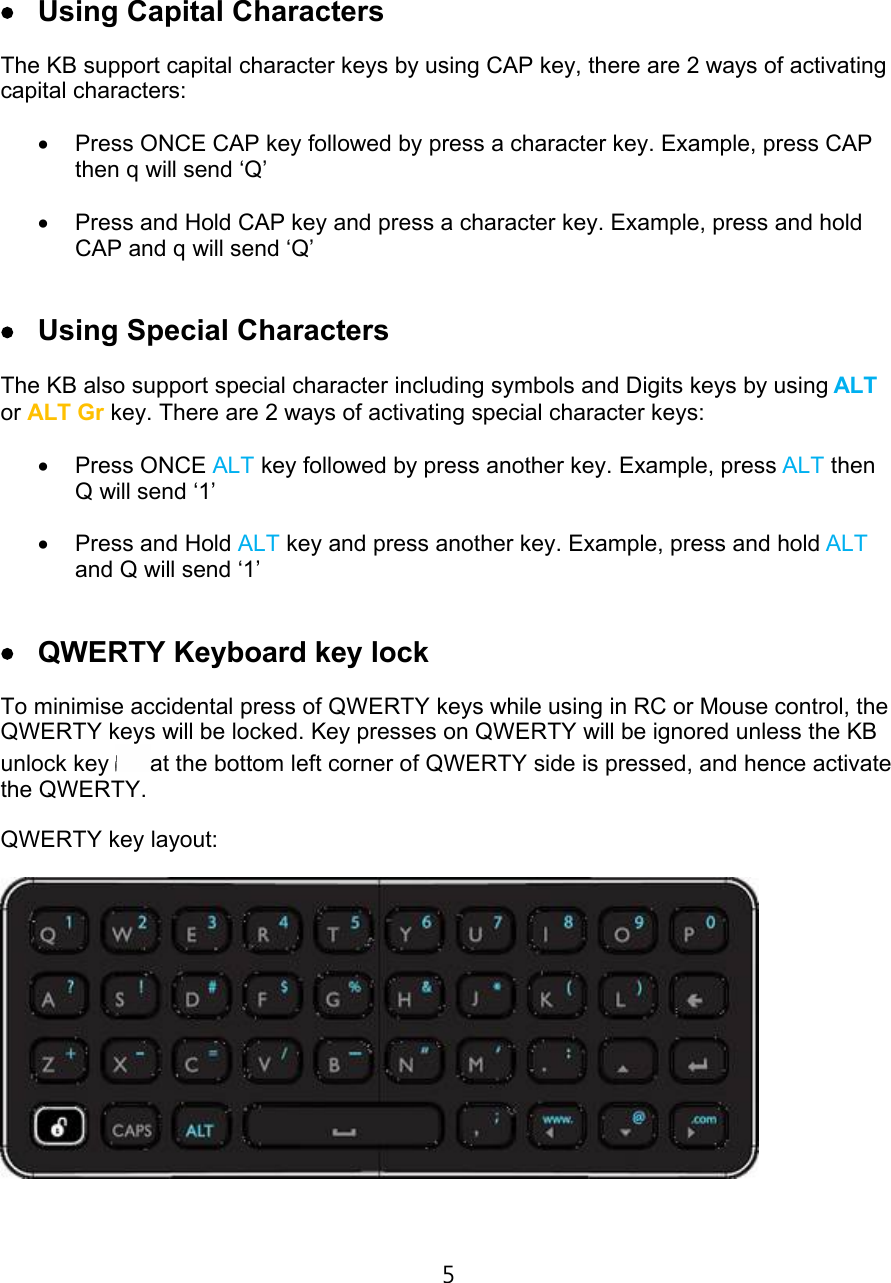

€‹ Using Capital CharactersThe KB support capital character keys by using CAP key, there are 2 ways of activating capital characters:€• Press ONCE CAP key followed by press a character key. Example, press CAP then q will send ‘Q’€‚ Press and Hold CAP key and press a character key. Example, press and hold CAP and q will send ‘Q’€Œ Using Special CharactersThe KB also support special character including symbols and Digits keys by using ALTor ALT Gr key. There are 2 ways of activating special character keys:€ƒ Press ONCE ALT key followed by press another key. Example, press ALT then Q will send ‘1’€„ Press and Hold ALT key and press another key. Example, press and hold ALTand Q will send ‘1’€• QWERTY Keyboard key lockTo minimise accidental press of QWERTY keys while using in RC or Mouse control, the QWERTY keys will be locked. Key presses on QWERTY will be ignored unless the KB unlock key at the bottom left corner of QWERTY side is pressed, and hence activate the QWERTY. QWERTY key layout:5

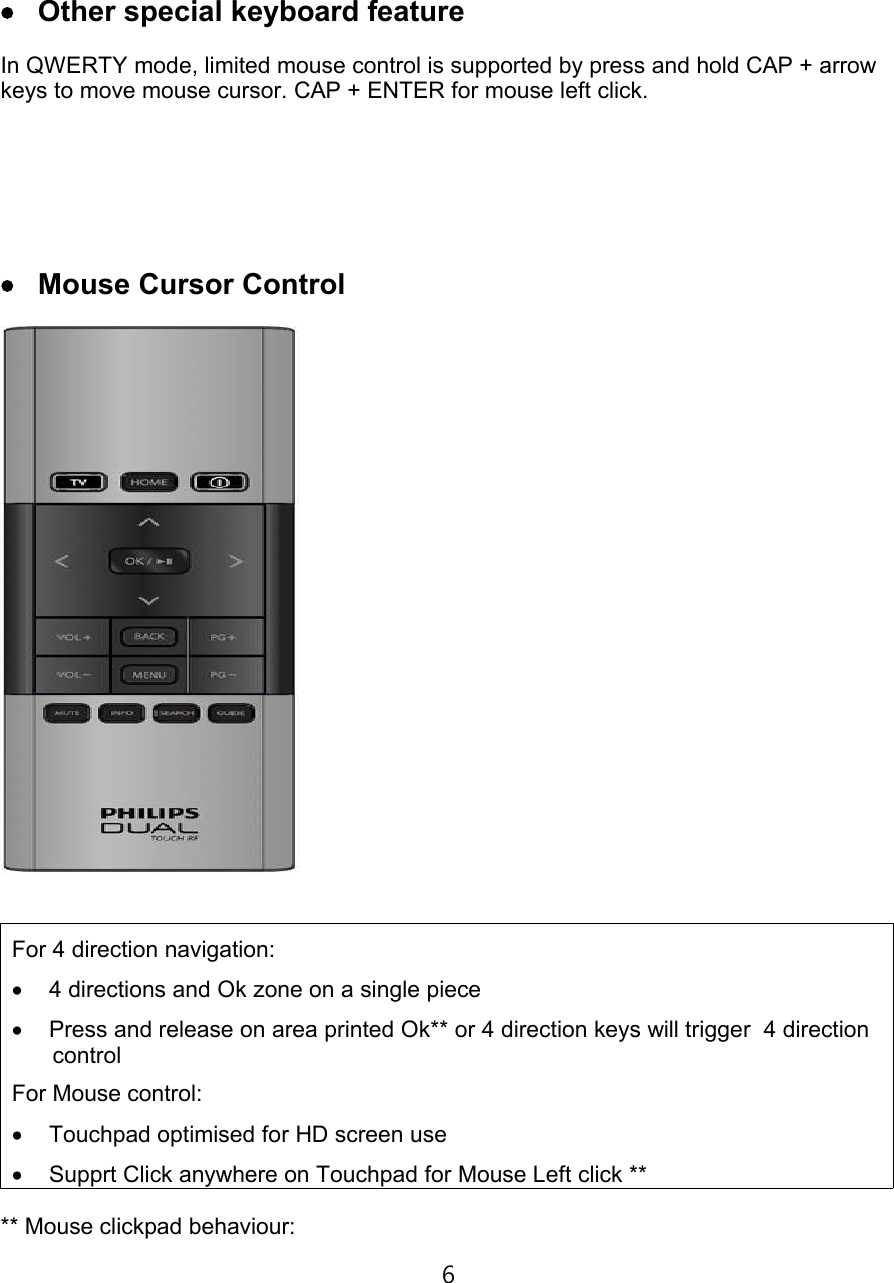

€Ž Other special keyboard featureIn QWERTY mode, limited mouse control is supported by press and hold CAP + arrow keys to move mouse cursor. CAP + ENTER for mouse left click.€• Mouse Cursor ControlFor 4 direction navigation:€… 4 directions and Ok zone on a single piece€† Press and release on area printed Ok** or 4 direction keys will trigger 4 direction controlFor Mouse control:€‡ Touchpad optimised for HD screen use€ˆ Supprt Click anywhere on Touchpad for Mouse Left click **** Mouse clickpad behaviour:6

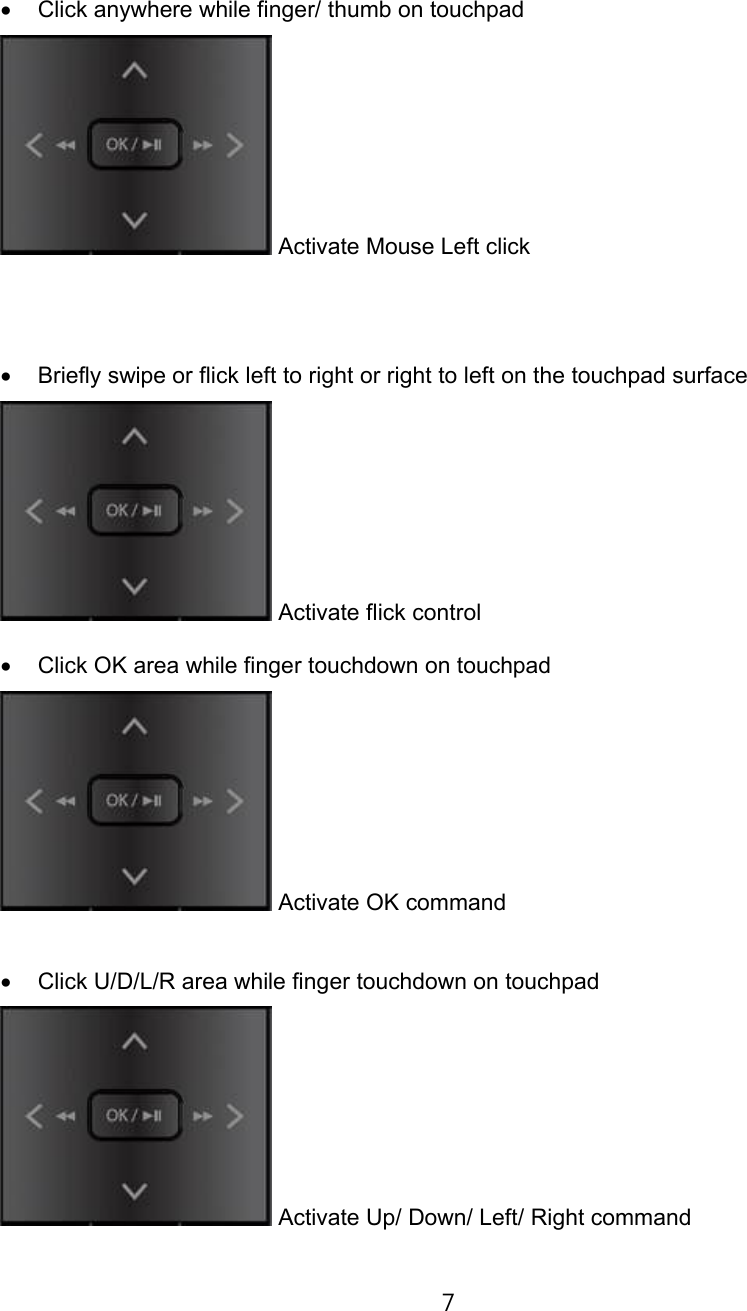

€‰ Click anywhere while finger/ thumb on touchpadActivate Mouse Left click€Š Briefly swipe or flick left to right or right to left on the touchpad surfaceActivate flick control€‹ Click OK area while finger touchdown on touchpadActivate OK command€Œ Click U/D/L/R area while finger touchdown on touchpadActivate Up/ Down/ Left/ Right command7

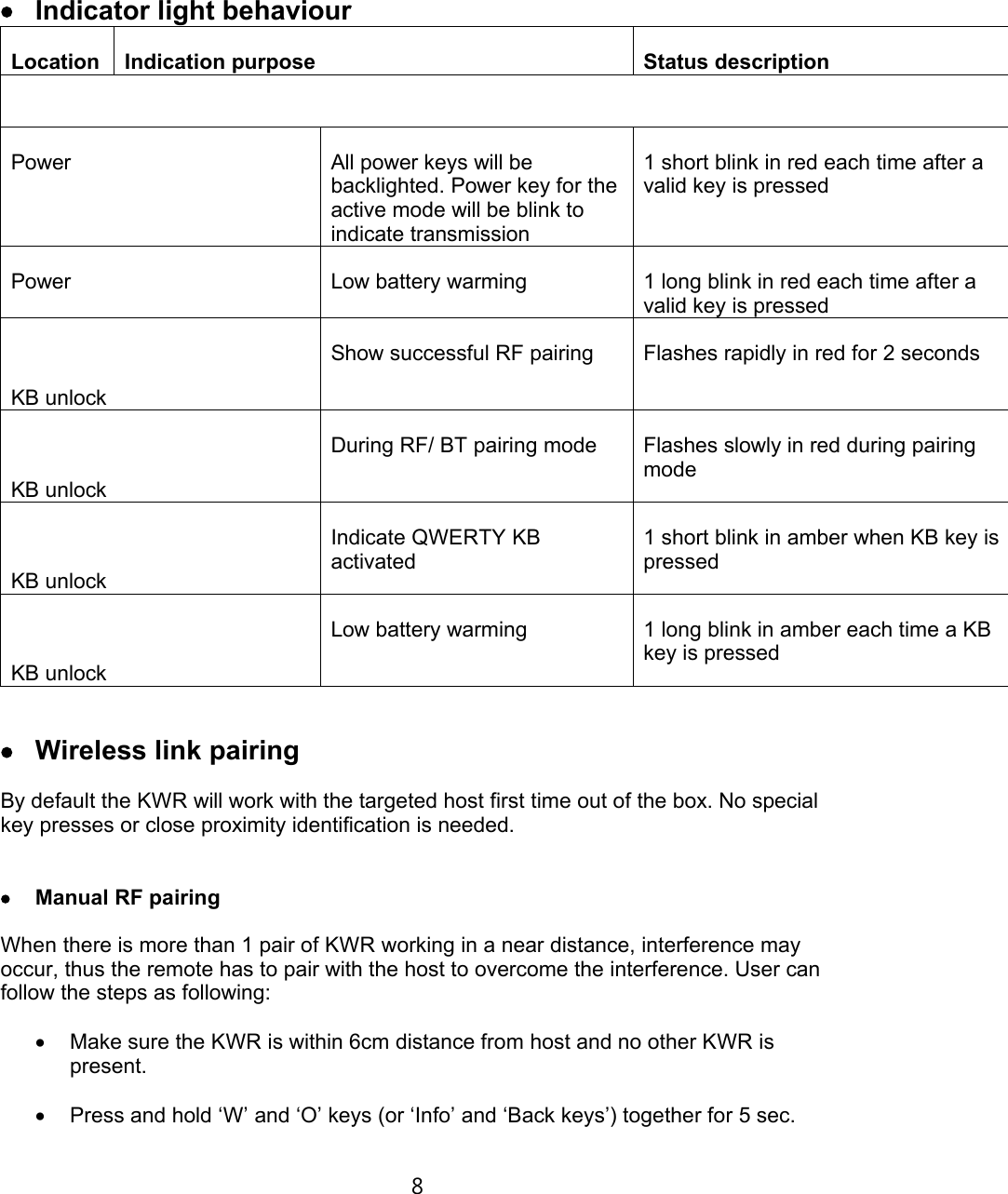

€• Indicator light behaviour Location Indication purpose Status descriptionPower All power keys will be backlighted. Power key for the active mode will be blink to indicate transmission1 short blink in red each time after a valid key is pressedPower Low battery warming 1 long blink in red each time after a valid key is pressedKB unlockShow successful RF pairing Flashes rapidly in red for 2 secondsKB unlockDuring RF/ BT pairing mode Flashes slowly in red during pairing modeKB unlockIndicate QWERTY KB activated1 short blink in amber when KB key is pressedKB unlockLow battery warming 1 long blink in amber each time a KB key is pressed€‘ Wireless link pairingBy default the KWR will work with the targeted host first time out of the box. No special key presses or close proximity identification is needed.€’ Manual RF pairingWhen there is more than 1 pair of KWR working in a near distance, interference may occur, thus the remote has to pair with the host to overcome the interference. User can follow the steps as following:€• Make sure the KWR is within 6cm distance from host and no other KWR is present.€Ž Press and hold ‘W’ and ‘O’ keys (or ‘Info’ and ‘Back keys’) together for 5 sec.8

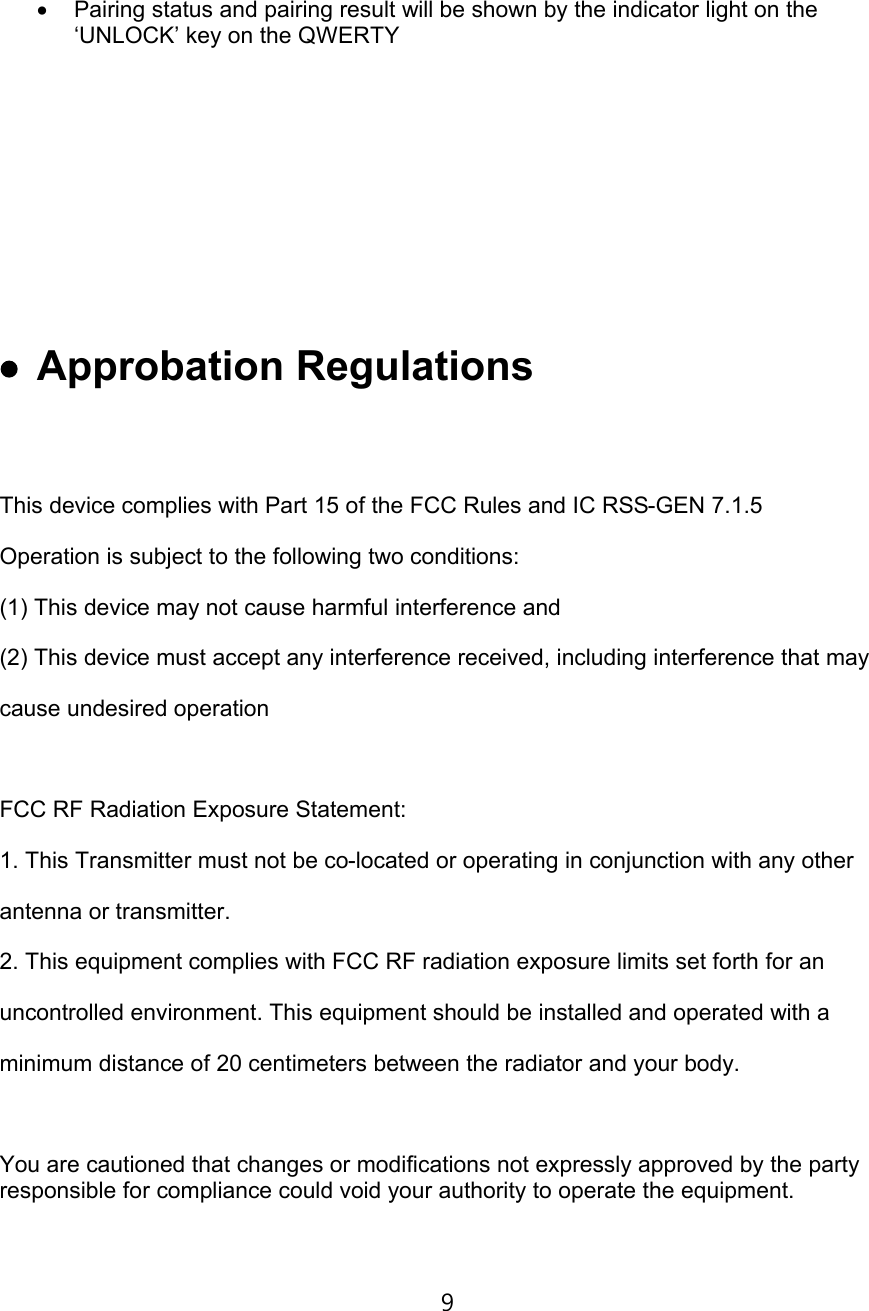

€• Pairing status and pairing result will be shown by the indicator light on the ‘UNLOCK’ key on the QWERTY €“ Approbation RegulationsThis device complies with Part 15 of the FCC Rules and IC RSS-GEN 7.1.5Operation is subject to the following two conditions:(1) This device may not cause harmful interference and(2) This device must accept any interference received, including interference that maycause undesired operationFCC RF Radiation Exposure Statement:1. This Transmitter must not be co-located or operating in conjunction with any otherantenna or transmitter.2. This equipment complies with FCC RF radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated with aminimum distance of 20 centimeters between the radiator and your body.You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.9
