Philips Electronics Singapore RC13747001 Remote Wonder II User Manual RW2
Philips Electronics Singapore Pte Ltd Remote Wonder II RW2
User Manual
i
ATI REMOTE WONDER
™
II
Installation Guide
Copyright © 2003, ATI Technologies Inc. All rights reserved.
ATI and all ATI product and product feature names are trademarks and/or
registered trademarks of ATI Technologies Inc. All other company and/or
product names are trademarks and/or registered trademarks of their
respective owners. Features, performance and specifications are subject to
change without notice. Product may not be exactly as shown in the diagrams.
Reproduction of this manual, or parts thereof, in any form, without the express
written permission of ATI Technologies Inc. is strictly prohibited.
03Mar21: PRELIMINARY
ii
Disclaimer
While every precaution has been taken in the preparation of this document,
ATI Technologies Inc. assumes no liability with respect to the operation or
use of ATI hardware, software or other products and documentation
described herein, for any act or omission of ATI concerning such products or
this documentation, for any interruption of service, loss or interruption of
business, loss of anticipatory profits, or for punitive, incidental or
consequential damages in connection with the furnishing, performance, or
use of the ATI hardware, software, or other products and documentation
provided herein.
ATI Technologies Inc. reserves the right to make changes without further
notice to a product or system described herein to improve reliability, function
or design. With respect to ATI products which this document relates, ATI
disclaims all express or implied warranties regarding such products,
including but not limited to, the implied warranties of merchantability, fitness
for a particular purpose, and non-infringement.
1
ATI REMOTE WONDER
™
II Installation
ATI REMOTE WONDER II is with all the functionality in all
Windows® software applications. If you have an ATI graphics card installed
in your system, you will also enjoy additional control over ATI software.
ATI REMOTE WONDER II works with other ATI products, such as the
RADEON® 9700 Series cards, although some buttons will be inactive (TV
and TV-ON-DEMAND™, for example). It also works with any Windows Me
or newer PC, regardless of the graphics card, but functionality is limited to
mouse control and the plugins installed on the system.
System Requirements
• Windows® 2000, Windows® Me, or Windows® XP Home/Professional
•Pentium
® III or equivalent, 64MB RAM, available USB port
Installing Your REMOTE WONDER II
1Open the battery container on the back of the ATI REMOTE WONDER II,
and then insert three, AAA batteries.
2Insert the included ATI Installation CD into your CD-ROM drive.
3If you have an ATI ALL-IN-WONDER RADEON 7500/8500/8500DV
graphics card, the ATI REMOTE WONDER II software is automatically
installed when you click Easy Install on the ATI CD Install screen. When
this is completed, skip to step 5.
If you have an ATI RAGE 128/128 PRO, RADEON family, or newer
graphics card, click Easy Install on the ATI CD Install screen to install the
latest ATI Multimedia Center, and then allow the computer to restart.
If you have an older ATI graphics card or non-ATI graphics card, skip to
step 4.
4Install the ATI REMOTE WONDER II software: click the ATI REMOTE
WONDER II icon on the ATI CD Install screen. Follow the on-screen
instructions, and then allow the computer to restart.

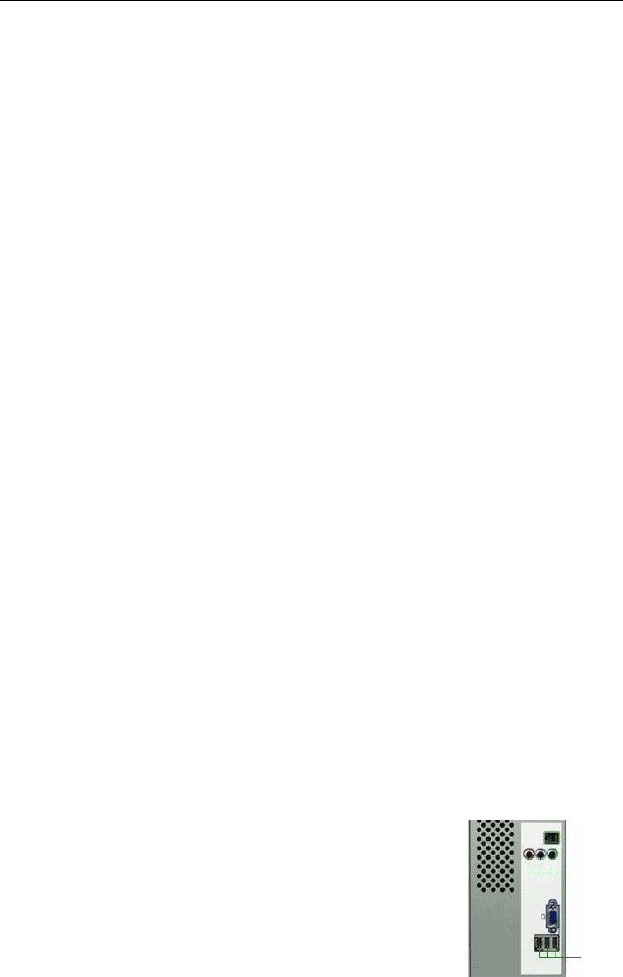

5 Plug the remote receiver into any available USB port
on your computer. The ATI REMOTE WONDER II
icon will appear on the Windows taskbar. Your ATI
REMOTE WONDER II is ready to use!
The following tables (on facing pages for easy use) list
all ATI REMOTE WONDER II functions when used with
ATI Multimedia Center 7.6 or newer. Note that you will
require an ALL-IN-WONDER family product to access
the features listed under the TV heading.
USB
Ports

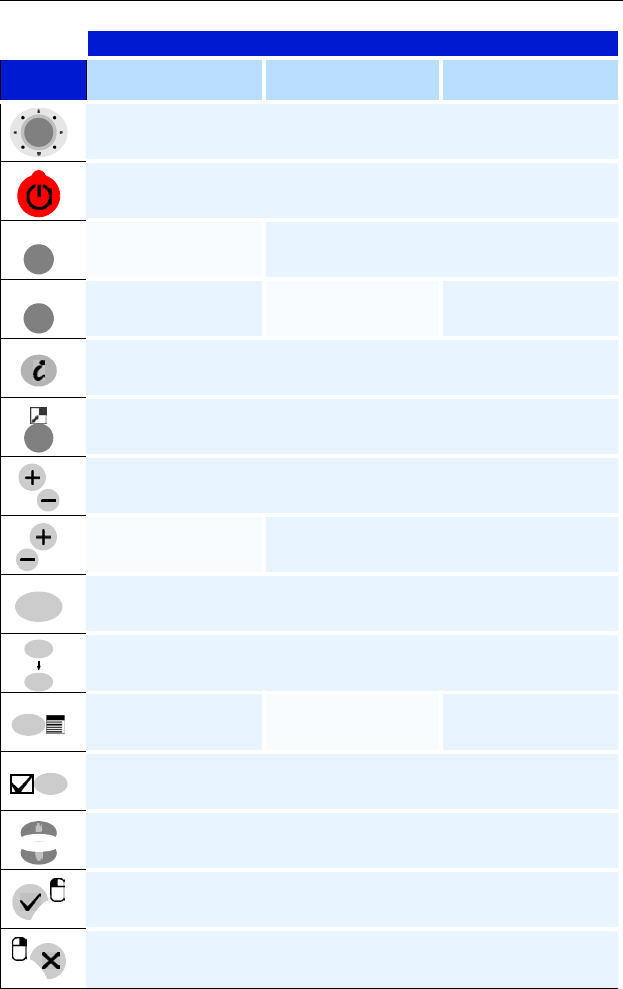

2 ATI REMOTE WONDER™ II Installation
Feature
Button TV DVD Video
CD
The Thumbpad controls cursor movement in all modes.
Power Off
Focus on TV Launch TV
Launch DVD Focus on DVD Launch DVD
Information details
Maximize / Restore the foreground window, if possible
Increase / Decrease volume
Channel Up / Down No action
Toggle audio mute
Alphanumeric keys
No action Open root menu No action
Open Setup menu
Up / Down arrows
Yes / Accept
No / Cancel
TV
DVD
VOL
CH
MUTE
9
0
ATI REMOTE WONDER™ II Installation 3
Feature
File
Player CD
Audio EAZYLOOK Windows
The Thumbpad controls cursor movement in all modes.
Power Off Alt + F4
Launch TV
Launch DVD
Information details ???
Maximize / Restore the foreground window, if possible
Increase / Decrease volume Increase / decrease
volume *
No action
Toggle audio mute Toggle
audio mute *
Alphanumeric keys
No action
Open Setup menu No action
Up / Down arrows
Yes / Accept
No / Cancel
* This function is supported by many Windows® multimedia applications.
? Any
Windows
function ?

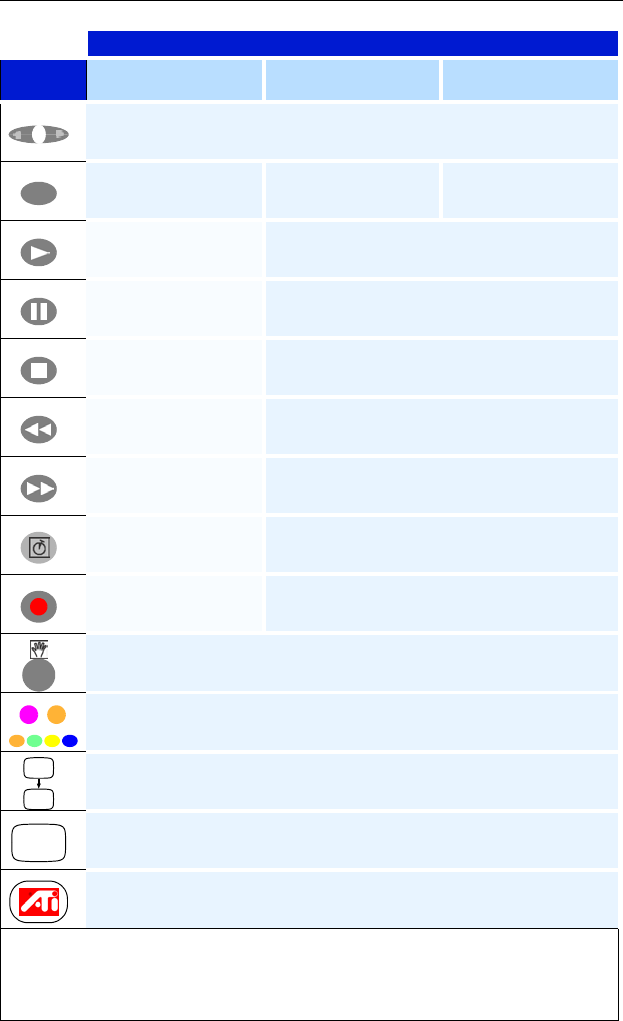

4 ATI REMOTE WONDER™ II Installation
Feature
Button TV DVD Video
CD
Right / Left arrows
Enter Enter / navigation
select Enter
Play in
TV-ON-DEMAND Play
Start TV-ON-DEMAND Pause
Exit TV-ON-DEMAND Stop
Rewind in
TV-ON-DEMAND Rewind
Fast-forward in
TV-ON-DEMAND Fast-forward
Toggle
TV-ON-DEMAND No action
Record No action
Drag (toggle holding down the left mouse button)
Programmable buttons. To program the buttons, right-click the ATI
REMOTE WONDER II icon in the system tray.
AUX 1 – AUX 4 Backlit, programmable buttons for controlling external
devices (will be enabled in future software releases).
Focus on topmost window
Open Multimedia Center LaunchPad or Media Library. You can remove
the keycap using a paperclip, and replace the logo with your own graphic.
• The ATI REMOTE WONDER’S range depends upon the environment. For best
results, the receiver should be placed as far as possible from the computer’s case
and monitor.
• The ATI REMOTE WONDER operates at 433.92 MHz.
OK
A B
C D E F
AUX 4
AUX 1
PC
? Frequency ?
ATI REMOTE WONDER™ II Installation 5
Feature
File
Player CD
Audio EAZYLOOK Windows
Right / Left arrows
Enter
Play Play *
Pause Pause *
Stop Stop *
Rewind Skip to
previous track *
Fast-forward Skip to
next track *
No action
No action
Drag (toggle holding down the left mouse button)
Programmable buttons. To program the buttons, right-click the ATI REMOTE
WONDER II icon in the system tray.
AUX 1 – AUX 4 Backlit, programmable buttons for controlling external devices (will
be enabled in future software releases).
Focus on topmost window
Open Multimedia Center LaunchPad or Media Library. You can remove the keycap
using a paperclip, and replace the logo with your own graphic.
* This function is supported by many Windows® multimedia applications.
6 ATI REMOTE WONDER™ II Installation
Getting Additional Accessories
Additional and replacement cables, installation CD-ROMs, manuals, and
other accessories for ATI products can be purchased from the online ATI
store at http://www.ati.com/online/accessories.
Warranty Information
Product Warranty Registration
To receive Customer Service, you must register your product with ATI.
Online Product Warranty Registration is available at
http://www.ati.com/online/registration.
Customer Service
For detailed instructions on how to use your ATI product, refer to the Online
User’s Guide included on your ATI Installation CD-ROM. If you require
further assistance with your product, use one of the following options:
Online:
For product information, video drivers, Frequently Asked Questions and
Email support, visit:
http://www.ati.com and select Customer Service for Built By ATI products.
Telephone:
Available Monday to Friday, 9:00 AM - 7:00 PM EST.
*905-882-2626
*Access to Telephone Support is available to registered users at no
additional cost for the first 30 days from the date of purchase (long distance
charges may apply). For complete details, please visit:
http://www.ati.com/online/customercare.
Mail:
ATI TECHNOLOGIES INC.
Attention: Customer Service
33 Commerce Valley Drive East
Markham, Ontario
Canada L3T 7N6E
Hardware Warranty Service Statement
Should the product, in ATI’s opinion, malfunction within the warranty period,
ATI will at its discretion repair or replace the product upon receipt with an
equivalent. Any replaced parts become the property of ATI. This warranty
does not apply to the software component of a product or a product which
has been damaged due to accident, misuse, abuse, improper installation,
usage not in accordance with product specifications and instructions, natural
or personal disaster, or unauthorized alterations, repairs, or modifications.
? Will the warranty info
change ?
ATI REMOTE WONDER™ II Installation 7
For a detailed description of the ATI Hardware Warranty Service Statement
visit: http://www.ati.com/online/warranty/statement.
Warranty Service
For warranty service instructions visit: http://www.ati.com/online/warranty
or contact one of our Customer Service Representatives using one of the
aforementioned means.
• Before shipping any unit for repair, obtain an RMA number for warranty
service.
• When shipping your product, pack it securely, show the RMA and serial
number of the product on the outside, and ship prepaid and insured.
• ATI will not be held liable for damage or loss to the product in shipment.
Limitations
• This warranty is valid only if the online Product Warranty Registration form
at http://www.ati.com/online/registration is successfully submitted
within 30 days of purchase of said product.
• All warranties for this product, when purchased as a retail product,
expressed or implied, will expire three (3) years* from date of original
purchase.
*The ATI REMOTE WONDER II unit is warranted for 1 year. All
accompanying cables and accessories are warranted for 90 days
• No warranties for this product, expressed or implied, shall extend to any
person who purchases the product in a used condition.
• The liability of ATI in respect of any defective product will be limited to the
repair or replacement of such product. ATI may use new or equivalent-to-
new replacement parts. Defective product will be sent in for repair or
replacement only.
ATI makes no other representations or warranties as to fitness for a
particular purpose, merchantability or otherwise in respect of the product. No
other representations, warranties or conditions shall be implied by statute or
otherwise.
In no event shall ATI be responsible or liable for any damages, including but
not limited to the loss of revenue or profit, arising:
• from the use of the product,
• from the loss of use of the product, as a result of any event, circumstance,
action or abuse beyond the control of ATI; whether such damages be
direct, indirect, consequential, special or otherwise and whether such
damages are incurred by the person to whom this warranty extends or a
third party.
8 ATI REMOTE WONDER™ II Installation
Compliance Information
FCC Compliance Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer's instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The use of shielded cables for connection of the monitor to the graphics
card is required to ensure compliance with FCC regulations.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to
operate this equipment.
ATI REMOTE WONDER™ II Installation 9
Industry Canada Compliance Statement
ICES-003 This Class B digital apparatus complies with Canadian ICES-003.
RSS 210, Low Power Licence-Exempt Radiocommunications Devices (All
Frequency Bands)
Cet appareil numérique de la Classe B est conforme à la norme NMB-003
du Canada.
RSS 210, Dispositifs de radiocommunications de faible puissance, exempts
de licence (pour toutes les bandes de fréquences)
For further compliance information:
ATI Research Inc.
4 Mount Royal Ave.
Marlborough, MA
01752-1976
USA
508-303-3900
CE Compliance Information
EMC Directive 89/336/EEC and Amendments 92/31/EEC and 93/68/EEC,
for Class B Digital Device.
EN 55022:1998/CISPR 22:1997, - Class B - Limits and Methods of
Measurement of Radio Disturbance Characteristics of Information
Technology Equipment.
EN55024:1998/CISPR 22:1997, - Information Technology Equipment -
Immunity Characteristics - Limits and Methods of Measurement.
EN 300 220-1, Radio Spectrum Matters, Short Range Devices, Part 1:
Technical characteristics and test methods.
EN 300 220-3, Part 3: Harmonized EN covering essential requirements
under article 3.2 of the RTTE directive.
ETS 300 683, Radio Equipment and Systems; Electromagnetic Compatibility
(EMC) standard for Short Range Devices.
10 ATI REMOTE WONDER™ II Installation
L’Information de Conformité de la CE
Directive EMC 89/336/CEE et amendement 92/31/CEE et 93/68/EEC,
dispositif numérique de Classe B.
EN 55022:1998/CISPR 22:1997, - Class B - Limites et méthodes de mesure
des caractéristiques d'interférences radiophoniques, Matériel des
technologies de l'information.
EN 55024:1998/CISPR 24:1997, Limites et méthodes de mesure des
caractéristiques d'immunité, Matériel des technologies de l'information
Equipement de Technologie de l'Information - Caractéristiques d'Immunité -
Limites et méthodes de mesure.
EN 300 220-1, Question du spectre radio, Dispositifs à courte portée, Partie
1 : Caractéristiques techniques et méthodes de test.
EN 300 220-3, Partie 3 : EN harmonisés couvrant les exigences essentielles
selon l'article 3.2 de la directive RTTE.
ETS 300 683, Systèmes et équipements radio ; Standard de compatibilité
électromagnétique (EMC) pour les dispositifs à courte portée.
CE-befolgungInformationen
EMC Richtlinie 89/336/EEC und Änderungen 92/31/EEC und 93/68/EEC,
Digitales Gerät der Klasse B.
EN 55022:1998/CISPR 22:1997, - Klasse B - Grenzwerte und Meßverfahren
für Funkstörungen von Einrichtungen der Informationstechnik.
EN 55024:1998/CISPR 24:1997, Einrichtungen der Informationstechnik,
Störfestigkeitseigenschaften, Grenzwerte und Prüfverfahren.
RSS 210, Funkanlagen kleiner Leistung außer Geräte für
Radiokommunikation (Alle Frequenzbänder)
EN 300 220-1, Bereich Radiospektrum, Kurzwellengeräte, Teil 1:
Technische Merkmale und Testmethoden.
EN 300 220-3, Teil 3: Harmonisiertes EN entsprechend den wichtigsten
Anforderungen gemäß Artikel 3.2 der RTTE-Richtlinie.
ETS 300 683, Radioausrüstung und -systeme; Standard der
Elektromagnetischen Kompatibilität (EMC) für Kurzwellengeräte.
Printed in CanadaP/N 117-70375-10
