Philips Electronics Singapore RC1704701A INRARED/RF REMOTE CONTROL User Manual DIRECTV Universal Remote Control User s Guide

Philips Electronics Singapore Pte Ltd INRARED/RF REMOTE CONTROL DIRECTV Universal Remote Control User s Guide

USERS MANUAL

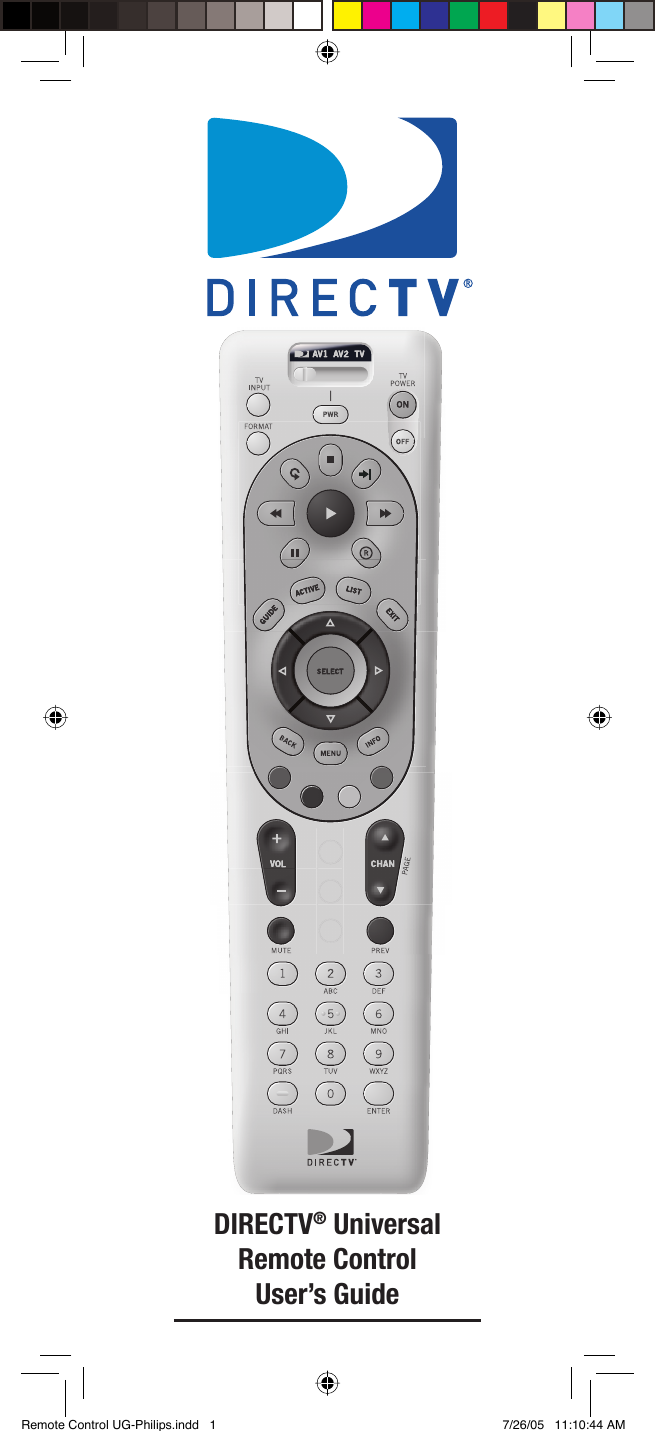

DIRECTV® Universal Remote Control User’s Guide Remote Control UG-Philips.indd 1Remote Control UG-Philips.indd 1 7/26/05 11:10:44 AM7/26/05 11:10:44 AM

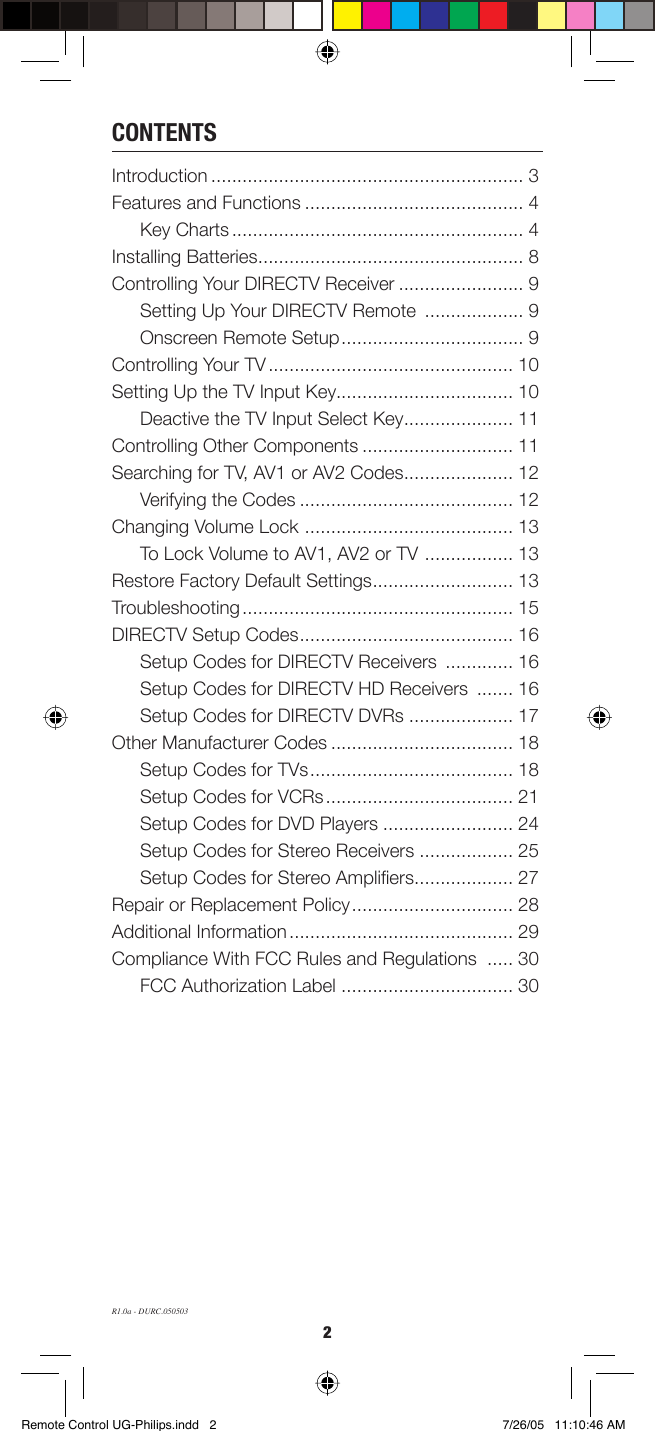

2CONTENTSIntroduction ............................................................ 3Features and Functions .......................................... 4Key Charts ........................................................ 4Installing Batteries ................................................... 8Controlling Your DIRECTV Receiver ........................ 9Setting Up Your DIRECTV Remote ................... 9Onscreen Remote Setup ................................... 9Controlling Your TV ............................................... 10Setting Up the TV Input Key.................................. 10Deactive the TV Input Select Key ..................... 11Controlling Other Components ............................. 11Searching for TV, AV1 or AV2 Codes ..................... 12Verifying the Codes ......................................... 12Changing Volume Lock ........................................ 13To Lock Volume to AV1, AV2 or TV ................. 13Restore Factory Default Settings ........................... 13Troubleshooting .................................................... 15DIRECTV Setup Codes ......................................... 16Setup Codes for DIRECTV Receivers ............. 16Setup Codes for DIRECTV HD Receivers ....... 16Setup Codes for DIRECTV DVRs .................... 17Other Manufacturer Codes ................................... 18Setup Codes for TVs ....................................... 18Setup Codes for VCRs .................................... 21Setup Codes for DVD Players ......................... 24Setup Codes for Stereo Receivers .................. 25Setup Codes for Stereo Amplifi ers ................... 27Repair or Replacement Policy ............................... 28Additional Information ........................................... 29Compliance With FCC Rules and Regulations ..... 30FCC Authorization Label ................................. 30R1.0a - DURC.050503Remote Control UG-Philips.indd 2Remote Control UG-Philips.indd 2 7/26/05 11:10:46 AM7/26/05 11:10:46 AM

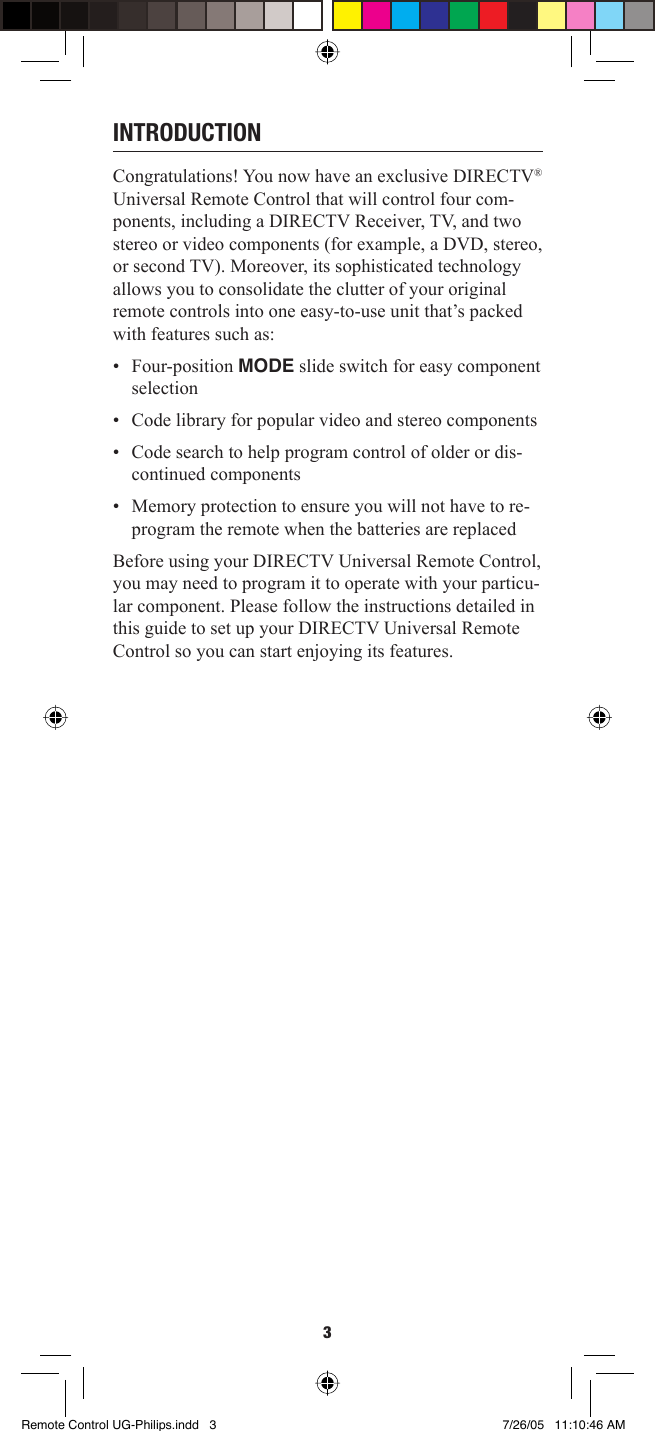

3INTRODUCTIONCongratulations! You now have an exclusive DIRECTV® Universal Remote Control that will control four com-ponents, including a DIRECTV Receiver, TV, and two stereo or video components (for example, a DVD, stereo, or second TV). Moreover, its sophisticated technology allows you to consolidate the clutter of your original remote controls into one easy-to-use unit that’s packed with features such as: • Four-position MODE slide switch for easy component selection • Code library for popular video and stereo components • Code search to help program control of older or dis-continued components • Memory protection to ensure you will not have to re-program the remote when the batteries are replaced Before using your DIRECTV Universal Remote Control, you may need to program it to operate with your particu-lar component. Please follow the instructions detailed in this guide to set up your DIRECTV Universal Remote Control so you can start enjoying its features. Remote Control UG-Philips.indd 3Remote Control UG-Philips.indd 3 7/26/05 11:10:46 AM7/26/05 11:10:46 AM

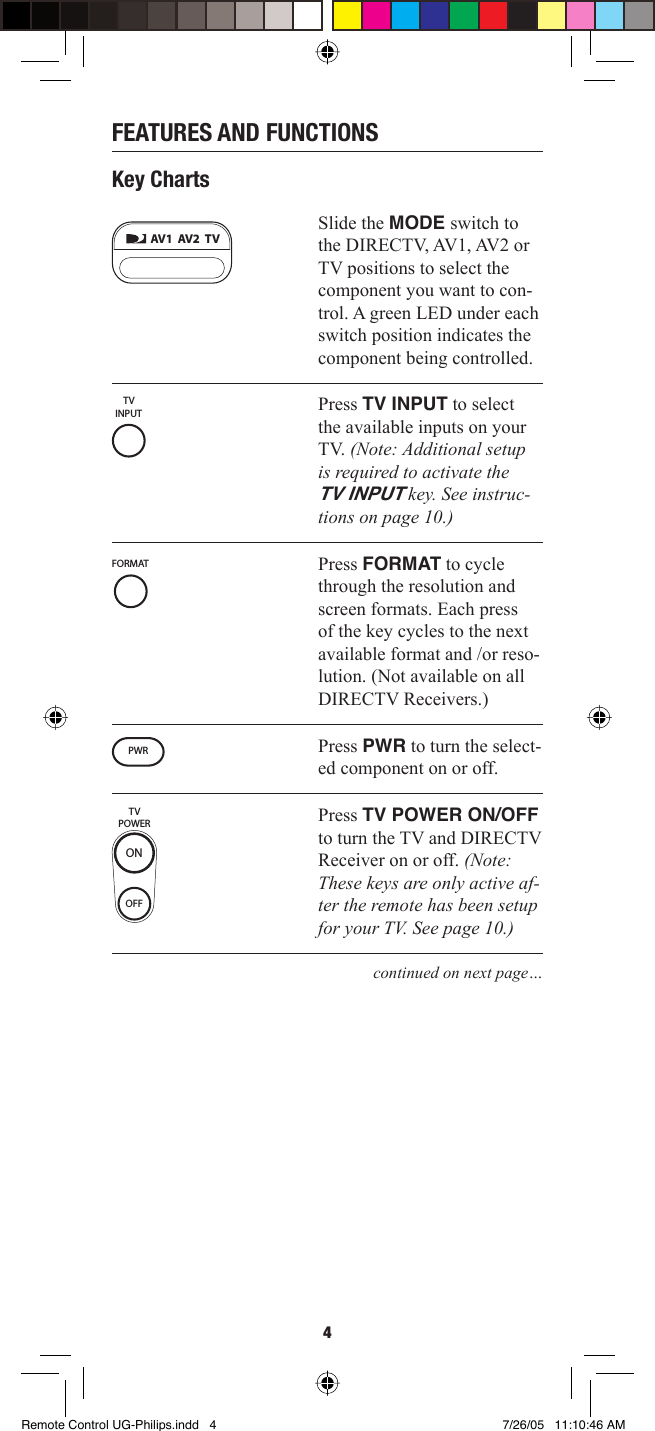

4FEATURES AND FUNCTIONSKey ChartsSlide the MODE switch to the DIRECTV, AV1, AV2 or TV positions to select the component you want to con-trol. A green LED under each switch position indicates the component being controlled.Press TV INPUT to select the available inputs on your TV. (Note: Additional setup is required to activate the TV INPUT key. See instruc-tions on page 10.)Press FORMAT to cycle through the resolution and screen formats. Each press of the key cycles to the next available format and /or reso-lution. (Not available on all DIRECTV Receivers.)Press PWR to turn the select-ed component on or off. Press TV POWER ON/OFF to turn the TV and DIRECTV Receiver on or off. (Note: These keys are only active af-ter the remote has been setup for your TV. See page 10.) continued on next page…AV1 AV2 TVTVINPUTFORMATTVPOWEROFFONPWRRemote Control UG-Philips.indd 4Remote Control UG-Philips.indd 4 7/26/05 11:10:46 AM7/26/05 11:10:46 AM

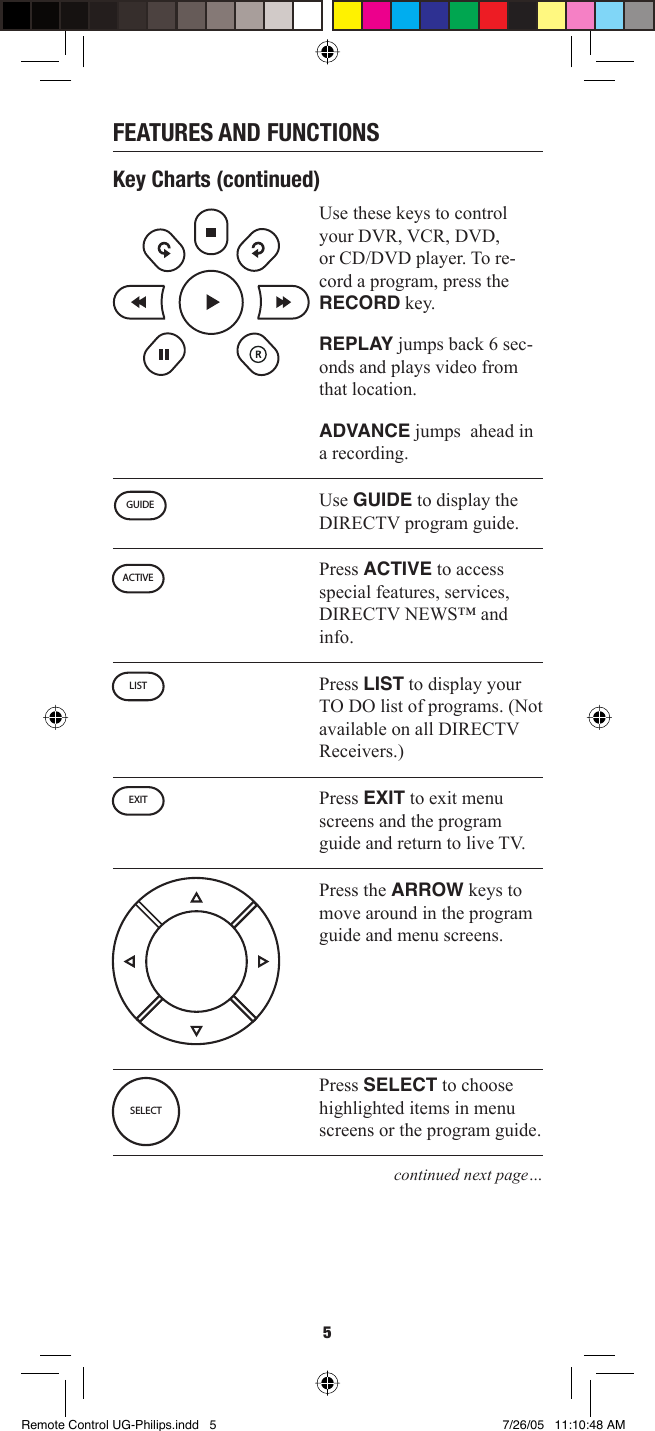

5FEATURES AND FUNCTIONSKey Charts (continued)Use these keys to control your DVR, VCR, DVD, or CD/DVD player. To re-cord a program, press the RECORD key.REPLAY jumps back 6 sec-onds and plays video from that location.ADVANCE jumps ahead in a recording.Use GUIDE to display the DIRECTV program guide.Press ACTIVE to access special features, services, DIRECTV NEWS™ and info. Press LIST to display your TO DO list of programs. (Not available on all DIRECTV Receivers.)Press EXIT to exit menu screens and the program guide and return to live TV.Press the ARROW keys to move around in the program guide and menu screens. Press SELECT to choose highlighted items in menu screens or the program guide.continued next page…GUIDEACTIVELISTEXITSELECTRemote Control UG-Philips.indd 5Remote Control UG-Philips.indd 5 7/26/05 11:10:48 AM7/26/05 11:10:48 AM

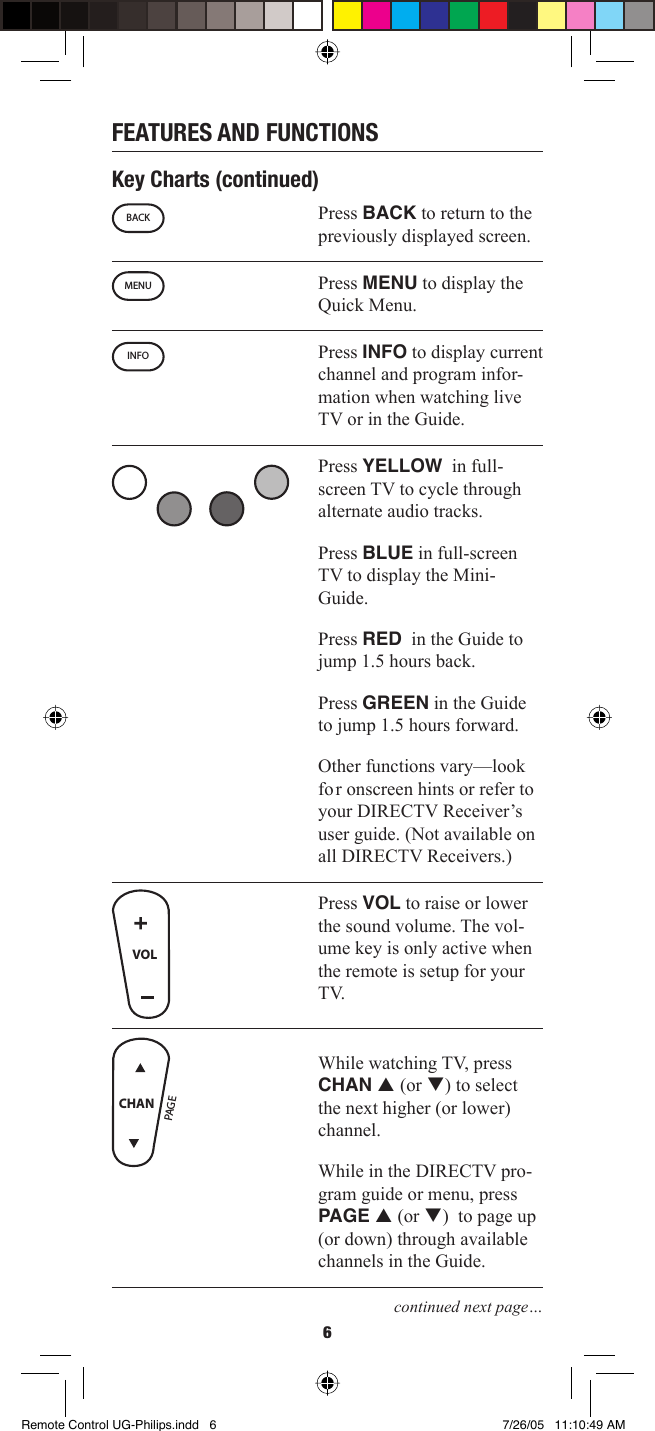

6FEATURES AND FUNCTIONSKey Charts (continued)Press BACK to return to the previously displayed screen. Press MENU to display the Quick Menu. Press INFO to display current channel and program infor-mation when watching live TV or in the Guide. Press YELLOW in full-screen TV to cycle through alternate audio tracks.Press BLUE in full-screen TV to display the Mini-Guide.Press RED in the Guide to jump 1.5 hours back.Press GREEN in the Guide to jump 1.5 hours forward.Other functions vary—look for onscreen hints or refer to your DIRECTV Receiver’s user guide. (Not available on all DIRECTV Receivers.)Press VOL to raise or lower the sound volume. The vol-ume key is only active when the remote is setup for your TV.While watching TV, press CHAN p (or q) to select the next higher (or lower) channel. While in the DIRECTV pro-gram guide or menu, press PAGE p (or q) to page up (or down) through available channels in the Guide.continued next page…BACKMENUINFOVOLPAG ECHANRemote Control UG-Philips.indd 6Remote Control UG-Philips.indd 6 7/26/05 11:10:49 AM7/26/05 11:10:49 AM

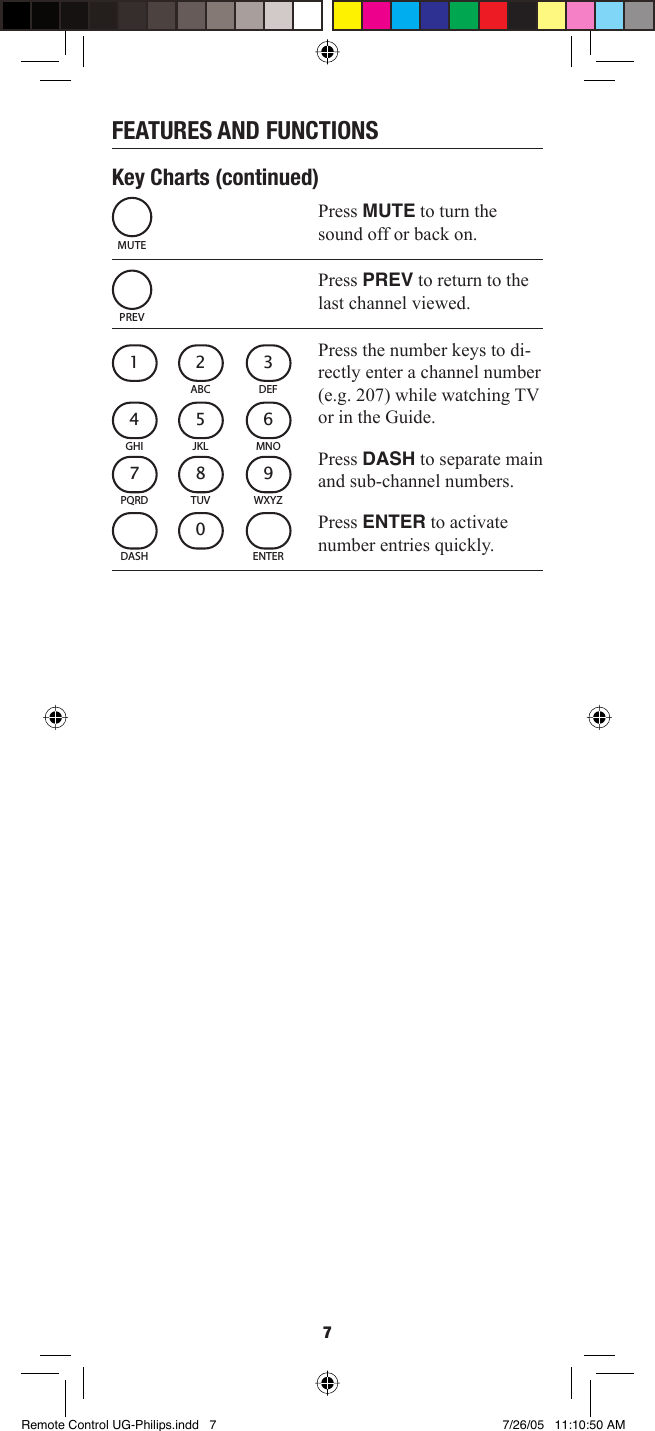

7FEATURES AND FUNCTIONSKey Charts (continued)Press MUTE to turn the sound off or back on. Press PREV to return to the last channel viewed. Press the number keys to di-rectly enter a channel number (e.g. 207) while watching TV or in the Guide.Press DASH to separate main and sub-channel numbers.Press ENTER to activate number entries quickly.MUTEPREVABC21DEF3JKL5GHI4MNO6TUV8PQRD7WXYZ90DASH ENTERRemote Control UG-Philips.indd 7Remote Control UG-Philips.indd 7 7/26/05 11:10:50 AM7/26/05 11:10:50 AM

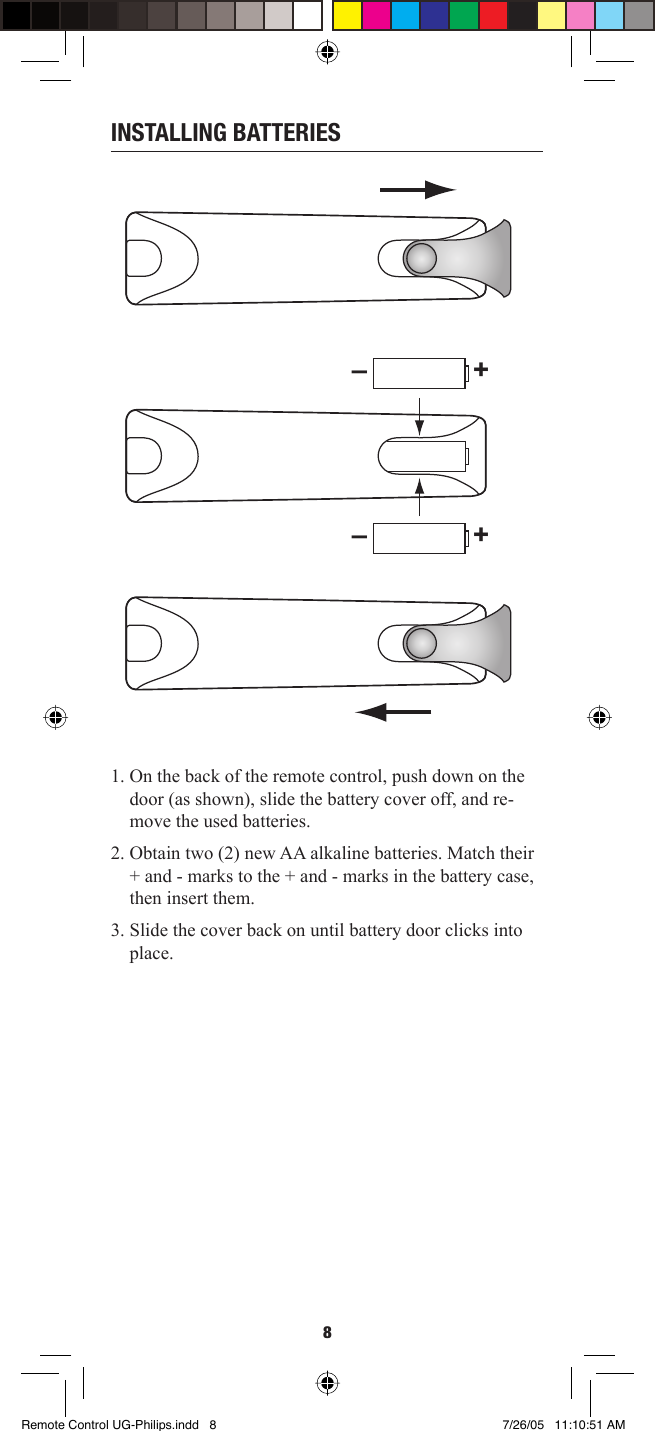

8INSTALLING BATTERIES1. On the back of the remote control, push down on the door (as shown), slide the battery cover off, and re-move the used batteries.2. Obtain two (2) new AA alkaline batteries. Match their + and - marks to the + and - marks in the battery case, then insert them. 3. Slide the cover back on until battery door clicks into place.–+–+Remote Control UG-Philips.indd 8Remote Control UG-Philips.indd 8 7/26/05 11:10:51 AM7/26/05 11:10:51 AM

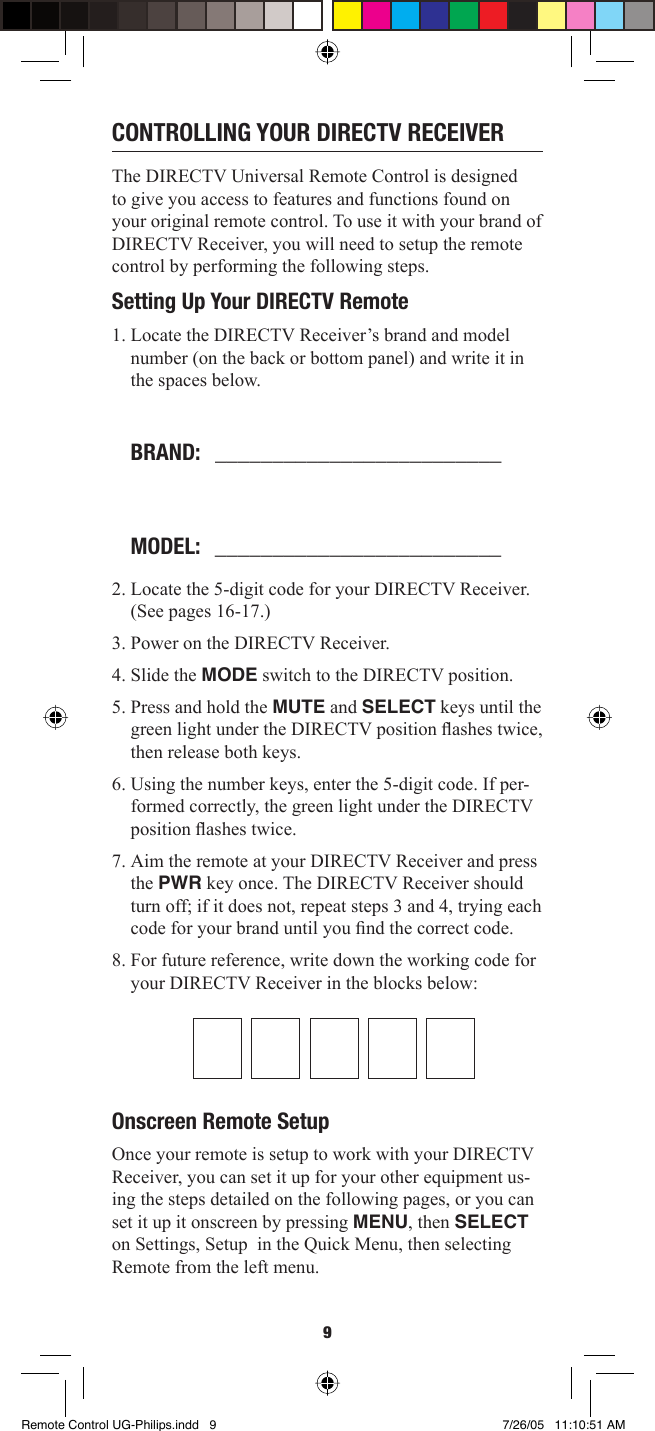

9CONTROLLING YOUR DIRECTV RECEIVERThe DIRECTV Universal Remote Control is designed to give you access to features and functions found on your original remote control. To use it with your brand of DIRECTV Receiver, you will need to setup the remote control by performing the following steps.Setting Up Your DIRECTV Remote 1. Locate the DIRECTV Receiver’s brand and model number (on the back or bottom panel) and write it in the spaces below.BRAND: _________________________MODEL: _________________________2. Locate the 5-digit code for your DIRECTV Receiver. (See pages 16-17.)3. Power on the DIRECTV Receiver. 4. Slide the MODE switch to the DIRECTV position. 5. Press and hold the MUTE and SELECT keys until the green light under the DIRECTV position fl ashes twice, then release both keys. 6. Using the number keys, enter the 5-digit code. If per-formed correctly, the green light under the DIRECTV position fl ashes twice. 7. Aim the remote at your DIRECTV Receiver and press the PWR key once. The DIRECTV Receiver should turn off; if it does not, repeat steps 3 and 4, trying each code for your brand until you fi nd the correct code. 8. For future reference, write down the working code for your DIRECTV Receiver in the blocks below: Onscreen Remote SetupOnce your remote is setup to work with your DIRECTV Receiver, you can set it up for your other equipment us-ing the steps detailed on the following pages, or you can set it up it onscreen by pressing MENU, then SELECT on Settings, Setup in the Quick Menu, then selecting Remote from the left menu.Remote Control UG-Philips.indd 9Remote Control UG-Philips.indd 9 7/26/05 11:10:51 AM7/26/05 11:10:51 AM

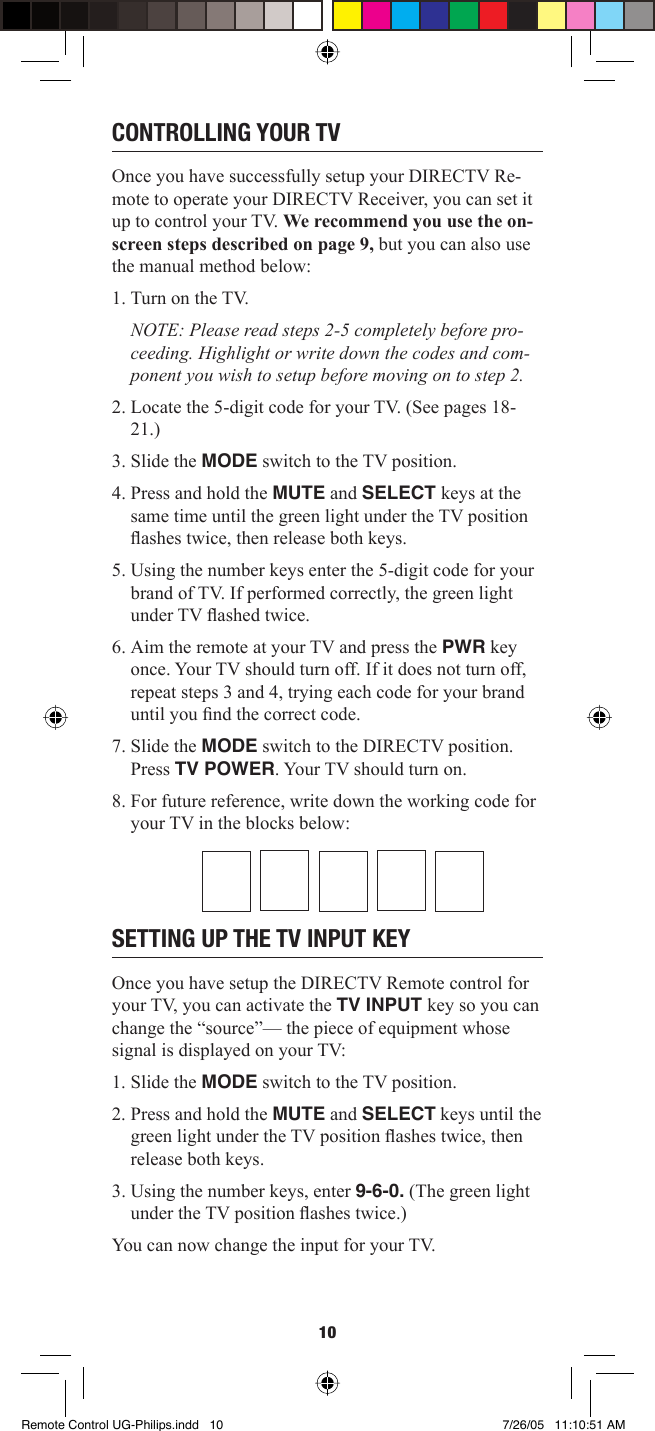

10CONTROLLING YOUR TVOnce you have successfully setup your DIRECTV Re-mote to operate your DIRECTV Receiver, you can set it up to control your TV. We recommend you use the on-screen steps described on page 9, but you can also use the manual method below: 1. Turn on the TV.NOTE: Please read steps 2-5 completely before pro-ceeding. Highlight or write down the codes and com-ponent you wish to setup before moving on to step 2. 2. Locate the 5-digit code for your TV. (See pages 18-21.) 3. Slide the MODE switch to the TV position. 4. Press and hold the MUTE and SELECT keys at the same time until the green light under the TV position fl ashes twice, then release both keys. 5. Using the number keys enter the 5-digit code for your brand of TV. If performed correctly, the green light under TV fl ashed twice. 6. Aim the remote at your TV and press the PWR key once. Your TV should turn off. If it does not turn off, repeat steps 3 and 4, trying each code for your brand until you fi nd the correct code. 7. Slide the MODE switch to the DIRECTV position. Press TV POWER. Your TV should turn on.8. For future reference, write down the working code for your TV in the blocks below:SETTING UP THE TV INPUT KEYOnce you have setup the DIRECTV Remote control for your TV, you can activate the TV INPUT key so you can change the “source”— the piece of equipment whose signal is displayed on your TV:1. Slide the MODE switch to the TV position.2. Press and hold the MUTE and SELECT keys until the green light under the TV position fl ashes twice, then release both keys. 3. Using the number keys, enter 9-6-0. (The green light under the TV position fl ashes twice.) You can now change the input for your TV. Remote Control UG-Philips.indd 10Remote Control UG-Philips.indd 10 7/26/05 11:10:51 AM7/26/05 11:10:51 AM

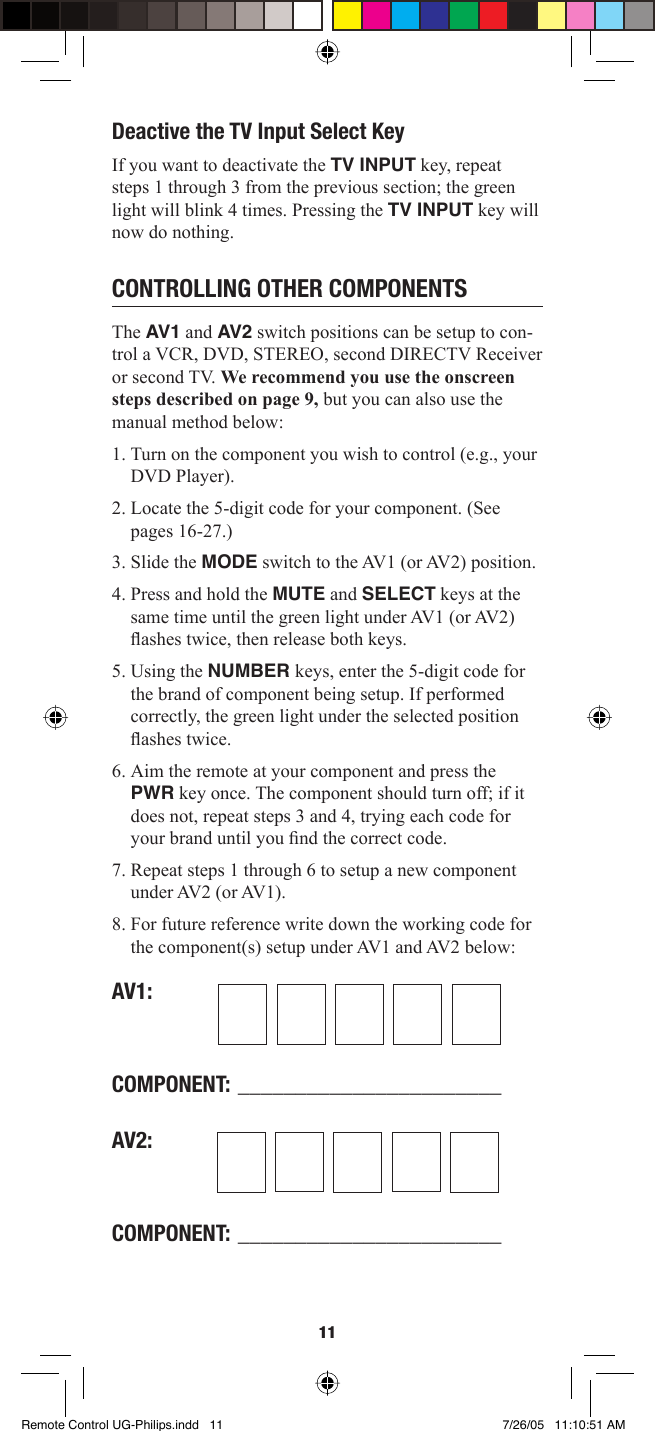

11Deactive the TV Input Select KeyIf you want to deactivate the TV INPUT key, repeat steps 1 through 3 from the previous section; the green light will blink 4 times. Pressing the TV INPUT key will now do nothing. CONTROLLING OTHER COMPONENTSThe AV1 and AV 2 switch positions can be setup to con-trol a VCR, DVD, STEREO, second DIRECTV Receiver or second TV. We recommend you use the onscreen steps described on page 9, but you can also use the manual method below:1. Turn on the component you wish to control (e.g., your DVD Player).2. Locate the 5-digit code for your component. (See pages 16-27.) 3. Slide the MODE switch to the AV1 (or AV2) position. 4. Press and hold the MUTE and SELECT keys at the same time until the green light under AV1 (or AV2) fl ashes twice, then release both keys. 5. Using the NUMBER keys, enter the 5-digit code for the brand of component being setup. If performed correctly, the green light under the selected position fl ashes twice. 6. Aim the remote at your component and press the PWR key once. The component should turn off; if it does not, repeat steps 3 and 4, trying each code for your brand until you fi nd the correct code. 7. Repeat steps 1 through 6 to setup a new component under AV2 (or AV1). 8. For future reference write down the working code for the component(s) setup under AV1 and AV2 below: AV1:COMPONENT: _______________________AV2:COMPONENT: _______________________Remote Control UG-Philips.indd 11Remote Control UG-Philips.indd 11 7/26/05 11:10:51 AM7/26/05 11:10:51 AM

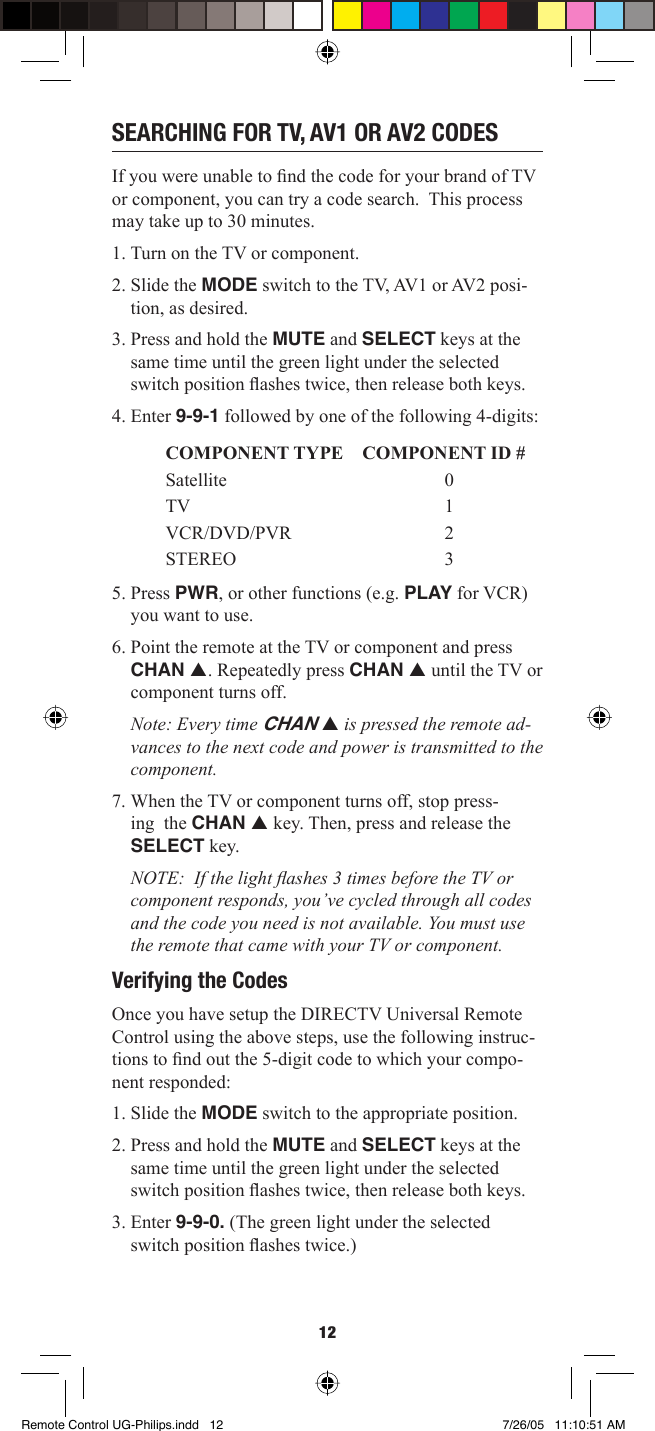

12SEARCHING FOR TV, AV1 OR AV2 CODESIf you were unable to fi nd the code for your brand of TV or component, you can try a code search. This process may take up to 30 minutes. 1. Turn on the TV or component.2. Slide the MODE switch to the TV, AV1 or AV2 posi-tion, as desired.3. Press and hold the MUTE and SELECT keys at the same time until the green light under the selected switch position fl ashes twice, then release both keys. 4. Enter 9-9-1 followed by one of the following 4-digits: COMPONENT TYPE COMPONENT ID # Satellite 0TV 1VCR/DVD/PVR 2STEREO 35. Press PWR, or other functions (e.g. PLAY for VCR) you want to use.6. Point the remote at the TV or component and press CHAN p. Repeatedly press CHAN p until the TV or component turns off.Note: Every time CHAN p is pressed the remote ad-vances to the next code and power is transmitted to the component.7. When the TV or component turns off, stop press-ing the CHAN p key. Then, press and release the SELECT key. NOTE: If the light fl ashes 3 times before the TV or component responds, you’ve cycled through all codes and the code you need is not available. You must use the remote that came with your TV or component. Verifying the CodesOnce you have setup the DIRECTV Universal Remote Control using the above steps, use the following instruc-tions to fi nd out the 5-digit code to which your compo-nent responded: 1. Slide the MODE switch to the appropriate position. 2. Press and hold the MUTE and SELECT keys at the same time until the green light under the selected switch position fl ashes twice, then release both keys. 3. Enter 9-9-0. (The green light under the selected switch position fl ashes twice.)Remote Control UG-Philips.indd 12Remote Control UG-Philips.indd 12 7/26/05 11:10:51 AM7/26/05 11:10:51 AM

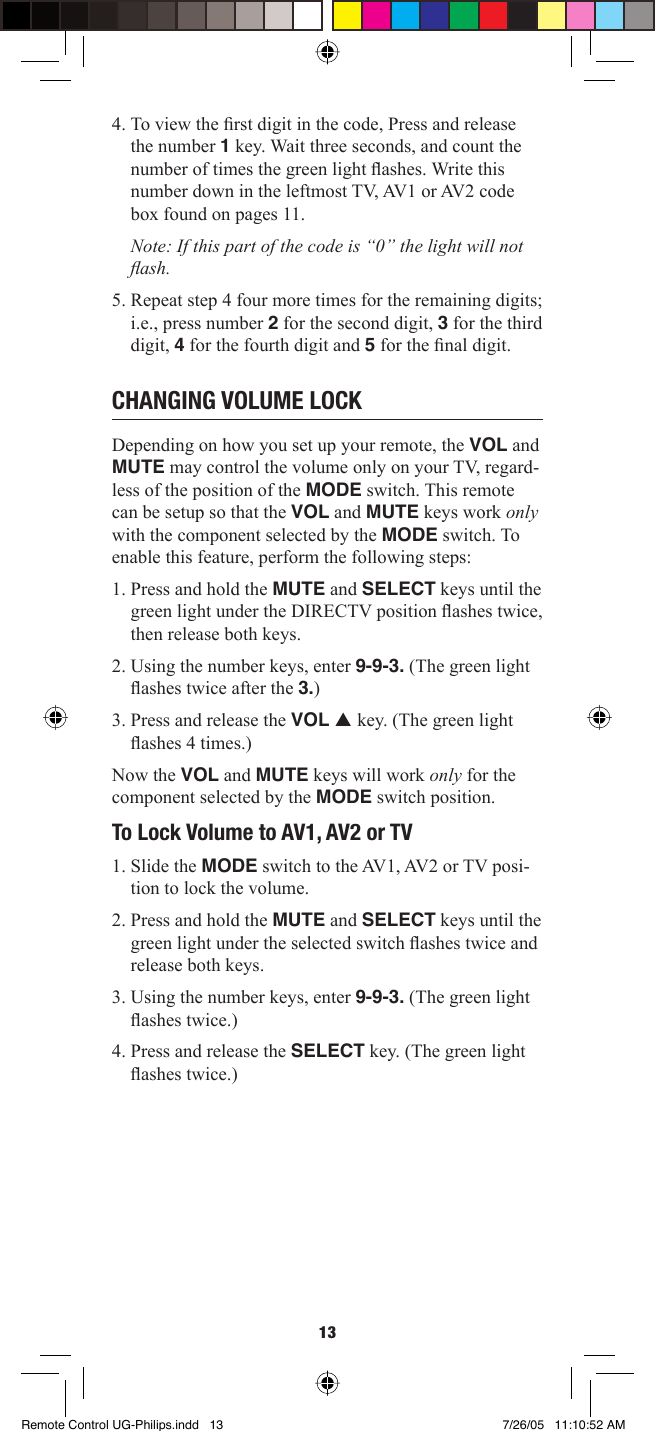

134. To view the fi rst digit in the code, Press and release the number 1 key. Wait three seconds, and count the number of times the green light fl ashes. Write this number down in the leftmost TV, AV1 or AV2 code box found on pages 11.Note: If this part of the code is “0” the light will not fl ash.5. Repeat step 4 four more times for the remaining digits; i.e., press number 2 for the second digit, 3 for the third digit, 4 for the fourth digit and 5 for the fi nal digit. CHANGING VOLUME LOCK Depending on how you set up your remote, the VOL and MUTE may control the volume only on your TV, regard-less of the position of the MODE switch. This remote can be setup so that the VOL and MUTE keys work only with the component selected by the MODE switch. To enable this feature, perform the following steps: 1. Press and hold the MUTE and SELECT keys until the green light under the DIRECTV position fl ashes twice, then release both keys. 2. Using the number keys, enter 9-9-3. (The green light fl ashes twice after the 3.)3. Press and release the VOL p key. (The green light fl ashes 4 times.)Now the VOL and MUTE keys will work only for the component selected by the MODE switch position. To Lock Volume to AV1, AV2 or TV 1. Slide the MODE switch to the AV1, AV2 or TV posi-tion to lock the volume. 2. Press and hold the MUTE and SELECT keys until the green light under the selected switch fl ashes twice and release both keys. 3. Using the number keys, enter 9-9-3. (The green light fl ashes twice.)4. Press and release the SELECT key. (The green light fl ashes twice.)Remote Control UG-Philips.indd 13Remote Control UG-Philips.indd 13 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

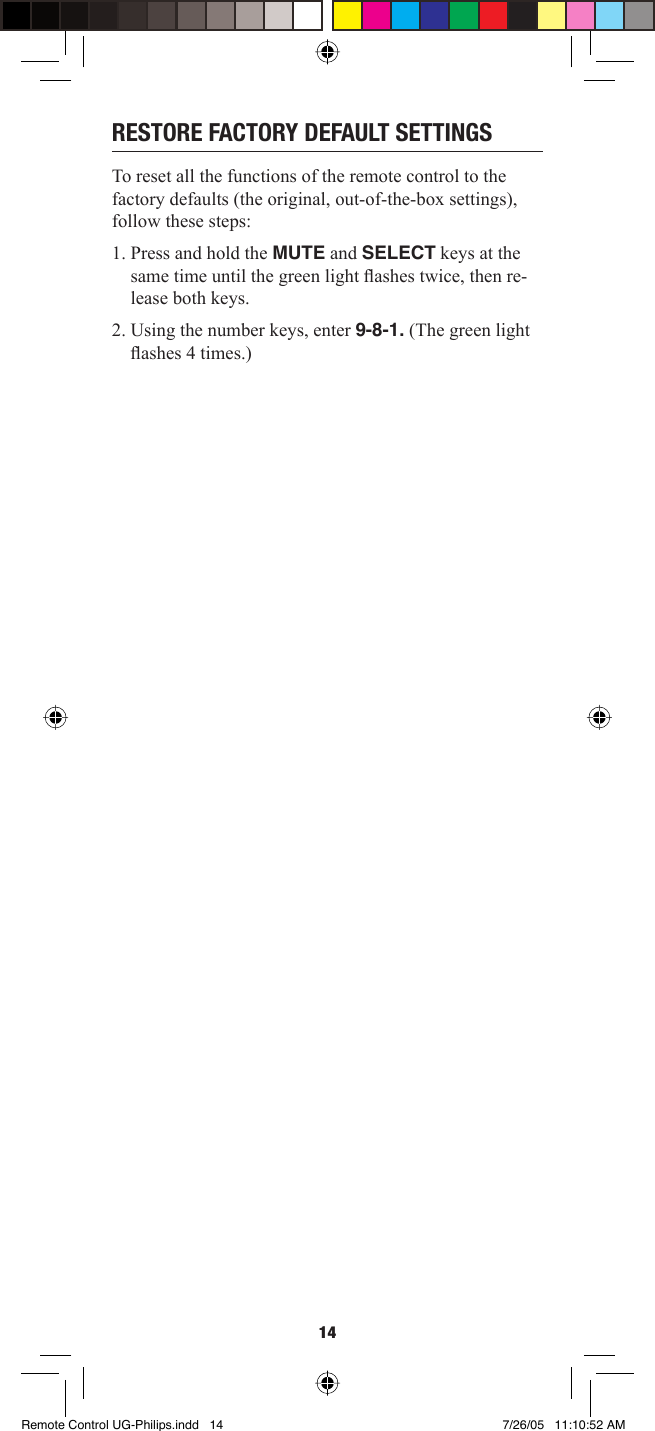

14RESTORE FACTORY DEFAULT SETTINGSTo reset all the functions of the remote control to the factory defaults (the original, out-of-the-box settings), follow these steps:1. Press and hold the MUTE and SELECT keys at the same time until the green light fl ashes twice, then re-lease both keys.2. Using the number keys, enter 9-8-1. (The green light fl ashes 4 times.)Remote Control UG-Philips.indd 14Remote Control UG-Philips.indd 14 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

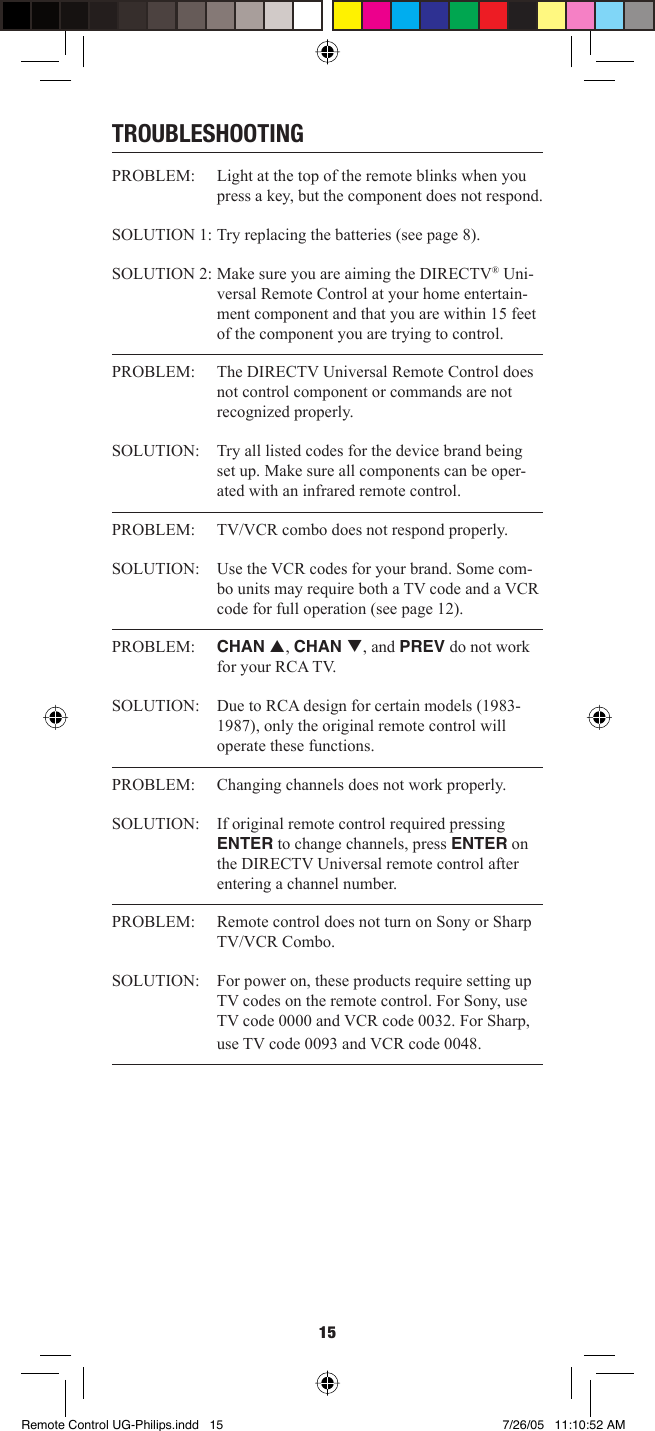

15TROUBLESHOOTINGPROBLEM: Light at the top of the remote blinks when you press a key, but the component does not respond. SOLUTION 1: Try replacing the batteries (see page 8). SOLUTION 2: Make sure you are aiming the DIRECTV® Uni-versal Remote Control at your home entertain-ment component and that you are within 15 feet of the component you are trying to control. PROBLEM: The DIRECTV Universal Remote Control does not control component or commands are not recognized properly. SOLUTION: Try all listed codes for the device brand being set up. Make sure all components can be oper-ated with an infrared remote control. PROBLEM: TV/VCR combo does not respond properly. SOLUTION: Use the VCR codes for your brand. Some com-bo units may require both a TV code and a VCR code for full operation (see page 12). PROBLEM: CHAN p, CHAN q, and PREV do not work for your RCA TV. SOLUTION: Due to RCA design for certain models (1983-1987), only the original remote control will operate these functions. PROBLEM: Changing channels does not work properly. SOLUTION: If original remote control required pressing ENTER to change channels, press ENTER on the DIRECTV Universal remote control after entering a channel number.PROBLEM: Remote control does not turn on Sony or Sharp TV/VCR Combo. SOLUTION: For power on, these products require setting up TV codes on the remote control. For Sony, use TV code 0000 and VCR code 0032. For Sharp, use TV code 0093 and VCR code 0048. Remote Control UG-Philips.indd 15Remote Control UG-Philips.indd 15 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

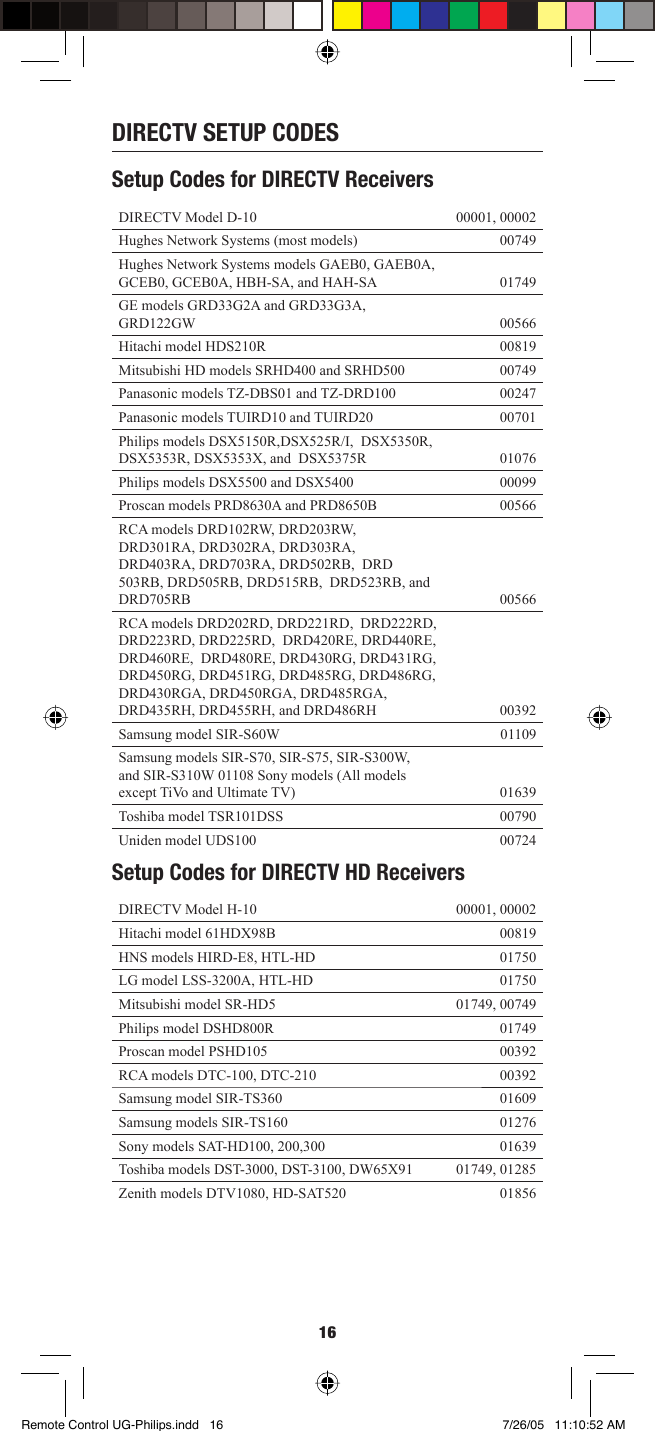

16DIRECTV SETUP CODESSetup Codes for DIRECTV Receivers DIRECTV Model D-10 00001, 00002 Hughes Network Systems (most models) 00749Hughes Network Systems models GAEB0, GAEB0A, GCEB0, GCEB0A, HBH-SA, and HAH-SA 01749GE models GRD33G2A and GRD33G3A, GRD122GW 00566 Hitachi model HDS210R 00819 Mitsubishi HD models SRHD400 and SRHD500 00749 Panasonic models TZ-DBS01 and TZ-DRD100 00247 Panasonic models TUIRD10 and TUIRD20 00701 Philips models DSX5150R,DSX525R/I, DSX5350R, DSX5353R, DSX5353X, and DSX5375R 01076Philips models DSX5500 and DSX5400 00099 Proscan models PRD8630A and PRD8650B 00566RCA models DRD102RW, DRD203RW, DRD301RA, DRD302RA, DRD303RA, DRD403RA, DRD703RA, DRD502RB, DRD 503RB, DRD505RB, DRD515RB, DRD523RB, and DRD705RB 00566 RCA models DRD202RD, DRD221RD, DRD222RD, DRD223RD, DRD225RD, DRD420RE, DRD440RE, DRD460RE, DRD480RE, DRD430RG, DRD431RG, DRD450RG, DRD451RG, DRD485RG, DRD486RG, DRD430RGA, DRD450RGA, DRD485RGA, DRD435RH, DRD455RH, and DRD486RH 00392Samsung model SIR-S60W 01109 Samsung models SIR-S70, SIR-S75, SIR-S300W, and SIR-S310W 01108 Sony models (All models except TiVo and Ultimate TV) 01639Toshiba model TSR101DSS 00790 Uniden model UDS100 00724Setup Codes for DIRECTV HD Receivers DIRECTV Model H-10 00001, 00002 Hitachi model 61HDX98B 00819 HNS models HIRD-E8, HTL-HD 01750 LG model LSS-3200A, HTL-HD 01750 Mitsubishi model SR-HD5 01749, 00749 Philips model DSHD800R 01749 Proscan model PSHD105 00392 RCA models DTC-100, DTC-210 00392 Samsung model SIR-TS360 01609Samsung models SIR-TS160 01276Sony models SAT-HD100, 200,300 01639Toshiba models DST-3000, DST-3100, DW65X91 01749, 01285Zenith models DTV1080, HD-SAT520 01856Remote Control UG-Philips.indd 16Remote Control UG-Philips.indd 16 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

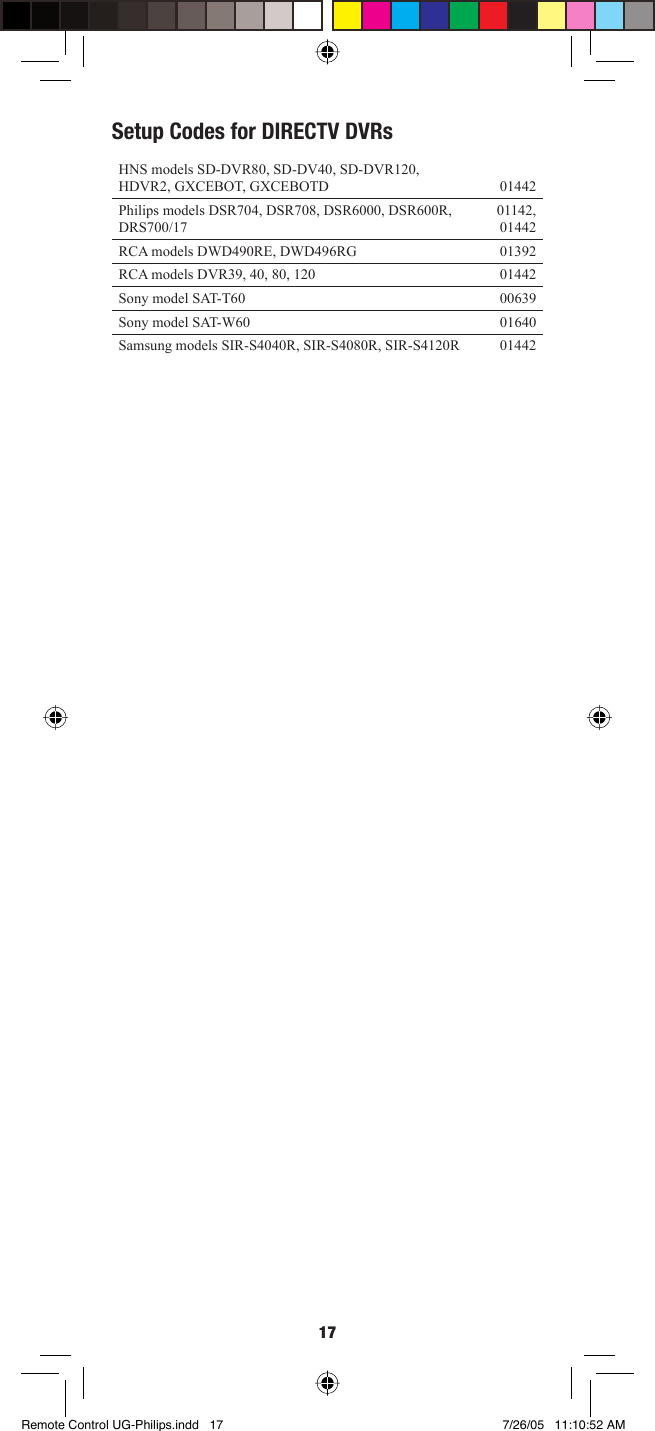

17Setup Codes for DIRECTV DVRs HNS models SD-DVR80, SD-DV40, SD-DVR120, HDVR2, GXCEBOT, GXCEBOTD 01442Philips models DSR704, DSR708, DSR6000, DSR600R, DRS700/17 01142, 01442RCA models DWD490RE, DWD496RG 01392RCA models DVR39, 40, 80, 120 01442 Sony model SAT-T60 00639Sony model SAT-W60 01640Samsung models SIR-S4040R, SIR-S4080R, SIR-S4120R 01442 Remote Control UG-Philips.indd 17Remote Control UG-Philips.indd 17 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

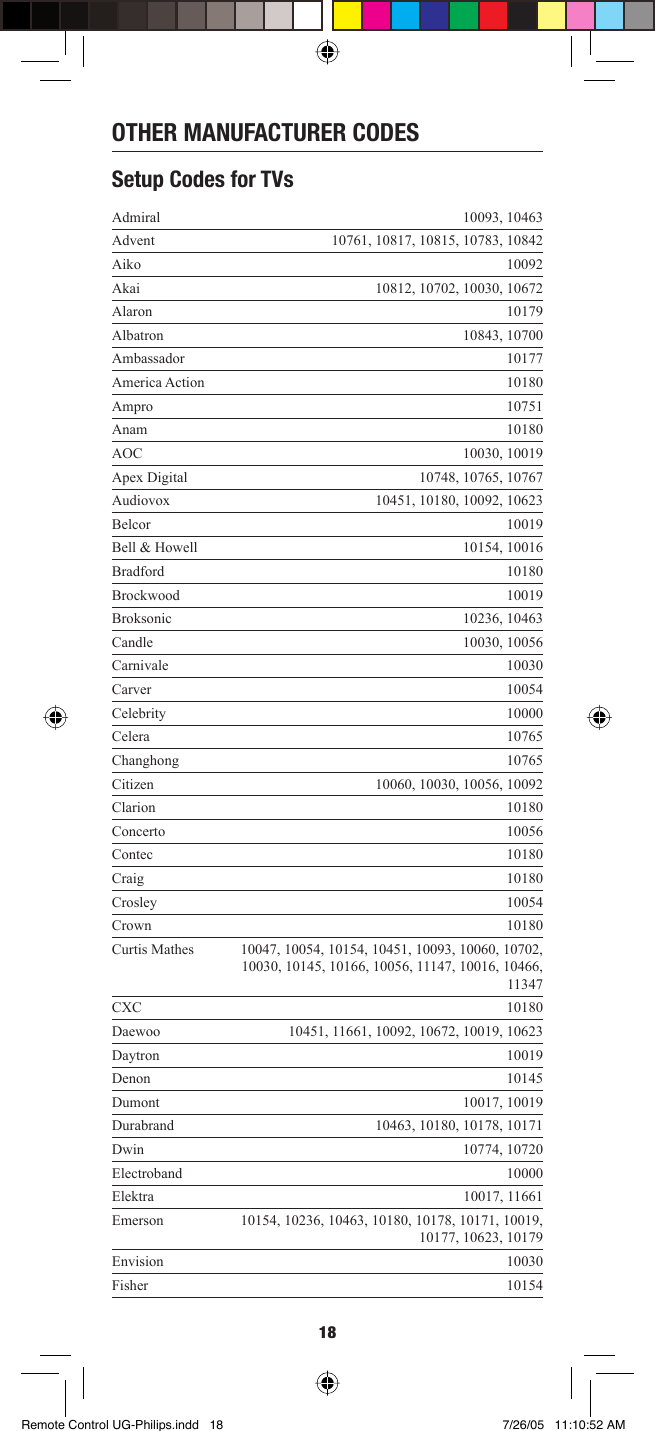

18OTHER MANUFACTURER CODESSetup Codes for TVsAdmiral 10093, 10463Advent 10761, 10817, 10815, 10783, 10842Aiko 10092Akai 10812, 10702, 10030, 10672Alaron 10179Albatron 10843, 10700Ambassador 10177America Action 10180Ampro 10751Anam 10180AOC 10030, 10019Apex Digital 10748, 10765, 10767Audiovox 10451, 10180, 10092, 10623Belcor 10019Bell & Howell 10154, 10016Bradford 10180Brockwood 10019Broksonic 10236, 10463Candle 10030, 10056Carnivale 10030Carver 10054Celebrity 10000Celera 10765Changhong 10765Citizen 10060, 10030, 10056, 10092Clarion 10180Concerto 10056Contec 10180Craig 10180Crosley 10054Crown 10180Curtis Mathes 10047, 10054, 10154, 10451, 10093, 10060, 10702, 10030, 10145, 10166, 10056, 11147, 10016, 10466, 11347CXC 10180Daewoo 10451, 11661, 10092, 10672, 10019, 10623Daytron 10019Denon 10145Dumont 10017, 10019Durabrand 10463, 10180, 10178, 10171Dwin 10774, 10720Electroband 10000Elektra 10017, 11661Emerson 10154, 10236, 10463, 10180, 10178, 10171, 10019, 10177, 10623, 10179Envision 10030Fisher 10154Remote Control UG-Philips.indd 18Remote Control UG-Philips.indd 18 7/26/05 11:10:52 AM7/26/05 11:10:52 AM

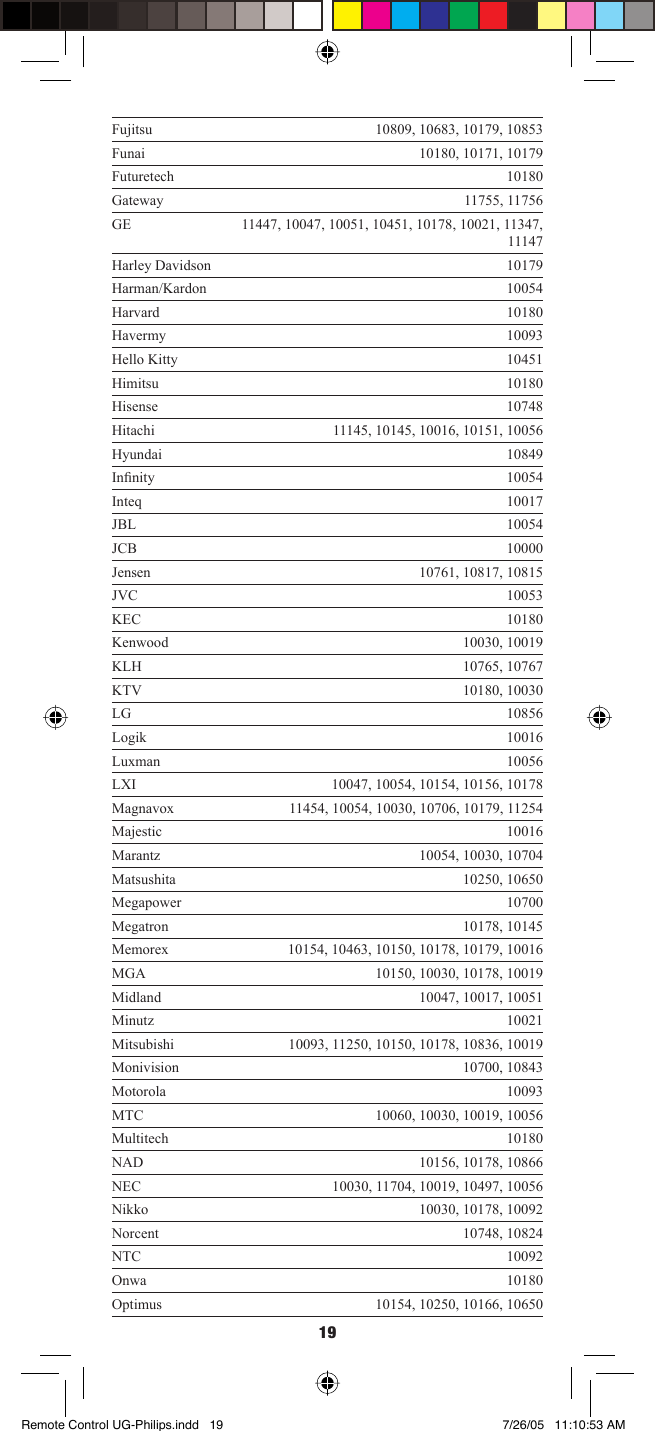

19Fujitsu 10809, 10683, 10179, 10853Funai 10180, 10171, 10179Futuretech 10180Gateway 11755, 11756GE 11447, 10047, 10051, 10451, 10178, 10021, 11347, 11147Harley Davidson 10179Harman/Kardon 10054Harvard 10180Havermy 10093Hello Kitty 10451Himitsu 10180Hisense 10748Hitachi 11145, 10145, 10016, 10151, 10056Hyundai 10849Infi nity 10054Inteq 10017JBL 10054JCB 10000Jensen 10761, 10817, 10815JVC 10053KEC 10180Kenwood 10030, 10019KLH 10765, 10767KTV 10180, 10030LG 10856Logik 10016Luxman 10056LXI 10047, 10054, 10154, 10156, 10178Magnavox 11454, 10054, 10030, 10706, 10179, 11254Majestic 10016Marantz 10054, 10030, 10704Matsushita 10250, 10650Megapower 10700Megatron 10178, 10145Memorex 10154, 10463, 10150, 10178, 10179, 10016MGA 10150, 10030, 10178, 10019Midland 10047, 10017, 10051Minutz 10021Mitsubishi 10093, 11250, 10150, 10178, 10836, 10019Monivision 10700, 10843Motorola 10093MTC 10060, 10030, 10019, 10056Multitech 10180NAD 10156, 10178, 10866NEC 10030, 11704, 10019, 10497, 10056Nikko 10030, 10178, 10092Norcent 10748, 10824NTC 10092Onwa 10180Optimus 10154, 10250, 10166, 10650Remote Control UG-Philips.indd 19Remote Control UG-Philips.indd 19 7/26/05 11:10:53 AM7/26/05 11:10:53 AM

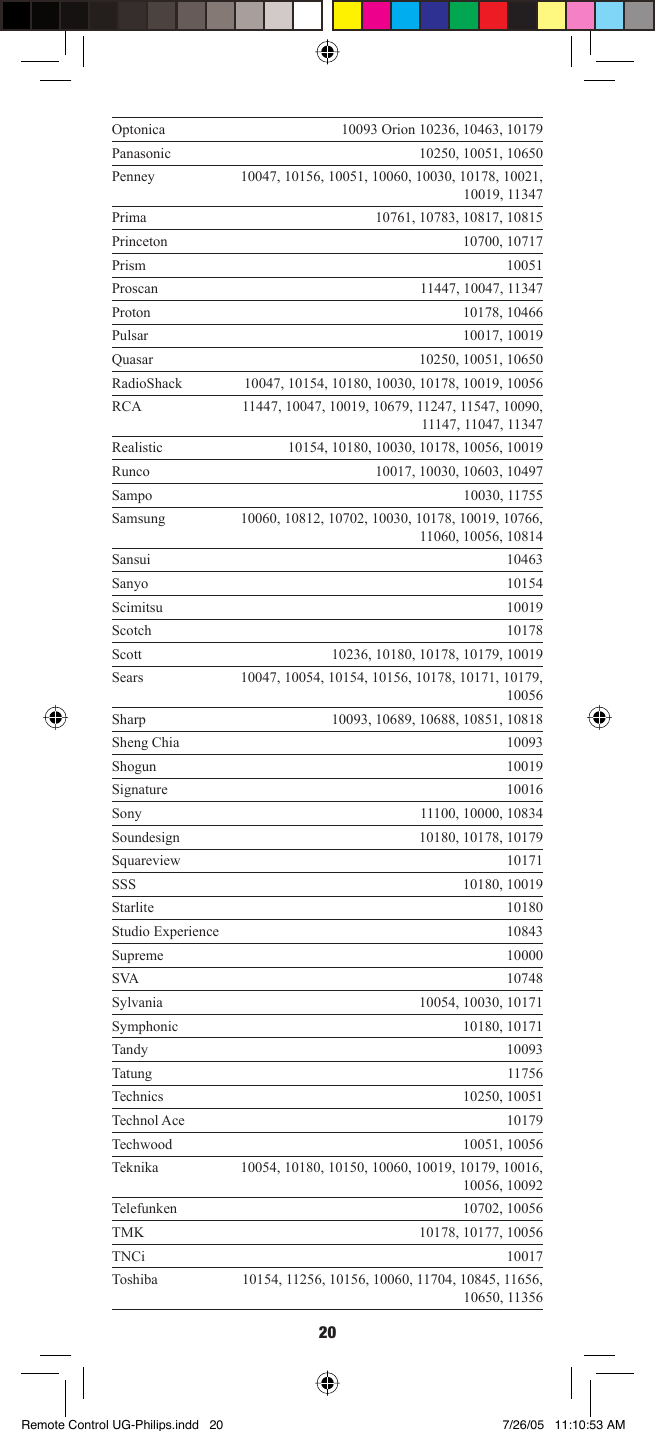

20Optonica 10093 Orion 10236, 10463, 10179Panasonic 10250, 10051, 10650Penney 10047, 10156, 10051, 10060, 10030, 10178, 10021, 10019, 11347Prima 10761, 10783, 10817, 10815Princeton 10700, 10717Prism 10051Proscan 11447, 10047, 11347Proton 10178, 10466Pulsar 10017, 10019Quasar 10250, 10051, 10650RadioShack 10047, 10154, 10180, 10030, 10178, 10019, 10056RCA 11447, 10047, 10019, 10679, 11247, 11547, 10090, 11147, 11047, 11347Realistic 10154, 10180, 10030, 10178, 10056, 10019Runco 10017, 10030, 10603, 10497Sampo 10030, 11755Samsung 10060, 10812, 10702, 10030, 10178, 10019, 10766, 11060, 10056, 10814Sansui 10463Sanyo 10154Scimitsu 10019Scotch 10178Scott 10236, 10180, 10178, 10179, 10019Sears 10047, 10054, 10154, 10156, 10178, 10171, 10179, 10056Sharp 10093, 10689, 10688, 10851, 10818Sheng Chia 10093Shogun 10019Signature 10016Sony 11100, 10000, 10834Soundesign 10180, 10178, 10179Squareview 10171SSS 10180, 10019Starlite 10180Studio Experience 10843Supreme 10000SVA 10748Sylvania 10054, 10030, 10171Symphonic 10180, 10171Tandy 10093Tatung 11756Technics 10250, 10051Technol Ace 10179Techwood 10051, 10056Teknika 10054, 10180, 10150, 10060, 10019, 10179, 10016, 10056, 10092Telefunken 10702, 10056TMK 10178, 10177, 10056TNCi 10017Toshiba 10154, 11256, 10156, 10060, 11704, 10845, 11656, 10650, 11356Remote Control UG-Philips.indd 20Remote Control UG-Philips.indd 20 7/26/05 11:10:53 AM7/26/05 11:10:53 AM

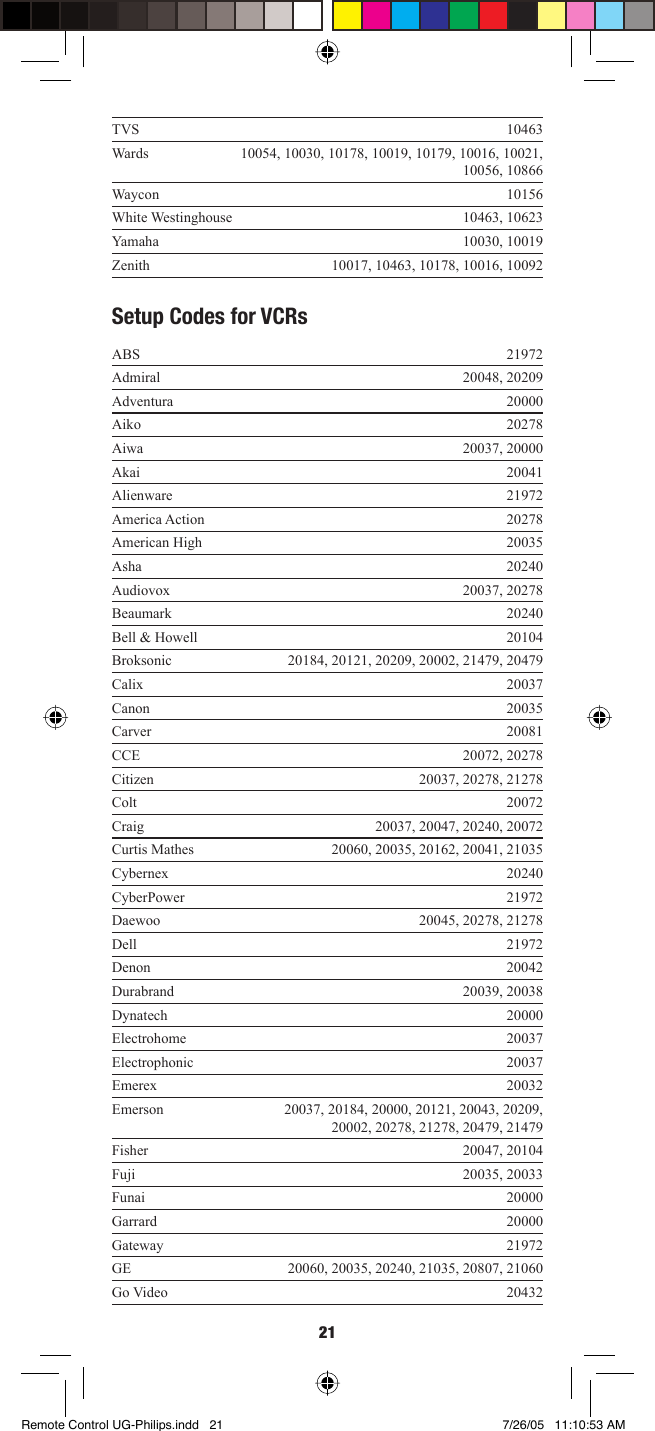

21TVS 10463Wards 10054, 10030, 10178, 10019, 10179, 10016, 10021, 10056, 10866Waycon 10156White Westinghouse 10463, 10623Yamaha 10030, 10019Zenith 10017, 10463, 10178, 10016, 10092Setup Codes for VCRsABS 21972Admiral 20048, 20209Adventura 20000Aiko 20278Aiwa 20037, 20000Akai 20041Alienware 21972America Action 20278American High 20035Asha 20240Audiovox 20037, 20278Beaumark 20240Bell & Howell 20104Broksonic 20184, 20121, 20209, 20002, 21479, 20479Calix 20037Canon 20035Carver 20081CCE 20072, 20278Citizen 20037, 20278, 21278Colt 20072Craig 20037, 20047, 20240, 20072Curtis Mathes 20060, 20035, 20162, 20041, 21035Cybernex 20240CyberPower 21972Daewoo 20045, 20278, 21278Dell 21972Denon 20042Durabrand 20039, 20038Dynatech 20000Electrohome 20037Electrophonic 20037Emerex 20032Emerson 20037, 20184, 20000, 20121, 20043, 20209, 20002, 20278, 21278, 20479, 21479Fisher 20047, 20104Fuji 20035, 20033Funai 20000Garrard 20000Gateway 21972GE 20060, 20035, 20240, 21035, 20807, 21060Go Video 20432Remote Control UG-Philips.indd 21Remote Control UG-Philips.indd 21 7/26/05 11:10:53 AM7/26/05 11:10:53 AM

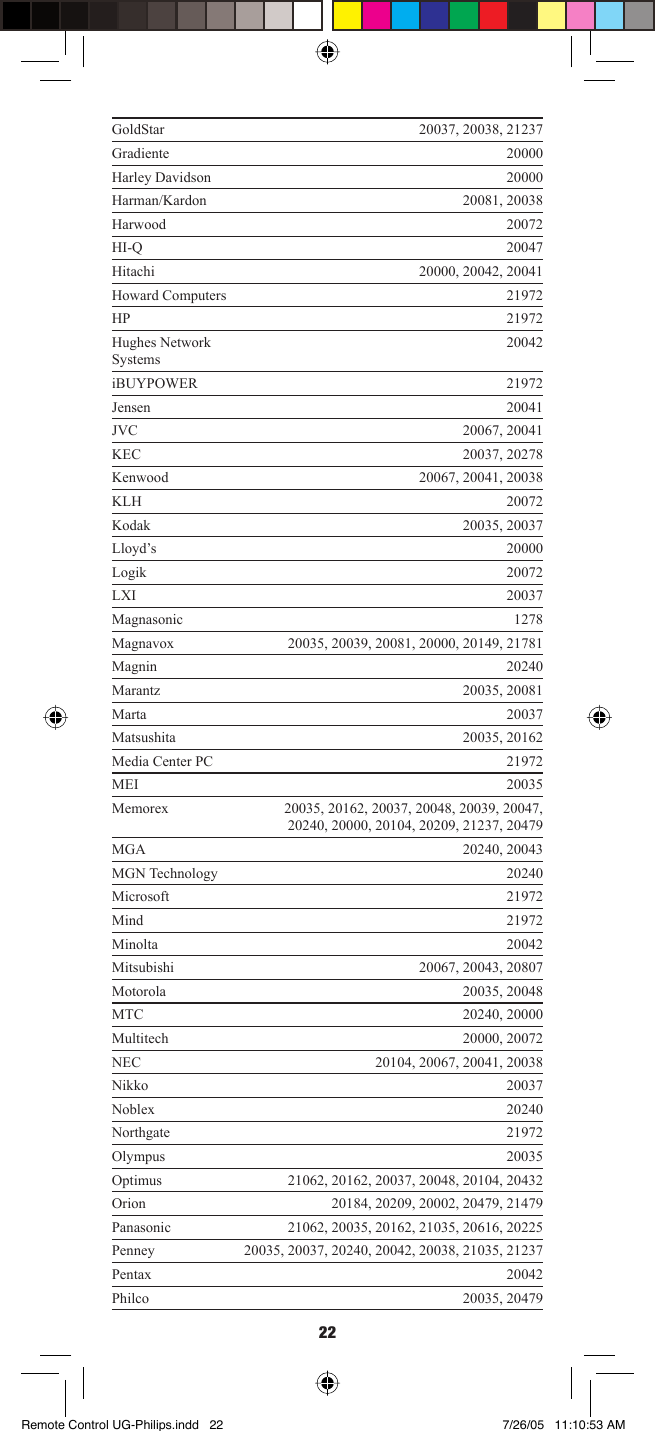

22GoldStar 20037, 20038, 21237Gradiente 20000Harley Davidson 20000Harman/Kardon 20081, 20038Harwood 20072HI-Q 20047Hitachi 20000, 20042, 20041Howard Computers 21972HP 21972Hughes Network Systems20042iBUYPOWER 21972Jensen 20041JVC 20067, 20041KEC 20037, 20278Kenwood 20067, 20041, 20038KLH 20072Kodak 20035, 20037Lloyd’s 20000 Logik 20072LXI 20037Magnasonic 1278 Magnavox 20035, 20039, 20081, 20000, 20149, 21781 Magnin 20240 Marantz 20035, 20081Marta 20037Matsushita 20035, 20162Media Center PC 21972MEI 20035Memorex 20035, 20162, 20037, 20048, 20039, 20047, 20240, 20000, 20104, 20209, 21237, 20479MGA 20240, 20043MGN Technology 20240 Microsoft 21972Mind 21972Minolta 20042Mitsubishi 20067, 20043, 20807Motorola 20035, 20048MTC 20240, 20000Multitech 20000, 20072NEC 20104, 20067, 20041, 20038Nikko 20037Noblex 20240Northgate 21972Olympus 20035Optimus 21062, 20162, 20037, 20048, 20104, 20432Orion 20184, 20209, 20002, 20479, 21479Panasonic 21062, 20035, 20162, 21035, 20616, 20225Penney 20035, 20037, 20240, 20042, 20038, 21035, 21237Pentax 20042Philco 20035, 20479Remote Control UG-Philips.indd 22Remote Control UG-Philips.indd 22 7/26/05 11:10:53 AM7/26/05 11:10:53 AM

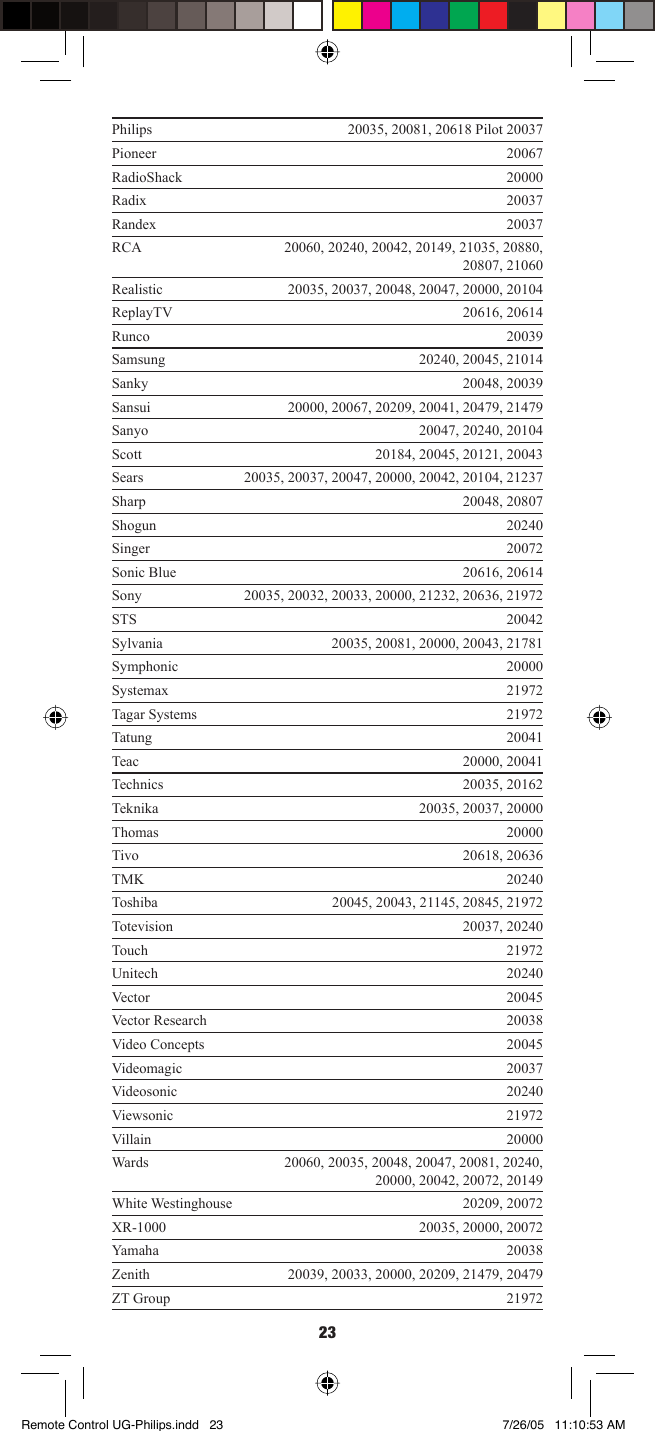

23Philips 20035, 20081, 20618 Pilot 20037Pioneer 20067RadioShack 20000Radix 20037Randex 20037RCA 20060, 20240, 20042, 20149, 21035, 20880, 20807, 21060Realistic 20035, 20037, 20048, 20047, 20000, 20104ReplayTV 20616, 20614Runco 20039Samsung 20240, 20045, 21014Sanky 20048, 20039Sansui 20000, 20067, 20209, 20041, 20479, 21479Sanyo 20047, 20240, 20104Scott 20184, 20045, 20121, 20043Sears 20035, 20037, 20047, 20000, 20042, 20104, 21237Sharp 20048, 20807Shogun 20240Singer 20072Sonic Blue 20616, 20614Sony 20035, 20032, 20033, 20000, 21232, 20636, 21972STS 20042Sylvania 20035, 20081, 20000, 20043, 21781Symphonic 20000Systemax 21972Tagar Systems 21972Tatung 20041Teac 20000, 20041Technics 20035, 20162Teknika 20035, 20037, 20000Thomas 20000Tivo 20618, 20636TMK 20240Toshiba 20045, 20043, 21145, 20845, 21972Totevision 20037, 20240Touch 21972Unitech 20240Vector 20045Vector Research 20038Video Concepts 20045Videomagic 20037Videosonic 20240Viewsonic 21972Villain 20000Wards 20060, 20035, 20048, 20047, 20081, 20240, 20000, 20042, 20072, 20149White Westinghouse 20209, 20072XR-1000 20035, 20000, 20072Yamaha 20038Zenith 20039, 20033, 20000, 20209, 21479, 20479ZT Group 21972Remote Control UG-Philips.indd 23Remote Control UG-Philips.indd 23 7/26/05 11:10:53 AM7/26/05 11:10:53 AM

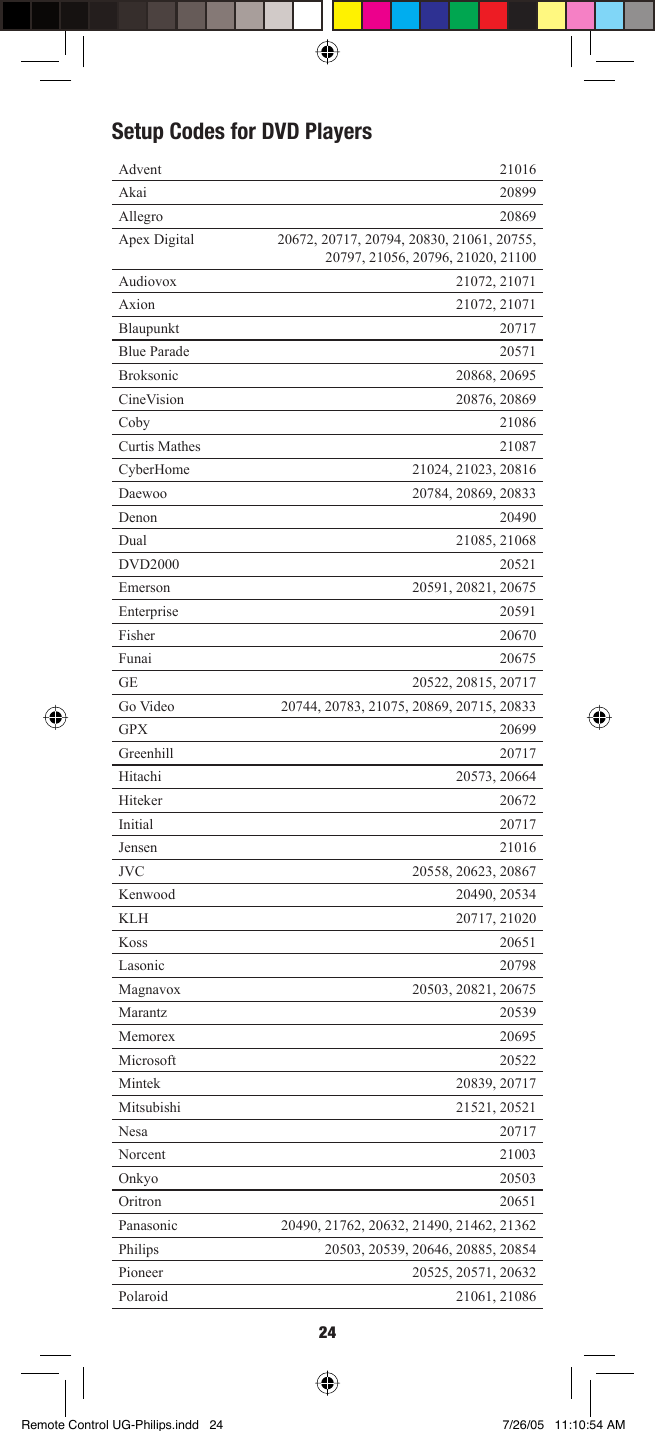

24Setup Codes for DVD PlayersAdvent 21016Akai 20899Allegro 20869Apex Digital 20672, 20717, 20794, 20830, 21061, 20755, 20797, 21056, 20796, 21020, 21100Audiovox 21072, 21071Axion 21072, 21071Blaupunkt 20717Blue Parade 20571Broksonic 20868, 20695CineVision 20876, 20869Coby 21086Curtis Mathes 21087CyberHome 21024, 21023, 20816Daewoo 20784, 20869, 20833Denon 20490Dual 21085, 21068DVD2000 20521Emerson 20591, 20821, 20675Enterprise 20591Fisher 20670Funai 20675GE 20522, 20815, 20717Go Video 20744, 20783, 21075, 20869, 20715, 20833GPX 20699Greenhill 20717Hitachi 20573, 20664Hiteker 20672Initial 20717Jensen 21016JVC 20558, 20623, 20867Kenwood 20490, 20534KLH 20717, 21020Koss 20651Lasonic 20798Magnavox 20503, 20821, 20675Marantz 20539Memorex 20695Microsoft 20522Mintek 20839, 20717Mitsubishi 21521, 20521Nesa 20717Norcent 21003Onkyo 20503Oritron 20651Panasonic 20490, 21762, 20632, 21490, 21462, 21362Philips 20503, 20539, 20646, 20885, 20854Pioneer 20525, 20571, 20632Polaroid 21061, 21086Remote Control UG-Philips.indd 24Remote Control UG-Philips.indd 24 7/26/05 11:10:54 AM7/26/05 11:10:54 AM

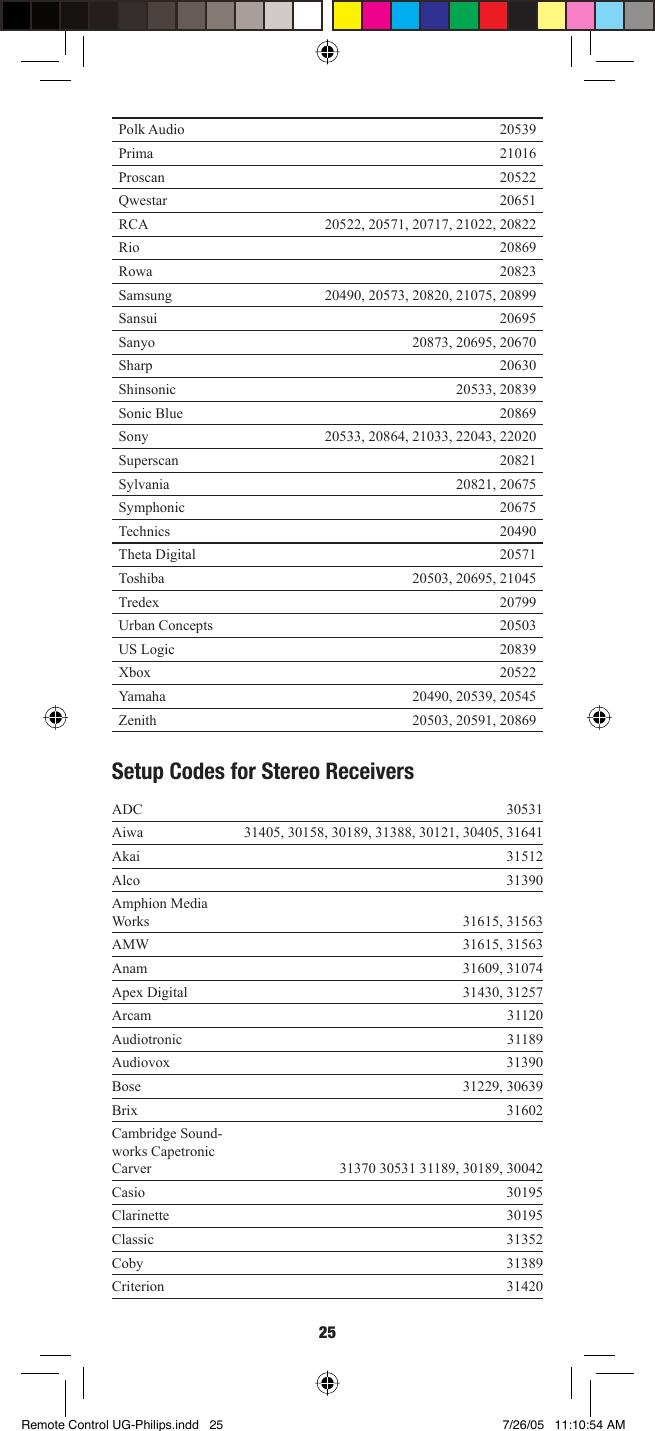

25Polk Audio 20539Prima 21016Proscan 20522Qwestar 20651RCA 20522, 20571, 20717, 21022, 20822Rio 20869Rowa 20823Samsung 20490, 20573, 20820, 21075, 20899Sansui 20695Sanyo 20873, 20695, 20670Sharp 20630Shinsonic 20533, 20839Sonic Blue 20869Sony 20533, 20864, 21033, 22043, 22020Superscan 20821Sylvania 20821, 20675Symphonic 20675Technics 20490Theta Digital 20571Toshiba 20503, 20695, 21045Tredex 20799Urban Concepts 20503US Logic 20839Xbox 20522Yamaha 20490, 20539, 20545Zenith 20503, 20591, 20869Setup Codes for Stereo ReceiversADC 30531Aiwa 31405, 30158, 30189, 31388, 30121, 30405, 31641Akai 31512Alco 31390Amphion Media Works 31615, 31563AMW 31615, 31563Anam 31609, 31074Apex Digital 31430, 31257Arcam 31120Audiotronic 31189Audiovox 31390Bose 31229, 30639Brix 31602Cambridge Sound-works Capetronic Carver 31370 30531 31189, 30189, 30042Casio 30195Clarinette 30195Classic 31352Coby 31389Criterion 31420Remote Control UG-Philips.indd 25Remote Control UG-Philips.indd 25 7/26/05 11:10:54 AM7/26/05 11:10:54 AM

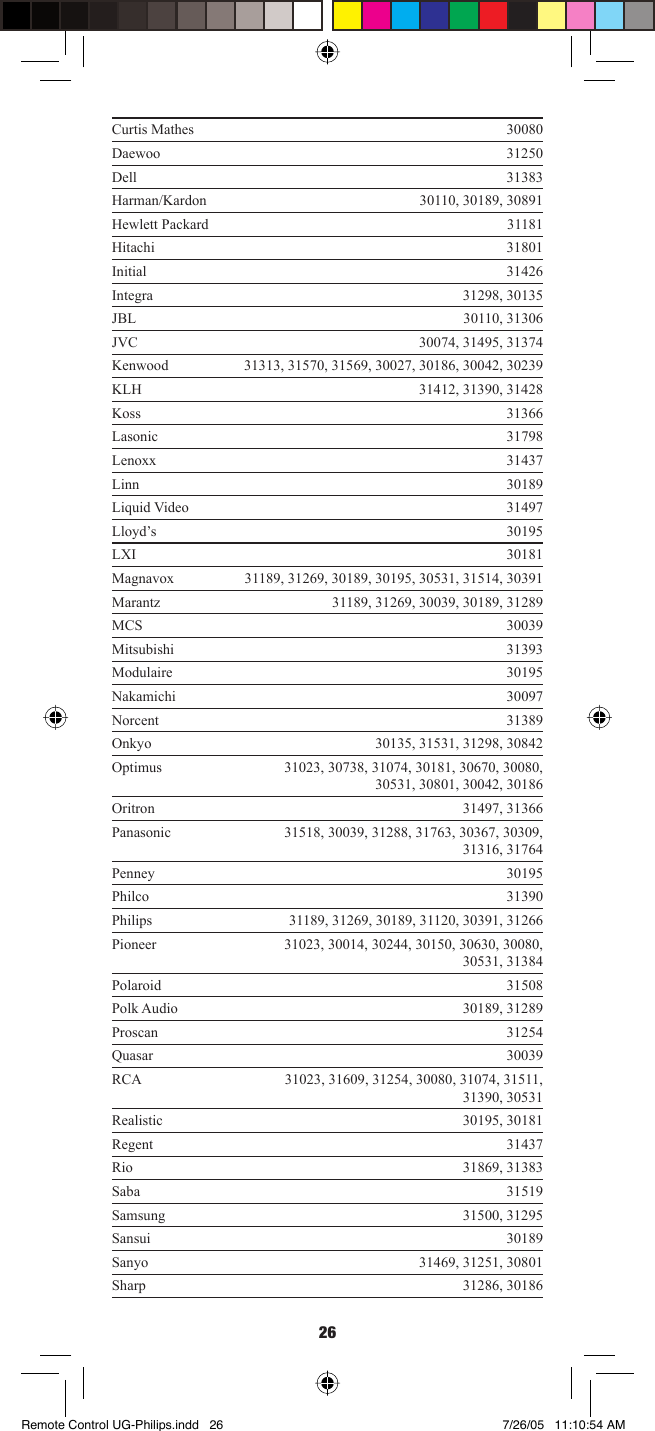

26Curtis Mathes 30080Daewoo 31250Dell 31383Harman/Kardon 30110, 30189, 30891Hewlett Packard 31181Hitachi 31801Initial 31426Integra 31298, 30135JBL 30110, 31306JVC 30074, 31495, 31374Kenwood 31313, 31570, 31569, 30027, 30186, 30042, 30239KLH 31412, 31390, 31428Koss 31366Lasonic 31798Lenoxx 31437Linn 30189Liquid Video 31497Lloyd’s 30195LXI 30181Magnavox 31189, 31269, 30189, 30195, 30531, 31514, 30391Marantz 31189, 31269, 30039, 30189, 31289MCS 30039Mitsubishi 31393Modulaire 30195Nakamichi 30097Norcent 31389Onkyo 30135, 31531, 31298, 30842Optimus 31023, 30738, 31074, 30181, 30670, 30080, 30531, 30801, 30042, 30186Oritron 31497, 31366Panasonic 31518, 30039, 31288, 31763, 30367, 30309, 31316, 31764Penney 30195Philco 31390Philips 31189, 31269, 30189, 31120, 30391, 31266Pioneer 31023, 30014, 30244, 30150, 30630, 30080, 30531, 31384Polaroid 31508Polk Audio 30189, 31289Proscan 31254Quasar 30039RCA 31023, 31609, 31254, 30080, 31074, 31511, 31390, 30531Realistic 30195, 30181Regent 31437Rio 31869, 31383Saba 31519Samsung 31500, 31295Sansui 30189Sanyo 31469, 31251, 30801Sharp 31286, 30186Remote Control UG-Philips.indd 26Remote Control UG-Philips.indd 26 7/26/05 11:10:54 AM7/26/05 11:10:54 AM

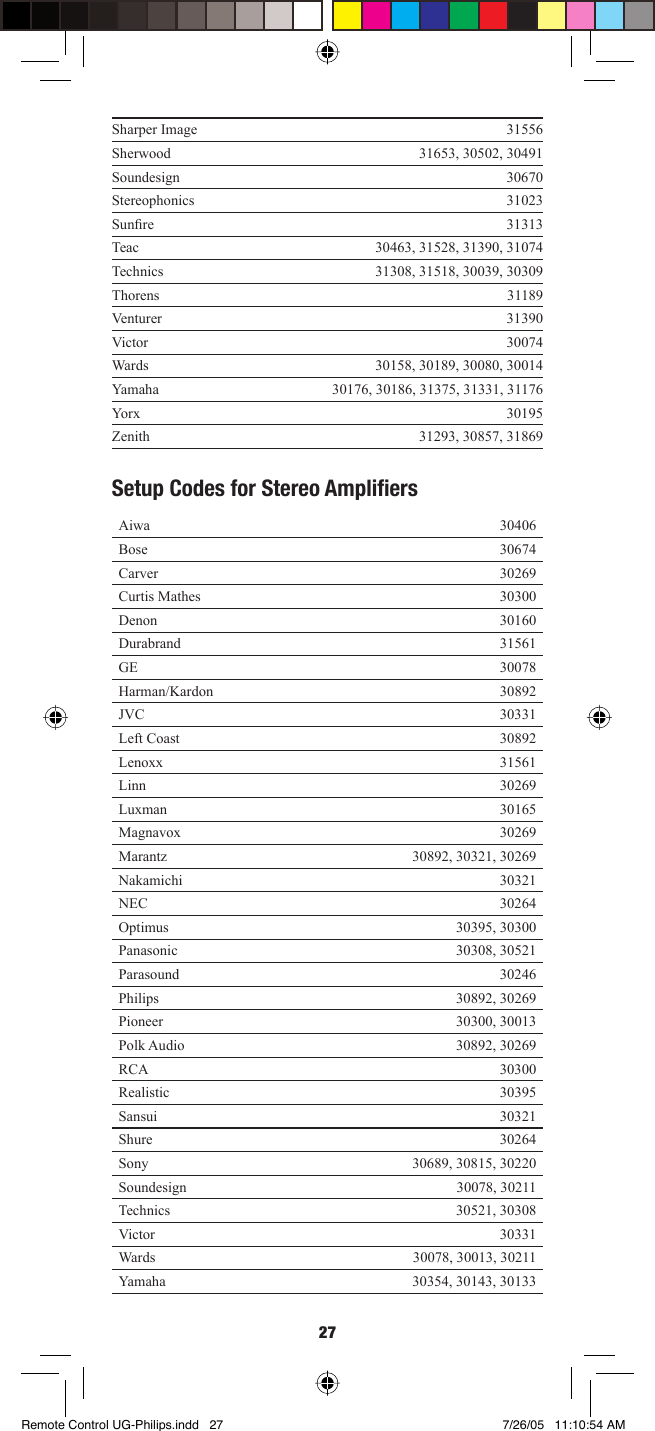

27Sharper Image 31556Sherwood 31653, 30502, 30491Soundesign 30670Stereophonics 31023Sunfi re 31313Teac 30463, 31528, 31390, 31074Technics 31308, 31518, 30039, 30309Thorens 31189Venturer 31390Victor 30074Wards 30158, 30189, 30080, 30014Yamaha 30176, 30186, 31375, 31331, 31176Yorx 30195Zenith 31293, 30857, 31869Setup Codes for Stereo Amplifi ersAiwa 30406Bose 30674Carver 30269Curtis Mathes 30300Denon 30160Durabrand 31561GE 30078Harman/Kardon 30892JVC 30331Left Coast 30892Lenoxx 31561Linn 30269Luxman 30165Magnavox 30269Marantz 30892, 30321, 30269Nakamichi 30321NEC 30264Optimus 30395, 30300Panasonic 30308, 30521Parasound 30246Philips 30892, 30269Pioneer 30300, 30013Polk Audio 30892, 30269RCA 30300Realistic 30395Sansui 30321Shure 30264Sony 30689, 30815, 30220Soundesign 30078, 30211Technics 30521, 30308Victor 30331Wards 30078, 30013, 30211Yamaha 30354, 30143, 30133Remote Control UG-Philips.indd 27Remote Control UG-Philips.indd 27 7/26/05 11:10:54 AM7/26/05 11:10:54 AM

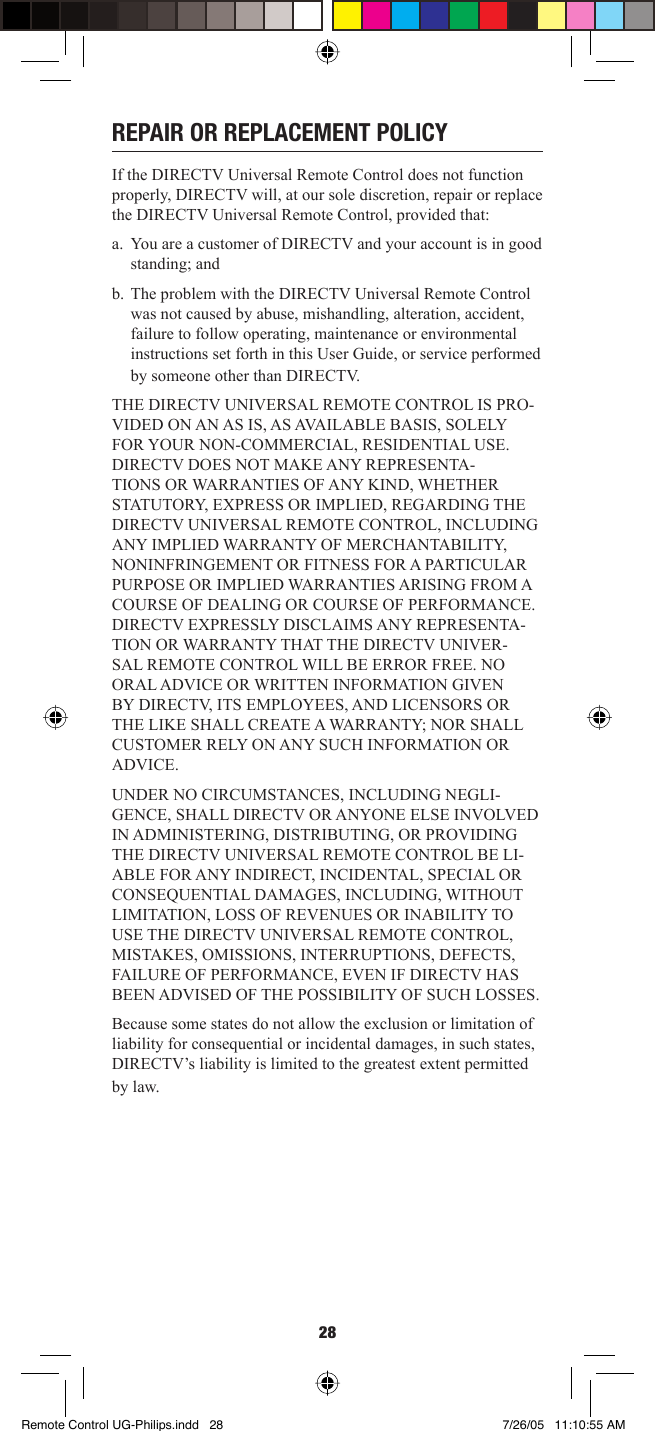

28REPAIR OR REPLACEMENT POLICYIf the DIRECTV Universal Remote Control does not function properly, DIRECTV will, at our sole discretion, repair or replace the DIRECTV Universal Remote Control, provided that: a. You are a customer of DIRECTV and your account is in good standing; and b. The problem with the DIRECTV Universal Remote Control was not caused by abuse, mishandling, alteration, accident, failure to follow operating, maintenance or environmental instructions set forth in this User Guide, or service performed by someone other than DIRECTV. THE DIRECTV UNIVERSAL REMOTE CONTROL IS PRO-VIDED ON AN AS IS, AS AVAILABLE BASIS, SOLELY FOR YOUR NON-COMMERCIAL, RESIDENTIAL USE. DIRECTV DOES NOT MAKE ANY REPRESENTA-TIONS OR WARRANTIES OF ANY KIND, WHETHER STATUTORY, EXPRESS OR IMPLIED, REGARDING THE DIRECTV UNIVERSAL REMOTE CONTROL, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, NONINFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE OR IMPLIED WARRANTIES ARISING FROM A COURSE OF DEALING OR COURSE OF PERFORMANCE. DIRECTV EXPRESSLY DISCLAIMS ANY REPRESENTA-TION OR WARRANTY THAT THE DIRECTV UNIVER-SAL REMOTE CONTROL WILL BE ERROR FREE. NO ORAL ADVICE OR WRITTEN INFORMATION GIVEN BY DIRECTV, ITS EMPLOYEES, AND LICENSORS OR THE LIKE SHALL CREATE A WARRANTY; NOR SHALL CUSTOMER RELY ON ANY SUCH INFORMATION OR ADVICE. UNDER NO CIRCUMSTANCES, INCLUDING NEGLI-GENCE, SHALL DIRECTV OR ANYONE ELSE INVOLVED IN ADMINISTERING, DISTRIBUTING, OR PROVIDING THE DIRECTV UNIVERSAL REMOTE CONTROL BE LI-ABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF REVENUES OR INABILITY TO USE THE DIRECTV UNIVERSAL REMOTE CONTROL, MISTAKES, OMISSIONS, INTERRUPTIONS, DEFECTS, FAILURE OF PERFORMANCE, EVEN IF DIRECTV HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, in such states, DIRECTV’s liability is limited to the greatest extent permitted by law. Remote Control UG-Philips.indd 28Remote Control UG-Philips.indd 28 7/26/05 11:10:55 AM7/26/05 11:10:55 AM

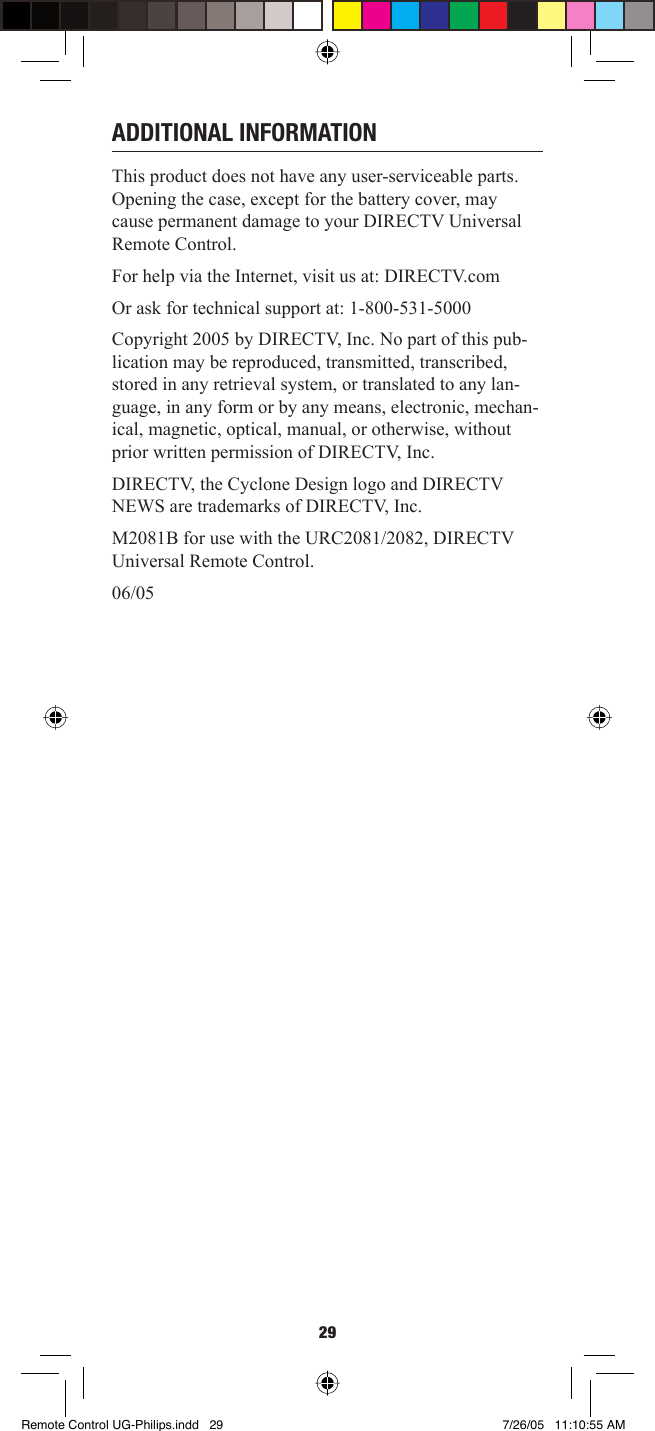

29ADDITIONAL INFORMATIONThis product does not have any user-serviceable parts. Opening the case, except for the battery cover, may cause permanent damage to your DIRECTV Universal Remote Control. For help via the Internet, visit us at: DIRECTV.com Or ask for technical support at: 1-800-531-5000 Copyright 2005 by DIRECTV, Inc. No part of this pub-lication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any lan-guage, in any form or by any means, electronic, mechan-ical, magnetic, optical, manual, or otherwise, without prior written permission of DIRECTV, Inc. DIRECTV, the Cyclone Design logo and DIRECTV NEWS are trademarks of DIRECTV, Inc.M2081B for use with the URC2081/2082, DIRECTV Universal Remote Control. 06/05Remote Control UG-Philips.indd 29Remote Control UG-Philips.indd 29 7/26/05 11:10:55 AM7/26/05 11:10:55 AM

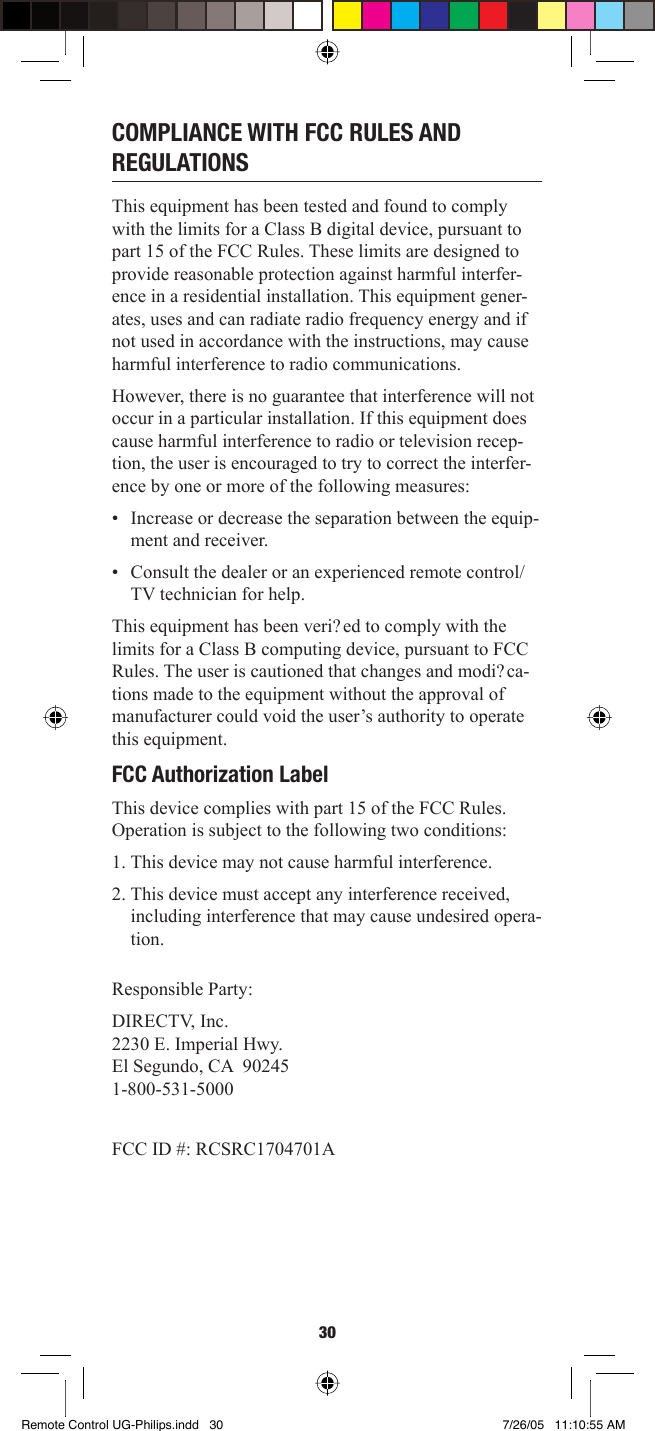

30COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-ence in a residential installation. This equipment gener-ates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep-tion, the user is encouraged to try to correct the interfer-ence by one or more of the following measures: • Increase or decrease the separation between the equip-ment and receiver. • Consult the dealer or an experienced remote control/TV technician for help.This equipment has been veri? ed to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modi? ca-tions made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired opera-tion.Responsible Party:DIRECTV, Inc.2230 E. Imperial Hwy.El Segundo, CA 902451-800-531-5000FCC ID #: RCSRC1704701ARemote Control UG-Philips.indd 30Remote Control UG-Philips.indd 30 7/26/05 11:10:55 AM7/26/05 11:10:55 AM
