Philips Electronics Singapore RM7500 RF REMOTE CONTROL User Manual SRM7500 IFU EN v3

Philips Electronics Singapore Pte Ltd RF REMOTE CONTROL SRM7500 IFU EN v3

users manual

SRM7500Instructions for UseENQuick & Easy Setupwww.philips.com/urc

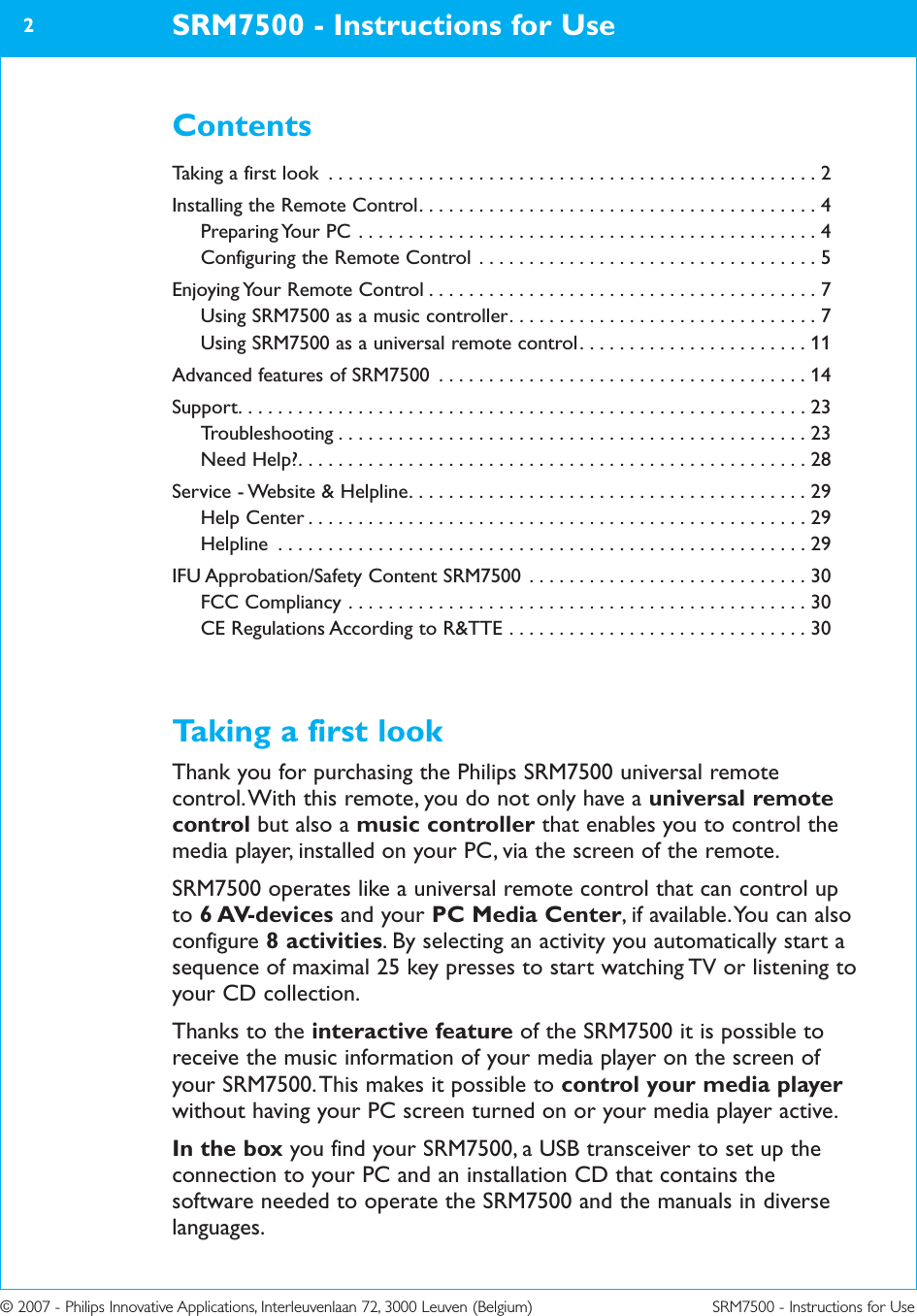

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use2ContentsTaking a first look . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Installing the Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Preparing Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Configuring the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5Enjoying Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Using SRM7500 as a music controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Using SRM7500 as a universal remote control. . . . . . . . . . . . . . . . . . . . . . . 11Advanced features of SRM7500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Need Help?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Service - Website & Helpline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Help Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Helpline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29IFU Approbation/Safety Content SRM7500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30FCC Compliancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30CE Regulations According to R&TTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Taking a first lookThank you for purchasing the Philips SRM7500 universal remotecontrol. With this remote, you do not only have a universal remotecontrol but also a music controller that enables you to control themedia player, installed on your PC, via the screen of the remote.SRM7500 operates like a universal remote control that can control upto 6 AV-devices and your PC Media Center, if available. You can alsoconfigure 8 activities. By selecting an activity you automatically start asequence of maximal 25 key presses to start watching TV or listening toyour CD collection.Thanks to the interactive feature of the SRM7500 it is possible toreceive the music information of your media player on the screen ofyour SRM7500. This makes it possible to control your media playerwithout having your PC screen turned on or your media player active.In the box you find your SRM7500, a USB transceiver to set up theconnection to your PC and an installation CD that contains thesoftware needed to operate the SRM7500 and the manuals in diverselanguages.

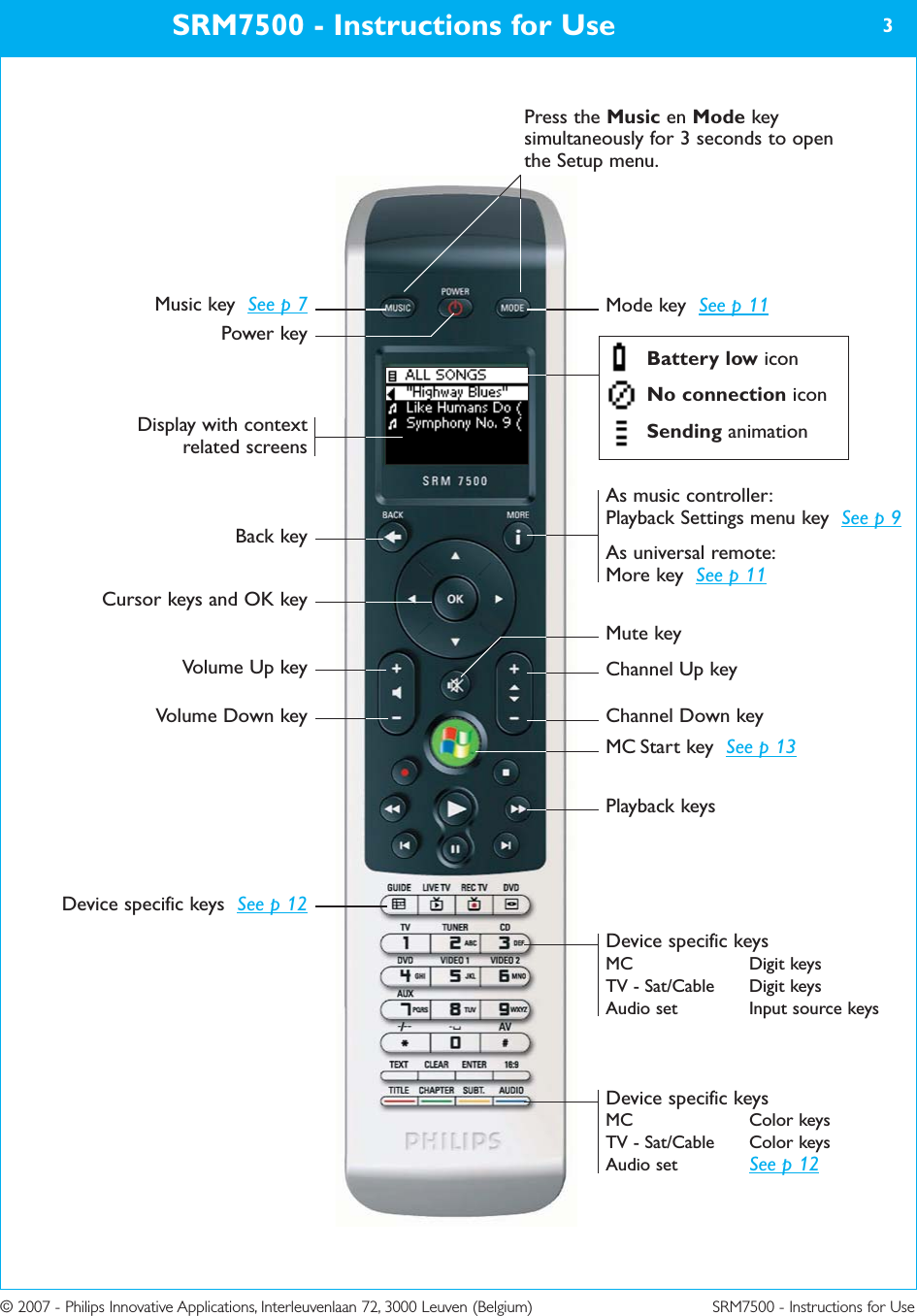

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use 3Music key See p 7Power keyBack keyCursor keys and OK keyDisplay with contextrelated screensVolume Up keyVolume Down keyDevice specific keys See p 12Mode key See p 11As music controller: Playback Settings menu key See p 9As universal remote: More key See p 11Mute keyChannel Up keyChannel Down keyMC Start key See p 13Playback keysDevice specific keysMC Digit keysTV - Sat/Cable Digit keysAudio set Input source keysDevice specific keysMC Color keysTV - Sat/Cable Color keysAudio set See p 12Press the Music en Mode keysimultaneously for 3 seconds to openthe Setup menu.Battery low iconNo connection iconSending animation

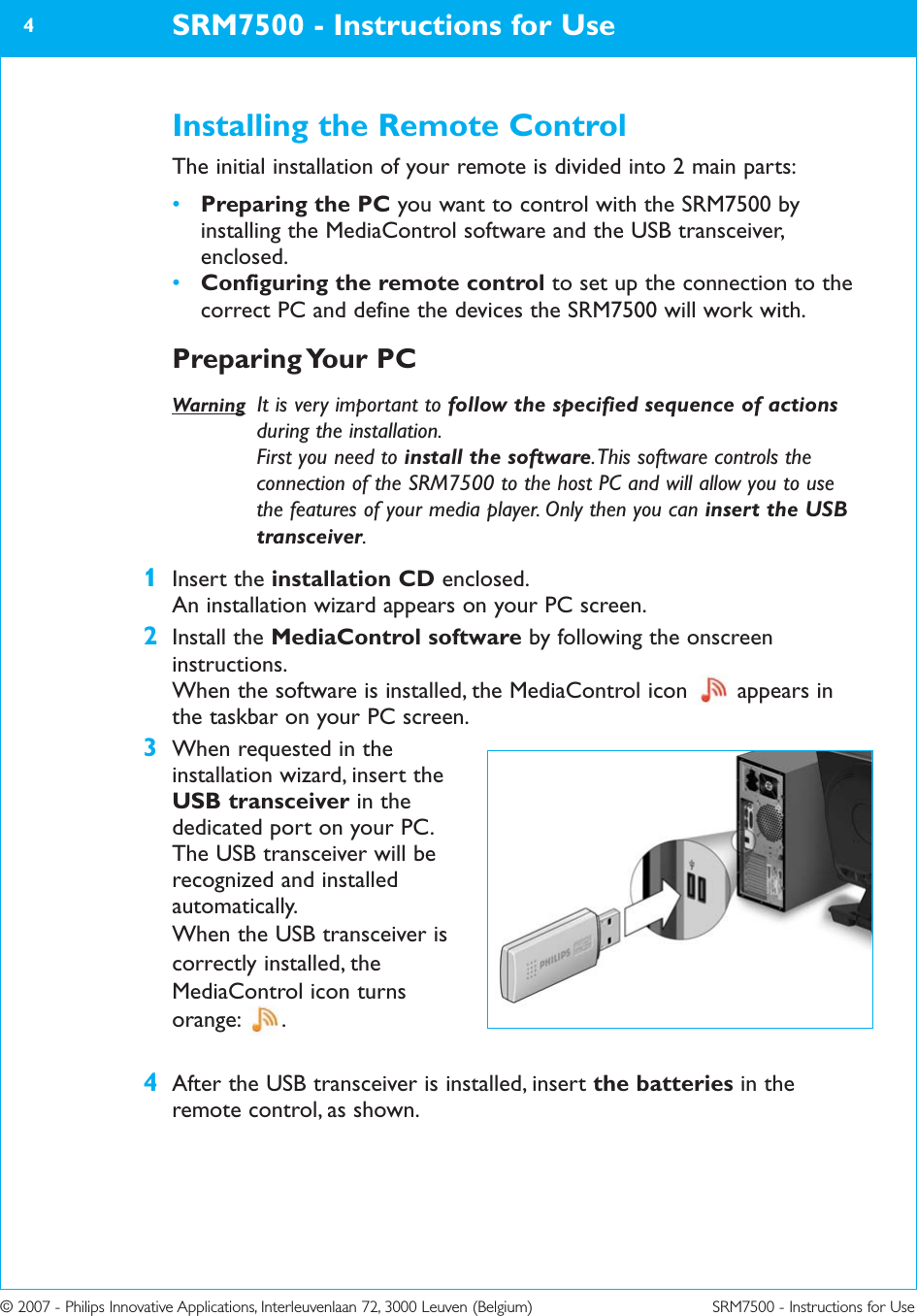

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseInstalling the Remote ControlThe initial installation of your remote is divided into 2 main parts:•Preparing the PC you want to control with the SRM7500 byinstalling the MediaControl software and the USB transceiver,enclosed.•Configuring the remote control to set up the connection to thecorrect PC and define the devices the SRM7500 will work with.Preparing Your PCWarning It is very important to follow the specified sequence of actionsduring the installation. First you need to install the software. This software controls theconnection of the SRM7500 to the host PC and will allow you to usethe features of your media player. Only then you can insert the USBtransceiver.1Insert the installation CD enclosed.An installation wizard appears on your PC screen.2Install the MediaControl software by following the onscreeninstructions.When the software is installed, the MediaControl icon appears inthe taskbar on your PC screen.3When requested in theinstallation wizard, insert theUSB transceiver in thededicated port on your PC.The USB transceiver will berecognized and installedautomatically.When the USB transceiver iscorrectly installed, theMediaControl icon turns orange: .4After the USB transceiver is installed, insert the batteries in theremote control, as shown.SRM7500 - Instructions for Use4

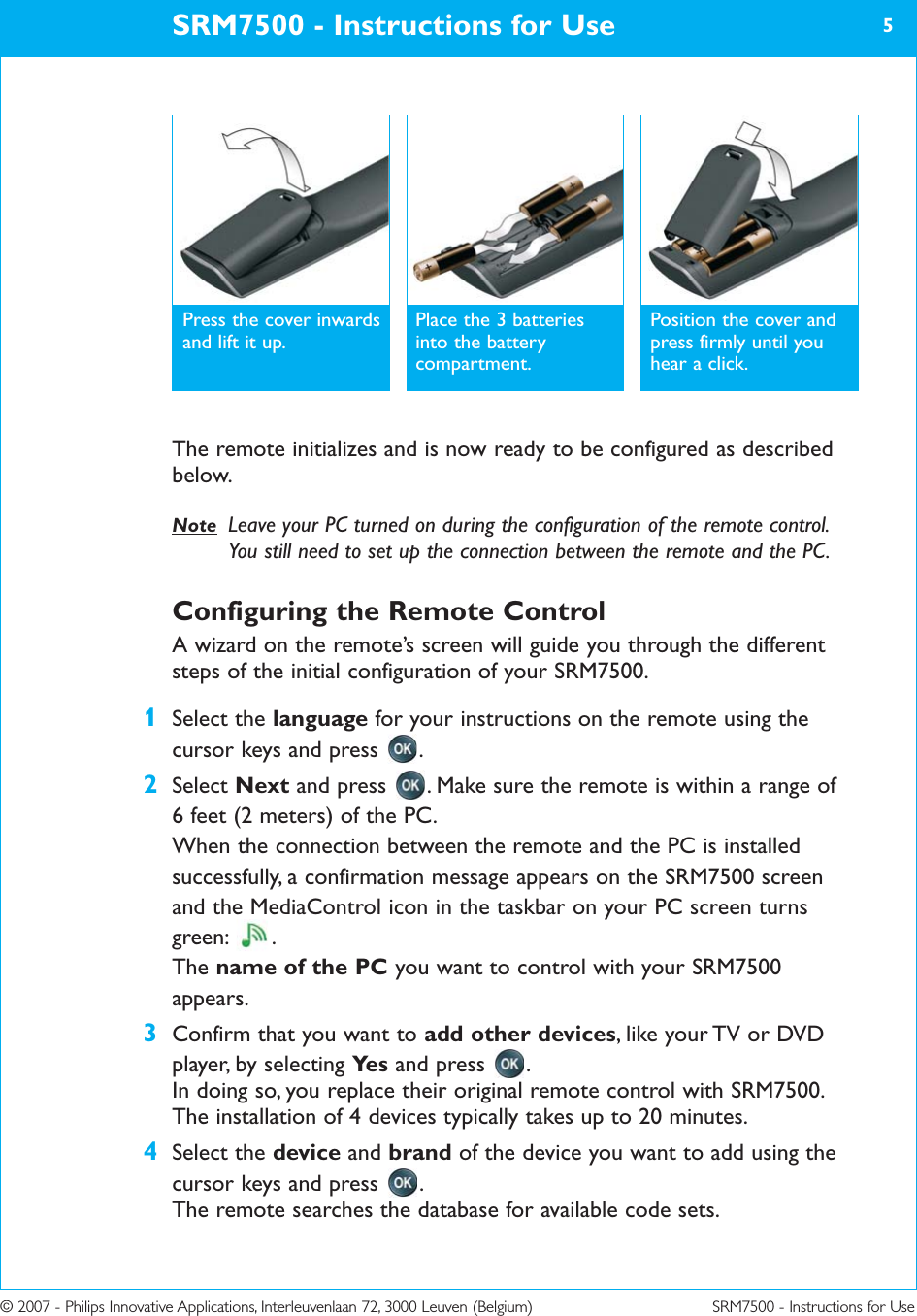

SRM7500 - Instructions for Use 5© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseThe remote initializes and is now ready to be configured as describedbelow.Note Leave your PC turned on during the configuration of the remote control.You still need to set up the connection between the remote and the PC.Configuring the Remote ControlA wizard on the remote’s screen will guide you through the differentsteps of the initial configuration of your SRM7500.1Select the language for your instructions on the remote using thecursor keys and press .2Select Next and press . Make sure the remote is within a range of 6 feet (2 meters) of the PC.When the connection between the remote and the PC is installedsuccessfully, a confirmation message appears on the SRM7500 screenand the MediaControl icon in the taskbar on your PC screen turnsgreen: .The name of the PC you want to control with your SRM7500appears.3Confirm that you want to add other devices, like your TV or DVDplayer, by selecting Ye s and press . In doing so, you replace their original remote control with SRM7500.The installation of 4 devices typically takes up to 20 minutes.4Select the device and brand of the device you want to add using thecursor keys and press .The remote searches the database for available code sets.Press the cover inwardsand lift it up.Place the 3 batteriesinto the batterycompartment.Position the cover andpress firmly until youhear a click.

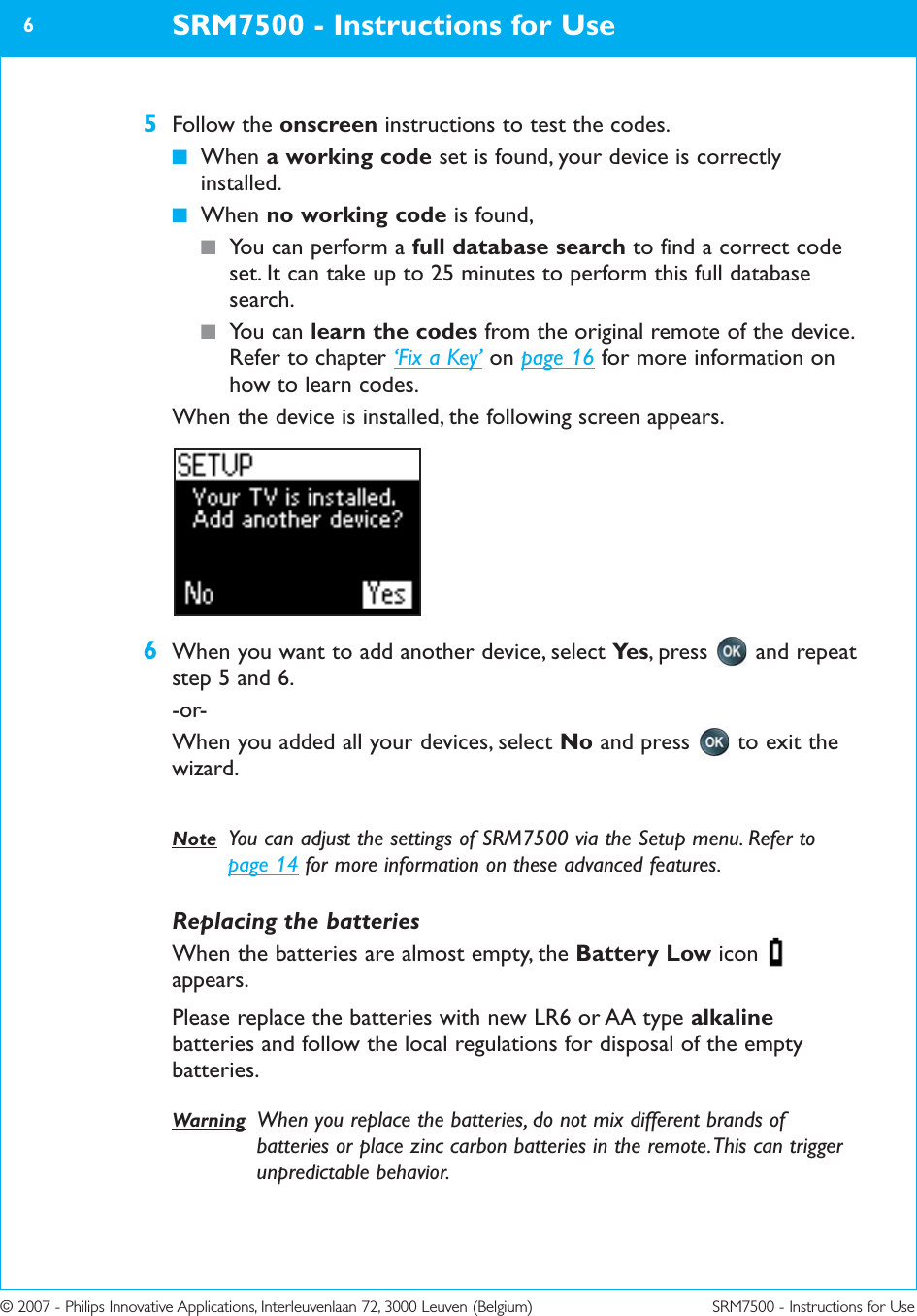

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for Use5Follow the onscreen instructions to test the codes.■When a working code set is found, your device is correctlyinstalled.■When no working code is found, ■You can perform a full database search to find a correct codeset. It can take up to 25 minutes to perform this full databasesearch.■You can learn the codes from the original remote of the device.Refer to chapter ‘Fix a Key’ on page 16 for more information onhow to learn codes.When the device is installed, the following screen appears.6When you want to add another device, select Ye s , press and repeatstep 5 and 6.-or-When you added all your devices, select No and press to exit thewizard. Note You can adjust the settings of SRM7500 via the Setup menu. Refer topage 14 for more information on these advanced features. Replacing the batteriesWhen the batteries are almost empty, the Battery Low iconappears.Please replace the batteries with new LR6 or AA type alkalinebatteries and follow the local regulations for disposal of the emptybatteries.Warning When you replace the batteries, do not mix different brands ofbatteries or place zinc carbon batteries in the remote. This can triggerunpredictable behavior. SRM7500 - Instructions for Use6

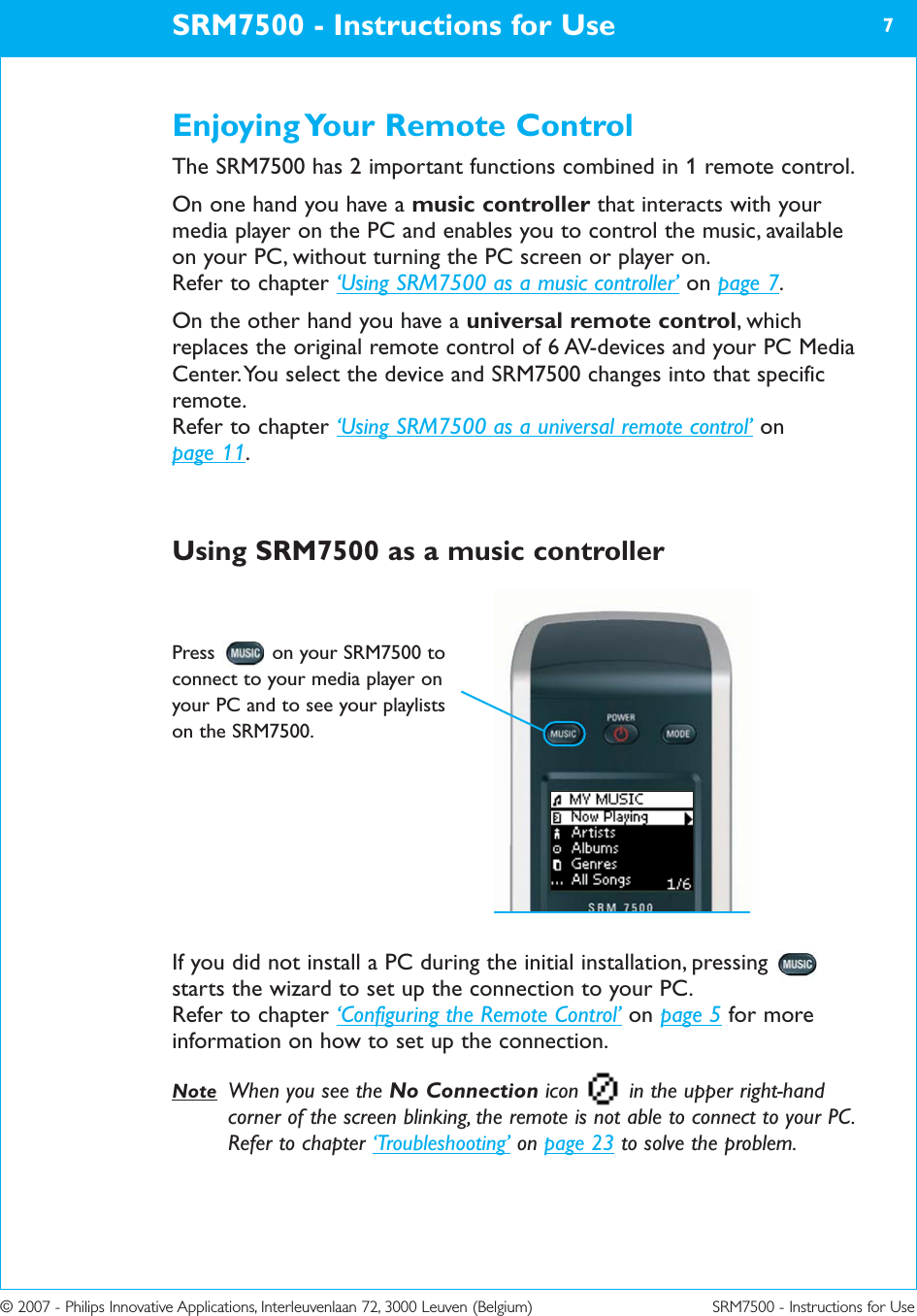

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseEnjoying Your Remote ControlThe SRM7500 has 2 important functions combined in 1 remote control. On one hand you have a music controller that interacts with yourmedia player on the PC and enables you to control the music, availableon your PC, without turning the PC screen or player on.Refer to chapter ‘Using SRM7500 as a music controller’ on page 7.On the other hand you have a universal remote control, whichreplaces the original remote control of 6 AV-devices and your PC MediaCenter. You select the device and SRM7500 changes into that specificremote.Refer to chapter ‘Using SRM7500 as a universal remote control’ on page 11.Using SRM7500 as a music controllerIf you did not install a PC during the initial installation, pressingstarts the wizard to set up the connection to your PC.Refer to chapter ‘Configuring the Remote Control’ on page 5 for moreinformation on how to set up the connection.Note When you see the No Connection icon in the upper right-handcorner of the screen blinking, the remote is not able to connect to your PC.Refer to chapter ‘Troubleshooting’ on page 23 to solve the problem.SRM7500 - Instructions for Use 7Press on your SRM7500 toconnect to your media player onyour PC and to see your playlistson the SRM7500.

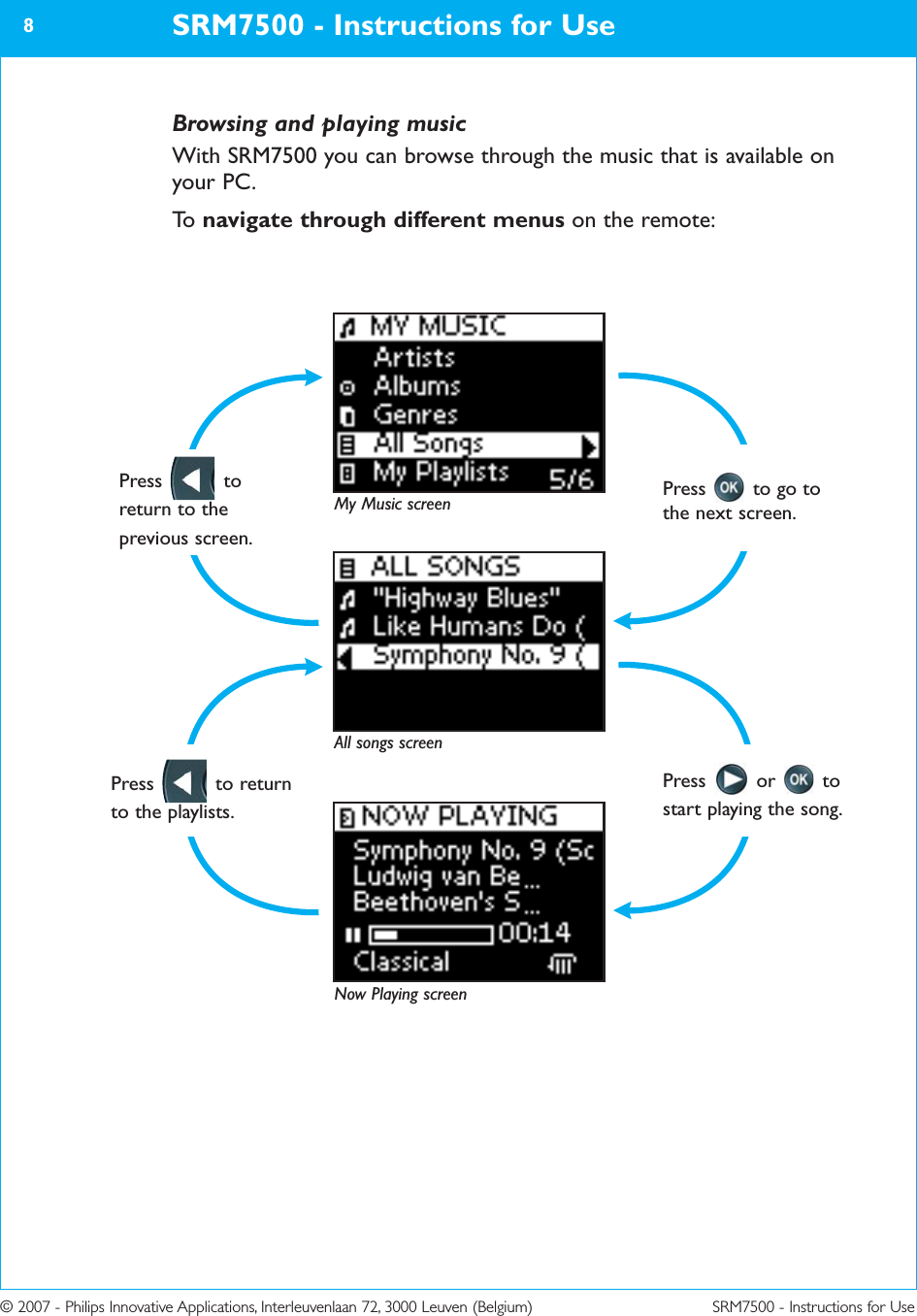

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseBrowsing and playing musicWith SRM7500 you can browse through the music that is available onyour PC. To navigate through different menus on the remote:SRM7500 - Instructions for Use8My Music screenAll songs screenNow Playing screenPress toreturn to theprevious screen.Press to go tothe next screen.Press to returnto the playlists.Press or tostart playing the song.

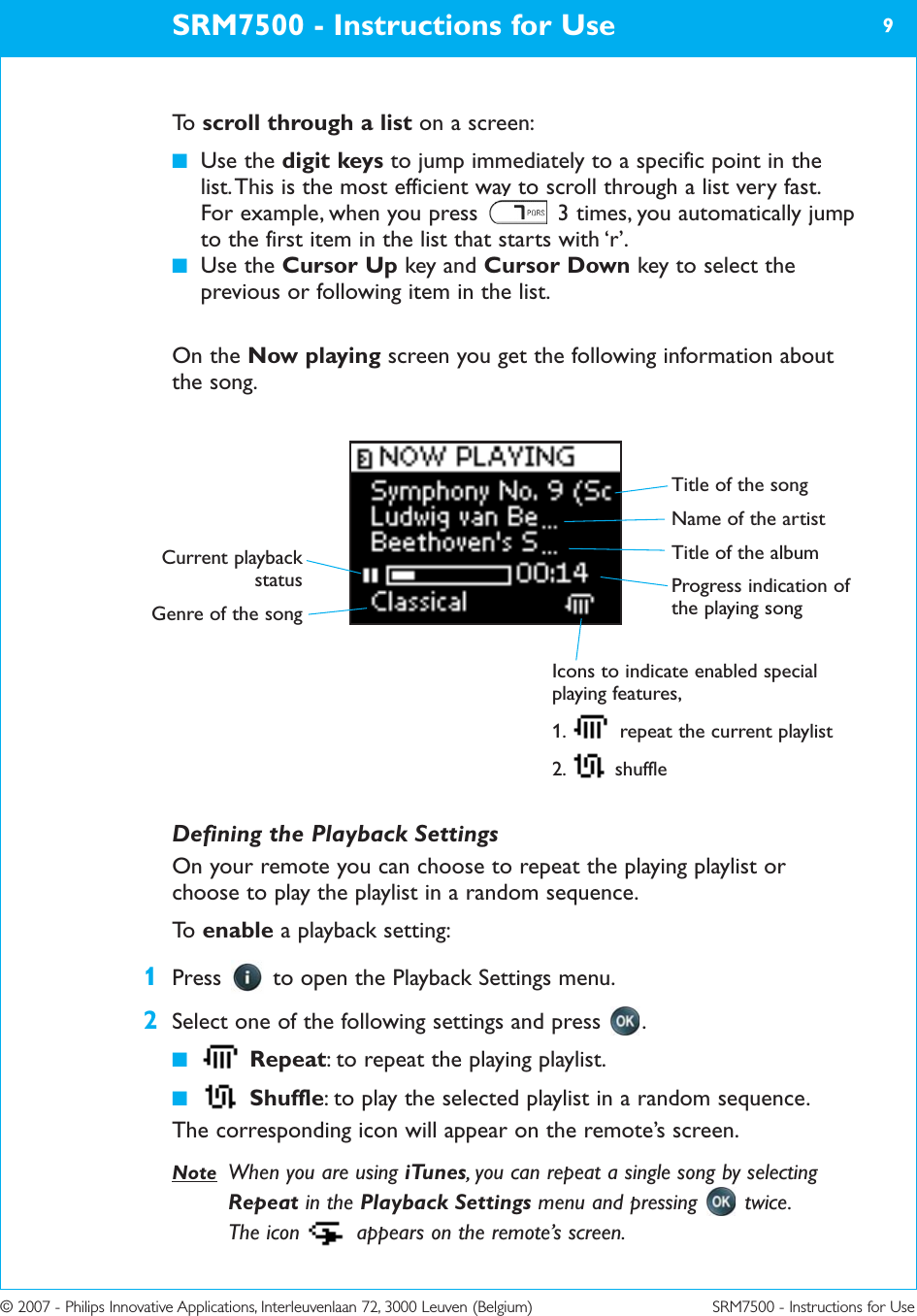

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseTo scroll through a list on a screen:■Use the digit keys to jump immediately to a specific point in thelist. This is the most efficient way to scroll through a list very fast.For example, when you press 3 times, you automatically jumpto the first item in the list that starts with ‘r’. ■Use the Cursor Up key and Cursor Down key to select theprevious or following item in the list.On the Now playing screen you get the following information aboutthe song.SRM7500 - Instructions for Use 9Defining the Playback SettingsOn your remote you can choose to repeat the playing playlist orchoose to play the playlist in a random sequence.To enable a playback setting:1Press to open the Playback Settings menu.2Select one of the following settings and press .■Repeat: to repeat the playing playlist. ■Shuffle: to play the selected playlist in a random sequence. The corresponding icon will appear on the remote’s screen.Note When you are using iTunes, you can repeat a single song by selectingRepeat in the Playback Settings menu and pressing twice. The icon appears on the remote’s screen.Title of the songName of the artistTitle of the album Progress indication ofthe playing song Icons to indicate enabled specialplaying features,1. repeat the current playlist2. shuffleCurrent playbackstatusGenre of the song

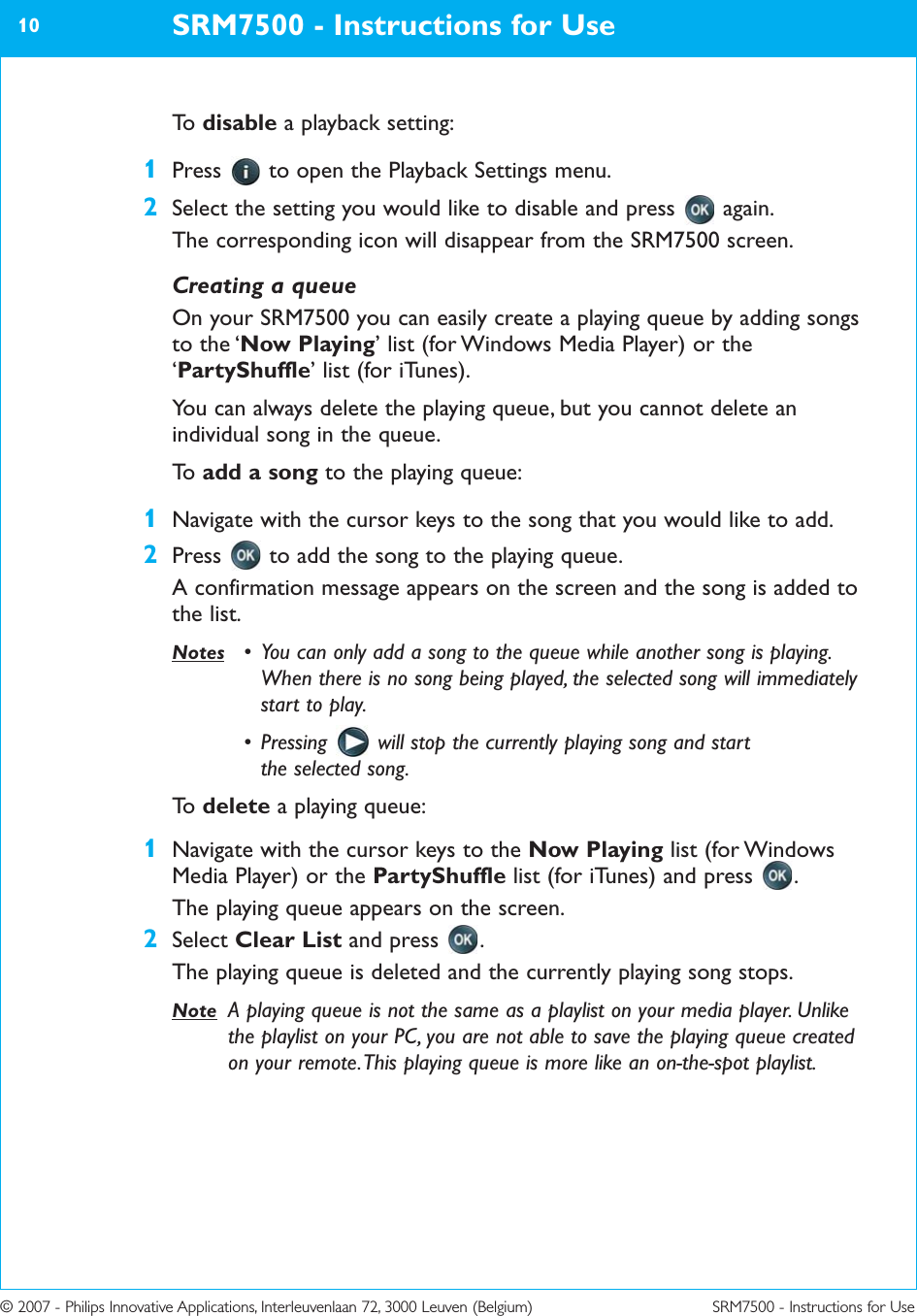

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseTo disable a playback setting:1Press to open the Playback Settings menu.2Select the setting you would like to disable and press again.The corresponding icon will disappear from the SRM7500 screen.Creating a queueOn your SRM7500 you can easily create a playing queue by adding songsto the ‘Now Playing’ list (for Windows Media Player) or the‘PartyShuffle’ list (for iTunes).You can always delete the playing queue, but you cannot delete anindividual song in the queue.To add a song to the playing queue:1Navigate with the cursor keys to the song that you would like to add.2Press to add the song to the playing queue.A confirmation message appears on the screen and the song is added tothe list.Notes • You can only add a song to the queue while another song is playing.When there is no song being played, the selected song will immediatelystart to play.• Pressing will stop the currently playing song and startthe selected song.To delete a playing queue:1Navigate with the cursor keys to the Now Playing list (for WindowsMedia Player) or the PartyShuffle list (for iTunes) and press .The playing queue appears on the screen.2Select Clear List and press .The playing queue is deleted and the currently playing song stops.Note A playing queue is not the same as a playlist on your media player. Unlikethe playlist on your PC, you are not able to save the playing queue createdon your remote. This playing queue is more like an on-the-spot playlist.SRM7500 - Instructions for Use10

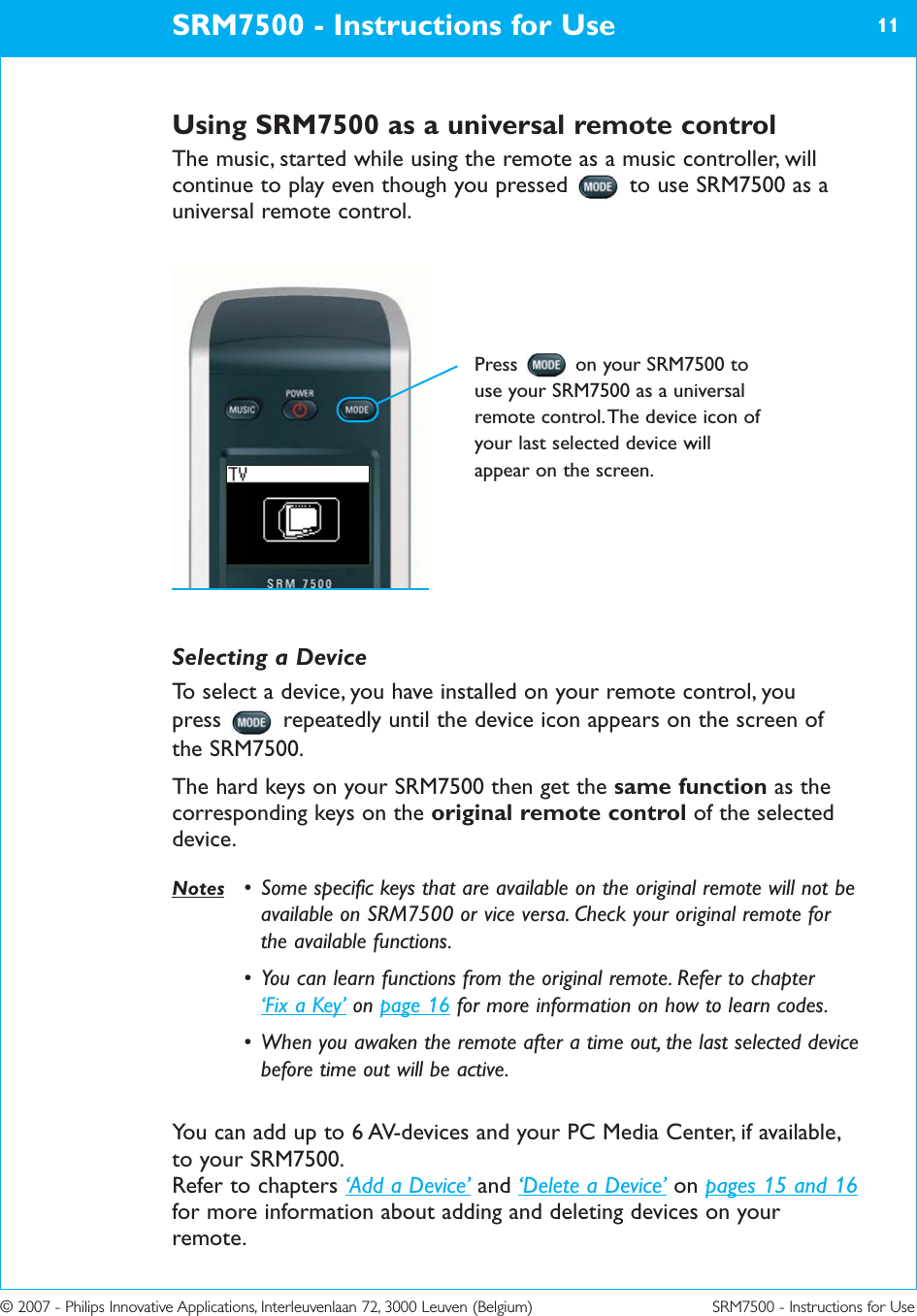

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseUsing SRM7500 as a universal remote controlThe music, started while using the remote as a music controller, willcontinue to play even though you pressed to use SRM7500 as auniversal remote control.SRM7500 - Instructions for Use 11Press on your SRM7500 touse your SRM7500 as a universalremote control. The device icon ofyour last selected device willappear on the screen.Selecting a DeviceTo select a device, you have installed on your remote control, you press repeatedly until the device icon appears on the screen ofthe SRM7500. The hard keys on your SRM7500 then get the same function as thecorresponding keys on the original remote control of the selecteddevice. Notes • Some specific keys that are available on the original remote will not beavailable on SRM7500 or vice versa. Check your original remote forthe available functions.• You can learn functions from the original remote. Refer to chapter ‘Fix a Key’ on page 16 for more information on how to learn codes.• When you awaken the remote after a time out, the last selected devicebefore time out will be active.You can add up to 6 AV-devices and your PC Media Center, if available,to your SRM7500.Refer to chapters ‘Add a Device’ and ‘Delete a Device’ on pages 15 and 16for more information about adding and deleting devices on yourremote.

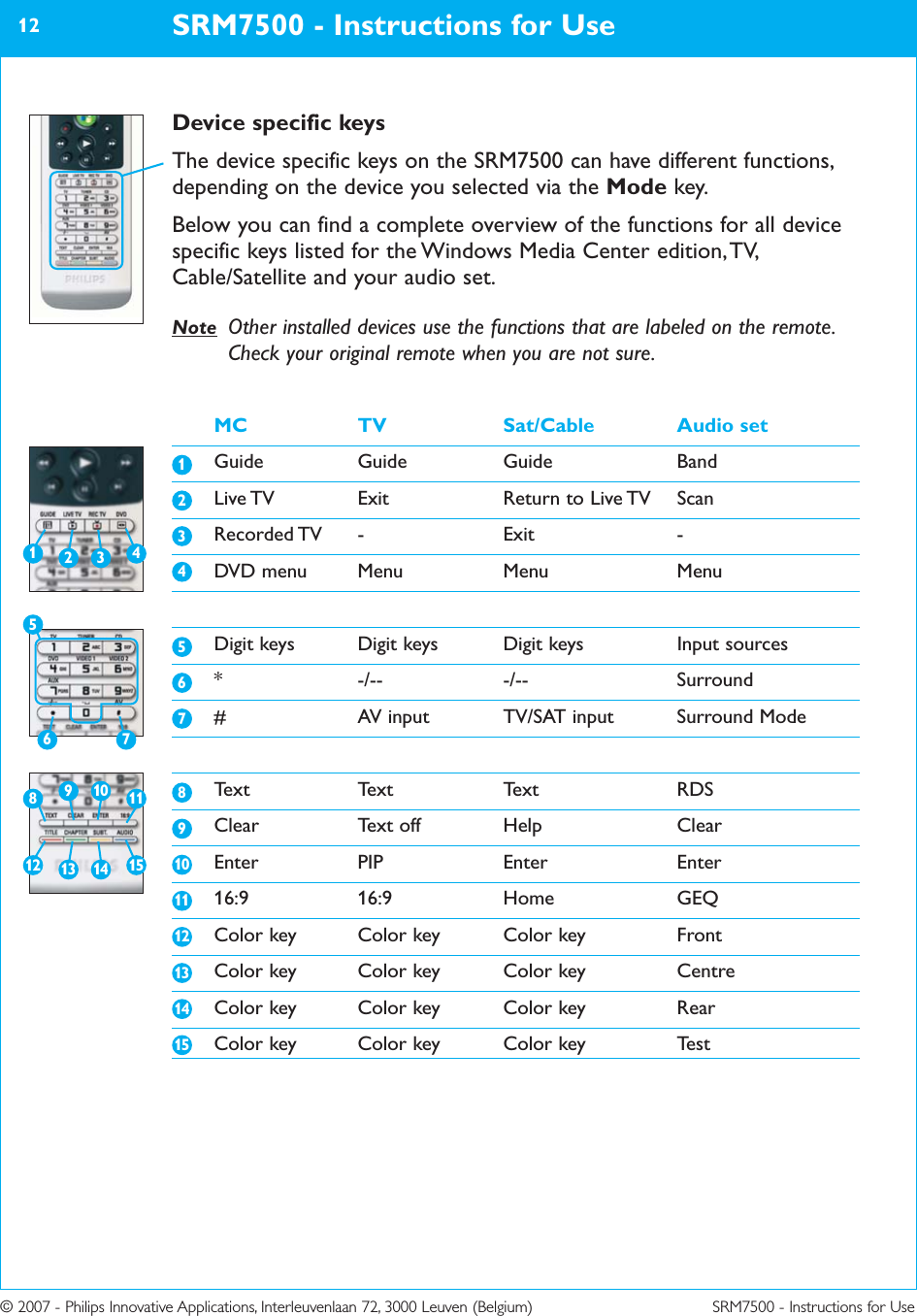

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseDevice specific keysThe device specific keys on the SRM7500 can have different functions,depending on the device you selected via the Mode key. Below you can find a complete overview of the functions for all devicespecific keys listed for the Windows Media Center edition, TV,Cable/Satellite and your audio set.Note Other installed devices use the functions that are labeled on the remote.Check your original remote when you are not sure. MC TV Sat/Cable Audio setGuide Guide Guide BandLive TV Exit Return to Live TV ScanRecorded TV - Exit -DVD menu Menu Menu MenuDigit keys Digit keys Digit keys Input sources* -/-- -/-- Surround# AV input TV/SAT input Surround ModeText Text Text RDSClear Text off Help ClearEnter PIP Enter Enter16:9 16:9 Home GEQColor key Color key Color key FrontColor key Color key Color key CentreColor key Color key Color key RearColor key Color key Color key TestSRM7500 - Instructions for Use1212345678910111213141512346712 13 14 158910 115

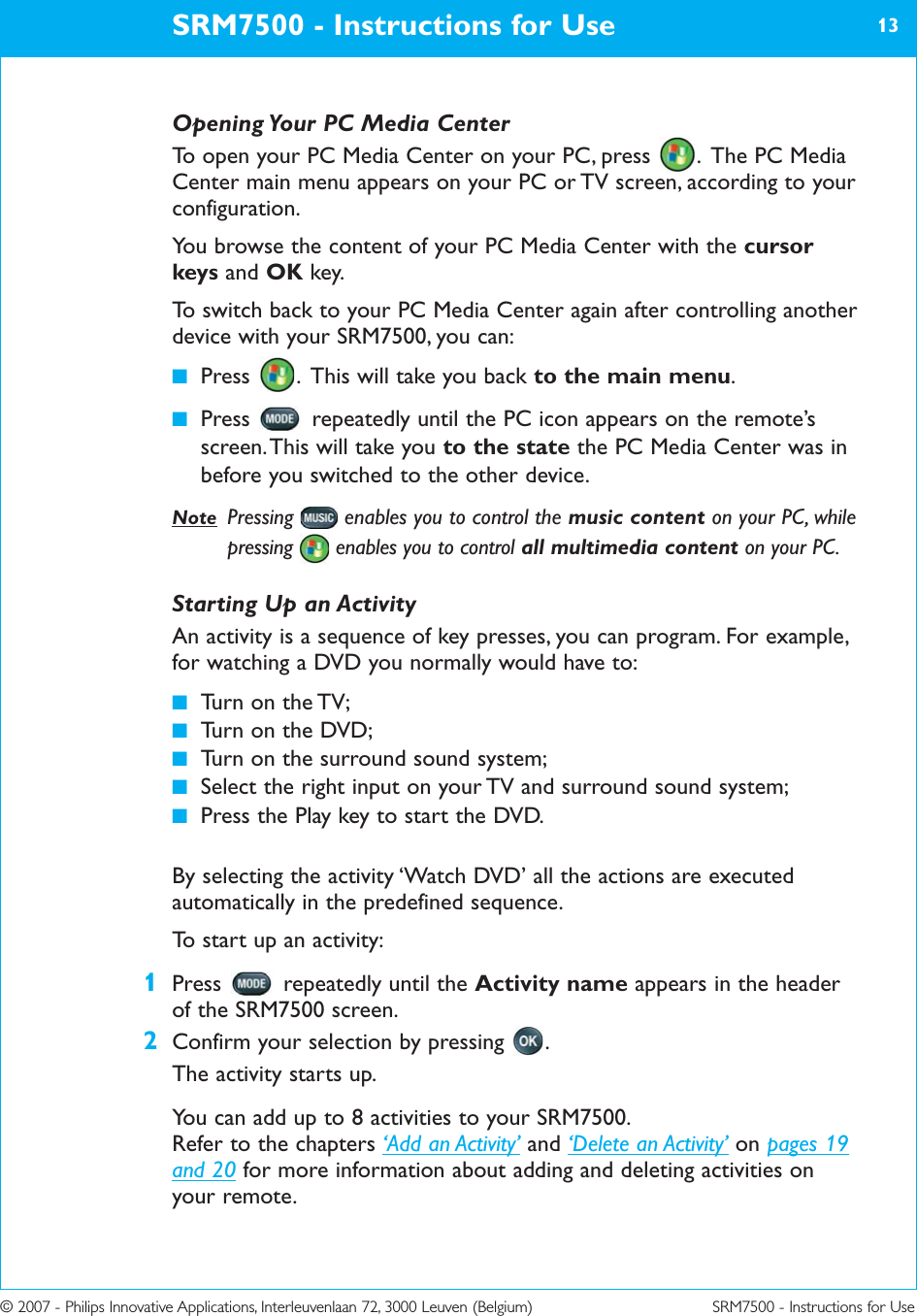

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseOpening Your PC Media CenterTo open your PC Media Center on your PC, press . The PC MediaCenter main menu appears on your PC or TV screen, according to yourconfiguration.You browse the content of your PC Media Center with the cursorkeys and OK key. To switch back to your PC Media Center again after controlling anotherdevice with your SRM7500, you can:■Press . This will take you back to the main menu.■Press repeatedly until the PC icon appears on the remote’sscreen. This will take you to the state the PC Media Center was inbefore you switched to the other device.Note Pressing enables you to control the music content on your PC, whilepressing enables you to control all multimedia content on your PC. Starting Up an ActivityAn activity is a sequence of key presses, you can program. For example,for watching a DVD you normally would have to:■Turn on the TV;■Turn on the DVD;■Turn on the surround sound system;■Select the right input on your TV and surround sound system;■Press the Play key to start the DVD.By selecting the activity ‘Watch DVD’ all the actions are executedautomatically in the predefined sequence.To start up an activity:1Press repeatedly until the Activity name appears in the headerof the SRM7500 screen.2Confirm your selection by pressing .The activity starts up.You can add up to 8 activities to your SRM7500.Refer to the chapters ‘Add an Activity’ and ‘Delete an Activity’ on pages 19and 20 for more information about adding and deleting activities onyour remote.SRM7500 - Instructions for Use 13

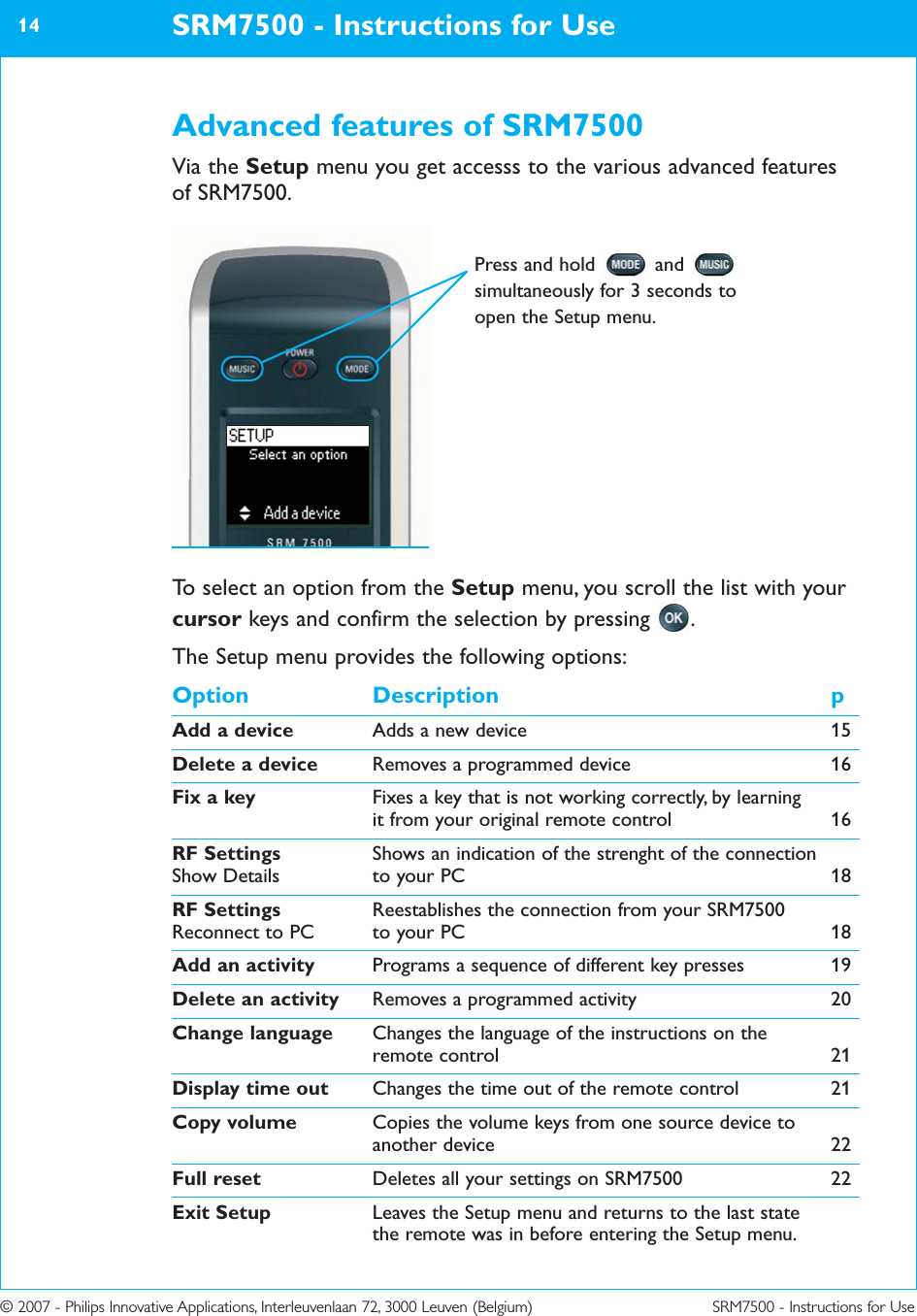

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseAdvanced features of SRM7500Via the Setup menu you get accesss to the various advanced featuresof SRM7500. SRM7500 - Instructions for Use14Press and hold and simultaneously for 3 seconds toopen the Setup menu. To select an option from the Setup menu, you scroll the list with yourcursor keys and confirm the selection by pressing .The Setup menu provides the following options:Option Description pAdd a device Adds a new device 15Delete a device Removes a programmed device 16Fix a key Fixes a key that is not working correctly, by learning it from your original remote control 16RF Settings Shows an indication of the strenght of the connection Show Details to your PC 18RF Settings Reestablishes the connection from your SRM7500 Reconnect to PC to your PC 18Add an activity Programs a sequence of different key presses 19Delete an activity Removes a programmed activity 20Change language Changes the language of the instructions on the remote control 21Display time out Changes the time out of the remote control 21Copy volume Copies the volume keys from one source device to another device 22Full reset Deletes all your settings on SRM7500 22Exit Setup Leaves the Setup menu and returns to the last state the remote was in before entering the Setup menu.

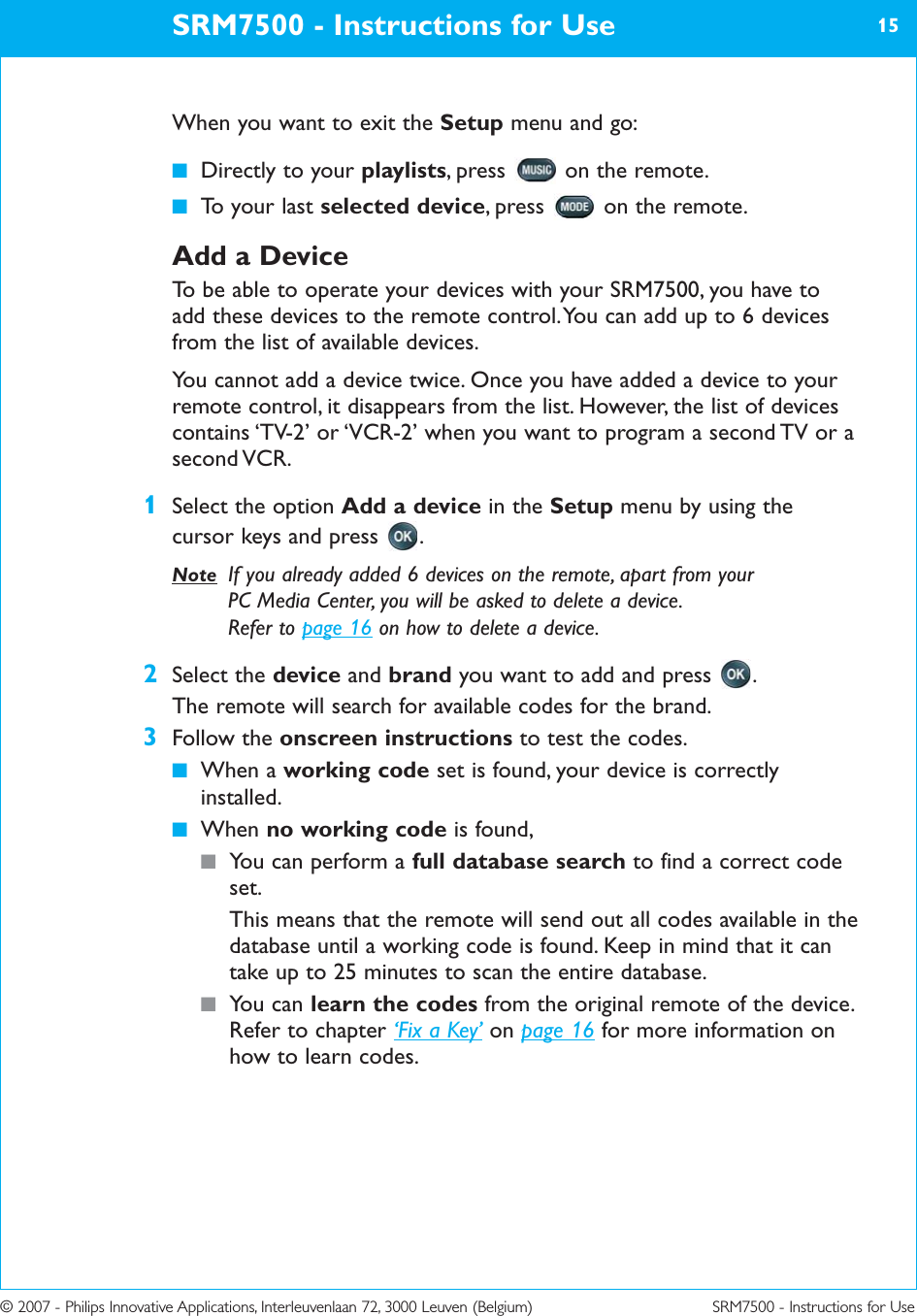

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseWhen you want to exit the Setup menu and go:■Directly to your playlists, press on the remote.■To your last selected device, press on the remote.Add a DeviceTo be able to operate your devices with your SRM7500, you have toadd these devices to the remote control. You can add up to 6 devicesfrom the list of available devices. You cannot add a device twice. Once you have added a device to yourremote control, it disappears from the list. However, the list of devicescontains ‘TV-2’ or ‘VCR-2’ when you want to program a second TV or asecond VCR.1Select the option Add a device in the Setup menu by using thecursor keys and press .Note If you already added 6 devices on the remote, apart from your PC Media Center, you will be asked to delete a device. Refer to page 16 on how to delete a device.2Select the device and brand you want to add and press .The remote will search for available codes for the brand.3Follow the onscreen instructions to test the codes.■When a working code set is found, your device is correctlyinstalled.■When no working code is found, ■You can perform a full database search to find a correct codeset.This means that the remote will send out all codes available in thedatabase until a working code is found. Keep in mind that it cantake up to 25 minutes to scan the entire database.■You can learn the codes from the original remote of the device.Refer to chapter ‘Fix a Key’ on page 16 for more information onhow to learn codes.SRM7500 - Instructions for Use 15

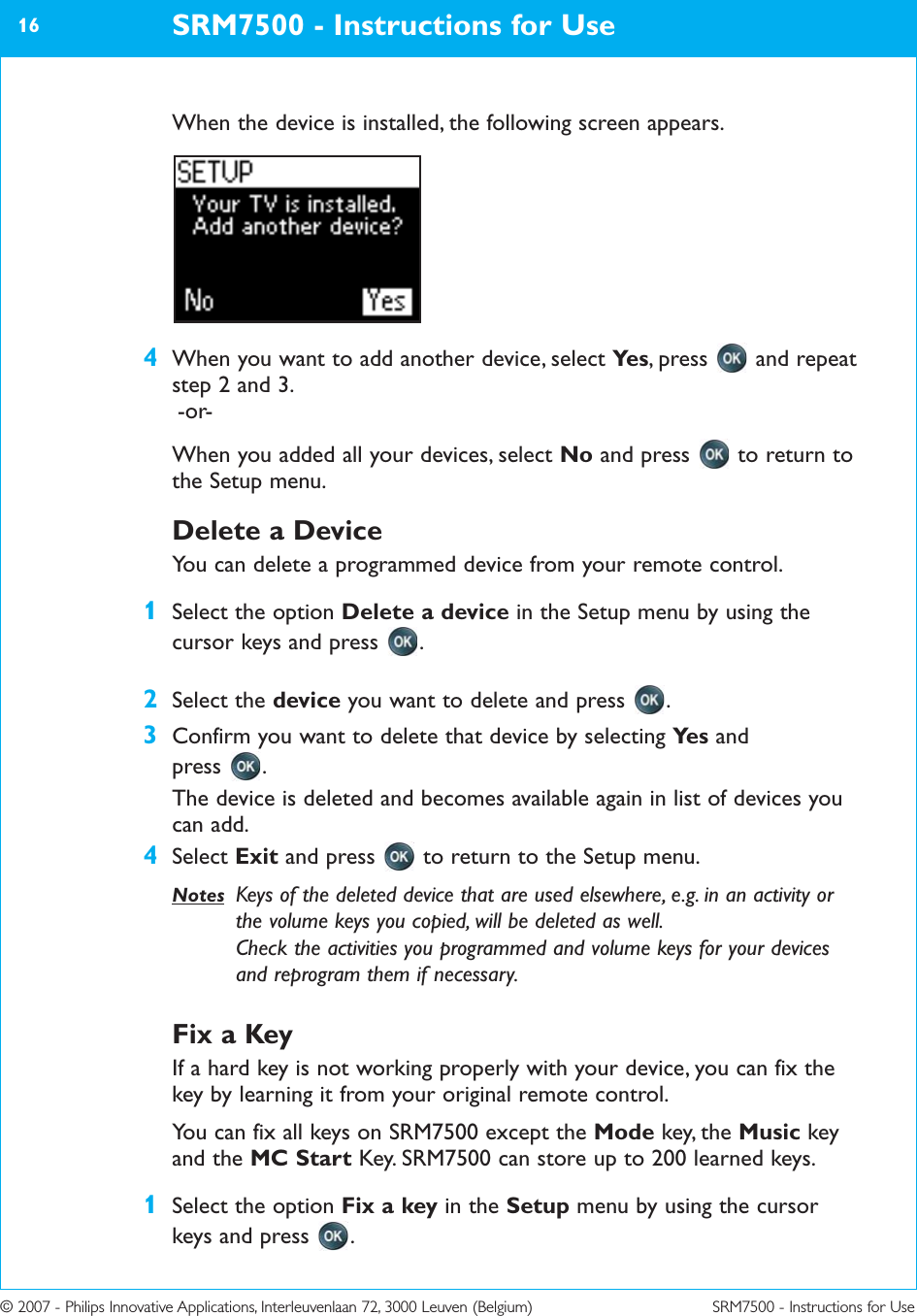

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseWhen the device is installed, the following screen appears.4When you want to add another device, select Ye s , press and repeatstep 2 and 3.-or-When you added all your devices, select No and press to return tothe Setup menu.Delete a DeviceYou can delete a programmed device from your remote control.1Select the option Delete a device in the Setup menu by using thecursor keys and press .2Select the device you want to delete and press .3Confirm you want to delete that device by selecting Ye s and press .The device is deleted and becomes available again in list of devices youcan add.4Select Exit and press to return to the Setup menu.Notes Keys of the deleted device that are used elsewhere, e.g. in an activity orthe volume keys you copied, will be deleted as well.Check the activities you programmed and volume keys for your devicesand reprogram them if necessary.Fix a KeyIf a hard key is not working properly with your device, you can fix thekey by learning it from your original remote control.You can fix all keys on SRM7500 except the Mode key, the Music keyand the MC Start Key. SRM7500 can store up to 200 learned keys. 1Select the option Fix a key in the Setup menu by using the cursorkeys and press .SRM7500 - Instructions for Use16

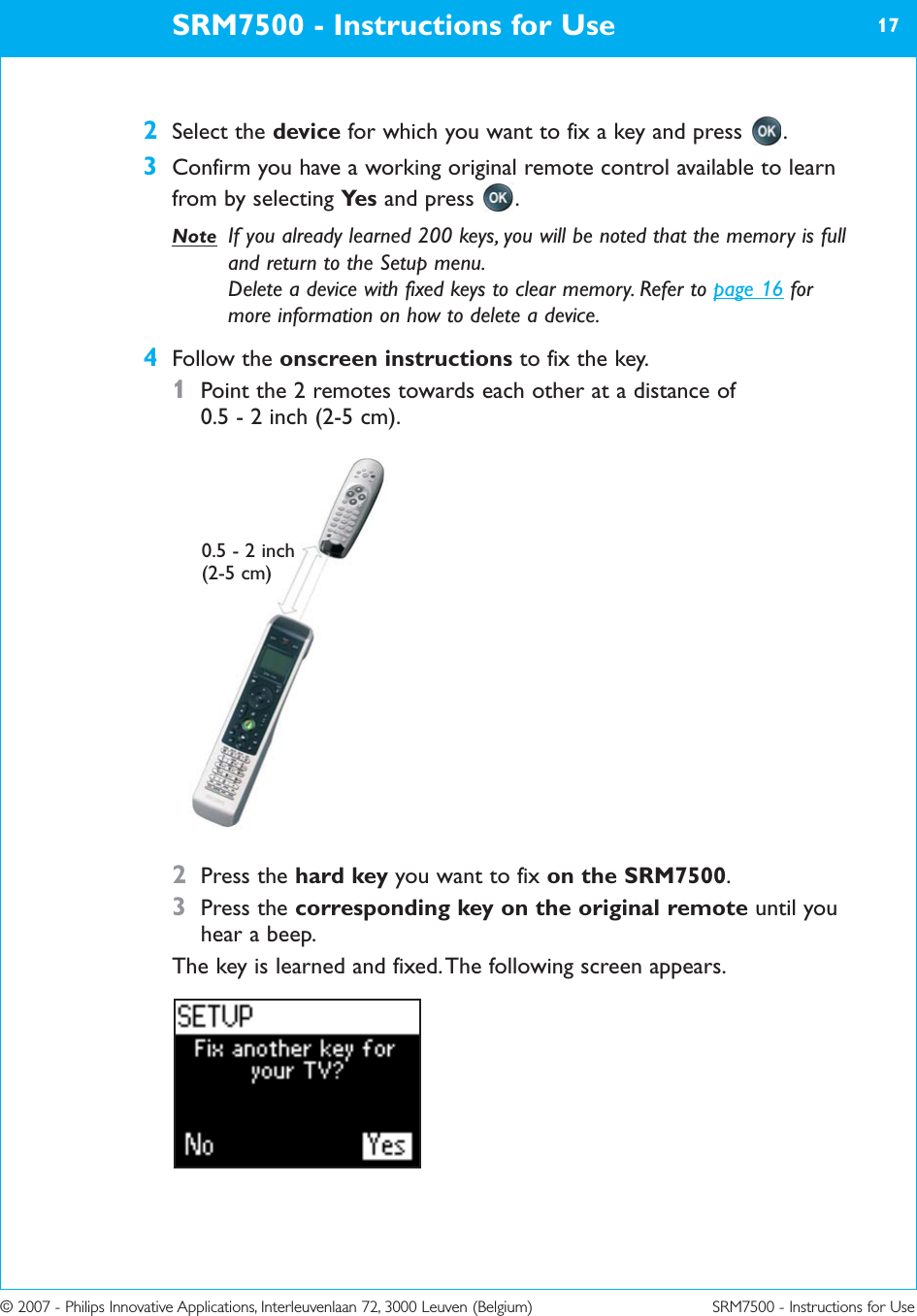

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for Use2Select the device for which you want to fix a key and press .3Confirm you have a working original remote control available to learnfrom by selecting Ye s and press .Note If you already learned 200 keys, you will be noted that the memory is fulland return to the Setup menu.Delete a device with fixed keys to clear memory. Refer to page 16 formore information on how to delete a device.4Follow the onscreen instructions to fix the key.1Point the 2 remotes towards each other at a distance of 0.5 - 2 inch (2-5 cm).2Press the hard key you want to fix on the SRM7500.3Press the corresponding key on the original remote until youhear a beep.The key is learned and fixed. The following screen appears.SRM7500 - Instructions for Use 170.5 - 2 inch (2-5 cm)

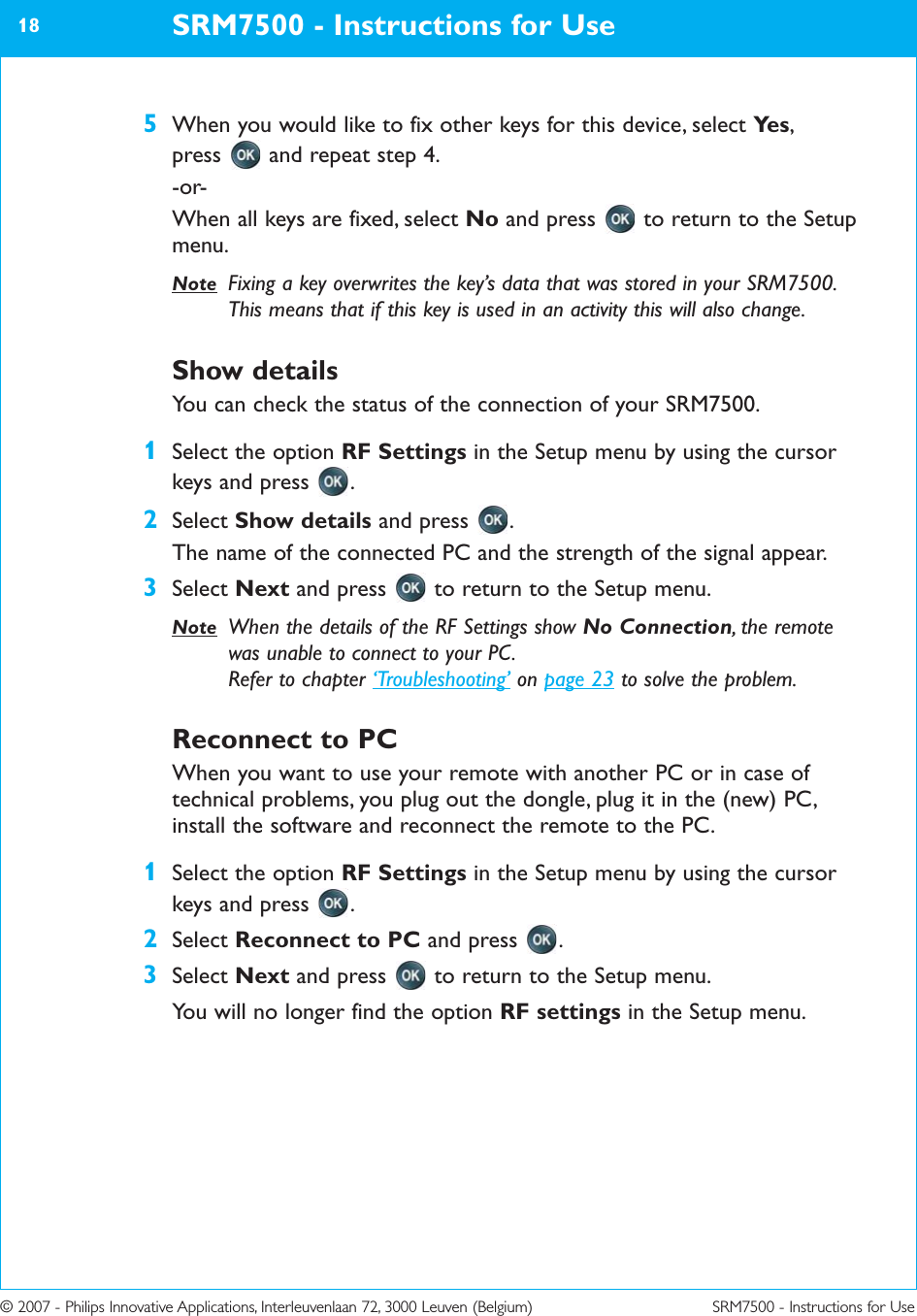

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for Use5When you would like to fix other keys for this device, select Ye s , press and repeat step 4.-or-When all keys are fixed, select No and press to return to the Setupmenu.Note Fixing a key overwrites the key’s data that was stored in your SRM7500.This means that if this key is used in an activity this will also change.Show detailsYou can check the status of the connection of your SRM7500.1Select the option RF Settings in the Setup menu by using the cursorkeys and press .2Select Show details and press .The name of the connected PC and the strength of the signal appear.3Select Next and press to return to the Setup menu.Note When the details of the RF Settings show No Connection, the remotewas unable to connect to your PC. Refer to chapter ‘Troubleshooting’ on page 23 to solve the problem.Reconnect to PC When you want to use your remote with another PC or in case oftechnical problems, you plug out the dongle, plug it in the (new) PC,install the software and reconnect the remote to the PC.1Select the option RF Settings in the Setup menu by using the cursorkeys and press .2Select Reconnect to PC and press .3Select Next and press to return to the Setup menu.You will no longer find the option RF settings in the Setup menu.SRM7500 - Instructions for Use18

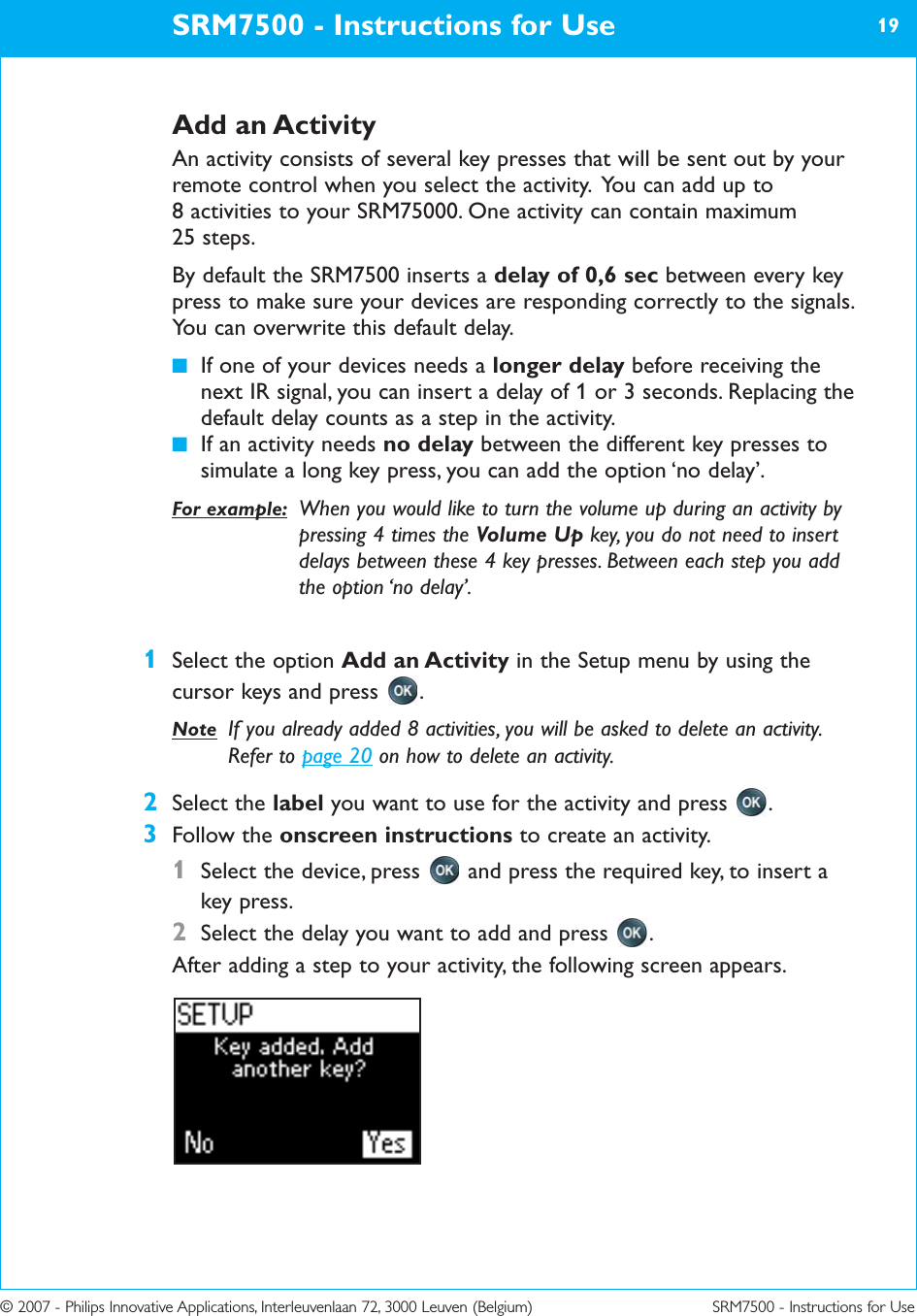

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseAdd an ActivityAn activity consists of several key presses that will be sent out by yourremote control when you select the activity. You can add up to 8 activities to your SRM75000. One activity can contain maximum 25 steps.By default the SRM7500 inserts a delay of 0,6 sec between every keypress to make sure your devices are responding correctly to the signals.You can overwrite this default delay. ■If one of your devices needs a longer delay before receiving thenext IR signal, you can insert a delay of 1 or 3 seconds. Replacing thedefault delay counts as a step in the activity.■If an activity needs no delay between the different key presses tosimulate a long key press, you can add the option ‘no delay’.For example: When you would like to turn the volume up during an activity bypressing 4 times the Volume Up key, you do not need to insertdelays between these 4 key presses. Between each step you addthe option ‘no delay’.1Select the option Add an Activity in the Setup menu by using thecursor keys and press .Note If you already added 8 activities, you will be asked to delete an activity.Refer to page 20 on how to delete an activity.2Select the label you want to use for the activity and press .3Follow the onscreen instructions to create an activity.1Select the device, press and press the required key, to insert akey press.2Select the delay you want to add and press .After adding a step to your activity, the following screen appears.SRM7500 - Instructions for Use 19

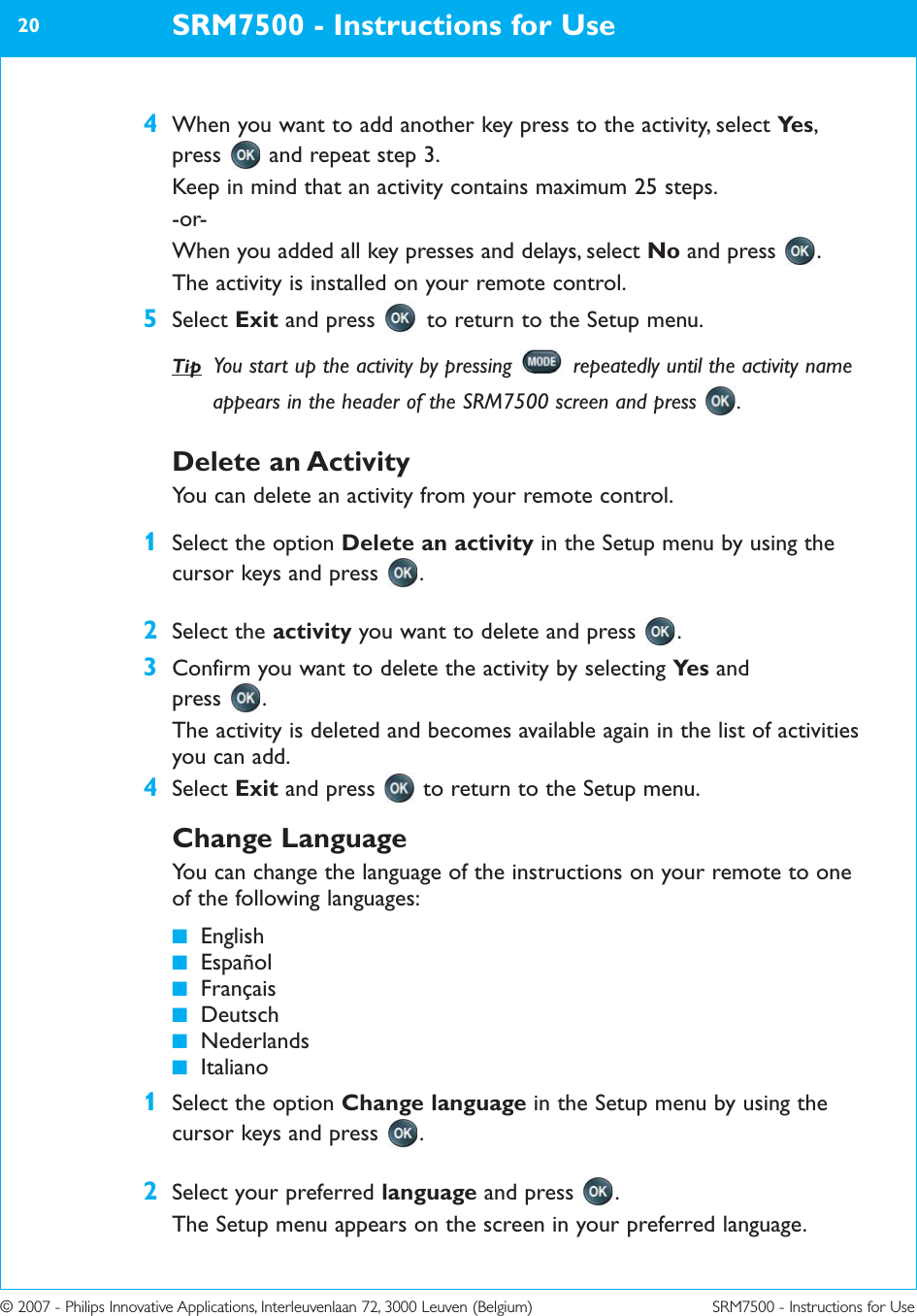

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for Use4When you want to add another key press to the activity, select Ye s ,press and repeat step 3.Keep in mind that an activity contains maximum 25 steps.-or-When you added all key presses and delays, select No and press .The activity is installed on your remote control. 5Select Exit and press to return to the Setup menu.SRM7500 - Instructions for Use20Tip You start up the activity by pressing repeatedly until the activity nameappears in the header of the SRM7500 screen and press .Delete an ActivityYou can delete an activity from your remote control.1Select the option Delete an activity in the Setup menu by using thecursor keys and press .2Select the activity you want to delete and press .3Confirm you want to delete the activity by selecting Ye s and press .The activity is deleted and becomes available again in the list of activitiesyou can add.4Select Exit and press to return to the Setup menu.Change LanguageYou can change the language of the instructions on your remote to oneof the following languages:■English■Español■Français■Deutsch■Nederlands■Italiano1Select the option Change language in the Setup menu by using thecursor keys and press .2Select your preferred language and press .The Setup menu appears on the screen in your preferred language.

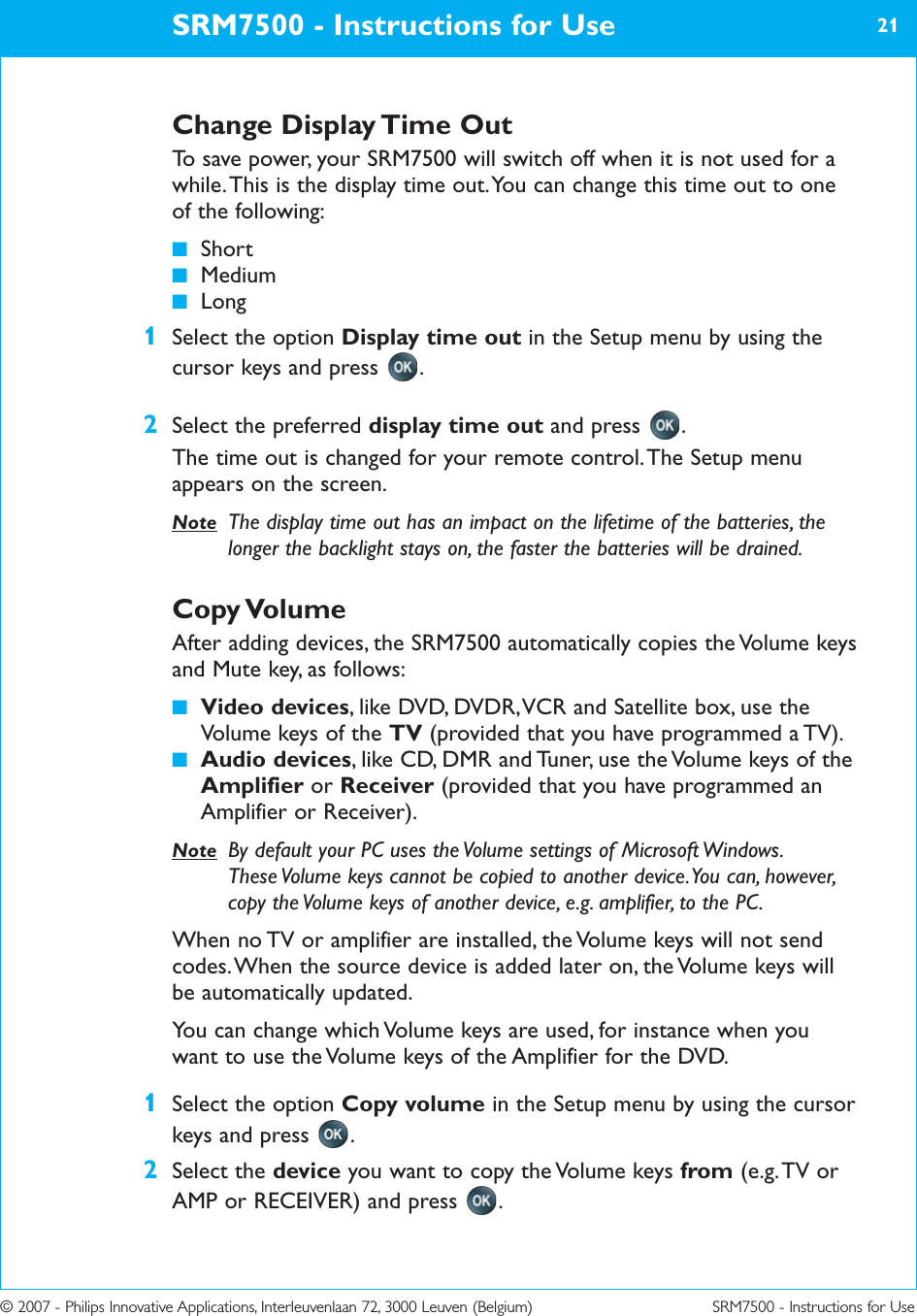

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseChange Display Time OutTo save power, your SRM7500 will switch off when it is not used for awhile. This is the display time out. You can change this time out to oneof the following: ■Short■Medium■Long1Select the option Display time out in the Setup menu by using thecursor keys and press .2Select the preferred display time out and press .The time out is changed for your remote control. The Setup menuappears on the screen.Note The display time out has an impact on the lifetime of the batteries, thelonger the backlight stays on, the faster the batteries will be drained.Copy VolumeAfter adding devices, the SRM7500 automatically copies the Volume keysand Mute key, as follows:■Video devices, like DVD, DVDR, VCR and Satellite box, use theVolume keys of the TV (provided that you have programmed a TV).■Audio devices, like CD, DMR and Tuner, use the Volume keys of theAmplifier or Receiver (provided that you have programmed anAmplifier or Receiver).Note By default your PC uses the Volume settings of Microsoft Windows.These Volume keys cannot be copied to another device. You can, however,copy the Volume keys of another device, e.g. amplifier, to the PC.When no TV or amplifier are installed, the Volume keys will not sendcodes. When the source device is added later on, the Volume keys willbe automatically updated.You can change which Volume keys are used, for instance when youwant to use the Volume keys of the Amplifier for the DVD.1Select the option Copy volume in the Setup menu by using the cursorkeys and press .2Select the device you want to copy the Volume keys from (e.g. TV orAMP or RECEIVER) and press .SRM7500 - Instructions for Use 21

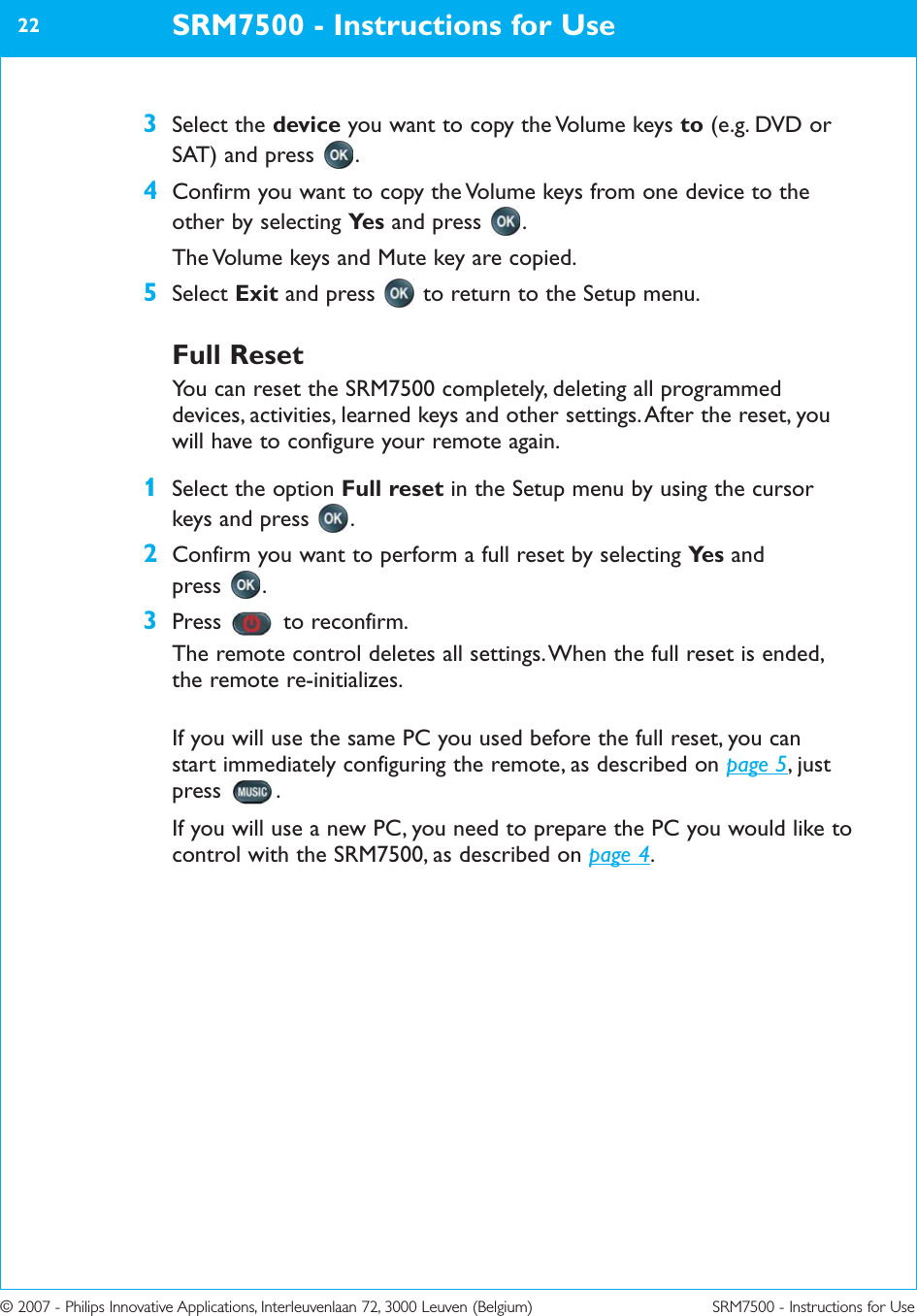

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for Use3Select the device you want to copy the Volume keys to (e.g. DVD orSAT) and press .4Confirm you want to copy the Volume keys from one device to theother by selecting Ye s and press .The Volume keys and Mute key are copied.5Select Exit and press to return to the Setup menu.Full ResetYou can reset the SRM7500 completely, deleting all programmeddevices, activities, learned keys and other settings. After the reset, youwill have to configure your remote again.1Select the option Full reset in the Setup menu by using the cursorkeys and press .2Confirm you want to perform a full reset by selecting Ye s and press .3Press to reconfirm.The remote control deletes all settings. When the full reset is ended,the remote re-initializes. If you will use the same PC you used before the full reset, you can start immediately configuring the remote, as described on page 5, justpress .If you will use a new PC, you need to prepare the PC you would like tocontrol with the SRM7500, as described on page 4.SRM7500 - Instructions for Use22

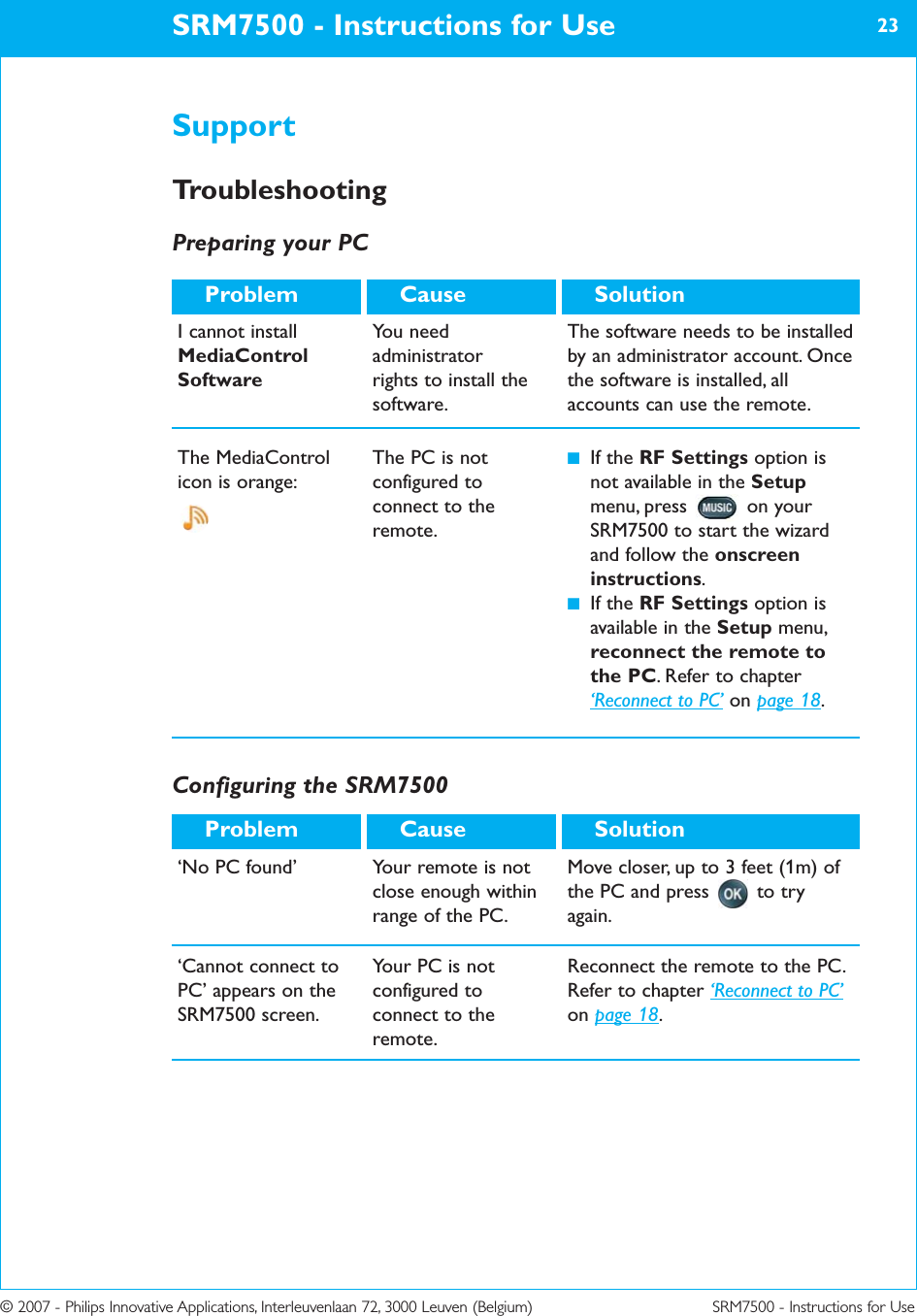

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use 23I cannot installMediaControlSoftwareYou needadministrator rights to install thesoftware.The software needs to be installedby an administrator account. Oncethe software is installed, allaccounts can use the remote.SolutionCauseProblemThe MediaControlicon is orange: The PC is notconfigured toconnect to theremote.■If the RF Settings option isnot available in the Setupmenu, press on yourSRM7500 to start the wizardand follow the onscreeninstructions. ■If the RF Settings option isavailable in the Setup menu,reconnect the remote tothe PC. Refer to chapter‘Reconnect to PC’ on page 18.SupportTroubleshootingPreparing your PCConfiguring the SRM7500SolutionCauseProblem‘Cannot connect toPC’ appears on theSRM7500 screen. Your PC is notconfigured toconnect to theremote.Reconnect the remote to the PC.Refer to chapter ‘Reconnect to PC’on page 18.‘No PC found’ Your remote is notclose enough withinrange of the PC.Move closer, up to 3 feet (1m) ofthe PC and press to tryagain.

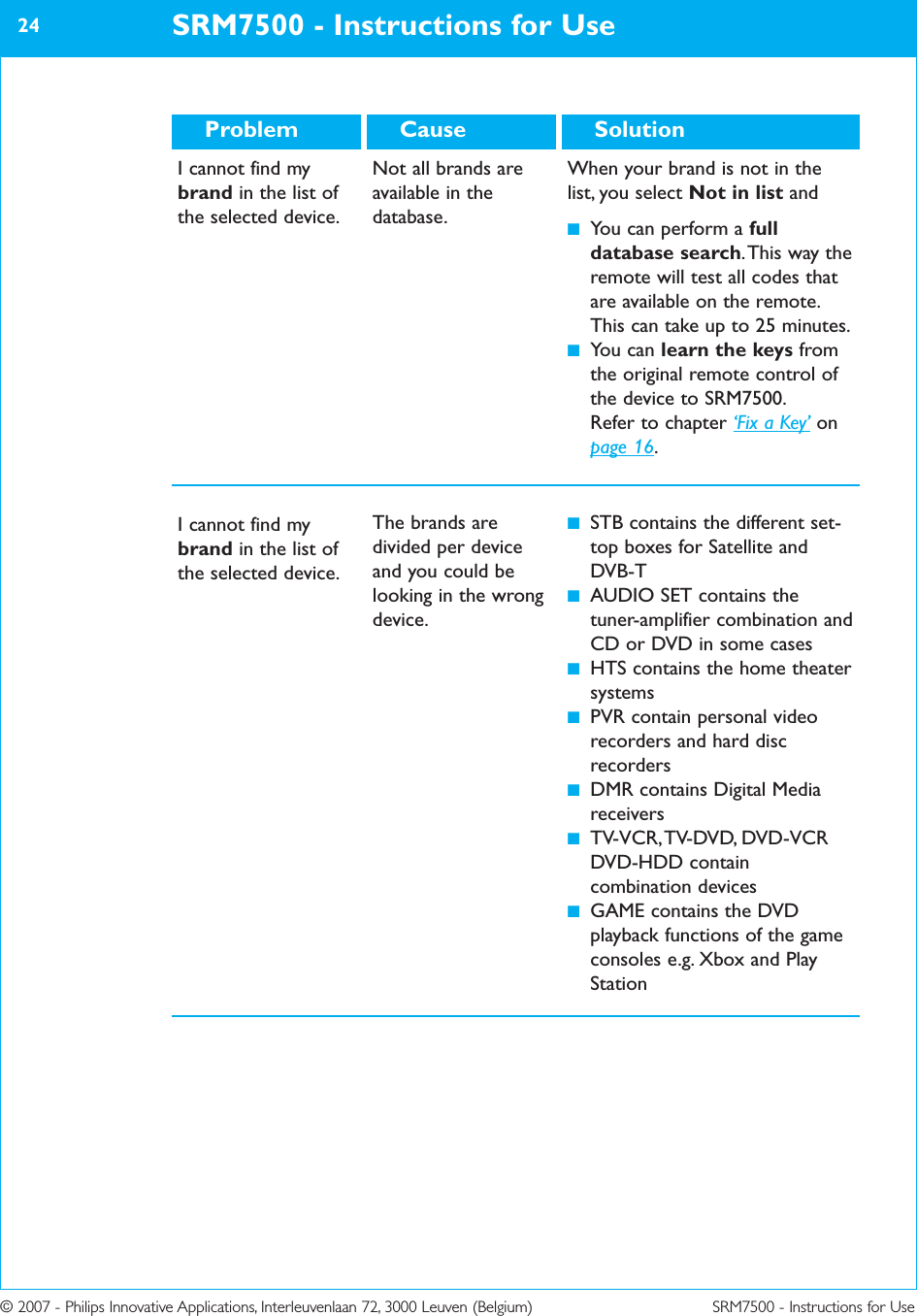

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use24I cannot find mybrand in the list ofthe selected device.The brands aredivided per deviceand you could belooking in the wrongdevice.■STB contains the different set-top boxes for Satellite andDVB-T■AUDIO SET contains thetuner-amplifier combination andCD or DVD in some cases■HTS contains the home theatersystems■PVR contain personal videorecorders and hard discrecorders■DMR contains Digital Mediareceivers■TV-VCR, TV-DVD, DVD-VCRDVD-HDD containcombination devices■GAME contains the DVDplayback functions of the gameconsoles e.g. Xbox and PlayStationSolutionCauseProblemI cannot find mybrand in the list ofthe selected device.Not all brands areavailable in thedatabase.When your brand is not in thelist, you select Not in list and■You can perform a fulldatabase search. This way theremote will test all codes thatare available on the remote.This can take up to 25 minutes.■You can learn the keys fromthe original remote control ofthe device to SRM7500. Refer to chapter ‘Fix a Key’ onpage 16.

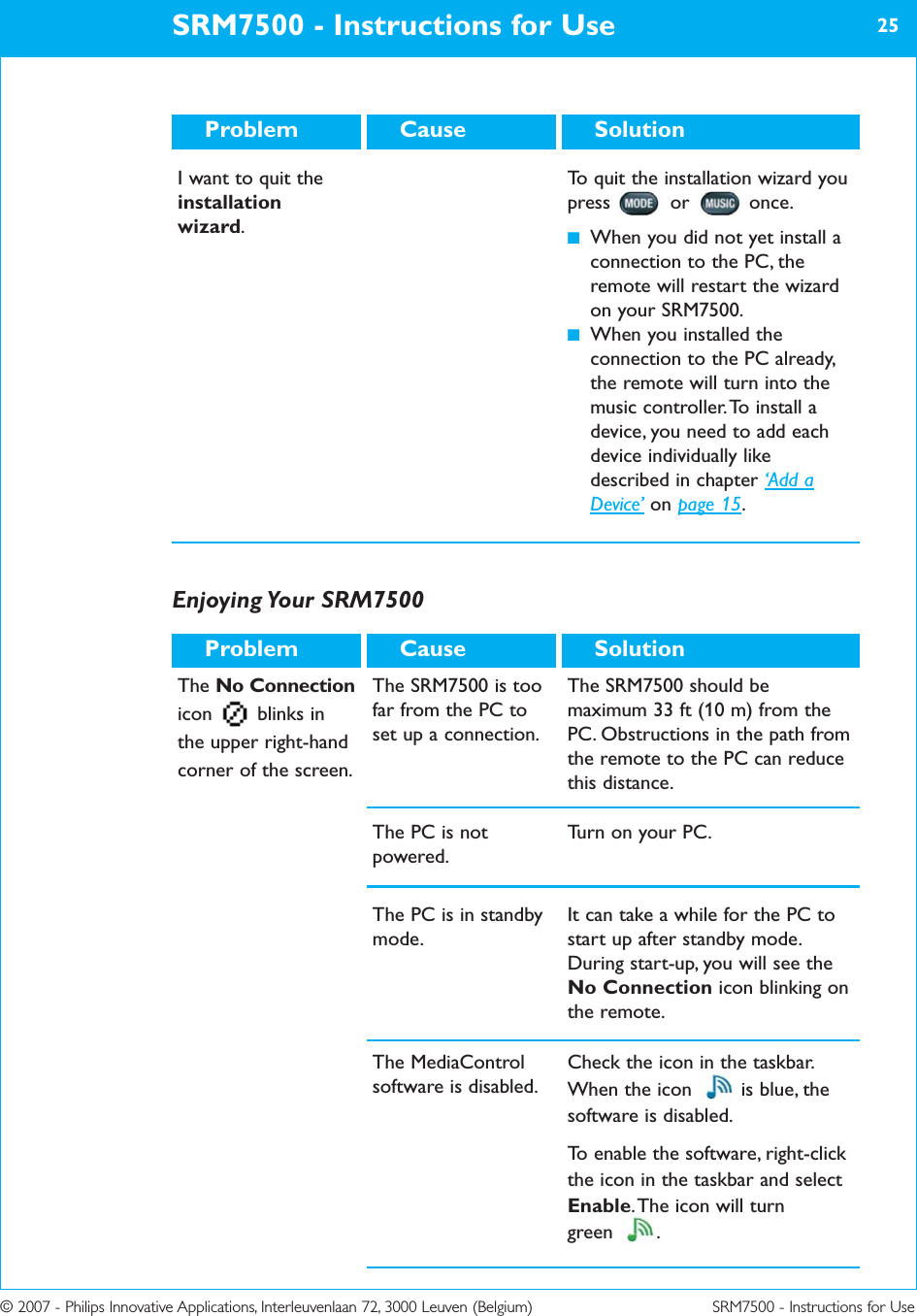

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use 25SolutionCauseProblemI want to quit theinstallationwizard.To quit the installation wizard youpress or once. ■When you did not yet install aconnection to the PC, theremote will restart the wizardon your SRM7500.■When you installed theconnection to the PC already,the remote will turn into themusic controller. To install adevice, you need to add eachdevice individually likedescribed in chapter ‘Add aDevice’ on page 15.Enjoying Your SRM7500The No Connectionicon blinks inthe upper right-handcorner of the screen.The SRM7500 is toofar from the PC toset up a connection. The SRM7500 should bemaximum 33 ft (10 m) from thePC. Obstructions in the path fromthe remote to the PC can reducethis distance.The PC is notpowered.Turn on your PC.The PC is in standbymode.It can take a while for the PC tostart up after standby mode.During start-up, you will see theNo Connection icon blinking onthe remote.SolutionCauseProblemThe MediaControlsoftware is disabled.Check the icon in the taskbar.When the icon is blue, thesoftware is disabled.To enable the software, right-clickthe icon in the taskbar and selectEnable. The icon will turn green .

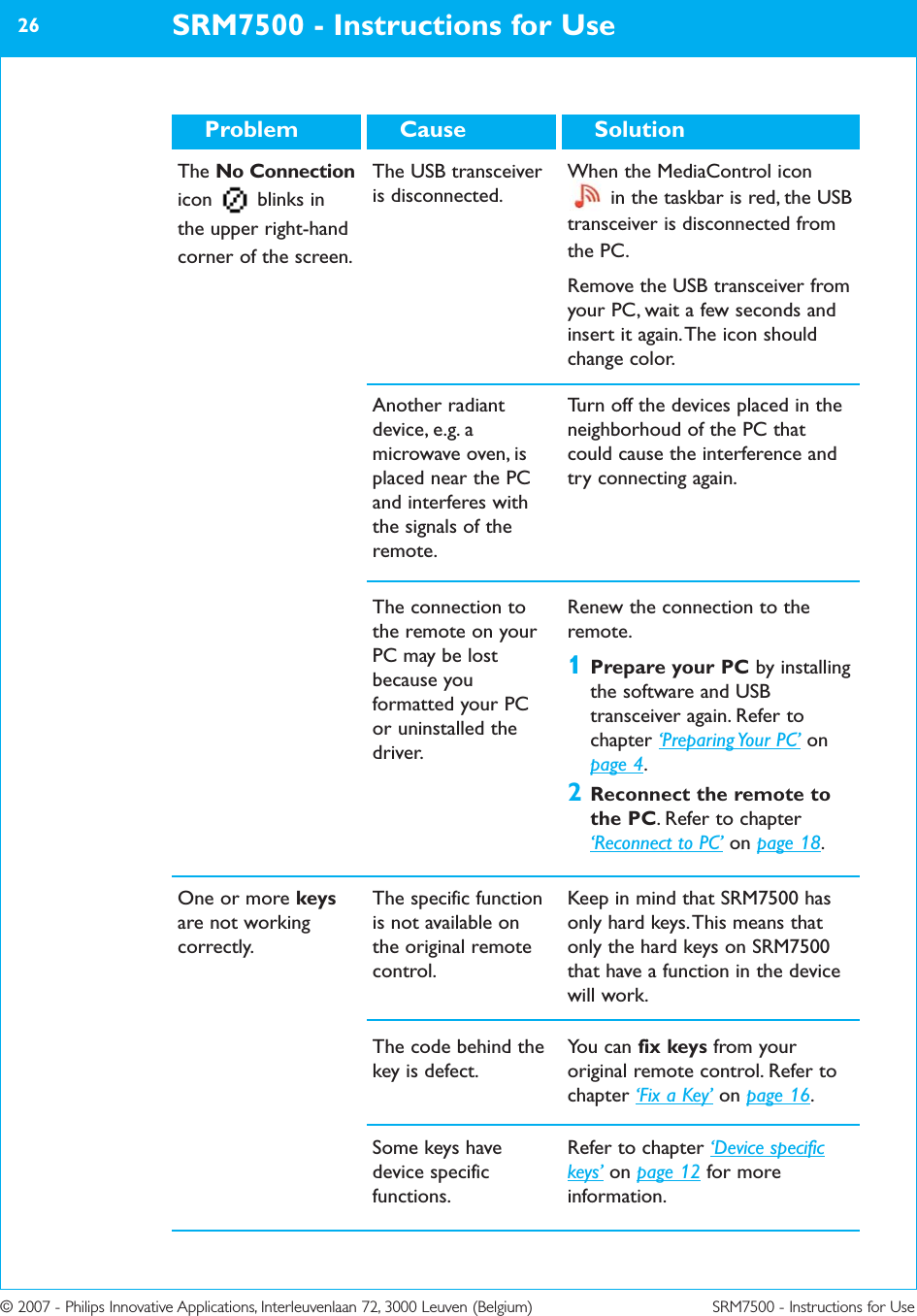

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use26The connection tothe remote on yourPC may be lostbecause youformatted your PCor uninstalled thedriver.Renew the connection to theremote.1Prepare your PC by installingthe software and USBtransceiver again. Refer tochapter ‘Preparing Your PC’ onpage 4.2Reconnect the remote tothe PC. Refer to chapter‘Reconnect to PC’ on page 18.SolutionCauseProblemOne or more keysare not workingcorrectly.The specific functionis not available onthe original remotecontrol.Keep in mind that SRM7500 hasonly hard keys. This means thatonly the hard keys on SRM7500that have a function in the devicewill work. The code behind thekey is defect.You can fix keys from youroriginal remote control. Refer tochapter ‘Fix a Key’ on page 16.Some keys havedevice specificfunctions.Refer to chapter ‘Device specifickeys’ on page 12 for moreinformation.The No Connectionicon blinks inthe upper right-handcorner of the screen.The USB transceiveris disconnected.When the MediaControl iconin the taskbar is red, the USBtransceiver is disconnected fromthe PC.Remove the USB transceiver fromyour PC, wait a few seconds andinsert it again. The icon shouldchange color.Another radiantdevice, e.g. amicrowave oven, isplaced near the PCand interferes withthe signals of theremote.Turn off the devices placed in theneighborhoud of the PC thatcould cause the interference andtry connecting again.

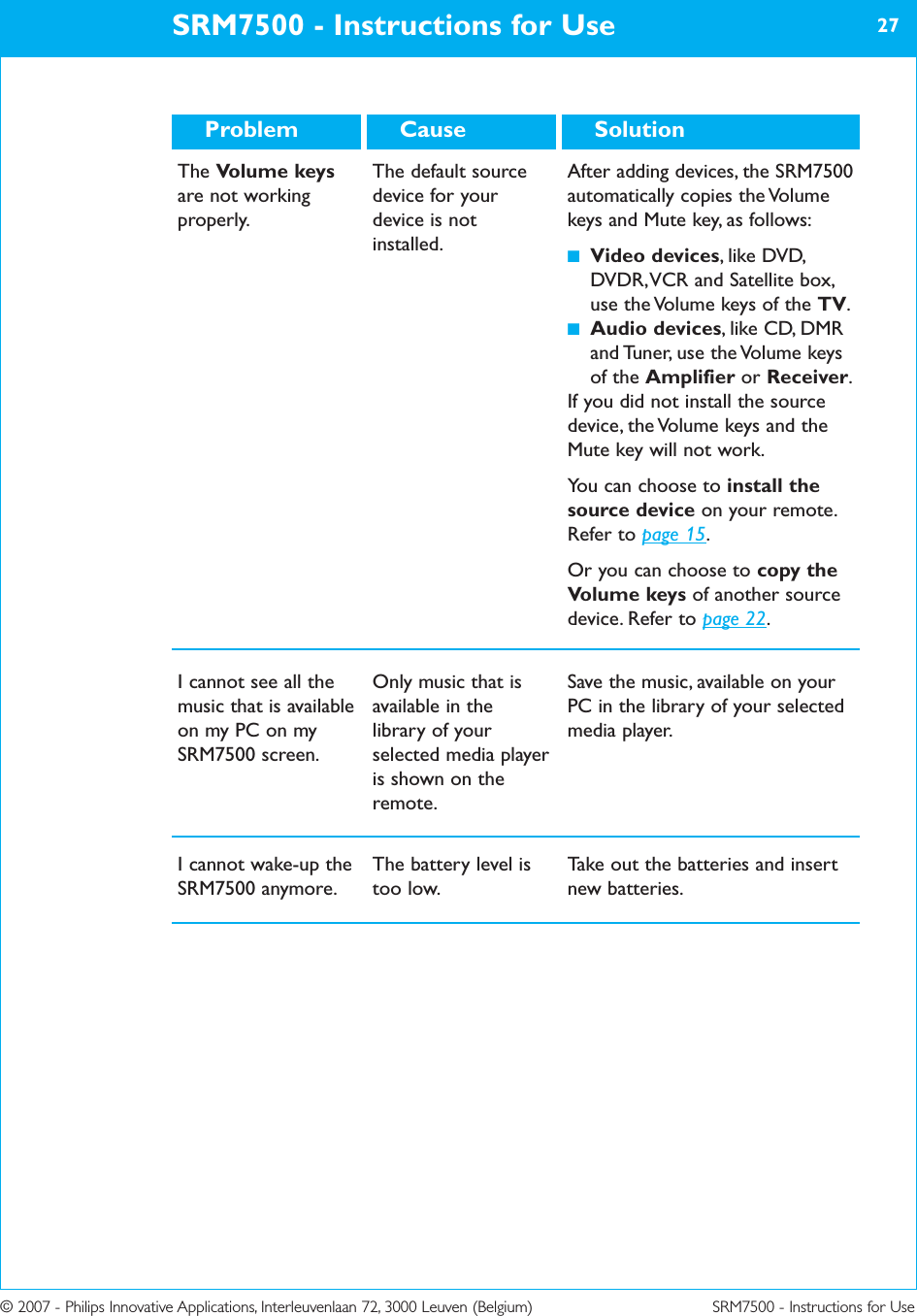

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use 27SolutionCauseProblemThe Volume keysare not workingproperly.The default sourcedevice for yourdevice is notinstalled.After adding devices, the SRM7500automatically copies the Volumekeys and Mute key, as follows:■Video devices, like DVD,DVDR, VCR and Satellite box,use the Volume keys of the TV.■Audio devices, like CD, DMRand Tuner, use the Volume keysof the Amplifier or Receiver.If you did not install the sourcedevice, the Volume keys and theMute key will not work. You can choose to install thesource device on your remote.Refer to page 15. Or you can choose to copy theVolume keys of another sourcedevice. Refer to page 22.I cannot see all themusic that is availableon my PC on mySRM7500 screen.Only music that isavailable in thelibrary of yourselected media playeris shown on theremote.Save the music, available on yourPC in the library of your selectedmedia player.I cannot wake-up theSRM7500 anymore.The battery level istoo low.Take out the batteries and insertnew batteries.

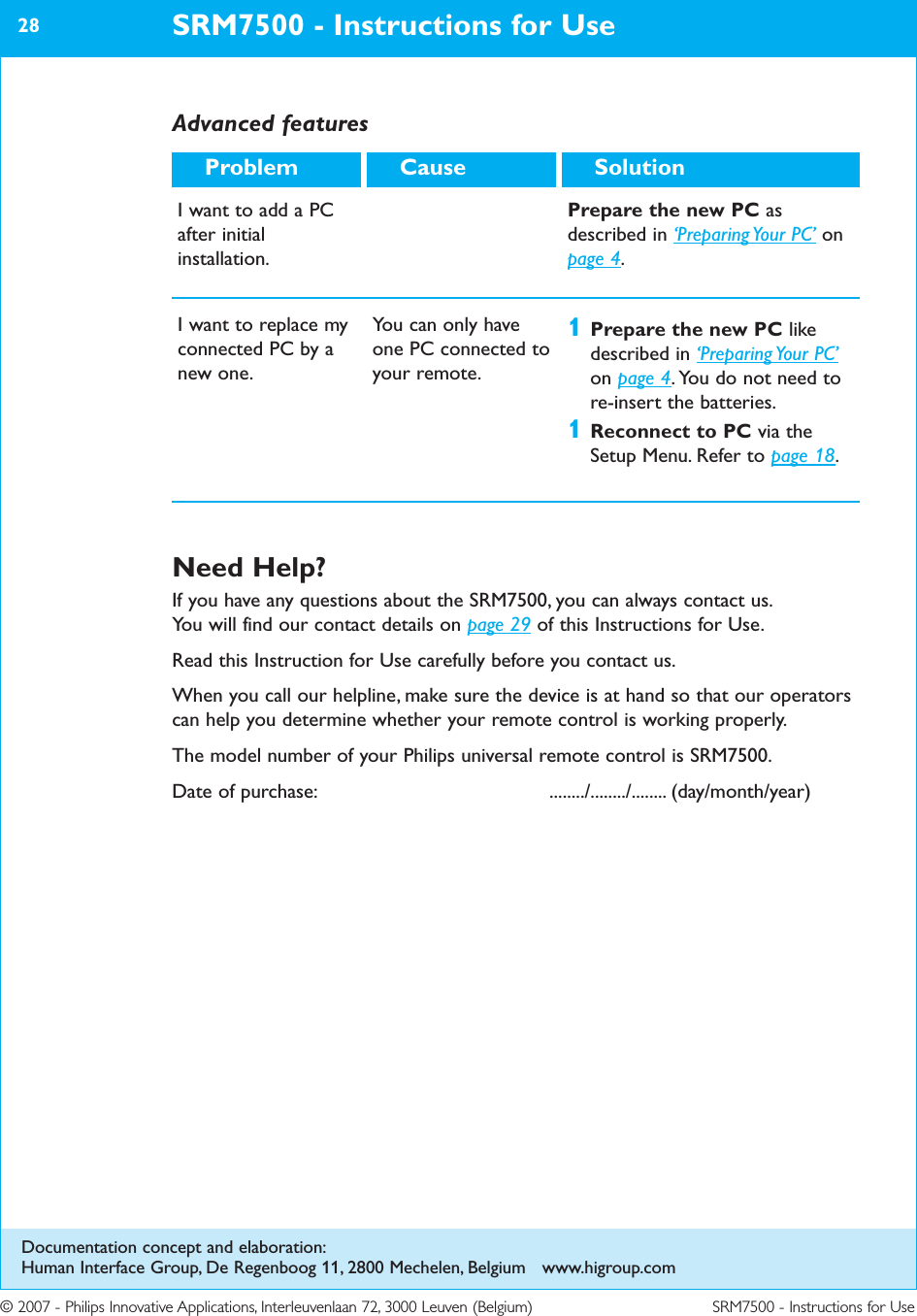

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseSRM7500 - Instructions for Use28SolutionCauseProblemI want to add a PCafter initialinstallation.Prepare the new PC asdescribed in ‘Preparing Your PC’ onpage 4.I want to replace myconnected PC by anew one.You can only haveone PC connected toyour remote.1Prepare the new PC likedescribed in ‘Preparing Your PC’on page 4. You do not need tore-insert the batteries.1Reconnect to PC via theSetup Menu. Refer to page 18.Advanced featuresNeed Help?If you have any questions about the SRM7500, you can always contact us.You will find our contact details on page 29 of this Instructions for Use.Read this Instruction for Use carefully before you contact us.When you call our helpline, make sure the device is at hand so that our operatorscan help you determine whether your remote control is working properly.The model number of your Philips universal remote control is SRM7500.Date of purchase: ......../......../........ (day/month/year)Documentation concept and elaboration:Human Interface Group, De Regenboog 11, 2800 Mechelen, Belgium www.higroup.com

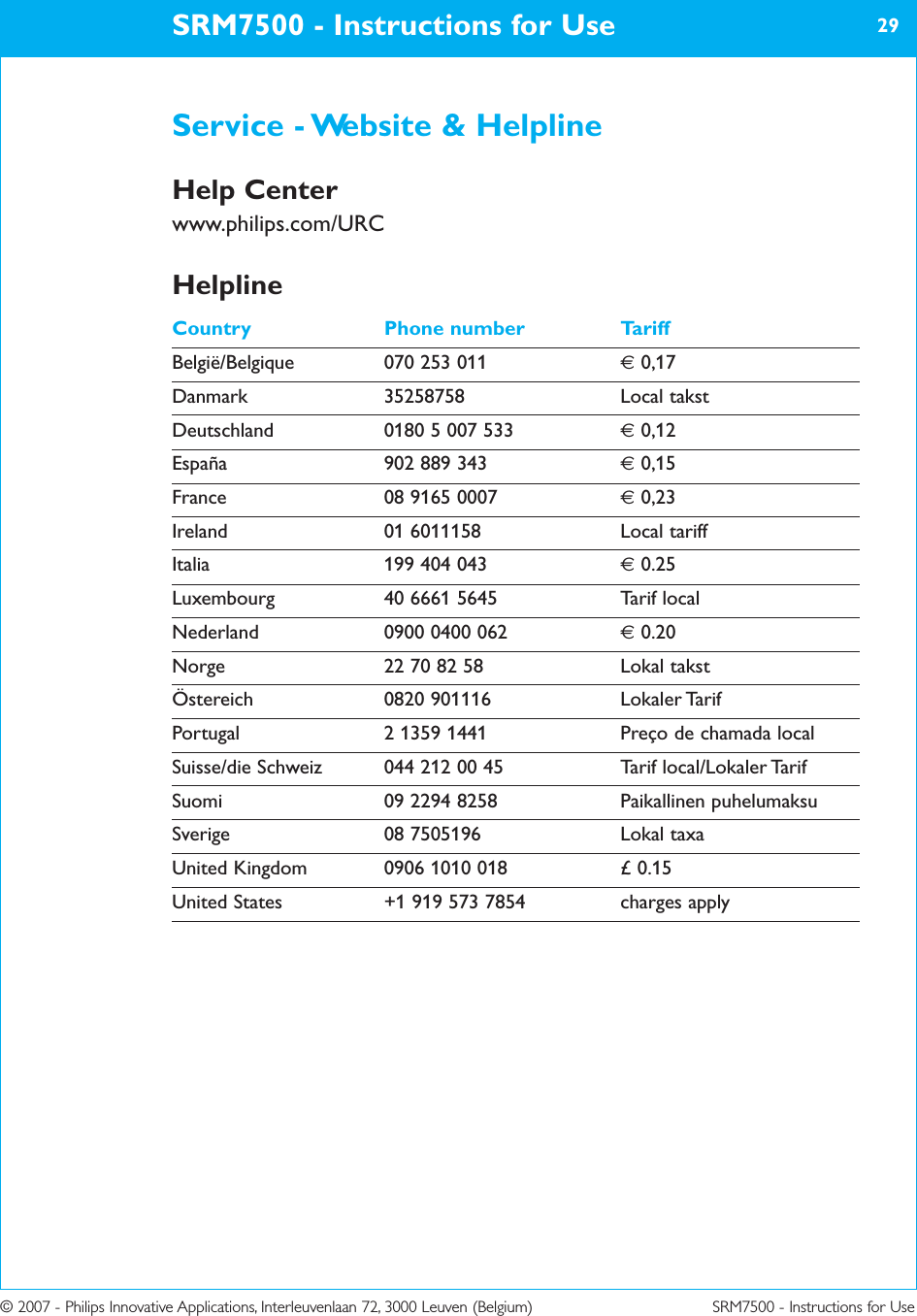

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseService - Website & HelplineHelp Centerwww.philips.com/URCHelplineCountry Phone number TariffBelgië/Belgique 070 253 011 €0,17Danmark 35258758 Local takstDeutschland 0180 5 007 533 €0,12España 902 889 343 €0,15France 08 9165 0007 €0,23Ireland 01 6011158 Local tariffItalia 199 404 043 €0.25Luxembourg 40 6661 5645 Tarif localNederland 0900 0400 062 €0.20Norge 22 70 82 58 Lokal takstÖstereich 0820 901116 Lokaler TarifPortugal 2 1359 1441 Preço de chamada localSuisse/die Schweiz 044 212 00 45 Tarif local/Lokaler TarifSuomi 09 2294 8258 Paikallinen puhelumaksuSverige 08 7505196 Lokal taxaUnited Kingdom 0906 1010 018 £ 0.15United States +1 919 573 7854 charges applySRM7500 - Instructions for Use 29

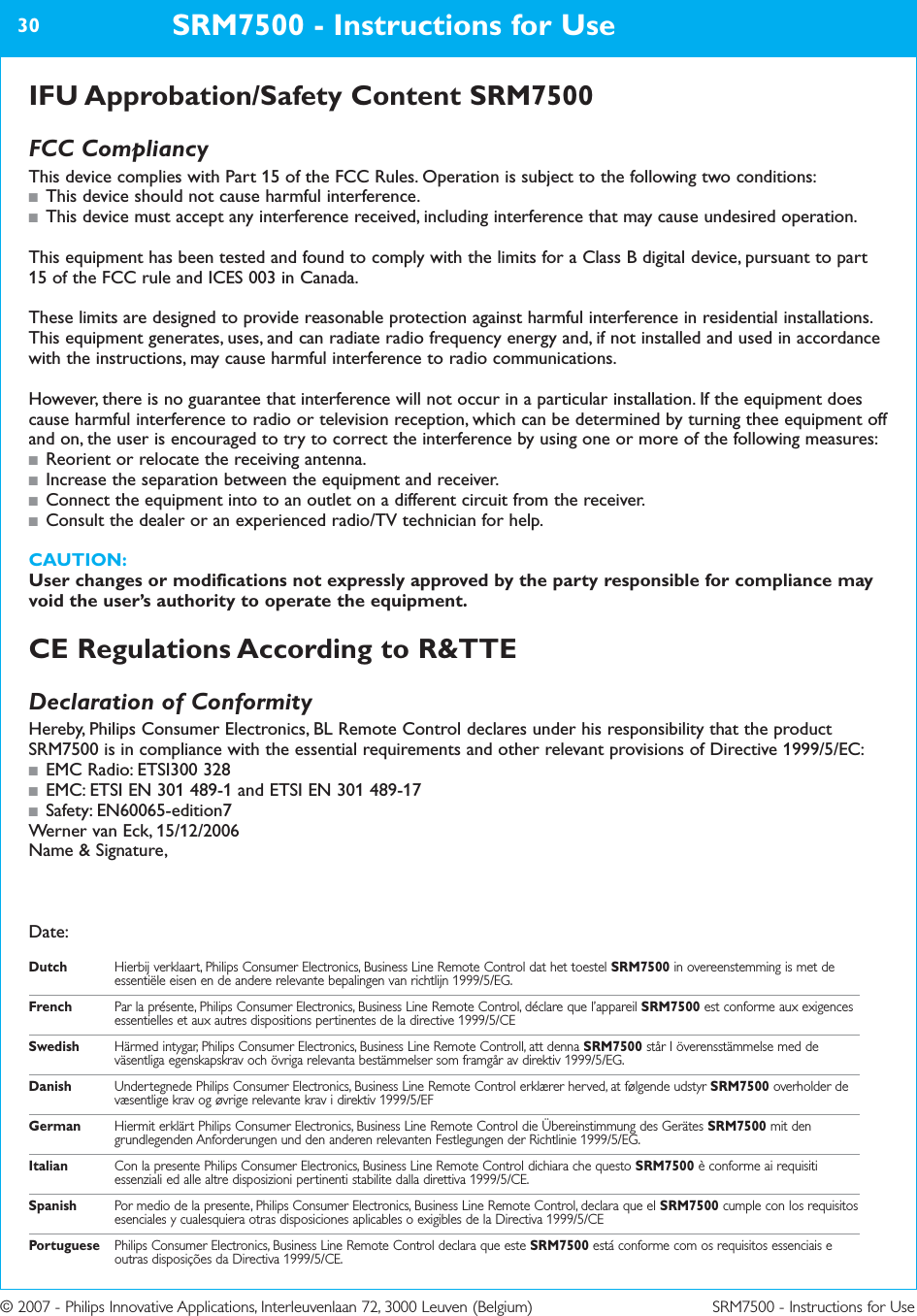

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseIFU Approbation/Safety Content SRM7500FCC CompliancyThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:■This device should not cause harmful interference.■This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC rule and ICES 003 in Canada.These limits are designed to provide reasonable protection against harmful interference in residential installations.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordancewith the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment doescause harmful interference to radio or television reception, which can be determined by turning thee equipment offand on, the user is encouraged to try to correct the interference by using one or more of the following measures:■Reorient or relocate the receiving antenna.■Increase the separation between the equipment and receiver.■Connect the equipment into to an outlet on a different circuit from the receiver.■Consult the dealer or an experienced radio/TV technician for help.CAUTION:User changes or modifications not expressly approved by the party responsible for compliance mayvoid the user’s authority to operate the equipment.CE Regulations According to R&TTEDeclaration of ConformityHereby, Philips Consumer Electronics, BL Remote Control declares under his responsibility that the productSRM7500 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC:■EMC Radio: ETSI300 328■EMC: ETSI EN 301 489-1 and ETSI EN 301 489-17■Safety: EN60065-edition7Werner van Eck, 15/12/2006Name & Signature,Date:Dutch Hierbij verklaart, Philips Consumer Electronics, Business Line Remote Control dat het toestel SRM7500 in overeenstemming is met deessentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.French Par la présente, Philips Consumer Electronics, Business Line Remote Control, déclare que l’appareil SRM7500 est conforme aux exigencesessentielles et aux autres dispositions pertinentes de la directive 1999/5/CESwedish Härmed intygar, Philips Consumer Electronics, Business Line Remote Controll, att denna SRM7500 står I överensstämmelse med deväsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Danish Undertegnede Philips Consumer Electronics, Business Line Remote Control erklærer herved, at følgende udstyr SRM7500 overholder devæsentlige krav og øvrige relevante krav i direktiv 1999/5/EFGerman Hiermit erklärt Philips Consumer Electronics, Business Line Remote Control die Übereinstimmung des Gerätes SRM7500 mit dengrundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG.Italian Con la presente Philips Consumer Electronics, Business Line Remote Control dichiara che questo SRM7500 è conforme ai requisitiessenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Spanish Por medio de la presente, Philips Consumer Electronics, Business Line Remote Control, declara que el SRM7500 cumple con los requisitosesenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CEPortuguese Philips Consumer Electronics, Business Line Remote Control declara que este SRM7500 está conforme com os requisitos essenciais eoutras disposições da Directiva 1999/5/CE.SRM7500 - Instructions for Use30

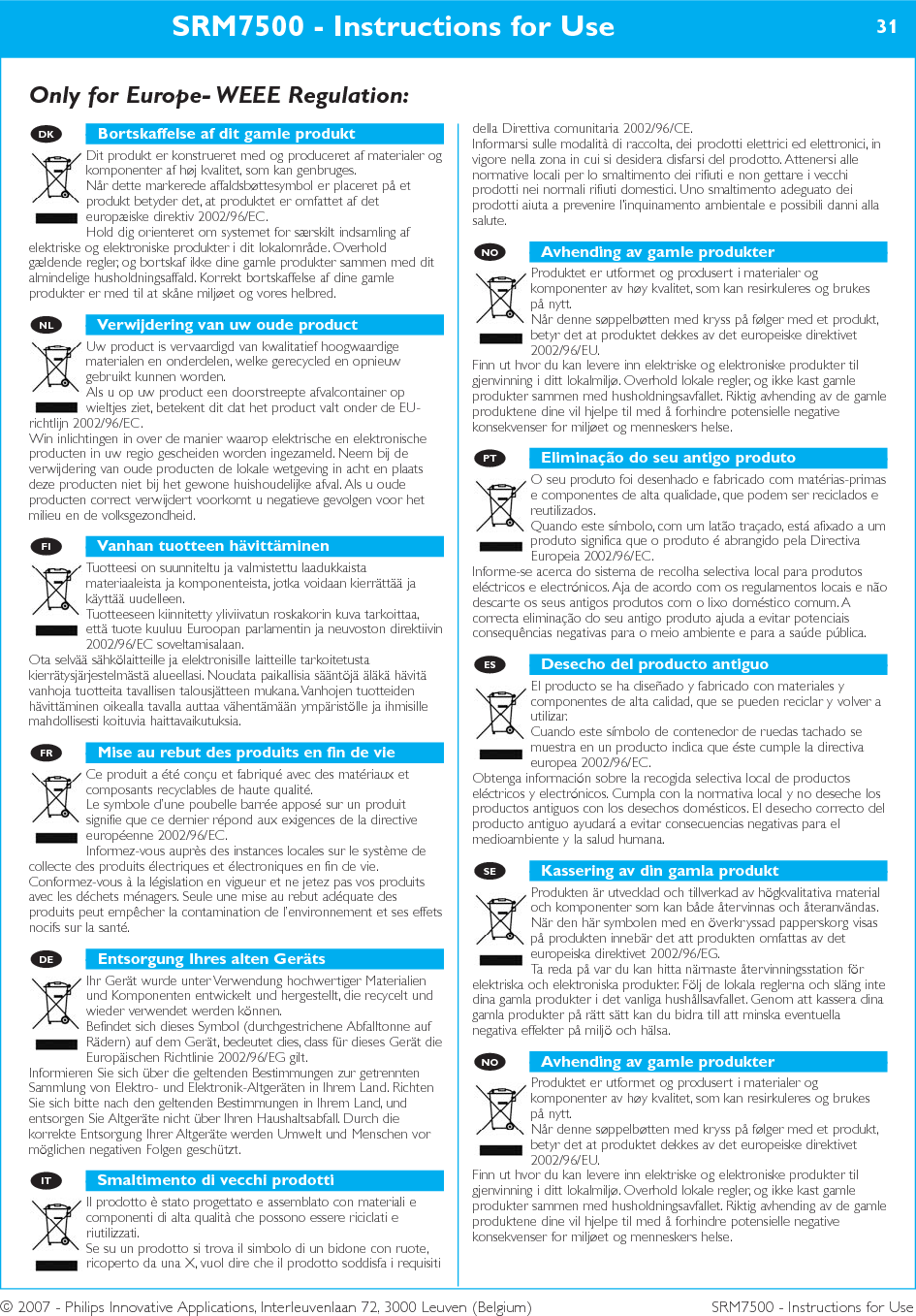

© 2007 - Philips Innovative Applications, Interleuvenlaan 72, 3000 Leuven (Belgium) SRM7500 - Instructions for UseOnly for Europe- WEEE Regulation:SRM7500 - Instructions for Use 31Bortskaffelse af dit gamle produktDit produkt er konstrueret med og produceret af materialer ogkomponenter af høj kvalitet, som kan genbruges. Når dette markerede affaldsbøttesymbol er placeret på etprodukt betyder det, at produktet er omfattet af deteuropæiske direktiv 2002/96/EC.Hold dig orienteret om systemet for særskilt indsamling afelektriske og elektroniske produkter i dit lokalområde. Overholdgældende regler, og bortskaf ikke dine gamle produkter sammen med ditalmindelige husholdningsaffald. Korrekt bortskaffelse af dine gamleprodukter er med til at skåne miljøet og vores helbred.Verwijdering van uw oude productUw product is vervaardigd van kwalitatief hoogwaardigematerialen en onderdelen, welke gerecycled en opnieuwgebruikt kunnen worden. Als u op uw product een doorstreepte afvalcontainer opwieltjes ziet, betekent dit dat het product valt onder de EU-richtlijn 2002/96/EC.Win inlichtingen in over de manier waarop elektrische en elektronischeproducten in uw regio gescheiden worden ingezameld. Neem bij deverwijdering van oude producten de lokale wetgeving in acht en plaatsdeze producten niet bij het gewone huishoudelijke afval. Als u oudeproducten correct verwijdert voorkomt u negatieve gevolgen voor hetmilieu en de volksgezondheid.Vanhan tuotteen hävittäminenTuotteesi on suunniteltu ja valmistettu laadukkaistamateriaaleista ja komponenteista, jotka voidaan kierrättää jakäyttää uudelleen. Tuotteeseen kiinnitetty yliviivatun roskakorin kuva tarkoittaa,että tuote kuuluu Euroopan parlamentin ja neuvoston direktiivin2002/96/EC soveltamisalaan.Ota selvää sähkölaitteille ja elektronisille laitteille tarkoitetustakierrätysjärjestelmästä alueellasi. Noudata paikallisia sääntöjä äläkä hävitävanhoja tuotteita tavallisen talousjätteen mukana. Vanhojen tuotteidenhävittäminen oikealla tavalla auttaa vähentämään ympäristölle ja ihmisillemahdollisesti koituvia haittavaikutuksia.Mise au rebut des produits en fin de vieCe produit a été conçu et fabriqué avec des matériaux etcomposants recyclables de haute qualité. Le symbole d’une poubelle barrée apposé sur un produitsignifie que ce dernier répond aux exigences de la directiveeuropéenne 2002/96/EC.Informez-vous auprès des instances locales sur le système decollecte des produits électriques et électroniques en fin de vie.Conformez-vous à la législation en vigueur et ne jetez pas vos produitsavec les déchets ménagers. Seule une mise au rebut adéquate desproduits peut empêcher la contamination de l’environnement et ses effetsnocifs sur la santé.Entsorgung Ihres alten GerätsIhr Gerät wurde unter Verwendung hochwertiger Materialienund Komponenten entwickelt und hergestellt, die recycelt undwieder verwendet werden können. Befindet sich dieses Symbol (durchgestrichene Abfalltonne aufRädern) auf dem Gerät, bedeutet dies, dass für dieses Gerät dieEuropäischen Richtlinie 2002/96/EG gilt.Informieren Sie sich über die geltenden Bestimmungen zur getrenntenSammlung von Elektro- und Elektronik-Altgeräten in Ihrem Land. RichtenSie sich bitte nach den geltenden Bestimmungen in Ihrem Land, undentsorgen Sie Altgeräte nicht über Ihren Haushaltsabfall. Durch diekorrekte Entsorgung Ihrer Altgeräte werden Umwelt und Menschen vormöglichen negativen Folgen geschützt.Smaltimento di vecchi prodottiIl prodotto è stato progettato e assemblato con materiali ecomponenti di alta qualità che possono essere riciclati eriutilizzati. Se su un prodotto si trova il simbolo di un bidone con ruote,ricoperto da una X, vuol dire che il prodotto soddisfa i requisitidella Direttiva comunitaria 2002/96/CE.Informarsi sulle modalità di raccolta, dei prodotti elettrici ed elettronici, invigore nella zona in cui si desidera disfarsi del prodotto. Attenersi allenormative locali per lo smaltimento dei rifiuti e non gettare i vecchiprodotti nei normali rifiuti domestici. Uno smaltimento adeguato deiprodotti aiuta a prevenire l’inquinamento ambientale e possibili danni allasalute.Avhending av gamle produkterProduktet er utformet og produsert i materialer ogkomponenter av høy kvalitet, som kan resirkuleres og brukespå nytt. Når denne søppelbøtten med kryss på følger med et produkt,betyr det at produktet dekkes av det europeiske direktivet2002/96/EU.Finn ut hvor du kan levere inn elektriske og elektroniske produkter tilgjenvinning i ditt lokalmiljø. Overhold lokale regler, og ikke kast gamleprodukter sammen med husholdningsavfallet. Riktig avhending av de gamleproduktene dine vil hjelpe til med å forhindre potensielle negativekonsekvenser for miljøet og menneskers helse.Eliminação do seu antigo produtoO seu produto foi desenhado e fabricado com matérias-primase componentes de alta qualidade, que podem ser reciclados ereutilizados. Quando este símbolo, com um latão traçado, está afixado a umproduto significa que o produto é abrangido pela DirectivaEuropeia 2002/96/EC.Informe-se acerca do sistema de recolha selectiva local para produtoseléctricos e electrónicos. Aja de acordo com os regulamentos locais e nãodescarte os seus antigos produtos com o lixo doméstico comum. Acorrecta eliminação do seu antigo produto ajuda a evitar potenciaisconsequências negativas para o meio ambiente e para a saúde pública.Desecho del producto antiguoEl producto se ha diseñado y fabricado con materiales ycomponentes de alta calidad, que se pueden reciclar y volver autilizar. Cuando este símbolo de contenedor de ruedas tachado semuestra en un producto indica que éste cumple la directivaeuropea 2002/96/EC.Obtenga información sobre la recogida selectiva local de productoseléctricos y electrónicos. Cumpla con la normativa local y no deseche losproductos antiguos con los desechos domésticos. El desecho correcto delproducto antiguo ayudará a evitar consecuencias negativas para elmedioambiente y la salud humana.Kassering av din gamla produktProdukten är utvecklad och tillverkad av högkvalitativa materialoch komponenter som kan både återvinnas och återanvändas. När den här symbolen med en överkryssad papperskorg visaspå produkten innebär det att produkten omfattas av deteuropeiska direktivet 2002/96/EG.Ta reda på var du kan hitta närmaste återvinningsstation förelektriska och elektroniska produkter. Följ de lokala reglerna och släng intedina gamla produkter i det vanliga hushållsavfallet. Genom att kassera dinagamla produkter på rätt sätt kan du bidra till att minska eventuellanegativa effekter på miljö och hälsa.Avhending av gamle produkterProduktet er utformet og produsert i materialer ogkomponenter av høy kvalitet, som kan resirkuleres og brukespå nytt. Når denne søppelbøtten med kryss på følger med et produkt,betyr det at produktet dekkes av det europeiske direktivet2002/96/EU.Finn ut hvor du kan levere inn elektriske og elektroniske produkter tilgjenvinning i ditt lokalmiljø. Overhold lokale regler, og ikke kast gamleprodukter sammen med husholdningsavfallet. Riktig avhending av de gamleproduktene dine vil hjelpe til med å forhindre potensielle negativekonsekvenser for miljøet og menneskers helse.NOSEESPTNOITDEFRFINLDK
