SRM7500

Instructions for Use

Quick & Easy Setup

www.philips.com/urc

SRM7500 - Instructions for Use

Contents

Taking a first look . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing the Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Configuring the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Enjoying Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using SRM7500 as a music controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using SRM7500 as a universal remote control. . . . . . . . . . . . . . . . . . . . . . . 11

Advanced features of SRM7500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Need Help?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Service - Website & Helpline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Help Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Helpline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

IFU Approbation/Safety Content SRM7500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

FCC Compliancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

CE Regulations According to R&TTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Taking a first look

Thank you for purchasing the Philips SRM7500 universal remote

control. With this remote, you do not only have a universal remote

control but also a music controller that enables you to control the

media player, installed on your PC, via the screen of the remote.

SRM7500 operates like a universal remote control that can control up

to 6 AV-devices and your PC Media Center, if available. You can also

configure 8 activities. By selecting an activity you automatically start a

sequence of maximal 25 key presses to start watching TV or listening to

your CD collection.

Thanks to the interactive feature of the SRM7500 it is possible to

receive the music information of your media player on the screen of

your SRM7500. This makes it possible to control your media player

without having your PC screen turned on or your media player active.

In the box you find your SRM7500, a USB transceiver to set up the

connection to your PC and an installation CD that contains the

software needed to operate the SRM7500 and the manuals in diverse

languages.

SRM7500 - Instructions for Use 3

Music key See p 7

Power key

Back key

Cursor keys and OK key

Display with context

related screens

Volume Up key

Volume Down key

Device specific keys See p 12

Mode key See p 11

As music controller:

Playback Settings menu key See p 9

As universal remote:

More key See p 11

Mute key

Channel Up key

Channel Down key

MC Start key See p 13

Playback keys

Device specific keys

MC Digit keys

TV - Sat/Cable Digit keys

Audio set Input source keys

Device specific keys

MC Color keys

TV - Sat/Cable Color keys

Audio set See p 12

Press the Music en Mode key

simultaneously for 3 seconds to open

the Setup menu.

Battery low icon

No connection icon

Sending animation

Installing the Remote Control

The initial installation of your remote is divided into 2 main parts:

•Preparing the PC you want to control with the SRM7500 by

installing the MediaControl software and the USB transceiver,

enclosed.

•Configuring the remote control to set up the connection to the

correct PC and define the devices the SRM7500 will work with.

Preparing Your PC

Warning It is very important to follow the specified sequence of actions

during the installation.

First you need to install the software. This software controls the

connection of the SRM7500 to the host PC and will allow you to use

the features of your media player. Only then you can insert the USB

transceiver.

1Insert the installation CD enclosed.

An installation wizard appears on your PC screen.

2Install the MediaControl software by following the onscreen

instructions.

When the software is installed, the MediaControl icon appears in

the taskbar on your PC screen.

3When requested in the

installation wizard, insert the

USB transceiver in the

dedicated port on your PC.

The USB transceiver will be

recognized and installed

automatically.

When the USB transceiver is

correctly installed, the

MediaControl icon turns

orange: .

4After the USB transceiver is installed, insert the batteries in the

remote control, as shown.

SRM7500 - Instructions for Use

SRM7500 - Instructions for Use 5

The remote initializes and is now ready to be configured as described

below.

Note Leave your PC turned on during the configuration of the remote control.

You still need to set up the connection between the remote and the PC.

Configuring the Remote Control

A wizard on the remote’s screen will guide you through the different

steps of the initial configuration of your SRM7500.

1Select the language for your instructions on the remote using the

cursor keys and press .

2Select Next and press . Make sure the remote is within a range of

6 feet (2 meters) of the PC.

When the connection between the remote and the PC is installed

successfully, a confirmation message appears on the SRM7500 screen

and the MediaControl icon in the taskbar on your PC screen turns

green: .

The name of the PC you want to control with your SRM7500

appears.

3Confirm that you want to add other devices, like your TV or DVD

player, by selecting Ye s and press .

In doing so, you replace their original remote control with SRM7500.

The installation of 4 devices typically takes up to 20 minutes.

4Select the device and brand of the device you want to add using the

cursor keys and press .

The remote searches the database for available code sets.

Press the cover inwards

and lift it up.

Place the 3 batteries

into the battery

compartment.

Position the cover and

press firmly until you

hear a click.

5Follow the onscreen instructions to test the codes.

■When a working code set is found, your device is correctly

installed.

■When no working code is found,

■You can perform a full database search to find a correct code

set. It can take up to 25 minutes to perform this full database

search.

■You can learn the codes from the original remote of the device.

Refer to chapter ‘Fix a Key’ on page 16 for more information on

how to learn codes.

When the device is installed, the following screen appears.

6When you want to add another device, select Ye s , press and repeat

step 5 and 6.

-or-

When you added all your devices, select No and press to exit the

wizard.

Note You can adjust the settings of SRM7500 via the Setup menu. Refer to

page 14 for more information on these advanced features.

Replacing the batteries

When the batteries are almost empty, the Battery Low icon

appears.

Please replace the batteries with new LR6 or AA type alkaline

batteries and follow the local regulations for disposal of the empty

batteries.

Warning When you replace the batteries, do not mix different brands of

batteries or place zinc carbon batteries in the remote. This can trigger

unpredictable behavior.

SRM7500 - Instructions for Use

Enjoying Your Remote Control

The SRM7500 has 2 important functions combined in 1 remote control.

On one hand you have a music controller that interacts with your

media player on the PC and enables you to control the music, available

on your PC, without turning the PC screen or player on.

Refer to chapter ‘Using SRM7500 as a music controller’ on page 7.

On the other hand you have a universal remote control, which

replaces the original remote control of 6 AV-devices and your PC Media

Center. You select the device and SRM7500 changes into that specific

remote.

Refer to chapter ‘Using SRM7500 as a universal remote control’ on

page 11.

Using SRM7500 as a music controller

If you did not install a PC during the initial installation, pressing

starts the wizard to set up the connection to your PC.

Refer to chapter ‘Configuring the Remote Control’ on page 5 for more

information on how to set up the connection.

Note When you see the No Connection icon in the upper right-hand

corner of the screen blinking, the remote is not able to connect to your PC.

Refer to chapter ‘Troubleshooting’ on page 23 to solve the problem.

SRM7500 - Instructions for Use 7

Press on your SRM7500 to

connect to your media player on

your PC and to see your playlists

on the SRM7500.

Browsing and playing music

With SRM7500 you can browse through the music that is available on

your PC.

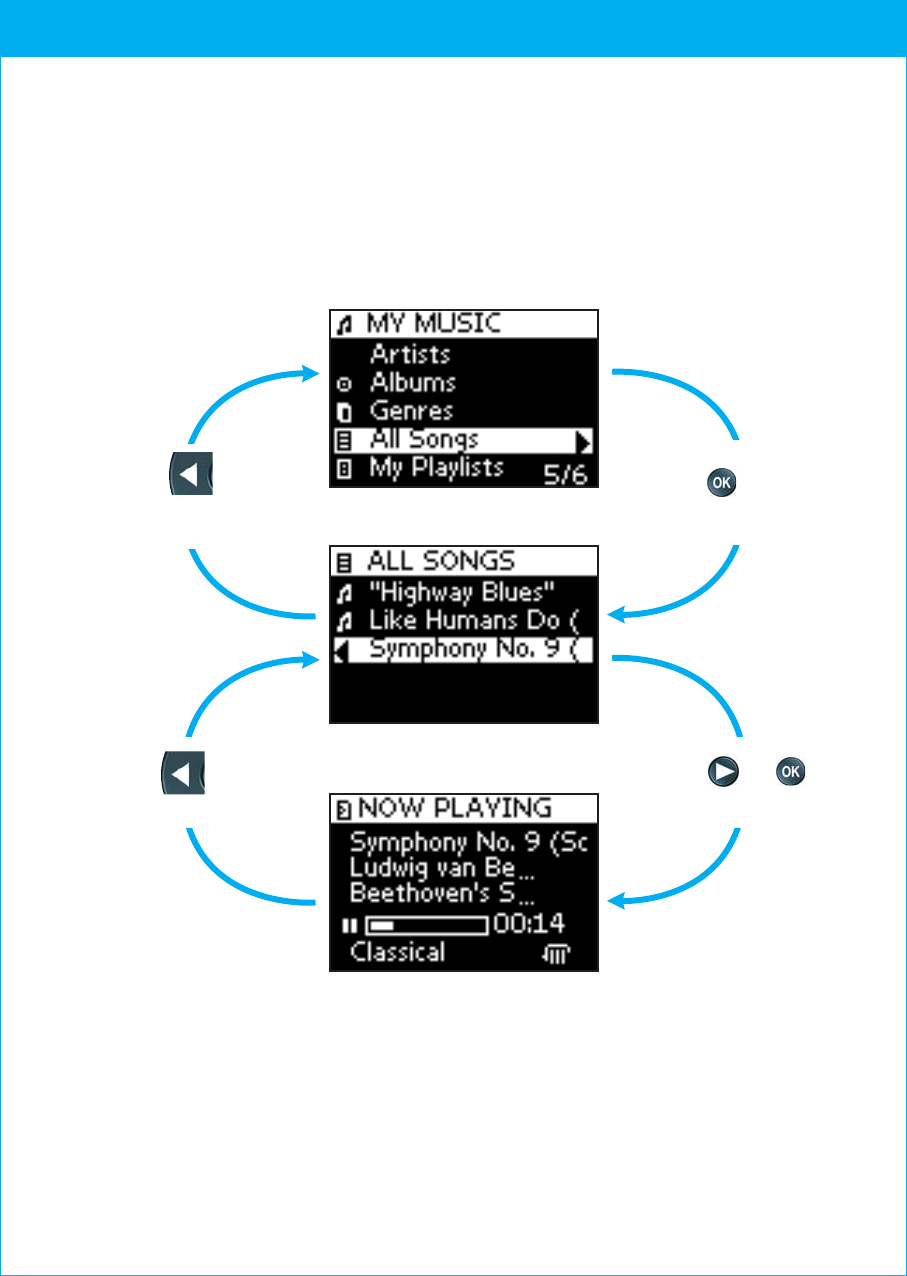

To navigate through different menus on the remote:

SRM7500 - Instructions for Use

My Music screen

All songs screen

Now Playing screen

Press to

return to the

previous screen.

Press to go to

the next screen.

Press to return

to the playlists.

Press or to

start playing the song.

To scroll through a list on a screen:

■Use the digit keys to jump immediately to a specific point in the

list. This is the most efficient way to scroll through a list very fast.

For example, when you press 3 times, you automatically jump

to the first item in the list that starts with ‘r’.

■Use the Cursor Up key and Cursor Down key to select the

previous or following item in the list.

On the Now playing screen you get the following information about

the song.

SRM7500 - Instructions for Use 9

Defining the Playback Settings

On your remote you can choose to repeat the playing playlist or

choose to play the playlist in a random sequence.

To enable a playback setting:

1Press to open the Playback Settings menu.

2Select one of the following settings and press .

■Repeat: to repeat the playing playlist.

■Shuffle: to play the selected playlist in a random sequence.

The corresponding icon will appear on the remote’s screen.

Note When you are using iTunes, you can repeat a single song by selecting

Repeat in the Playback Settings menu and pressing twice.

The icon appears on the remote’s screen.

Title of the song

Name of the artist

Title of the album

Progress indication of

the playing song

Icons to indicate enabled special

playing features,

1. repeat the current playlist

2. shuffle

Current playback

status

Genre of the song

To disable a playback setting:

1Press to open the Playback Settings menu.

2Select the setting you would like to disable and press again.

The corresponding icon will disappear from the SRM7500 screen.

Creating a queue

On your SRM7500 you can easily create a playing queue by adding songs

to the ‘Now Playing’ list (for Windows Media Player) or the

‘PartyShuffle’ list (for iTunes).

You can always delete the playing queue, but you cannot delete an

individual song in the queue.

To add a song to the playing queue:

1Navigate with the cursor keys to the song that you would like to add.

2Press to add the song to the playing queue.

A confirmation message appears on the screen and the song is added to

the list.

Notes • You can only add a song to the queue while another song is playing.

When there is no song being played, the selected song will immediately

start to play.

• Pressing will stop the currently playing song and start

the selected song.

To delete a playing queue:

1Navigate with the cursor keys to the Now Playing list (for Windows

Media Player) or the PartyShuffle list (for iTunes) and press .

The playing queue appears on the screen.

2Select Clear List and press .

The playing queue is deleted and the currently playing song stops.

Note A playing queue is not the same as a playlist on your media player. Unlike

the playlist on your PC, you are not able to save the playing queue created

on your remote. This playing queue is more like an on-the-spot playlist.

SRM7500 - Instructions for Use

Using SRM7500 as a universal remote control

The music, started while using the remote as a music controller, will

continue to play even though you pressed to use SRM7500 as a

universal remote control.

SRM7500 - Instructions for Use 11

Press on your SRM7500 to

use your SRM7500 as a universal

remote control. The device icon of

your last selected device will

appear on the screen.

Selecting a Device

To select a device, you have installed on your remote control, you

press repeatedly until the device icon appears on the screen of

the SRM7500.

The hard keys on your SRM7500 then get the same function as the

corresponding keys on the original remote control of the selected

device.

Notes • Some specific keys that are available on the original remote will not be

available on SRM7500 or vice versa. Check your original remote for

the available functions.

• You can learn functions from the original remote. Refer to chapter

‘Fix a Key’ on page 16 for more information on how to learn codes.

• When you awaken the remote after a time out, the last selected device

before time out will be active.

You can add up to 6 AV-devices and your PC Media Center, if available,

to your SRM7500.

Refer to chapters ‘Add a Device’ and ‘Delete a Device’ on pages 15 and 16

for more information about adding and deleting devices on your

remote.

Device specific keys

The device specific keys on the SRM7500 can have different functions,

depending on the device you selected via the Mode key.

Below you can find a complete overview of the functions for all device

specific keys listed for the Windows Media Center edition, TV,

Cable/Satellite and your audio set.

Note Other installed devices use the functions that are labeled on the remote.

Check your original remote when you are not sure.

MC TV Sat/Cable Audio set

Guide Guide Guide Band

Live TV Exit Return to Live TV Scan

Recorded TV - Exit -

DVD menu Menu Menu Menu

Digit keys Digit keys Digit keys Input sources

* -/-- -/-- Surround

# AV input TV/SAT input Surround Mode

Text Text Text RDS

Clear Text off Help Clear

Enter PIP Enter Enter

16:9 16:9 Home GEQ

Color key Color key Color key Front

Color key Color key Color key Centre

Color key Color key Color key Rear

Color key Color key Color key Test

SRM7500 - Instructions for Use

1234

12 13 14 15

8910 11

Opening Your PC Media Center

To open your PC Media Center on your PC, press . The PC Media

Center main menu appears on your PC or TV screen, according to your

configuration.

You browse the content of your PC Media Center with the cursor

keys and OK key.

To switch back to your PC Media Center again after controlling another

device with your SRM7500, you can:

■Press . This will take you back to the main menu.

■Press repeatedly until the PC icon appears on the remote’s

screen. This will take you to the state the PC Media Center was in

before you switched to the other device.

Note Pressing enables you to control the music content on your PC, while

pressing enables you to control all multimedia content on your PC.

Starting Up an Activity

An activity is a sequence of key presses, you can program. For example,

for watching a DVD you normally would have to:

■Turn on the TV;

■Turn on the DVD;

■Turn on the surround sound system;

■Select the right input on your TV and surround sound system;

■Press the Play key to start the DVD.

By selecting the activity ‘Watch DVD’ all the actions are executed

automatically in the predefined sequence.

To start up an activity:

1Press repeatedly until the Activity name appears in the header

of the SRM7500 screen.

2Confirm your selection by pressing .

The activity starts up.

You can add up to 8 activities to your SRM7500.

Refer to the chapters ‘Add an Activity’ and ‘Delete an Activity’ on pages 19

and 20 for more information about adding and deleting activities on

your remote.

SRM7500 - Instructions for Use 13

Advanced features of SRM7500

Via the Setup menu you get accesss to the various advanced features

of SRM7500.

SRM7500 - Instructions for Use

Press and hold and

simultaneously for 3 seconds to

open the Setup menu.

To select an option from the Setup menu, you scroll the list with your

cursor keys and confirm the selection by pressing .

The Setup menu provides the following options:

Option Description p

Add a device Adds a new device 15

Delete a device Removes a programmed device 16

Fix a key Fixes a key that is not working correctly, by learning

it from your original remote control 16

RF Settings Shows an indication of the strenght of the connection

Show Details to your PC 18

RF Settings Reestablishes the connection from your SRM7500

Reconnect to PC to your PC 18

Add an activity Programs a sequence of different key presses 19

Delete an activity Removes a programmed activity 20

Change language Changes the language of the instructions on the

remote control 21

Display time out Changes the time out of the remote control 21

Copy volume Copies the volume keys from one source device to

another device 22

Full reset Deletes all your settings on SRM7500 22

Exit Setup Leaves the Setup menu and returns to the last state

the remote was in before entering the Setup menu.

When you want to exit the Setup menu and go:

■Directly to your playlists, press on the remote.

■To your last selected device, press on the remote.

Add a Device

To be able to operate your devices with your SRM7500, you have to

add these devices to the remote control. You can add up to 6 devices

from the list of available devices.

You cannot add a device twice. Once you have added a device to your

remote control, it disappears from the list. However, the list of devices

contains ‘TV-2’ or ‘VCR-2’ when you want to program a second TV or a

second VCR.

1Select the option Add a device in the Setup menu by using the

cursor keys and press .

Note If you already added 6 devices on the remote, apart from your

PC Media Center, you will be asked to delete a device.

Refer to page 16 on how to delete a device.

2Select the device and brand you want to add and press .

The remote will search for available codes for the brand.

3Follow the onscreen instructions to test the codes.

■When a working code set is found, your device is correctly

installed.

■When no working code is found,

■You can perform a full database search to find a correct code

set.

This means that the remote will send out all codes available in the

database until a working code is found. Keep in mind that it can

take up to 25 minutes to scan the entire database.

■You can learn the codes from the original remote of the device.

Refer to chapter ‘Fix a Key’ on page 16 for more information on

how to learn codes.

SRM7500 - Instructions for Use 15

When the device is installed, the following screen appears.

4When you want to add another device, select Ye s , press and repeat

step 2 and 3.

-or-

When you added all your devices, select No and press to return to

the Setup menu.

Delete a Device

You can delete a programmed device from your remote control.

1Select the option Delete a device in the Setup menu by using the

cursor keys and press .

2Select the device you want to delete and press .

3Confirm you want to delete that device by selecting Ye s and

press .

The device is deleted and becomes available again in list of devices you

can add.

4Select Exit and press to return to the Setup menu.

Notes Keys of the deleted device that are used elsewhere, e.g. in an activity or

the volume keys you copied, will be deleted as well.

Check the activities you programmed and volume keys for your devices

and reprogram them if necessary.

Fix a Key

If a hard key is not working properly with your device, you can fix the

key by learning it from your original remote control.

You can fix all keys on SRM7500 except the Mode key, the Music key

and the MC Start Key. SRM7500 can store up to 200 learned keys.

1Select the option Fix a key in the Setup menu by using the cursor

keys and press .

SRM7500 - Instructions for Use

2Select the device for which you want to fix a key and press .

3Confirm you have a working original remote control available to learn

from by selecting Ye s and press .

Note If you already learned 200 keys, you will be noted that the memory is full

and return to the Setup menu.

Delete a device with fixed keys to clear memory. Refer to page 16 for

more information on how to delete a device.

4Follow the onscreen instructions to fix the key.

1Point the 2 remotes towards each other at a distance of

0.5 - 2 inch (2-5 cm).

2Press the hard key you want to fix on the SRM7500.

3Press the corresponding key on the original remote until you

hear a beep.

The key is learned and fixed. The following screen appears.

SRM7500 - Instructions for Use 17

0.5 - 2 inch

(2-5 cm)

5When you would like to fix other keys for this device, select Ye s ,

press and repeat step 4.

-or-

When all keys are fixed, select No and press to return to the Setup

menu.

Note Fixing a key overwrites the key’s data that was stored in your SRM7500.

This means that if this key is used in an activity this will also change.

Show details

You can check the status of the connection of your SRM7500.

1Select the option RF Settings in the Setup menu by using the cursor

keys and press .

2Select Show details and press .

The name of the connected PC and the strength of the signal appear.

3Select Next and press to return to the Setup menu.

Note When the details of the RF Settings show No Connection, the remote

was unable to connect to your PC.

Refer to chapter ‘Troubleshooting’ on page 23 to solve the problem.

Reconnect to PC

When you want to use your remote with another PC or in case of

technical problems, you plug out the dongle, plug it in the (new) PC,

install the software and reconnect the remote to the PC.

1Select the option RF Settings in the Setup menu by using the cursor

keys and press .

2Select Reconnect to PC and press .

3Select Next and press to return to the Setup menu.

You will no longer find the option RF settings in the Setup menu.

SRM7500 - Instructions for Use

Add an Activity

An activity consists of several key presses that will be sent out by your

remote control when you select the activity. You can add up to

8 activities to your SRM75000. One activity can contain maximum

25 steps.

By default the SRM7500 inserts a delay of 0,6 sec between every key

press to make sure your devices are responding correctly to the signals.

You can overwrite this default delay.

■If one of your devices needs a longer delay before receiving the

next IR signal, you can insert a delay of 1 or 3 seconds. Replacing the

default delay counts as a step in the activity.

■If an activity needs no delay between the different key presses to

simulate a long key press, you can add the option ‘no delay’.

For example: When you would like to turn the volume up during an activity by

pressing 4 times the Volume Up key, you do not need to insert

delays between these 4 key presses. Between each step you add

the option ‘no delay’.

1Select the option Add an Activity in the Setup menu by using the

cursor keys and press .

Note If you already added 8 activities, you will be asked to delete an activity.

Refer to page 20 on how to delete an activity.

2Select the label you want to use for the activity and press .

3Follow the onscreen instructions to create an activity.

1Select the device, press and press the required key, to insert a

key press.

2Select the delay you want to add and press .

After adding a step to your activity, the following screen appears.

SRM7500 - Instructions for Use 19

4When you want to add another key press to the activity, select Ye s ,

press and repeat step 3.

Keep in mind that an activity contains maximum 25 steps.

-or-

When you added all key presses and delays, select No and press .

The activity is installed on your remote control.

5Select Exit and press to return to the Setup menu.

SRM7500 - Instructions for Use

Tip You start up the activity by pressing repeatedly until the activity name

appears in the header of the SRM7500 screen and press .

Delete an Activity

You can delete an activity from your remote control.

1Select the option Delete an activity in the Setup menu by using the

cursor keys and press .

2Select the activity you want to delete and press .

3Confirm you want to delete the activity by selecting Ye s and

press .

The activity is deleted and becomes available again in the list of activities

you can add.

4Select Exit and press to return to the Setup menu.

Change Language

You can change the language of the instructions on your remote to one

of the following languages:

■English

■Español

■Français

■Deutsch

■Nederlands

■Italiano

1Select the option Change language in the Setup menu by using the

cursor keys and press .

2Select your preferred language and press .

The Setup menu appears on the screen in your preferred language.

Change Display Time Out

To save power, your SRM7500 will switch off when it is not used for a

while. This is the display time out. You can change this time out to one

of the following:

■Short

■Medium

■Long

1Select the option Display time out in the Setup menu by using the

cursor keys and press .

2Select the preferred display time out and press .

The time out is changed for your remote control. The Setup menu

appears on the screen.

Note The display time out has an impact on the lifetime of the batteries, the

longer the backlight stays on, the faster the batteries will be drained.

Copy Volume

After adding devices, the SRM7500 automatically copies the Volume keys

and Mute key, as follows:

■Video devices, like DVD, DVDR, VCR and Satellite box, use the

Volume keys of the TV (provided that you have programmed a TV).

■Audio devices, like CD, DMR and Tuner, use the Volume keys of the

Amplifier or Receiver (provided that you have programmed an

Amplifier or Receiver).

Note By default your PC uses the Volume settings of Microsoft Windows.

These Volume keys cannot be copied to another device. You can, however,

copy the Volume keys of another device, e.g. amplifier, to the PC.

When no TV or amplifier are installed, the Volume keys will not send

codes. When the source device is added later on, the Volume keys will

be automatically updated.

You can change which Volume keys are used, for instance when you

want to use the Volume keys of the Amplifier for the DVD.

1Select the option Copy volume in the Setup menu by using the cursor

keys and press .

2Select the device you want to copy the Volume keys from (e.g. TV or

AMP or RECEIVER) and press .

SRM7500 - Instructions for Use 21

3Select the device you want to copy the Volume keys to (e.g. DVD or

SAT) and press .

4Confirm you want to copy the Volume keys from one device to the

other by selecting Ye s and press .

The Volume keys and Mute key are copied.

5Select Exit and press to return to the Setup menu.

Full Reset

You can reset the SRM7500 completely, deleting all programmed

devices, activities, learned keys and other settings. After the reset, you

will have to configure your remote again.

1Select the option Full reset in the Setup menu by using the cursor

keys and press .

2Confirm you want to perform a full reset by selecting Ye s and

press .

3Press to reconfirm.

The remote control deletes all settings. When the full reset is ended,

the remote re-initializes.

If you will use the same PC you used before the full reset, you can

start immediately configuring the remote, as described on page 5, just

press .

If you will use a new PC, you need to prepare the PC you would like to

control with the SRM7500, as described on page 4.

SRM7500 - Instructions for Use

SRM7500 - Instructions for Use 23

I cannot install

MediaControl

Software

You need

administrator

rights to install the

software.

The software needs to be installed

by an administrator account. Once

the software is installed, all

accounts can use the remote.

SolutionCauseProblem

The MediaControl

icon is orange:

The PC is not

configured to

connect to the

remote.

■If the RF Settings option is

not available in the Setup

menu, press on your

SRM7500 to start the wizard

and follow the onscreen

instructions.

■If the RF Settings option is

available in the Setup menu,

reconnect the remote to

the PC. Refer to chapter

‘Reconnect to PC’ on page 18.

Support

Troubleshooting

Preparing your PC

Configuring the SRM7500

SolutionCauseProblem

‘Cannot connect to

PC’ appears on the

SRM7500 screen.

Your PC is not

configured to

connect to the

remote.

Reconnect the remote to the PC.

Refer to chapter ‘Reconnect to PC’

on page 18.

‘No PC found’ Your remote is not

close enough within

range of the PC.

Move closer, up to 3 feet (1m) of

the PC and press to try

again.

SRM7500 - Instructions for Use

I cannot find my

brand in the list of

the selected device.

The brands are

divided per device

and you could be

looking in the wrong

device.

■STB contains the different set-

top boxes for Satellite and

DVB-T

■AUDIO SET contains the

tuner-amplifier combination and

CD or DVD in some cases

■HTS contains the home theater

systems

■PVR contain personal video

recorders and hard disc

recorders

■DMR contains Digital Media

receivers

■TV-VCR, TV-DVD, DVD-VCR

DVD-HDD contain

combination devices

■GAME contains the DVD

playback functions of the game

consoles e.g. Xbox and Play

Station

SolutionCauseProblem

I cannot find my

brand in the list of

the selected device.

Not all brands are

available in the

database.

When your brand is not in the

list, you select Not in list and

■You can perform a full

database search. This way the

remote will test all codes that

are available on the remote.

This can take up to 25 minutes.

■You can learn the keys from

the original remote control of

the device to SRM7500.

Refer to chapter ‘Fix a Key’ on

page 16.

SRM7500 - Instructions for Use 25

SolutionCauseProblem

I want to quit the

installation

wizard.

To quit the installation wizard you

press or once.

■When you did not yet install a

connection to the PC, the

remote will restart the wizard

on your SRM7500.

■When you installed the

connection to the PC already,

the remote will turn into the

music controller. To install a

device, you need to add each

device individually like

described in chapter ‘Add a

Device’ on page 15.

Enjoying Your SRM7500

The No Connection

icon blinks in

the upper right-hand

corner of the screen.

The SRM7500 is too

far from the PC to

set up a connection.

The SRM7500 should be

maximum 33 ft (10 m) from the

PC. Obstructions in the path from

the remote to the PC can reduce

this distance.

The PC is not

powered.

Turn on your PC.

The PC is in standby

mode.

It can take a while for the PC to

start up after standby mode.

During start-up, you will see the

No Connection icon blinking on

the remote.

SolutionCauseProblem

The MediaControl

software is disabled.

Check the icon in the taskbar.

When the icon is blue, the

software is disabled.

To enable the software, right-click

the icon in the taskbar and select

Enable. The icon will turn

green .

SRM7500 - Instructions for Use

The connection to

the remote on your

PC may be lost

because you

formatted your PC

or uninstalled the

driver.

Renew the connection to the

remote.

1Prepare your PC by installing

the software and USB

transceiver again. Refer to

chapter ‘Preparing Your PC’ on

page 4.

2Reconnect the remote to

the PC. Refer to chapter

‘Reconnect to PC’ on page 18.

SolutionCauseProblem

One or more keys

are not working

correctly.

The specific function

is not available on

the original remote

control.

Keep in mind that SRM7500 has

only hard keys. This means that

only the hard keys on SRM7500

that have a function in the device

will work.

The code behind the

key is defect.

You can fix keys from your

original remote control. Refer to

chapter ‘Fix a Key’ on page 16.

Some keys have

device specific

functions.

Refer to chapter ‘Device specific

keys’ on page 12 for more

information.

The No Connection

icon blinks in

the upper right-hand

corner of the screen.

The USB transceiver

is disconnected.

When the MediaControl icon

in the taskbar is red, the USB

transceiver is disconnected from

the PC.

Remove the USB transceiver from

your PC, wait a few seconds and

insert it again. The icon should

change color.

Another radiant

device, e.g. a

microwave oven, is

placed near the PC

and interferes with

the signals of the

remote.

Turn off the devices placed in the

neighborhoud of the PC that

could cause the interference and

try connecting again.

SRM7500 - Instructions for Use 27

SolutionCauseProblem

The Volume keys

are not working

properly.

The default source

device for your

device is not

installed.

After adding devices, the SRM7500

automatically copies the Volume

keys and Mute key, as follows:

■Video devices, like DVD,

DVDR, VCR and Satellite box,

use the Volume keys of the TV.

■Audio devices, like CD, DMR

and Tuner, use the Volume keys

of the Amplifier or Receiver.

If you did not install the source

device, the Volume keys and the

Mute key will not work.

You can choose to install the

source device on your remote.

Refer to page 15.

Or you can choose to copy the

Volume keys of another source

device. Refer to page 22.

I cannot see all the

music that is available

on my PC on my

SRM7500 screen.

Only music that is

available in the

library of your

selected media player

is shown on the

remote.

Save the music, available on your

PC in the library of your selected

media player.

I cannot wake-up the

SRM7500 anymore.

The battery level is

too low.

Take out the batteries and insert

new batteries.

SRM7500 - Instructions for Use

SolutionCauseProblem

I want to add a PC

after initial

installation.

Prepare the new PC as

described in ‘Preparing Your PC’ on

page 4.

I want to replace my

connected PC by a

new one.

You can only have

one PC connected to

your remote.

1Prepare the new PC like

described in ‘Preparing Your PC’

on page 4. You do not need to

re-insert the batteries.

1Reconnect to PC via the

Setup Menu. Refer to page 18.

Advanced features

Need Help?

If you have any questions about the SRM7500, you can always contact us.

You will find our contact details on page 29 of this Instructions for Use.

Read this Instruction for Use carefully before you contact us.

When you call our helpline, make sure the device is at hand so that our operators

can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SRM7500.

Date of purchase: ......../......../........ (day/month/year)

Documentation concept and elaboration:

Human Interface Group, De Regenboog 11, 2800 Mechelen, Belgium www.higroup.com

Service - Website & Helpline

Help Center

www.philips.com/URC

Helpline

Country Phone number Tariff

België/Belgique 070 253 011 €0,17

Danmark 35258758 Local takst

Deutschland 0180 5 007 533 €0,12

España 902 889 343 €0,15

France 08 9165 0007 €0,23

Ireland 01 6011158 Local tariff

Italia 199 404 043 €0.25

Luxembourg 40 6661 5645 Tarif local

Nederland 0900 0400 062 €0.20

Norge 22 70 82 58 Lokal takst

Östereich 0820 901116 Lokaler Tarif

Portugal 2 1359 1441 Preço de chamada local

Suisse/die Schweiz 044 212 00 45 Tarif local/Lokaler Tarif

Suomi 09 2294 8258 Paikallinen puhelumaksu

Sverige 08 7505196 Lokal taxa

United Kingdom 0906 1010 018 £ 0.15

United States +1 919 573 7854 charges apply

SRM7500 - Instructions for Use 29

IFU Approbation/Safety Content SRM7500

FCC Compliancy

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

■This device should not cause harmful interference.

■This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC rule and ICES 003 in Canada.

These limits are designed to provide reasonable protection against harmful interference in residential installations.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If the equipment does

cause harmful interference to radio or television reception, which can be determined by turning thee equipment off

and on, the user is encouraged to try to correct the interference by using one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into to an outlet on a different circuit from the receiver.

■Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

User changes or modifications not expressly approved by the party responsible for compliance may

void the user’s authority to operate the equipment.

CE Regulations According to R&TTE

Declaration of Conformity

Hereby, Philips Consumer Electronics, BL Remote Control declares under his responsibility that the product

SRM7500 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC:

■EMC Radio: ETSI300 328

■EMC: ETSI EN 301 489-1 and ETSI EN 301 489-17

■Safety: EN60065-edition7

Werner van Eck, 15/12/2006

Name & Signature,

Date:

Dutch Hierbij verklaart, Philips Consumer Electronics, Business Line Remote Control dat het toestel SRM7500 in overeenstemming is met de

essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

French Par la présente, Philips Consumer Electronics, Business Line Remote Control, déclare que l’appareil SRM7500 est conforme aux exigences

essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE

Swedish Härmed intygar, Philips Consumer Electronics, Business Line Remote Controll, att denna SRM7500 står I överensstämmelse med de

väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Danish Undertegnede Philips Consumer Electronics, Business Line Remote Control erklærer herved, at følgende udstyr SRM7500 overholder de

væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF

German Hiermit erklärt Philips Consumer Electronics, Business Line Remote Control die Übereinstimmung des Gerätes SRM7500 mit den

grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG.

Italian Con la presente Philips Consumer Electronics, Business Line Remote Control dichiara che questo SRM7500 è conforme ai requisiti

essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Spanish Por medio de la presente, Philips Consumer Electronics, Business Line Remote Control, declara que el SRM7500 cumple con los requisitos

esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE

Portuguese Philips Consumer Electronics, Business Line Remote Control declara que este SRM7500 está conforme com os requisitos essenciais e

outras disposições da Directiva 1999/5/CE.

SRM7500 - Instructions for Use

Only for Europe- WEEE Regulation:

SRM7500 - Instructions for Use 31

Bortskaffelse af dit gamle produkt

Dit produkt er konstrueret med og produceret af materialer og

komponenter af høj kvalitet, som kan genbruges.

Når dette markerede affaldsbøttesymbol er placeret på et

produkt betyder det, at produktet er omfattet af det

europæiske direktiv 2002/96/EC.

Hold dig orienteret om systemet for særskilt indsamling af

elektriske og elektroniske produkter i dit lokalområde. Overhold

gældende regler, og bortskaf ikke dine gamle produkter sammen med dit

almindelige husholdningsaffald. Korrekt bortskaffelse af dine gamle

produkter er med til at skåne miljøet og vores helbred.

Verwijdering van uw oude product

Uw product is vervaardigd van kwalitatief hoogwaardige

materialen en onderdelen, welke gerecycled en opnieuw

gebruikt kunnen worden.

Als u op uw product een doorstreepte afvalcontainer op

wieltjes ziet, betekent dit dat het product valt onder de EU-

richtlijn 2002/96/EC.

Win inlichtingen in over de manier waarop elektrische en elektronische

producten in uw regio gescheiden worden ingezameld. Neem bij de

verwijdering van oude producten de lokale wetgeving in acht en plaats

deze producten niet bij het gewone huishoudelijke afval. Als u oude

producten correct verwijdert voorkomt u negatieve gevolgen voor het

milieu en de volksgezondheid.

Vanhan tuotteen hävittäminen

Tuotteesi on suunniteltu ja valmistettu laadukkaista

materiaaleista ja komponenteista, jotka voidaan kierrättää ja

käyttää uudelleen.

Tuotteeseen kiinnitetty yliviivatun roskakorin kuva tarkoittaa,

että tuote kuuluu Euroopan parlamentin ja neuvoston direktiivin

2002/96/EC soveltamisalaan.

Ota selvää sähkölaitteille ja elektronisille laitteille tarkoitetusta

kierrätysjärjestelmästä alueellasi. Noudata paikallisia sääntöjä äläkä hävitä

vanhoja tuotteita tavallisen talousjätteen mukana. Vanhojen tuotteiden

hävittäminen oikealla tavalla auttaa vähentämään ympäristölle ja ihmisille

mahdollisesti koituvia haittavaikutuksia.

Mise au rebut des produits en fin de vie

Ce produit a été conçu et fabriqué avec des matériaux et

composants recyclables de haute qualité.

Le symbole d’une poubelle barrée apposé sur un produit

signifie que ce dernier répond aux exigences de la directive

européenne 2002/96/EC.

Informez-vous auprès des instances locales sur le système de

collecte des produits électriques et électroniques en fin de vie.

Conformez-vous à la législation en vigueur et ne jetez pas vos produits

avec les déchets ménagers. Seule une mise au rebut adéquate des

produits peut empêcher la contamination de l’environnement et ses effets

nocifs sur la santé.

Entsorgung Ihres alten Geräts

Ihr Gerät wurde unter Verwendung hochwertiger Materialien

und Komponenten entwickelt und hergestellt, die recycelt und

wieder verwendet werden können.

Befindet sich dieses Symbol (durchgestrichene Abfalltonne auf

Rädern) auf dem Gerät, bedeutet dies, dass für dieses Gerät die

Europäischen Richtlinie 2002/96/EG gilt.

Informieren Sie sich über die geltenden Bestimmungen zur getrennten

Sammlung von Elektro- und Elektronik-Altgeräten in Ihrem Land. Richten

Sie sich bitte nach den geltenden Bestimmungen in Ihrem Land, und

entsorgen Sie Altgeräte nicht über Ihren Haushaltsabfall. Durch die

korrekte Entsorgung Ihrer Altgeräte werden Umwelt und Menschen vor

möglichen negativen Folgen geschützt.

Smaltimento di vecchi prodotti

Il prodotto è stato progettato e assemblato con materiali e

componenti di alta qualità che possono essere riciclati e

riutilizzati.

Se su un prodotto si trova il simbolo di un bidone con ruote,

ricoperto da una X, vuol dire che il prodotto soddisfa i requisiti

della Direttiva comunitaria 2002/96/CE.

Informarsi sulle modalità di raccolta, dei prodotti elettrici ed elettronici, in

vigore nella zona in cui si desidera disfarsi del prodotto. Attenersi alle

normative locali per lo smaltimento dei rifiuti e non gettare i vecchi

prodotti nei normali rifiuti domestici. Uno smaltimento adeguato dei

prodotti aiuta a prevenire l’inquinamento ambientale e possibili danni alla

salute.

Avhending av gamle produkter

Produktet er utformet og produsert i materialer og

komponenter av høy kvalitet, som kan resirkuleres og brukes

på nytt.

Når denne søppelbøtten med kryss på følger med et produkt,

betyr det at produktet dekkes av det europeiske direktivet

2002/96/EU.

Finn ut hvor du kan levere inn elektriske og elektroniske produkter til

gjenvinning i ditt lokalmiljø. Overhold lokale regler, og ikke kast gamle

produkter sammen med husholdningsavfallet. Riktig avhending av de gamle

produktene dine vil hjelpe til med å forhindre potensielle negative

konsekvenser for miljøet og menneskers helse.

Eliminação do seu antigo produto

O seu produto foi desenhado e fabricado com matérias-primas

e componentes de alta qualidade, que podem ser reciclados e

reutilizados.

Quando este símbolo, com um latão traçado, está afixado a um

produto significa que o produto é abrangido pela Directiva

Europeia 2002/96/EC.

Informe-se acerca do sistema de recolha selectiva local para produtos

eléctricos e electrónicos. Aja de acordo com os regulamentos locais e não

descarte os seus antigos produtos com o lixo doméstico comum. A

correcta eliminação do seu antigo produto ajuda a evitar potenciais

consequências negativas para o meio ambiente e para a saúde pública.

Desecho del producto antiguo

El producto se ha diseñado y fabricado con materiales y

componentes de alta calidad, que se pueden reciclar y volver a

utilizar.

Cuando este símbolo de contenedor de ruedas tachado se

muestra en un producto indica que éste cumple la directiva

europea 2002/96/EC.

Obtenga información sobre la recogida selectiva local de productos

eléctricos y electrónicos. Cumpla con la normativa local y no deseche los

productos antiguos con los desechos domésticos. El desecho correcto del

producto antiguo ayudará a evitar consecuencias negativas para el

medioambiente y la salud humana.

Kassering av din gamla produkt

Produkten är utvecklad och tillverkad av högkvalitativa material

och komponenter som kan både återvinnas och återanvändas.

När den här symbolen med en överkryssad papperskorg visas

på produkten innebär det att produkten omfattas av det

europeiska direktivet 2002/96/EG.

Ta reda på var du kan hitta närmaste återvinningsstation för

elektriska och elektroniska produkter. Följ de lokala reglerna och släng inte

dina gamla produkter i det vanliga hushållsavfallet. Genom att kassera dina

gamla produkter på rätt sätt kan du bidra till att minska eventuella

negativa effekter på miljö och hälsa.

Avhending av gamle produkter

Produktet er utformet og produsert i materialer og

komponenter av høy kvalitet, som kan resirkuleres og brukes

på nytt.

Når denne søppelbøtten med kryss på følger med et produkt,

betyr det at produktet dekkes av det europeiske direktivet

2002/96/EU.

Finn ut hvor du kan levere inn elektriske og elektroniske produkter til

gjenvinning i ditt lokalmiljø. Overhold lokale regler, og ikke kast gamle

produkter sammen med husholdningsavfallet. Riktig avhending av de gamle

produktene dine vil hjelpe til med å forhindre potensielle negative

konsekvenser for miljøet og menneskers helse.

Philips Electronics Singapore RM7500 RF REMOTE CONTROL User Manual SRM7500 IFU EN v3

Philips Electronics Singapore Pte Ltd RF REMOTE CONTROL SRM7500 IFU EN v3

users manual

Navigation menu

Namespaces

Views

Navigation
