Philips Electronics M117 LCD Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd LCD Monitor

User Manual

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150S4FG / 150S4FB Embedded Power Supply z15-inch color LCD monitor with excellent display performance zUltra slim frame design zStandard VGA analog input zEmbedded universal AC power supply zAUTO adjustment optimizes picture quality zUser installable bezel for optional protective cover choice RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 15" visual• Pixel Pitch 0.297 x 0.297mm (15.0")• LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer hardness • Effective viewing area 304.1 x 228.1mm (15.0")• Display Colors 16.7M colors SCANNING• Vertical refresh rate 56Hz-76Hz• Horizontal frequency 30kHz-61kHz VIDEO • Video dot rate 80 MHz• Input impedanceExhibit 3Installstion and Operating instructions

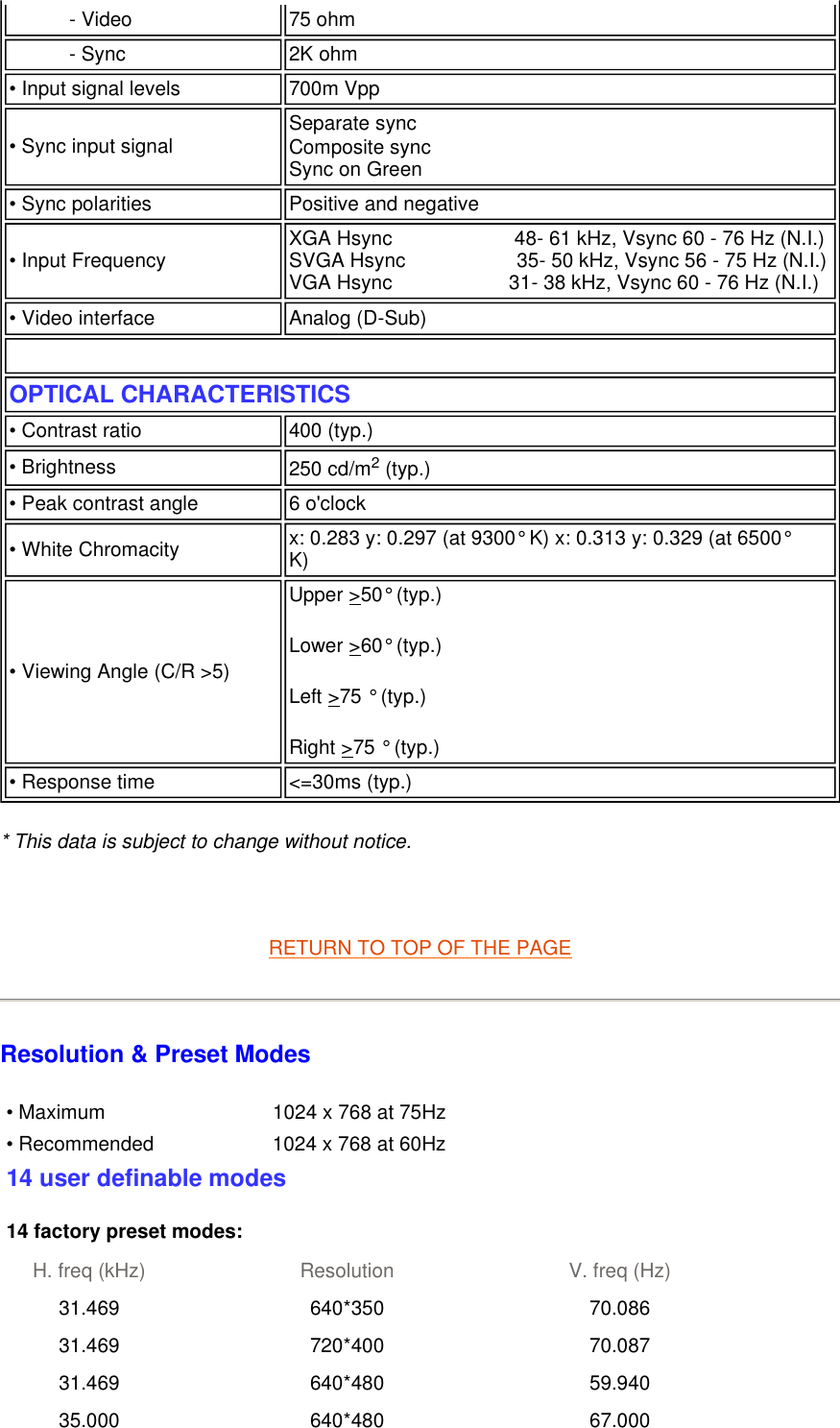

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes - Video 75 ohm- Sync 2K ohm• Input signal levels 700m Vpp• Sync input signal Separate sync Composite sync Sync on Green • Sync polarities Positive and negative• Input Frequency XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.) • Video interface Analog (D-Sub) OPTICAL CHARACTERISTICS • Contrast ratio 400 (typ.)• Brightness 250 cd/m2 (typ.) • Peak contrast angle 6 o'clock• White Chromacity x: 0.283 y: 0.297 (at 9300° K) x: 0.313 y: 0.329 (at 6500° K)• Viewing Angle (C/R >5) Upper >50° (typ.)Lower >60° (typ.) Left >75 ° (typ.) Right >75 ° (typ.) • Response time <=30ms (typ.) • Maximum 1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz14 user definable modes 14 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.469 640*350 70.086 31.469 720*400 70.087 31.469 640*480 59.940 35.000 640*480 67.000

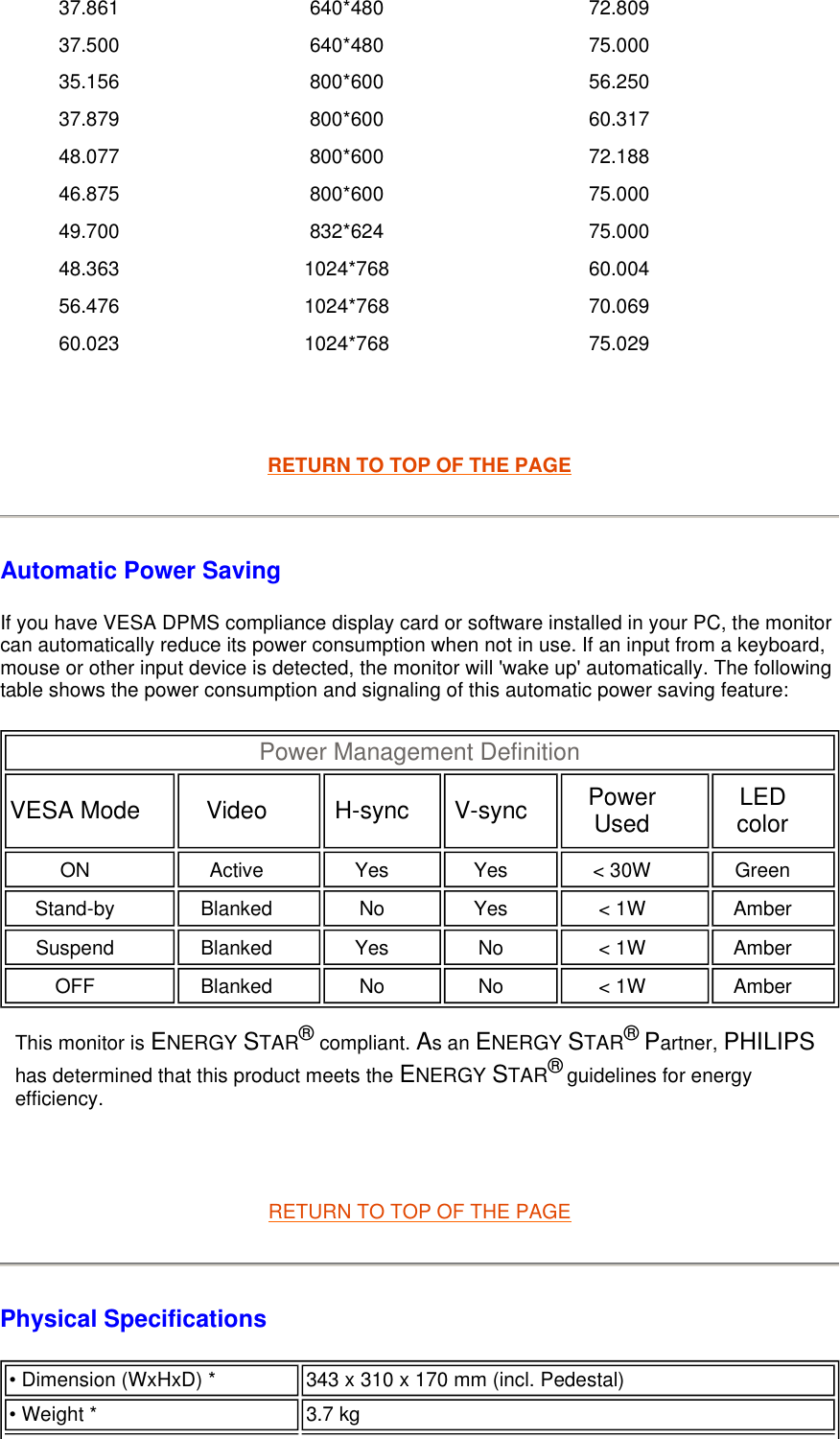

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE Physical Specifications 37.861 640*480 72.809 37.500 640*480 75.000 35.156 800*600 56.250 37.879 800*600 60.317 48.077 800*600 72.188 46.875 800*600 75.000 49.700 832*624 75.000 48.363 1024*768 60.004 56.476 1024*768 70.069 60.023 1024*768 75.029 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 30W Green Stand-by Blanked No Yes < 1W Amber Suspend Blanked Yes No < 1W Amber OFF Blanked No No < 1W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) * 343 x 310 x 170 mm (incl. Pedestal) • Weight * 3.7 kg

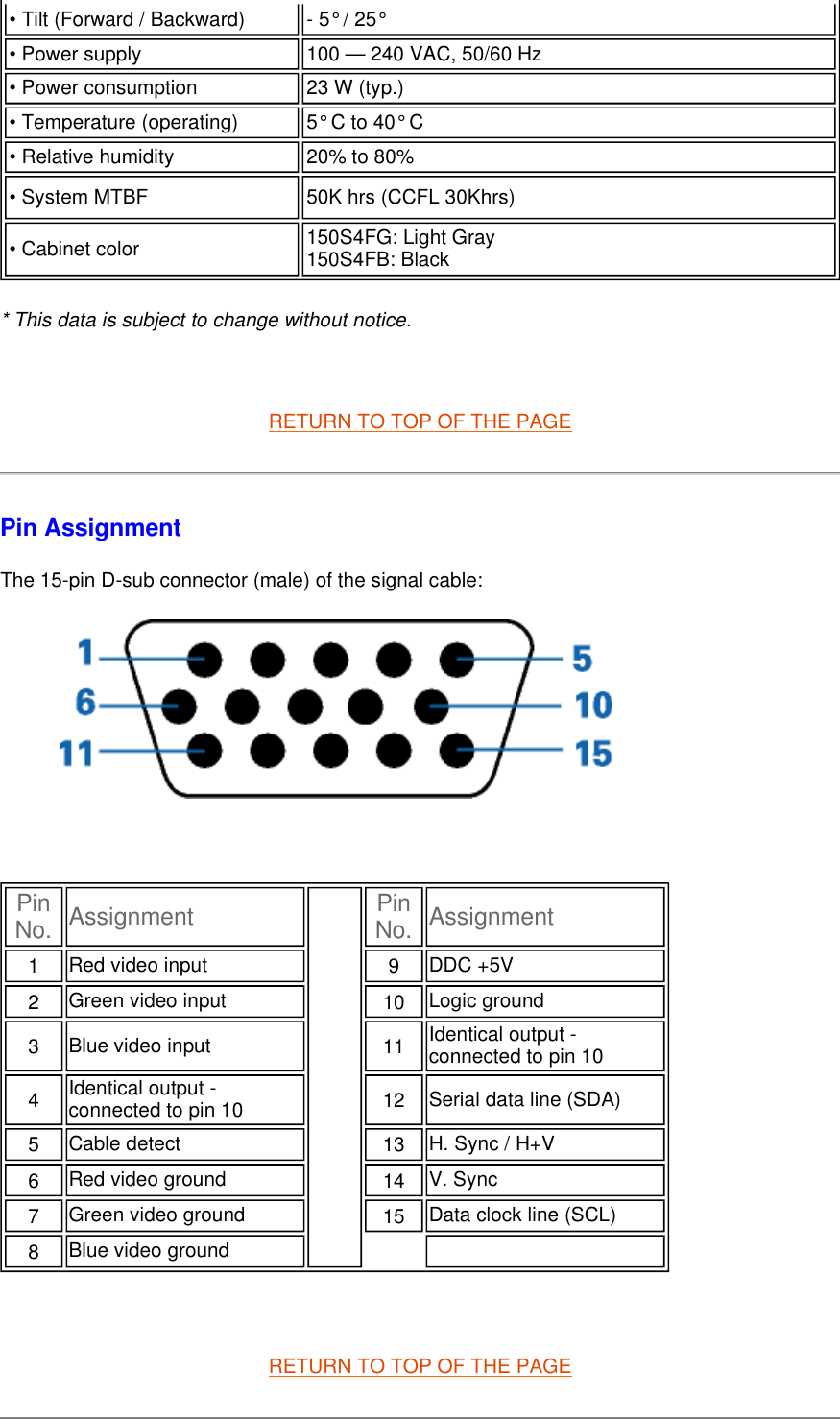

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE • Tilt (Forward / Backward) - 5° / 25°• Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 23 W (typ.)• Temperature (operating) 5° C to 40° C • Relative humidity 20% to 80%• System MTBF 50K hrs (CCFL 30Khrs) • Cabinet color 150S4FG: Light Gray 150S4FB: BlackPin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground3 Blue video input 11 Identical output - connected to pin 104 Identical output - connected to pin 10 12 Serial data line (SDA)5 Cable detect 13 H. Sync / H+V6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground

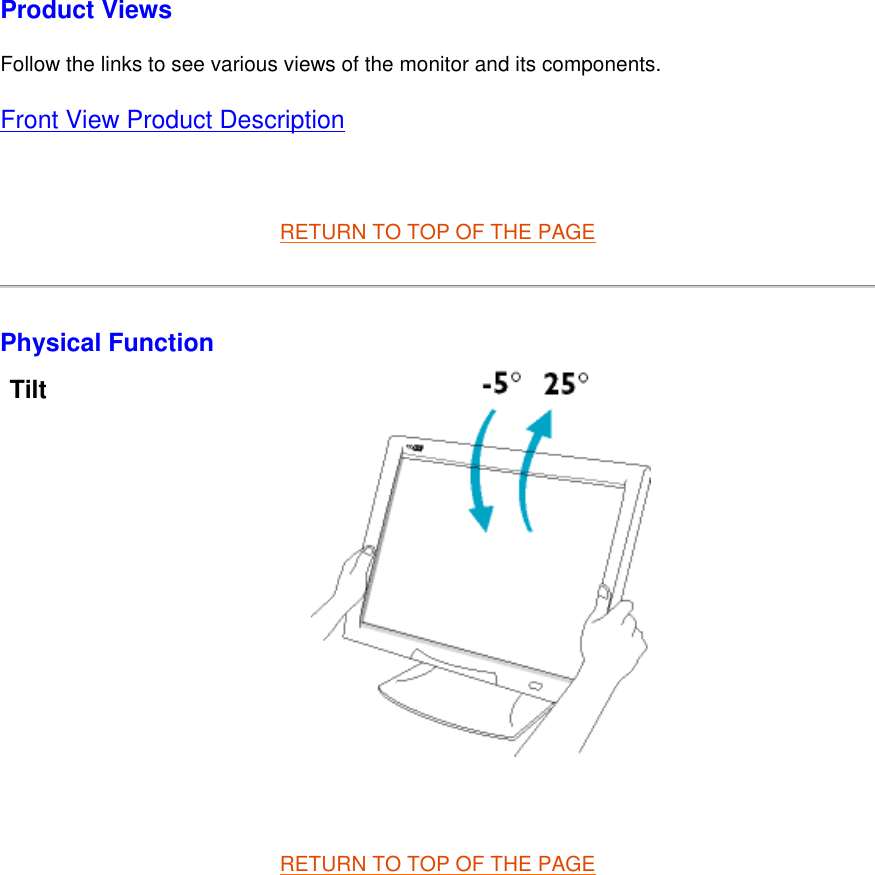

Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function RETURN TO TOP OF THE PAGETilt

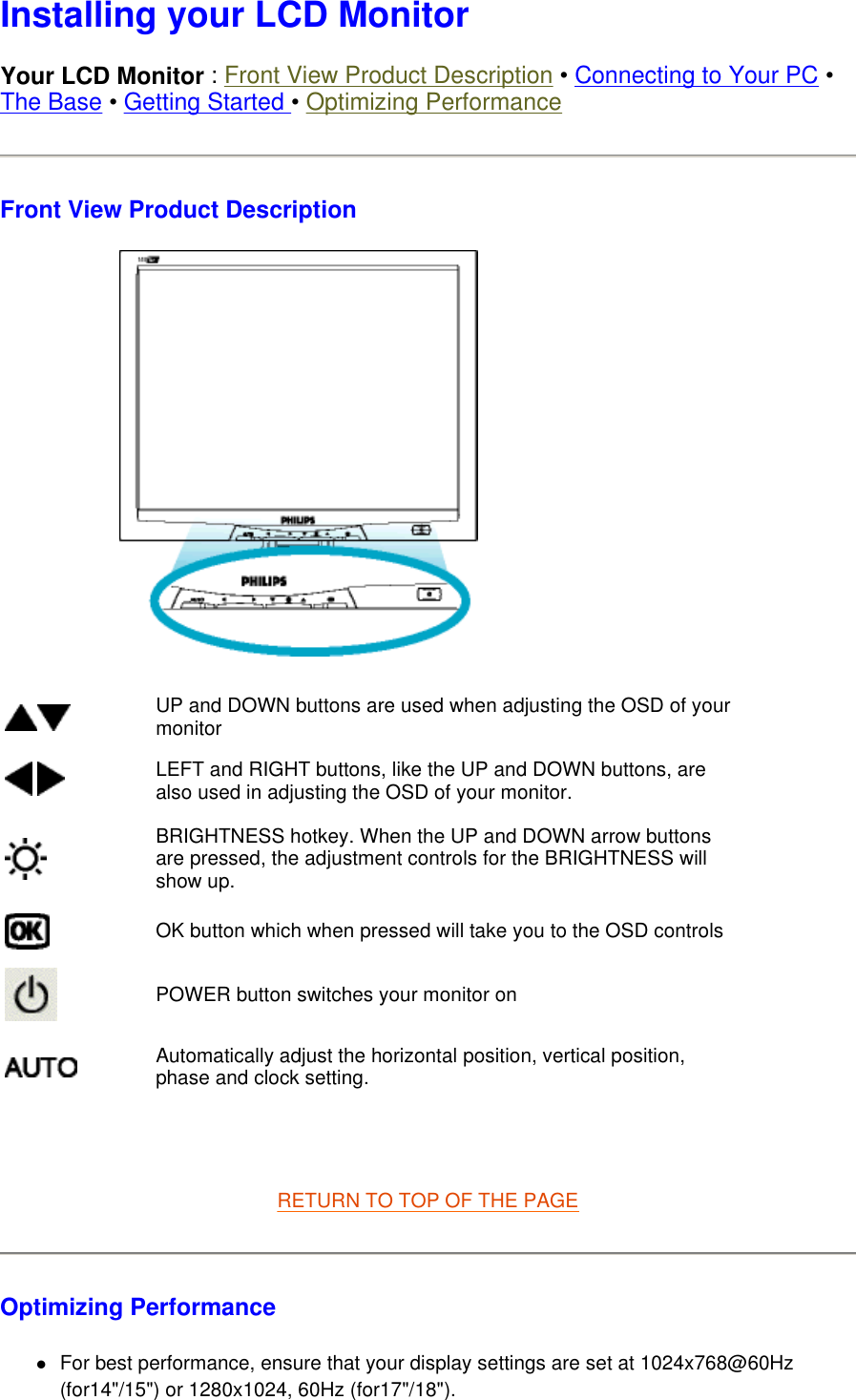

Installing your LCD Monitor Your LCD Monitor : Front View Product Description • Connecting to Your PC • The Base • Getting Started • Optimizing Performance Front View Product Description RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1024x768@60Hz (for14"/15") or 1280x1024, 60Hz (for17"/18"). UP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.OK button which when pressed will take you to the OSD controlsPOWER button switches your monitor onAutomatically adjust the horizontal position, vertical position, phase and clock setting.

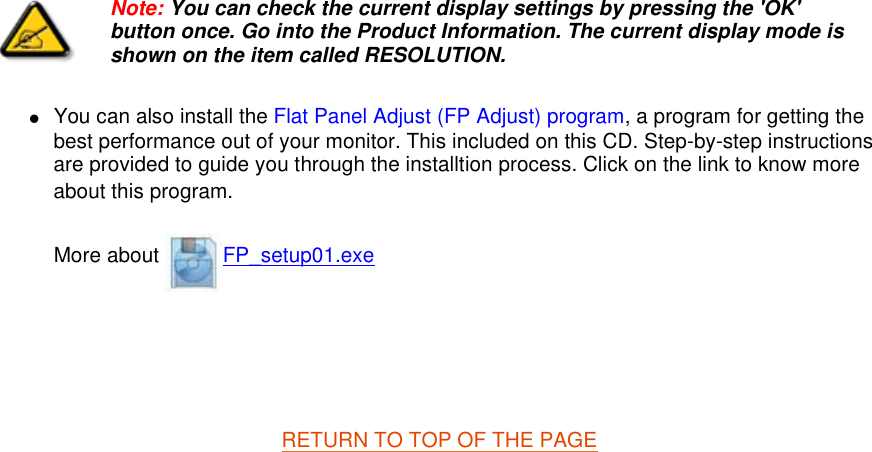

zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup01.exe RETURN TO TOP OF THE PAGE Note: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

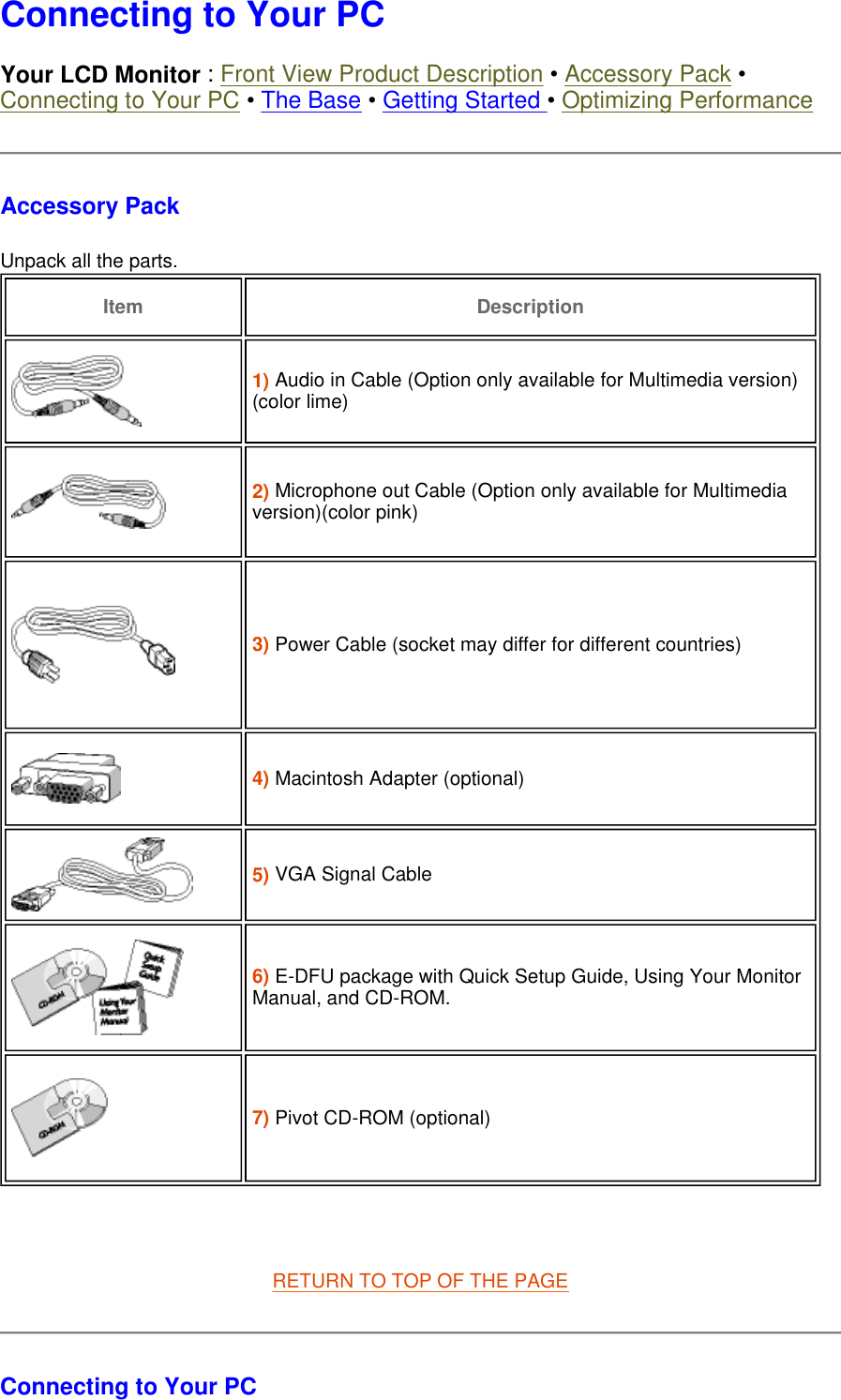

Connecting to Your PC Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • The Base • Getting Started • Optimizing Performance Accessory Pack Unpack all the parts. RETURN TO TOP OF THE PAGE Connecting to Your PC Item Description 1) Audio in Cable (Option only available for Multimedia version)(color lime) 2) Microphone out Cable (Option only available for Multimedia version)(color pink) 3) Power Cable (socket may differ for different countries)4) Macintosh Adapter (optional)5) VGA Signal Cable6) E-DFU package with Quick Setup Guide, Using Your Monitor Manual, and CD-ROM.7) Pivot CD-ROM (optional)

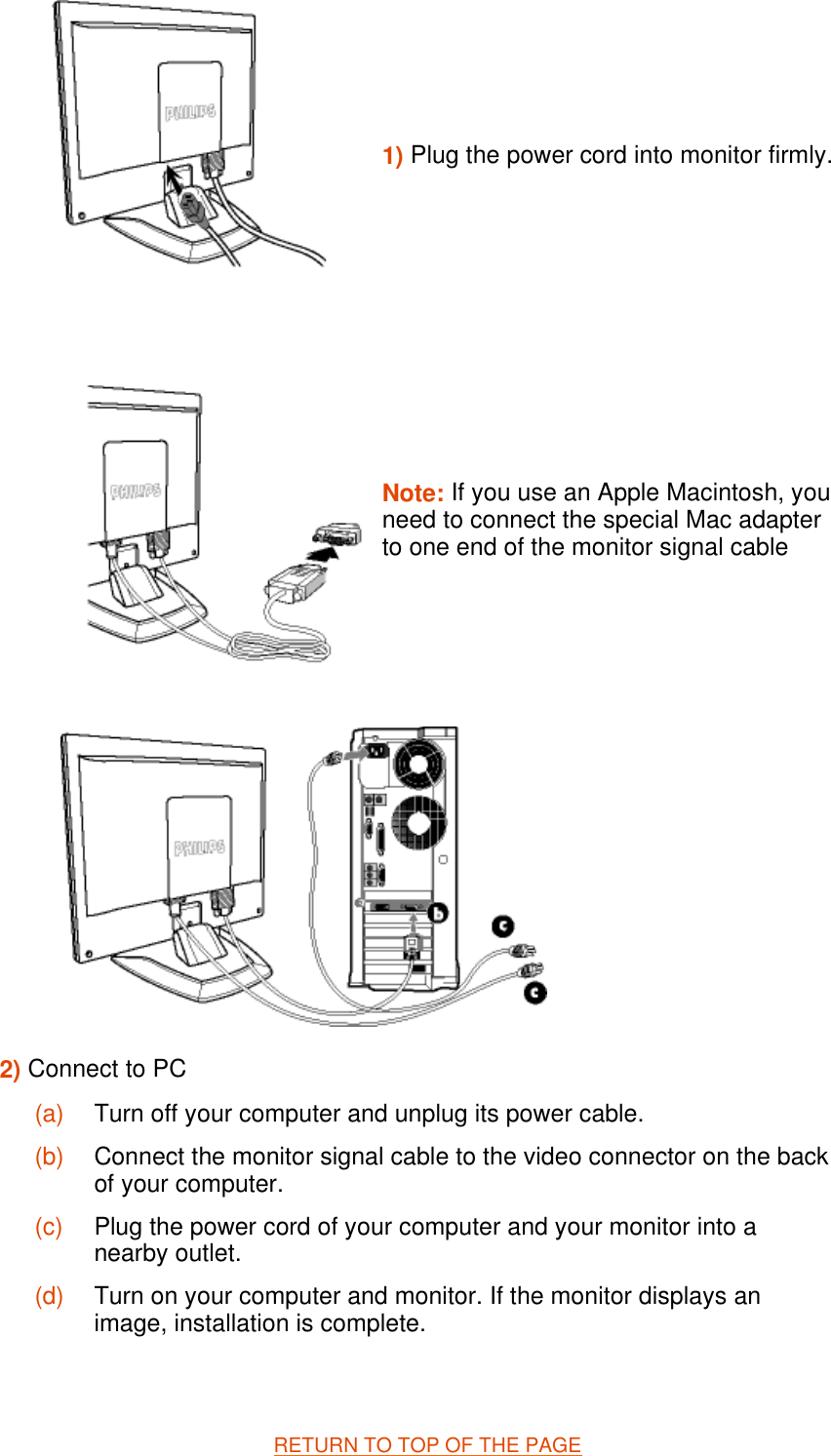

RETURN TO TOP OF THE PAGE 1) Plug the power cord into monitor firmly.Note: If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable 2) Connect to PC (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet. (d) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

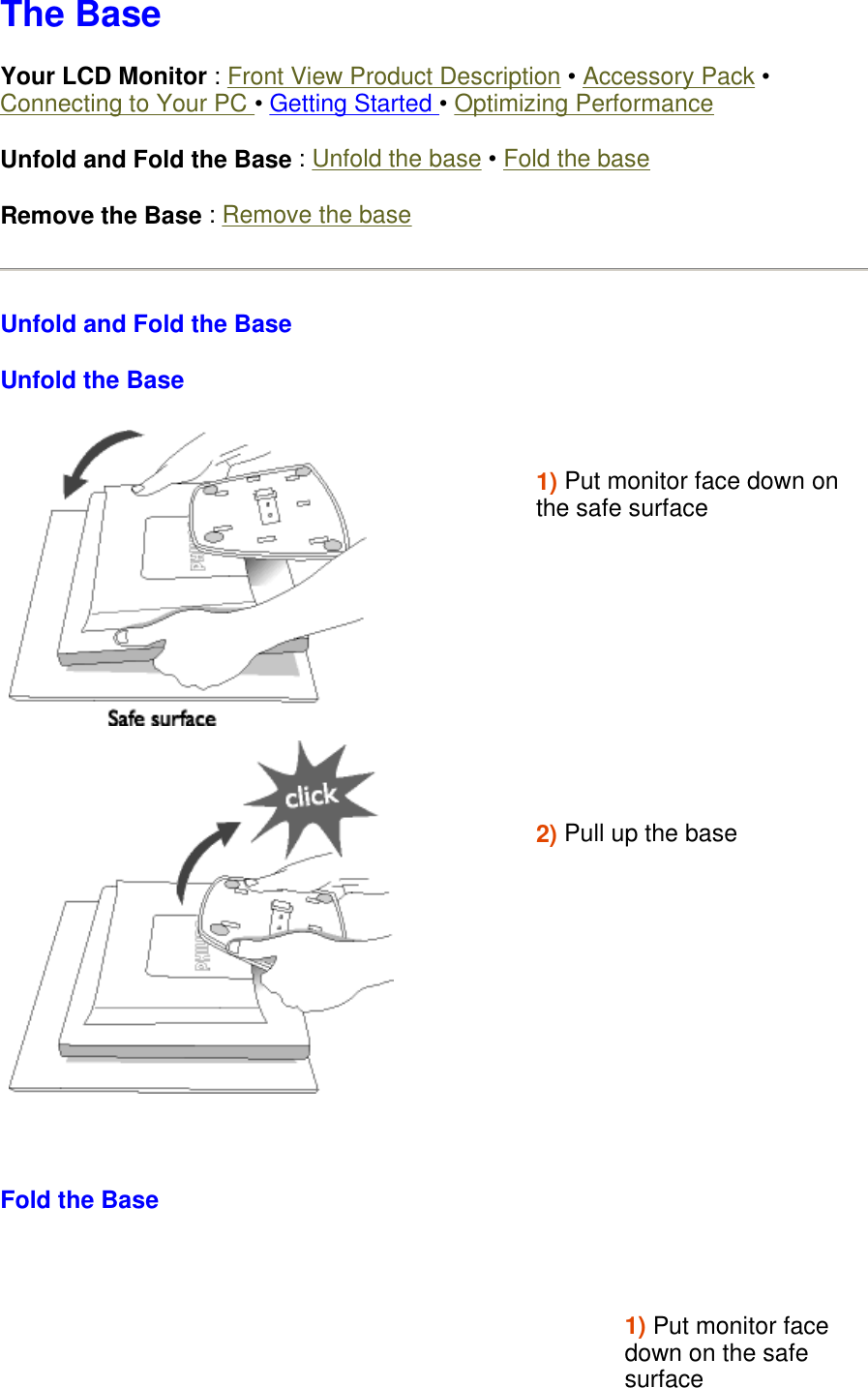

The Base Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • Getting Started • Optimizing Performance Unfold and Fold the Base : Unfold the base • Fold the base Remove the Base : Remove the base Unfold and Fold the Base Unfold the Base Fold the Base 1) Put monitor face down on the safe surface 2) Pull up the base 1) Put monitor face down on the safe surface

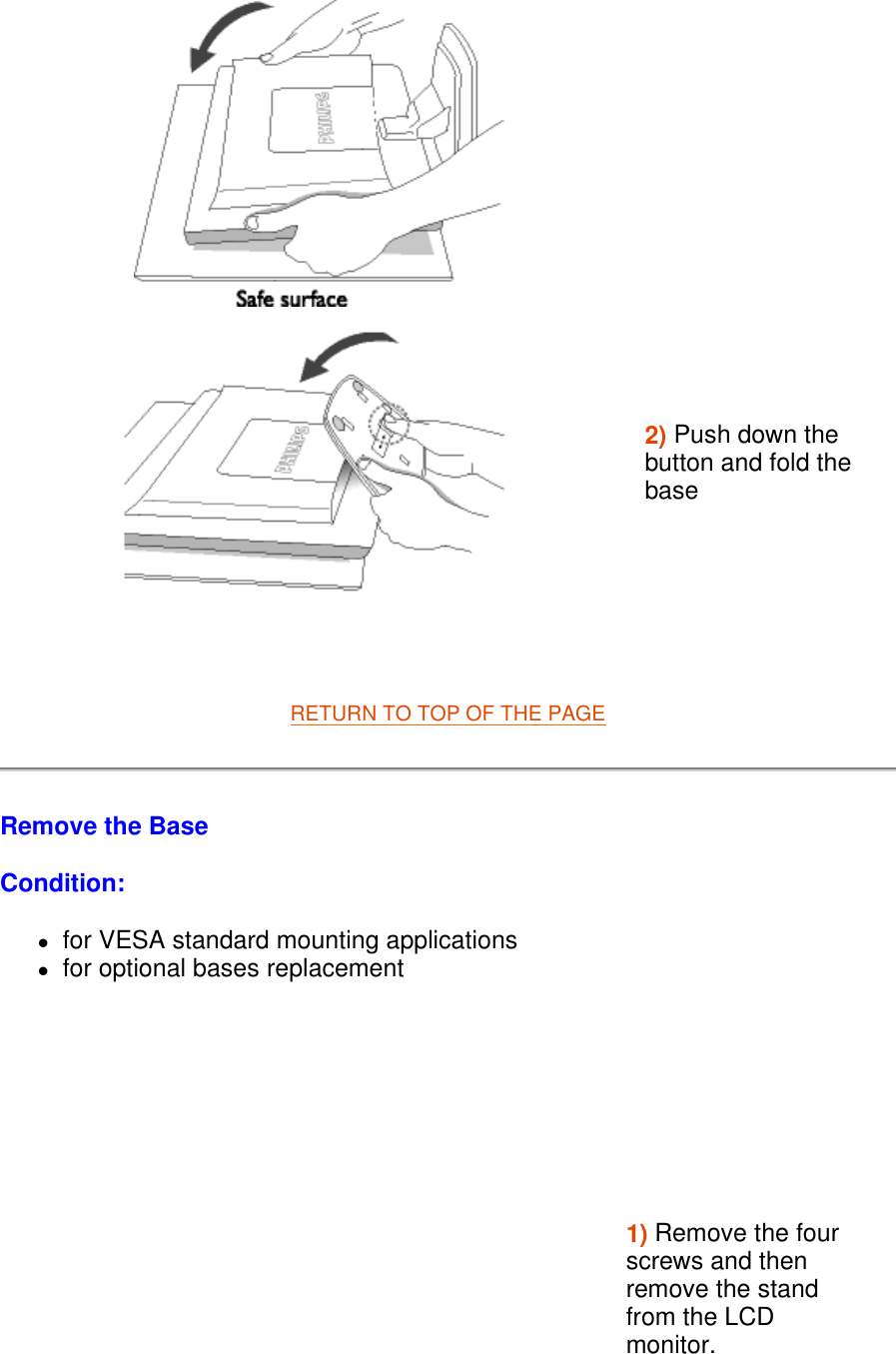

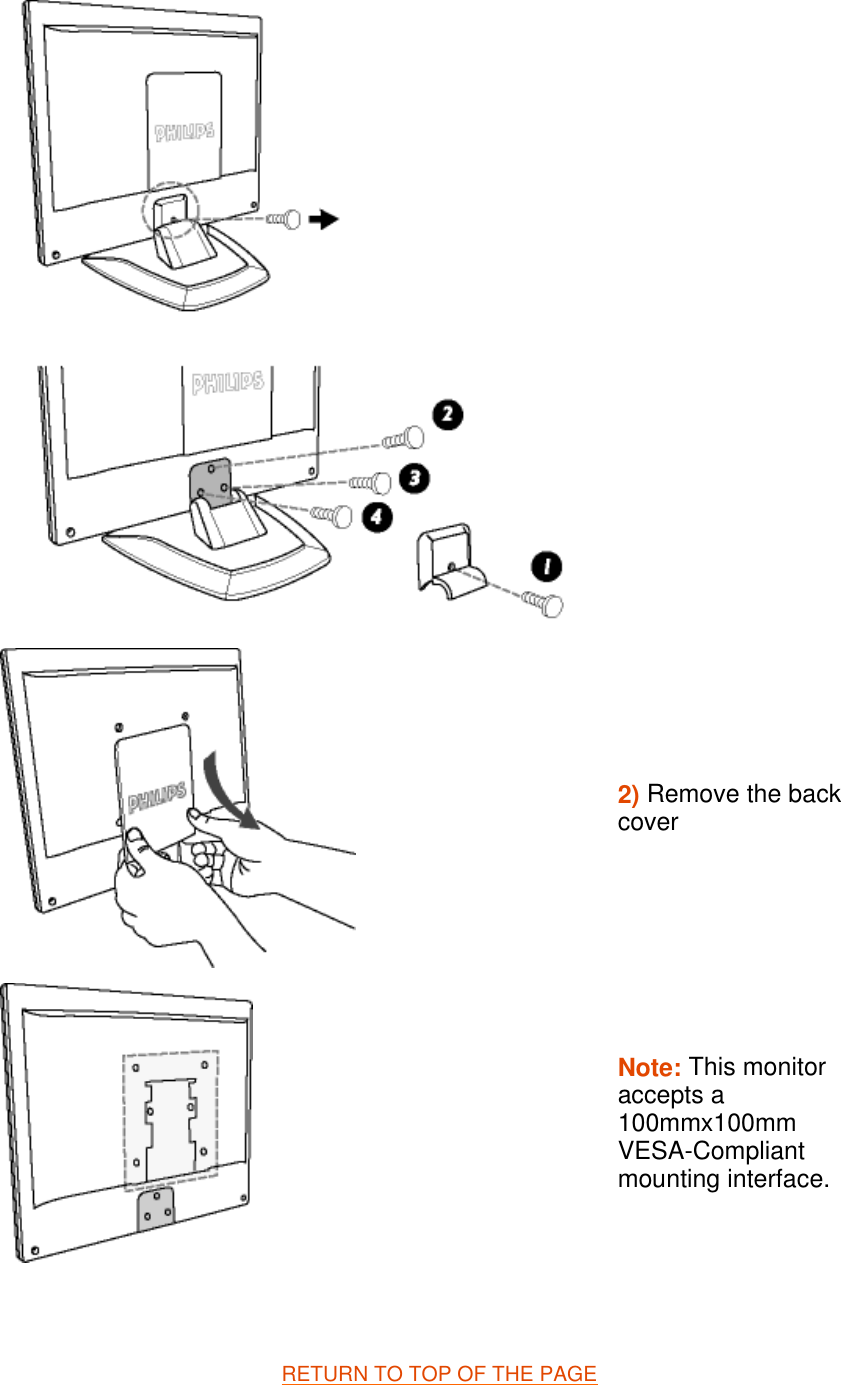

RETURN TO TOP OF THE PAGE Remove the Base Condition: zfor VESA standard mounting applications zfor optional bases replacement 2) Push down the button and fold the base1) Remove the four screws and then remove the stand from the LCD monitor.
RETURN TO TOP OF THE PAGE 2) Remove the back coverNote: This monitor accepts a 100mmx100mm VESA-Compliant mounting interface.

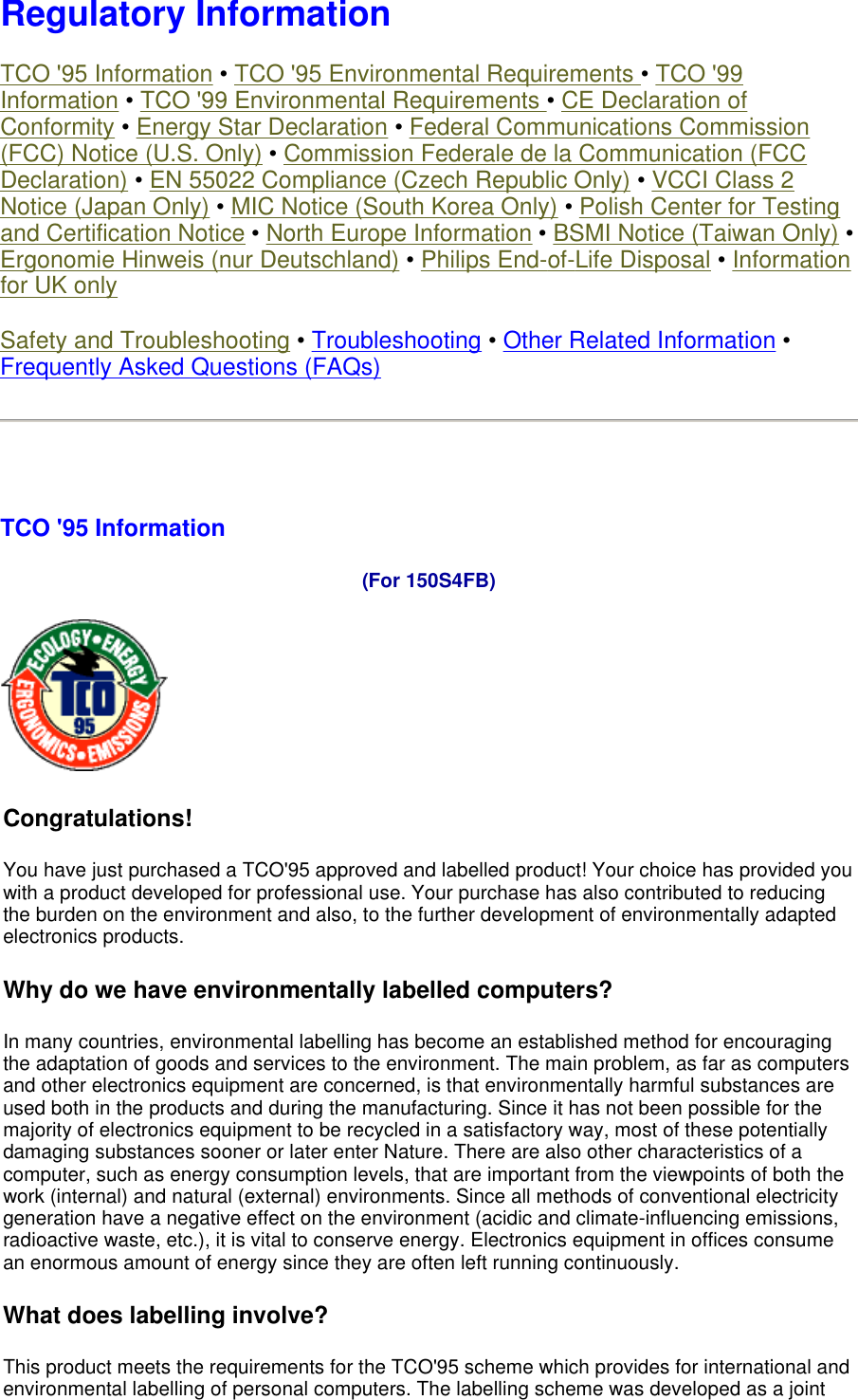

Regulatory Information TCO '95 Information • TCO '95 Environmental Requirements • TCO '99 Information • TCO '99 Environmental Requirements • CE Declaration of Conformity • Energy Star Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North Europe Information • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal • Information for UK only Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Asked Questions (FAQs) TCO '95 Information (For 150S4FB) Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint

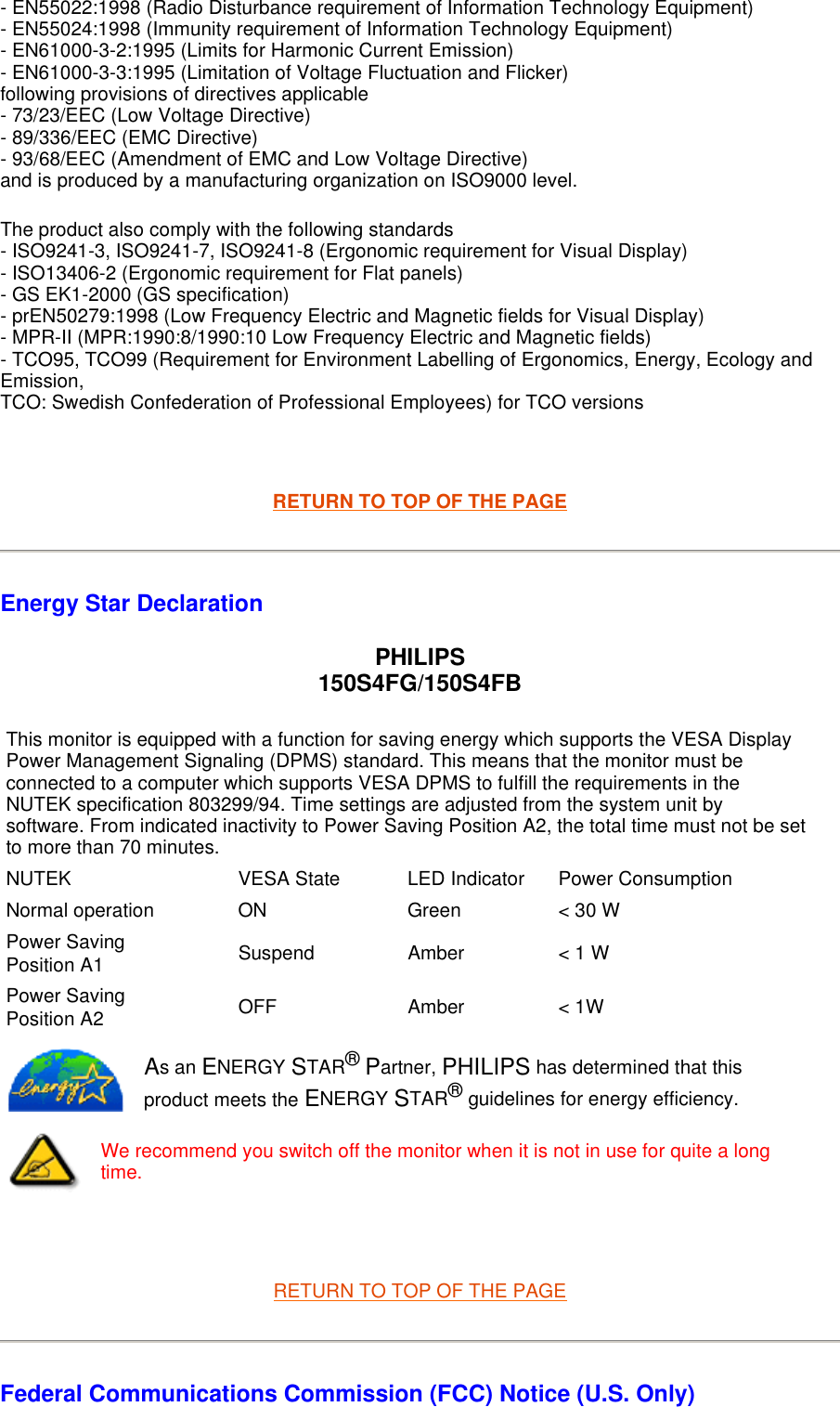

- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment) - EN55024:1998 (Immunity requirement of Information Technology Equipment) - EN61000-3-2:1995 (Limits for Harmonic Current Emission) - EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable - 73/23/EEC (Low Voltage Directive) - 89/336/EEC (EMC Directive) - 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level. The product also comply with the following standards - ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display) - ISO13406-2 (Ergonomic requirement for Flat panels) - GS EK1-2000 (GS specification) - prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display) - MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields) - TCO95, TCO99 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions RETURN TO TOP OF THE PAGE Energy Star Declaration PHILIPS 150S4FG/150S4FB RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software. From indicated inactivity to Power Saving Position A2, the total time must not be set to more than 70 minutes.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Green < 30 WPower Saving Position A1 Suspend Amber < 1 WPower Saving Position A2 OFF Amber < 1WAs an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.

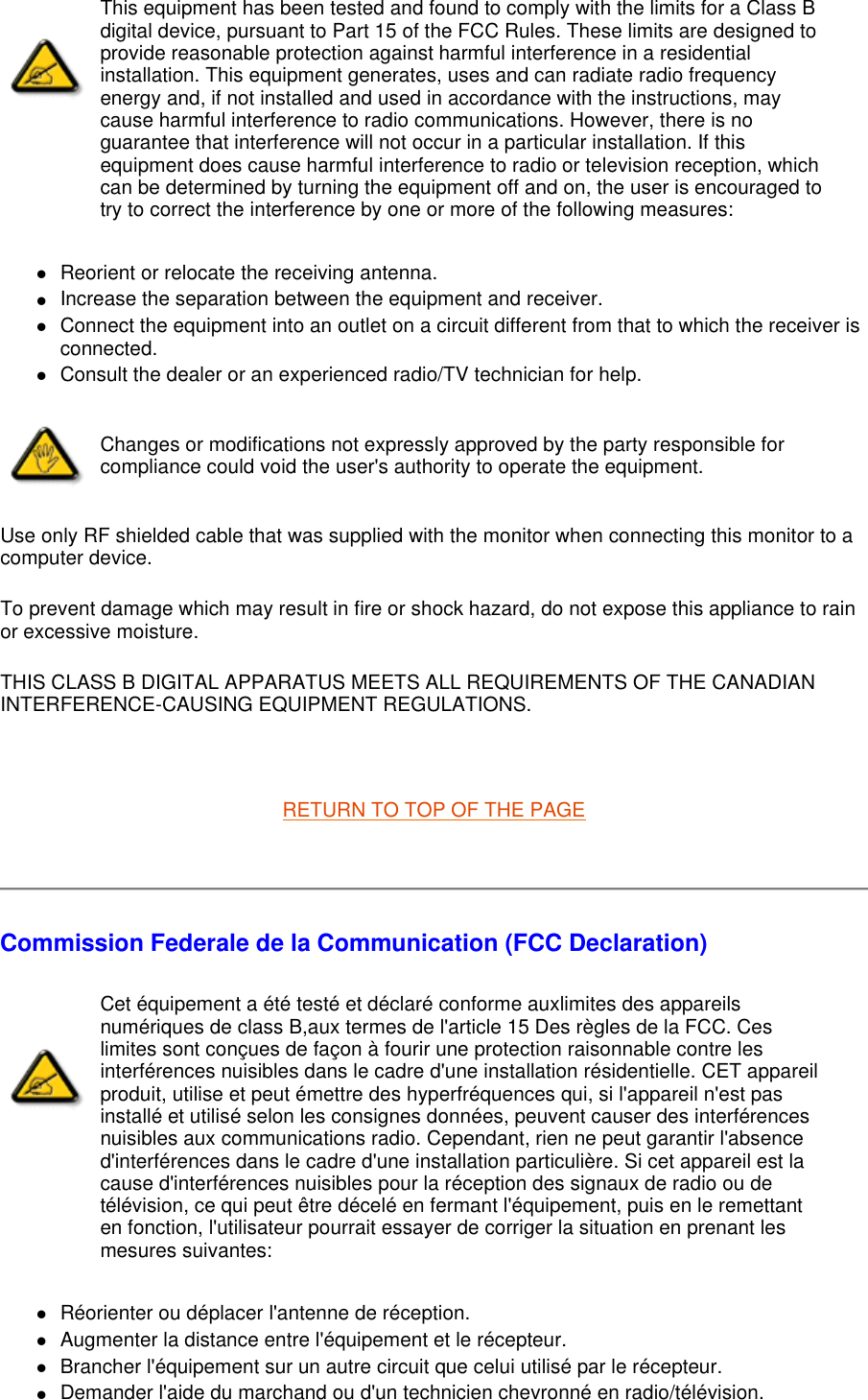

zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:

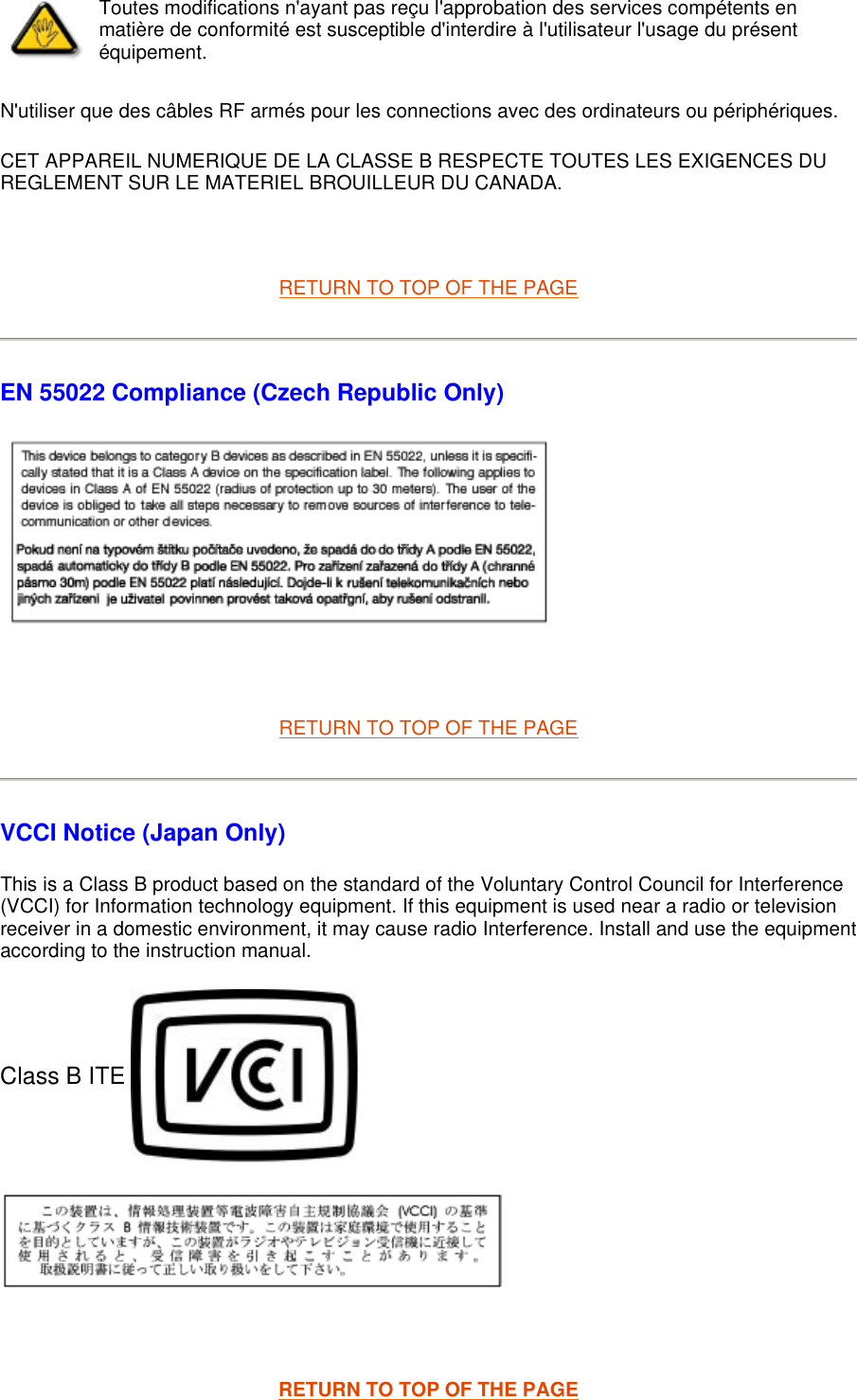

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE VCCI Notice (Japan Only) This is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI) for Information technology equipment. If this equipment is used near a radio or television receiver in a domestic environment, it may cause radio Interference. Install and use the equipment according to the instruction manual. Class B ITE RETURN TO TOP OF THE PAGEToutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
