Philips Electronics M118 LCD Color Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd LCD Color Monitor

User Manual

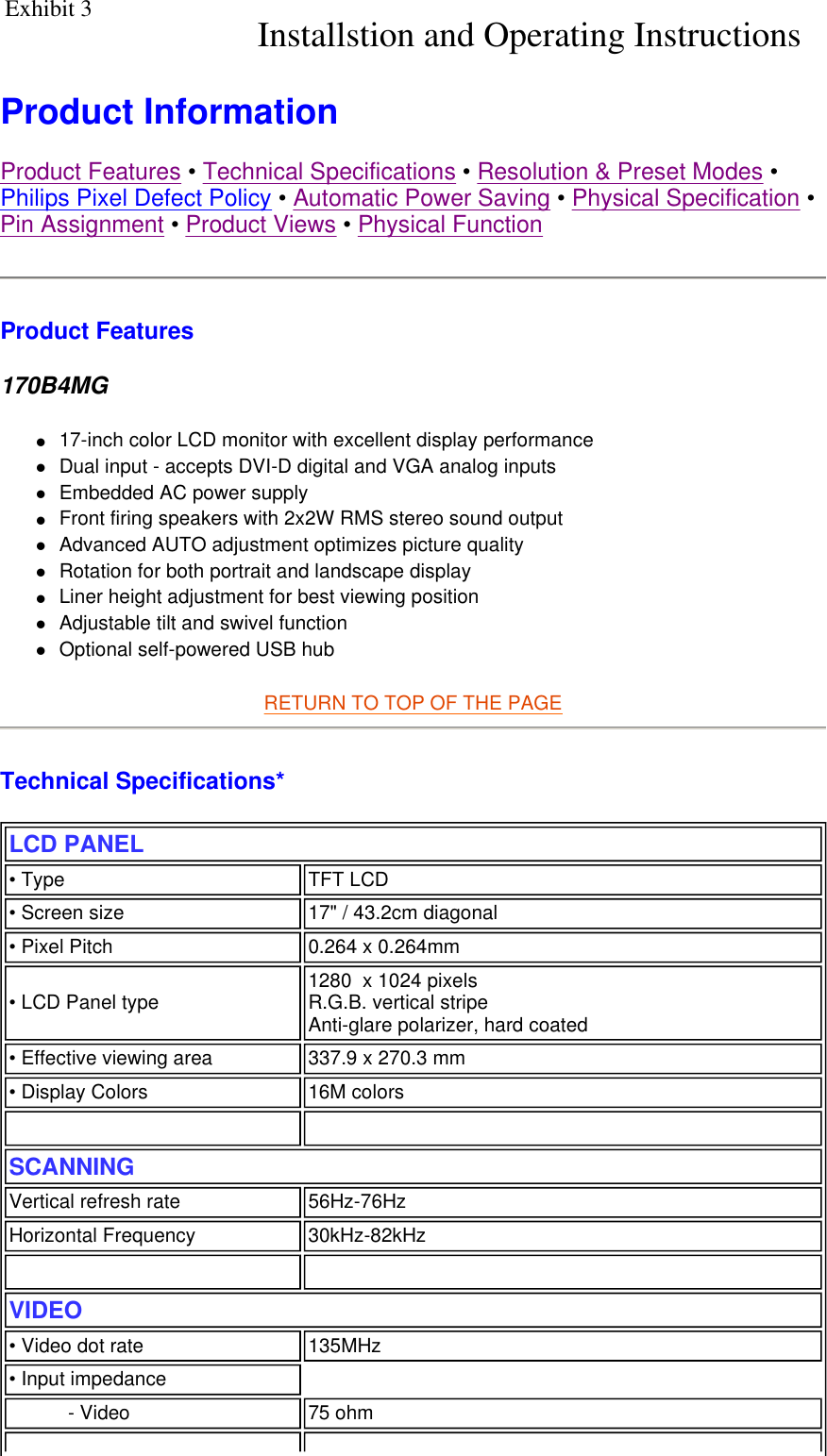

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 170B4MG z17-inch color LCD monitor with excellent display performance zDual input - accepts DVI-D digital and VGA analog inputs zEmbedded AC power supply zFront firing speakers with 2x2W RMS stereo sound output zAdvanced AUTO adjustment optimizes picture quality zRotation for both portrait and landscape display zLiner height adjustment for best viewing position zAdjustable tilt and swivel function zOptional self-powered USB hub RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 17" / 43.2cm diagonal • Pixel Pitch 0.264 x 0.264mm• LCD Panel type 1280 x 1024 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 337.9 x 270.3 mm• Display Colors 16M colors SCANNINGVertical refresh rate 56Hz-76HzHorizontal Frequency 30kHz-82kHz VIDEO • Video dot rate 135MHz• Input impedance- Video 75 ohmInstallstion and Operating Instructions Exhibit 3

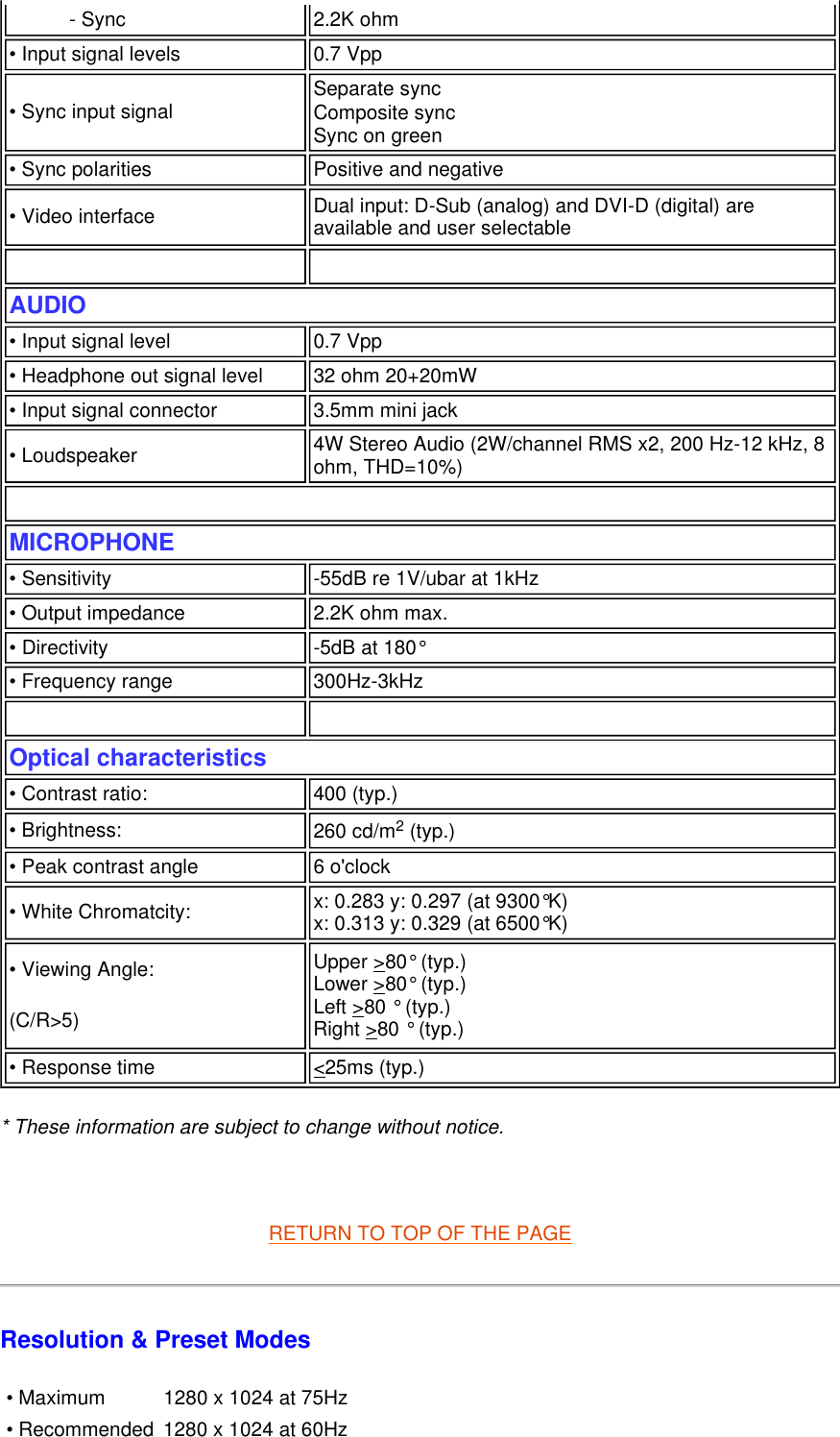

* These information are subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes - Sync 2.2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green • Sync polarities Positive and negative• Video interface Dual input: D-Sub (analog) and DVI-D (digital) are available and user selectable AUDIO • Input signal level 0.7 Vpp • Headphone out signal level 32 ohm 20+20mW• Input signal connector 3.5mm mini jack• Loudspeaker 4W Stereo Audio (2W/channel RMS x2, 200 Hz-12 kHz, 8 ohm, THD=10%) MICROPHONE• Sensitivity -55dB re 1V/ubar at 1kHz• Output impedance 2.2K ohm max.• Directivity -5dB at 180° • Frequency range 300Hz-3kHz Optical characteristics • Contrast ratio: 400 (typ.) • Brightness: 260 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromatcity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>5) Upper >80° (typ.) Lower >80° (typ.) Left >80 ° (typ.) Right >80 ° (typ.) • Response time <25ms (typ.) • Maximum 1280 x 1024 at 75Hz • Recommended 1280 x 1024 at 60Hz

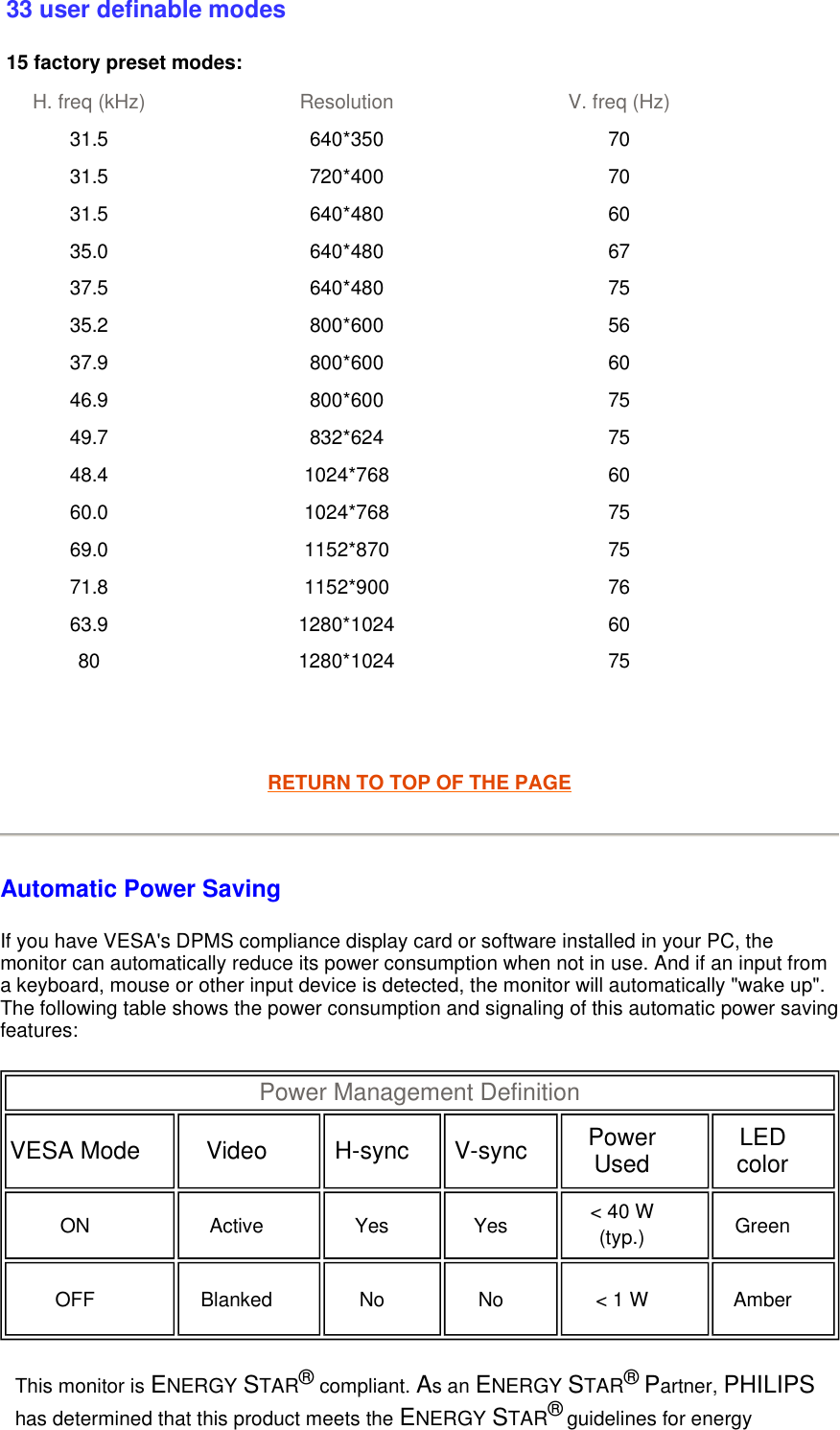

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: 33 user definable modes 15 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 31.5 720*400 70 31.5 640*480 60 35.0 640*480 67 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 49.7 832*624 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 71.8 1152*900 76 63.9 1280*1024 60 80 1280*1024 75 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 40 W (typ.) Green OFF Blanked No No < 1 W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy

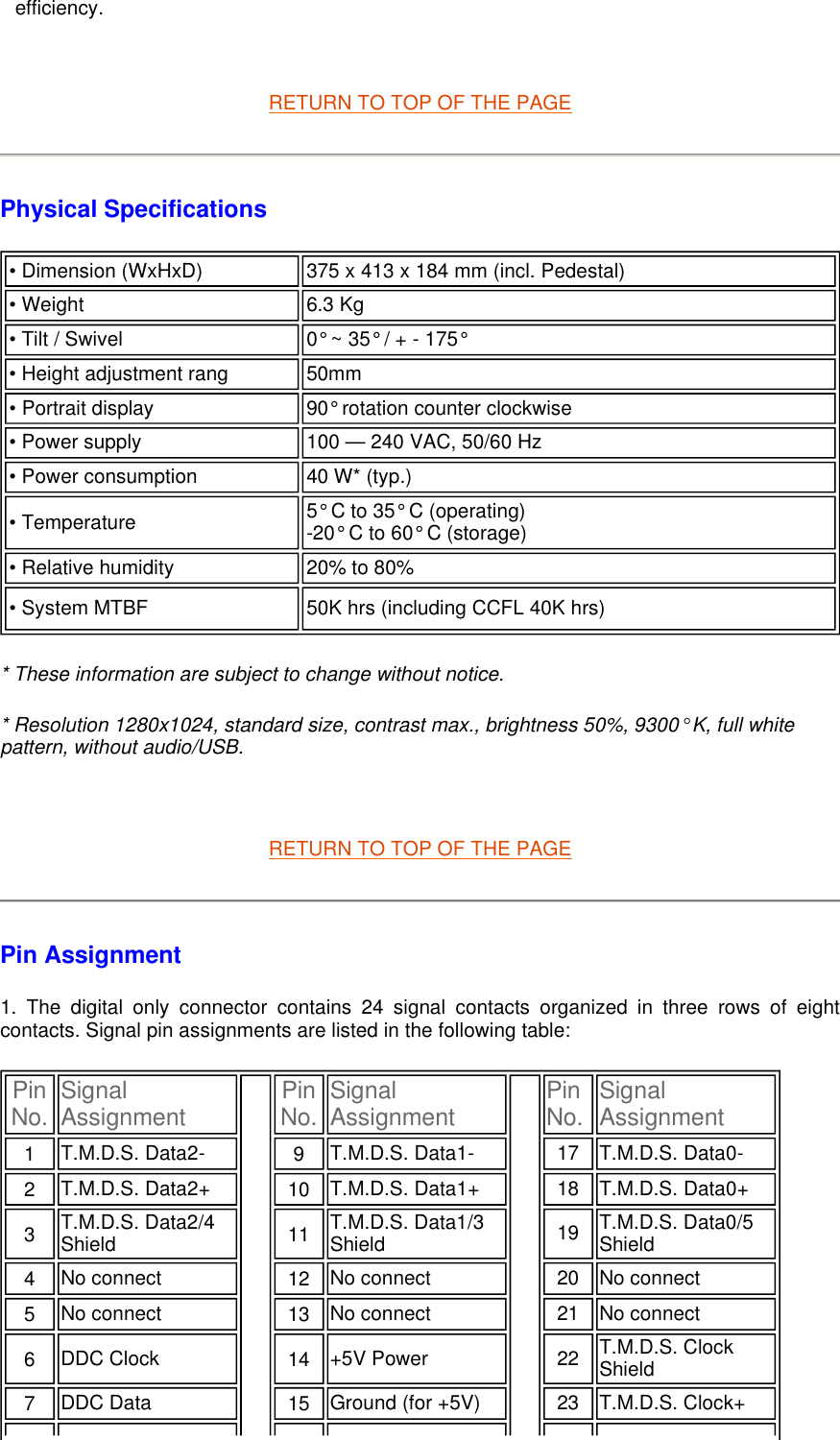

RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. * Resolution 1280x1024, standard size, contrast max., brightness 50%, 9300° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: efficiency.• Dimension (WxHxD) 375 x 413 x 184 mm (incl. Pedestal) • Weight 6.3 Kg • Tilt / Swivel 0° ~ 35° / + - 175° • Height adjustment rang 50mm• Portrait display 90° rotation counter clockwise • Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 40 W* (typ.)• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage) • Relative humidity 20% to 80%• System MTBF 50K hrs (including CCFL 40K hrs) Pin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+

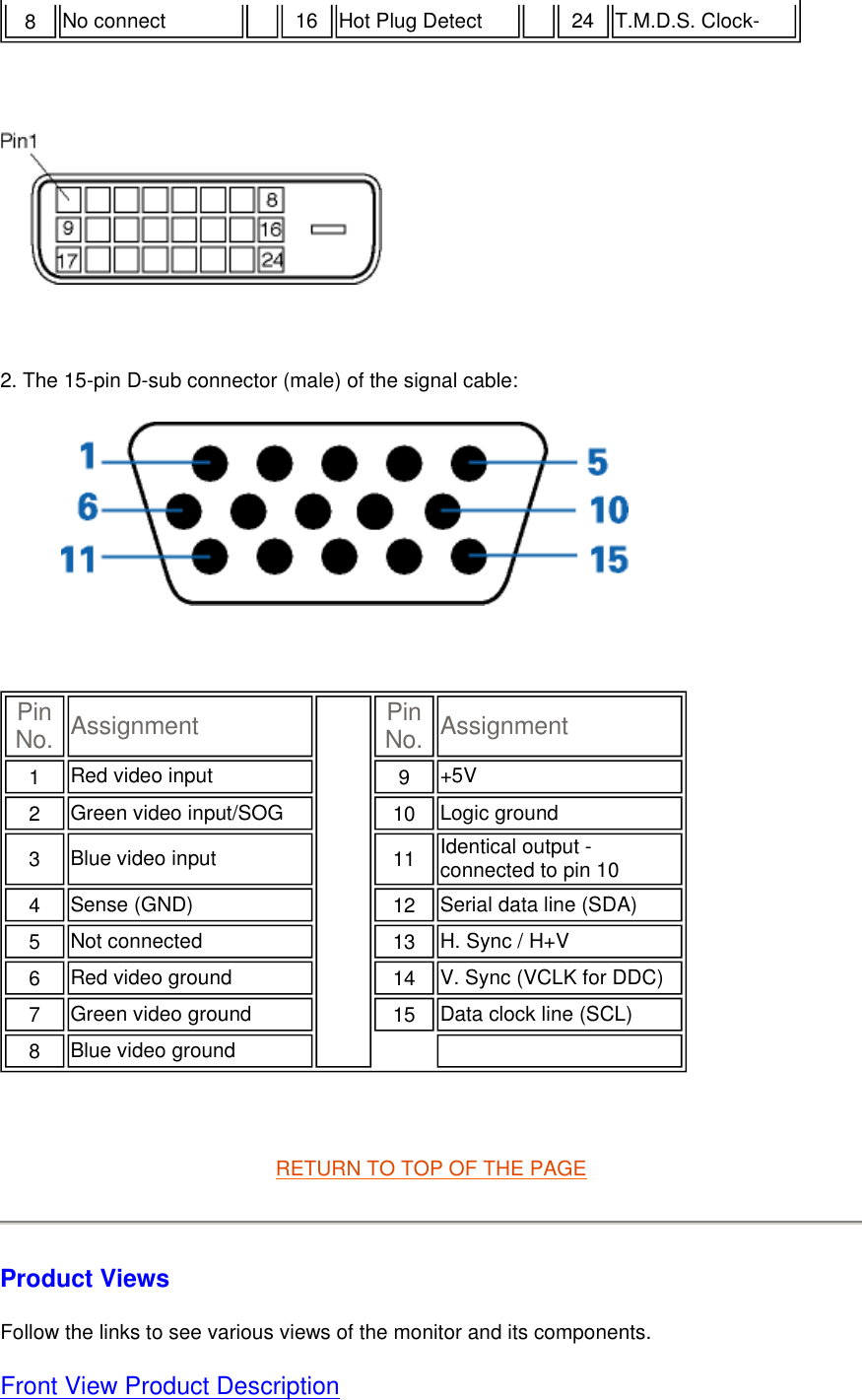

2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description 8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Identical output - connected to pin 104 Sense (GND) 12 Serial data line (SDA)5 Not connected 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video ground

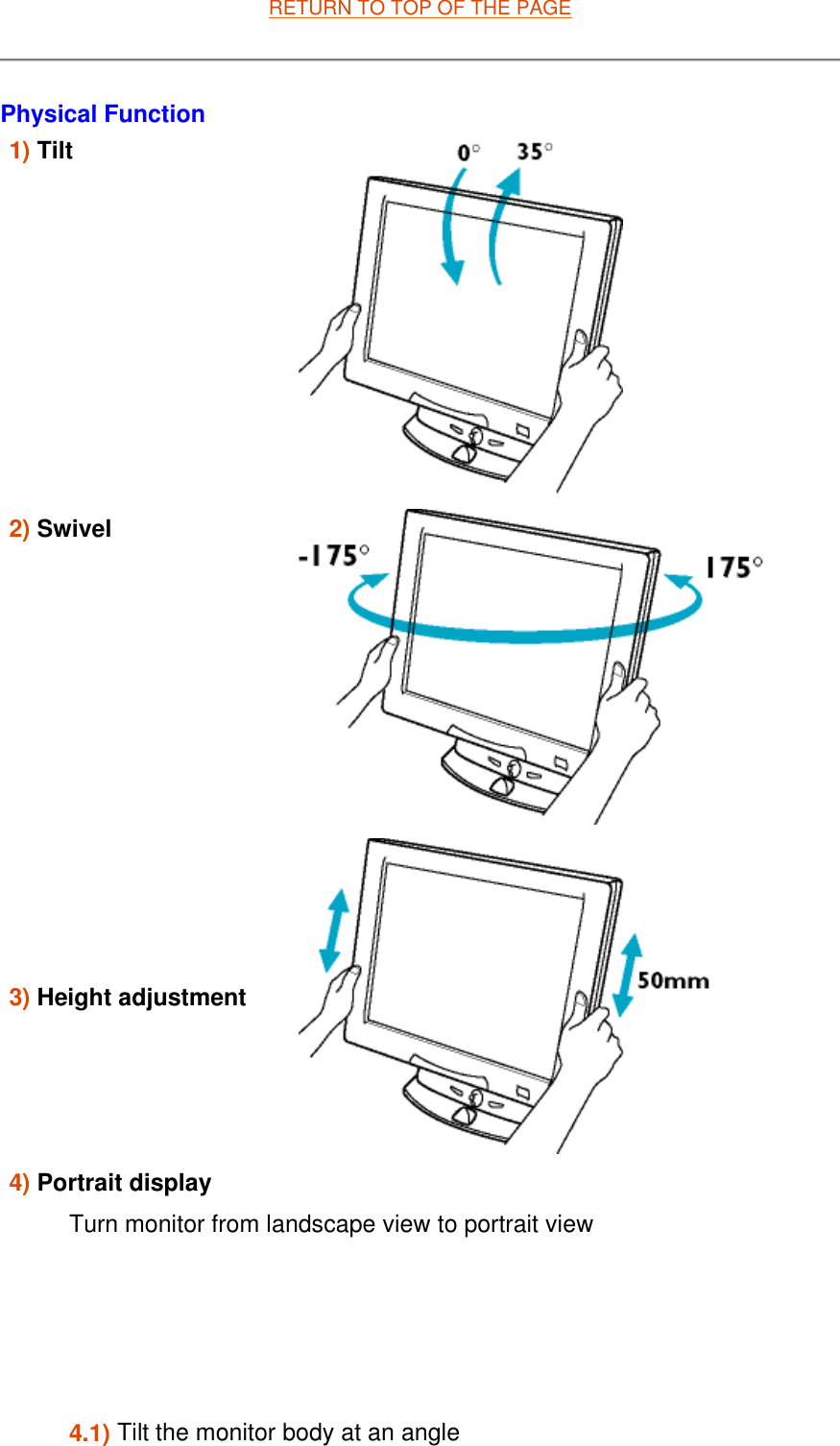

RETURN TO TOP OF THE PAGEPhysical Function 1) Tilt 2) Swivel 3) Height adjustment4) Portrait displayTurn monitor from landscape view to portrait view 4.1) Tilt the monitor body at an angle

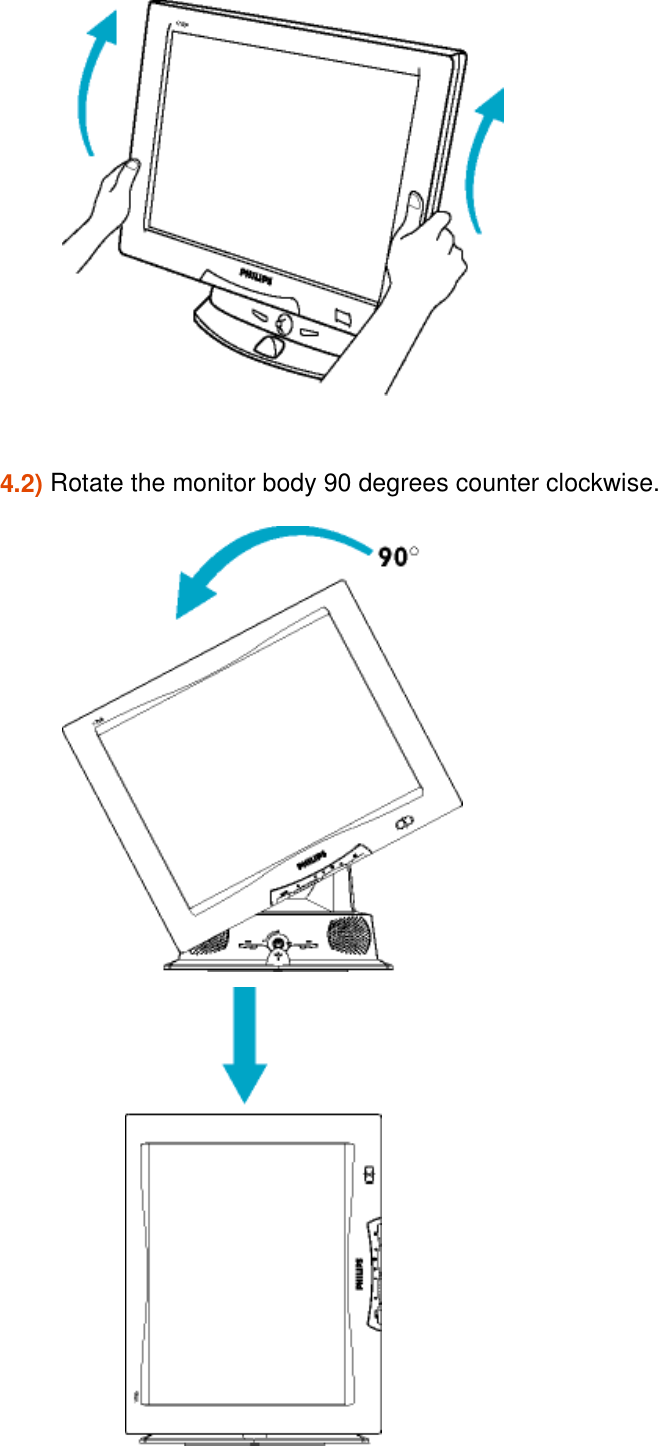

4.2) Rotate the monitor body 90 degrees counter clockwise.

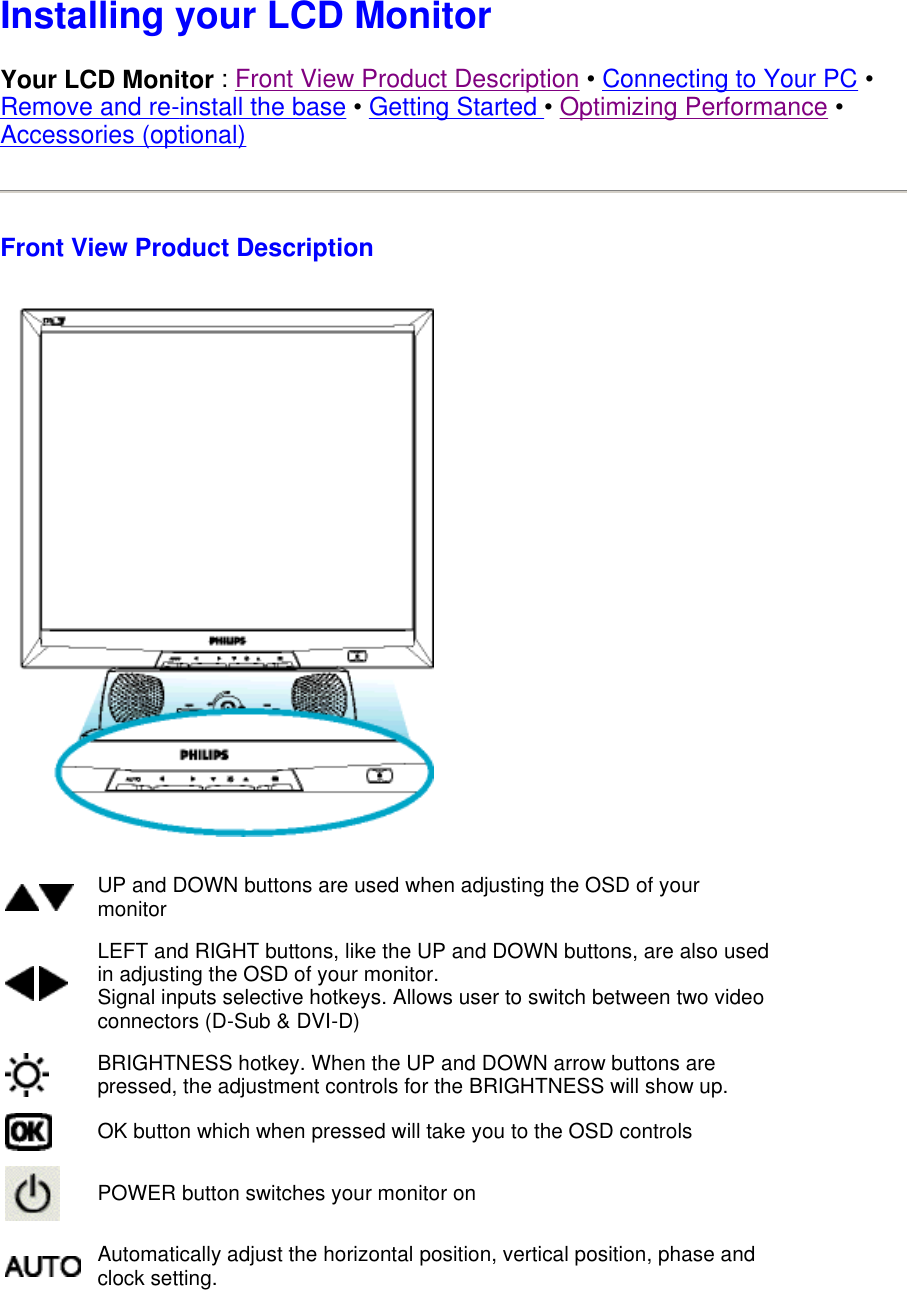

Installing your LCD Monitor Your LCD Monitor : Front View Product Description • Connecting to Your PC • Remove and re-install the base • Getting Started • Optimizing Performance • Accessories (optional) Front View Product Description UP and DOWN buttons are used when adjusting the OSD of your monitor LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor. Signal inputs selective hotkeys. Allows user to switch between two video connectors (D-Sub & DVI-D) BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are pressed, the adjustment controls for the BRIGHTNESS will show up.OK button which when pressed will take you to the OSD controlsPOWER button switches your monitor onAutomatically adjust the horizontal position, vertical position, phase and clock setting.

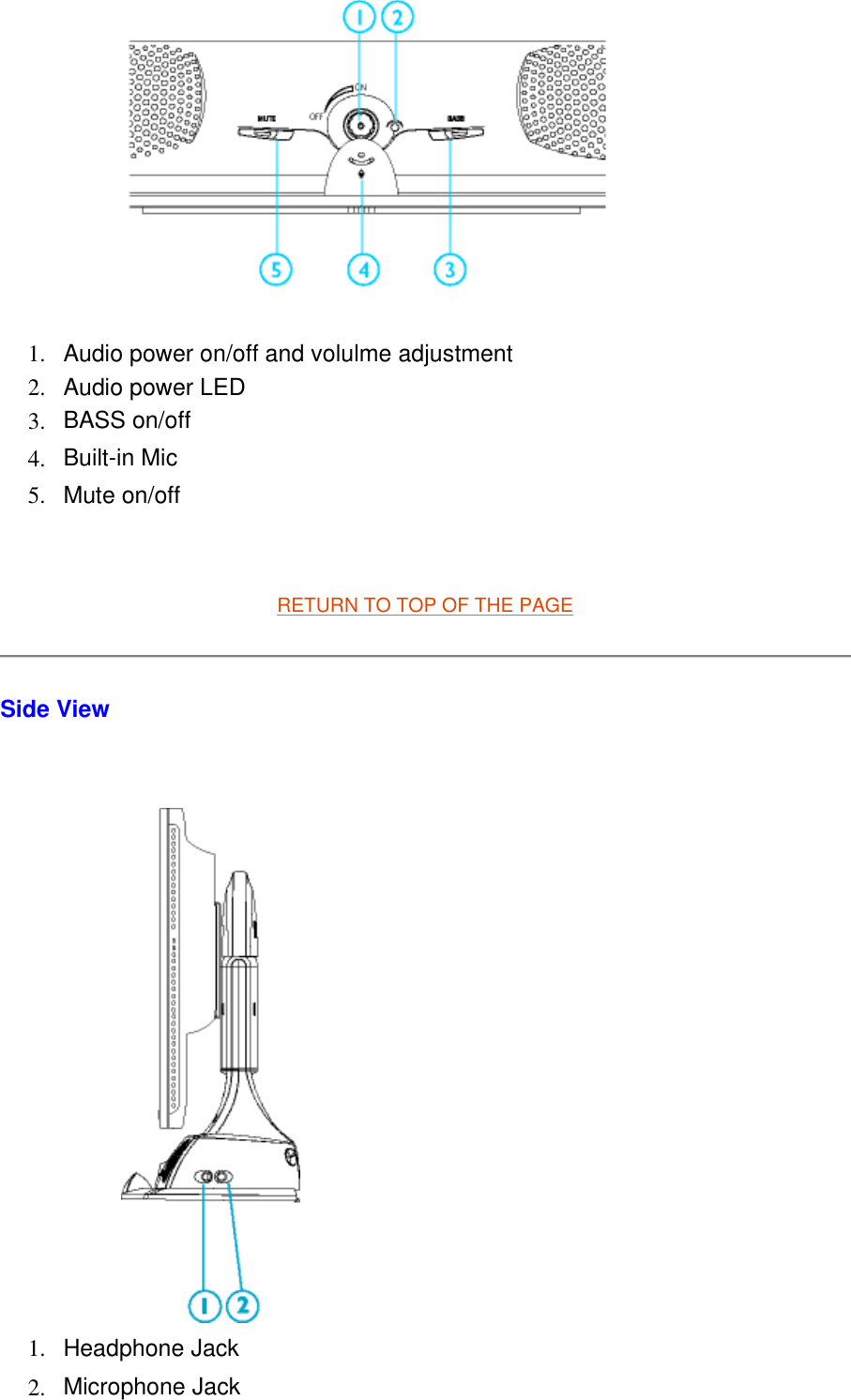

RETURN TO TOP OF THE PAGE Side View 1. Audio power on/off and volulme adjustment 2. Audio power LED 3. BASS on/off 4. Built-in Mic 5. Mute on/off 1. Headphone Jack 2. Microphone Jack

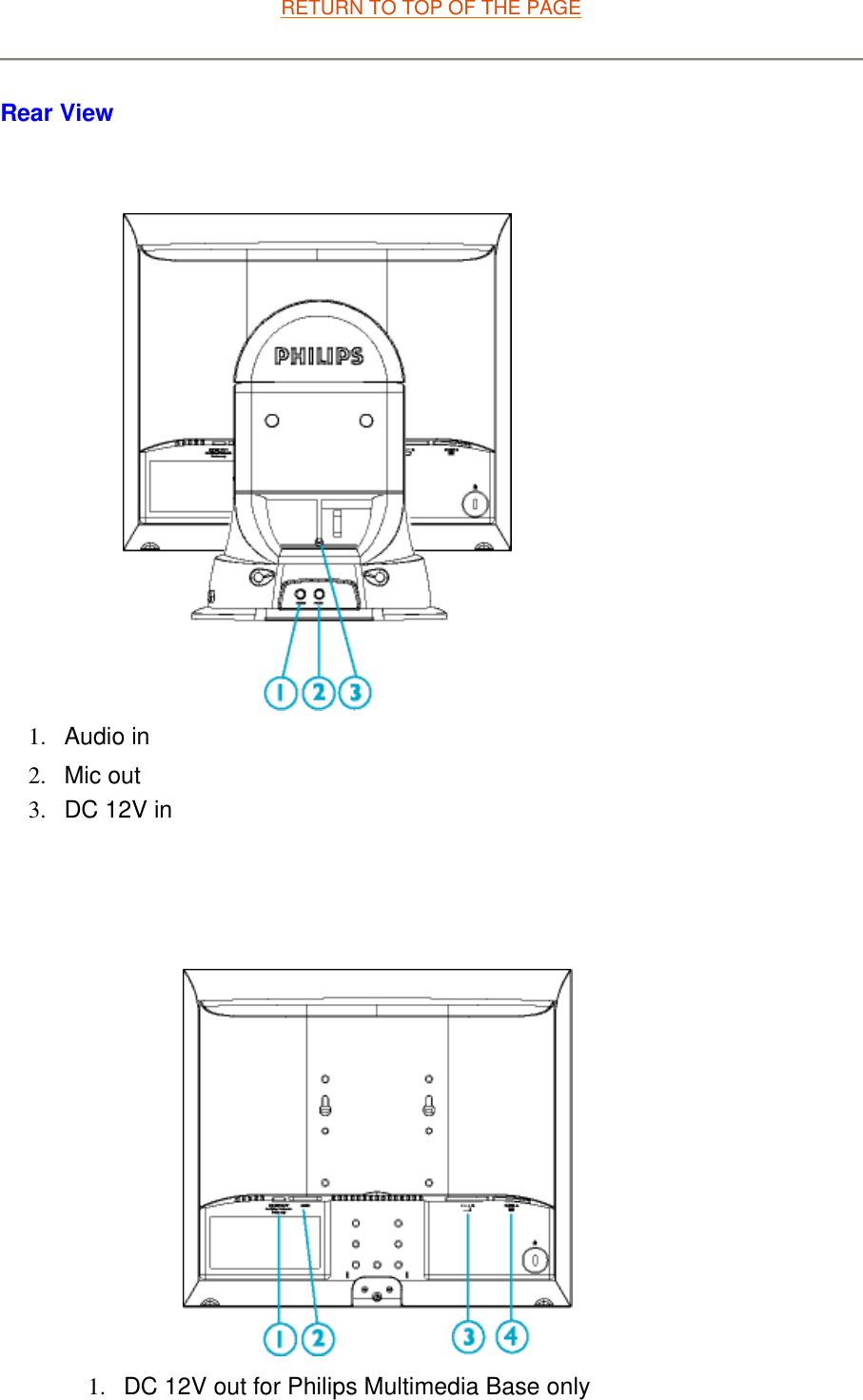

RETURN TO TOP OF THE PAGERear View 1. Audio in 2. Mic out 3. DC 12V in 1. DC 12V out for Philips Multimedia Base only

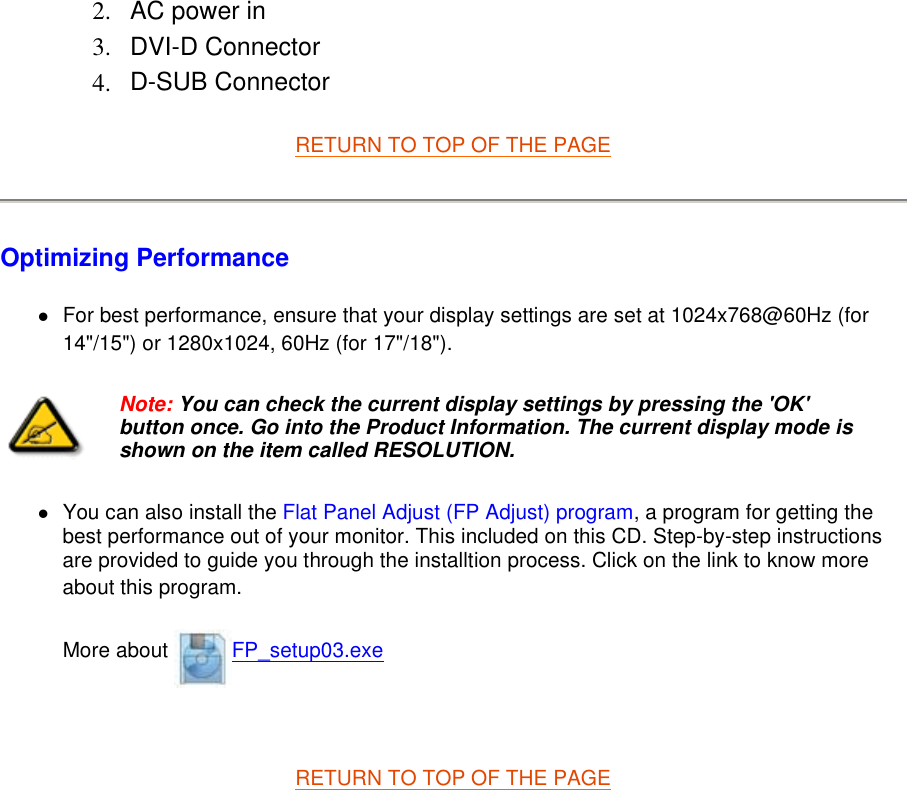

RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1024x768@60Hz (for 14"/15") or 1280x1024, 60Hz (for 17"/18"). zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This included on this CD. Step-by-step instructions are provided to guide you through the installtion process. Click on the link to know more about this program. More about FP_setup03.exe RETURN TO TOP OF THE PAGE 2. AC power in 3. DVI-D Connector 4. D-SUB Connector Note: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

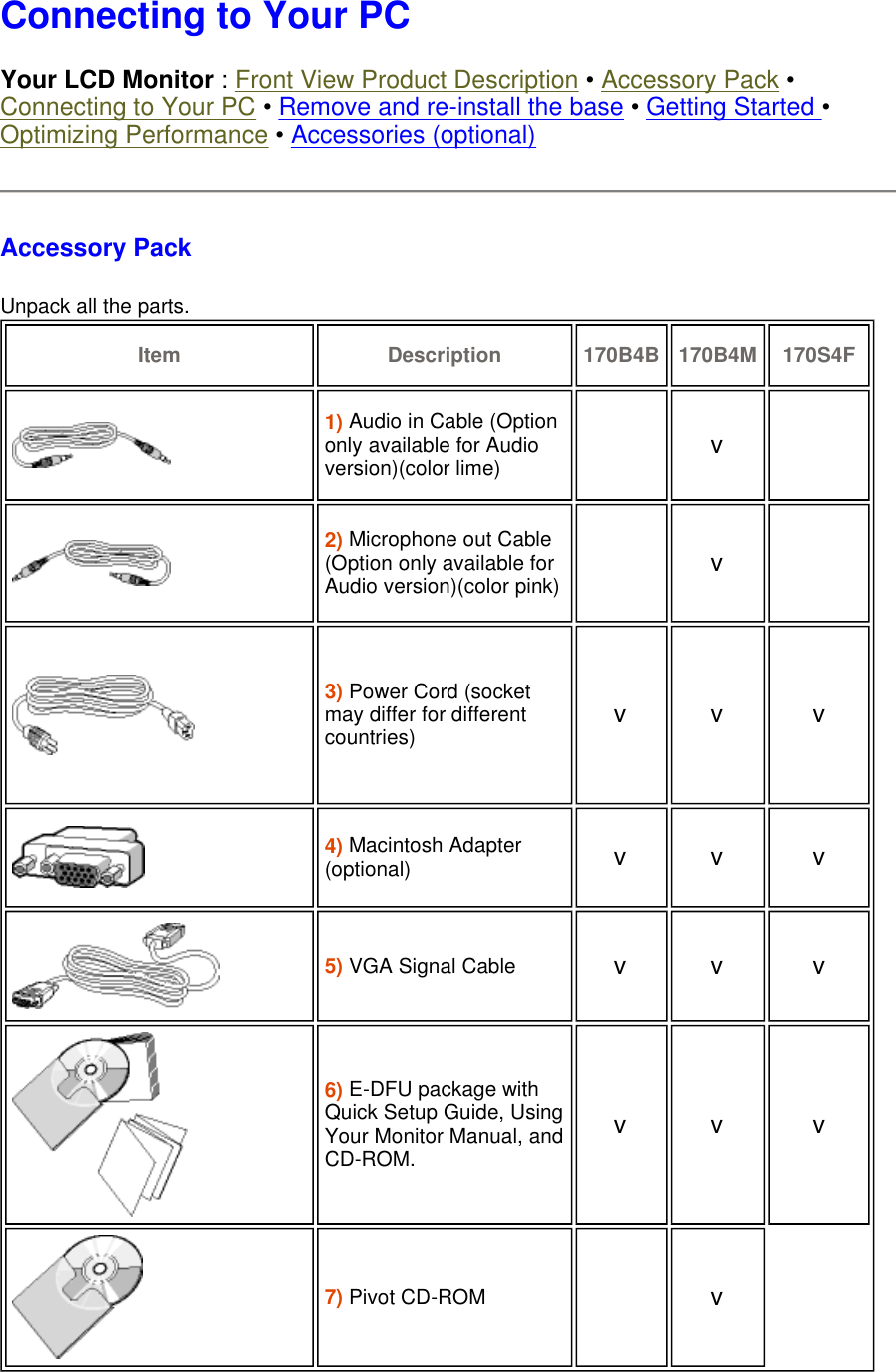

Connecting to Your PC Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • Remove and re-install the base • Getting Started • Optimizing Performance • Accessories (optional) Accessory Pack Unpack all the parts. Item Description 170B4B 170B4M 170S4F 1) Audio in Cable (Option only available for Audio version)(color lime) v 2) Microphone out Cable (Option only available for Audio version)(color pink) v 3) Power Cord (socket may differ for different countries) v v v 4) Macintosh Adapter (optional) v v v 5) VGA Signal Cable v v v 6) E-DFU package with Quick Setup Guide, Using Your Monitor Manual, and CD-ROM.v v v 7) Pivot CD-ROM v

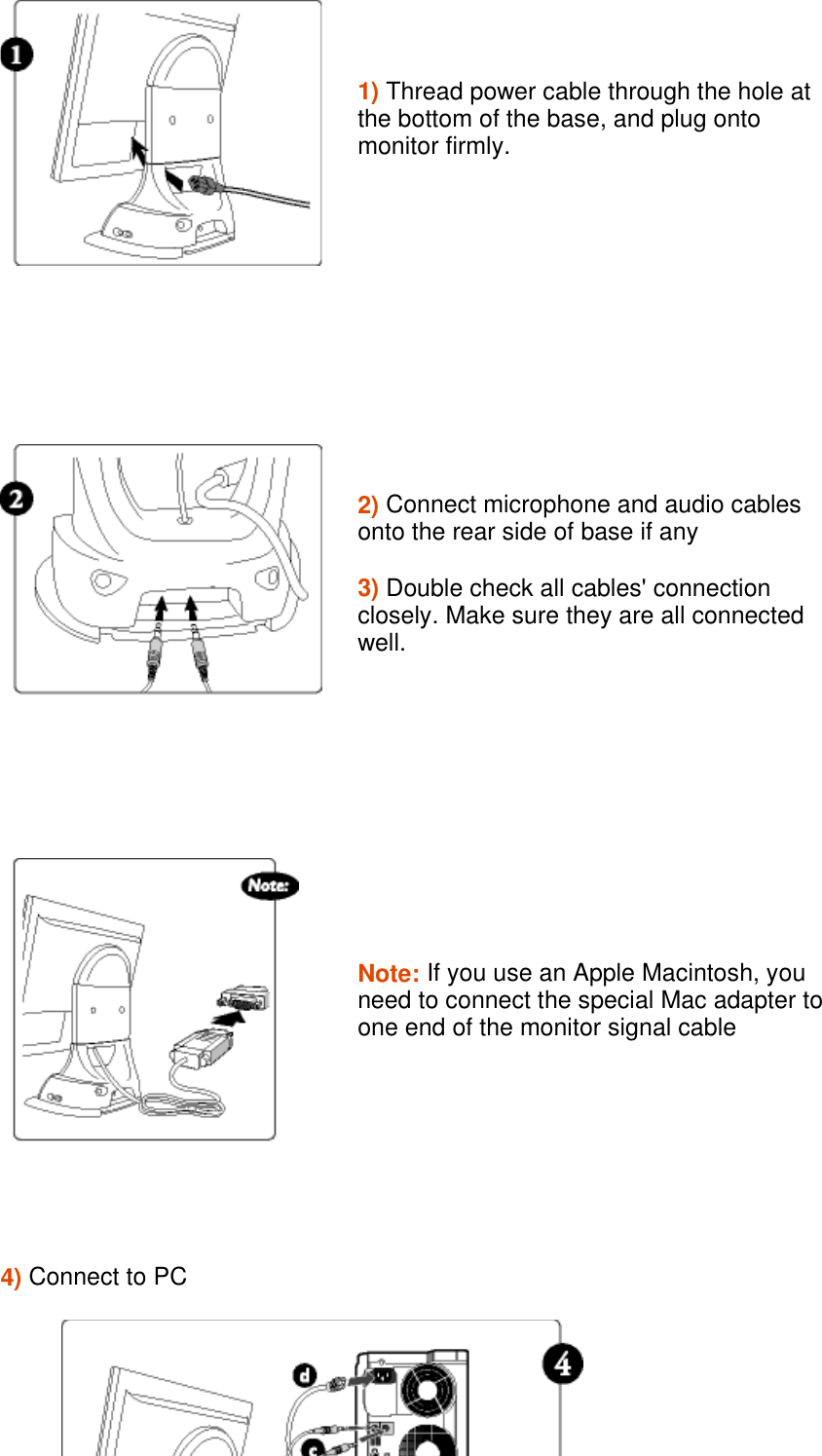

1) Thread power cable through the hole at the bottom of the base, and plug onto monitor firmly.2) Connect microphone and audio cables onto the rear side of base if any 3) Double check all cables' connection closely. Make sure they are all connected well. Note: If you use an Apple Macintosh, you need to connect the special Mac adapter to one end of the monitor signal cable 4) Connect to PC

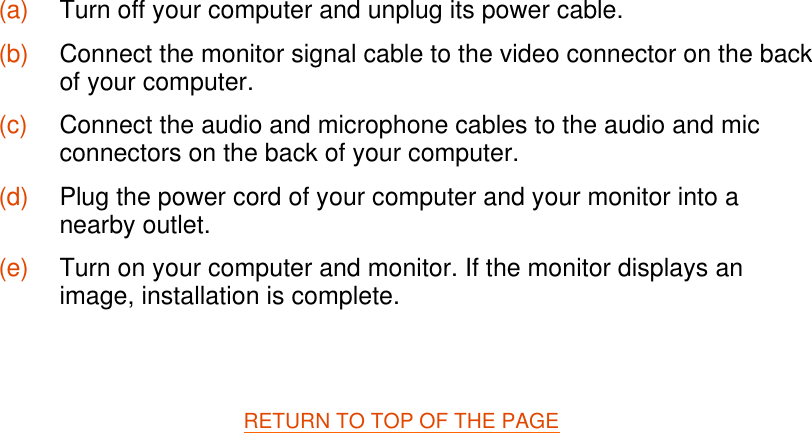

RETURN TO TOP OF THE PAGE (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Connect the audio and microphone cables to the audio and mic connectors on the back of your computer. (d) Plug the power cord of your computer and your monitor into a nearby outlet. (e) Turn on your computer and monitor. If the monitor displays an image, installation is complete.

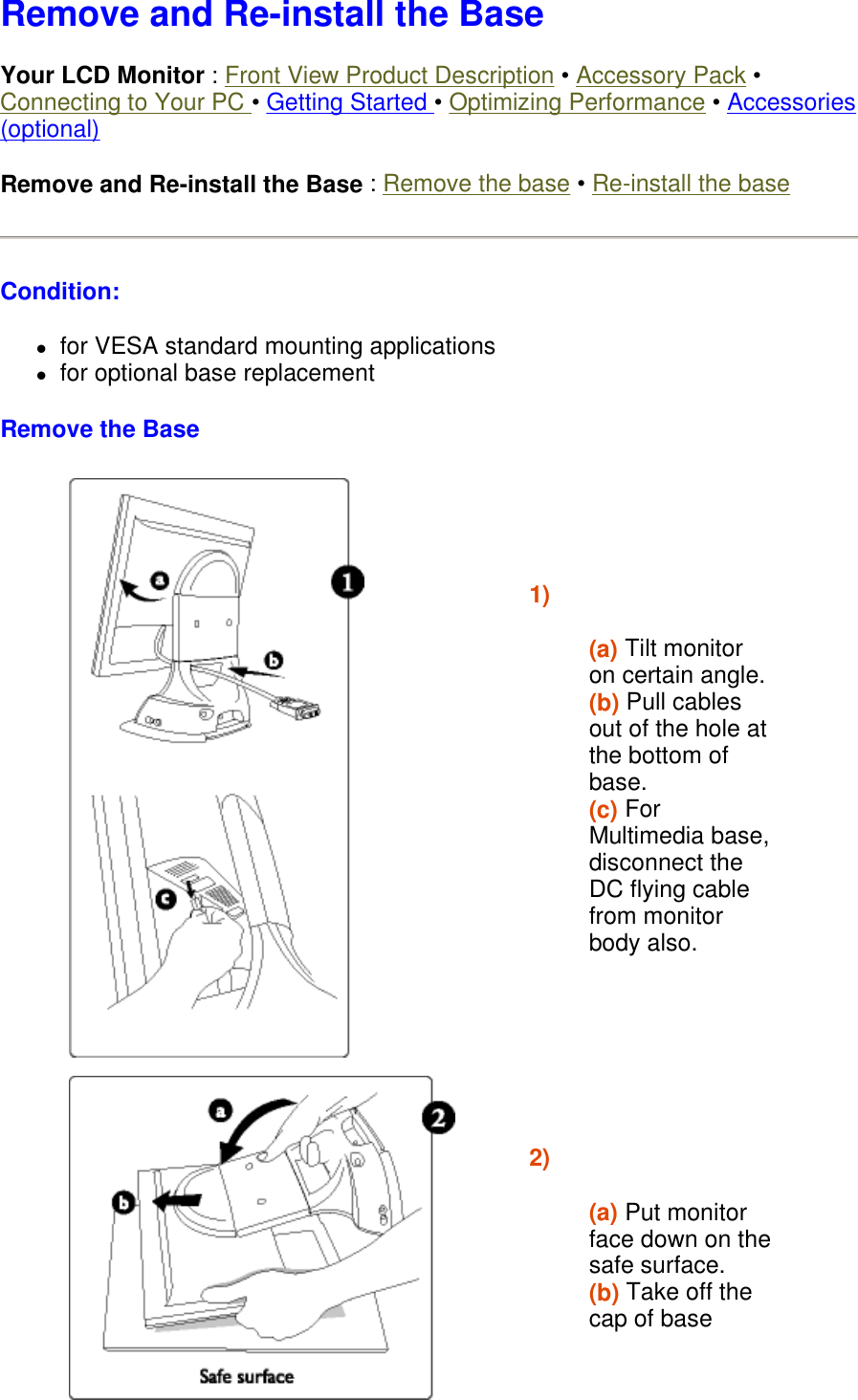

Remove and Re-install the Base Your LCD Monitor : Front View Product Description • Accessory Pack • Connecting to Your PC • Getting Started • Optimizing Performance • Accessories (optional) Remove and Re-install the Base : Remove the base • Re-install the base Condition: zfor VESA standard mounting applications zfor optional base replacement Remove the Base 1) (a) Tilt monitor on certain angle. (b) Pull cables out of the hole at the bottom of base. (c) For Multimedia base, disconnect the DC flying cable from monitor body also. 2) (a) Put monitor face down on the safe surface. (b) Take off the cap of base

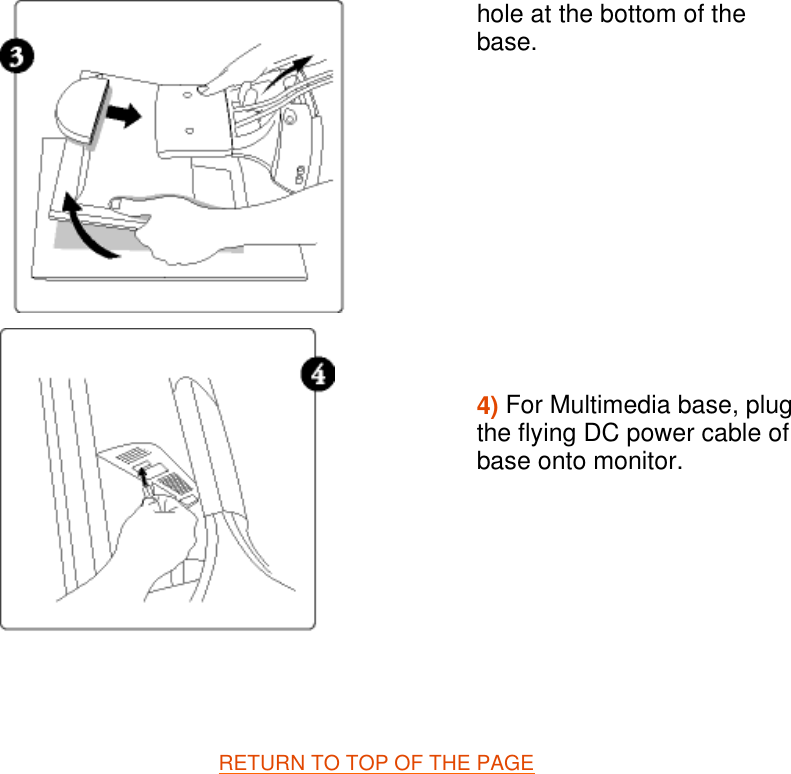

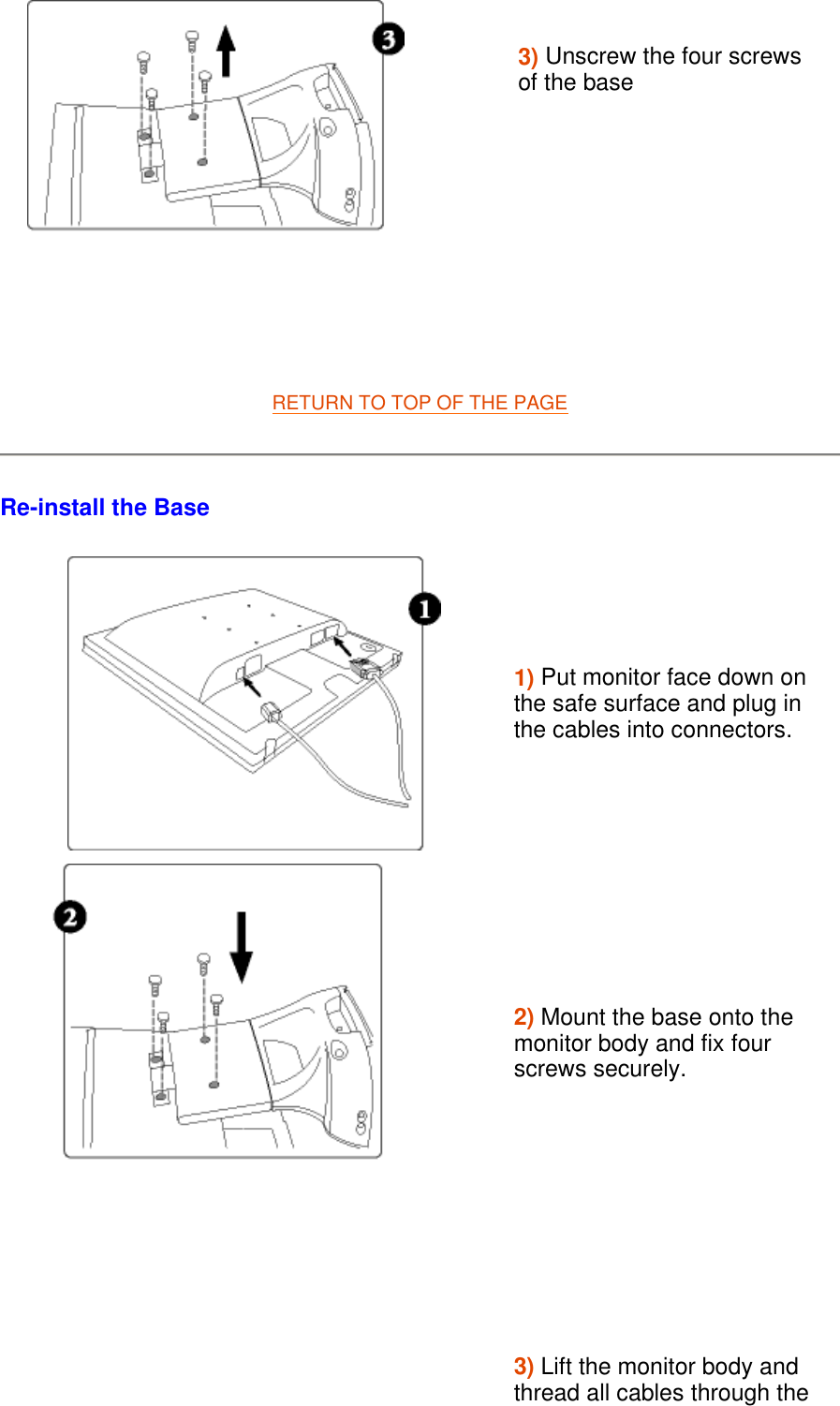

RETURN TO TOP OF THE PAGE Re-install the Base 3) Unscrew the four screws of the base 1) Put monitor face down on the safe surface and plug in the cables into connectors. 2) Mount the base onto the monitor body and fix four screws securely.3) Lift the monitor body and thread all cables through the
RETURN TO TOP OF THE PAGE hole at the bottom of the base. 4) For Multimedia base, plug the flying DC power cable of base onto monitor.

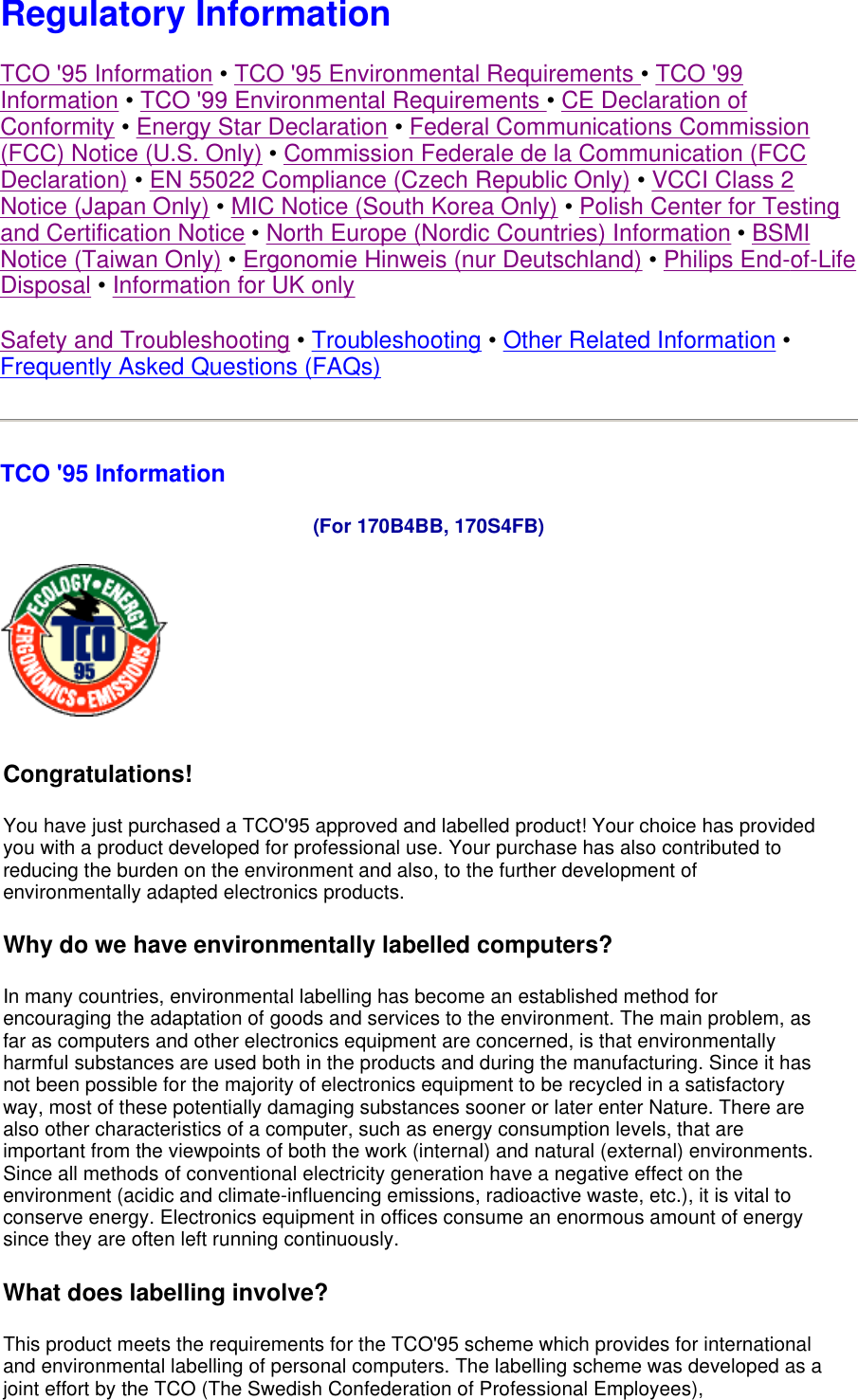

Regulatory Information TCO '95 Information • TCO '95 Environmental Requirements • TCO '99 Information • TCO '99 Environmental Requirements • CE Declaration of Conformity • Energy Star Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North Europe (Nordic Countries) Information • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal • Information for UK only Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Asked Questions (FAQs) TCO '95 Information (For 170B4BB, 170S4FB) Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees),
- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment) - EN55024:1998 (Immunity requirement of Information Technology Equipment) - EN61000-3-2:1995 (Limits for Harmonic Current Emission) - EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable - 73/23/EEC (Low Voltage Directive) - 89/336/EEC (EMC Directive) - 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level. The product also comply with the following standards - ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display) - ISO13406-2 (Ergonomic requirement for Flat panels) - GS EK1-2000 (GS specification) - prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display) - MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields) - TCO95, TCO99 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission, TCO: Swedish Confederation of Professional Employees) for TCO versions RETURN TO TOP OF THE PAGE Energy Star Declaration PHILIPS 170B4MG RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Green < 40 W (typ.)Power Saving Alternative 2 One step OFF Amber < 1 WAs an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.

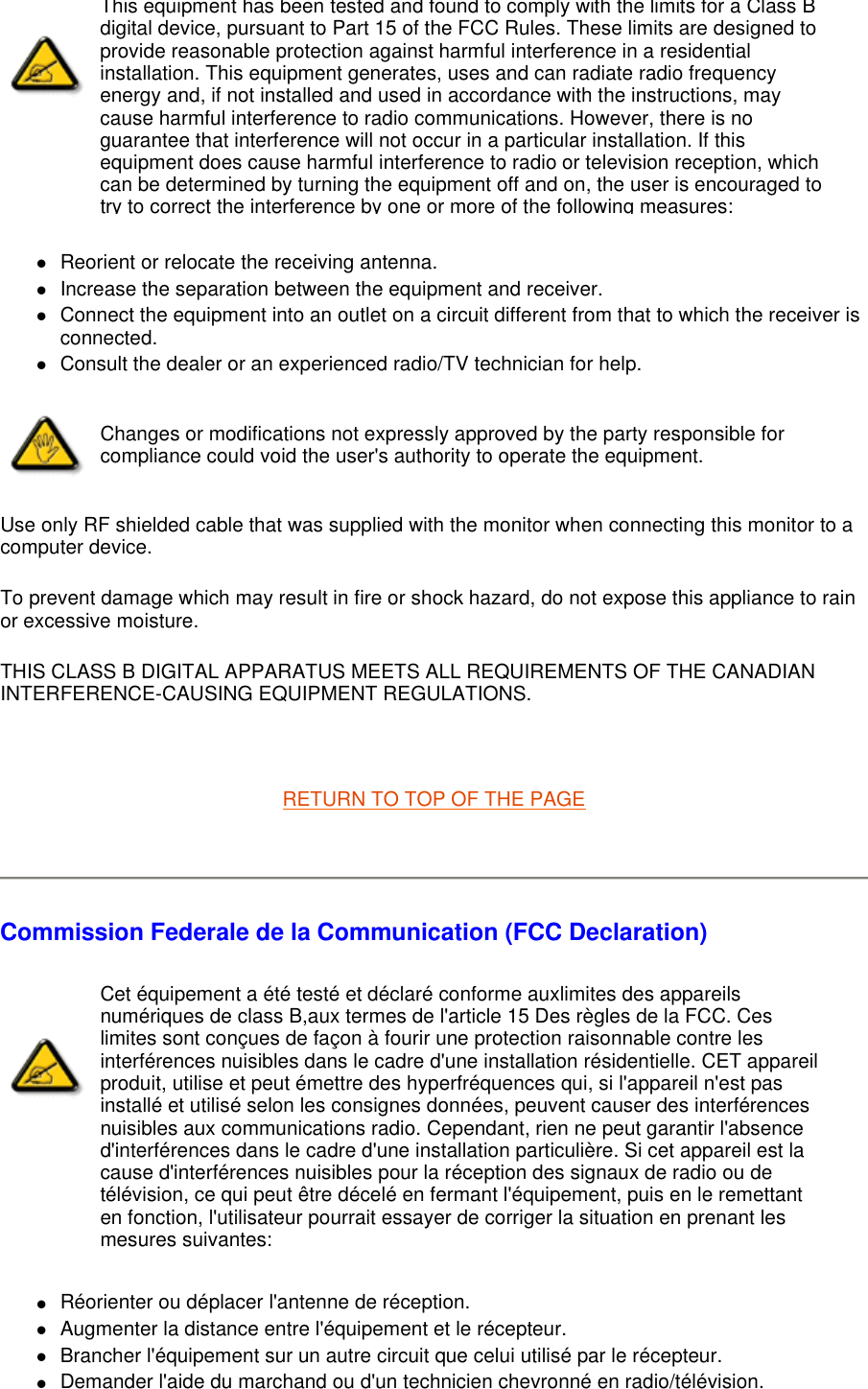

zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes:

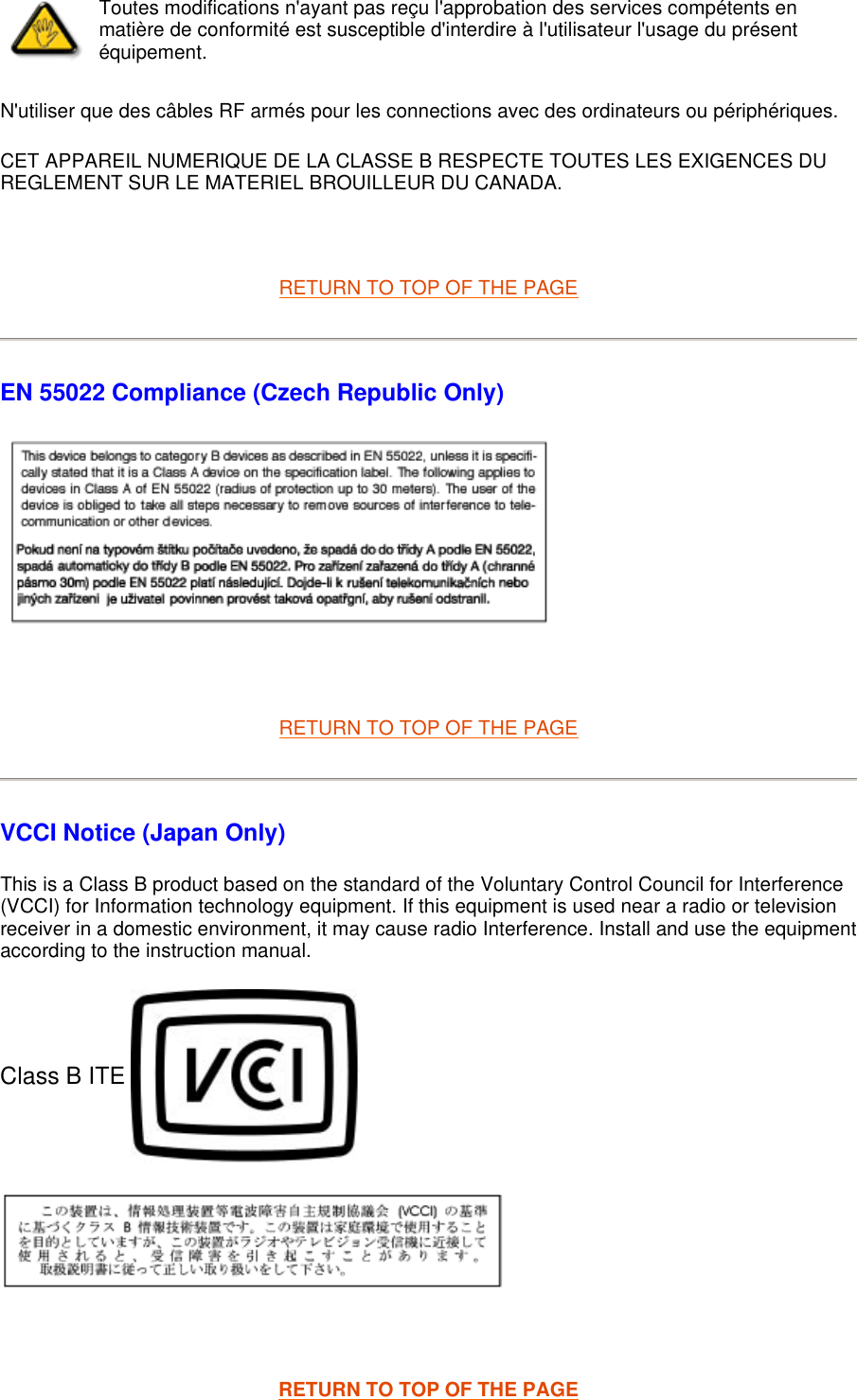

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE VCCI Notice (Japan Only) This is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI) for Information technology equipment. If this equipment is used near a radio or television receiver in a domestic environment, it may cause radio Interference. Install and use the equipment according to the instruction manual. Class B ITE RETURN TO TOP OF THE PAGEToutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
