Philips Electronics M121 20 User Manual

Philips Electronics Industries (Taiwan) Ltd 20

User Manual

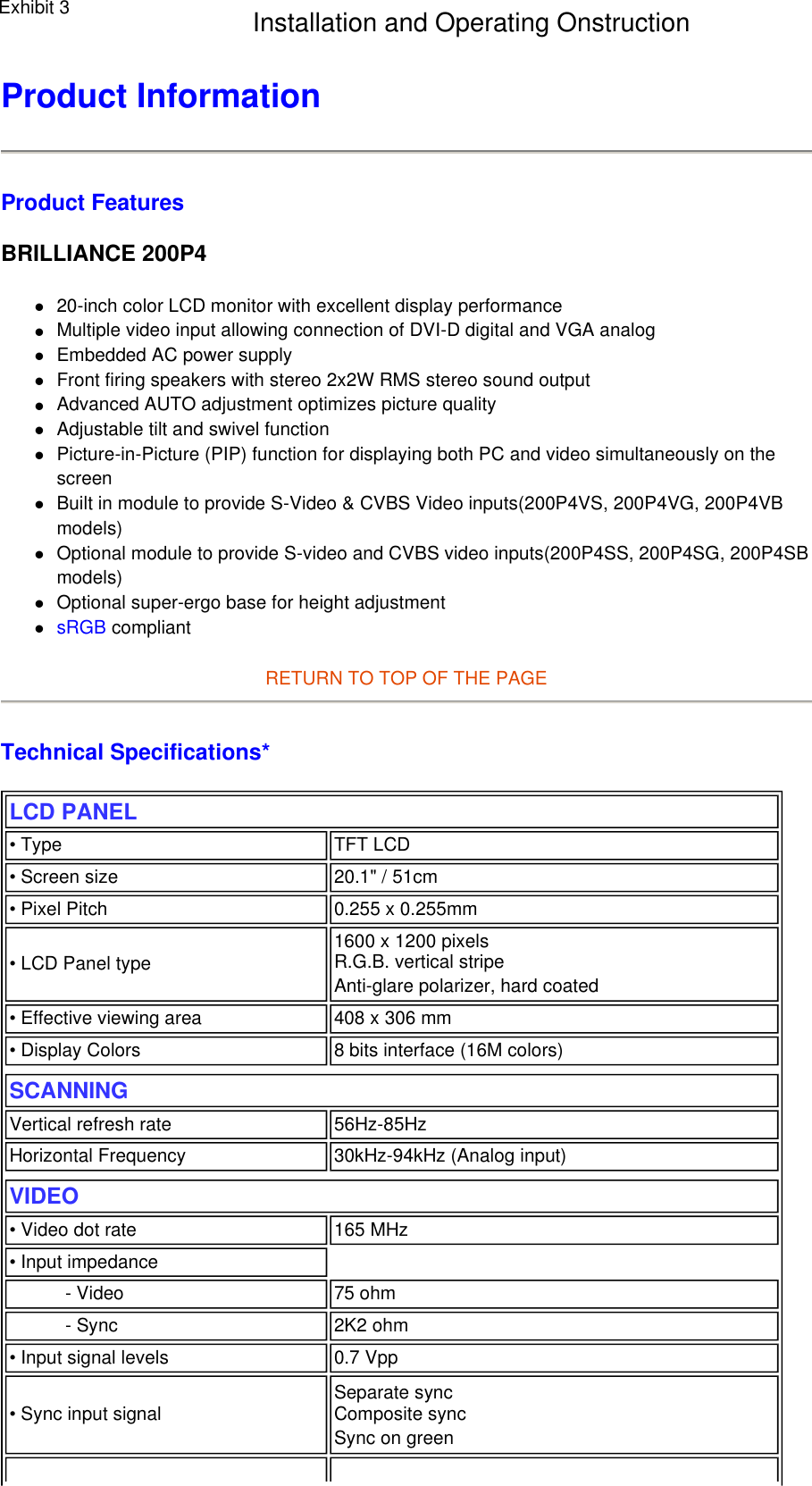

Product Information Product Features BRILLIANCE 200P4 z20-inch color LCD monitor with excellent display performance zMultiple video input allowing connection of DVI-D digital and VGA analog zEmbedded AC power supply zFront firing speakers with stereo 2x2W RMS stereo sound output zAdvanced AUTO adjustment optimizes picture quality zAdjustable tilt and swivel function zPicture-in-Picture (PIP) function for displaying both PC and video simultaneously on the screen zBuilt in module to provide S-Video & CVBS Video inputs(200P4VS, 200P4VG, 200P4VB models) zOptional module to provide S-video and CVBS video inputs(200P4SS, 200P4SG, 200P4SB models) zOptional super-ergo base for height adjustment zsRGB compliant RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 20.1" / 51cm• Pixel Pitch 0.255 x 0.255mm• LCD Panel type 1600 x 1200 pixels R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 408 x 306 mm• Display Colors 8 bits interface (16M colors)SCANNINGVertical refresh rate 56Hz-85HzHorizontal Frequency 30kHz-94kHz (Analog input)VIDEO • Video dot rate 165 MHz• Input impedance- Video 75 ohm- Sync 2K2 ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync Sync on green Exhibit 3 Installation and Operating Onstruction

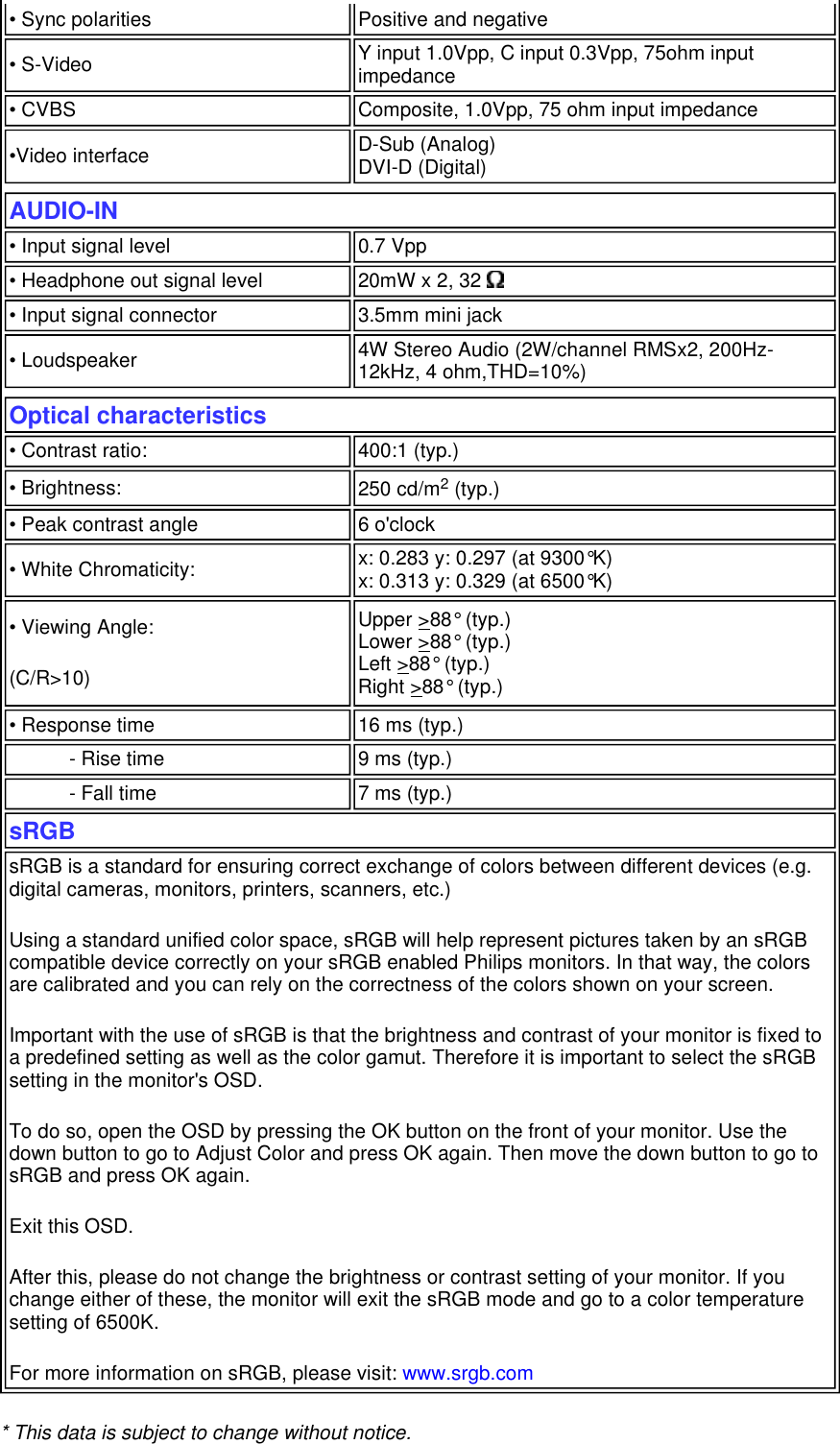

* This data is subject to change without notice. • Sync polarities Positive and negative• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input impedance• CVBS Composite, 1.0Vpp, 75 ohm input impedance•Video interface D-Sub (Analog) DVI-D (Digital)AUDIO-IN • Input signal level 0.7 Vpp • Headphone out signal level 20mW x 2, 32 • Input signal connector 3.5mm mini jack• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-12kHz, 4 ohm,THD=10%)Optical characteristics • Contrast ratio: 400:1 (typ.) • Brightness: 250 cd/m2 (typ.)• Peak contrast angle 6 o'clock• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K) • Viewing Angle: (C/R>10) Upper >88° (typ.) Lower >88° (typ.) Left >88° (typ.) Right >88° (typ.)• Response time 16 ms (typ.) - Rise time 9 ms (typ.) - Fall time 7 ms (typ.) sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Adjust Color and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please do not change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com
RETURN TO TOP OF THE PAGEResolution & Preset Modes RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: • Maximum 1600 x 1200 at 60Hz(analog input) 1600 x 1200 at 60Hz(digtal input) • Recommended 1600 x 1200 at 60Hz * at DVI digital input37 user definable modes 15 factory preset modes: (Interlace mode is not applicable except 1080i) H. freq (kHz) Resolution V. freq (Hz) 31.5 640*350 70 (IBM VGA 10h) 31.5 720*400 70 31.5 640*480 60 37.5 640*480 75 35.2 800*600 56 37.9 800*600 60 46.9 800*600 75 48.4 1024*768 60 60.0 1024*768 75 69.0 1152*870 75 63.9 1280*1024 60 80.0 1280*1024 75 75.0 1600*1200 60 33.8 1080i 60 45.0 720p 60 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes < 65W Green

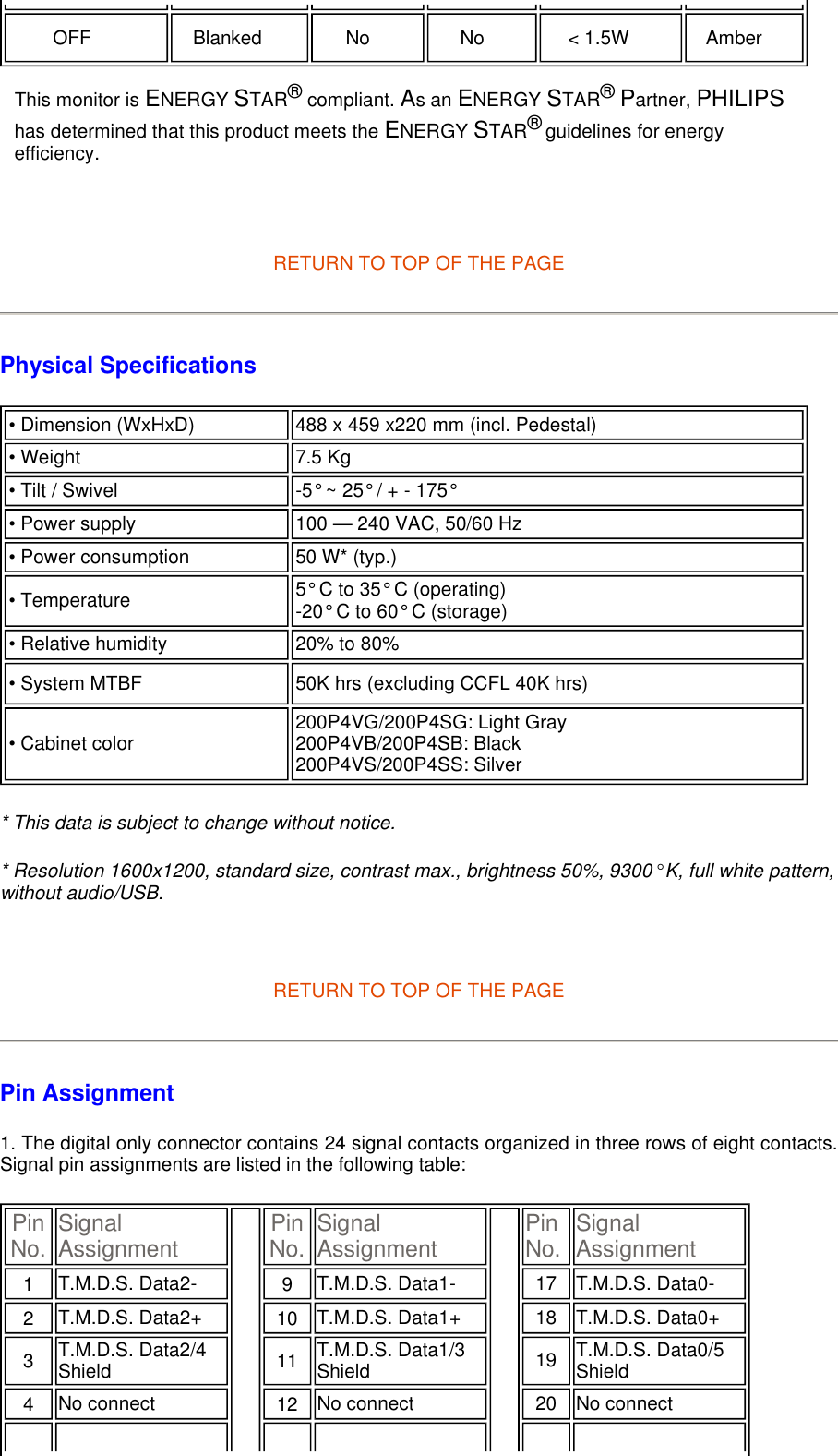

RETURN TO TOP OF THE PAGE Physical Specifications * This data is subject to change without notice. * Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern, without audio/USB. RETURN TO TOP OF THE PAGE Pin Assignment 1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: OFF Blanked No No < 1.5W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal) • Weight 7.5 Kg • Tilt / Swivel -5° ~ 25° / + - 175° • Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 50 W* (typ.)• Temperature 5° C to 35° C (operating) -20° C to 60° C (storage)• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40K hrs)• Cabinet color 200P4VG/200P4SG: Light Gray 200P4VB/200P4SB: Black 200P4VS/200P4SS: SilverPin No. Signal Assignment Pin No. Signal Assignment Pin No. Signal Assignment1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield4 No connect 12 No connect 20 No connect

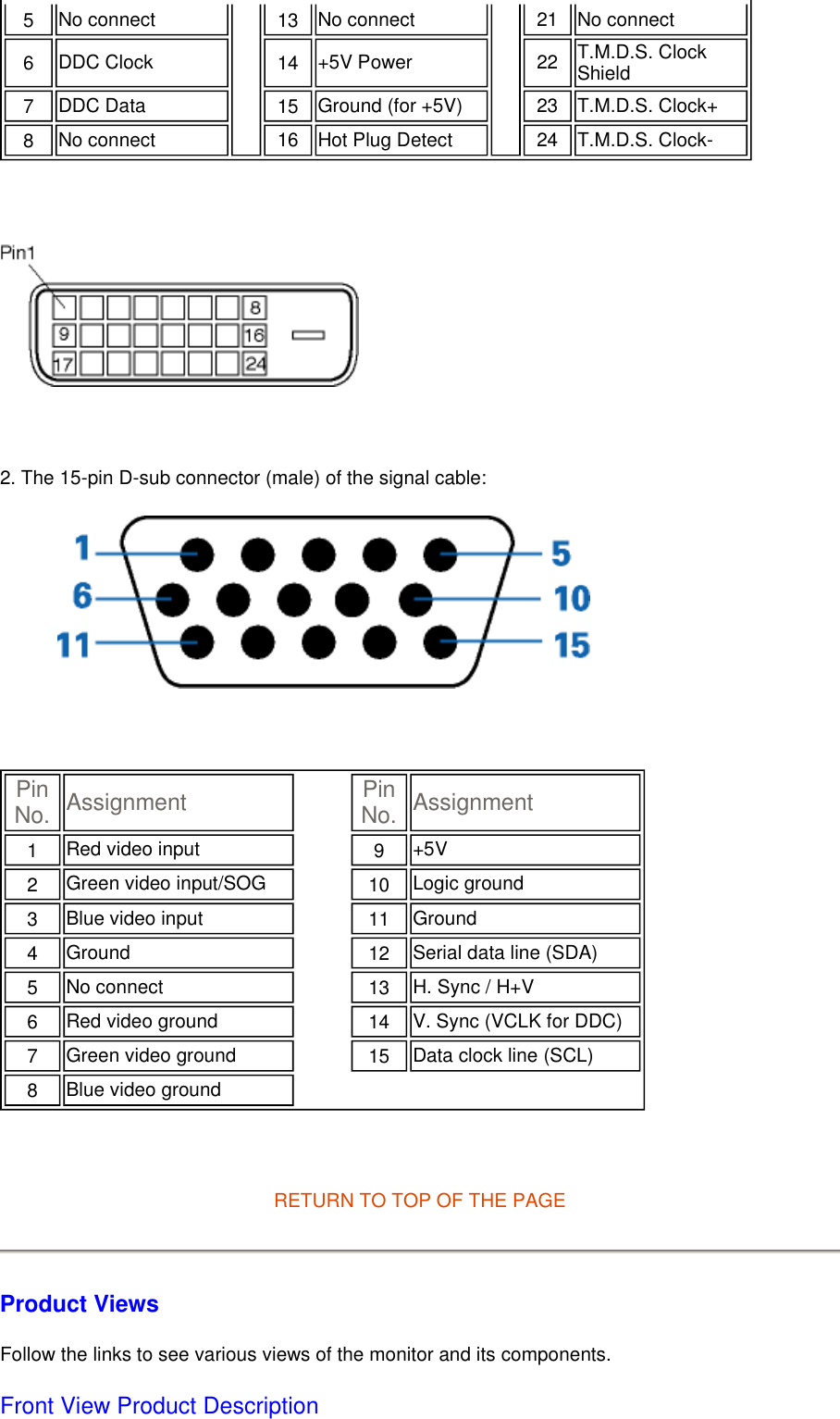

2. The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description 5 No connect 13 No connect 21 No connect 6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-Pin No. Assignment Pin No. Assignment1 Red video input 9 +5V2 Green video input/SOG 10 Logic ground3 Blue video input 11 Ground4 Ground 12 Serial data line (SDA)5 No connect 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video ground

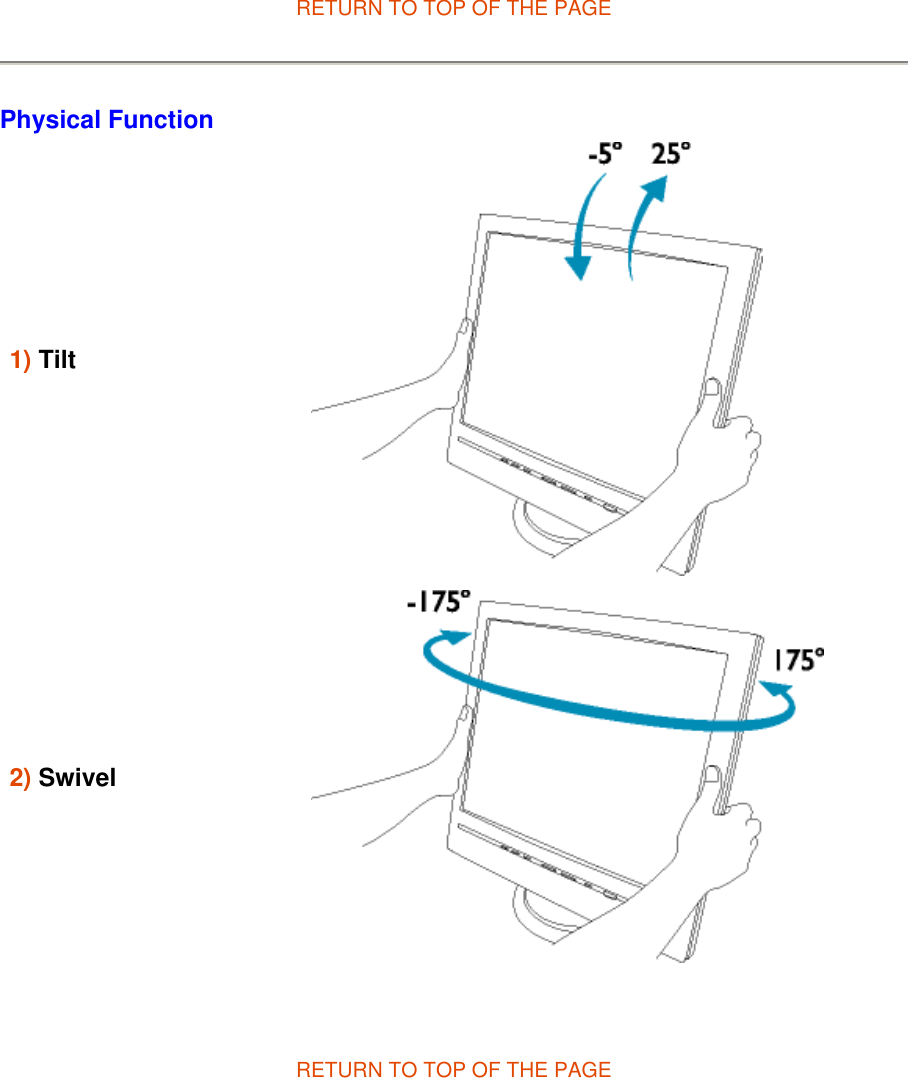

RETURN TO TOP OF THE PAGE Physical Function RETURN TO TOP OF THE PAGE1) Tilt2) Swivel

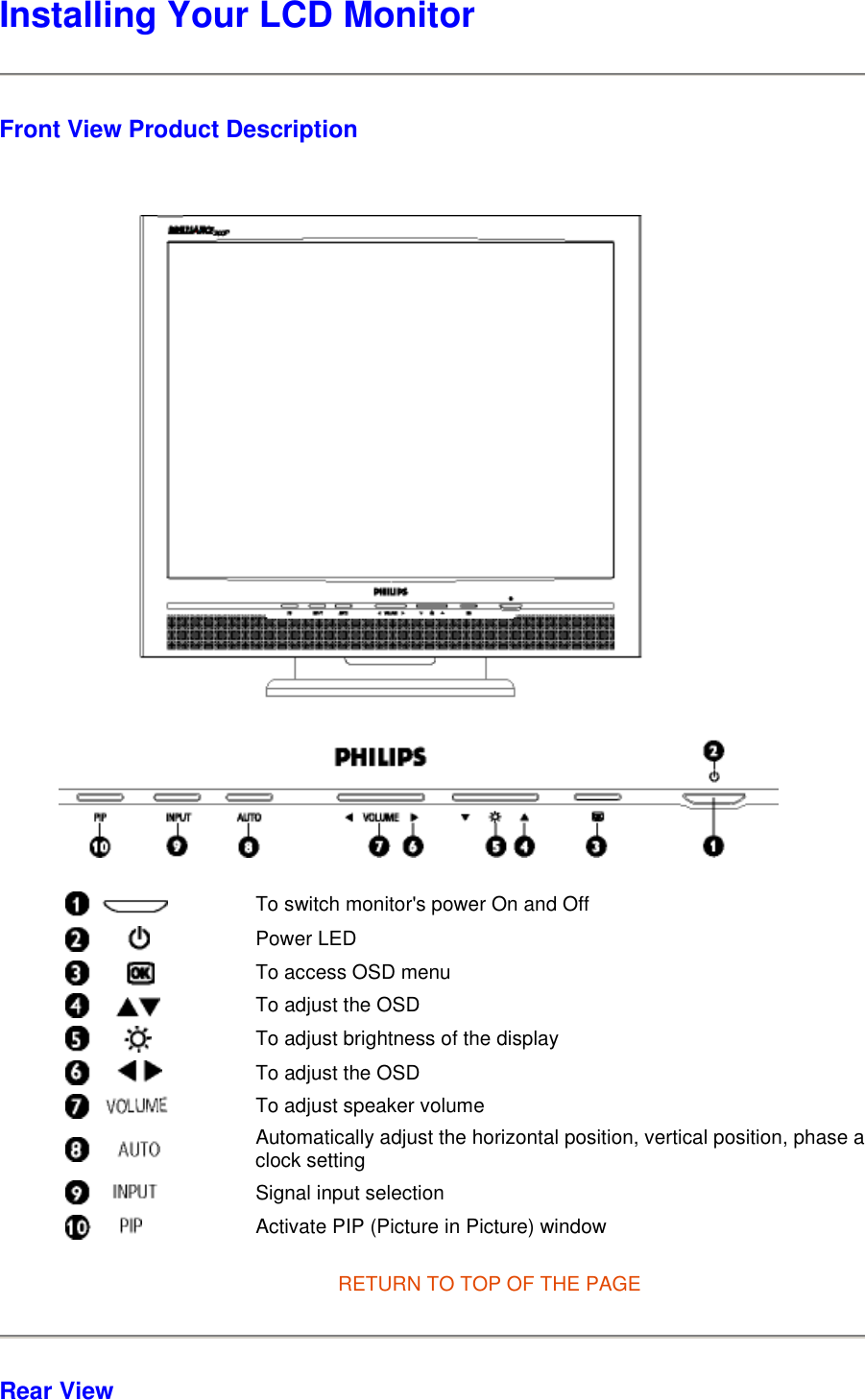

Installing Your LCD Monitor Front View Product Description RETURN TO TOP OF THE PAGE Rear View To switch monitor's power On and OffPower LEDTo access OSD menuTo adjust the OSDTo adjust brightness of the displayTo adjust the OSDTo adjust speaker volumeAutomatically adjust the horizontal position, vertical position, phase aclock settingSignal input selectionActivate PIP (Picture in Picture) window

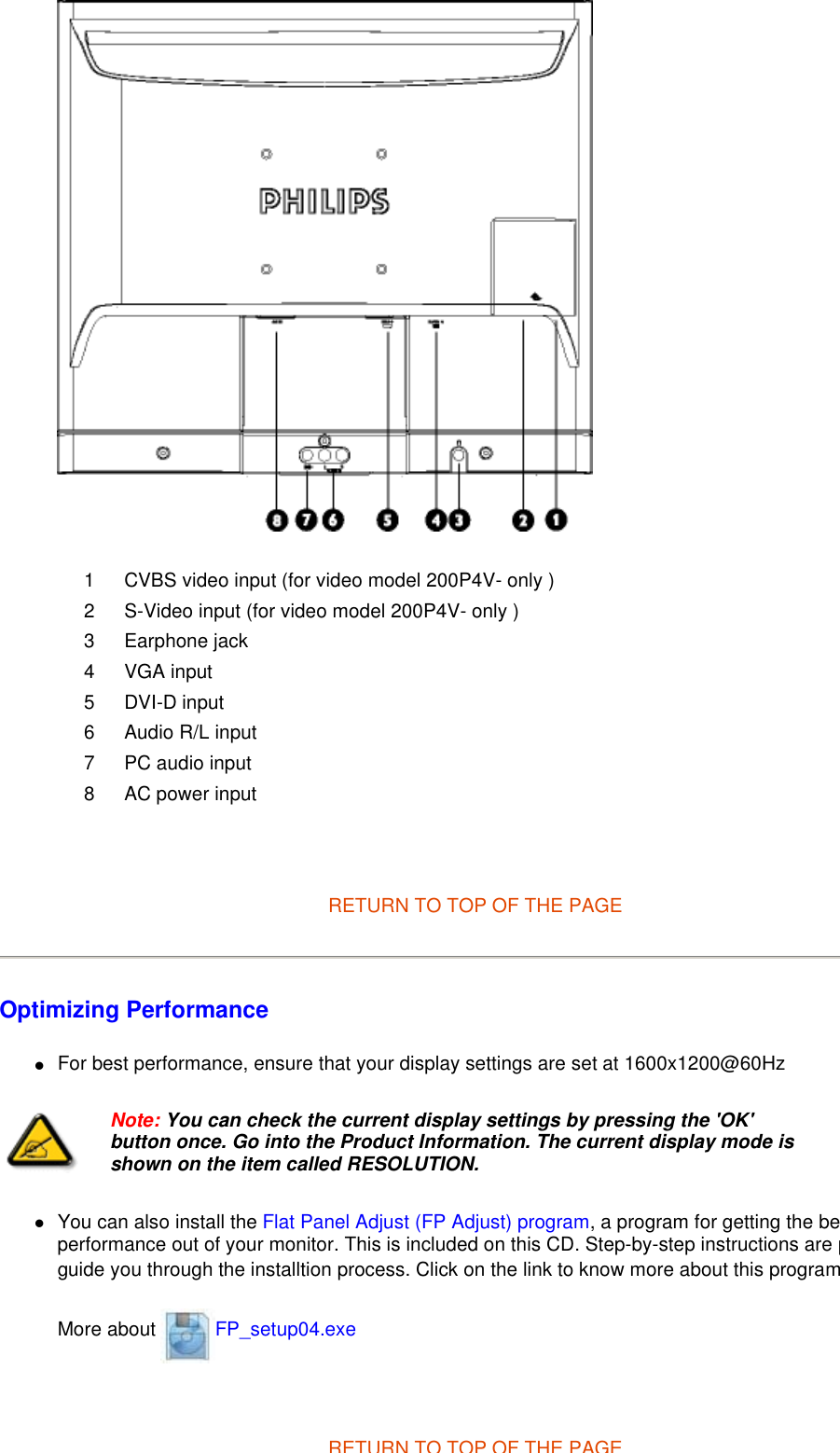

RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1600x1200@60Hz zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the beperformance out of your monitor. This is included on this CD. Step-by-step instructions are pguide you through the installtion process. Click on the link to know more about this programMore about FP_setup04.exe RETURN TO TOP OF THE PAGE1 CVBS video input (for video model 200P4V- only )2 S-Video input (for video model 200P4V- only )3 Earphone jack 4 VGA input5 DVI-D input6 Audio R/L input7 PC audio input8 AC power inputNote: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

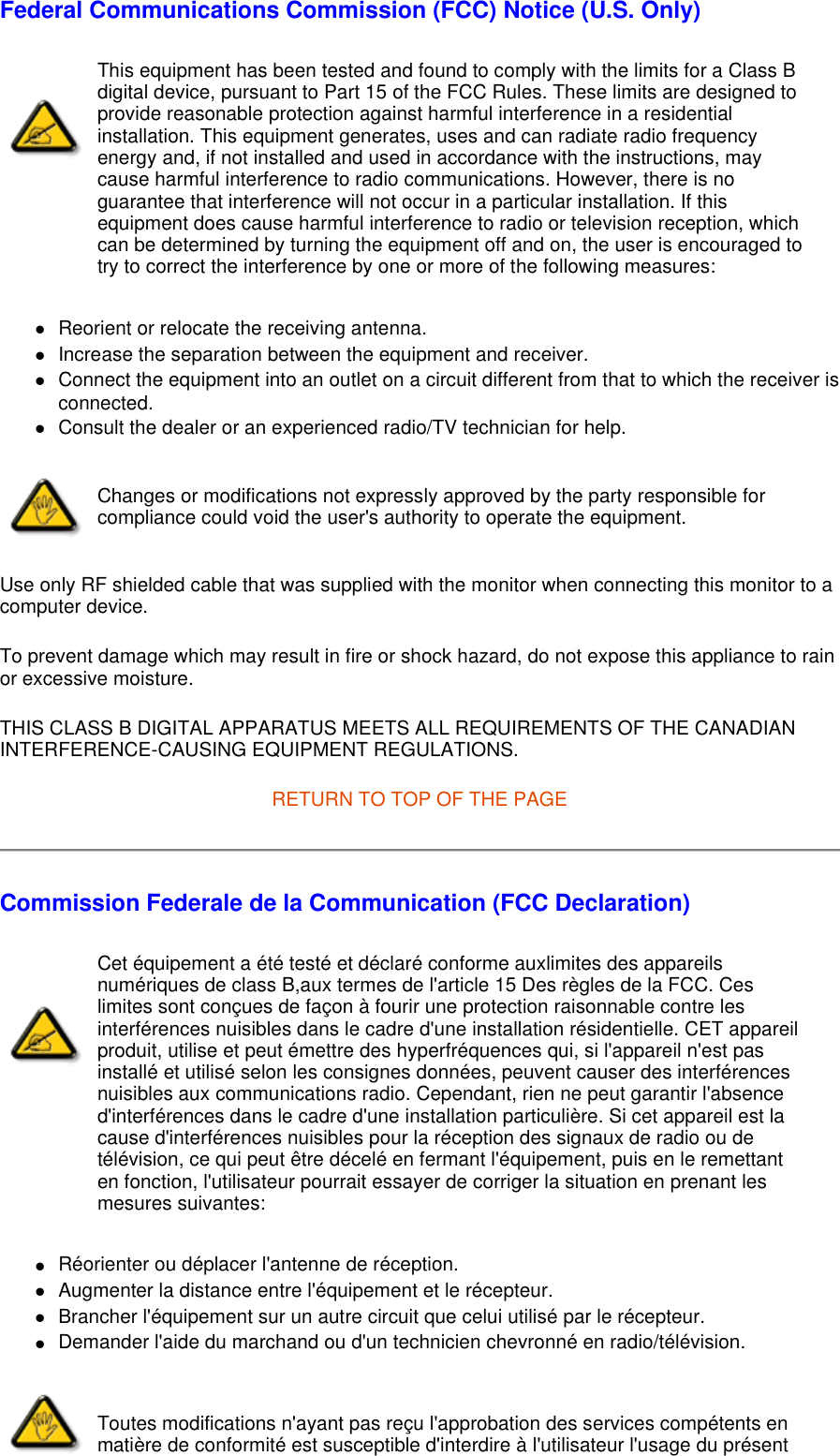

Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent

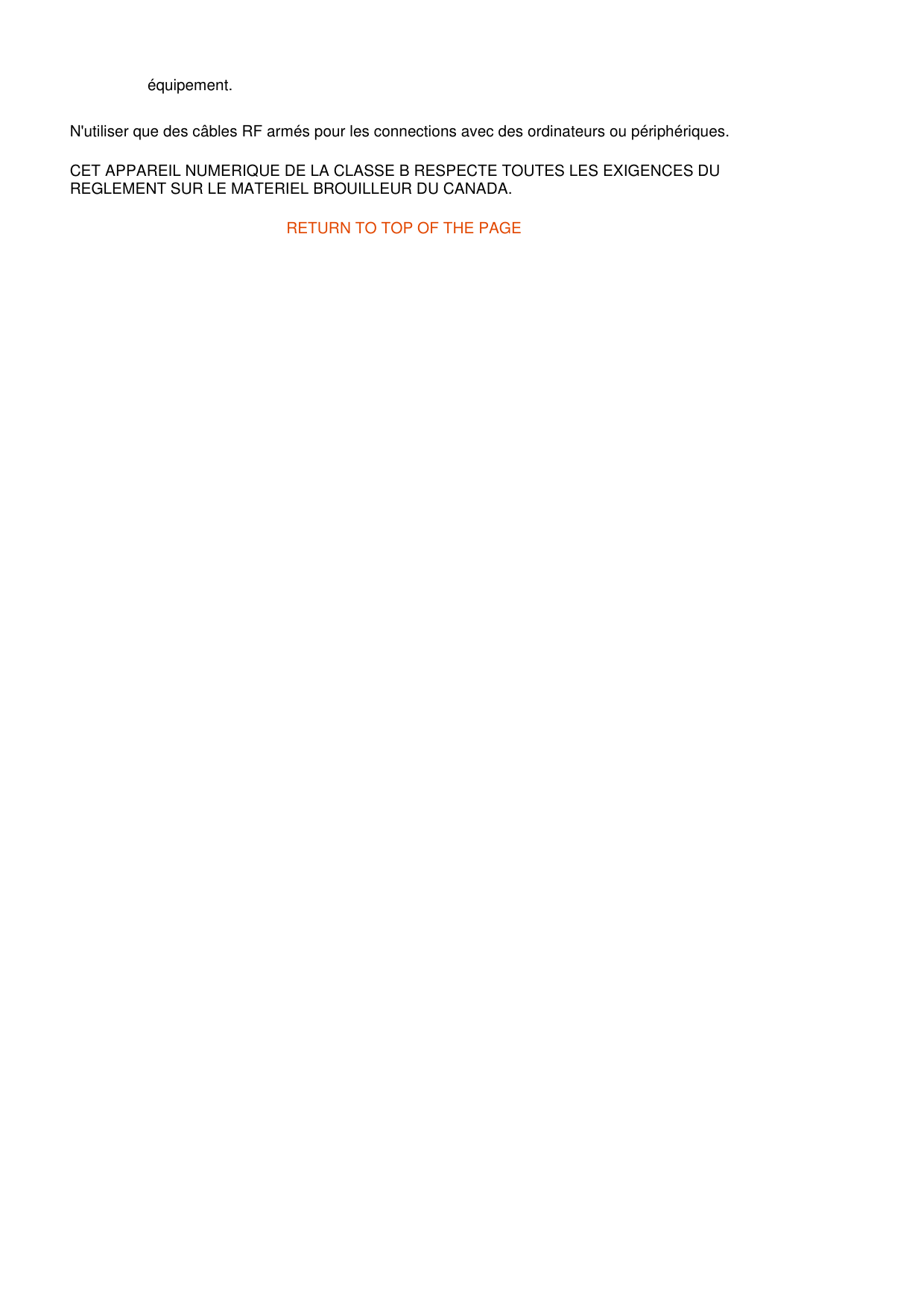

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGEéquipement.
