Philips Electronics M121 20 User Manual
Philips Electronics Industries (Taiwan) Ltd 20
User Manual
Product Information
Product Features
BRILLIANCE 200P4
z20-inch color LCD monitor with excellent display performance
zMultiple video input allowing connection of DVI-D digital and VGA analog
zEmbedded AC power supply
zFront firing speakers with stereo 2x2W RMS stereo sound output
zAdvanced AUTO adjustment optimizes picture quality
zAdjustable tilt and swivel function
zPicture-in-Picture (PIP) function for displaying both PC and video simultaneously on the
screen
zBuilt in module to provide S-Video & CVBS Video inputs(200P4VS, 200P4VG, 200P4VB
models)
zOptional module to provide S-video and CVBS video inputs(200P4SS, 200P4SG, 200P4SB
models)
zOptional super-ergo base for height adjustment
zsRGB compliant
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 20.1" / 51cm
• Pixel Pitch 0.255 x 0.255mm
• LCD Panel type 1600 x 1200 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 408 x 306 mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz
Horizontal Frequency 30kHz-94kHz (Analog input)
VIDEO
• Video dot rate 165 MHz
• Input impedance
- Video 75 ohm
- Sync 2K2 ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
Exhibit 3 Installation and Operating Onstruction
* This data is subject to change without notice.
• Sync polarities Positive and negative
• S-Video Y input 1.0Vpp, C input 0.3Vpp, 75ohm input
impedance
• CVBS Composite, 1.0Vpp, 75 ohm input impedance
•Video interface D-Sub (Analog)
DVI-D (Digital)
AUDIO-IN
• Input signal level 0.7 Vpp
• Headphone out signal level 20mW x 2, 32
• Input signal connector 3.5mm mini jack
• Loudspeaker 4W Stereo Audio (2W/channel RMSx2, 200Hz-
12kHz, 4 ohm,THD=10%)
Optical characteristics
• Contrast ratio: 400:1 (typ.)
• Brightness: 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
• Viewing Angle:
(C/R>10)
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time 16 ms (typ.)
- Rise time 9 ms (typ.)
- Fall time 7 ms (typ.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the
down button to go to Adjust Color and press OK again. Then move the down button to go to
sRGB and press OK again.
Exit this OSD.
After this, please do not change the brightness or contrast setting of your monitor. If you
change either of these, the monitor will exit the sRGB mode and go to a color temperature
setting of 6500K.
For more information on sRGB, please visit: www.srgb.com
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
• Maximum 1600 x 1200 at 60Hz(analog input)
1600 x 1200 at 60Hz(digtal input)
• Recommended 1600 x 1200 at 60Hz * at DVI digital input
37 user definable modes
15 factory preset modes:
(Interlace mode is not applicable except 1080i)
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
48.4 1024*768 60
60.0 1024*768 75
69.0 1152*870 75
63.9 1280*1024 60
80.0 1280*1024 75
75.0 1600*1200 60
33.8 1080i 60
45.0 720p 60
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
ON Active Yes Yes < 65W Green
RETURN TO TOP OF THE PAGE
Physical Specifications
* This data is subject to change without notice.
* Resolution 1600x1200, standard size, contrast max., brightness 50%, 9300° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE
Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts.
Signal pin assignments are listed in the following table:
OFF Blanked No No < 1.5W Amber
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) 488 x 459 x220 mm (incl. Pedestal)
• Weight 7.5 Kg
• Tilt / Swivel -5° ~ 25° / + - 175°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 50 W* (typ.)
• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color 200P4VG/200P4SG: Light Gray
200P4VB/200P4SB: Black
200P4VS/200P4SS: Silver
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4
Shield 11 T.M.D.S. Data1/3
Shield 19 T.M.D.S. Data0/5
Shield
4 No connect 12 No connect 20 No connect

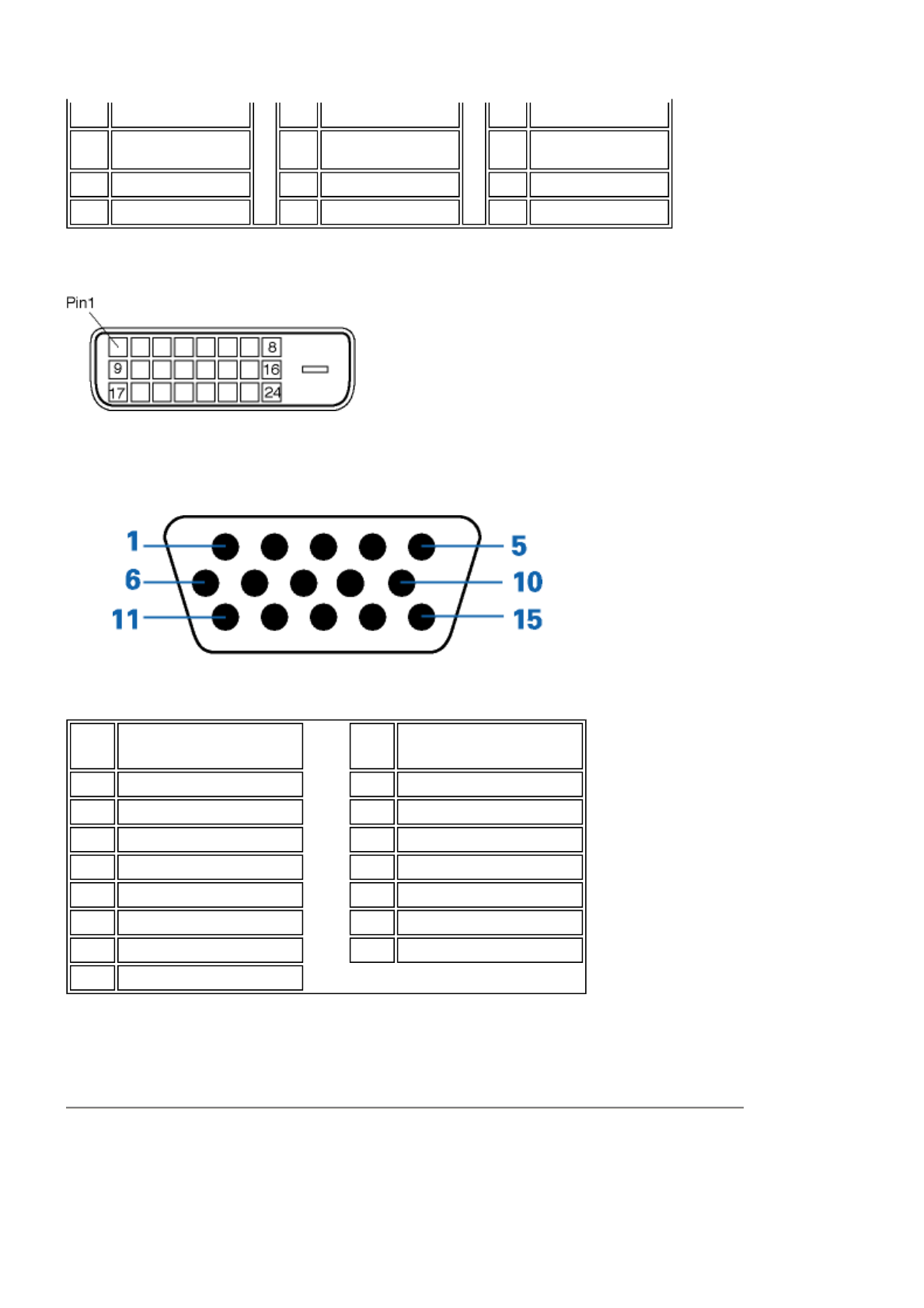

2. The 15-pin D-sub connector (male) of the signal cable:
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock+
8 No connect 16 Hot Plug Detect 24 T.M.D.S. Clock-
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 No connect 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
RETURN TO TOP OF THE PAGE
Physical Function
RETURN TO TOP OF THE PAGE
1) Tilt
2) Swivel
Installing Your LCD Monitor

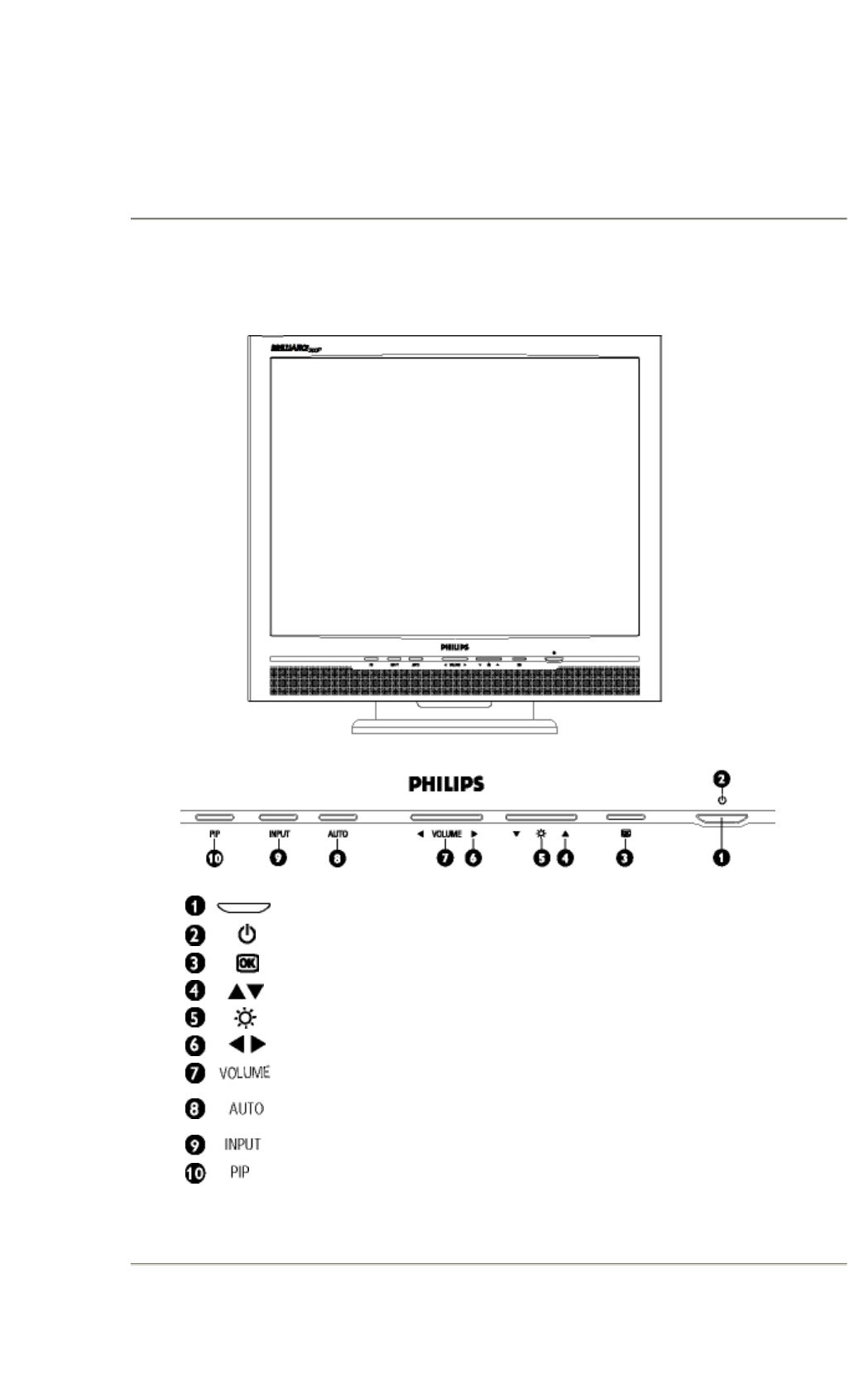

Front View Product Description
RETURN TO TOP OF THE PAGE
Rear View
To switch monitor's power On and Off
Power LED
To access OSD menu
To adjust the OSD
To adjust brightness of the display
To adjust the OSD
To adjust speaker volume
A
utomatically adjust the horizontal position, vertical position, phase a
clock setting
Signal input selection
Activate PIP (Picture in Picture) window
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1600x1200@60Hz
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the be
performance out of your monitor. This is included on this CD. Step-by-step instructions are
p
guide you through the installtion process. Click on the link to know more about this progra
m
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE

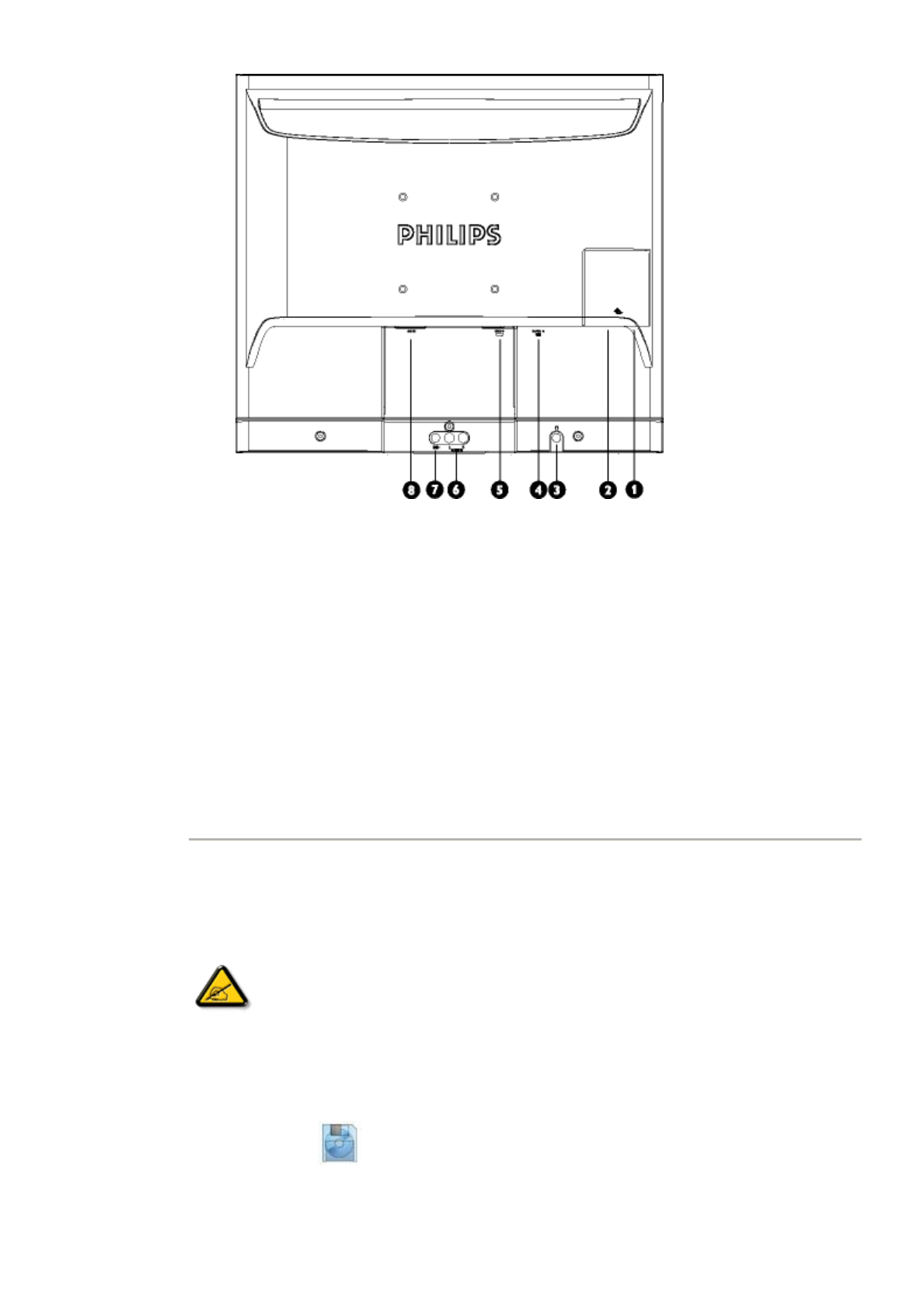

1 CVBS video input (for video model 200P4V- only )
2 S-Video input (for video model 200P4V- only )
3 Earphone jack
4 VGA input
5 DVI-D input
6 Audio R/L input
7 PC audio input
8 AC power input
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
